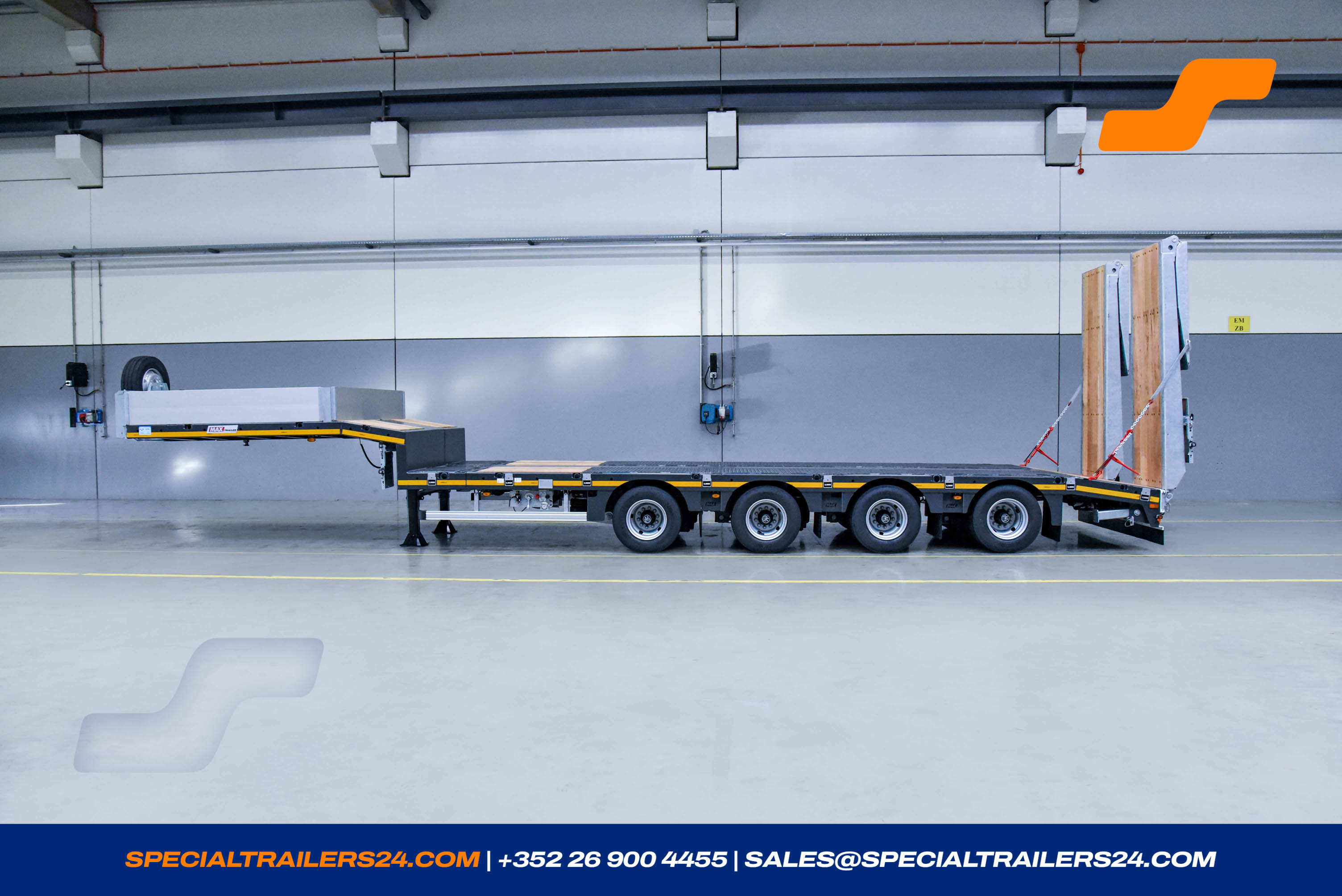

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111069
- Reference MAX100-N-4A-9.30-U

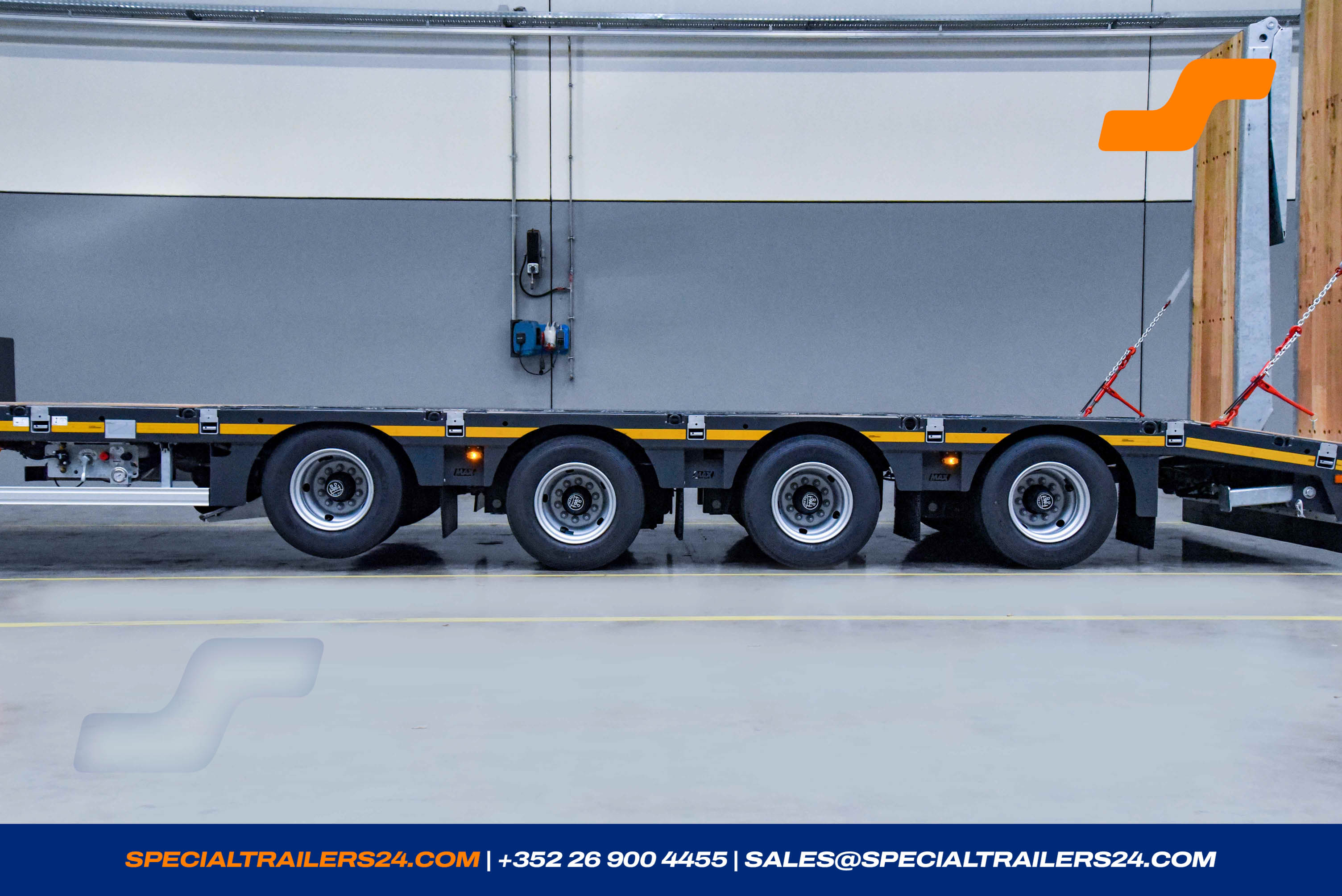

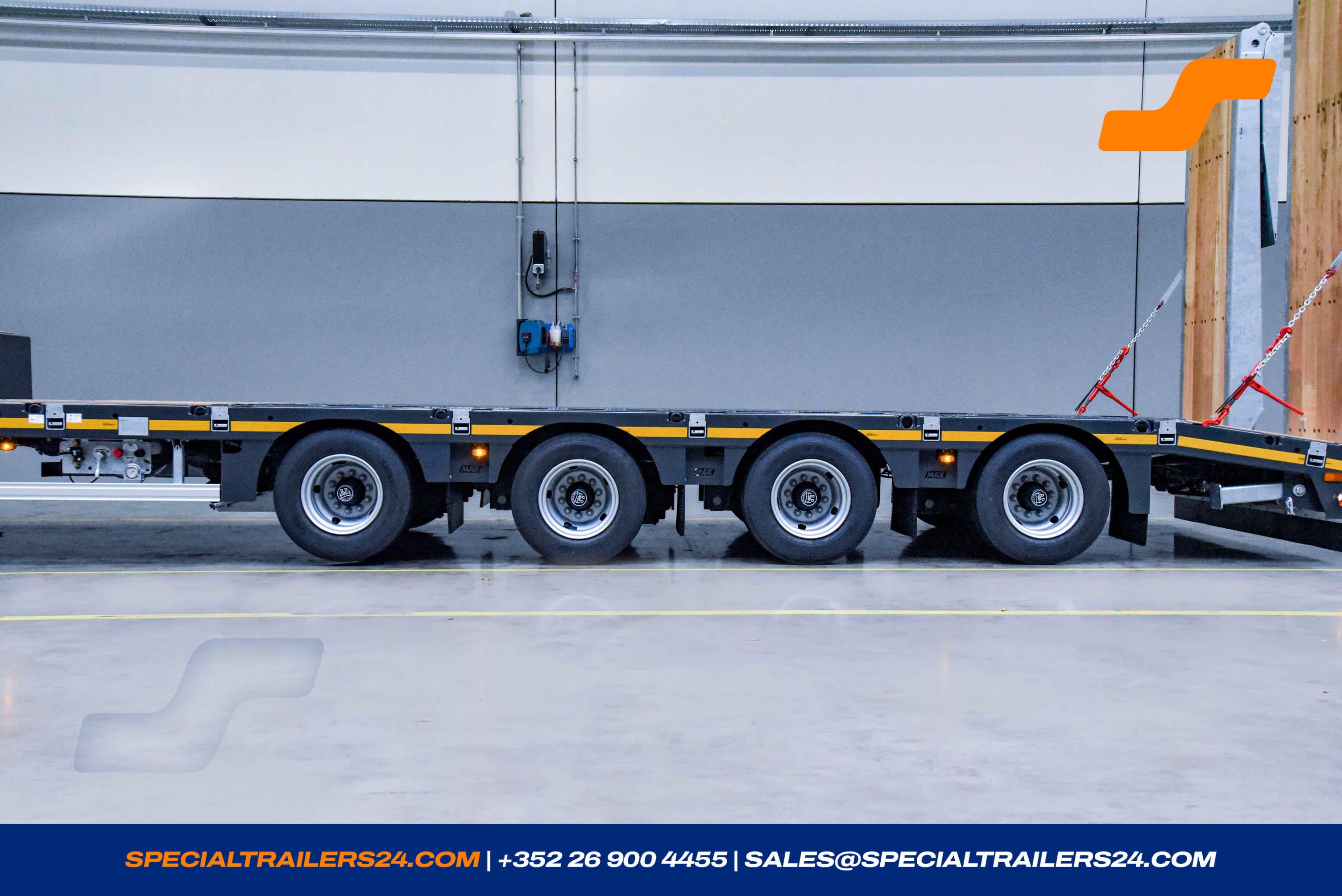

- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 42800 kg |
| Gross weight | 60800 kg |
| Tare weight +- 3% | 12395 kg |
| Payload | 48405 kg |
Dimensions
| Fifth wheel height loaded | 1350 mm |
| Gooseneck length | 3 450 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 4 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

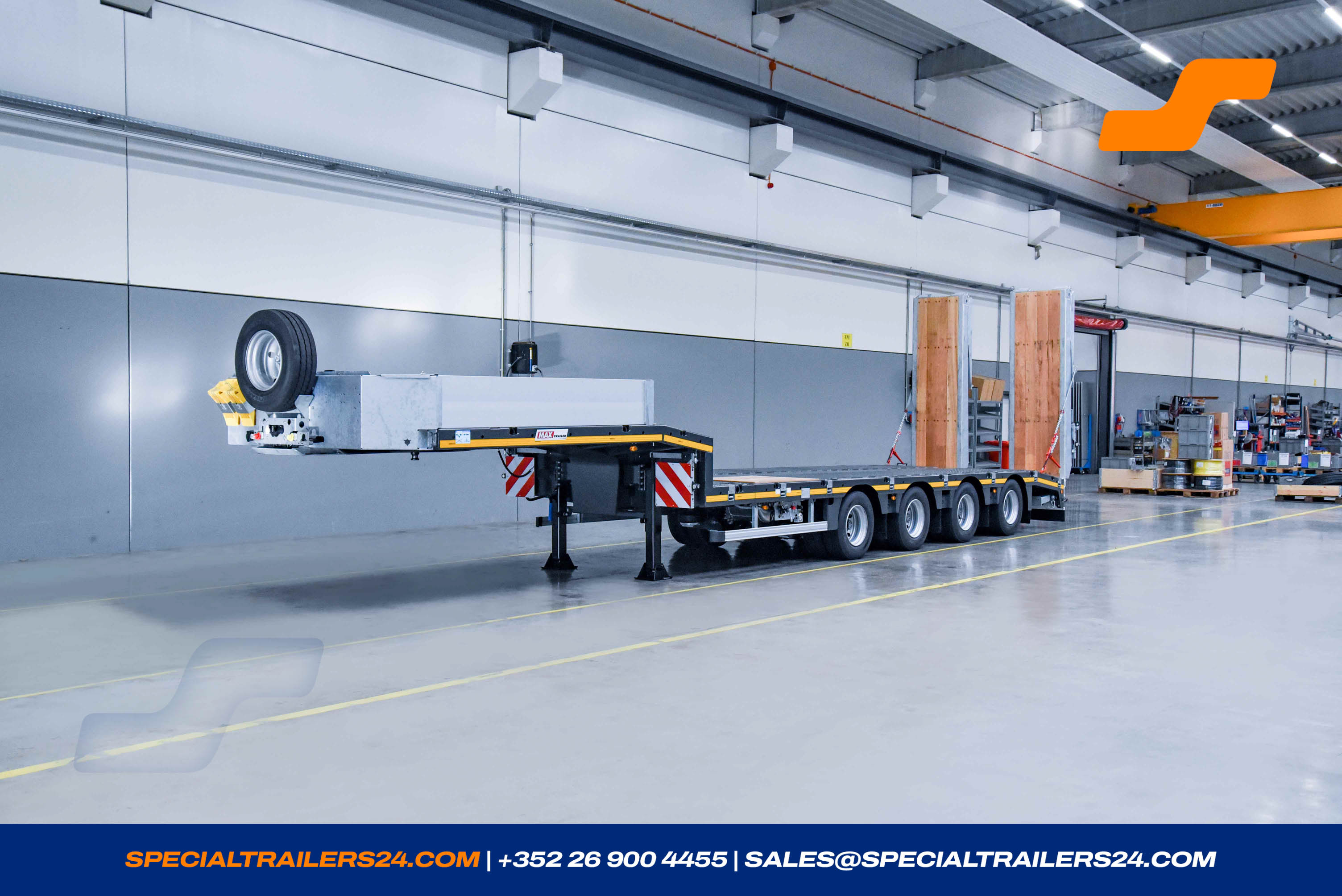

Gooseneck
1 x Gooseneck : MAX-3.450-750-10° (DSR 2300/ASH 1350)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

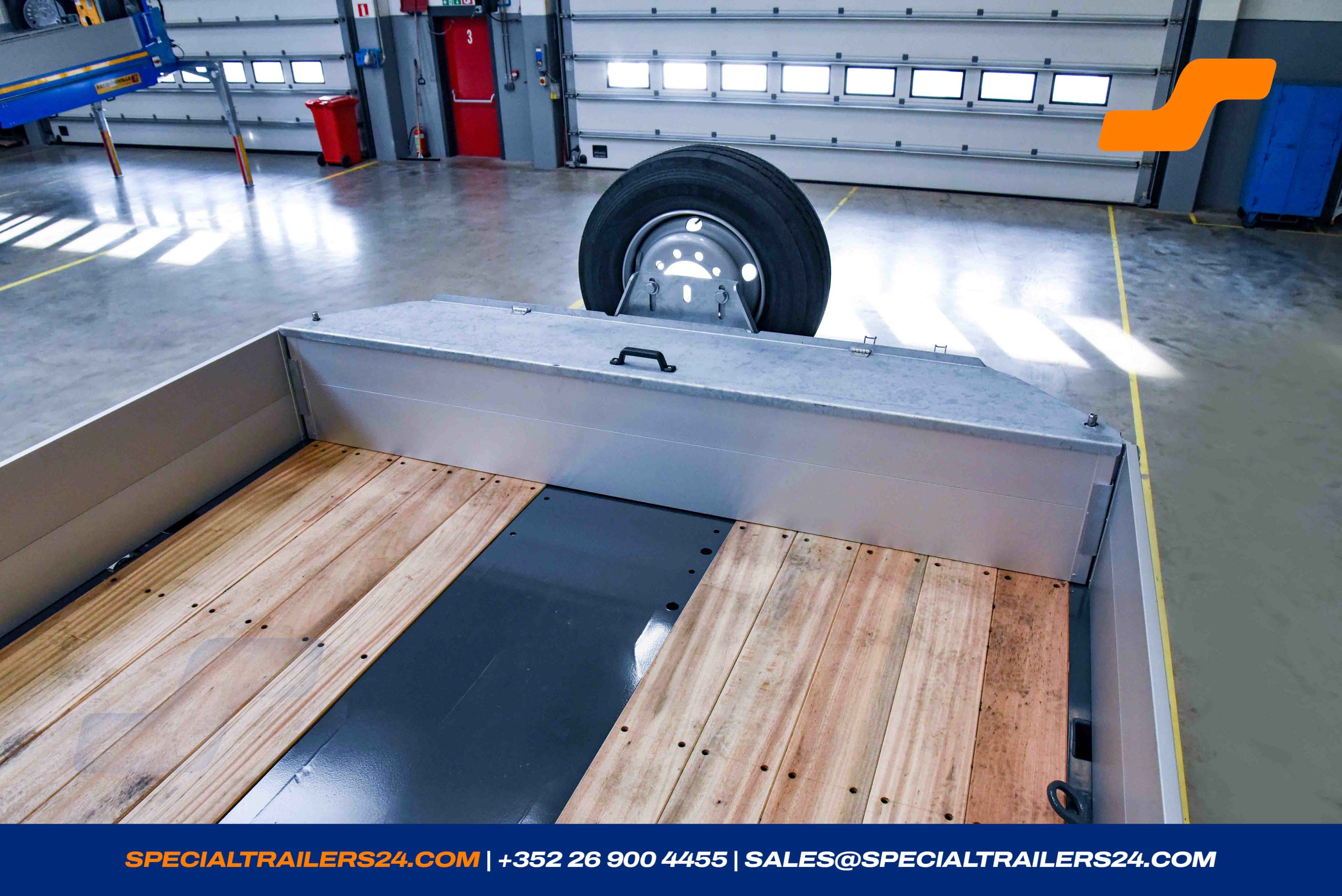

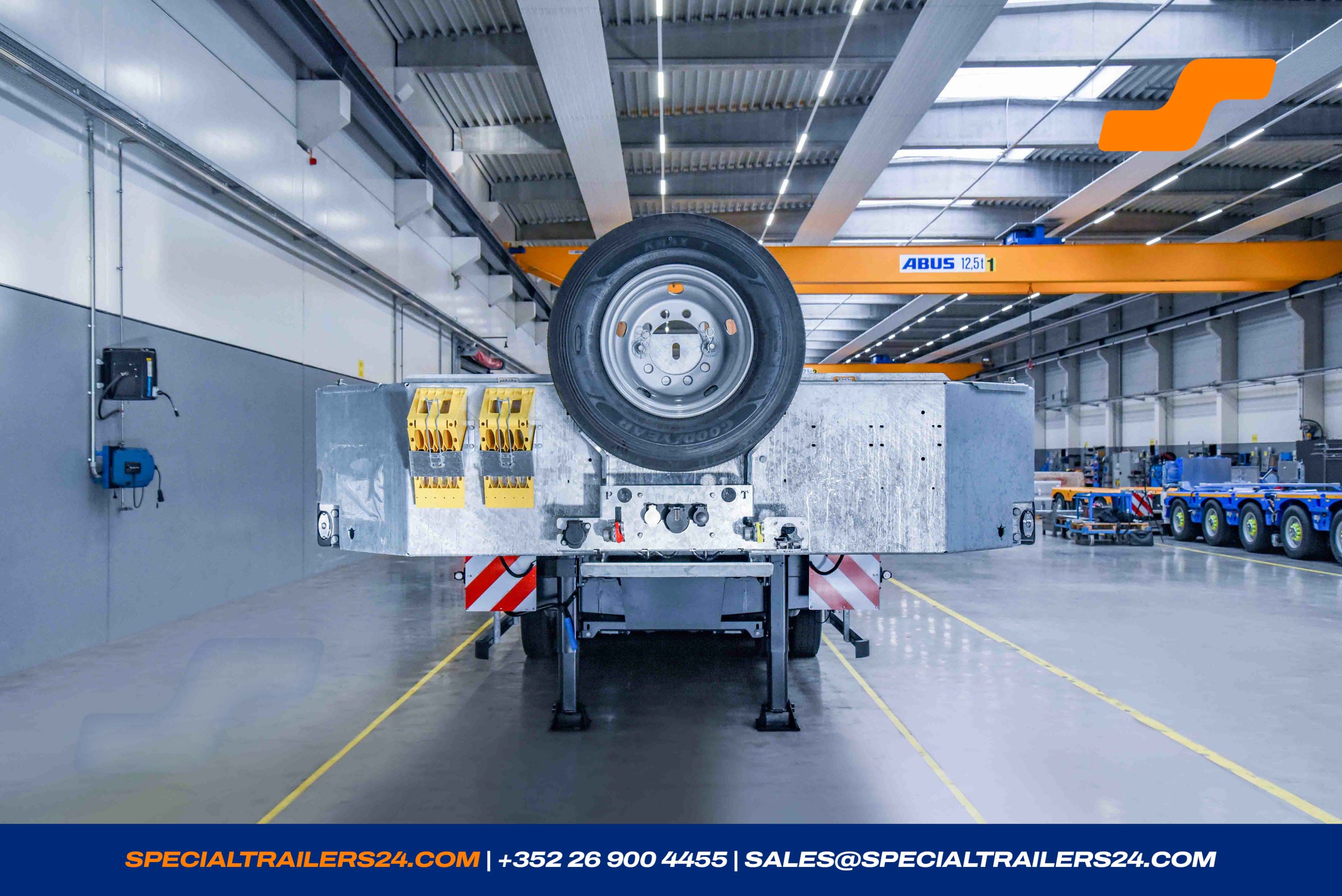

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.

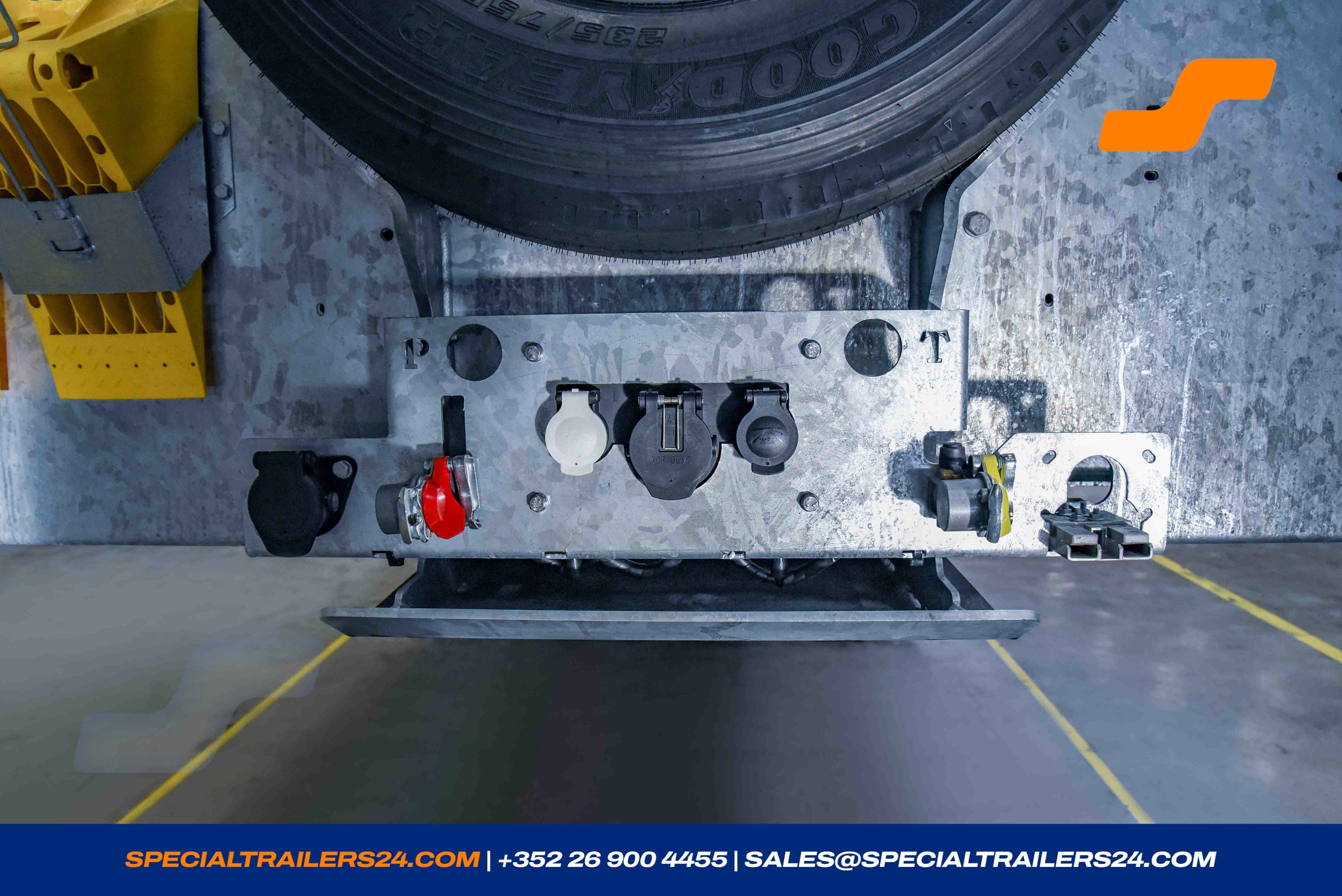

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

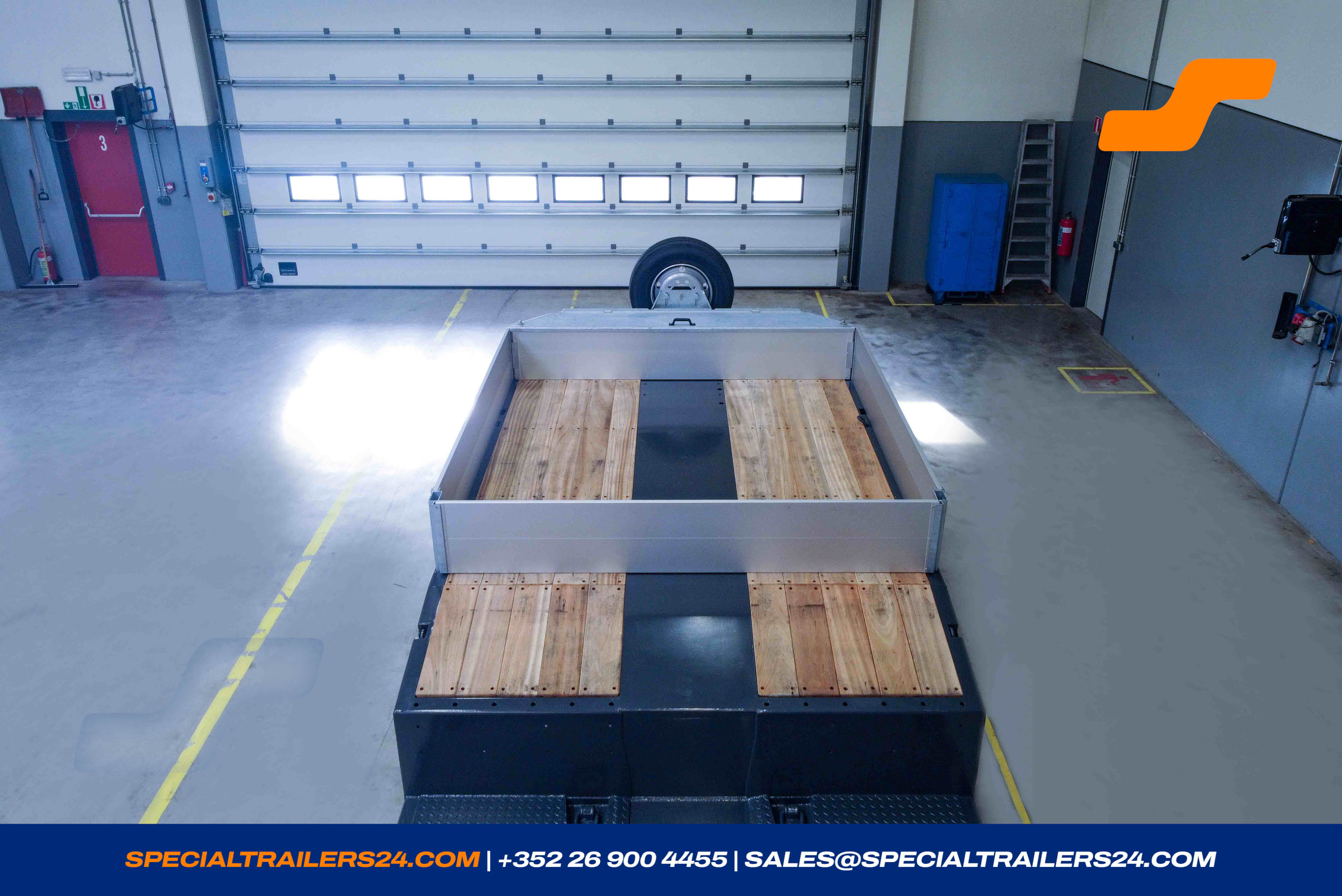

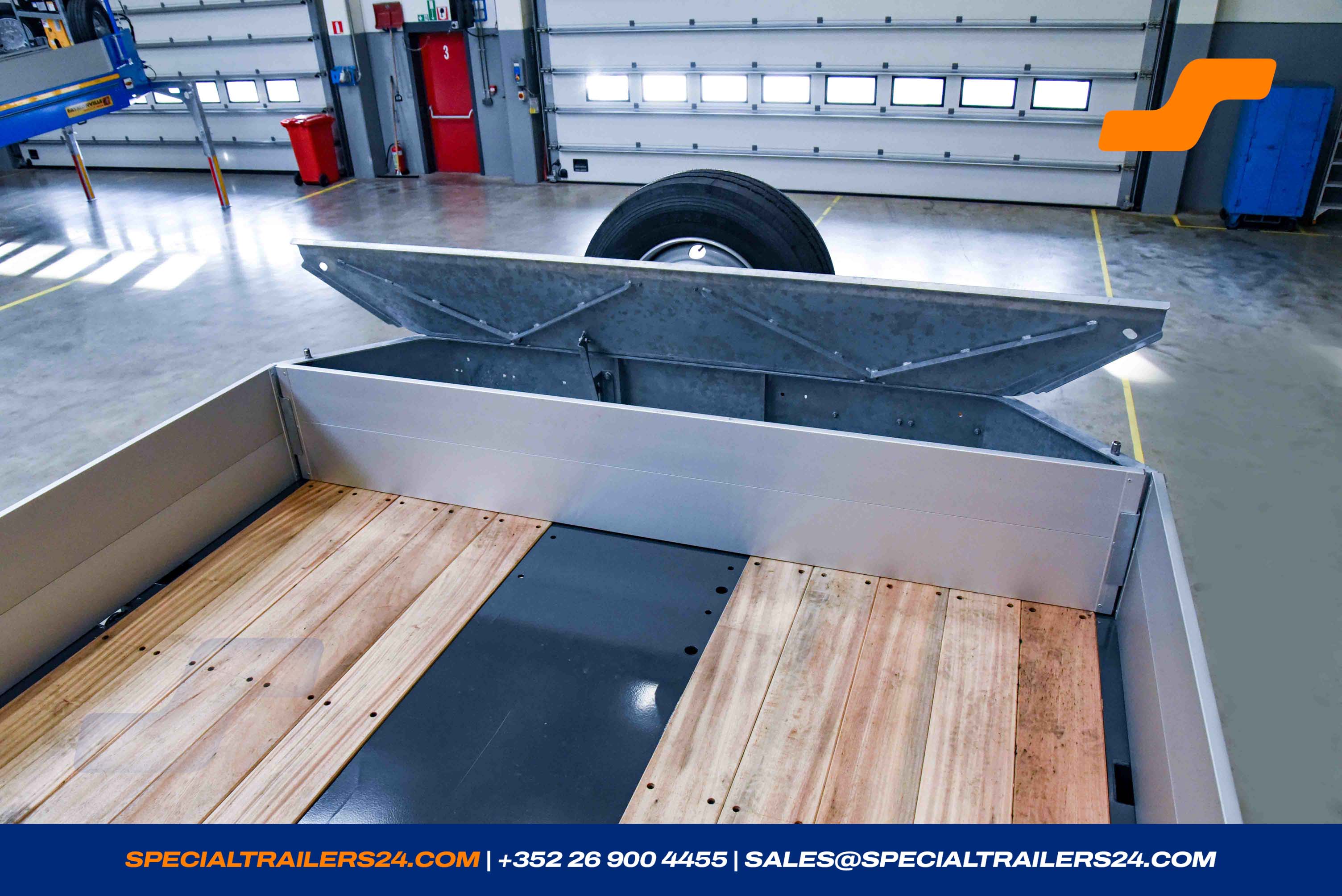

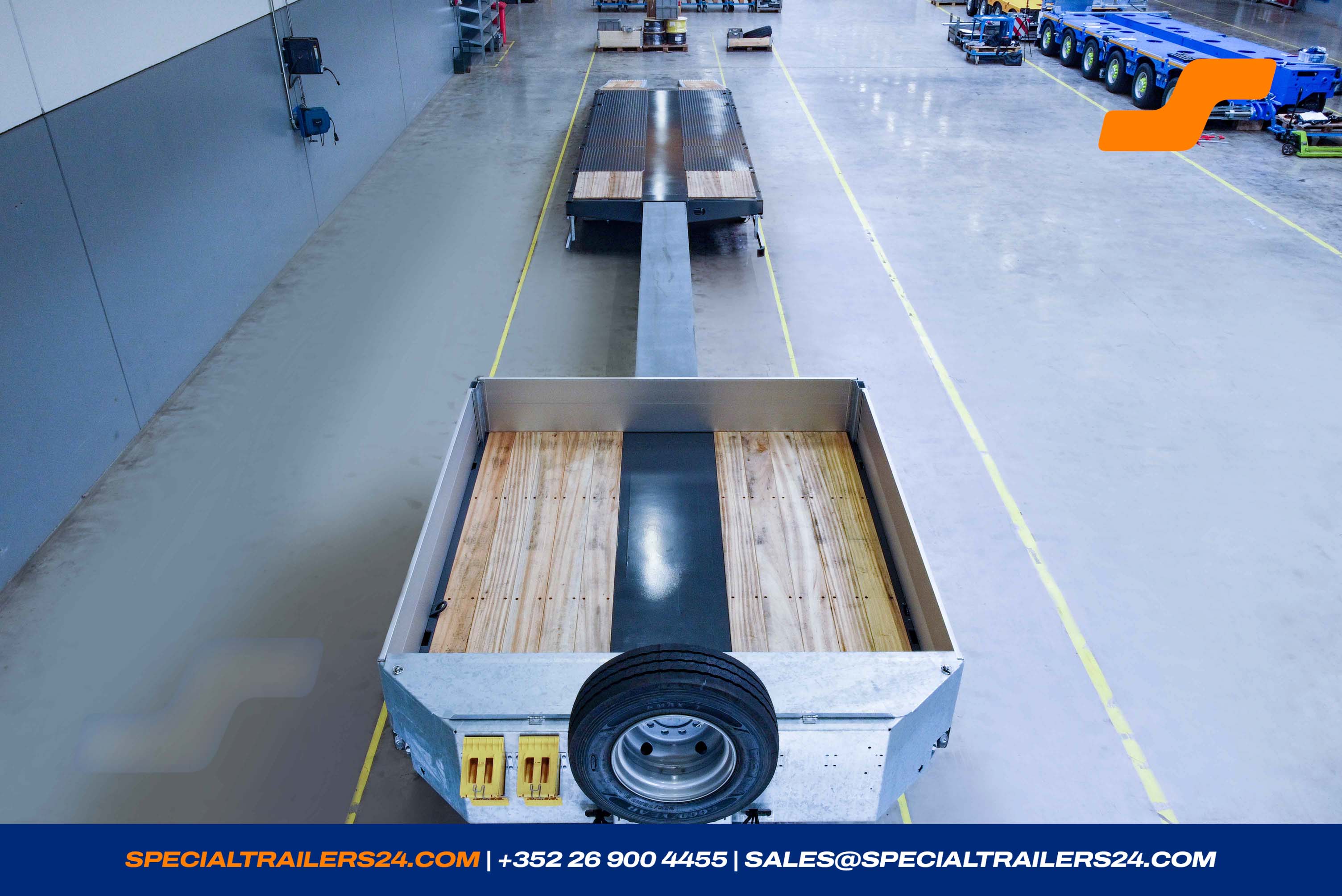

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
Loading deck
Loading platform
1 x Loading platform : MAX100-N-4A(4500)-9.30-17.5-2.54

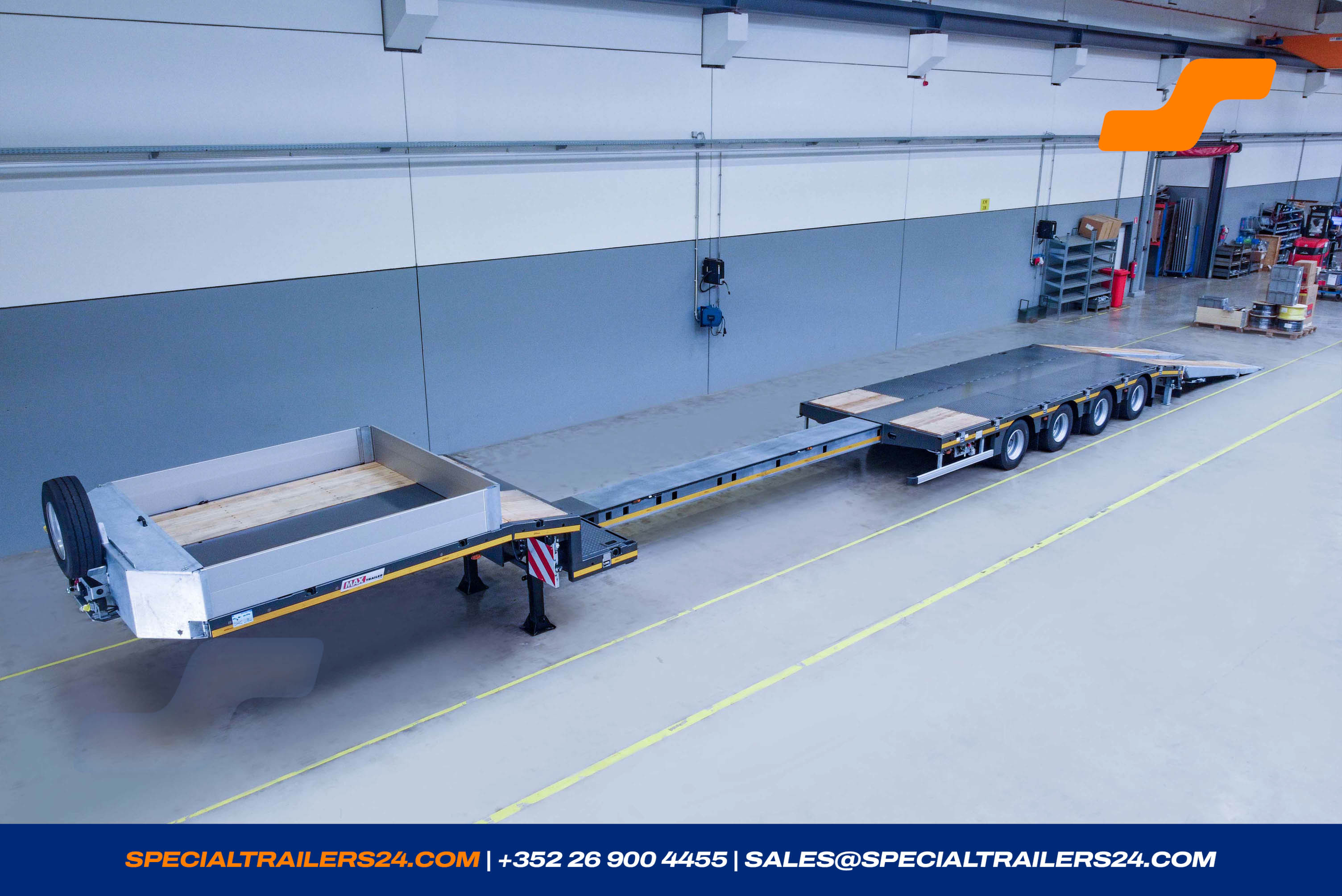

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.

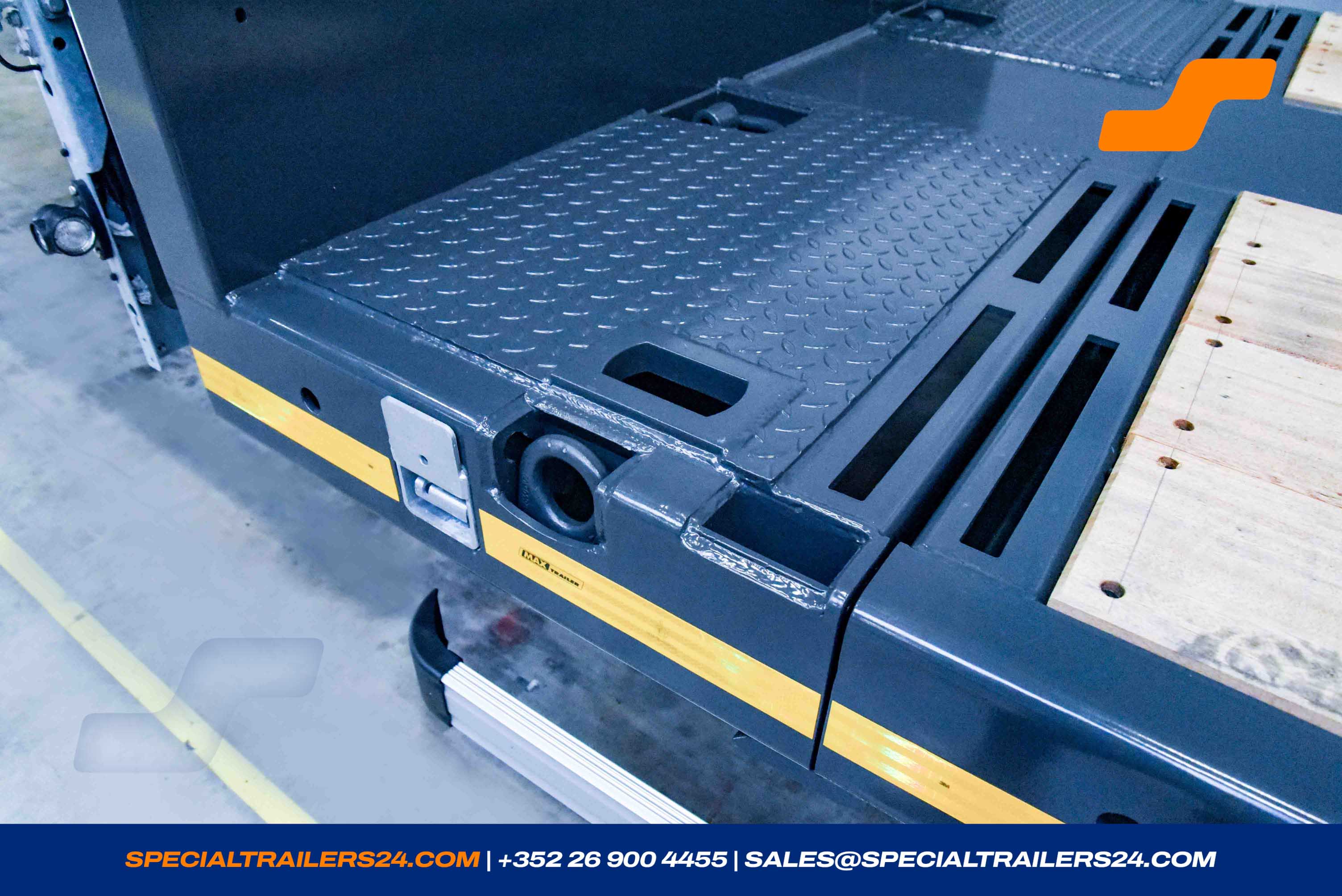

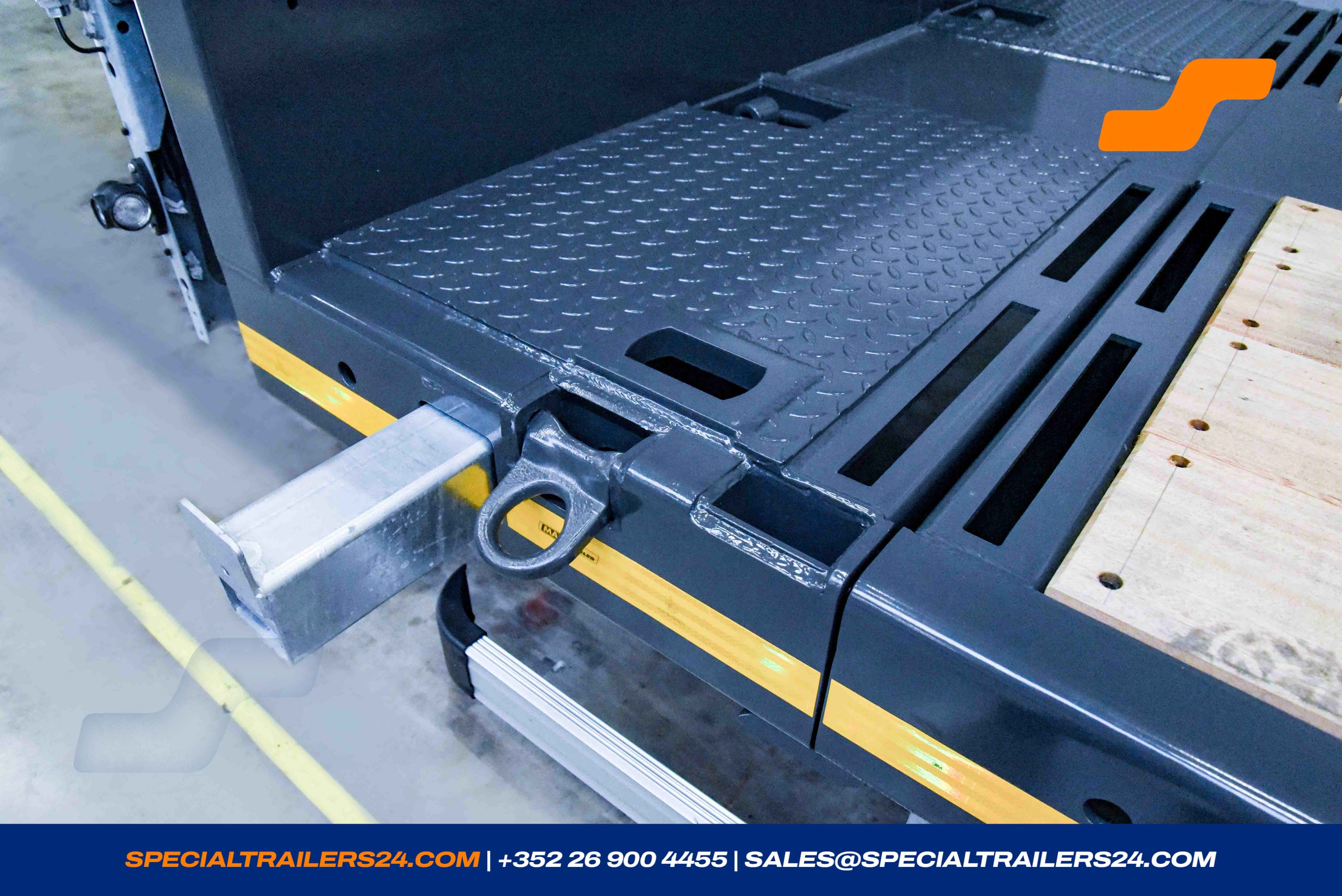

5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

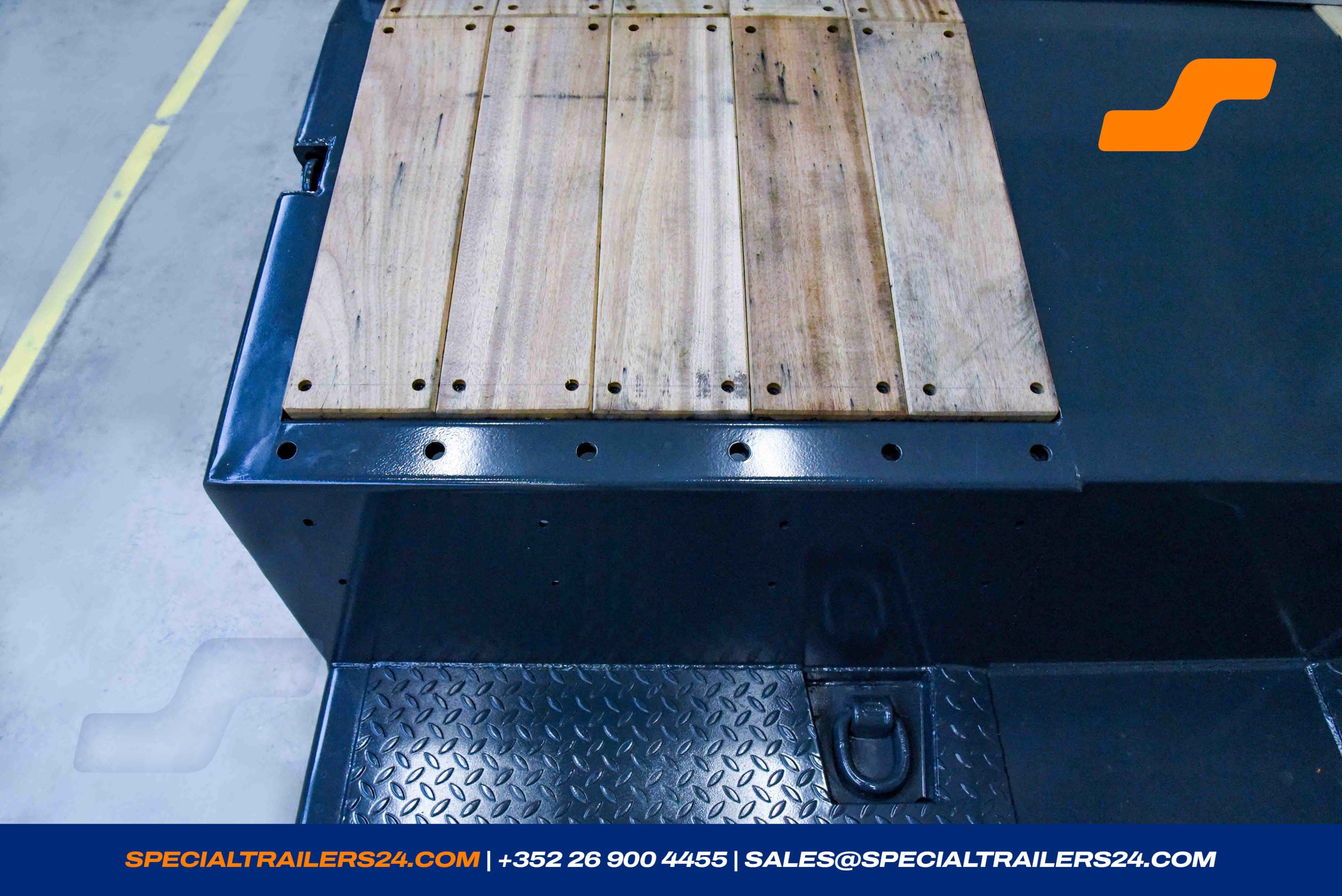

Hardwood cover thickness 48 mm above the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

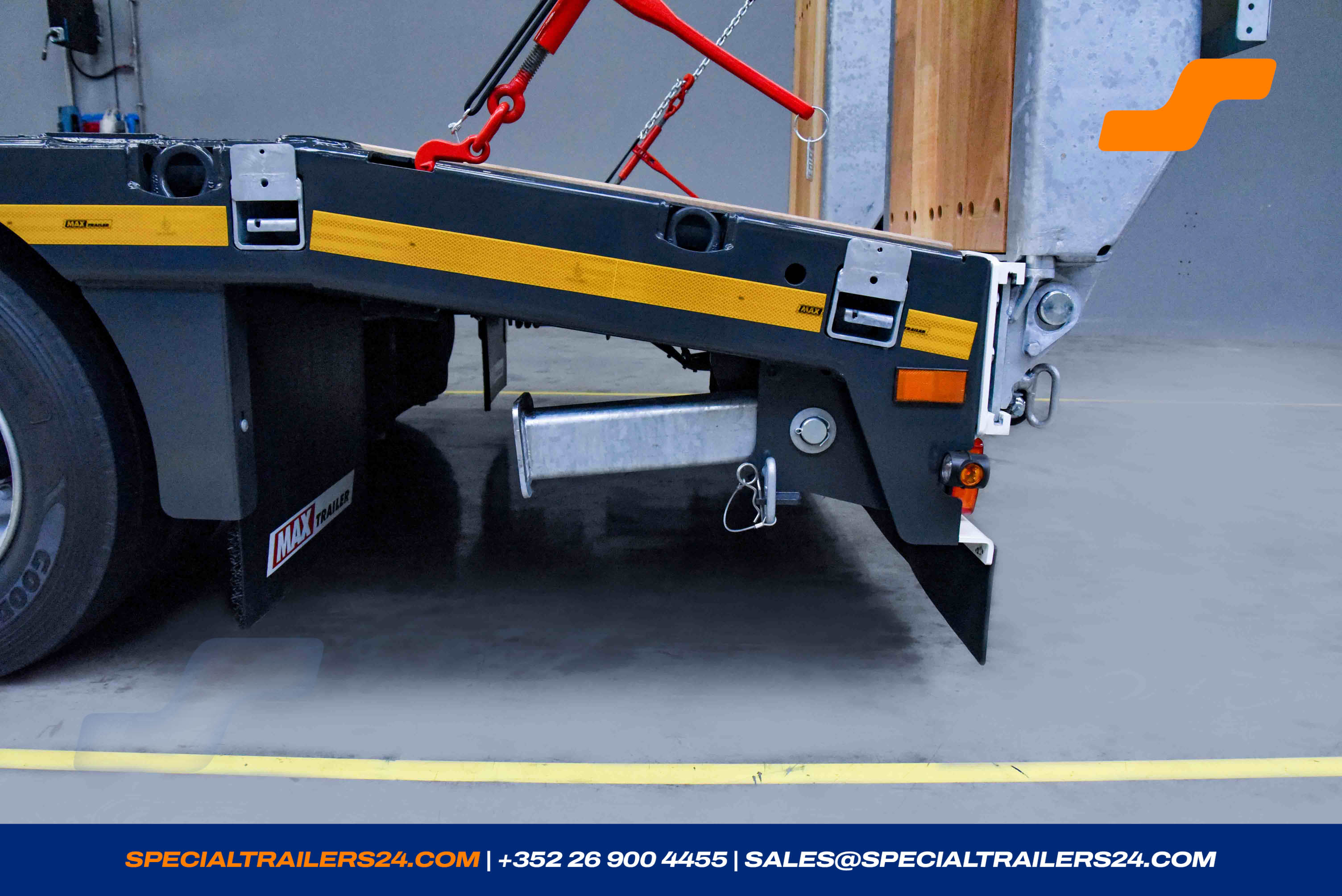

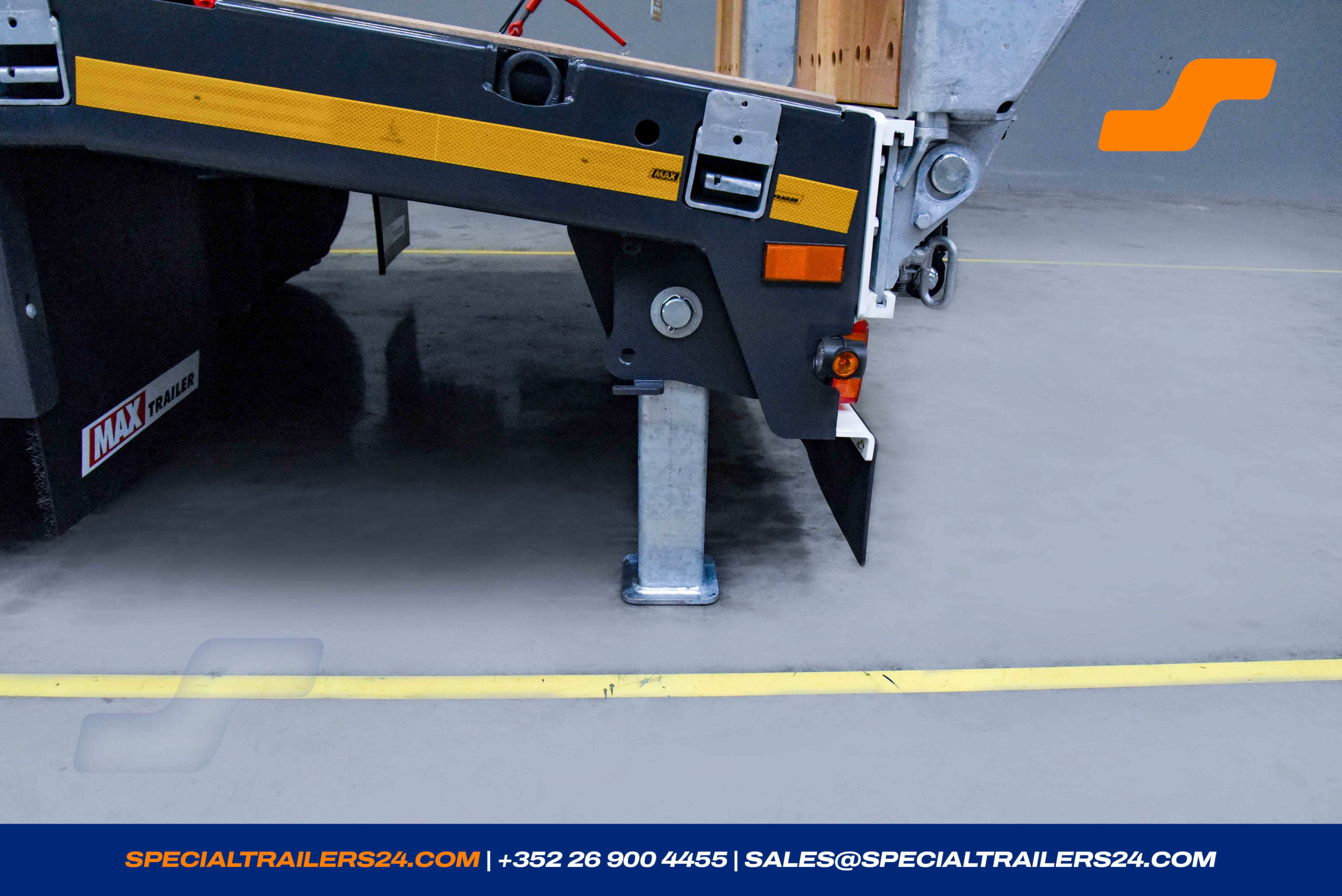

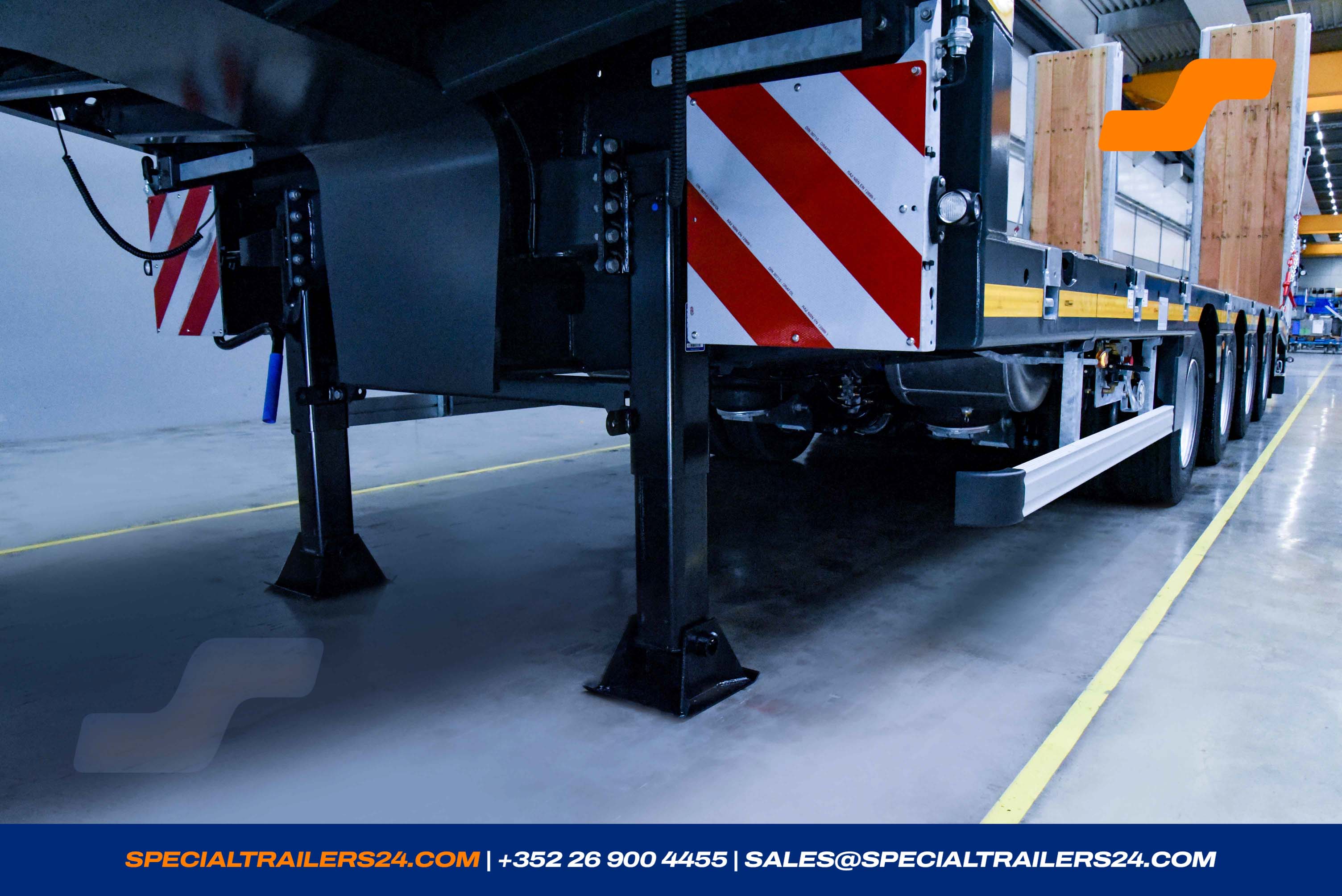

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

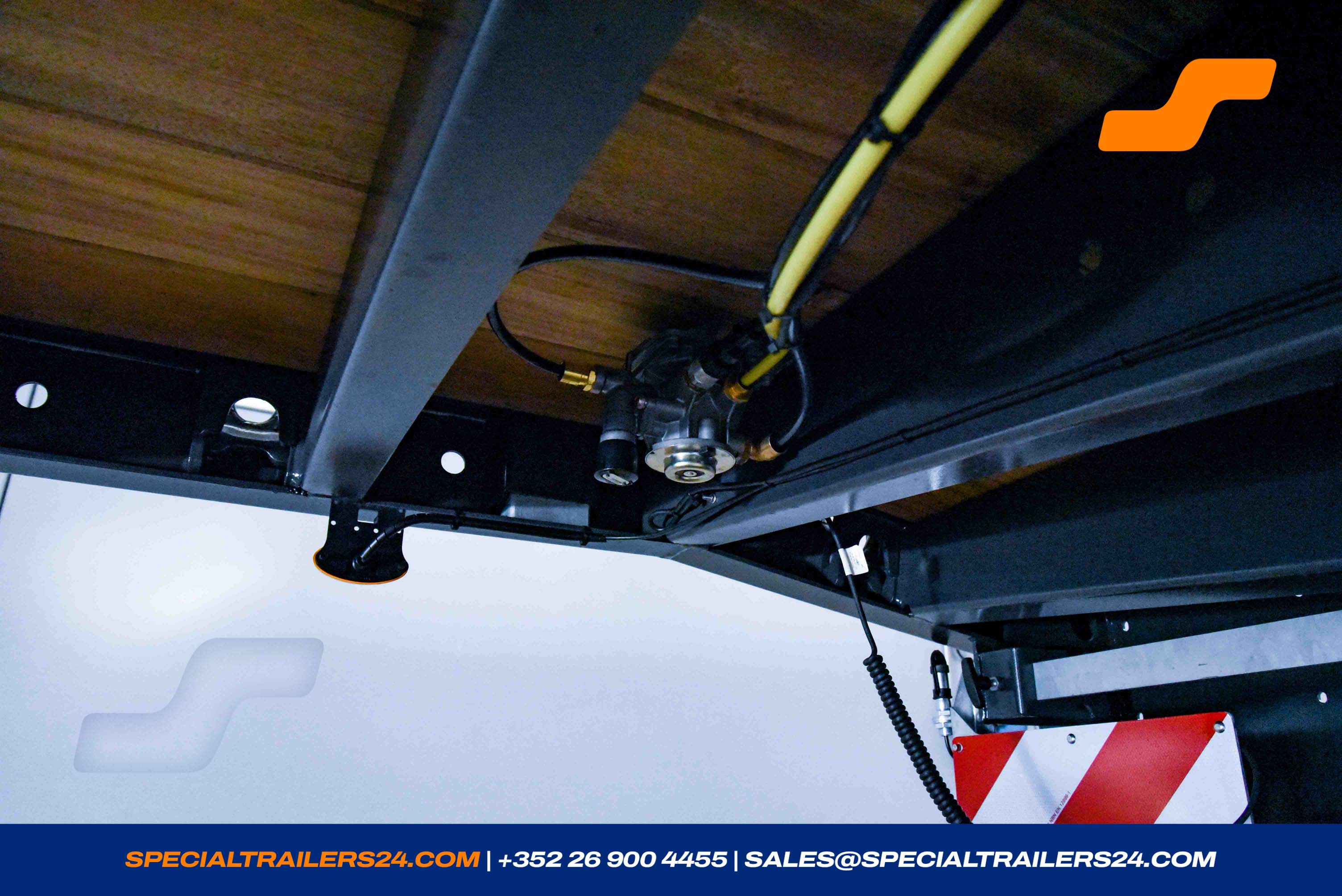

- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 4 LED flashing beacons, provided separately.

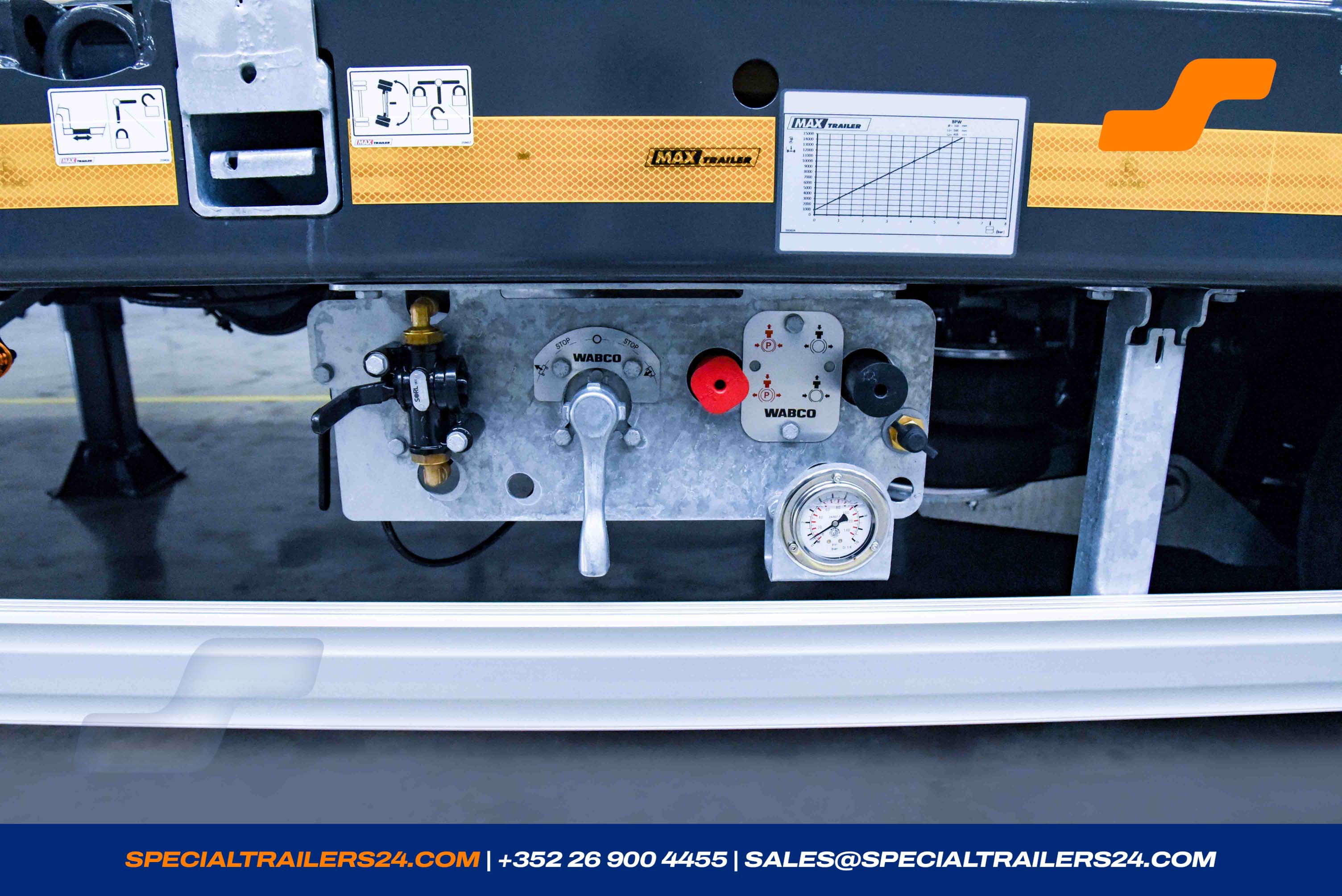

- Load manometer for determining the axle load, including load diagram.
- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)
- 7 pairs of galvanised stakes ca. 100 x 50 mm, height 1000 mm. (± 154kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. - Galvanised storage across under the loading platform. (± 150kg)
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).
- Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
Ramps

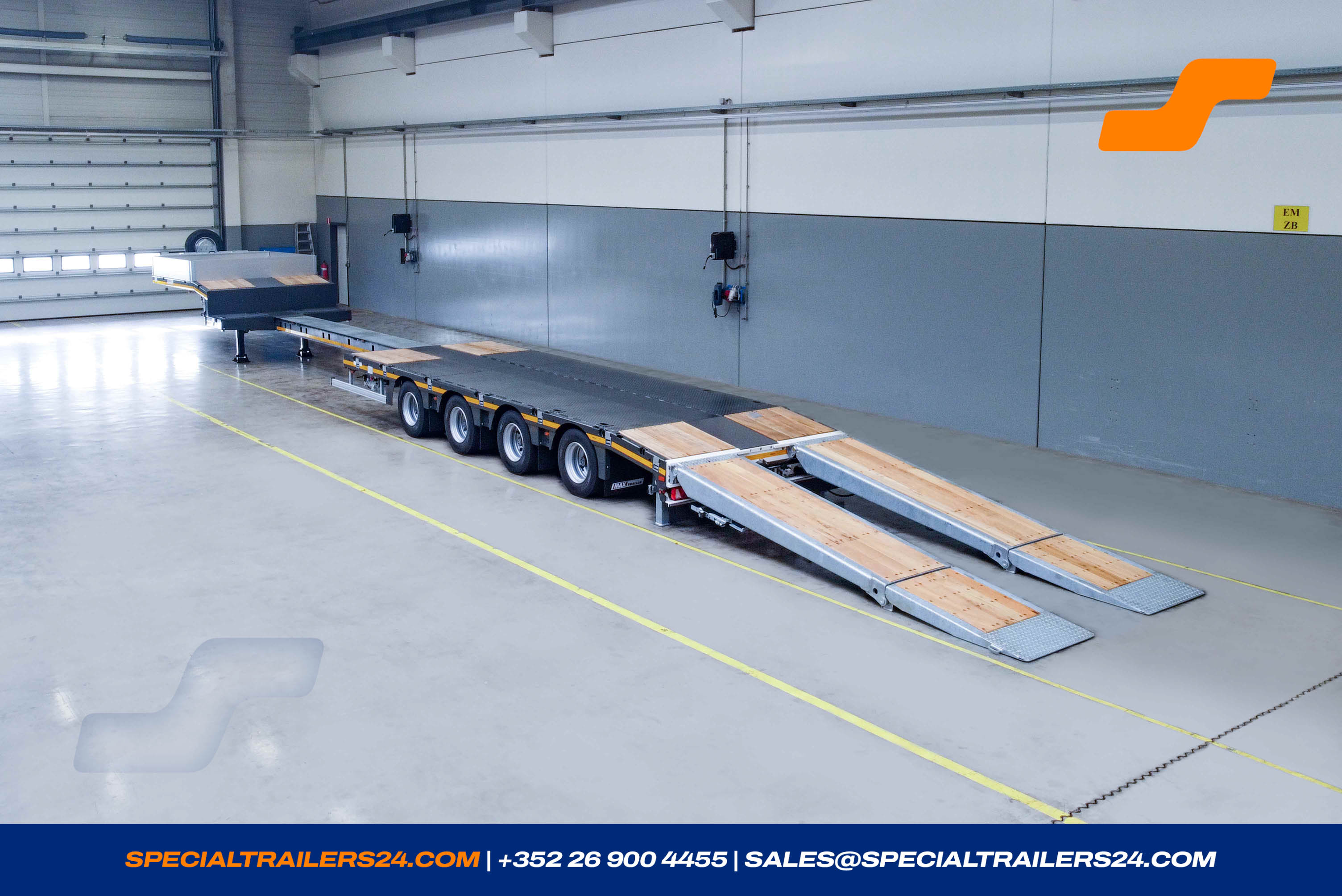

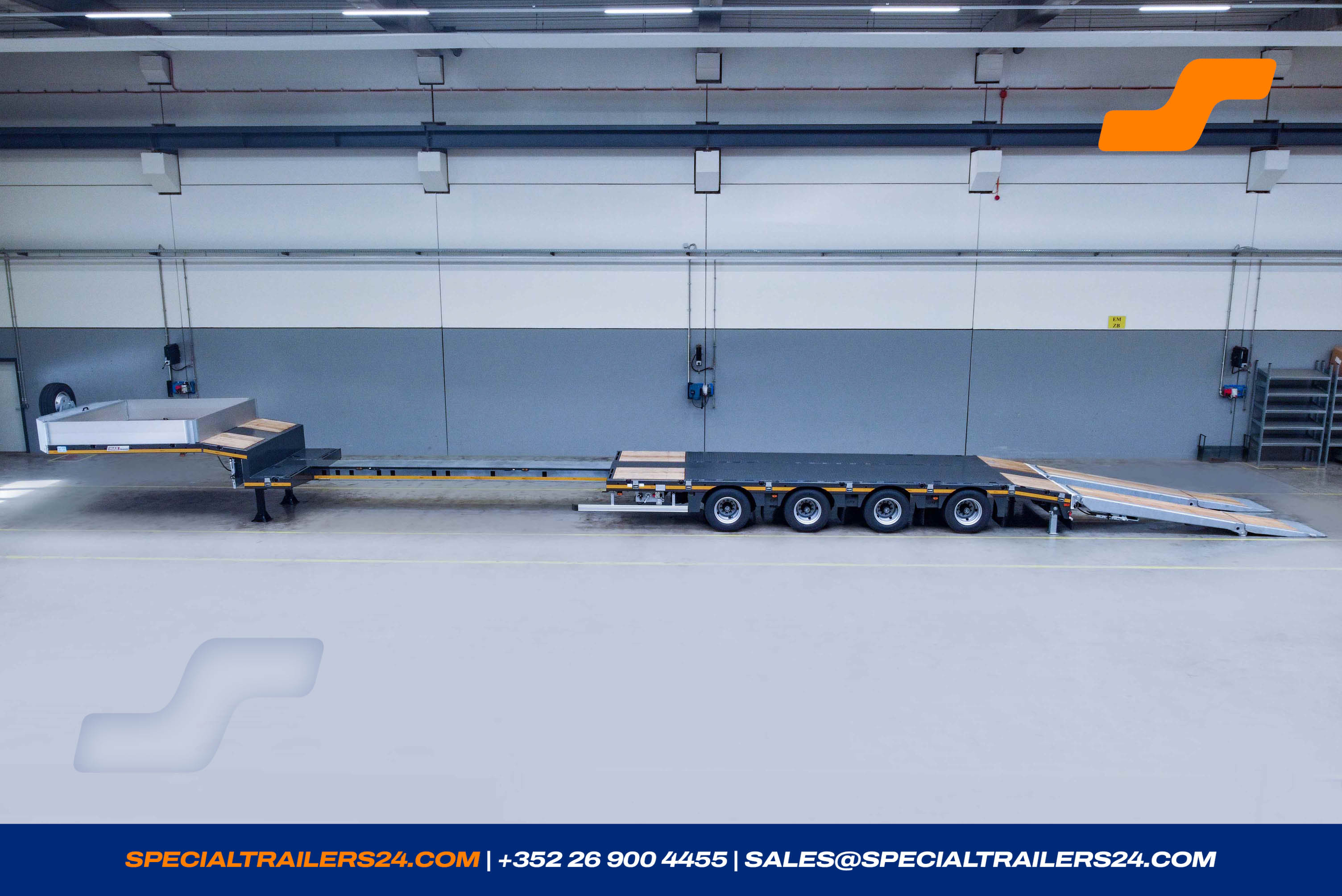

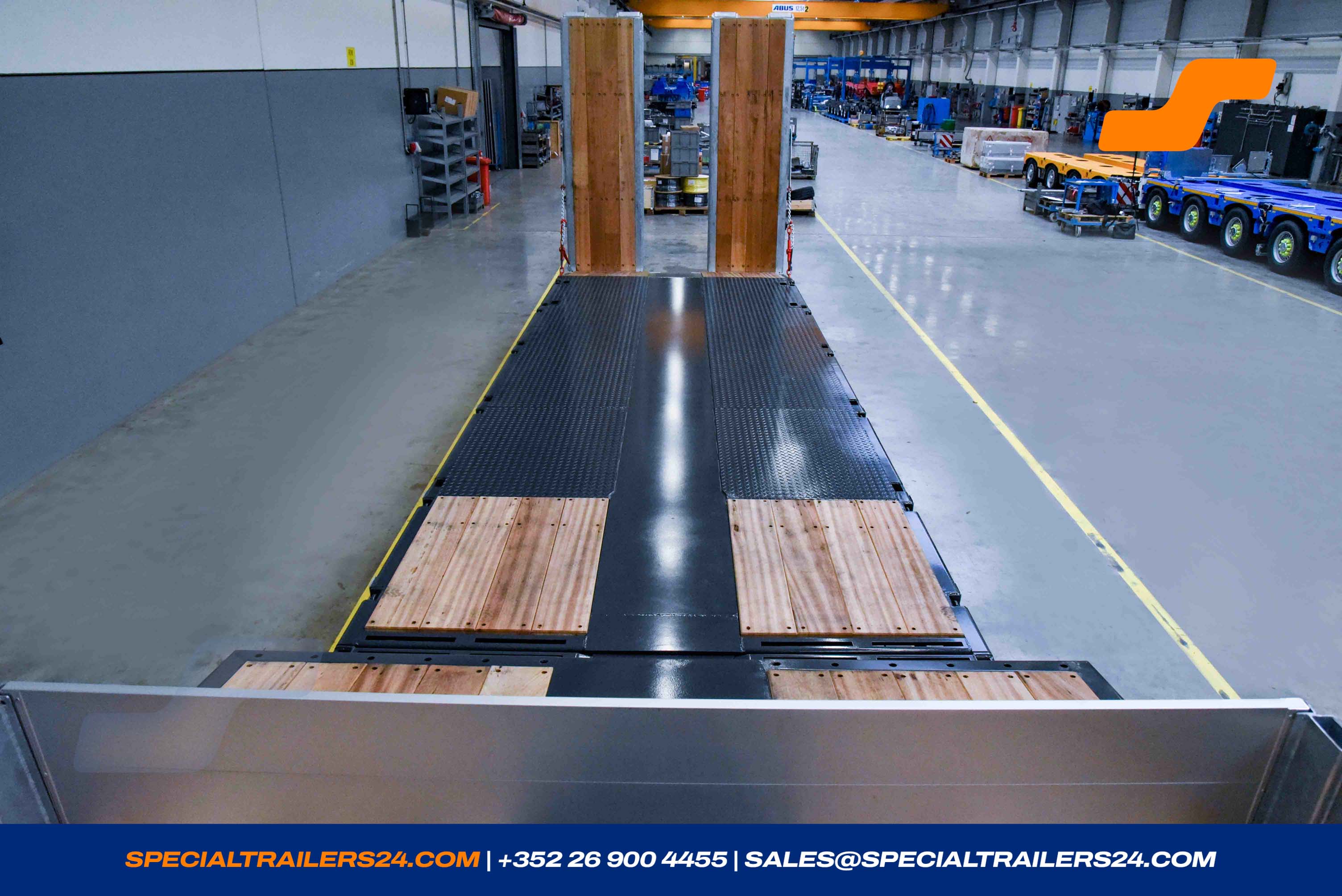

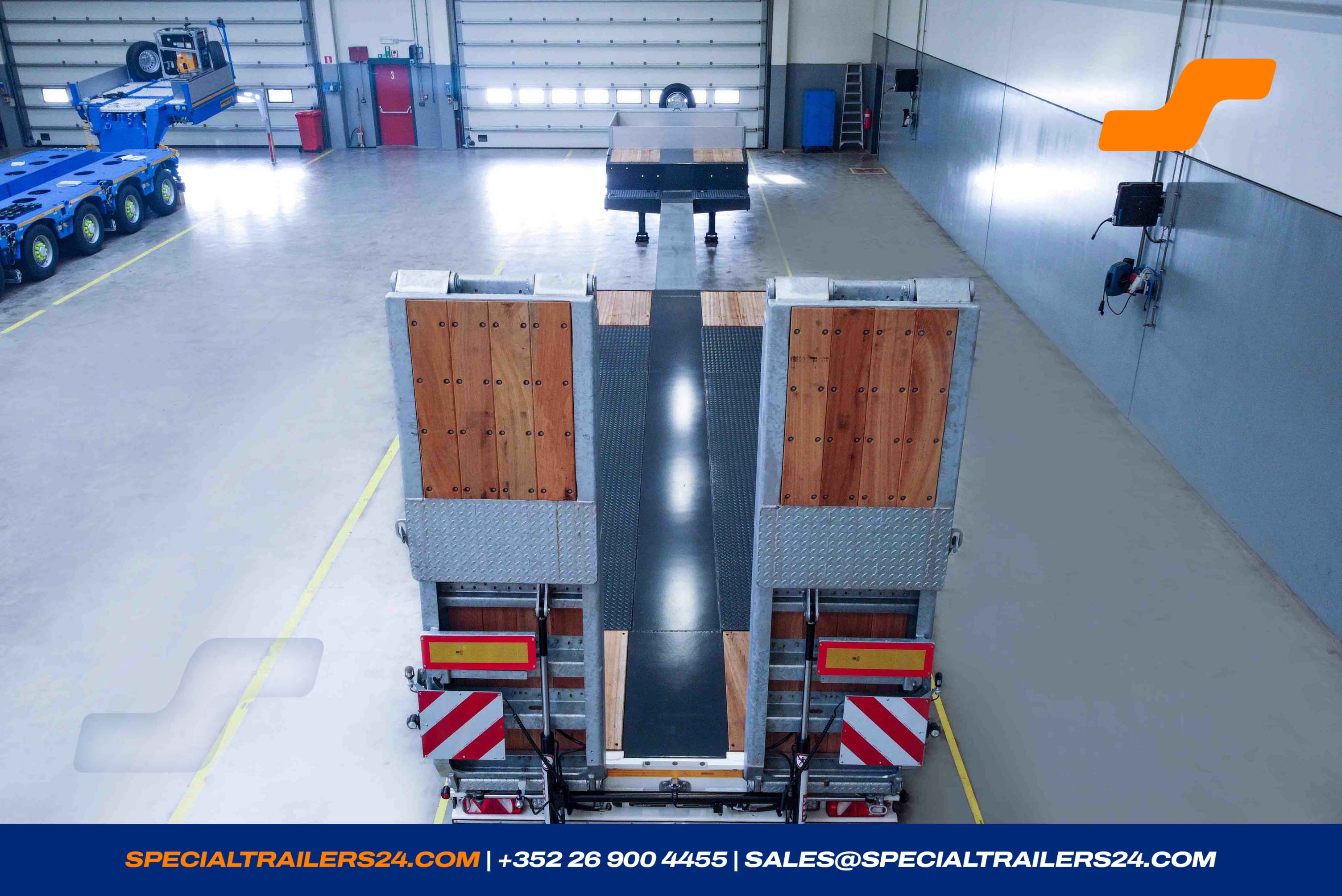

Hydraulic loading ramps
1 x Steel double flip ramps : DR-800-HH-40-HB-HVA

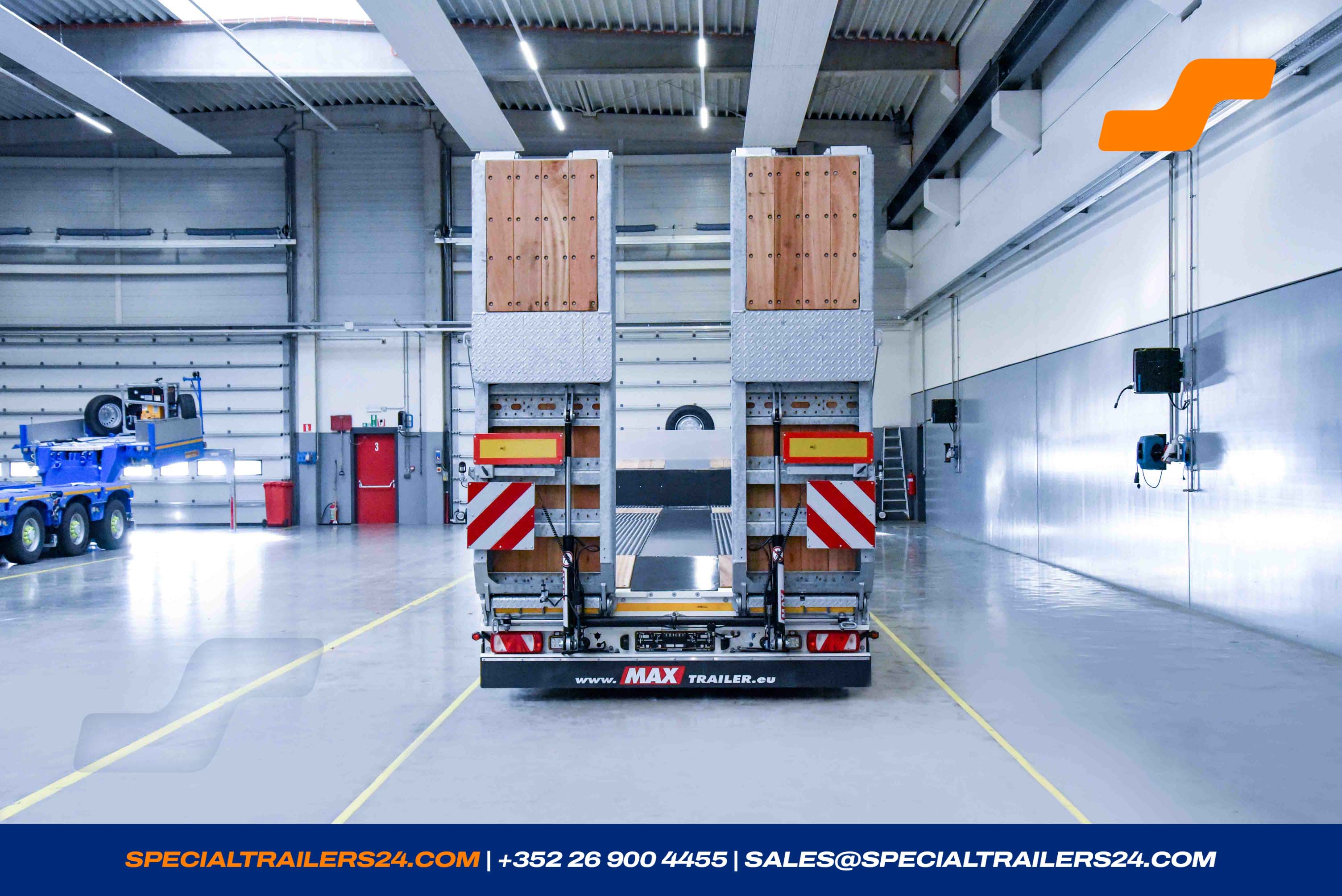

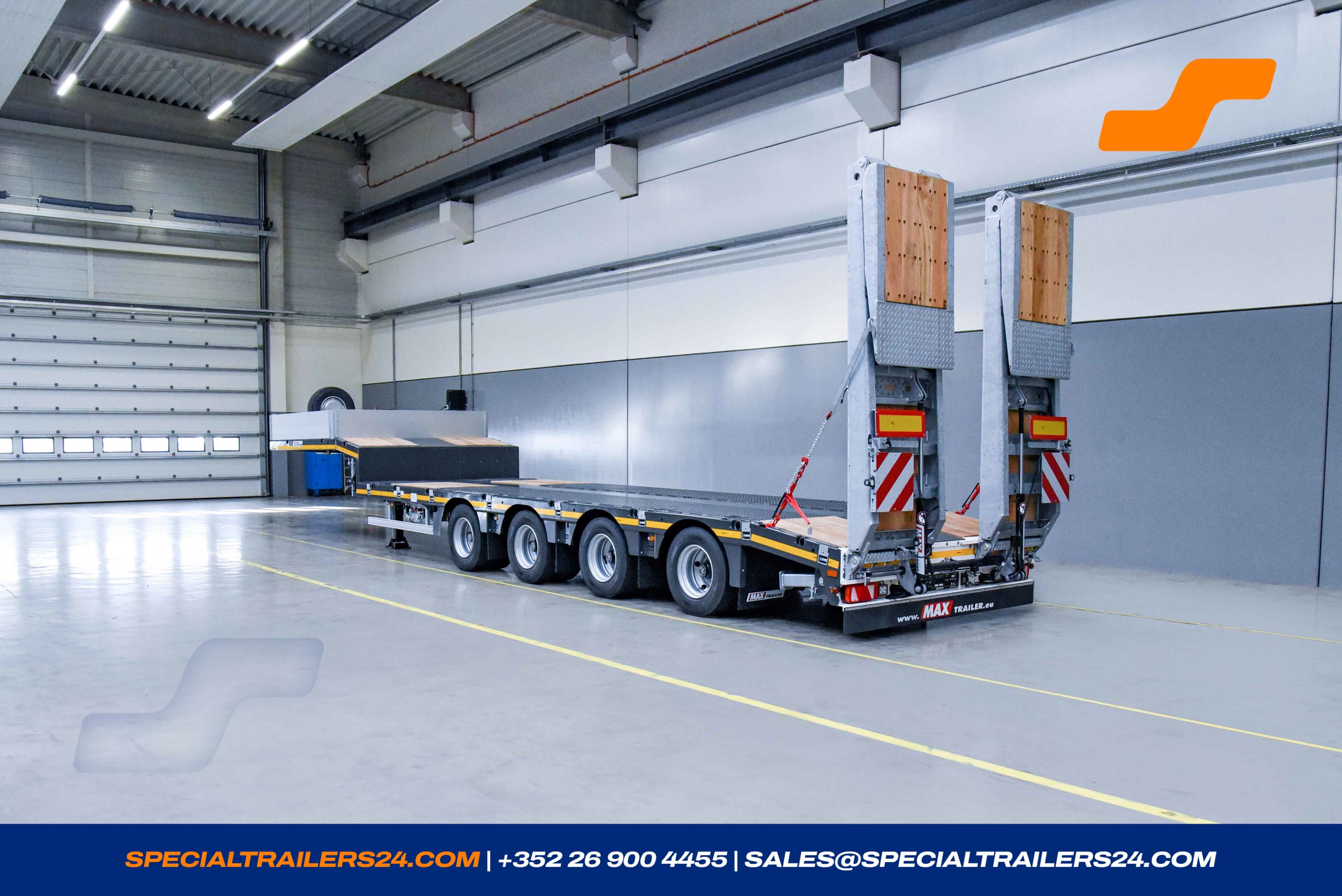

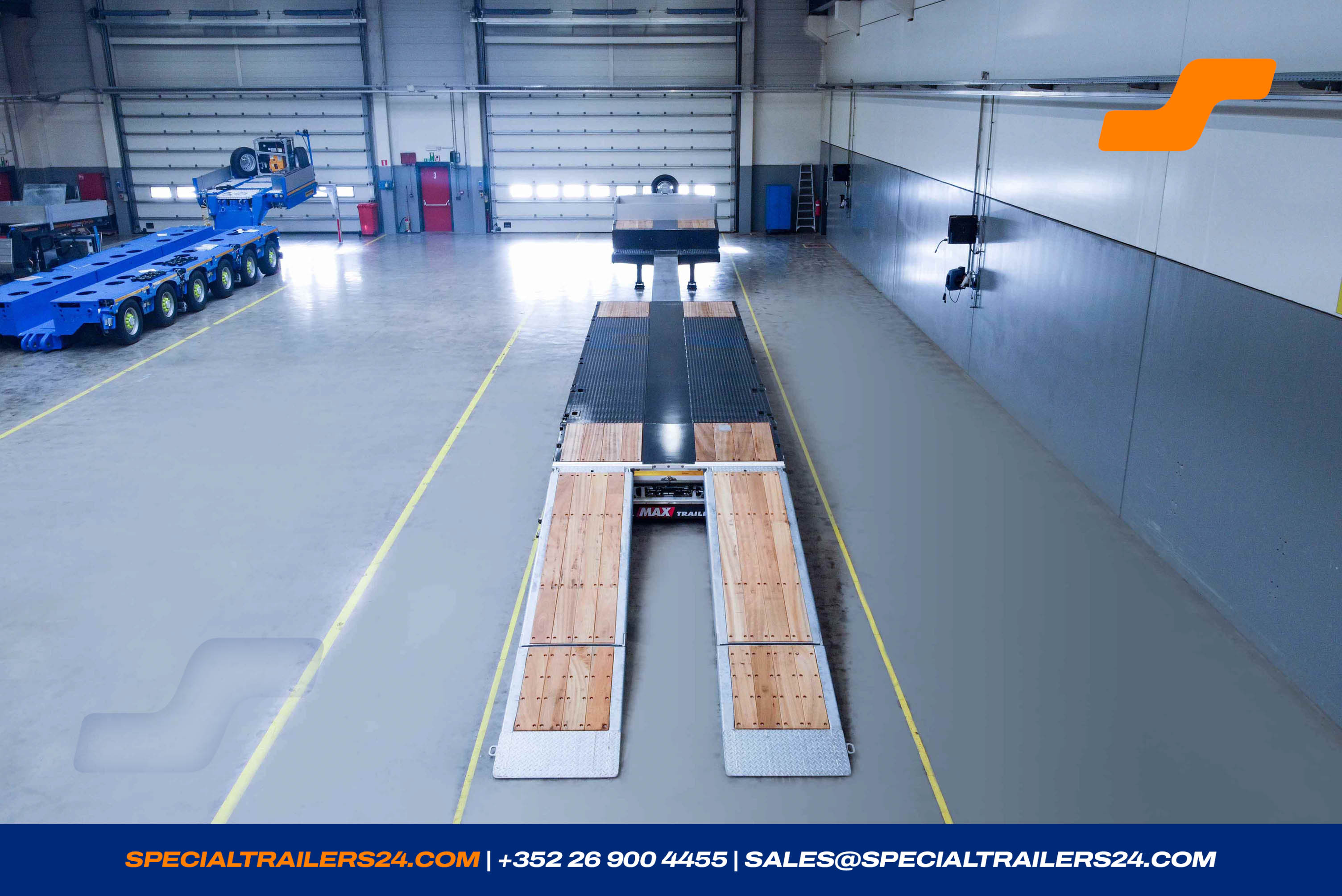

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg

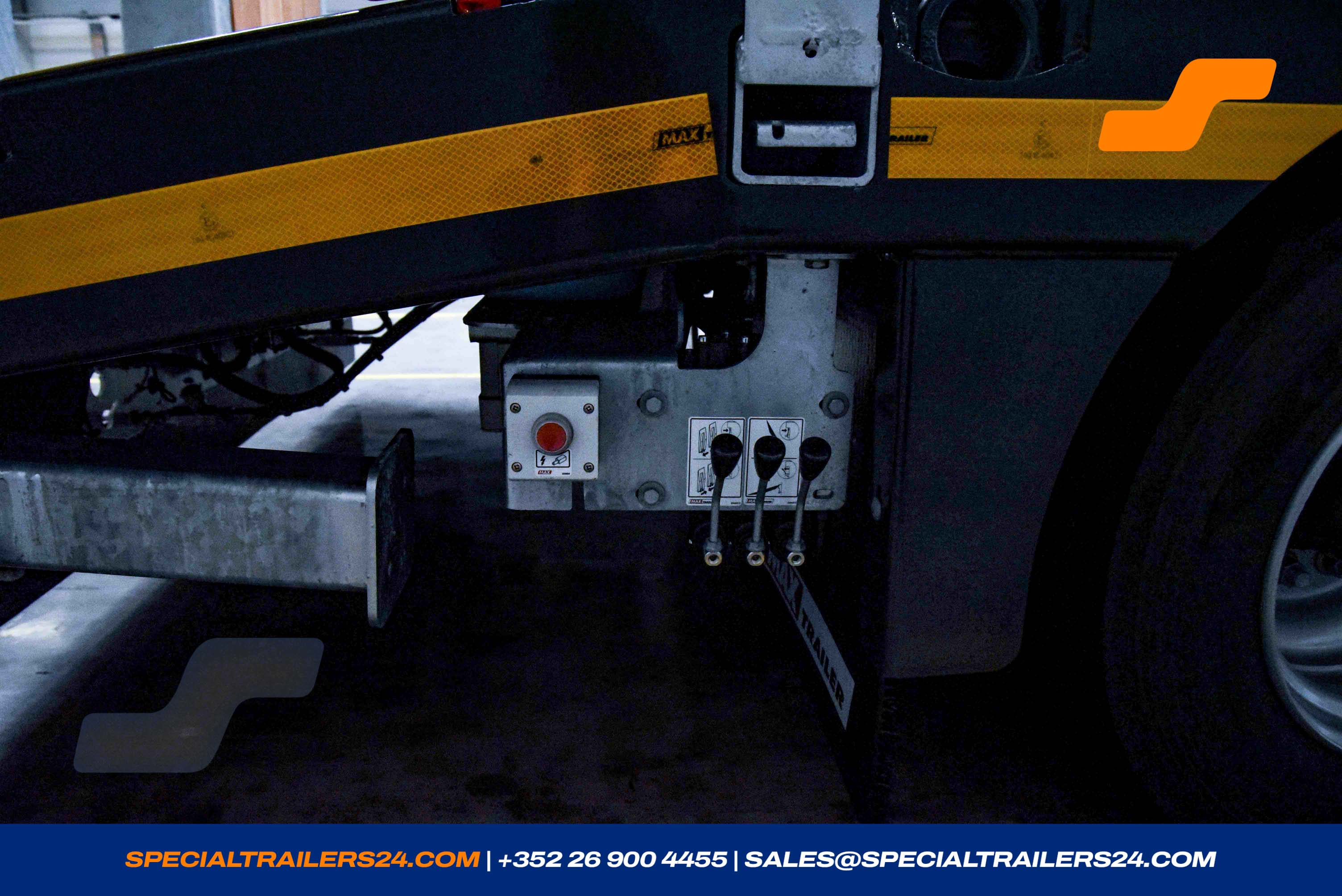

- Operated valve for ramps mounted on the right side (± 4 kg).

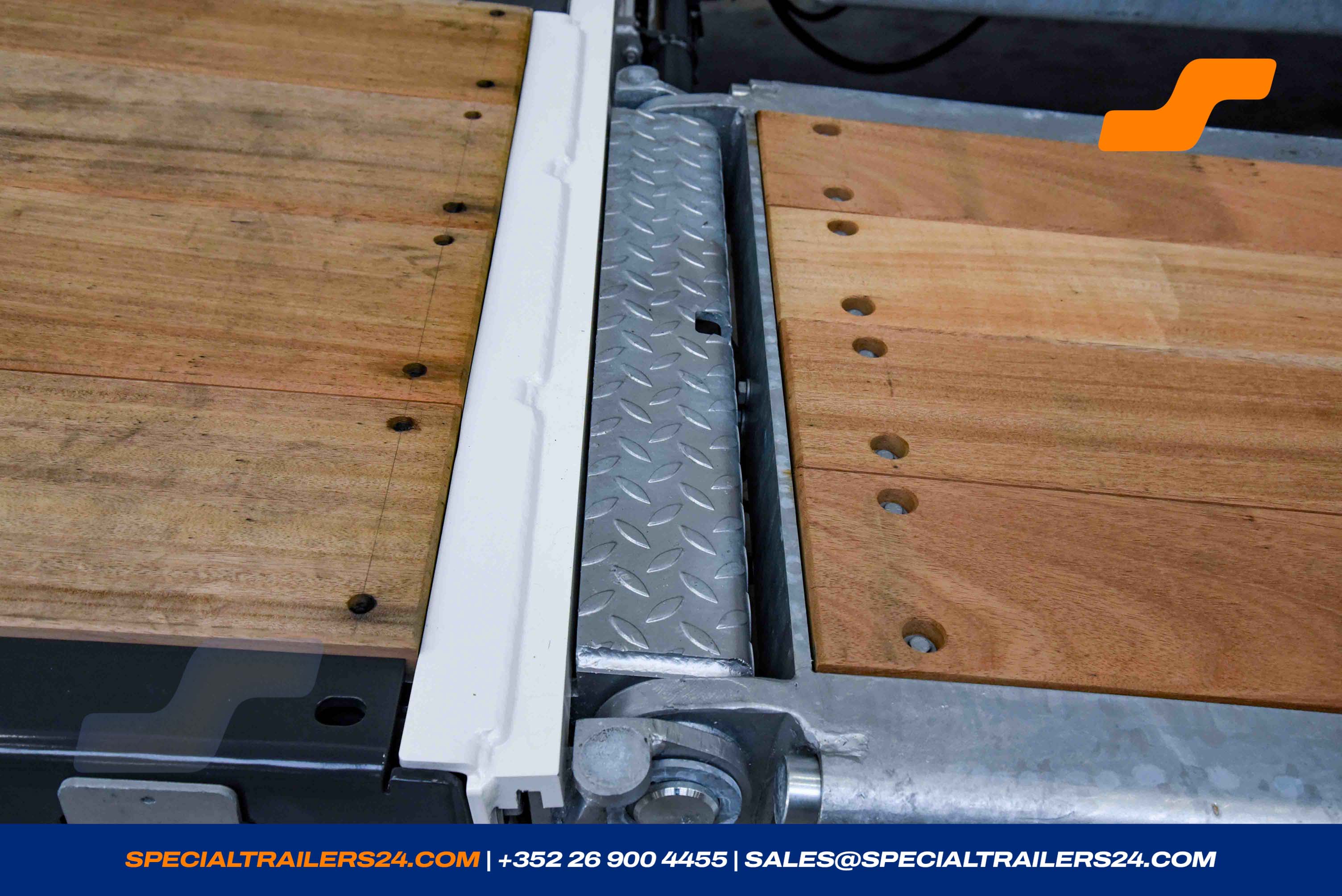

- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111069
- Reference MAX100-N-4A-9.30-U
- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Price On request
-
