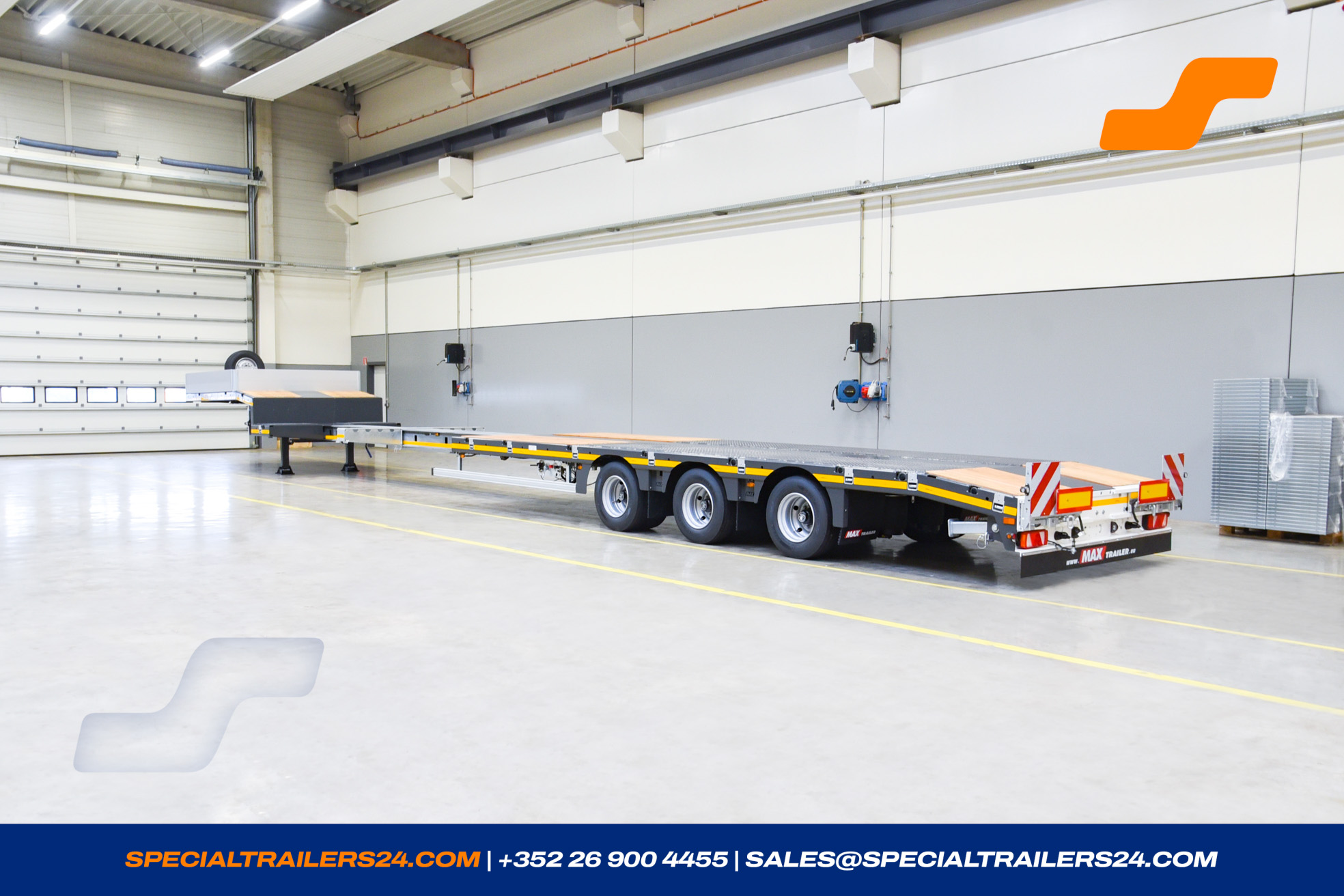

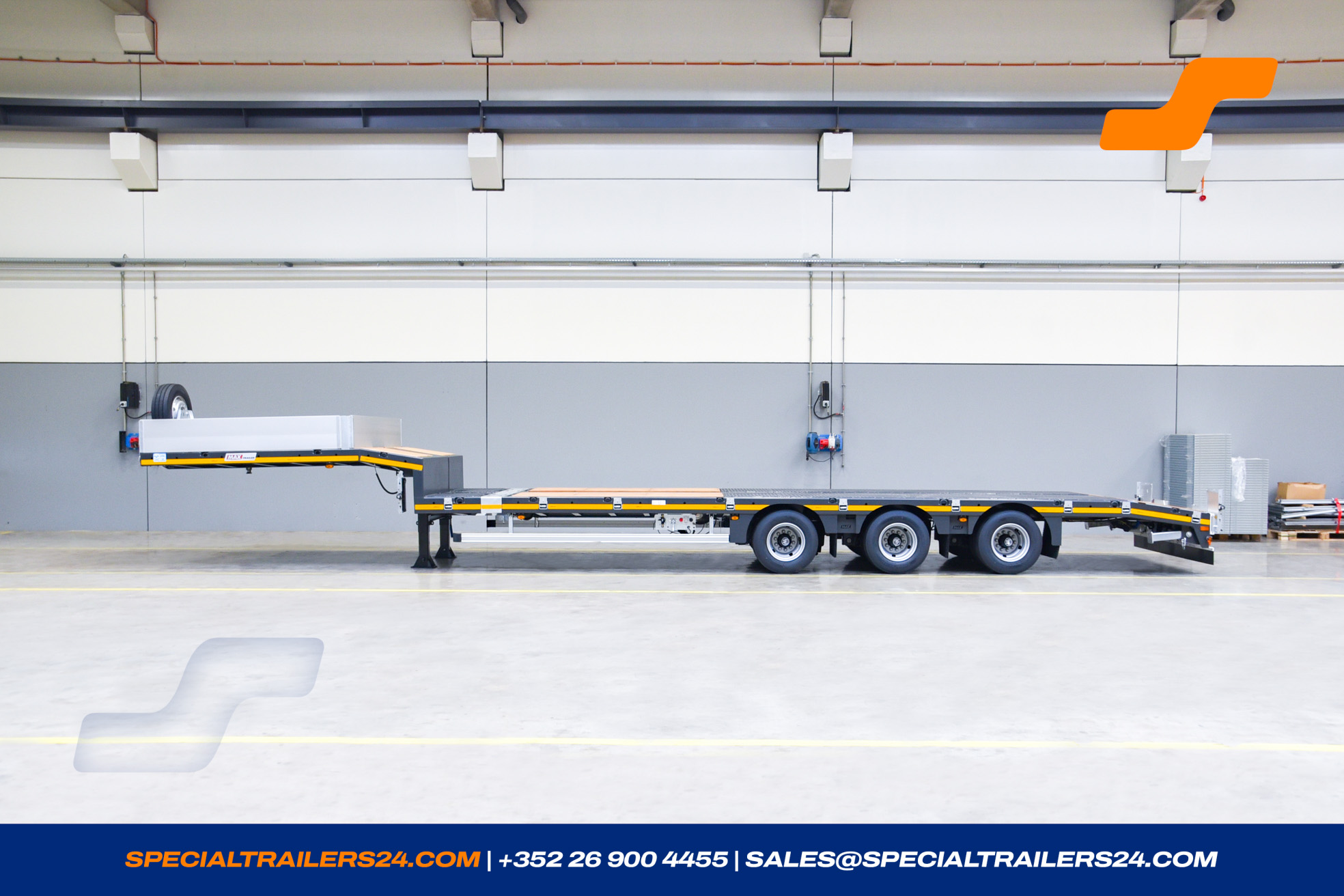

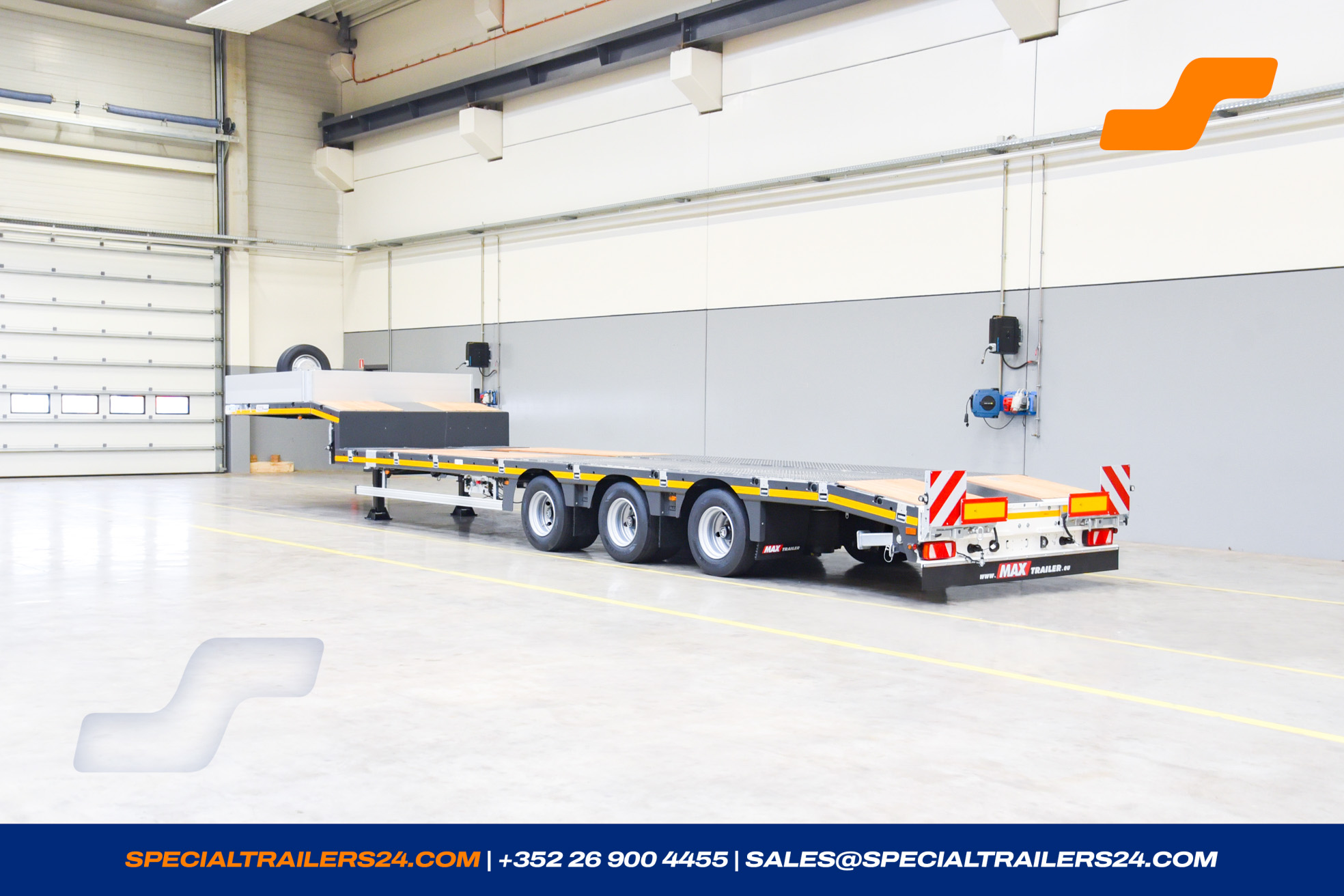

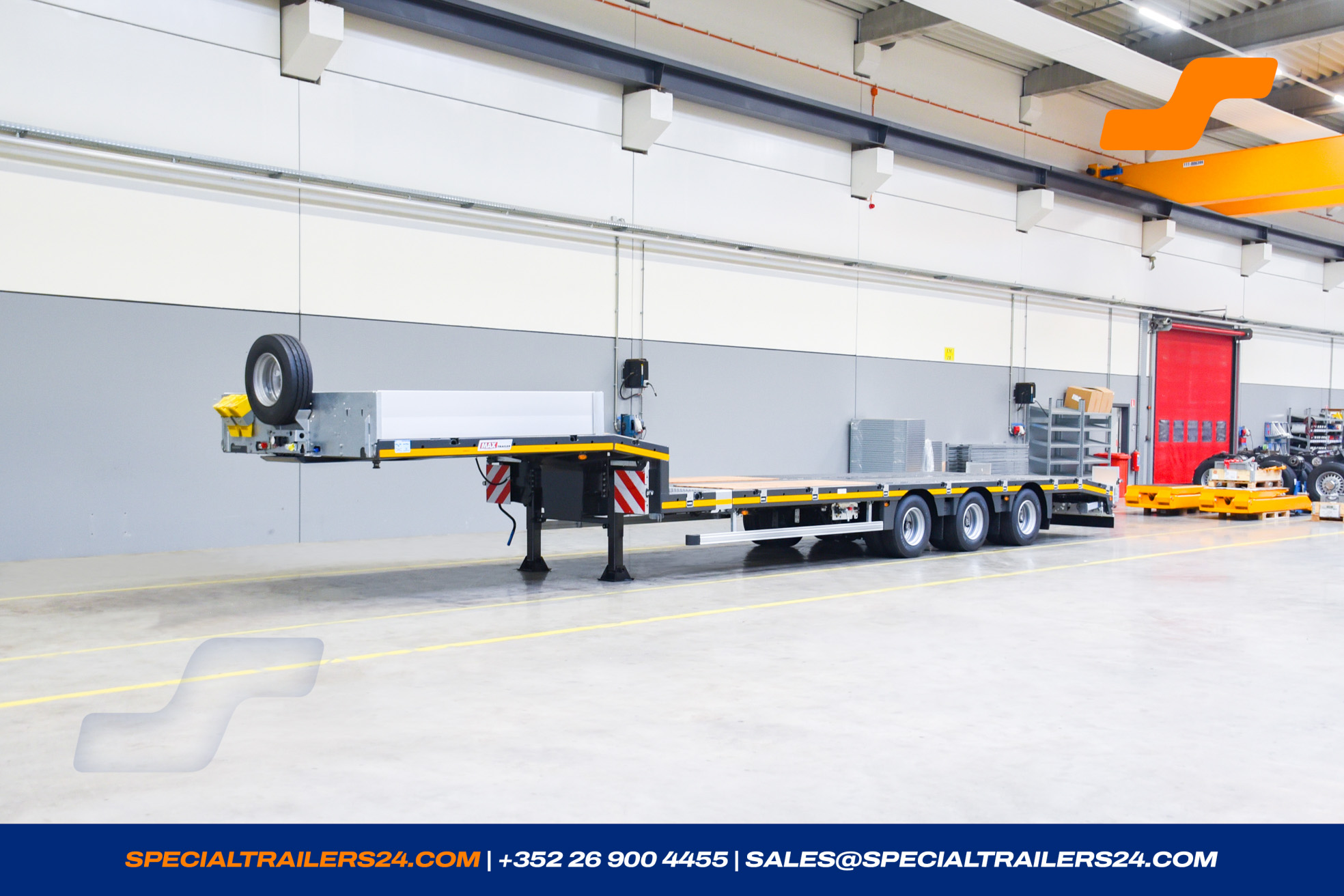

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111519
- Reference MAX100-N-3A-9.30

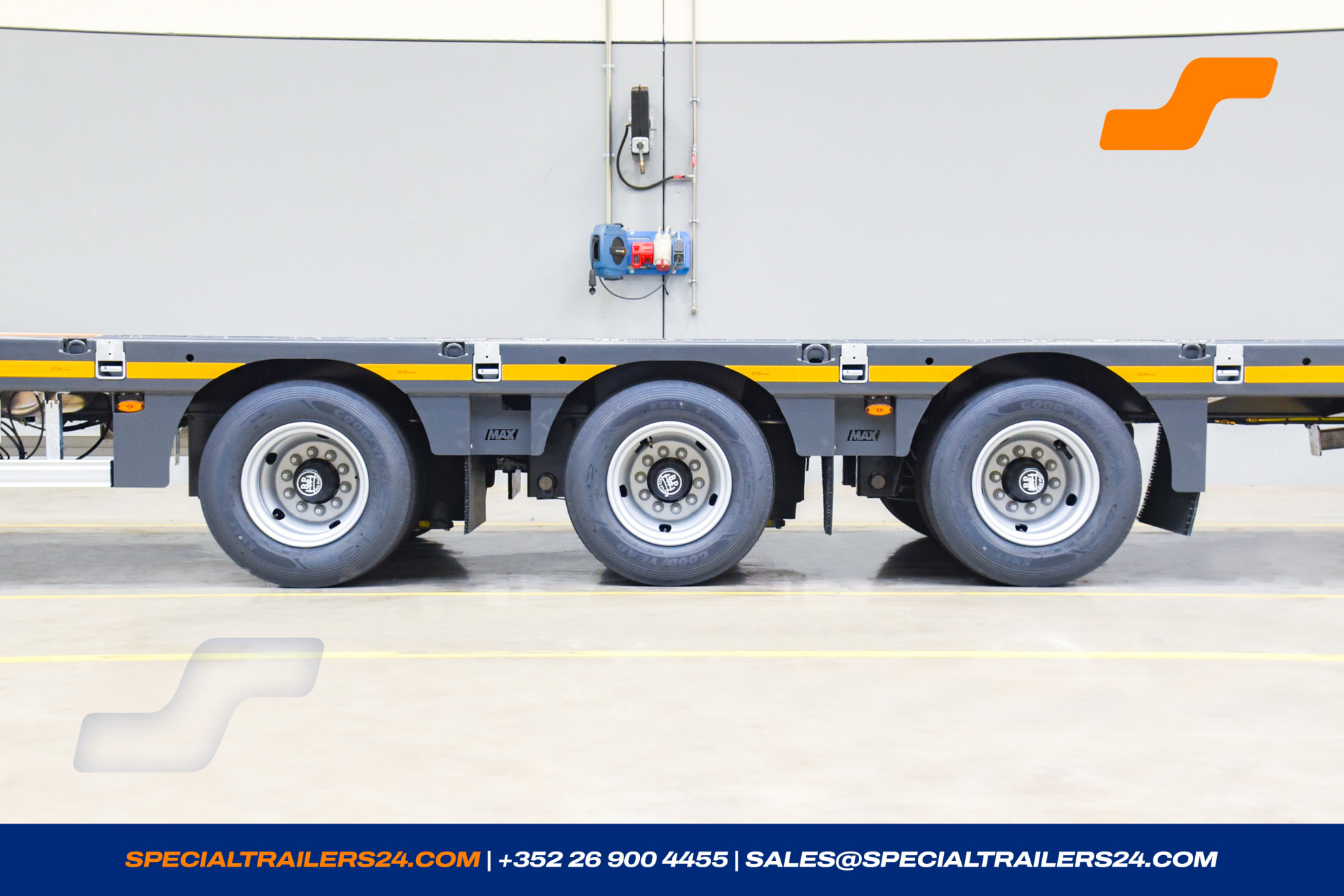

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 08/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9378 kg |
| Payload | 40122 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 450 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 4 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

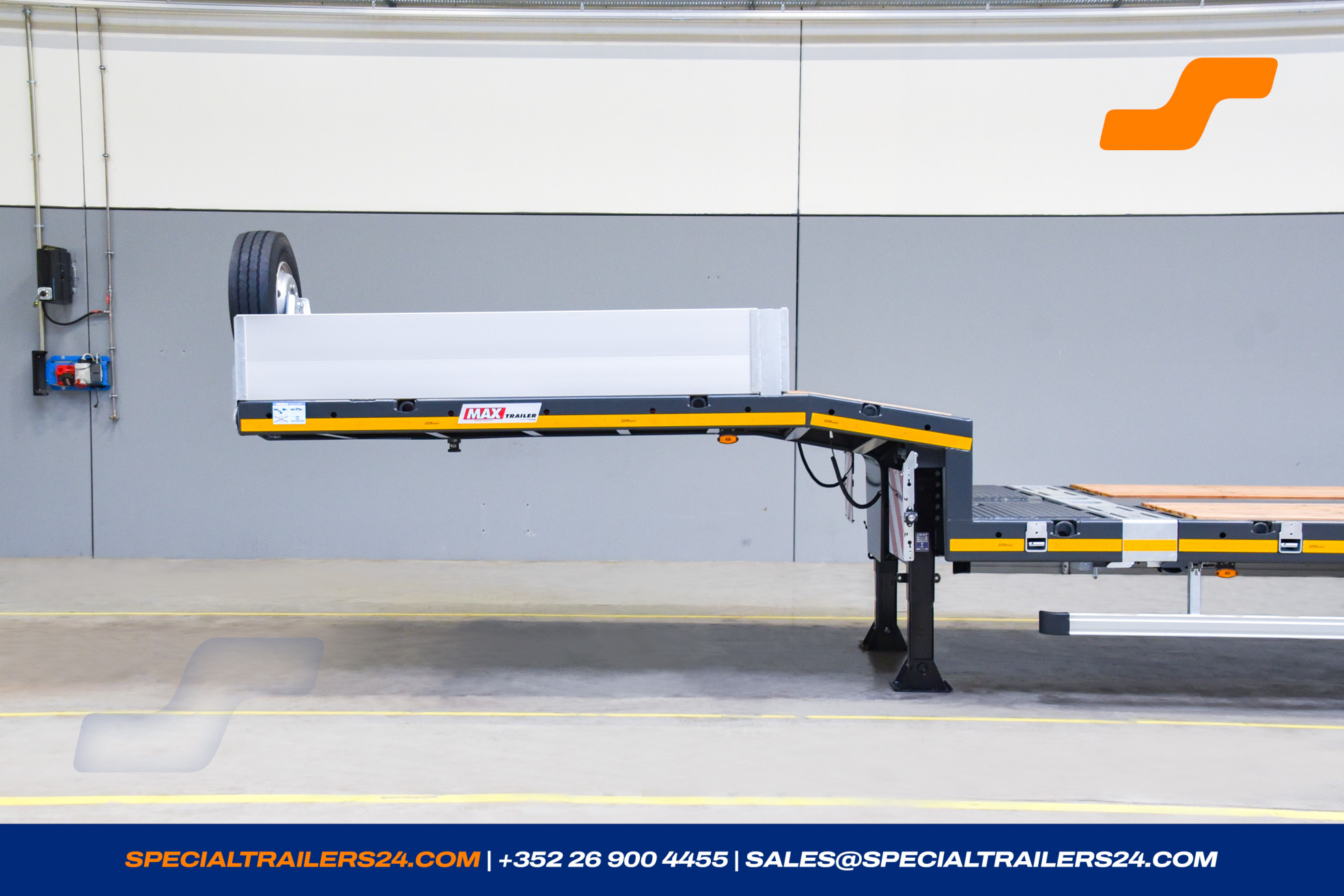

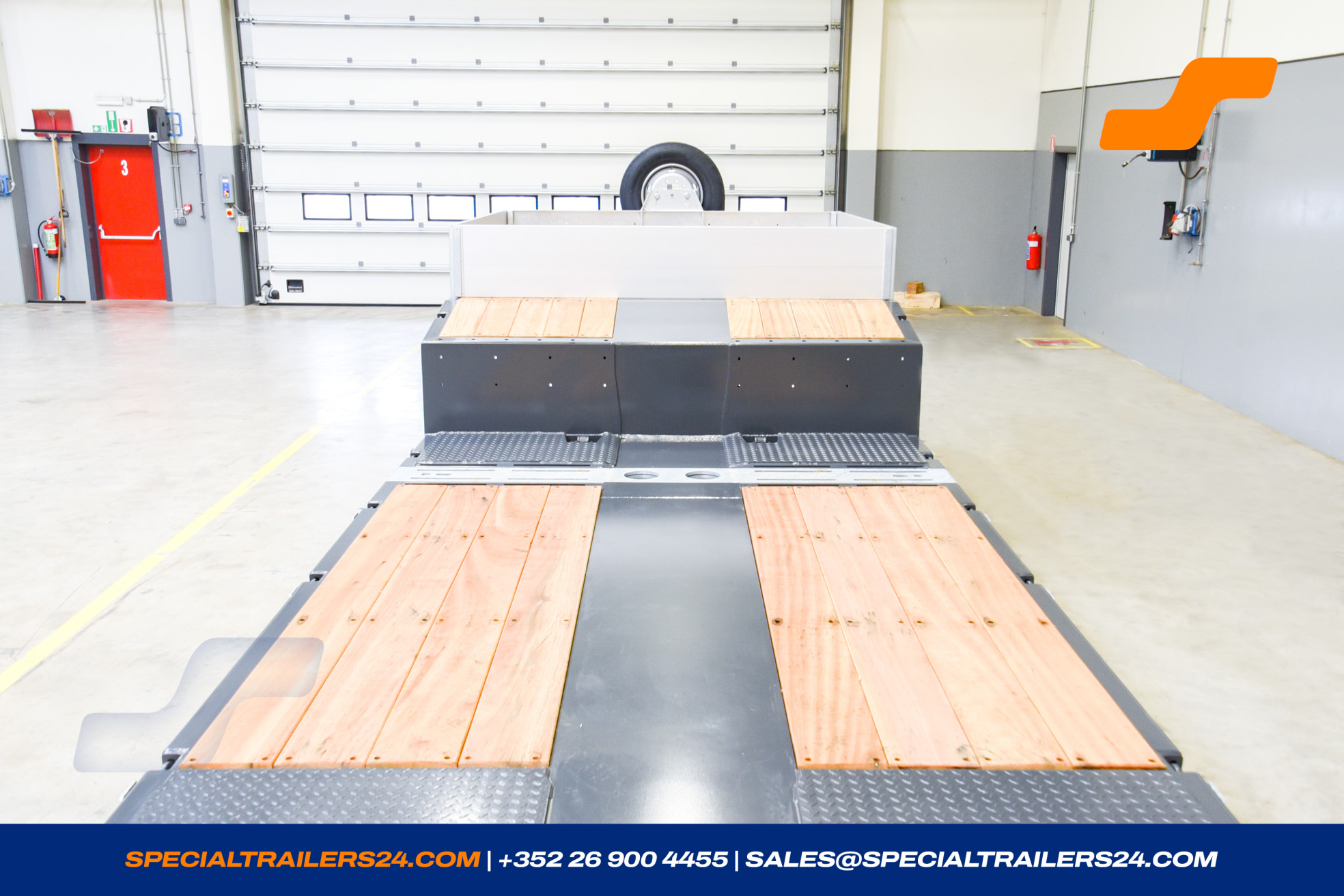

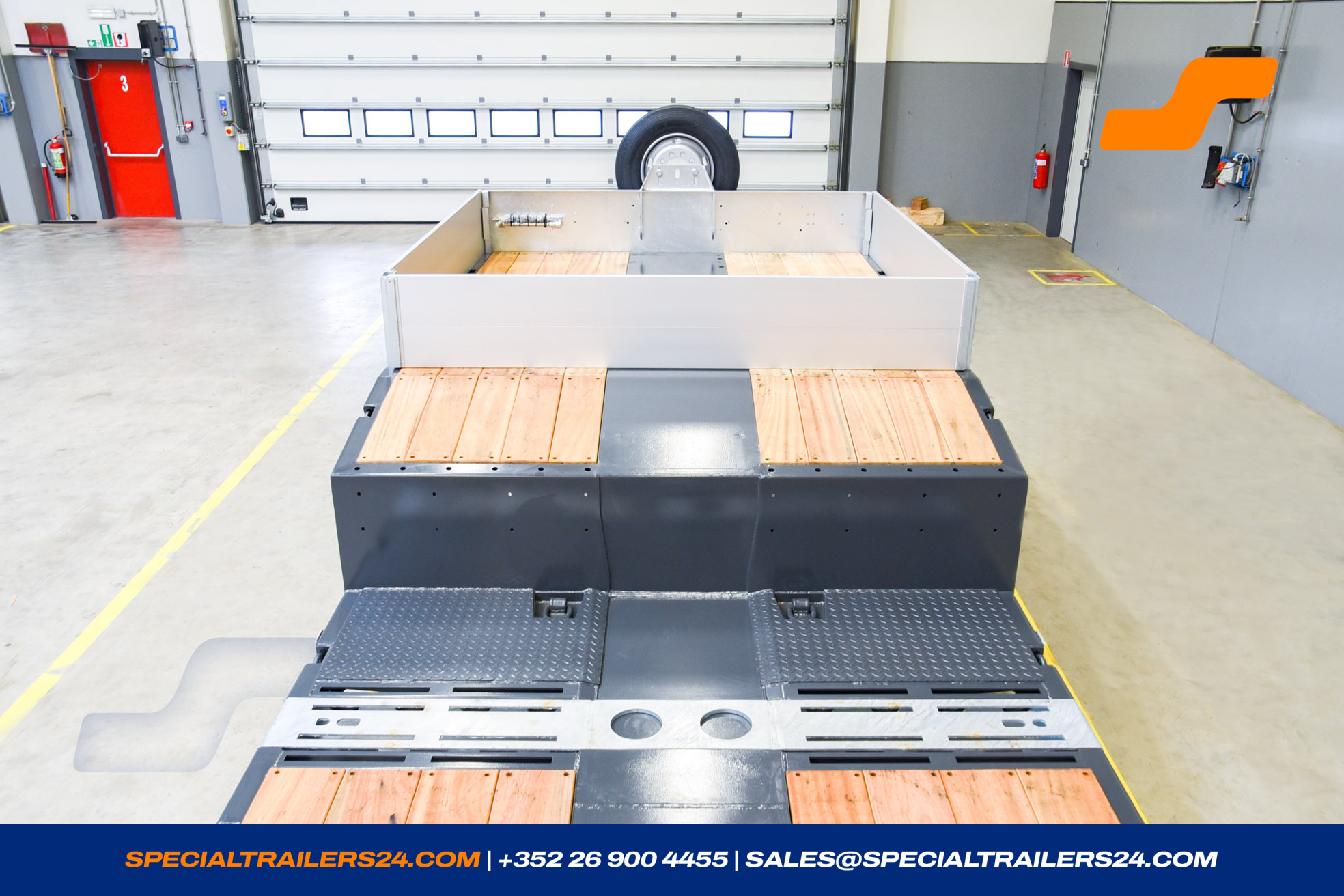

Gooseneck
1 x Gooseneck : MAX-3.450-750-10° (DSR 2100/ASH 1150)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

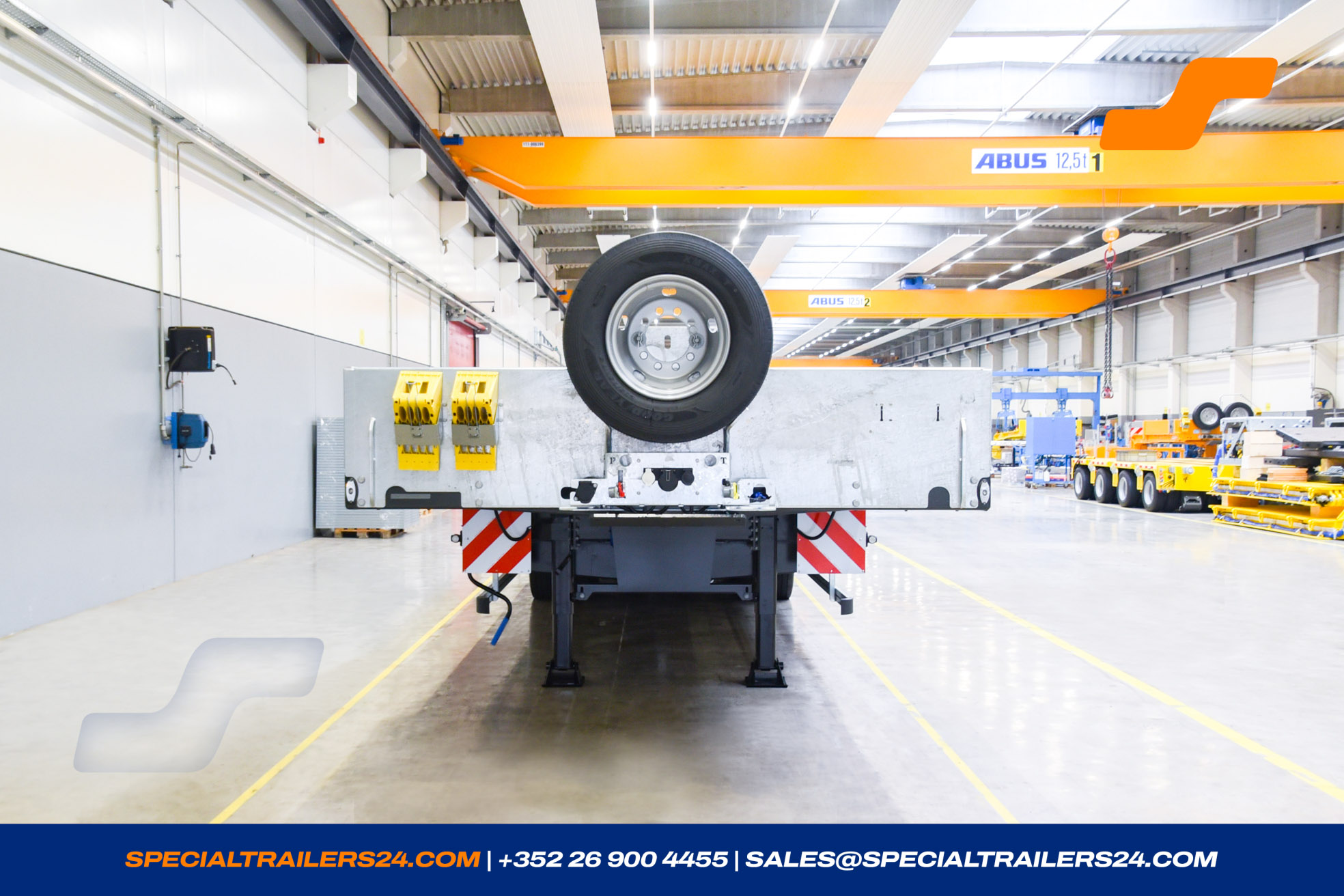

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.

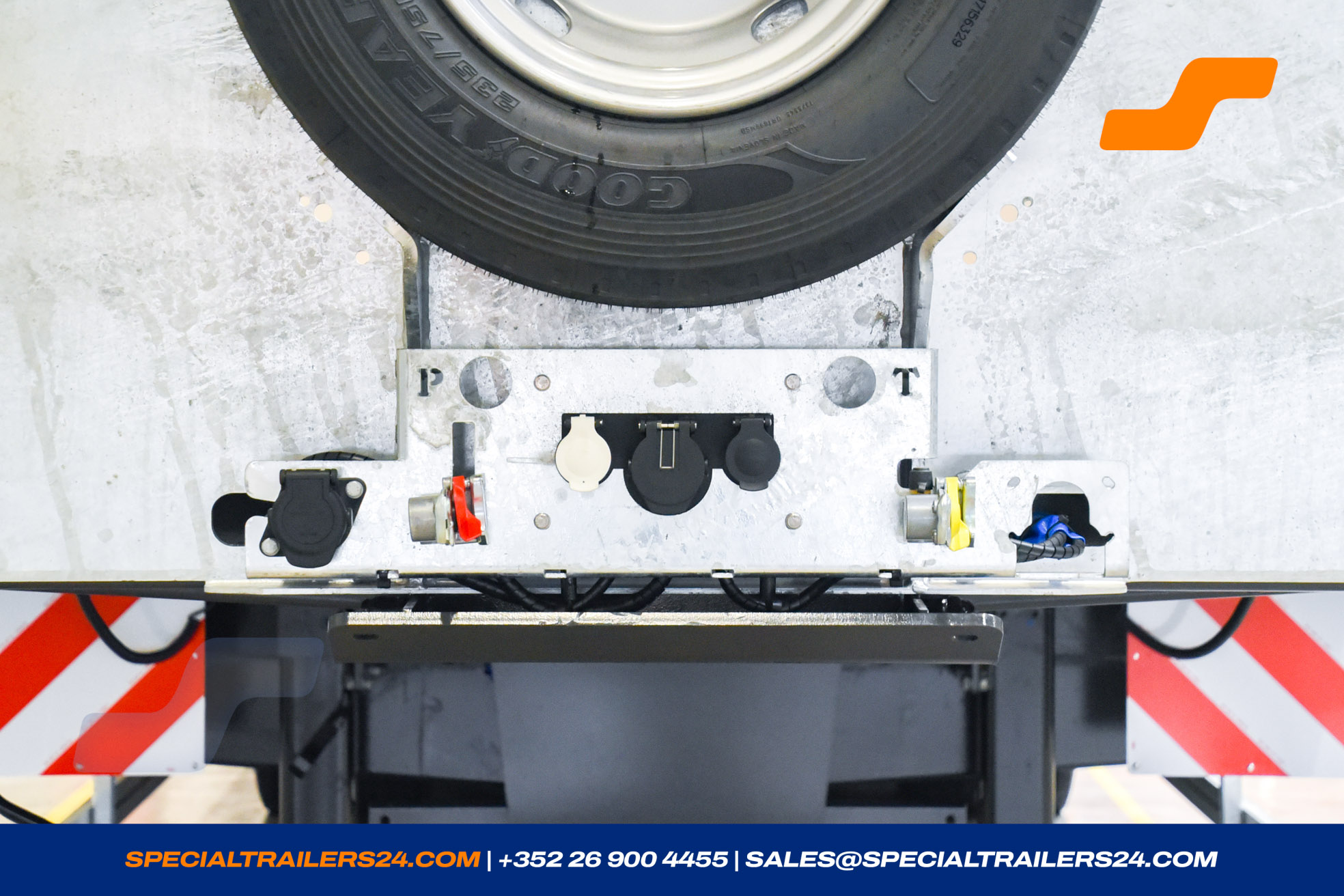

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

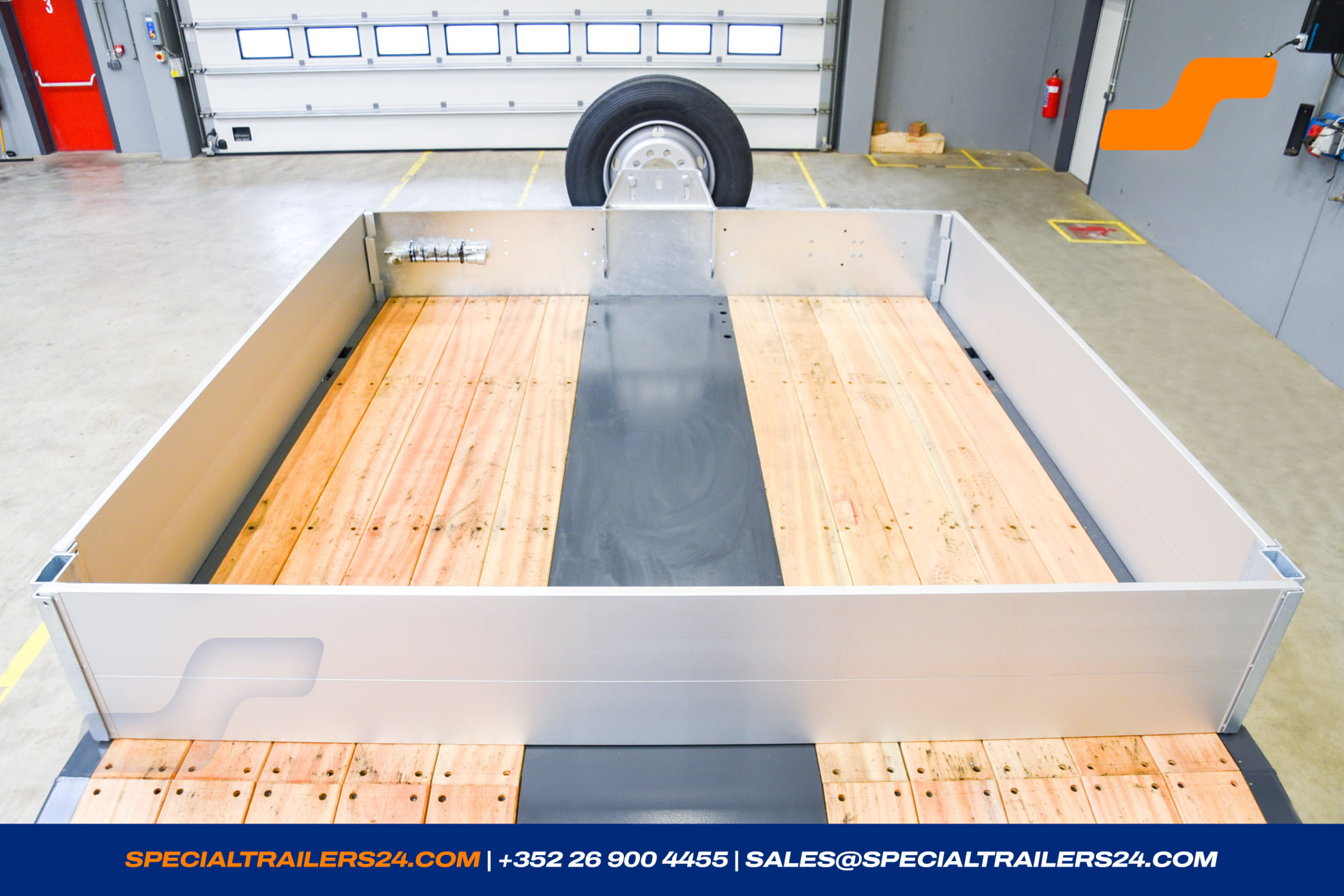

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)

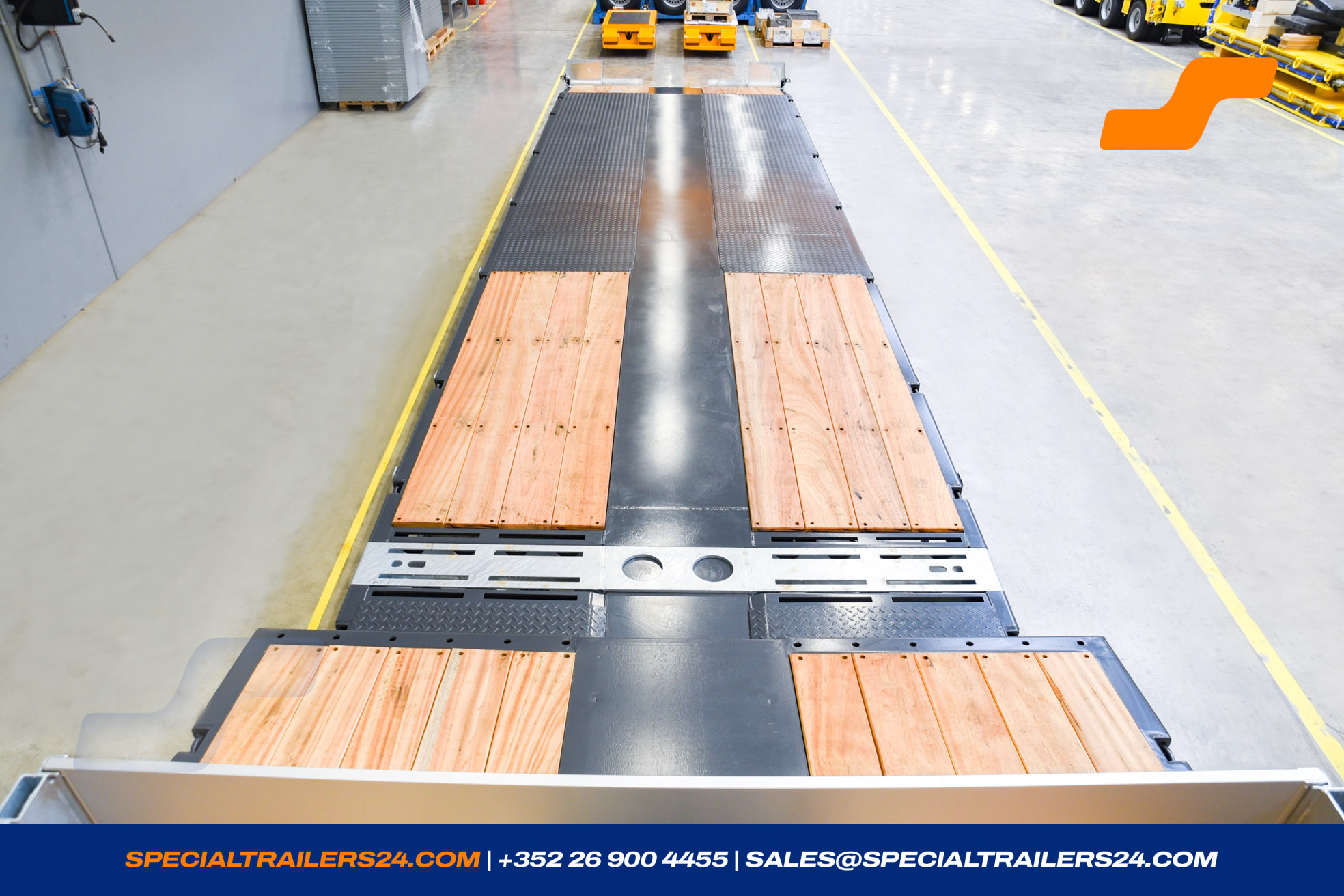

Loading deck
Loading platform
1 x Loading platform : MAX100-N-3A(4500)-9.30-17.5-2.54

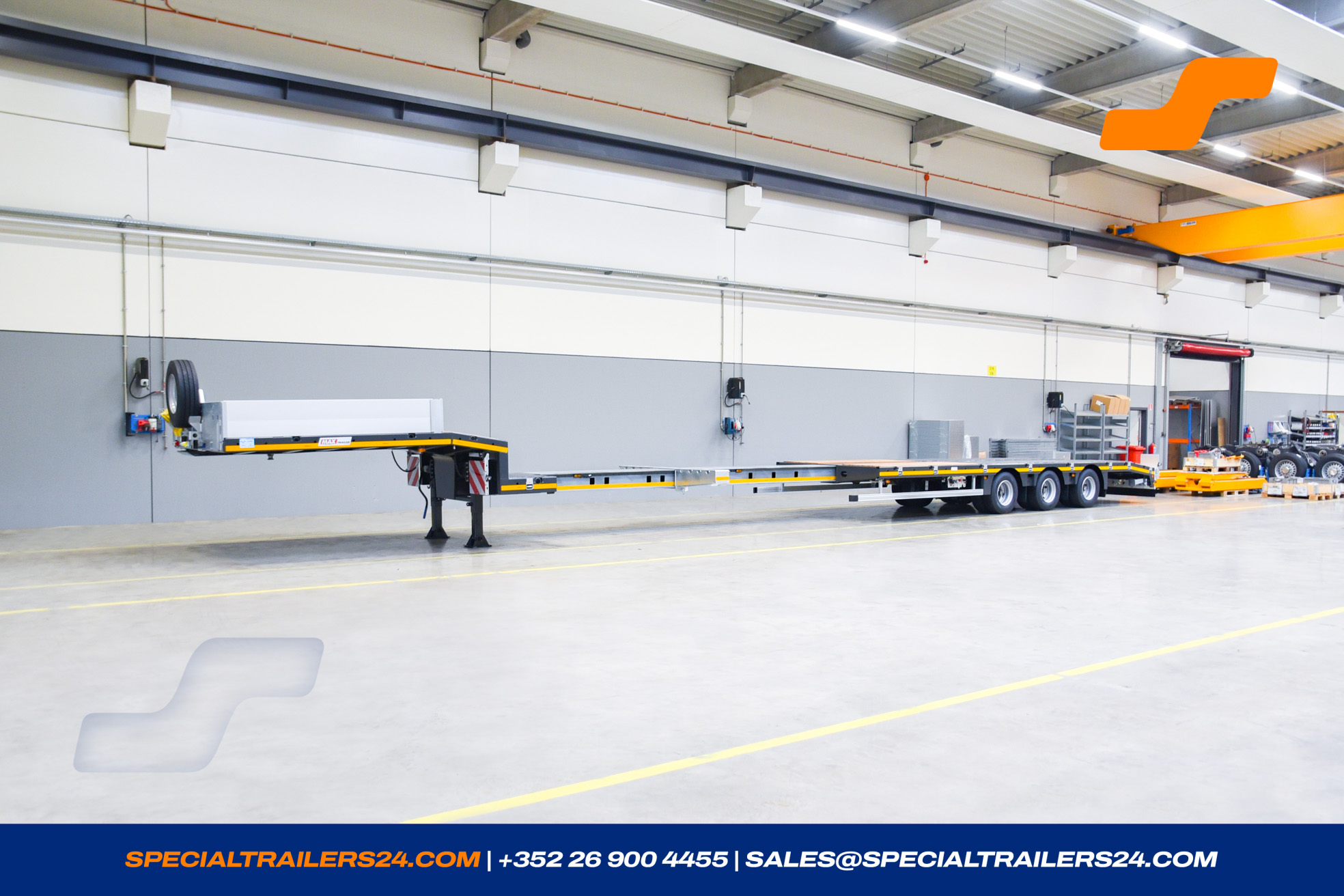

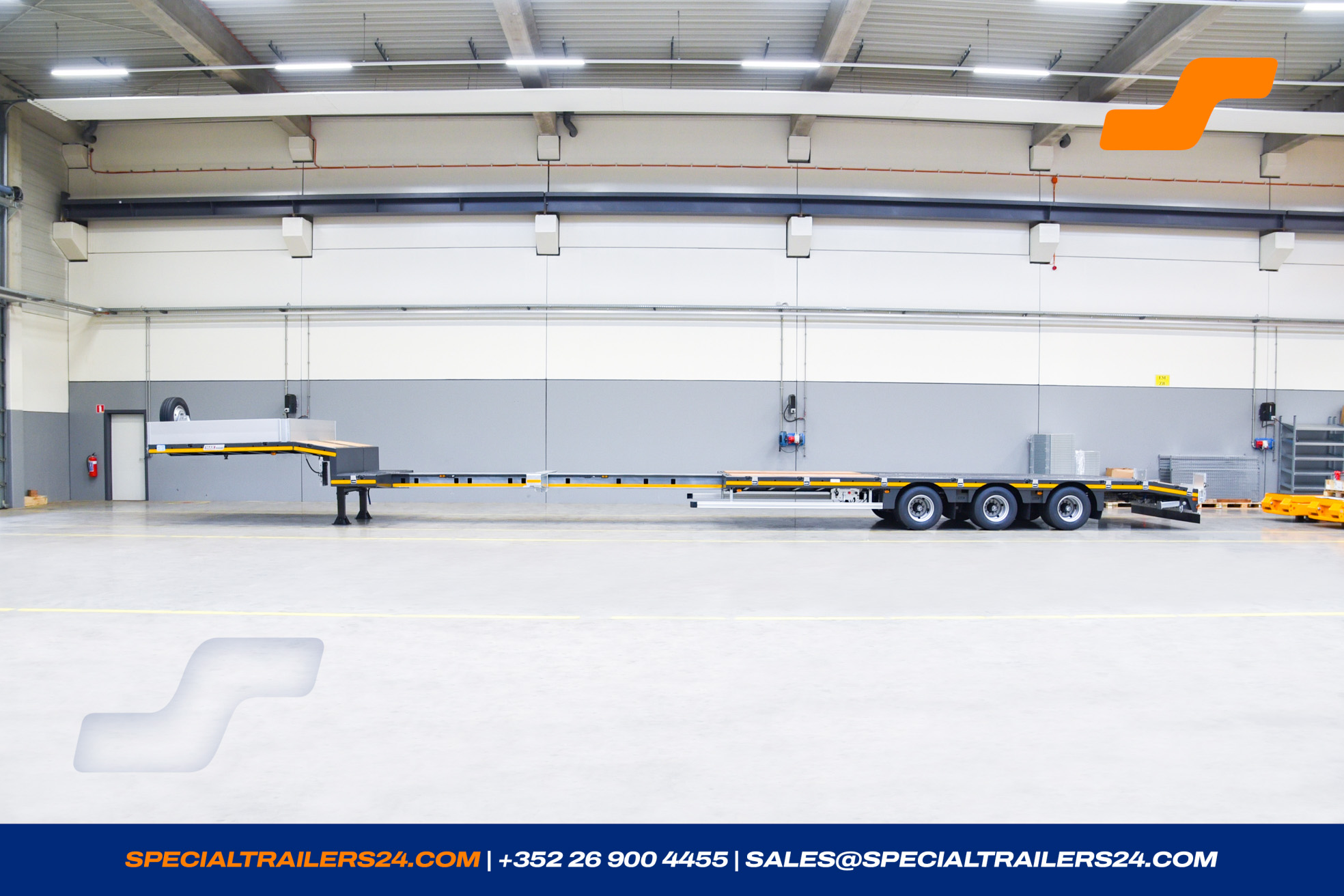

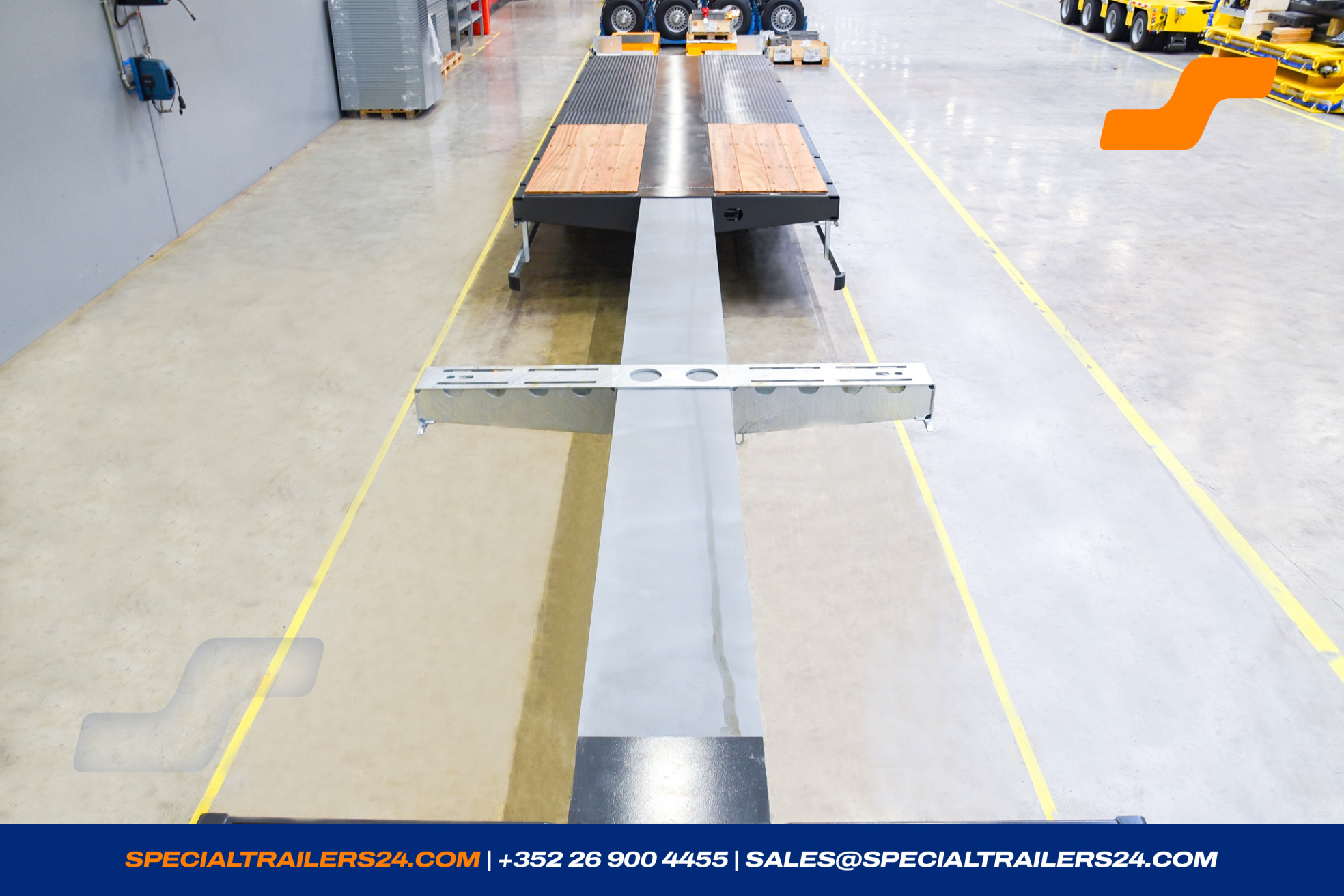

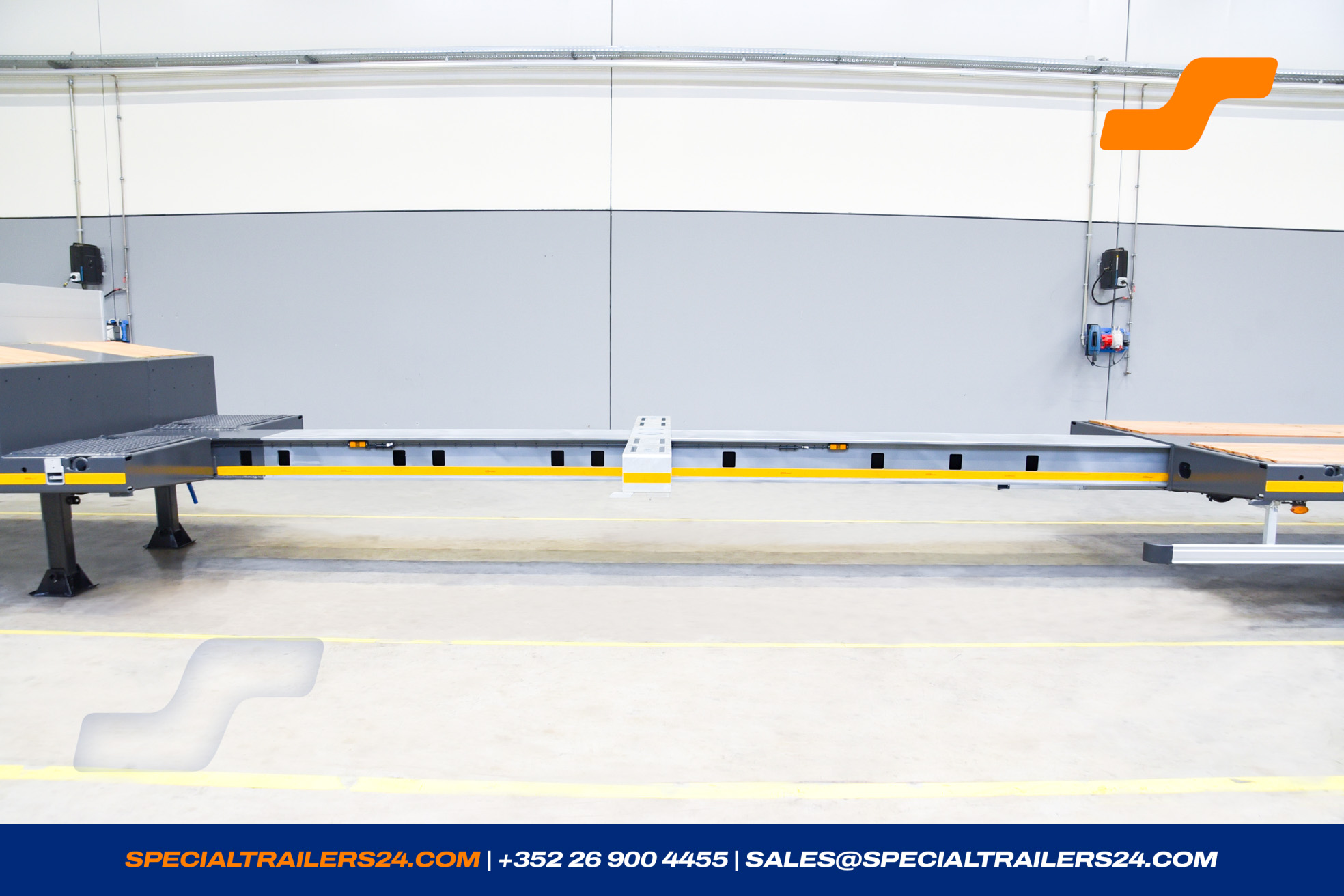

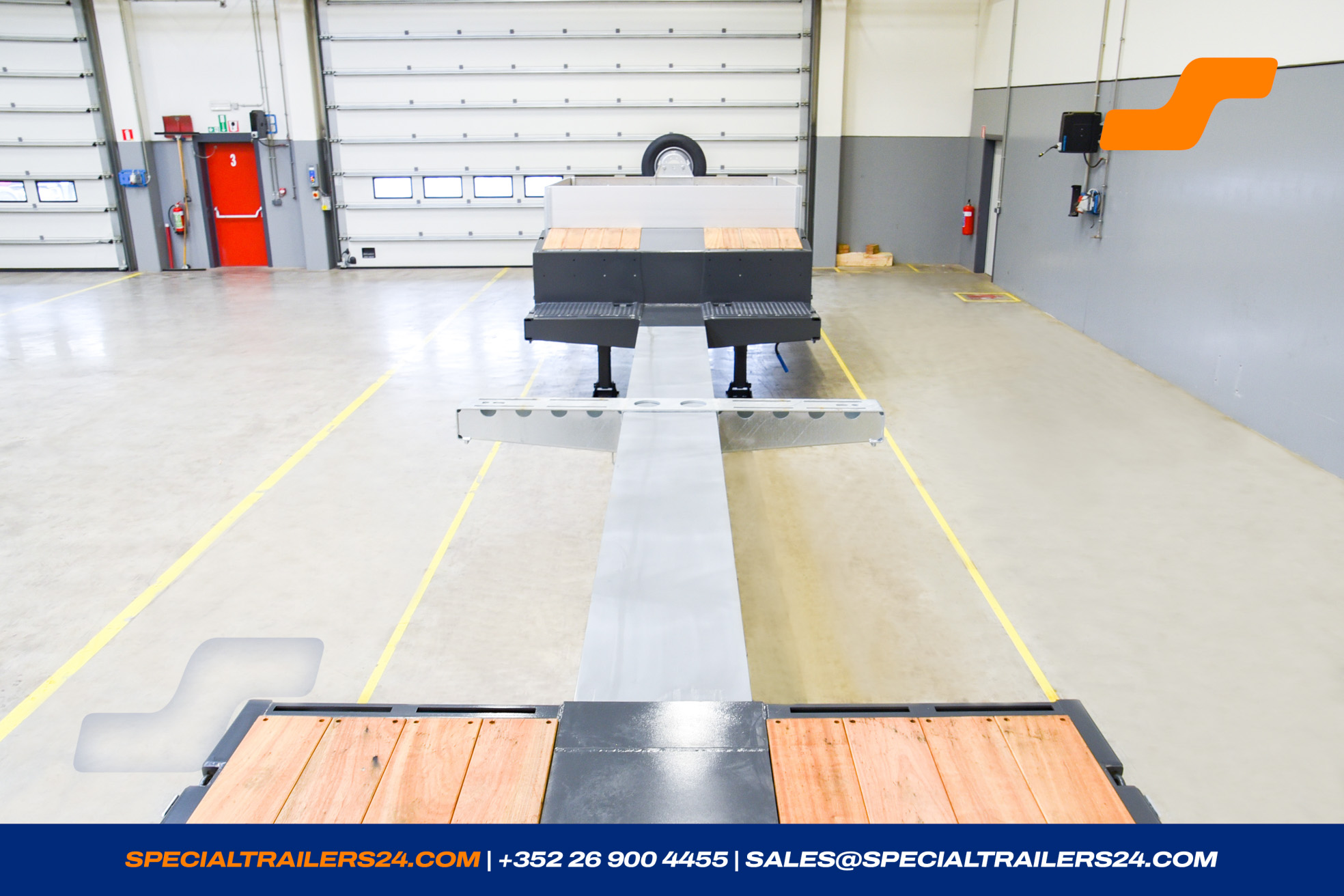

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.

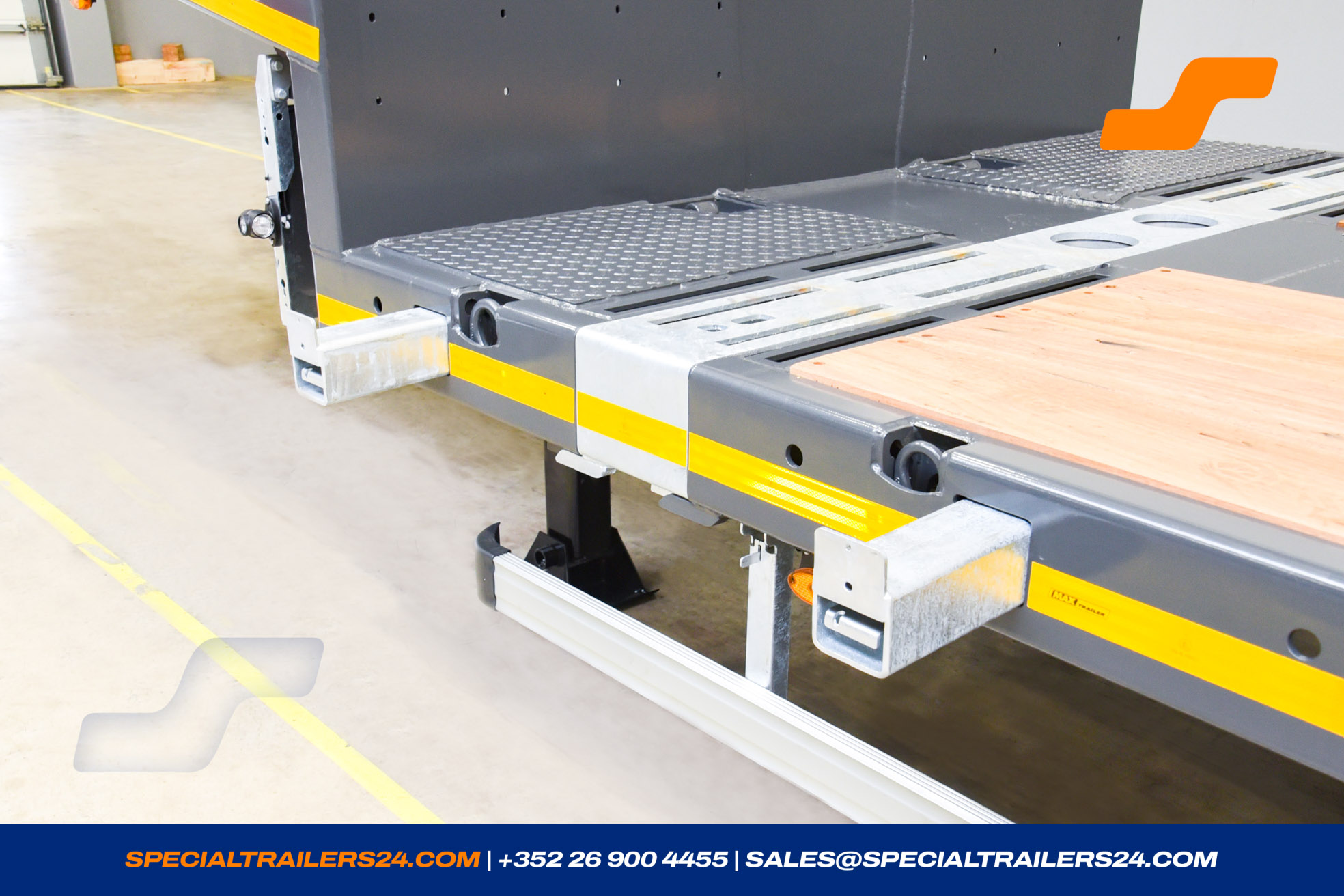

6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

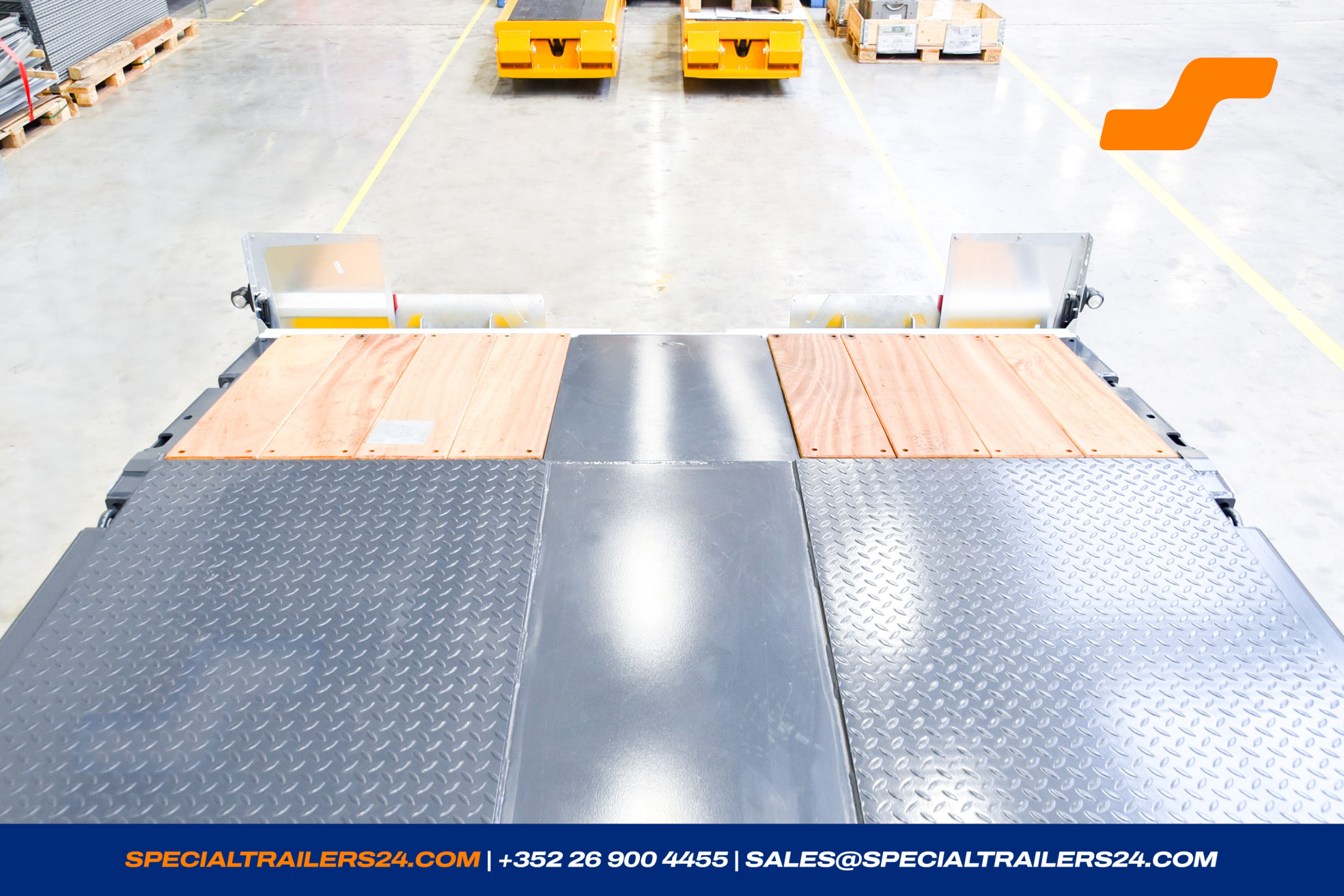

Hardwood cover thickness 48 mm above the axles chequer plate.

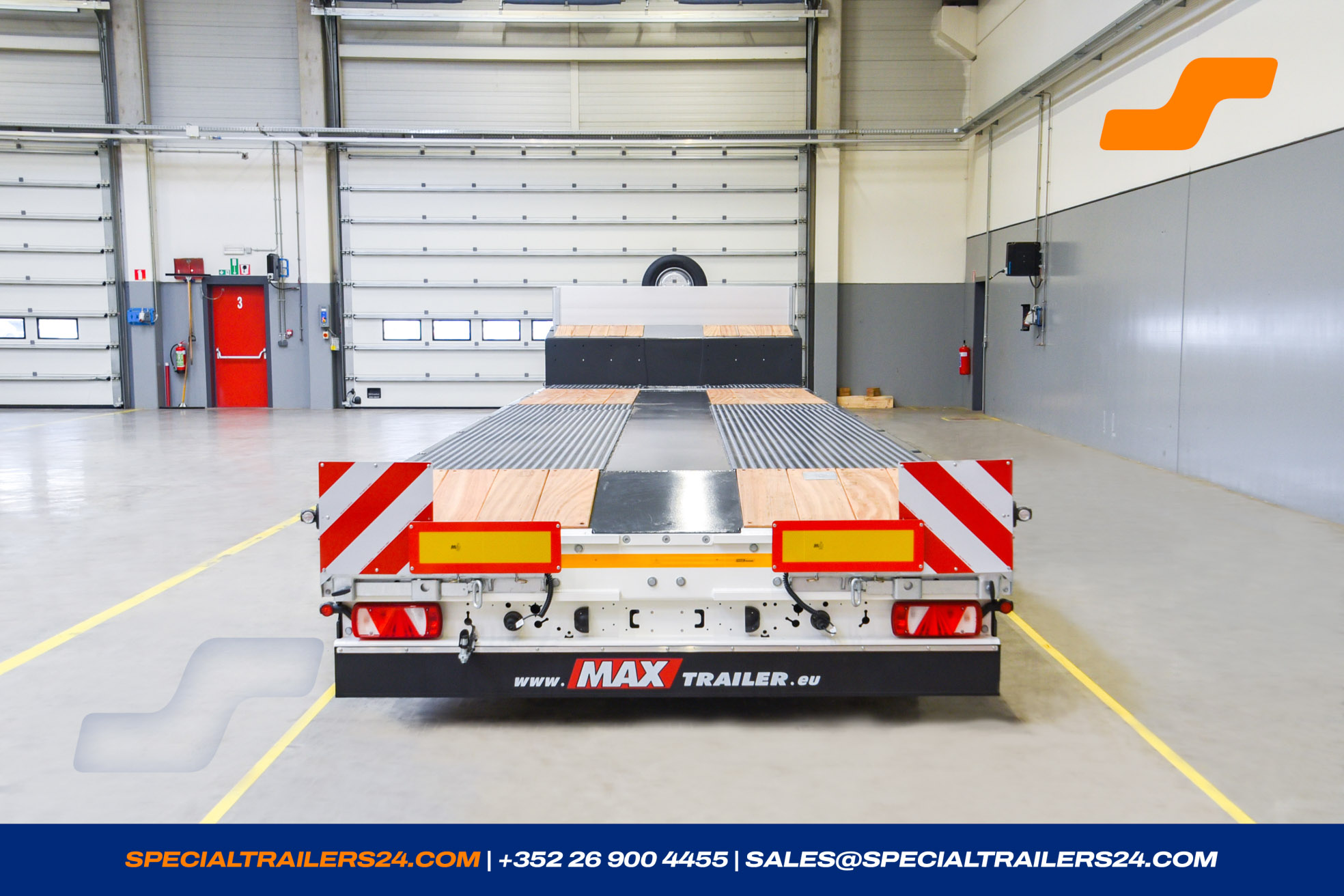

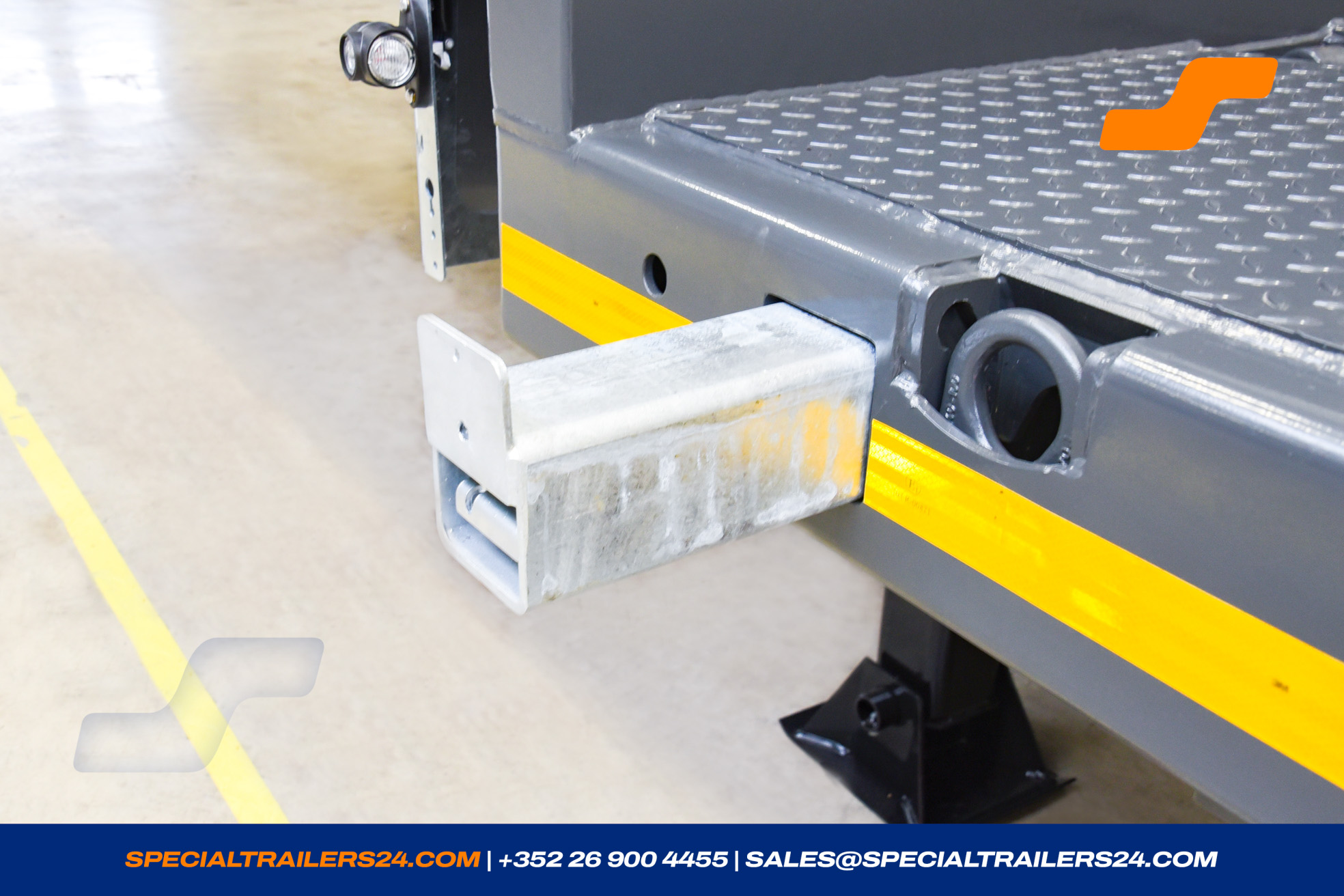

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

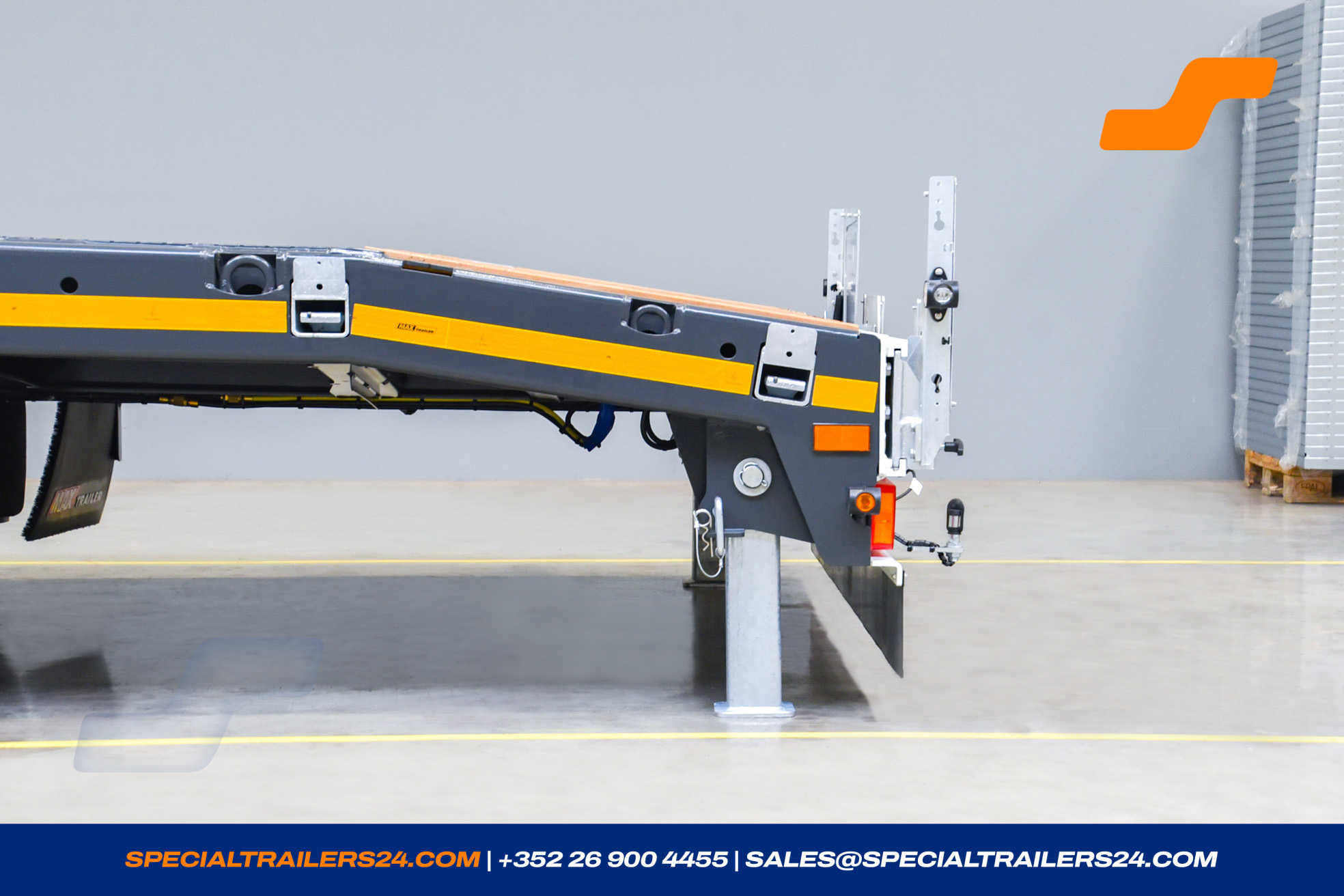

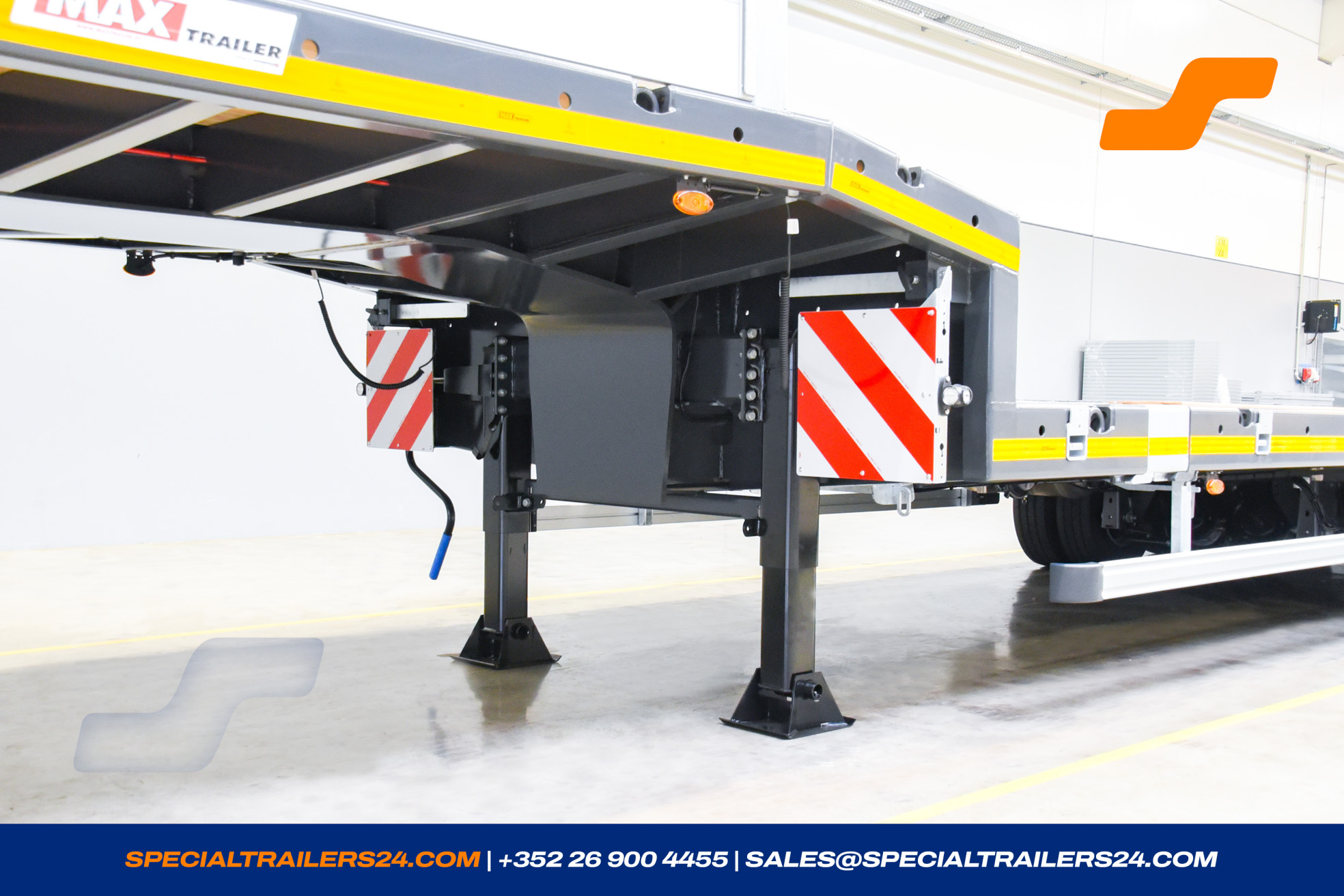

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Profile as hook on device for alu-ramps at the rear.

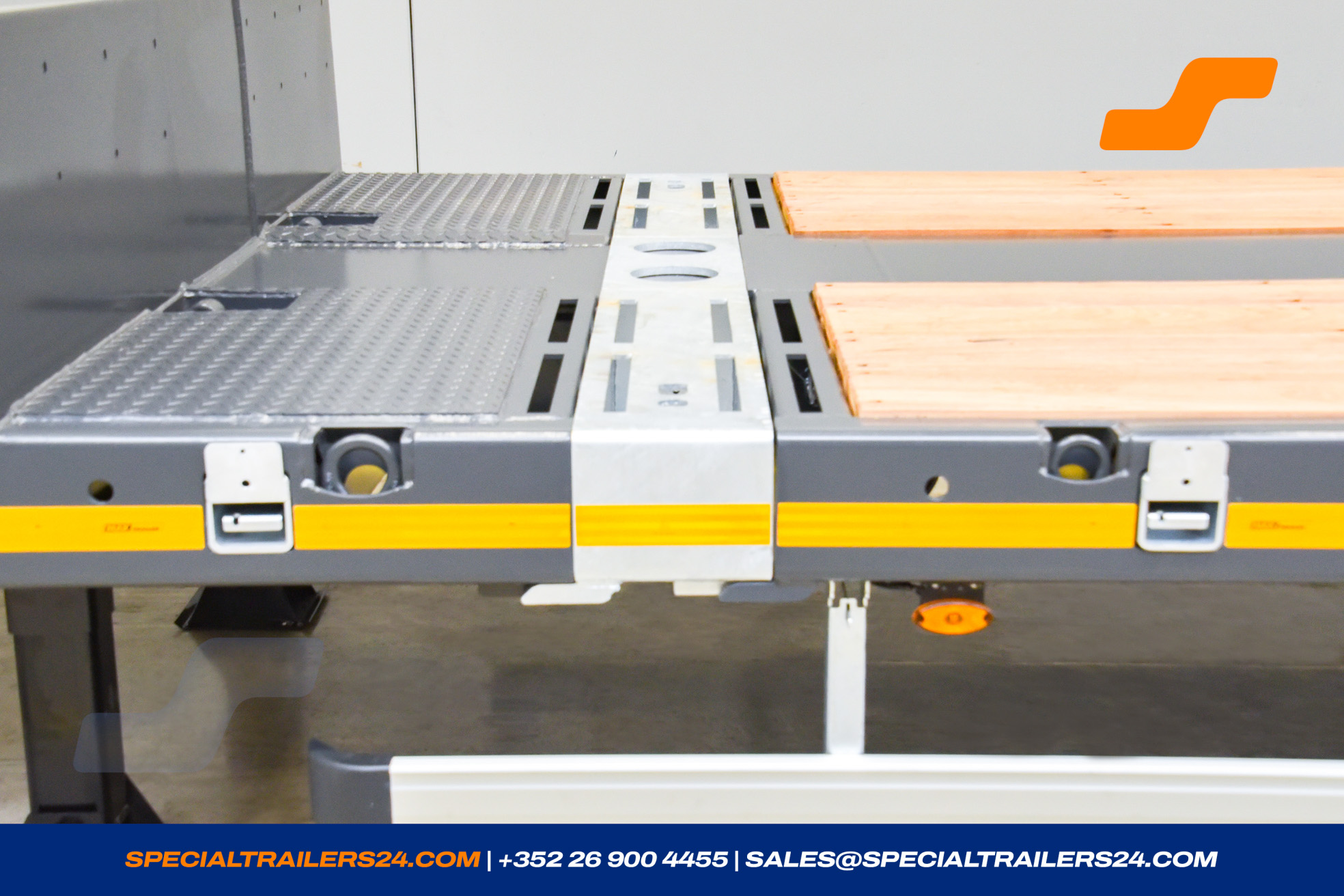

- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

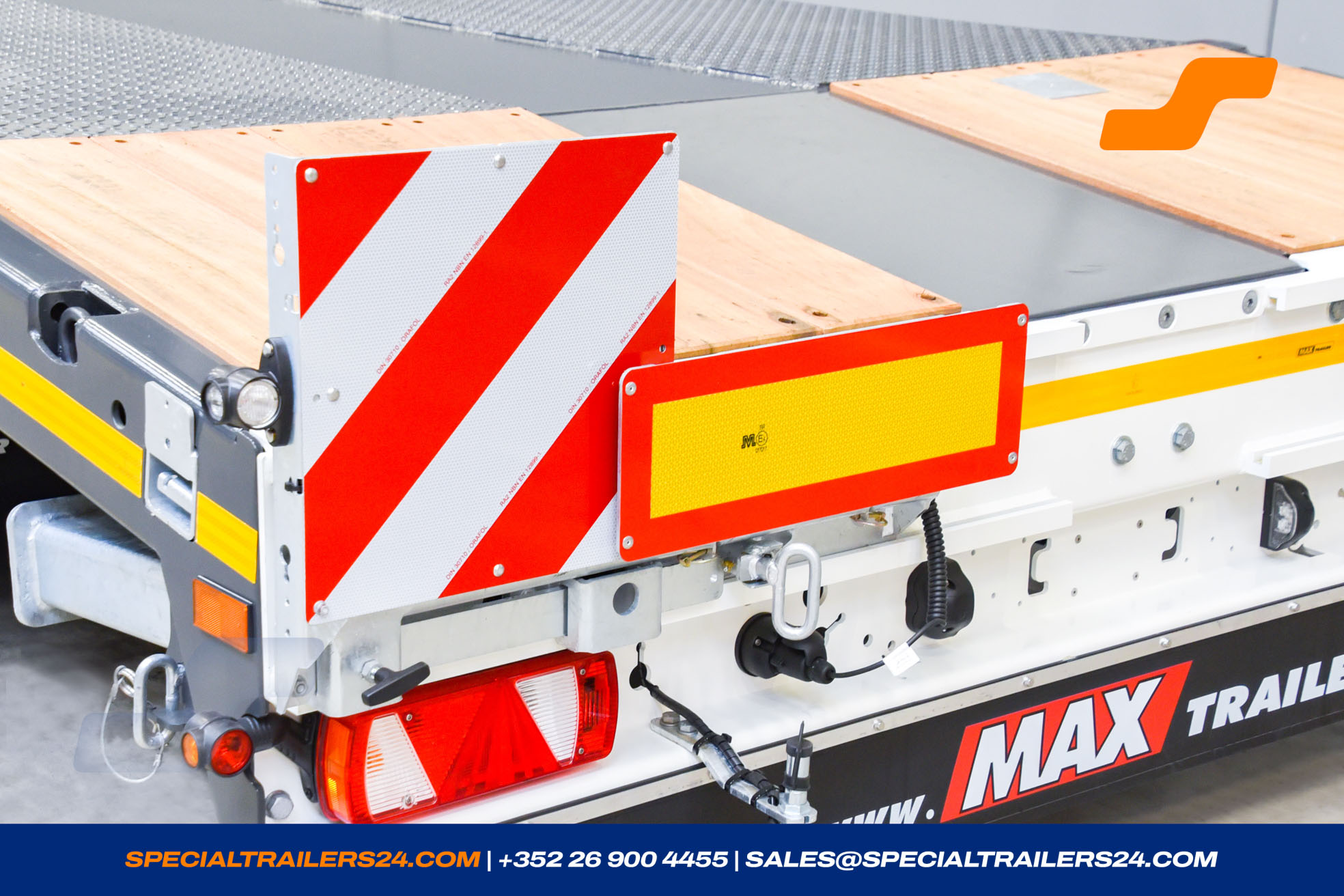

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).

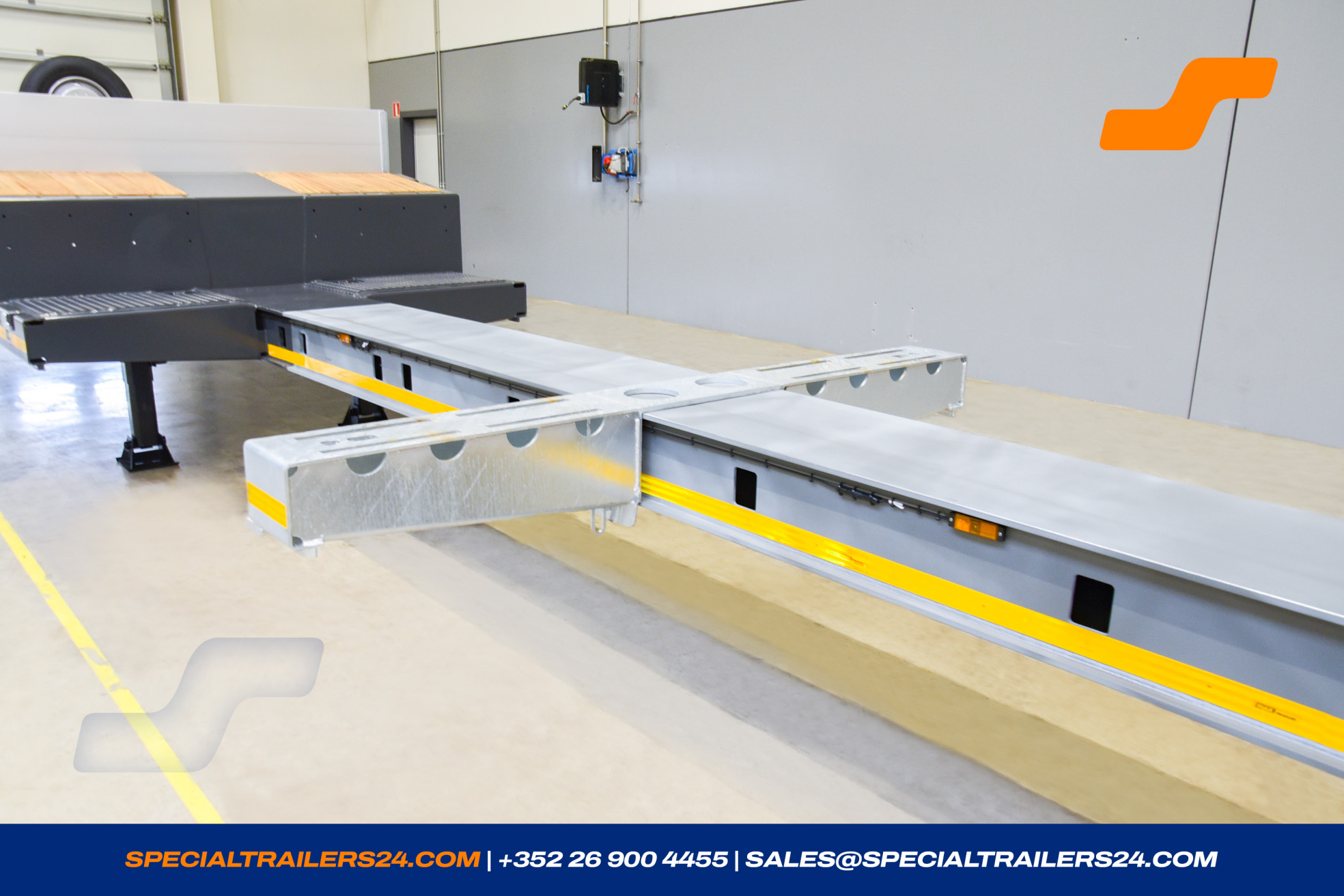

- Galvanised storage for timber, left and right under the loading platform (± 100kg).

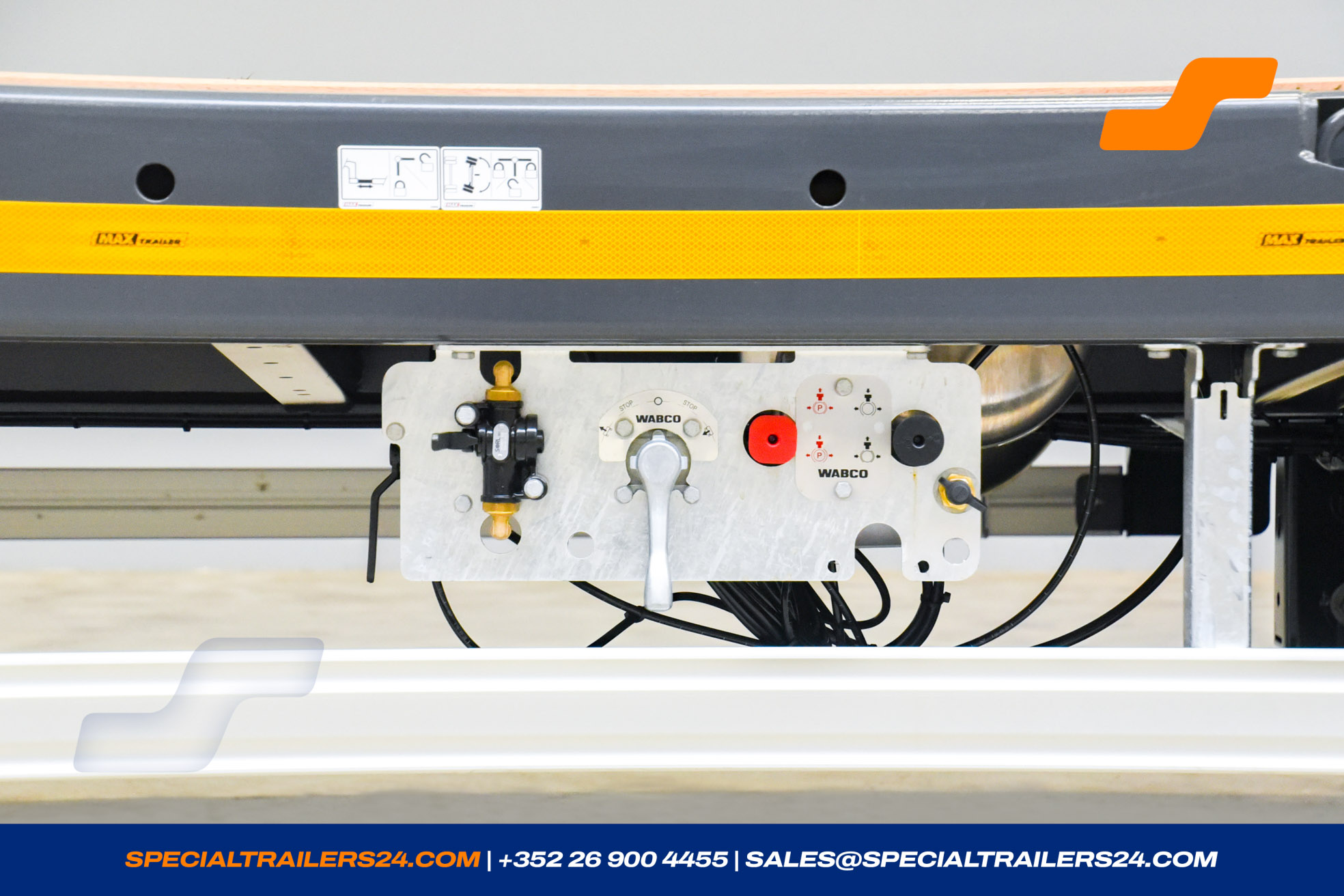

- 1st Lift axle on the front axle with control by TEBS-E depending on the current axle load (± 69kg)
-
1 pair of alu ramps VFR 120 ± 2350 x 450 x 120 (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 9500 daN (Kp)
by axle distance 2.0 meter : 12000 daN (Kp)
single axle 5500 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 55 kg (± 110kg) - Holder for alu-ramps, across, behind the axle bogie. (± 88kg)
- Reflective tape red/white for the extension of the loading platform.
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
- Codice d'immatricolazione
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111519
- Reference MAX100-N-3A-9.30
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 08/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000349
- Steering Type Friction
