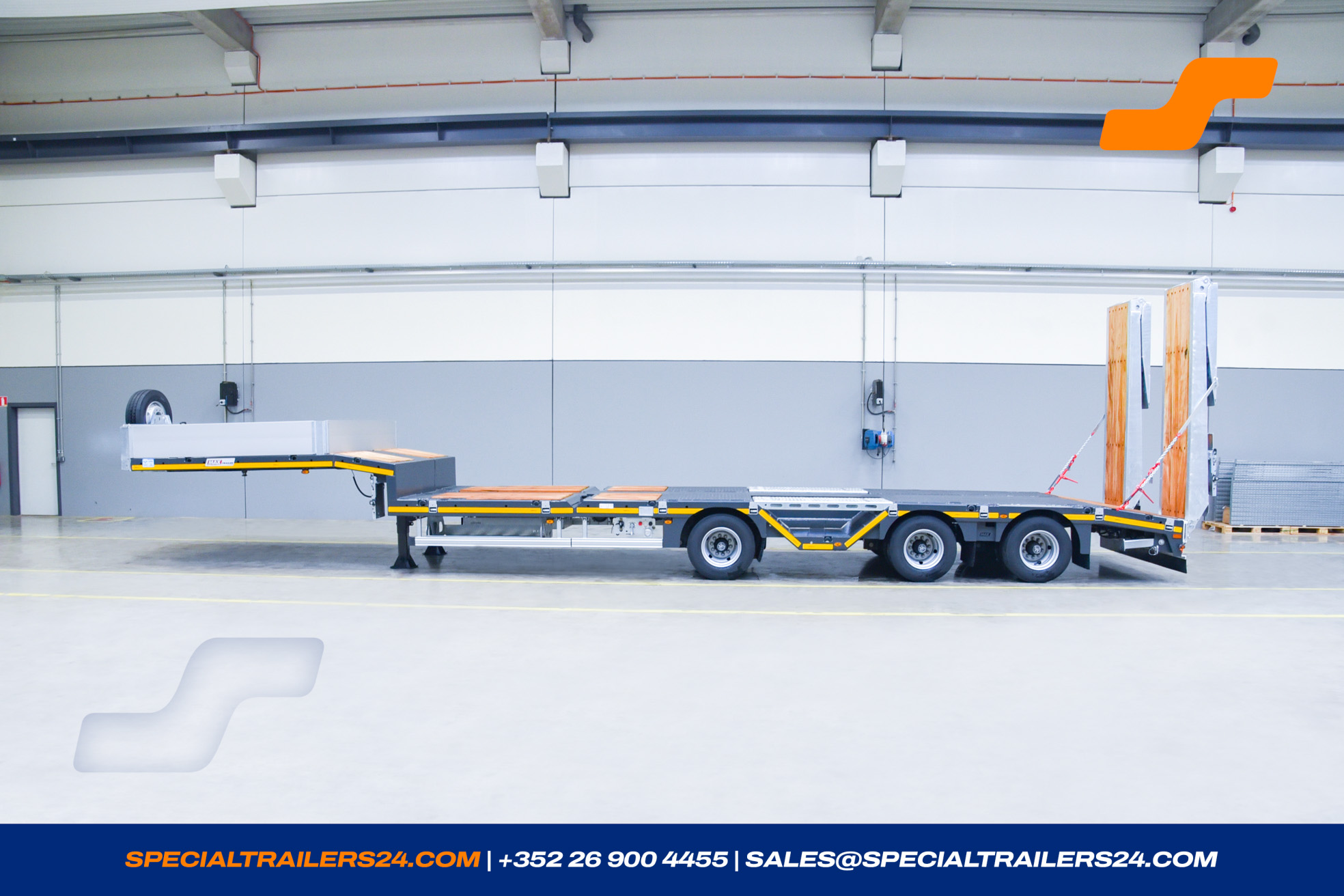

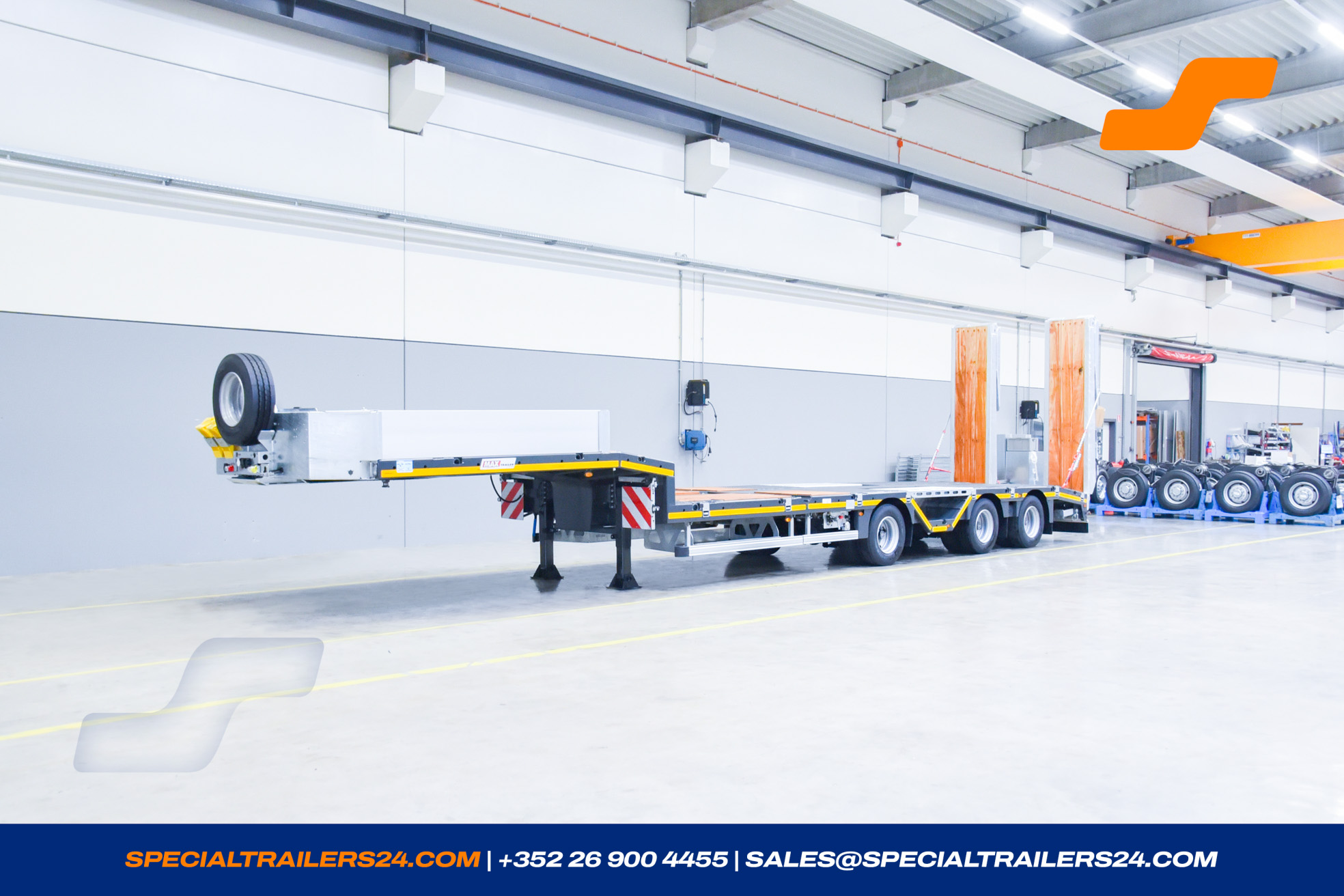

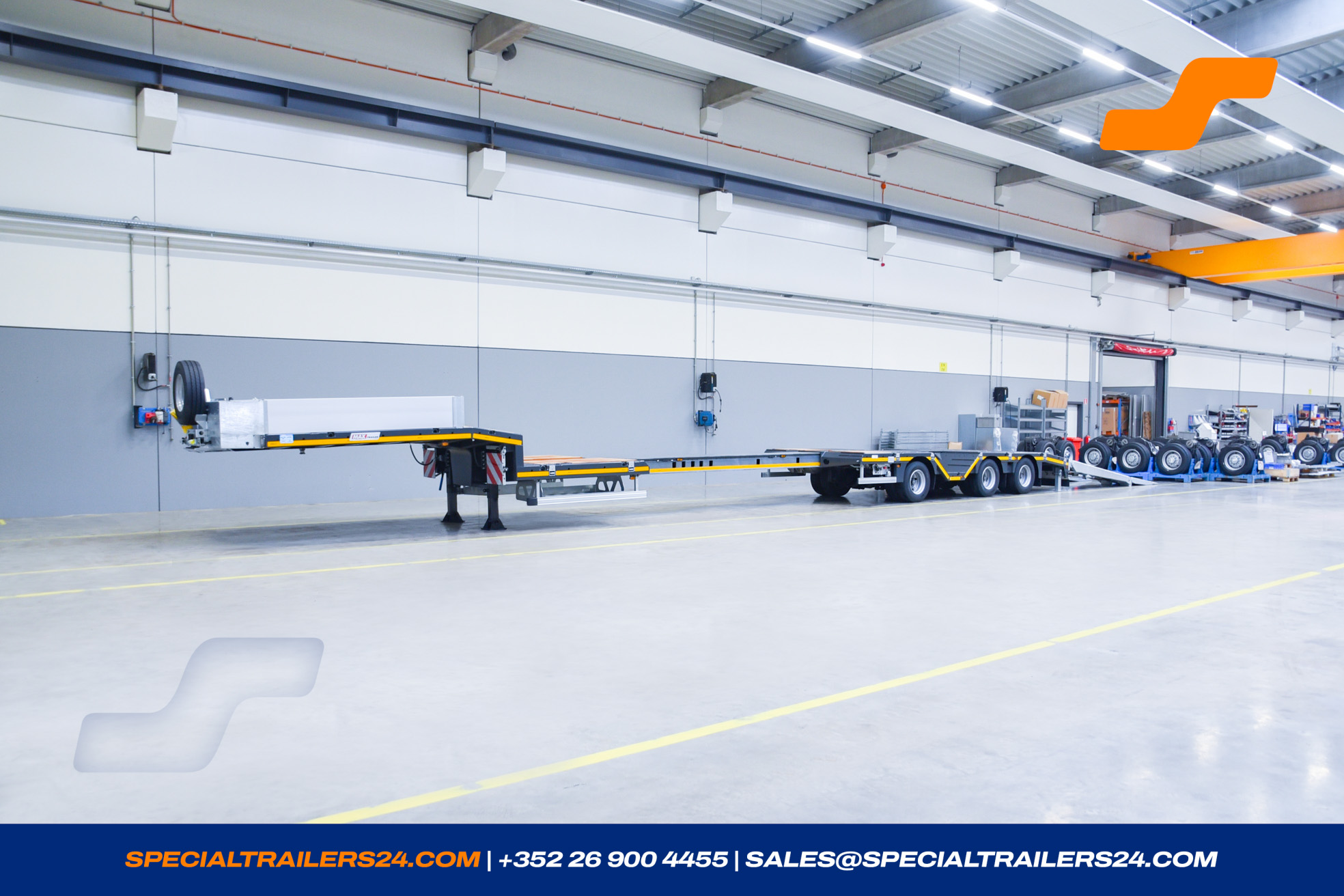

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111269
- Reference MAX100-N-3-9.30-2RM
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9826 kg |
| Payload | 39674 kg |
Dimensions
| Fifth wheel height loaded | 950 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 2350/1360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

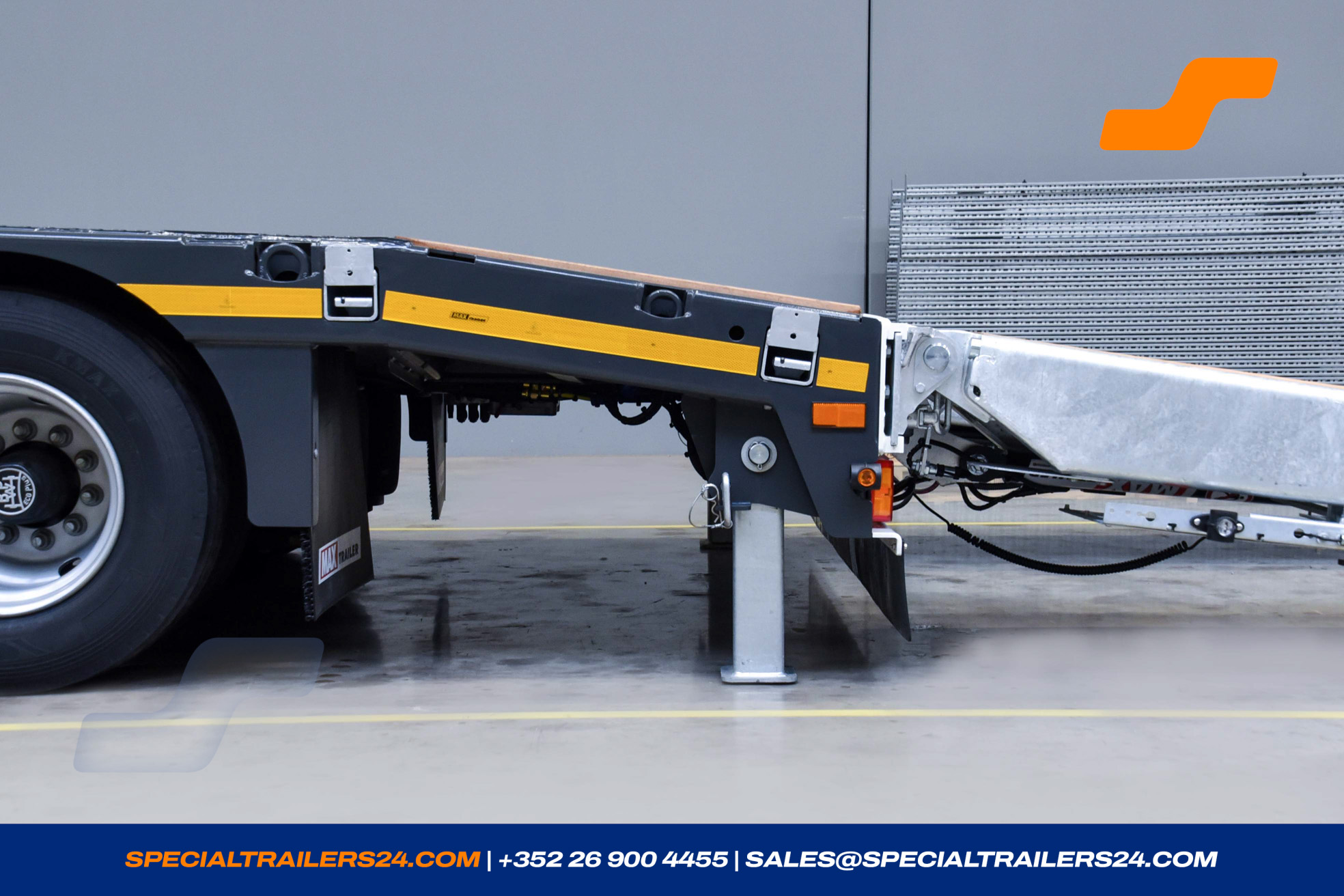

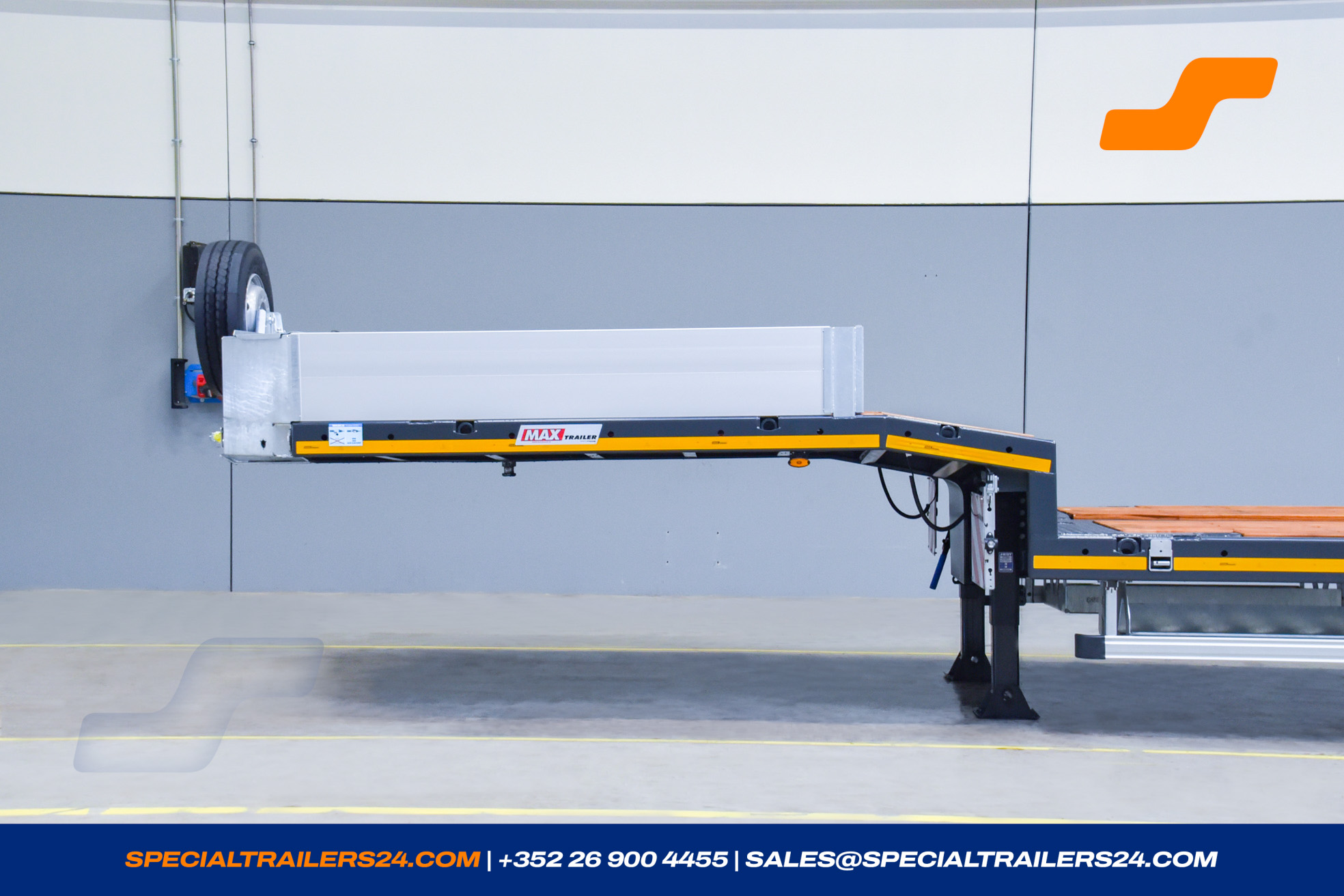

Gooseneck
1 x Gooseneck : MAX-3.800 (DSR 2100/ASH 950)X
Gooseneck with Hardwood cover thickness 30 mm.
Gooseneck at rear in straight version.
3 pairs of lashing rings (LC 5 000 daN).

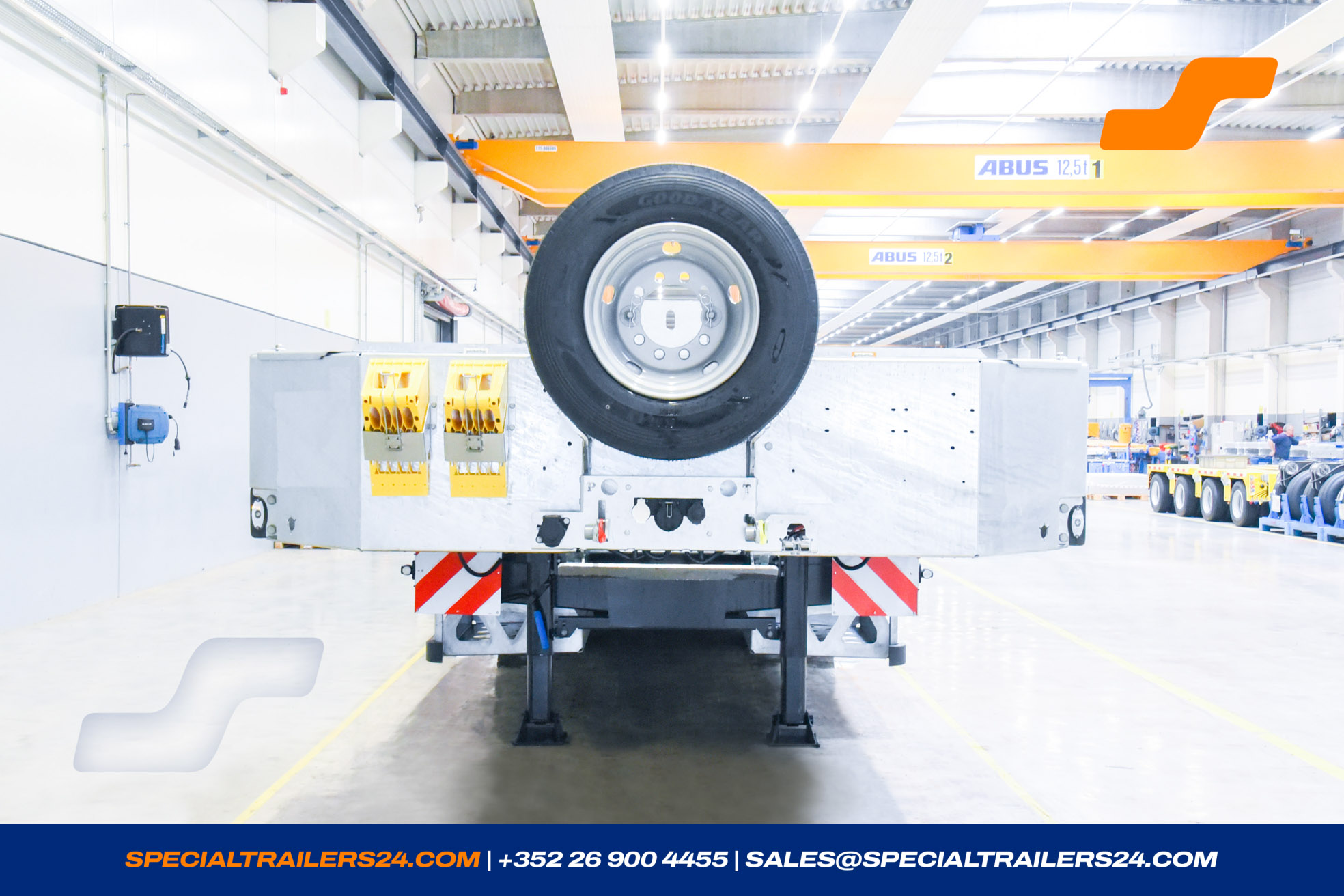

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier on the headboard (± 5kg).

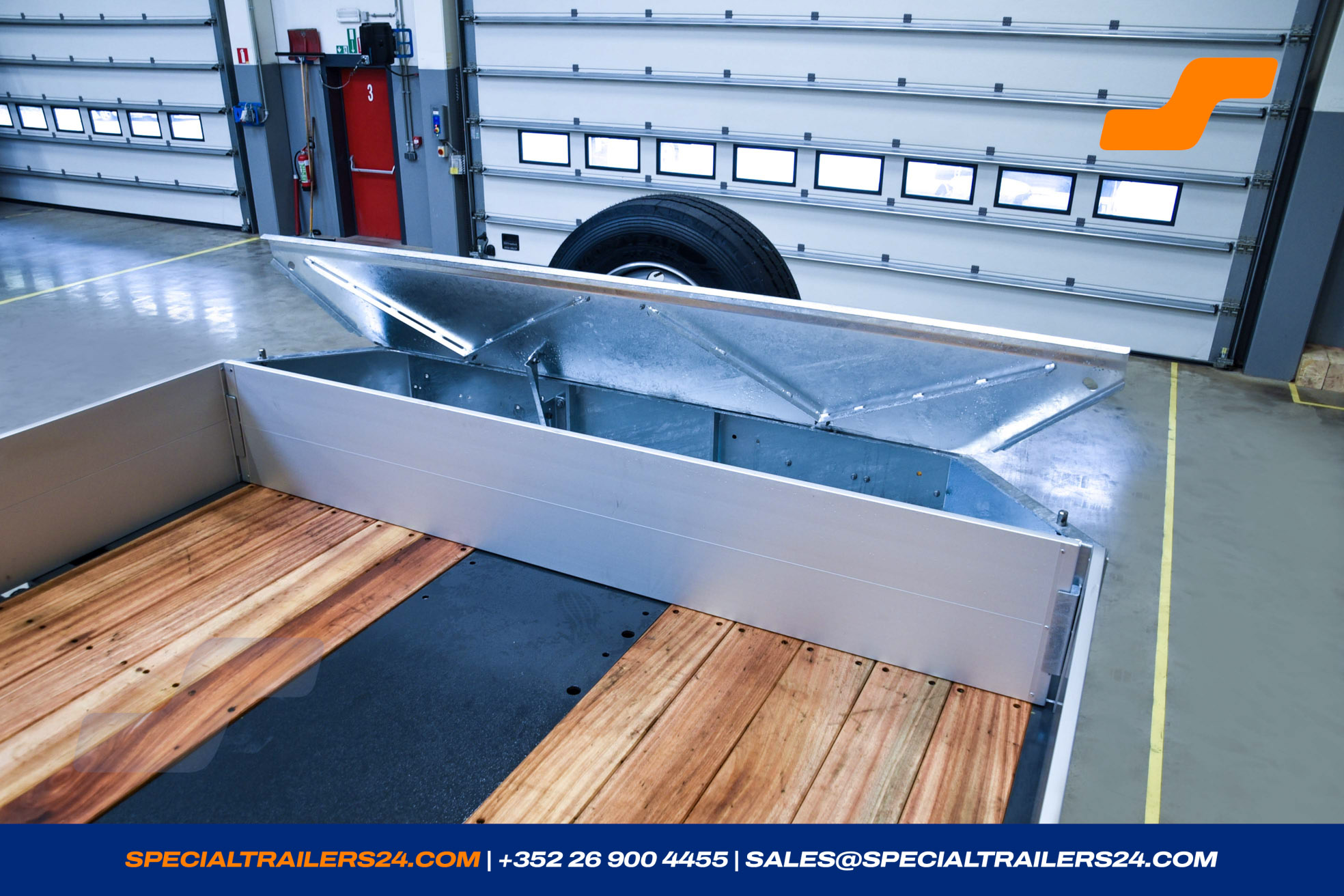

- 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
Loading deck
Loading platform
1 x Loading platform : MAX100-N-3-9.30-17.5-2.54-RM

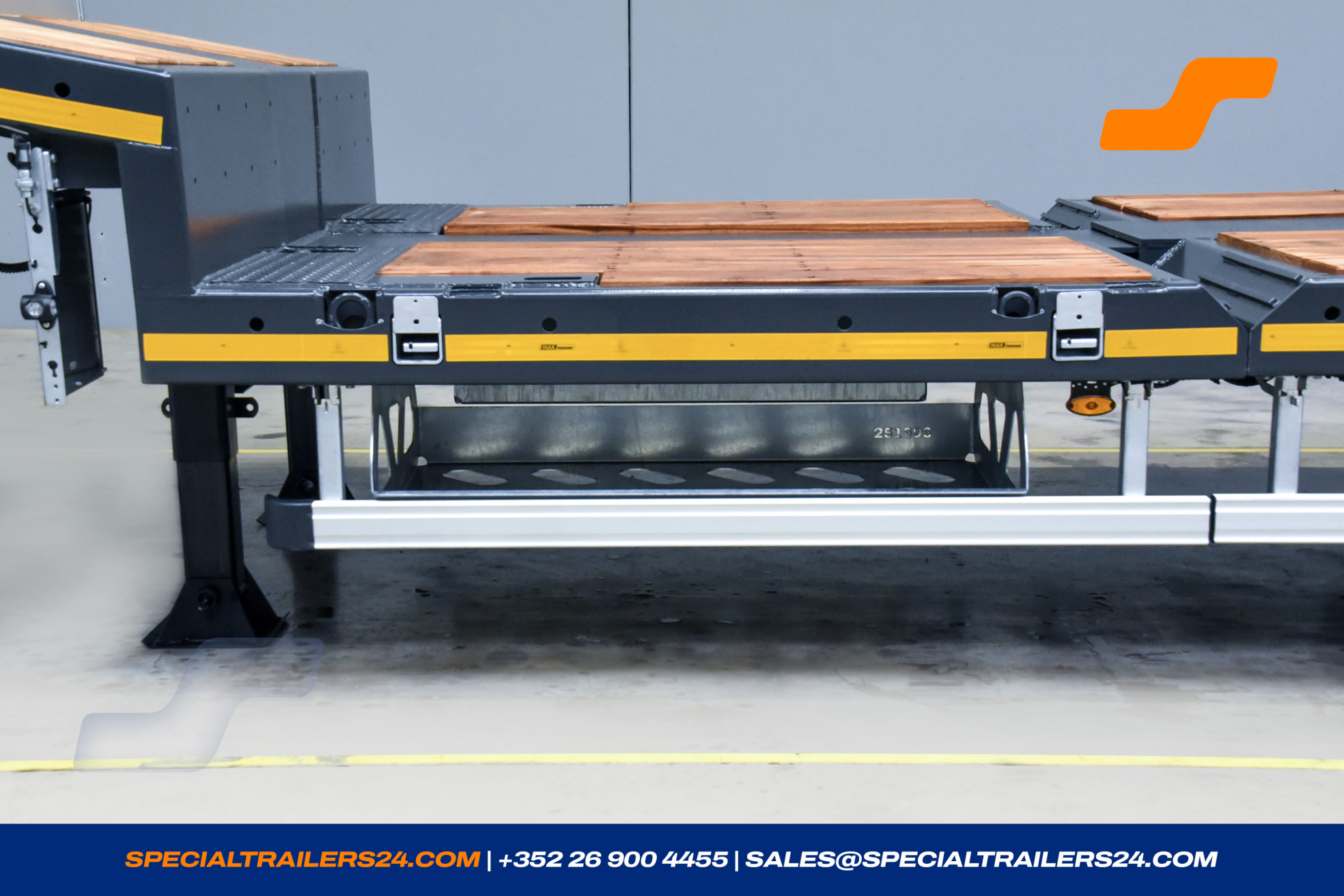

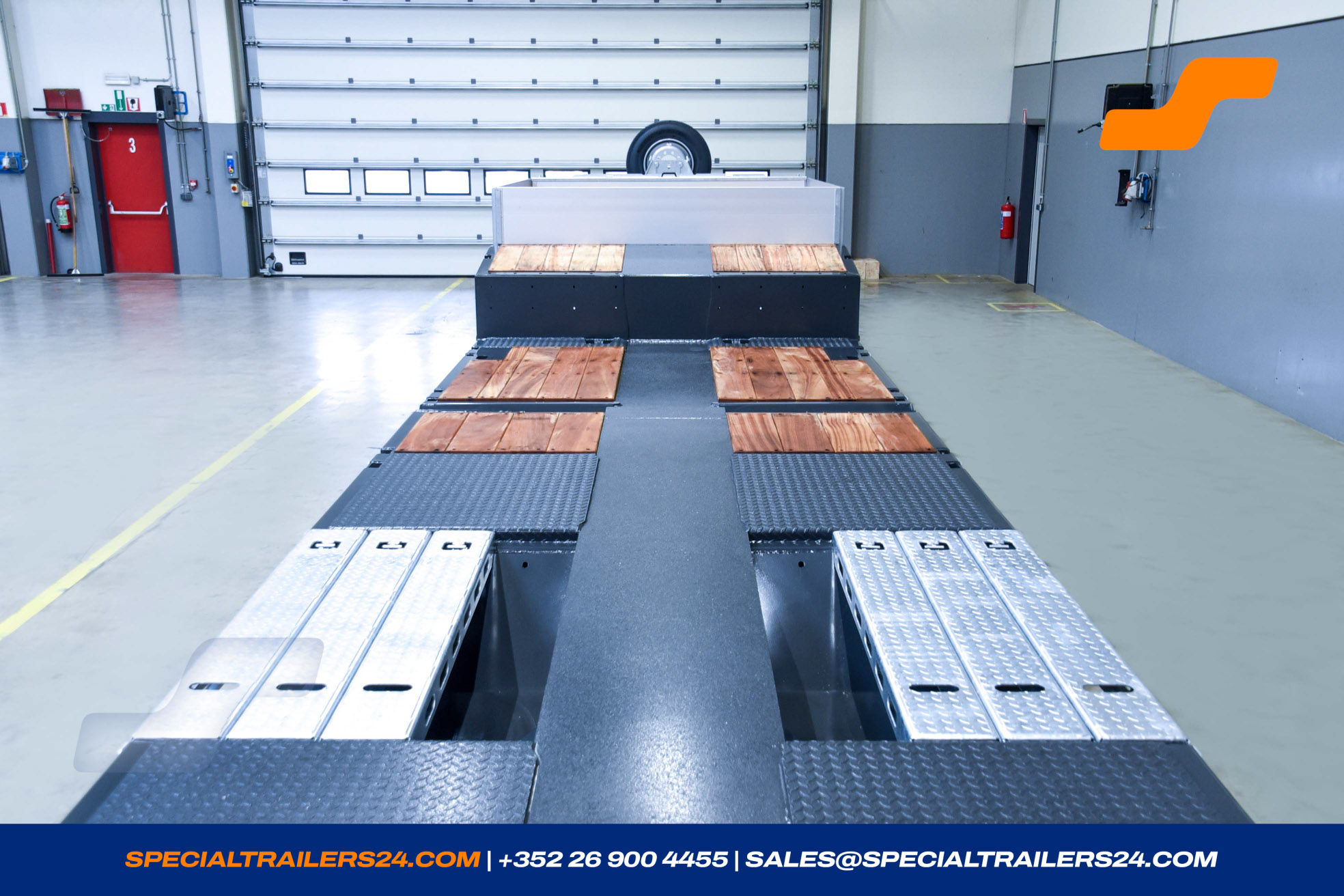

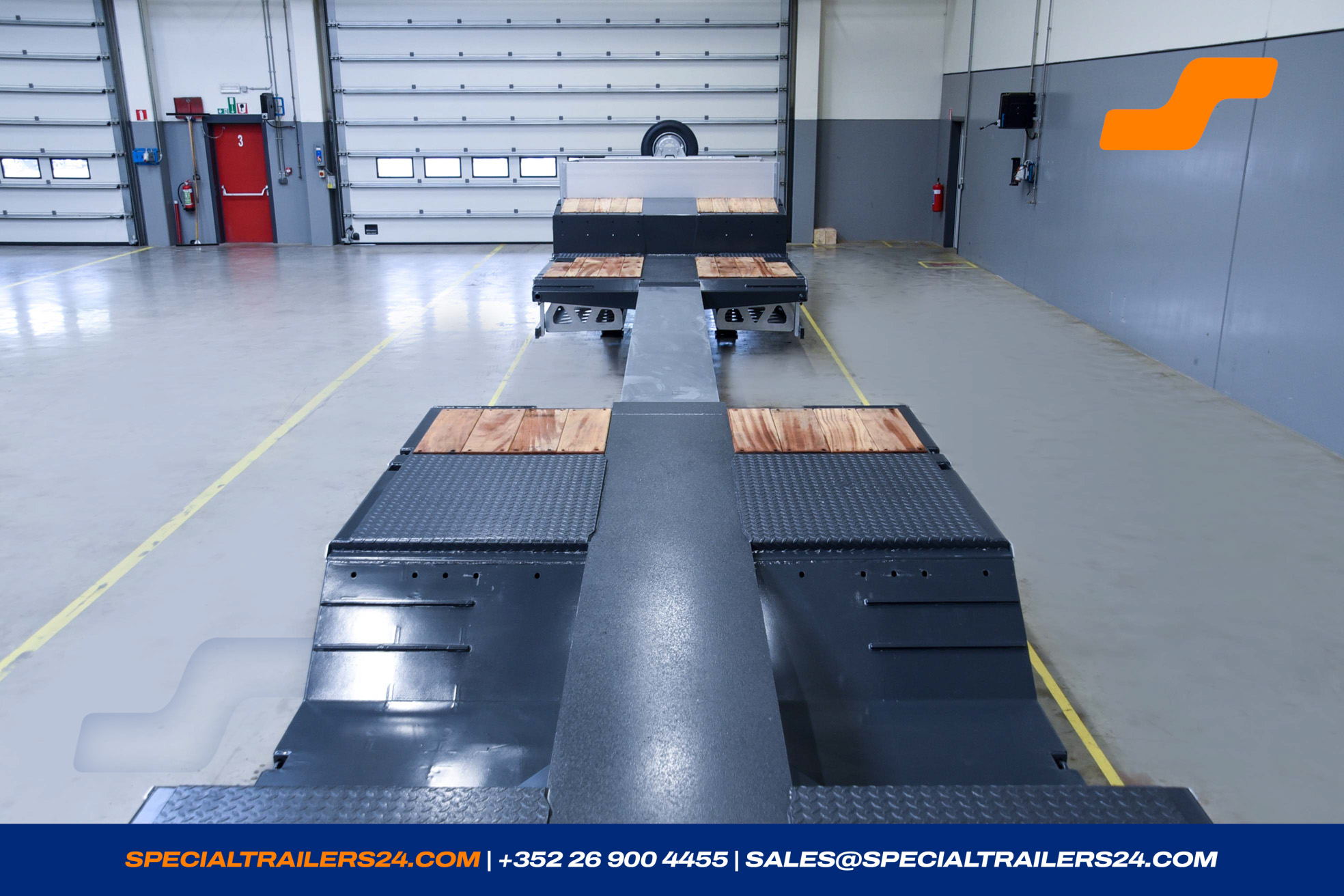

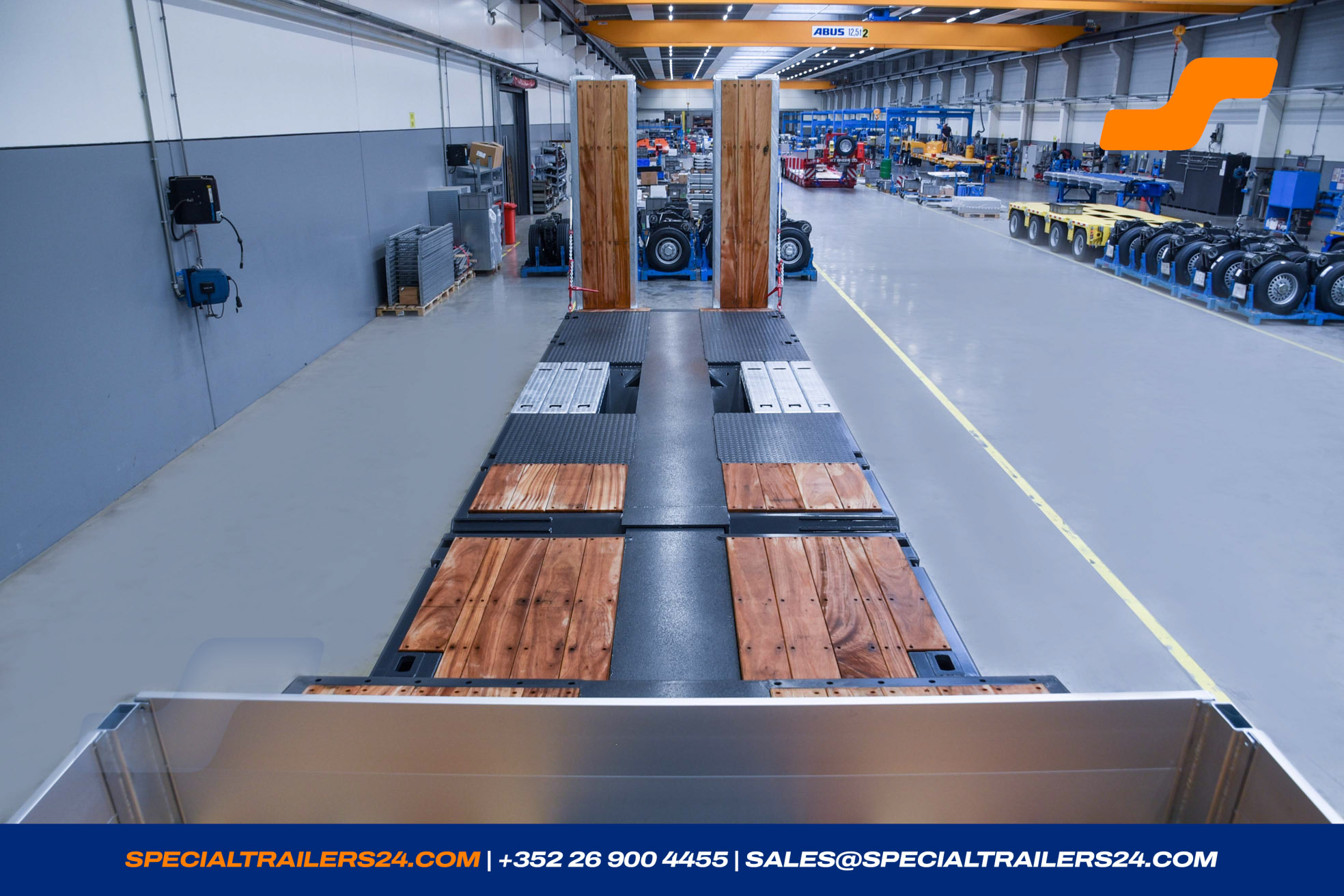

1 pair of fixed wheel recesses in front of the axles, approximately 2.610 x 970 x 400 mm (L x W x H).
Wheel recesses with square iron ledges of 15 x 15 mm, as well as extensions in the lower area.

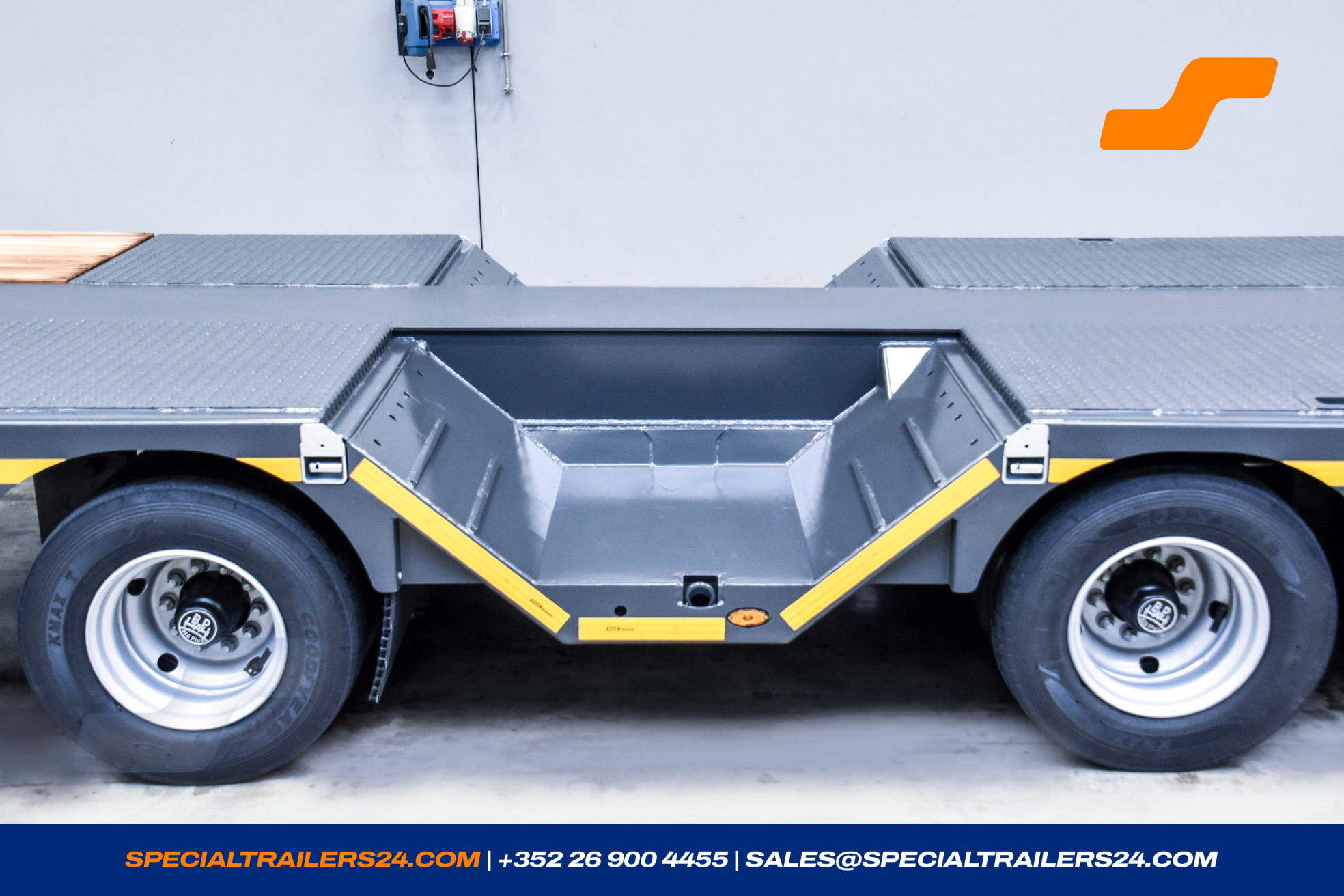

Between the 1st and 2nd axle, a pair of fixed wheel recesses, approximately 1.610 x 970 x 400 mm (L x W x H).

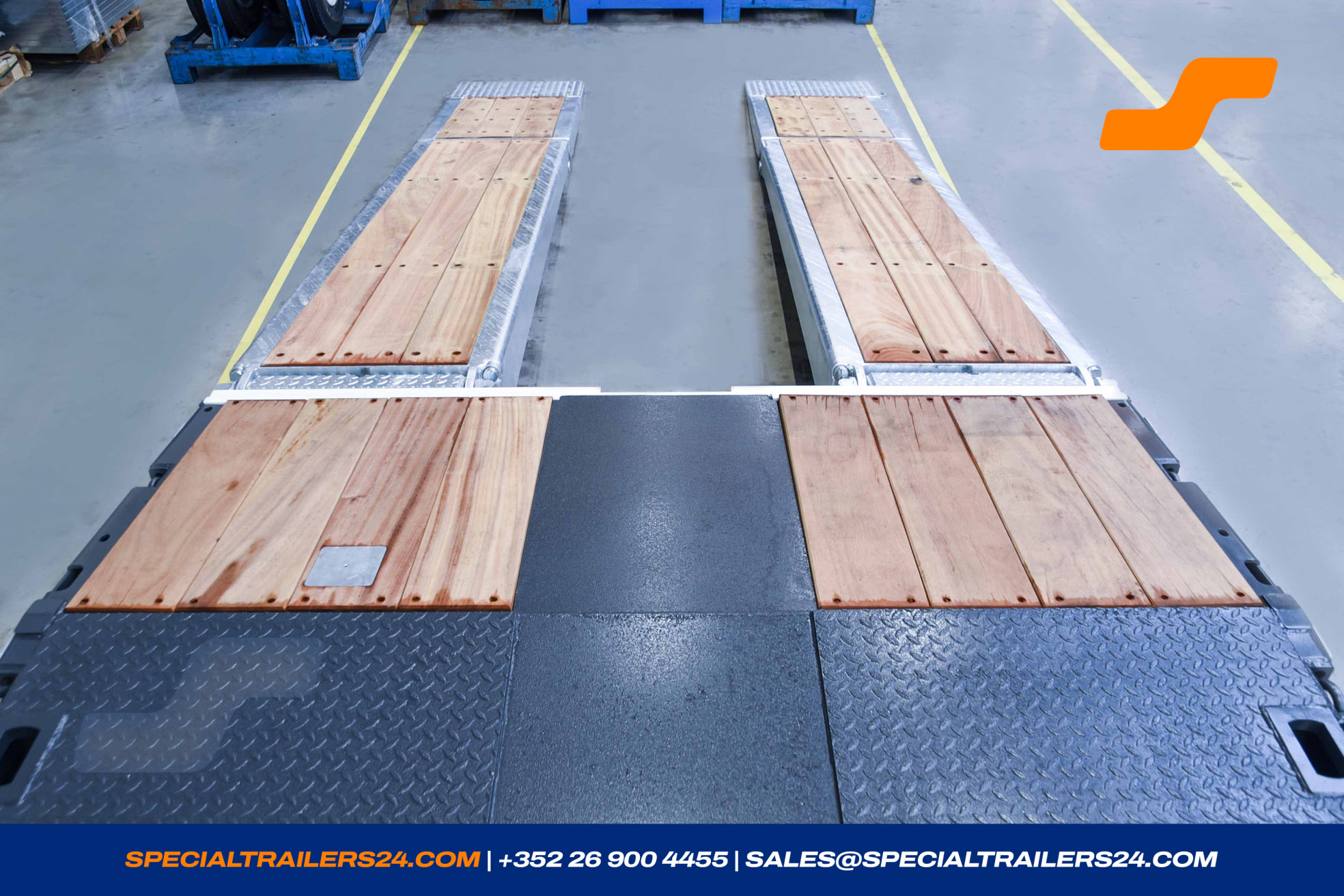

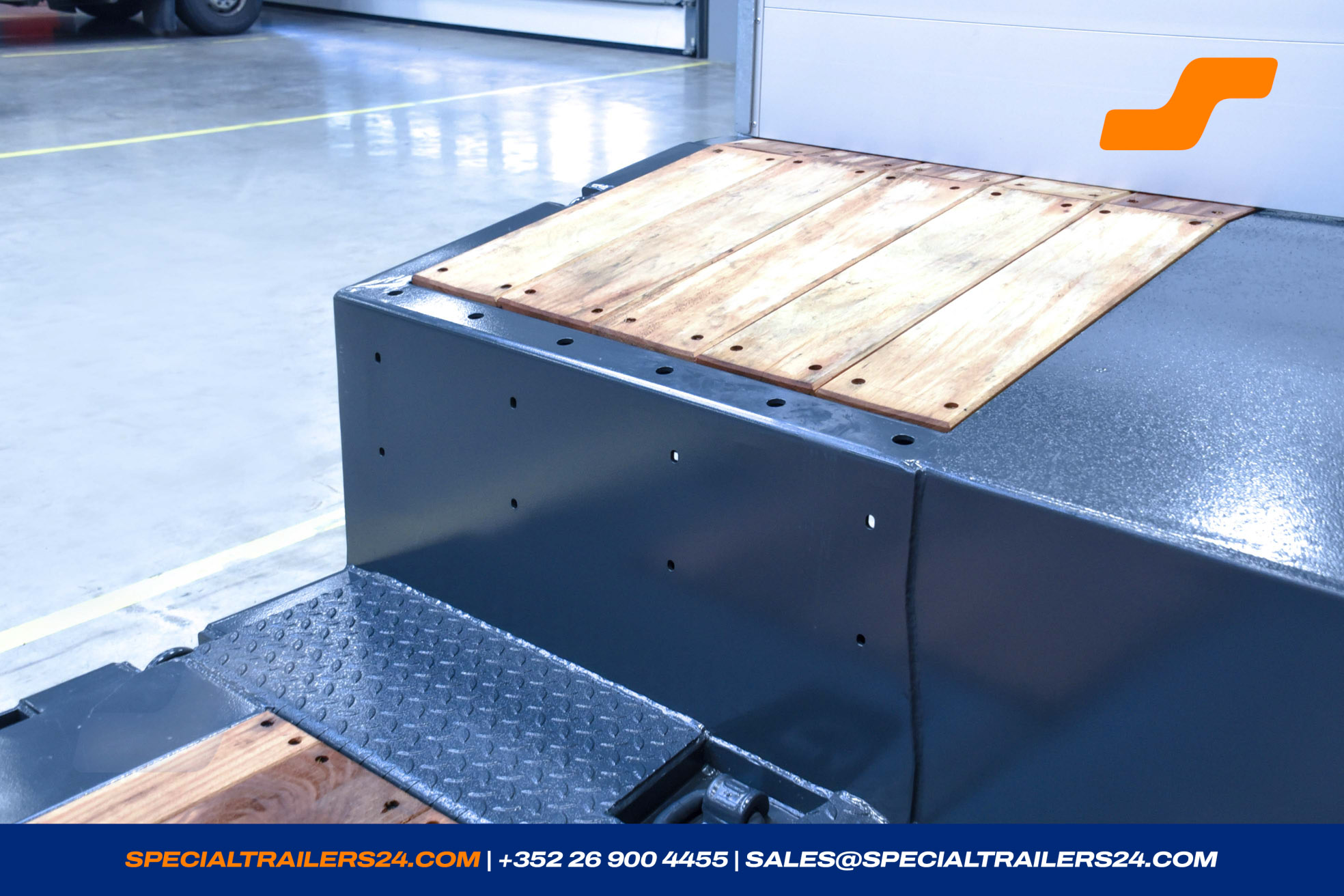

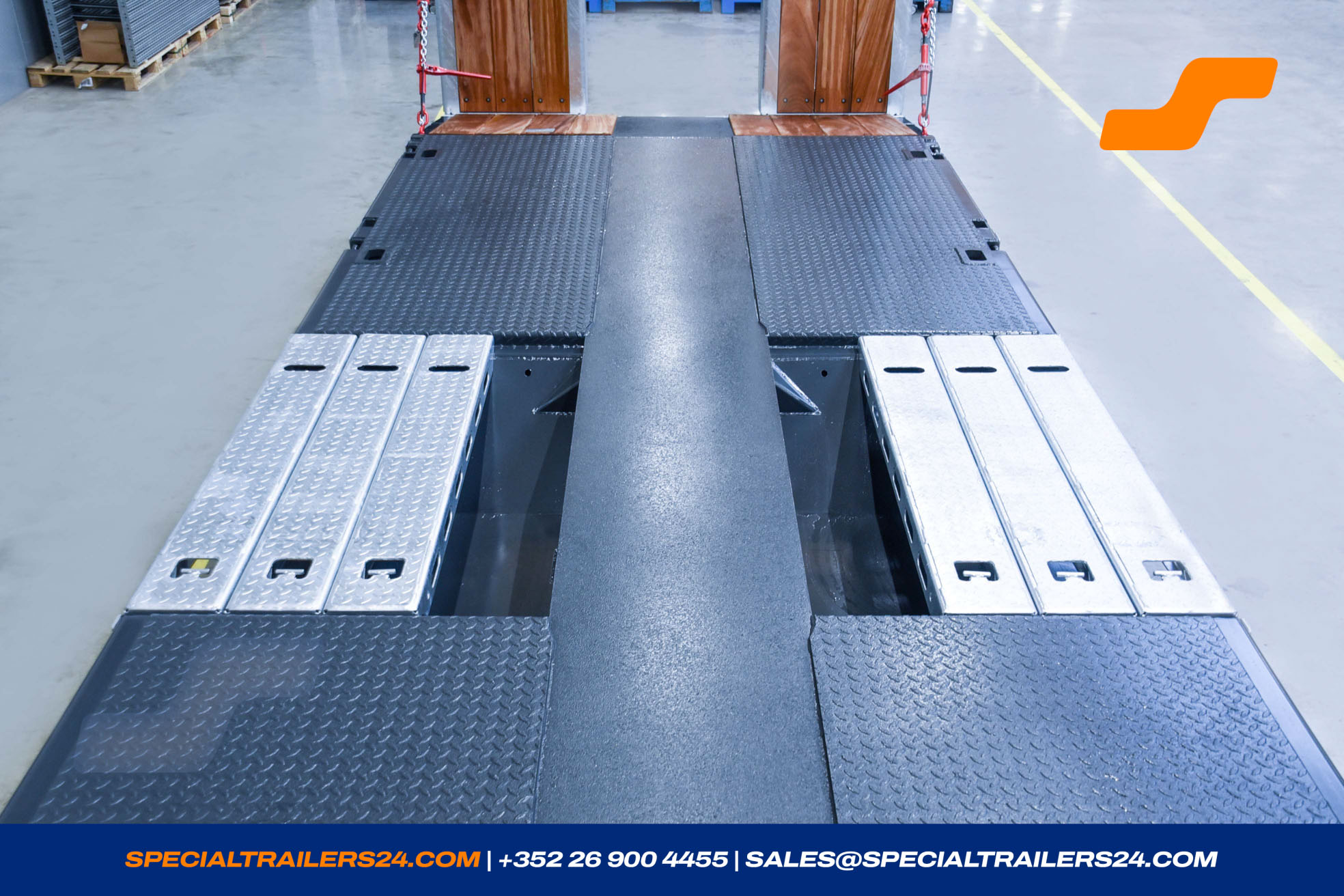

Includes a 3-piece, removable, galvanized cover over the wheel recesses (W 670 mm - max. point load of 5 tons per piece).
1 pair of lashing rings at the front of the loading area (LC 10,000 daN).
5 pairs of foldable outward lashing rings (LC 5,000 daN).
3 pairs of foldable outward lashing rings (LC 10,000 daN).
Cutouts in the outer frame of the loading area for attaching tension straps (LC 2,000 daN).
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

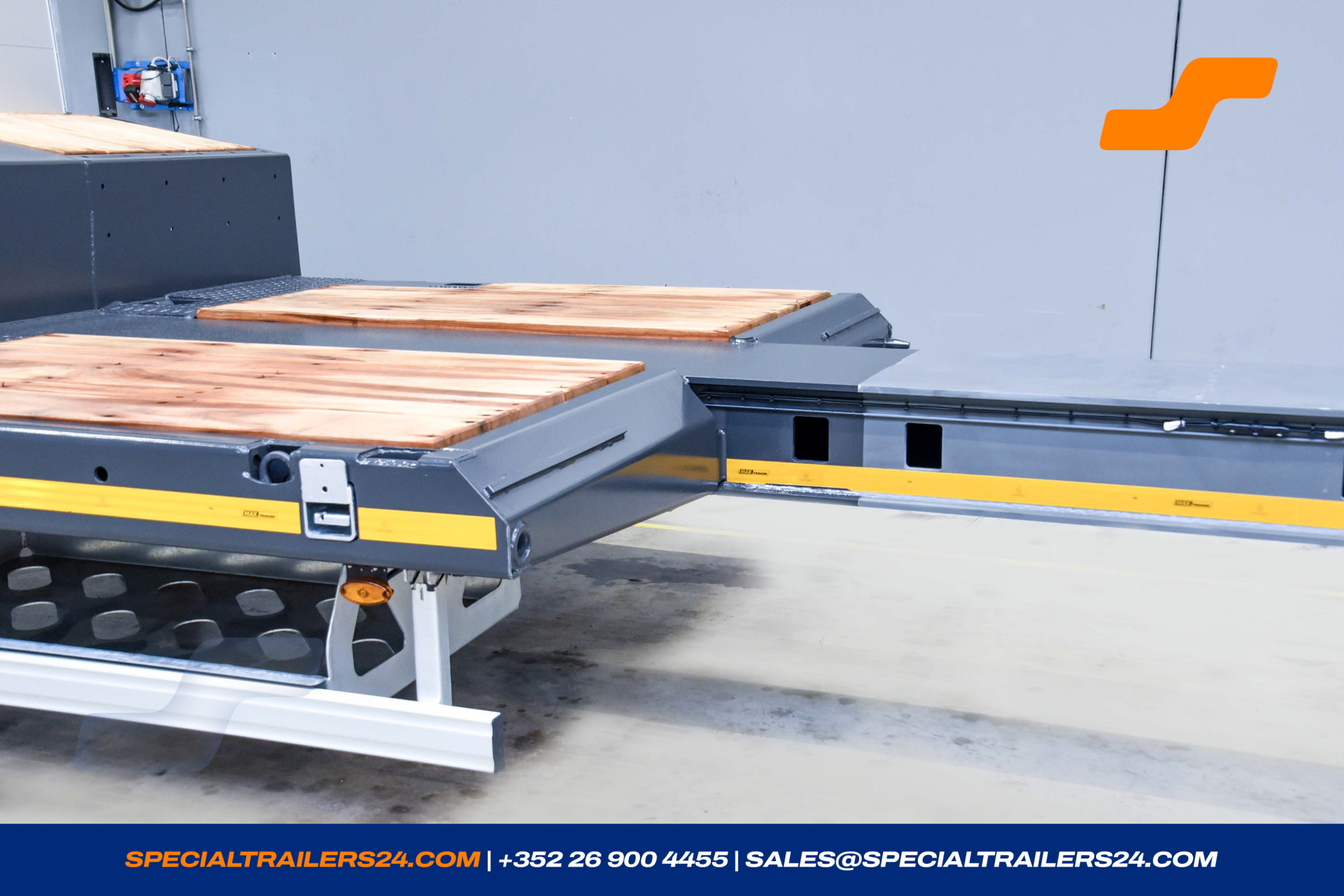

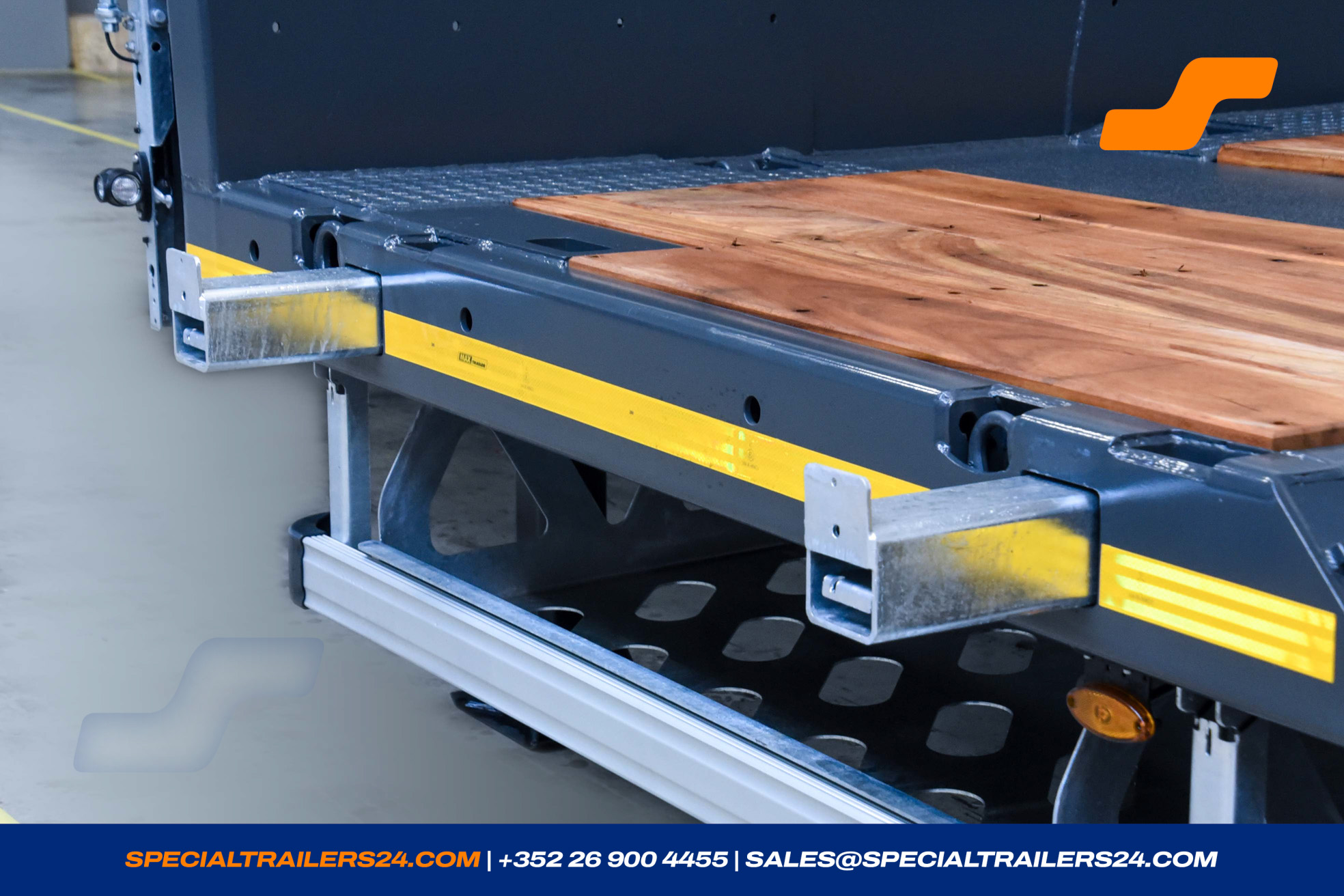

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
- Holder for one beacon light at the rear of the trailer.

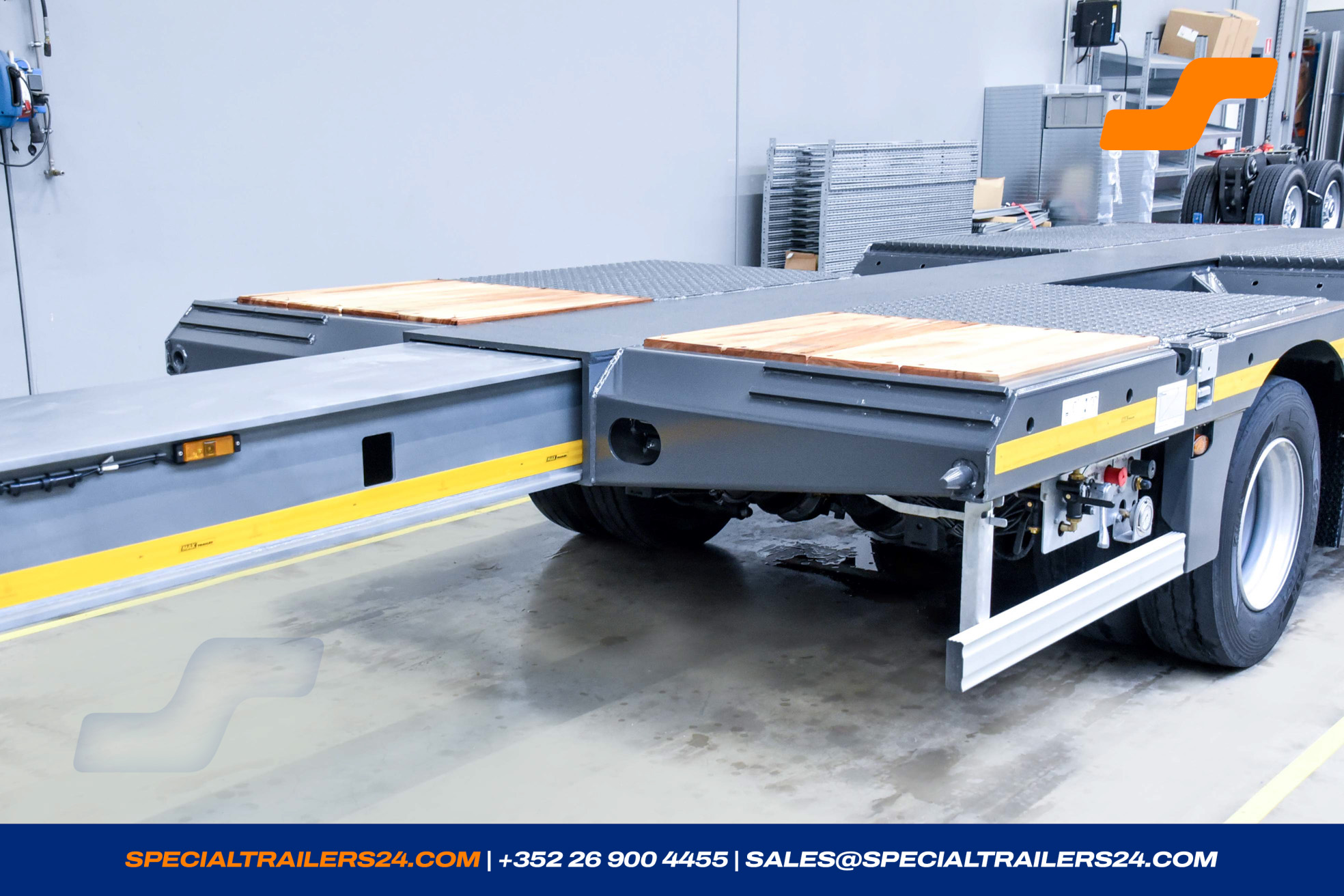

- Profile displaceable as hook-on device for alu-ramps at the rear.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

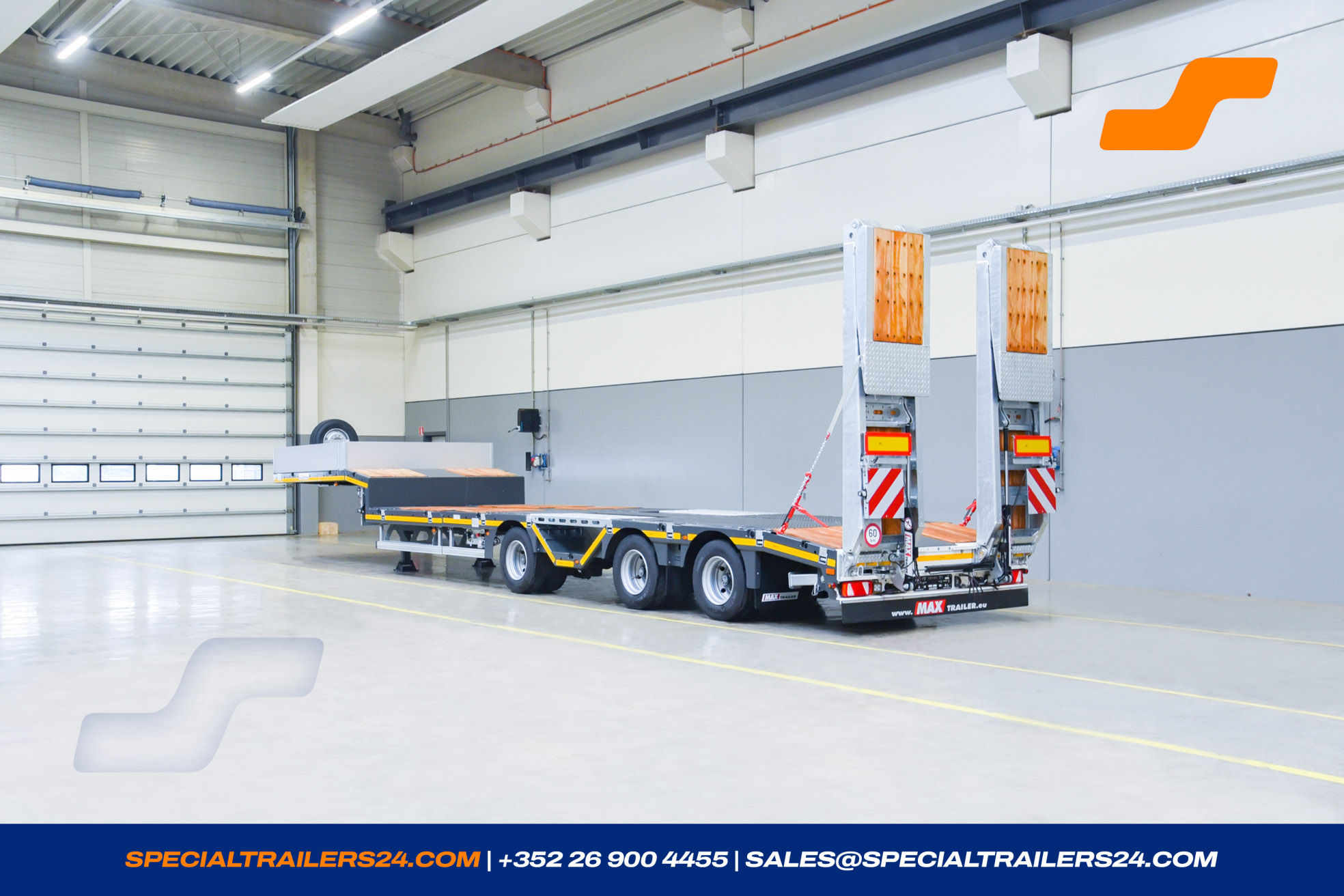

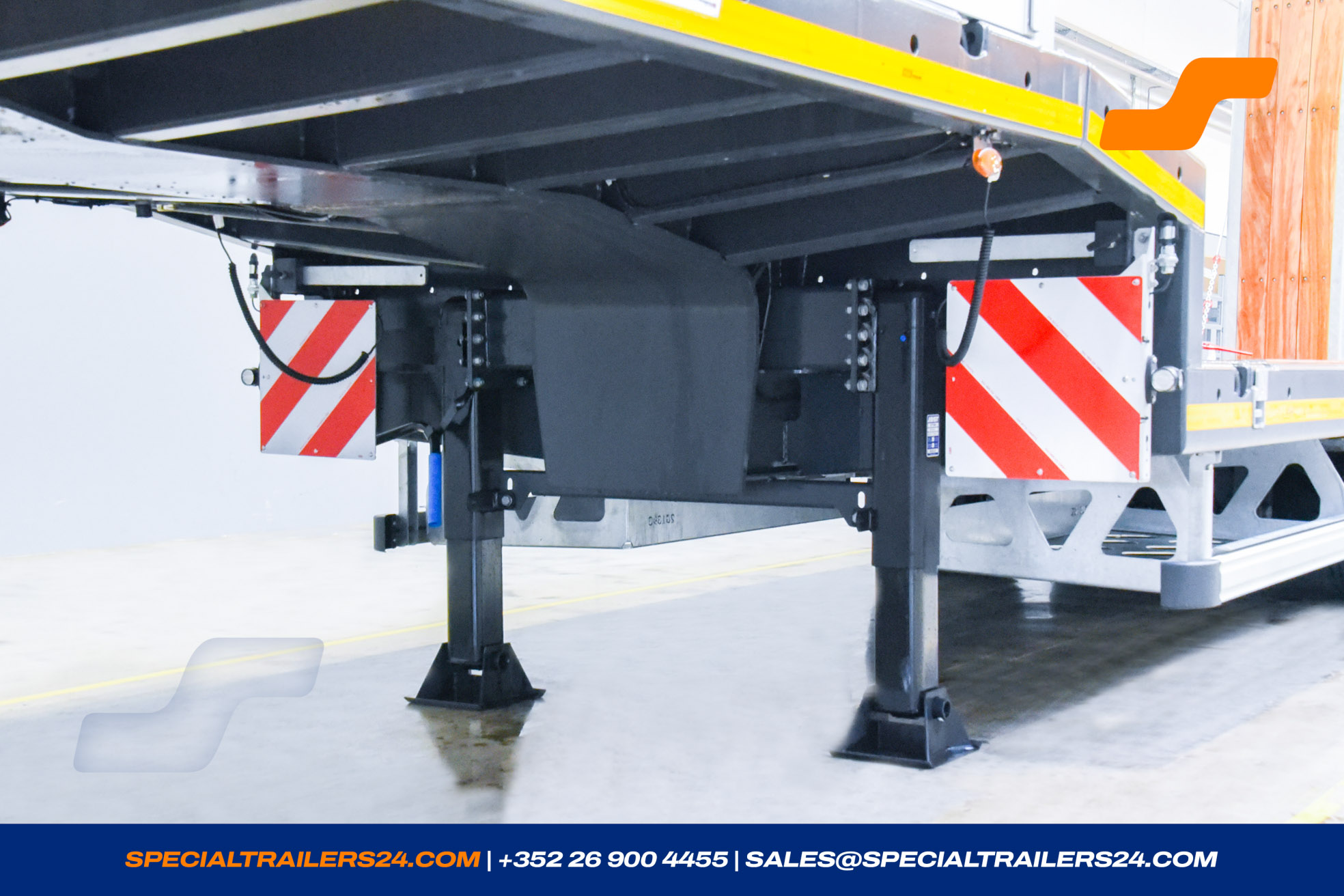

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- 1 LED flashing beacon, provided separately.
- On the warning boards a holder to put a flashing beacon.

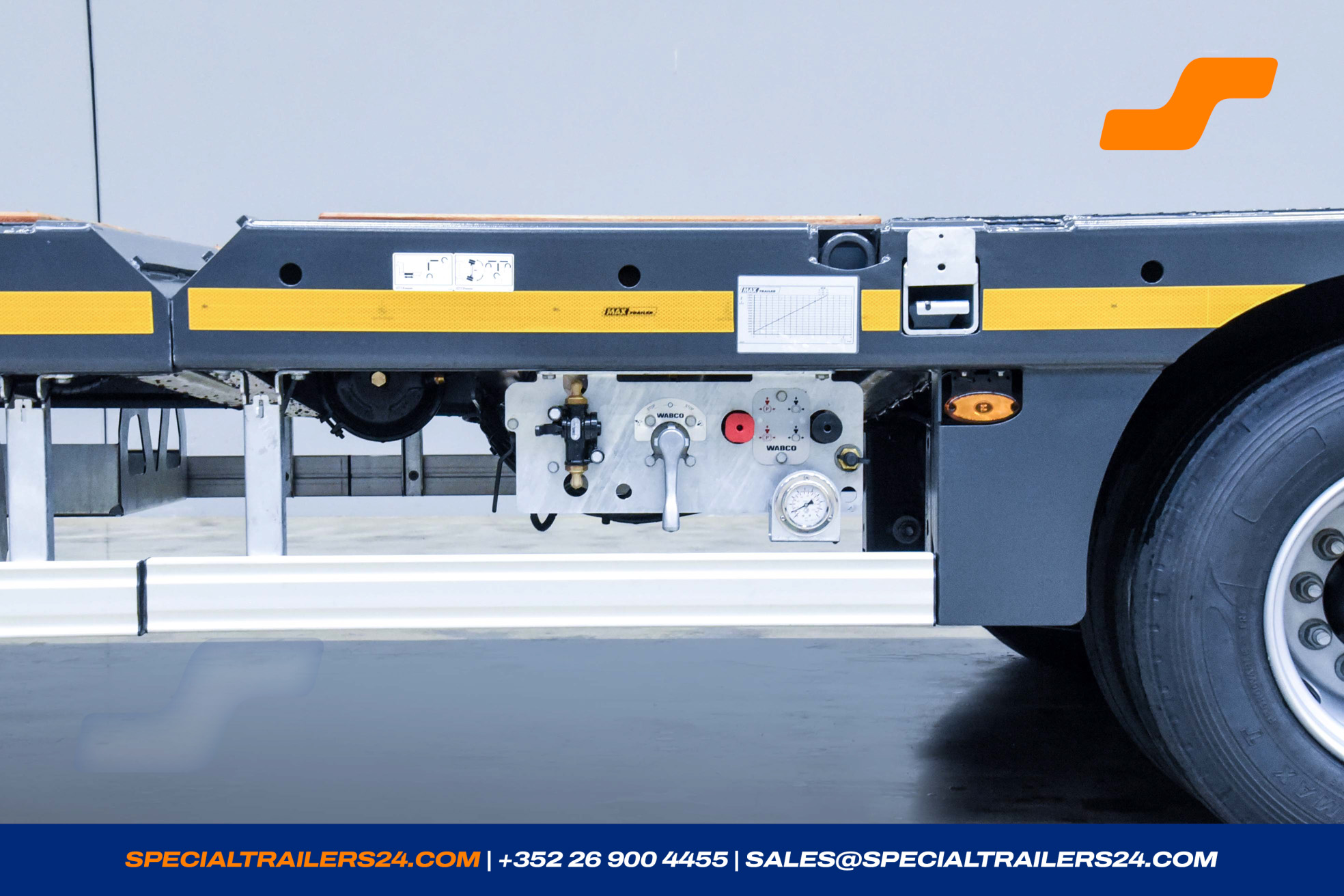

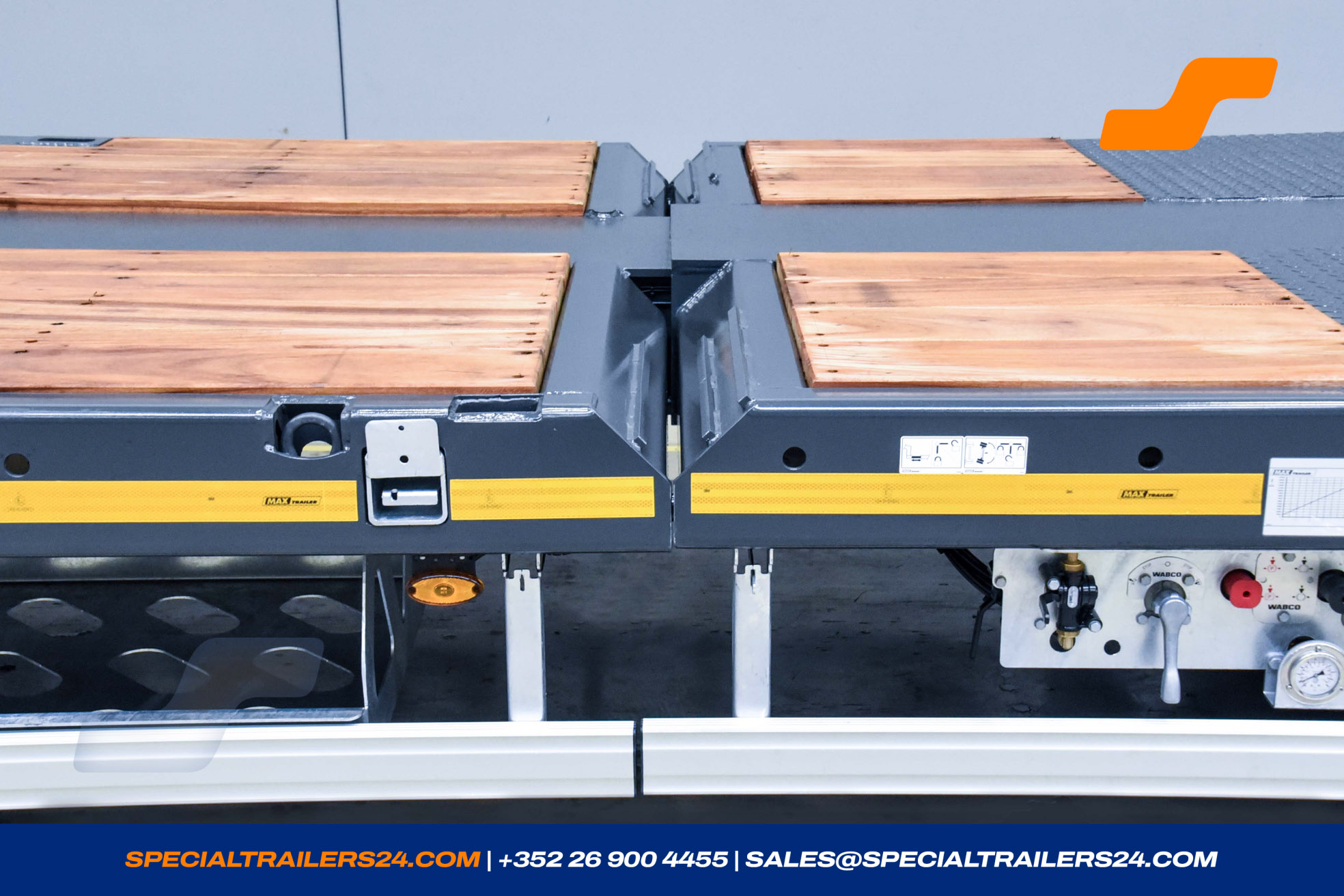

- Load manometer for determining the axle load, including load diagram.
- 3 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 10kg)
- 5 pairs of galvanised stakes ±100 x 50 mm, height 1000 mm (± 110 kg).
-
Hardwood timber for the outriggers. (± 108kg)
The maximum permissible point load on an area of 200x200mm is 3.5to. - 3 pairs of additional, removable, galvanised covers over the wheel recess - max. point load 3.5 to / pc. (± 185 kg).
-

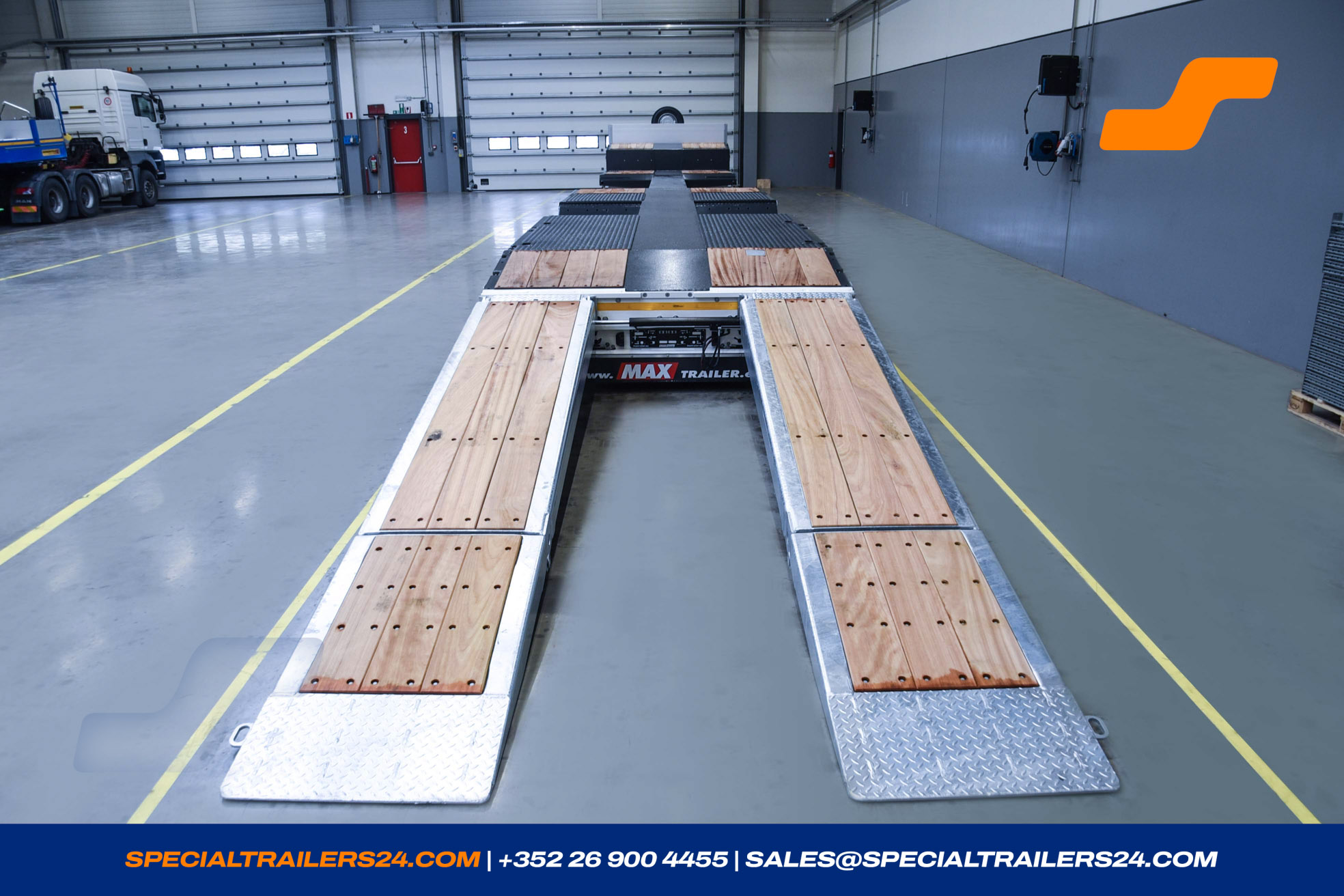

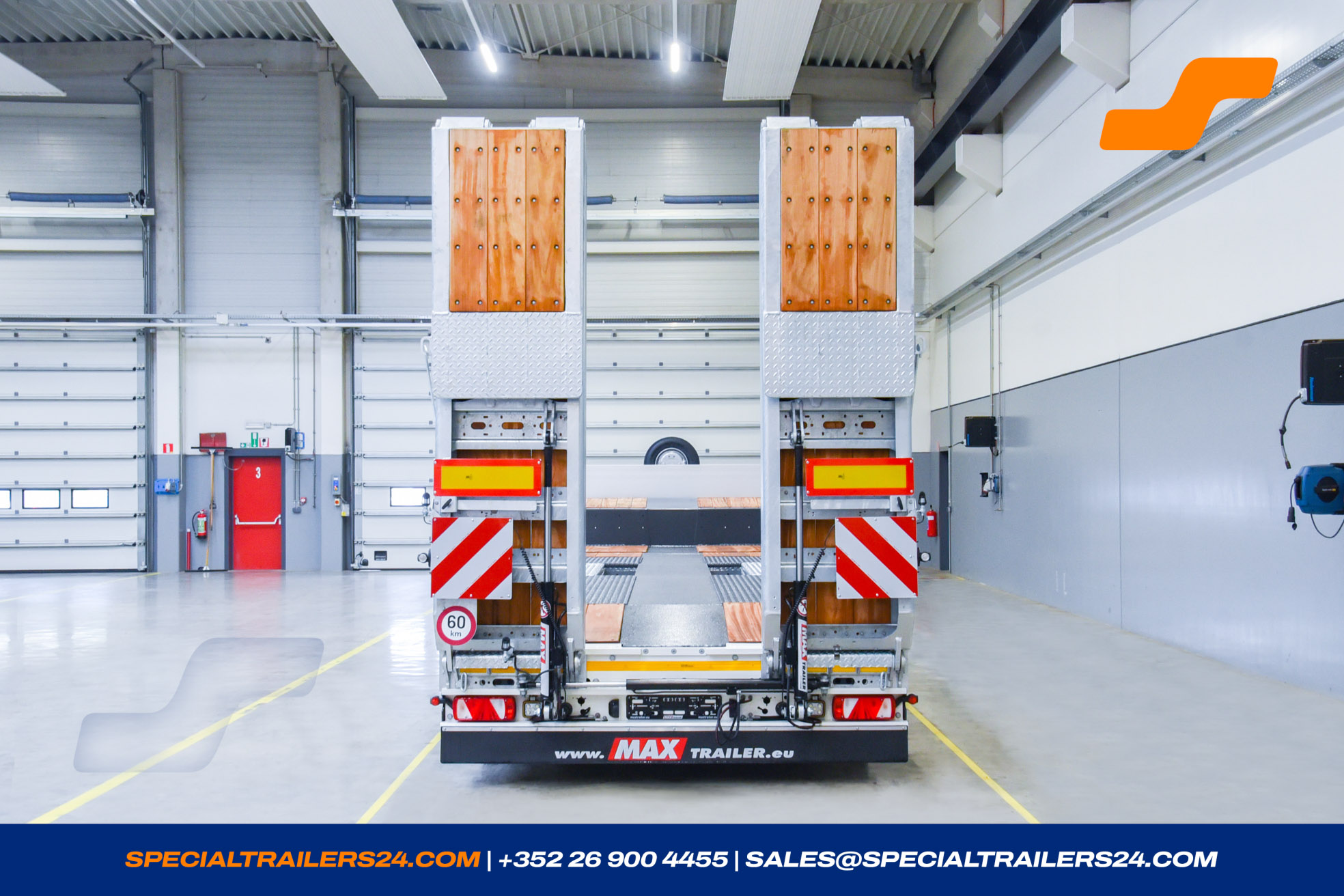

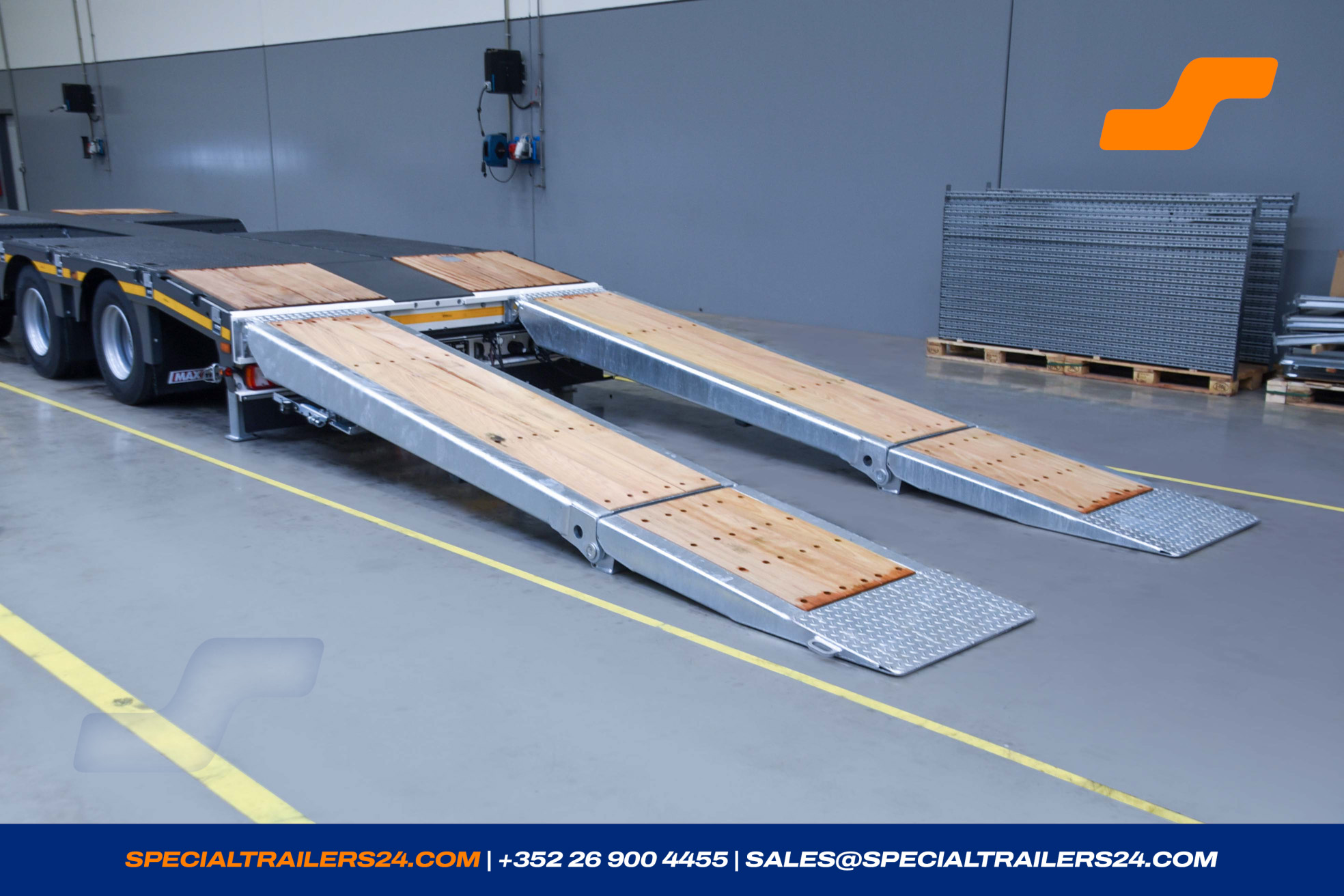

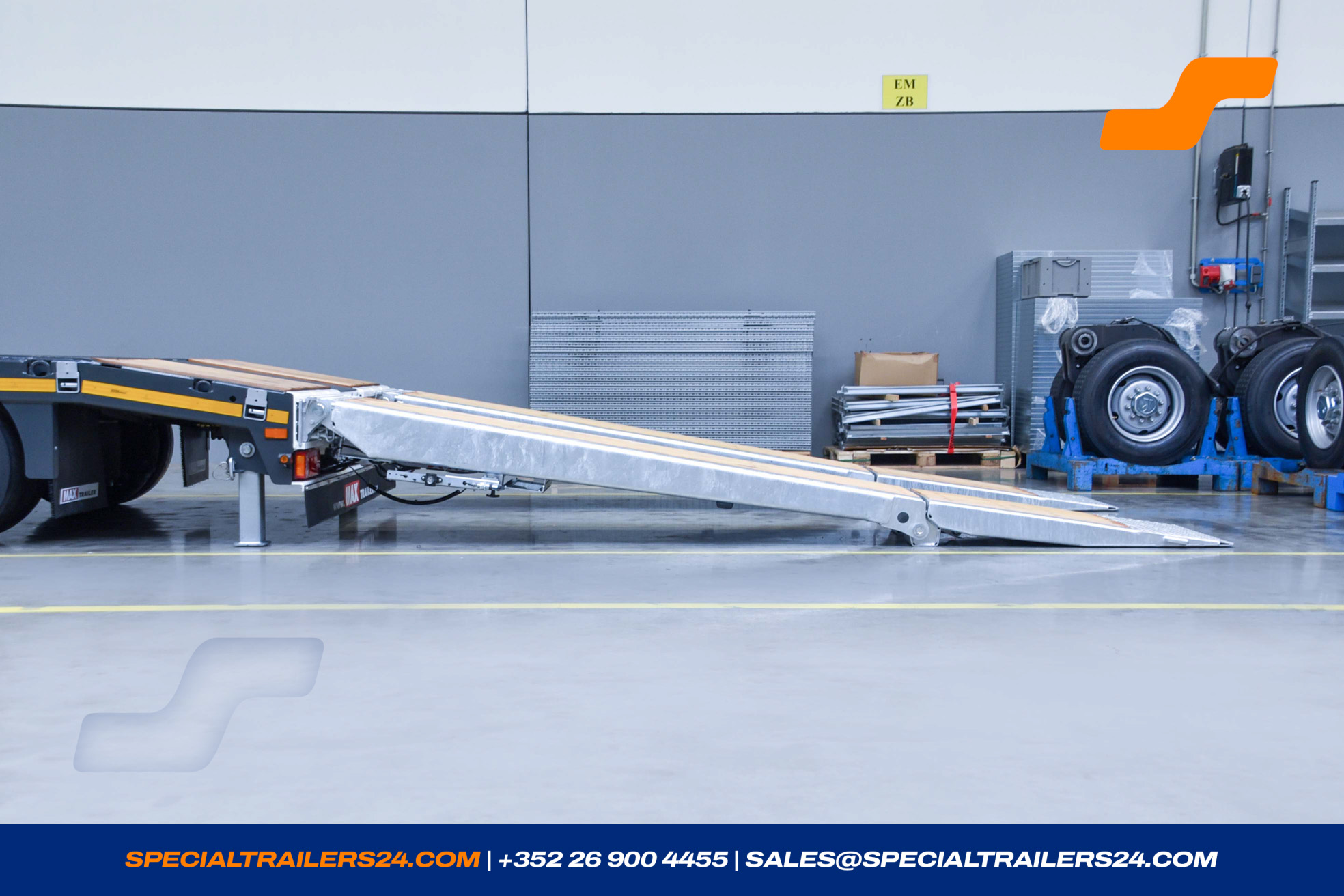

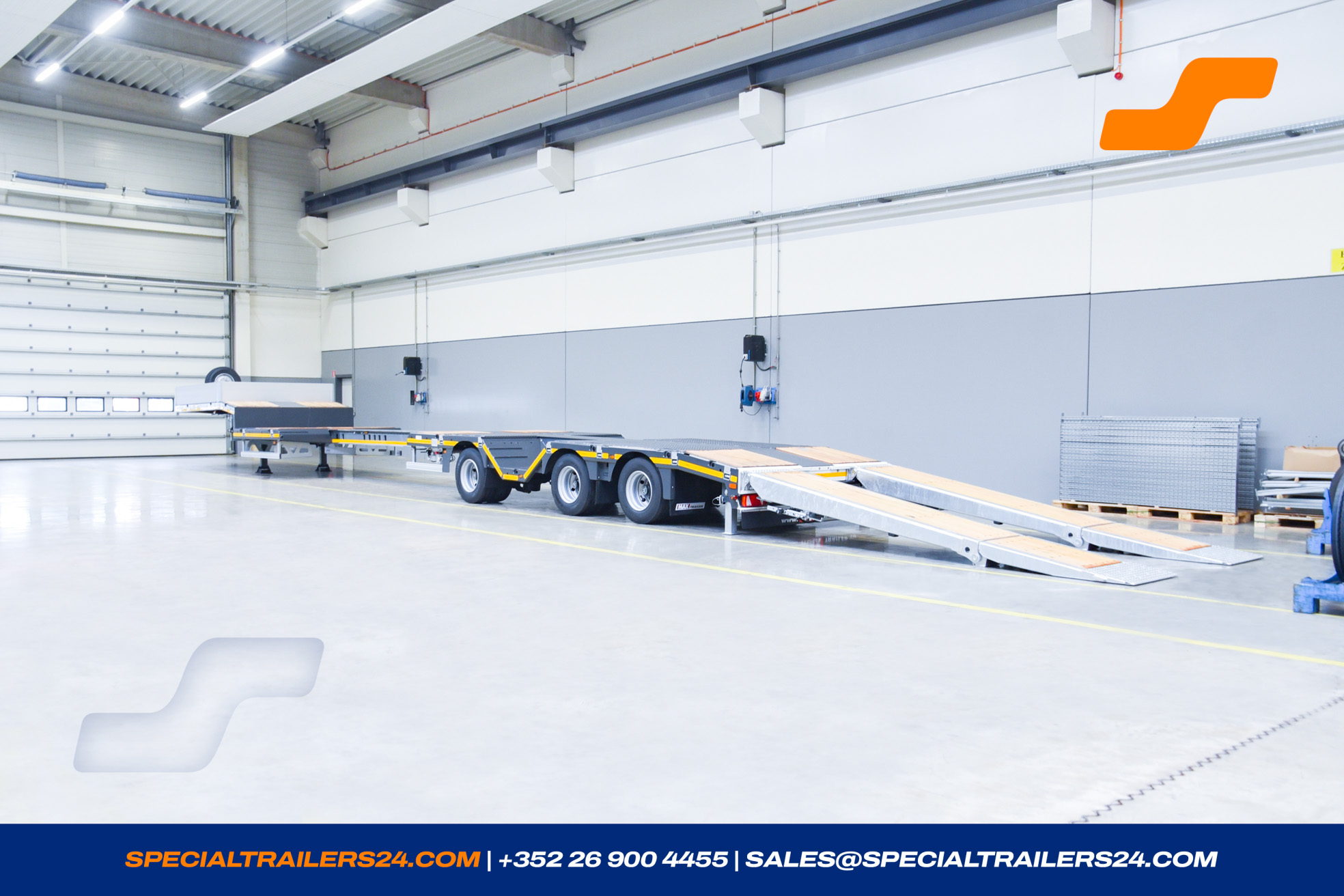

1 pair of alu ramps VFR 120 ± 2350 x 450 x 120 (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 9500 daN (Kp)
by axle distance 2.0 meter : 12000 daN (Kp)
single axle 5500 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 55 kg (± 110kg) -
3 pairs of lashing rings along the central beam of the loading area (LC 5.000 daN).
1 pair of inserted lashing rings along the central beam at the back (LC 10 000 daN). (± 13kg)
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
-
Spain: Ficha técnica
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations. -
Italy, Scheda Tecnica:
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111269
- Reference MAX100-N-3-9.30-2RM
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000361
- Steering Type Friction
