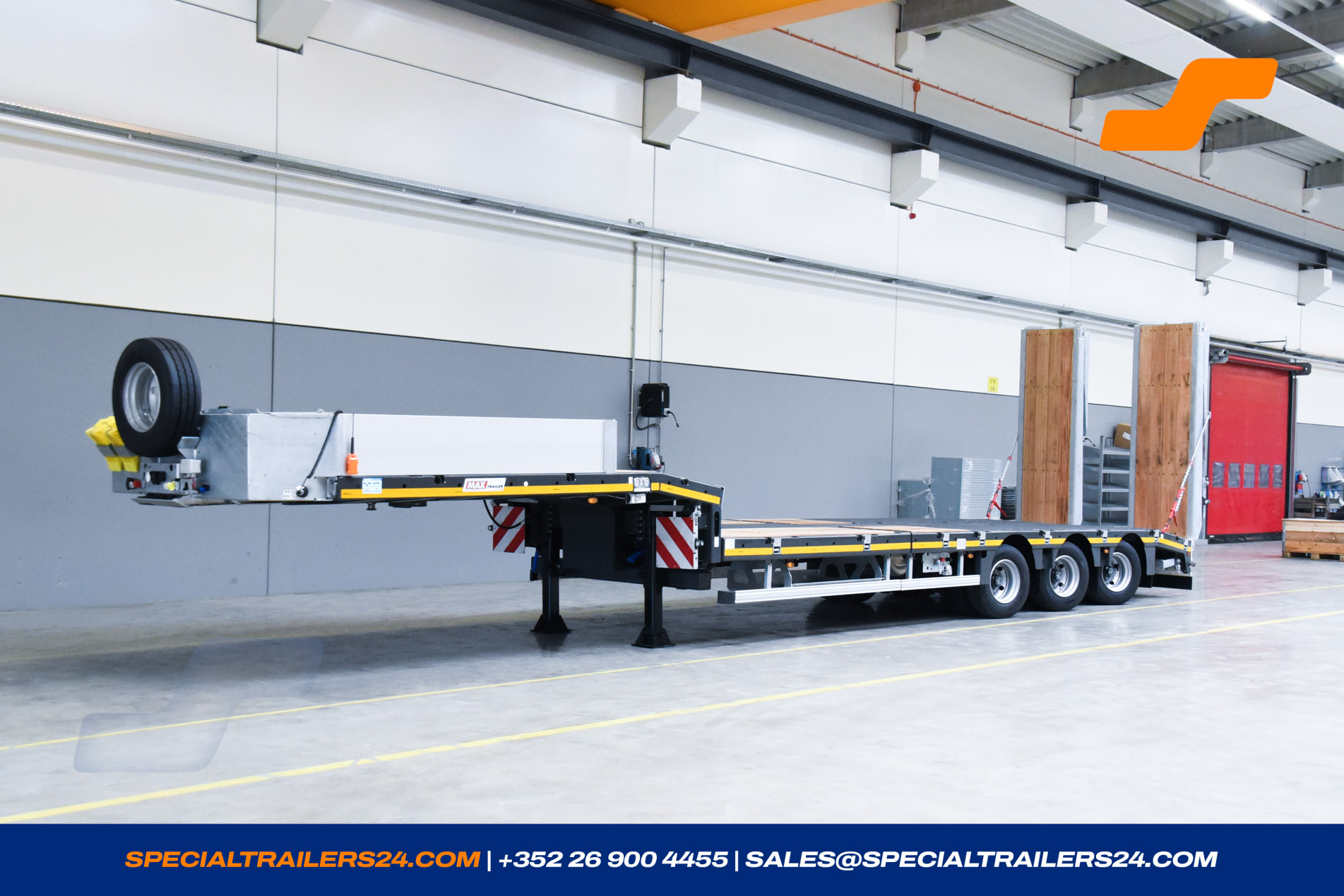

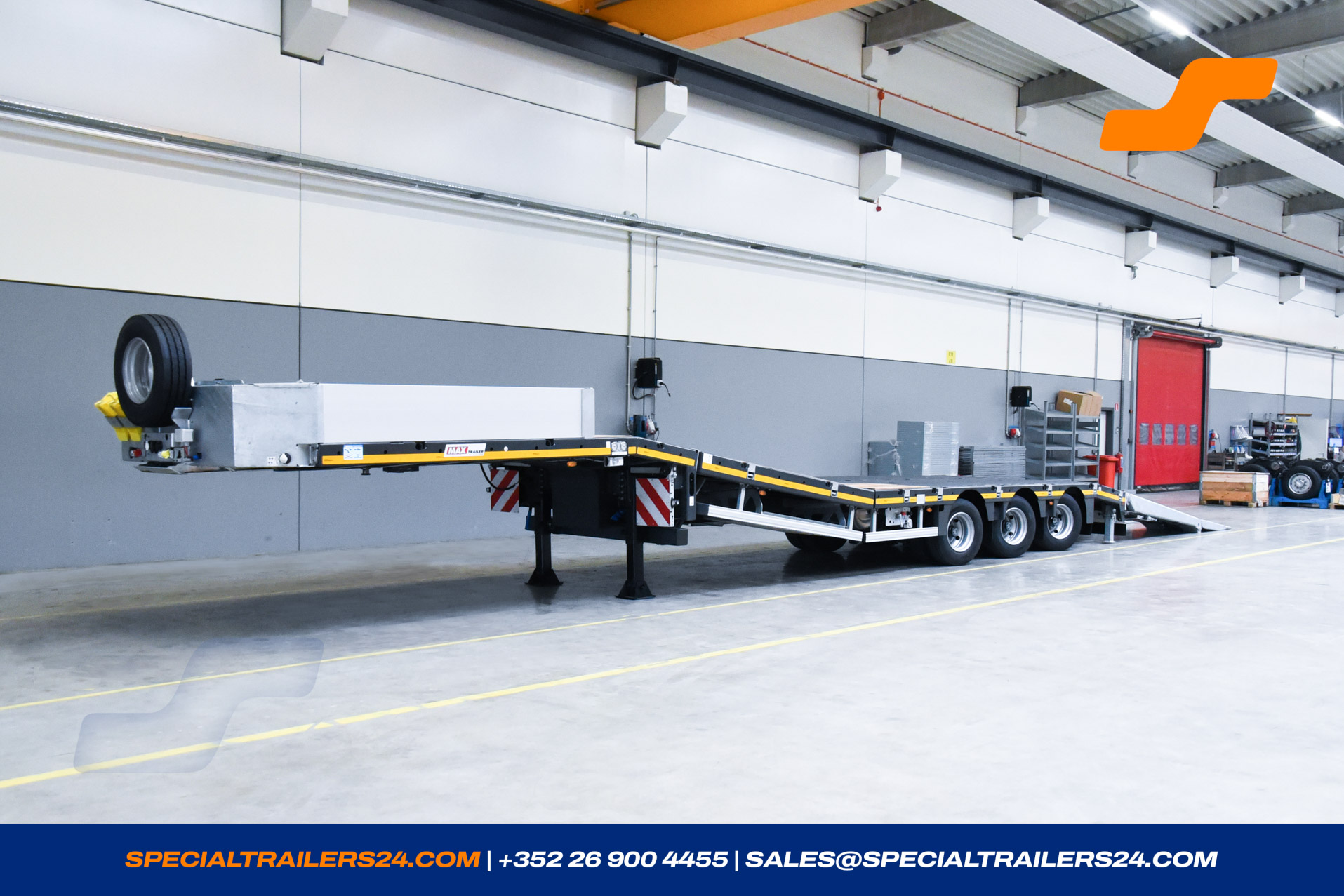

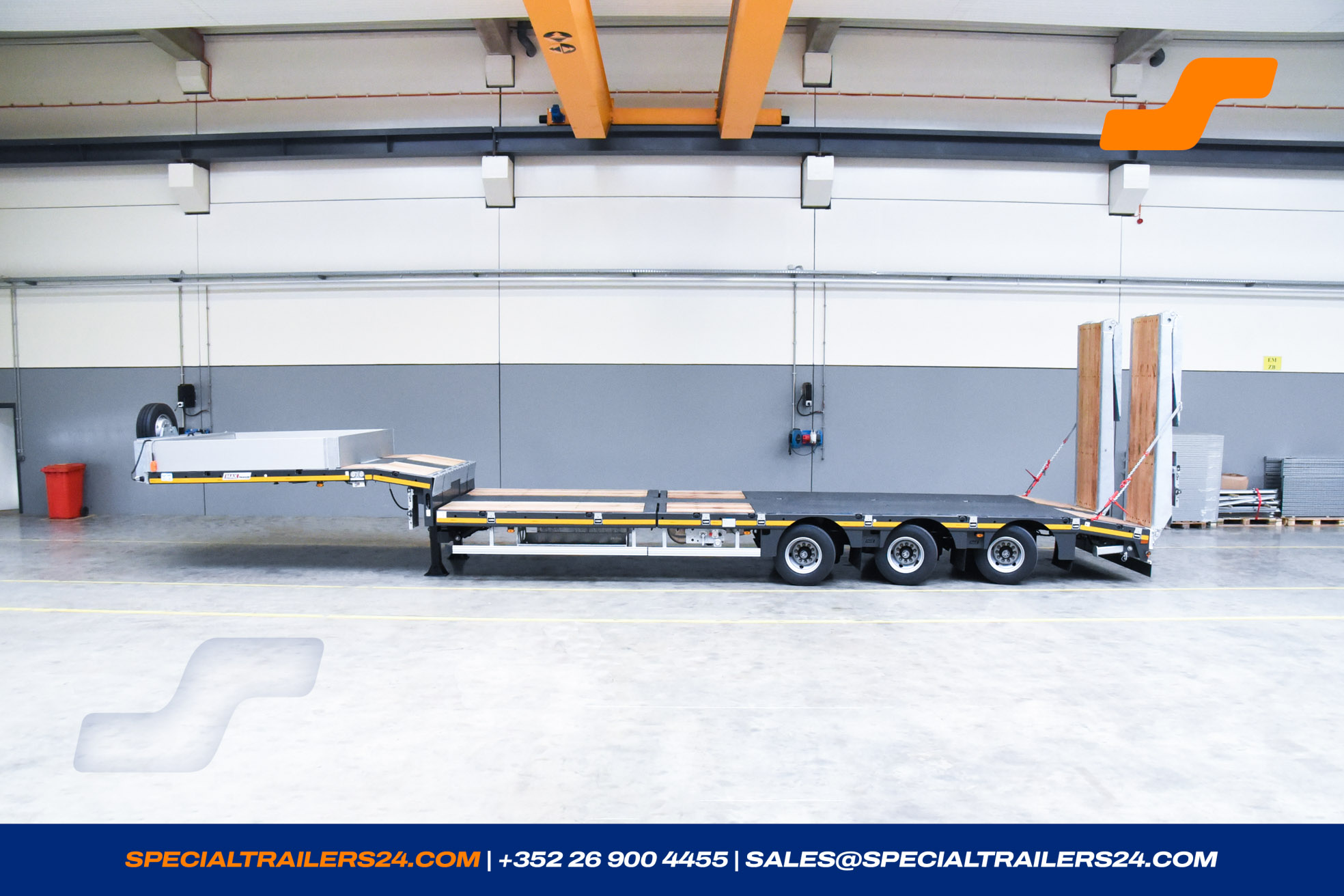

Low loader
MAX Trailer MAX110
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111672
- Reference MAX110-Z-3B-9.30-U

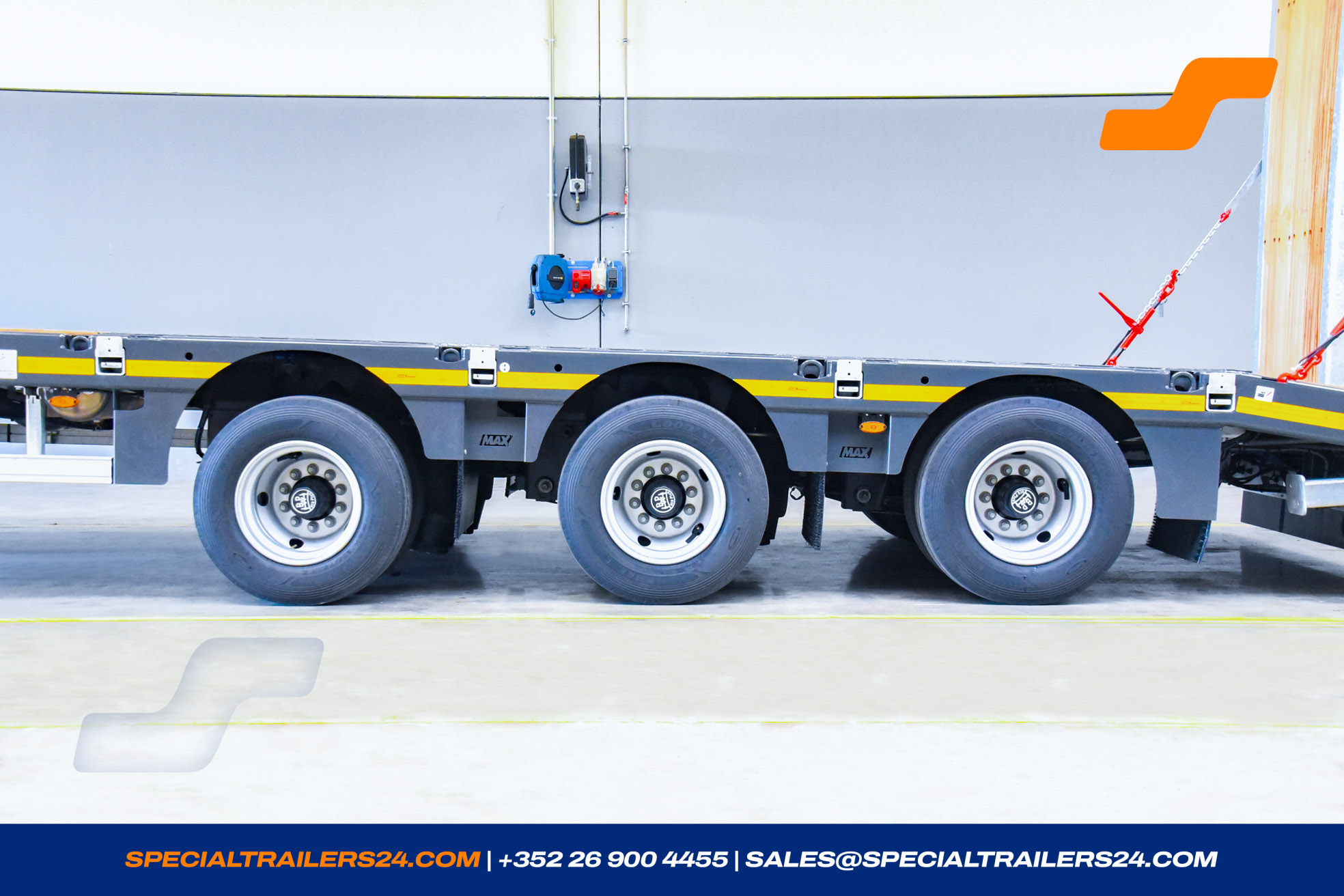

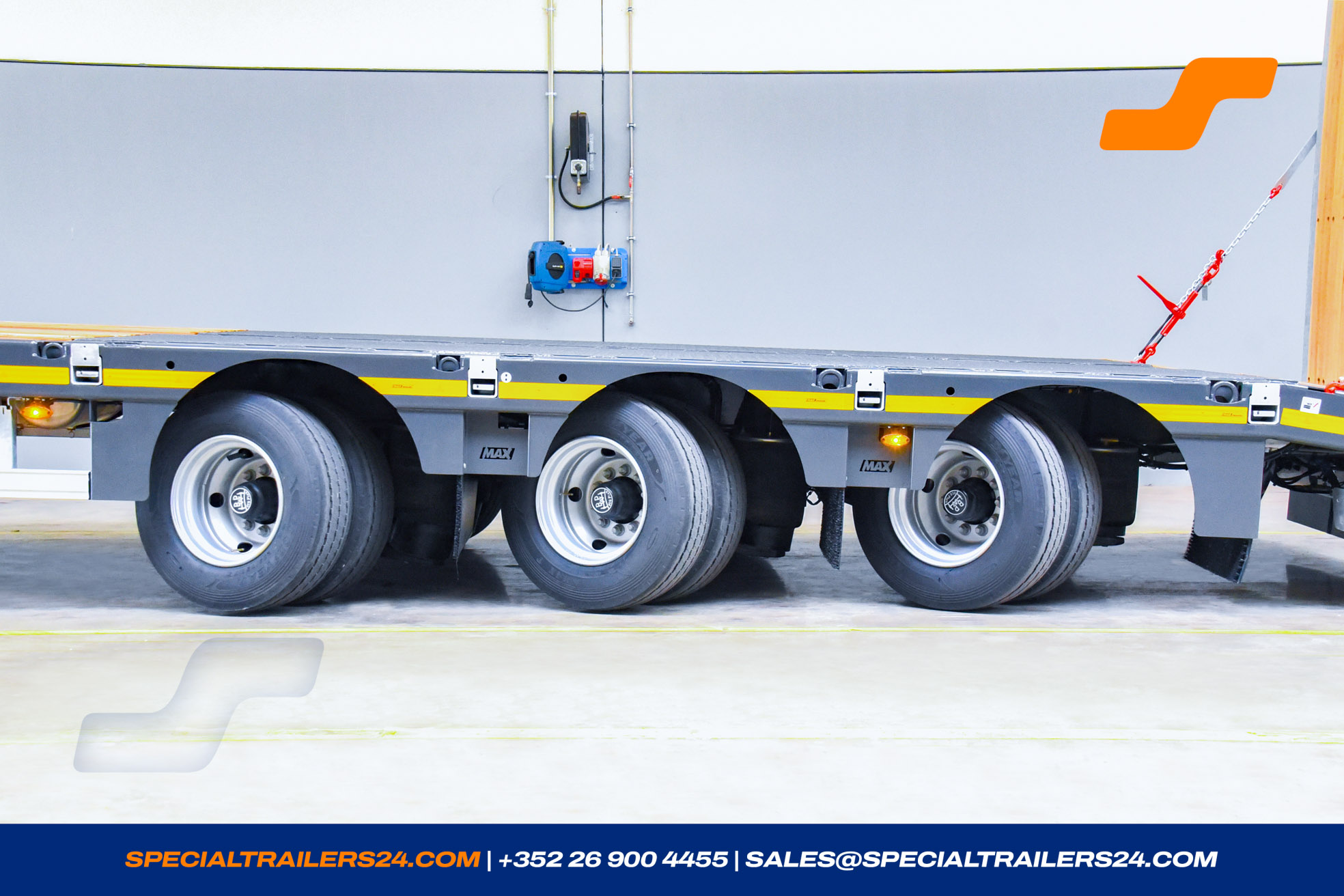

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9005 - Jet black
- Availability 08/2026
- Steering Type Hydraulic
Availability
08/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 36000 kg |
| Gross weight | 54000 kg |
| Tare weight +- 3% | 11749 kg |
| Payload | 42251 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

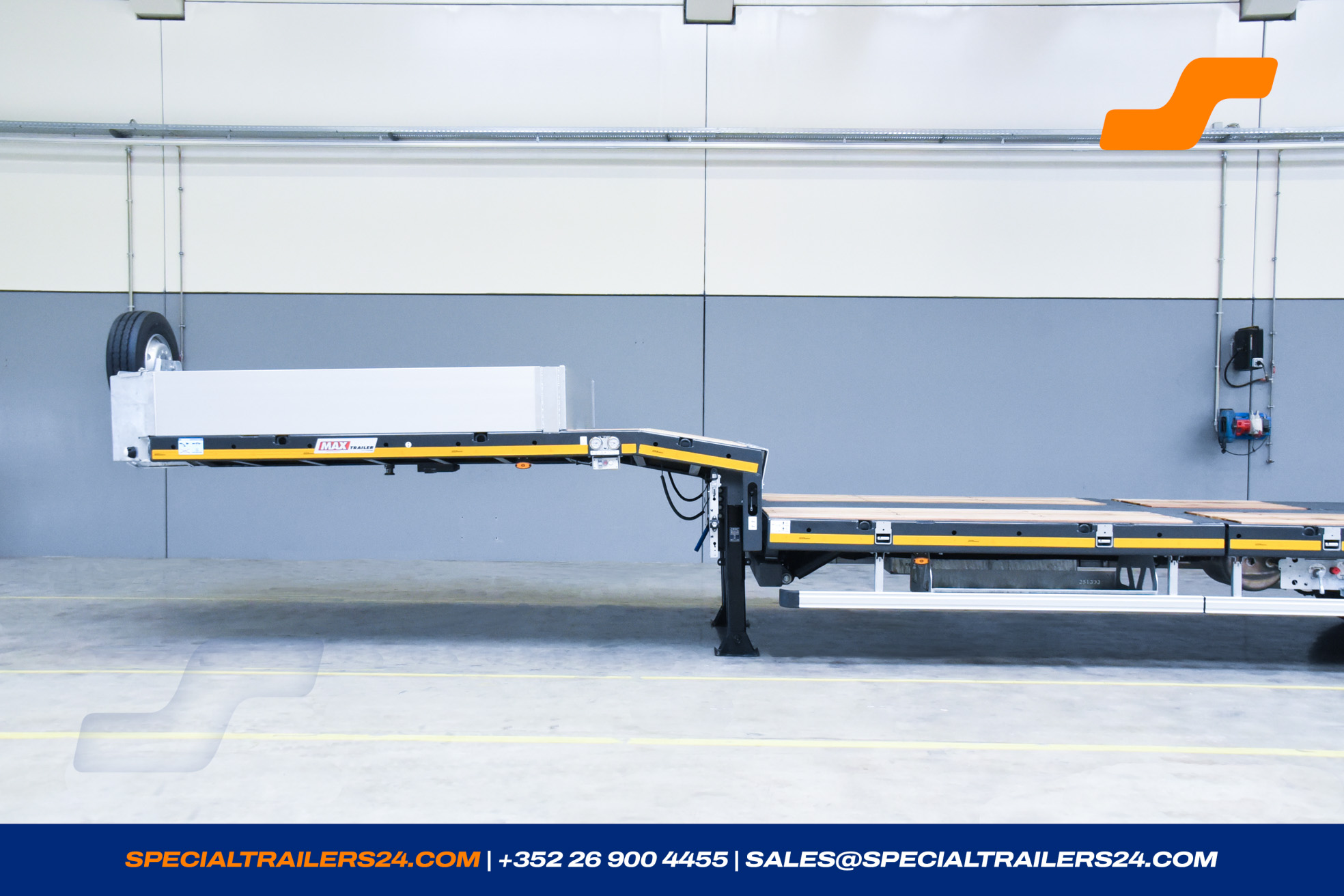

Gooseneck
1 x Gooseneck : MAX-4.200-750-10° (DSR 2300/ASH 1200) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

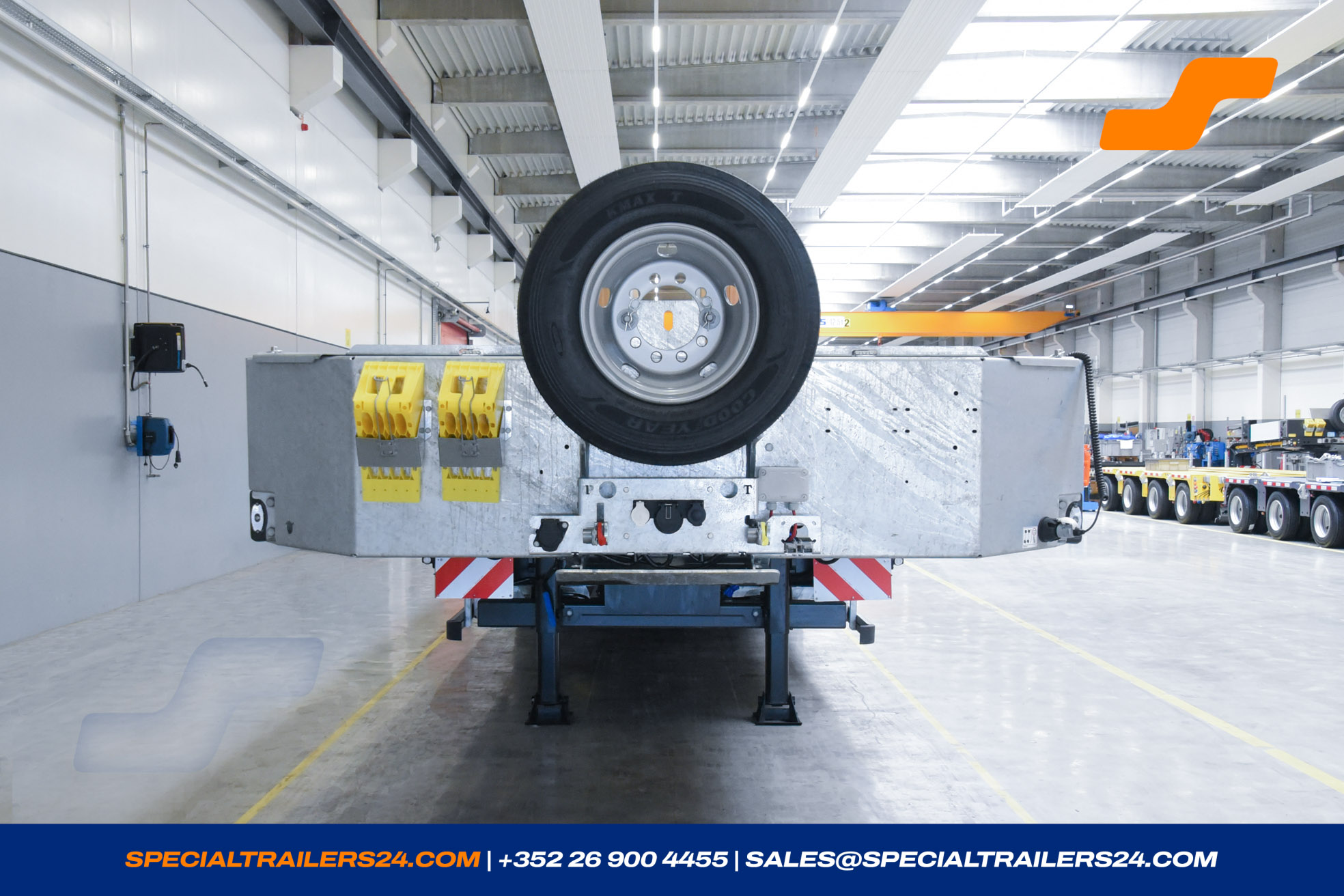

- One galvanised steel headboard, height ± 400 mm.
- One spare wheel with holder on the headboard.
- 2 king-pin.
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier on the headboard (± 5kg).
-

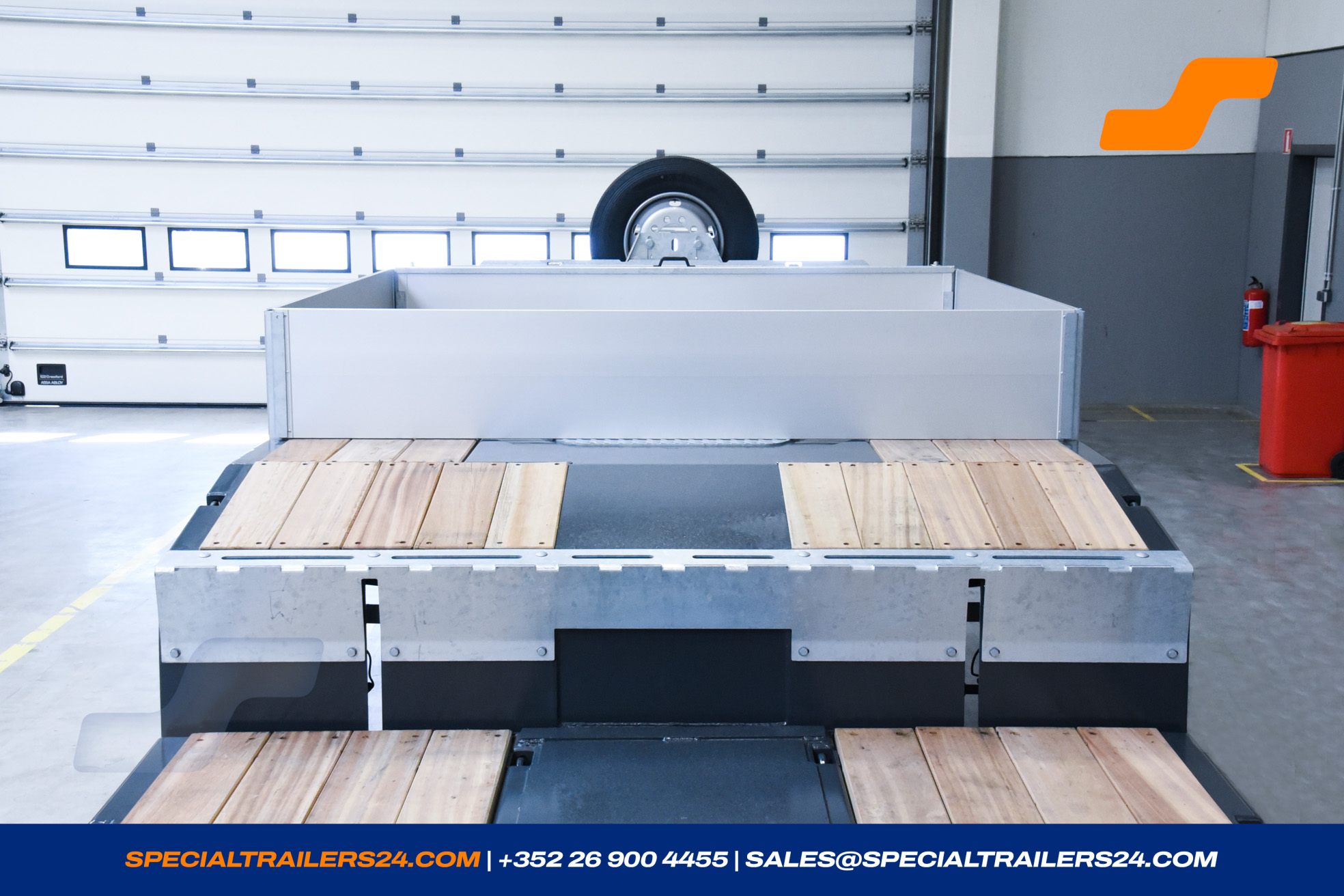

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - An electric cable winch with radio remote control, ± 5,400 kg lifting force, including 9.5 mm thick wire rope 24 m long with cable guide pulley. (± 88 kg)

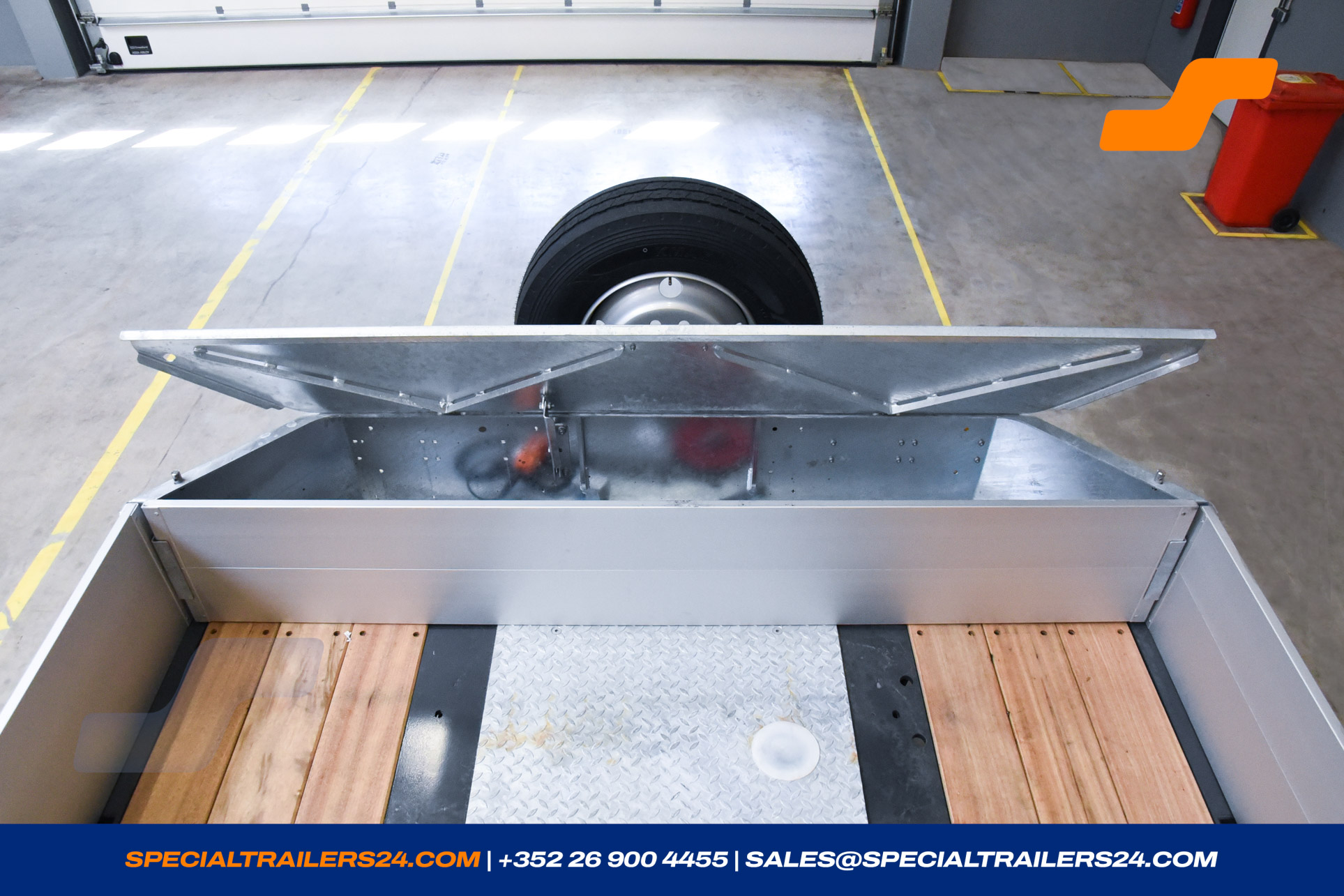

- 1 toolbox galvanized integrated into charmfered gooseneck included opening winch . (± 47kg)
Loading deck

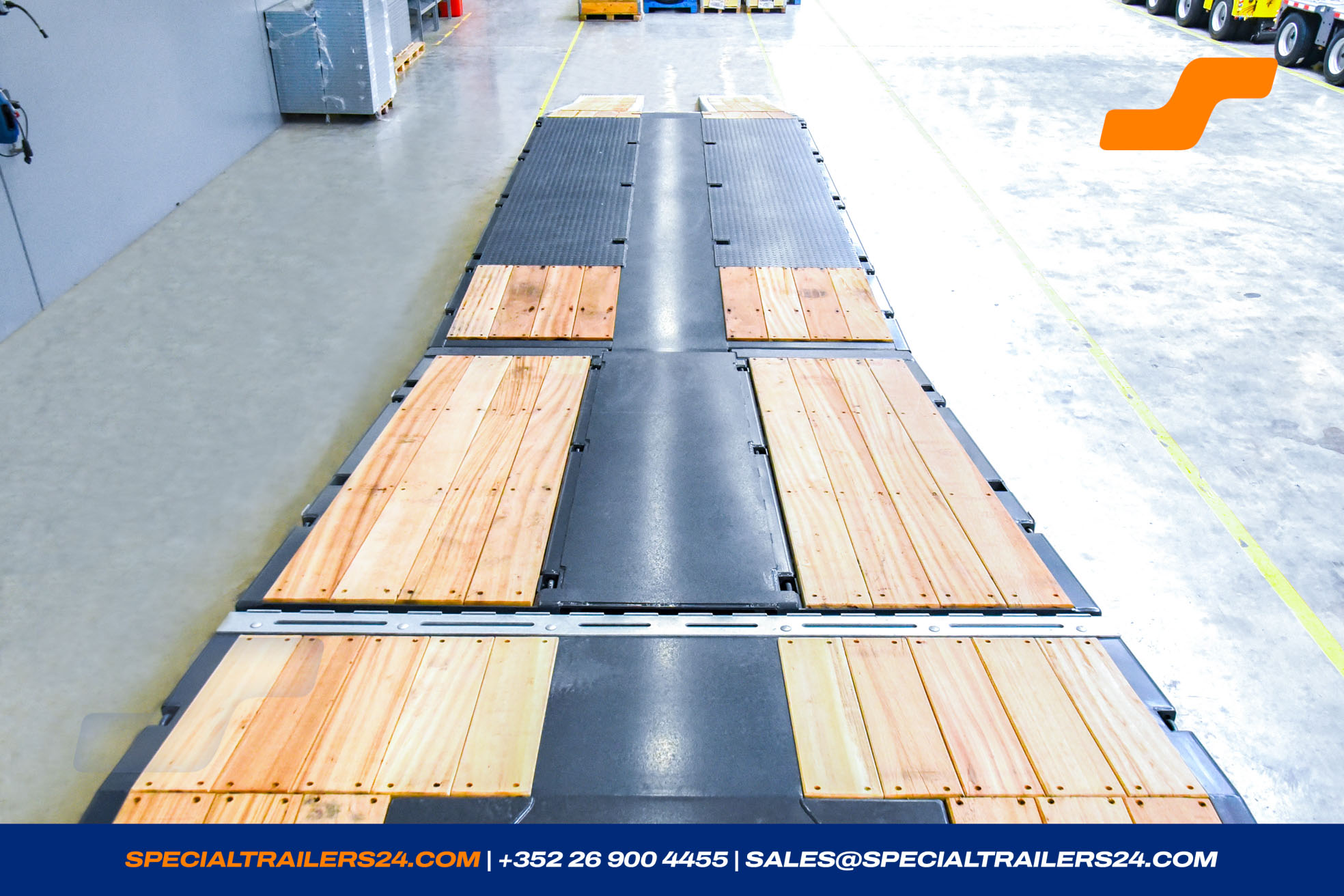

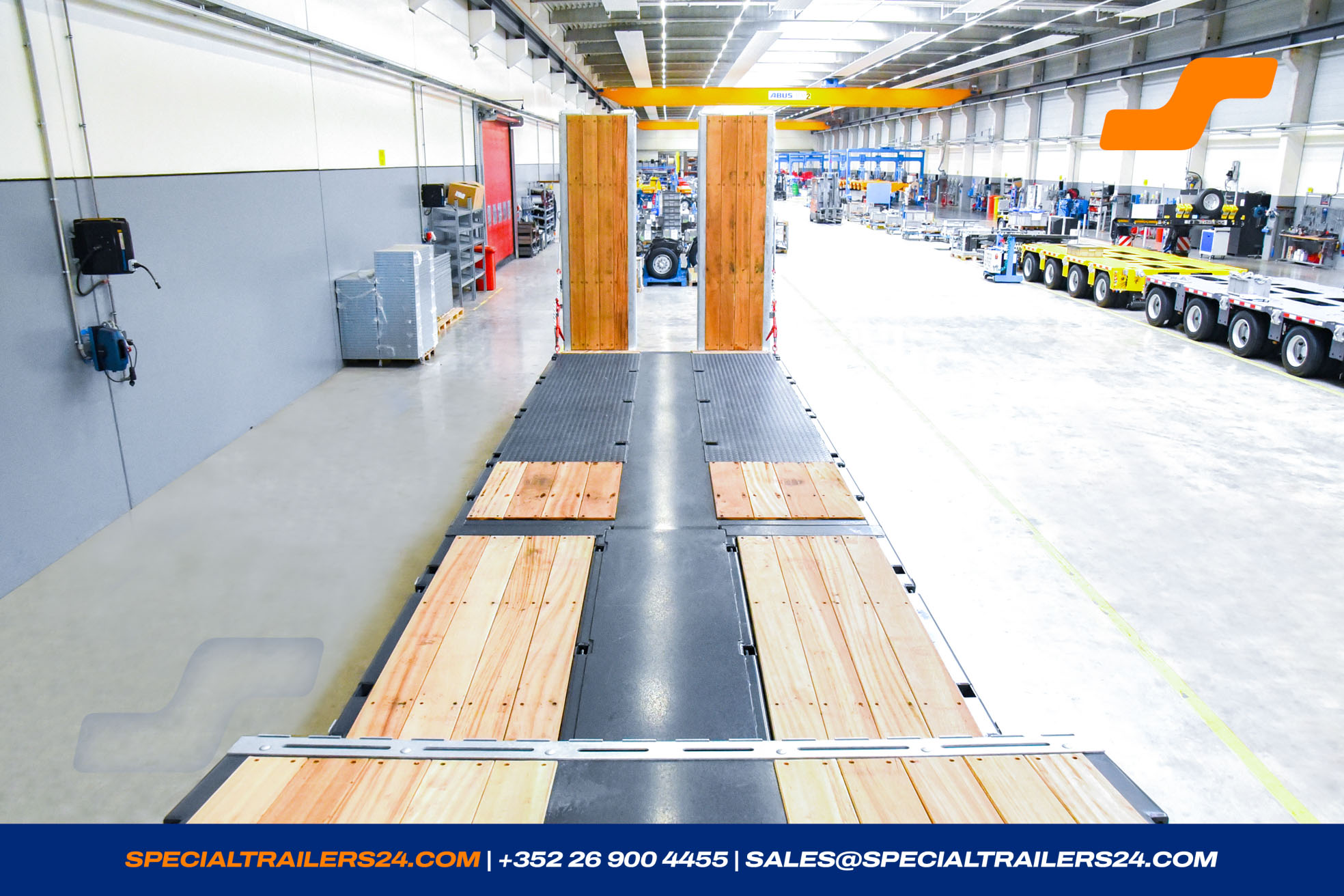

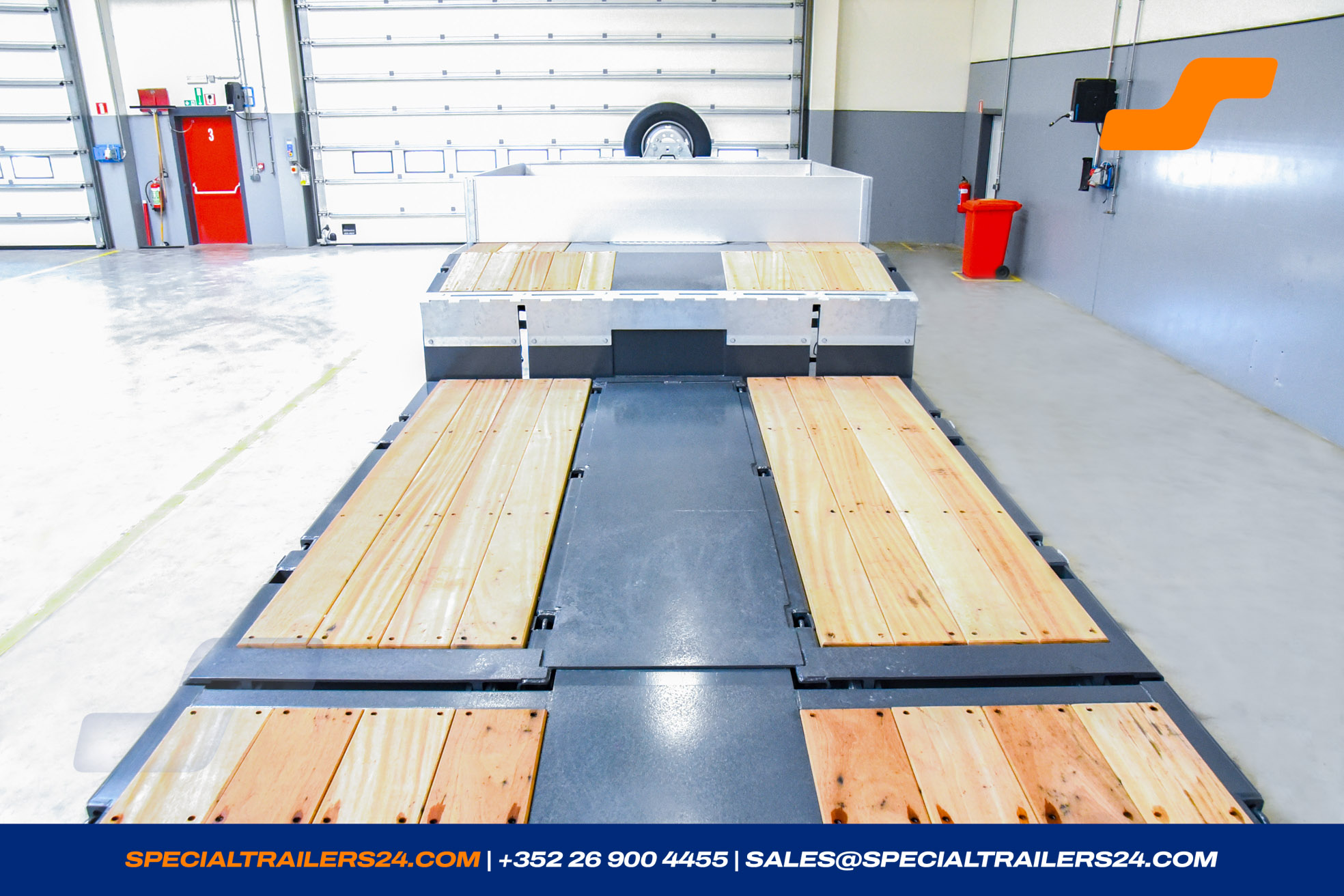

Loading platform
1 x Loading platform : MAX110-Z-3B-9.30-17.5-2.54

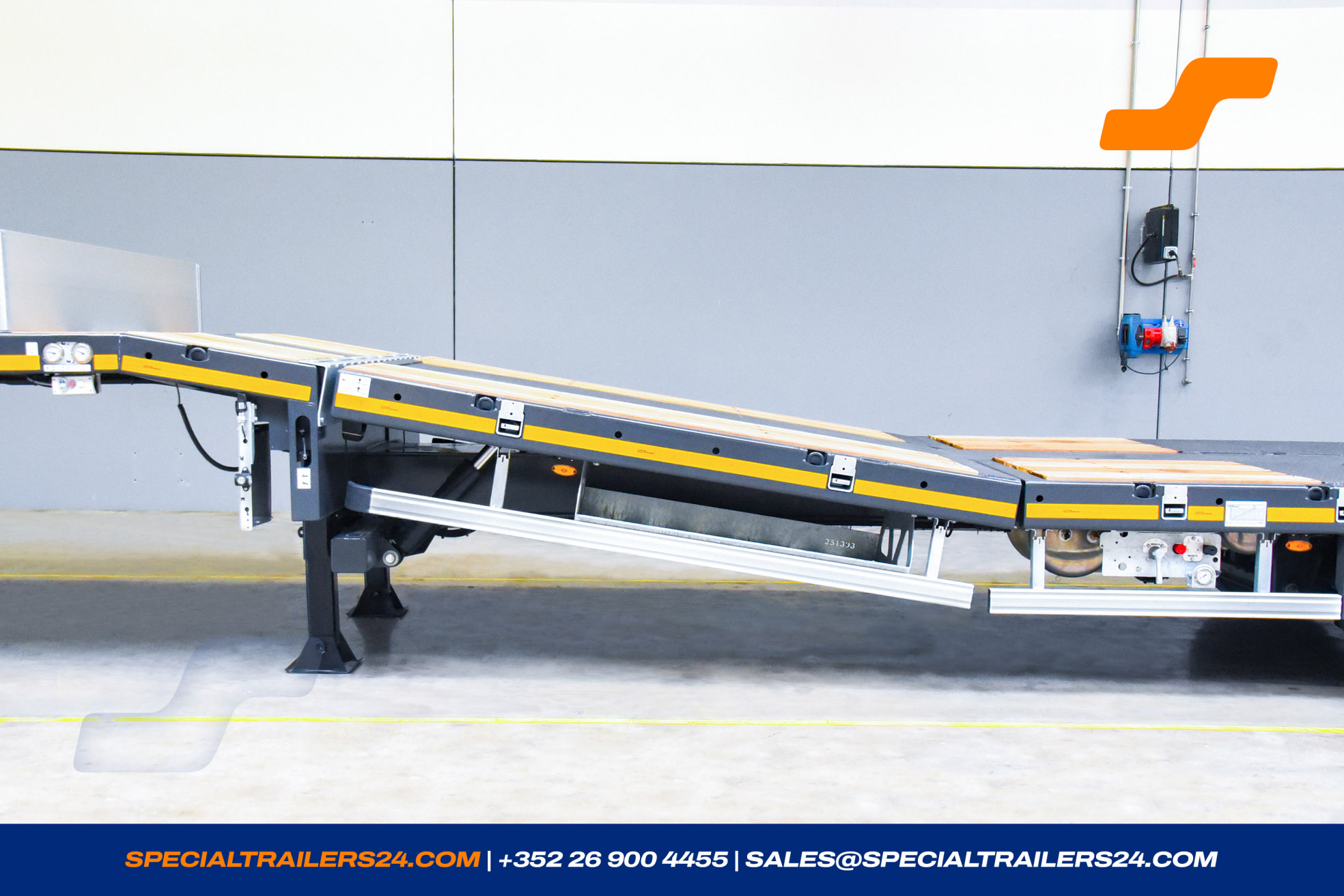

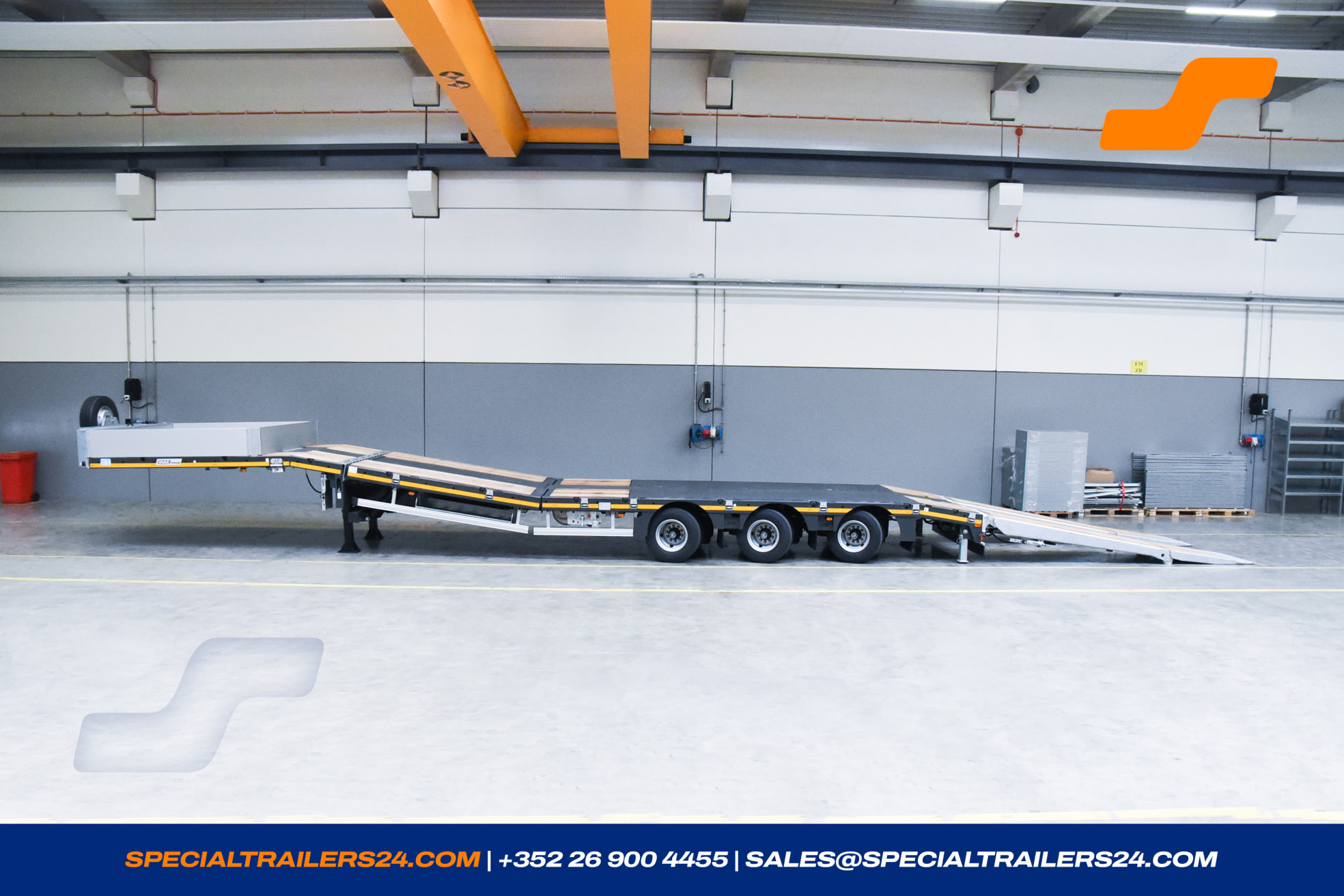

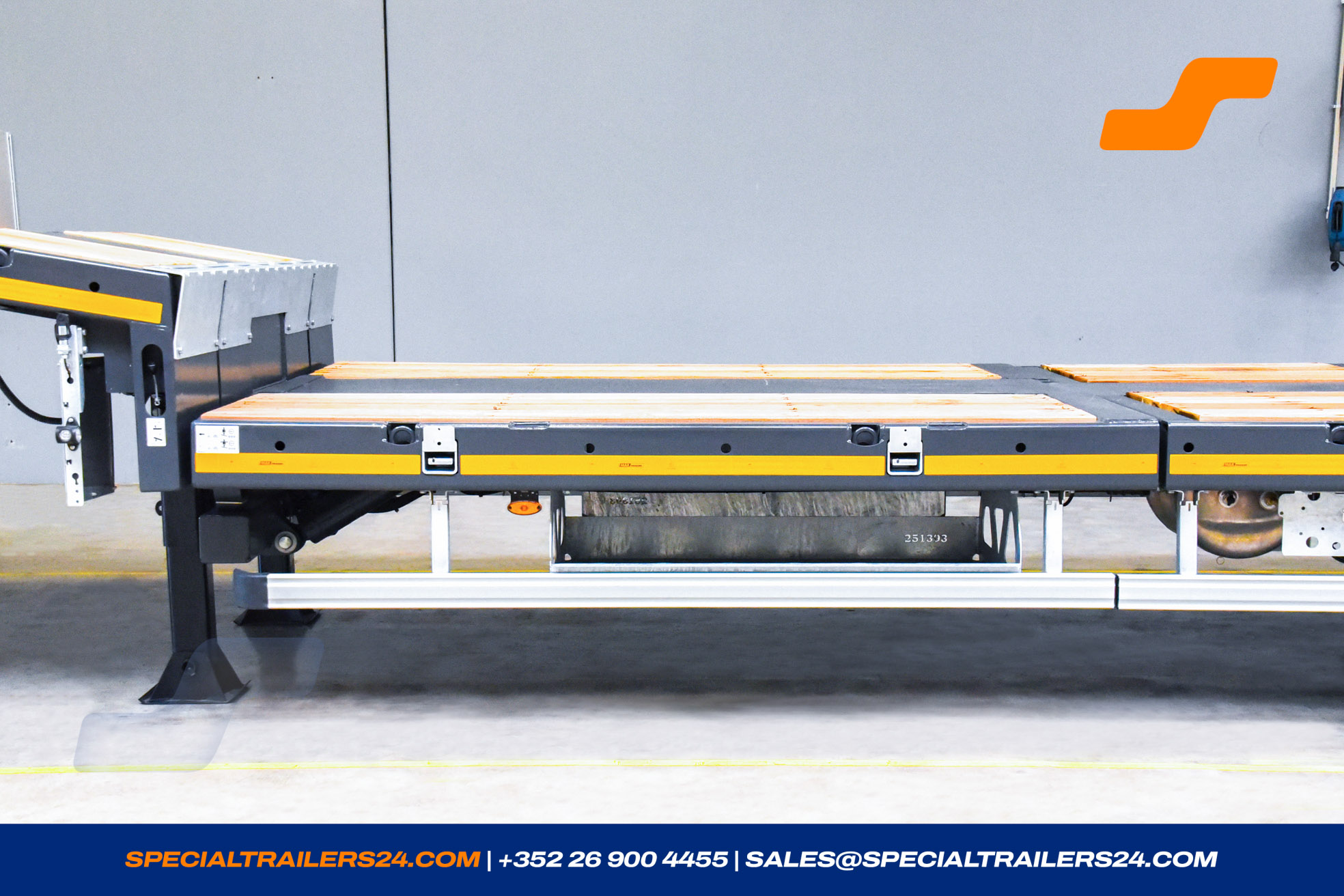

Loading platform behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).
Hardwood cover thickness 48 mm above of the axles chequer plate.

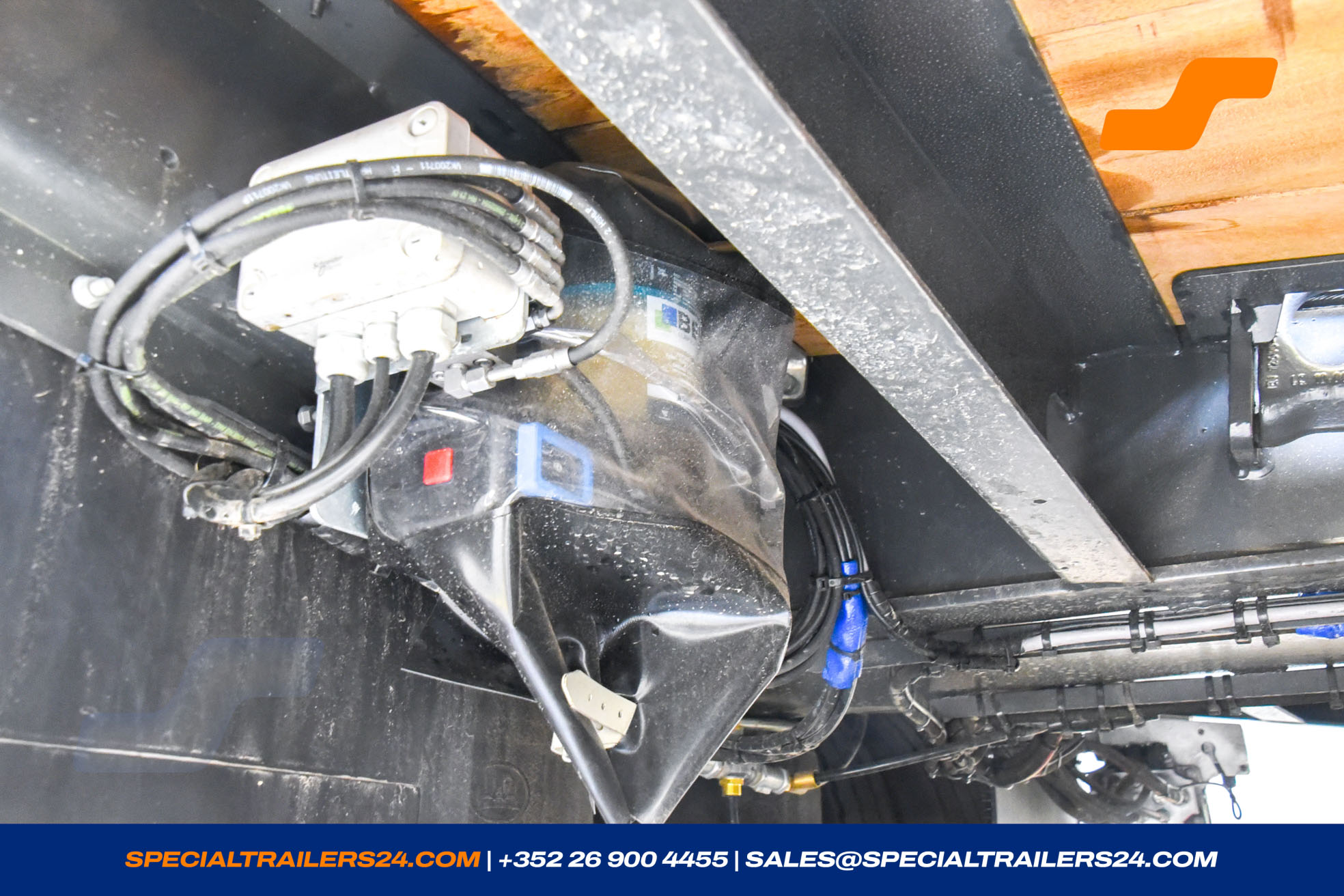

- Electrically operated hydraulic pump. (± 45kg)
-

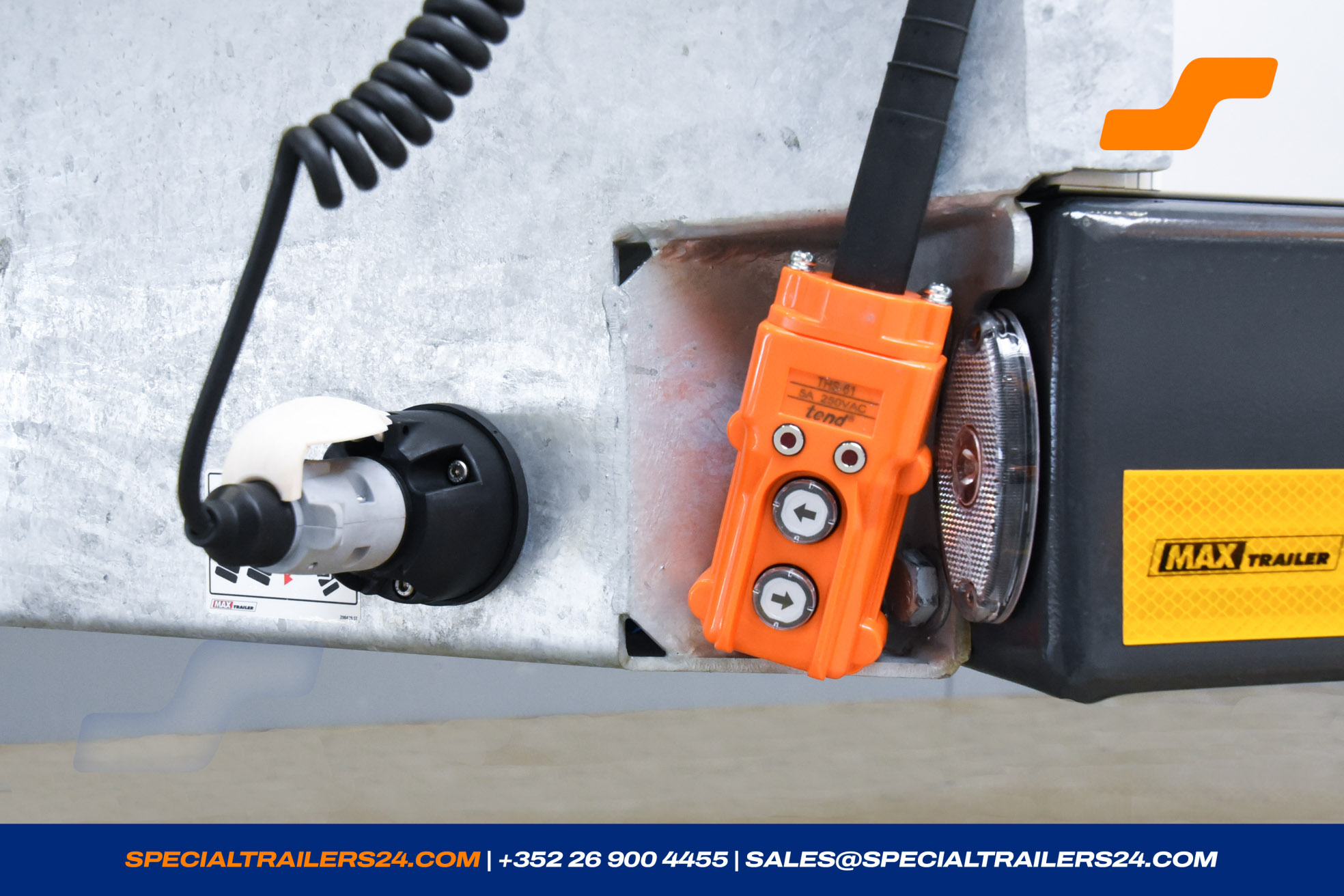

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Holder for one beacon light at the rear of the trailer.

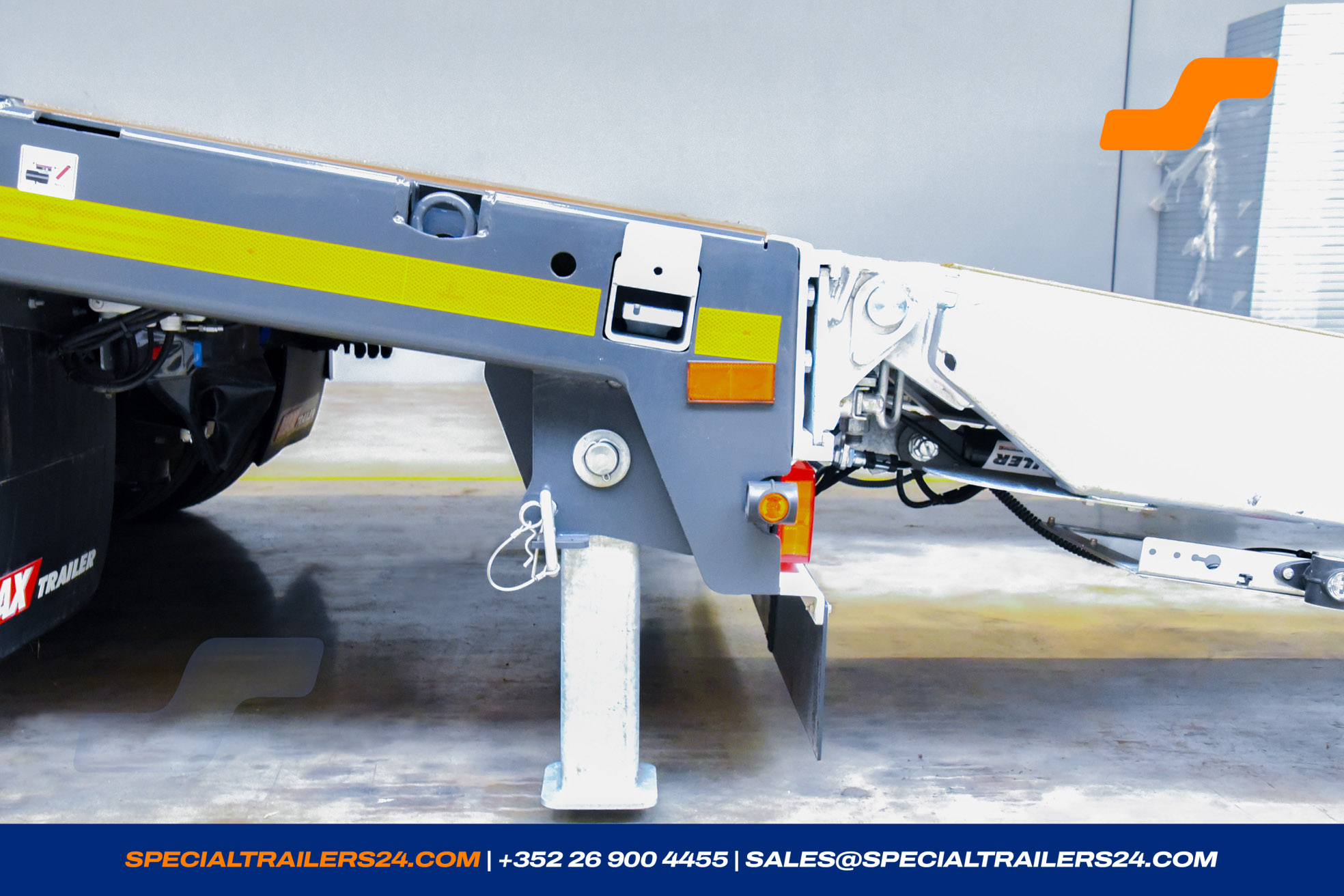

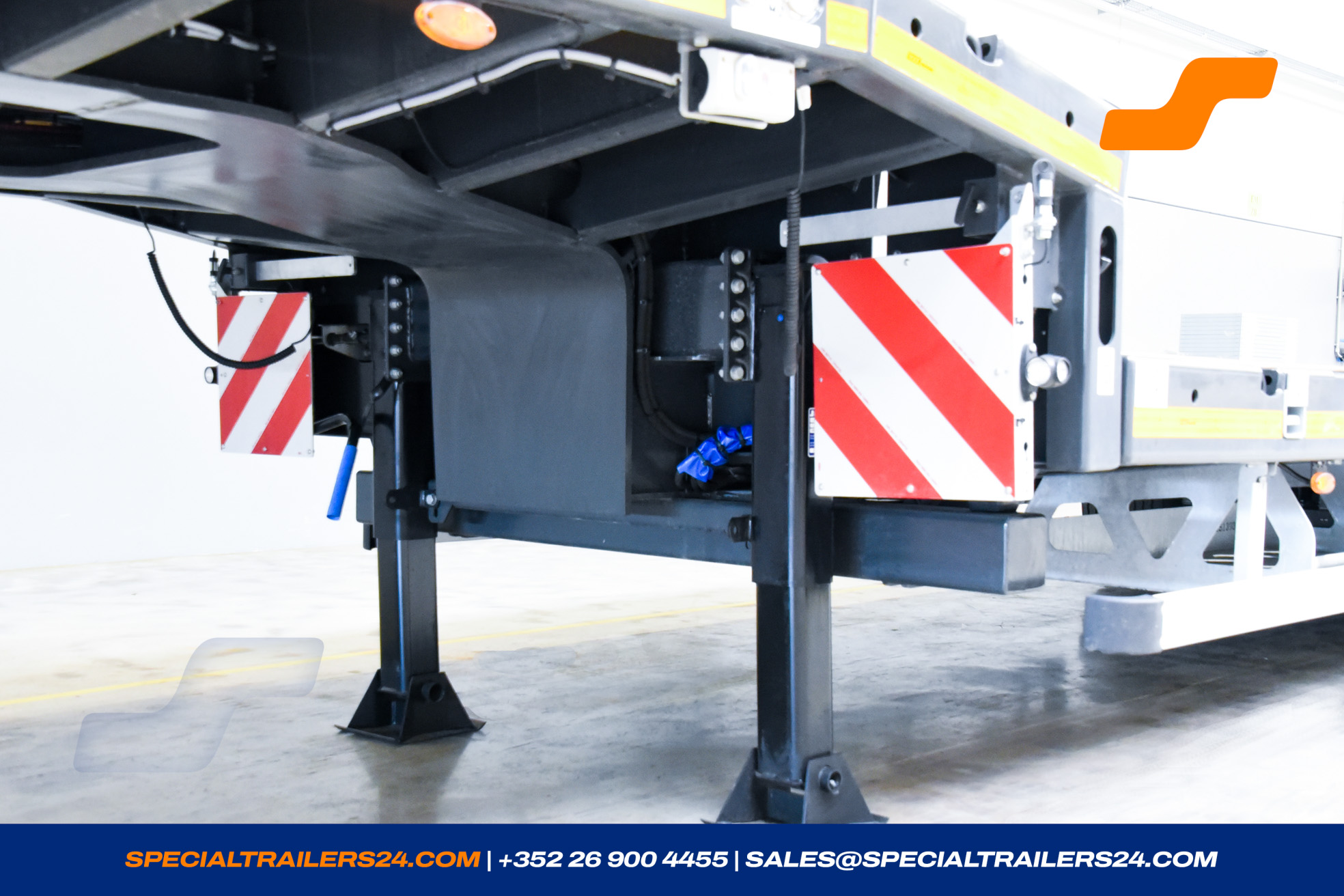

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- One lockable tool-box INOX 1500x390x810 under the loading platform in driving direction on the right side.(± 65kg)
-
6 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
- 3 pairs in the lifting floor.
- 3 pairs in the rear loading area.
1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 22 kg) - Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
Ramps

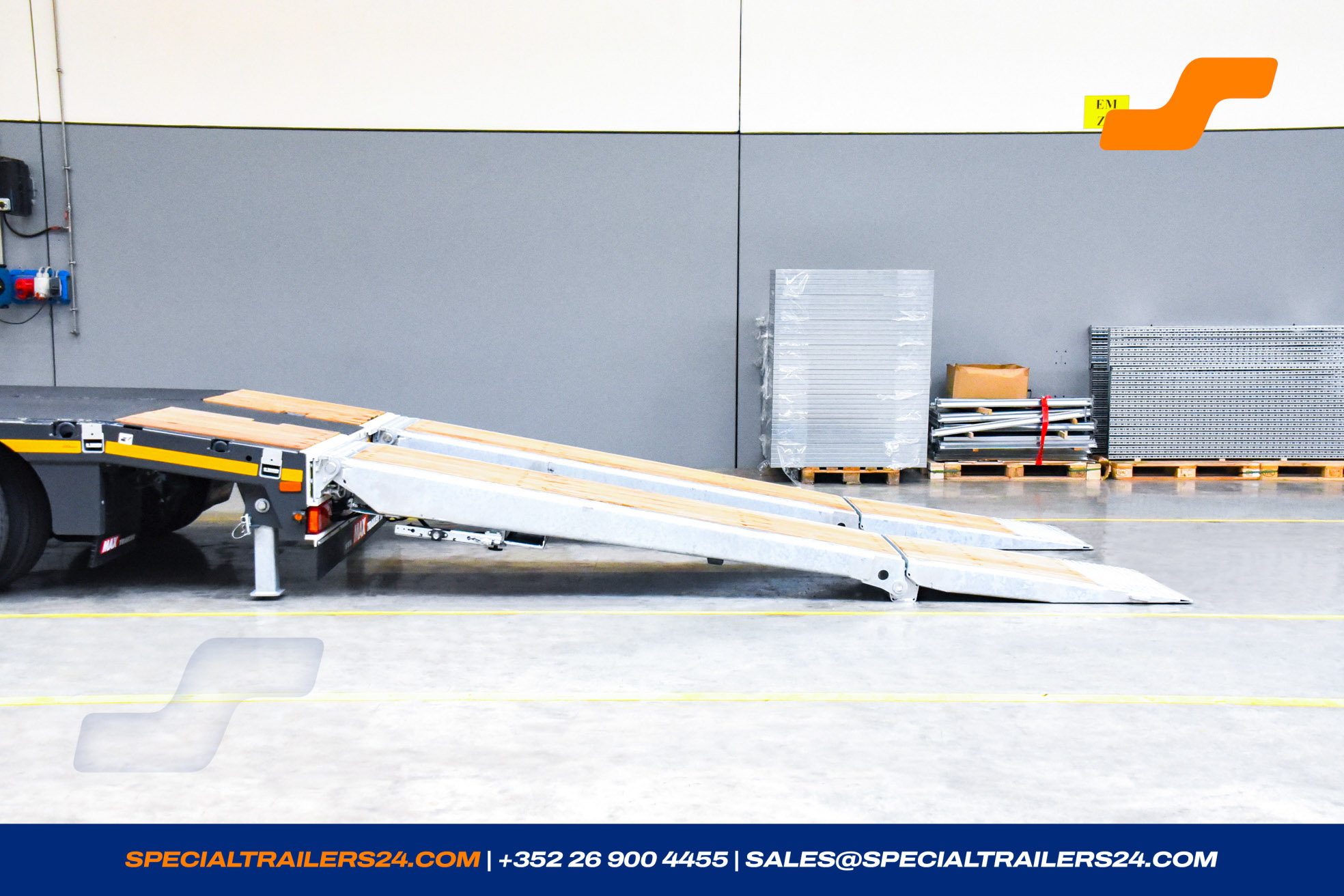

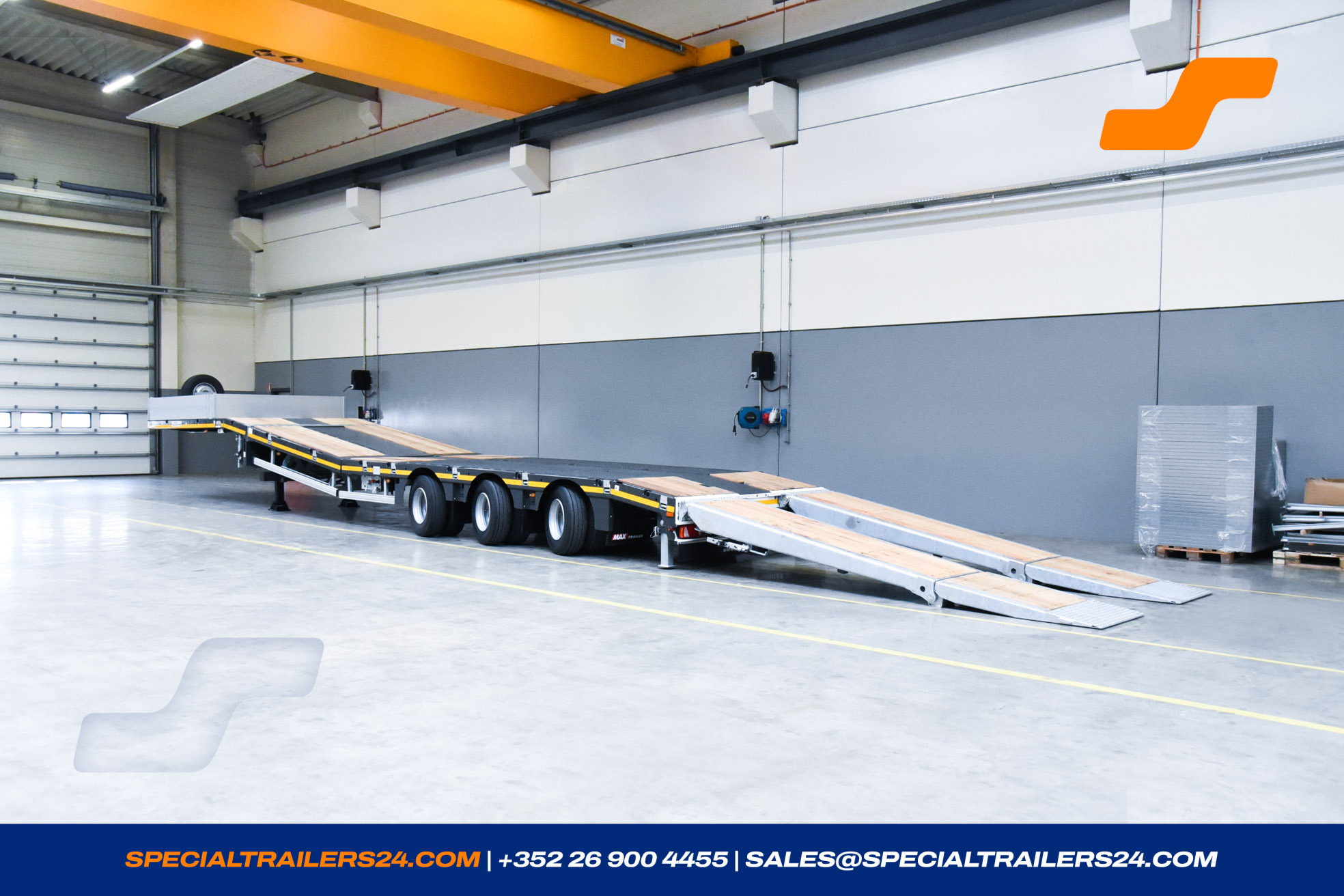

Hydraulic loading ramps

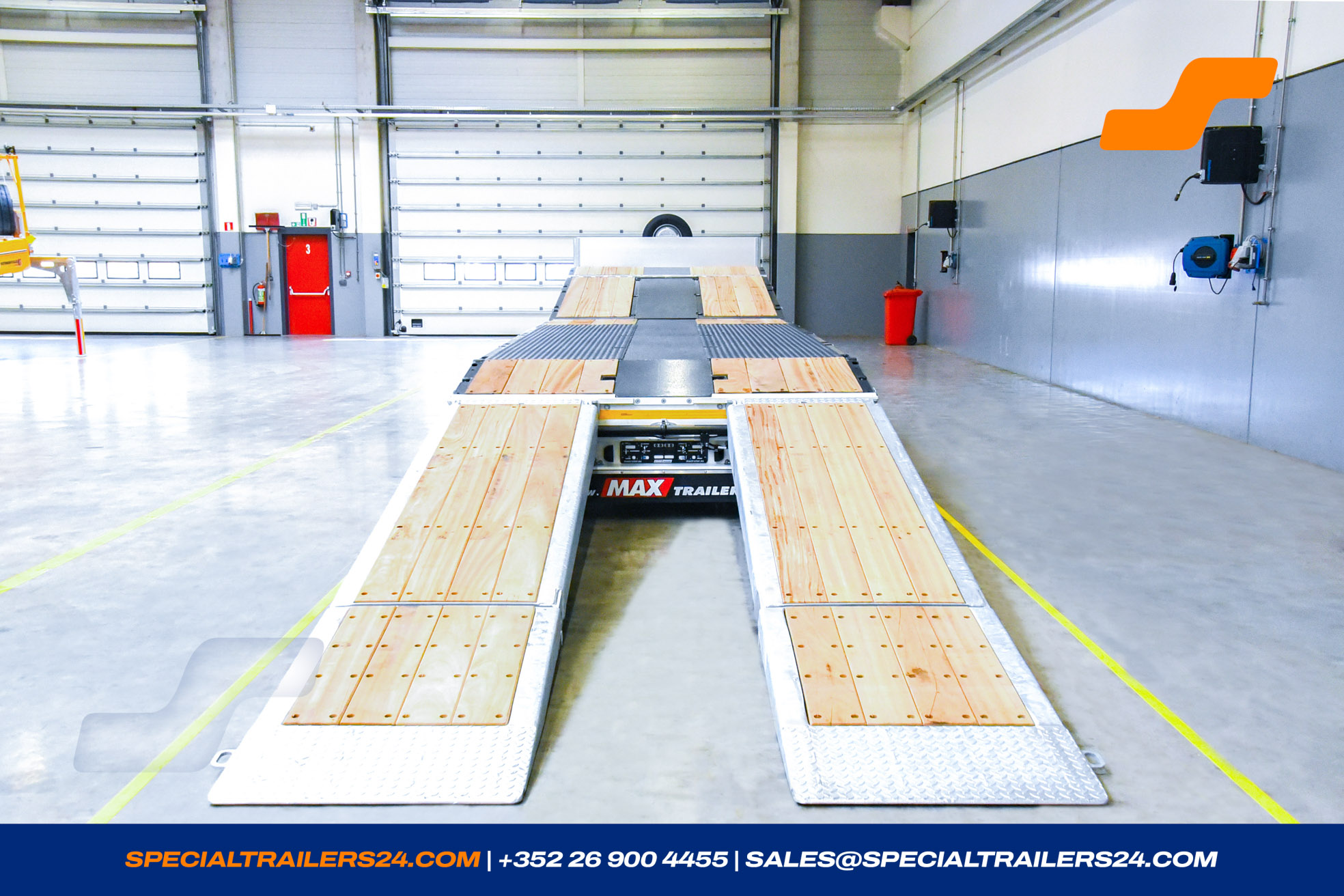

1 x Steel double flip ramps : DR-900-HH-40-GB-HVA

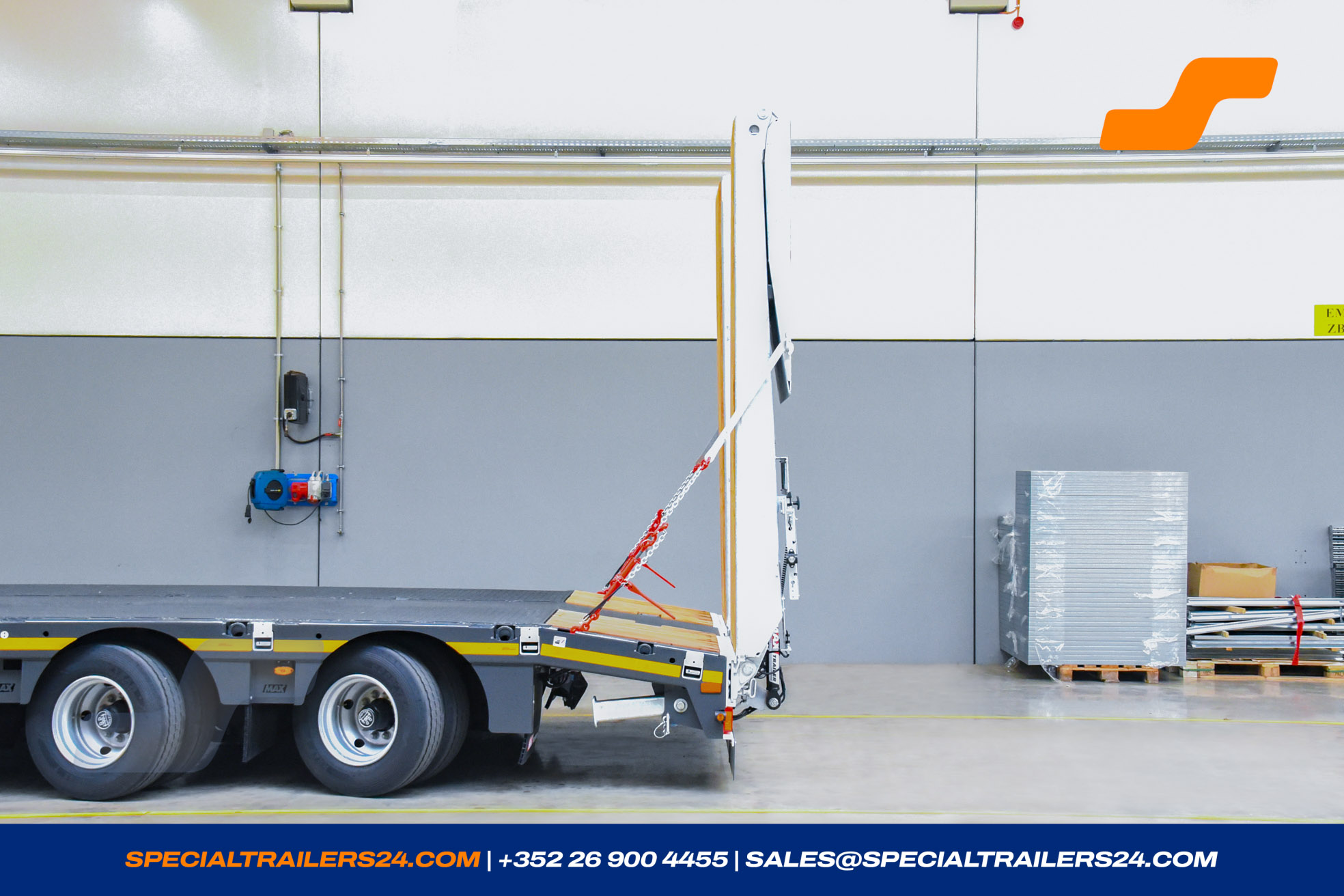

1 pair steel double flip ramps galvanized ± 2 750 + 1 400 x 900 mm covered with rubber Super Grip.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg

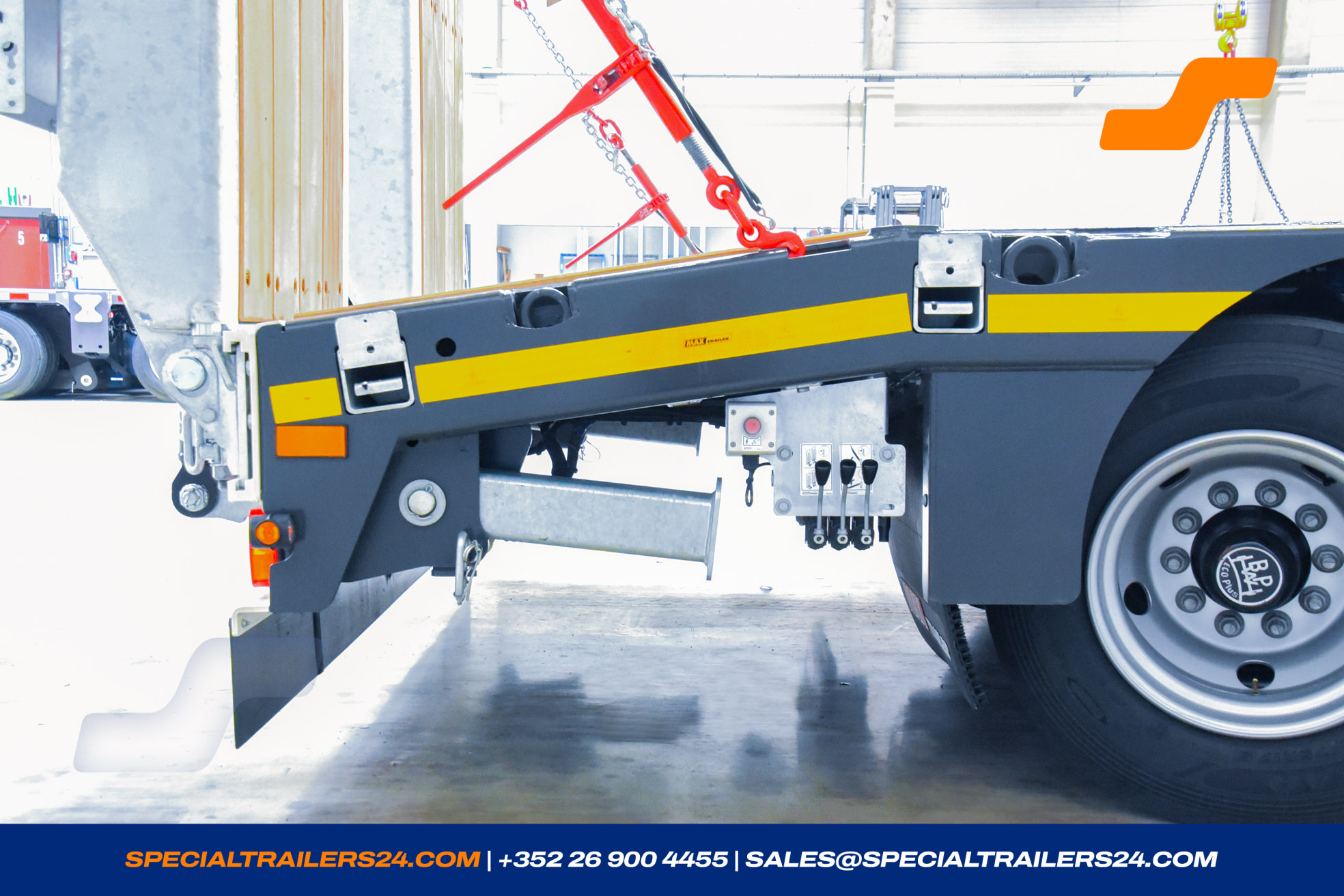

- Operated valve for ramps mounted on the right side (± 4 kg).
- Rubber coating Super Grip 25 in the chamfer of the loading area.
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- Assembly of the double ramps on the semitrailer.
Accessories
1 x Accessory
MAX110-Accessory
- Manual and description on USB stick .
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Speed sticker 80 km/h at the rear and on both sides.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;

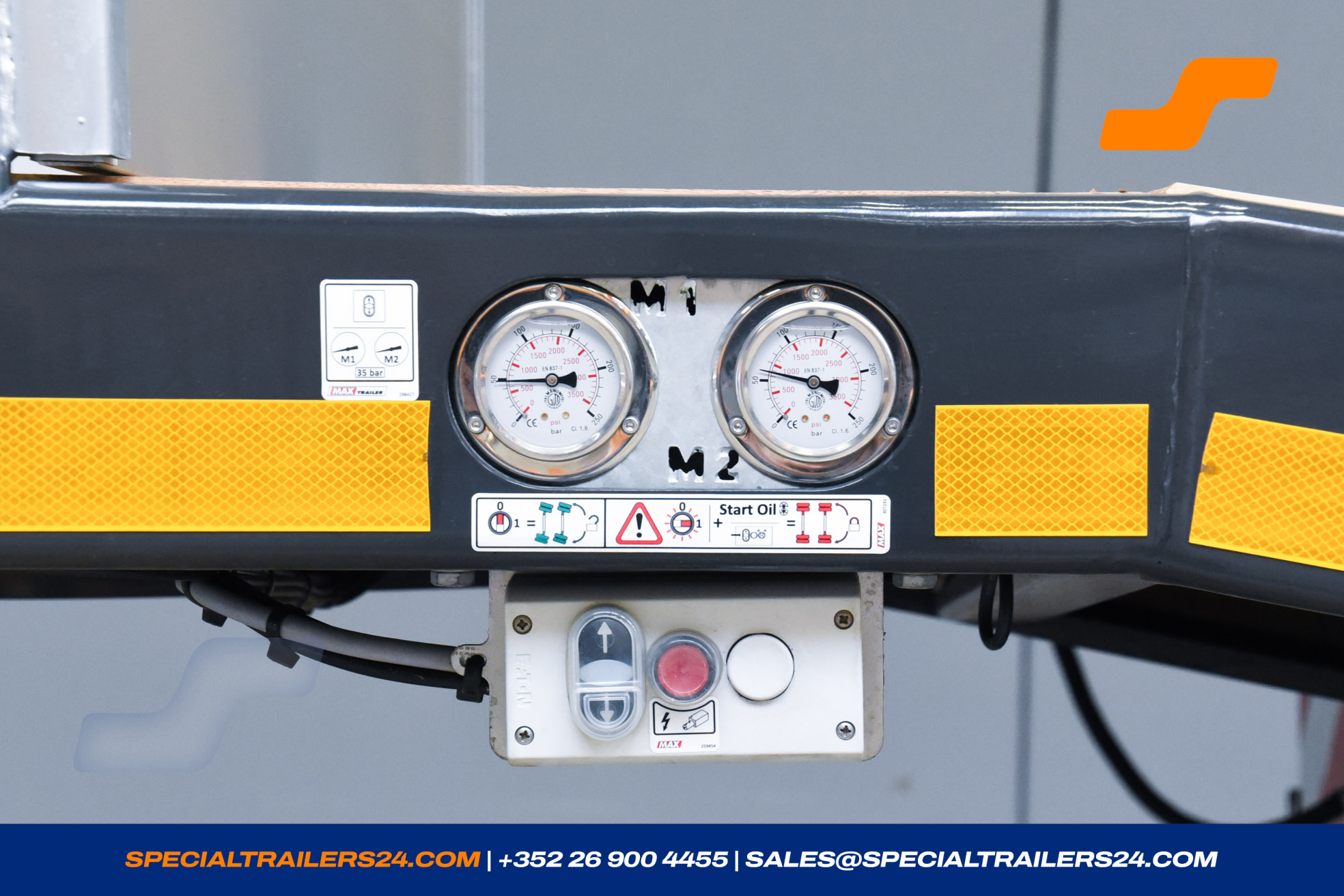

7. 6 pictures of the truck without trailer. - Load manometer for determining the axle load, including load diagram.
