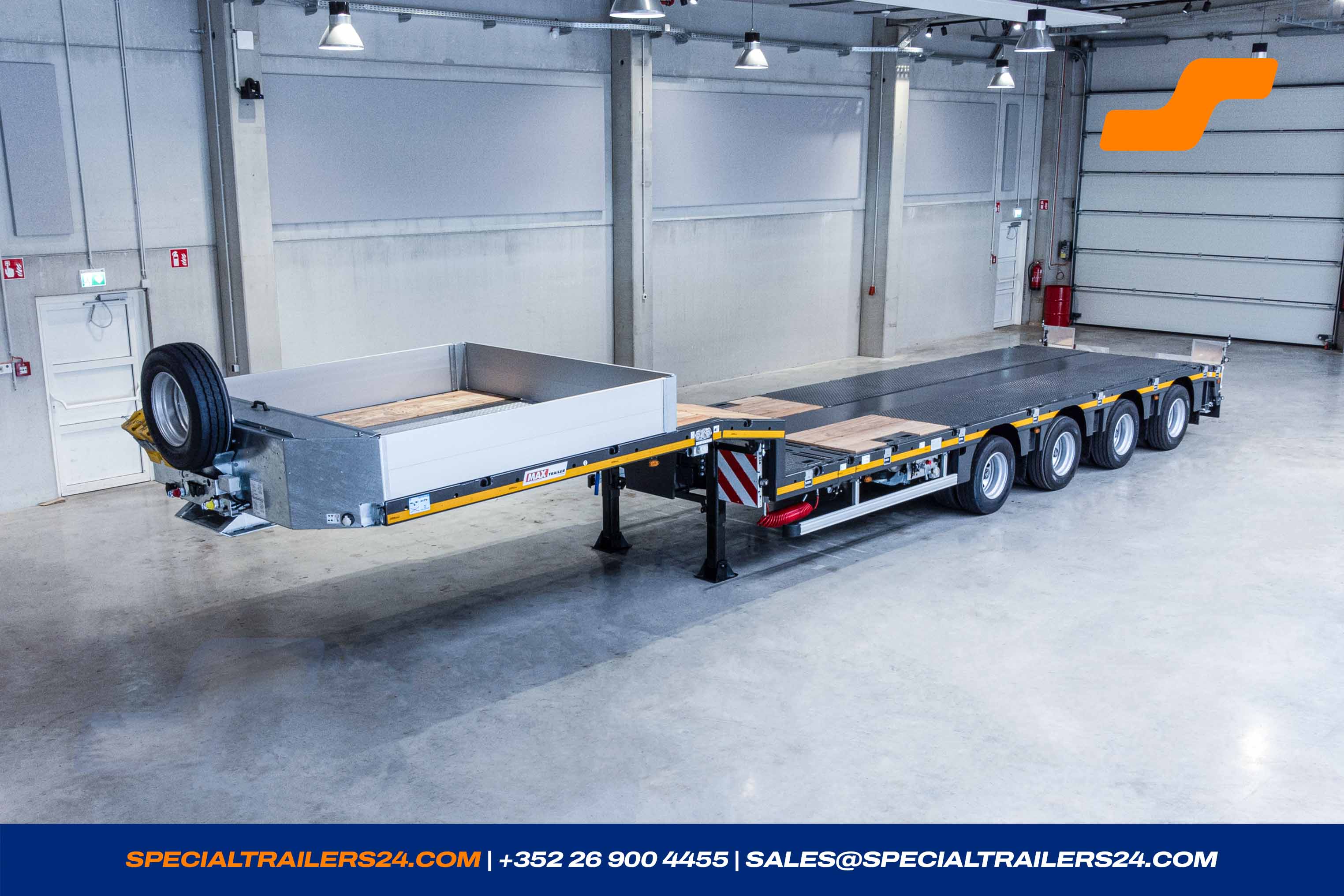

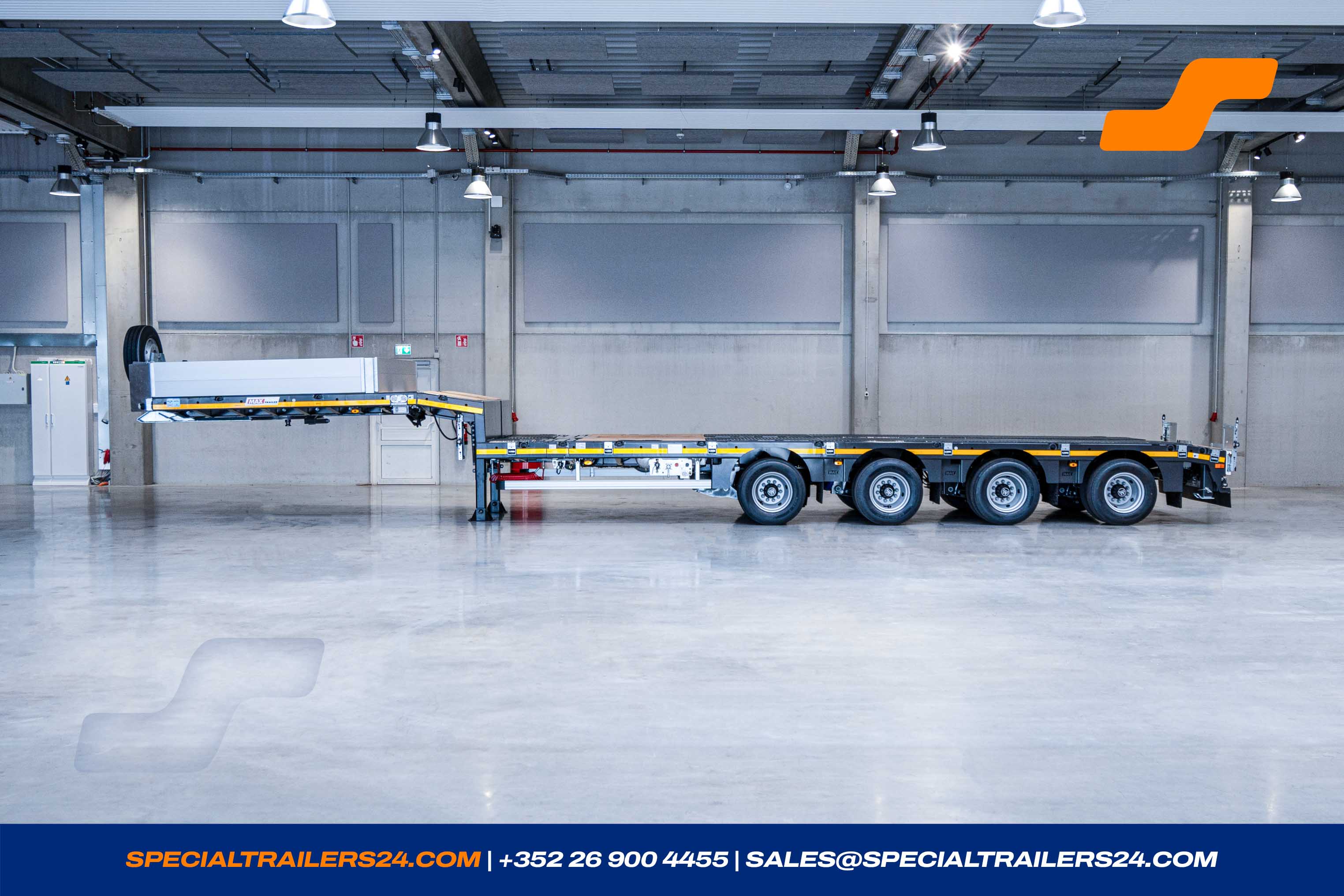

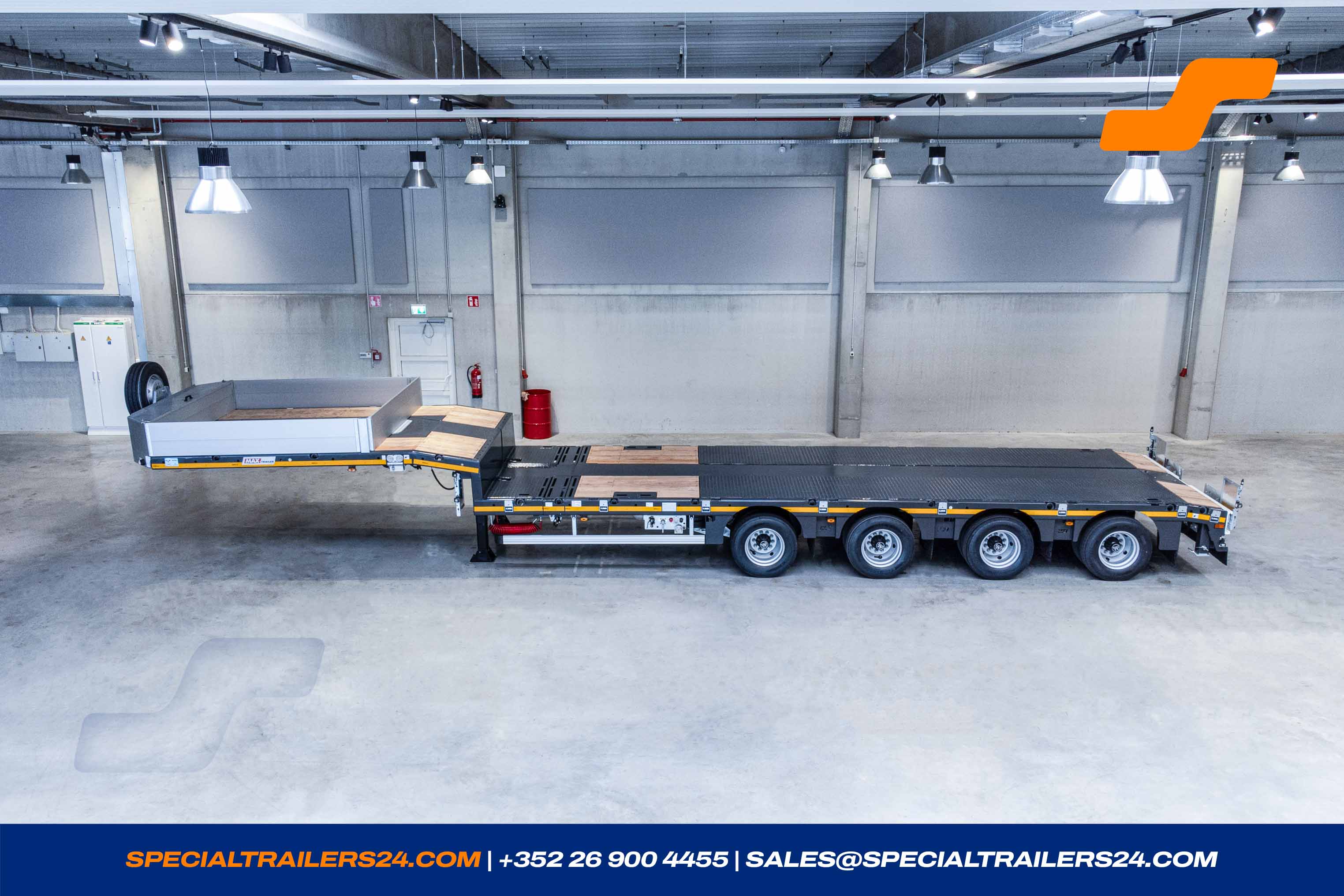

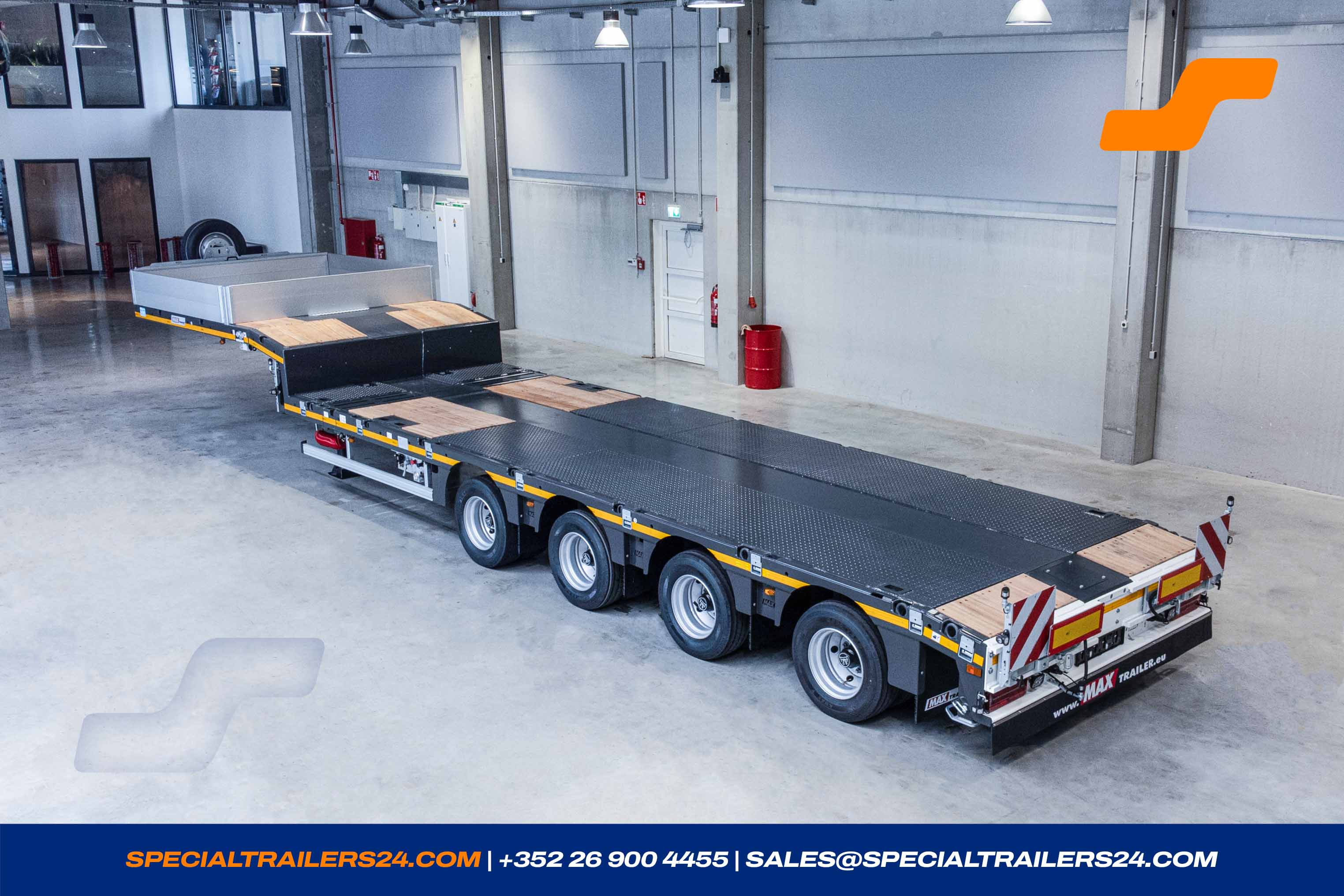

Low loader
MAX Trailer MAX110
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111518
- Reference MAX110-Z-4AA-8.60

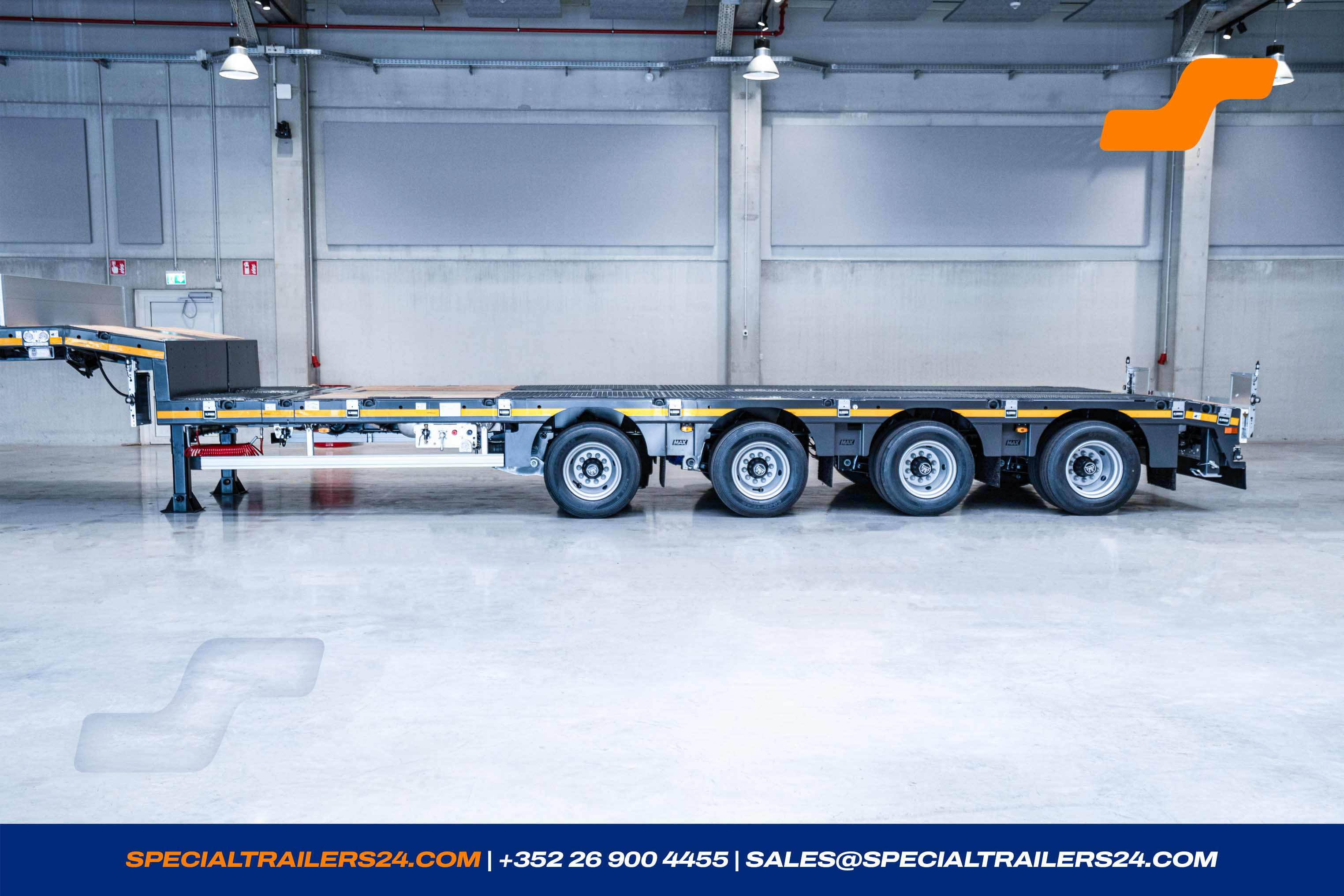

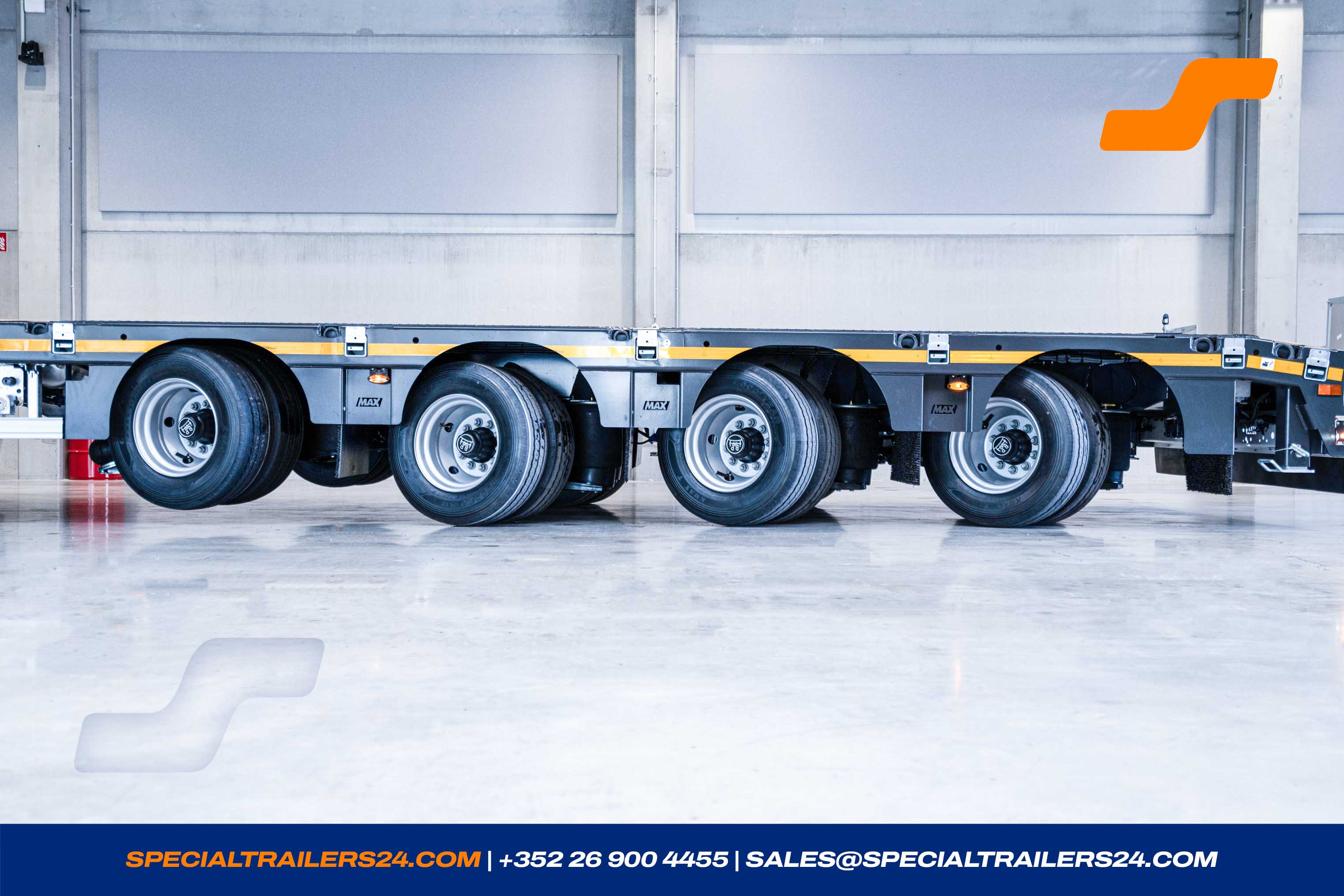

- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour RAL 6032 - Signal green
- Availability Directly available
- Steering Type Hydraulic
Availability
Directly available
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 48000 kg |
| Gross weight | 71000 kg |
| Tare weight +- 3% | 15472 kg |
| Payload | 55528 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 8 600 mm |

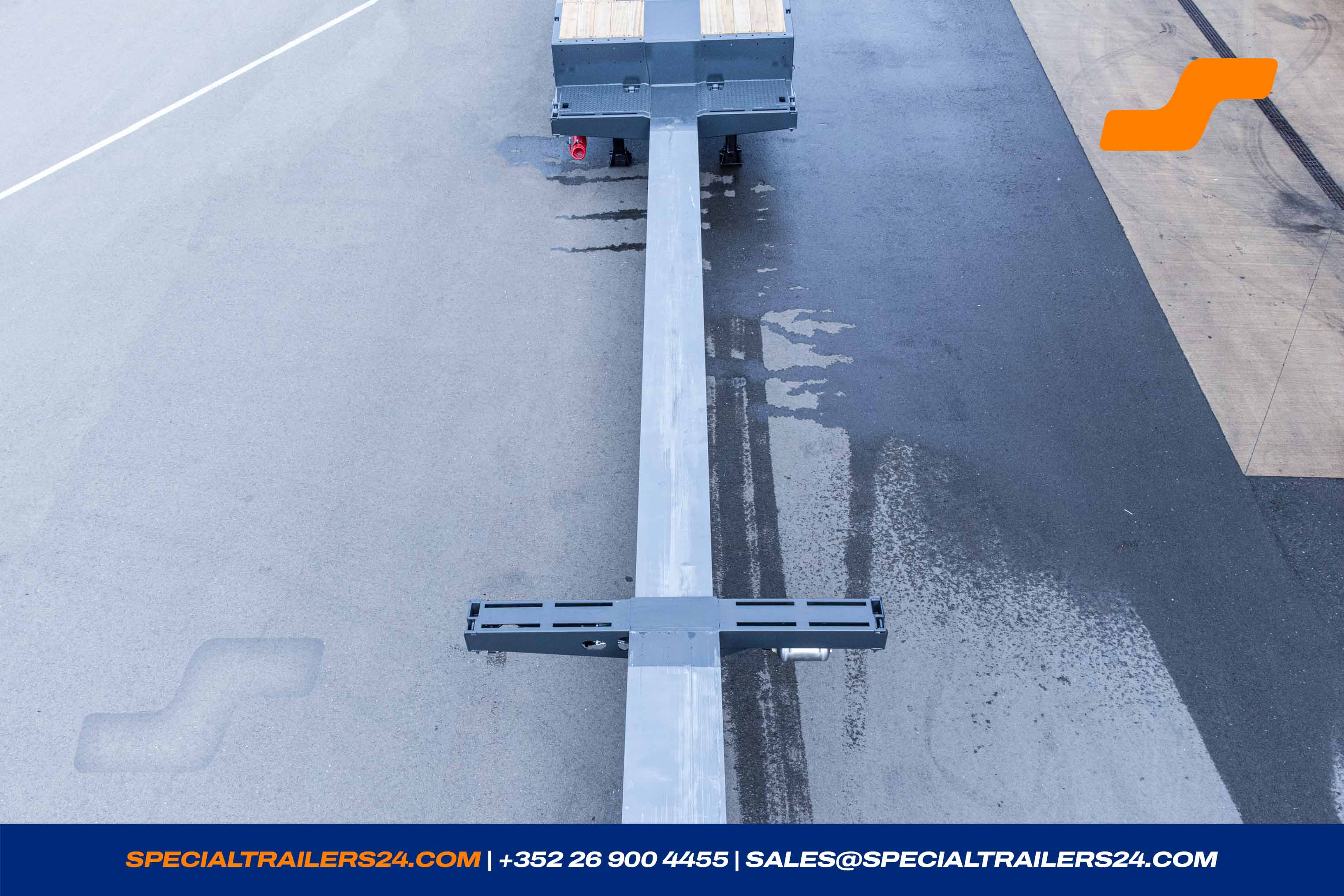

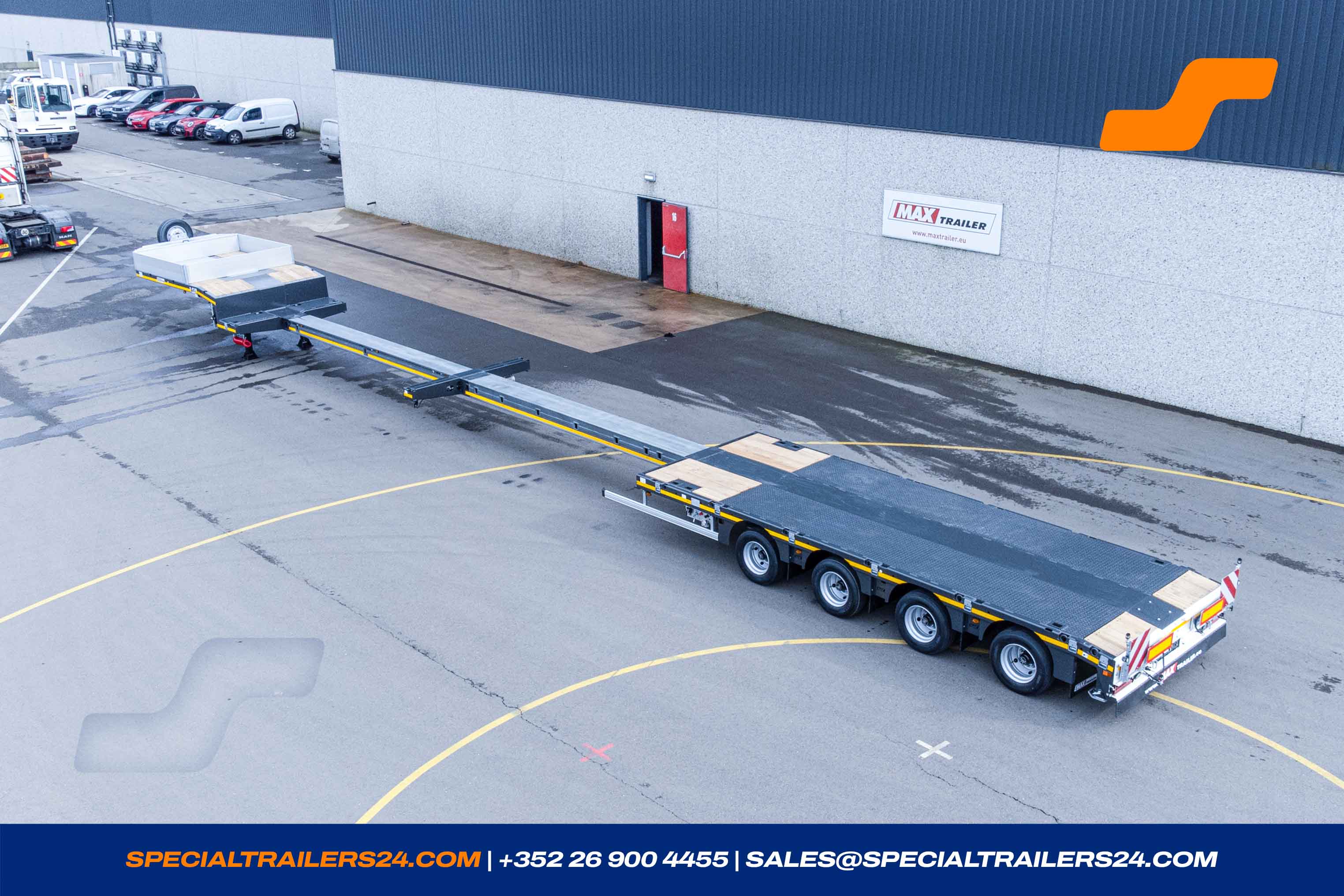

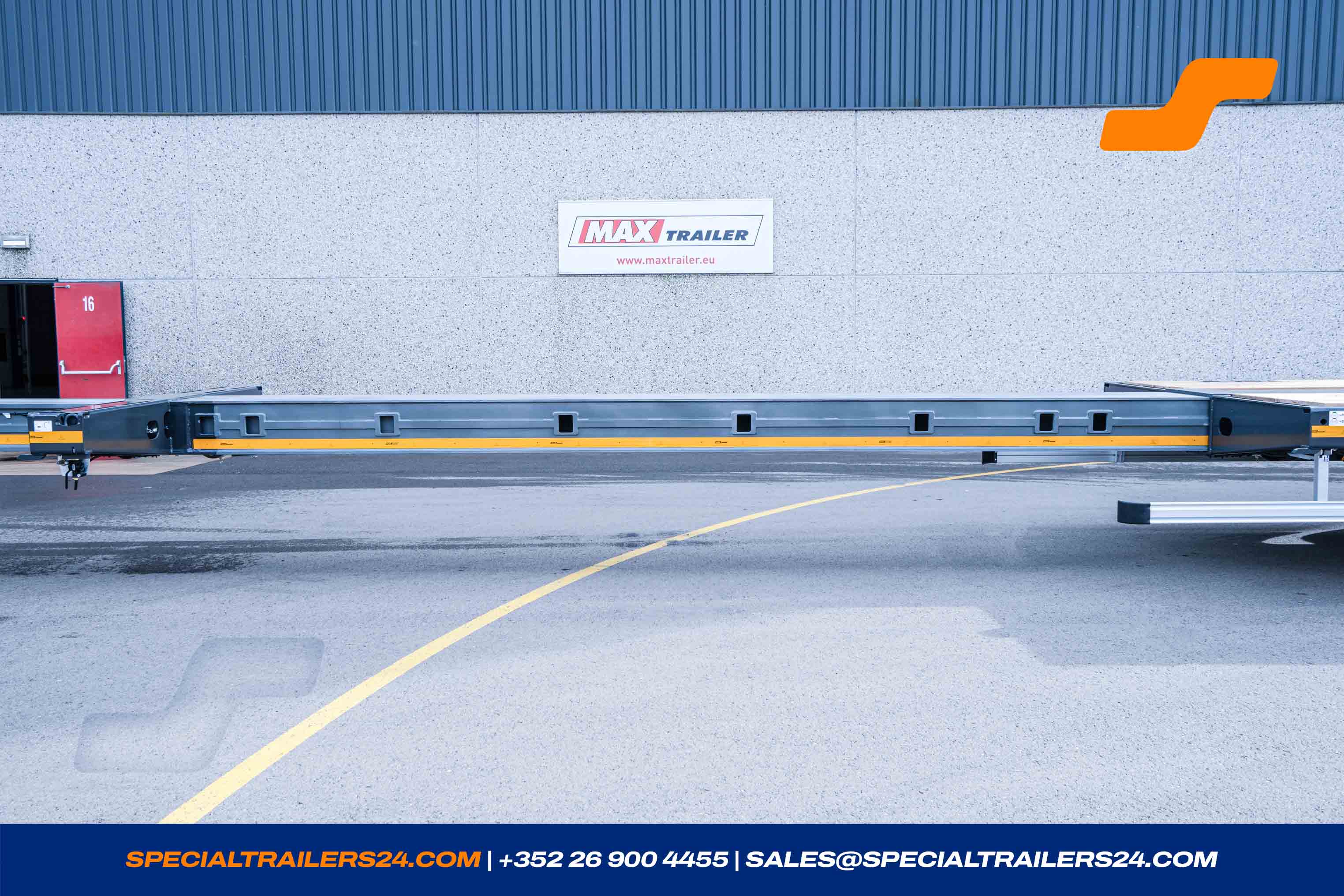

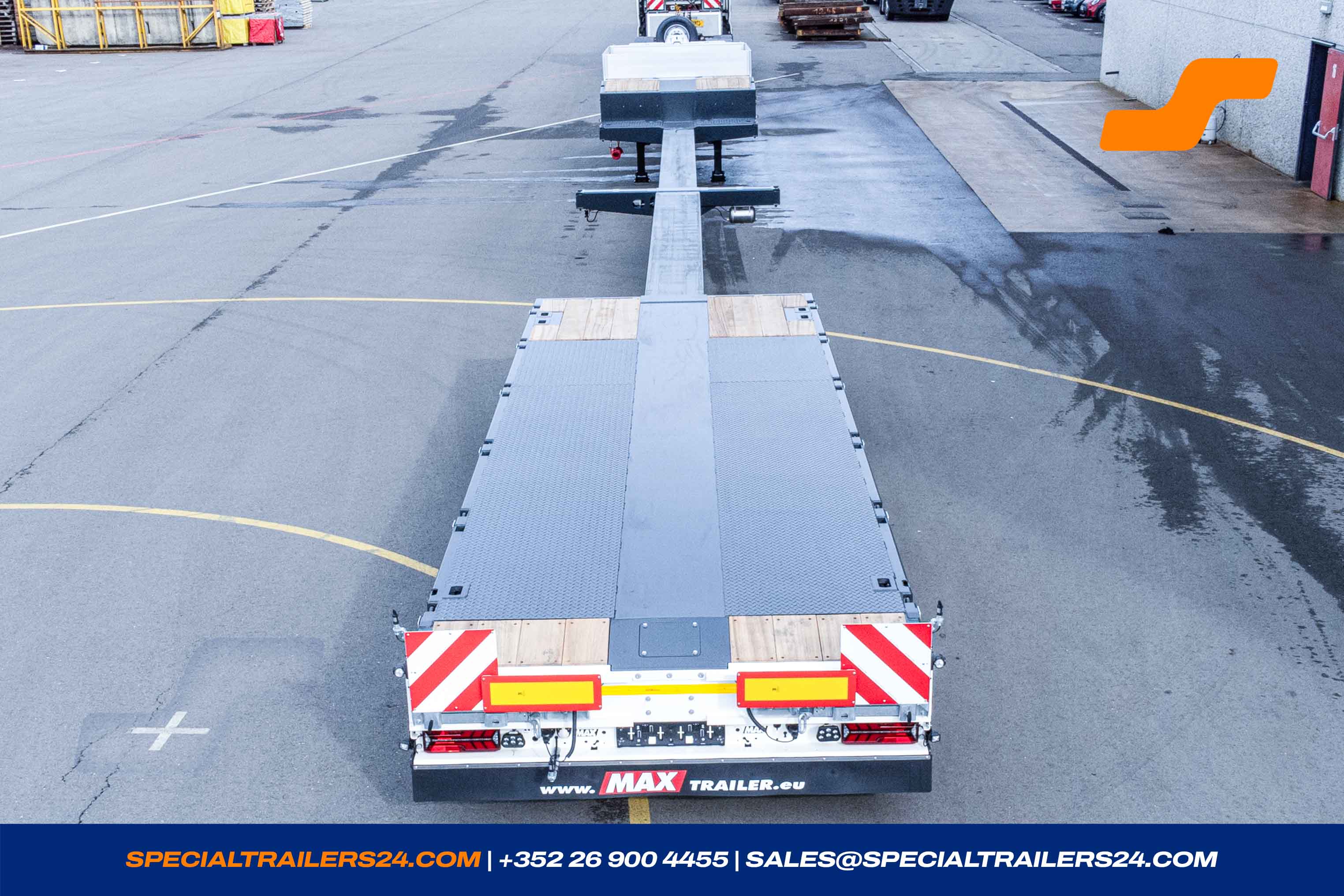

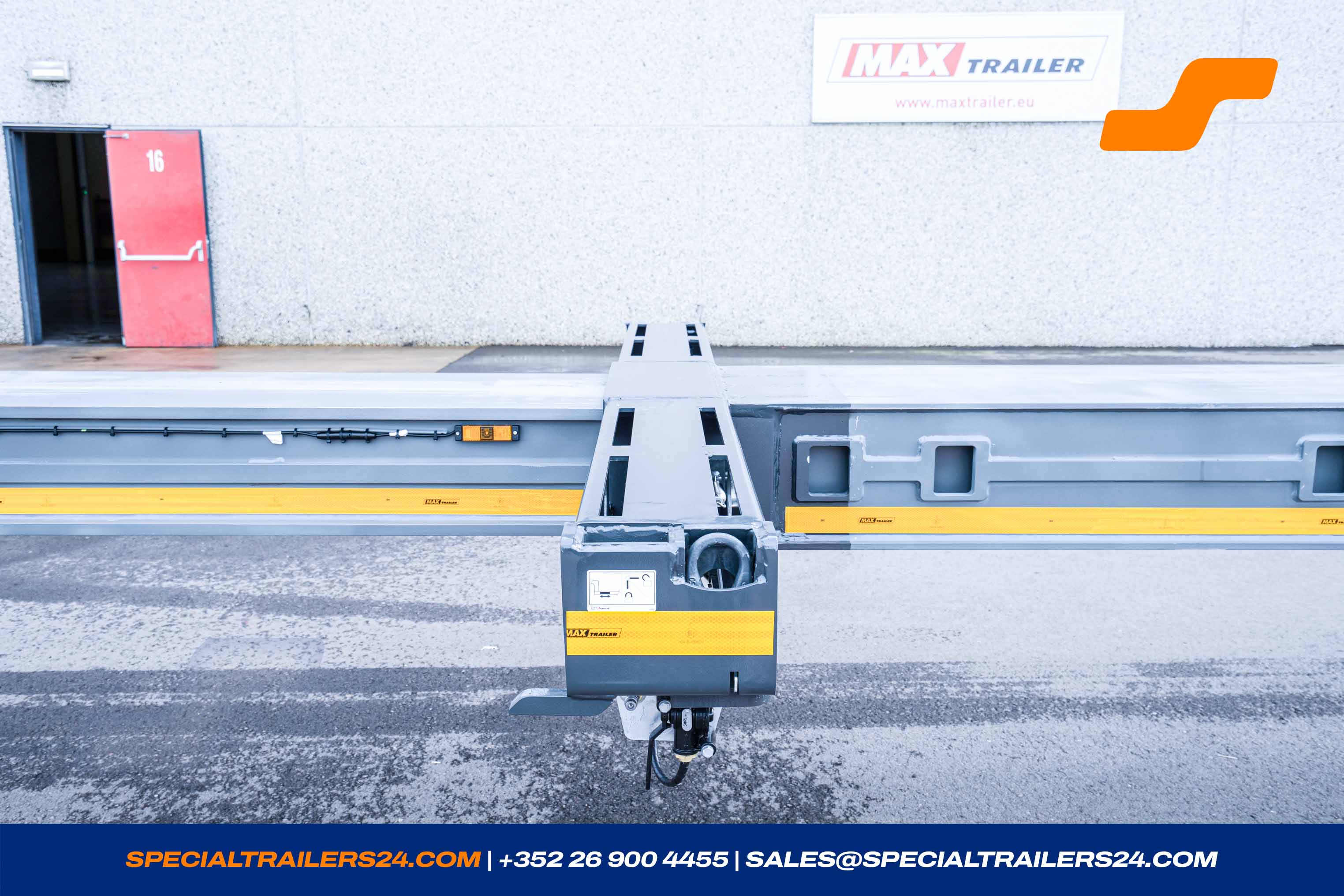

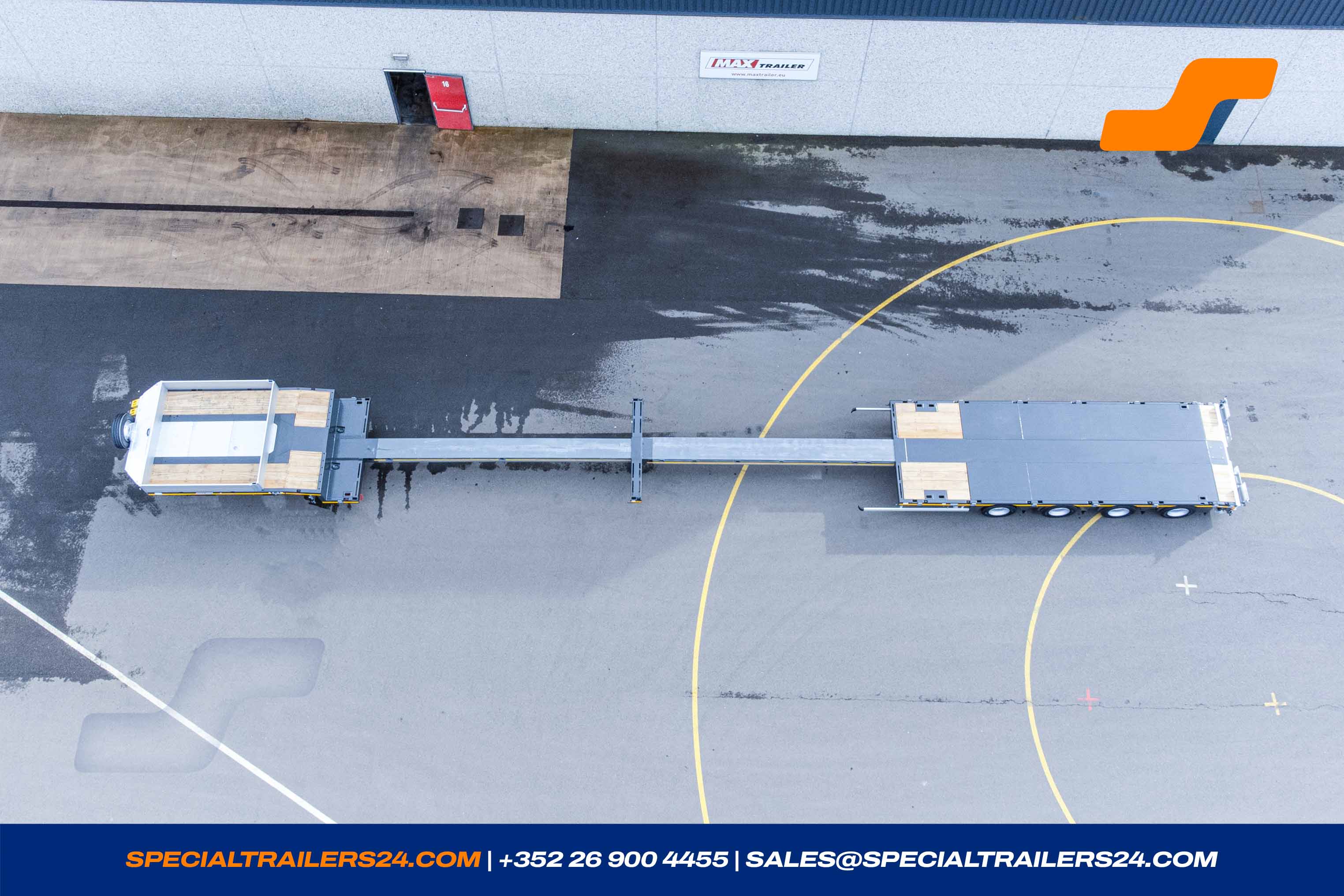

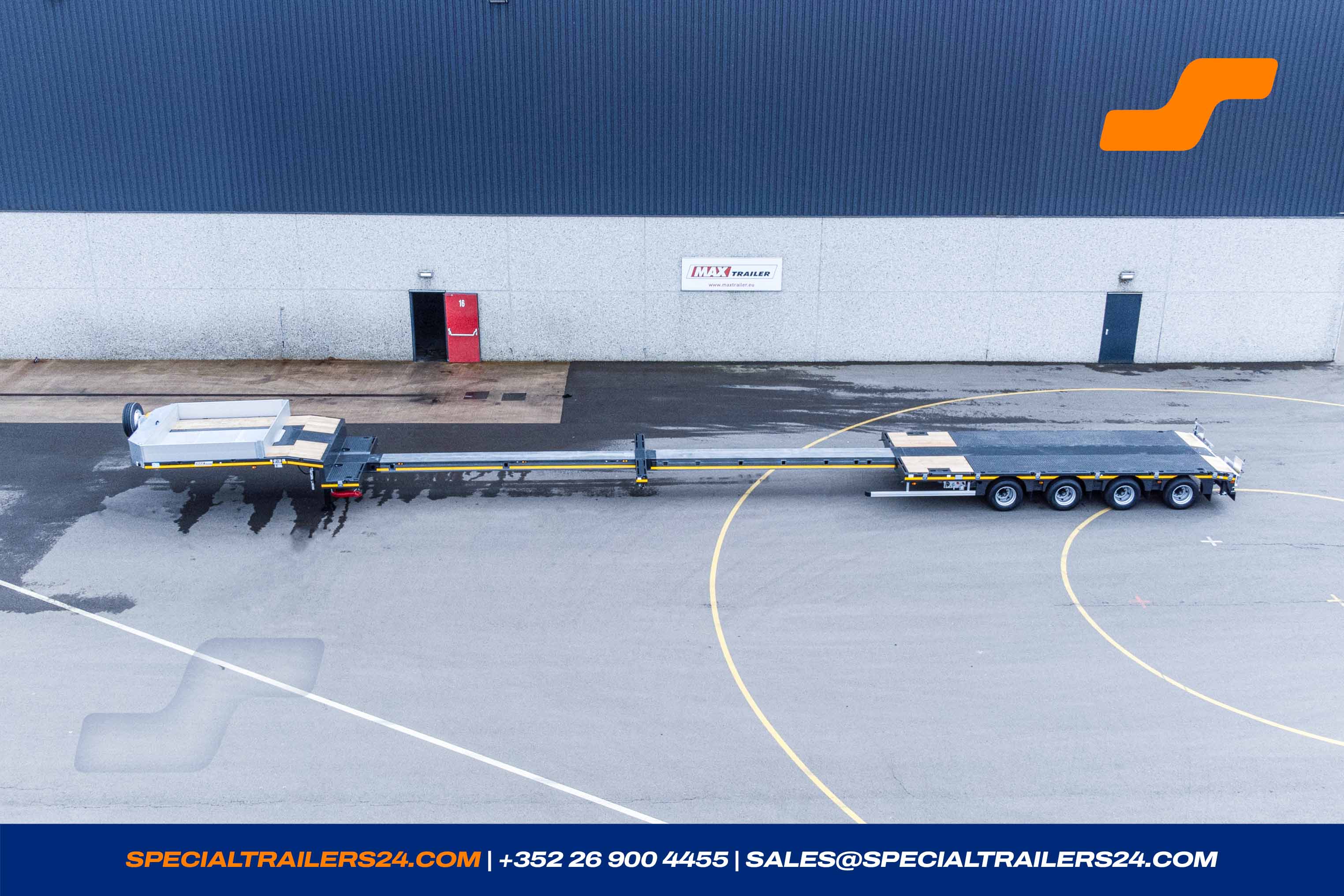

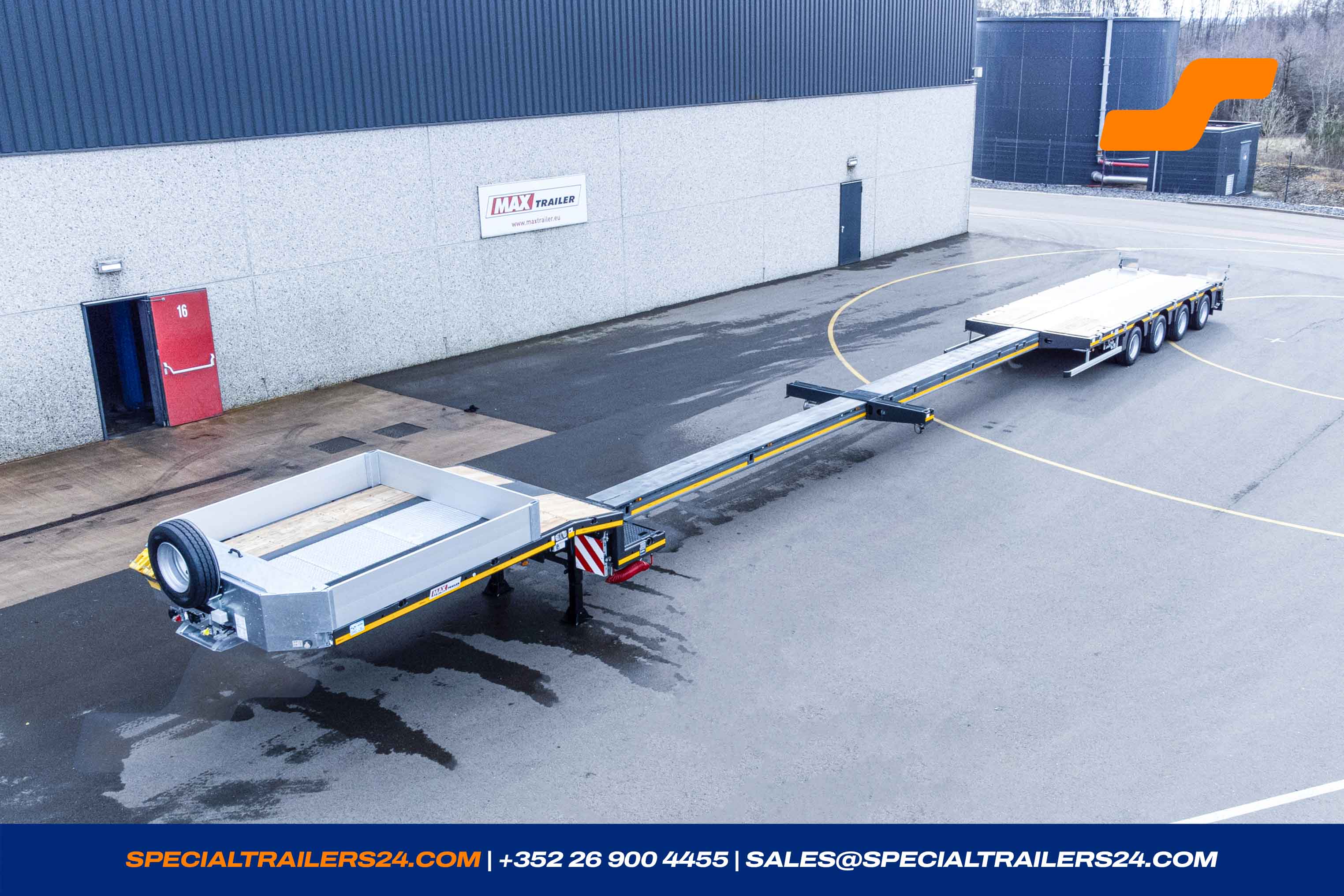

| Extendable by | 11 900 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 900 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

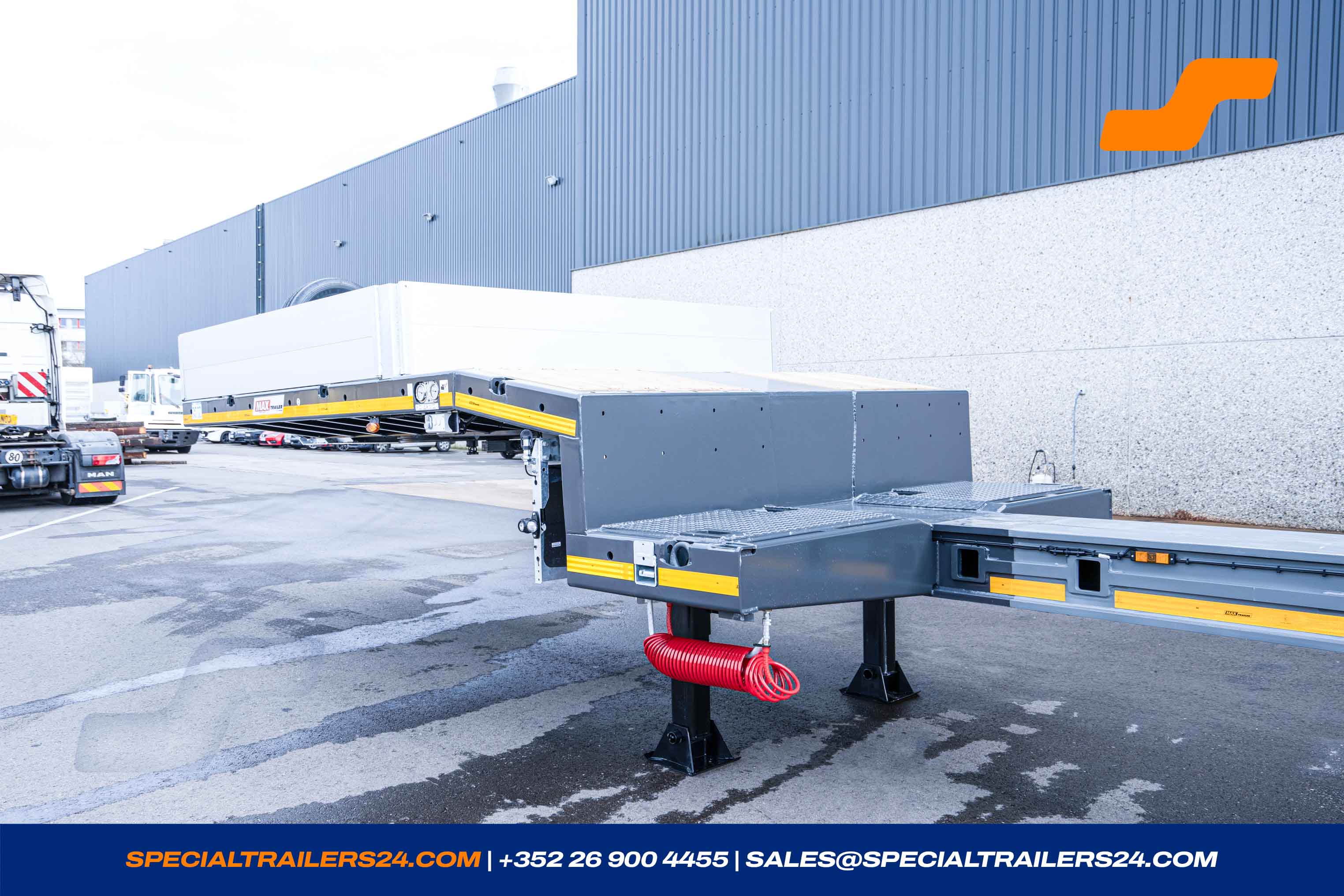

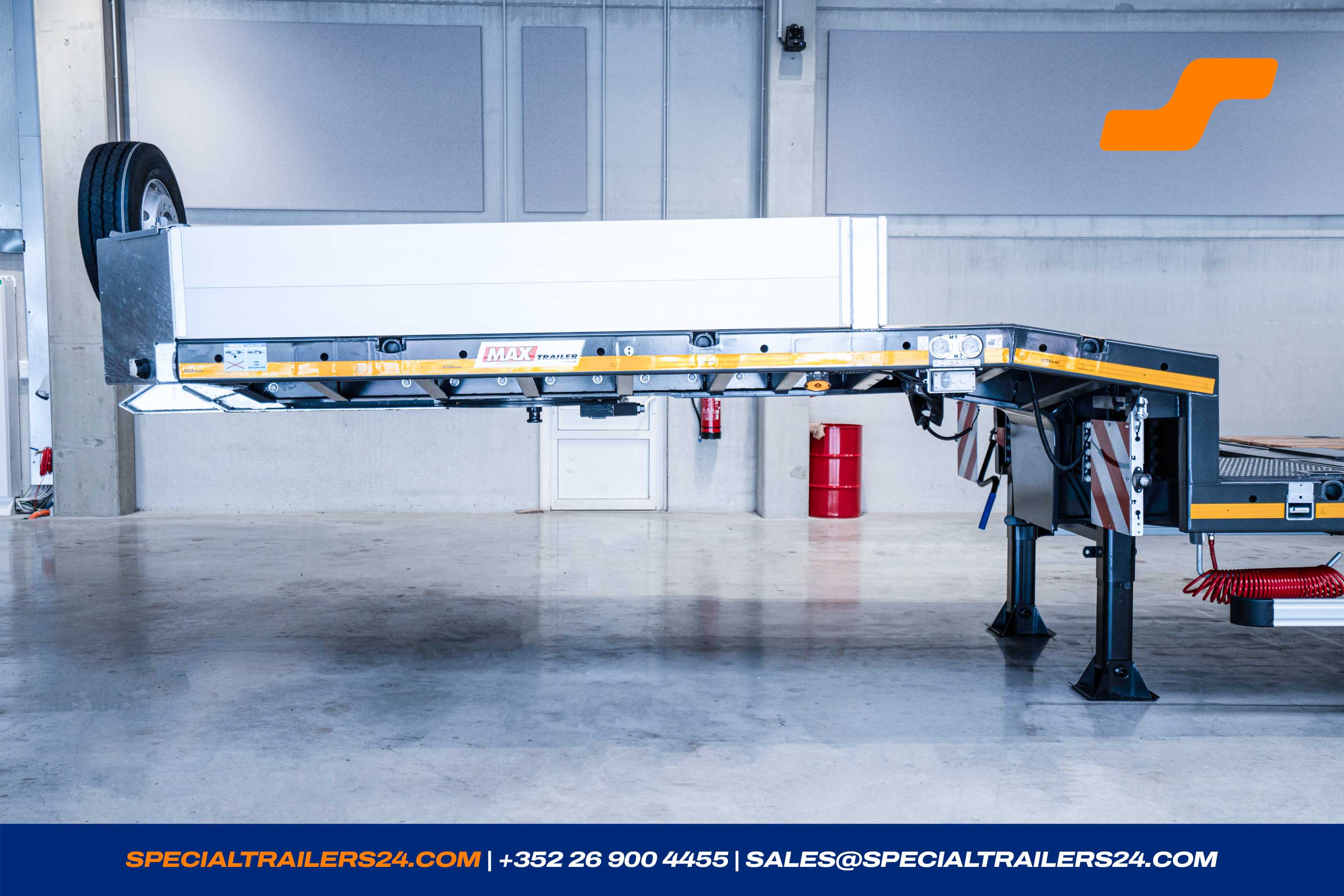

Gooseneck

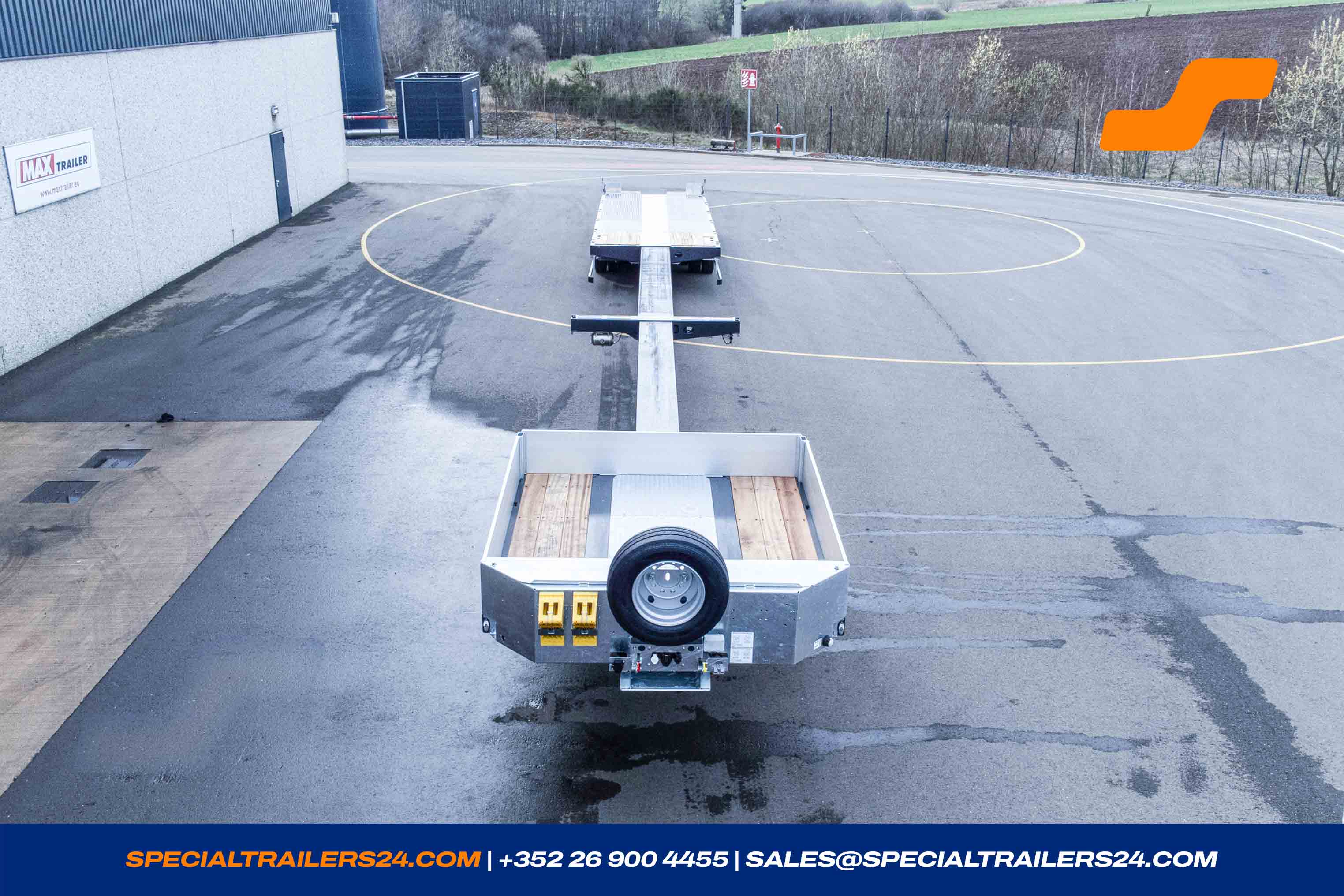

1 x Gooseneck : MAX-4.200-750-8° (DSR 2300/ASH 1200) 45° 23T
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

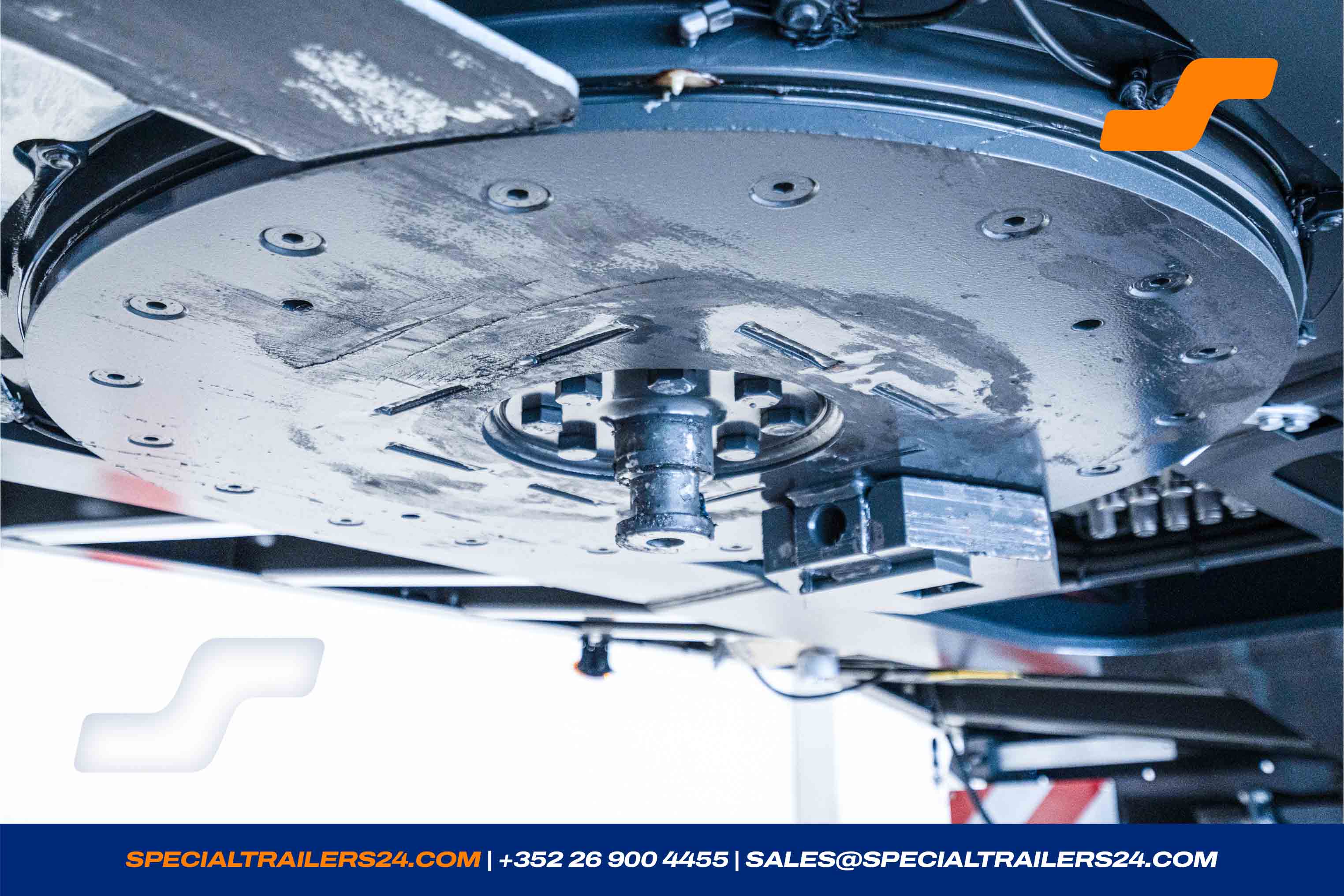

- 2 king-pin.

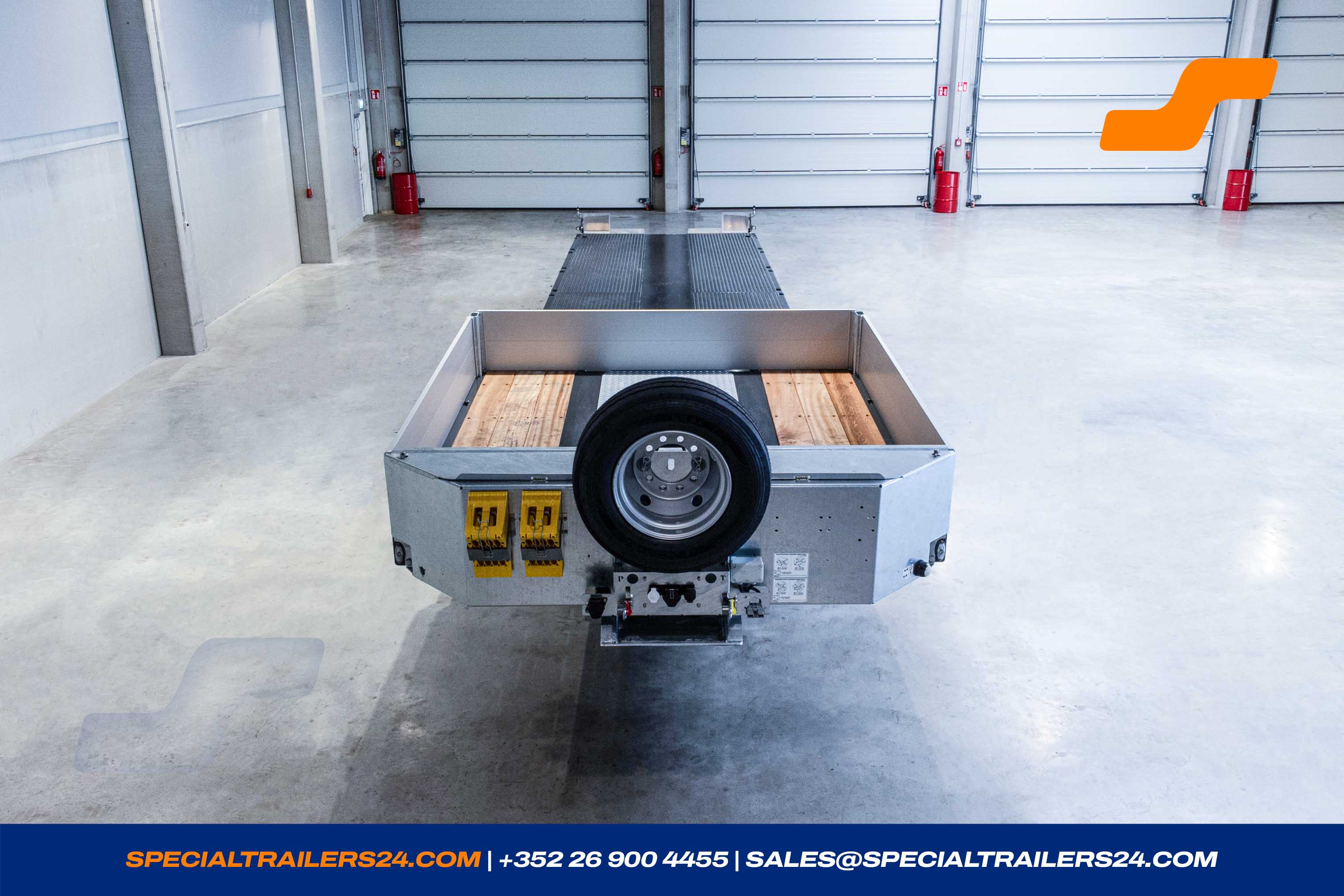

- One galvanised steel headboard, height ± 400 mm.

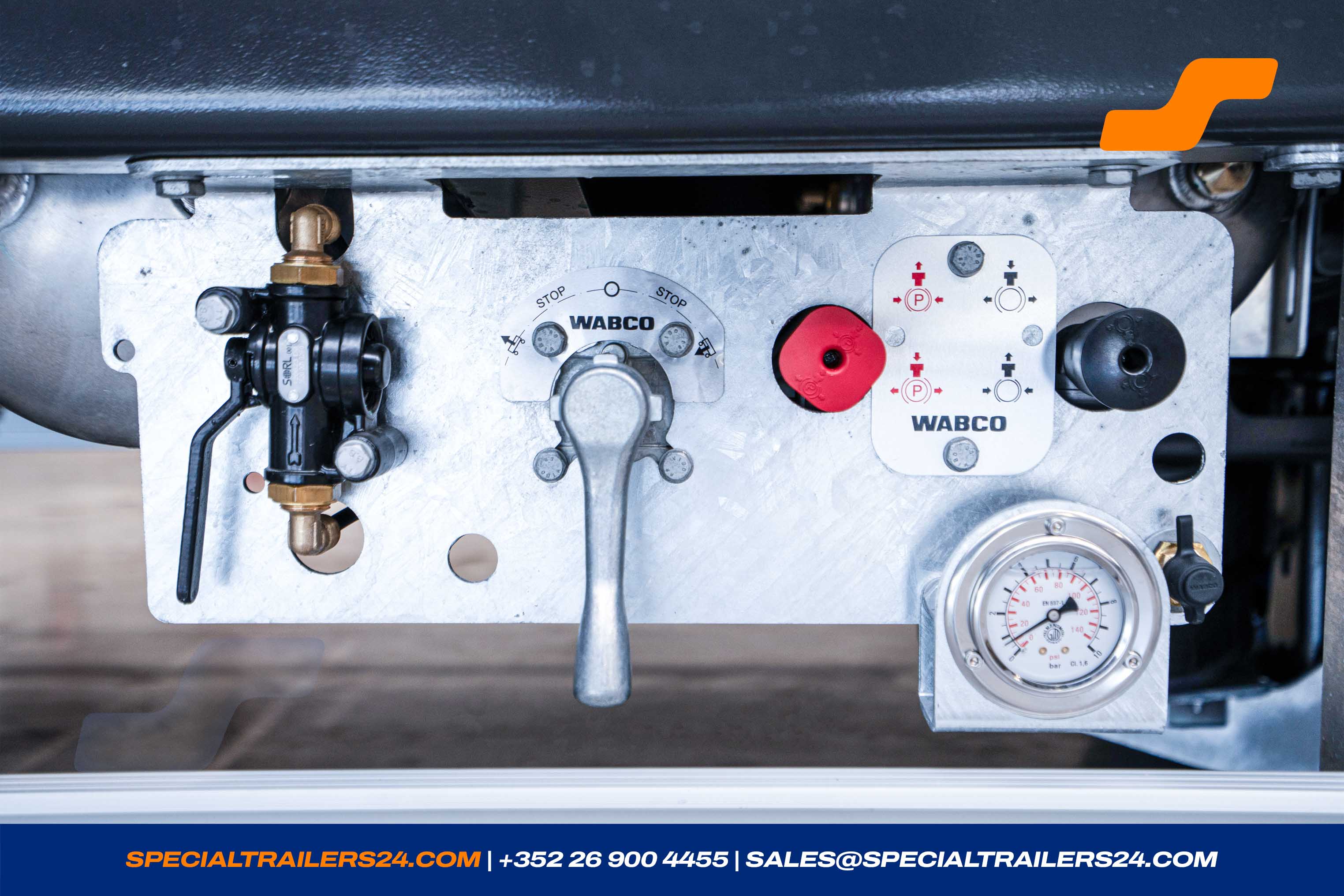

- Red and yellow air couplings on the galvanised front connection ledge.

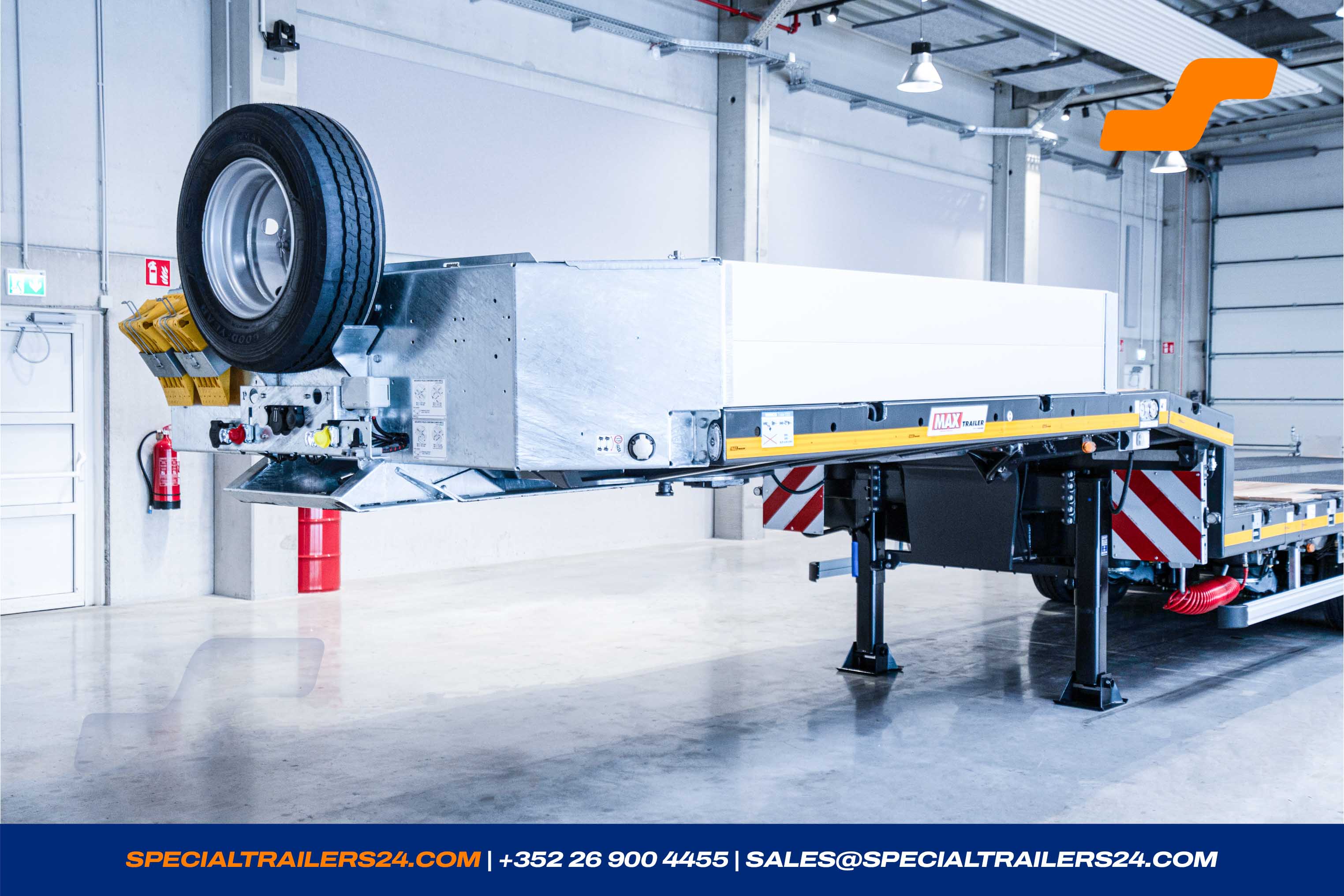

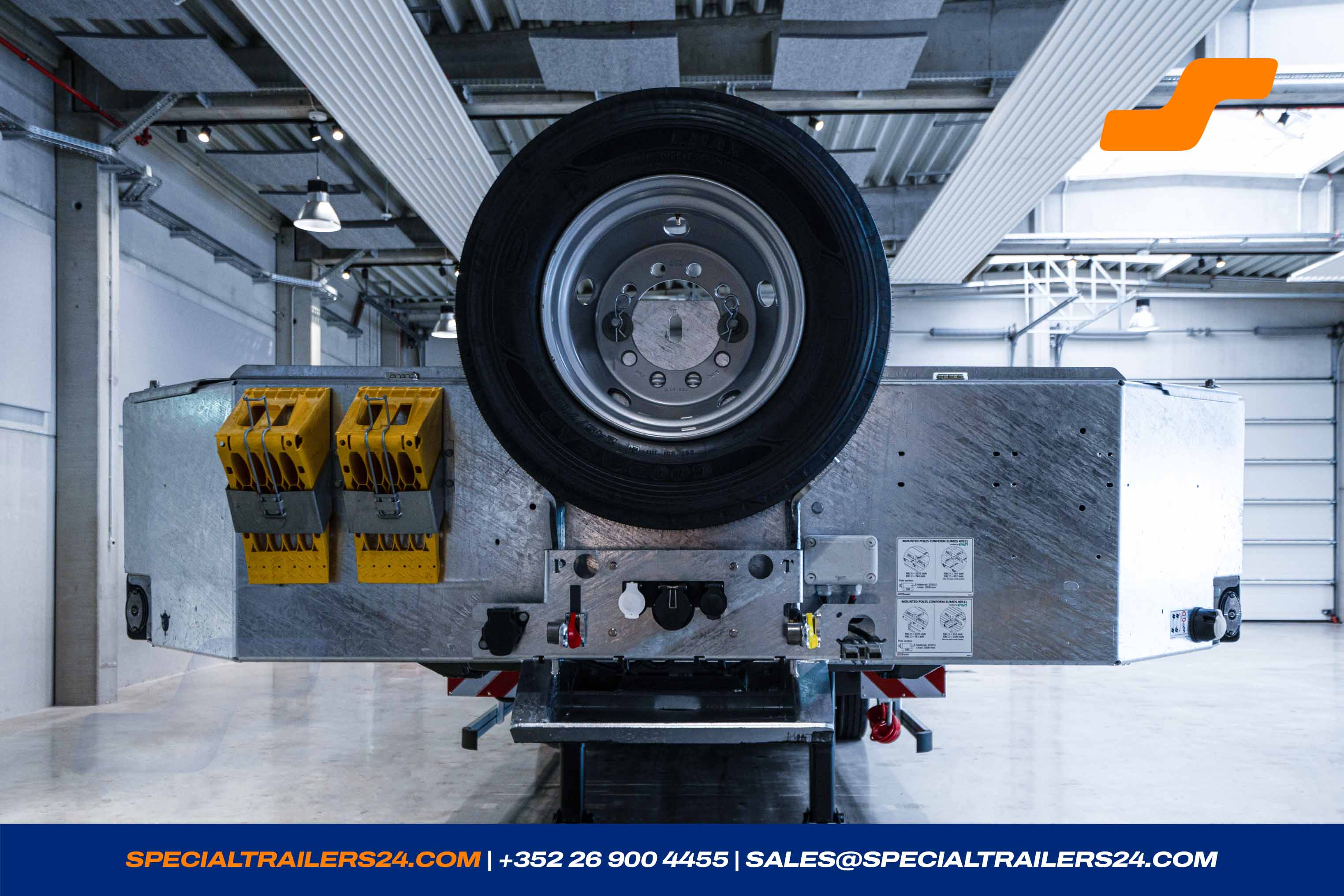

- One spare wheel with holder on the headboard.
- 4 wheel chocks with carrier on the headboard (± 5kg).
-

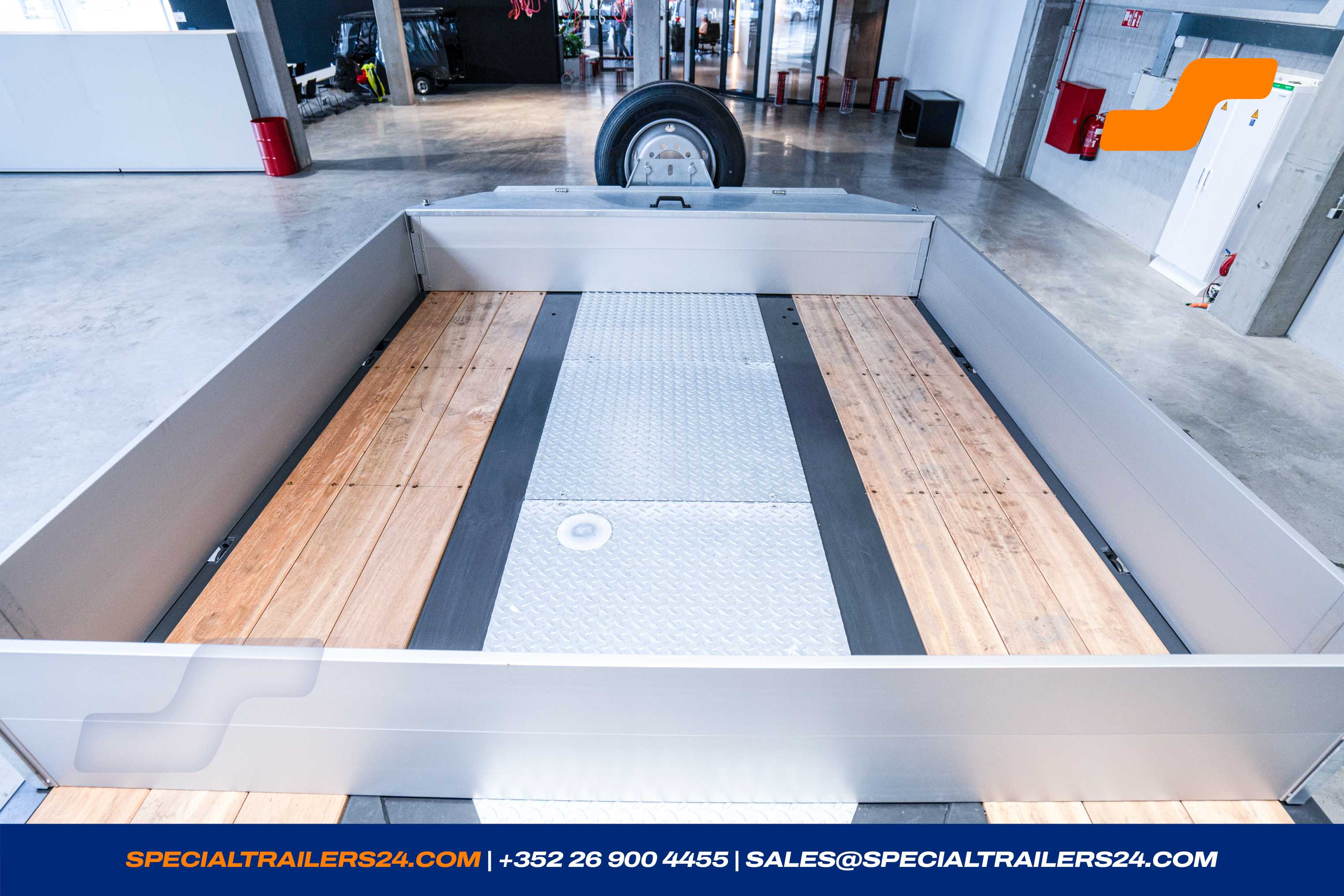

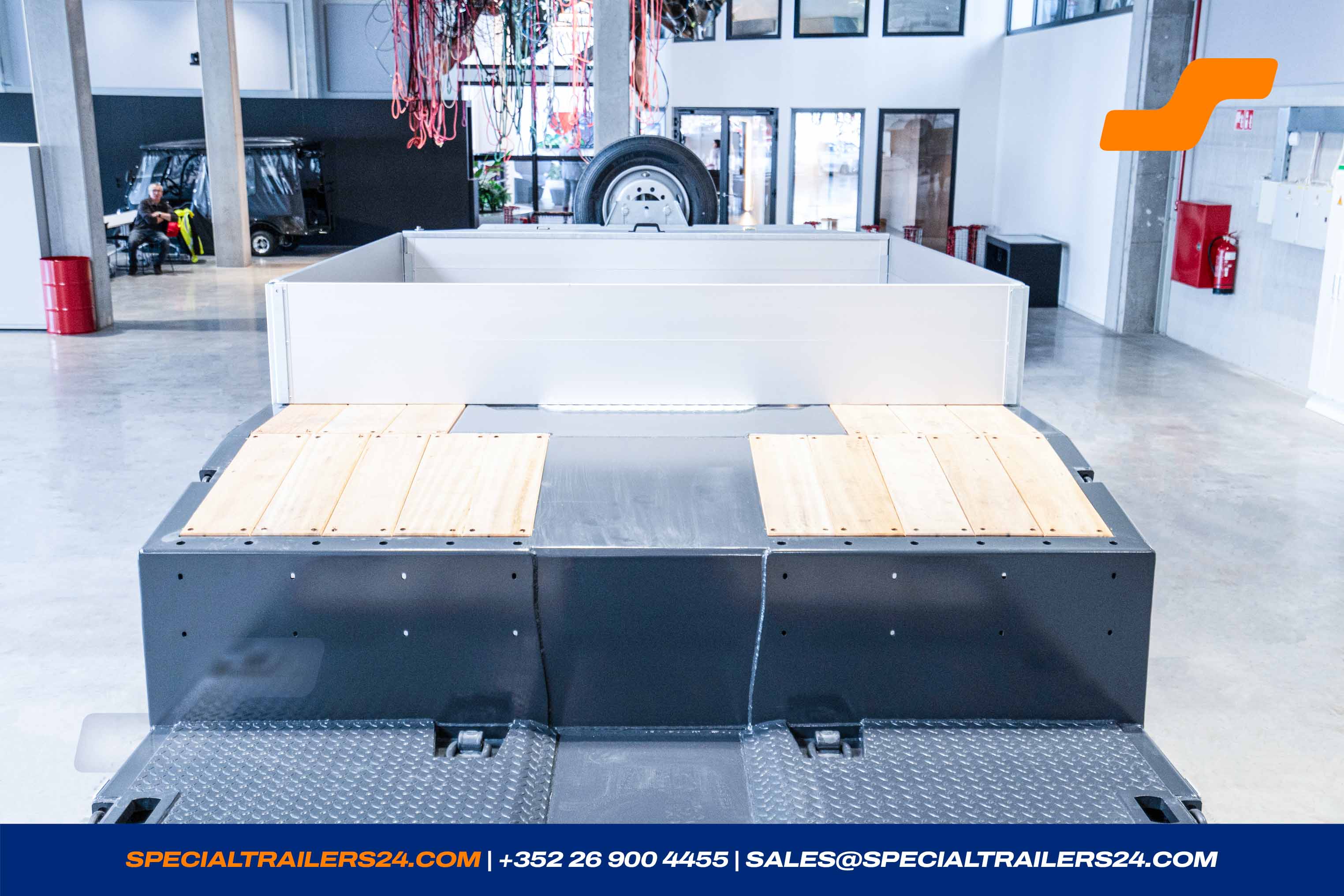

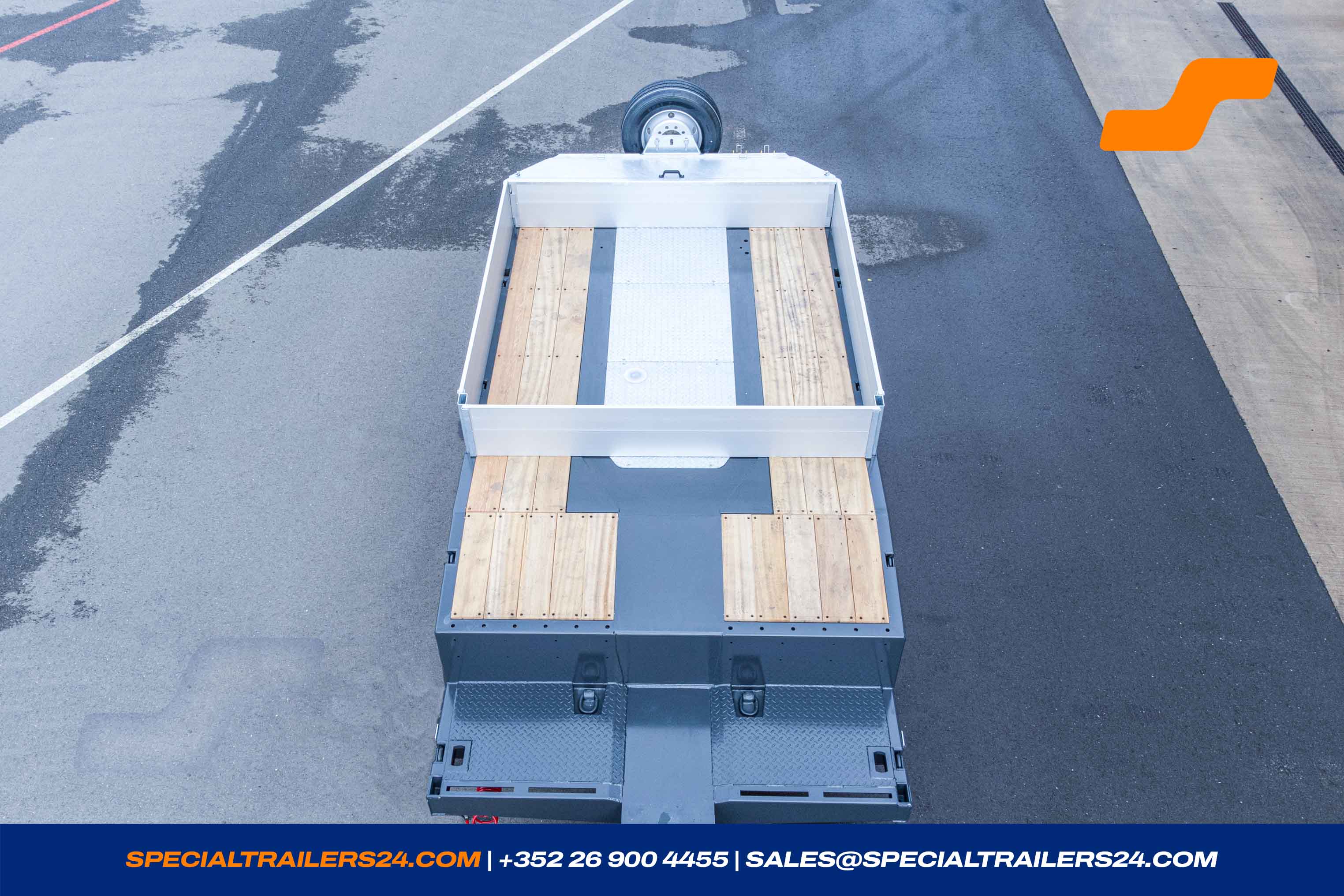

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

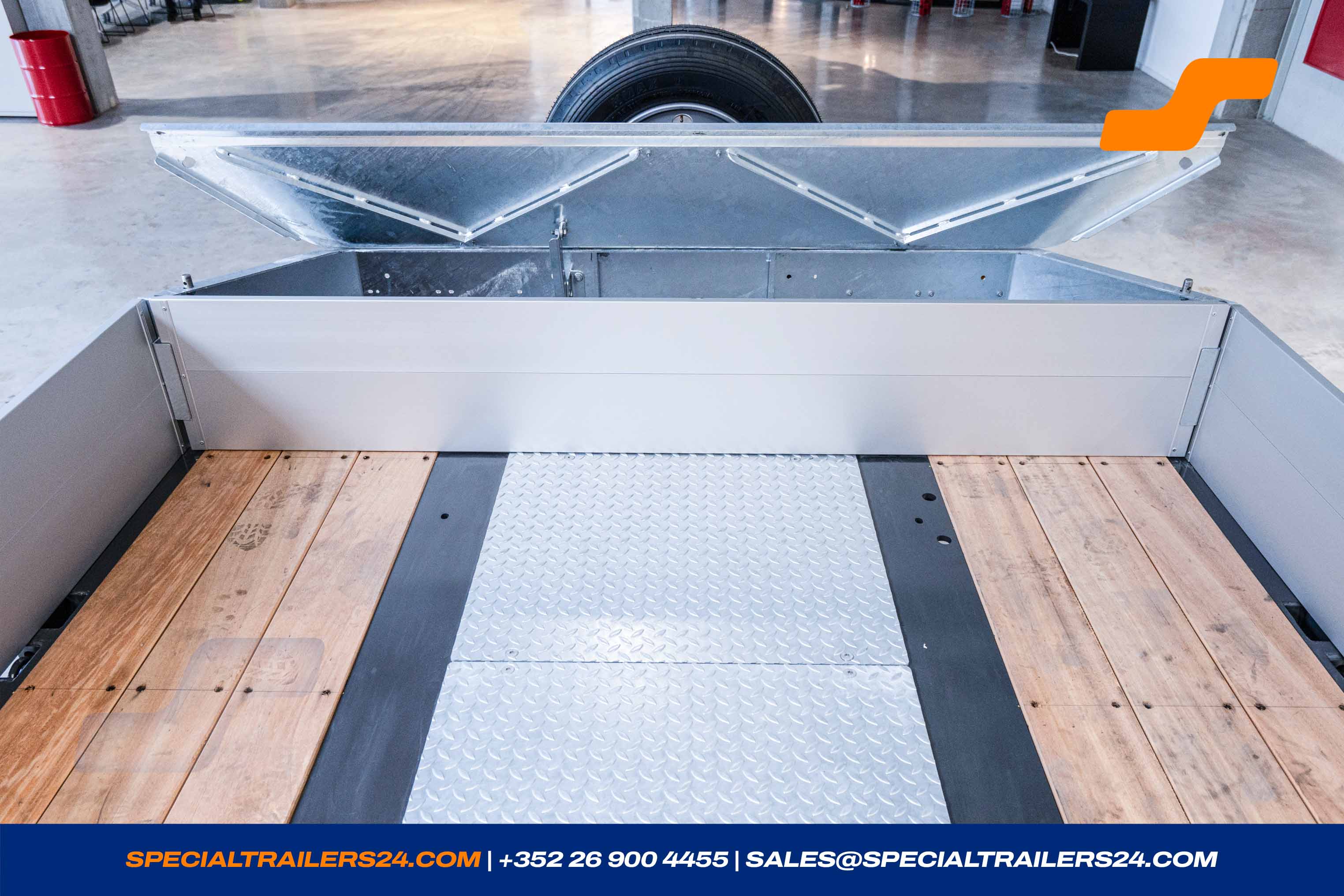

(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
-
1 pair of alu ramps AVS 150 OR KE ± 1500 x 400 x 150 (l x w x h)
Capacity per ramp for :
Bogie 2 axles with load distribution 40% to 60%
by axle distance 1.5 meter : 6900 daN (Kp)
by axle distance 2.0 meter : 6900 daN (Kp)
single axle: 4140 daN (Kp)
max. admissible uphill : 30% (16.5°)
Weight per ramp approx. 23 kg (approx. 50kg)
Loading deck
Loading platform
1 x Loading platform : MAX110-Z-4AA-8.60-17.5-2.54

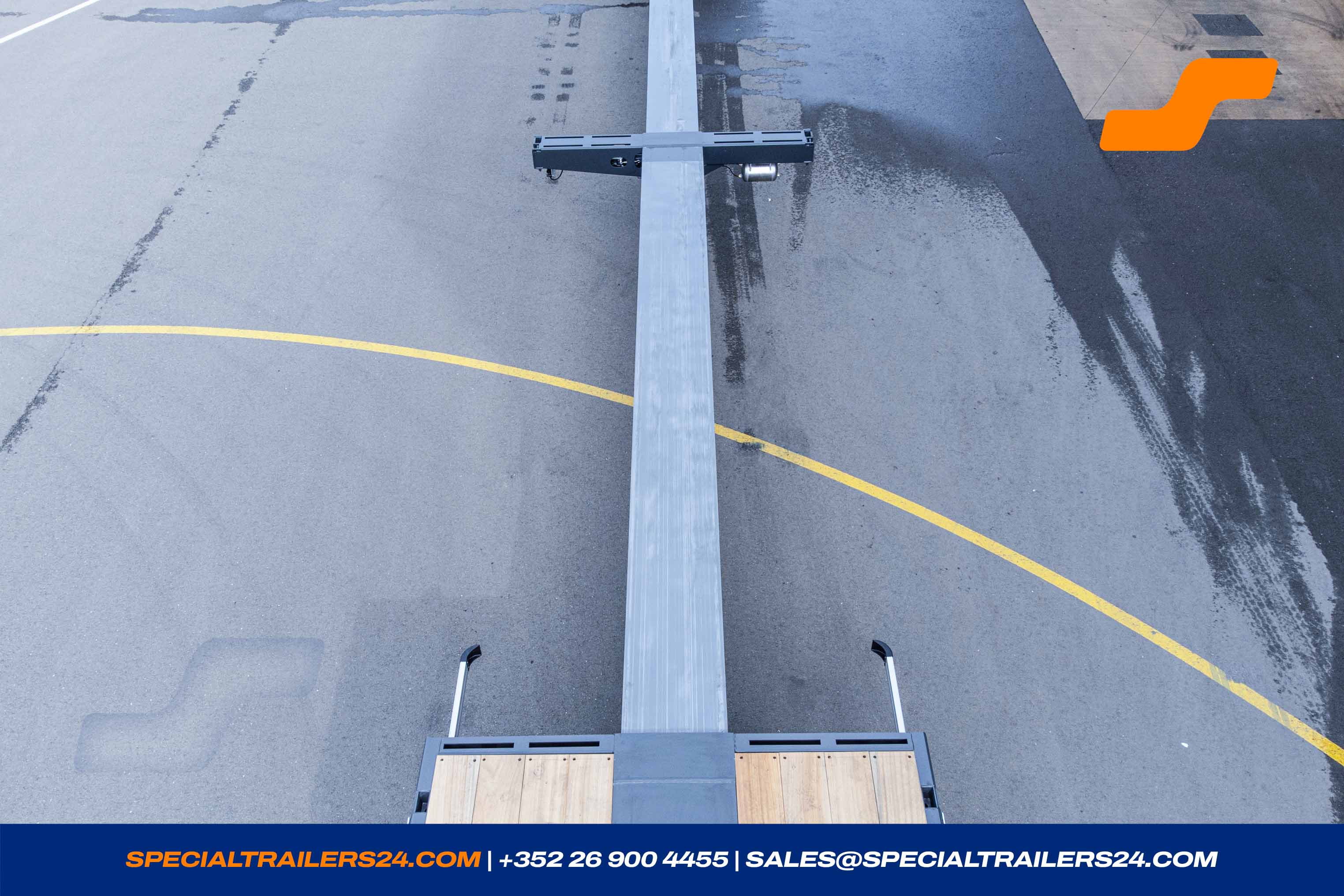

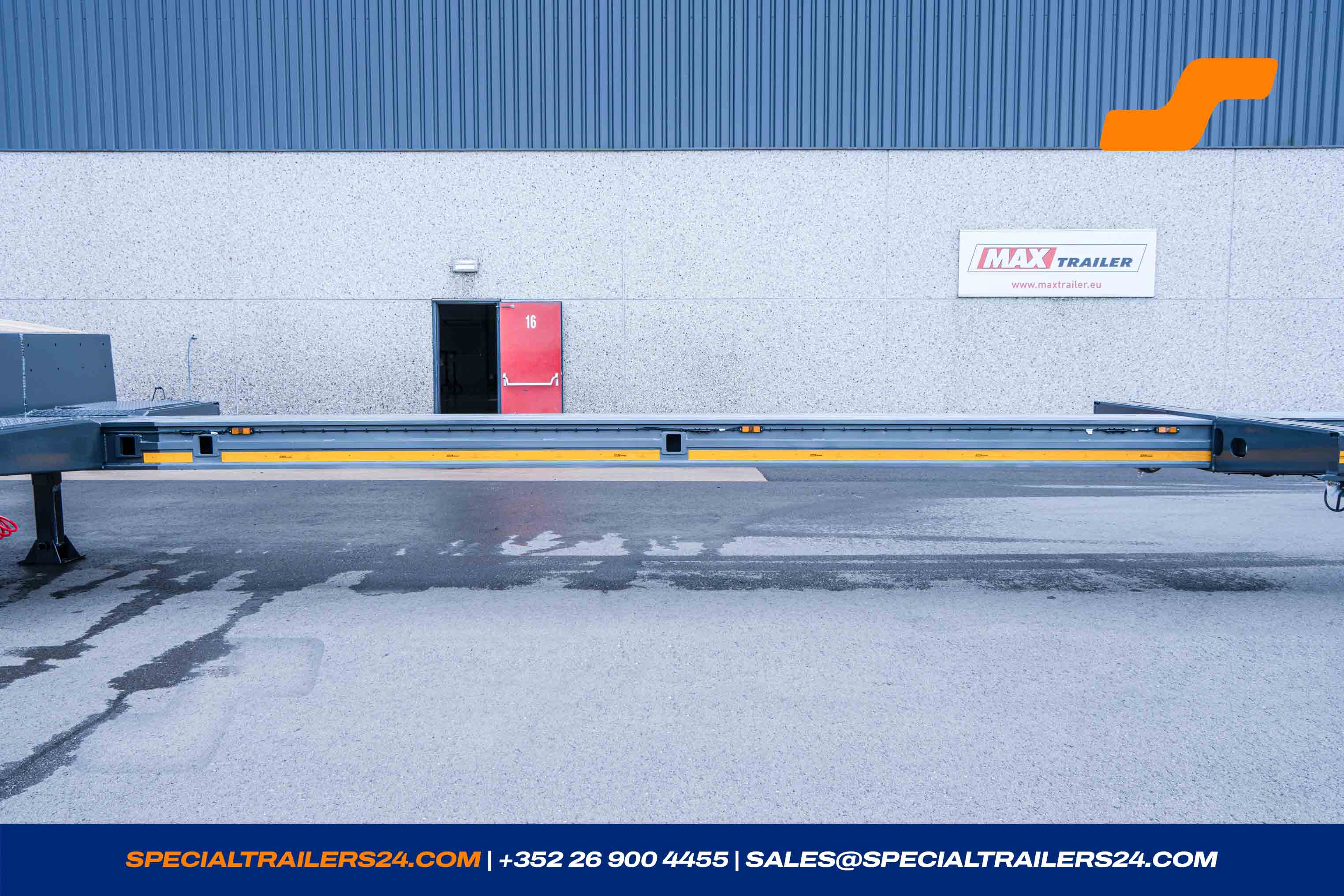

Loading platform in extendable version with chamfered beaver tail by about 500 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
4 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
One bolster 250 mm.

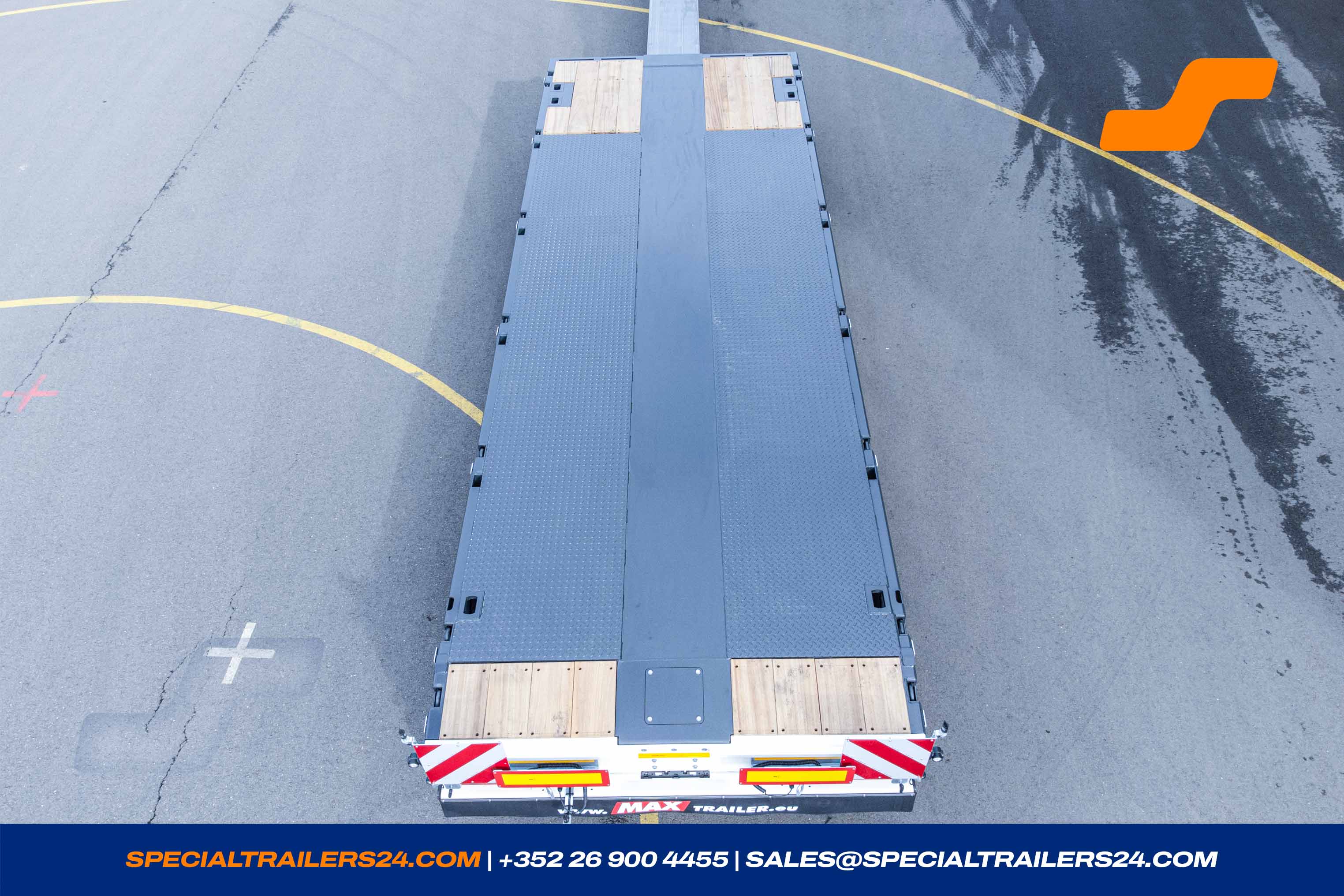

Hardwood cover thickness 48 mm; above the axles chequer plate.
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN)
- Electrically operated hydraulic pump. (± 45kg)
-

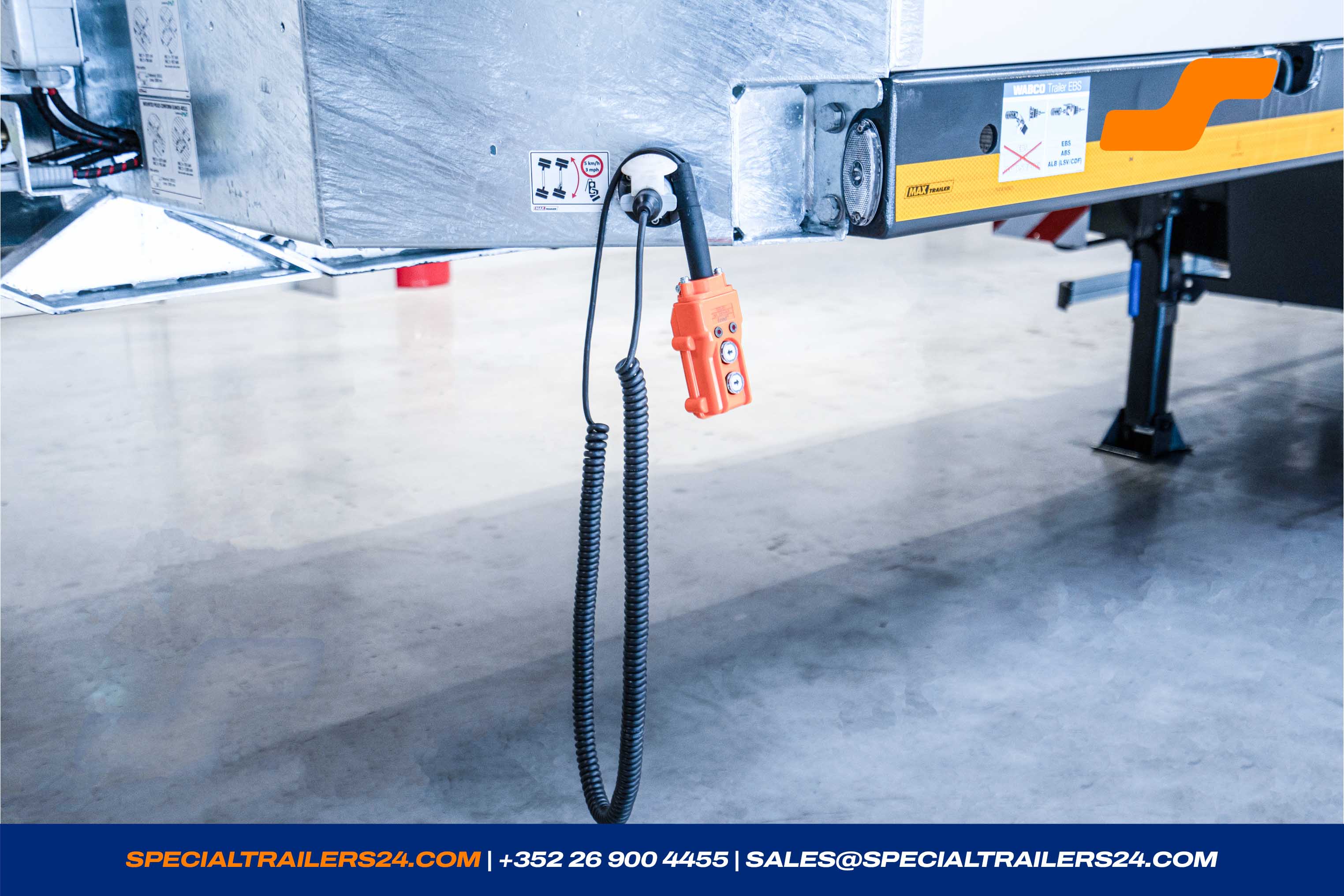

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.

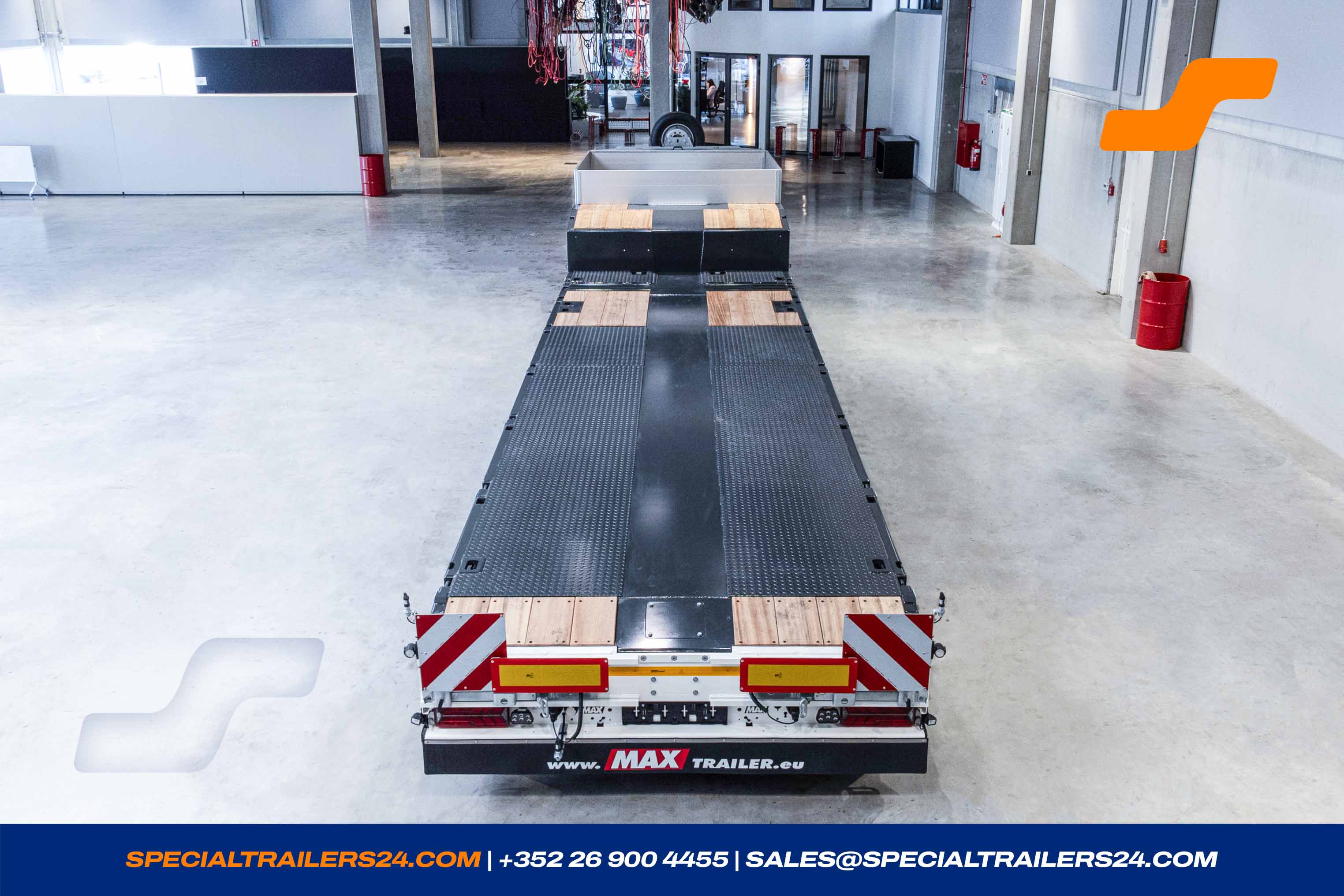

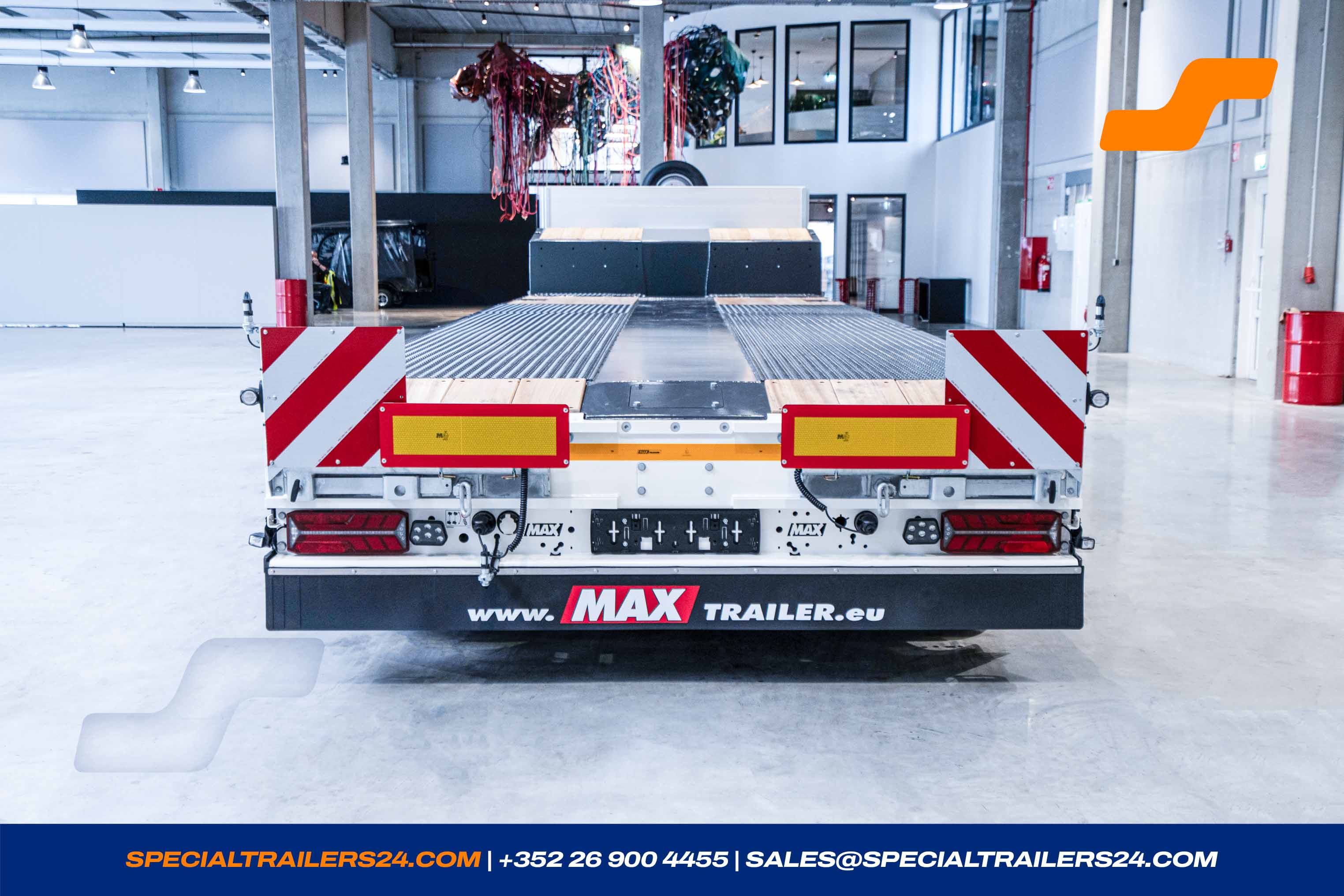

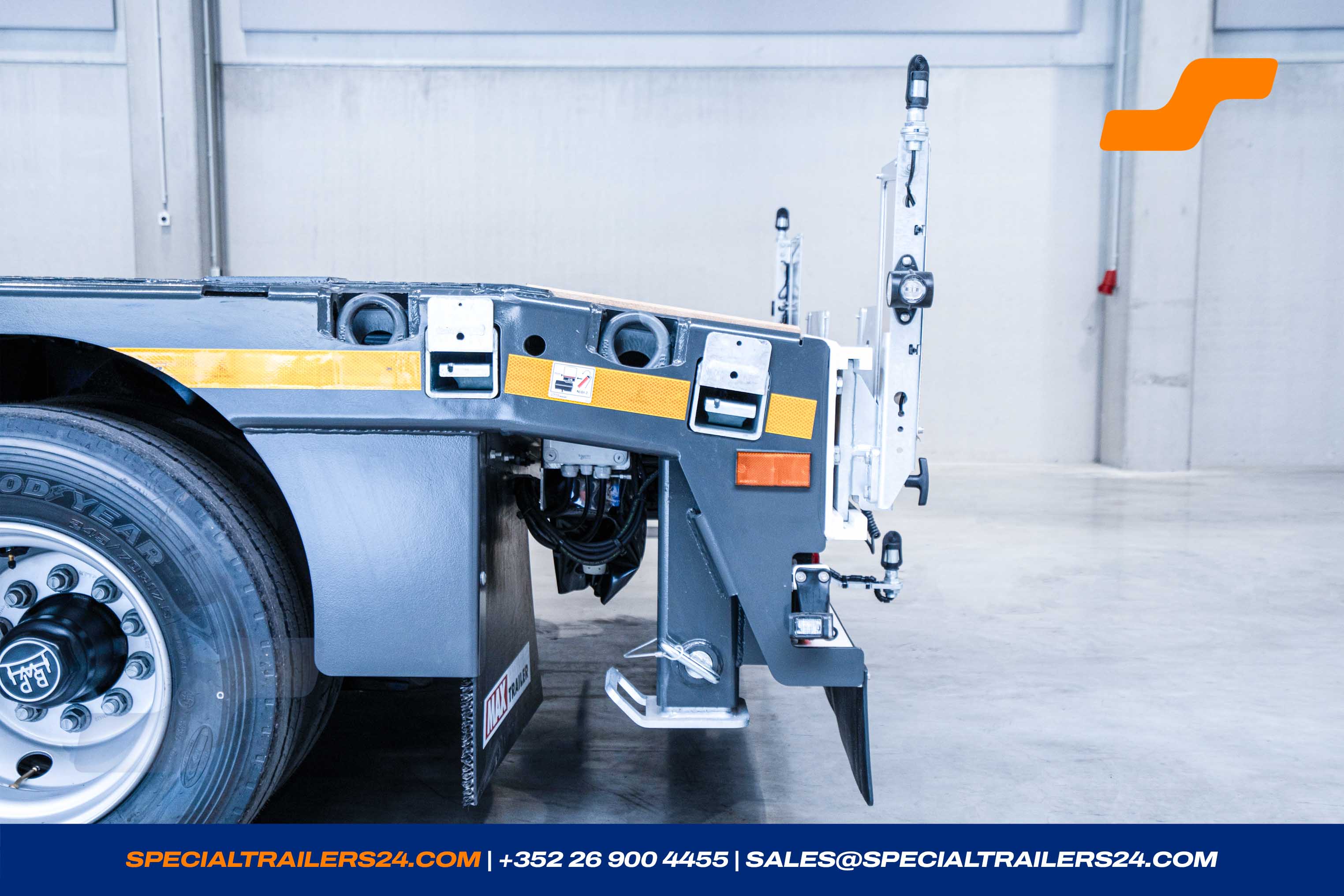

(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Holder for one beacon light at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 4 pairs of WADER containerpockets in the loading platform for one 20', 2 x 20', 1 x 40' or 1 x 45' container. (± 40 kg)
- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)

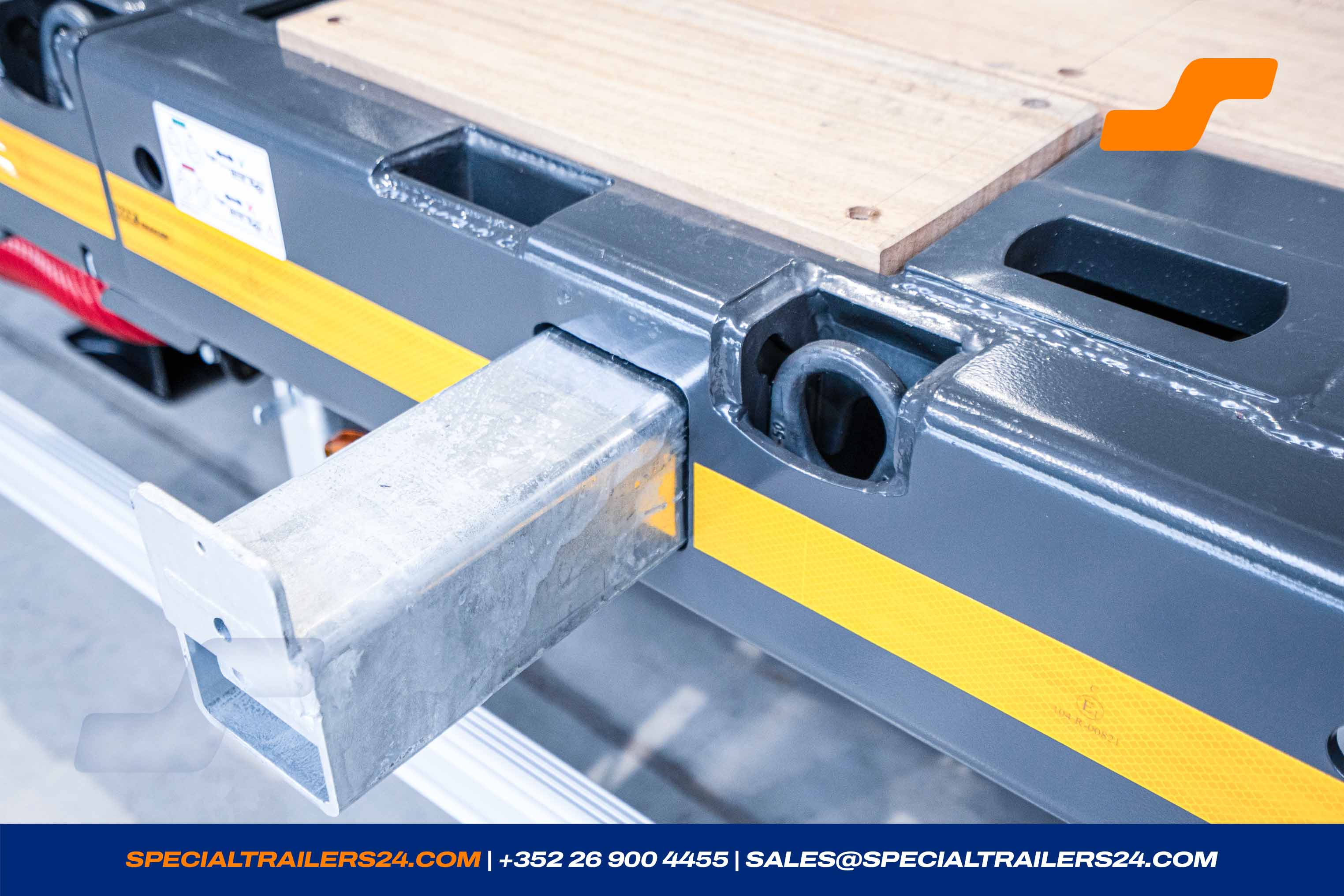

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. - Profile displaceable as hook-on device for alu-ramps at the rear.
- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).
-
1 pair of alu ramps VFR 120, ± 2 400 x 600 mm (l x w)
Capacity per ramp for:
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 m: 12 200 daN (Kp)
by axle distance 2.0 m: 16 000 daN (Kp)
single axle 7 200 daN (Kp)
max. admissible uphill: 30 % (16.5°)

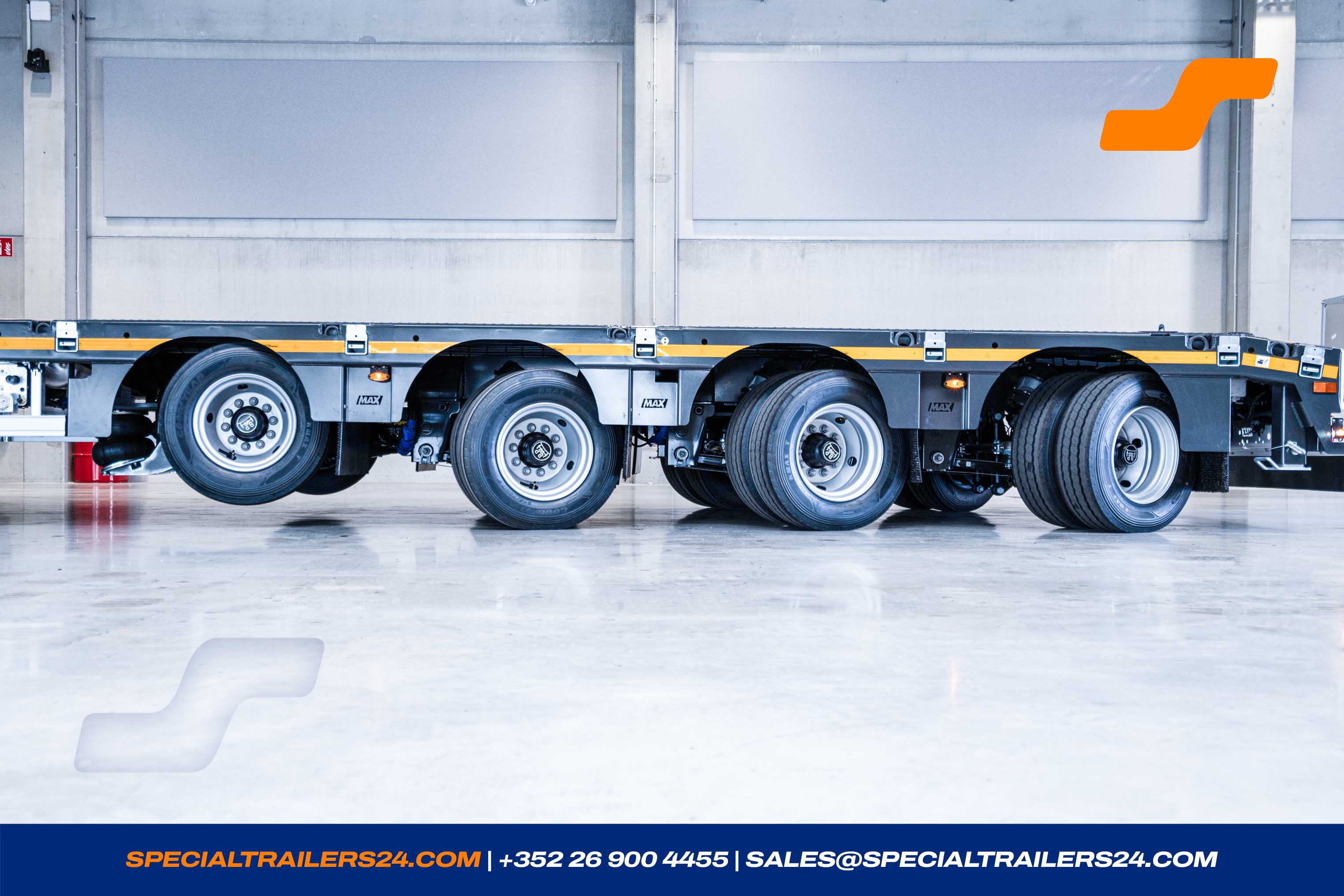

Weight per ramp ± 83 kg (± 166 kg) - Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
-
One galvanised trestle for the loading platform at the same height as the gooseneck, with one pair of galvanised stakes ca. 100 x 50 mm.
Capacity: 20000 kg
(± 110kg) -
1 pair ALU wheel recesses ± 1 160 x 400 x 250 mm (for 1 000 mm Extension).
Load capacity per pair ± 10 000 kg.
Net weight per item ± 41 kg.
Accessories
1 x Accessory
MAX110-Accessory
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Manual and description on USB stick .
- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
- 4 warning boards ± 500 x 500 mm, extendable by ± 400 mm with 1 LED position light (± 25 kg).

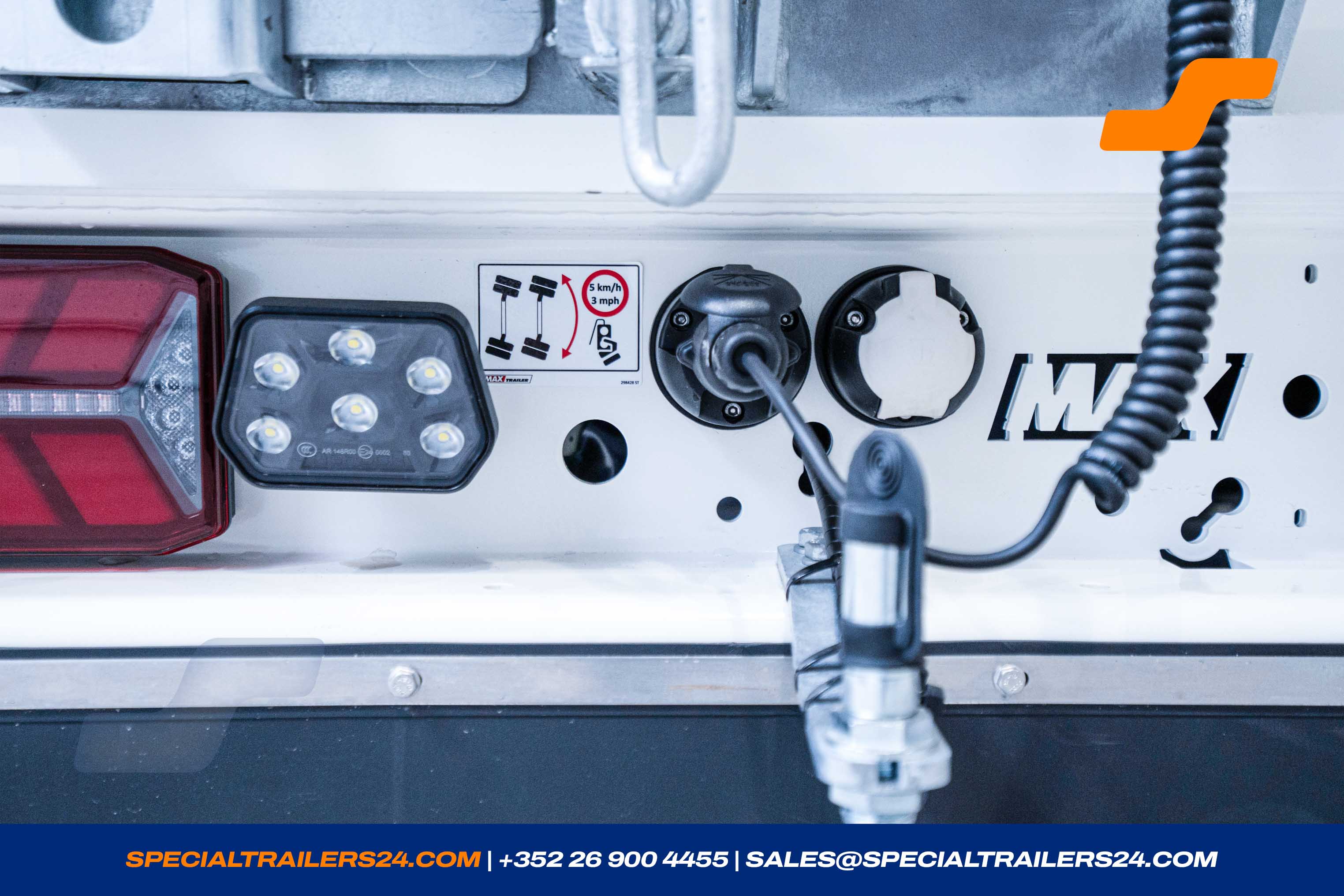

- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;

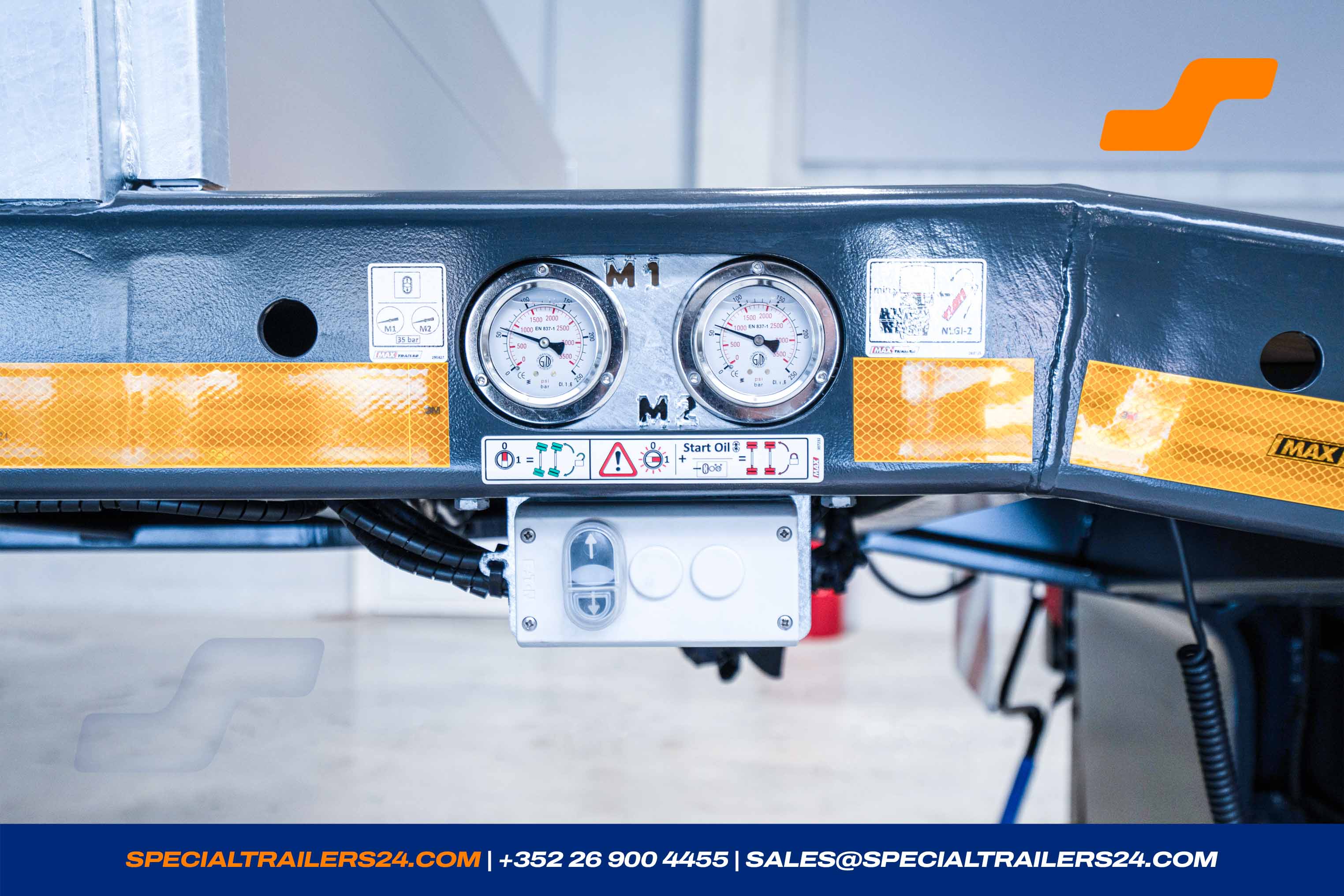

7. 6 pictures of the truck without trailer. - Load manometer for determining the axle load, including load diagram.
- Holder for a 2nd numberplate at the rear end included a lighting.
