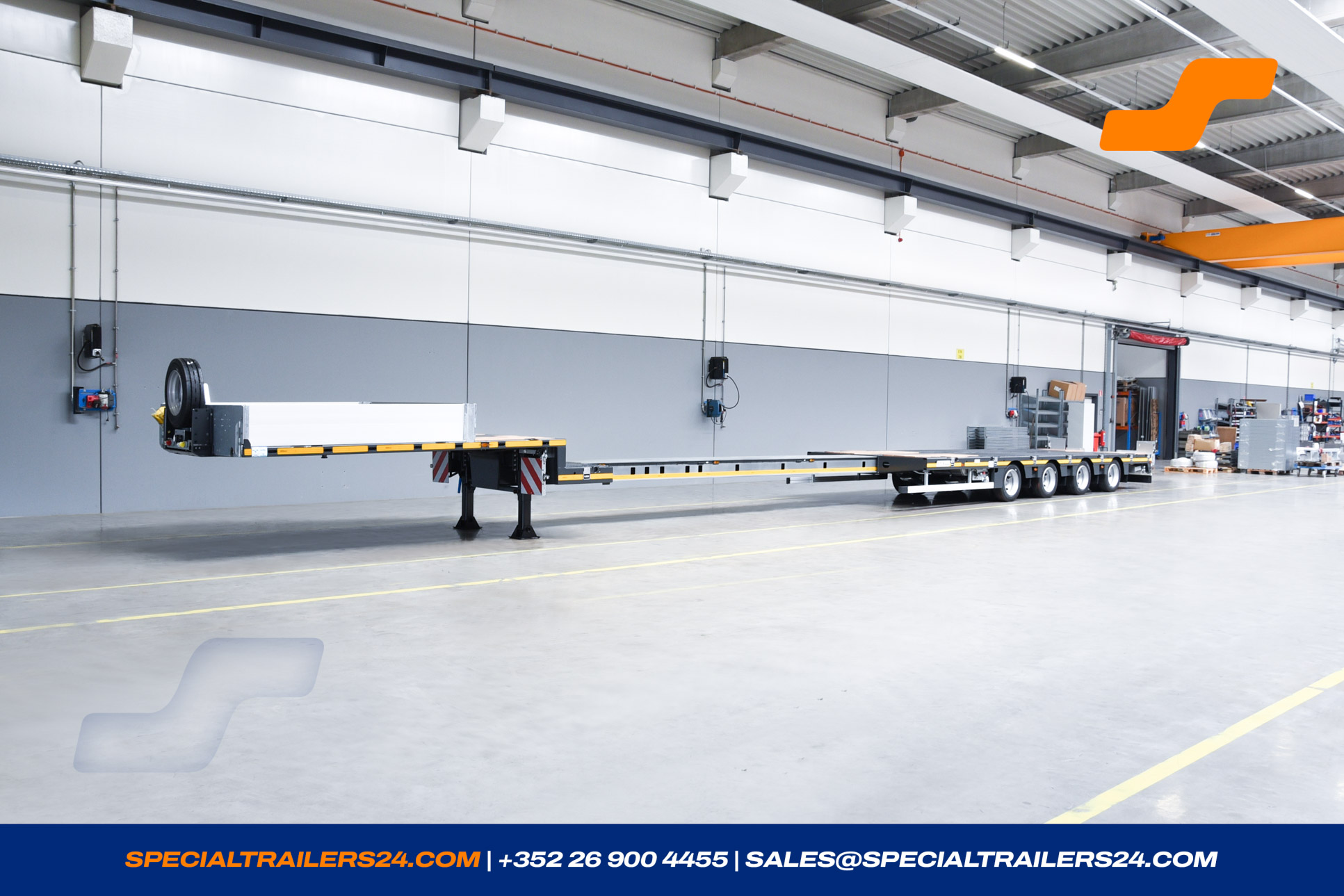

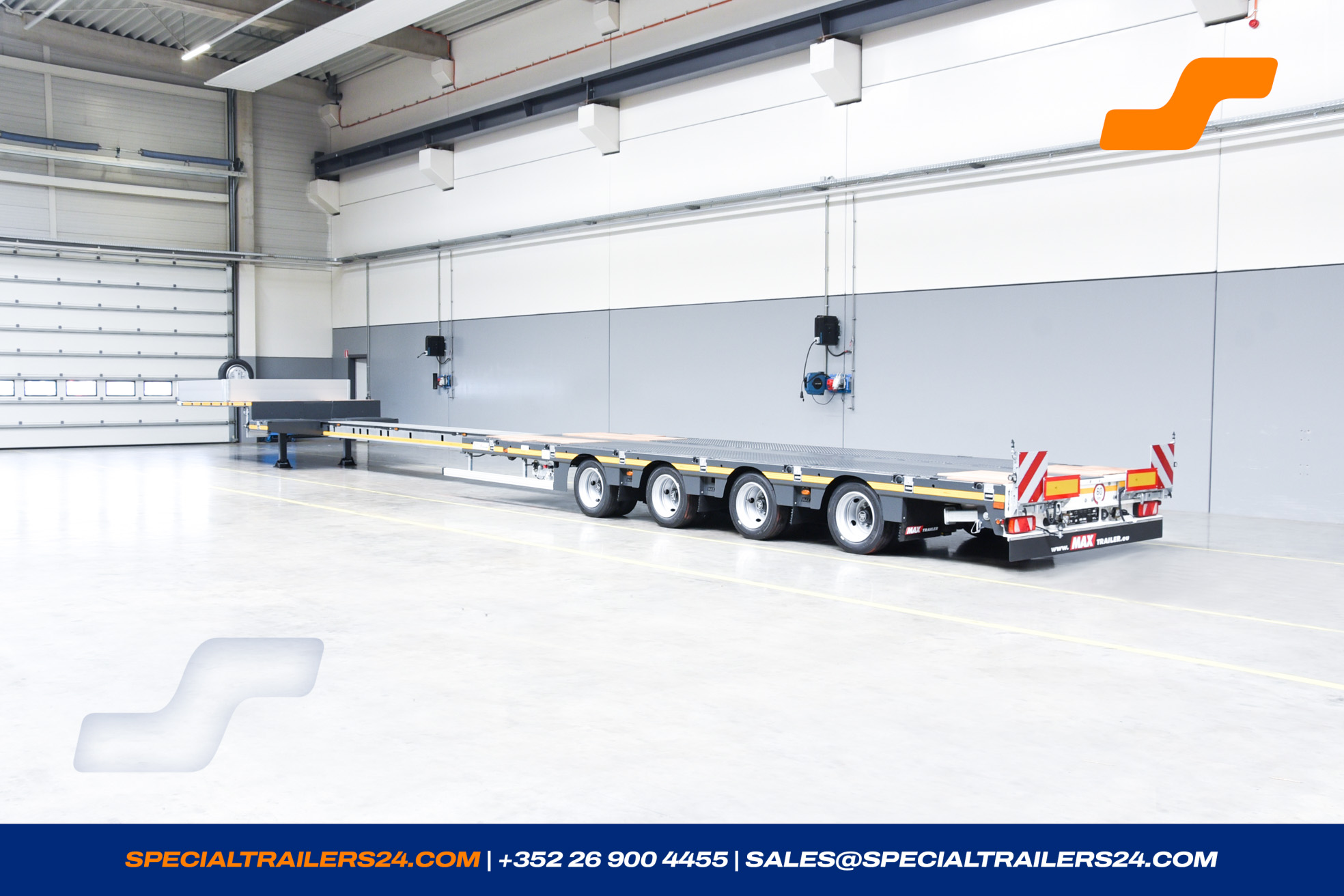

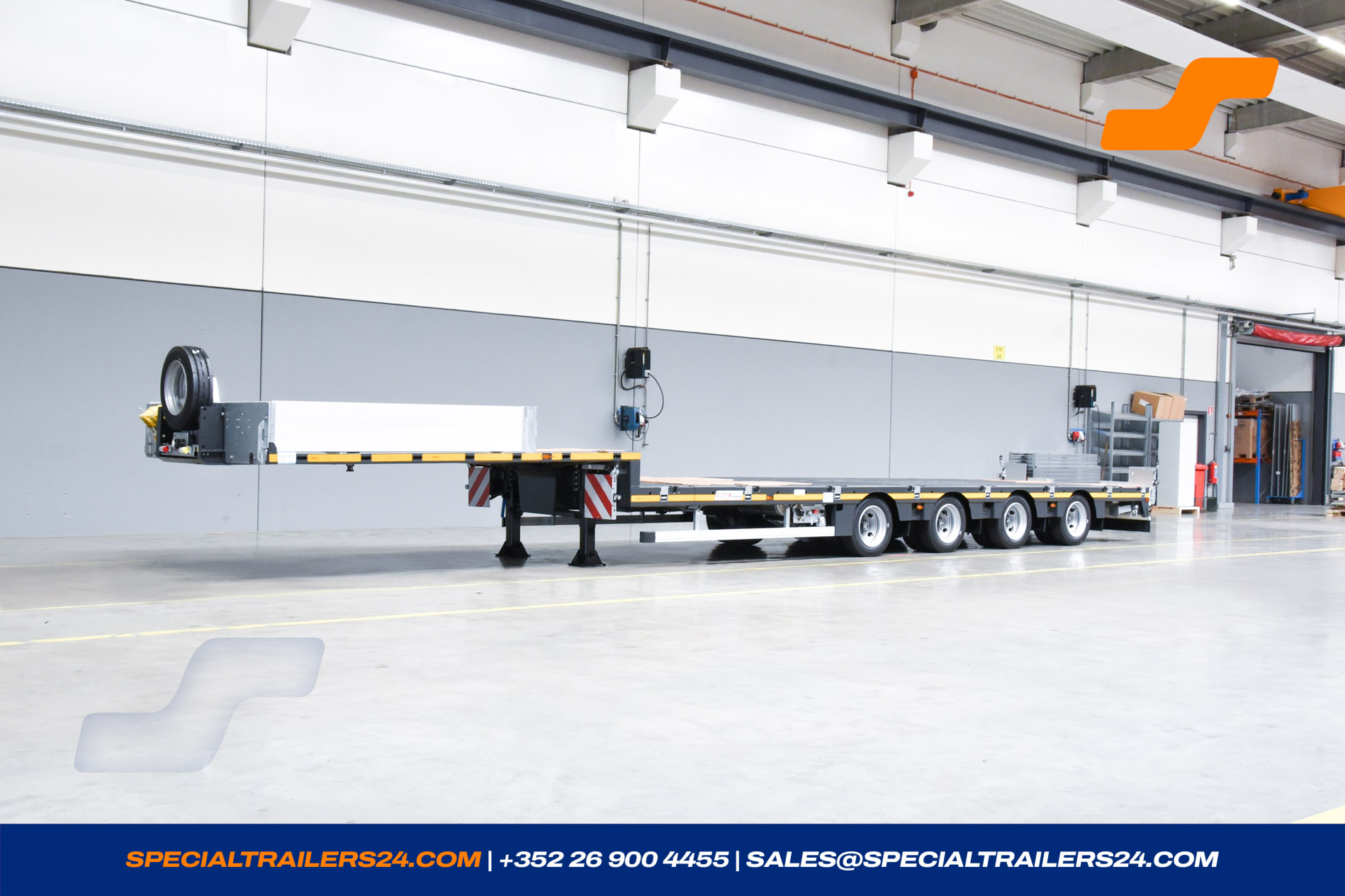

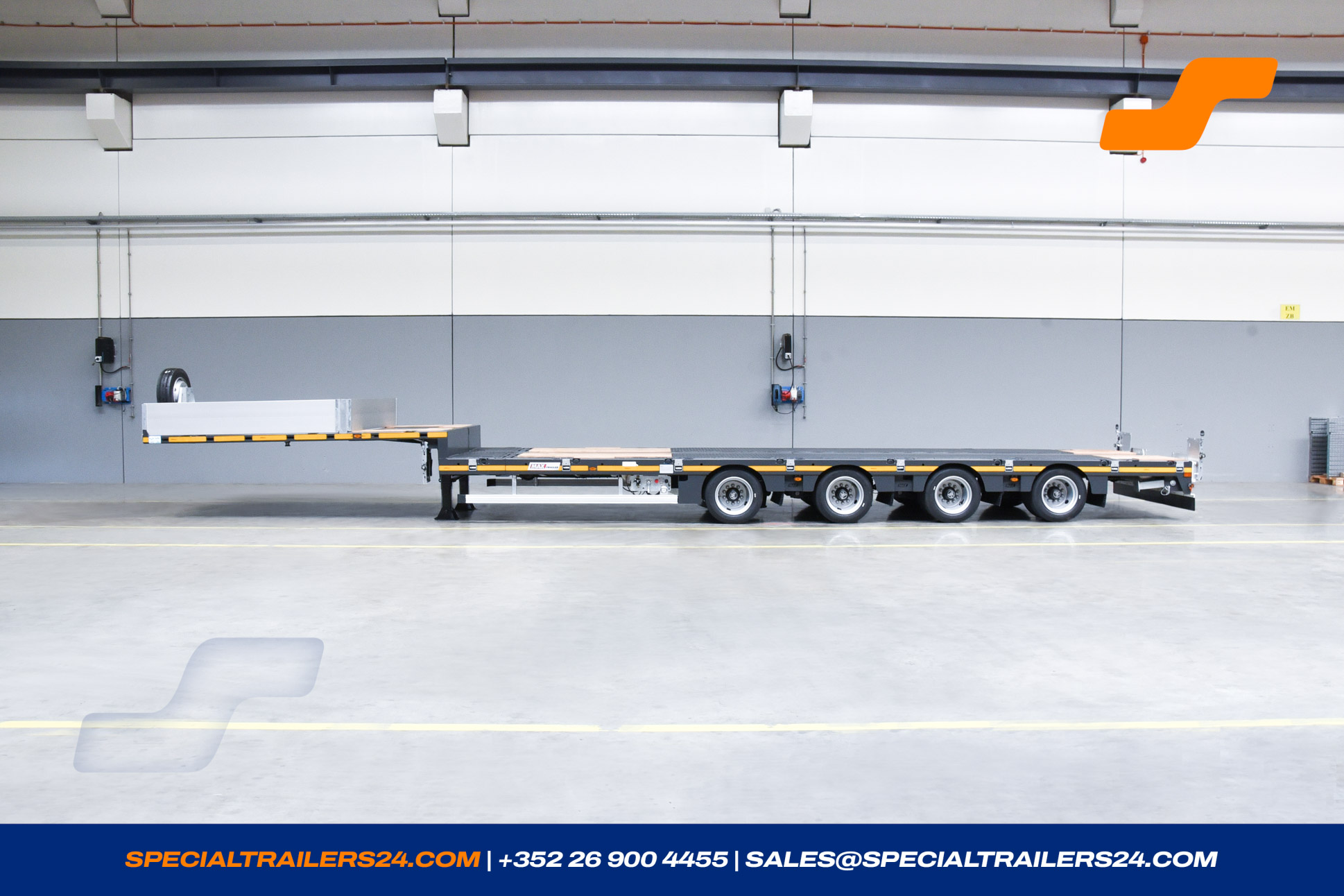

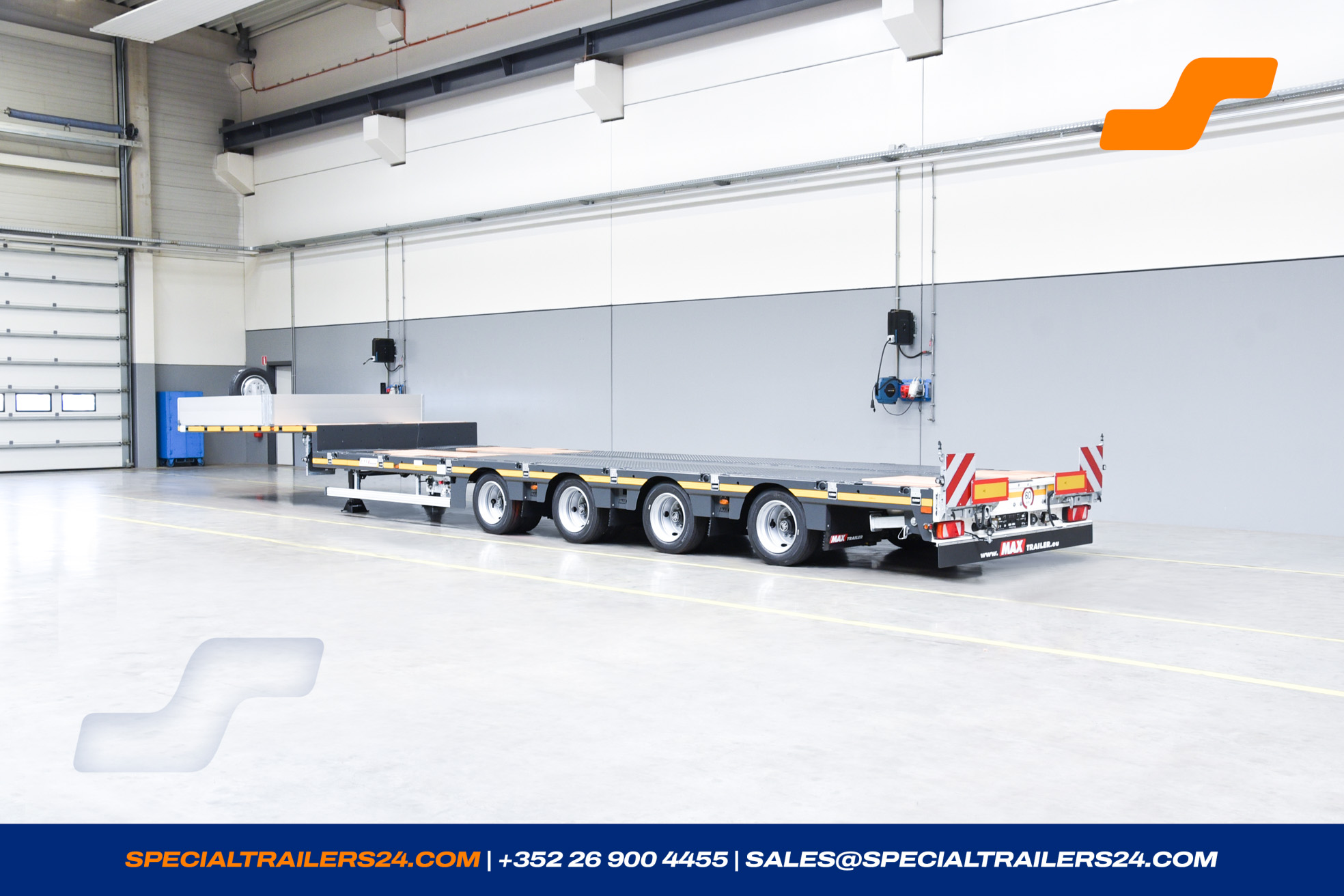

Low loader
MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112142
- Reference MAX100-N-4AX-9.30

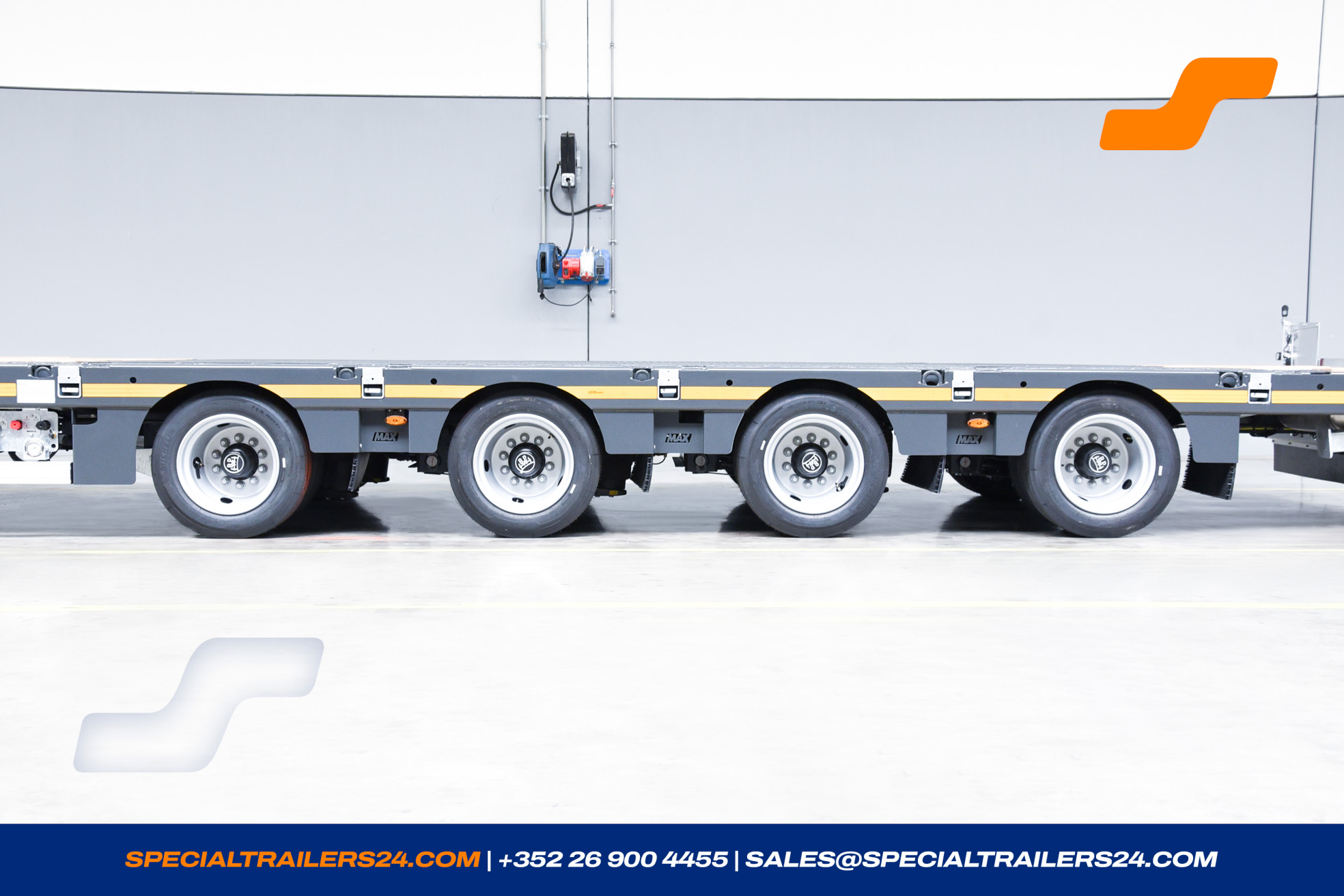

- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 08/2026
- Steering Type Friction
Availability
08/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32960 kg |
| Gross weight | 50960 kg |
| Tare weight +- 3% | 11672 kg |
| Payload | 39288 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 300 mm |

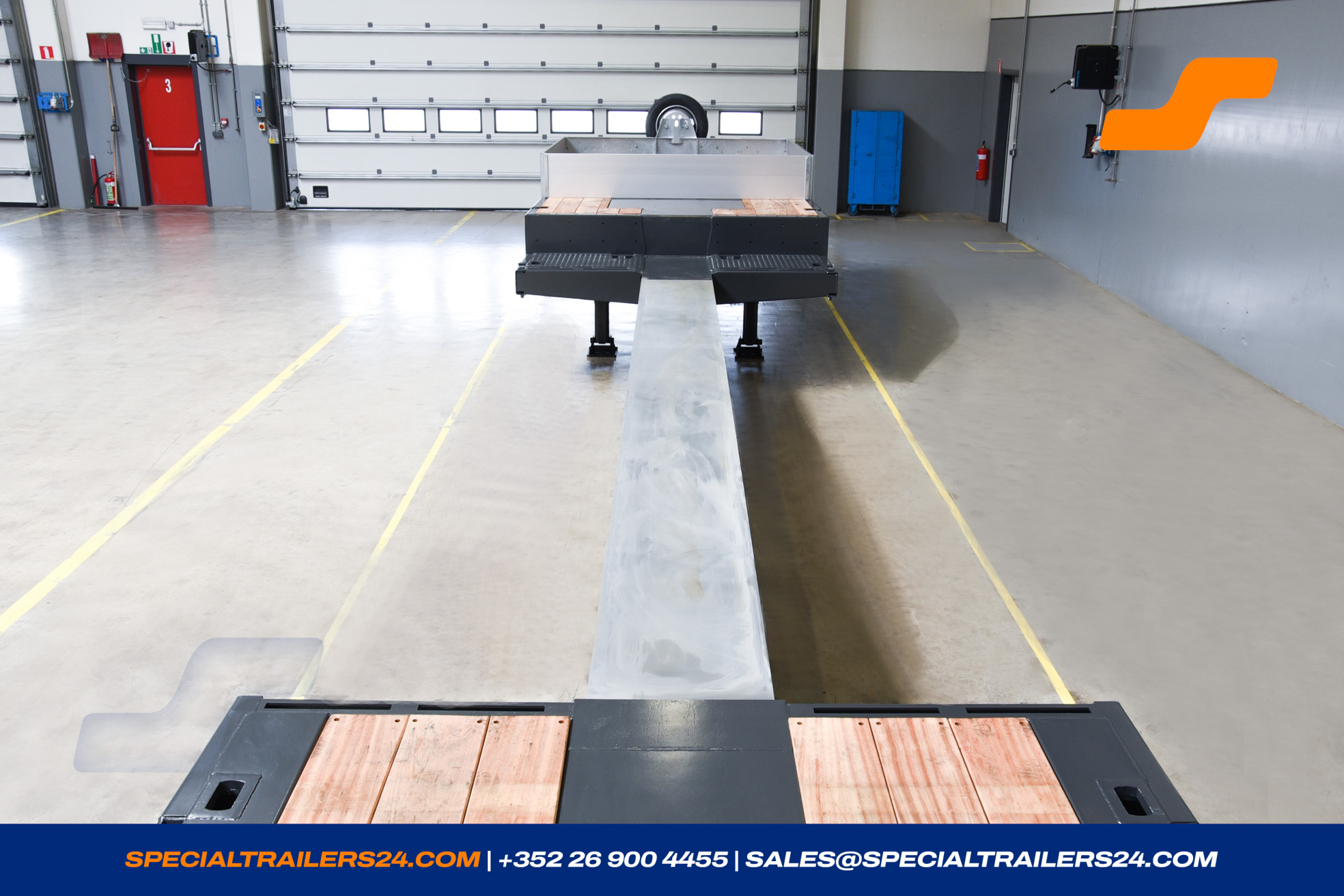

| Loading platform length | 9 300 mm |
| Extendable by | 6 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 760 mm |
| Total width | 2 540 mm |
| Suspension stroke | -40/ +155 mm |

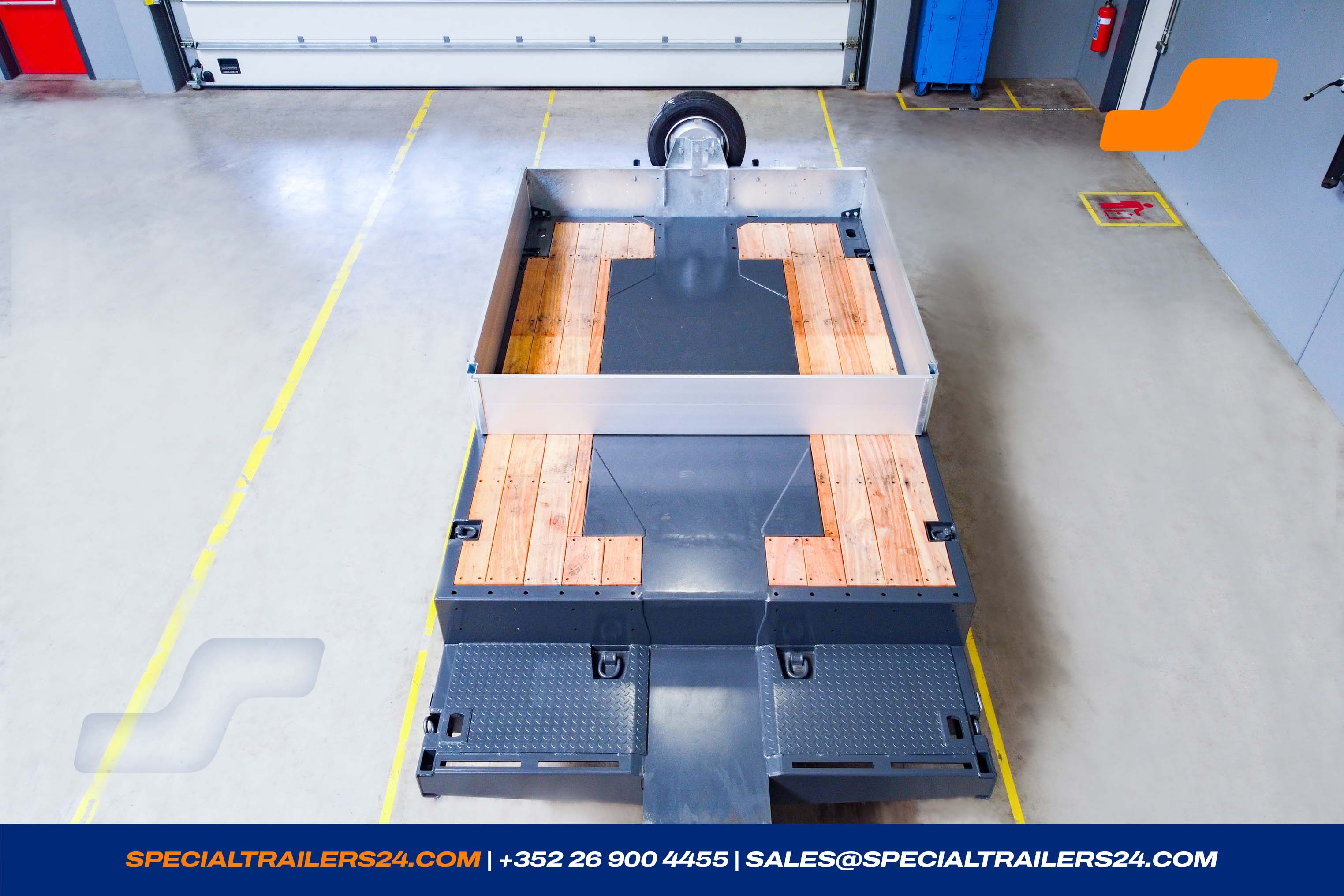

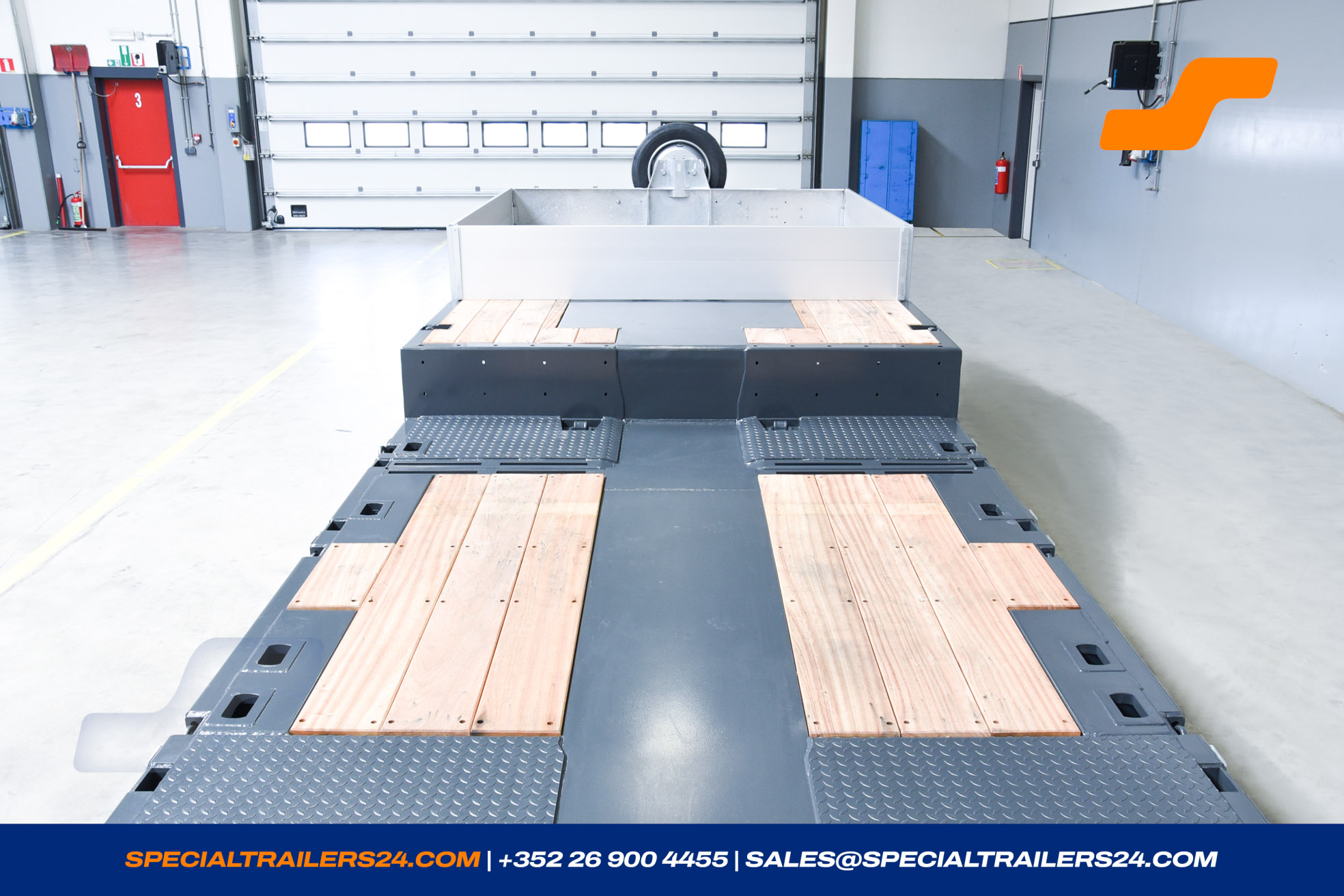

Gooseneck

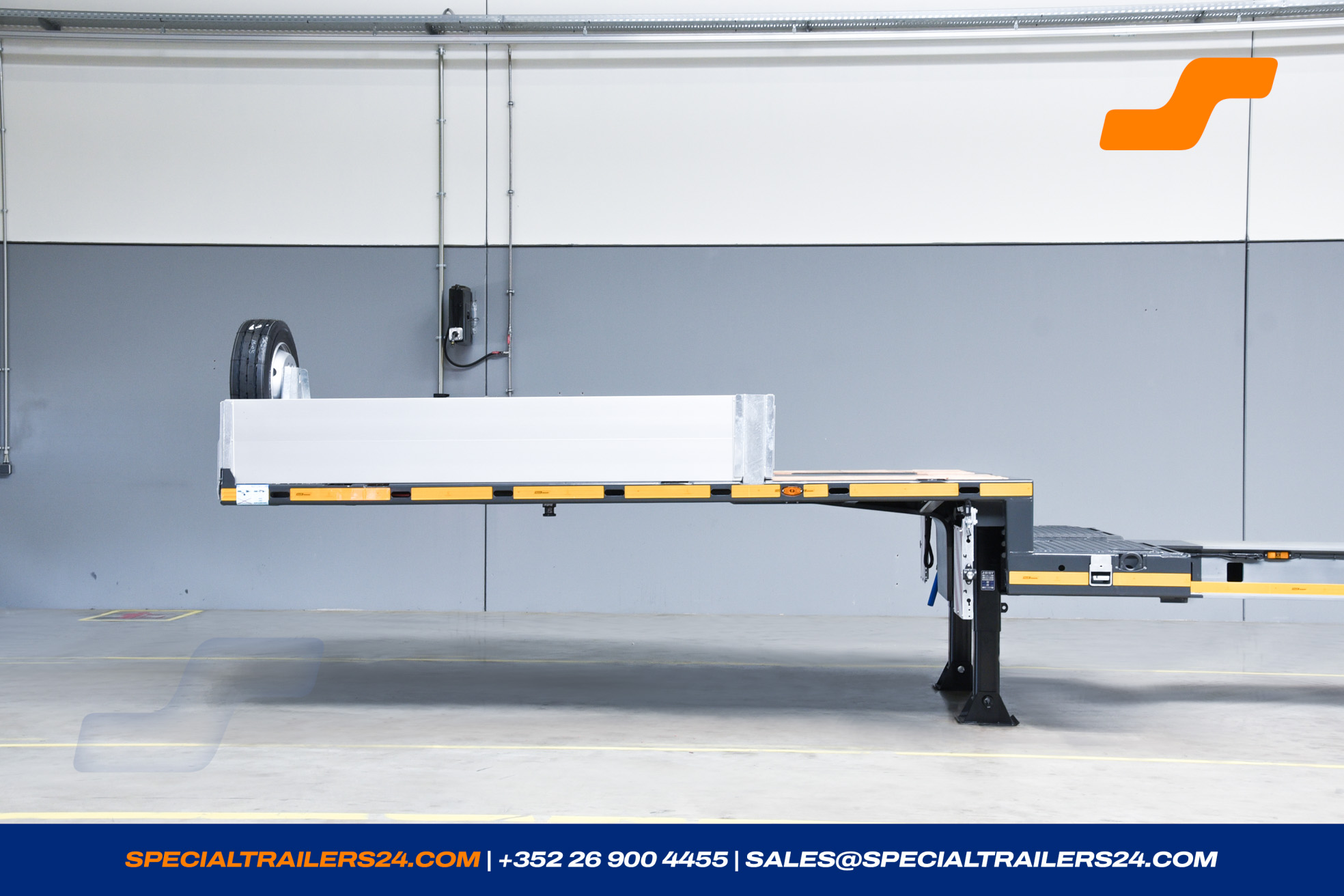

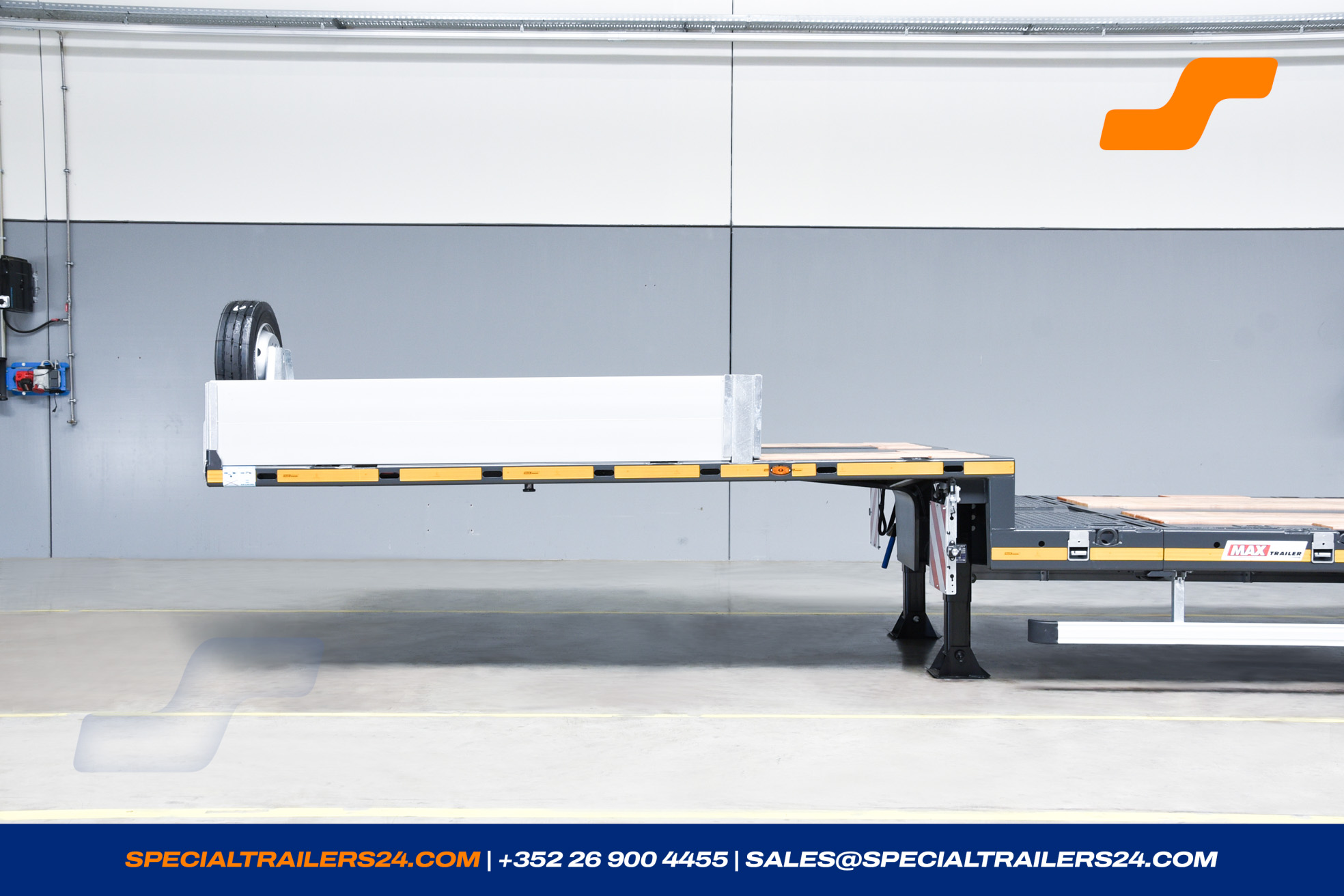

1 x Gooseneck : MAX-3.800 (DSR 2300/ASH 1150)X
Gooseneck with Hardwood cover thickness 30 mm.
Gooseneck at rear in straight version.
3 pairs of lashing rings (LC 5 000 daN).

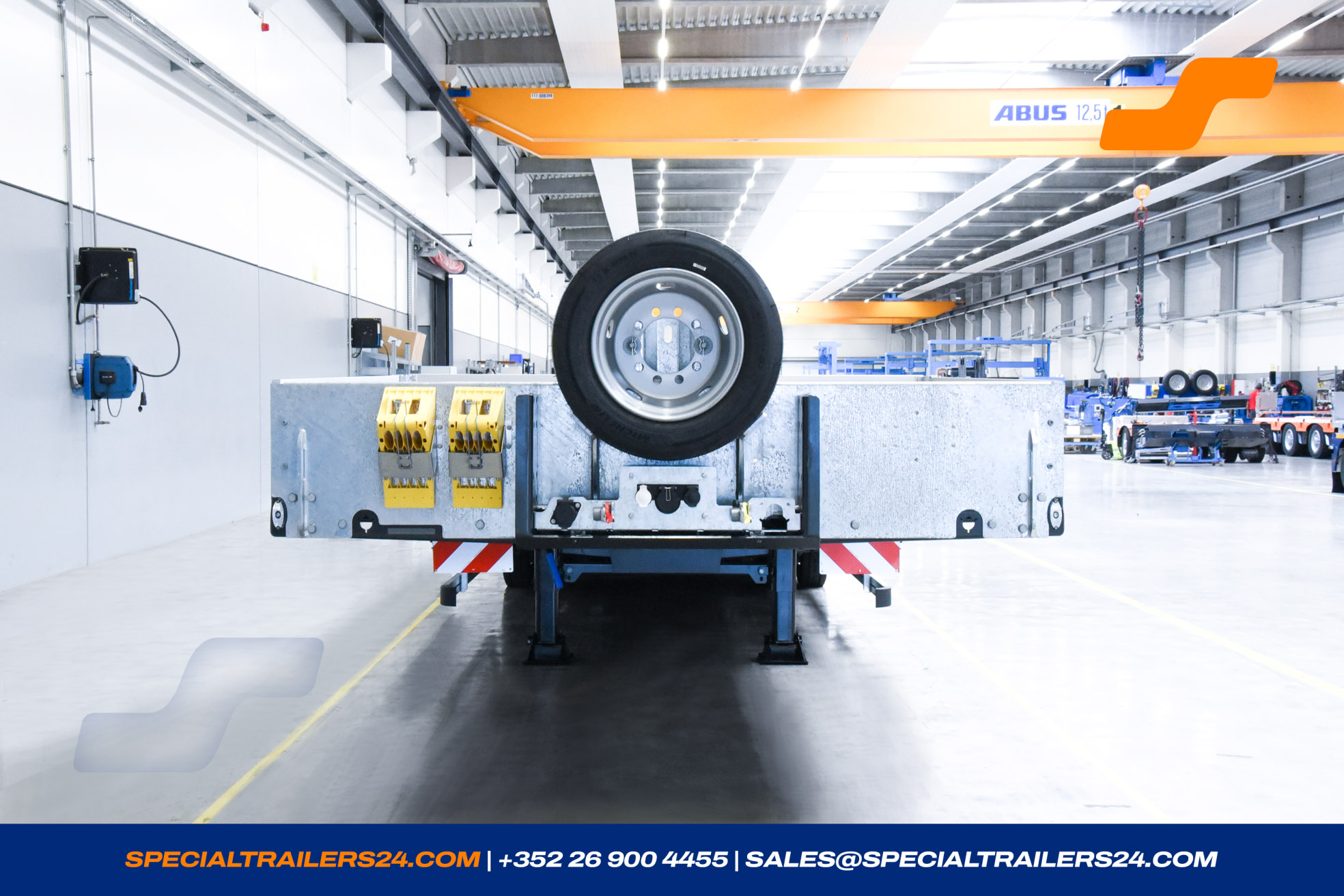

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier on the headboard (± 5kg).
-

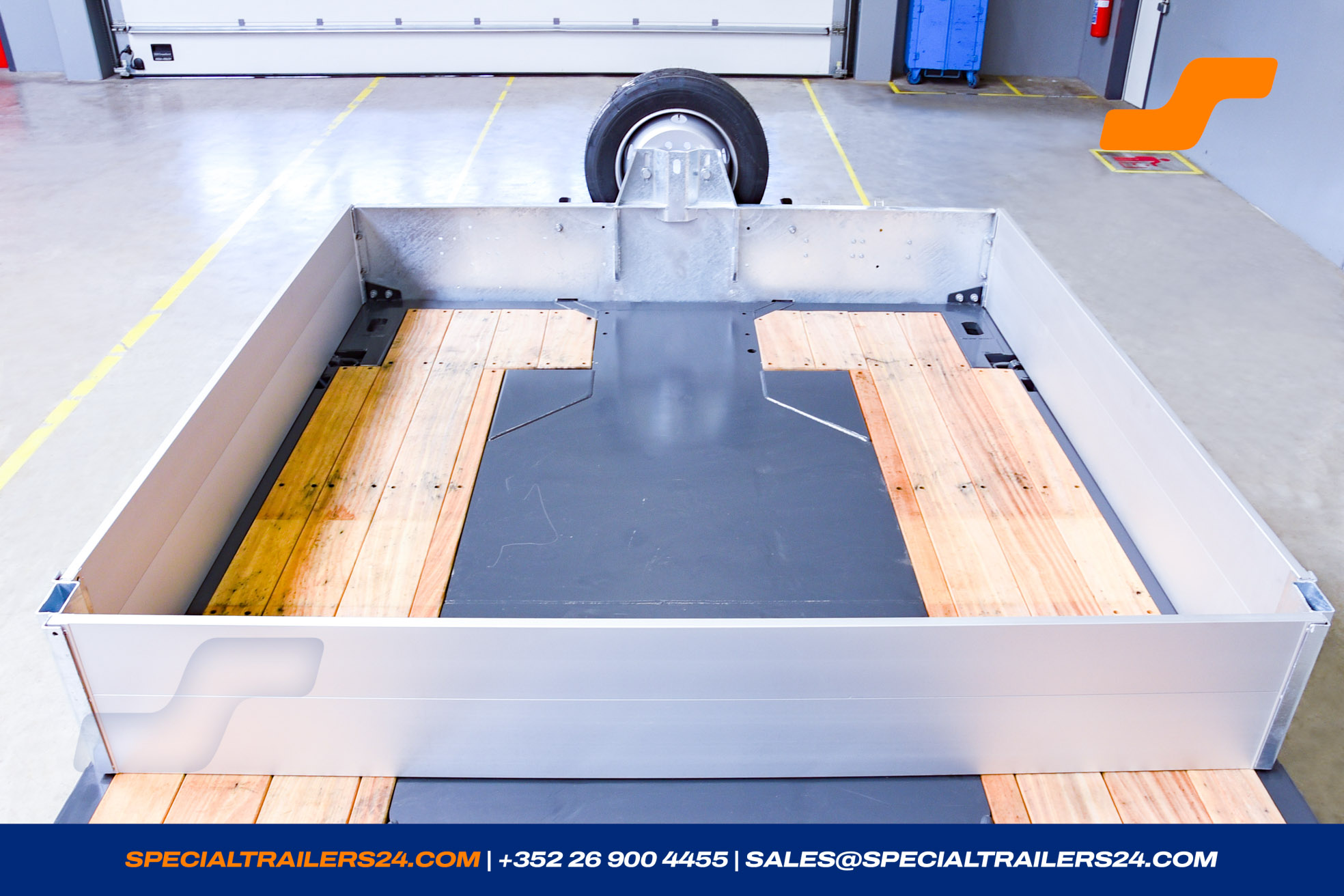

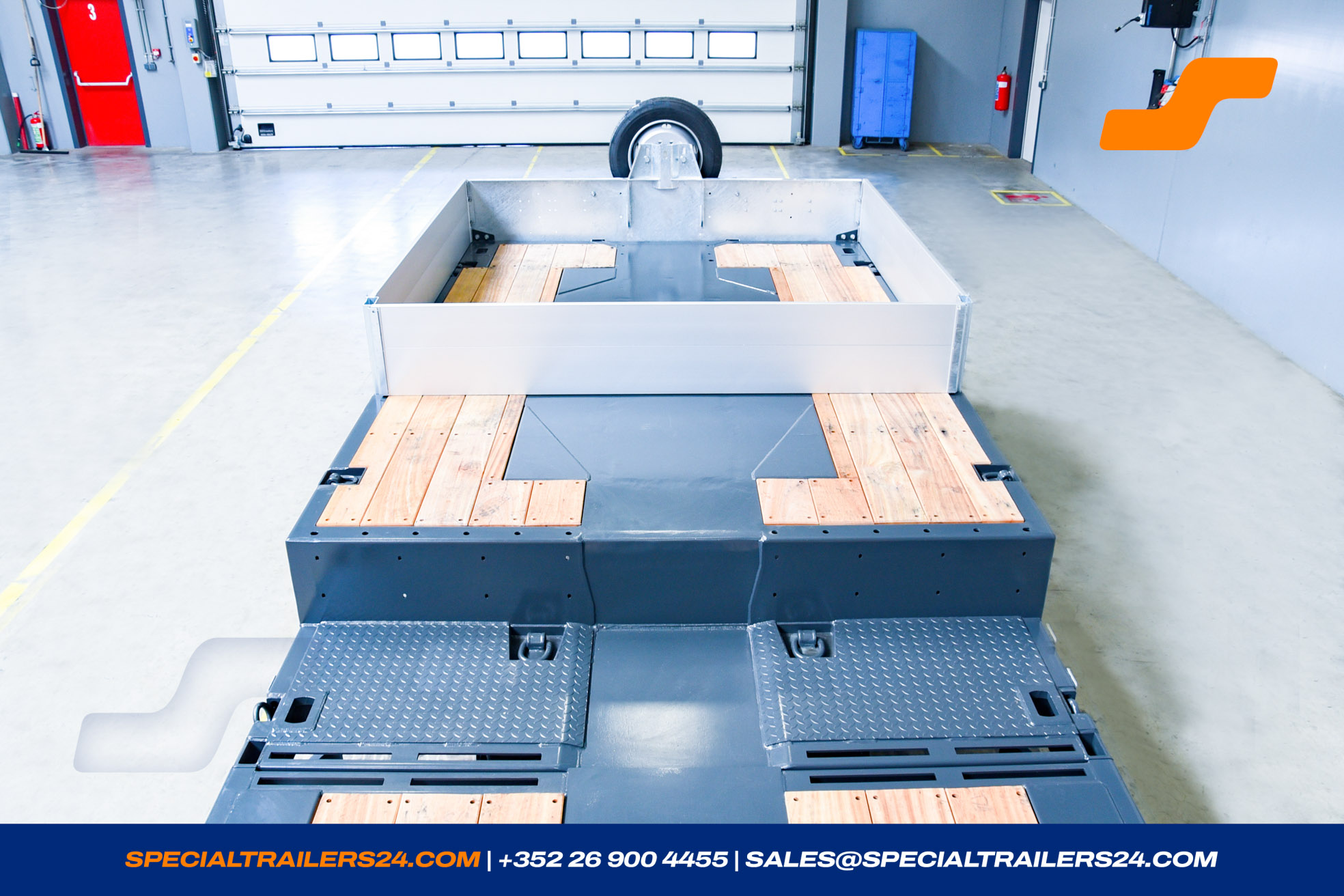

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg).
Loading deck

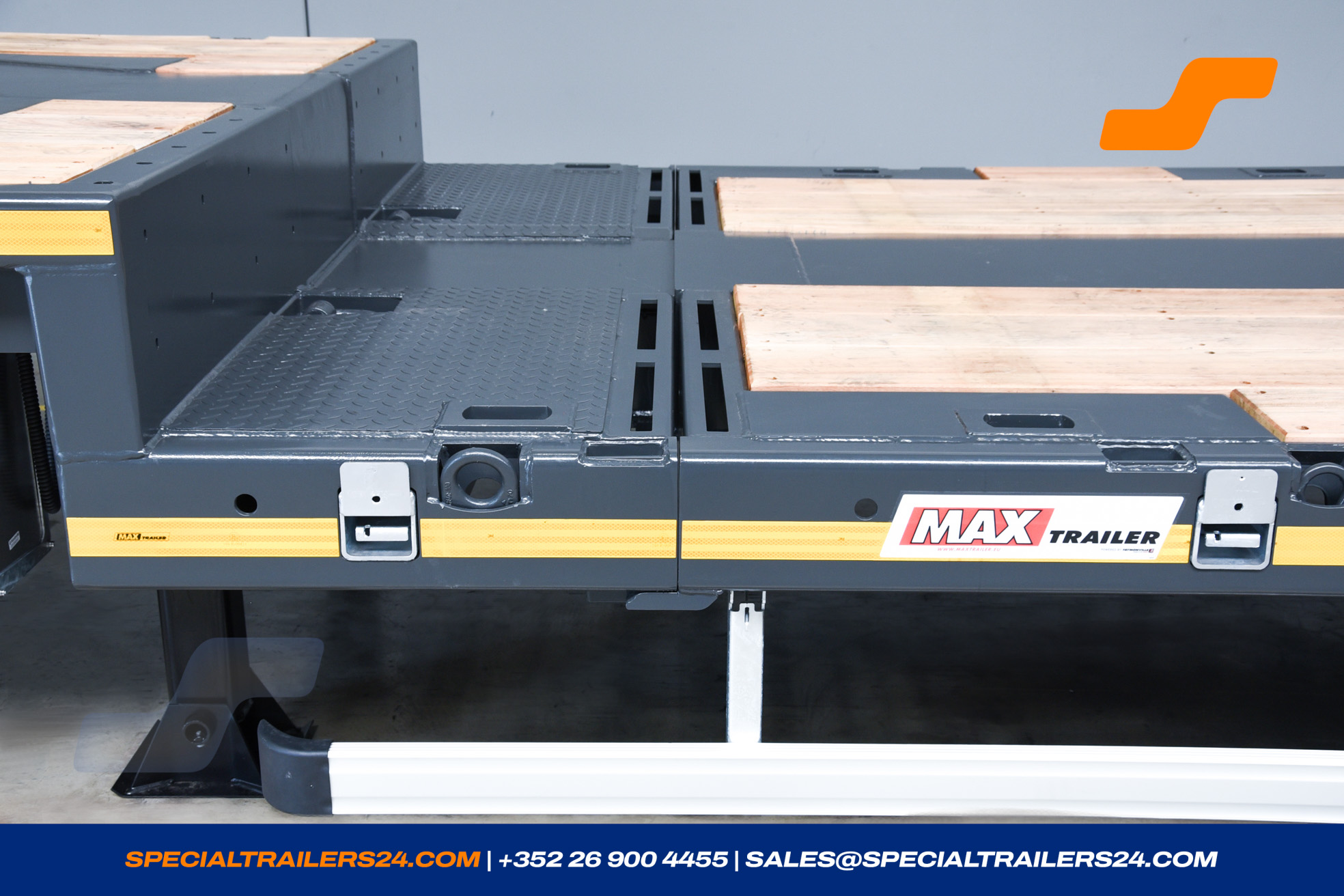

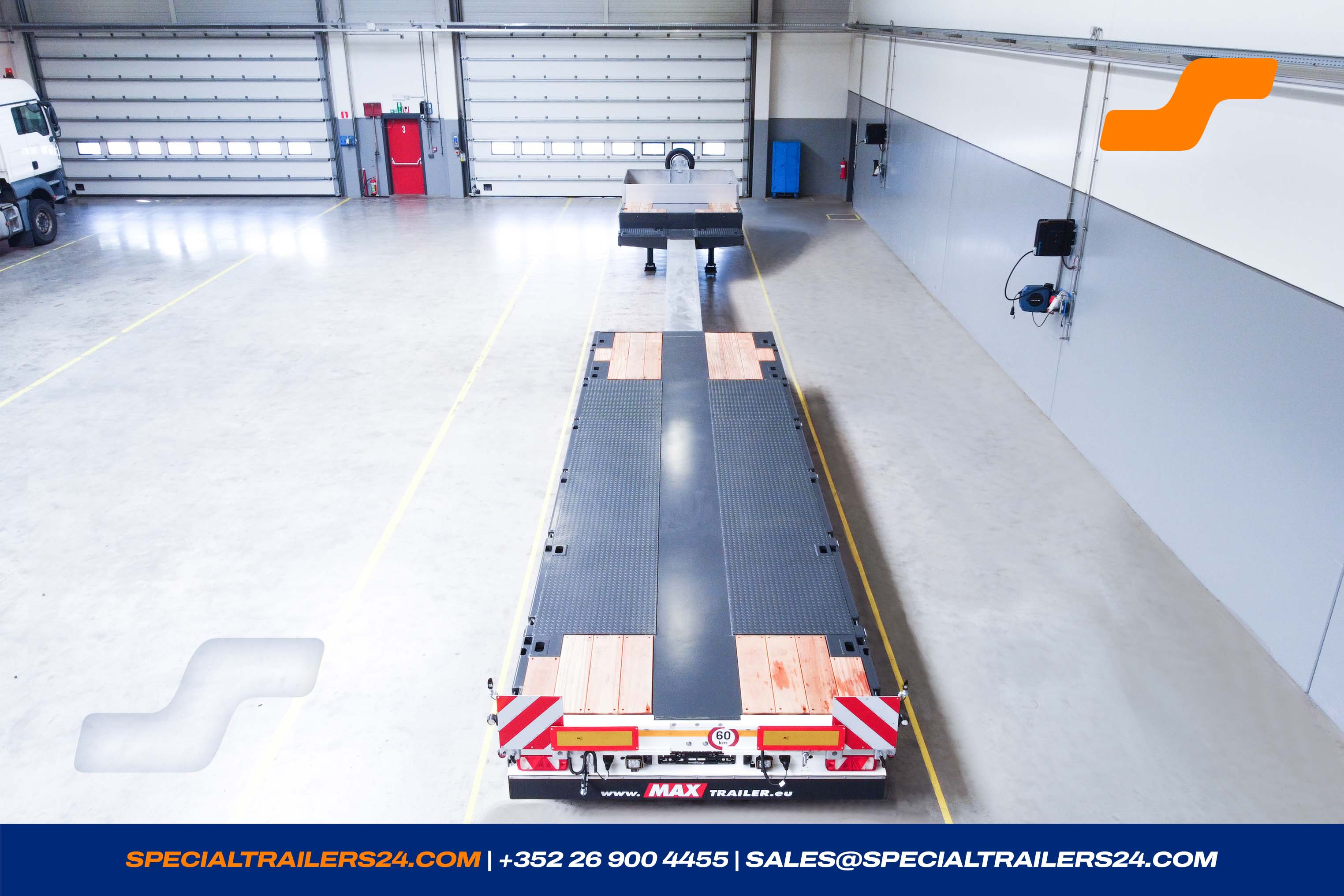

Loading platform
1 x Loading platform : MAX100-N-4AX(6500)-9.30-17.5-2.54

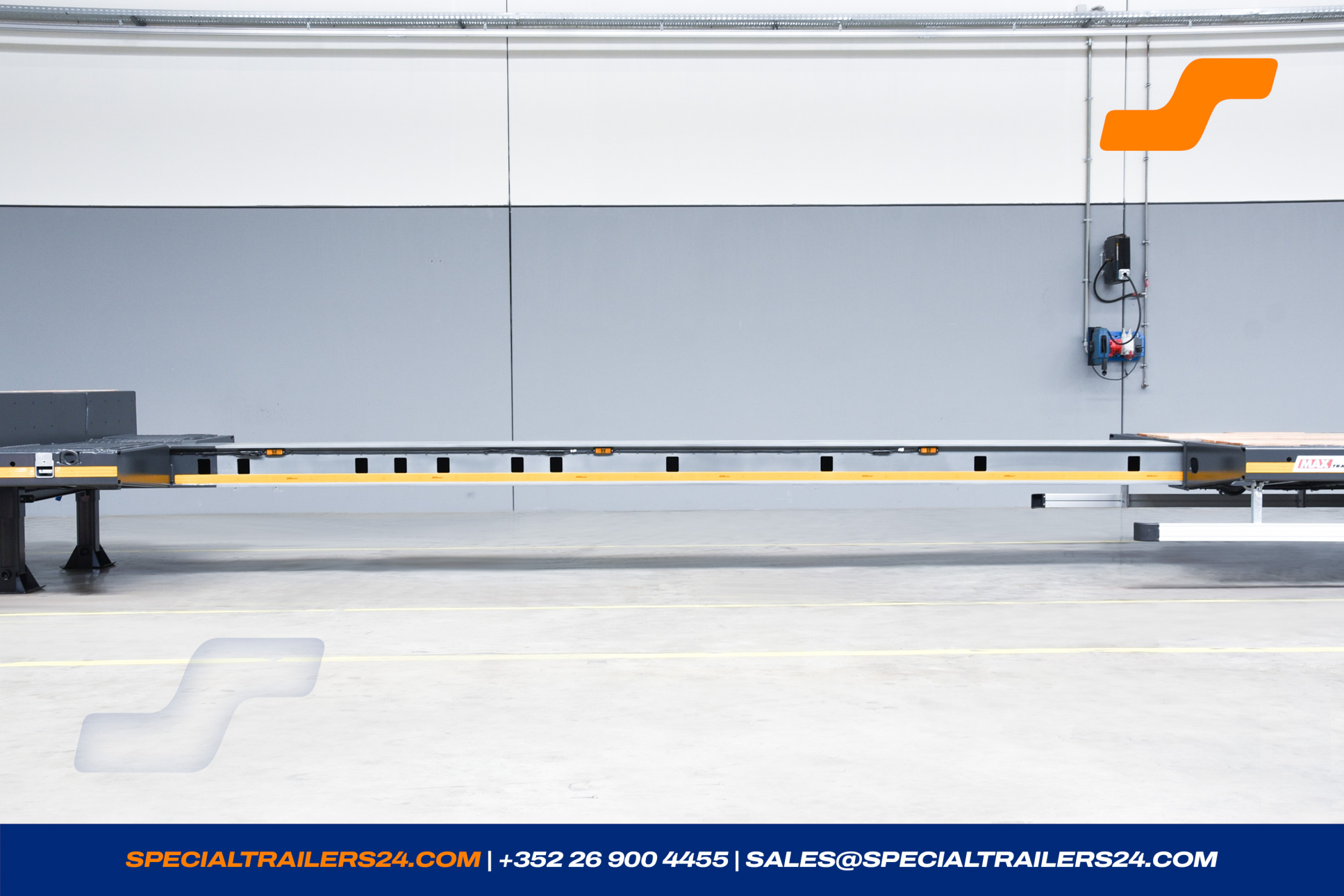

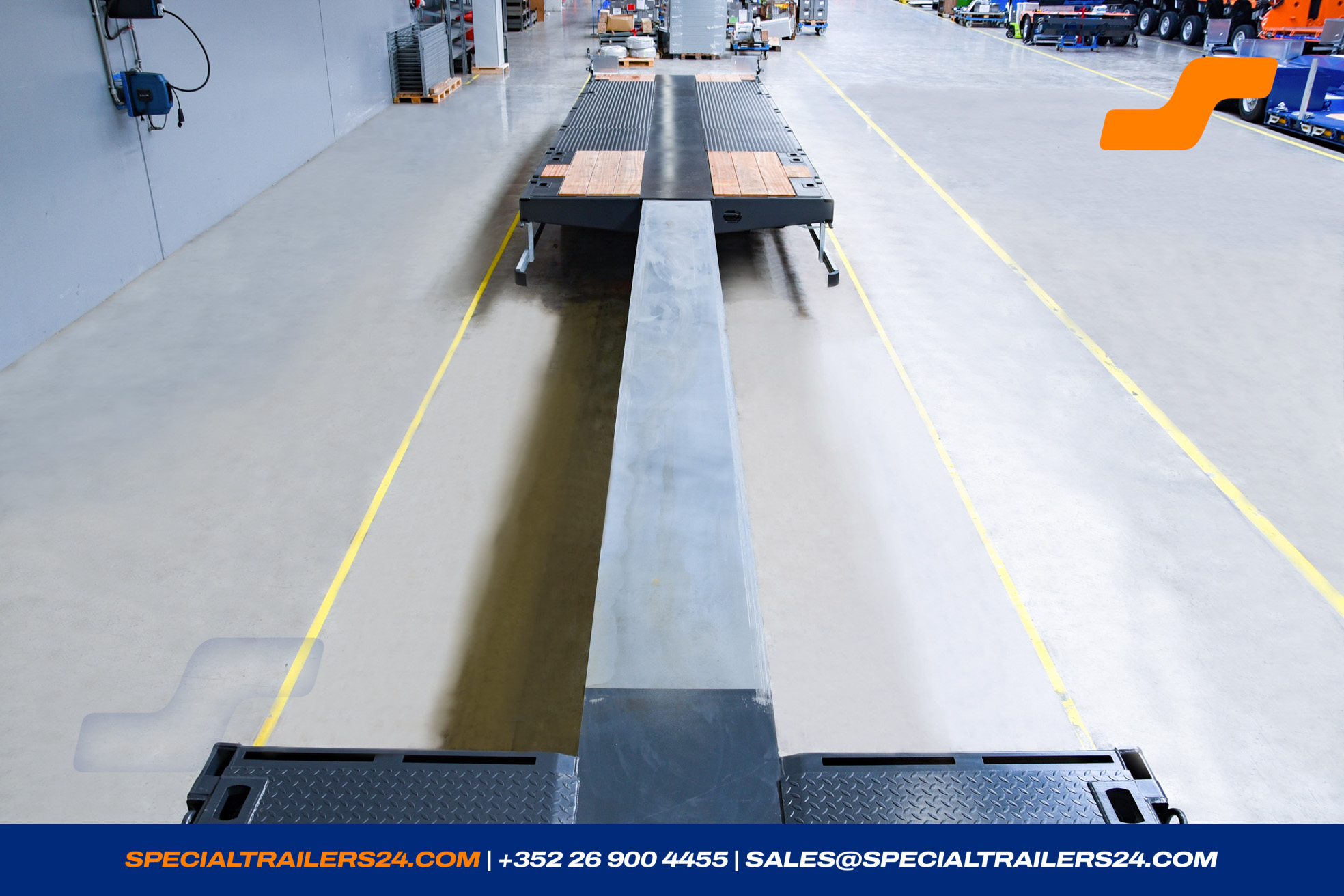

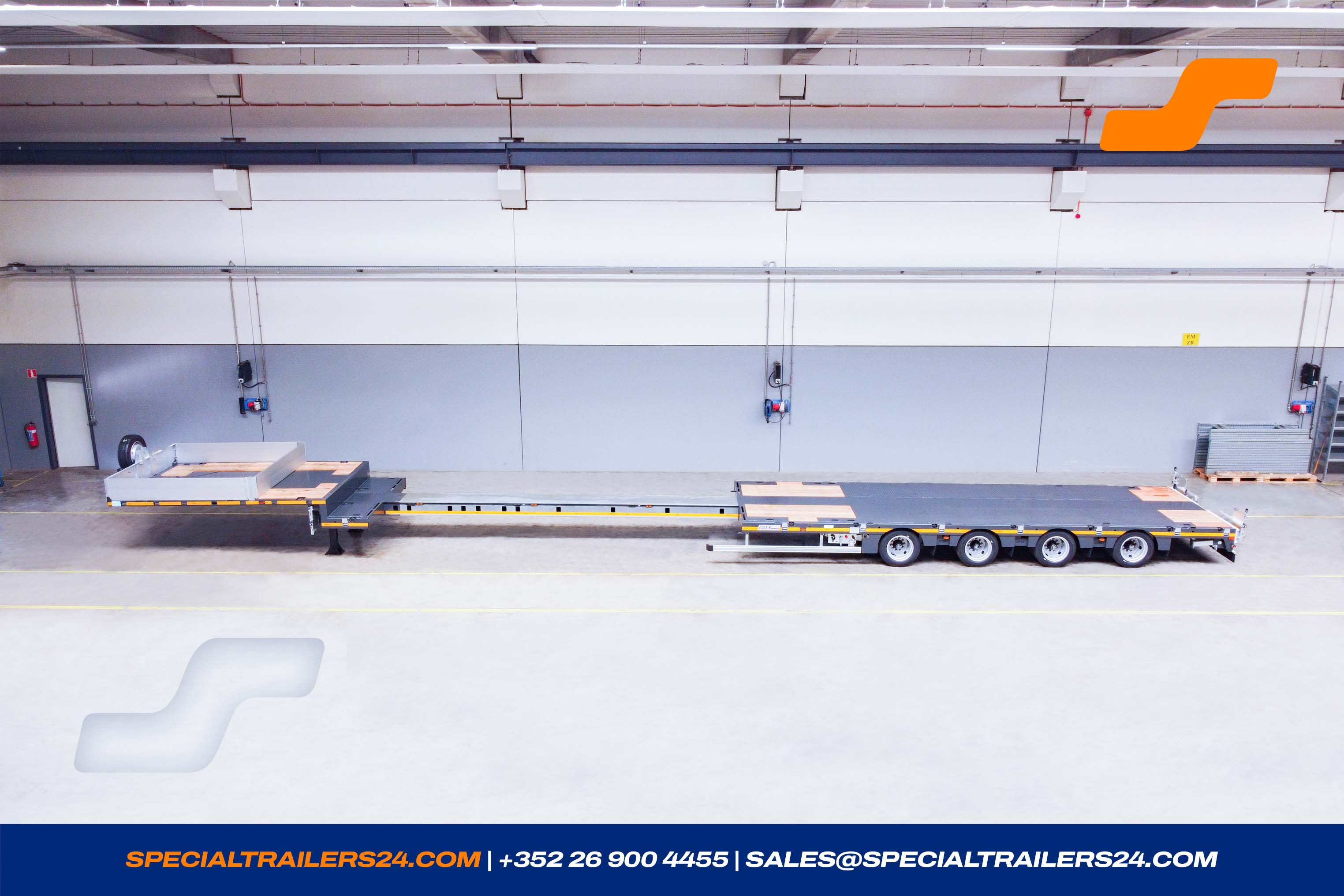

Loading platform in extendable version.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

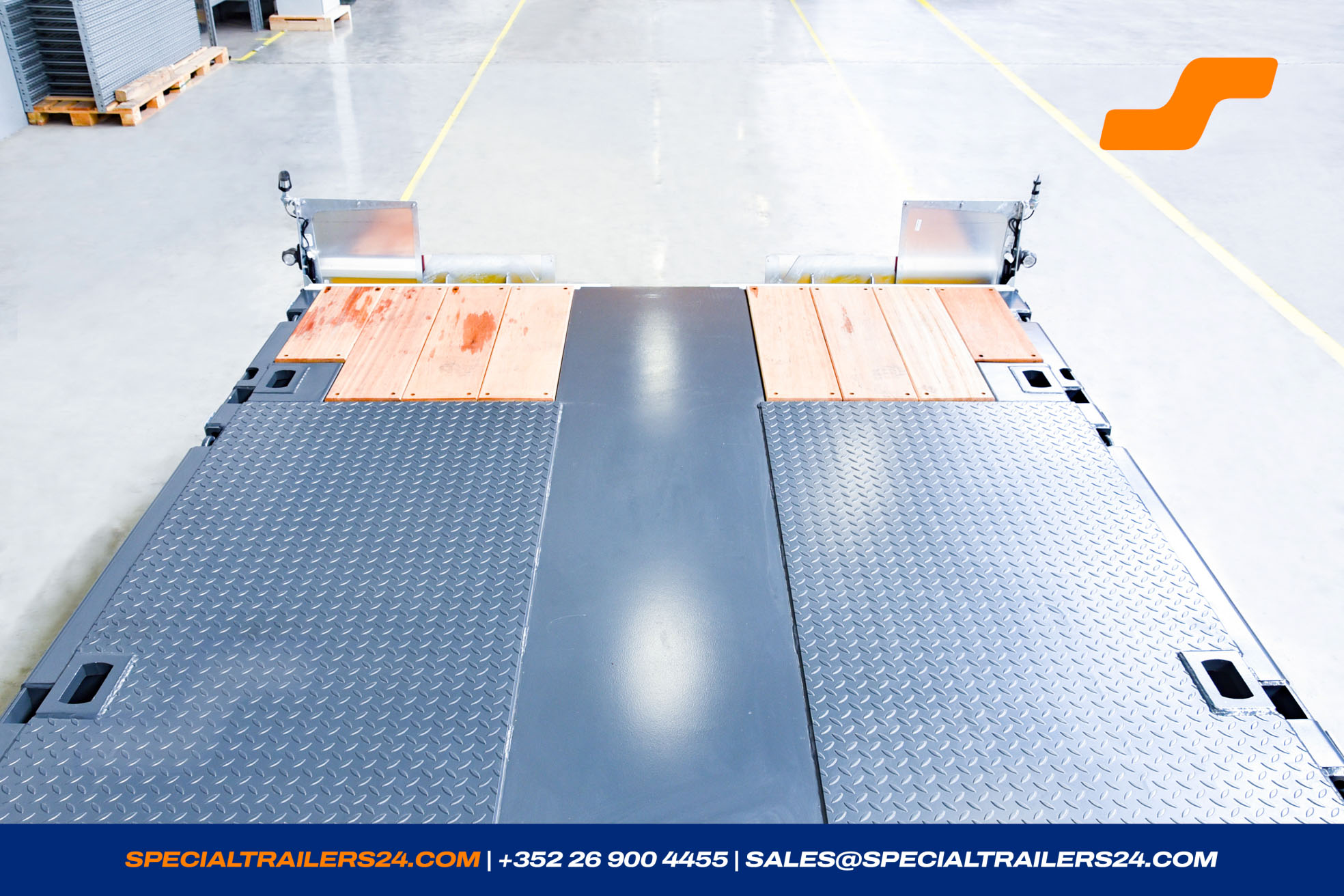

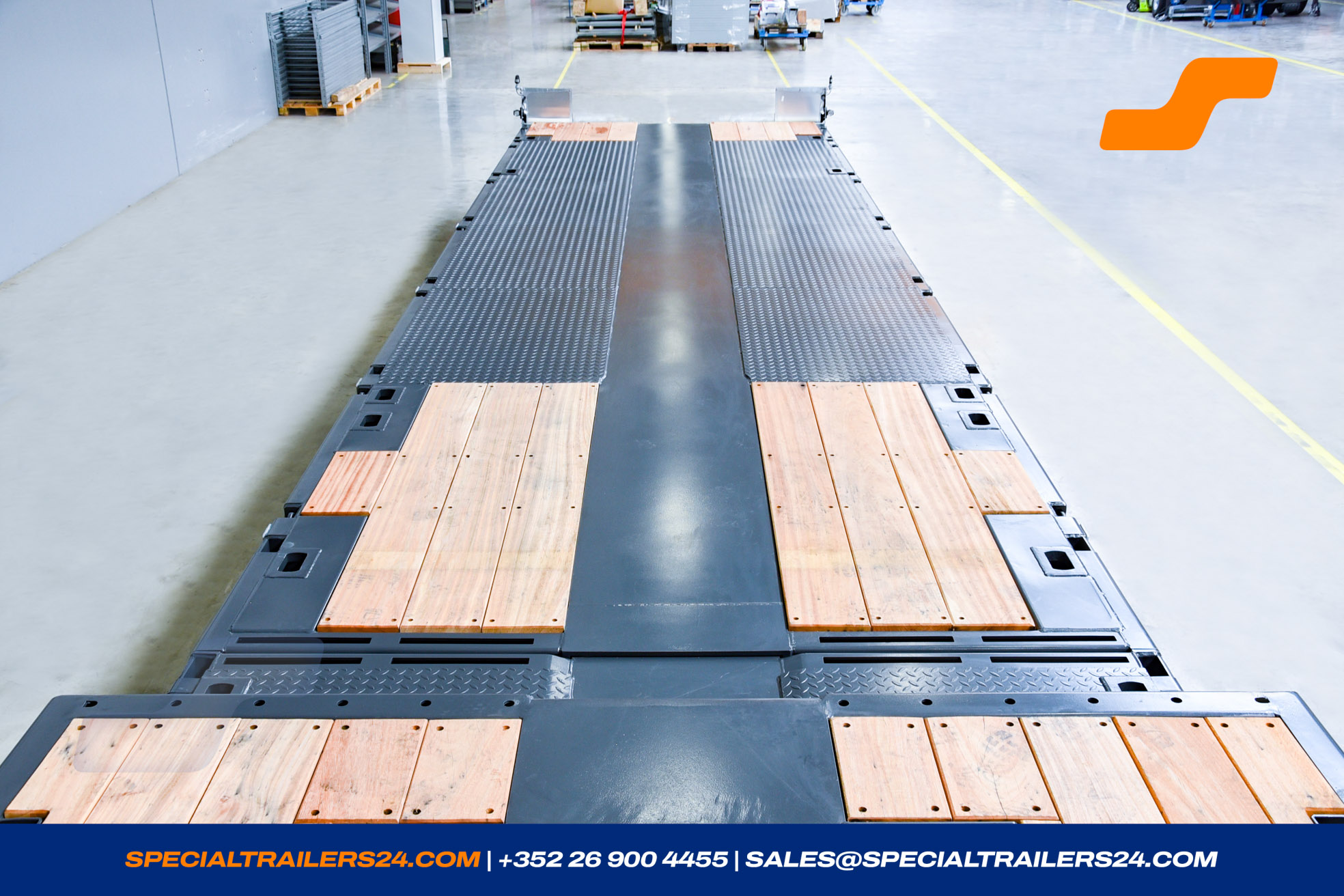

Hardwood cover thickness 48 mm above the axles chequer plate.

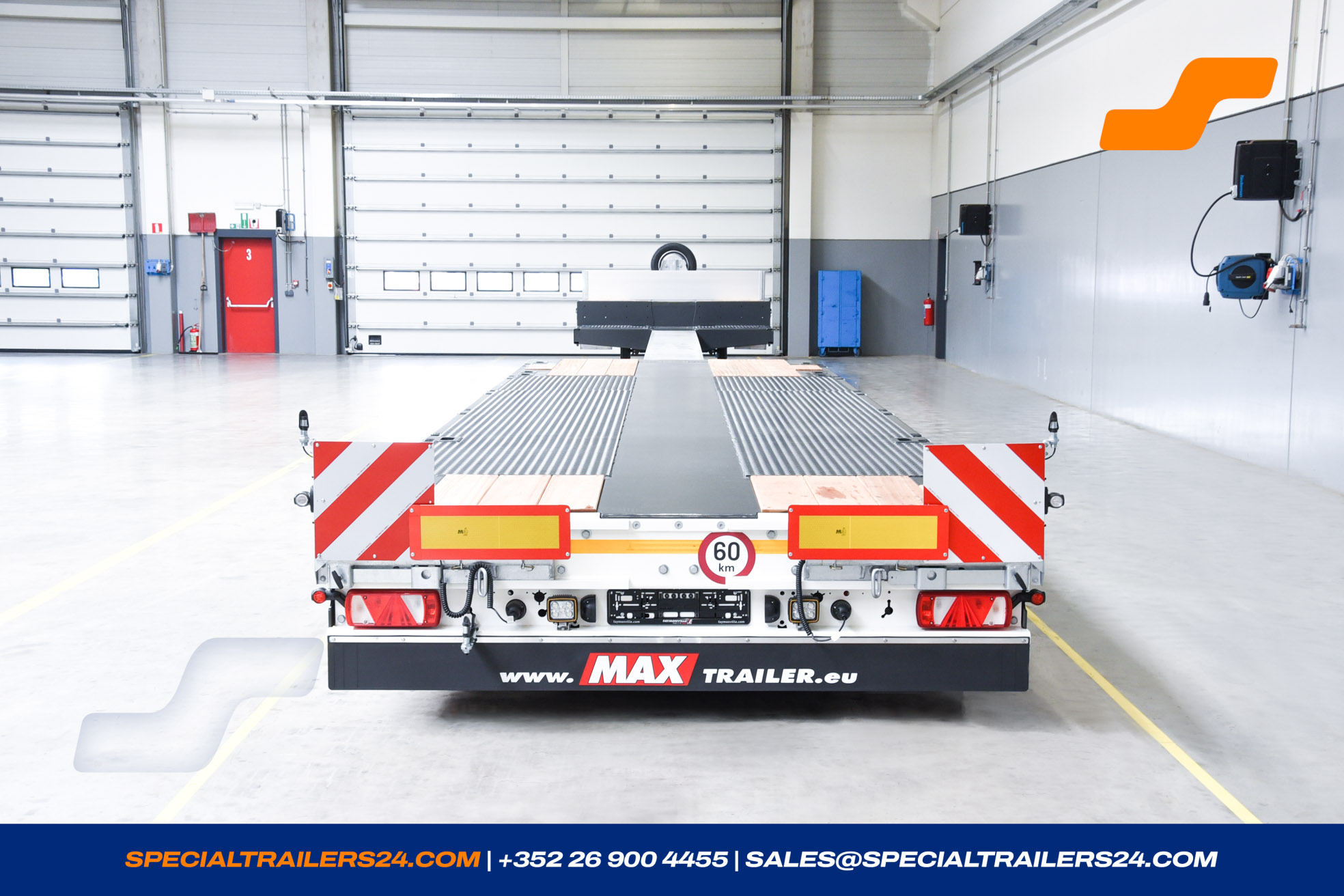

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

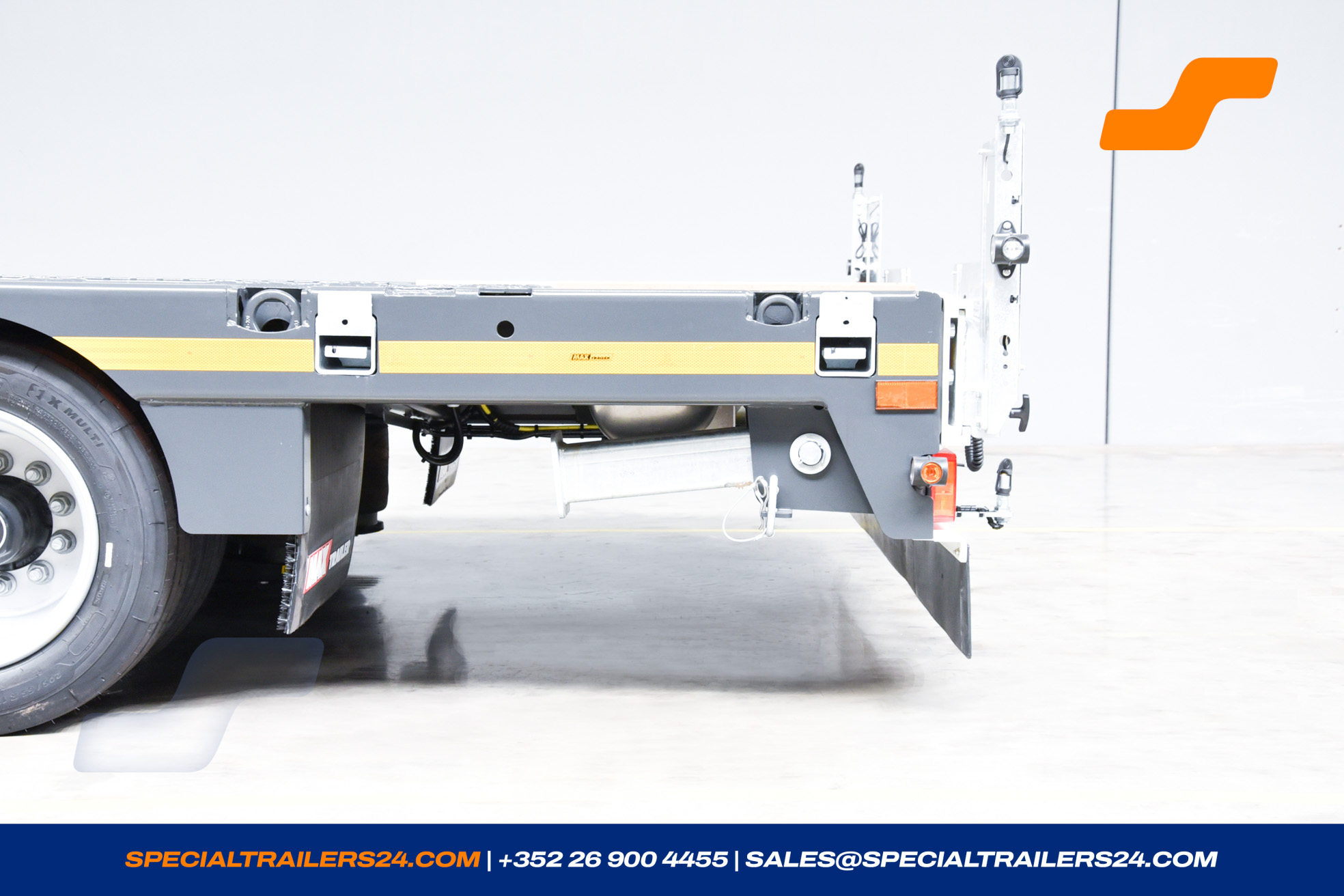

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.

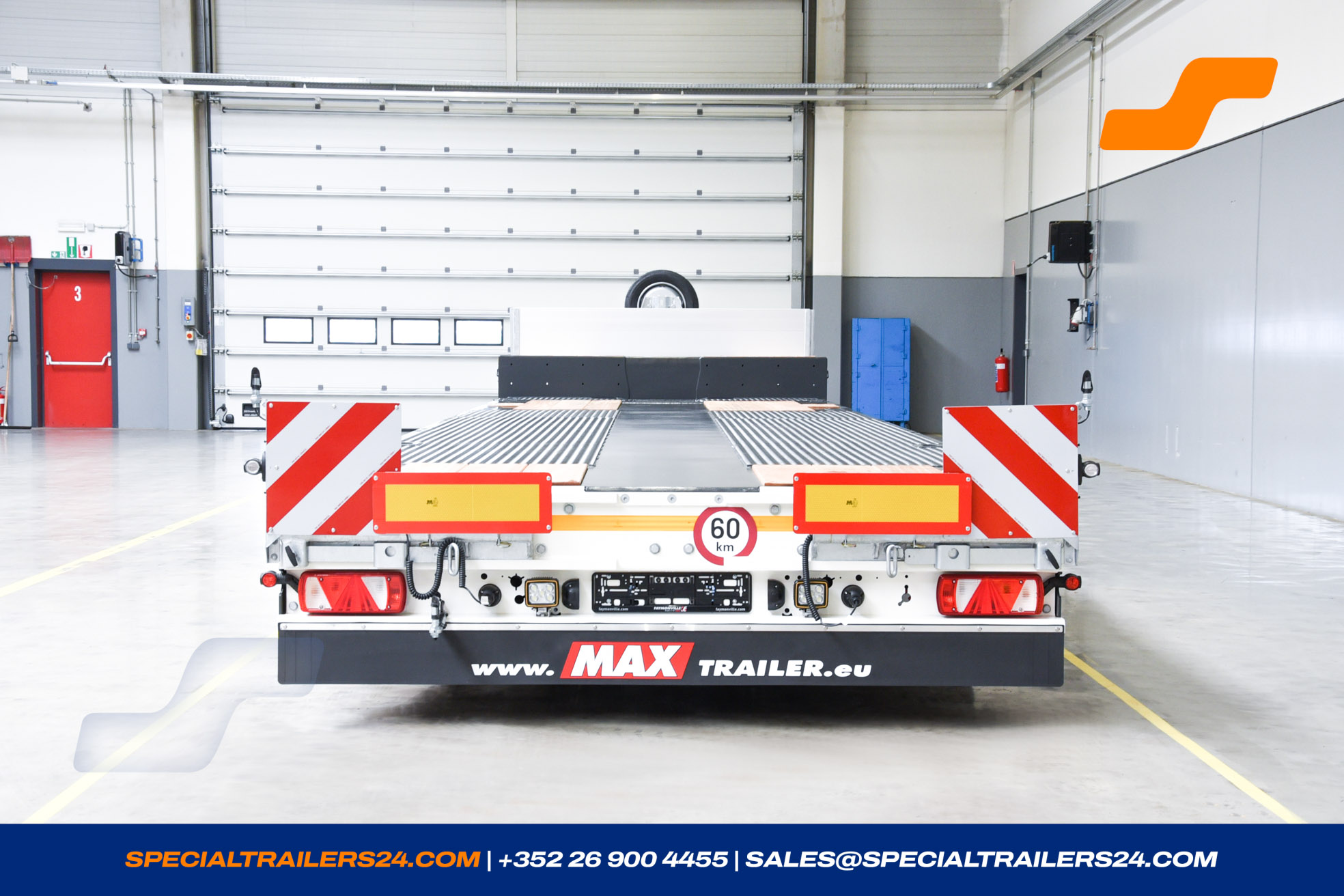

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

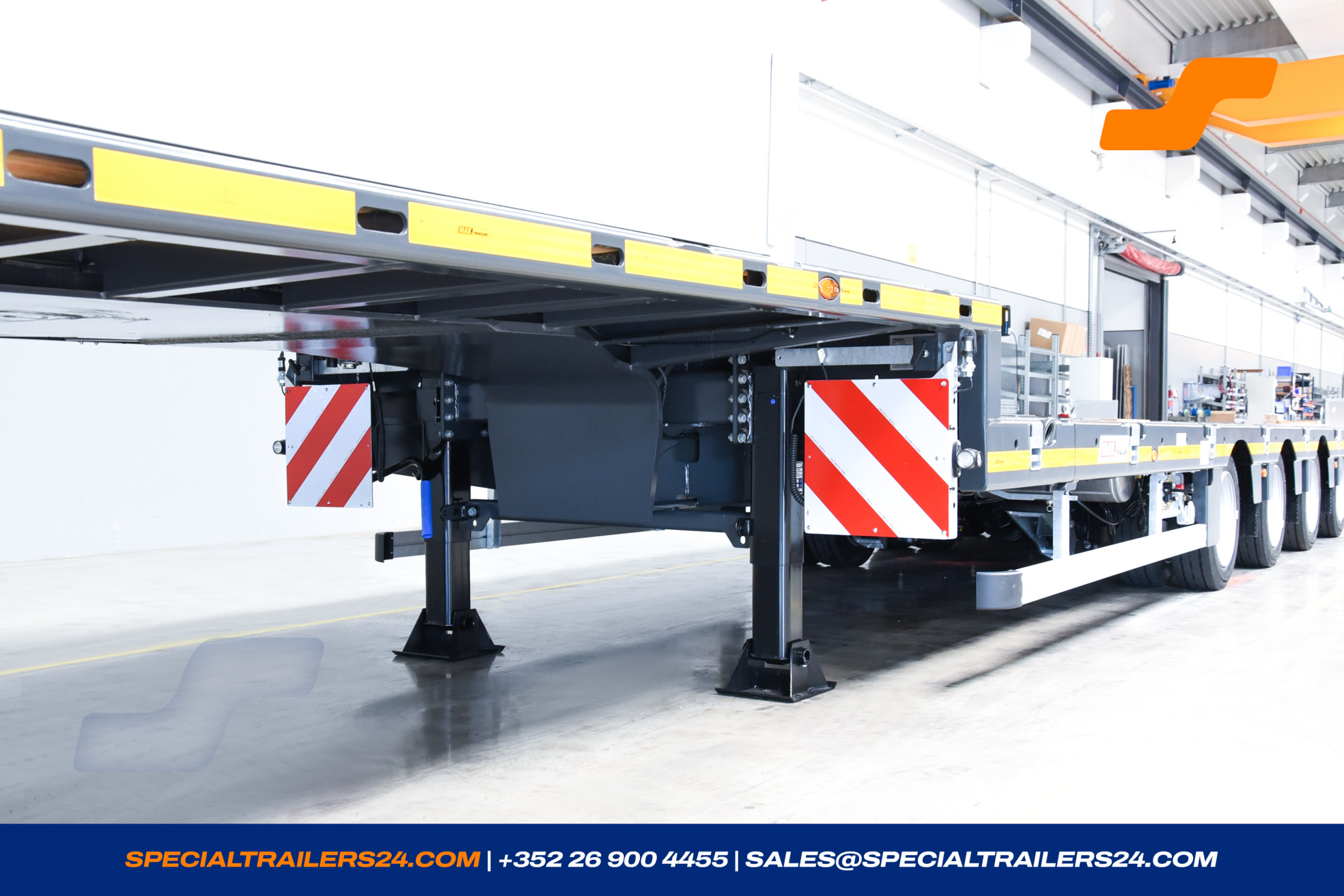

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 1 LED flashing beacon, provided separately.
- On the warning boards a holder to put a flashing beacon.

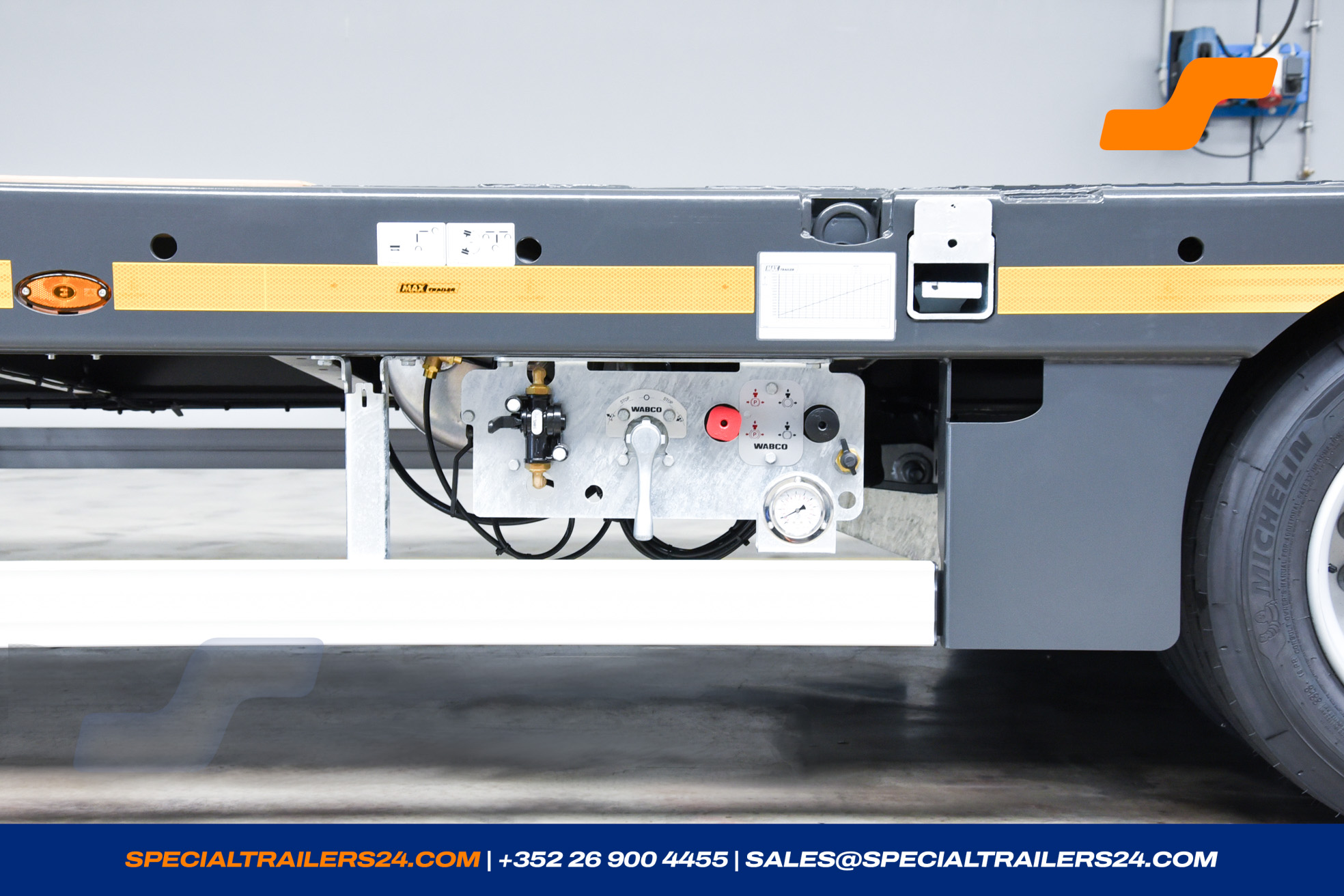

- Load manometer for determining the axle load, including load diagram.
-
7 pairs of containerpockets .
1 x 20' container in the loading platform
1 x 40' container in the loading platform
1 x 40' container over the gooseneck
2 x 20' container.
(± 105 kg) -

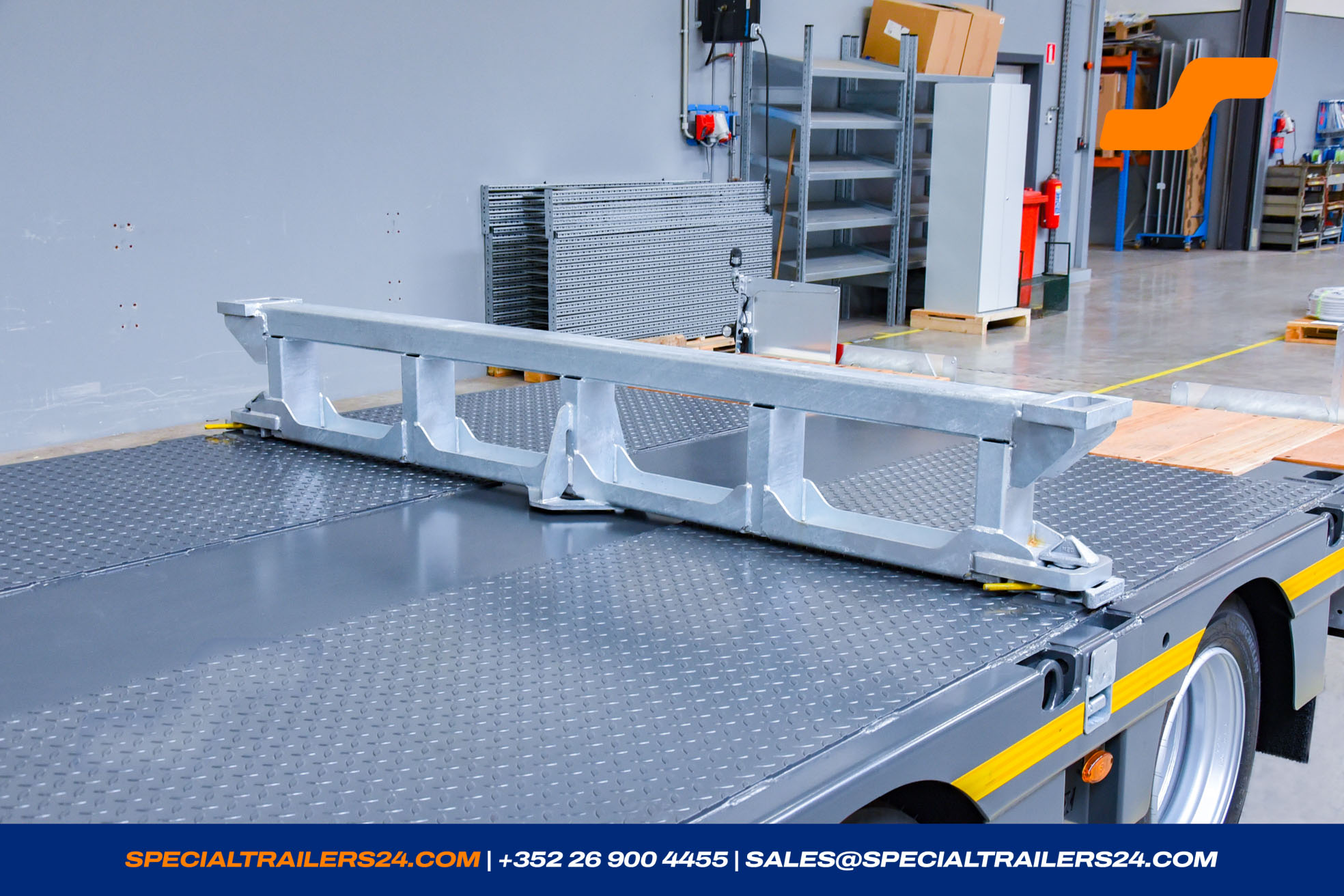

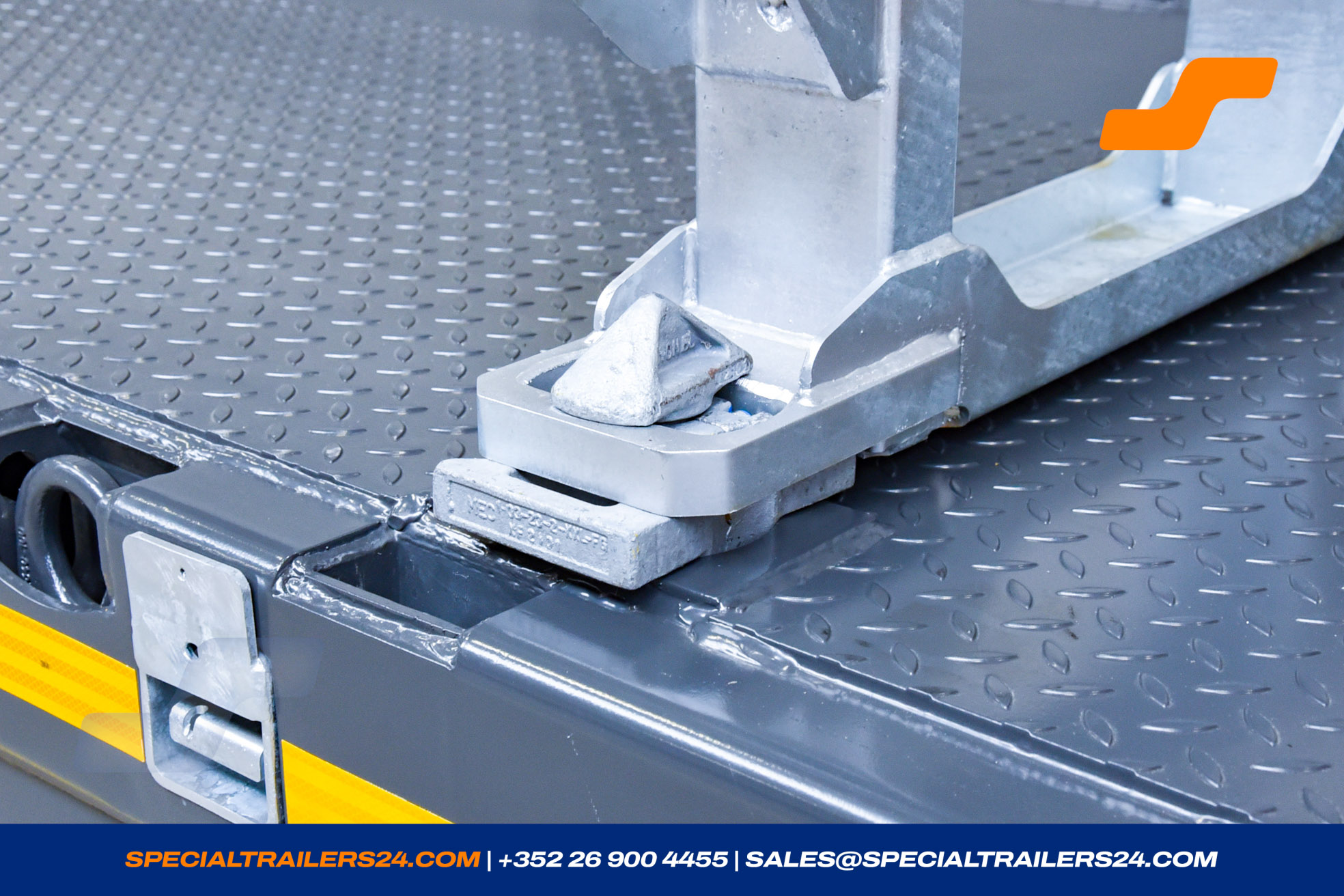

Trestle with 1 pair of WADER containerpockets.
Load capacity ± 20 000 kg (± 86 kg) - 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)

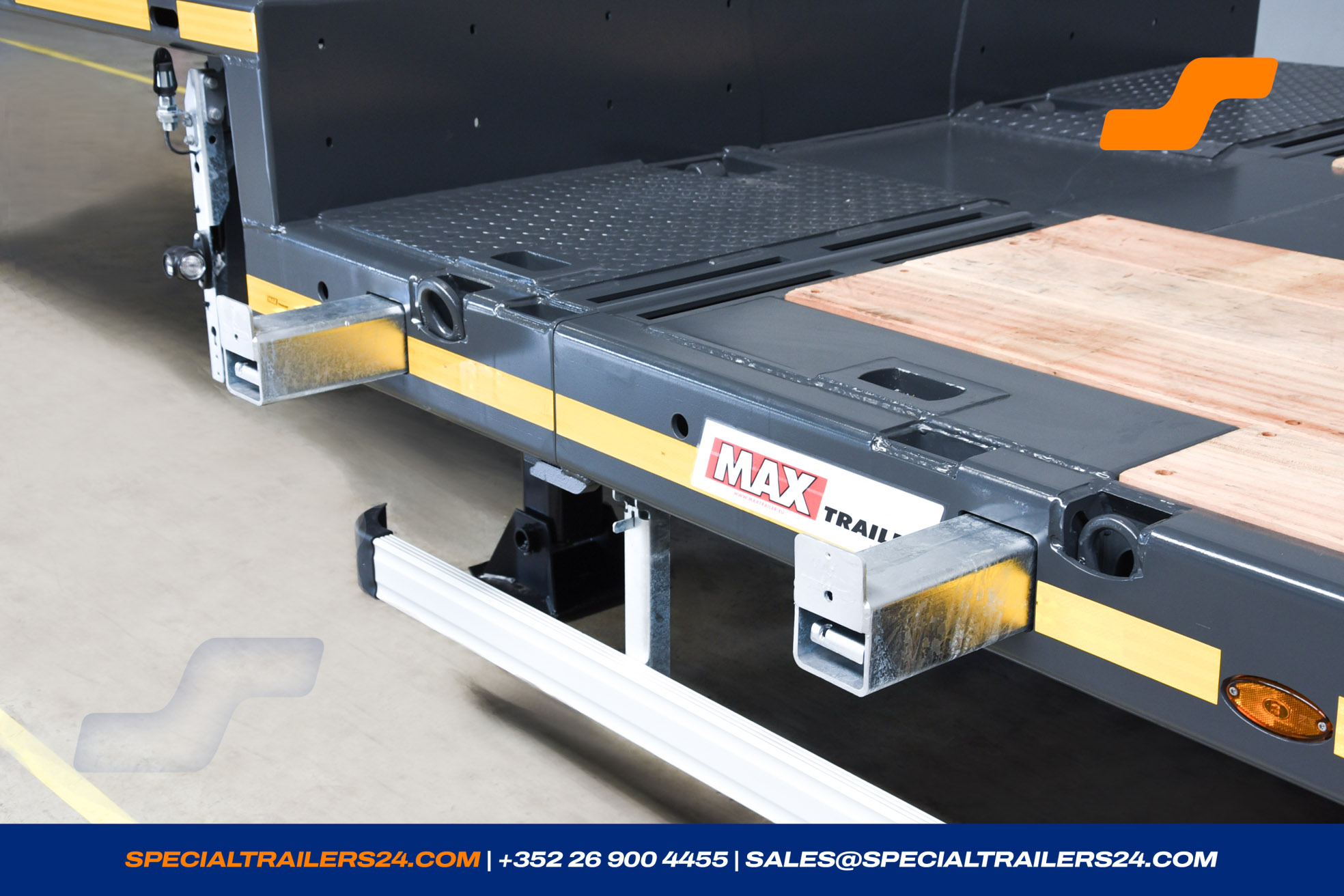

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. - Galvanised storage across under the loading platform. (± 150kg)

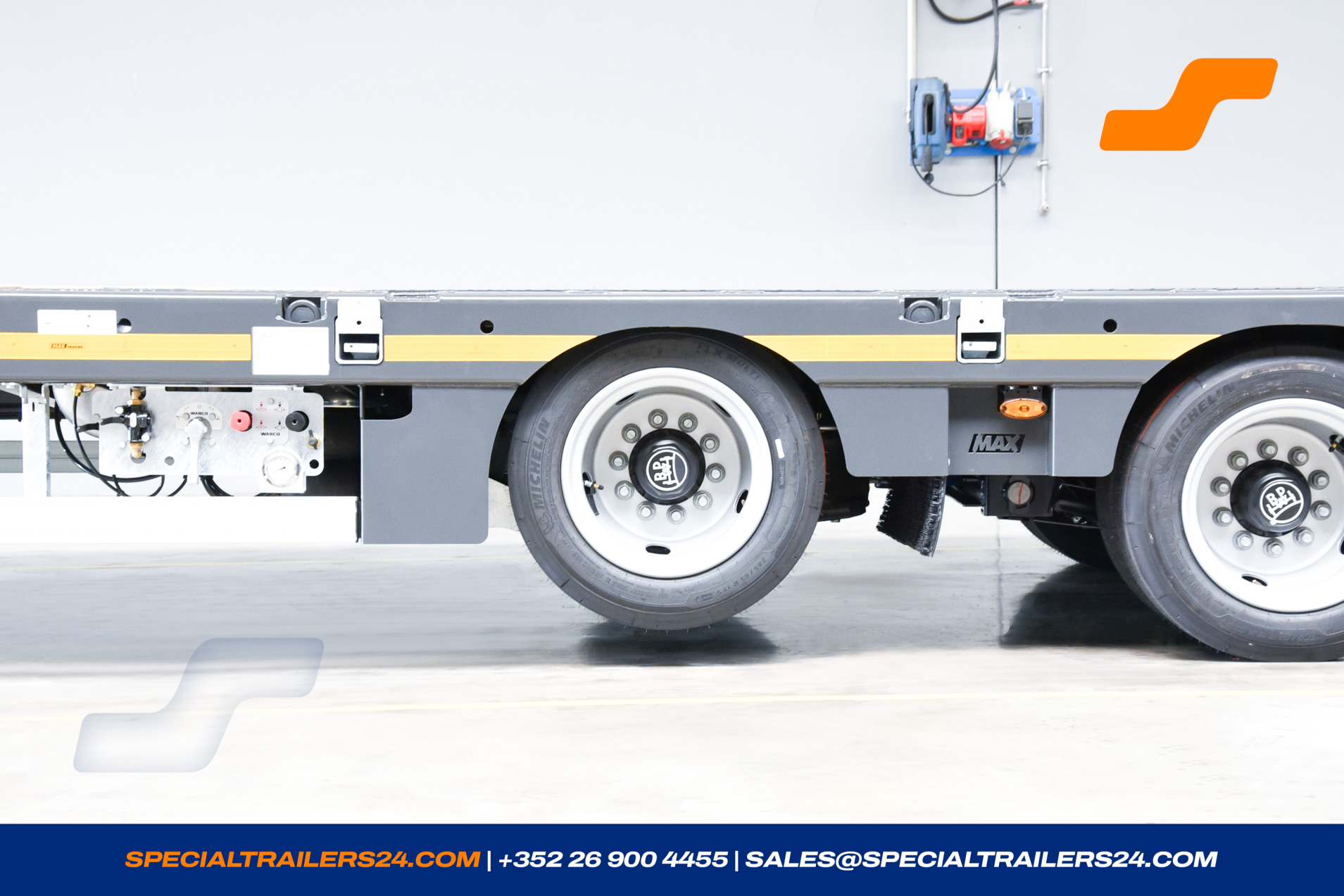

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Profile displaceable as hook-on device for alu-ramps at the rear.
- Holder for alu-ramps, across, under the loading platform in front of the axles. (± 142 kg)
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
