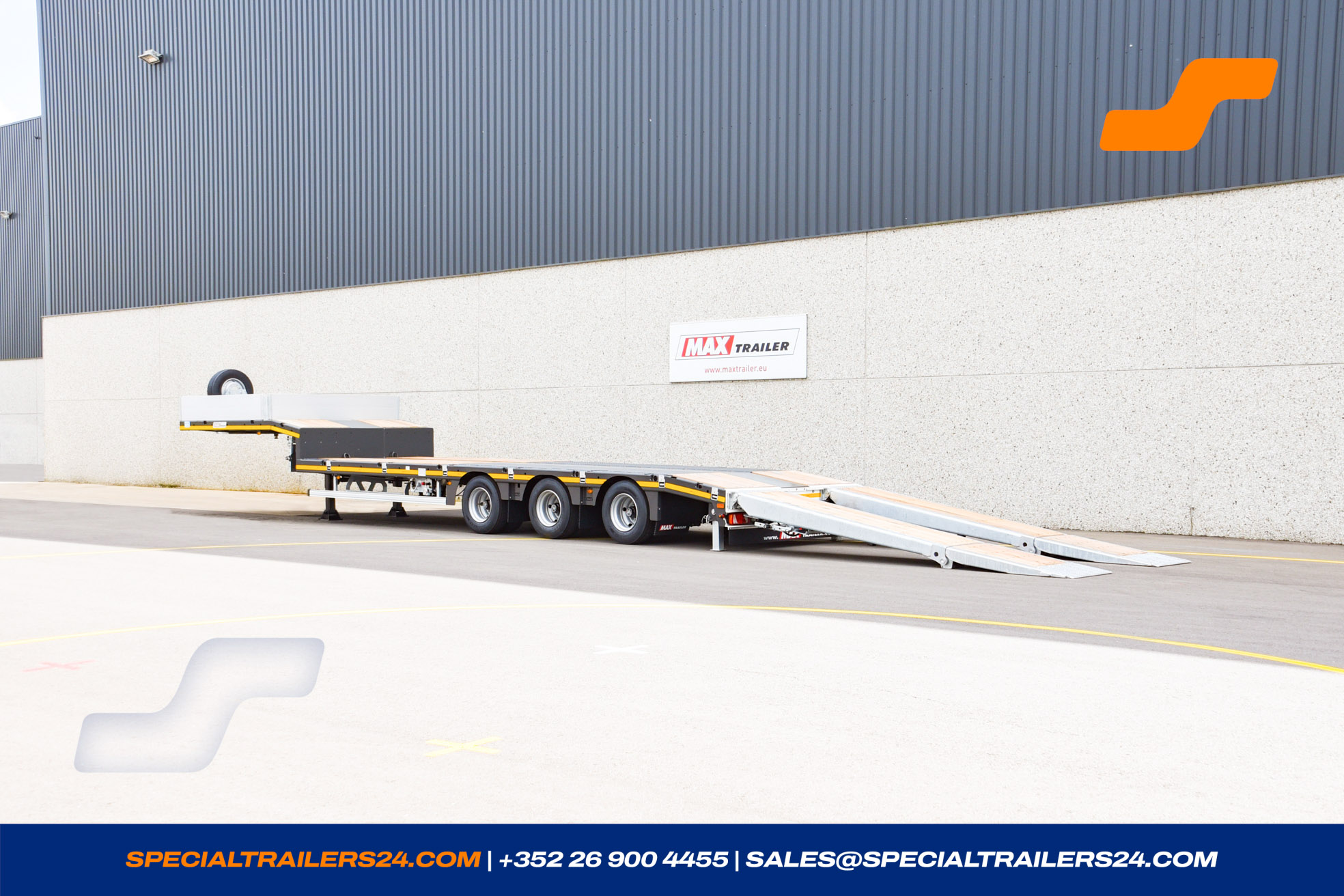

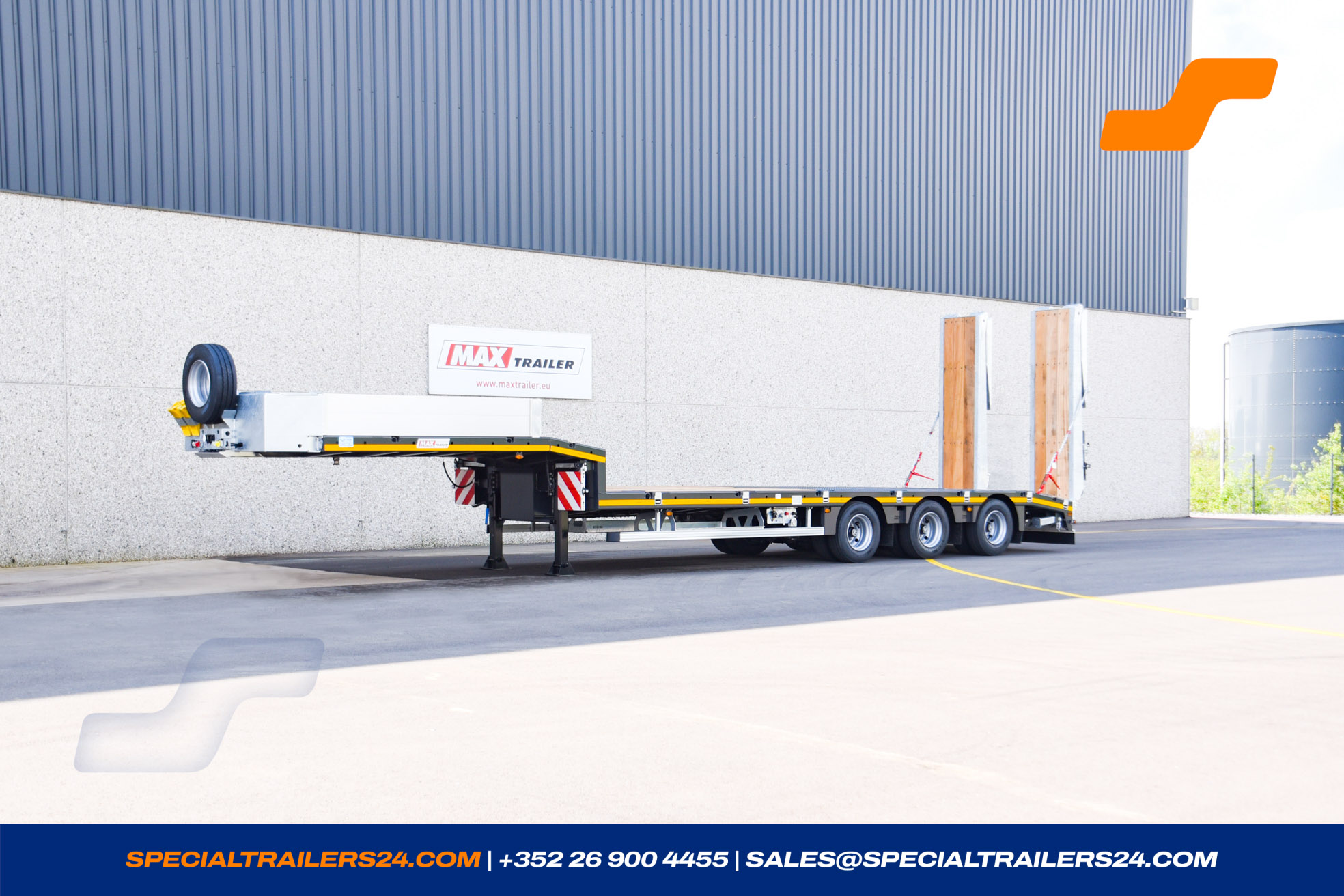

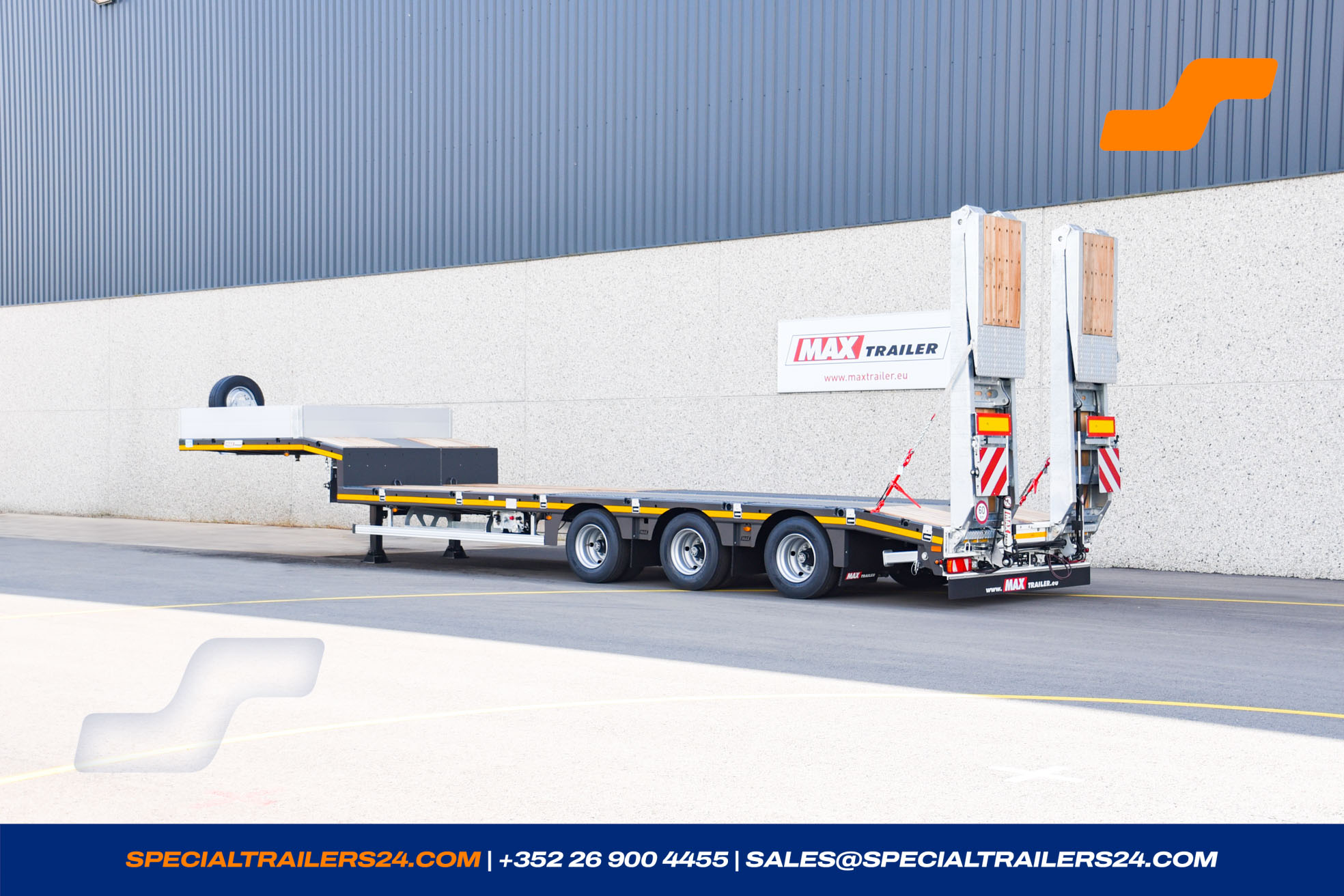

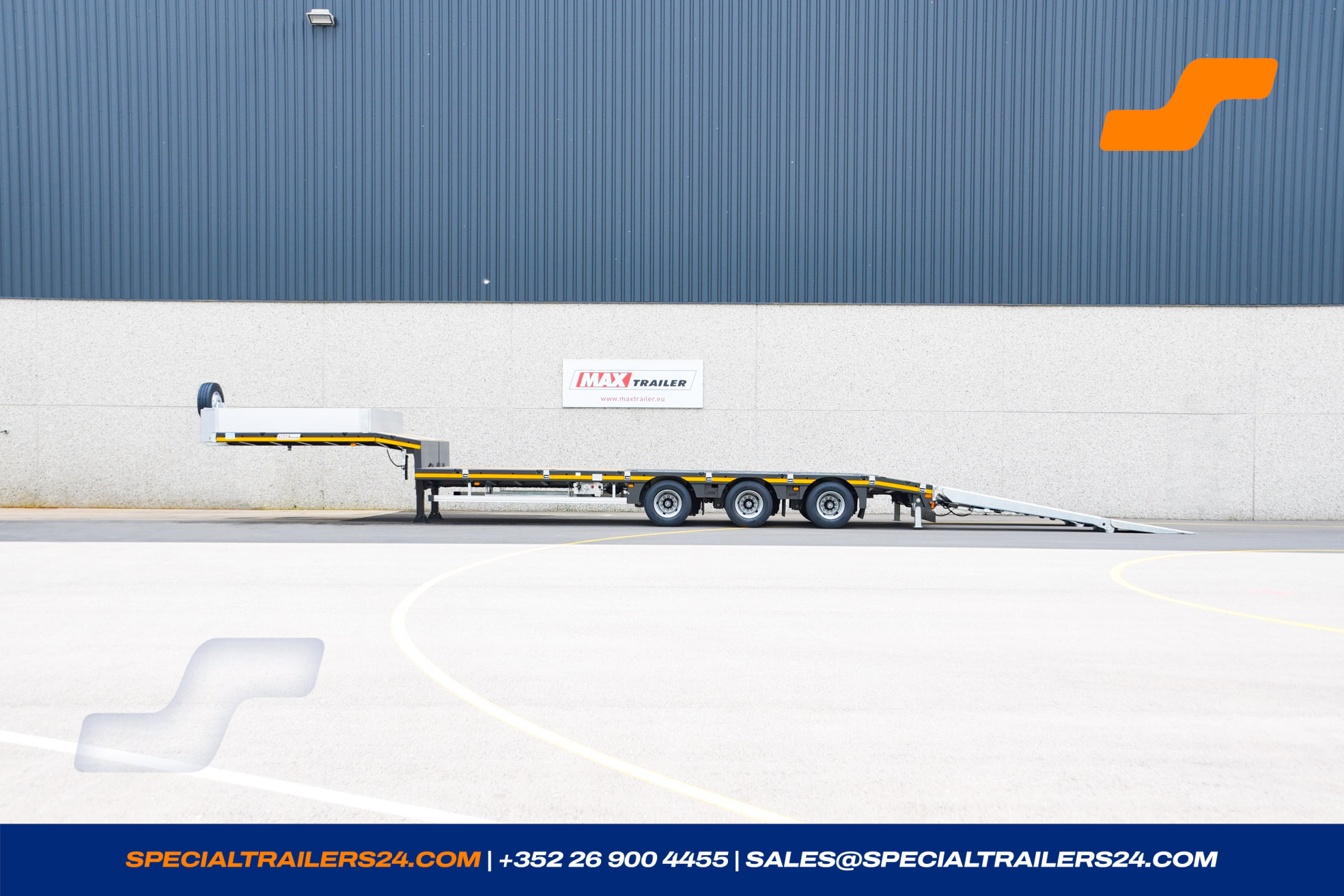

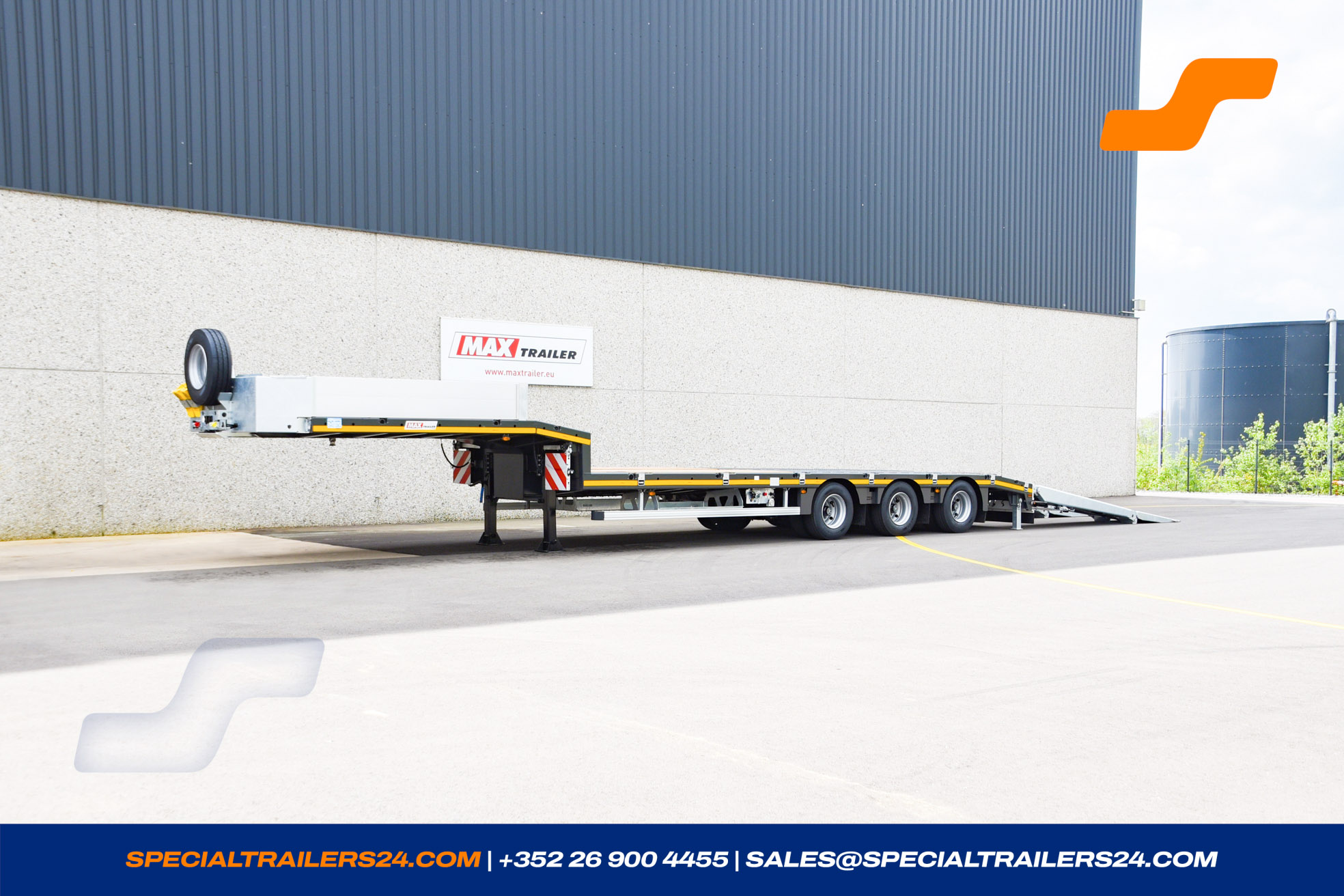

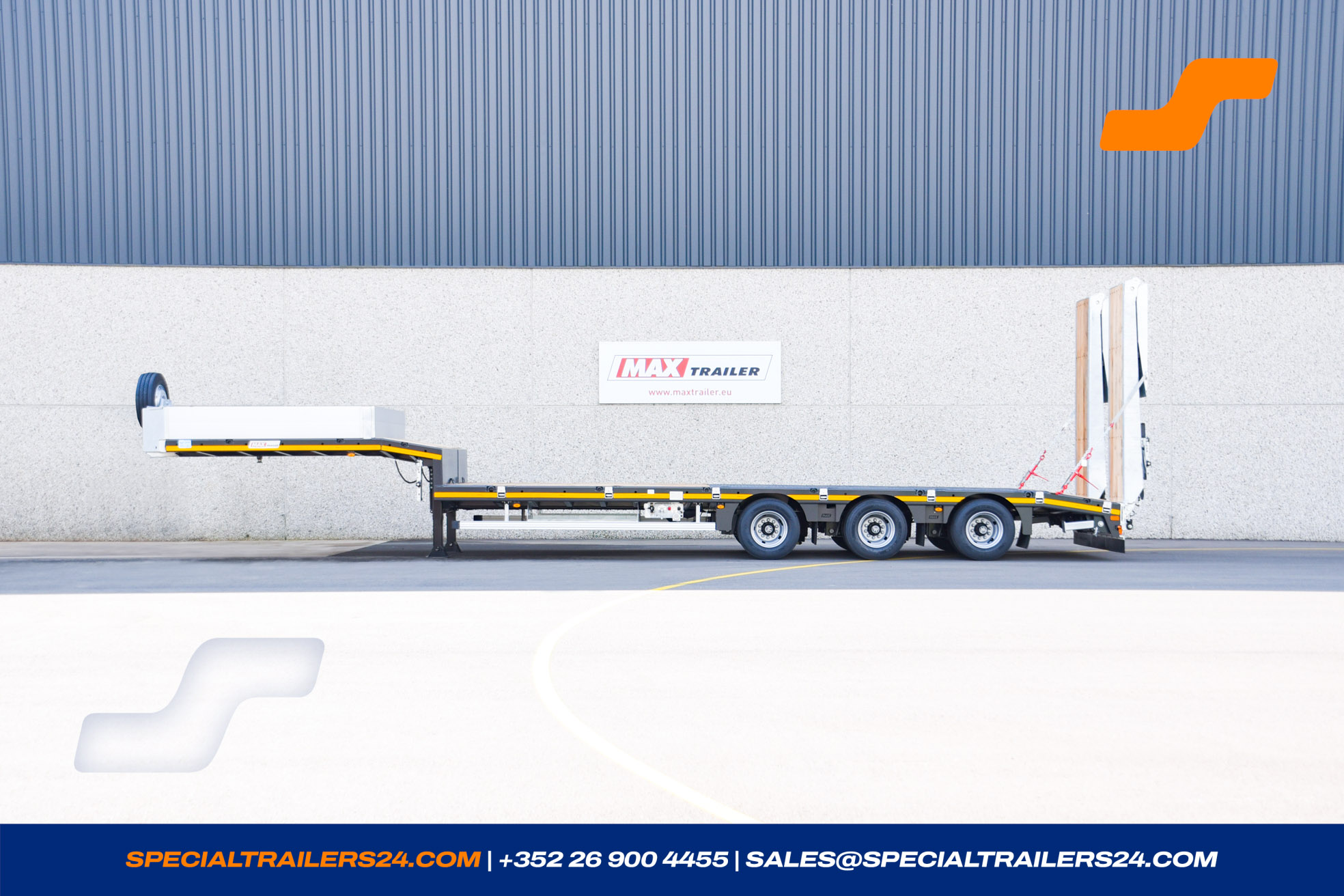

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112140
- Reference MAX100-N-3-9.30-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 5002 - Ultramarine blue
- Availability 09/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 8380 kg |
| Payload | 41120 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 450 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

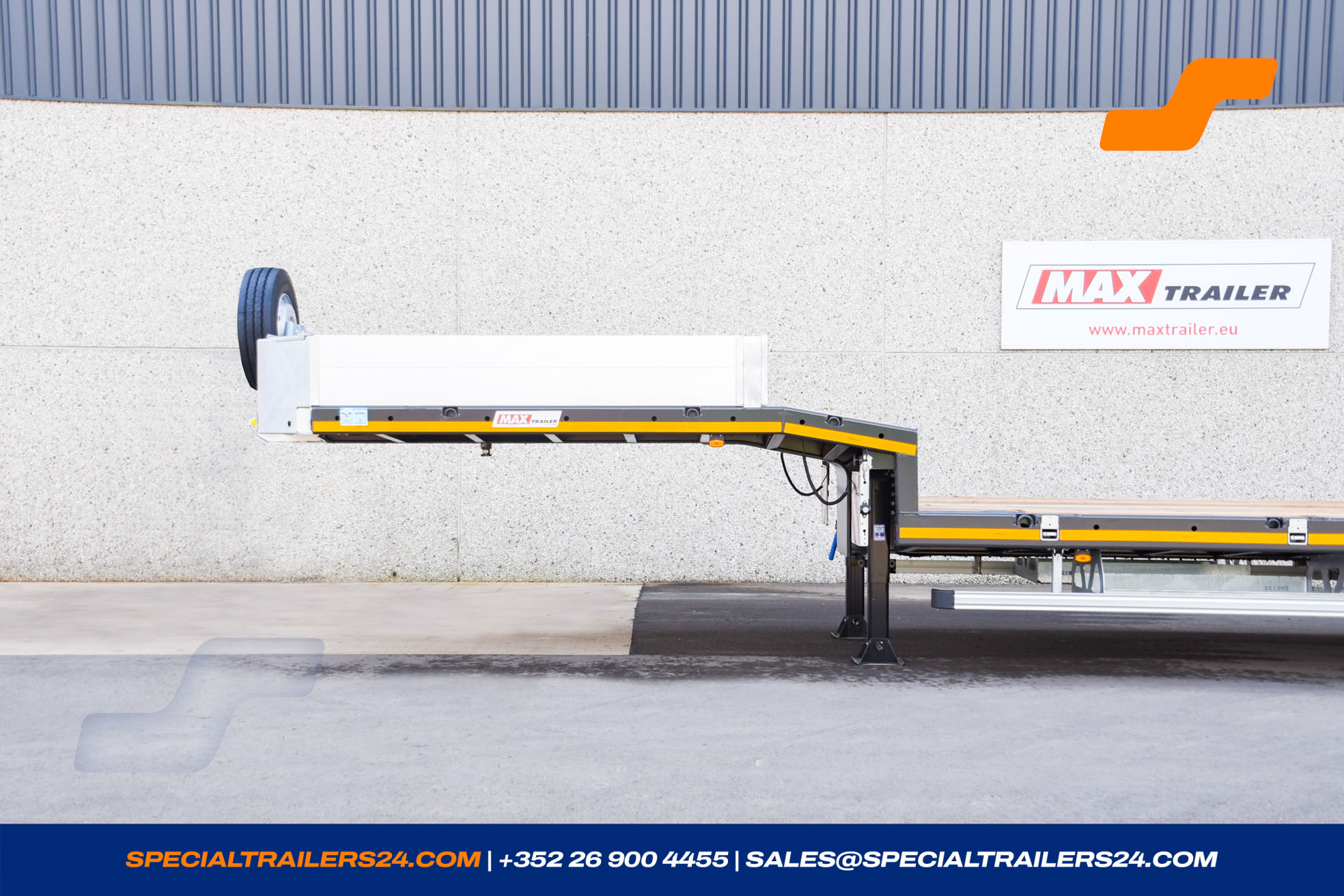

Gooseneck
1 x Gooseneck : MAX-3.450-750-10° (DSR 2100/ASH 1150)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

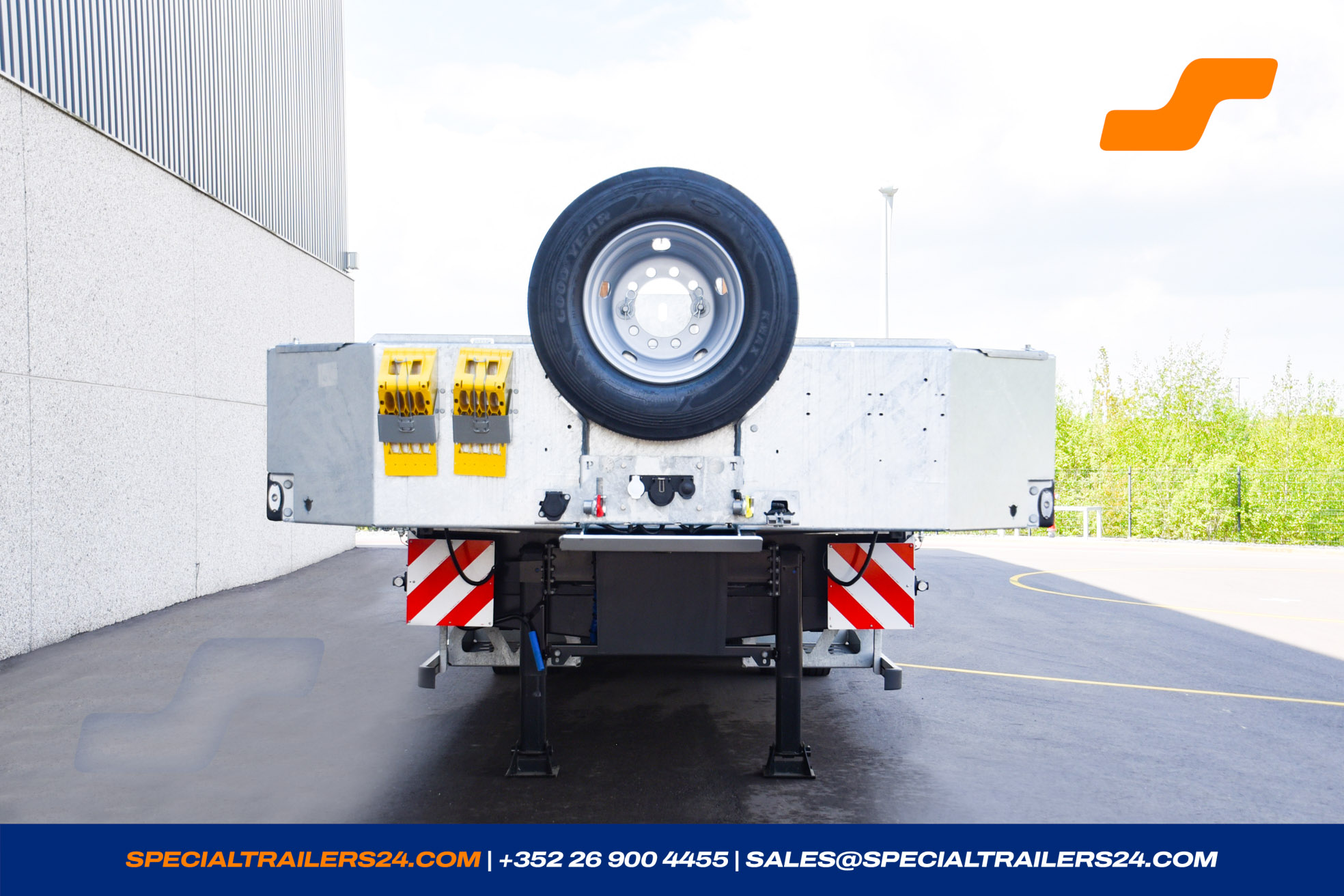

- One spare wheel with holder on the headboard.
- 2 king-pin.

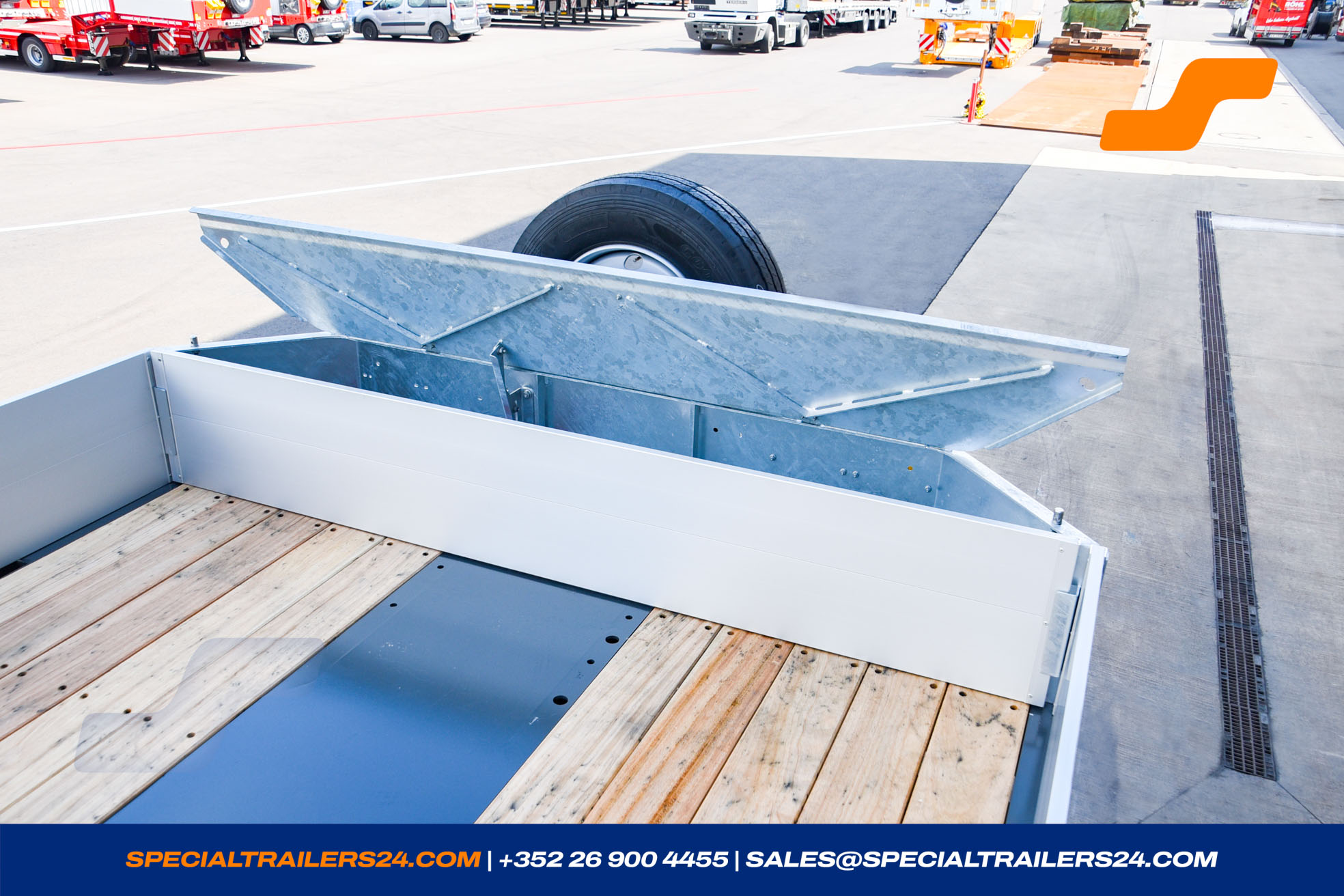

- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier on the headboard (± 5kg).
Loading deck

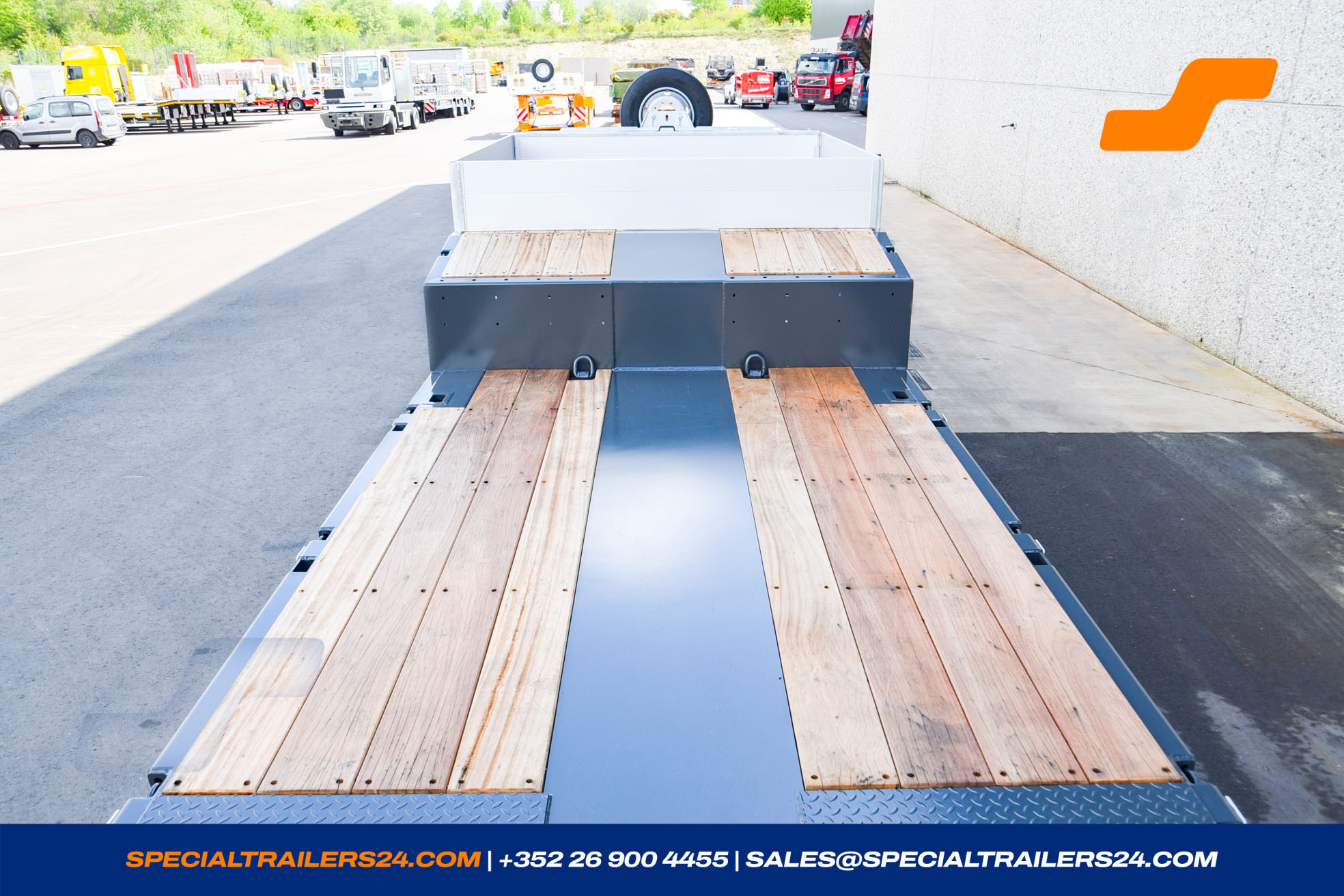

Loading platform
1 x Loading platform : MAX100-N-3-9.30-17.5-2.54
Loading platform with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

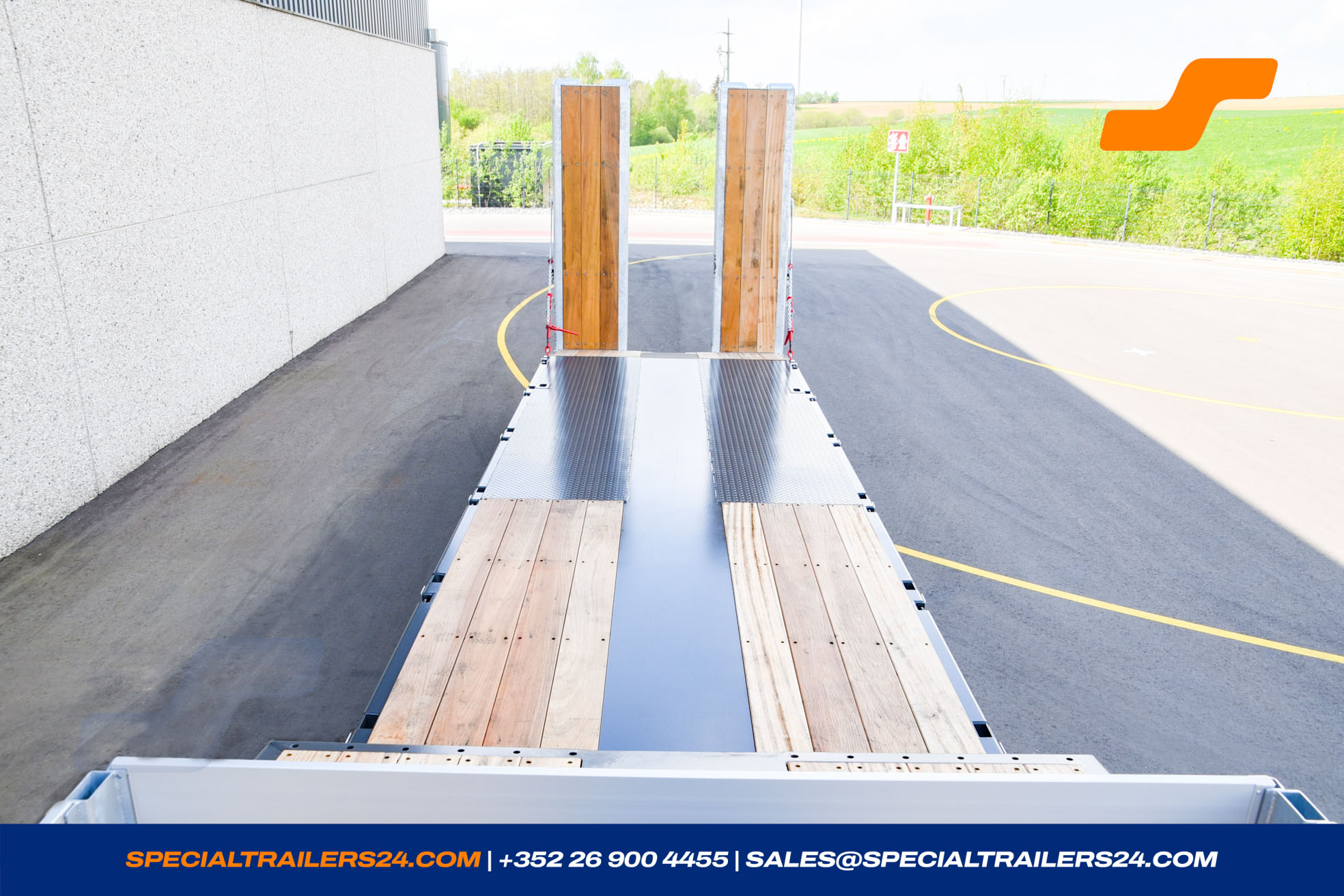

Hardwood cover thickness 48 mm; above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

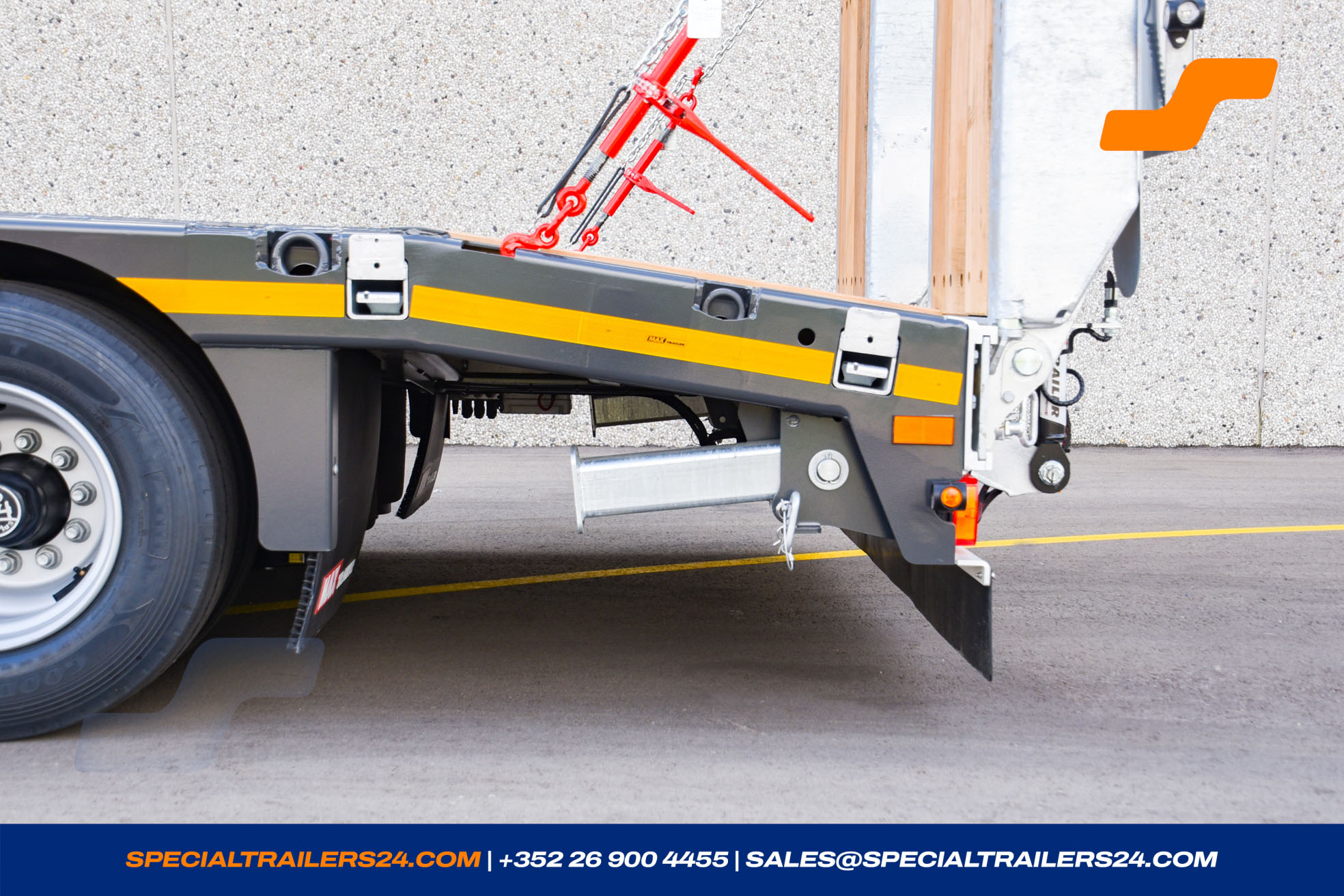

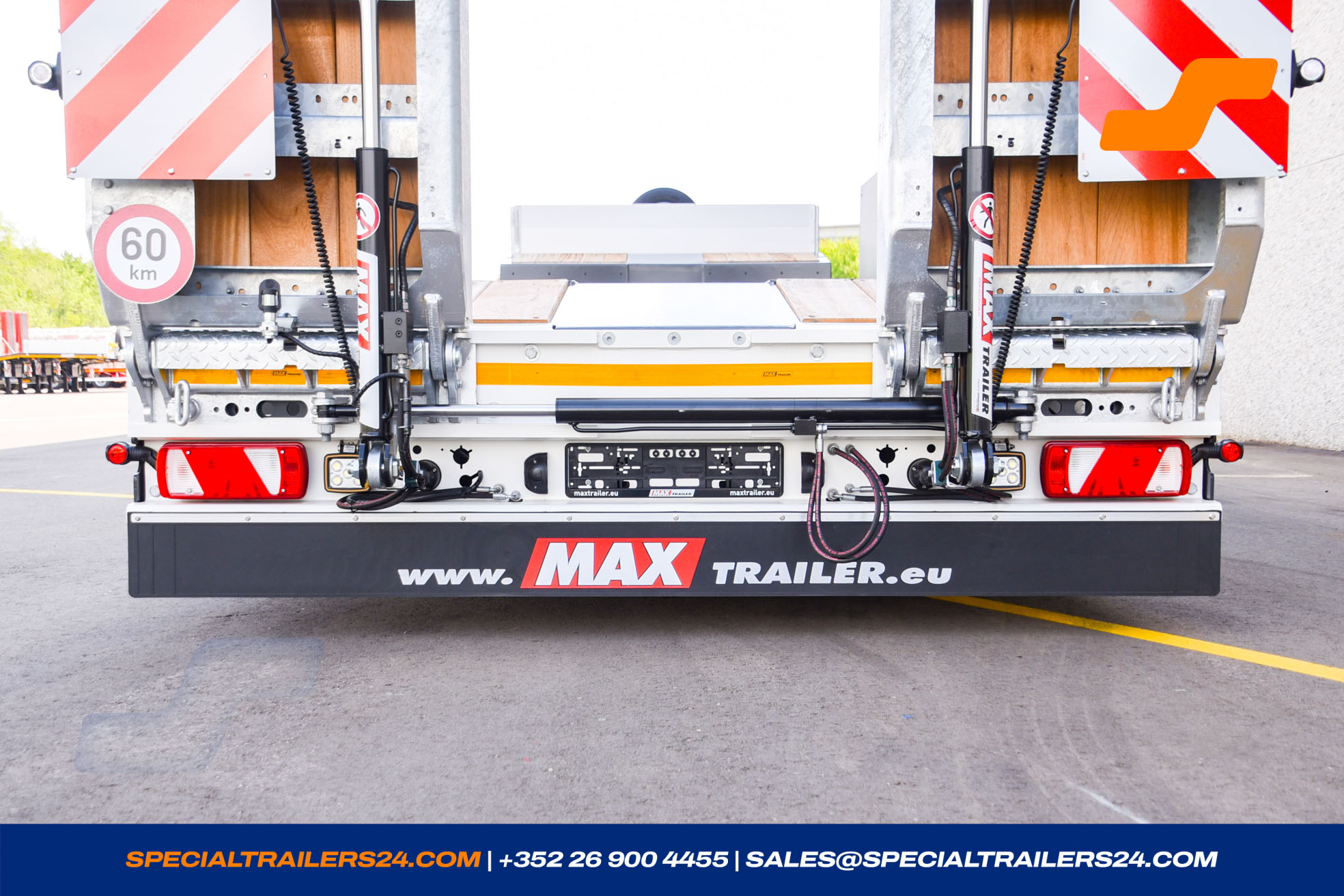

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

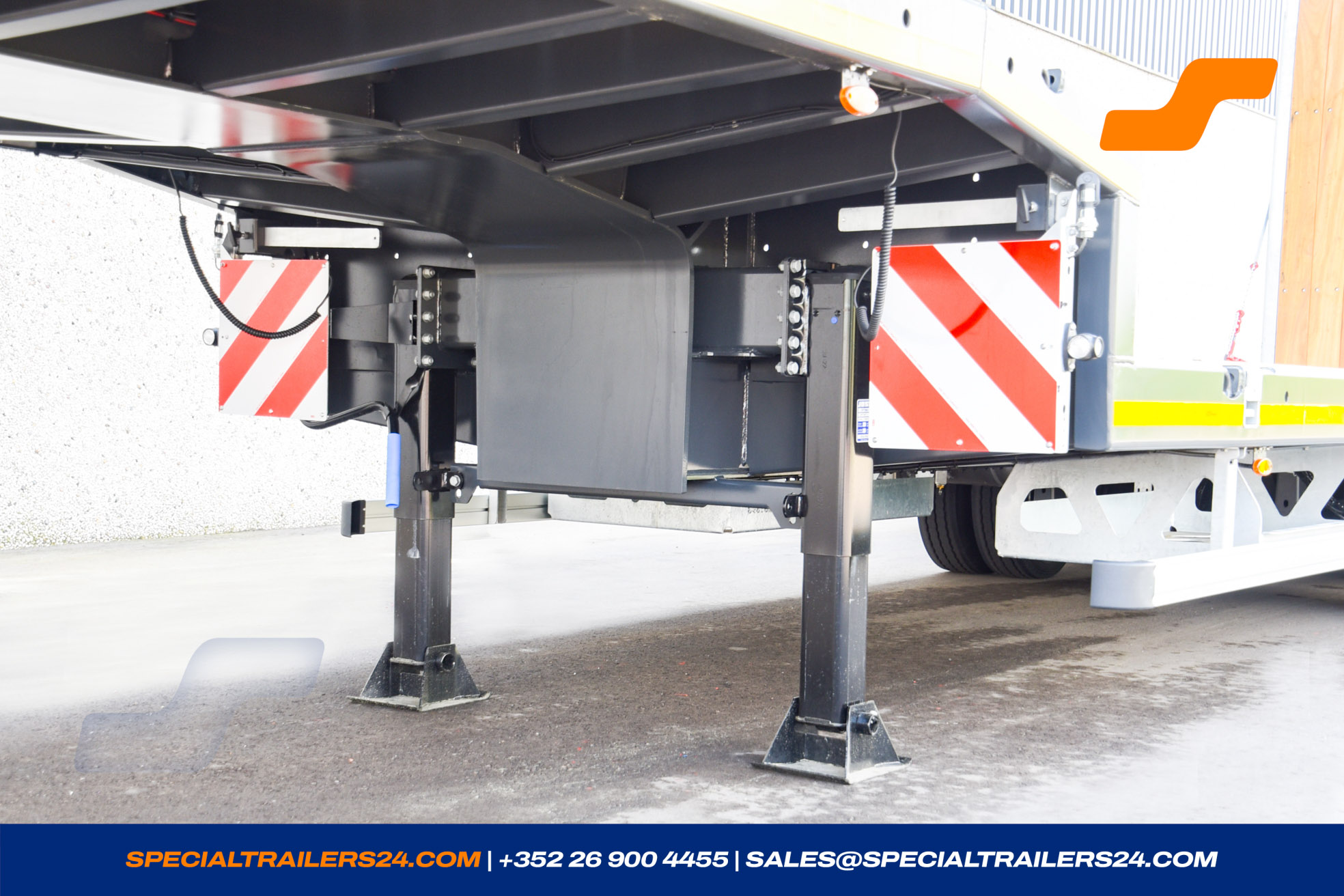

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 1 LED flashing beacon, provided separately.
- Speed sticker 80 km/h at the rear and on both sides.

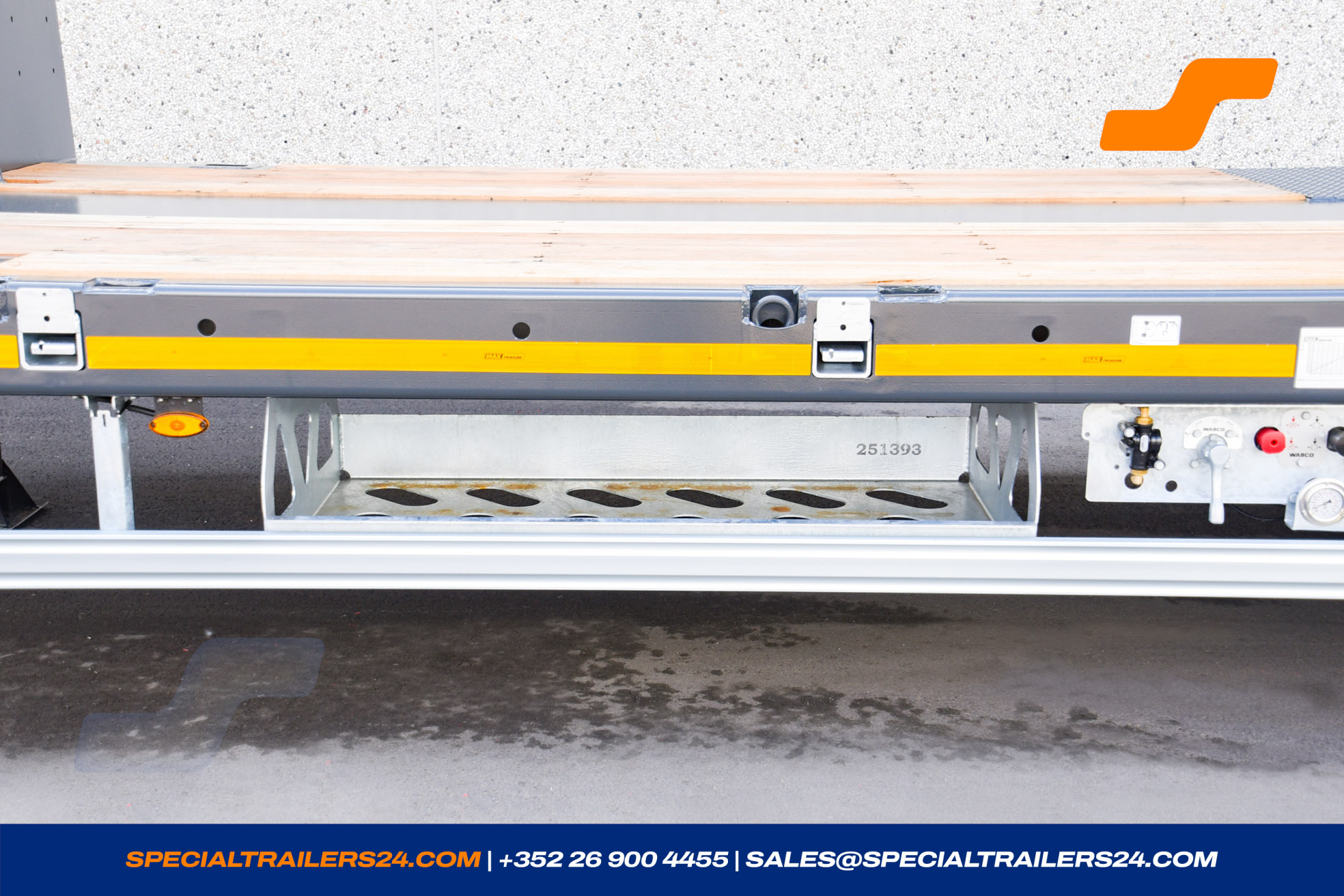

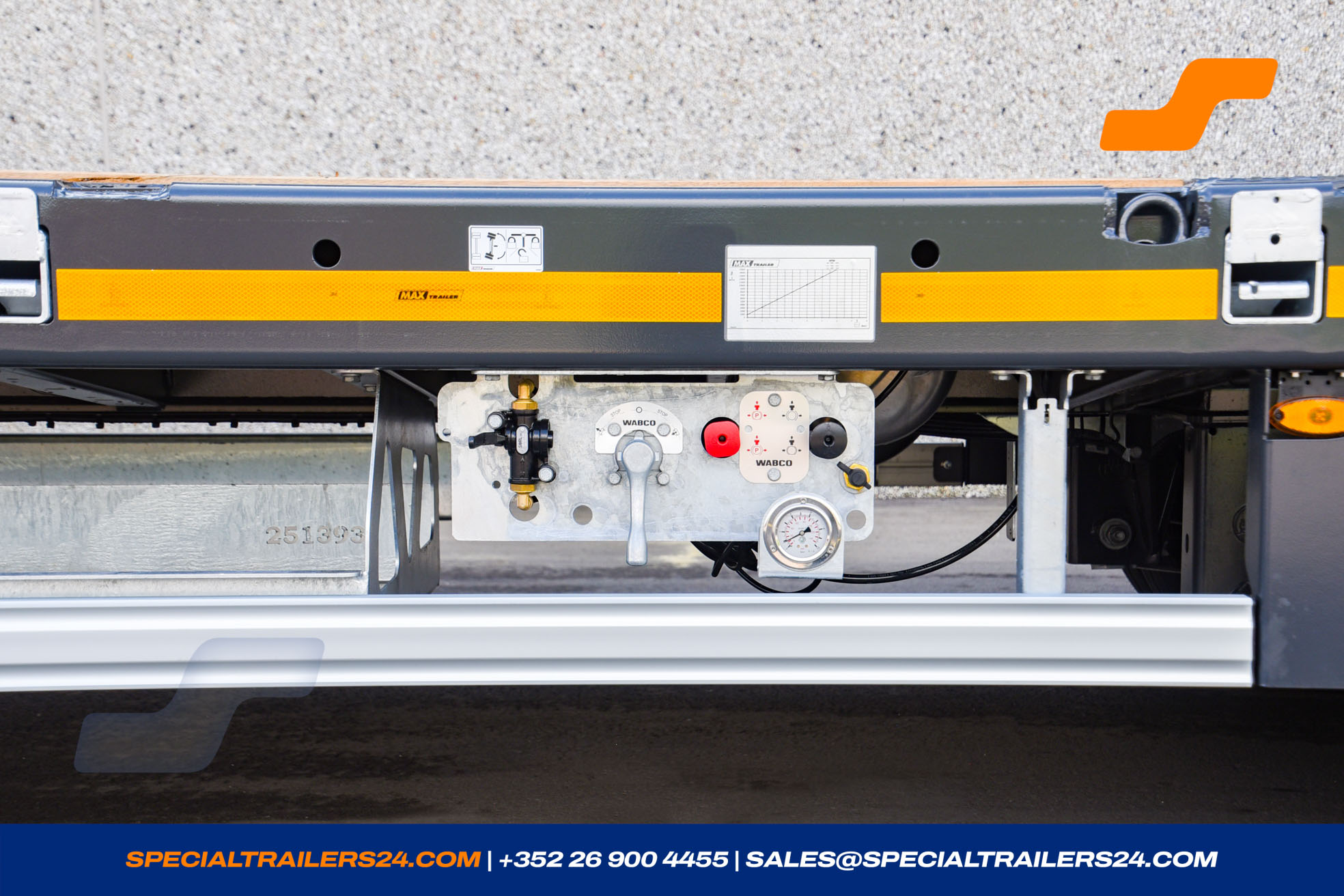

- Load manometer for determining the axle load, including load diagram.

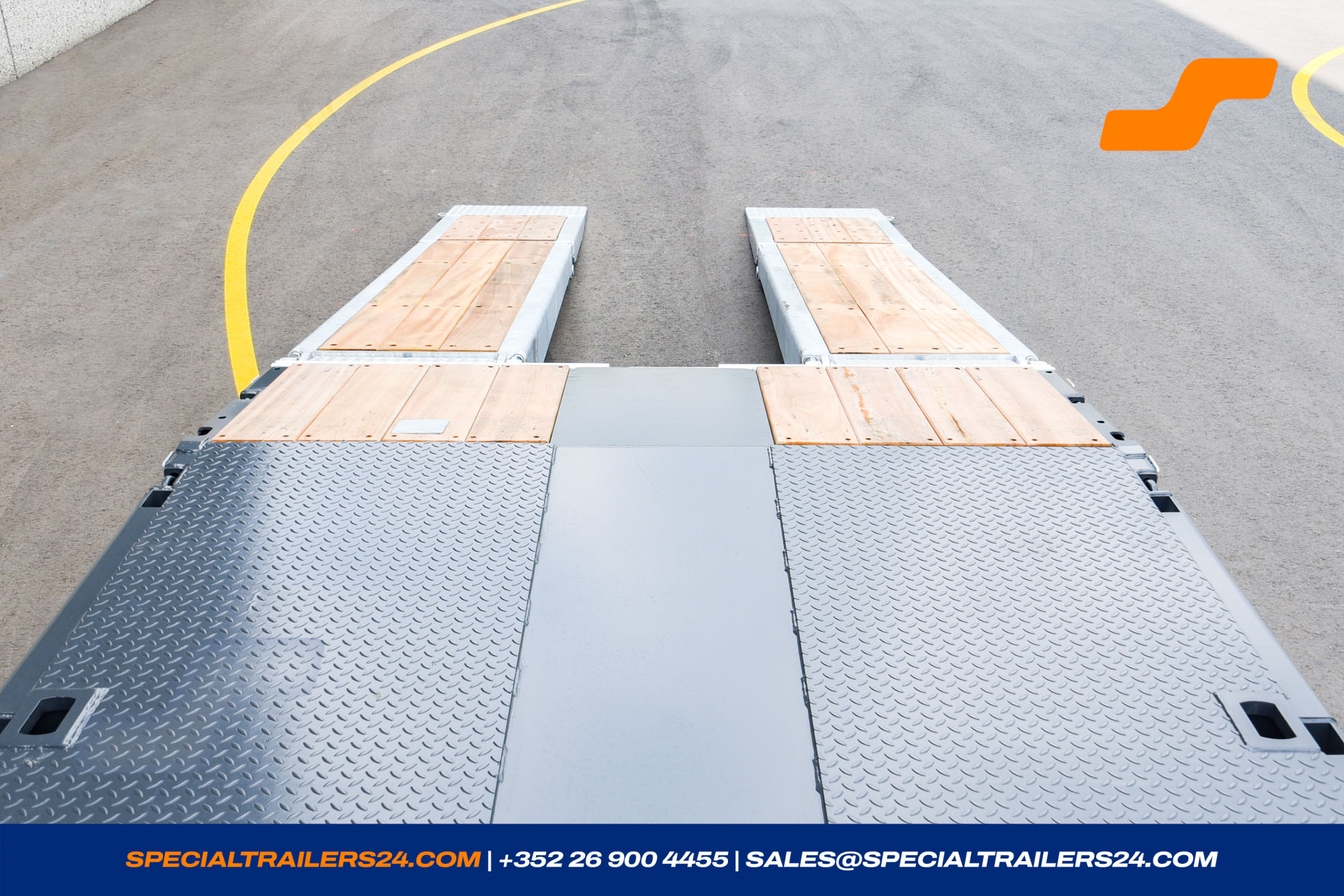

- Grating floor of the chamfer on the loading platform C40/4 (for point load of 2.9to on a surface of 20 x 20 cm) (± 21kg).
-
7 pairs of inserted lashing rings along the central beam of the loading area (LC 5.000 daN).
1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 25kg) - Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- 2 LED- reversing lights at the rear.

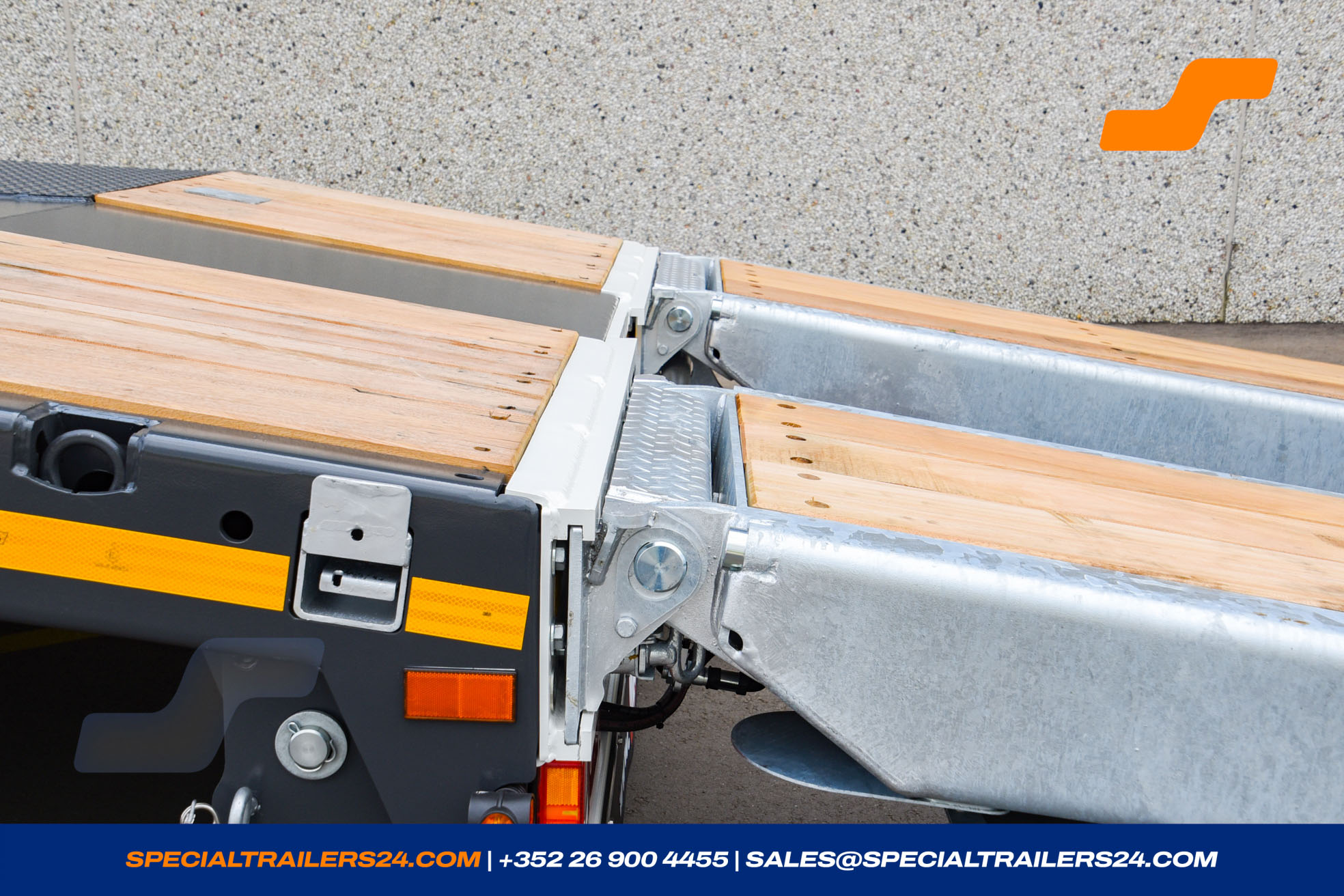

Ramps

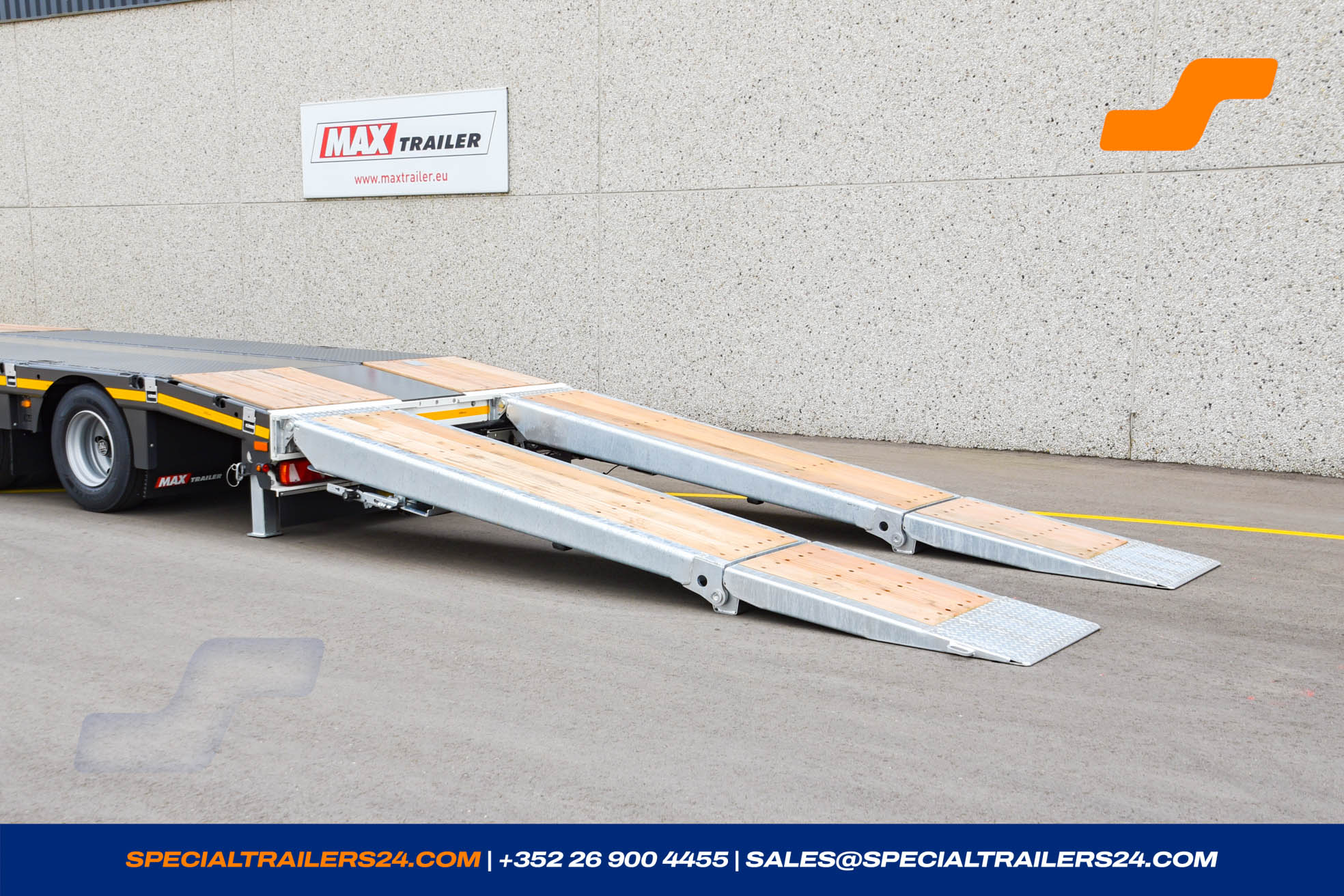

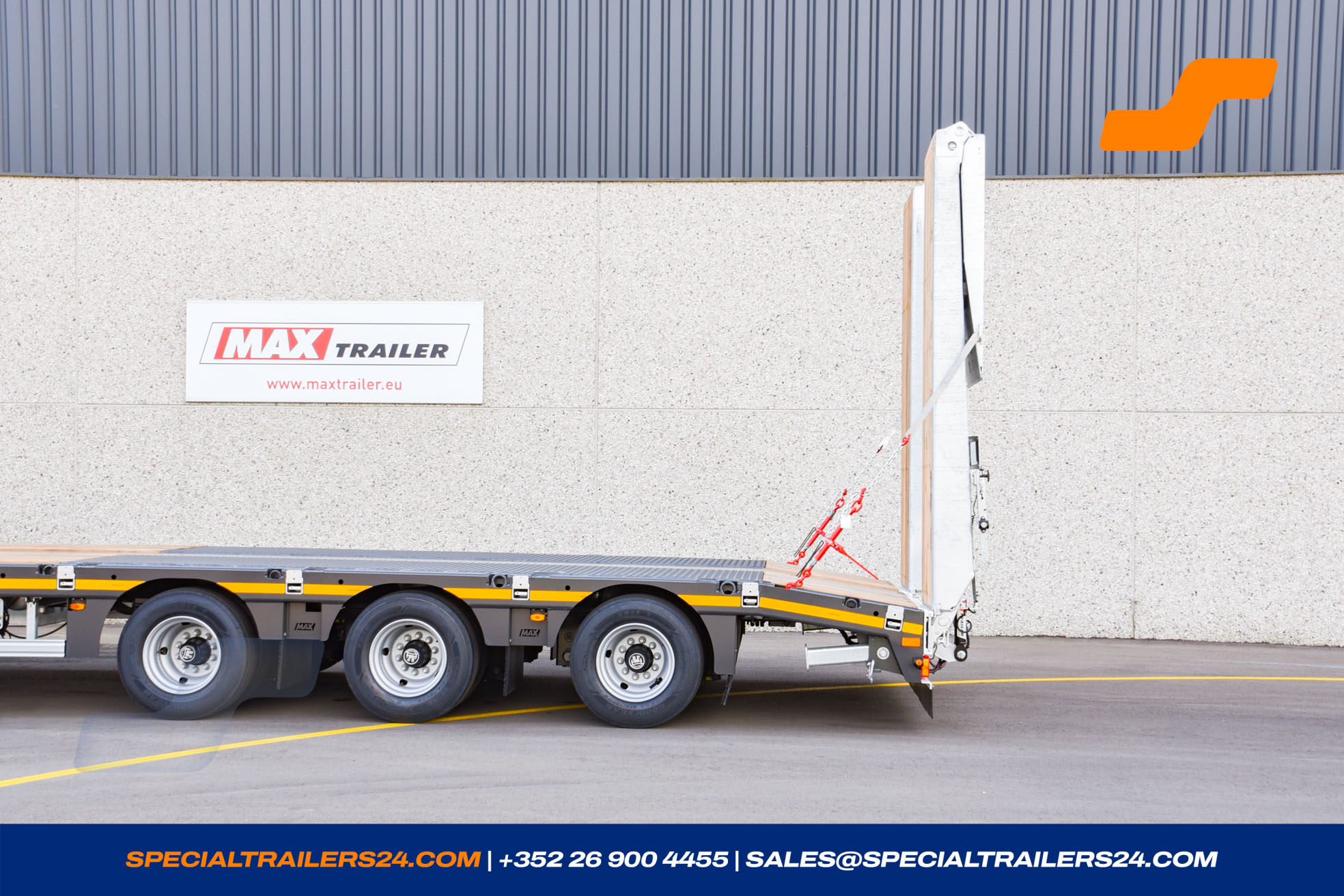

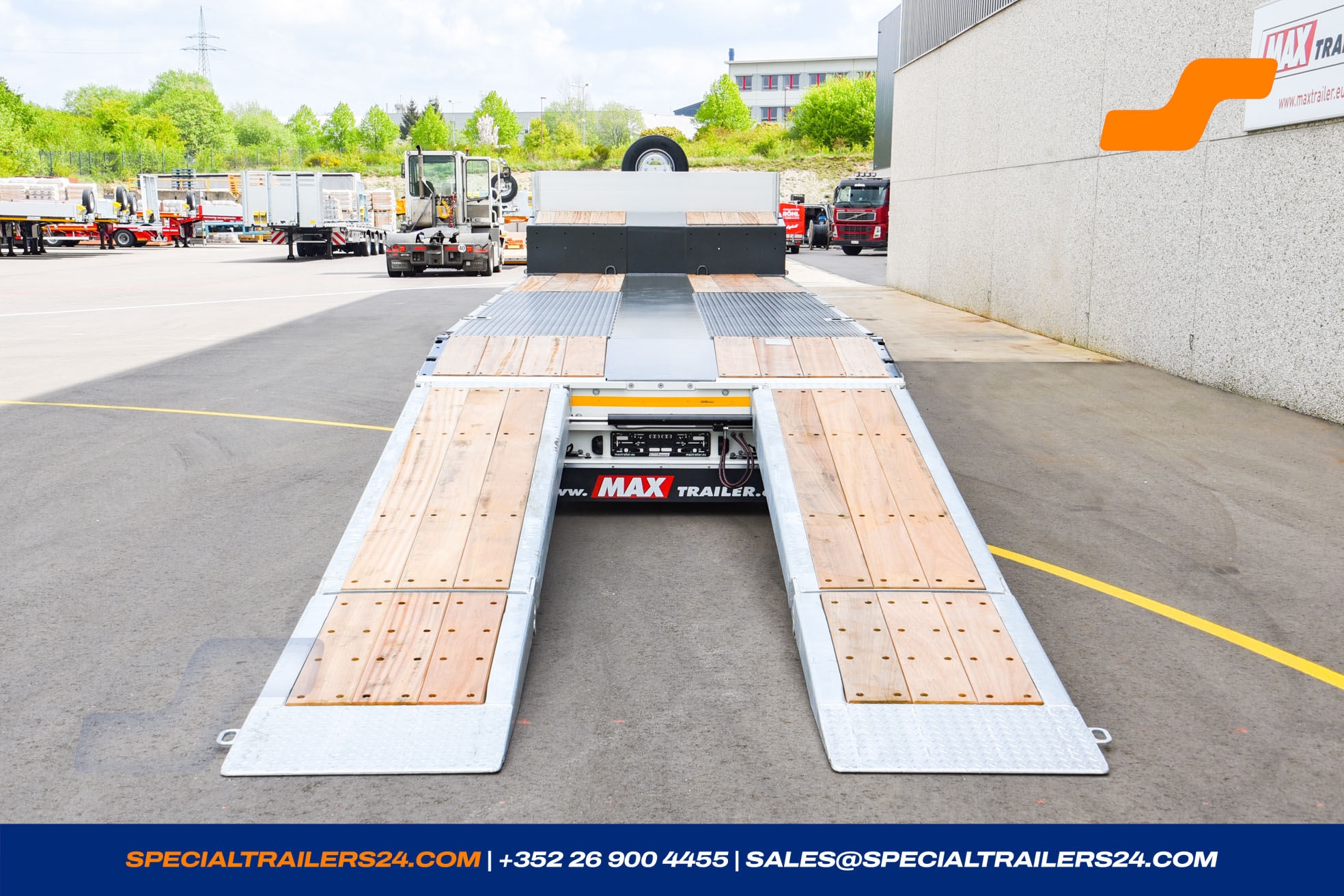

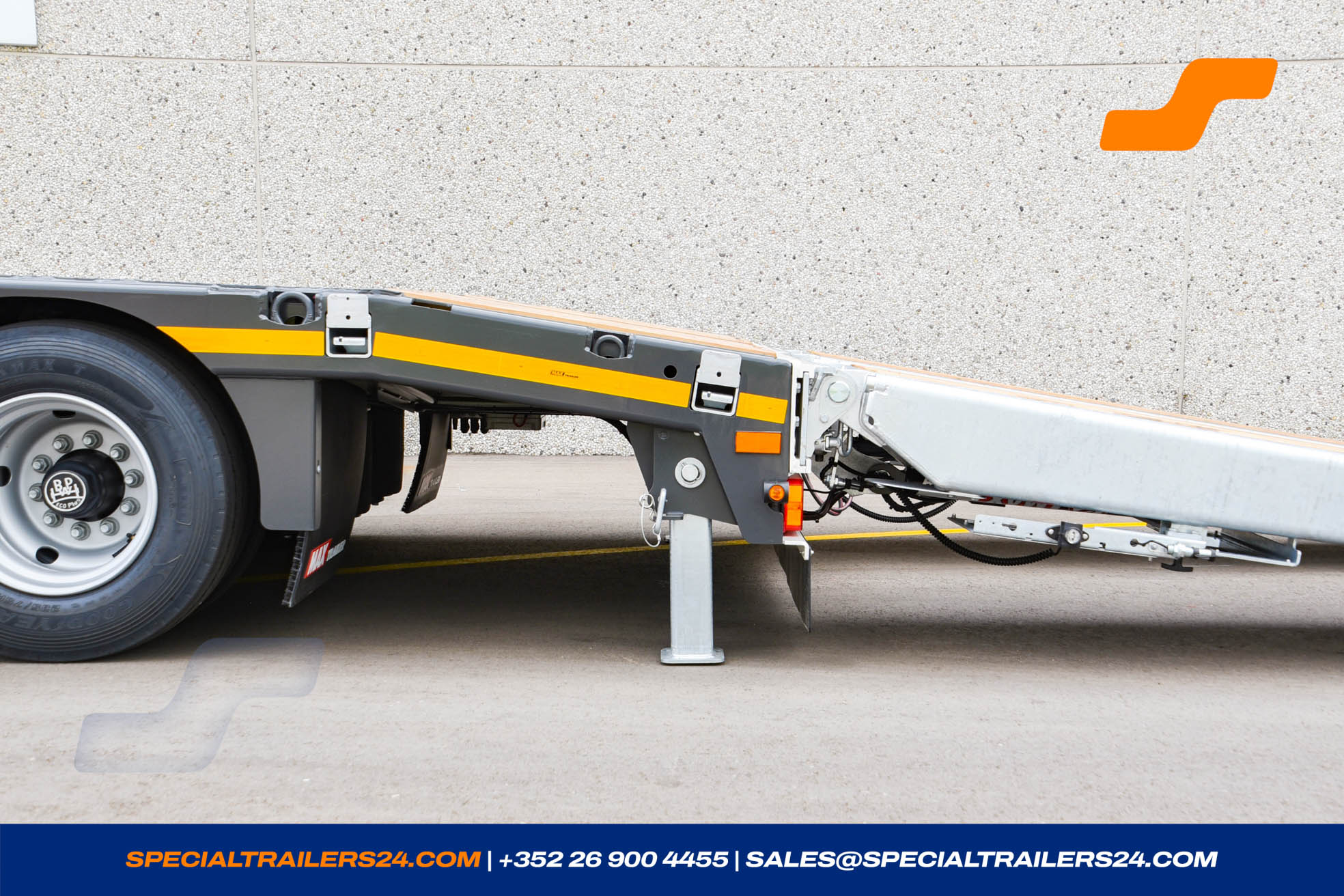

Hydraulic loading ramps
1 x ALU single piece ramps : ER-600-FH-24-AB-MVA

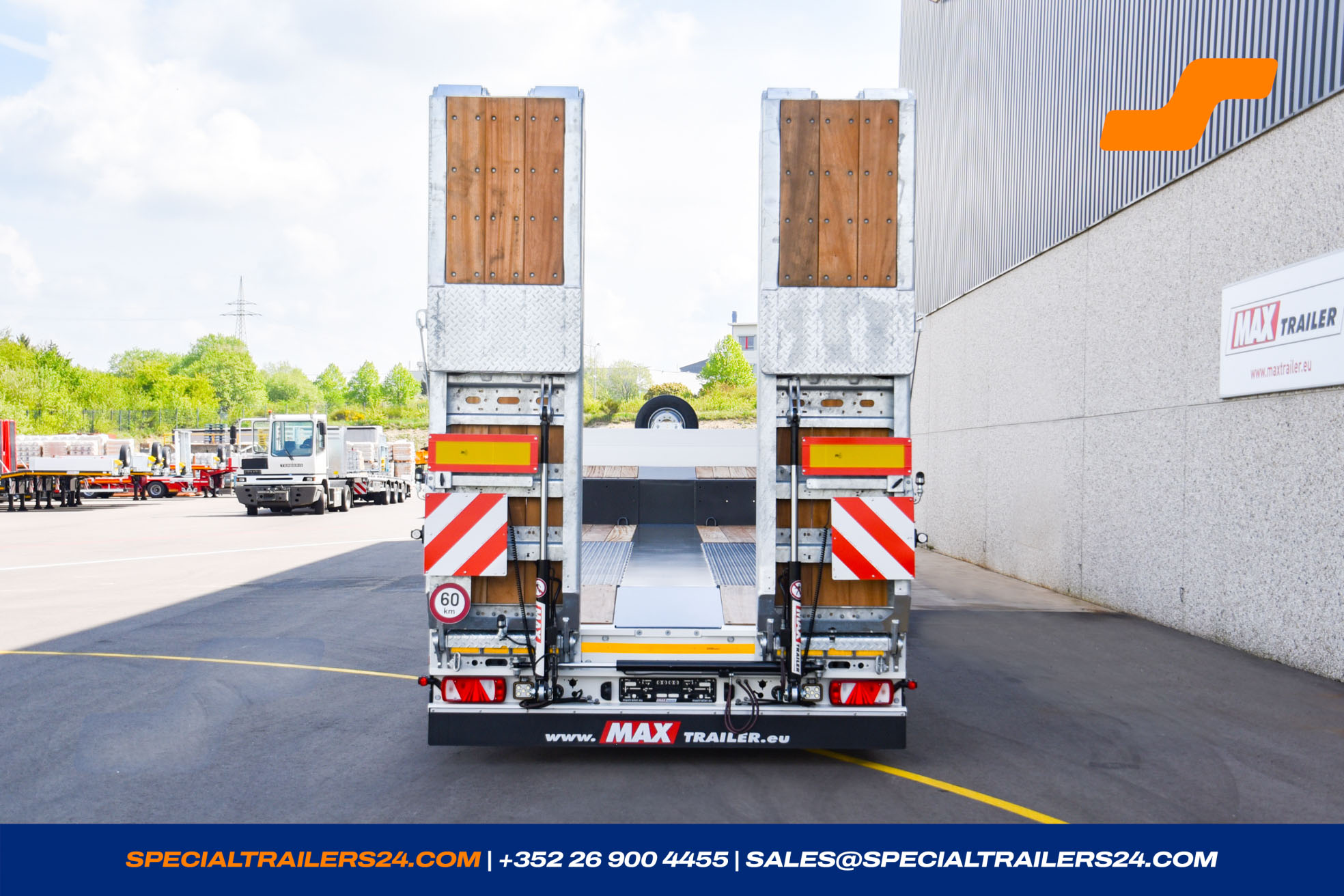

1 pair of single-piece ALU ramps ca. 2 500 x 600 mm.
Ramps spring actuated and manuel side shift
Maximal charge for one pair : 24 000 kg
- Assembly of the single ramps on the semitrailer.
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 112140
- Reference MAX100-N-3-9.30-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 5002 - Ultramarine blue
- Availability 09/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000362
- Steering Type Friction
