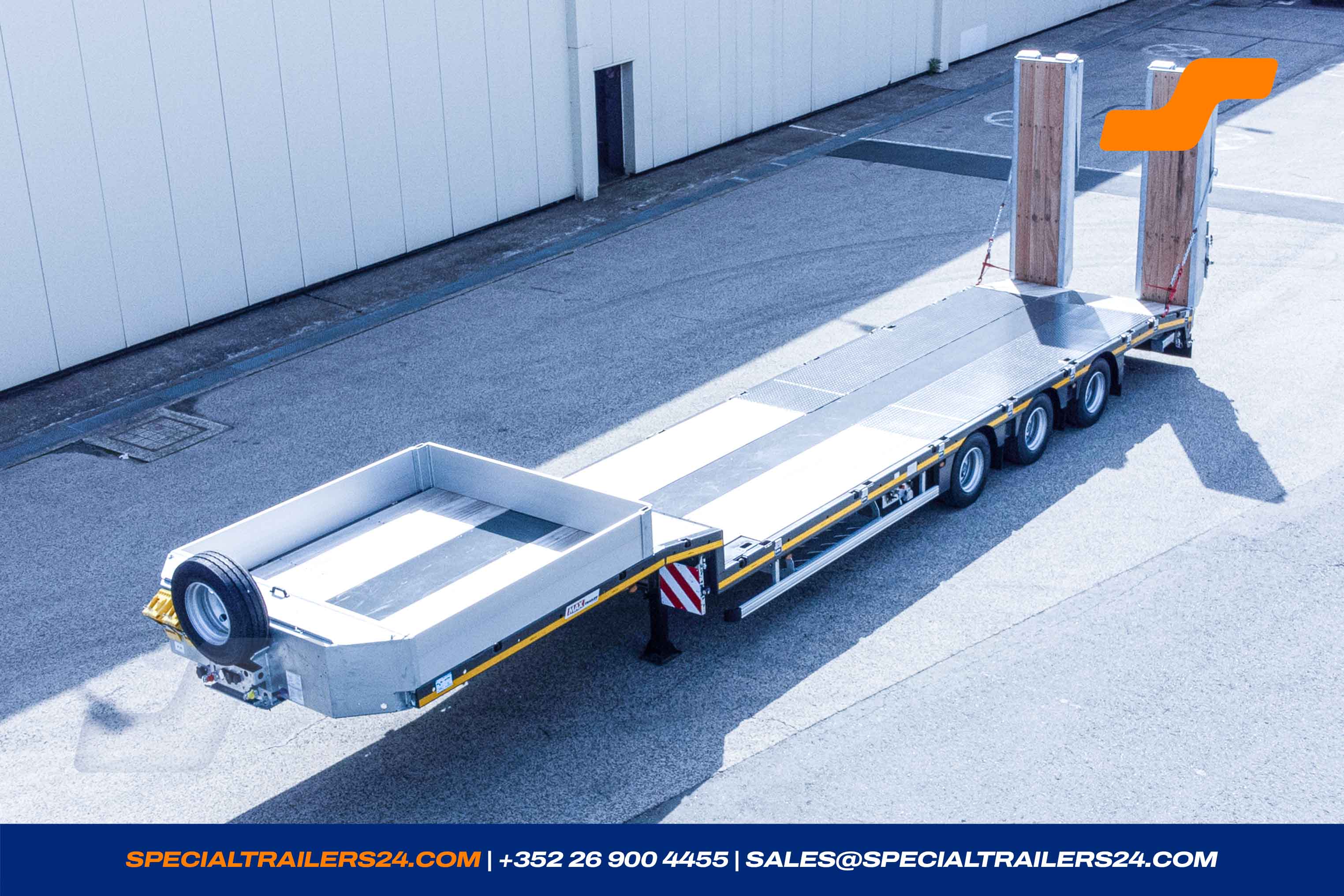

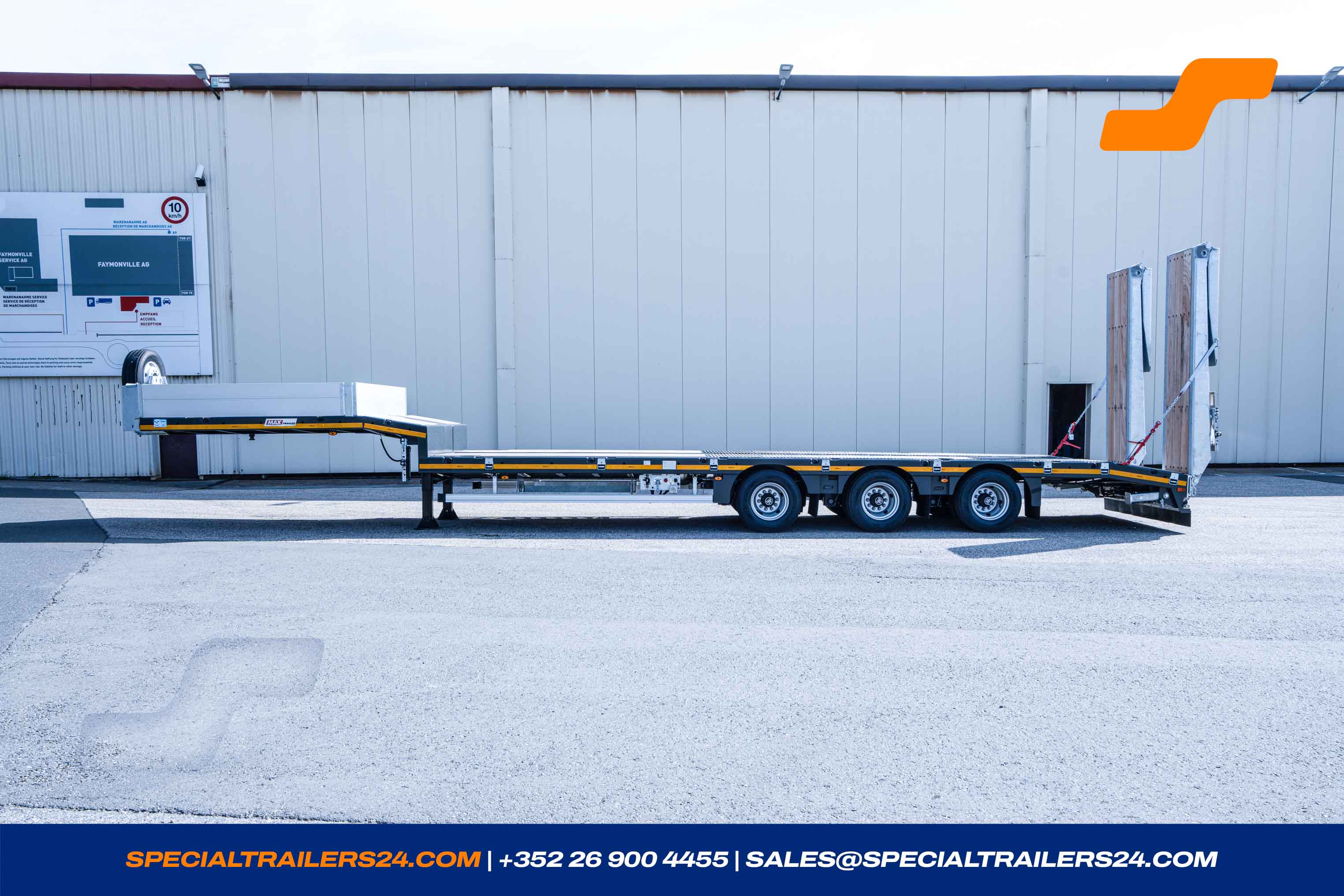

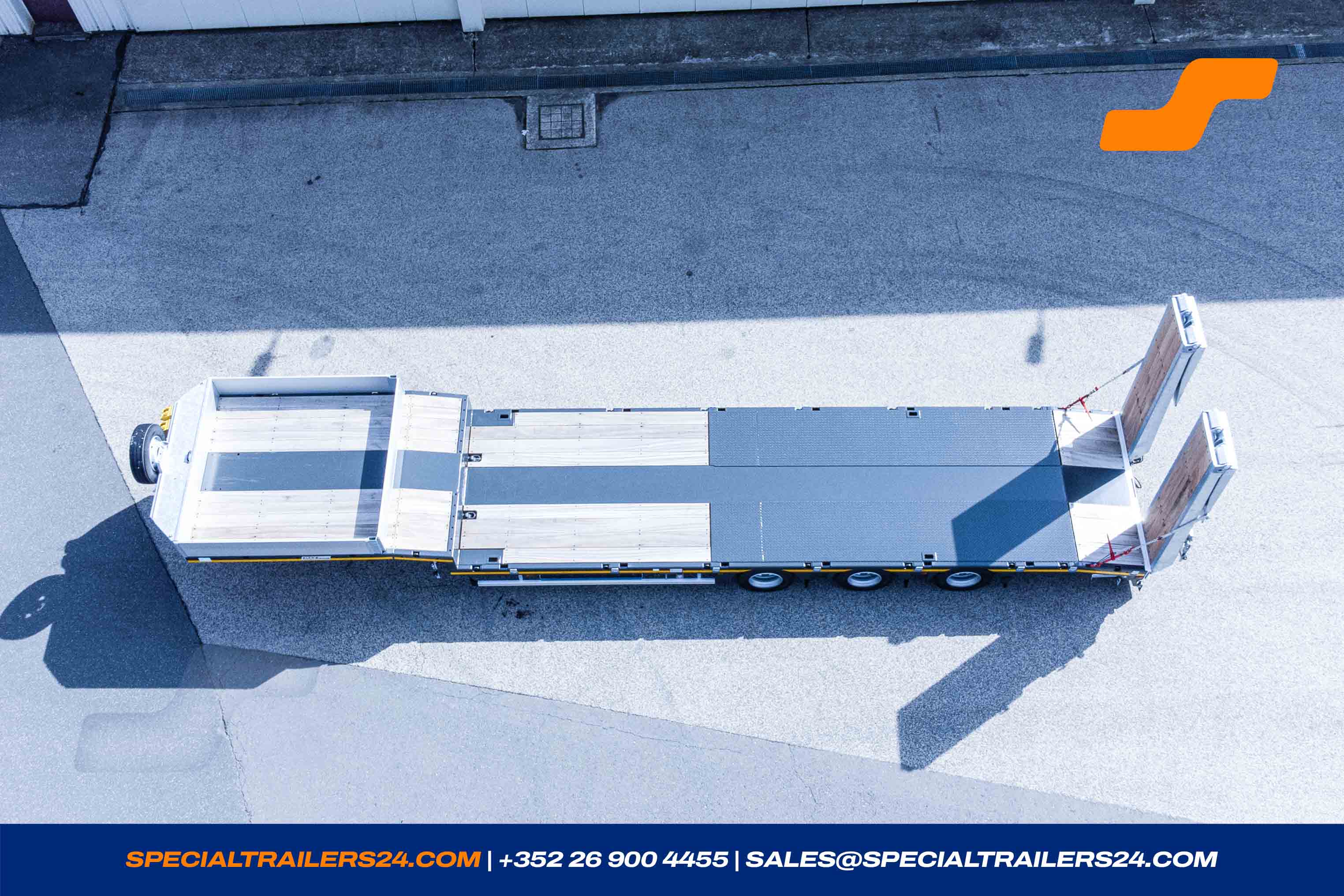

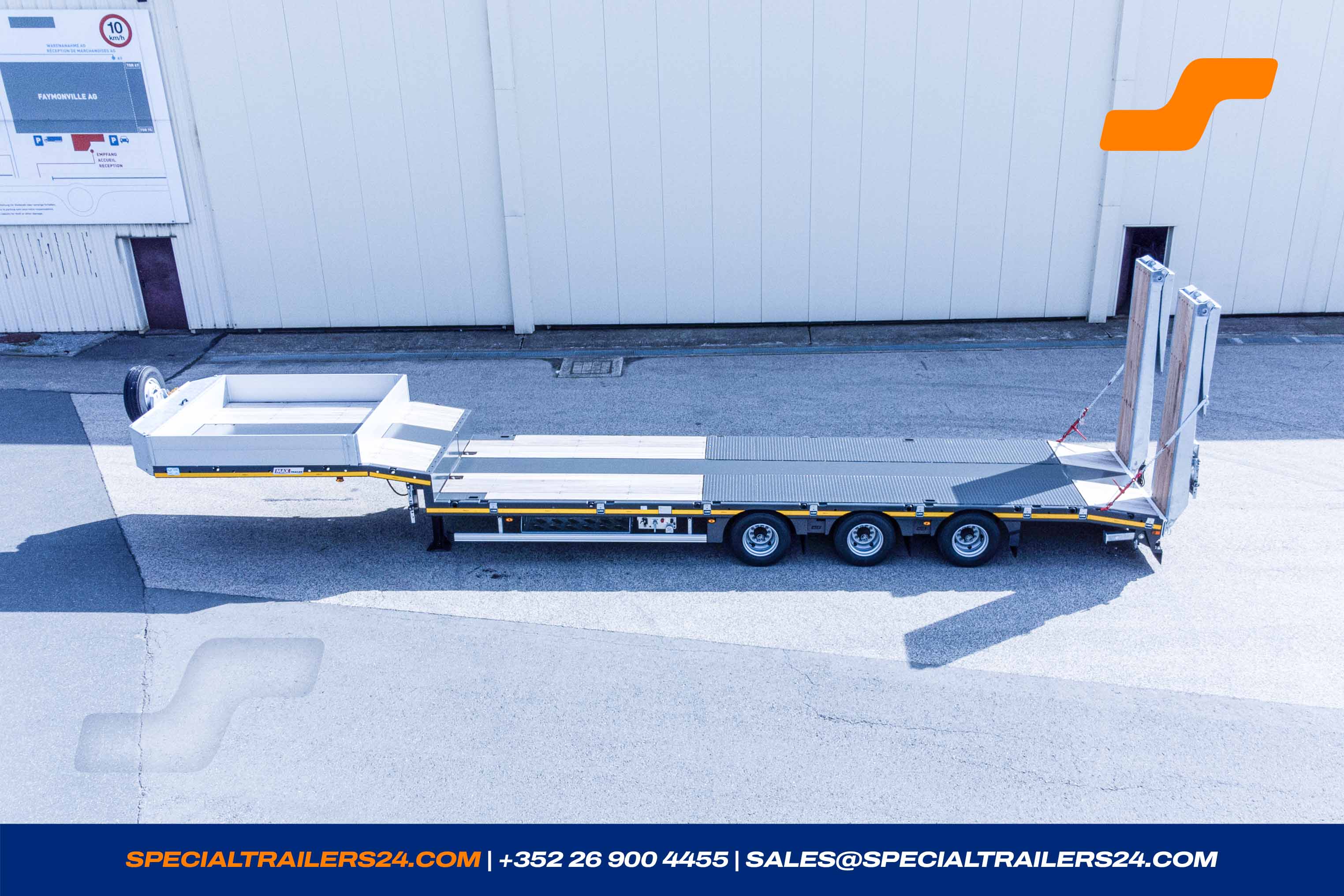

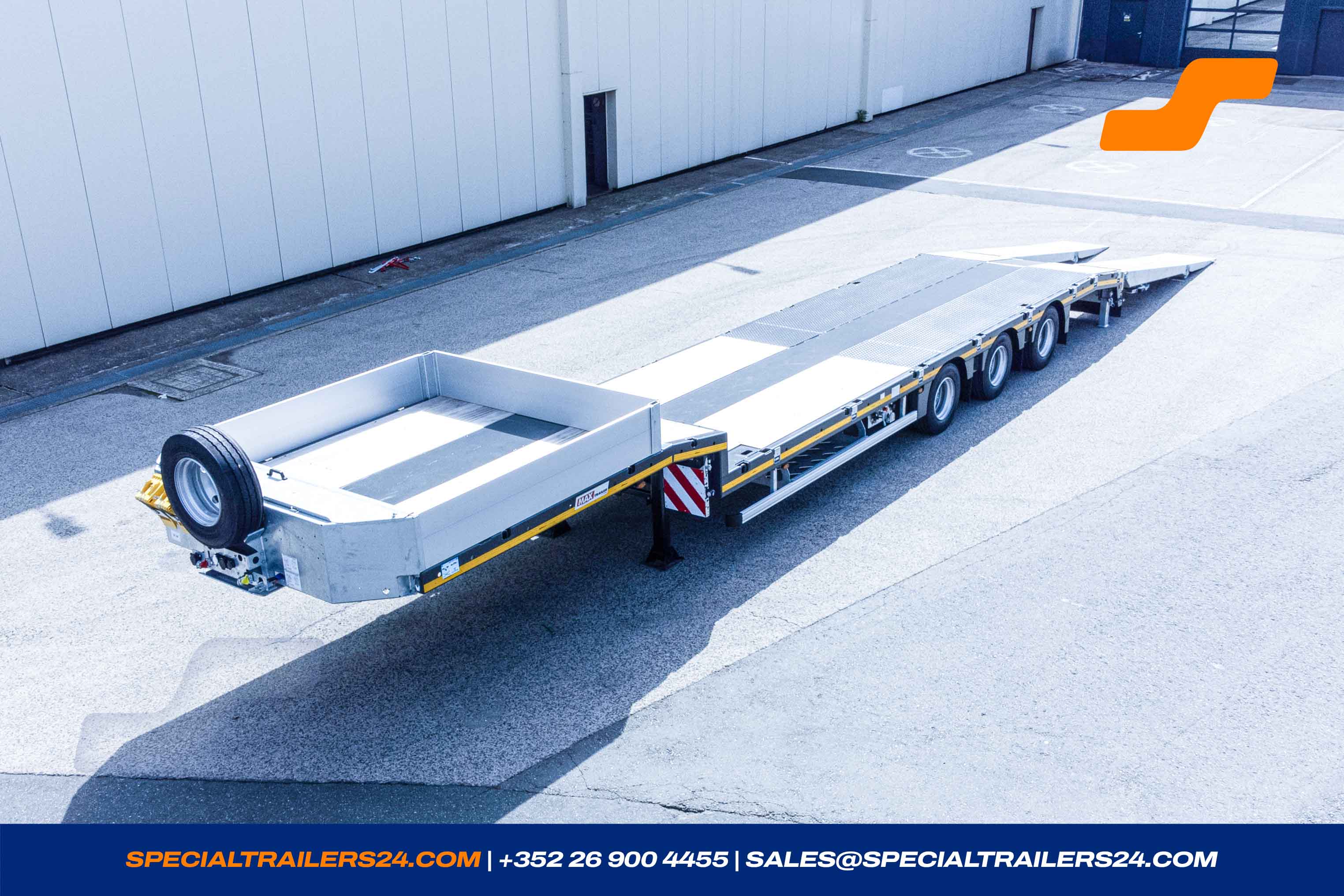

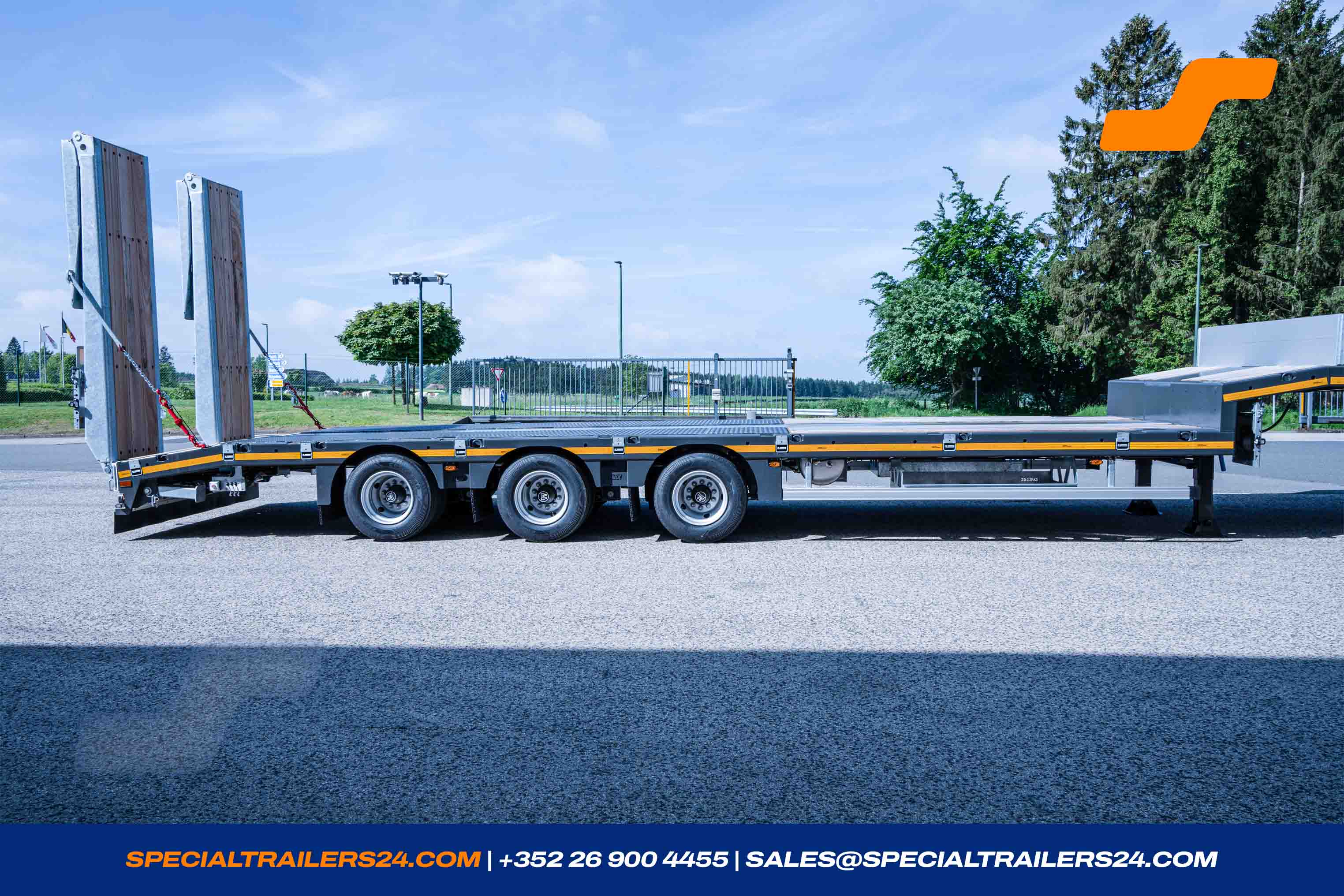

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111758
- Reference MAX100-N-3-9.30-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 1023 - Traffic yellow
- Availability 07/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9837 kg |
| Payload | 39663 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

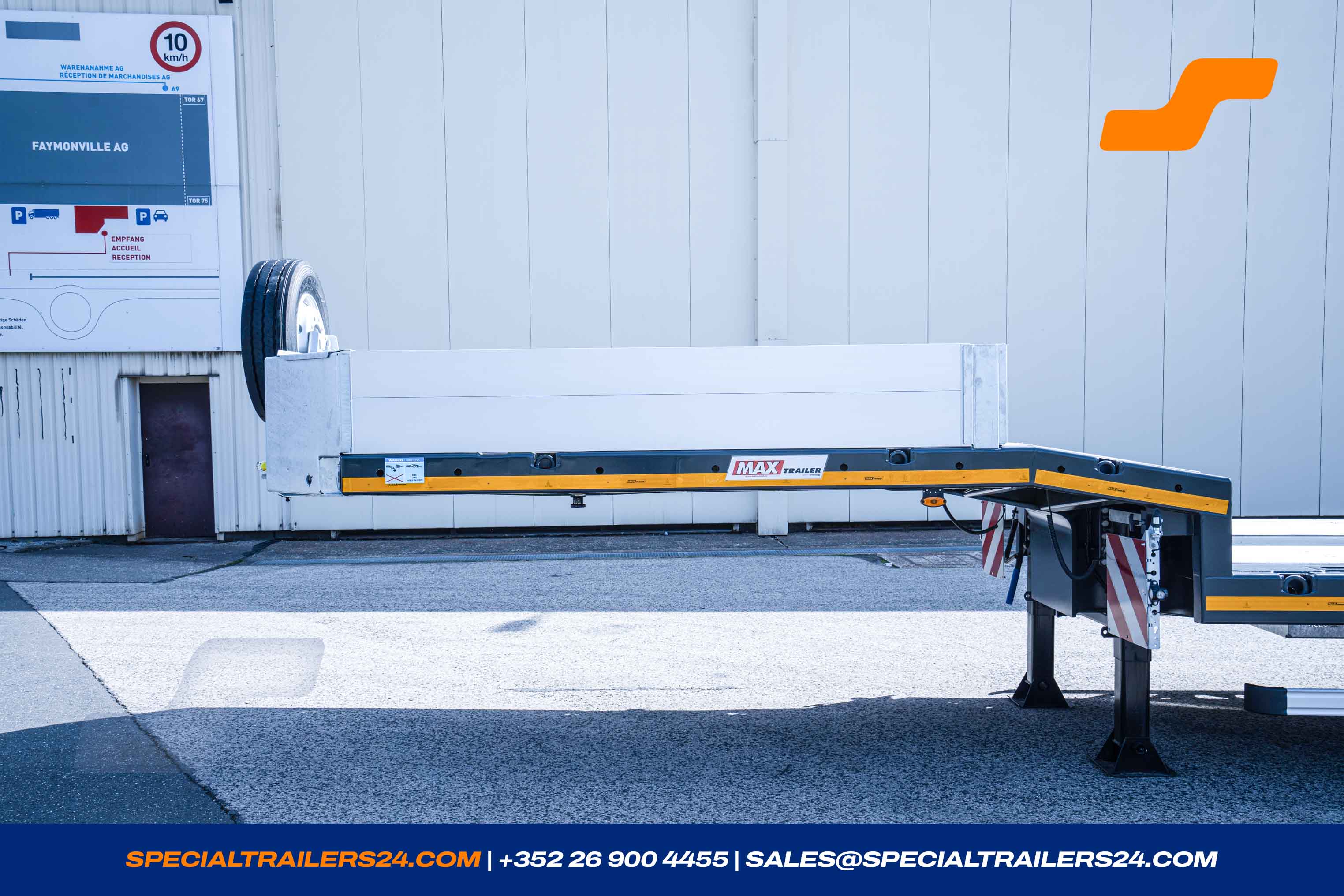

Gooseneck
1 x Gooseneck : MAX-3.850-750-10° (DSR 2100/ASH 1150) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

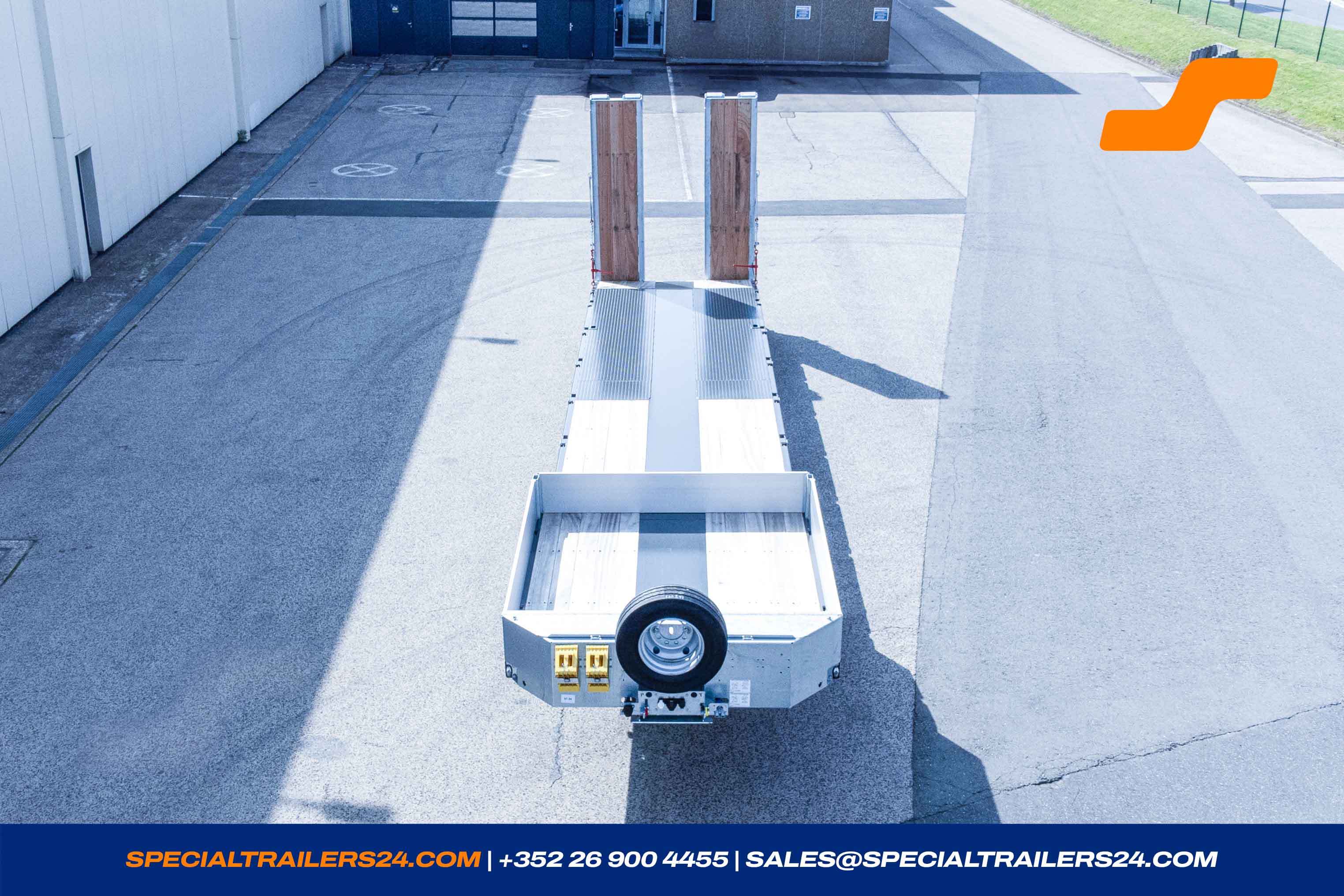

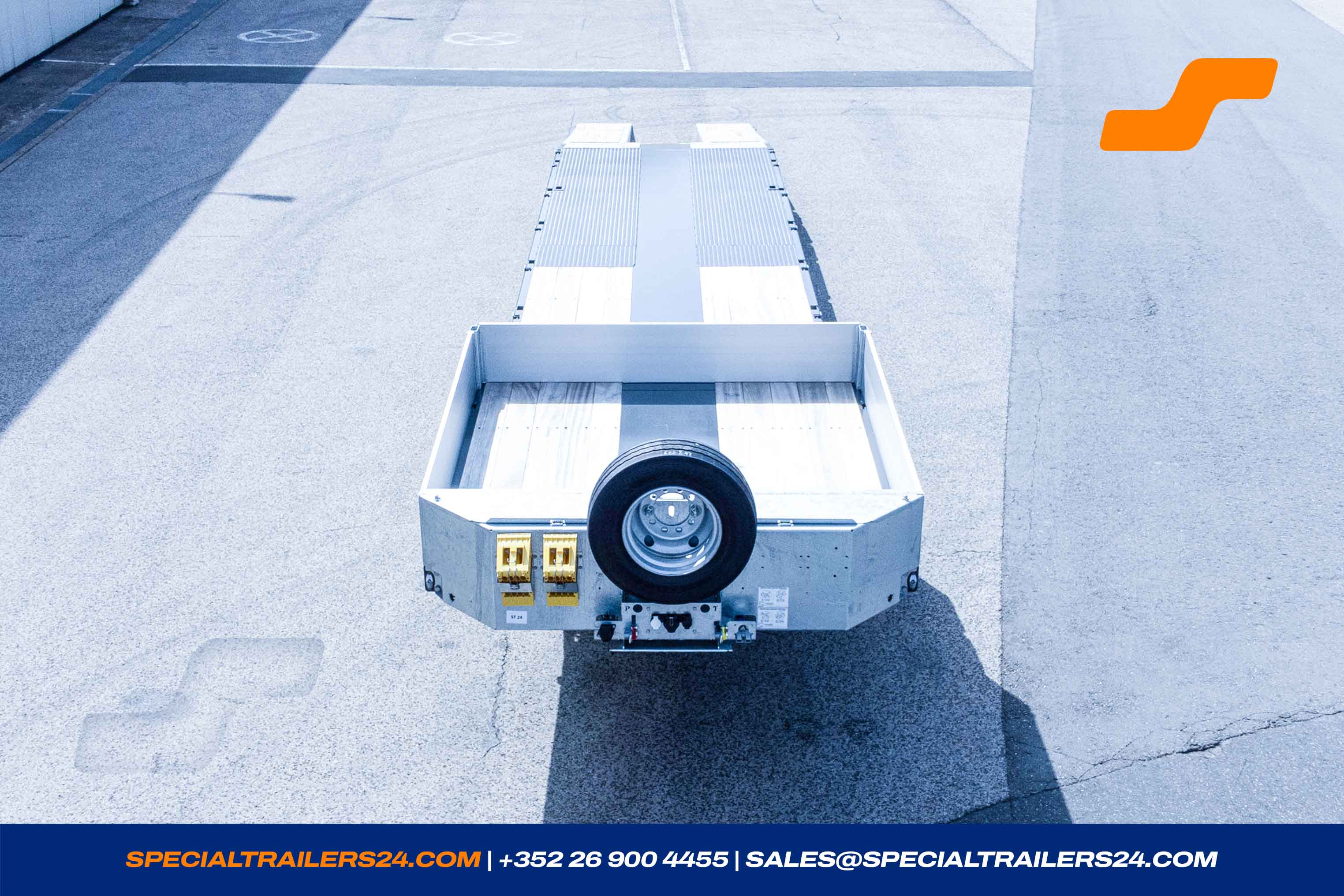

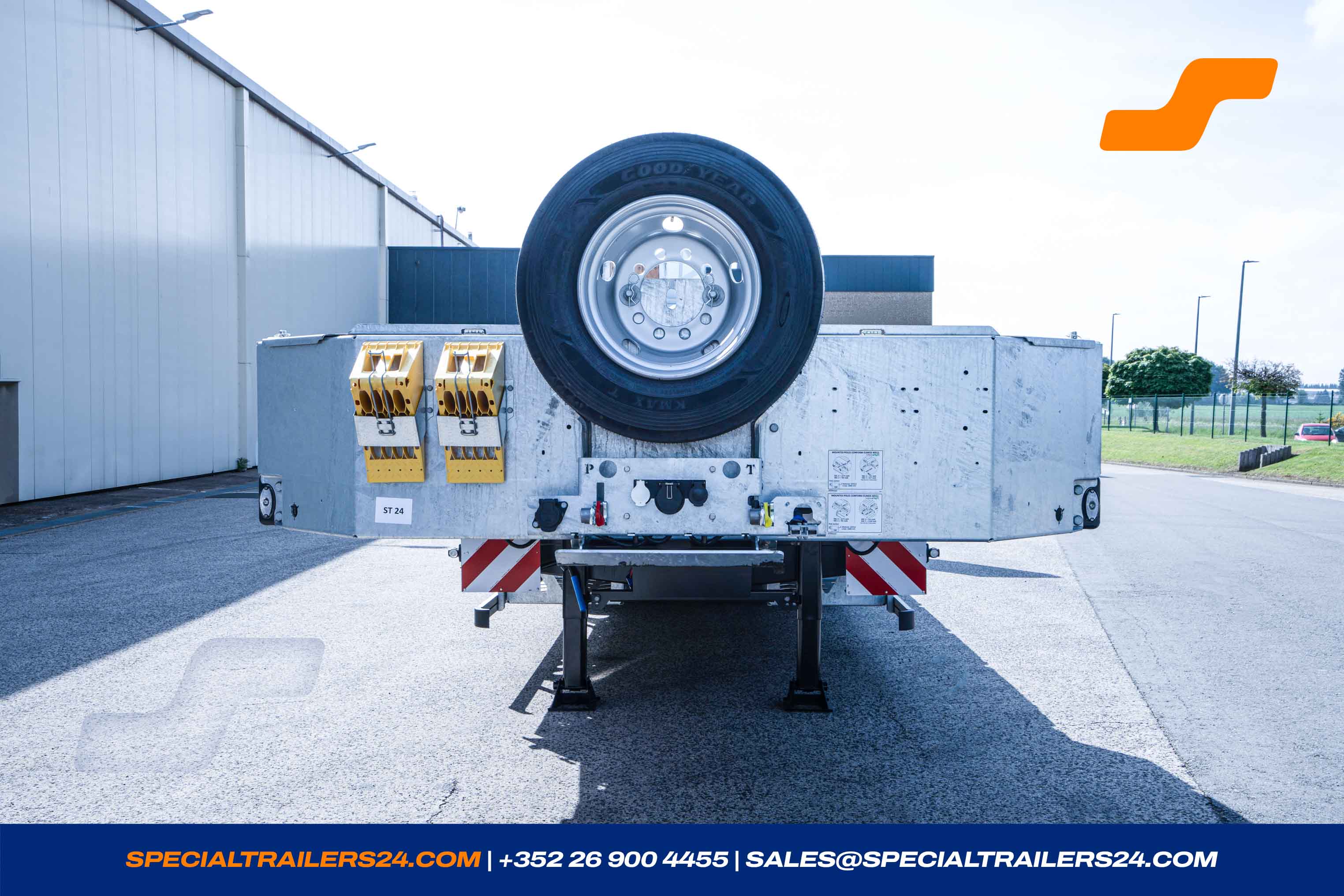

- One spare wheel with holder on the headboard.

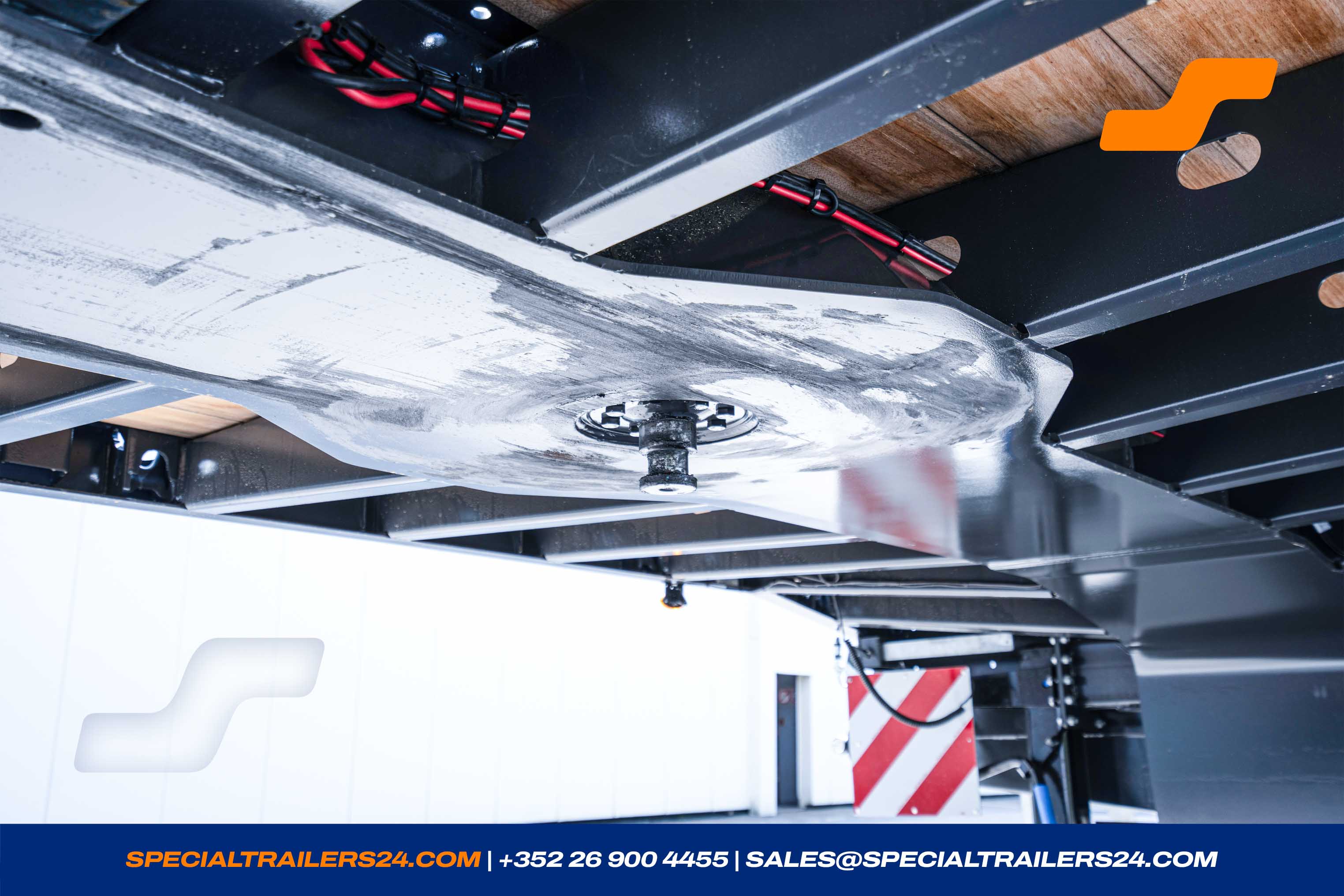

- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.

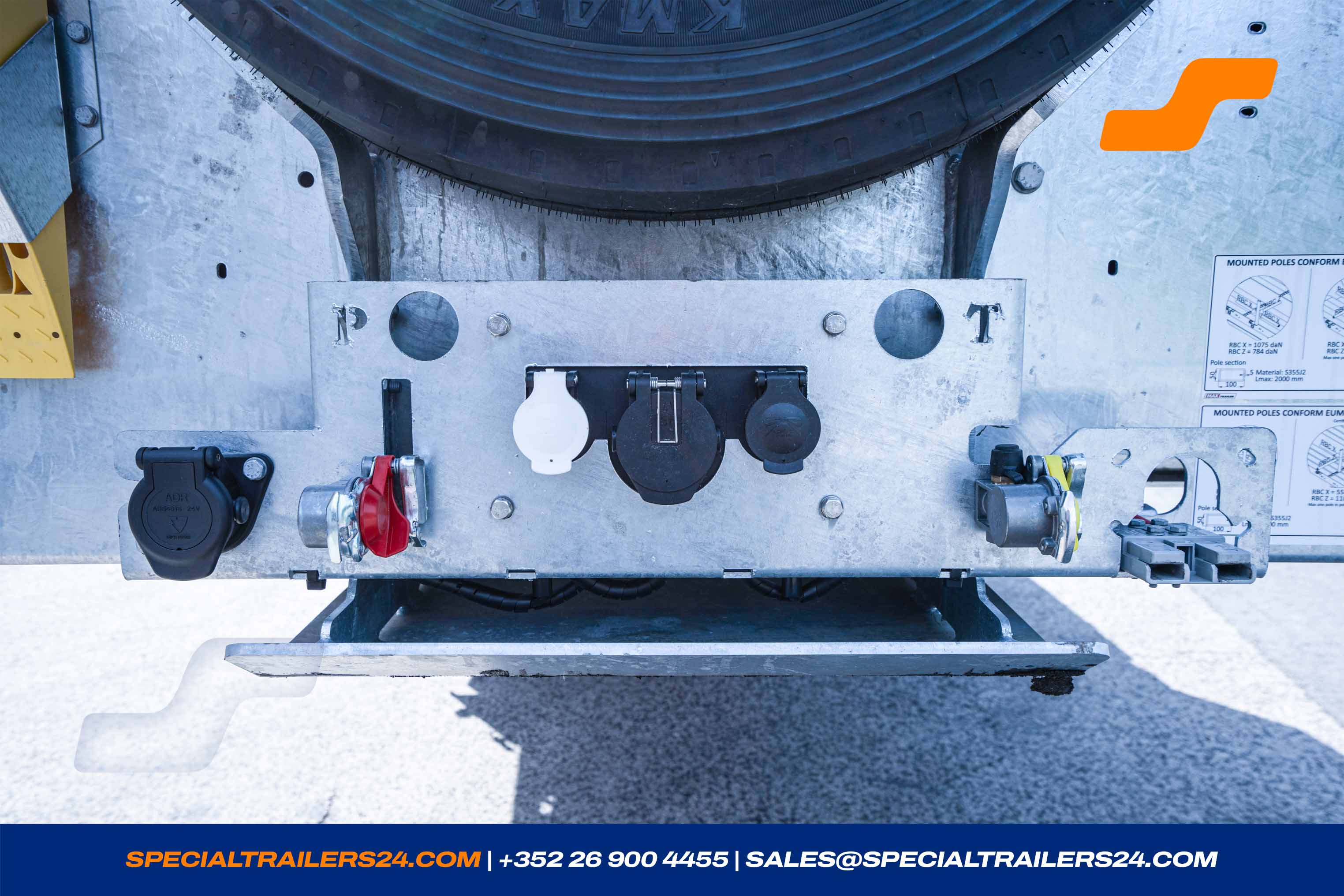

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
- Document holder fixed on the front .
-

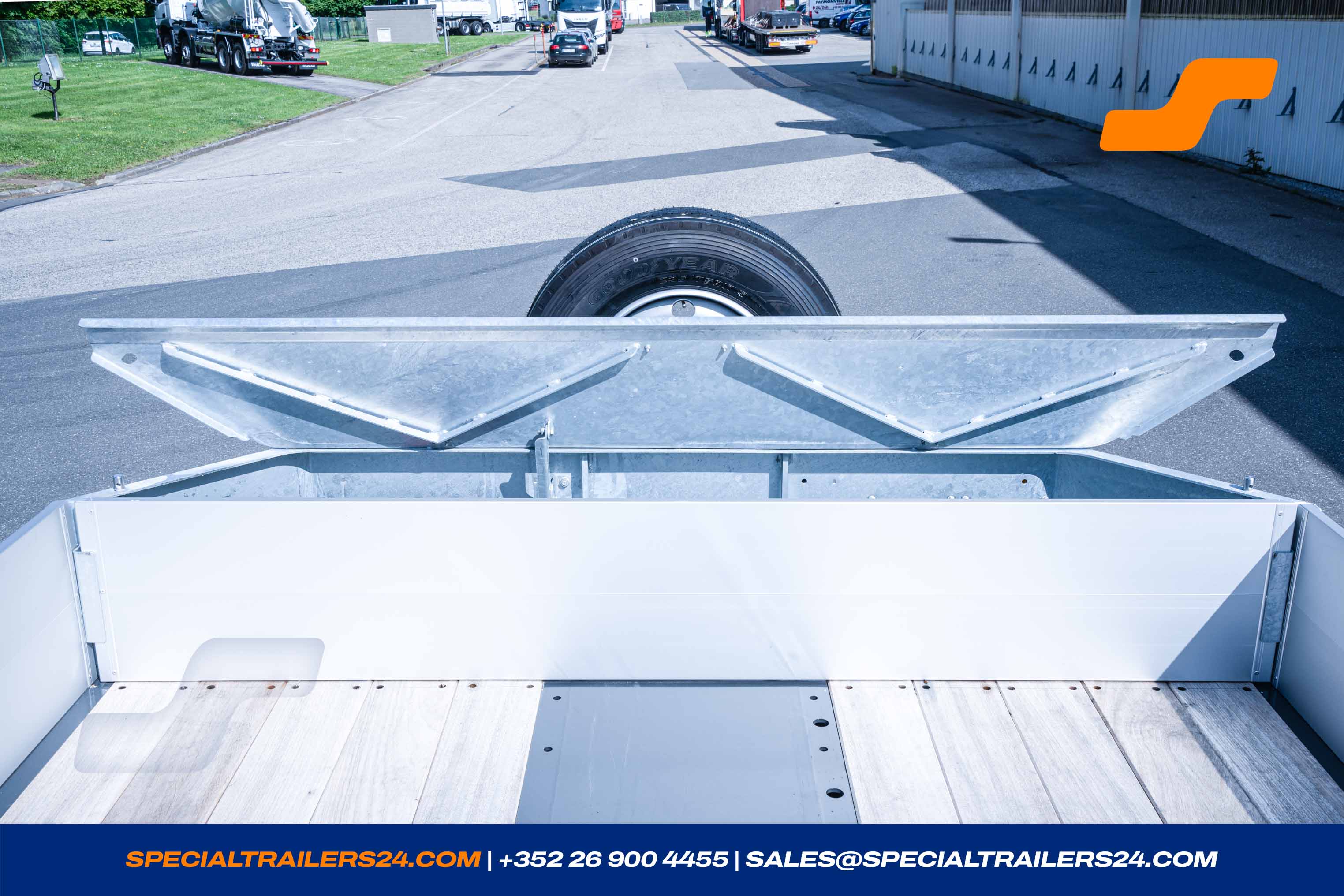

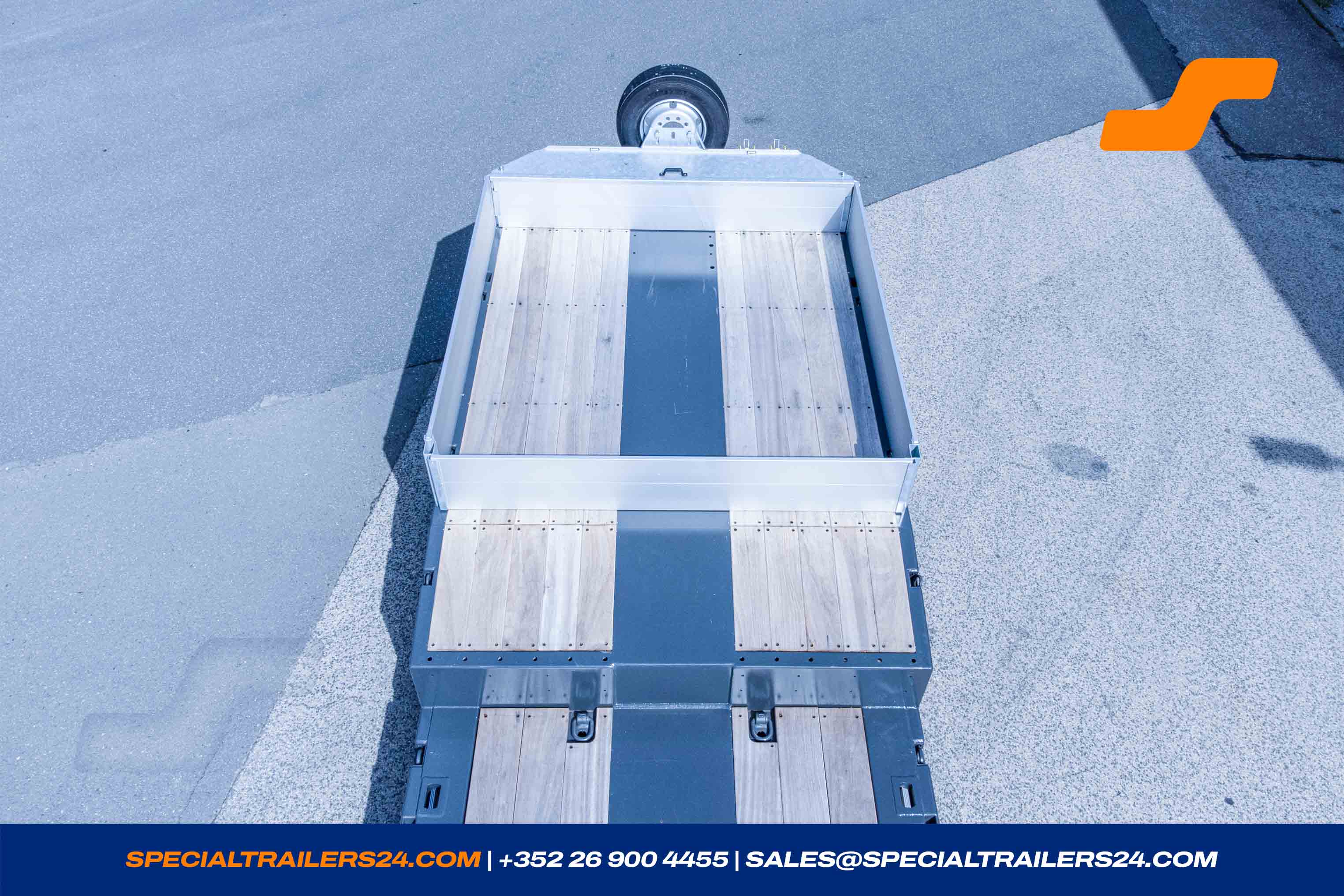

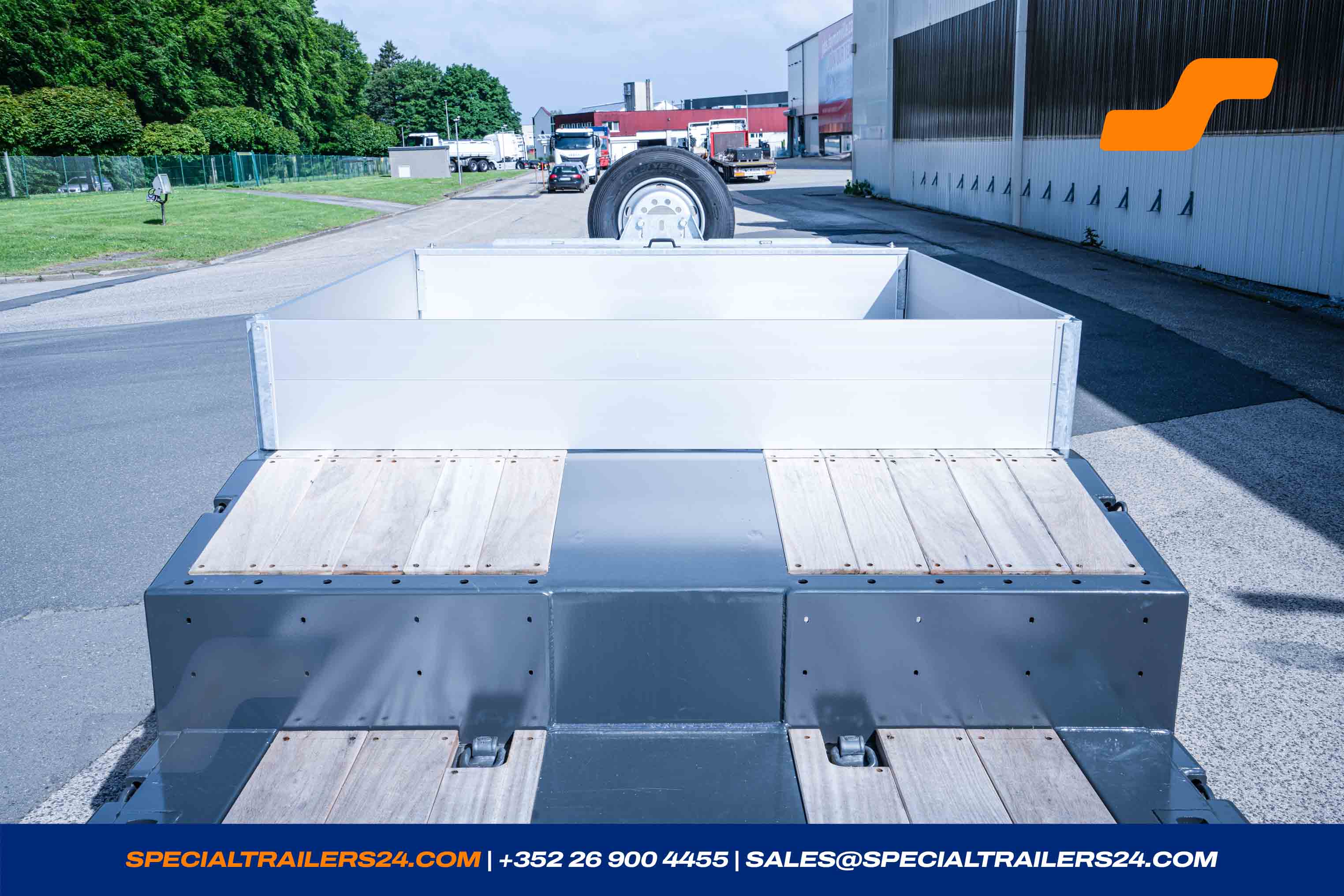

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 toolbox galvanized integrated into charmfered gooseneck included opening winch . (± 47kg)
- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)
Loading deck
Loading platform
1 x Loading platform : MAX100-N-3-9.30-17.5-2.54
Loading platform with chamfered beaver tail by about 1 000 mm x 8°.

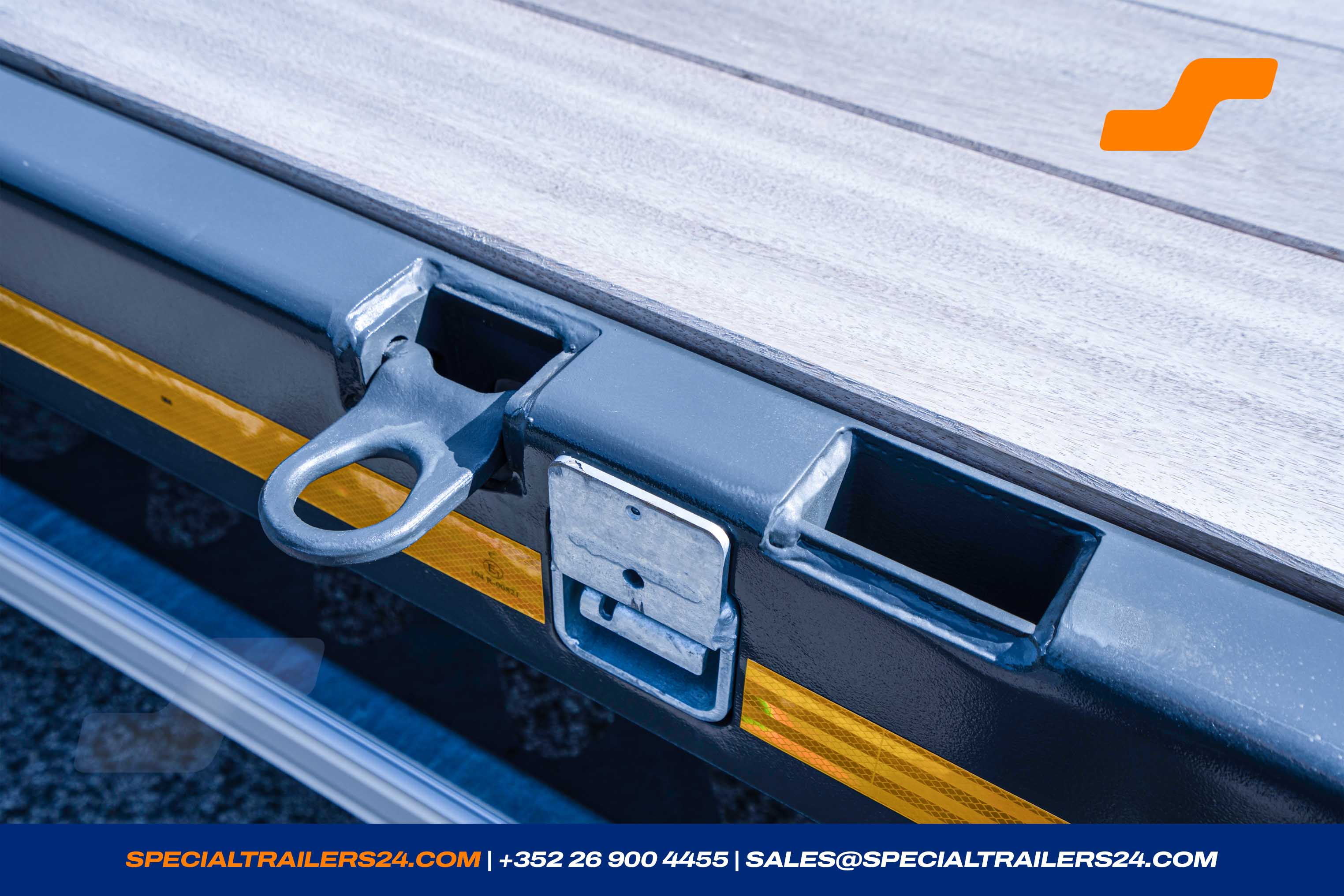

5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

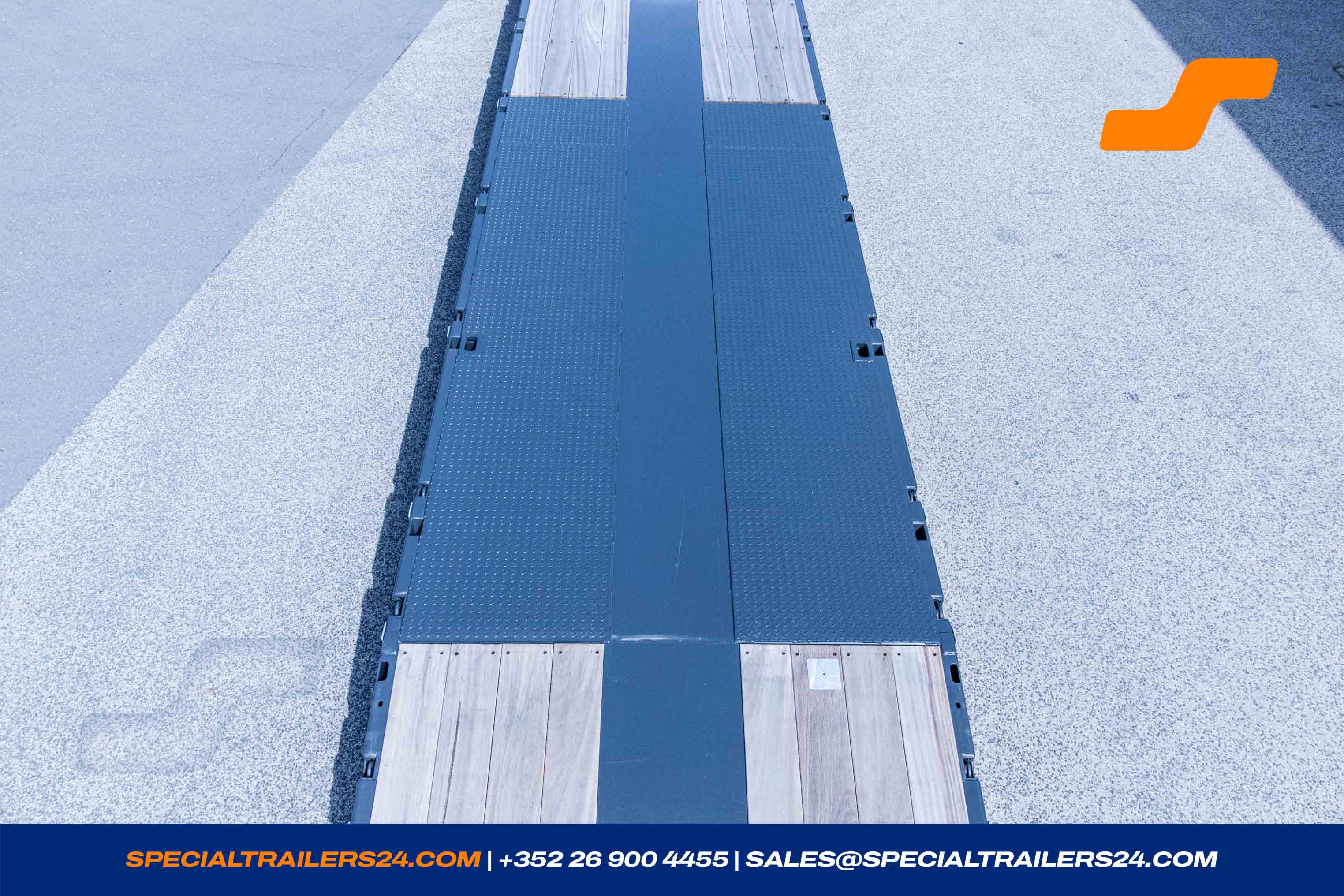

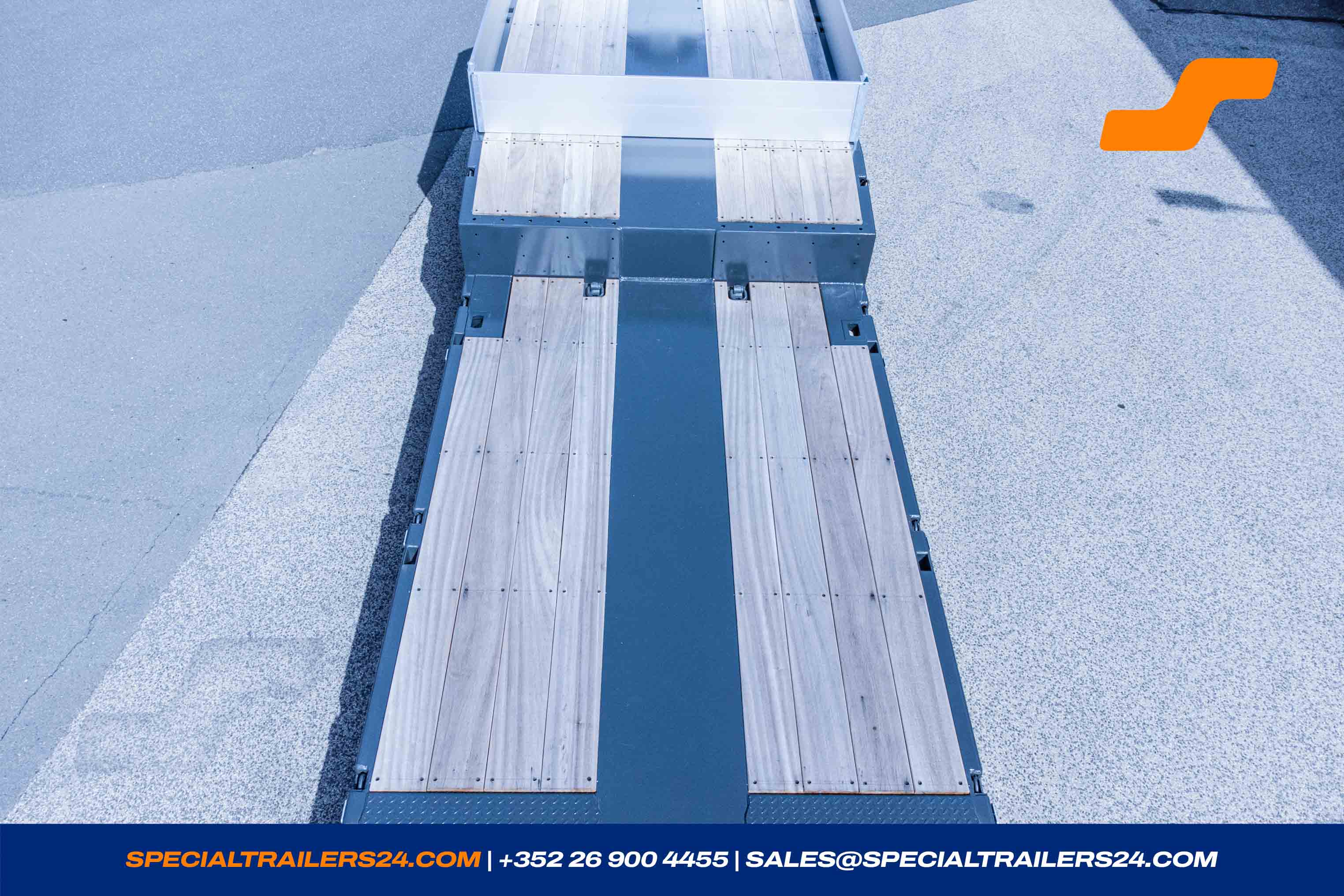

Hardwood cover thickness 48 mm above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

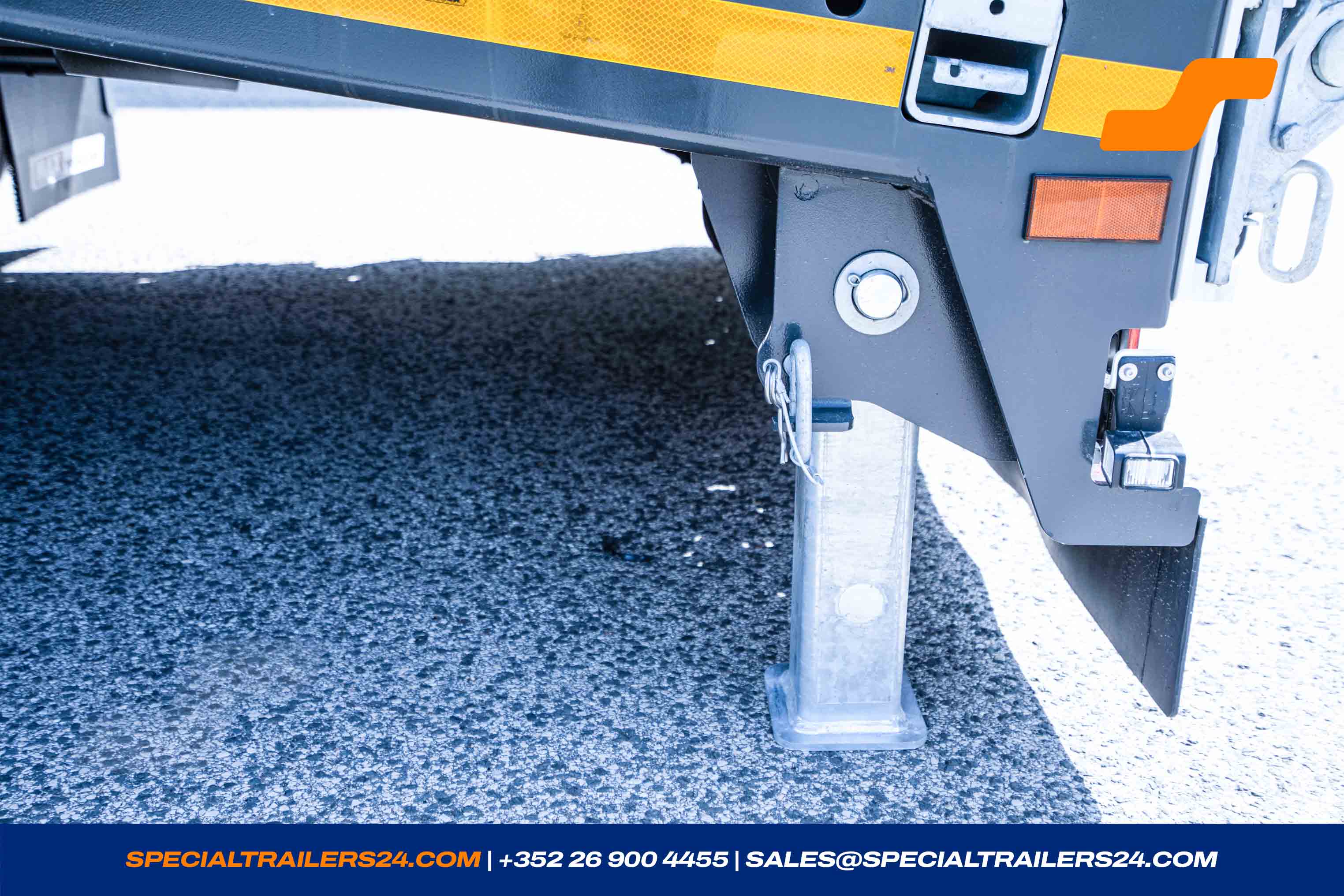

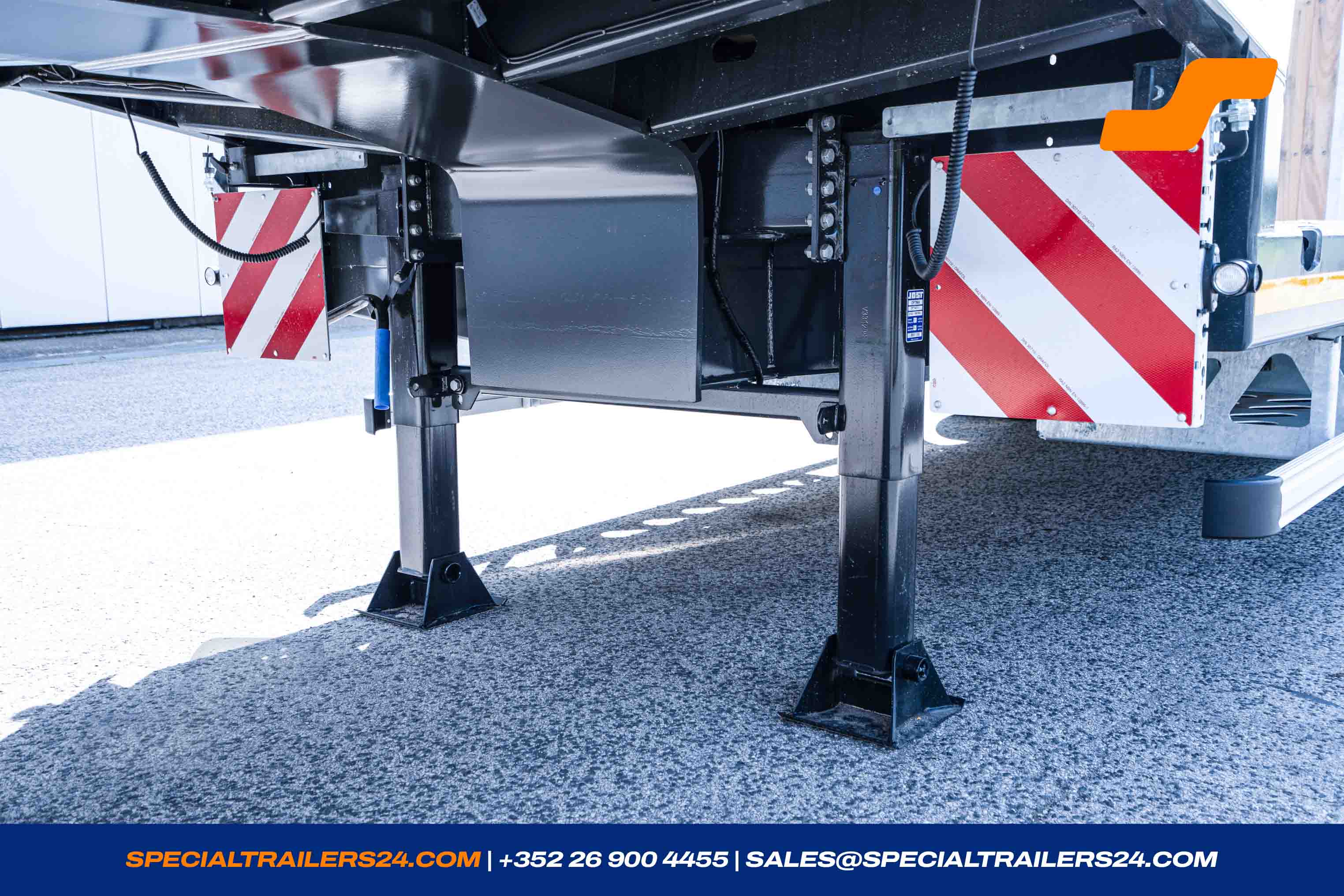

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- Acoustic warning signal when reversing.

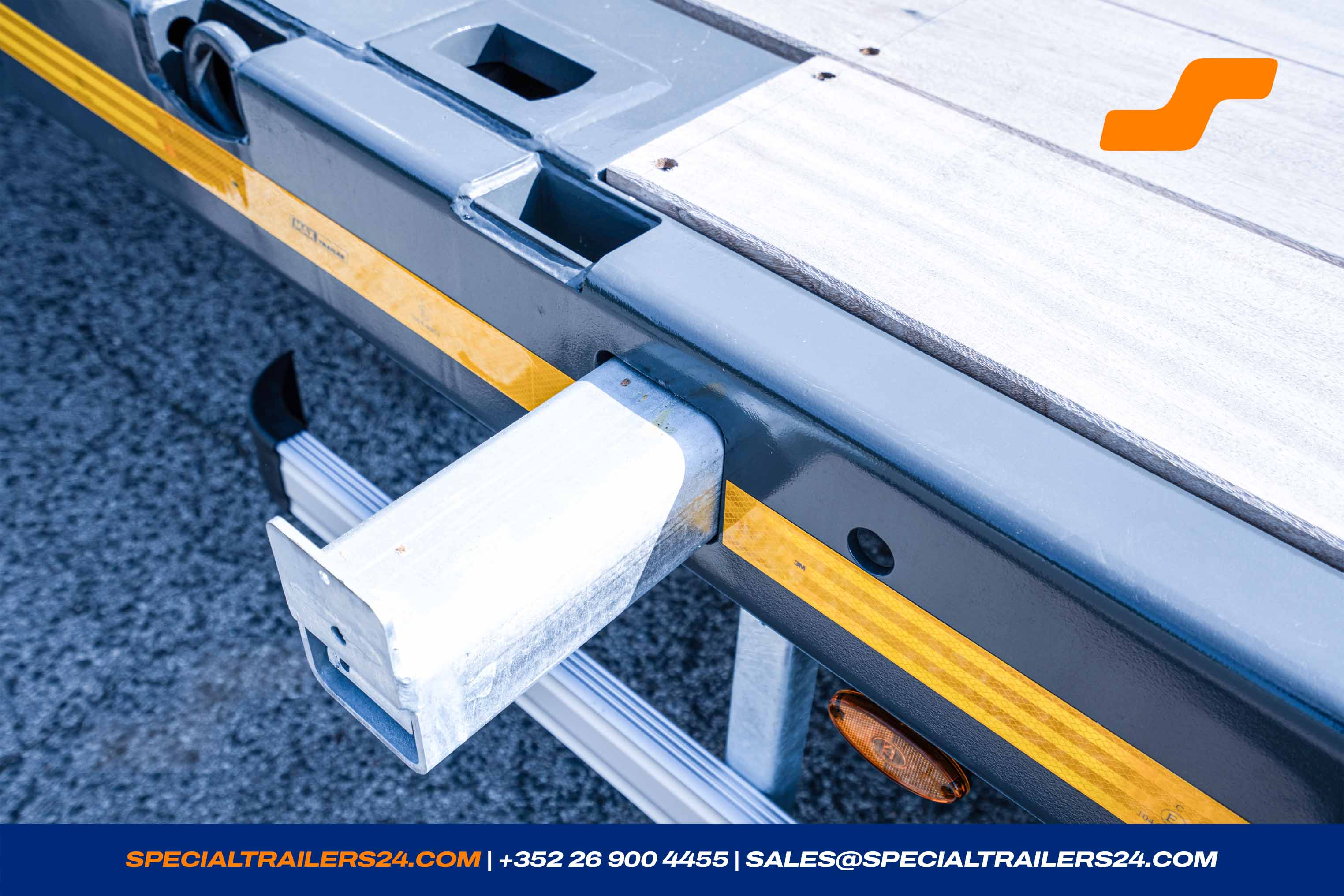

- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
- 1st Lift axle on the front axle with control by TEBS-E depending on the current axle load (± 69kg)
- 2nd driving height, ± 50 mm above the normal driving position, manually operated
-
1 pair of alu ramps AVS 150 OR KE ± 1 500 x 400 x 150 (l x w x h)
Capacity per ramp for :
Bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 m: 6 900 daN (Kp)
by axle distance 2.0 m: 6 900 daN (Kp)
single axle: 4 140 daN (Kp)
max. admissible uphill : 30 % (16.5°)

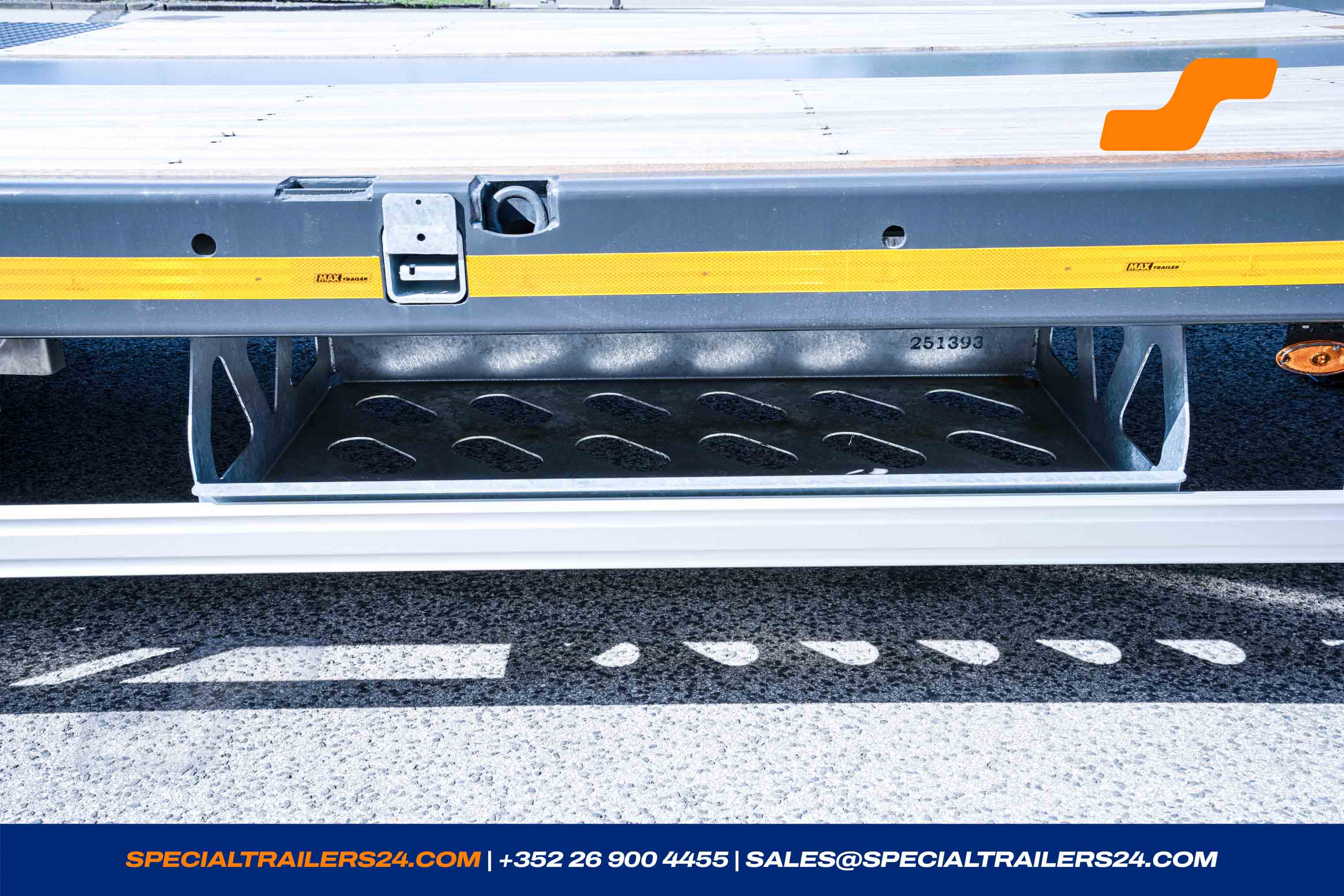

Weight per ramp ± 23 kg (± 46 kg) - Grating floor of the chamfer on the loading platform C40/4 (for point load of 2.9to on a surface of 20 x 20 cm) (± 21kg).
- One lockable tool-box HDPE 620 x 360 x 610 mm under the loading platform in driving direction on the left side. (± 36 kg)
- Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- 2 LED- reversing lights at the rear.
Ramps
Hydraulic loading ramps

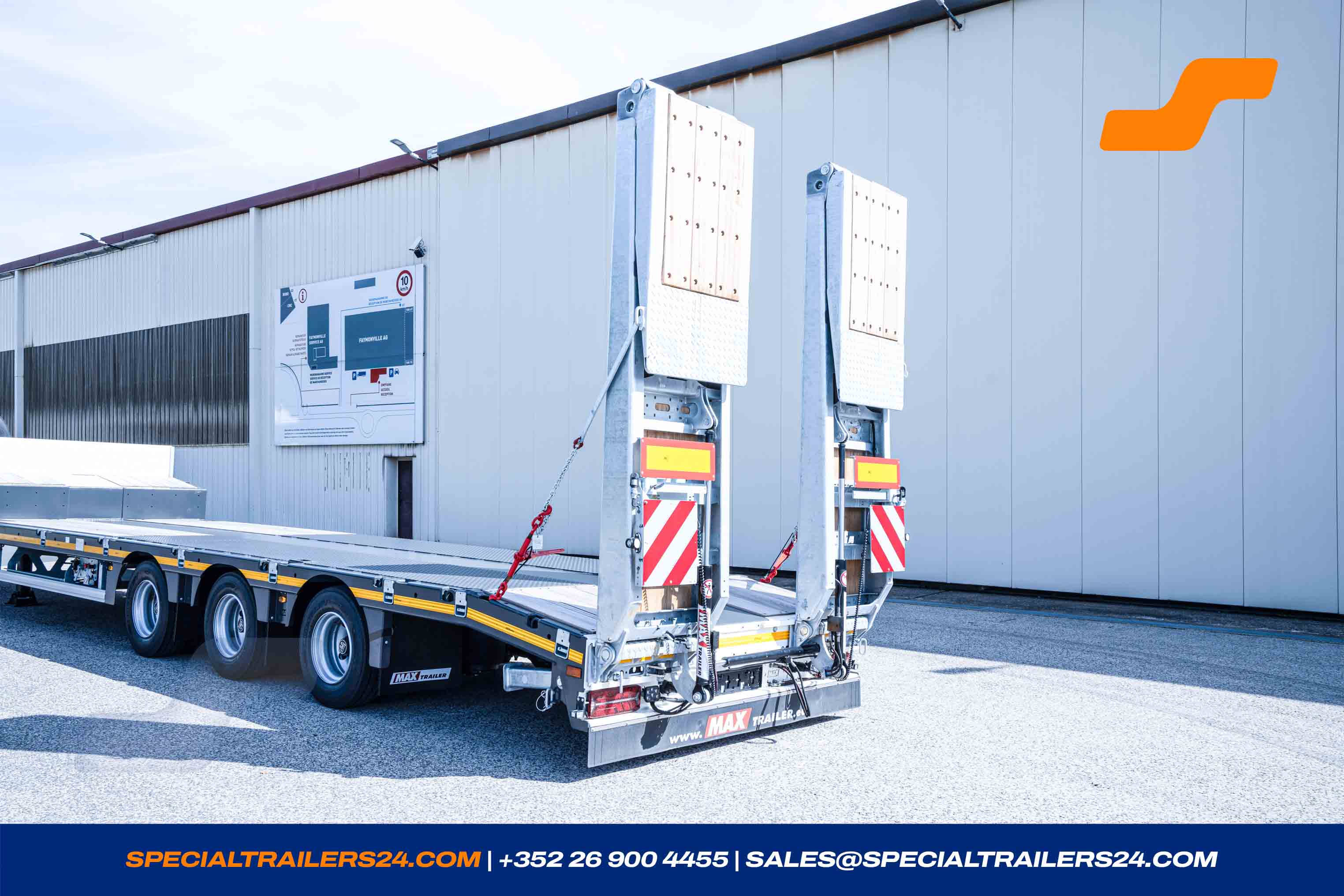

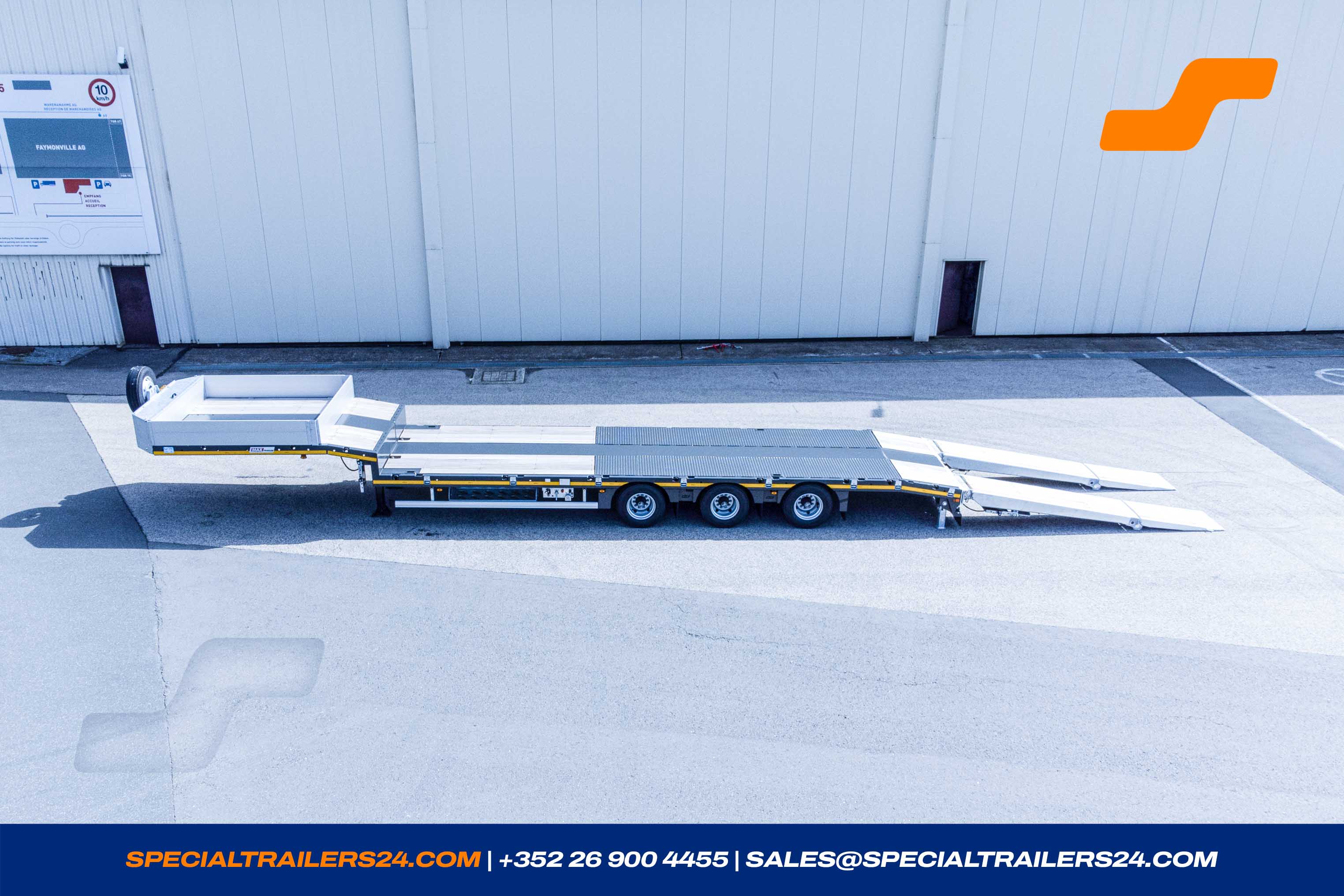

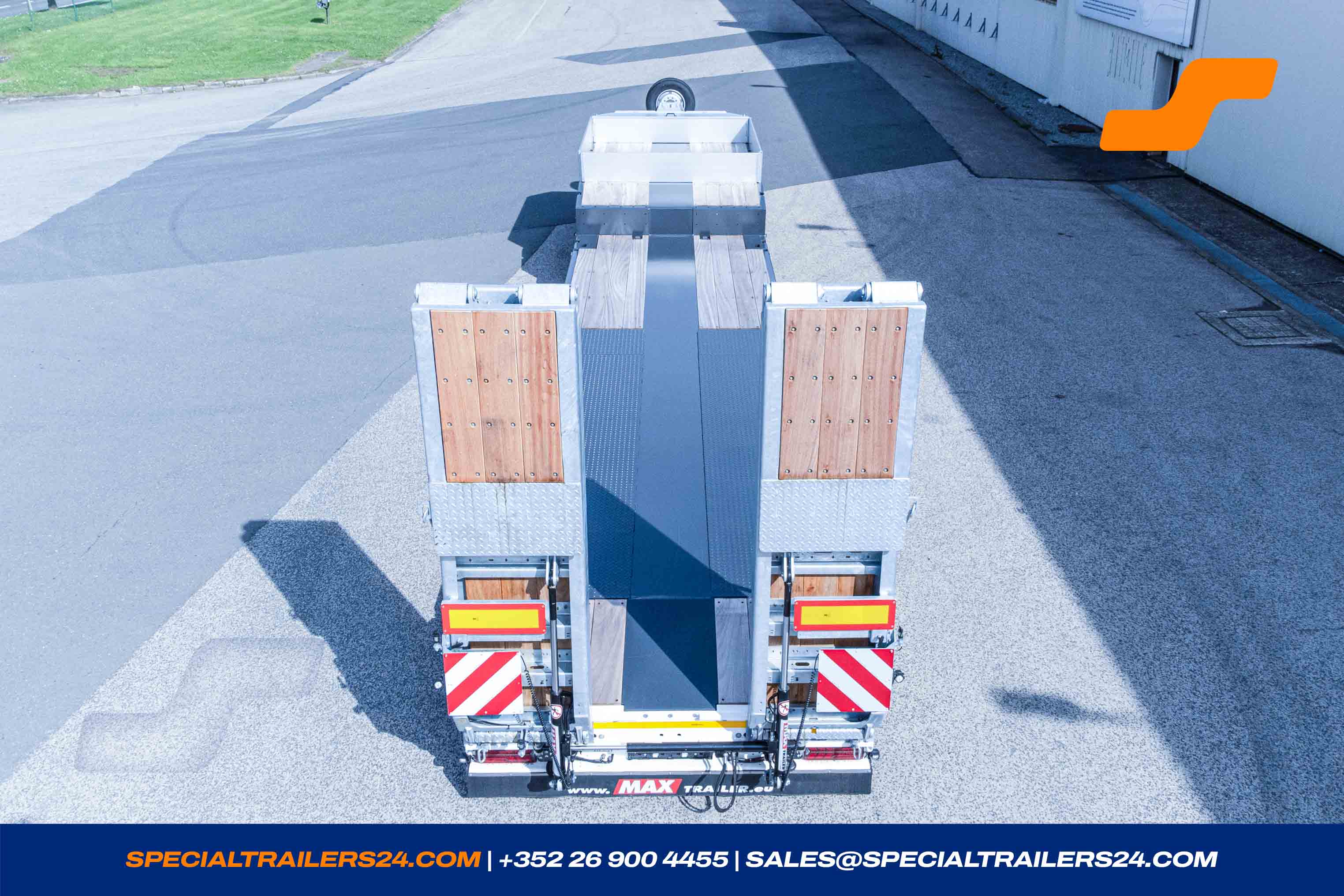

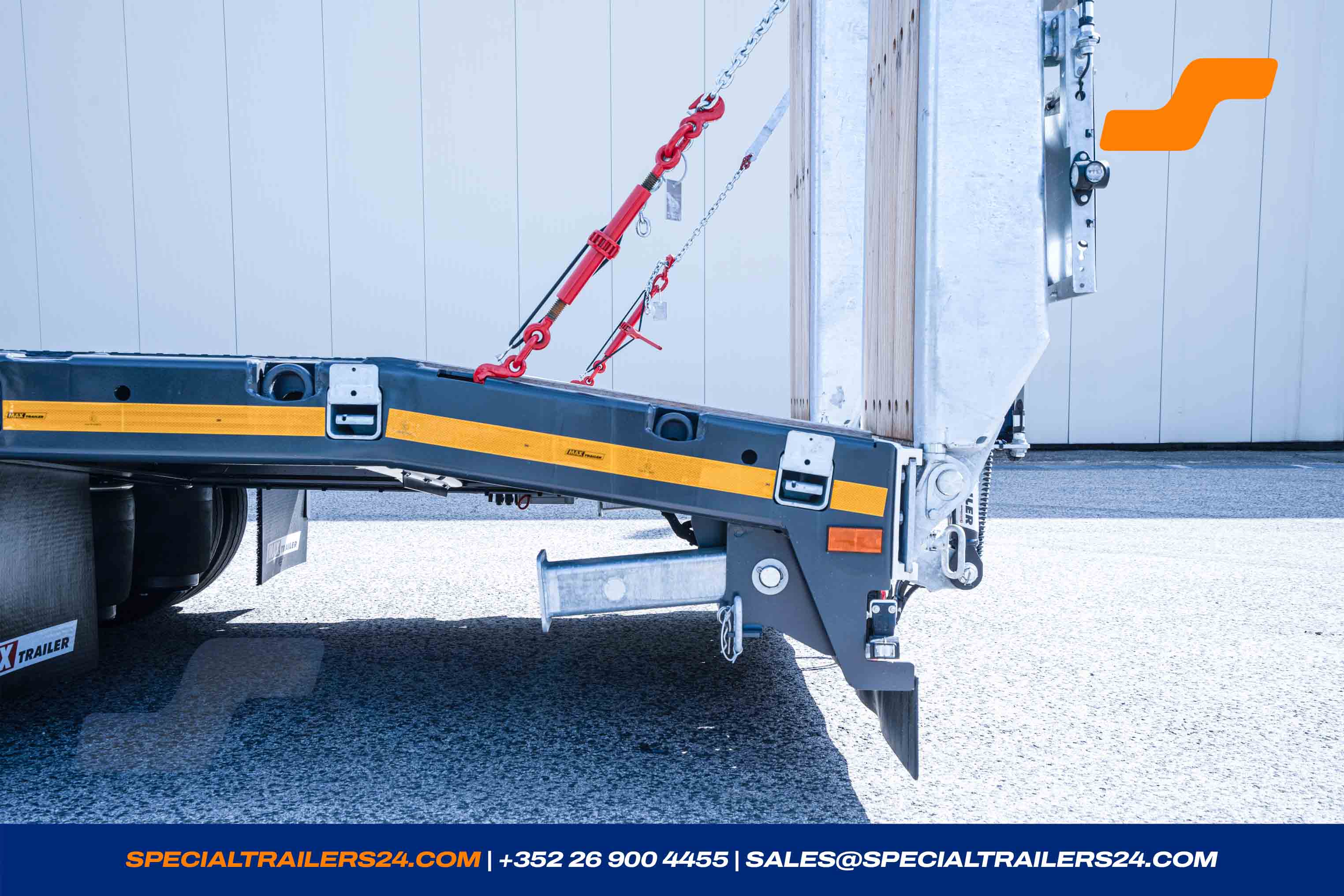

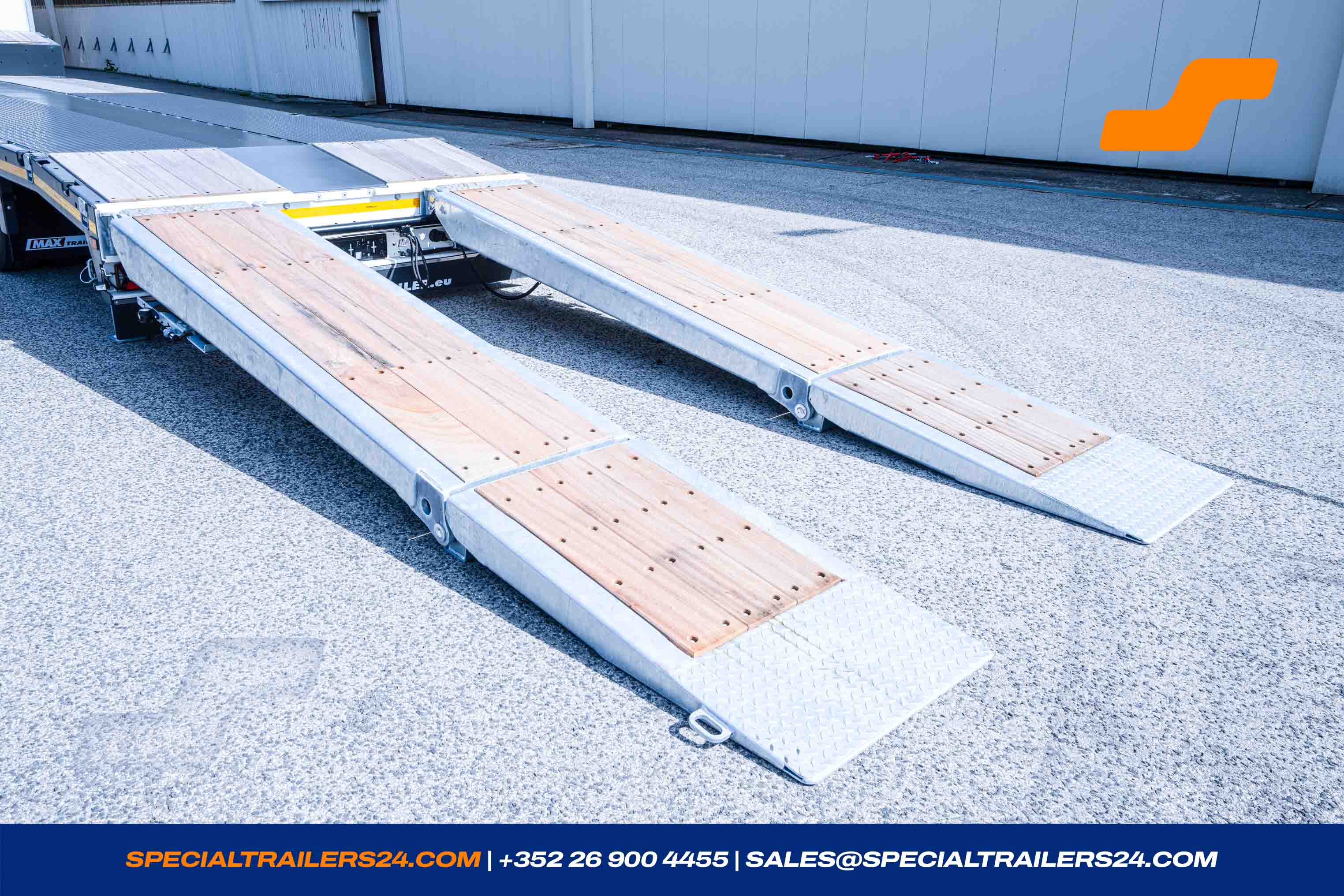

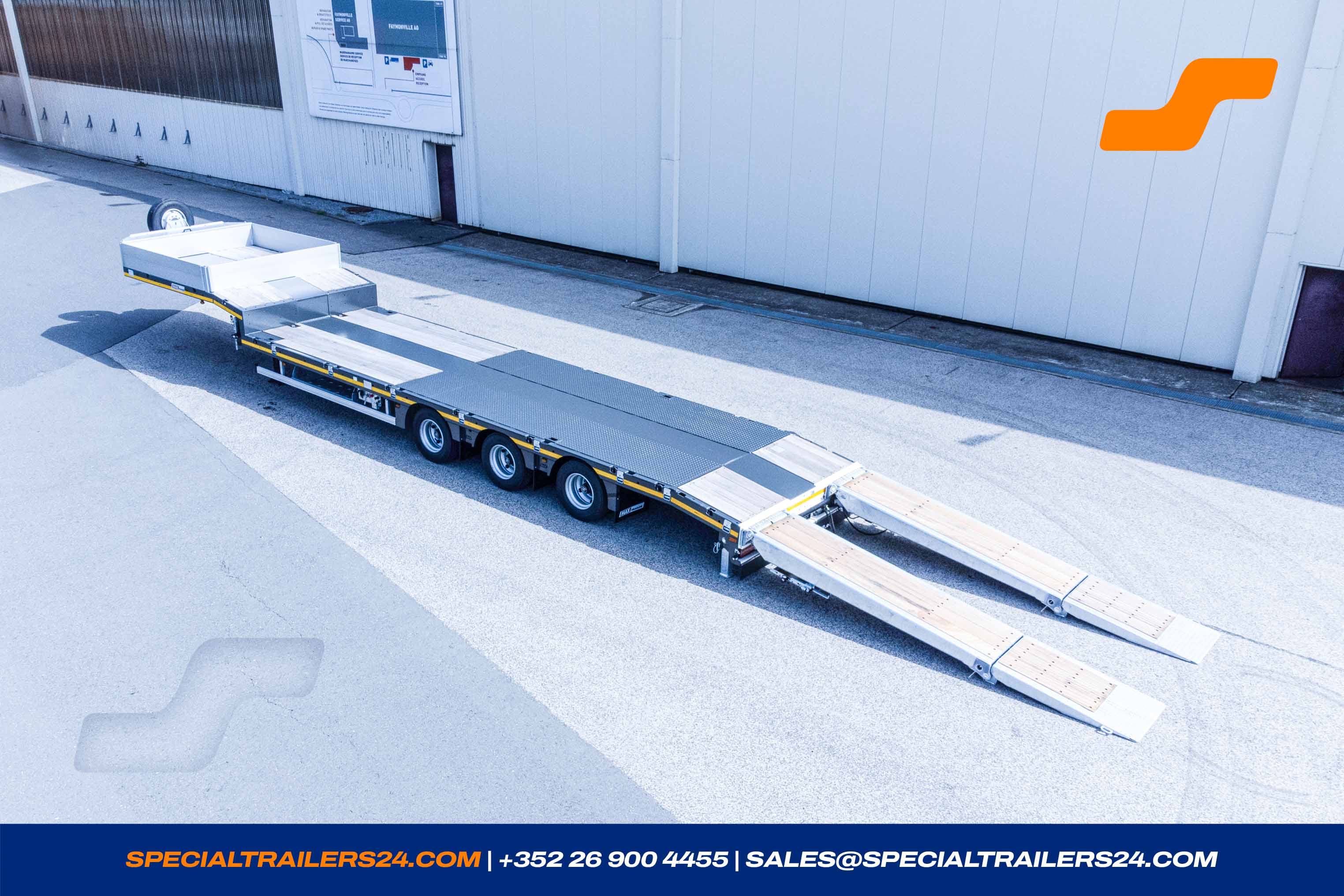

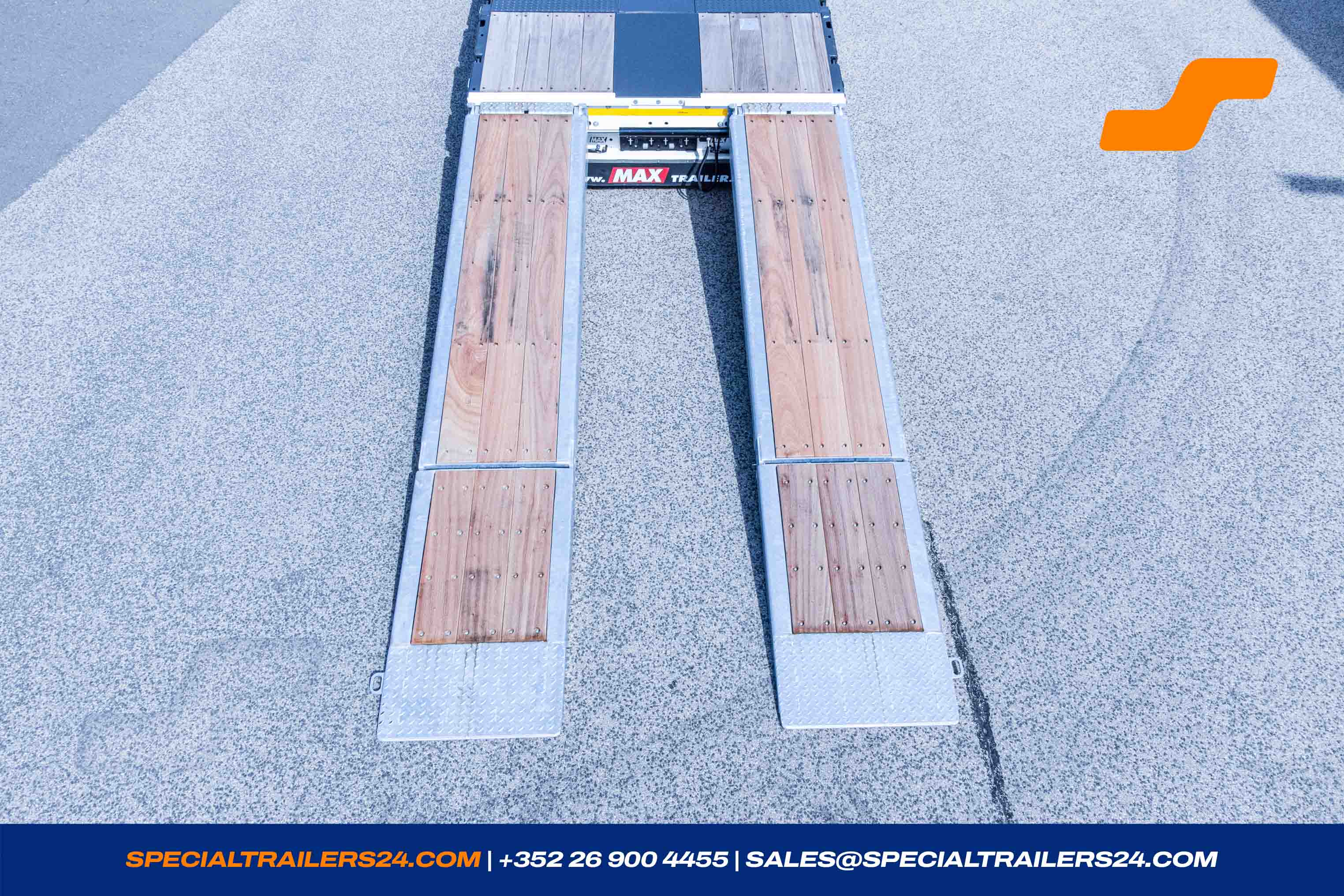

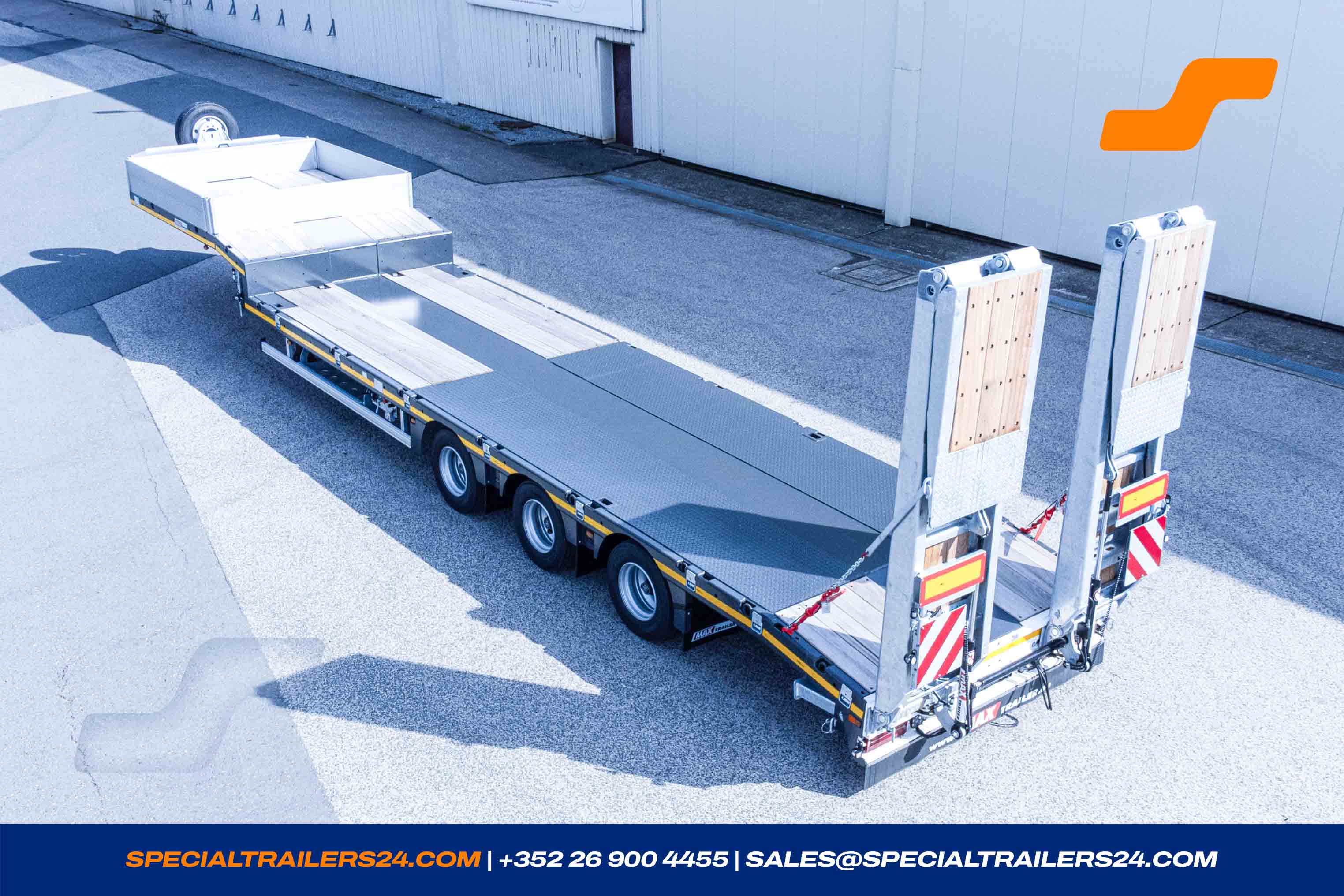

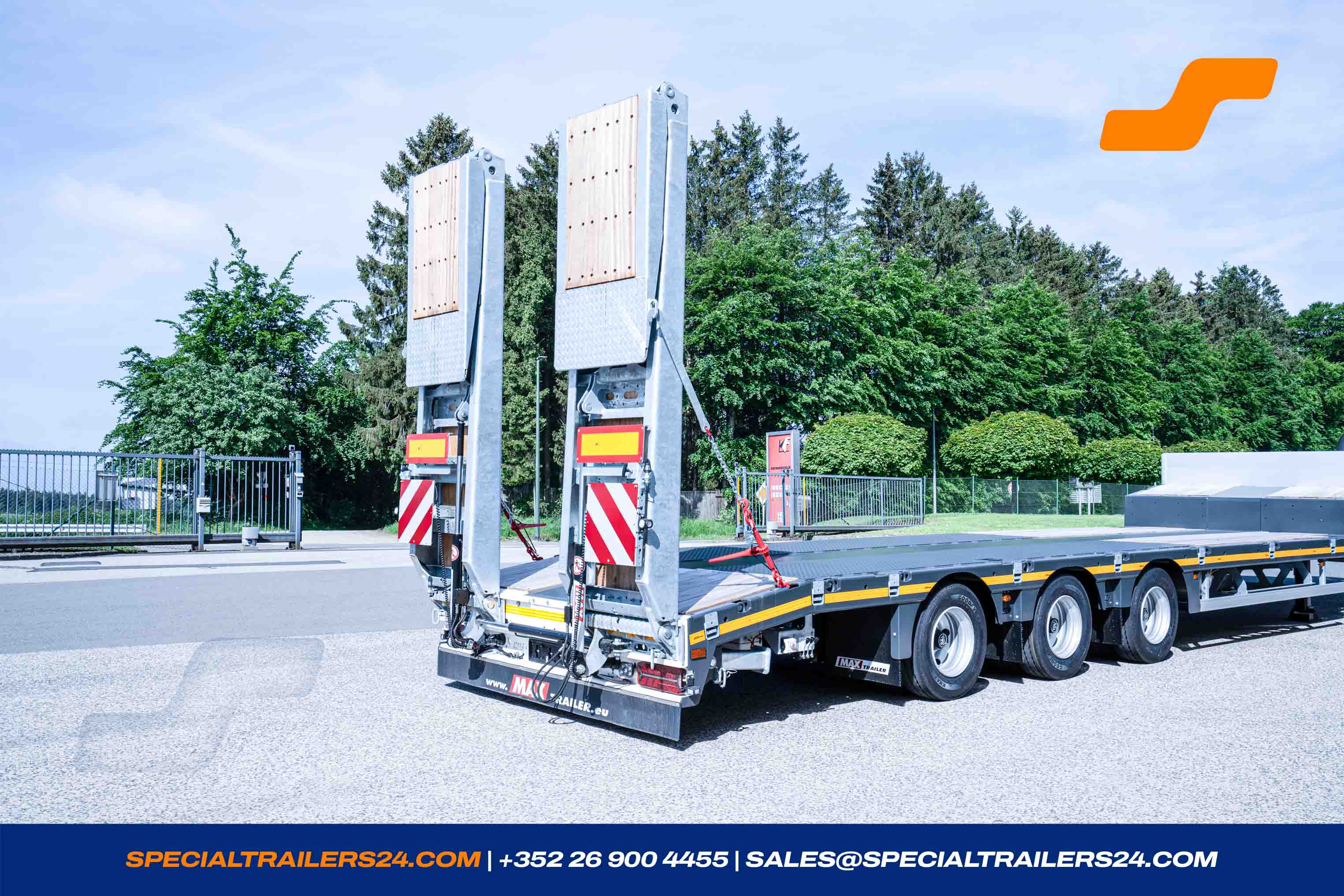

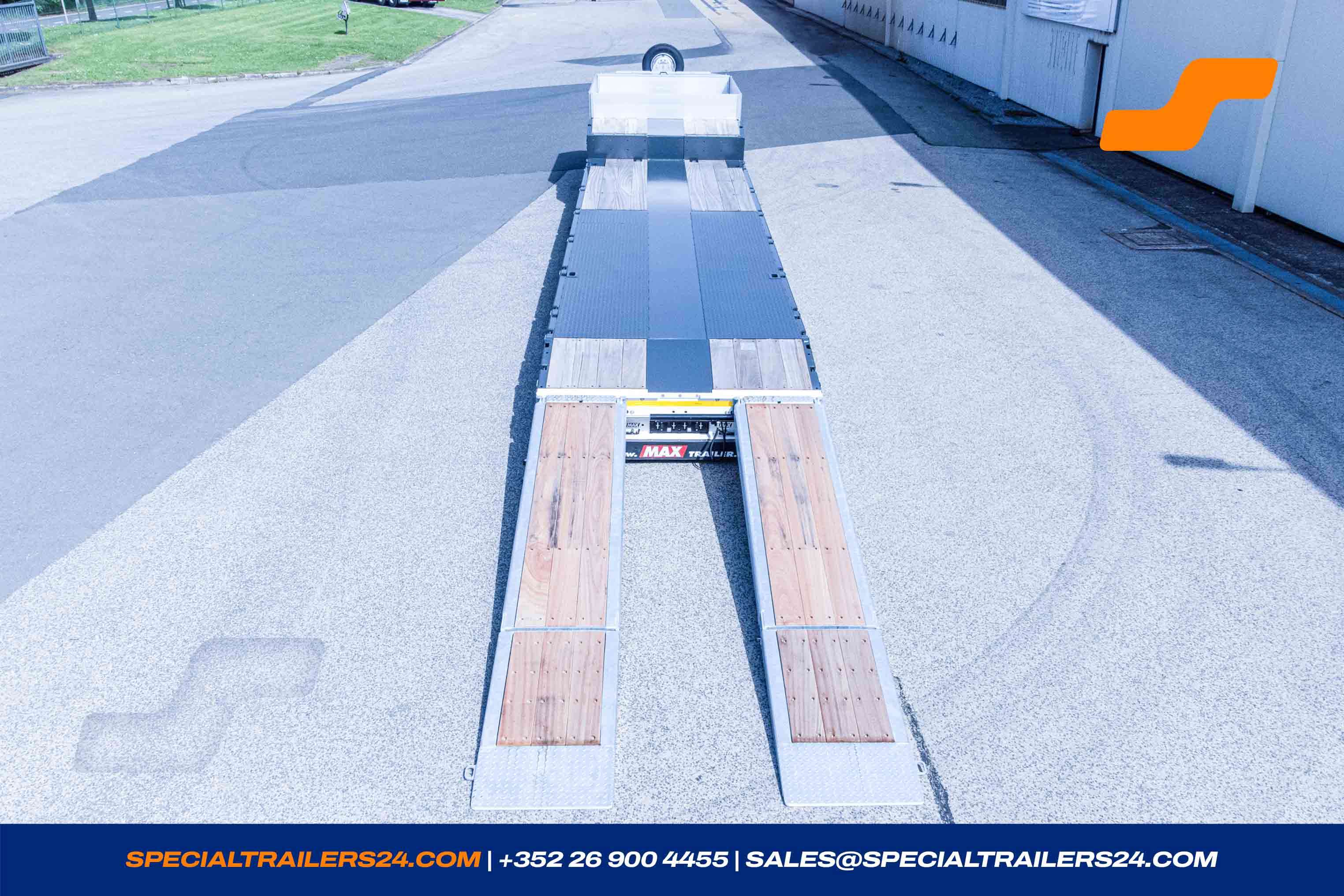

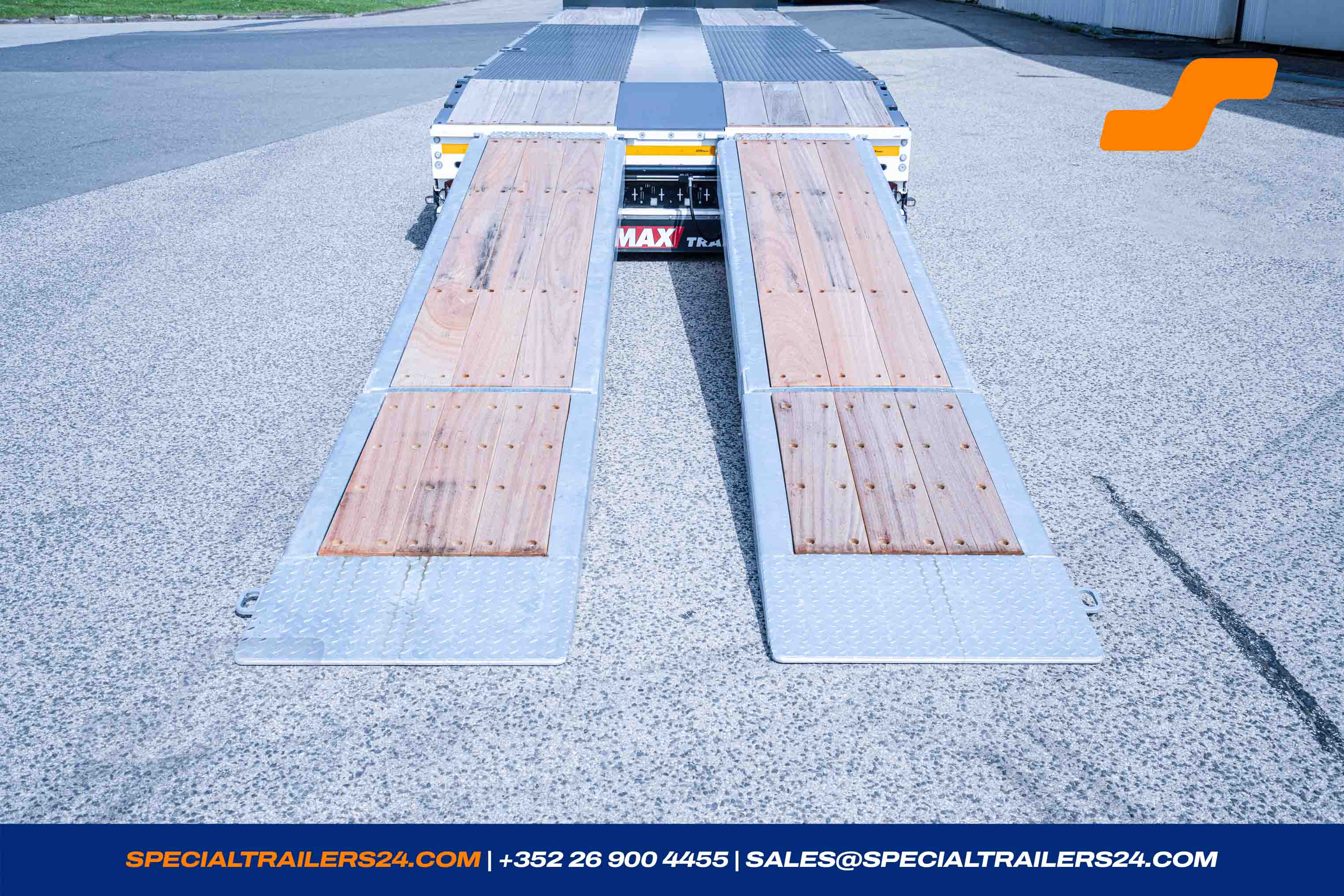

1 x Steel double flip ramps : DR-900-HH-40-GRV-HVA
1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm with grating floor C40/5 (for point load of 2.2 to on a surface of 20 x 20 cm).
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40.000 kg

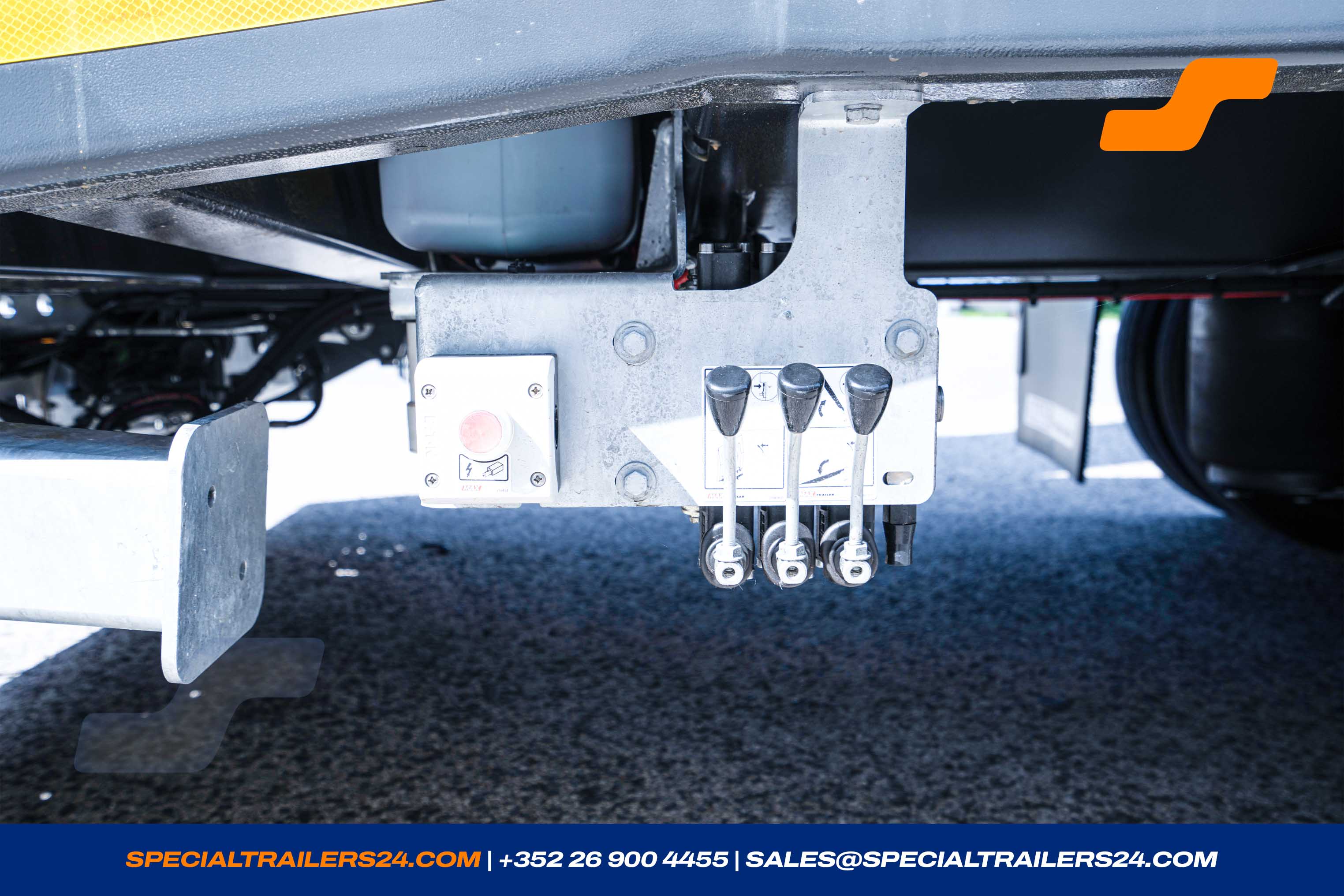

- Operated valve for ramps mounted on the right side (± 4 kg).
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
- Codice d'immatricolazione
- Spiral cable for the electric-hydraulic pump and/or electric winch between the semi-trailer and the truck with socket (ARDOUILLE-ARDOUILLE).
