MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110621
- Reference MAX100-N-4A-9.30(RU)
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 04/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions
Gooseneck
1 x Gooseneck
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
-

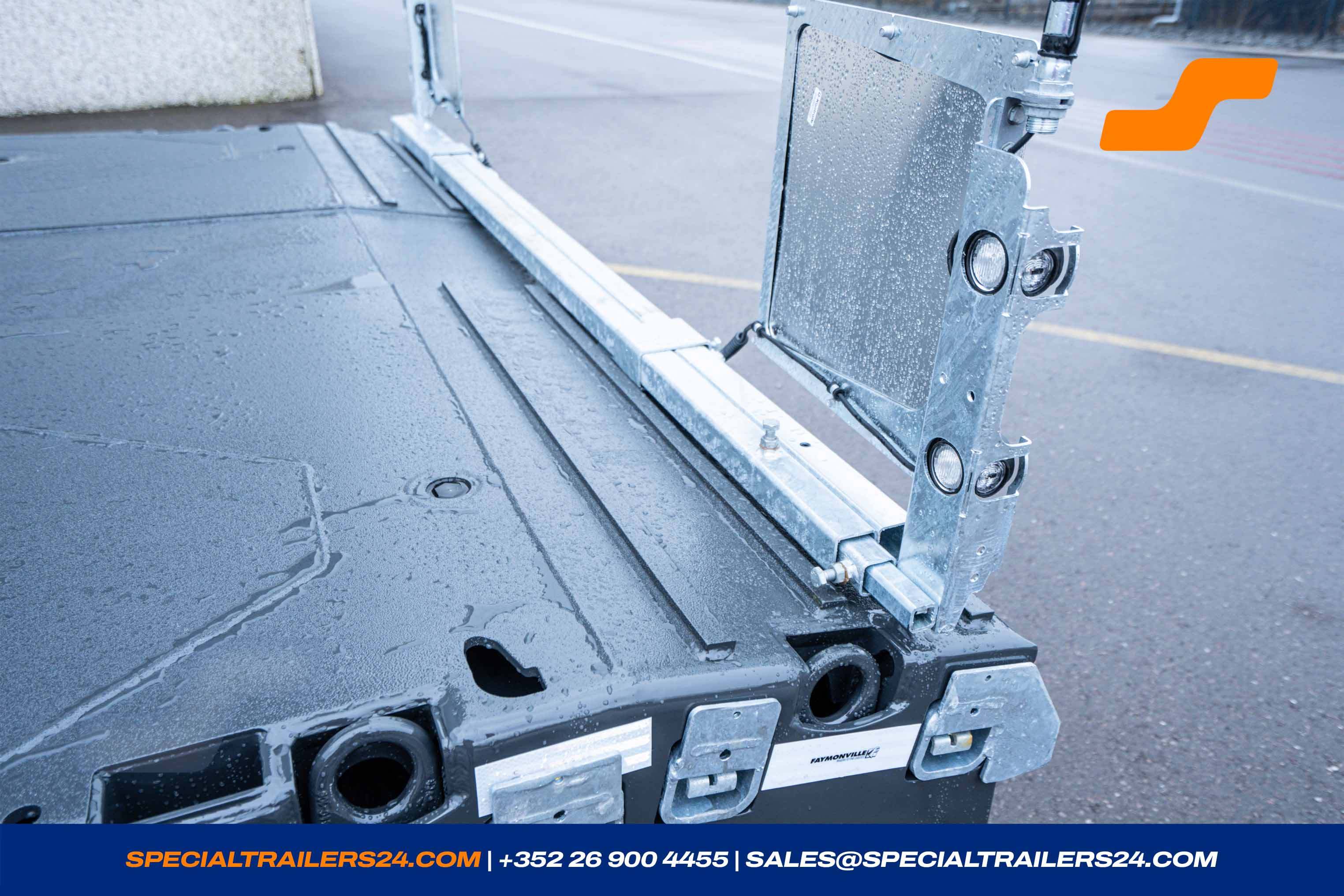

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - 4 wheel chocks with carrier on the headboard (± 5kg).

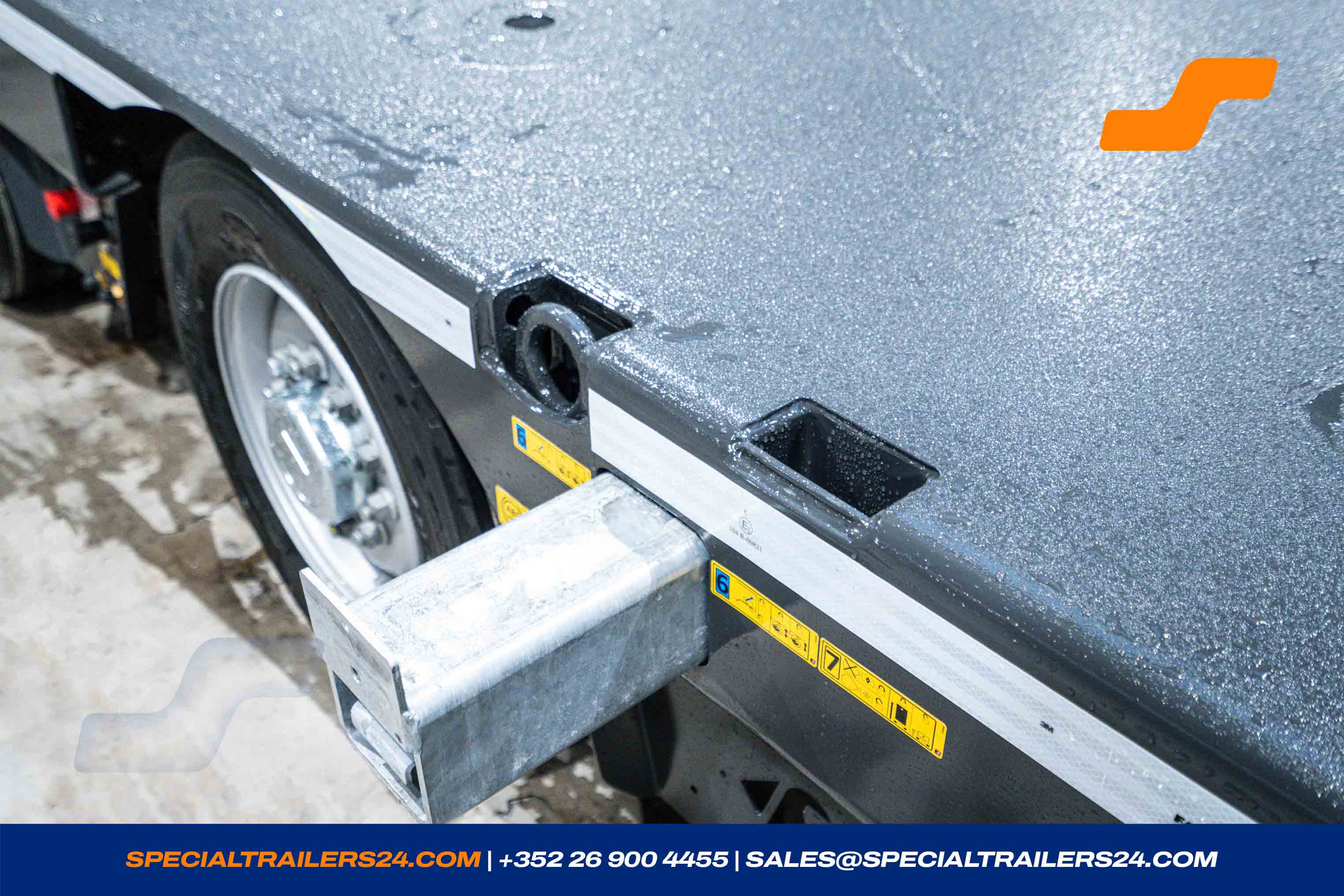

- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)

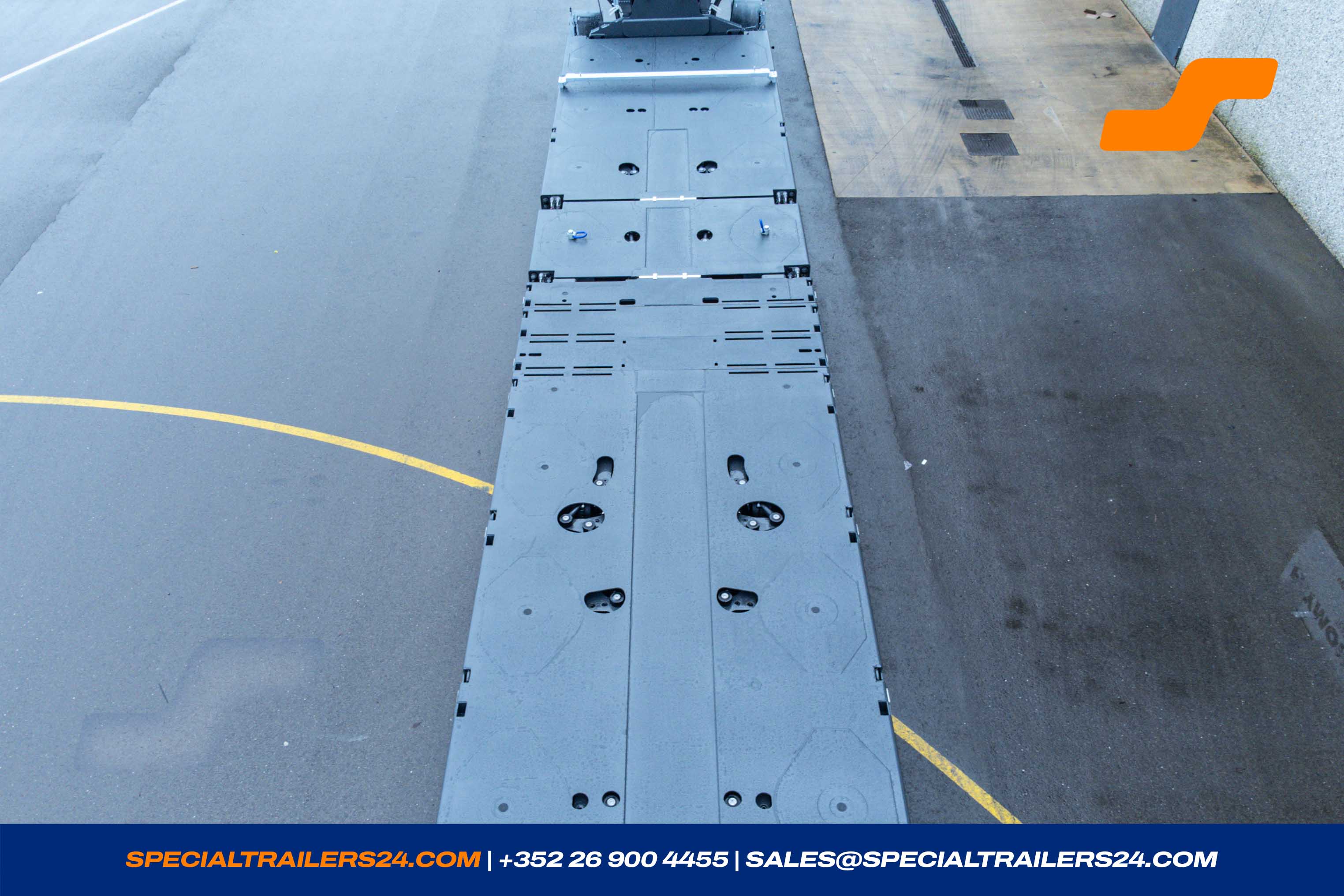

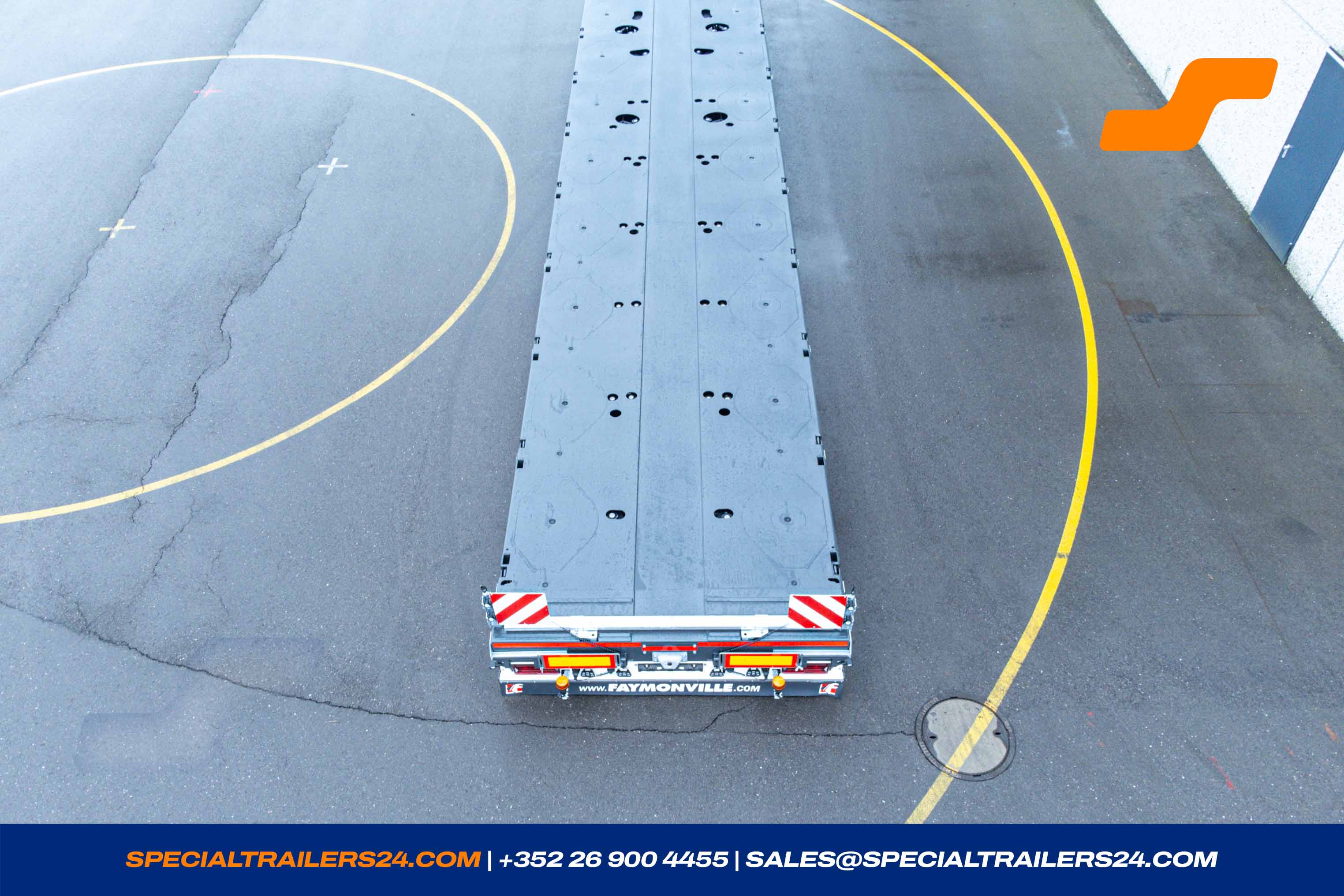

Loading deck

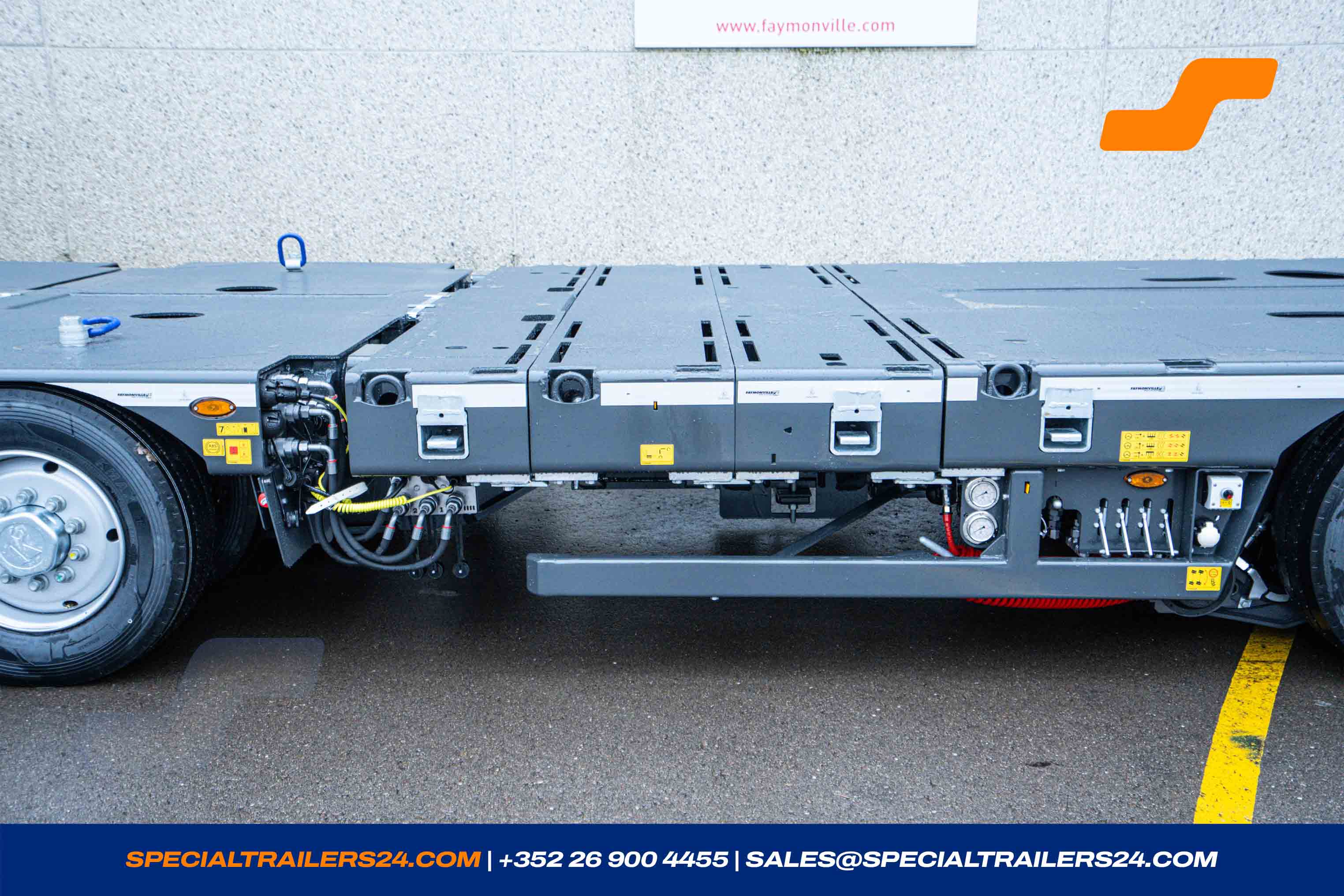

Loading platform
1 x Loading platform

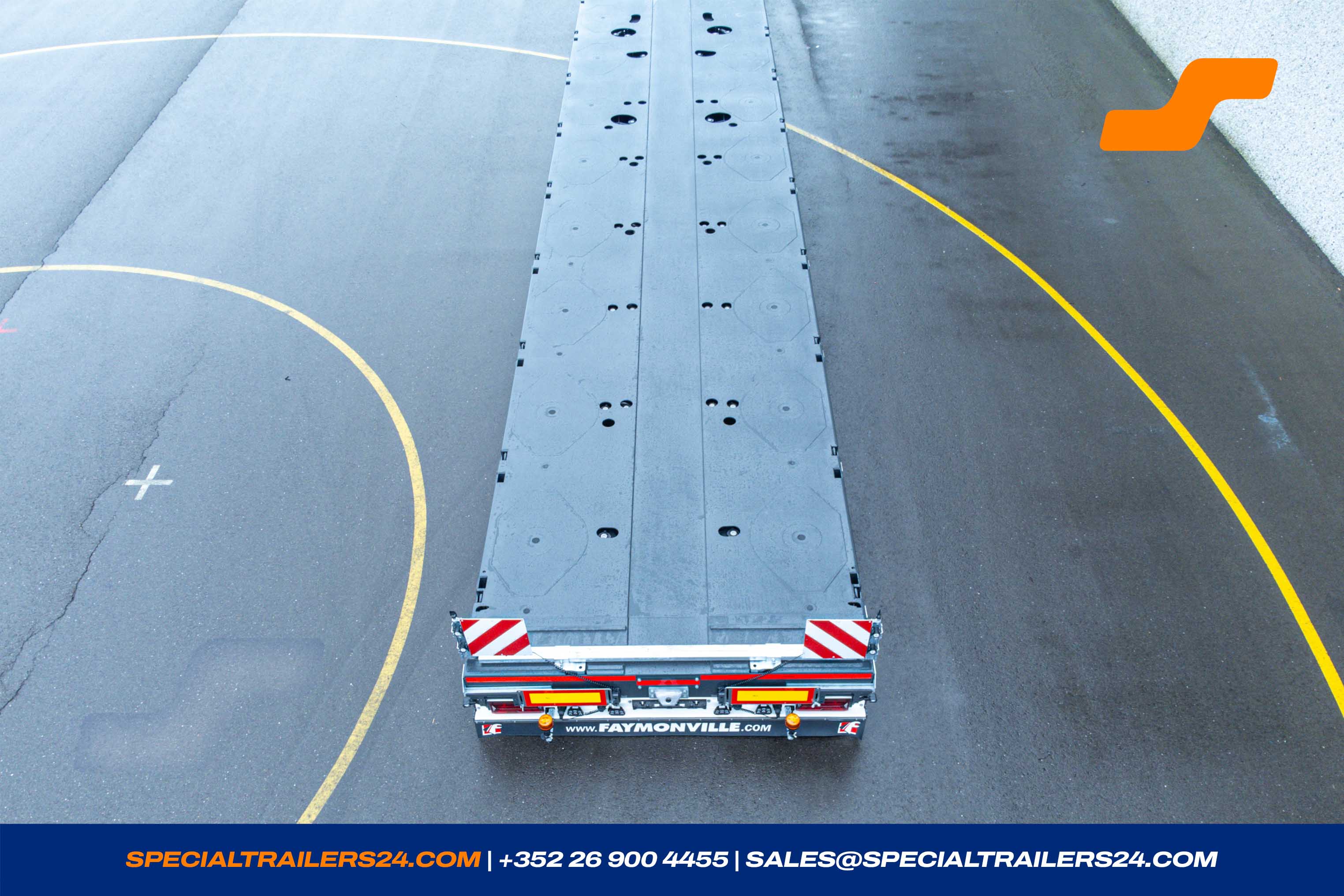

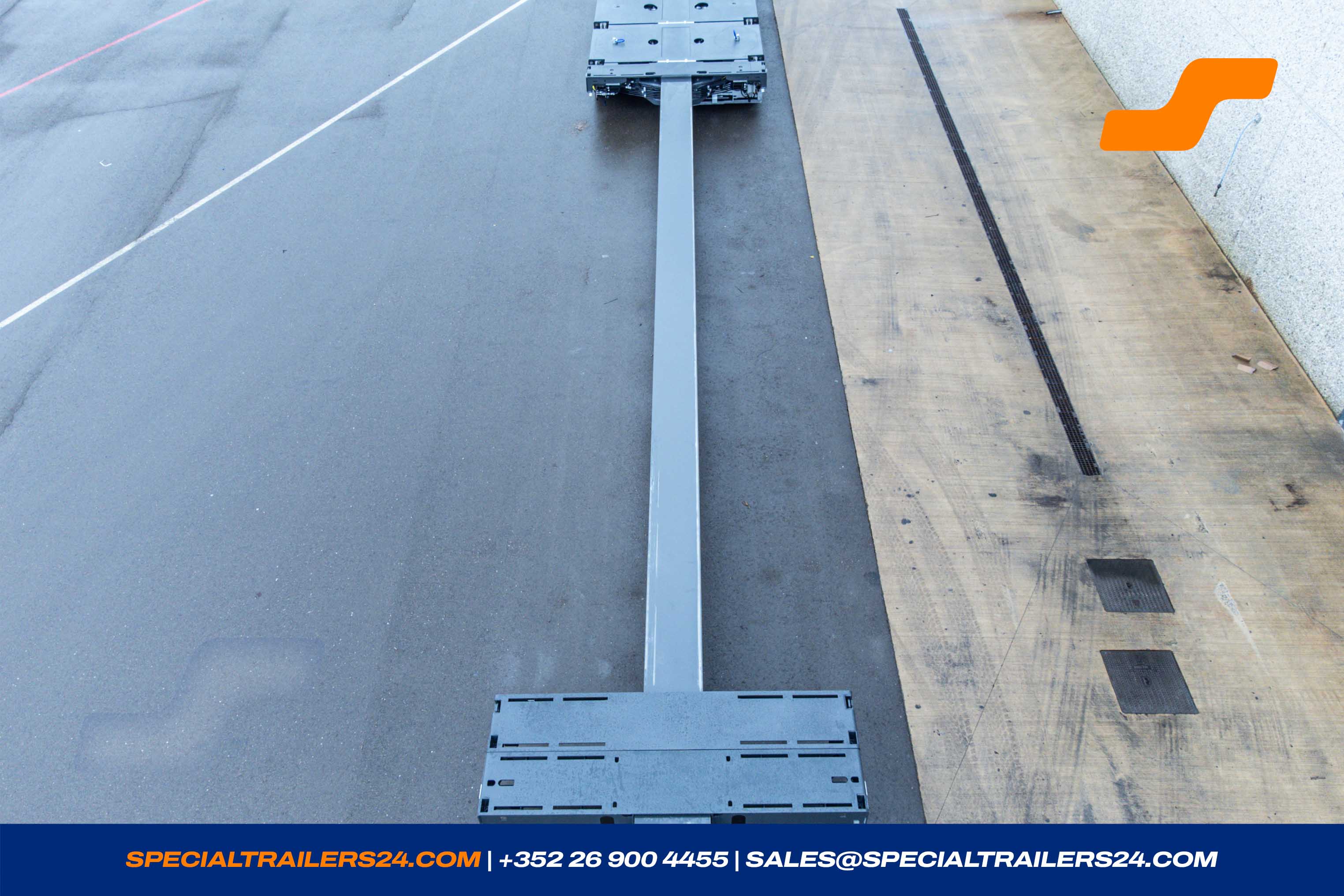

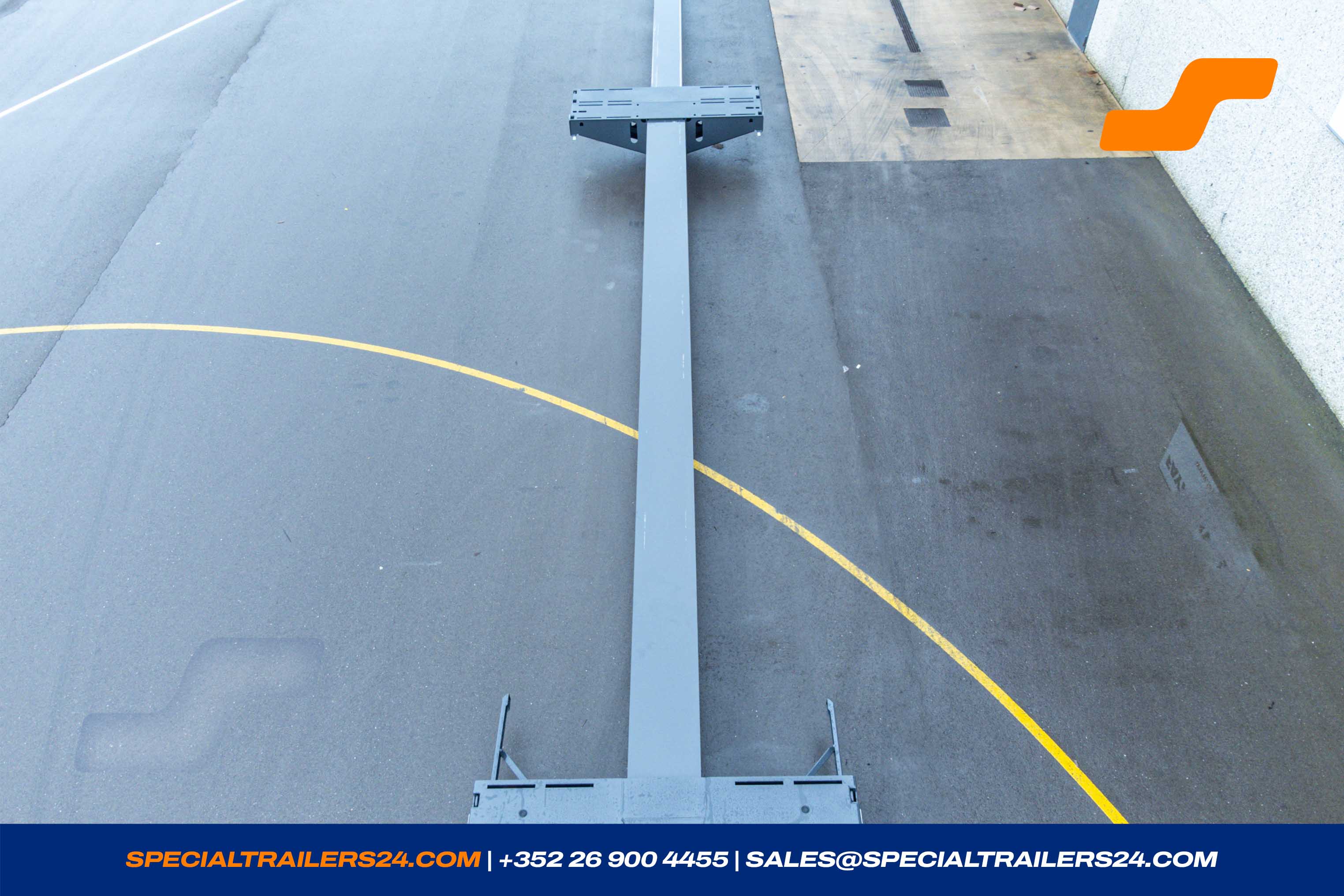

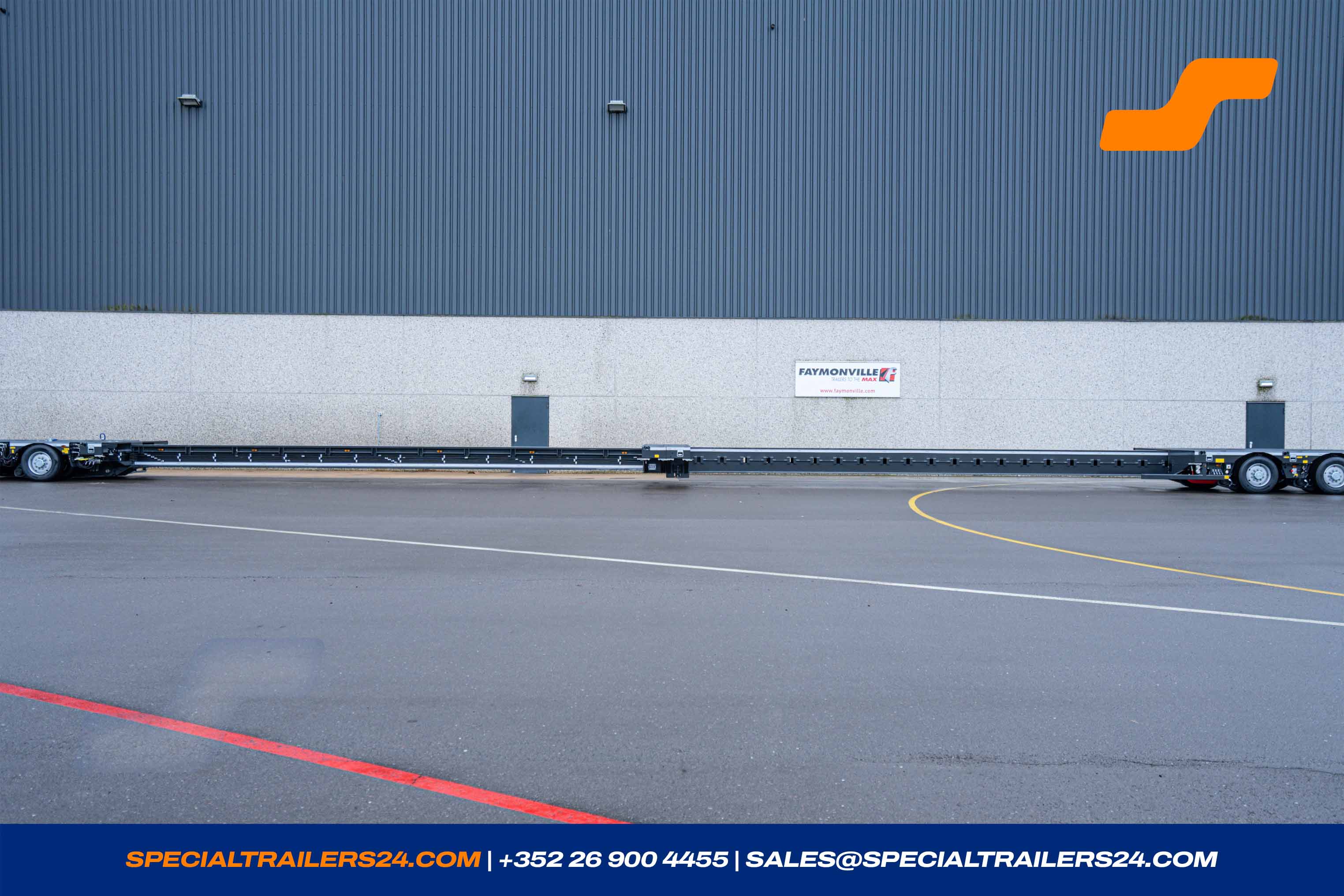

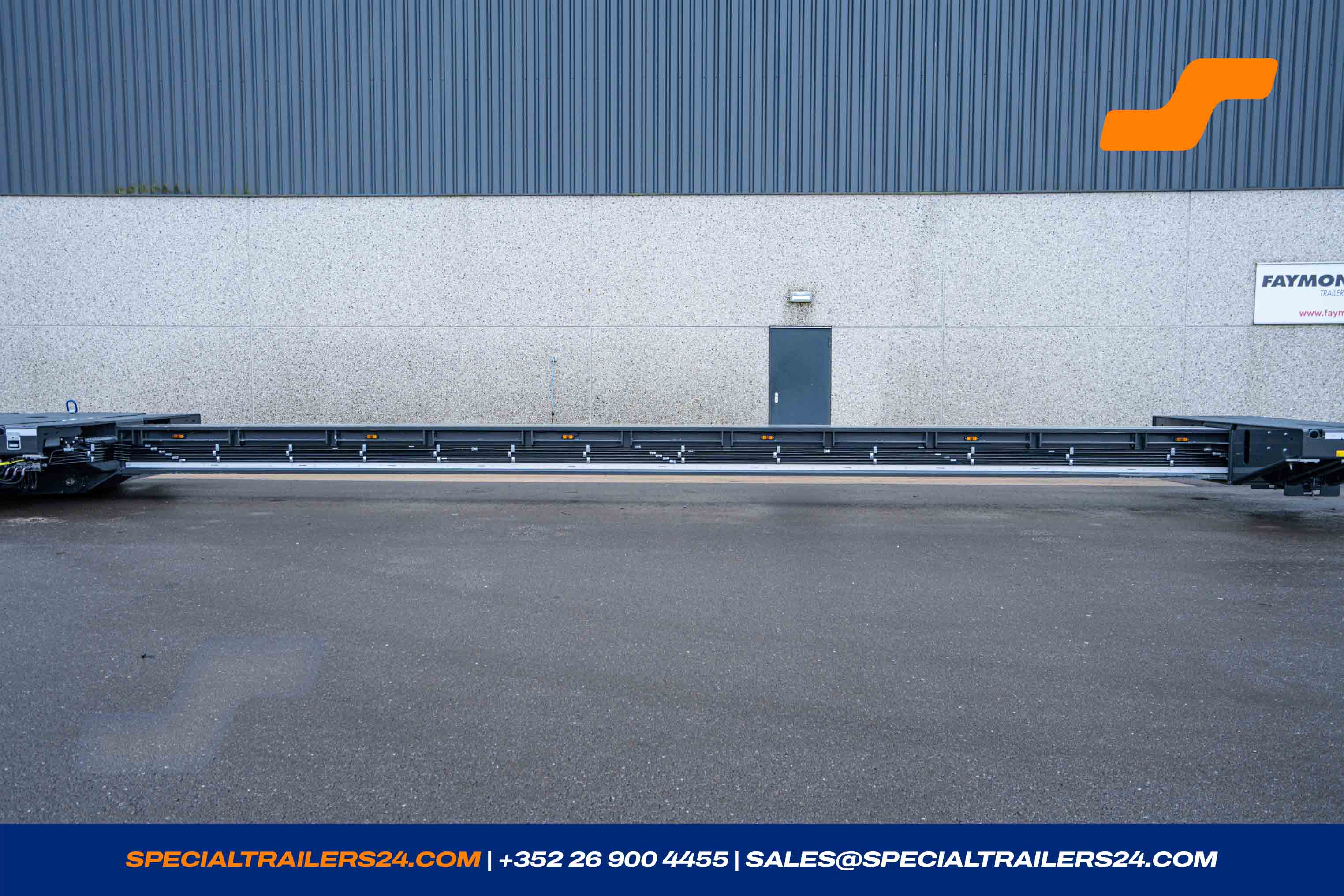

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Hardwood cover thickness 48 mm above the axles chequer plate.
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. -
Additional hardwood timber for the outriggers when using the intermediate table. (± 45 kg)
Maximum permissible point load 3.5 tonnes on an area of 20 x 20 cm. - Profile displaceable as hook-on device for alu-ramps at the rear.
- Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- 1 LED flashing beacon, provided separately.

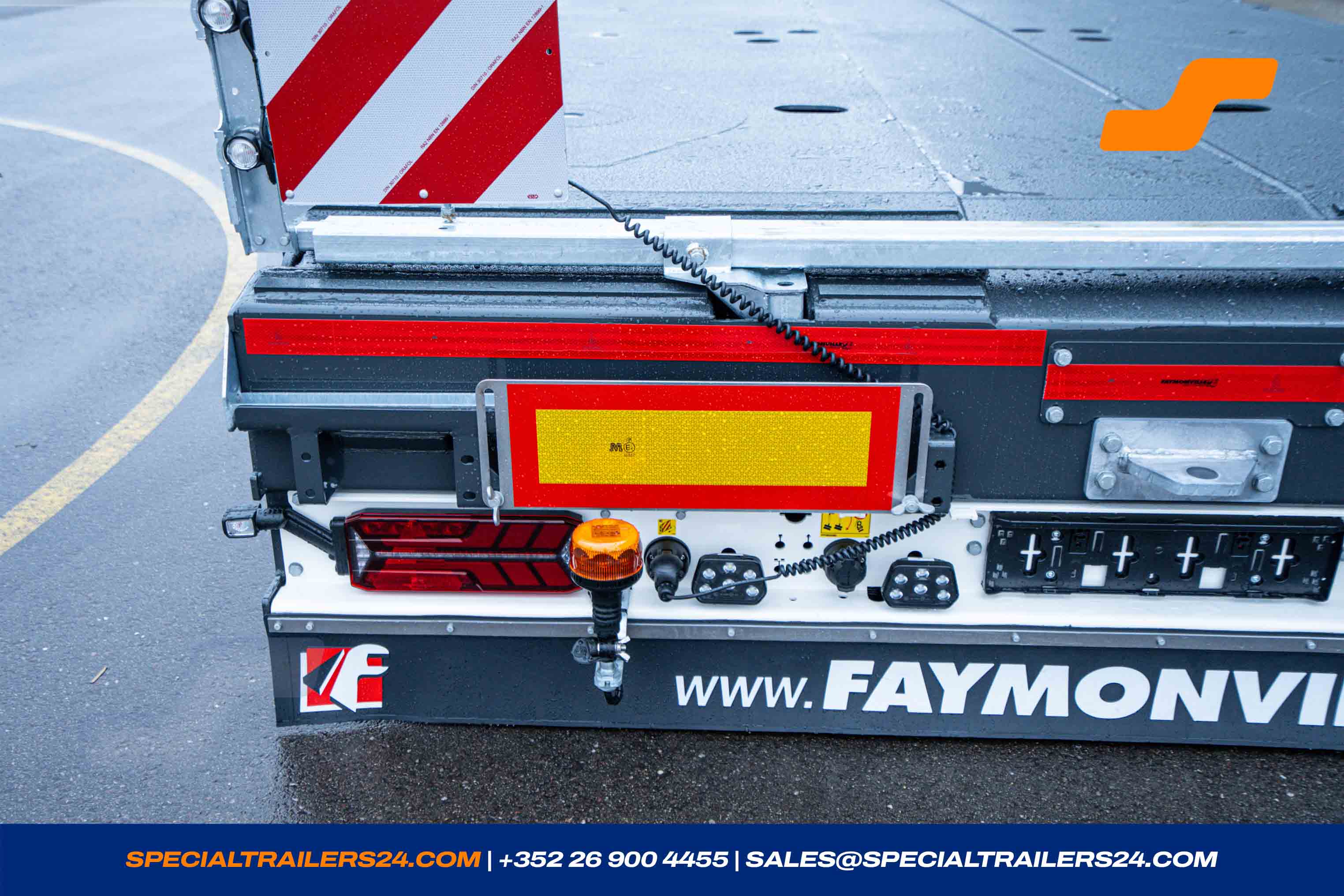

- Speed sticker 80 km/h at the rear and on both sides.
-
Electric installation conform to ADR (EX/II - EX/III - FL - AT).

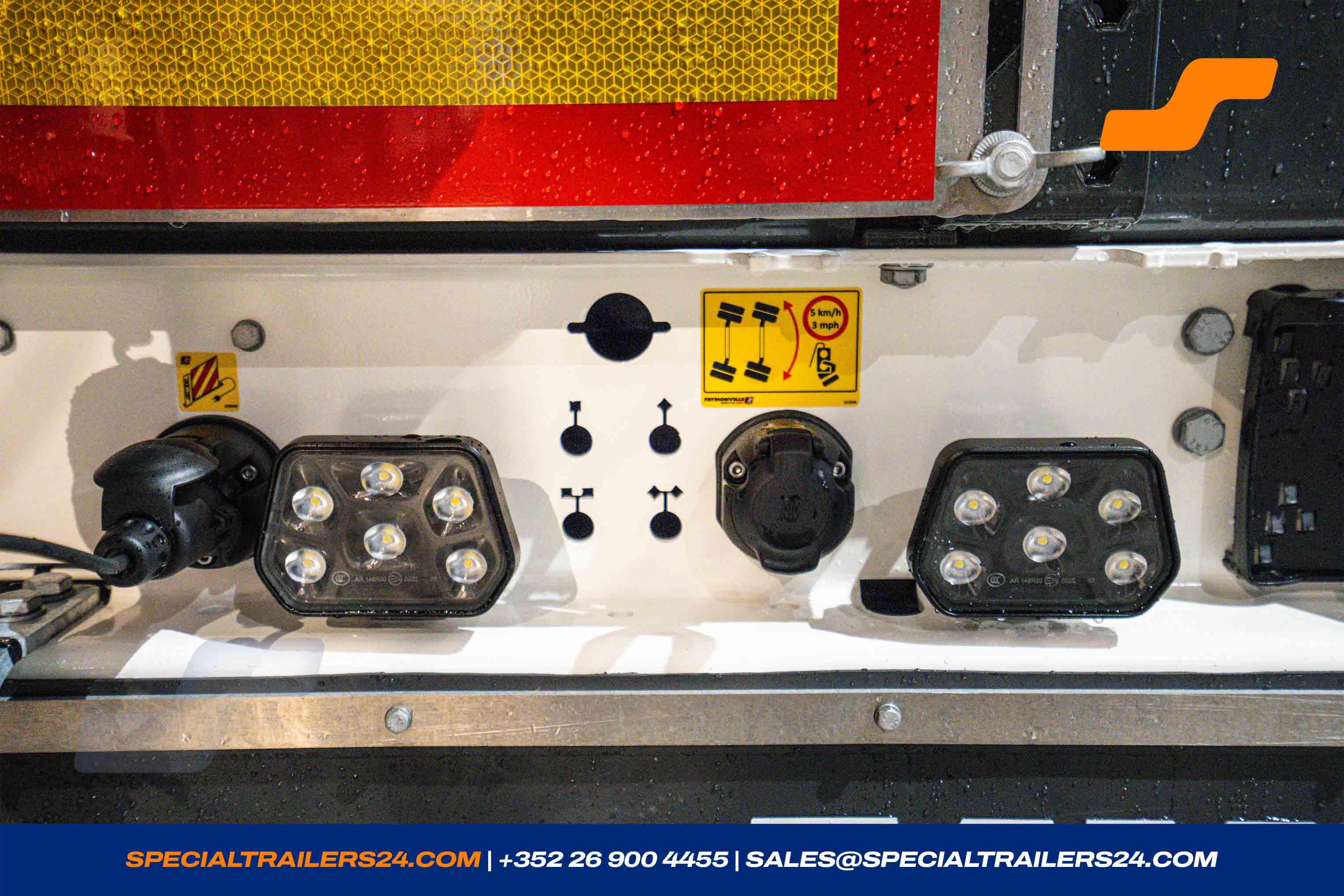

Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.
ASPÖCK-UNIBOX on the galvanised front connection ledge with 15-pole socket.
Connection according to ISO12098.
It is the customer's responsibility to present his vehicle to his registration office in order to obtain ADR approval.
Calculations for the load capacity of container locks are not included in these documents!
Accessories
1 x Accessories
- Manual and description on USB stick .
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110621
- Reference MAX100-N-4A-9.30(RU)
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 04/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000204
- Steering Type Friction
