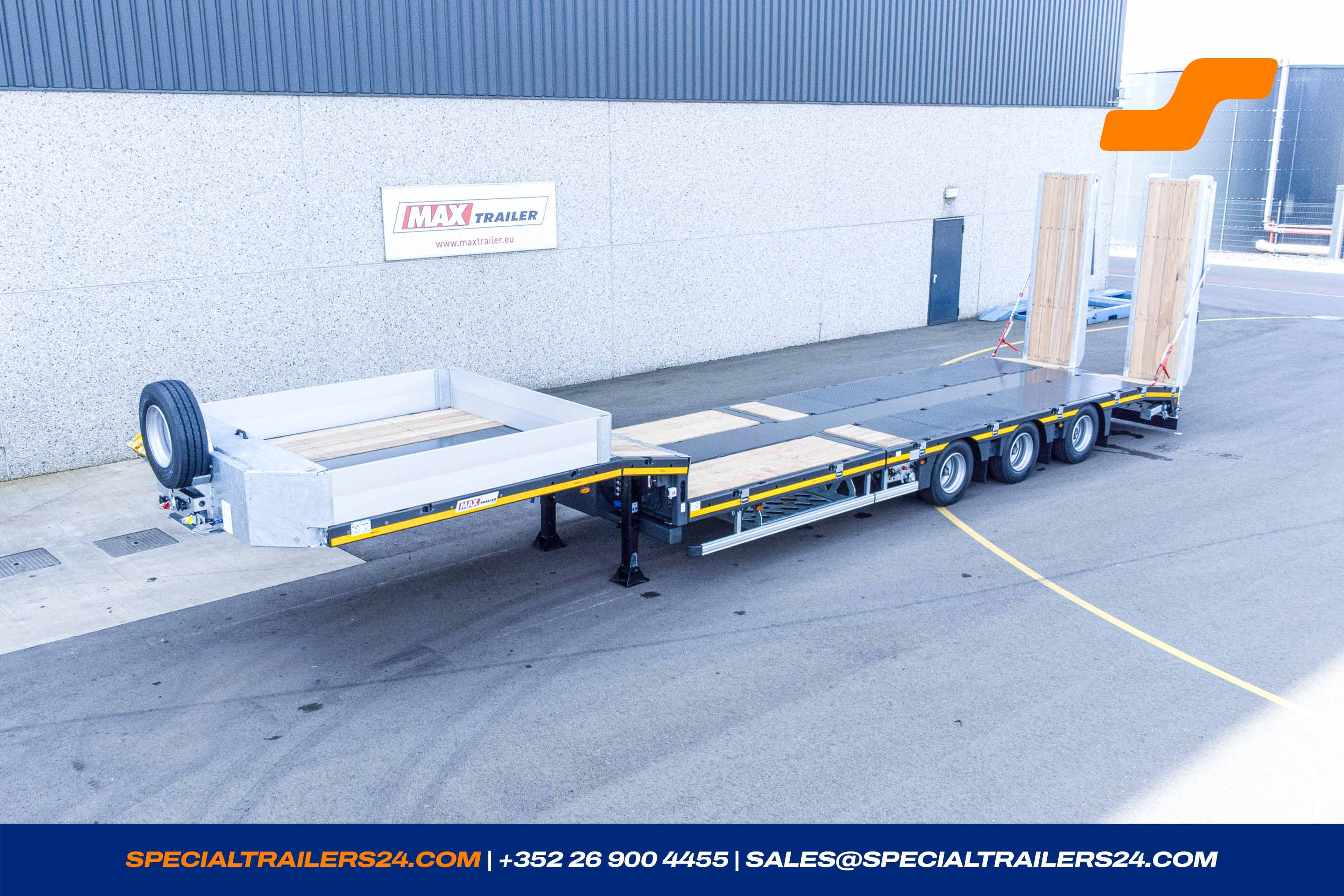

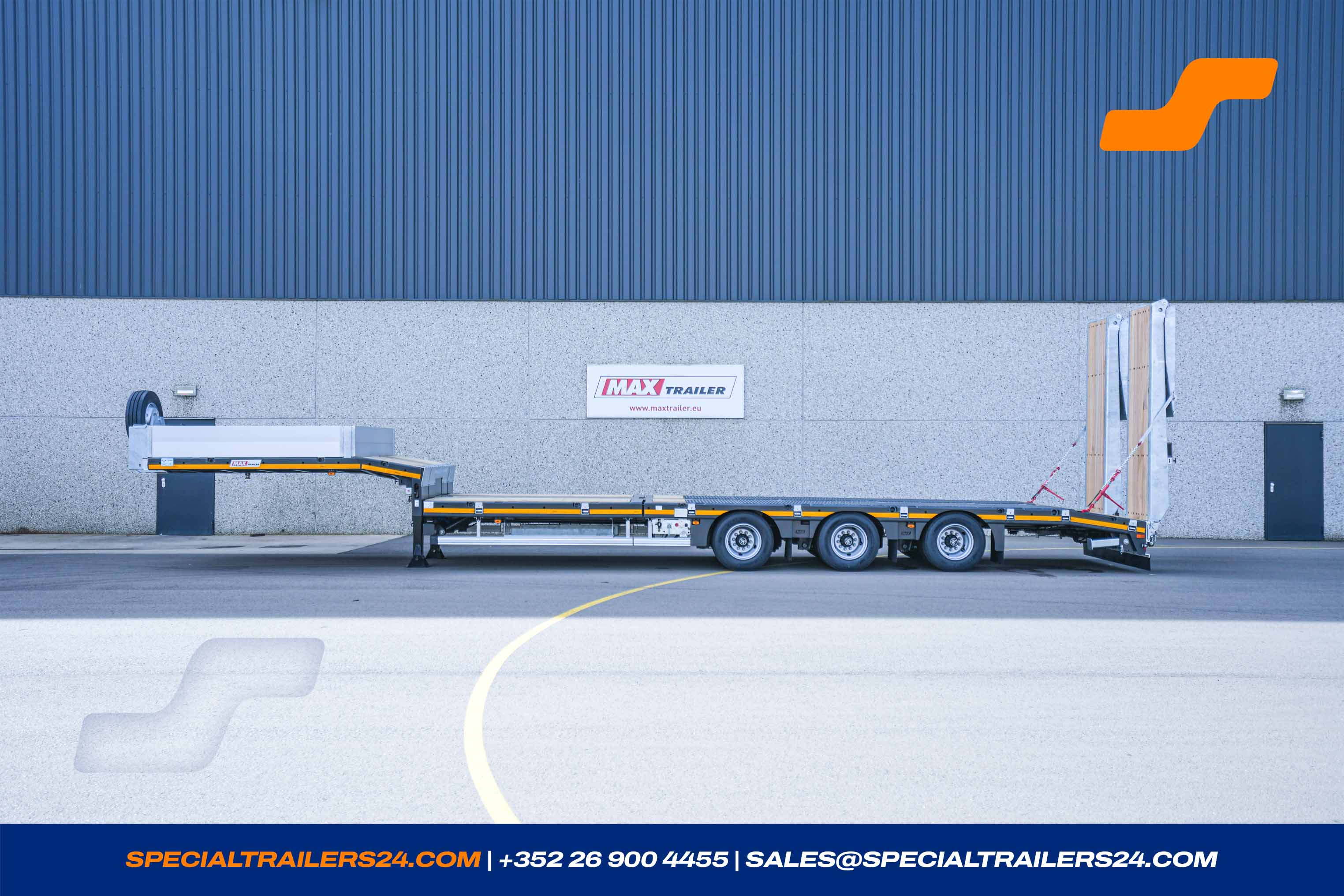

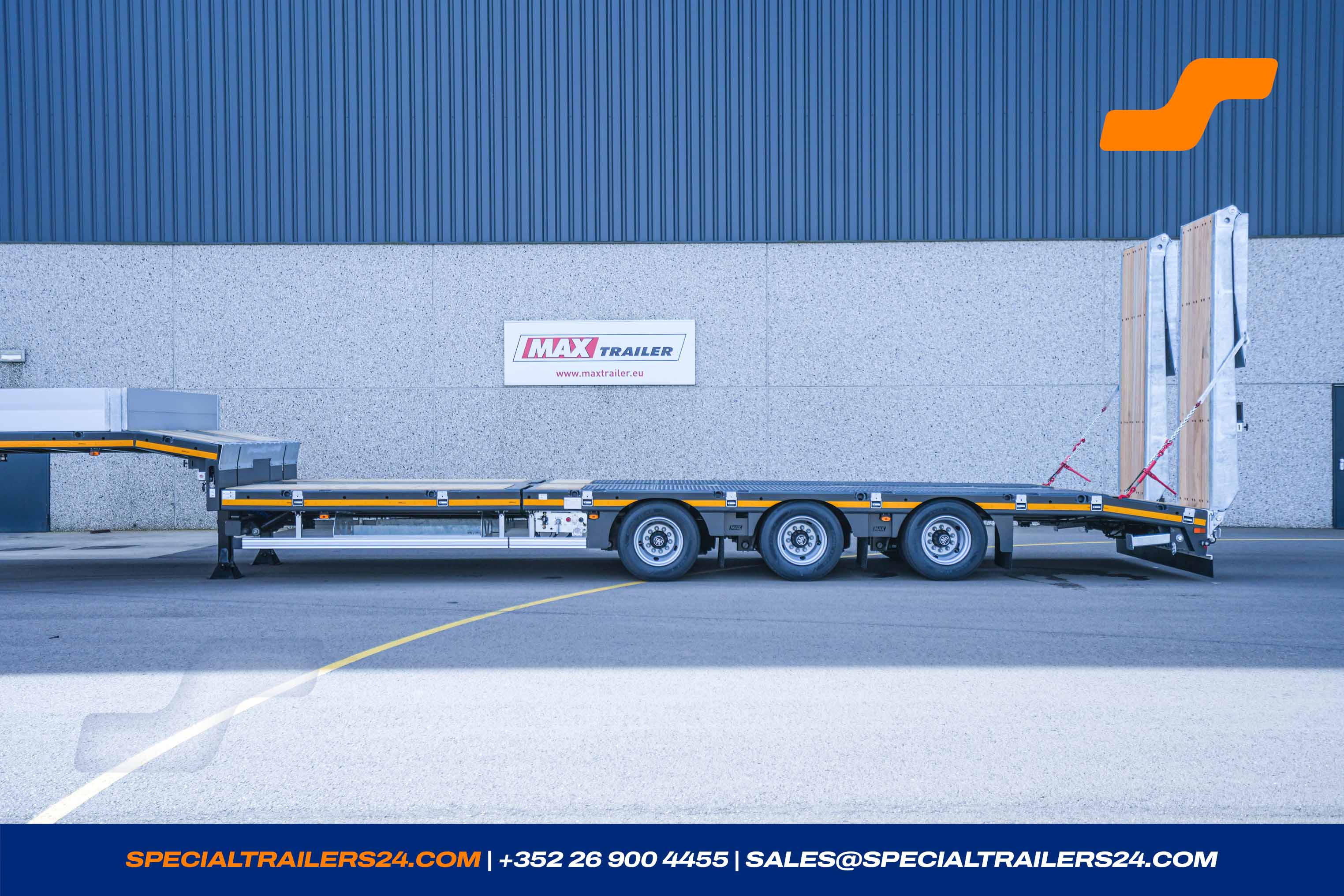

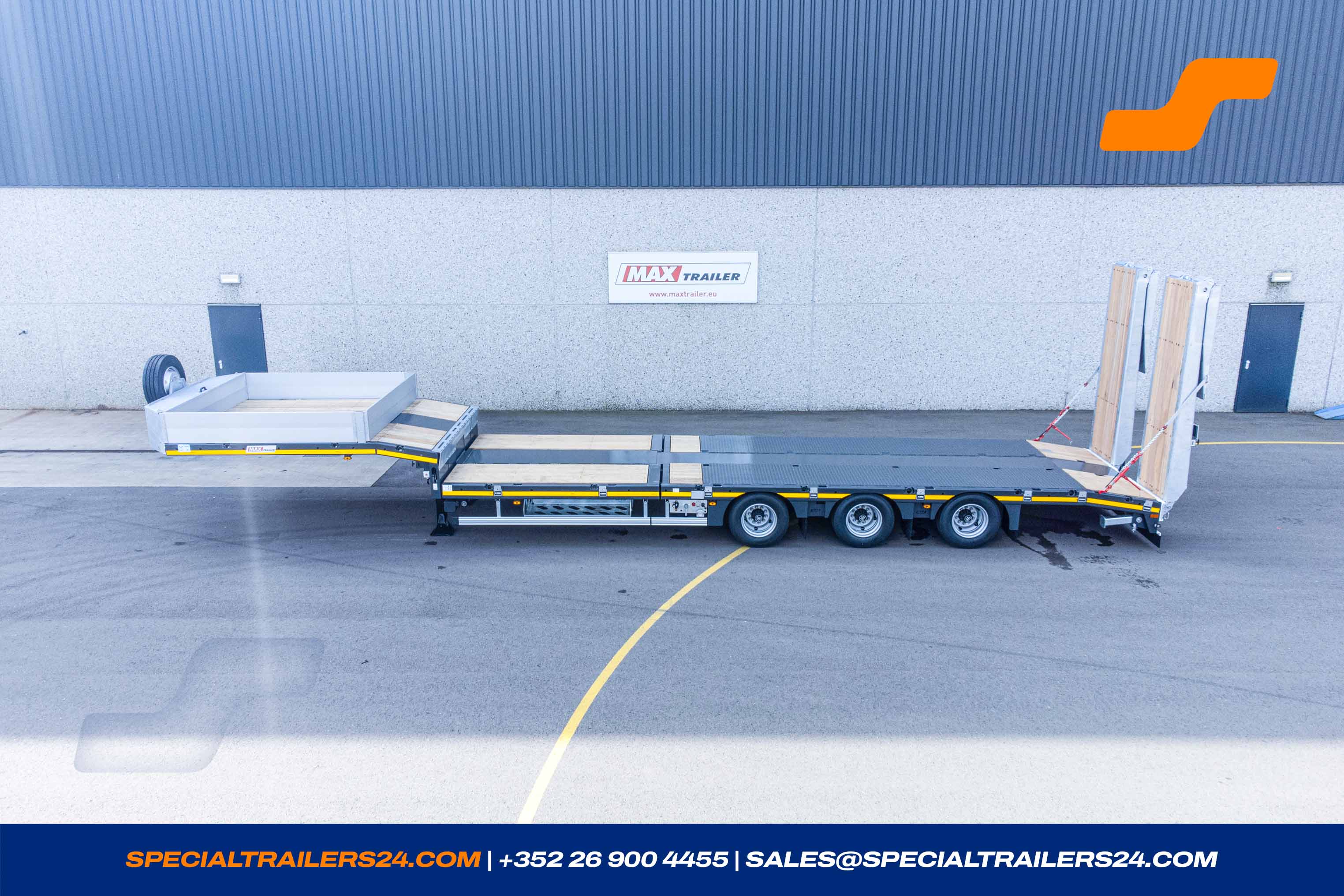

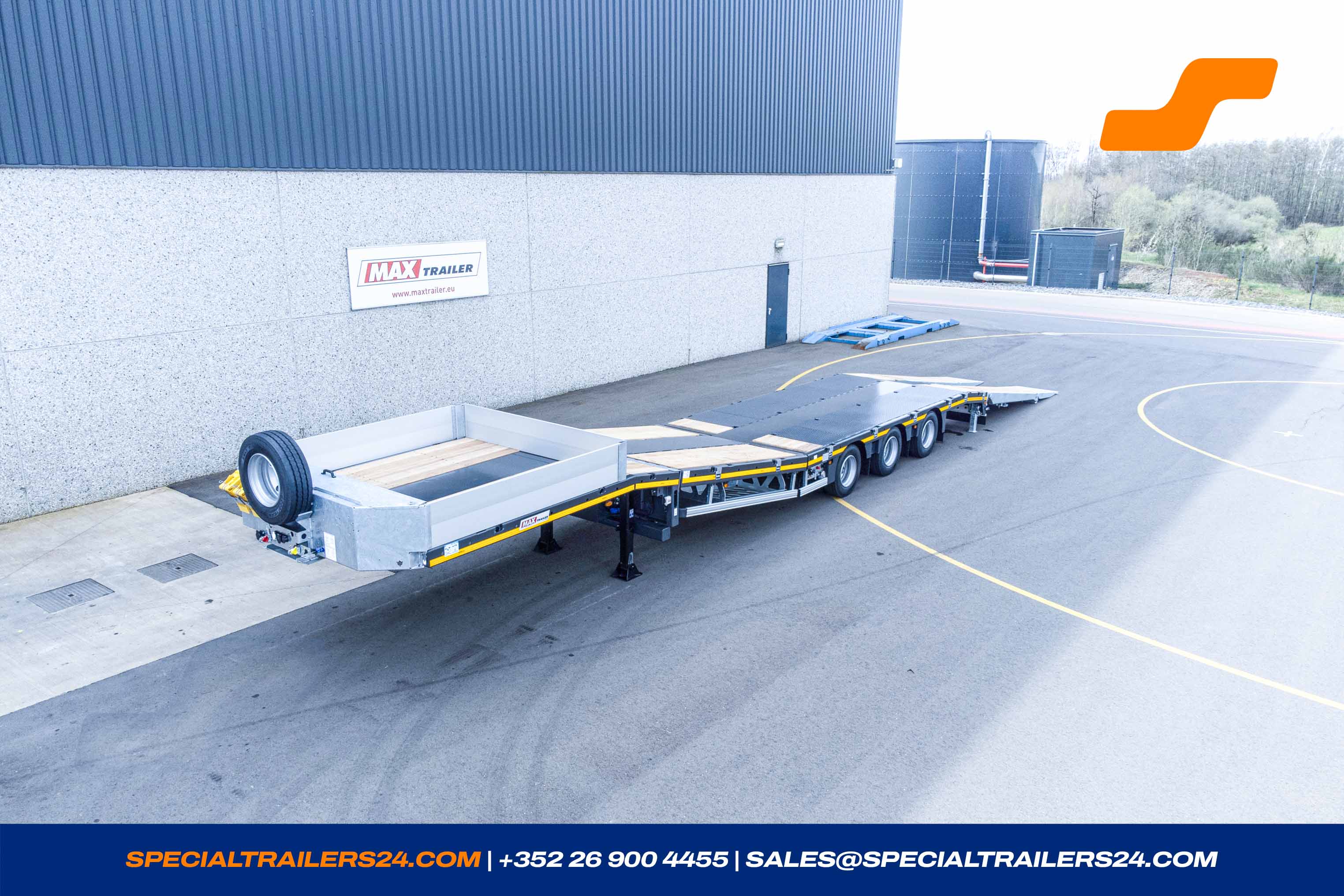

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111271
- Reference MAX100-N-3BA-9.30-U

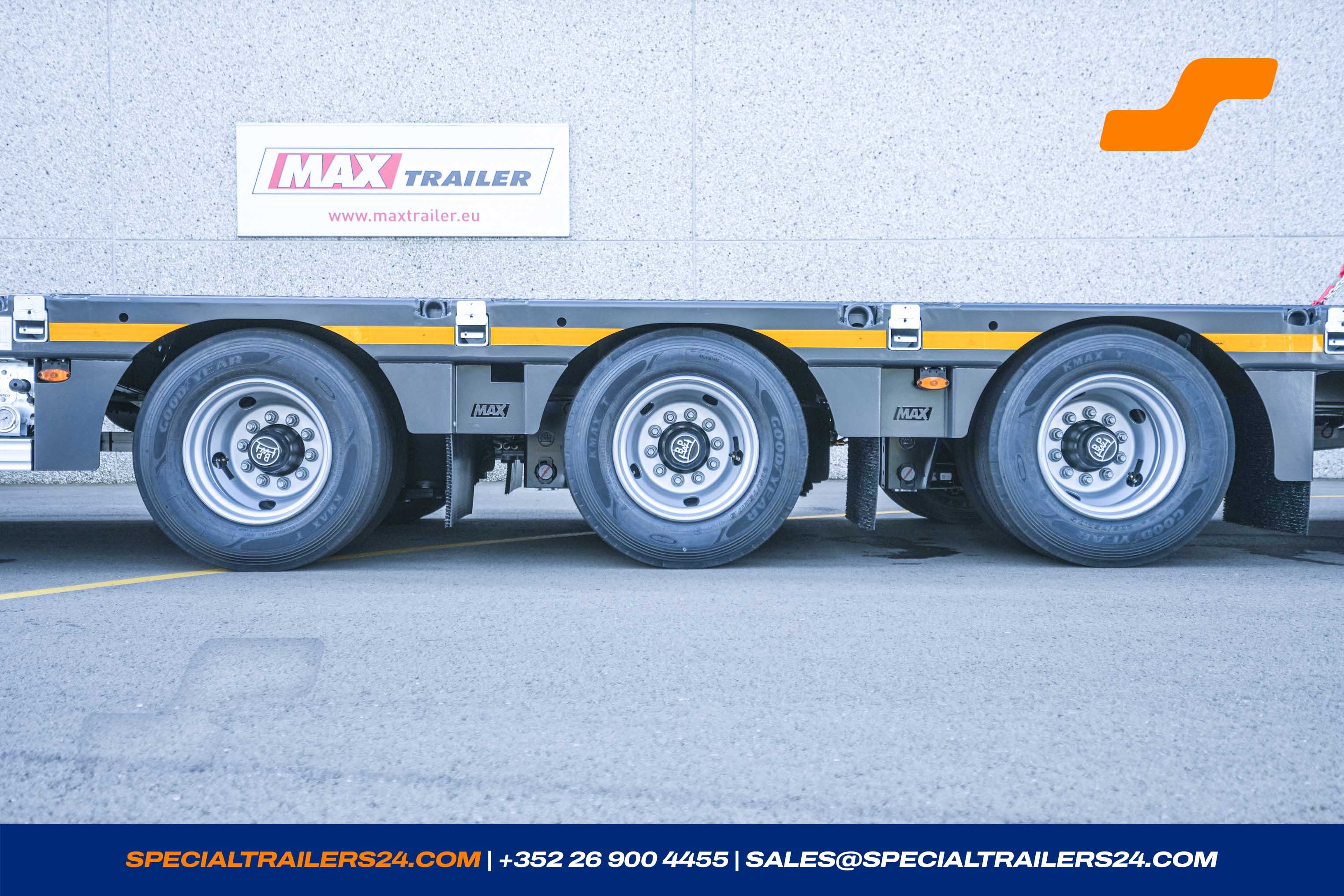

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 06/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 11389 kg |
| Payload | 38111 kg |
Dimensions
| Fifth wheel height loaded | 1200 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 3 700 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

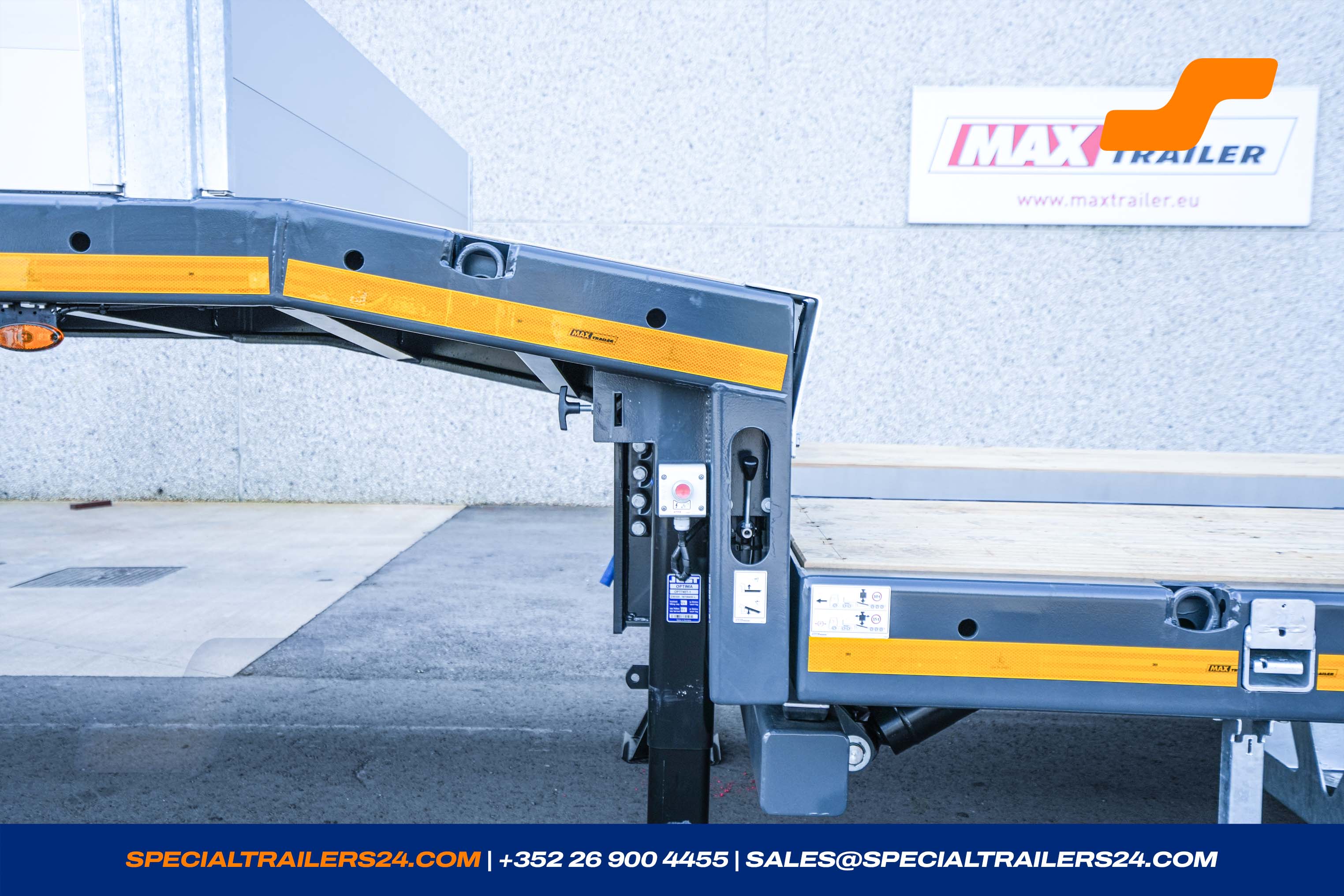

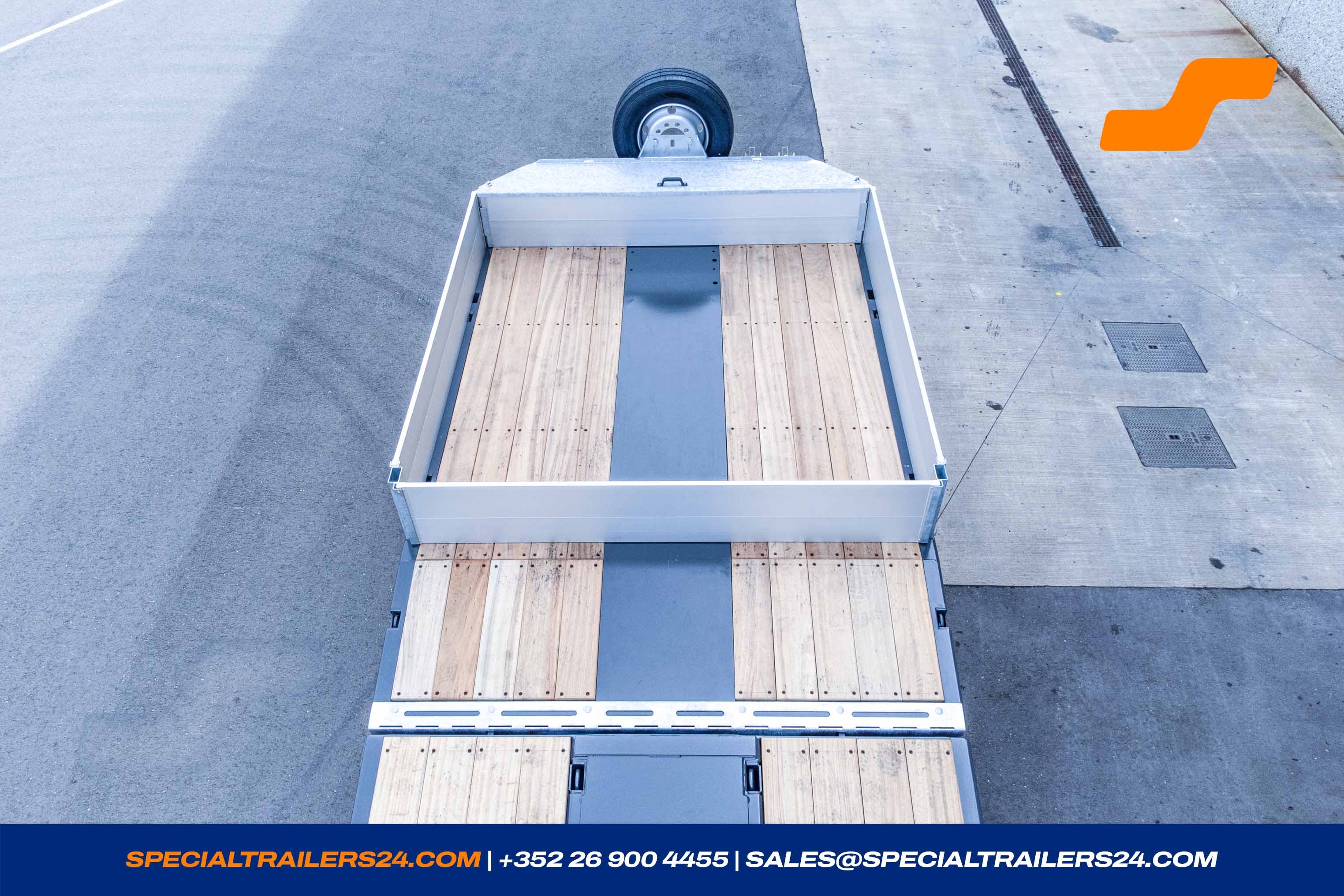

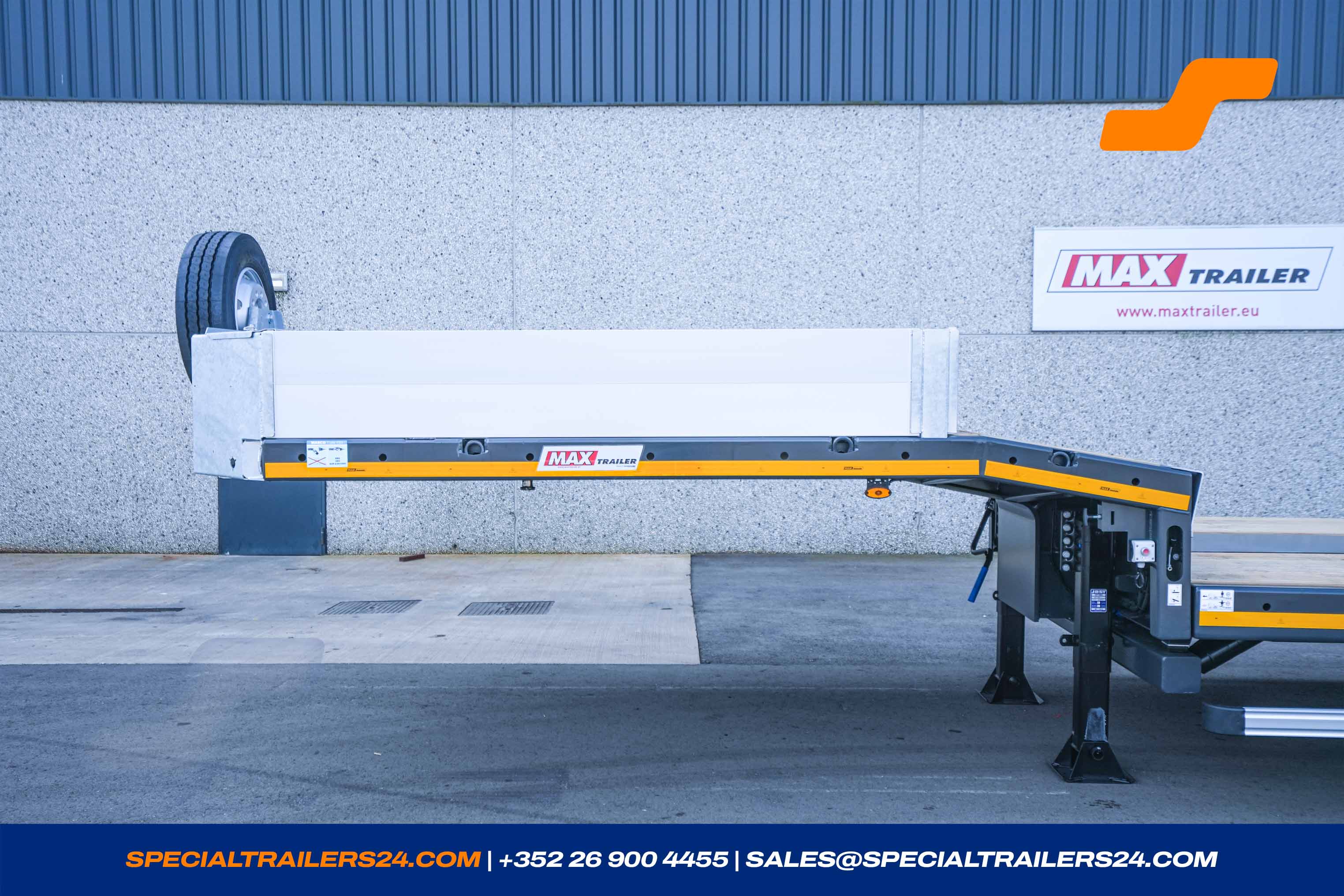

Gooseneck

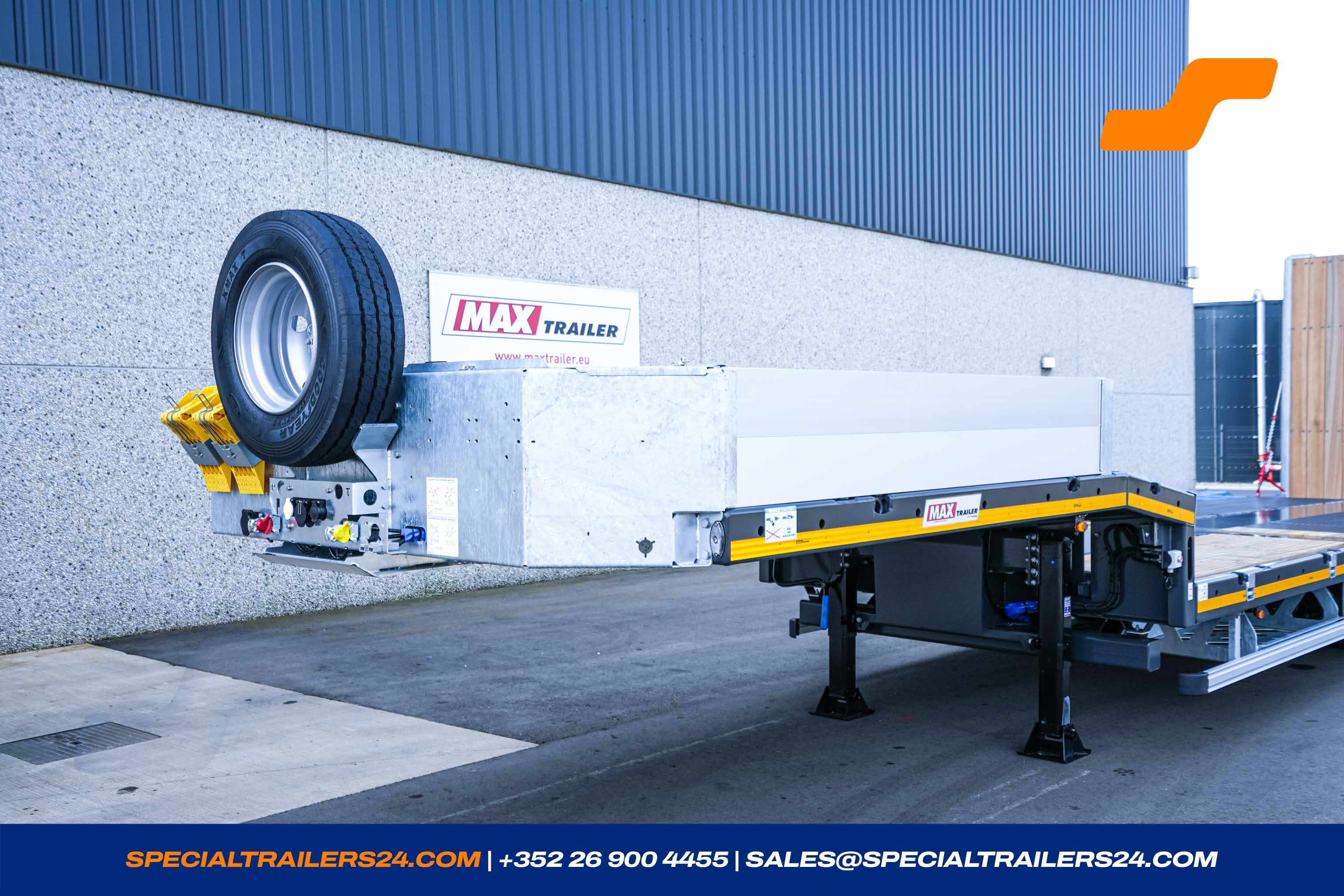

1 x Gooseneck : MAX-3.800-750-10° (DSR 2100/ASH 1200)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

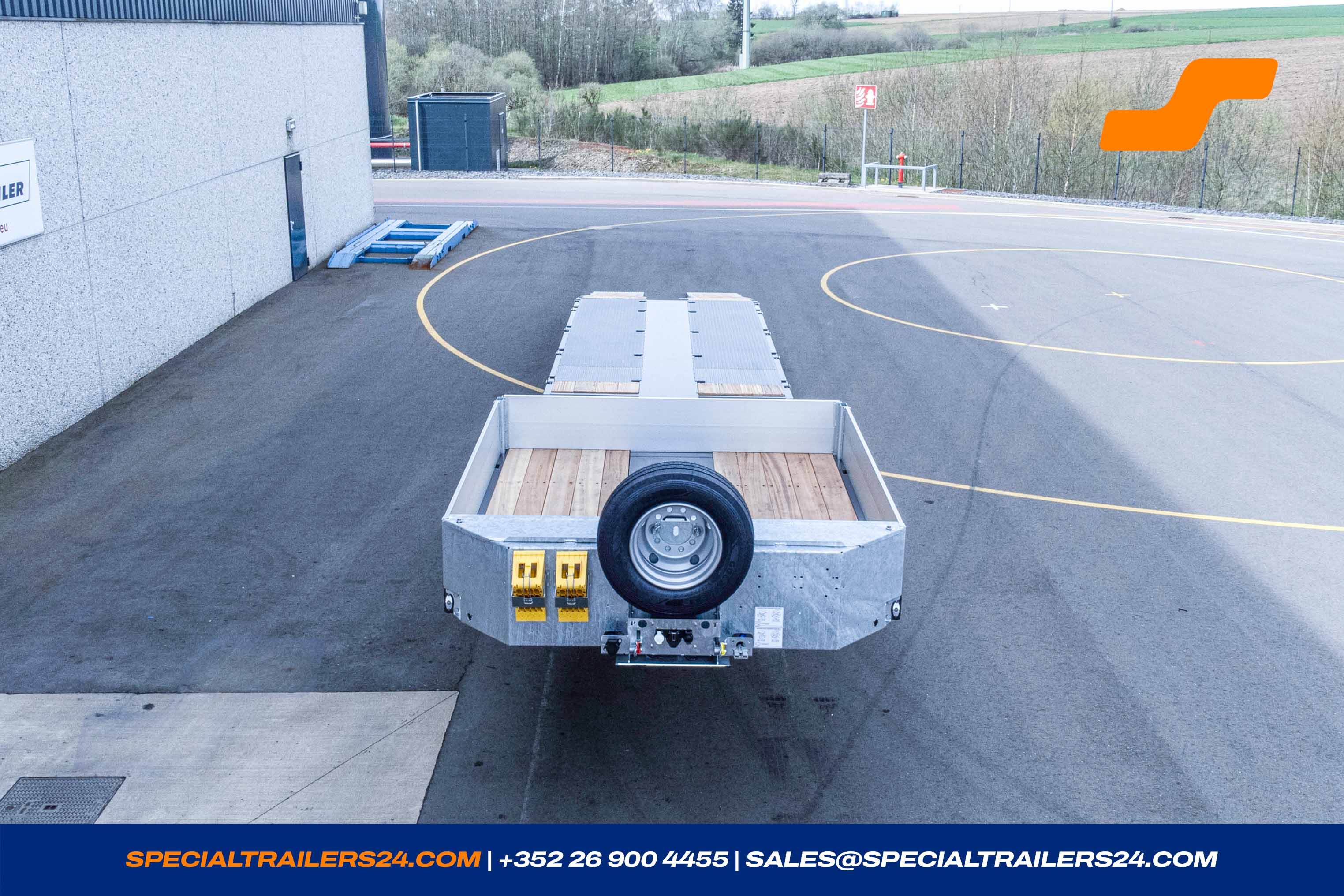

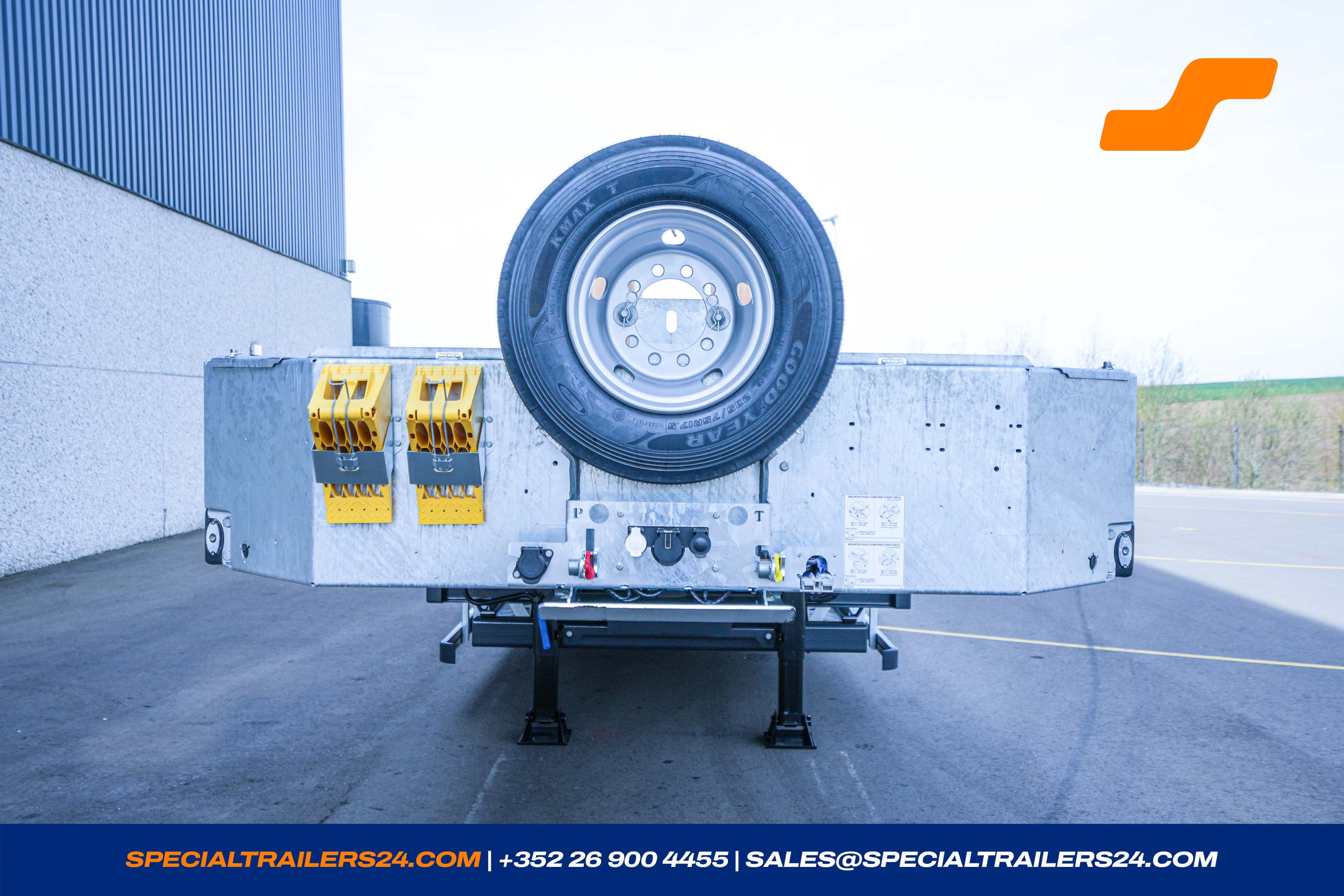

- One spare wheel with holder on the headboard.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-

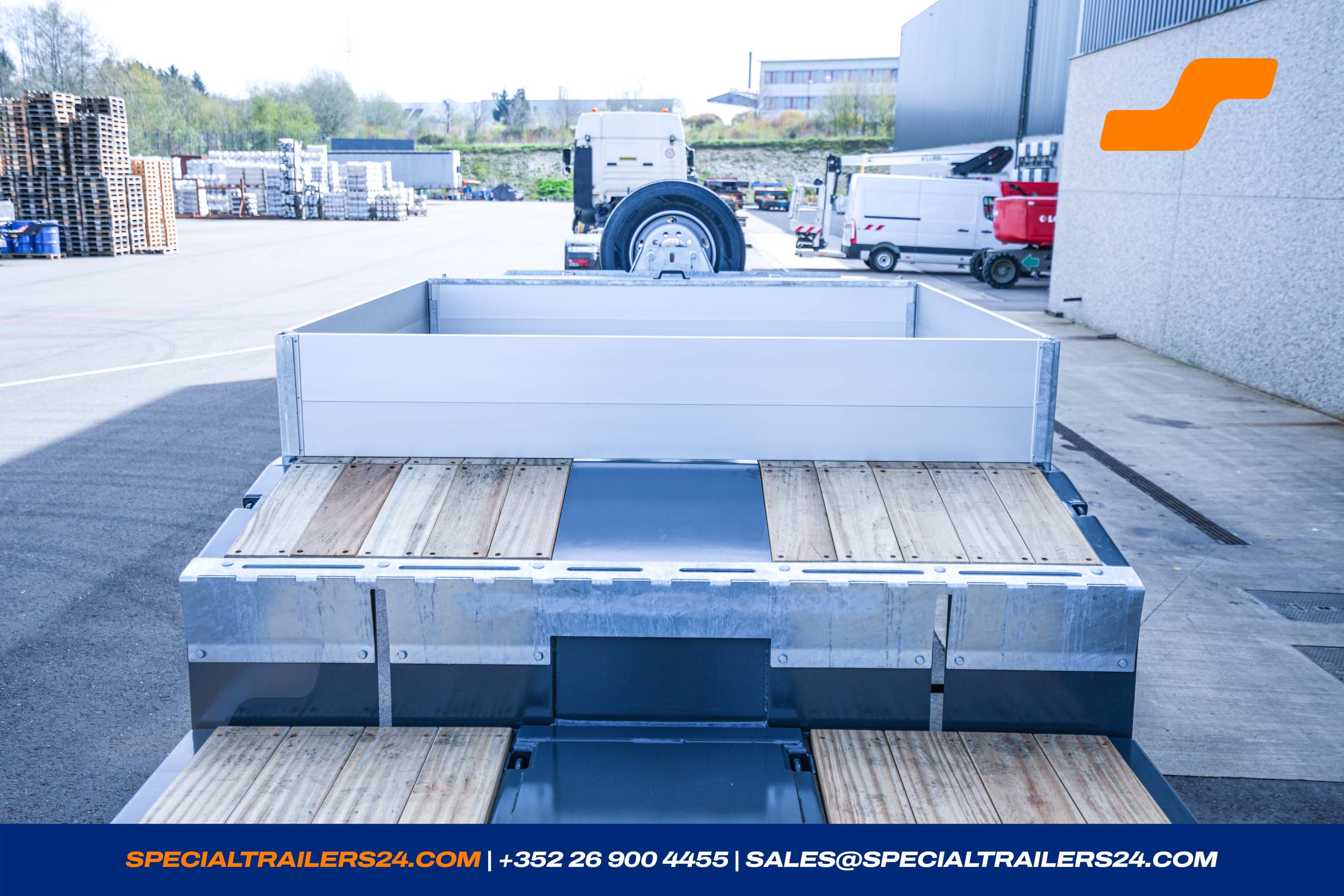

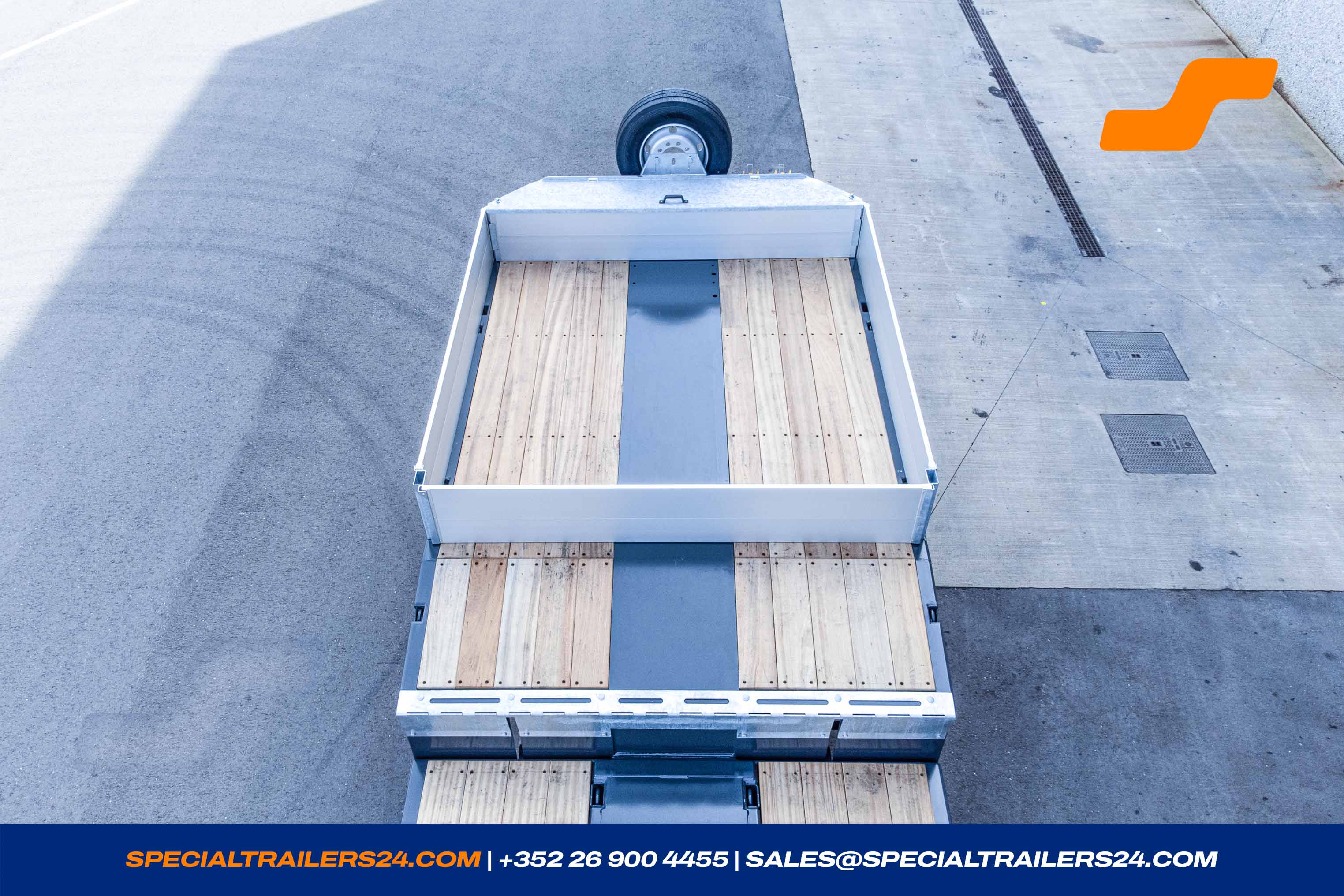

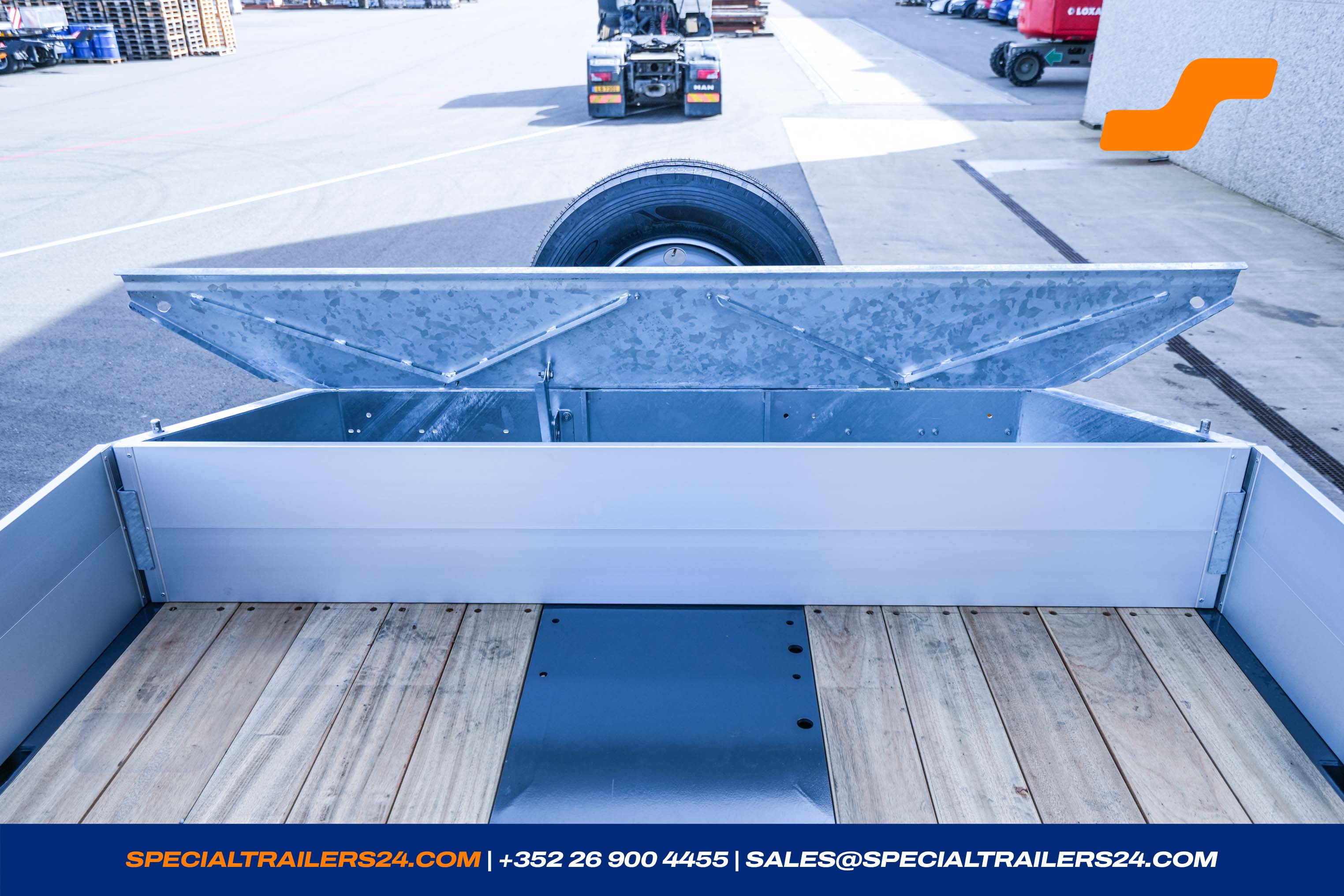

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
Loading deck

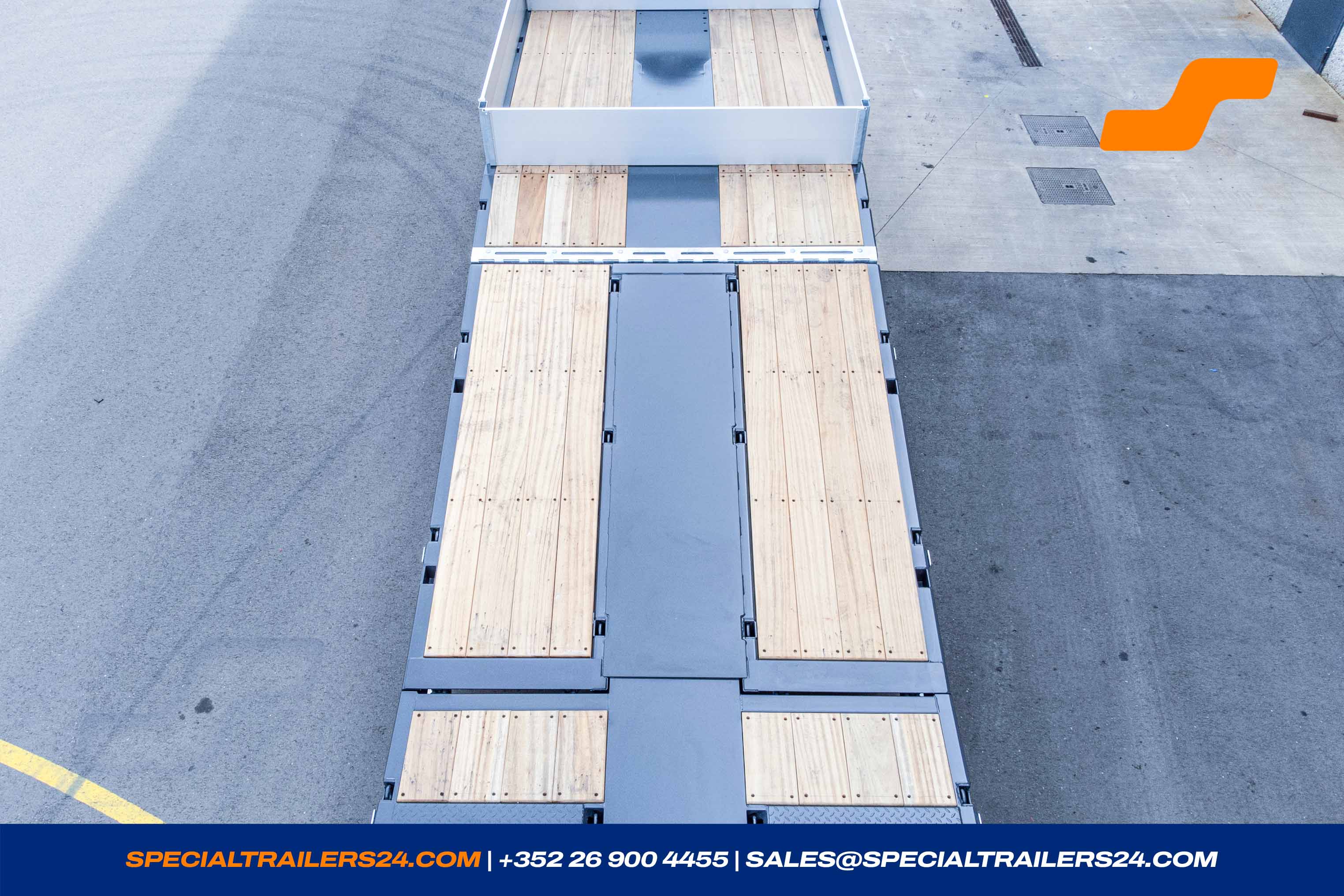

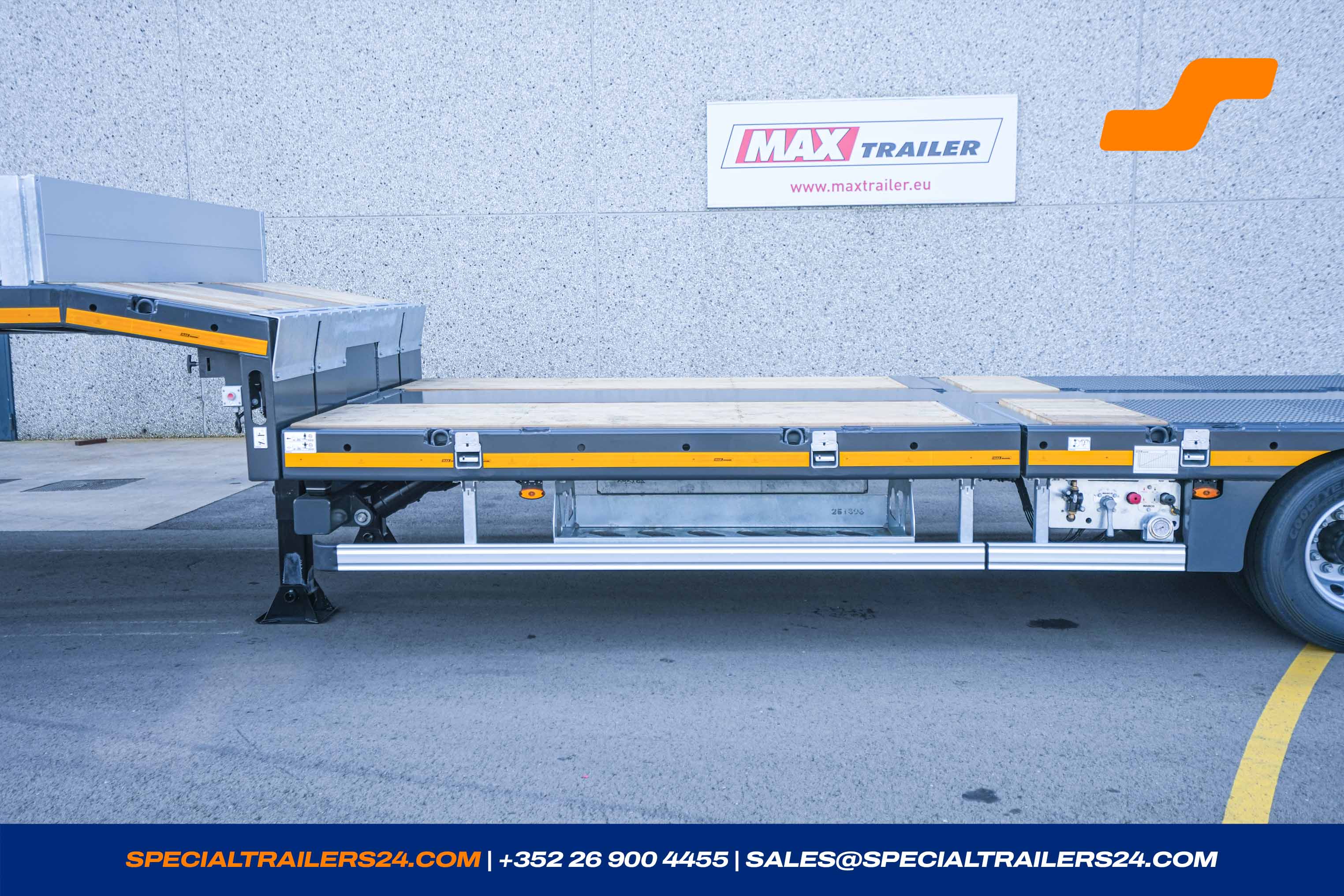

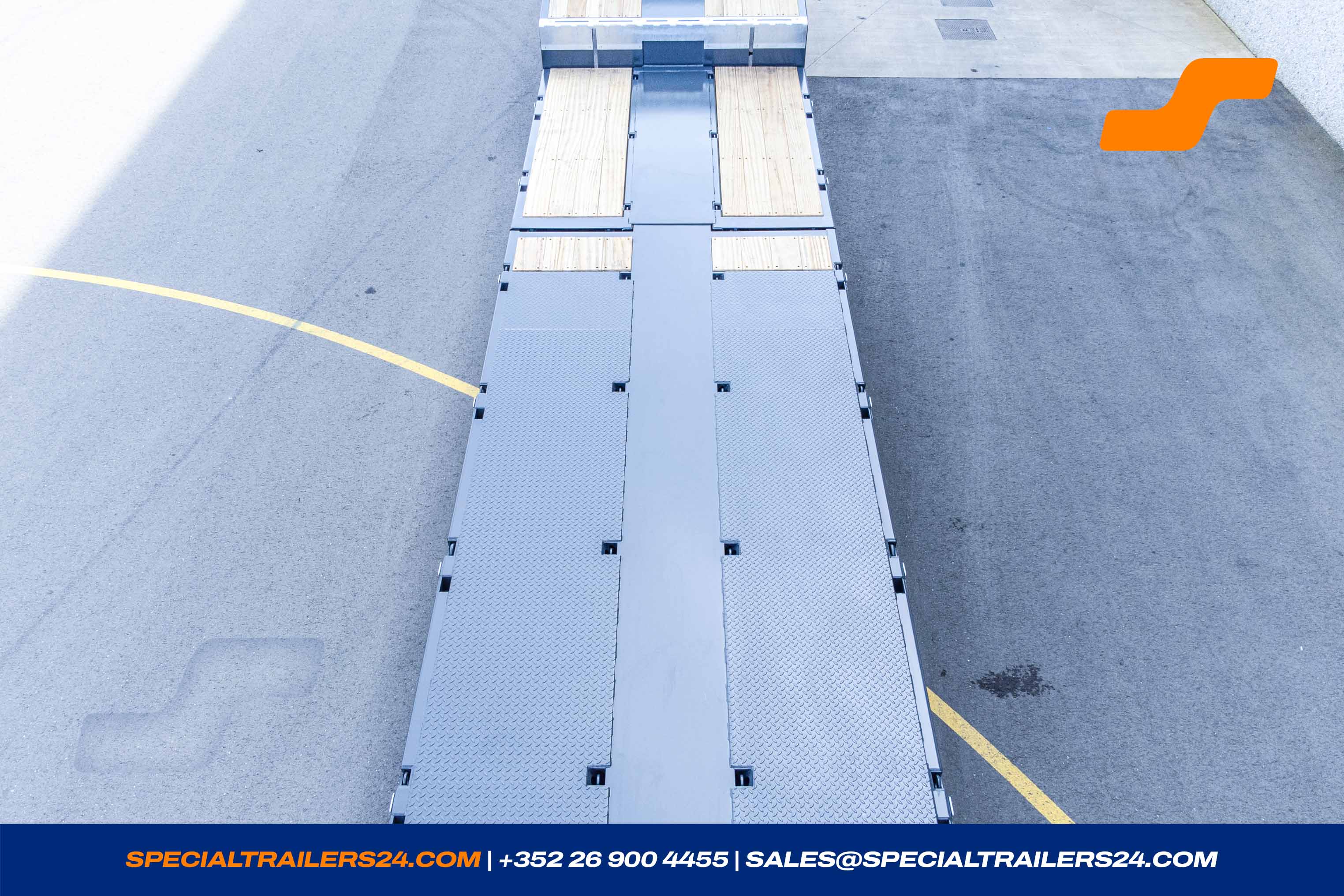

Loading platform
1 x Loading platform : MAX100-N-3BA-9.30-17.5-2.54

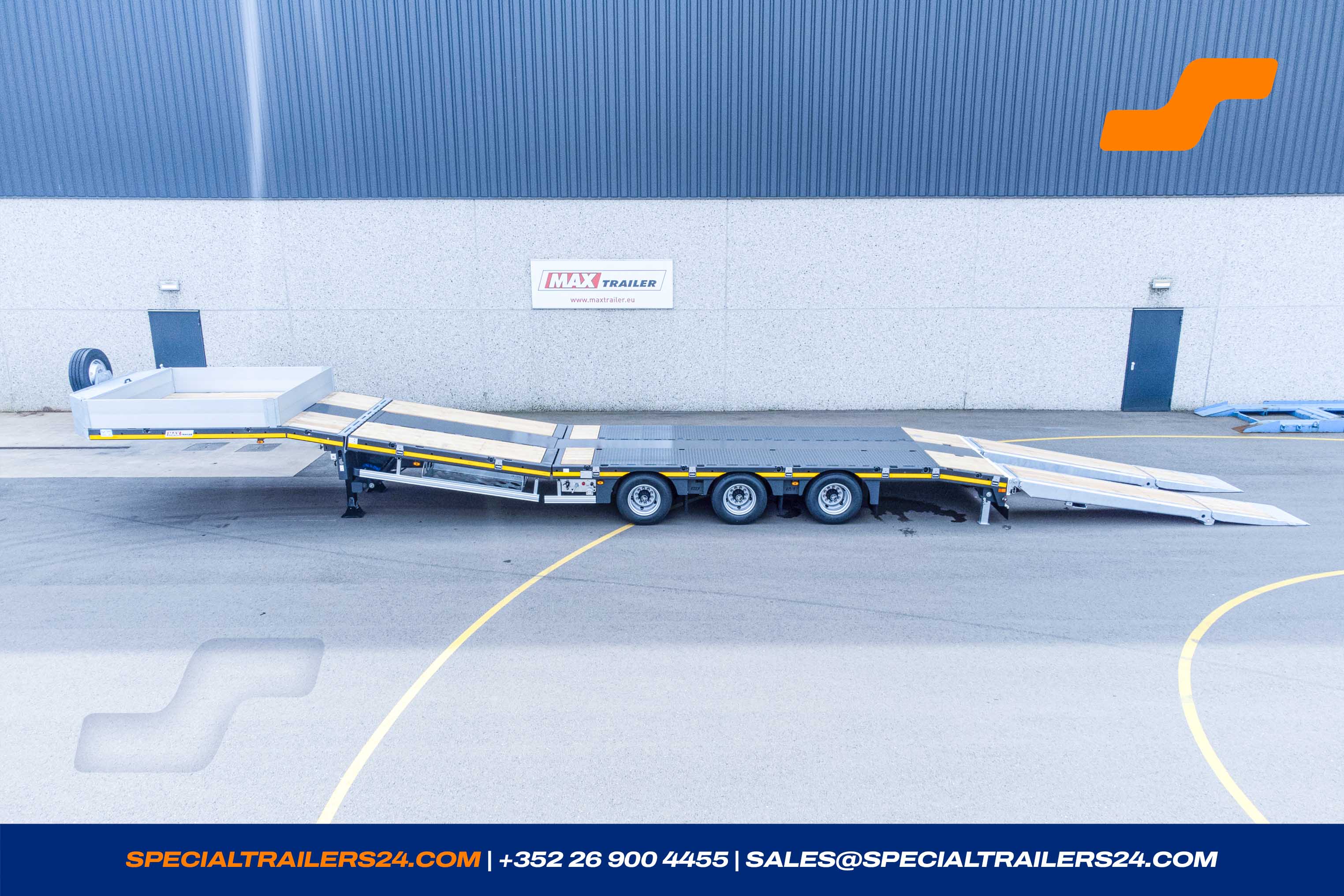

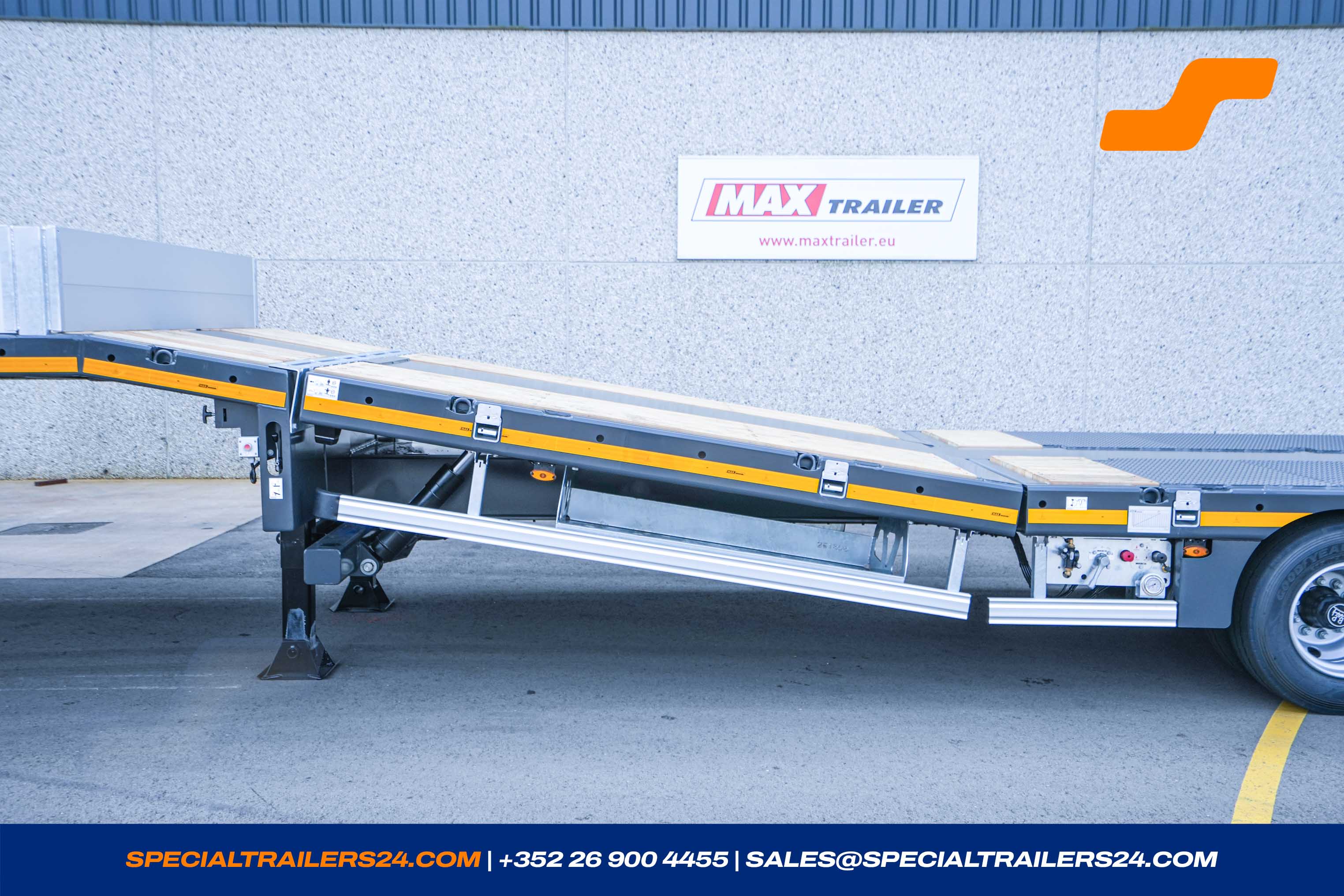

Loading platform in extendable version behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

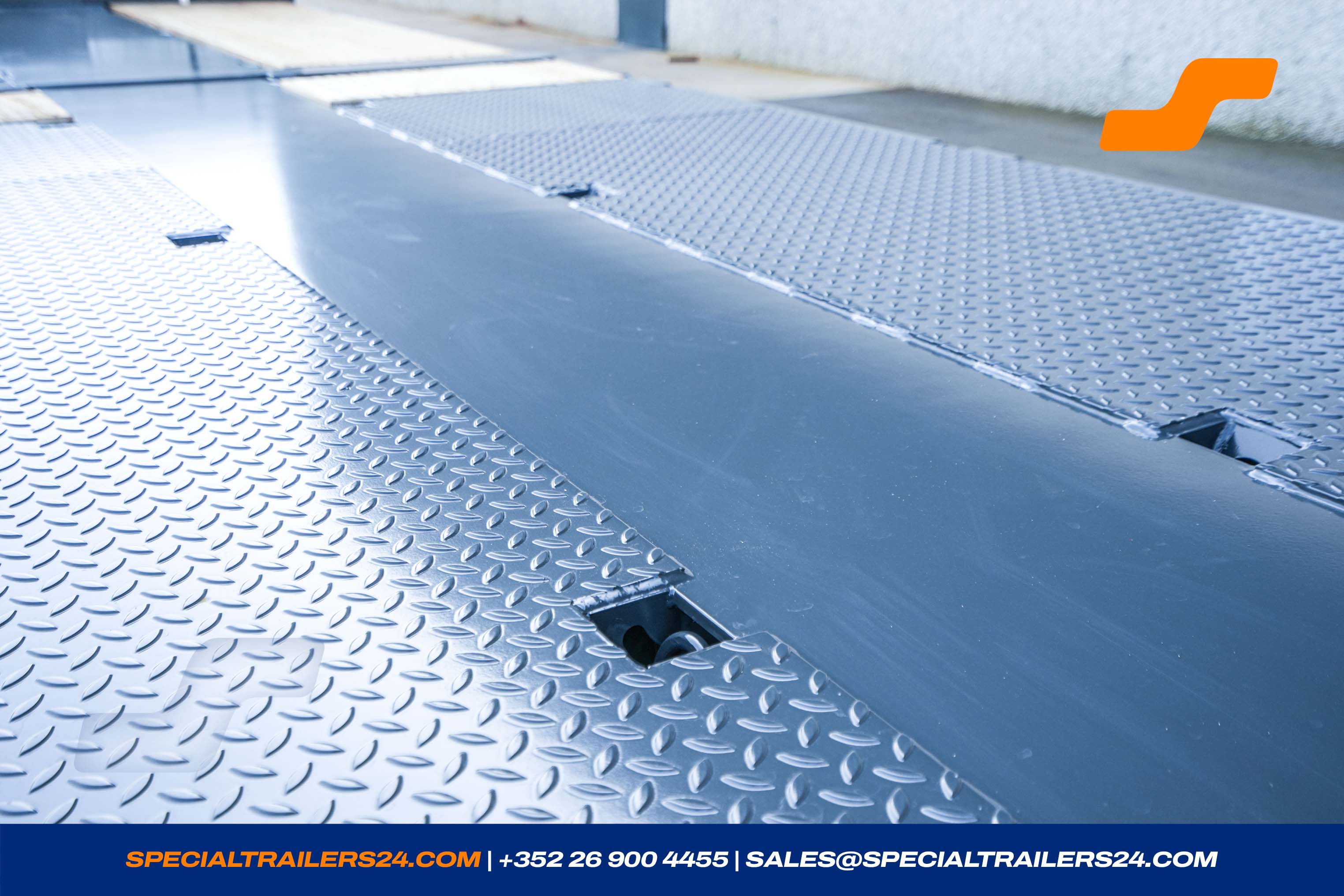

Hardwood cover thickness 48 mm above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

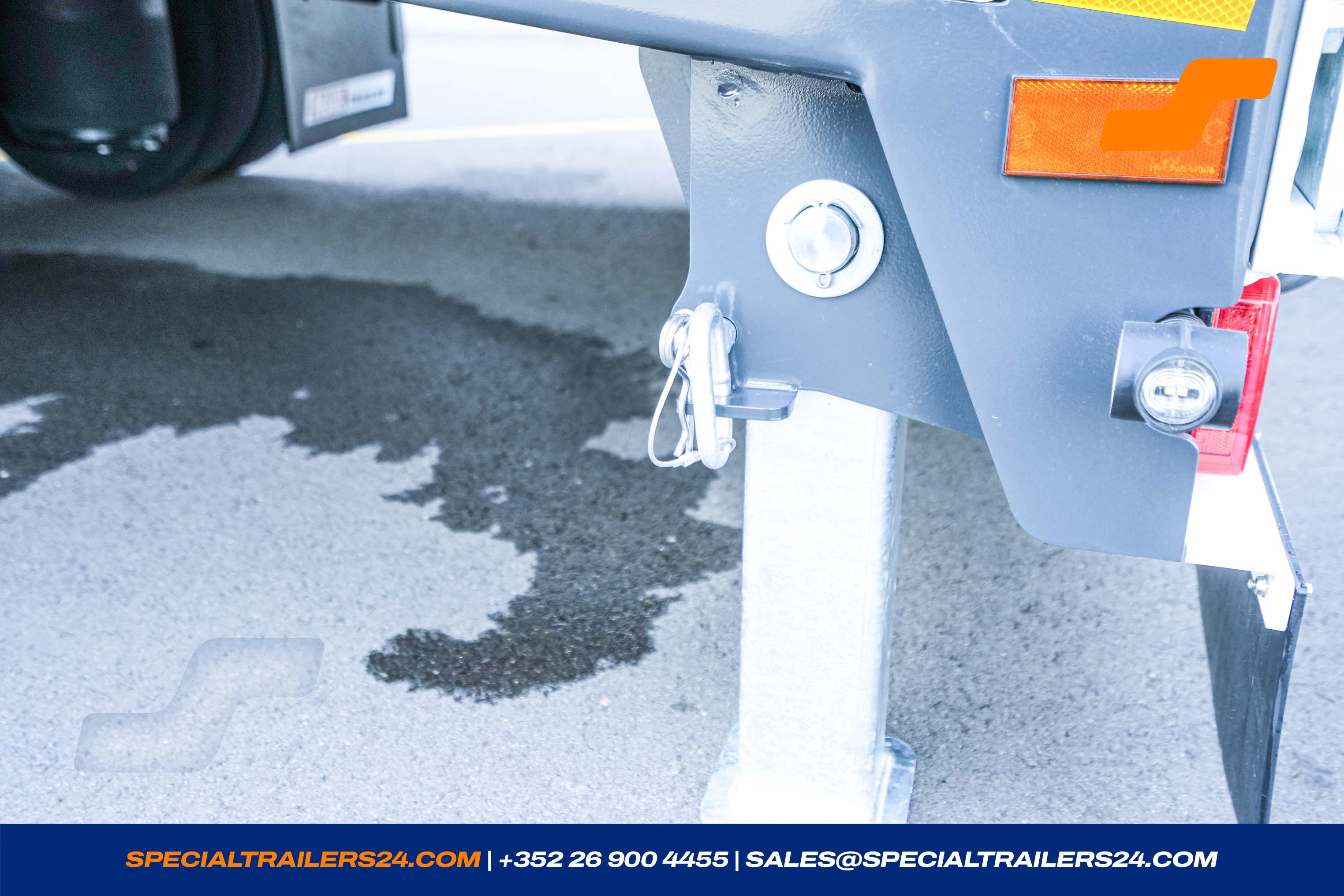

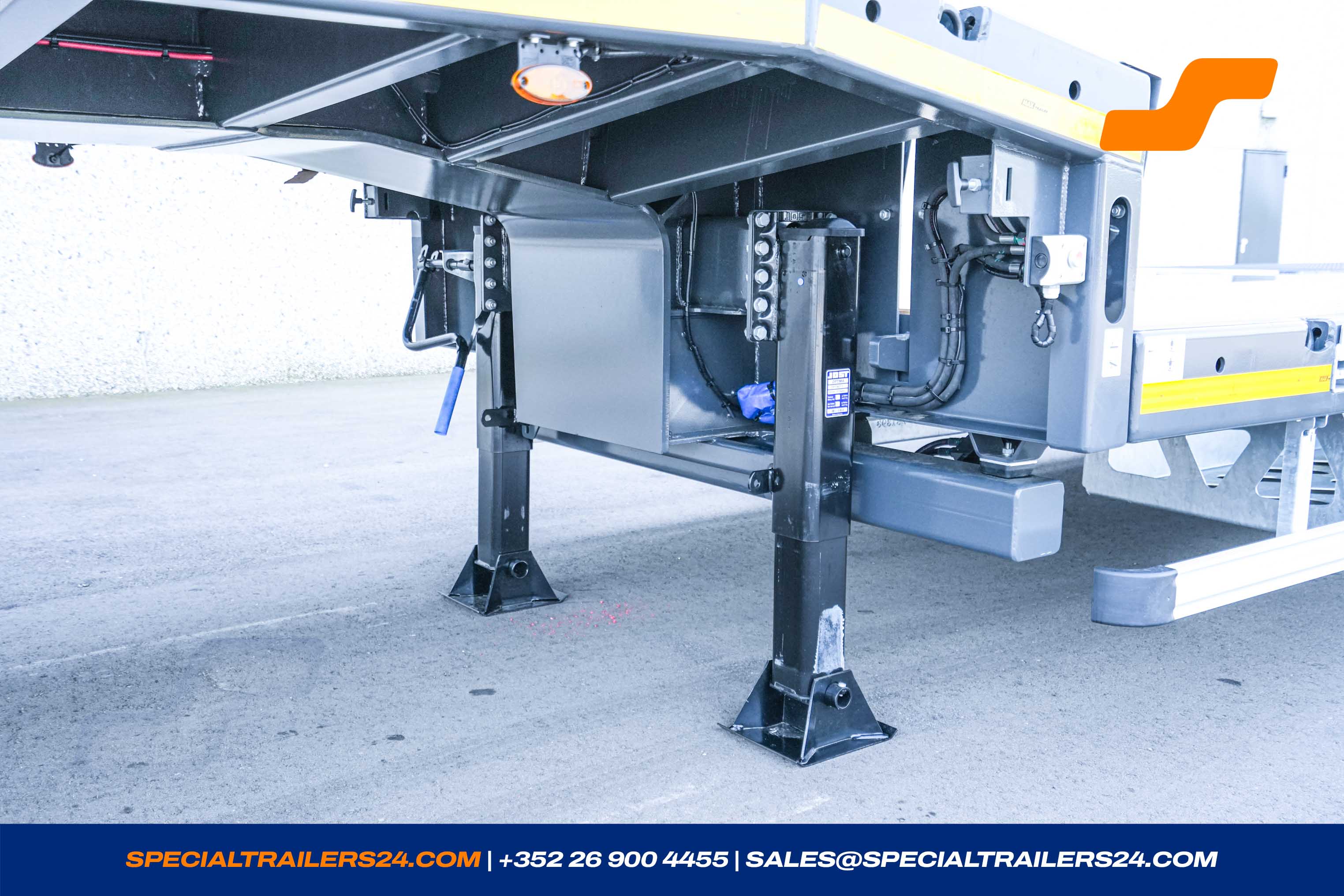

- Galvanised landing gears at the rear under the loading platform.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.

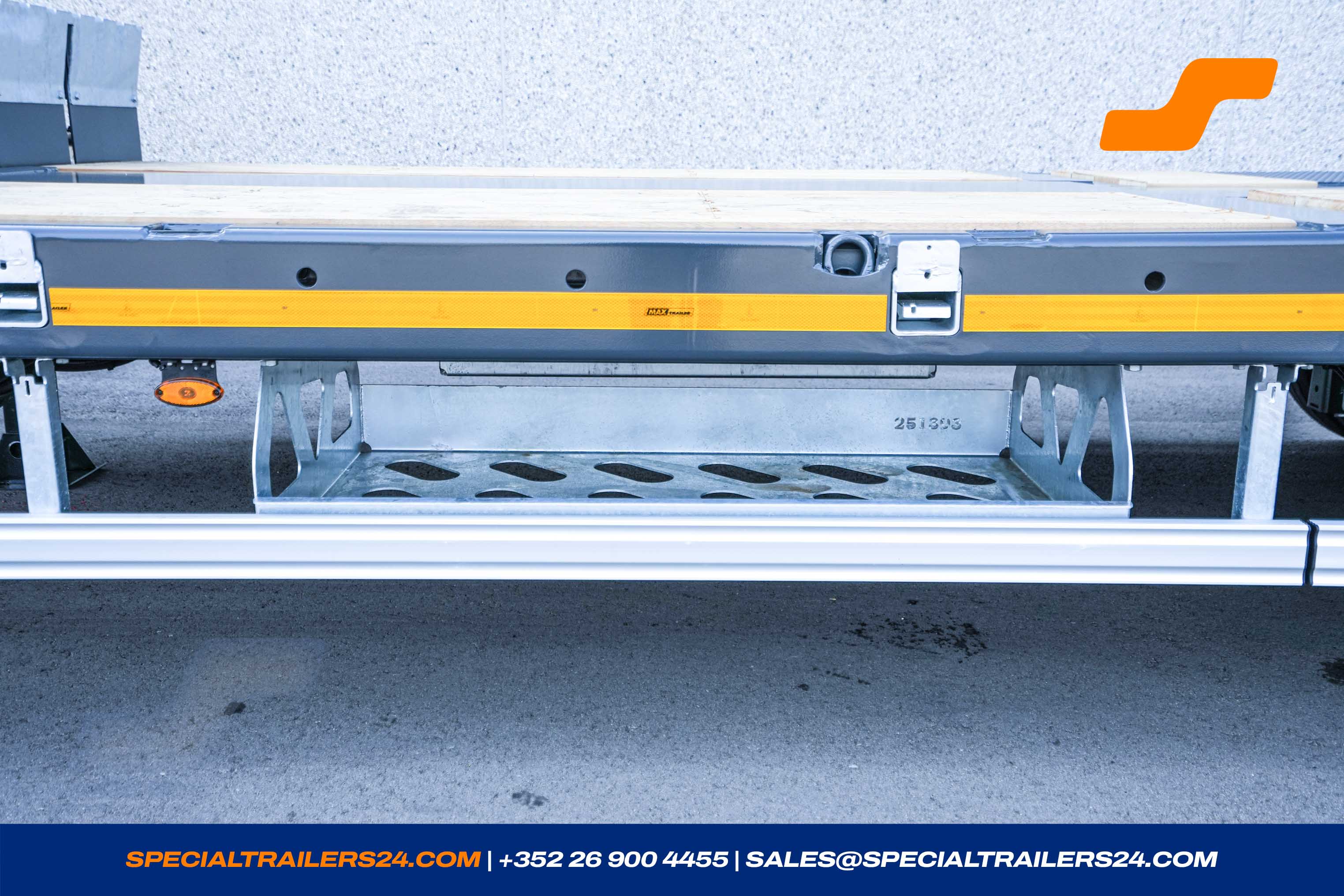

- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).

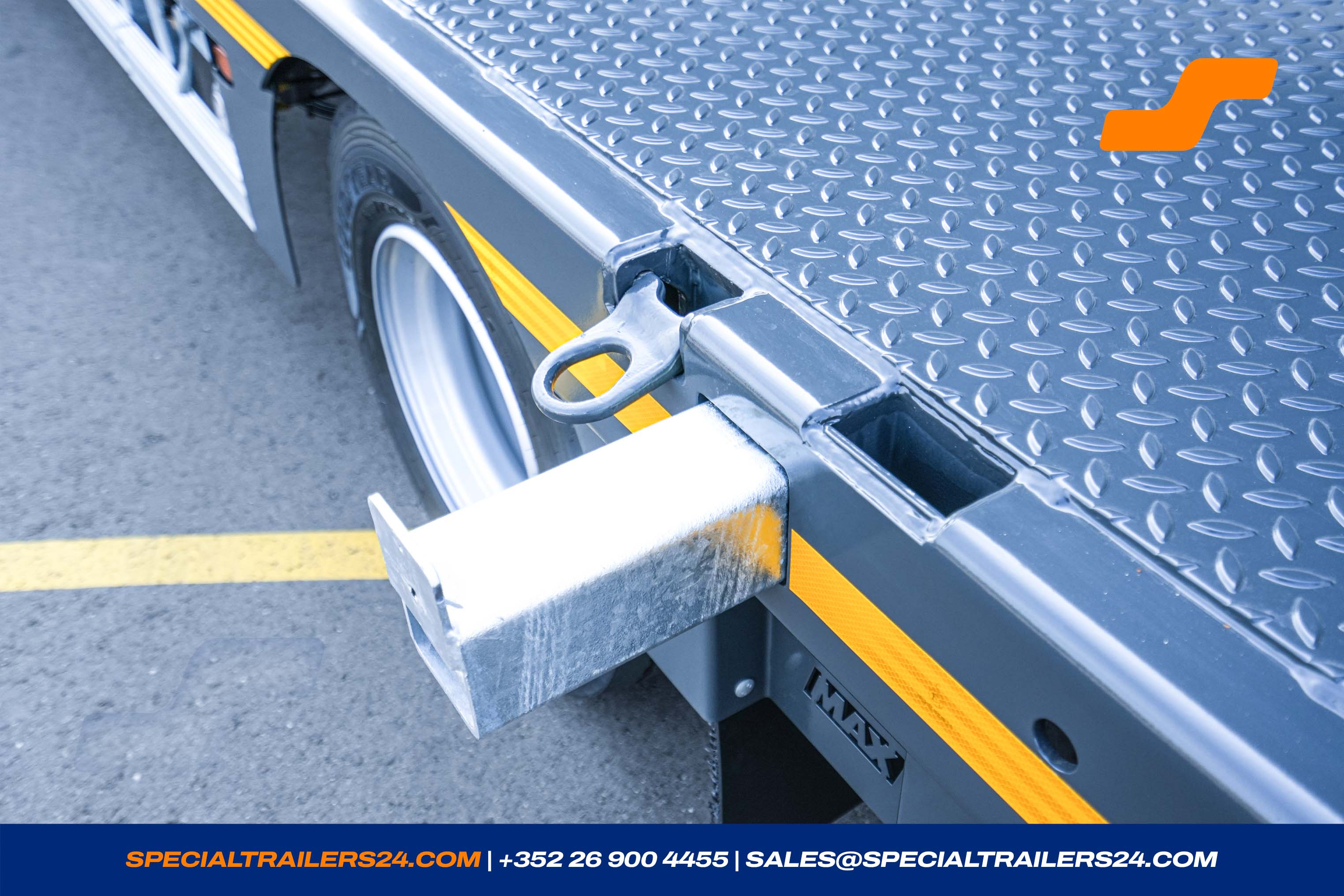

- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. - 1st Lift axle on the front axle with control by TEBS-E depending on the current axle load (± 69kg)
- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).
- 2 LED- reversing lights at the rear.
- Reflective tape red/white for the extension of the loading platform.
- 1 LED flashing beacon, provided separately.
Ramps

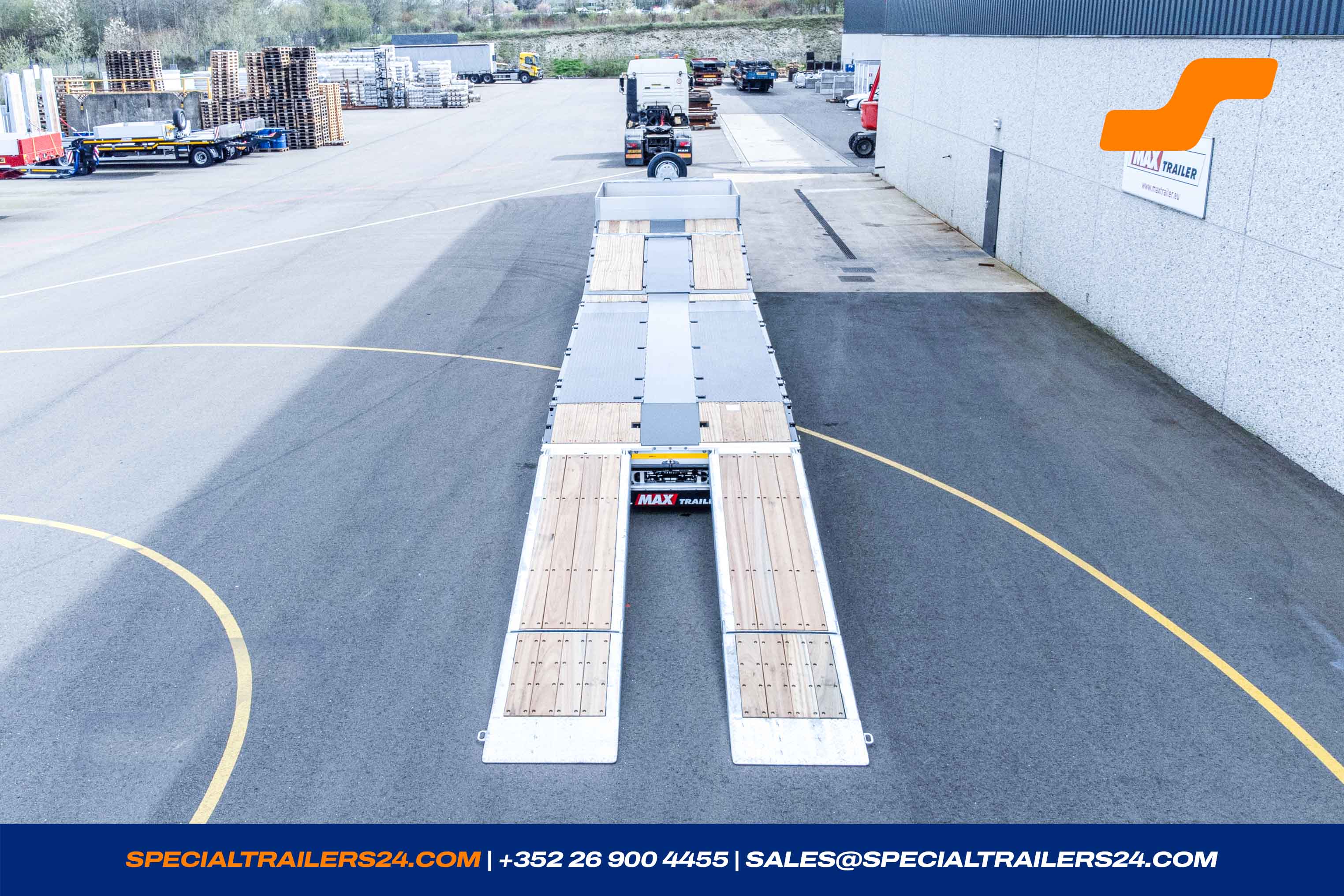

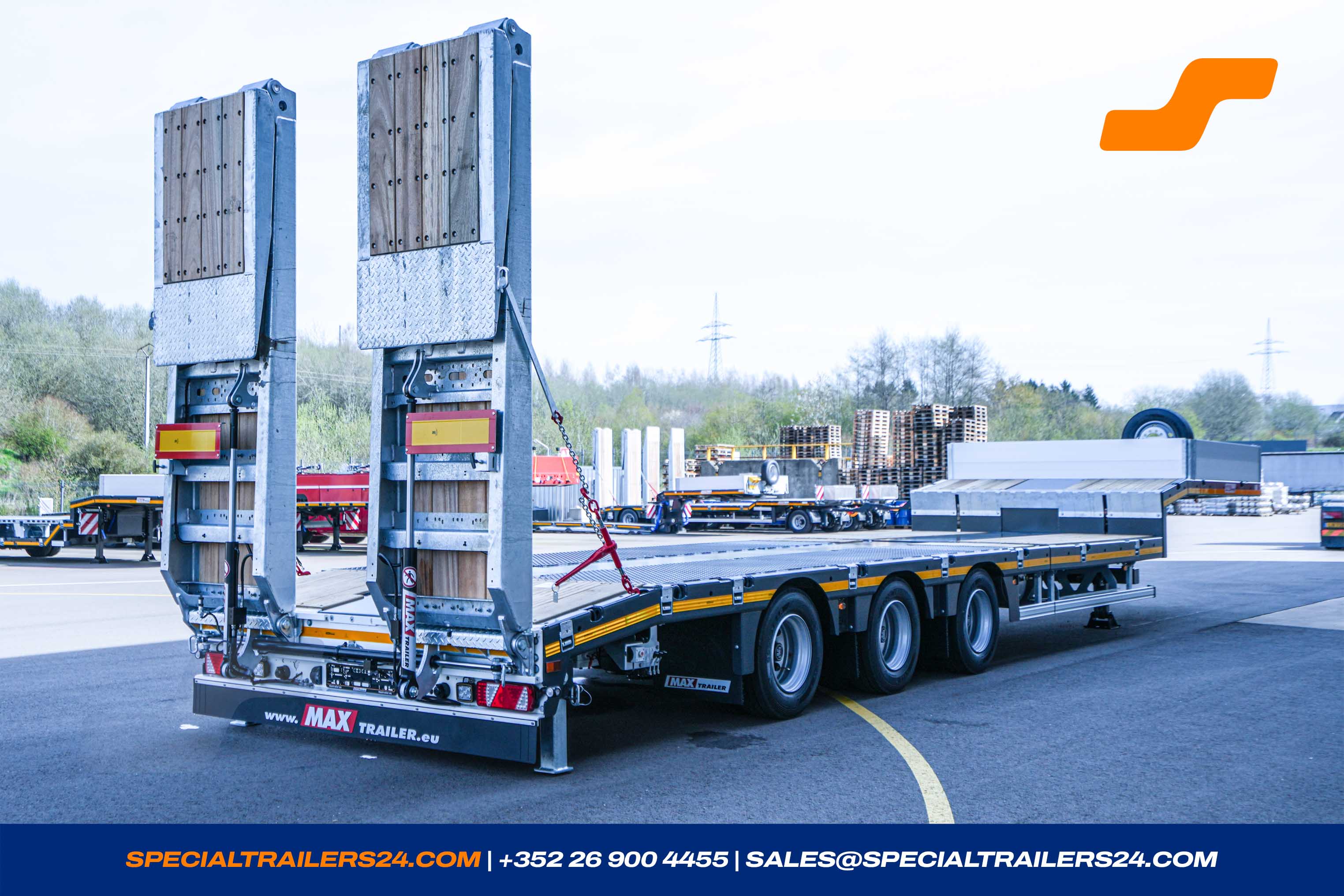

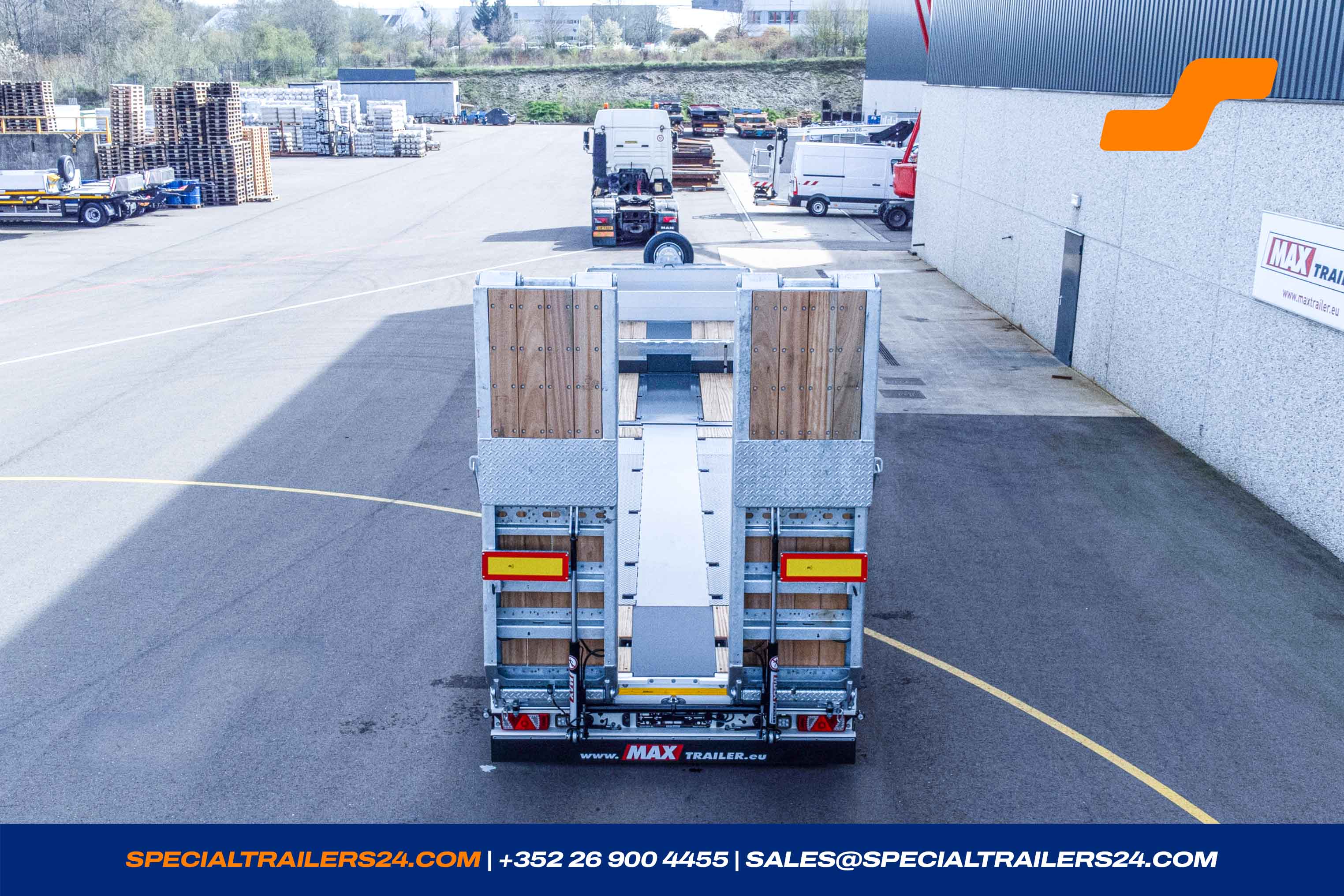

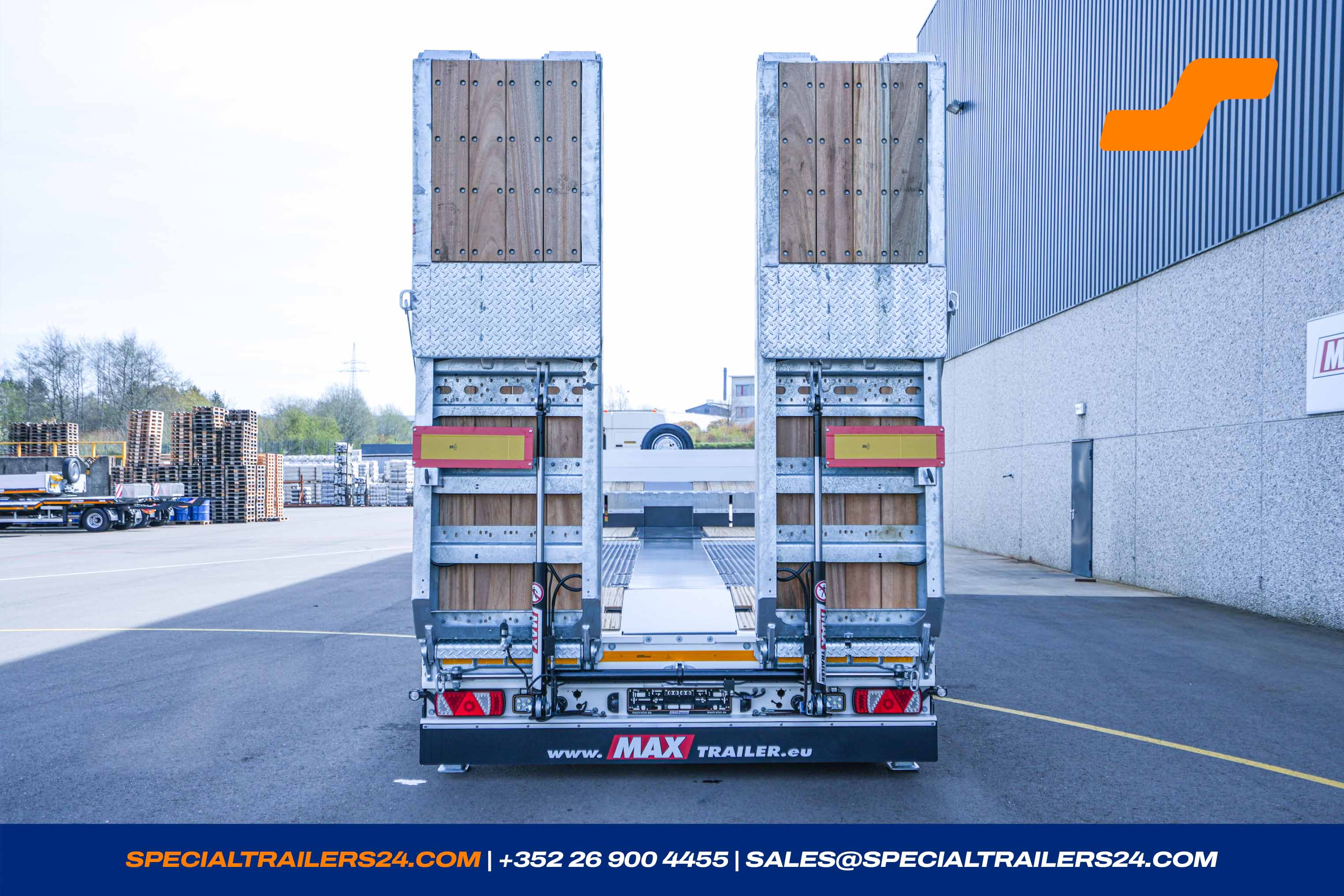

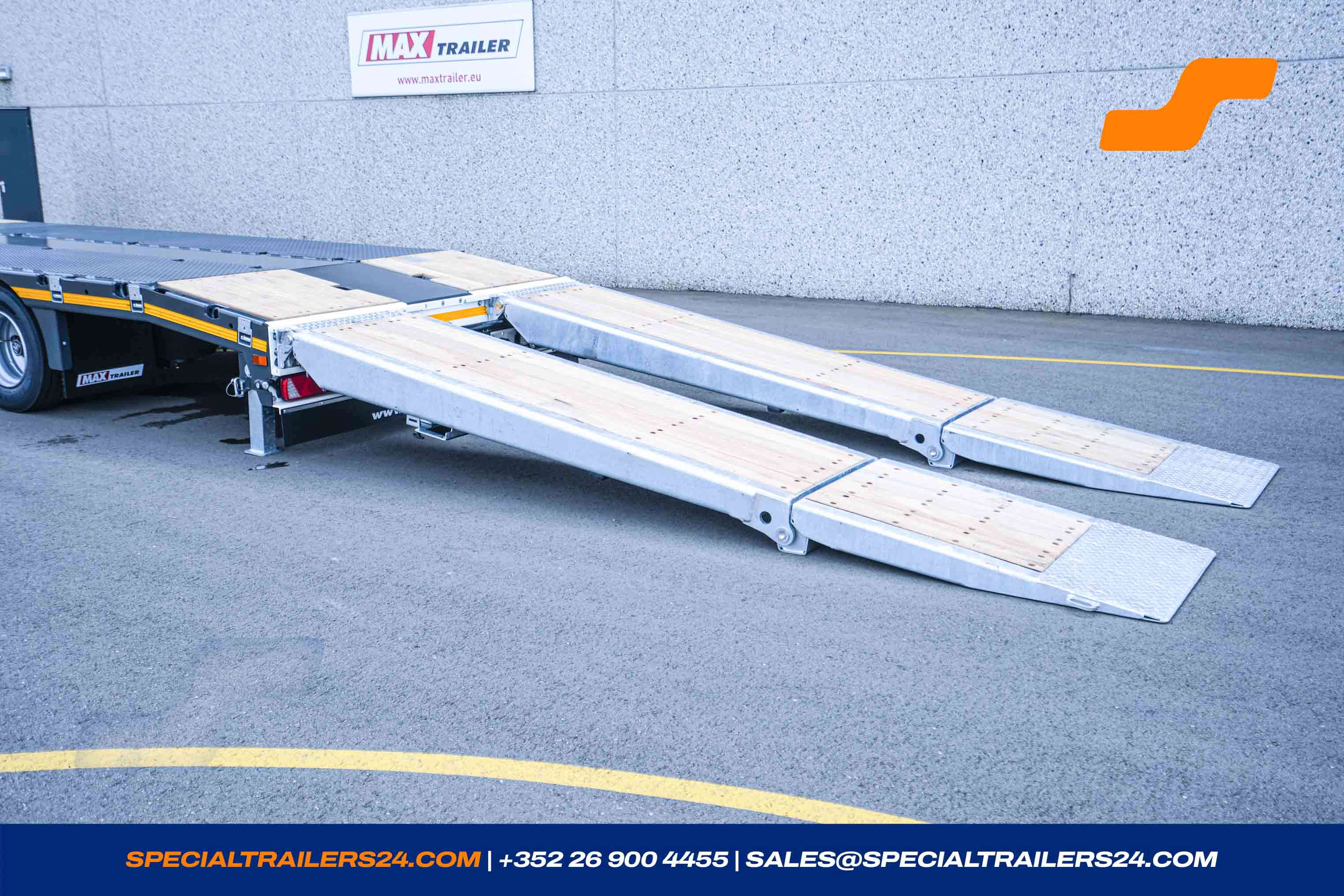

Hydraulic loading ramps

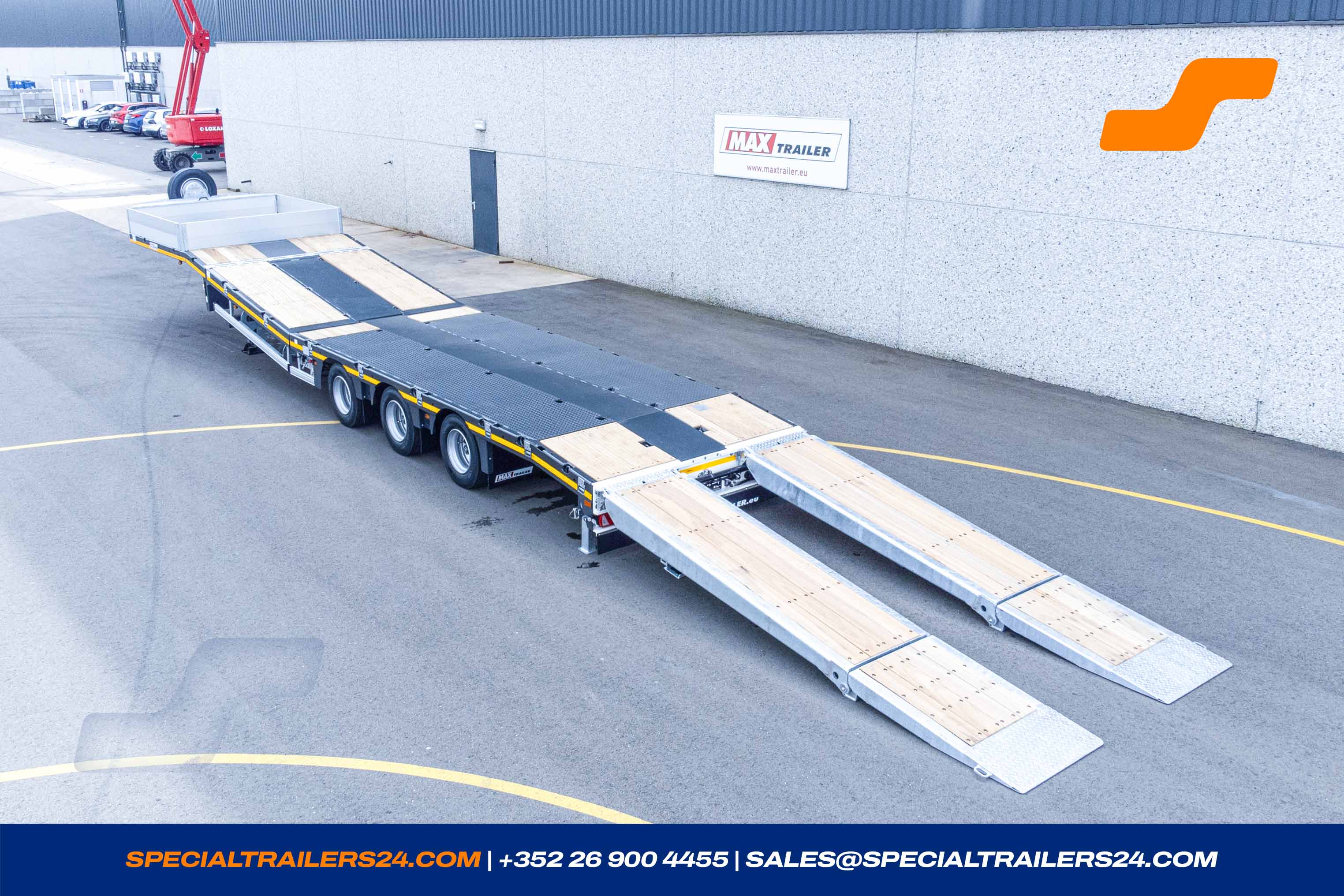

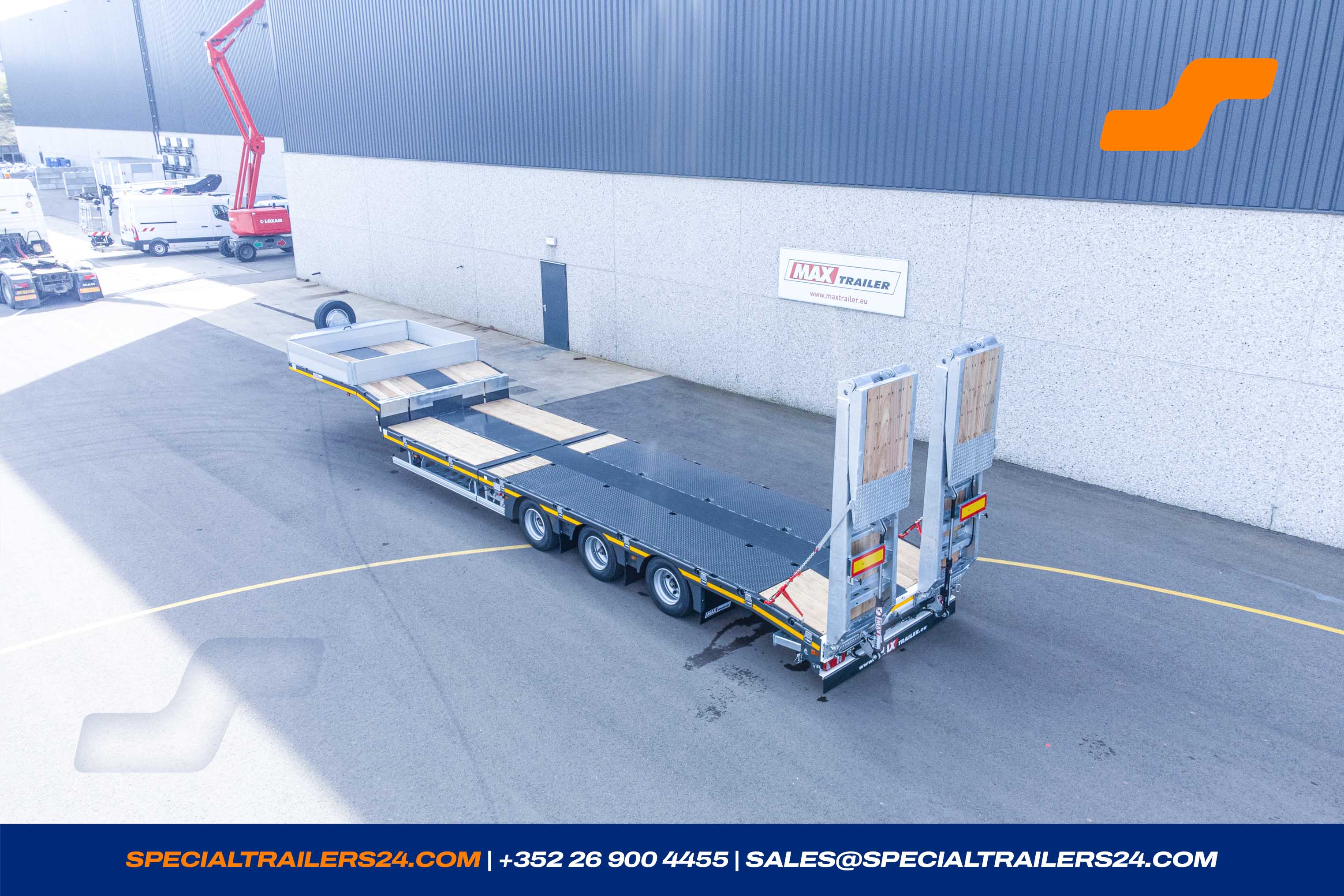

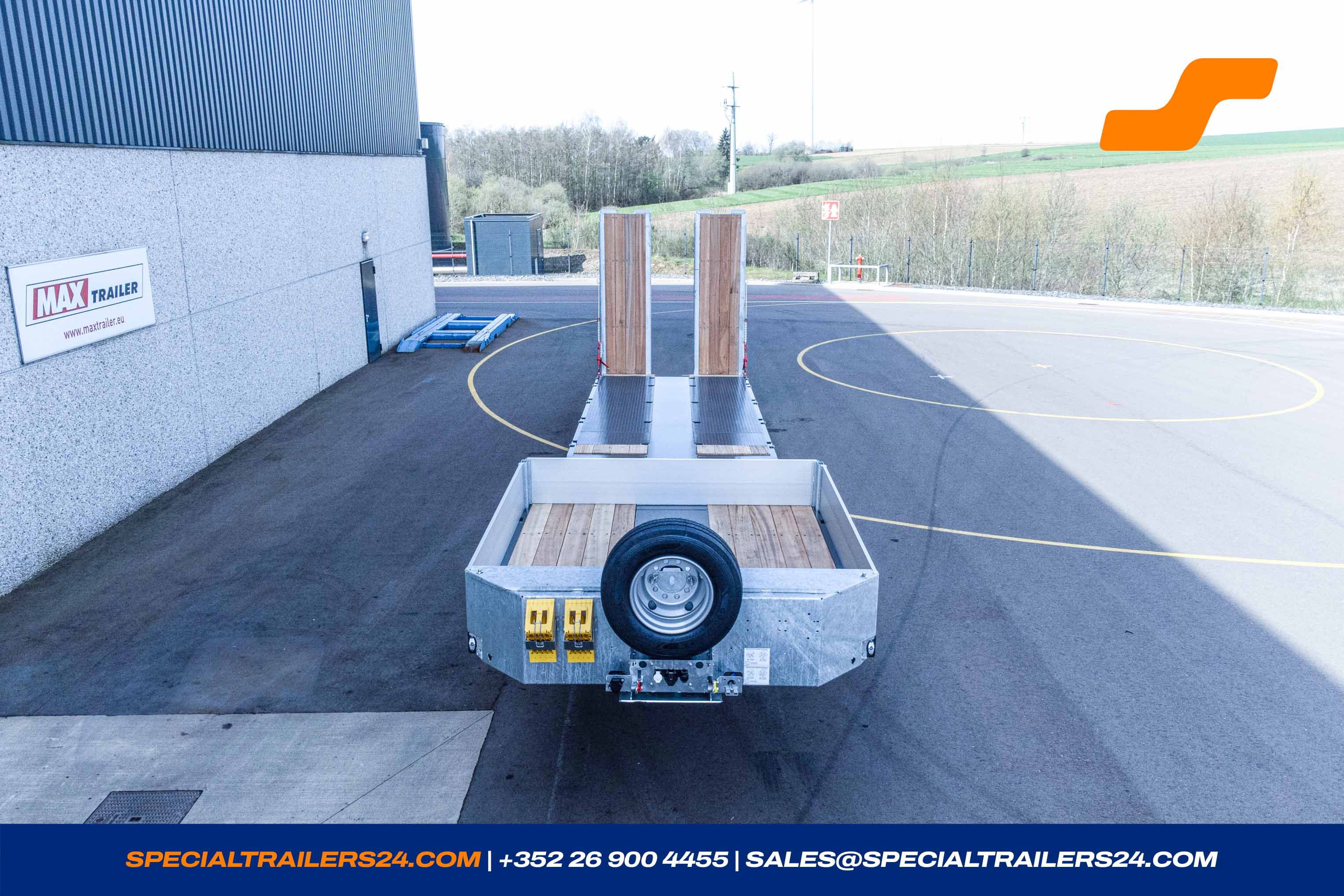

1 x Steel double flip ramps : DR-800-HH-40-HB-HVA
1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg

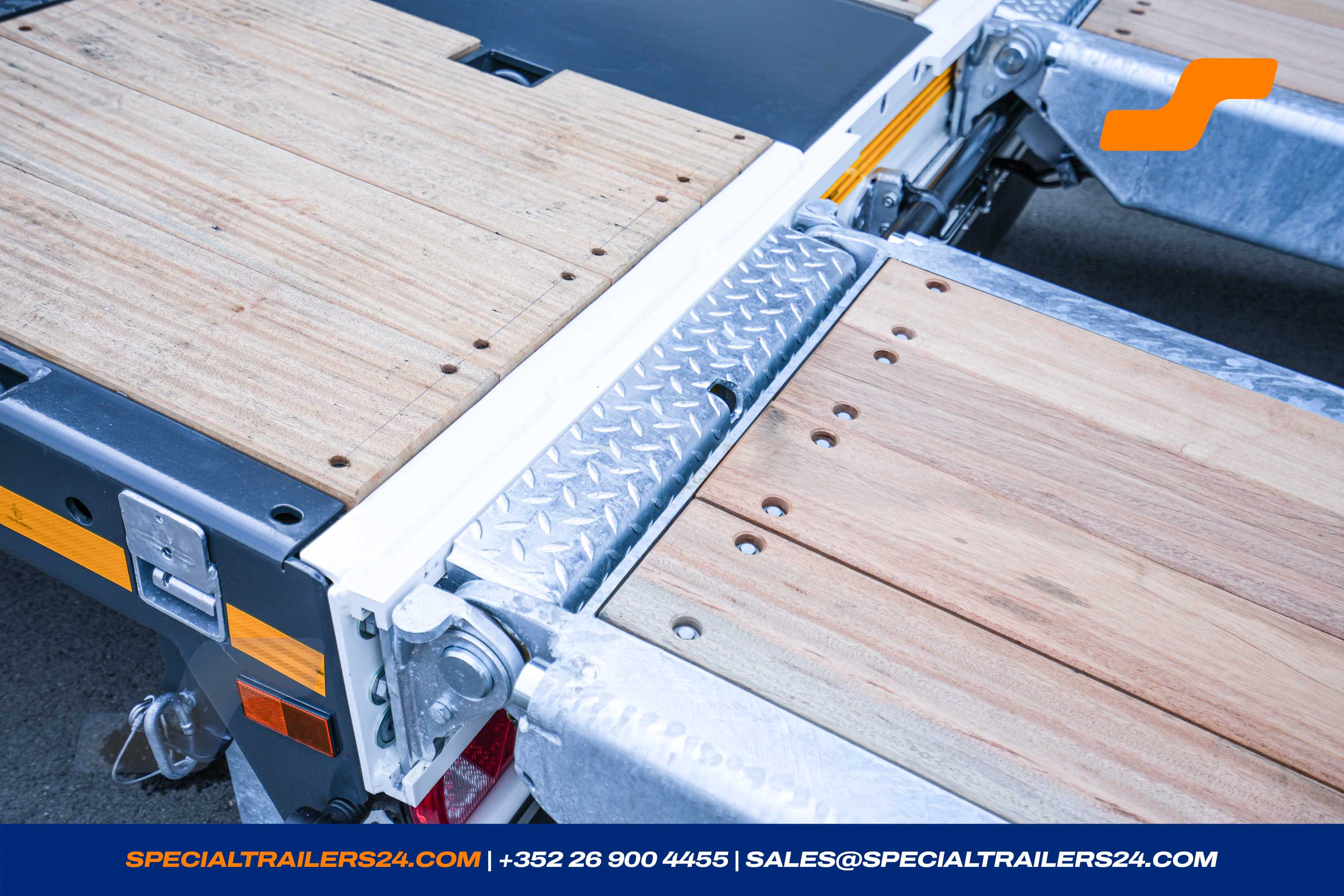

- Cover plates to bridge the clearance between ramps and loading area (± 17kg).

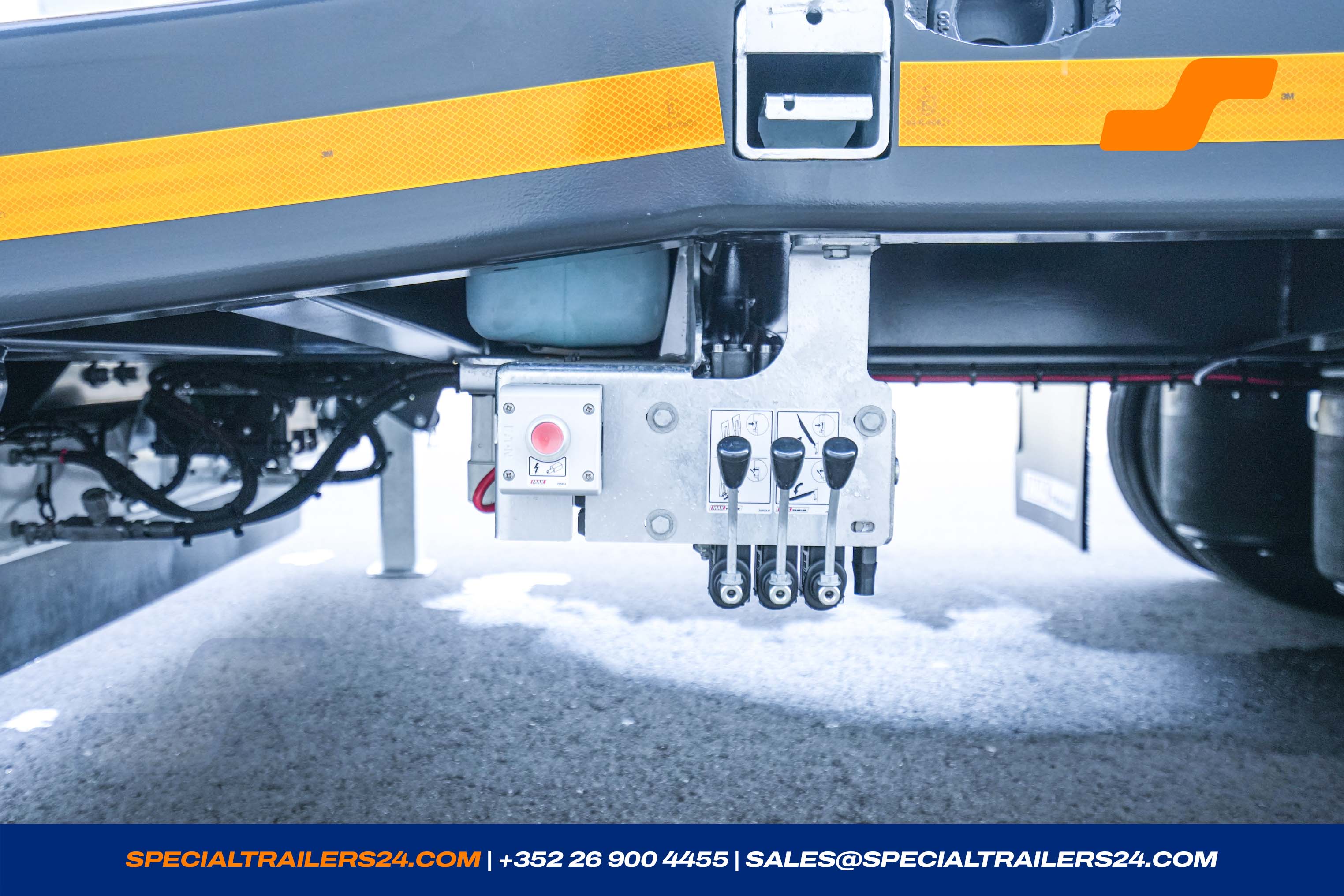

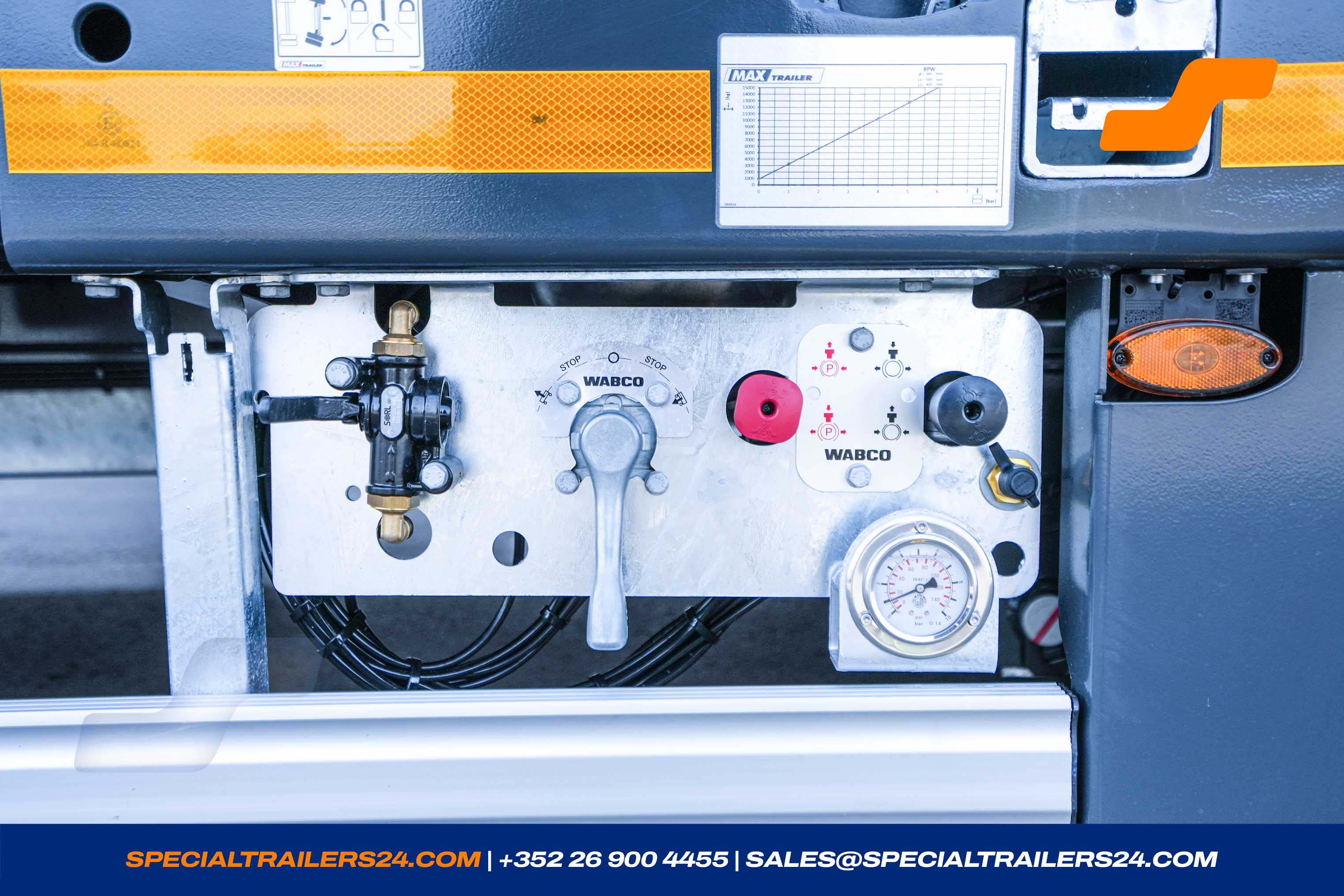

- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessory
MAX100-Accessory
- Manual and description on USB stick .
- Holder for one beacon light at the rear right and left of the trailer.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Delivery from a trailer to factory Lentzweiler.
- Codice d'immatricolazione
