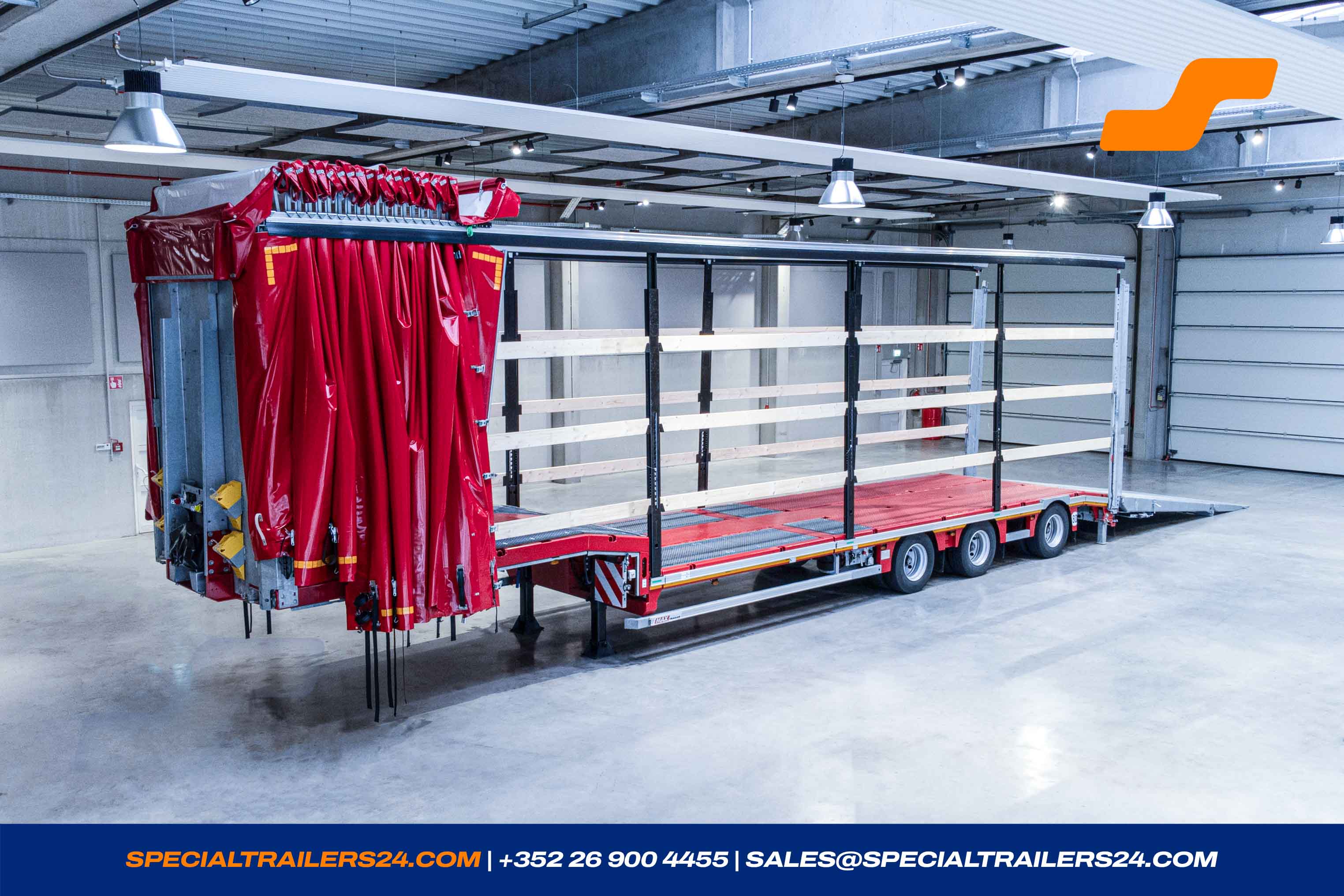

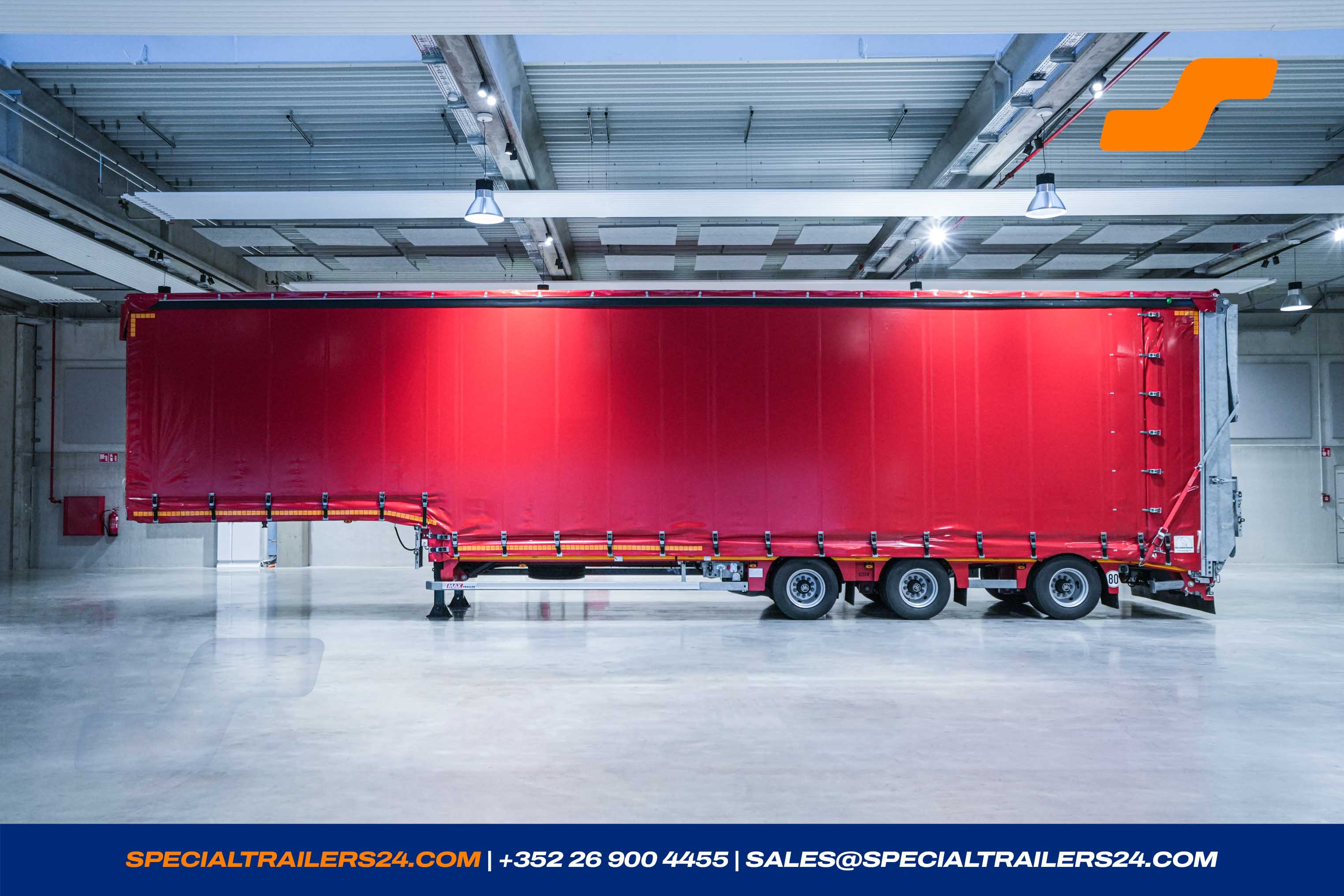

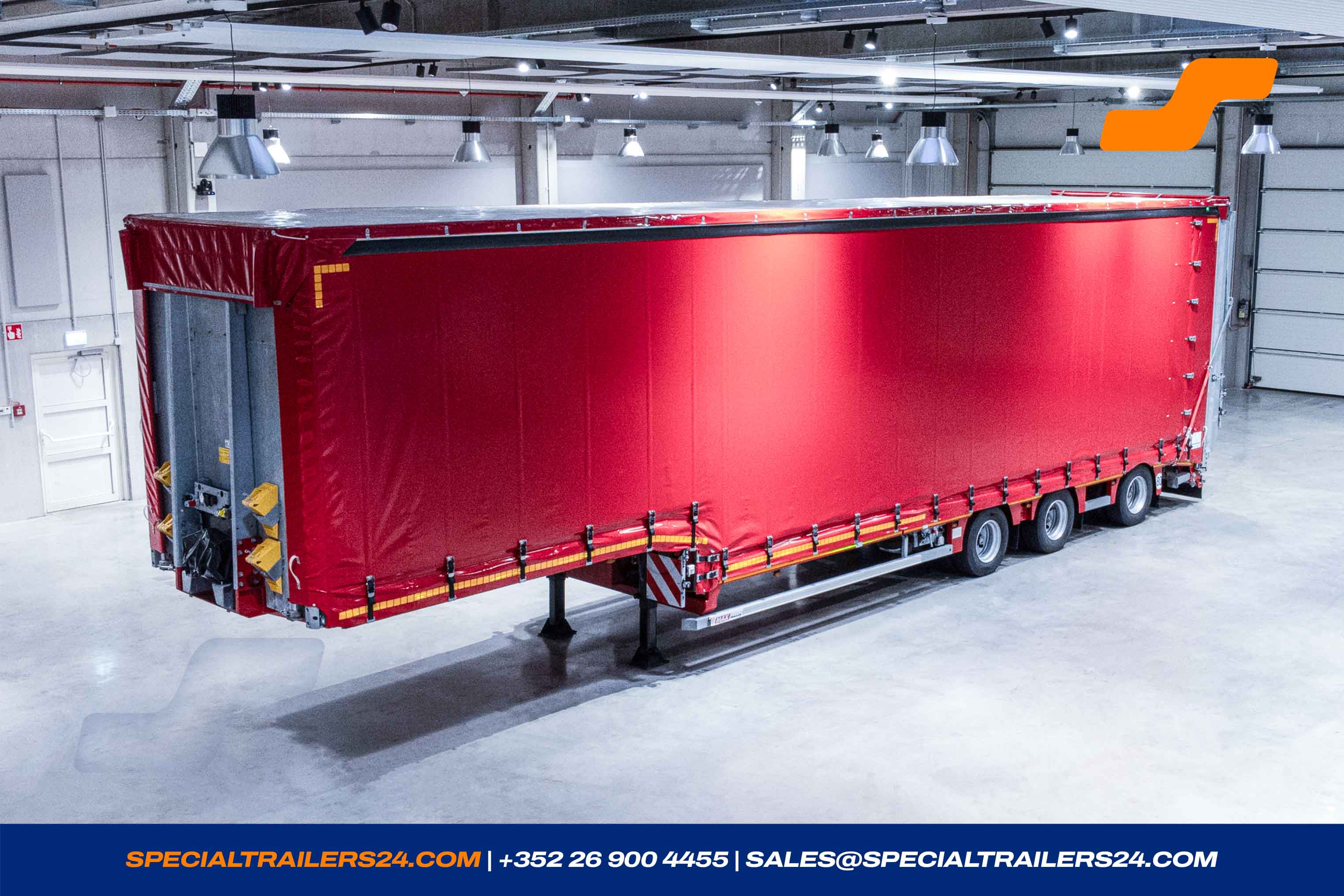

Low loader
MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111270
- Reference MAX100-N-3B-9.30-(CS)-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9005 - Jet black
- Availability Directly available
- Steering Type Rigid
Availability
Directly available
Price
On request
Location
Landsberg/Lech, Germany
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 12643 kg |
| Payload | 36857 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Wheelbase | 1360/1810 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 480 mm |
| Suspension stroke | -55/ +145 mm |
Gooseneck
1 x Gooseneck : MAX-3.800-750-10° (DSR 2100/ASH 1150)
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.

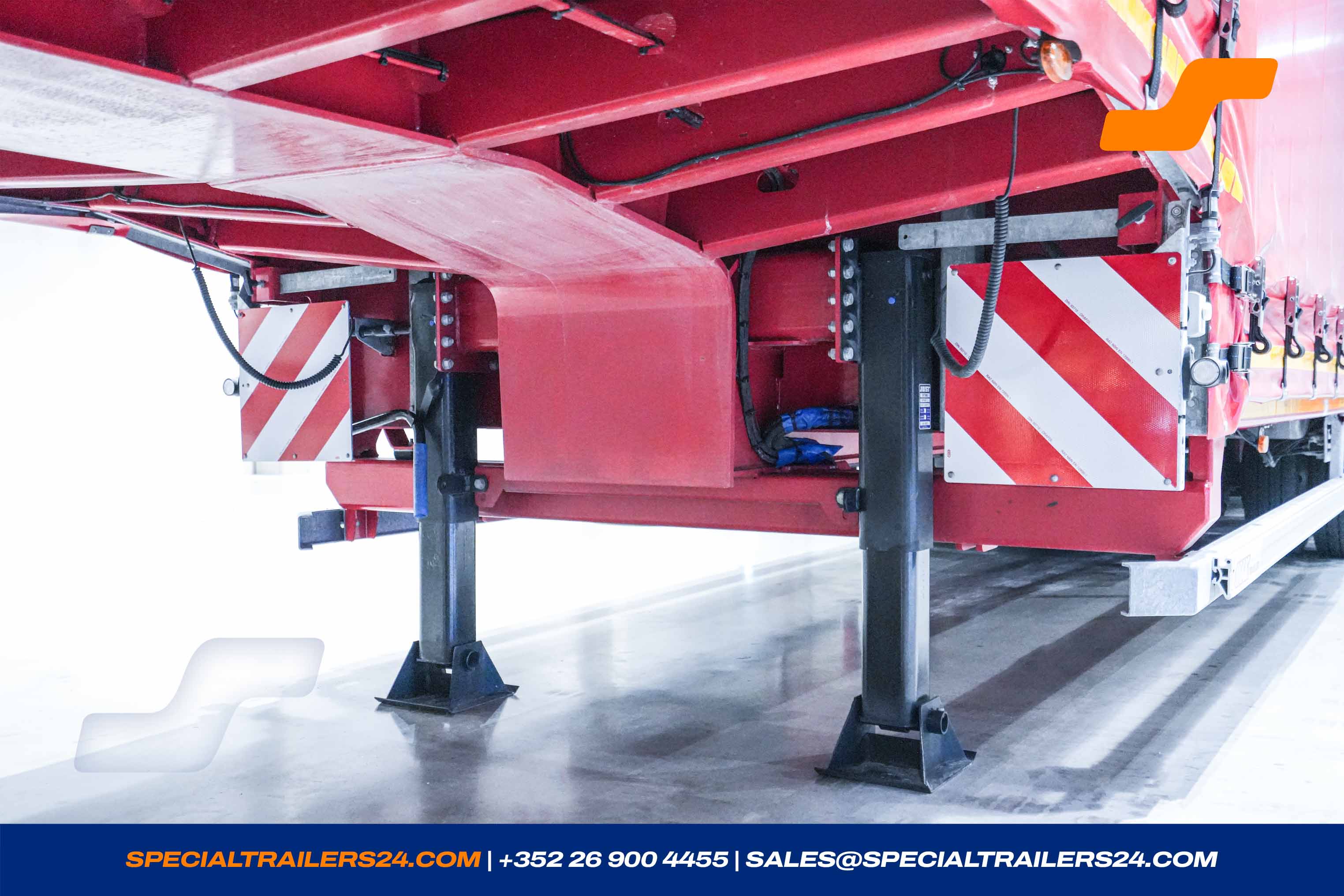

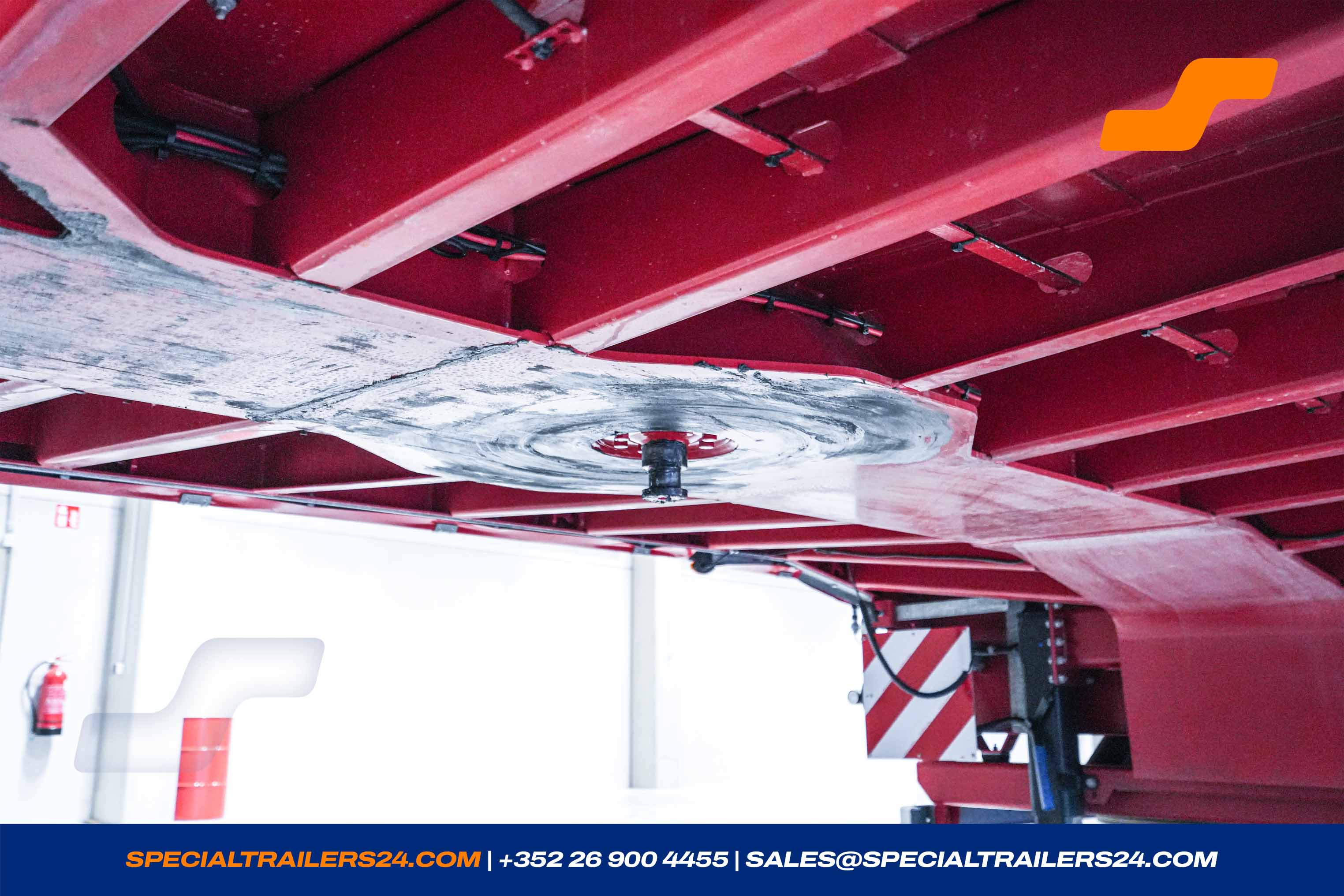

- 2 king-pin.
- Red and yellow air couplings on the galvanised front connection ledge.

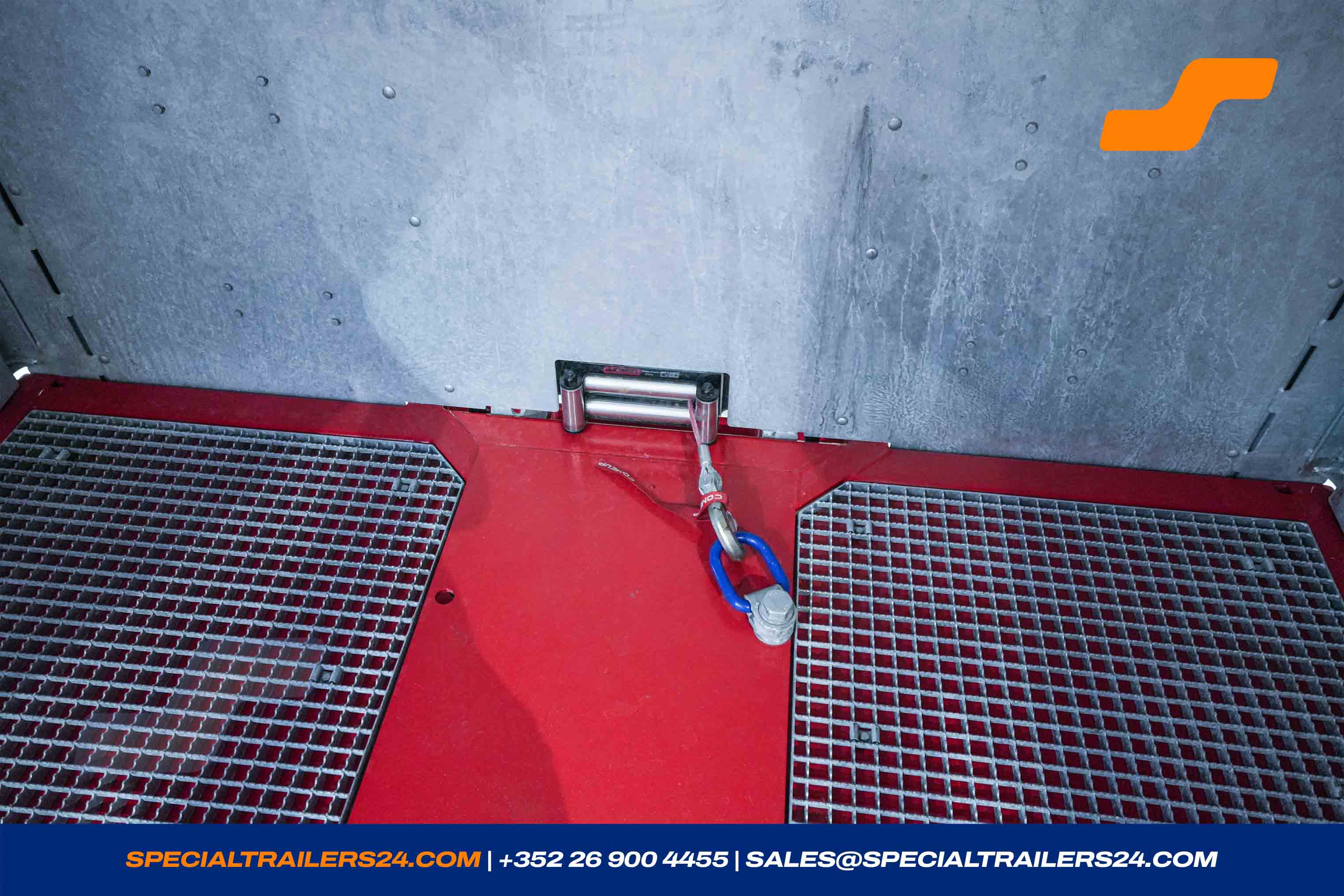

- Grating floor on the gooseneck C30/3 (for point load of 2 to on a surface of 20 x 20 cm). (± 355 kg)

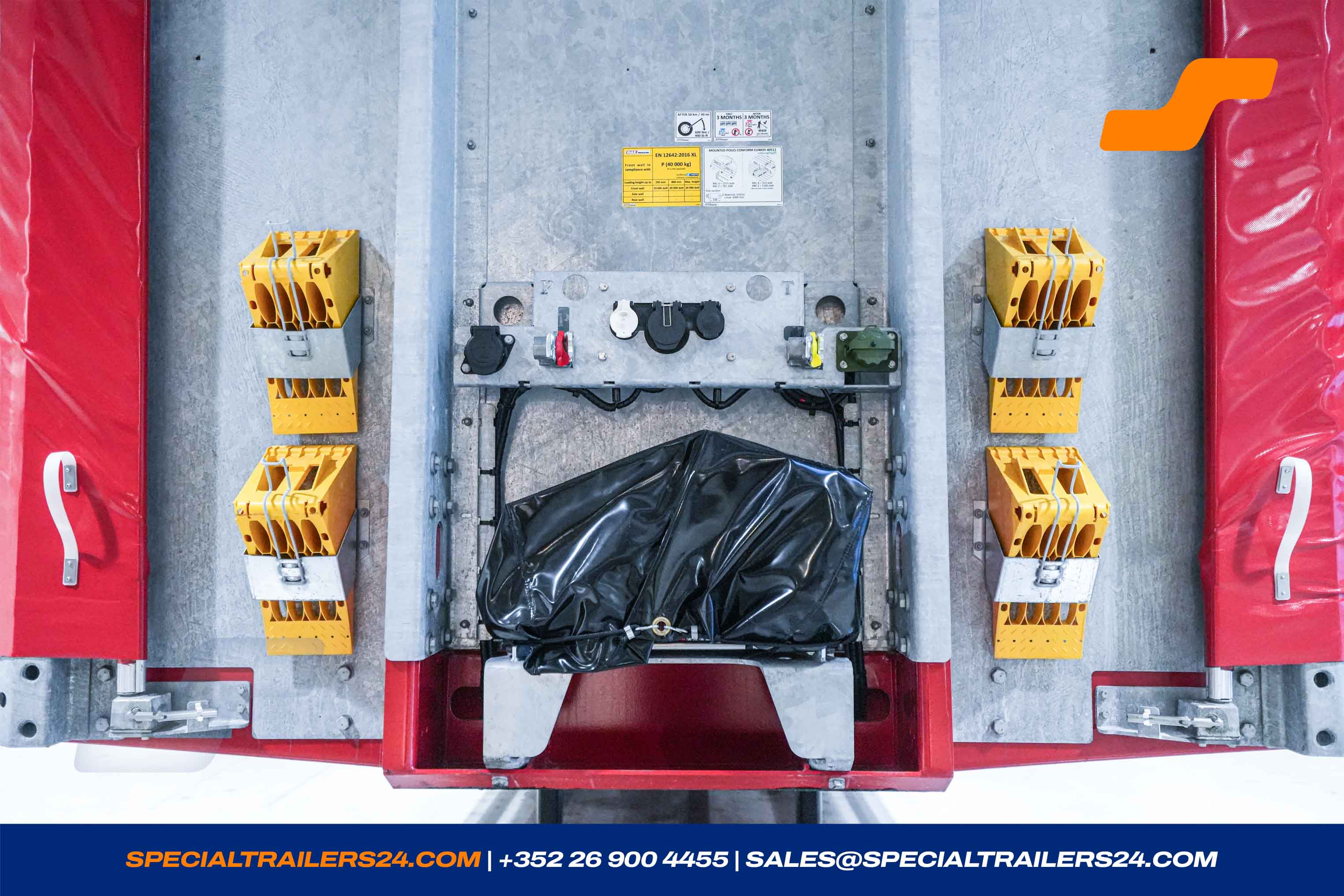

- 4 wheel chocks with carrier on the headboard (± 5kg).
- One powder fire extinguisher (6 kg) with a protective casing and holder on the headboard (± 15kg).
Loading deck

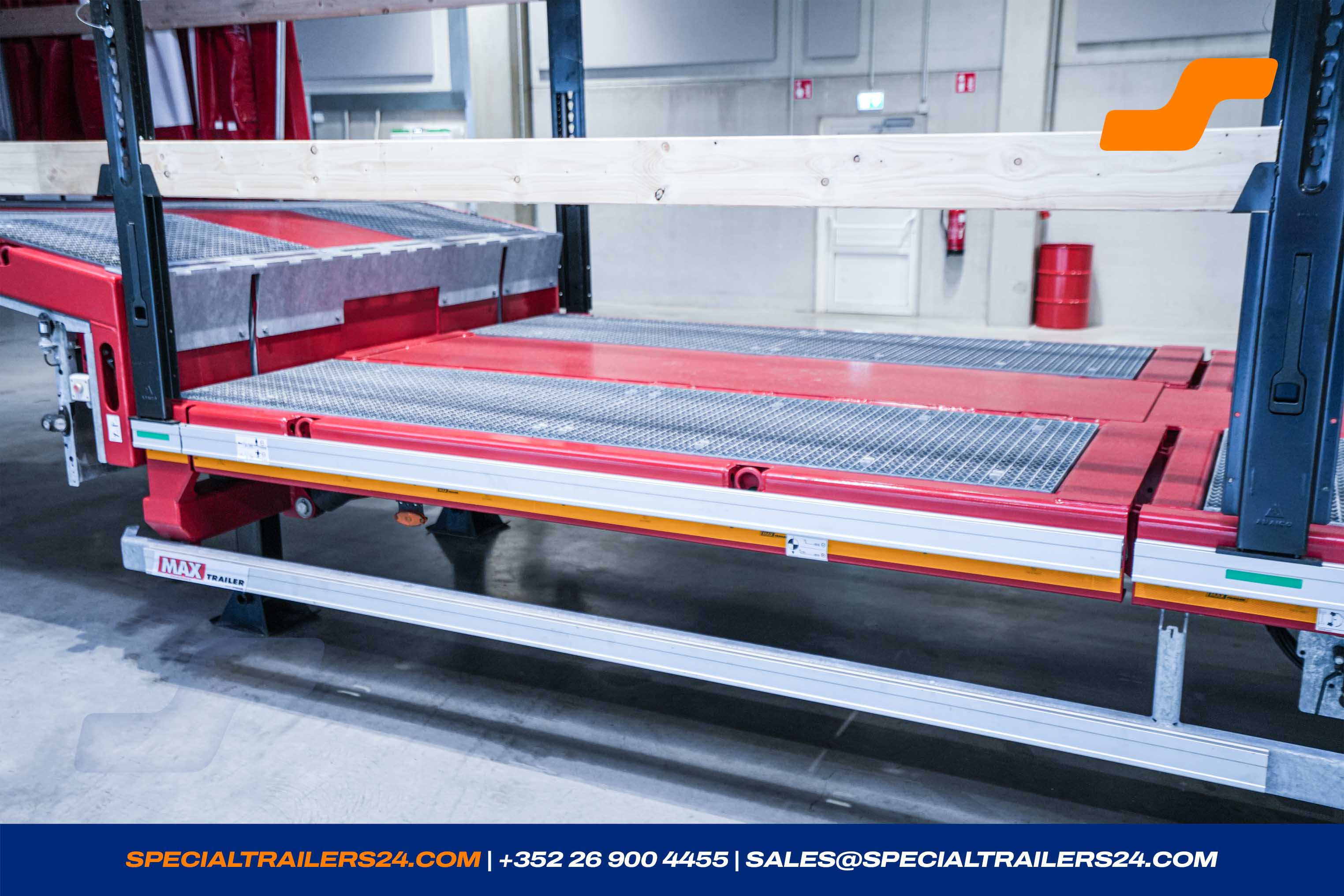

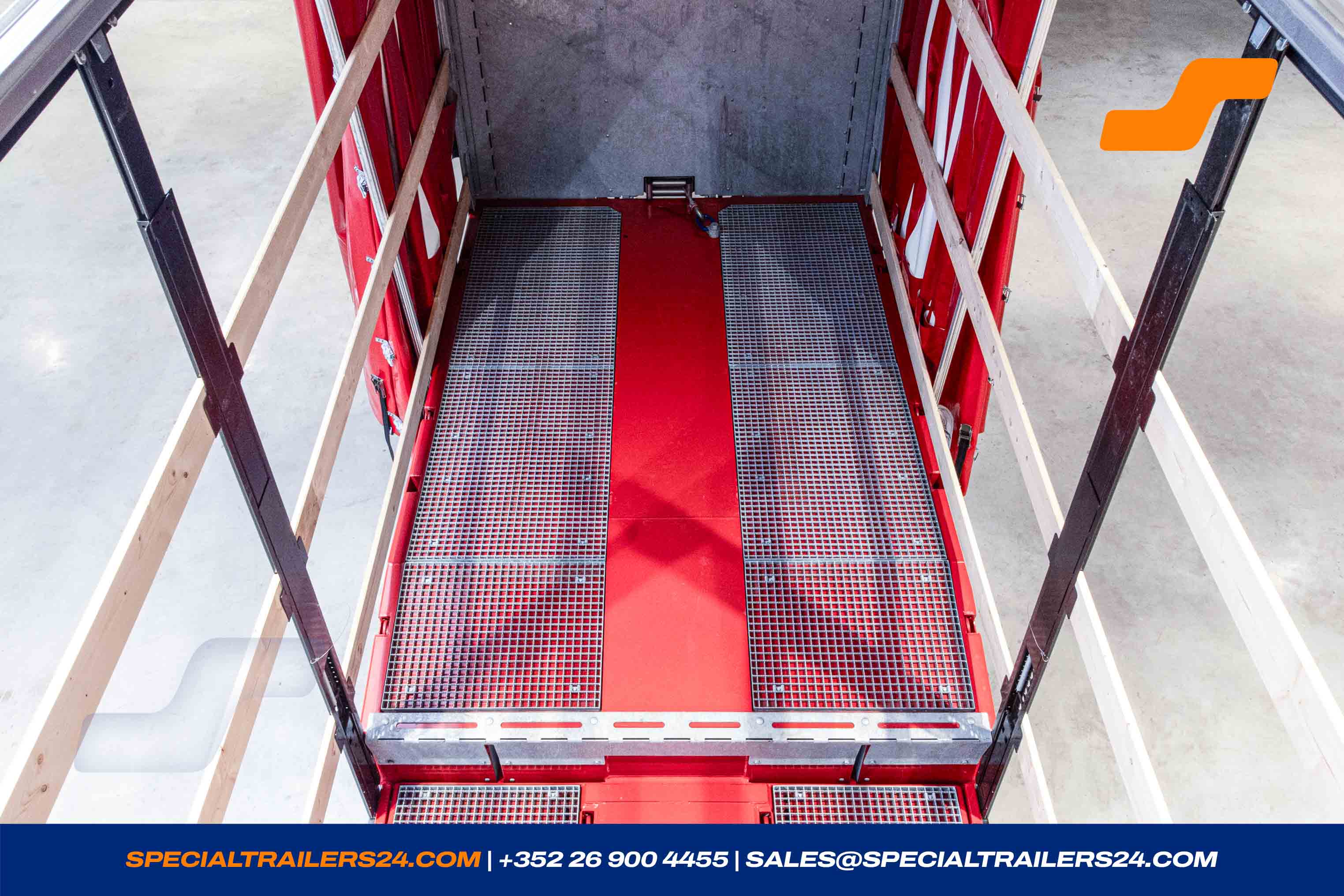

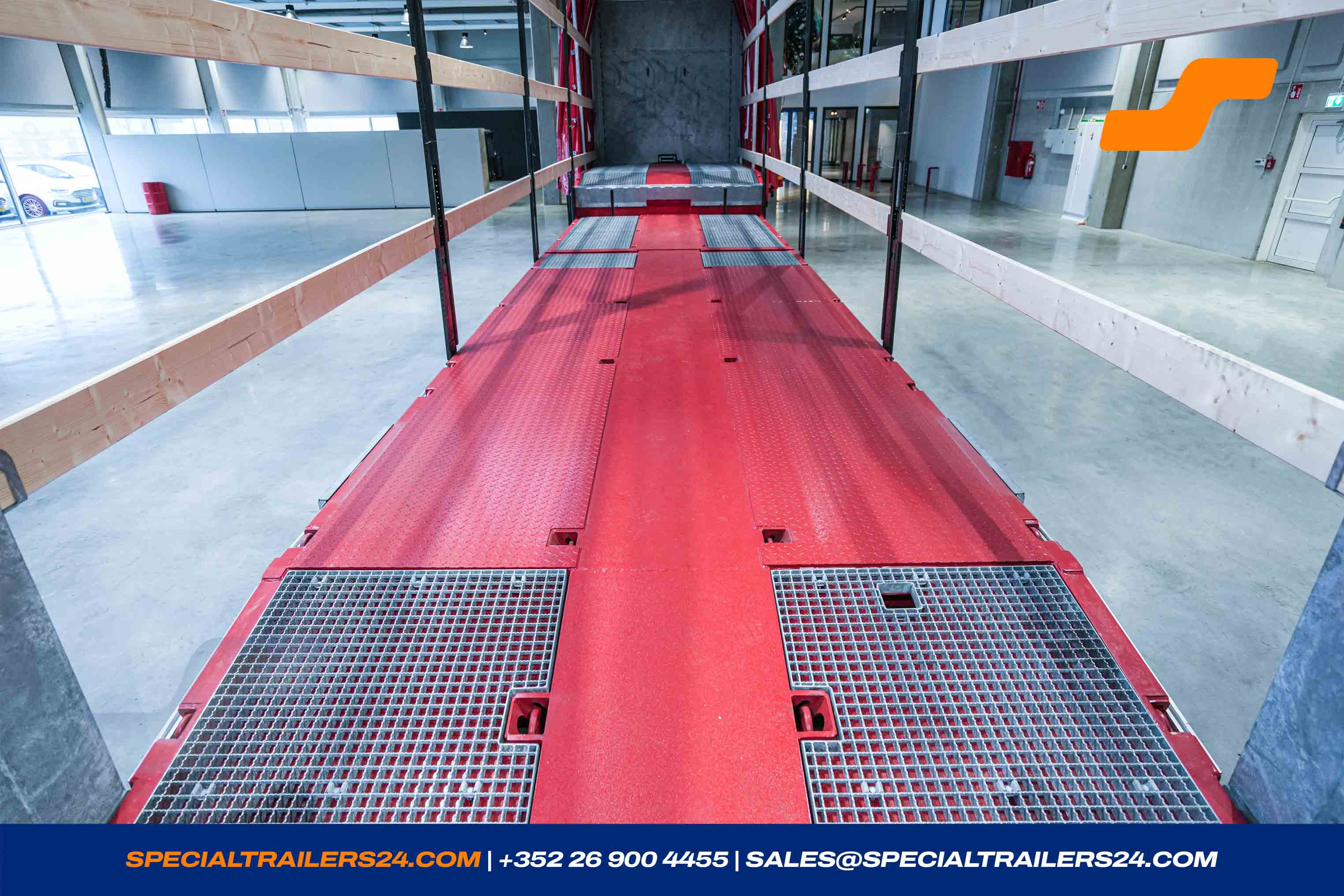

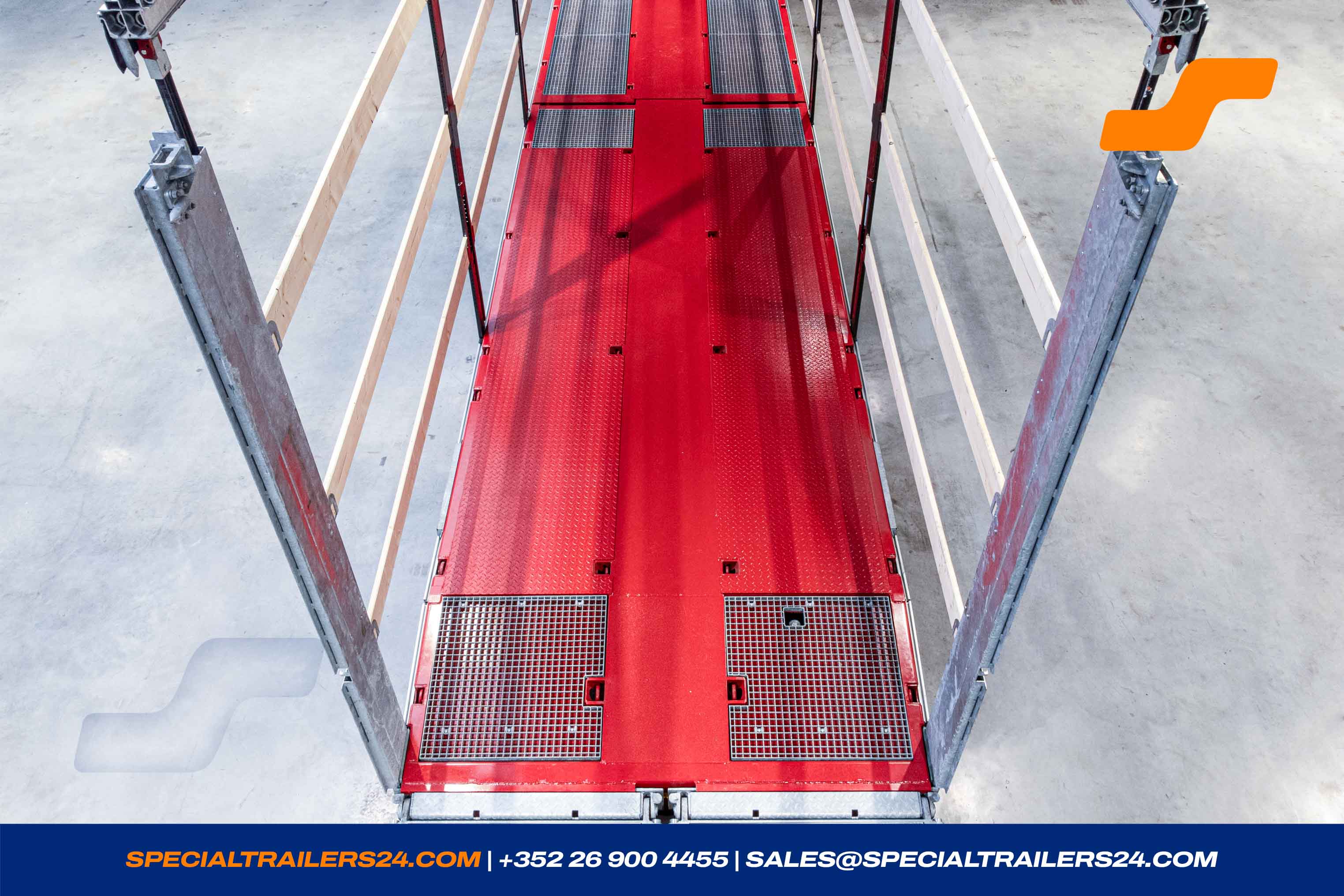

Loading platform
1 x Loading platform : MAX100-N-3B-9.30-(CS-HV)-17.5-2.54-(GR)(Skan)

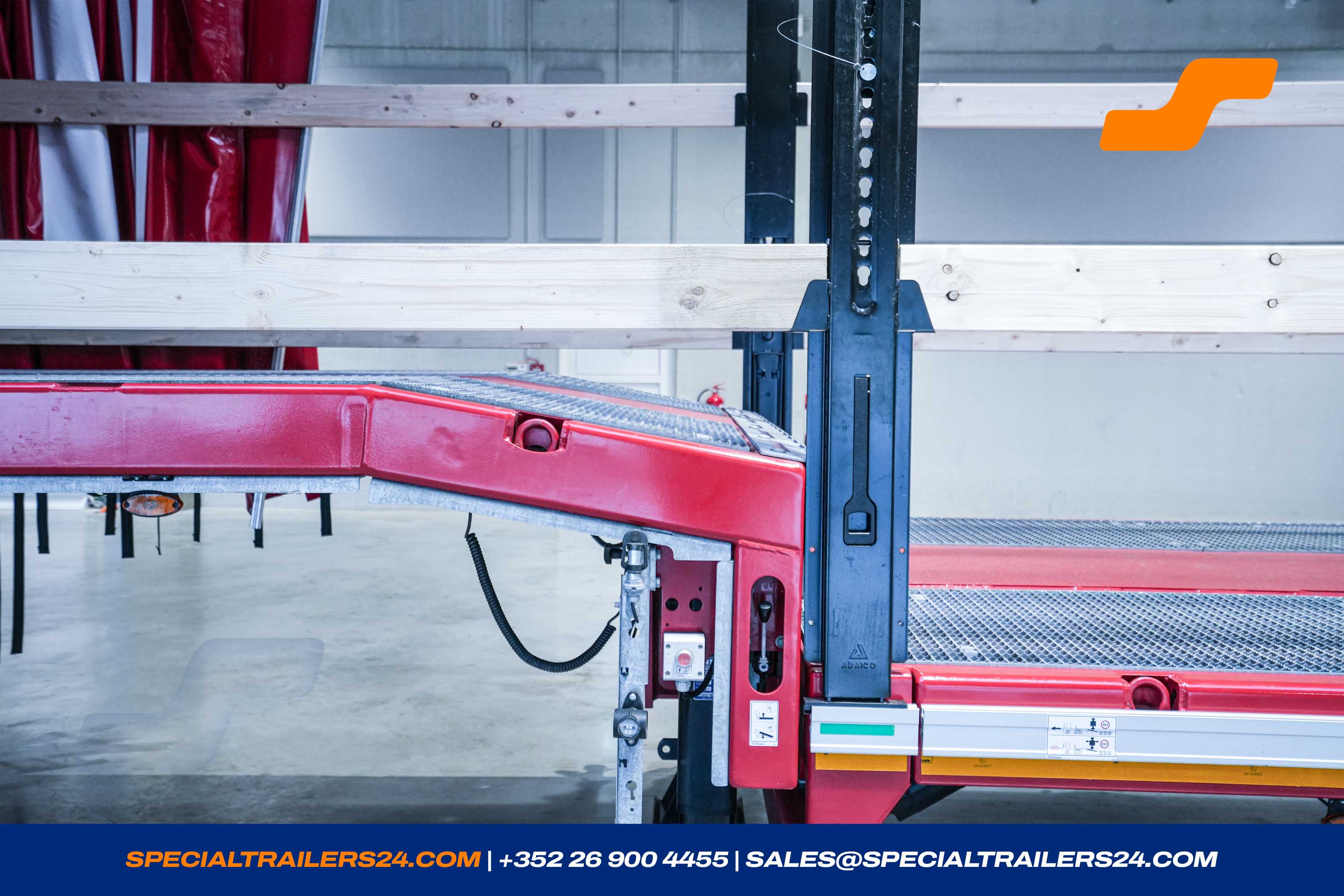

Loading platform behind the gooseneck with hydraulically lift- and lowerable loading area ca. 2 800 mm length, with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
2 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pairs of lashing rings in the loading platform, hinged inwards at the front (LC 10 000 daN).
Grating floor C40/4 (for point load of 2.3to on a surface of 20 x 20 cm), above of the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

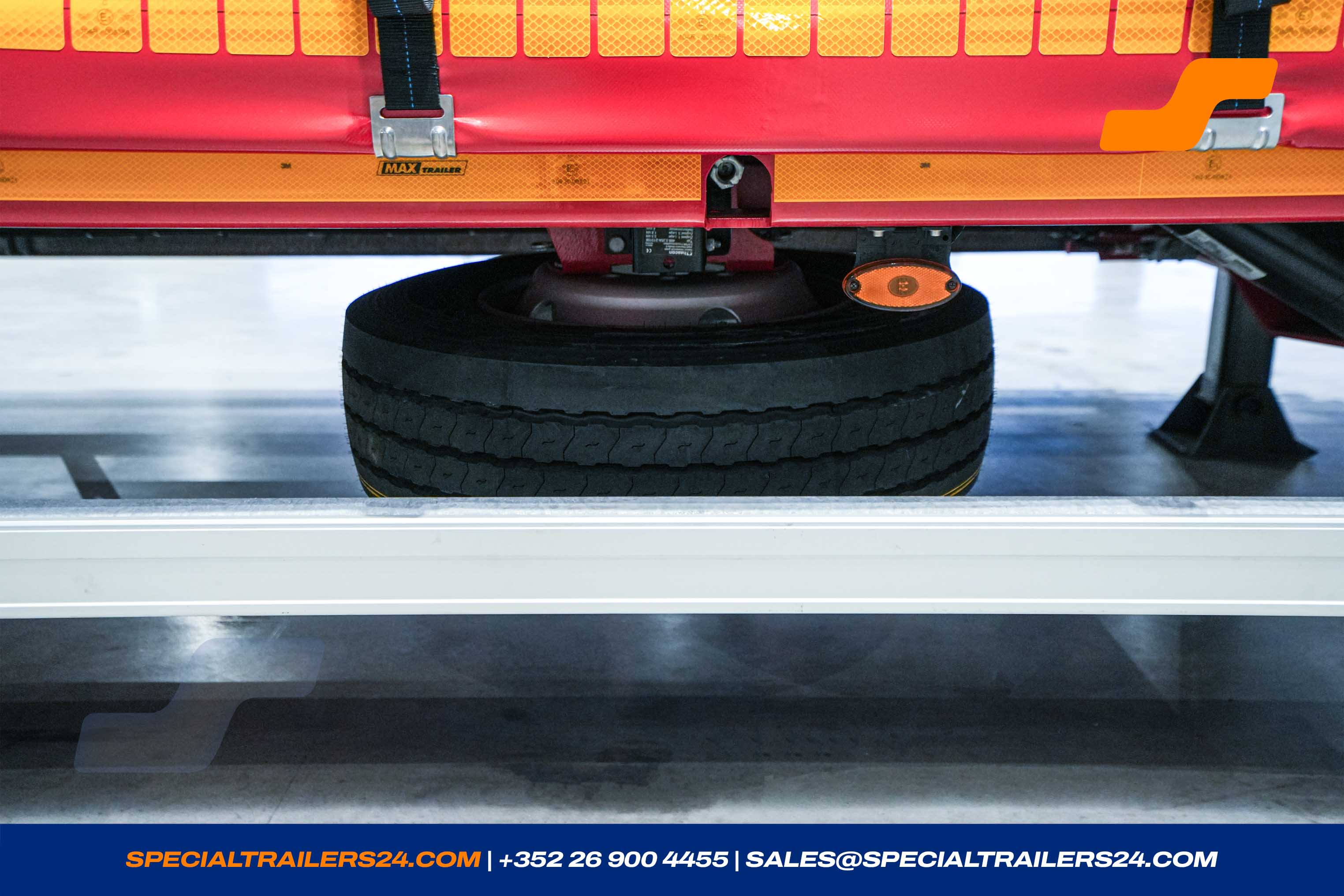

- 1 spare wheel with holder under the loading platform, on the right-hand side in the direction of travel 235/75 R17.5 3PMSF. (± 70 kg)

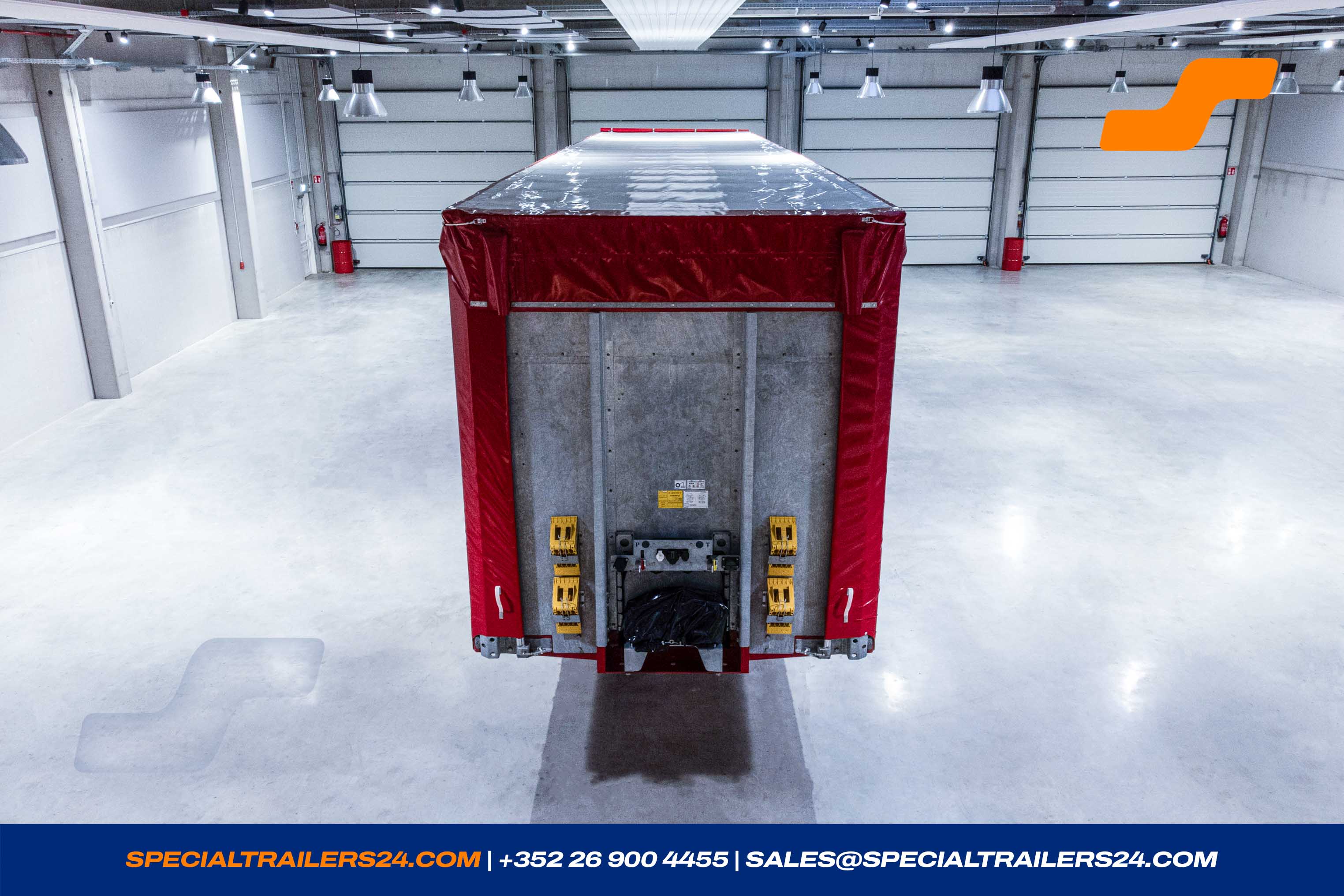

- One galvanised steel headboard.
- 3 heights wooden boards.

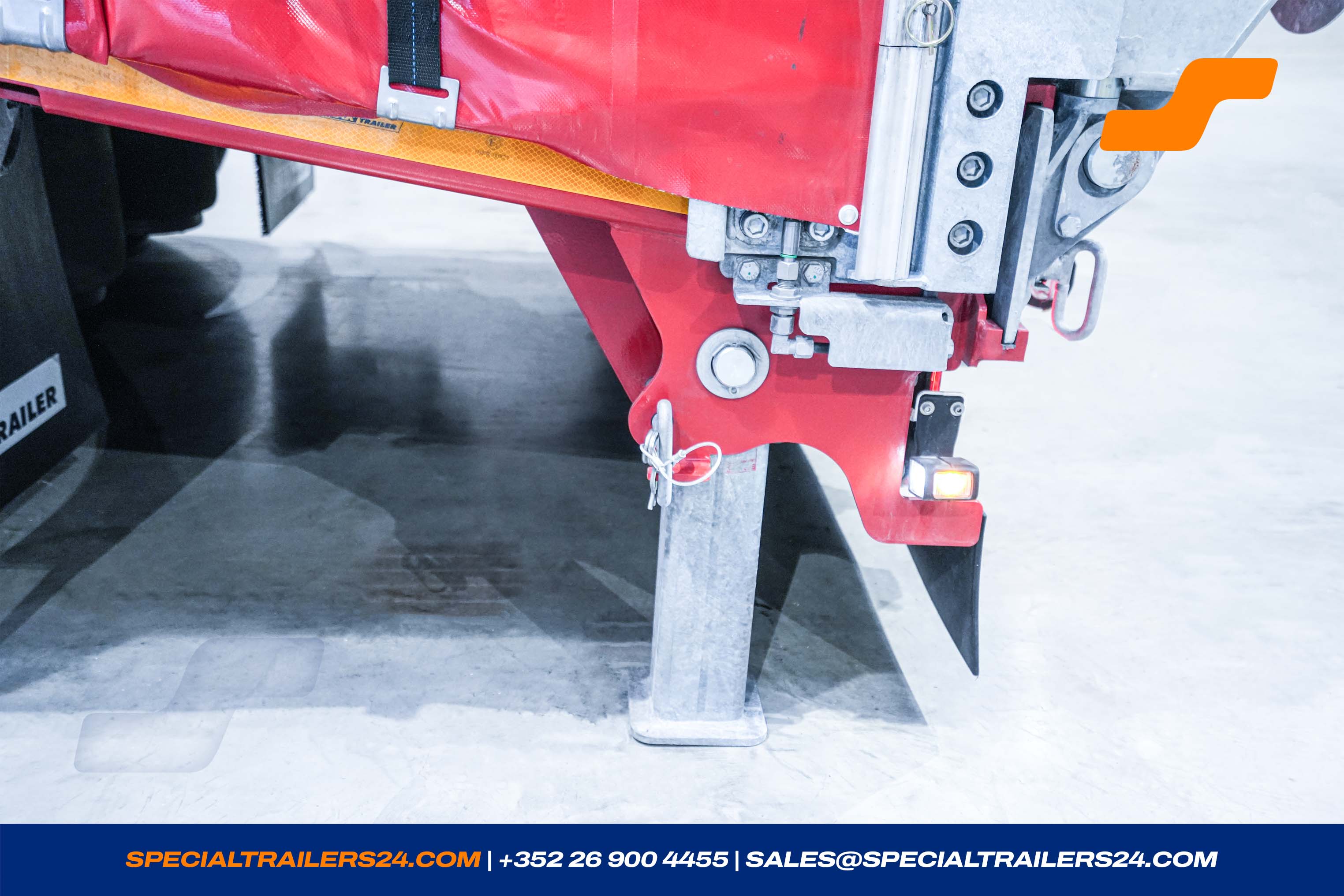

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
-

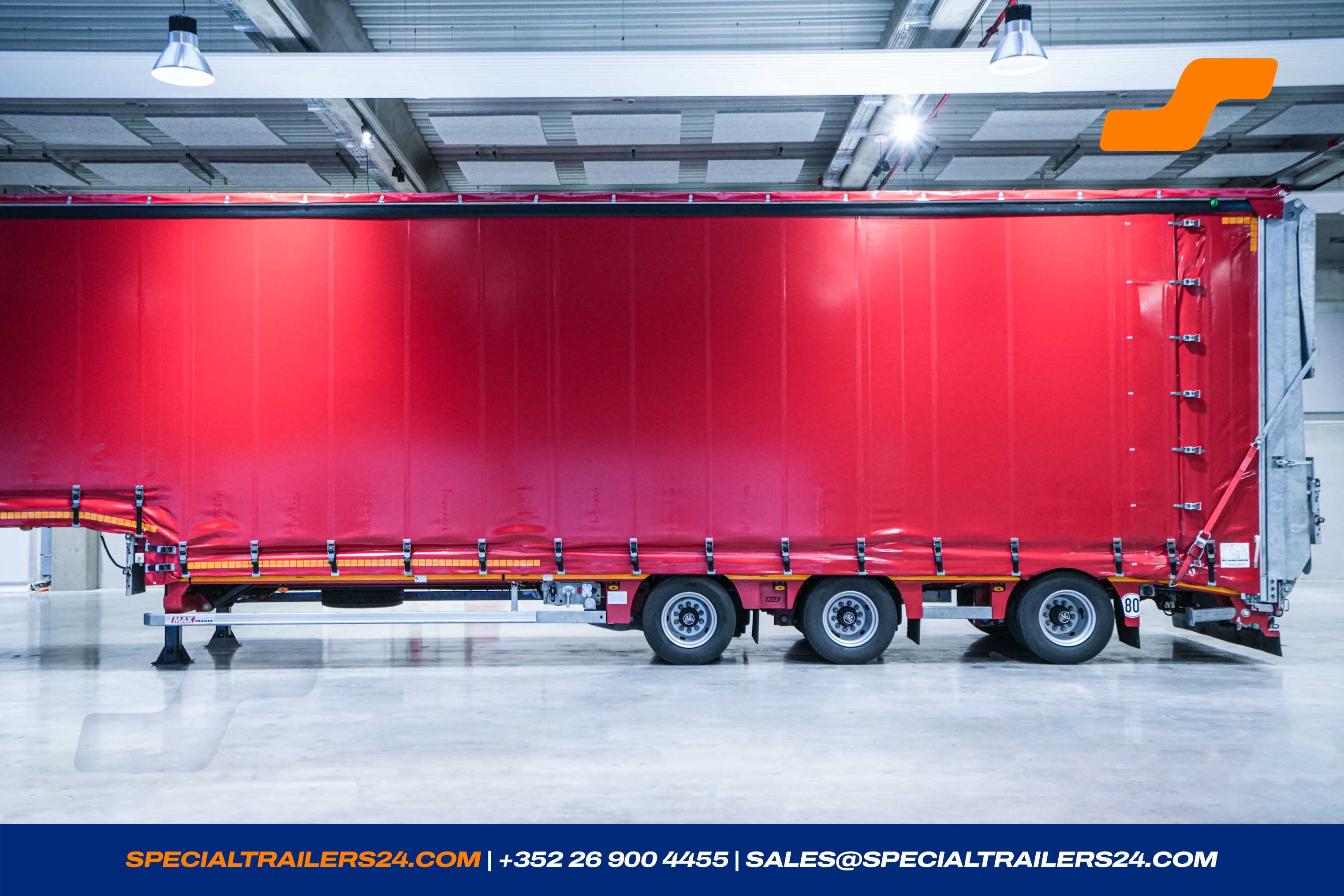

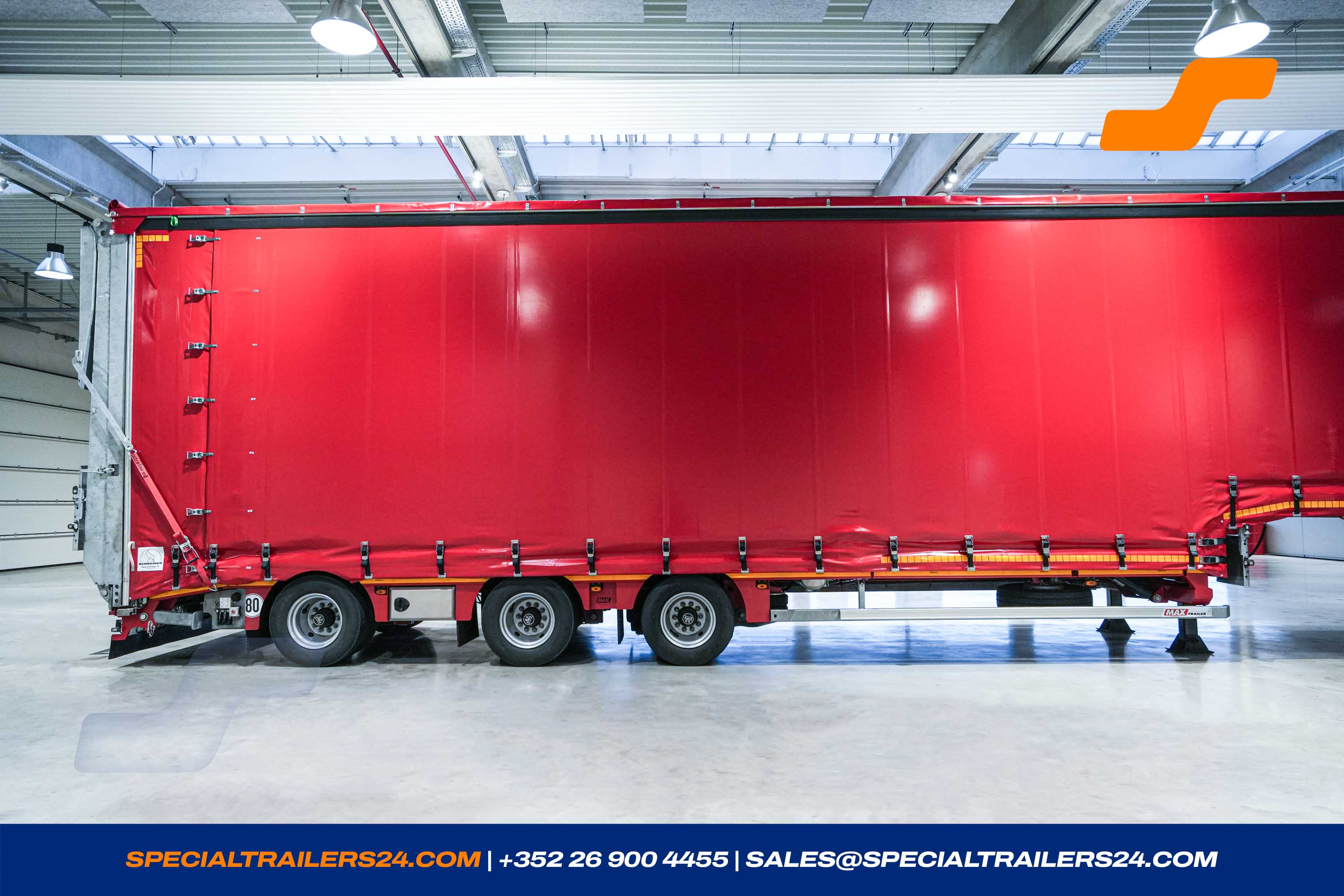

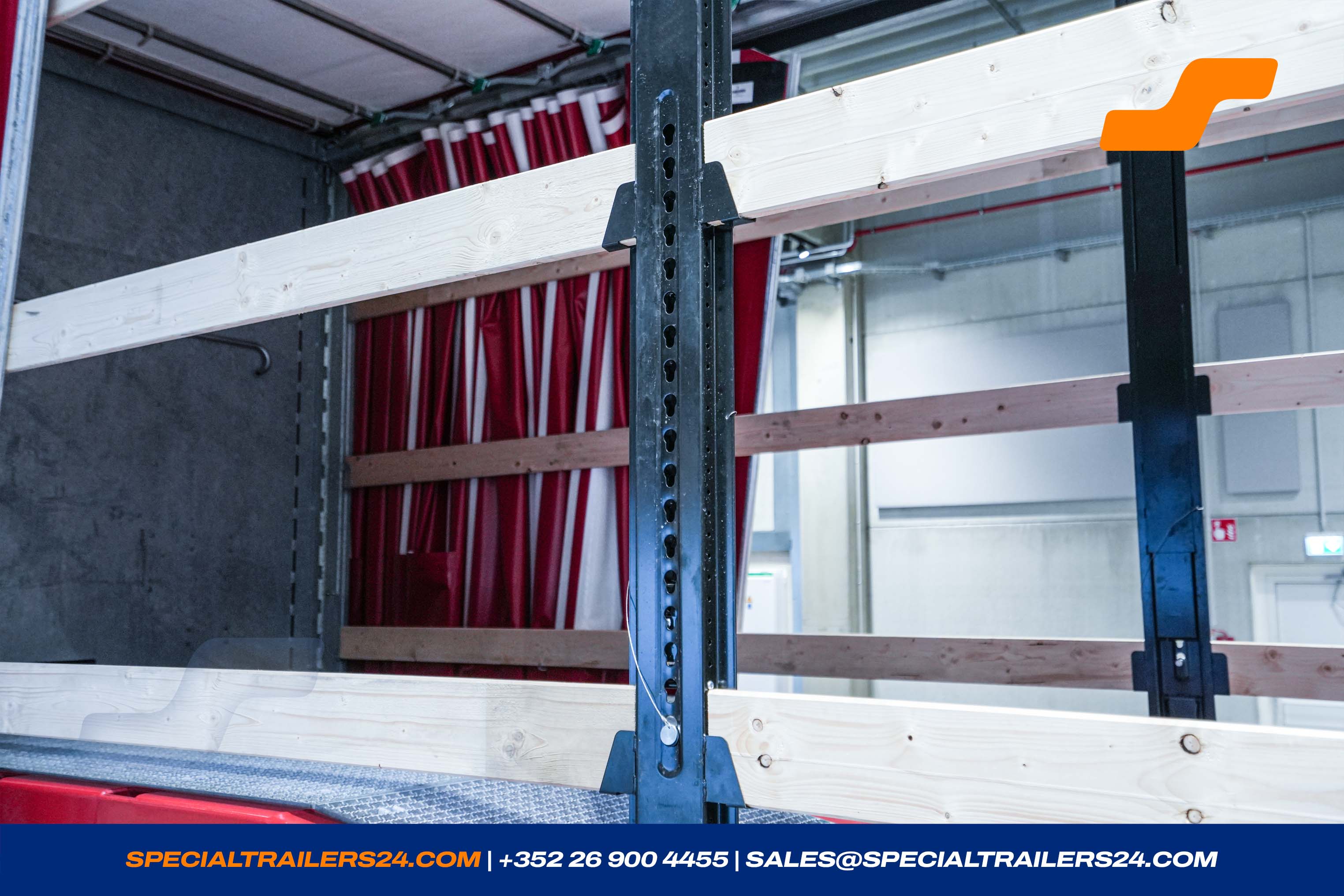

Height-ajustable superstructure ***3.960 mm***:

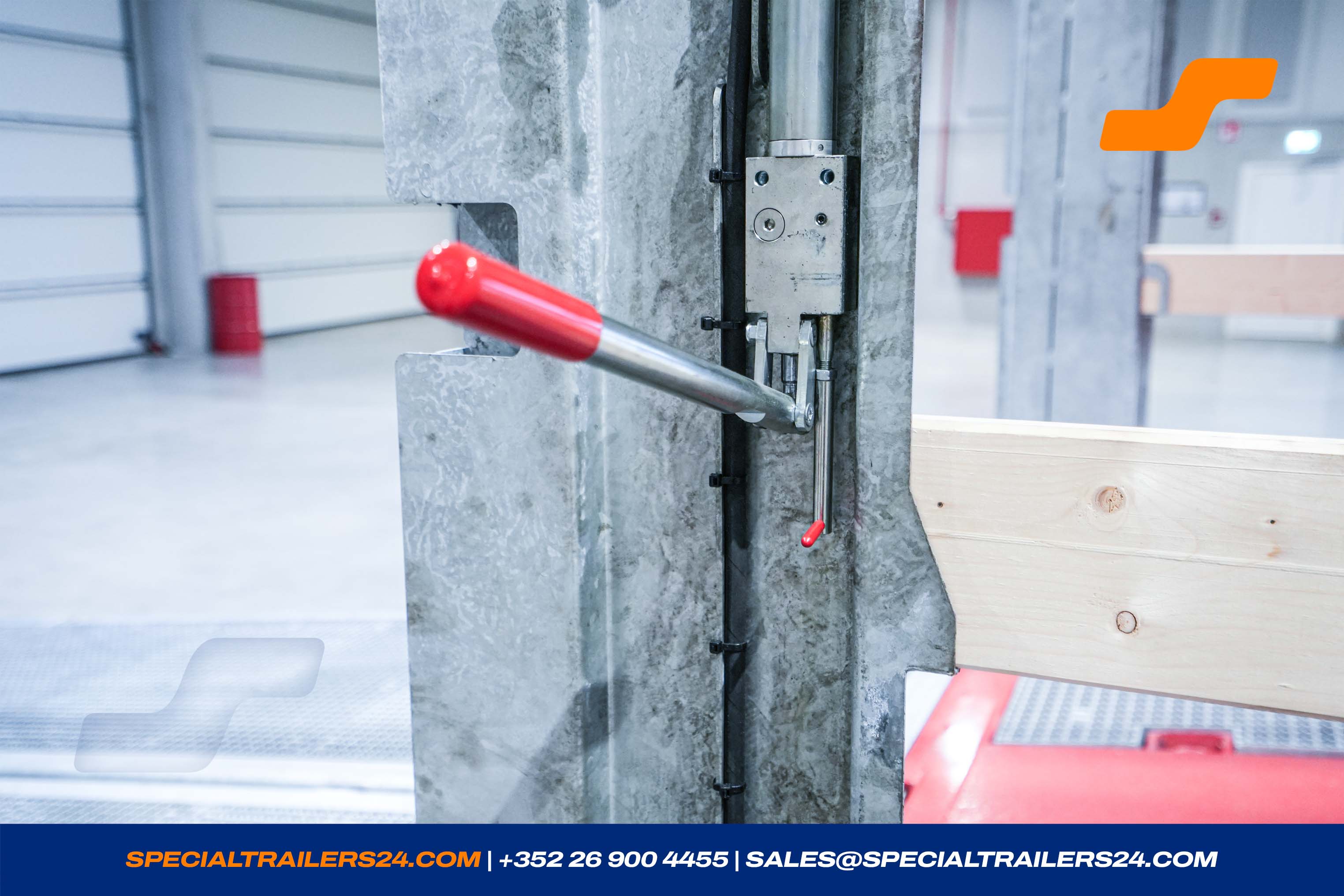

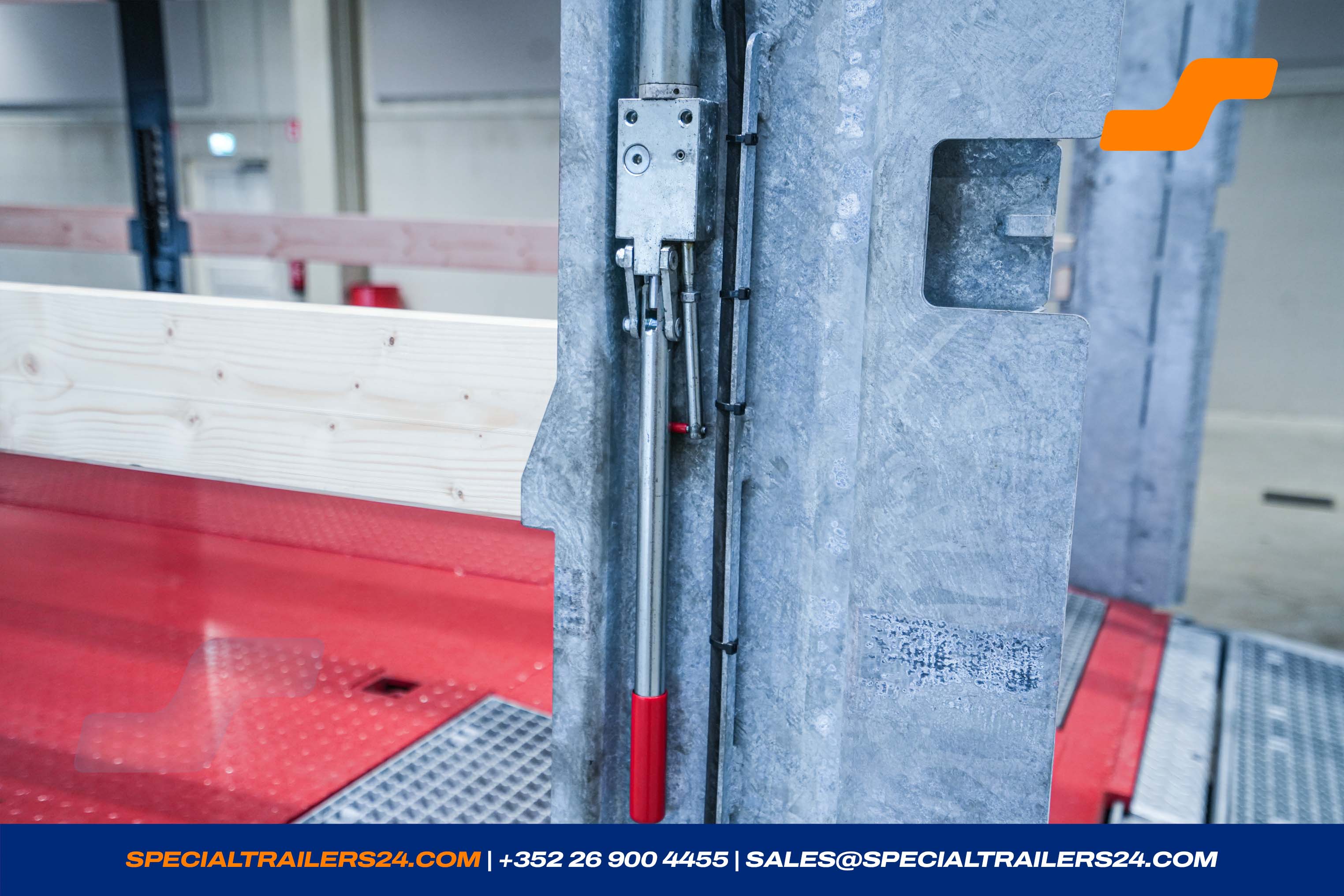

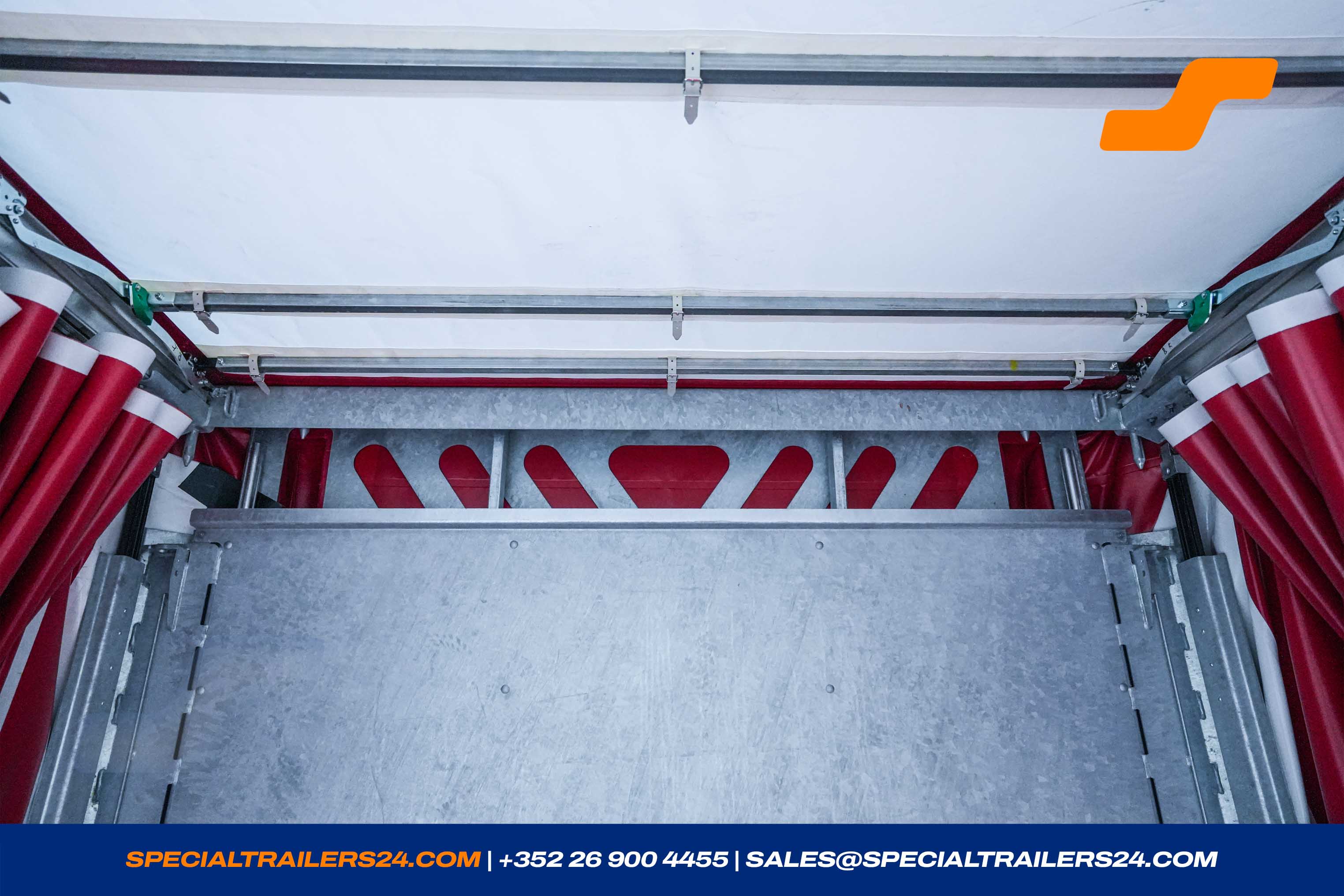

- Front headboard galvanised steel,with a tensioning mechanism for the curtainsider.

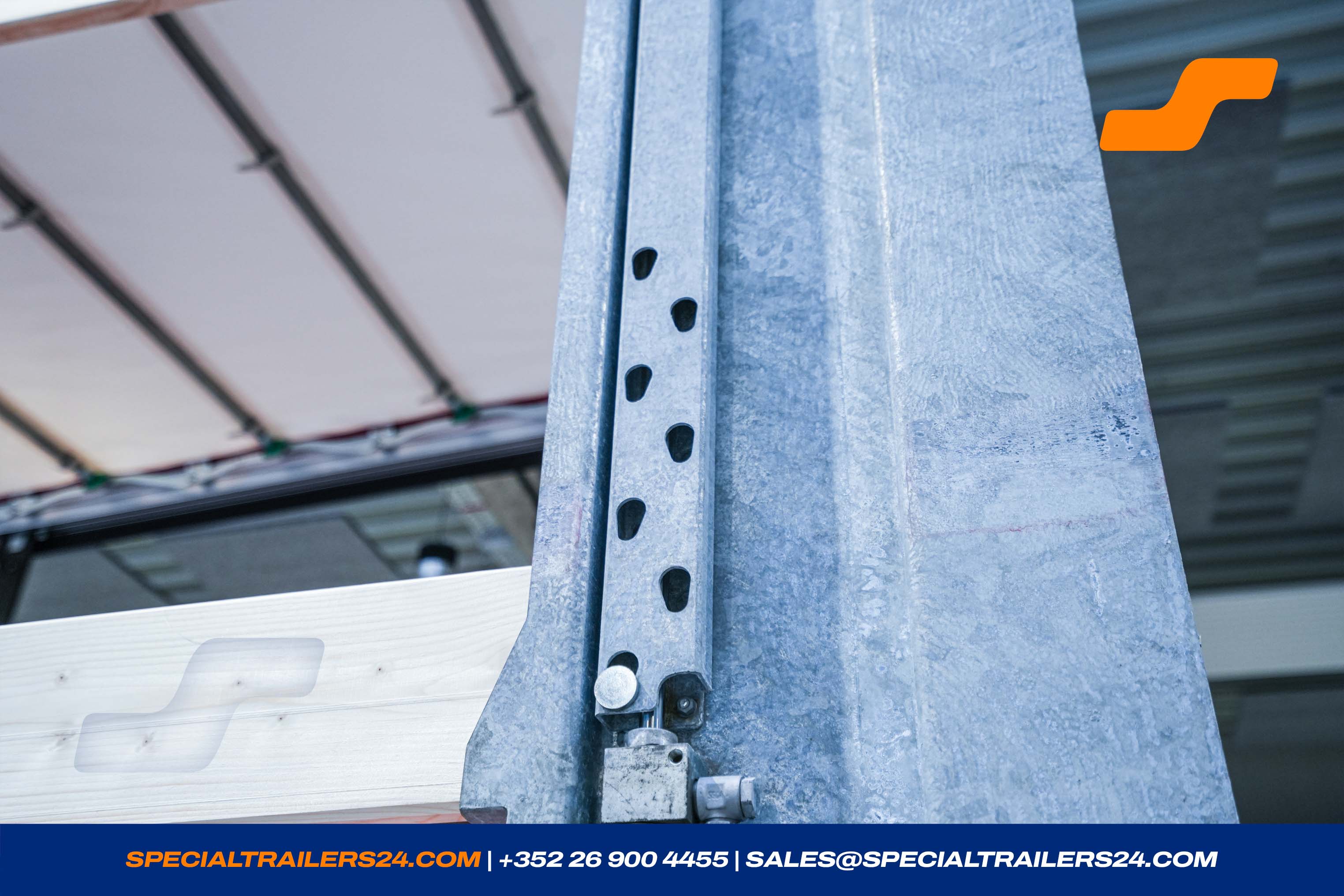

Height-adjustable by approx. 400 mm.
- EDSCHAroof sliding forwards on ALU roof belt profiles (bolted to front and rear wall).

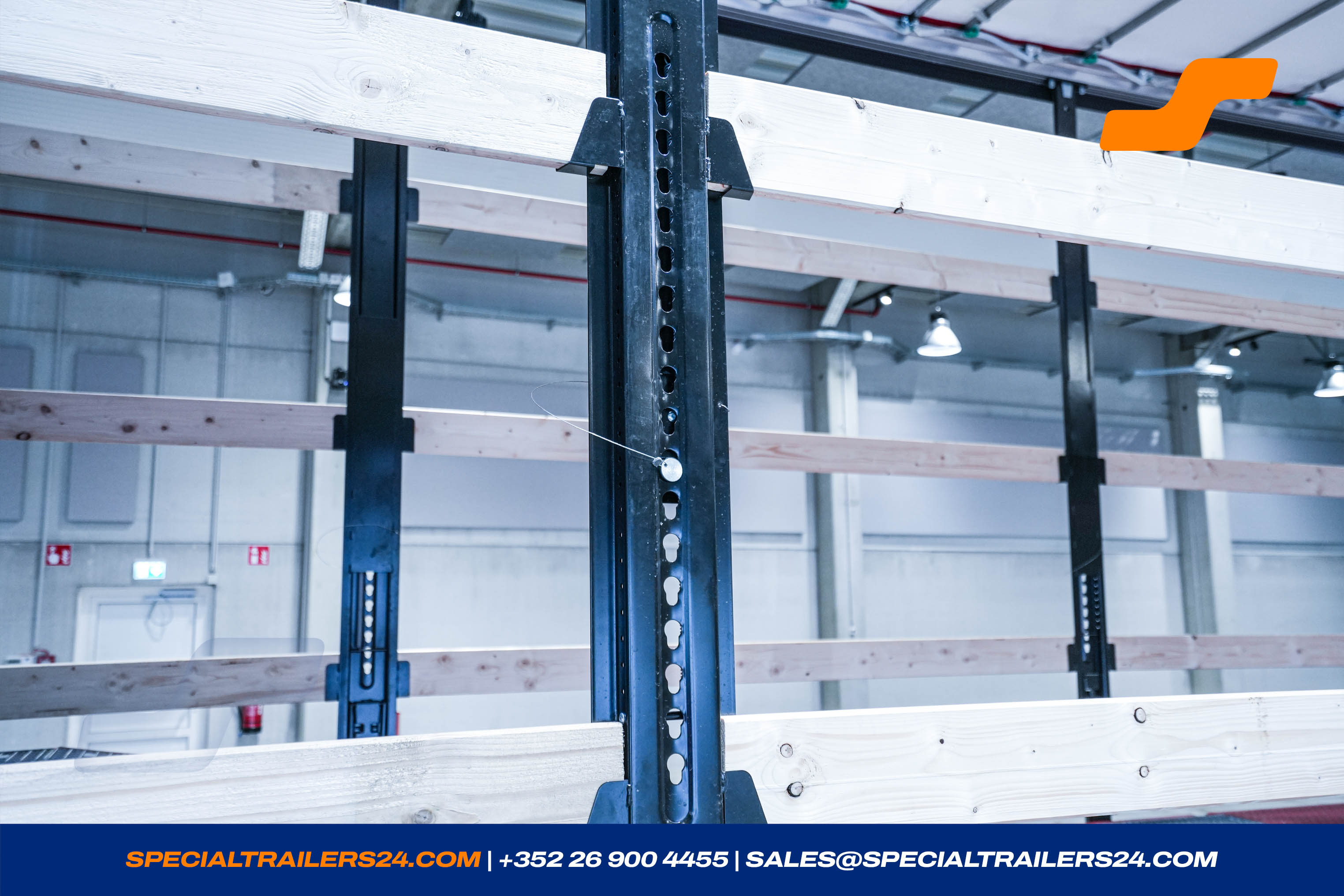

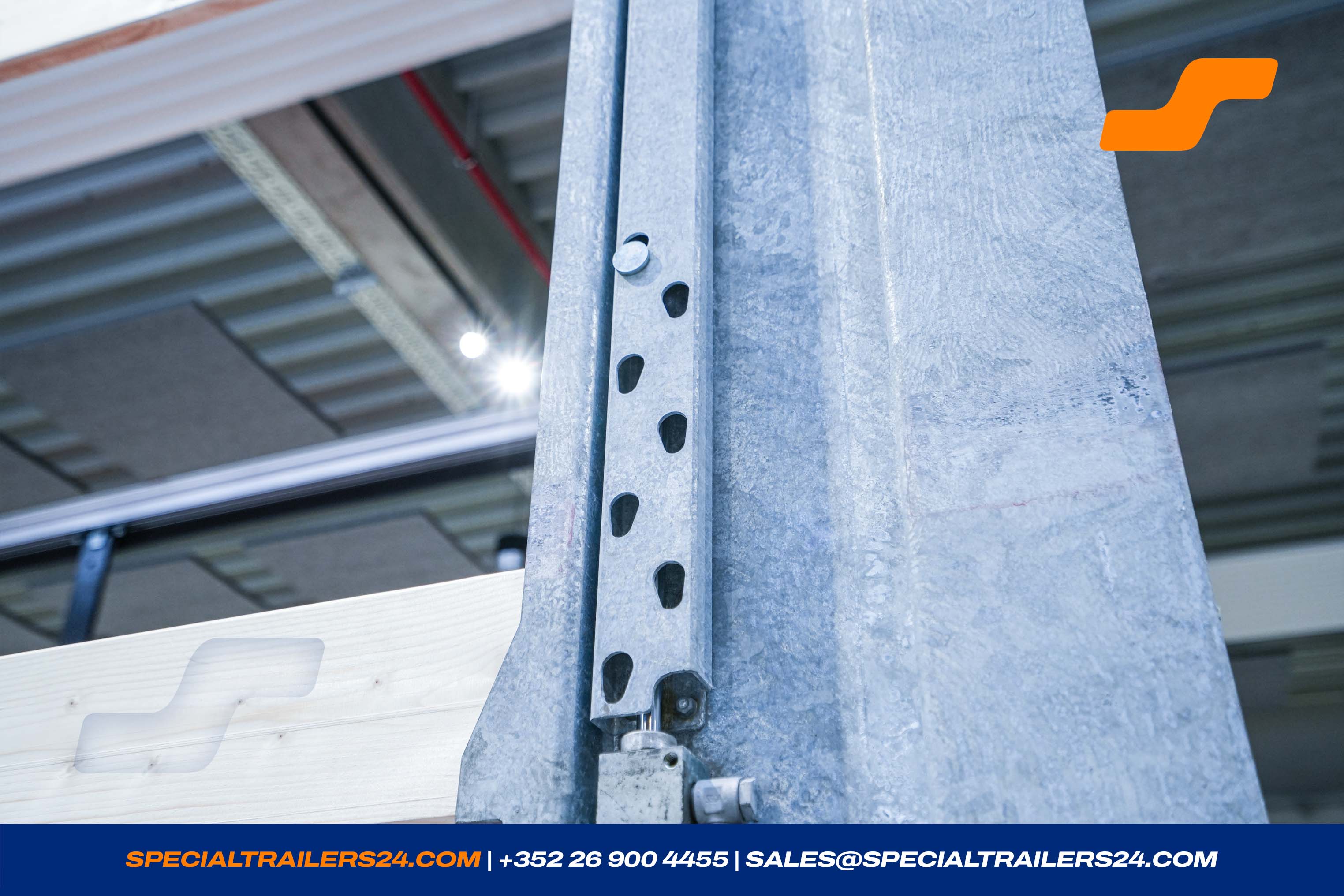

- On the loading area 3 pairs of sliding stakes.
- The rear corner stakes can be hydraulically extended by 750 mm to the left and right.
- Sliding roof with high-swinging portal beam.

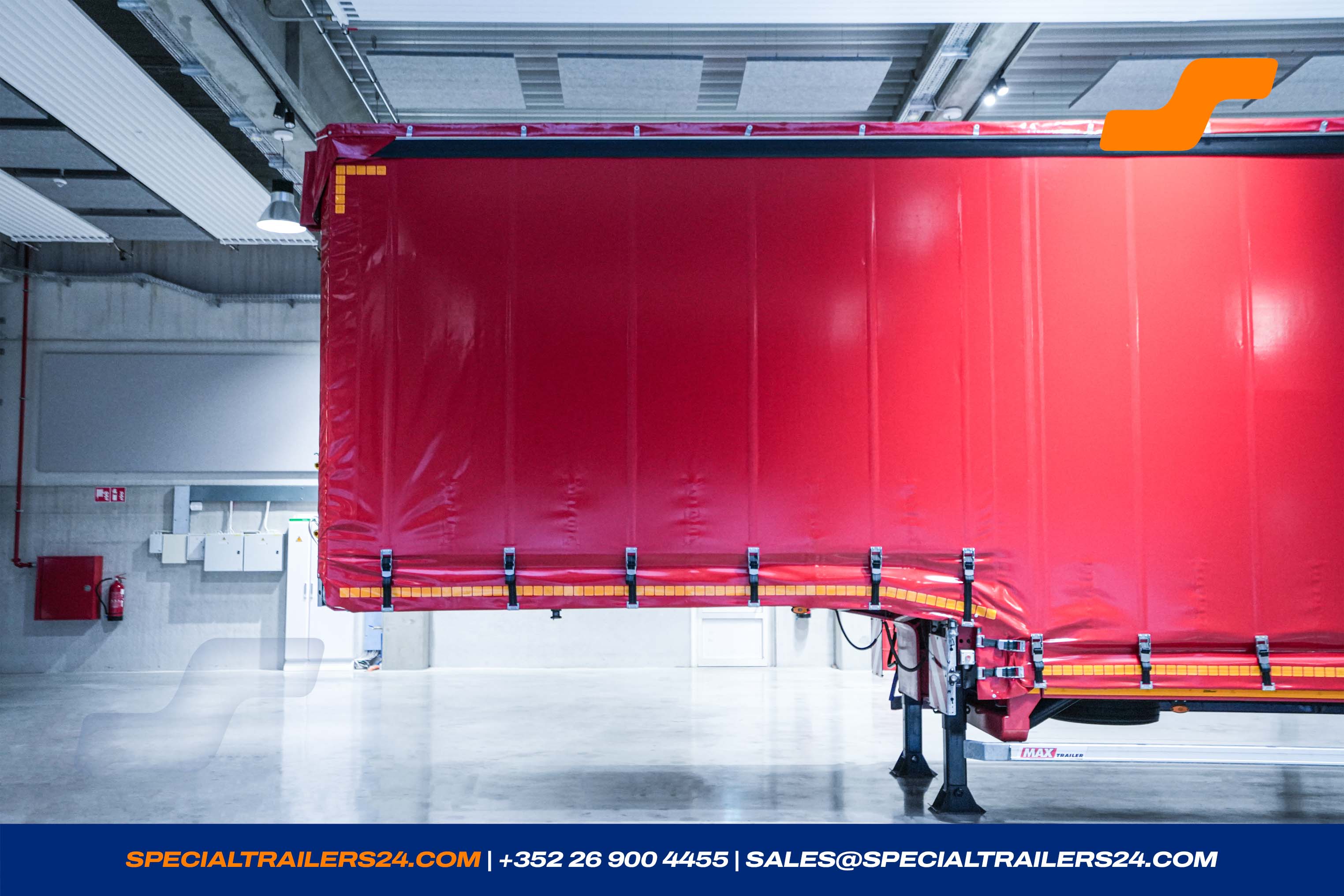

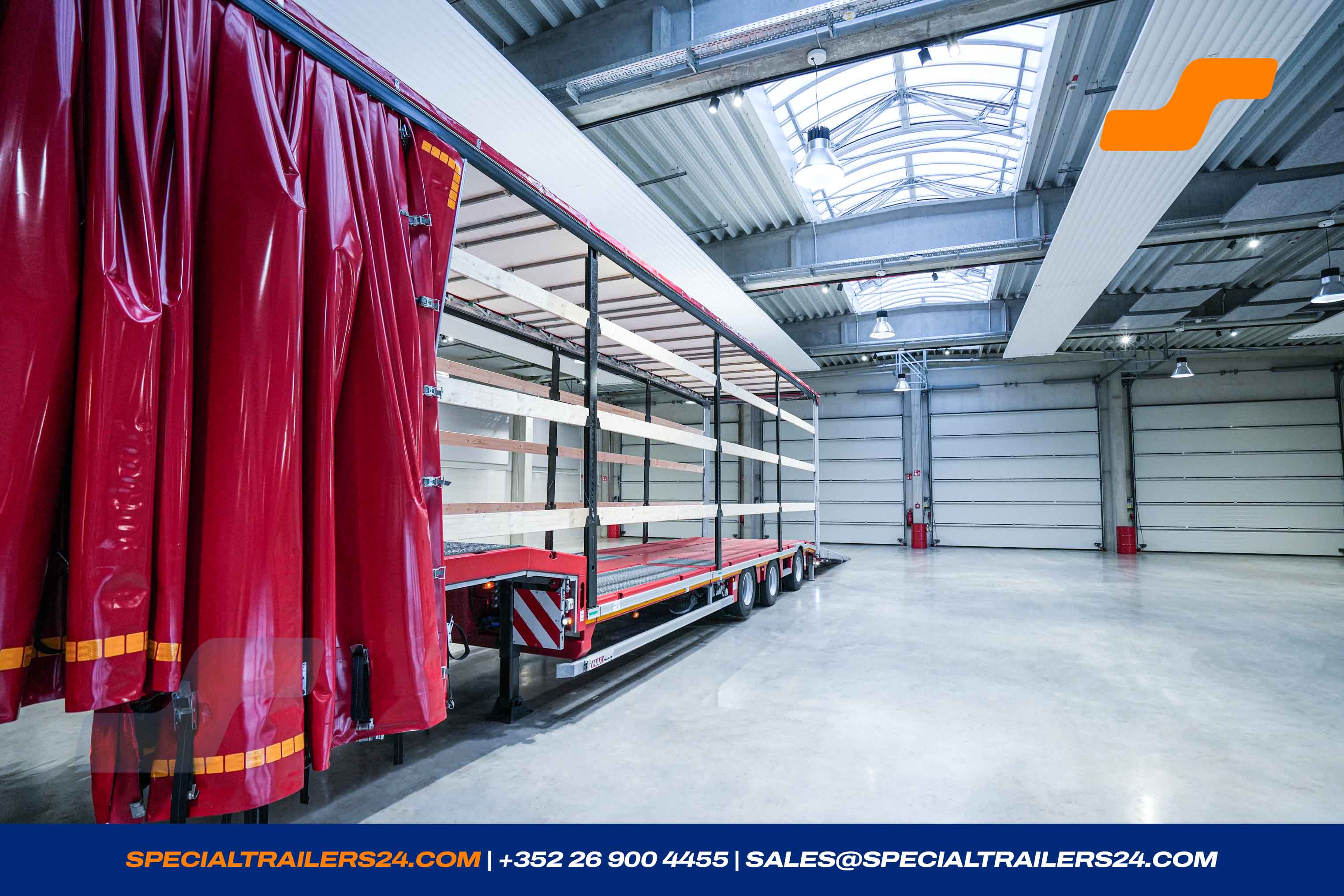

- Sliding tarpaulin with 700 mm reserve in length, with tensioning straps at intervals of approx. 600 mm.
Height of upper edge of construction 3.960 mm (Loaded).
- Driving with the sliding roof open is not permitted and will damage the tarpaulin. - Grating floor of the chamfer on the gooseneck C30/3 (for point load of 2to on a surface of 20 x 20 cm) (± 17kg).
- Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- Electrically operated hydraulic pump at the rear under the loading platform. (± 45 kg)
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Delivery from a trailer to factory Büllingen.

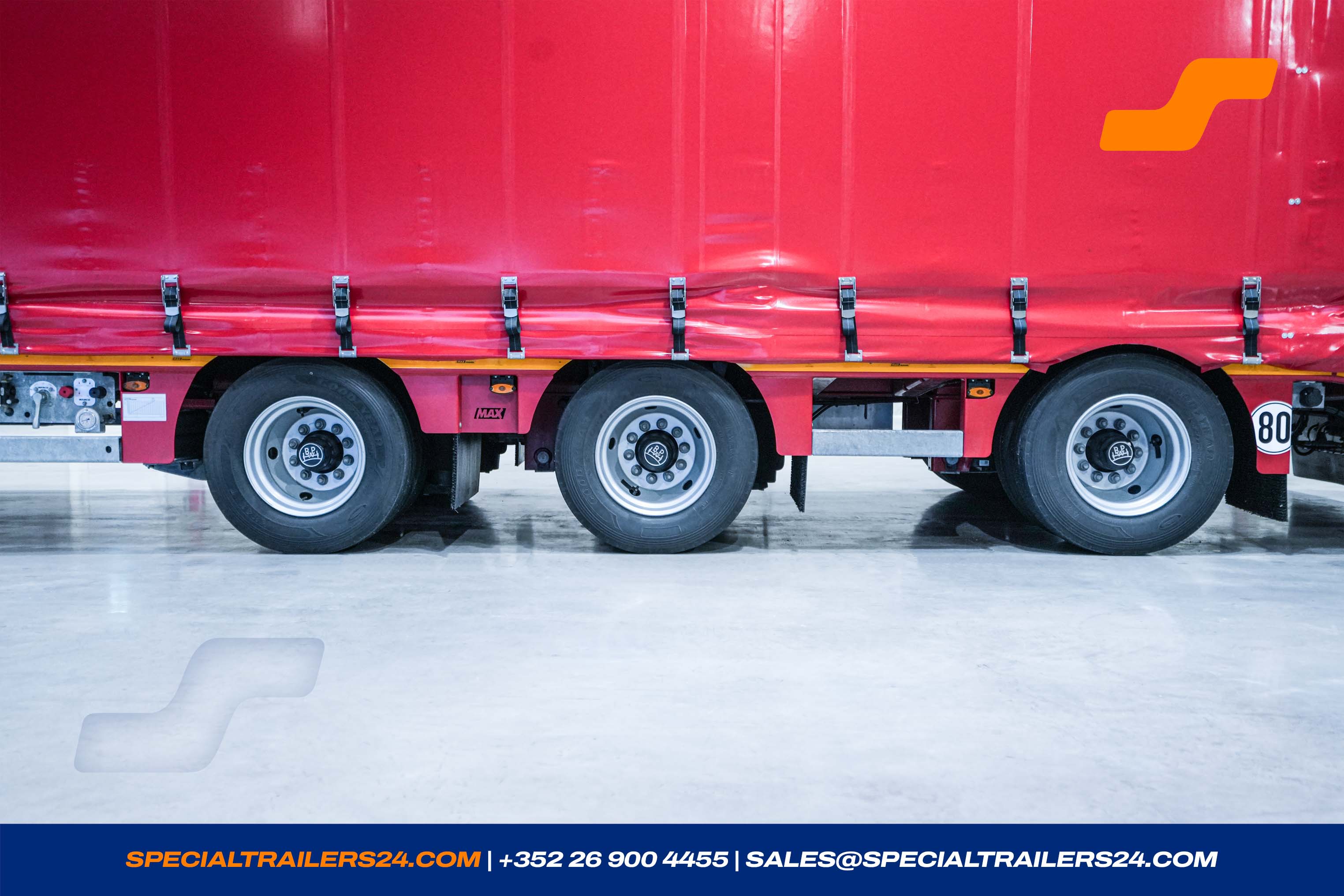

- 1st Lift axle on the front axle with control by TEBS-E depending on the current axle load (± 69kg)

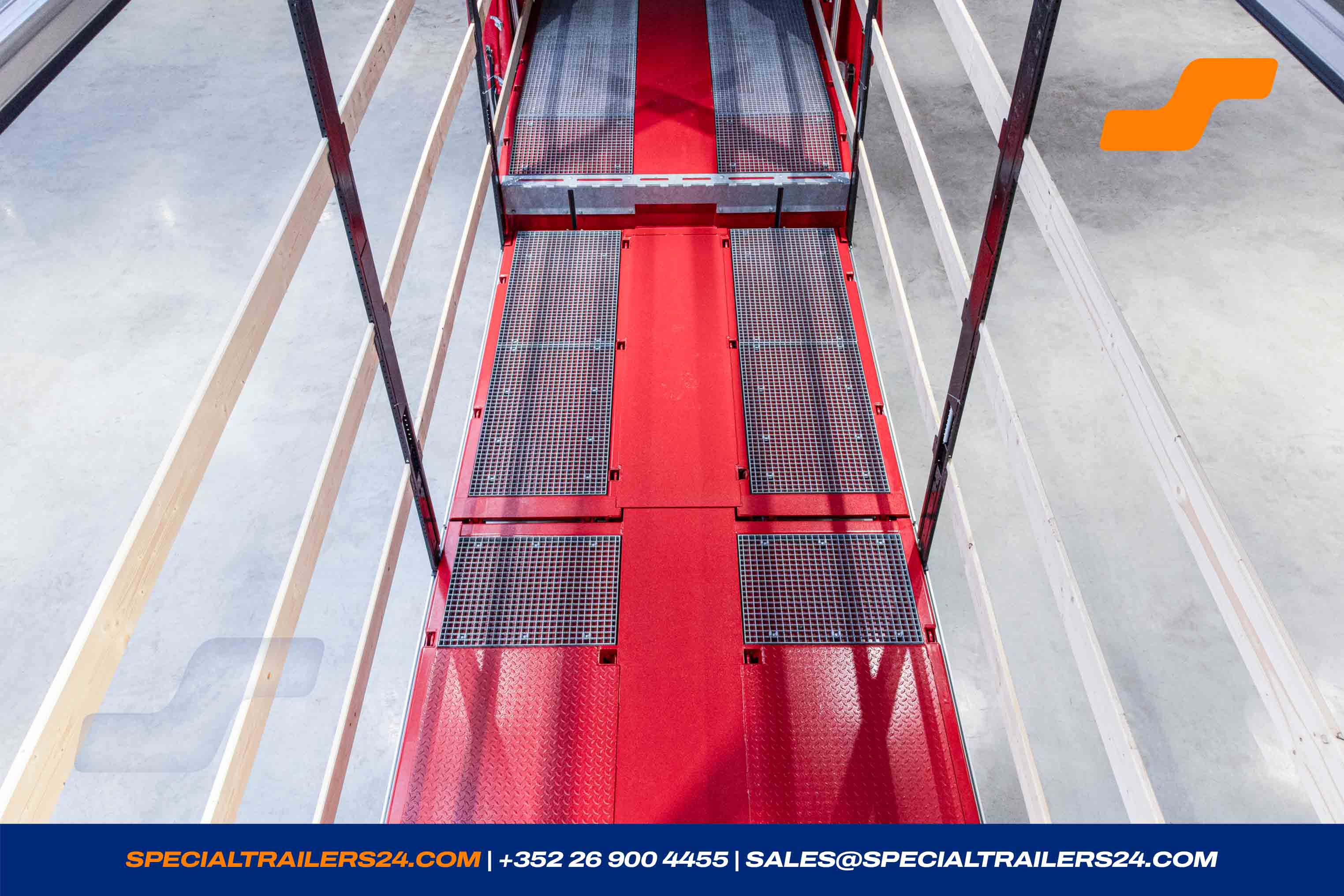

- Grating floor on the hydraulically liftable loading area C40/5 (for point load of 8 to on a surface of 20 x 20 cm).
-
7 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
- 2 pairs in the lifting floor.
- 5 pairs in the rear loading area.

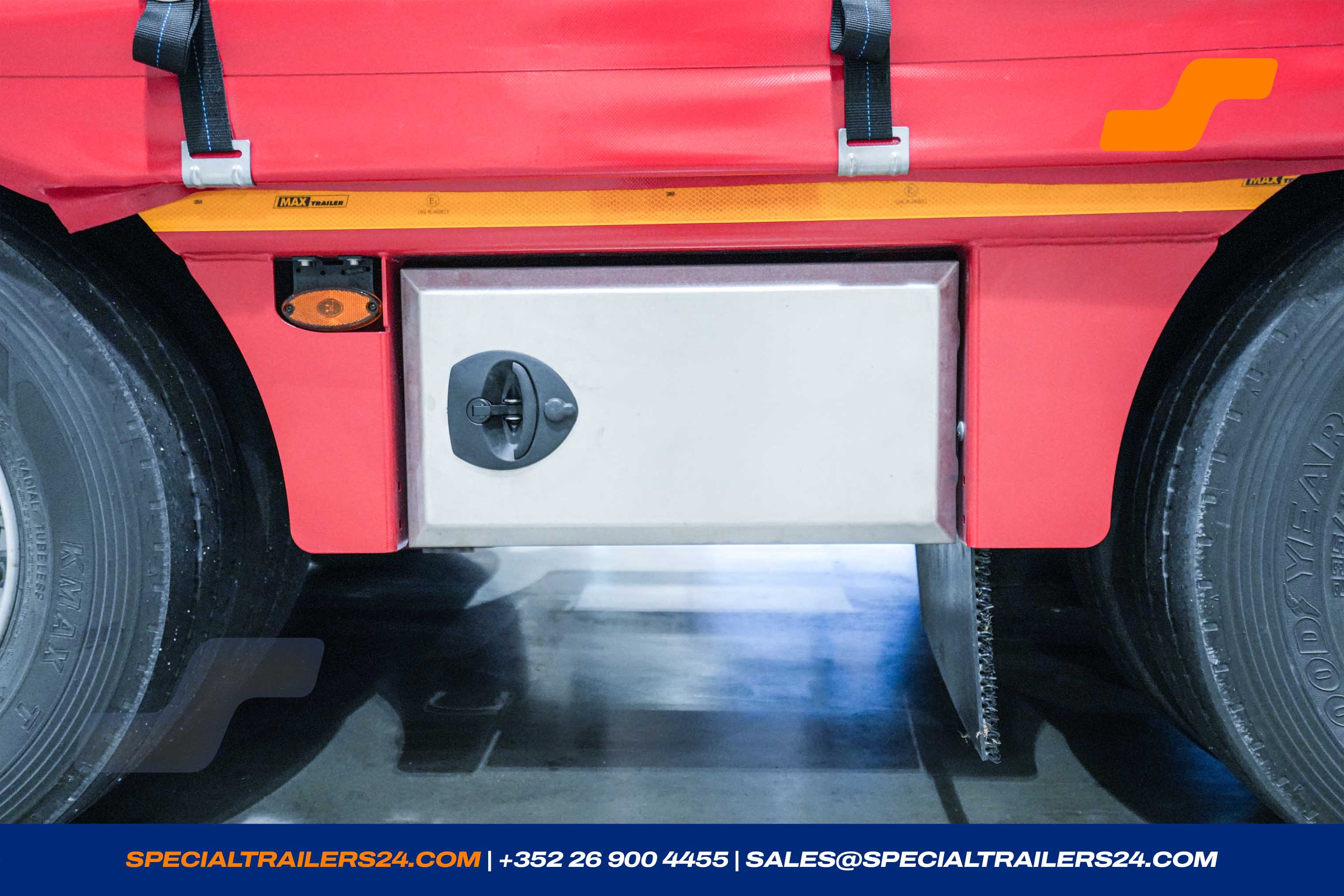

1 pair of inserted lashing rings along the central beam at the back end of the chamfer (LC 10 000 daN). (± 25 kg) - Tool box INOX 565 x 290 x 810 mm in driving direction on the right side, between the axles. (± 45 kg)
- 2 LED- reversing lights at the rear.
- 1 LED working lamp left and right inside the superstructure, operable via on-off switch .
- 1 LED reversing lamp left and right in front of the first axle.
-
Cable control for platform widening and ramps-operation.
*Control for platform widening.
*Control for lifting and lowering of the ramps. - Speed sticker 60, 80 & 90 km/h at the rear.
- Acoustic warning signal when reversing.

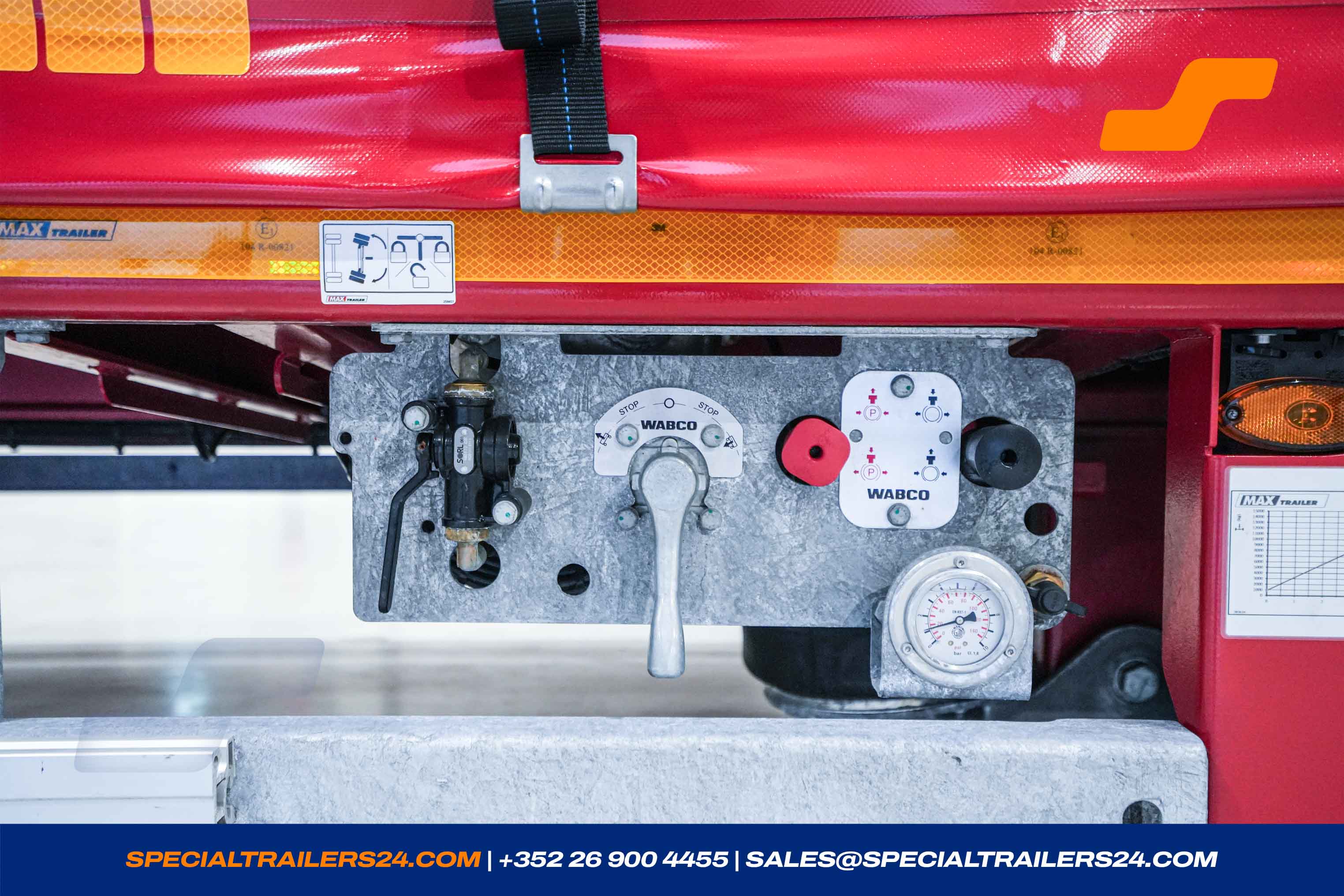

- Load manometer for determining the axle load, including load diagram.
Ramps

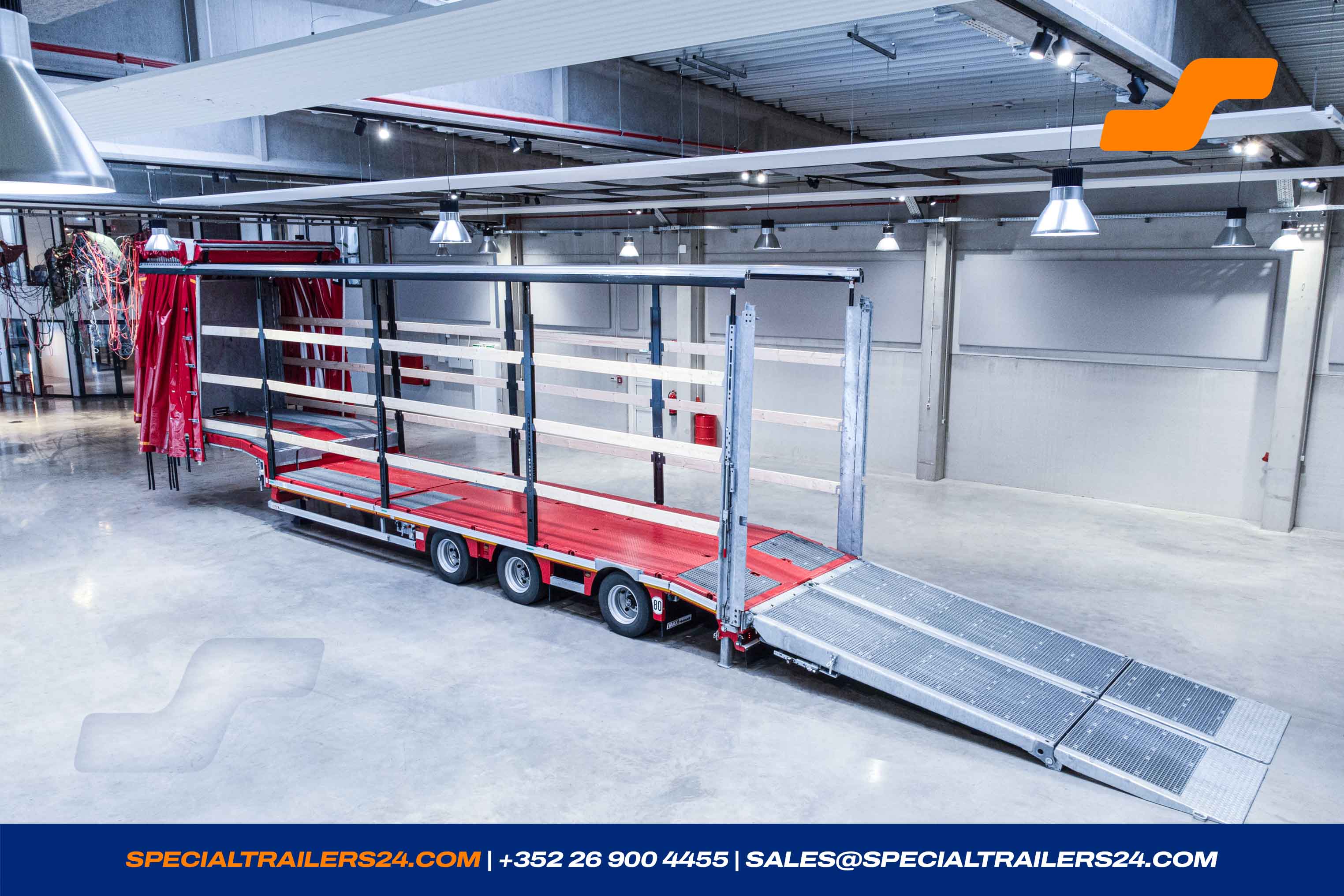

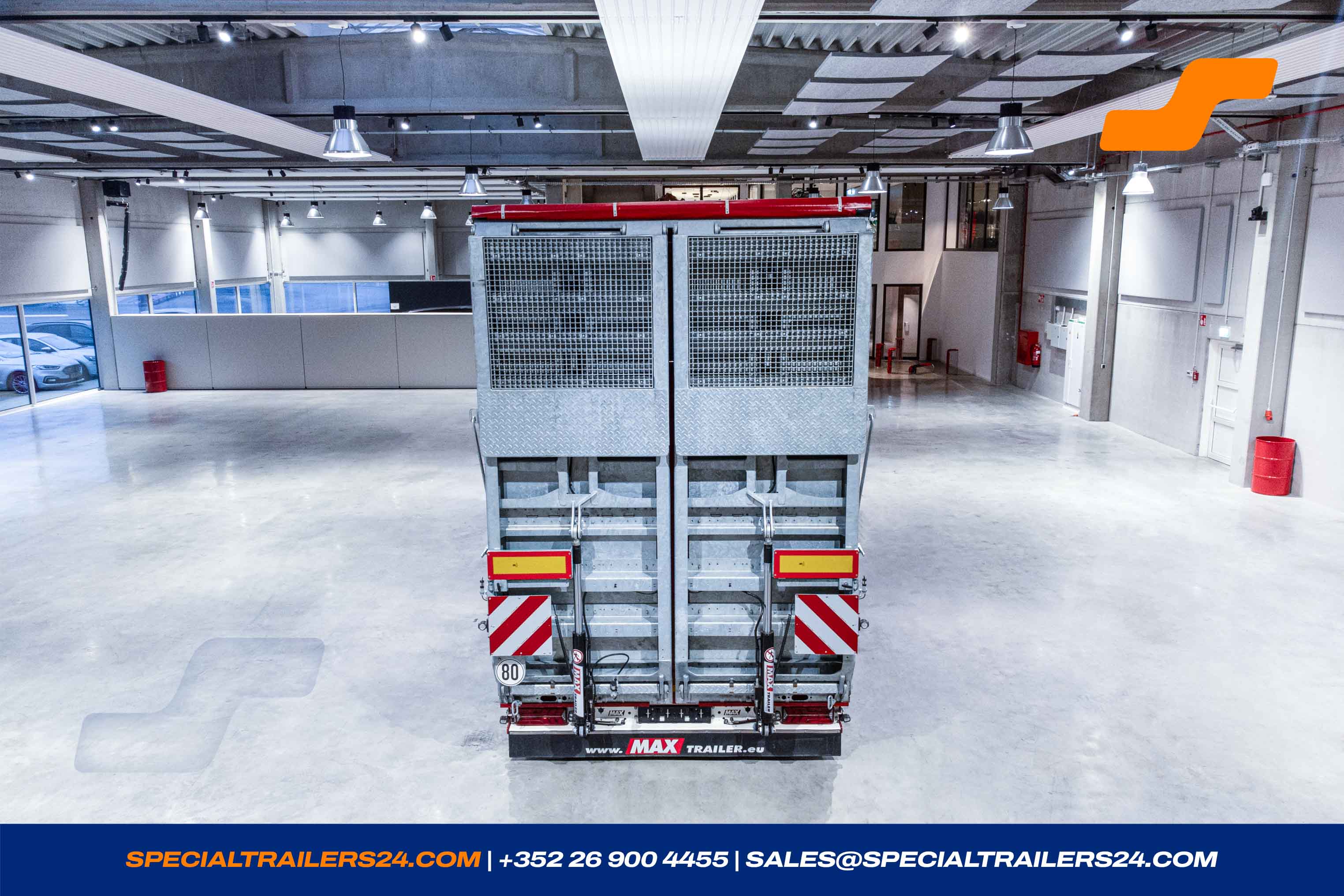

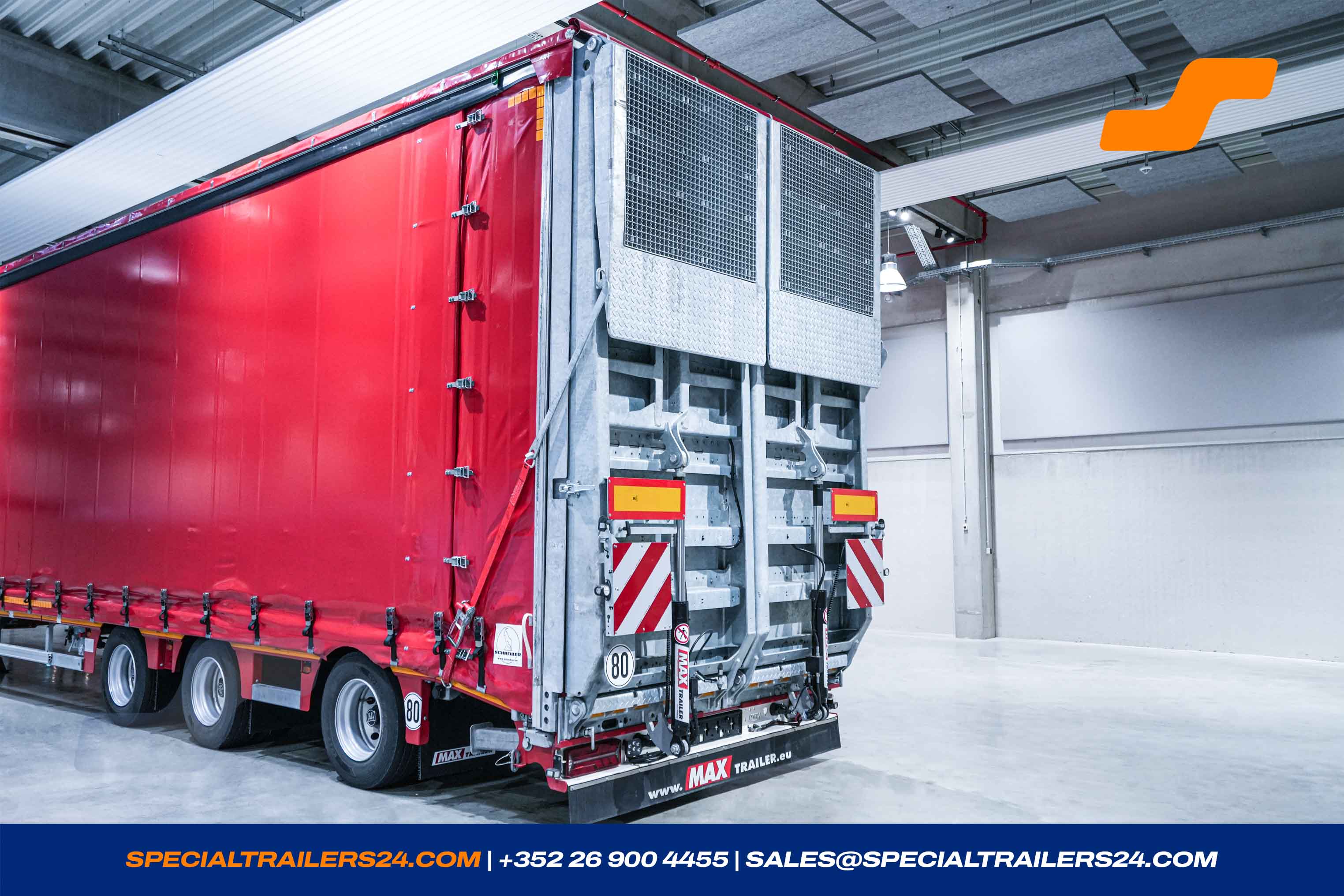

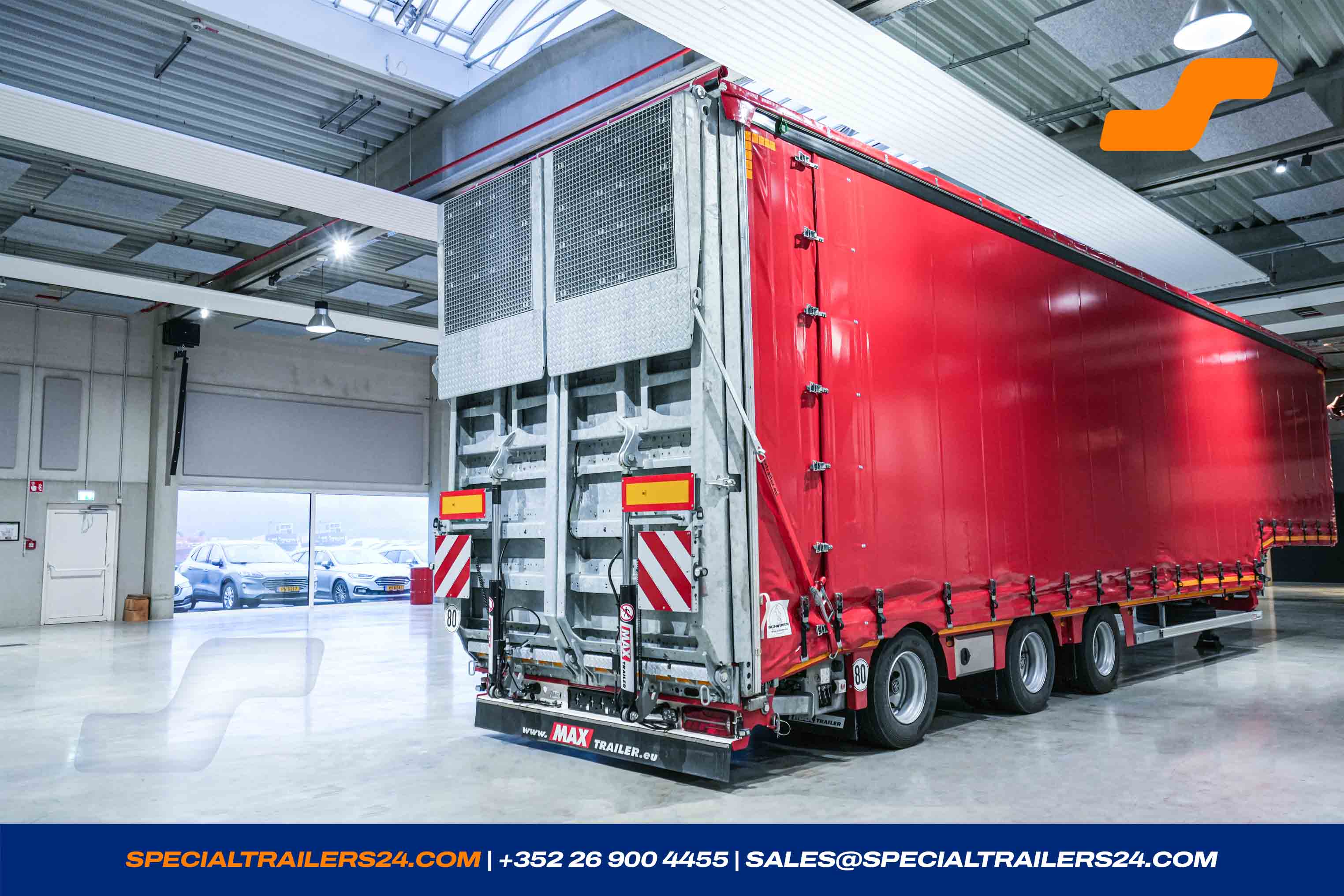

Hydraulic loading ramps

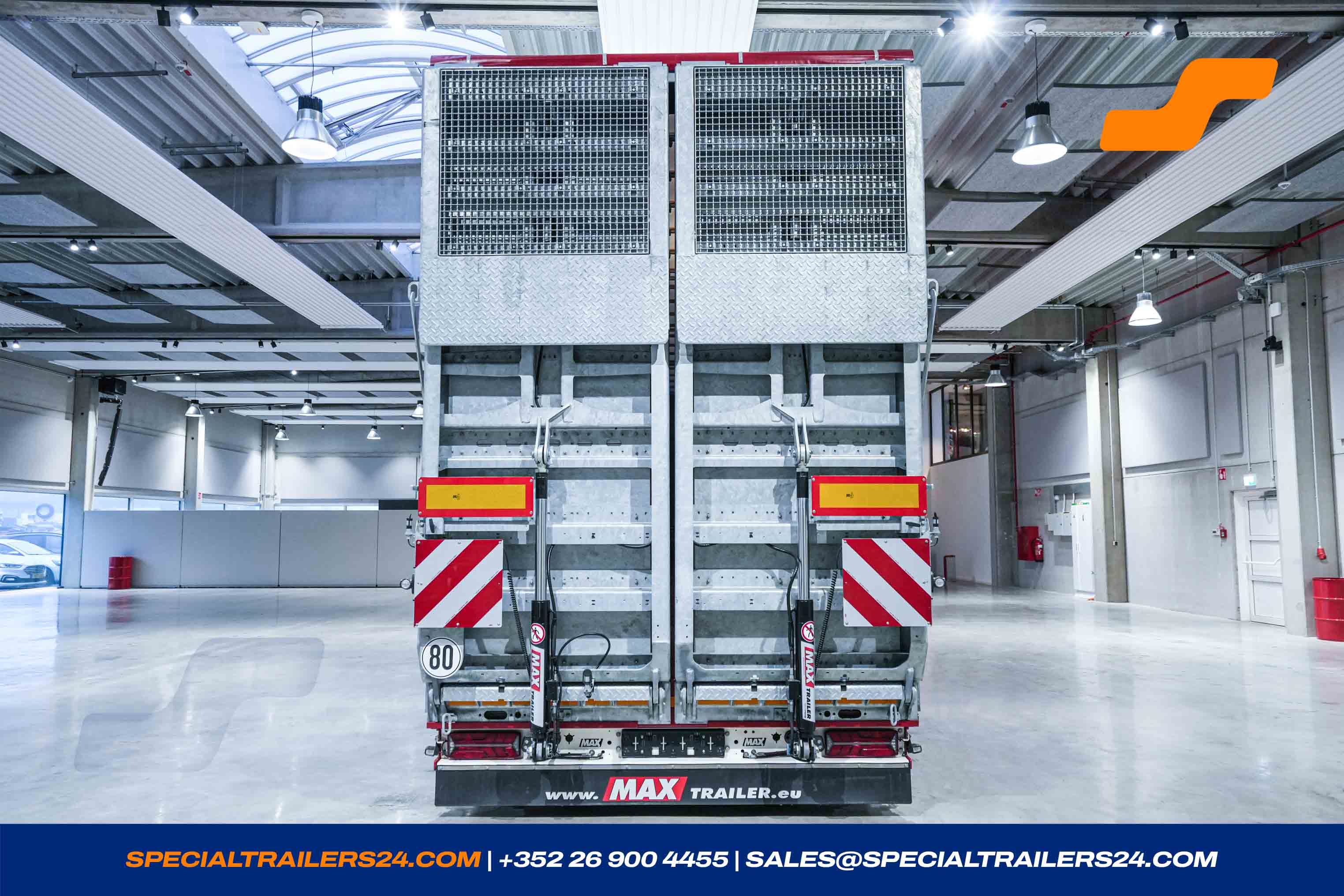

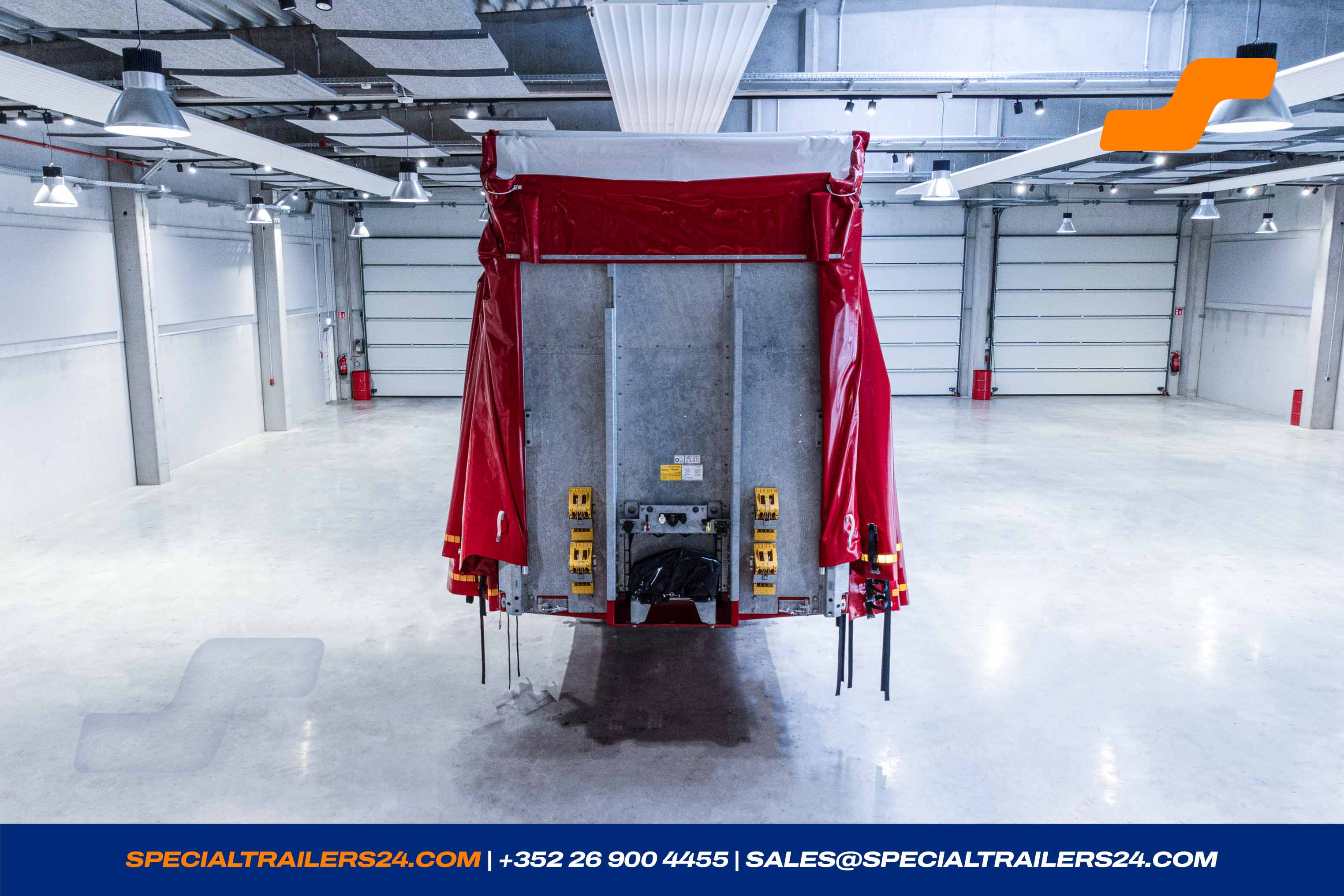

1 x Steel double flip ramps : DR-1250-HH-40-GRV-HVA{Aufbau}

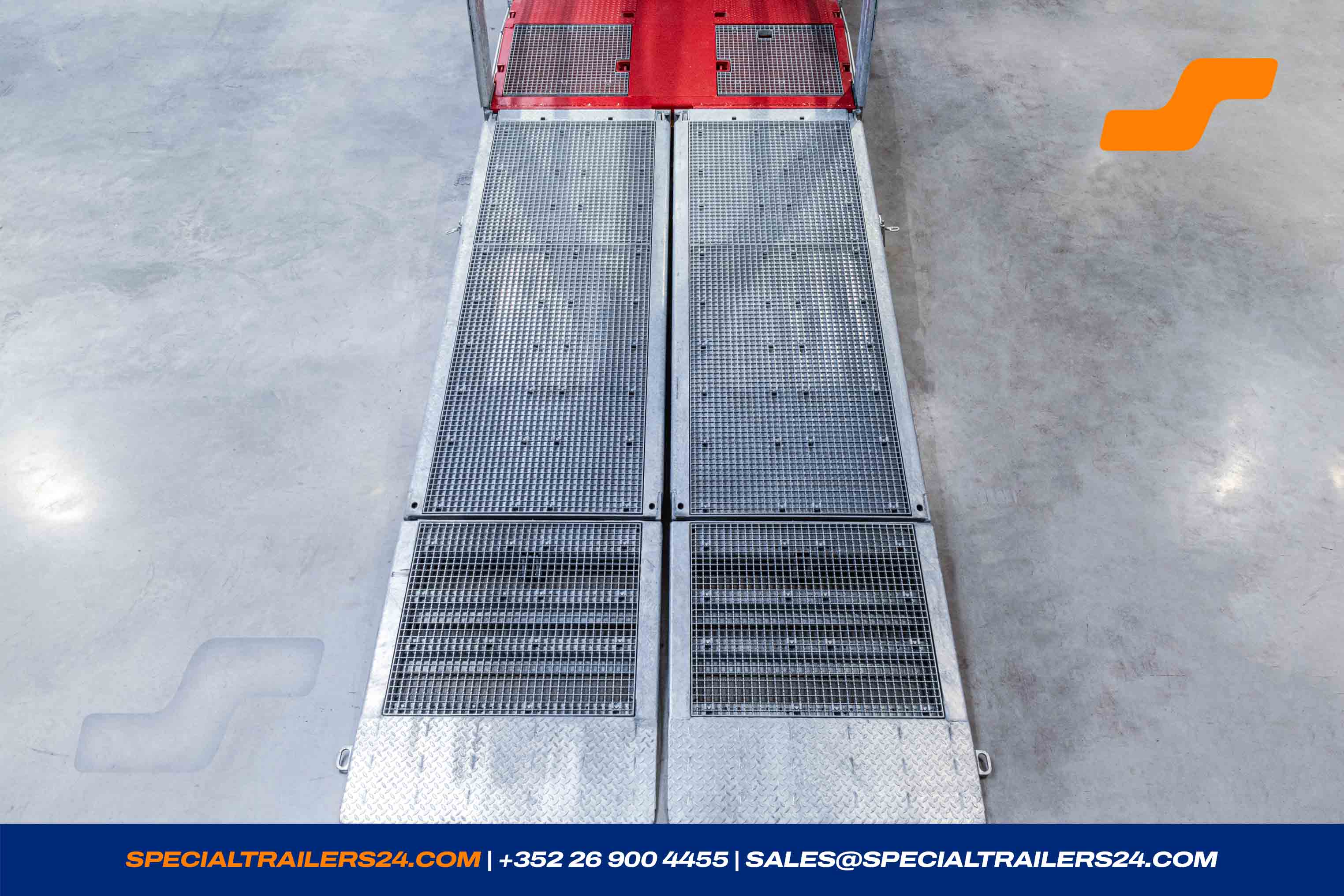

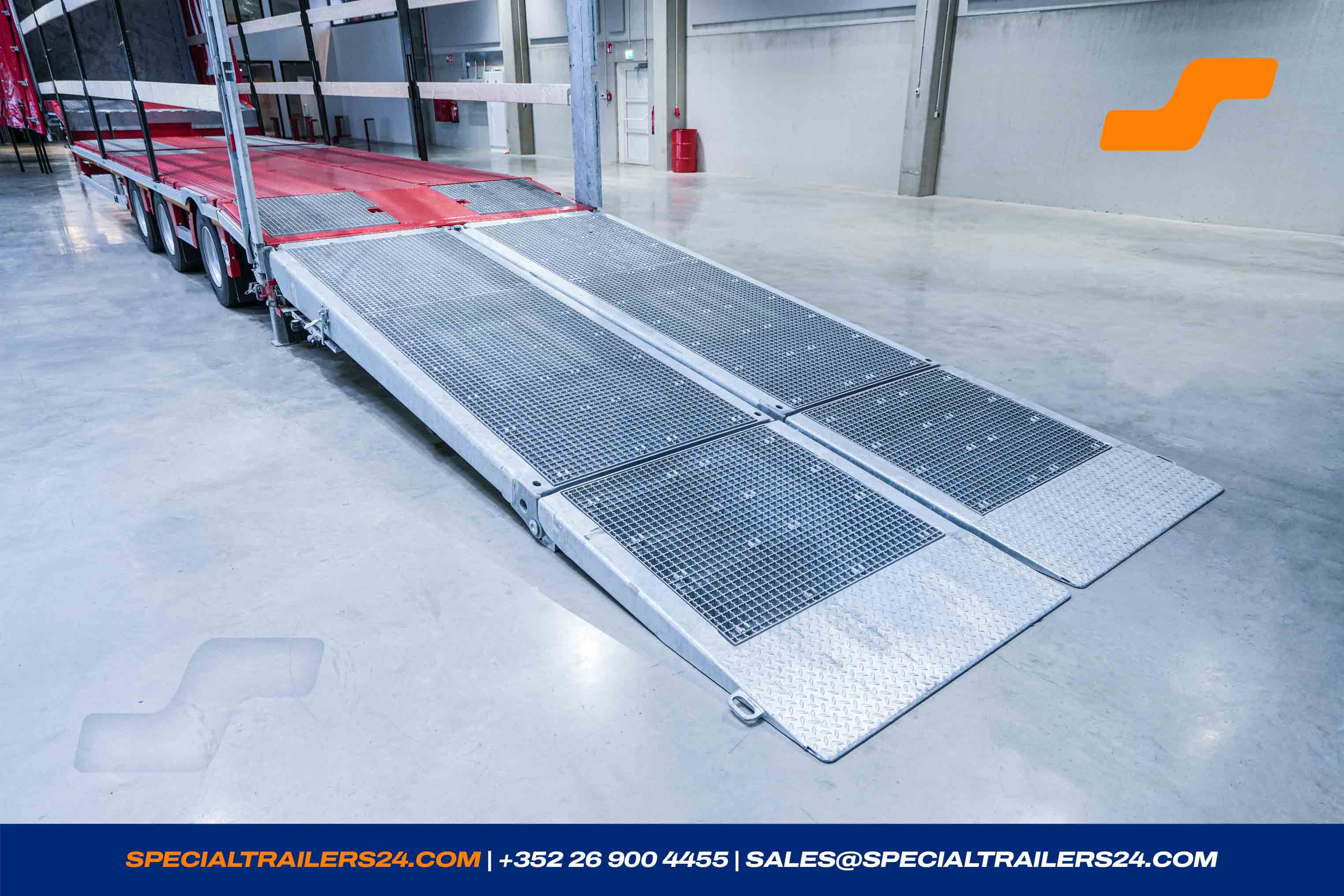

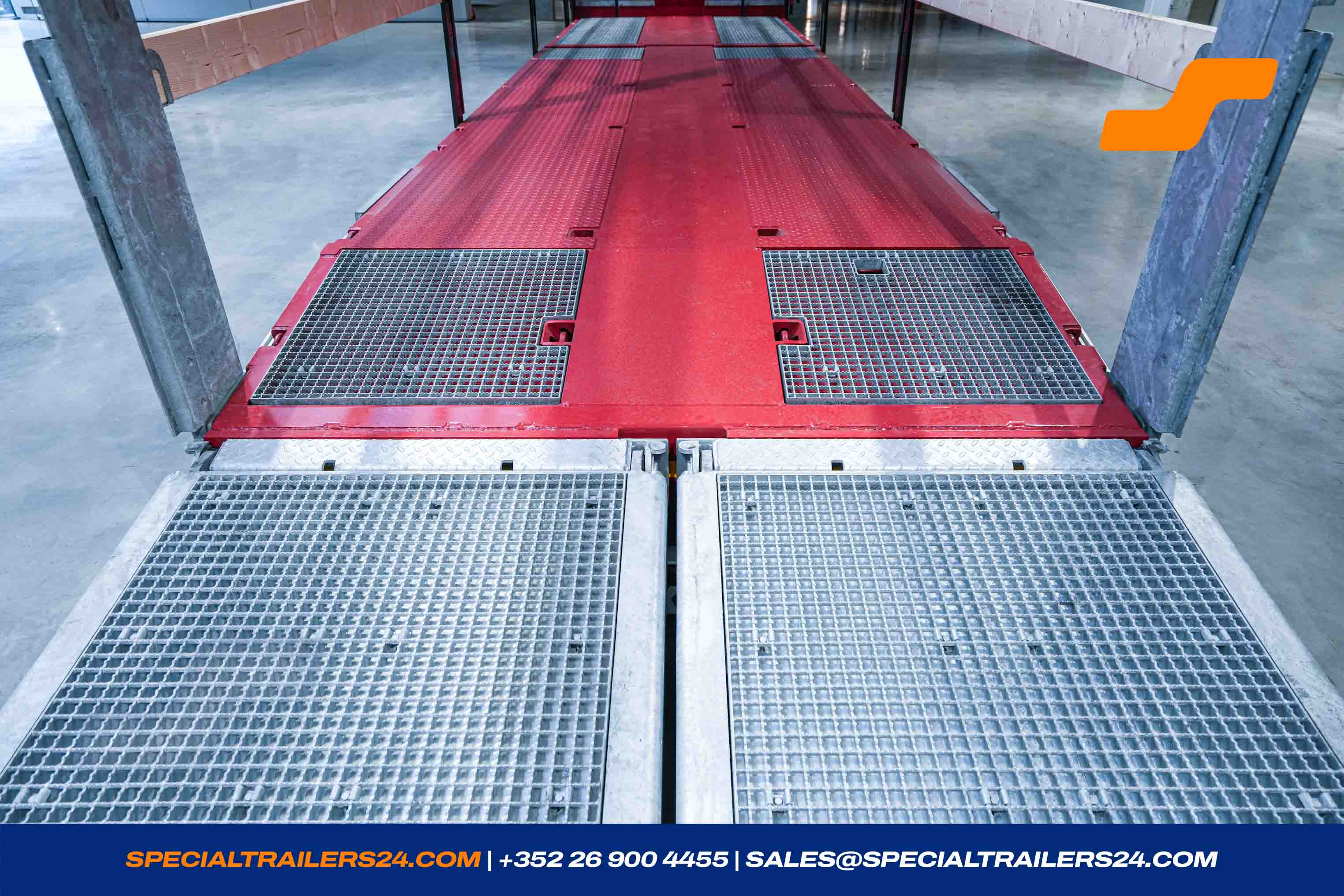

1 pair of galvanized steel double flip ramps ca. 3 185 +1 420 x1 250 mm with grating floor C40/5 (for point load of 8 to on a surface of 20 x 20 cm).
Ramps hydraulically operated.
Maximal charge for one pair: 40.000 kg
- Loading platform reinforced with a ± 4 mm perforated steel underlay for higher point load. (± 525 kg)
- Grating floor on the chamfer of the loading platform C40/5 (for point load of 8 to on a surface of 20 x 20 cm). (± 31 kg)
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).

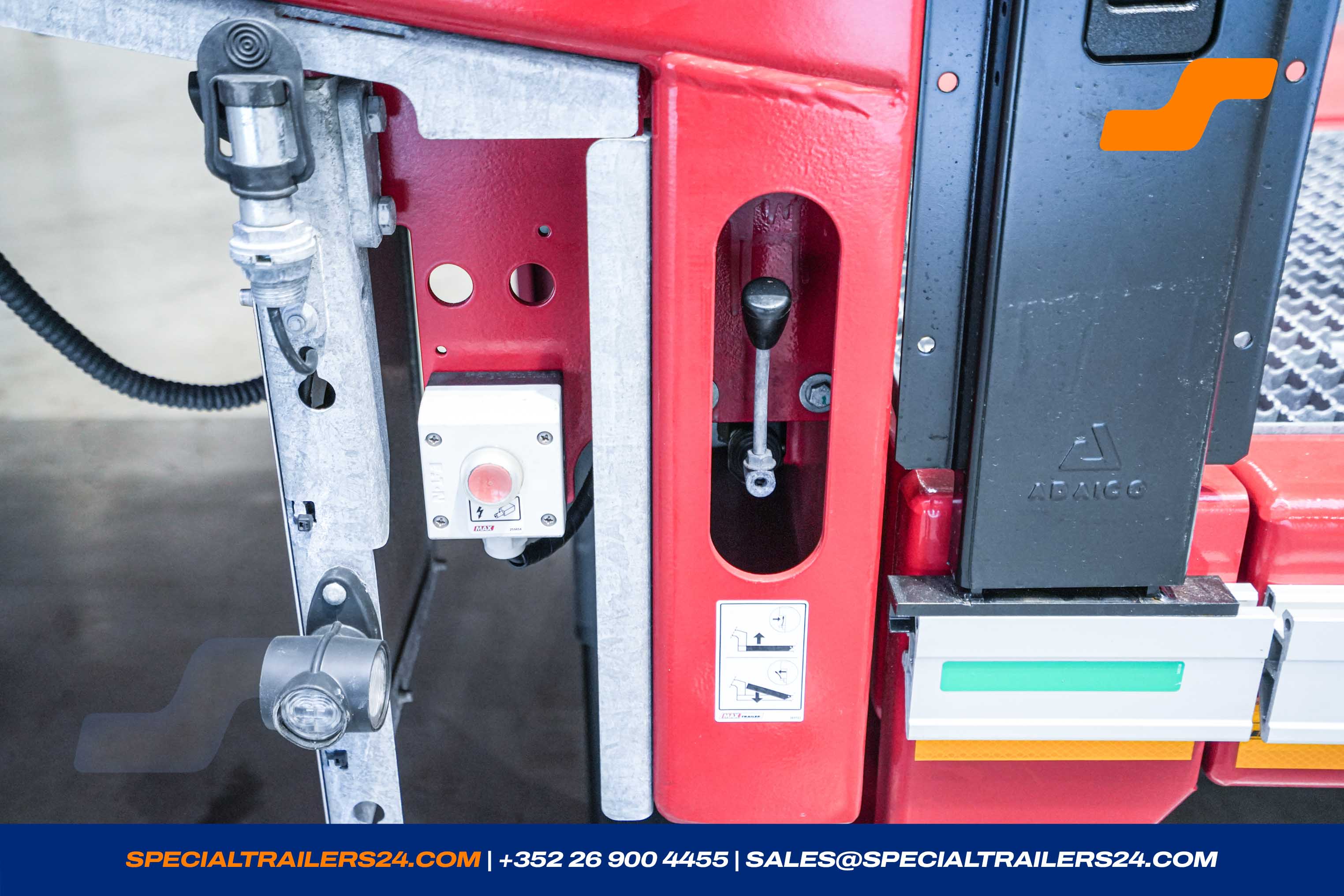

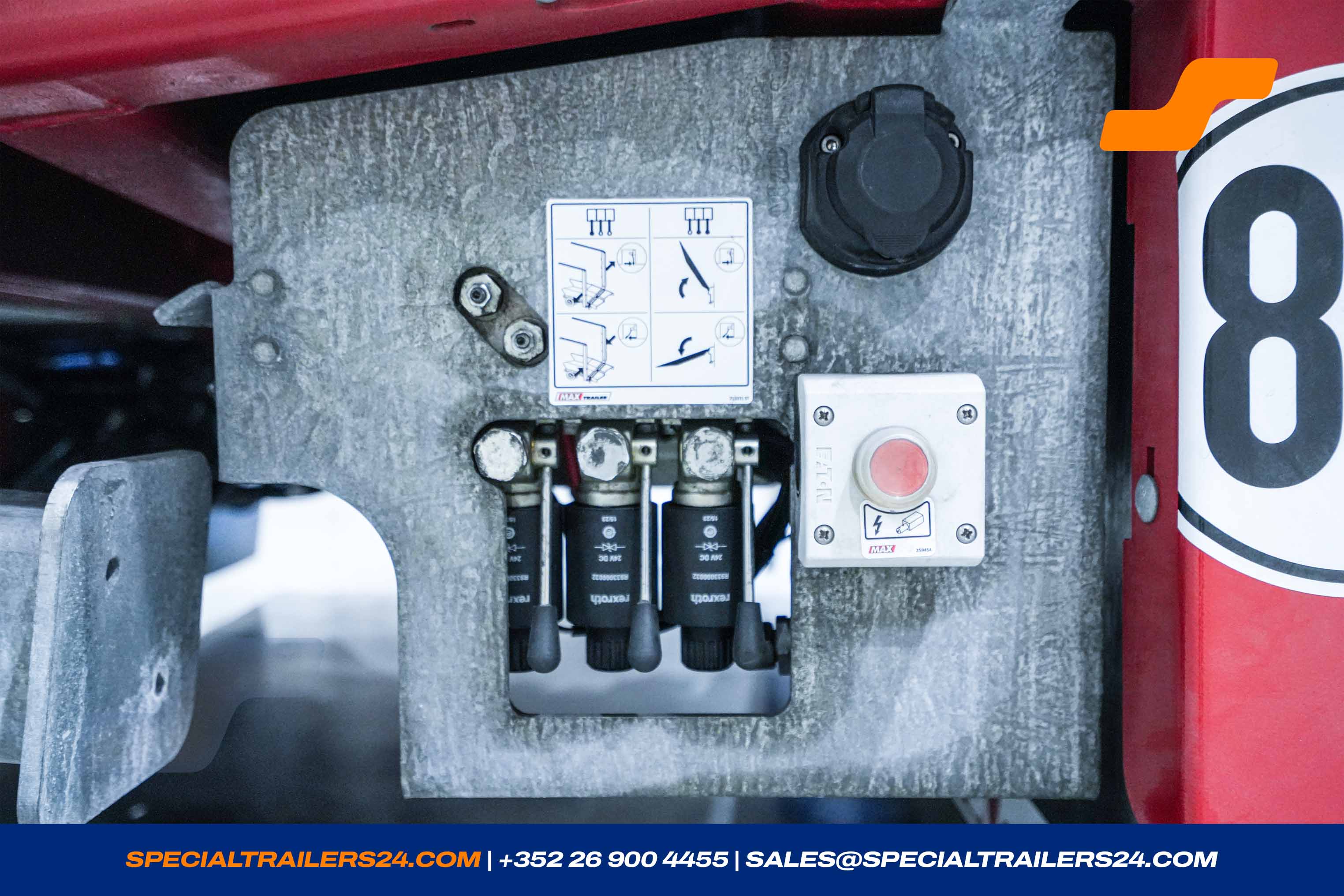

- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessory
MAX100-Accessory
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- Manual and description on USB stick .
