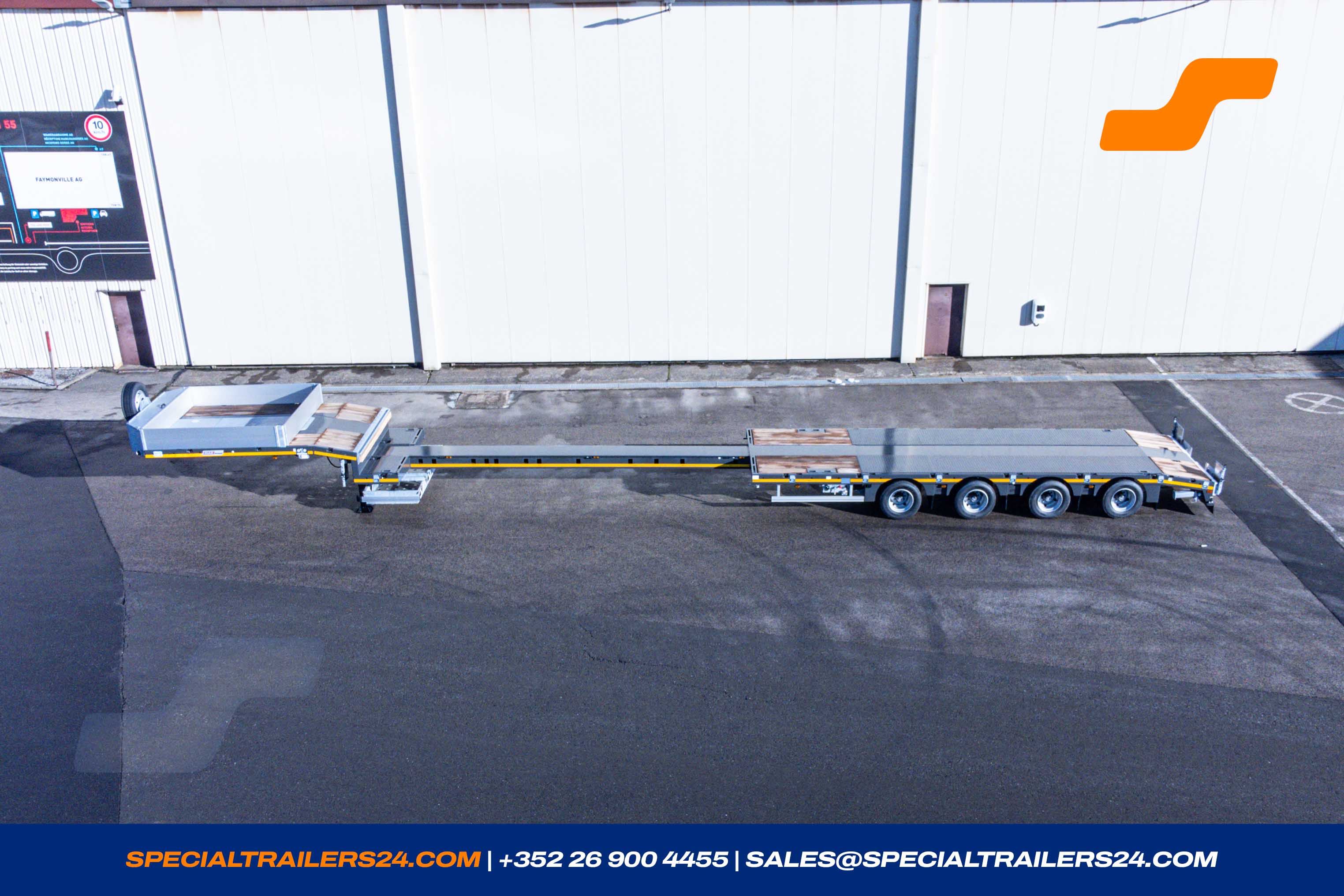

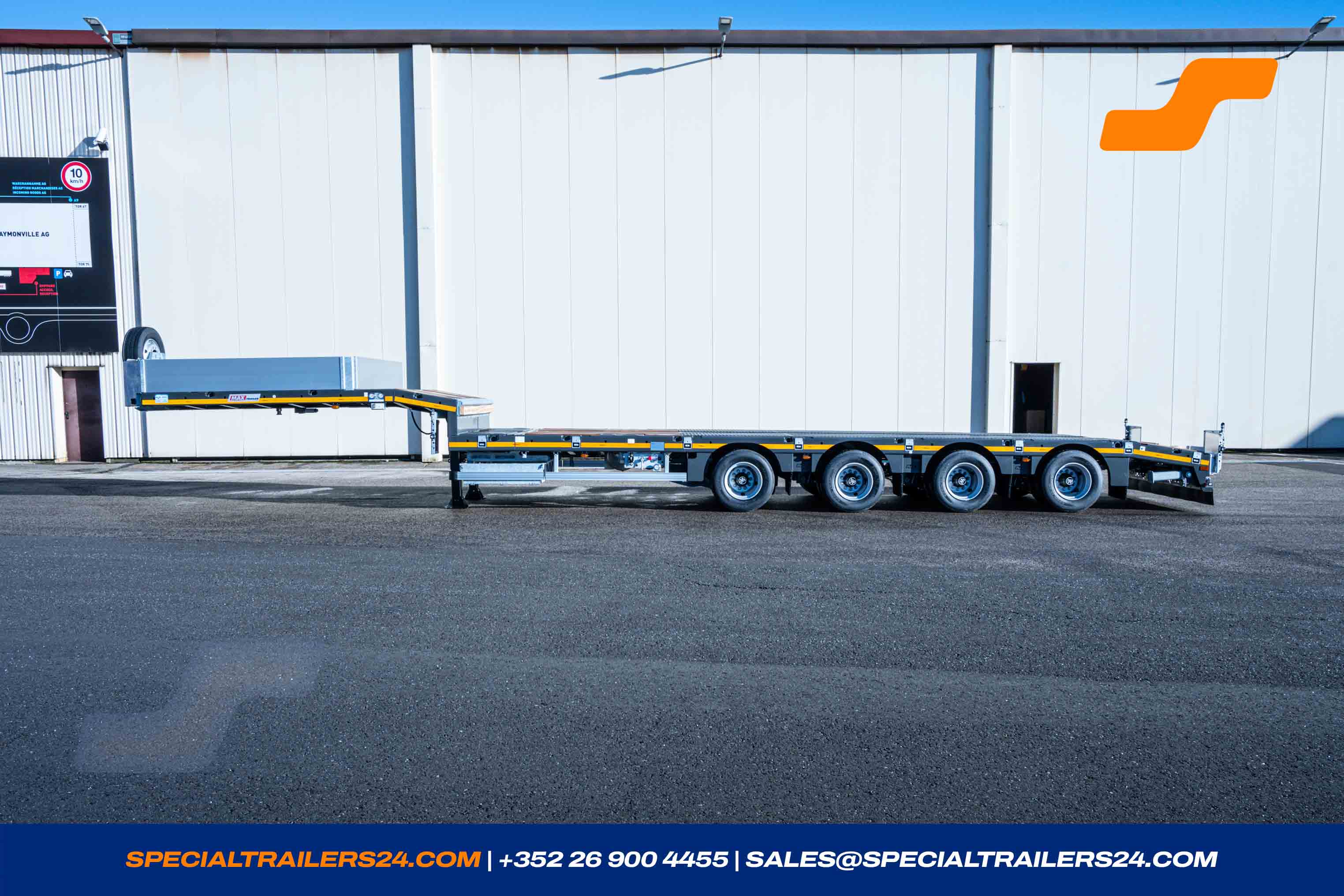

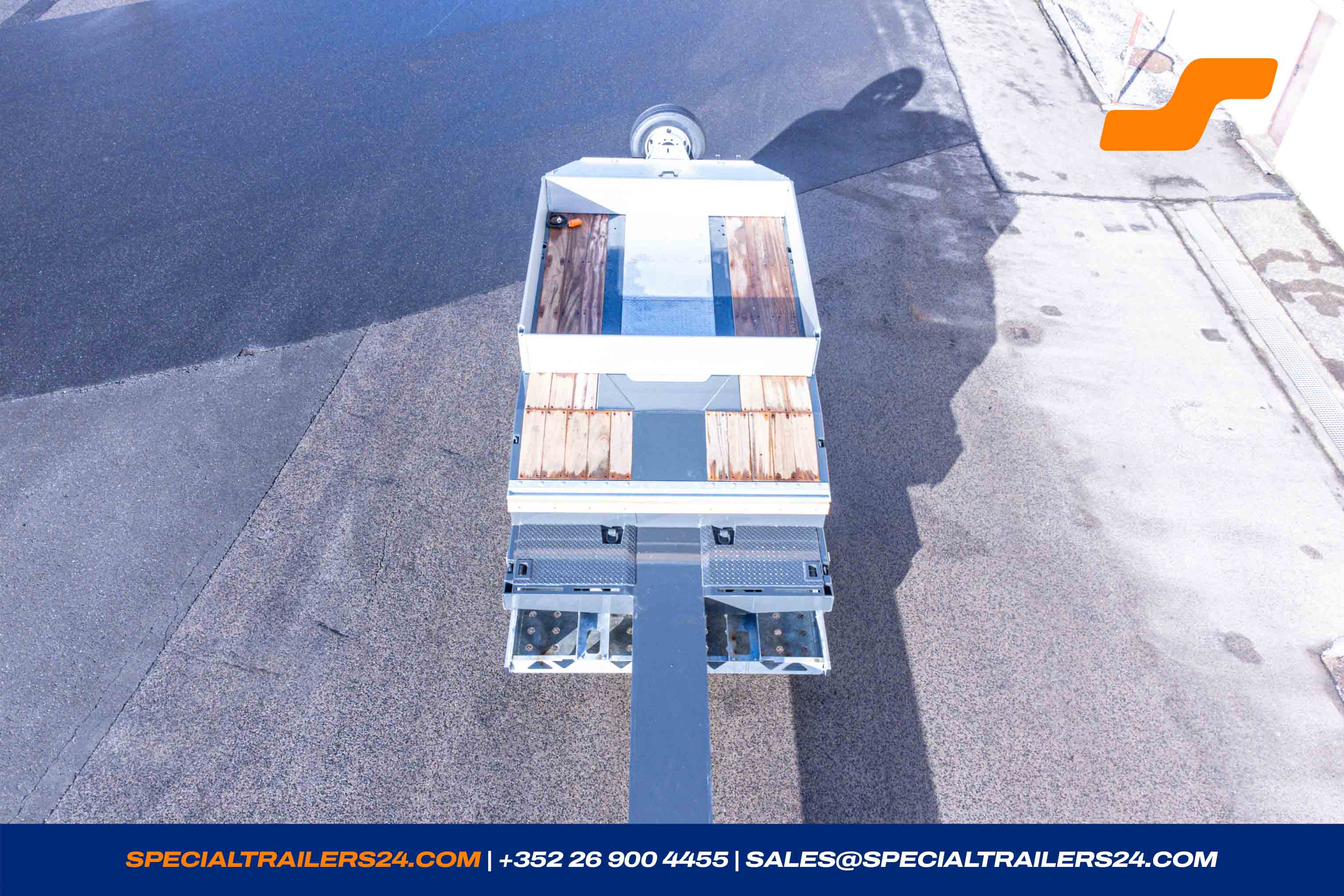

MAX Trailer MAX110
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110686
- Reference MAX110-Z-4A-8.60-U

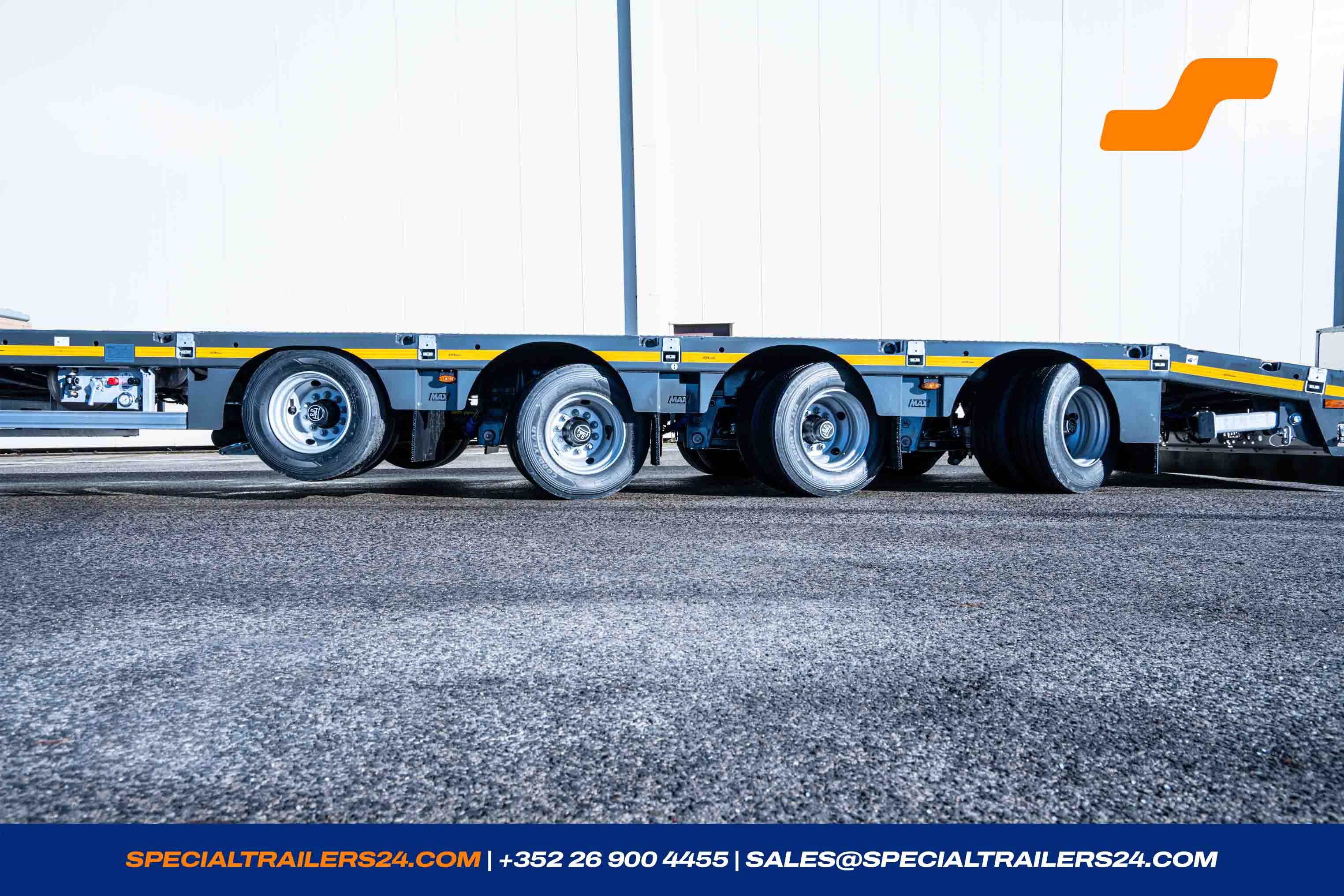

- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 06/2026
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 42800 kg |
| Gross weight | 60800 kg |
| Tare weight +- 3% | 13970 kg |
| Payload | 46830 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 4 200 mm |
| Turning circle reversing | 2 300 mm |

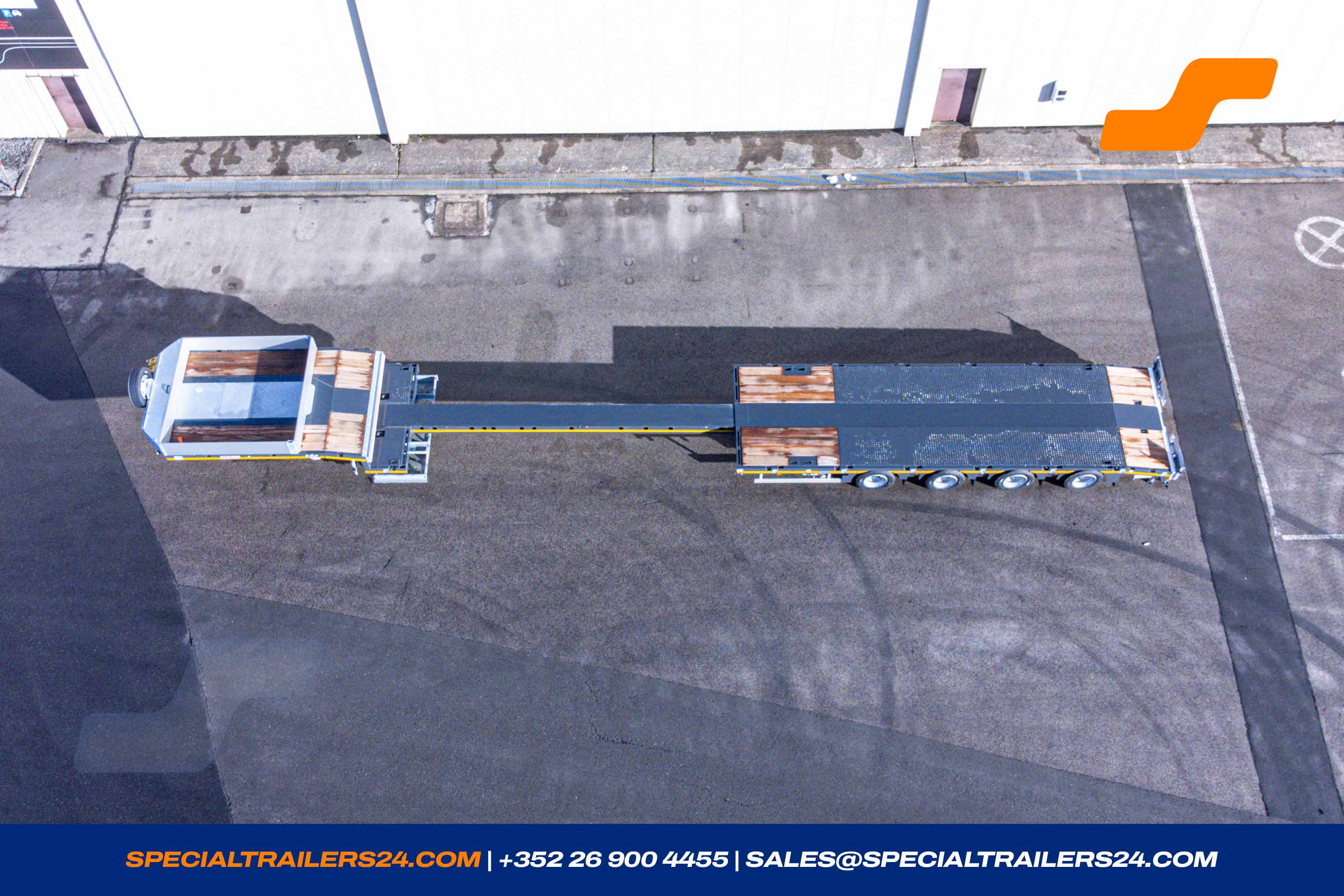

| Loading platform length | 8 600 mm |

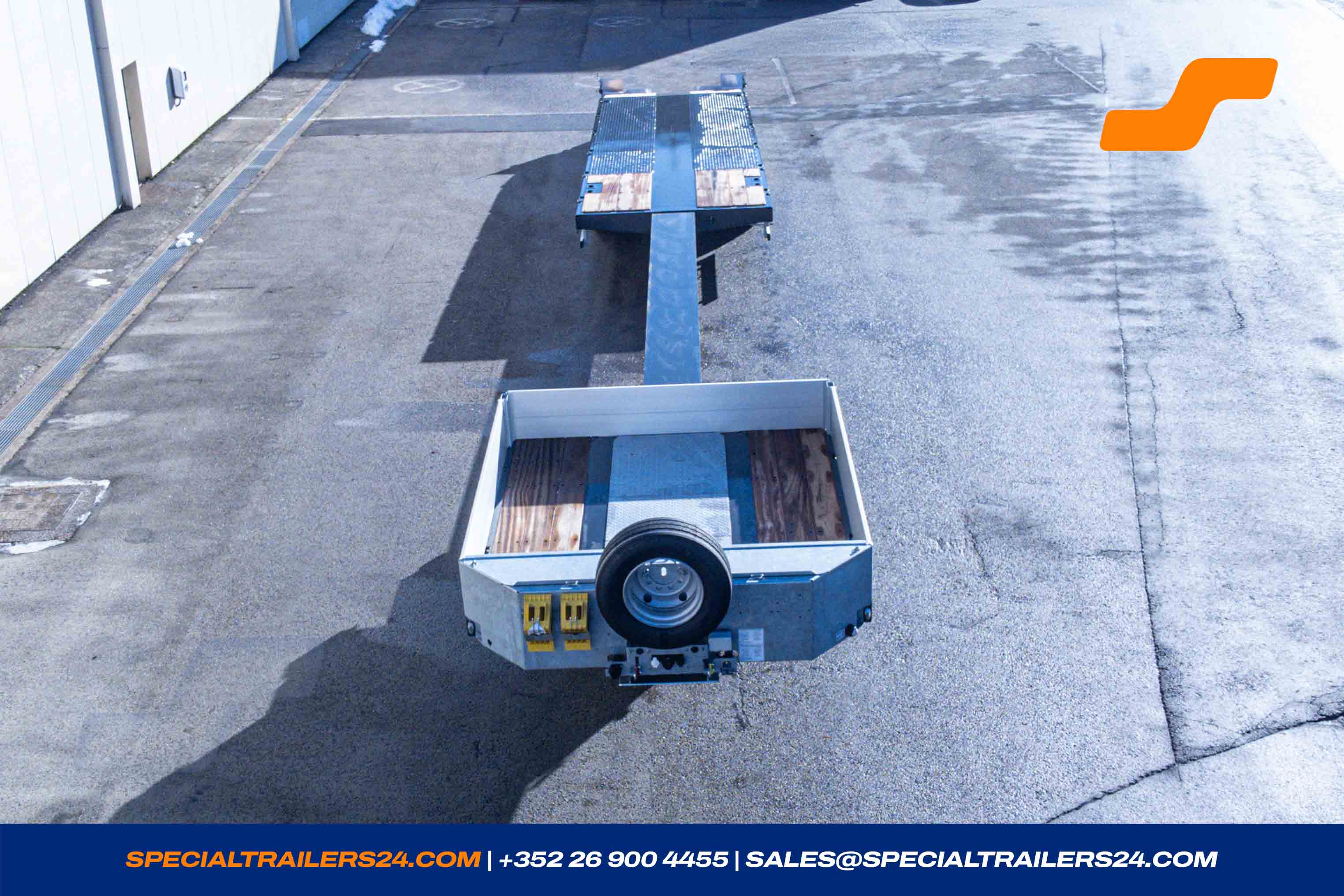

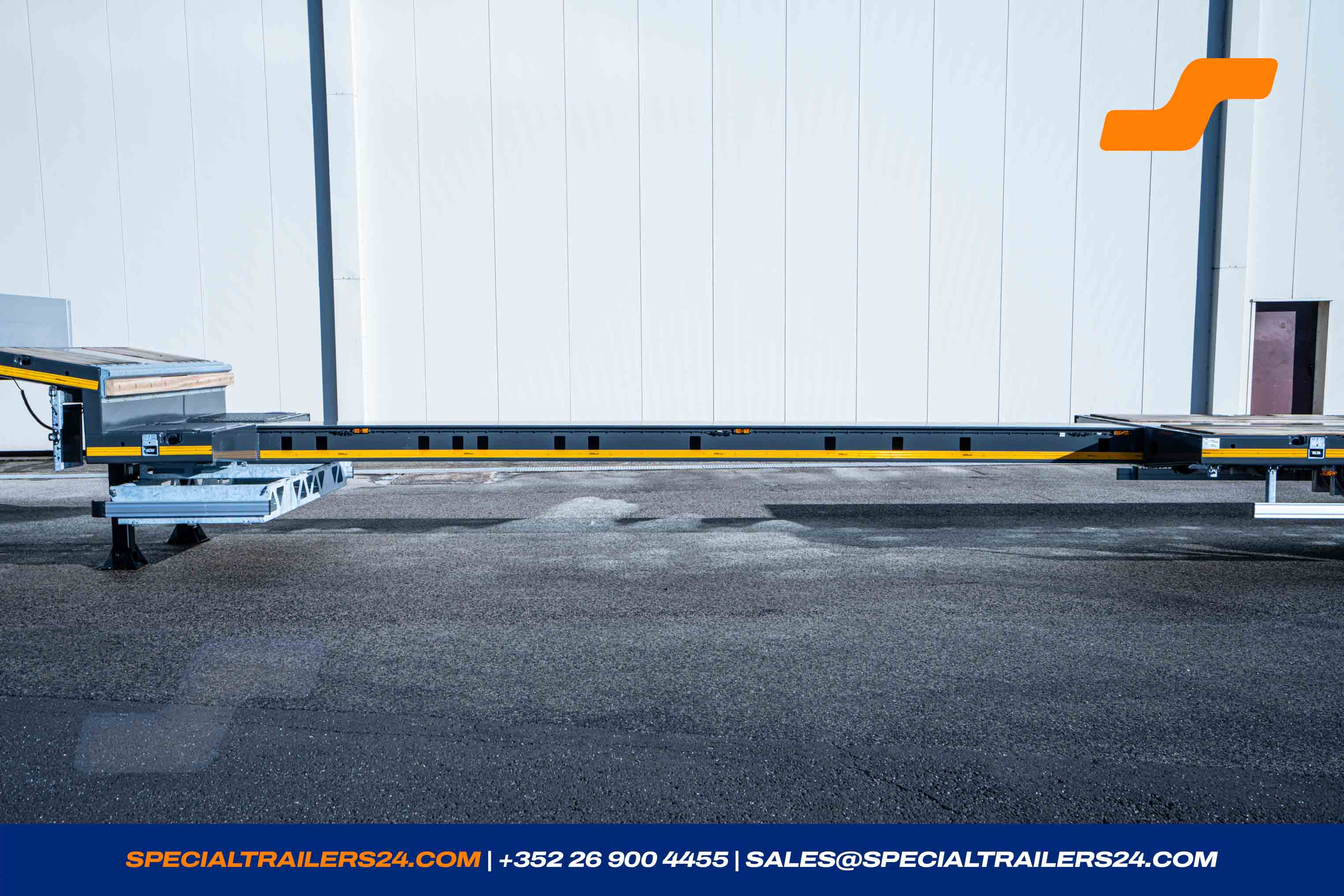

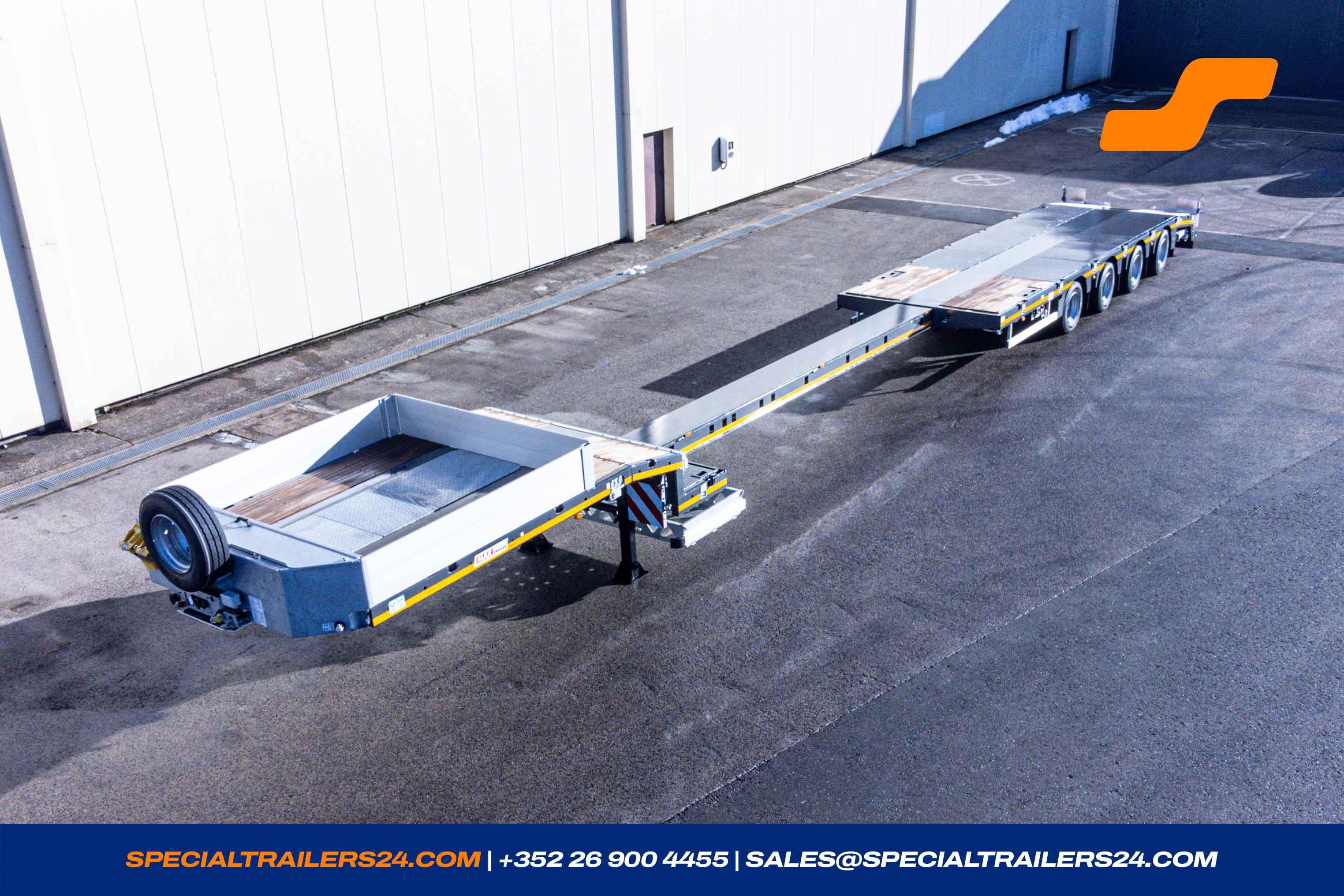

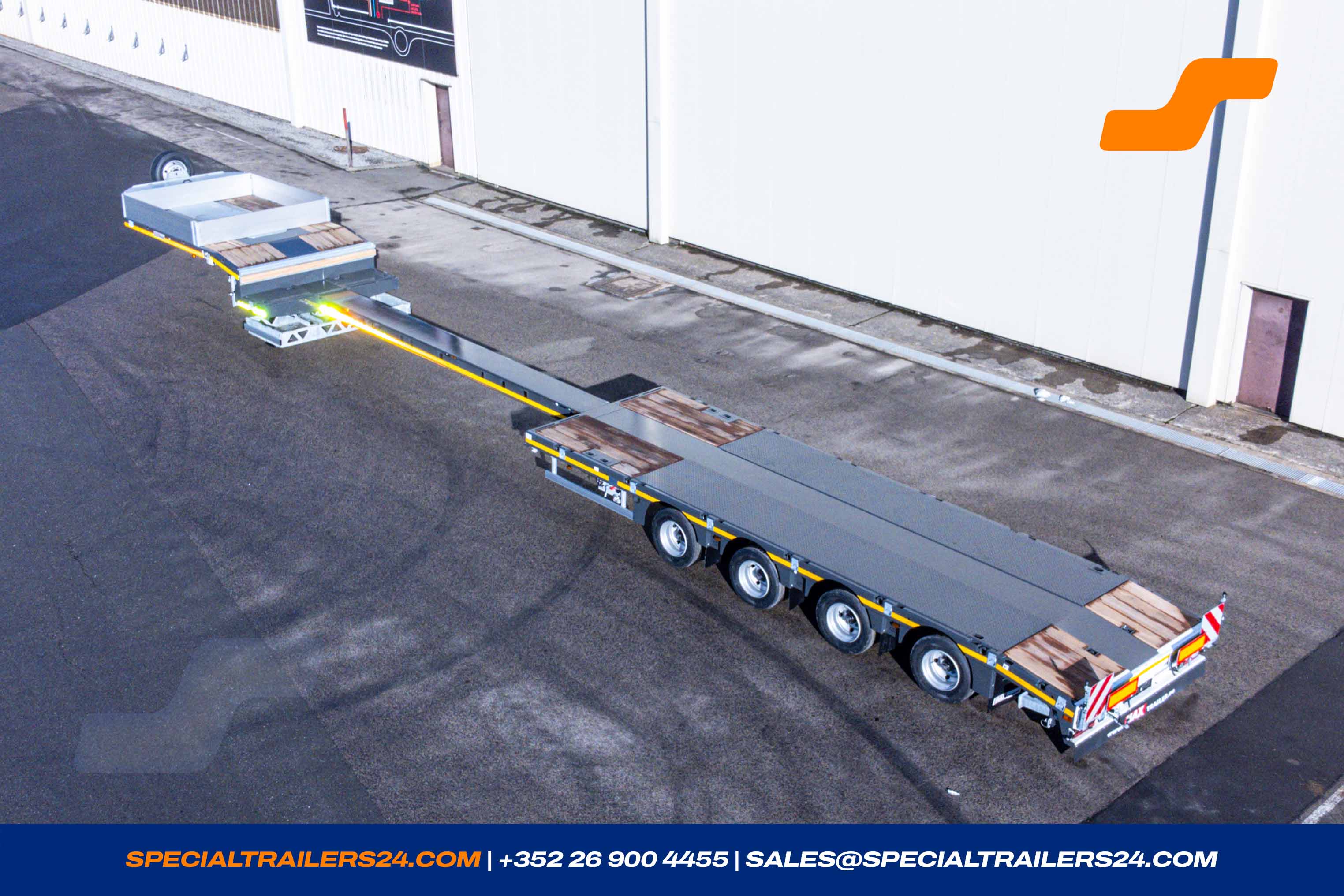

| Extendable by | 5 800 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

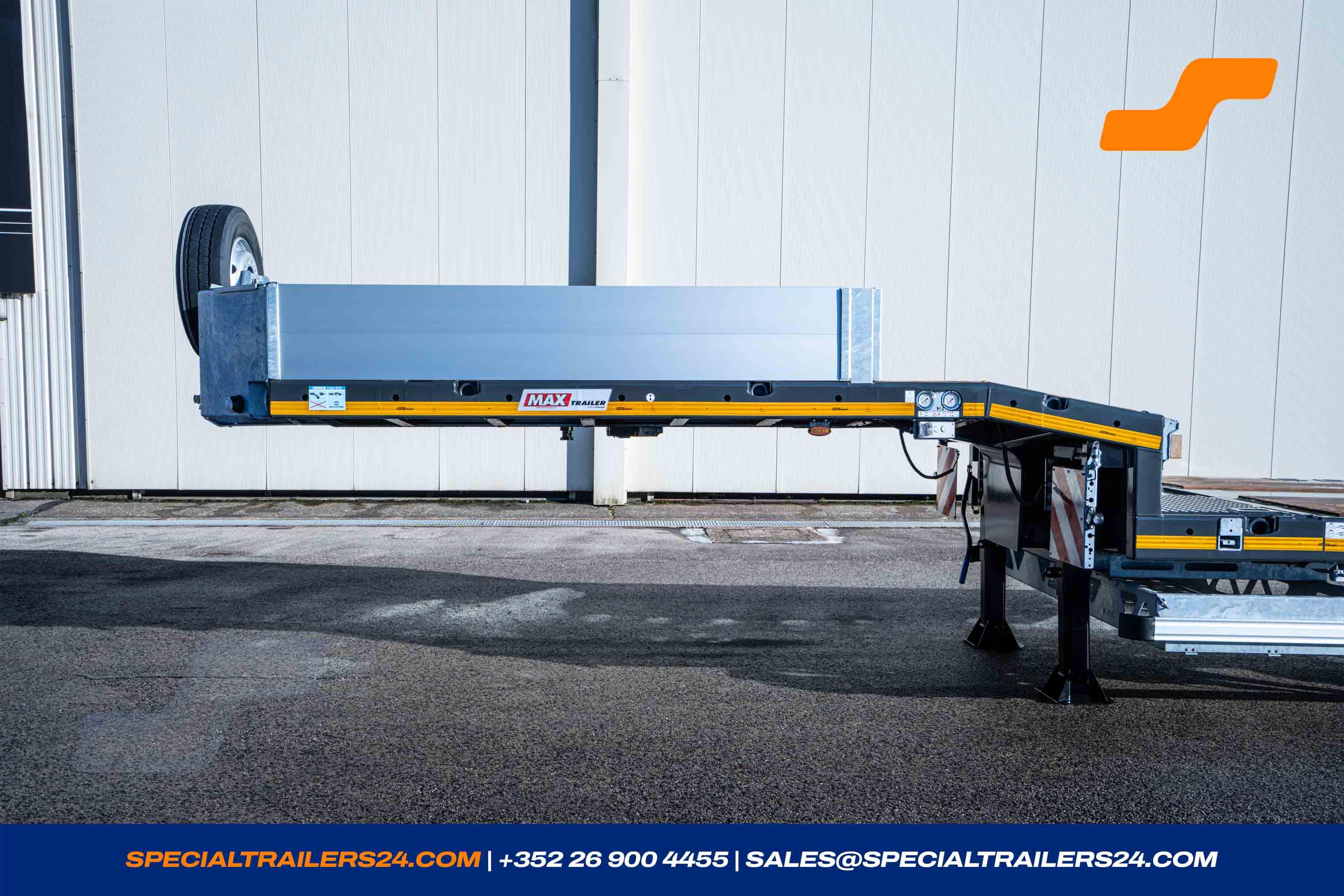

Gooseneck
1 x Gooseneck : MAX-4.200-750-10° (DSR 2300/ASH 1250) 45°
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
- 2 king-pin.
- One galvanised steel headboard, height ± 400 mm.

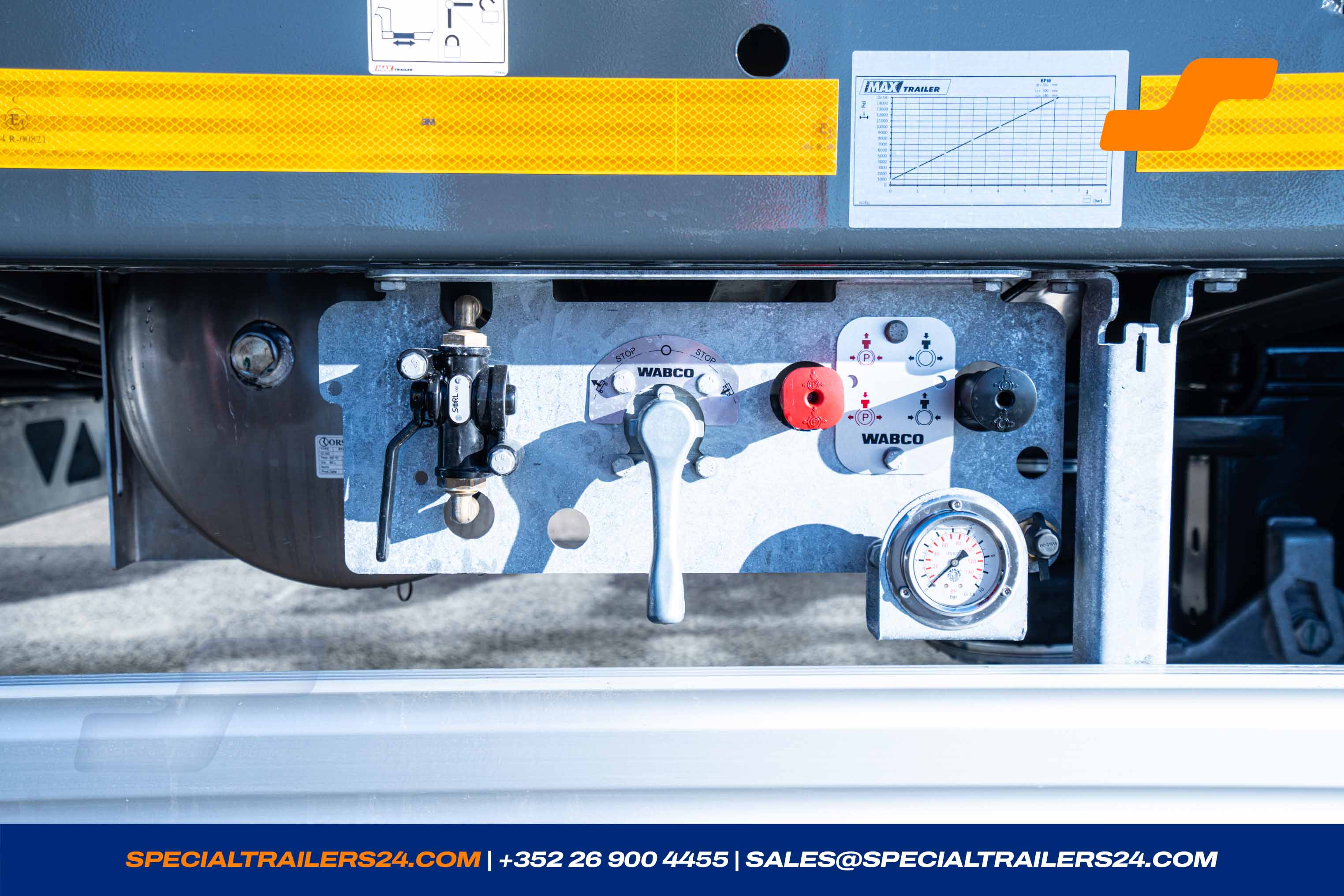

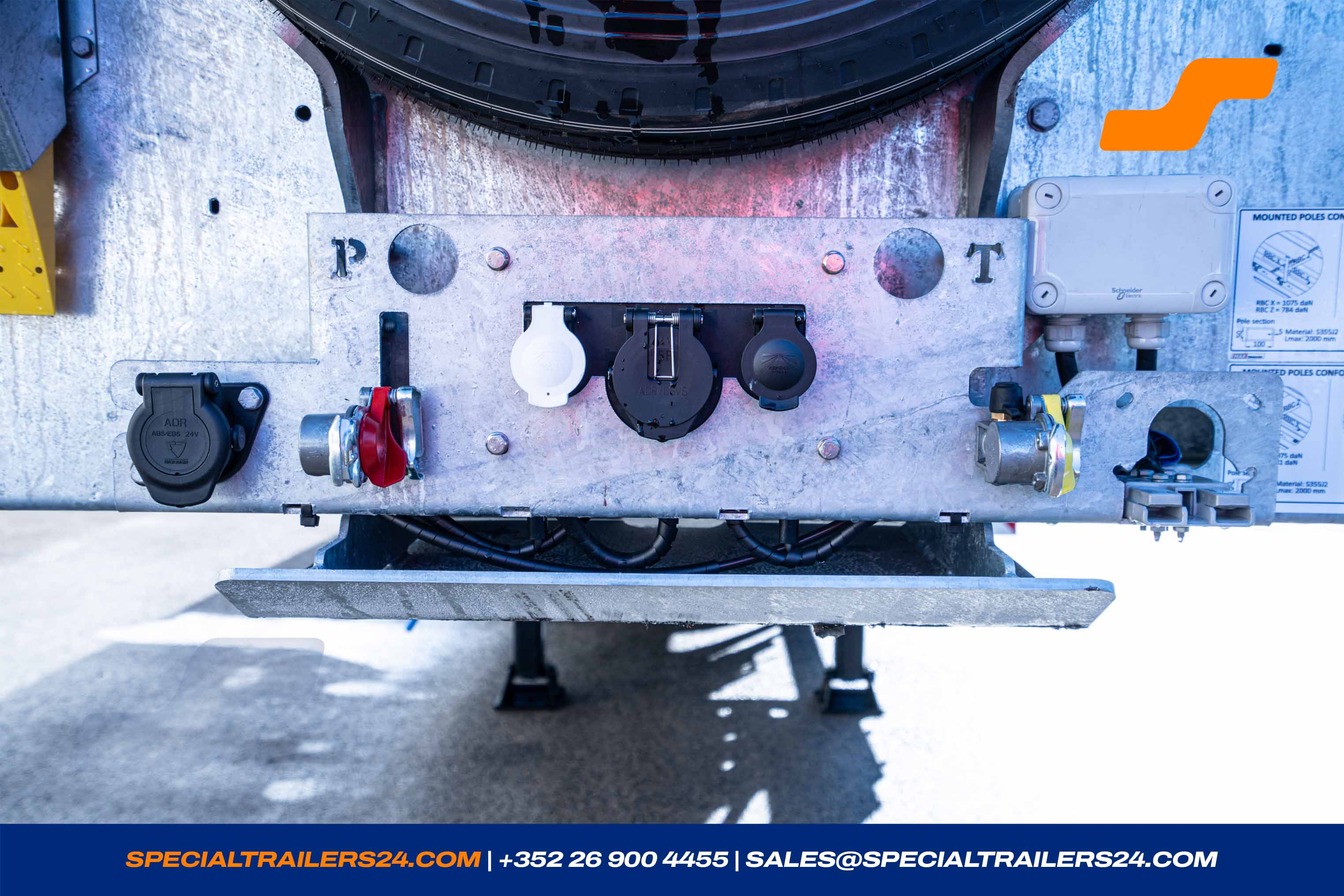

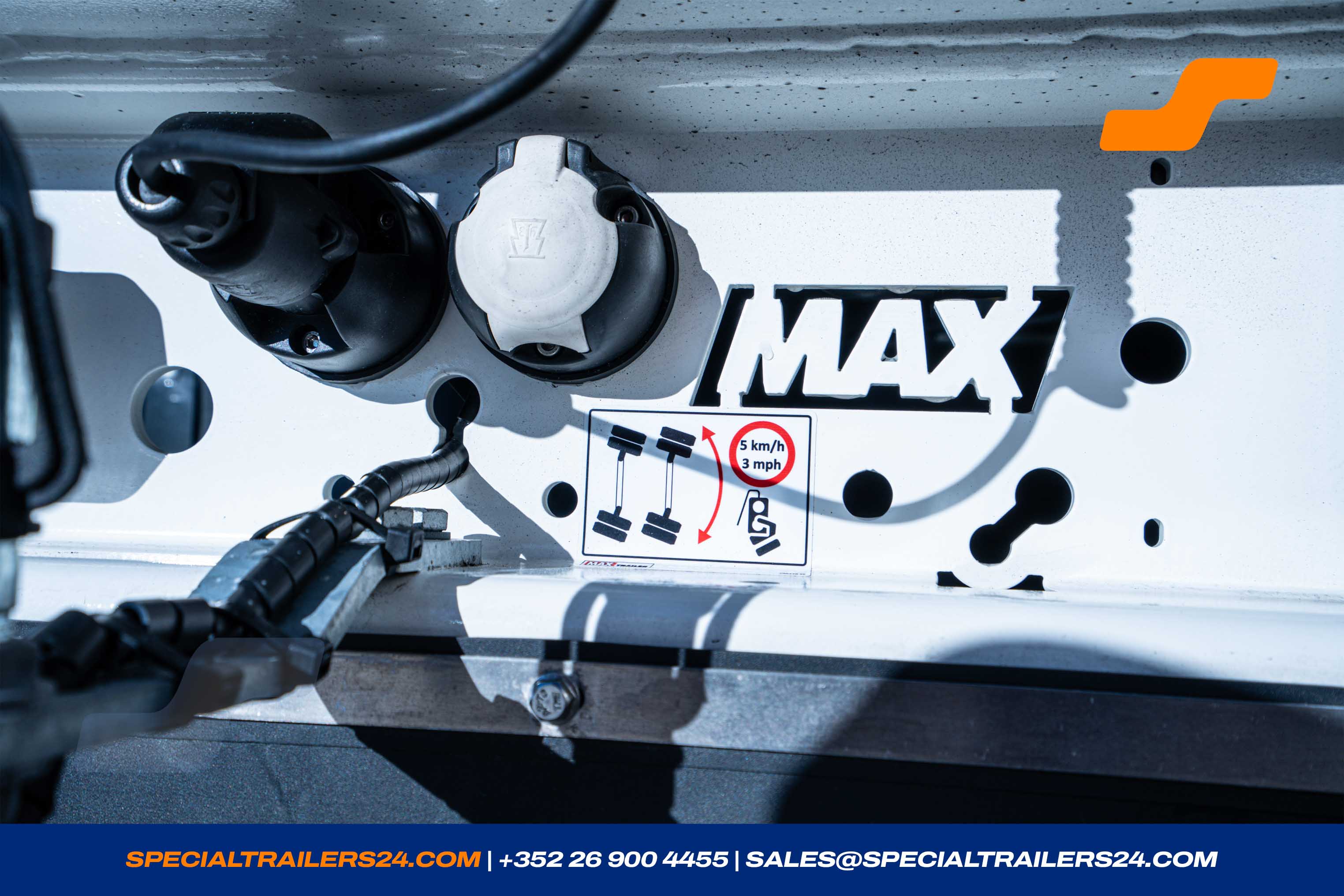

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.

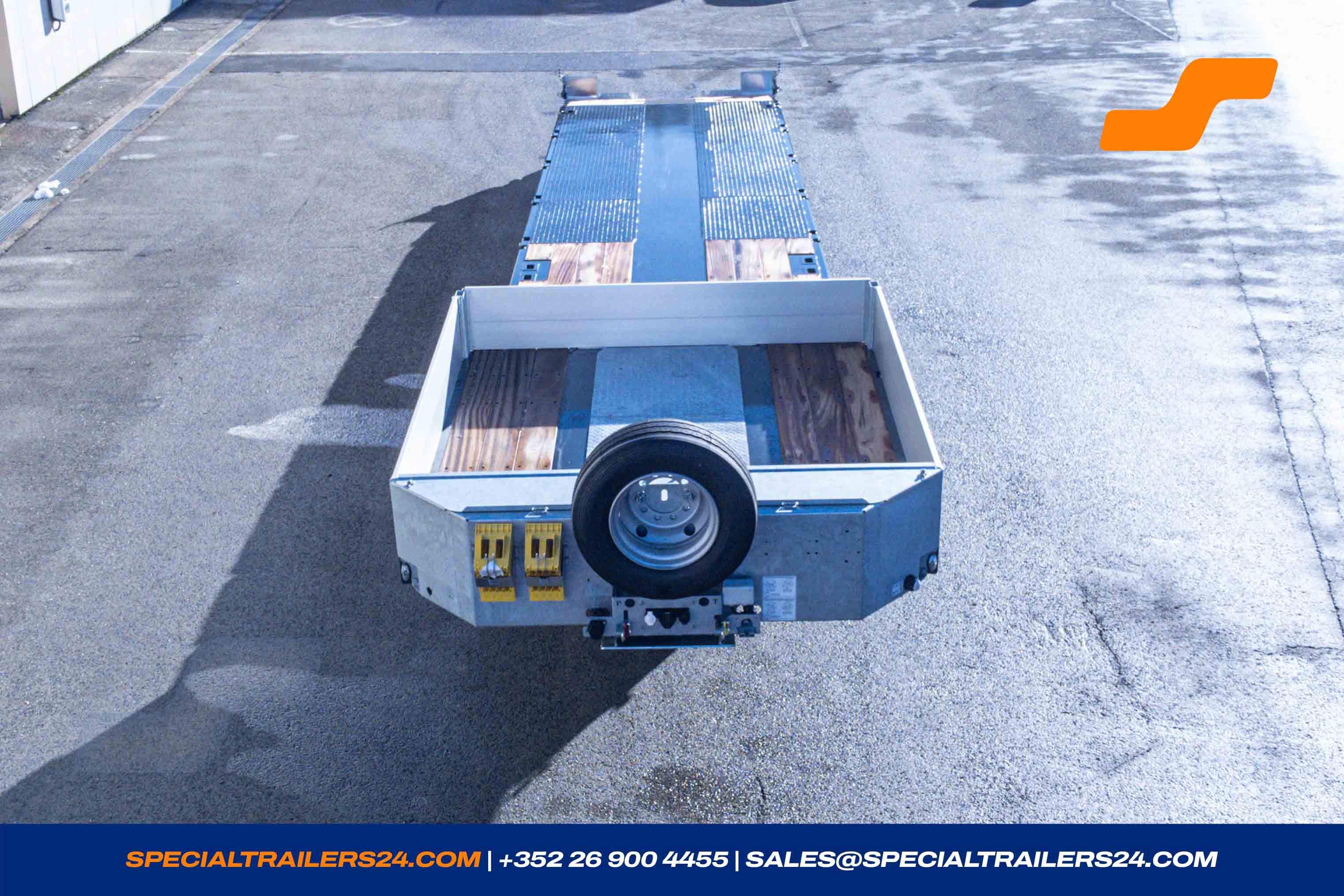

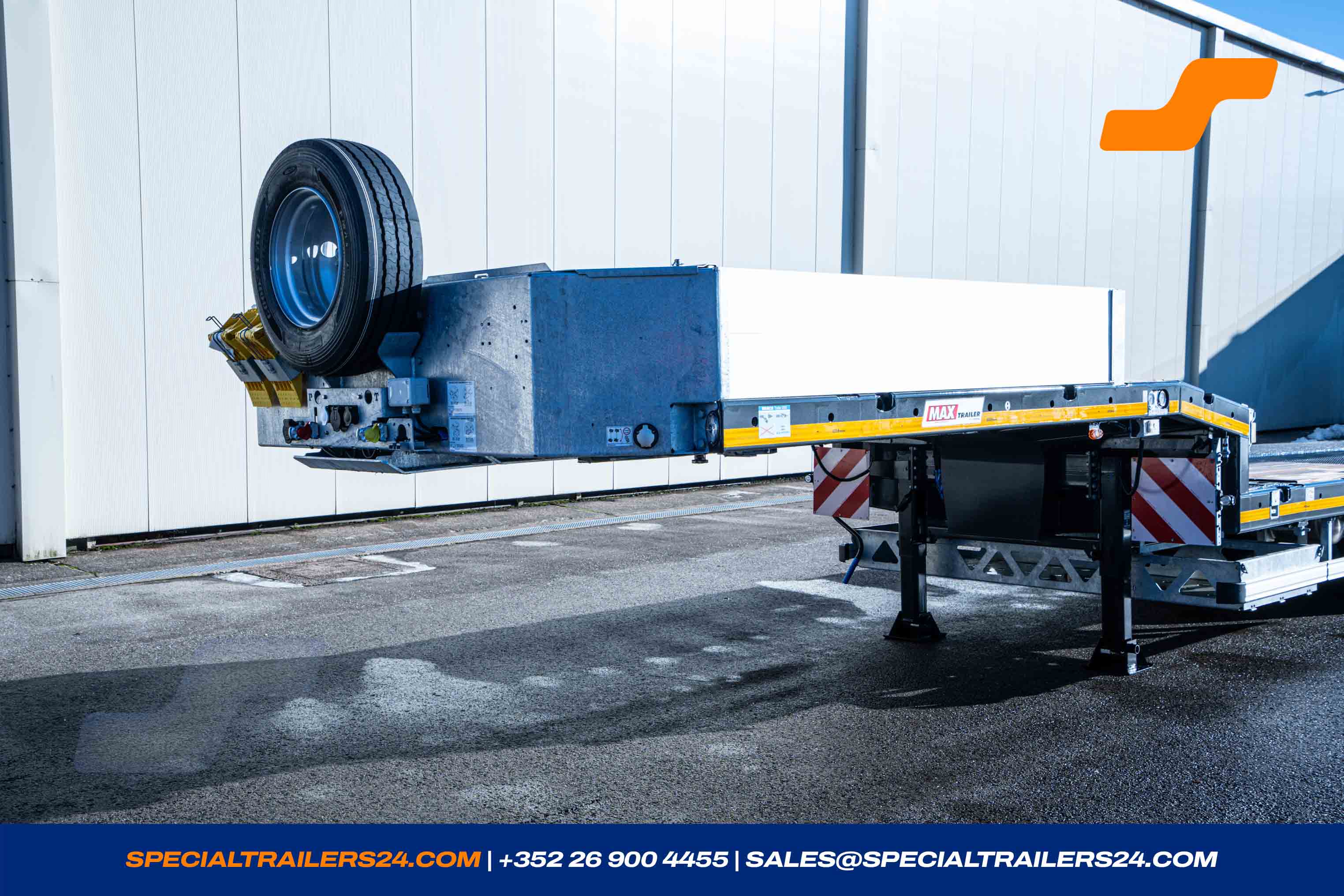

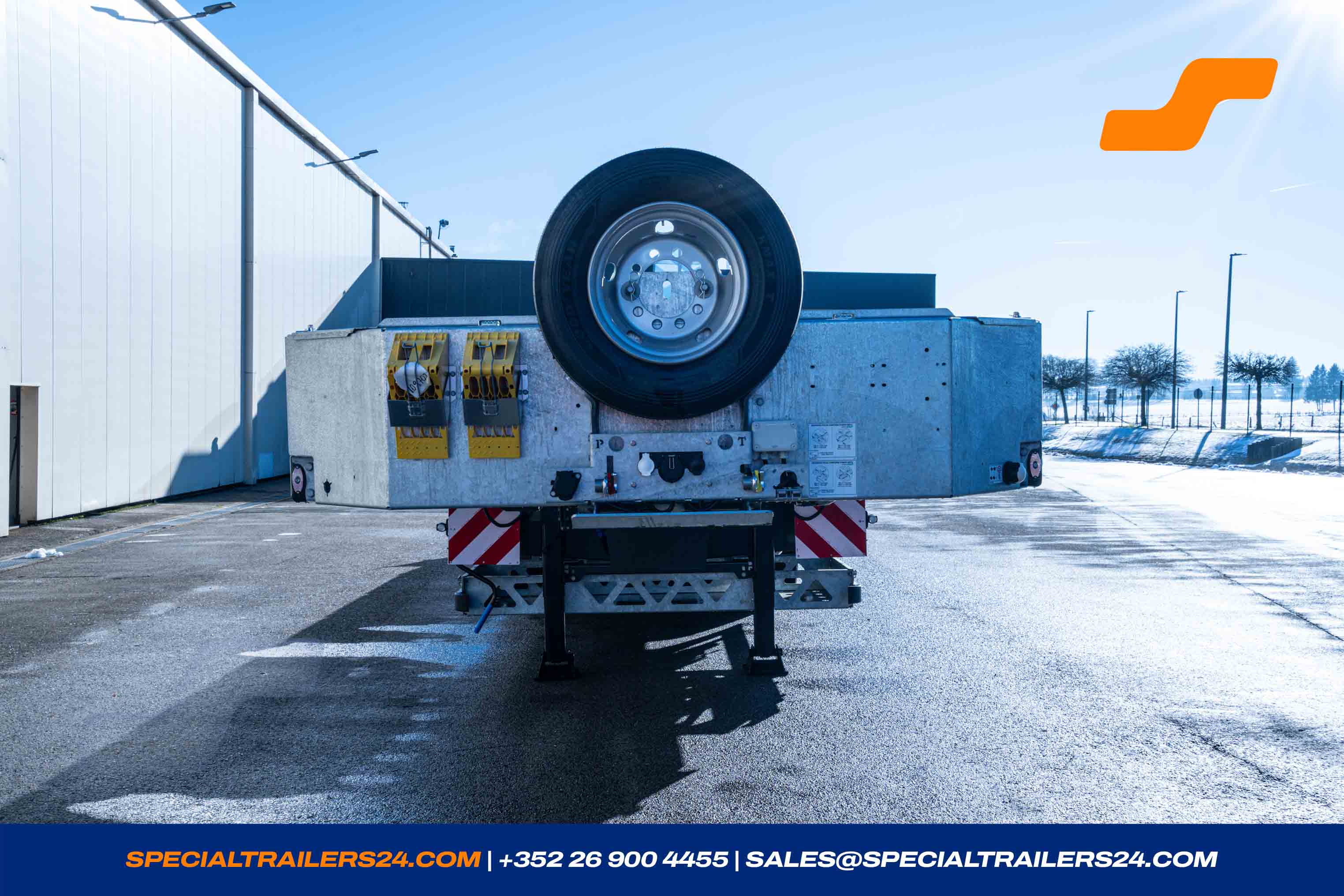

- One spare wheel with holder on the headboard.
-

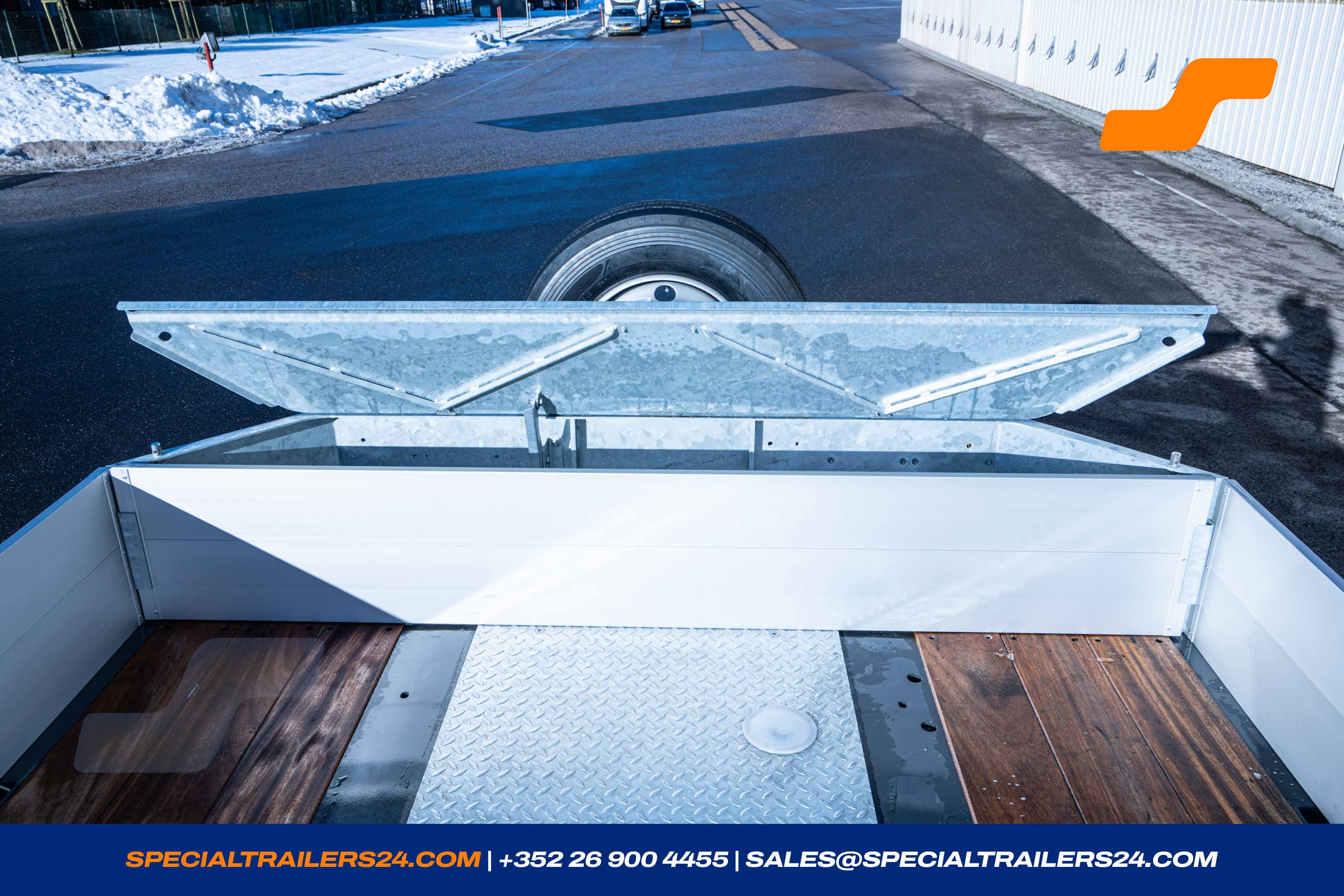

On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)

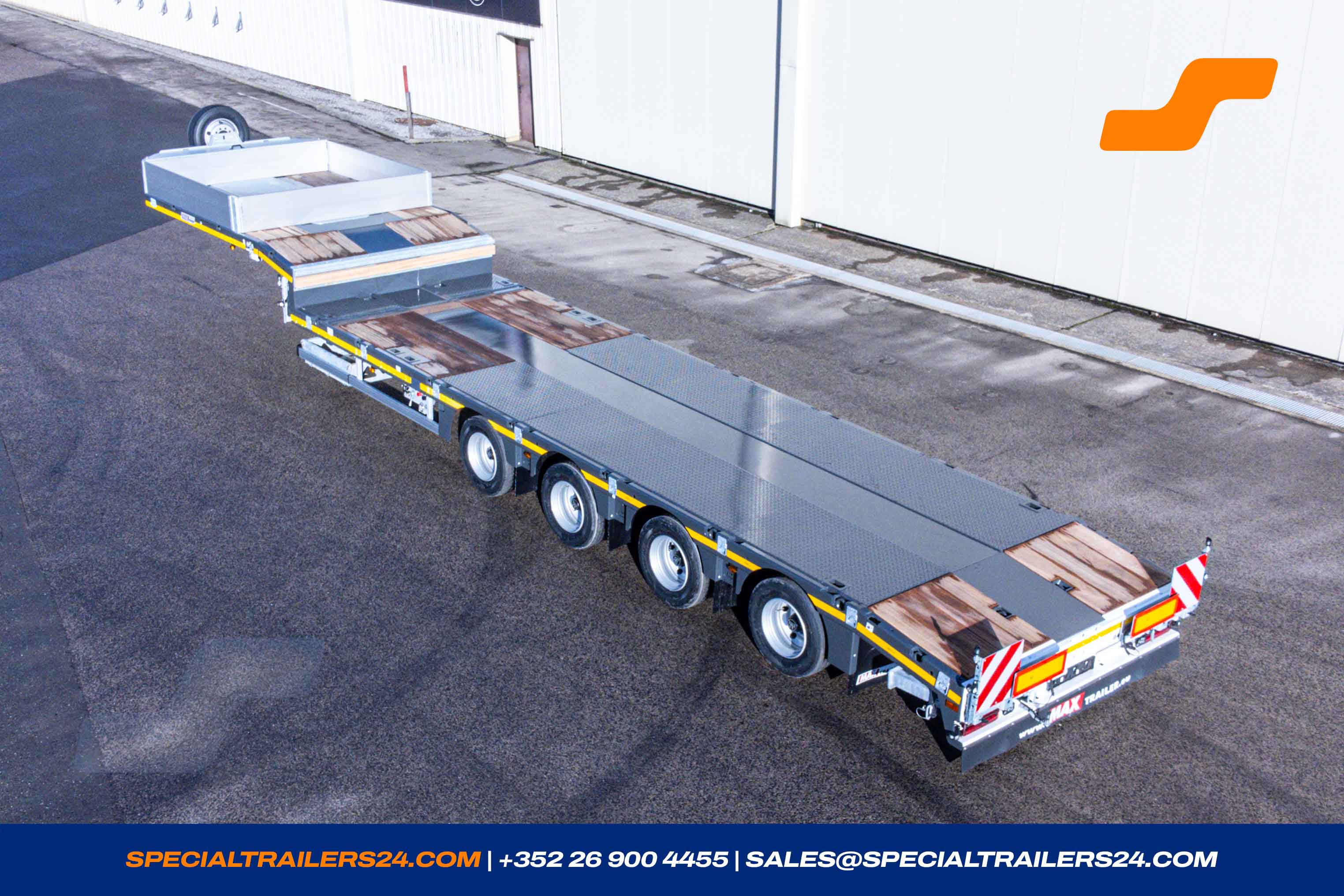

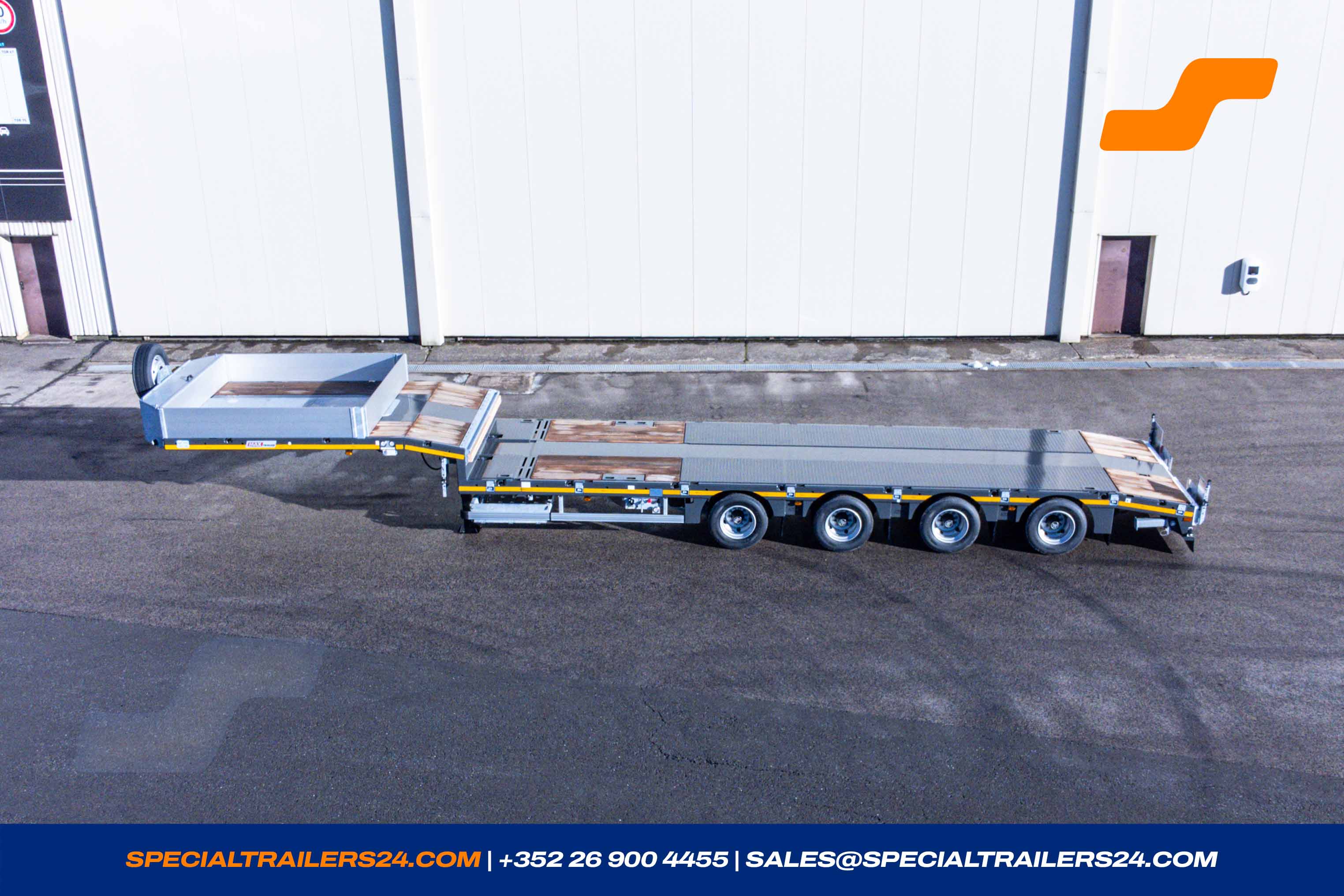

Loading deck

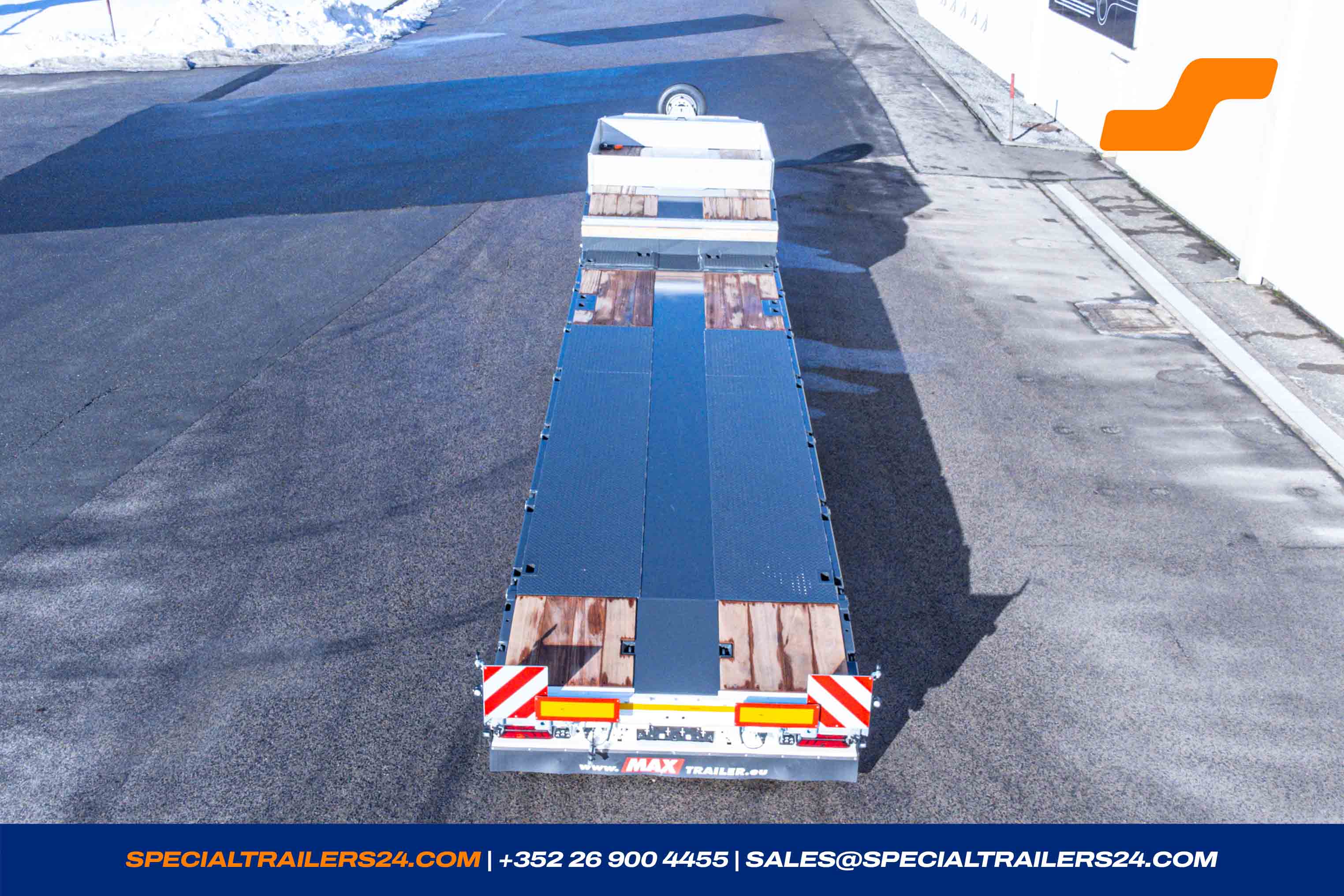

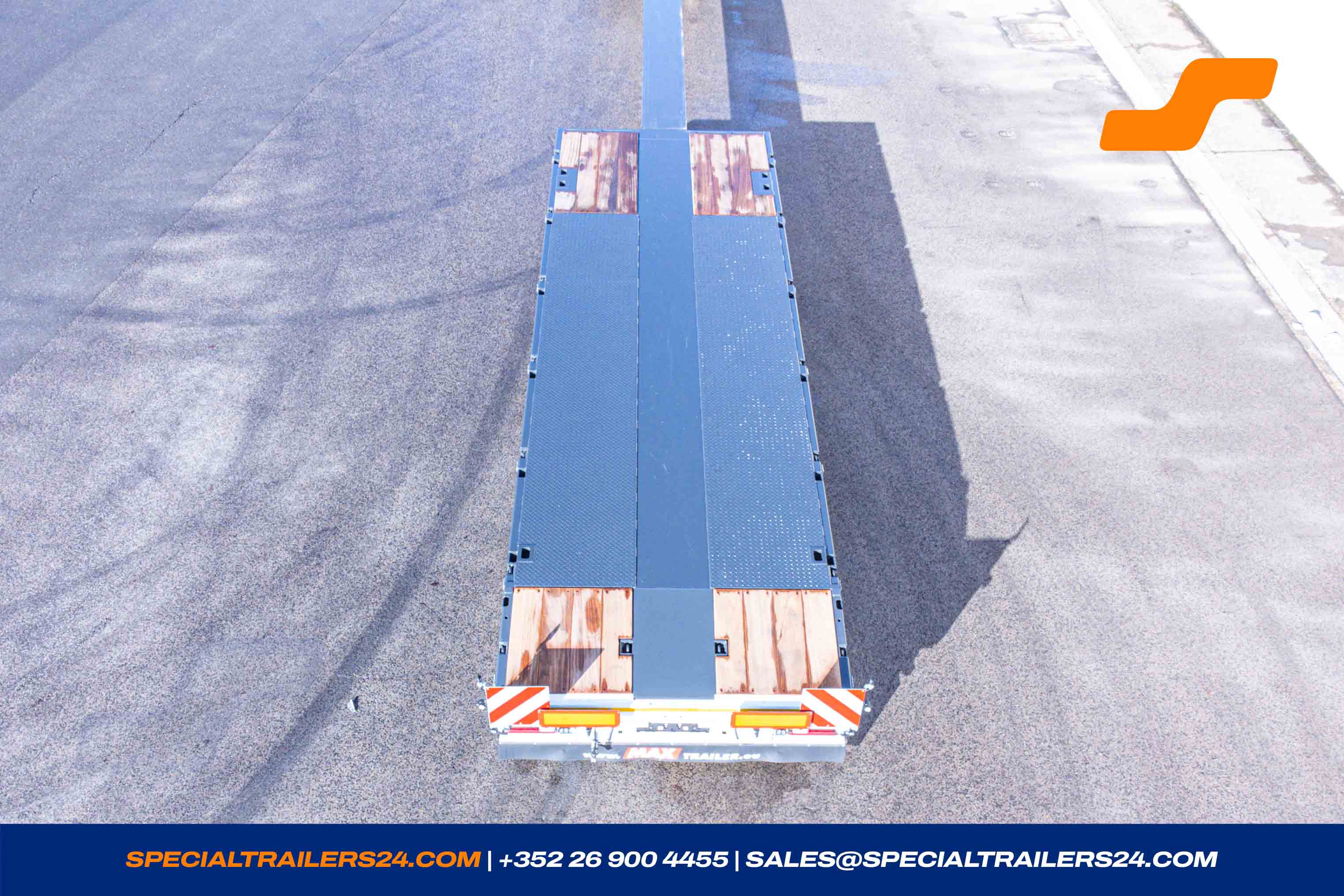

Loading platform
1 x Loading platform : MAX110-Z-4A-8.60-17.5-2.54

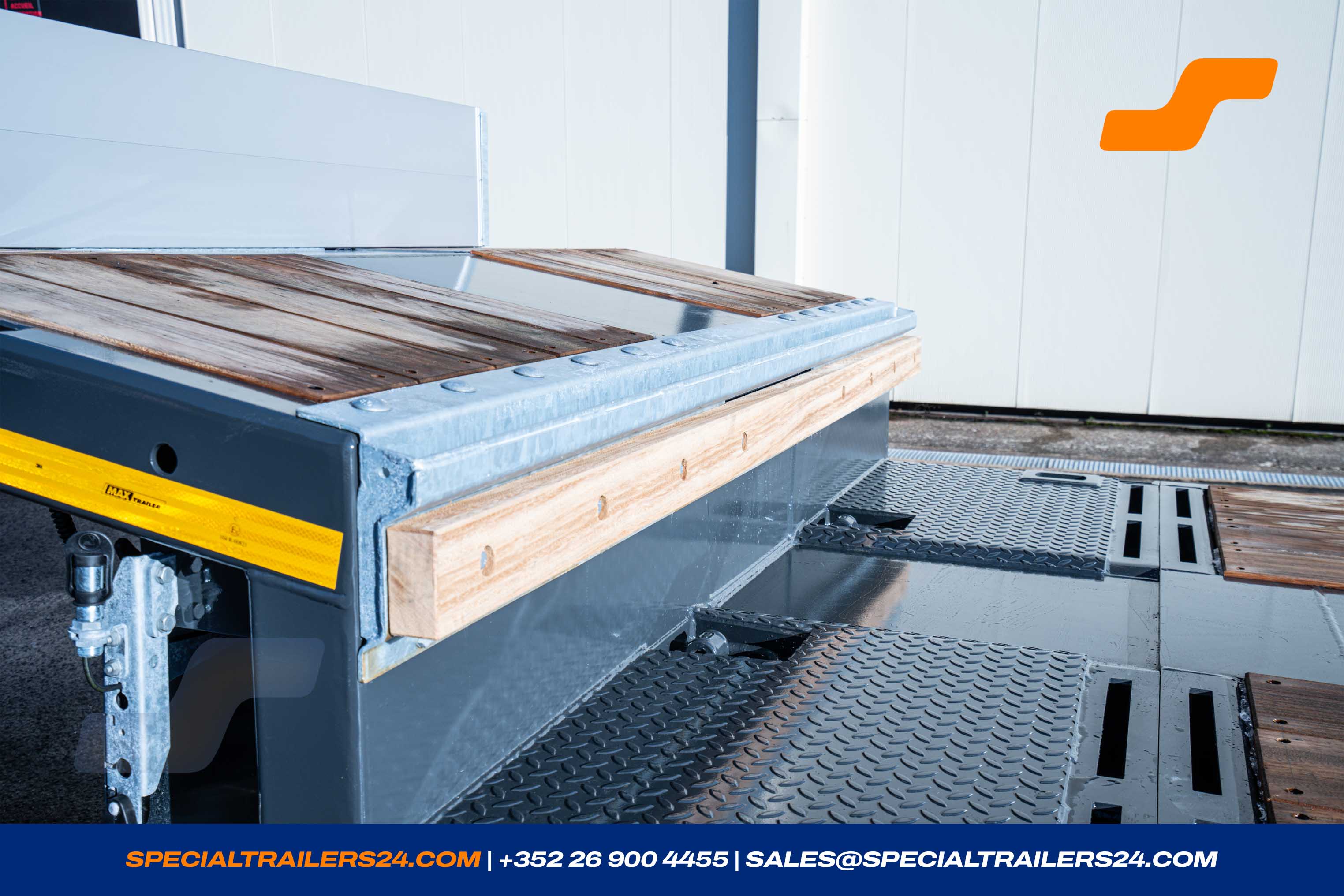

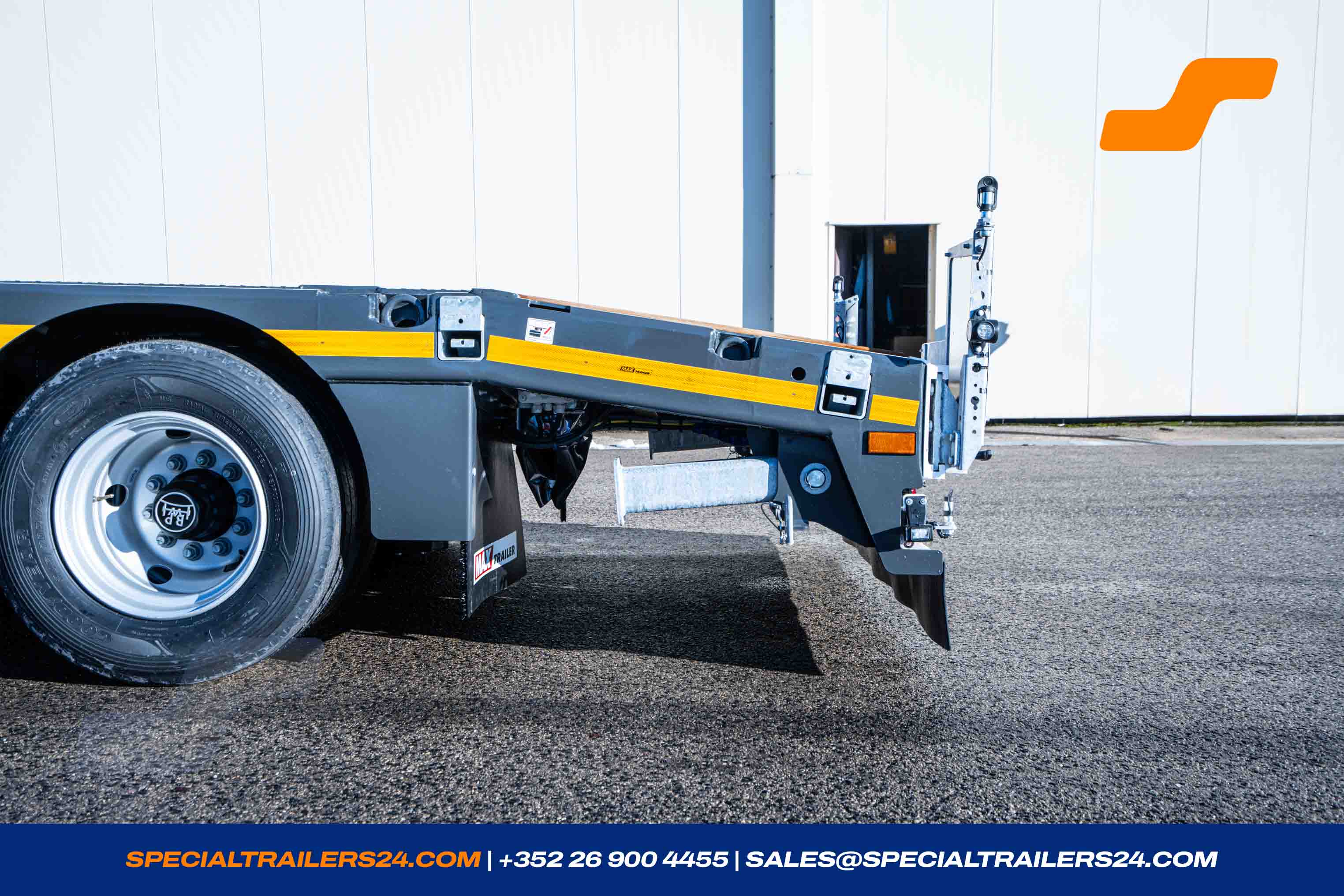

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Hardwood cover thickness 48 mm above the axles chequer plate.
- Electrically operated hydraulic pump. (± 45kg)
-

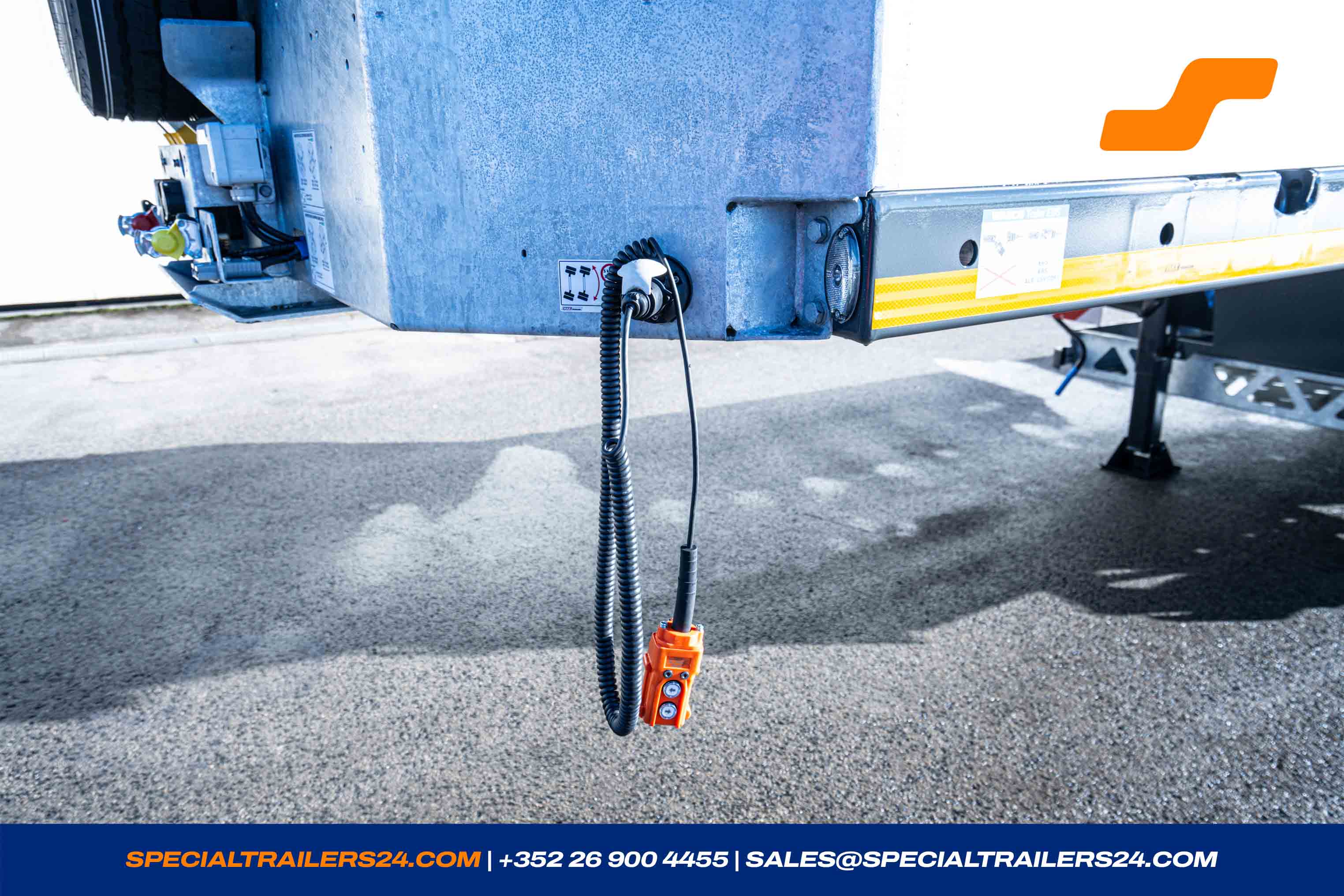

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

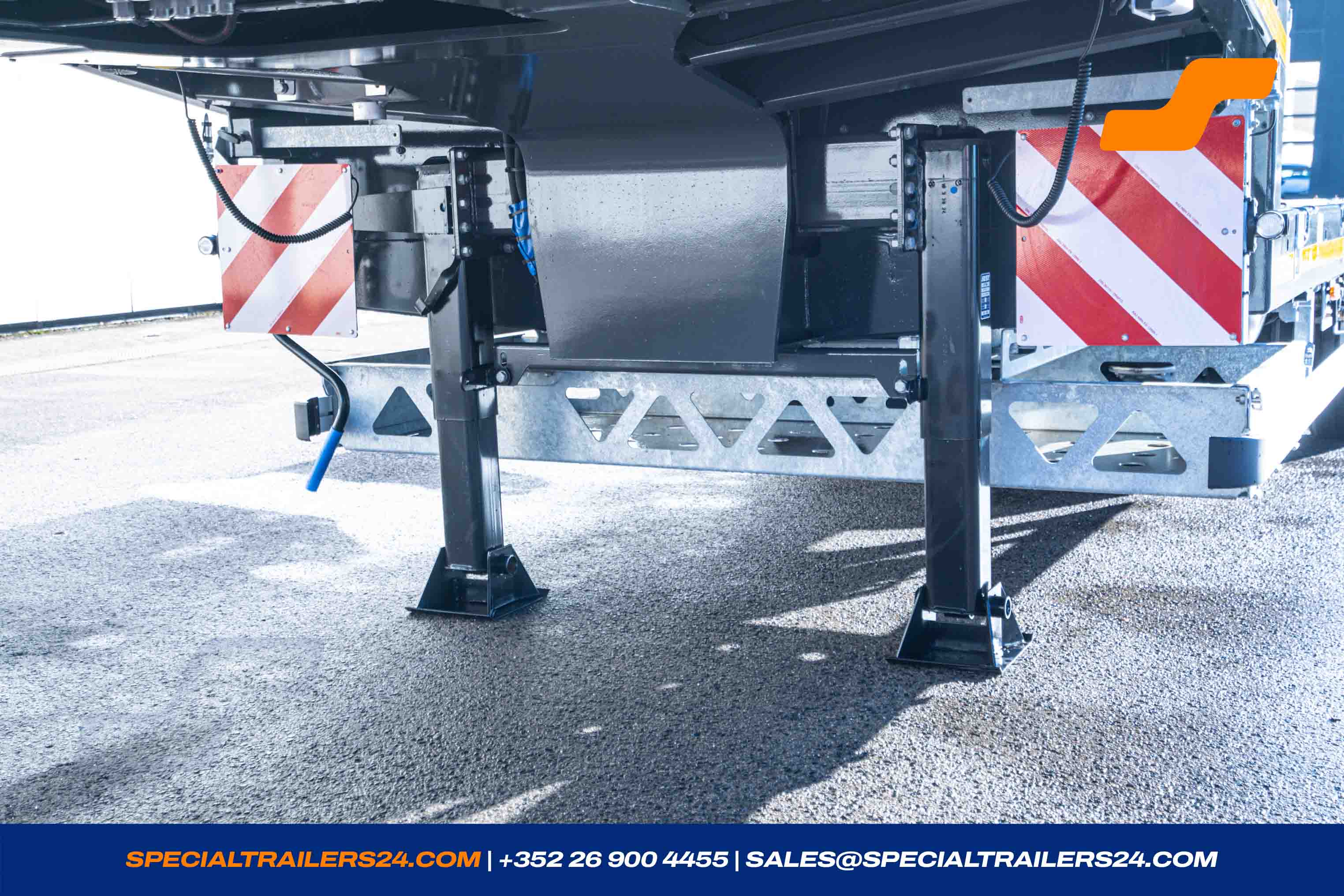

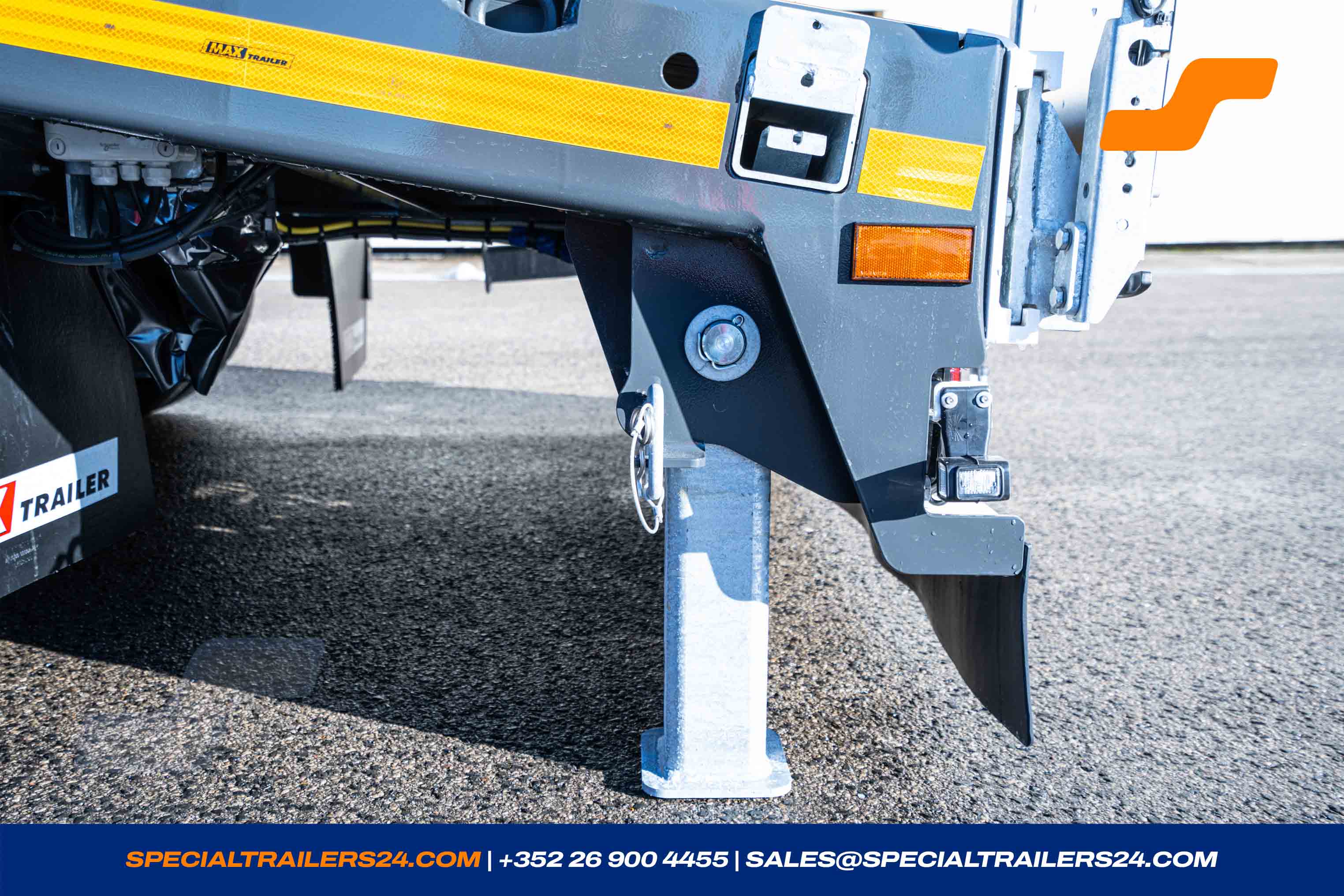

- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
- 6 pairs of galvanised stakes ca. 100 x 50 mm, height 1000 mm (± 132kg).

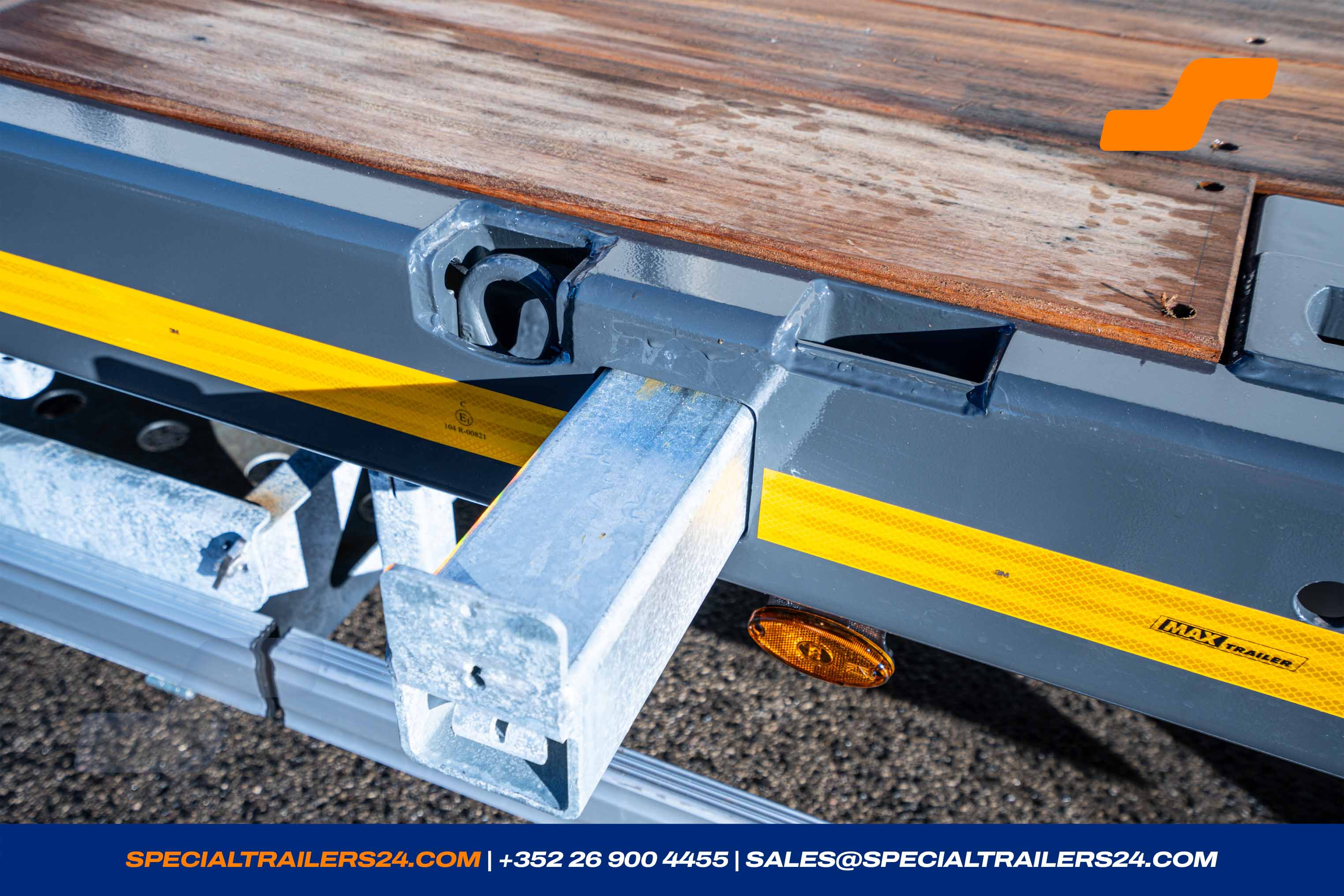

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

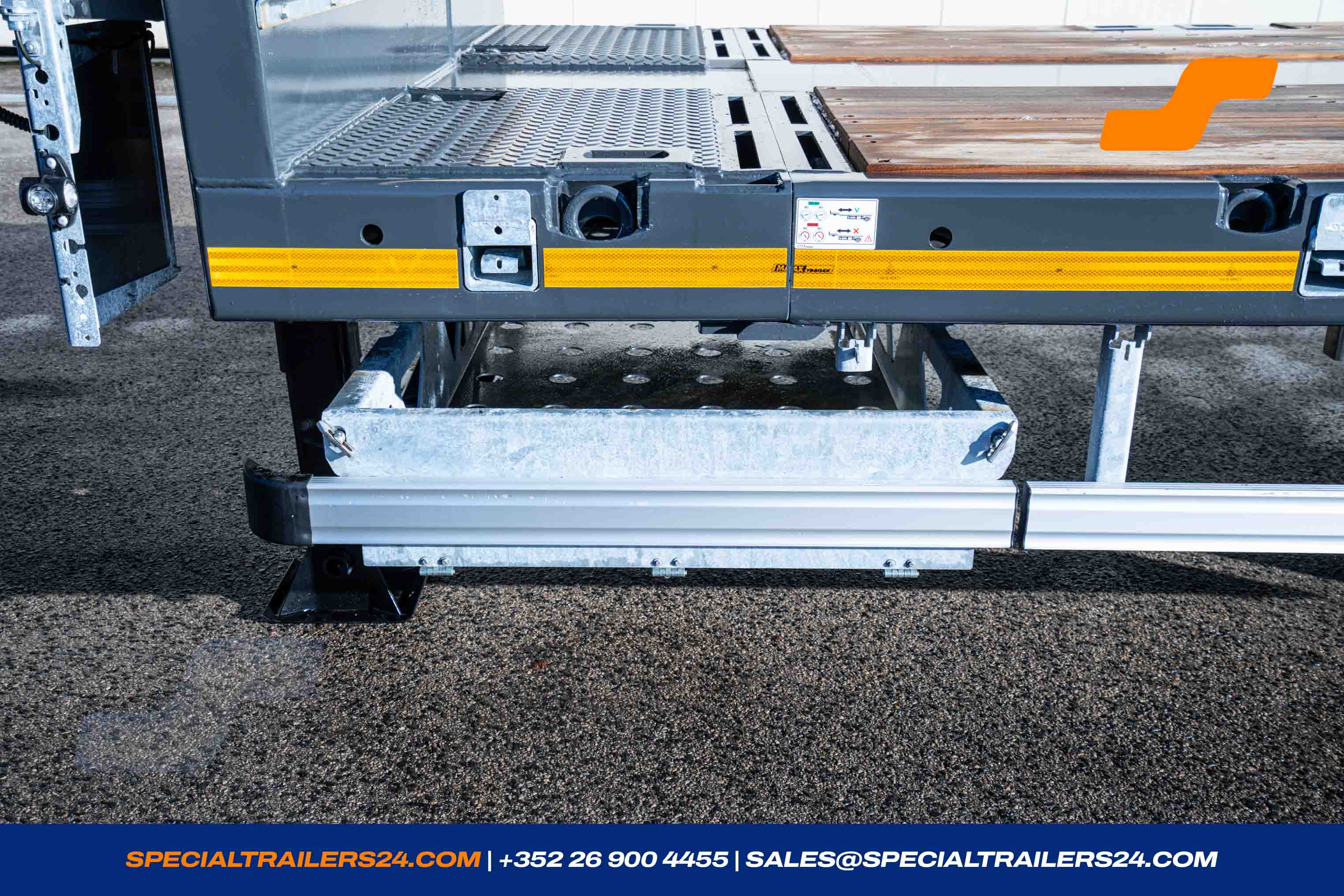

- Galvanised storage across under the loading platform. (± 150kg)
- Hardwood/grating floor of the chamfer on the loading platform C40/4 (for point load of 2.9 to on a surface of 20 x 20 cm). (± 21kg)

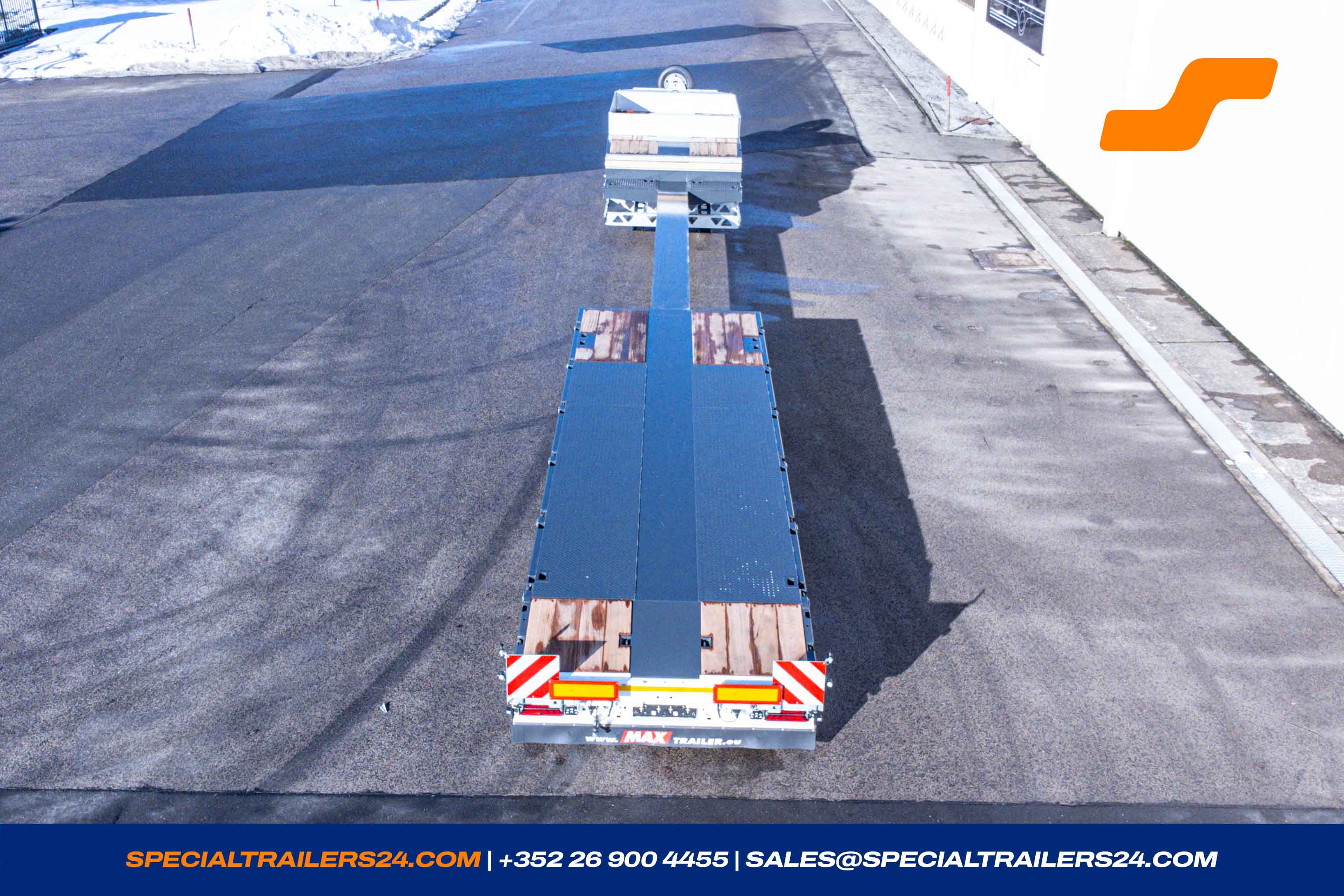

- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
-
4 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
1 pair of inserted lashing rings along the central beam at the back (LC 10 000 daN). (± 16 kg) - Loading platform reinforced with a ± 4 mm perforated steel underlay for higher point load. (± 455 kg)
- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).
- Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
Ramps
Hydraulic loading ramps
1 x Steel double flip ramps : DR-900-HH-40-HGRV-HVA
1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 900 mm.
The covering is divided into two Hardwood cover outside with grating floor C40/5 (for point load of 2.8 to on a surface of 20 x 20 cm ) inside(not suitable for tracked vehicles) .
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40.000 kg
- Operated valve for ramps mounted on the right side (± 4 kg).
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
Accessories
1 x Accessory
MAX110-Accessory
- Manual and description on USB stick .

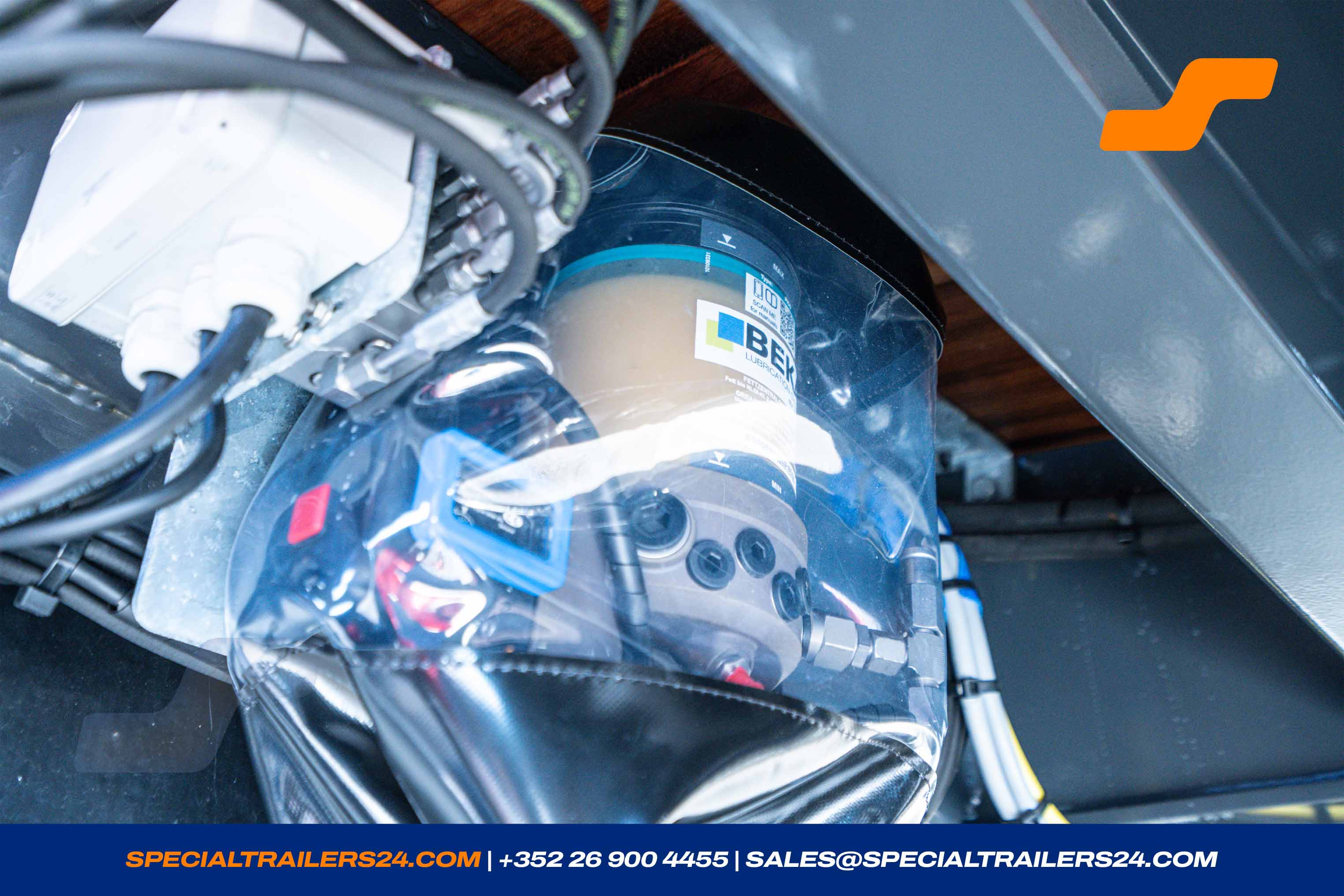

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Holder for one beacon light at the rear right and left of the trailer.
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Camera cable Brigade (Ref. VBV-L430 ) to be fitted inside of the energy chain.
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Spiral cable for the electric-hydraulic pump and/or electric winch between the semi-trailer and the truck with socket (ARDOUILLE-ARDOUILLE).
- Assembly of the double ramps on the semitrailer.
- Speed sticker 60 km/h at the rear.
-
Sign KG for CONVOI EXCEPTIONNEL
Caution: only valid for belgium
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110686
- Reference MAX110-Z-4A-8.60-U
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 06/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000246
- Steering Type Hydraulic
