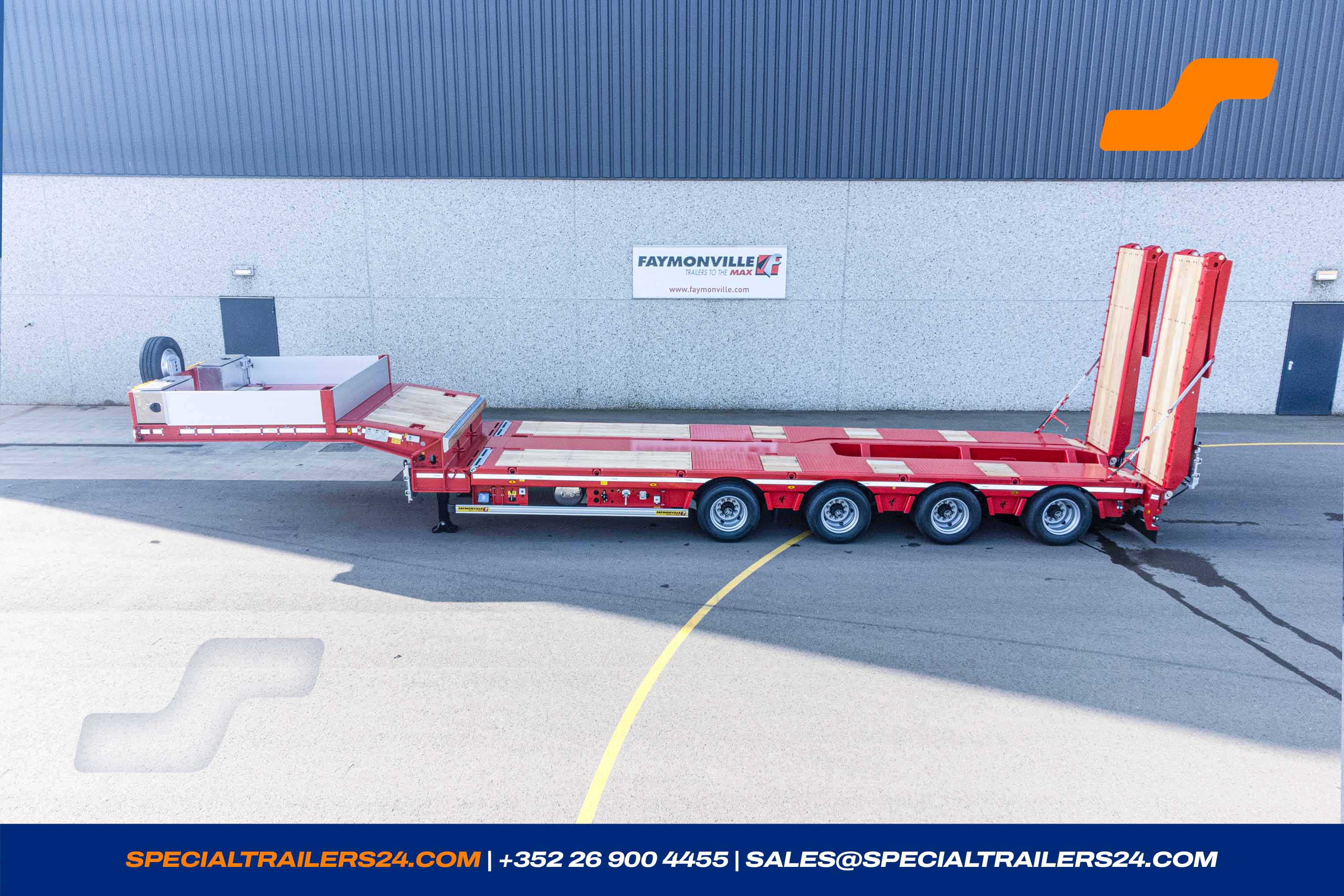

Low loader
MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110369
- Reference MAX100-N-5A-9.30
- Number of axles 5
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 03/2026
- Steering Type Friction
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 53500 kg |
| Gross weight | 76500 kg |
| Tare weight +- 3% | 13611 kg |
| Payload | 62889 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 6 600 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 900 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |
Gooseneck
1 x Gooseneck
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
- King pin 2
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier on the headboard (± 5kg).
-
On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.

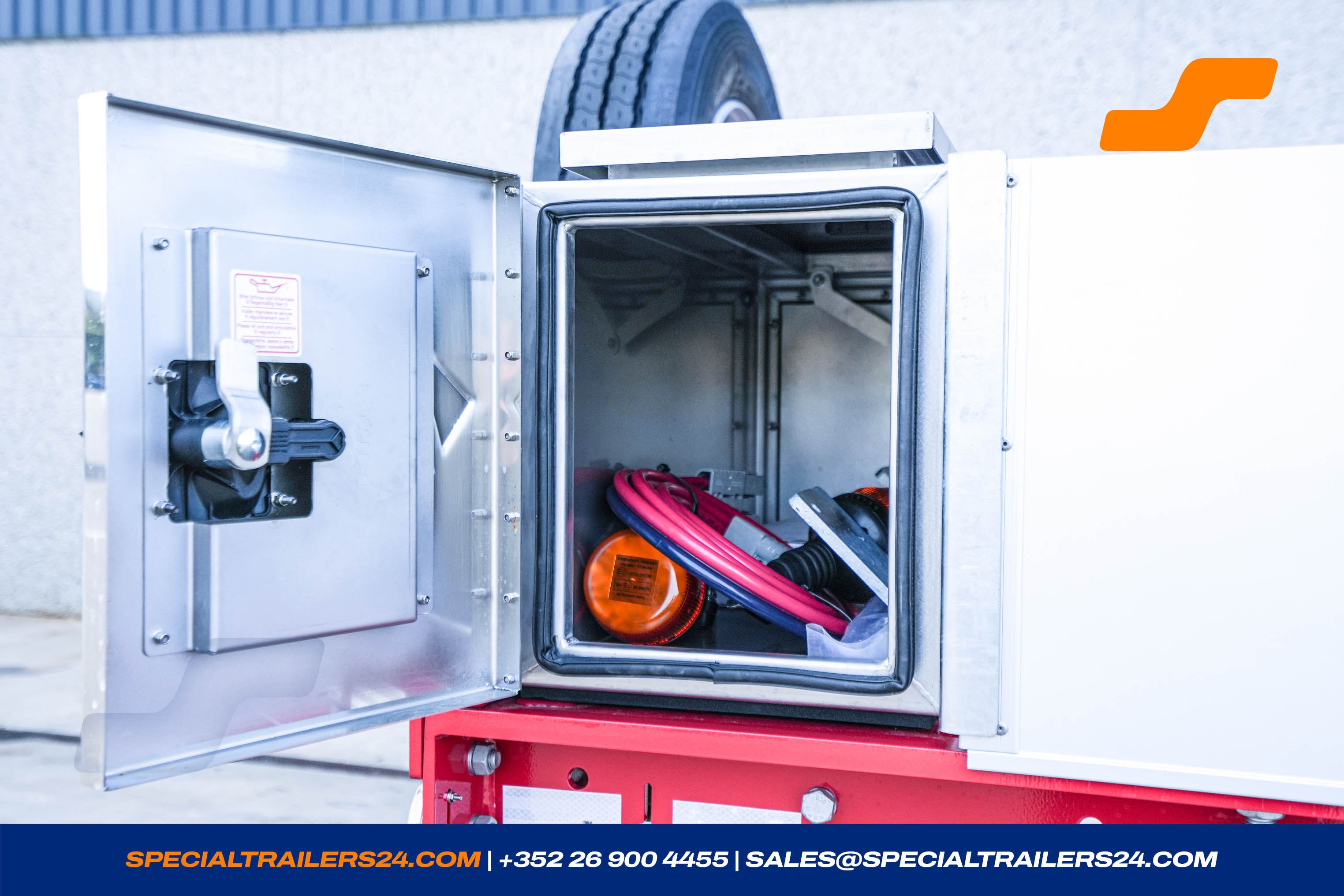

(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
Loading deck
Loading platform
1 x Loading platform

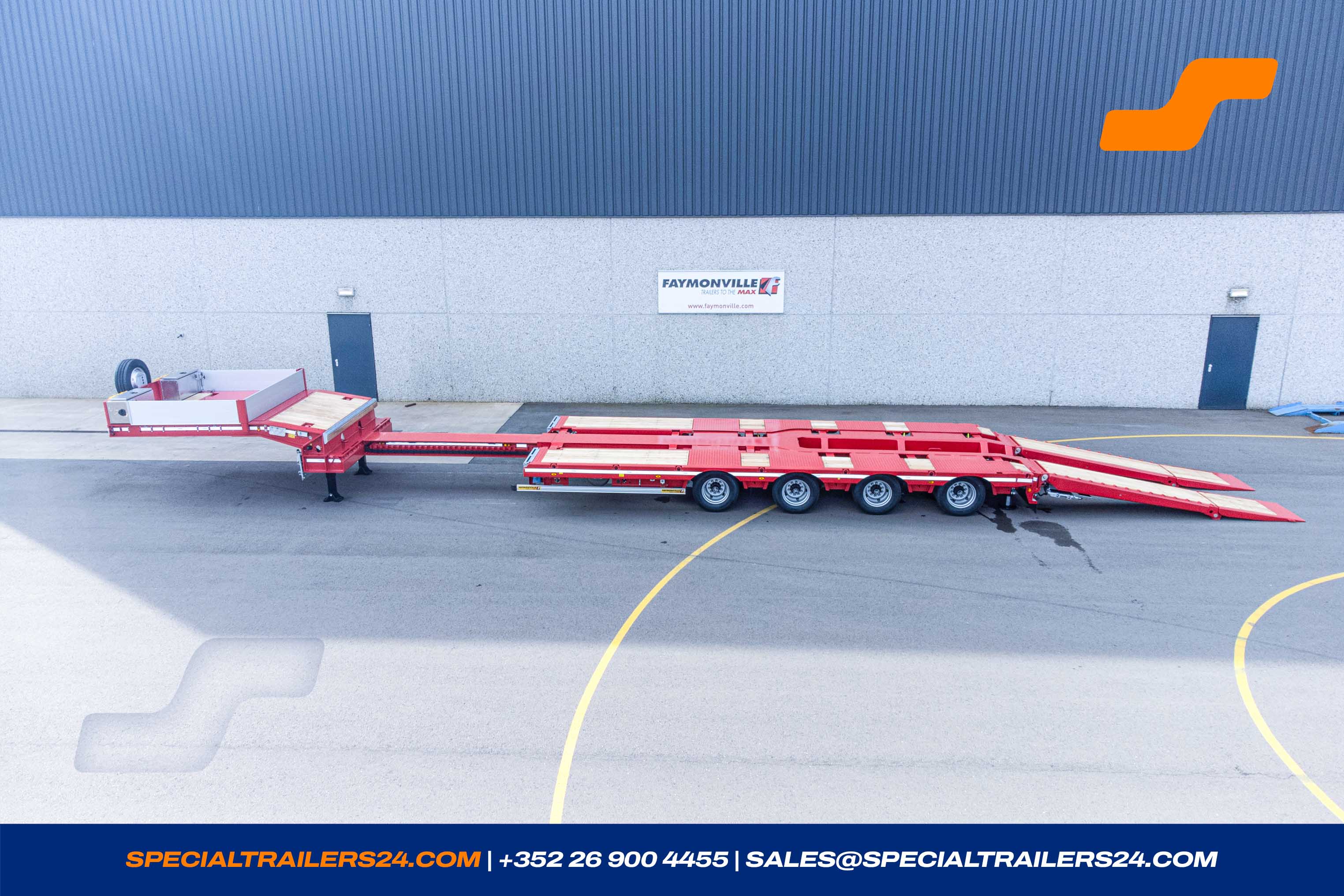

Loading platform in extendable version with chamfered beaver tail by about 500 mm x 8°.
9 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Hardwood cover thickness 48 mm above the axles chequer plate.
- 4 warning boards ± 423 x 423 mm, extendable by ± 900 mm with 1 LED position light. (± 39 kg)
- A hardwood ram guard on the rear wall from the gooseneck to the loading area (± 12kg).
- 2 pairs of WADER-containerlocks (± 30 kg).
- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. -
1 pair of alu ramps VFR 120, ± 2 400 x 600 mm (l x w)
Capacity per ramp for:
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 m: 12 200 daN (Kp)
by axle distance 2.0 m: 16 000 daN (Kp)
single axle 7 200 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp ± 83 kg (± 166 kg) - Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
- Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- 1 LED flashing beacon, provided separately.
- Speed sticker 80 km/h at the rear and on both sides.
- Load manometer for determining the axle load, including load diagram.
Accessories
1 x Accessories
- Manual and description on USB stick .
- Delivery from a trailer to factory Lentzweiler.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer.
