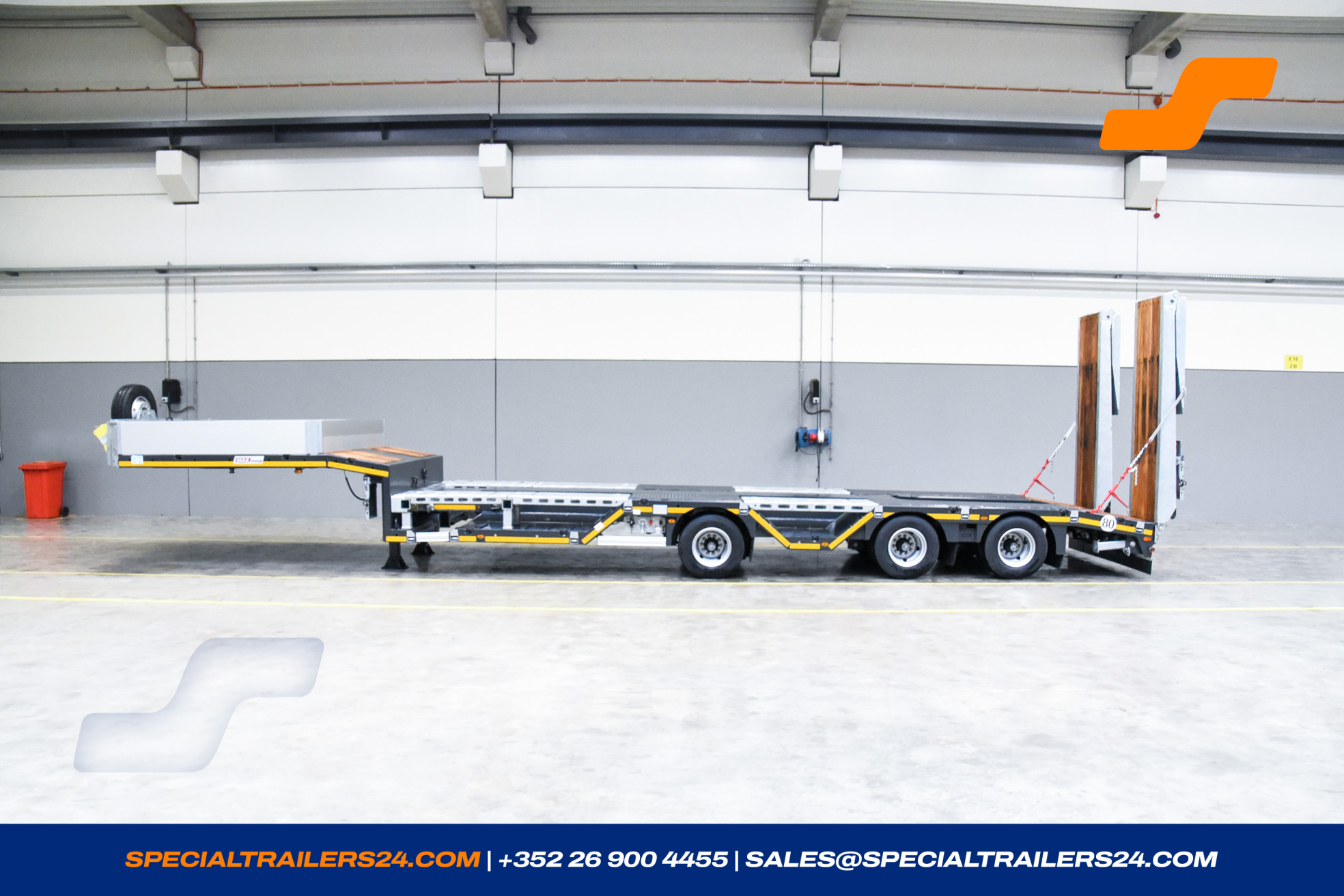

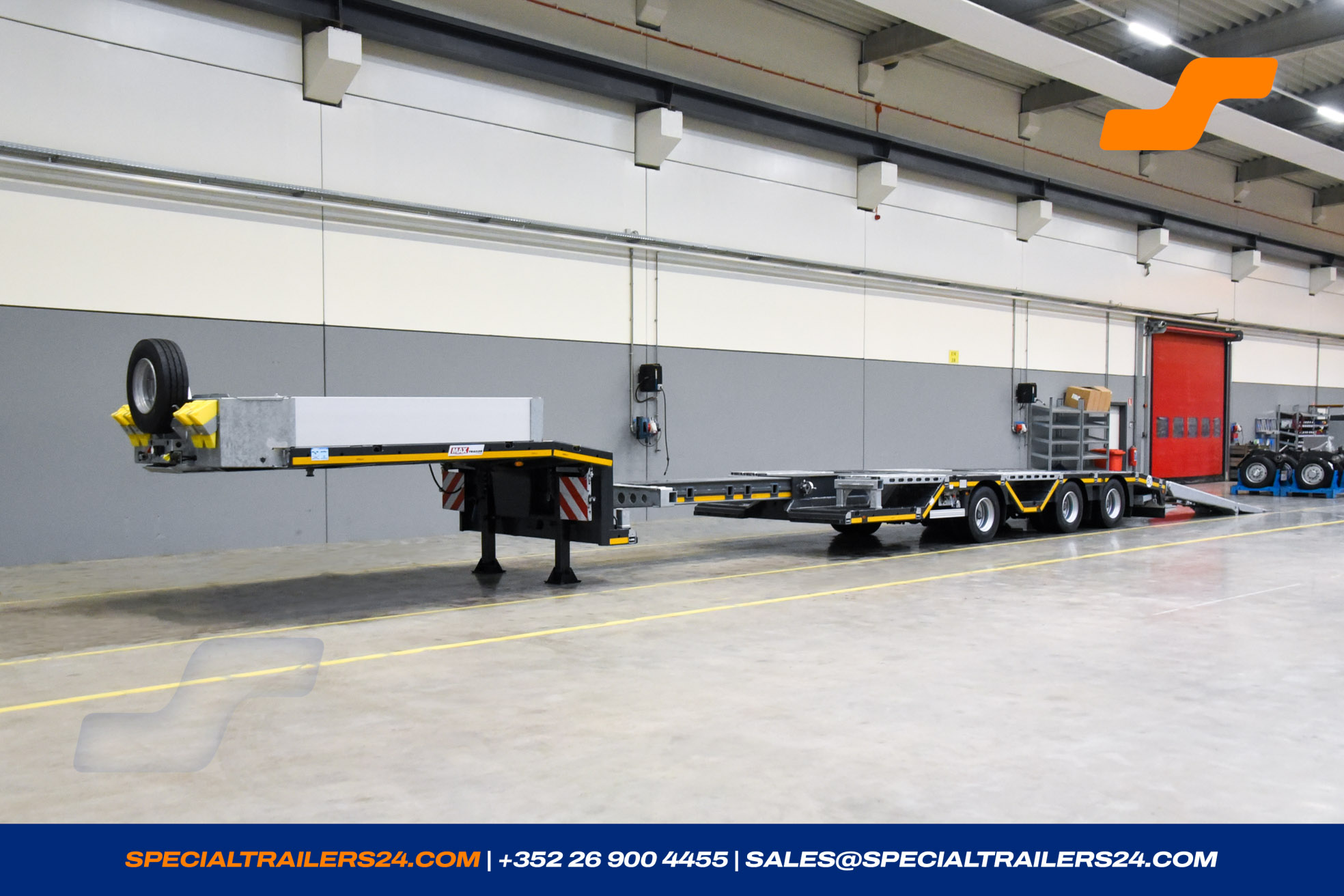

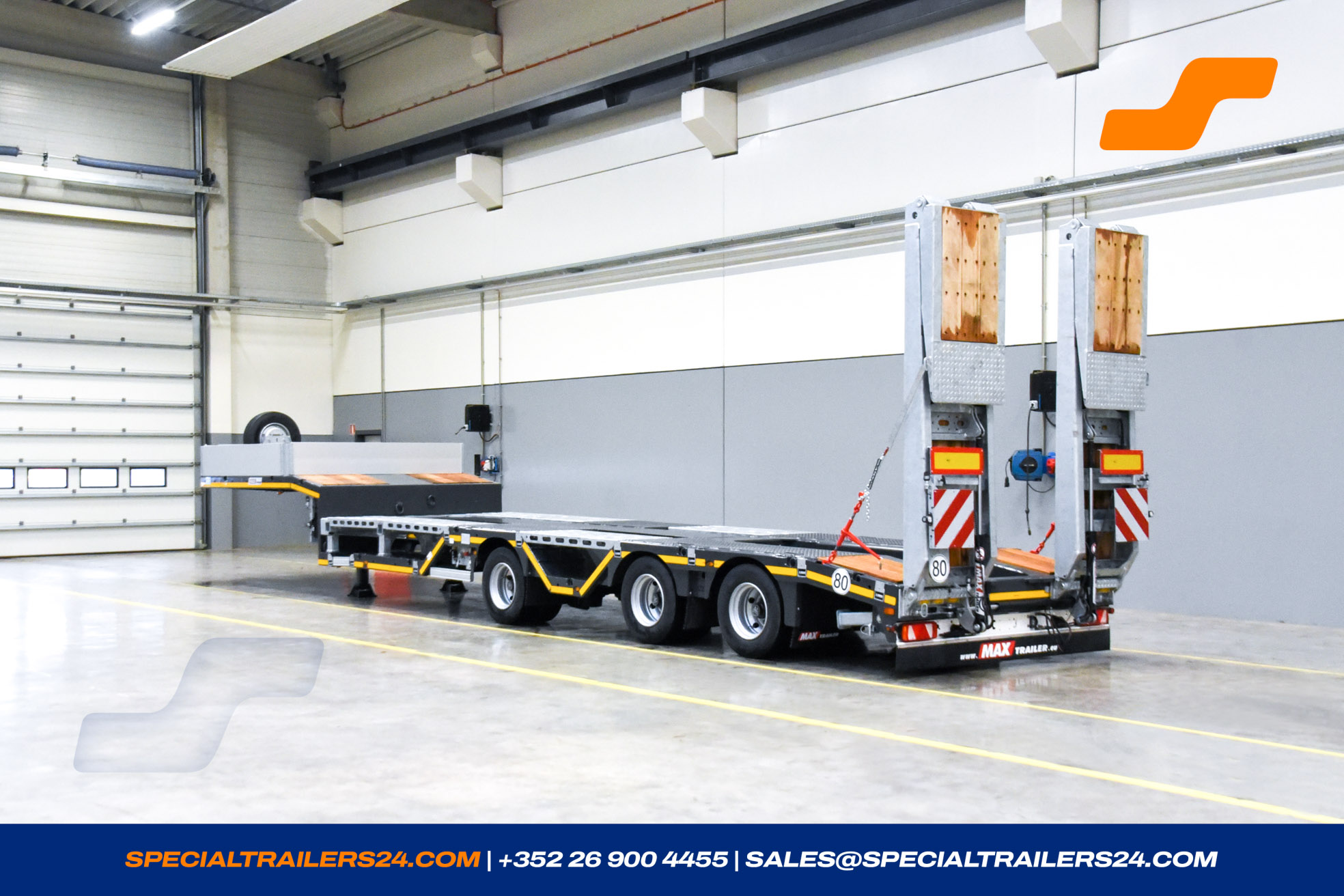

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111346
- Reference MAX100-N-3A-9.30-RM-U

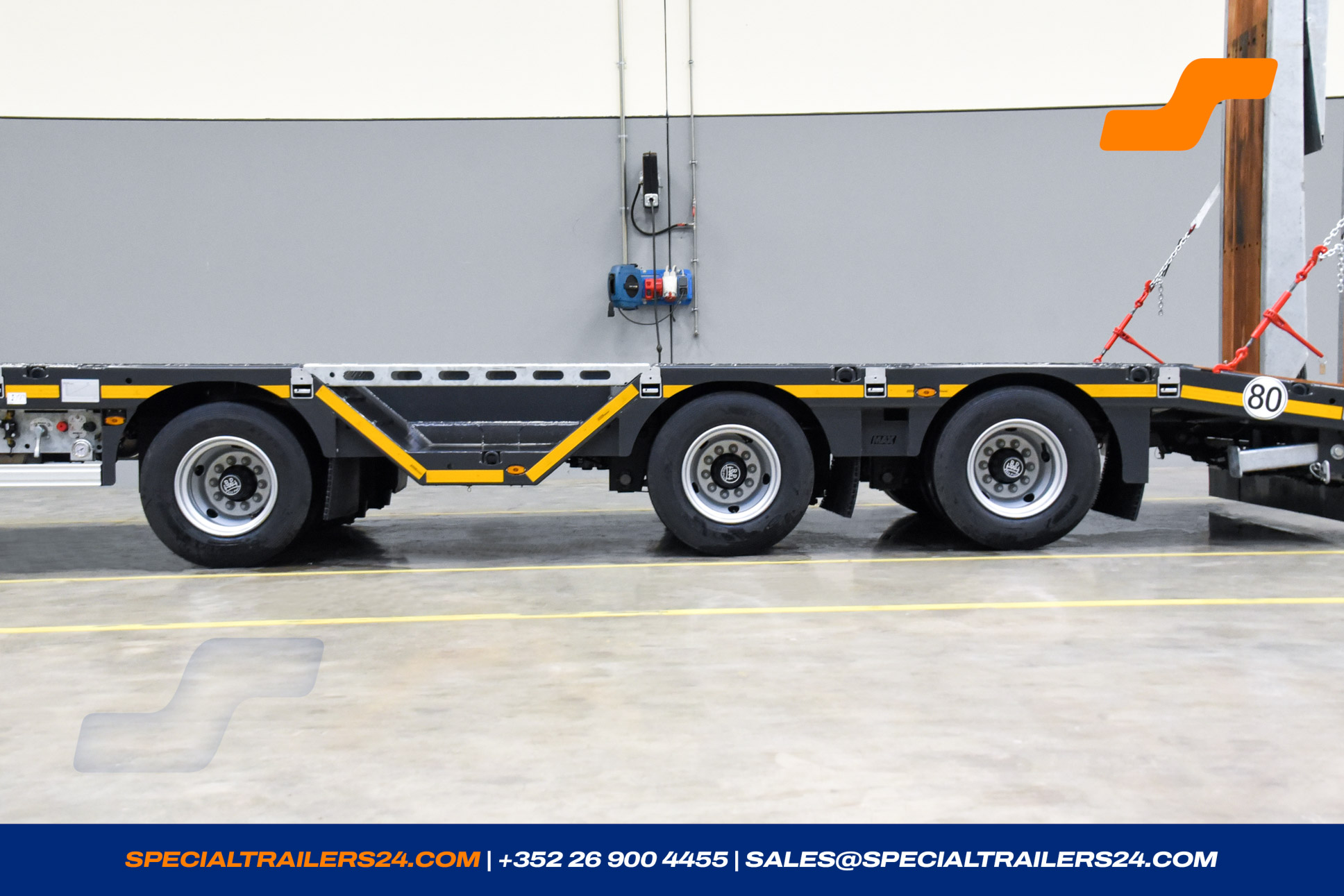

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 7016 - Anthracite grey
- Availability 04/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions

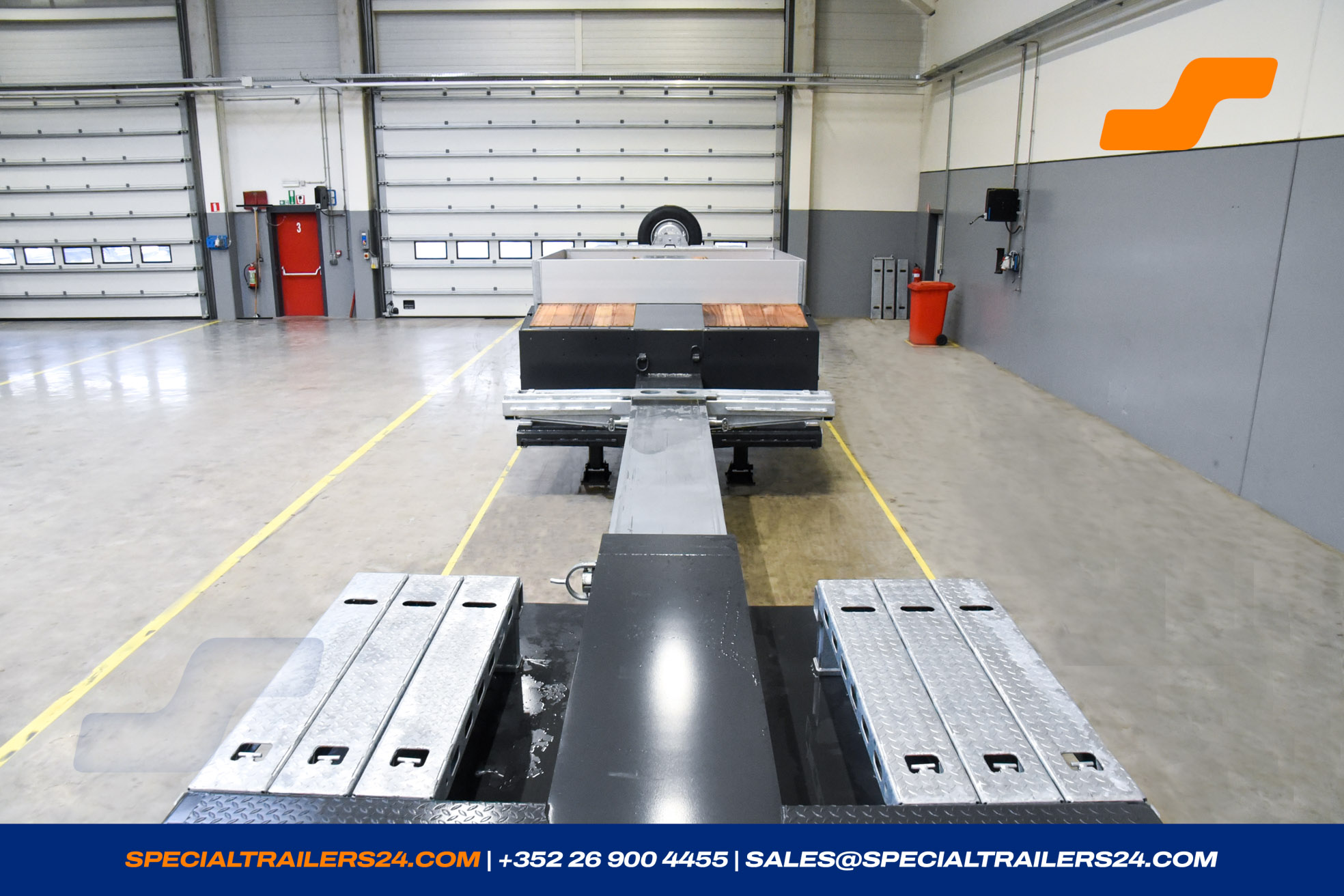

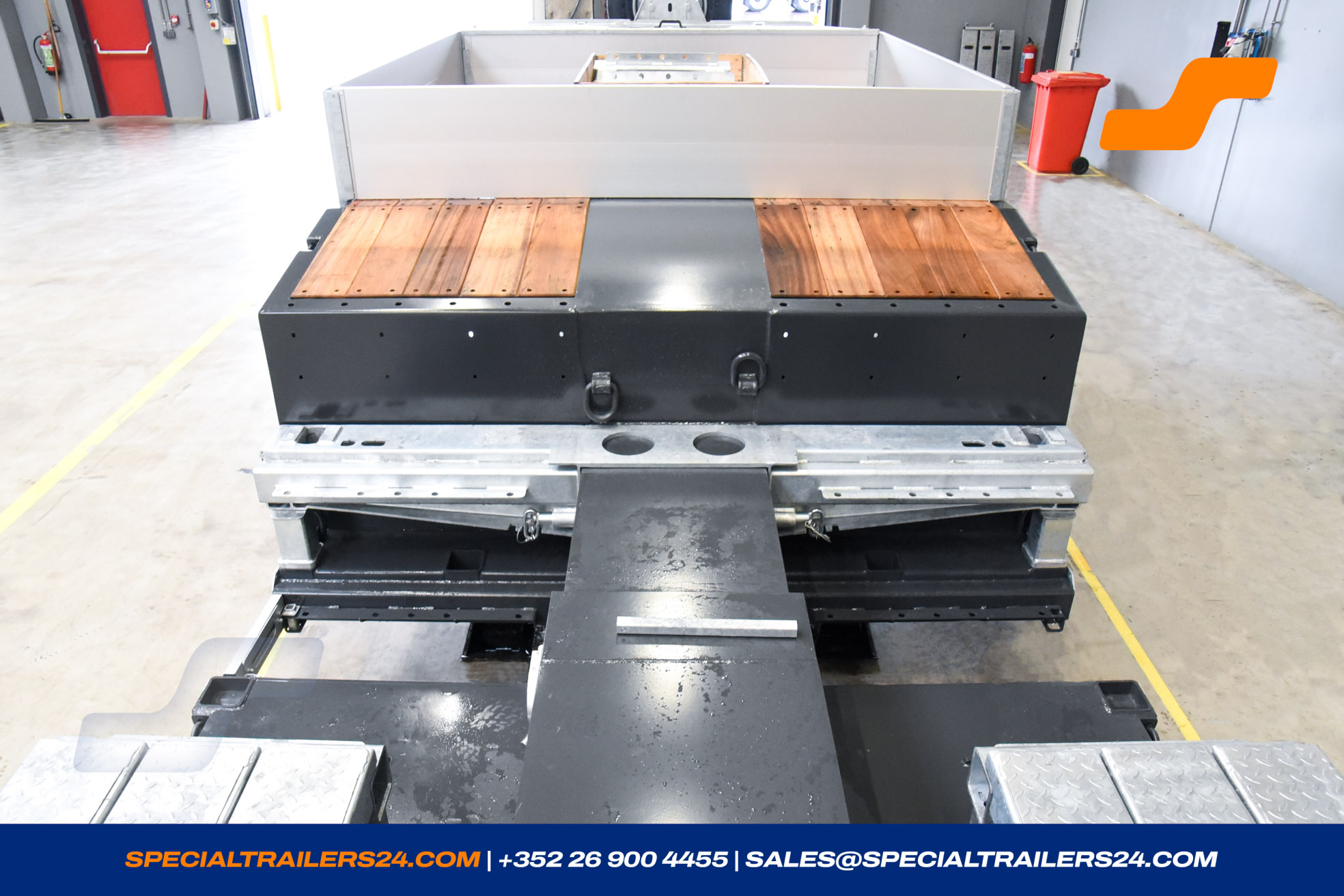

Gooseneck
1 x Gooseneck
Gooseneck with rear chamfered by ca. 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
-

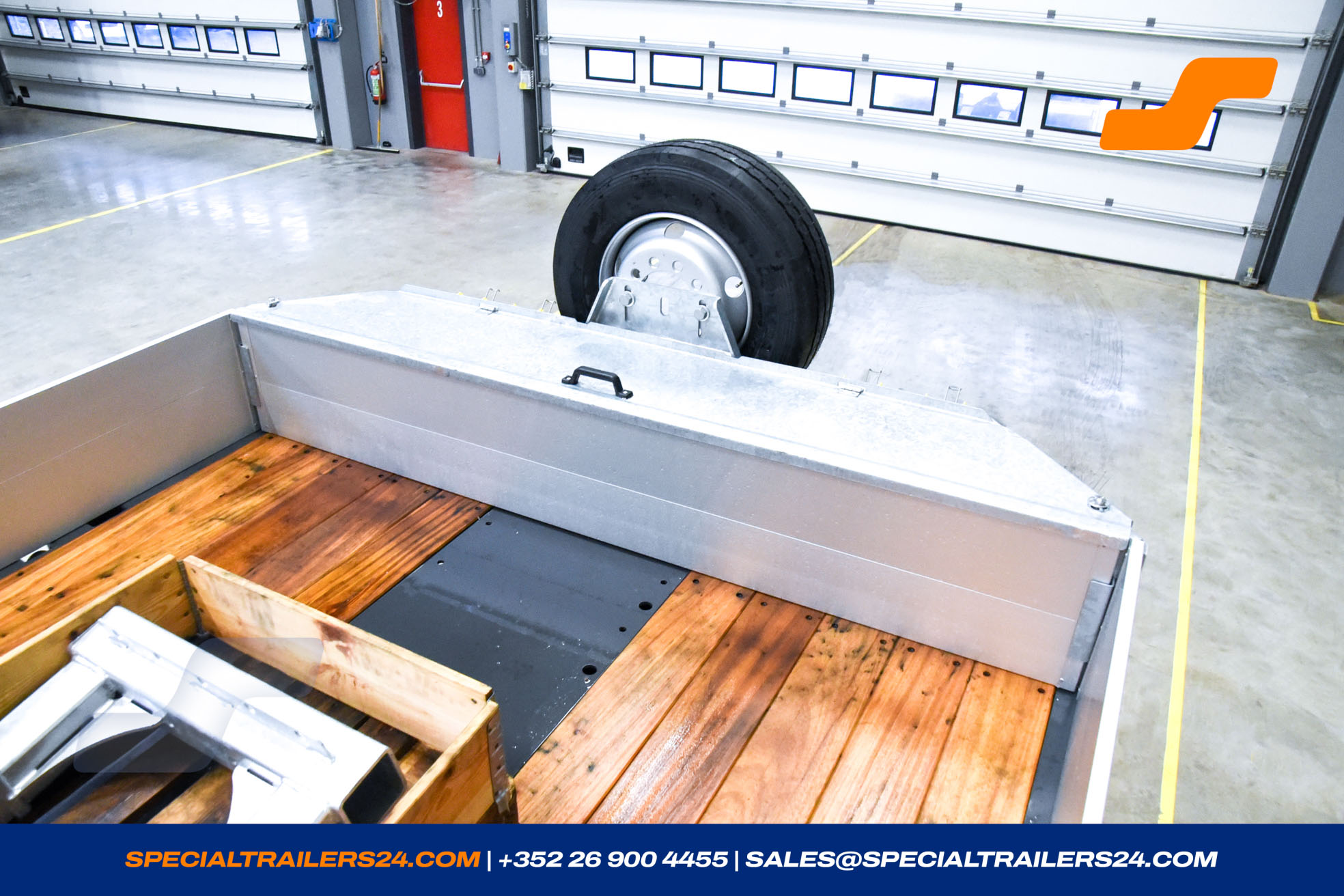

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)
Loading deck
Loading platform
1 x Loading platform

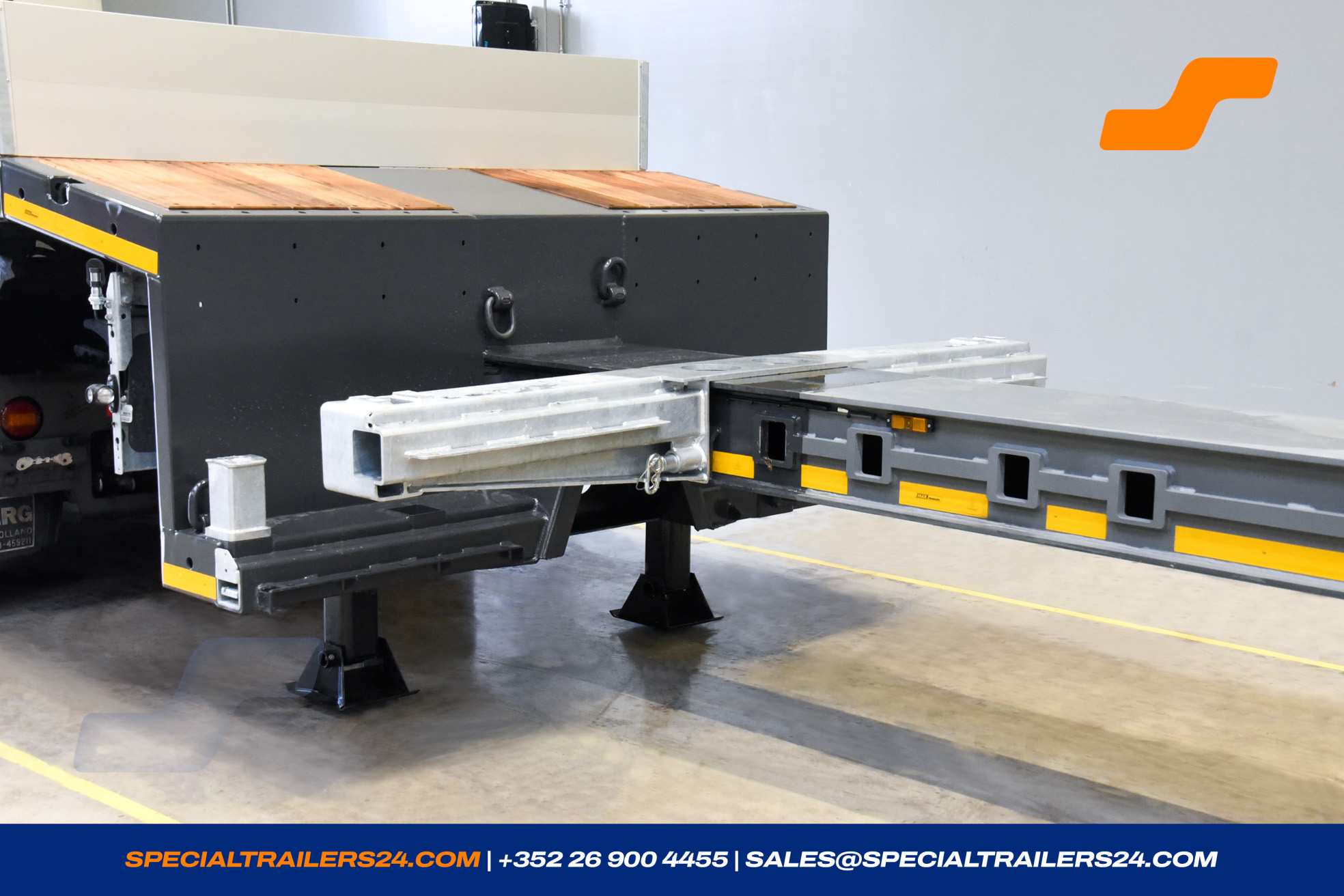

Extendable loading platform with rear slope of approximately 1,000 mm x 8°.

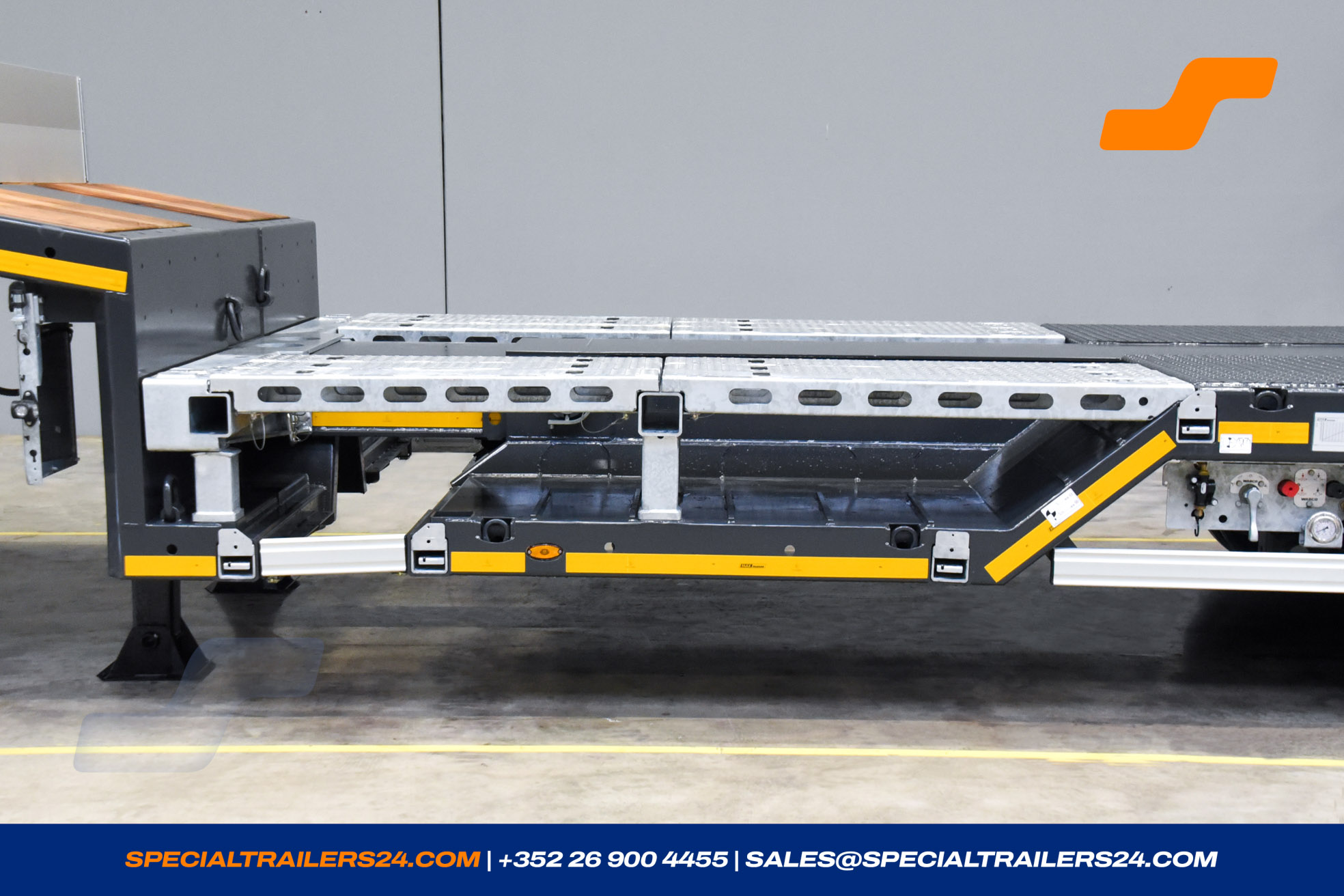

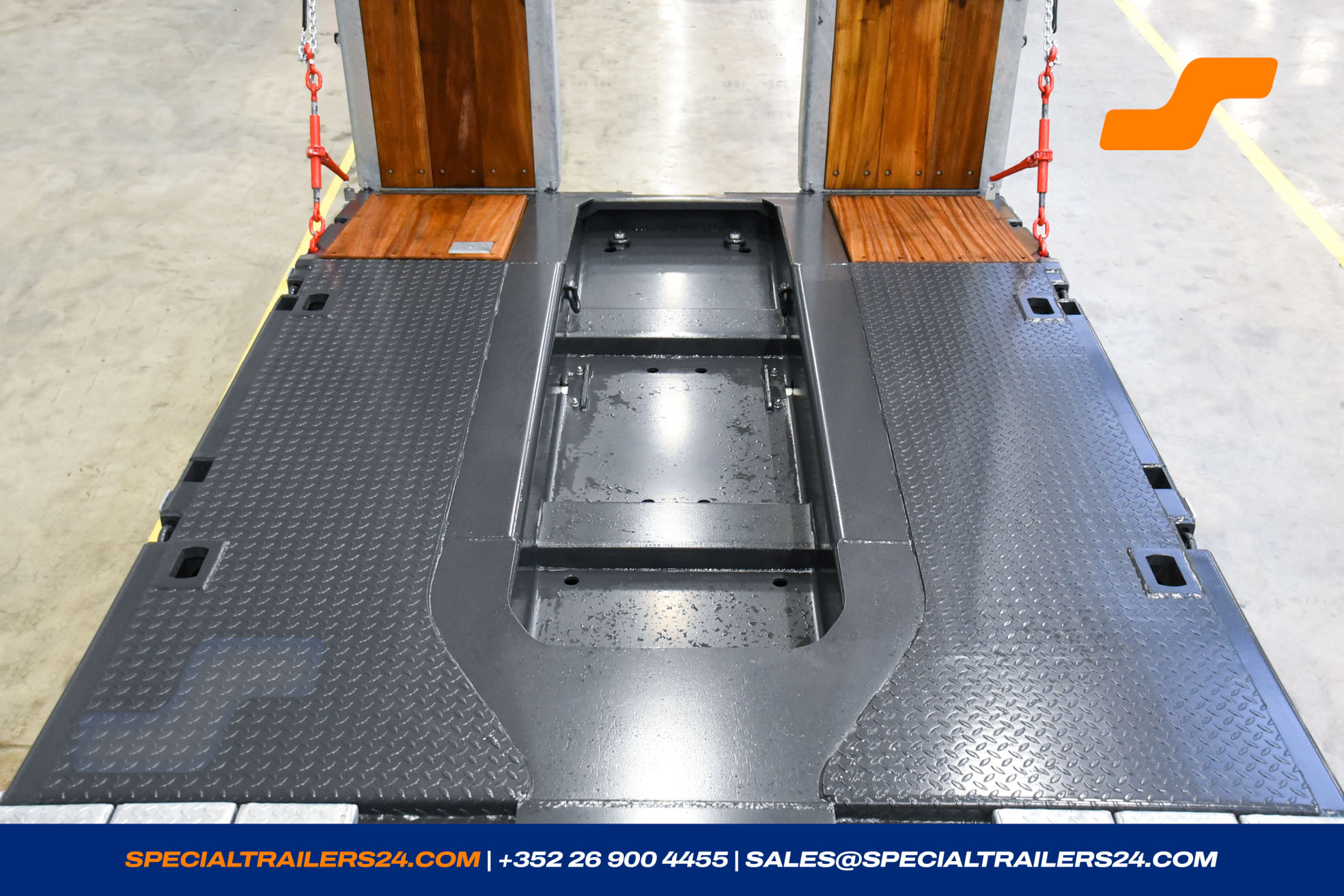

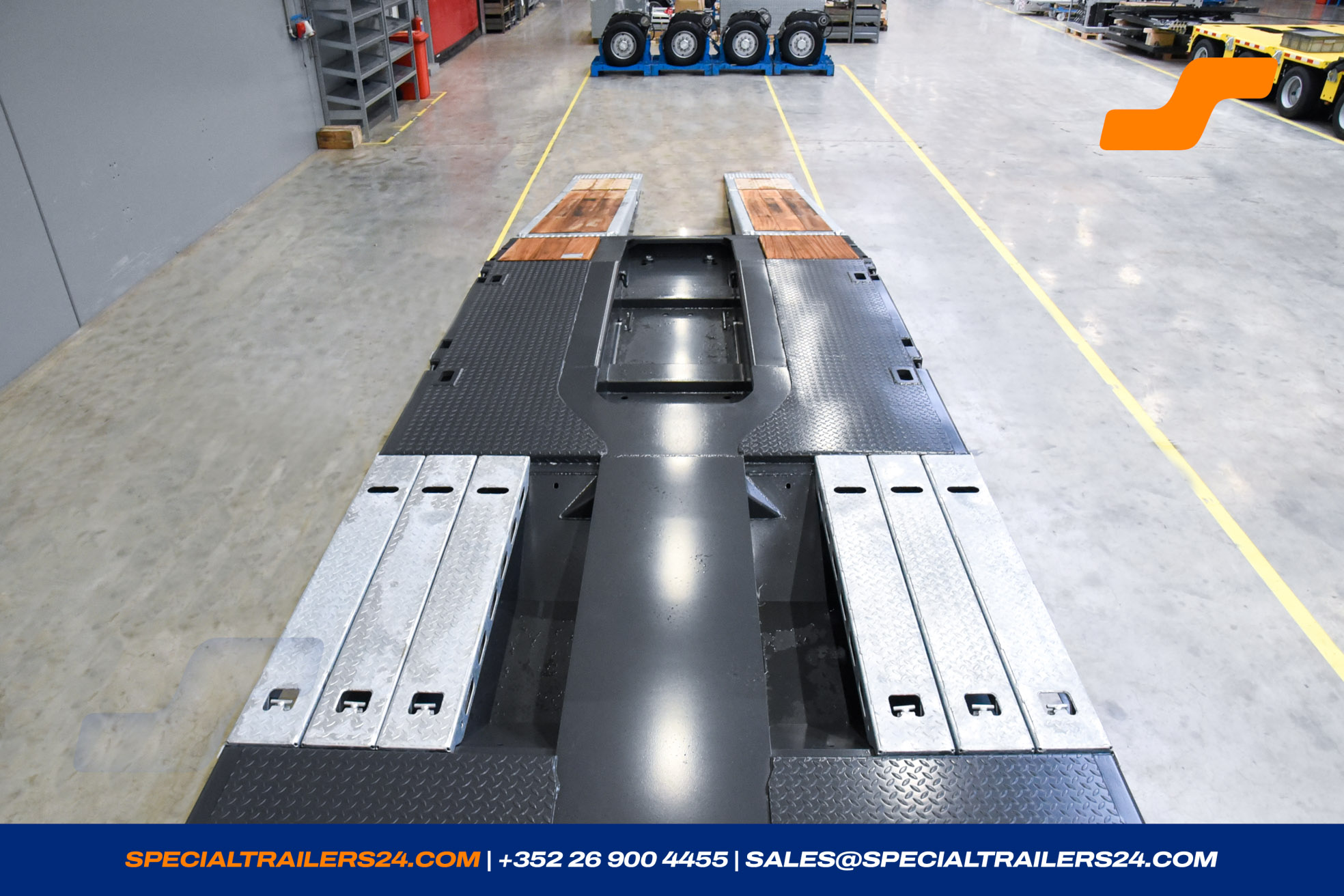

Between the 1st and 2nd axle, a pair of built-in wheel recesses, approximately 1,610 x 970 x 400 mm (L x W x H).
Includes 3-piece, removable, galvanized cover over the wheel recesses (W 670 mm - max. point load 5 tons per piece).
1 pair of horizontal lashing rings at the front of the loading platform (LC 10,000 daN).

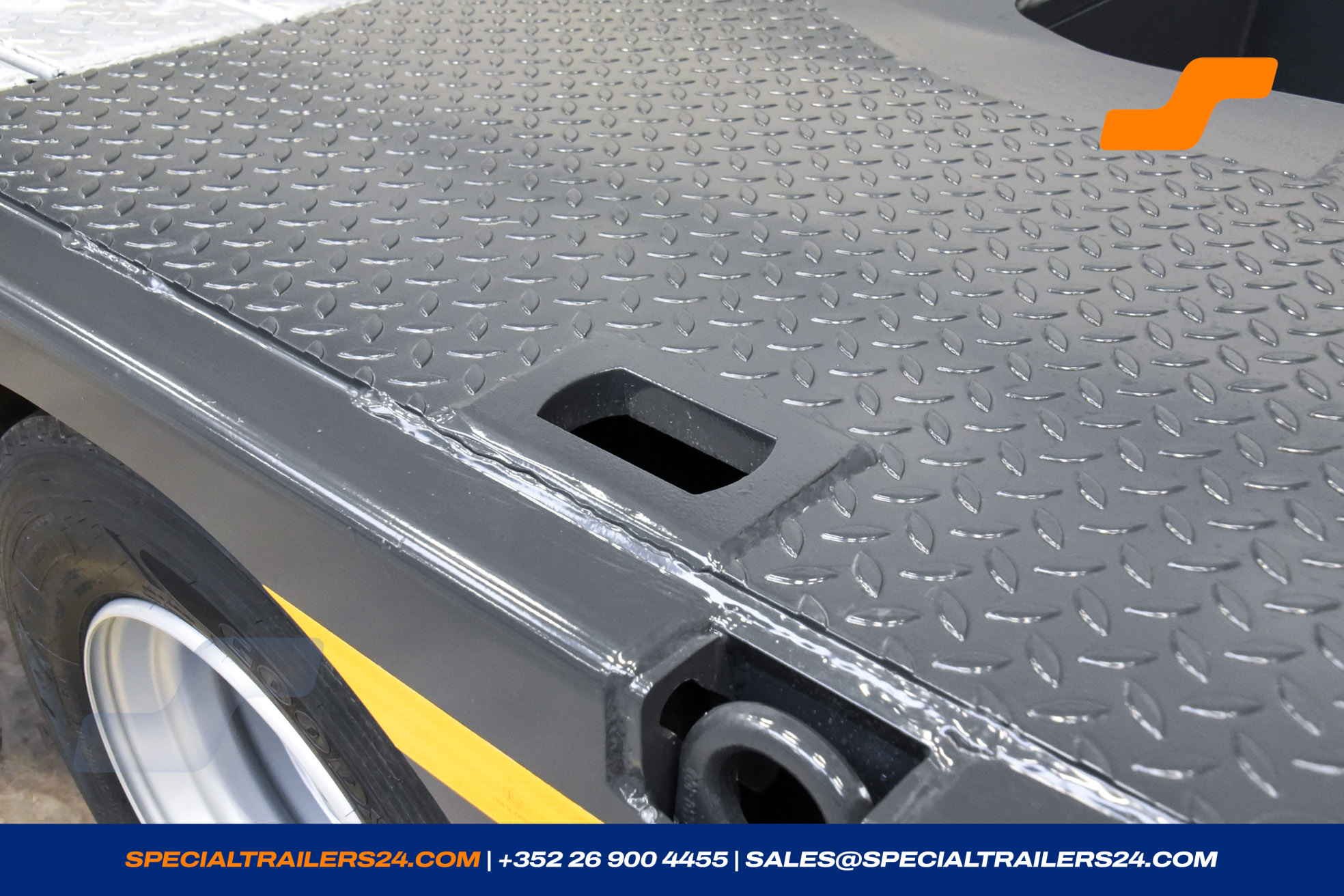

4 pairs of fold-out lashing rings (LC 5,000 daN).
3 pairs of fold-out lashing rings (LC 10,000 daN).
Cutouts in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN).
- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).
-
Hardwood timber for the outriggers (± 312kg).
The maximum permissible point load on an area of 200 x 200 mm is 3.5 to. -
Additional hardwood timber for the outriggers when using the intermediate table. (± 45 kg)

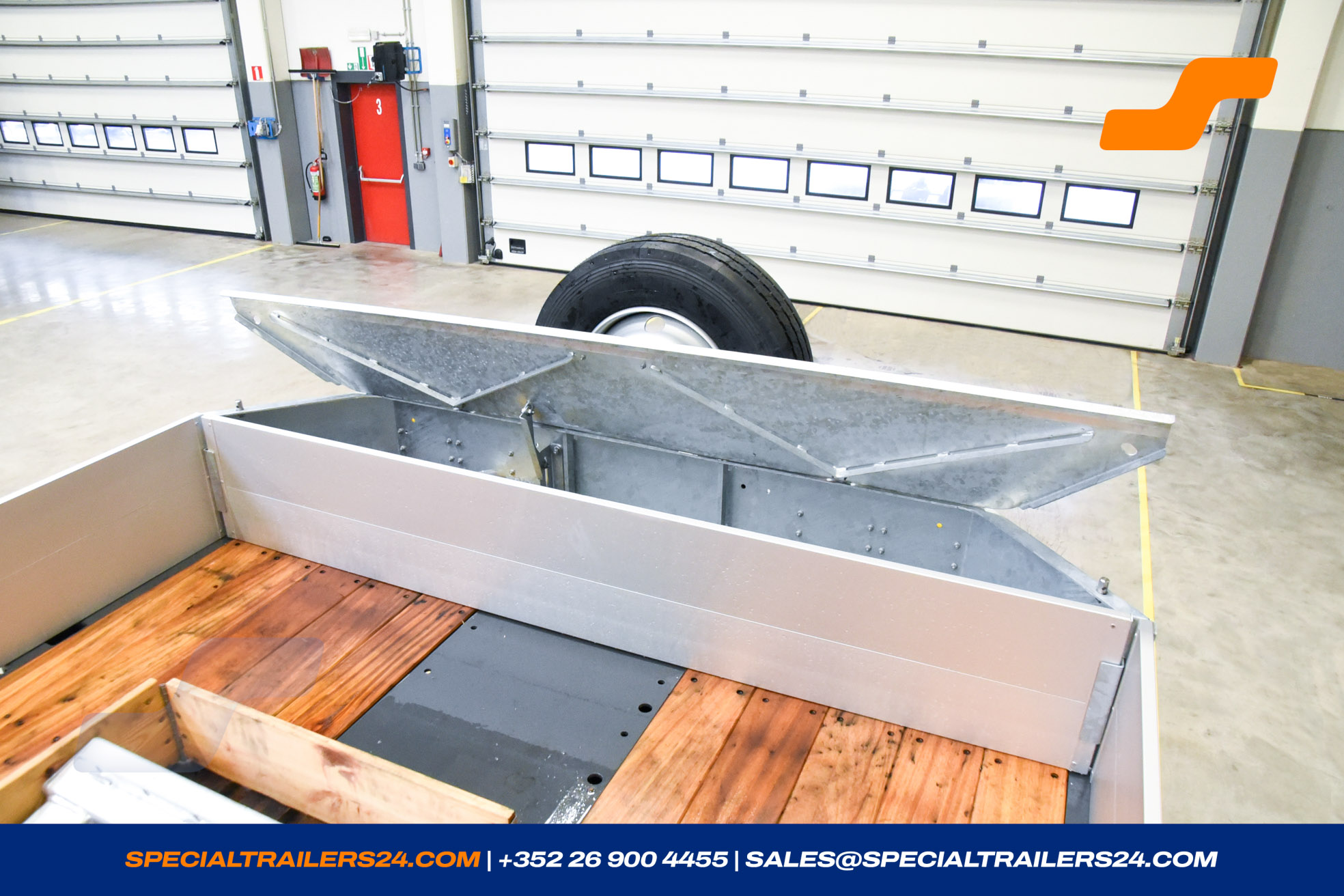

Maximum permissible point load 3.5 tonnes on an area of 20 x 20 cm. - Galvanised storage for timber, left and right under the loading platform (± 100kg).
-
One galvanised trestle for the loading platform at the same height as the gooseneck, with one pair of galvanised stakes ca. 100 x 50 mm.
Capacity: 20000 kg
(± 110kg) - 1 additional pair of removable galvanized covers over the wheel recesses - max.point load 3.5 to/pc.(± 66kg).

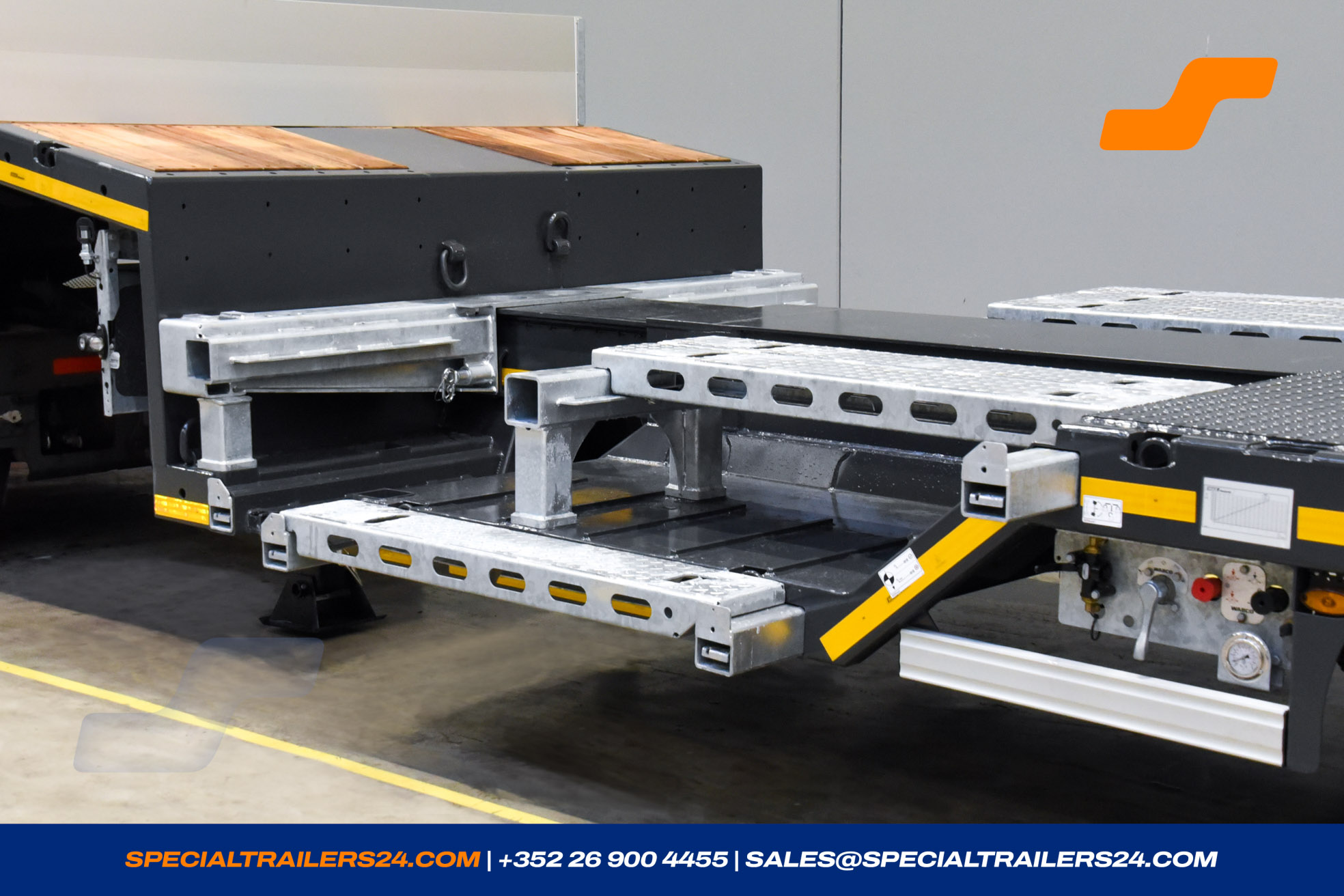

- One removable, galvanised sliding bolster with ± 250 mm. (± 127 kg)
-
4 pairs of inserted lashing rings along the central beam of the loading area (LC 5 000 daN).
1 pair of inserted lashing rings along the central beam at the back (LC 10 000 daN). (± 16 kg) - Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
- 1 LED reversing lamp left and right in front of the first axle.

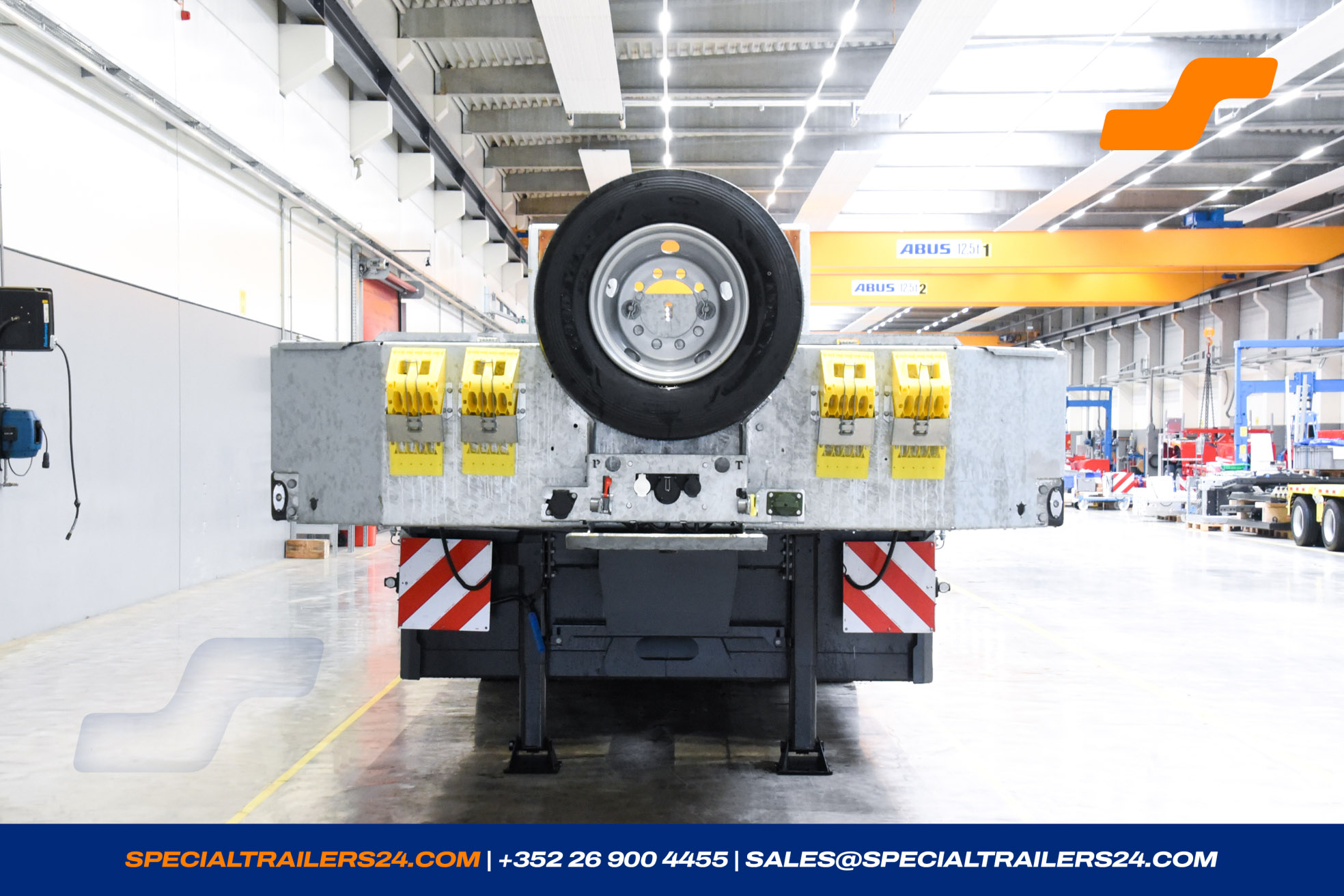

- Sign 1 200 x 400 mm CONVOI EXCEPTIONNEL at the rear of the trailer.
- 1 LED flashing beacon, provided separately.

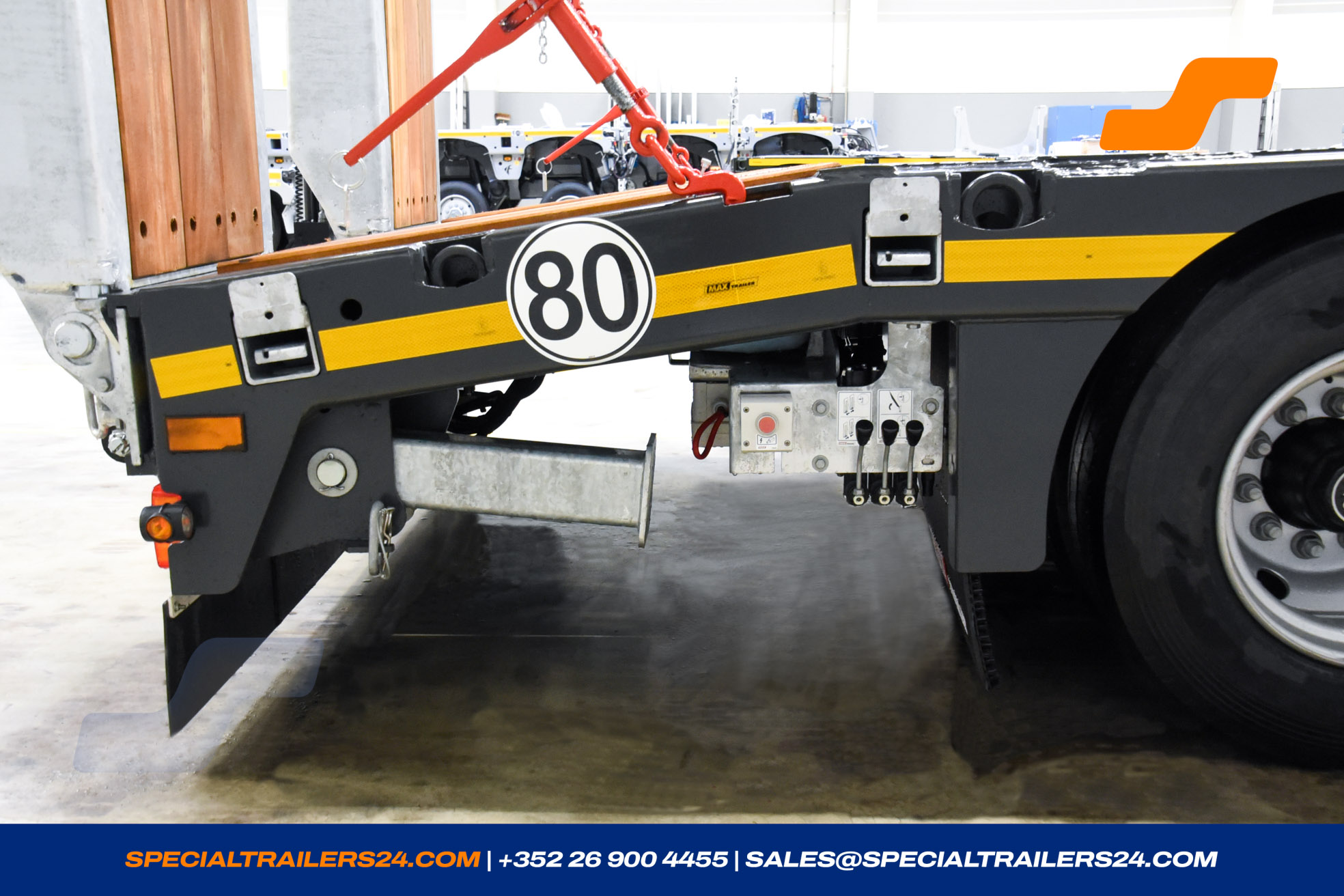

- Speed sticker 60 km/h at the rear.
- Delivery from a trailer to factory Büllingen.
- Load manometer for determining the axle load, including load diagram.
Ramps

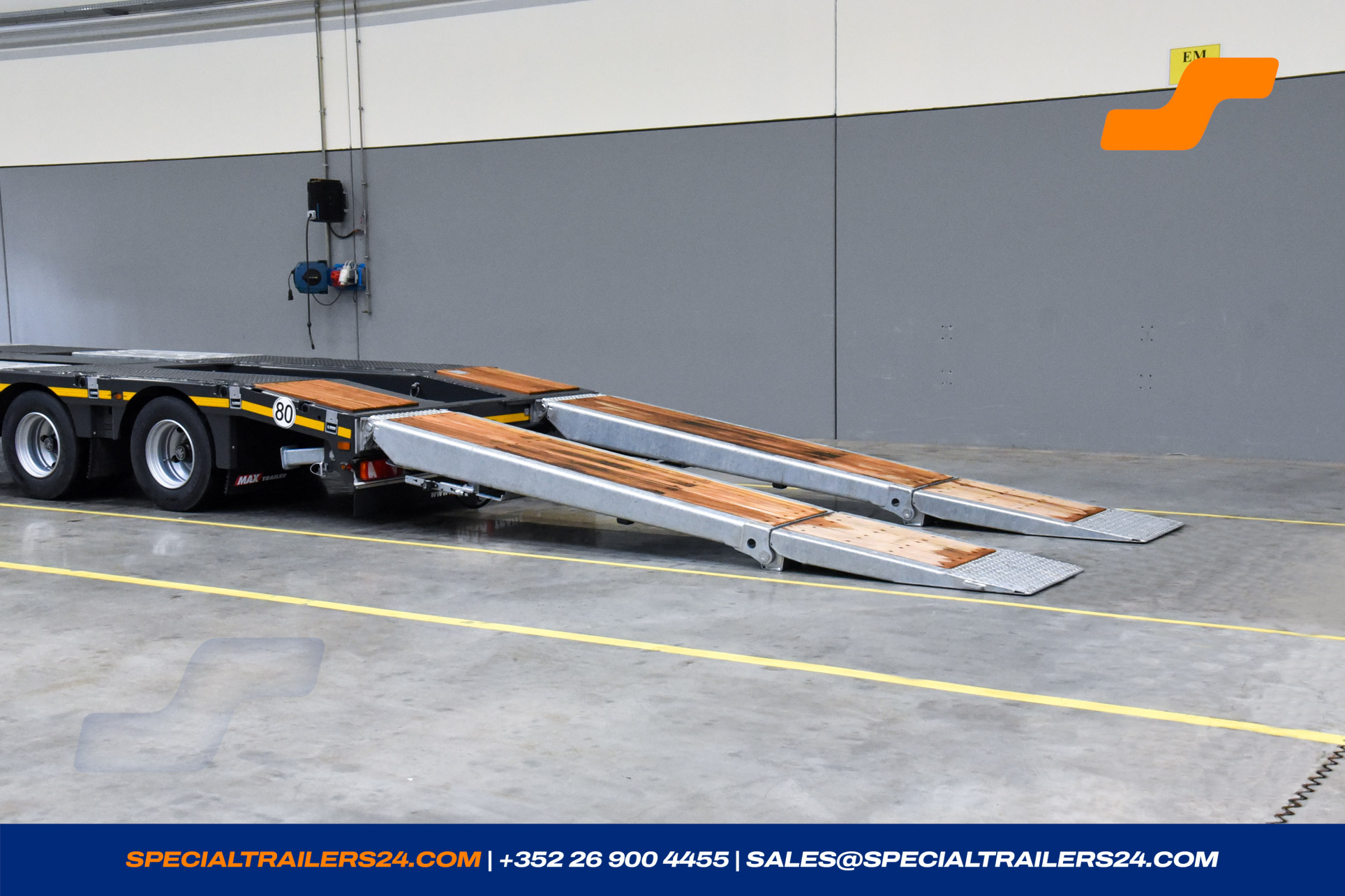

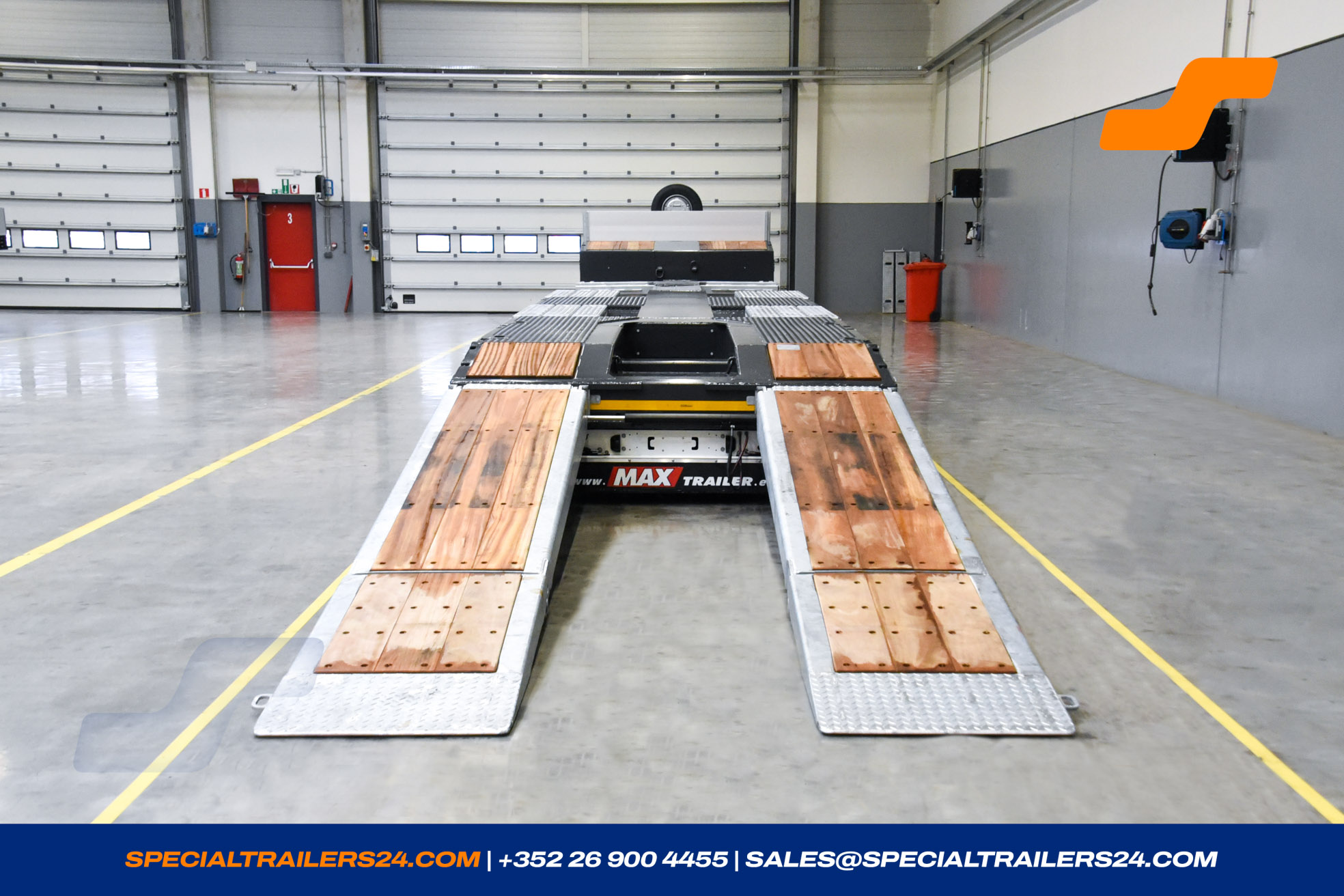

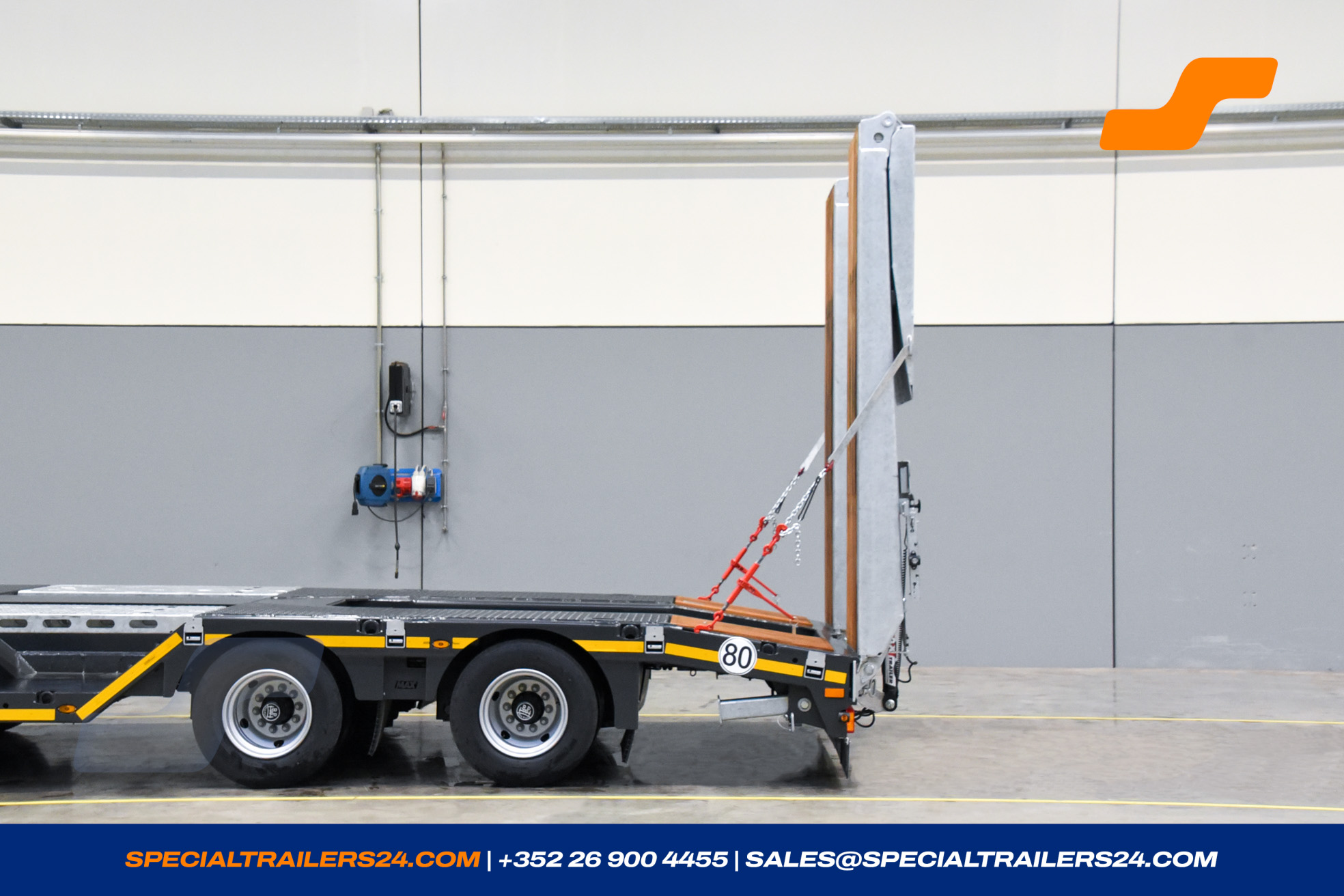

Hydraulic loading ramps
1 x Steel double flip ramps

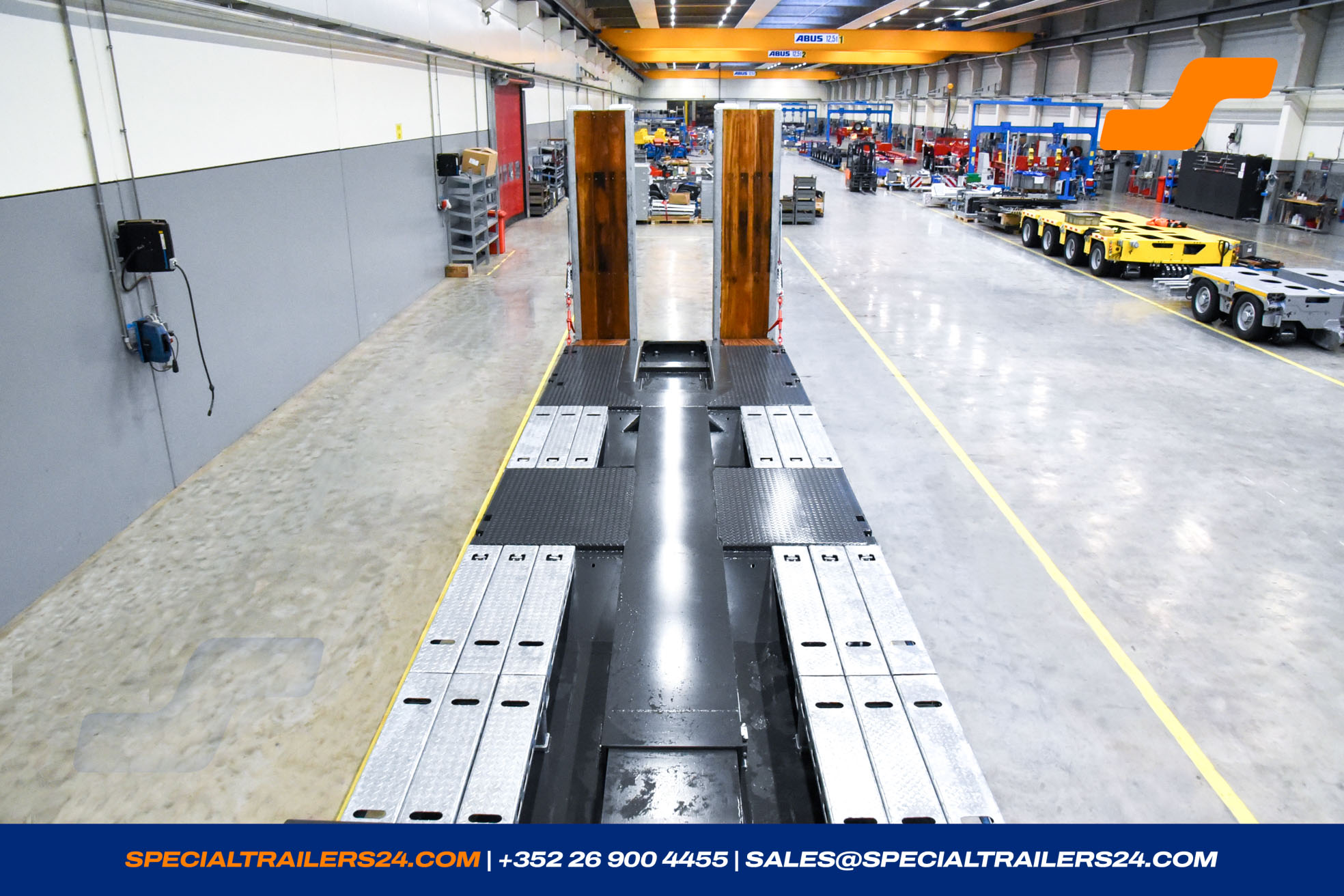

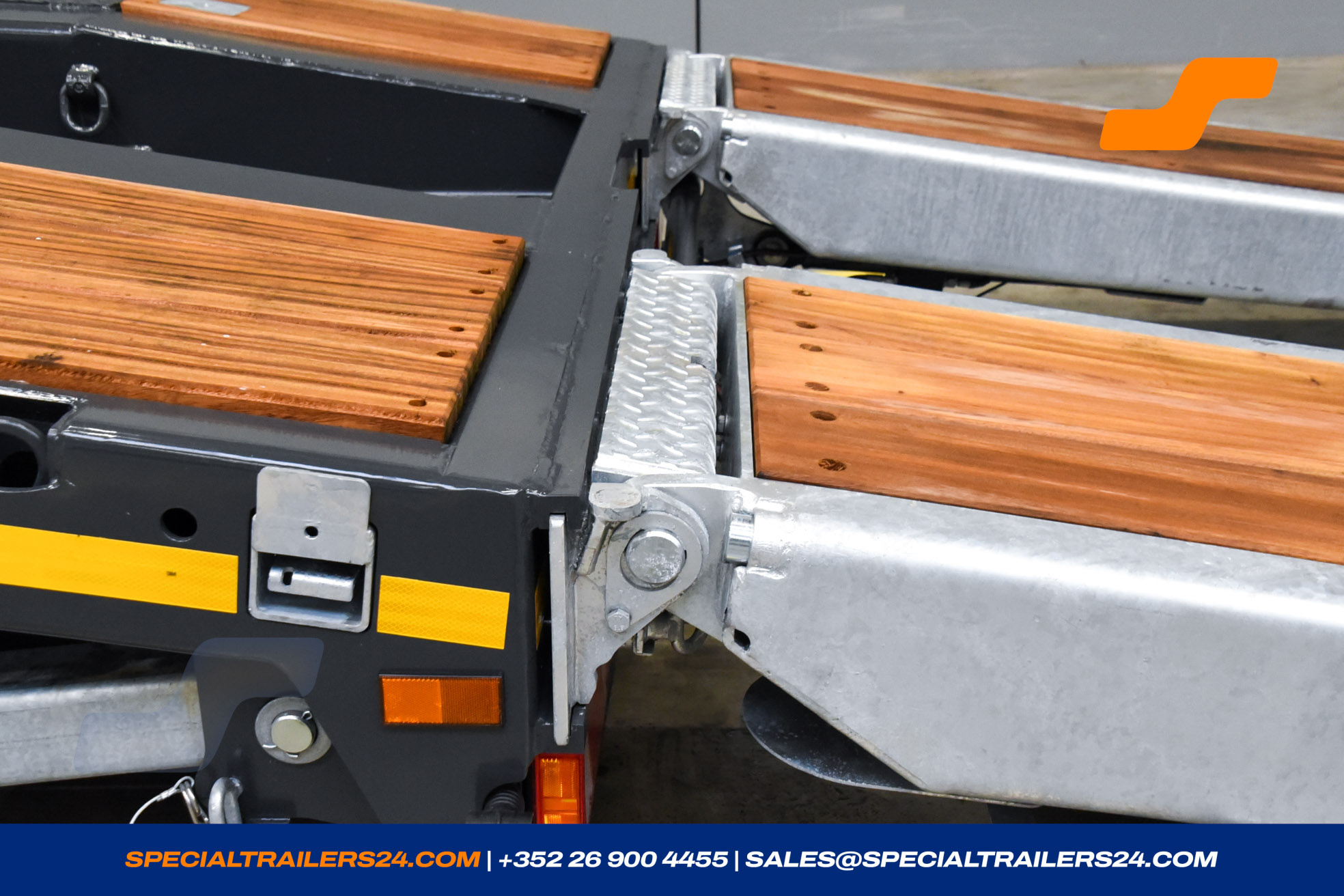

1 pair steel double flip ramps galvanized ca. 2 750 + 1 400 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40 000 kg
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessories
- Manual and description on USB stick .
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Assembly of the double ramps on the semitrailer.
