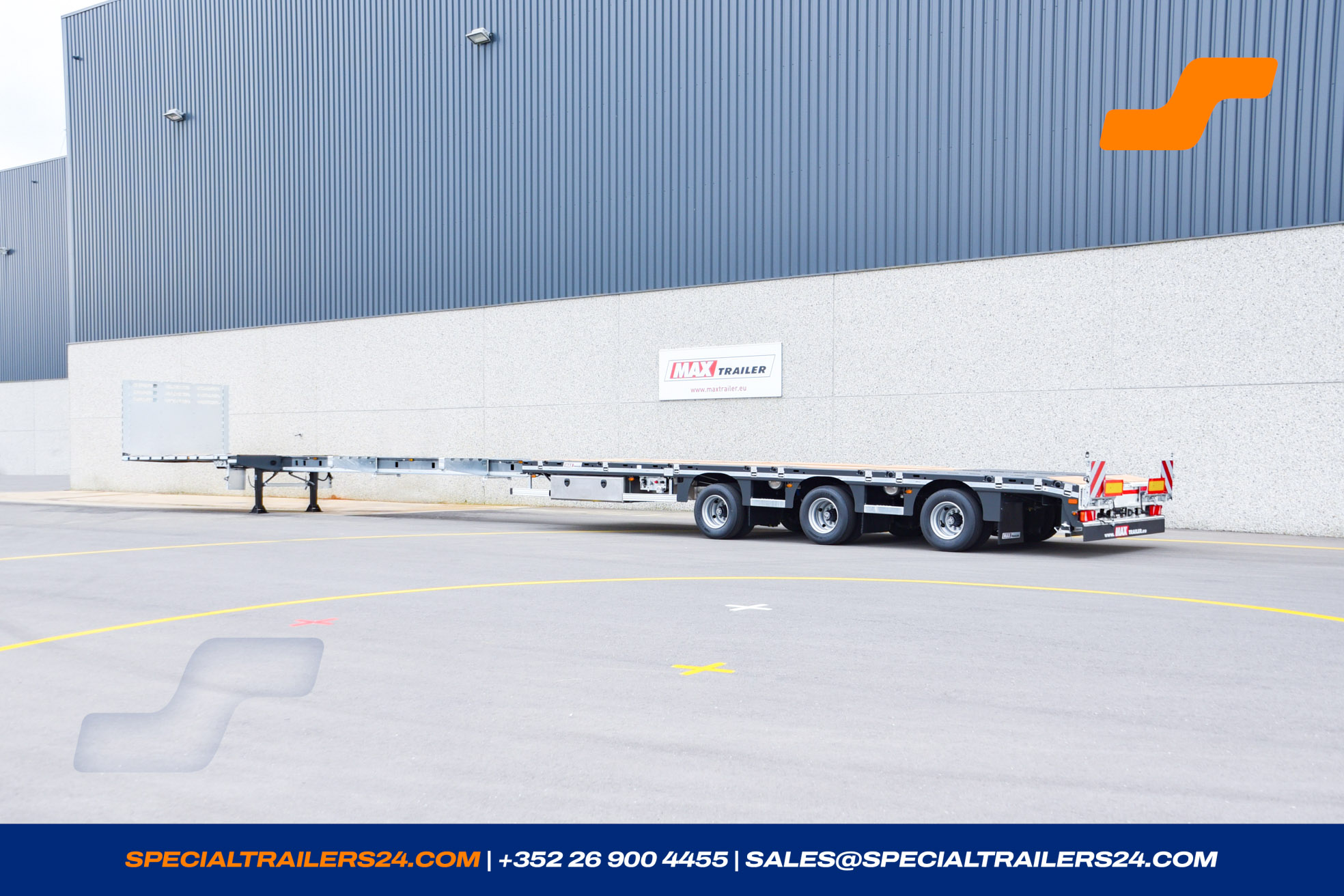

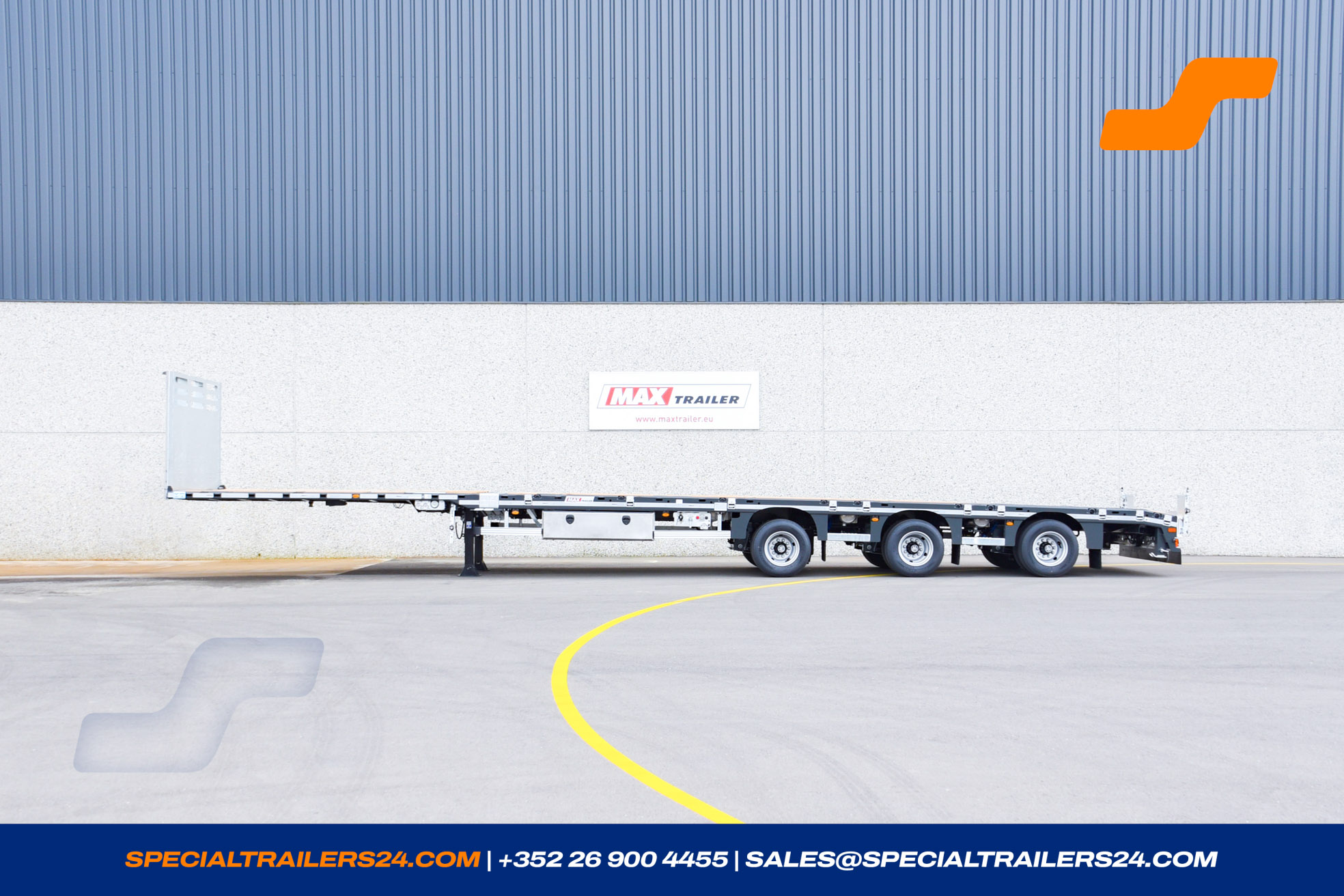

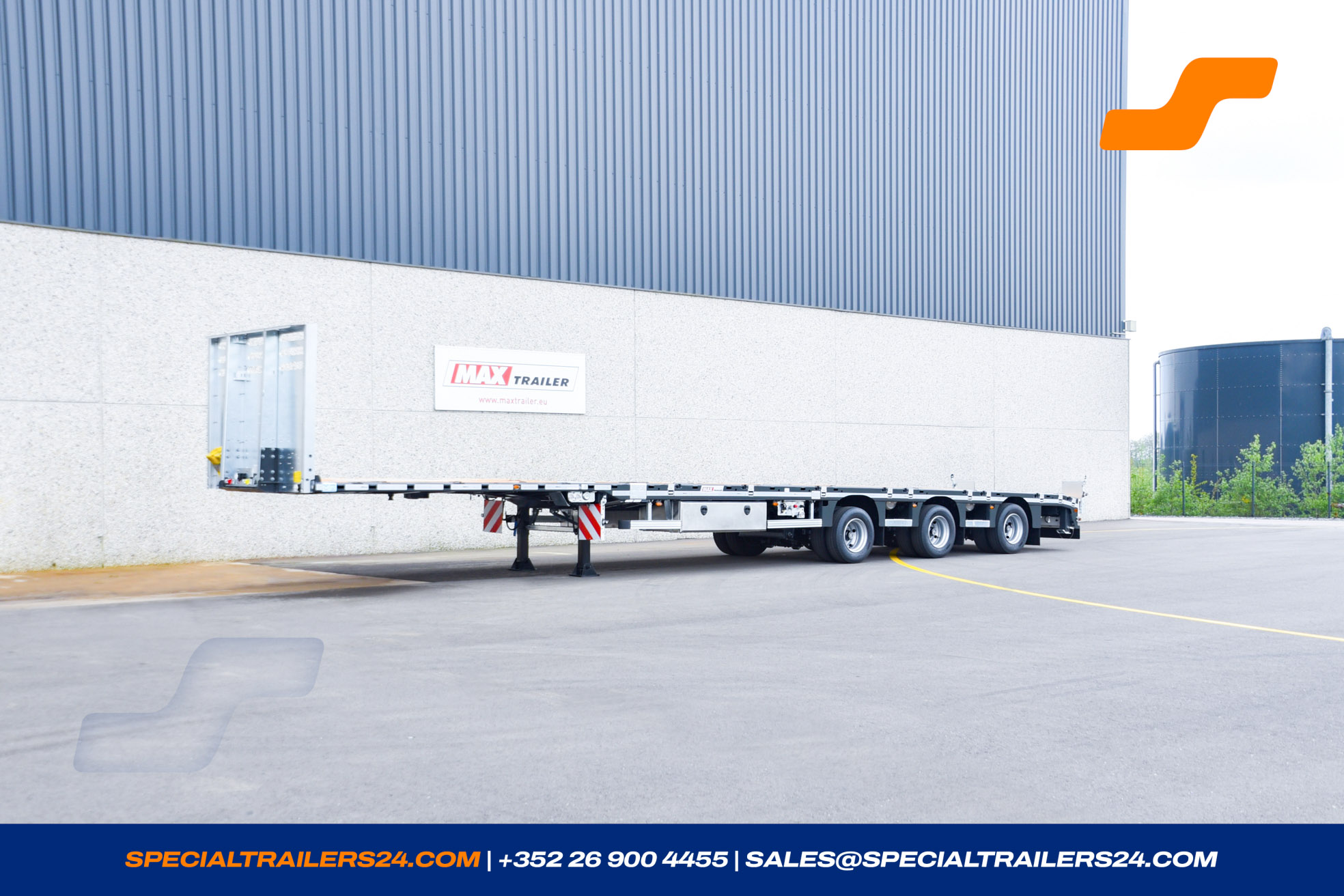

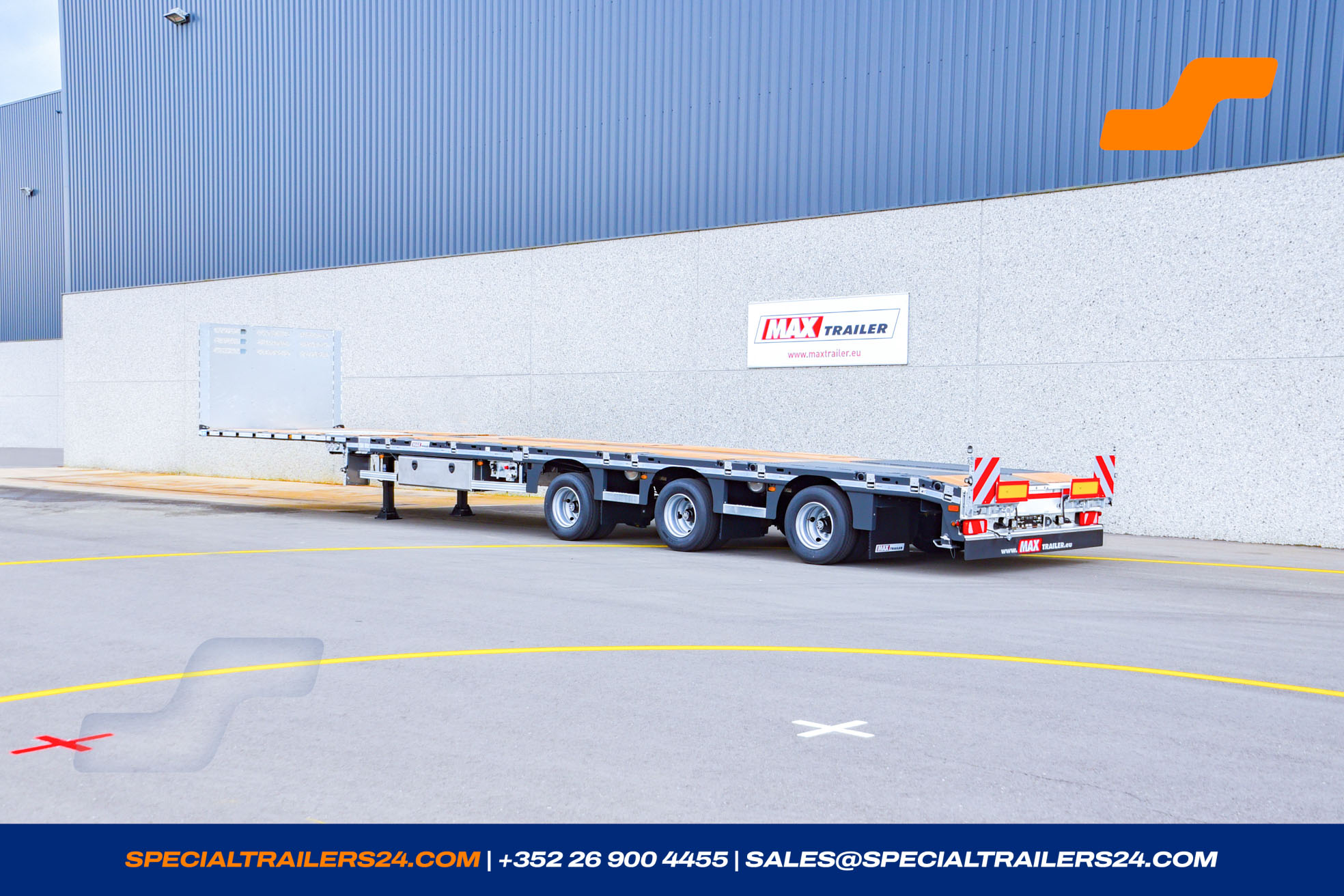

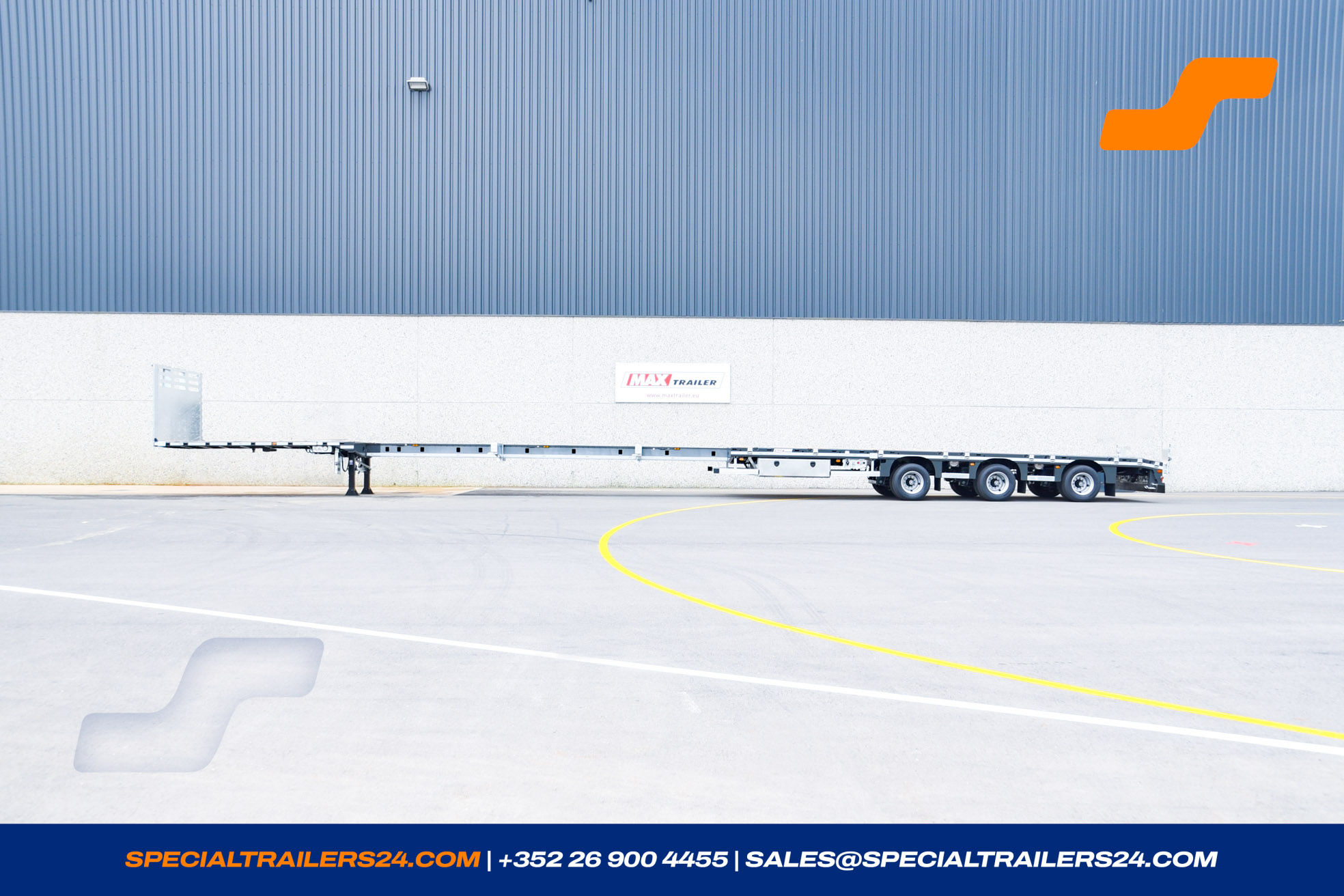

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112143
- Reference MAX210-Z-3A-13.50-17.5-2.54

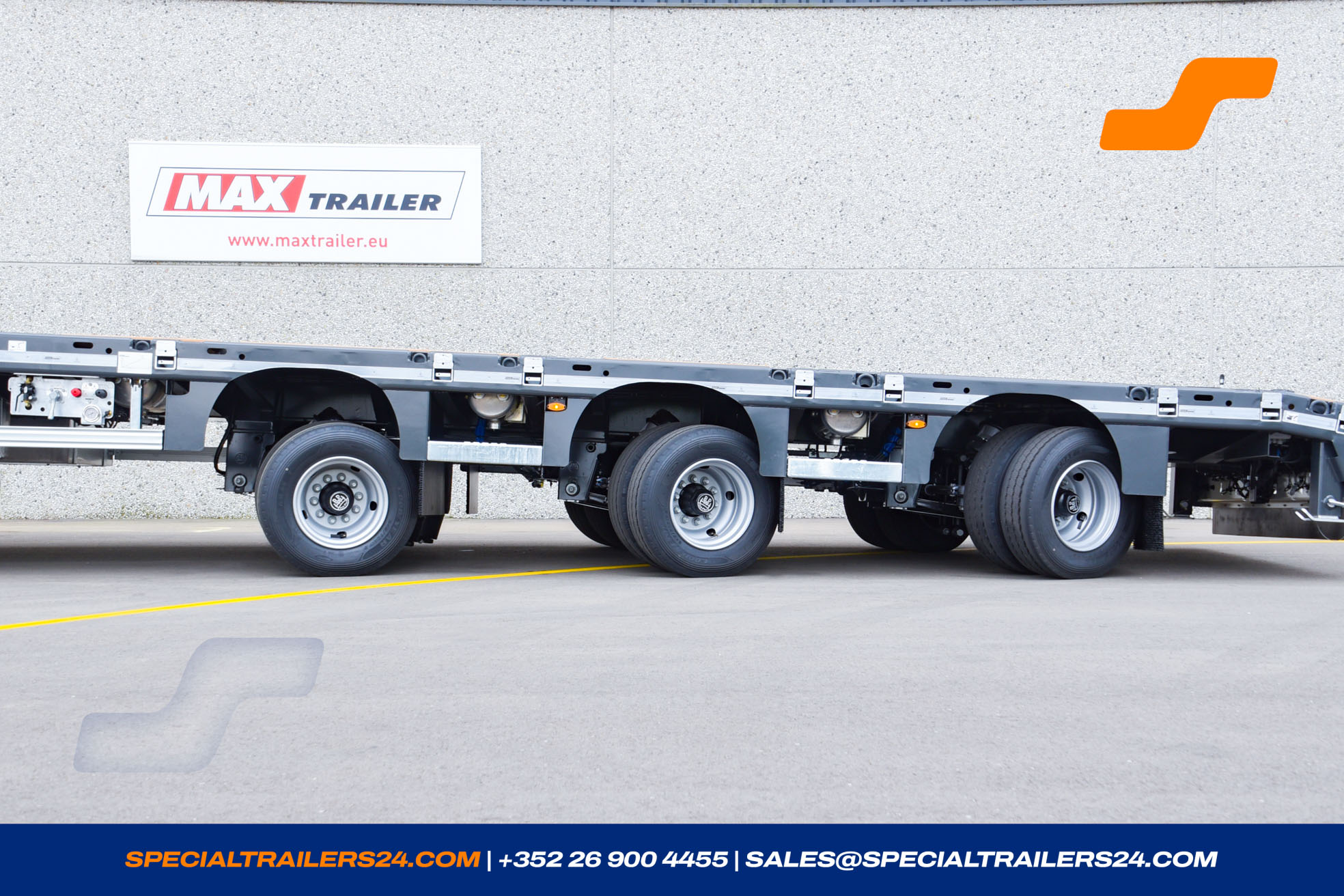

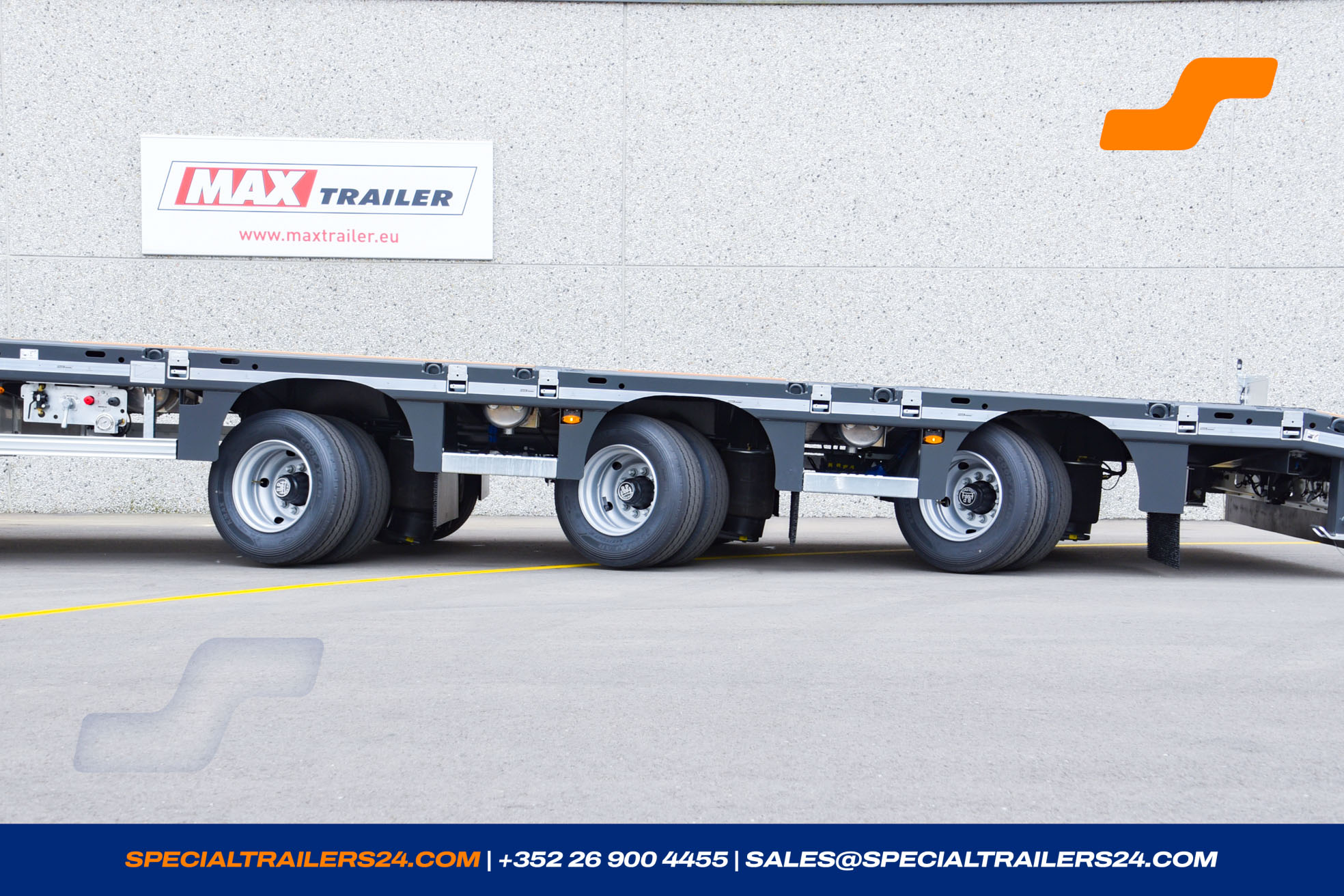

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 08/2026
- Steering Type Hydraulic
Availability
08/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32100 kg |
| Gross weight | 50100 kg |
| Tare weight +- 3% | 11122 kg |
| Payload | 38978 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 100 mm |

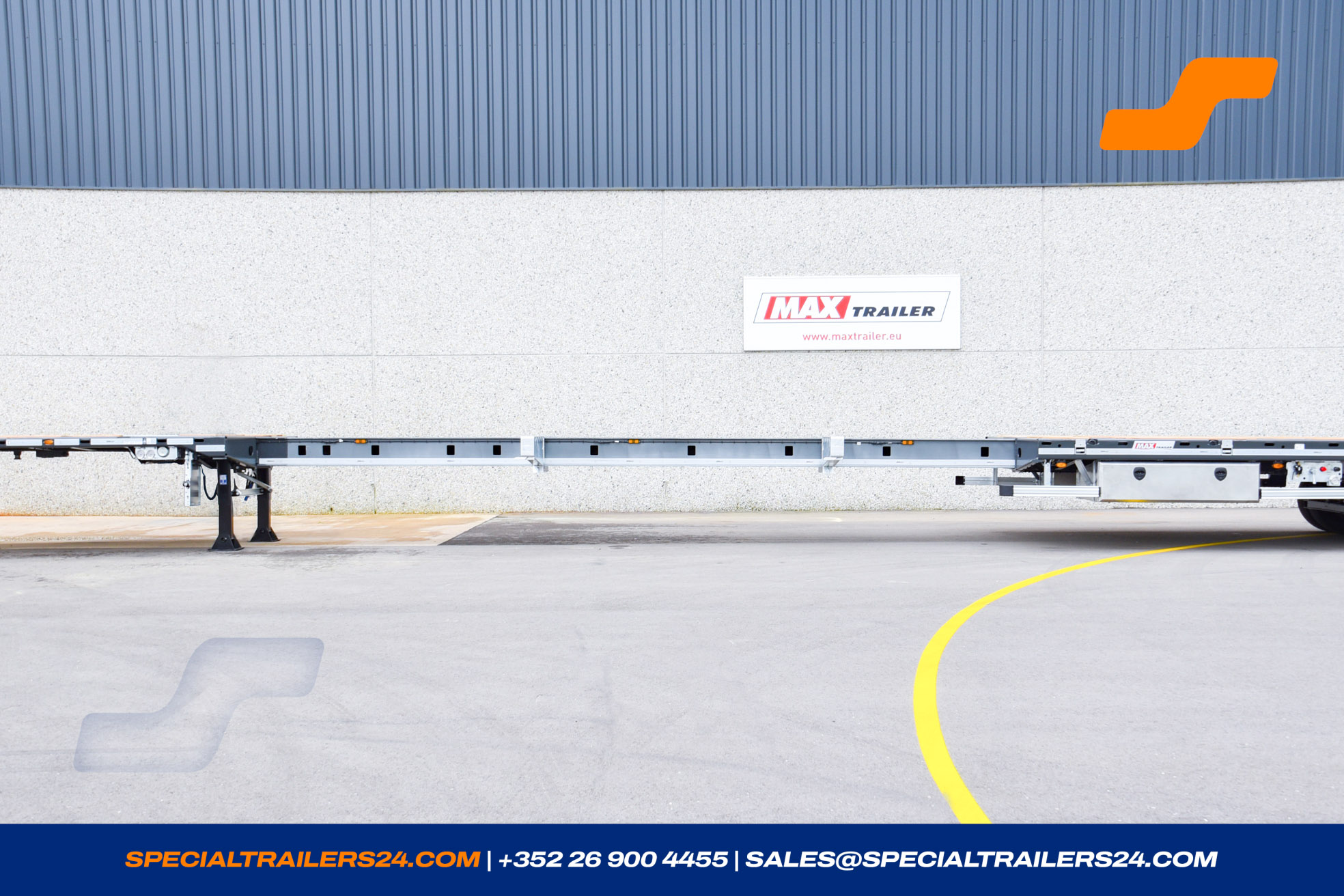

| Loading platform length | 13 500 mm |
| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX210-Z-3A(7500)-13.50-17.5-2.54(DSR 2100-ASH 950->1050-12T)

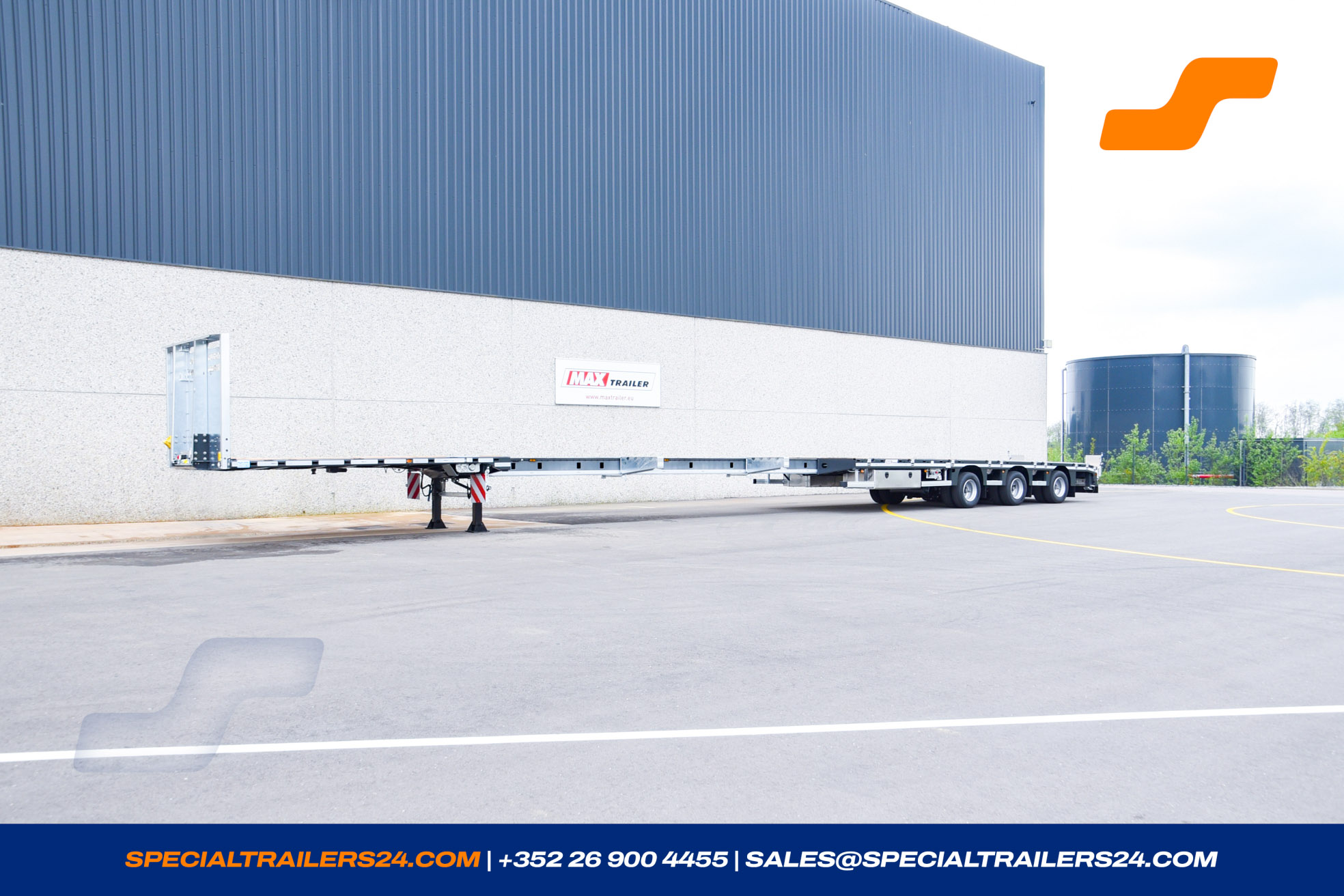

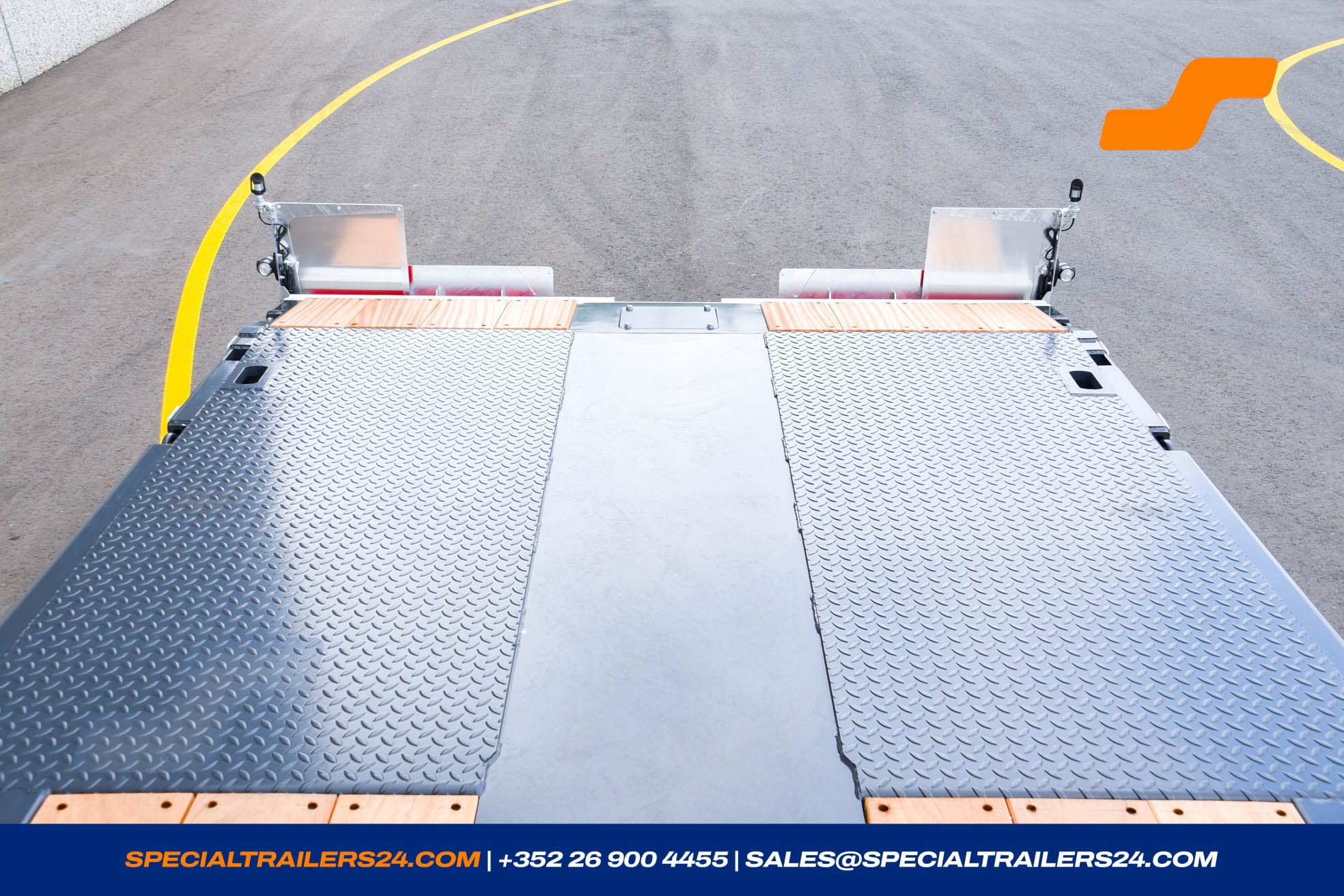

Loading platform in extendable version with chamfered beaver tail by about 500 mm x 8°.
2 pairs of lashing rings lying in the gooseneck (LC 5 000 daN).
1 pair of lashing rings lying in the gooseneck (LC 10 000 daN).
6 pairs of lashing rings folding outwards (LC 5 000 daN).
3 pairs of lashing rings folding outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN)
-

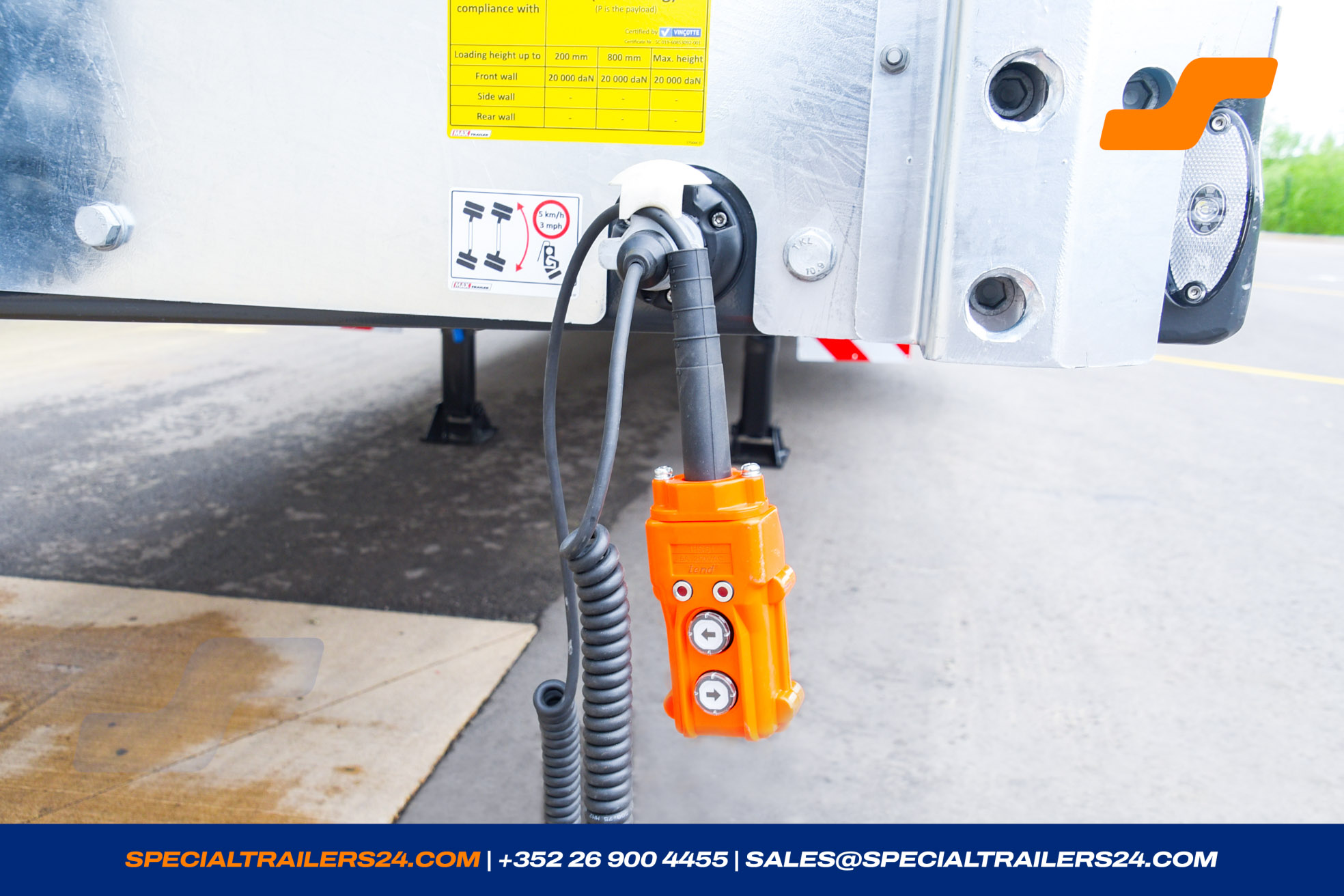

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- King pin 2

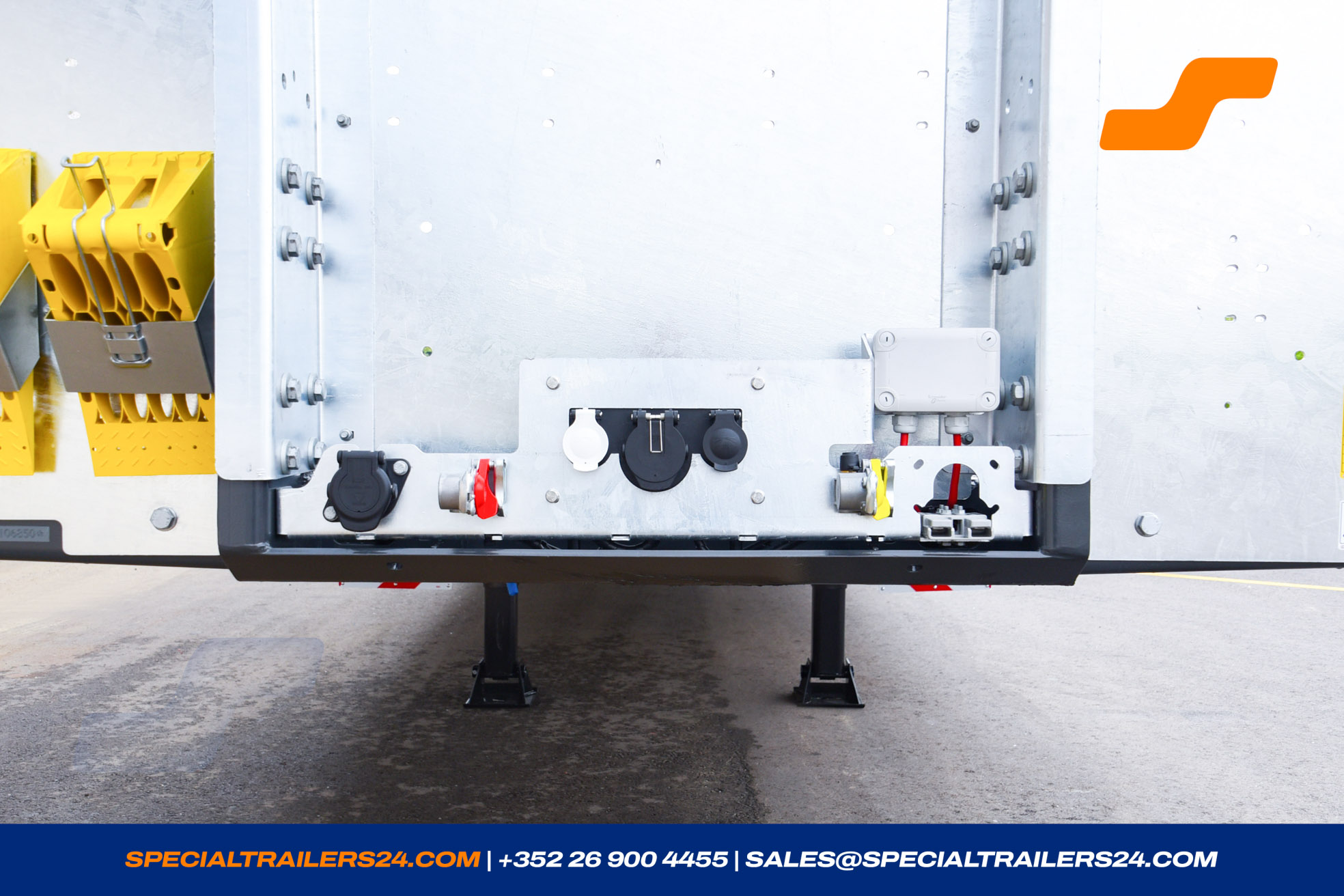

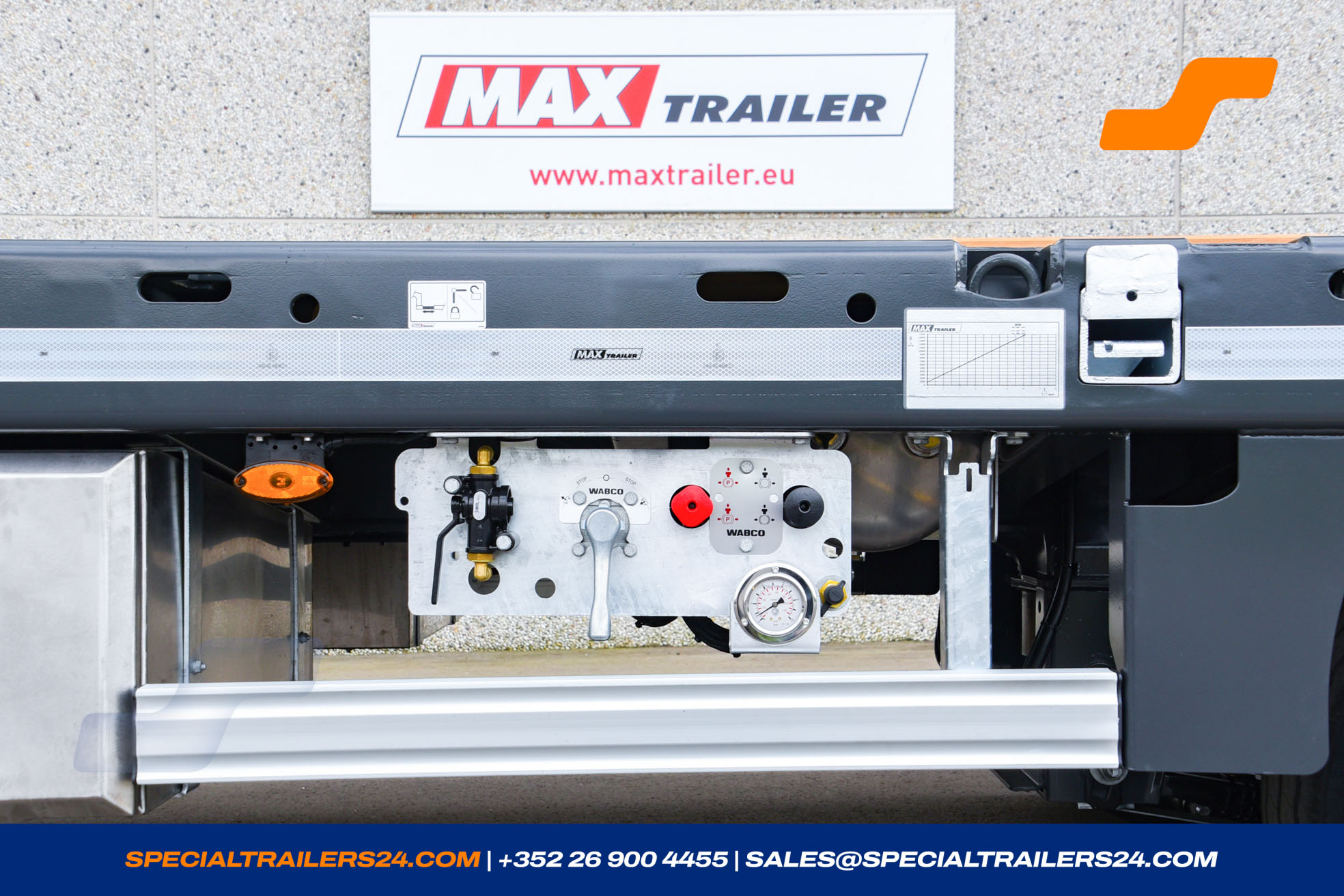

- Red and yellow air couplings on the galvanised front connection ledge.

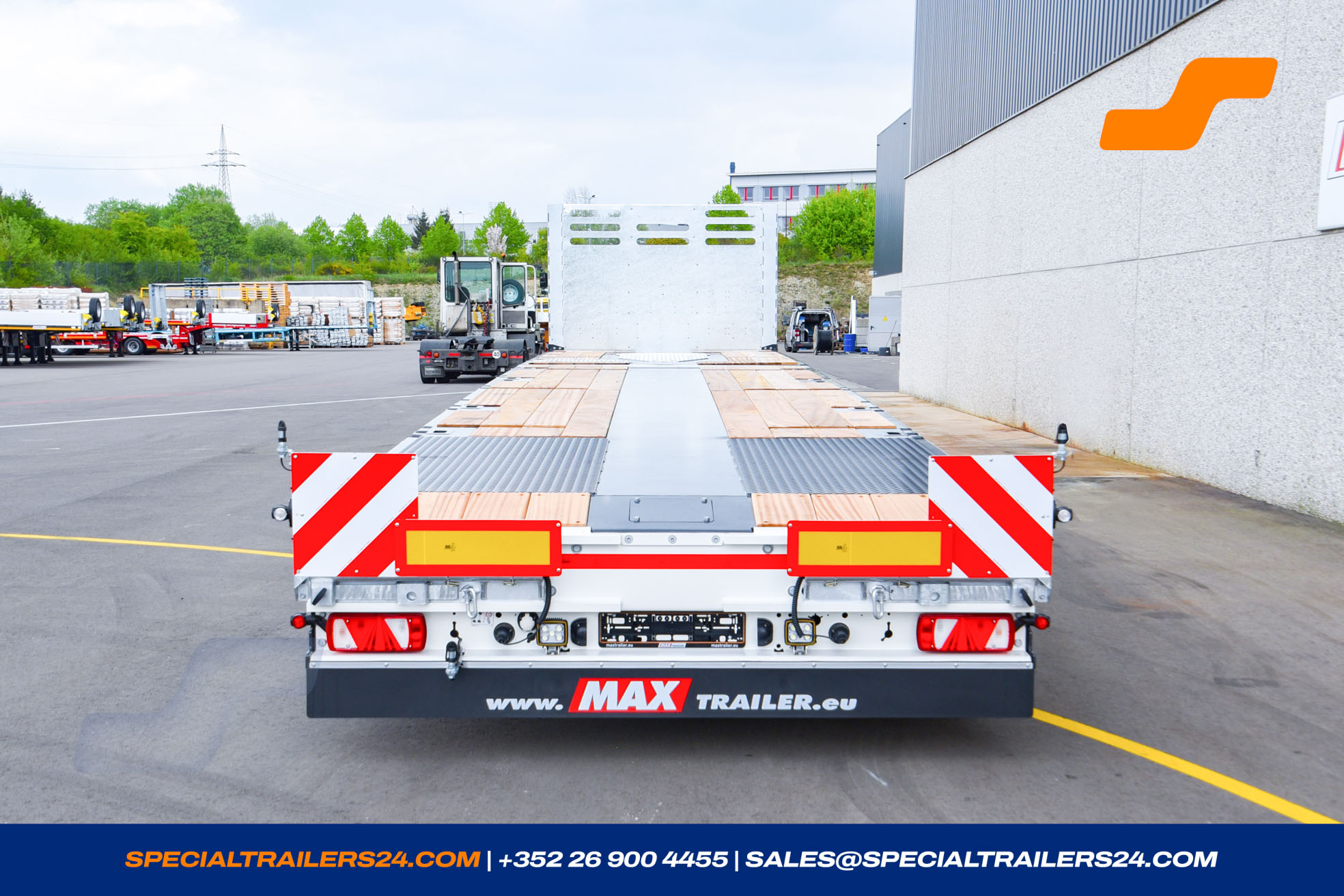

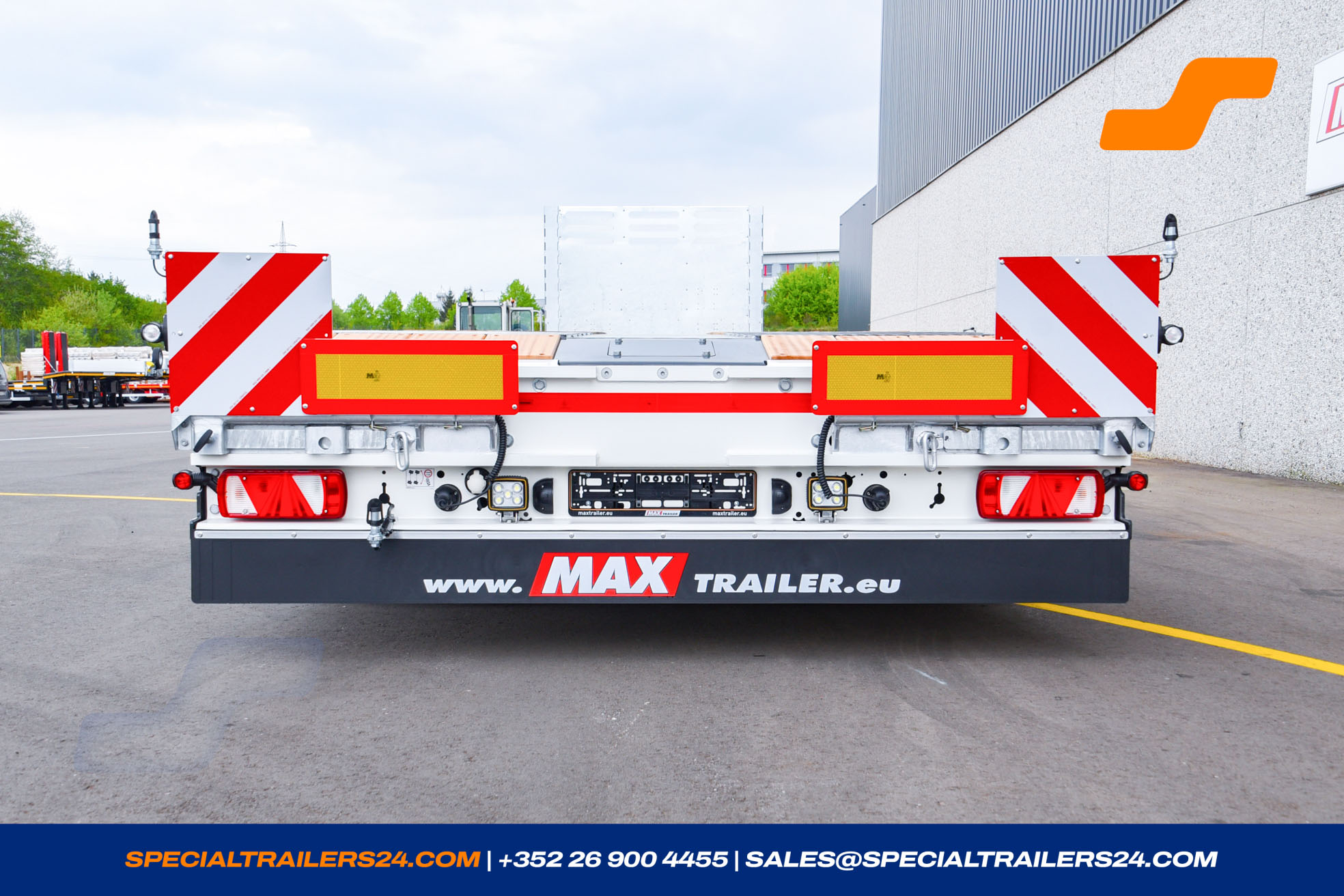

- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.

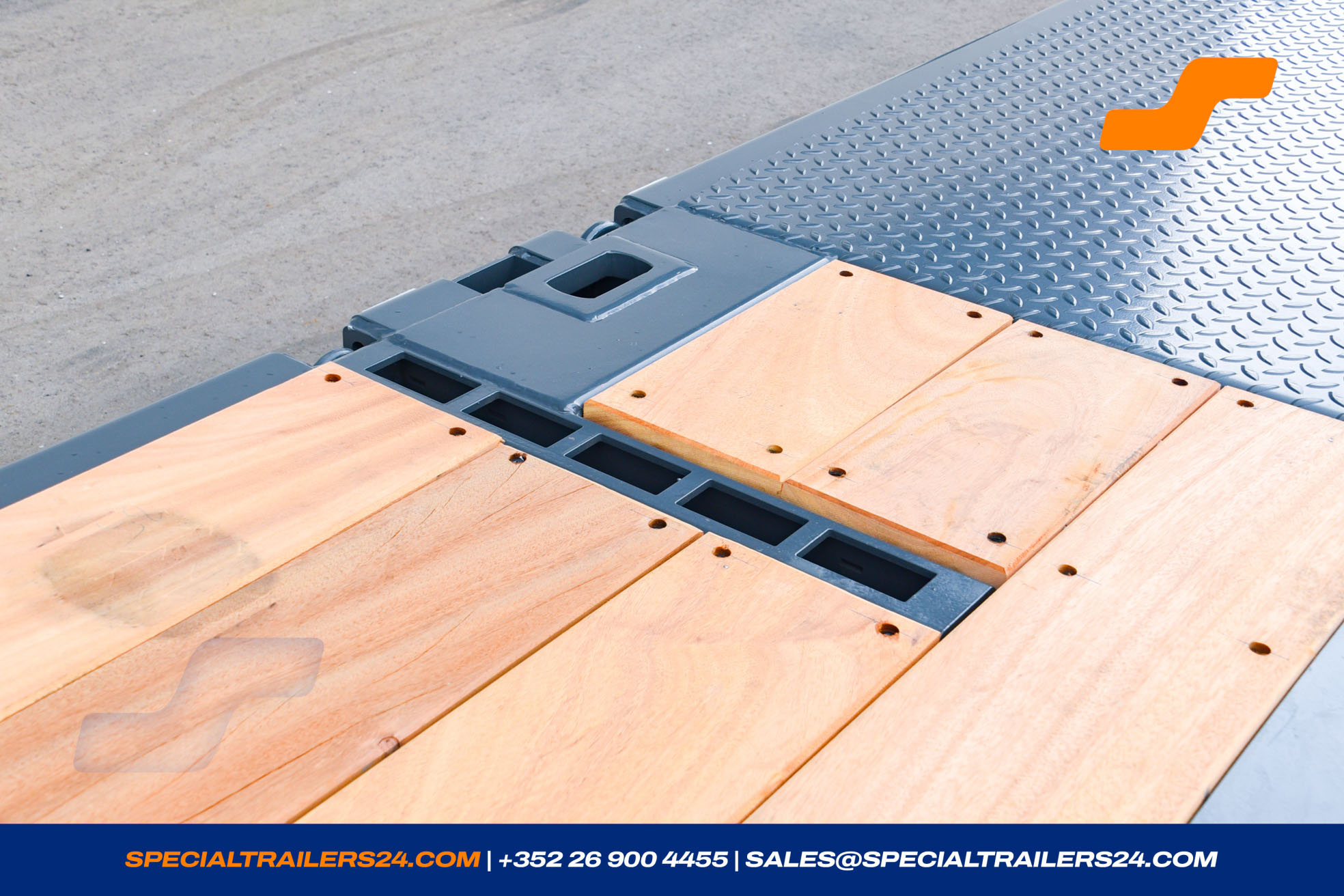

- Loading area with hardwood timber.

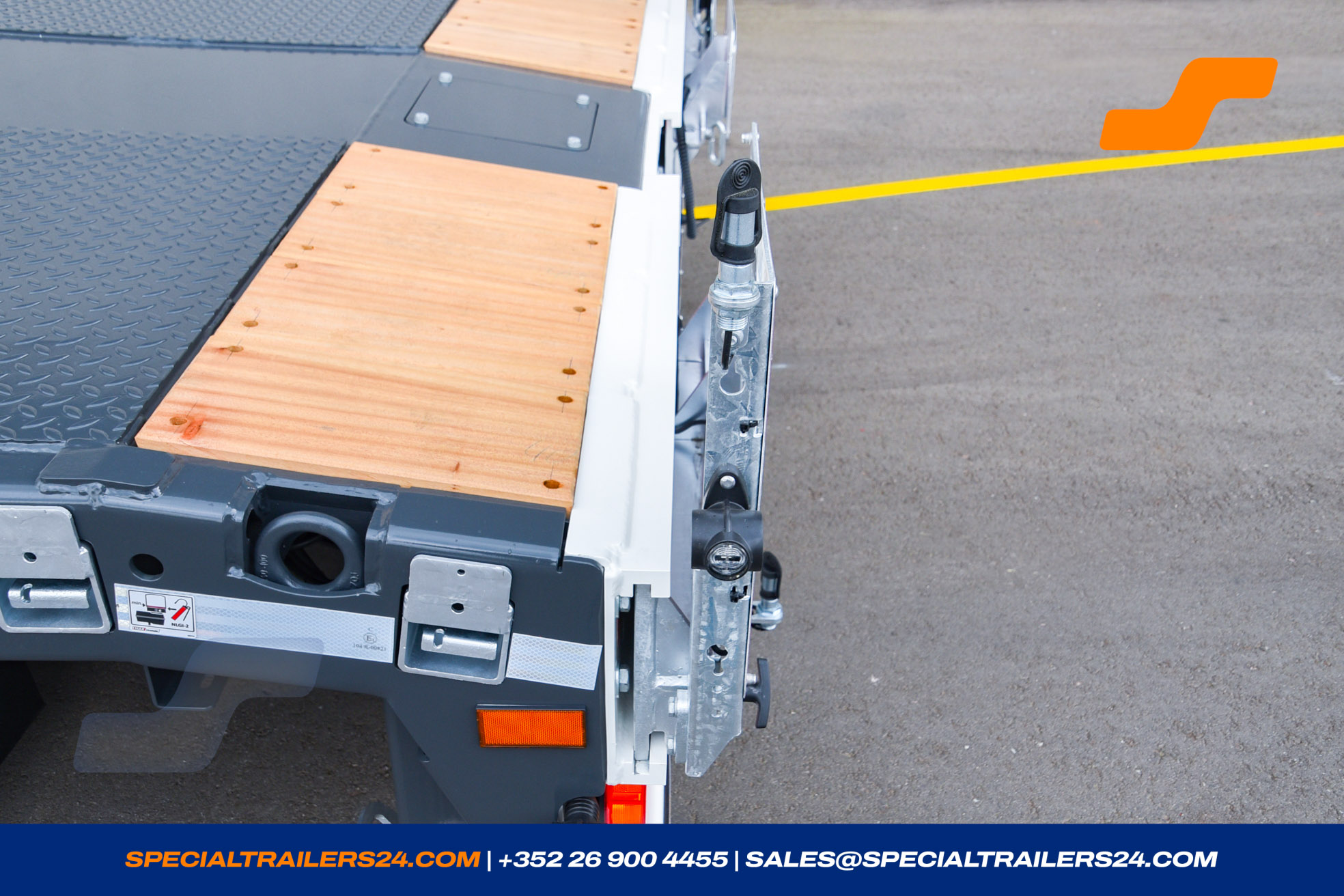

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-
2 sliding bolsters ± 125 mm.
***
! With this configuration, the sliding bolsters must remain in the loading area !
*** - 9 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 27 kg)

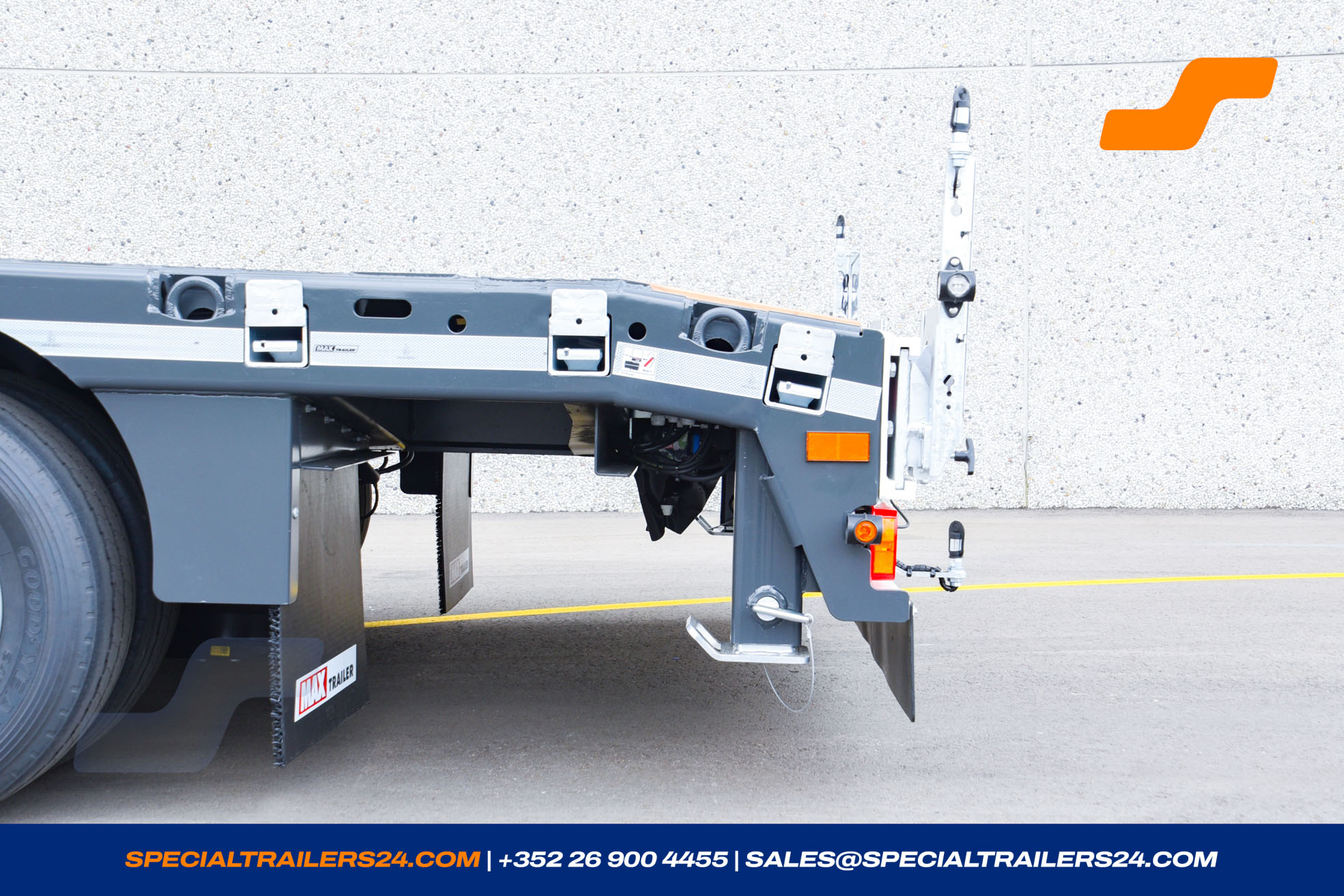

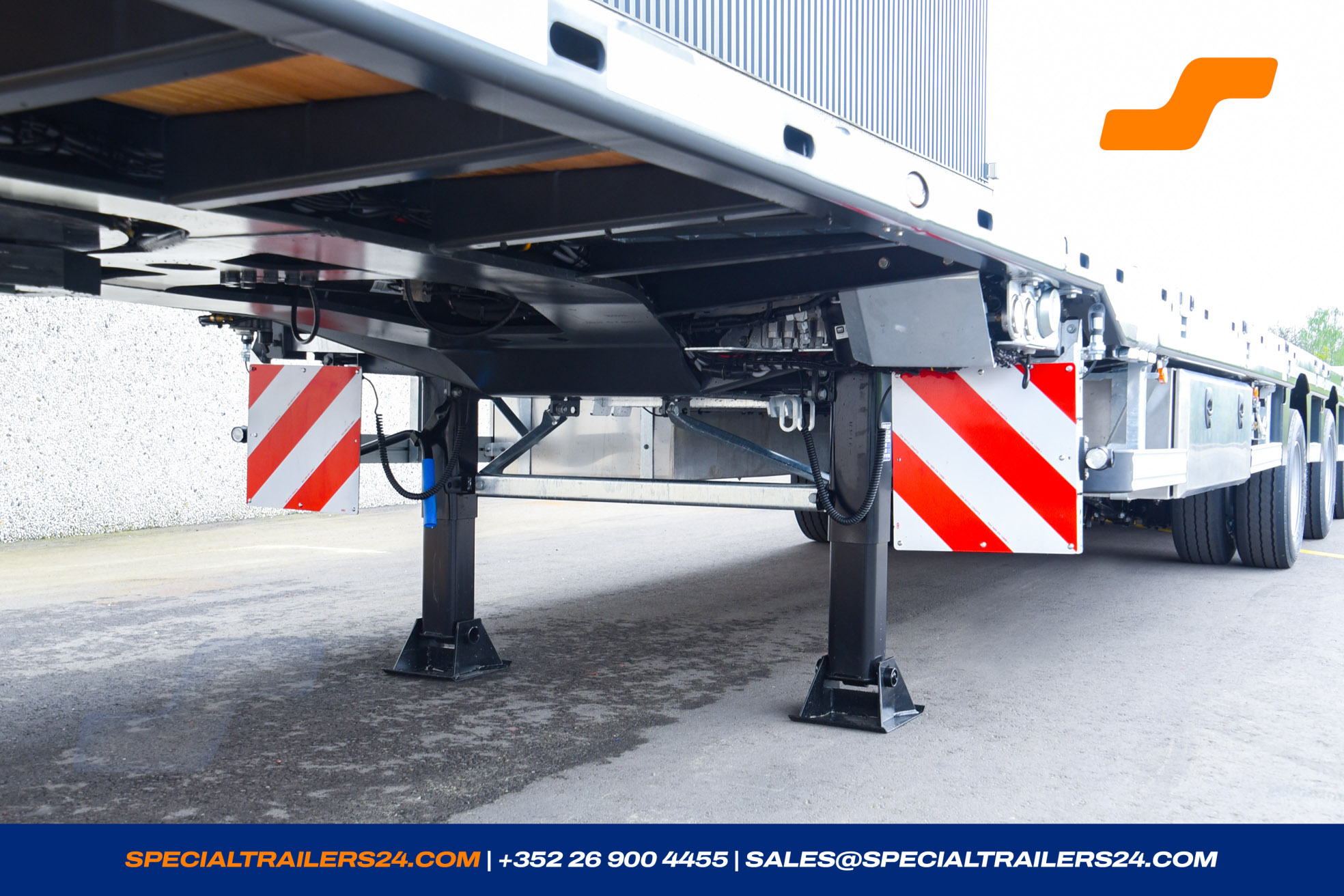

- Galvanised landing gears at the rear under the chamfer of loading platform.
-

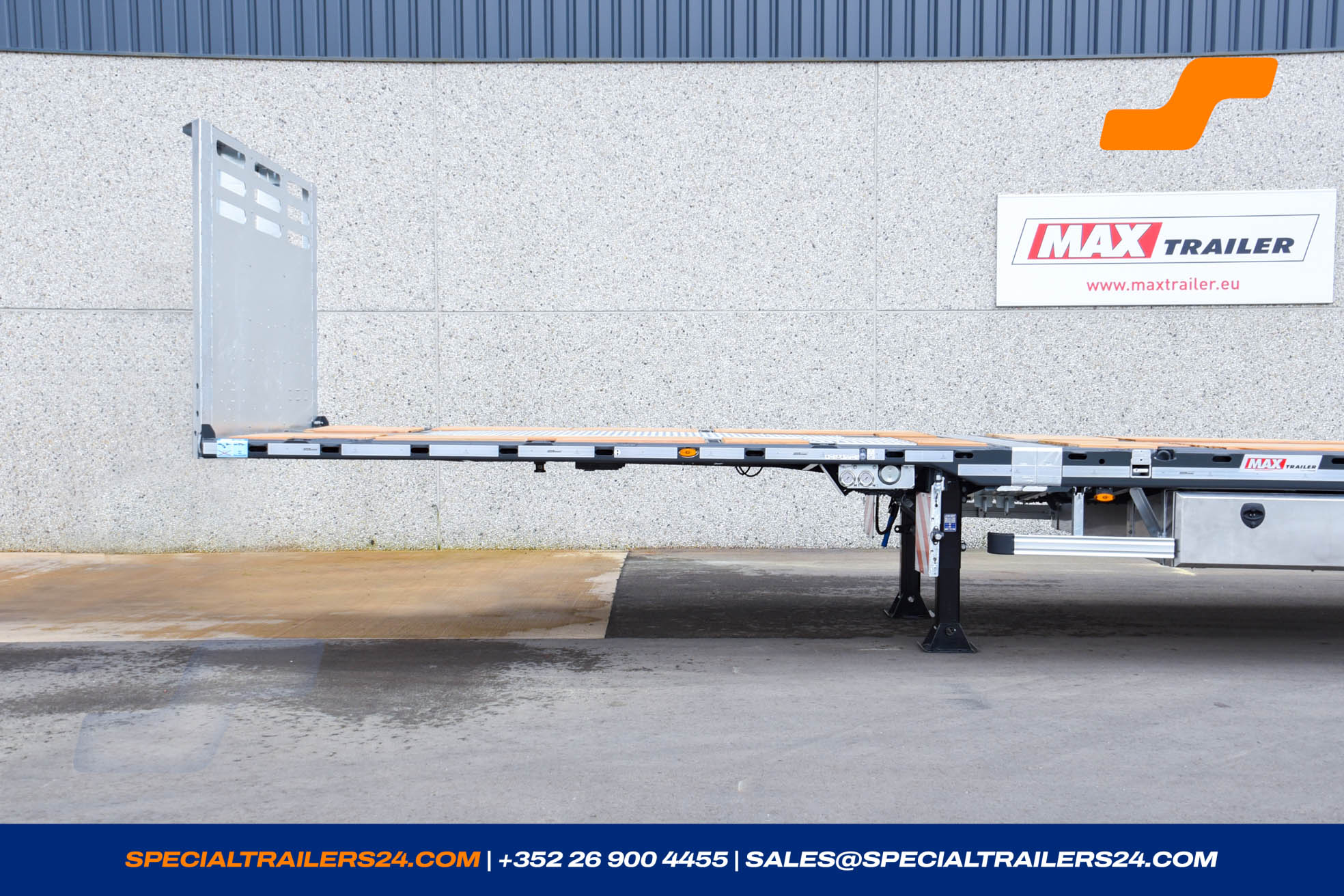

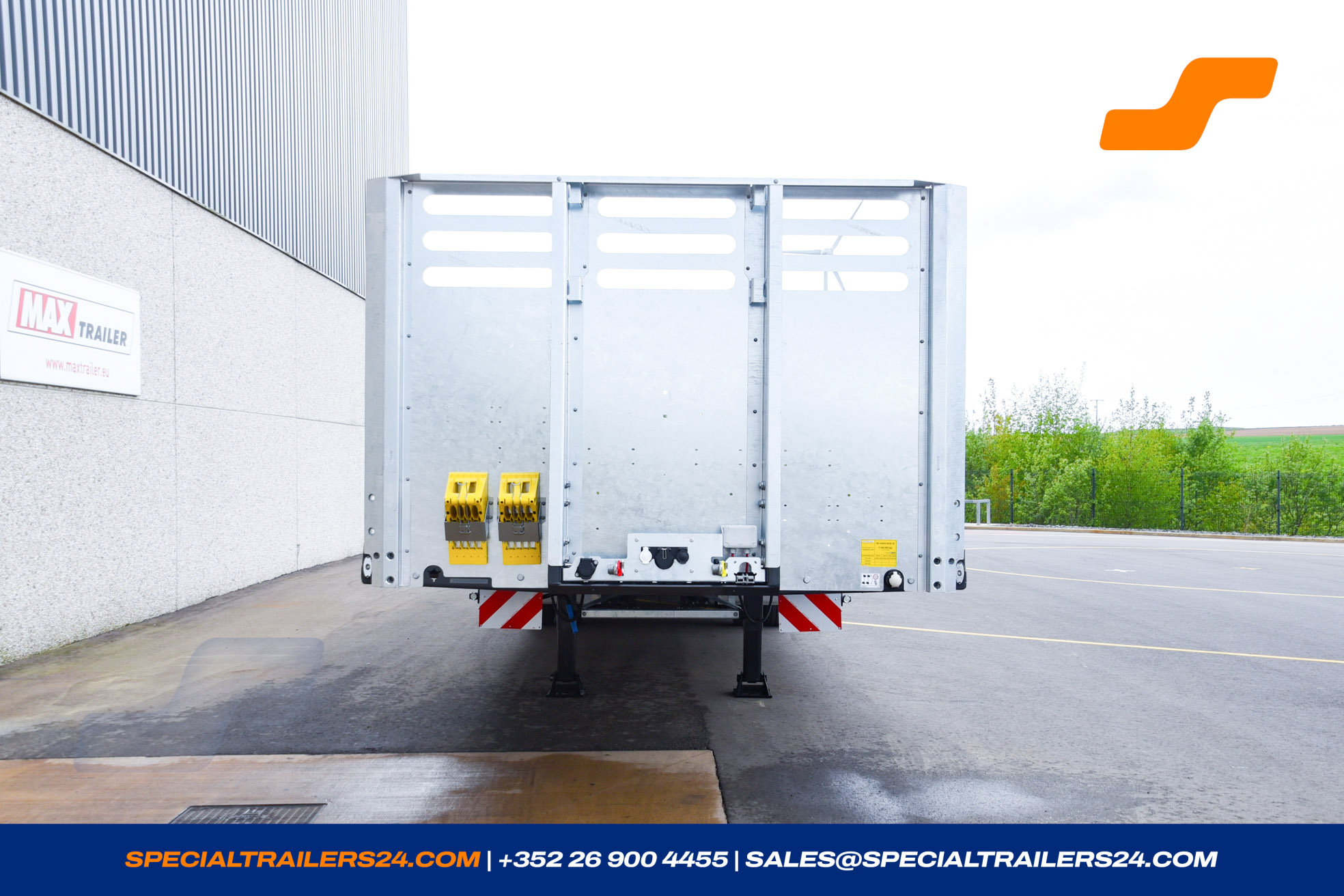

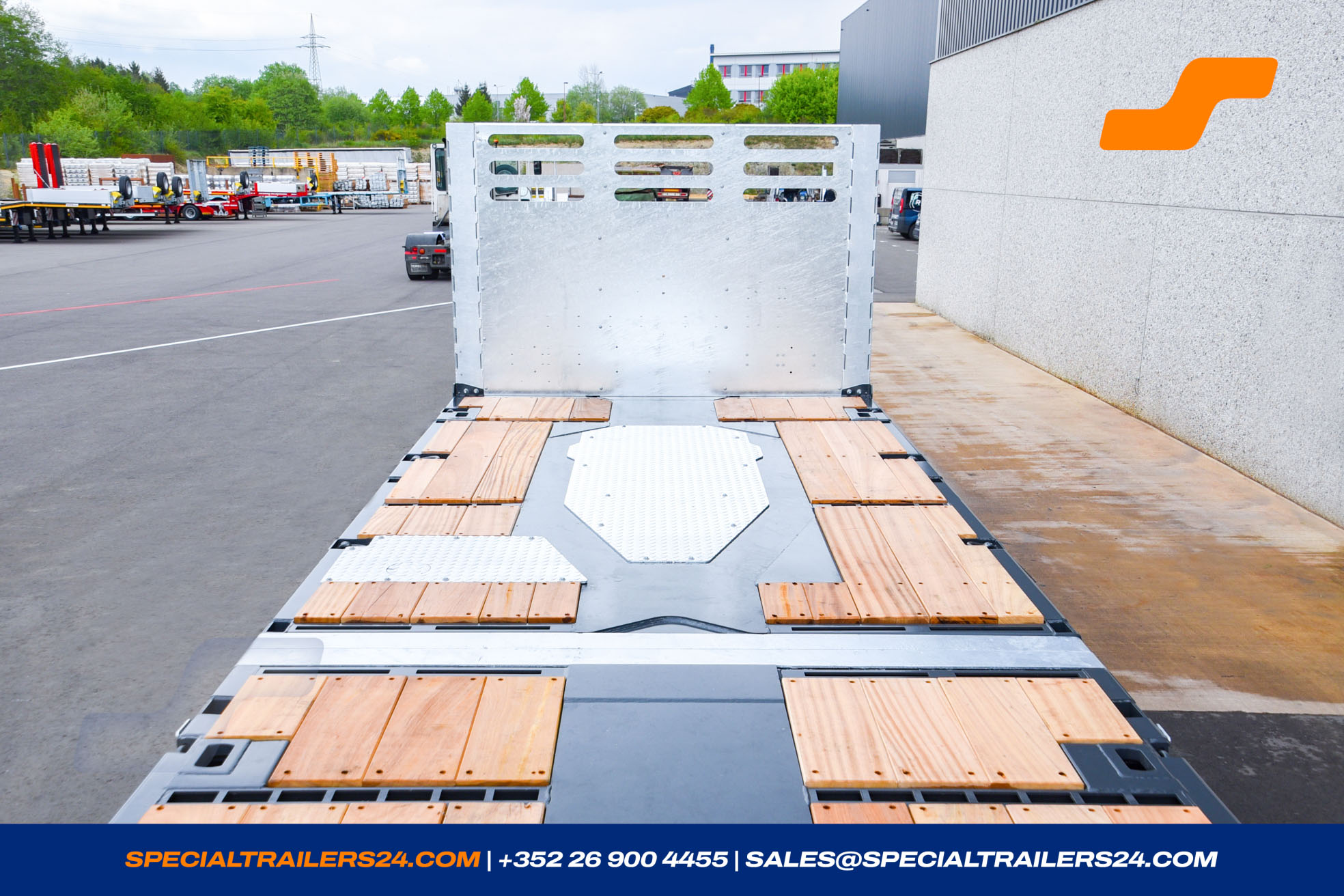

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)

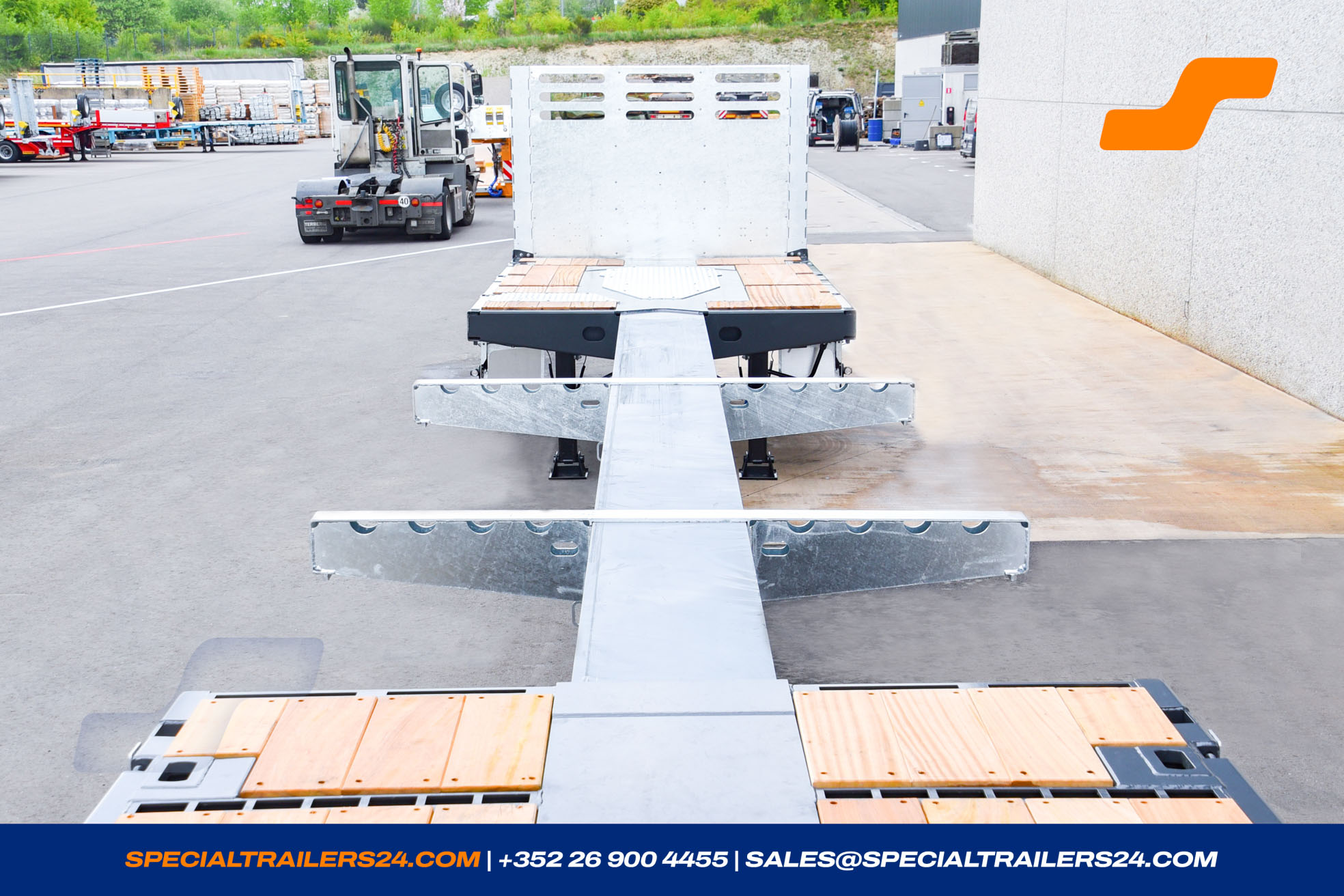

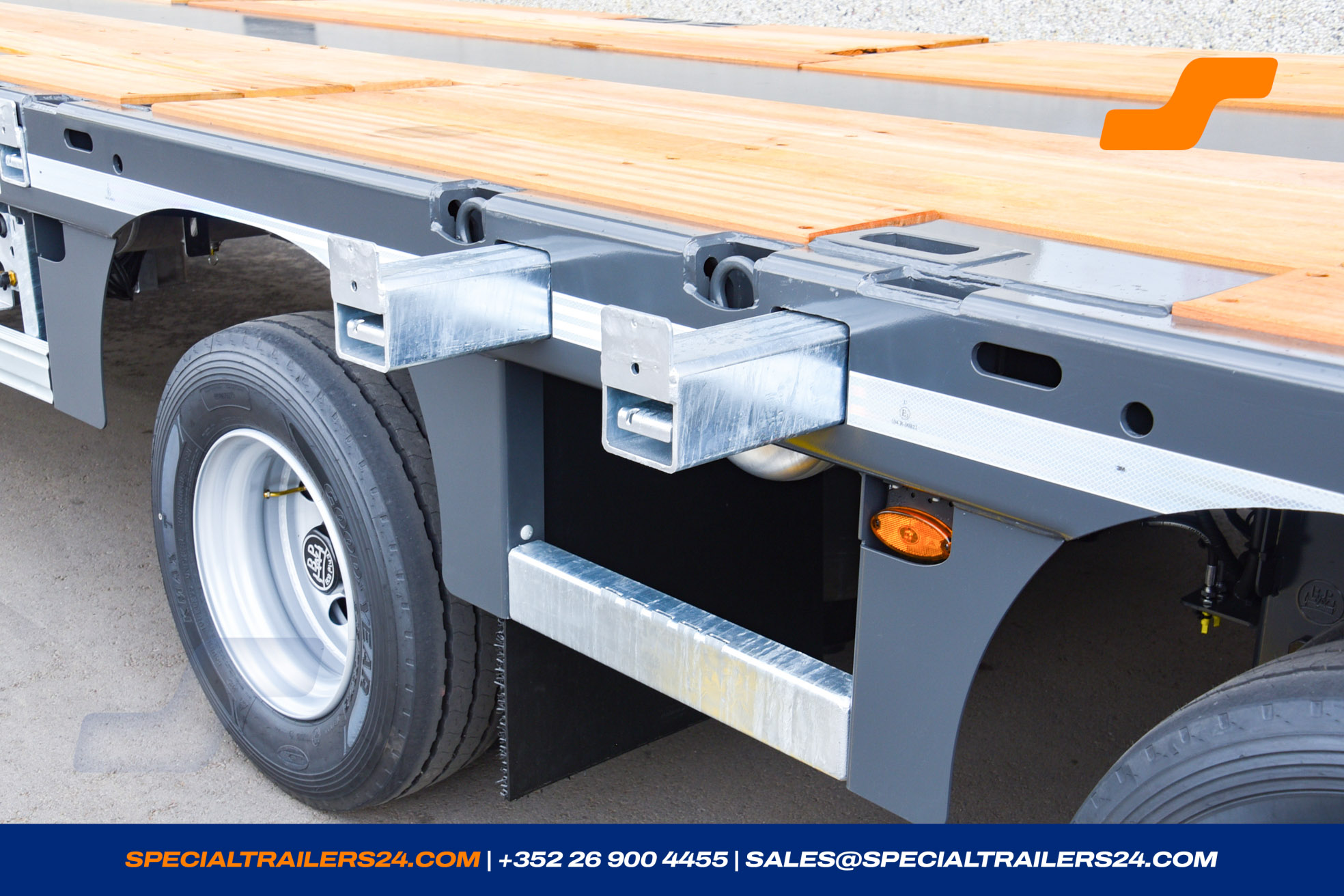

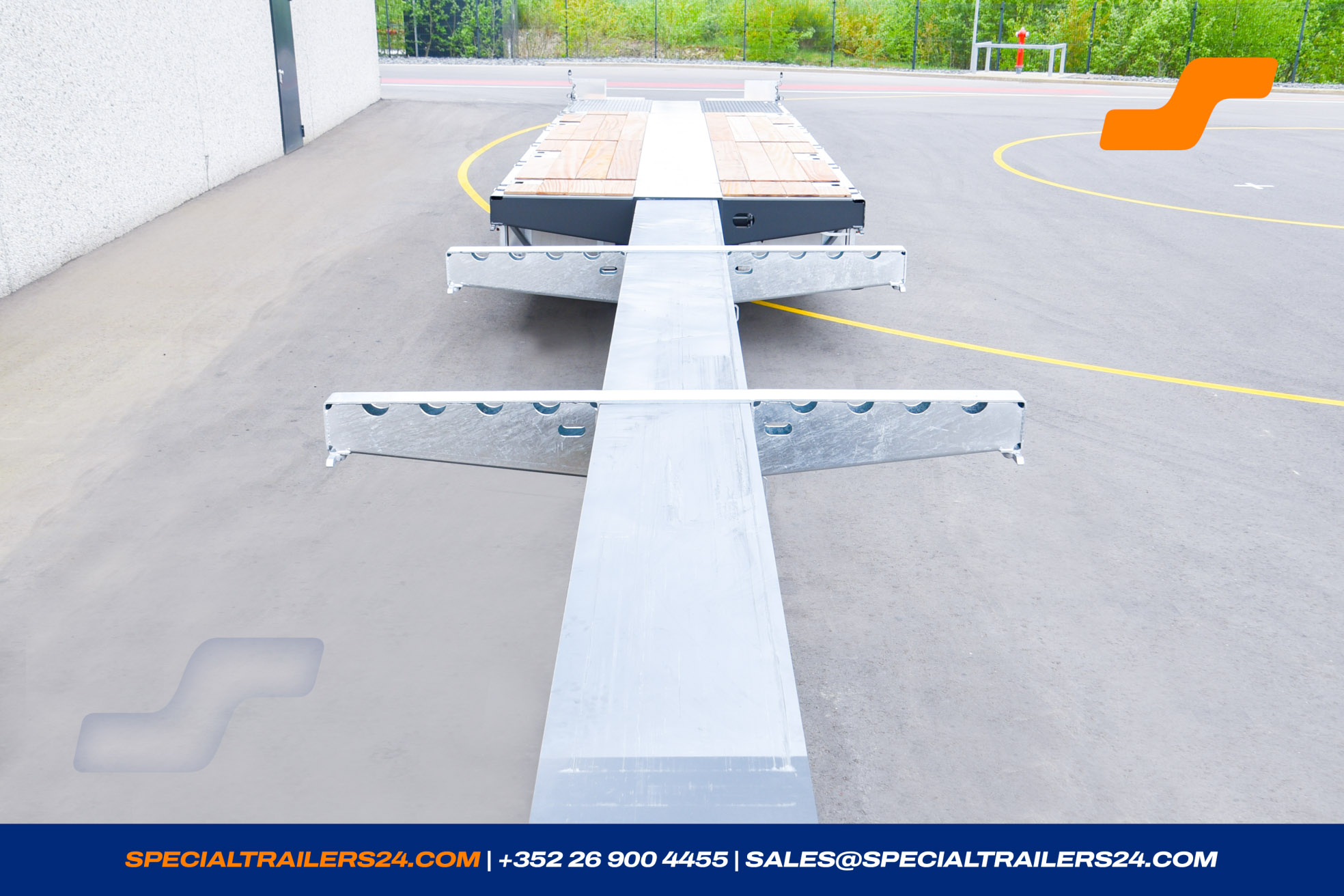

- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).
- Profile displaceable as hook-on device for alu-ramps at the rear.
- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
-

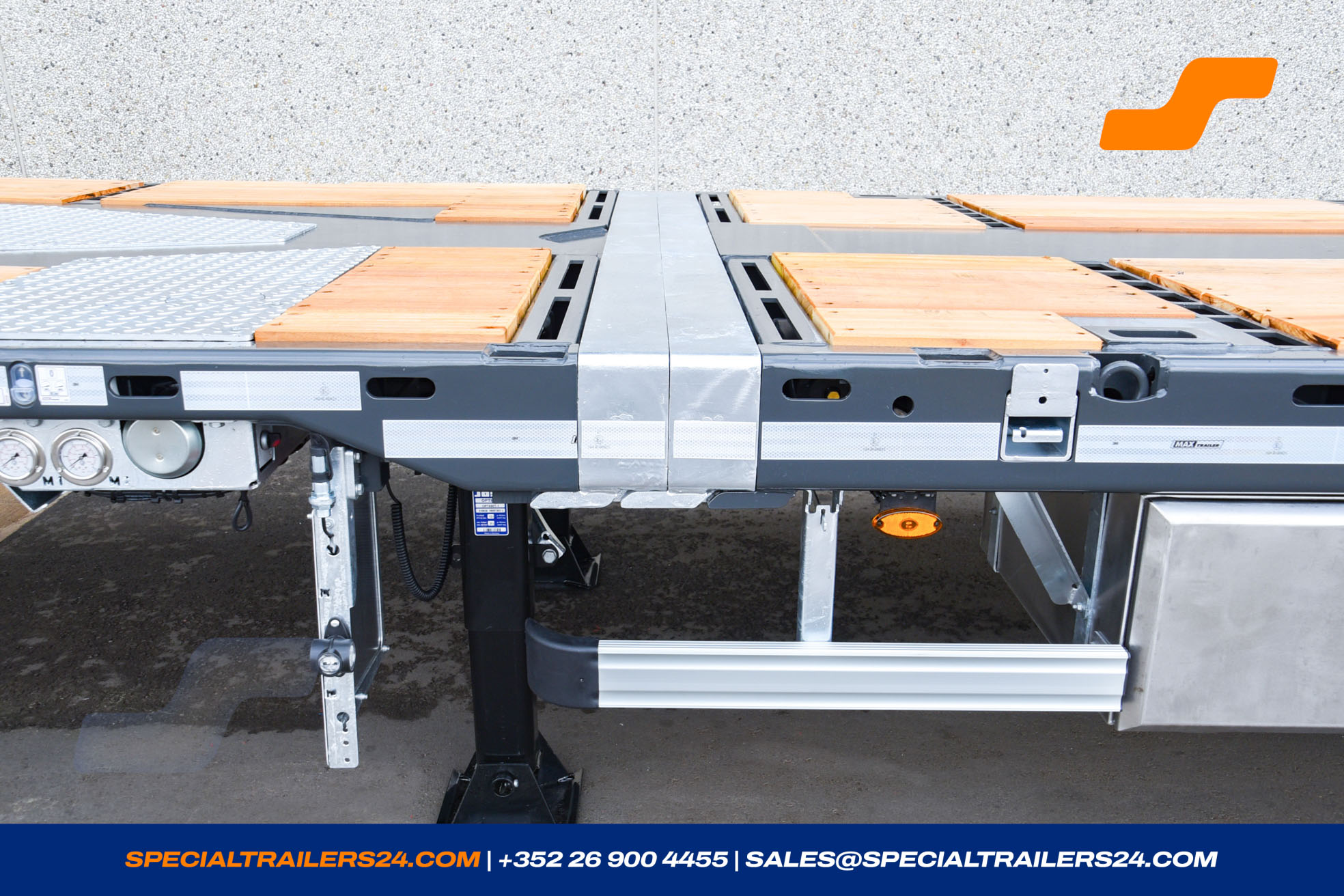

Ascent possibility to the loading area between the axles on the left side.
Includes 2 plug-in handrails. - Holder for aluminium ramps (on top of each other) with a galvanised door, mounted transversely behind the axles. (± 97 kg)

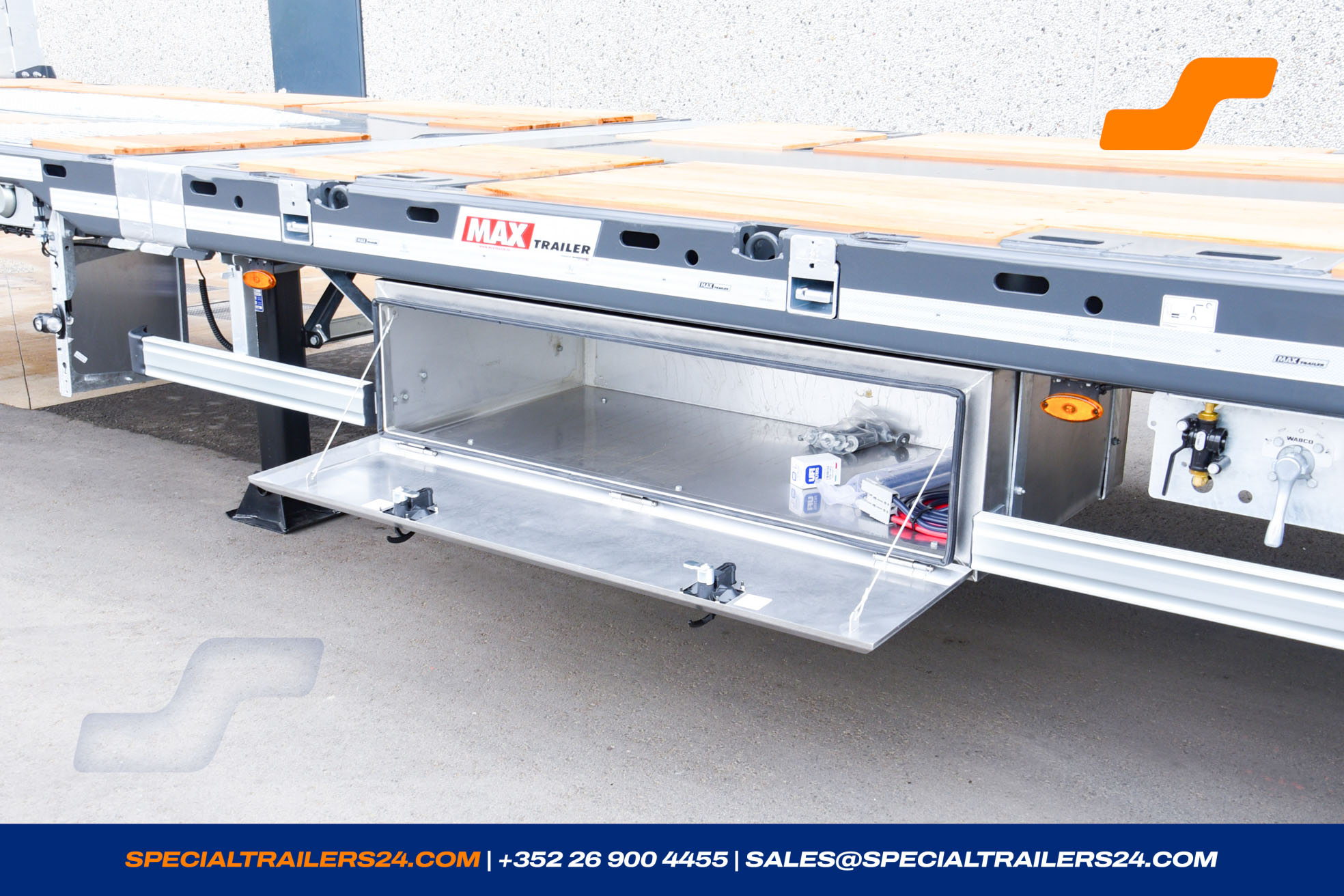

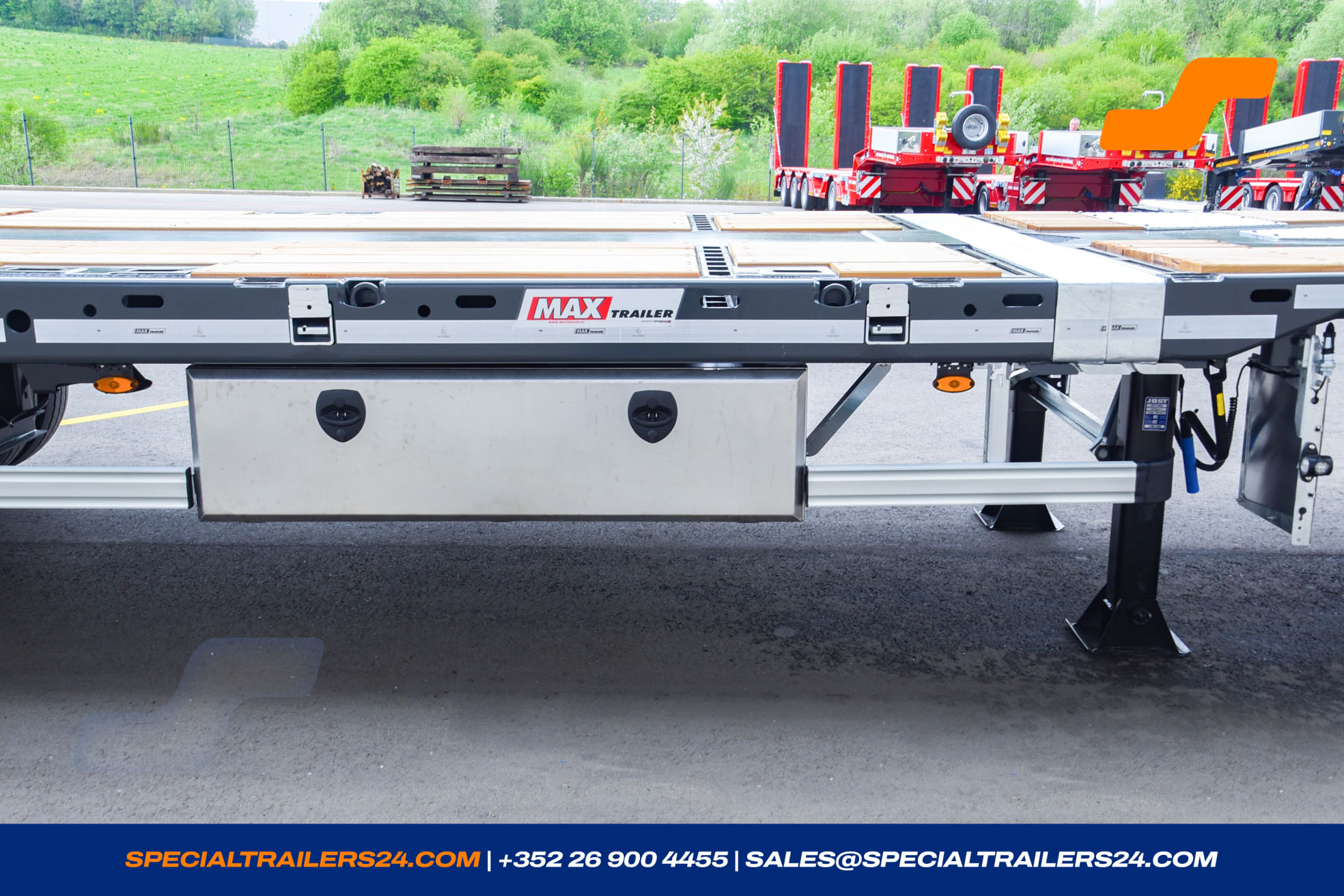

- One lockable tool-box INOX 1500x390x810 under the loading platform in driving direction on the right side.(± 65kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).

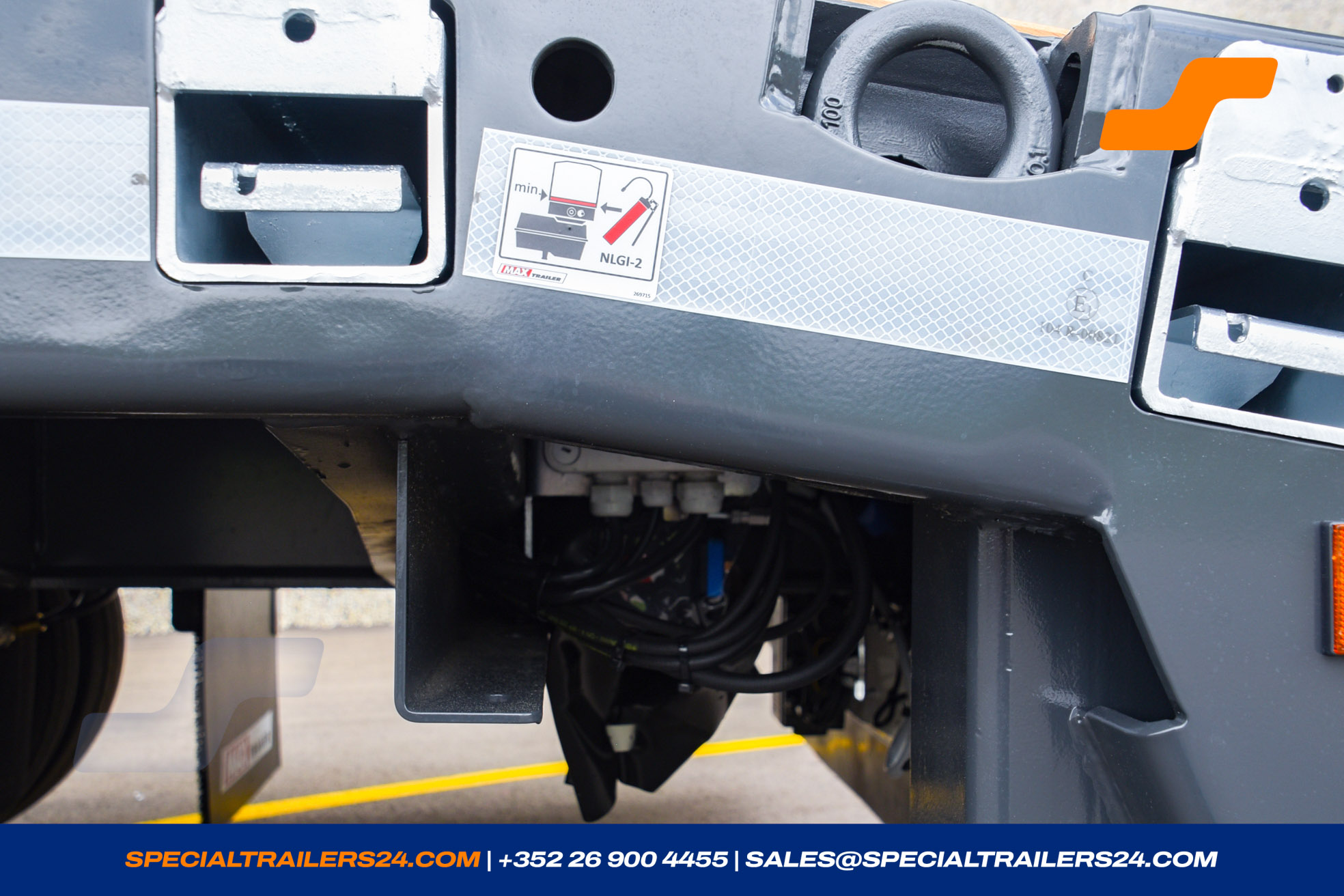

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
Accessories
1 x Accessory
MAX210-Accessory
- Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
- Holder for a 2nd numberplate at the rear end included a lighting.
