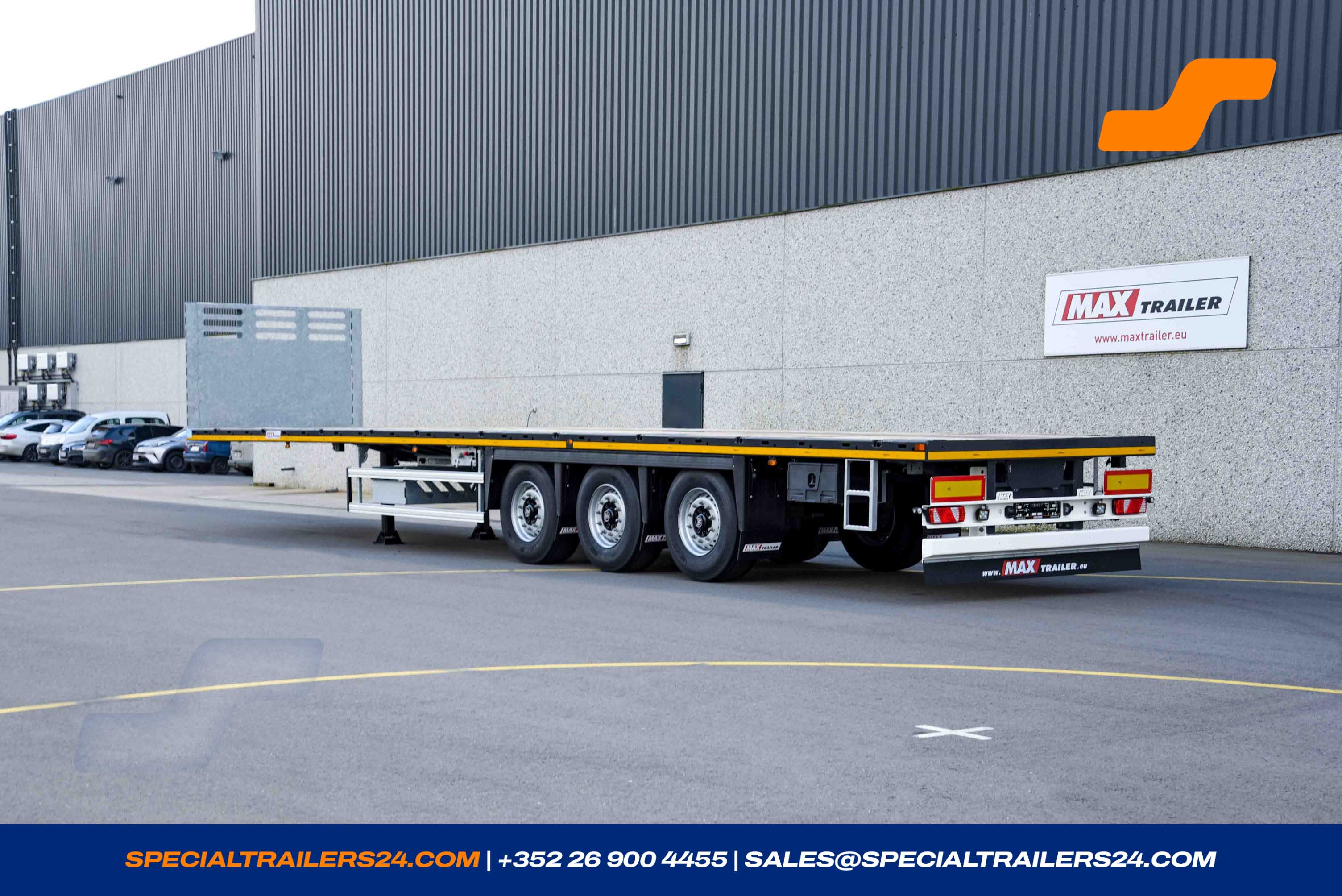

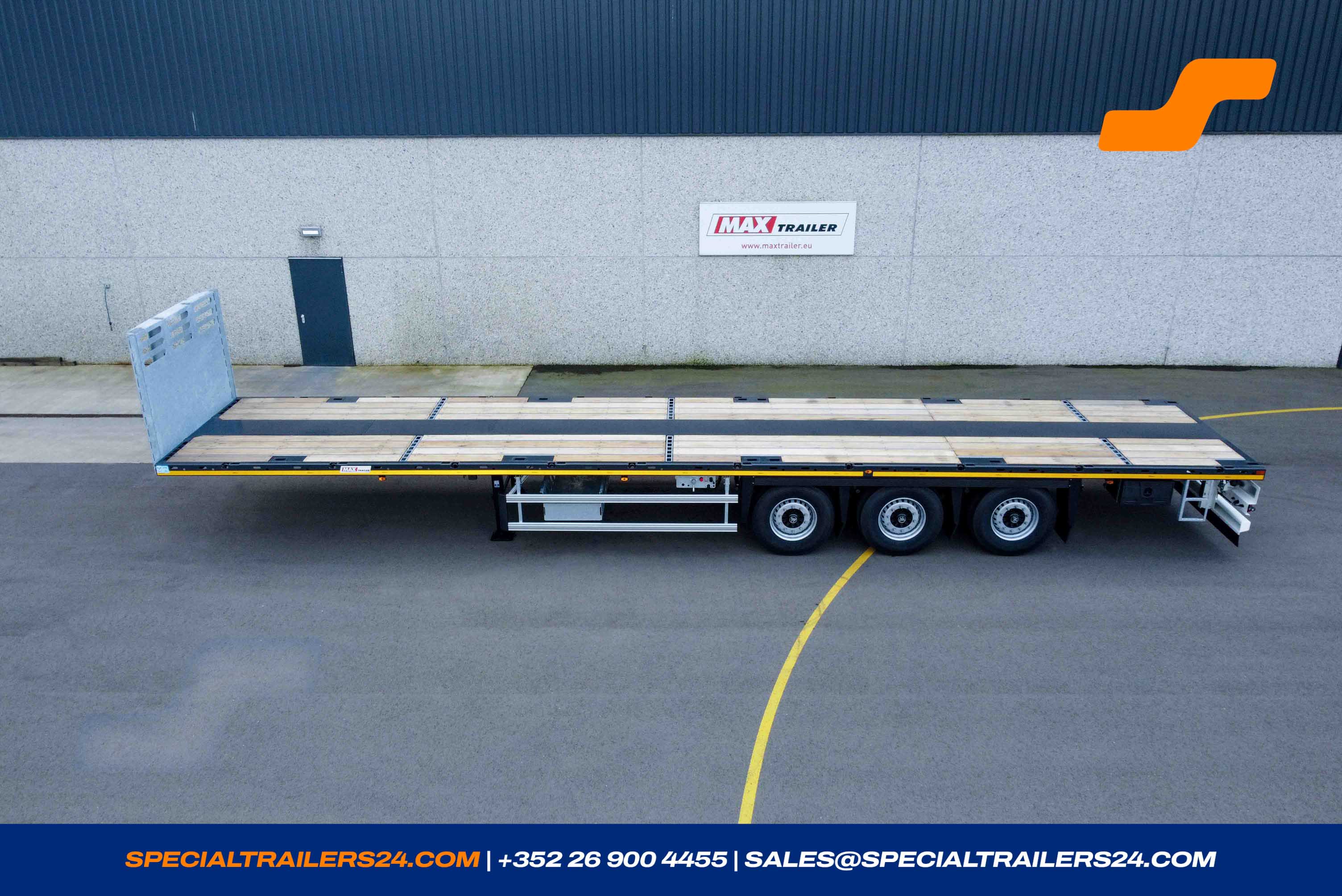

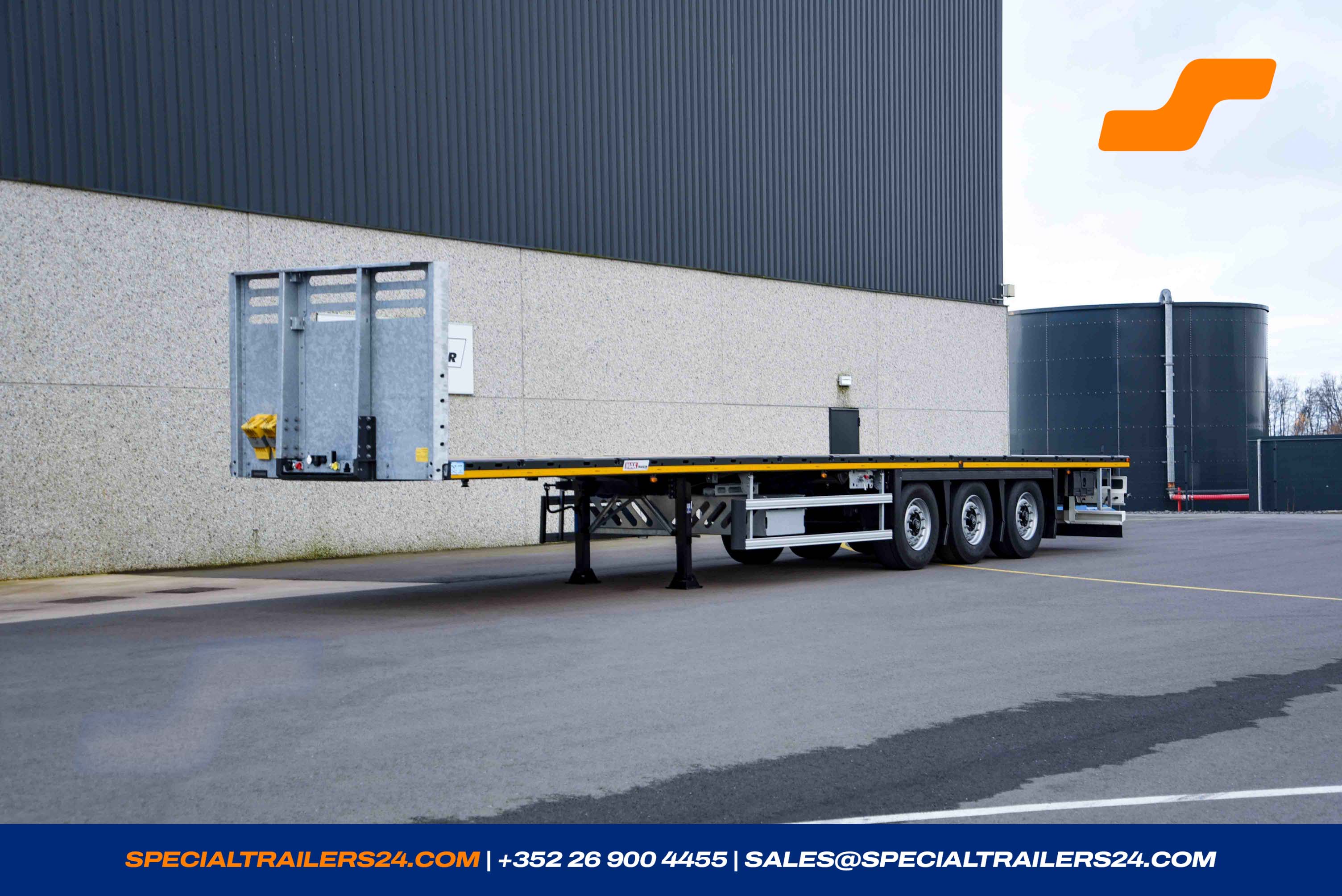

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112288
- Reference MAX200-S-3-13.60-22.5-2.54

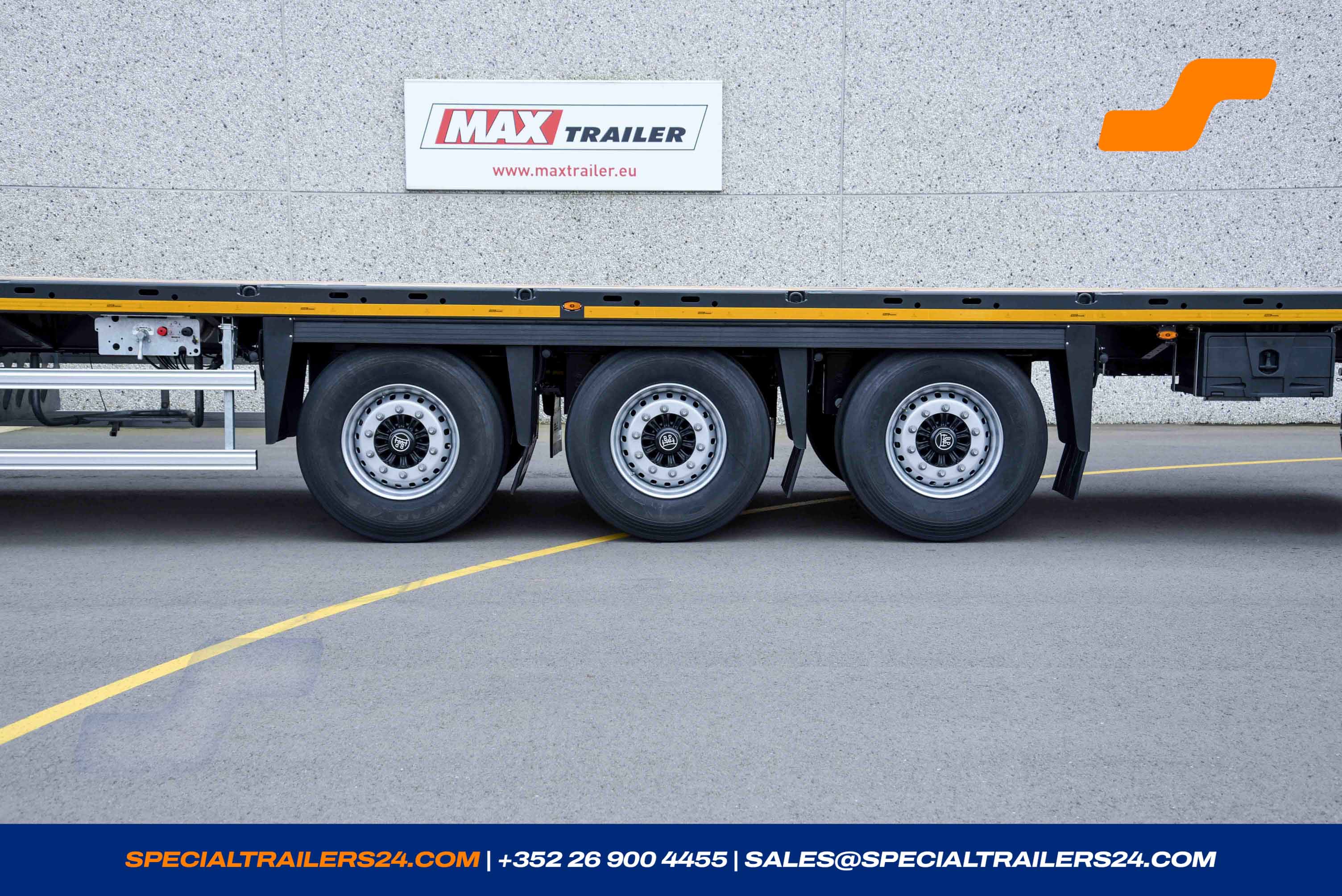

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 3002 - Carmine red
- Availability 07/2026
- Steering Type Rigid
Availability
07/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 6939 kg |
| Payload | 38061 kg |
Dimensions
| Fifth wheel height loaded | 1080->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX200-S-3-13.60-22.5-2.54(DSR 2300-ASH 1080->1250-9T)

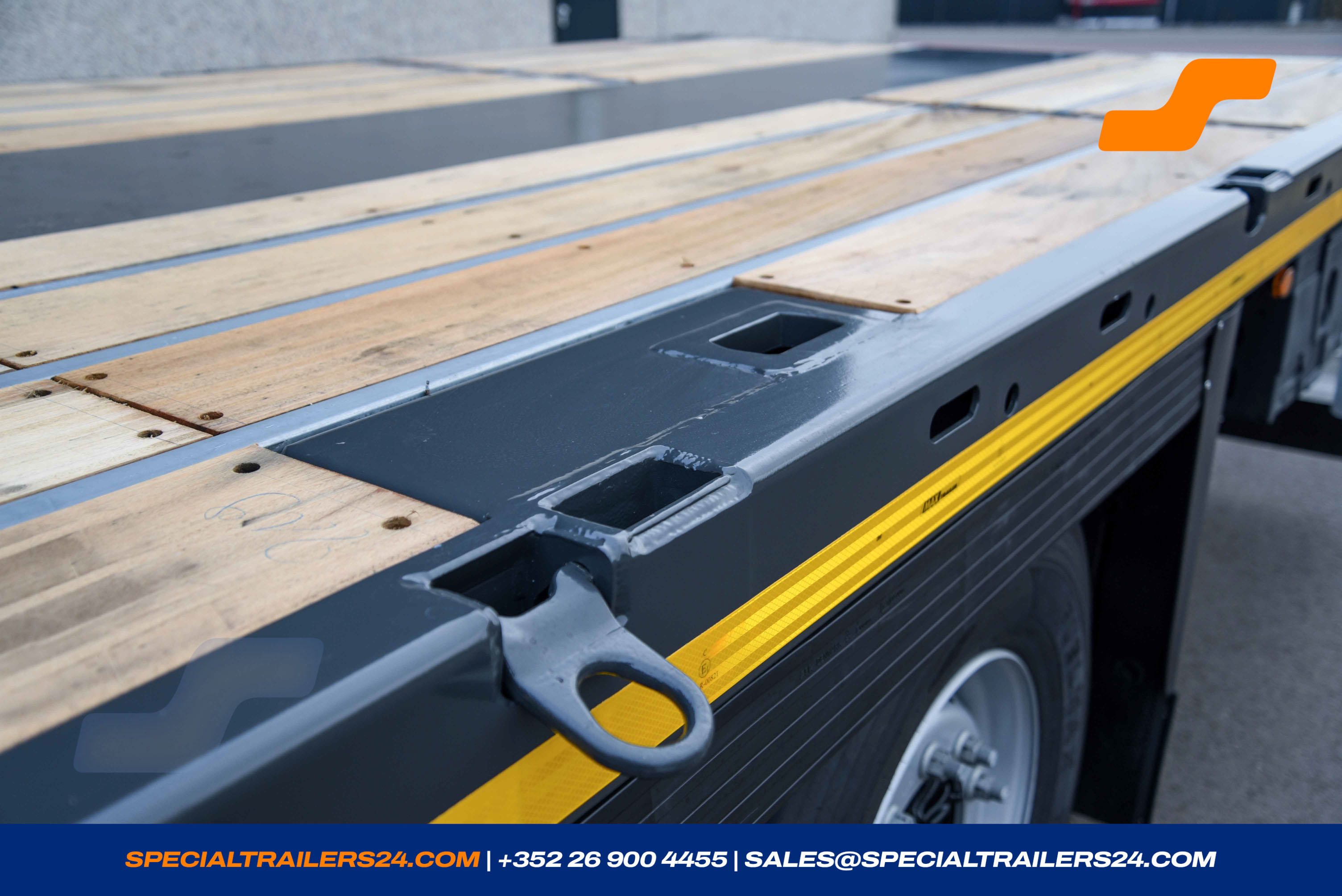

2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
24 pairs cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

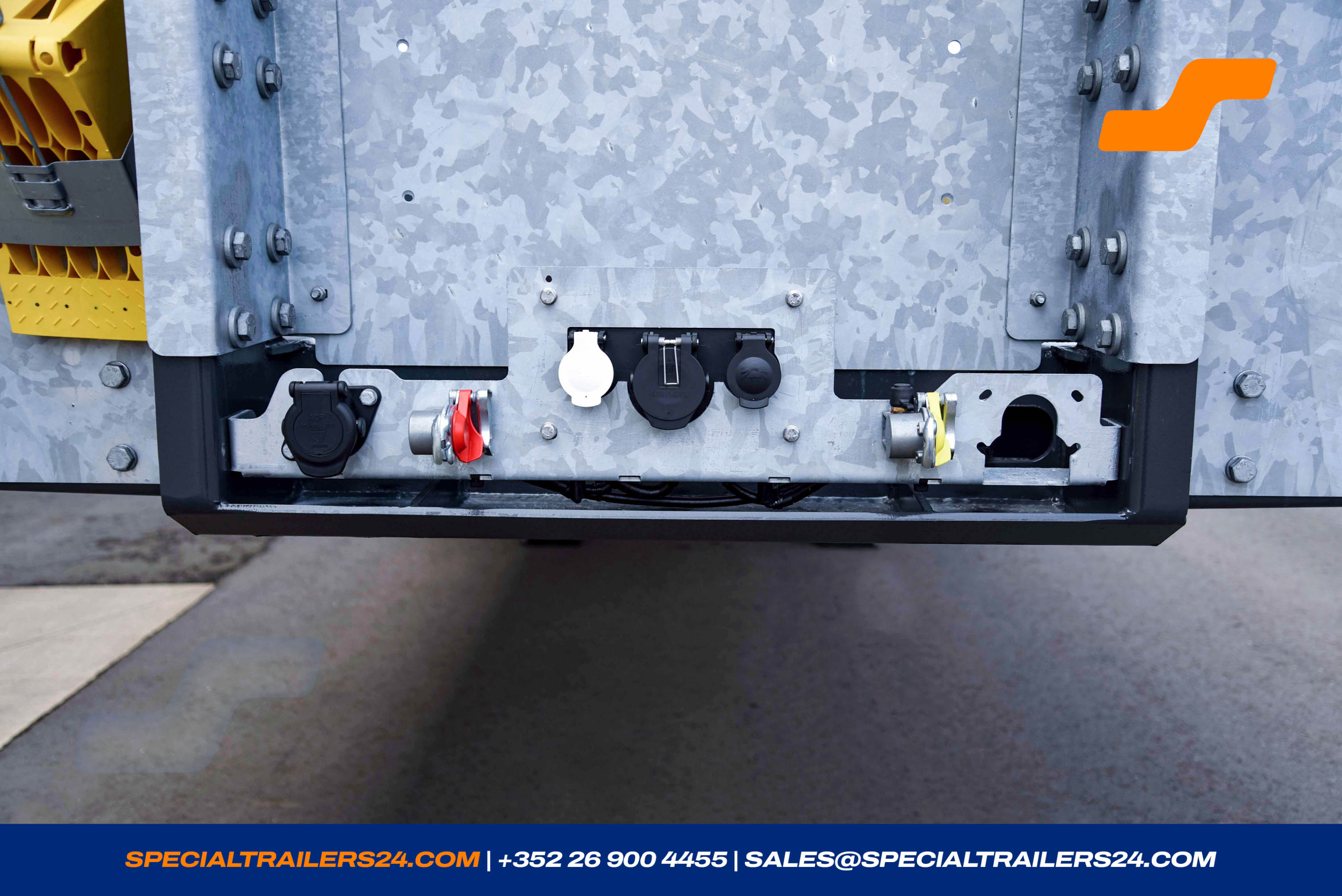

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 king-pin.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

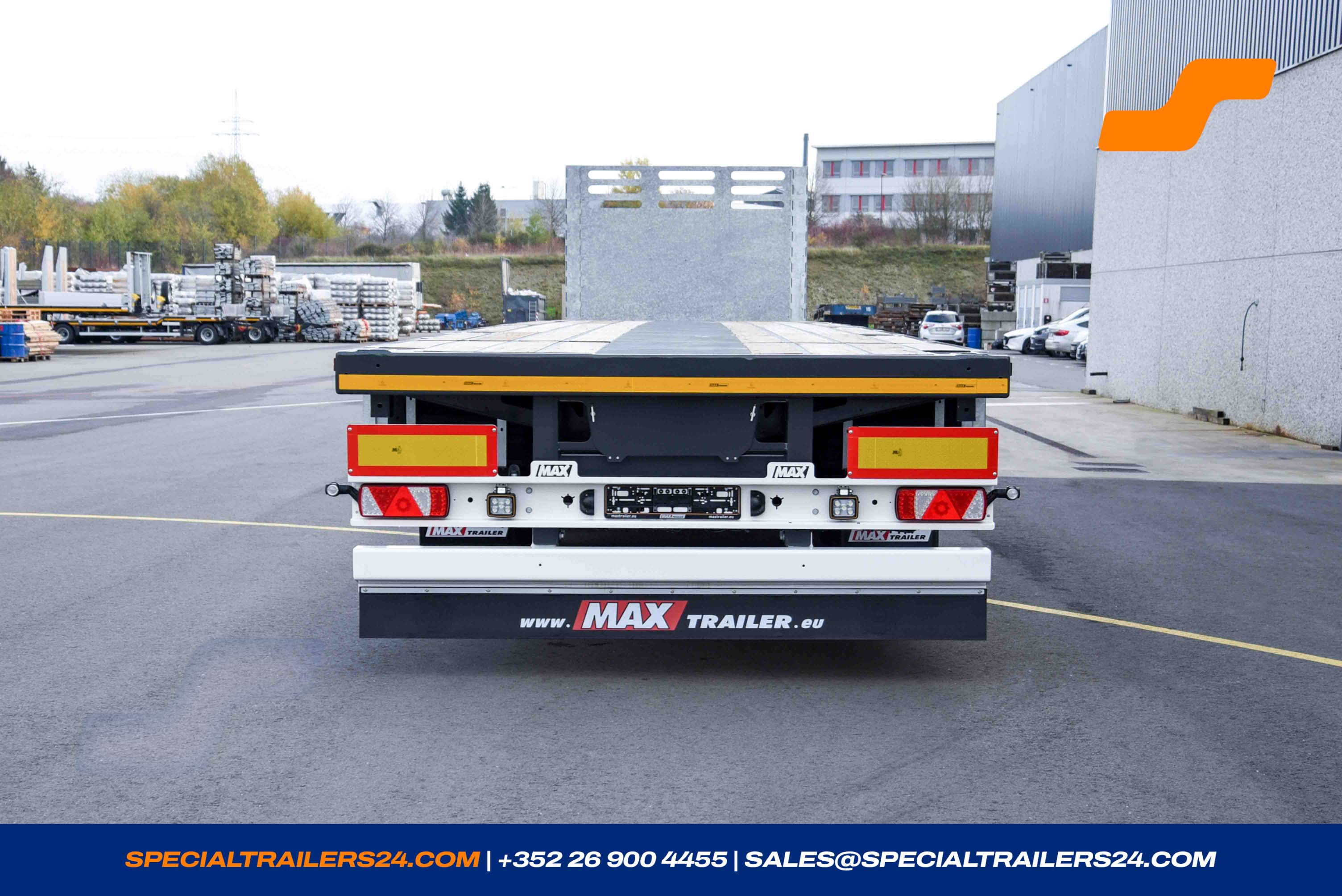

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

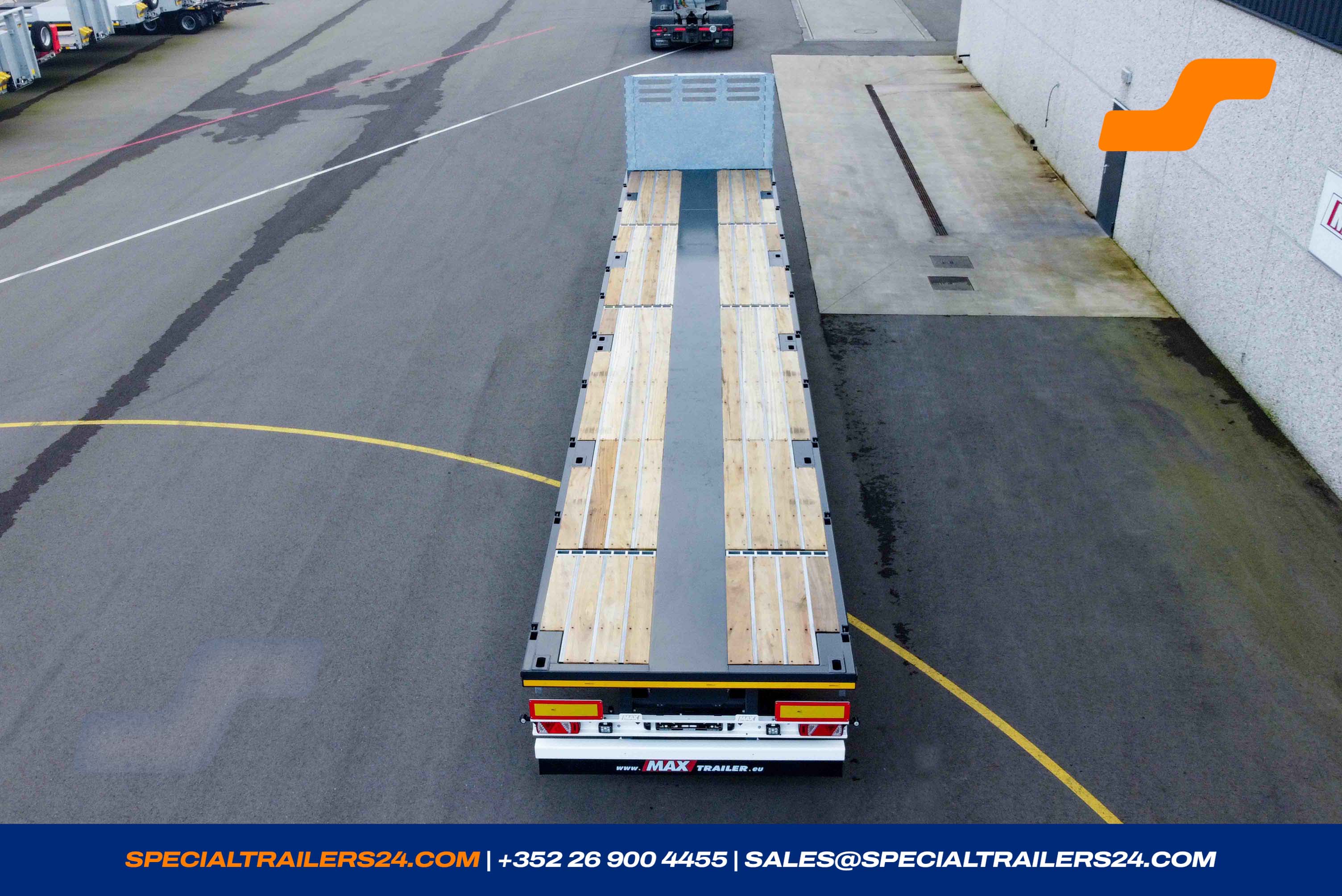

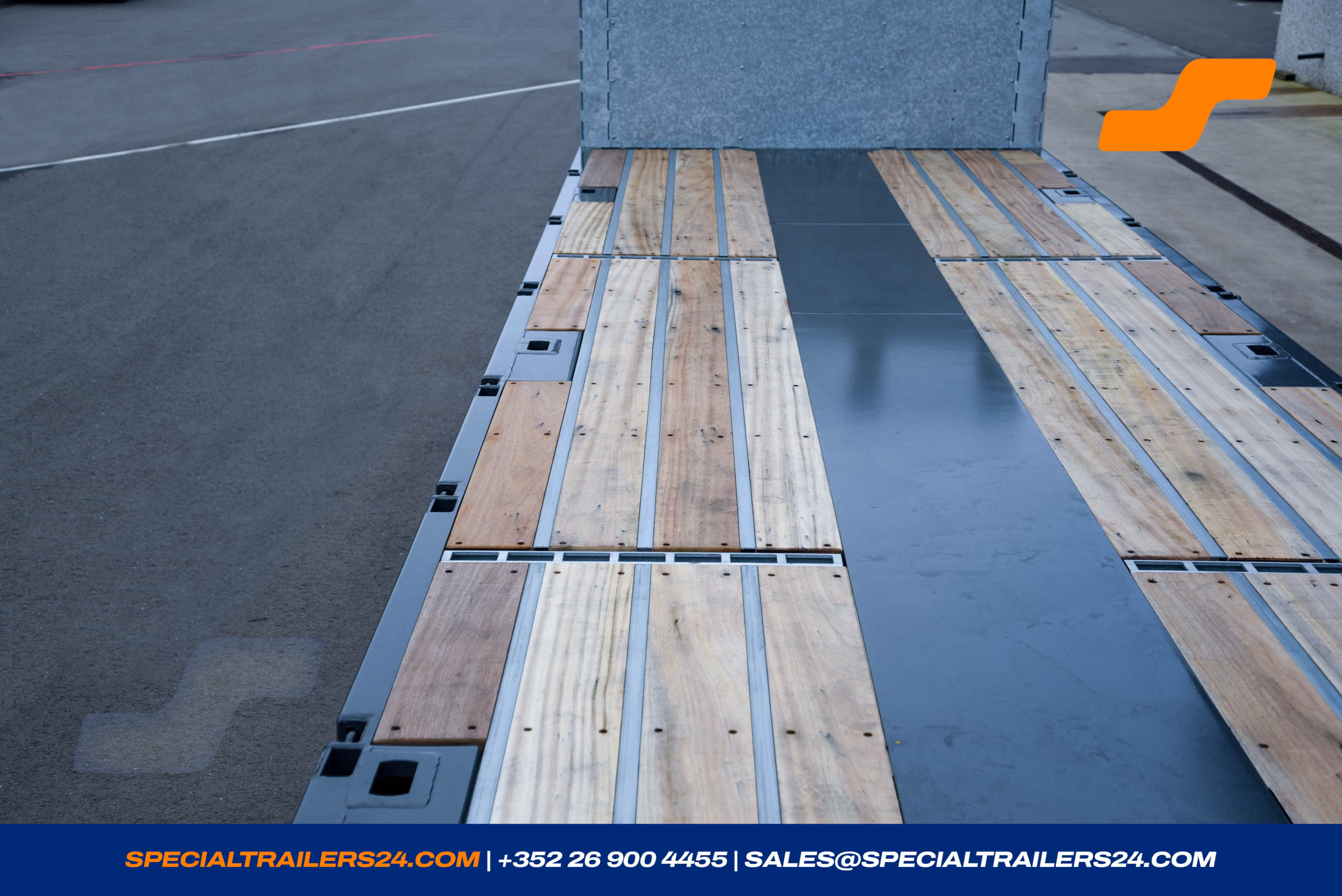

- Loading area with ± 30 mm wooden floor incorporated in omega profiles.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)

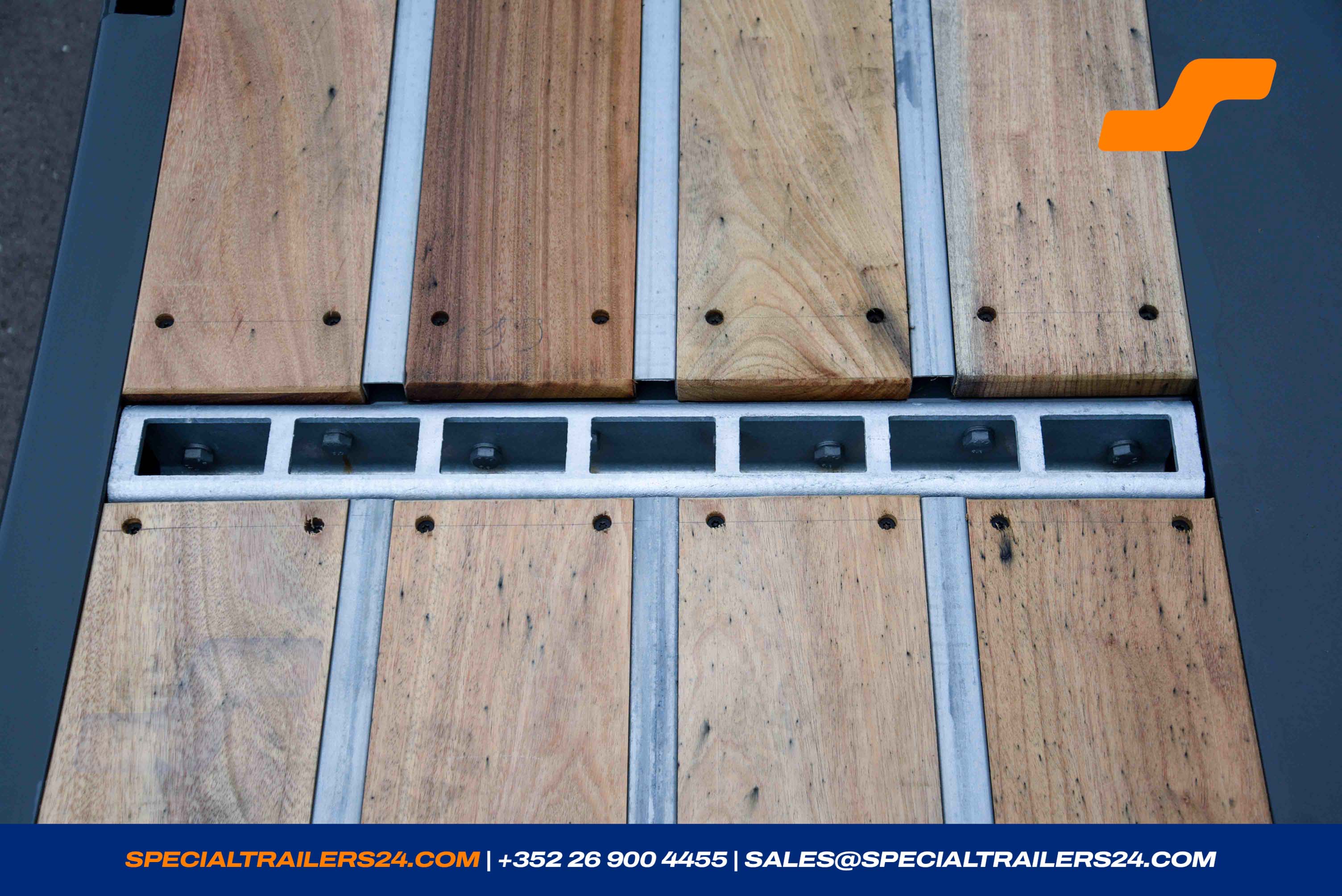

- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- 1 spare wheel carrier, under the loading platform on the right side.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 4 wheel chocks with carrier. (± 5 kg)
-

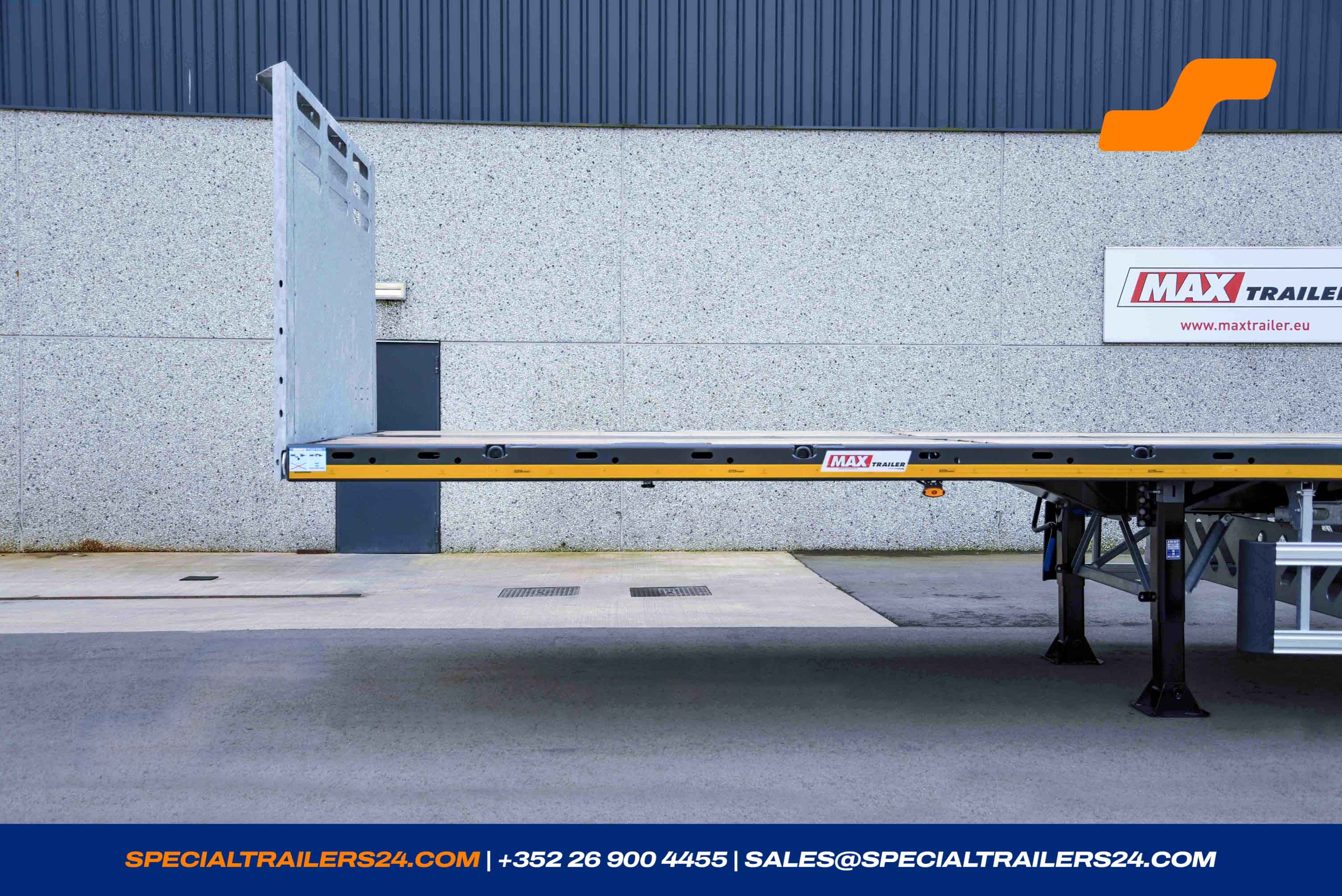

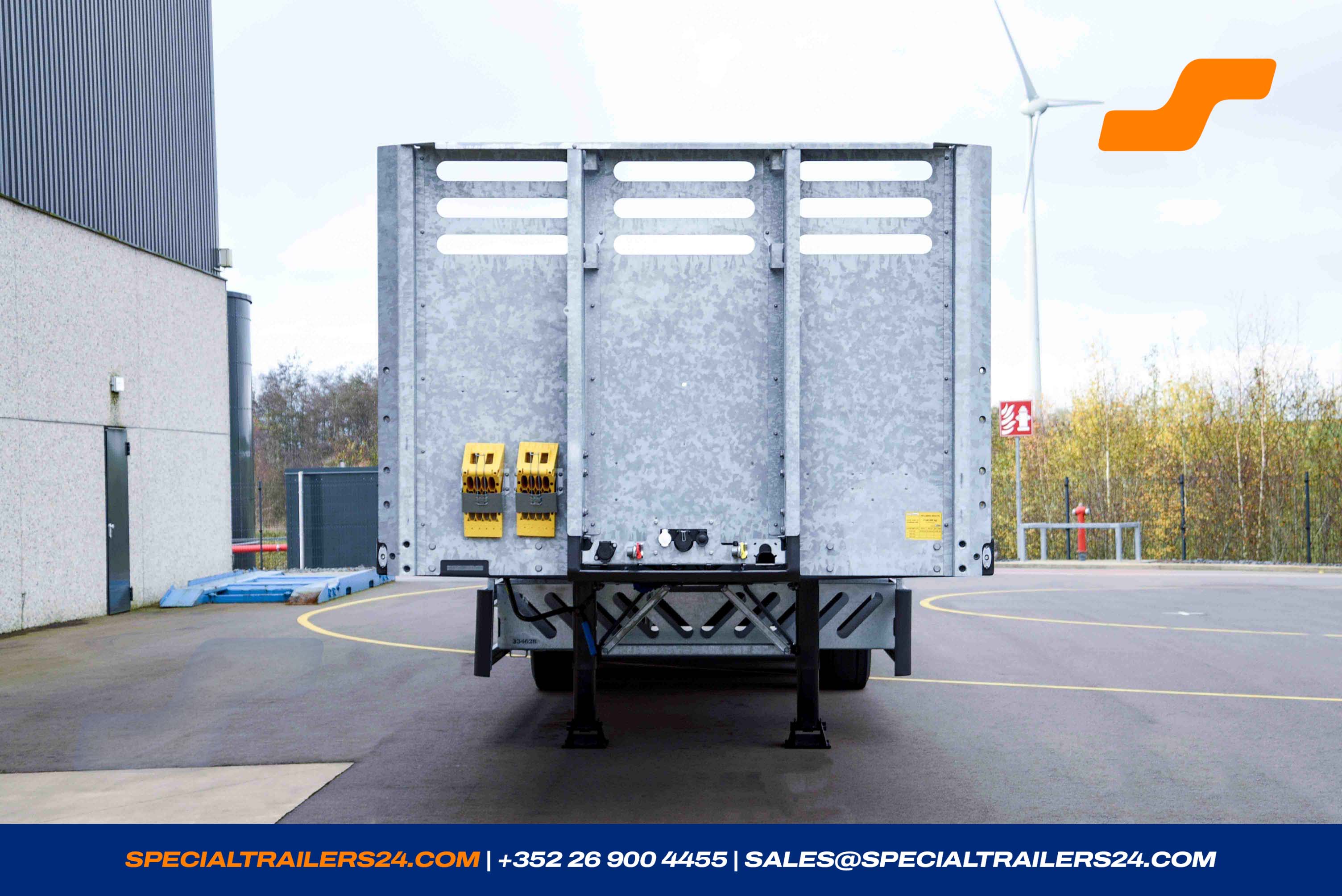

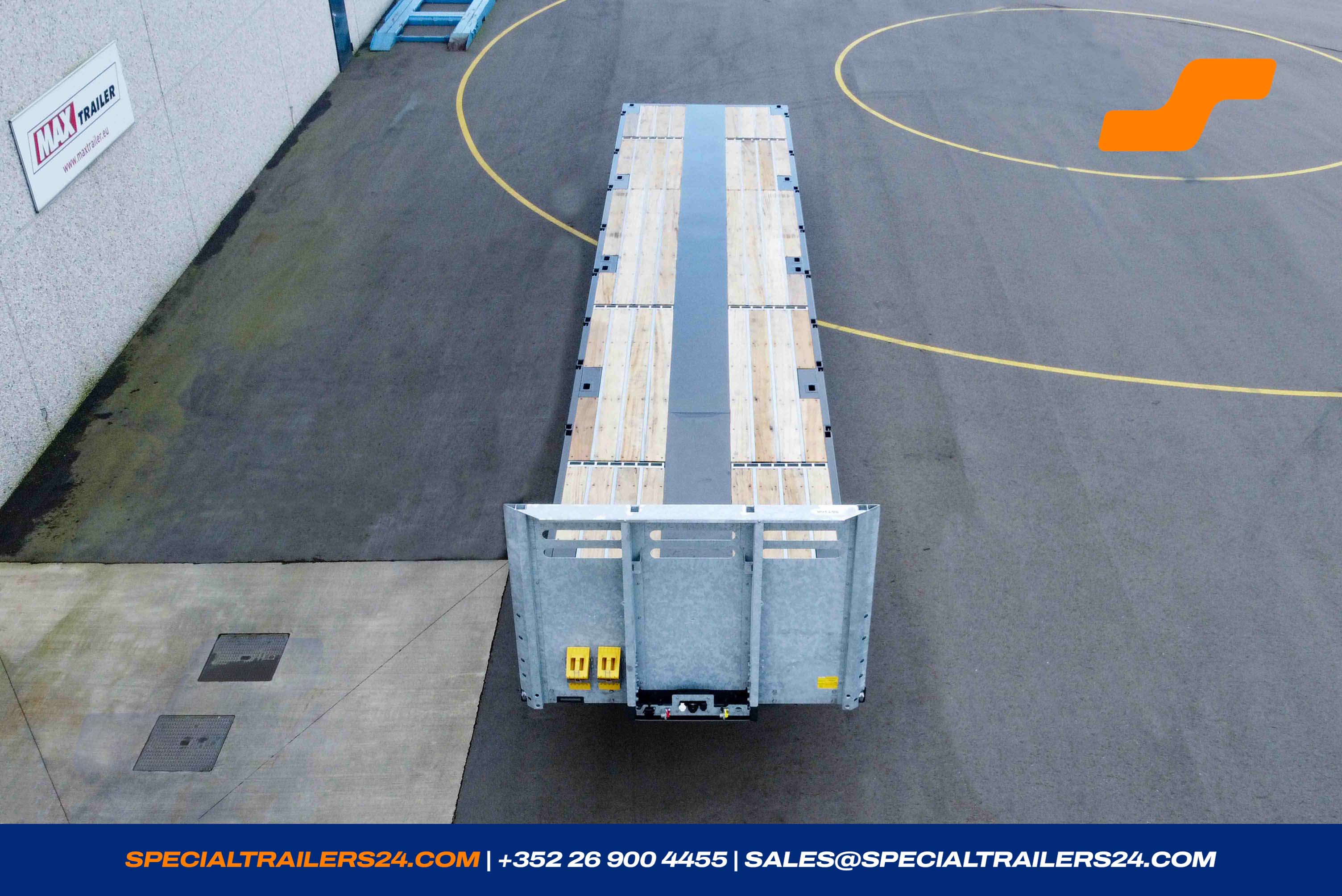

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - 8 pairs of lashing rings inserted in the border frame, hinged outwards (LC 5 000 daN). (± 40 kg)
- 10 pairs of galvanised stakes ± 100 x 50 mm, height ± 1 500 mm. (± 330 kg)

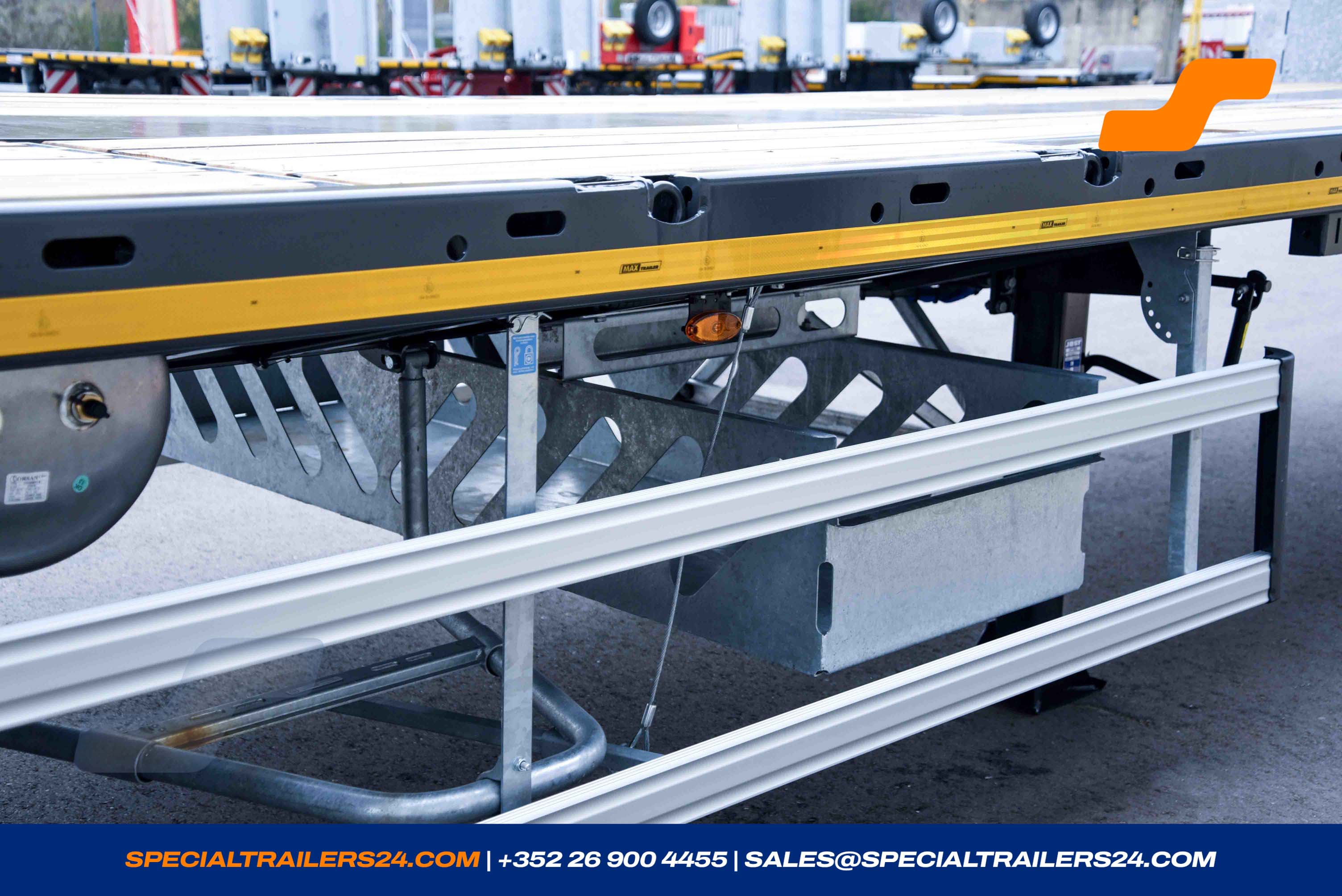

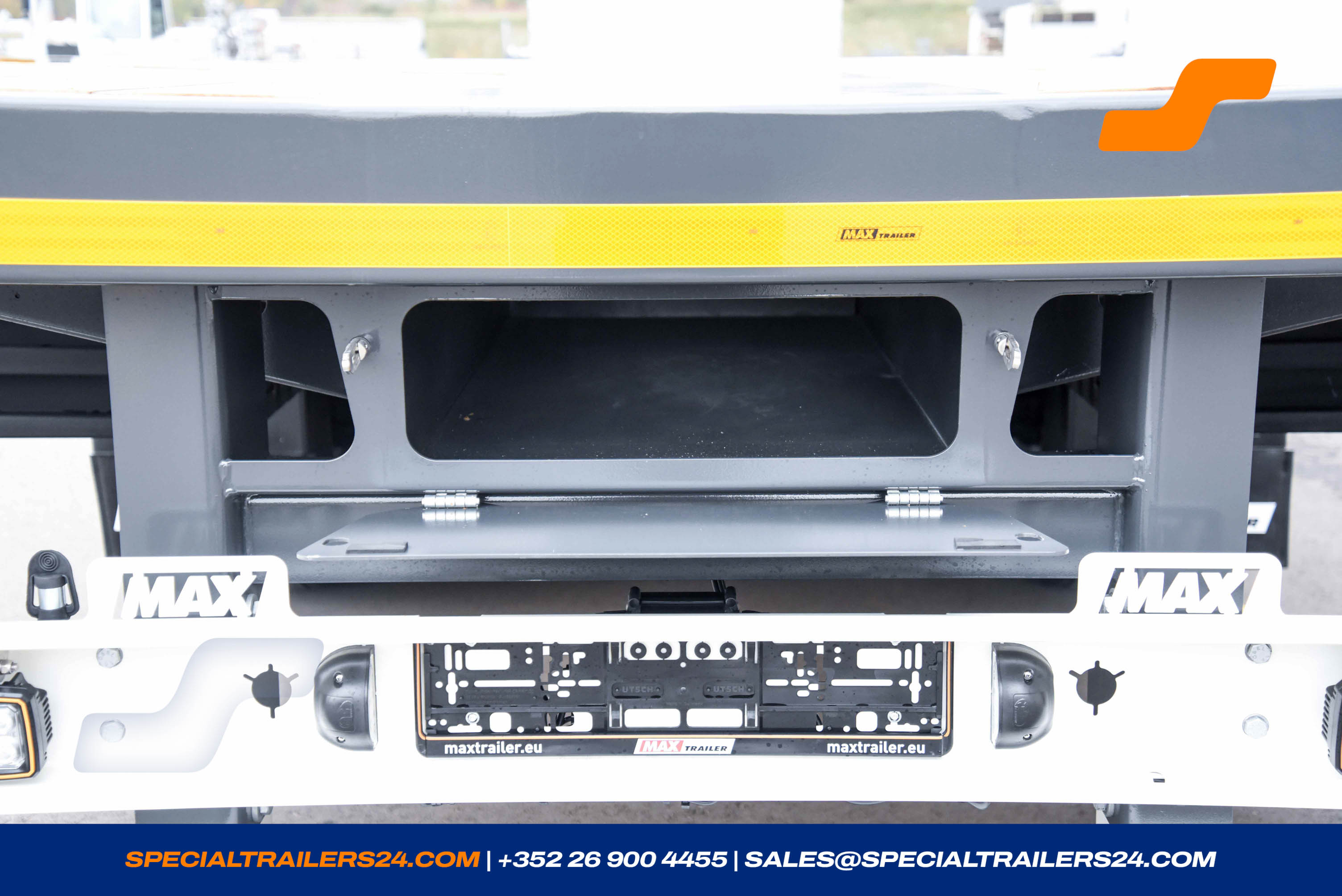

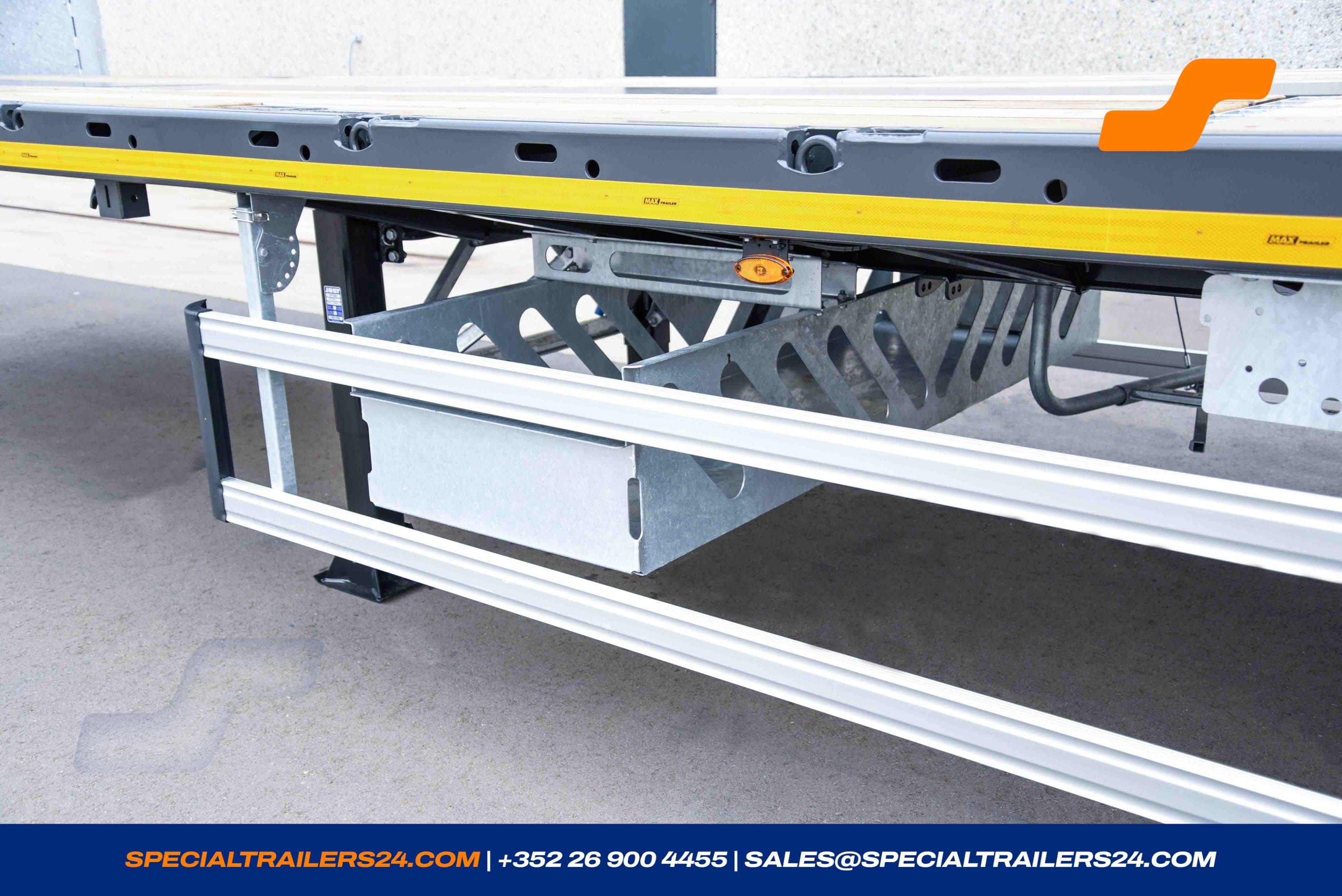

- Storage for stakes 1500 mm in the central carrier.
- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)

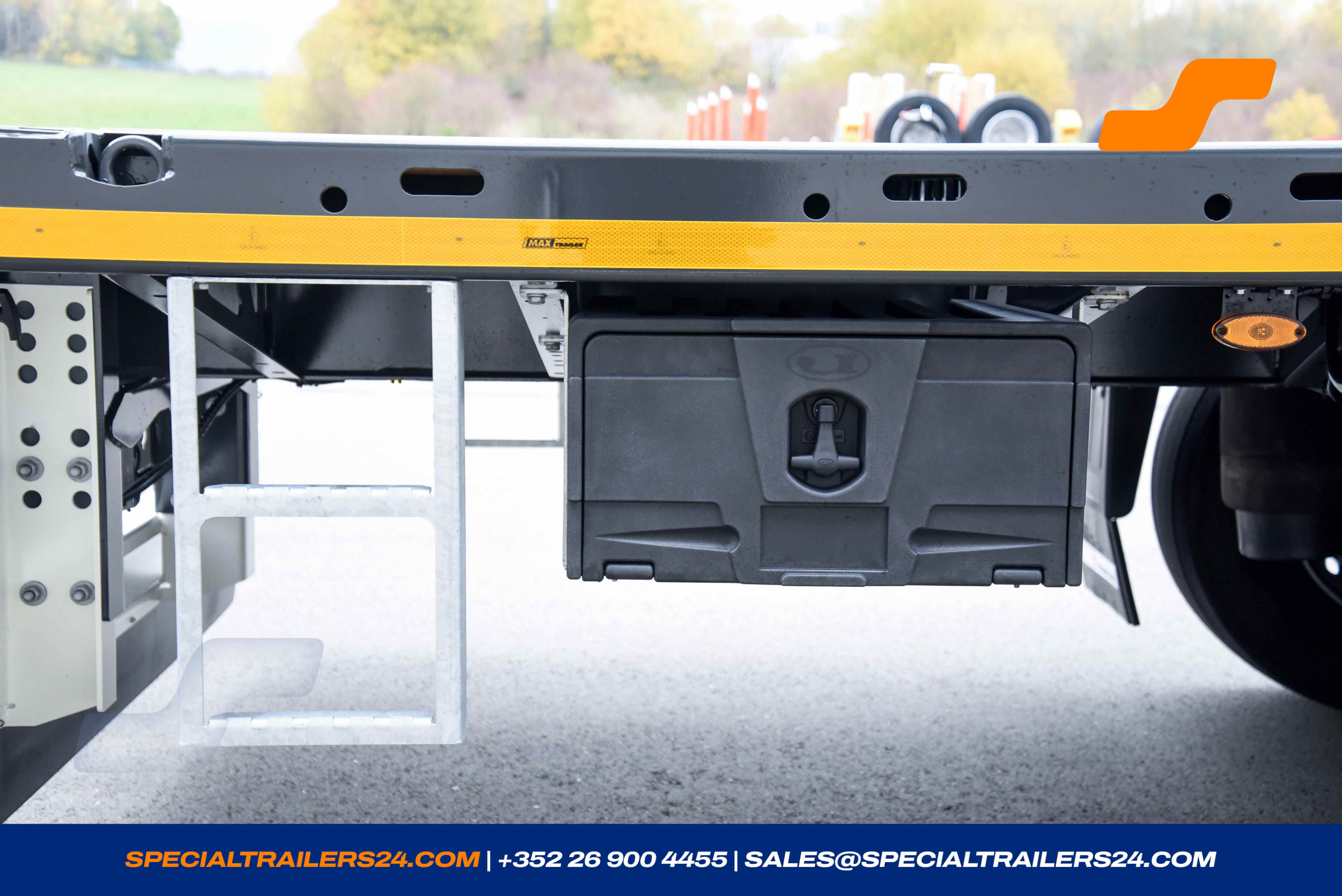

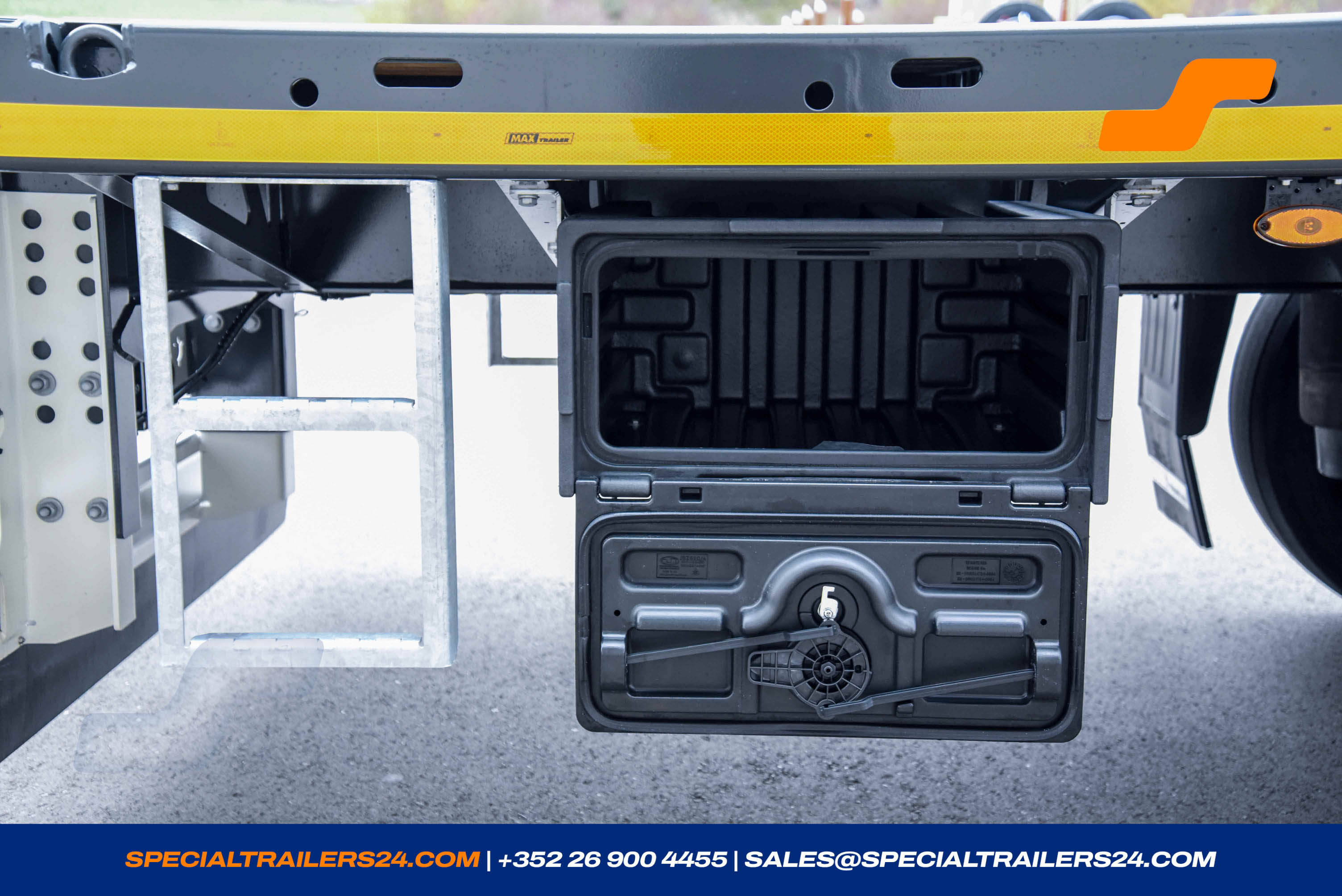

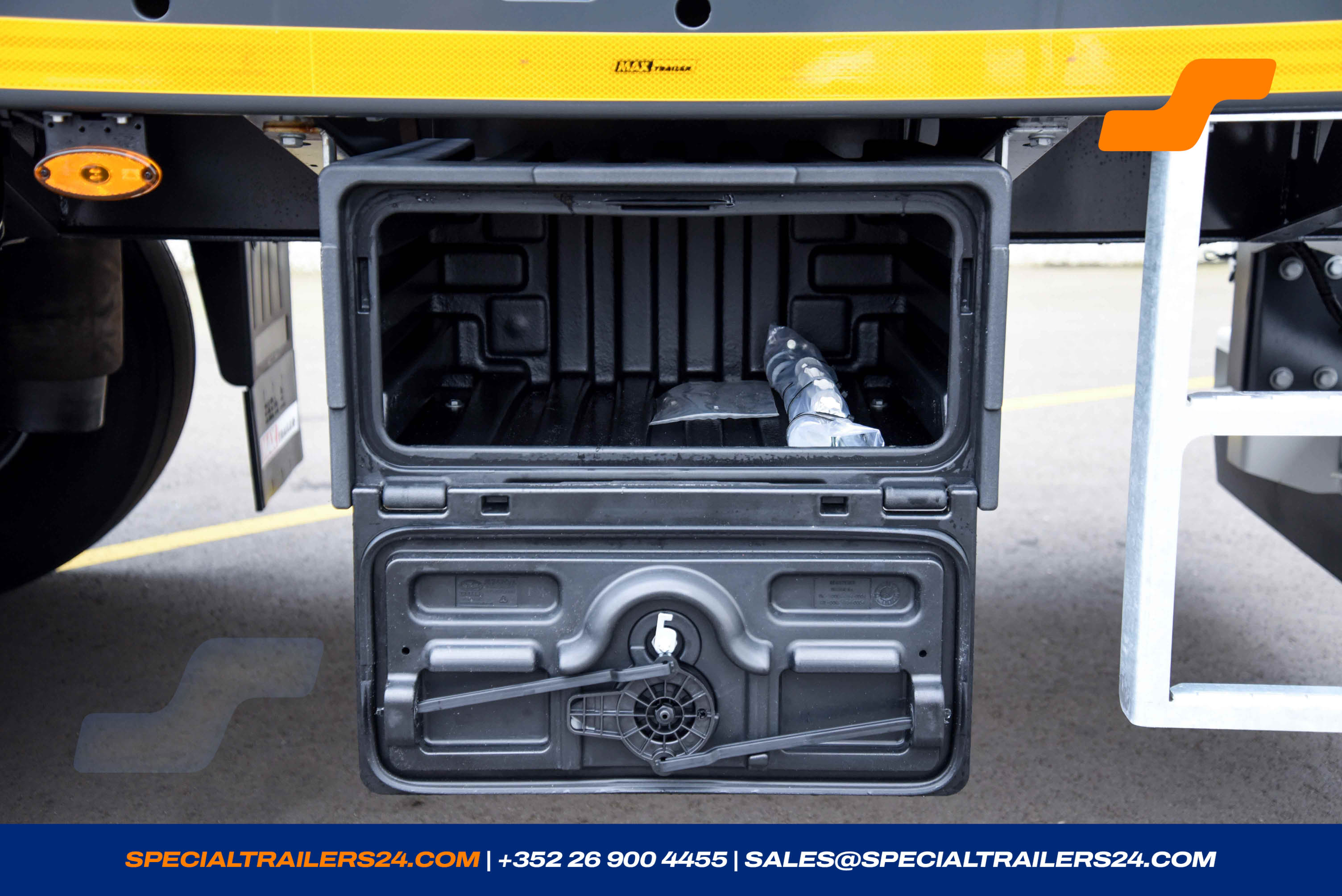

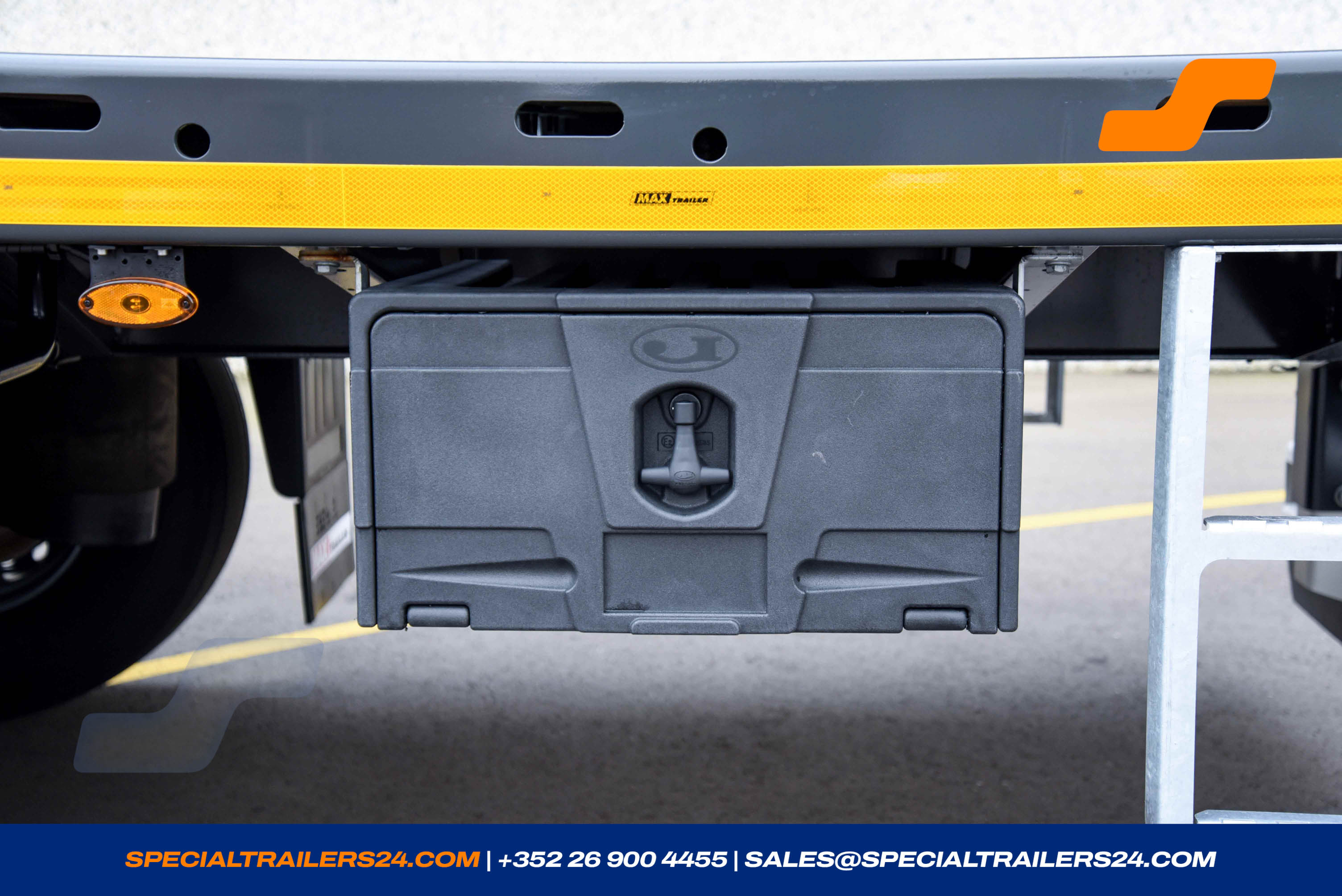

- Two lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left and right side. (± 54kg)

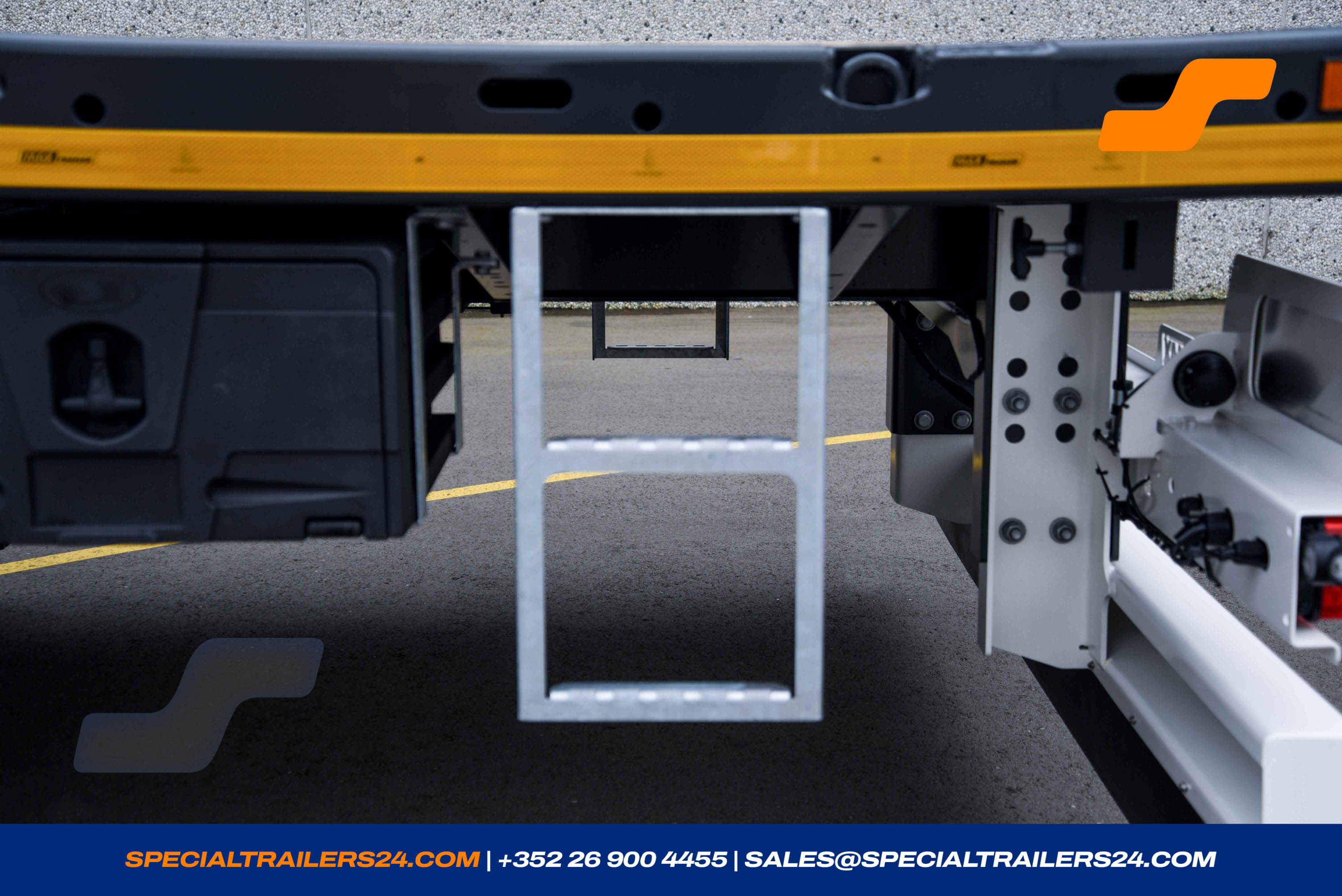

- Access ladder mounted on the left and right in the direction of travel. (± 24 kg)
- 1 spare wheel 385/65 R22.5 (± 120 kg)

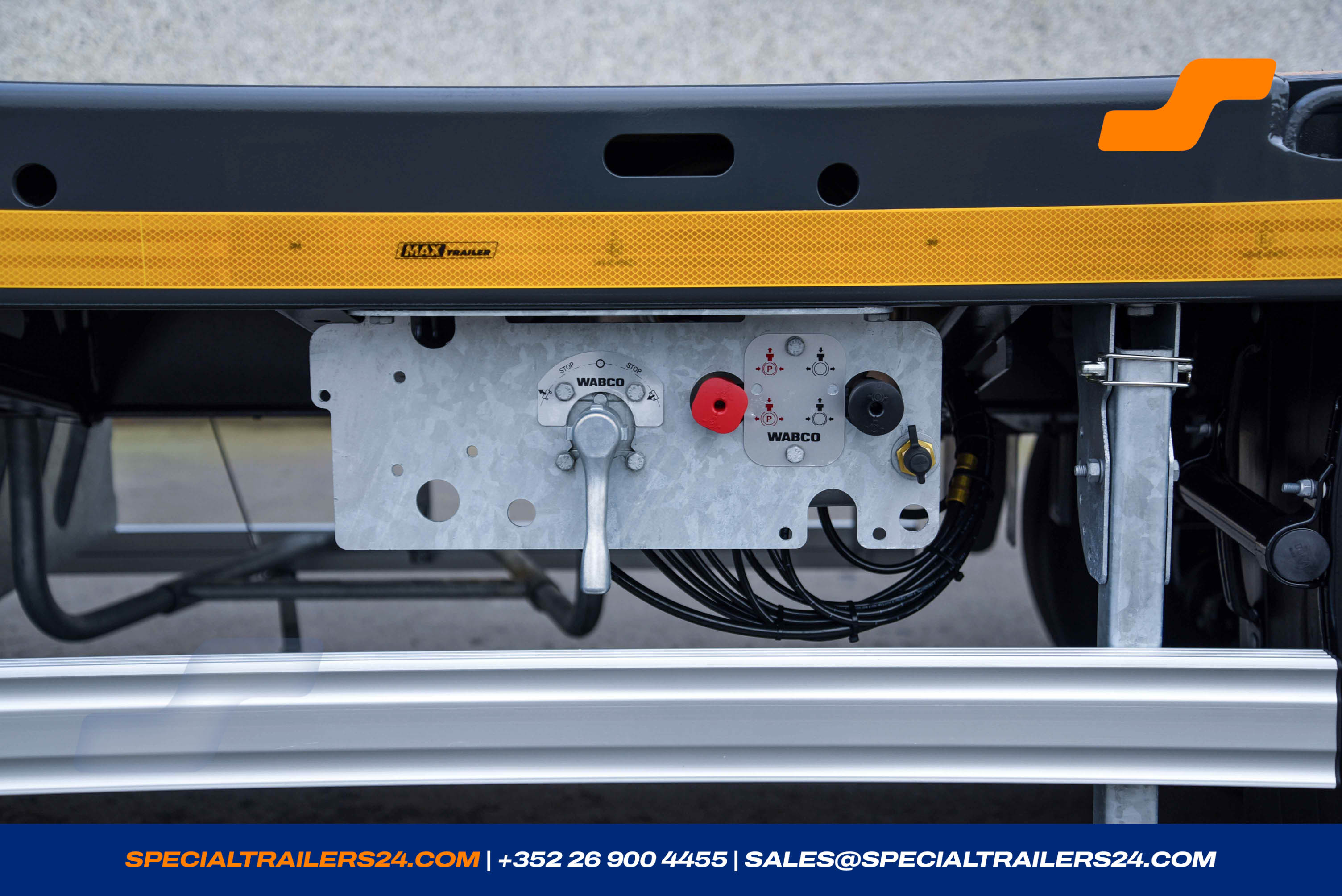

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
Accessories
1 x Accessory
MAX200-Accessory
- Load manometer for determining the axle load, including load diagram.
- Speed sticker 80 km/h at the rear and on both sides.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Delivery from a trailer to factory Lentzweiler.
MAX Trailer MAX200
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 112288
- Reference MAX200-S-3-13.60-22.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 3002 - Carmine red
- Availability 07/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000353
- Steering Type Rigid
