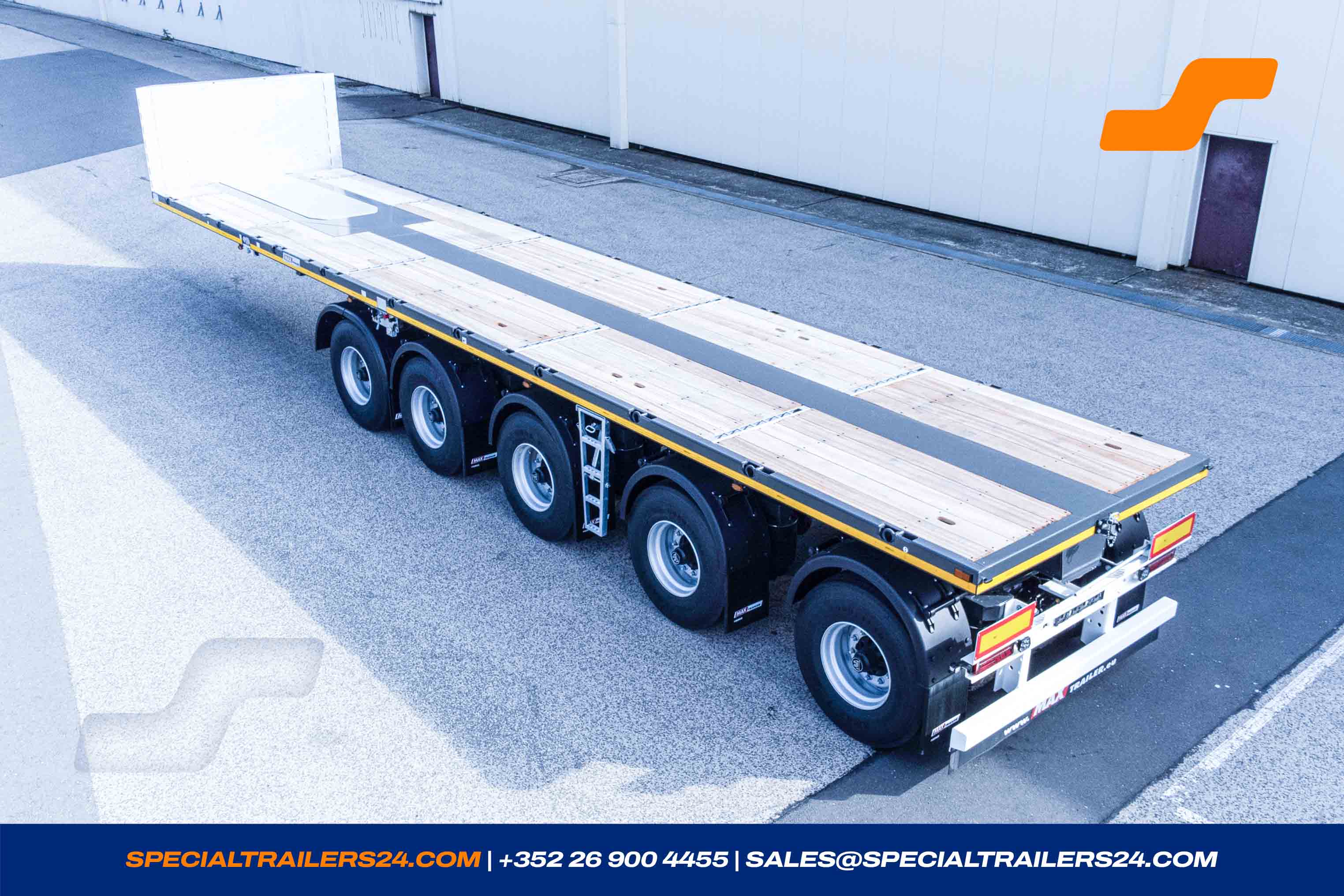

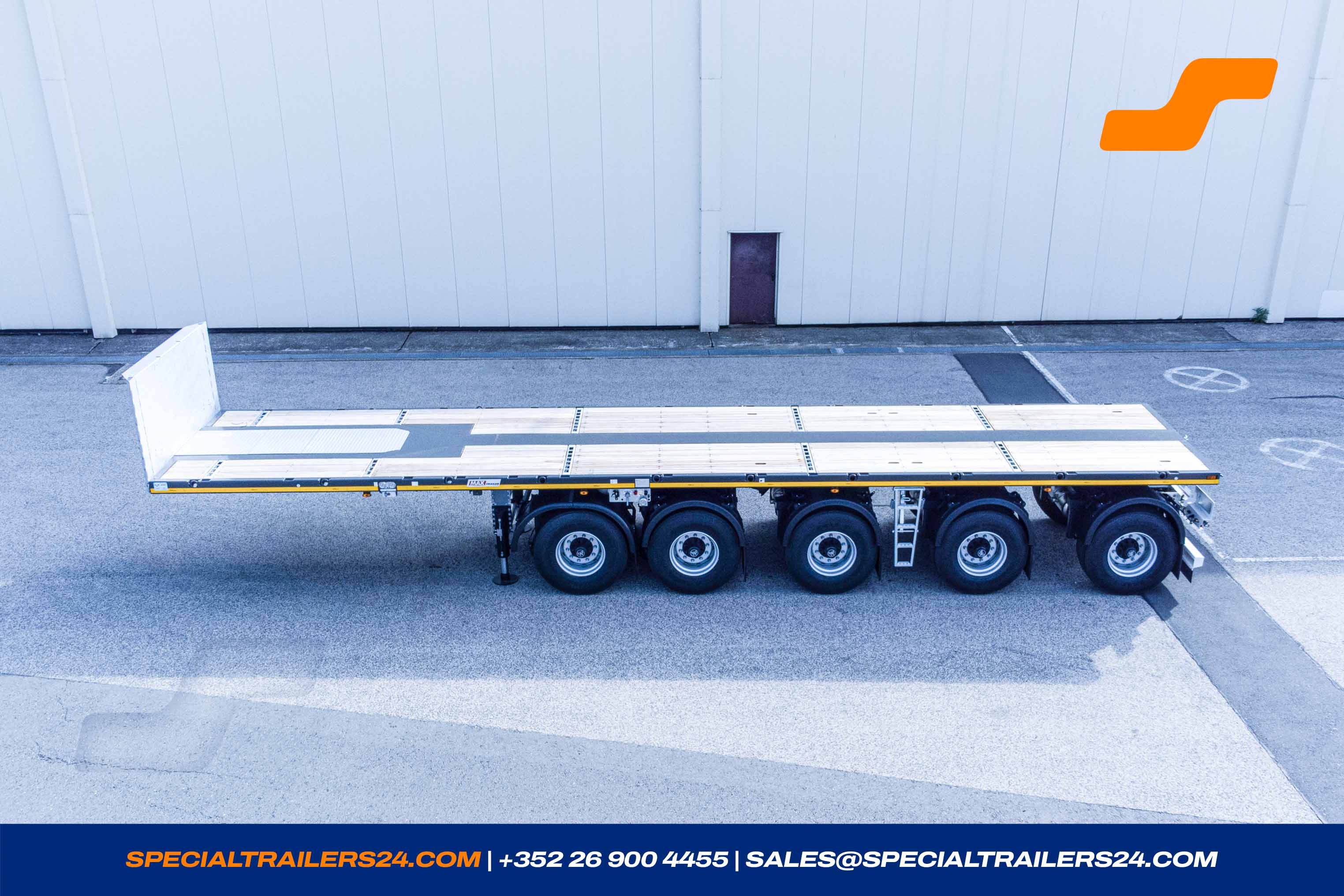

Flatbed trailer
MAX Trailer MAX410
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111513
- Reference MAX410-NZ-5-12.40-22.5-2.54

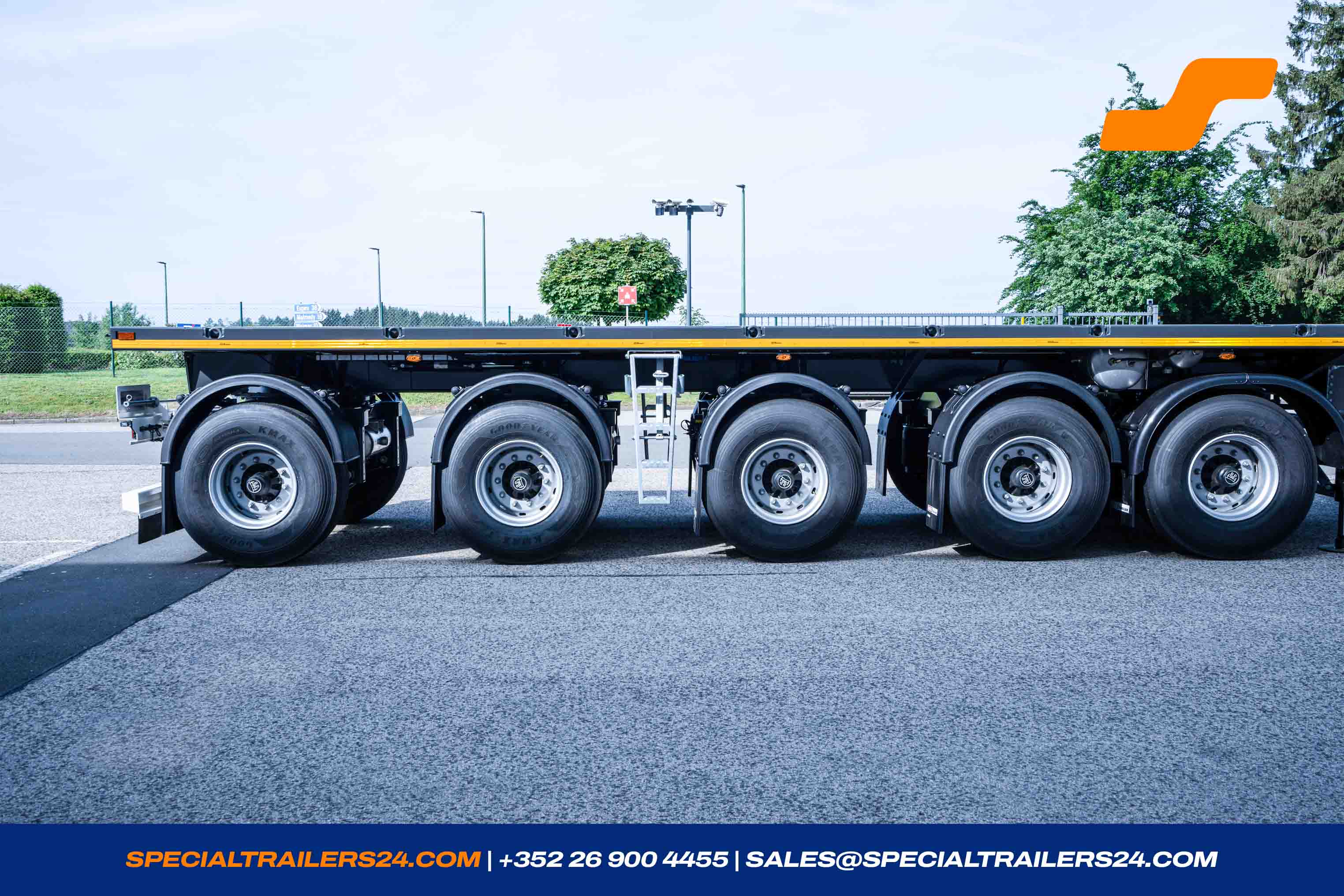

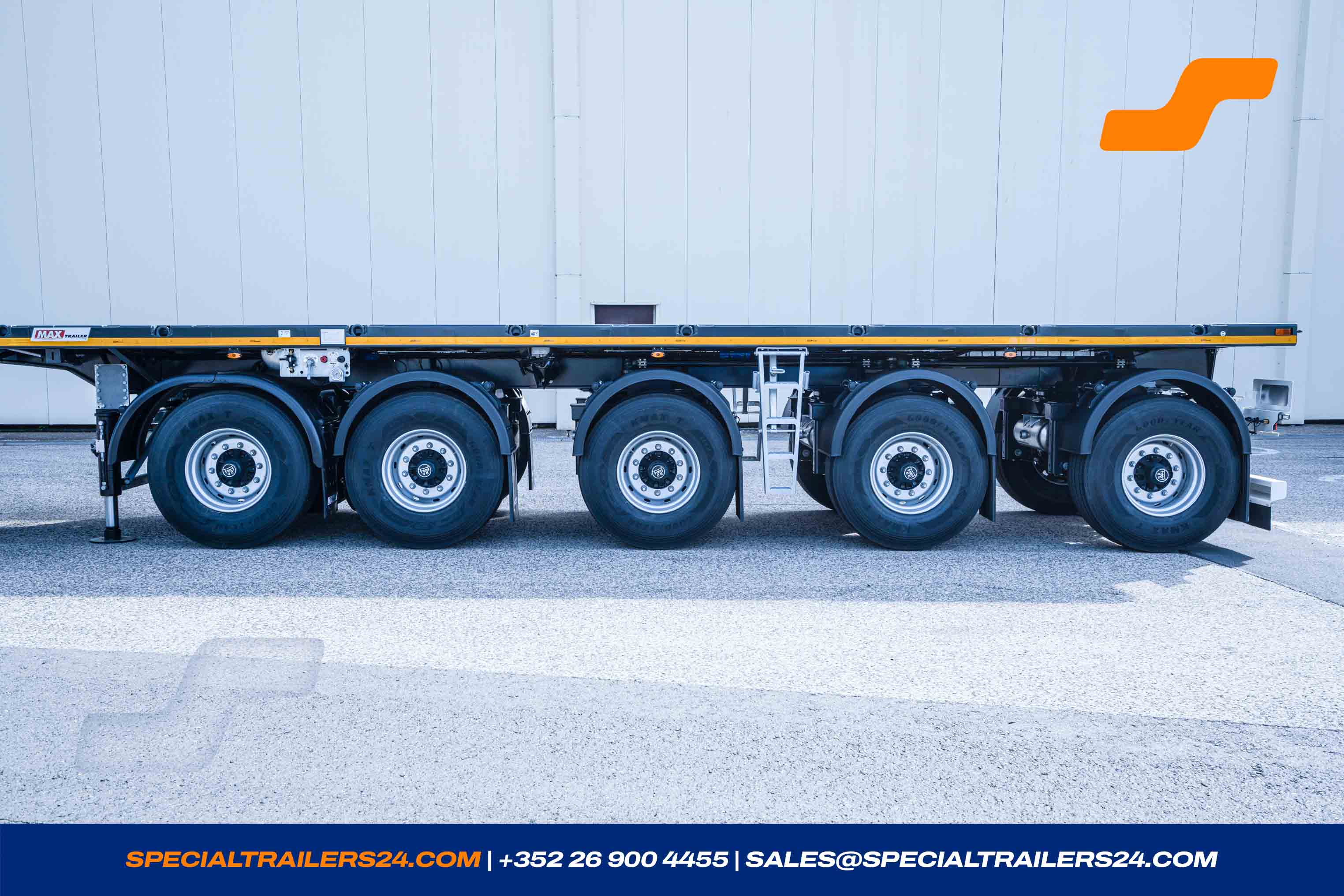

- Number of axles 5
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 10/2026
- Steering Type Hydraulic
Availability
10/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 60000 kg |
| Gross weight | 83000 kg |
| Tare weight +- 3% | 11699 kg |
| Payload | 71301 kg |
| King pin load | 23000 kg |
Dimensions
| Fifth wheel height loaded | 1340->1400 mm |
| Loading platform length | 12 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
| Turning circle reversing | 2 500 mm |
Loading deck
Loading platform
1 x Loading platform : MAX410-NZ-5-12.40-22.5-2.54(DSR 2500-ASH 1340->1400-12T)

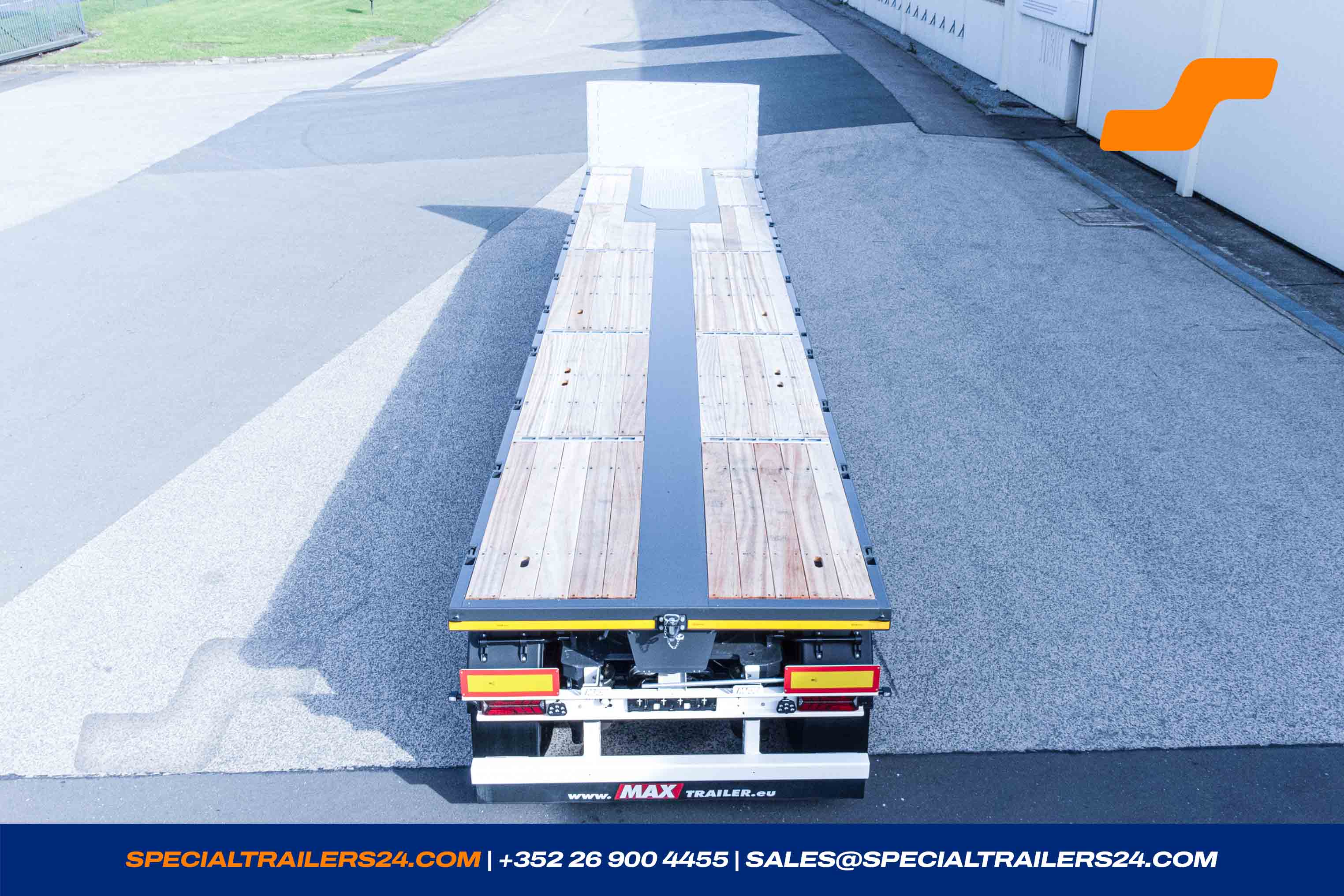

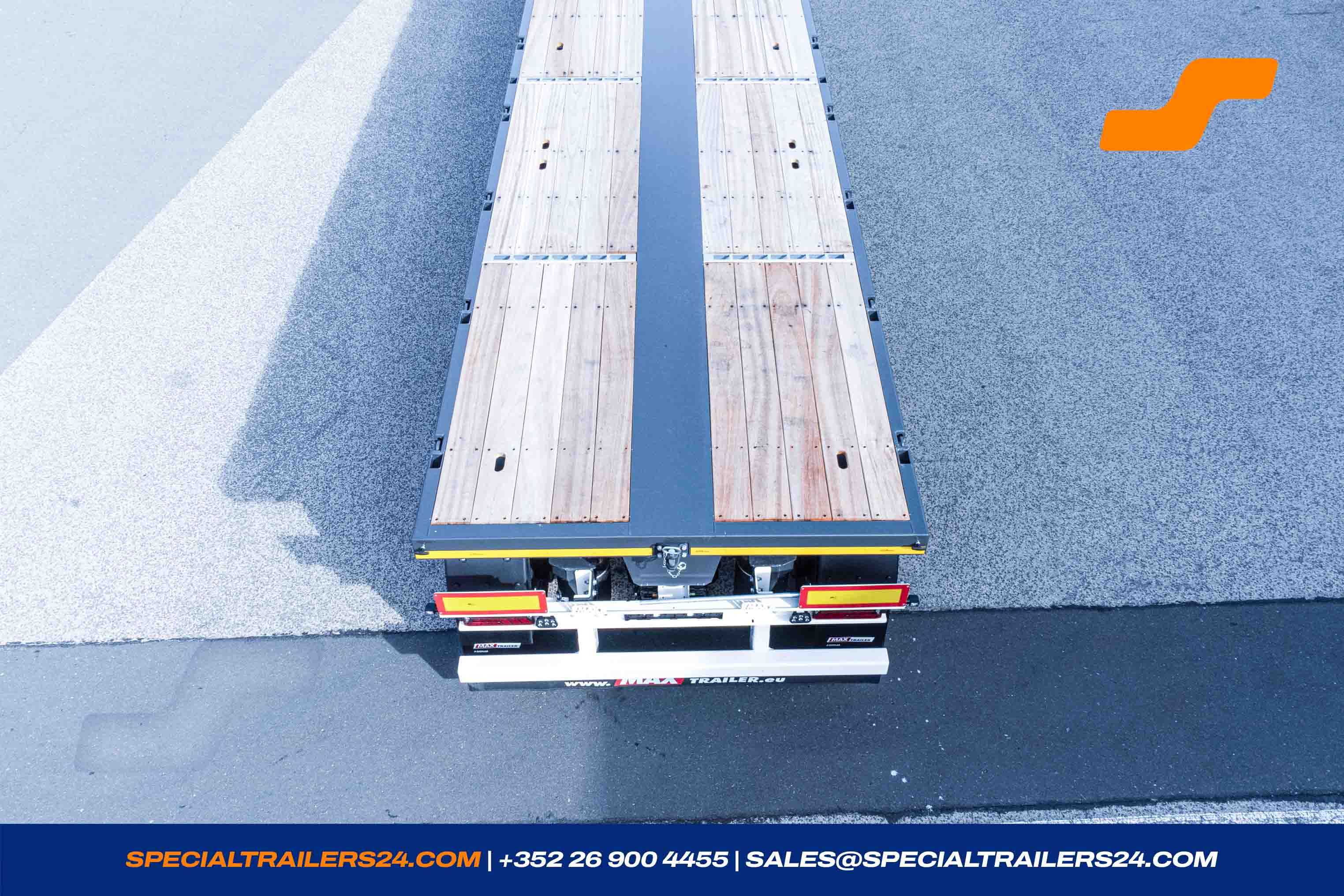

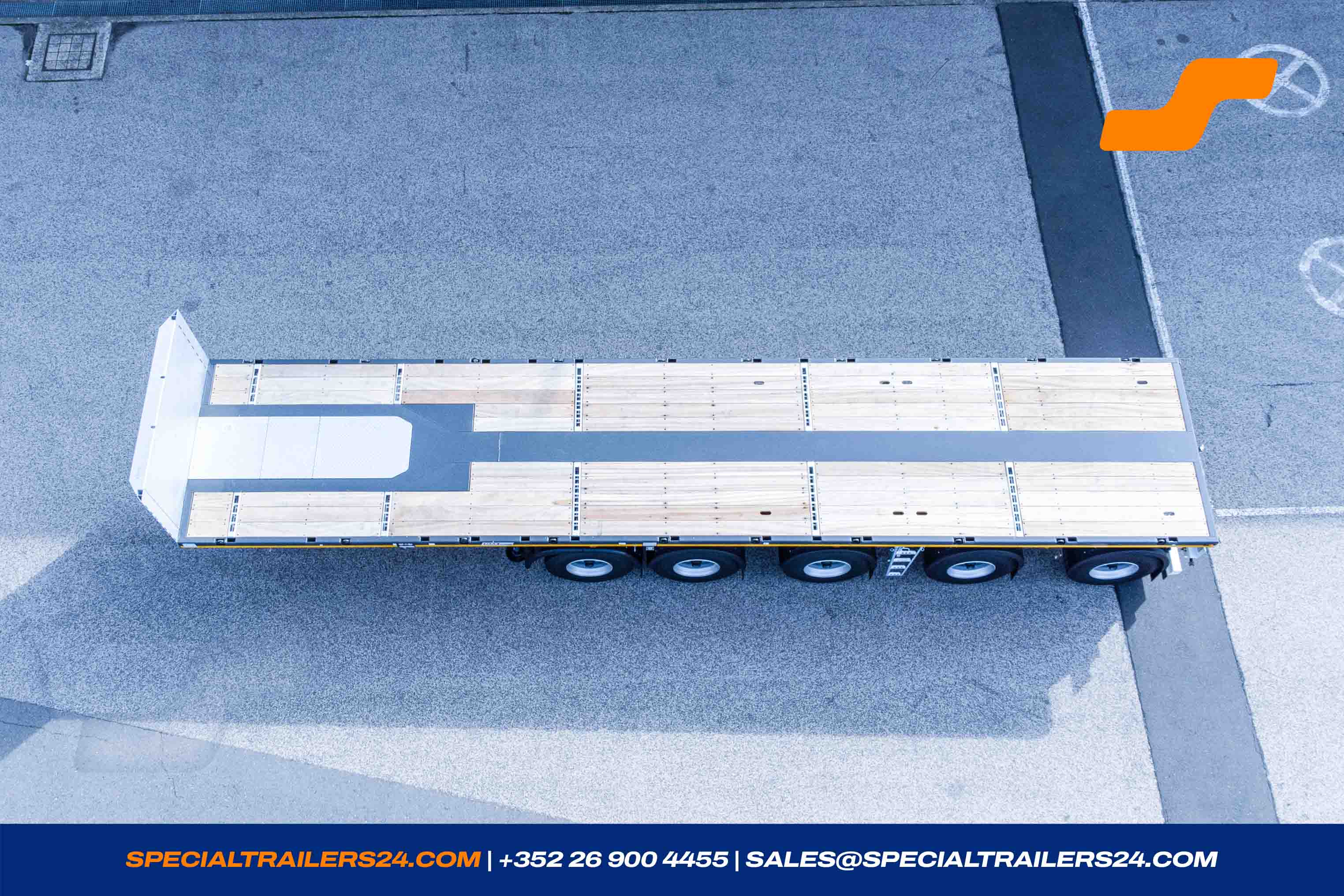

Loading area with ± 30 mm timber floor.

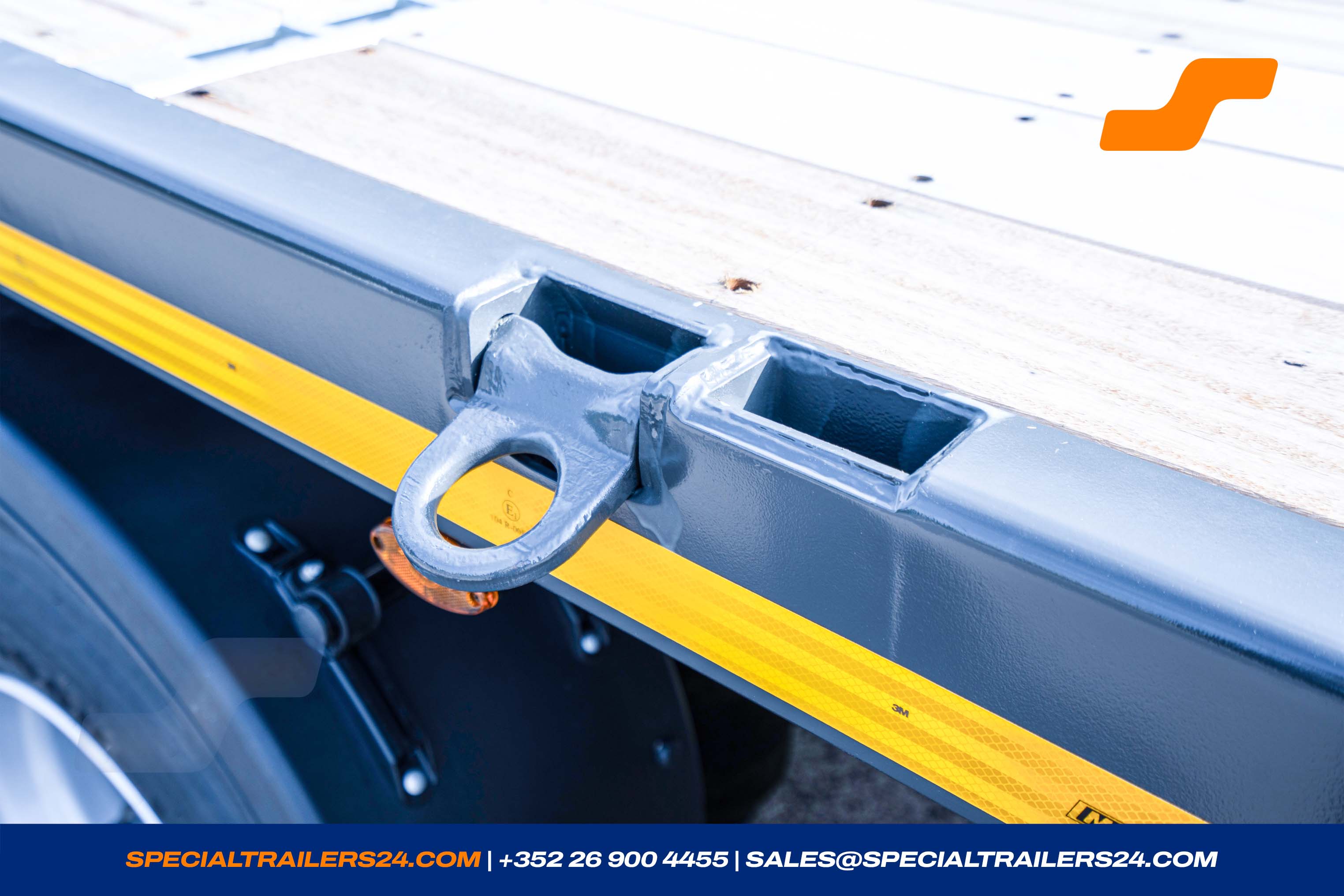

10 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).

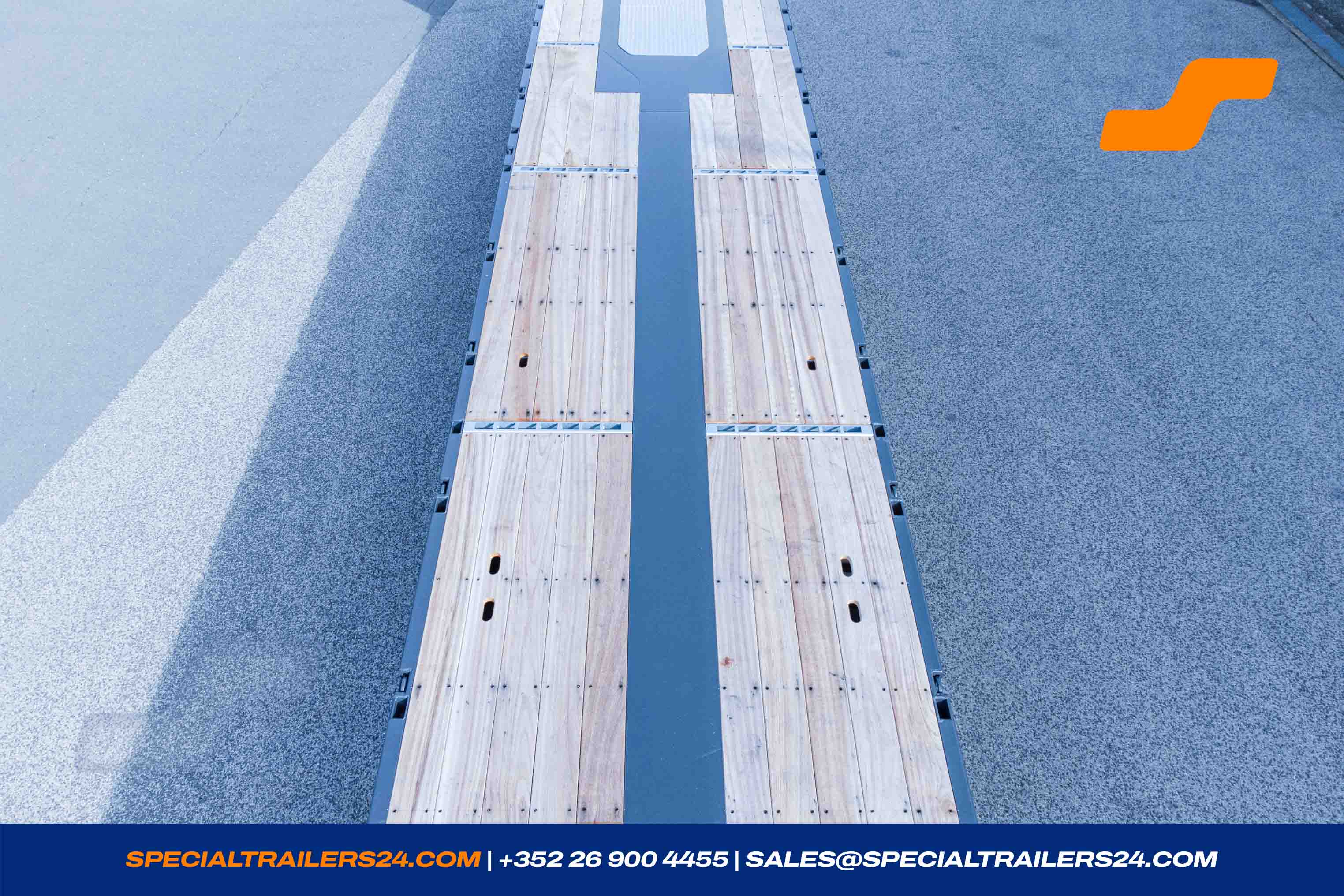

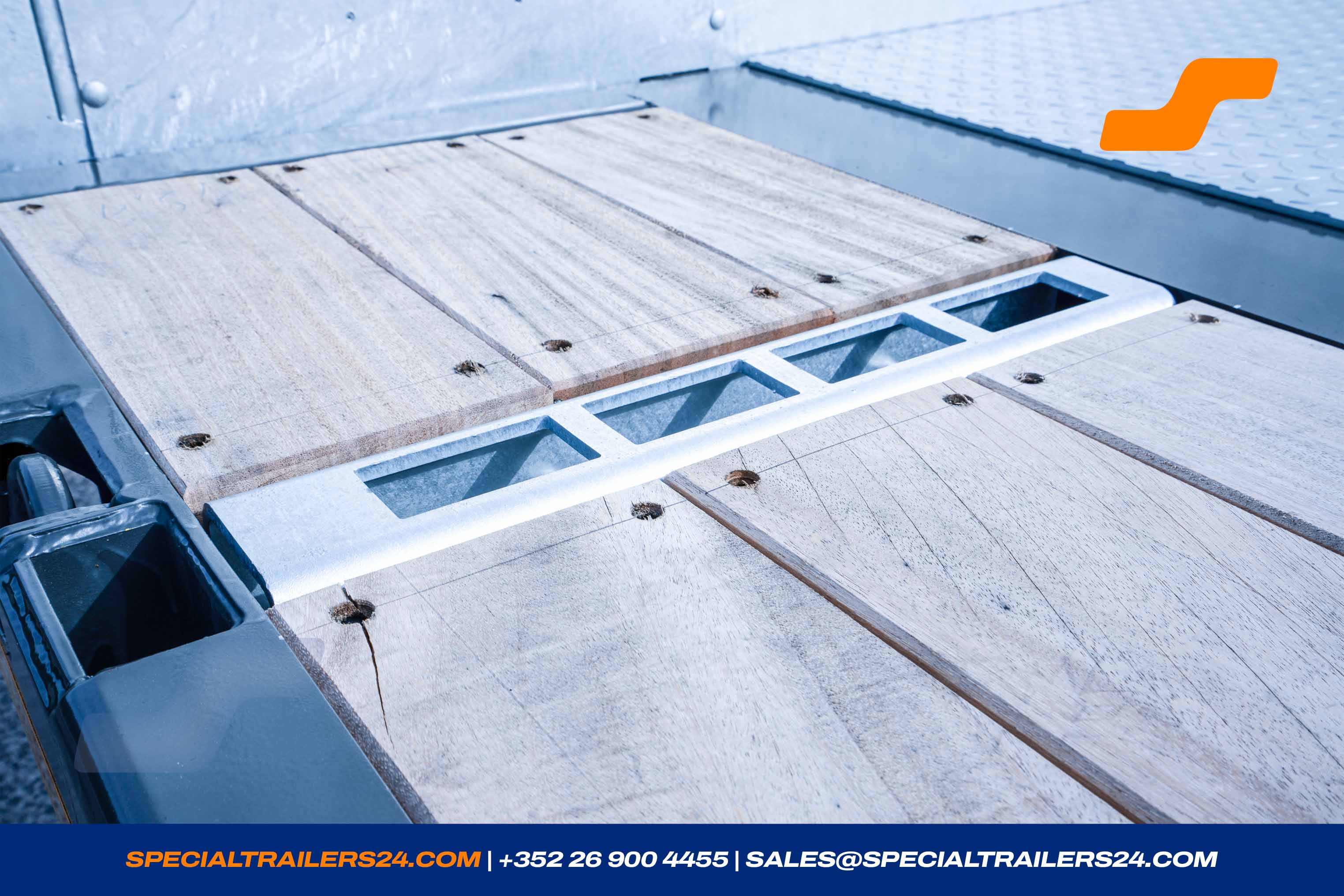

- Loading area with ± 30 mm hardwood floor. (± 270 kg)
- 2 king-pin.
-

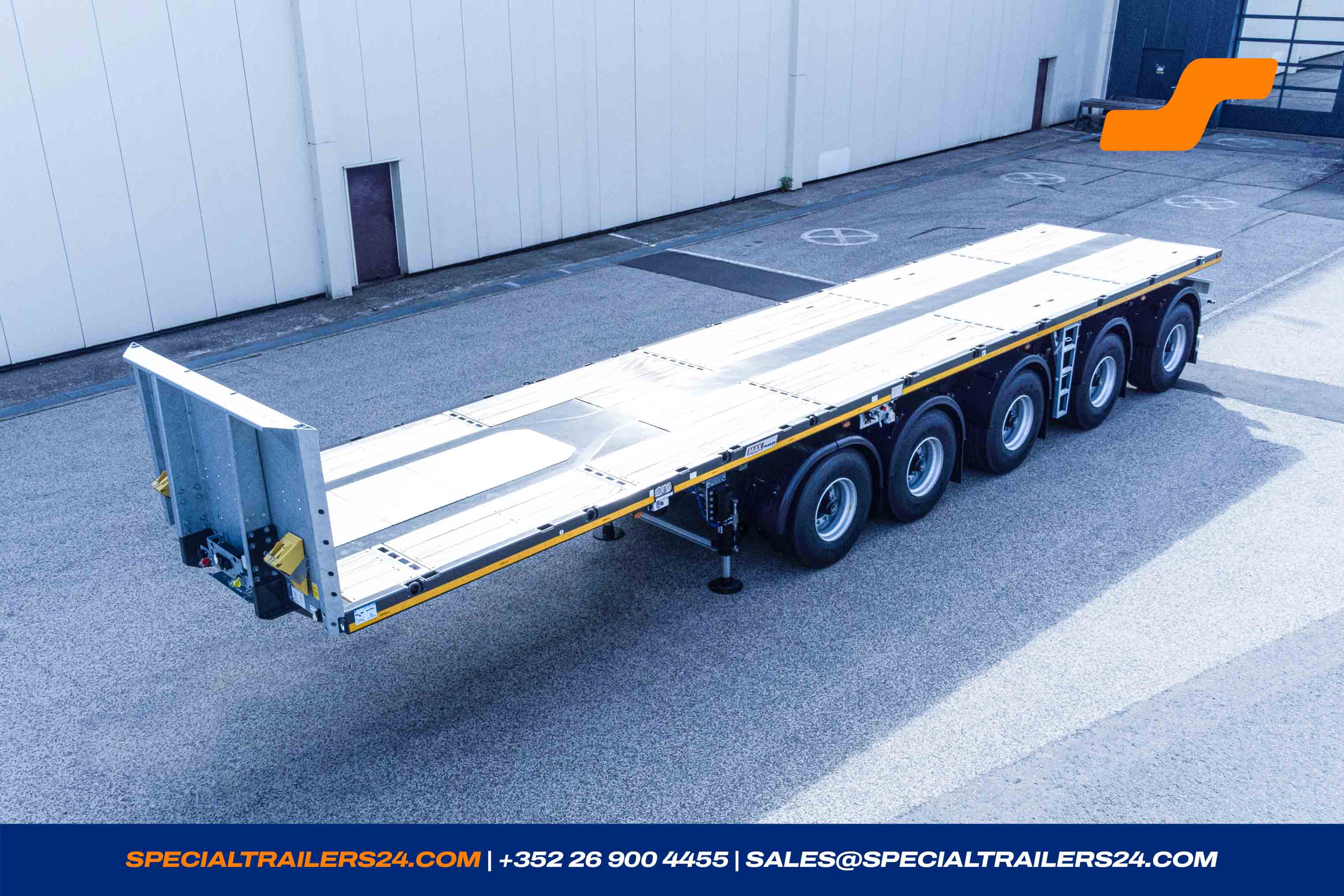

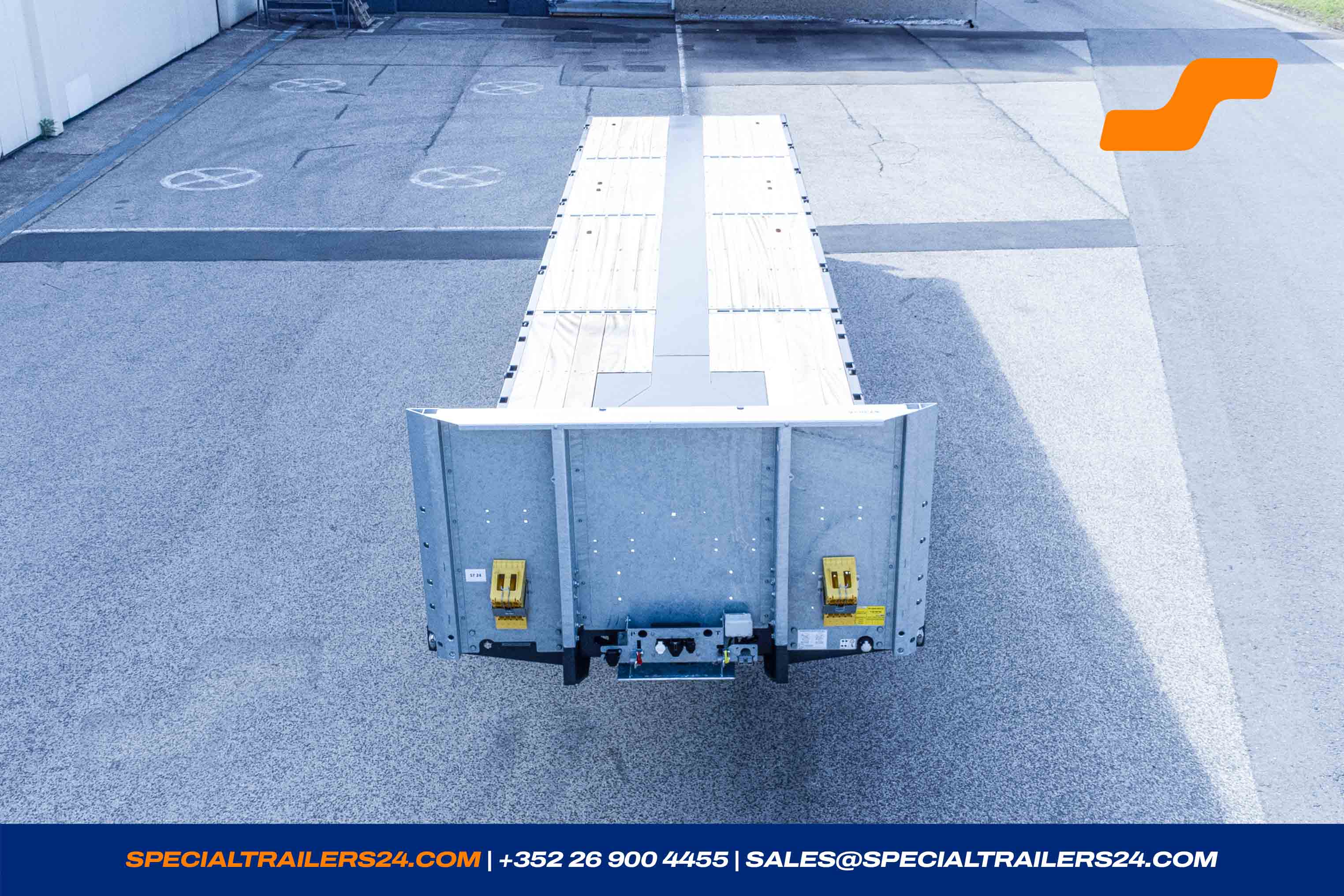

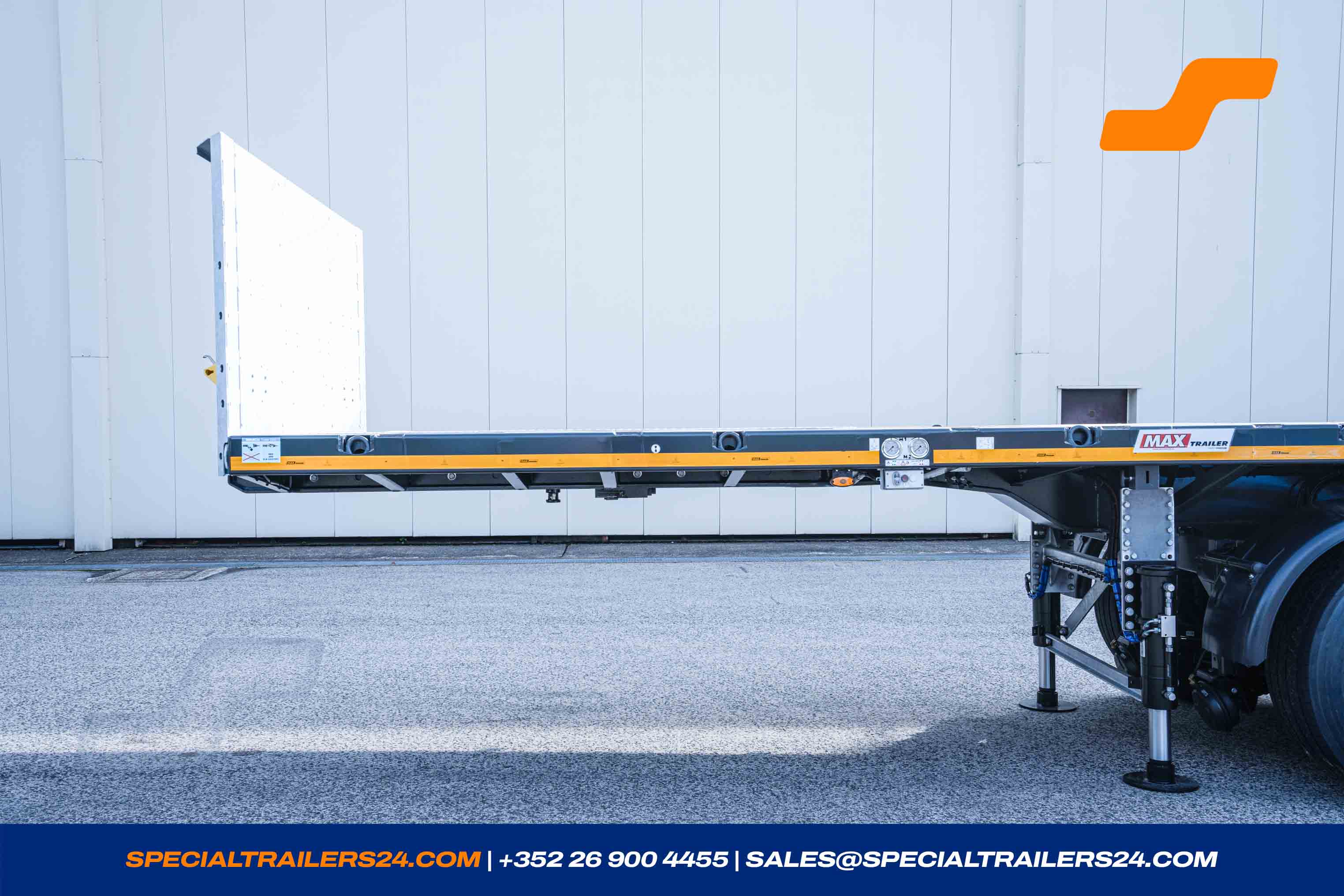

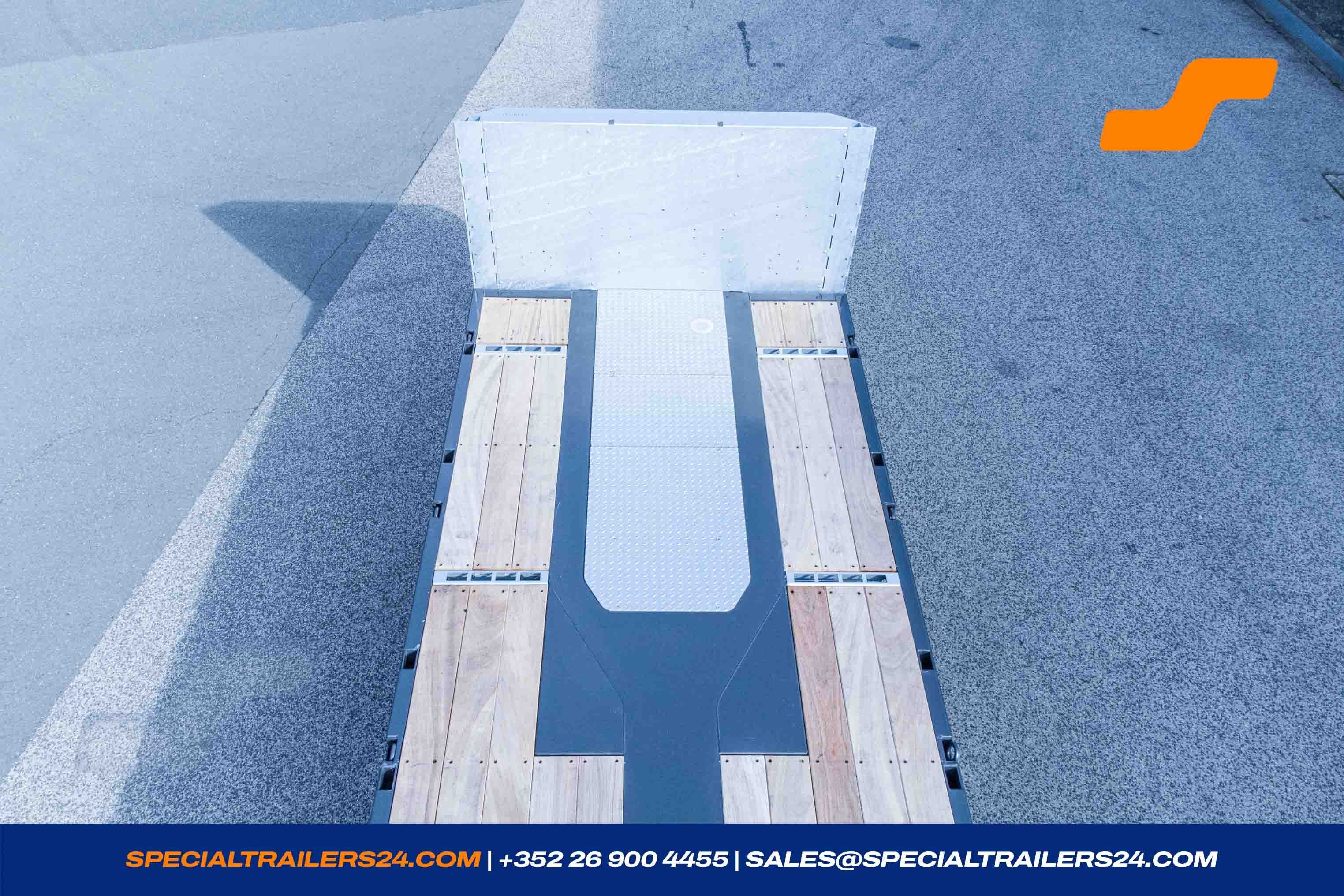

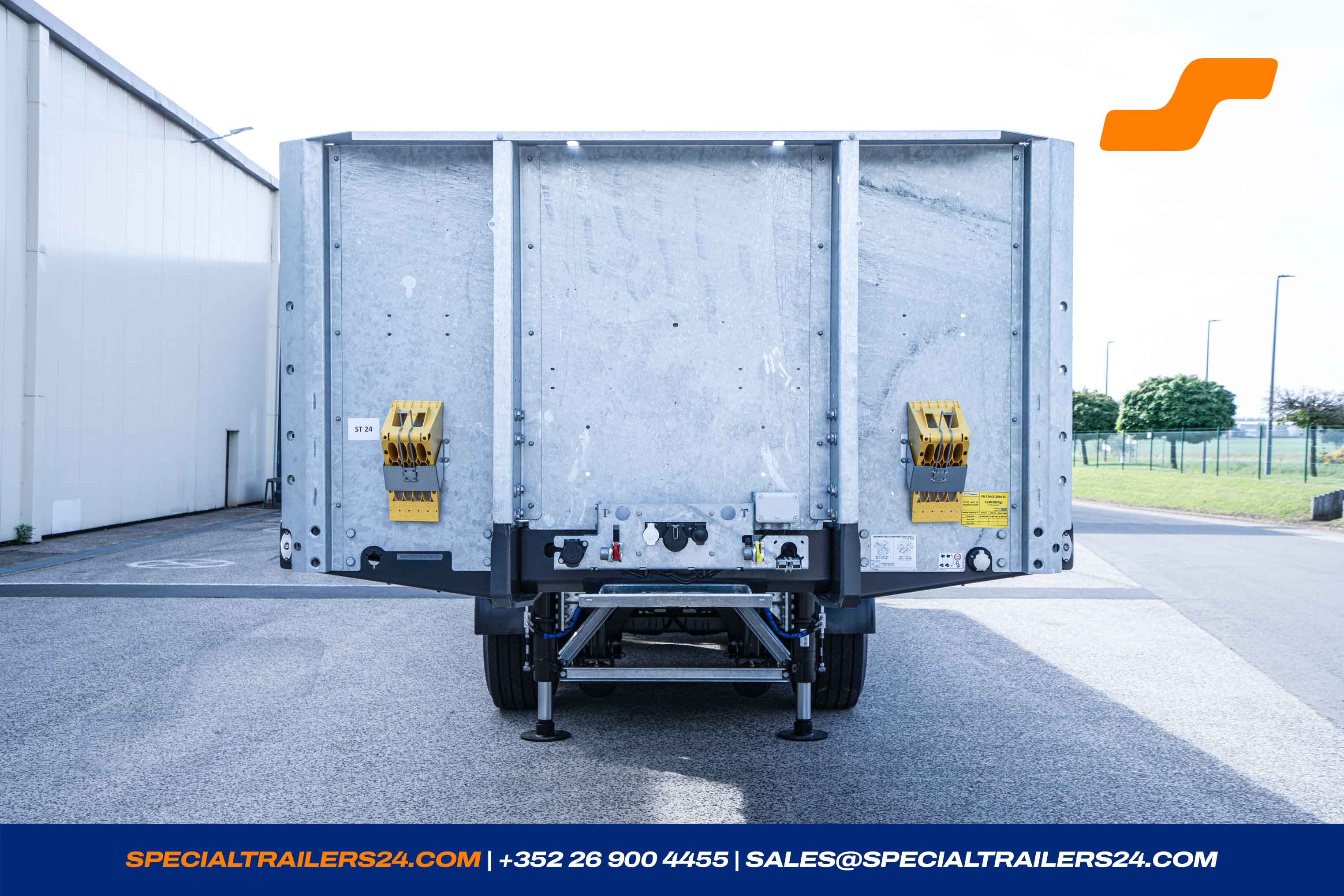

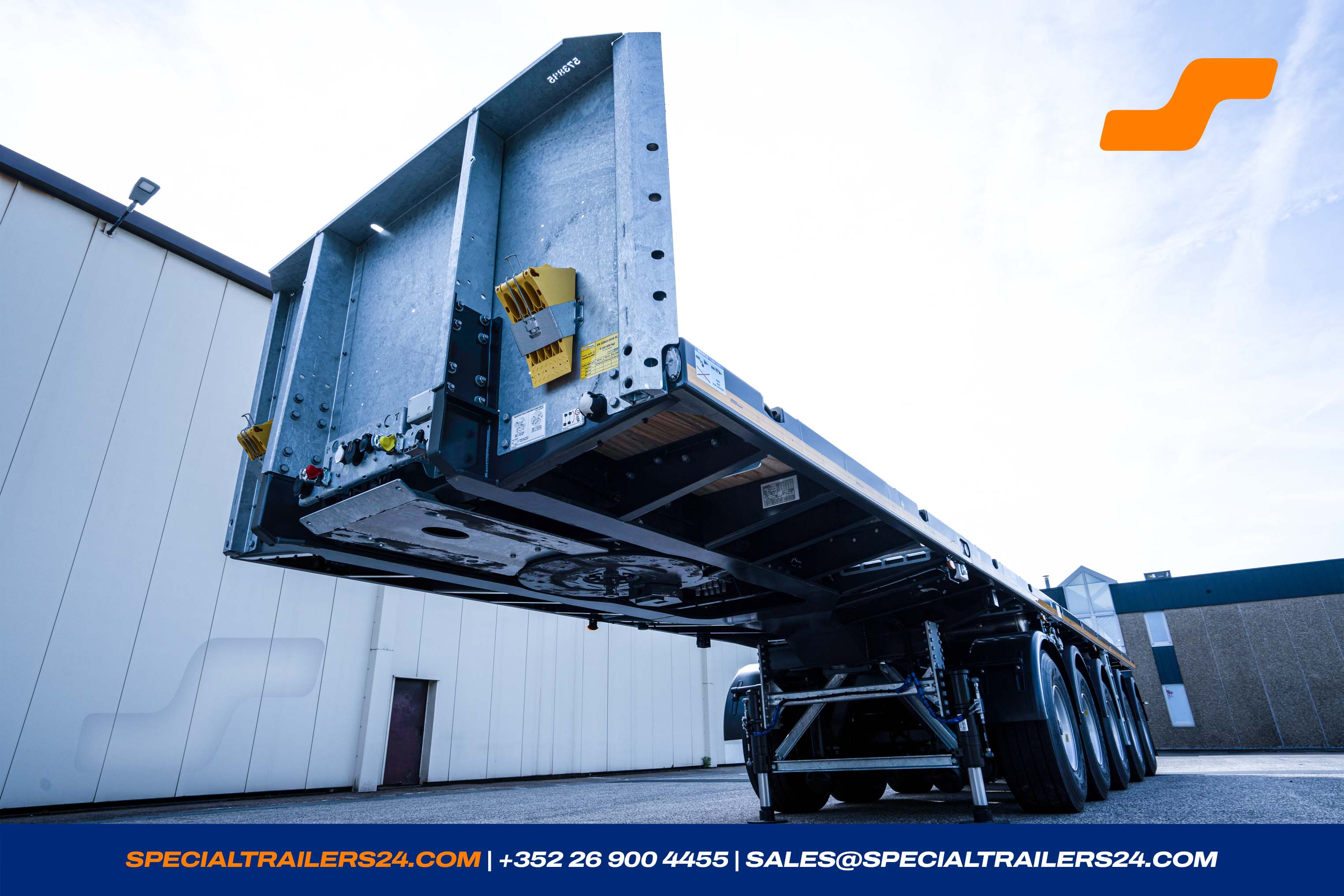

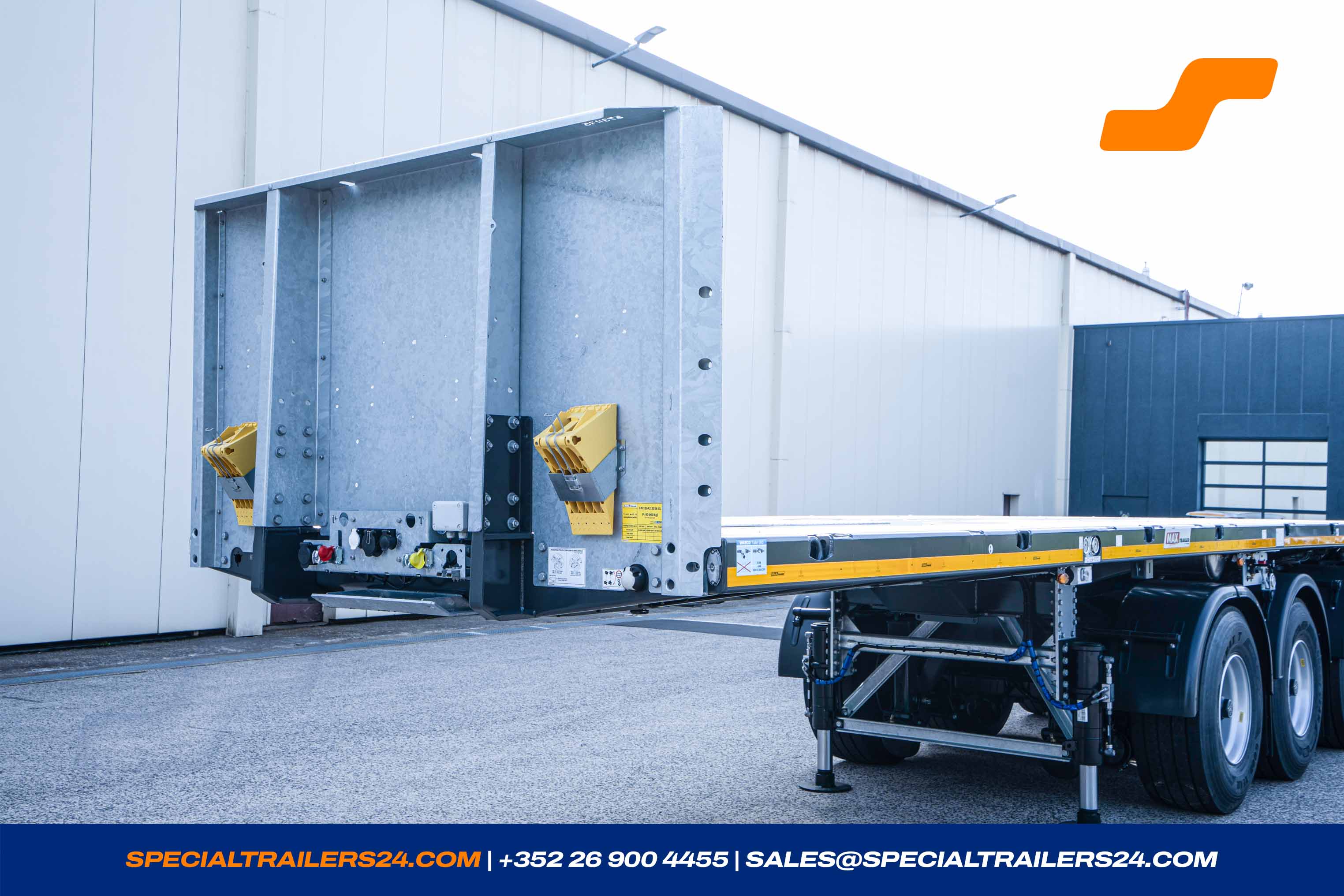

One galvanised steel headboard, height ± 1 200 mm.
EN12642-XL - Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
- Storage for 1000 mm stakes in the central carrier.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

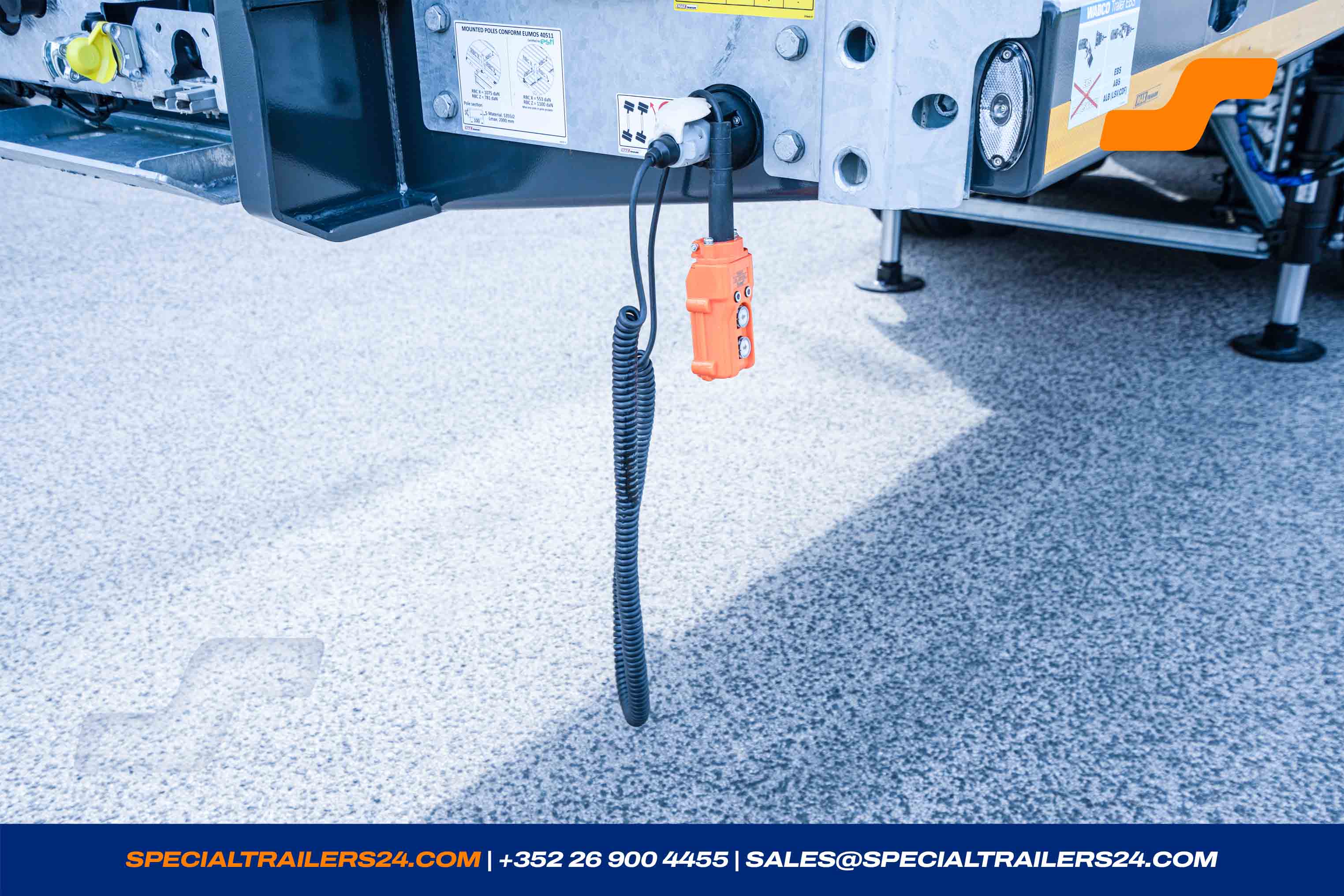

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)

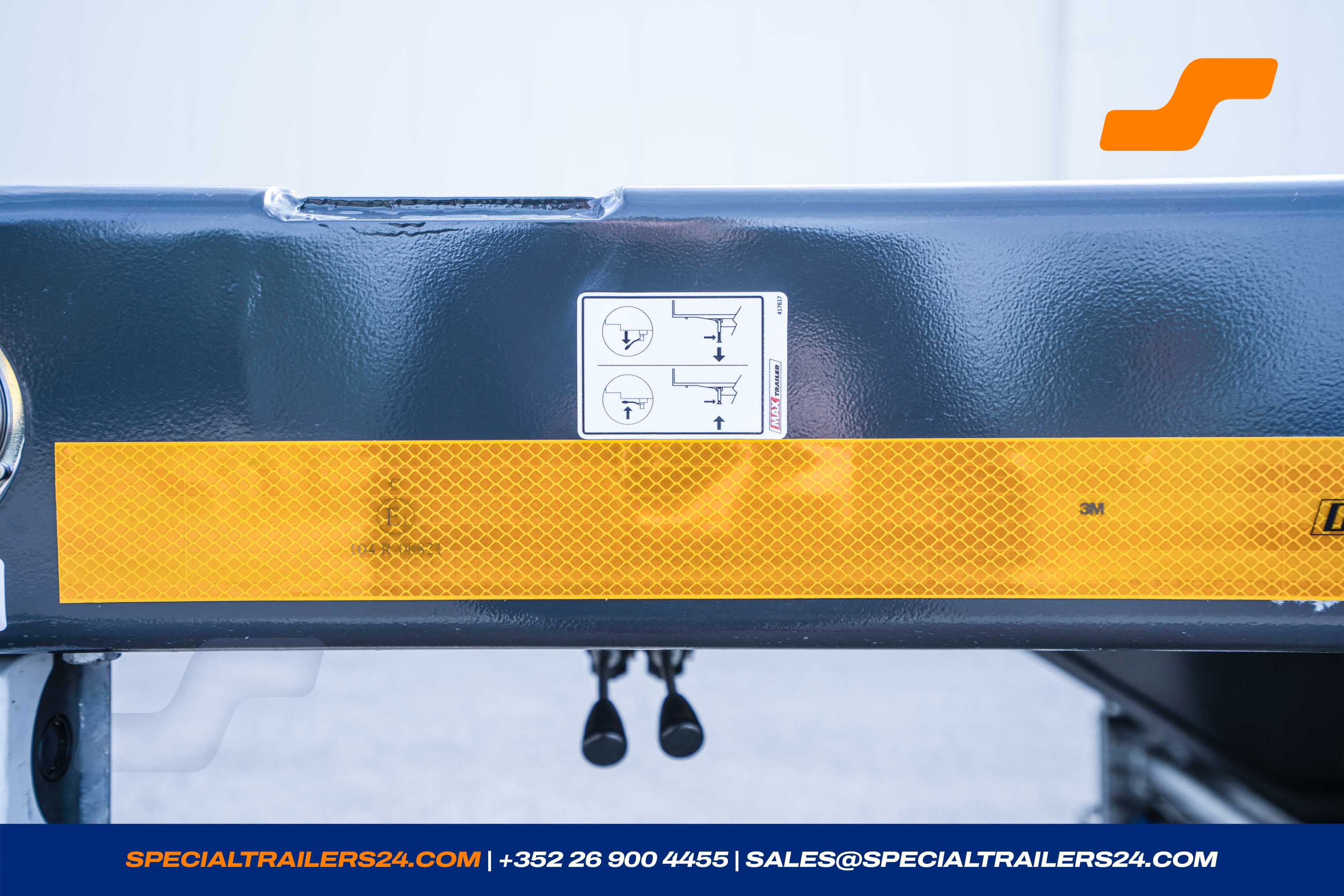

- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- 13 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform.

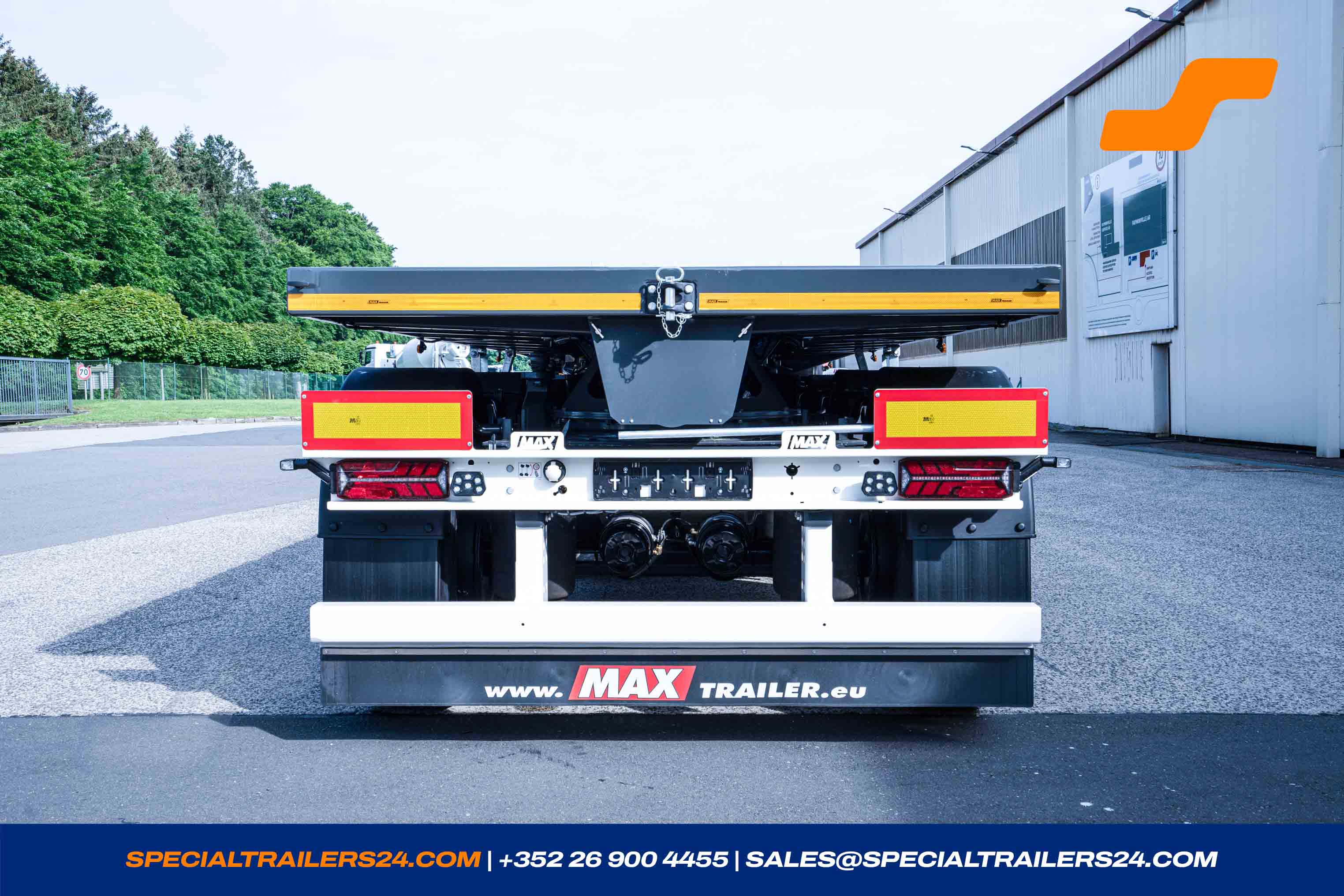

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).

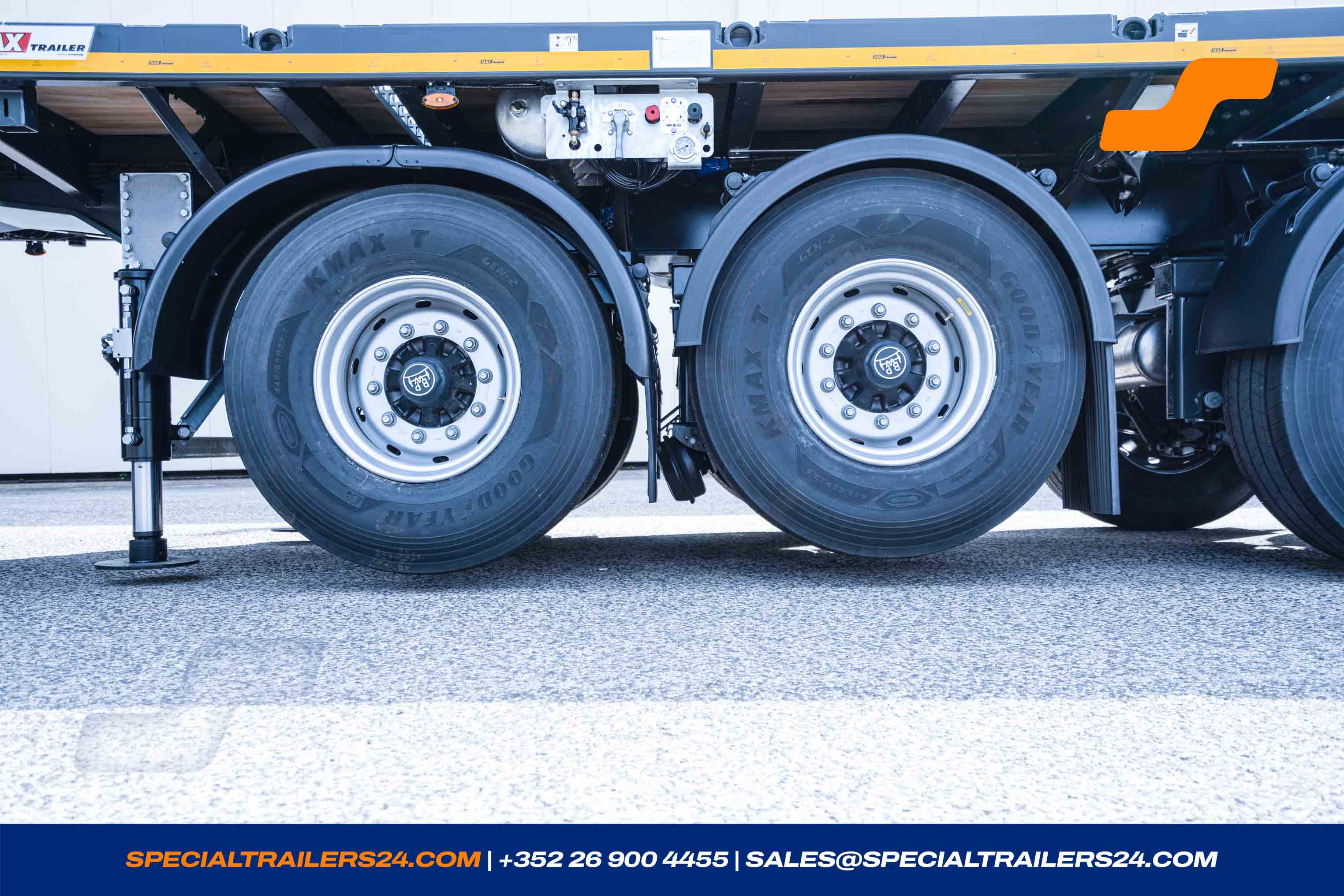

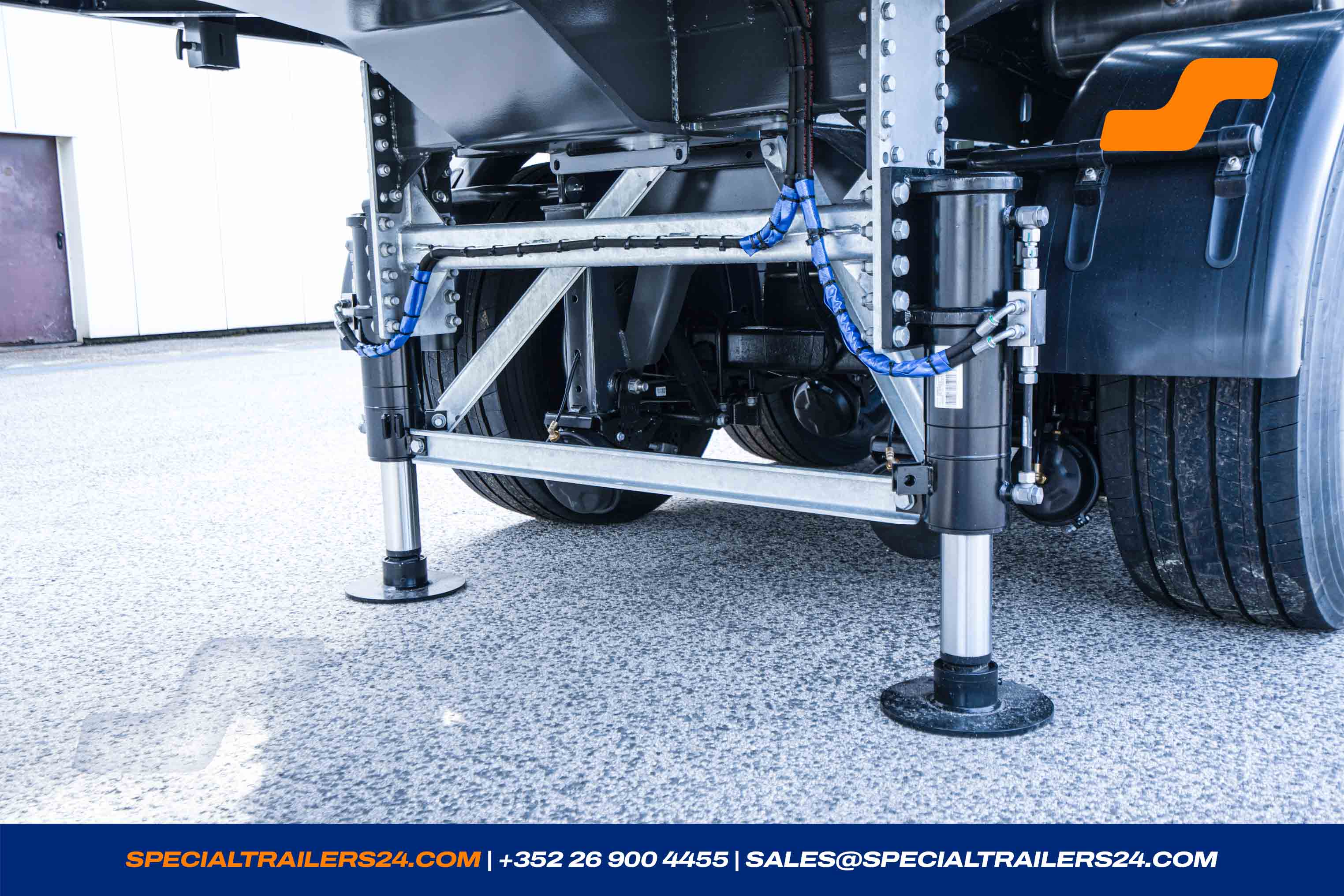

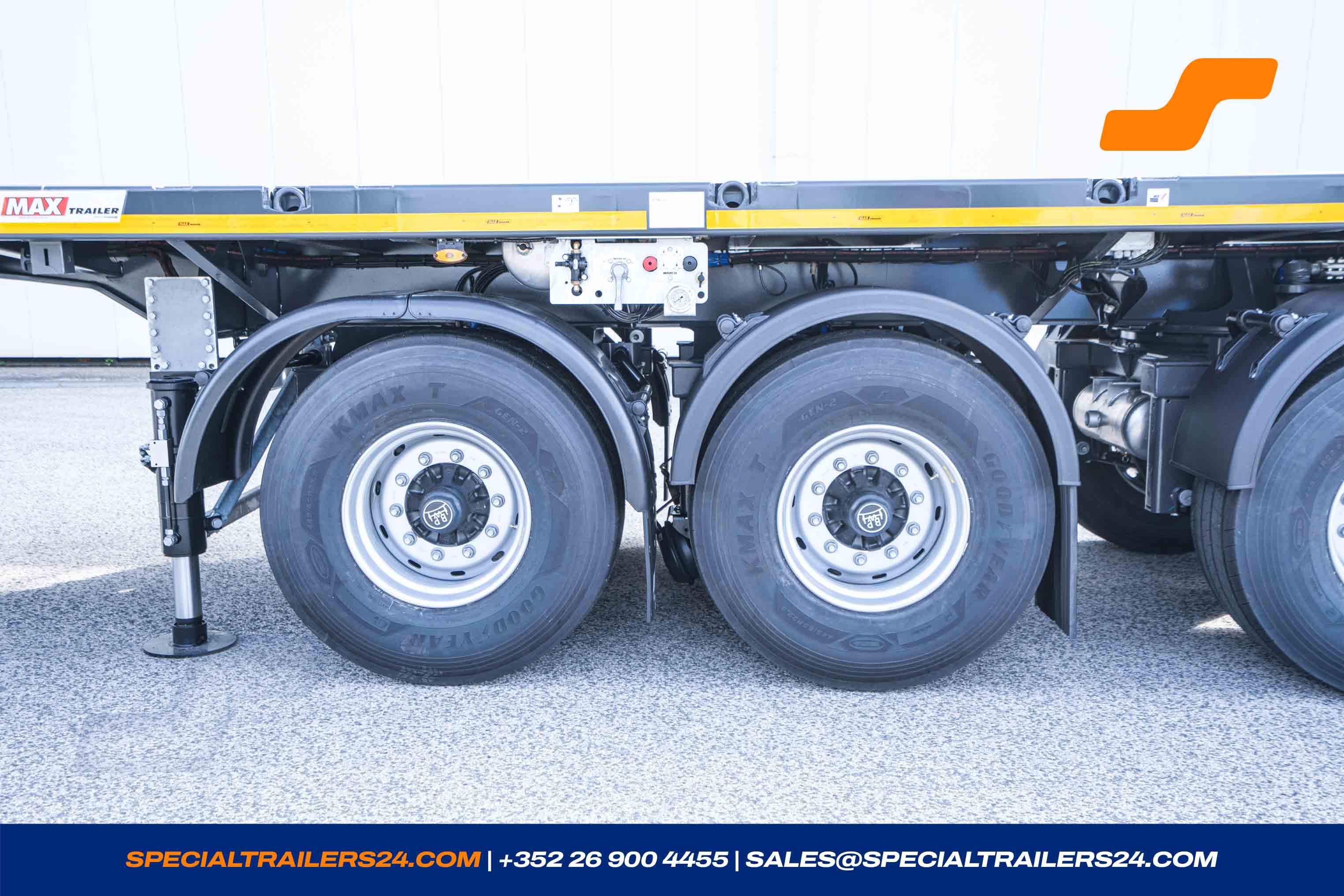

- Hydraulic landing legs. (± 55 kg)

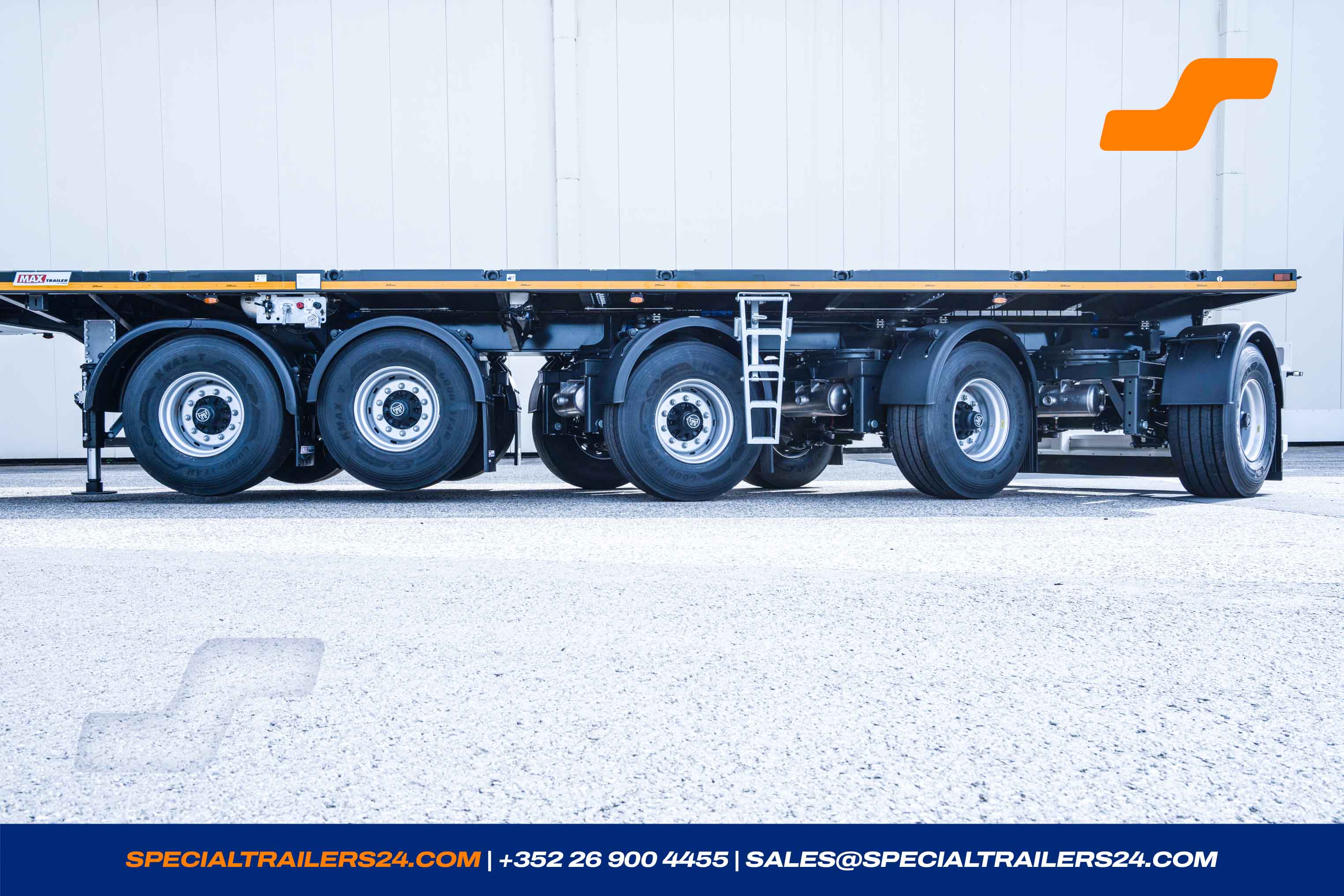

- Lift axle on the first and second axle with control by TEBS-E depending on the current axle load and the current loading condition (± 138 kg)
- 1 spare wheel 445/65 R22.5 delivered loose, WITHOUT holder. (± 140 kg)
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)

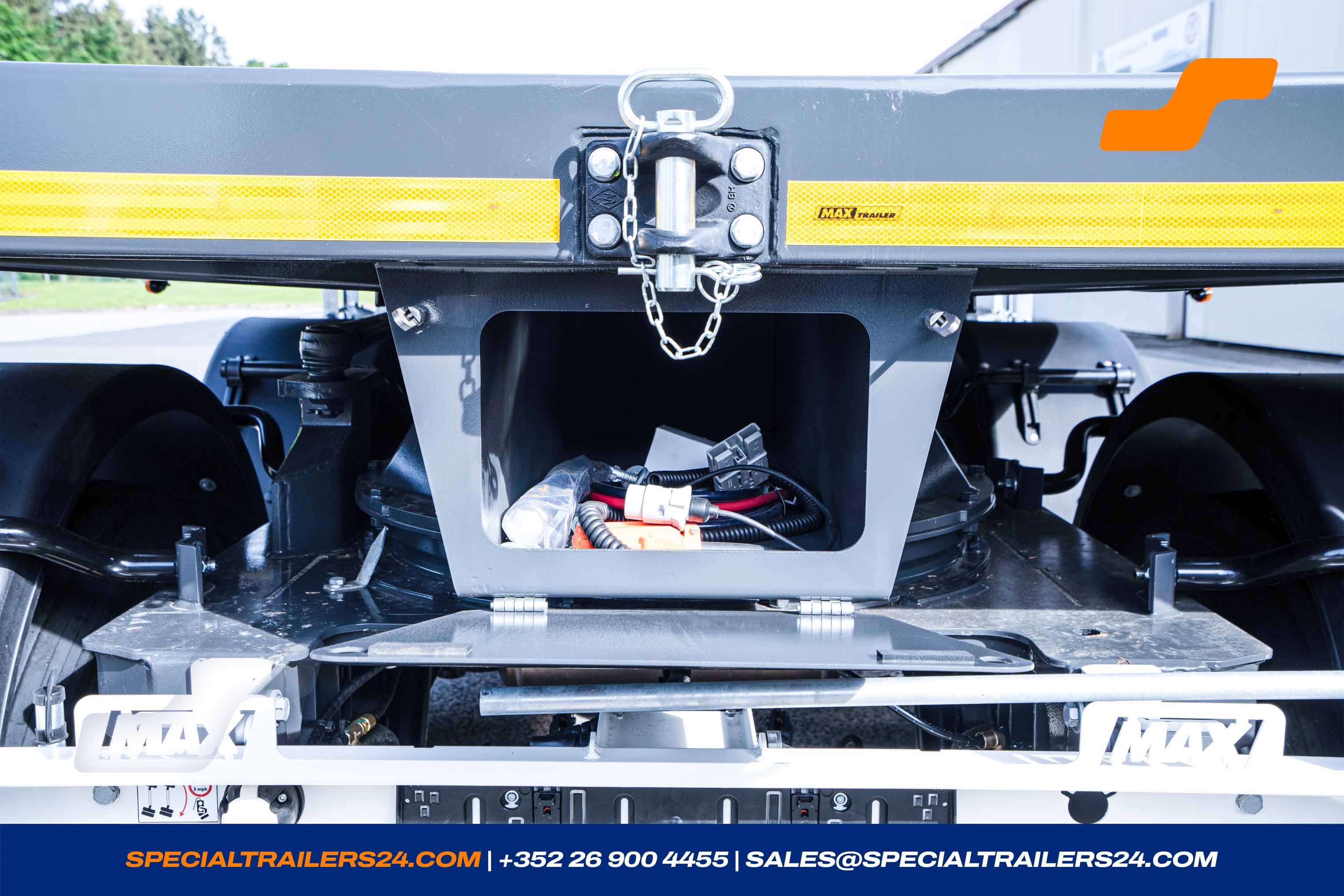

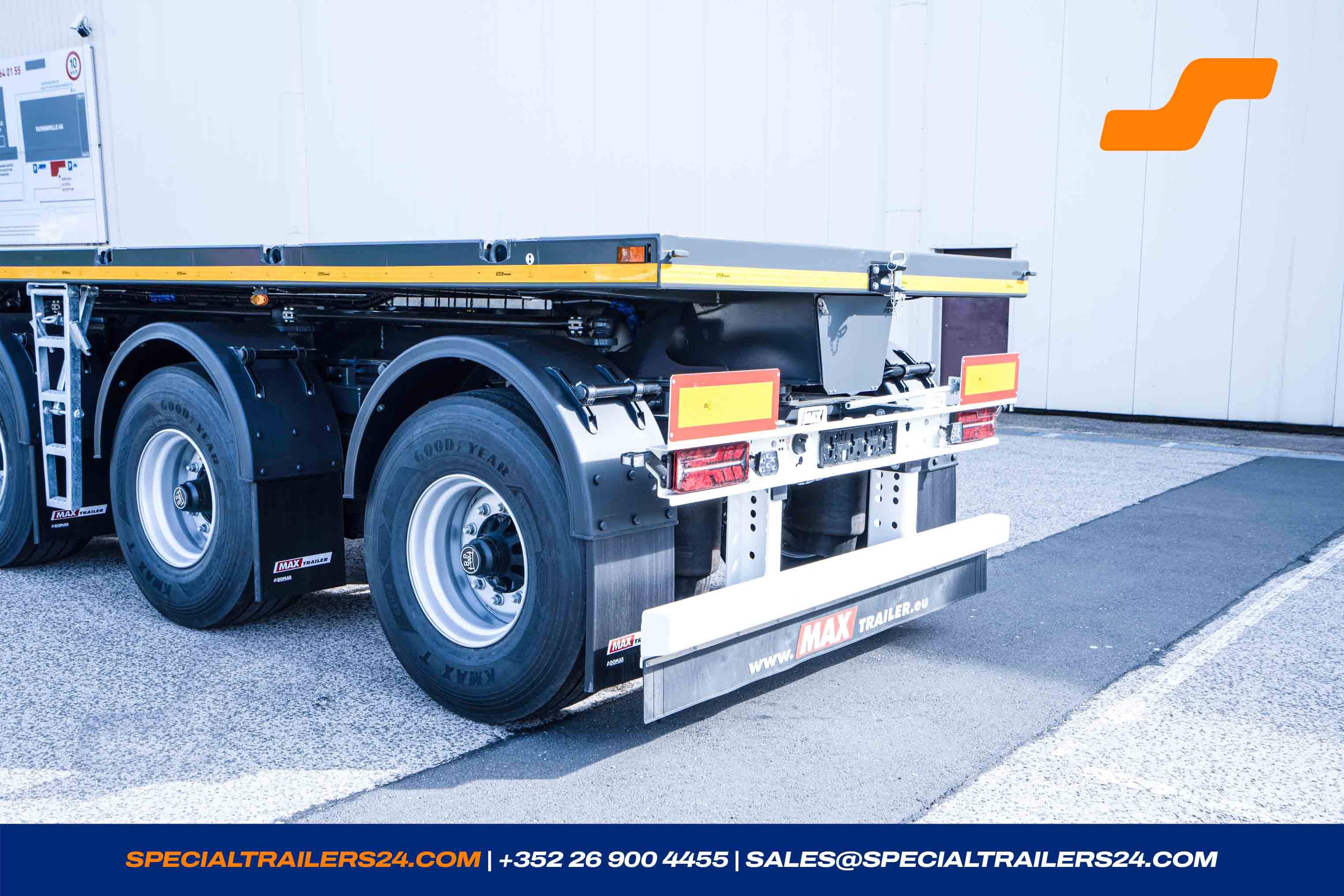

- 1 shunting coupling with reinforcement bolted to the end crossbar.

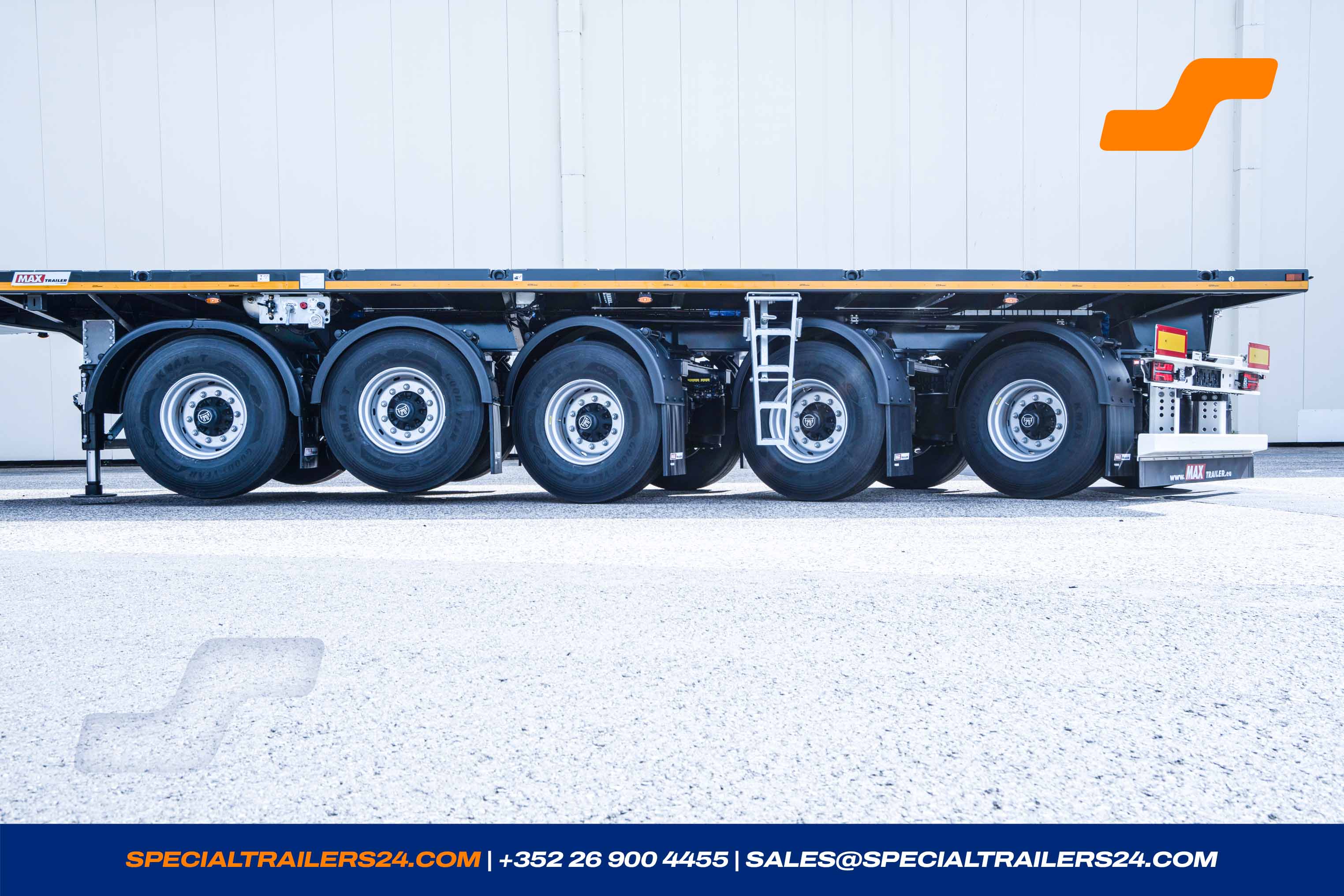

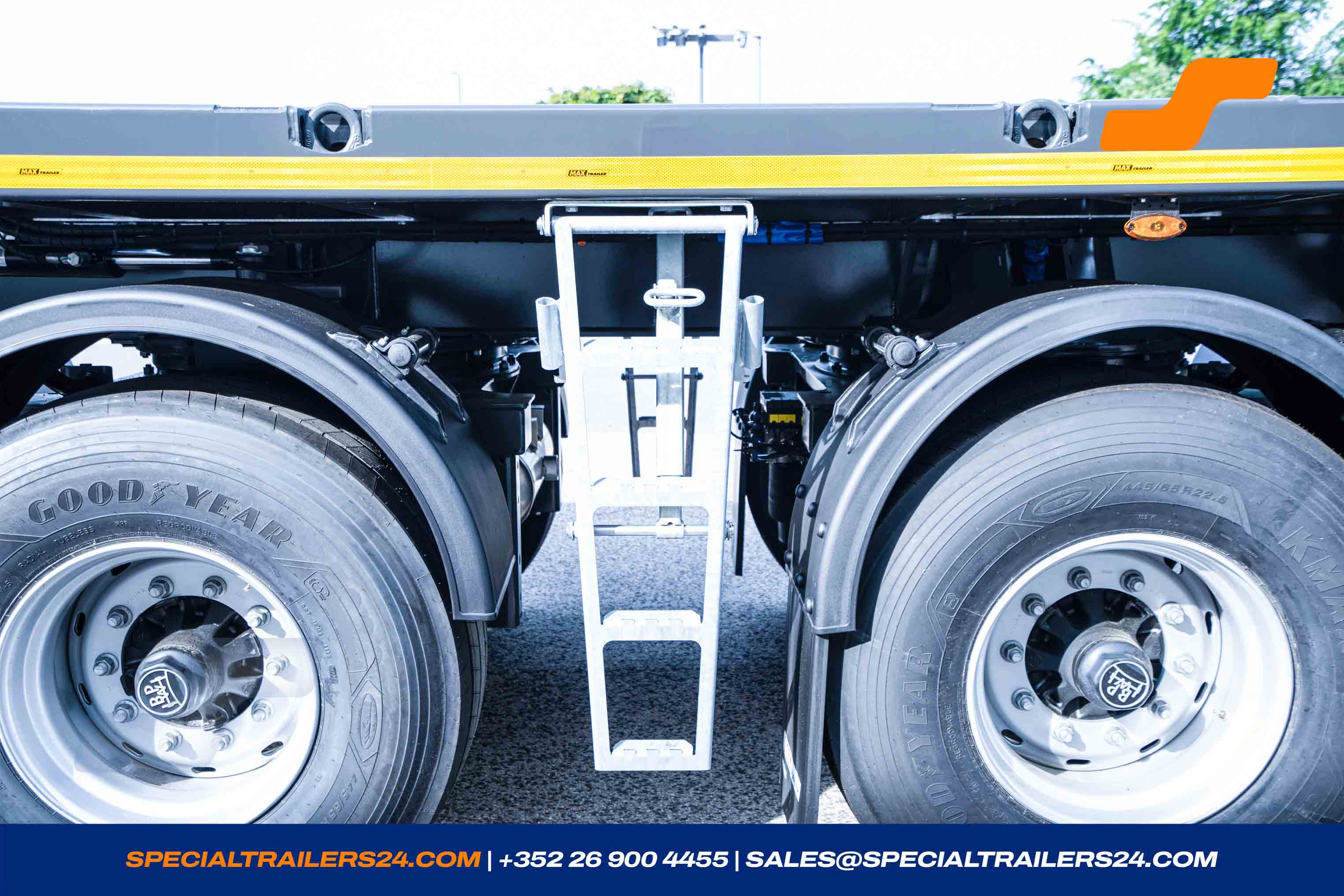

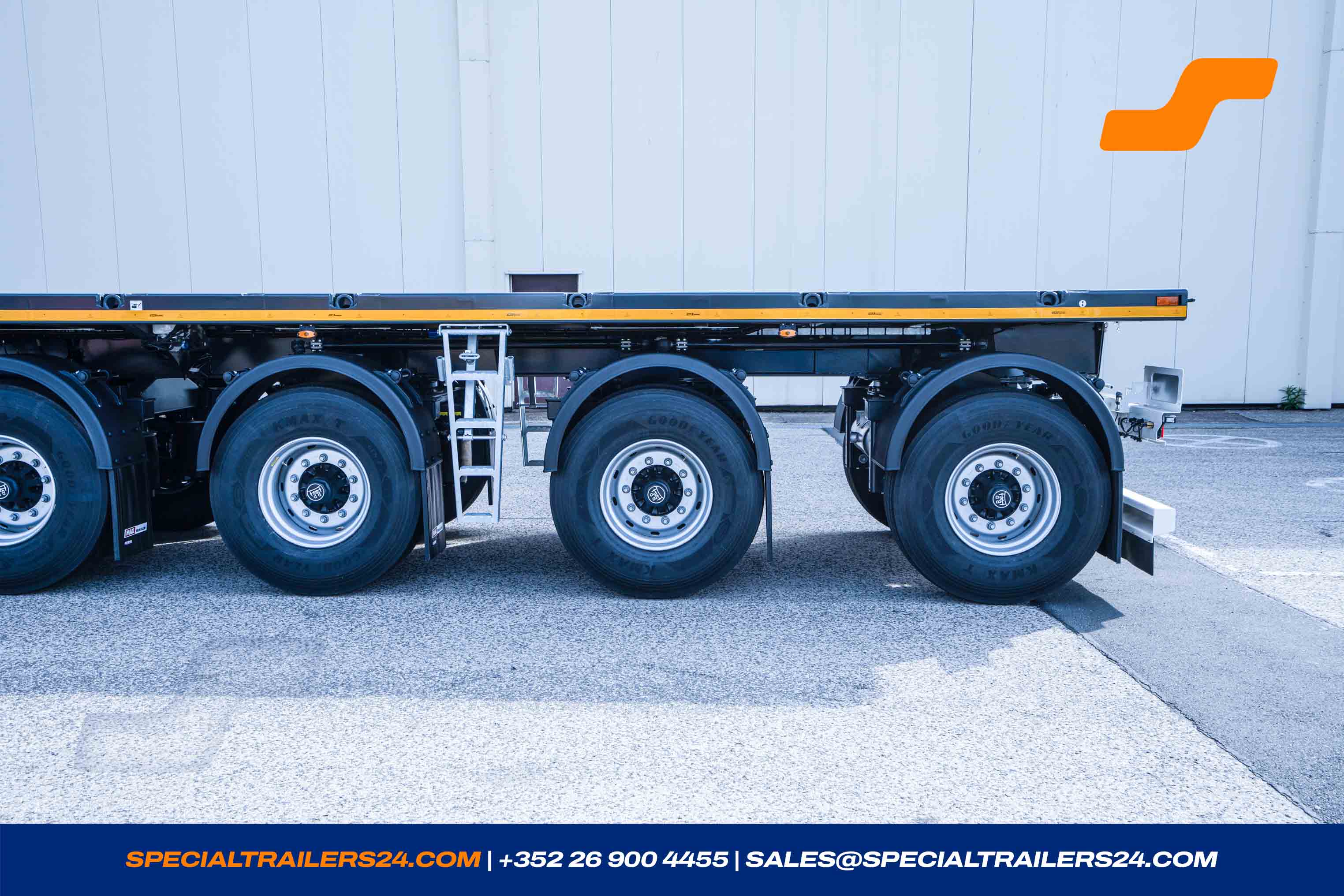

- Adjustable ladder mounted on the left and right hand side. (± 29kg)
Accessories
1 x Accessory
MAX410-Accessory
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

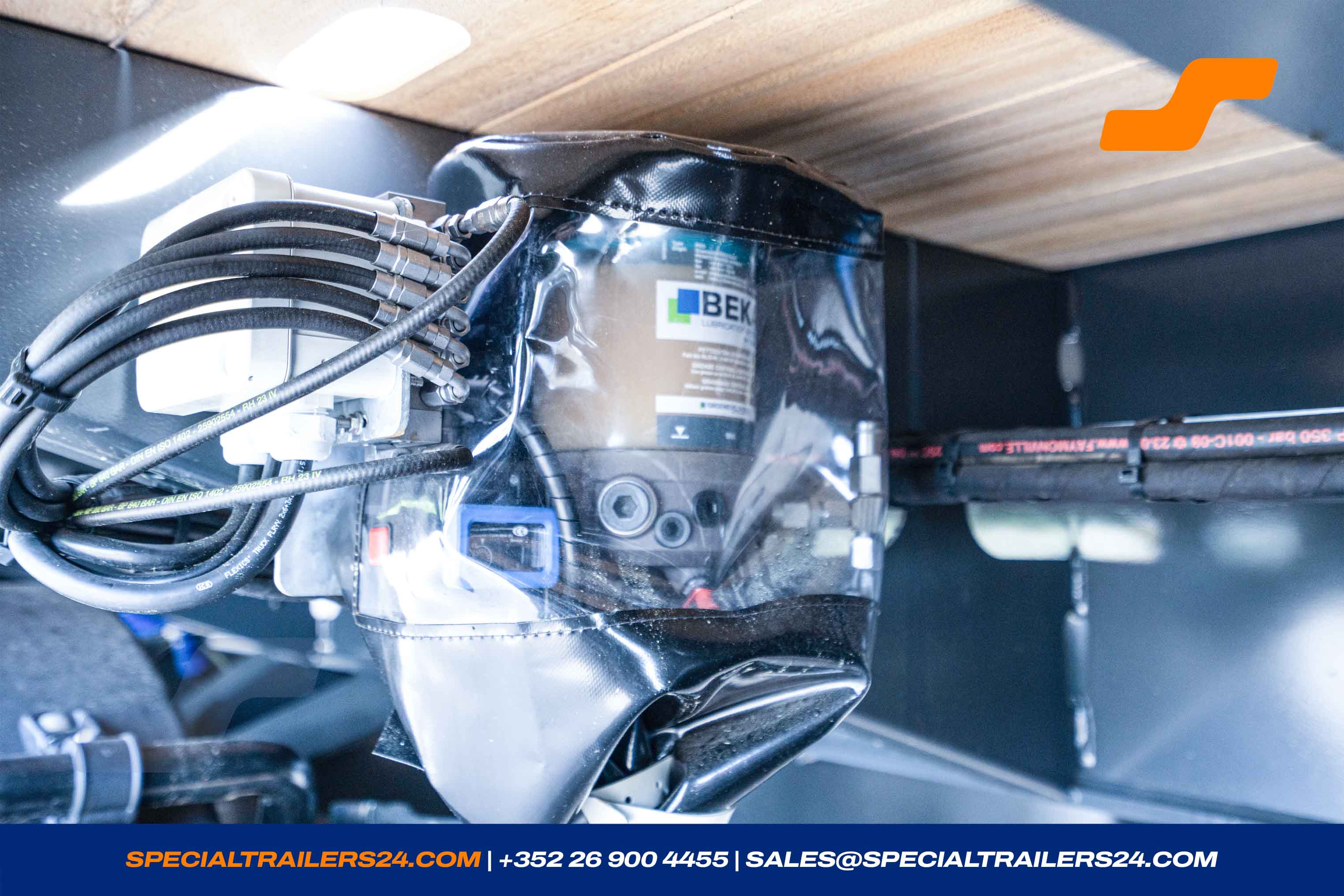

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 2 LED- reversing lights at the rear.

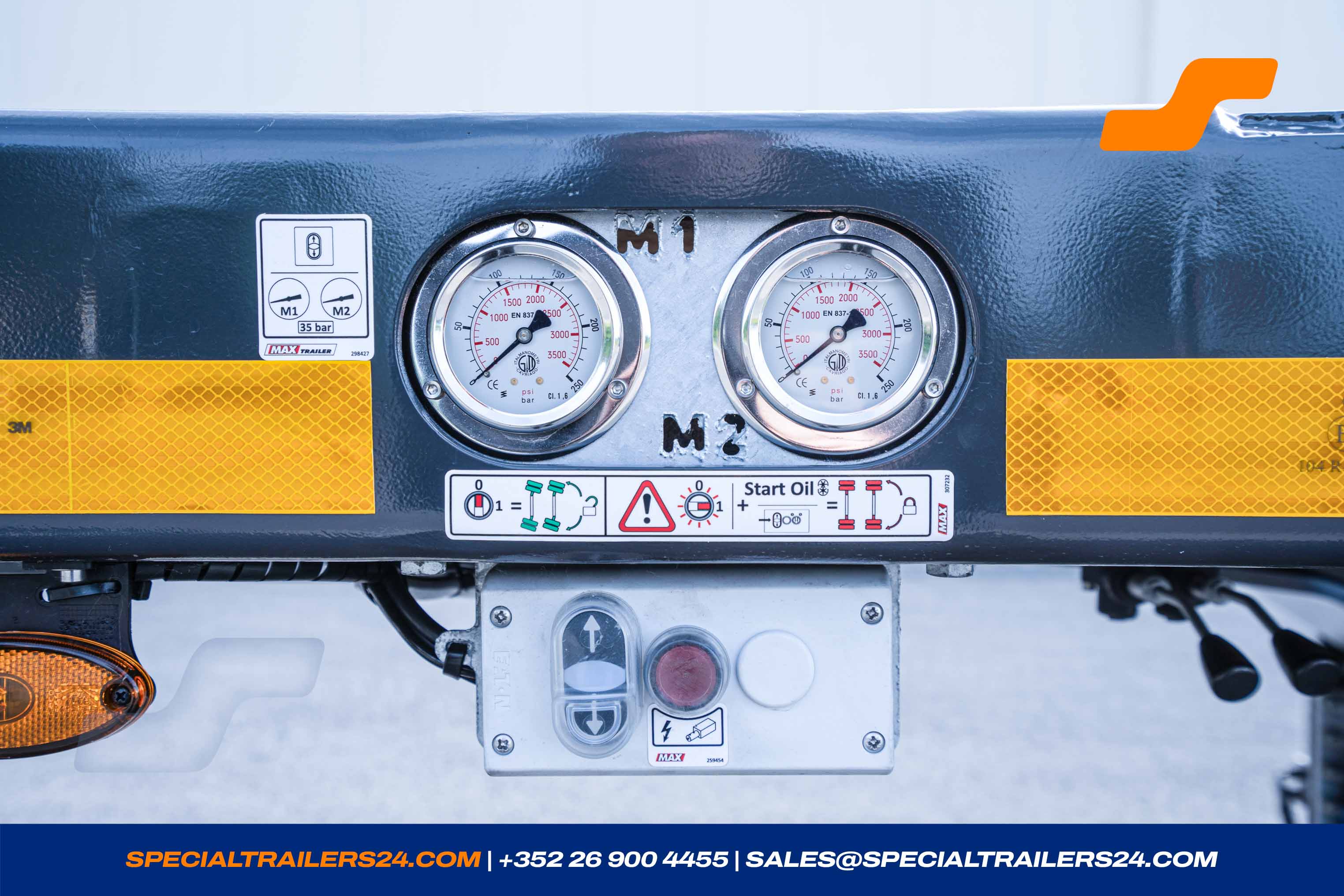

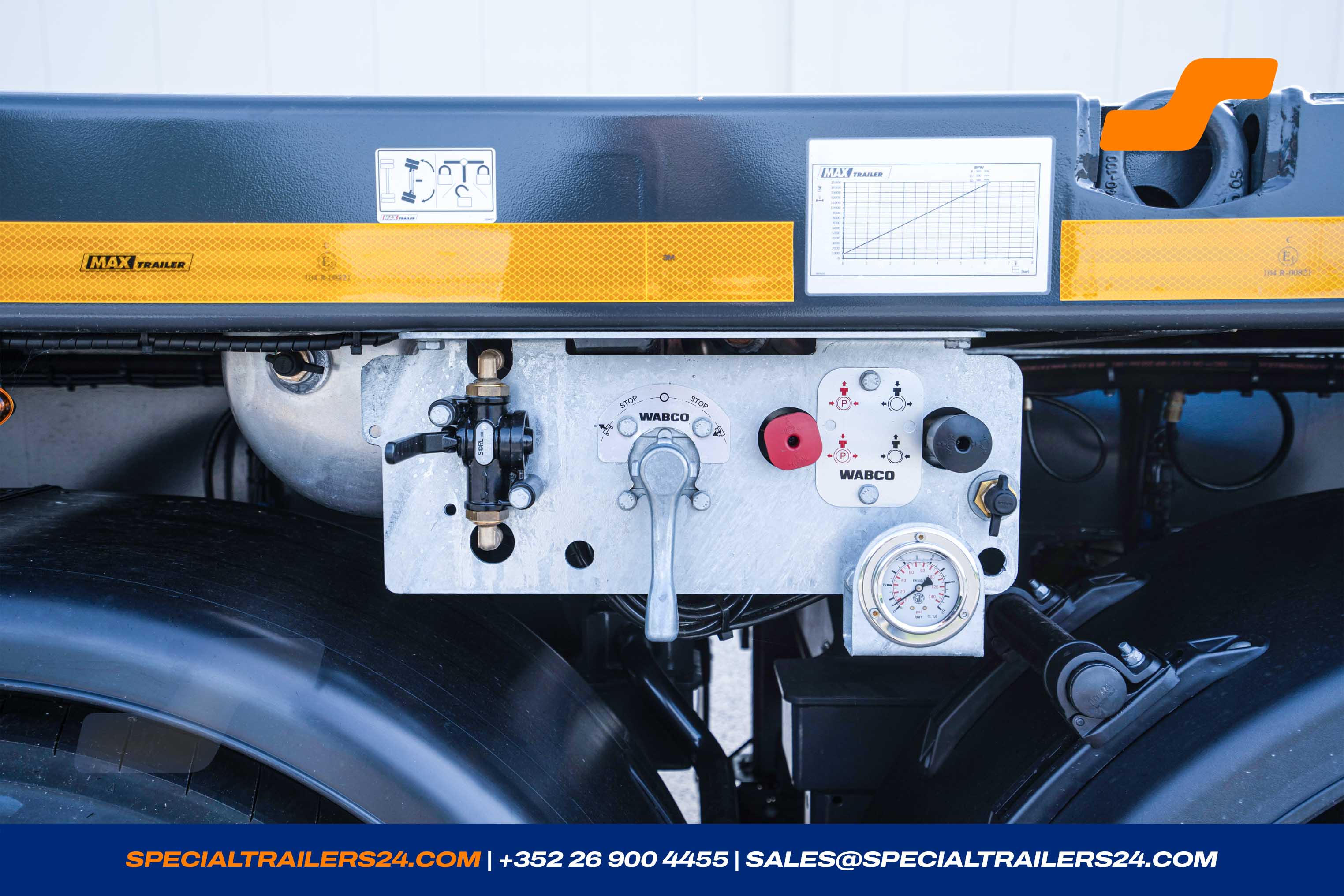

- Load manometer for determining the axle load, including load diagram.
- Delivery from a trailer to factory Lentzweiler.
