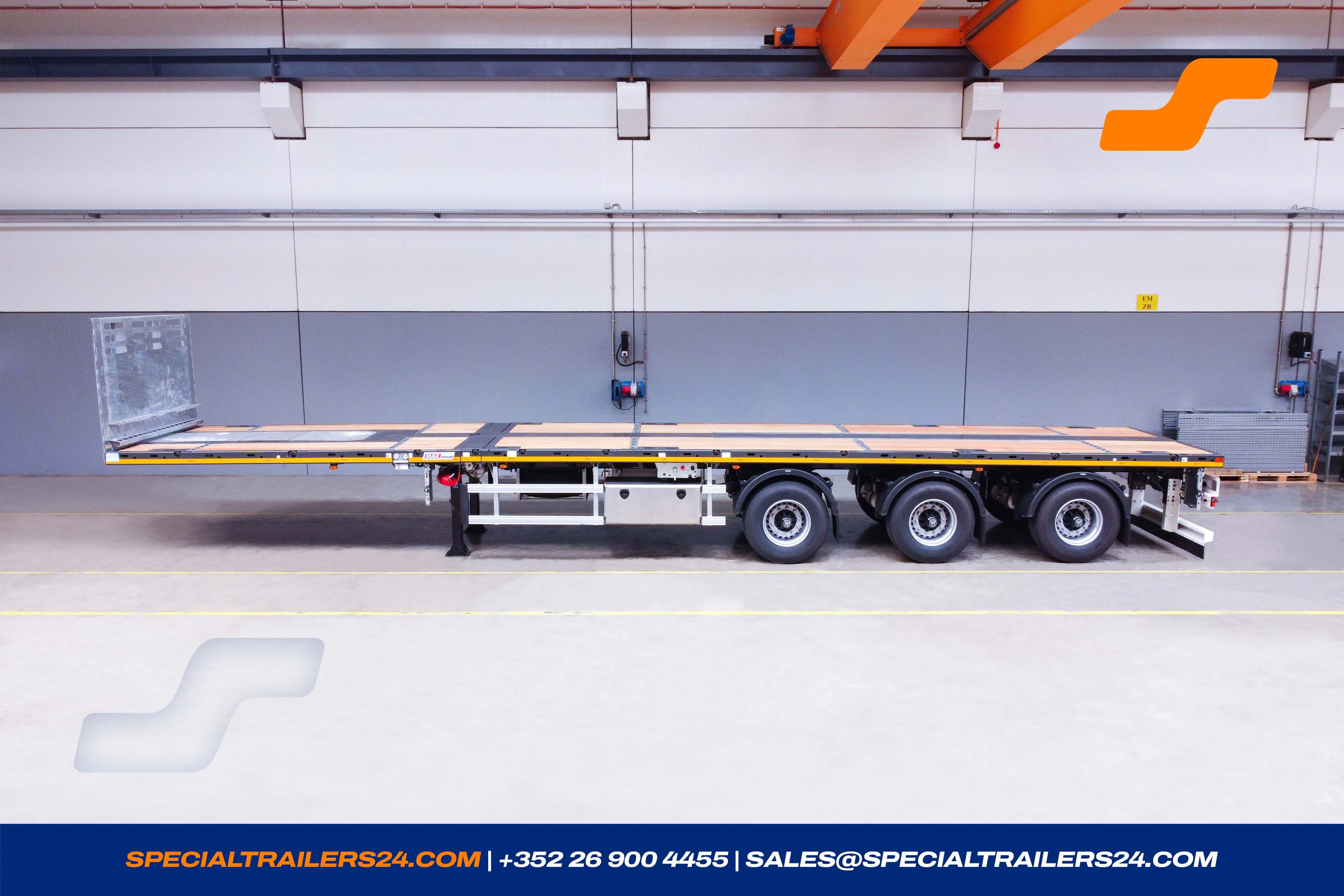

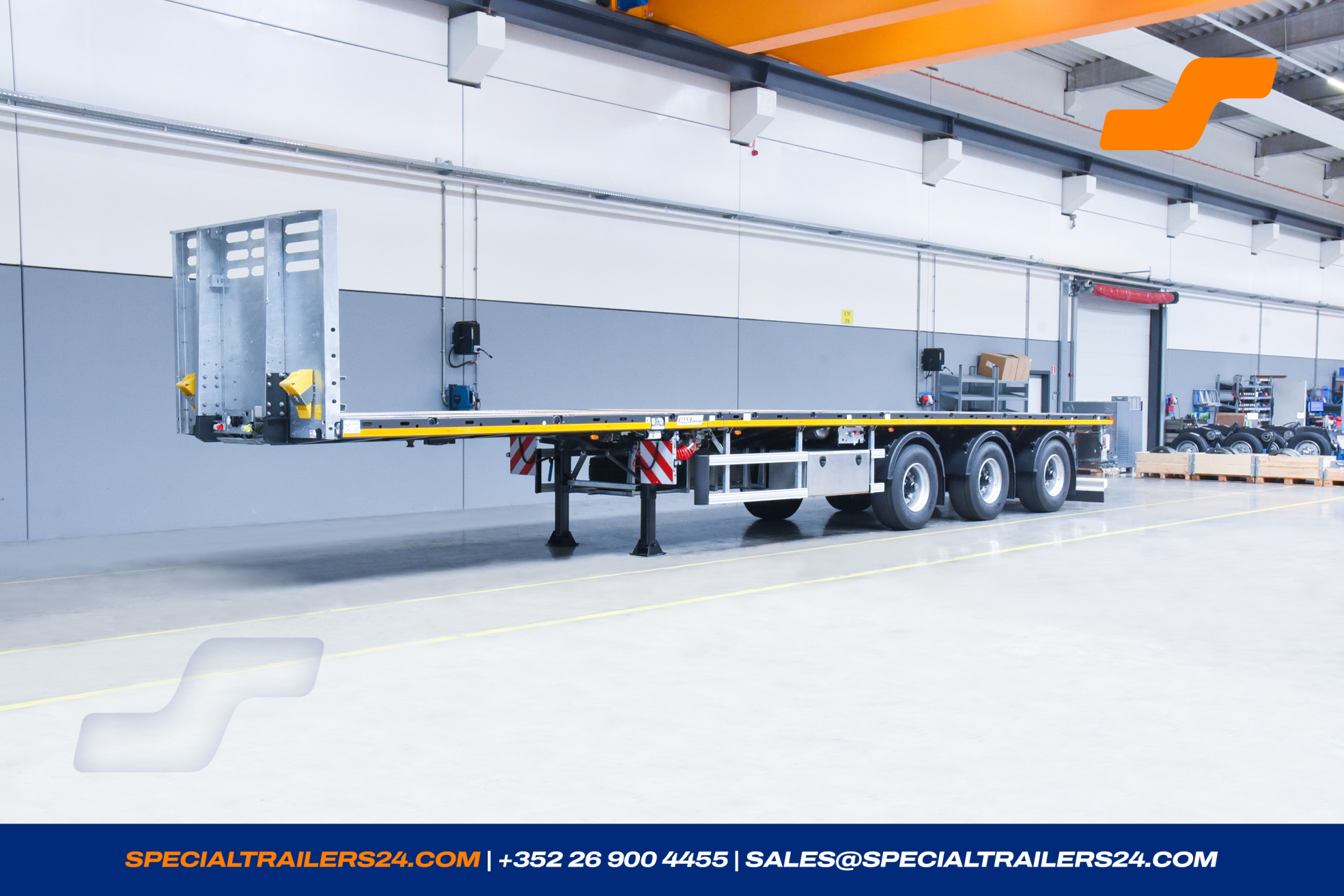

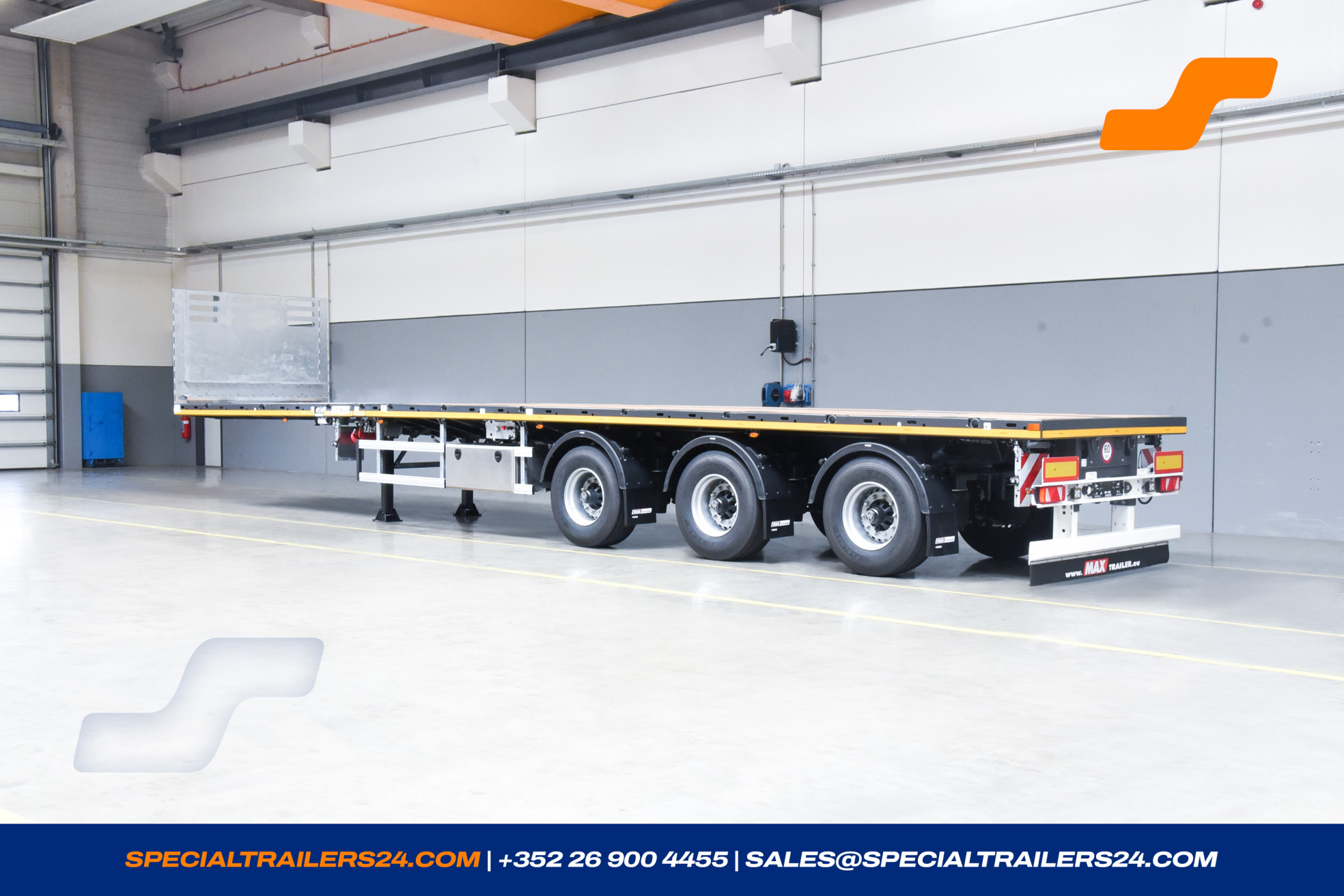

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112396
- Reference MAX210-Z-3AA-13.60-22.5-2.54

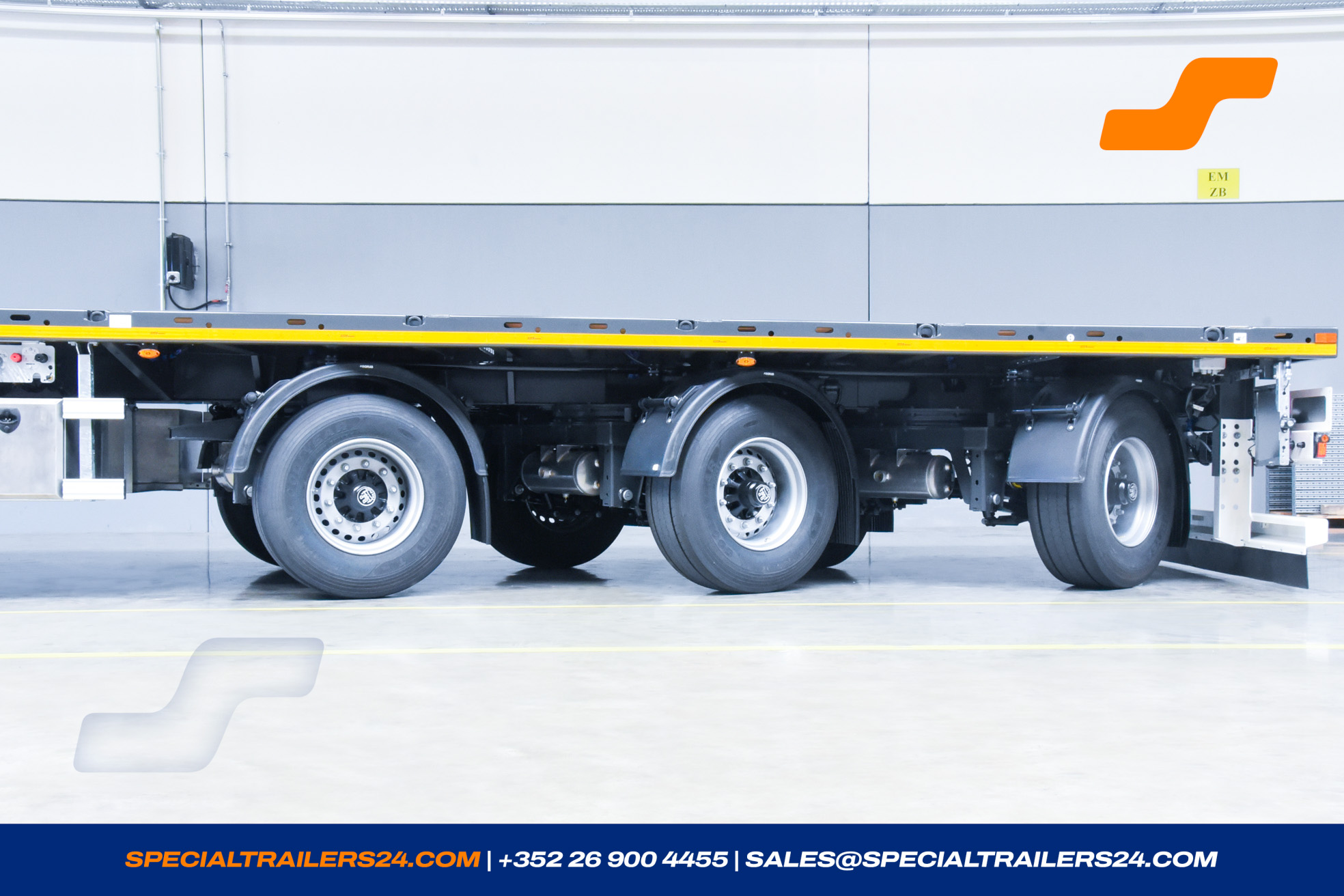

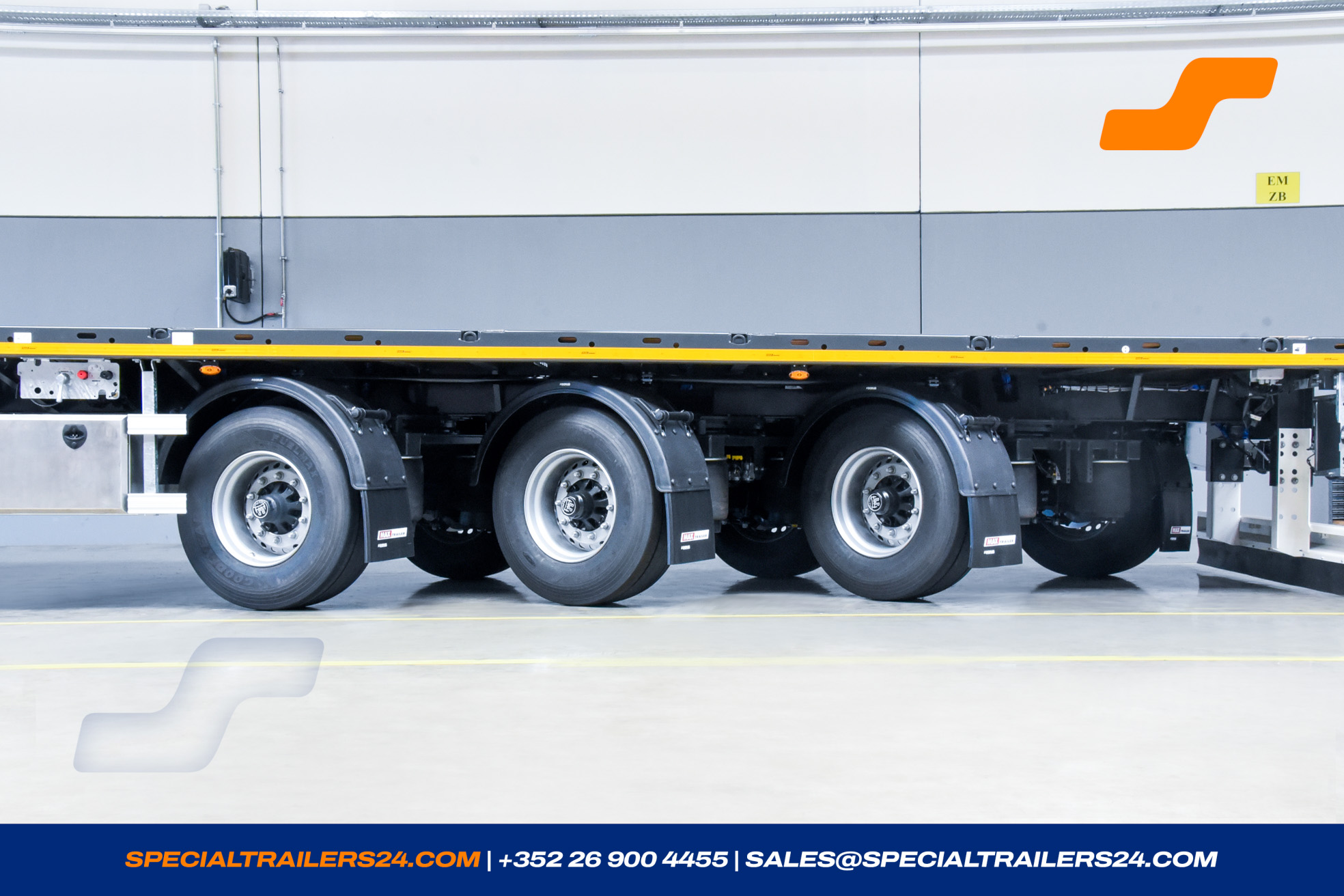

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 11/2026
- Steering Type Hydraulic
Availability
11/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 30000 kg |
| Gross weight | 48000 kg |
| Tare weight +- 3% | 11542 kg |
| Payload | 36458 kg |
Dimensions
| Fifth wheel height loaded | 1200->1270 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |

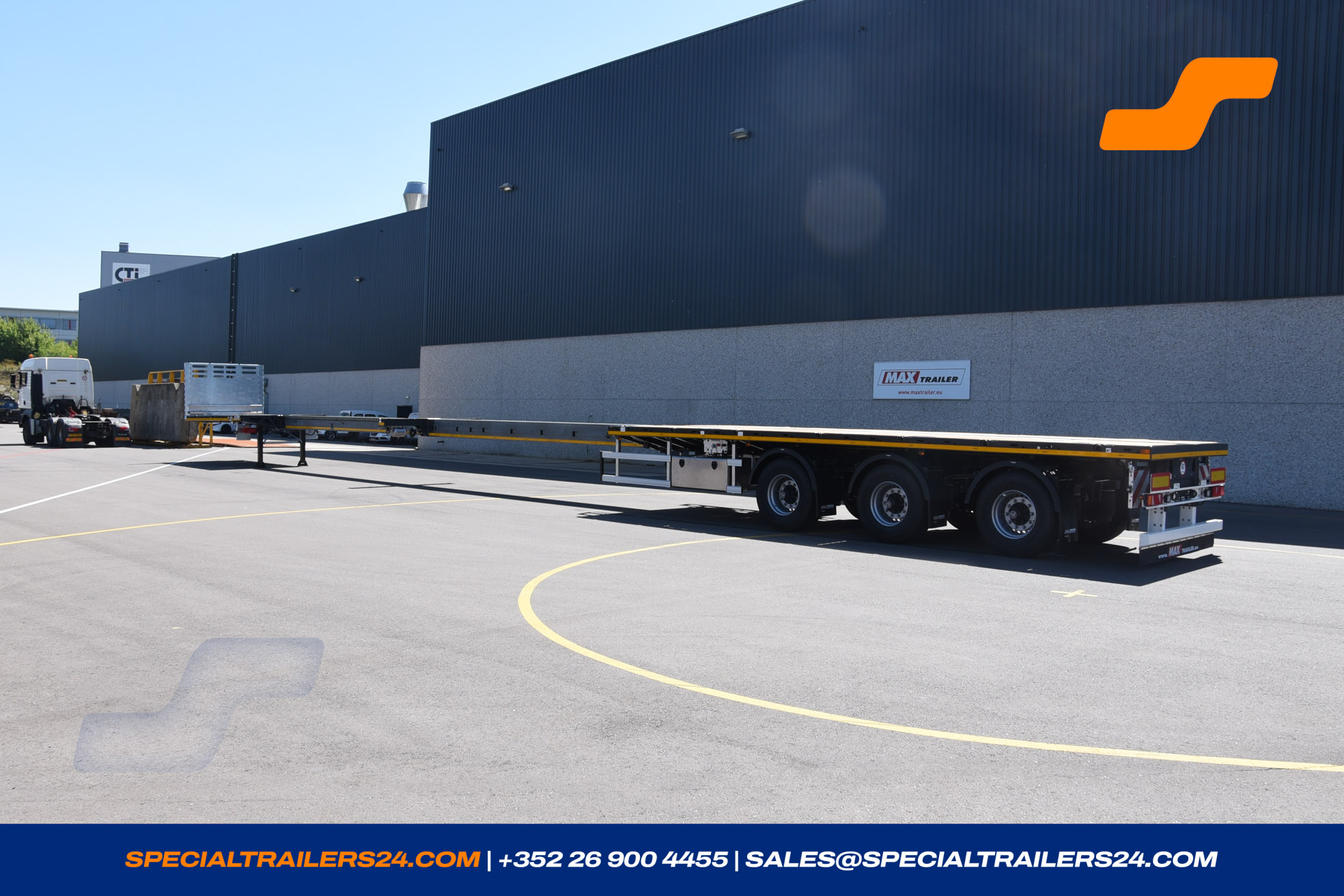

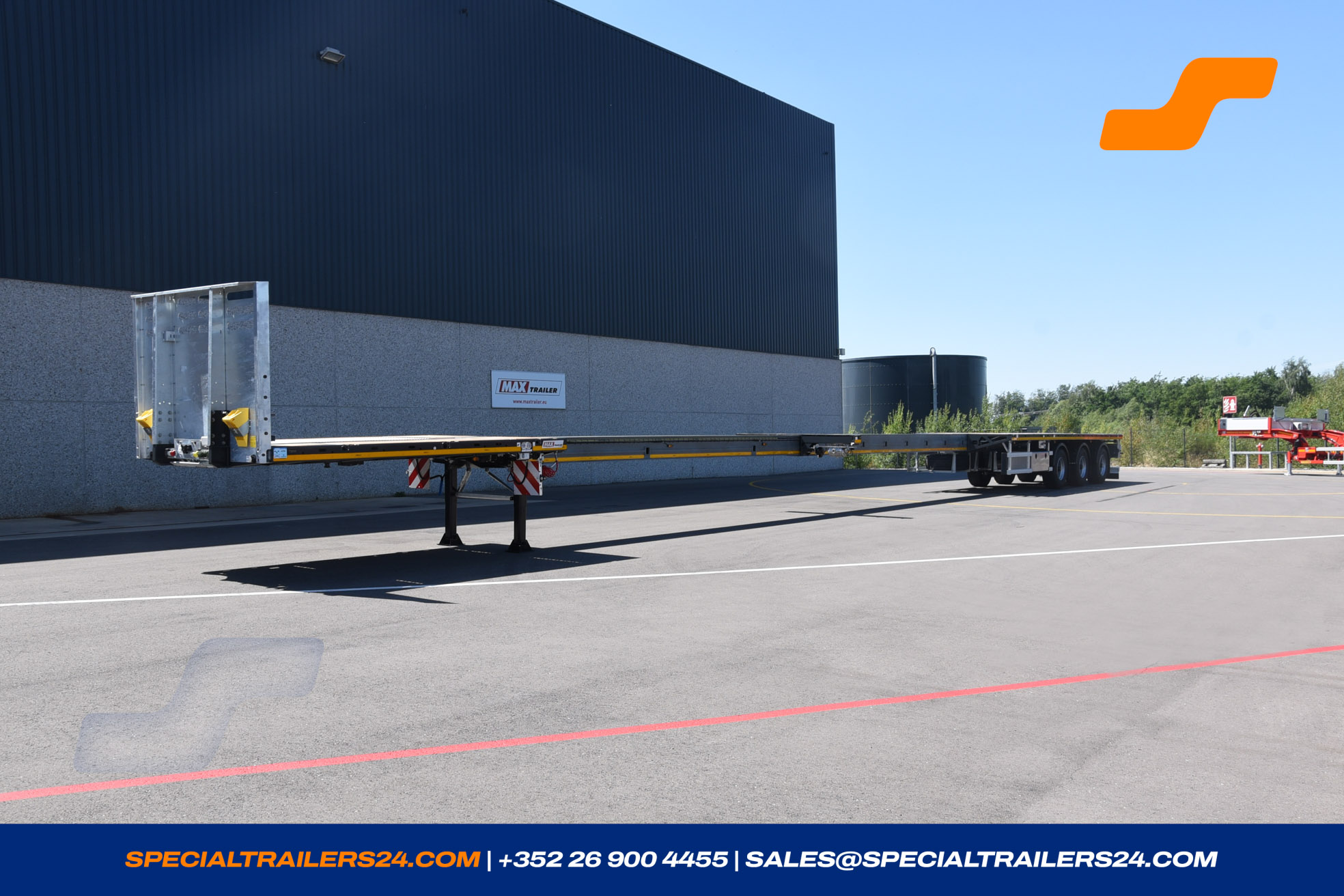

| Extendable by | 15 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX210-Z-3AA(15400)-13.60-22.5-2.54(DSR 2300-ASH 1200->1270-11T)

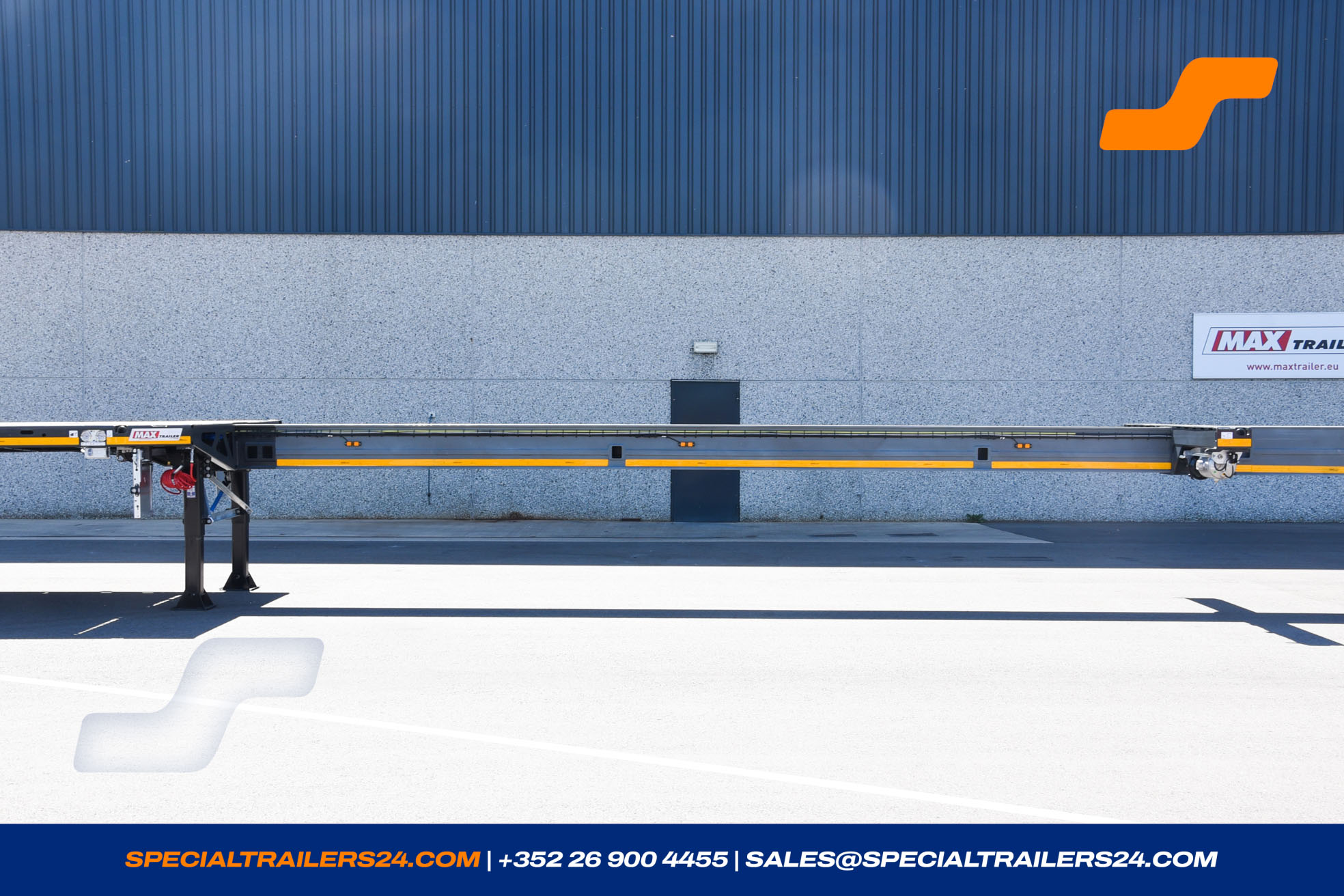

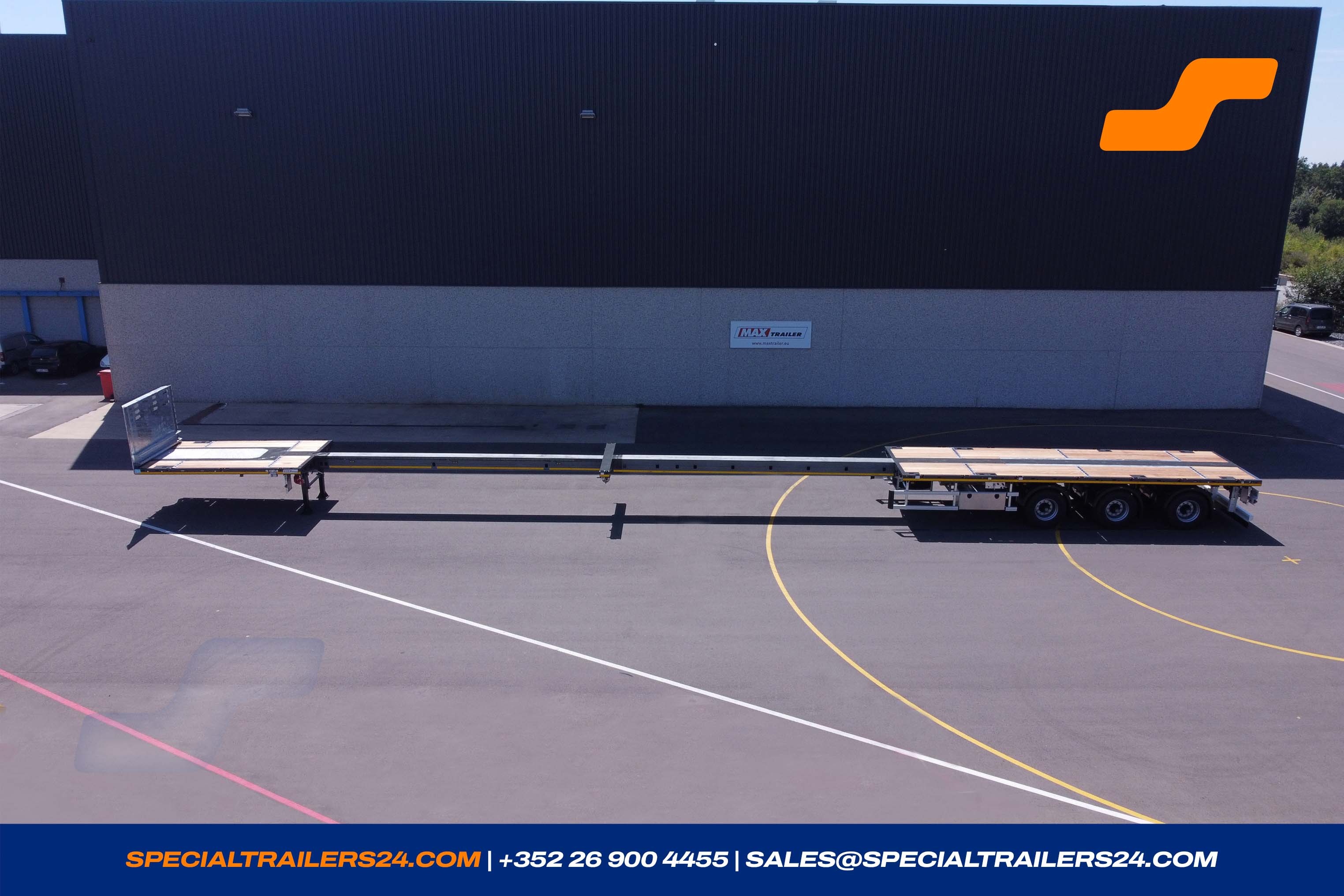

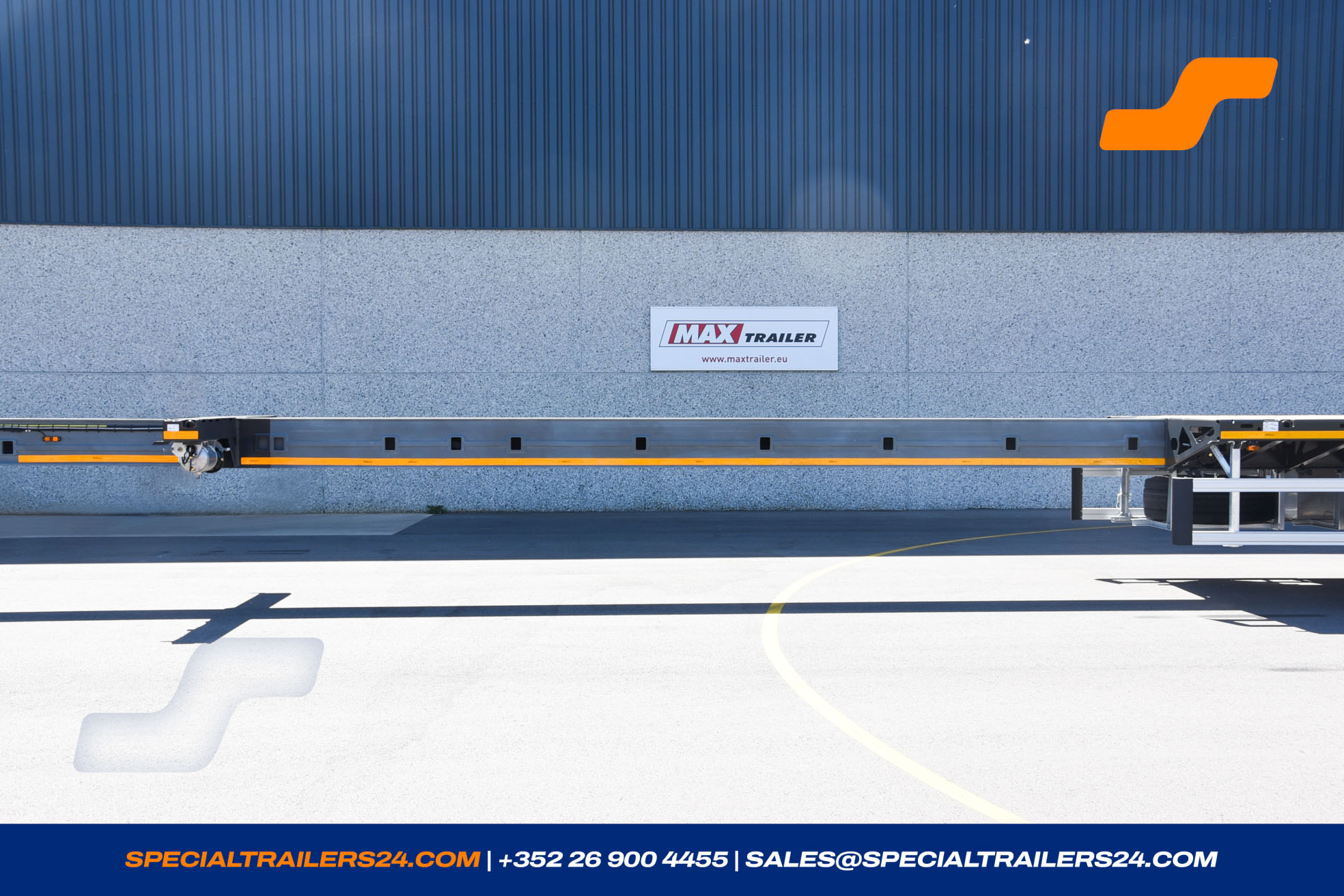

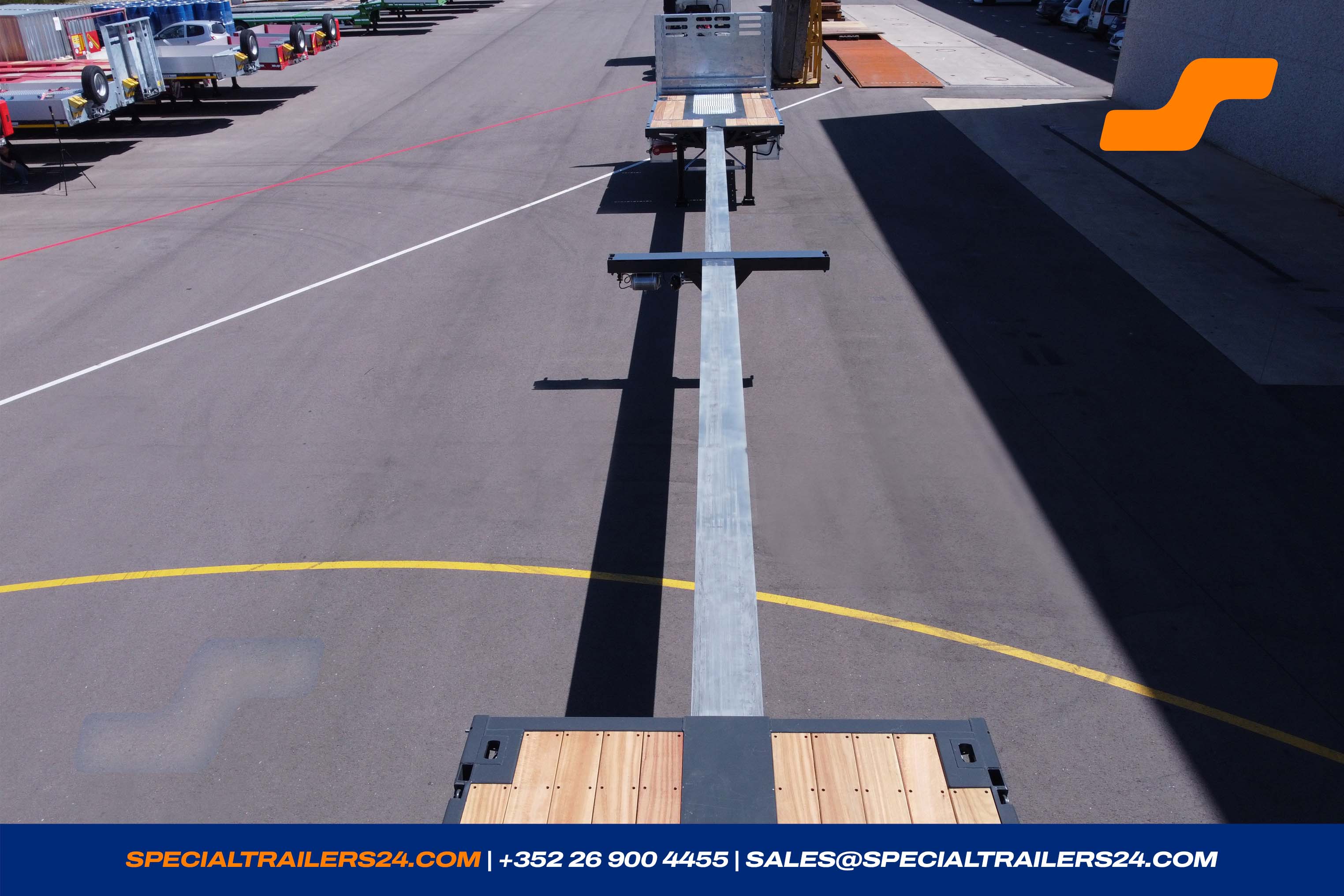

Loading area extendable center spine, pneumatically locked.
One fixed intermediate tabel + - 250 mm on the extension beam
8 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-

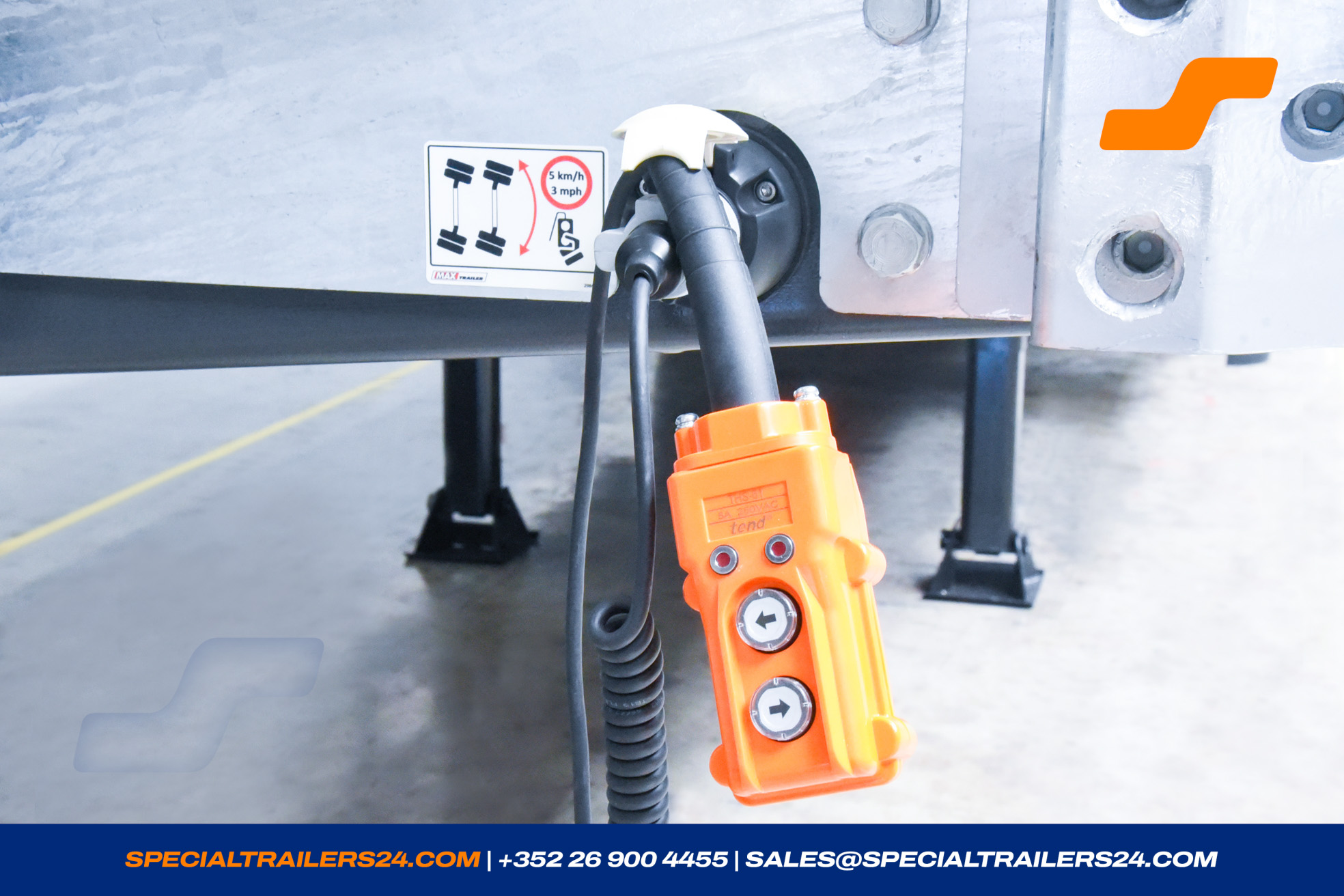

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- 2 king-pin.
-

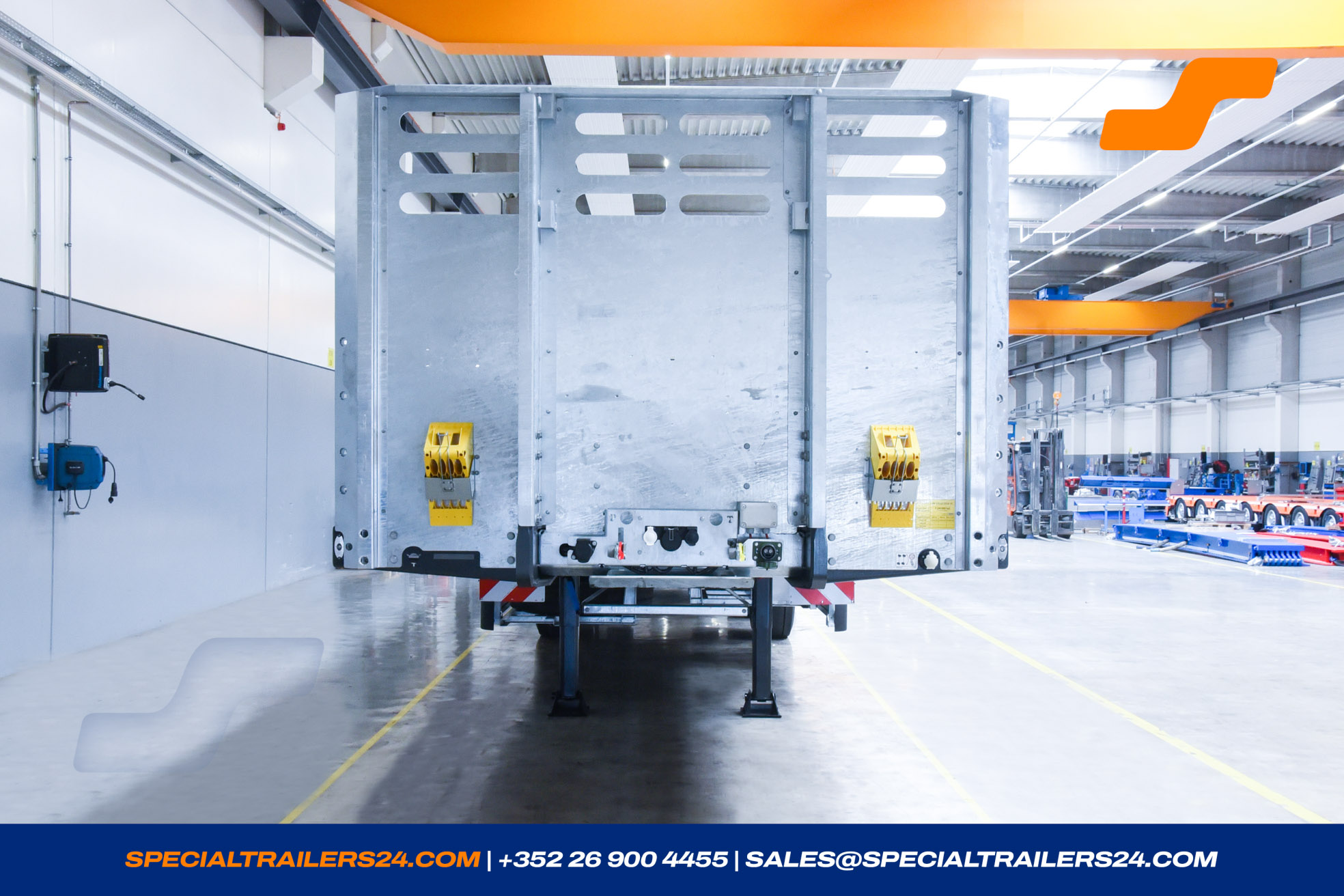

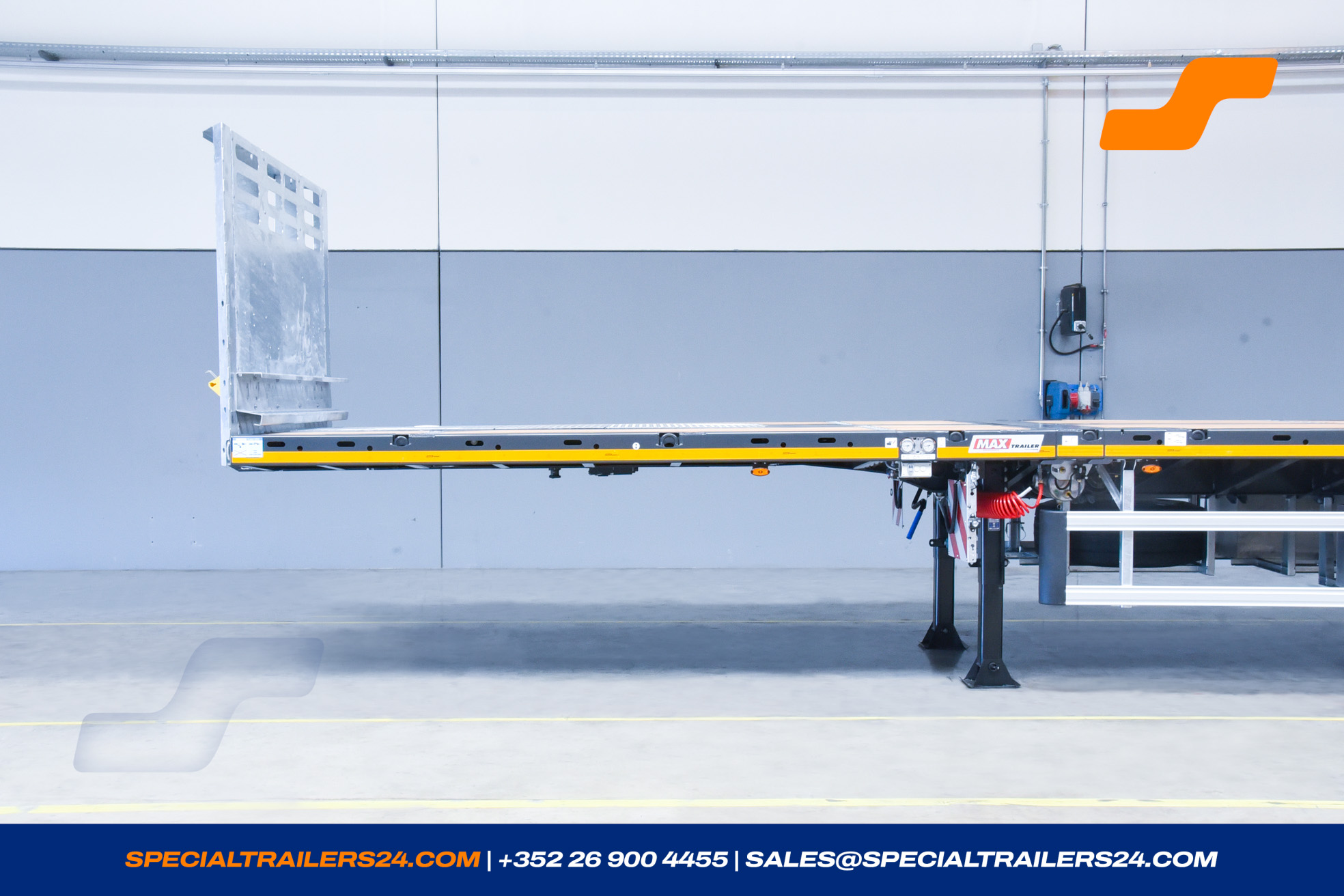

One galvanised steel headboard, height ± 1 200 mm.

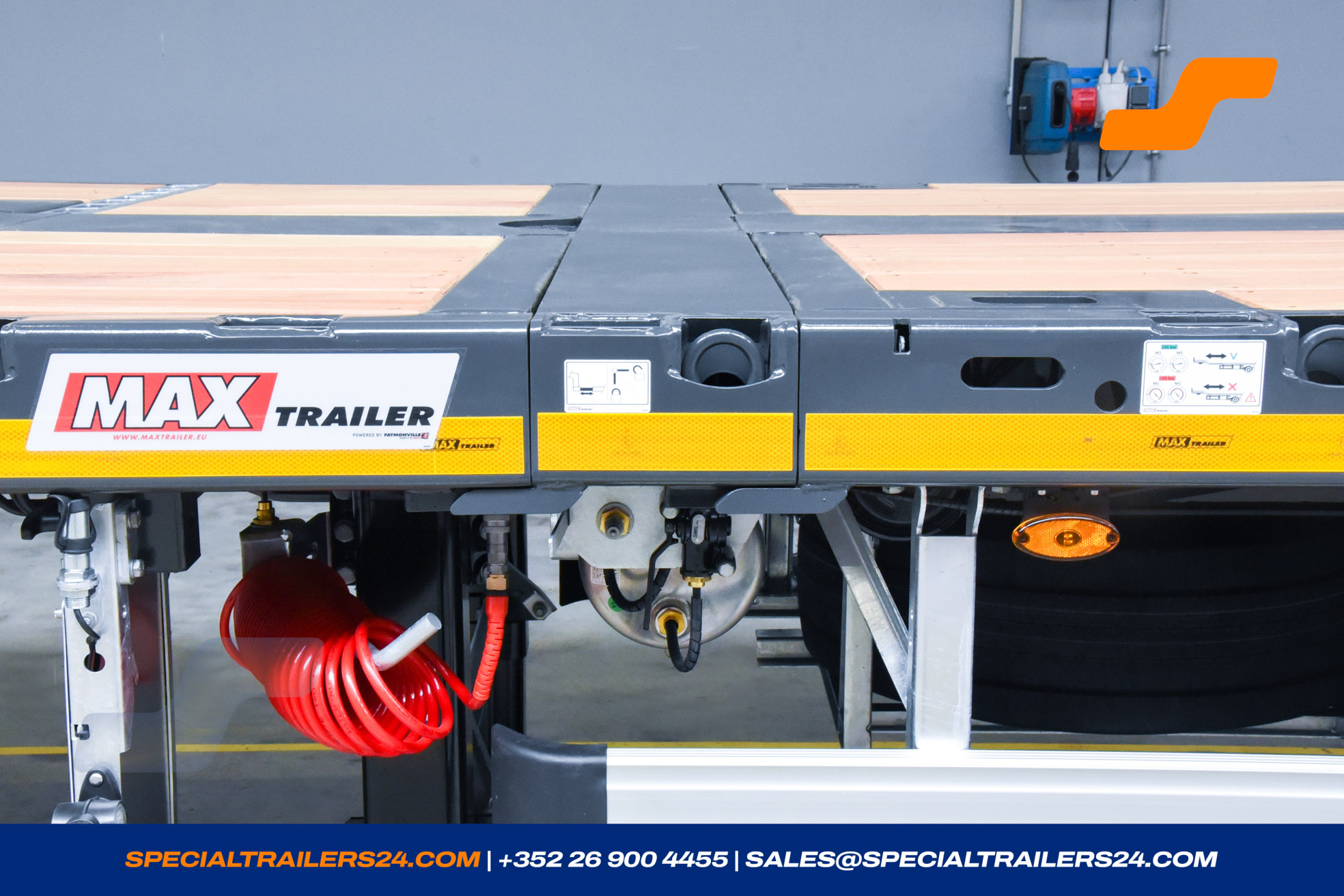

EN12642-XL - Red and yellow air couplings on the galvanised front connection ledge.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

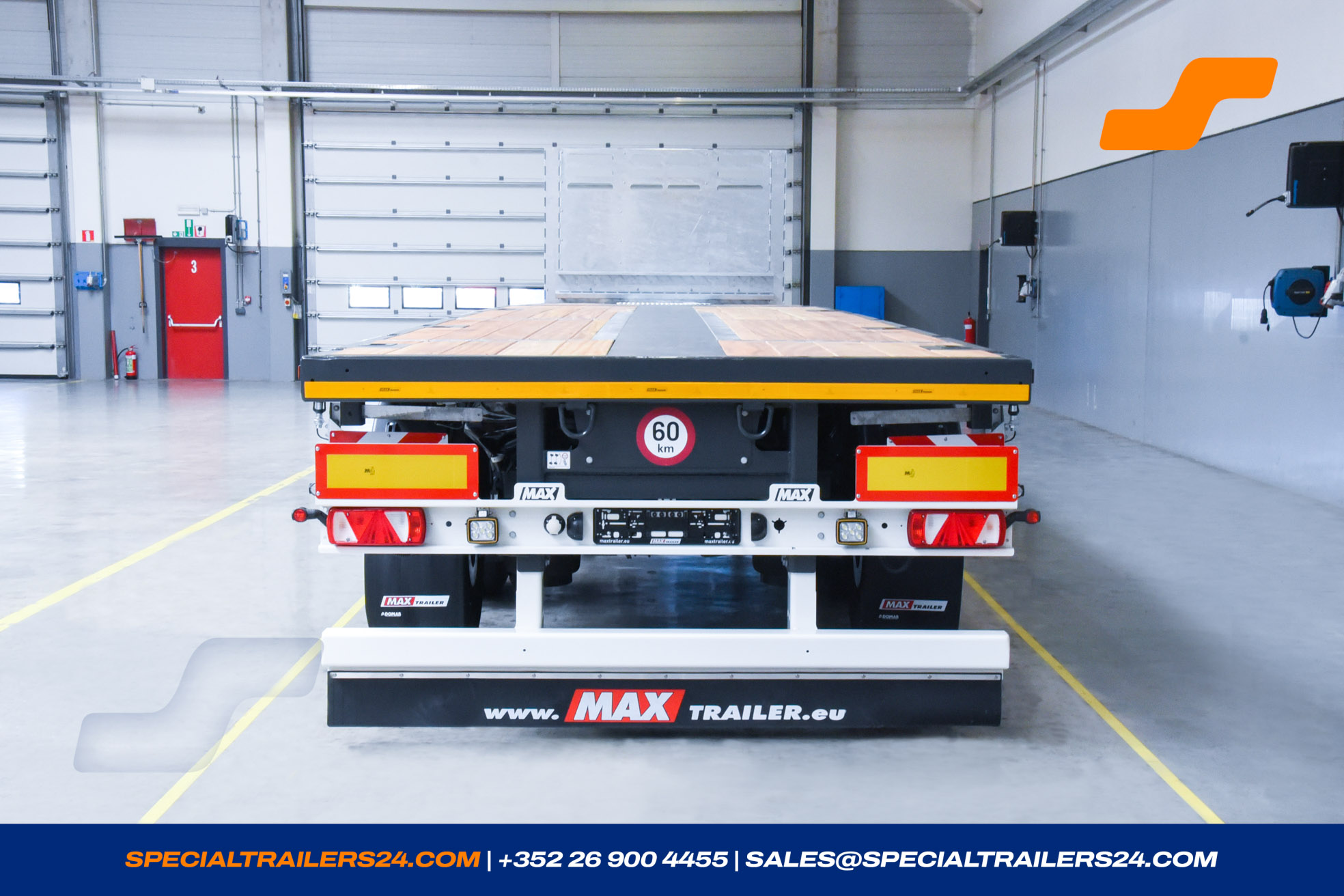

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)

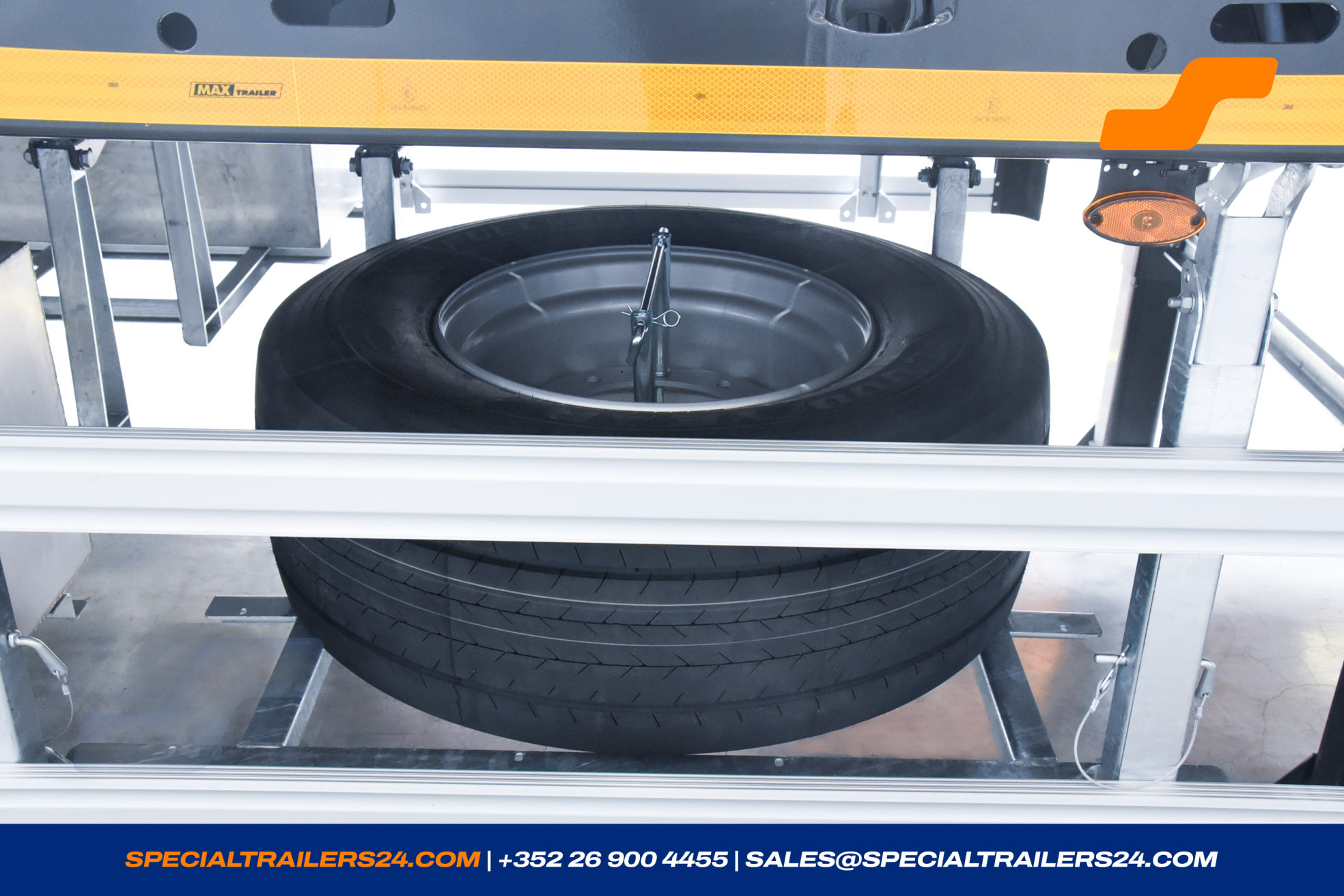

- 1 spare wheel carrier, under the loading platform on the right side.

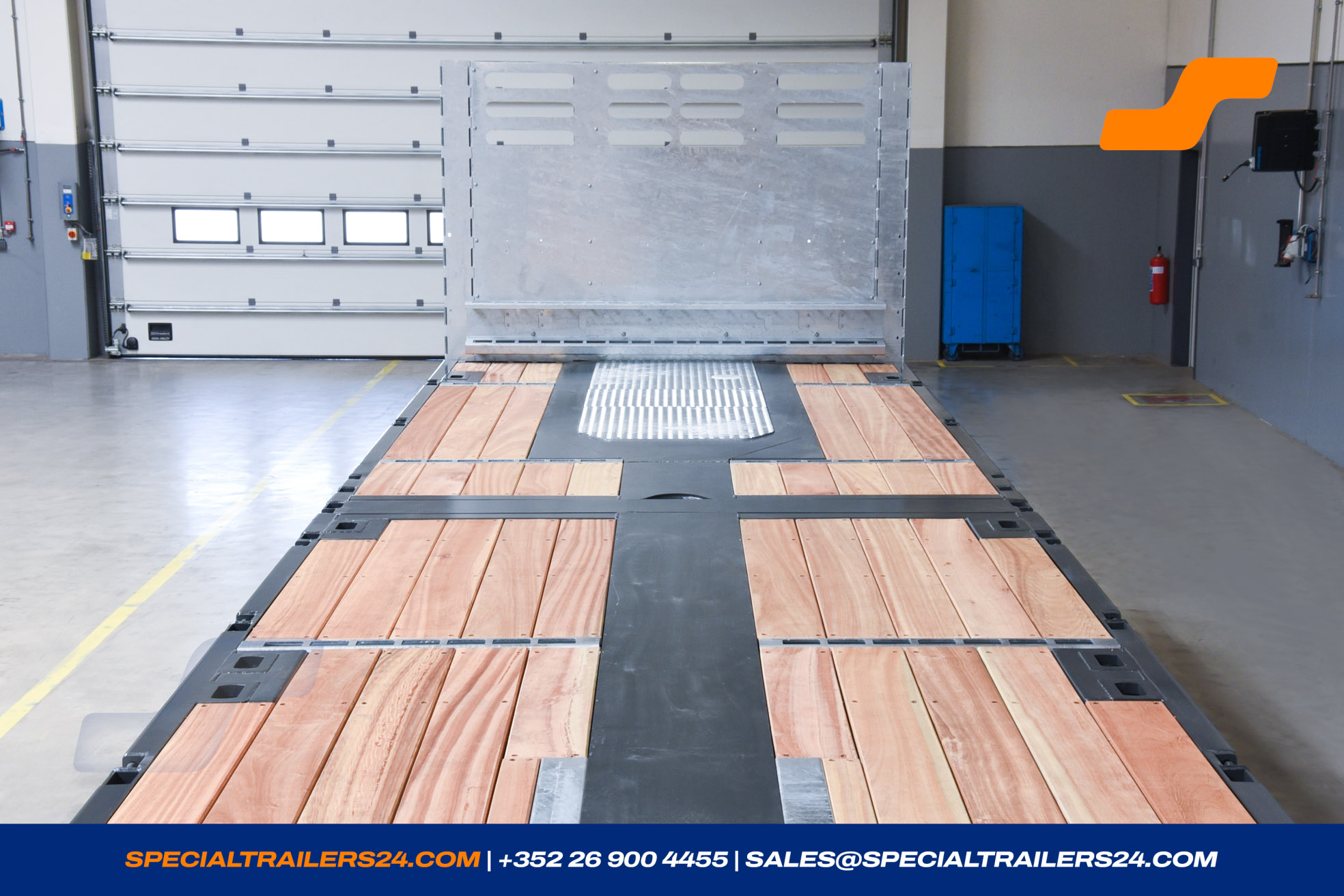

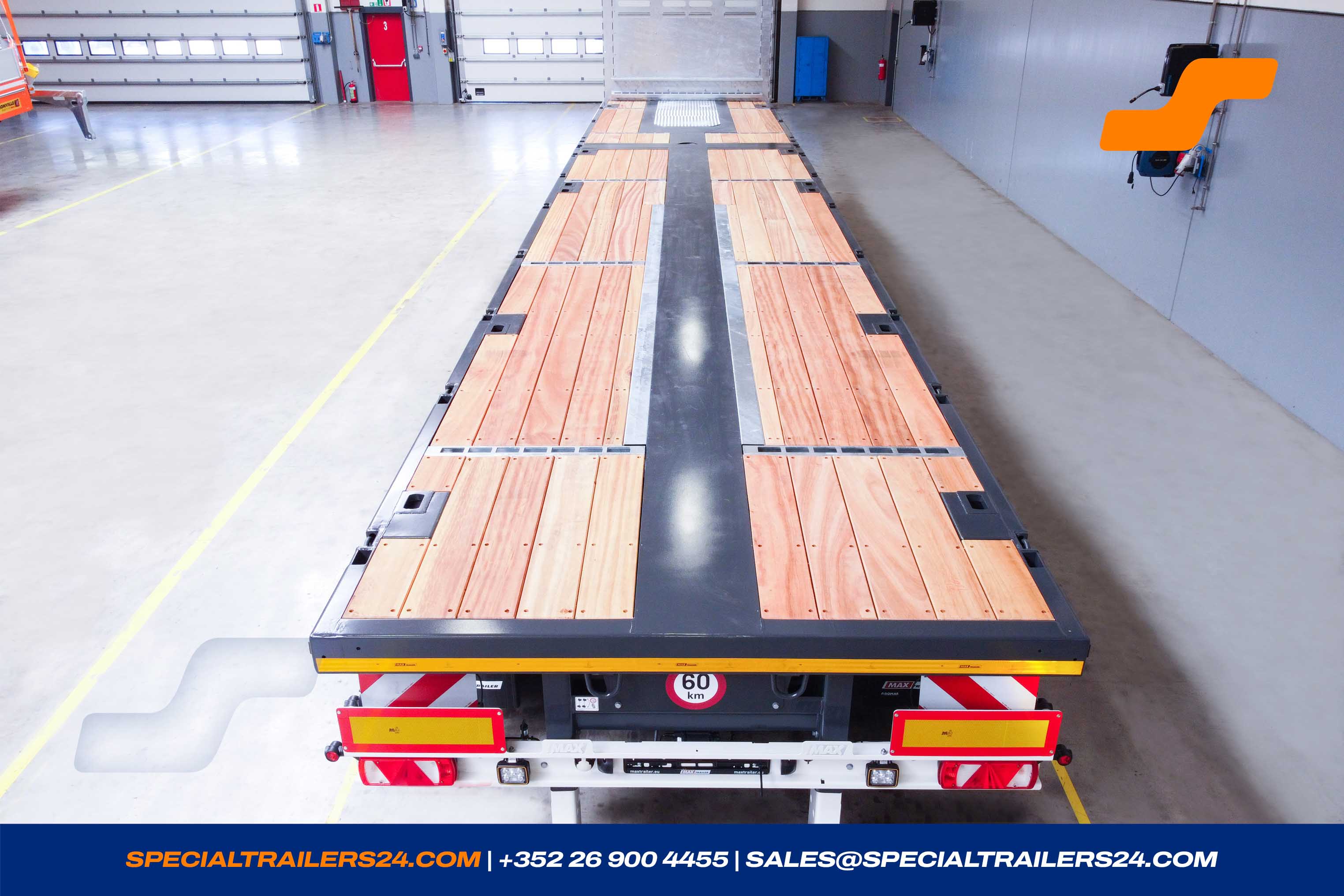

- Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 298 kg)
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 2 pairs of WADER-containerlocks (± 30 kg).
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)
- 9 pairs of galvanised stakes ± 100 x 50 mm, height 1 000 mm. (± 200 kg)
- Storage for stakes 1 000 mm. (± 45 kg)

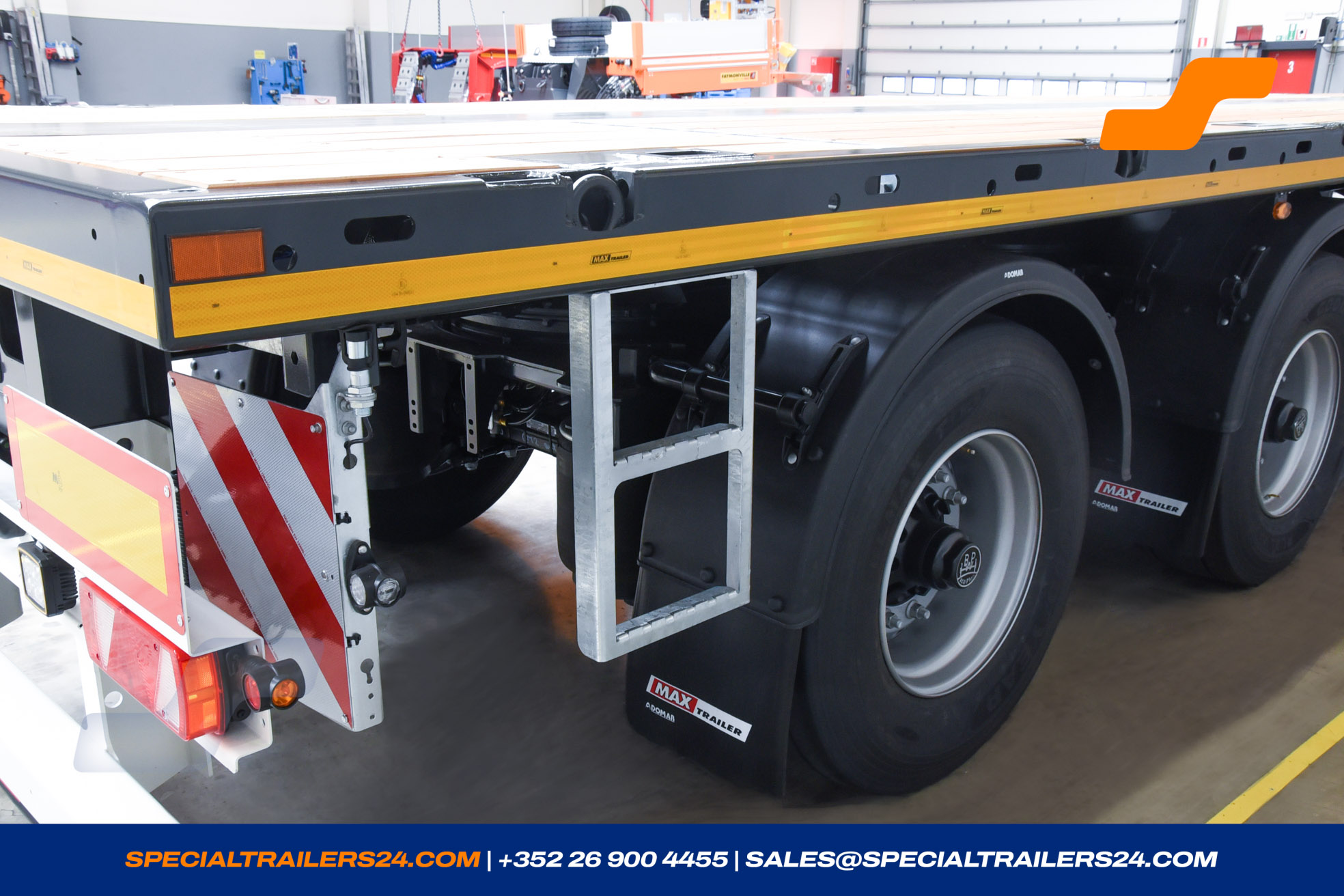

- Ladder mounted on the right hand side. (± 12kg)

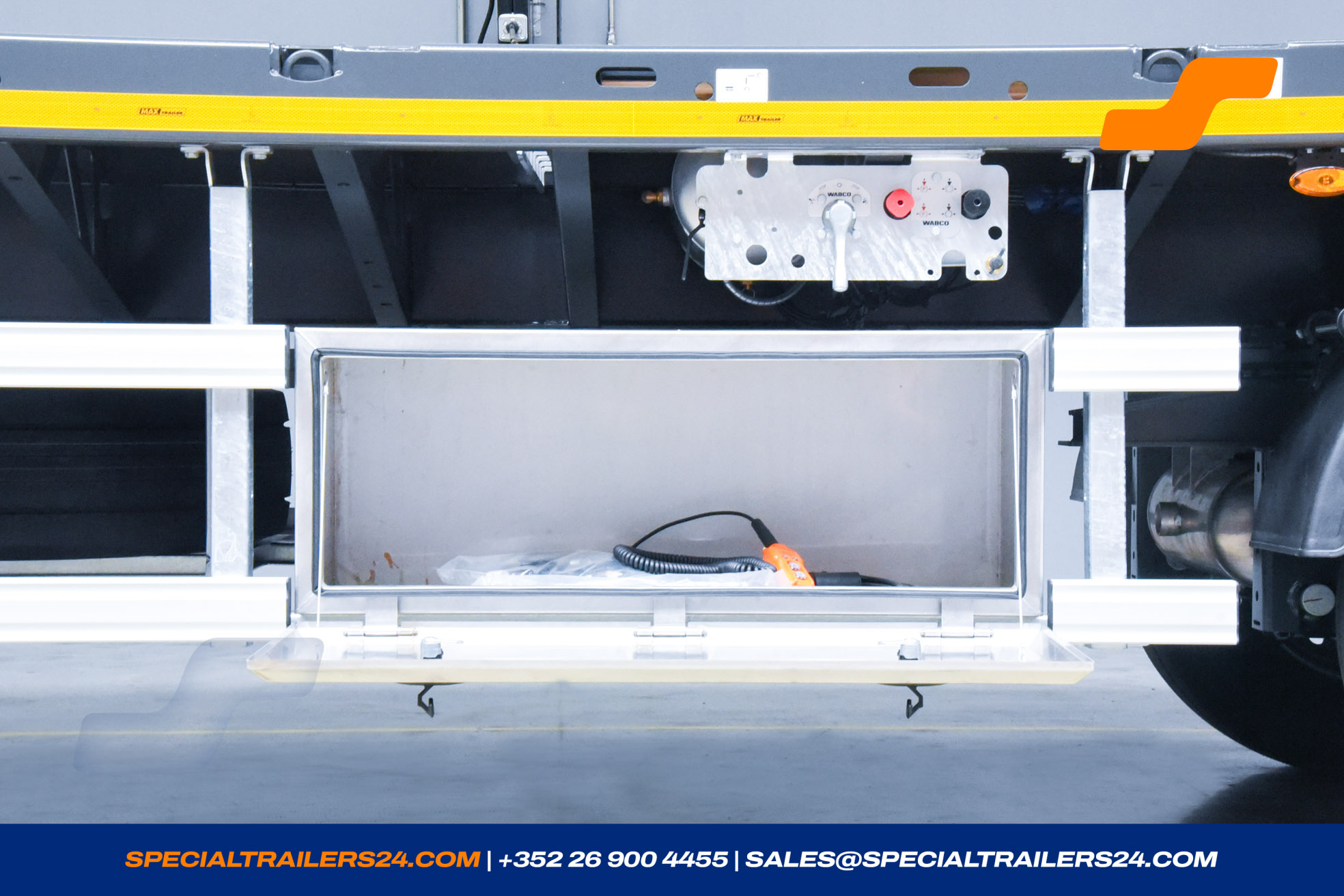

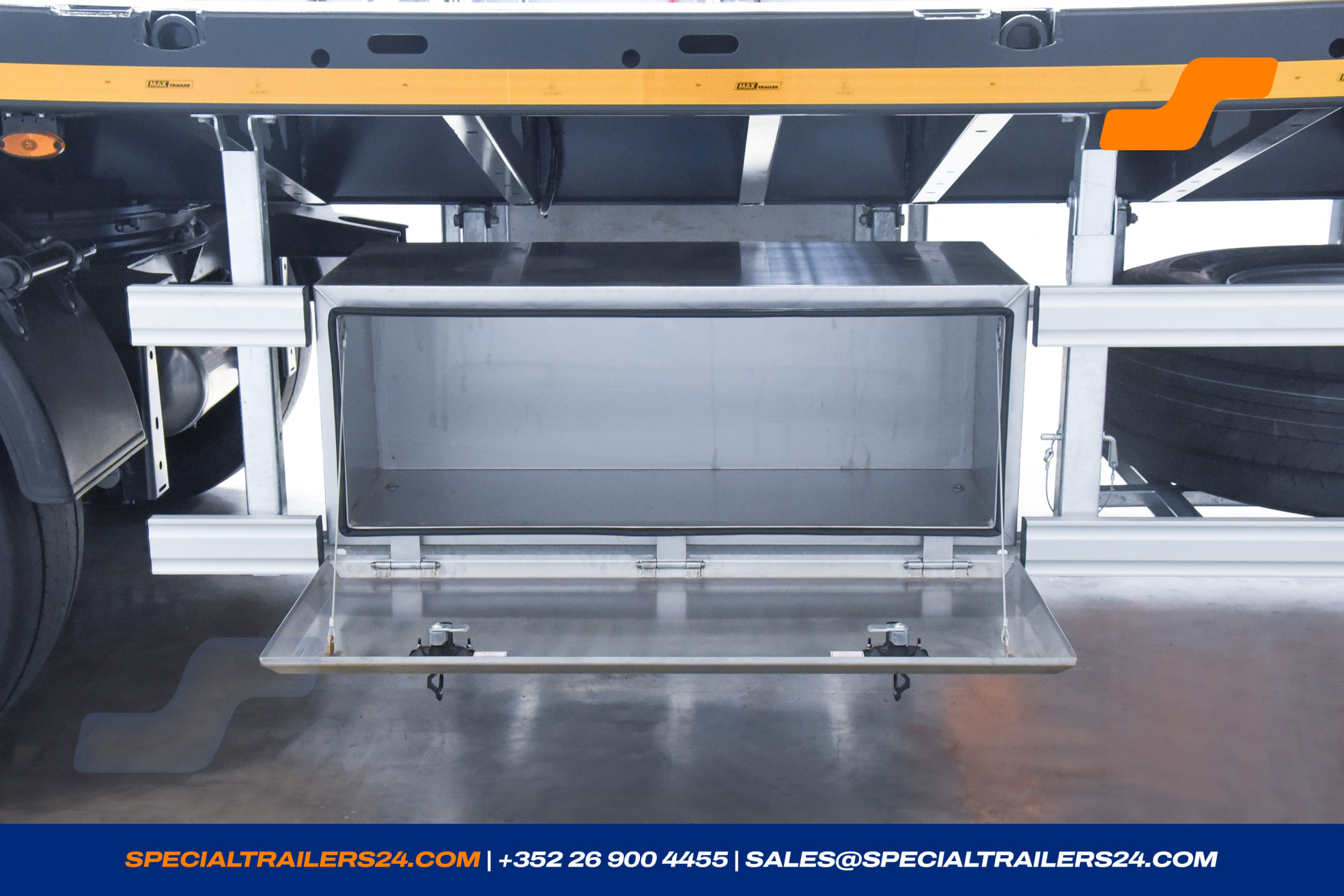

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the left side. (± 75 kg)
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).

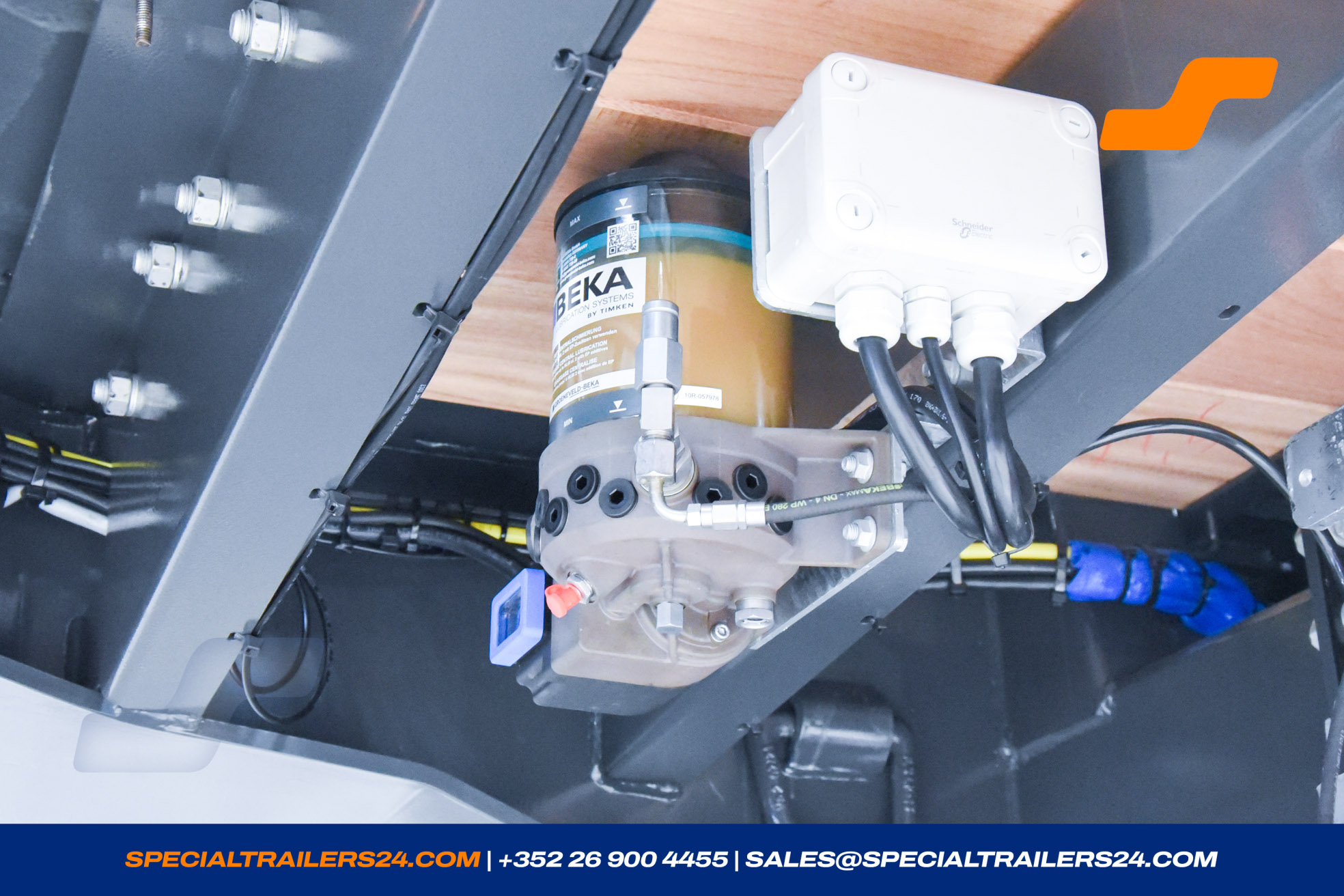

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
Accessories
1 x Accessory
MAX210-Accessory
- Manual and description on USB stick .
- 2 LED- reversing lights at the rear.

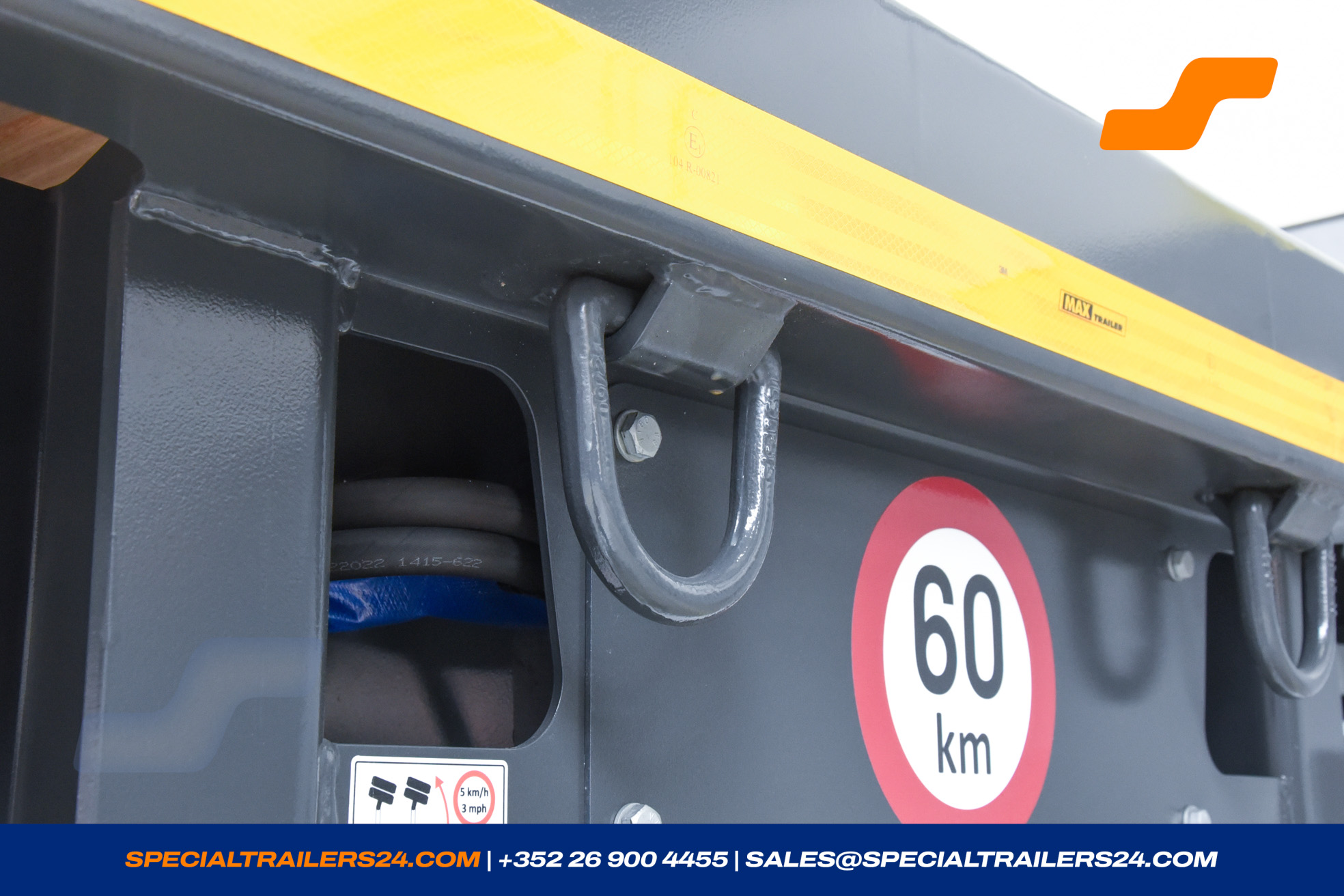

- Speed sticker 60 km/h at the rear.
- Delivery from a trailer to factory Büllingen.

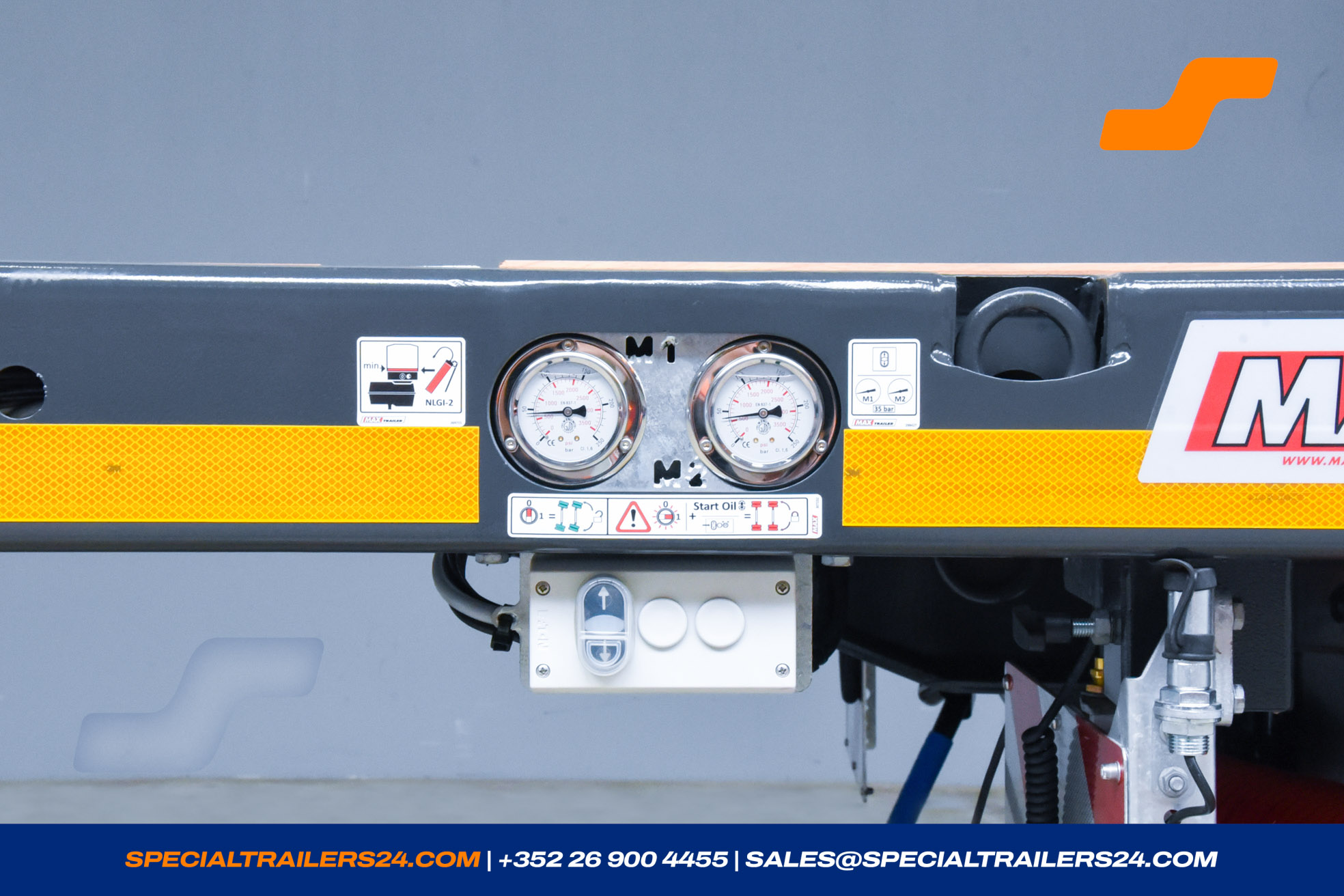

- Load manometer for determining the axle load, including load diagram.
