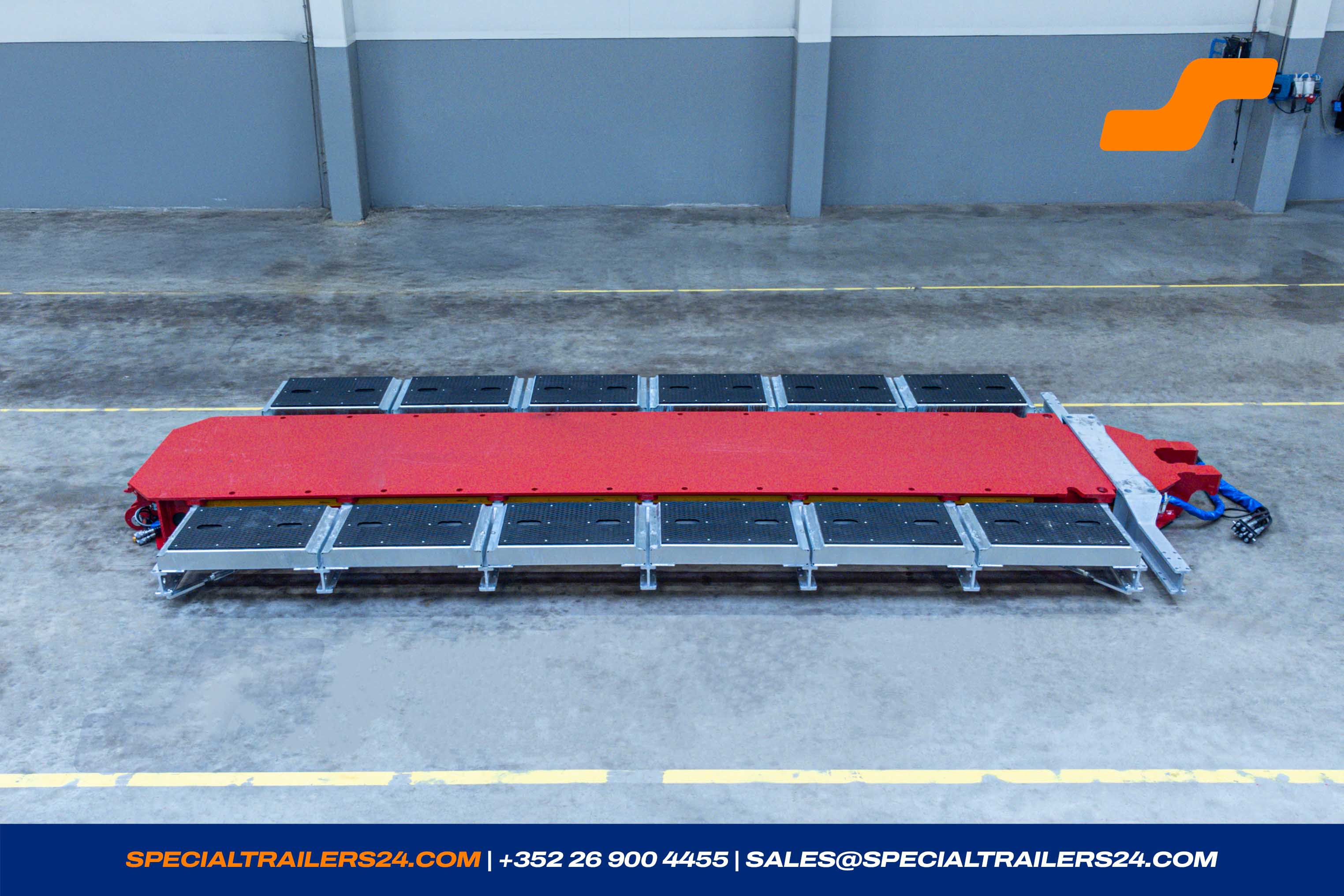

MAX Trailer MAX710
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110528
- Reference MAX710-Tiefbett-BB-A-7.15-(430)-2.85
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 01/2026
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 12191 kg |
Dimensions
| Extendable by | 4 000 mm |
| Loading platform length | 7 150 mm |
Loading deck
Loading platform

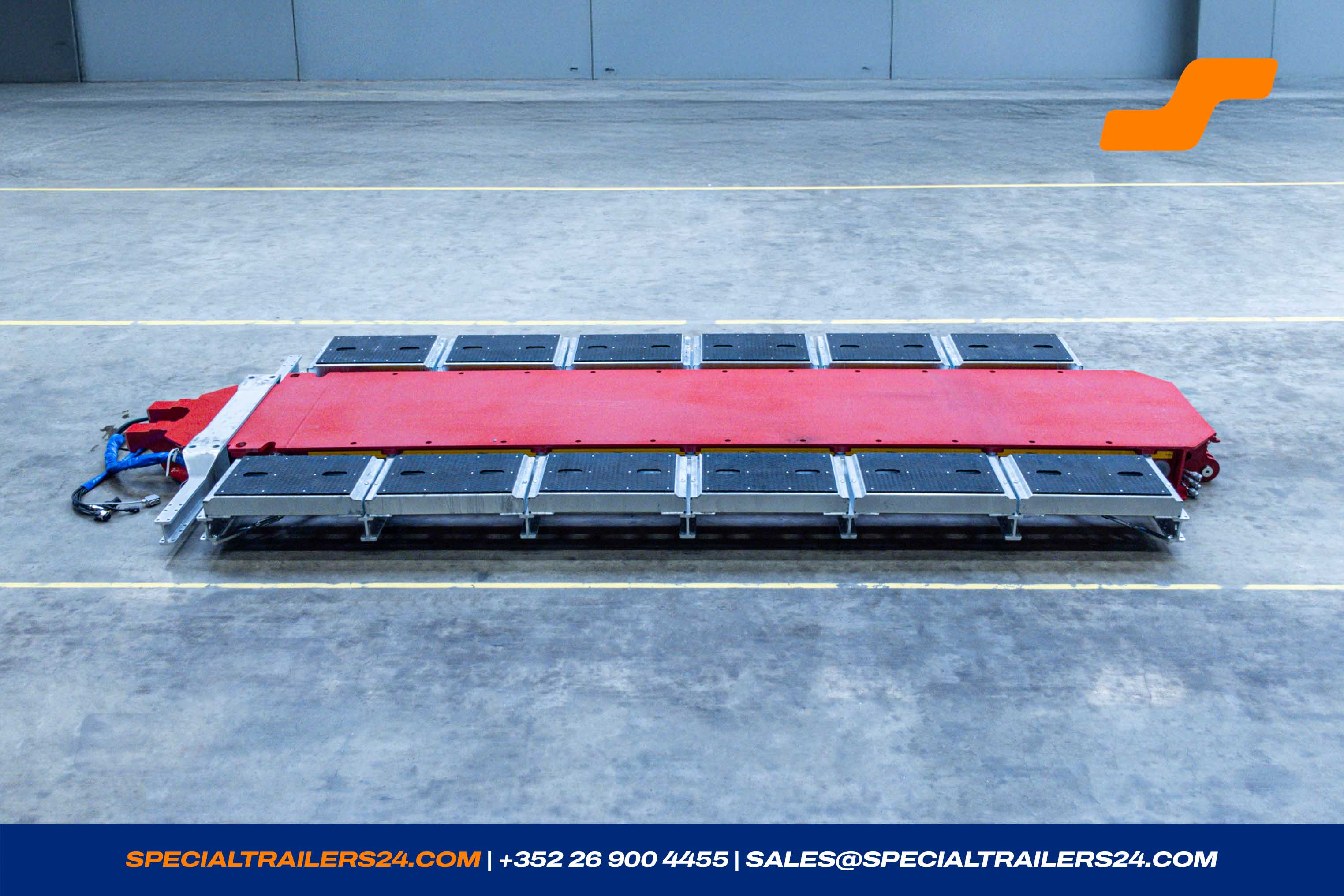

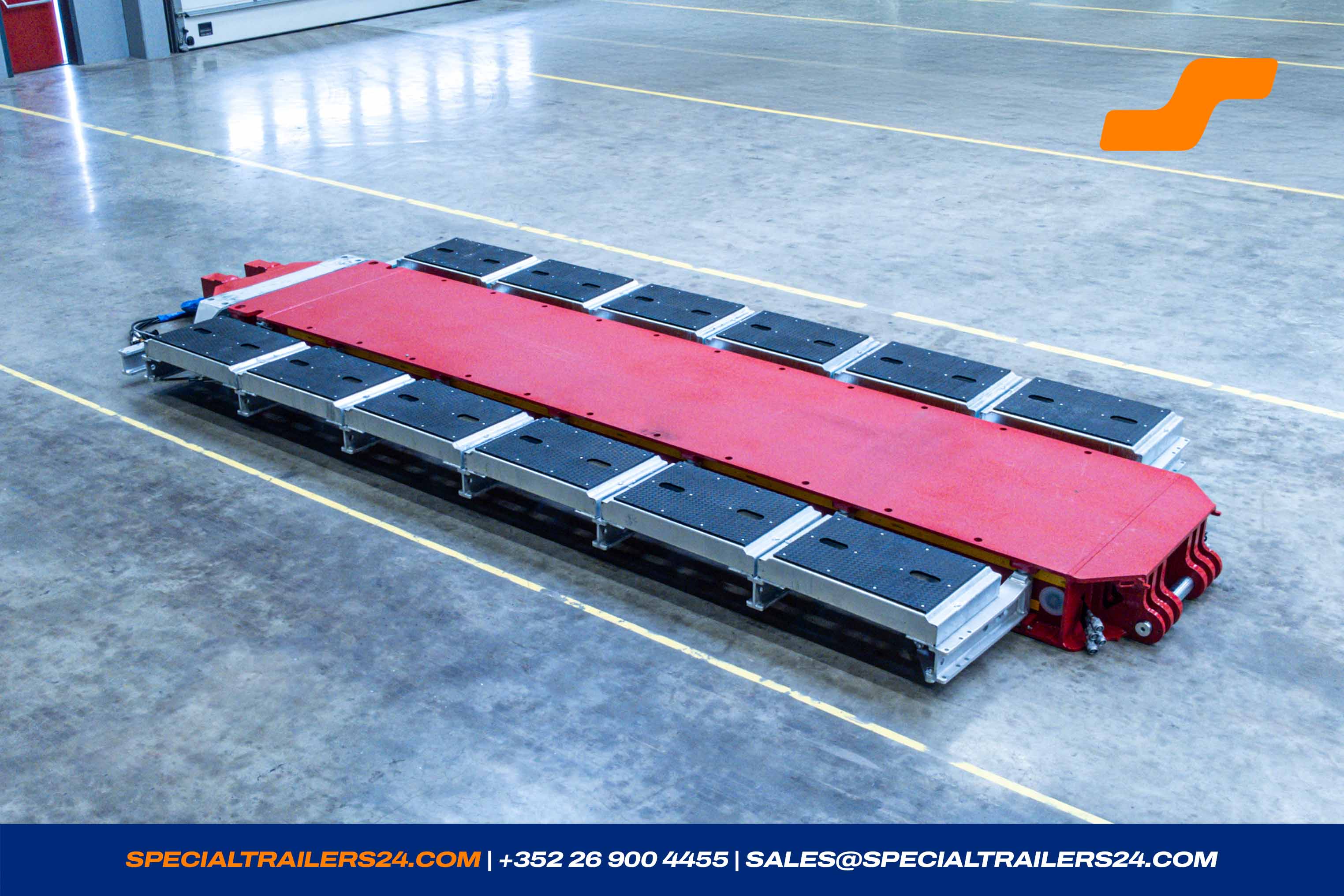

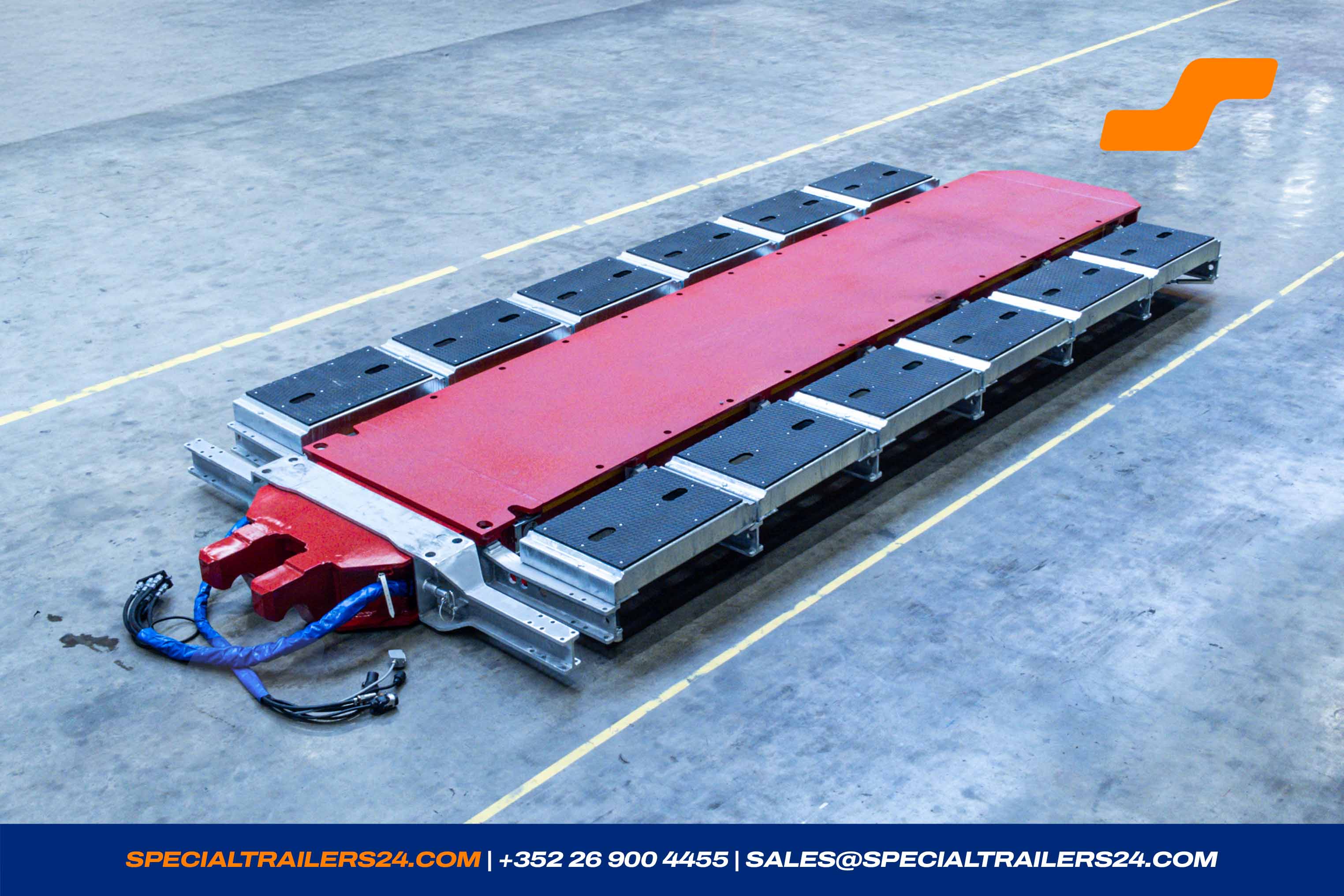

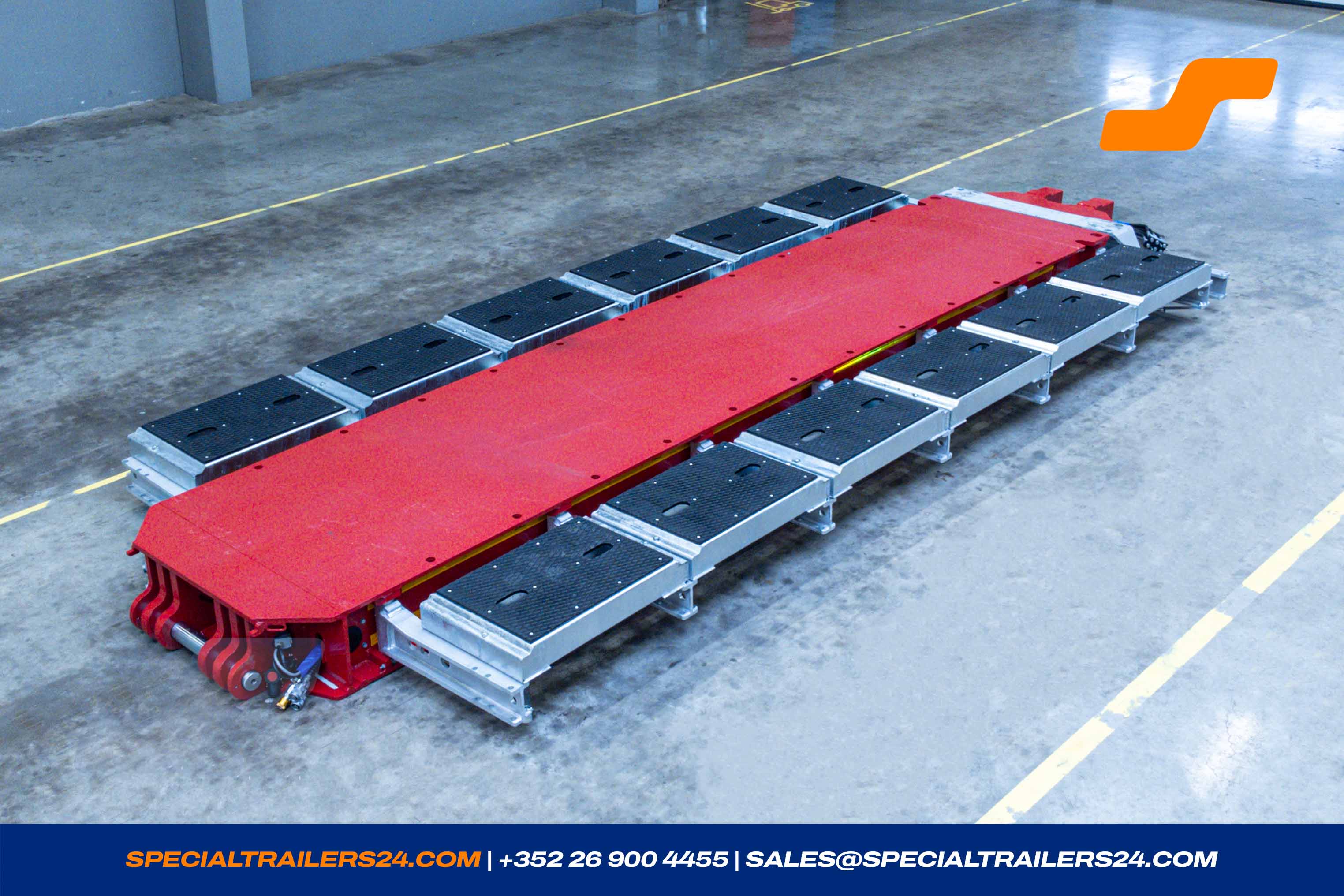

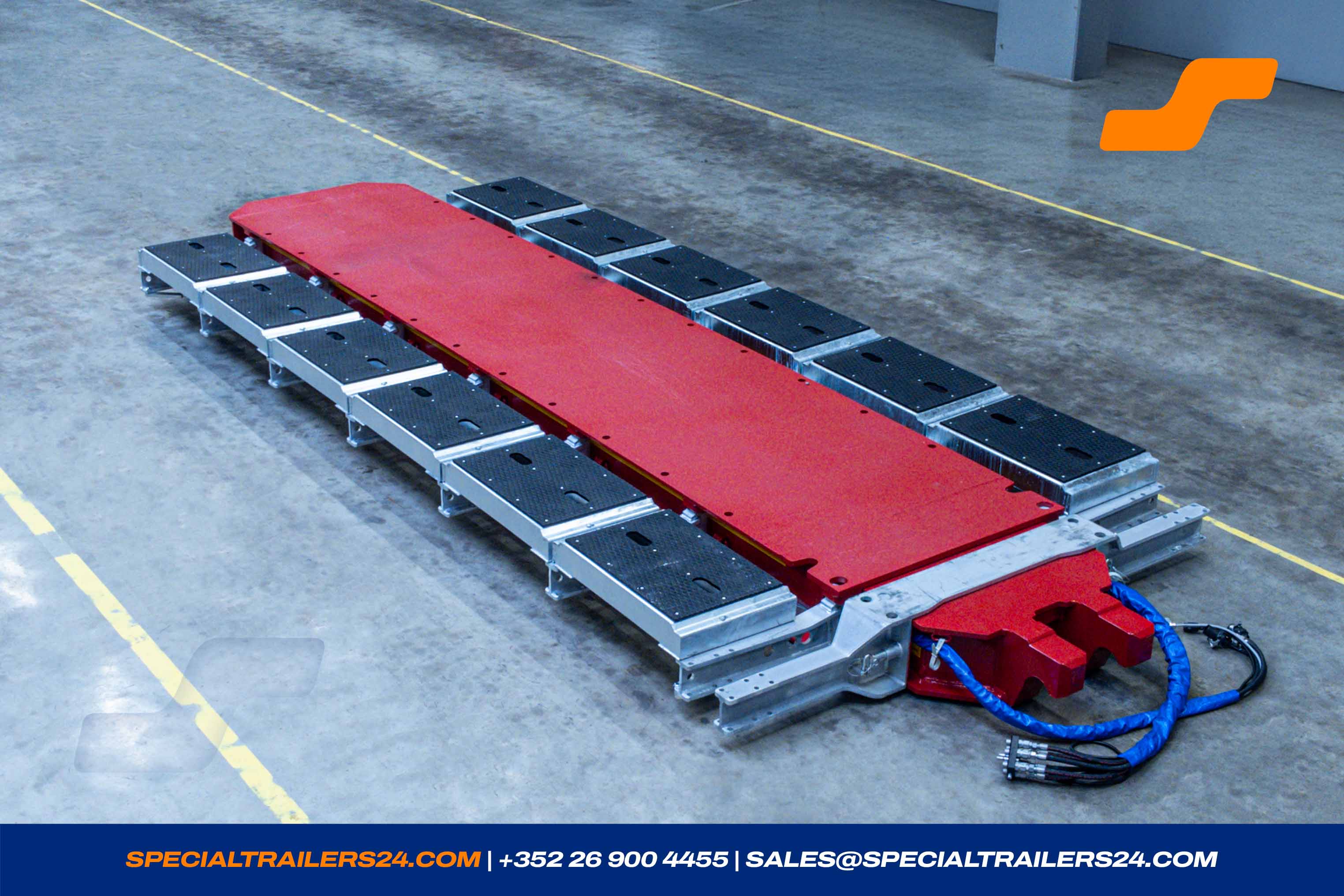

1 x Spine bed

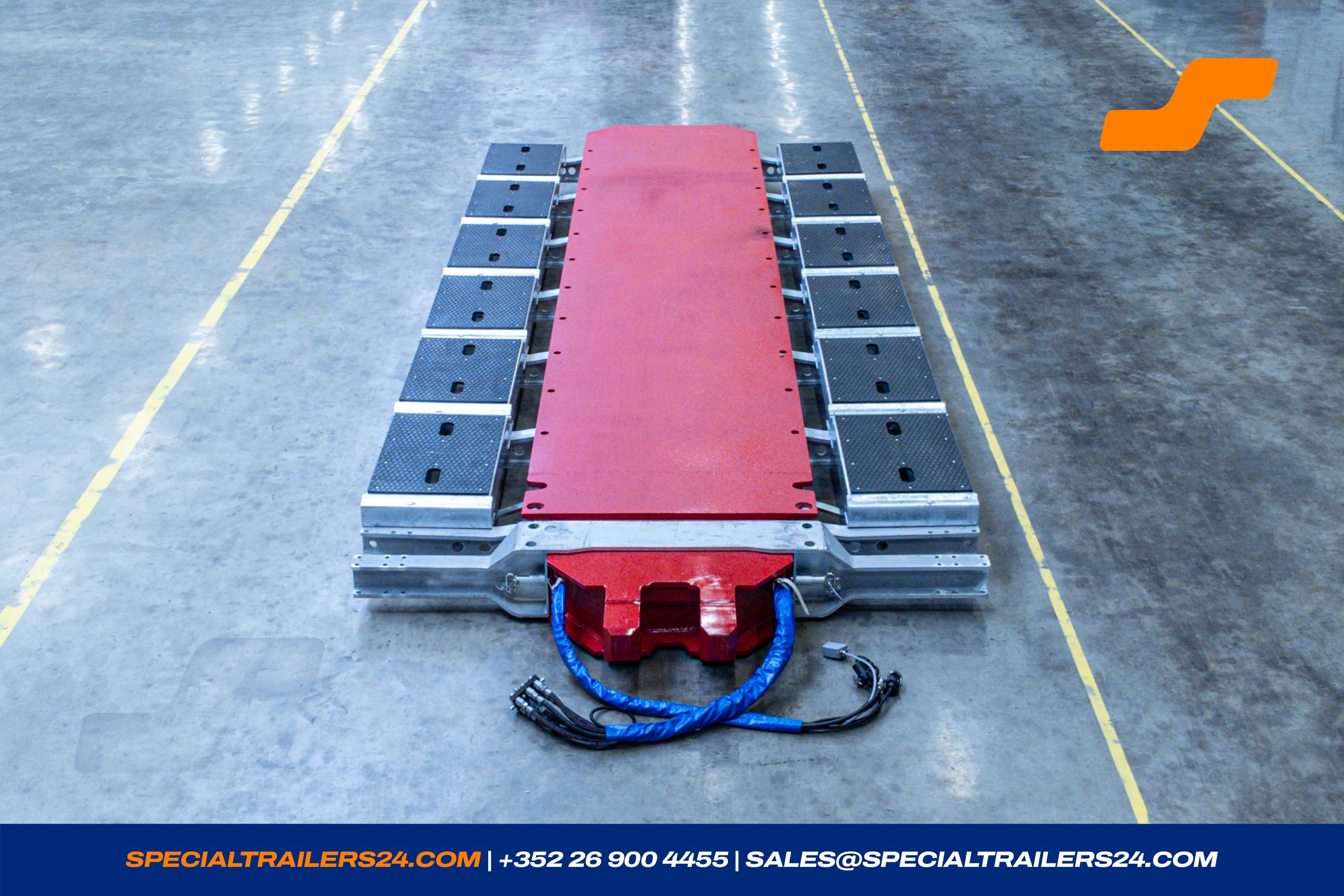

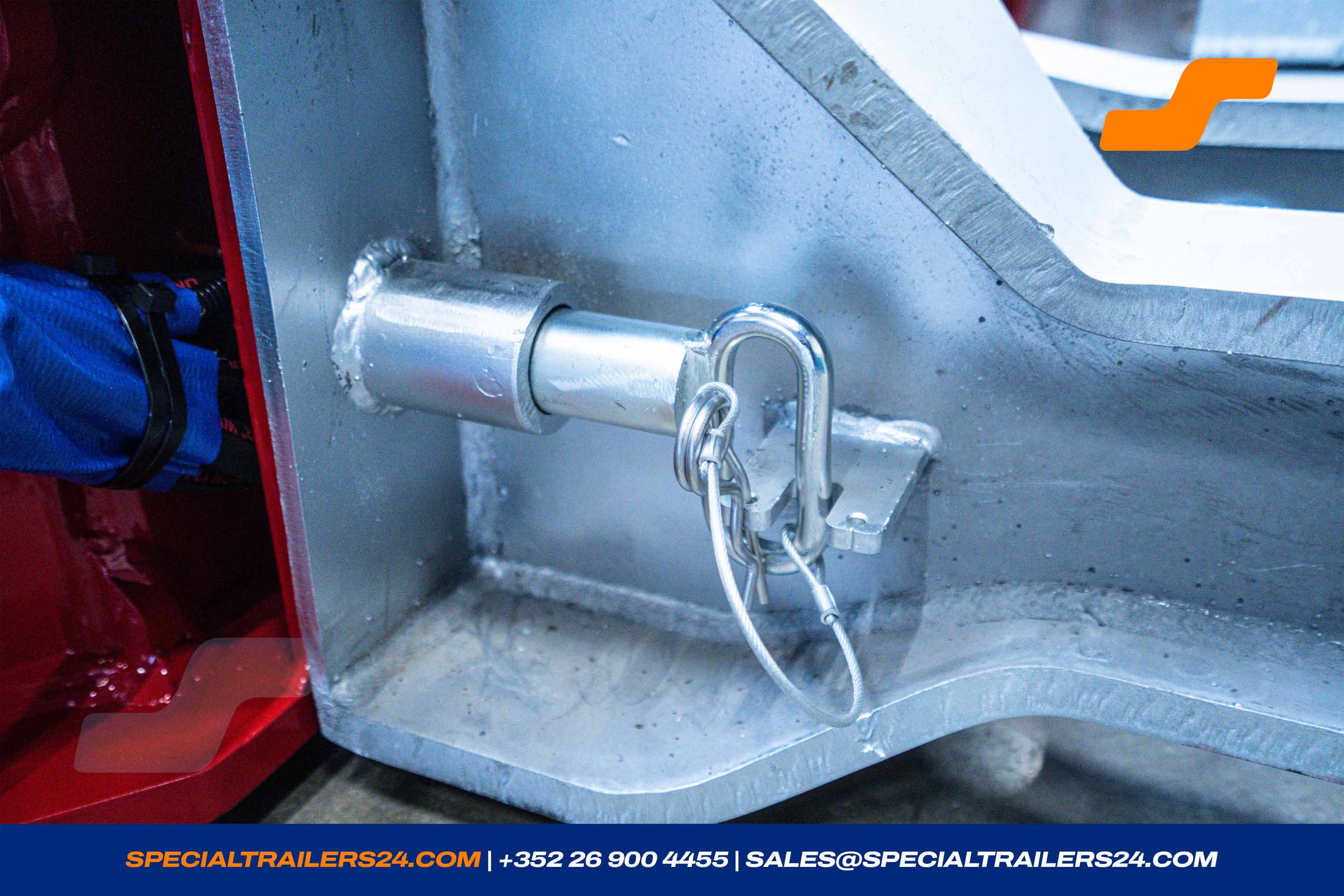

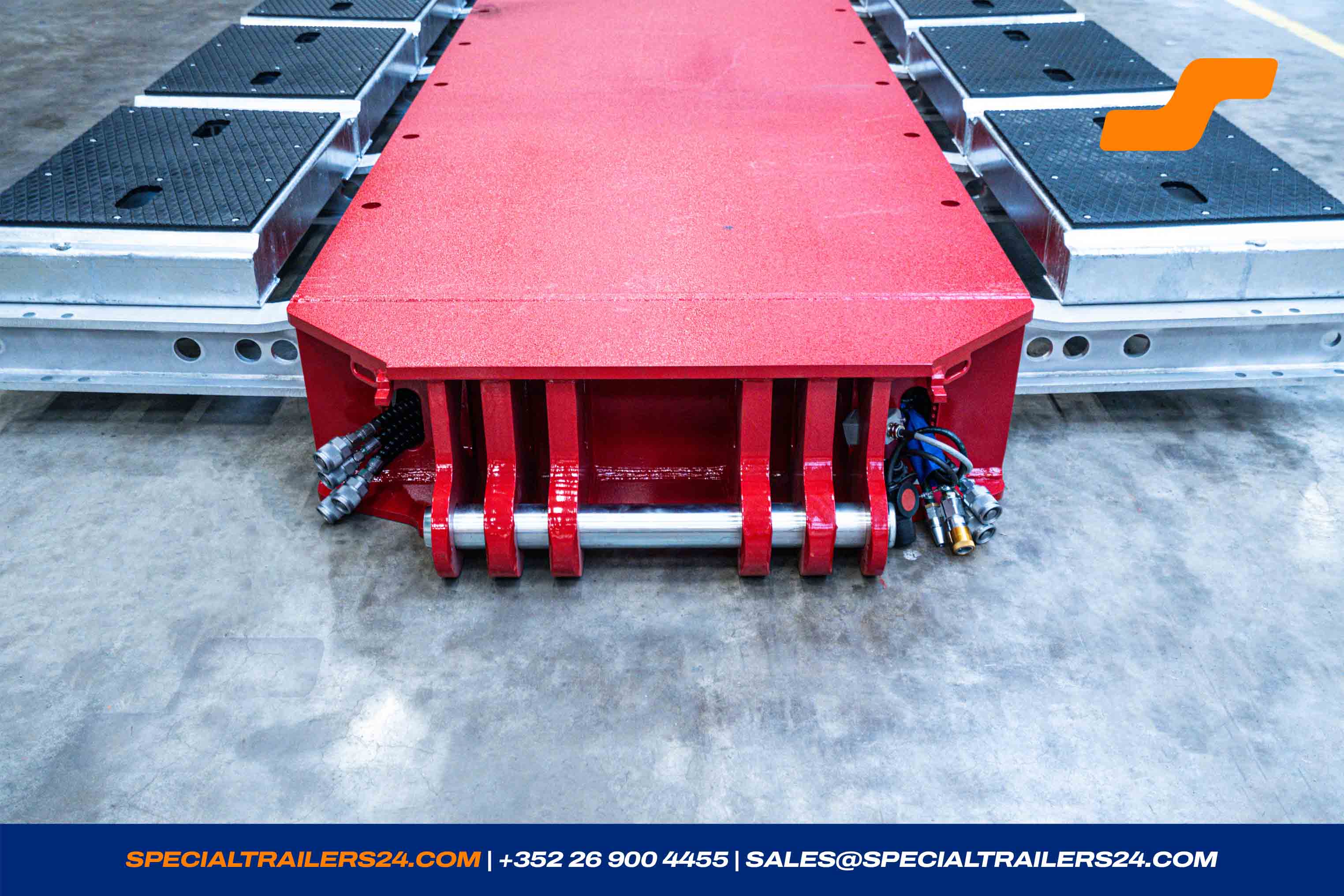

Telescopic spine bed BB-A with hooks that can be driven over at the front and with pin and lug coupling at the rear.
Basic width: 2 850 mm
Length: 7 150 mm
Beam height: 430 mm
Beam width: 1 350 mm
Loading height 580 mm at 150 mm ground clearance.

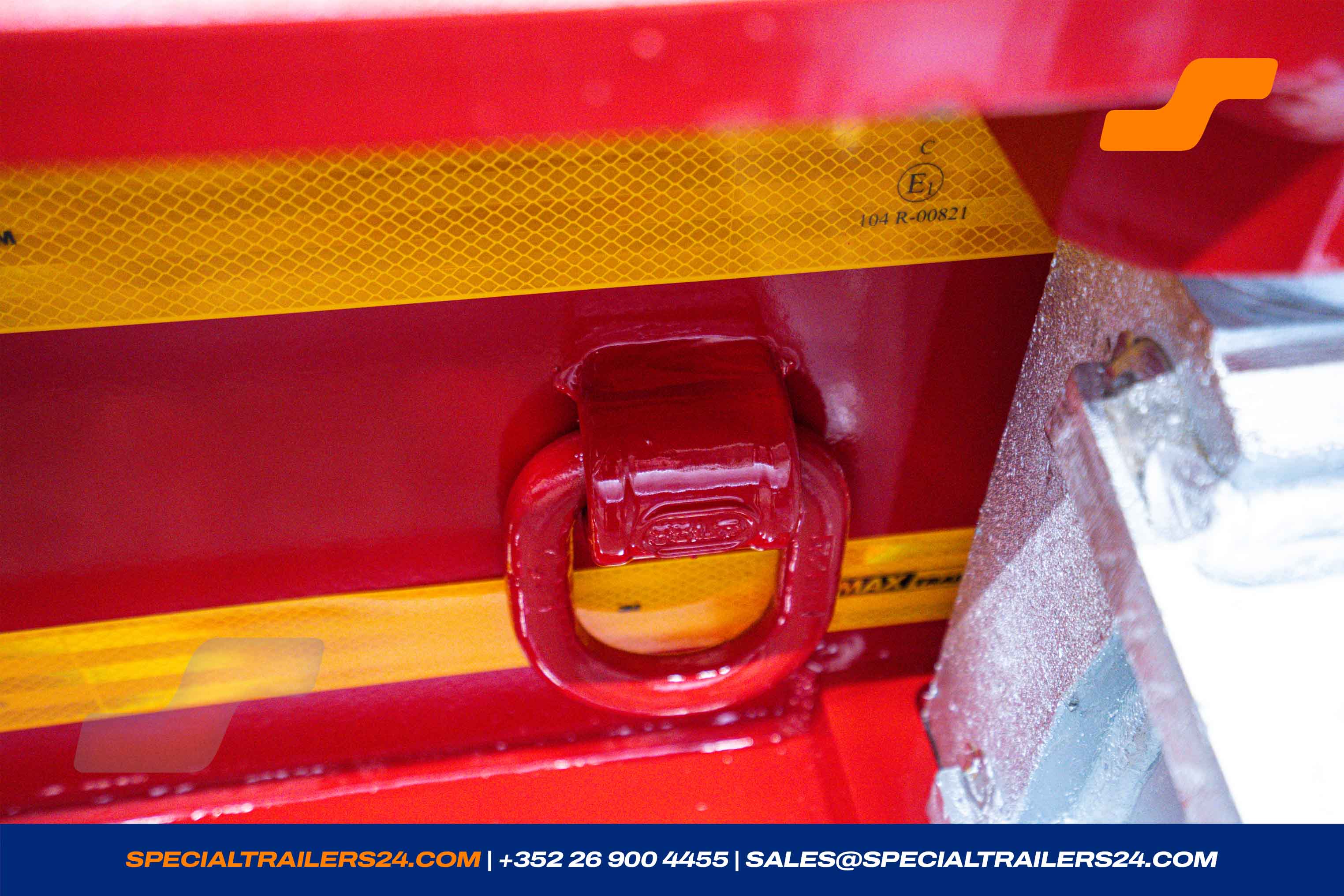

5 pairs of hanging lashing rings (LC 10 600 daN).
4 pairs of threat blocks M30 on the inner beam for mounting screwable rings.

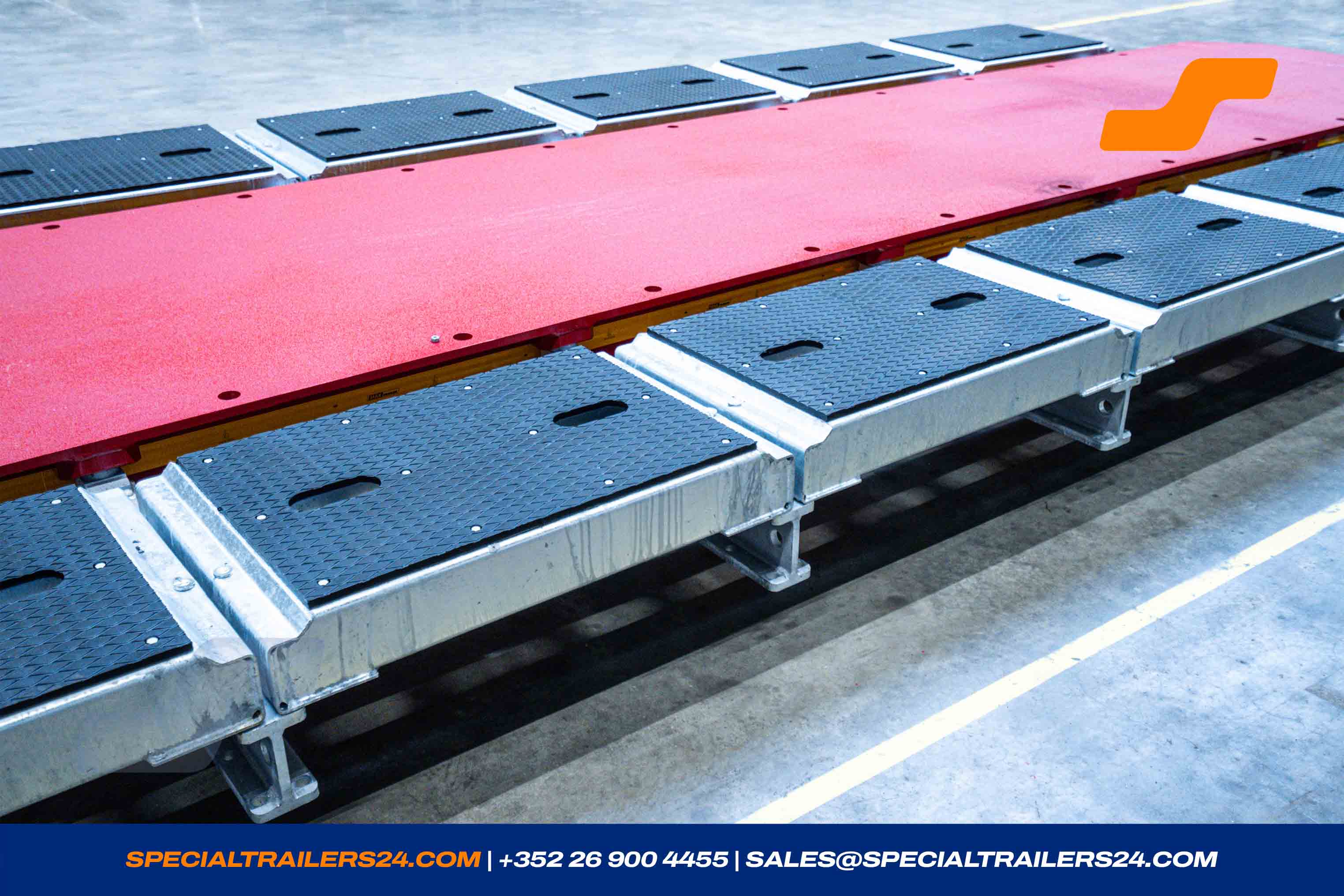

6 pairs of steel mattresses with rubber floor covering 1 000 mm, 1 pair of 500 mm. (± 1 660 kg)
- On the top of the loading area, outside every ± 500 mm a fixing point (ø 40 mm) for screwable lashing rings (LC 16.000 daN).
-

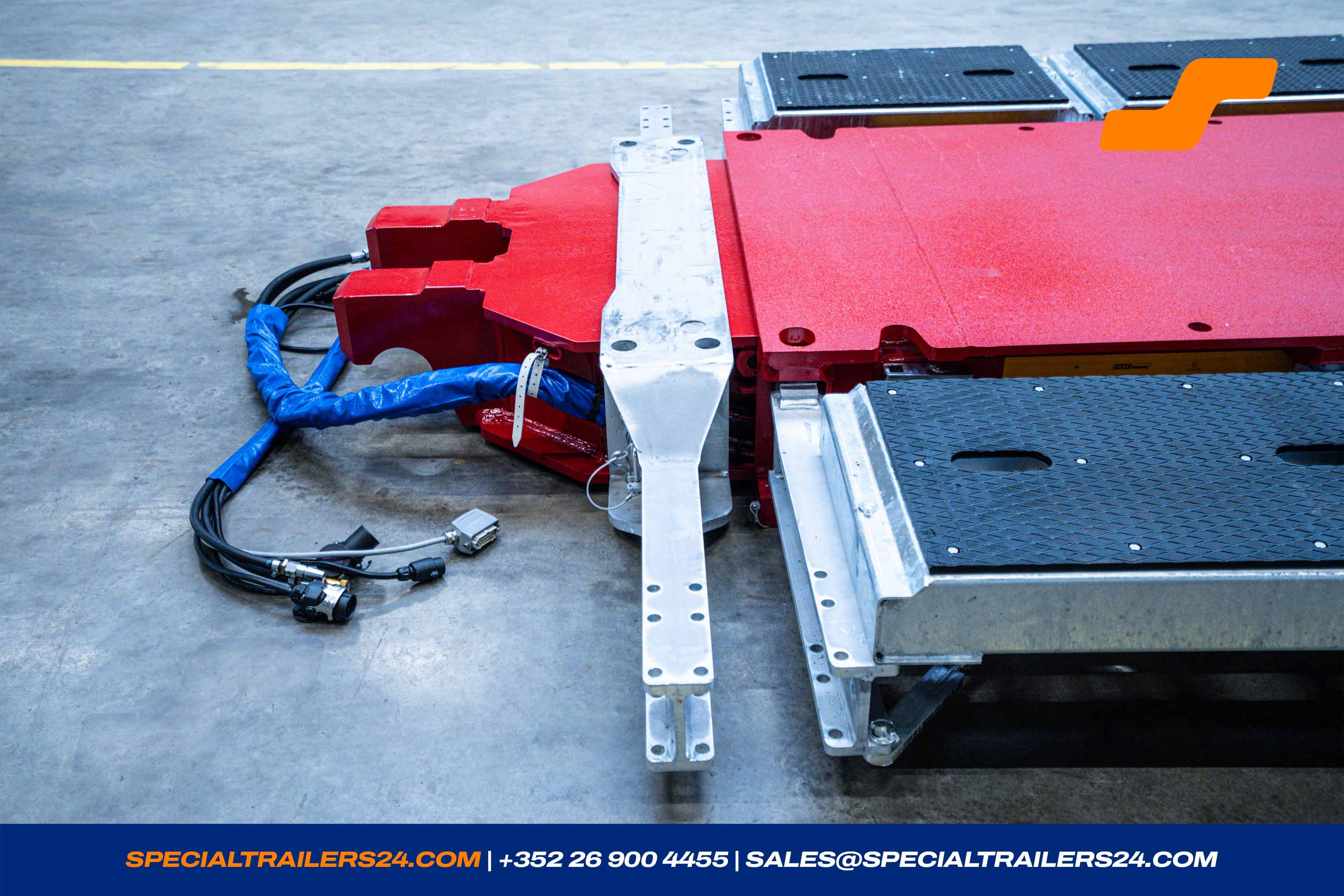

Quick-release hydraulic couplings on the loading bed.

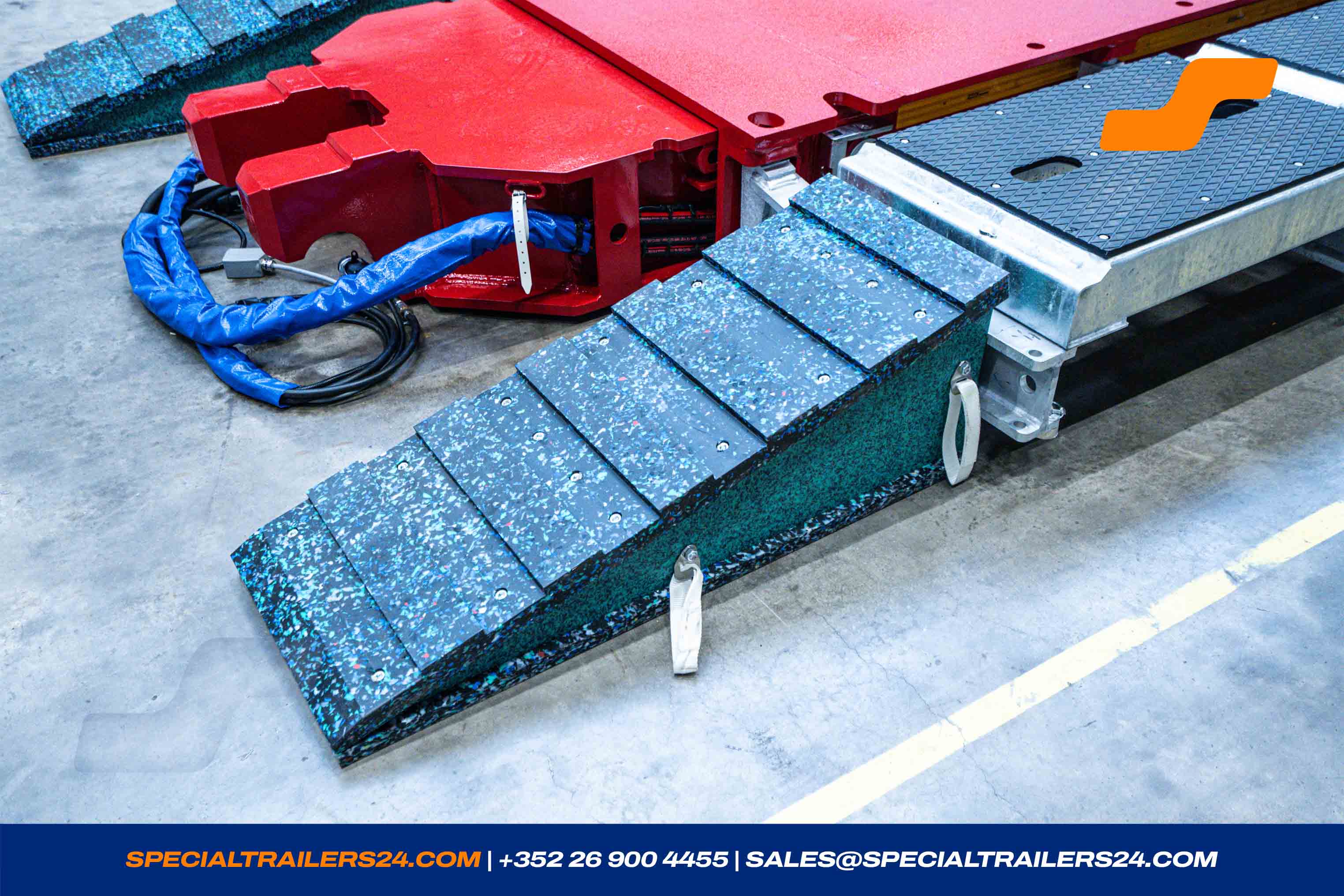

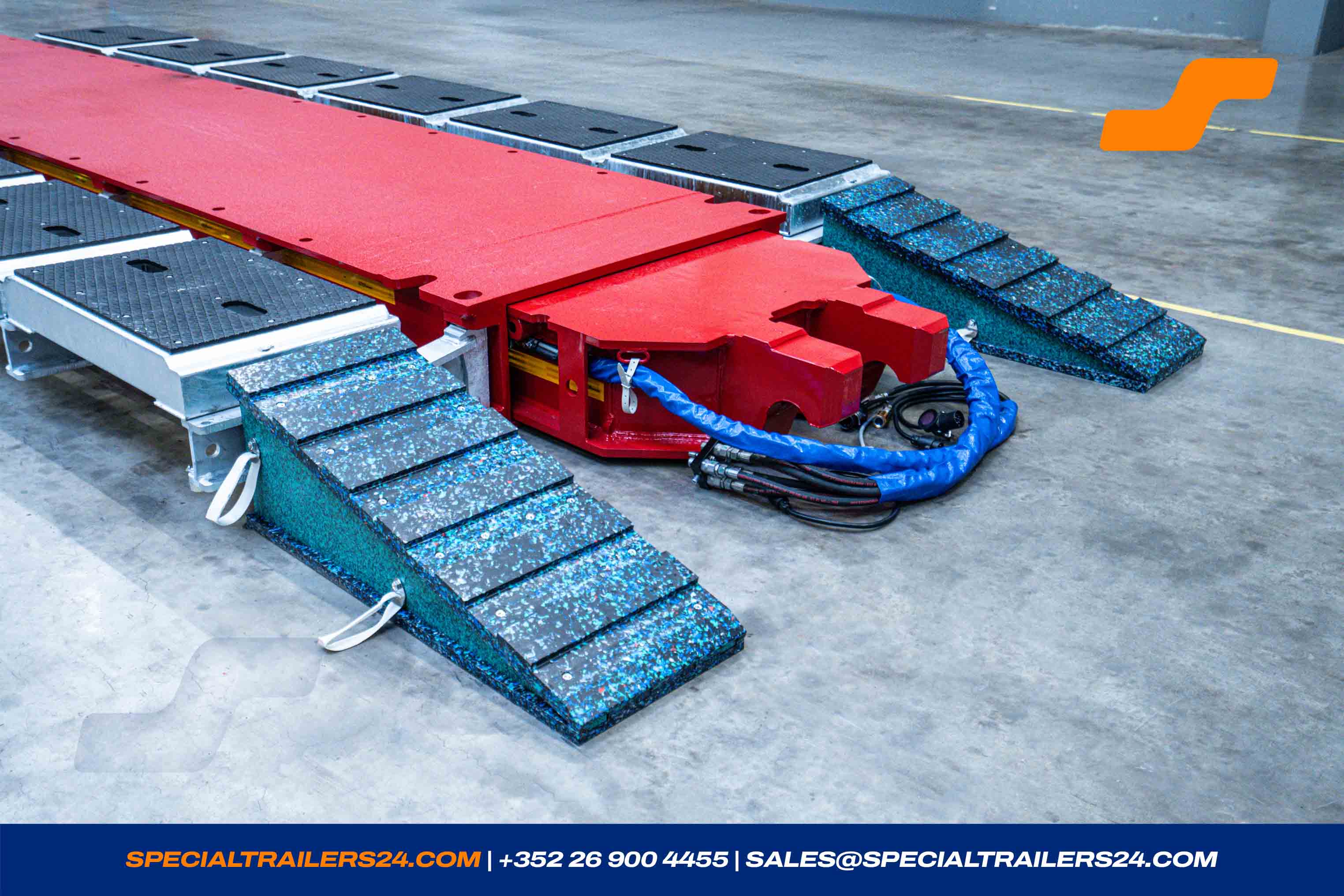

Without warranty on the seals. (± 4 kg) - 1 pair of loose HeProLen drive-on wedges with cross-ribs 1 200 x 450 x 50/400 mm. (± 130 kg)
-
1 hook-in intermediate table, lockable at the front on the extension tube of the excavator deck, with widenings to accommodate steel mattresses.
3 hook-in intermediate tables, movable on the extension tube of the excavator bridge, with widenings to accommodate steel mattresses.

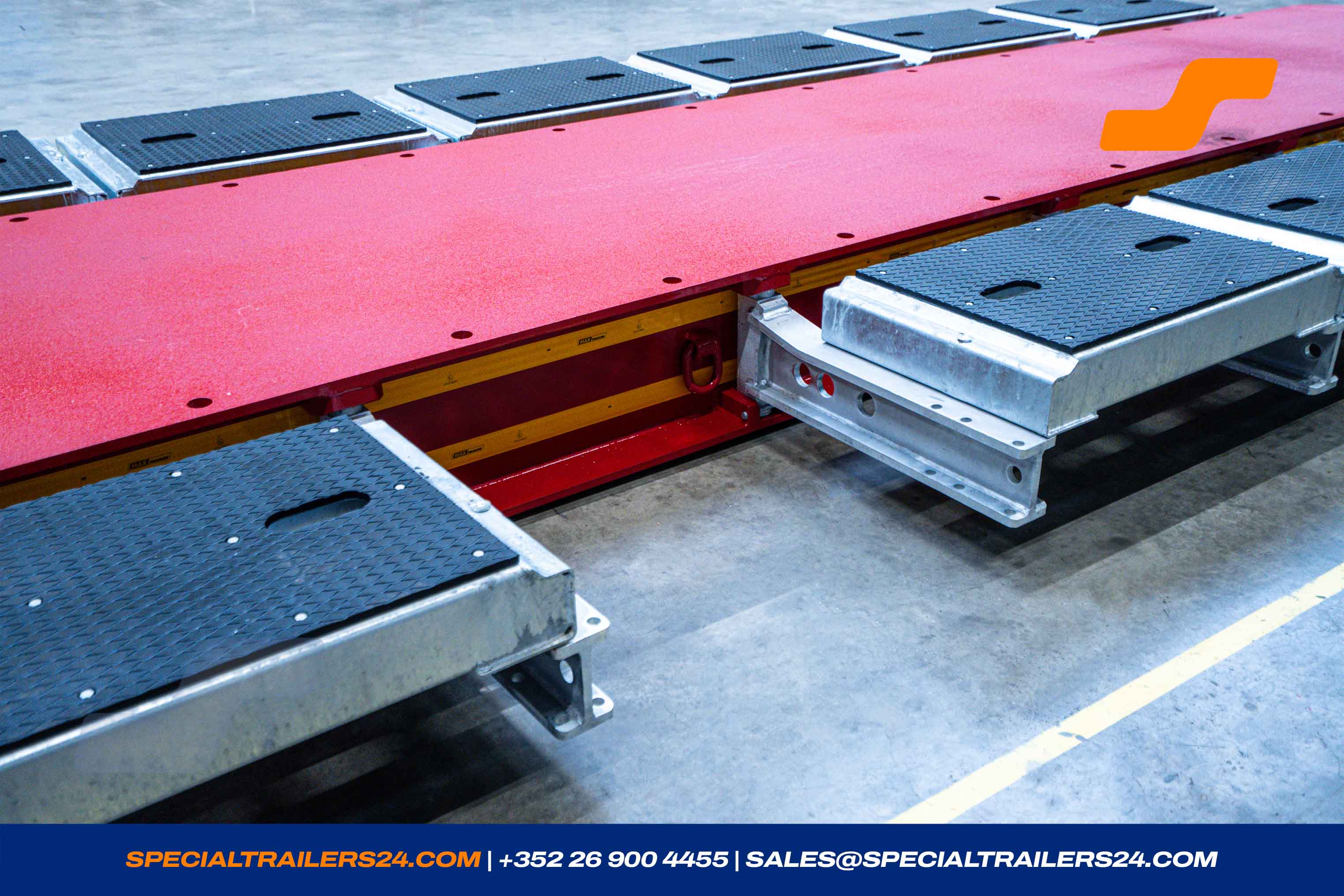

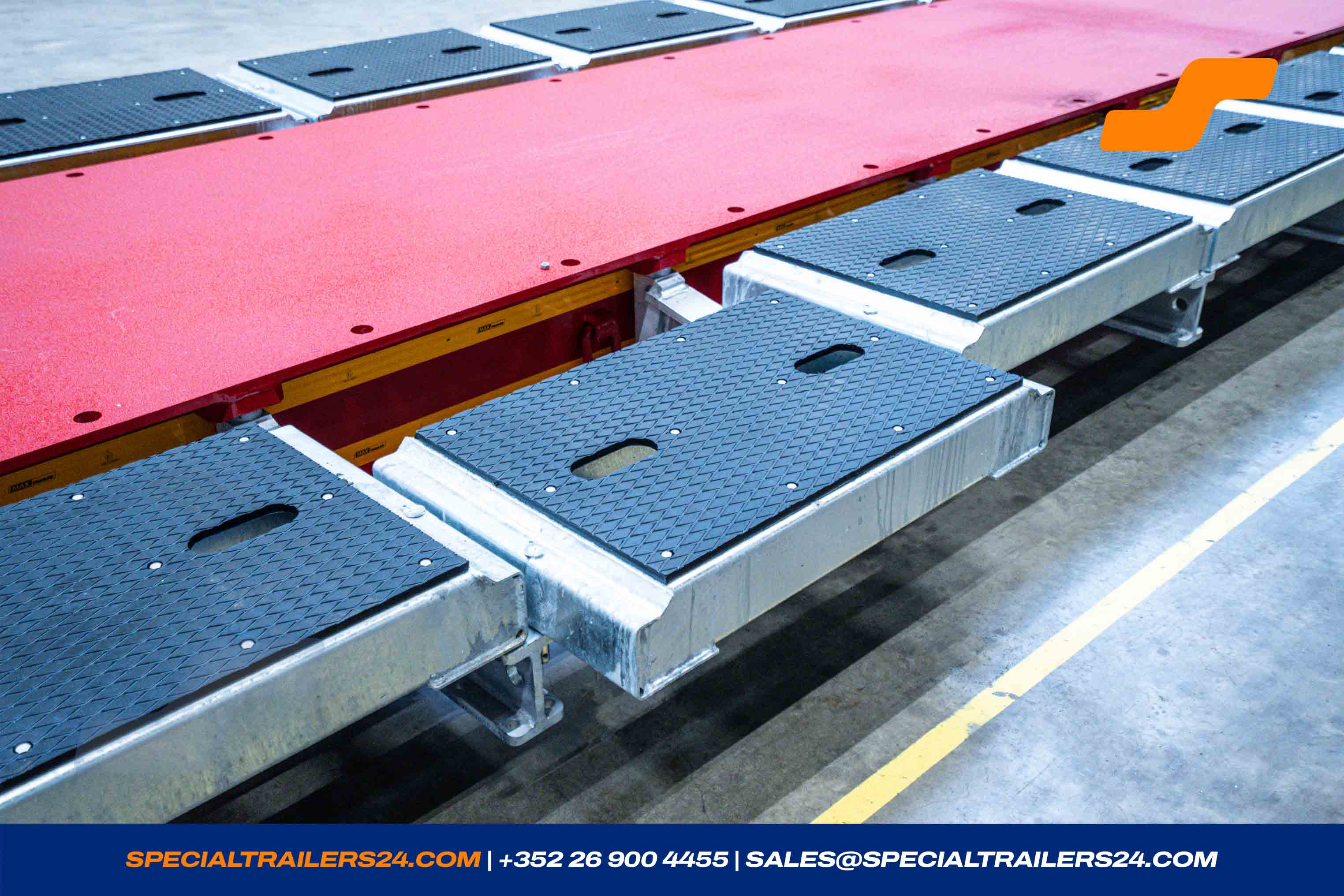

The steel mattresses are adjustable in width from 2 850 mm to 3 250 mm and can be inserted in 2 positions to create a lowered loading surface.
Please refer to the respective load diagram for the load capacity depending on the widening.
4 pairs of steel mattresses 1 000 mm long, with ± 12 mm thick rubber floor covering.
A maximum of 4 000 mm extension tubes can be covered, in steps of 500 mm. (± 1 554 kg) - 2 pairs of screwable lashing rings M30 (LC 12 000 daN).
- Installing of a camera cable brigade (Ref. VBV - L430) from front to back.
- Central beam of the loading platform painting with sand as anti-slip-coating.
- 2 pairs of screwable lashing rings M36 (LC 16 000 daN).
MAX710-Längsträger-BB-4.00-(430)-2.85
1 x MAX710-Längsträger-BB-4.00-(430)-2.85
Elongation beam for spine bed with compression-joint in front and rear.
Swing-out outriggers with steel mattresses, the mattresses can be slided out from ± 2.850 mm to ± 3.250 mm.
The steel mattresses can be inserted in 2 levels in order to get a lower loading height on the mattresses.
Please refer to the loadchart for outrigger-capacity.
Steel mattresses with rubber cover ± 12 mm.
Coupling length: 4.000 mm
Basic width: 2.850 mm
Beams height: 430 mm
Beams width: 1.350 mm
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110528
- Reference MAX710-Tiefbett-BB-A-7.15-(430)-2.85
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 01/2026
- Price On request
-
