Modular vehicle
MAX Trailer MAX710
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110521
- Reference MAX710-Hals-V-30-2700-2
- Number of axles 0
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 01/2026
Availability
01/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 30000 kg |
| Gross weight | 30000 kg |
| Tare weight +- 3% | 5374 kg |
| Payload | 24626 kg |
Dimensions
| Fifth wheel height loaded | 1300->1400 mm |
| Turning circle reversing | 2 700 mm |
| Gooseneck length | 3 650 mm |

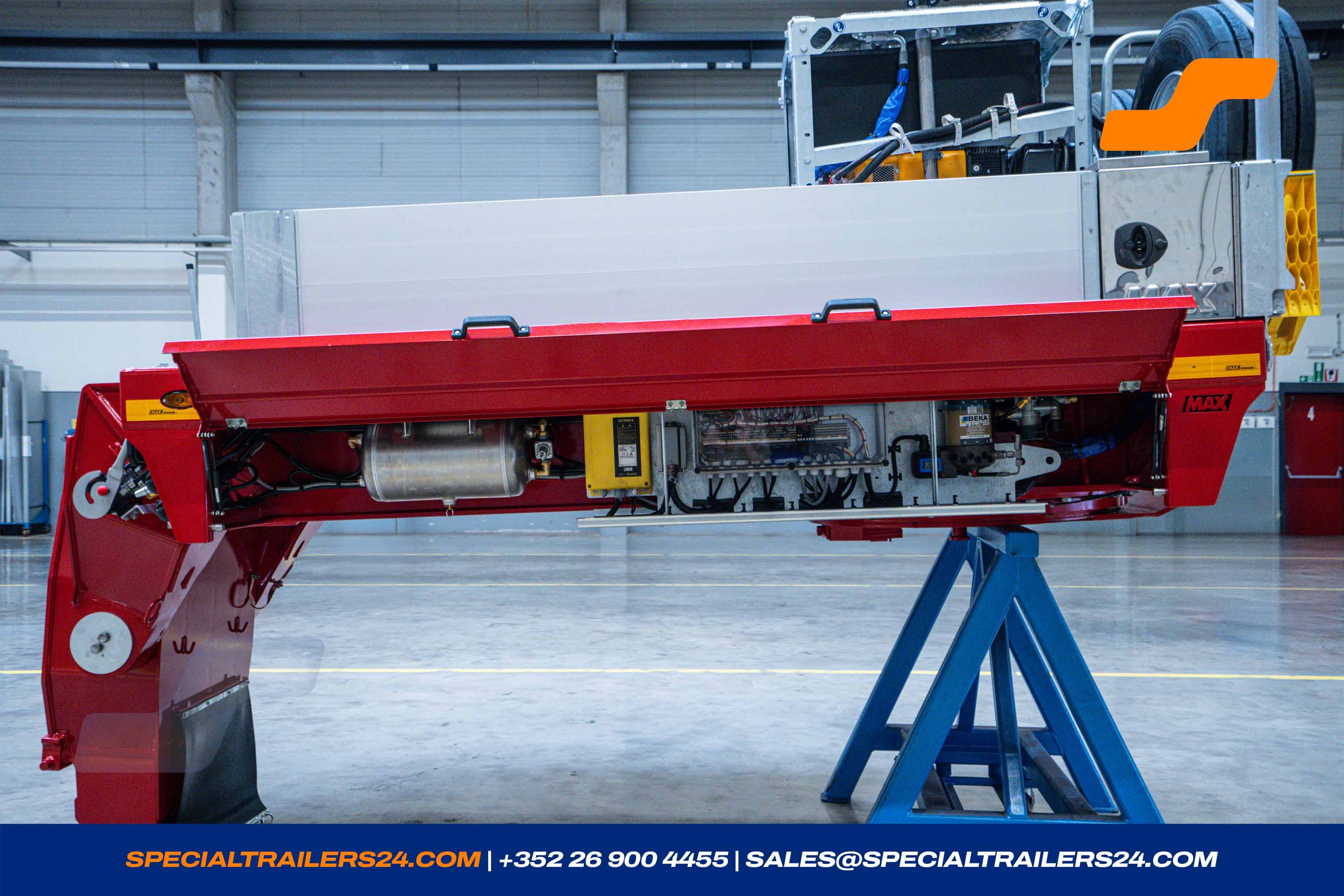

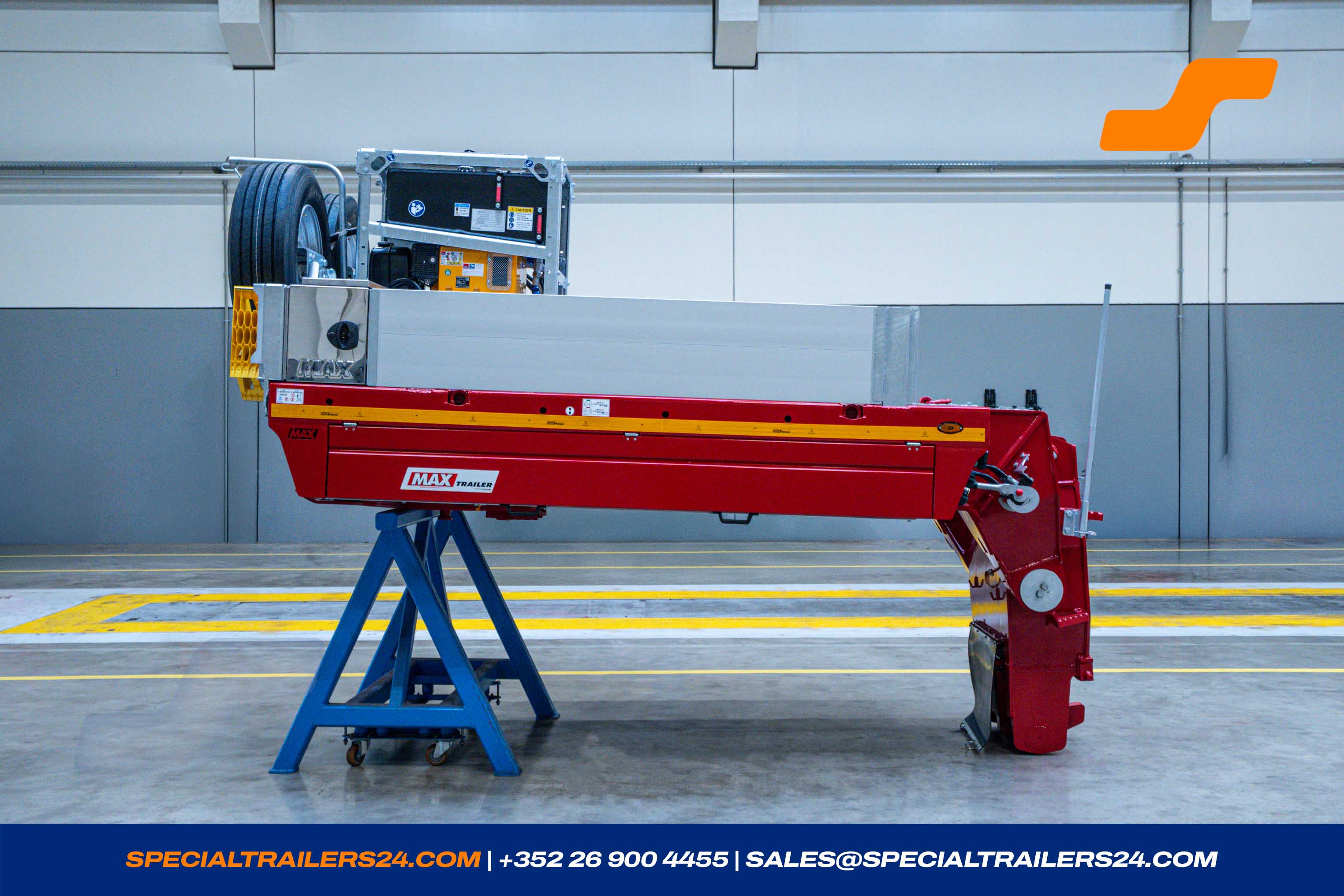

Gooseneck

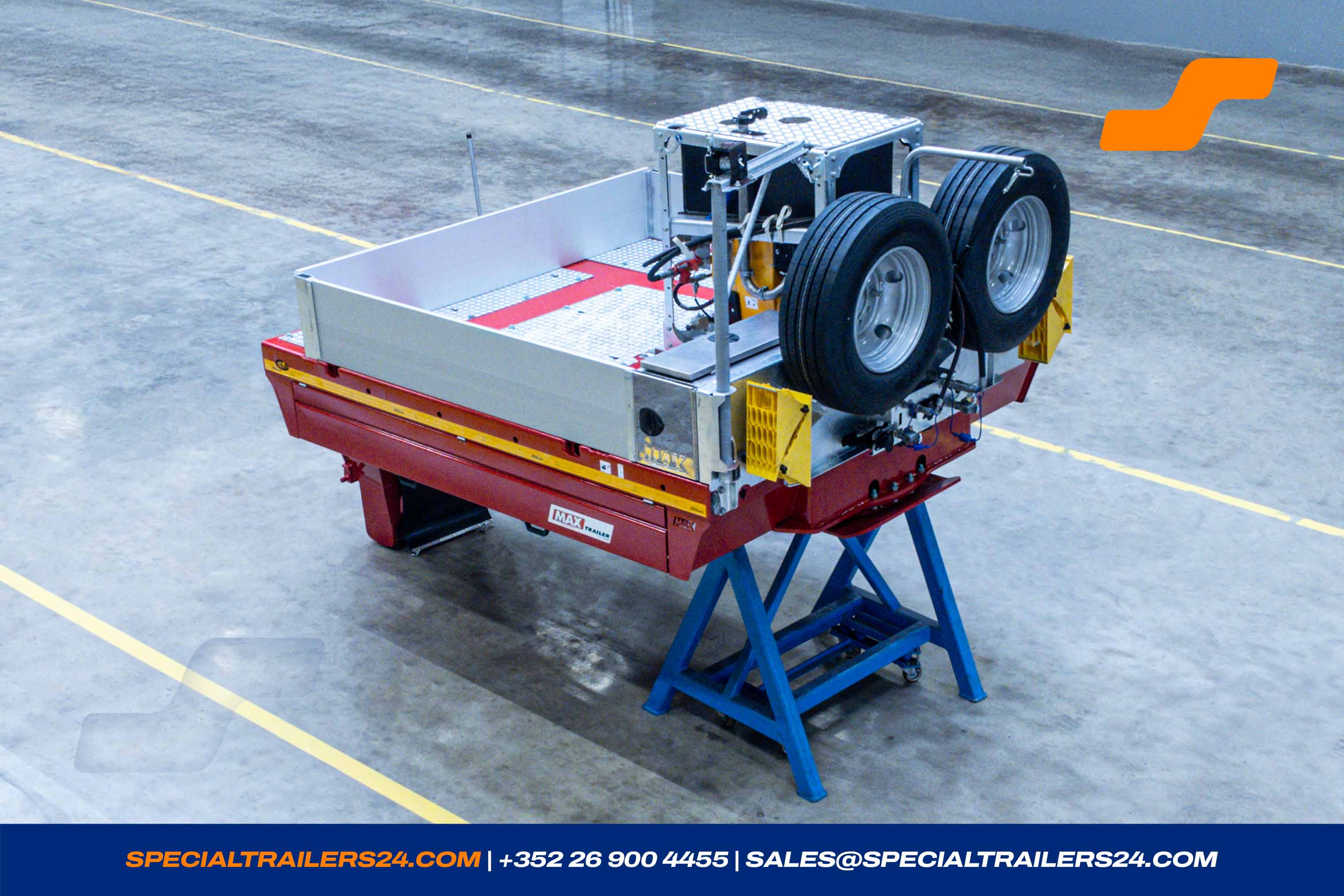

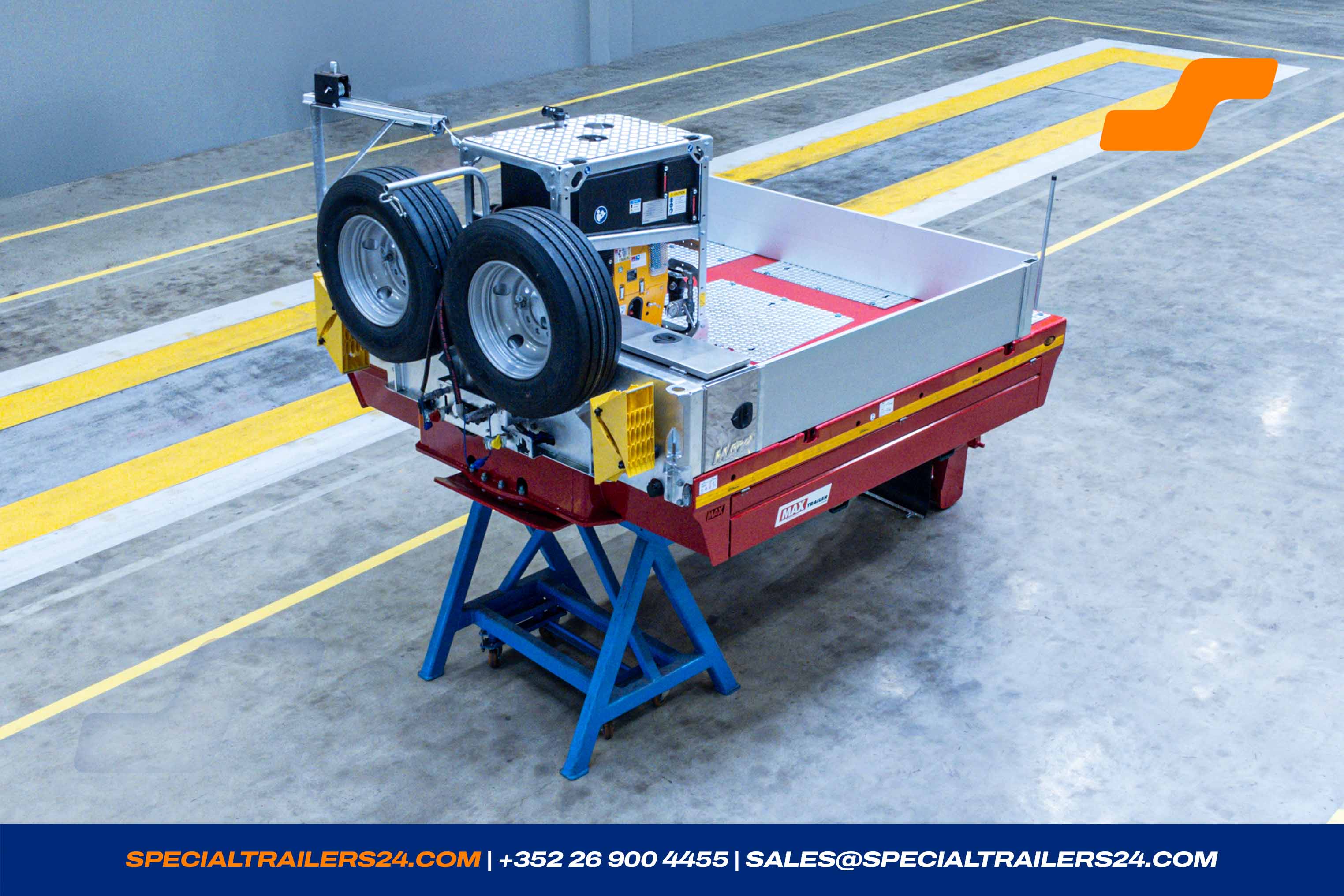

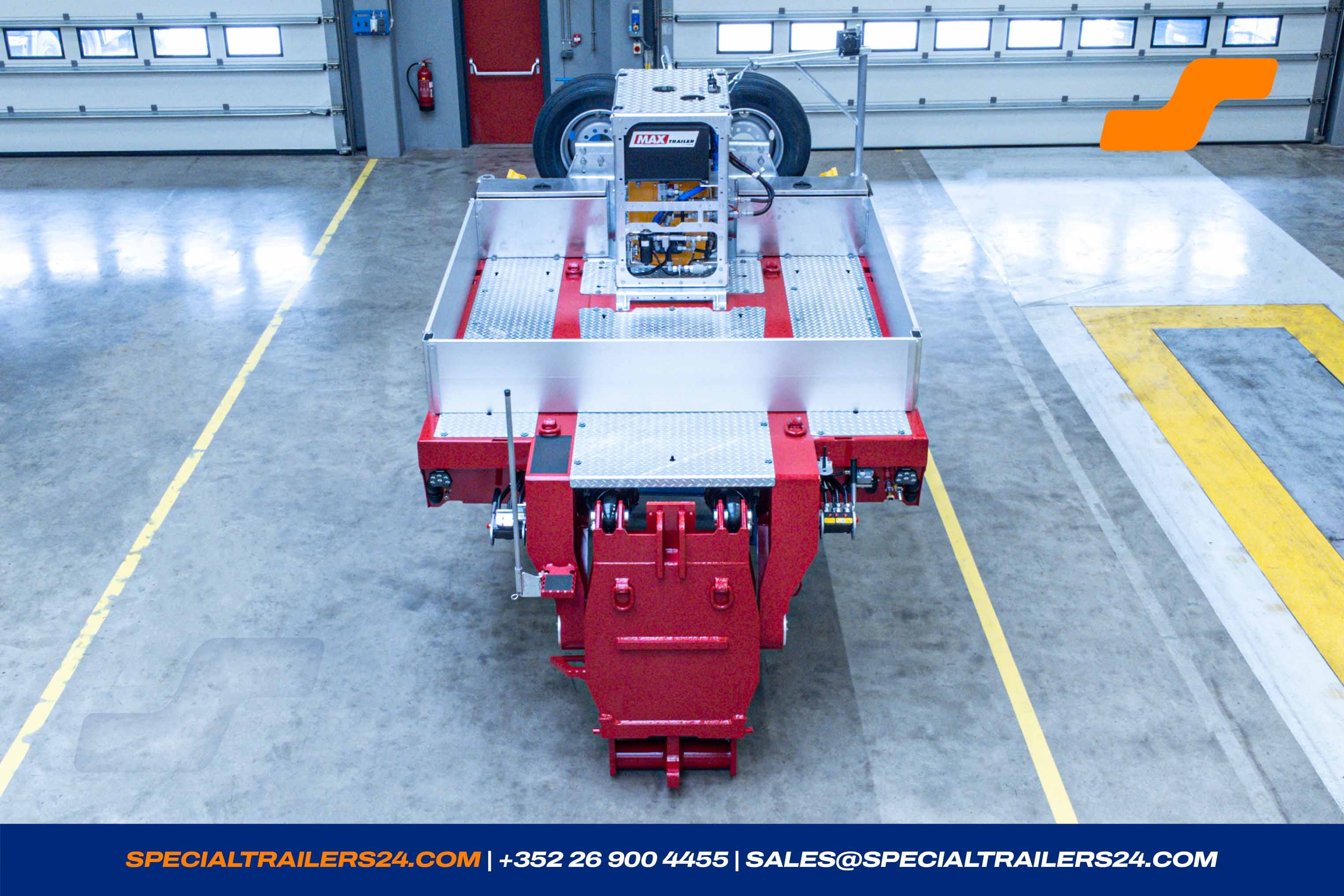

1 x Gooseneck
Gooseneck hydraulic lift- and lowerable and detachable.
Length ± 3 650 mm.
2 pairs of lashing rings foldable outwards (LC 5000 daN)
2 pairs of lashing rings on the gooseneck (LC 10 600daN)
1 pair of lashing rings on the centre section of the gooseneck (LC 10 600 daN)
For use of trucks: 6 x 4 and 8 x 4

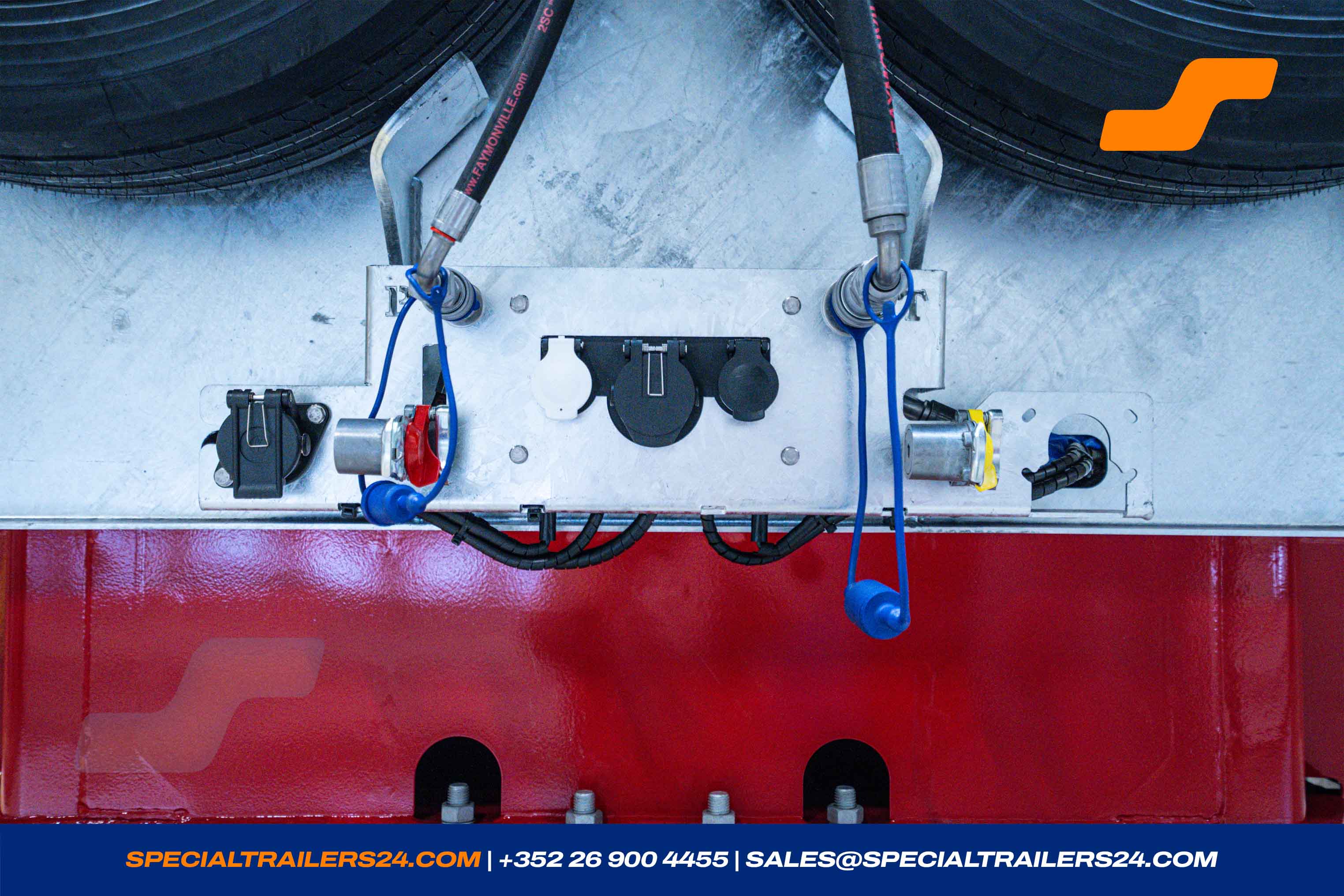

- Red and yellow air couplings on the galvanised front connection ledge.
- 4 wheel chocks with carrier. (± 5 kg)
- A separate air connection with air gun on the gooseneck.

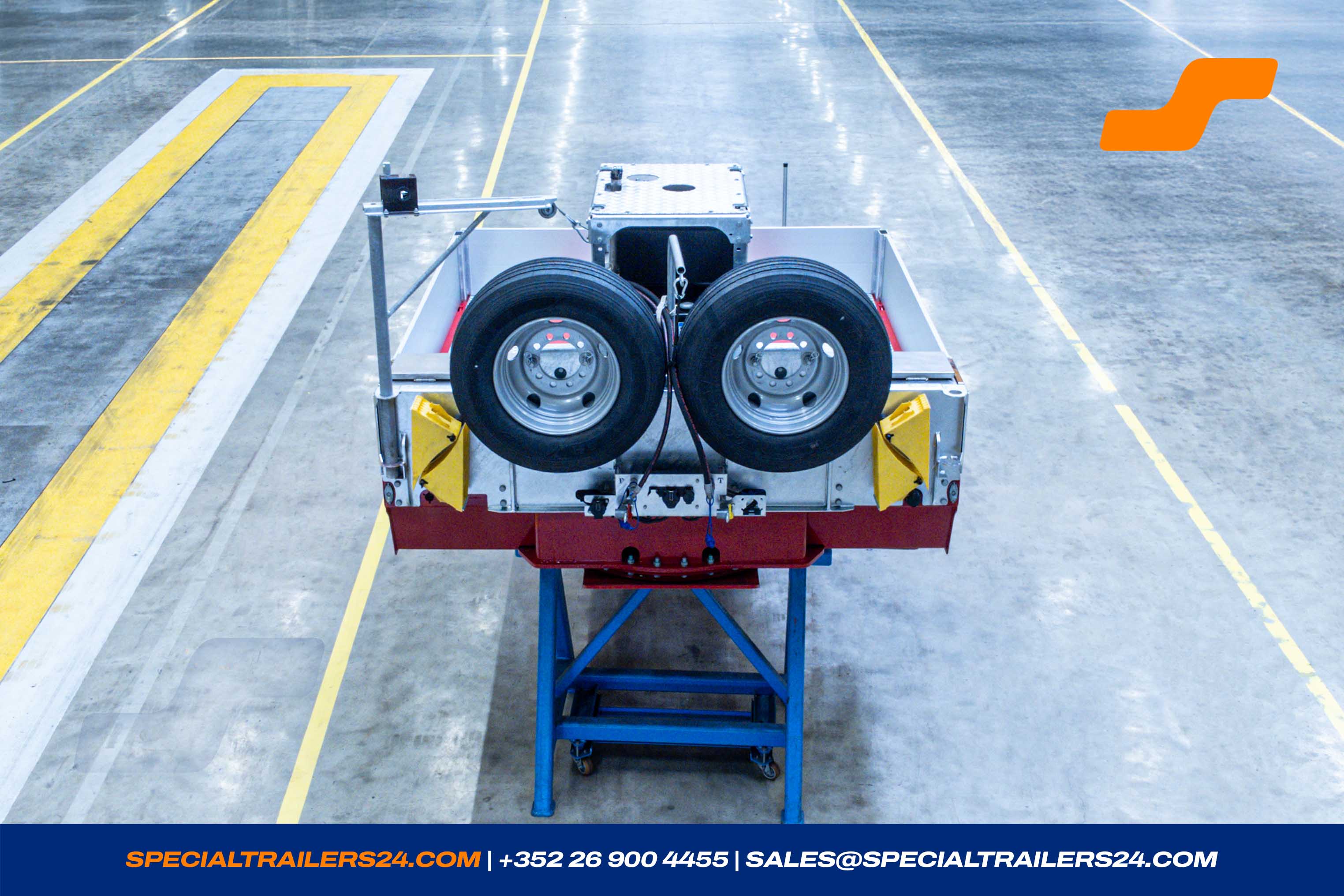

- A gallow with winch for spare wheel on the front of the gooseneck.
- Steel headboard, heigth ± 400 mm.
- 3.5 king-pin.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.
ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Connection to the truck PTO with flow reducing valve (20 l/min), incl. gallow to hang up the hydraulic pipes, the tank of the truck has to contain min. 80 l.
Coupling pieces MAX Trailer, otherwise to be delivered by the customer - Lighting for the control valves on the gooseneck with on/off switch.

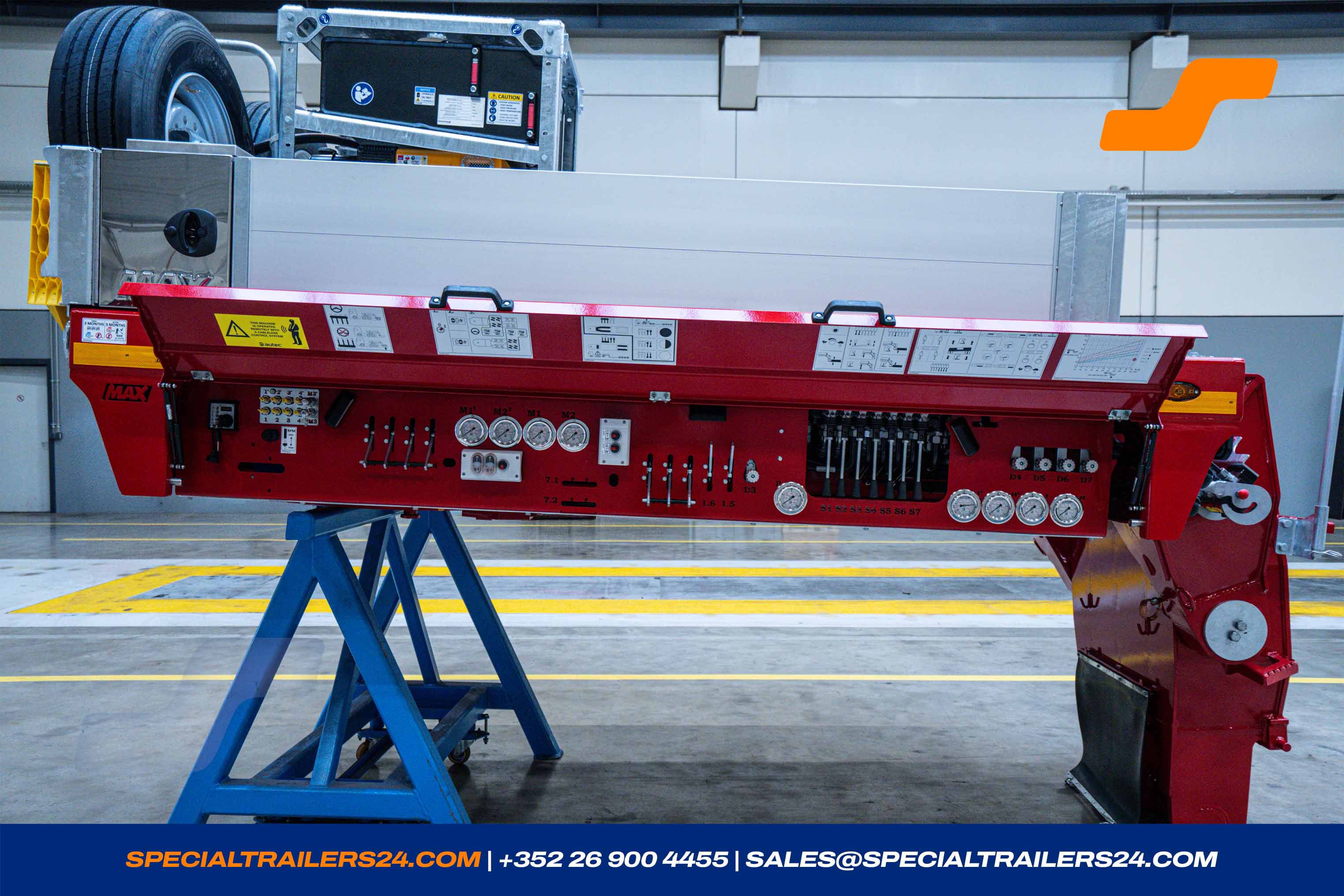

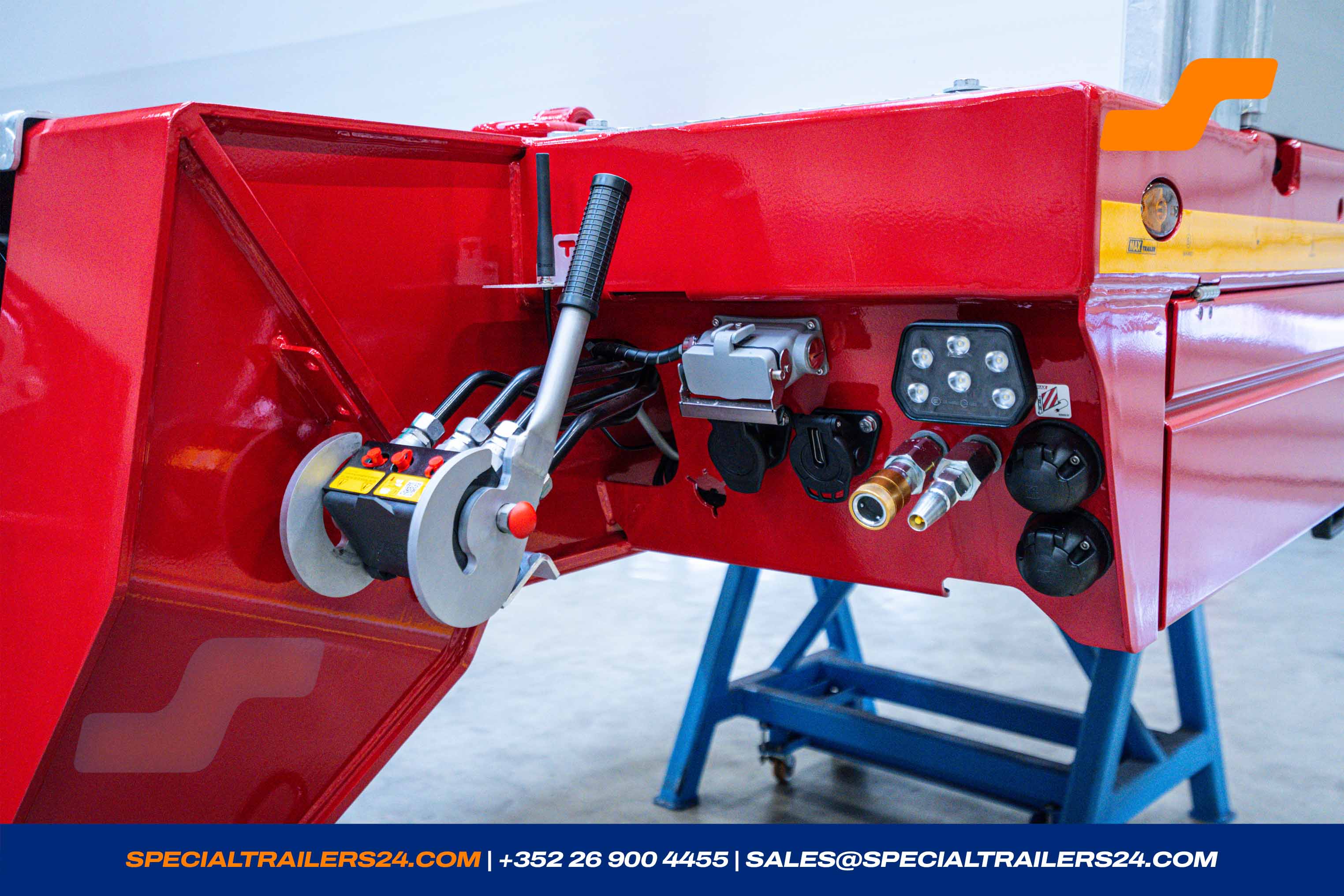

- Control panel at the gooseneck protected by a cover.
- A 7-pole socket left and right at the rear of the gooseneck for the warning boards.
- Load manometers at the gooseneck for the axle load on the front and the rear bogie incl. axle load graph.

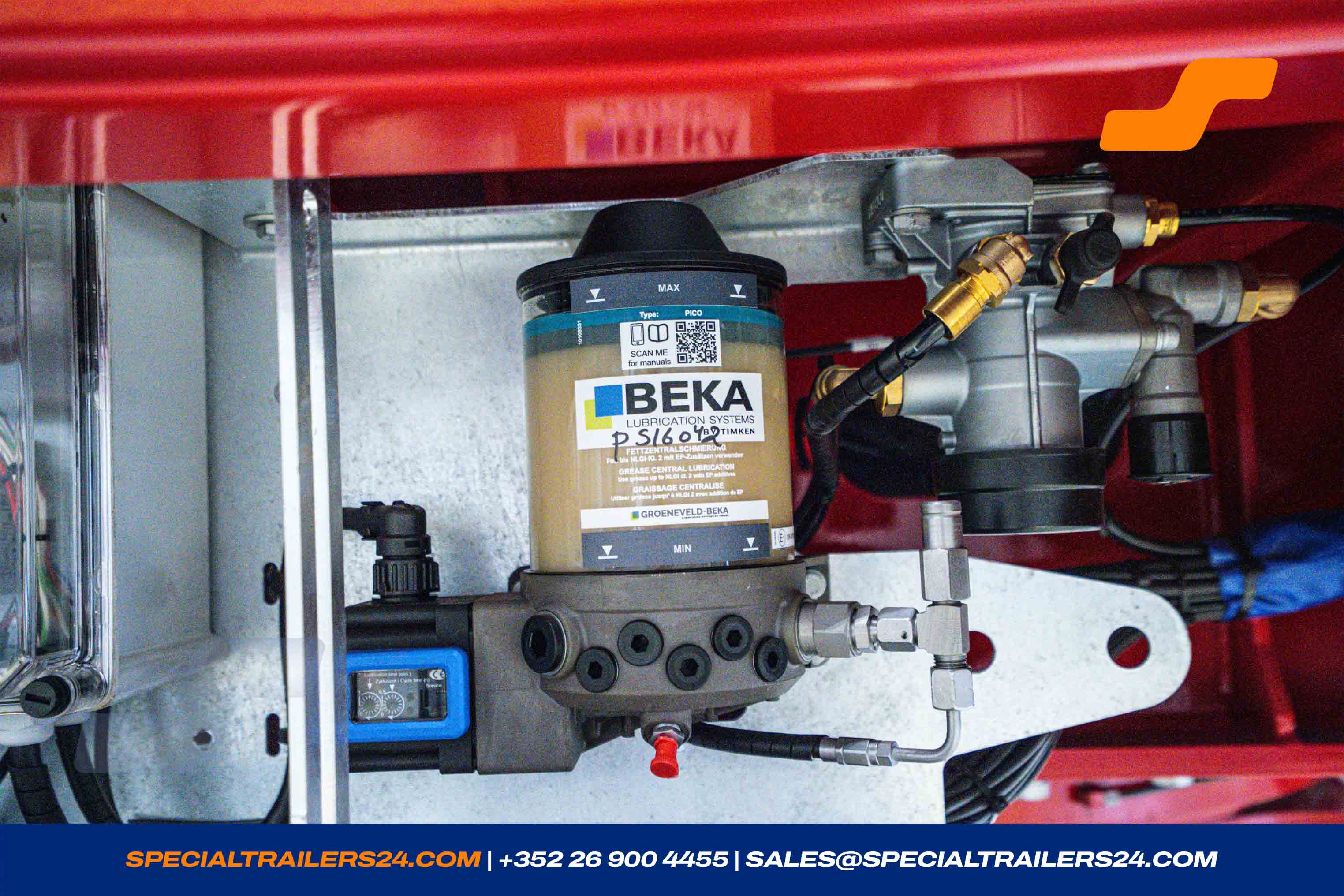

- BEKA-MAX central lubrication for a gooseneck with NLGI-2 normal grease.
- Tool-kit Art N° 612452.
- Ascent possibility to the gooseneck.
- Yellow reflective tape in accordance with EU regulations on the side of the gooseneck.
-

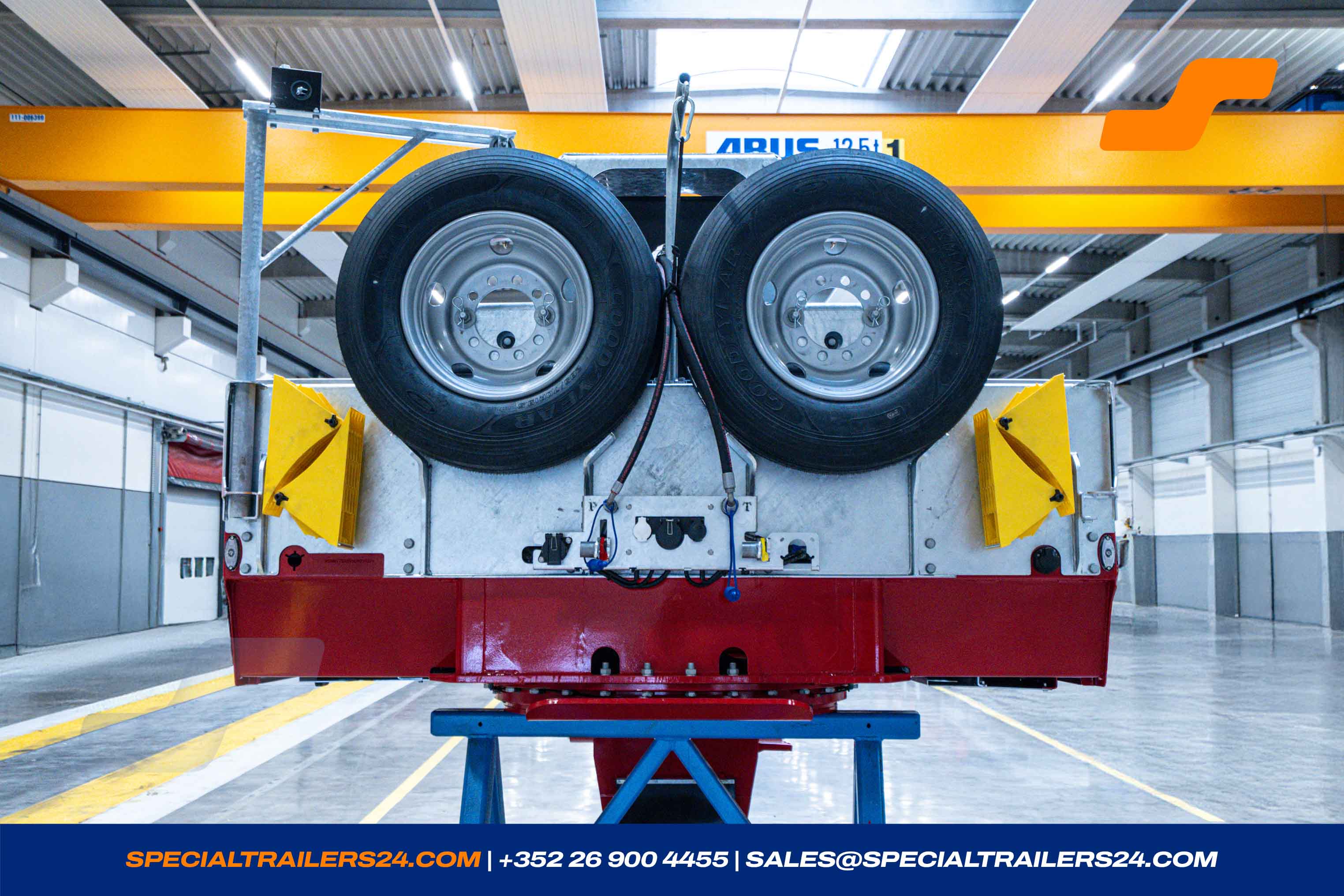

2 Spare wheels 285/70 R19.5 (M+S)
Product of our choice
Load Index 150/148J

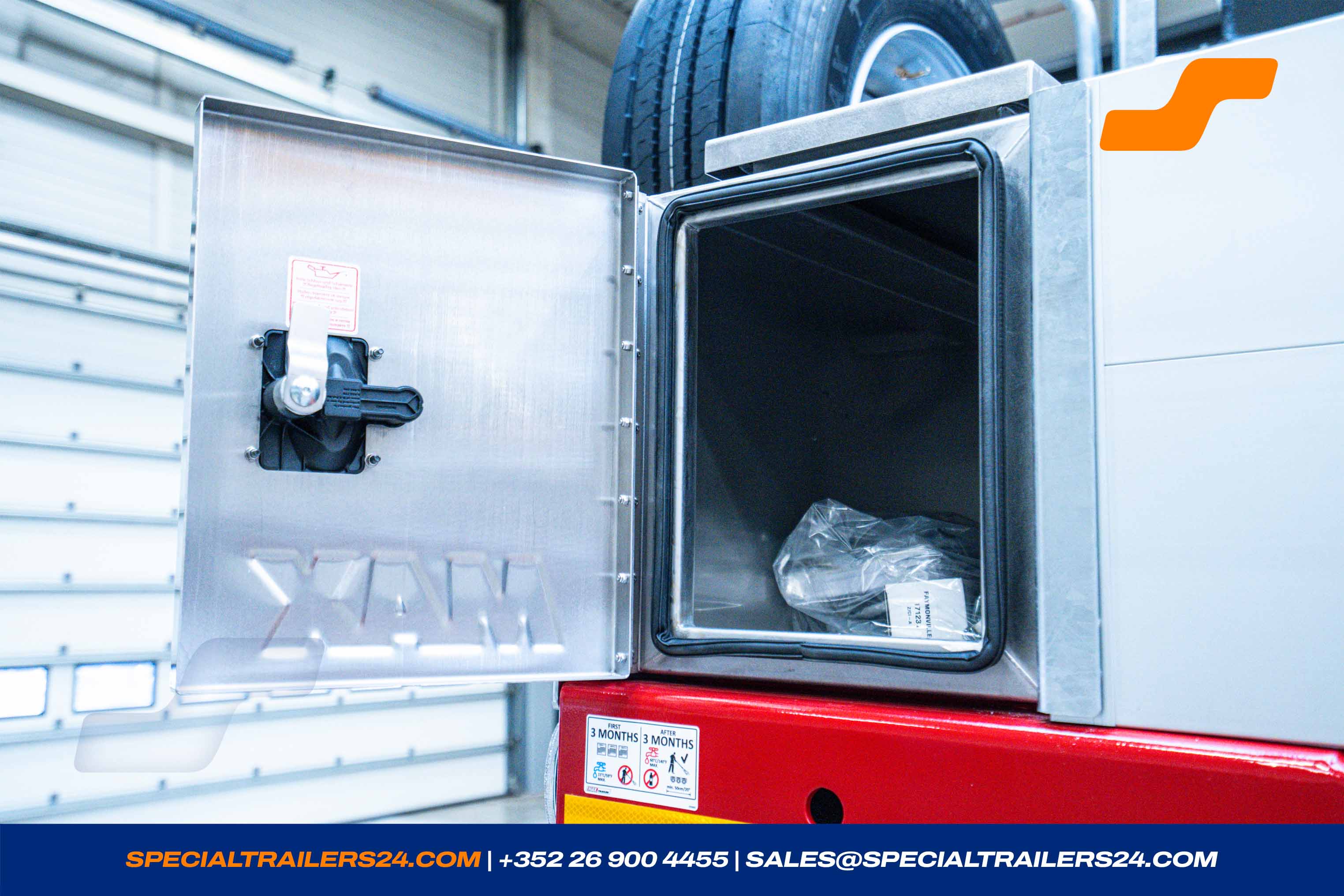

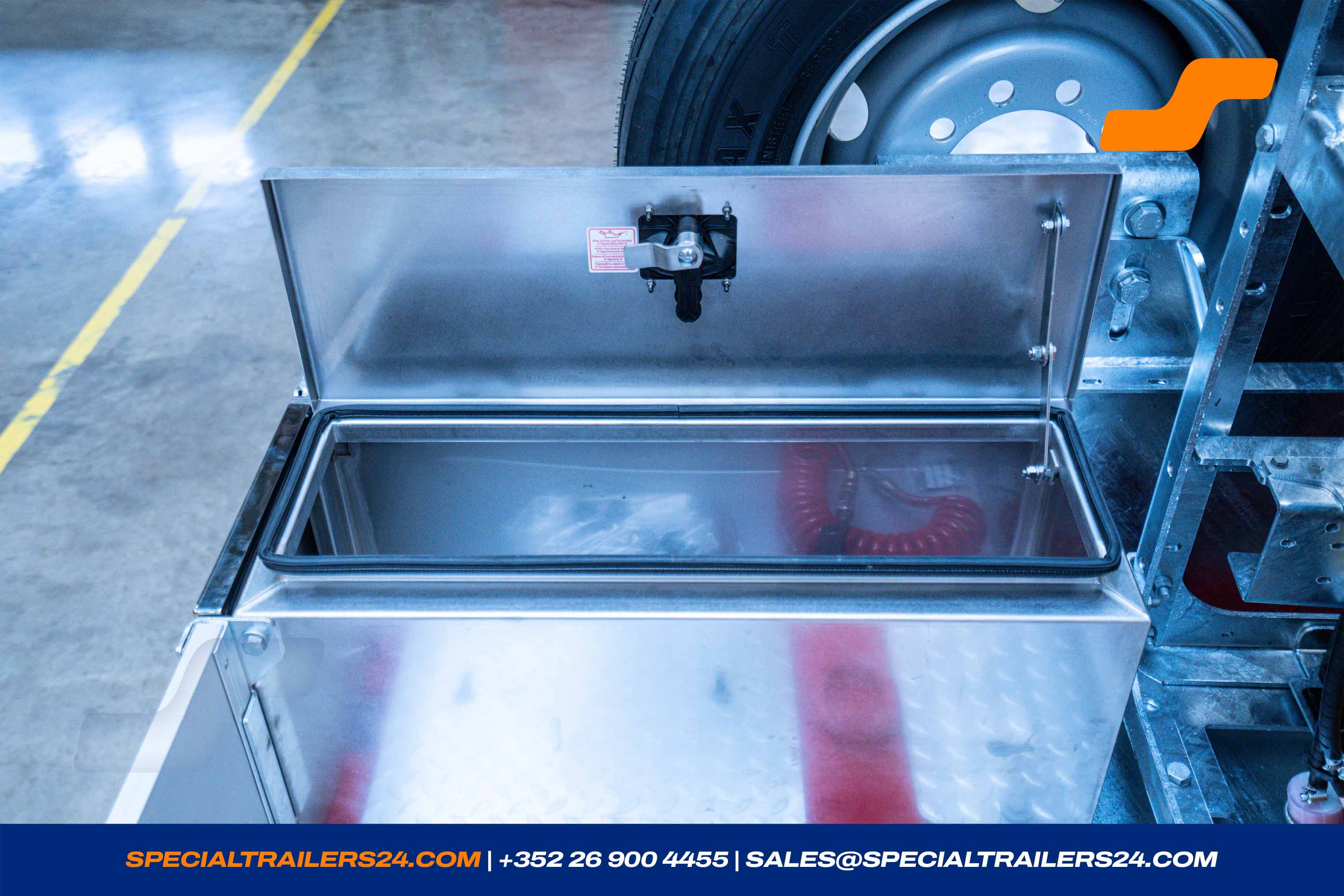

(± 146 kg) - 2 tool boxes INOX on the left and right of the gooseneck ± 855 x 340 x 390 mm. (± 48 kg)

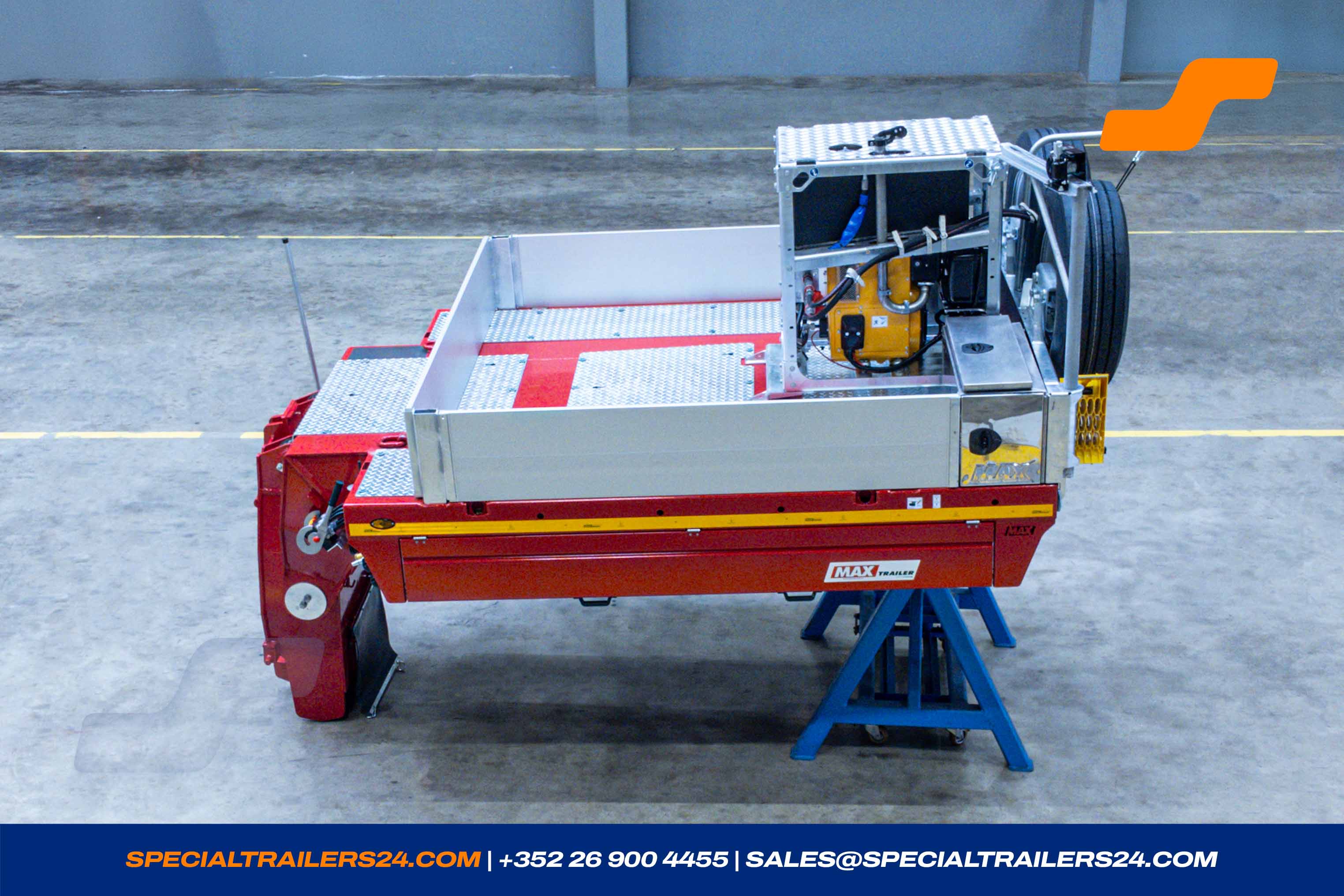

- On the gooseneck, removable alu-sideboards and rearboard, height ± 400 mm, anodized.

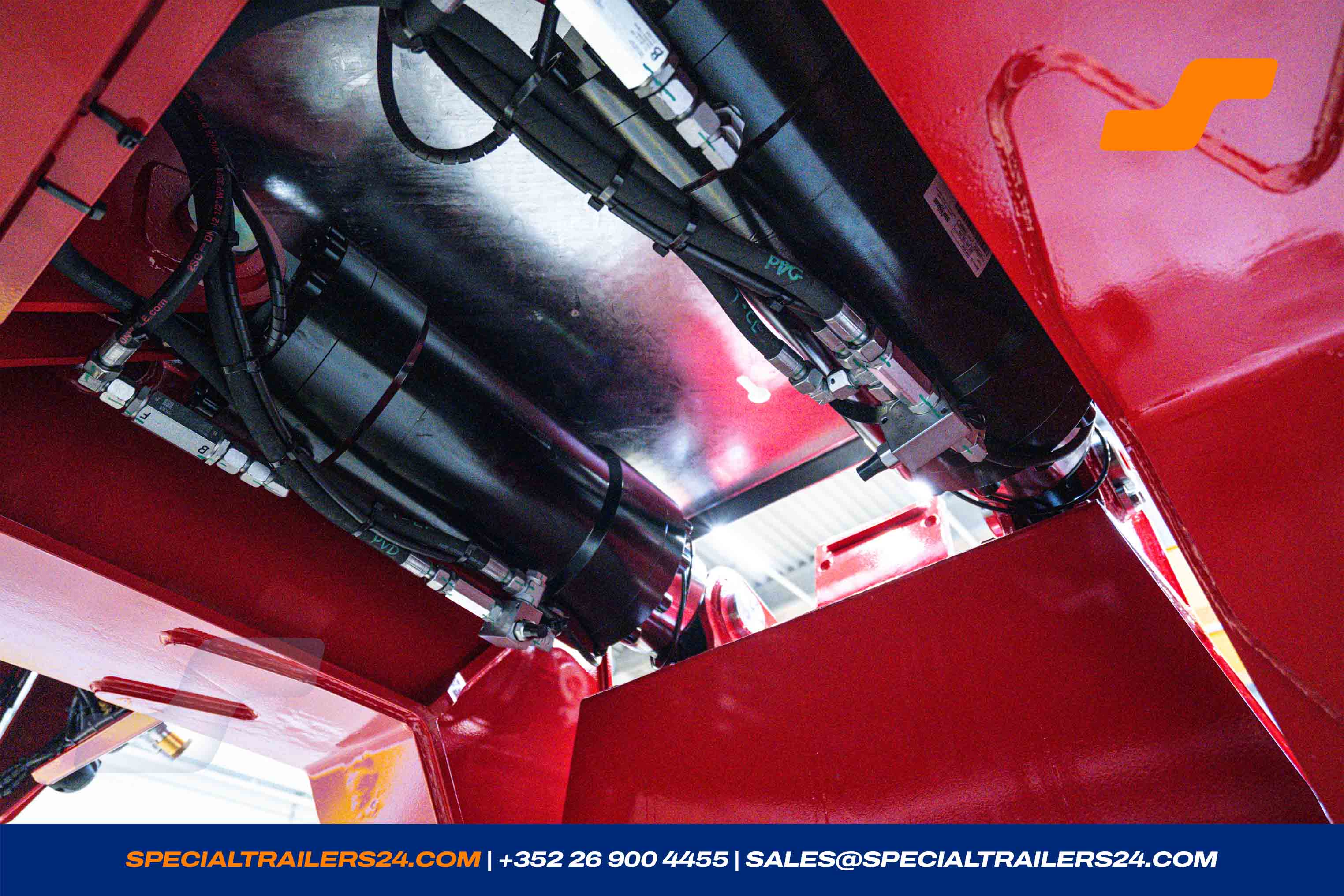

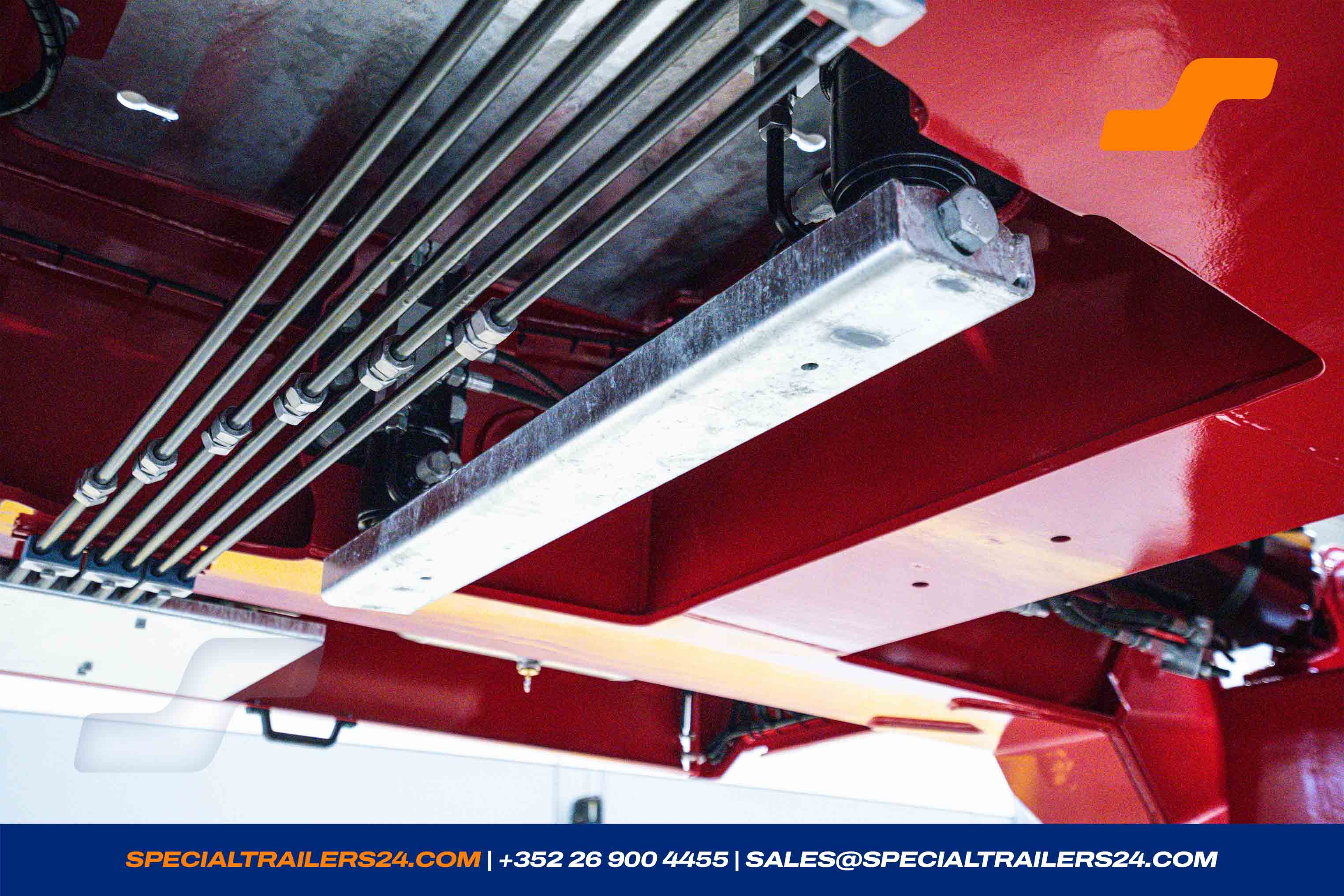

- Hydraulic connecting lines between power pack and connection ledge of the gooseneck.
-
Electro-hydraulic unit ± 4 kW integrated in the gooseneck.
The unit is not suitable for continuous operation under full load and can only be used in conjunction with a permanently installed diesel power pack with integrated oil tank or with a separate oil tank. - Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-

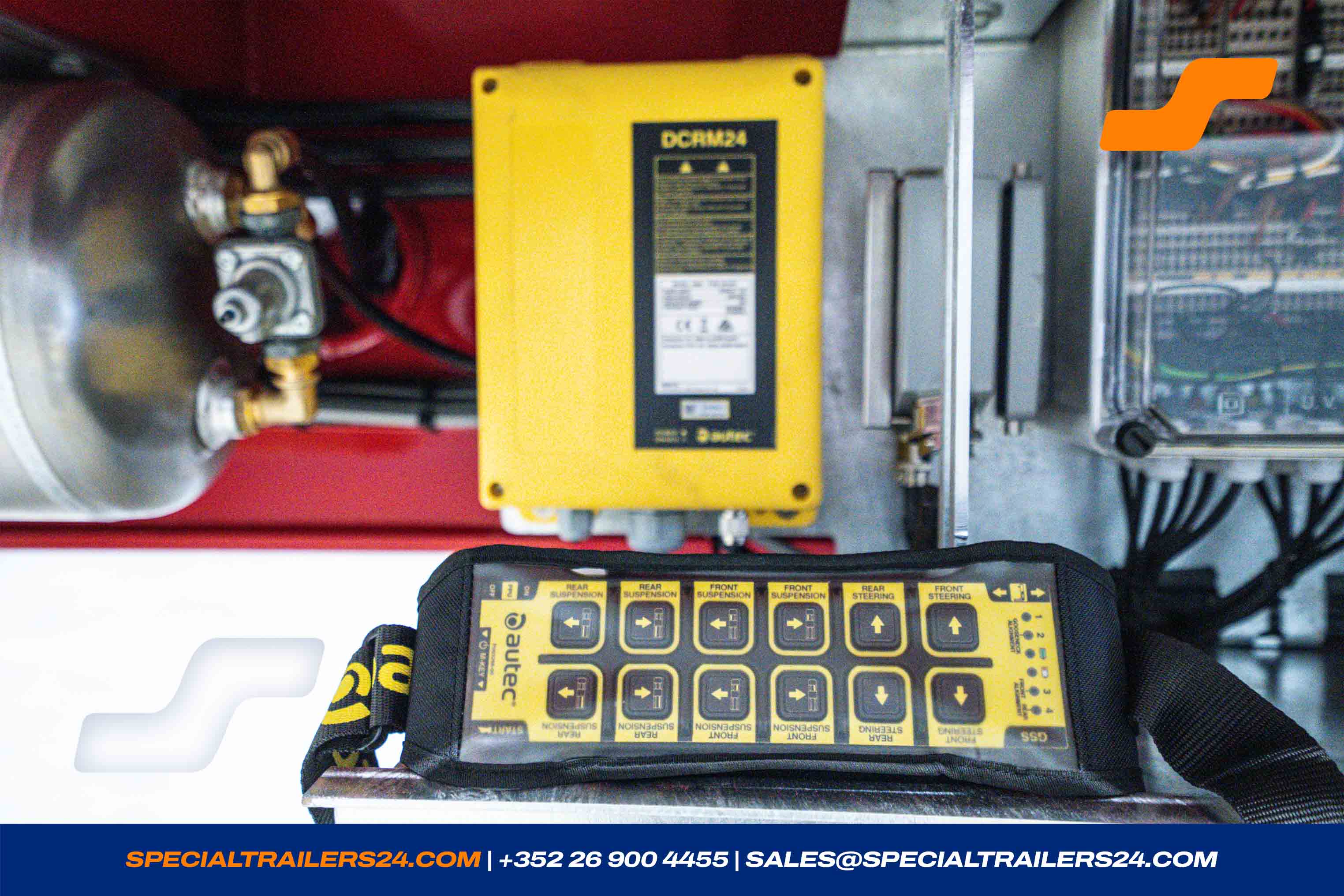

Radio remote control:
- Control of the Powerpack for Start/Stop of the Diesel engine.
- Control for the remote steering including optical realignment signal. Additional to the cable remote.
- Control for lifting and lowering of the suspension of the bogies.
- Control for lifting and lowering of the gooseneck. -

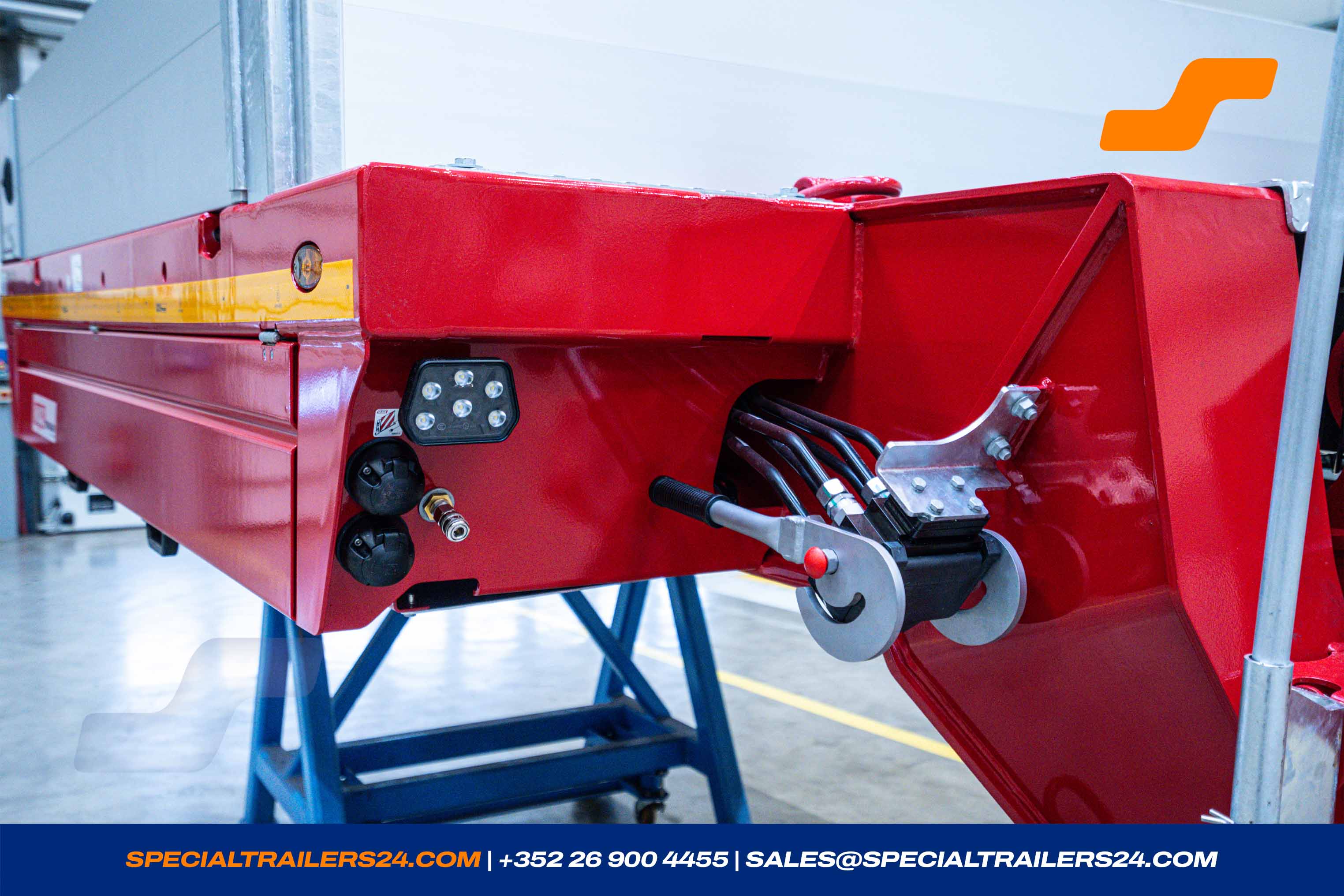

Quick-release hydraulic couplings on the gooseneck.
Without warranty on the seals. (± 4 kg) - 1 LED working lamp at the left and right side at the rear of the gooseneck with separate switch

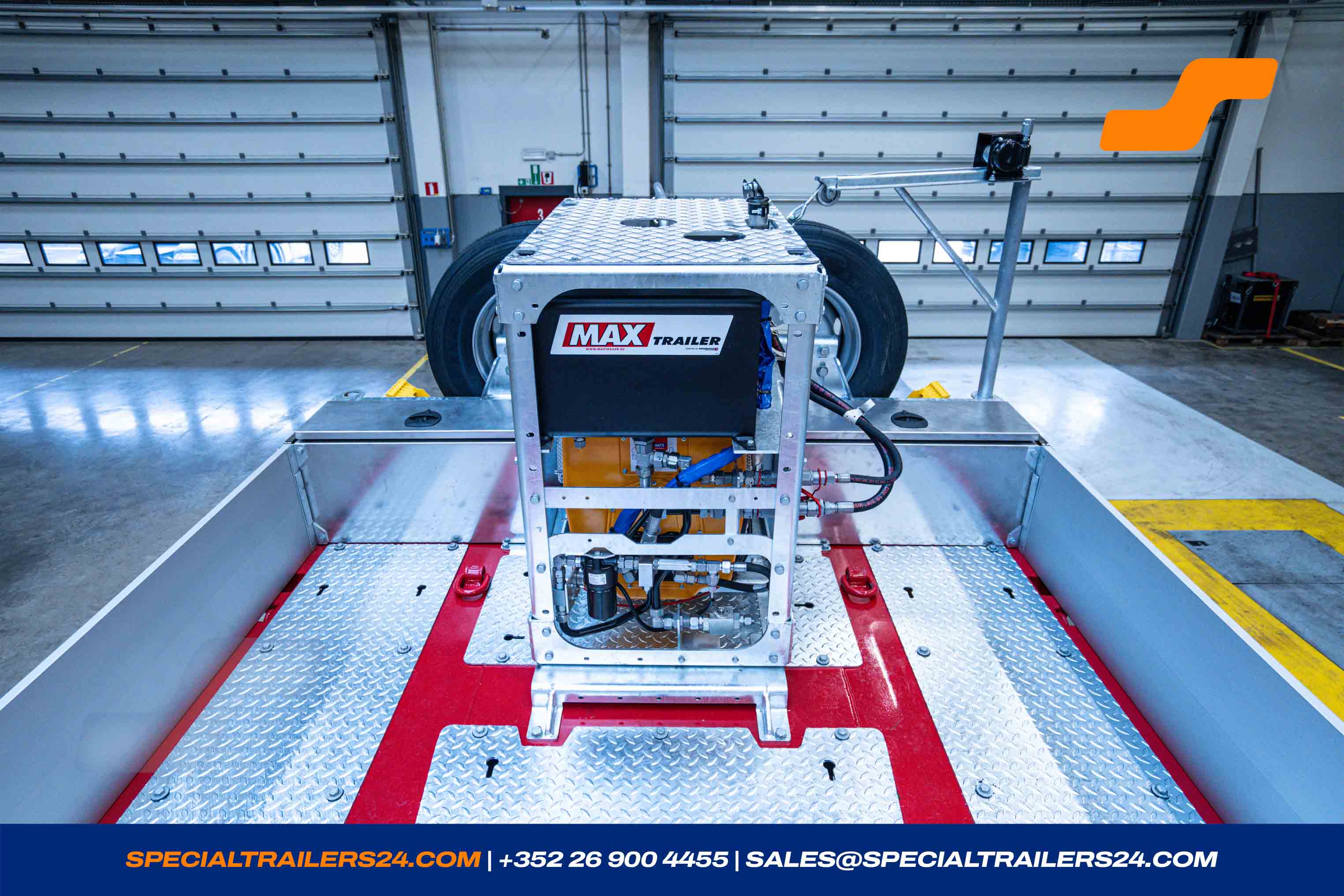

Powerpack-HA-1-EU-Std.
1 x Powerpack-HA-1-EU-Std.
1- cylinder Hatz-Diesel engine (silent pack) with electric starter and battery.
Performance: 9.5 kW (12.9 HP) at 3000 rpm
Exhaust classification: EU Stage V
Maximum hydraulic pressure: 280 bar
Maximum flow rate: 21l/min
Mounting on the gooseneck.
Hydraulic oil tank: 100 L
Frame hot-dip galvanized.
(± 480 kg)
Accessories
1 x Accessories
- One powder fire extinguisher (6 kg) with a protective casing and holder (± 15kg).
- 4 warning boards ± 423 x 423 mm extendable by ± 1 000 mm with 1 LED position light and holder for a flashing beacon. (± 105 kg)
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Delivery from a trailer to factory Lentzweiler.
-
France:
Cerfa:
For your information:
Technical description, necessary for the request of an authorization for the special transport.
We do not deliver any authorization but only the forms or descriptions useful for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations. -
Spain: Ficha técnica
For your information :
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations.
