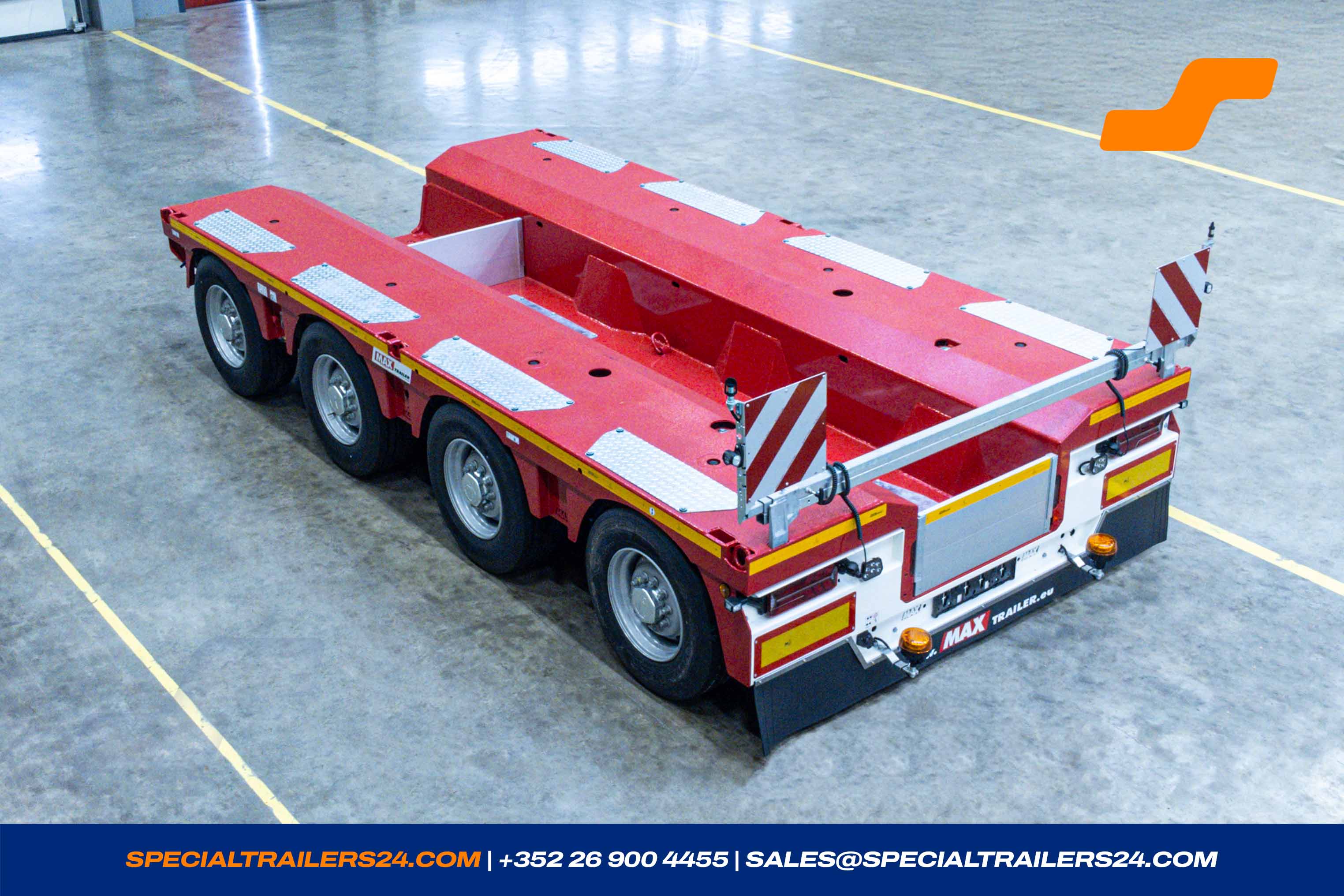

Modular vehicle
MAX Trailer MAX710
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110529
- Reference MAX710-Fahrwerk-PA-H-4-19.5-1.36-2.85
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 01/2026
- Steering Type Hydraulic
Availability
01/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load rear bogie | 55600 kg |
| Gross weight | 55600 kg |
| Tare weight +- 3% | 9083 kg |
| Payload | 46517 kg |
Dimensions
| Wheelbase | 1 360 mm |
| Bogie length | 5 480 mm |
Rear Bogie

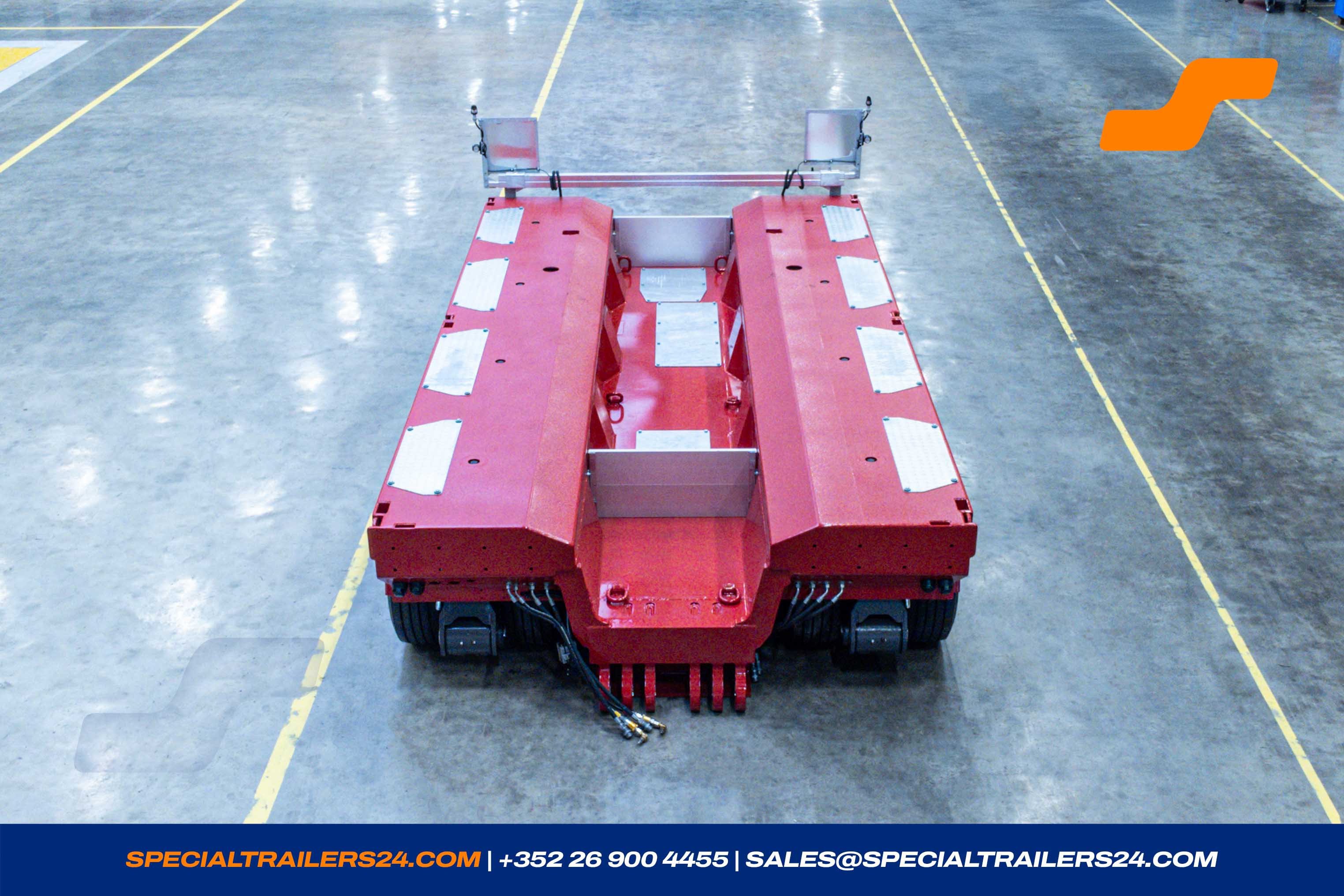

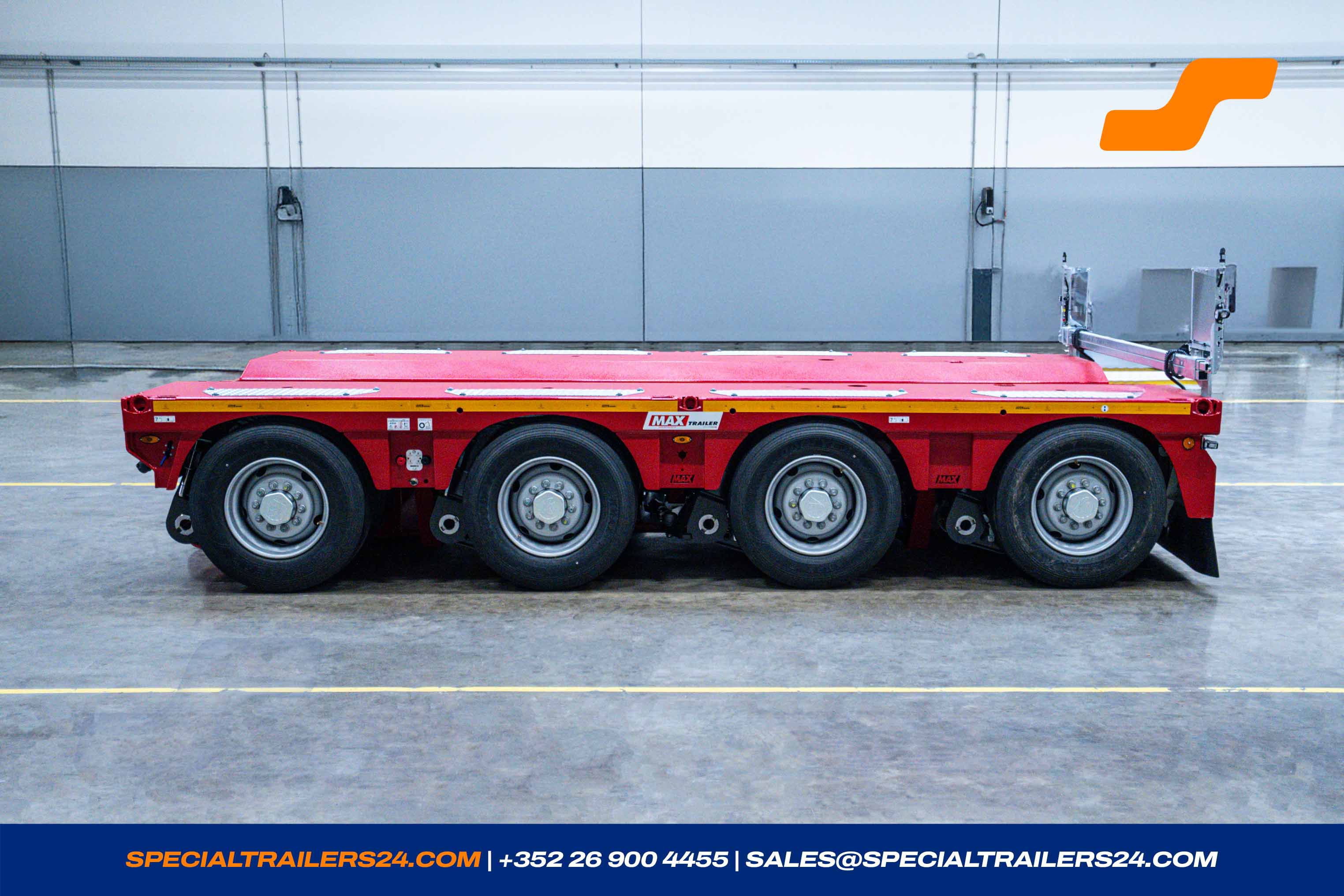

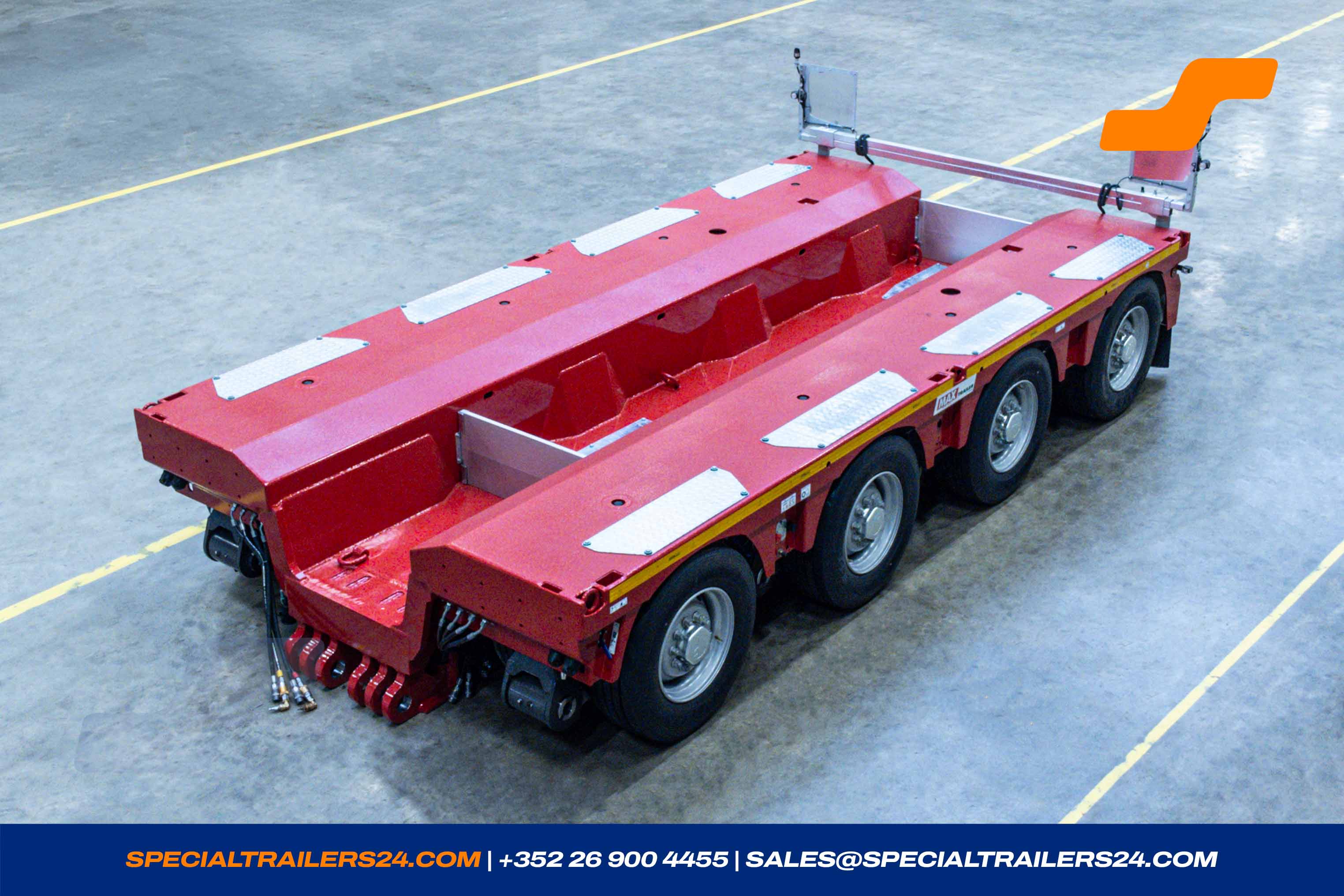

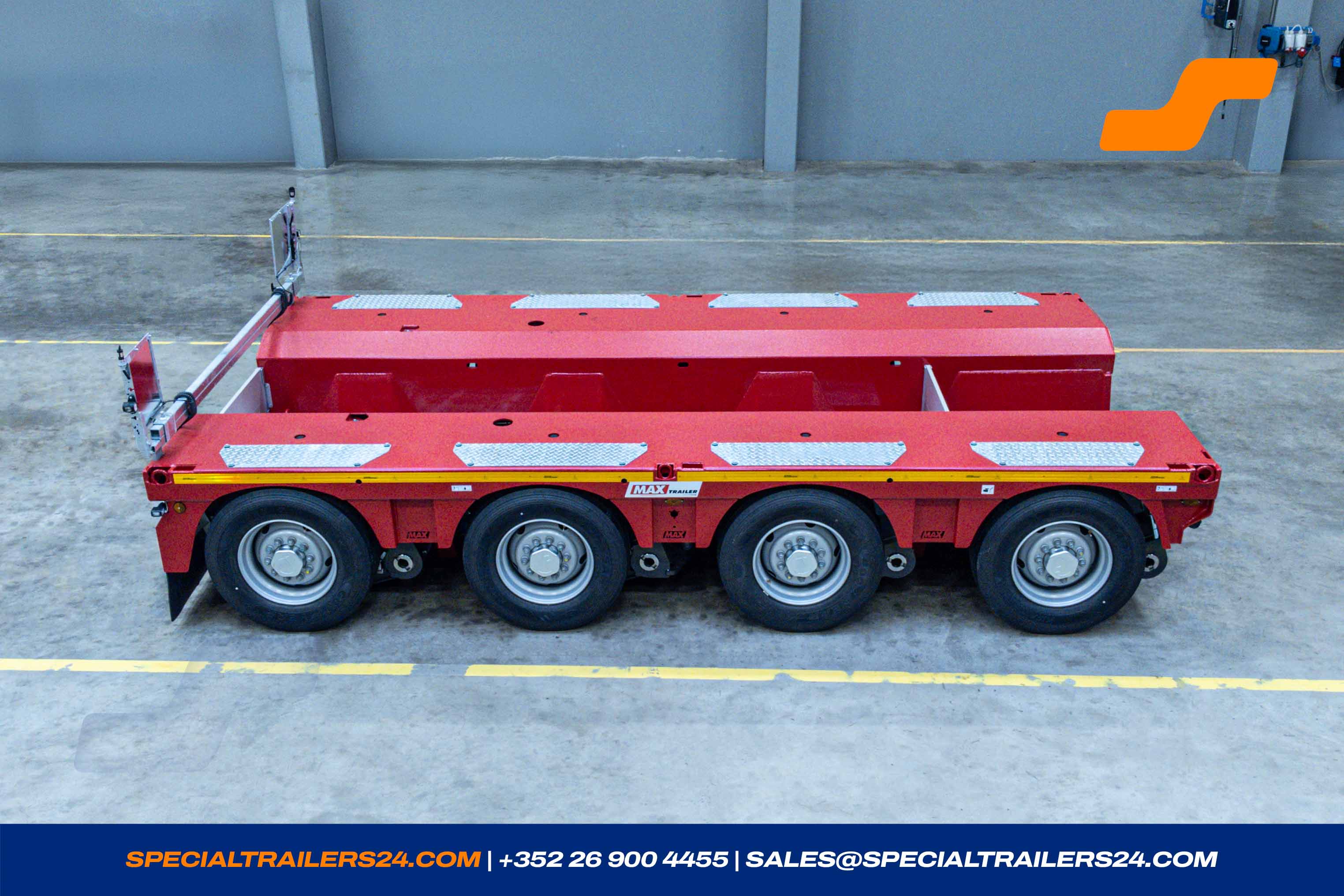

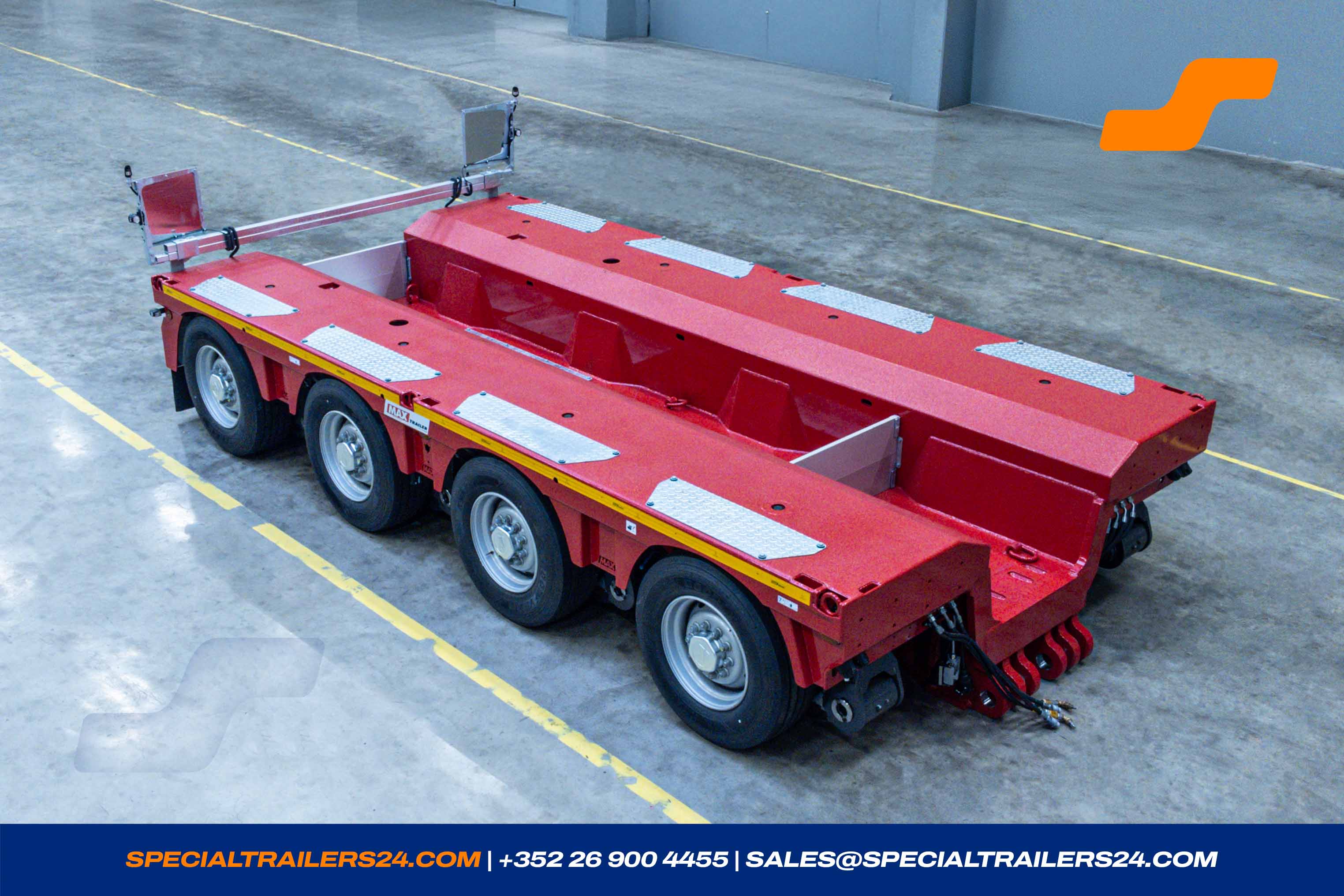

1 x 4-axles rear bogie

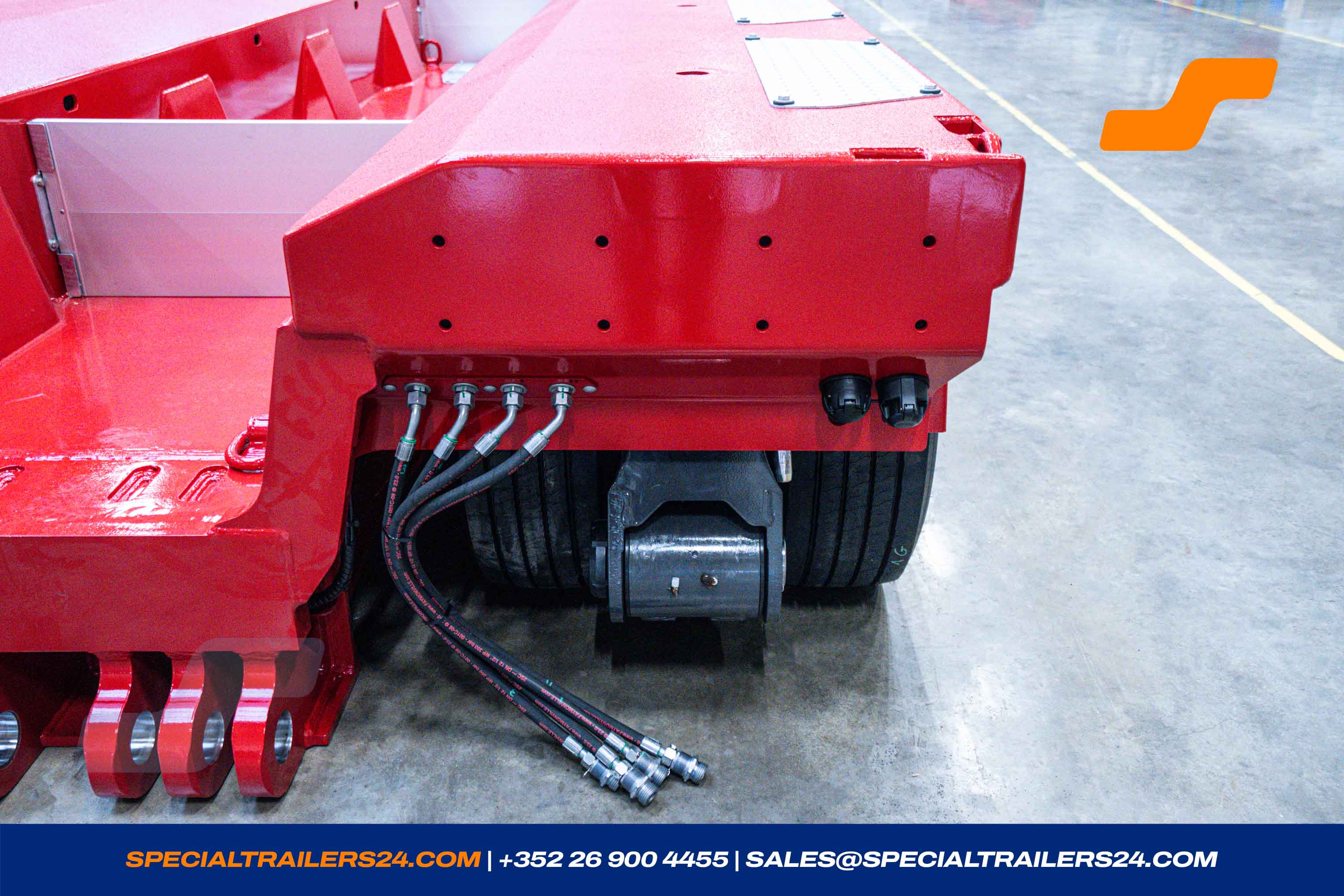

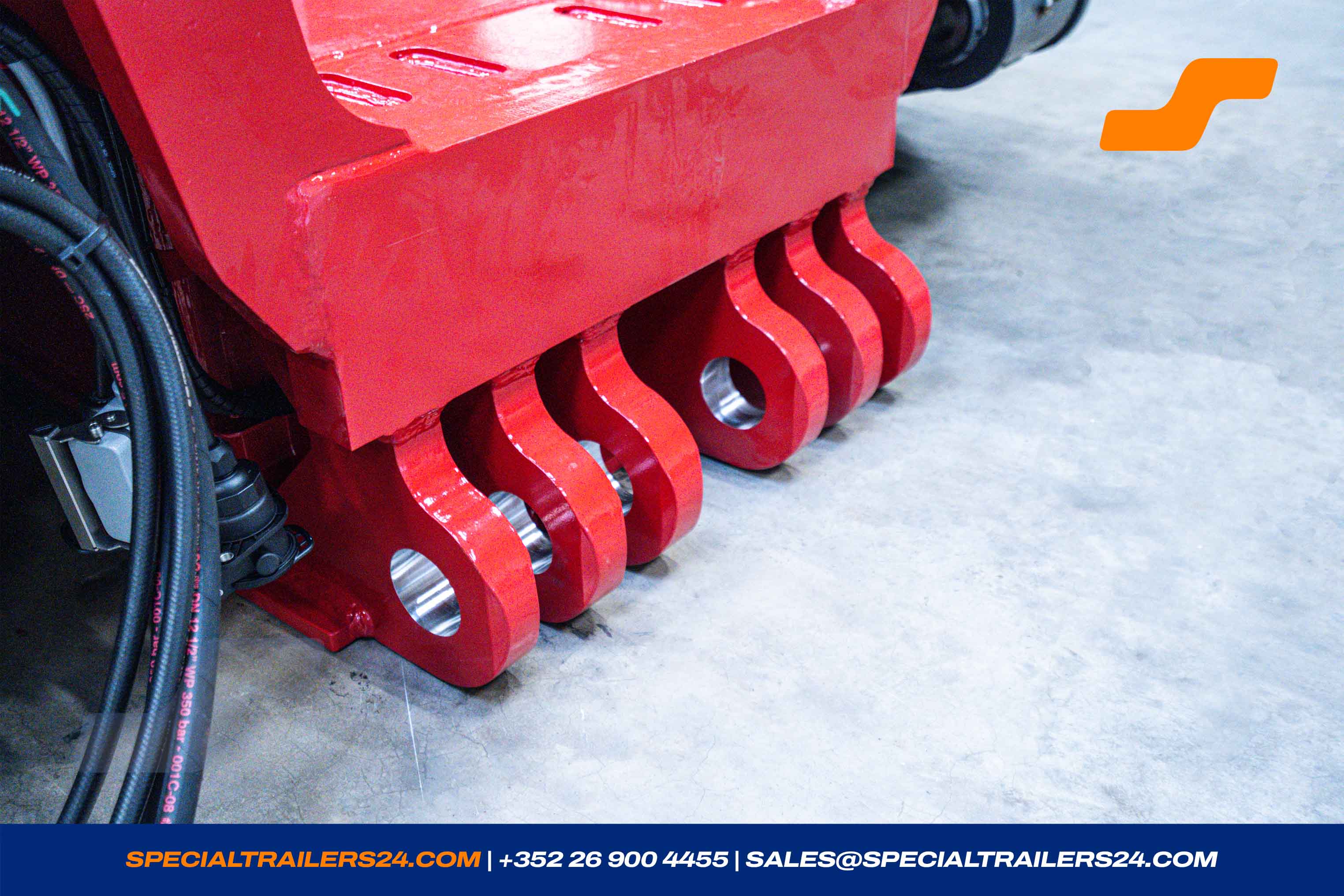

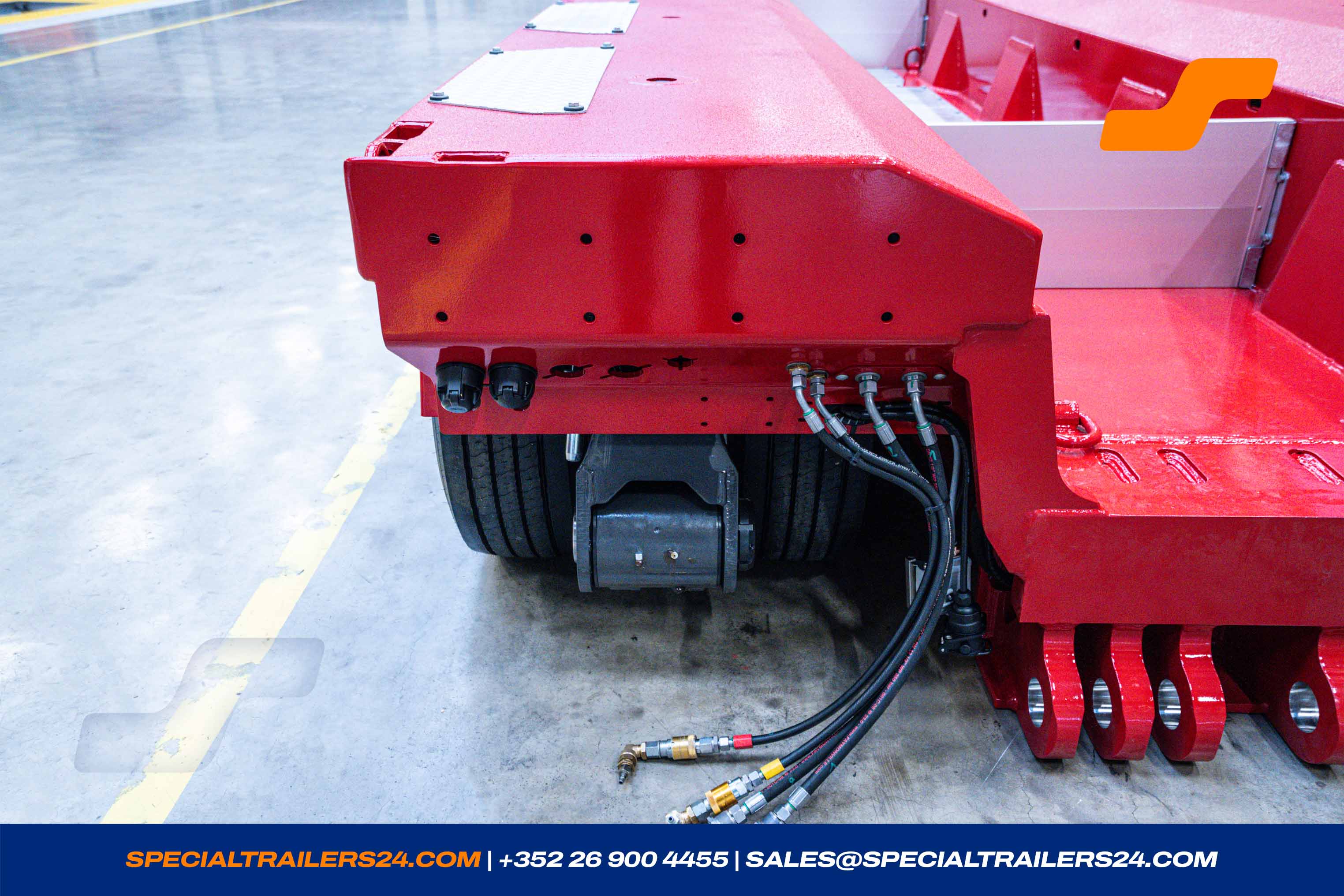

Mechanical pin and lug coupling for mounting a lowbed at the front, end cross member at the rear
Bogie width: 2 850 mm
Bogie length: 5,480 mm

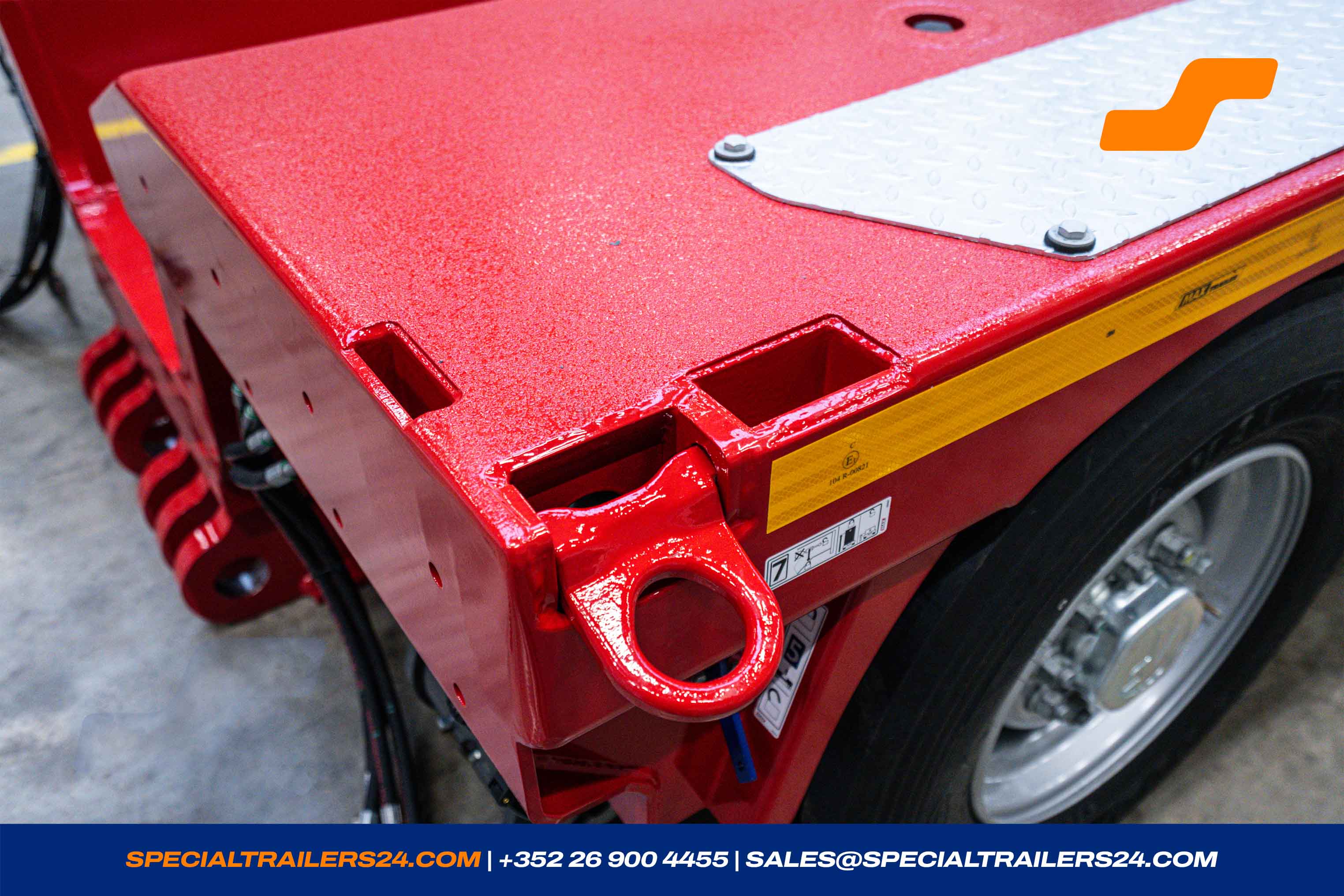

2 pairs of retractable lashing rings (LC 10 000 daN).
1 pair of retractable lashing rings (LC 5 000 daN).
3 pairs of cutouts in the border frame for hooking in tension belts (LC 2 000 daN)
3 pairs of lying lashing rings in the chassis (LC 10 600 daN).

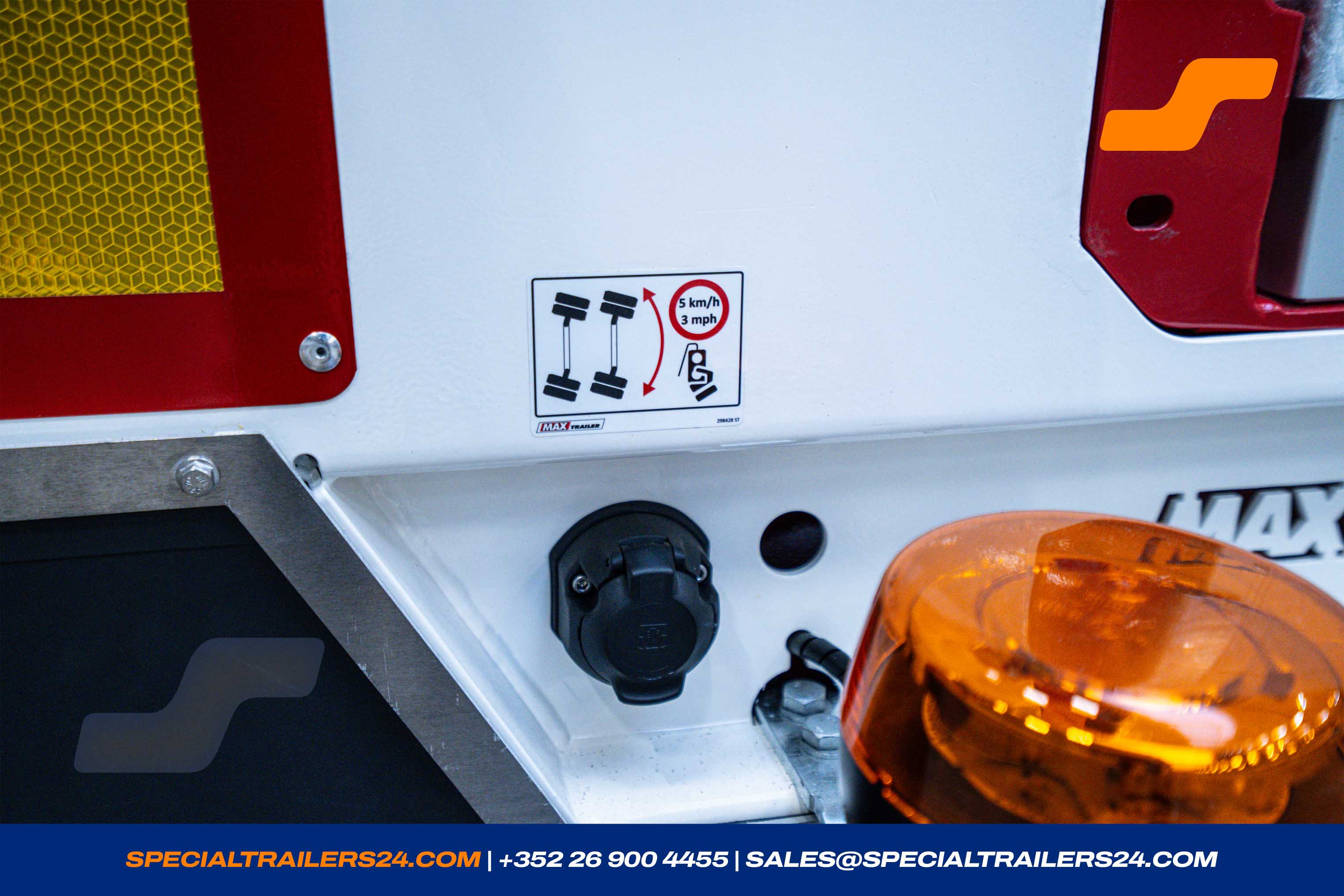

- A 7-pole socket on the left and right, front and rear on the rear bogie for the warning boards.
-
BEKA-MAX central lubrication for a 4 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods). - Socket for the cable remote control for the auxiliary steering on the rear bogie.

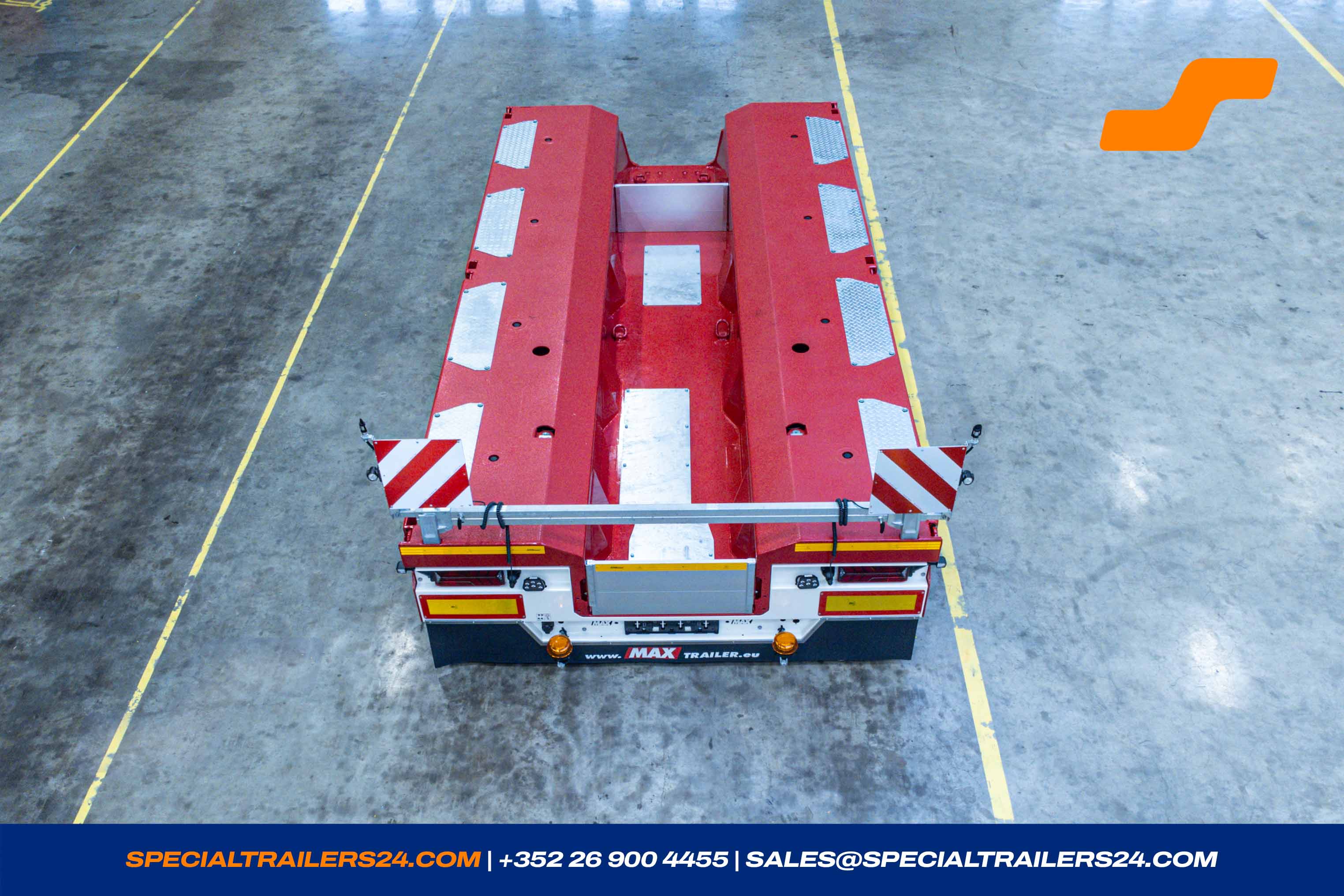

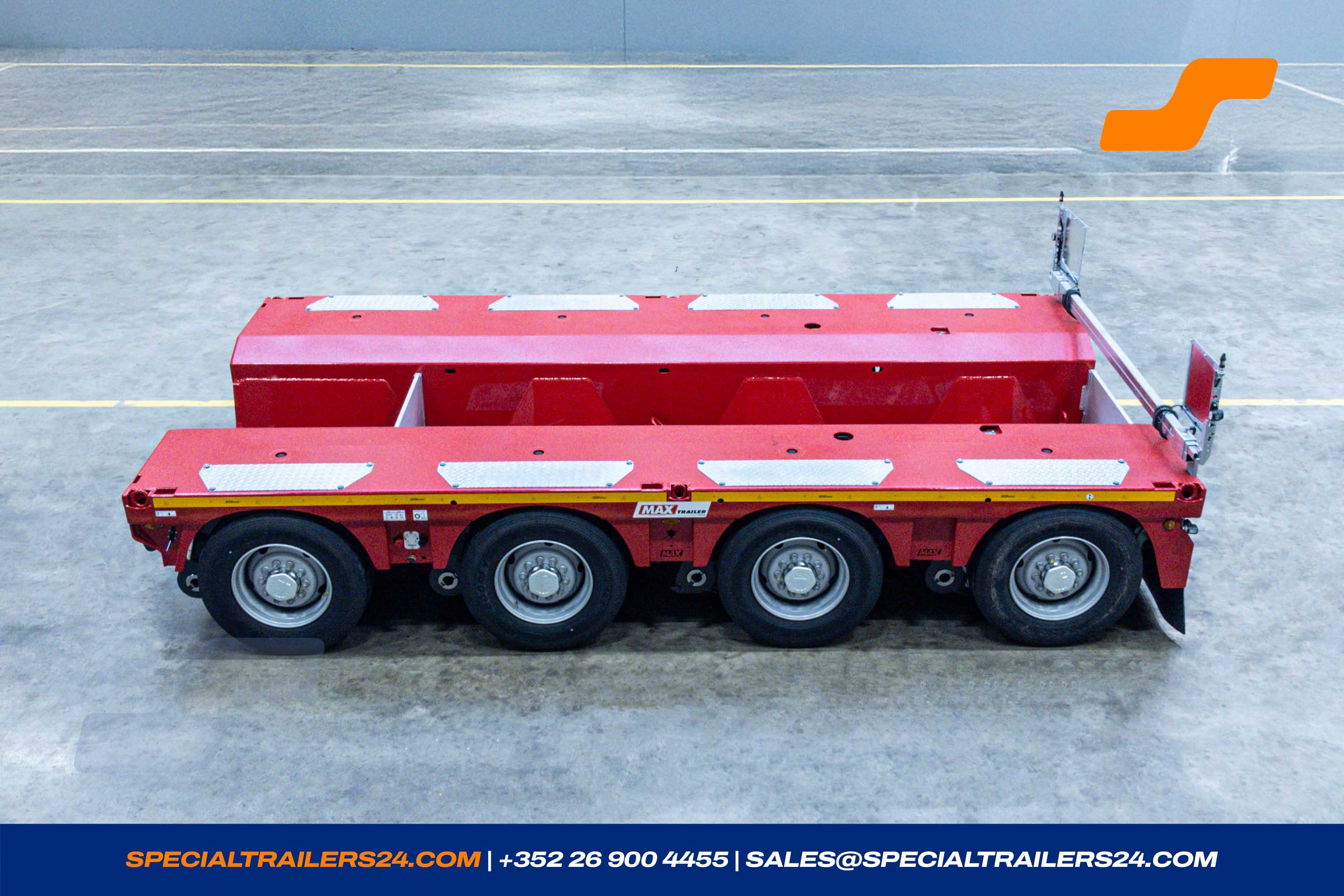

- Bogie with recess.

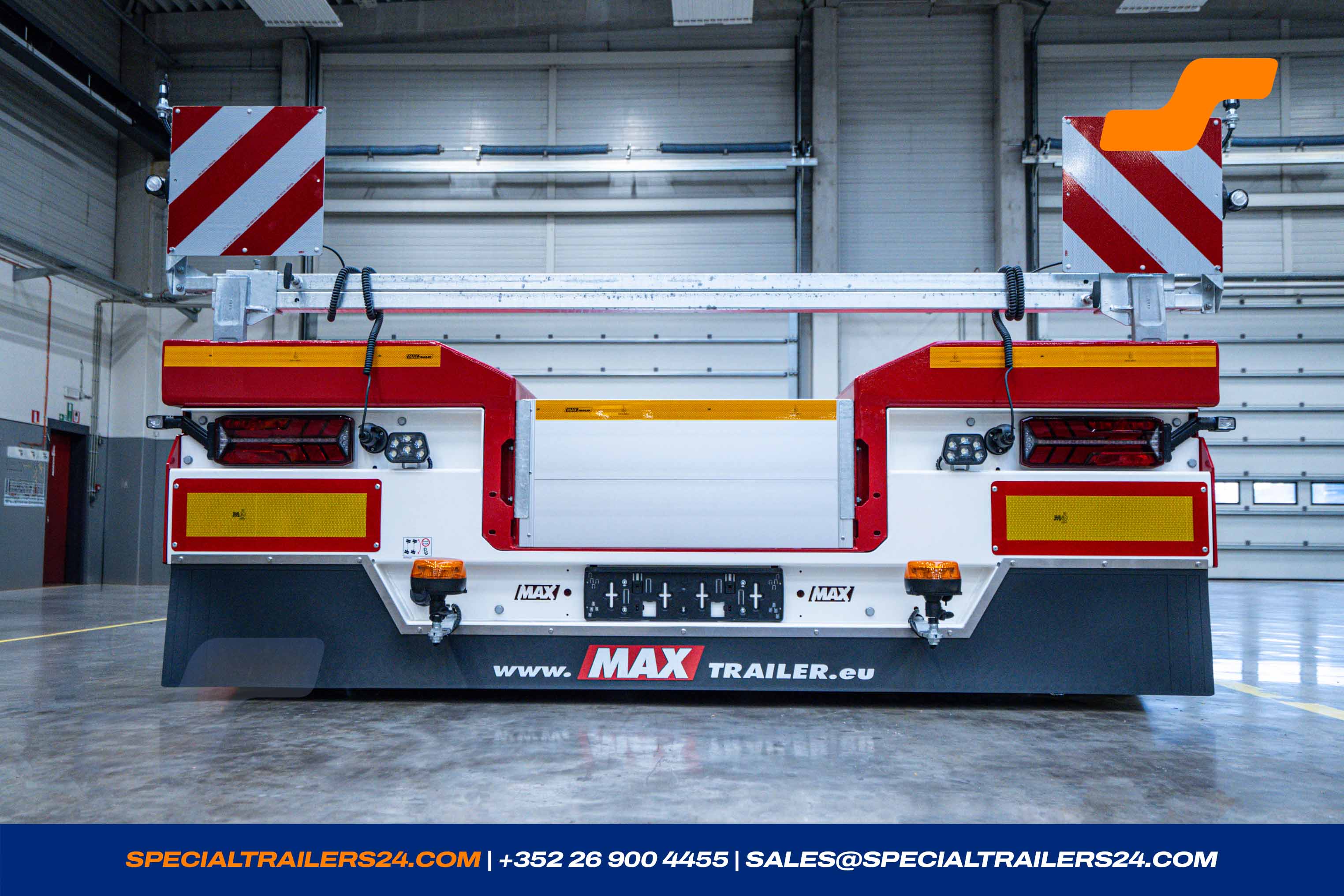

- 2 LED- reversing lights at the rear.

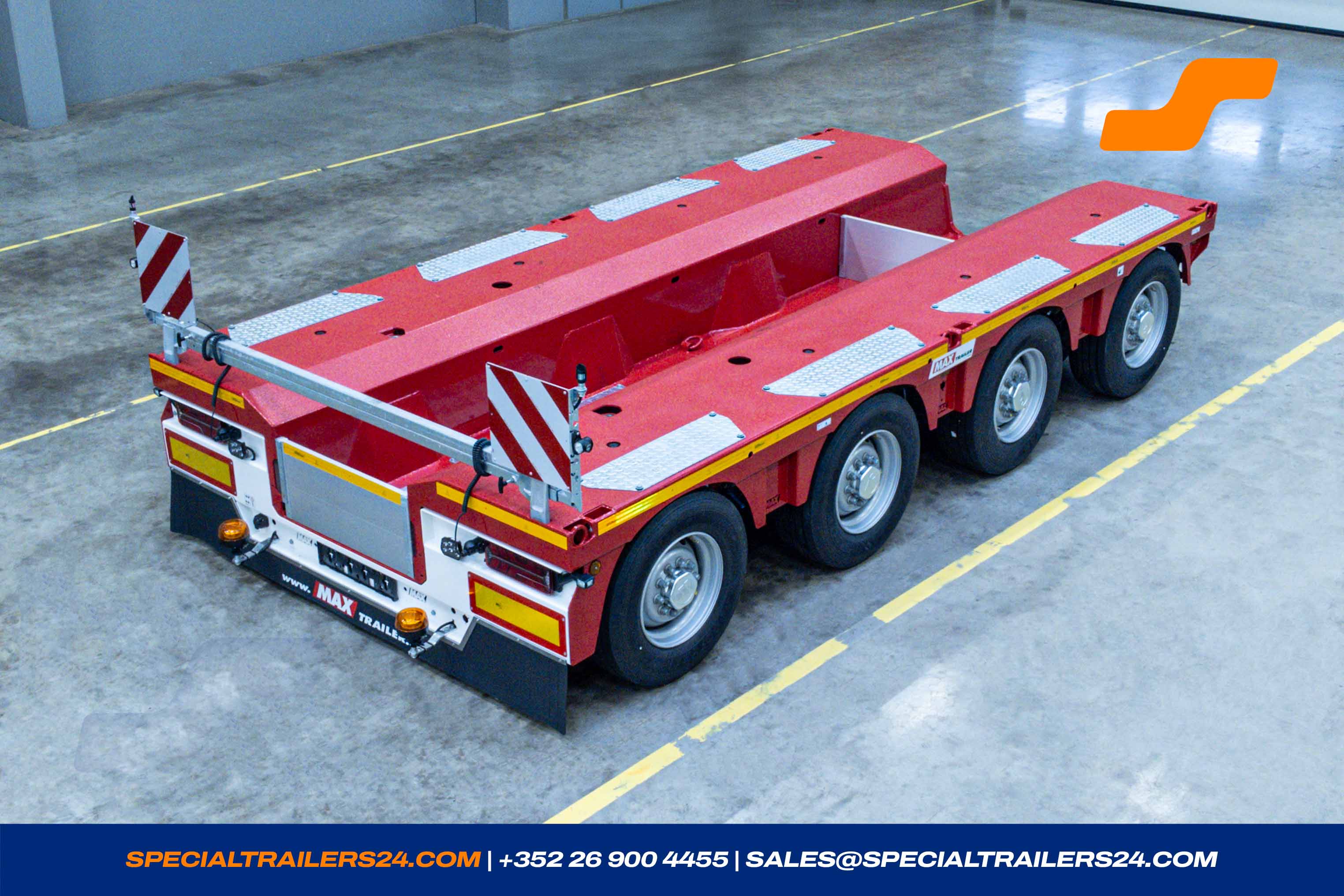

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- A LED flashing beacon with holder on the left and right side.
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.
- One hubodometer mounted on the inside of an axle.
- U-beam between lowbed and rear axle bogie for ramps.
- Surface of the rear axle bogie painted with sand as anti-slip-coating.
- Recess on the rear axle bogie closed in front and rear with a screwed plate.
- Speed sticker 60 & 80 km/h at the rear.
- A reversible reflector with ‘CONVOI EXCEPTIONNEL, at the rear of the vehicle.
