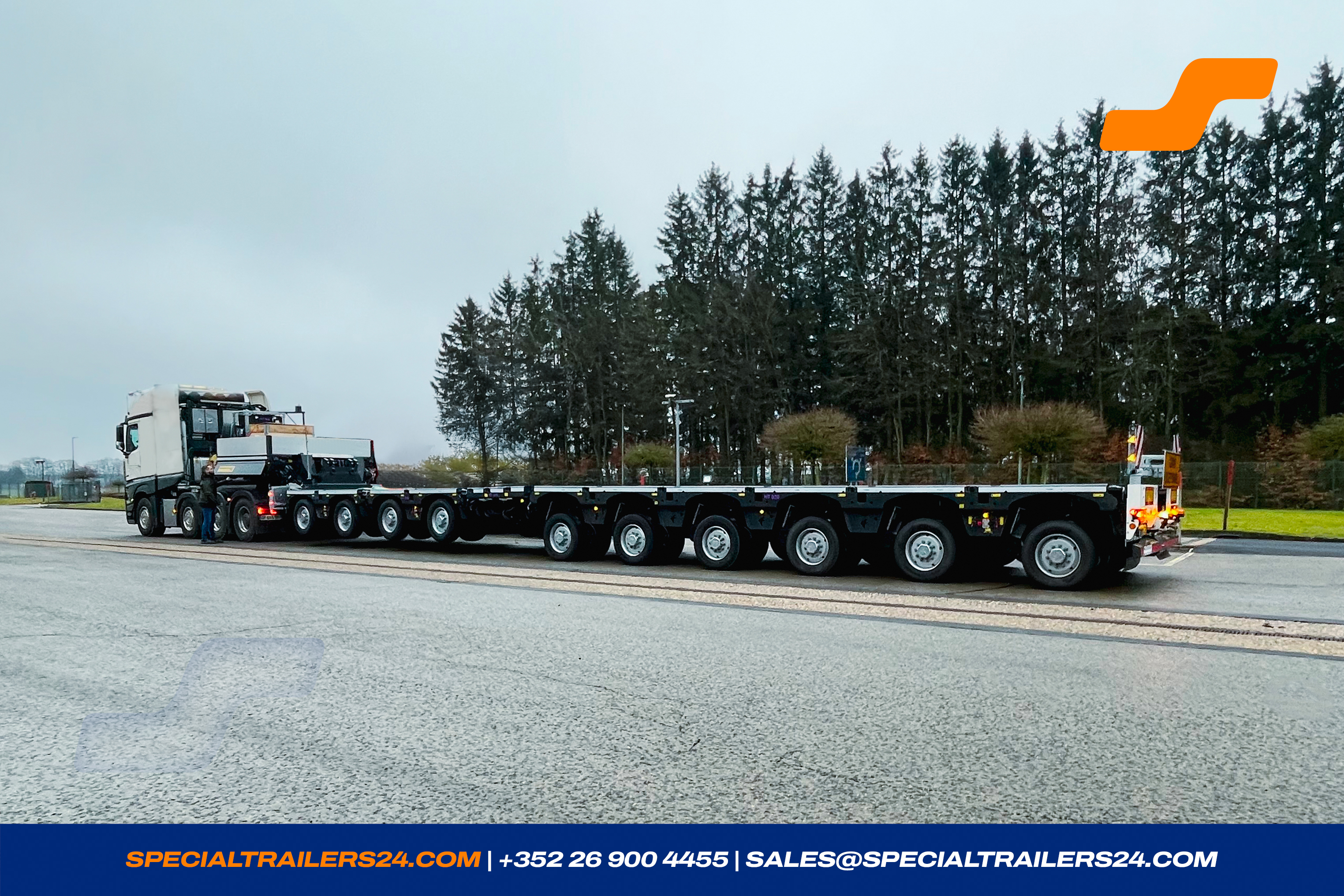

Faymonville CombiMAX
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 205017-AOB
- Reference CombiMAX 1 x neck with PPU, 10 axle lines type 245-2850-1500 (2 x 1-, 1 x 2- & 2 x 6-axle), 1 x 16m Add-On-Beam & accessories
- Condition Used
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 39235 kg |

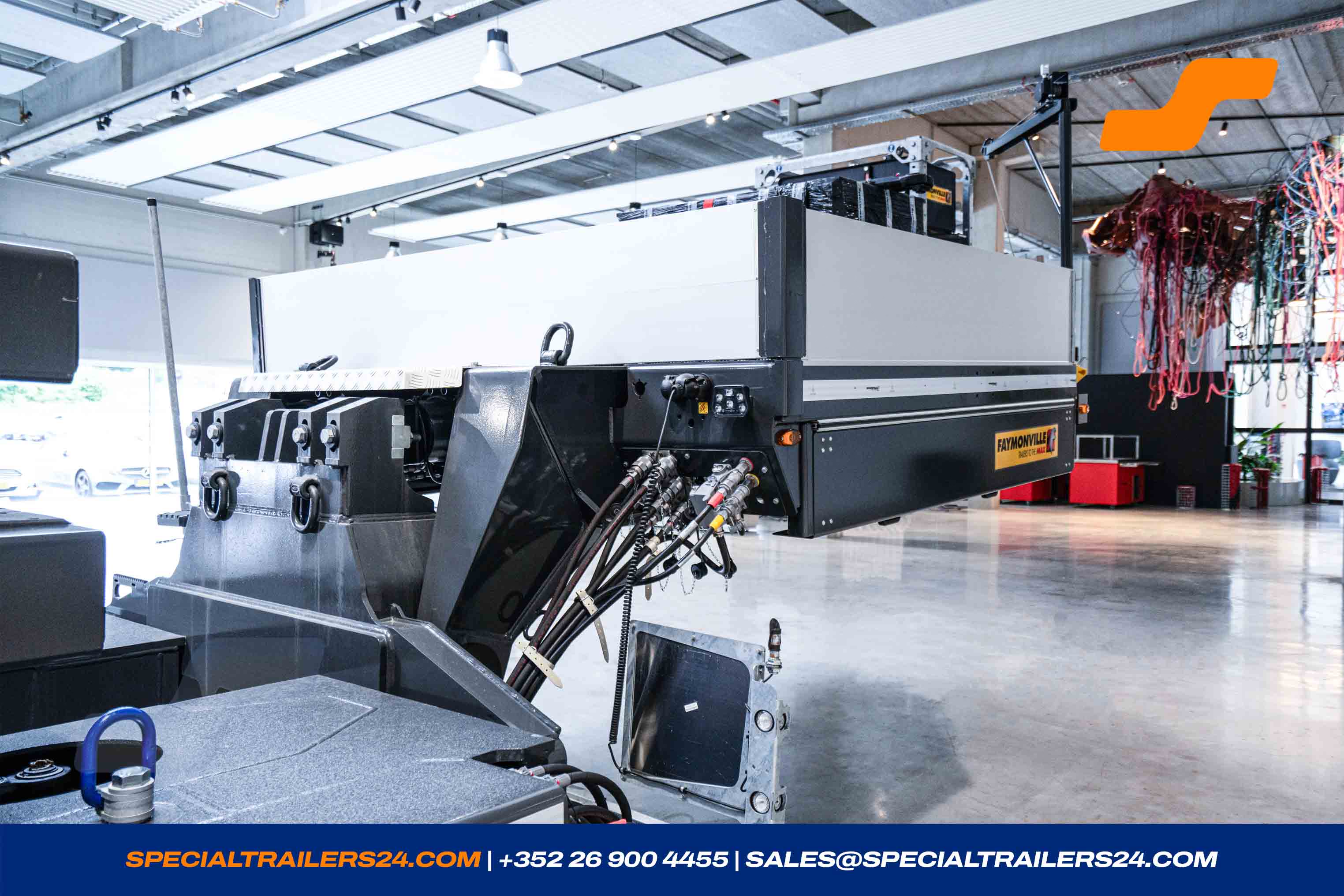

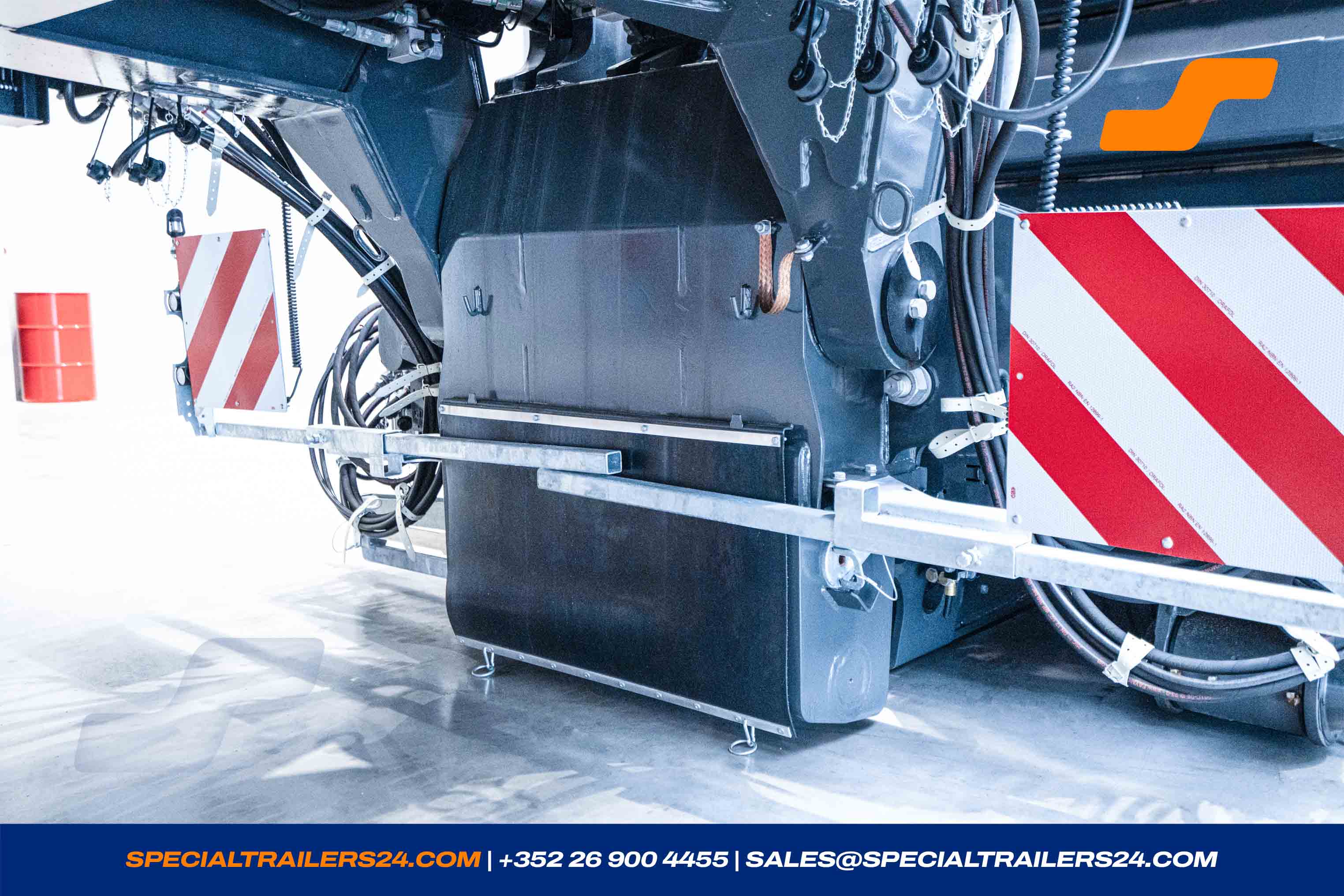

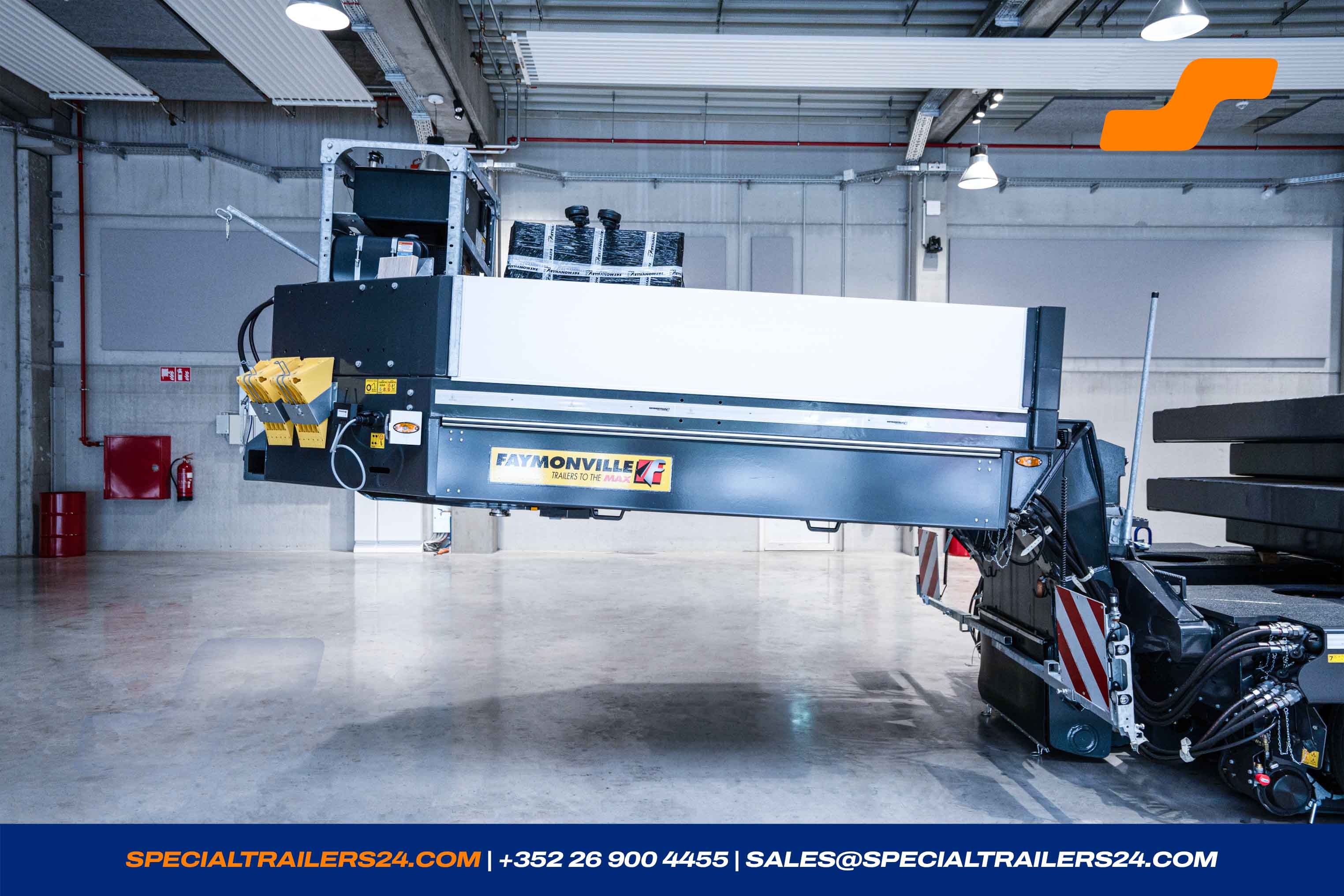

Gooseneck
1 x Universal gooseneck, type V-30-DSR2700-3-U
Universal gooseneck with three lifting and lowering cylinders, type V30-DSR2700-3-U
according to drawing: FEL_DWG-018165
Fifth wheel load in function of the axle load is adjustable by hydraulic adjustment and fine tuning device
Technical capacity: 37.500 kg
Rear gooseneck swing: 2.700 mm
For truck 6 x 4 and 8 x 4
Tare weight (+/- 3%): 5.250 kg
- Hydraulic suspension can be switched to 4-Point suspension to increase the tilt limits.
- Hydraulic system in the gooseneck prepared for bogies with 4-tires per line.
- A 7-pole socket left and right at the rear of the gooseneck for the warning boards.
- 1 pair of lashing rings on the middle part of the gooseneck (LC 10 600 daN)
- 1 pair of removable mechanical landing legs in front of the gooseneck
- BEKA-MAX central lubrication for a gooseneck with NLGI-2 normal grease.
- 2 pairs of lashing rings on the gooseneck (LC 6.300 daN).
- 2 pairs of lashing rings on the gooseneck (LC 10 600 daN)
- Tool-kit Combimax Art N° 380009
-
Socket for operating the manual-steering in front of the gooseneck.
Cable remote control with PDC-light control for the realignment of the axles. - Steel headboard, heigth ± 400 mm with chamfered corners.
- On the gooseneck, removable alu-sideboards, height ± 400 mm, anodized.
- On the gooseneck, 1 removable alu-rearboard, height ± 400 mm, anodized.

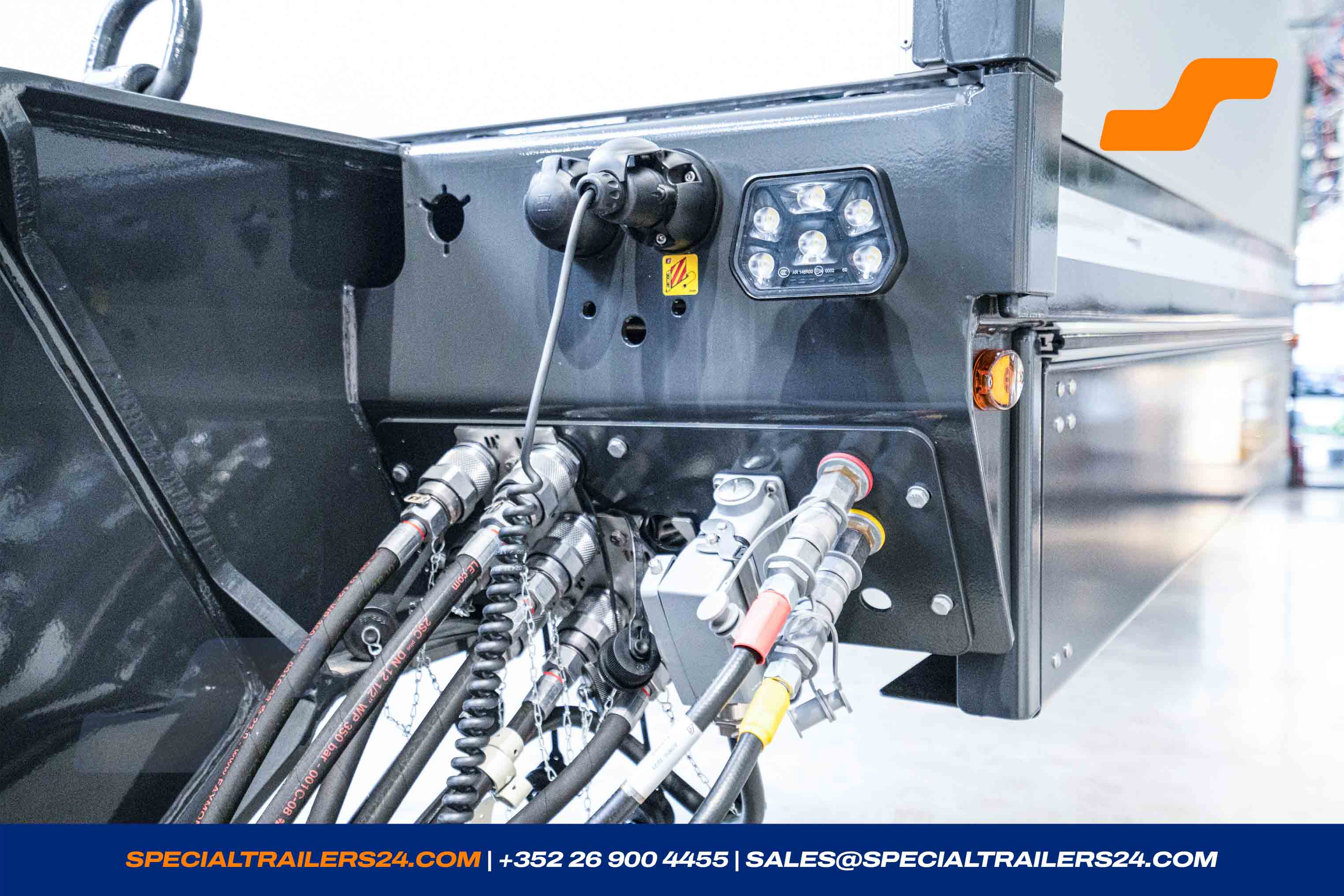

- 1 LED working lamp at the left and right side at the rear of the gooseneck with separate switch
- Connection-kit for universal CombiMAX gooseneck
- Gooseneck with universal coupling head and receiver for hook attachment of a front bogie or a lowbed.

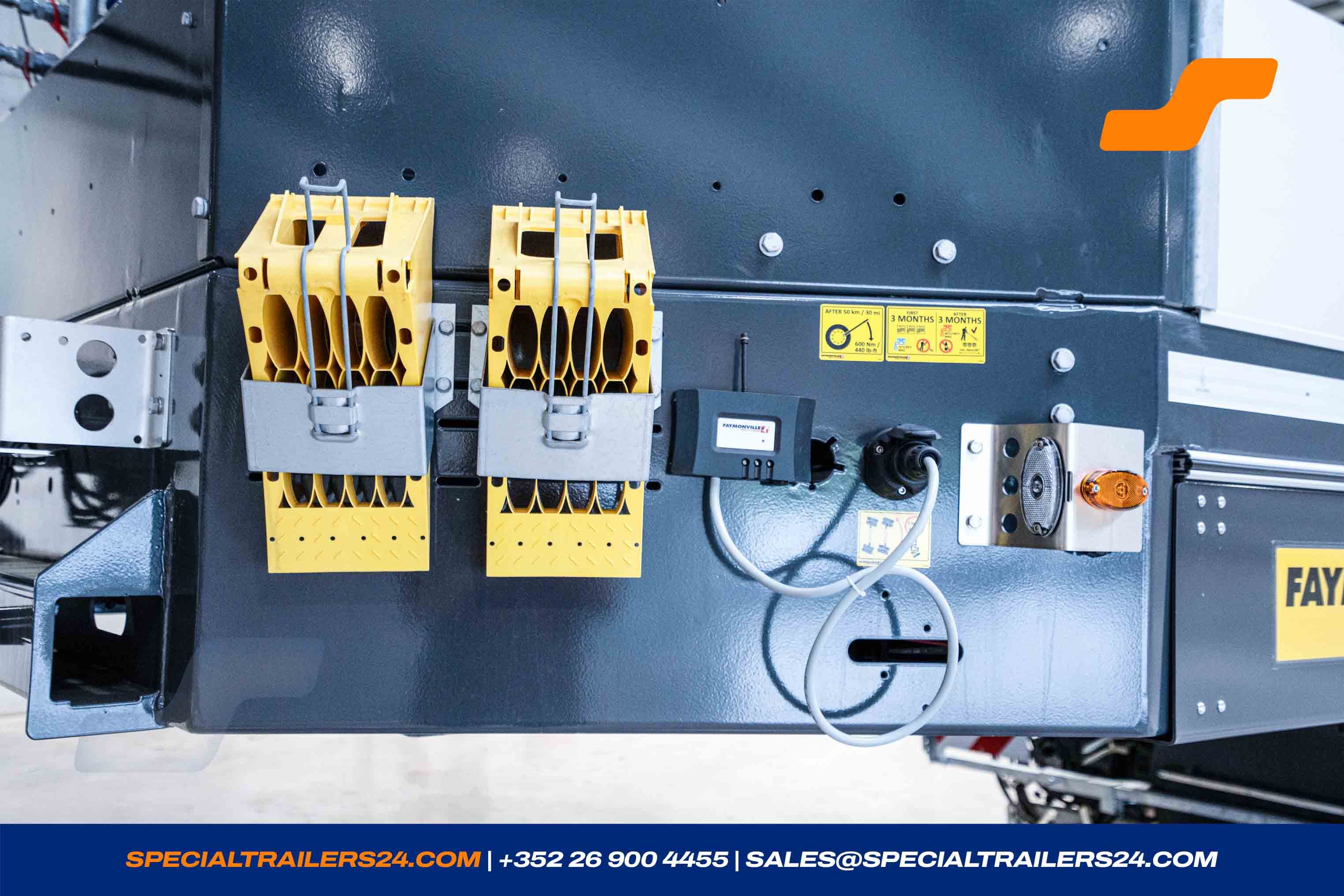

- 4 wheel chocks with carrier on the gooseneck.
- 3.5 king-pin.
-

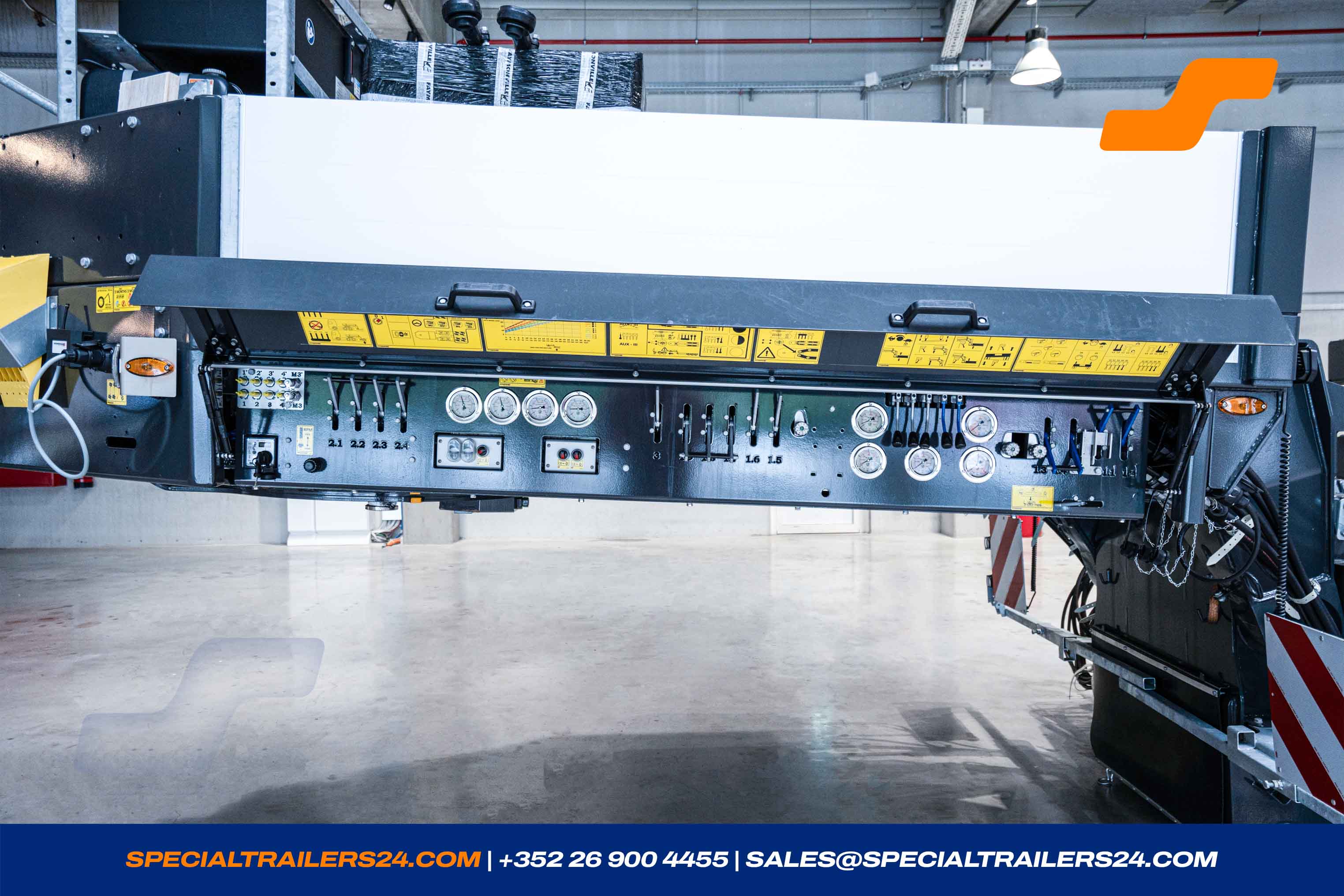

ASPÖCK-UNIBOX on the front connection ledge with sockets 24N, 24S & 15 pole.
24N connect after ISO-1185
24S connect after ISO-3731
15-pole connect after ISO-12098
If your poles connection is different to the ISO norm, please inform us. - Gooseneck cylinders fixed on position 2 (middle)
- Fifth wheel height loaded: 1 300 mm
- Radio control for the manual steering additional to the cable control, with LED control lamps on the receiver for the alignment of the axles.
Painting
| Sideboards | ALU-Natural |
| Outer frame | N/A - RAL-nbr.: .................... (please confirm) |
| Chassis / structure | DB 7350 - Nova grey |
| Headboard | N/A - RAL-nbr.: .................... (please confirm) |
Bogie
Bogie PA
1 x 2-axles central bogie, type 245/2850/1500
2-axles central bogie, type 245/2850/1500
according to drawing: FEL_DWG-018418

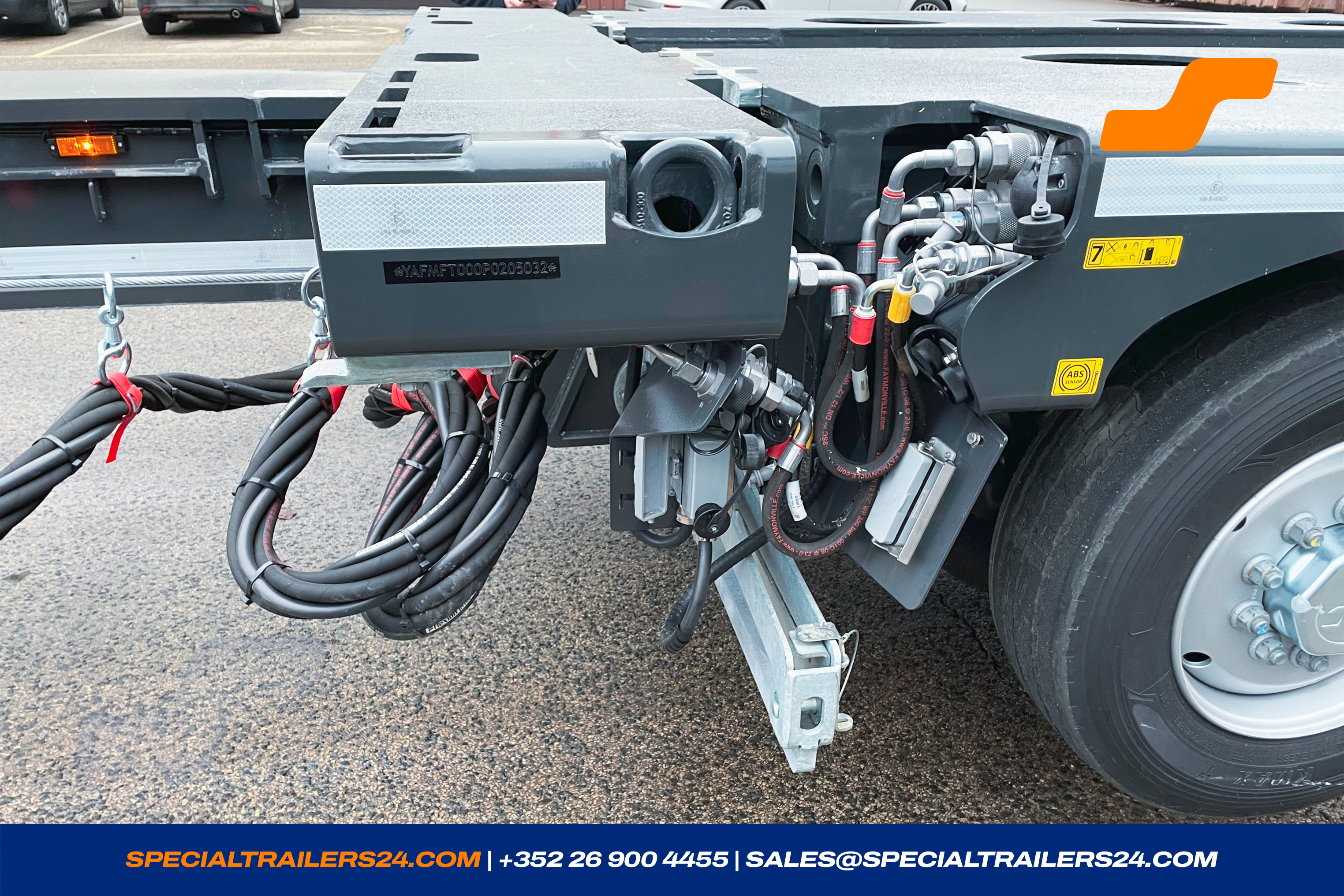

Universal coupling head in front and at rear.
Bogie width: 2 850 mm
Tare weight (+/- 3%): 5 700 kg
-
Tyres:
8x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Integrated front-steering system.
-
BEKA-MAX central lubrication for a 2 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Bogie PA
2 x 1-axle central bogie, type 245/2850/1500 « Joker-axle »
1-axle central bogie, type 245/2850/1500 « Joker-axle »
according to drawing: FEL_DWG-018419
Universal coupling head in front and at rear.
Bogie width: 2 850 mm
Tare weight (+/- 3%): 3 050 kg
-
Tyres:
4x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Without steering system.
-
BEKA-MAX central lubrication for a 1 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Bogie PA
1 x 6-axles central bogie, type 245/2850/1500
6-axles central bogie, type 245/2850/1500
according to drawing: FEL_DWG-018414
Universal coupling head in front and at rear.
Bogie width: 2.850 mm
Tare weight (+/- 3%): 14.350kg
-
Tyres:
24x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Integrated rear-steering system with mounting option for a front steering system.
-
BEKA-MAX central lubrication for a 6 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Loading deck
Add-On-Beam
1 x Add-On Beam AA 16.00-6-1.50-700-520-2.85-2.85-300-KK-KK
16 000 mm Add-On Beam for an assembly in min. 6 Combimax axle lines of the series 285/2850/1500 with recess 700 x 520 mm (category-300).
following drawing: FEL_DWG-018786
Double telescopic Add-On Beam with coupling head in front and slidable locking head at rear.
Coupling length: 1 500 - 16 000 mm
Telescopic length: 14 500 mm
Tare weight (+/- 3%):
- Locking head at rear in front with a pair of lashing rings (LC 10.000 daN) hinged outward and a pairs of stake pockets for stakes ± 100 x 50 mm.
- One lashing ring hanging every 2.000 mm left and right of the extension beam (LC 10.000 daN).
- Coupling head in front with a pair of lashing rings (LC 10.000 daN) hinged outward and a pairs of stake pockets for stakes ± 100 x 50 mm.
- Coupling head with devices to put deck filling sections.
- Sand coating on the loading surface of the coupling head or sliding bolster.
-
A locking position every 500 mm on the large extension.
A locking position every 1.000 mm on the small extension.
Each locking position is reinforced.
The locking bolt is conical. -
Awelded support table at the beginning of the large extension, ± 500 mm long width devices to put deck filling sections.
A pair of lashing rings (LC 10.000 daN) hinged outward (LC 10.000 daN) and a pairs of stake pockets for stakes ± 100 x 50 mm. -
Pressure pieces to connect to a 17,5 Combimax bogie.
For 19.5 bogies other adapters are required.
Painting
| Upper side Coupling head | DB 7350 - Nova grey |
| Chassis | N/A - RAL-nbr.: .................... (please confirm) |
Accessories
Lighting and signage
1 x Lighting element
Detachable lighting element (left/right) for the back of a Combi-Modul, conform to the EU-regulations.
Tare weight (+/- 3%): 100 kg
- Mounting possibility for a number plate (520 x 110 mm) including lighting.
- An LED reversing lamp on the left and right side.
- A LED flashing beacon with holder on the left and right side.
- A socket for the cable remote control for the rear steering system in the front area of the loading platform, on the left in the direction of travel.
- Single tires
- A LED working lamp at the rear on the left and right side with separate on/off switch.
- EU-reflector at the rear end.
Steering rods
2 x Steering rods bypassing steering 1.500 mm
Steering rods for bypassing the steering of a combimodule with a wheelbase of 1.500 mm.
Art. No.: 346970
Lighting and signage
1 x Underride protection-2.85-3.00
Underride protection, detachable
Painted FAY-grey-34-0260
Lighting and signage
1 x Warning boards-2.85
A set of warning boards consisting of 4 warning boards with 2 LED position lights and holders on the boards to put a flashing beacon.
- 1 support for warning boards to install in the stake pockets
- 7-pole plug.
- Reflector CONVOI EXEPTIONNEL at the rear side of the trailer.

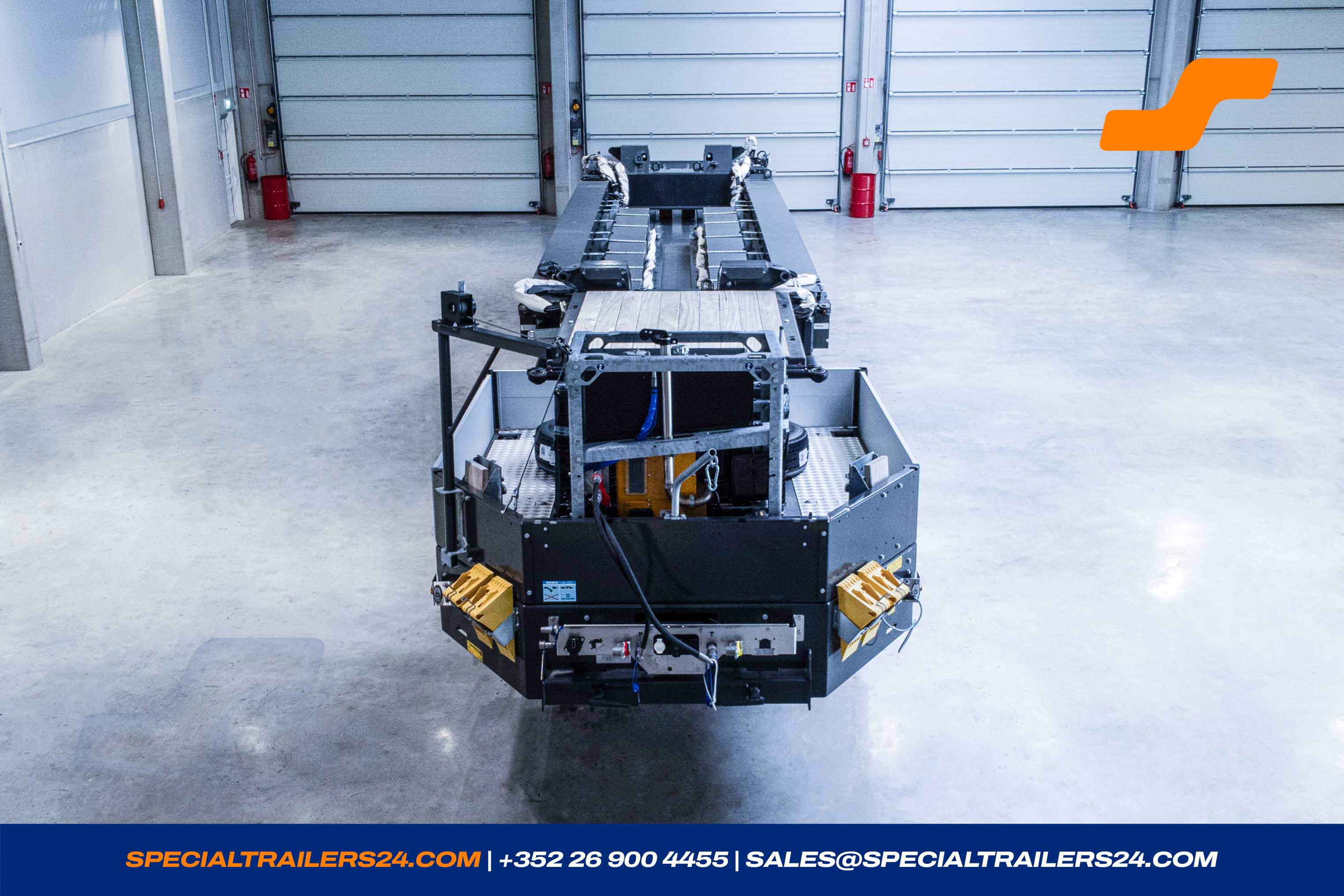

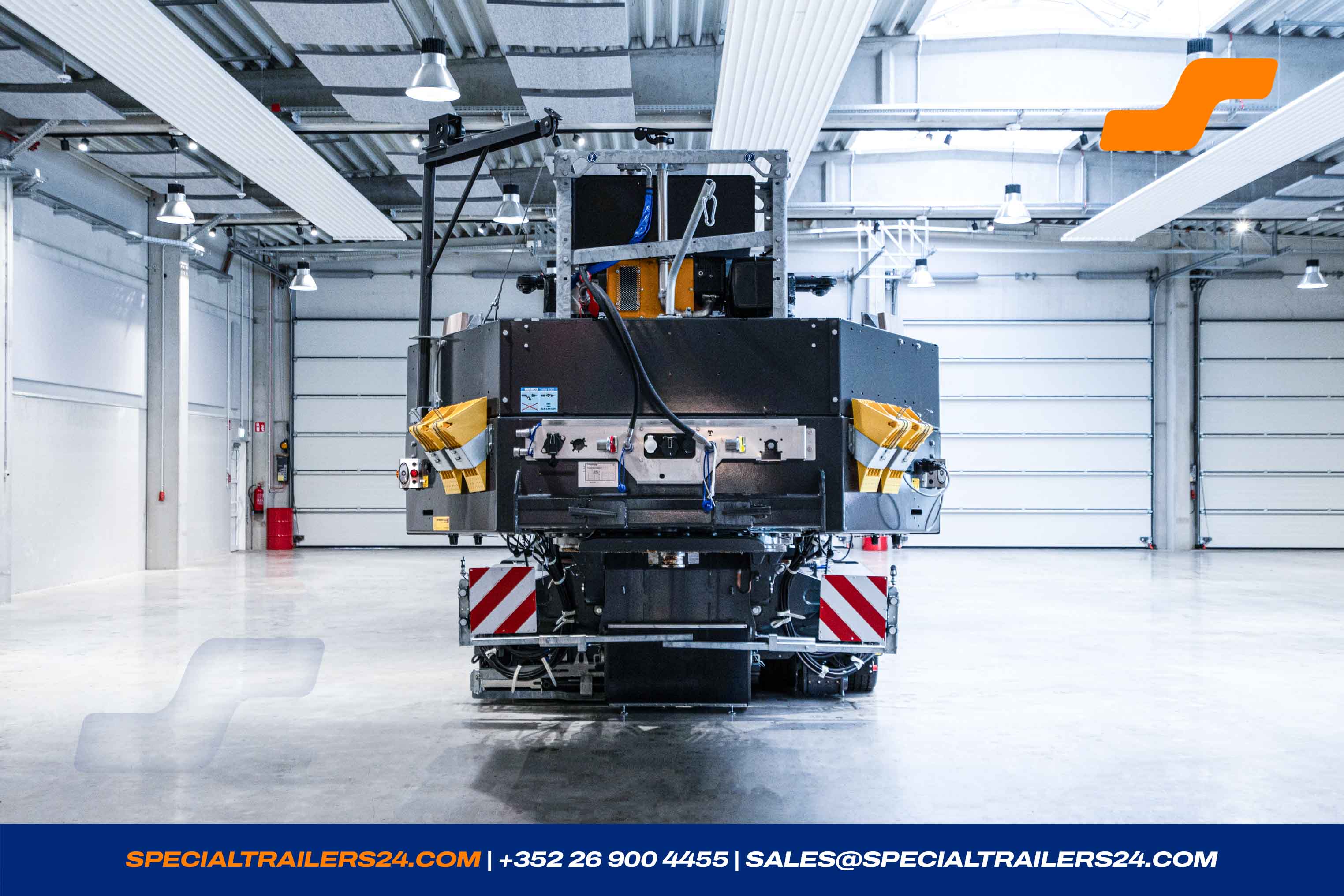

Powerpack
1 x Powerpack-HA-1-EU-Std. 100L
1-cylinder Hatz diesel engine (Silent pack) with electric starter and battery.
Performance: 9.5 kW (12.9PS) at 3.000 rpm
Exhaust classification: EU Stage V
Hydraulic pressure: 280 bar
Flow rate: 21 l/min
Firmly installed on the gooseneck.
Frame galvanized.
Dimensions l x w x h: 700 x 1.000 x 1.230mm
-
Additional connection on the oil reservoir for the electro-hydraulic pump on the gooseneck.
Attention: the gooseneck has to be configured accordingly! - Throttle lever for adjustment of the rotational speed.
- Hydraulic oil tank: 100 l
- Adapter for mechanical fixing of the power pack on the gooseneck.
- Hydraulic connecting lines between power pack and connection ledge from gooseneck
Steering rods
6 x Steering rods to connect combimodules 1.500 mm
Steering rods to connect combimodules with a wheelbase of 1.500 mm.
Art. No.: 359521
Know-How
Delivery and training
3 x Days of briefing in our factory
Days of briefing for drivers and operators at our factory (max. 5 people).
Documentation and software
1 x FALCO-II software
FALCO-II software as initial version for calculating of axle loads and fifth wheel load as well as other useful transport data.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 205017-AOB
- Reference CombiMAX 1 x neck with PPU, 10 axle lines type 245-2850-1500 (2 x 1-, 1 x 2- & 2 x 6-axle), 1 x 16m Add-On-Beam & accessories
- Condition Used
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Price On request
-
