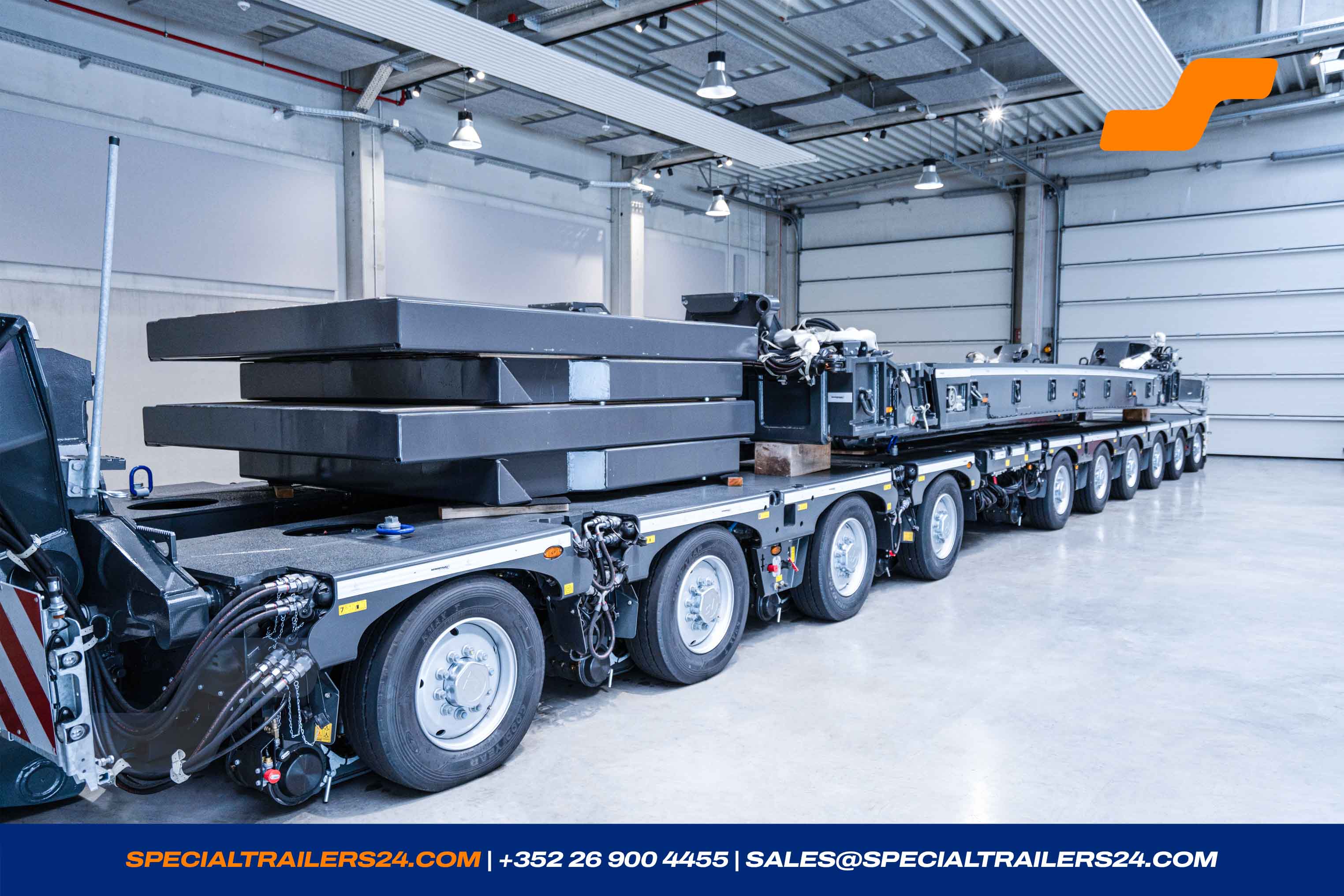

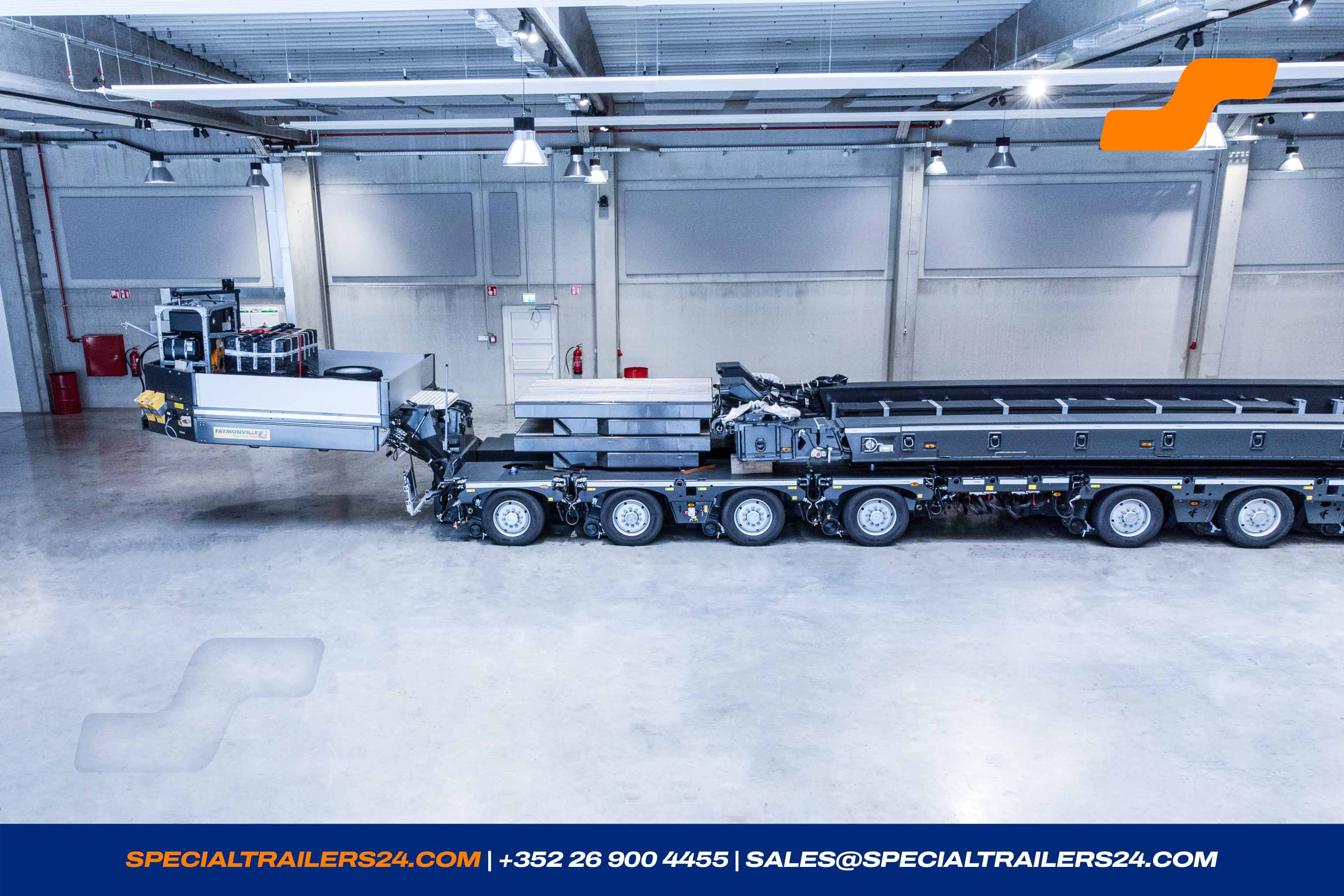

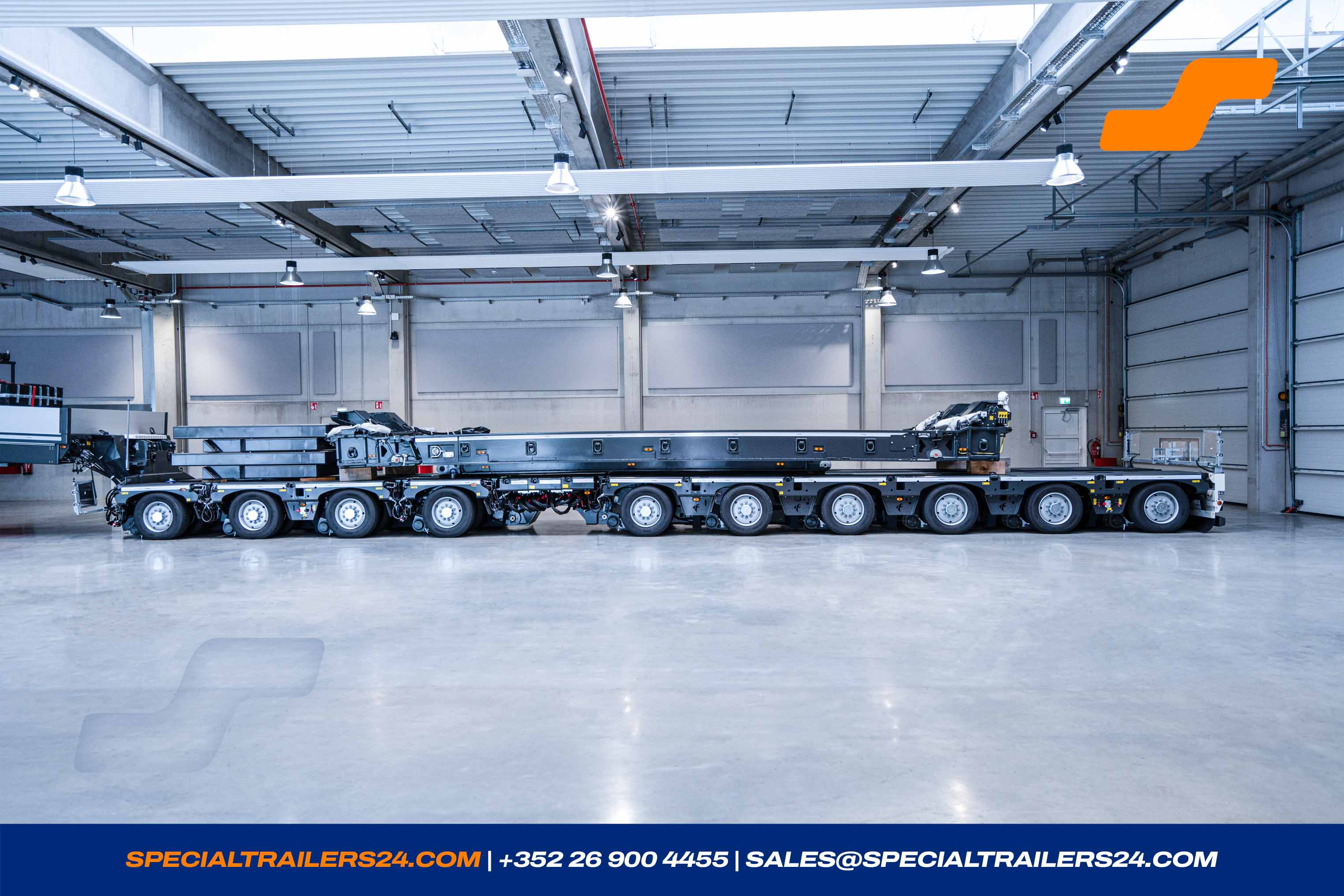

Faymonville CombiMAX
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 205017-KBV

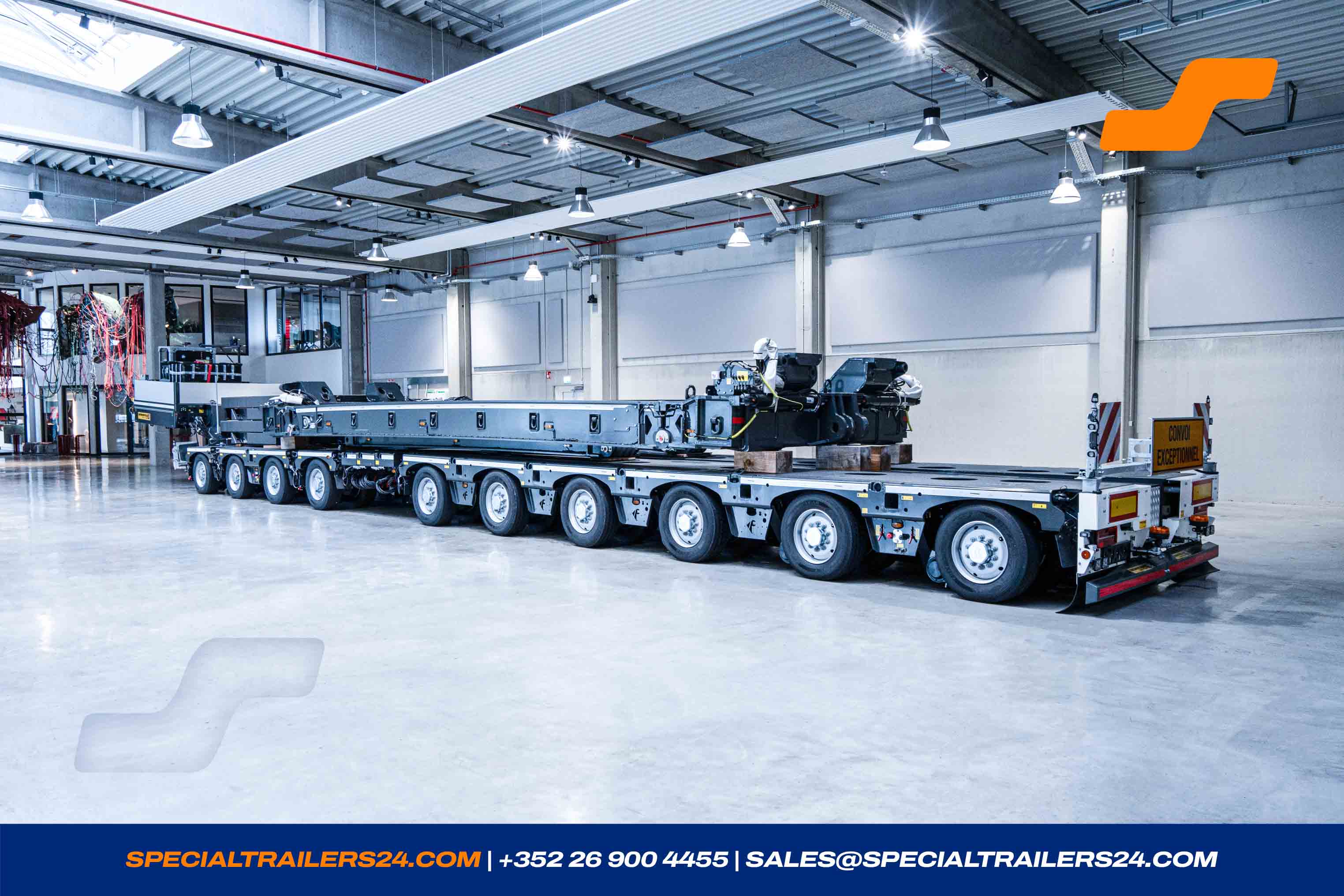

- Reference CombiMAX 1 x neck with PPU, 10 axle lines type 245-2850-1500 (2 x 2- & 1 x 6-axle), 1 x vessel deck (8+5m beams + 6m elongations) & accessories
- Condition Used
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 52335 kg |

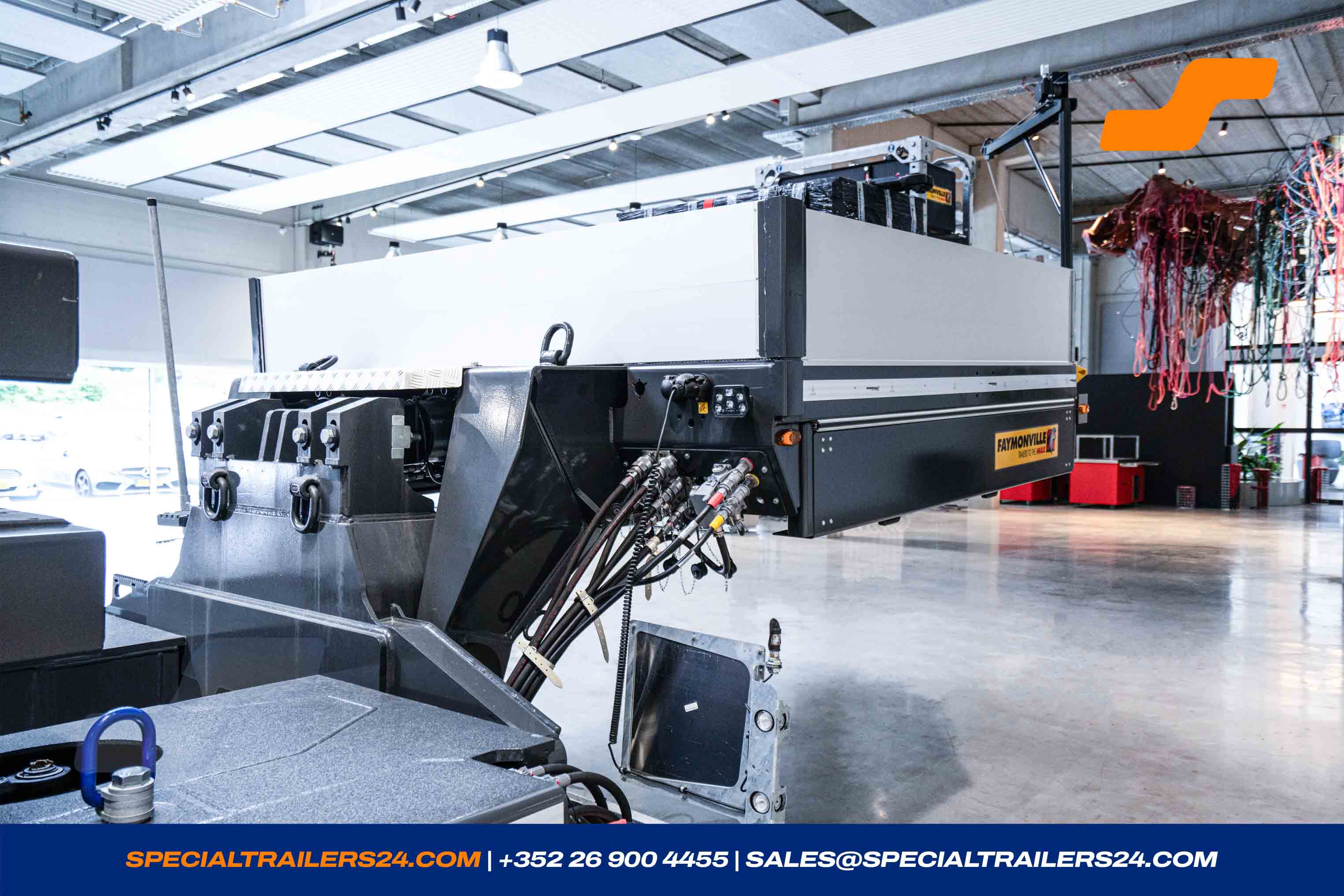

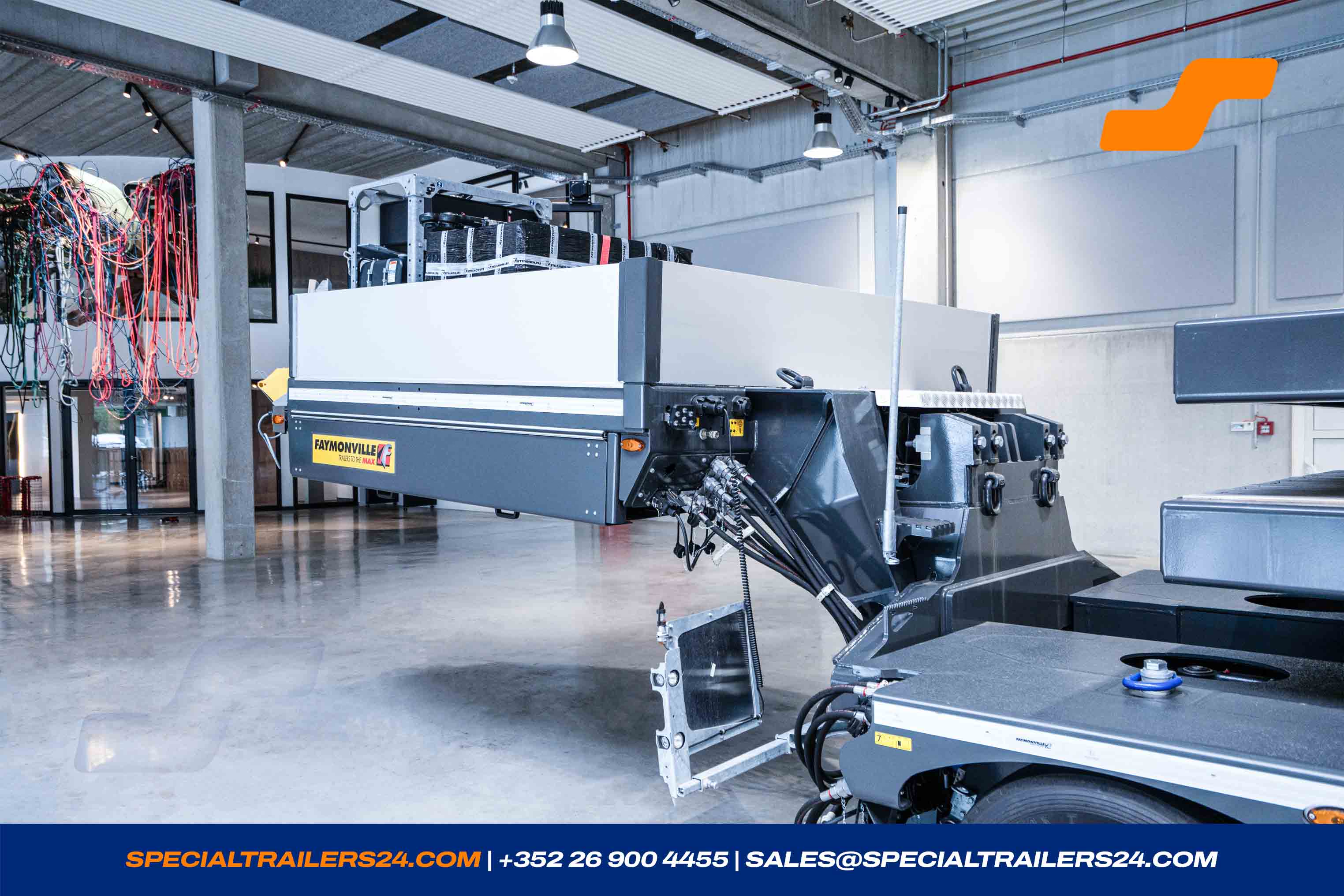

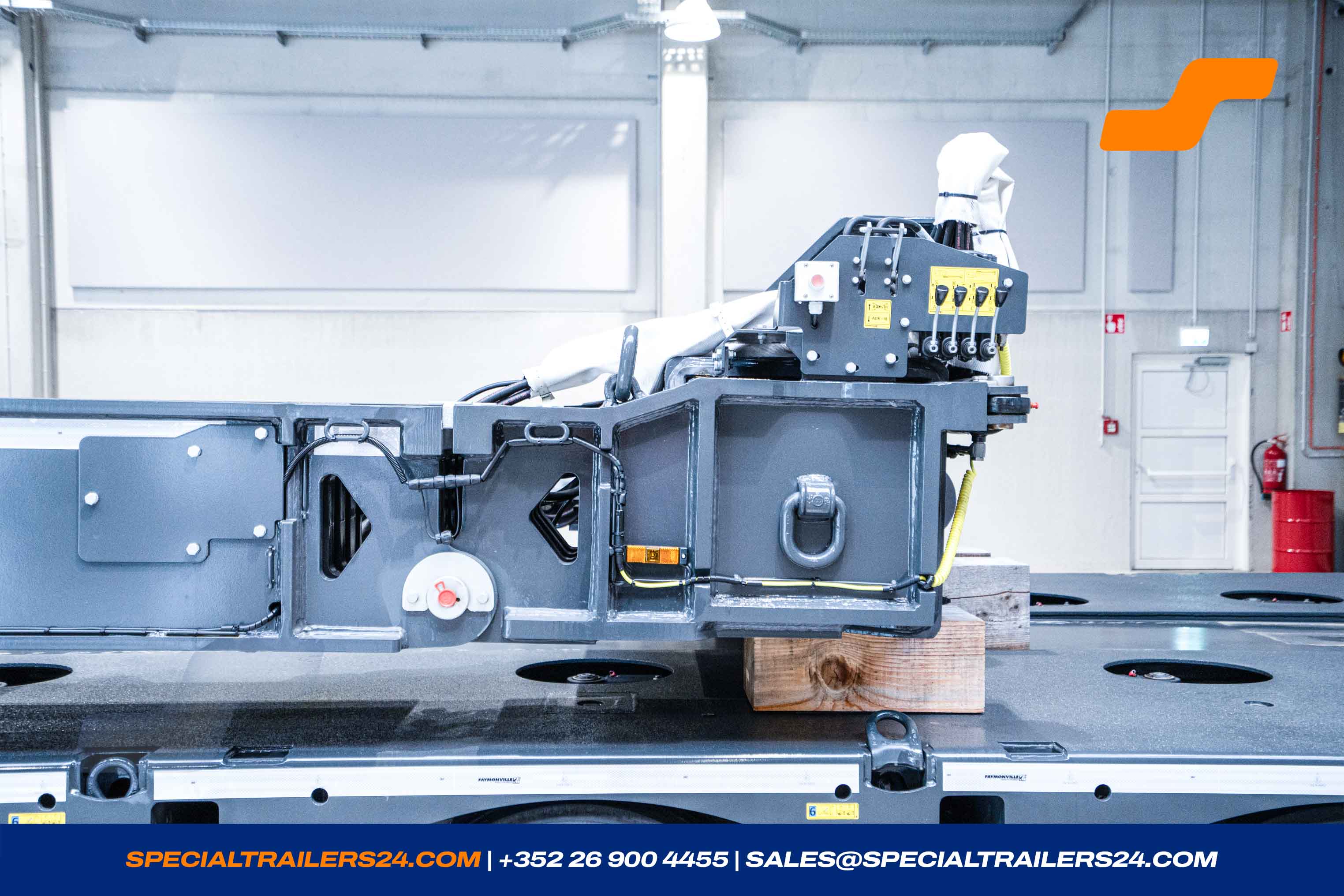

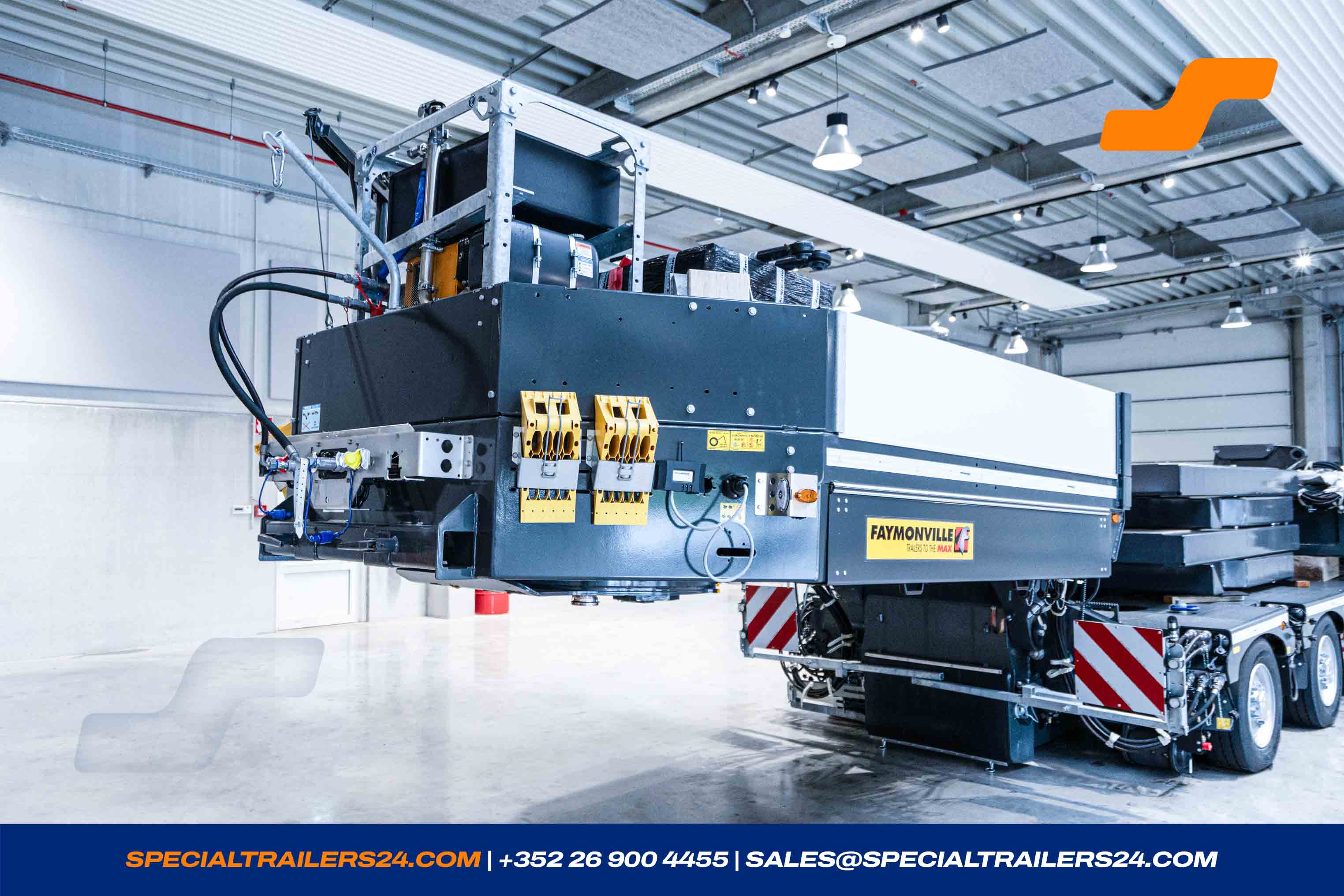

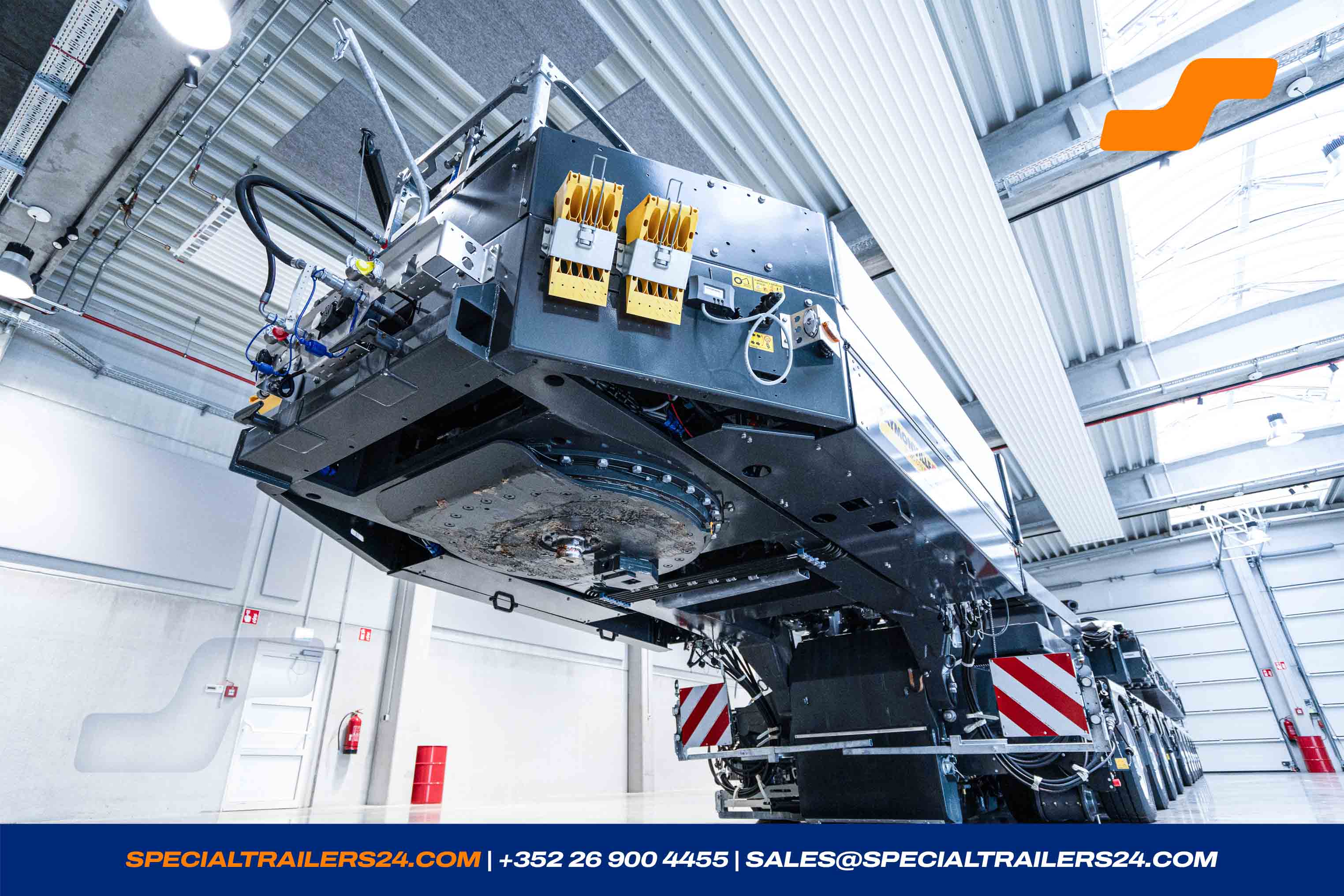

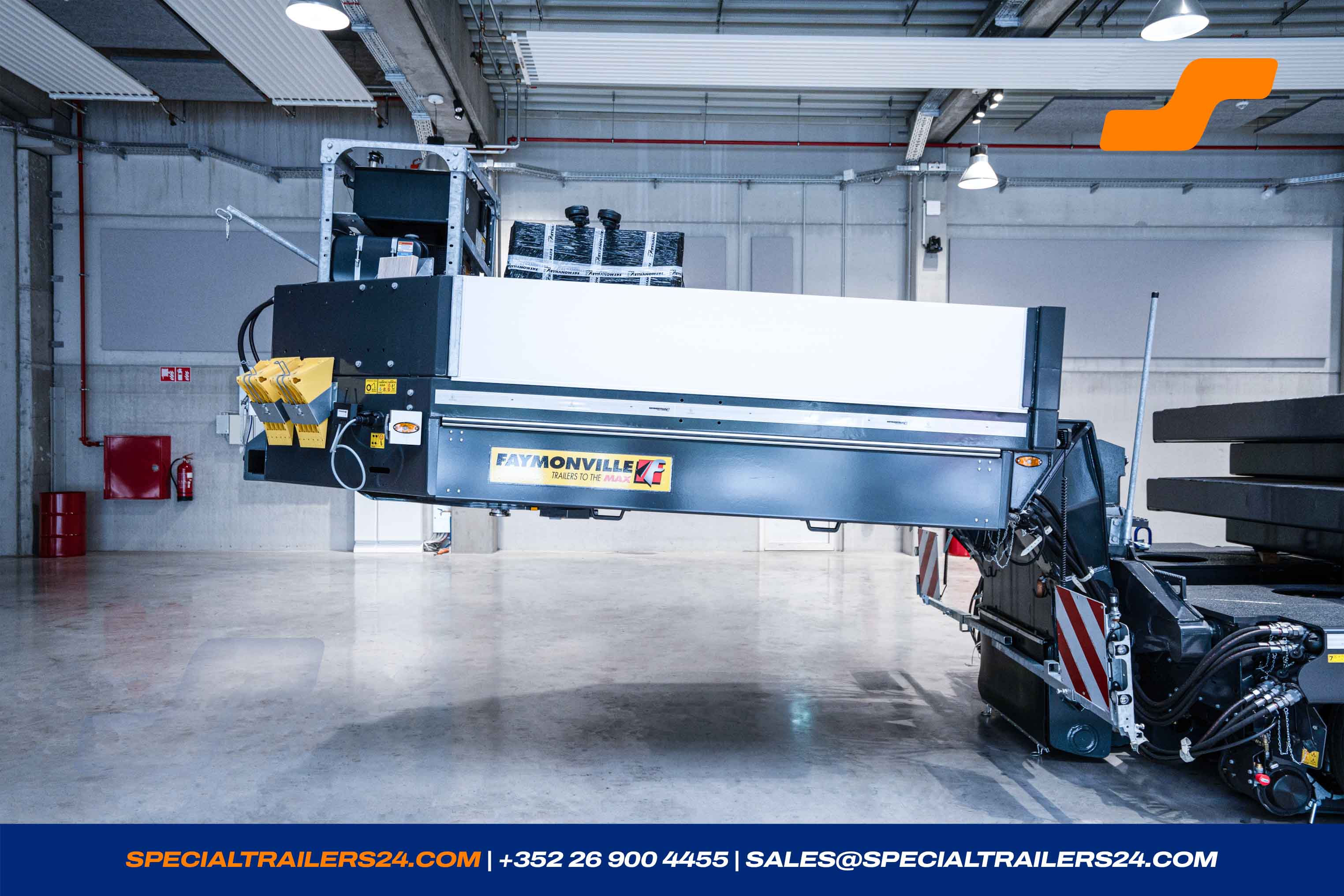

Gooseneck

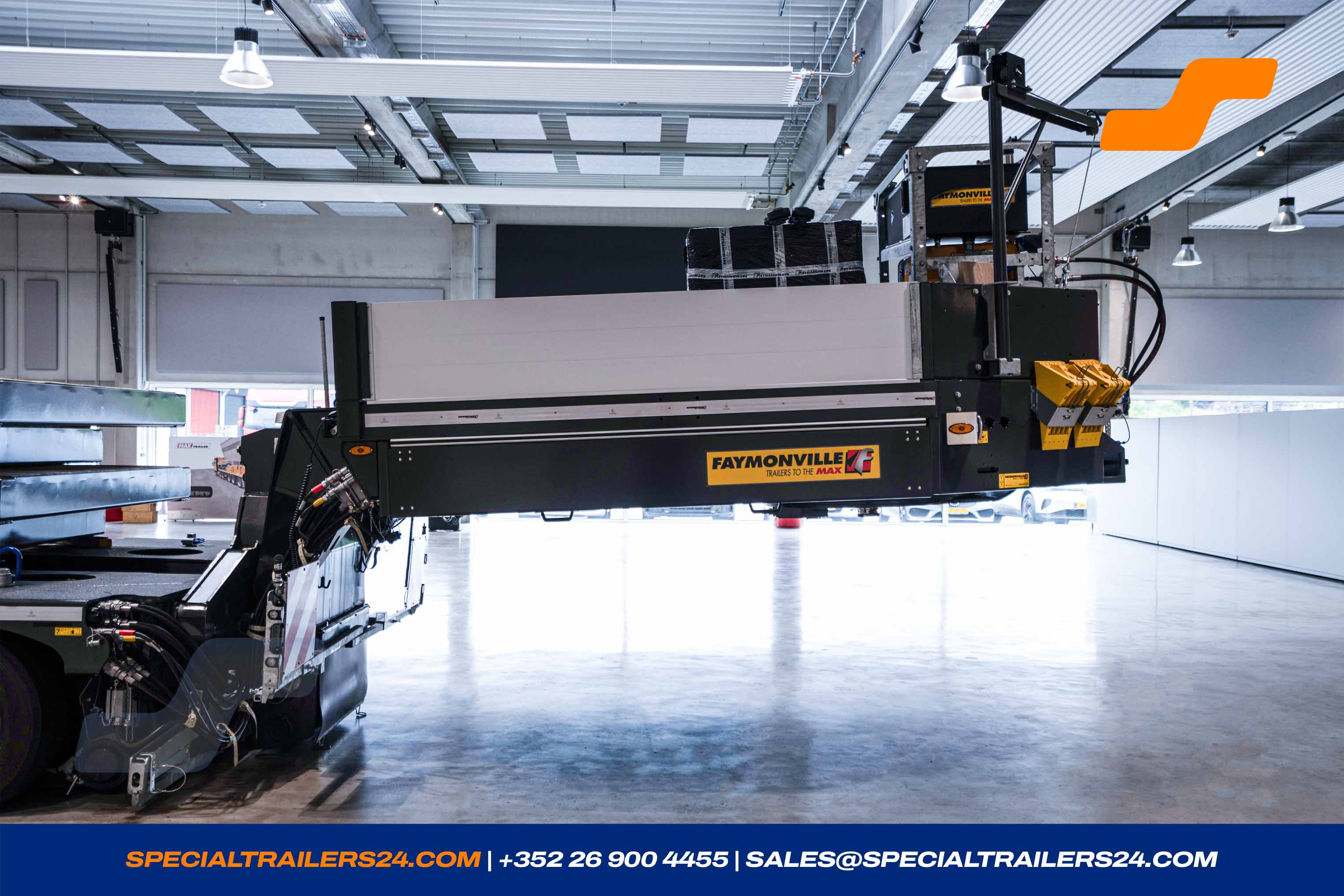

1 x Universal gooseneck, type V-30-DSR2700-3-U
Universal gooseneck with three lifting and lowering cylinders, type V30-DSR2700-3-U
according to drawing: FEL_DWG-018165
Fifth wheel load in function of the axle load is adjustable by hydraulic adjustment and fine tuning device
Technical capacity: 37.500 kg
Rear gooseneck swing: 2.700 mm
For truck 6 x 4 and 8 x 4
Tare weight (+/- 3%): 5.250 kg
- Hydraulic suspension can be switched to 4-Point suspension to increase the tilt limits.
- Hydraulic system in the gooseneck prepared for bogies with 4-tires per line.
- A 7-pole socket left and right at the rear of the gooseneck for the warning boards.
- 1 pair of lashing rings on the middle part of the gooseneck (LC 10 600 daN)
- 1 pair of removable mechanical landing legs in front of the gooseneck

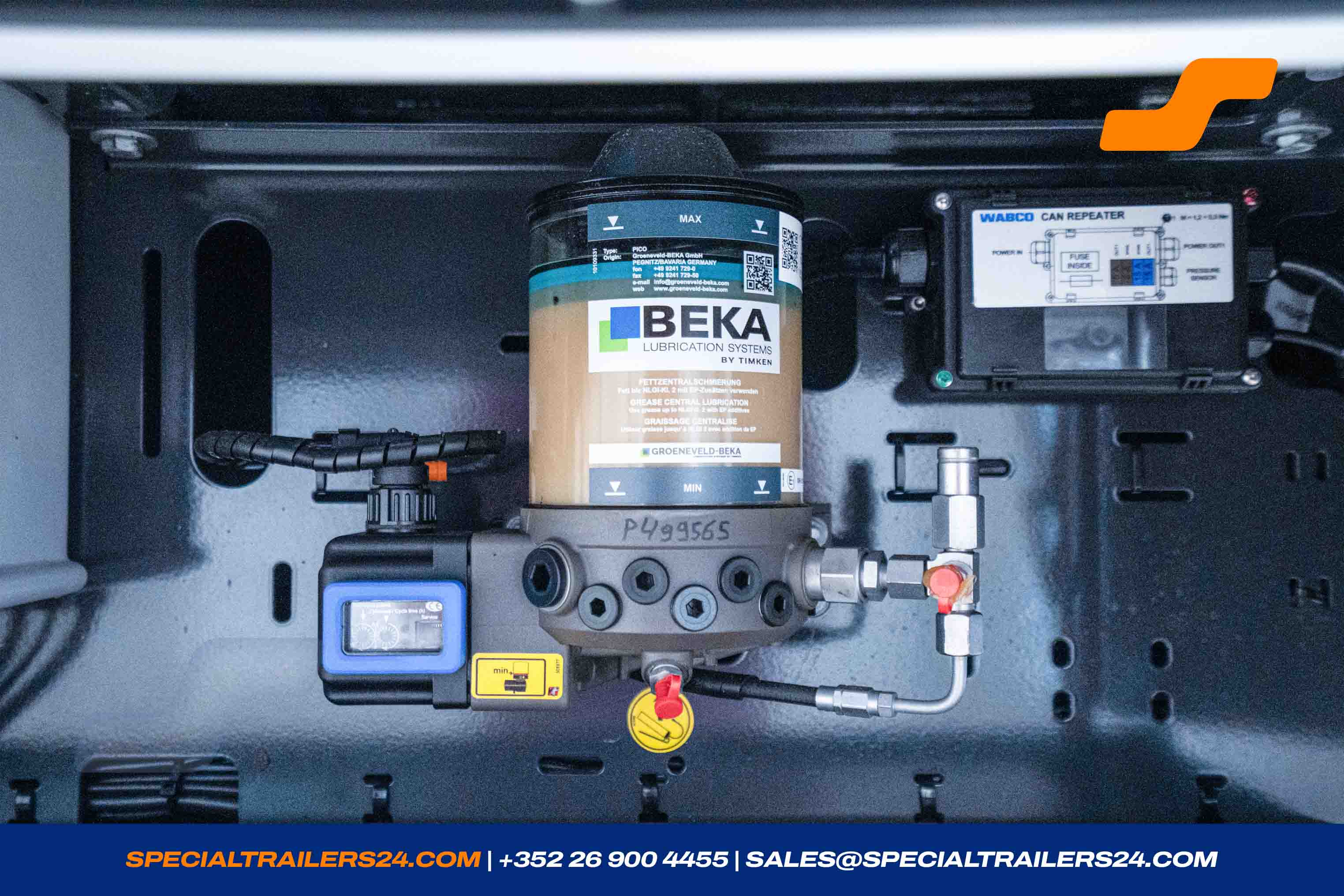

- BEKA-MAX central lubrication for a gooseneck with NLGI-2 normal grease.
- 2 pairs of lashing rings on the gooseneck (LC 6.300 daN).
- 2 pairs of lashing rings on the gooseneck (LC 10 600 daN)
- Tool-kit Combimax Art N° 380009
-
Socket for operating the manual-steering in front of the gooseneck.

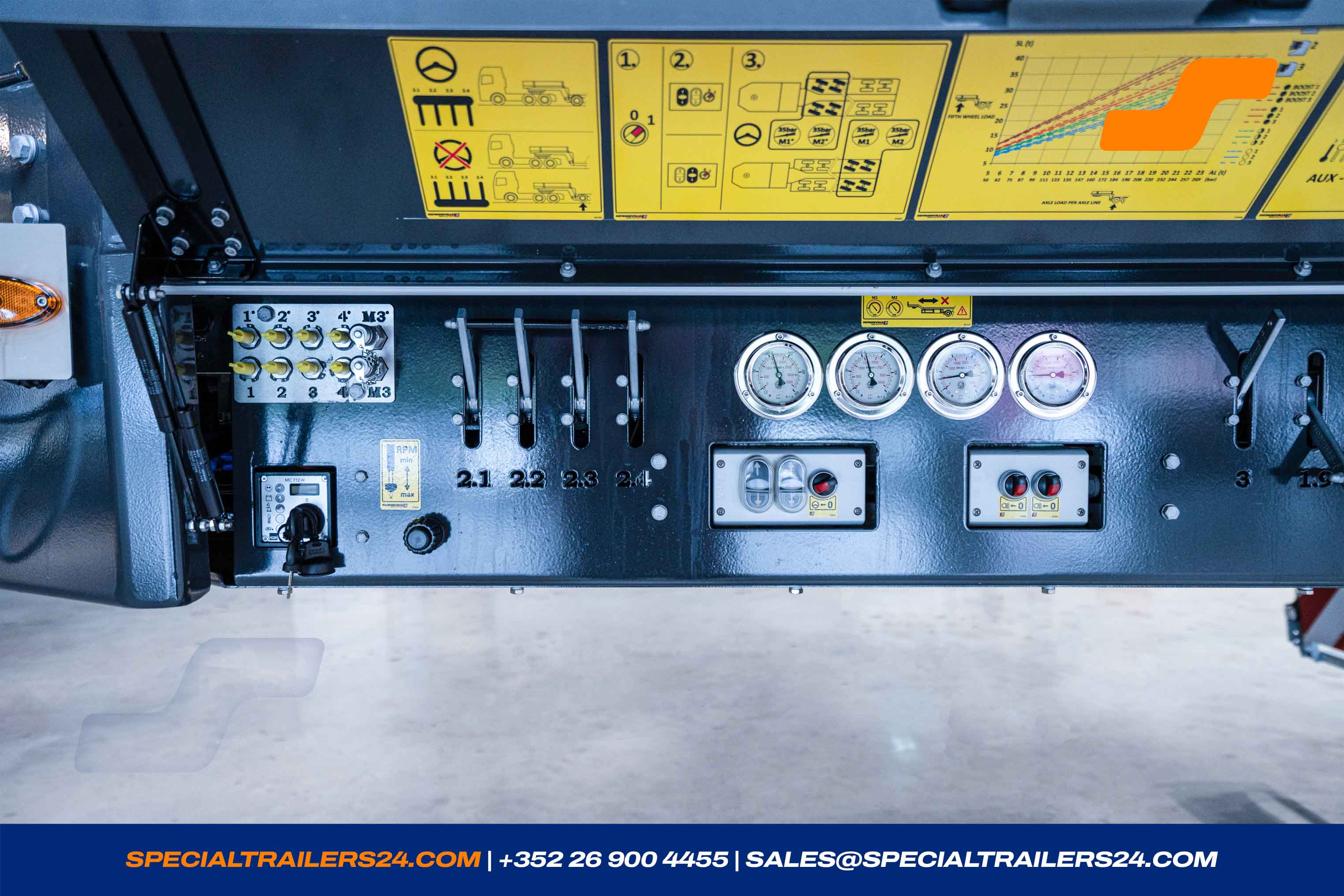

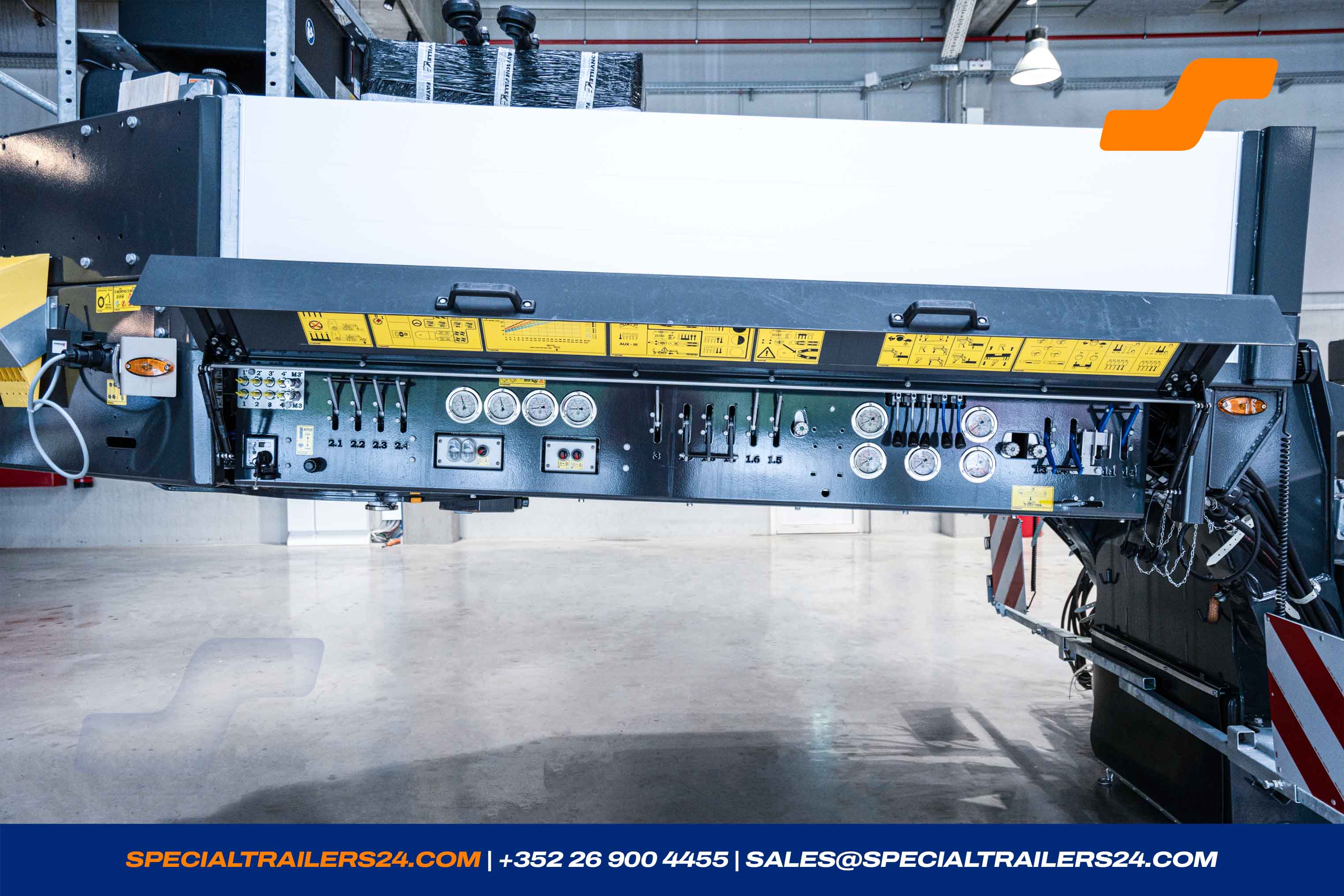

Cable remote control with PDC-light control for the realignment of the axles. - Steel headboard, heigth ± 400 mm with chamfered corners.
- On the gooseneck, removable alu-sideboards, height ± 400 mm, anodized.
- On the gooseneck, 1 removable alu-rearboard, height ± 400 mm, anodized.
- 1 LED working lamp at the left and right side at the rear of the gooseneck with separate switch
- Connection-kit for universal CombiMAX gooseneck
- Gooseneck with universal coupling head and receiver for hook attachment of a front bogie or a lowbed.

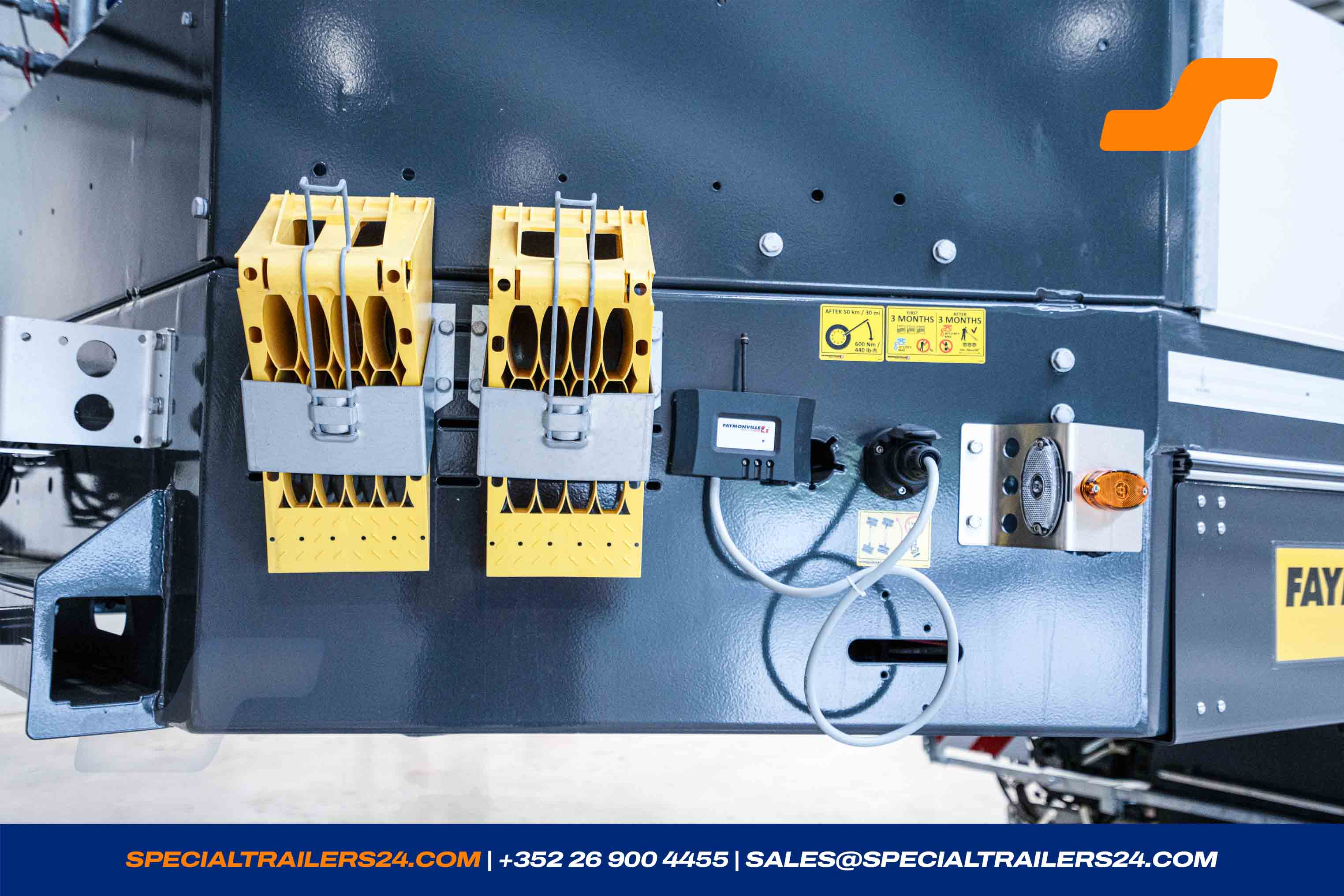

- 4 wheel chocks with carrier on the gooseneck.
- 3.5 king-pin.
-

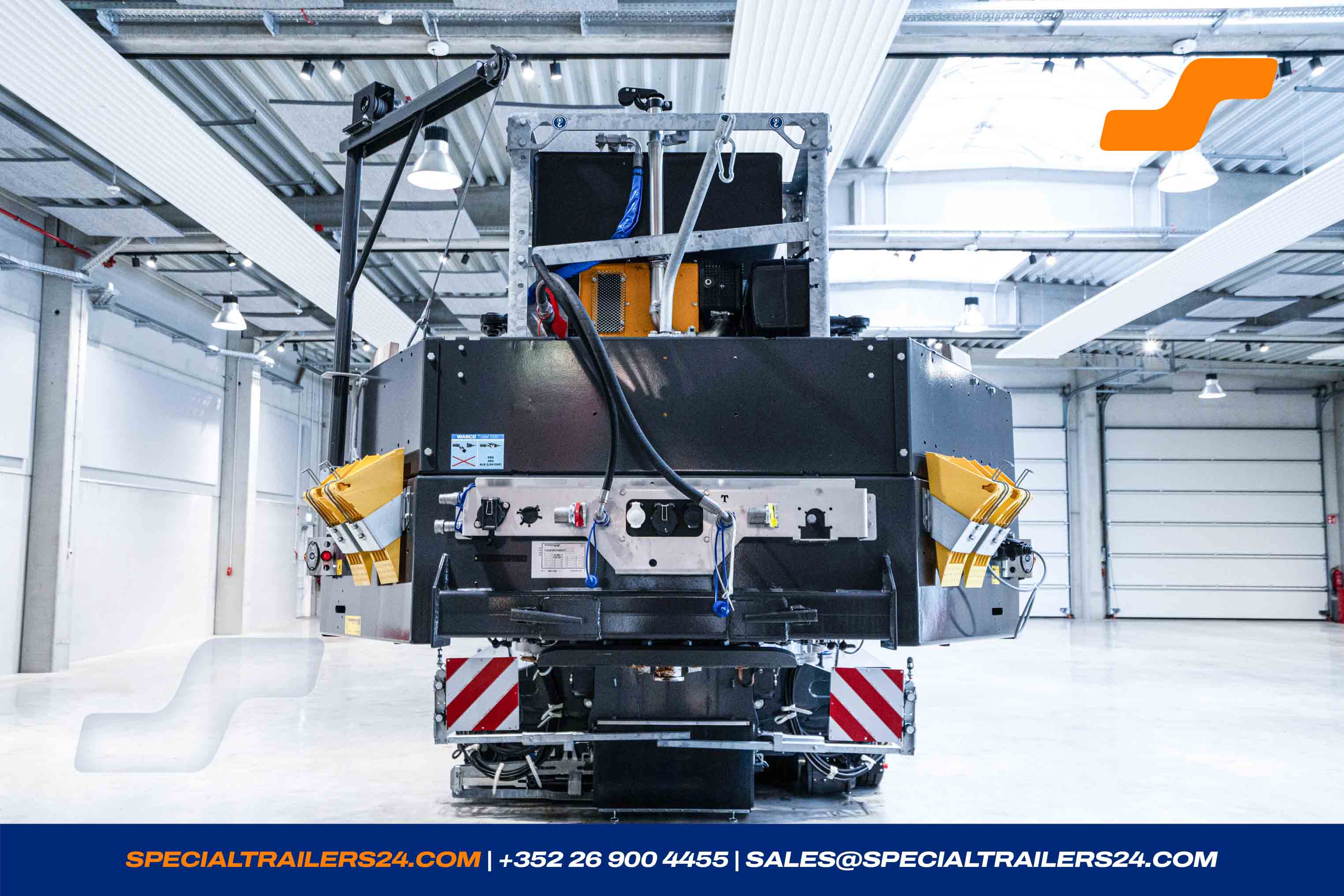

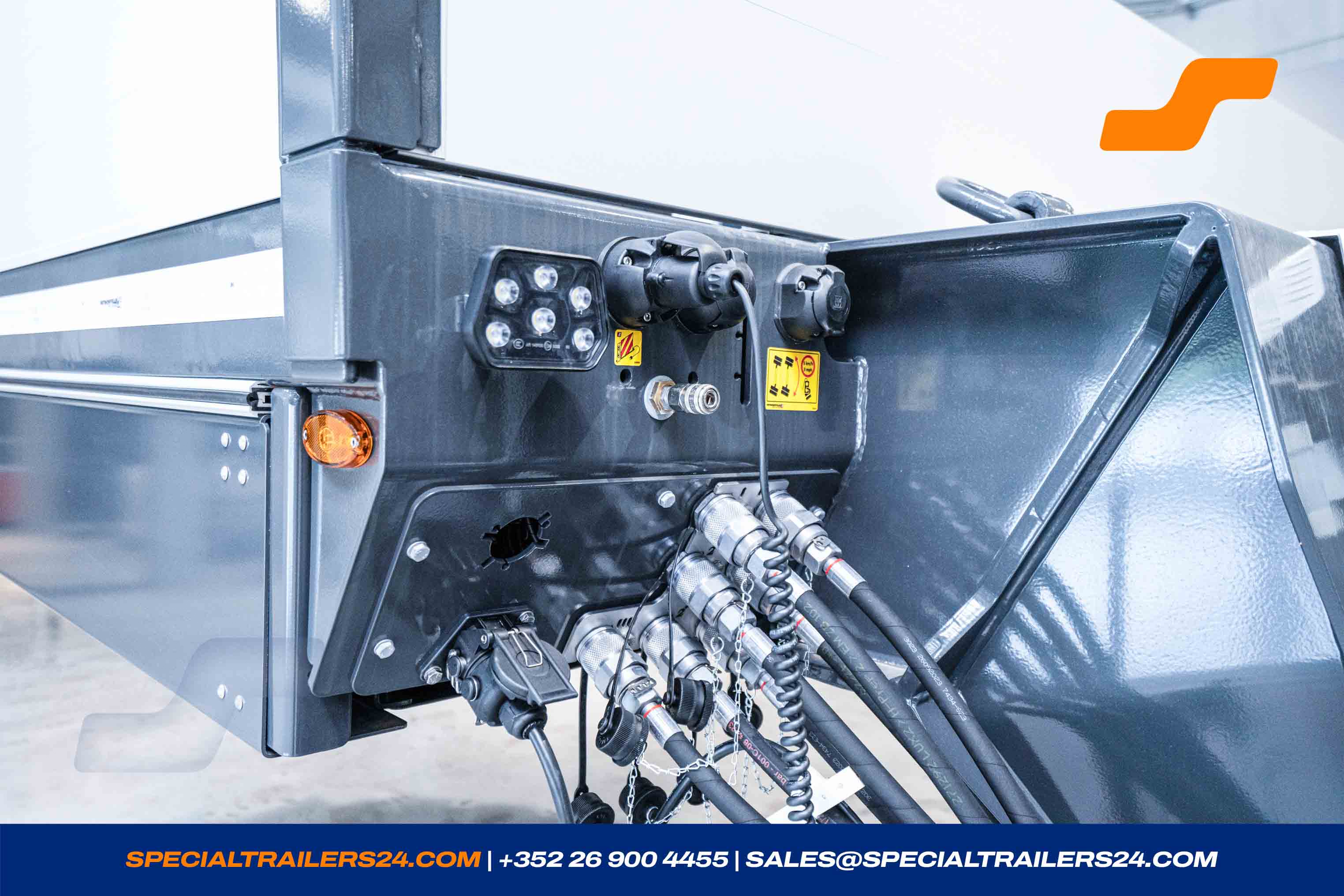

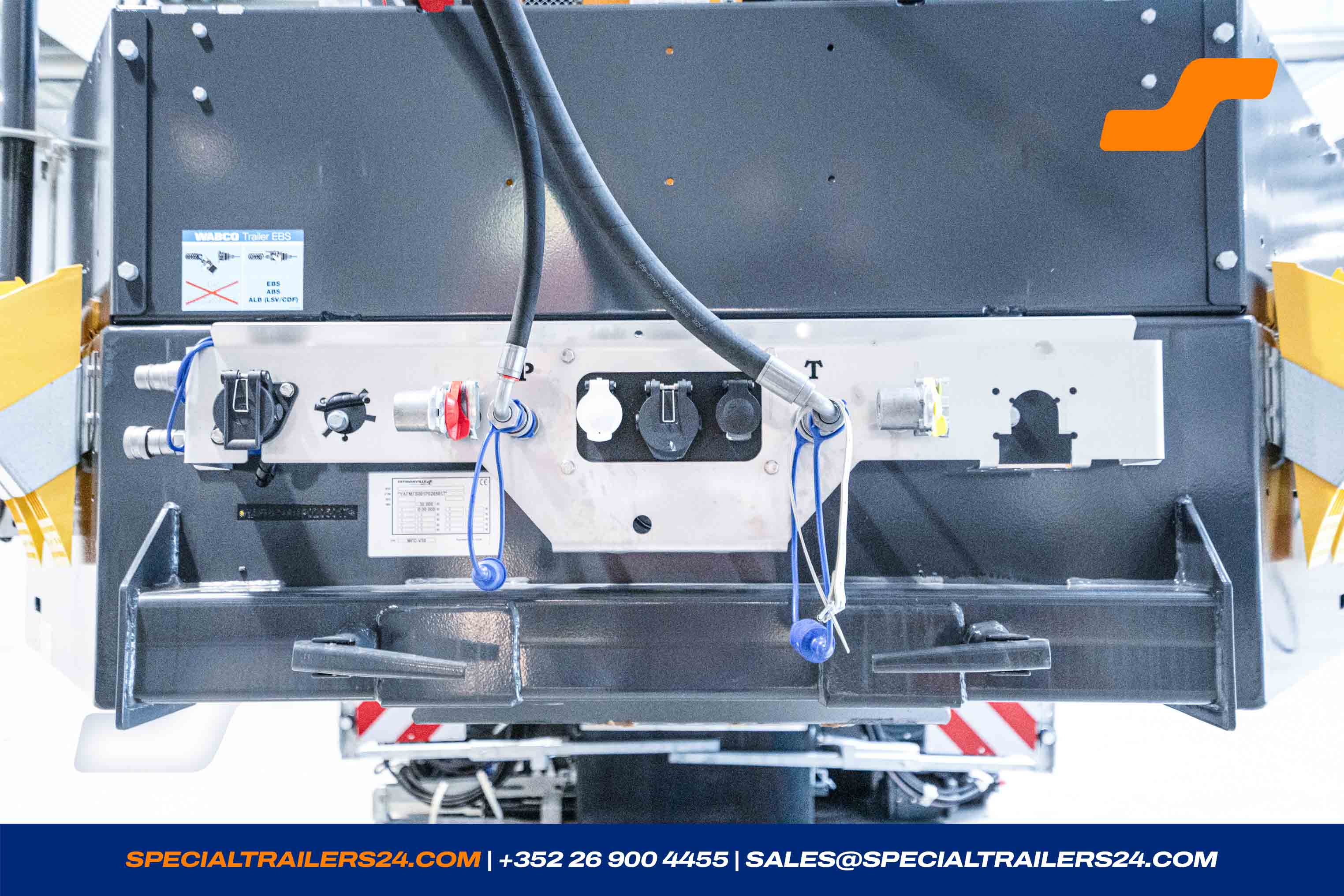

ASPÖCK-UNIBOX on the front connection ledge with sockets 24N, 24S & 15 pole.
24N connect after ISO-1185
24S connect after ISO-3731
15-pole connect after ISO-12098
If your poles connection is different to the ISO norm, please inform us. - Gooseneck cylinders fixed on position 2 (middle)
- Fifth wheel height loaded: 1 300 mm
- Radio control for the manual steering additional to the cable control, with LED control lamps on the receiver for the alignment of the axles.
Painting
| Sideboards | ALU-Natural |
| Outer frame | N/A - RAL-nbr.: .................... (please confirm) |
| Chassis / structure | DB 7350 - Nova grey |
| Headboard | N/A - RAL-nbr.: .................... (please confirm) |

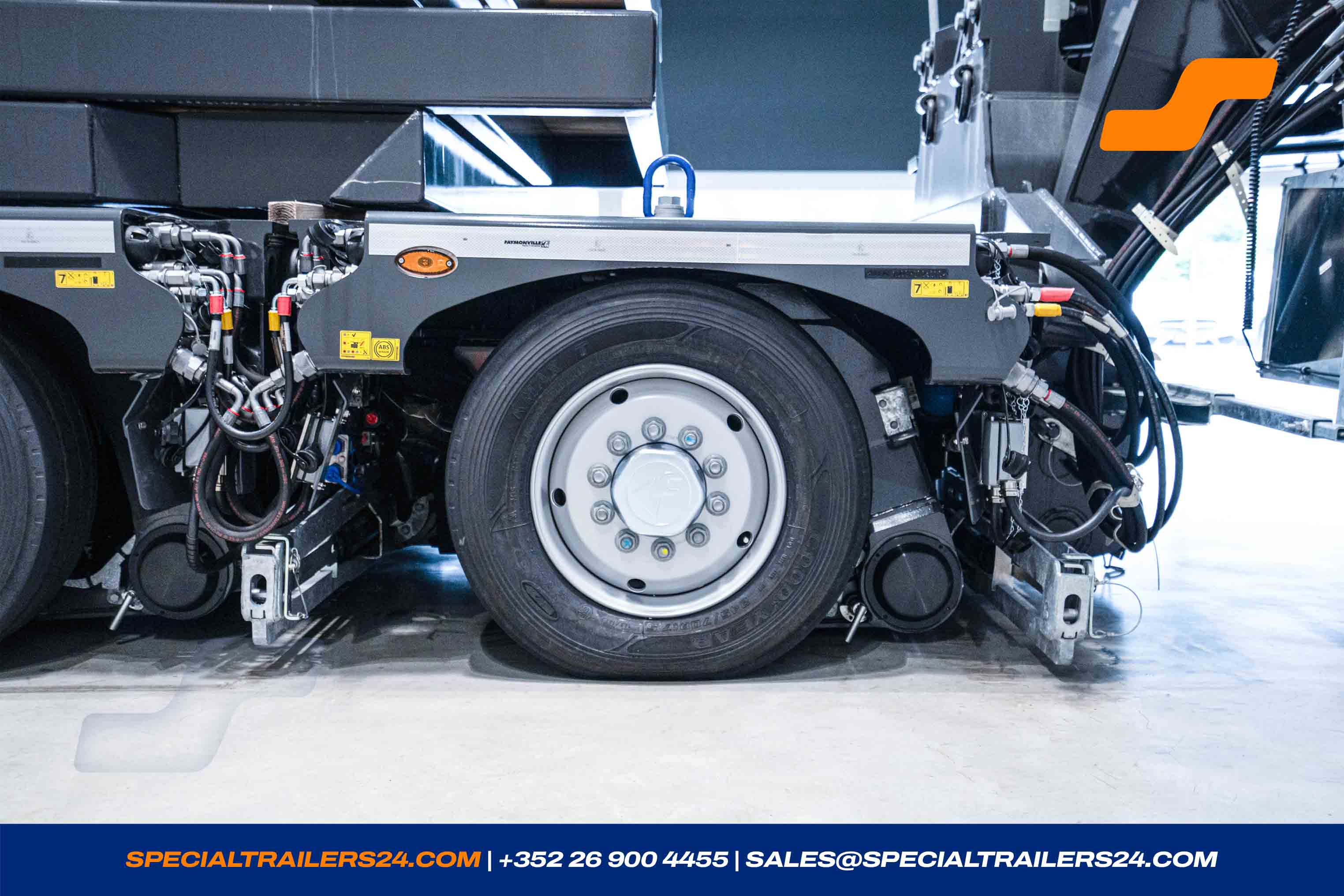

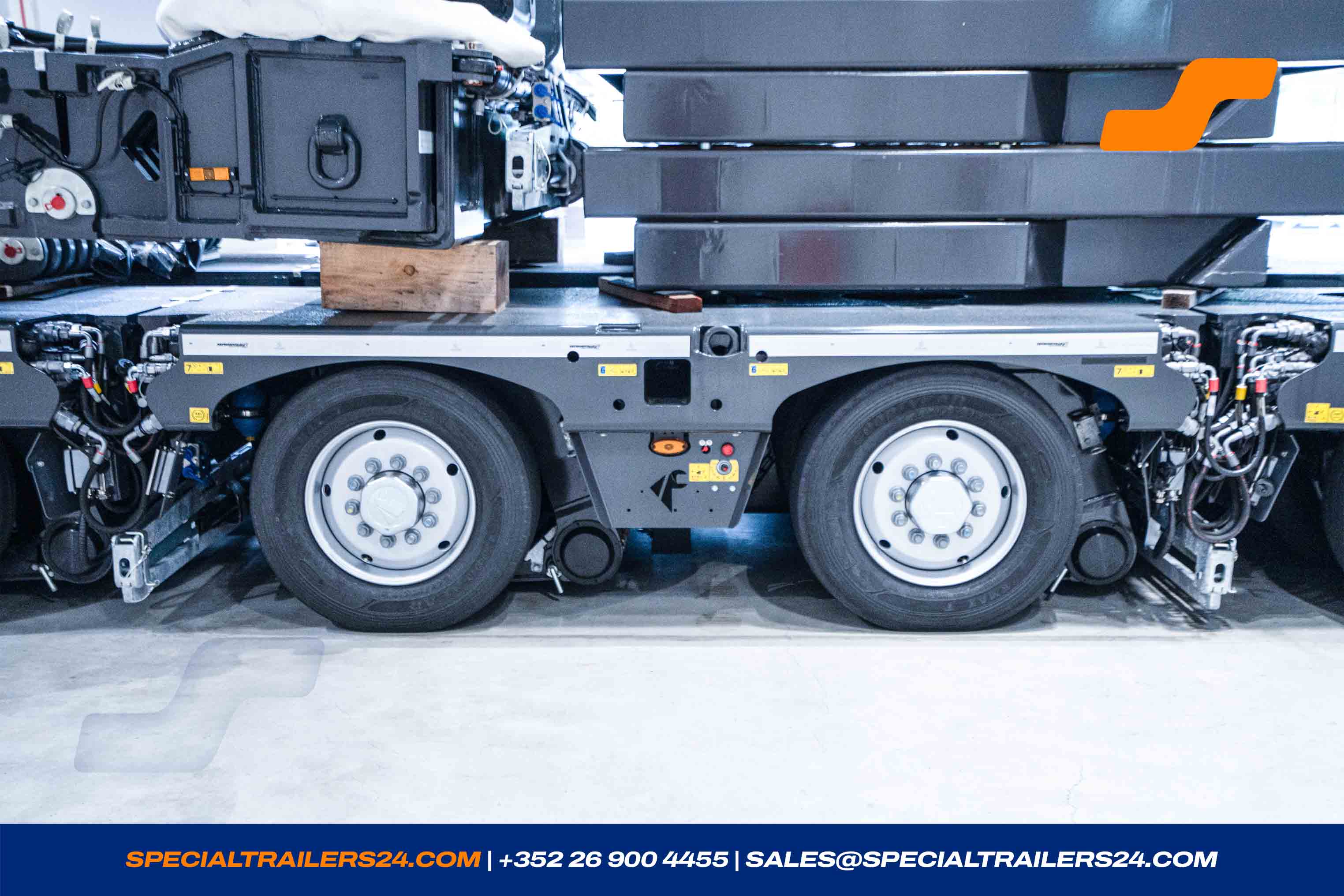

Bogie
Bogie PA
2 x 2-axles central bogie, type 245/2850/1500
2-axles central bogie, type 245/2850/1500
according to drawing: FEL_DWG-018418
Universal coupling head in front and at rear.
Bogie width: 2 850 mm
Tare weight (+/- 3%): 5 700 kg
-

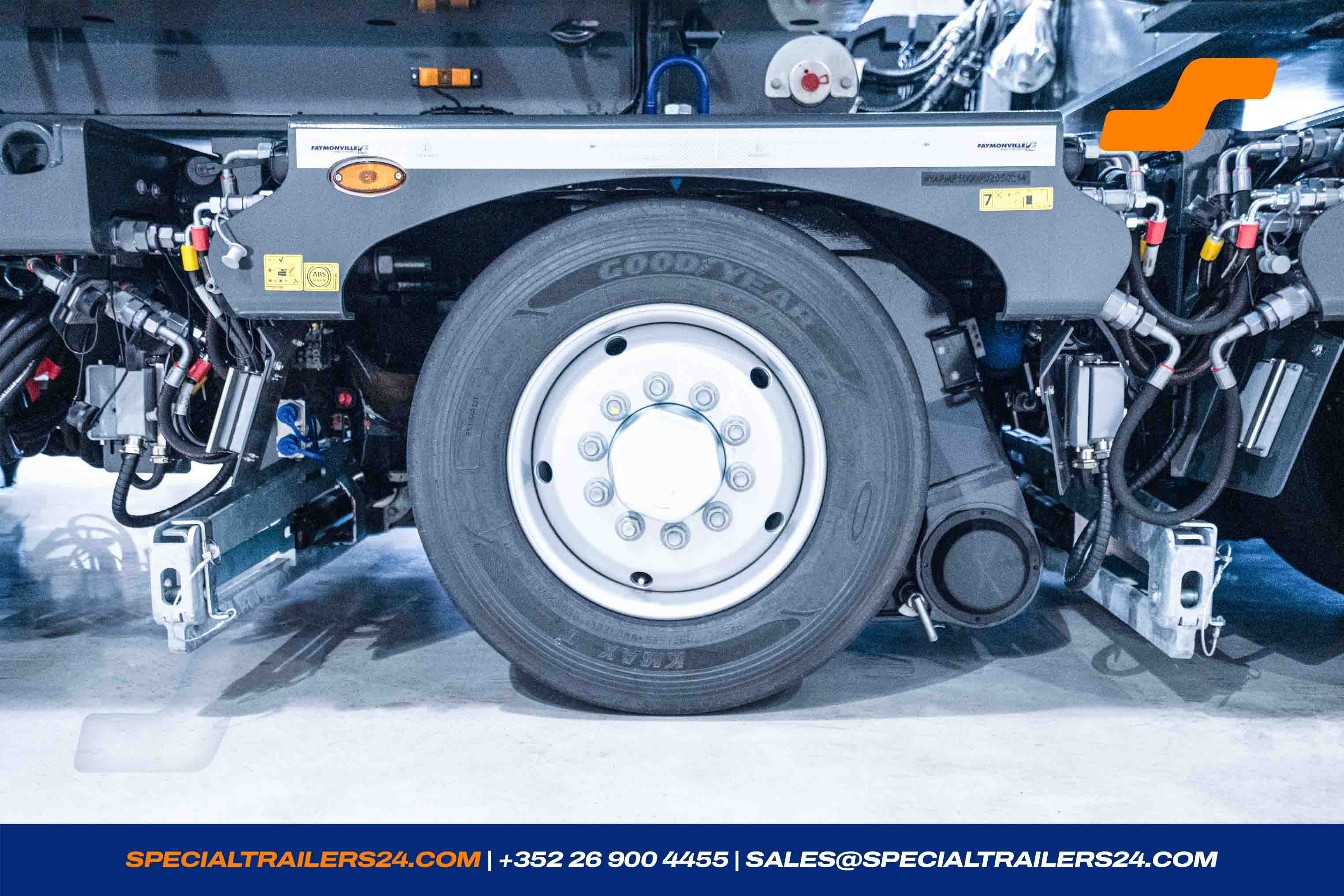

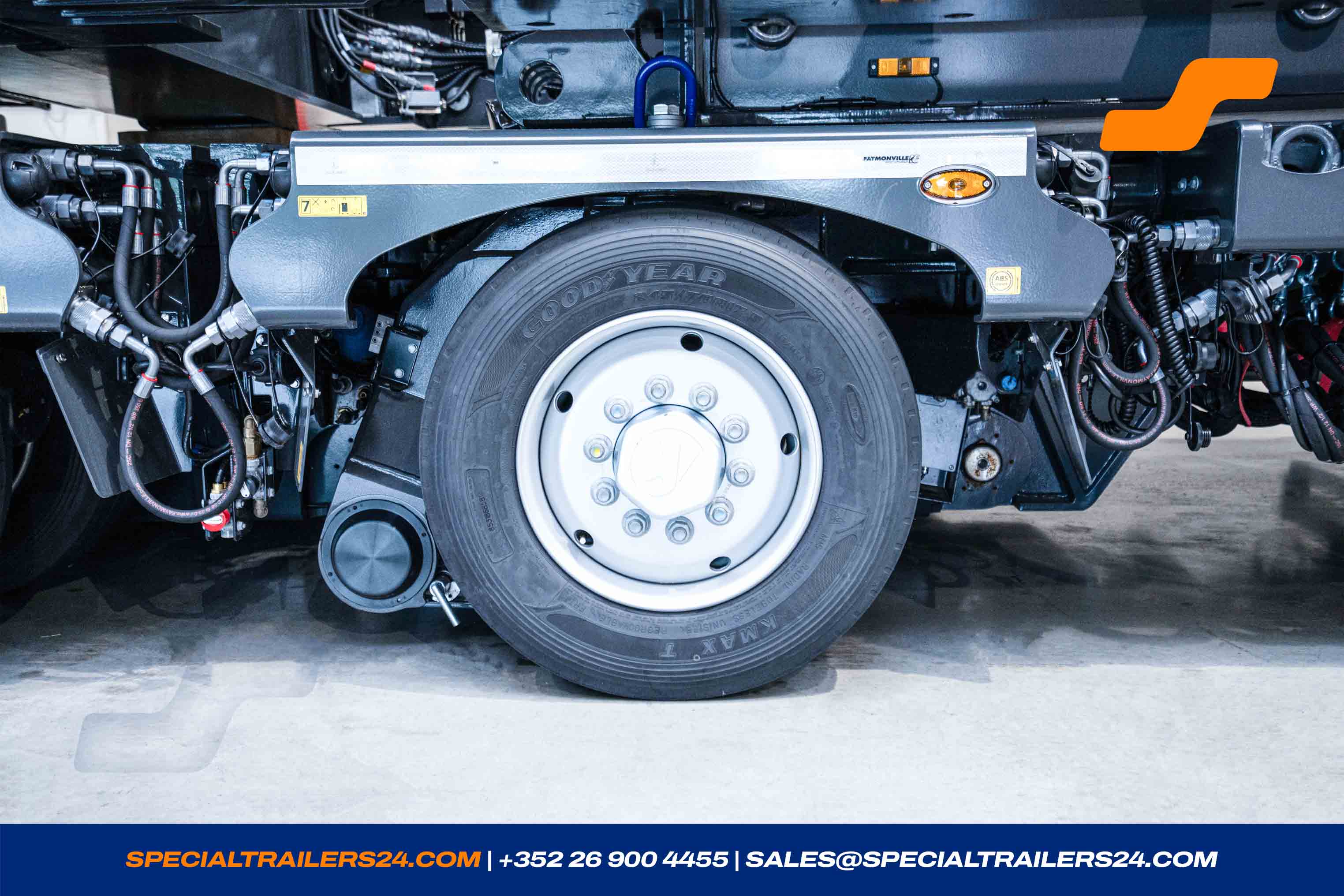

Tyres:
8x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Integrated front-steering system.
-
BEKA-MAX central lubrication for a 2 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Bogie PA

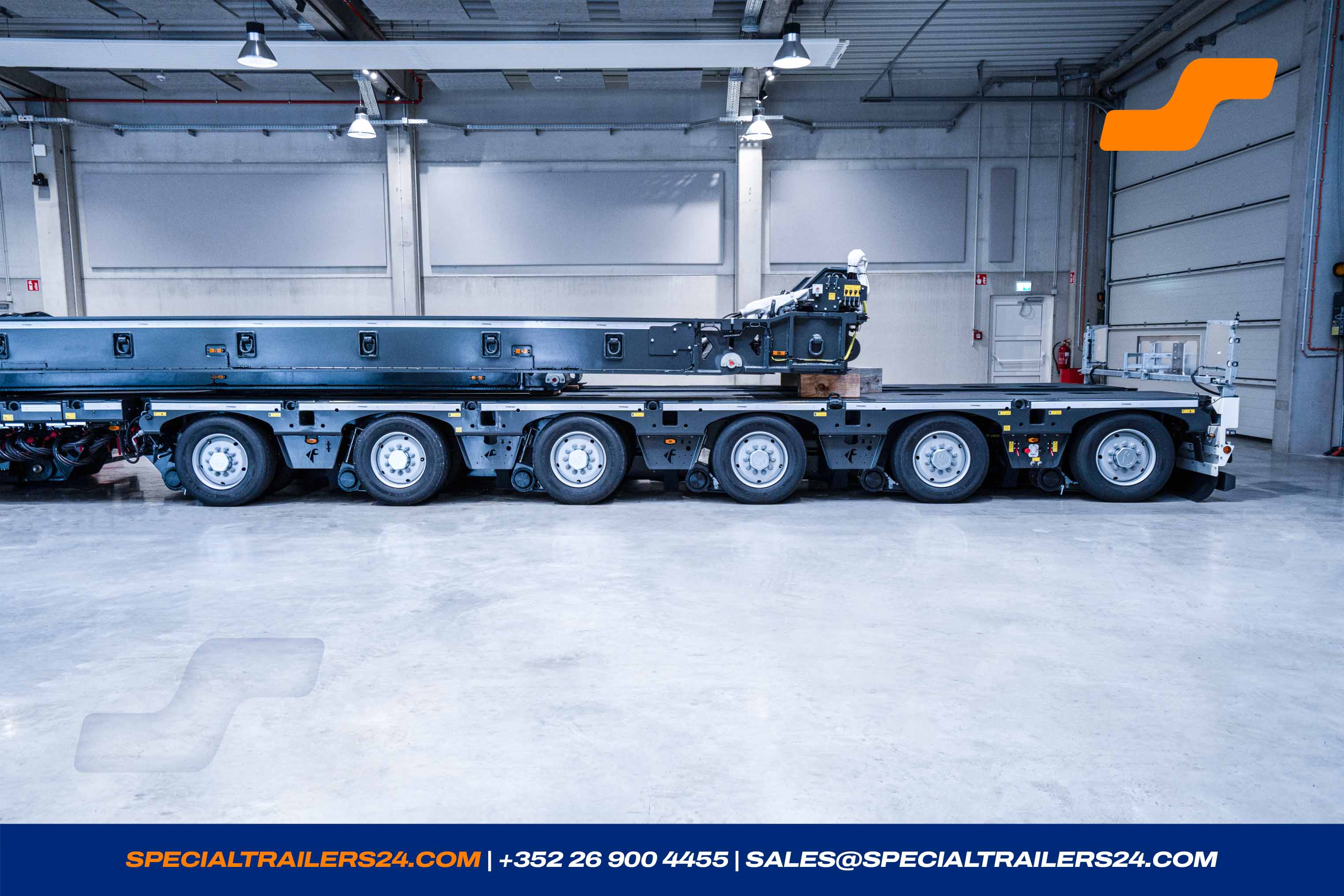

1 x 6-axles central bogie, type 245/2850/1500
6-axles central bogie, type 245/2850/1500
according to drawing: FEL_DWG-018414
Universal coupling head in front and at rear.
Bogie width: 2.850 mm
Tare weight (+/- 3%): 14.350kg
-
Tyres:
24x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Integrated rear-steering system with mounting option for a front steering system.
-
BEKA-MAX central lubrication for a 6 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Bogie PA
1 x 1-axle central bogie, type 245/2850/1500 « Joker-axle »
1-axle central bogie, type 245/2850/1500 « Joker-axle »
according to drawing: FEL_DWG-018419
Universal coupling head in front and at rear.
Bogie width: 2 850 mm
Tare weight (+/- 3%): 3 050 kg
-
Tyres:
4x Product of our choice (M+S)
245/70 R17.5
Load Index 143/141L(146/146F) - Without steering system.
-
BEKA-MAX central lubrication for a 1 axle bogie with NLGI-2 normal grease.
(not connected to the steering rods).
Painting
| Wheels hubs | According to axle manufacturer |
| Outer frame | DB 7350 - Nova grey |
| Chassis / structure | DB 7350 - Nova grey |
Loading deck
Elongation beam
1 x Pair(s) Elongation beams KB *-380-6.00-455-450/650-N-BK-BK
Elongation beams KB (category-380) with compression-joint in front and rear.
Lower seating surface reinforced for higher point loads.
Coupling length: 6.000 mm
Beam height: 455 mm
Beam width: 450/650 mm
Tare weight (+/- 3%): 4.700 kg
- Lashing rings ± every 1.000-1.200 mm outside of the elongation pieces (LC 10.000 daN).
- EPH supply pipes with fixing possibility on the inner and outer side of the elongation beams.
- For mounting the elongation beams are scheduled with forklift pockets and inside on the compression join a lashing ring.
Painting
| Loading deck | N/A - RAL-nbr.: .................... (please confirm) |
Rear coupling head
1 x Combi coupling head at rear KBV 380-3.00-455-KK-H-*
Lowbed-coupling head at rear KBV (category-380) hydraulically extendable with compression-joint in front outside and universal coupling head at rear.
Basic width: 3.000 mm, hydraulically widenable up to 4.700 mm.
Beam height: 455 mm
Ground clearance: 145 mm in nominal driving position.
Tare weight (+/- 3%): 4.300 kg
- Three pairs of lashing rings on the rear cross beams (LC 16.000 daN).
- One lashing ring left and right hanging at the outside from the rear cross beams (LC 16.000 daN).
- Control panel for hydraulic width adjustment.
Painting
| Coupling Head | N/A - RAL-nbr.: .................... (please confirm) |

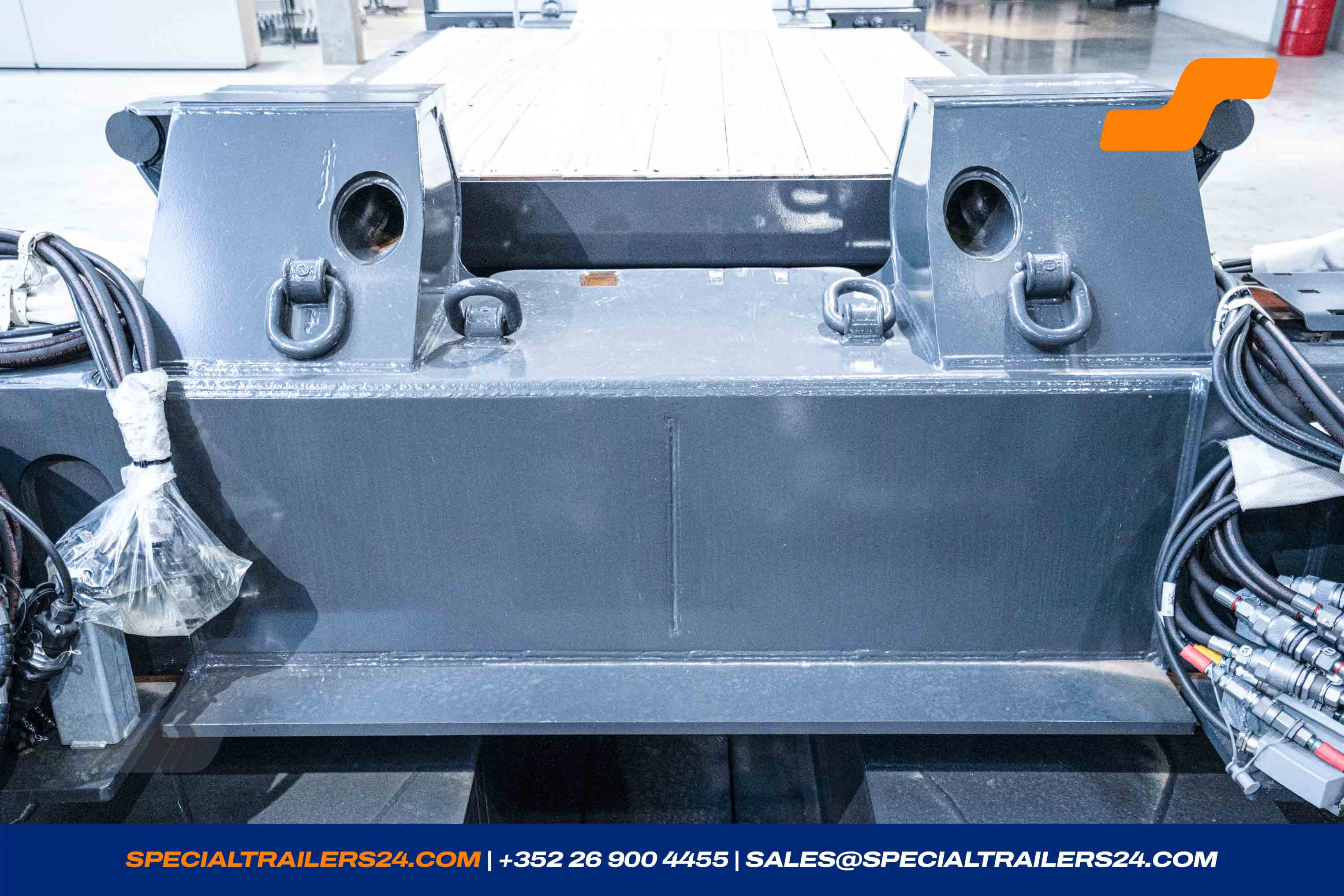

Front coupling head
1 x Combi coupling head in front KBV 380-3.00-455-KK-F-*
Lowbed-coupling head in front KBV (category-380) hydraulically extendable with universal coupling head in front and with compression-joint outside at rear.
Basic width: 3.000 mm, hydraulically widenable up to 4.700 mm.
Beam height: 455 mm
Ground clearance: 145 mm in nominal driving position.
Tare weight (+/- 3%): 4300 kg
- On pair of lashing ring welded on top of the front cross beam (LC 16.000daN).
- A lashing ring on left and right hanging at the outside of the front cross beam (LC 16.000daN).
- Three pairs of lashing rings on the front cross beams (LC 16.000daN).
Painting
| Coupling Head | N/A - RAL-nbr.: .................... (please confirm) |
Elongation beam
1 x Pair(s) Telescopic beams KB-A 380-8.00-455-450/650-N-BK-BK
Telescopic beams KB-A 8.000+5000 mm (category-380), with compression join in front and rear.
Coupling length: 8.000-13.000 mm
Beam height: 455 mm
Beam width: 450/650 mm
(Loading height 600 mm at 145 mm ground clearance)
Tare weight (+/- 3%): 10.000 kg
- Lashing rings ± every 1.000-1.200 mm outside of the inner beams from the loading platform (LC 10.000 daN).
- Lashing rings ± every 1.000-1.200 mm outside of the outer beams from the loading platform (LC 10.000 daN).
-
Locking position on the extension each ± 500 mm with mechanical locking.
The supply lines are laid in the outerbeam and adapt automatically to the loading length.
Painting
| Loading deck | N/A - RAL-nbr.: .................... (please confirm) |
Accessories
Steering rods
2 x Steering rods bypassing steering 1.500 mm
Steering rods for bypassing the steering of a combimodule with a wheelbase of 1.500 mm.
Art. No.: 346970

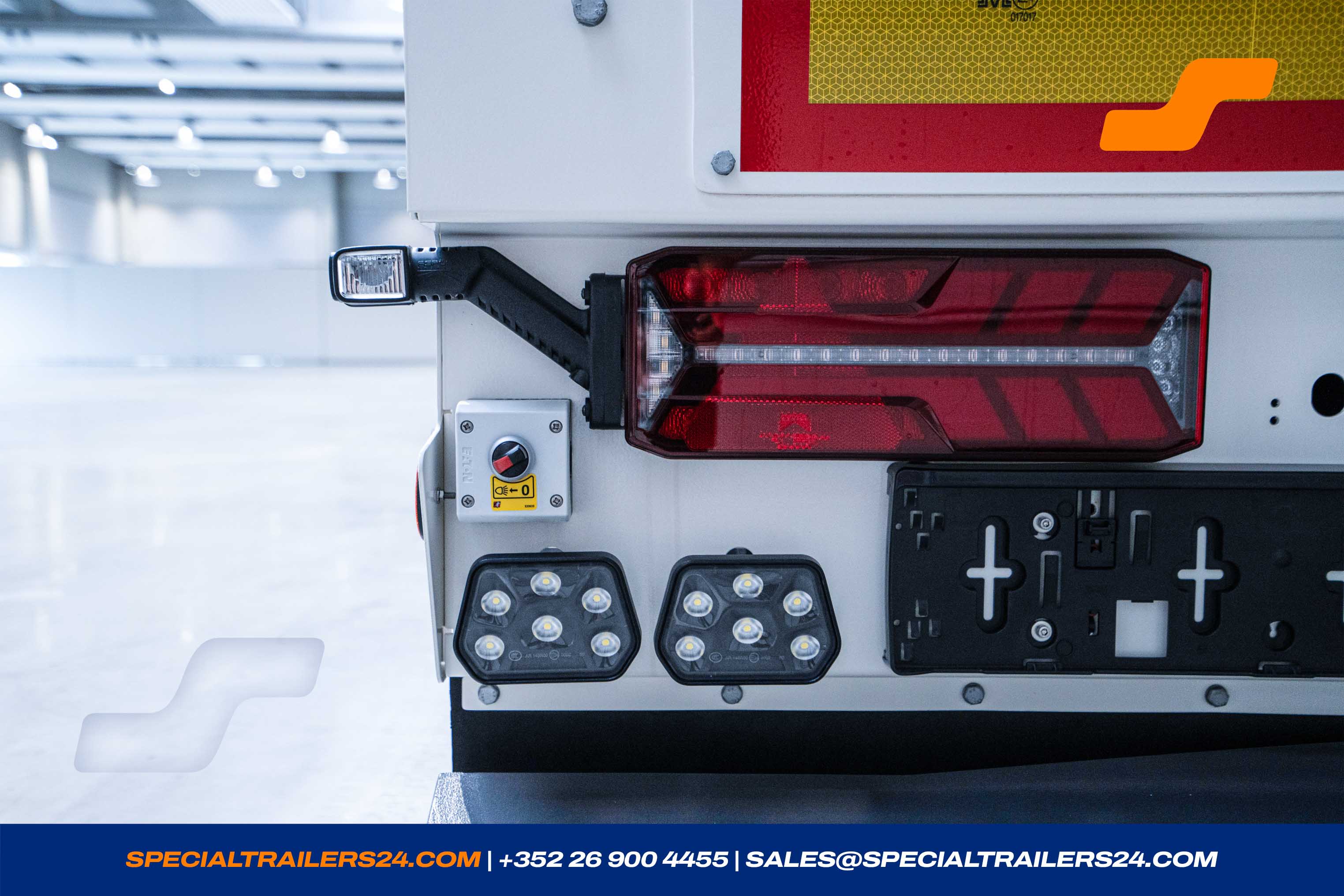

Lighting and signage
1 x Lighting element
Detachable lighting element (left/right) for the back of a Combi-Modul, conform to the EU-regulations.
Tare weight (+/- 3%): 100 kg
- Mounting possibility for a number plate (520 x 110 mm) including lighting.
- An LED reversing lamp on the left and right side.

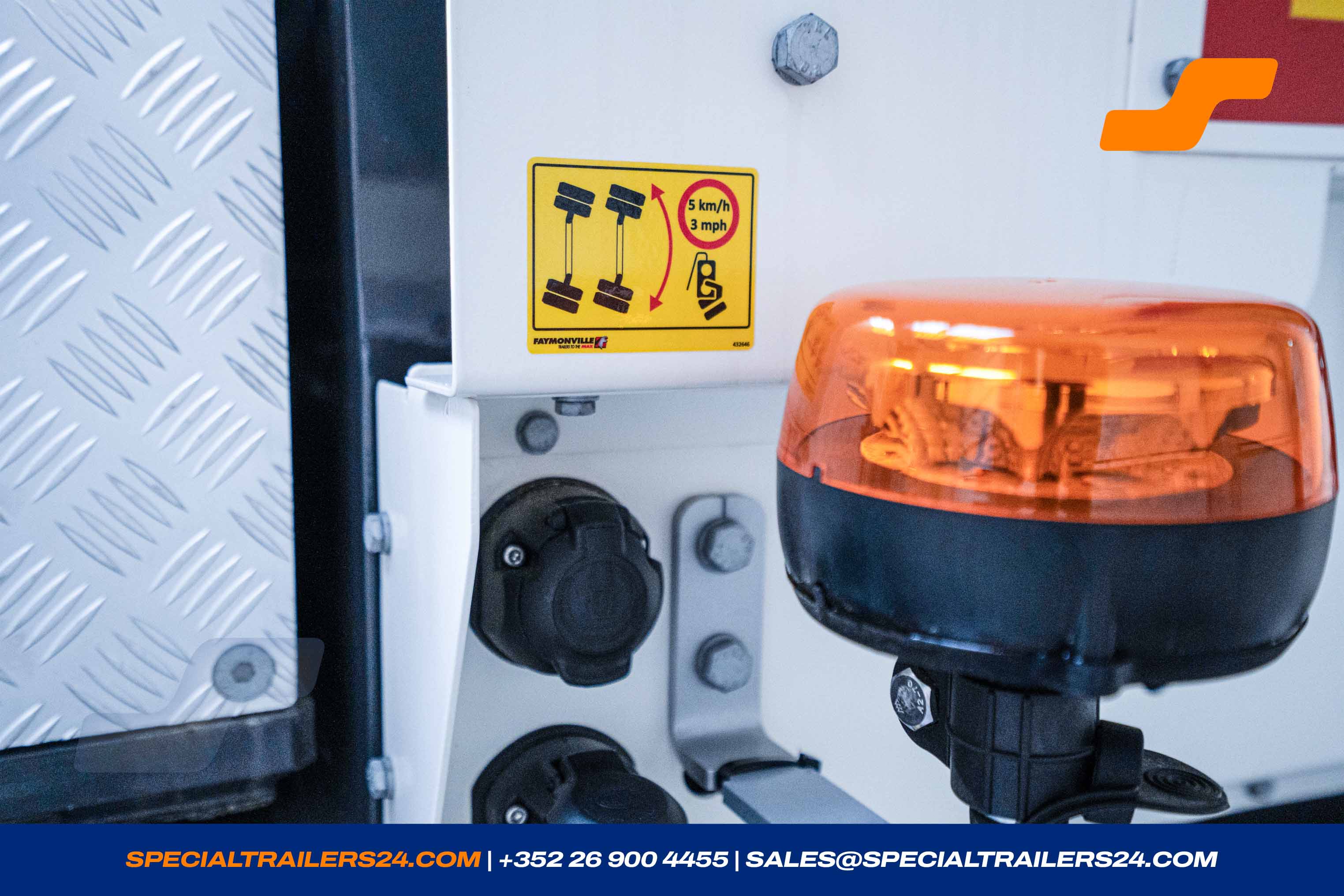

- A LED flashing beacon with holder on the left and right side.
- A socket for the cable remote control for the rear steering system in the front area of the loading platform, on the left in the direction of travel.
- Single tires
- A LED working lamp at the rear on the left and right side with separate on/off switch.
- EU-reflector at the rear end.

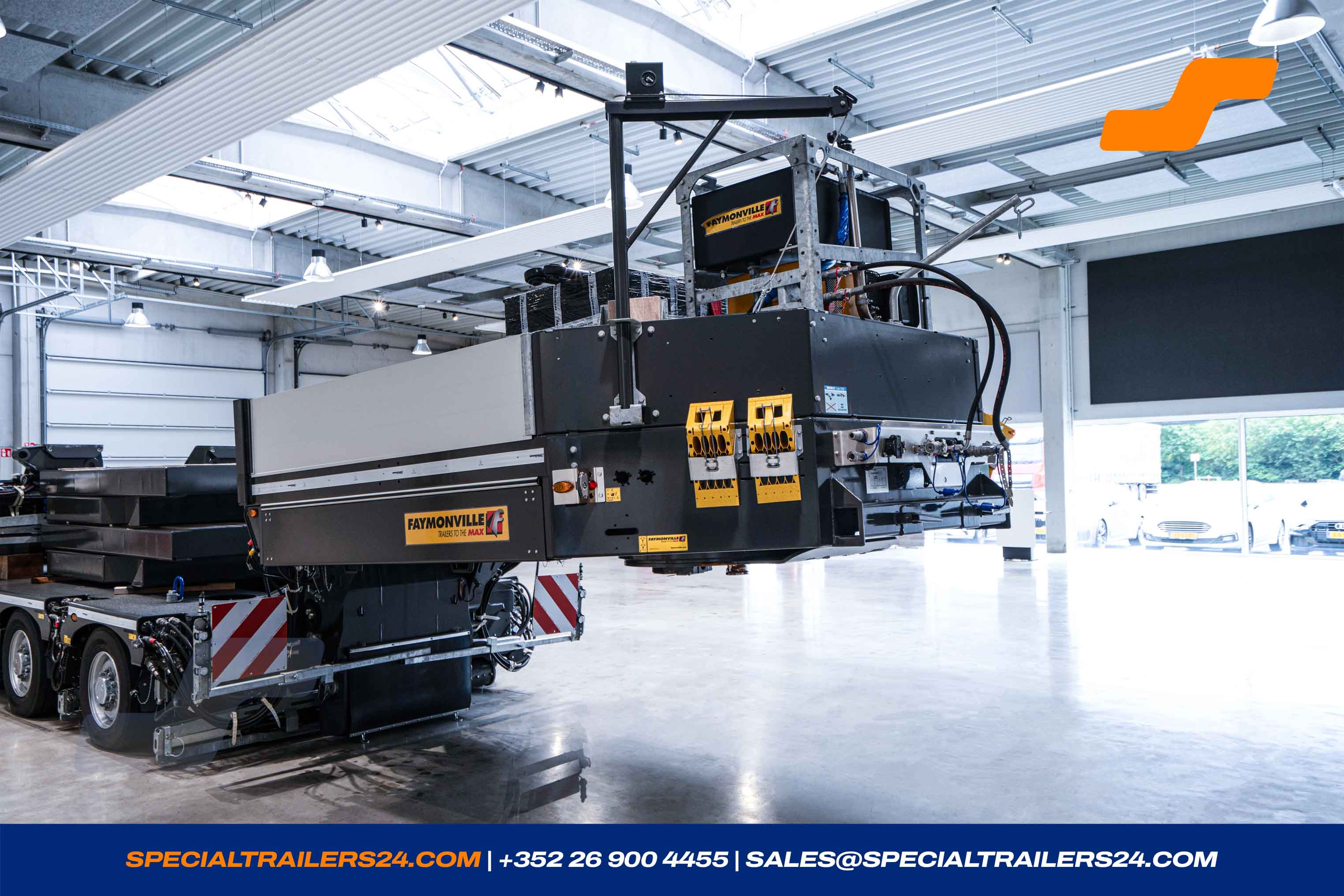

Powerpack
1 x Powerpack-HA-1-EU-Std. 100L
1-cylinder Hatz diesel engine (Silent pack) with electric starter and battery.
Performance: 9.5 kW (12.9PS) at 3.000 rpm
Exhaust classification: EU Stage V
Hydraulic pressure: 280 bar
Flow rate: 21 l/min
Firmly installed on the gooseneck.
Frame galvanized.
Dimensions l x w x h: 700 x 1.000 x 1.230mm
-
Additional connection on the oil reservoir for the electro-hydraulic pump on the gooseneck.

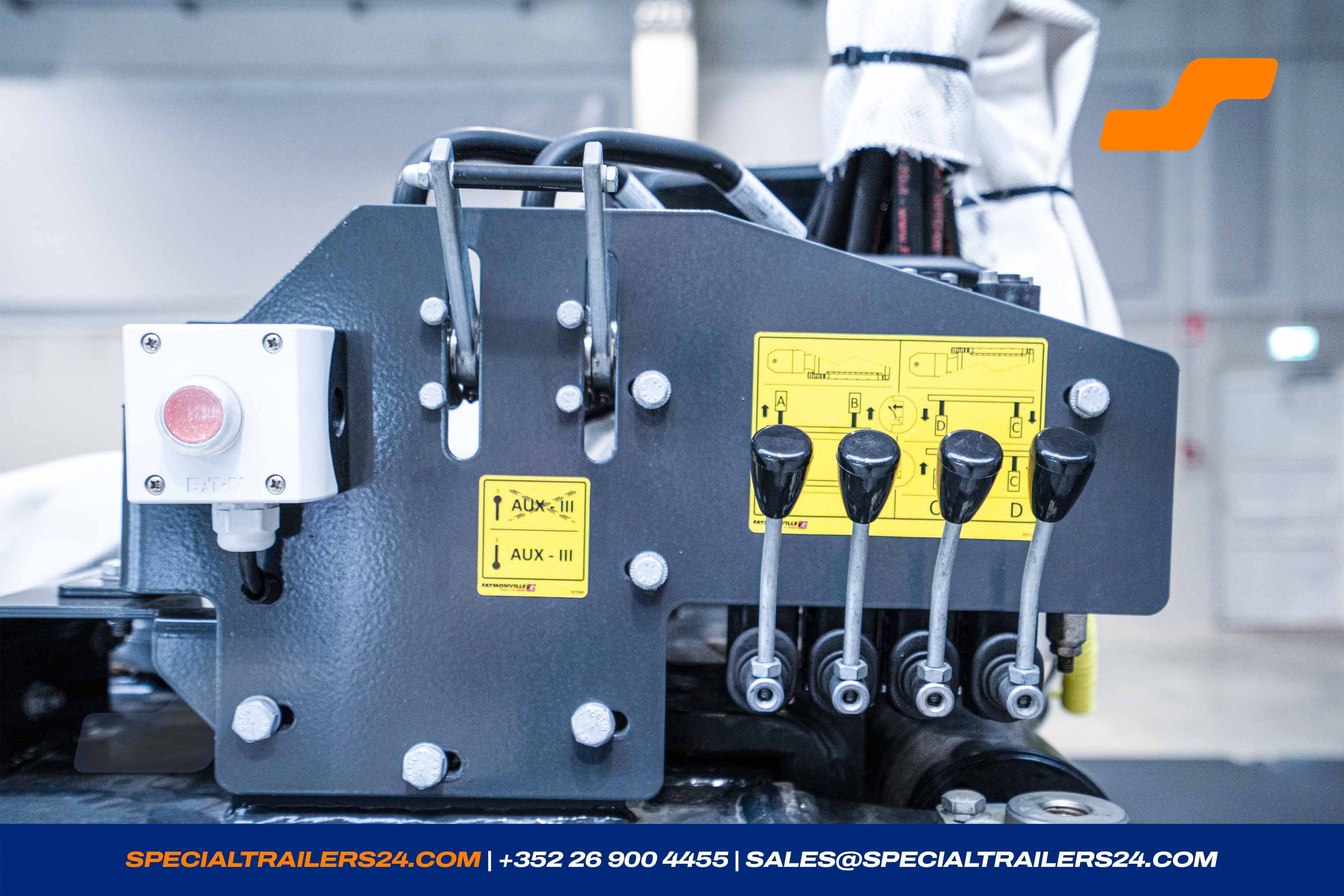

Attention: the gooseneck has to be configured accordingly! - Throttle lever for adjustment of the rotational speed.
- Hydraulic oil tank: 100 l
- Adapter for mechanical fixing of the power pack on the gooseneck.
- Hydraulic connecting lines between power pack and connection ledge from gooseneck
Steering rods
4 x Steering rods to connect combimodules 1.500 mm
Steering rods to connect combimodules with a wheelbase of 1.500 mm.
Art. No.: 359521

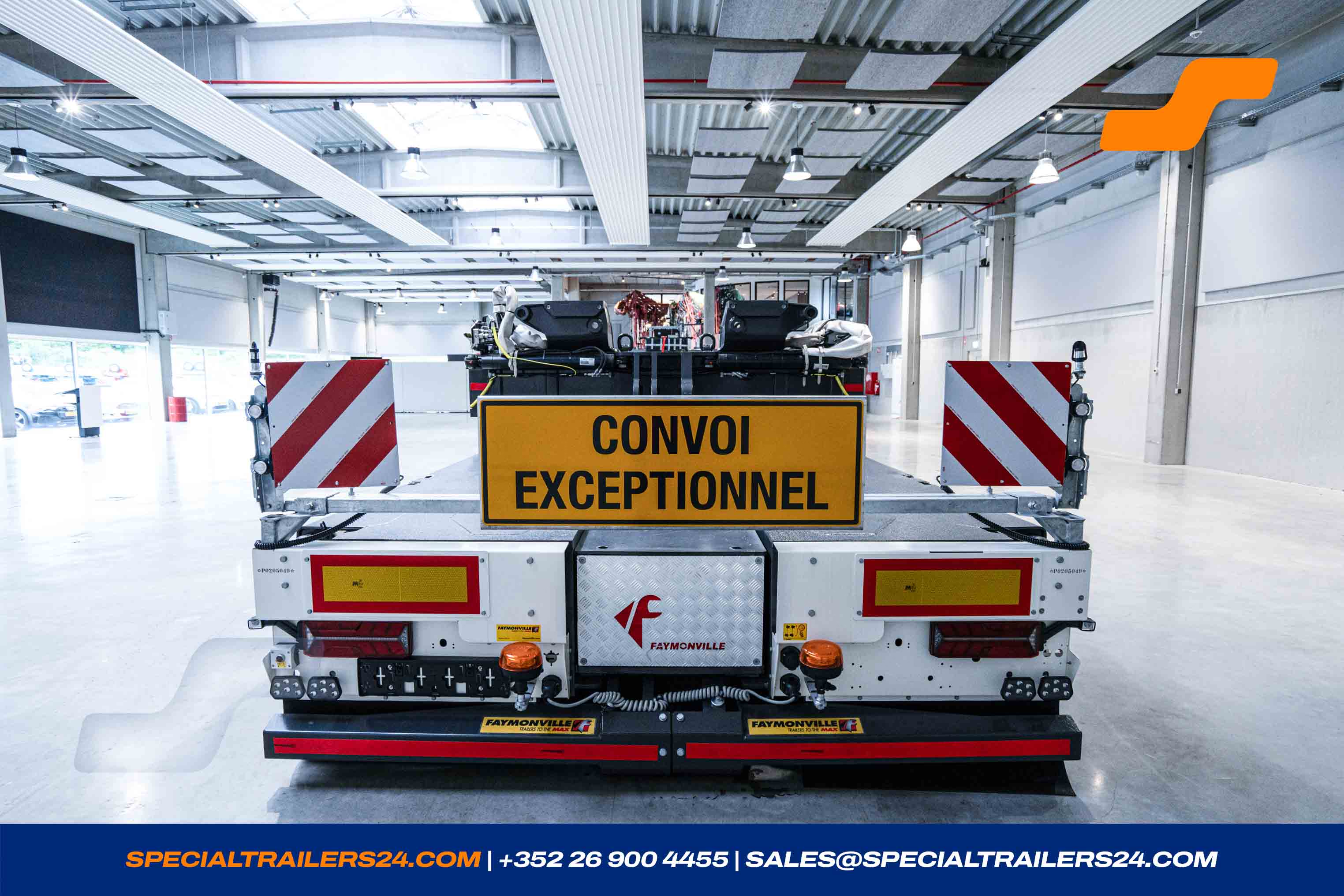

Lighting and signage
1 x Warning boards-2.85
A set of warning boards consisting of 4 warning boards with 2 LED position lights and holders on the boards to put a flashing beacon.
- 1 support for warning boards to install in the stake pockets
- 7-pole plug.

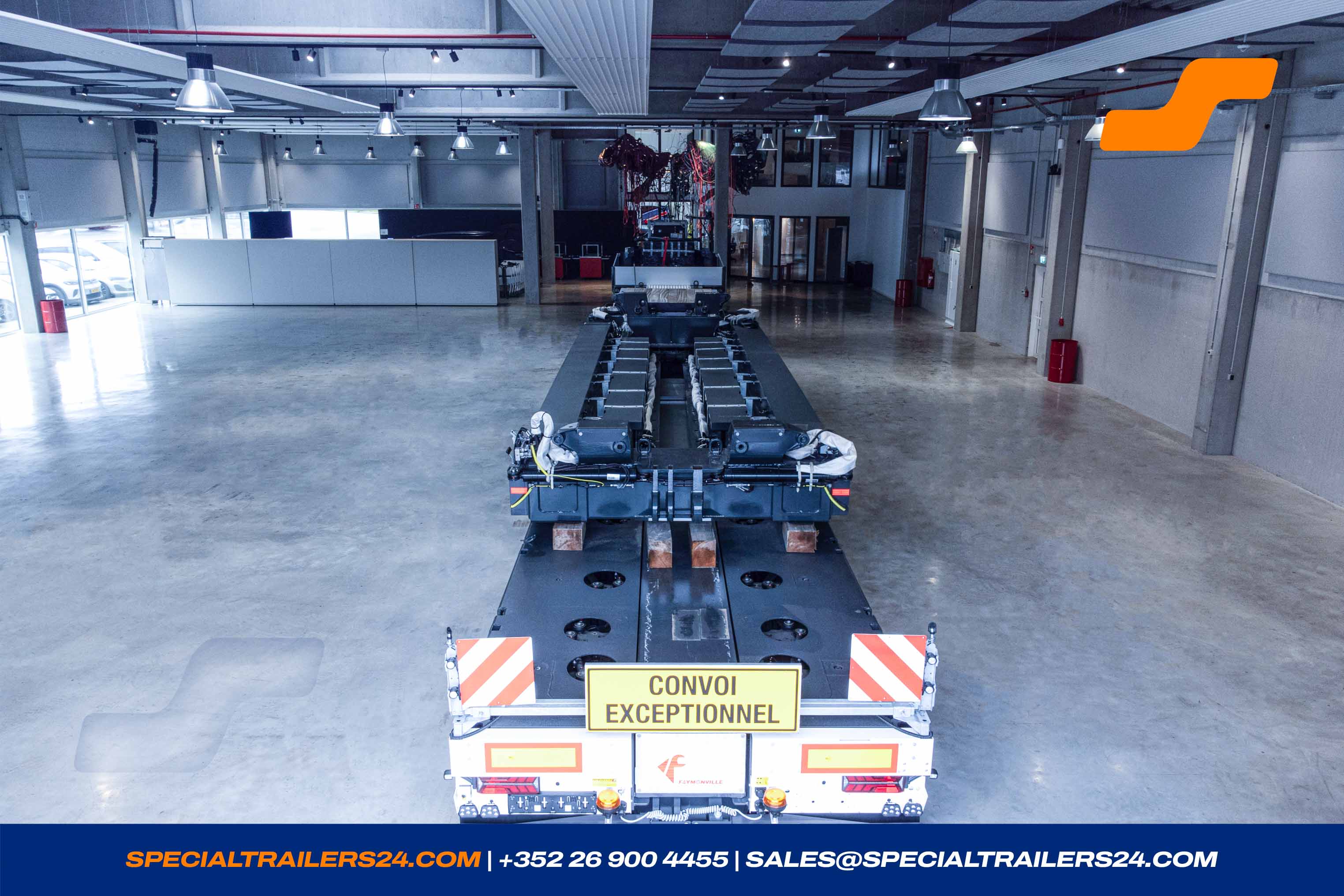

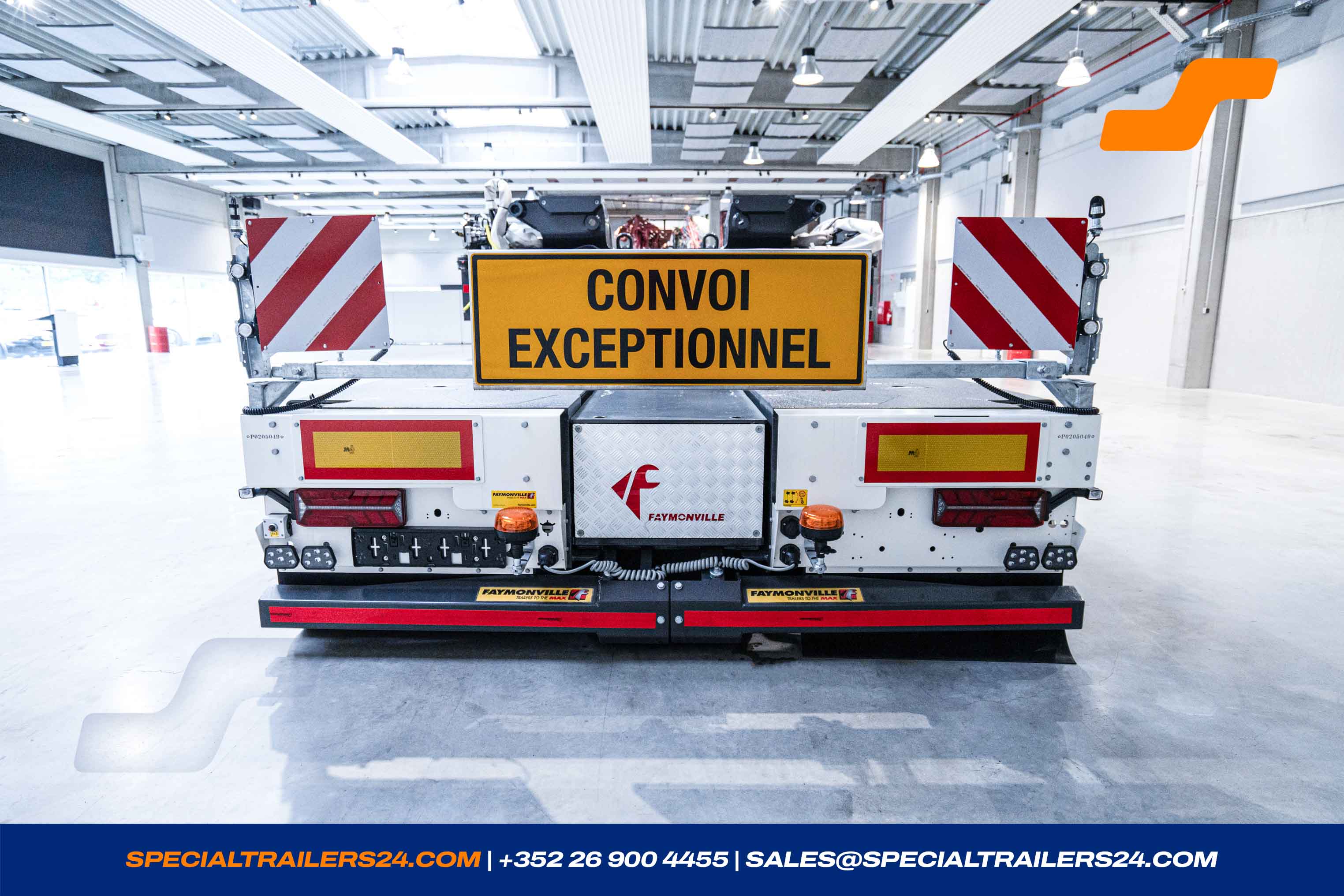

- Reflector CONVOI EXEPTIONNEL at the rear side of the trailer.
Lighting and signage

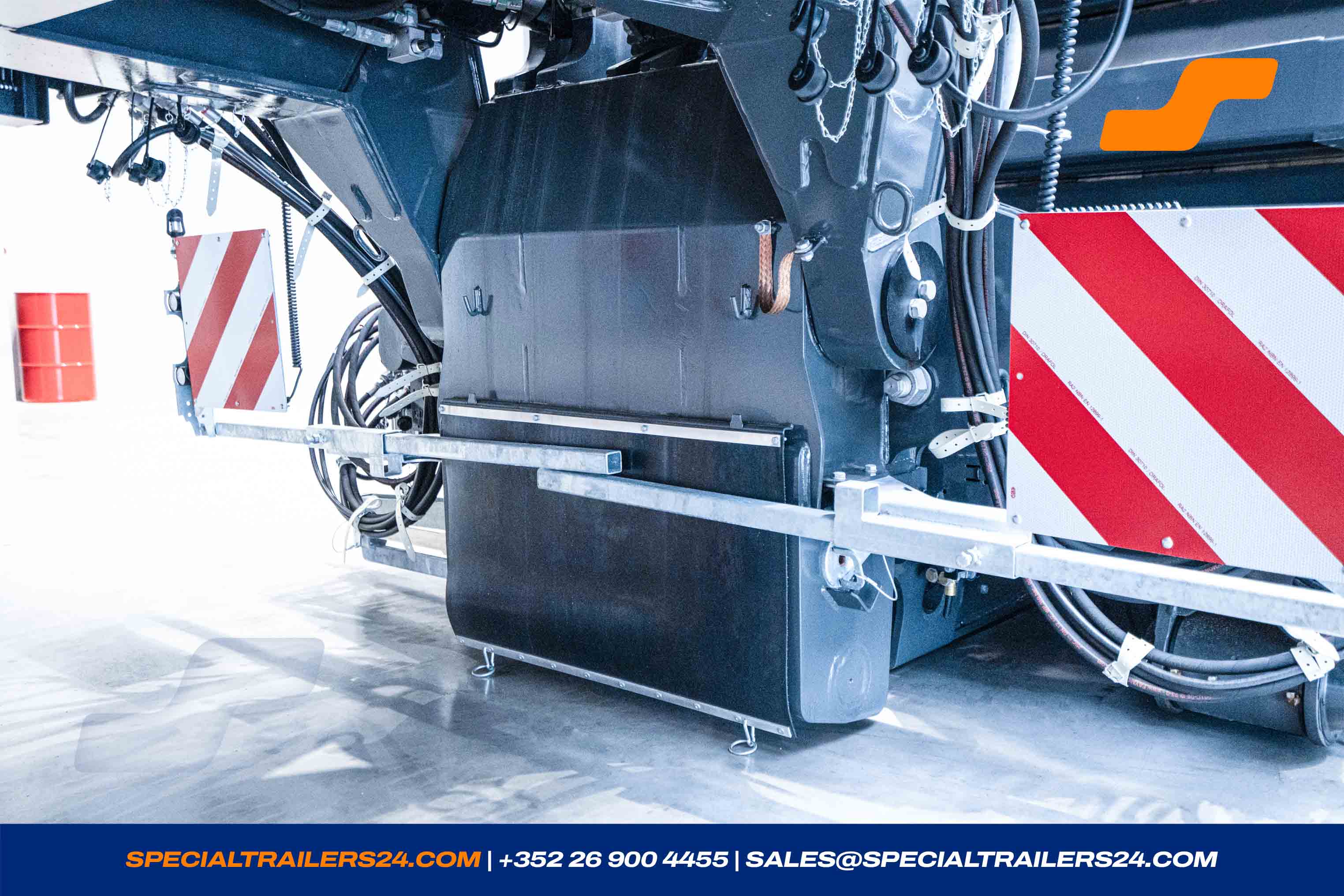

1 x Underride protection-2.85-3.00
Underride protection, detachable
Painted FAY-grey-34-0260
Know-How
Documentation and software
1 x FALCO-II software
FALCO-II software as initial version for calculating of axle loads and fifth wheel load as well as other useful transport data.
Delivery and training
3 x Days of briefing in our factory
Days of briefing for drivers and operators at our factory (max. 5 people).
