Faymonville CombiMAX
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 206143
- Reference Combi Hals CH-206143 + PPU CH-206146
- Number of axles 0
- Condition New
- Year of manufacture 2025
- Colour FAY 34-0260 - FAY-Grau
- Availability Directly available
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 5730 kg |

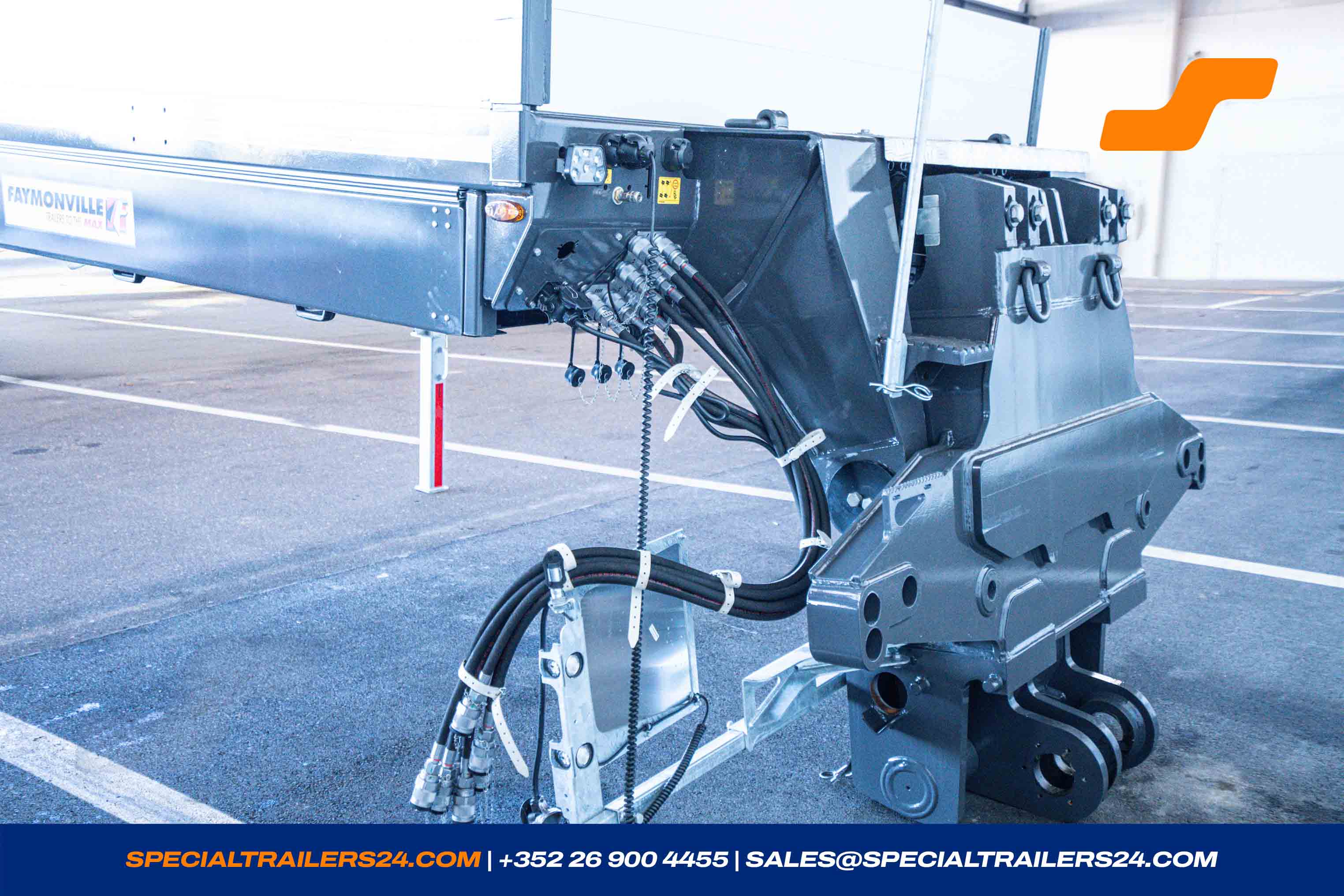

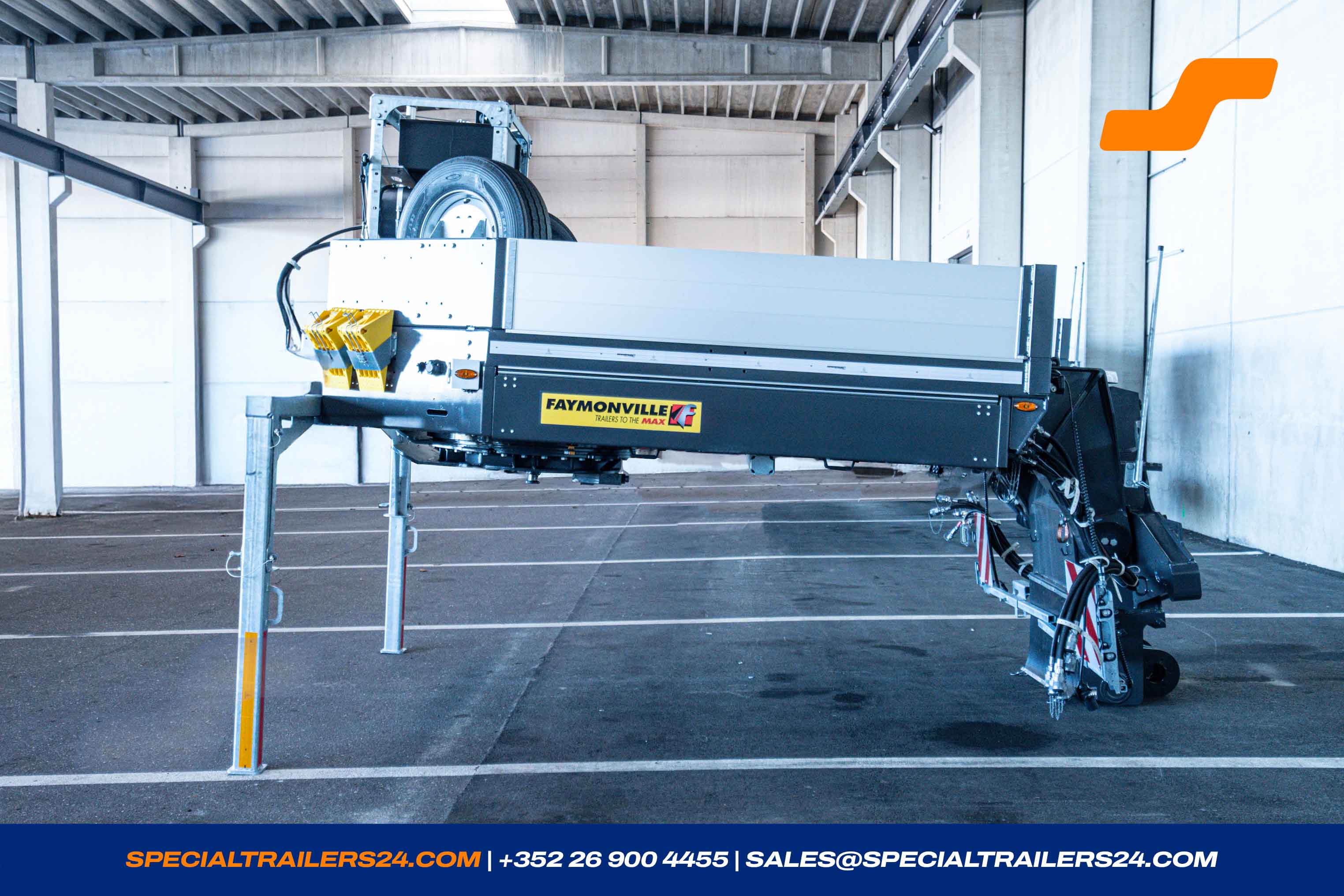

Gooseneck

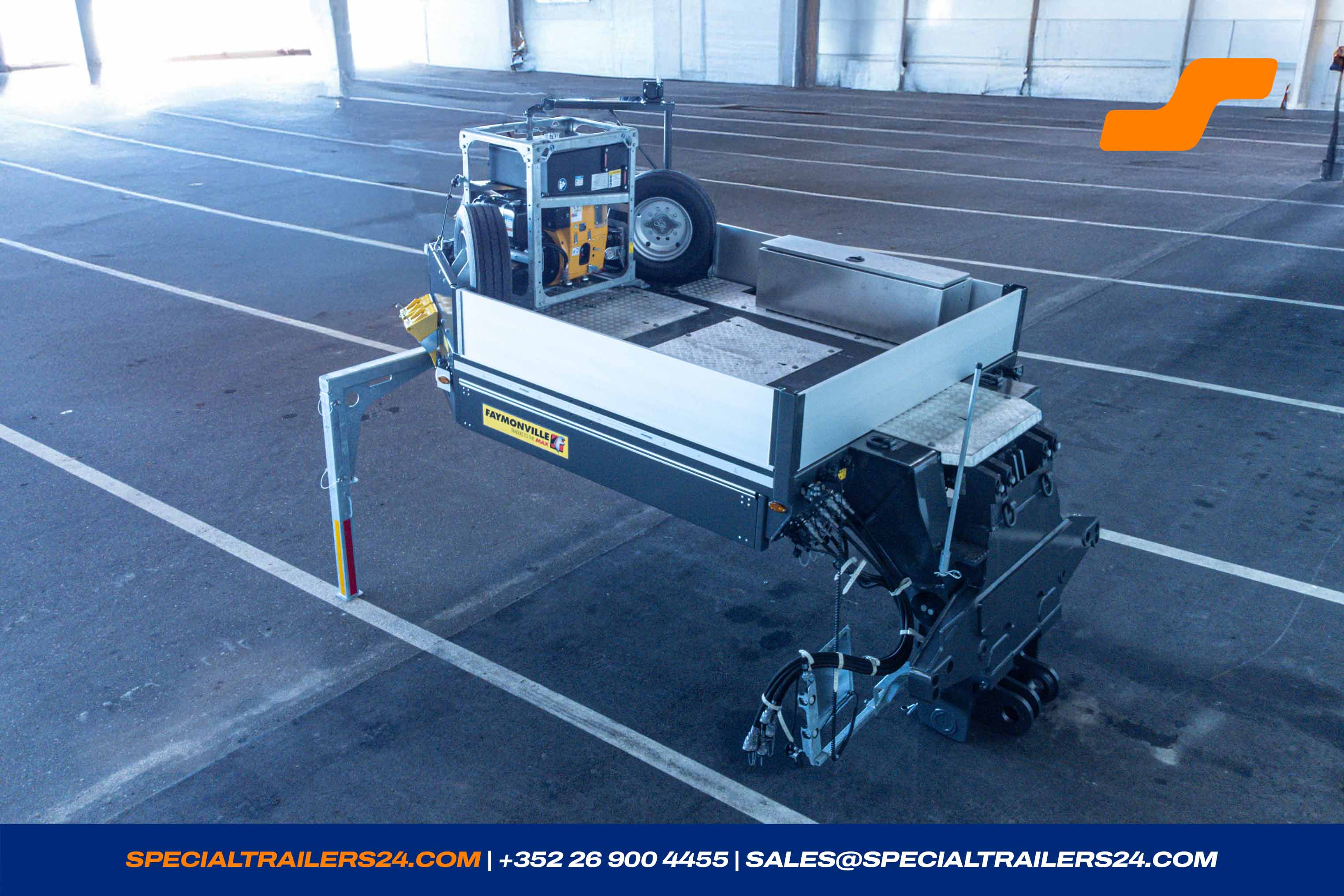

1 x Universal gooseneck, type V-30-DSR2700-3-U

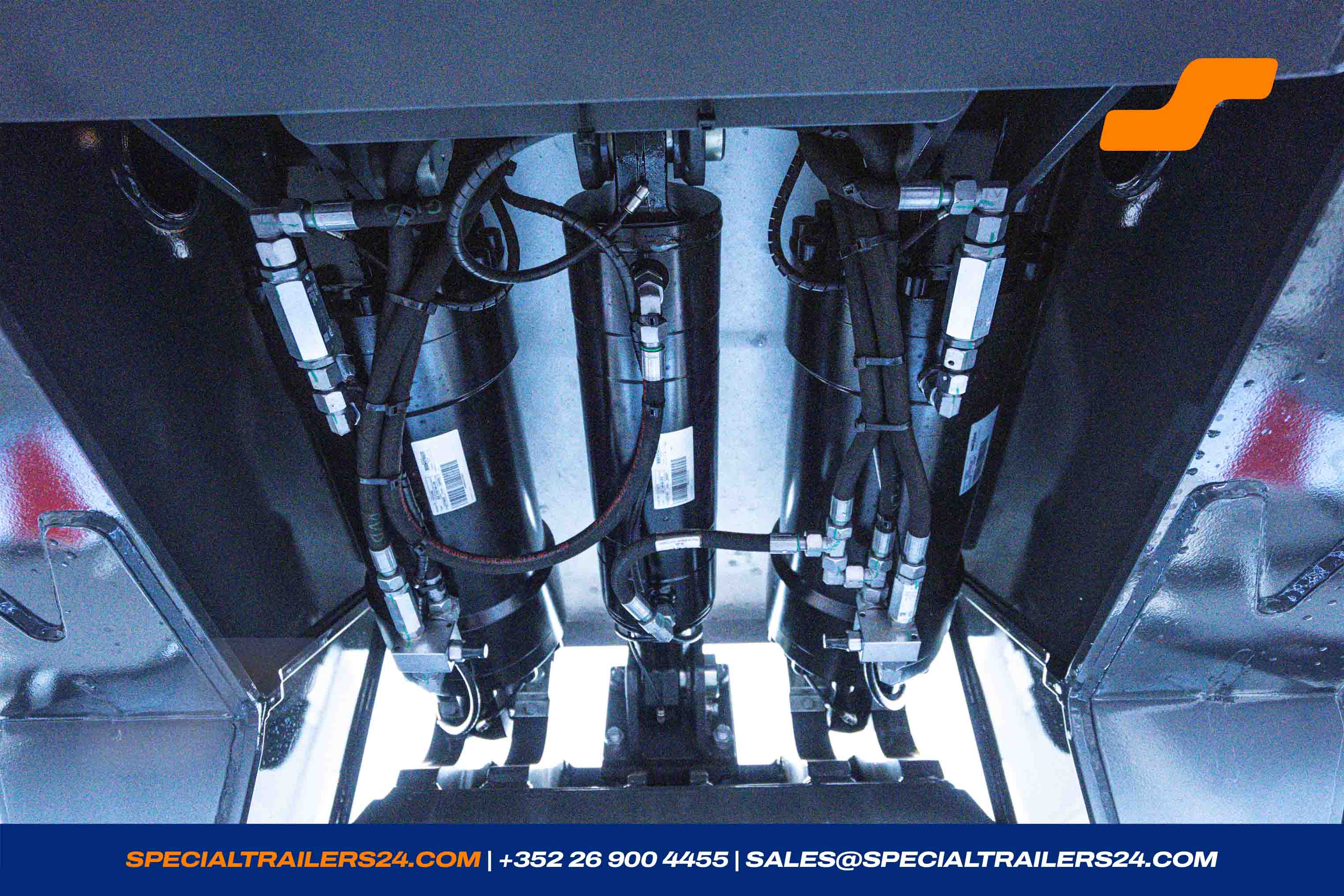

Universal gooseneck with three lifting and lowering cylinders, type V30-DSR2700-3-U
according to drawing: FEL_DWG-018165
Fifth wheel load in function of the axle load is adjustable by hydraulic adjustment and fine tuning device
Technical capacity: 37.500 kg
Rear gooseneck swing: 2.700 mm
For truck 6 x 4 and 8 x 4
Tare weight (+/- 3%): 5.250 kg
- Hydraulic suspension can be switched to 4-Point suspension to increase the tilt limits.

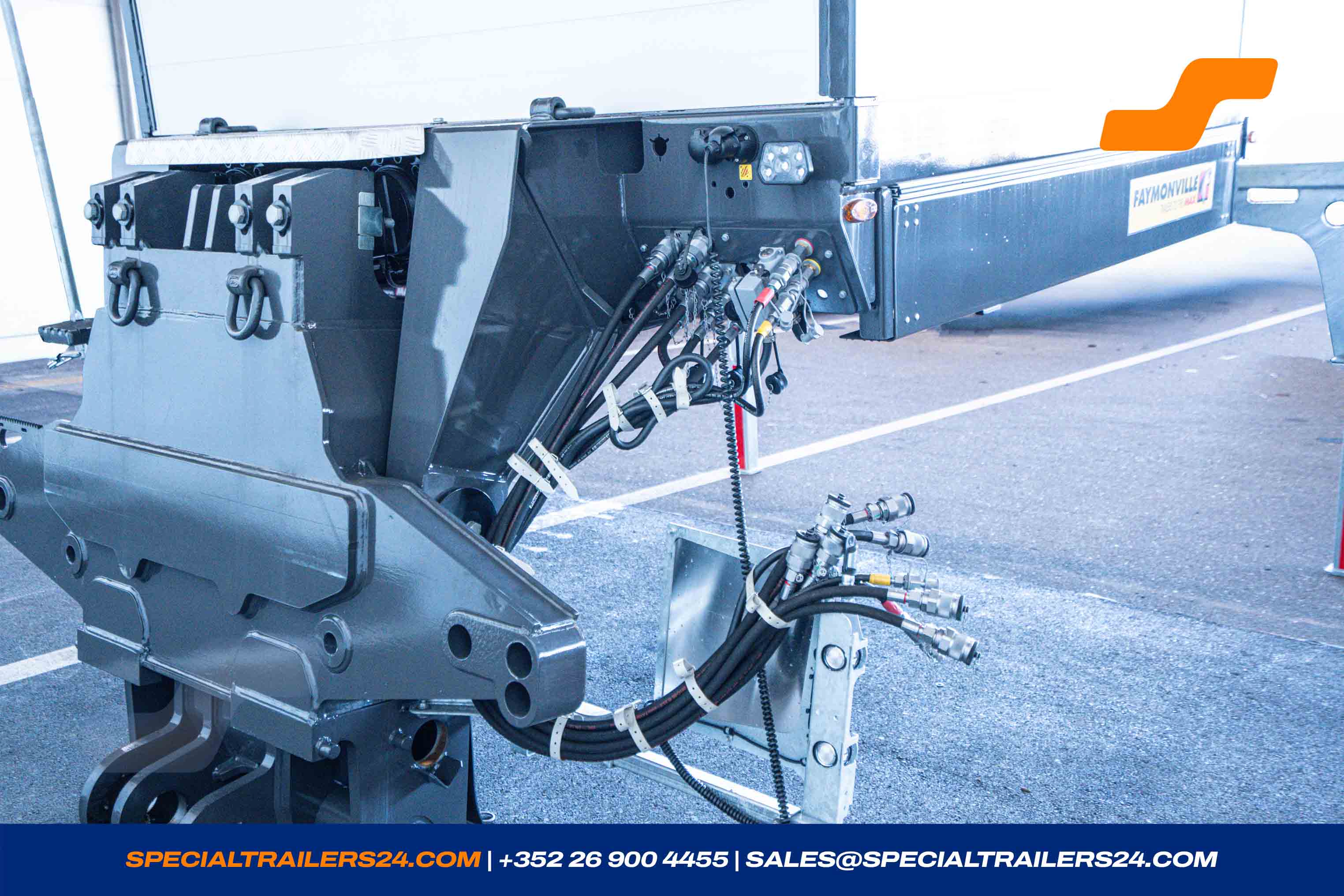

- Hydraulic system in the gooseneck prepared for bogies with 4-tires per line.

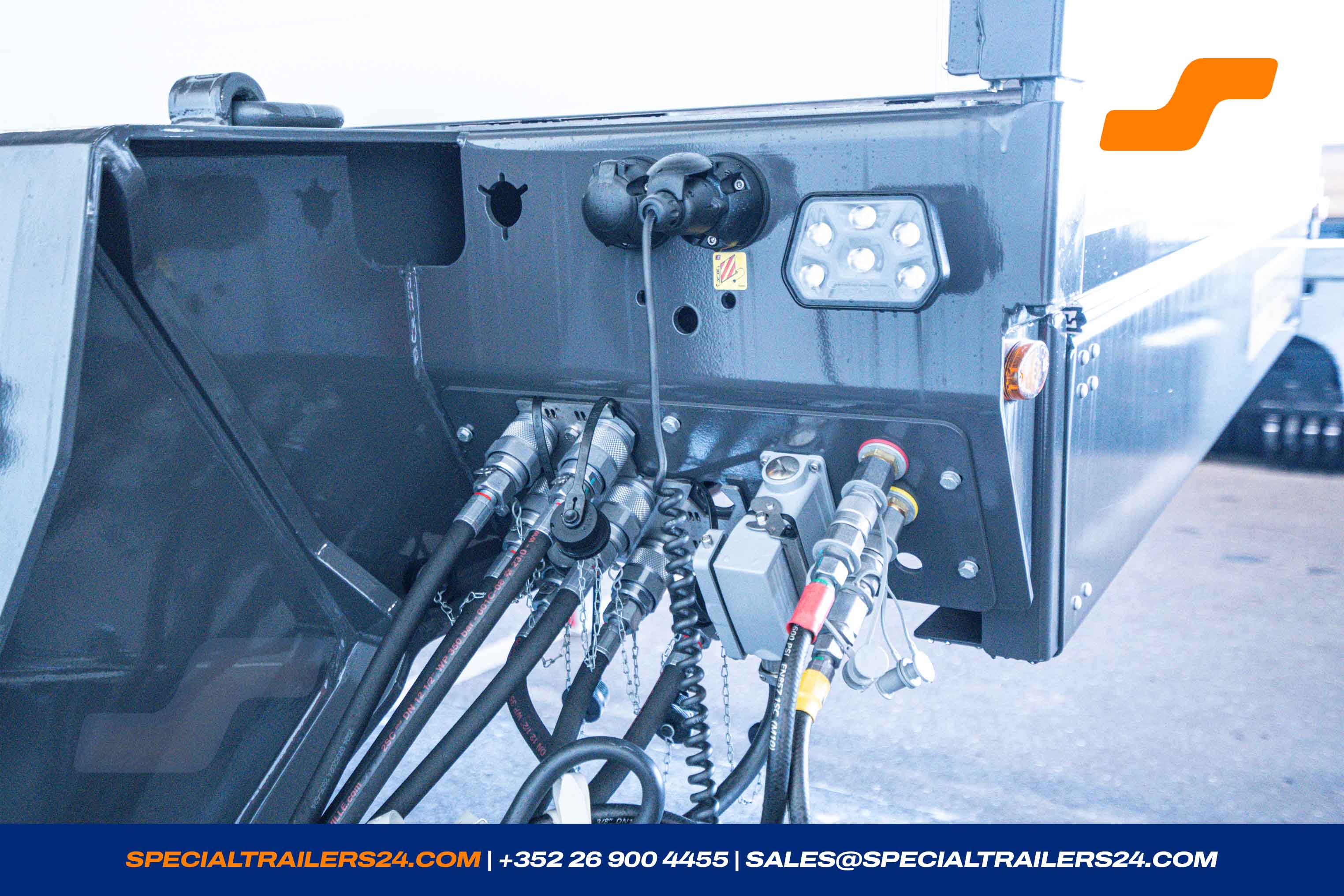

- A 7-pole socket left and right at the rear of the gooseneck for the warning boards.
- 1 pair of lashing rings on the middle part of the gooseneck (LC 10 600 daN)

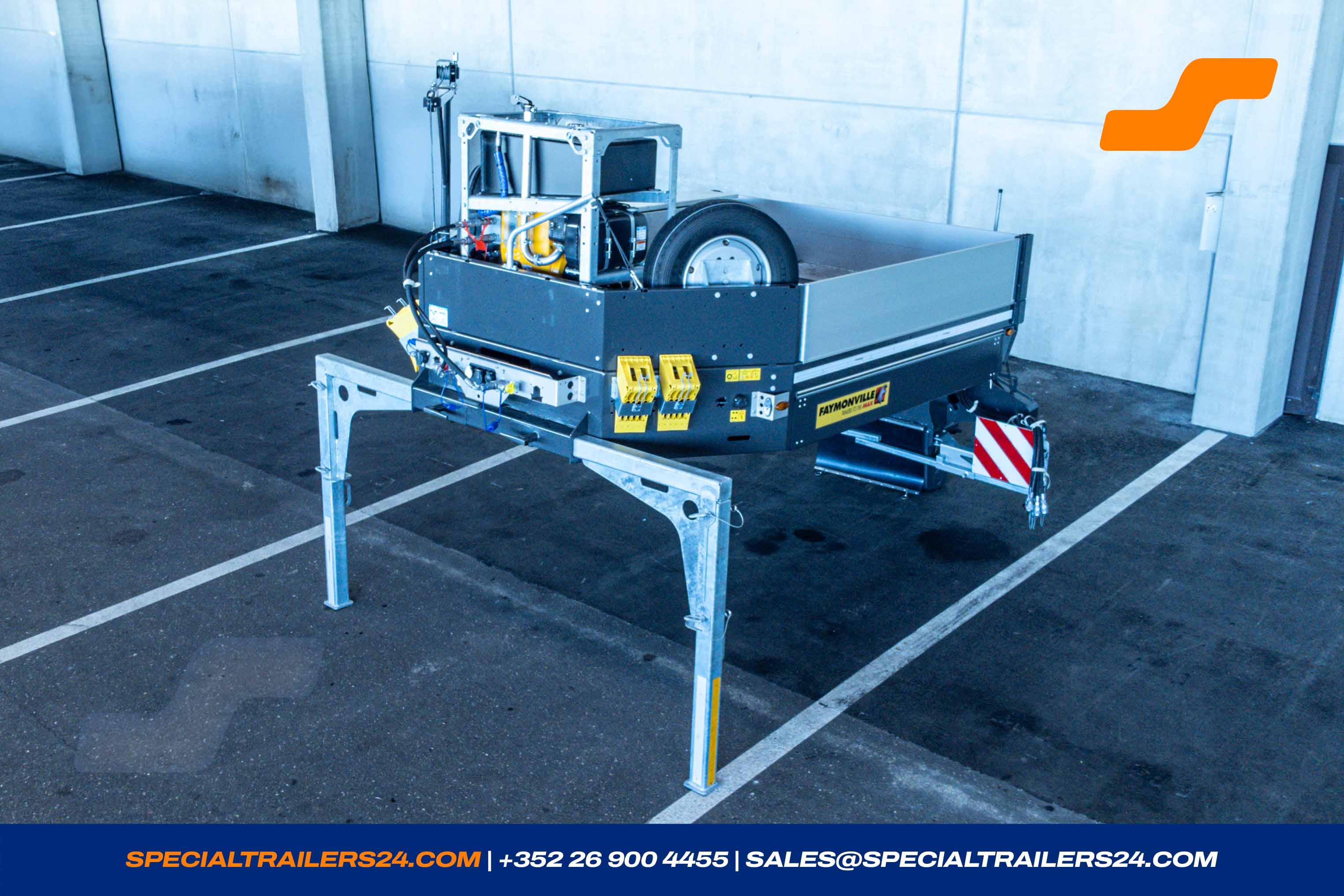

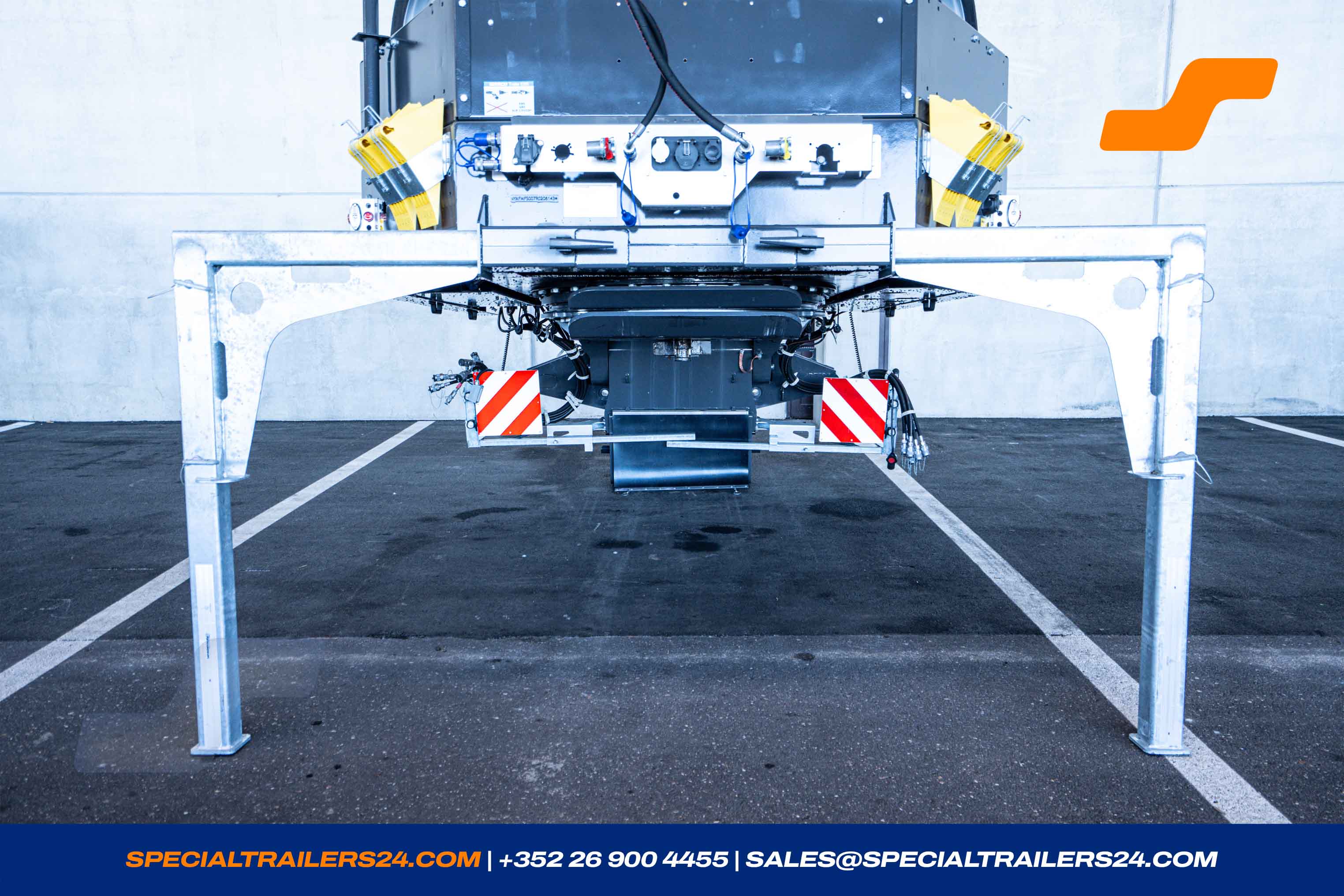

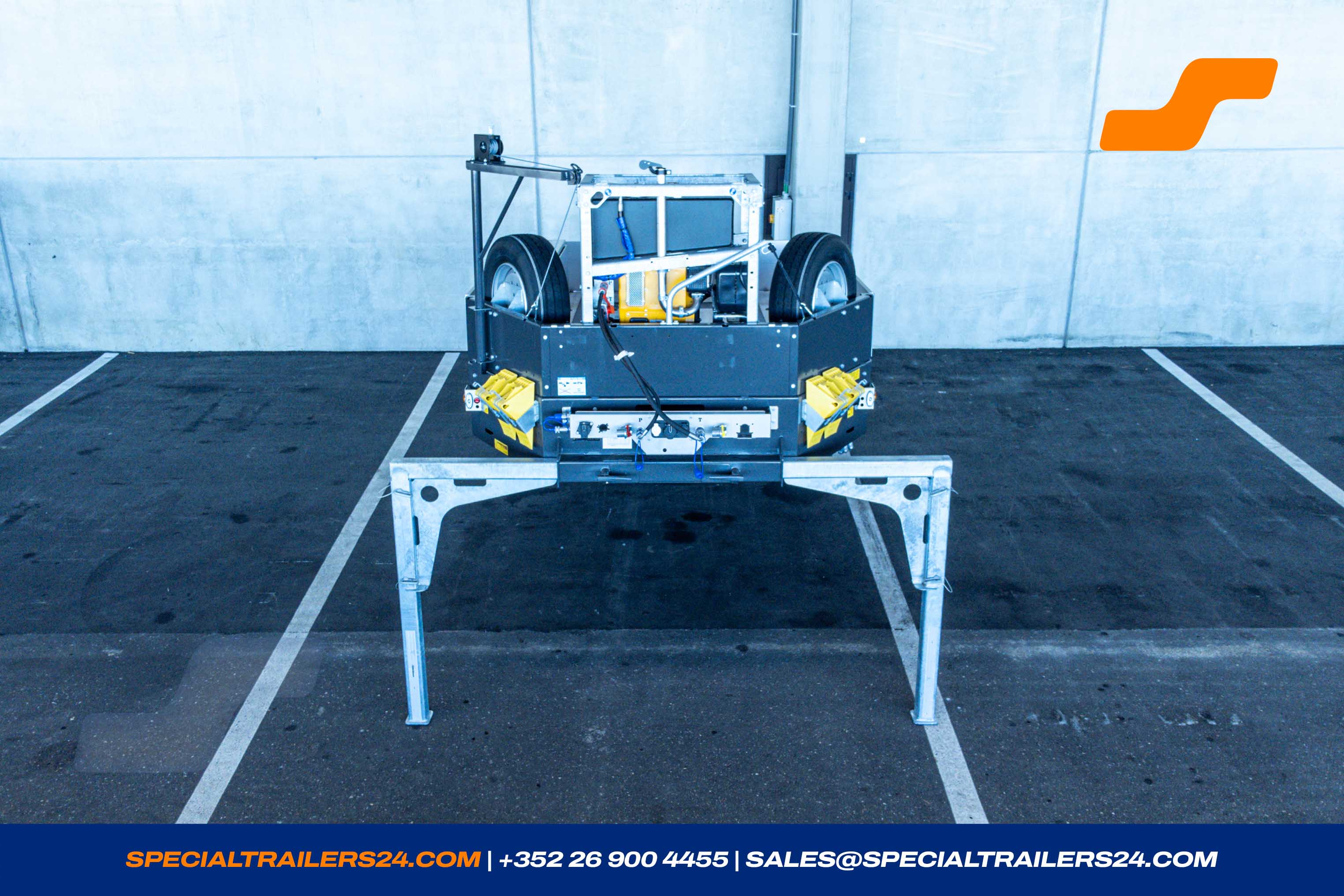

- 1 pair of removable mechanical landing legs in front of the gooseneck

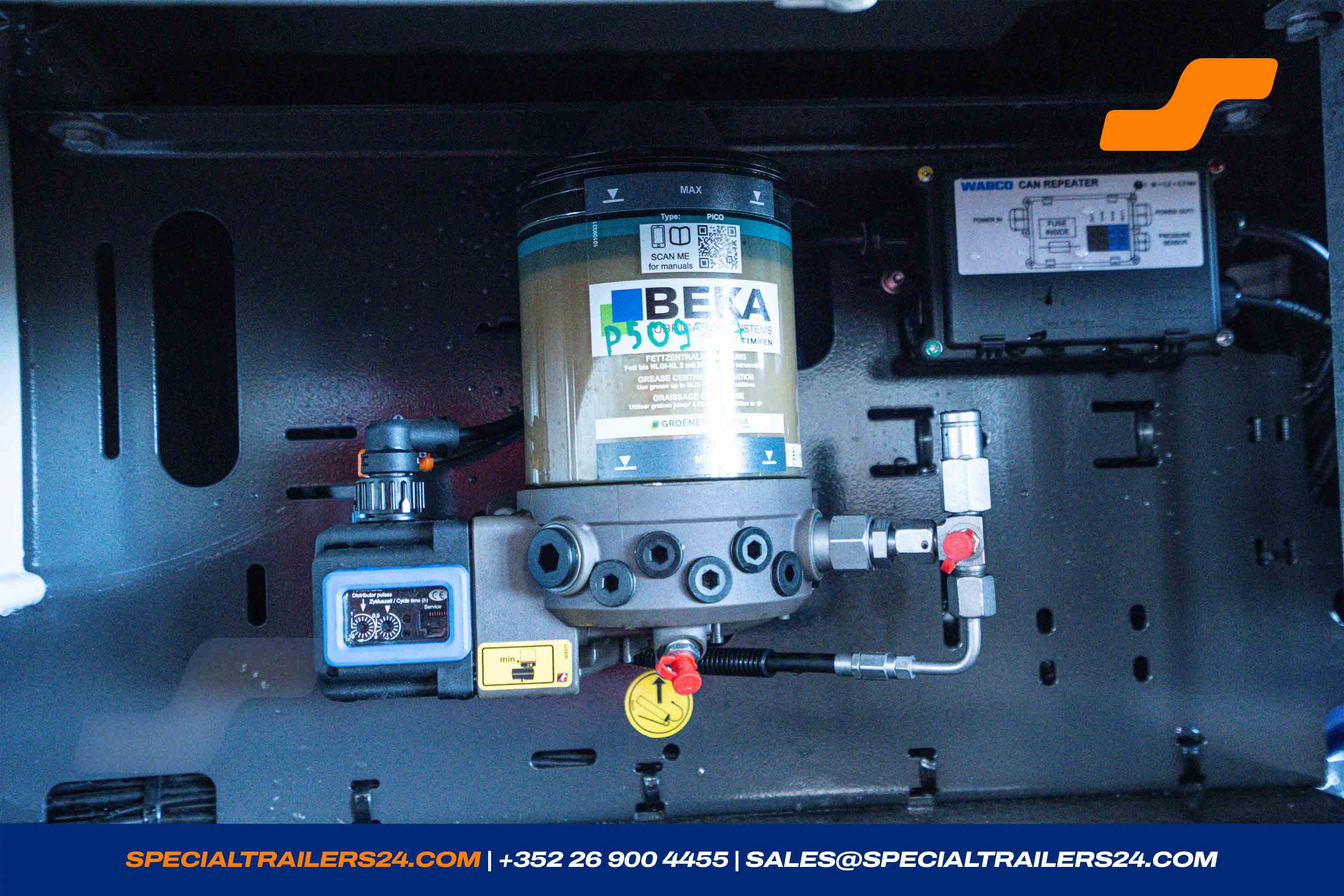

- BEKA-MAX central lubrication for a gooseneck with NLGI-2 normal grease.
- 2 pairs of lashing rings on the gooseneck (LC 6.300 daN).
- 2 pairs of lashing rings on the gooseneck (LC 10 600 daN)
- Tool-kit Combimax Art N° 380009
-
Socket for operating the manual-steering in front of the gooseneck.
Cable remote control with PDC-light control for the realignment of the axles. - Steel headboard, heigth ± 400 mm with chamfered corners.
- On the gooseneck, removable alu-sideboards, height ± 400 mm, anodized.
- On the gooseneck, 1 removable alu-rearboard, height ± 400 mm, anodized.
- 1 LED working lamp at the left and right side at the rear of the gooseneck with separate switch
- Connection-kit for universal CombiMAX gooseneck

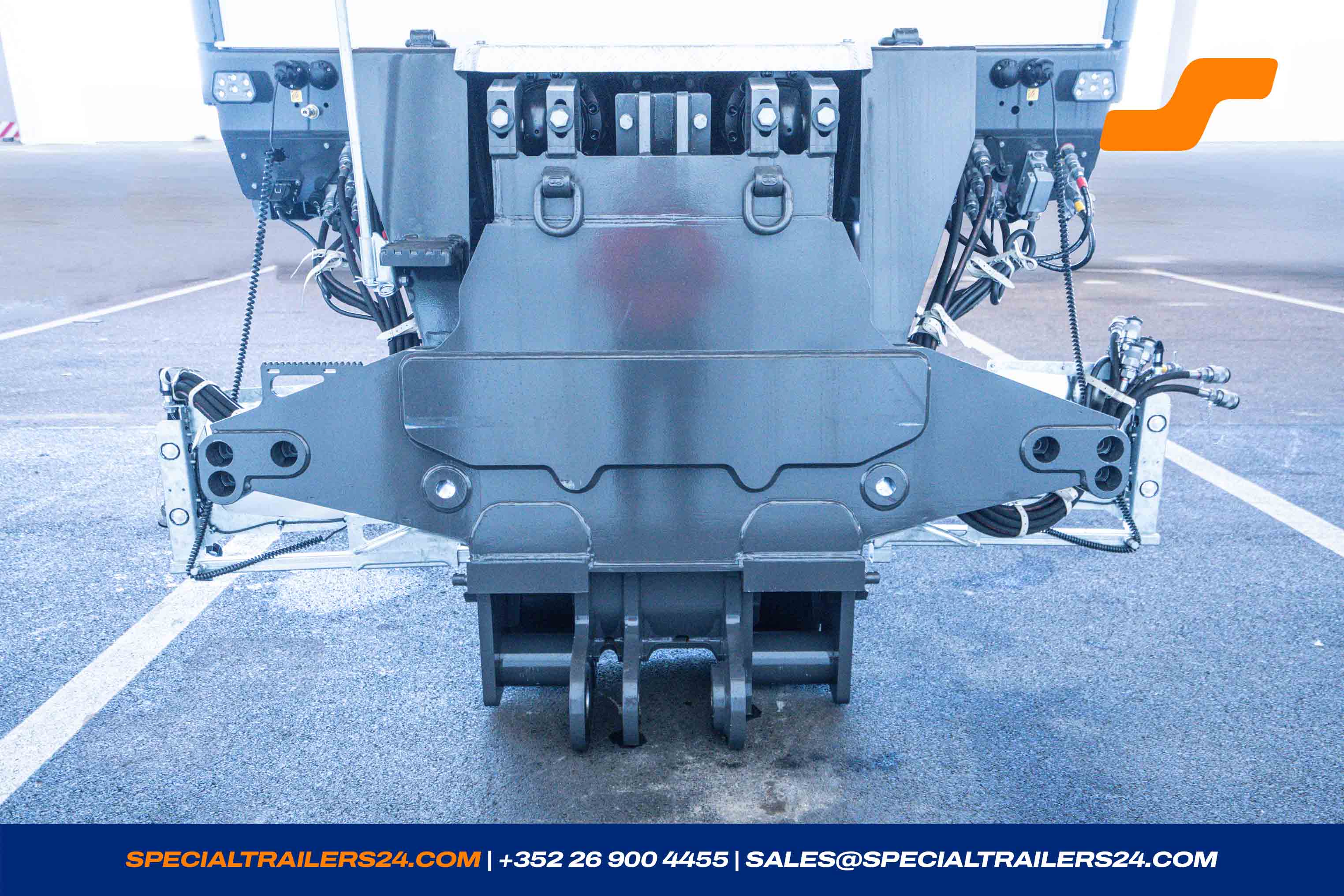

- Gooseneck with universal coupling head and receiver for hook attachment of a front bogie or a lowbed.

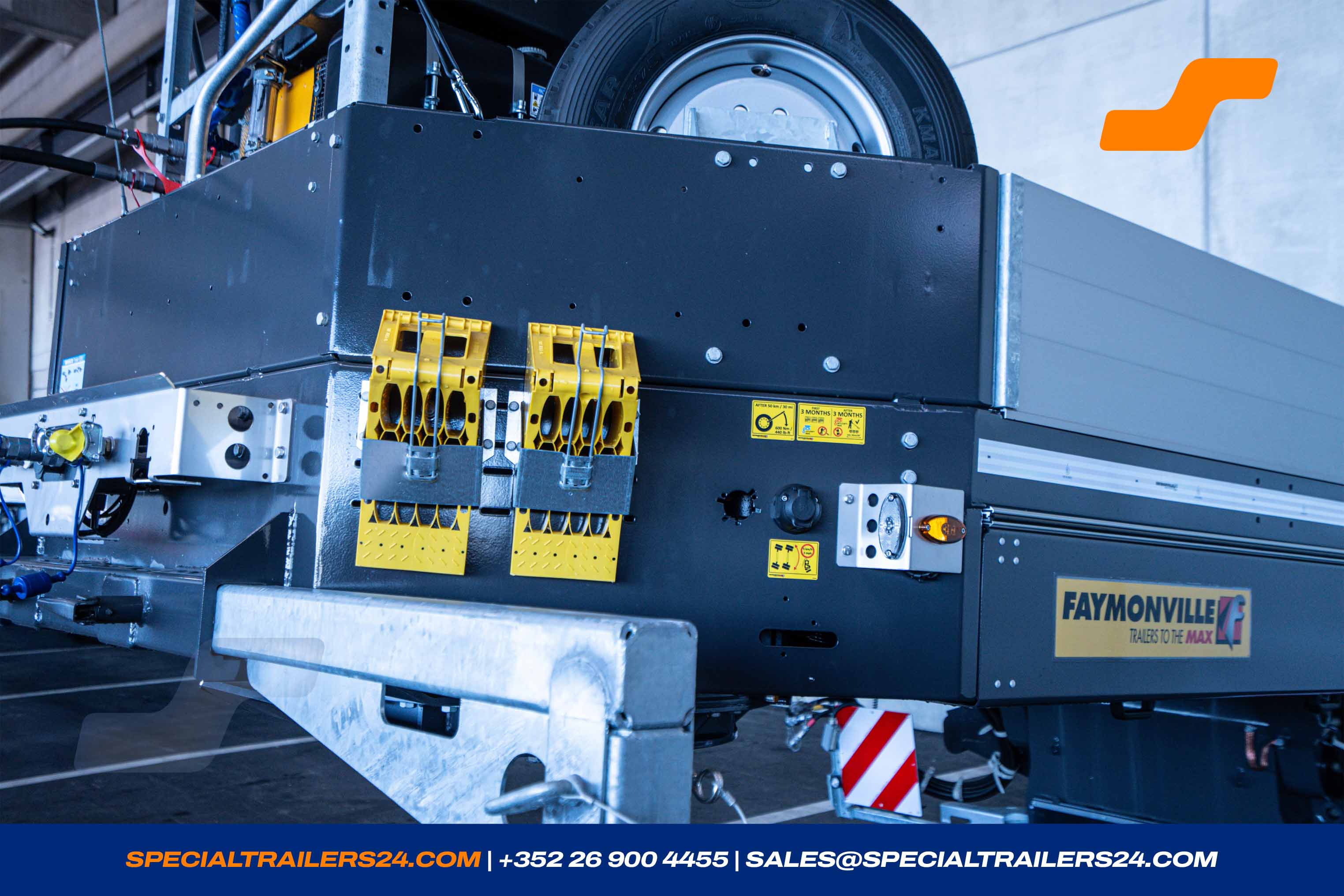

- 4 wheel chocks with carrier on the gooseneck.

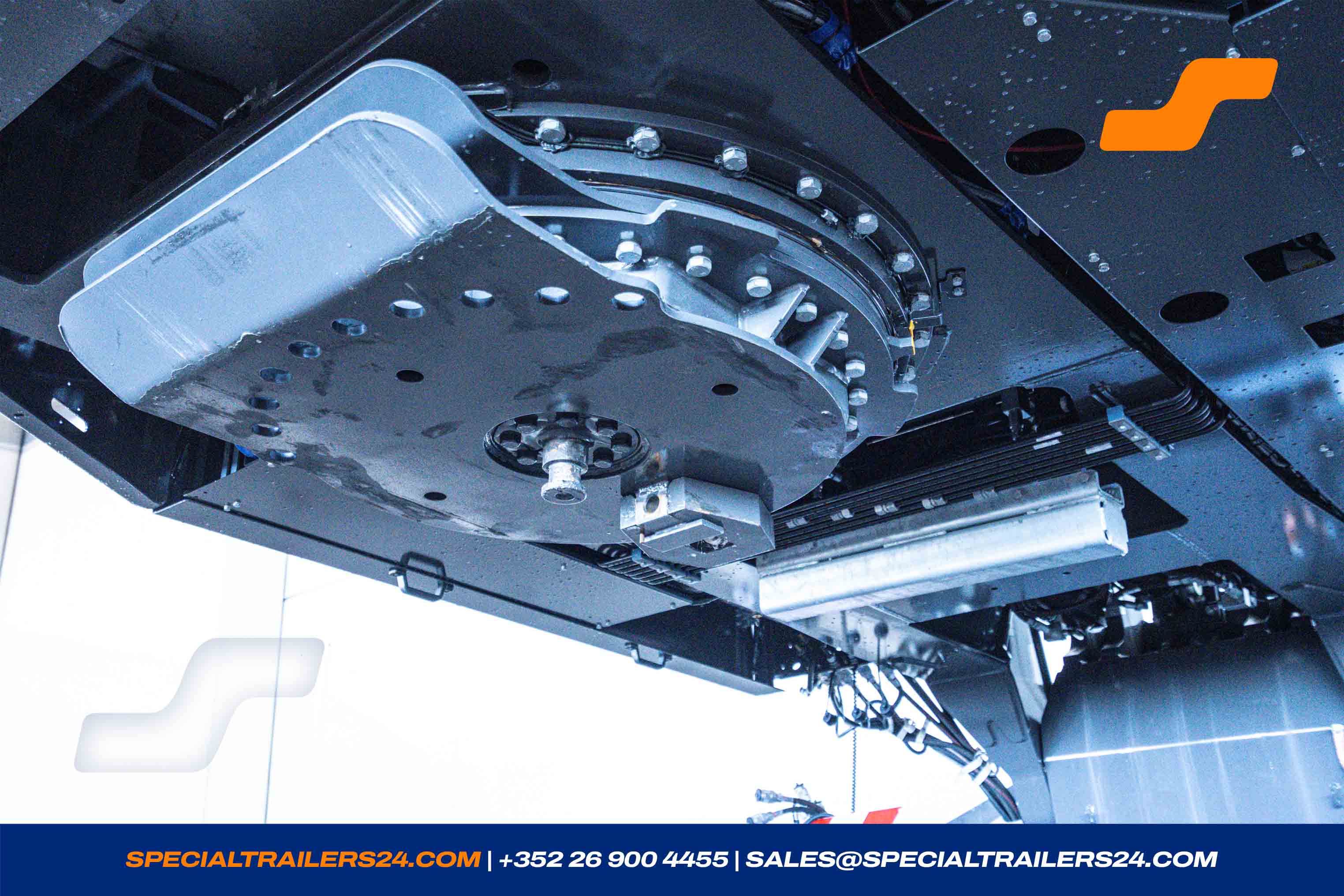

- 3.5 king-pin.
-

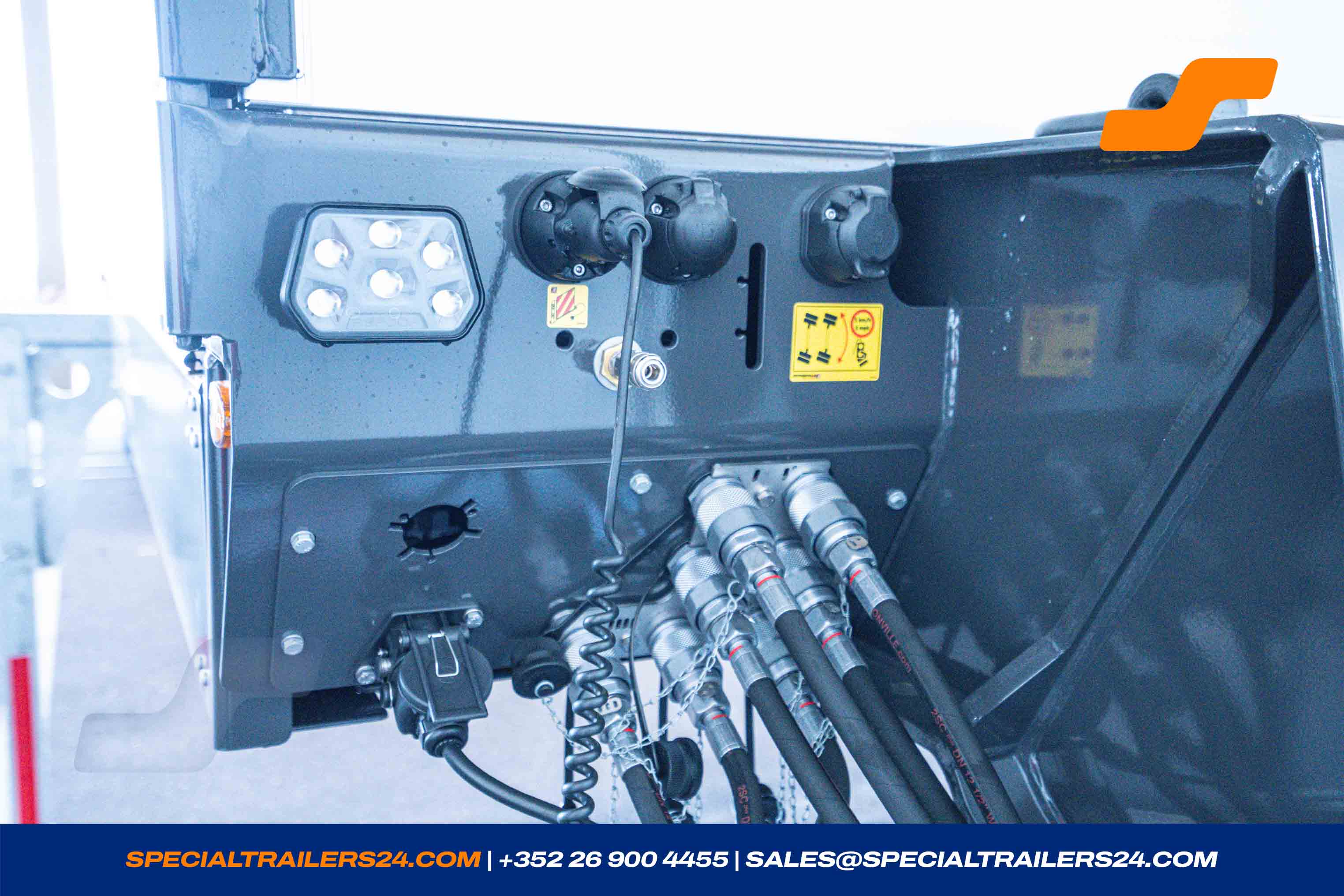

ASPÖCK-UNIBOX on the front connection ledge with sockets 24N, 24S & 15 pole.
24N connect after ISO-1185
24S connect after ISO-3731
15-pole connect after ISO-12098
If your poles connection is different to the ISO norm, please inform us. - Gooseneck cylinders fixed on position 2 (middle)
- HRM metallisation of the complete steel construction with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection.
-
2 Spare wheels with fixing adapter
Product of our choice (M+S)
245/70 R17.5

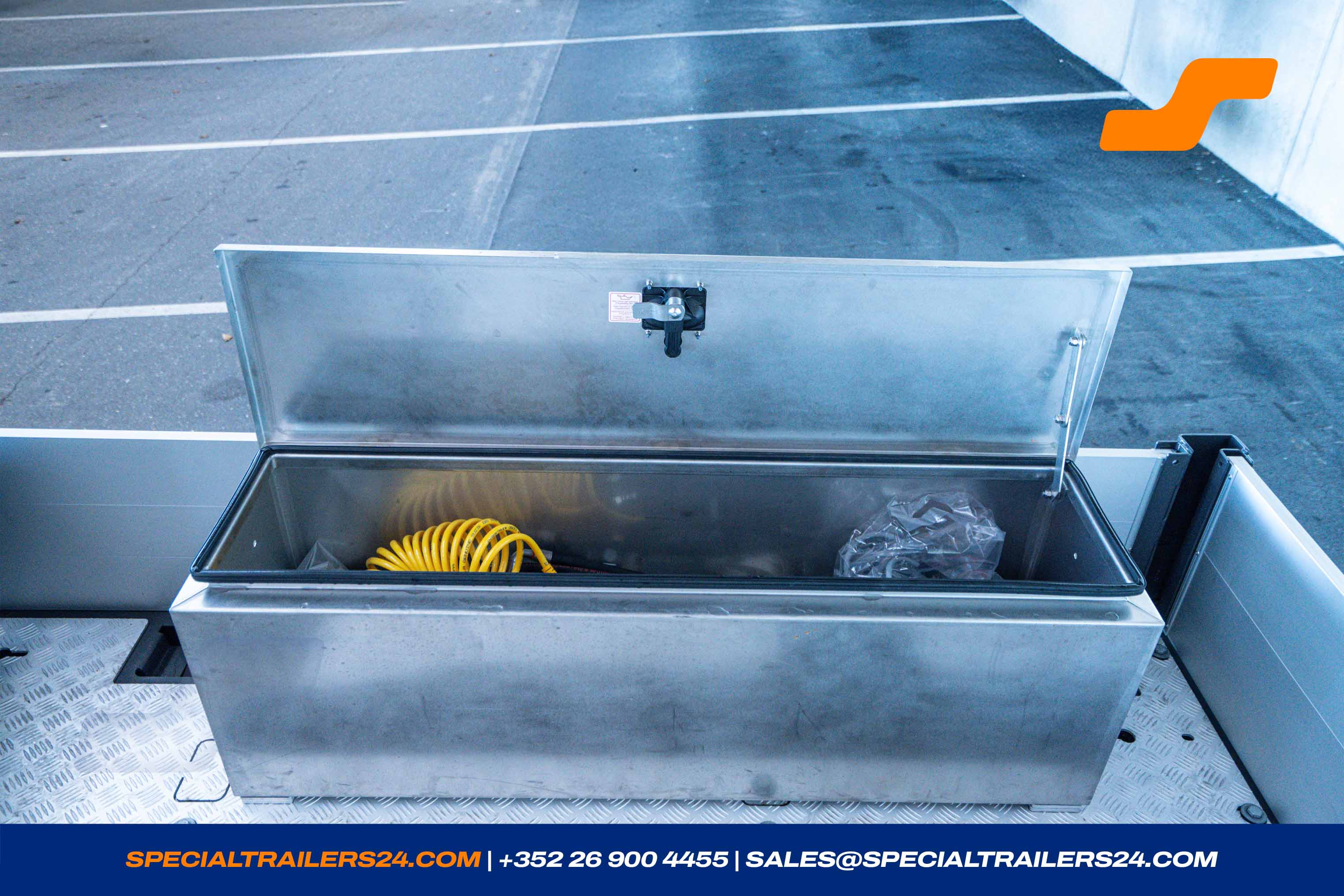

Load Index 143/141L(146/146F) - 1 tool box INOX ± 1.350 x 400 x 400 mm (l x w x h), on the top of the gooseneck.
-
Fifth wheel height loaded: 1 250 mm
The basic construction of the gooseneck is designed for a cupling height of 1.350 mm and will be
reduced to 1,250 mm
by means of a screwed adapter plate. - Radio control for the manual steering additional to the cable control, with LED control lamps on the receiver for the alignment of the axles.
- White reflective tape on both sides over the entire length according to the EU regulation.
- 2 king pin, interchangeable – for transit purpose only.
Painting
| Sideboards | ALU-Natural |
| Outer frame | FAY 34-0260 - FAY-Grau |
| Chassis / structure | FAY 34-0260 - FAY-Grau |
| Headboard | FAY 34-0260 - FAY-Grau |
Accessories

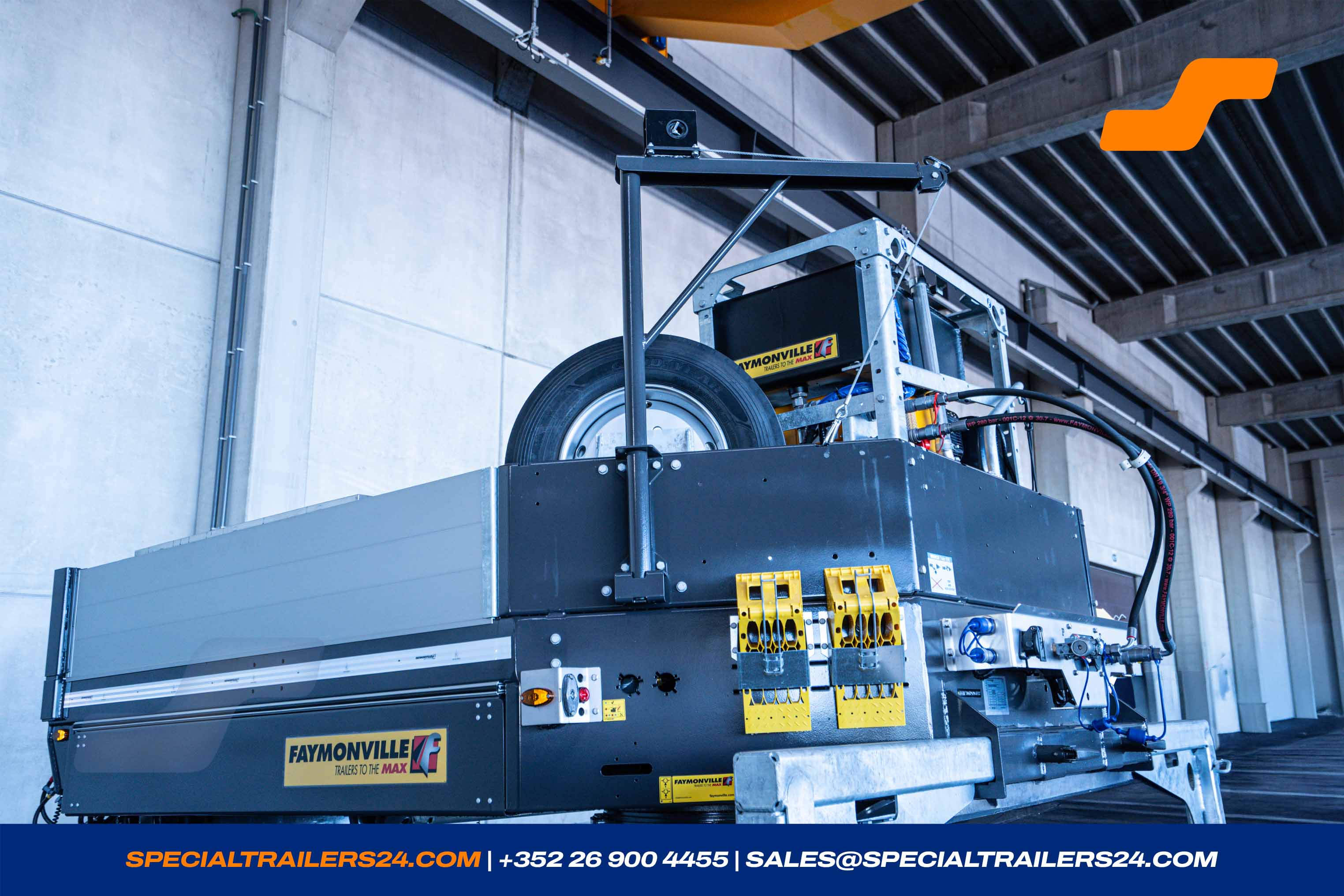

Powerpack
1 x Powerpack-HA-1-EU-Std. 100L
1-cylinder Hatz diesel engine (Silent pack) with electric starter and battery.
Performance: 9.5 kW (12.9PS) at 3.000 rpm
Exhaust classification: EU Stage V
Hydraulic pressure: 280 bar
Flow rate: 21 l/min
Firmly installed on the gooseneck.
Frame galvanized.
Dimensions l x w x h: 700 x 1.000 x 1.230mm
-
Additional connection on the oil reservoir for the electro-hydraulic pump on the gooseneck.
Attention: the gooseneck has to be configured accordingly! - Throttle lever for adjustment of the rotational speed.
- Hydraulic oil tank: 100 l
- Adapter for mechanical fixing of the power pack on the gooseneck.
- Hydraulic connecting lines between power pack and connection ledge from gooseneck
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 206143
- Reference Combi Hals CH-206143 + PPU CH-206146
- Number of axles 0
- Condition New
- Year of manufacture 2025
- Colour FAY 34-0260 - FAY-Grau
- Availability Directly available
- Price On request
-
