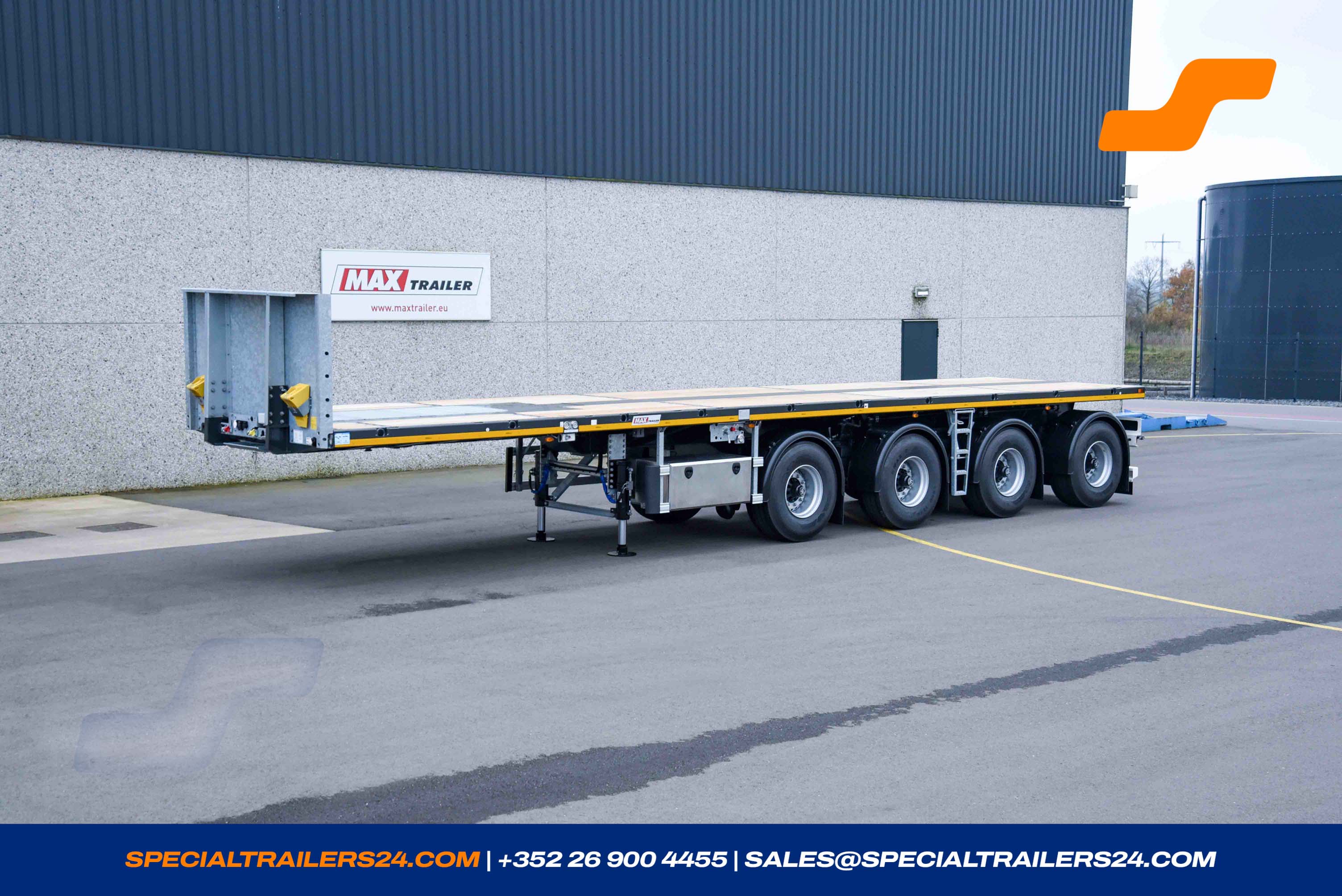

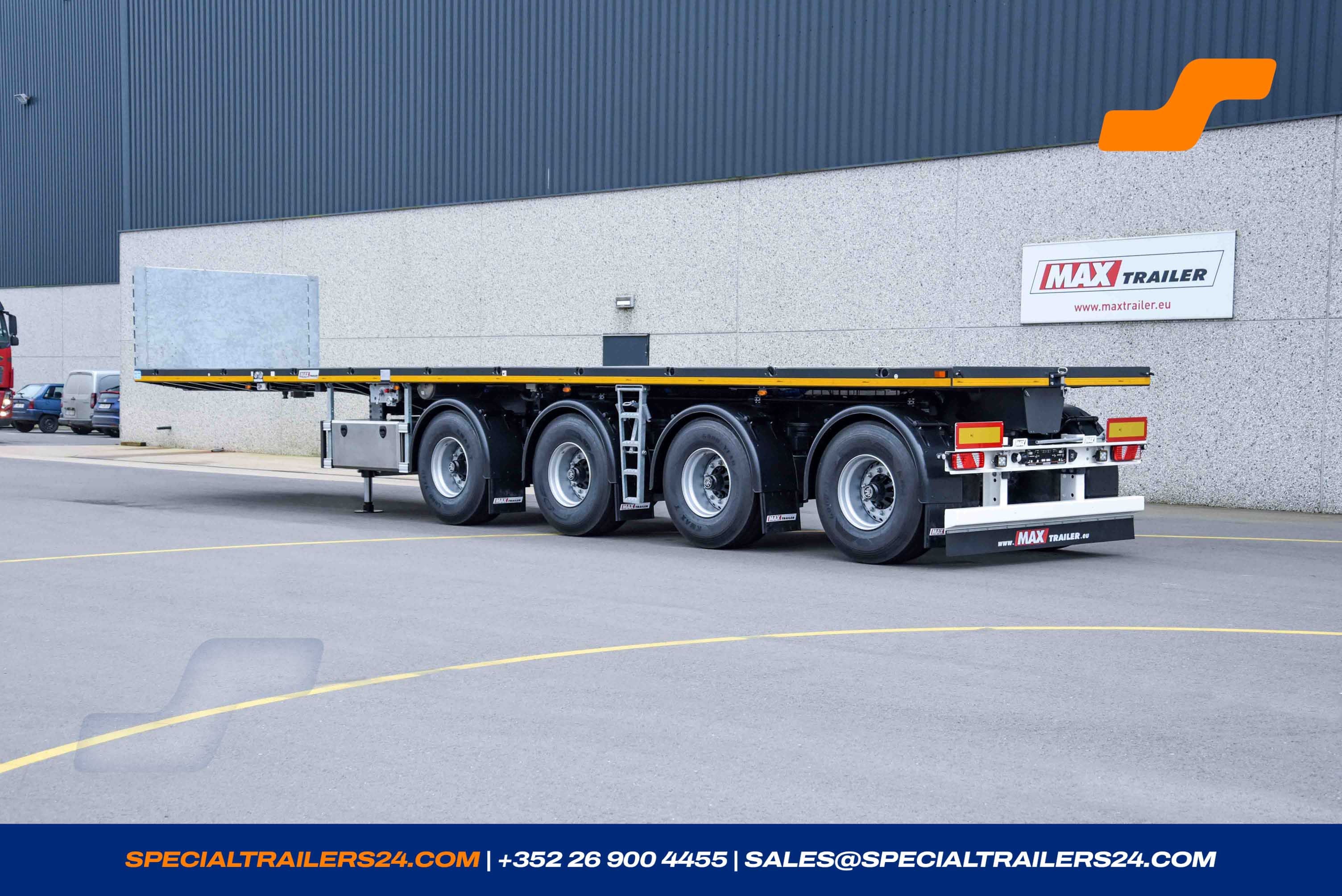

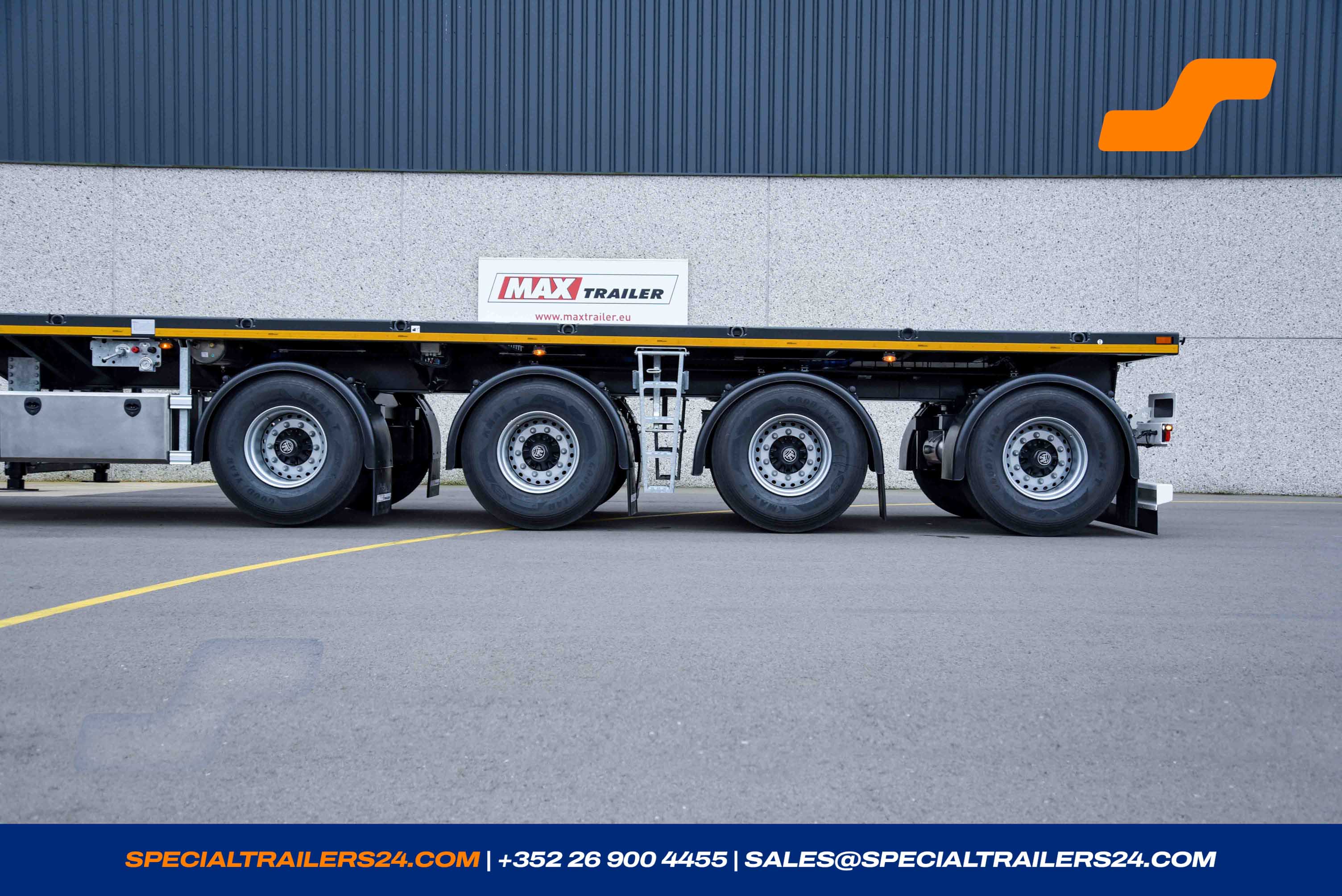

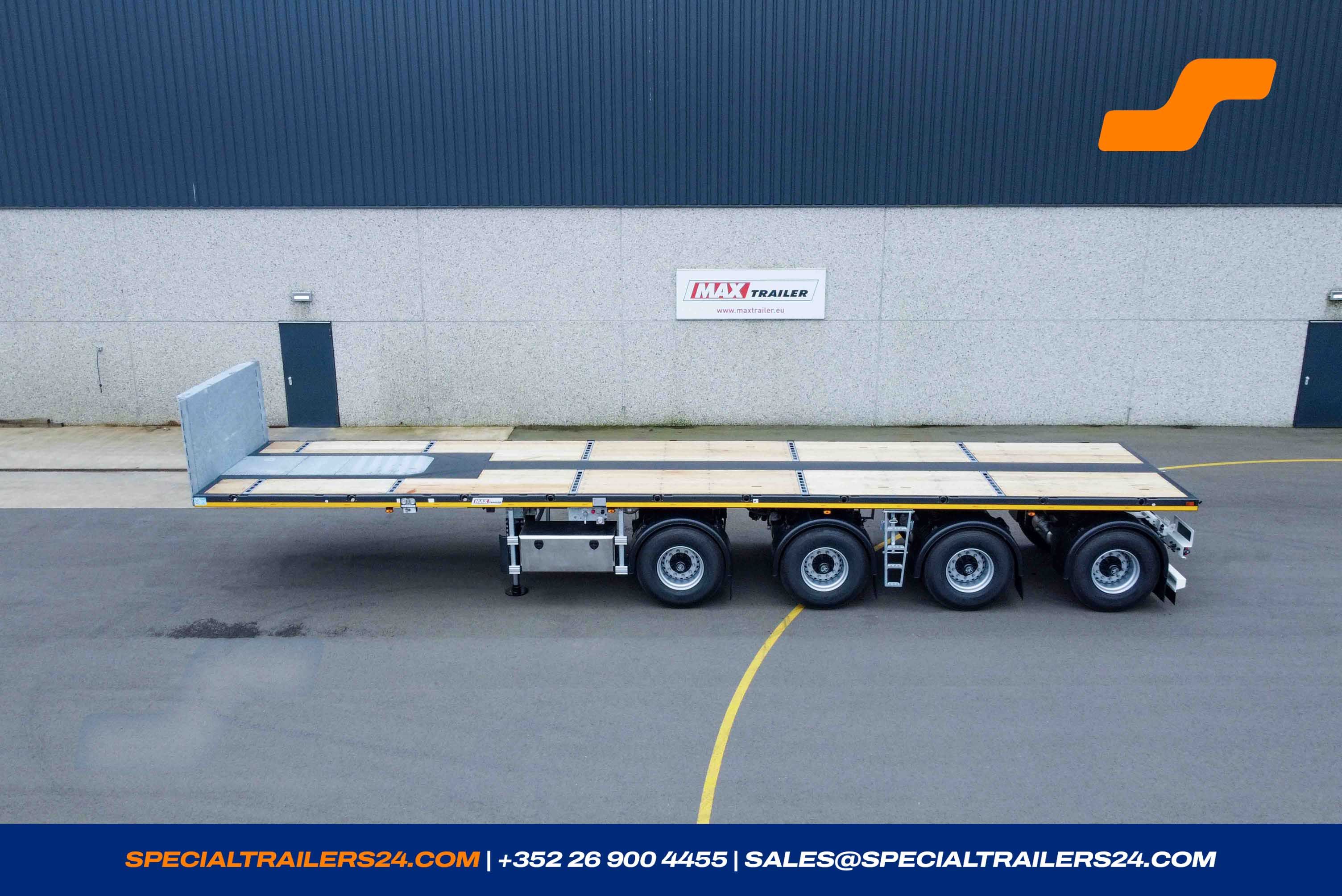

Flatbed trailer
MAX Trailer MAX410
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111276
- Reference MAX410-Z-4-12.40-22.5-2.54

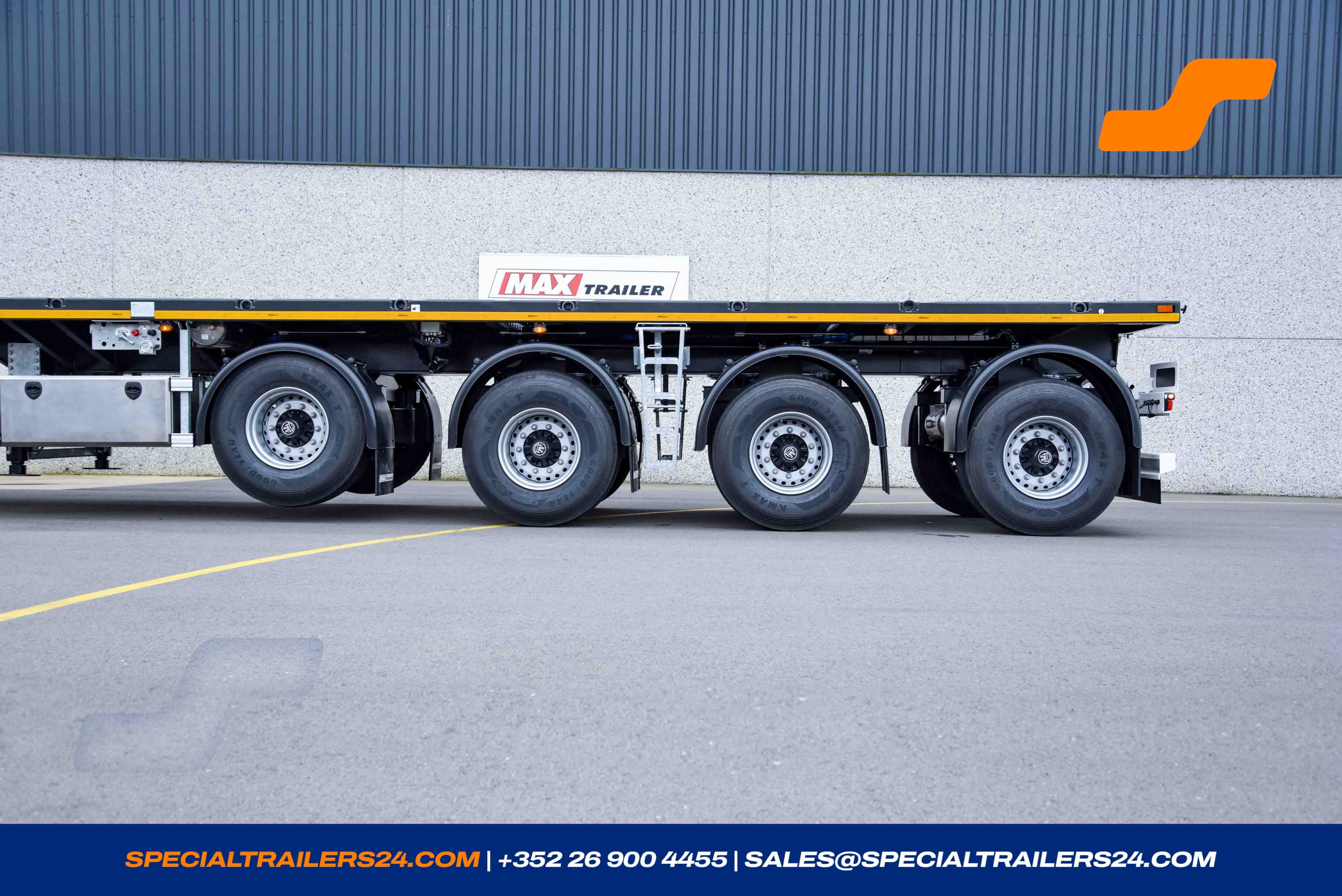

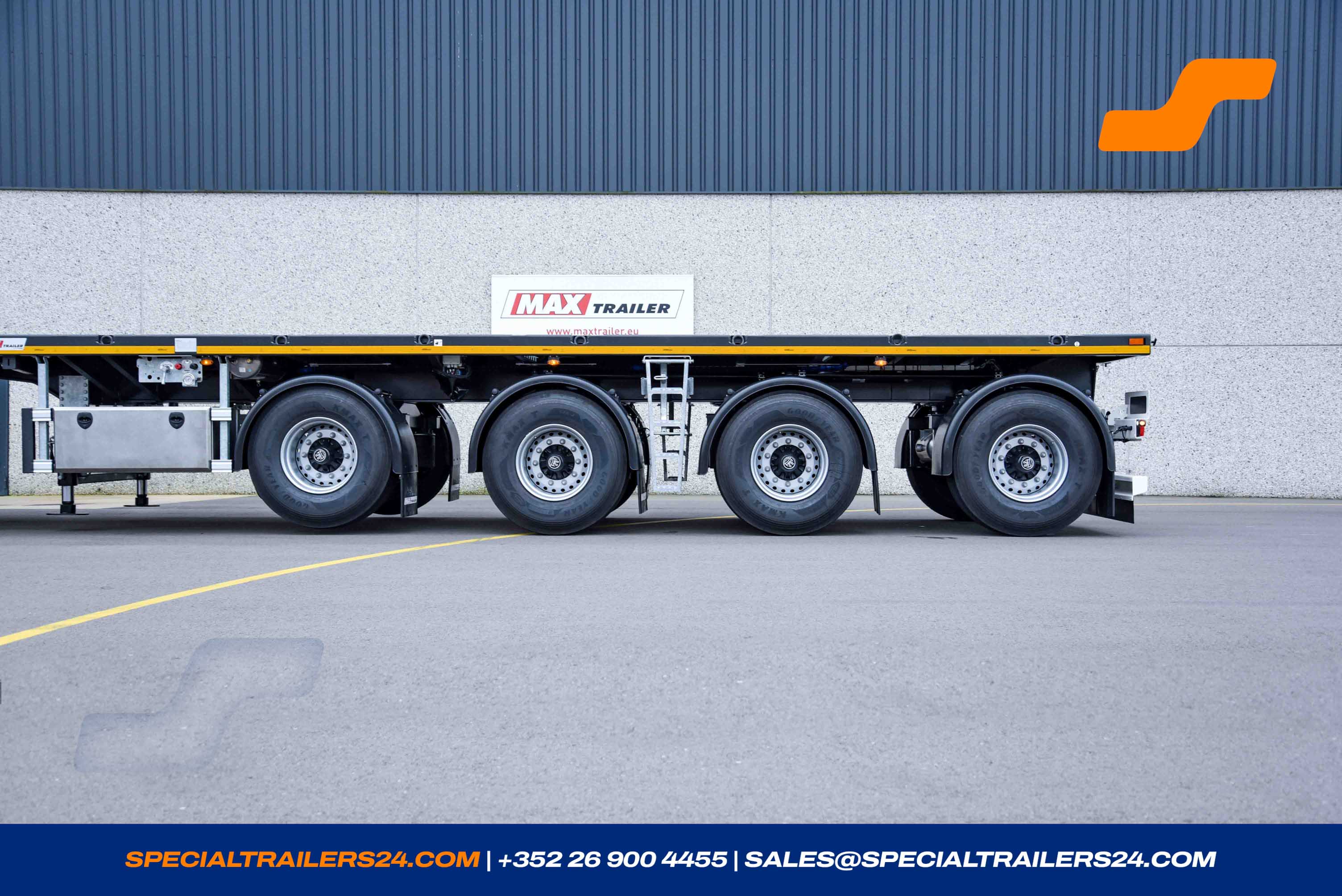

- Number of axles 4
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 02/2026
- Steering Type Hydraulic
Availability
02/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 48000 kg |
| Gross weight | 71000 kg |
| Tare weight +- 3% | 10267 kg |
| Payload | 60733 kg |
Dimensions
| Fifth wheel height loaded | 1270->1330 mm |
| Loading platform length | 12 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
| Turning circle reversing | 2 500 mm |
Loading deck
Loading platform
1 x Loading platform

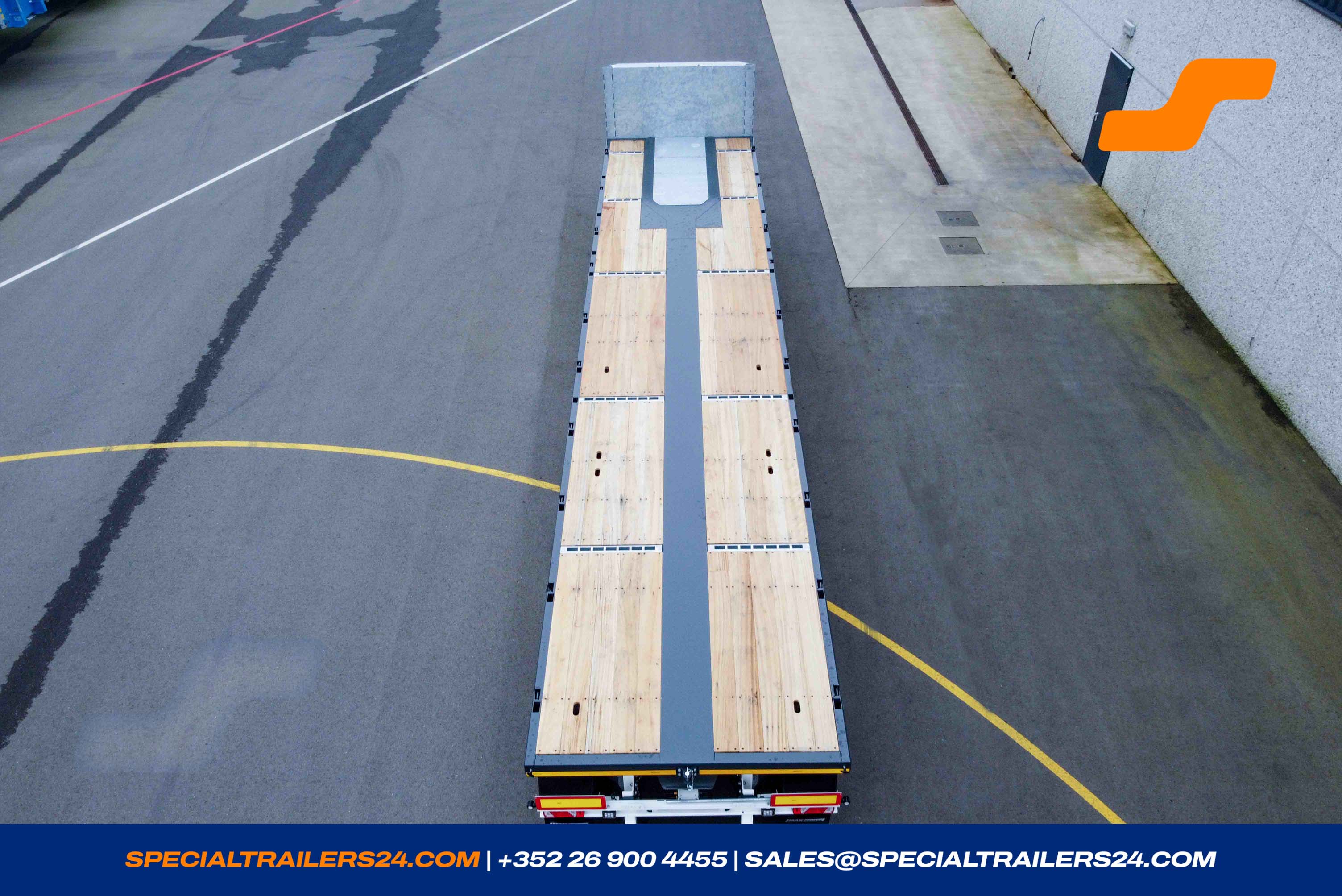

Loading area with ± 30 mm timber floor.

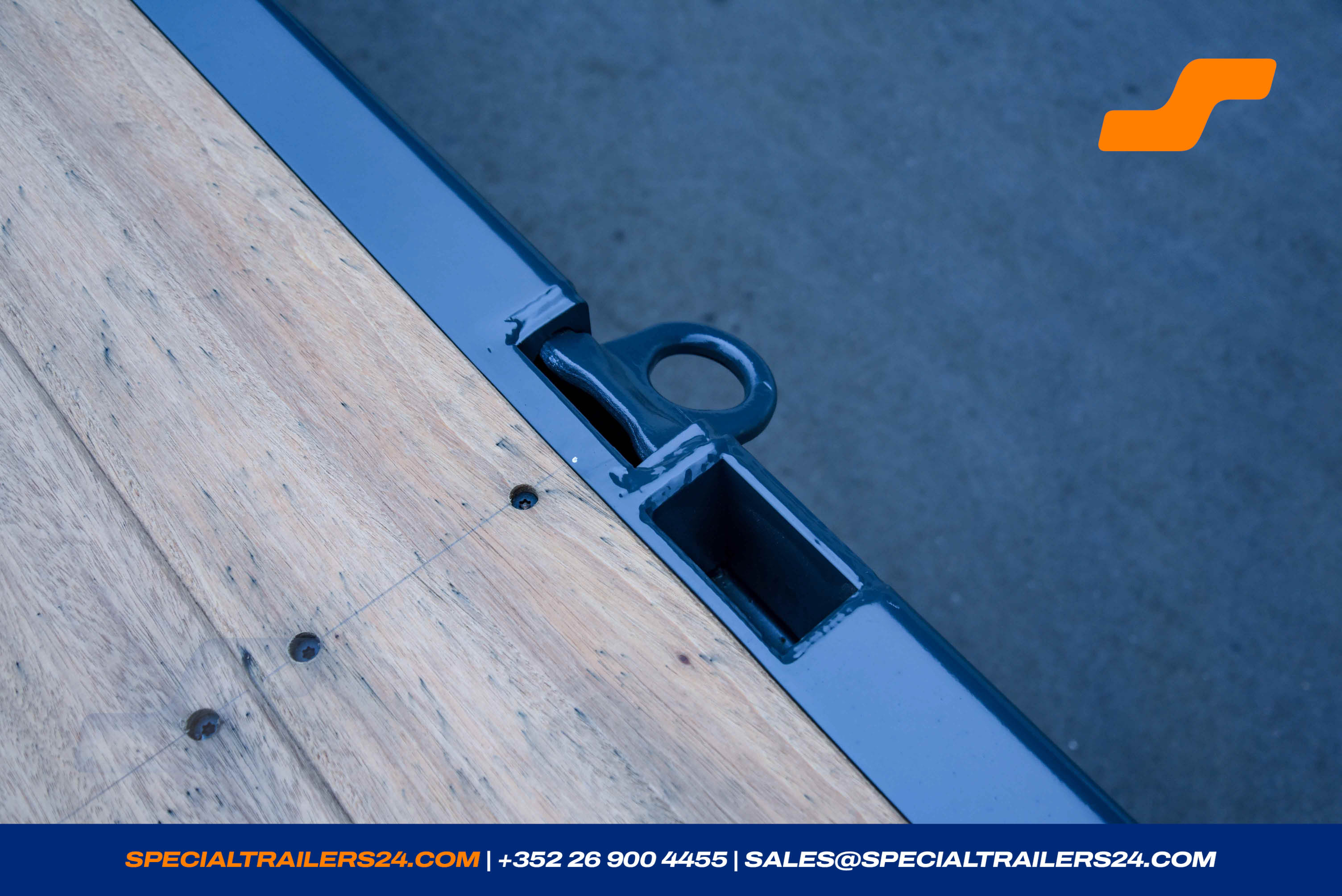

10 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
- Loading area with ± 30 mm hardwood floor. (± 270 kg)
- King pin 2
-

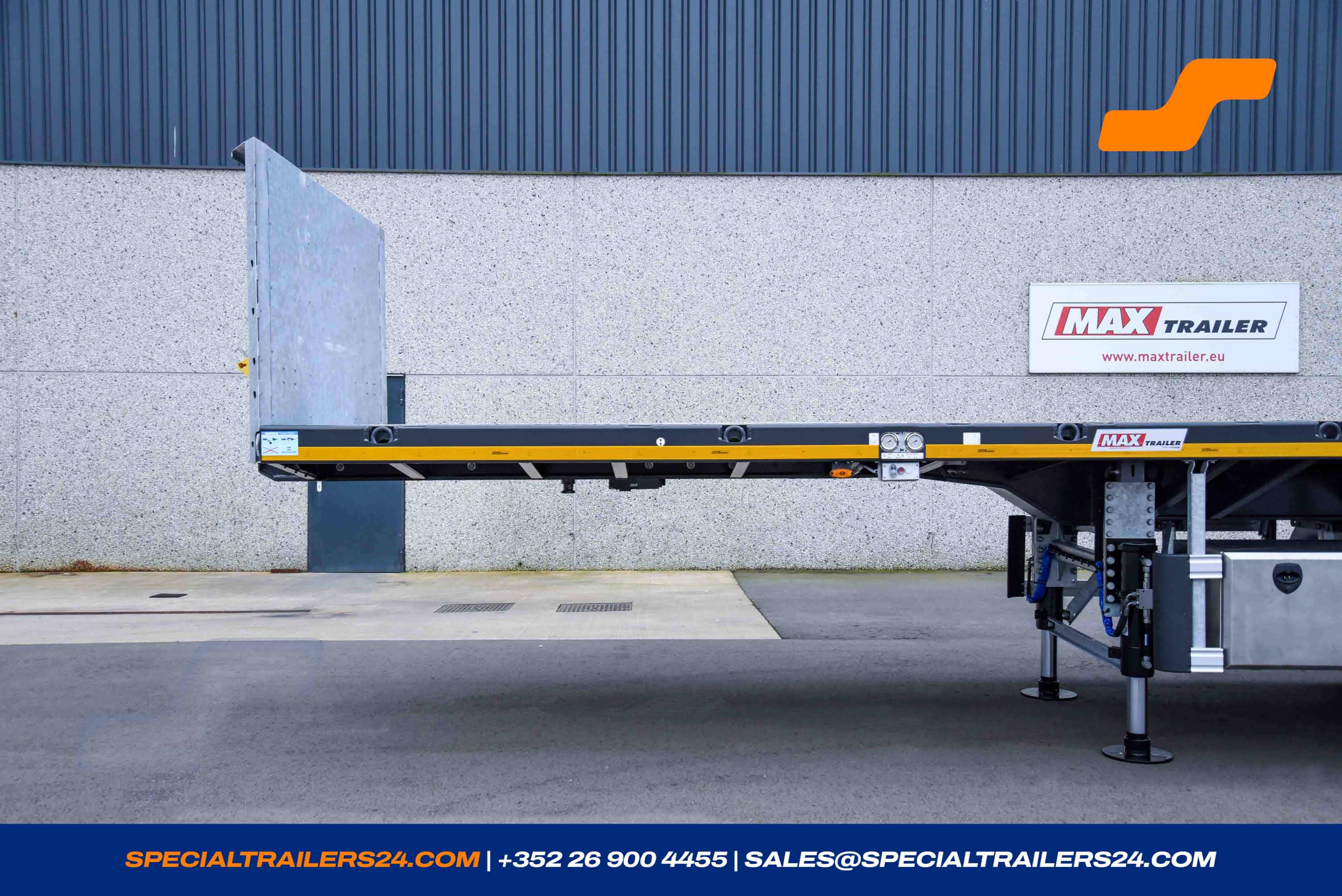

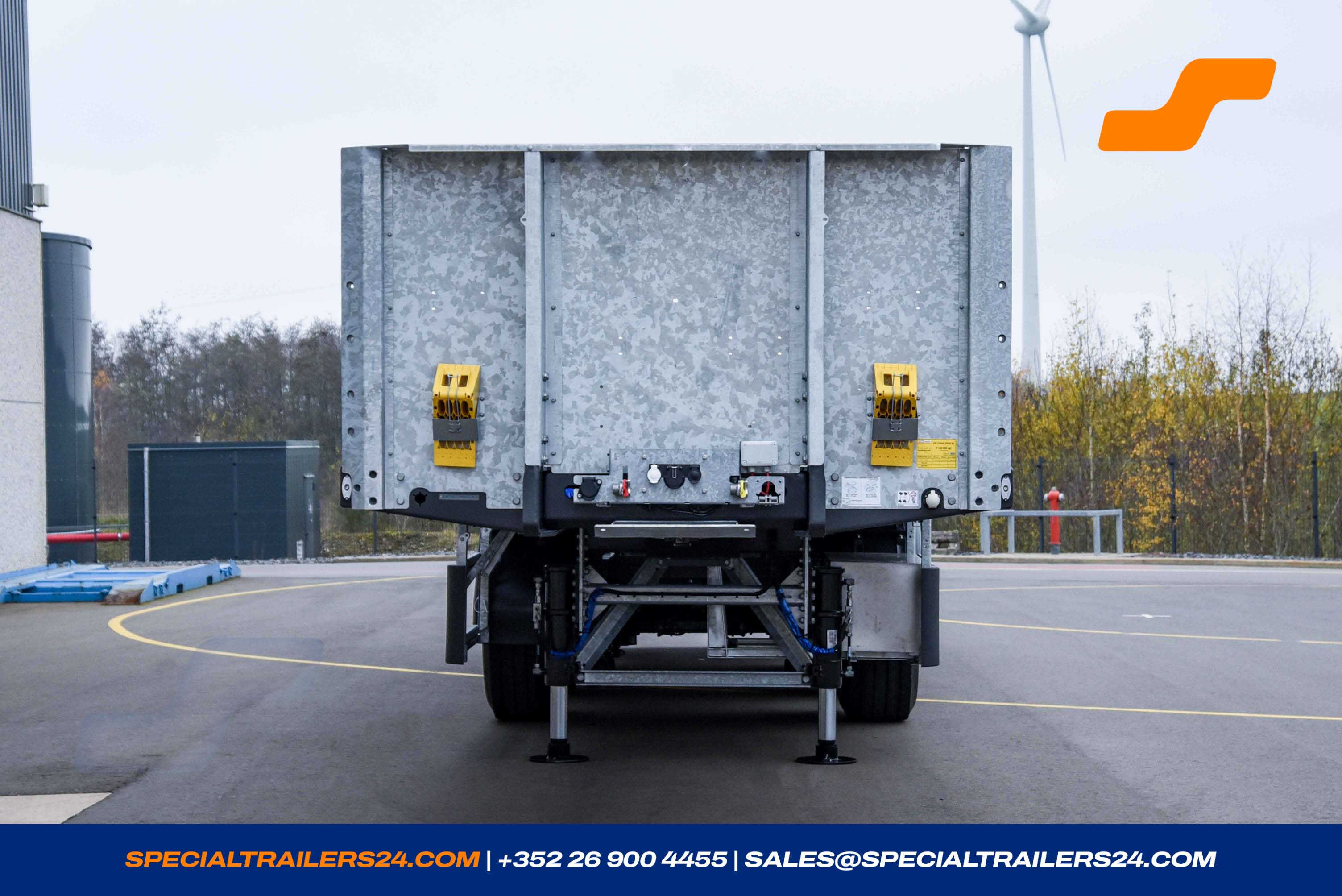

One galvanised steel headboard, height ± 1 200 mm.
EN12642-XL - Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
- Storage for 1000 mm stakes in the central carrier.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

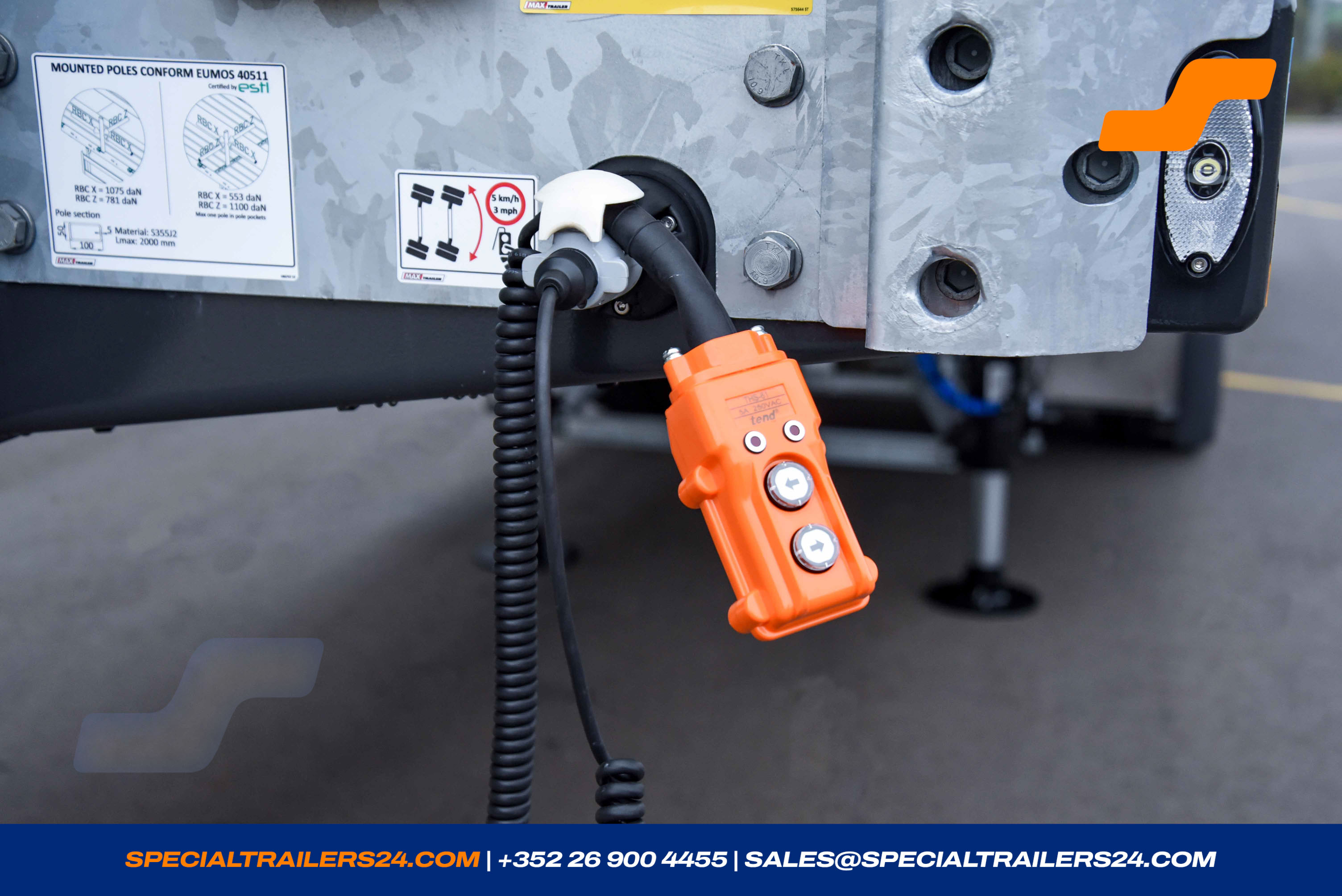

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 12 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform.

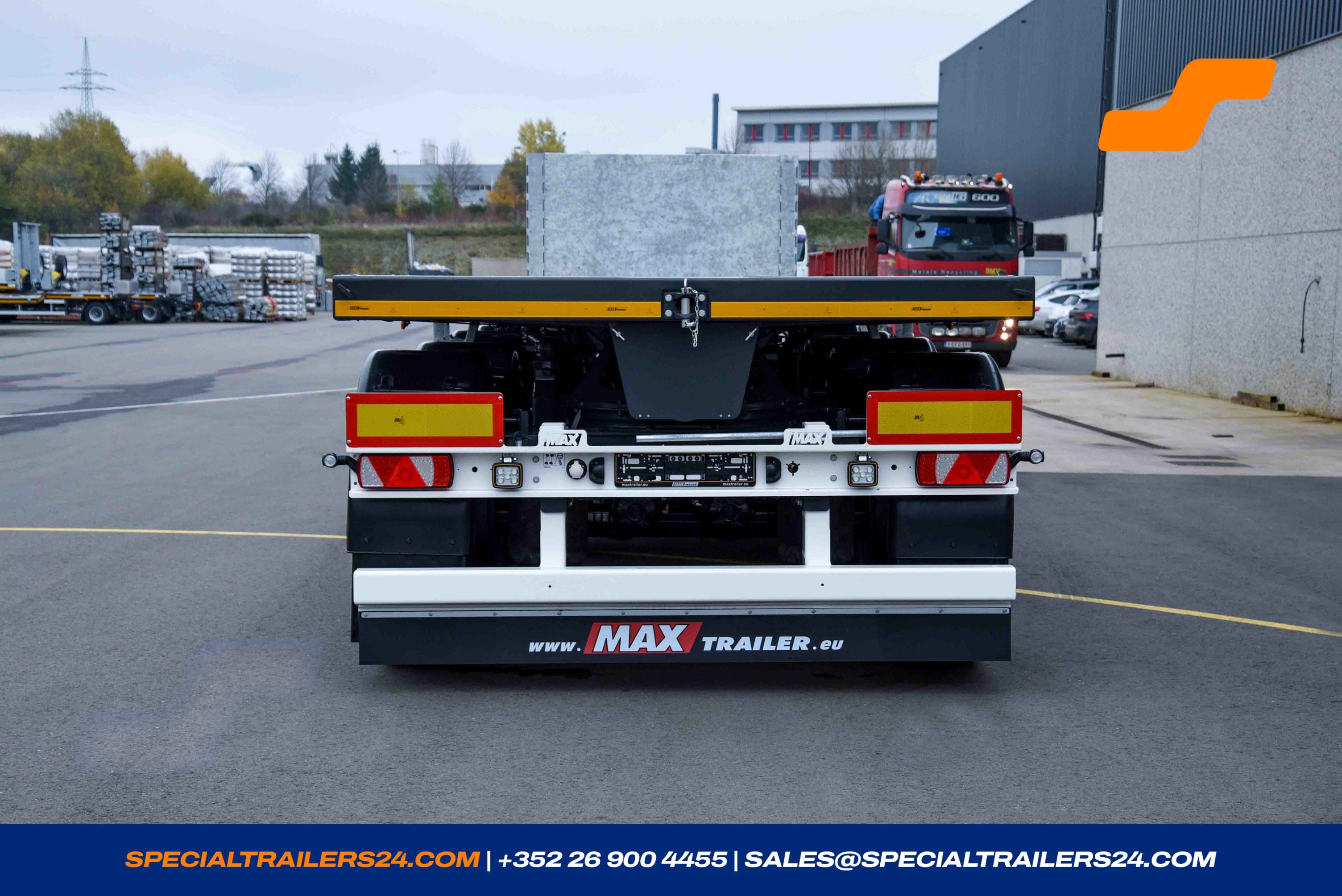

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.

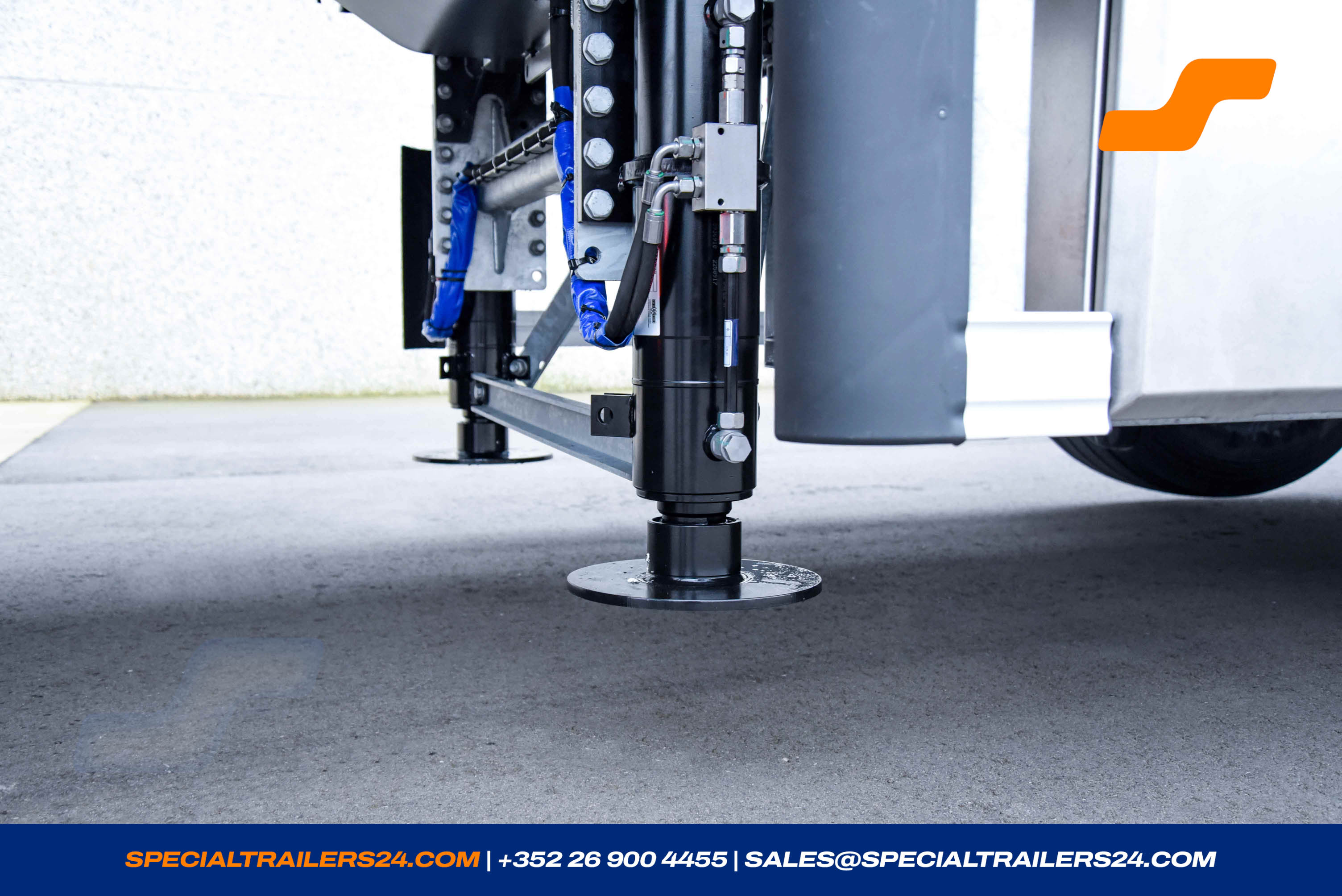

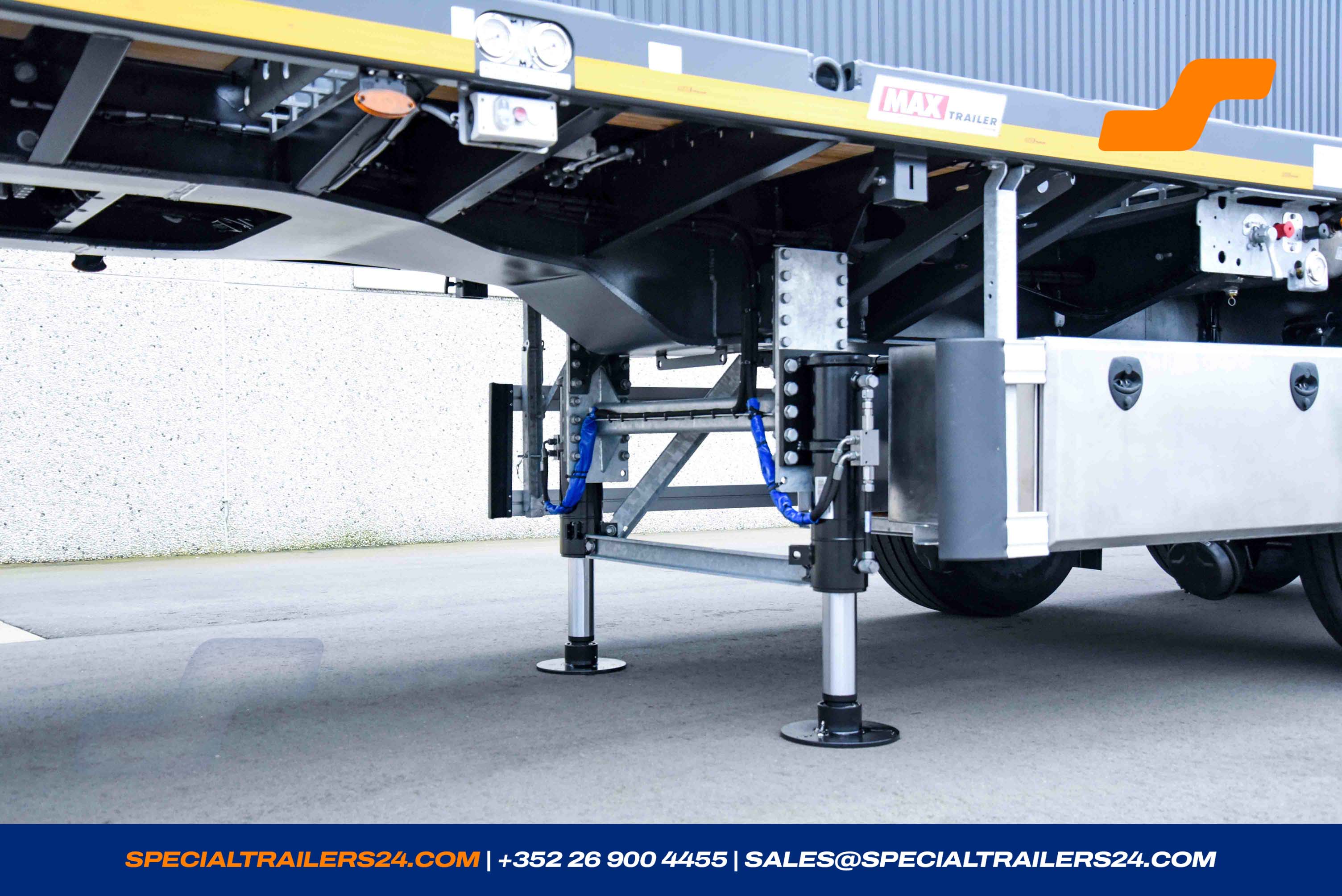

- Hydraulic landing legs. (± 55 kg)
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- White reflective tape according to the EU regulation over the entire length, red on the rear.
- 7 pairs of galvanised stakes ca. 100 x 50 mm, height 1000 mm. (± 154kg)

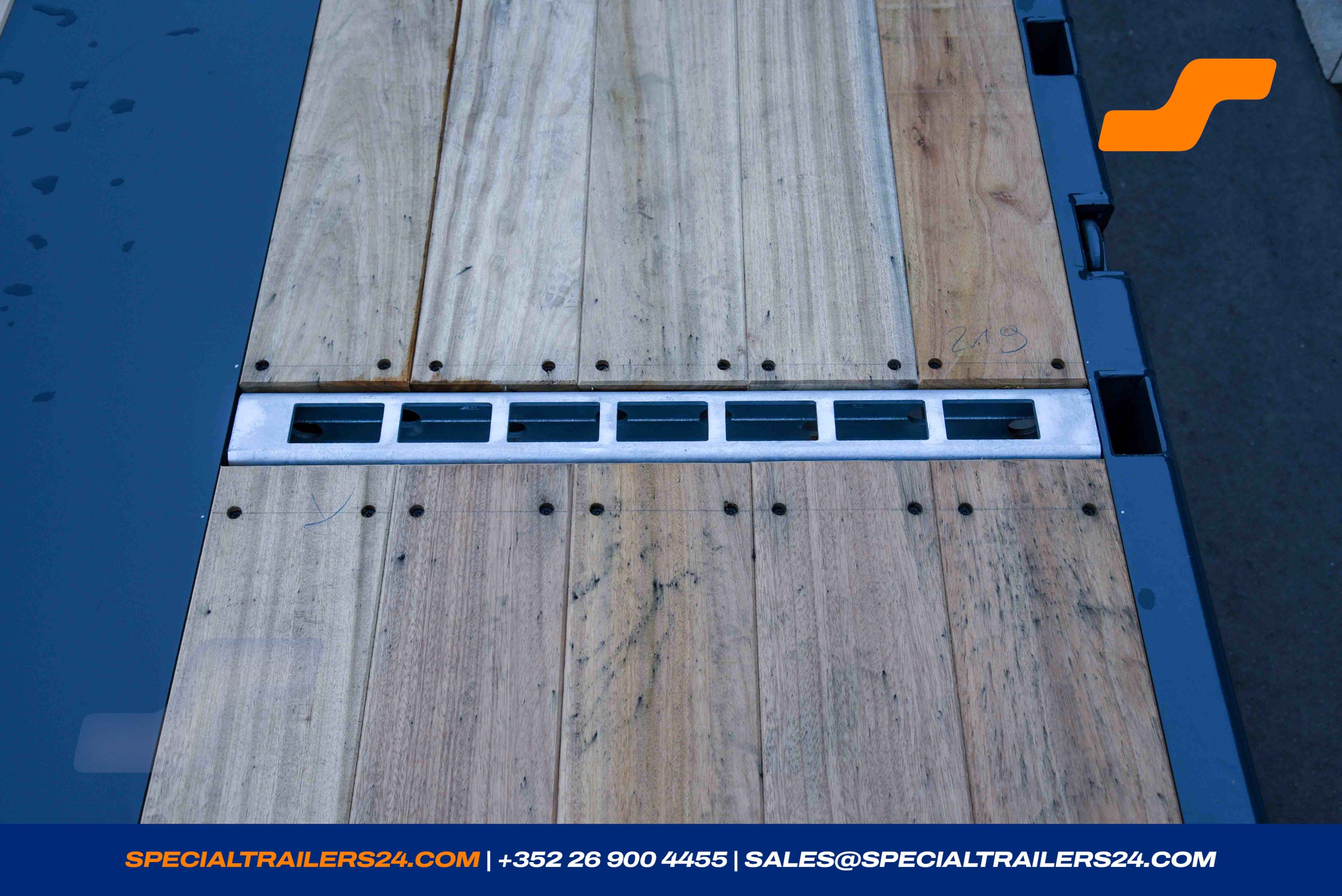

- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)

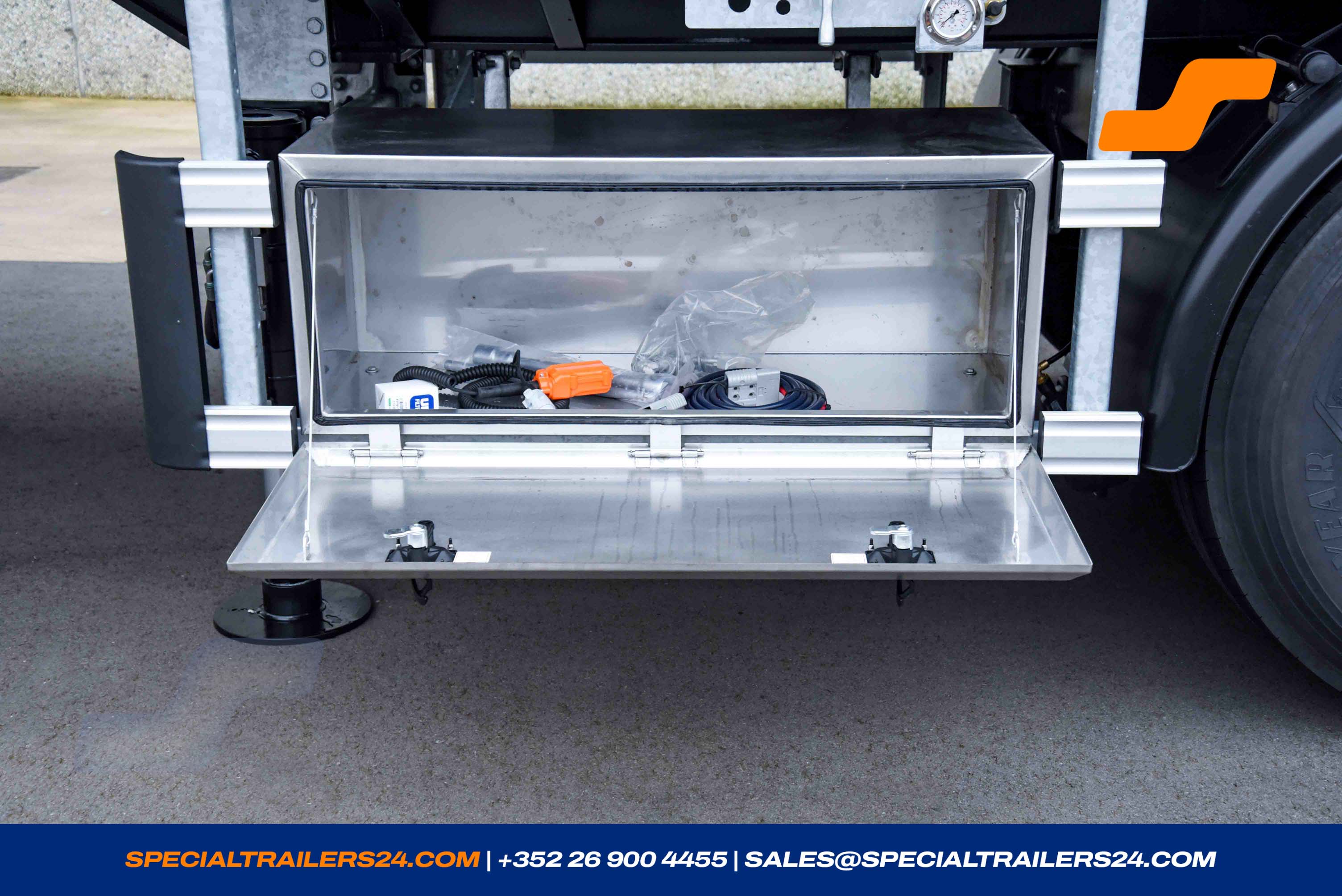

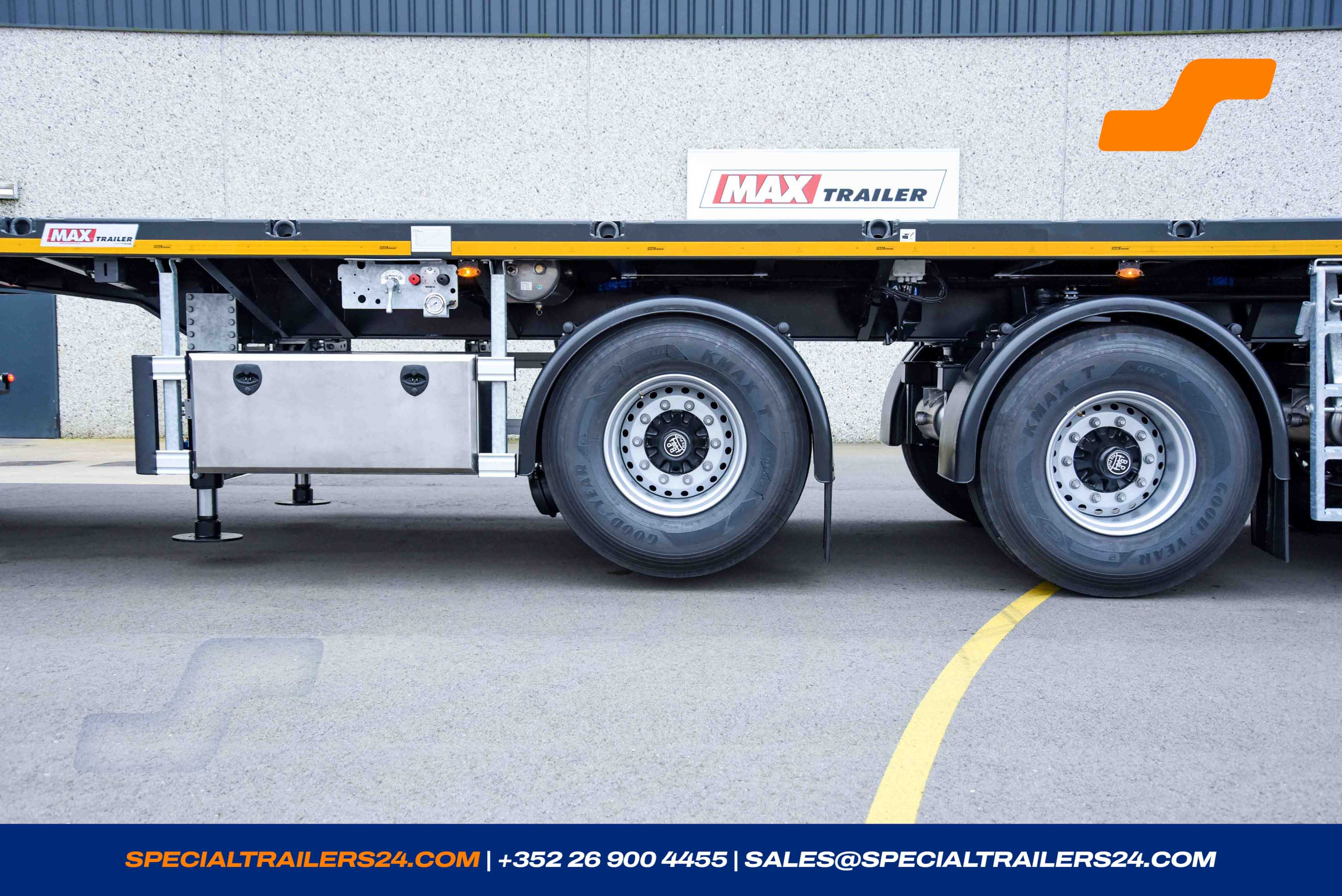

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the left side. (± 75 kg)

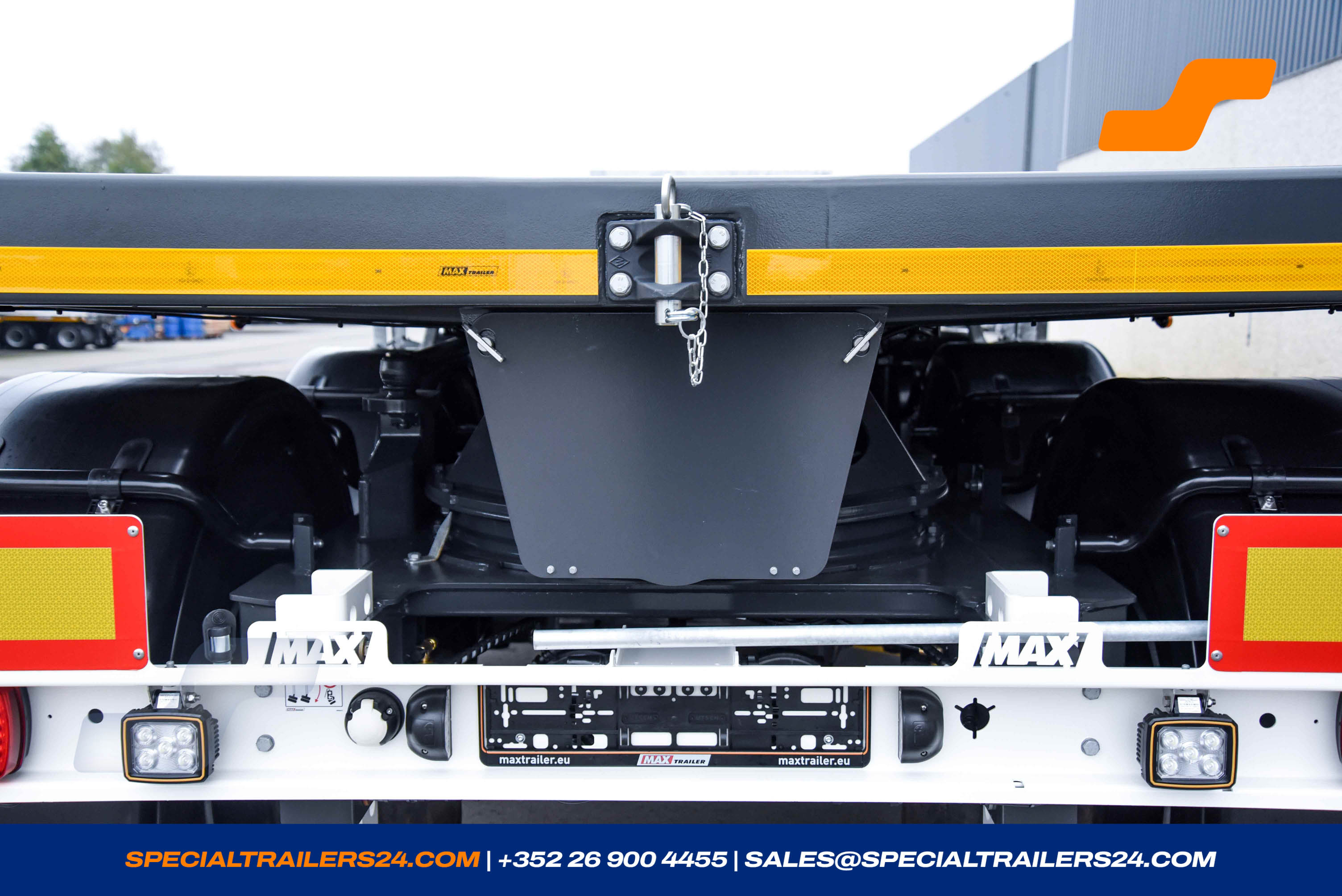

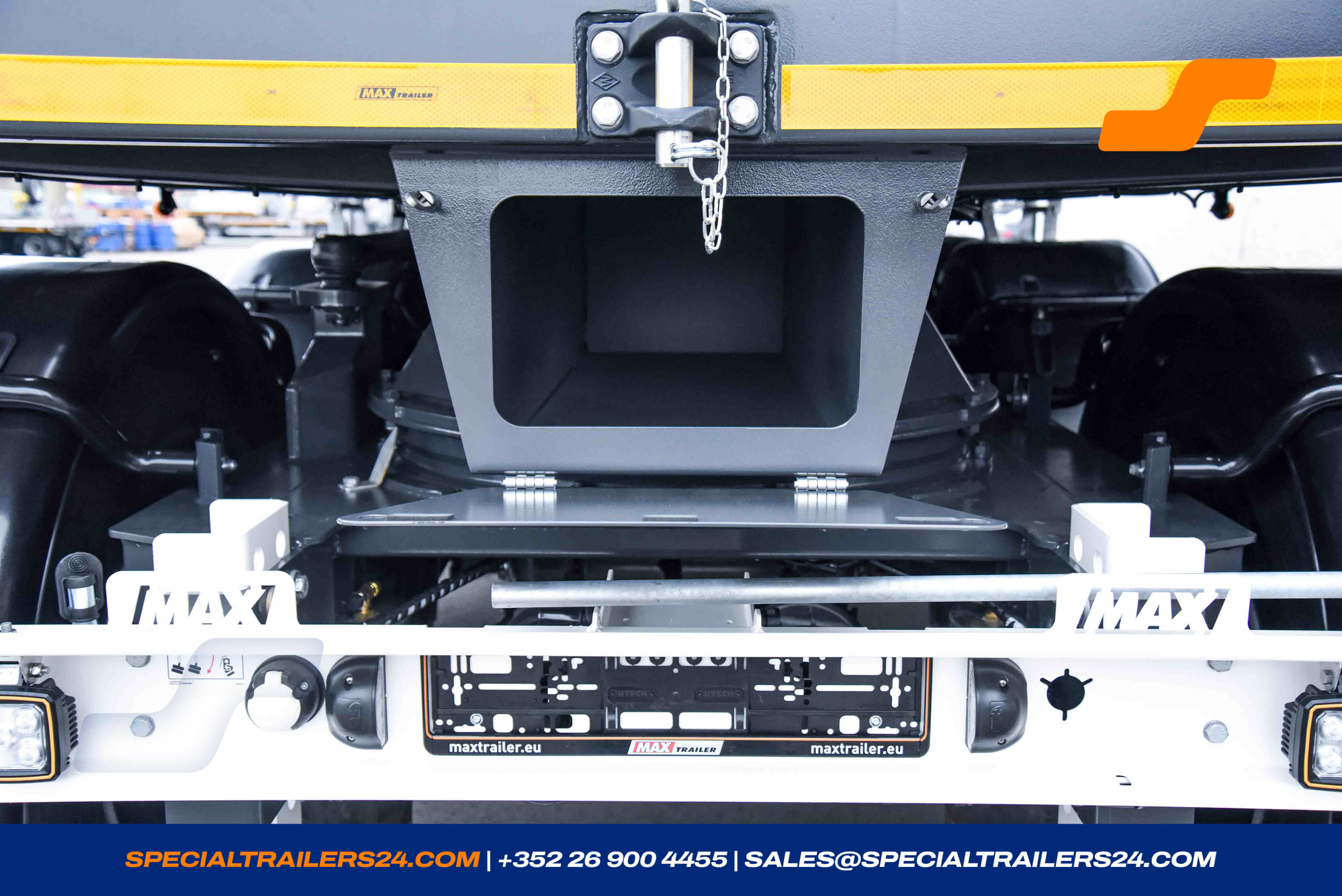

- 1 shunting coupling with reinforcement bolted to the end crossbar.
- Speed sticker 60 km/h at the rear.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).

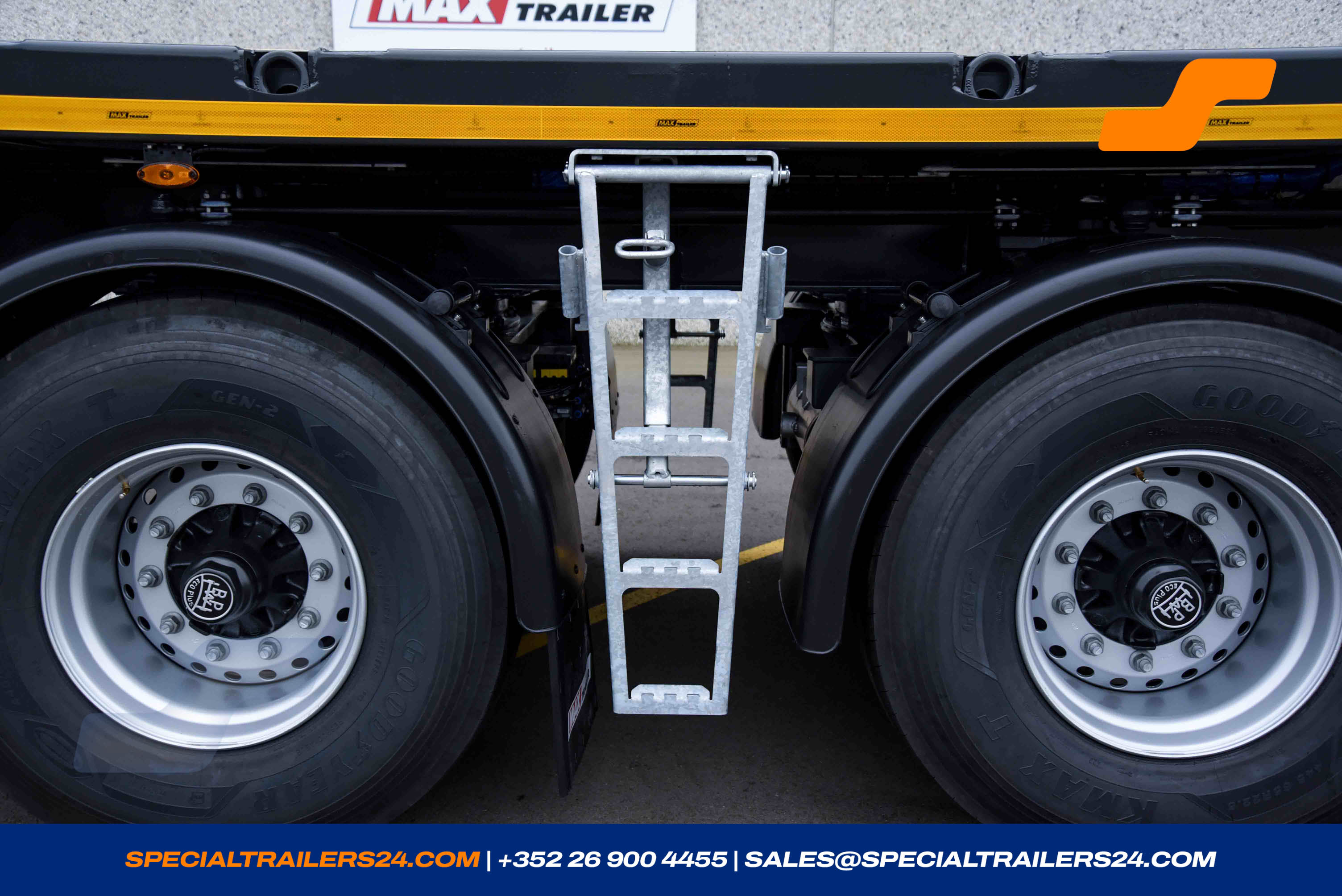

- Adjustable ladder mounted on the left and right hand side. (± 29kg)
Accessories
1 x Accessories
- Braking system WABCO following EU-regulations with EBS-E (4S3M) system, without connection to the truck.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.

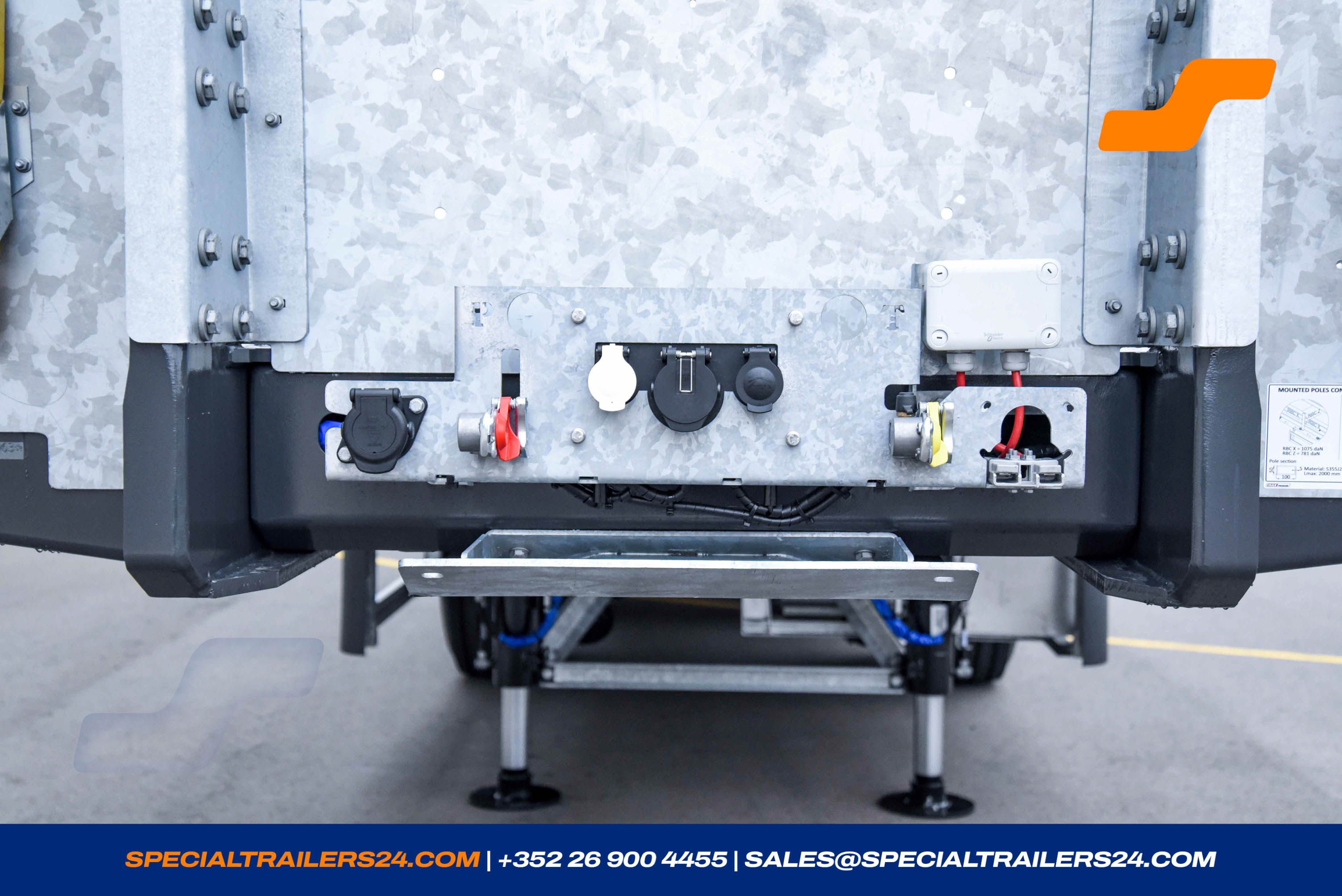

ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 2 LED- reversing lights at the rear.
- Sign 1 900 x 250 mm CONVOI EXCEPTIONNEL at the rear of the trailer.

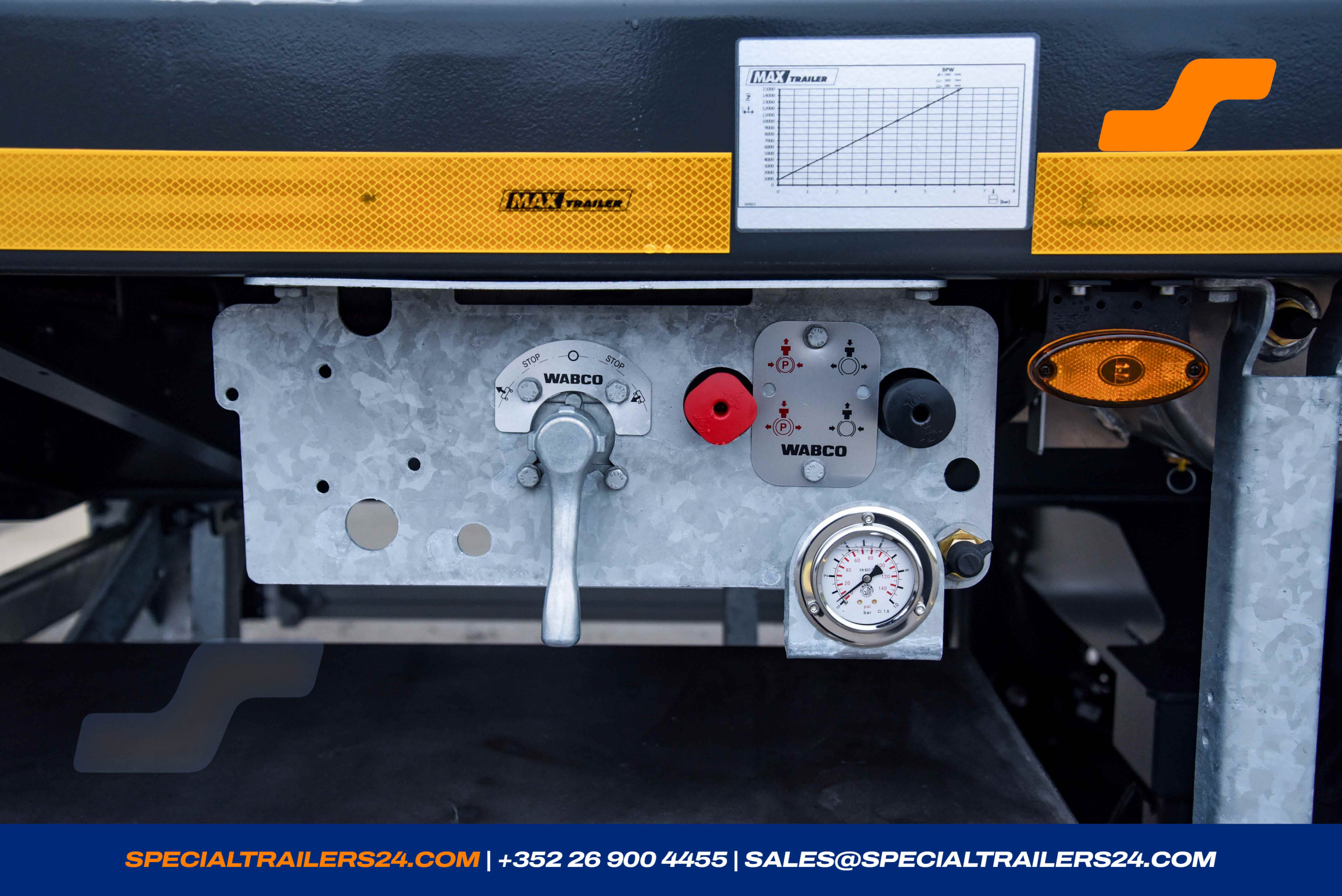

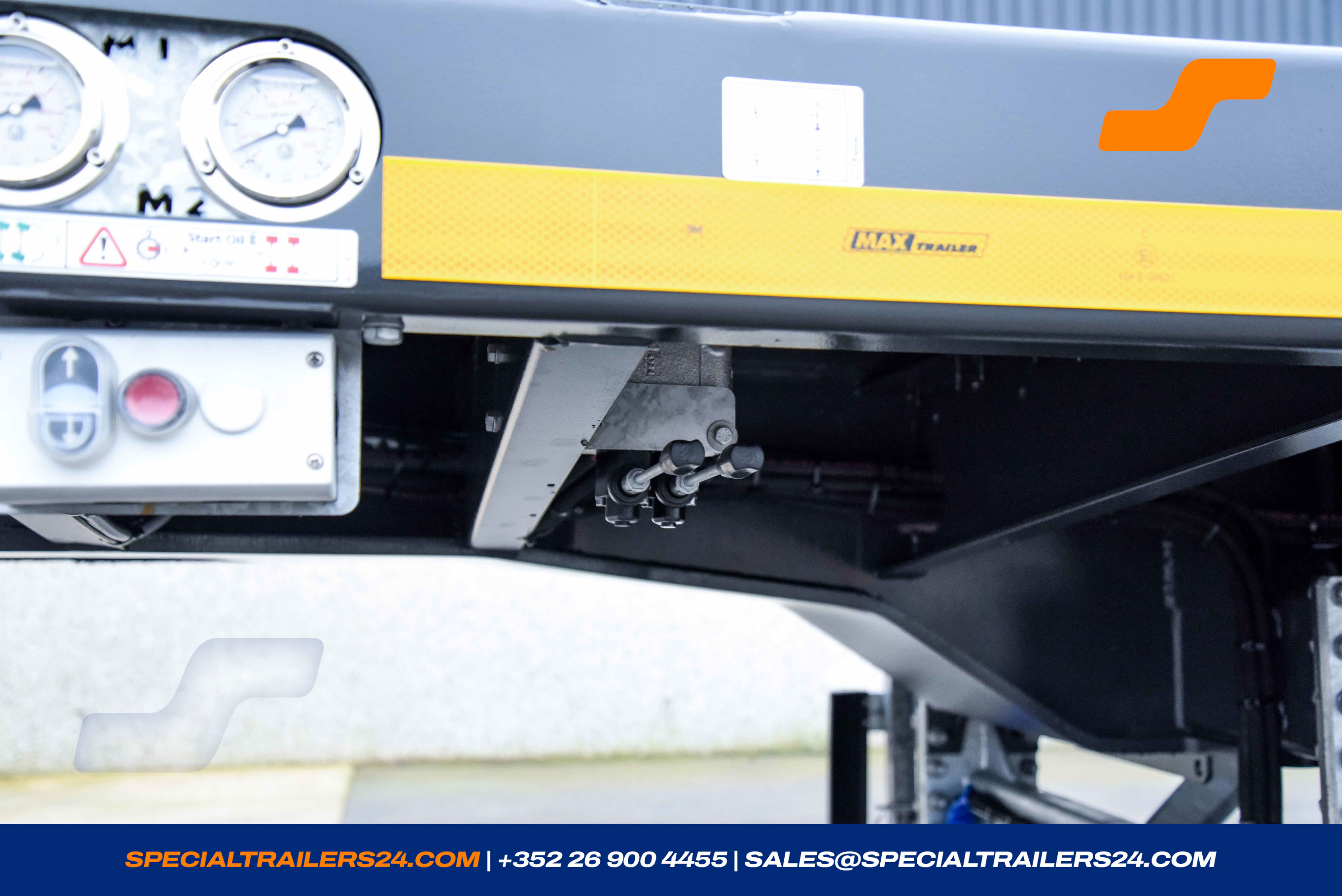

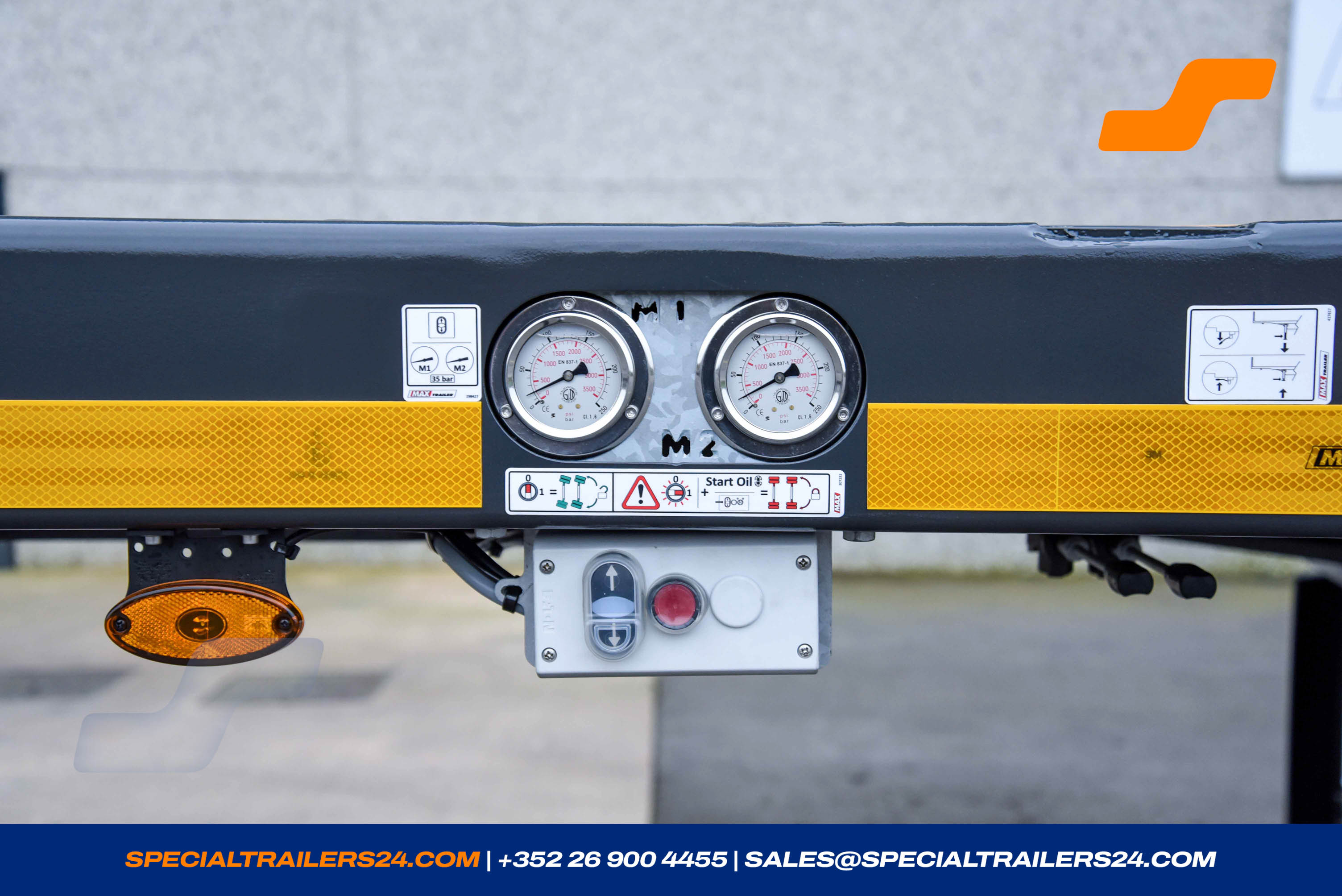

- Load manometer for determining the axle load, including load diagram.
- Delivery from a trailer to factory Büllingen.
