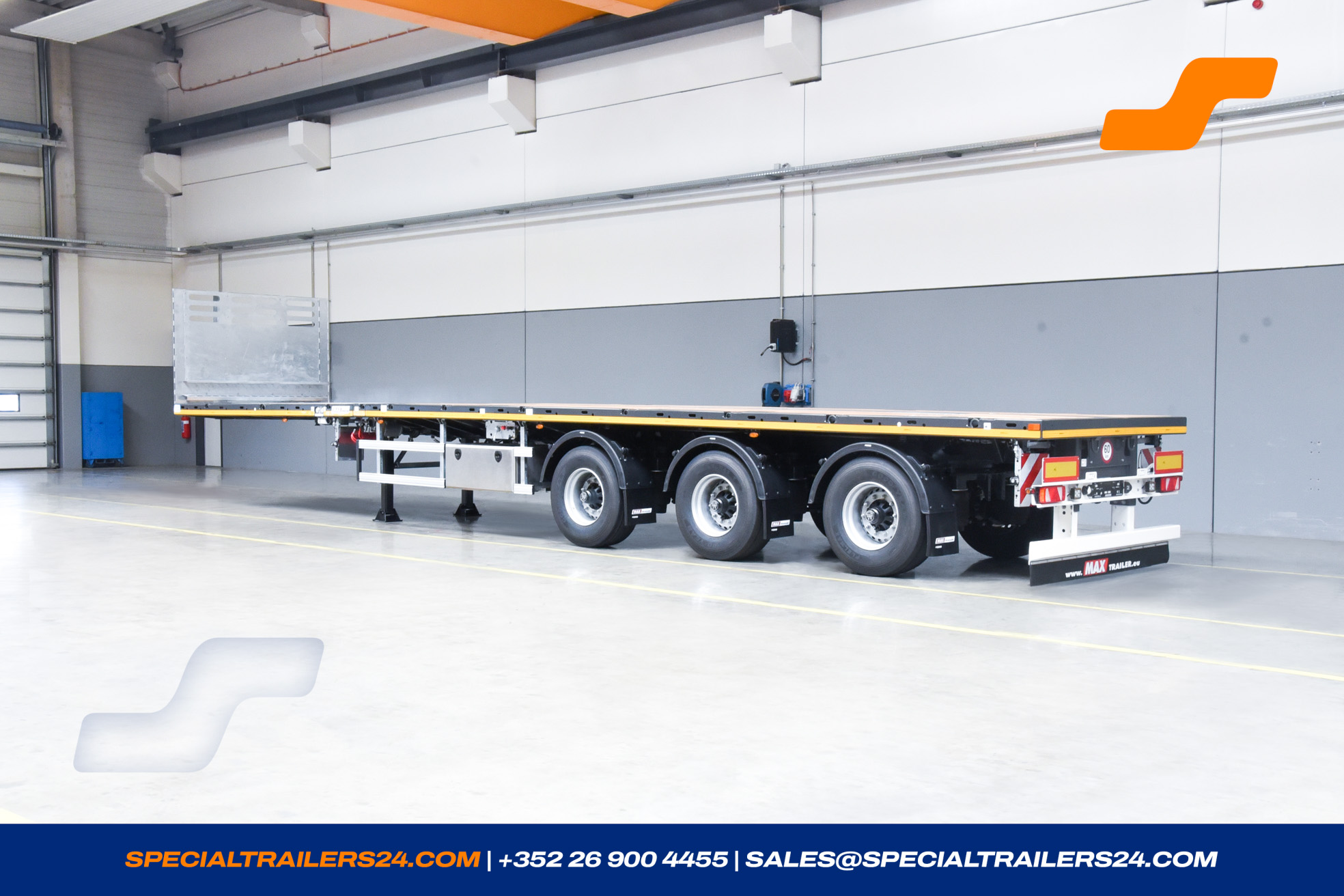

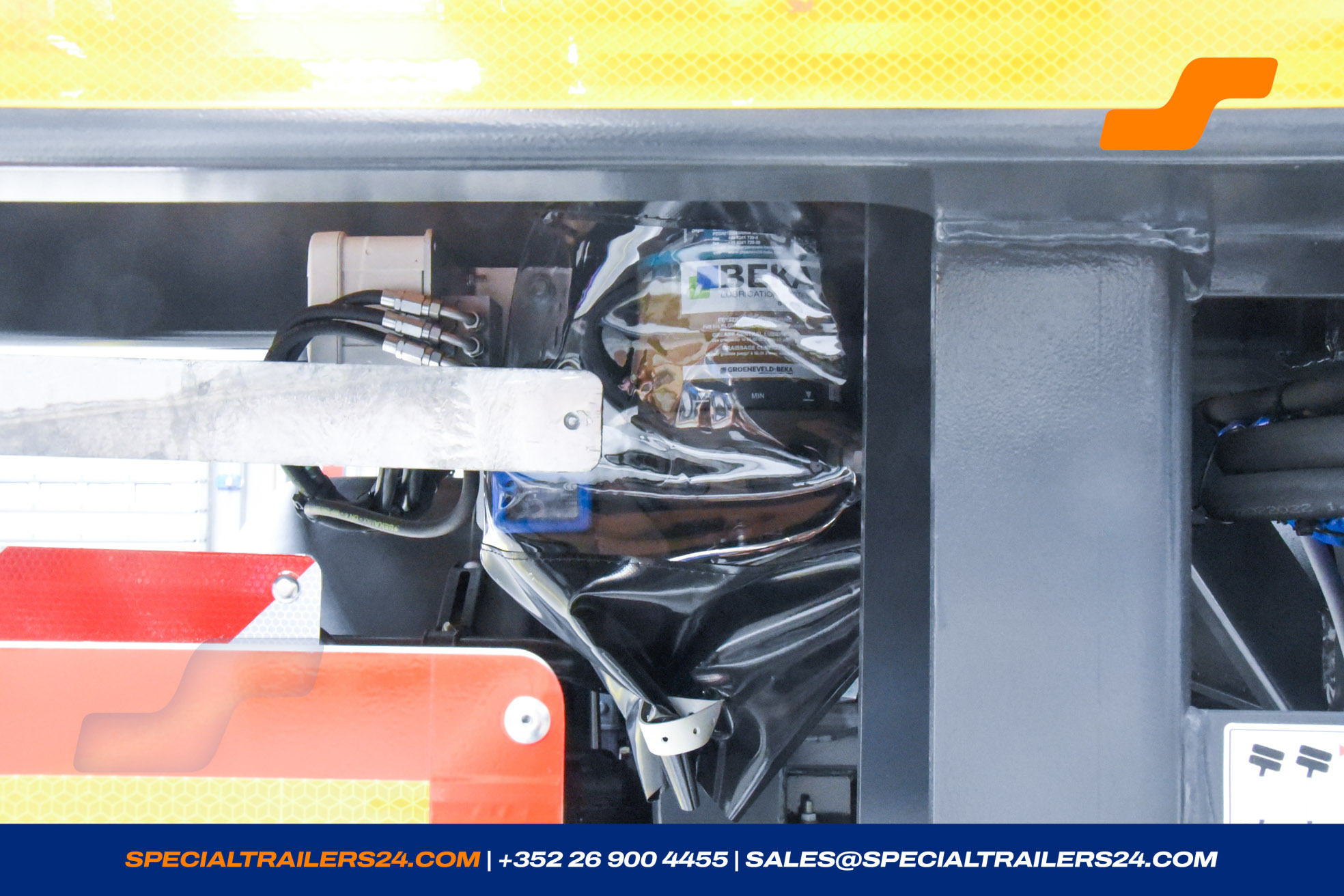

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110916
- Reference MAX210-Z-3A-13.50-22.5-2.54

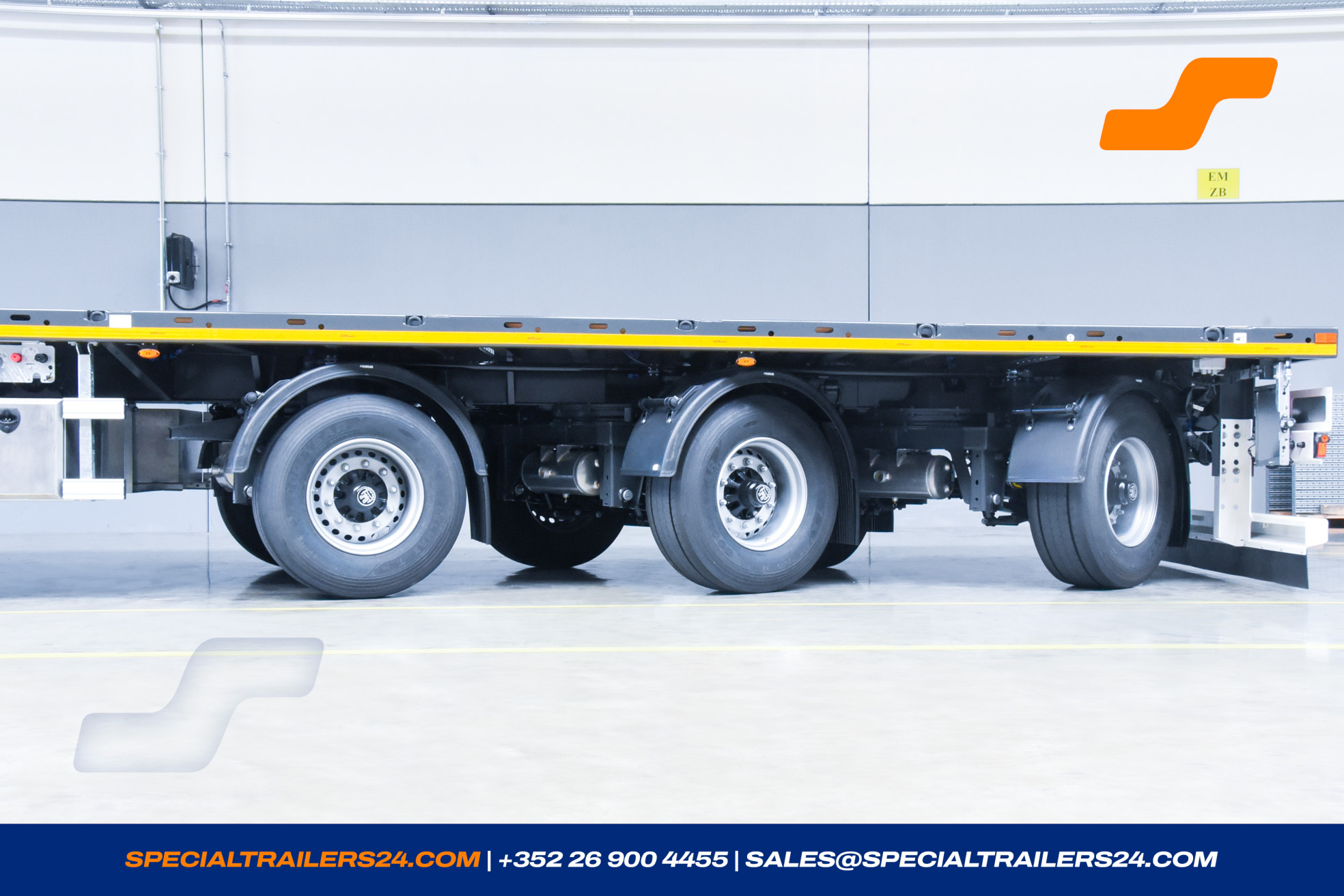

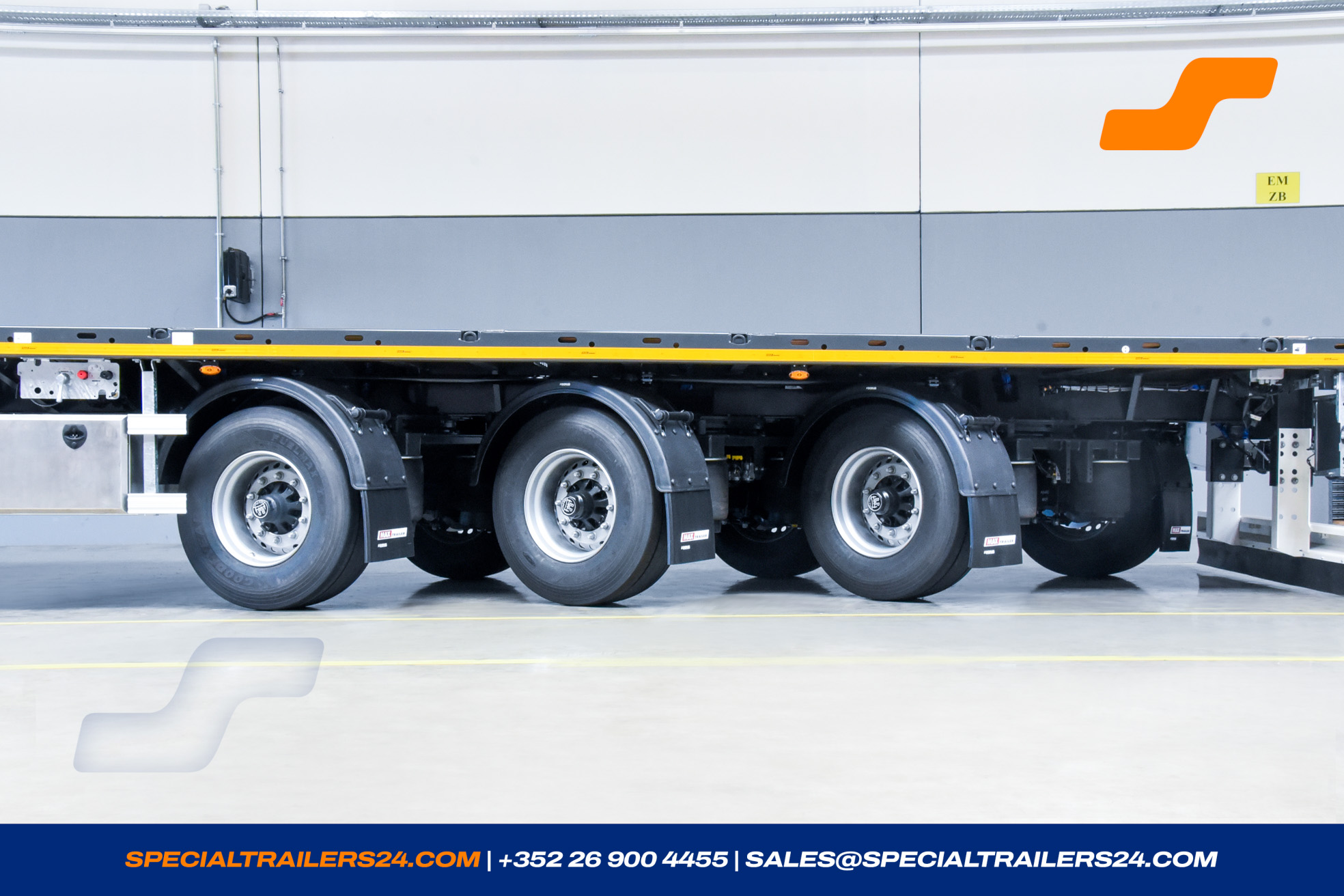

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour RAL 5021 - Water blue
- Availability Directly available
- Steering Type Hydraulic
Availability
Directly available
Price
On request
Location
Atasehir/Istanbul, Turkey
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 30000 kg |
| Gross weight | 48000 kg |
| Tare weight +- 3% | 9483 kg |
| Payload | 38517 kg |
Dimensions
| Fifth wheel height loaded | 1200->1270 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 500 mm |

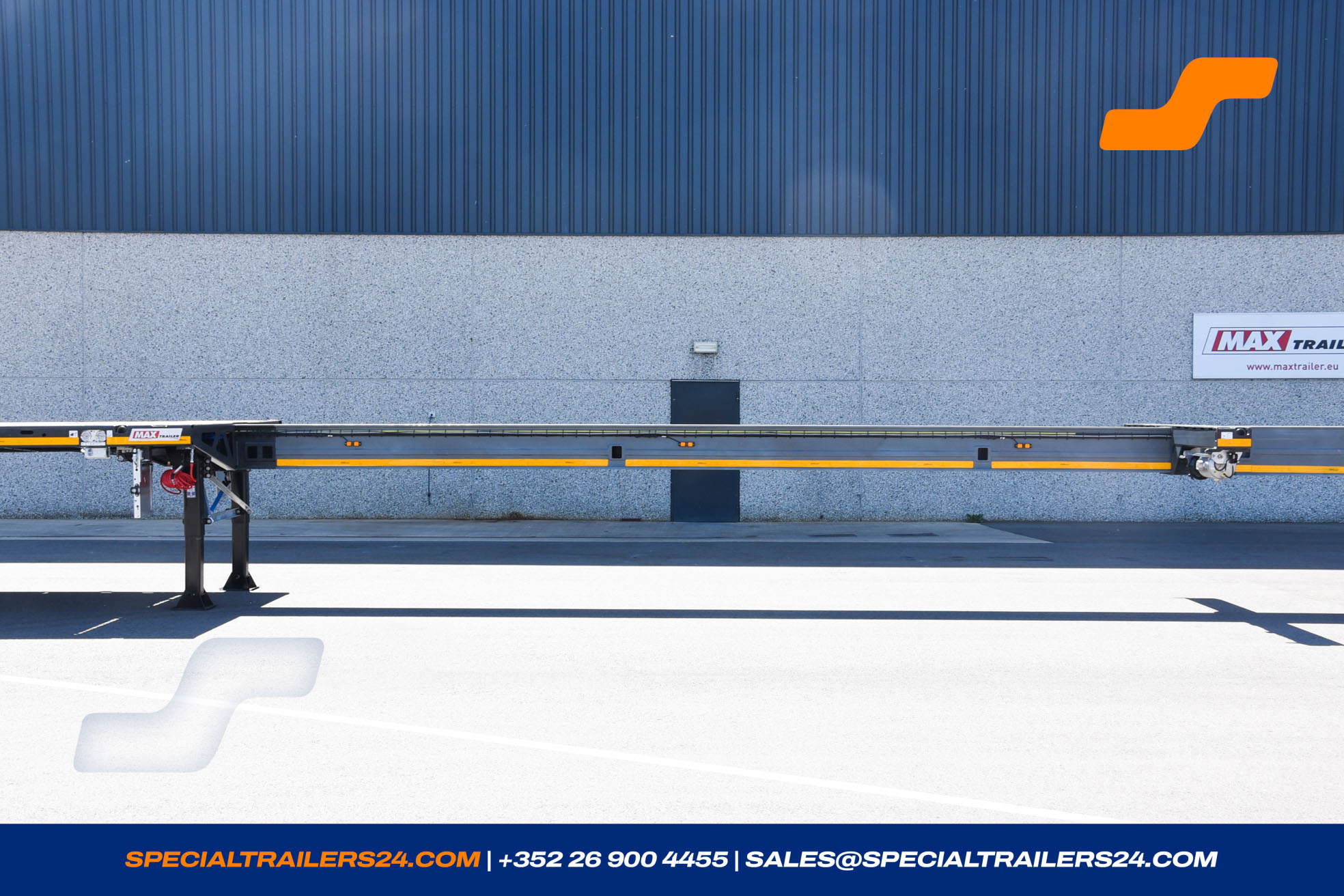

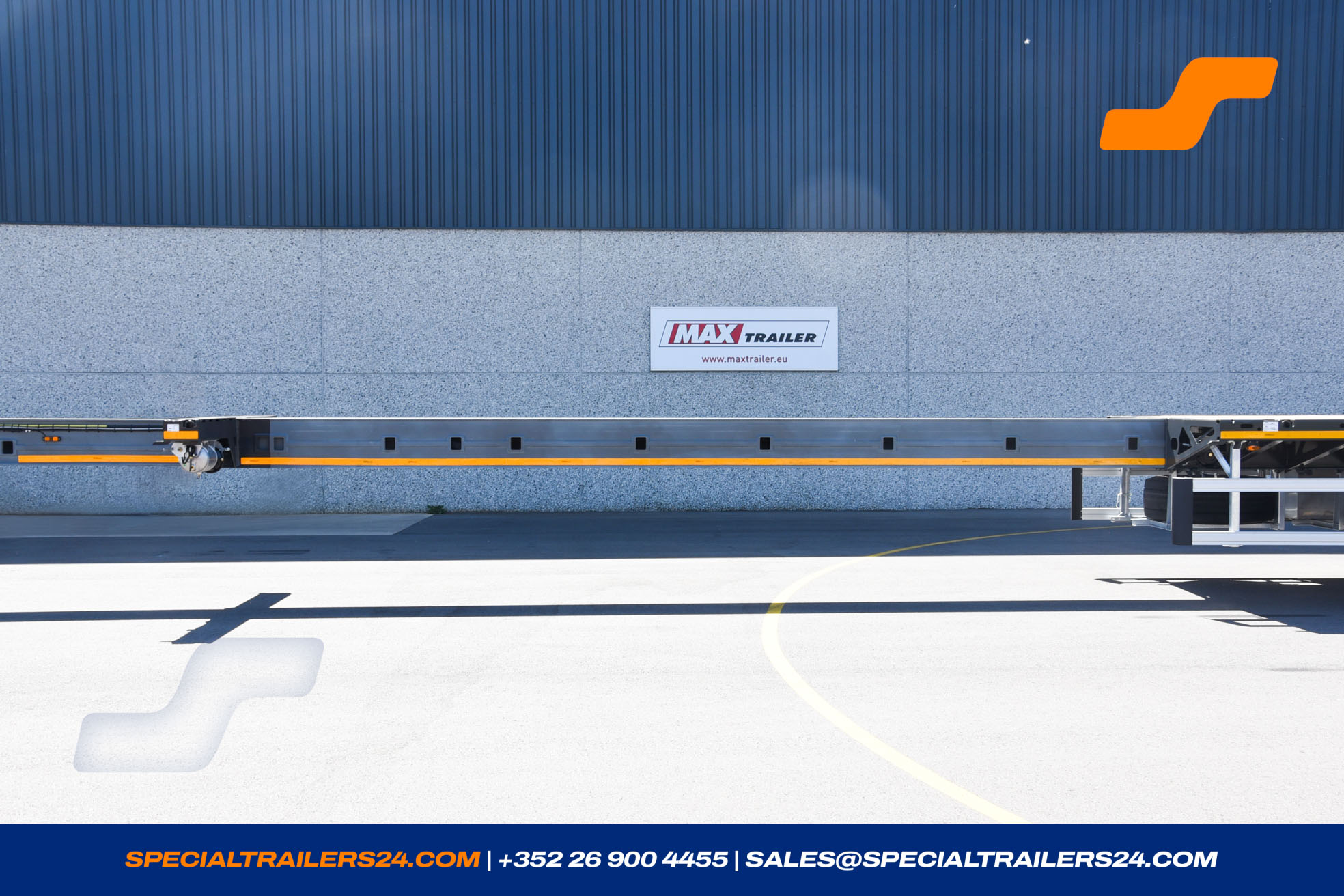

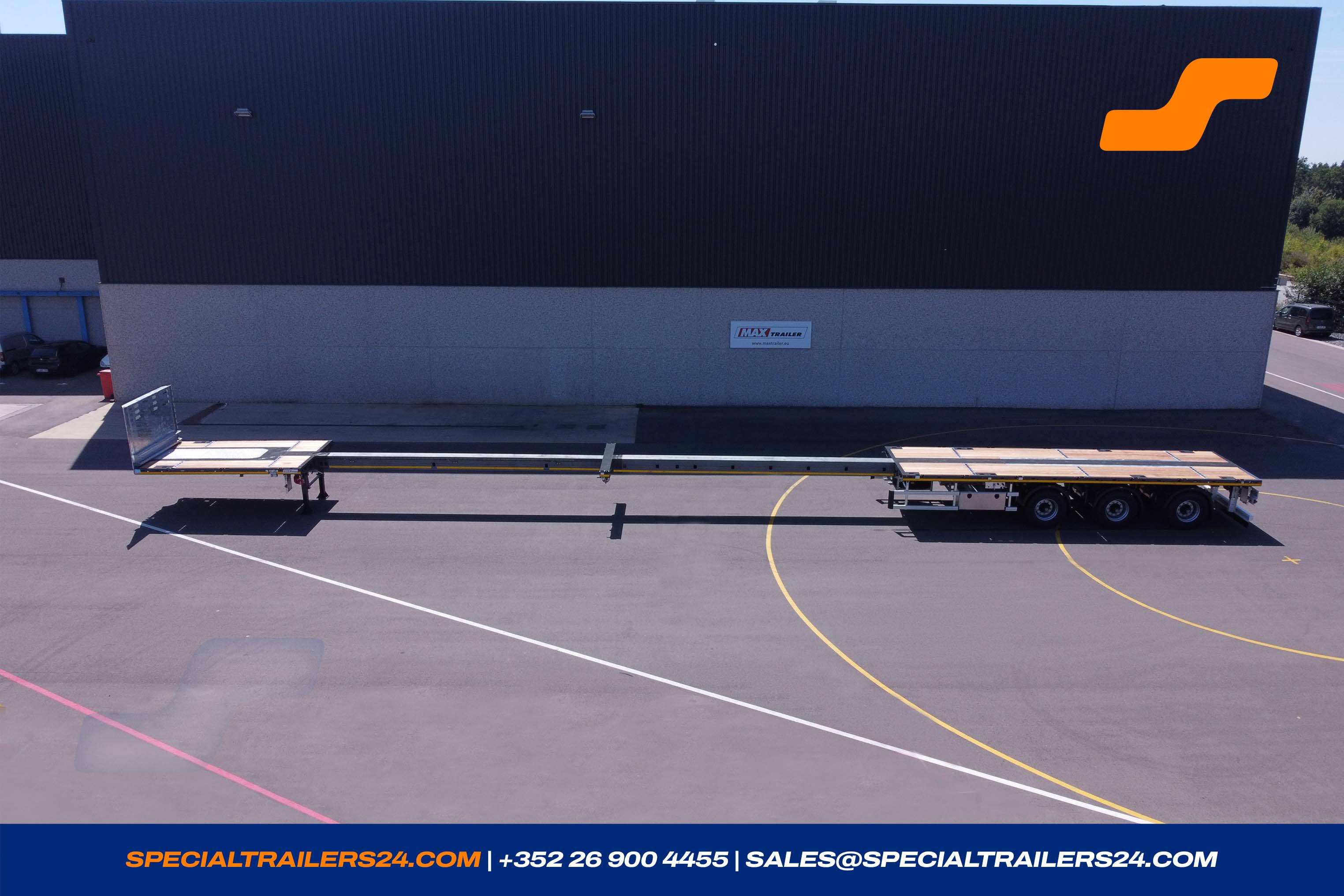

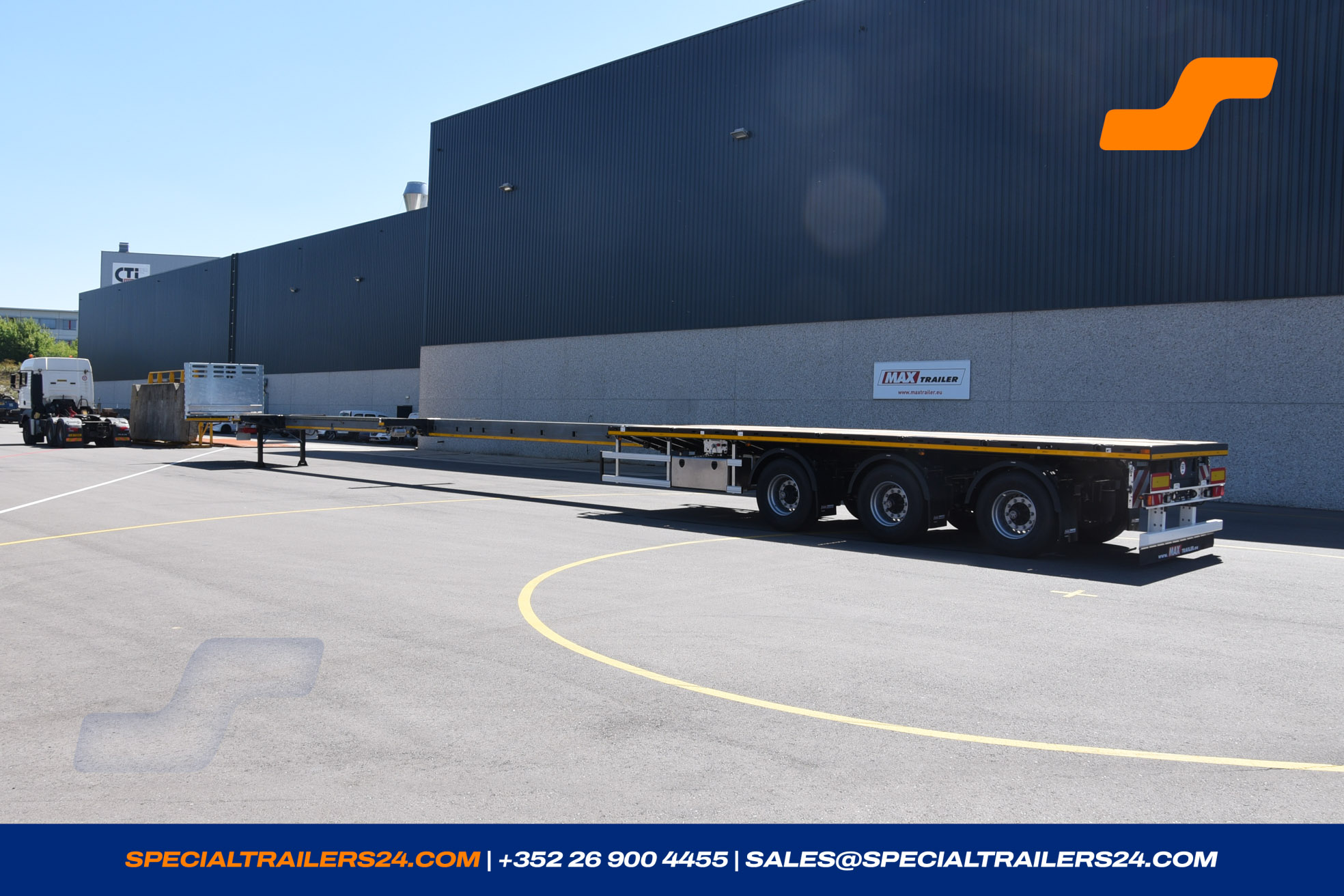

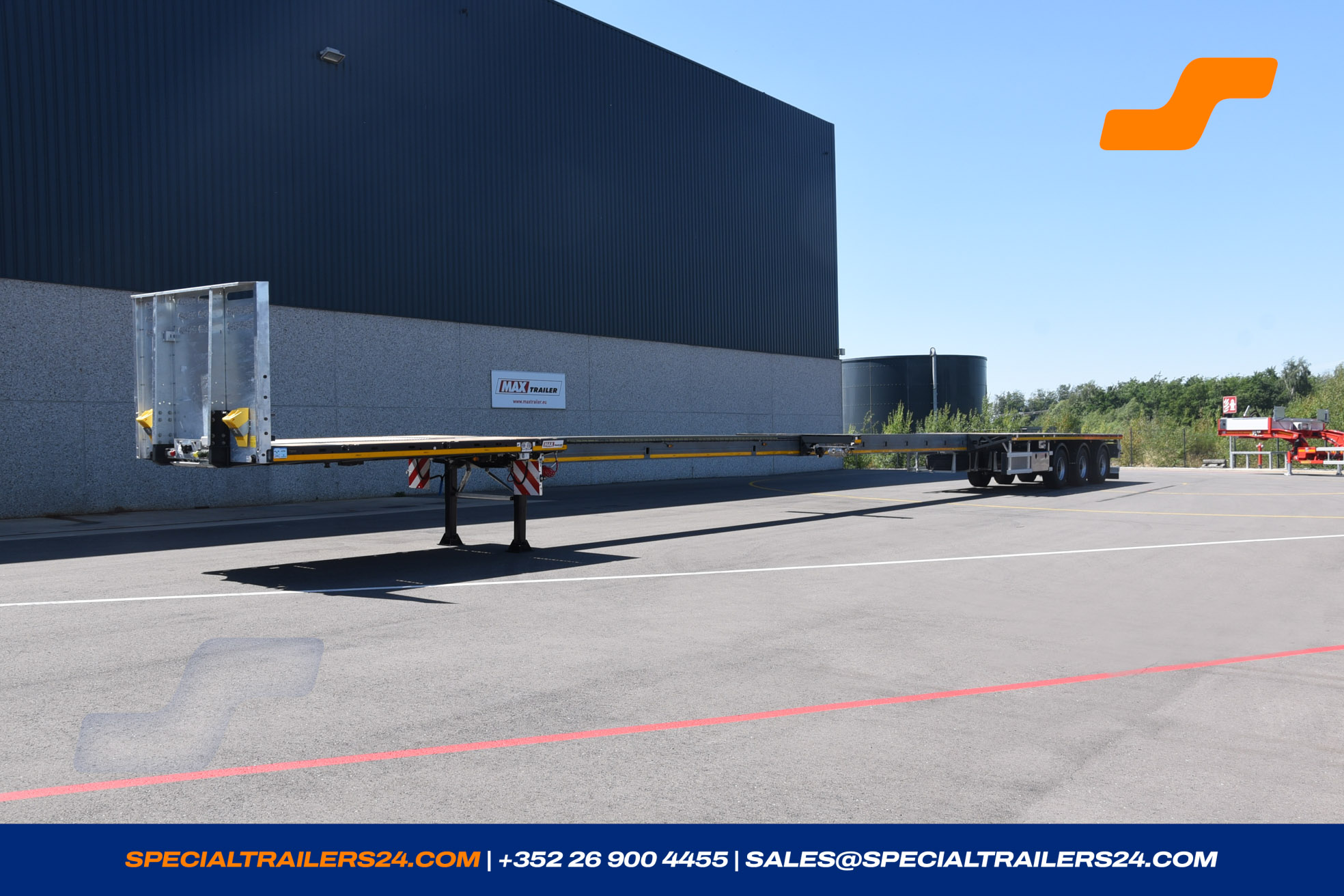

| Extendable by | 7 250 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

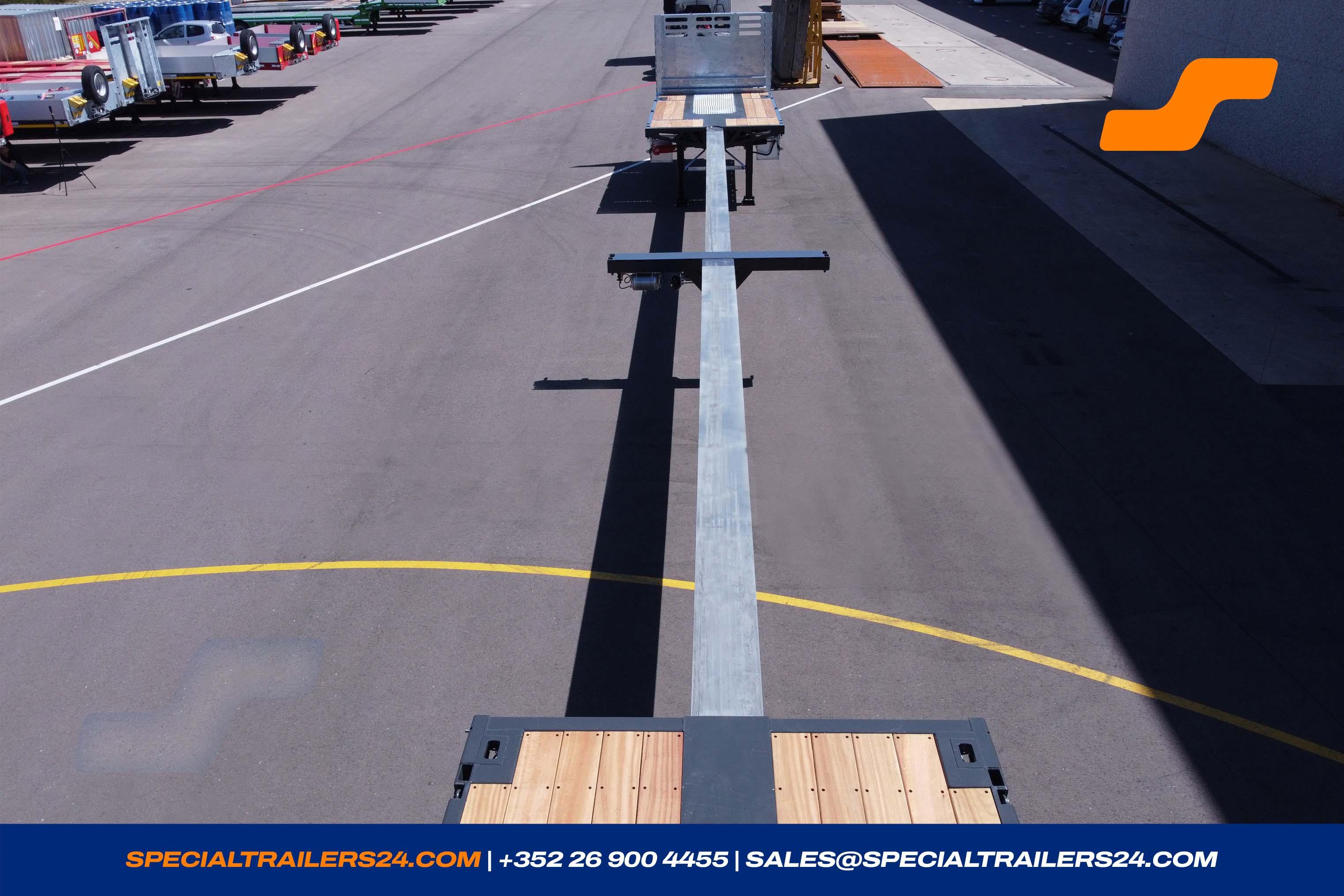

Loading area extendable center spine, pneumatically locked.

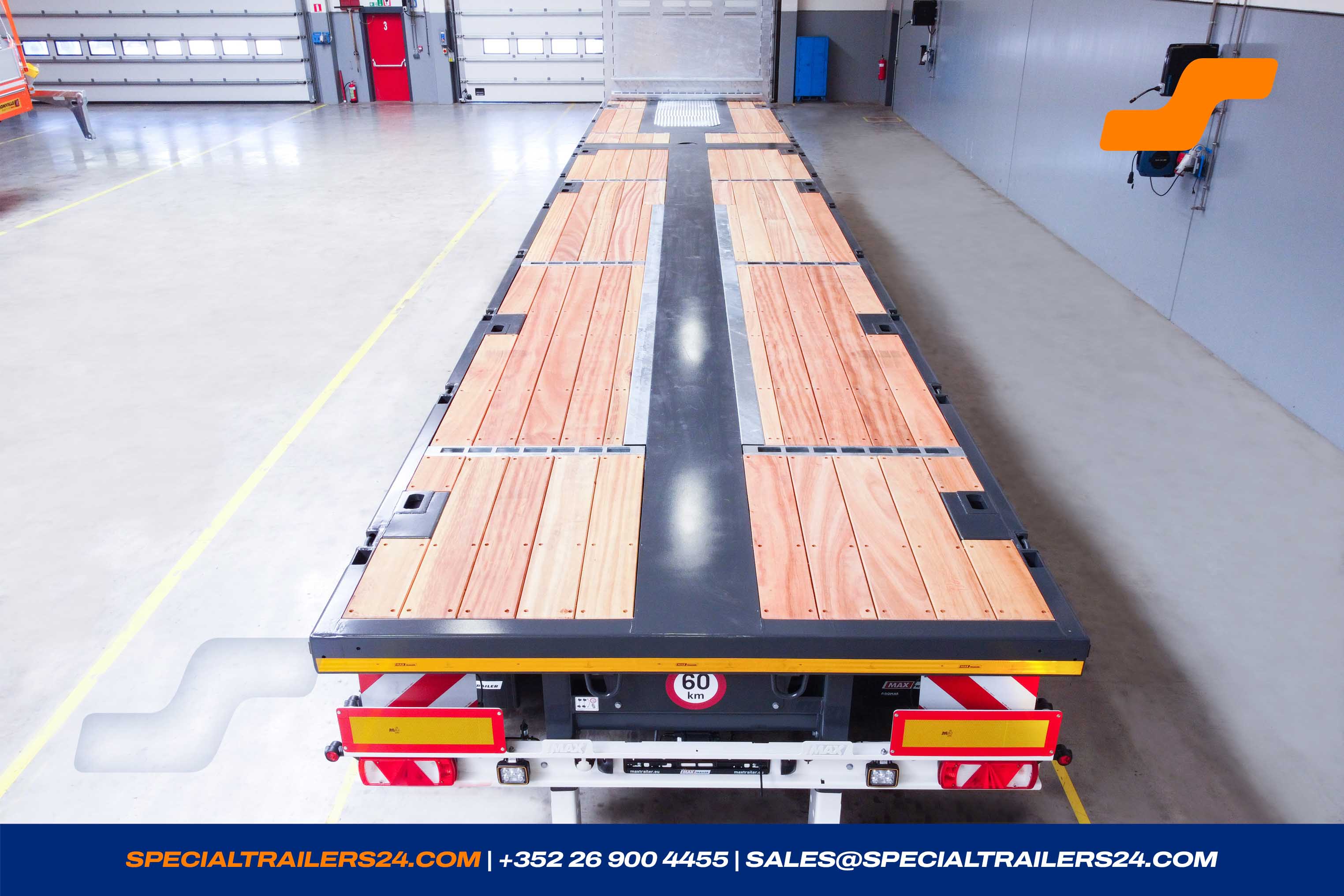

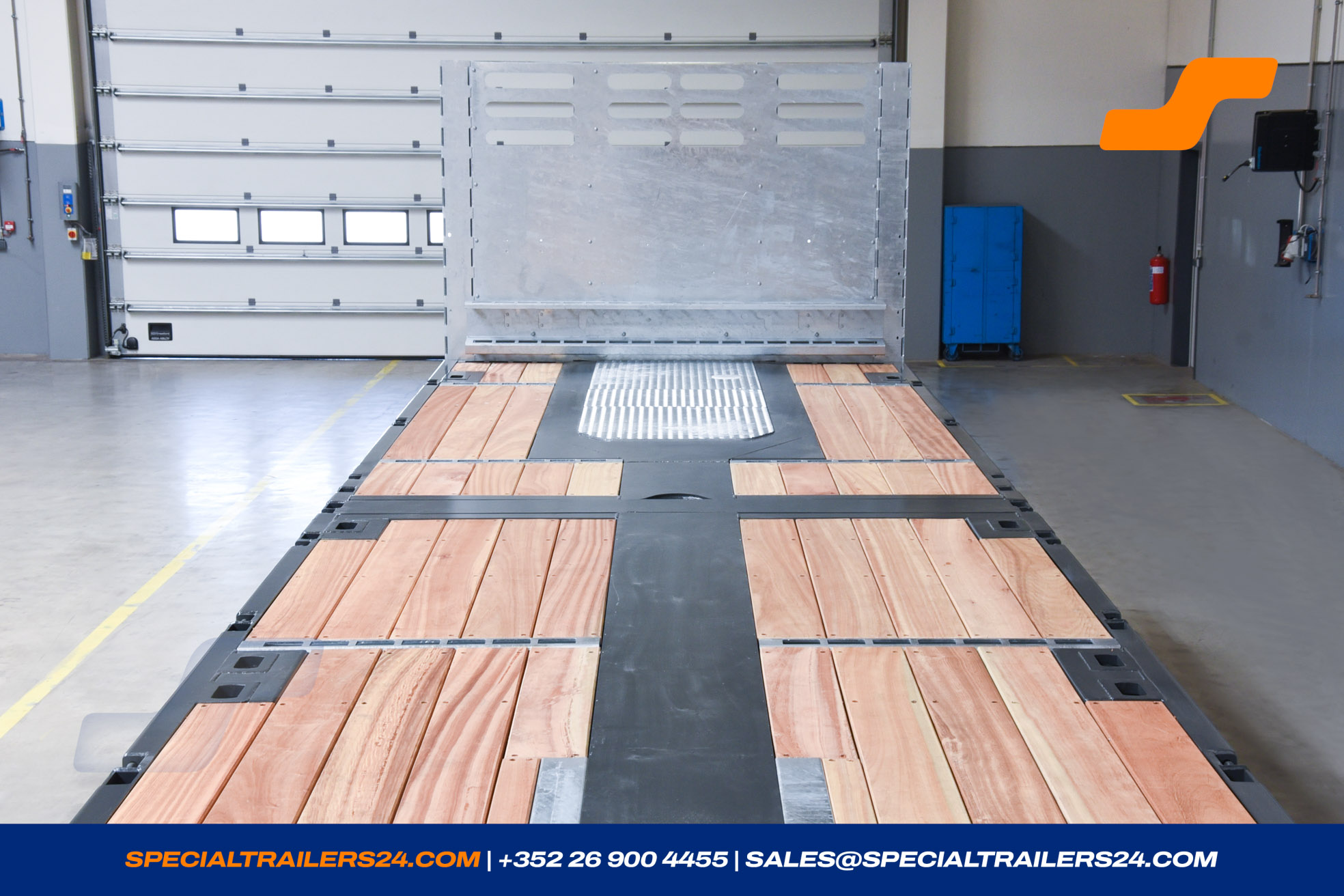

Timber floor, ± 30 mm thickness.
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-
2 sliding bolsters ± 125 mm.
***
! With this configuration, the sliding bolsters must remain in the loading area !
***
Accessories
1 x Accessories
- Manual and description on USB stick .

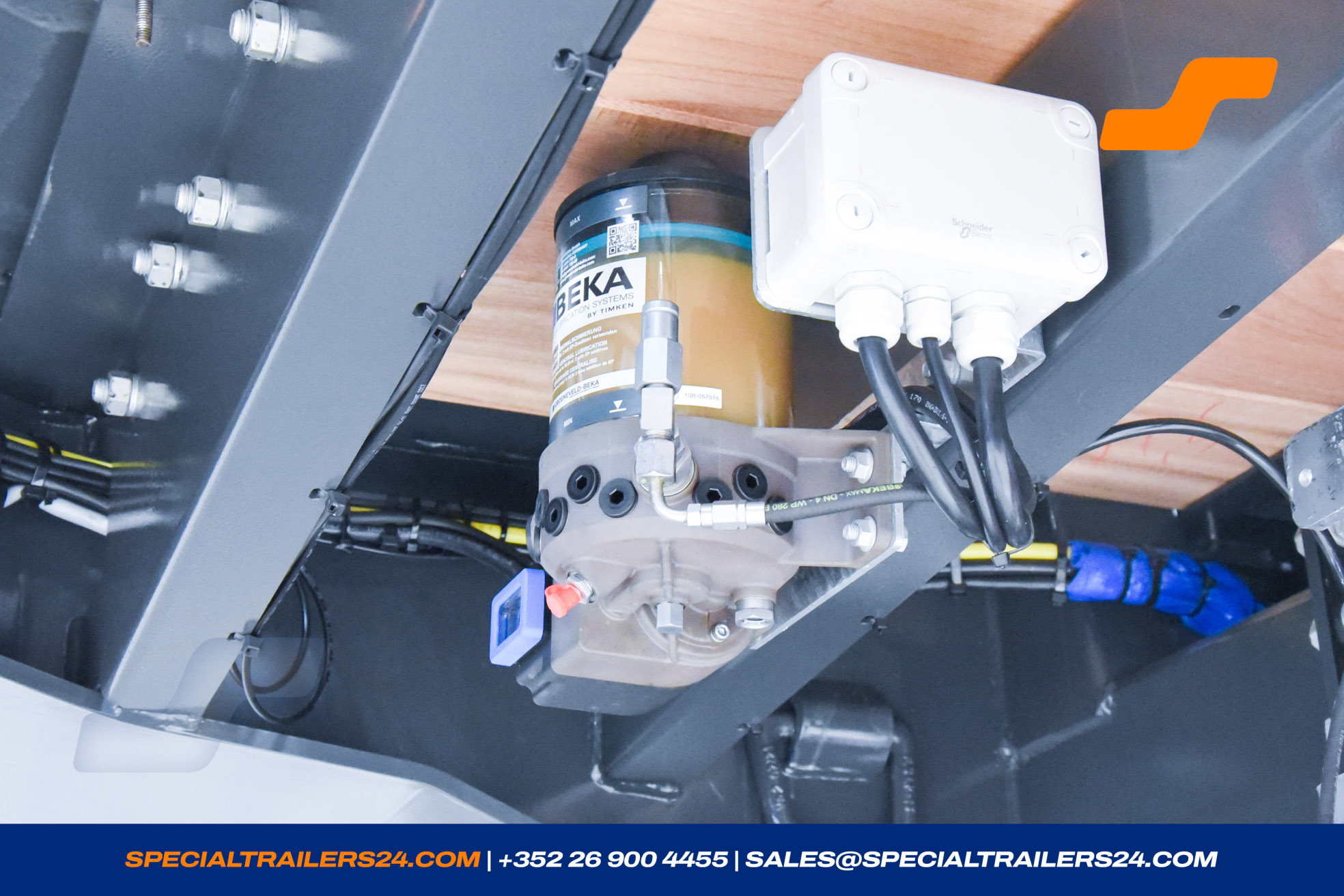

- We recommend to equip this trailer with a central greasing.

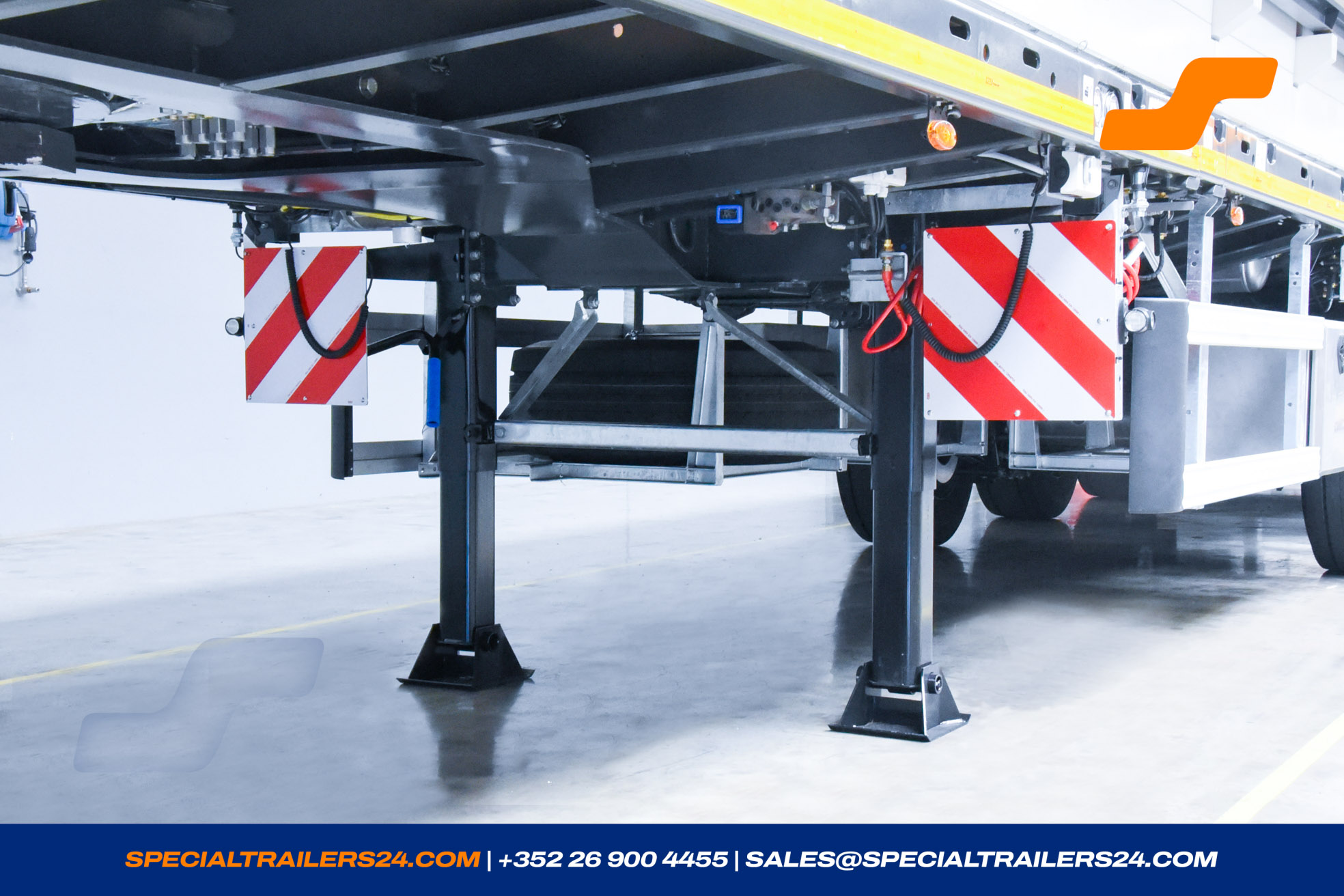

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position light and 3-pole SCHUKO plug. (± 25 kg)
- On the warning boards a holder to put a flashing beacon.

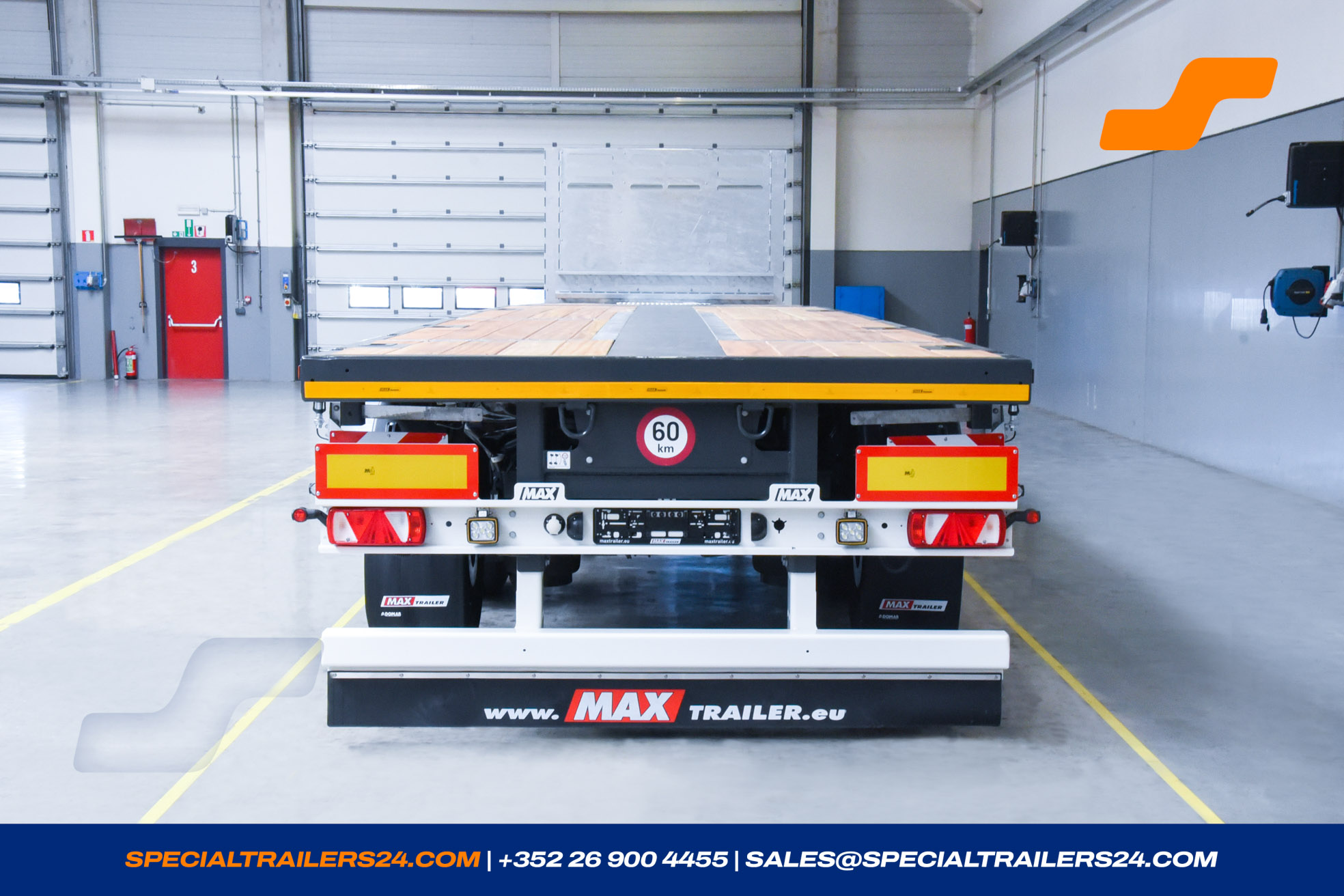

- 2 LED- reversing lights at the rear.
- Crash protection on the right and left of the rear crossmember. (± 7kg)

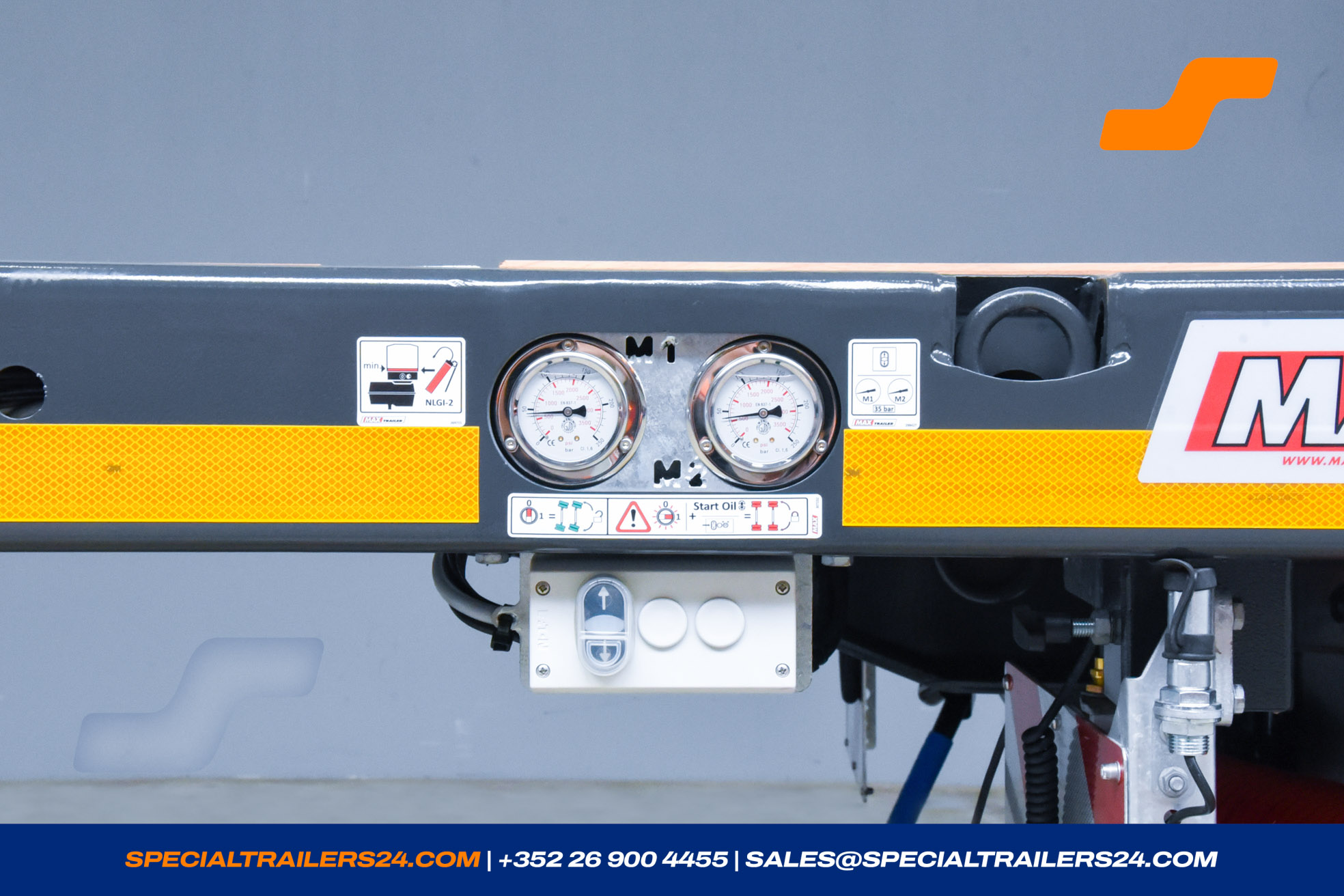

- Load manometer for determining the axle load, including load diagram.
