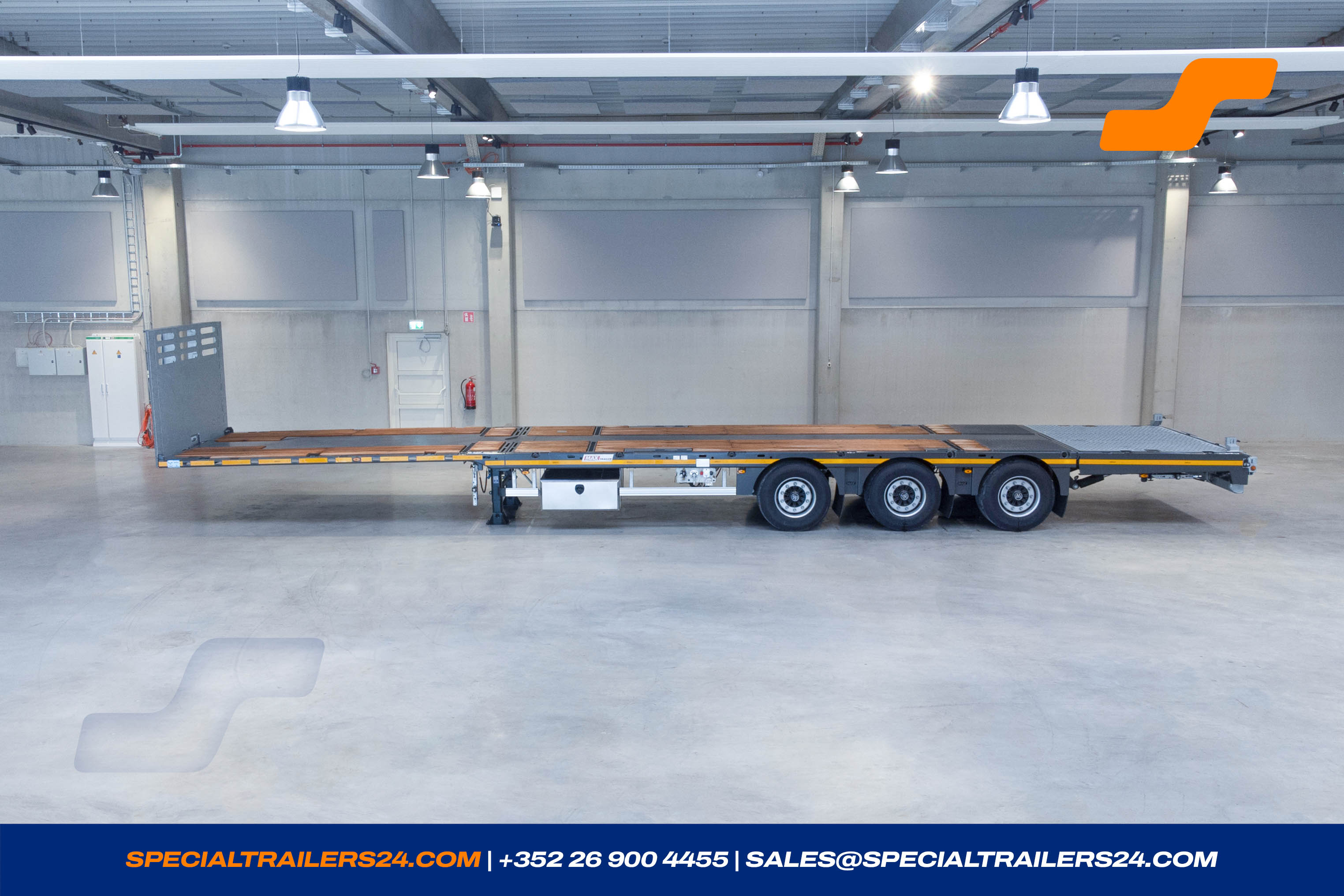

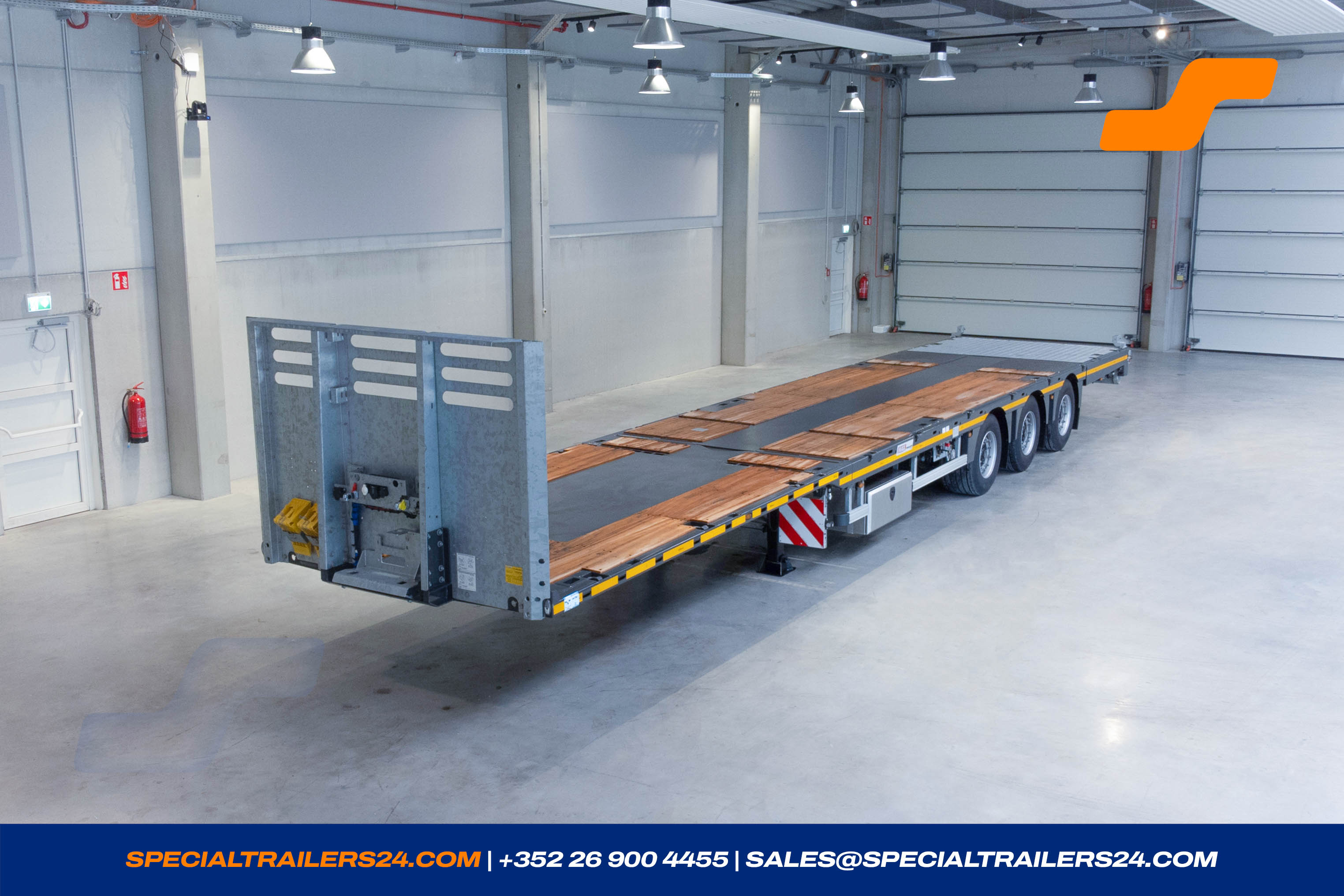

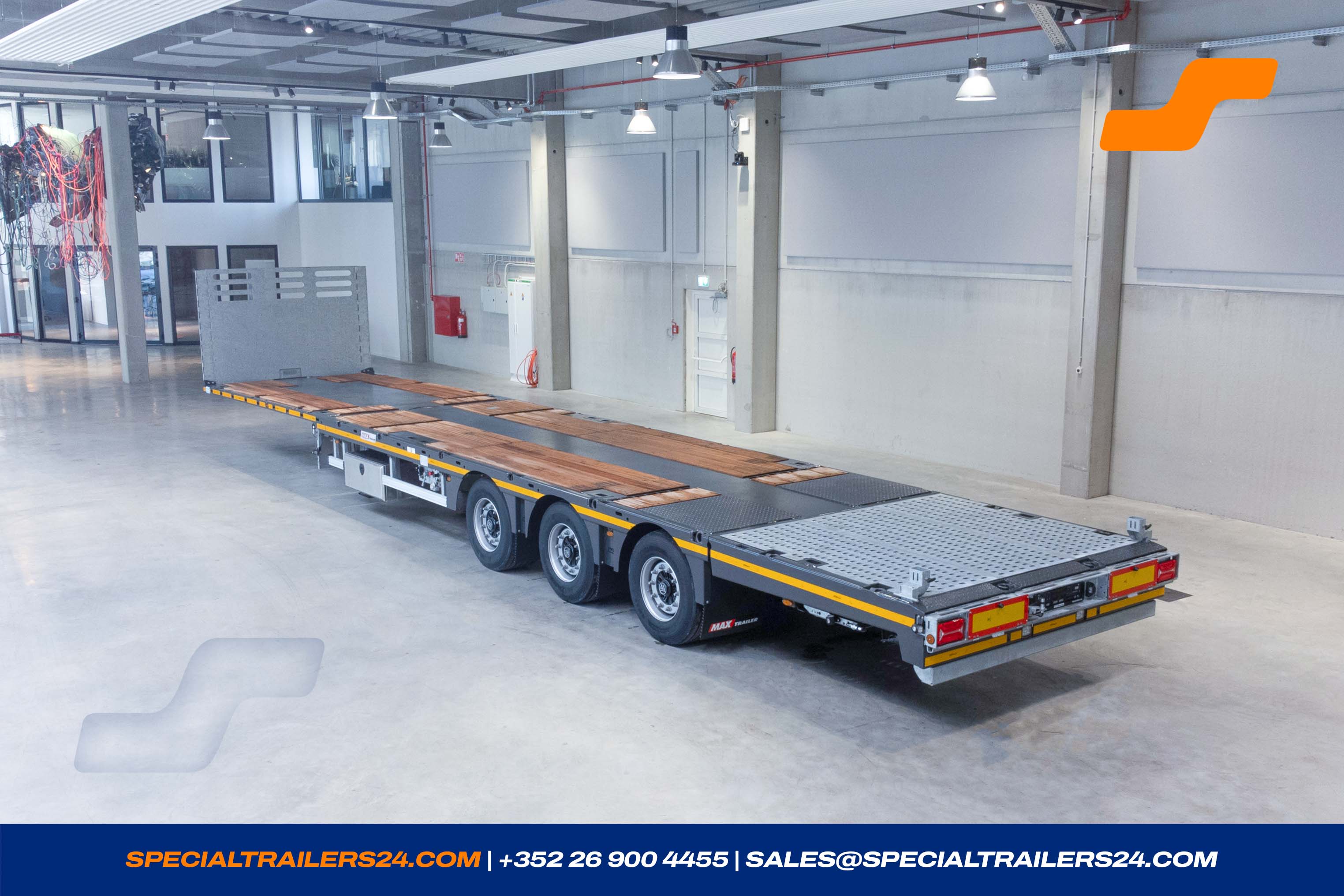

MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111273
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 9789 kg |
| Payload | 35211 kg |
Dimensions
| Fifth wheel height loaded | 1050->1100 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | 3 400 mm |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX200-N-3A(3400)-13.60-19.5-2.54(DSR 2300-ASH 1050->1100-9T) -FTR

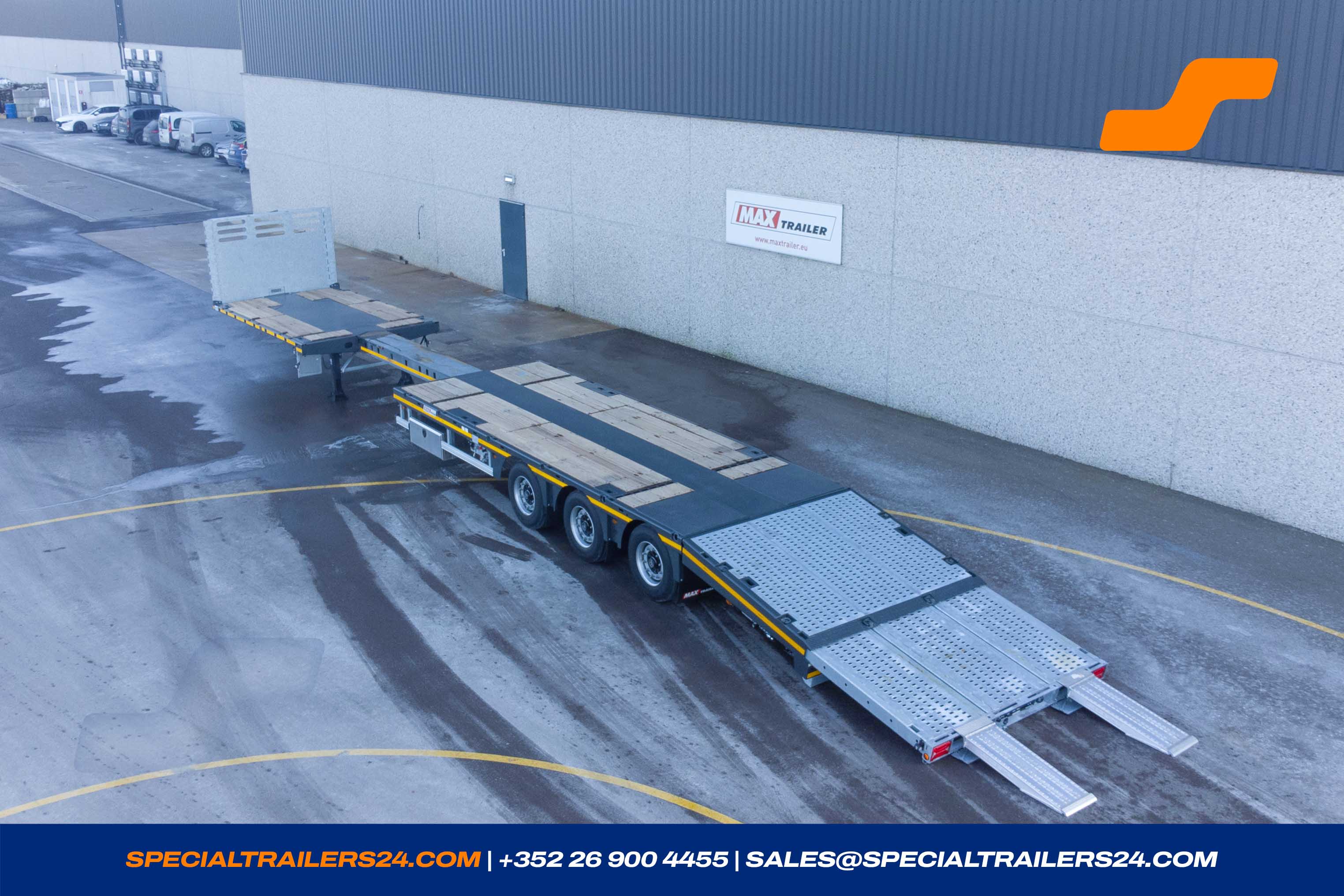

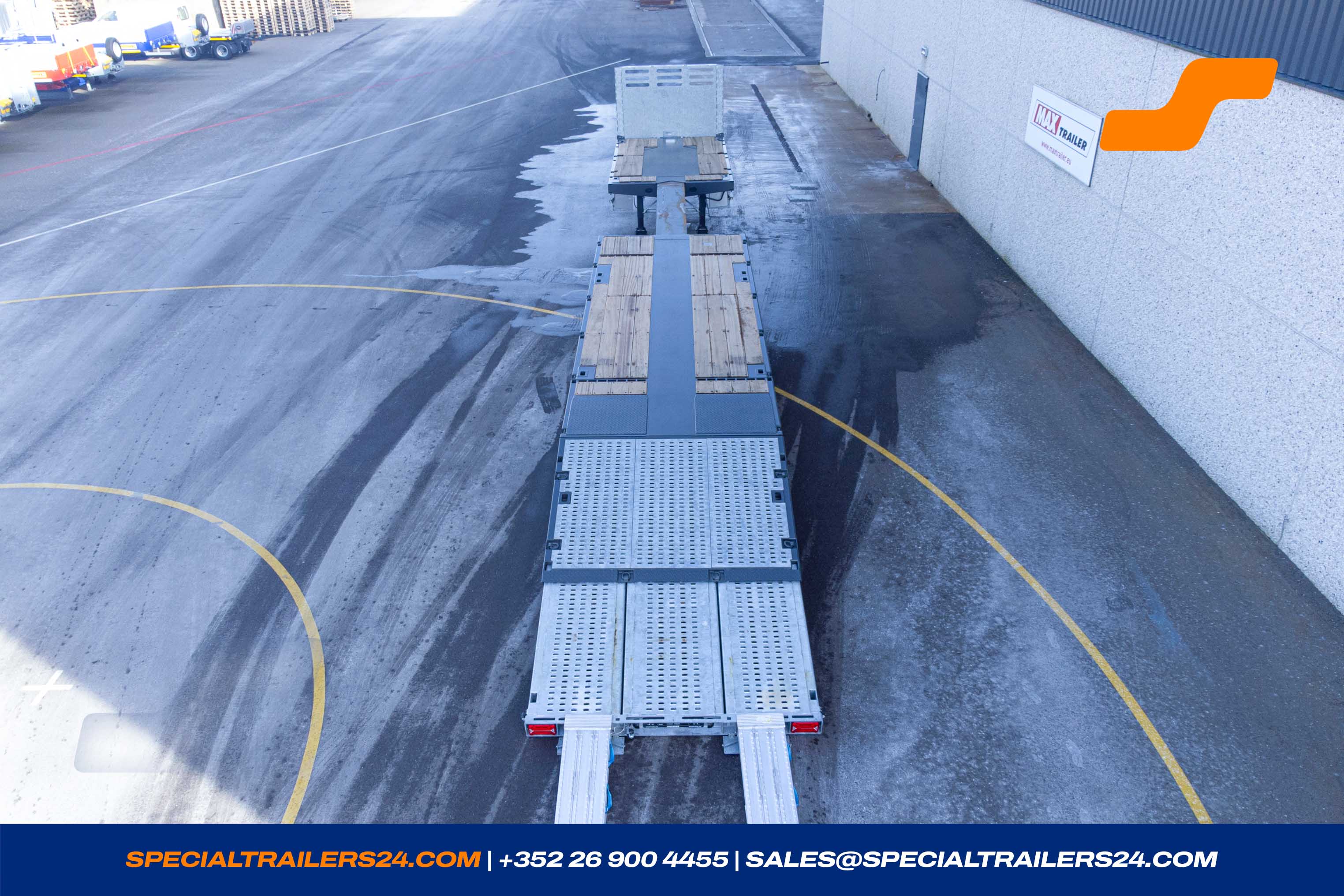

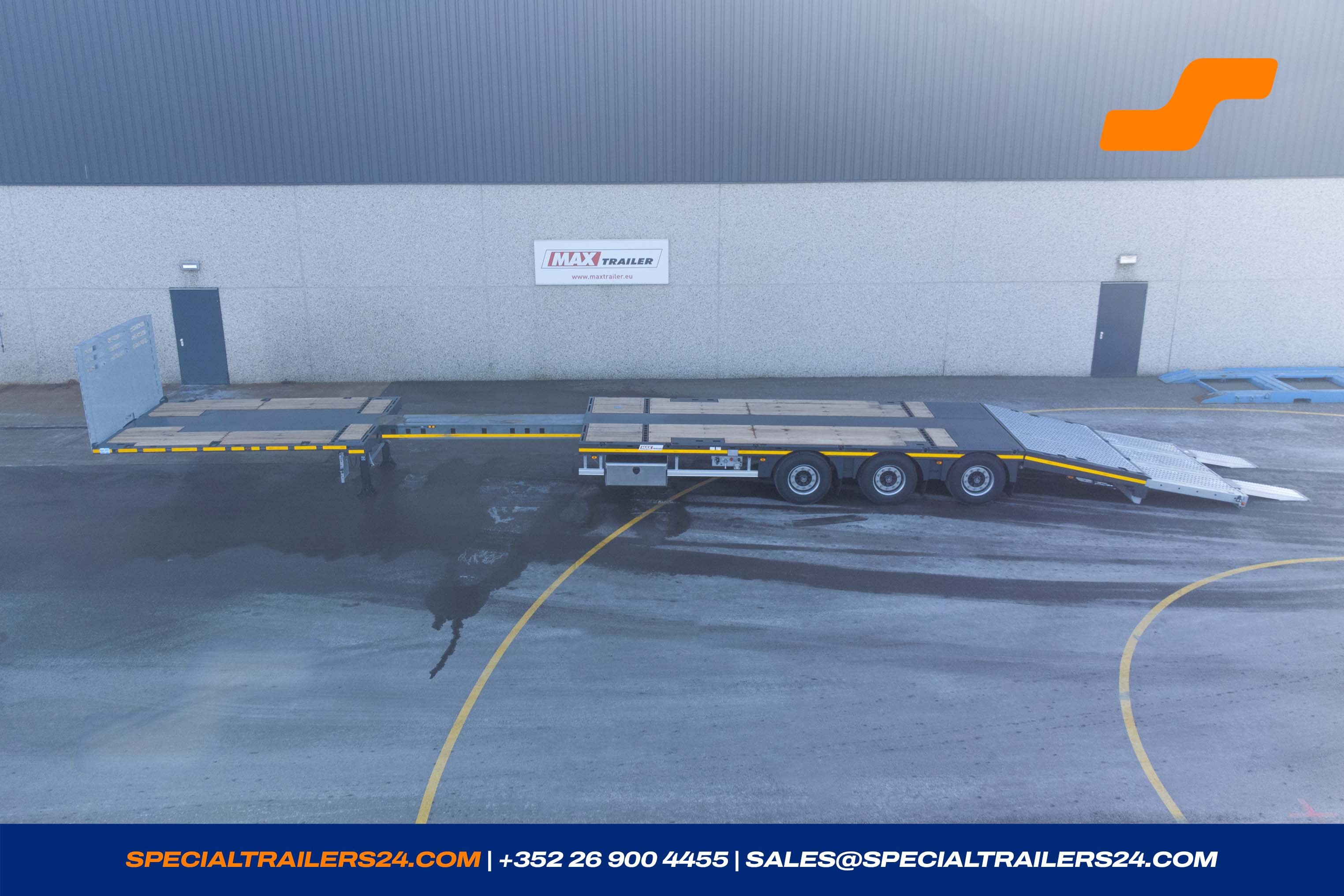

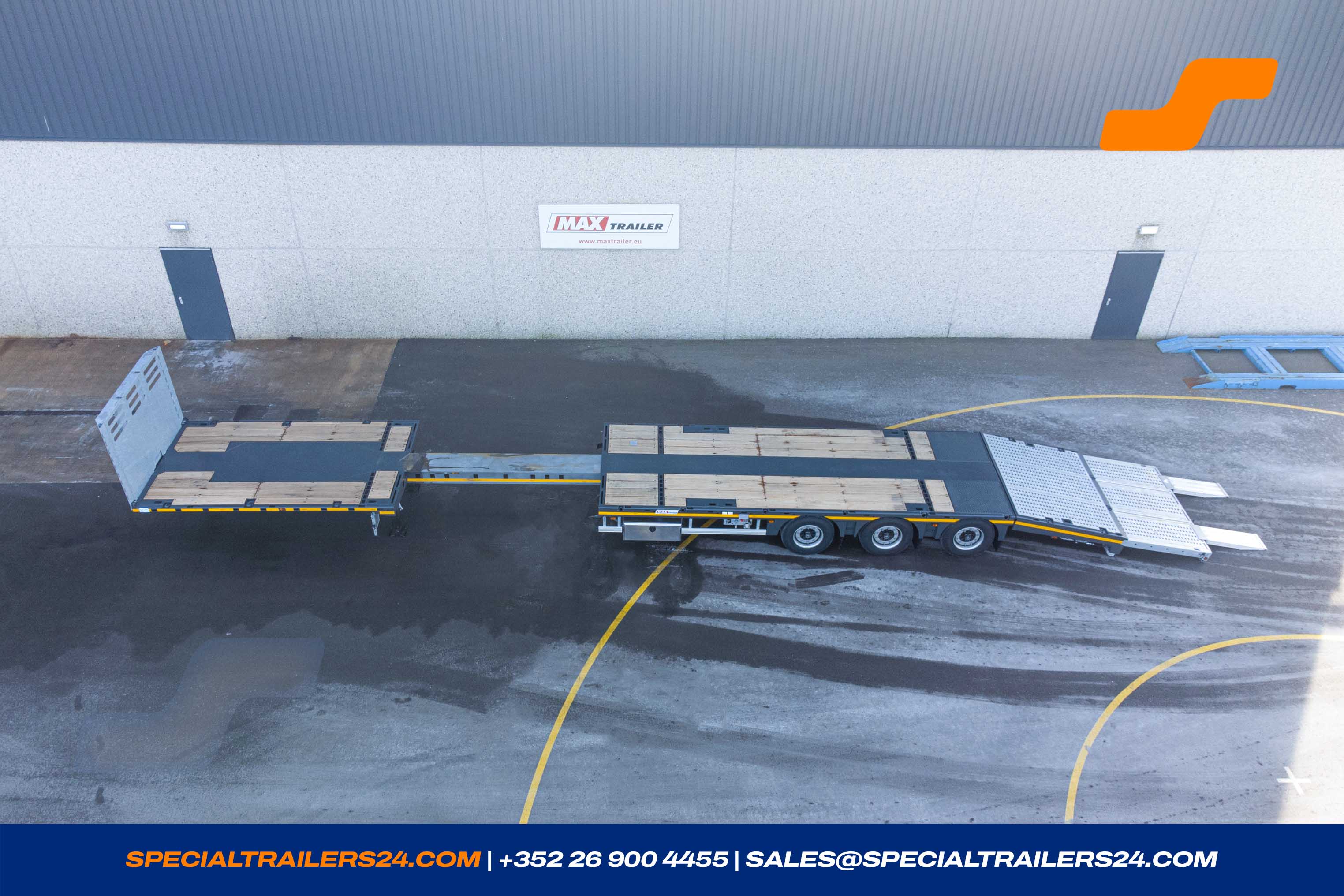

Loading platform in extendable version.

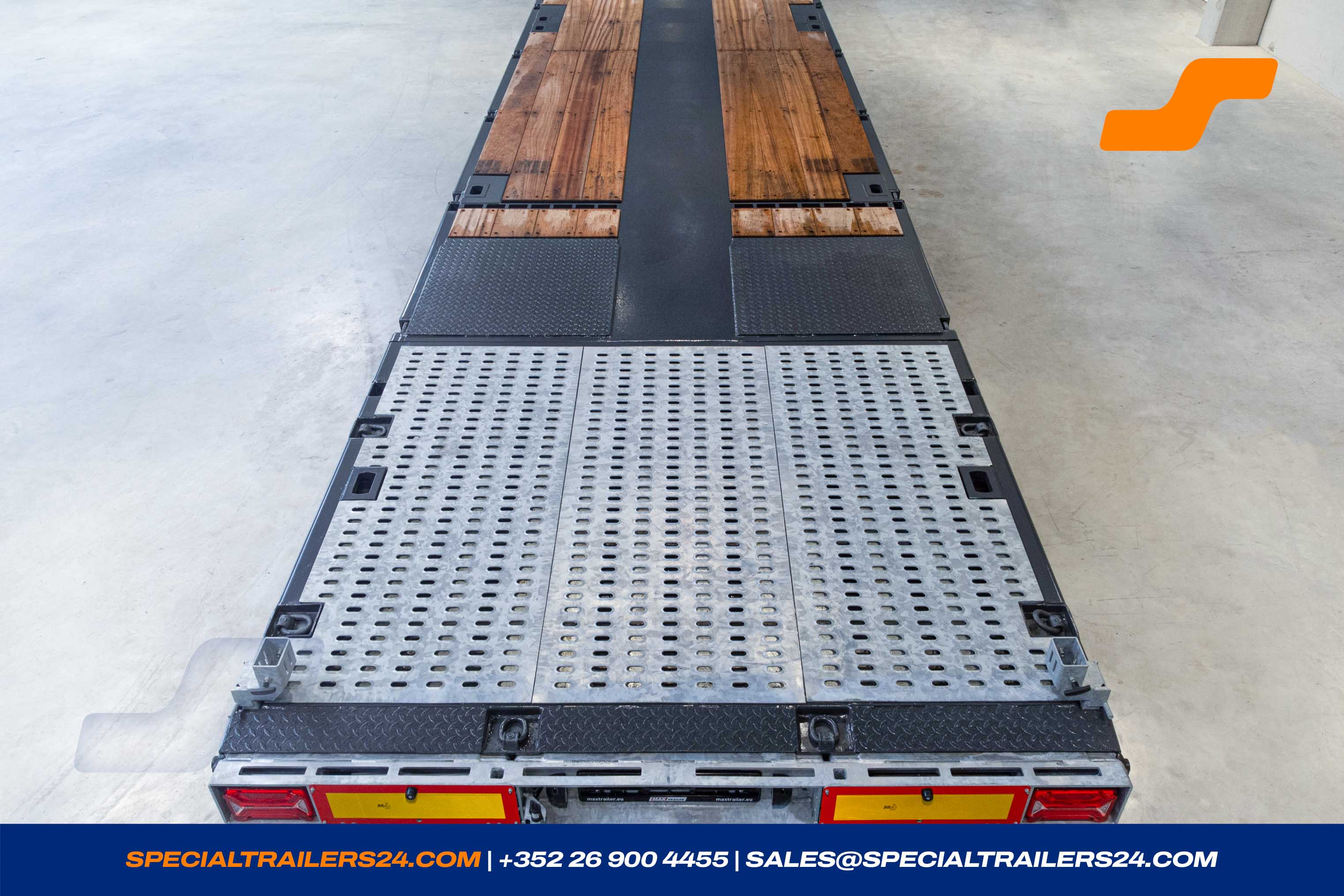

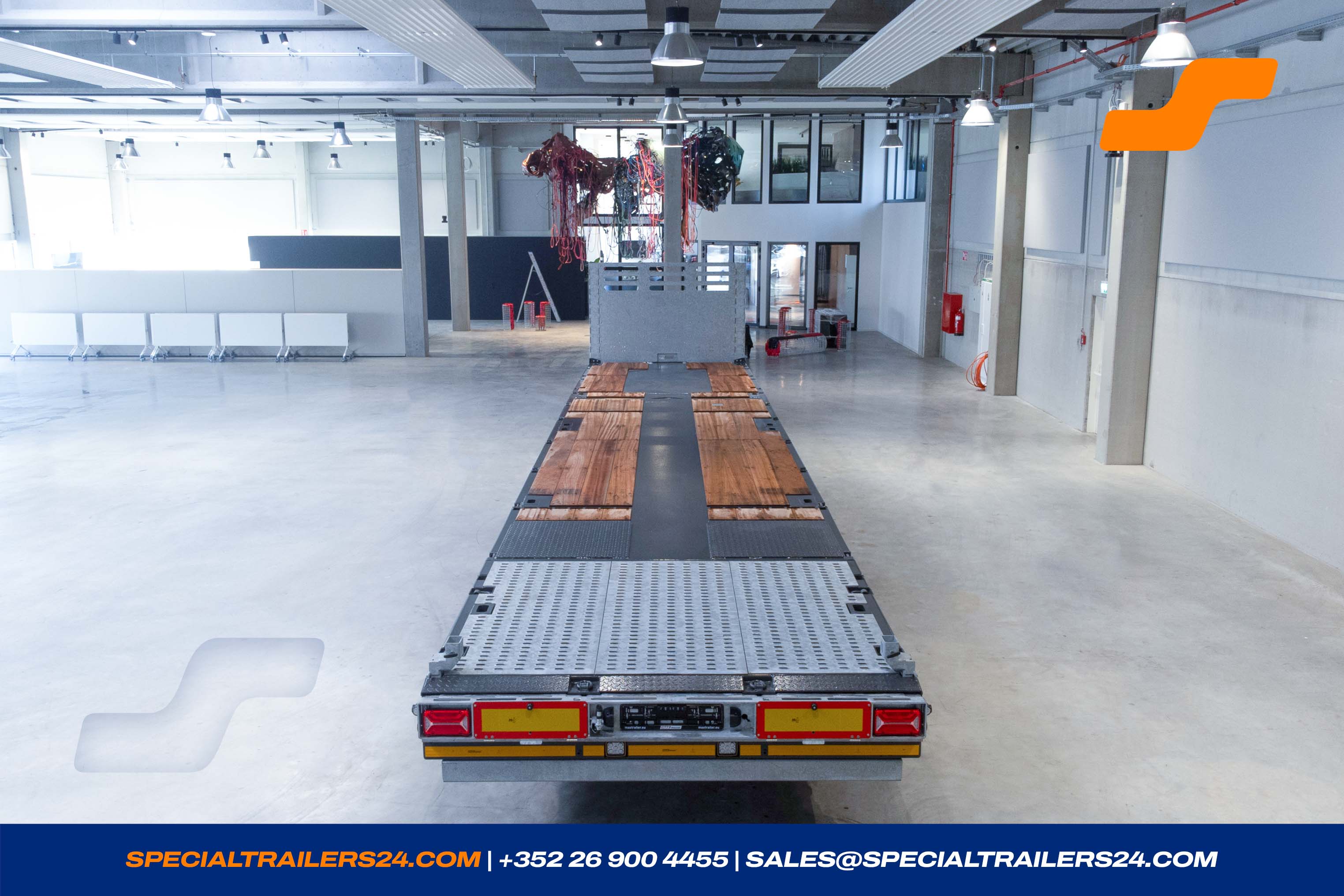

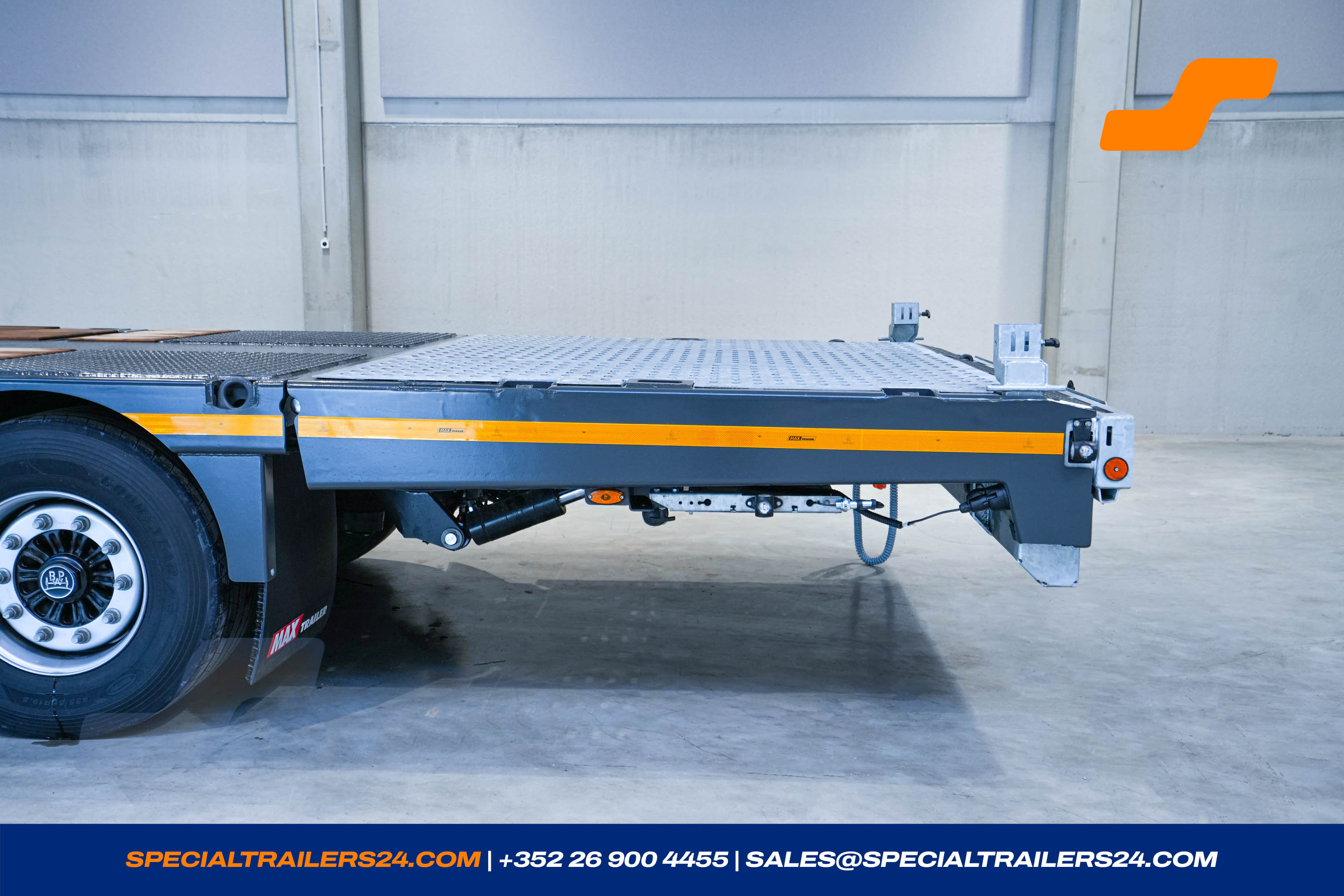

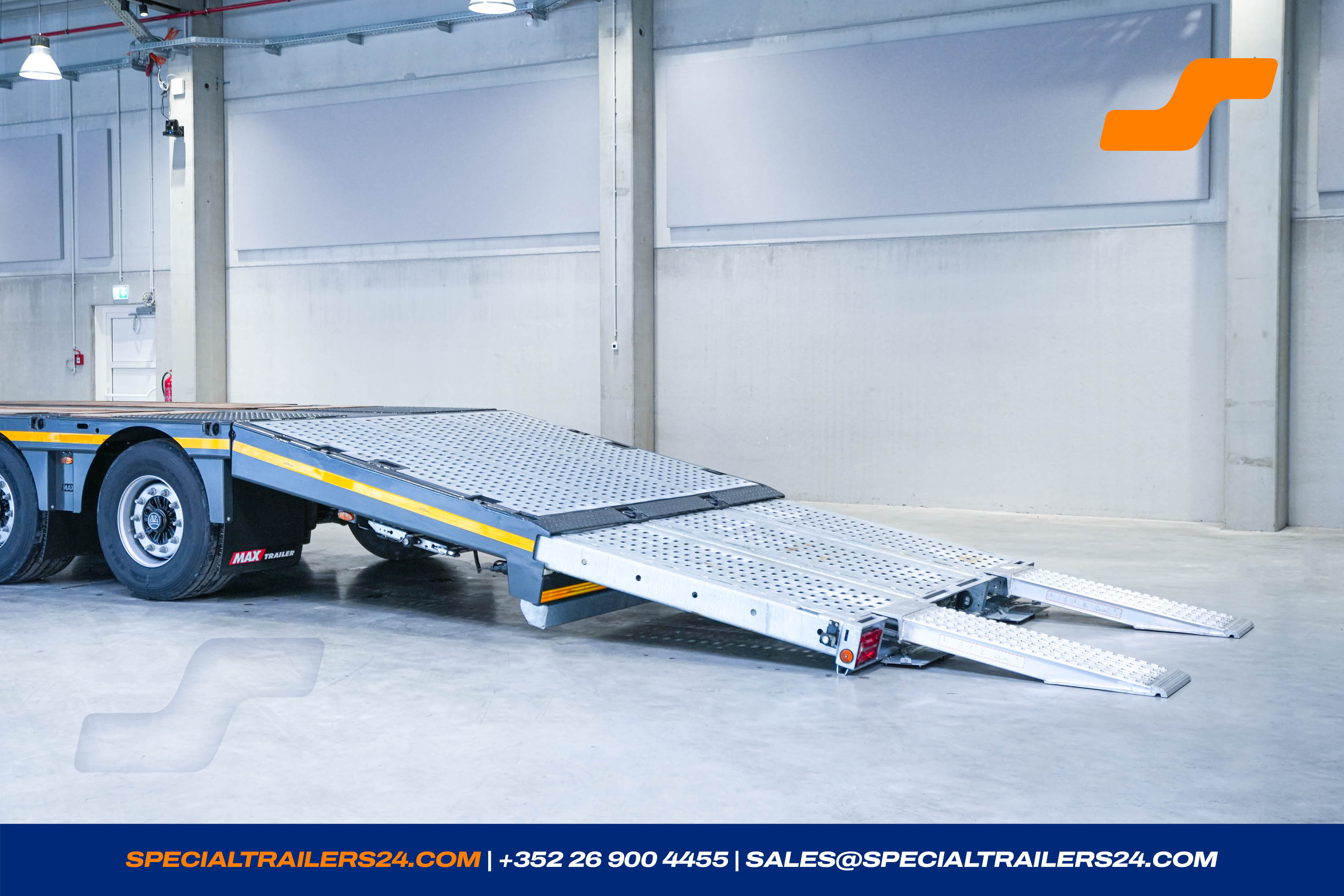

Loading platform at the rear with perforated steel on a length of approx. 2200 mm hydraulically lowerable.

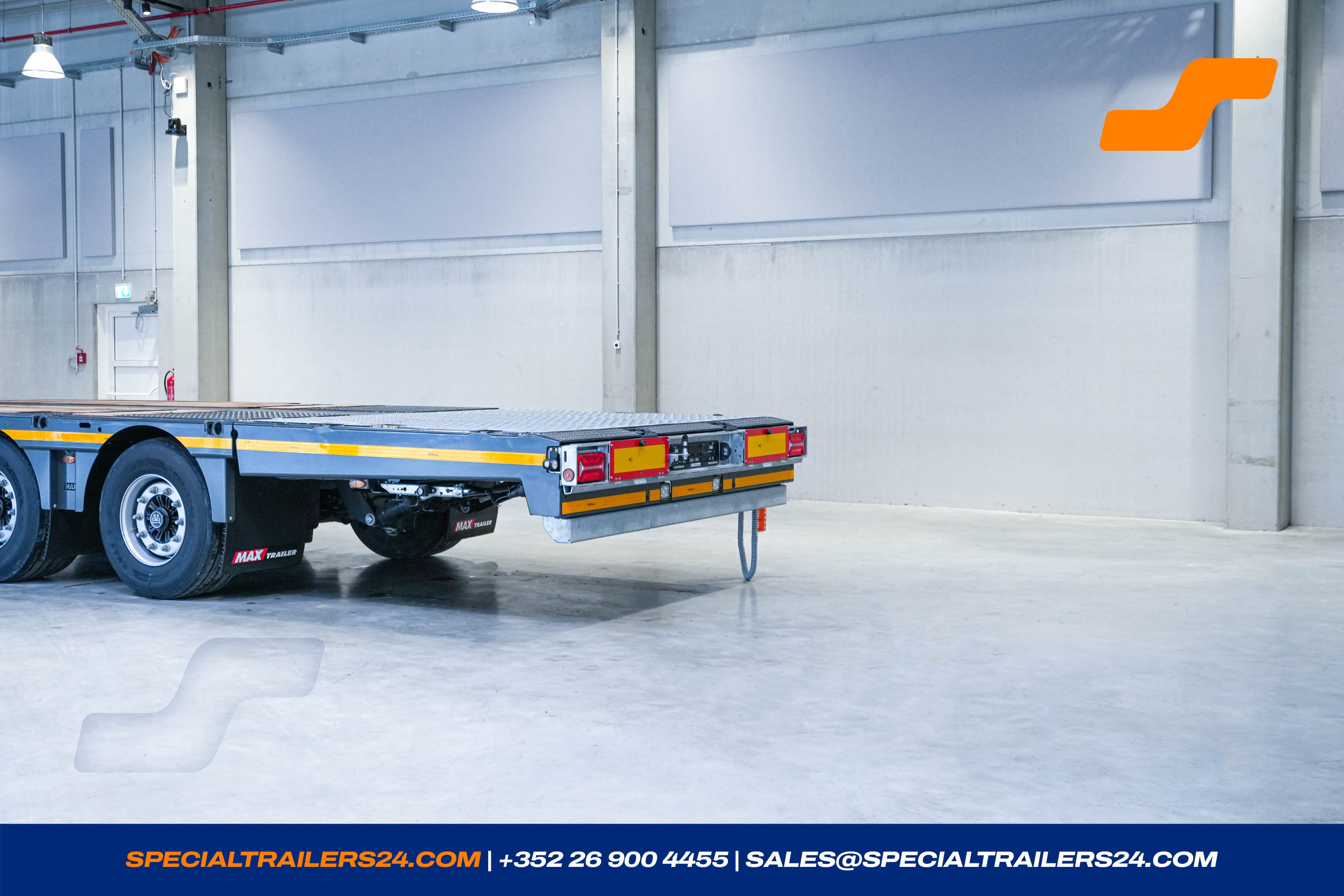

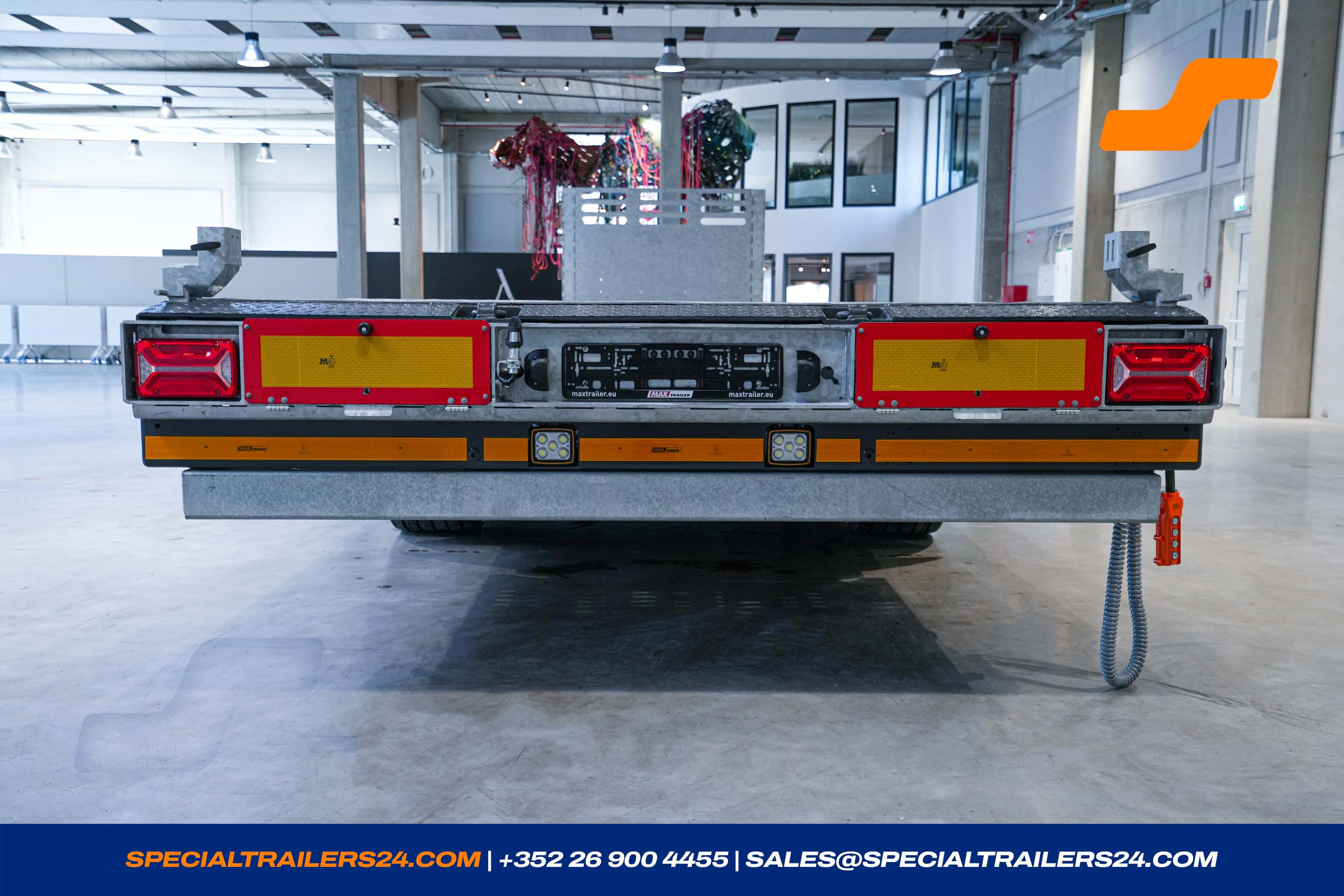

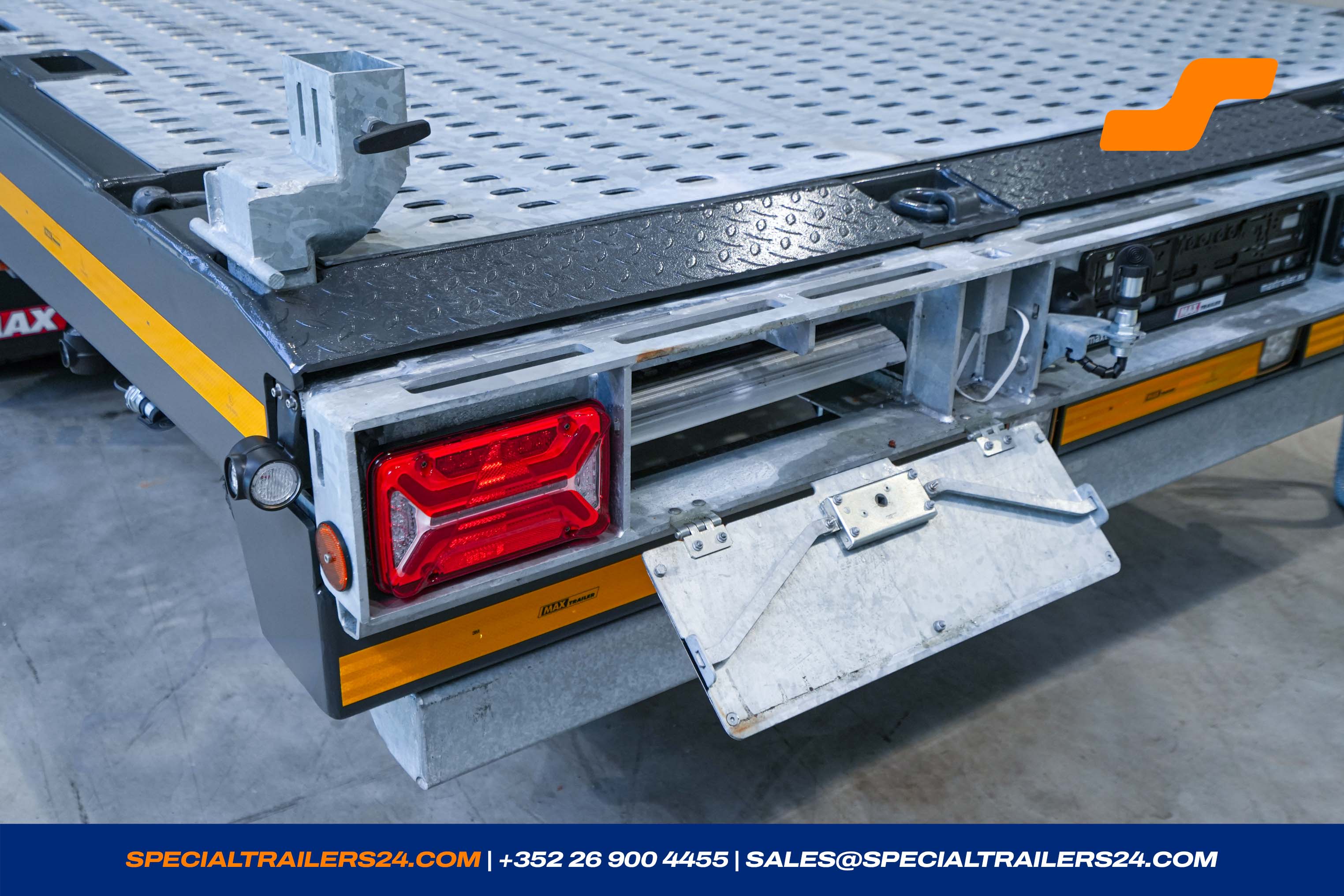

Vehicle rear end with integrated loading table that can be extended hydraulically by 1500 mm, including 2 ramp compartments and ramp supports. 6to capacity when lifted. The pull-out is not load-bearing.
The rear end of the vehicle can be driven on with up to 8to axle load and is not suitable for track machines.
2 pairs of lashing rings (LC 5000 daN).
1 pairs of lashing rings (LC 10000 daN).

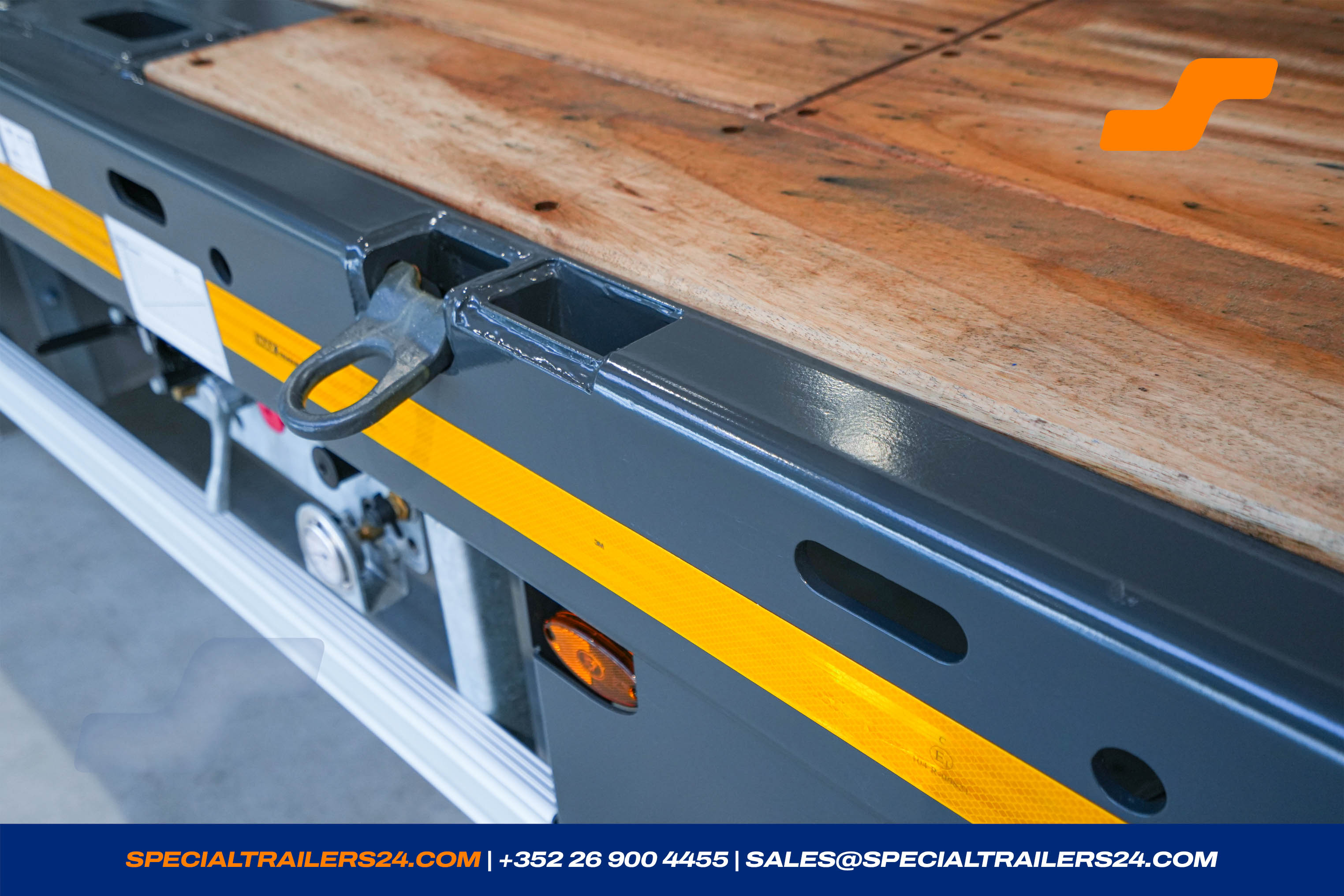

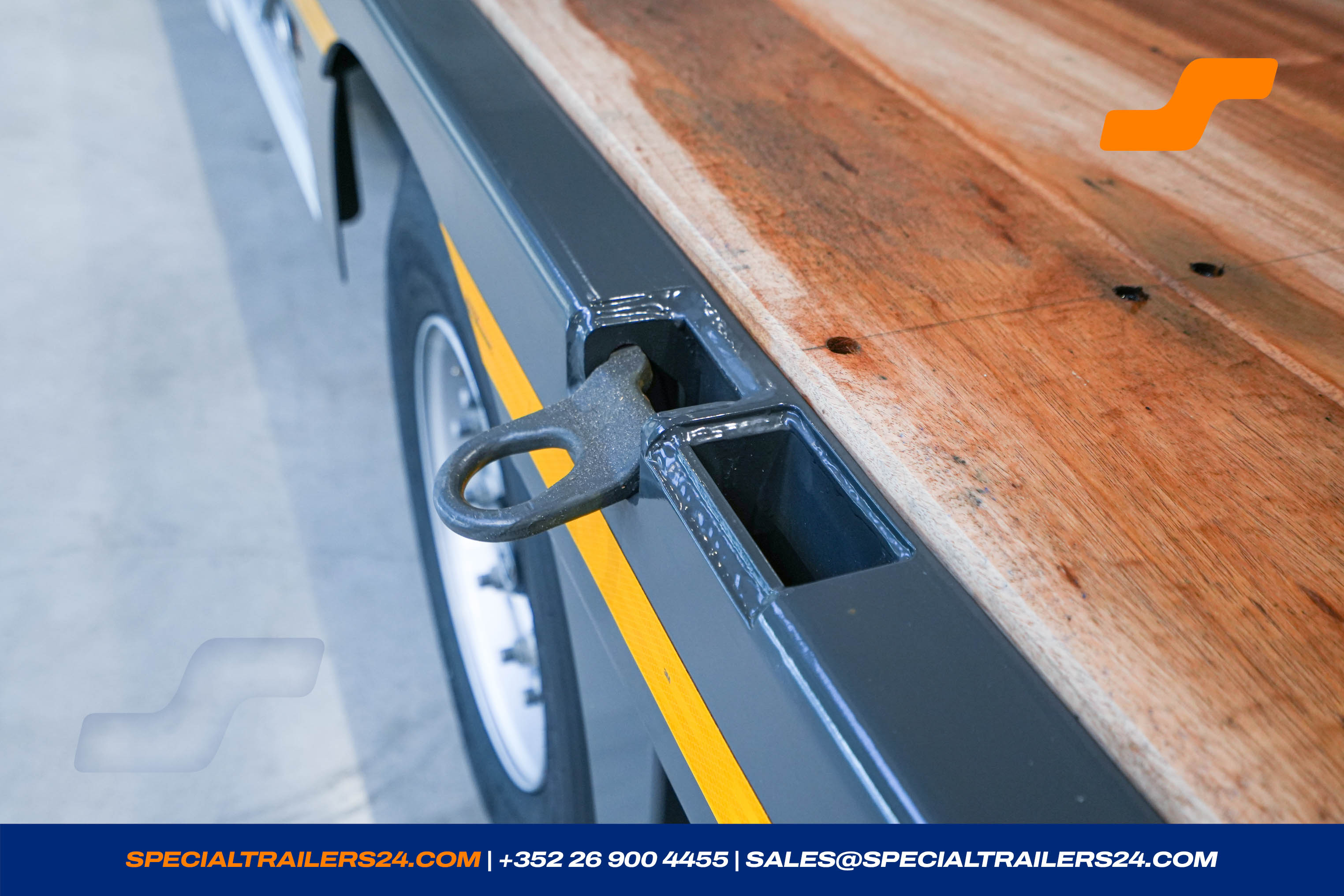

5 pairs of lashing rings hinged outwardss (LC 5000 daN).
2 pairs of lashing rings hinged outwardss (LC 10000 daN).
1 pair of lashing rings at the rear of the trailer (LC 5000 daN).
cutouts in the border frame of the loading area for hooking in tension belts (LC 2000 daN)

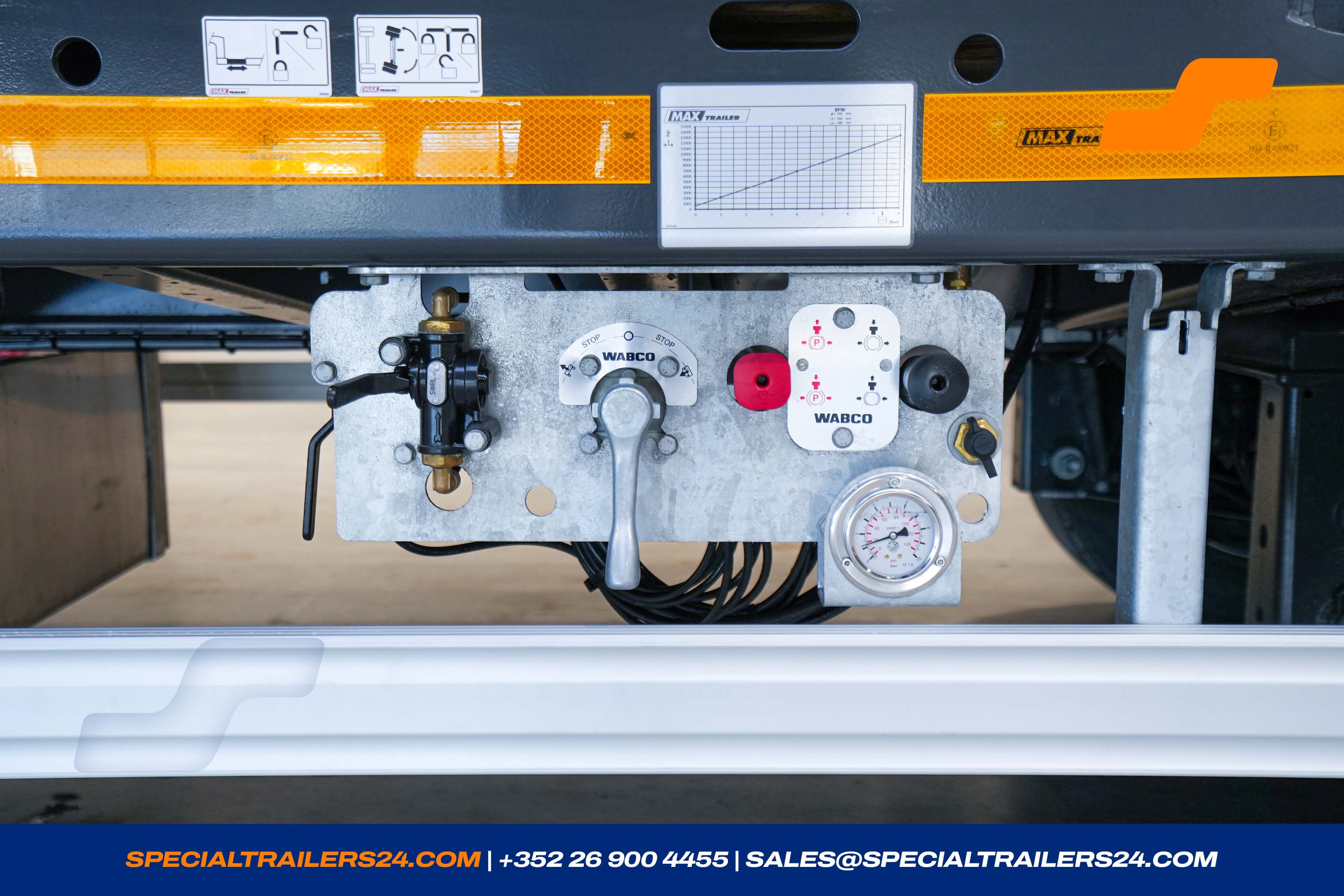

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- 2 king-pin.
-

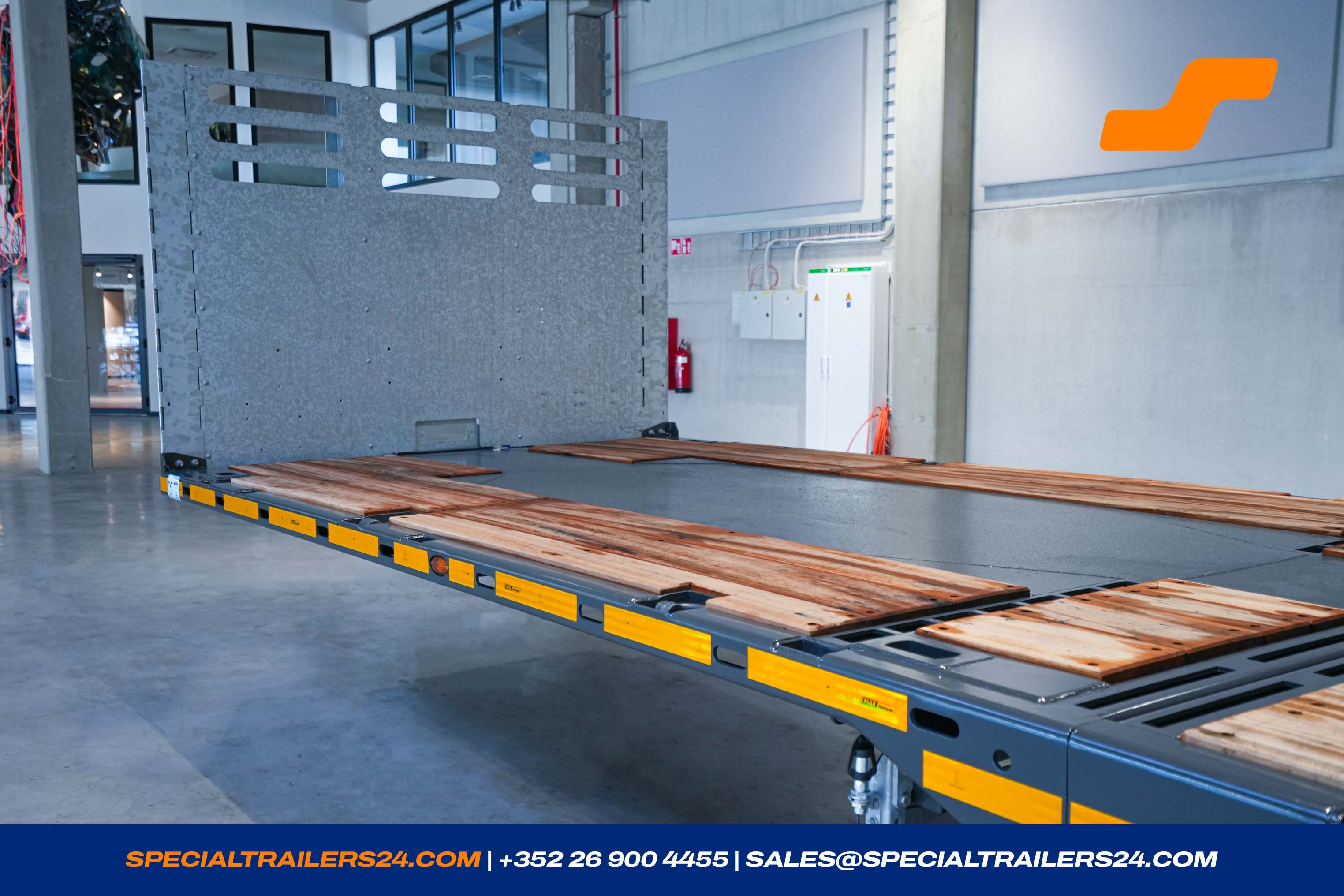

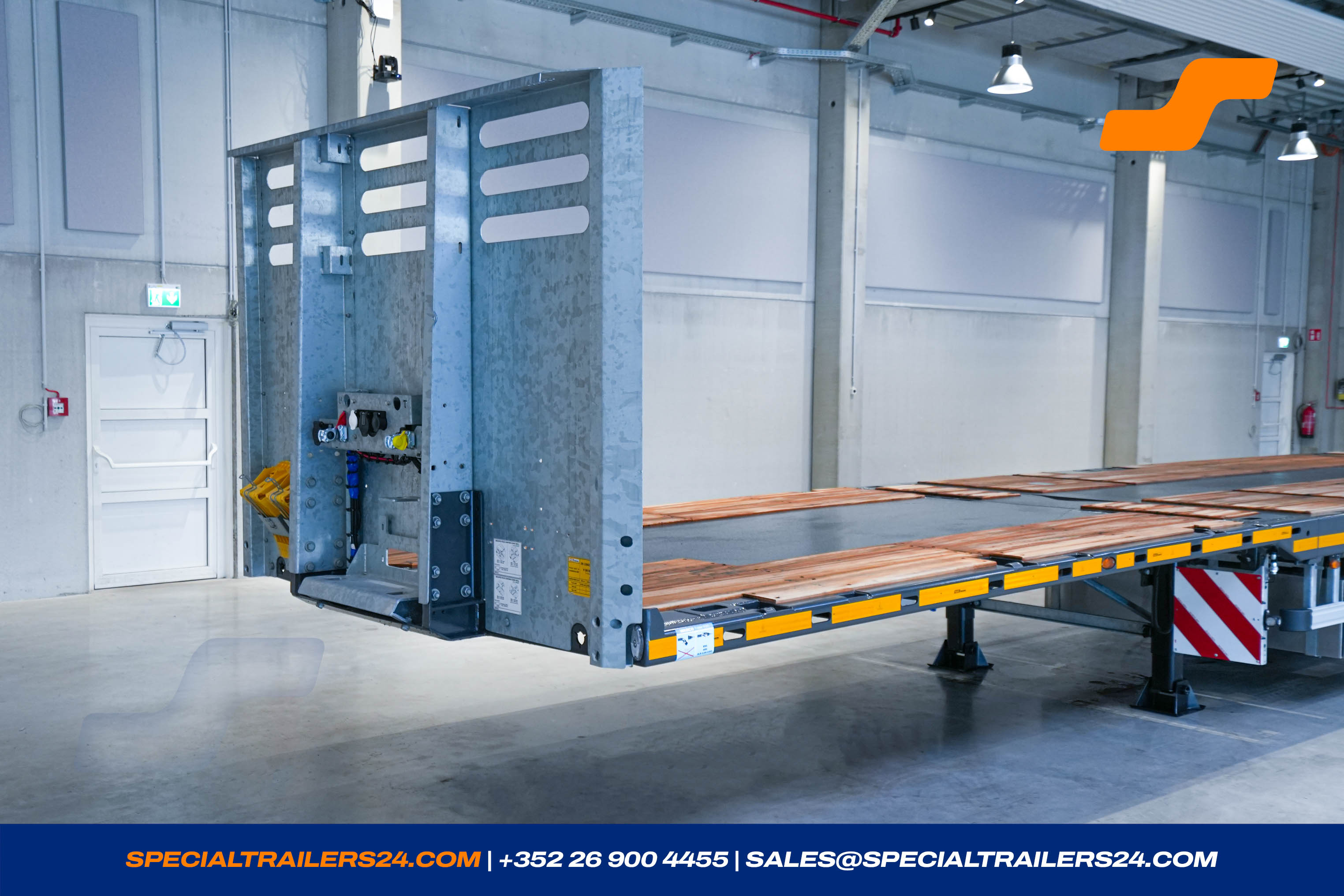

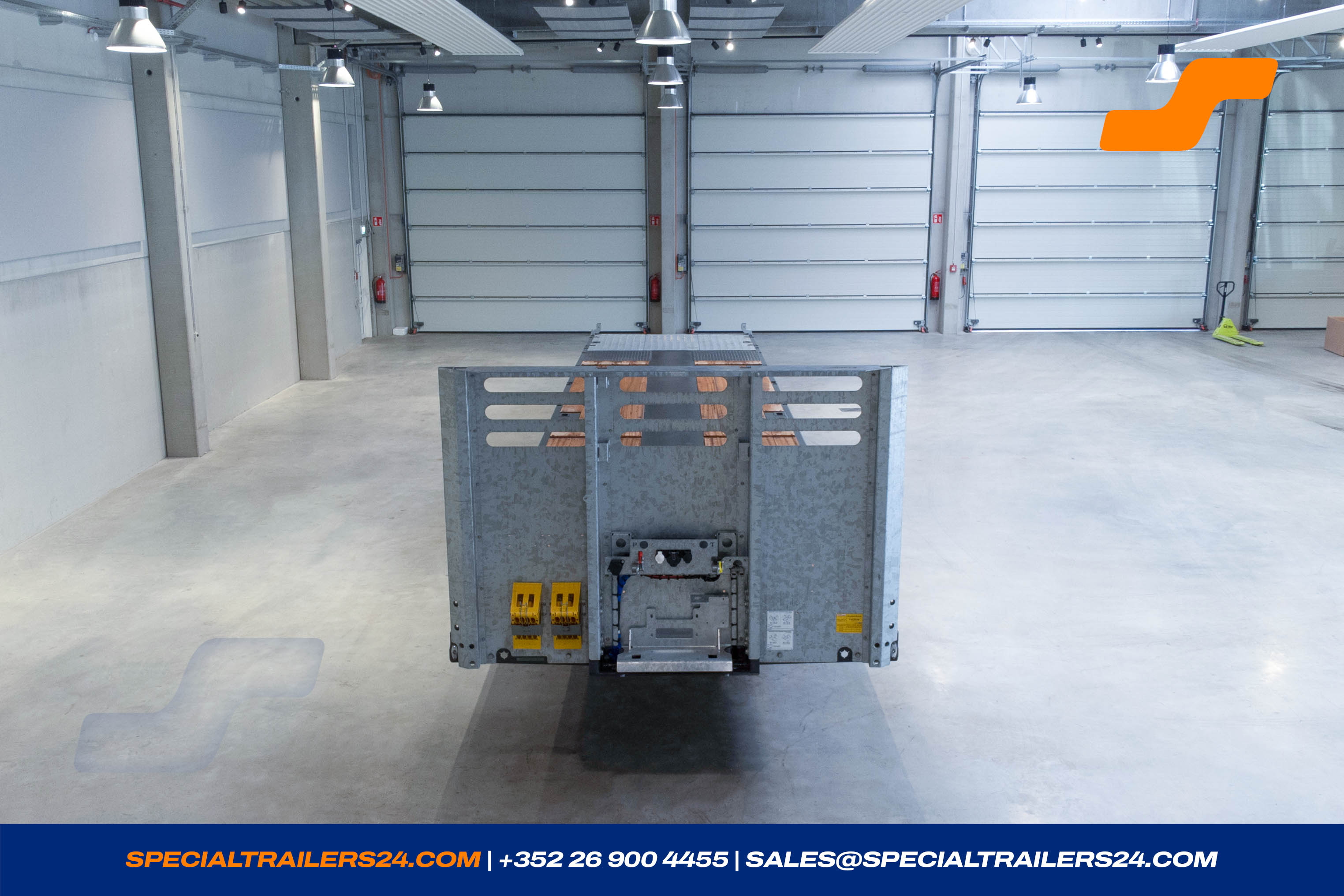

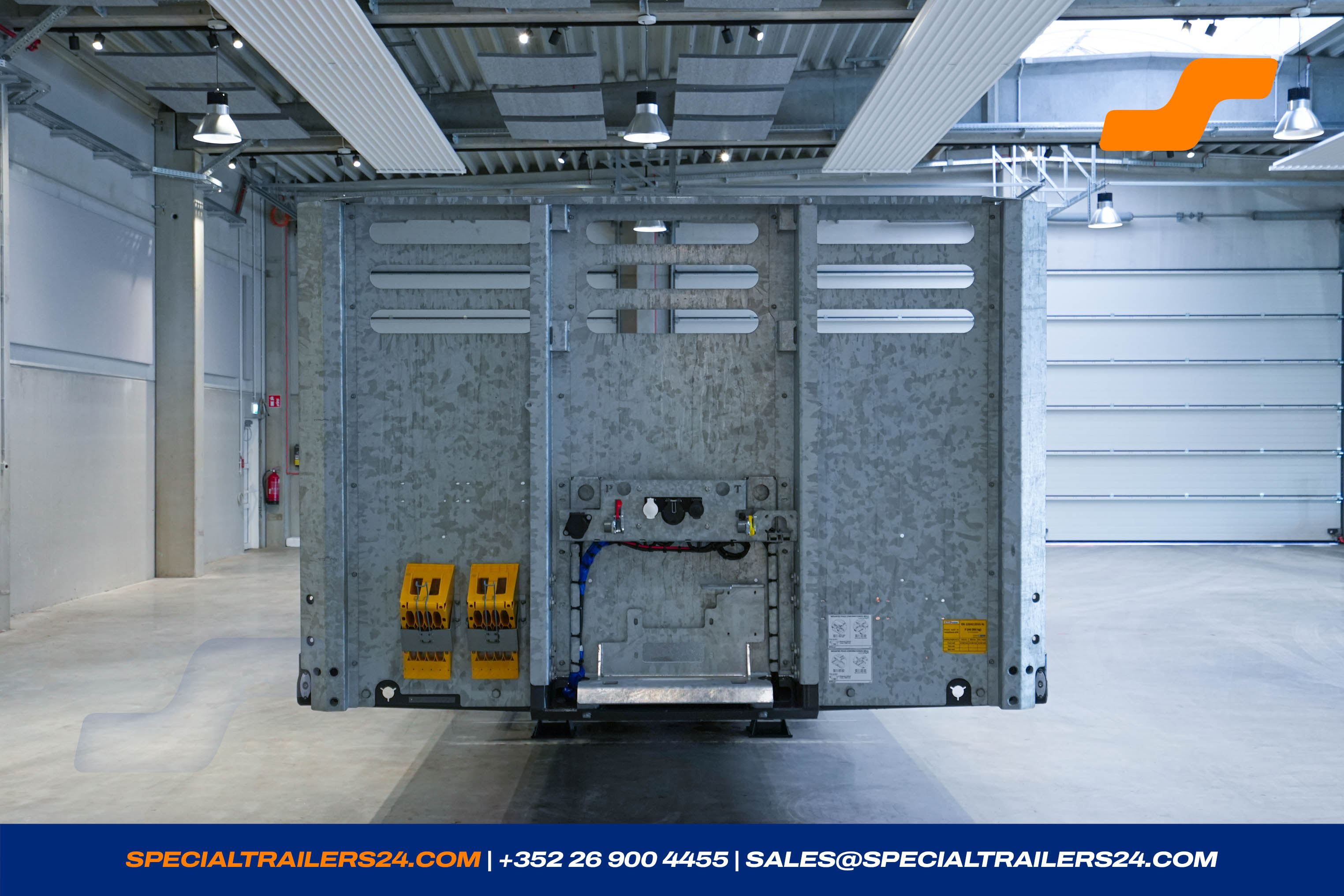

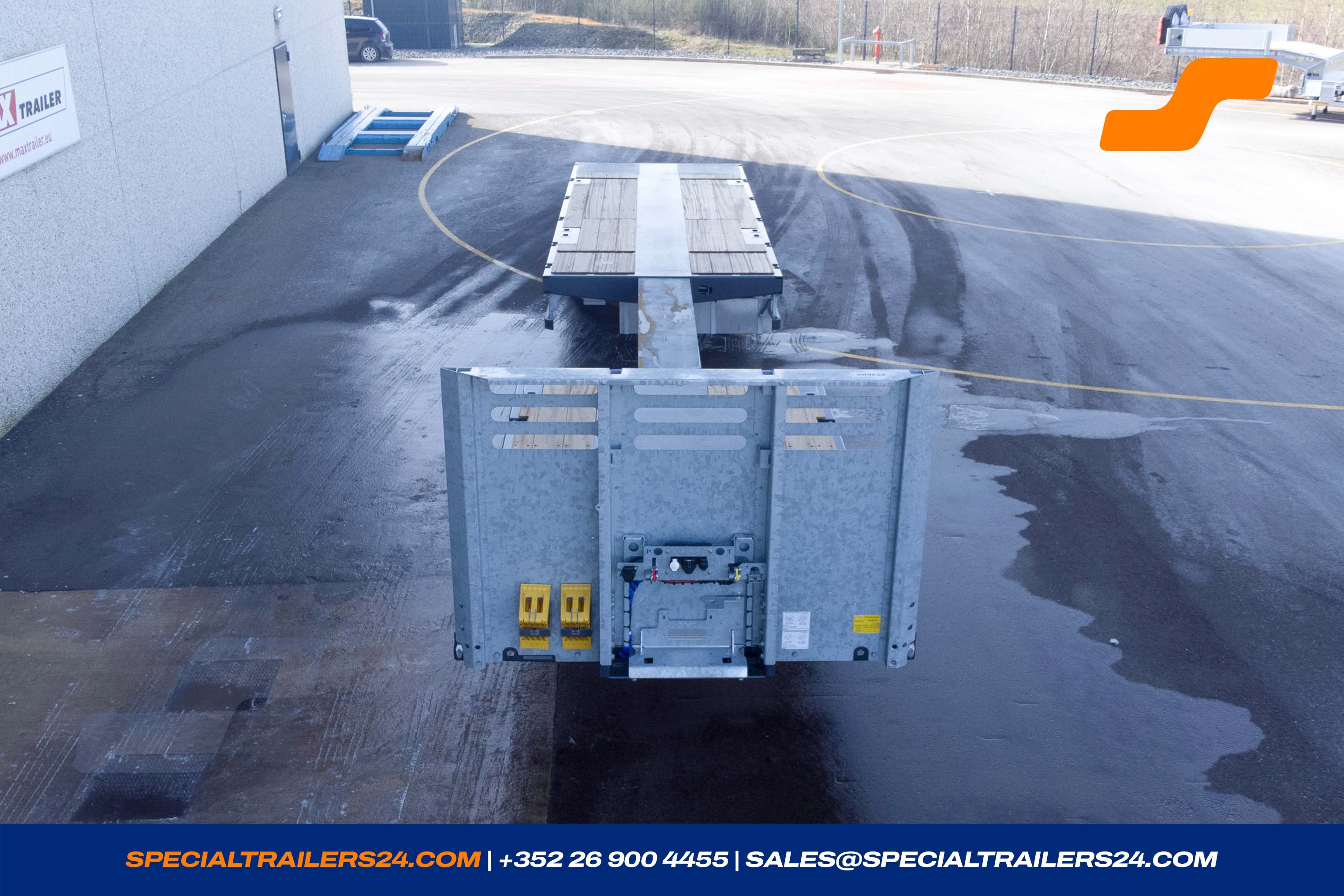

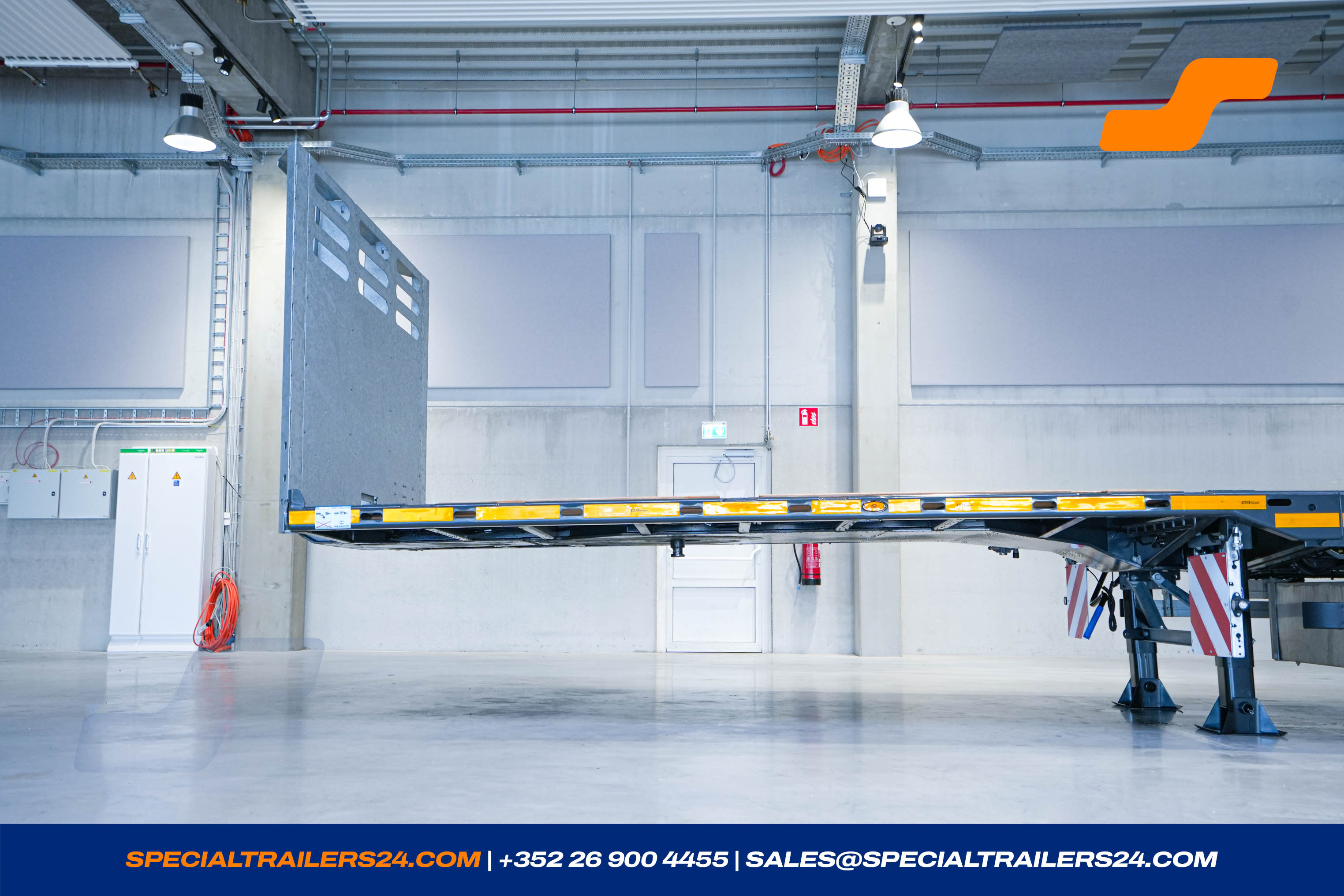

One galvanised steel headboard, height ± 1 200 mm.
EN12642-XL - Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

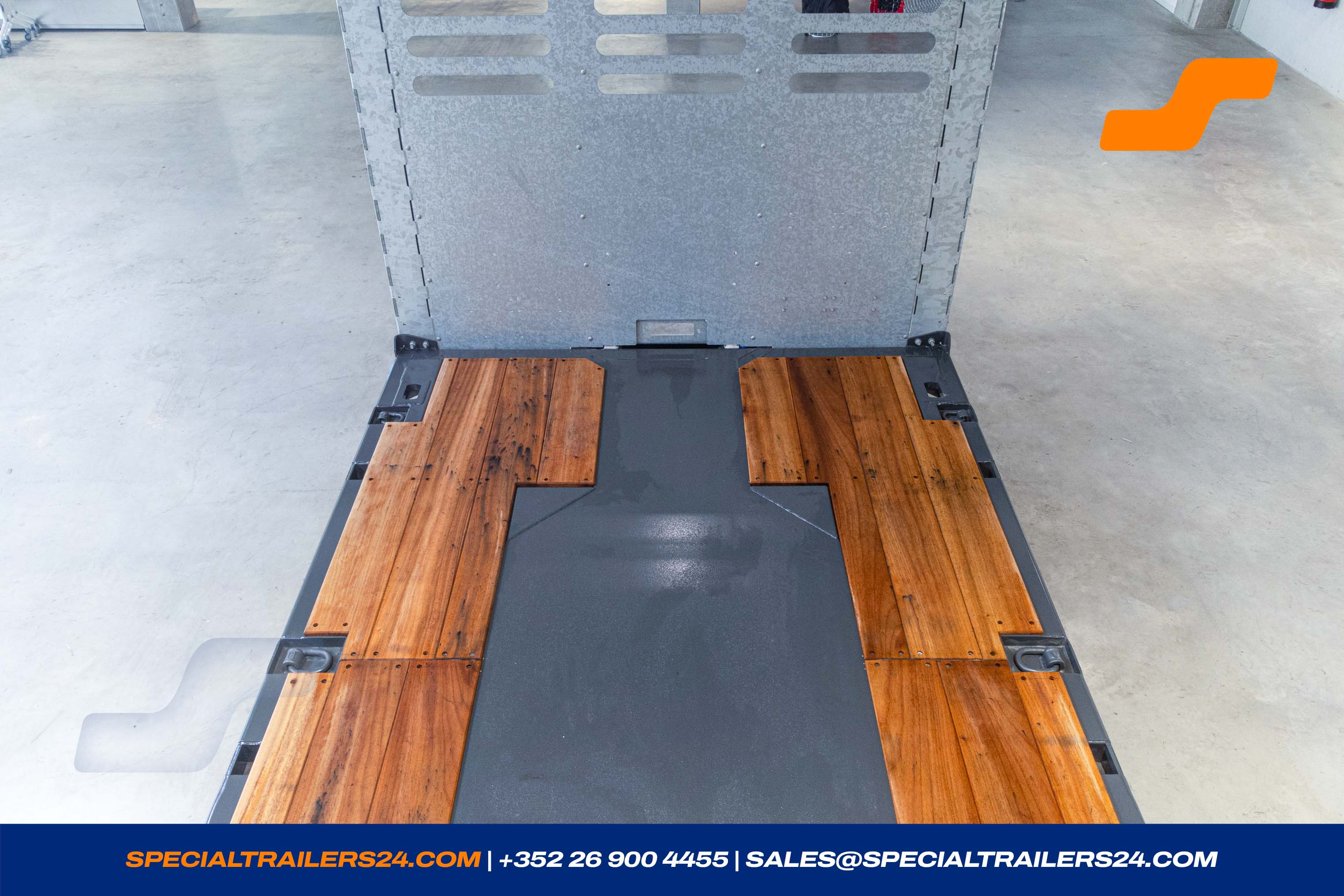

- Loading area with hardwood timber.
-

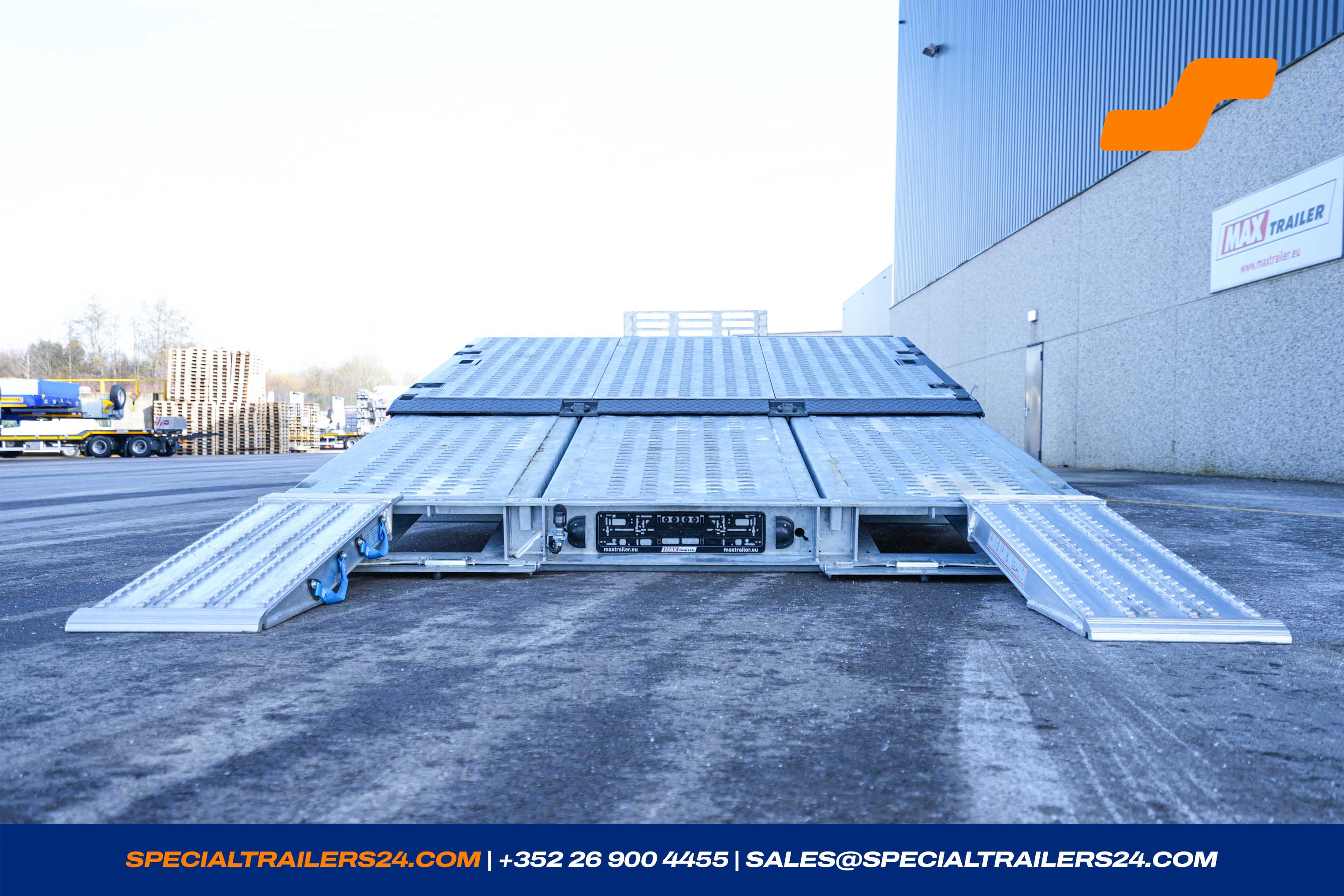

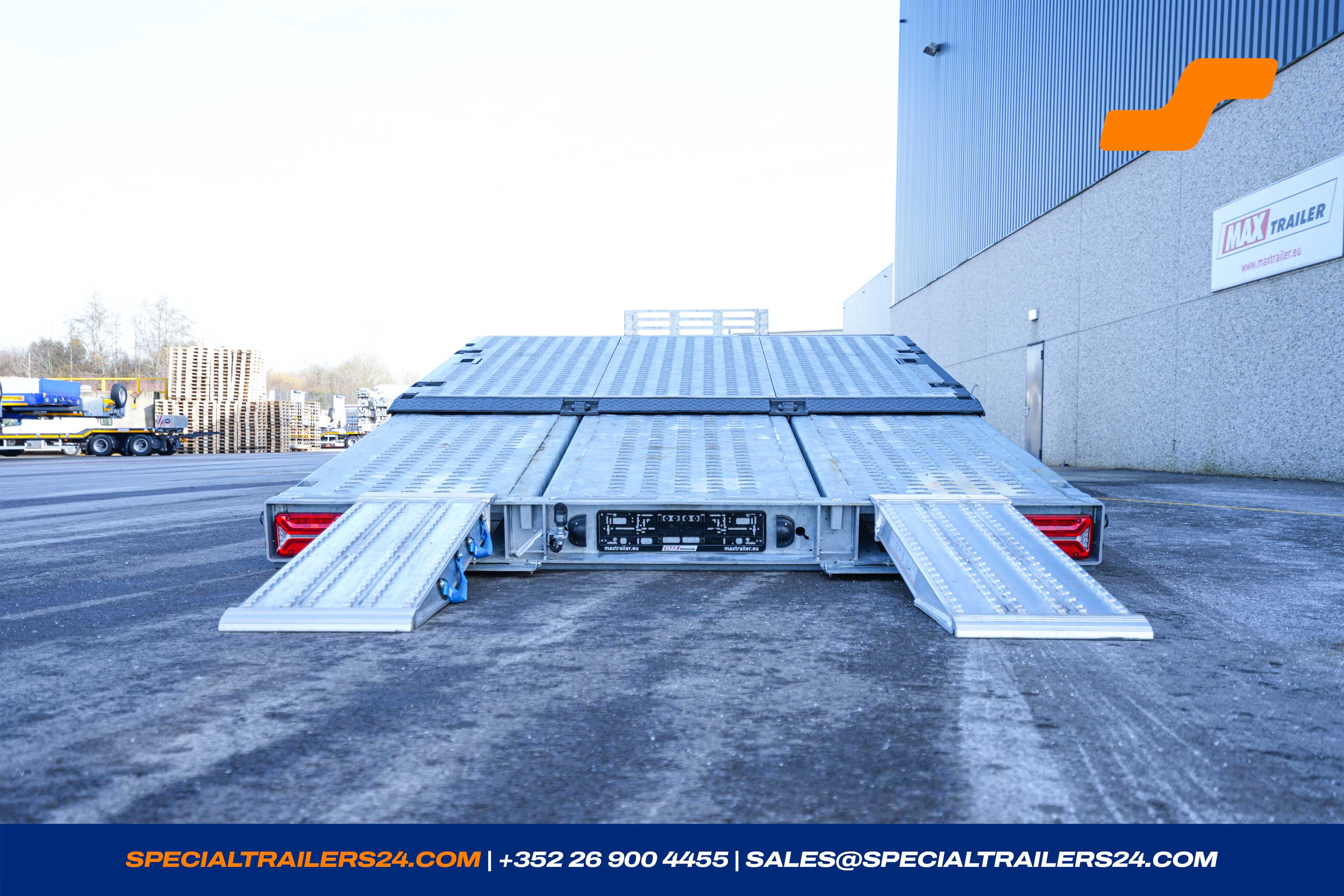

1 pair of alu ramps VFR 105 ca. 1300x390 x 105 mm (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 7650 daN (Kp)
by axle distance 2.0 meter : 7650 daN (Kp)
single axle 5740 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 24 kg (± 48kg) - 1 spare wheel carrier, under the loading platform on the right side.
- Manual and description on USB stick .
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Electrically operated hydraulic pump. (± 45kg)

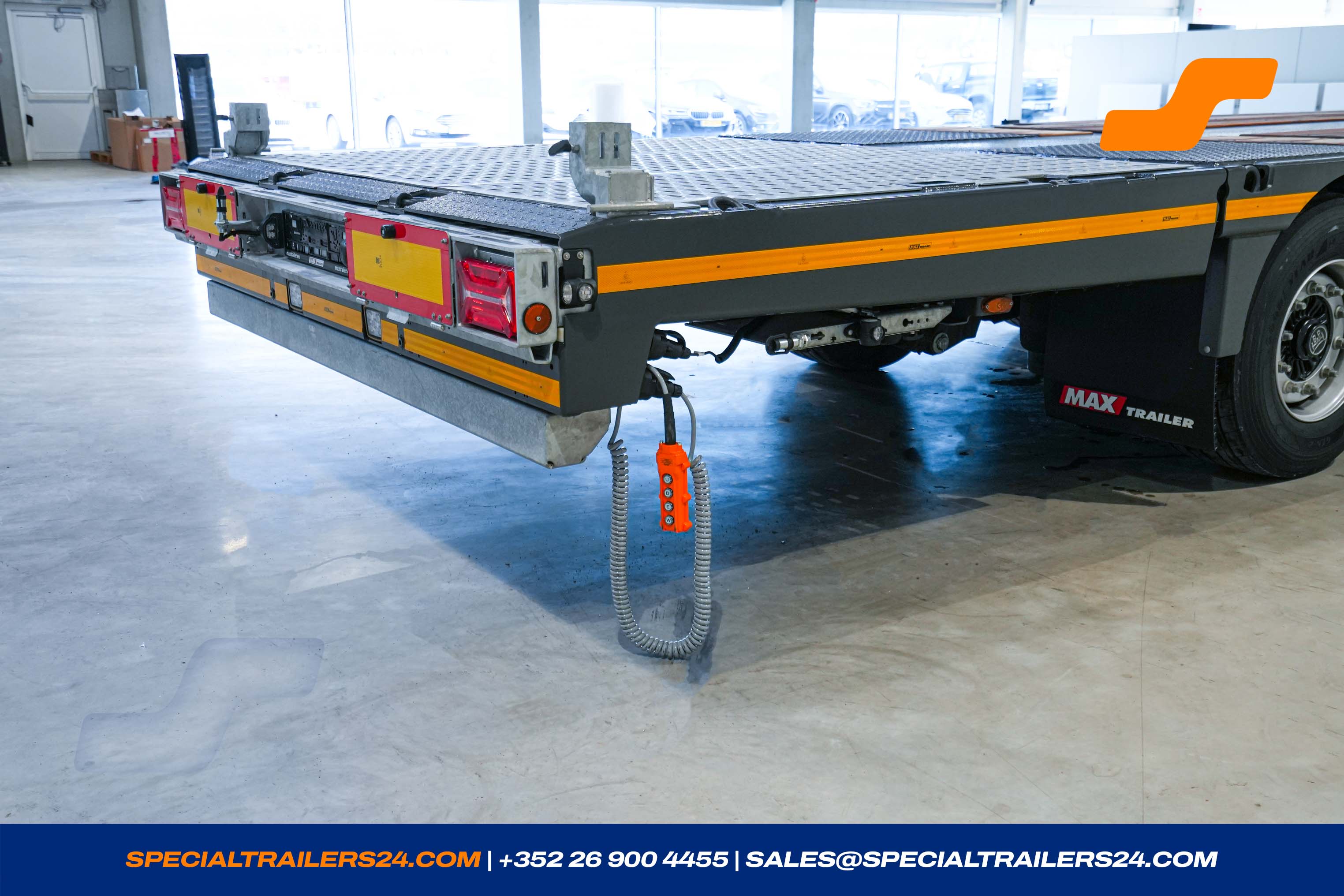

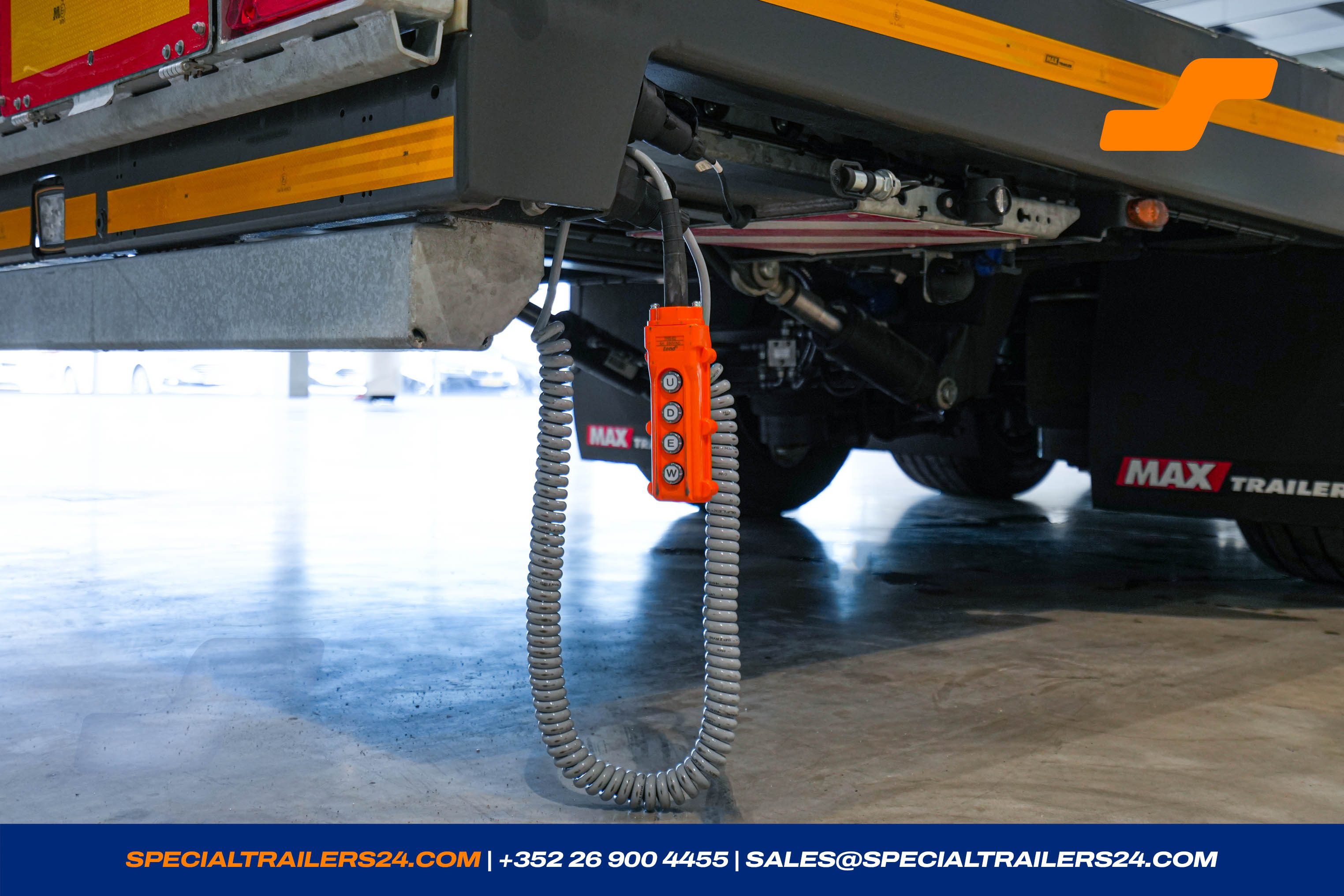

- Cable control for the hydraulic rear.
- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- One powder fire extinguisher (6 kg) with a protective casing and holder on the headboard (± 15kg).
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 4 pairs of WADER-containerlocks. (± 60kg)
- One removable, galvanised sliding bolster, ± 250 mm wide (± 127 kg).
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)

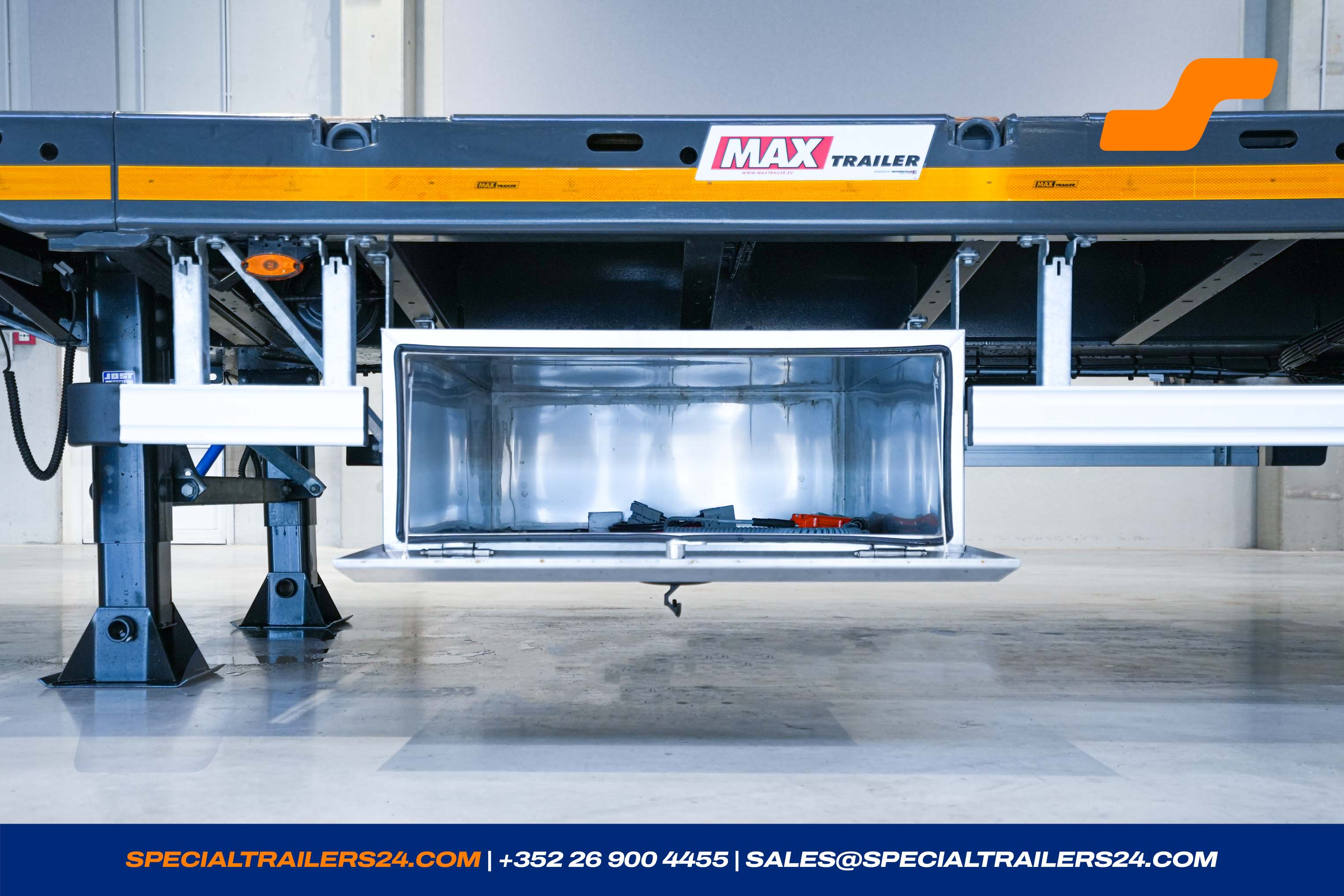

- Two lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left and right side. (± 54kg)
- 1 spare wheel 435/50 R19.5 (± 105 kg)

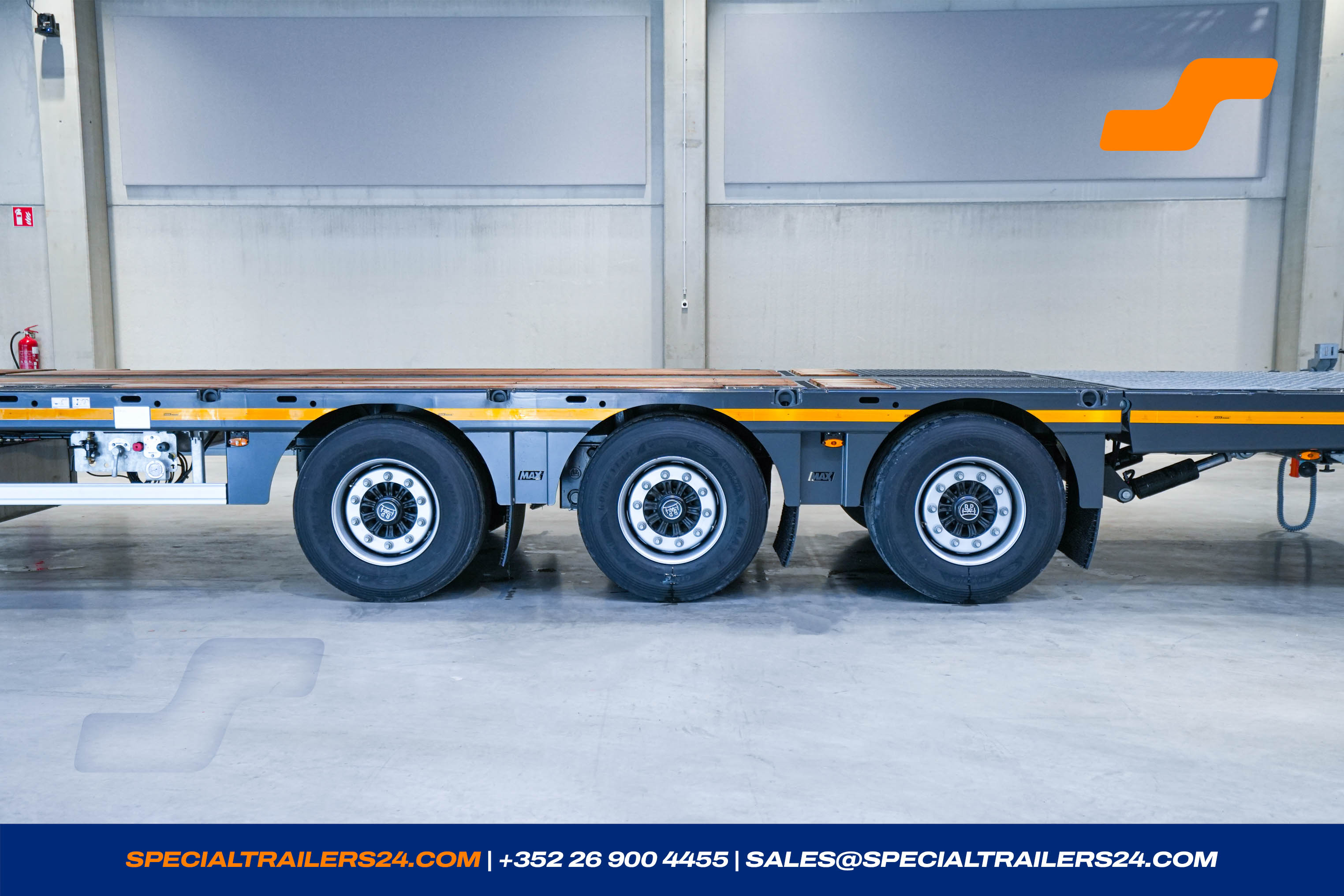

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Holder for one beacon light at the rear right and left of the trailer.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
Accessories
1 x Accessory
MAX200-Accessory
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Camera cable Brigade (Ref. VBV-L430 ) to be fitted inside of the energy chain.
- Speed sticker 60, 80 & 90 km/h at the rear.
- Acoustic warning signal when reversing.
- Delivery from a trailer to factory Lentzweiler.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.
- Holder for a 2nd numberplate at the rear end included a lighting.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111273
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 07/2026
- Price On request
-
