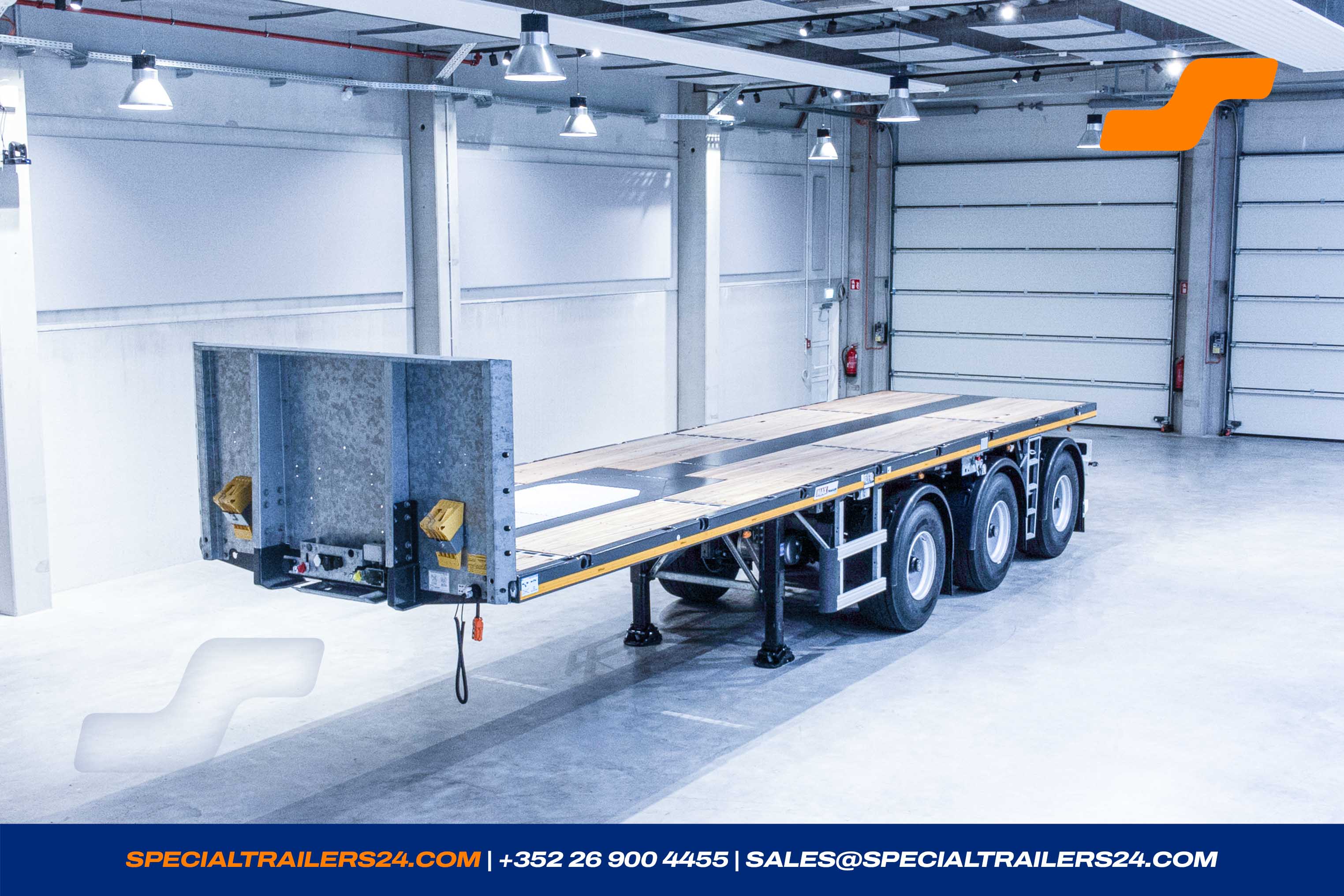

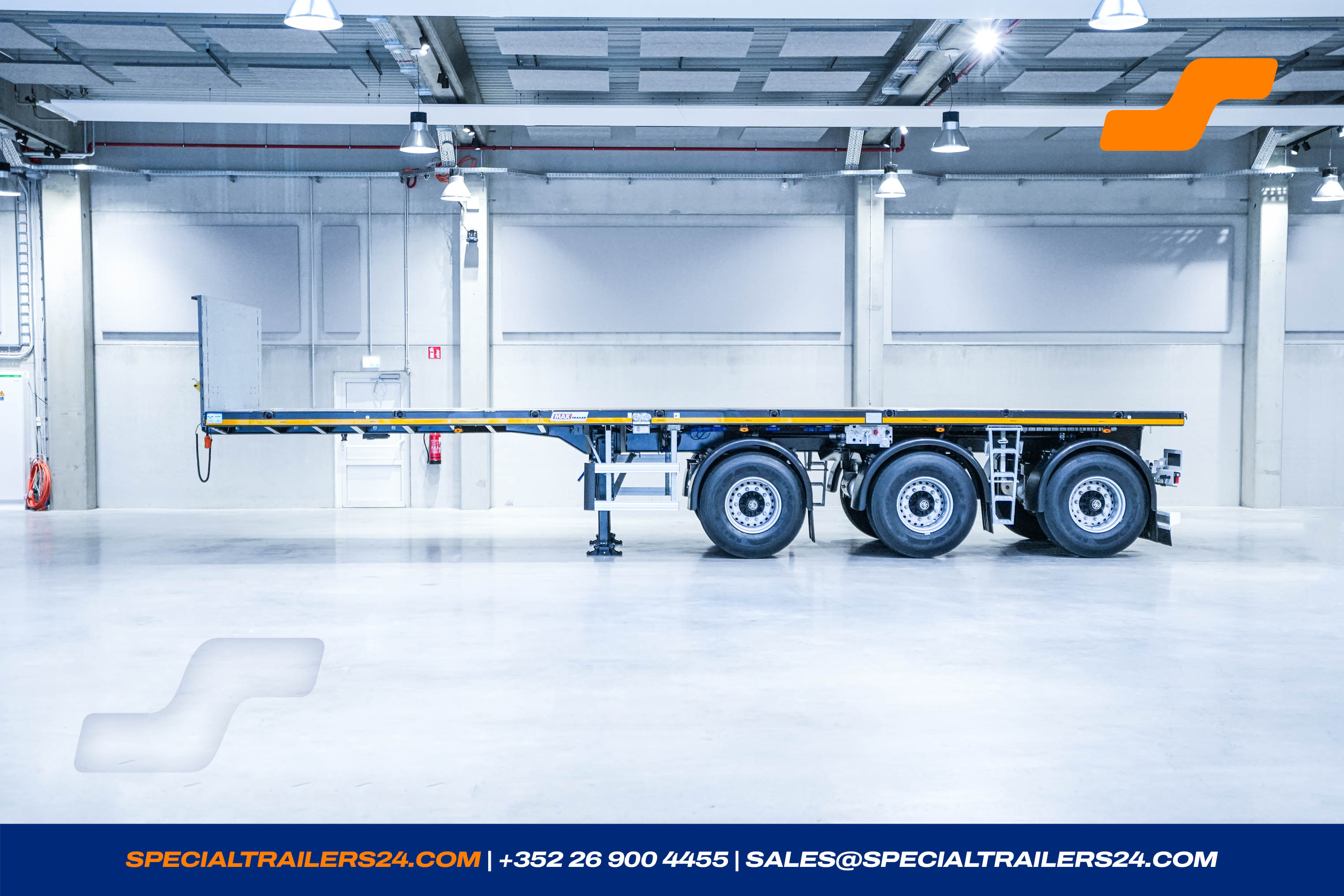

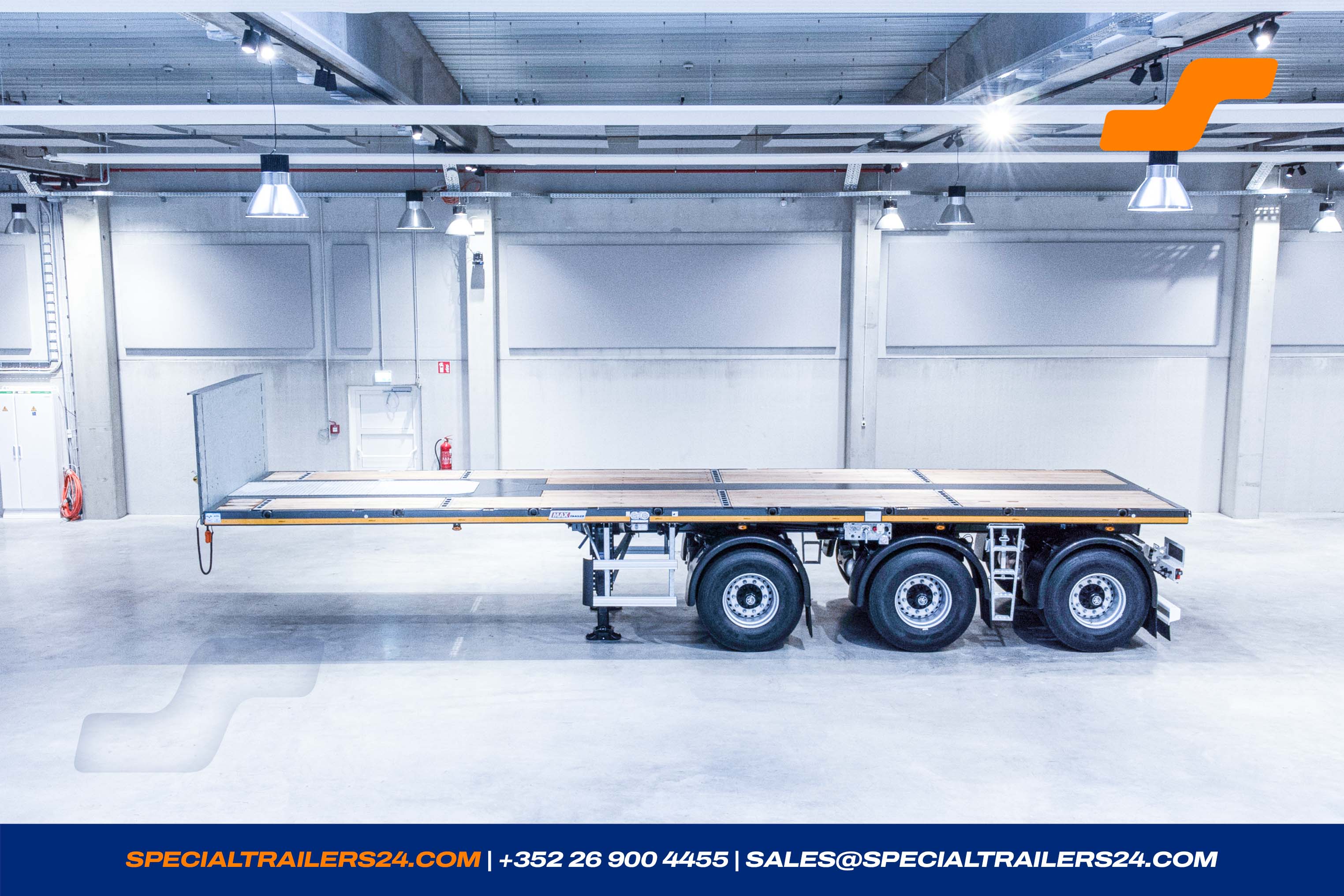

Flatbed trailer
MAX Trailer MAX410
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110605
- Reference MAX410-Z-3-10.20-22.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 05/2026
- Steering Type Hydraulic
Availability
05/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions

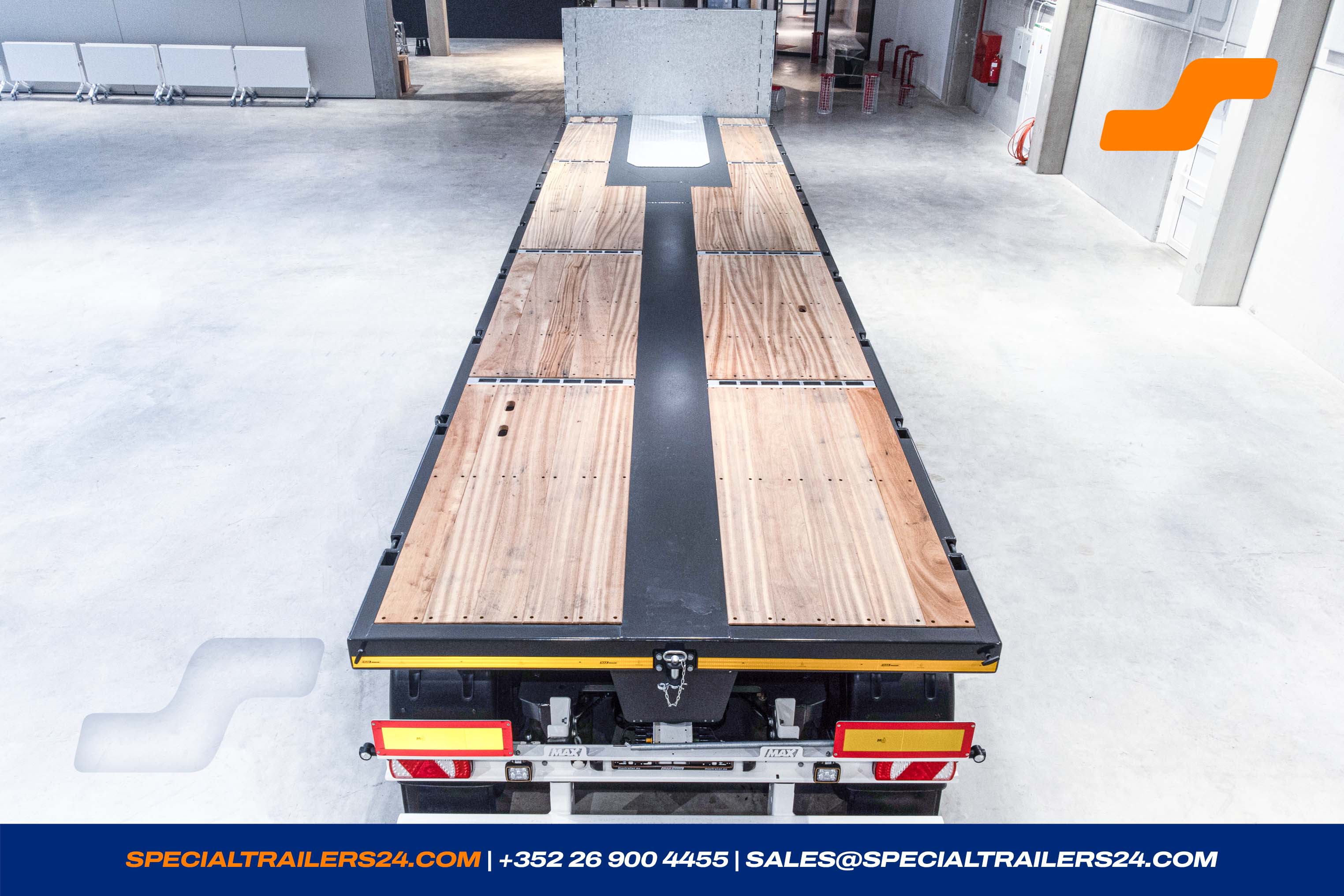

Loading deck
Loading platform
1 x Loading platform

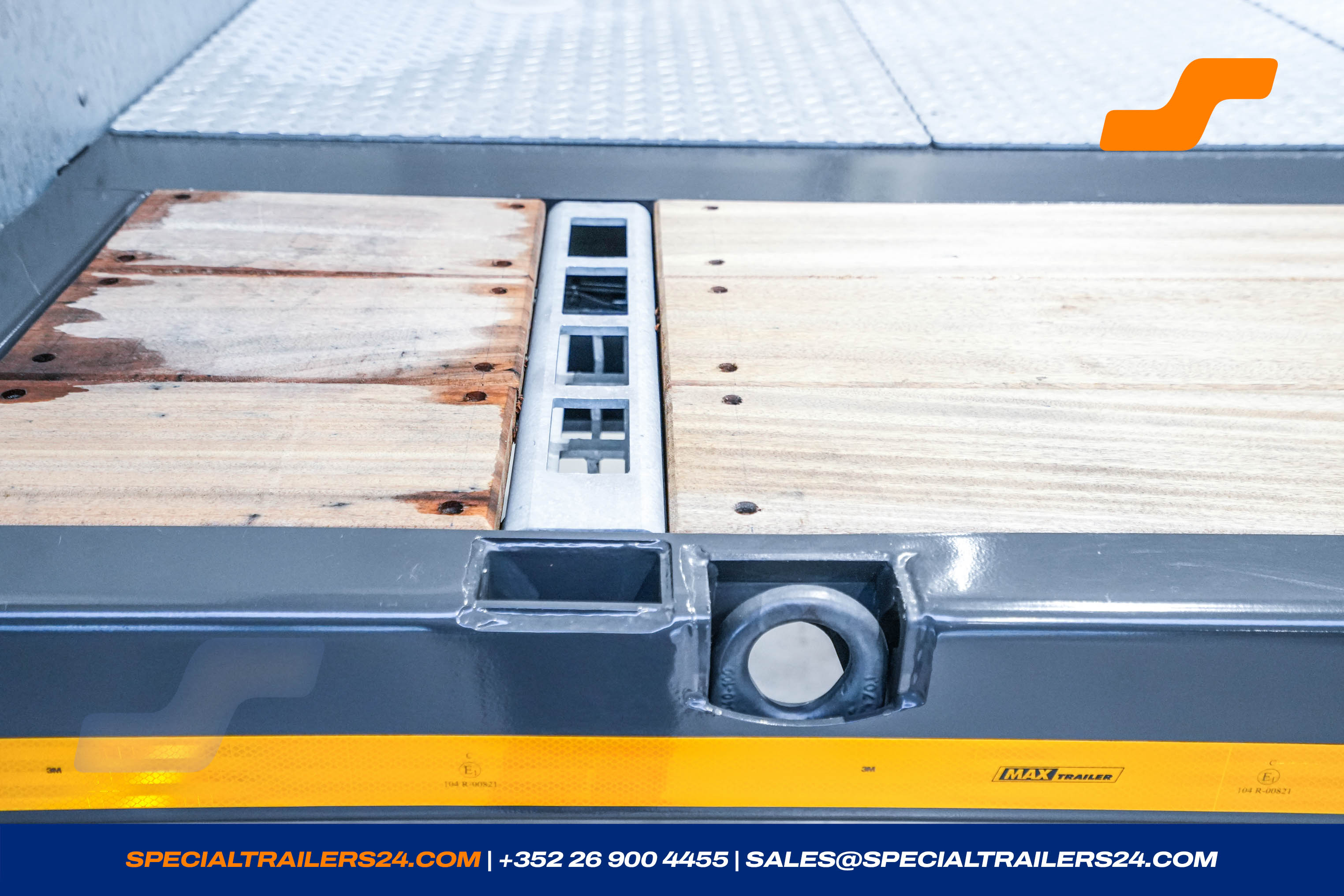

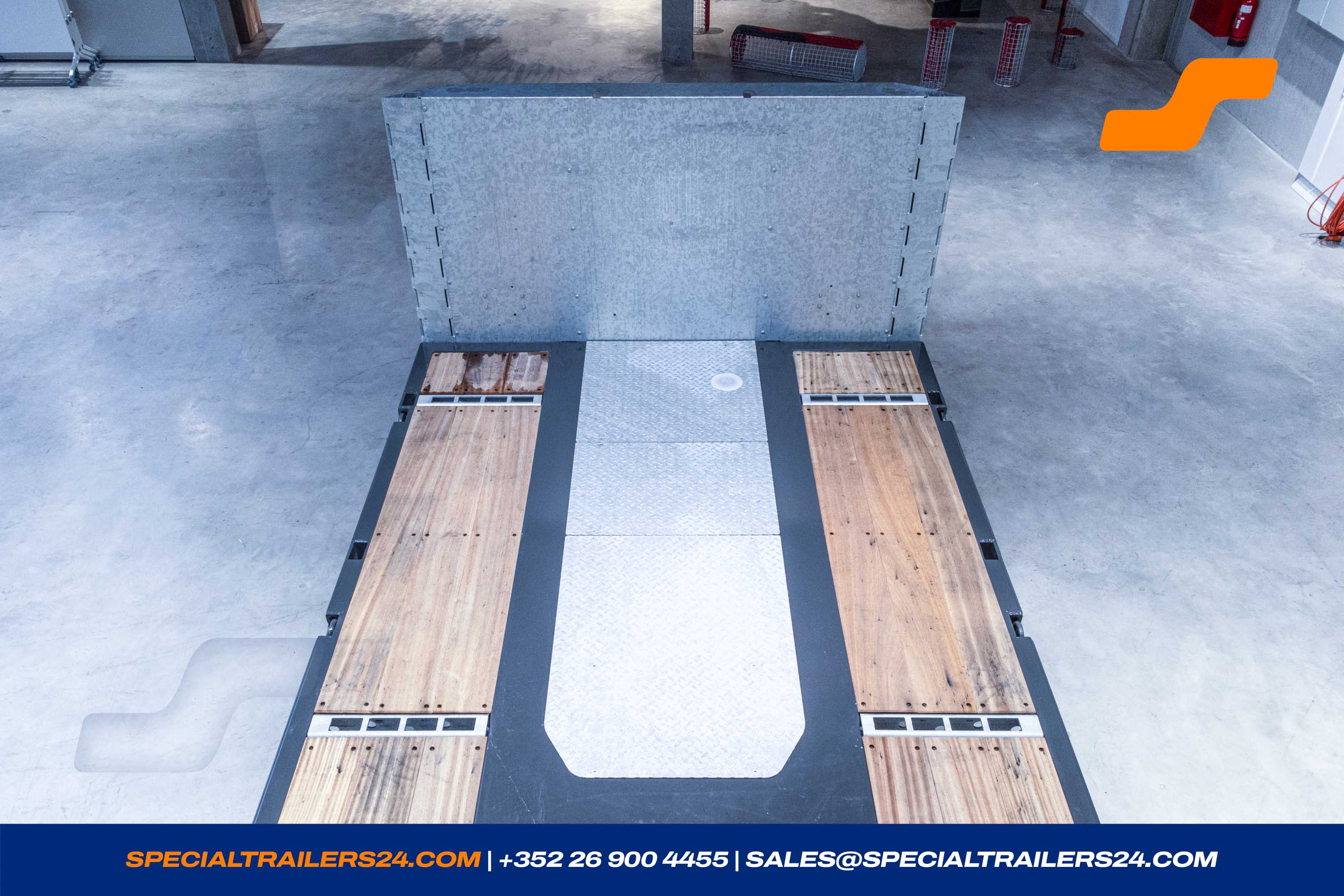

Loading area with ± 30 mm timber floor.

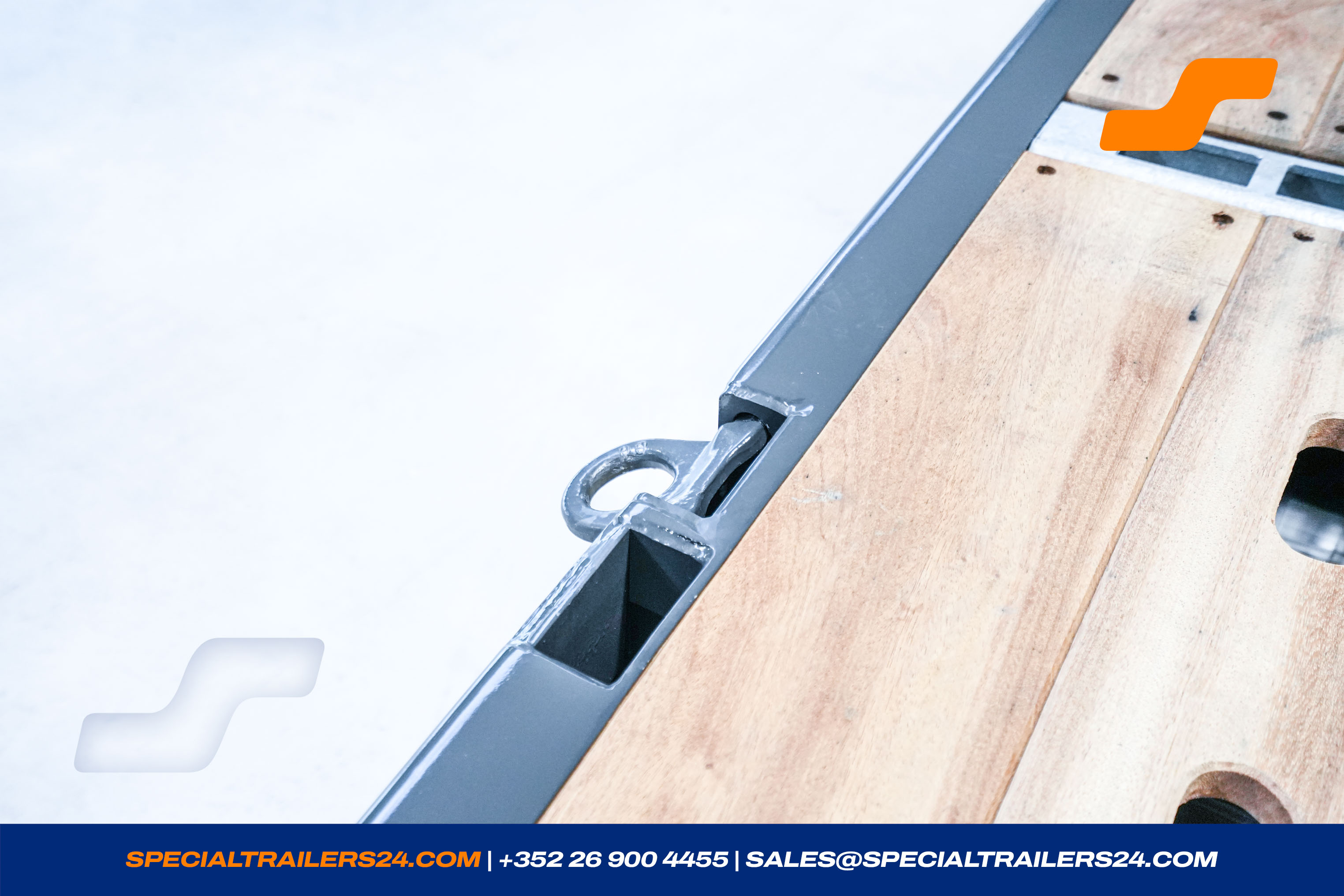

8 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).

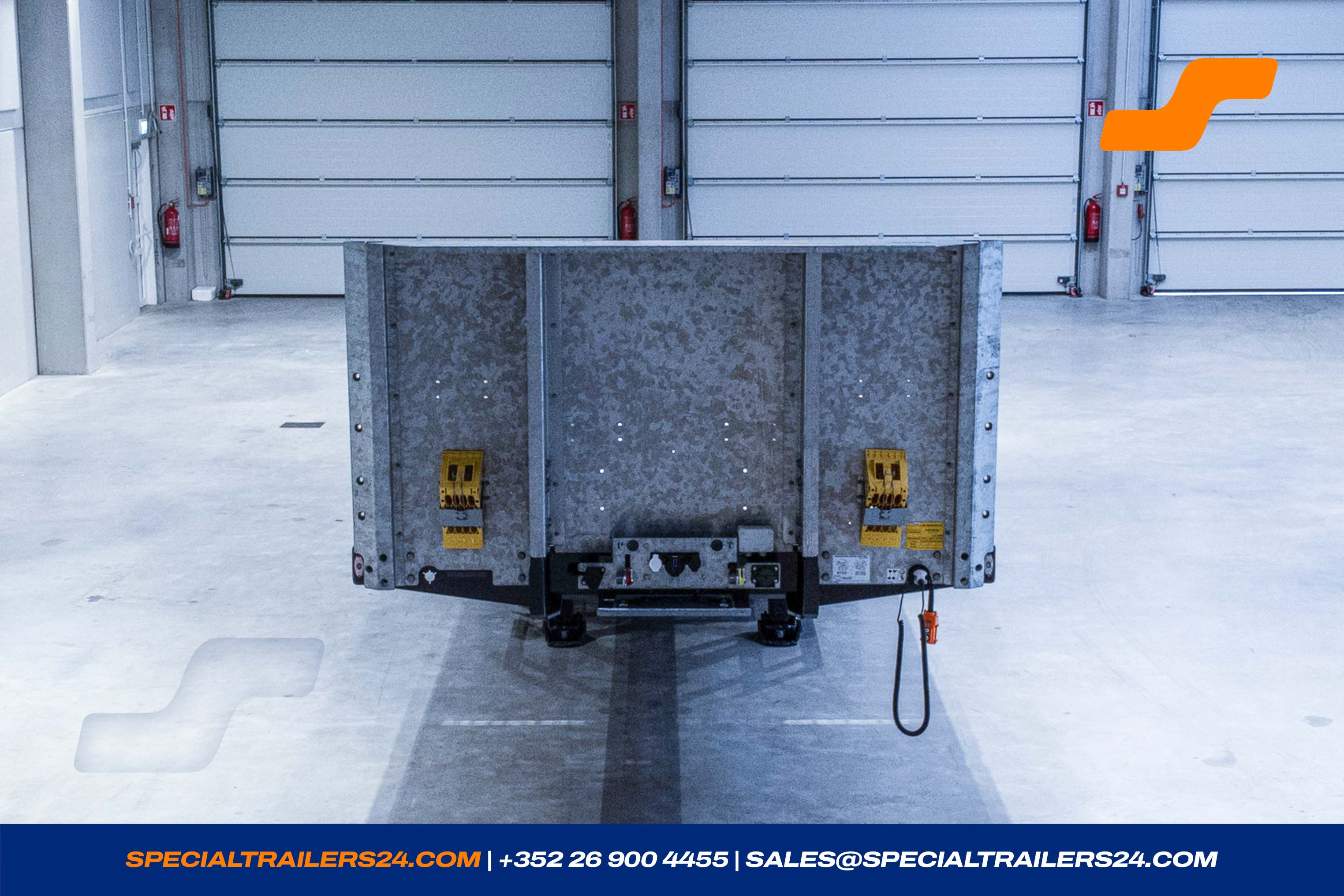

- 4 wheel chocks with carrier on the headboard (± 5kg).

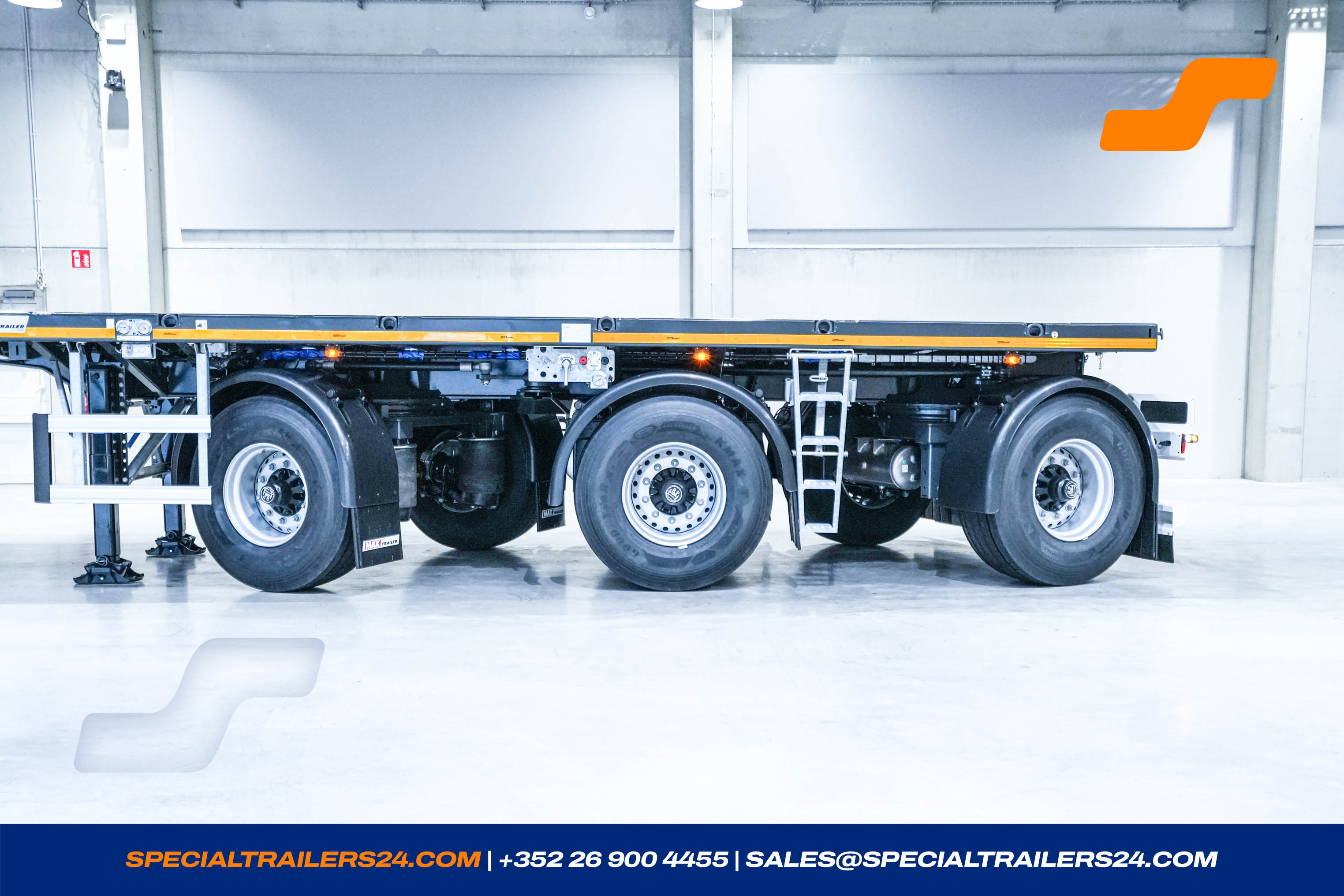

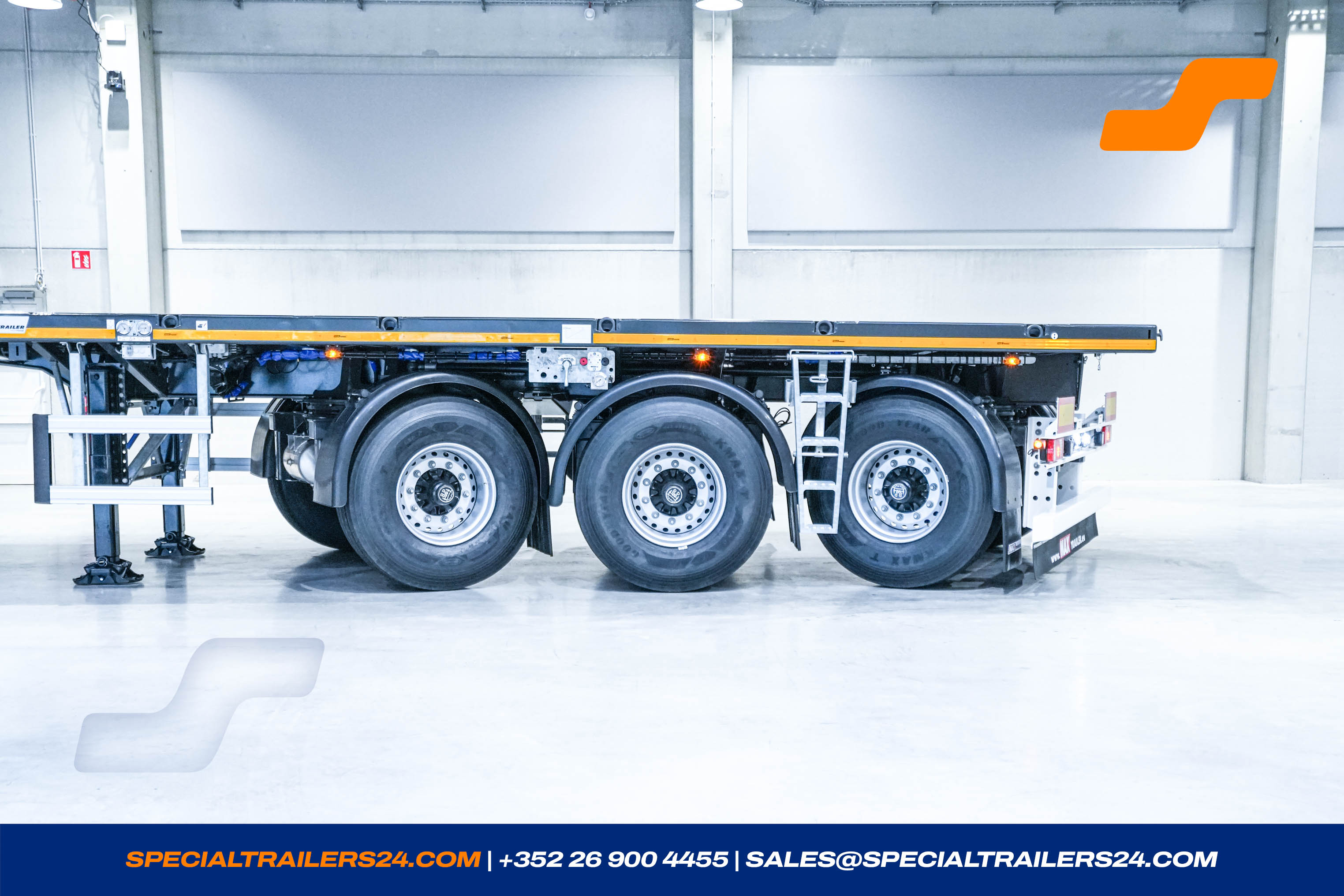

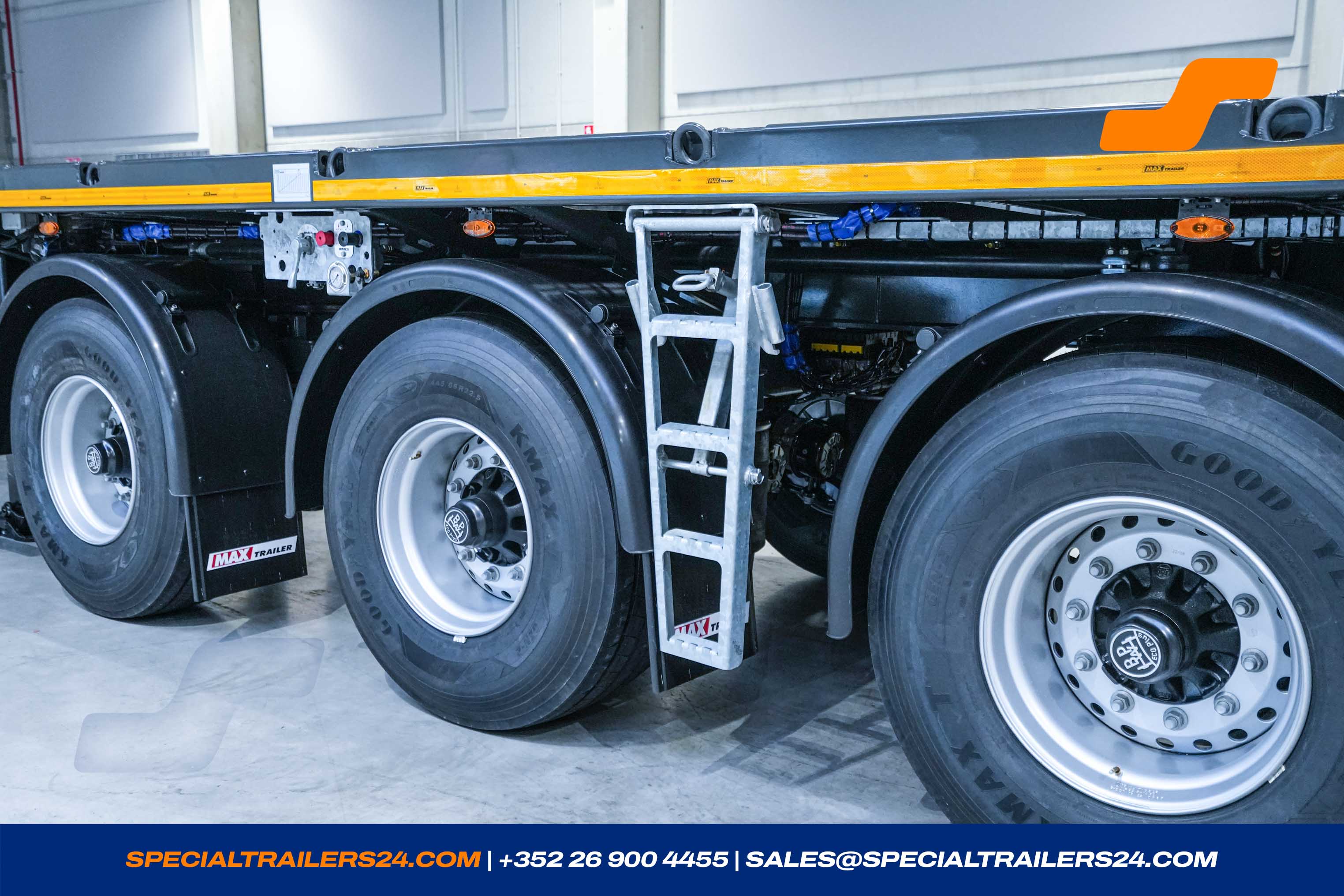

- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

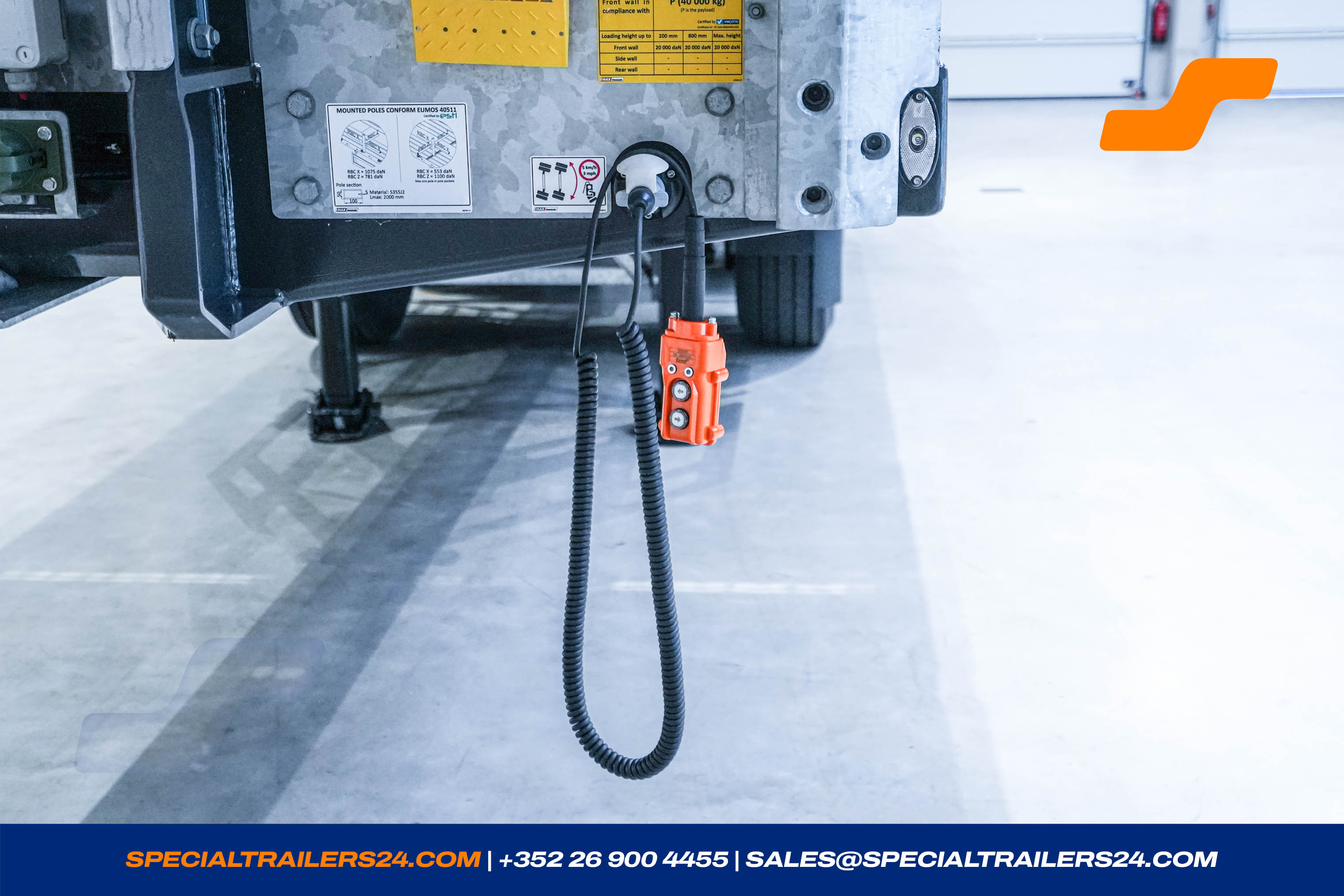

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
Accessories
1 x Accessories

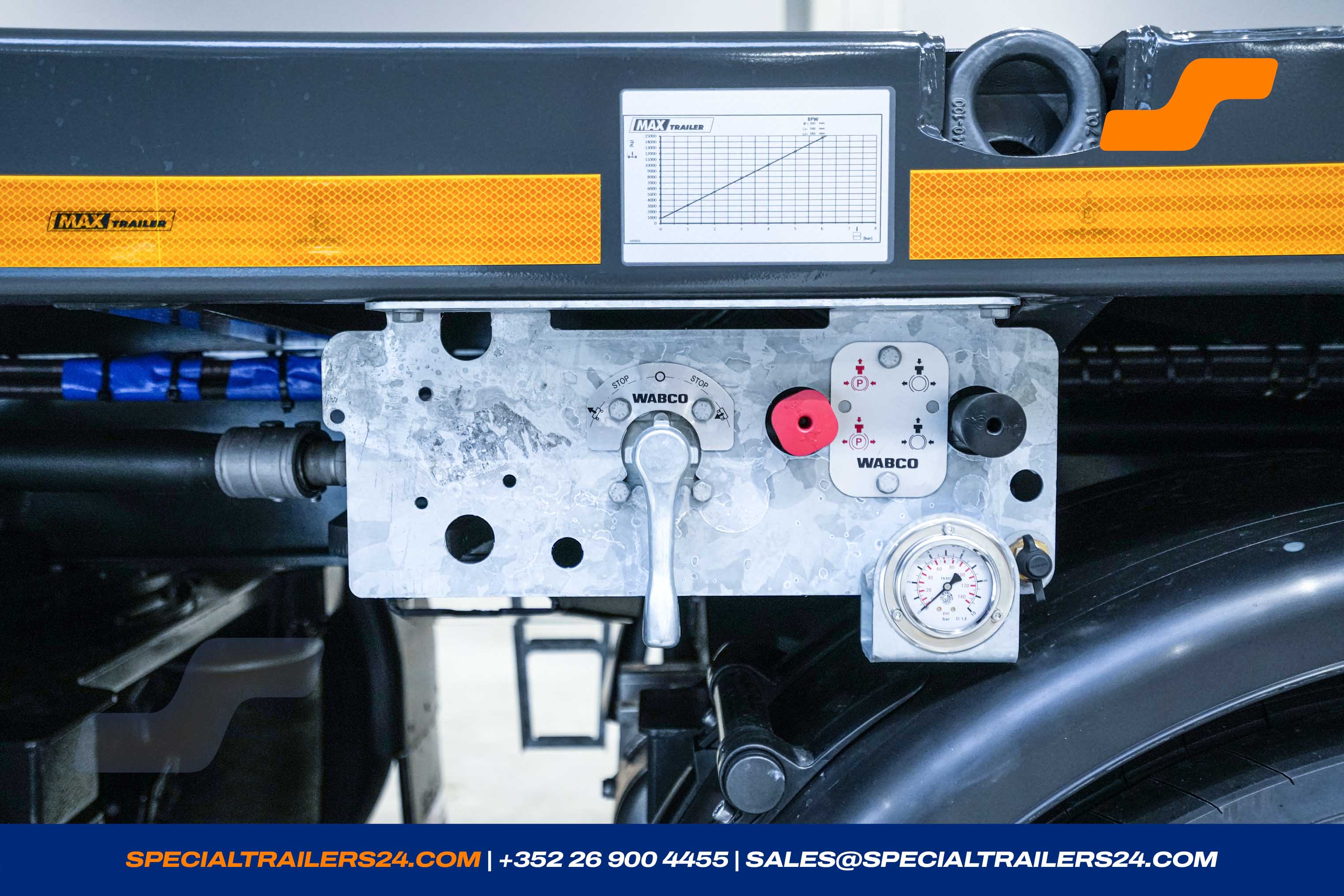

- Braking system WABCO following EU-regulations with EBS-E (4S3M) system, without connection to the truck.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.
ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)

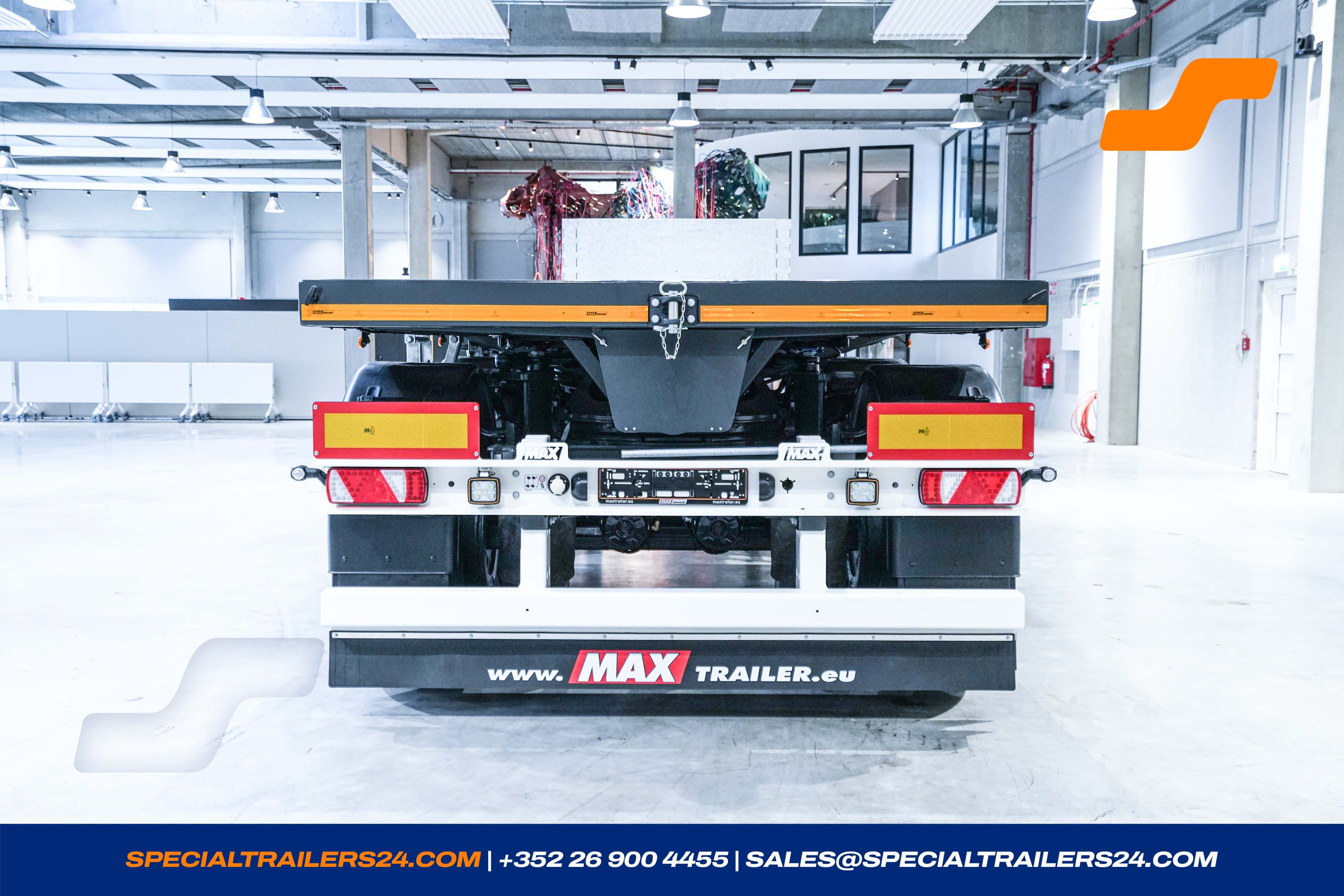

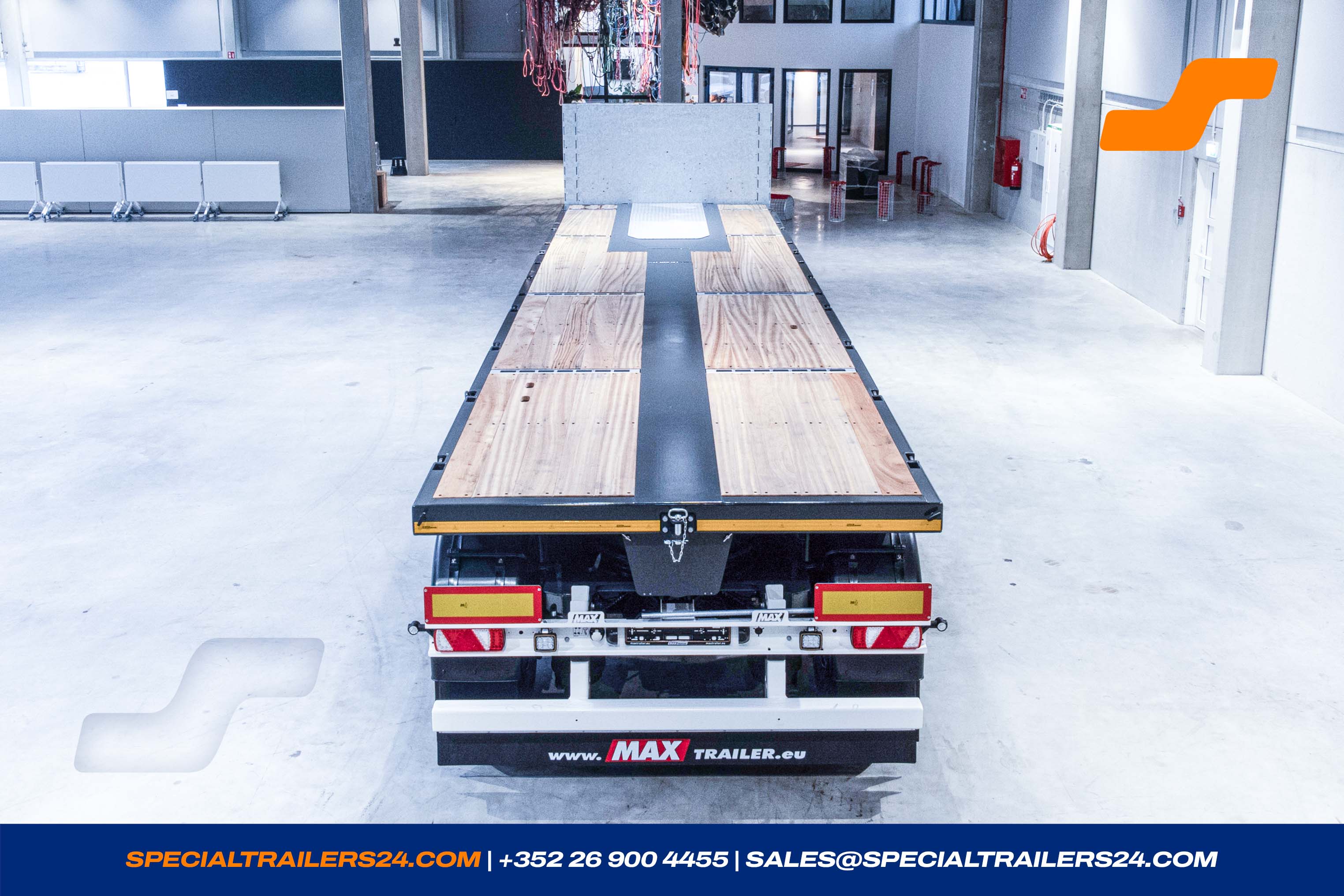

**S690QL/S700MC (yield strength 690 MPa) - A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

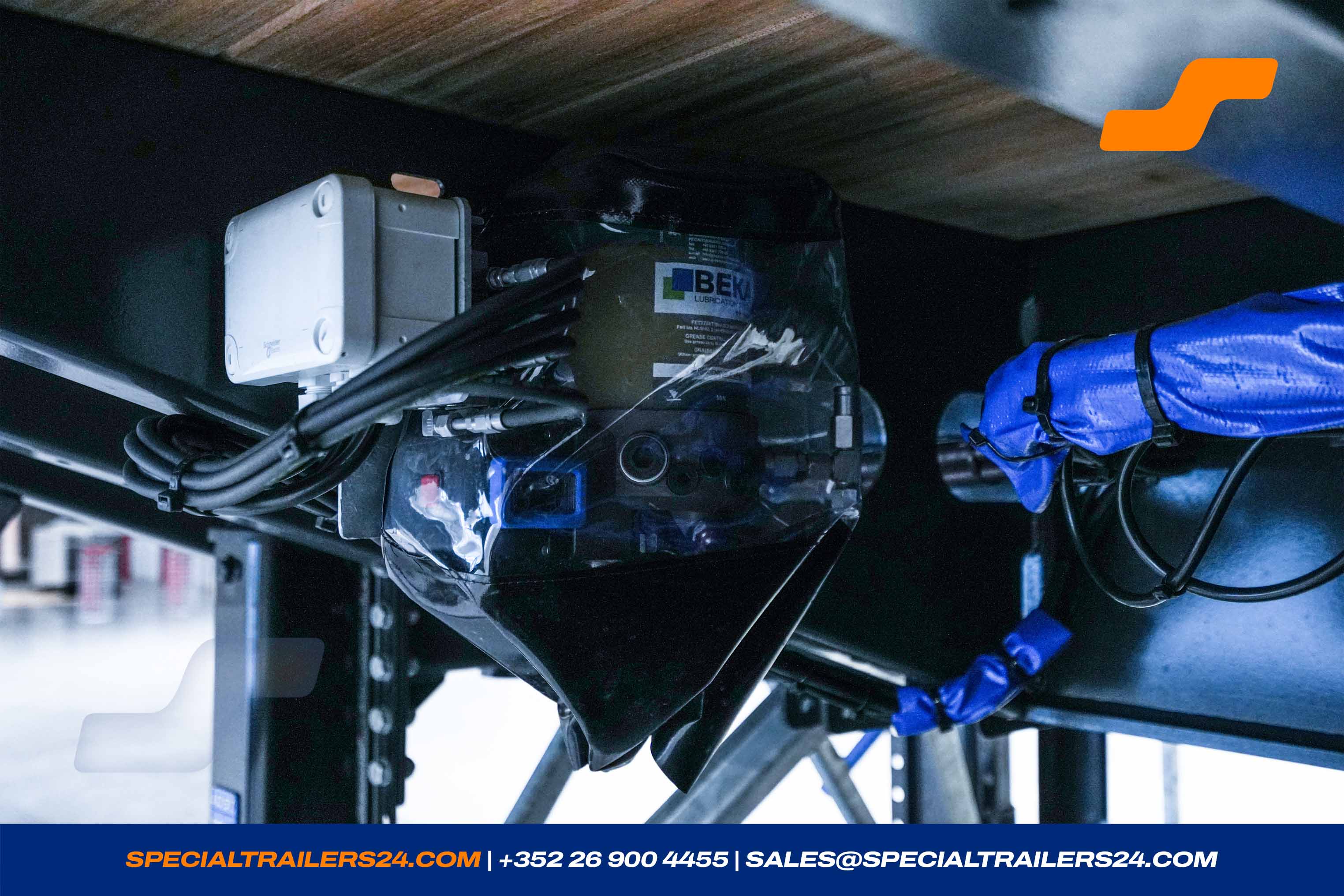

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)

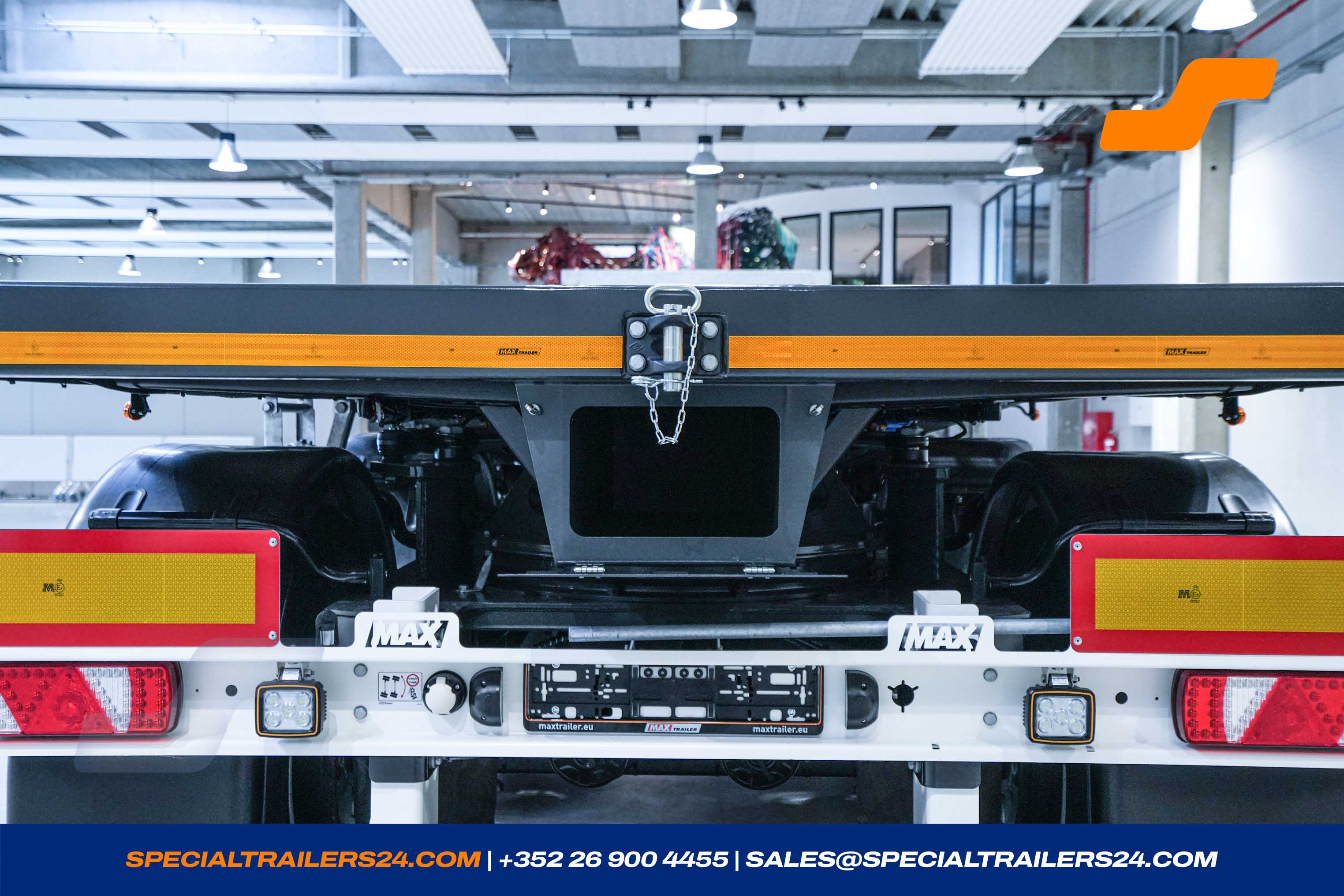

- 2 LED- reversing lights at the rear.
- Load manometer for determining the axle load, including load diagram.
