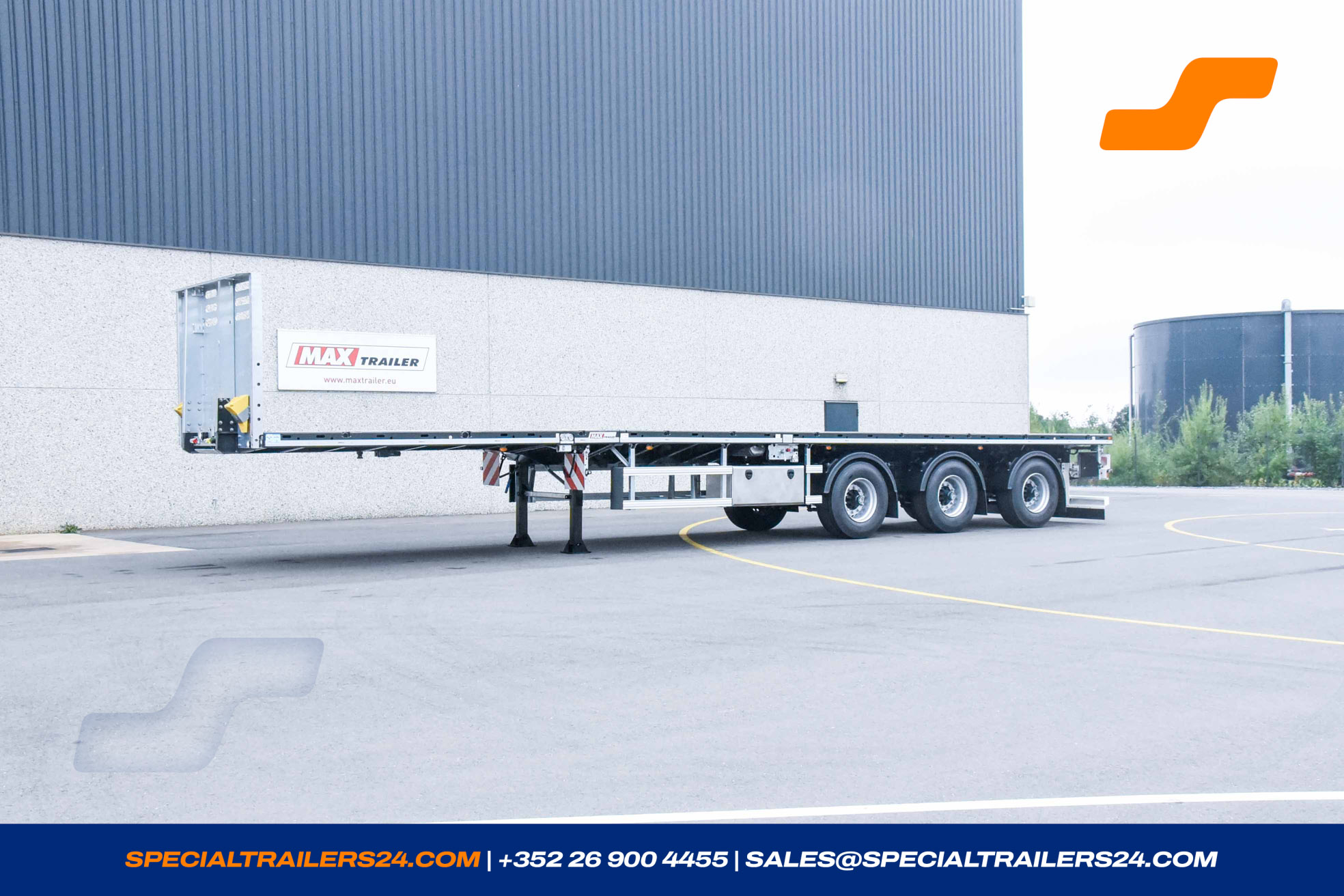

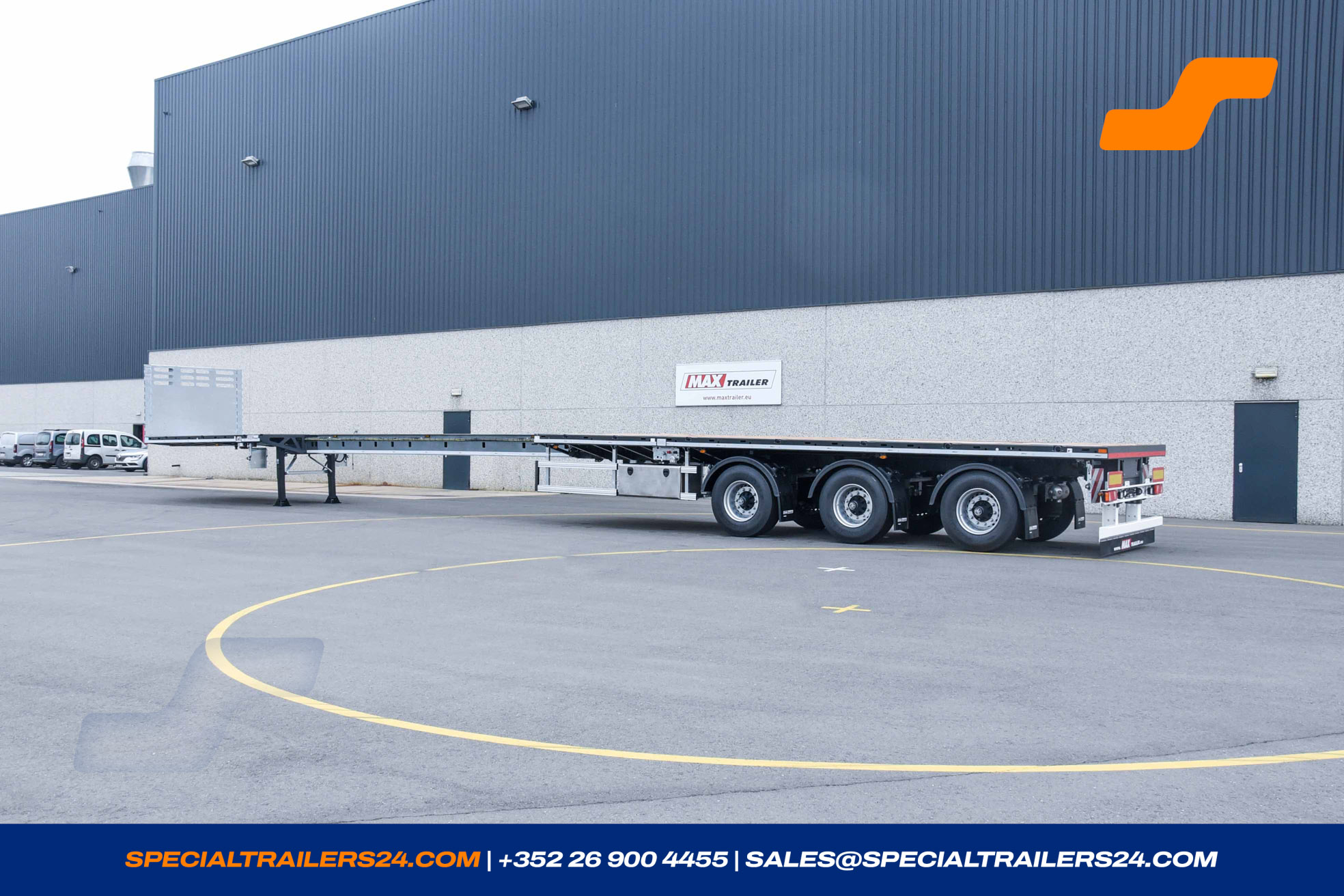

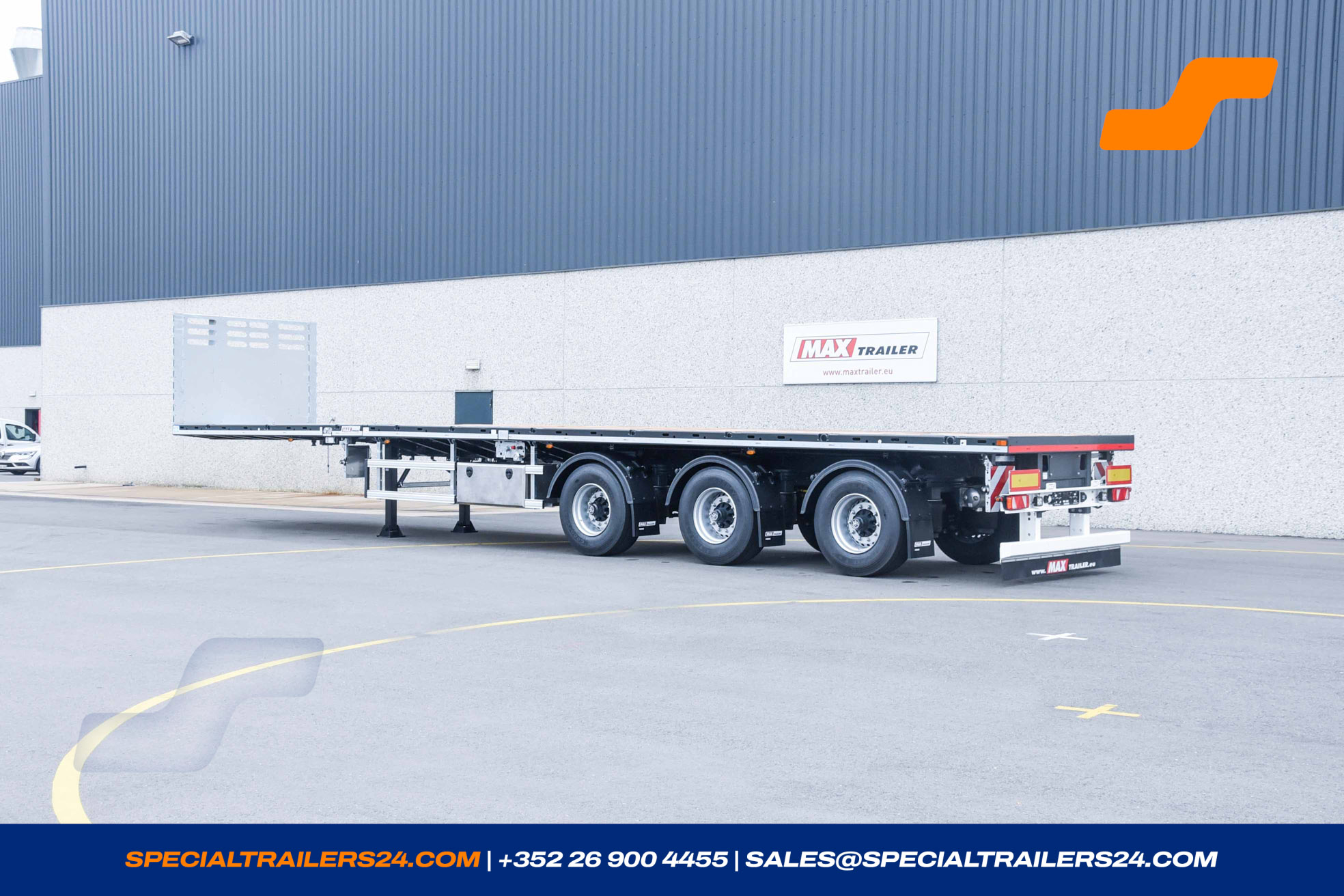

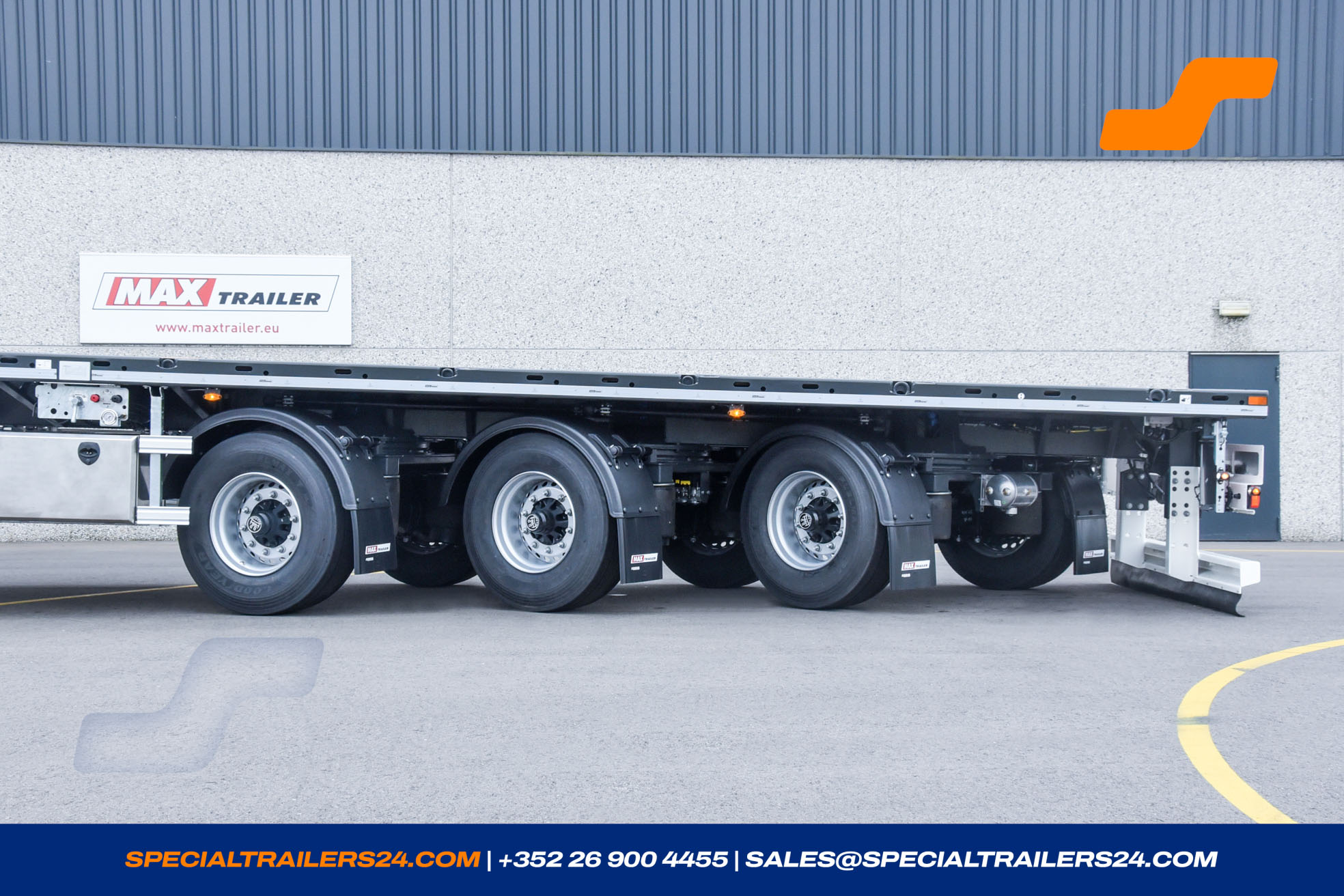

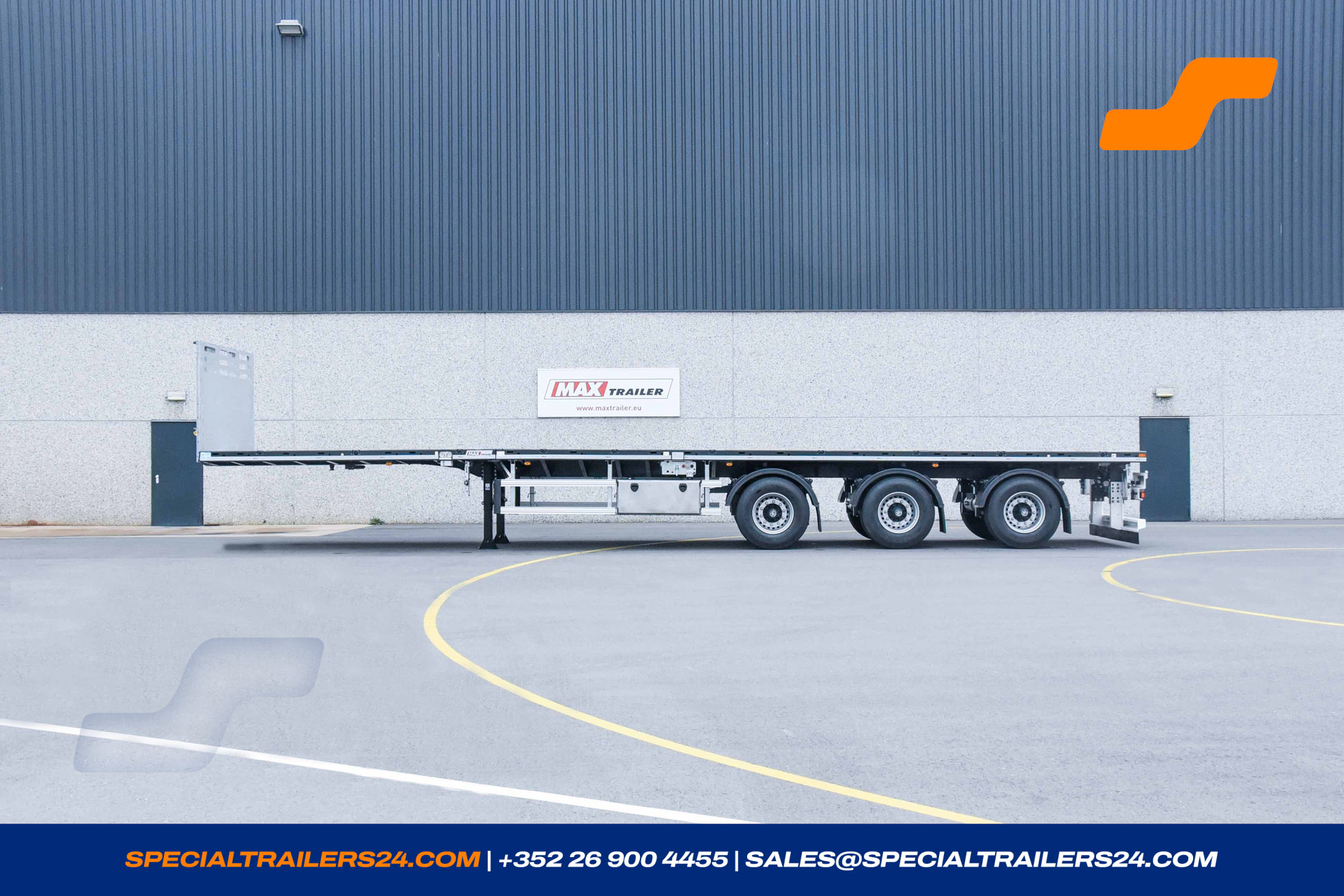

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111268
- Reference MAX210-Z-3A-13.60-22.5-2.54

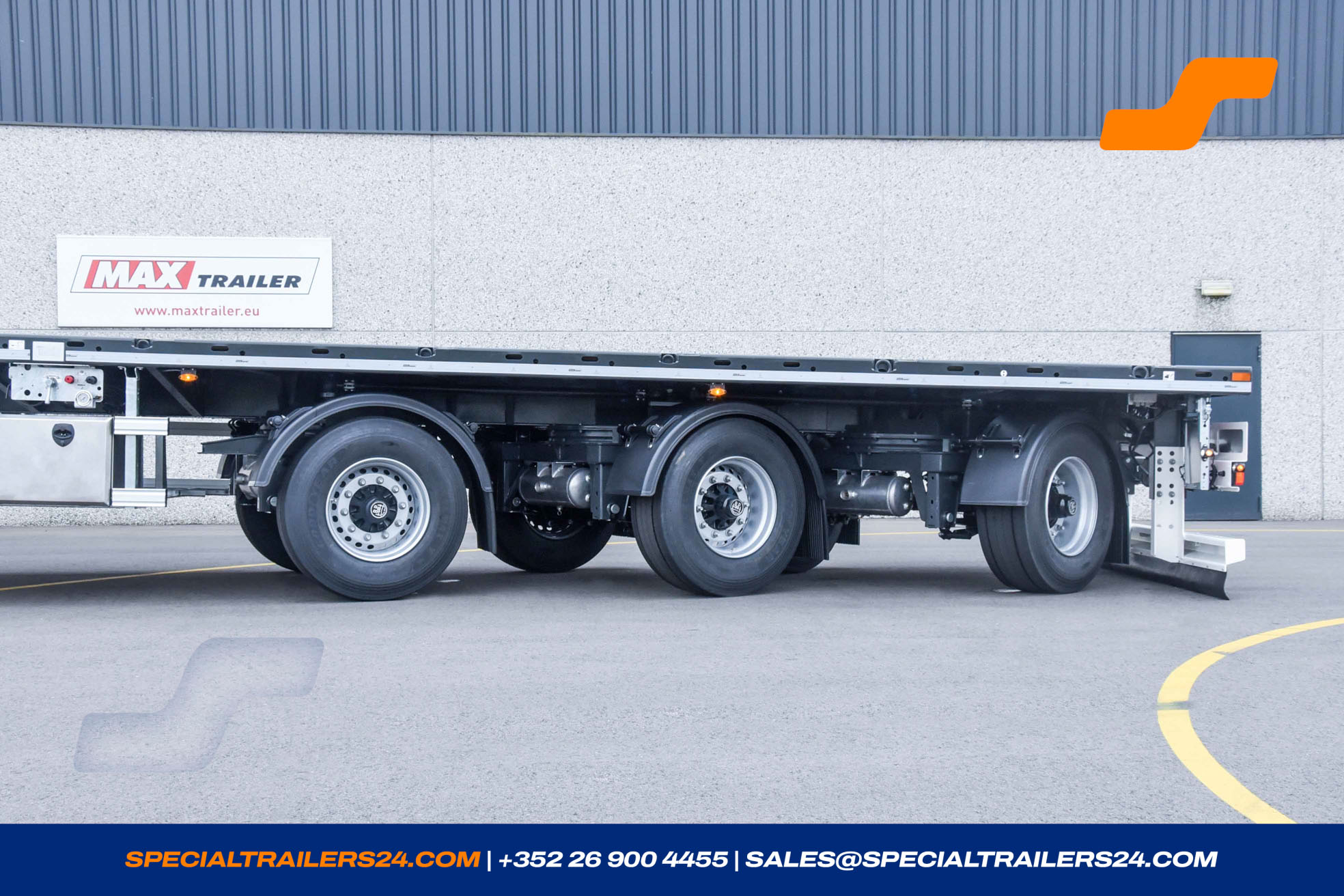

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Steering Type Hydraulic
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 9634 kg |
| Payload | 35366 kg |
Dimensions
| Fifth wheel height loaded | 1150->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |

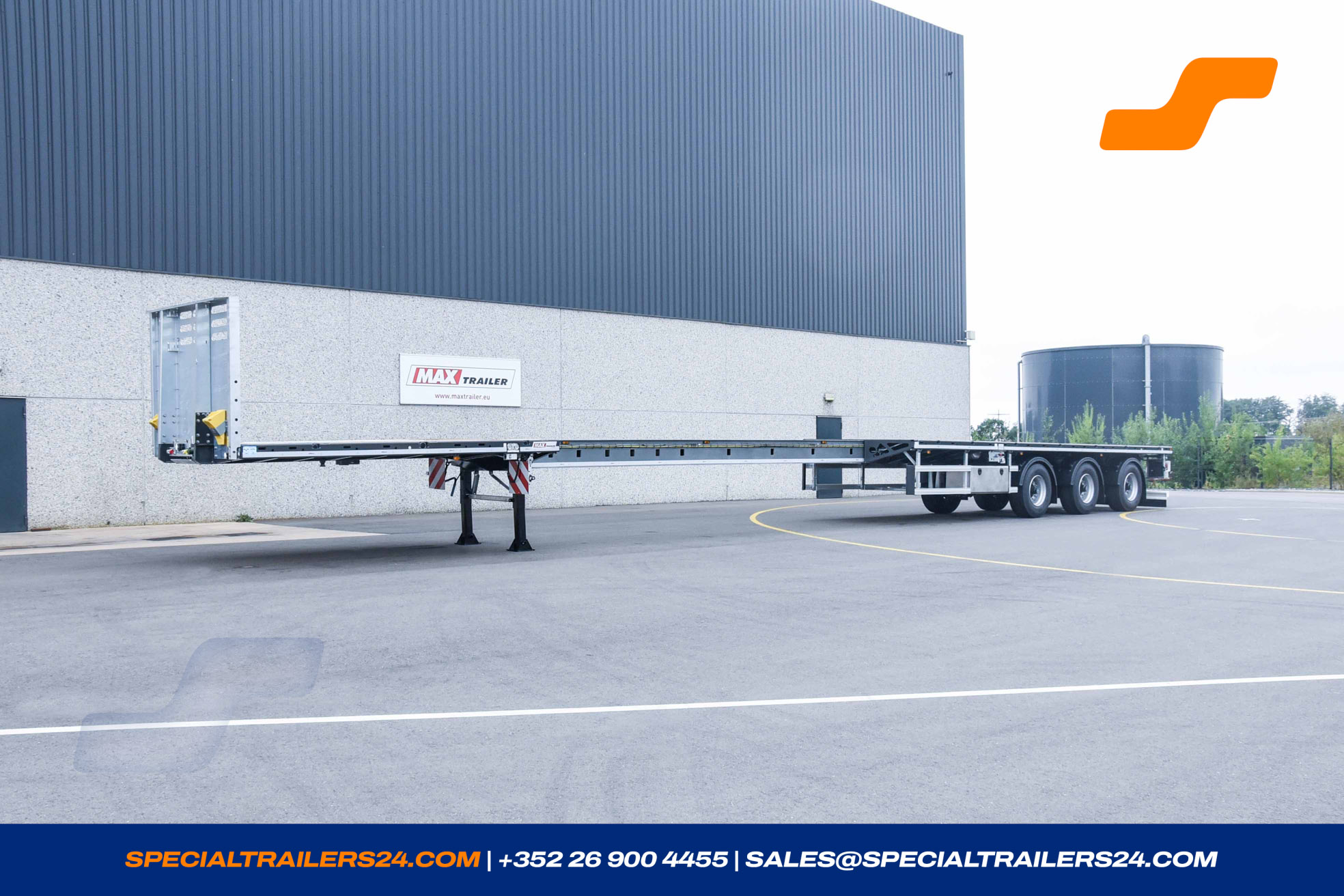

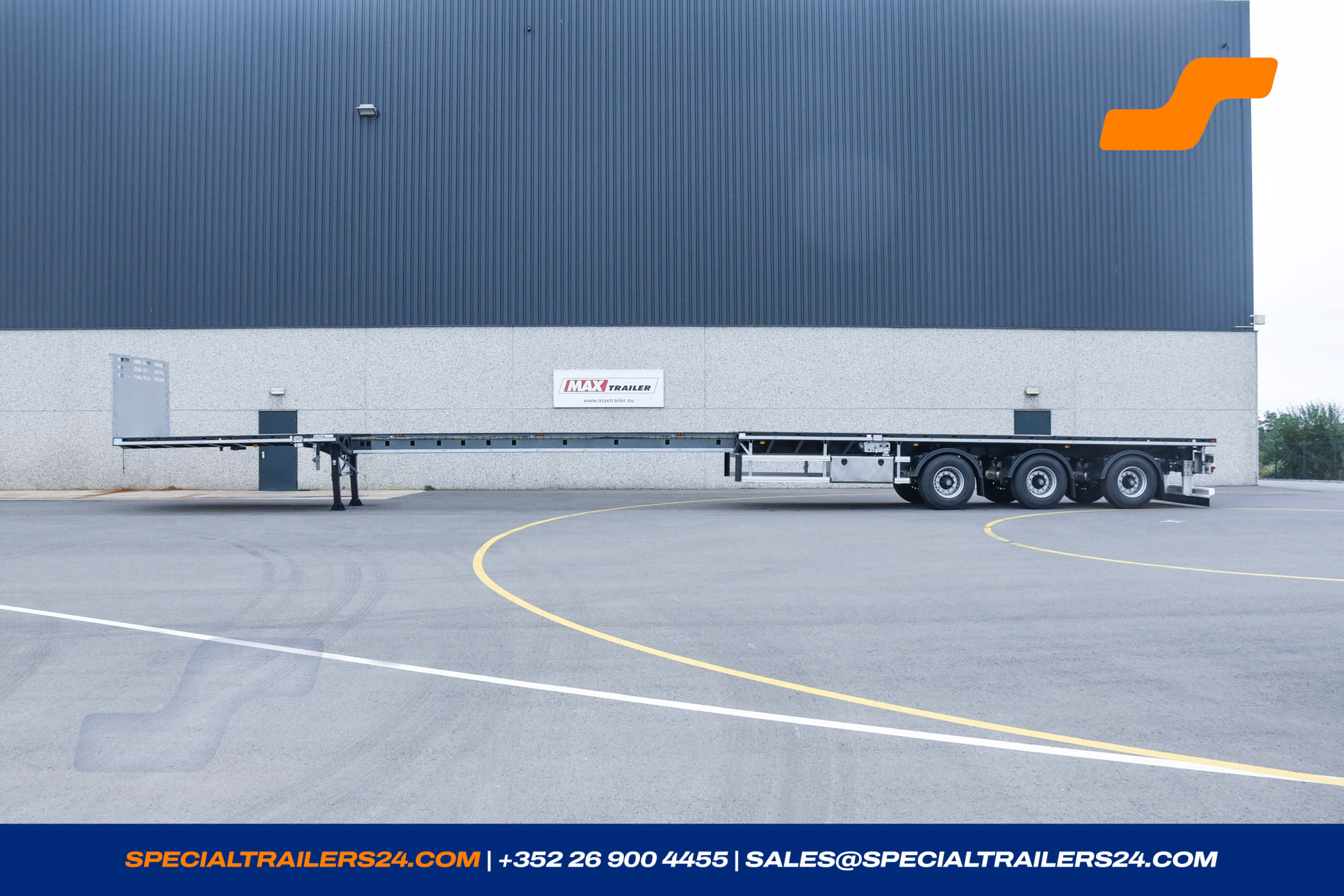

| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

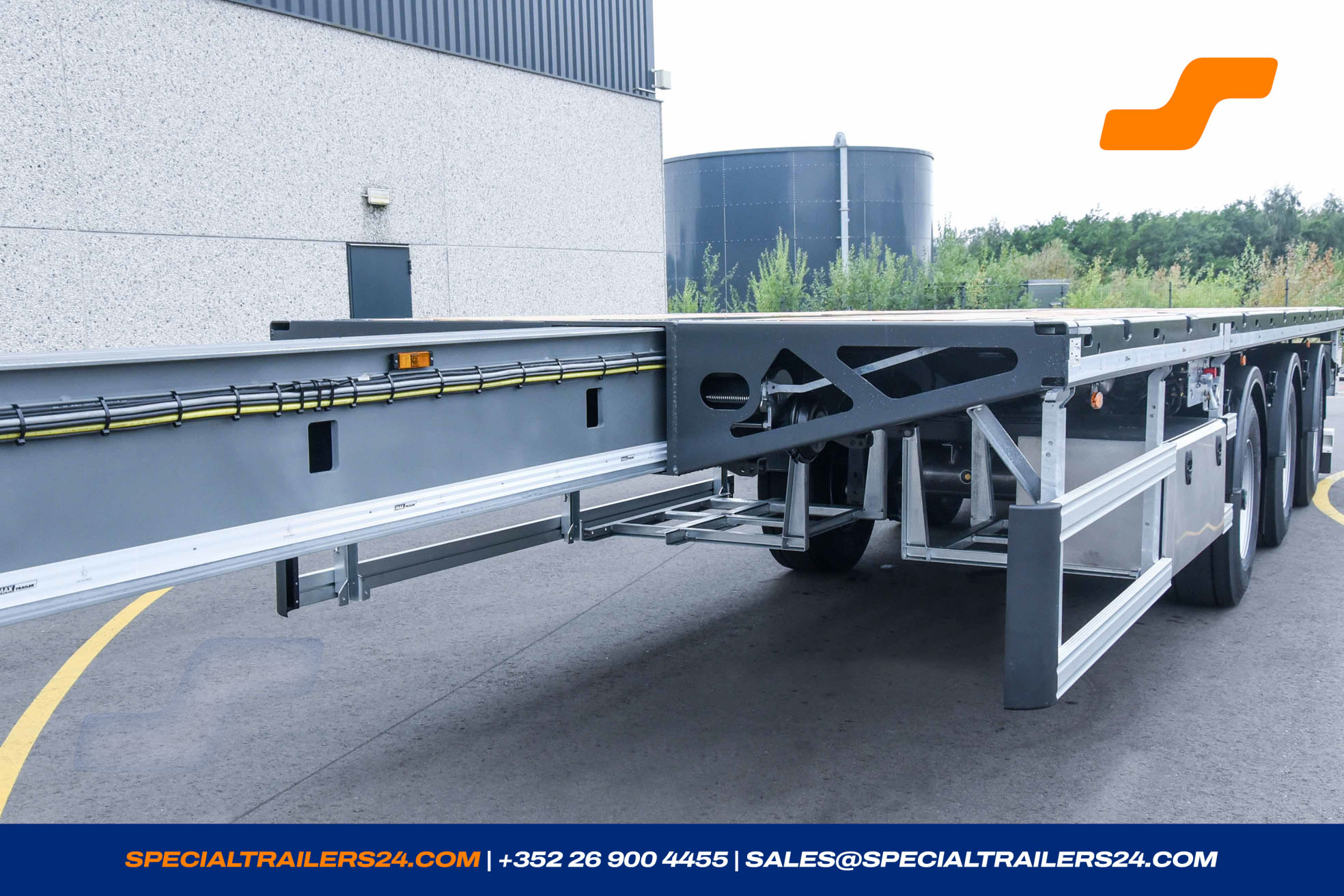

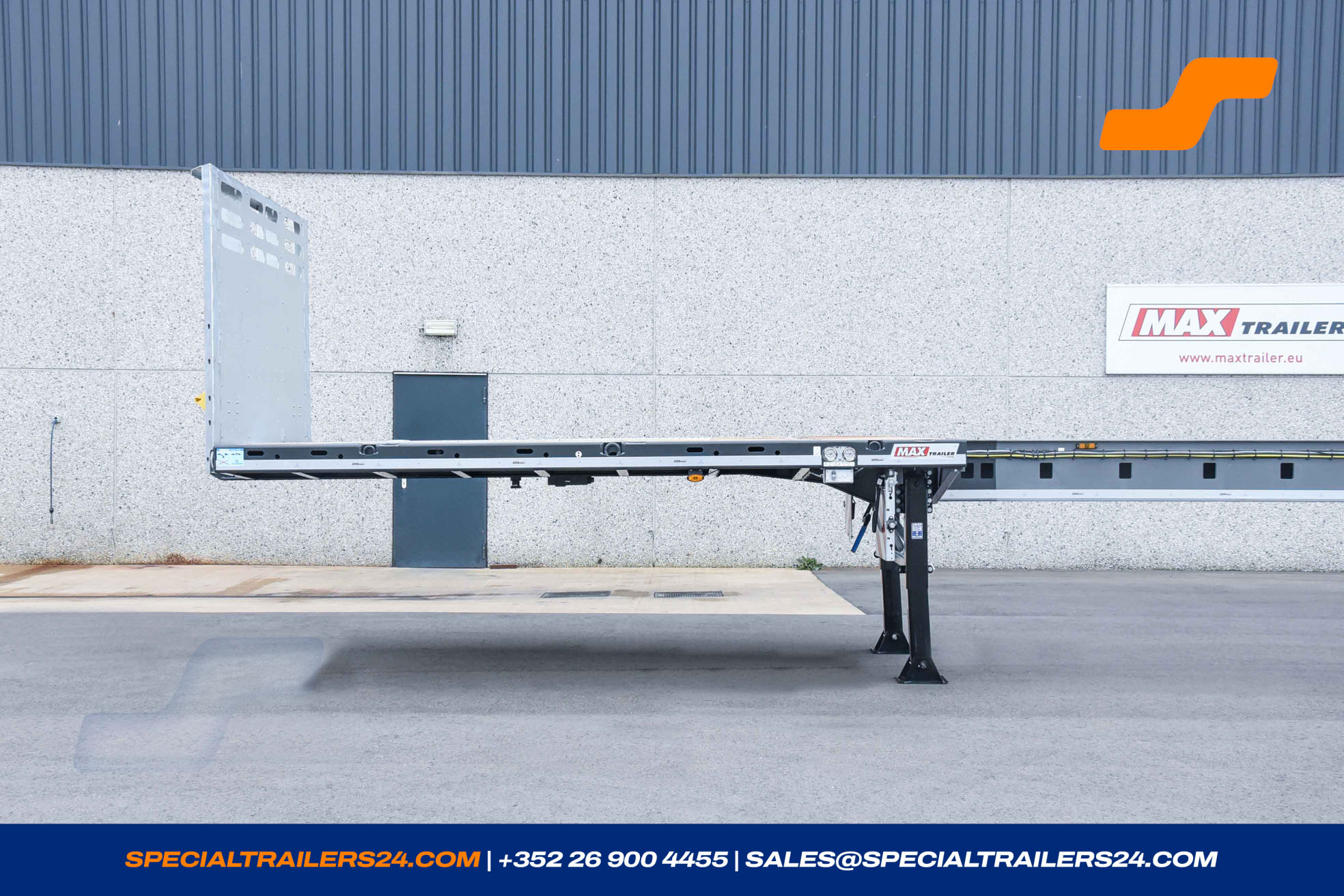

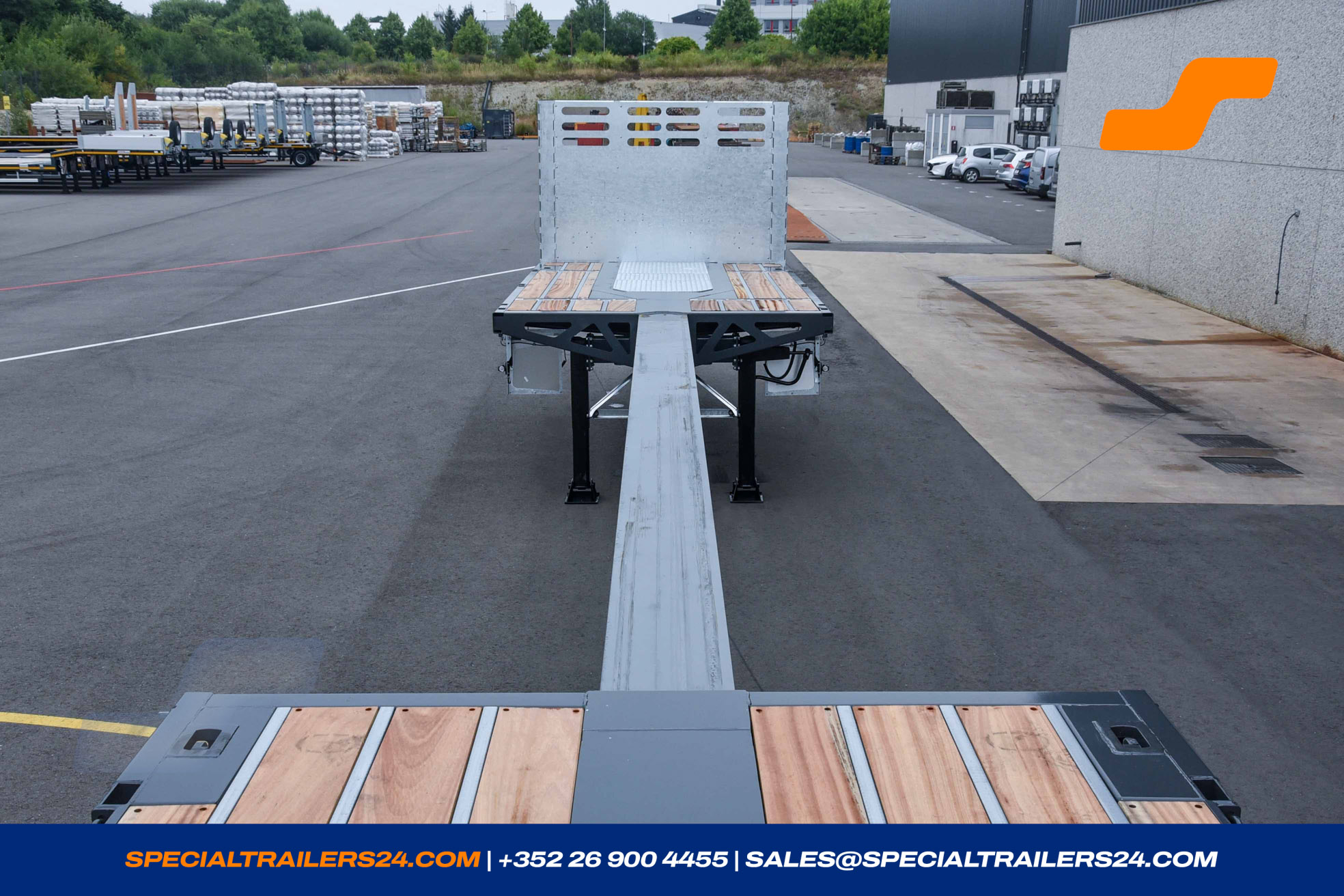

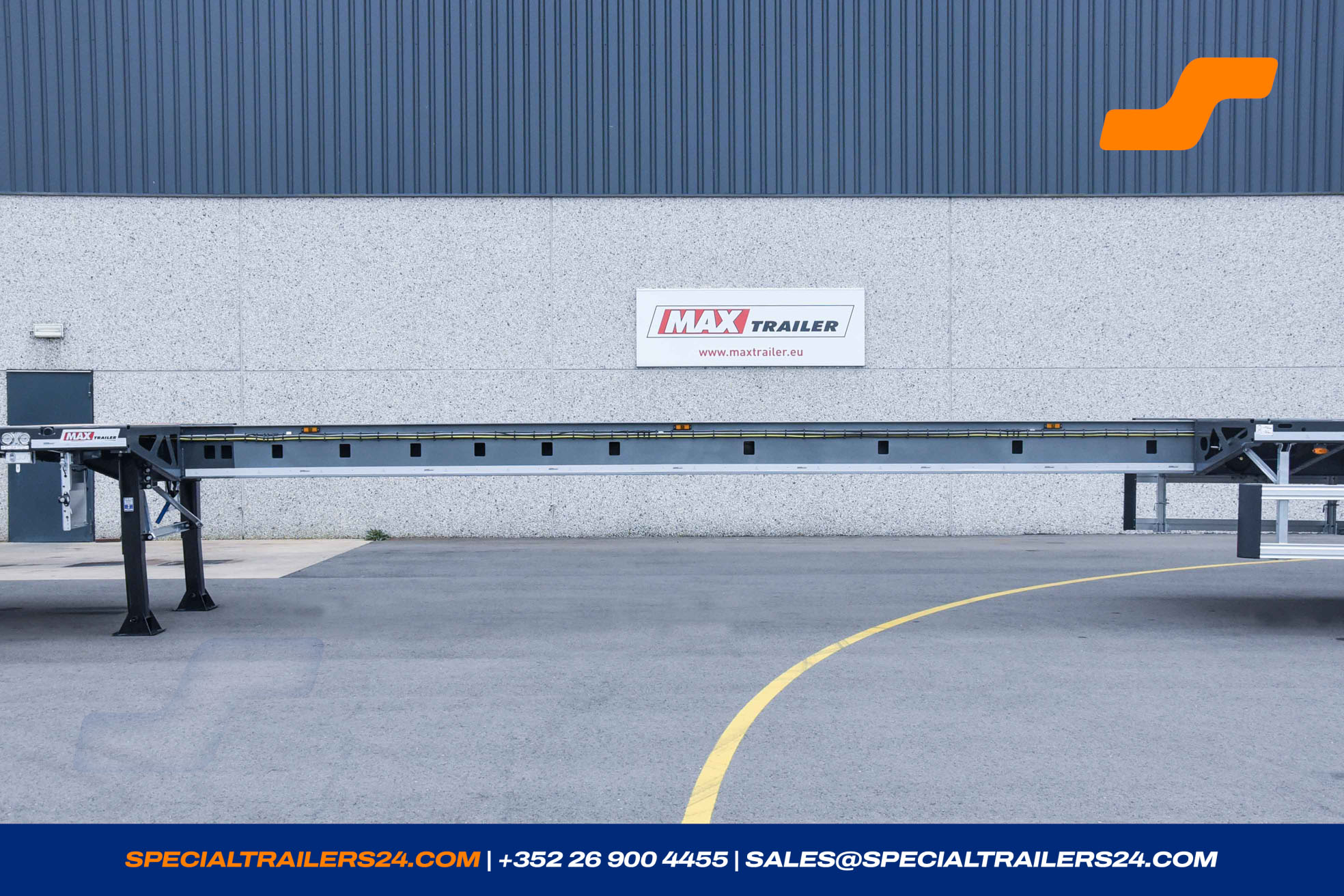

Loading area extendable center spine, pneumatically locked.
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

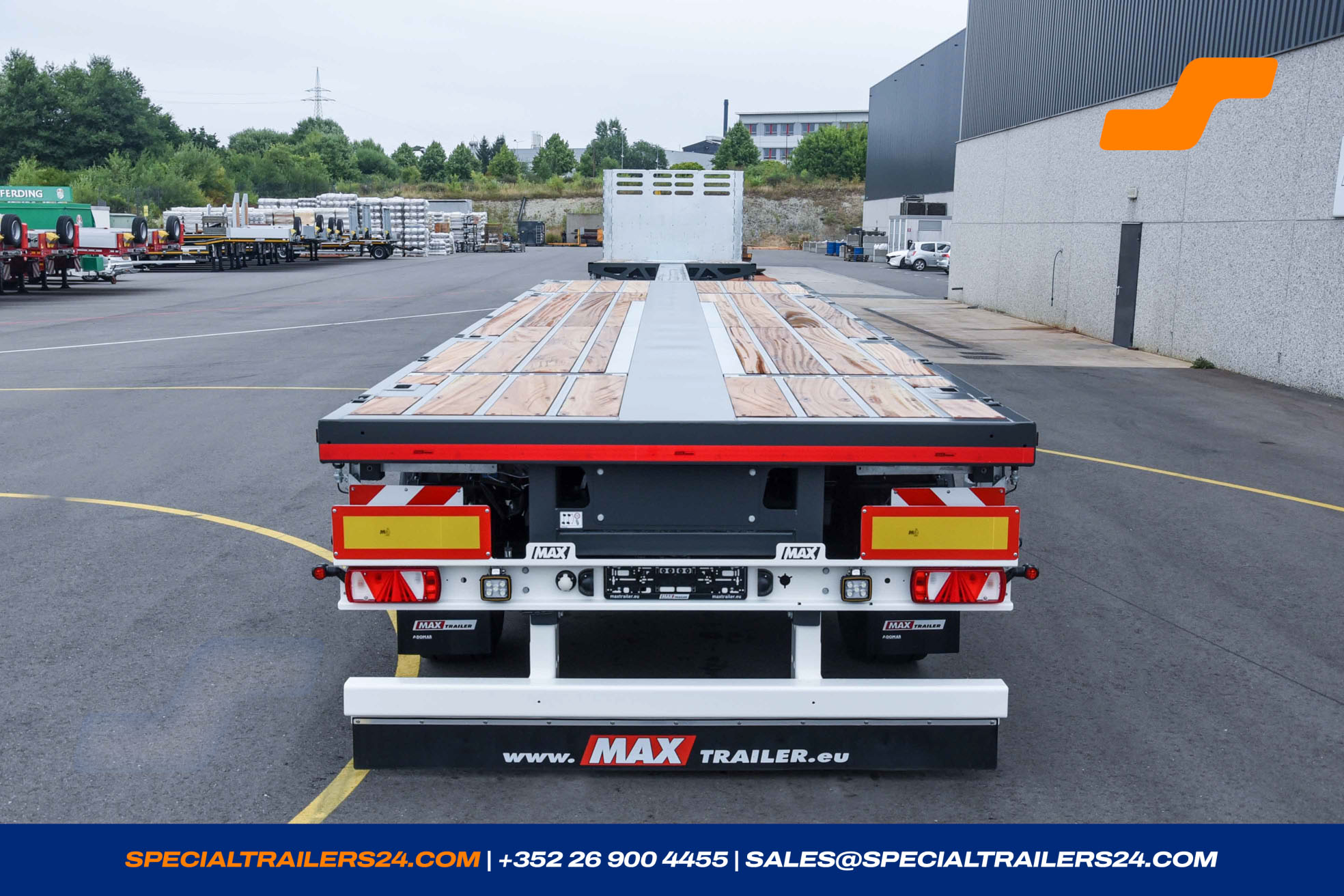

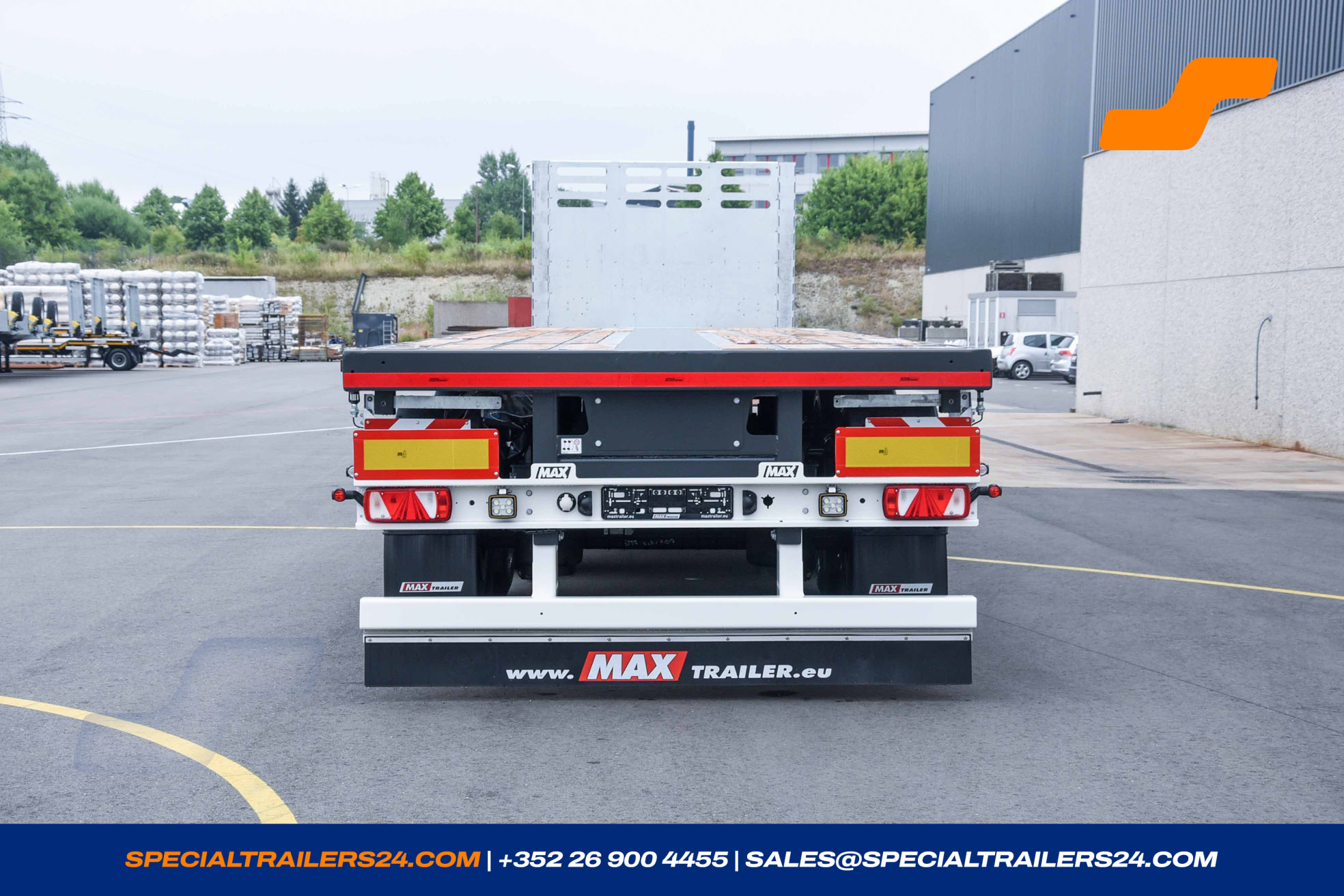

- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.

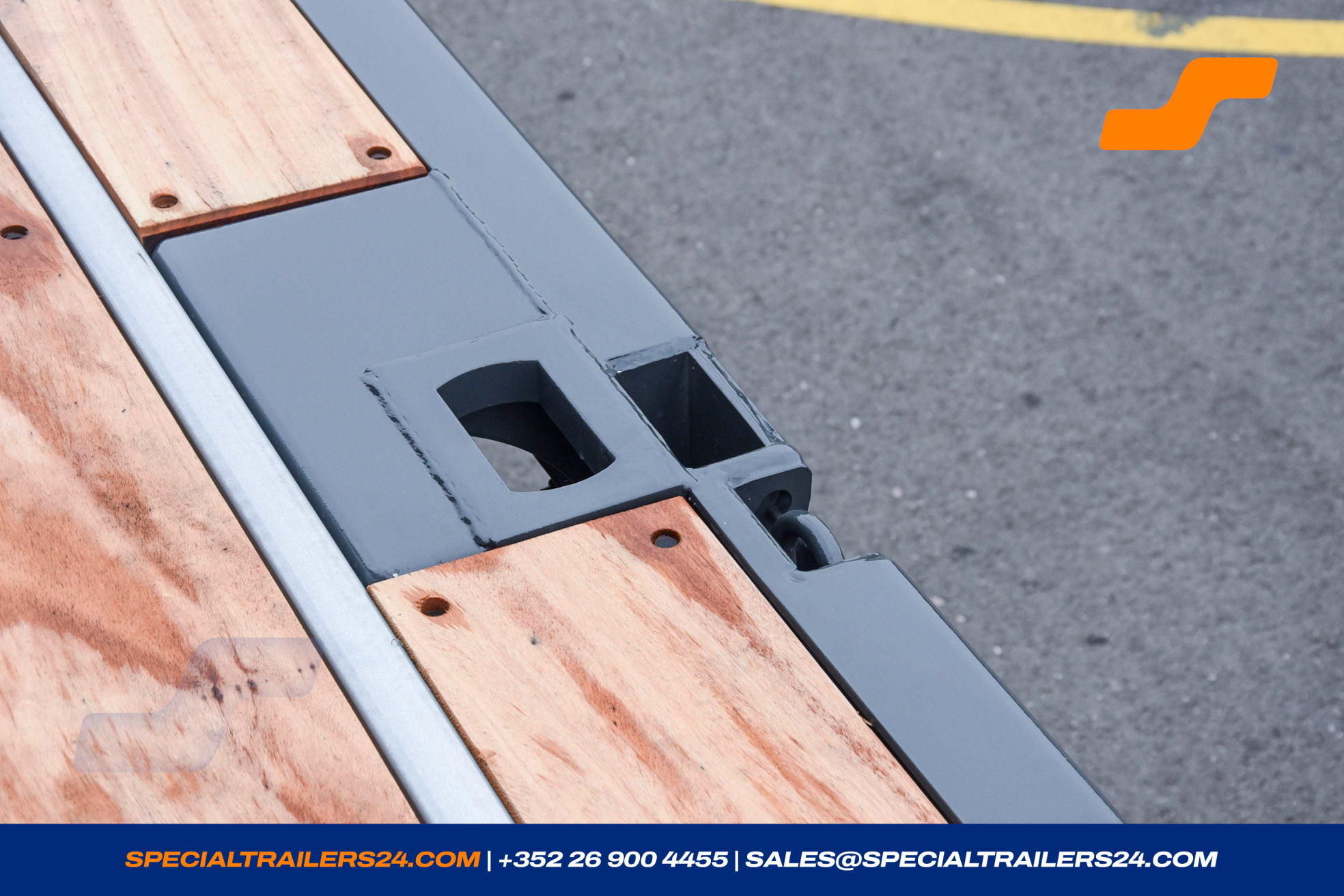

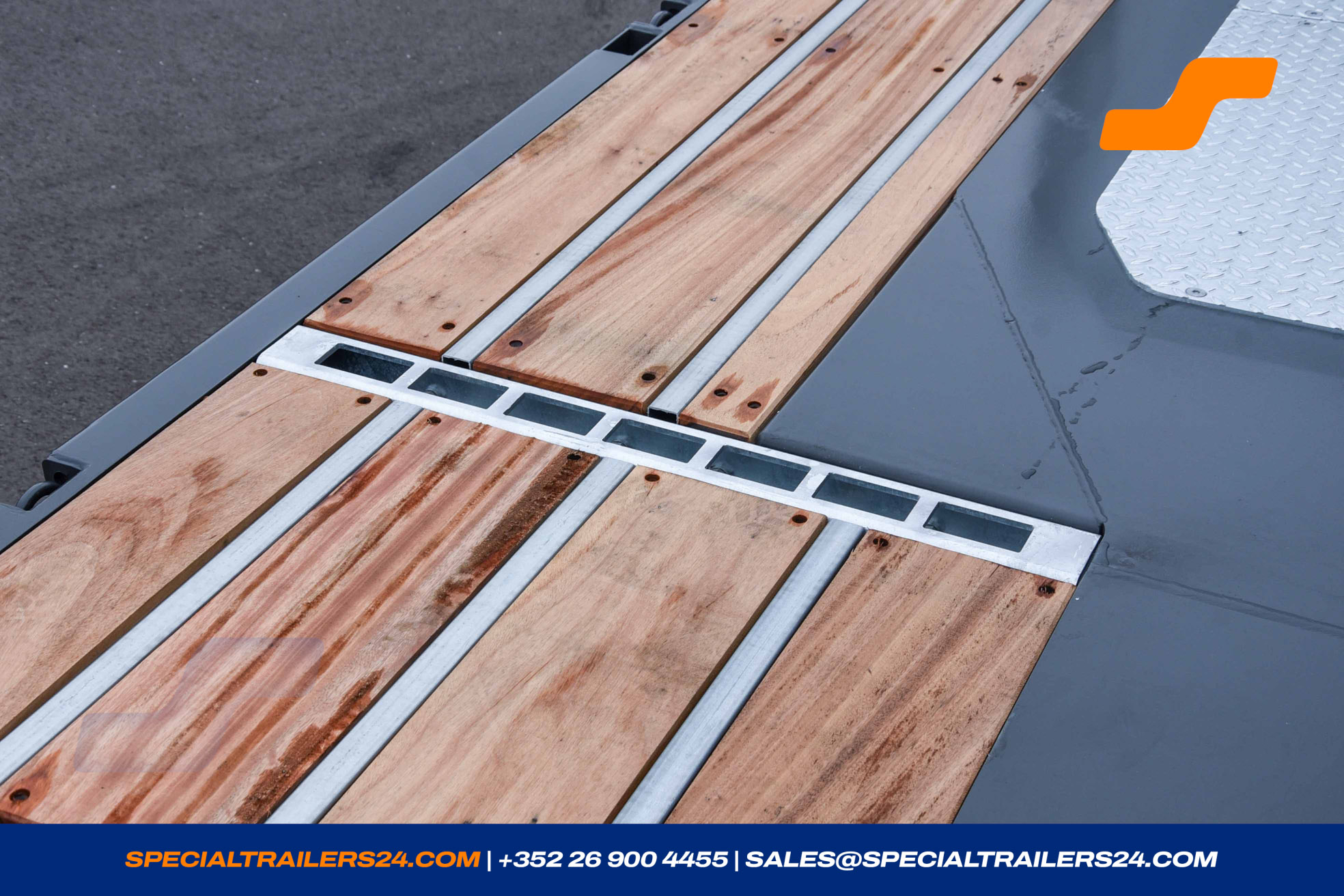

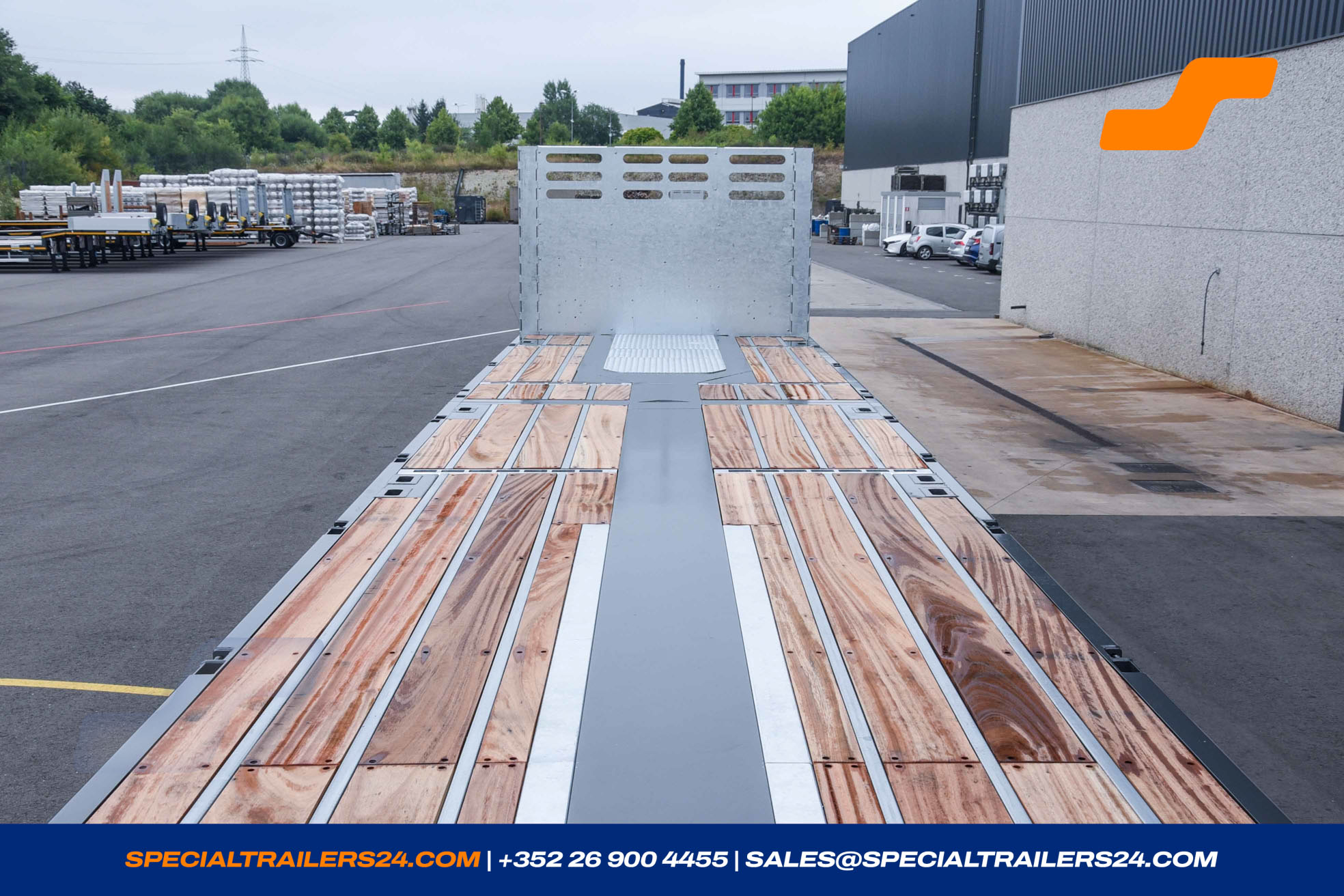

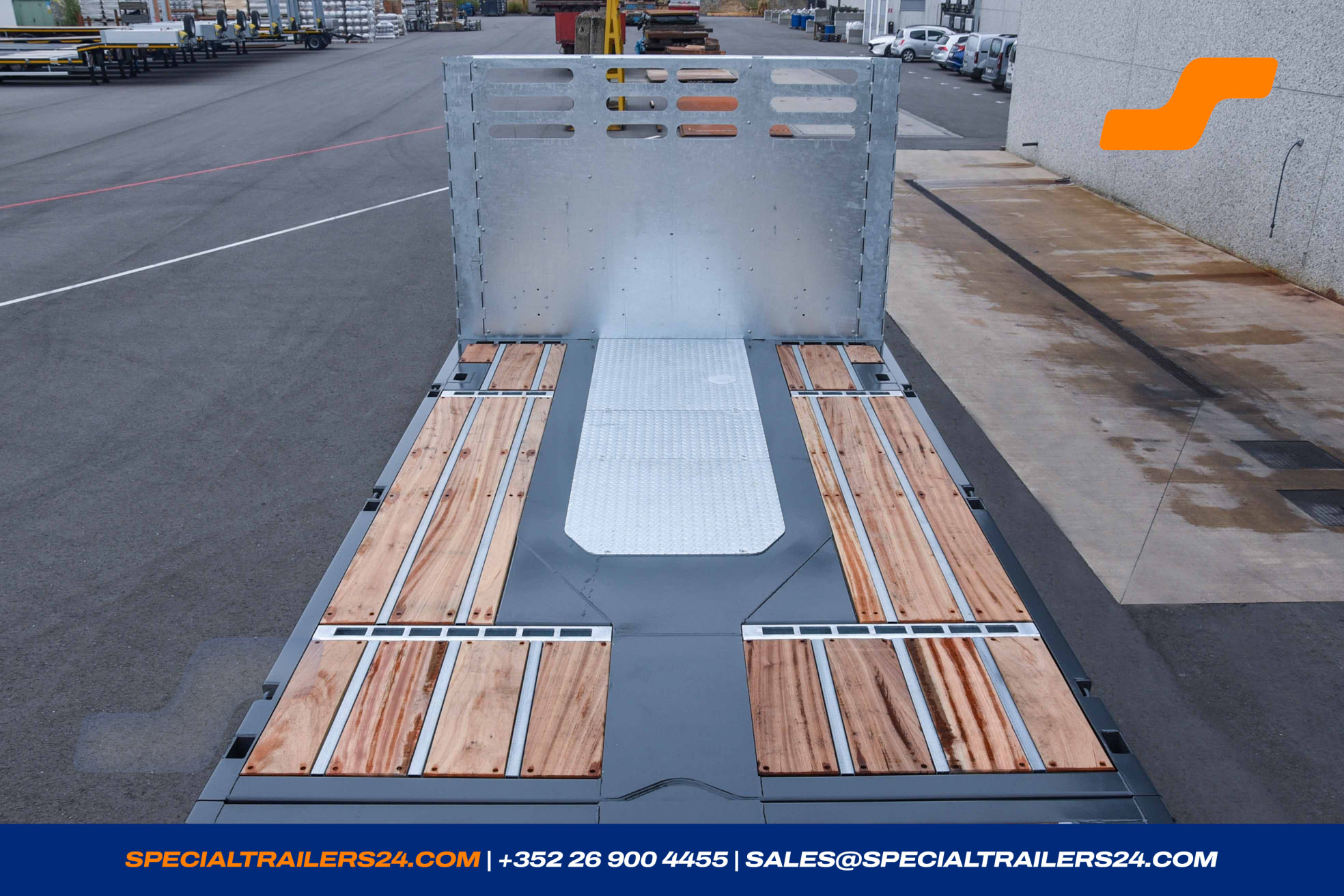

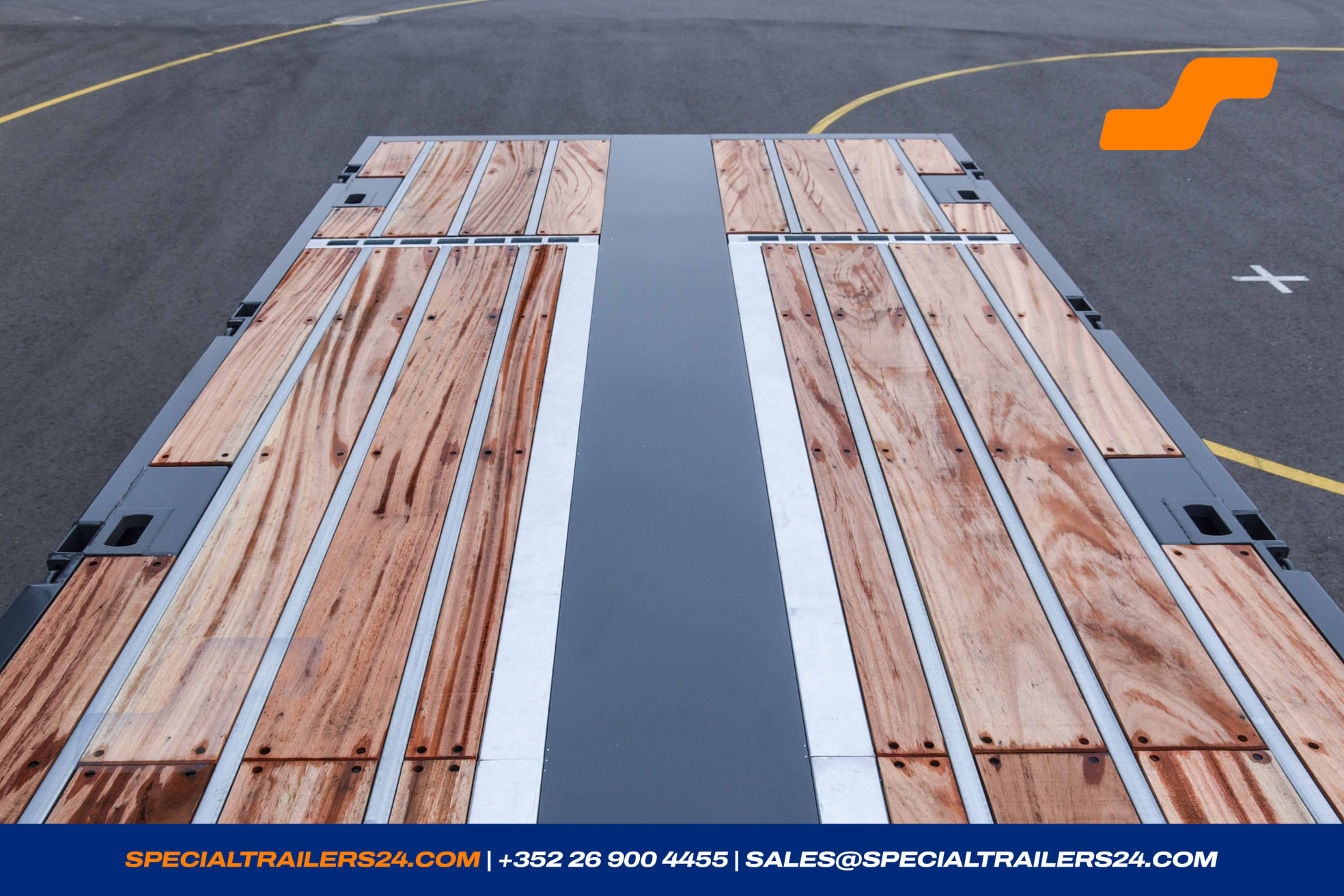

- Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 298 kg)
- 10 pairs of galvanised stakes ± 100 x 50 mm, height 1 000 mm. (± 220 kg)

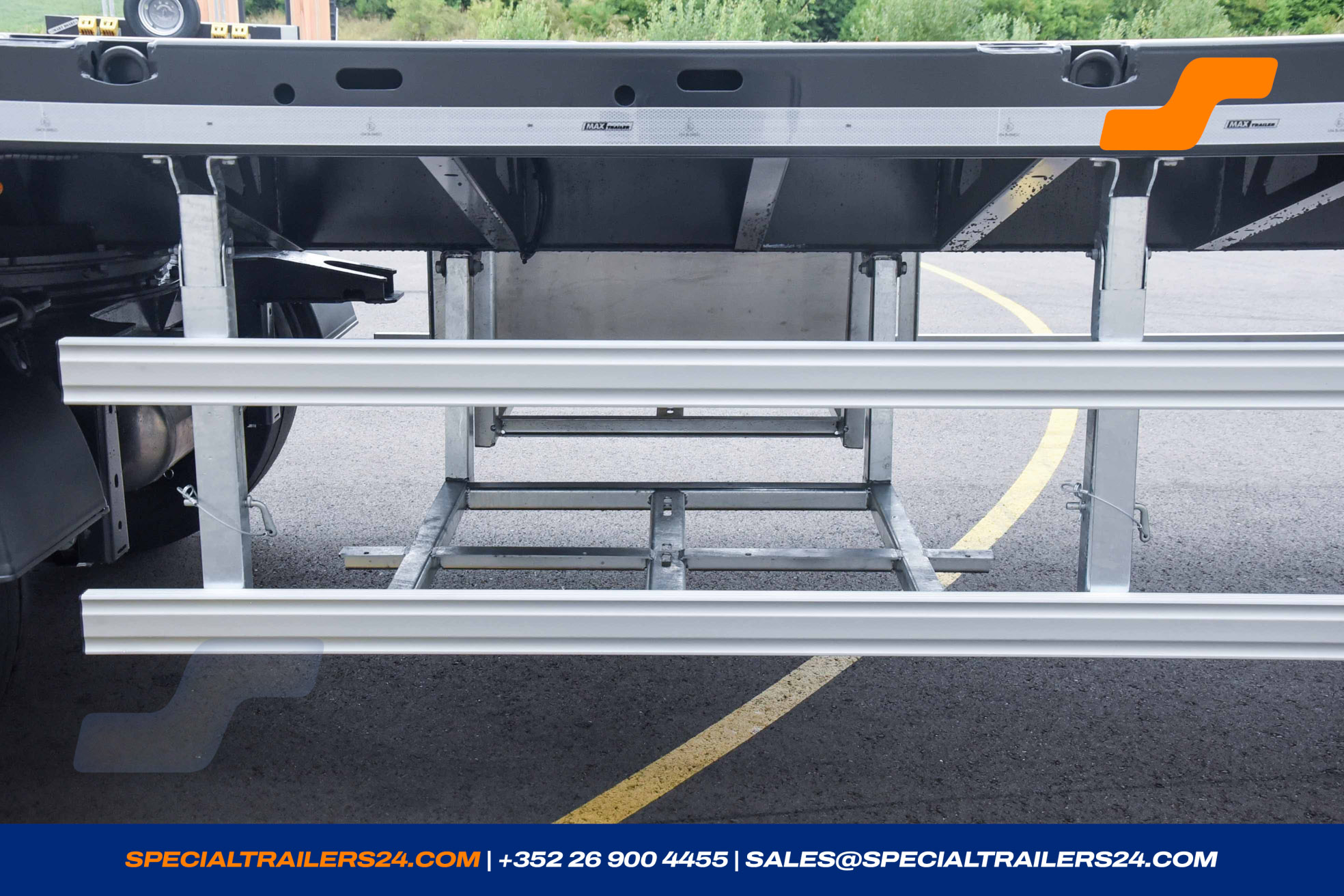

- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)
- Hooks for cover (8 mm), every ca. 500 mm under the outer frame of the gooseneck and of the loading platform (± 2kg).

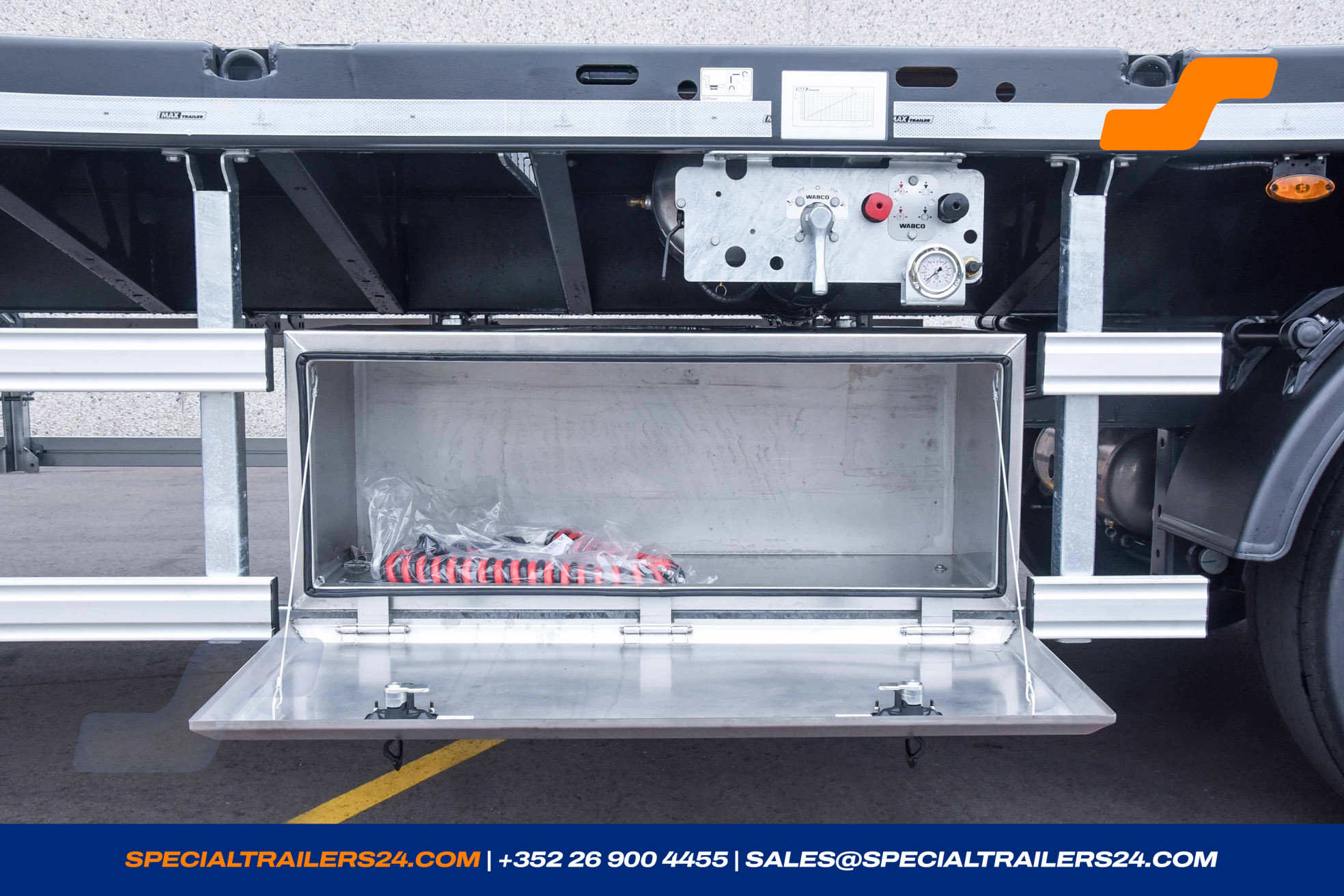

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the right side. (± 75 kg)
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
Accessories
1 x Accessories
-
Complete steel construction automatically blasted after welding with blast wheel system.
Second blasting with corundum for optimal adhesion of the coating system.
HRM metallisation of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection.
Final painting with 2 layers of 2K topcoat, in a single colour of your choice following RAL 841GL system.

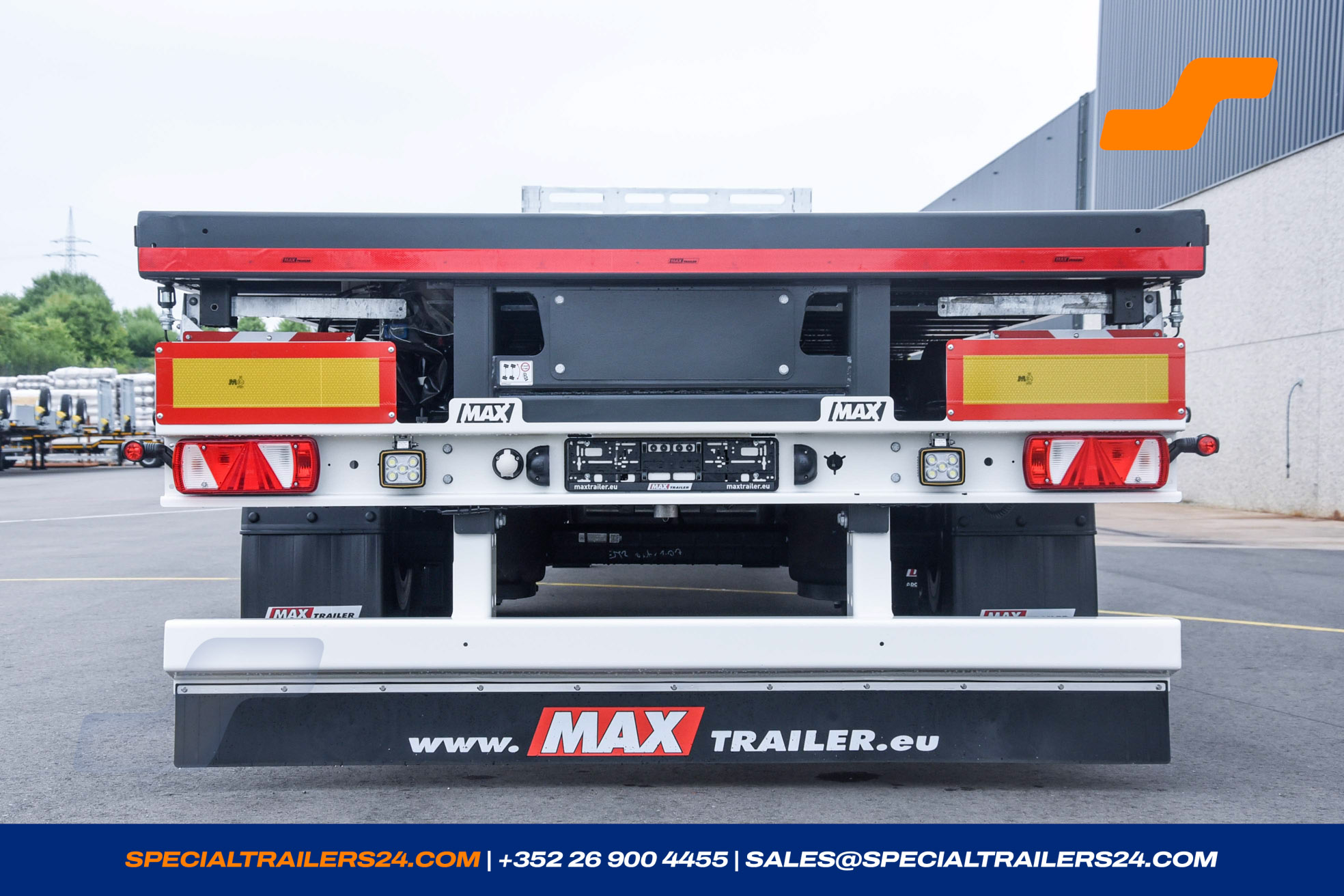

Rear section metallised and painted in RAL 9010 (pure white). Metallic paintwork is not possible.
Lacquer structure tested in salt spray test according to ISO 9227-NSS.
Body-cavity sealing with special wax. - Manual and description on USB stick .

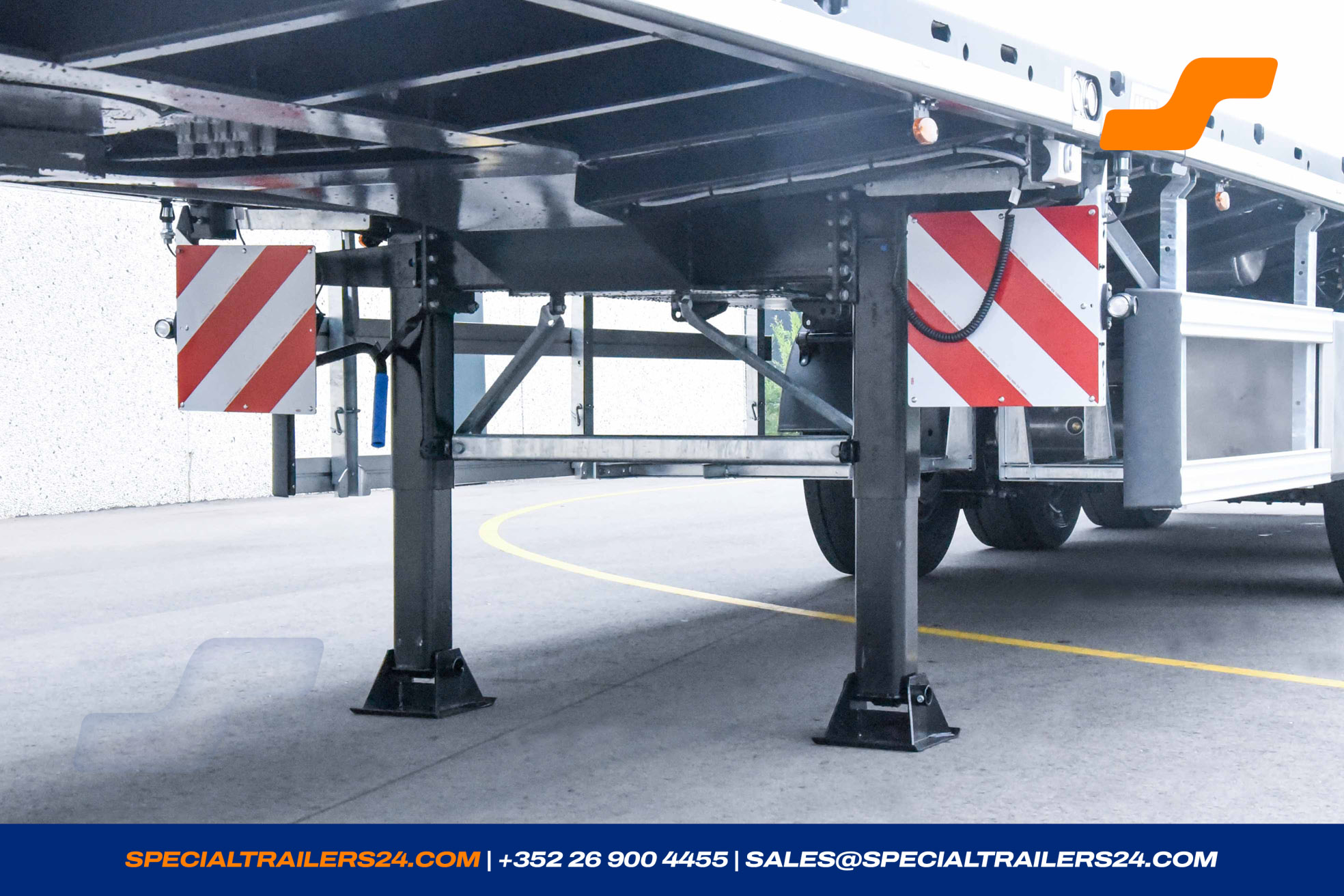

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Acoustic warning signal when reversing.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.
