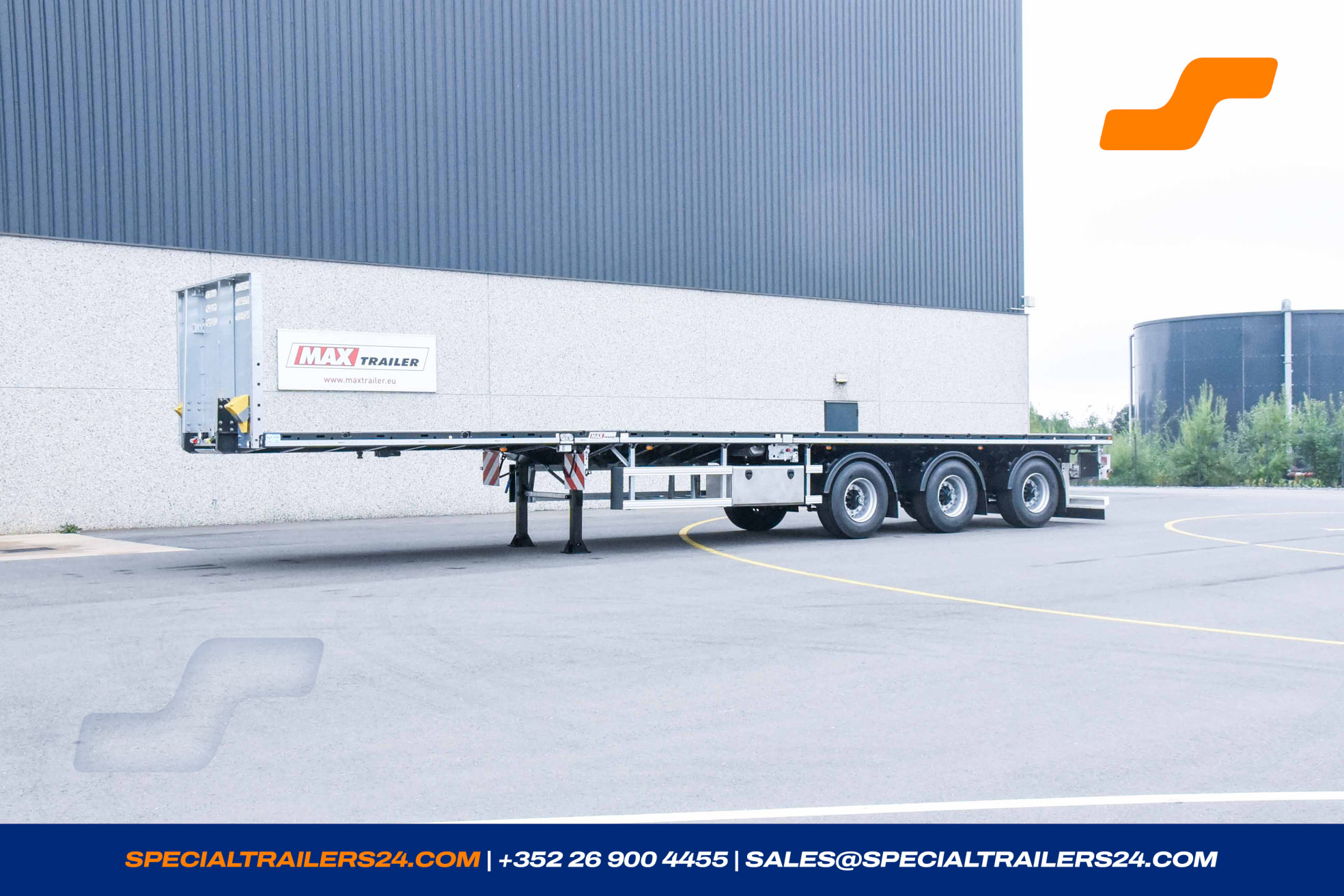

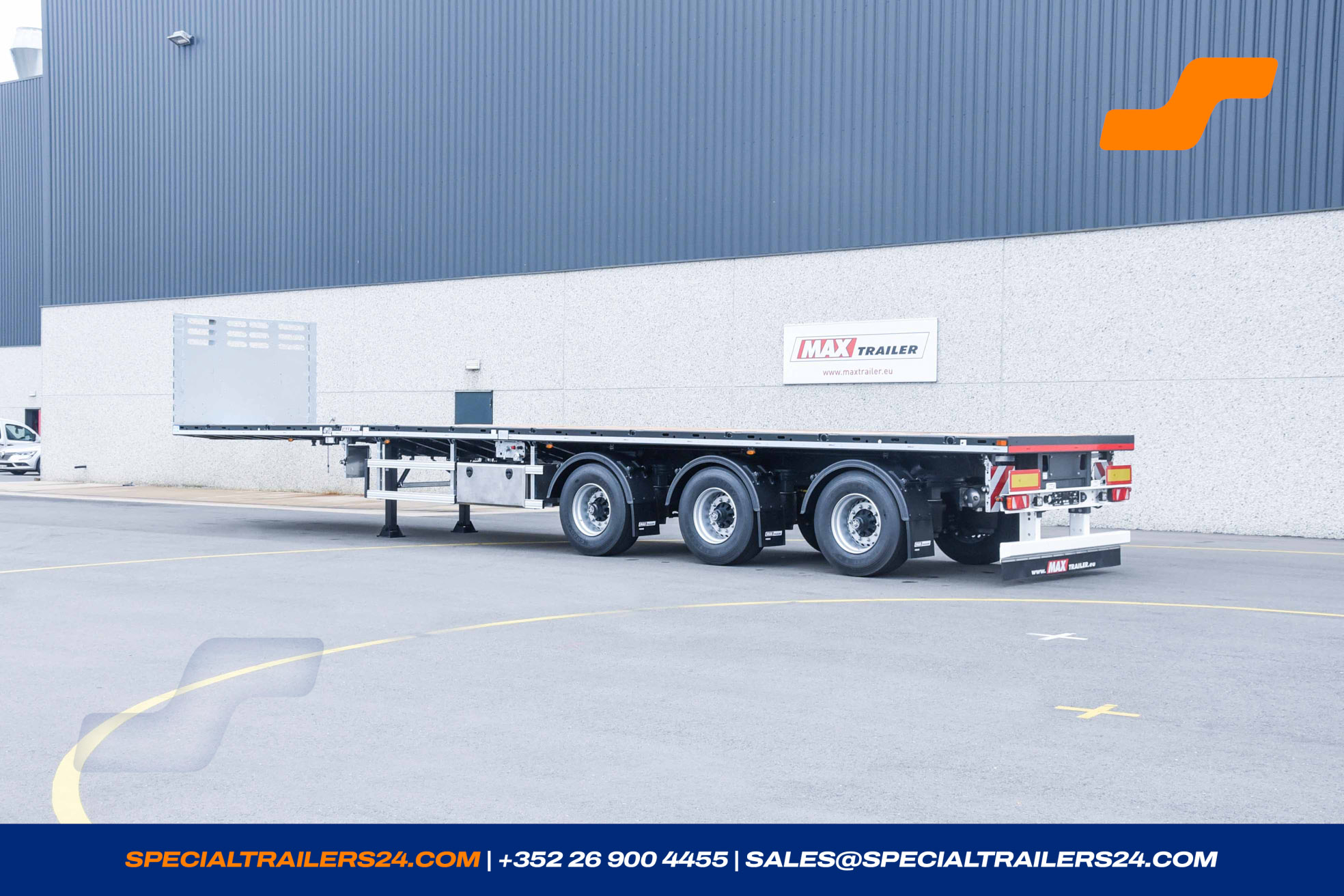

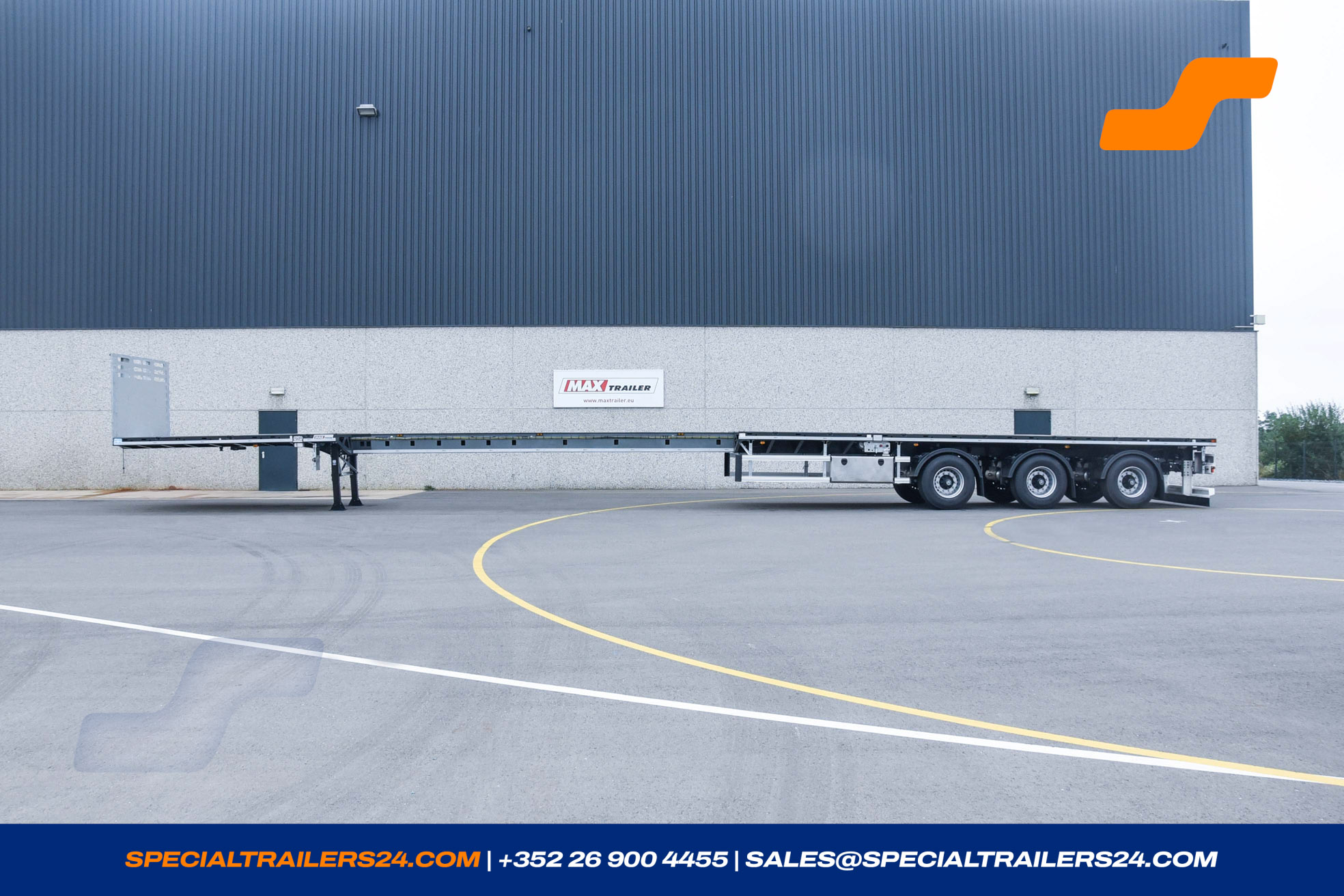

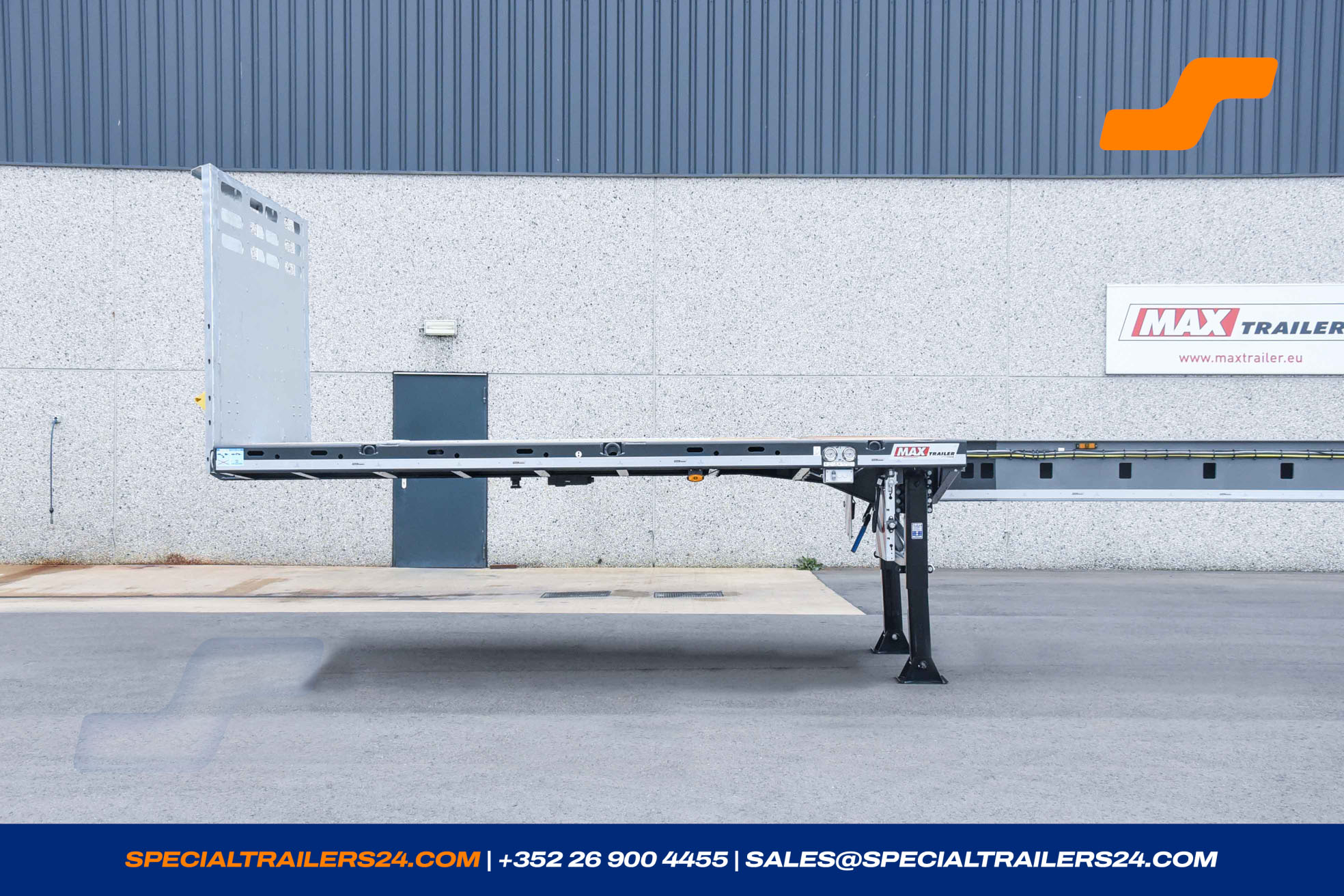

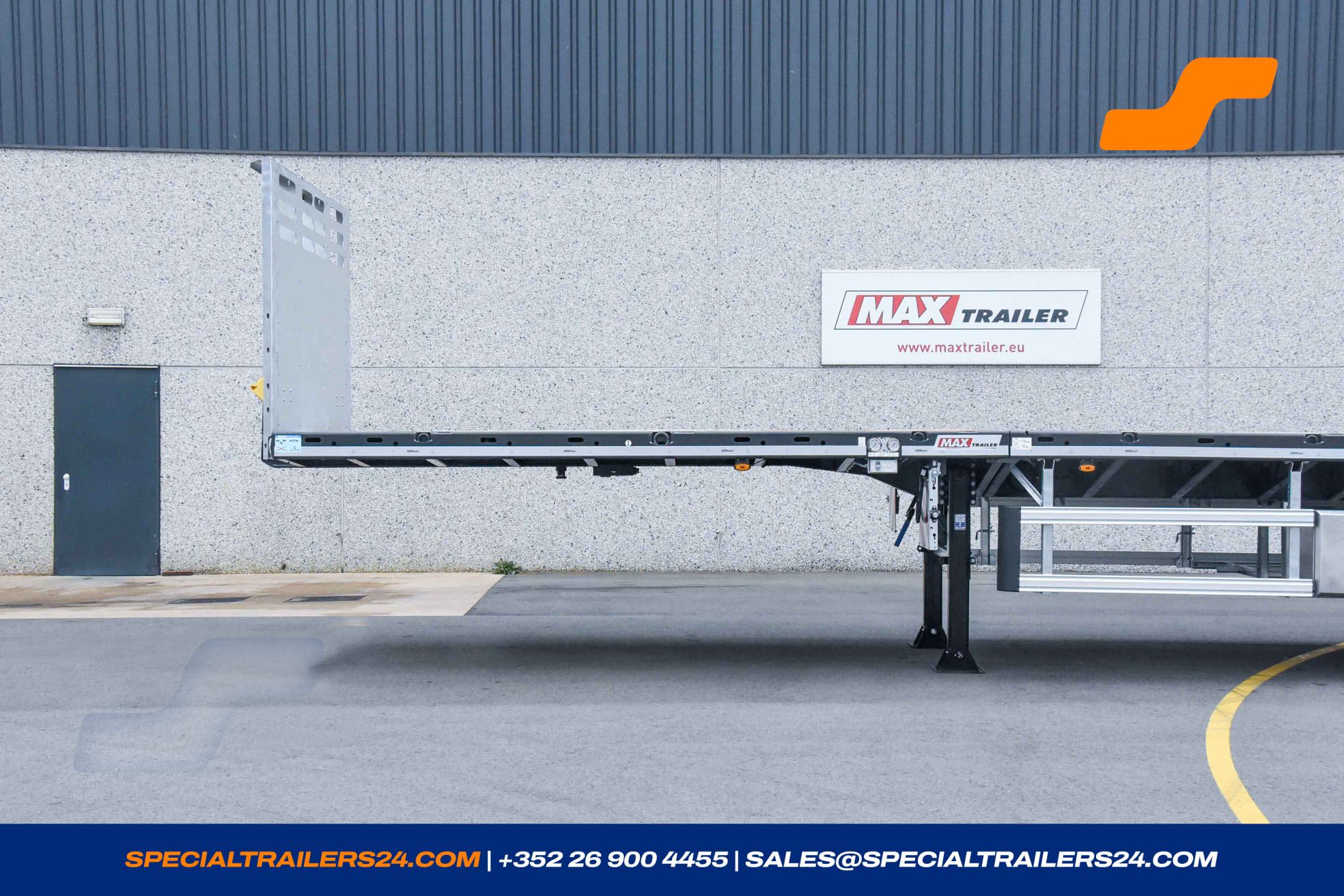

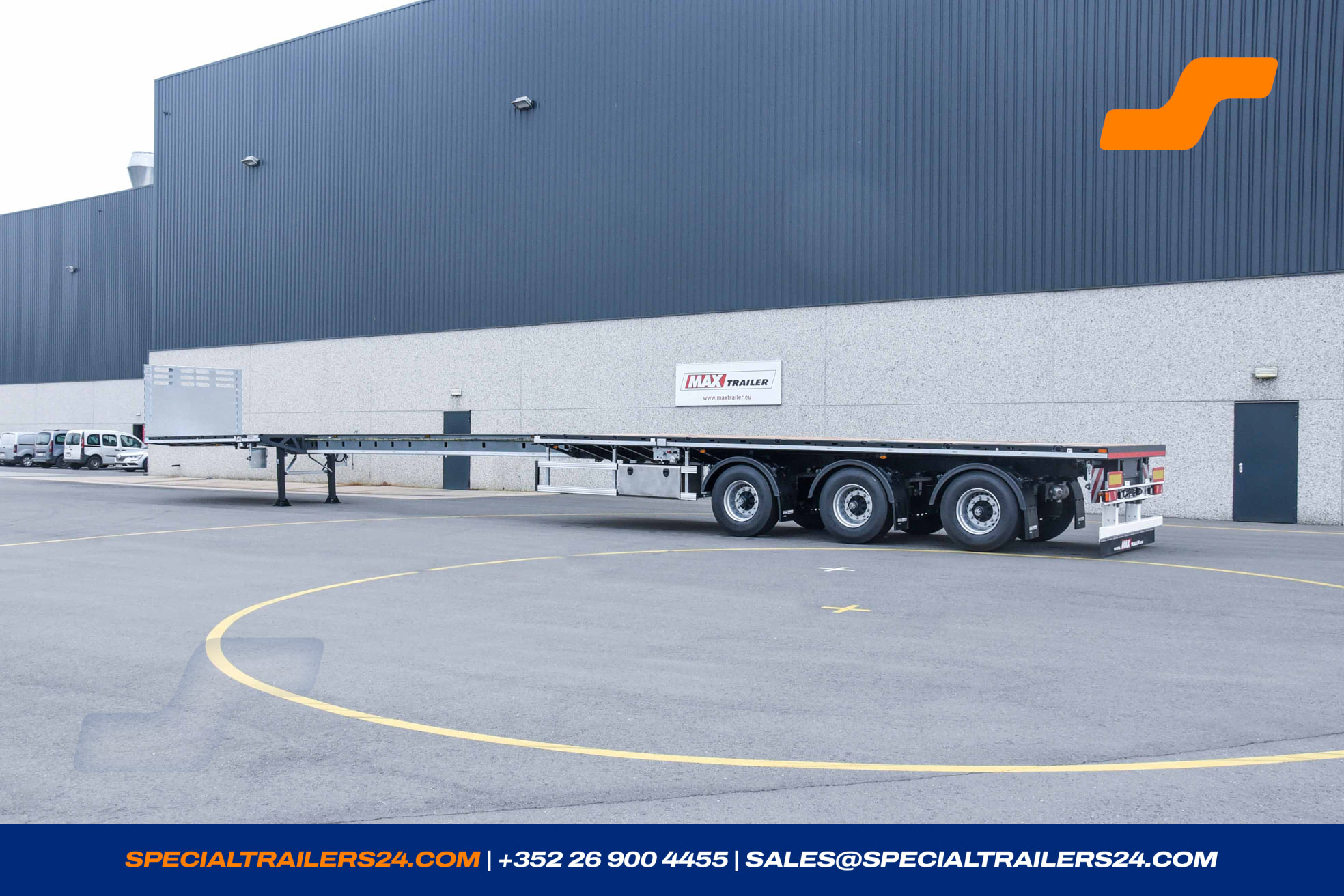

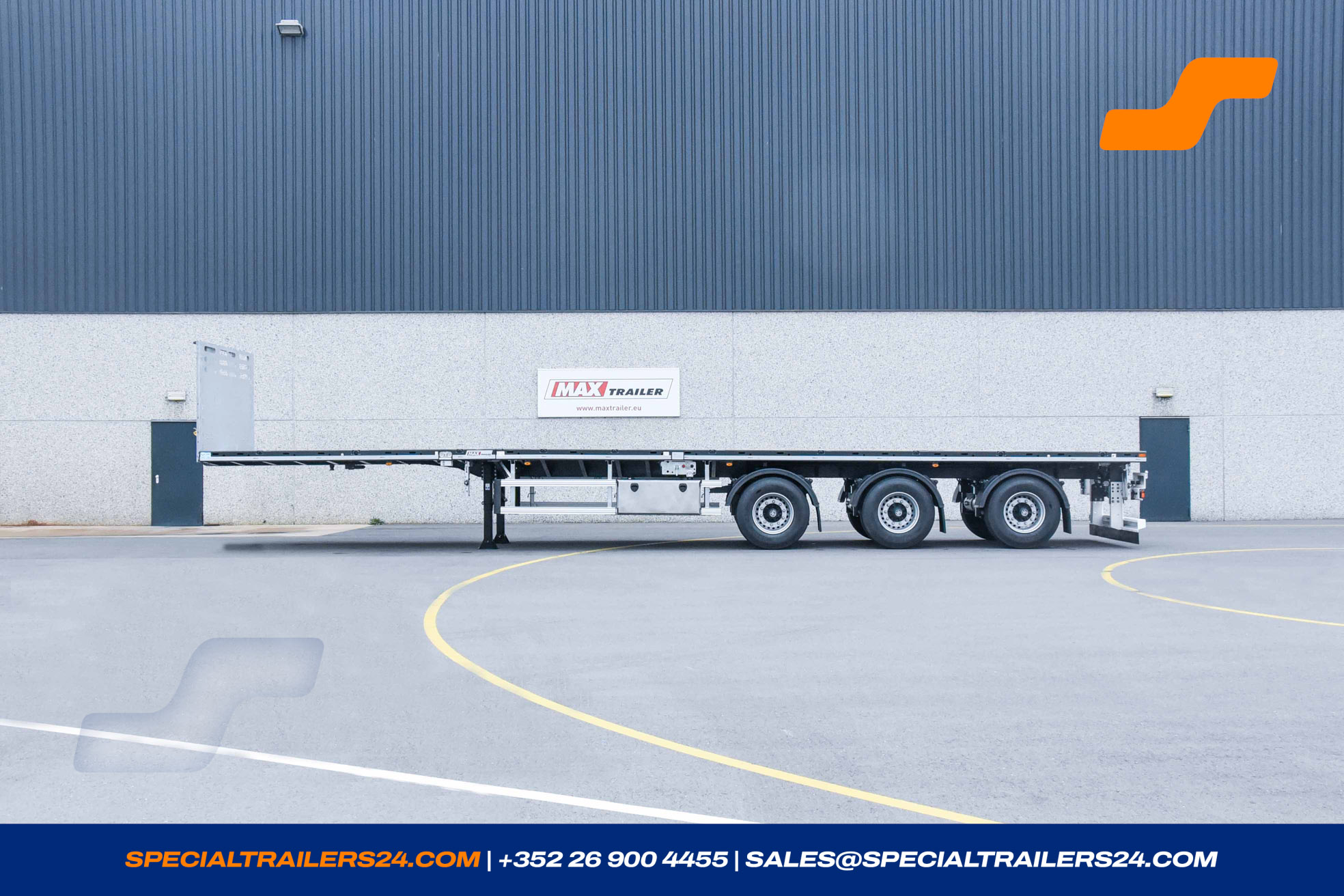

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111072
- Reference MAX210-Z-3A-13.60-22.5-2.54

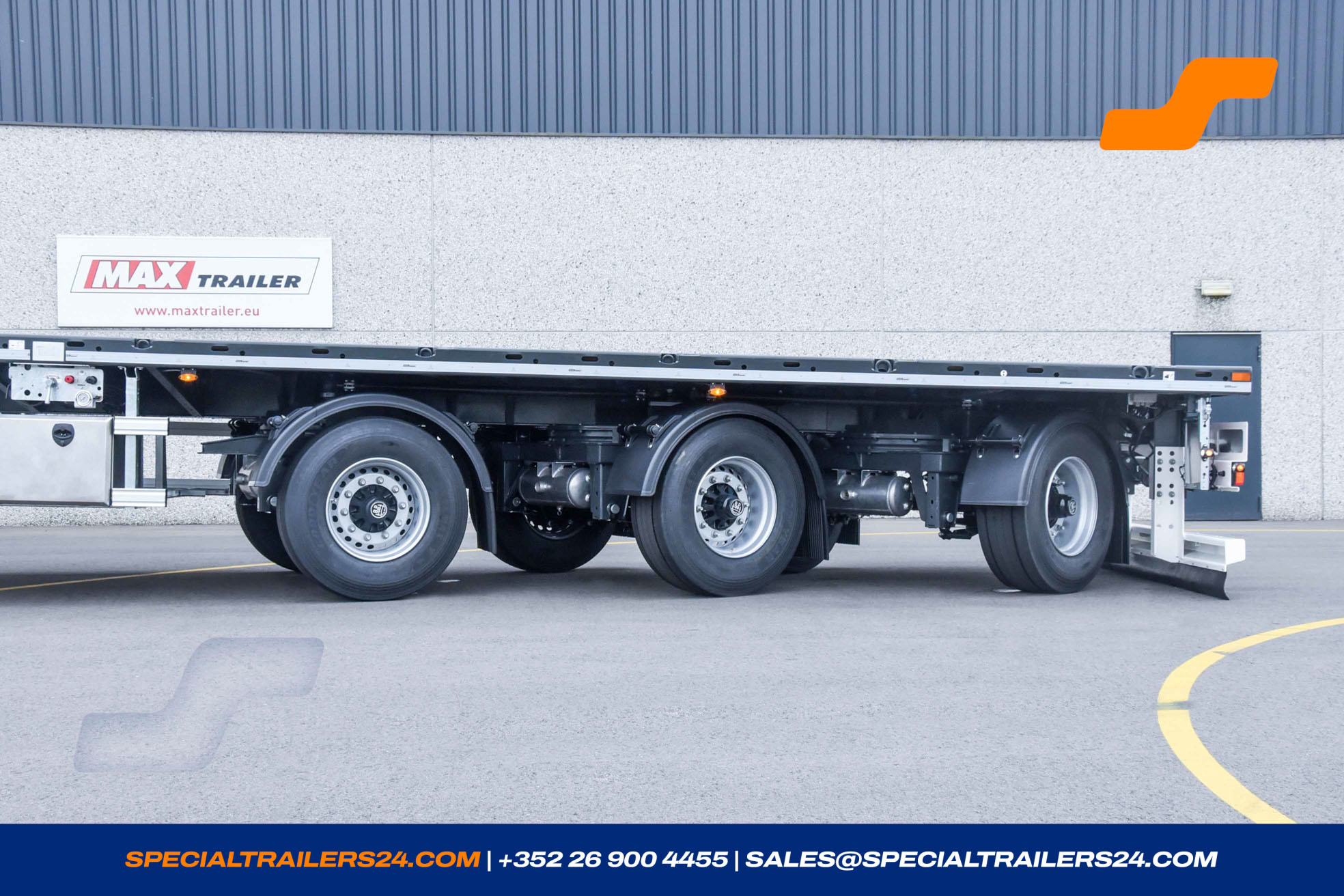

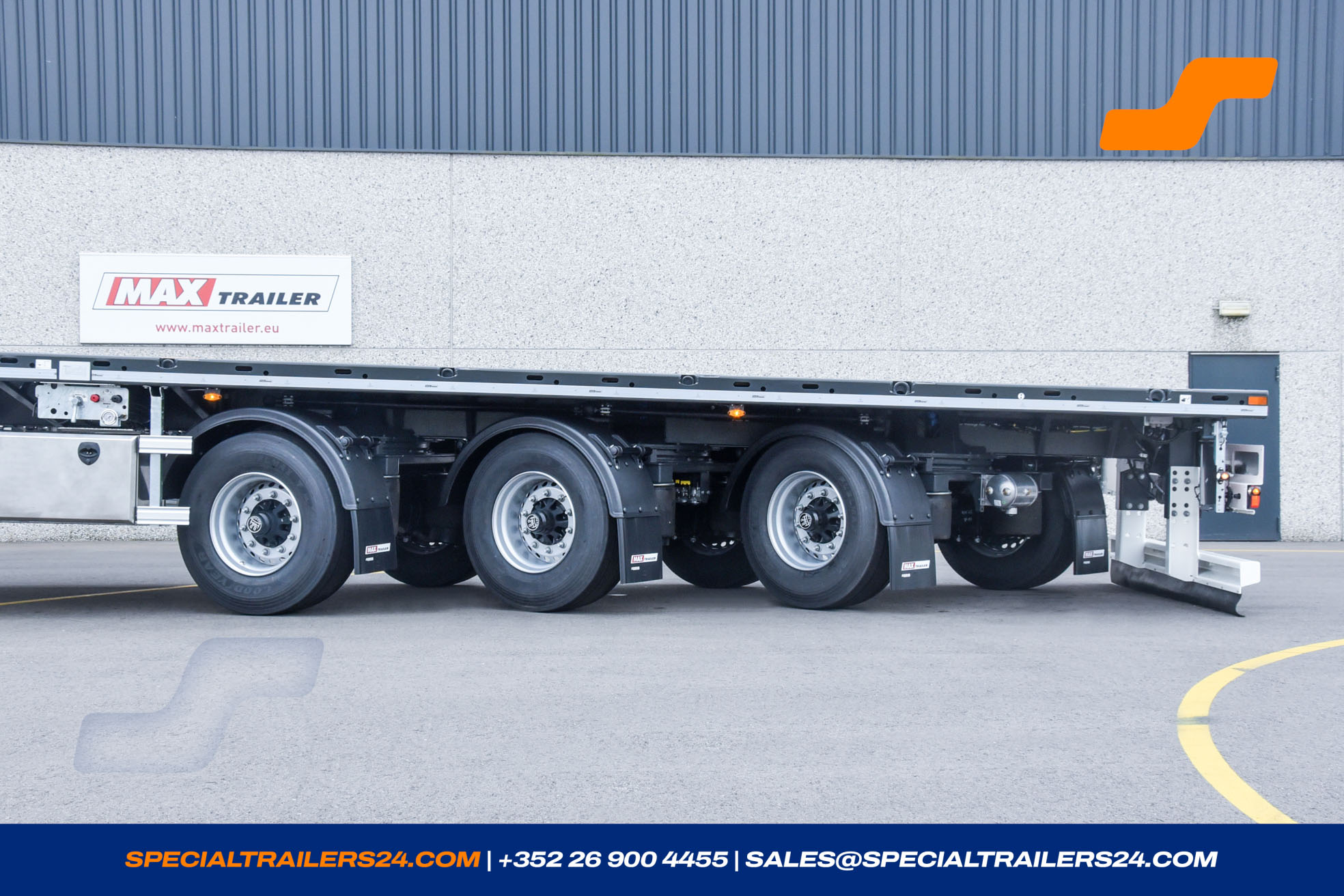

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 02/2026
- Steering Type Hydraulic
Availability
02/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 30000 kg |
| Gross weight | 48000 kg |
| Tare weight +- 3% | 9954 kg |
| Payload | 38046 kg |
Dimensions
| Fifth wheel height loaded | 1150->1190 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck

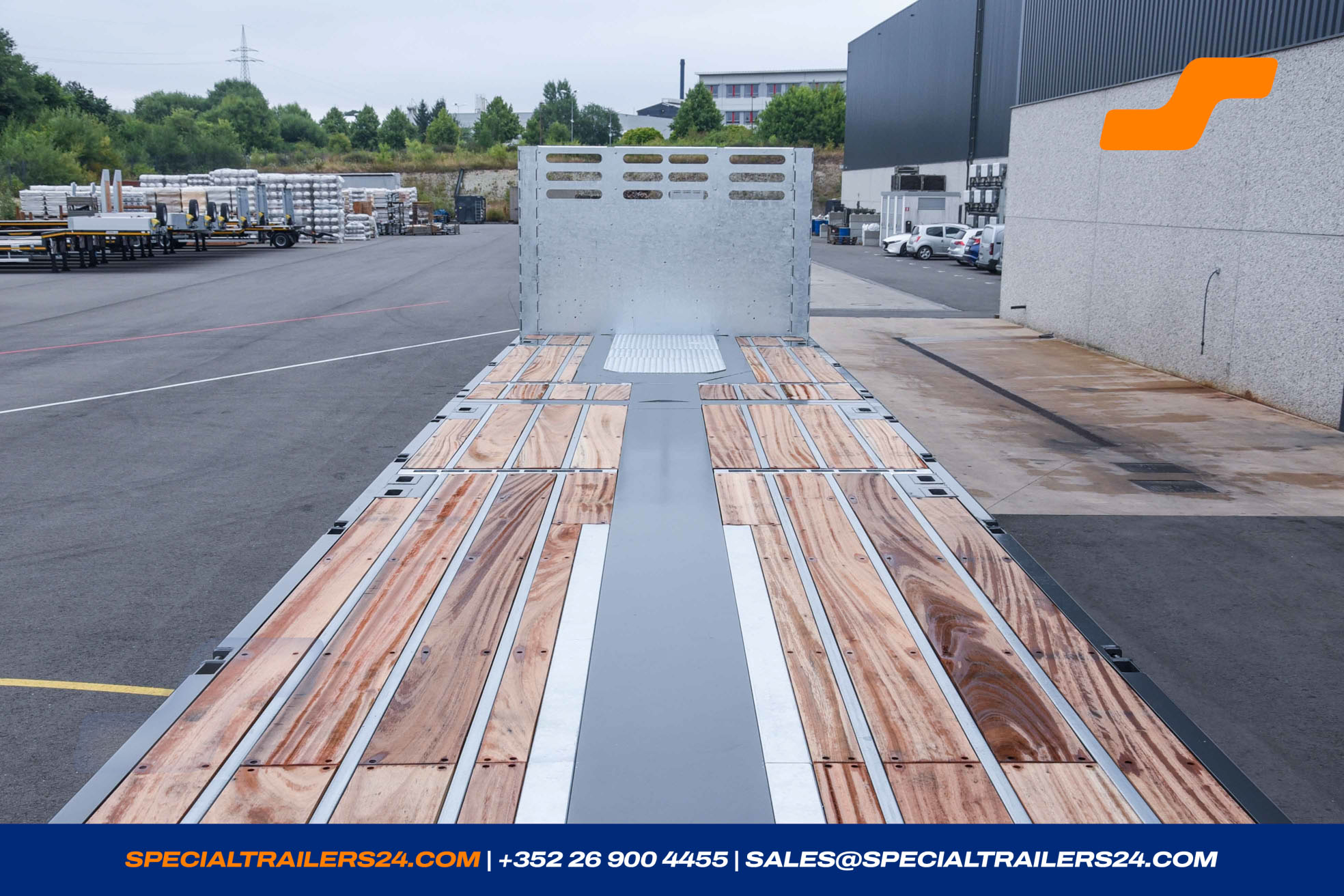

Loading platform
1 x Loading platform

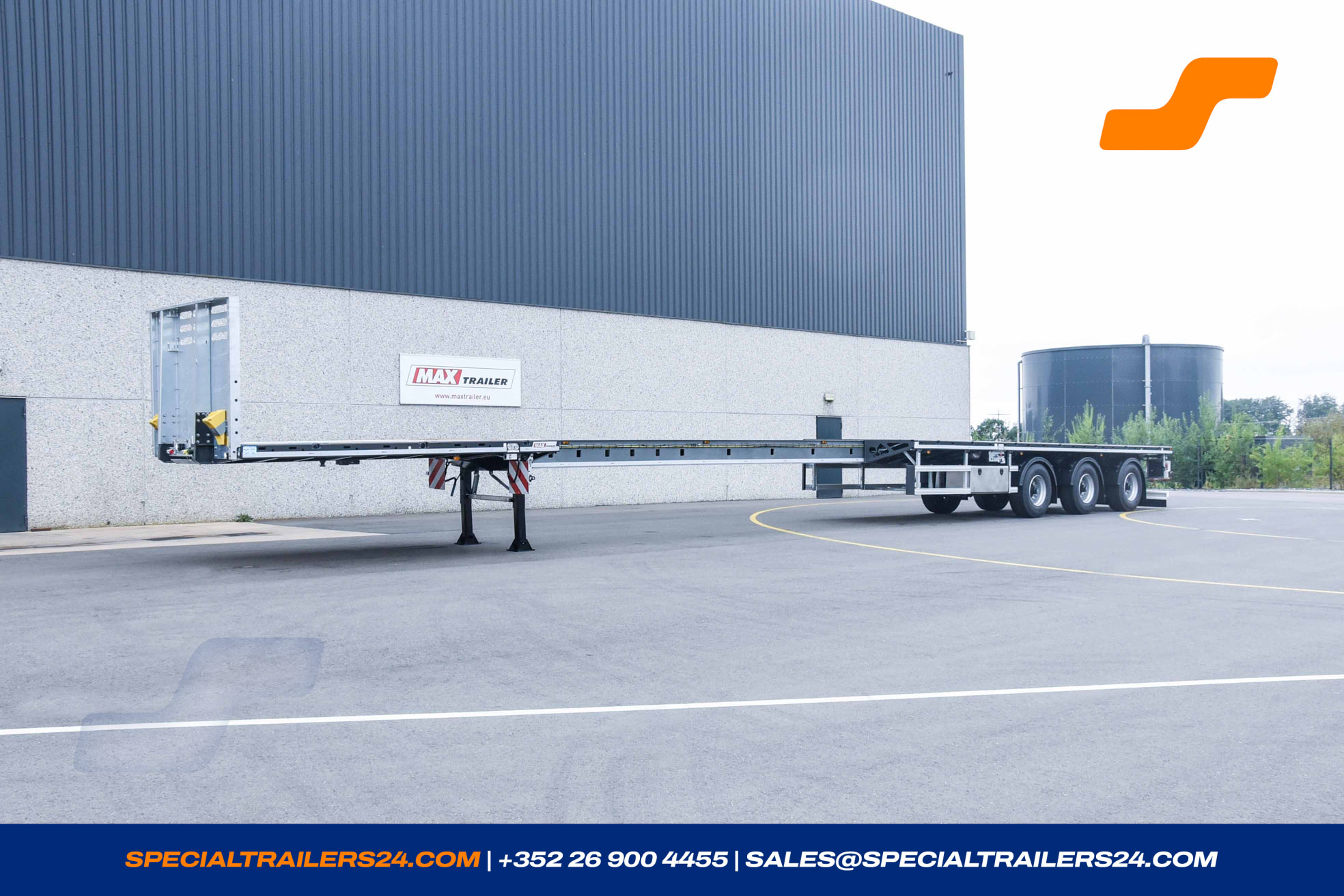

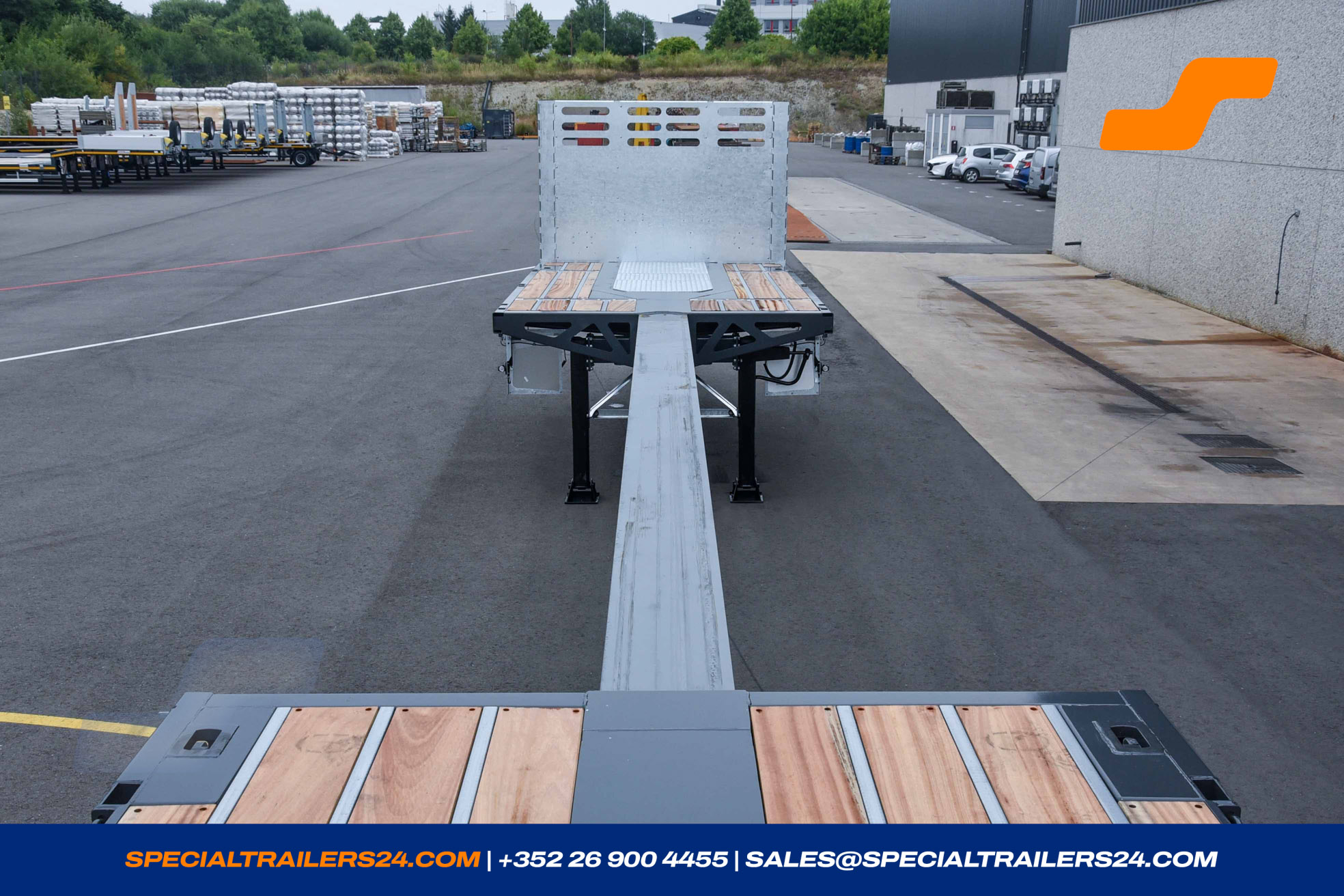

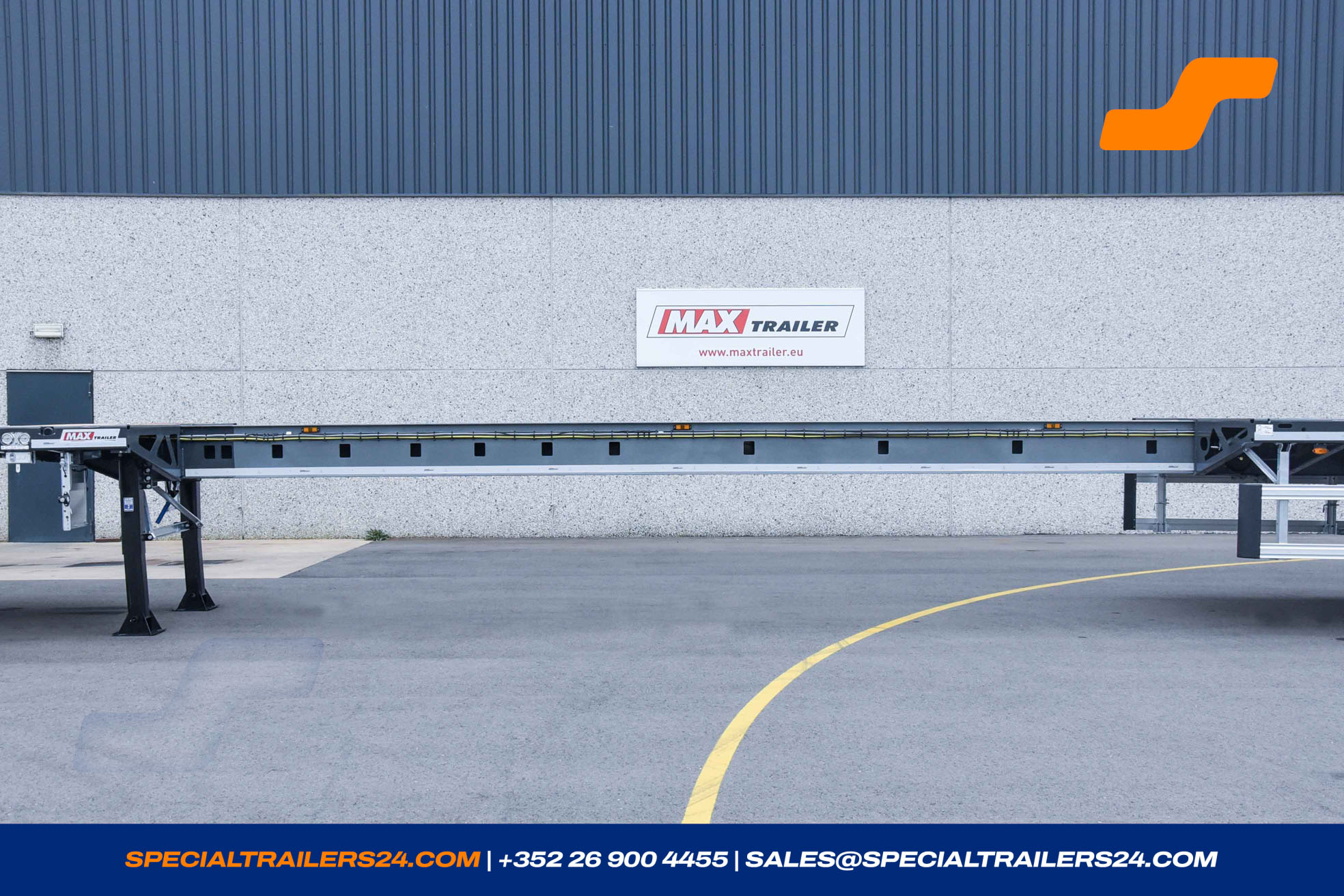

Extendable loading platform with pneumatically operated locking mechanism.

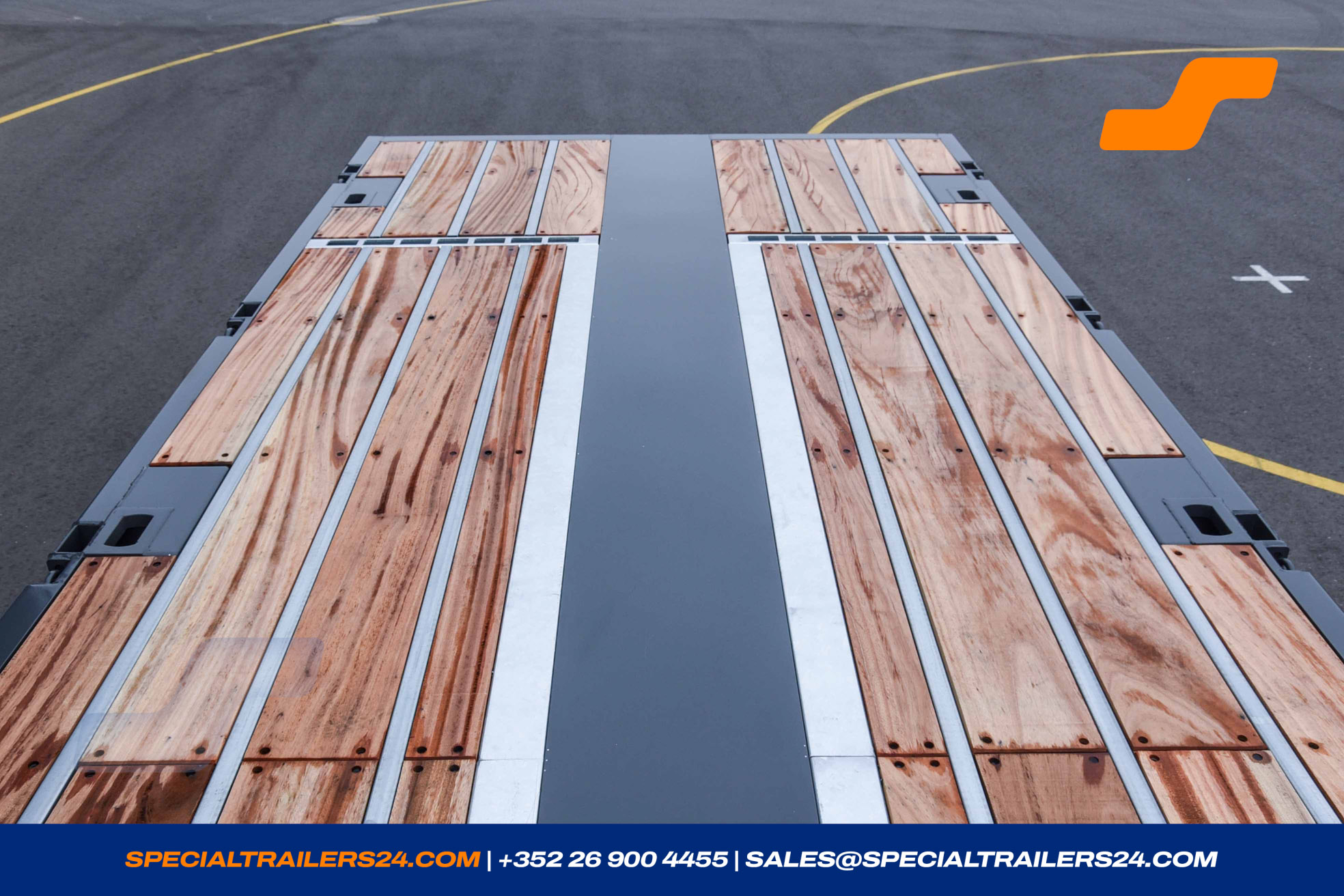

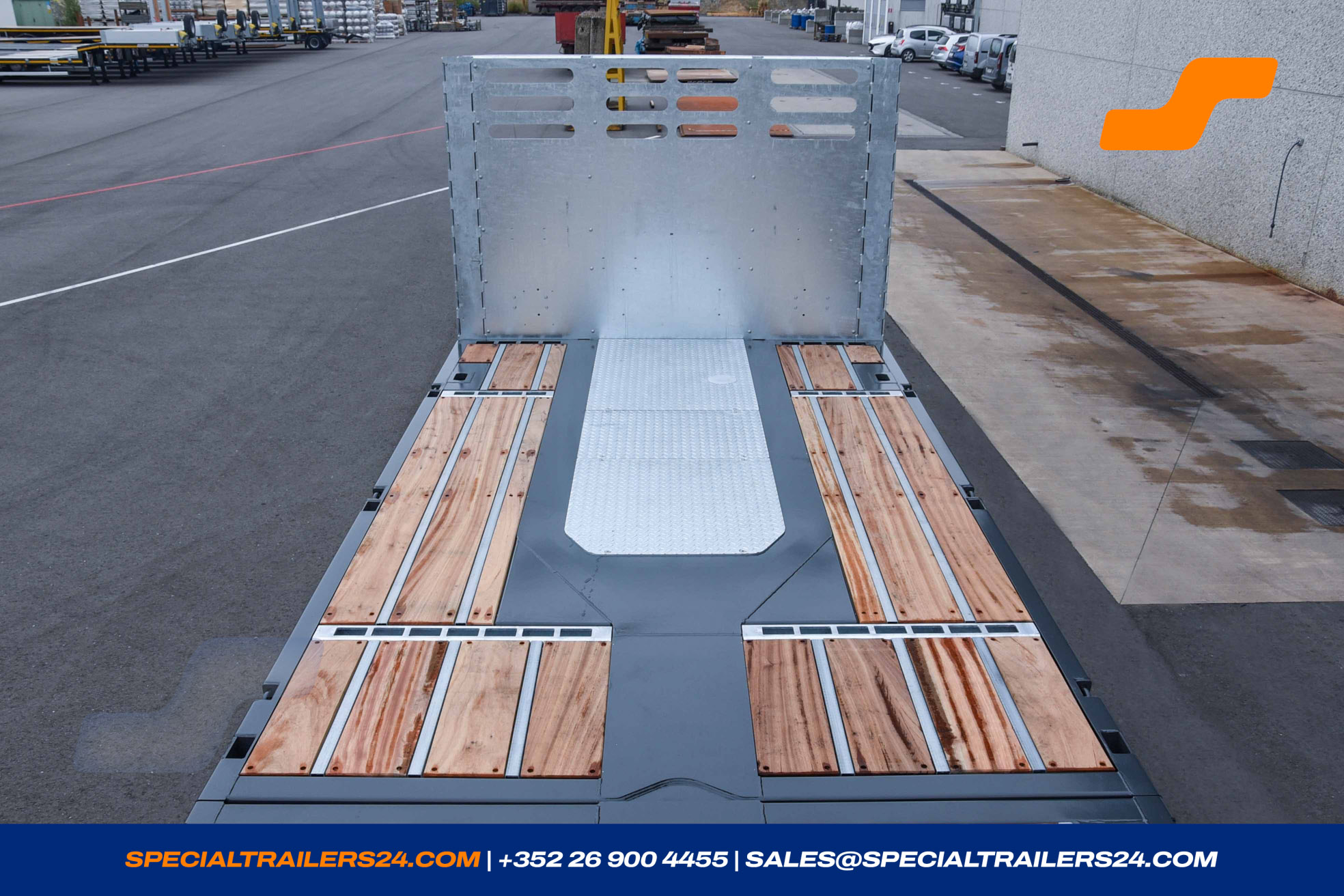

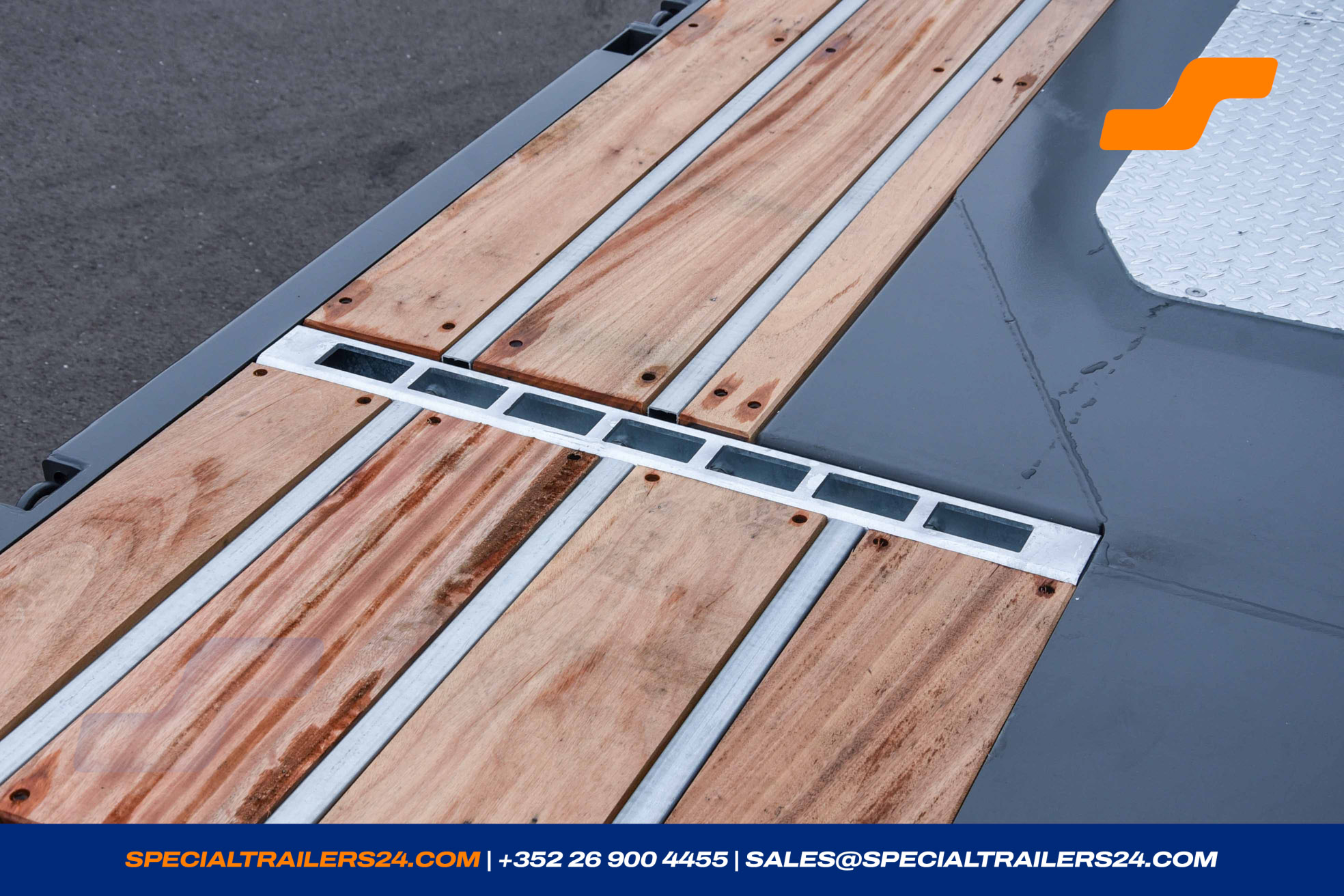

Loading area with ± 30 mm thick timber.

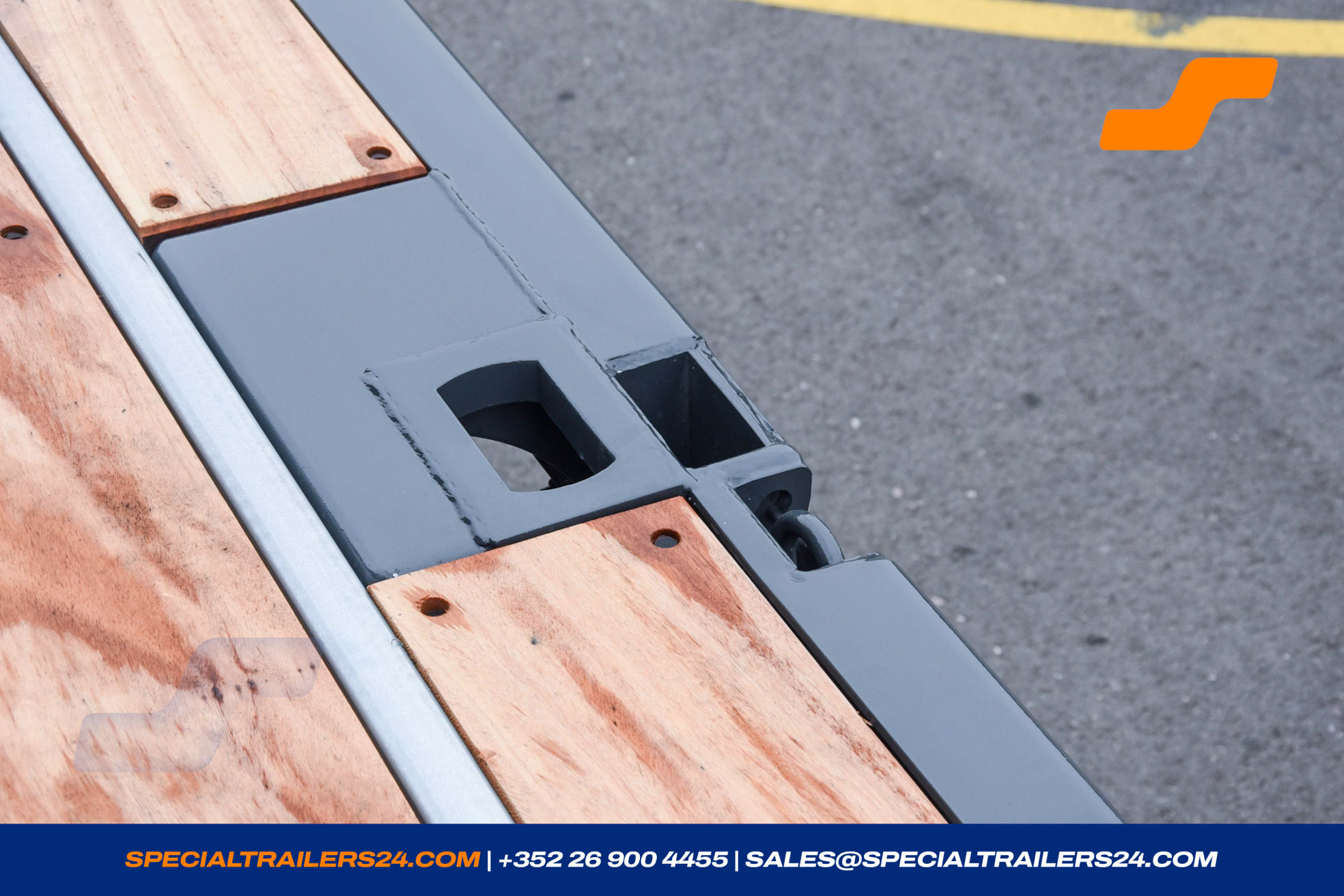

7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
- 4 wheel chocks with carrier on the headboard (± 5kg).

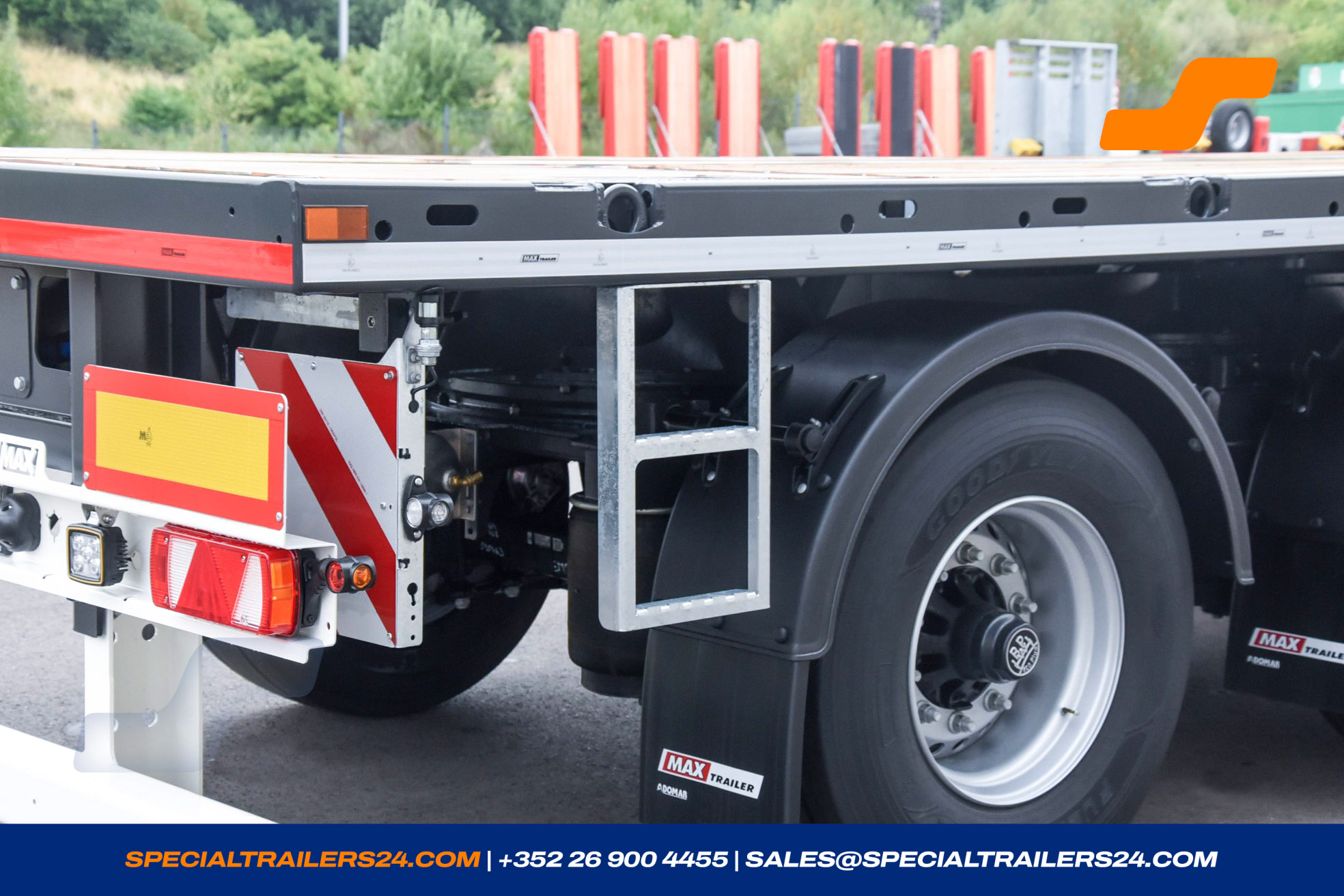

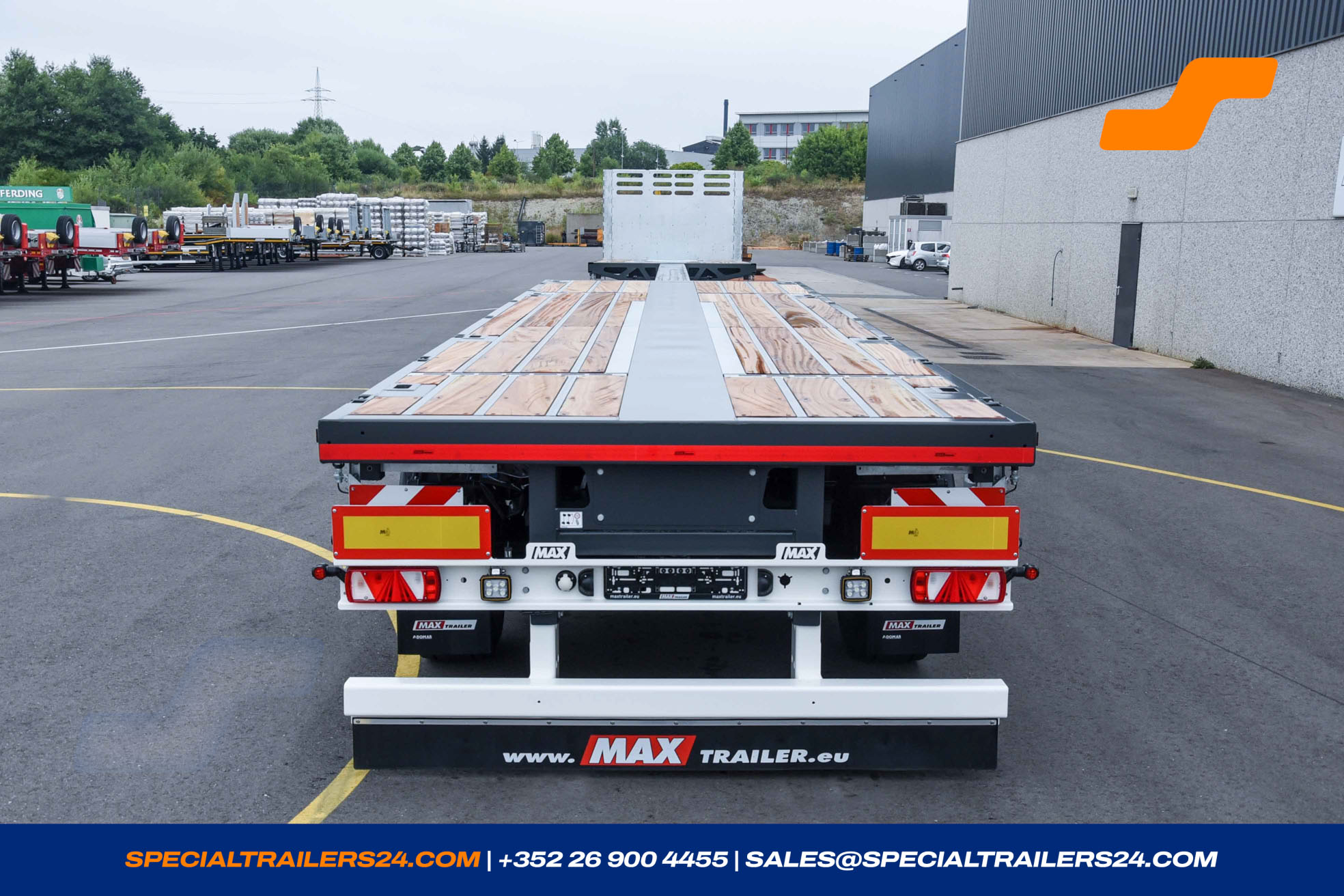

- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- 2 pairs of WADER-containerlocks (± 30 kg).
- 7 pairs of galvanised stakes ca. 100 x 50 mm, height 1000 mm. (± 154kg)

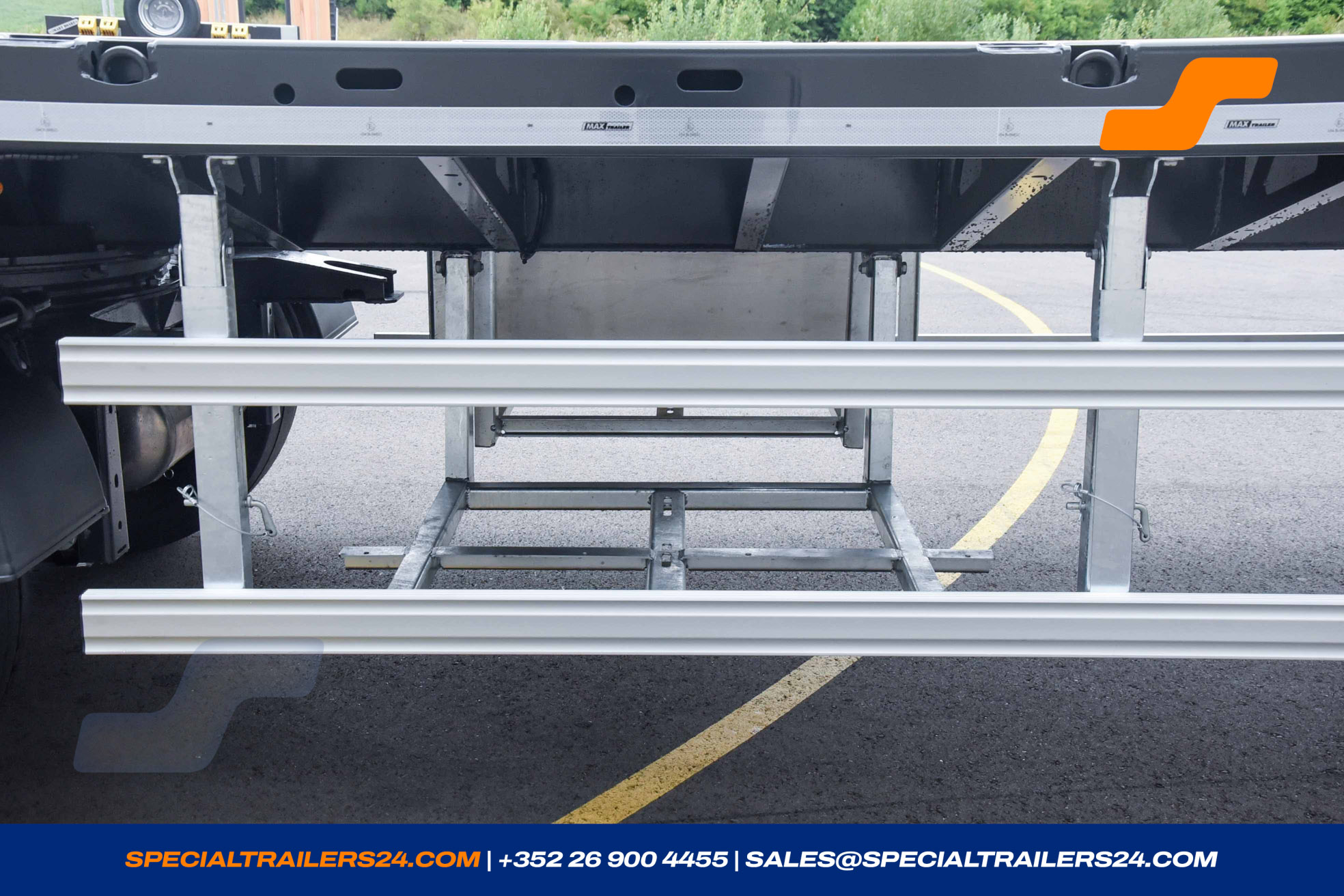

- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)

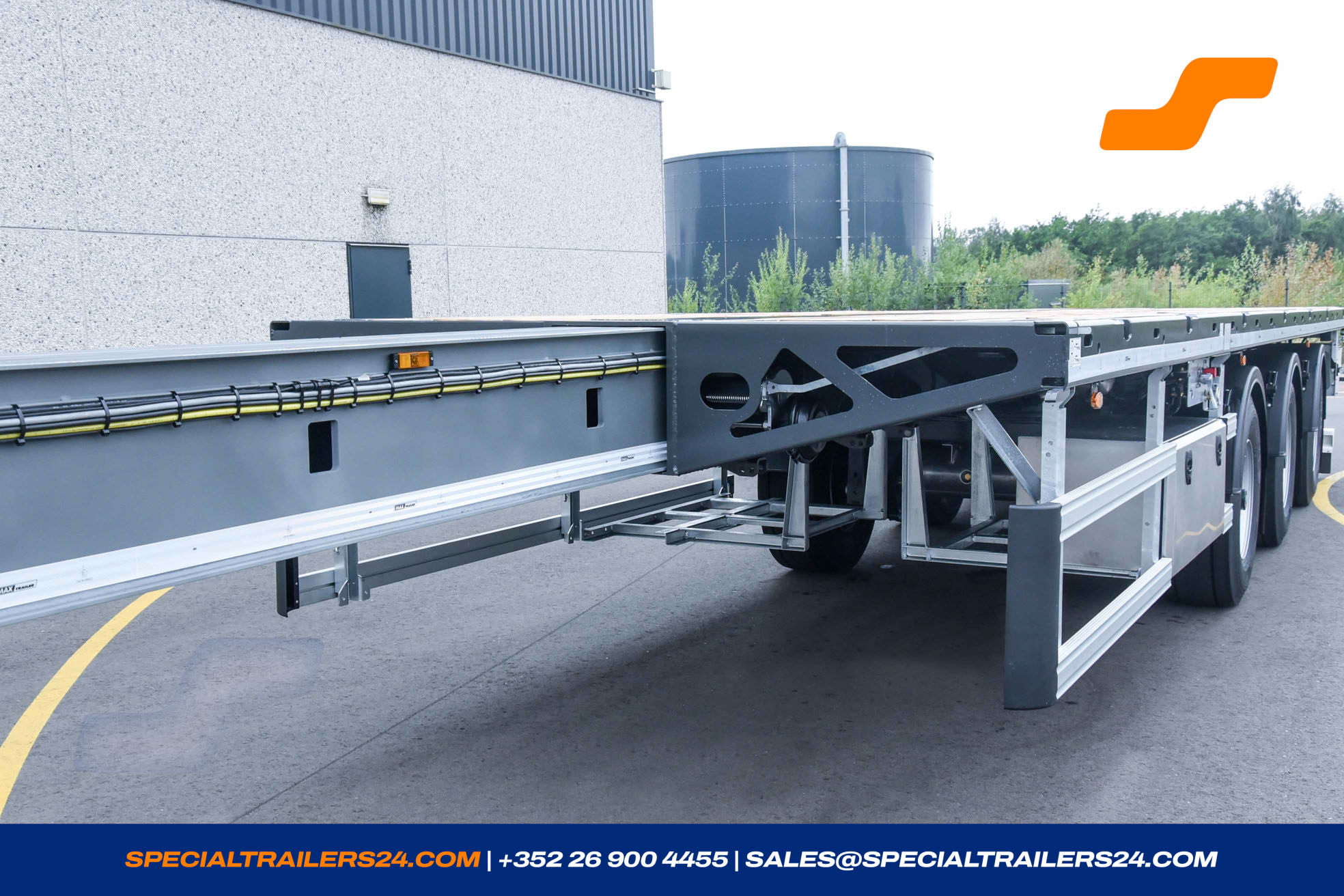

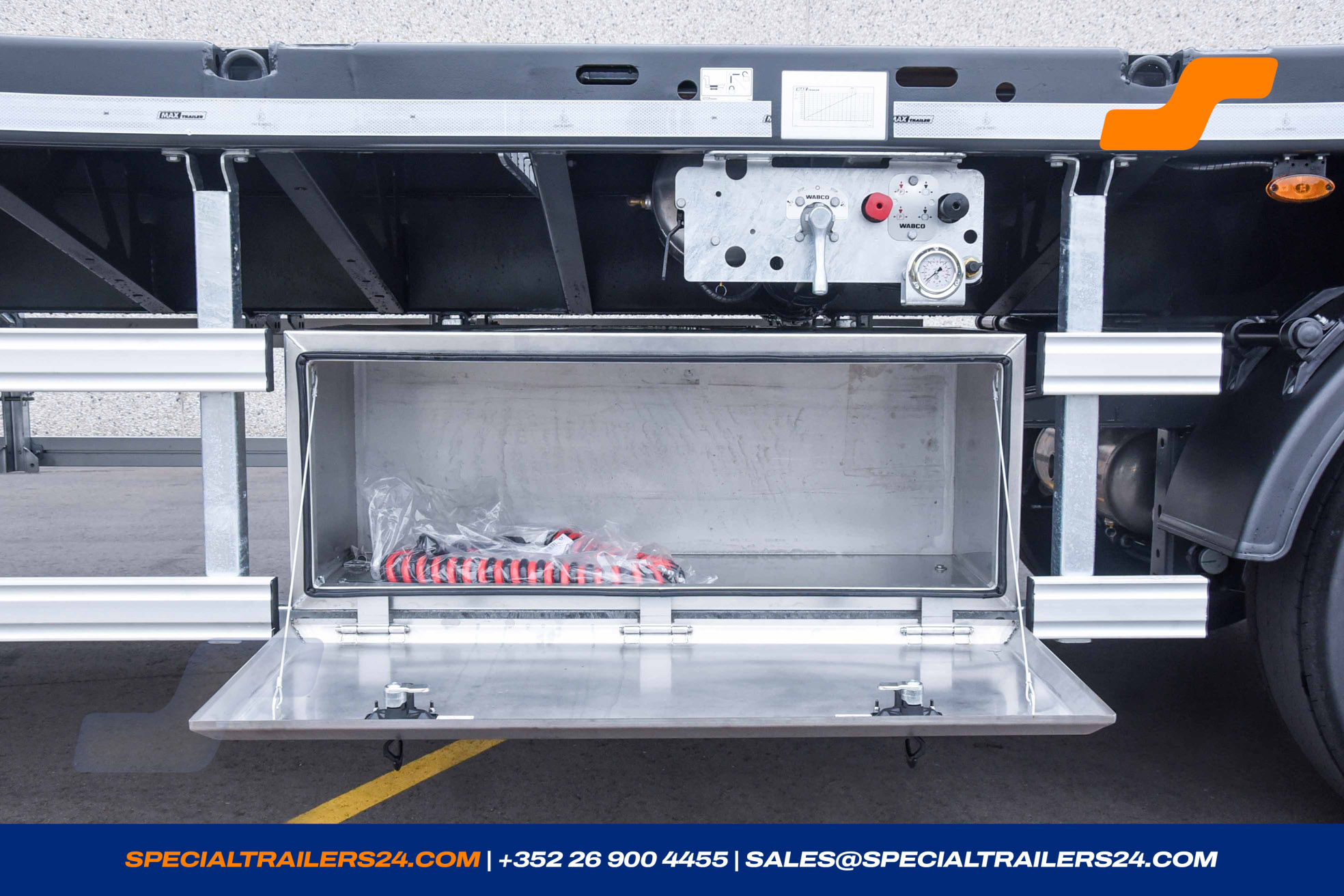

- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)
- Hooks for cover (8 mm), every ca. 500 mm under the outer frame of the gooseneck and of the loading platform (± 2kg).
- 1 spare wheel 385/65 R22.5 (± 120 kg)
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).

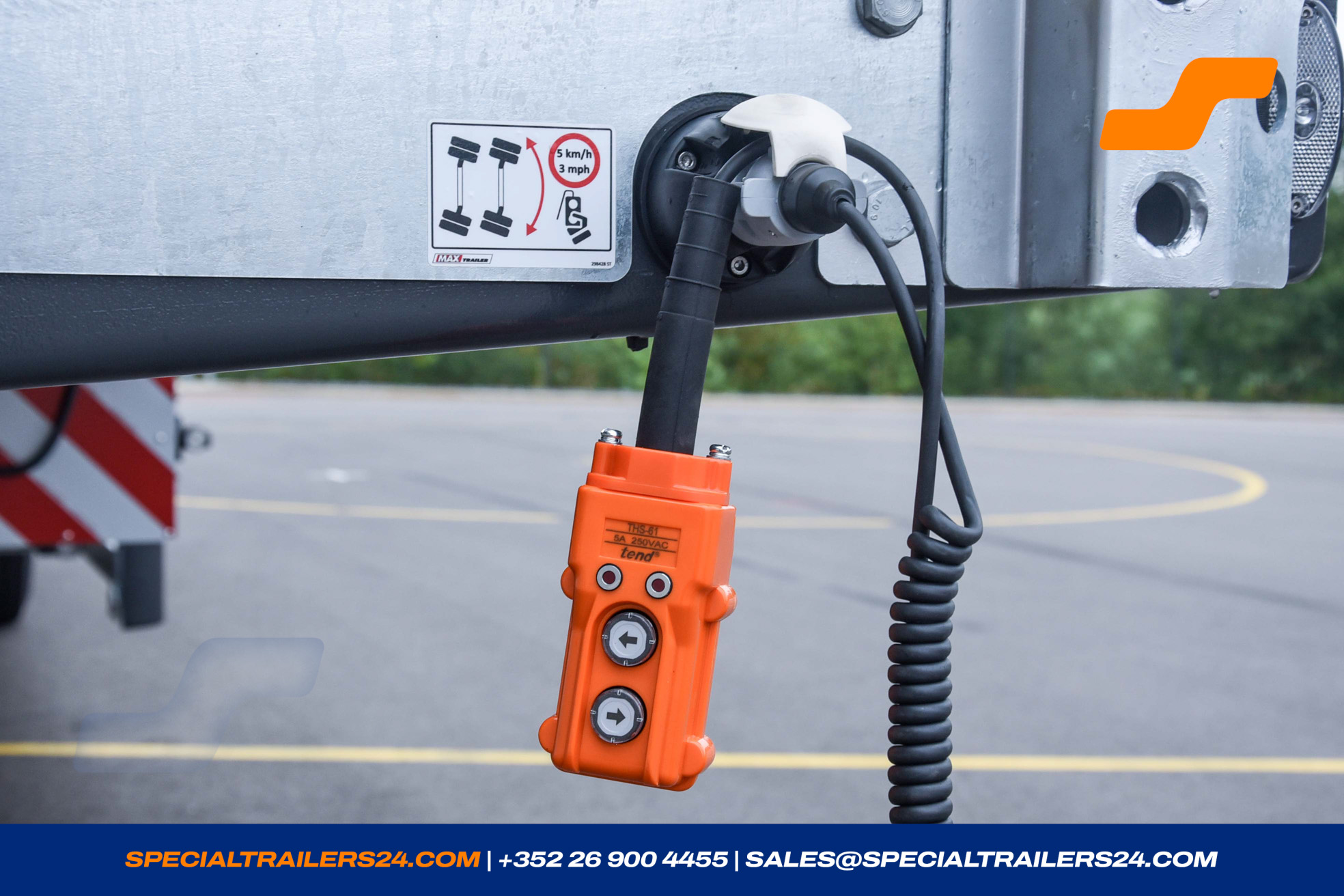

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
Accessories
1 x Accessories
-
Complete steel construction automatically blasted after welding with blast wheel system.
Second blasting with corundum for optimal adhesion of the coating system.
HRM metallisation of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection.
Final painting with 2 layers of 2K topcoat, in a single colour of your choice following RAL 841GL system.
Rear section metallised and painted in RAL 9010 (pure white). Metallic paintwork is not possible.
Lacquer structure tested in salt spray test according to ISO 9227-NSS.
Body-cavity sealing with special wax. - Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 1 LED flashing beacon, provided separately.

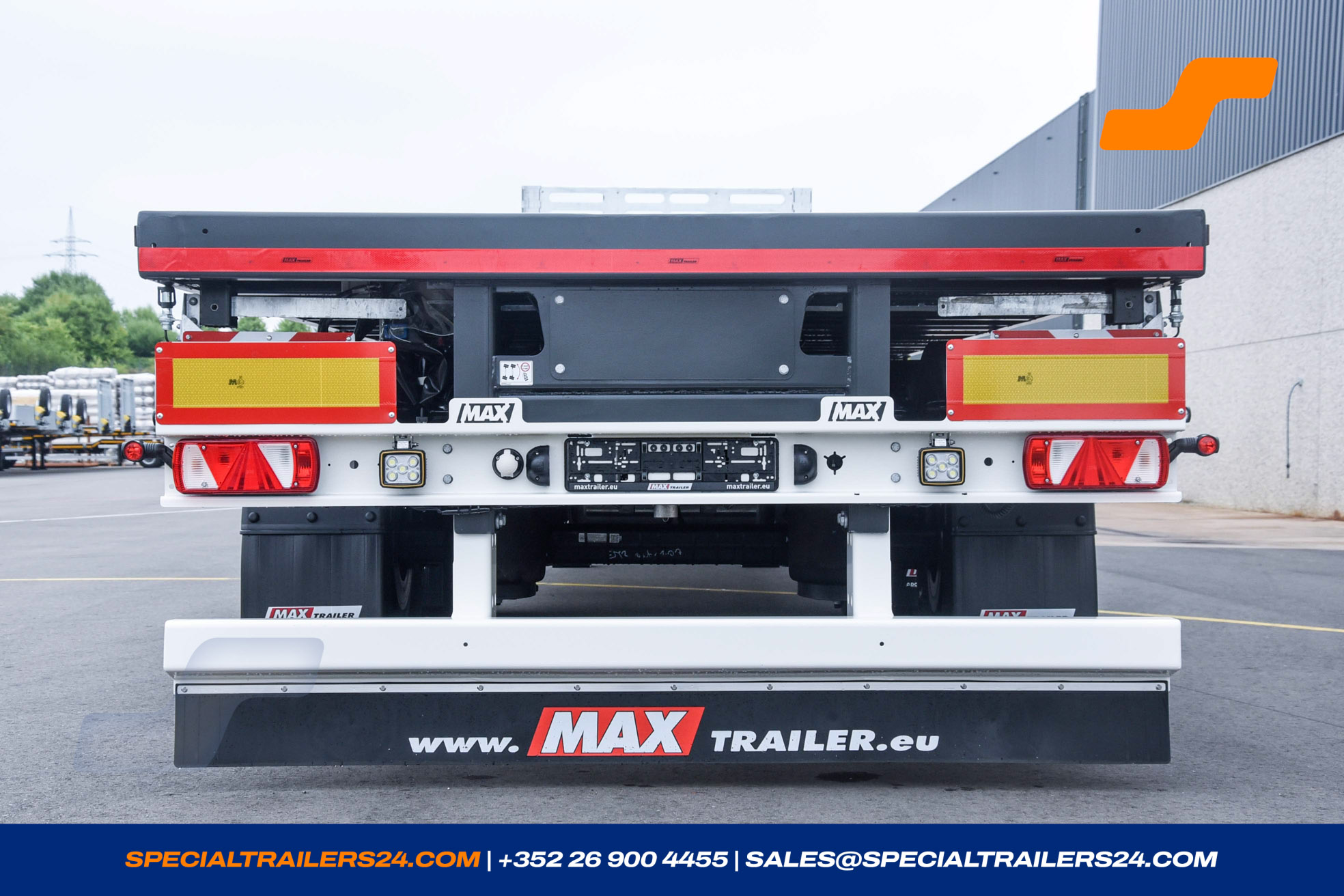

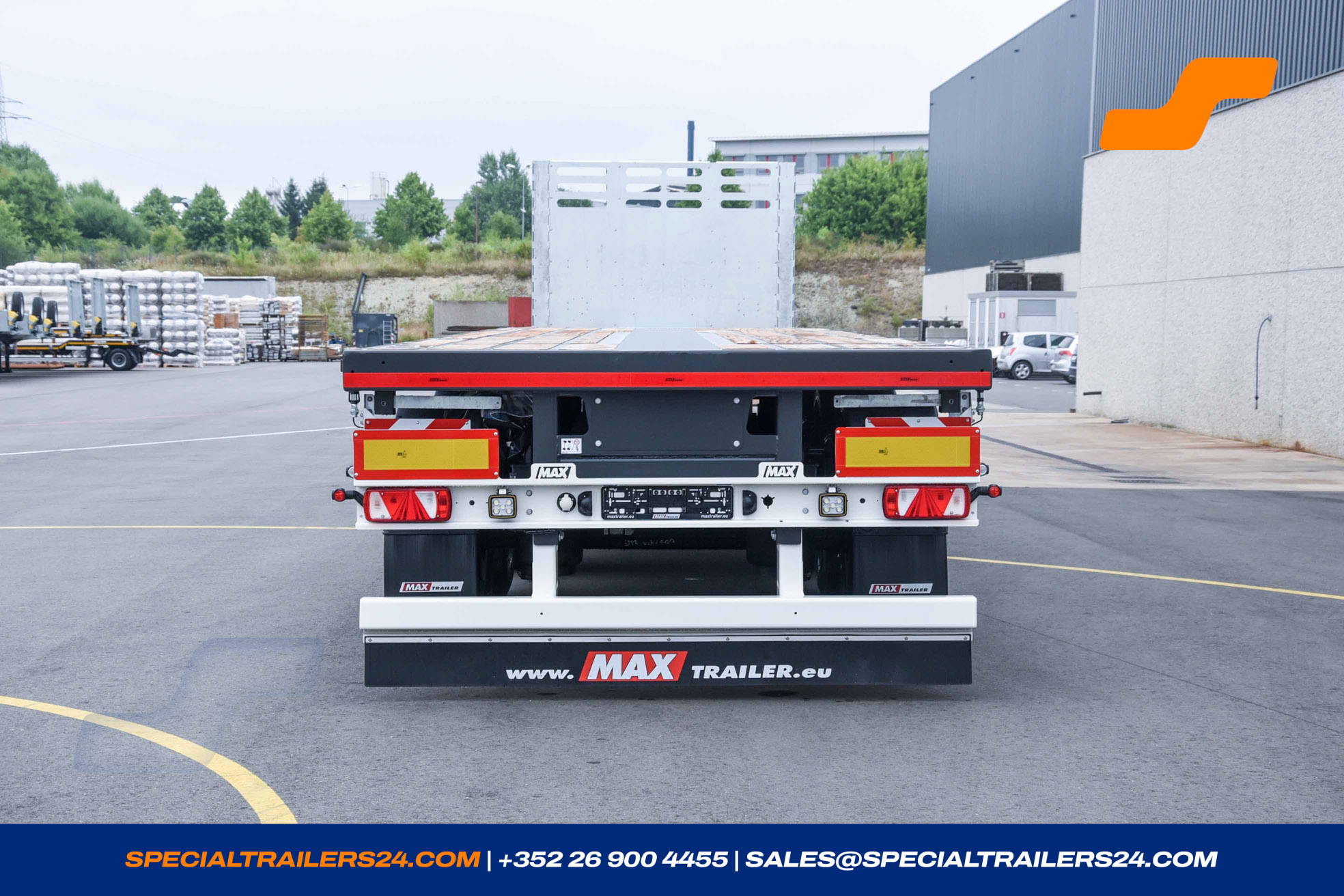

- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
-
TÜV expertise and §70 exemption for an application for an exceptional transport permit for a tractor.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;

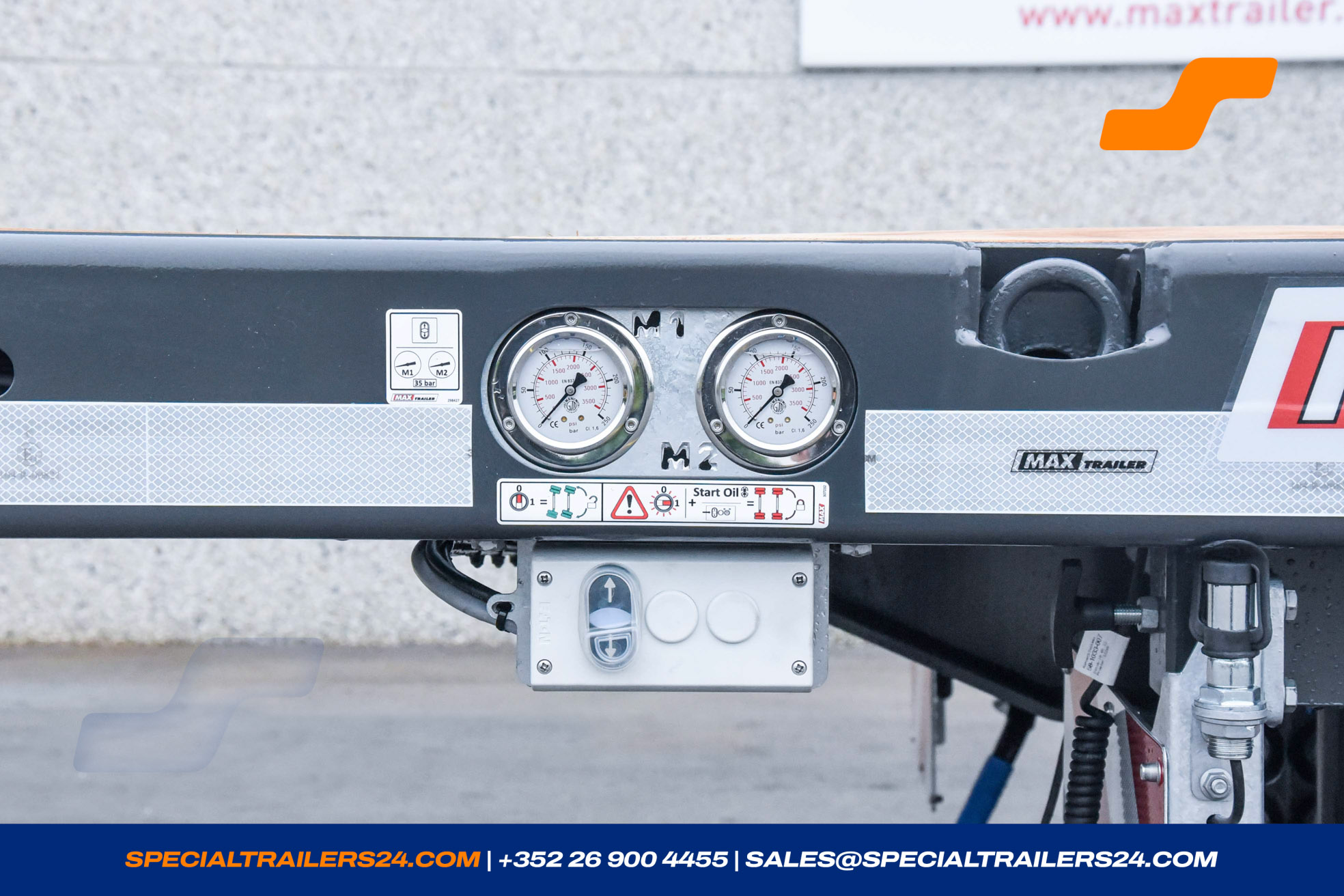

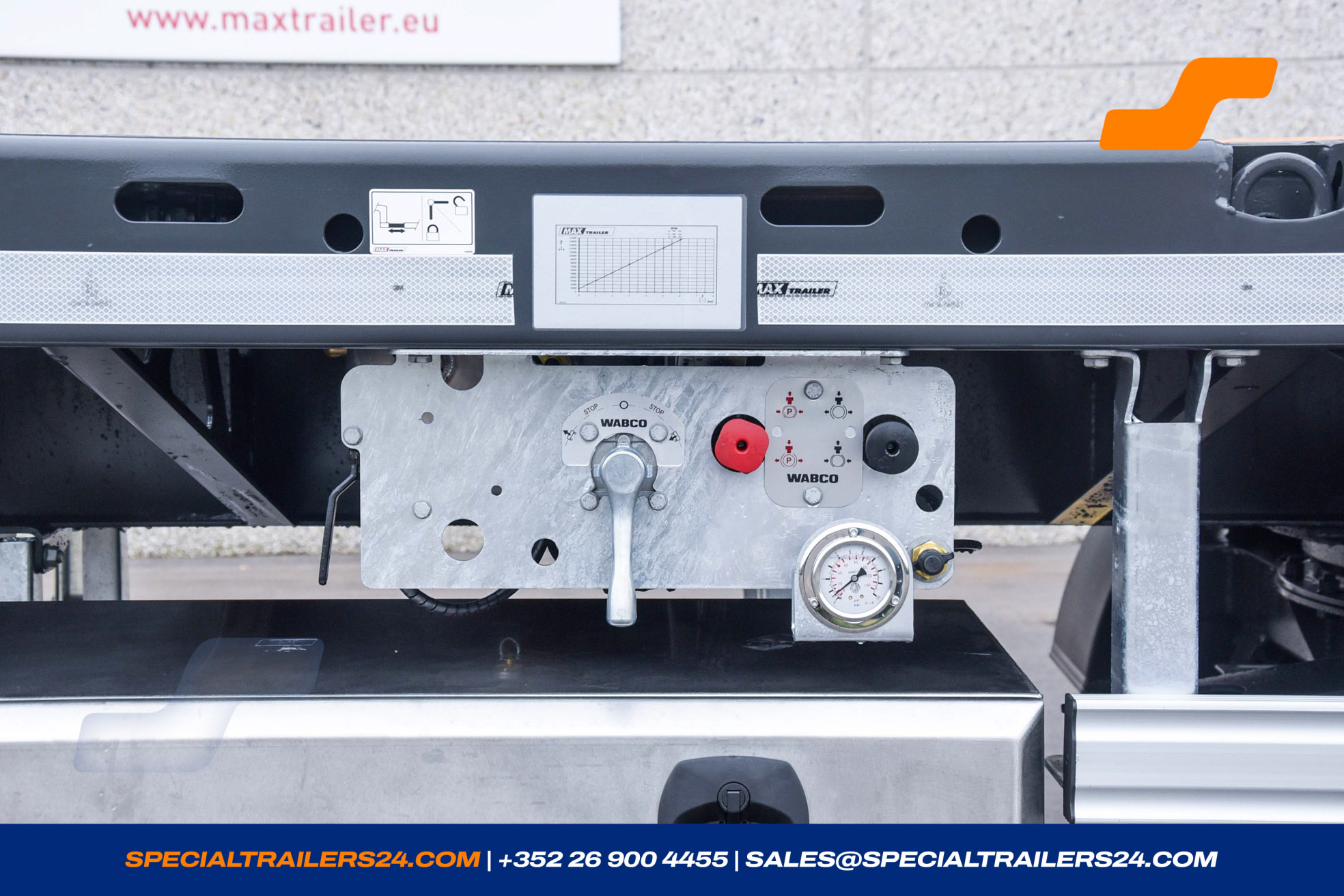

7. 6 pictures of the truck without trailer. - Load manometer for determining the axle load, including load diagram.
-
Italy, Scheda Tecnica:
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations.
