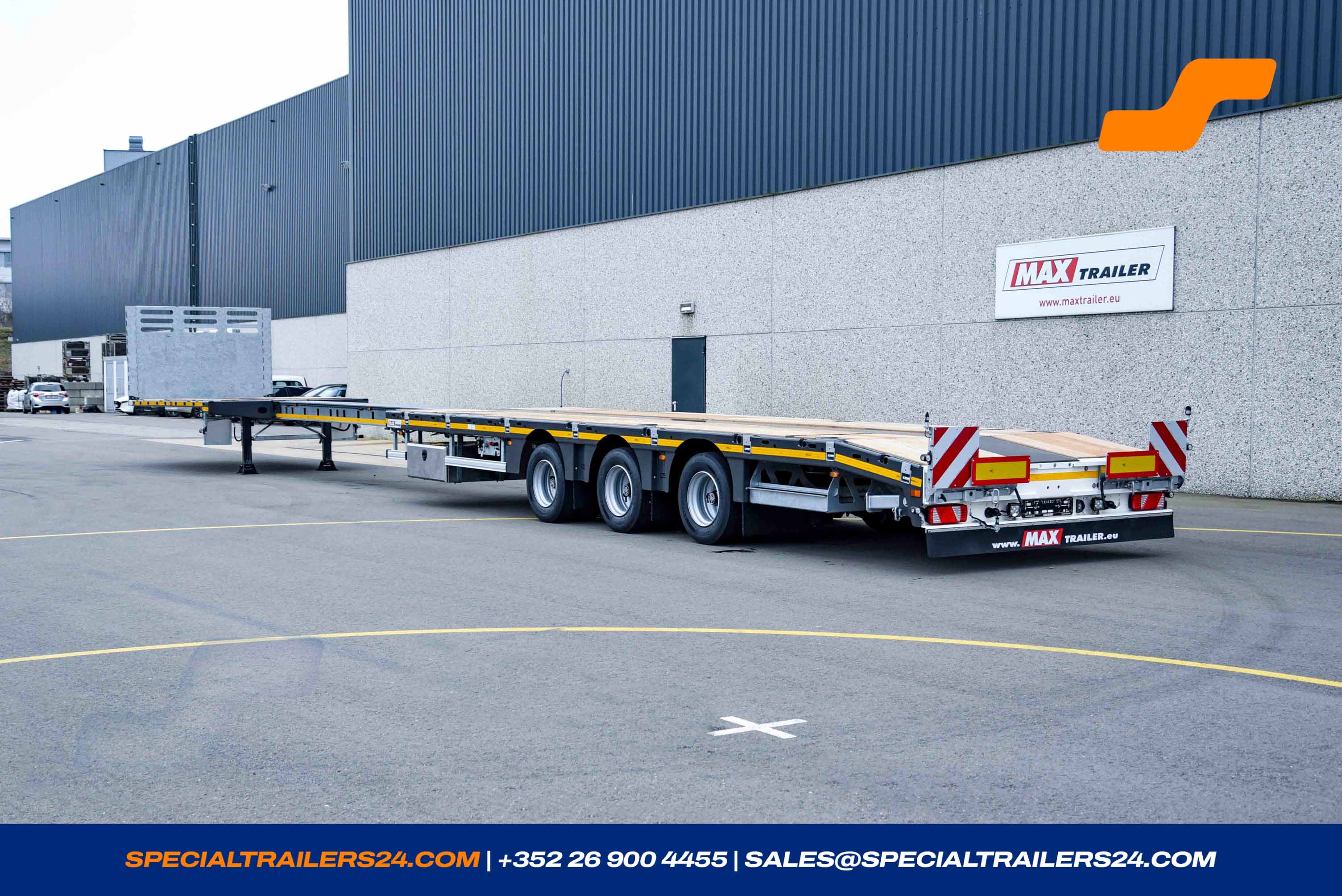

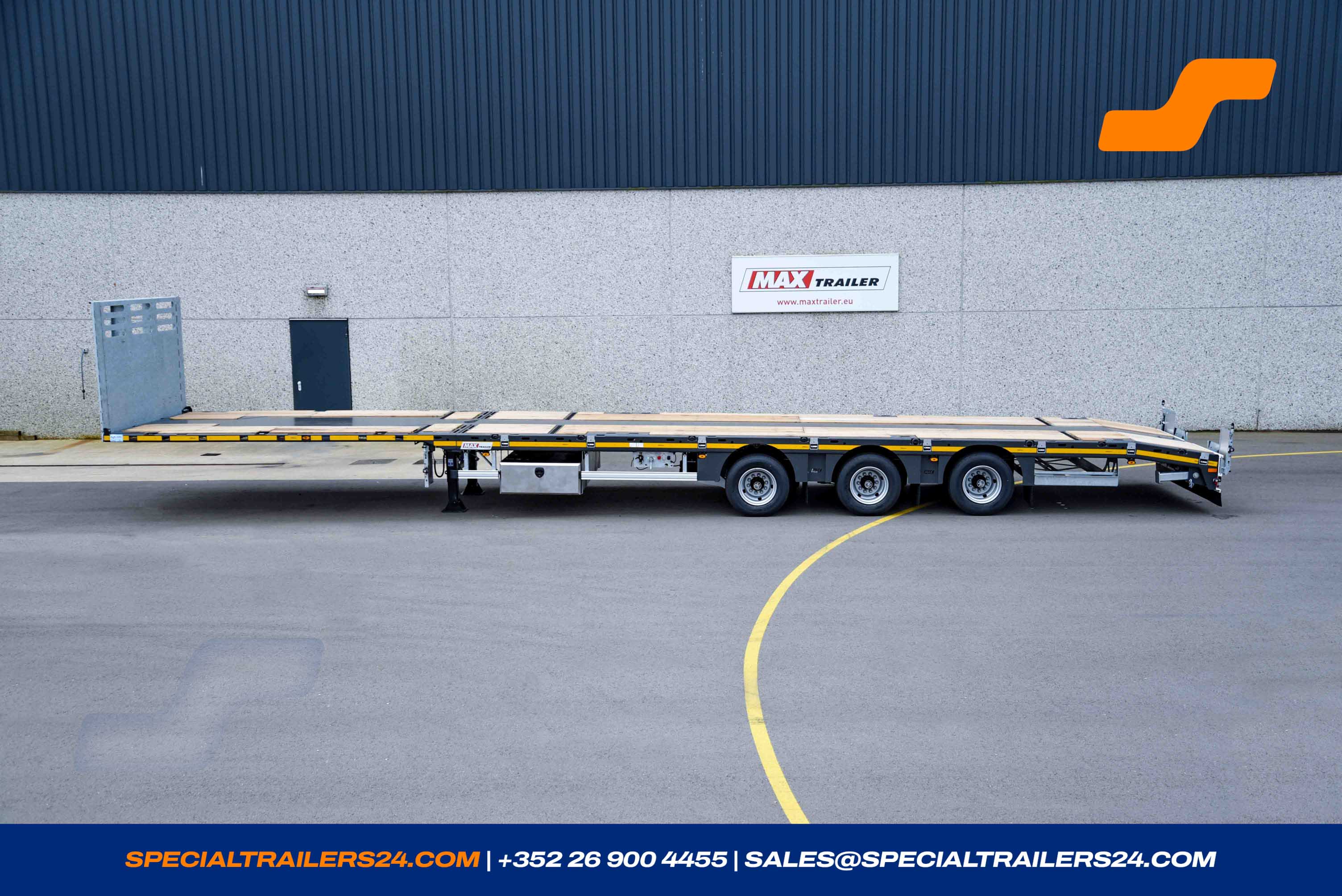

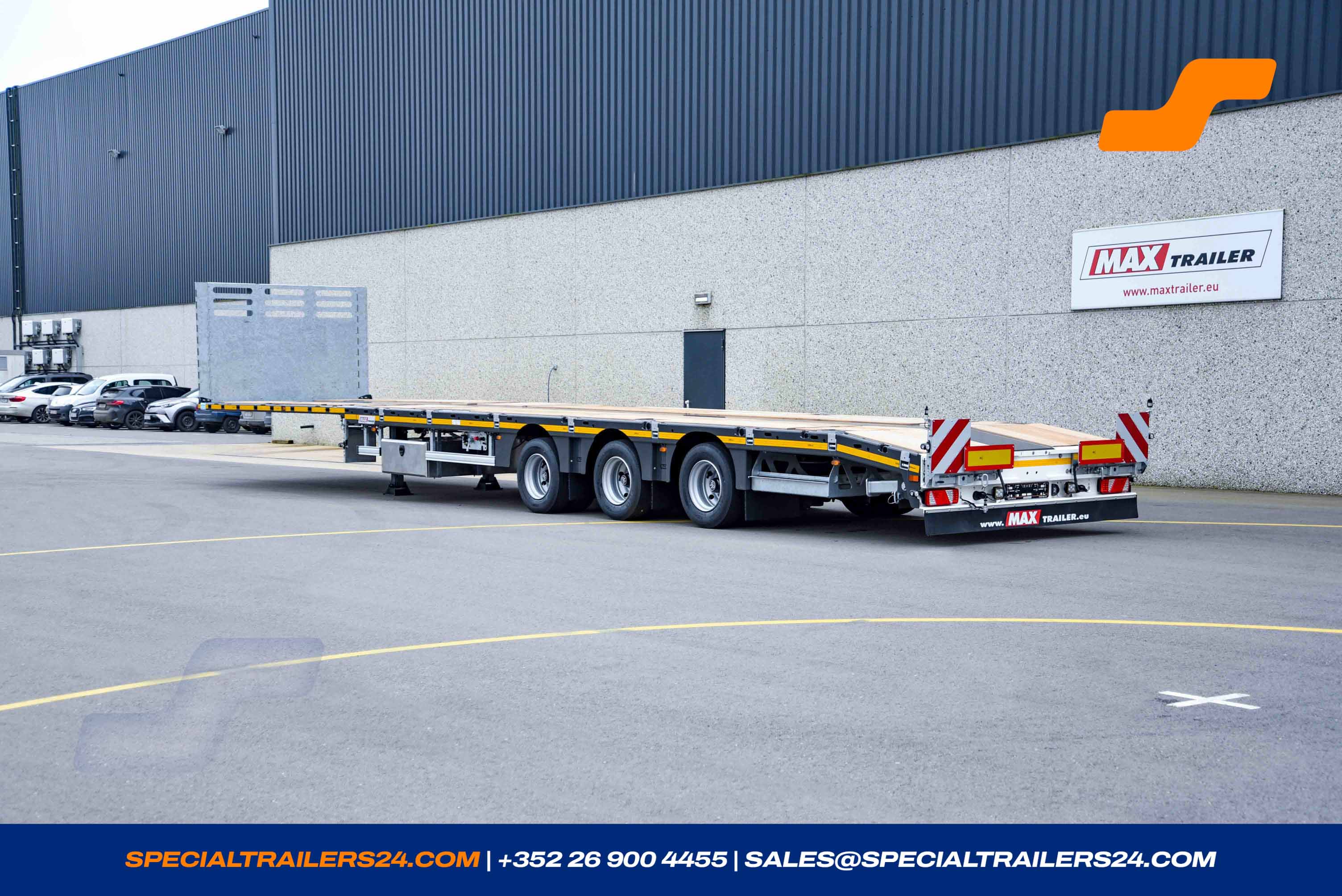

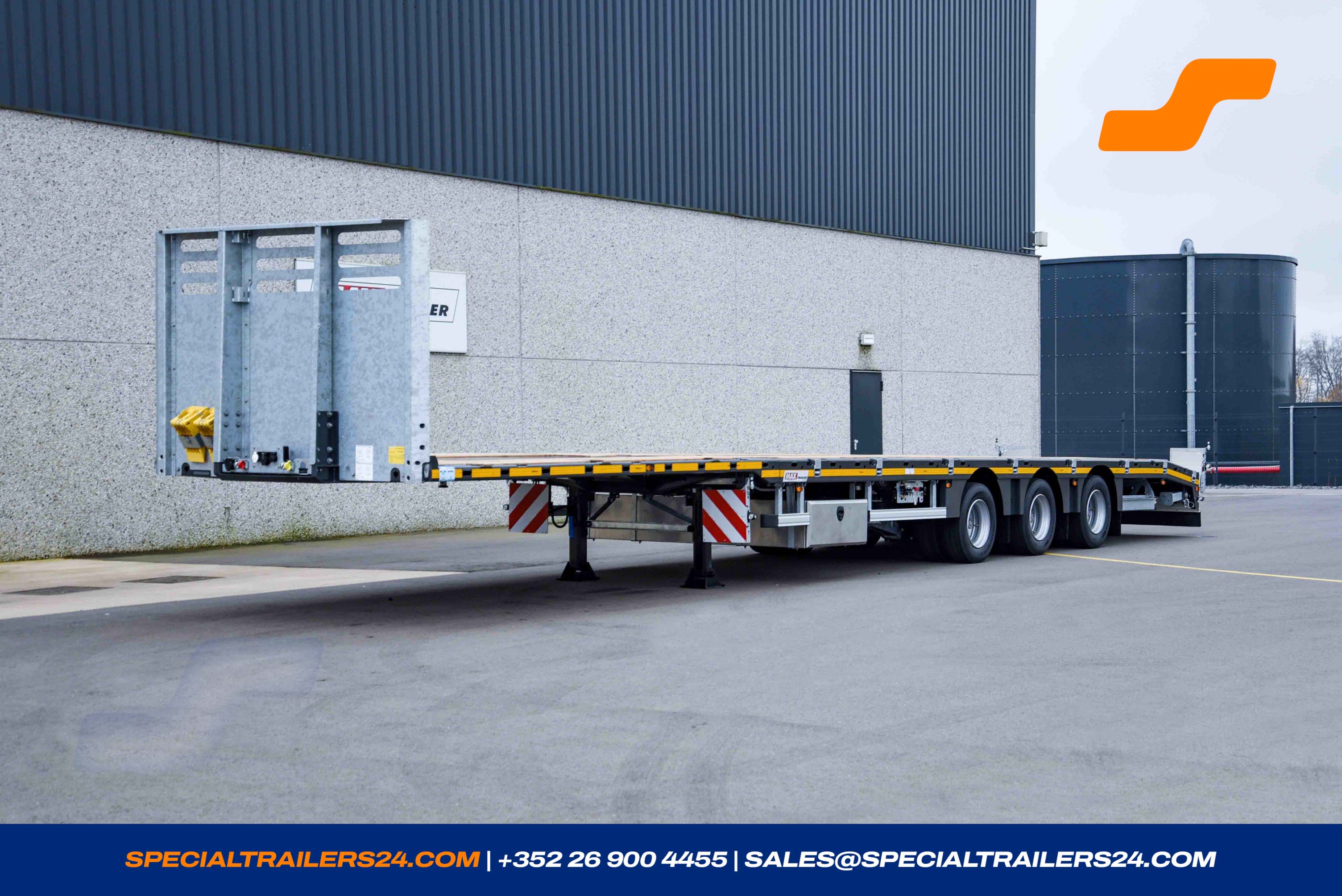

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112922
- Reference MAX200-N-3A-13.50-17.5-2.54

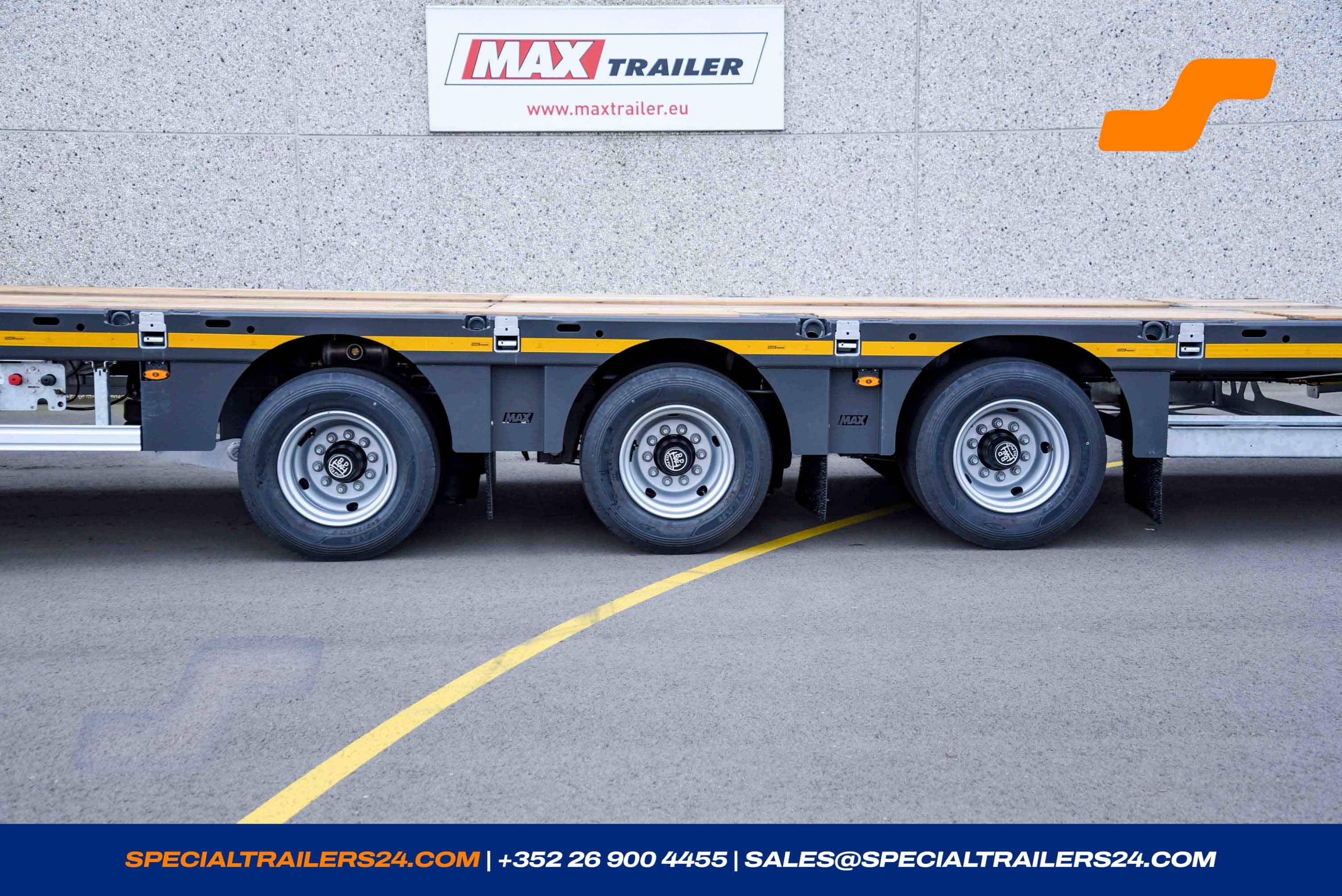

- Number of axles 3
- Condition New
- Year of manufacture 2027
- Colour Colour selectable
- Availability 02/2027
- Steering Type Friction
Availability
02/2027
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9690 kg |
| Payload | 39810 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 300 mm |

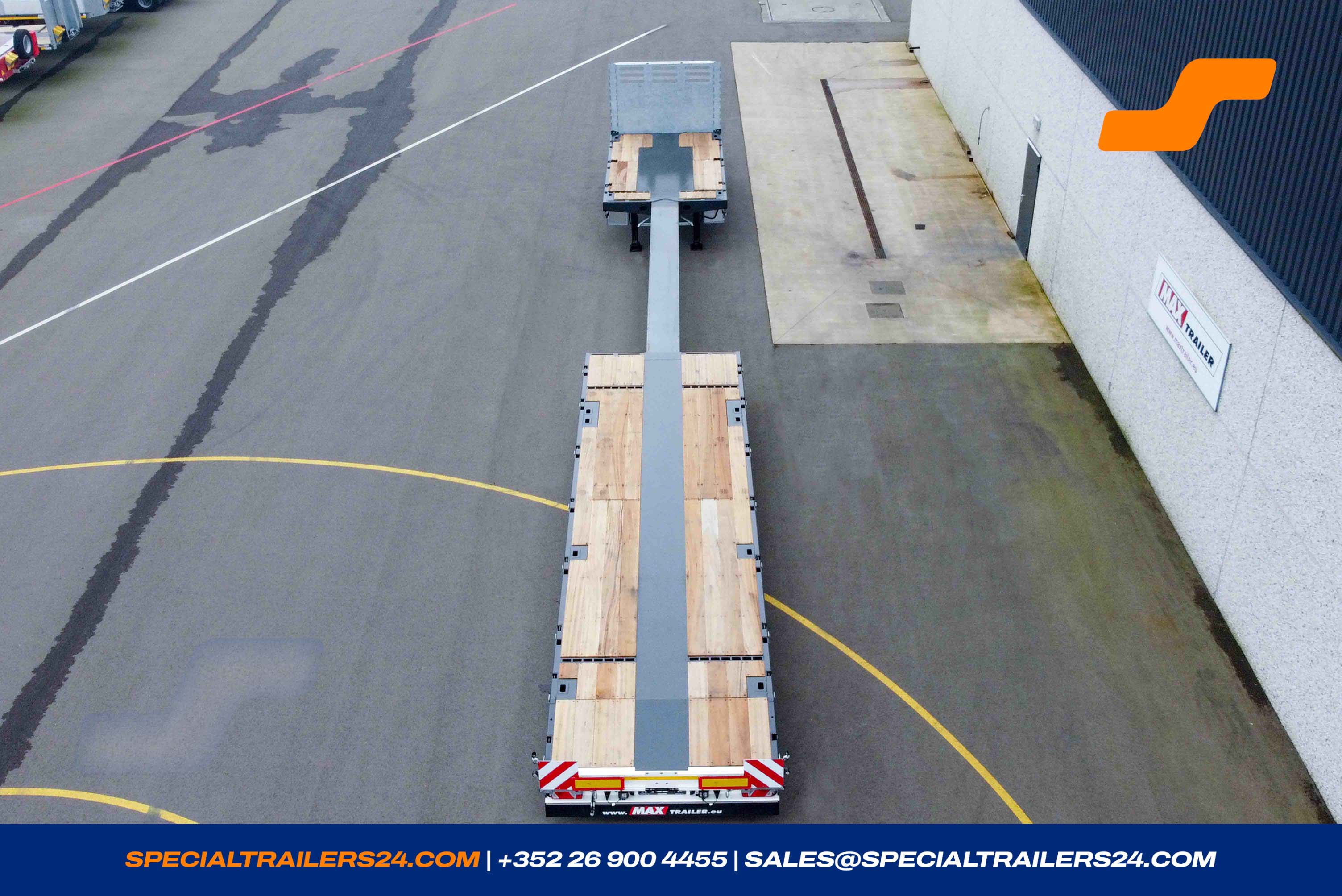

| Loading platform length | 13 500 mm |

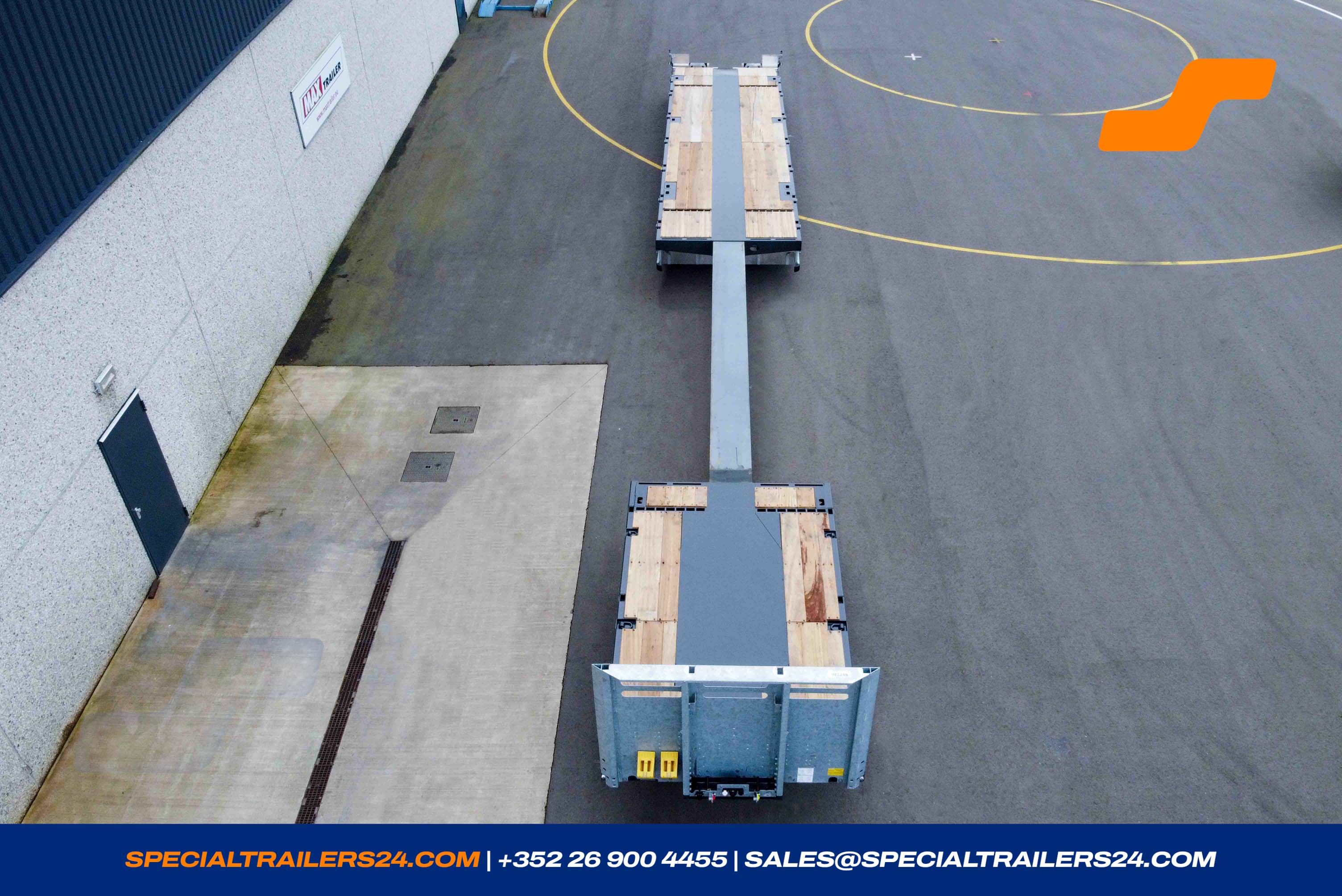

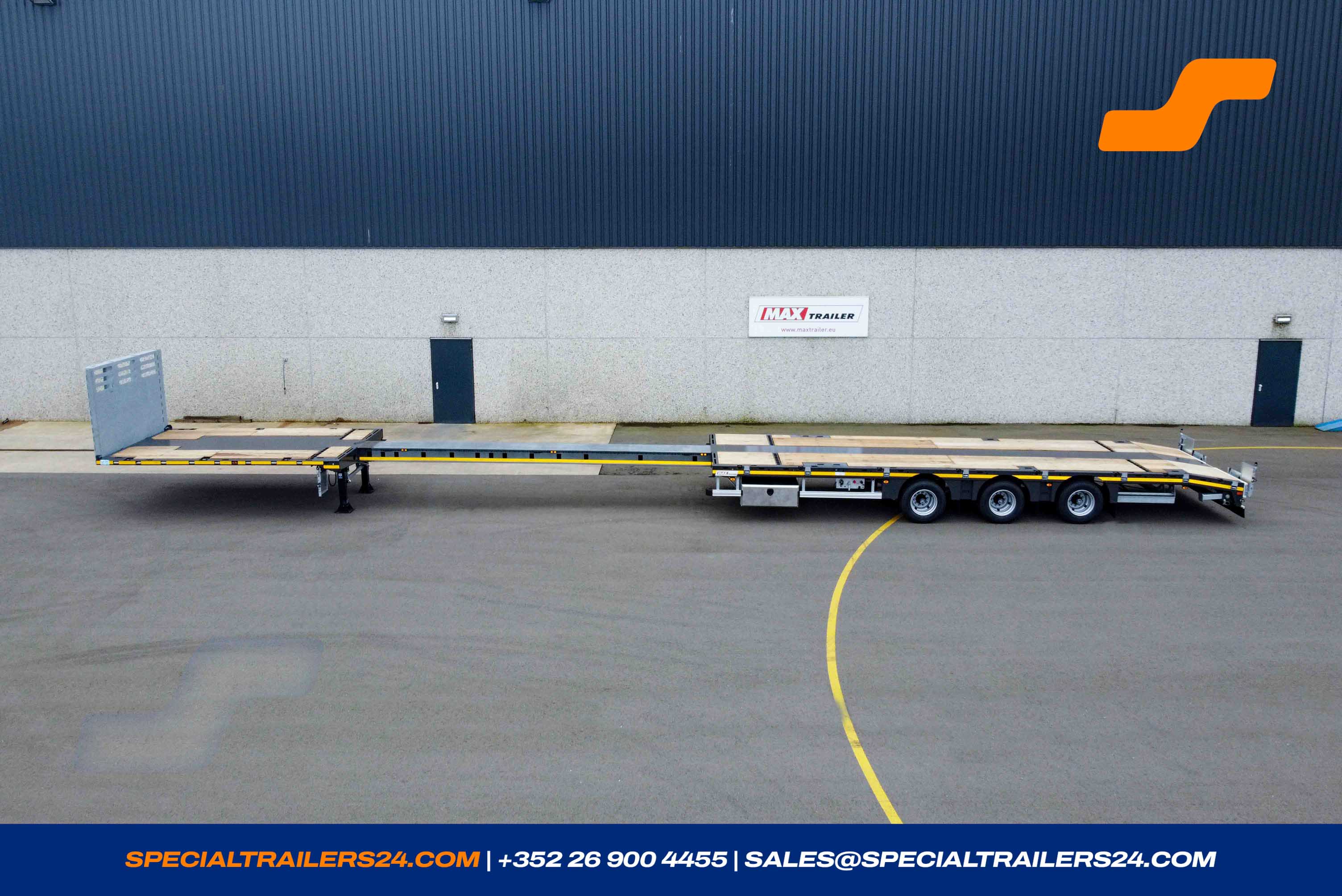

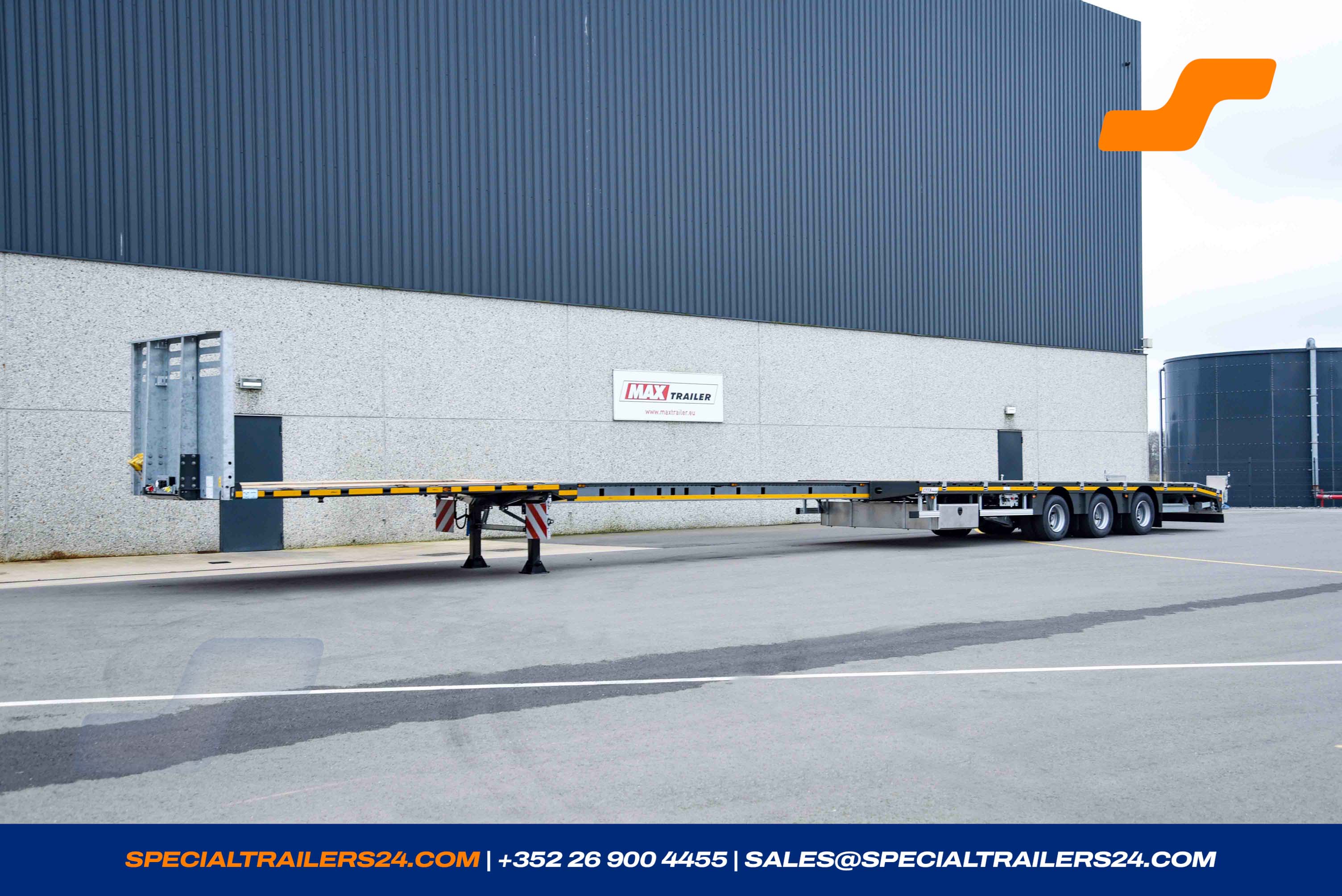

| Extendable by | 6 500 mm |
| Wheelbase | 1 360/1 360 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX200-N-3A(6500)-13.50-17.5-2.54(DSR 2300-ASH 950->1050)

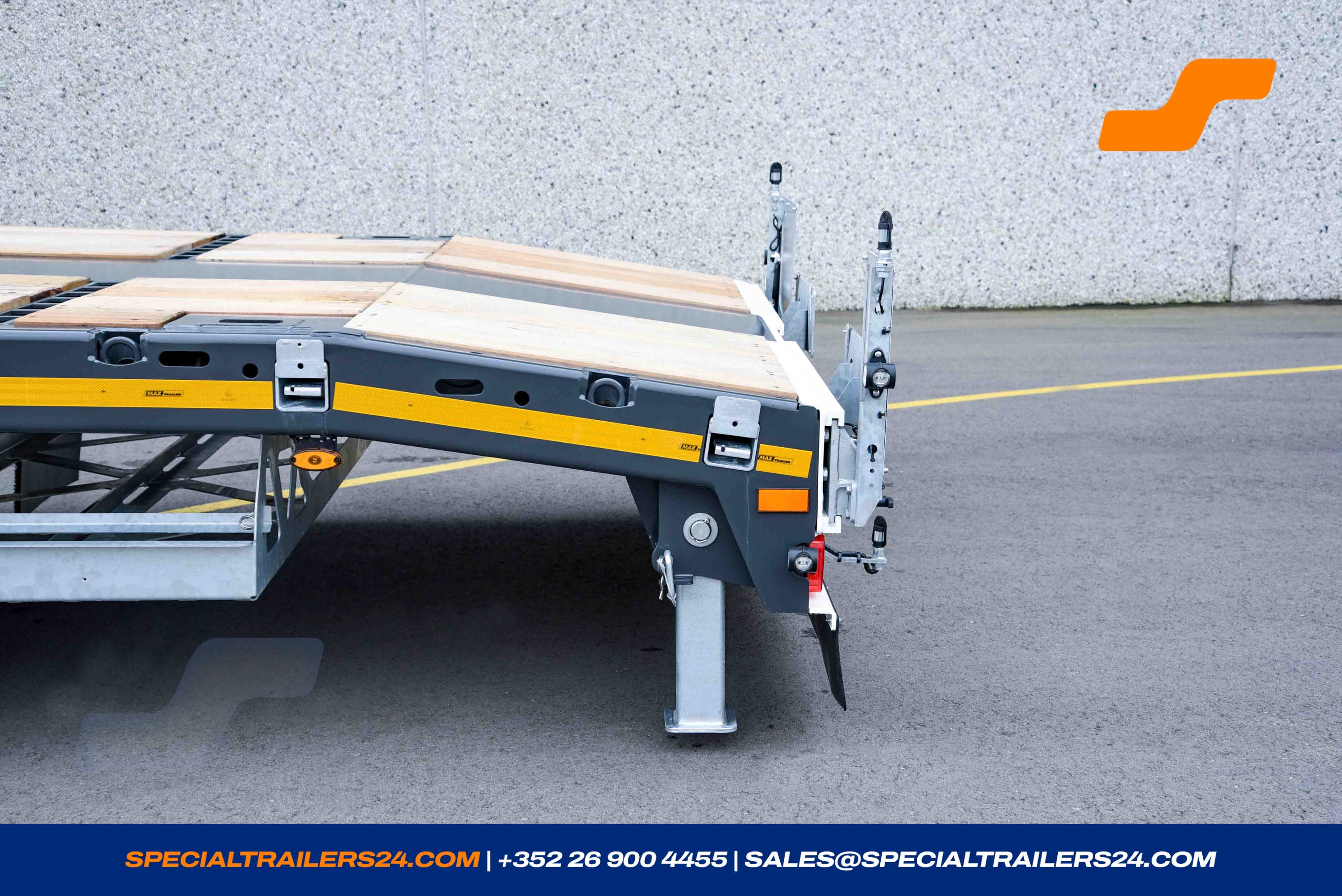

Extendabbe loading platform with hardwooden floor with chamfered beaver tail by about 1000 mm x 8°.
2 pairs of lashing rings inserted in the border frame (LC 5 000 daN).
1 pairs of lashing rings inserted in the border frame,(LC 10 000 daN).
6 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

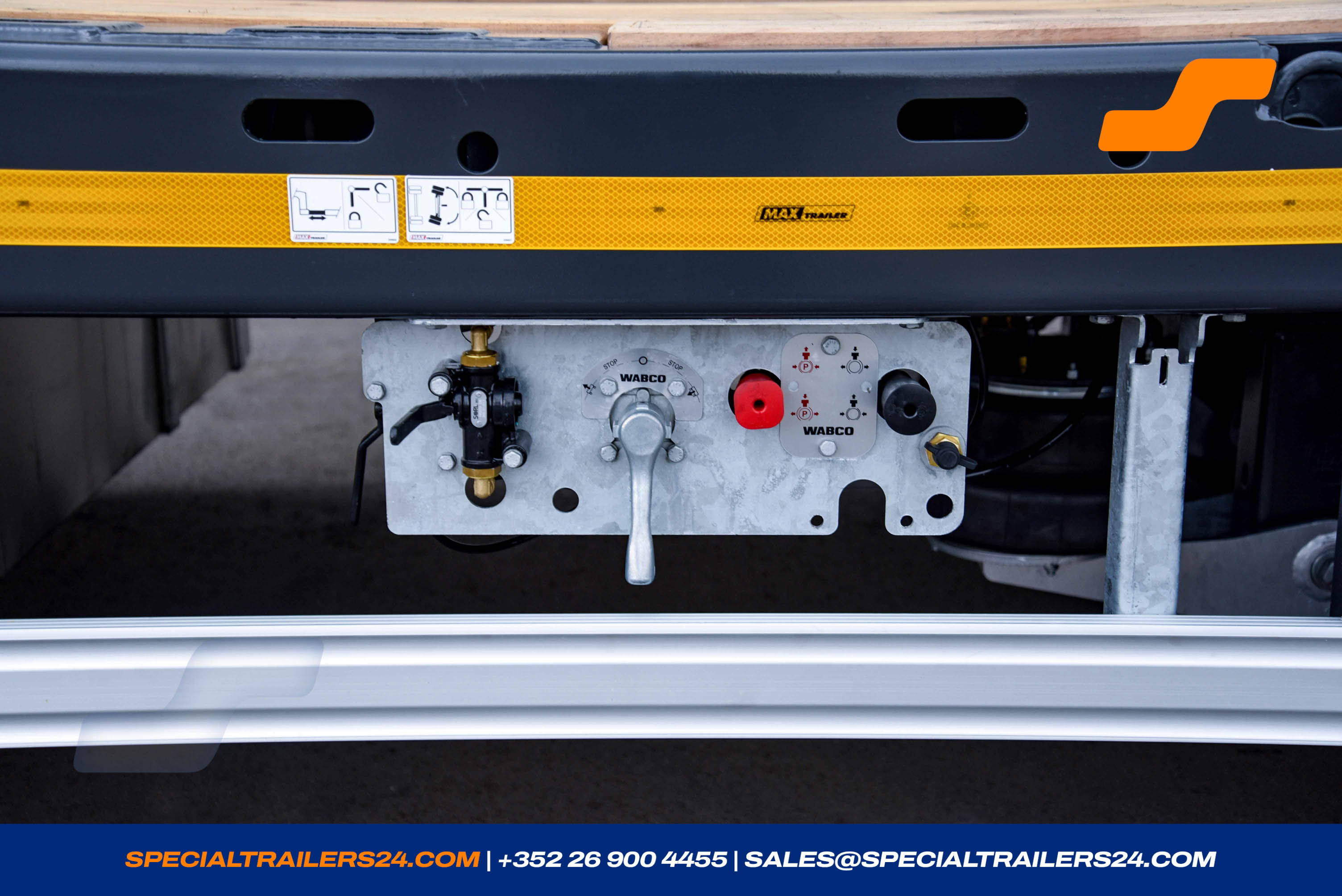

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 king-pin.

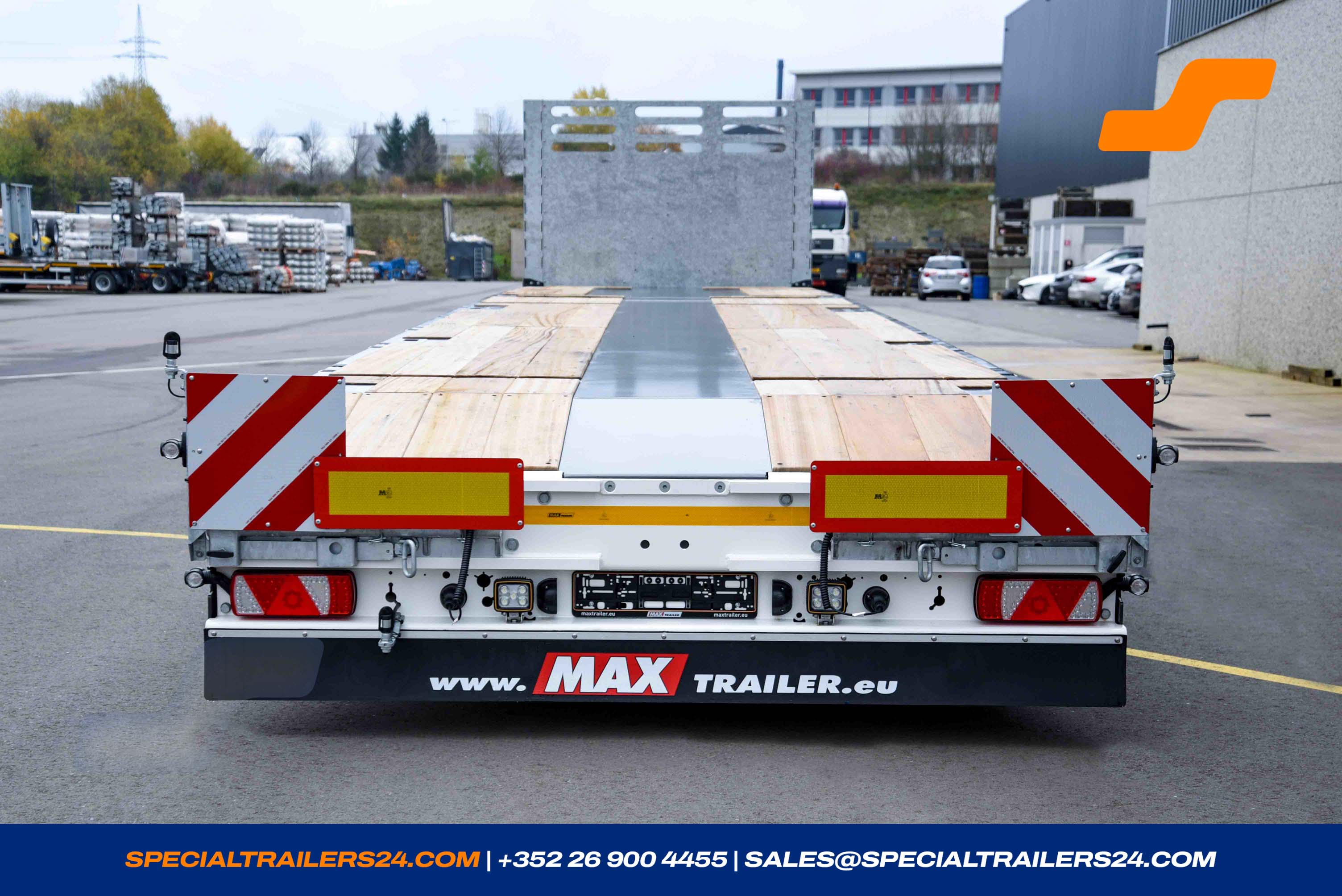

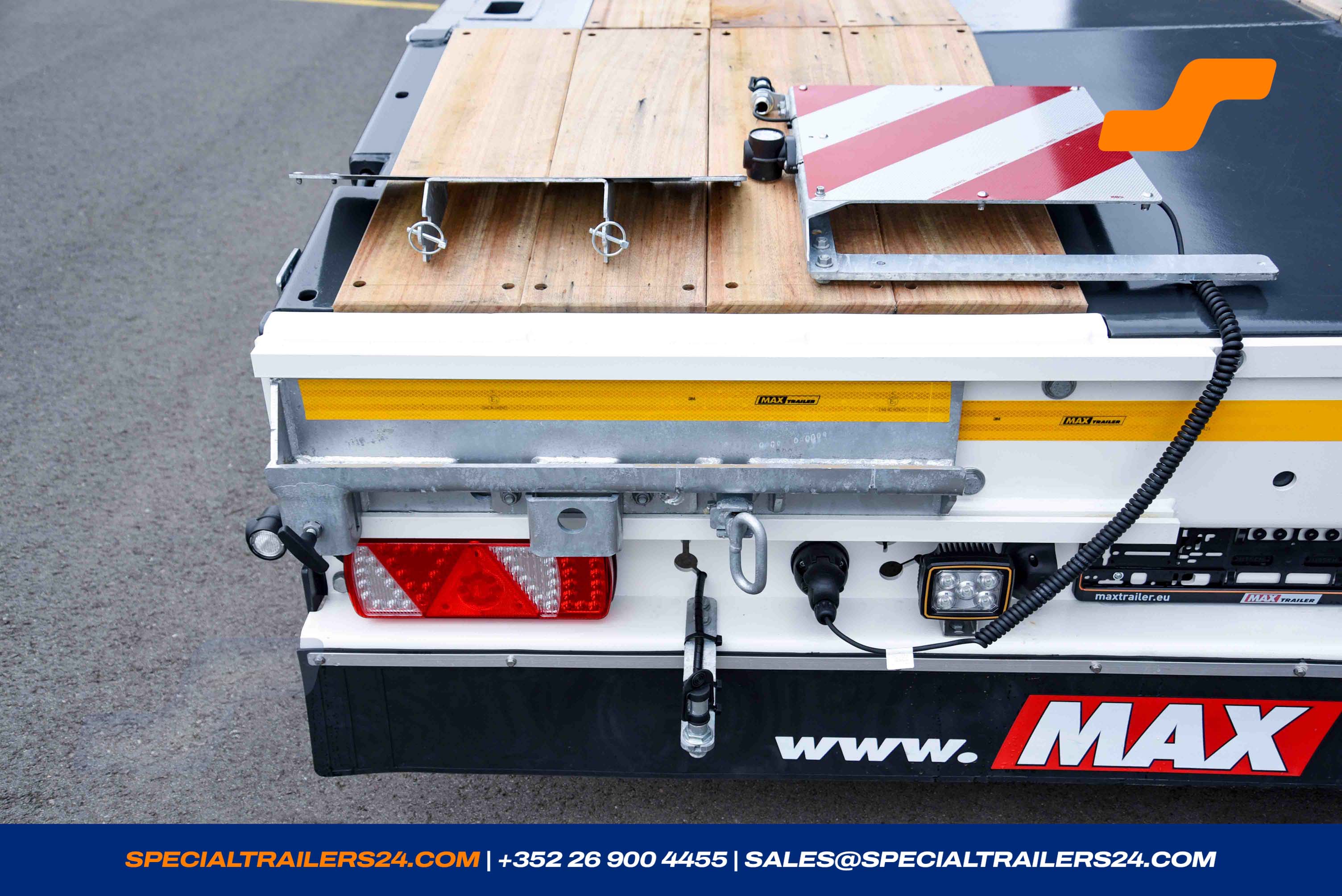

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

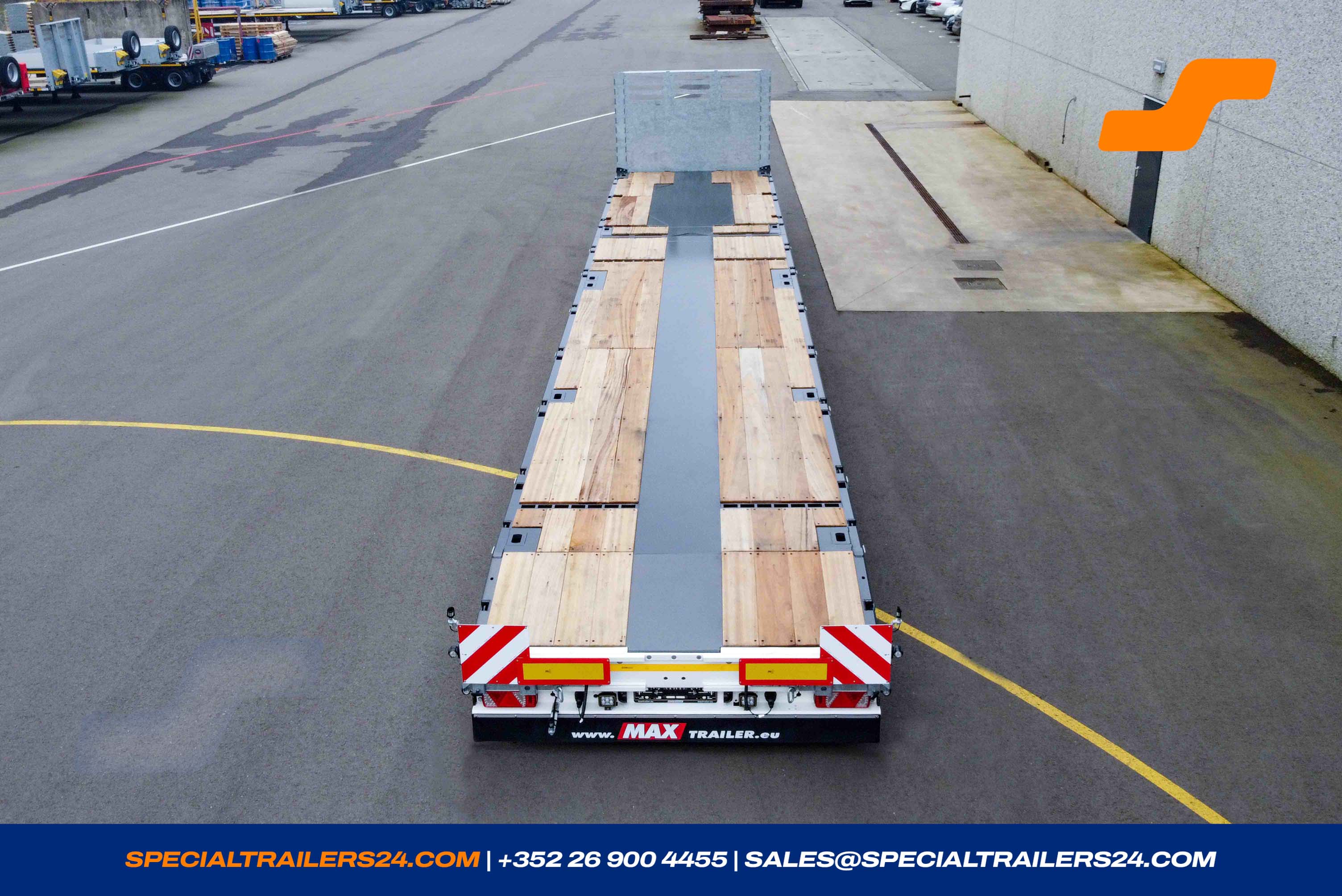

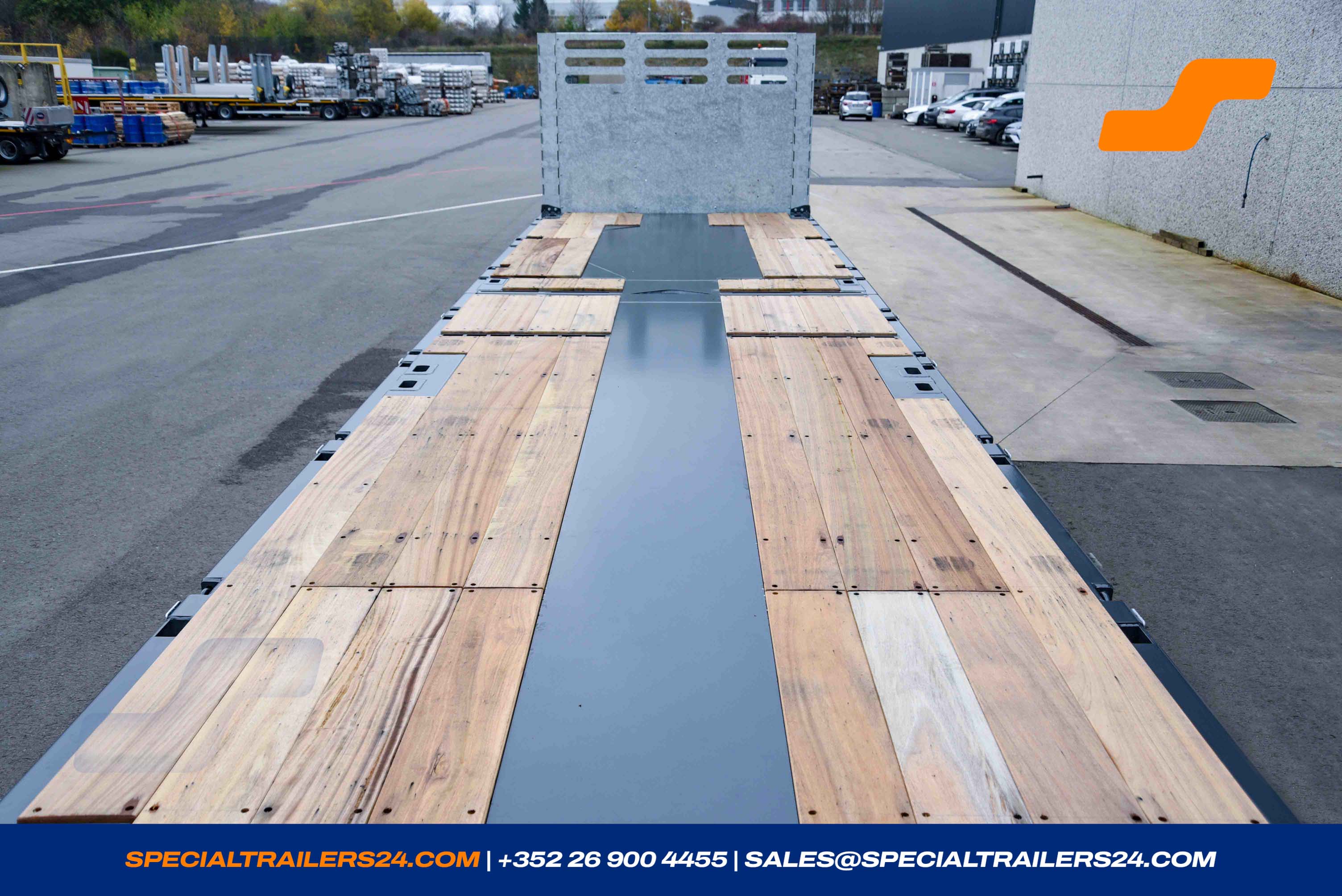

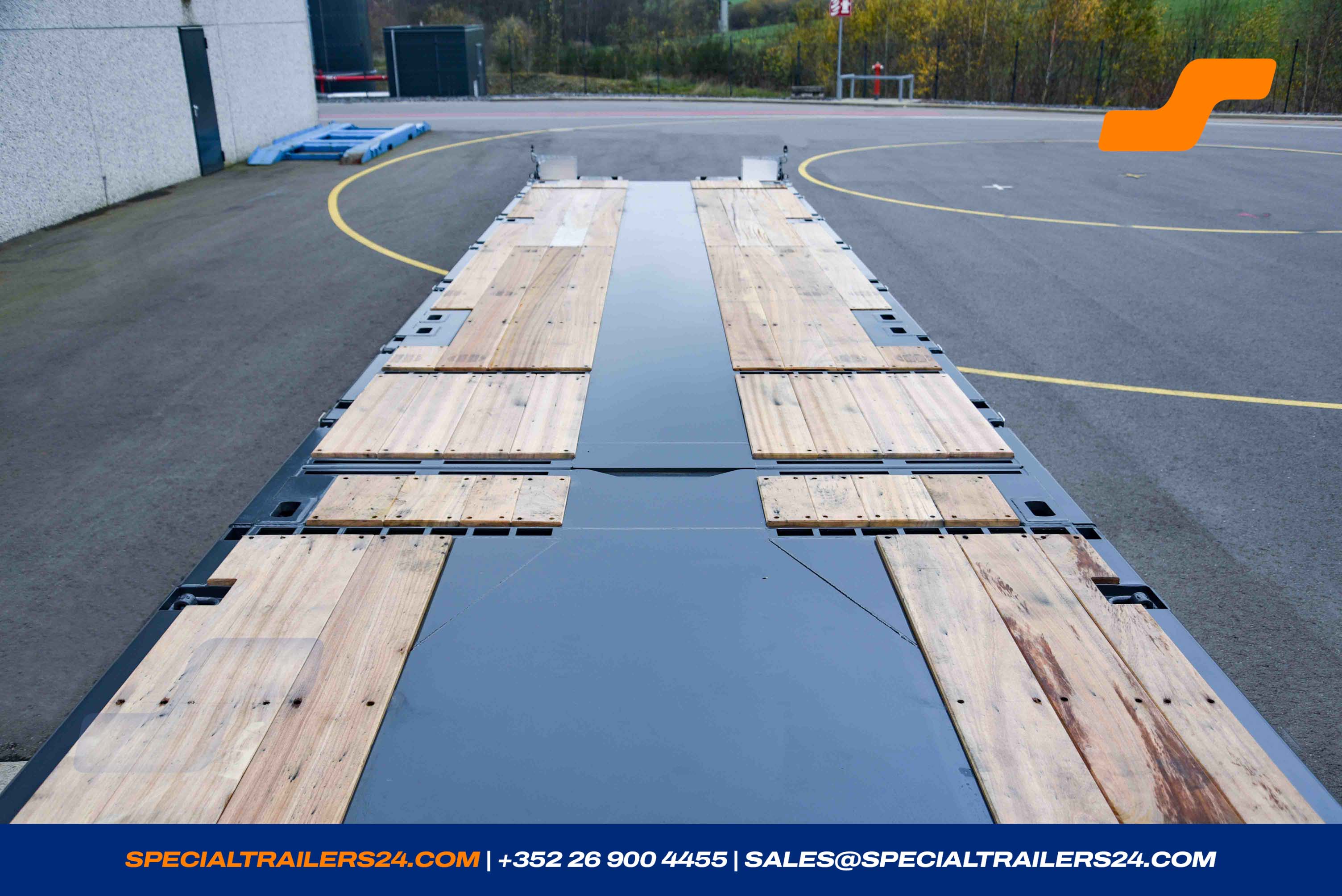

- Loading area with hardwood timber.
- 9 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 27 kg)

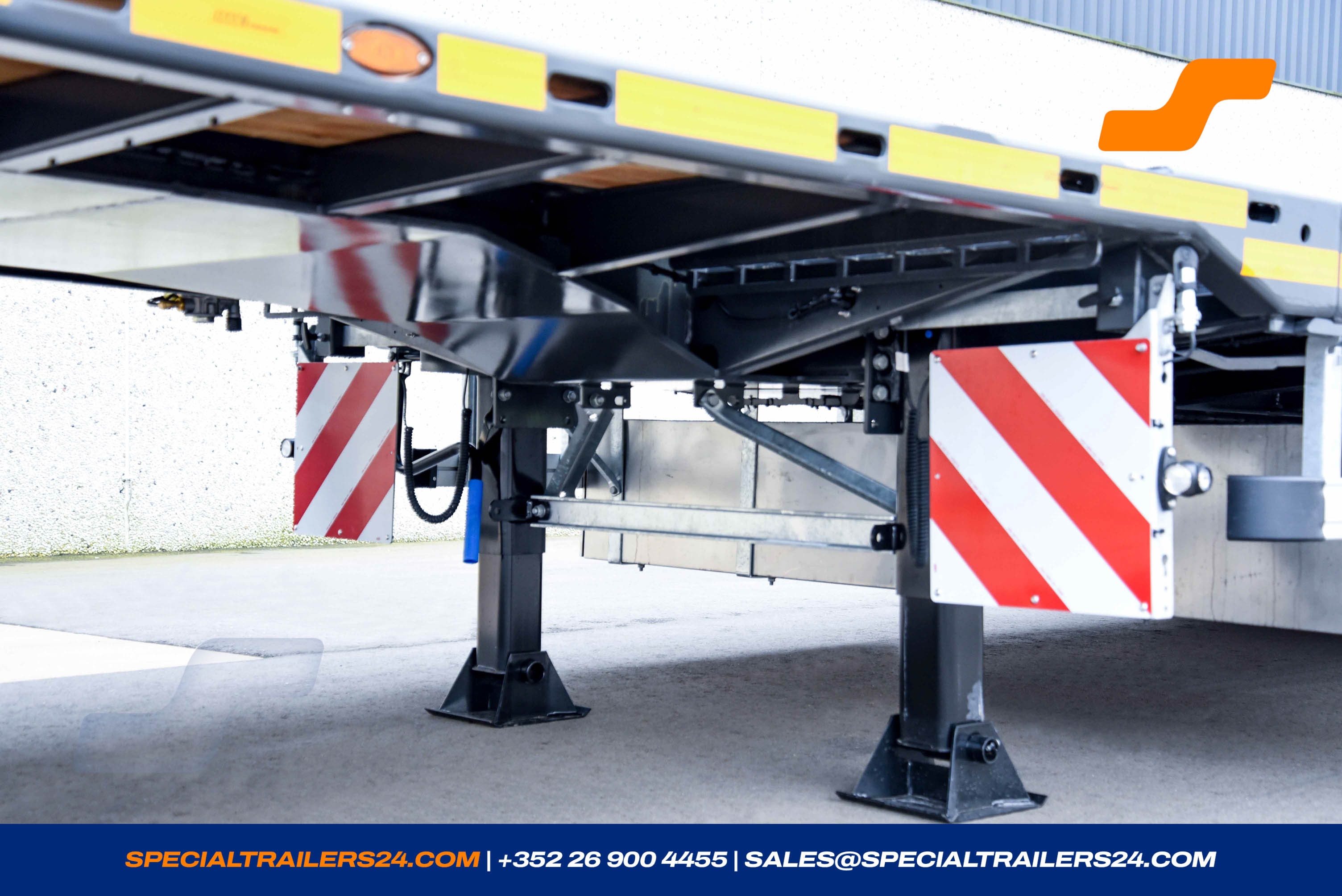

- Galvanised landing gears at the rear under the loading platform.
- Profile as hook on device for alu-ramps at the rear.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- A 7-pin socket for the warning signs, left and right in the area of the axles.
- 4 wheel chocks with carrier. (± 5 kg)
-

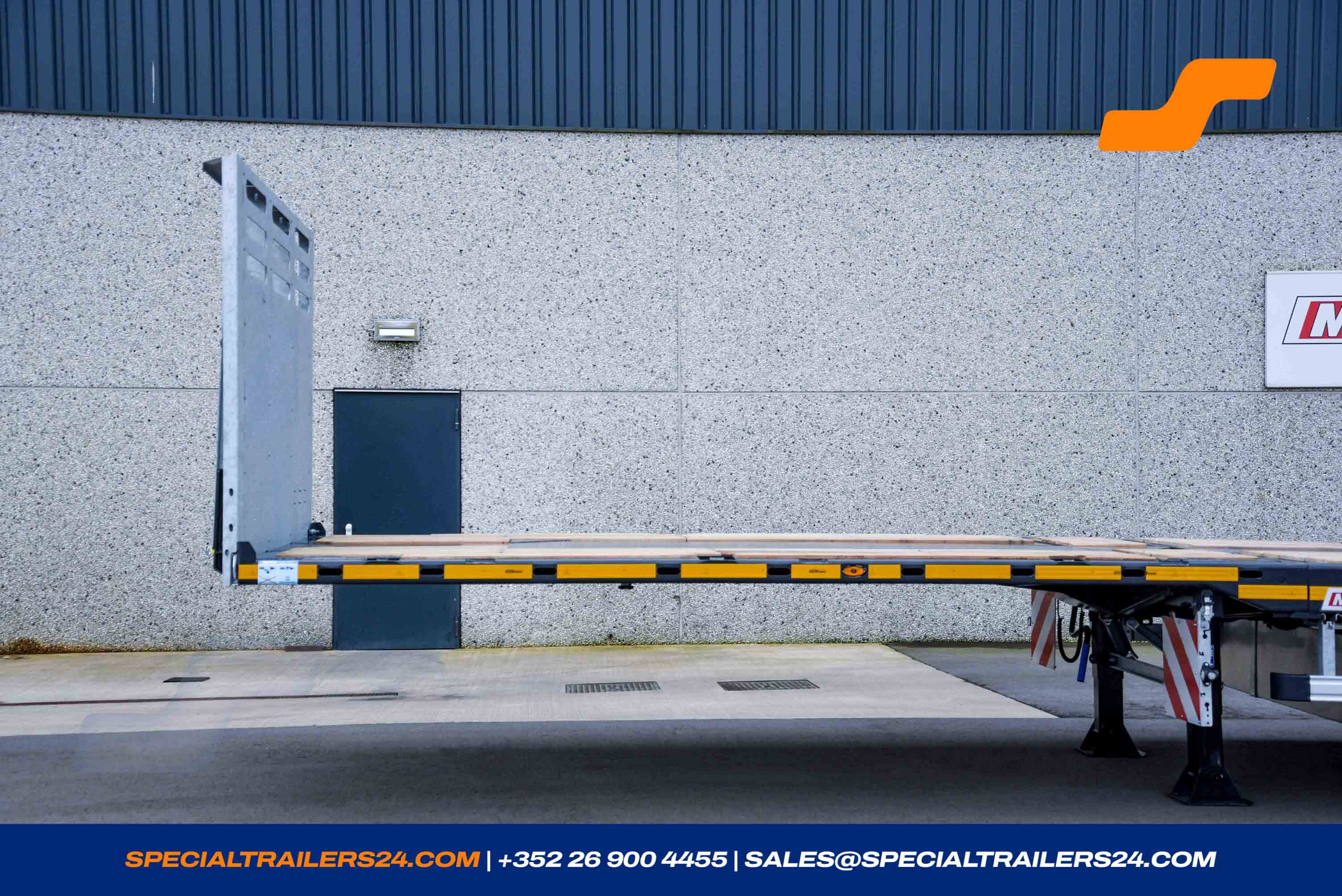

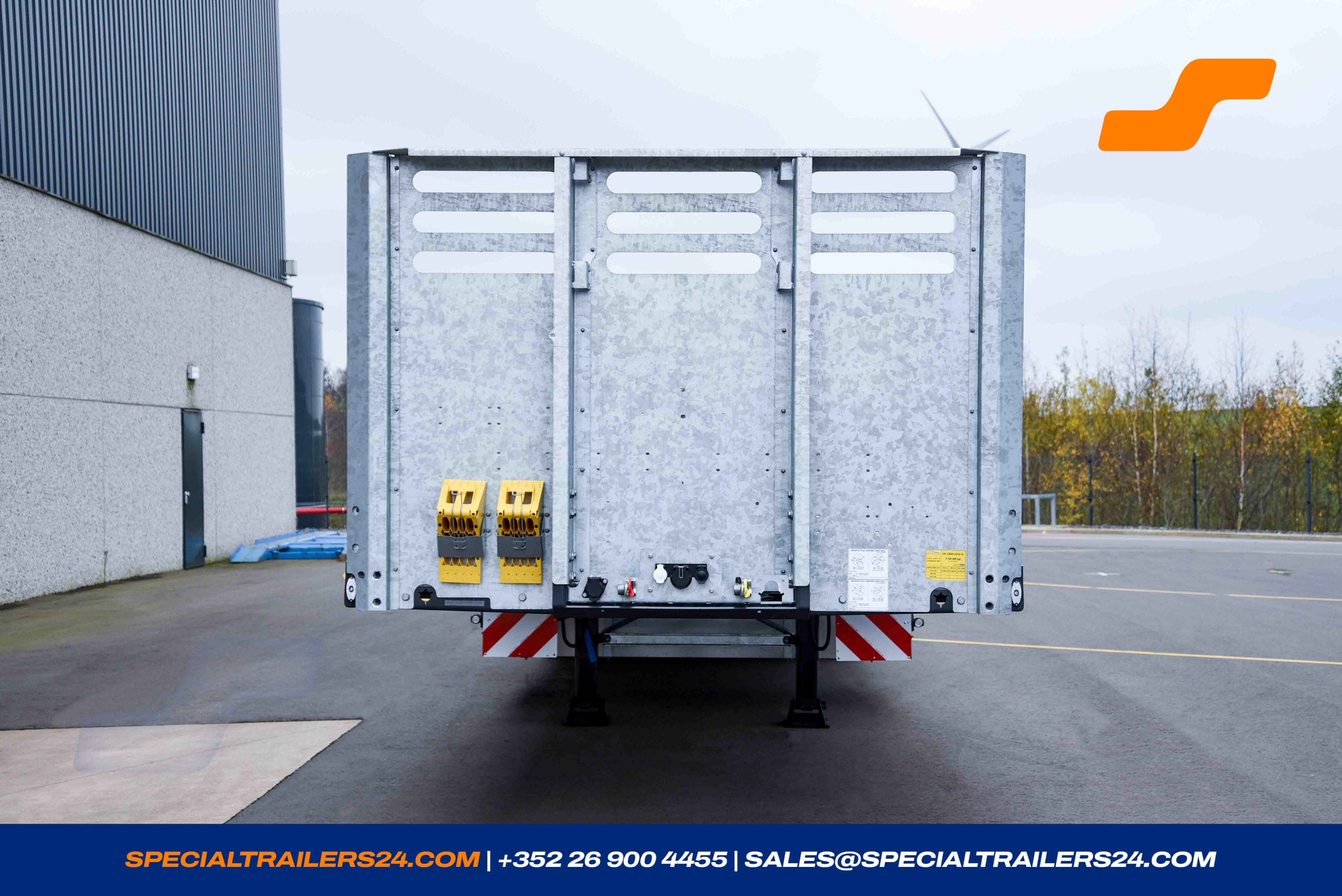

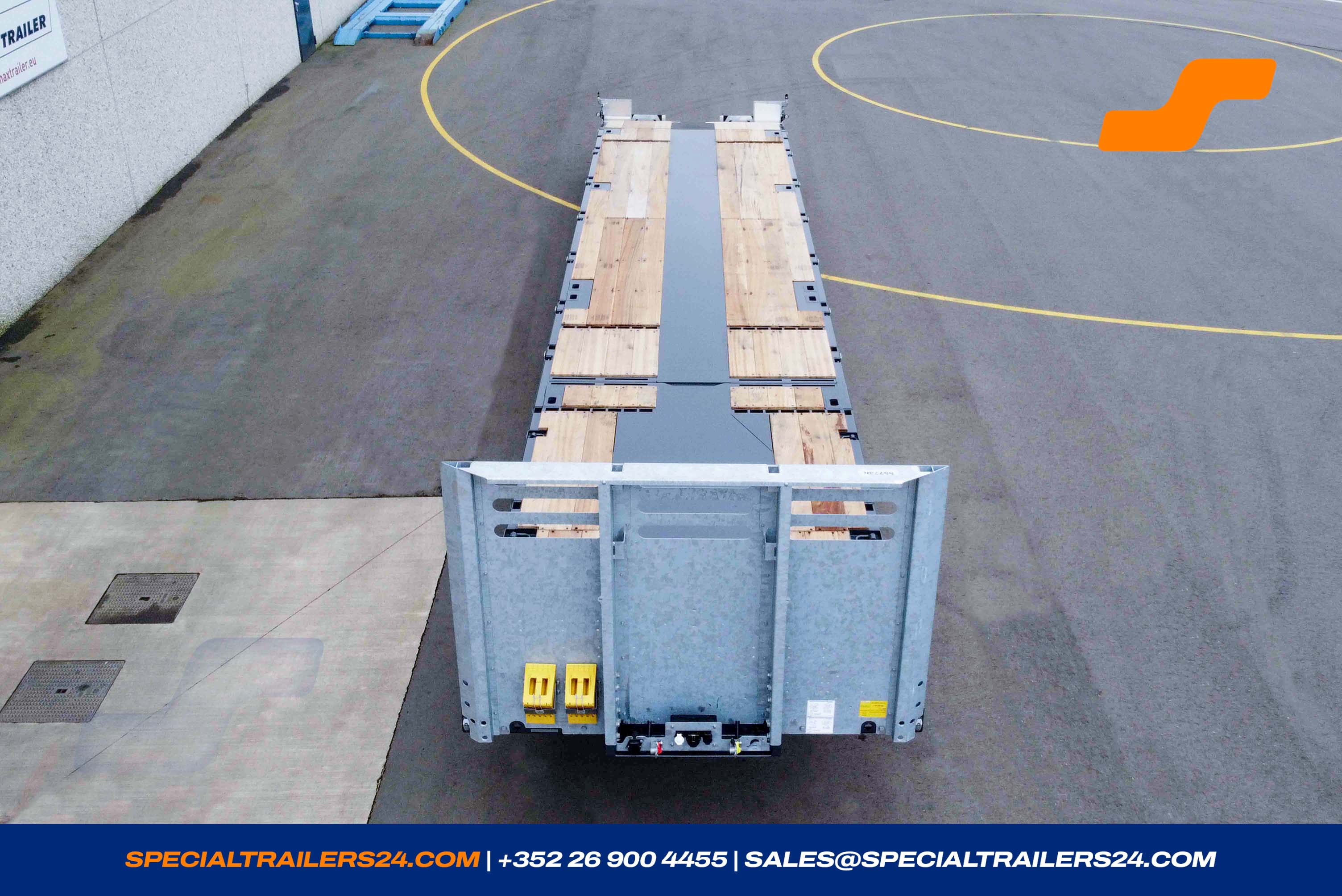

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.

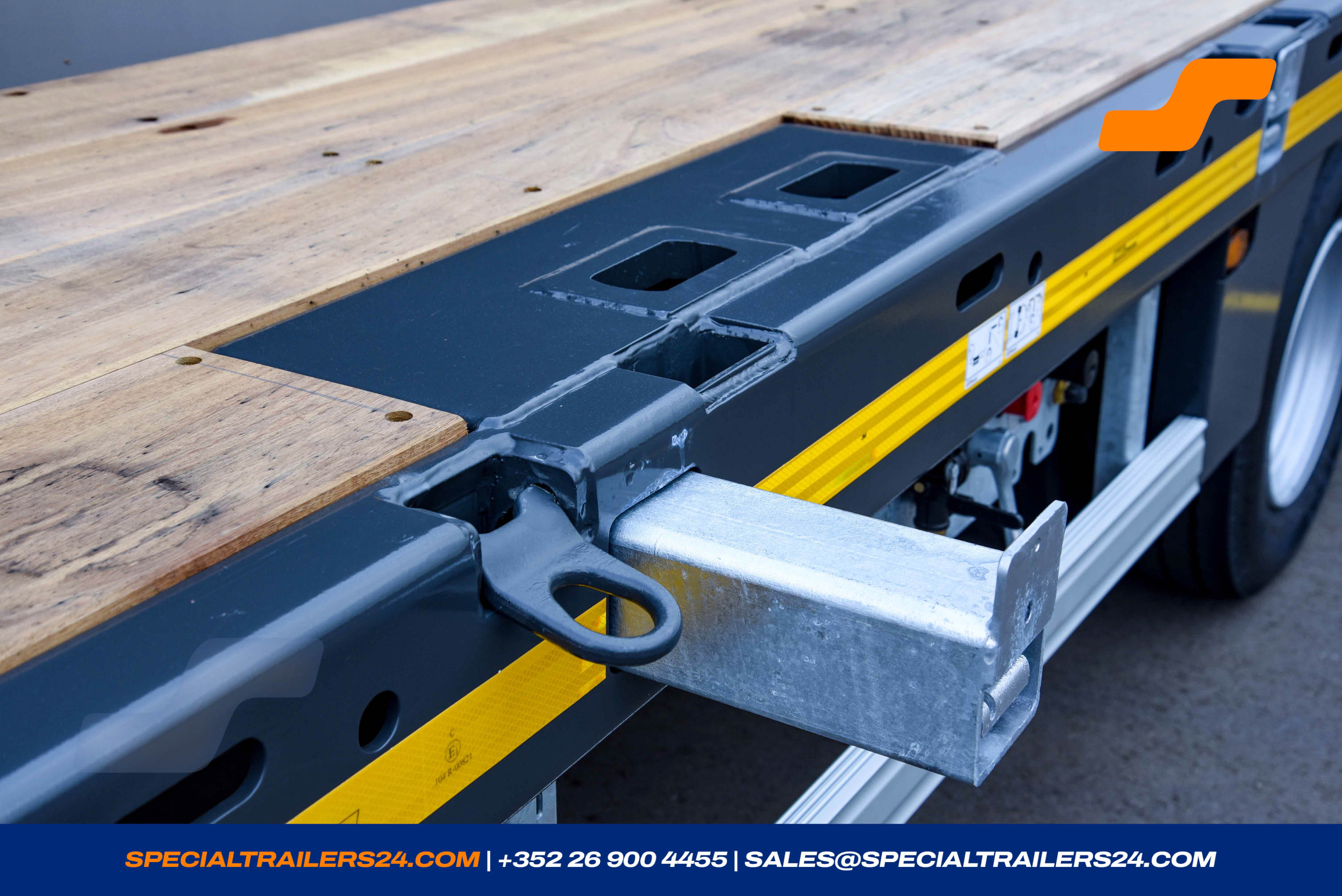

- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 4 pairs of WADER-containerlocks. (± 60kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)

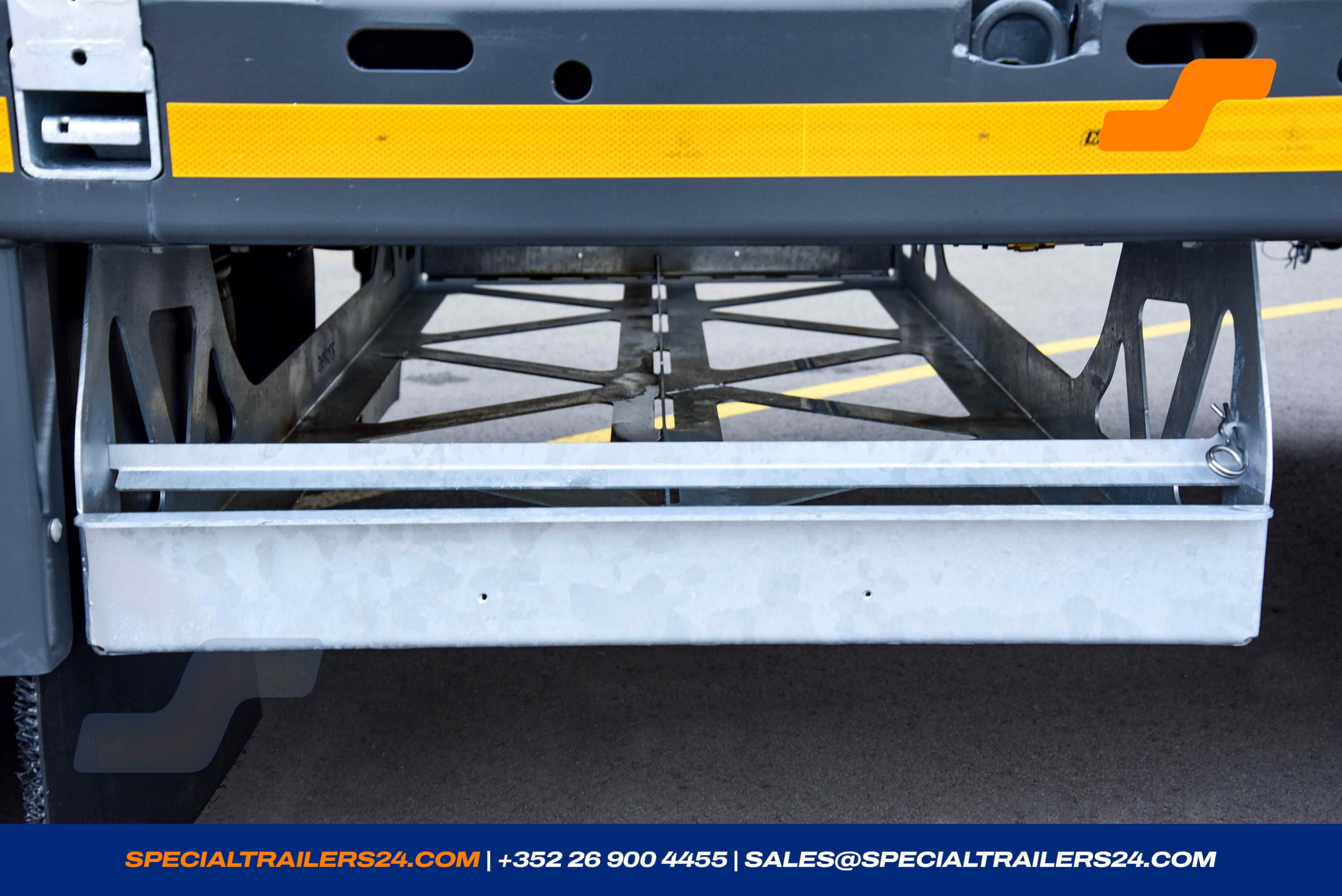

- Galvanised storage under the loading platform (2 400 x 640 x 165 mm). (± 83 kg)

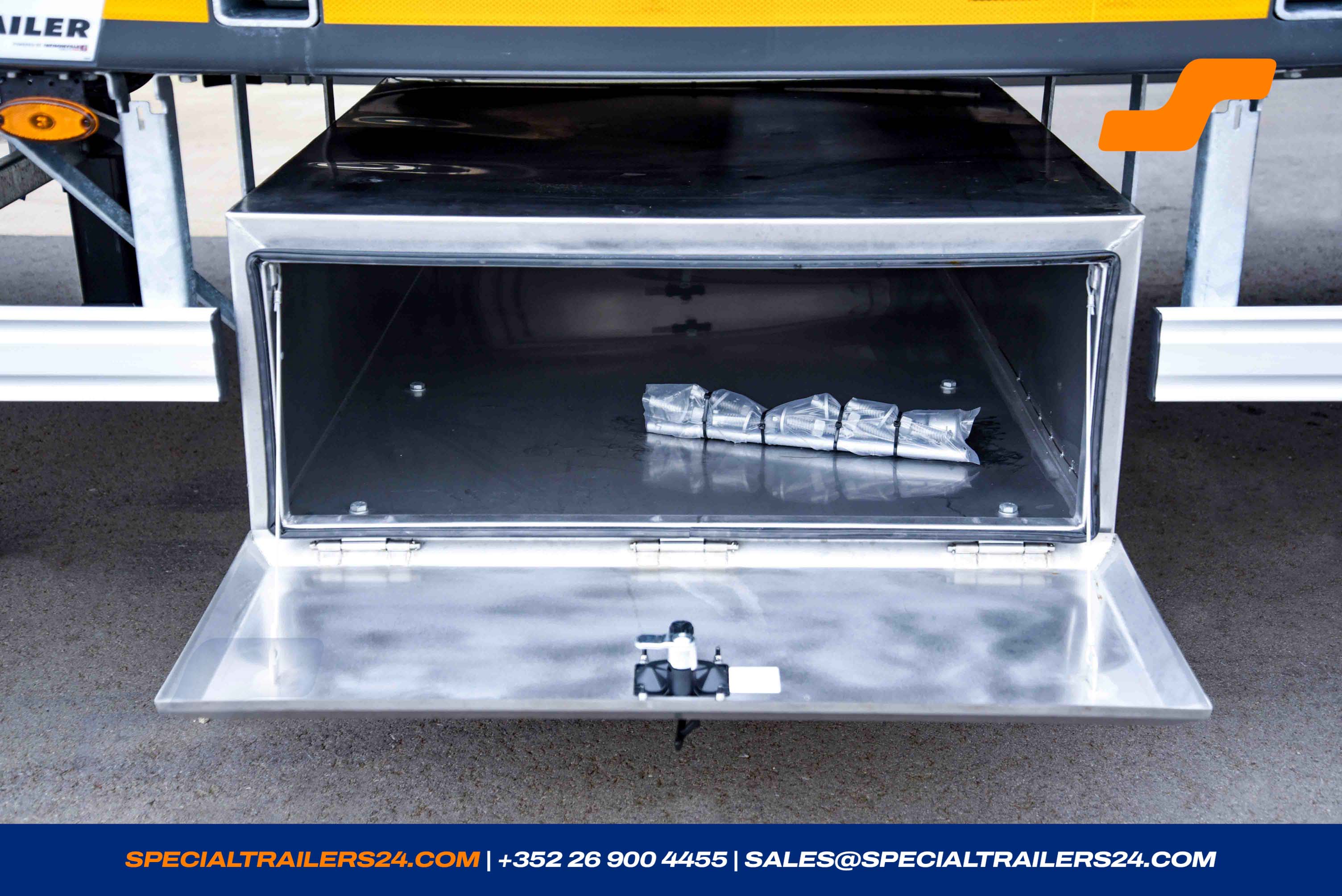

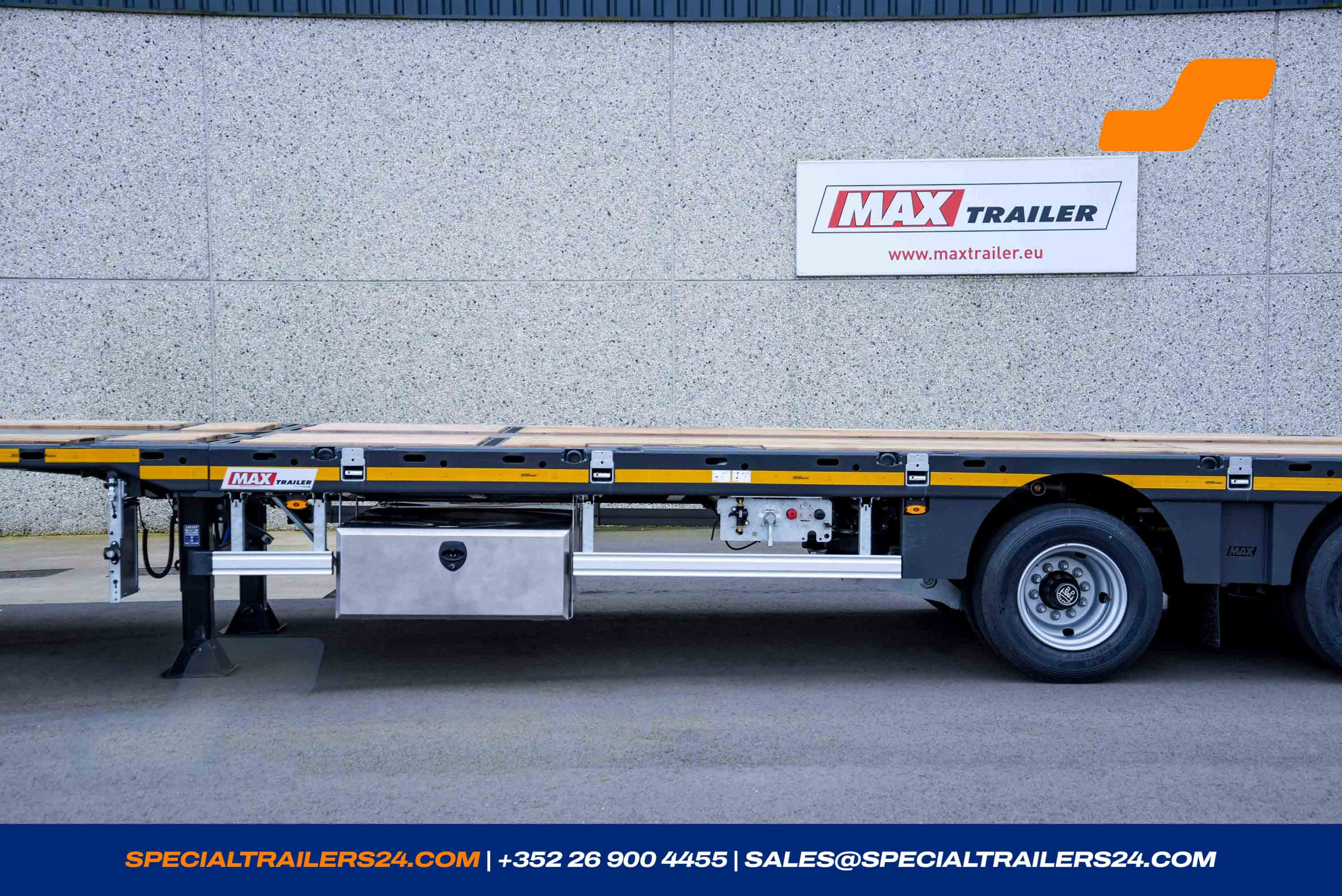

- A tool box INOX 565 x 290 x 810 mm in the direction of travel left in front of the axles (± 45kg)
-
1 pair of alu ramps VFR 120 ± 2350 x 450 x 120 (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 9500 daN (Kp)
by axle distance 2.0 meter : 12000 daN (Kp)
single axle 5500 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 55 kg (± 110kg) - Holder for alu-ramps, across, behind the axle bogie. (± 88kg)
- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- Holder for one beacon light at the rear right and left of the trailer.
- 2 pairs of supports for warning boards to install in the stake pockets
Accessories
1 x Accessory
MAX200-Accessory
- Load manometer for determining the axle load, including load diagram.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.
-
Spain: Ficha técnica
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations. -
Italy, Scheda Tecnica:
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.

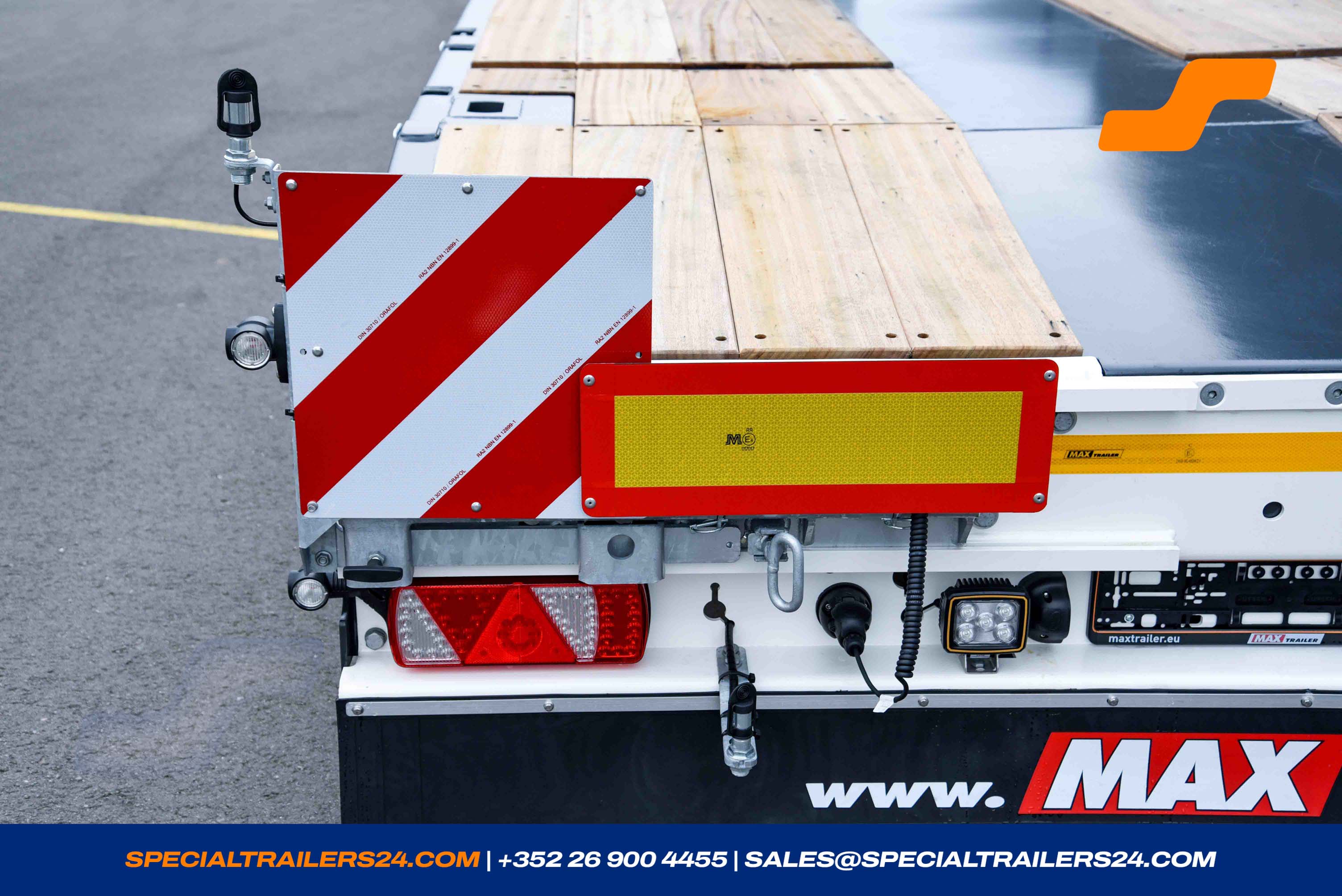

We do not have any influence on the delivery time of these authorizations. - 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED flashing beacons, provided separately.
- 2 LED- reversing lights at the rear.
- Hooks for cover (8 mm), every ca. 500 mm under the outer frame of the gooseneck and of the loading platform (± 2kg).
- 2 pairs of ferry-rings under the gooseneck and 2 pairs of ferry-rings at the rear of the bogie. (± 16kg)
- Delivery from a trailer to factory Lentzweiler.
