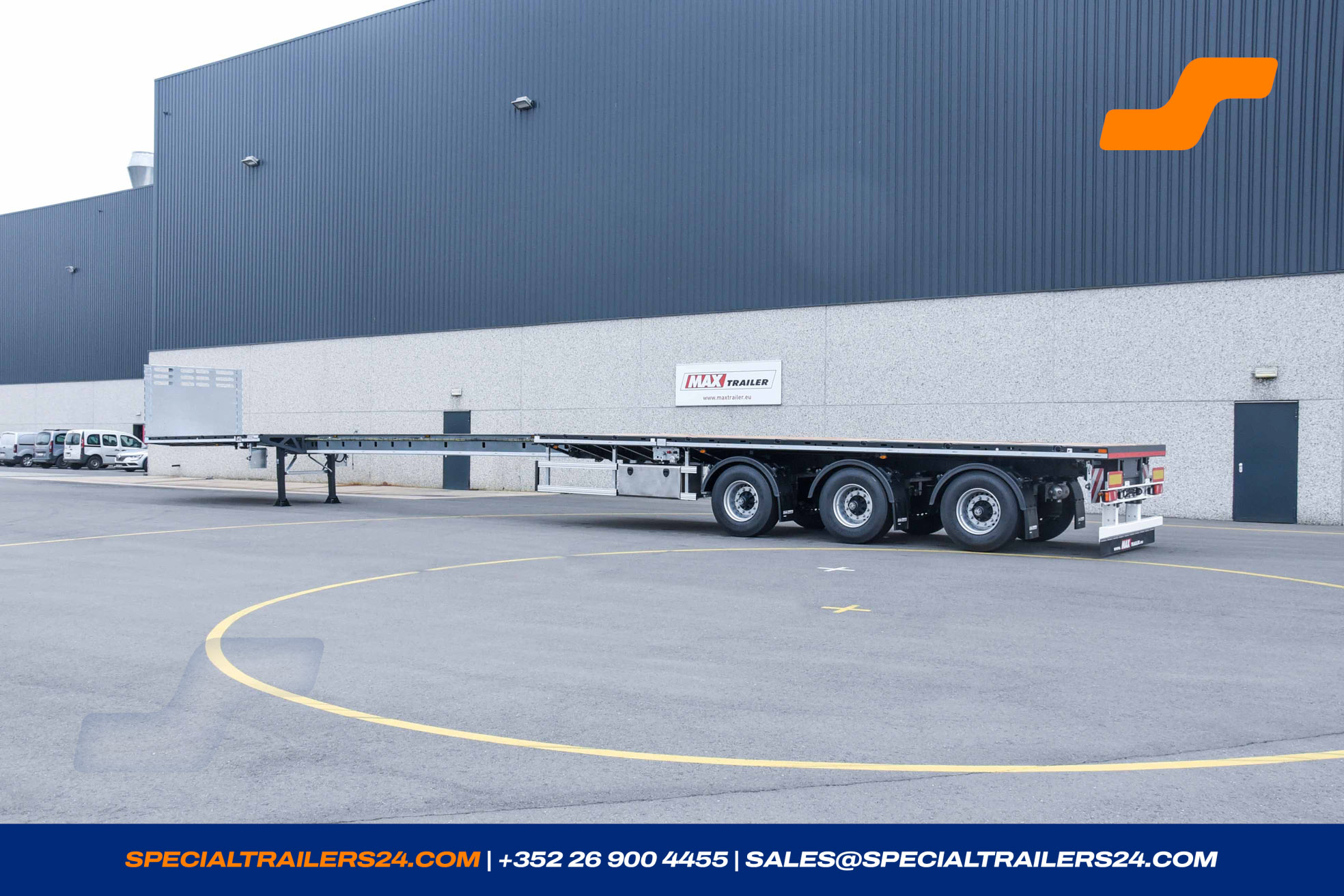

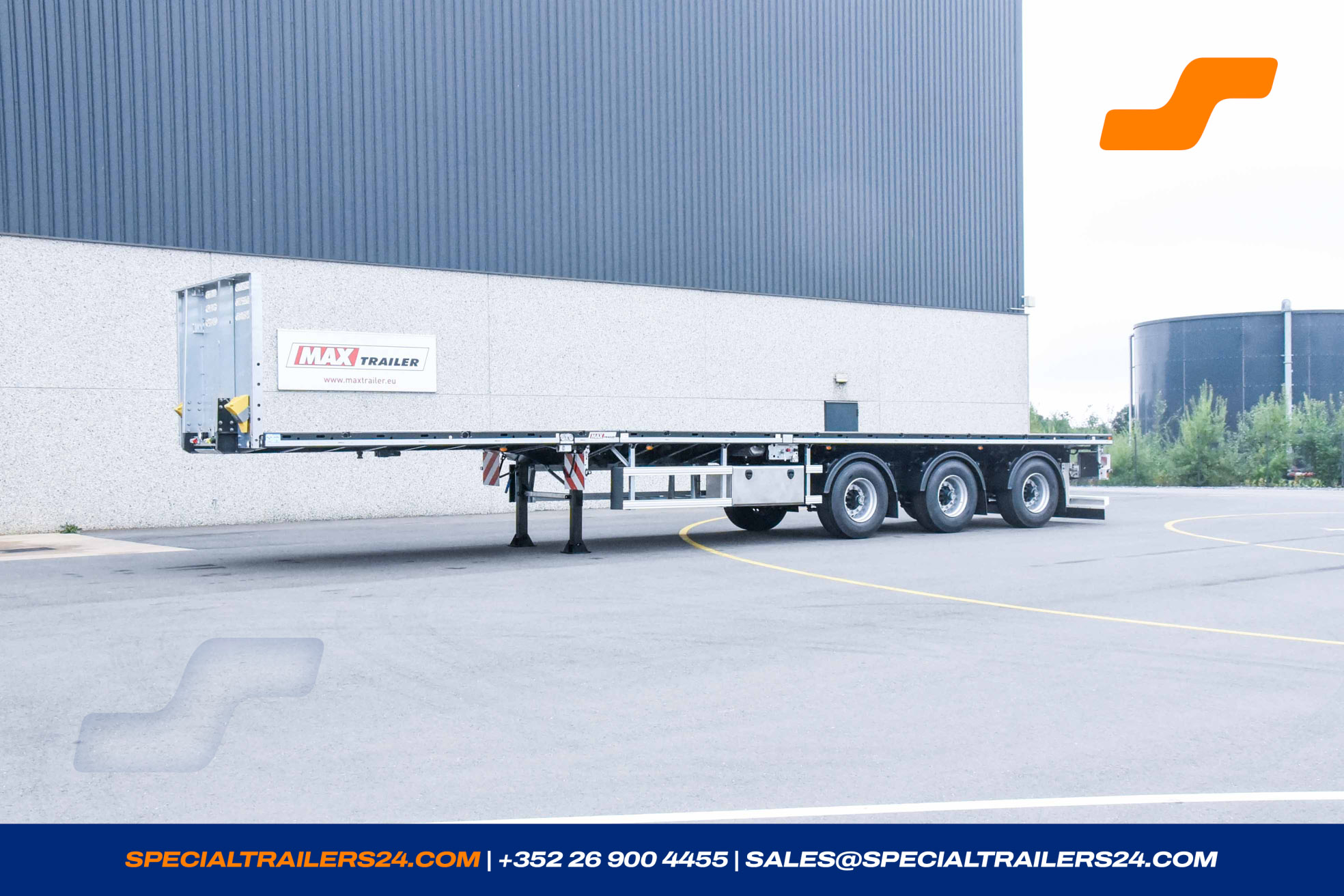

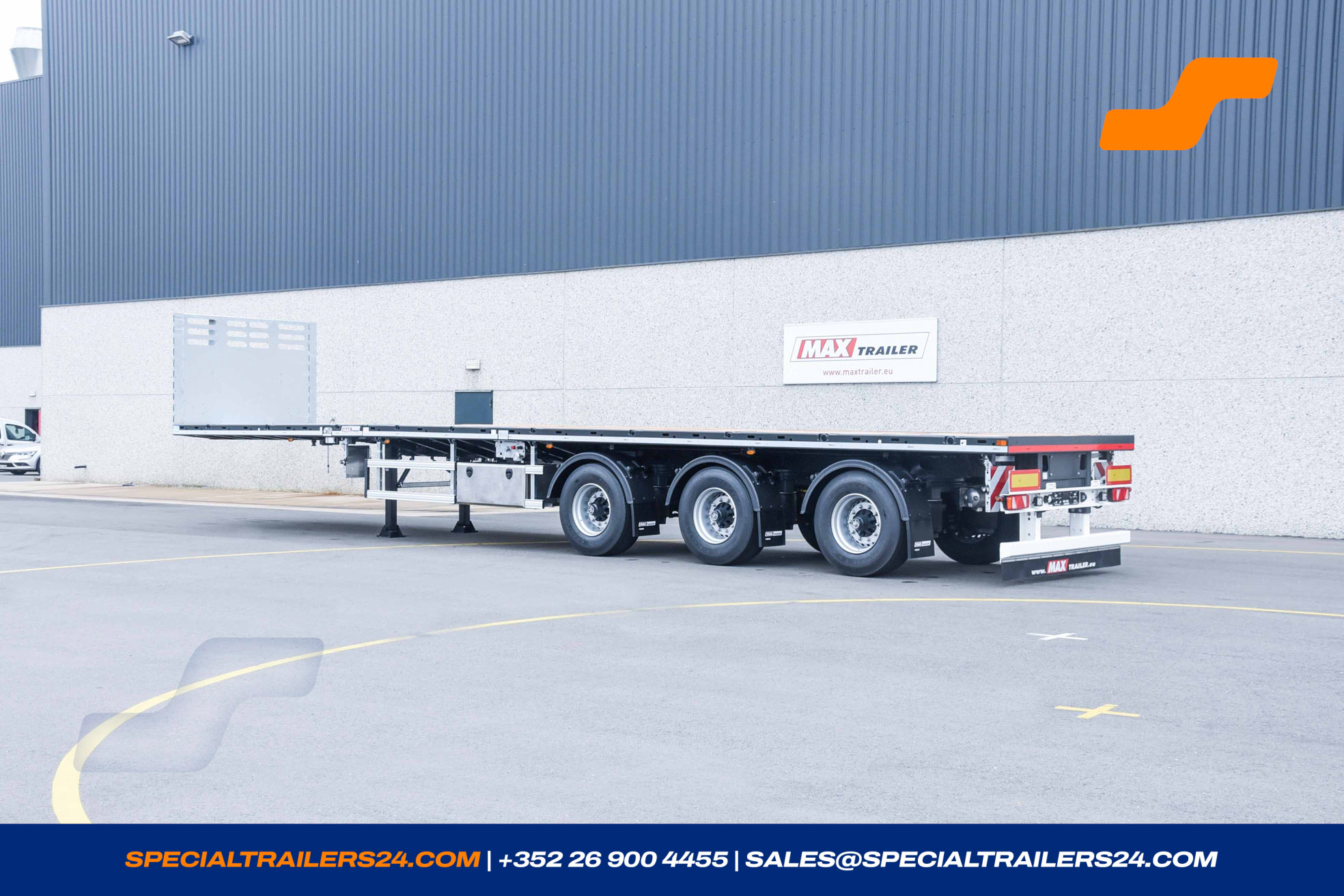

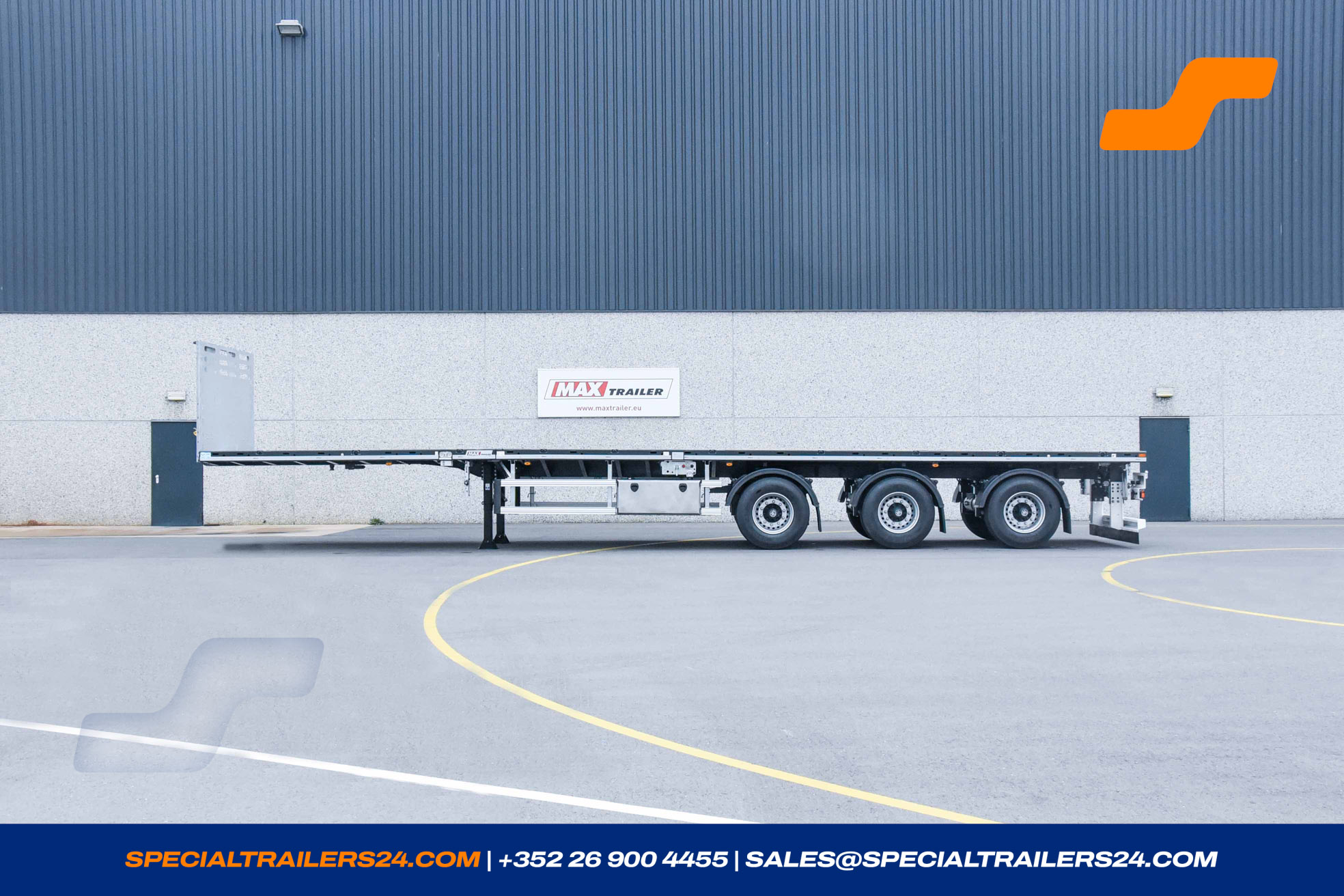

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 112395
- Reference MAX210-Z-3A-13.60-22.5-2.54

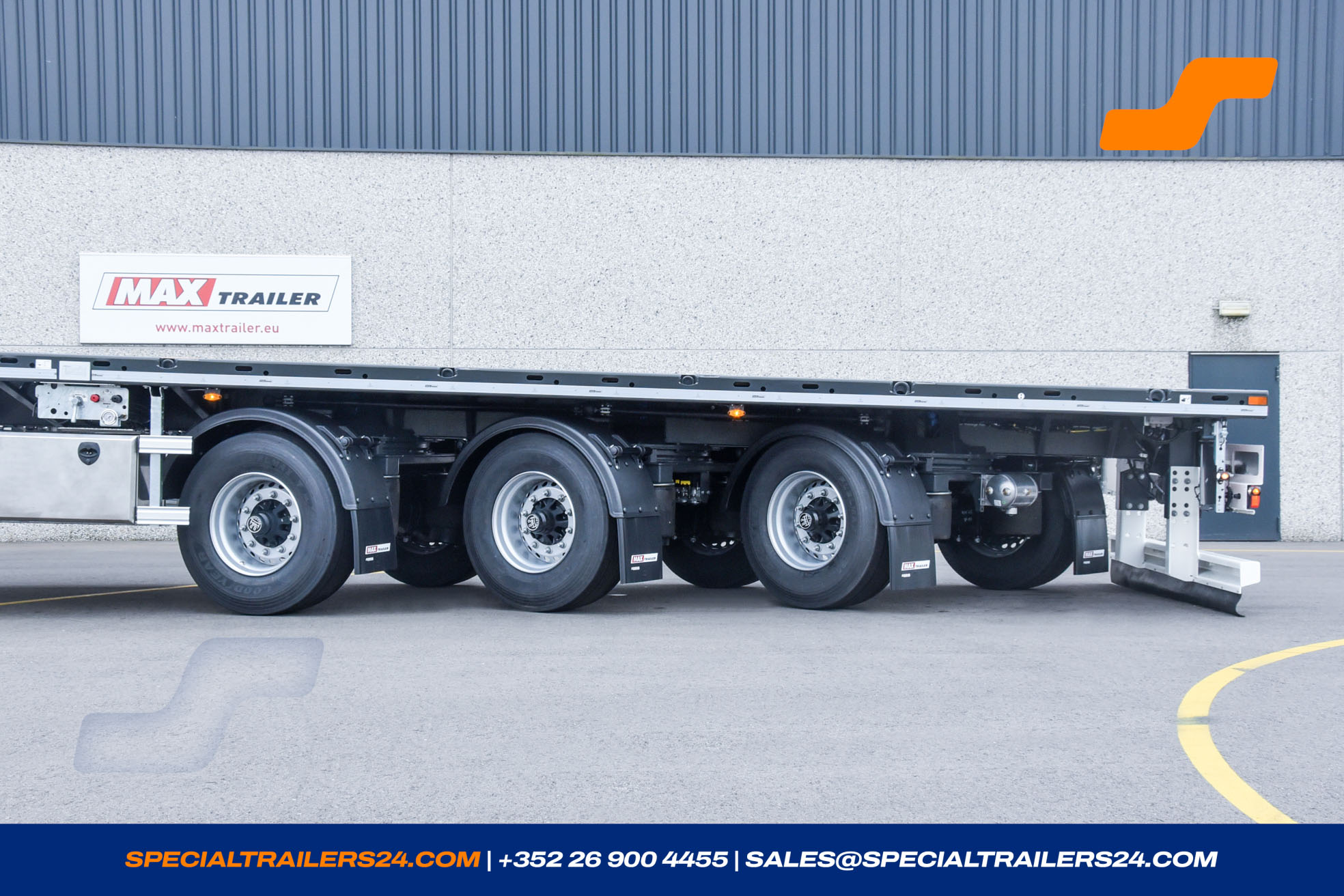

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 12/2026
- Steering Type Hydraulic
Availability
12/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 30000 kg |
| Gross weight | 48000 kg |
| Tare weight +- 3% | 9573 kg |
| Payload | 38427 kg |
Dimensions
| Fifth wheel height loaded | 1150->1190 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |

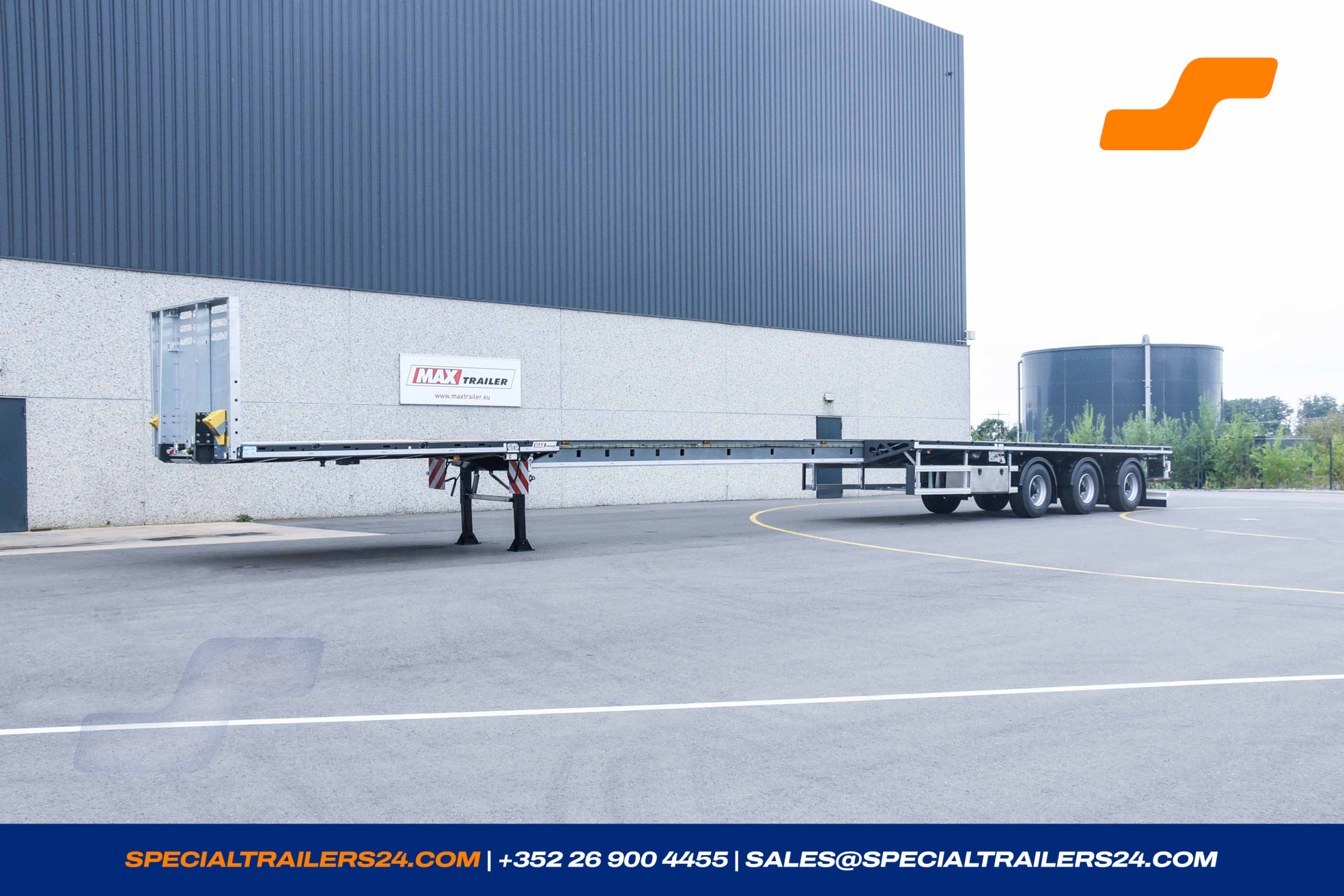

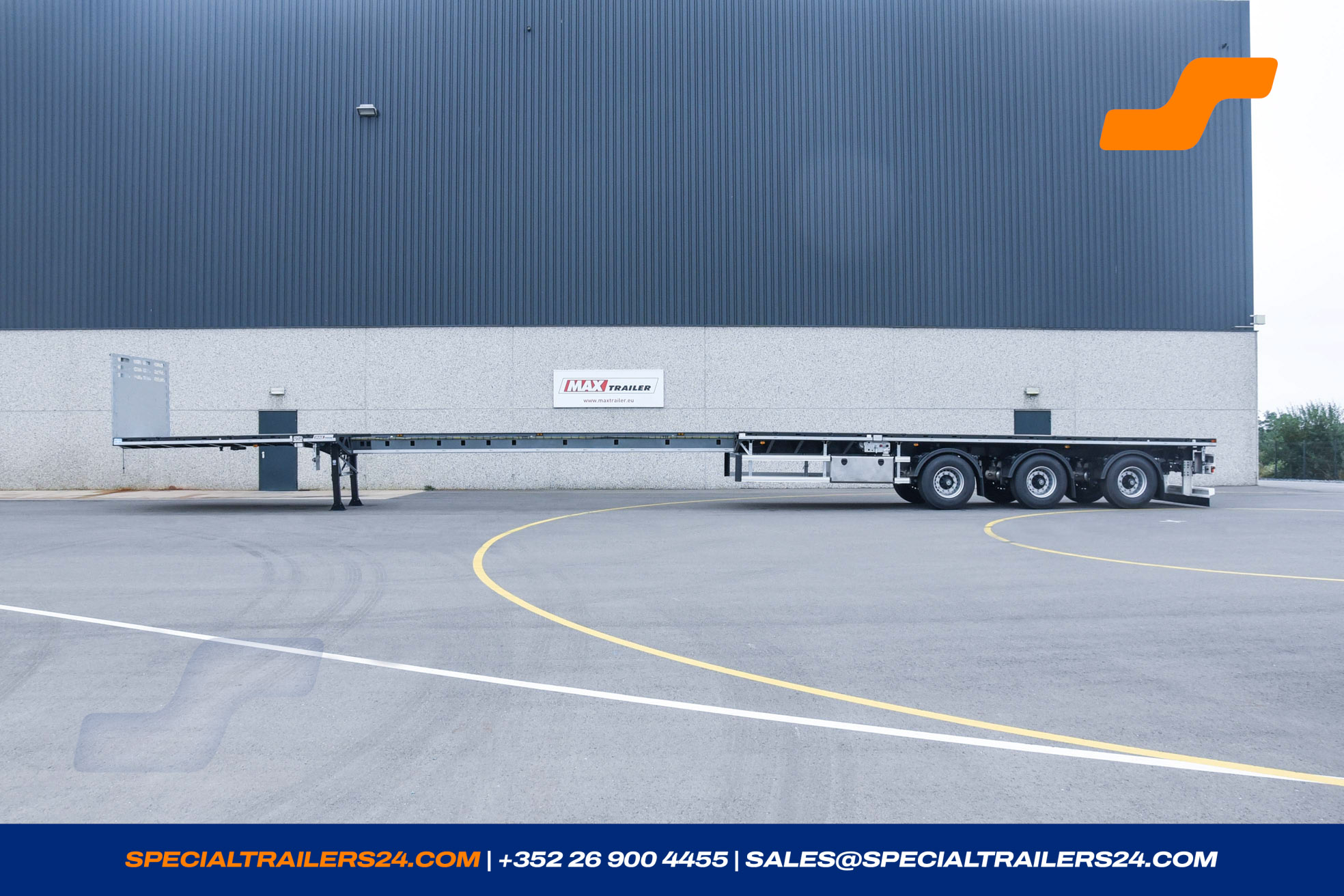

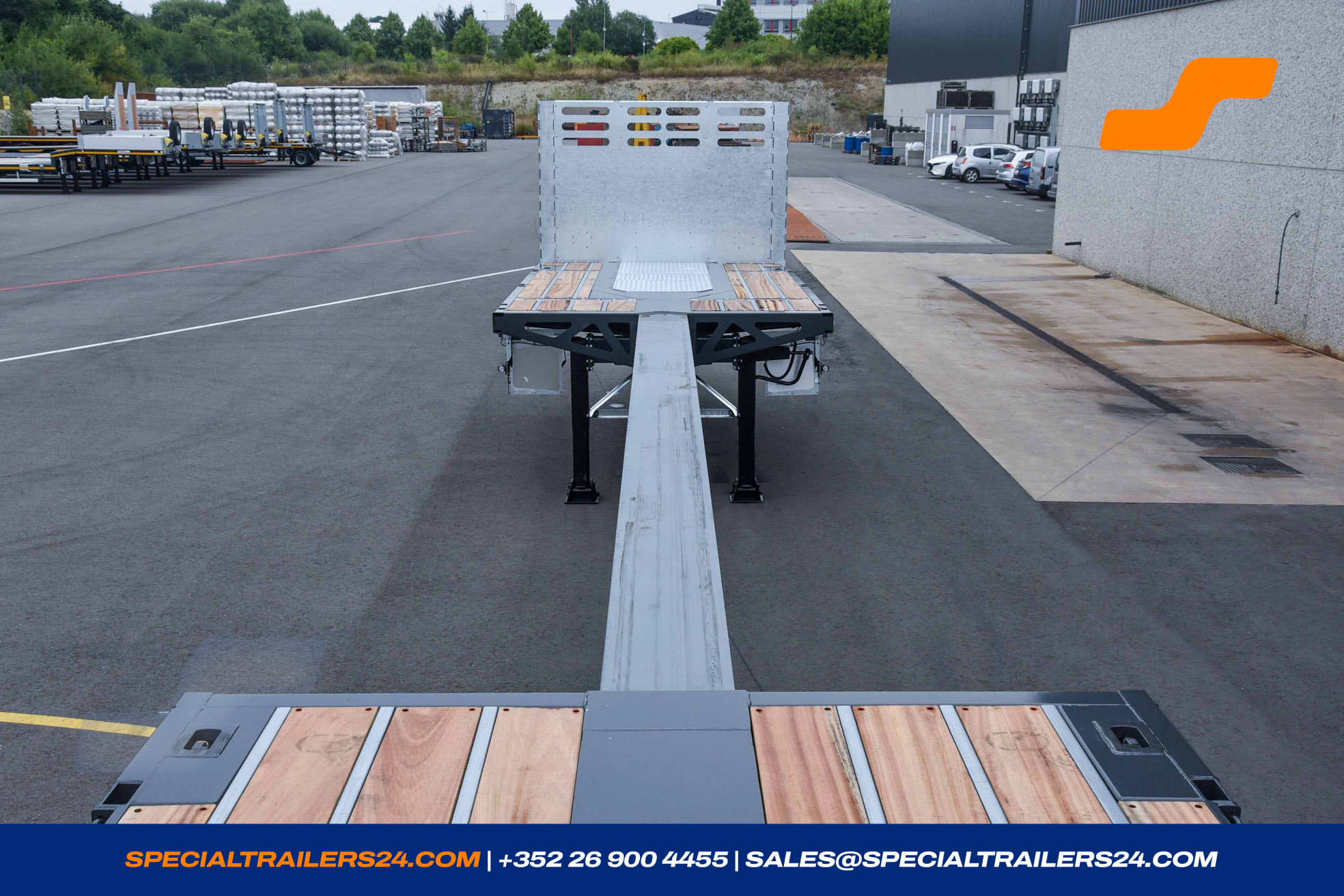

| Extendable by | 7 500 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform : MAX210-Z-3A(7500)-13.60-22.5-2.54(DSR 2300-ASH 1150->1190-11T)

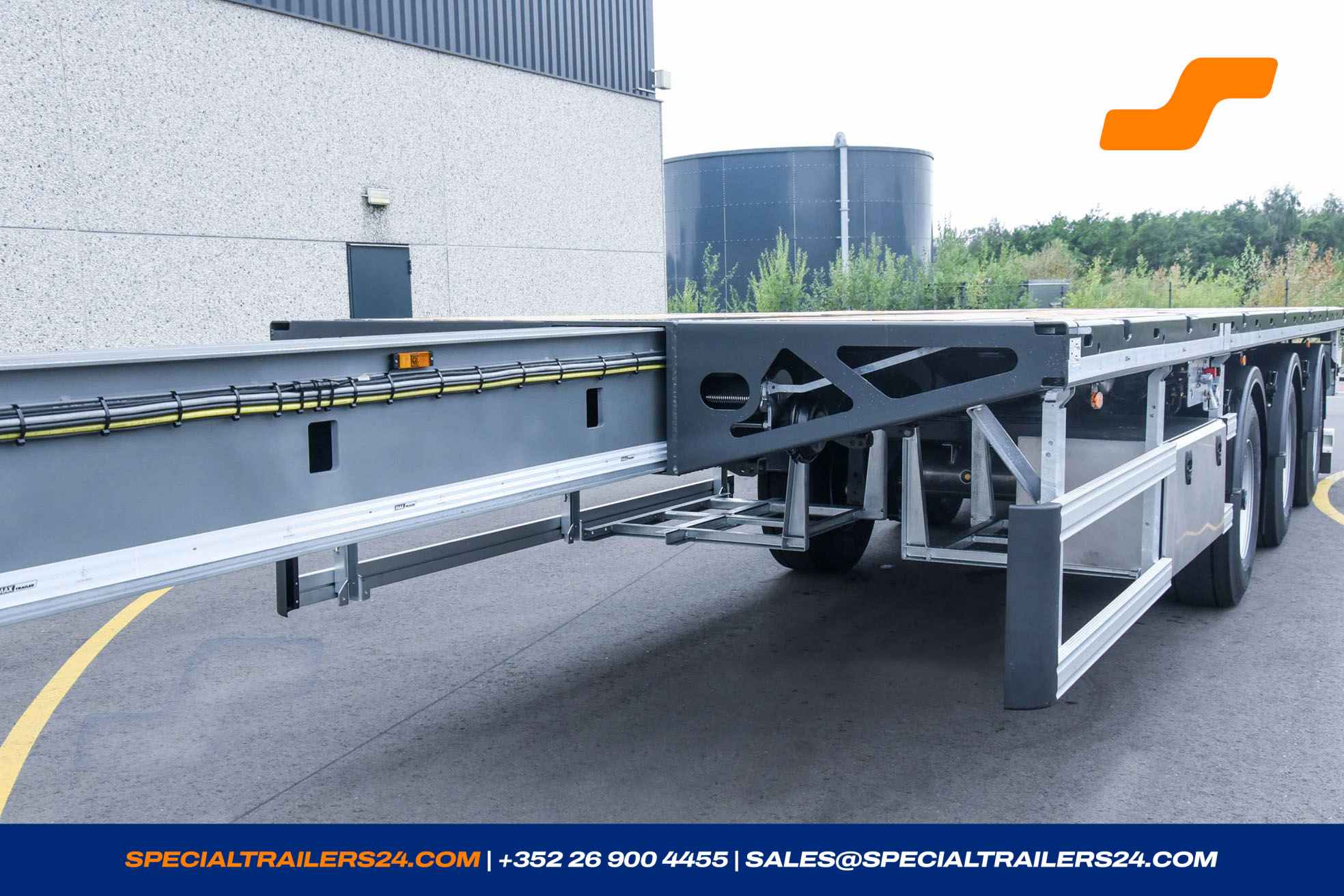

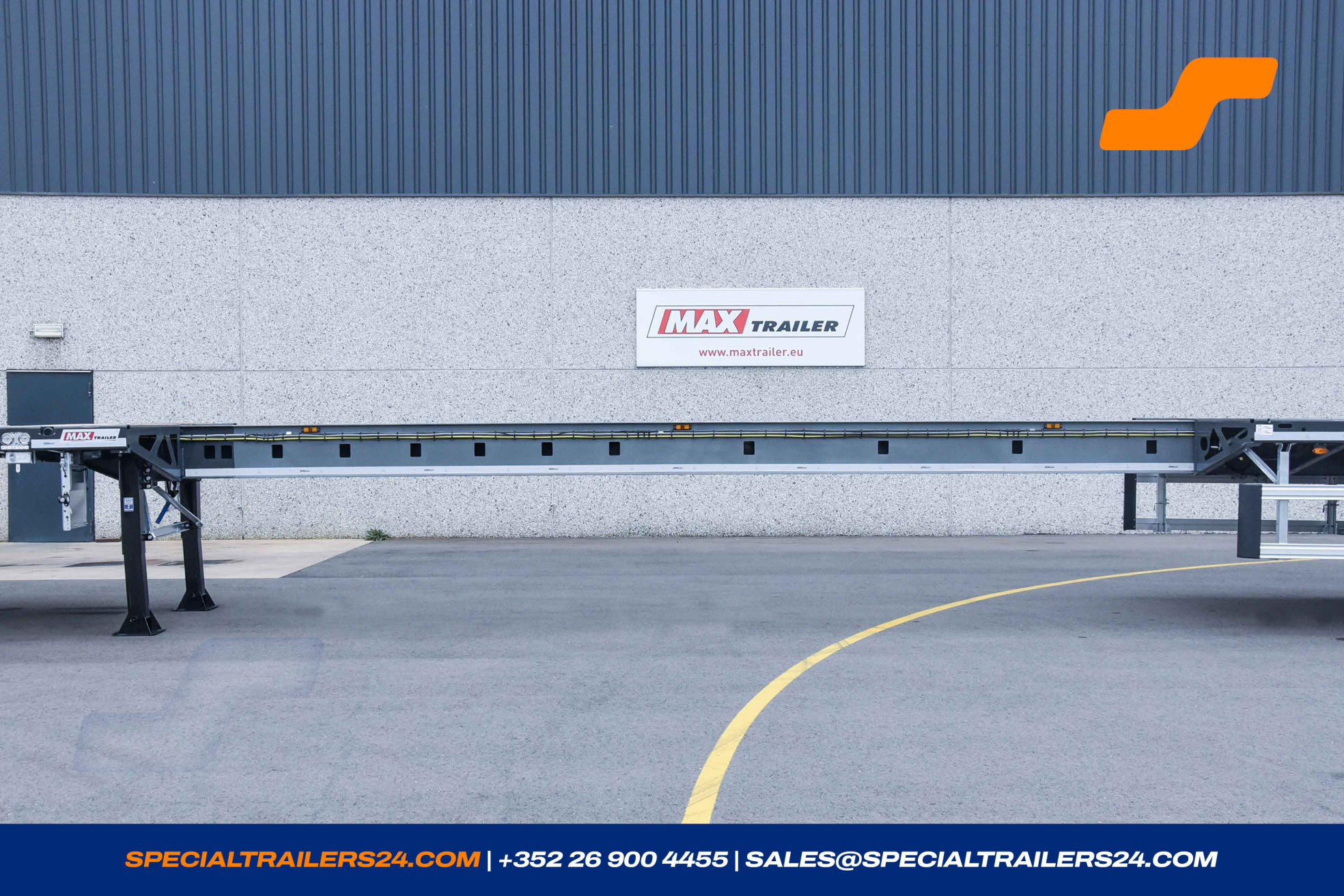

Extendable loading platform with pneumatically operated locking mechanism.
Loading area with ± 30 mm thick timber.
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-

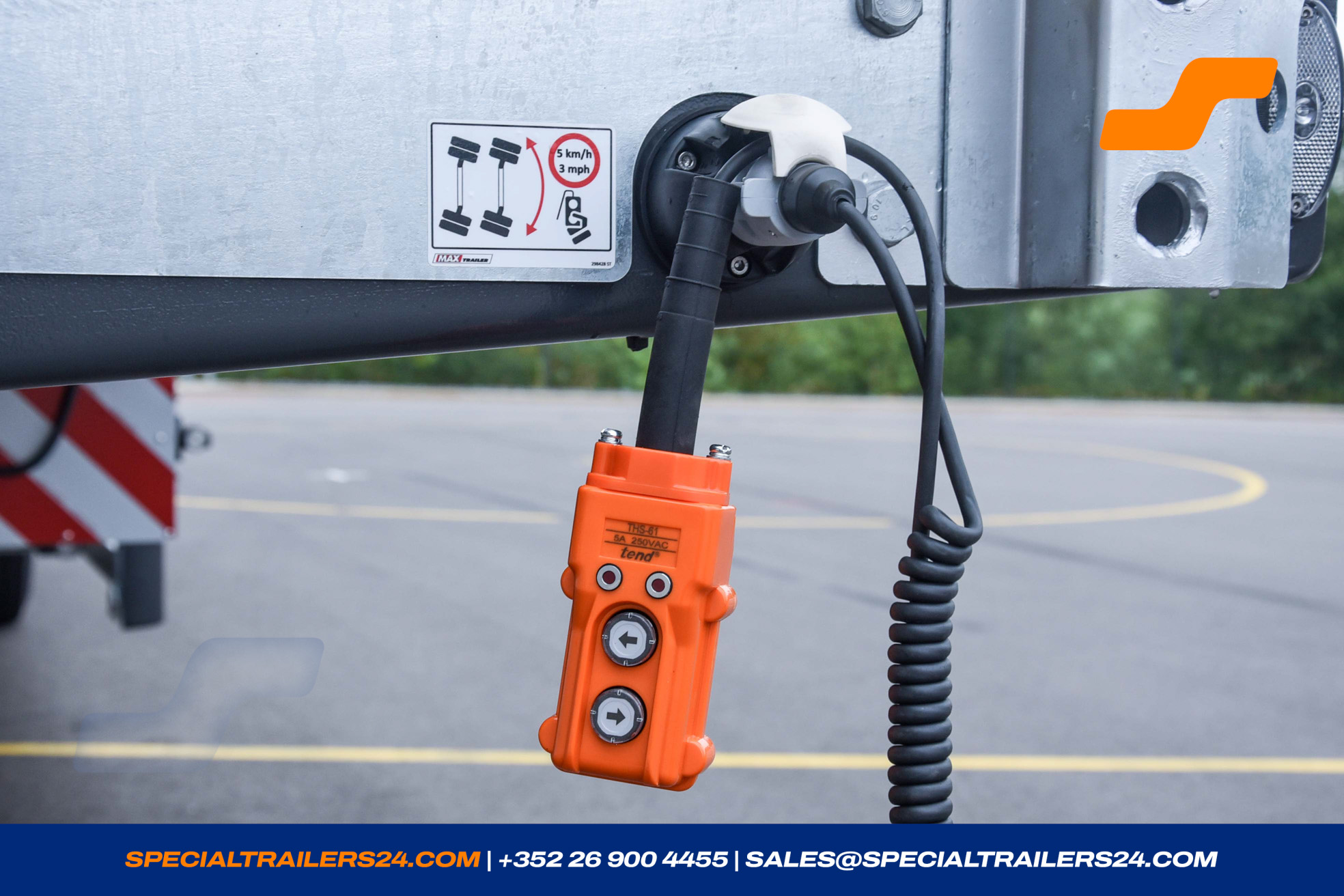

Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- King pin 2

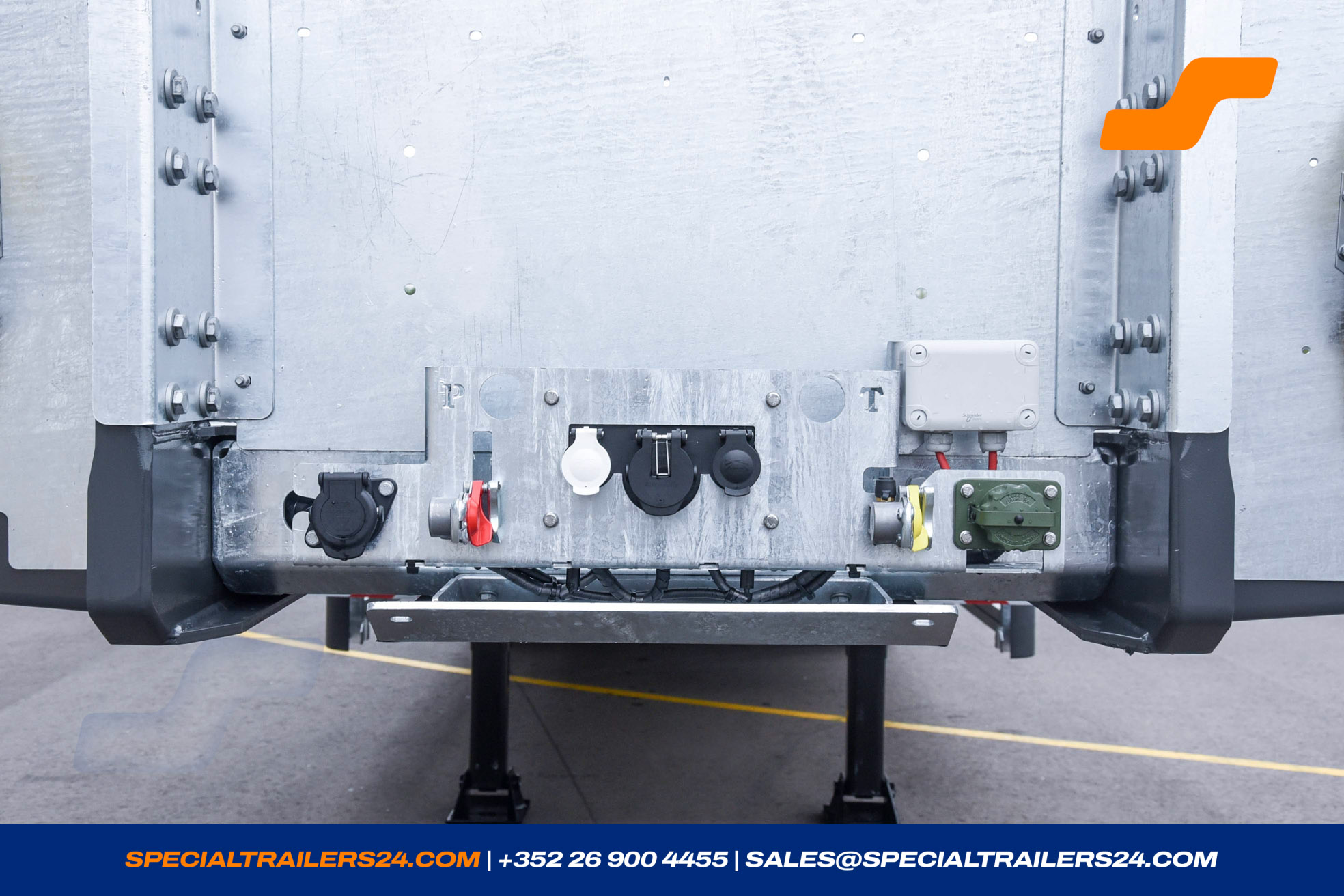

- Red and yellow air couplings on the galvanised front connection ledge.

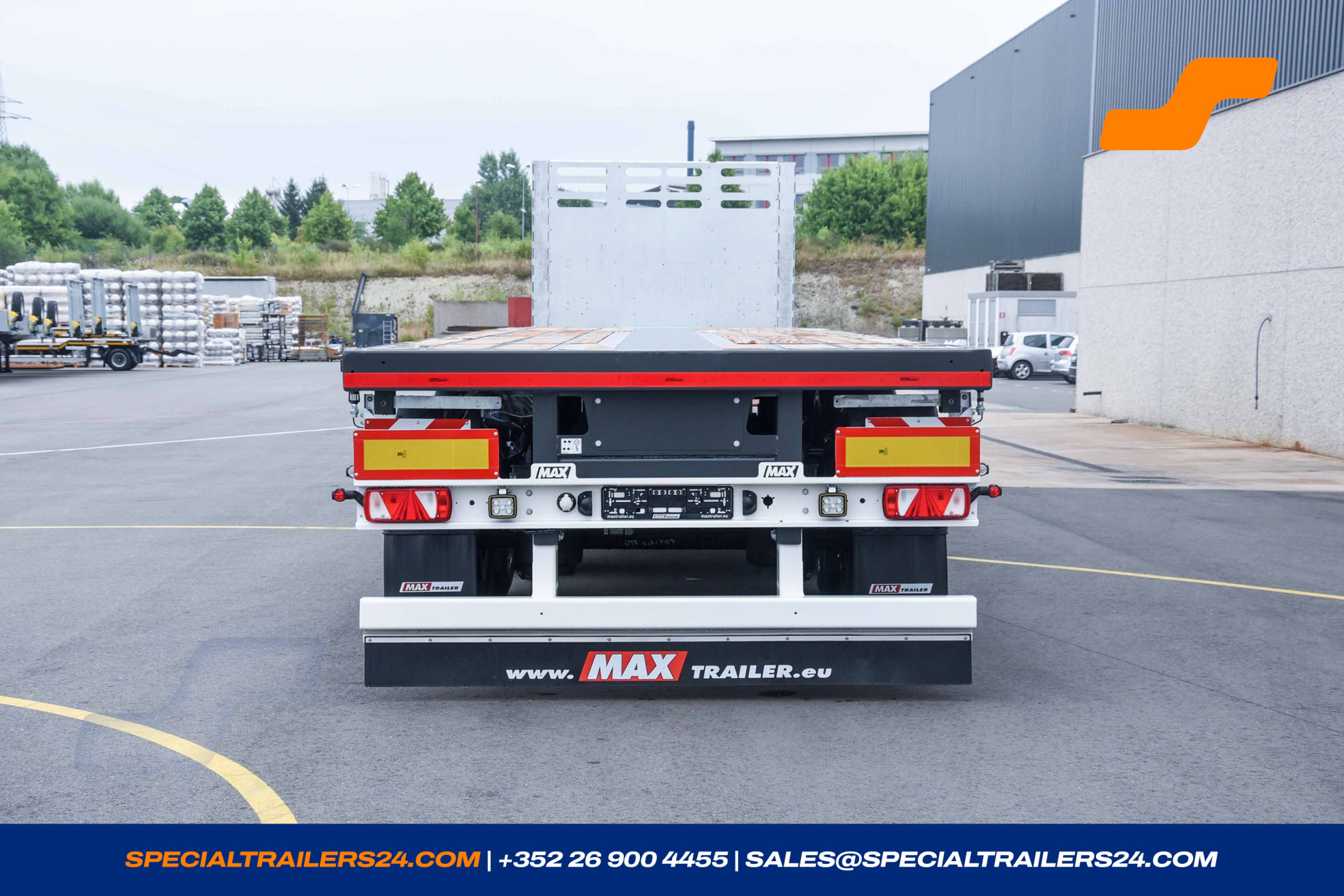

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.

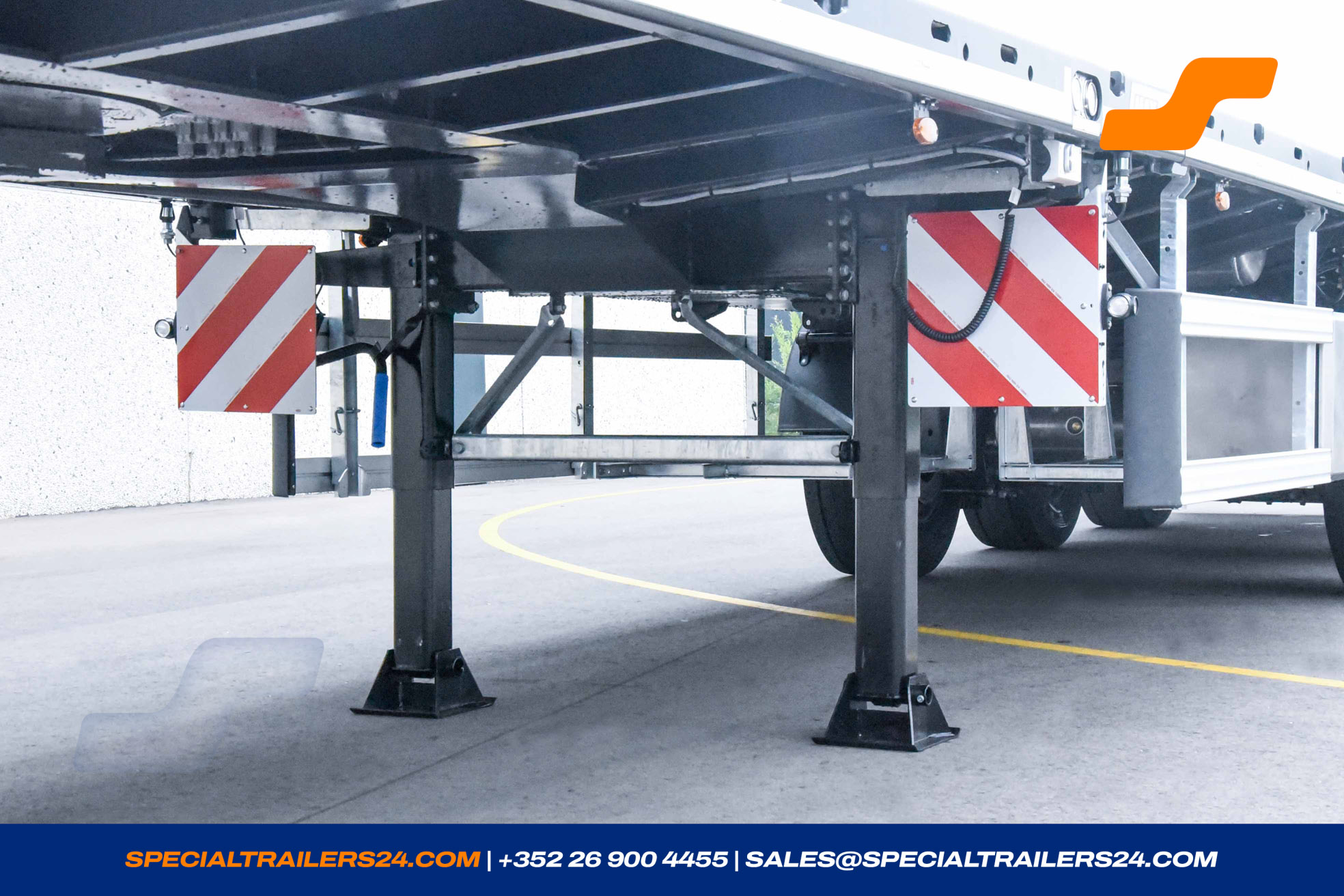

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 1 spare wheel carrier, under the loading platform on the right side.
-

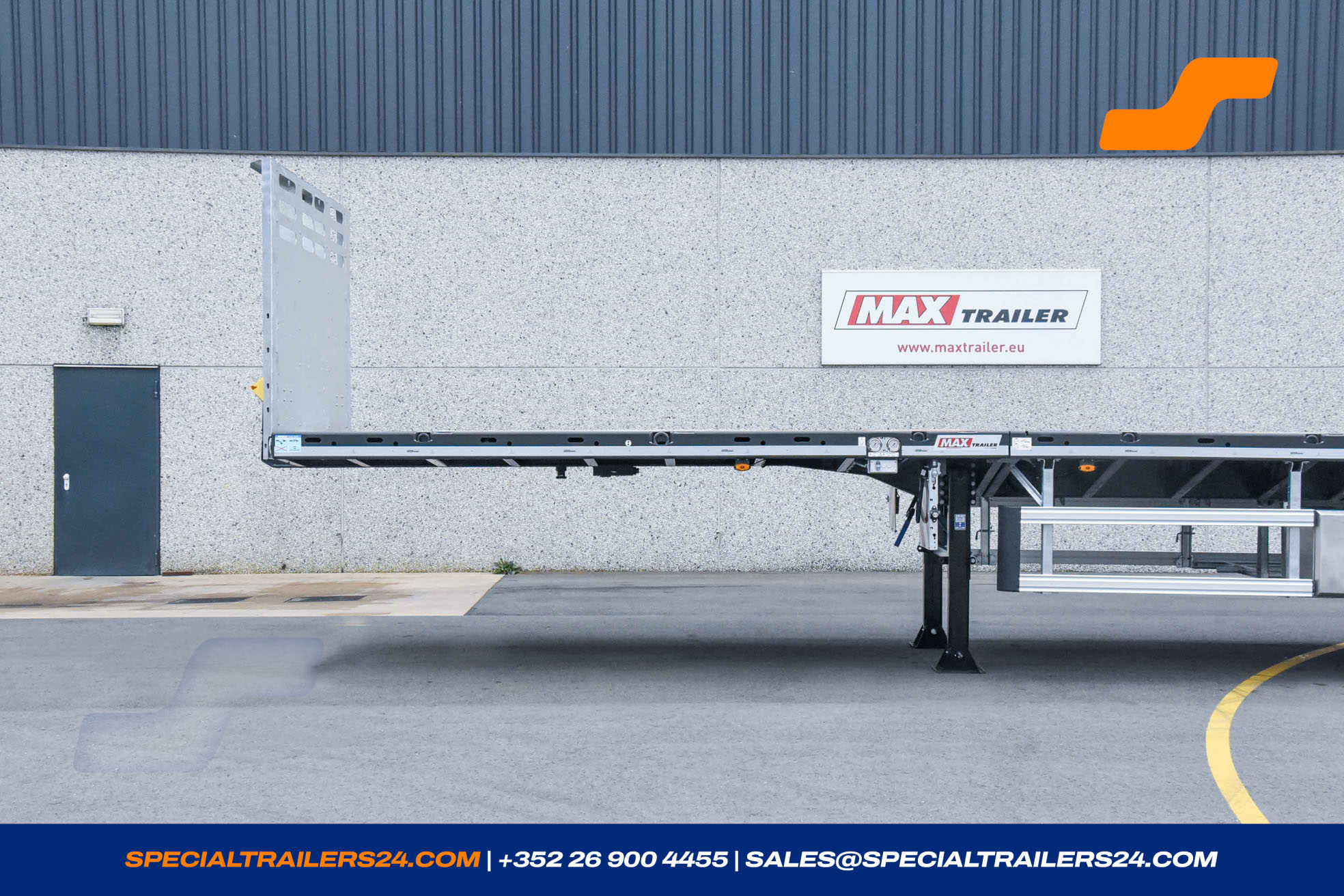

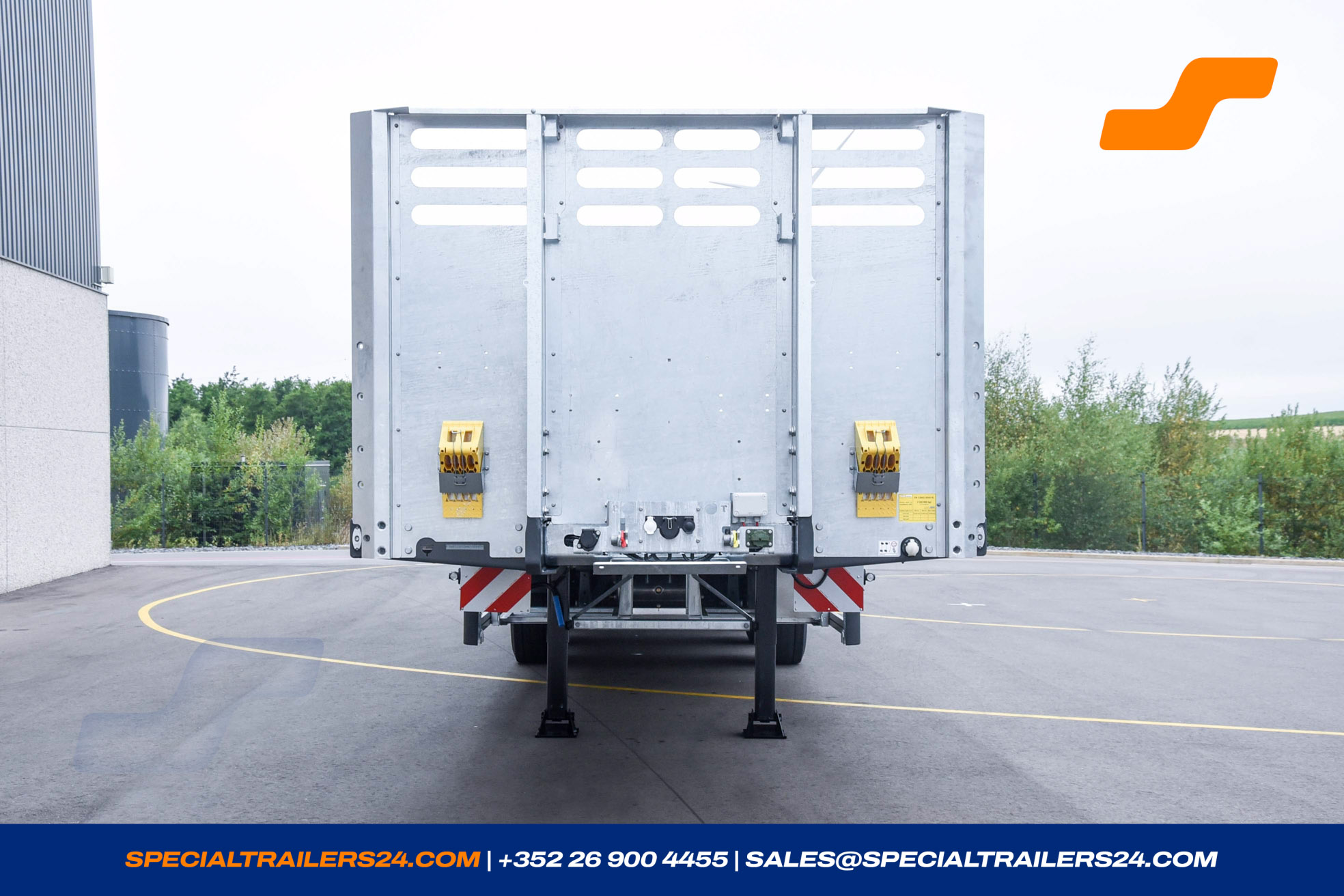

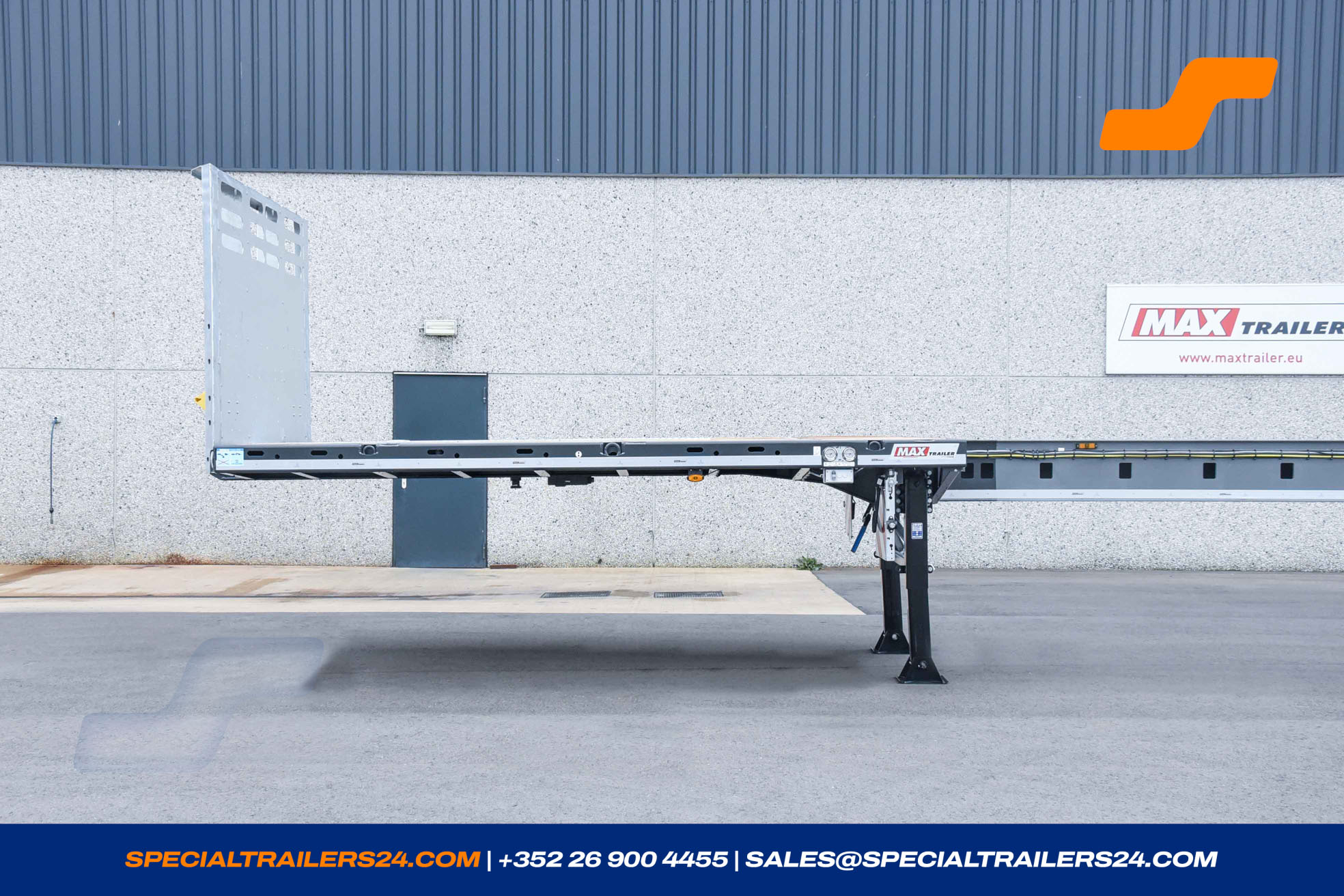

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.

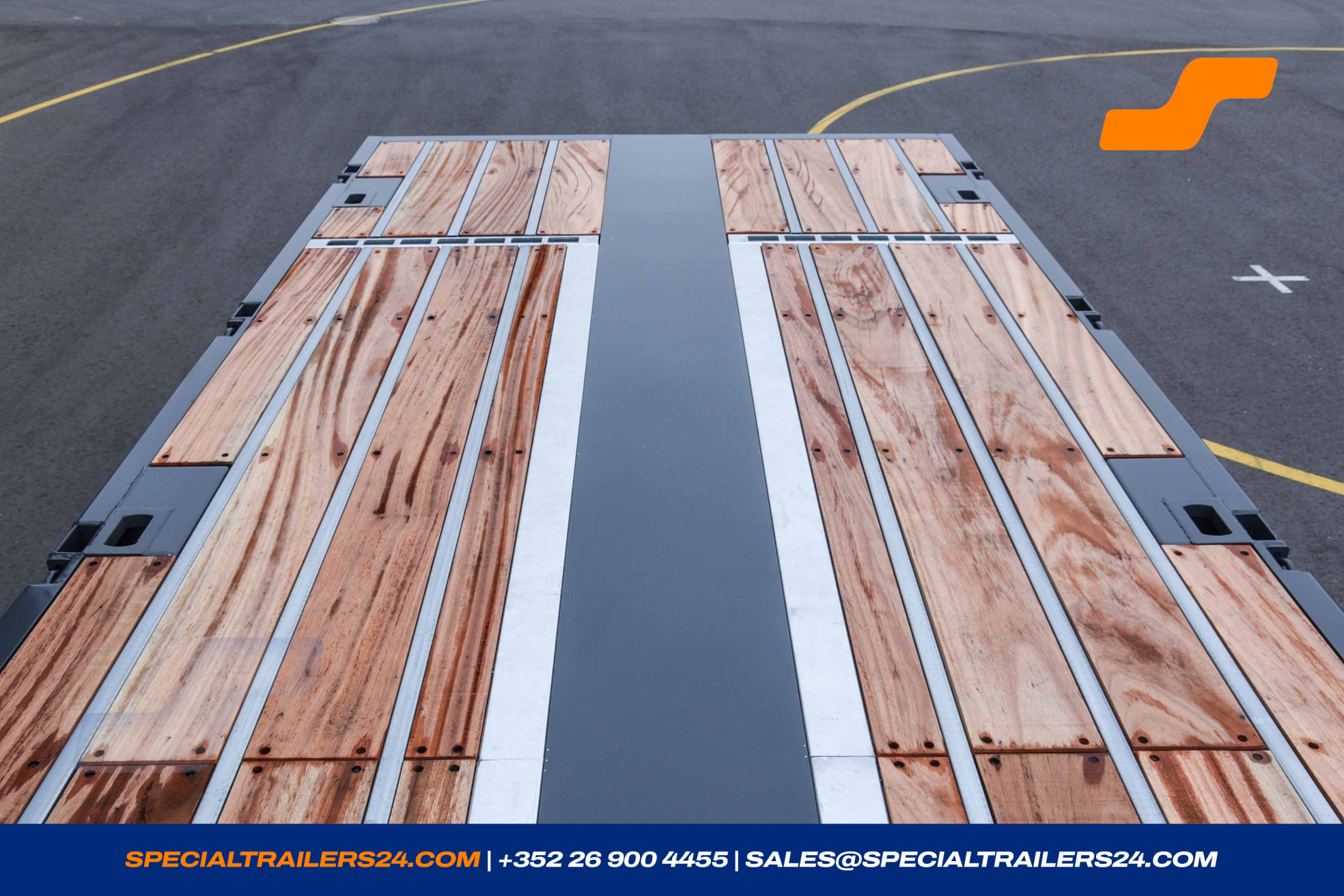

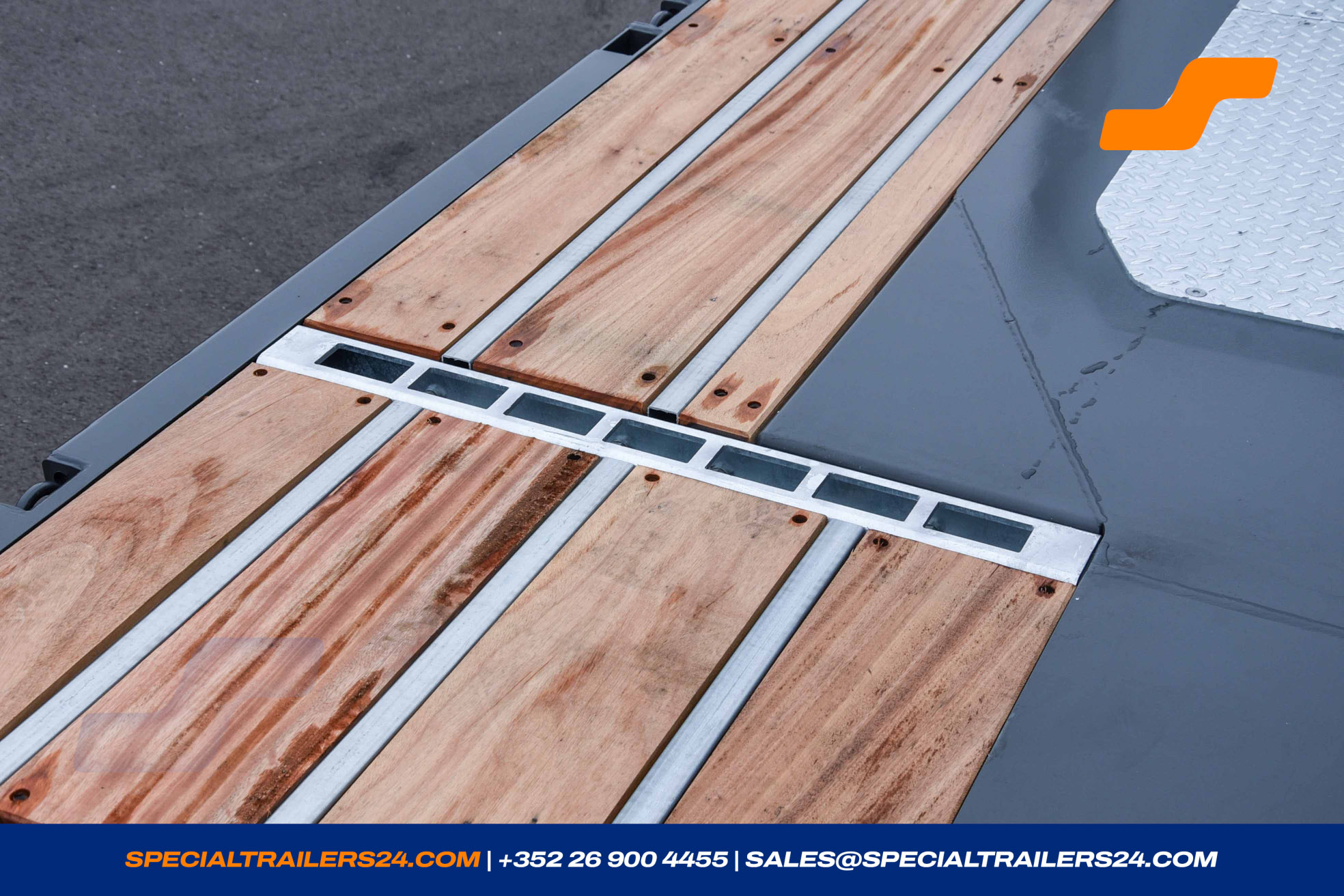

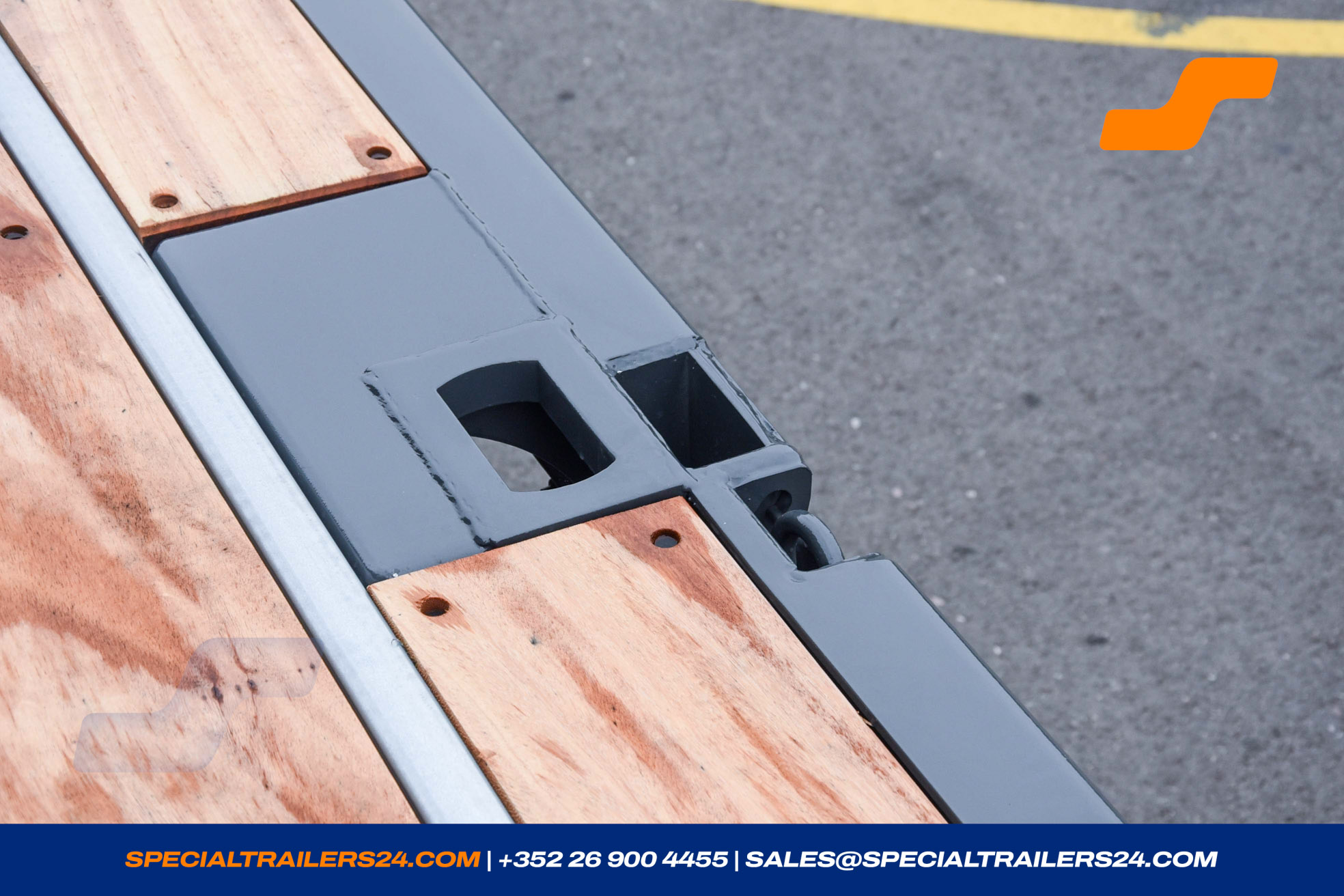

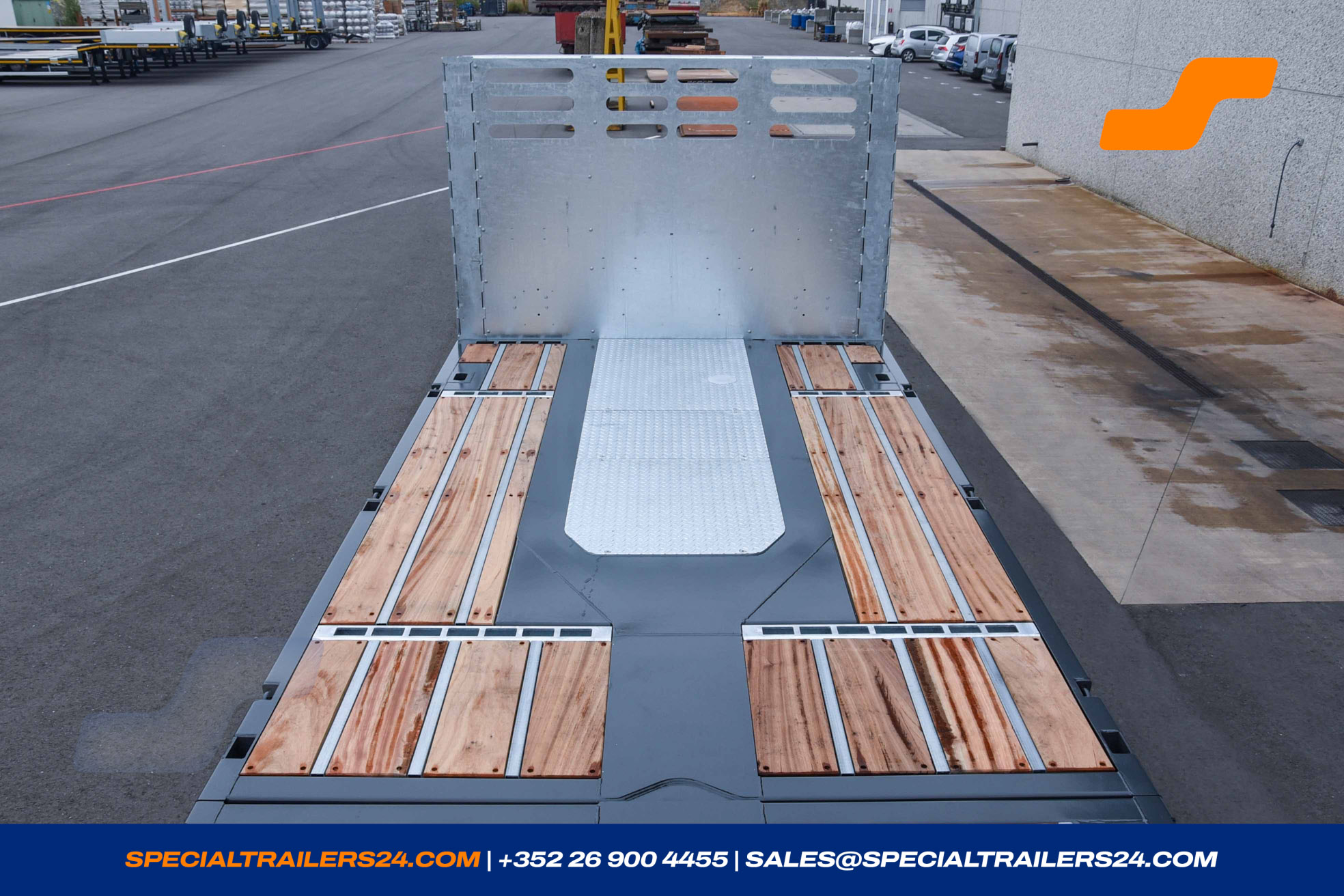

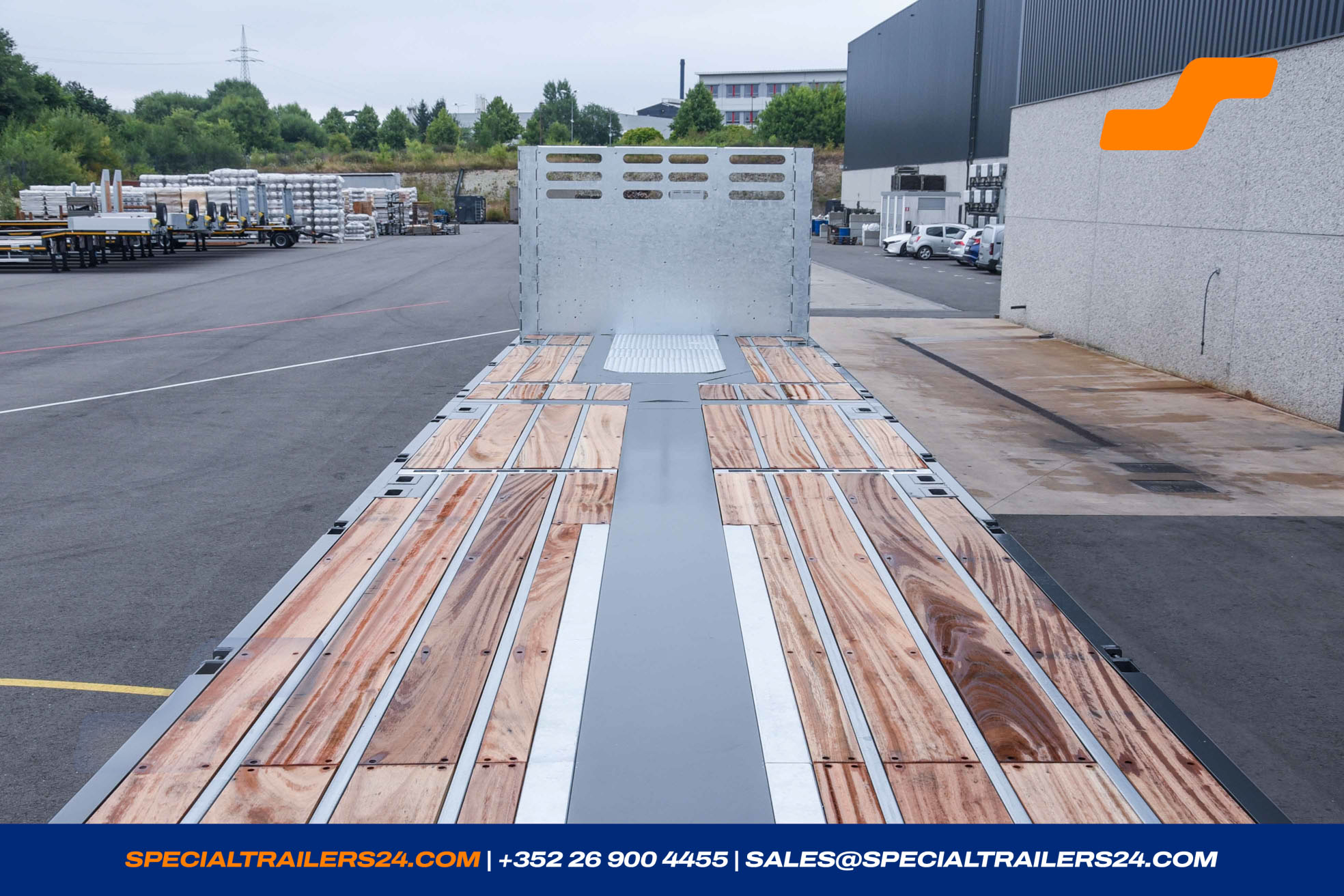

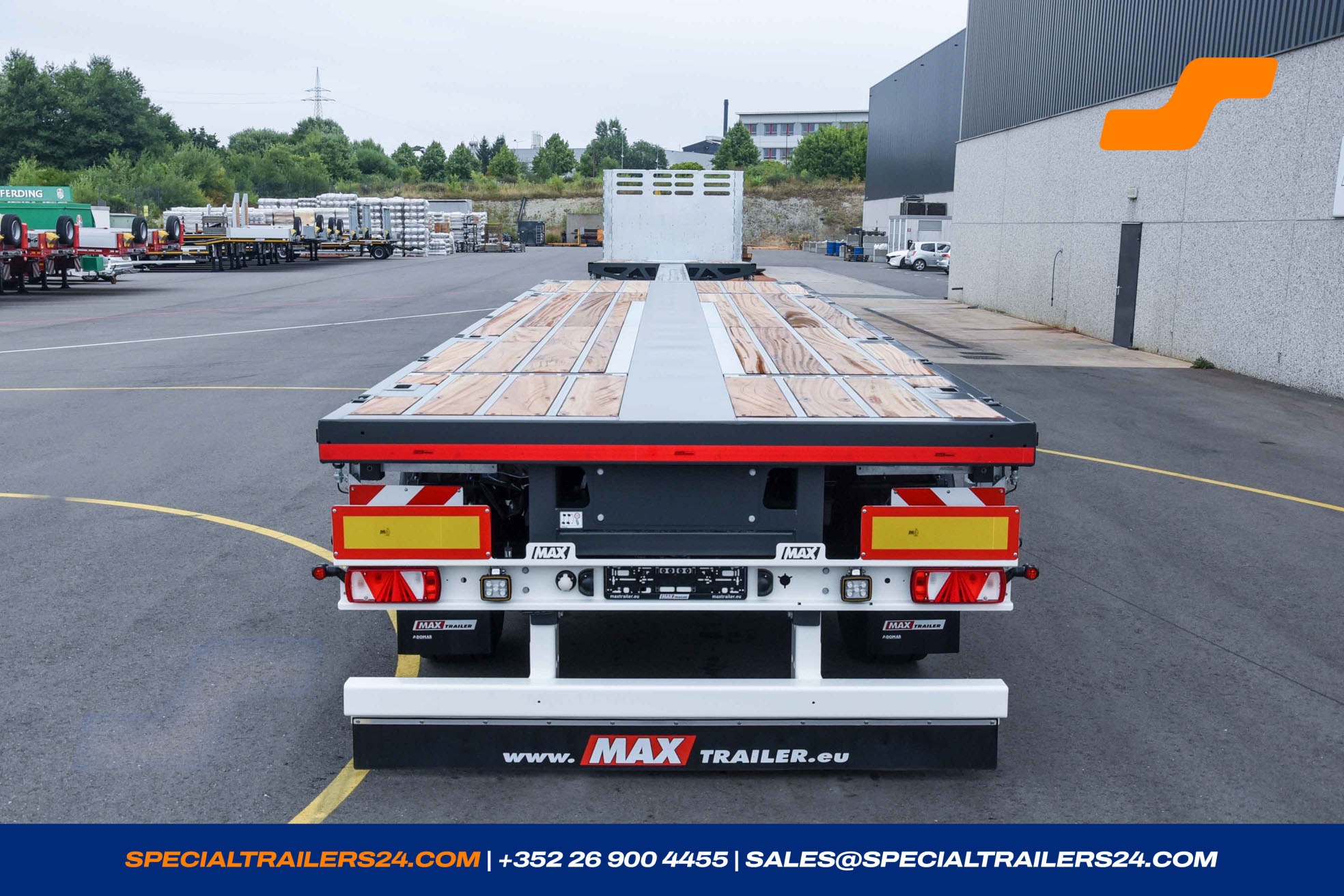

- Loading area with ± 30 mm hardwood floor incorporated in omega profiles. (± 298 kg)

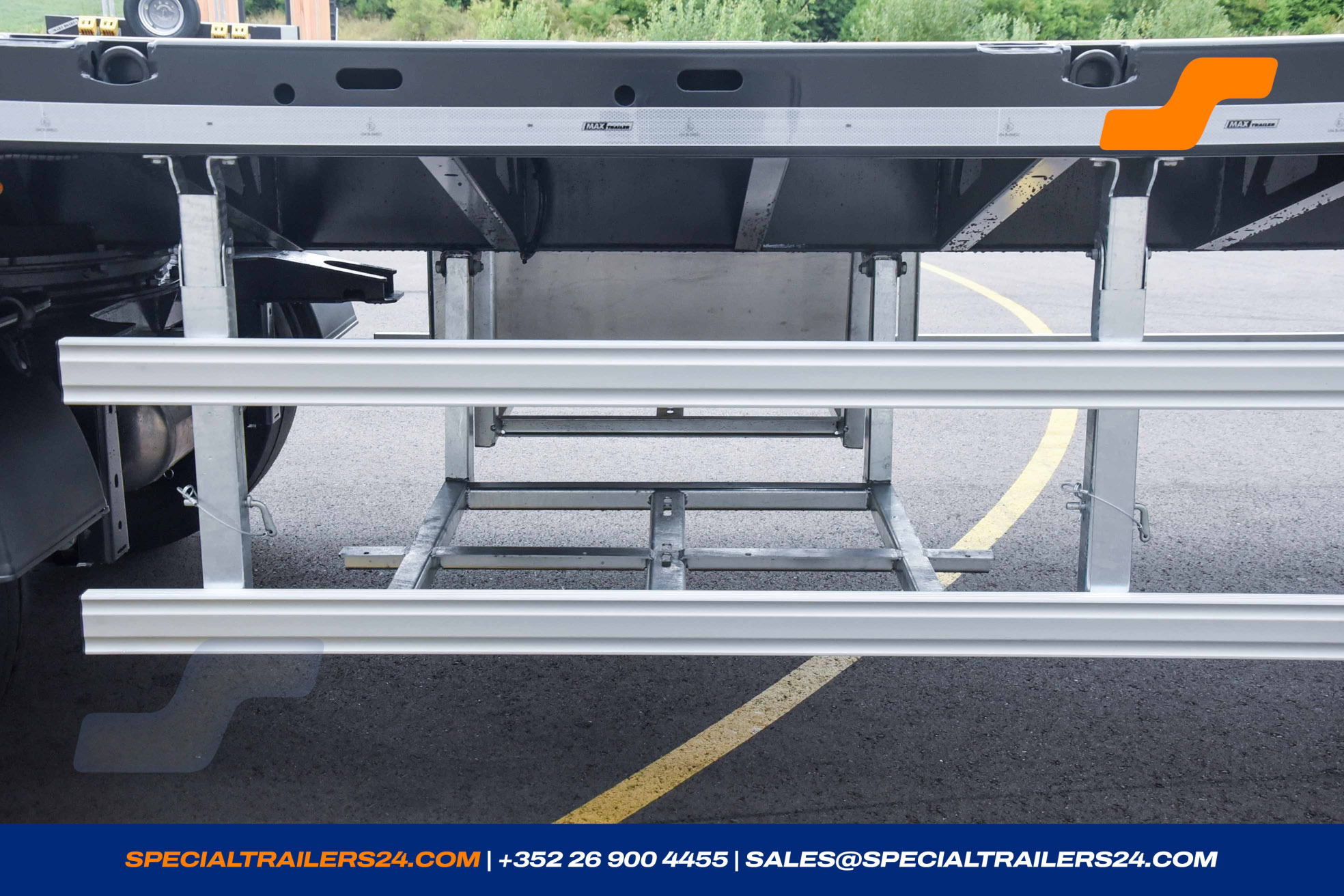

- Galvanised storage under the loading platform 2 390 x 720 x 400 mm. (± 125 kg)

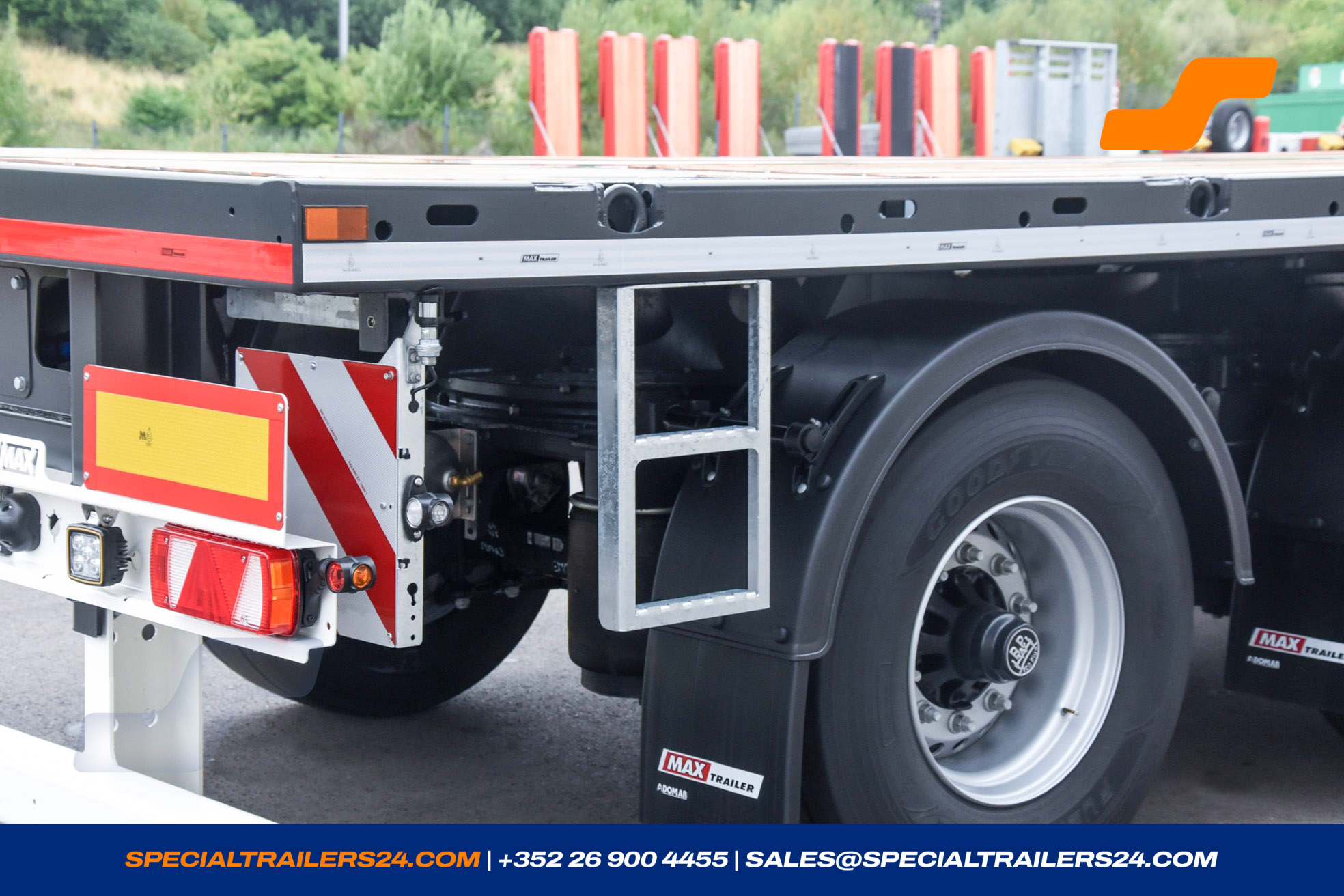

- Access ladder mounted on the left and right in the direction of travel. (± 24 kg)

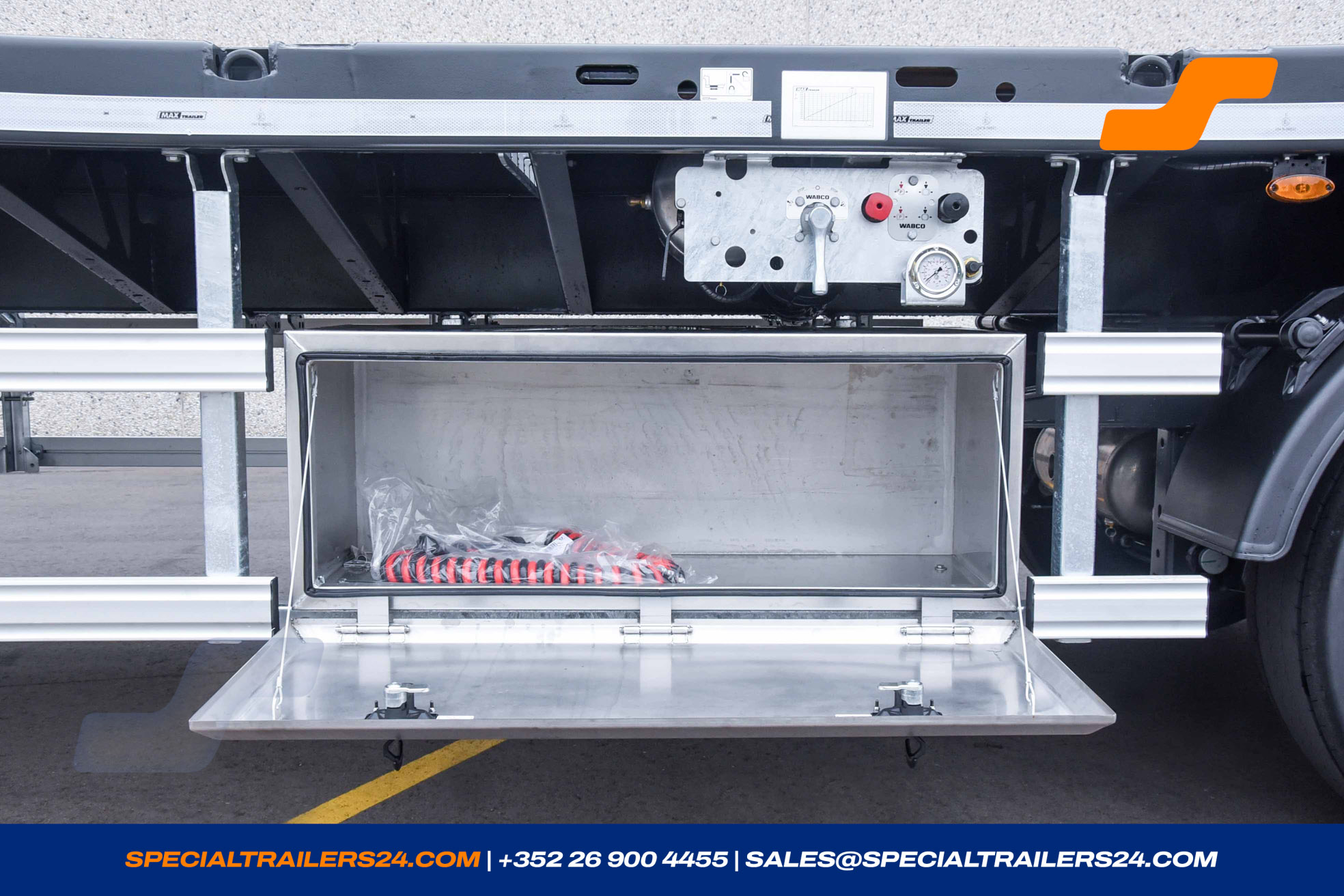

- One lockable tool-box INOX 1 200 x 460 x 550 mm under the loading platform in driving direction on the left side. (± 75 kg)
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-
Steering wedge on the fifth wheel plate in rubber-mounted design.

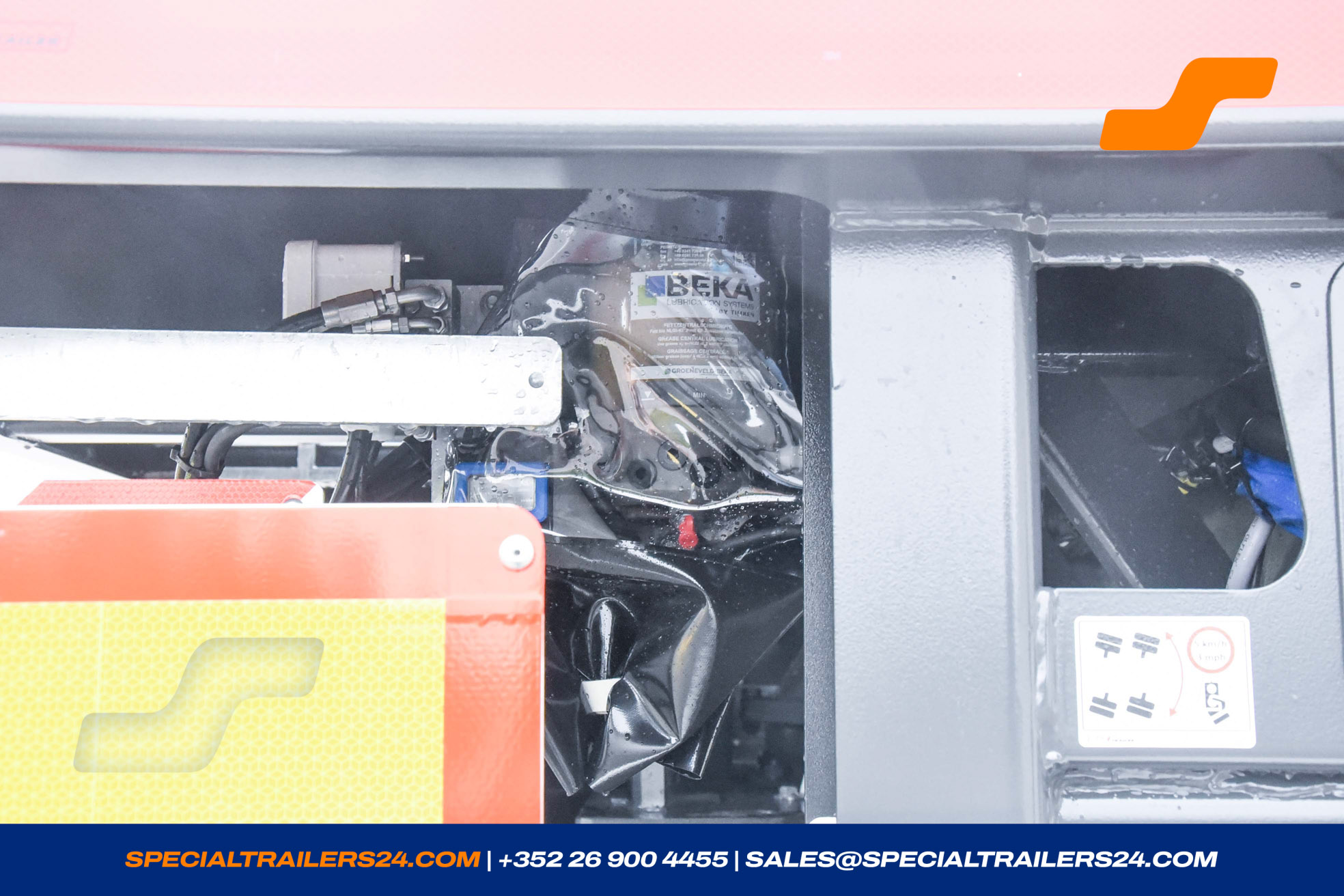

(Not adjustable) - Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 4 pairs of stake pocket rows in the loading platform for stakes 100 x 50 mm. (± 145 kg)
Accessories
1 x Accessory
MAX210-Accessory
- Manual and description on USB stick .
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Document holder fixed on the front .
- 1 LED flashing beacon, provided separately.

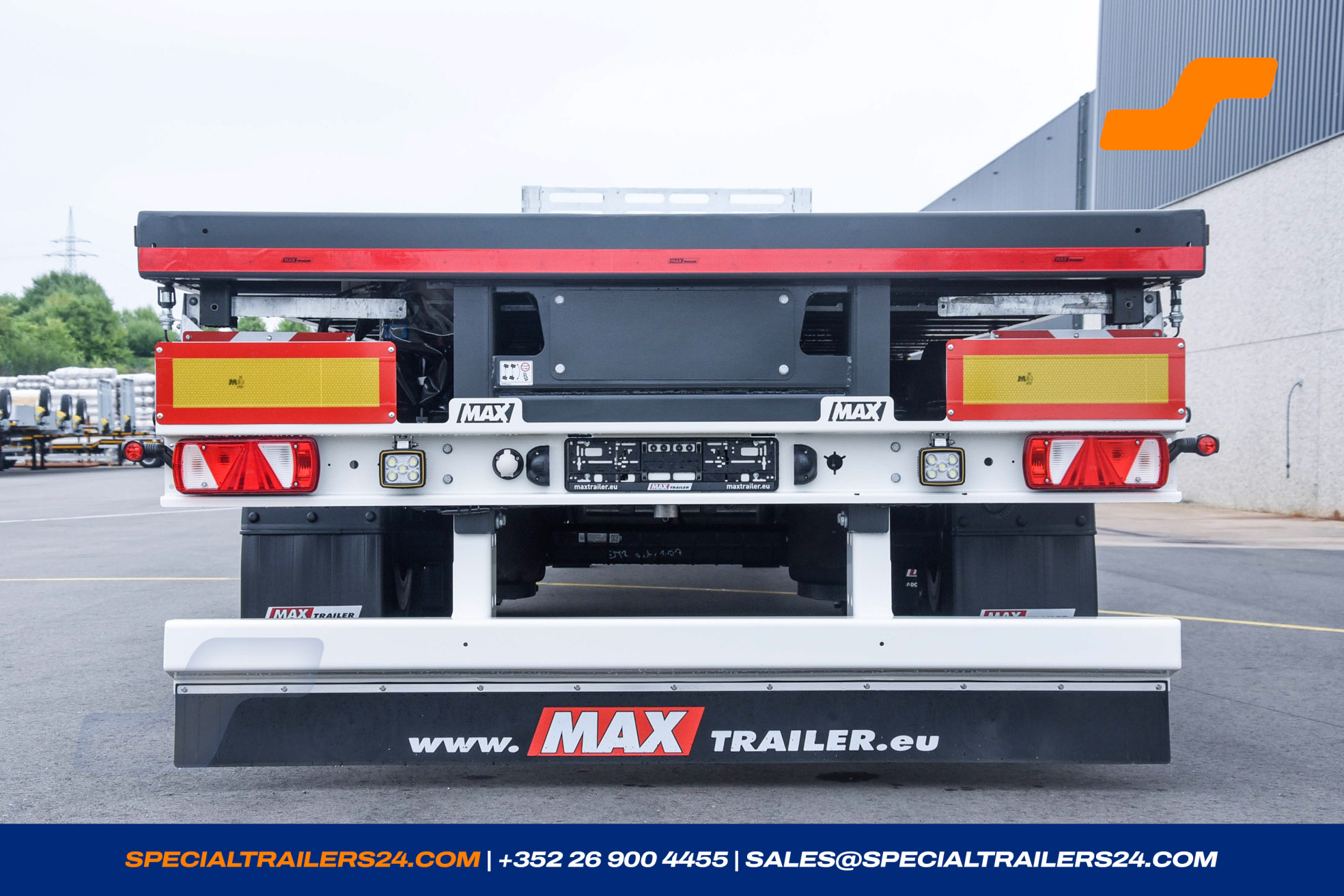

- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.

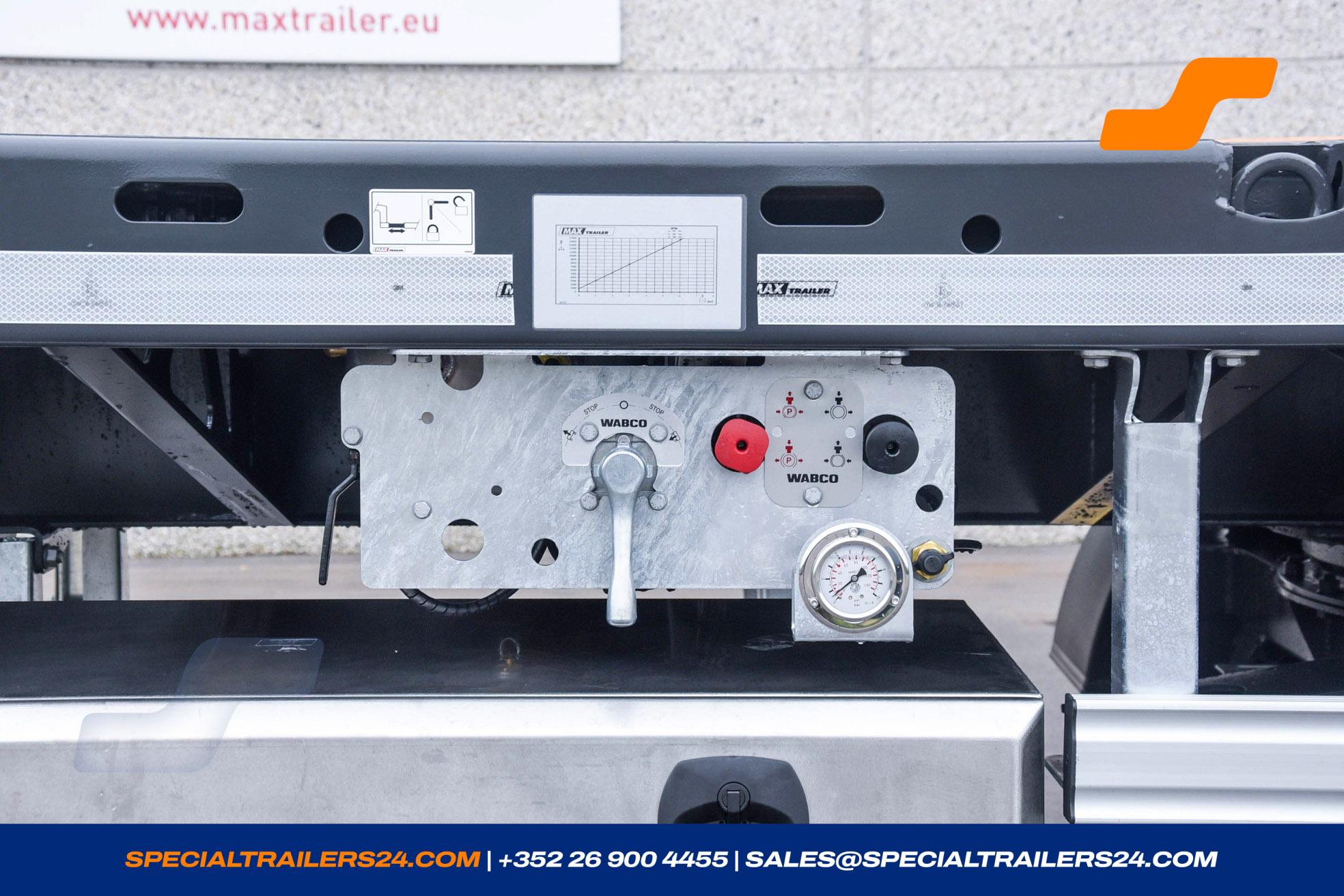

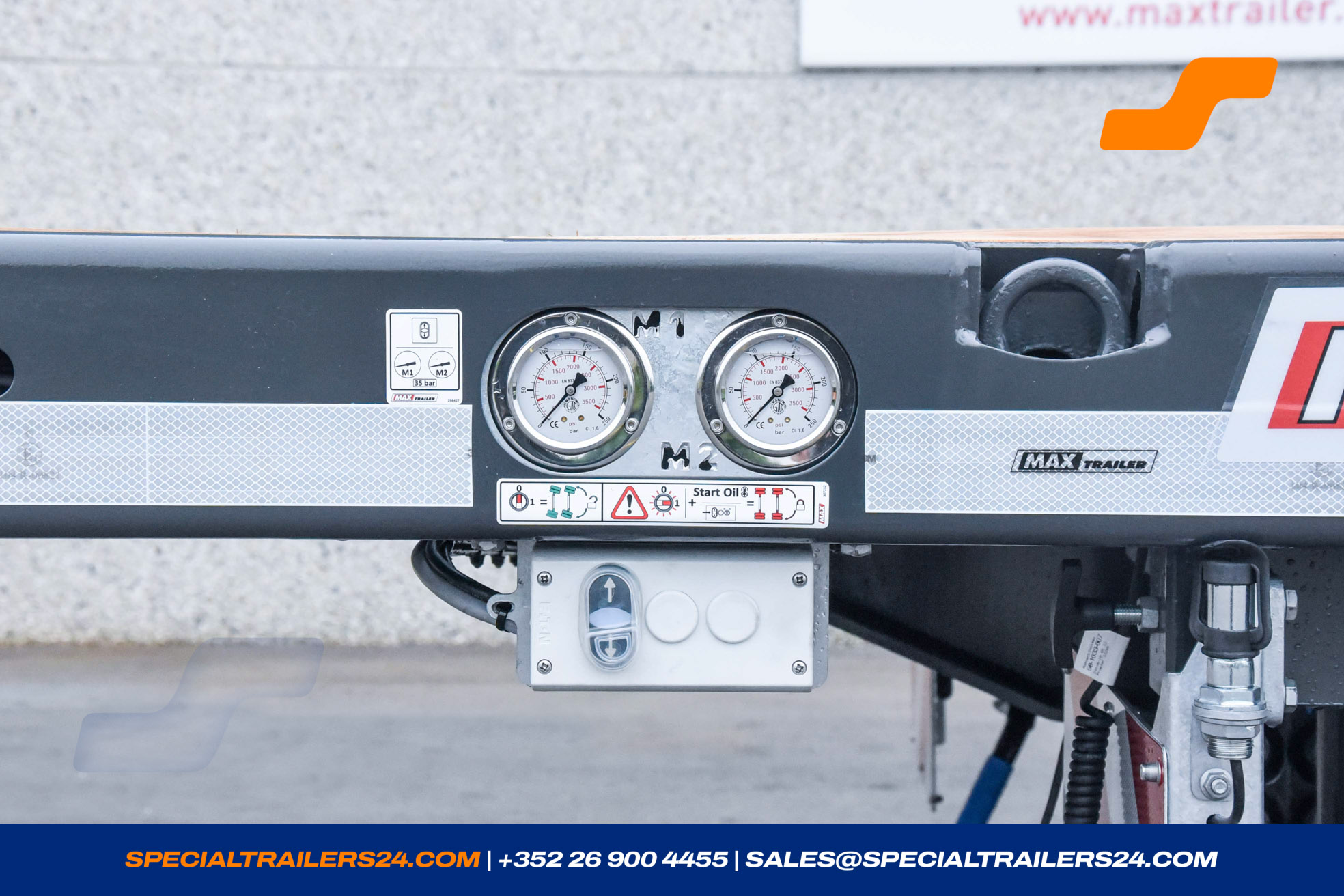

- Load manometer for determining the axle load, including load diagram.
-
Inquiry form SERT Netherlands:
For your information :
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions useful for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations.
