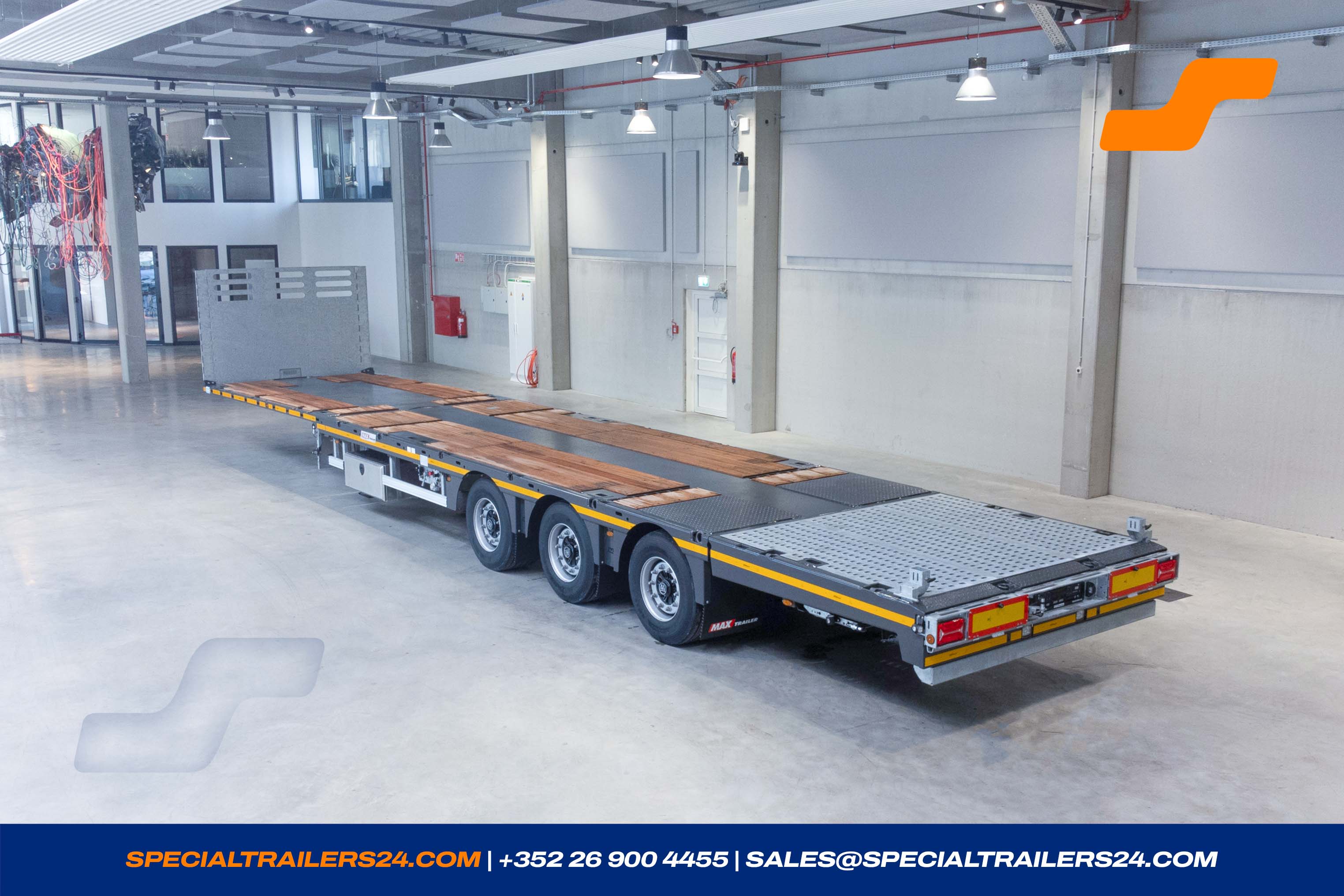

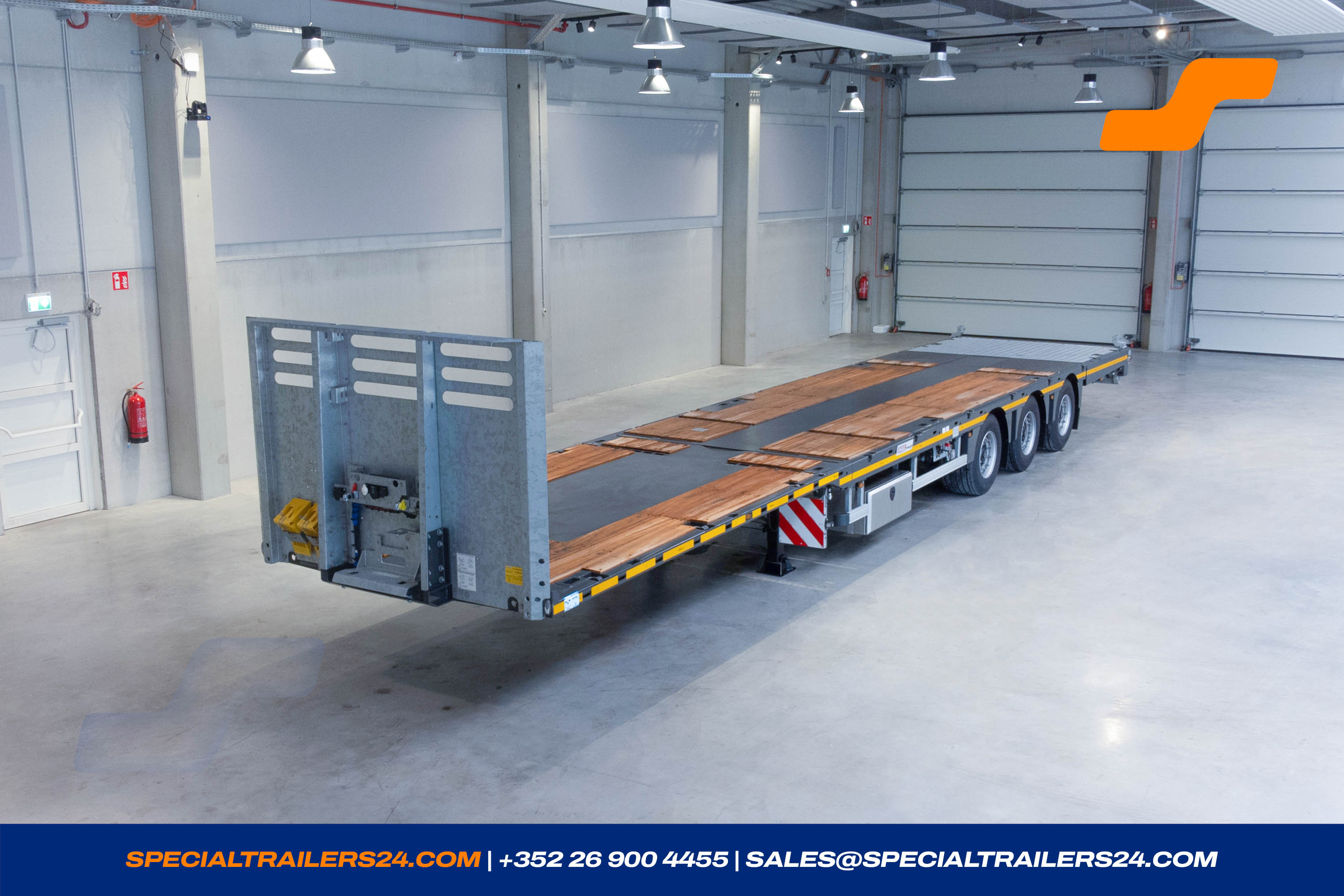

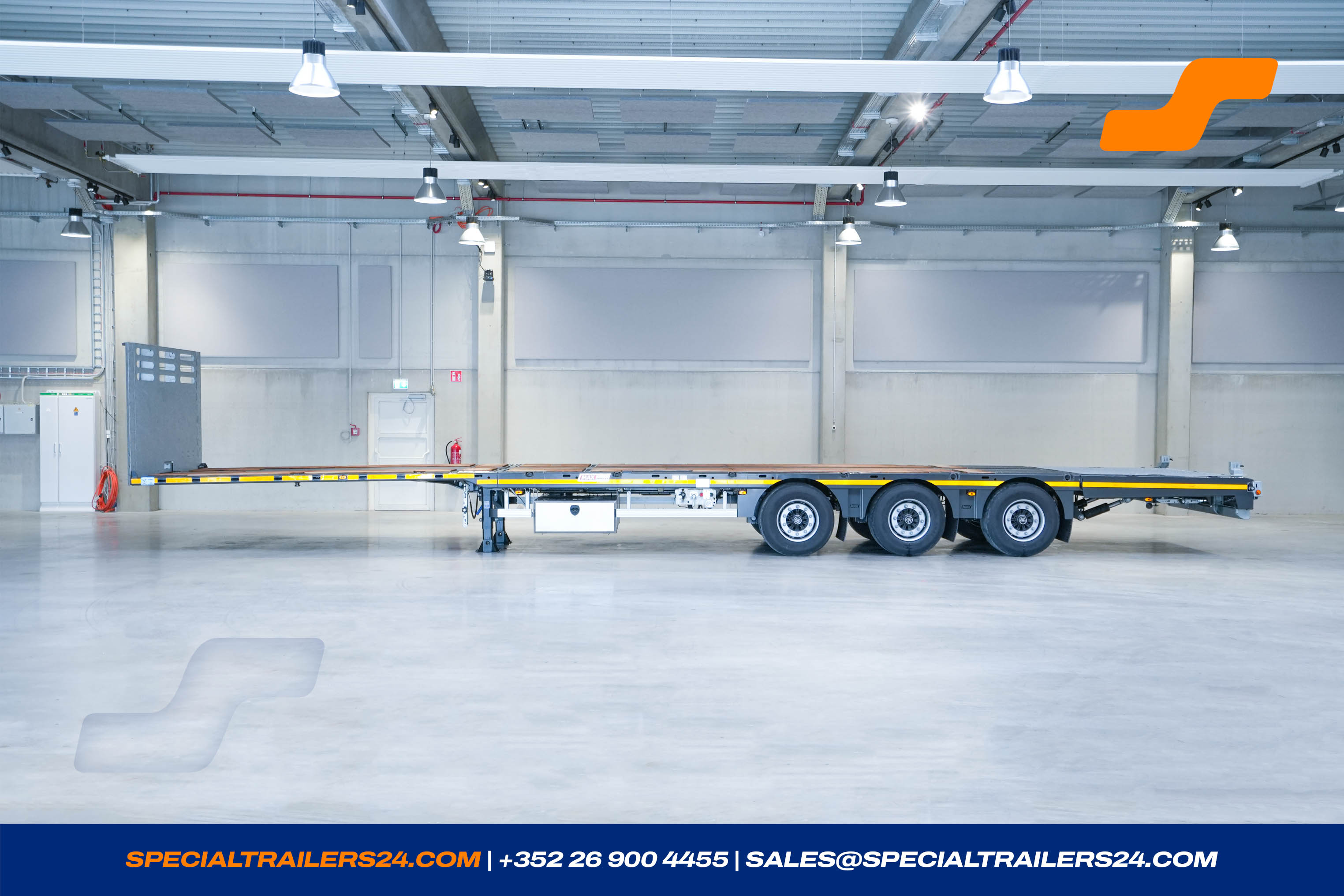

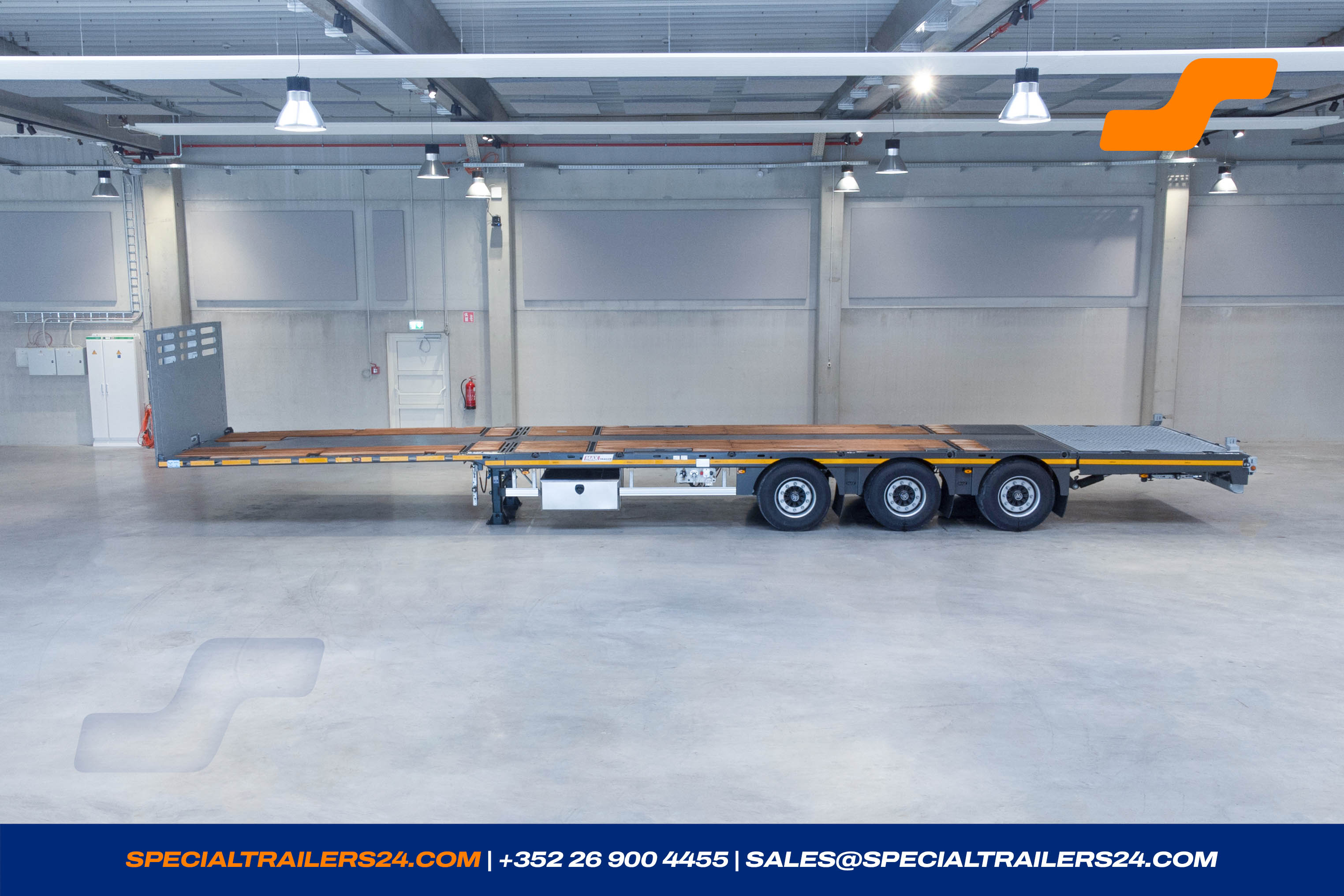

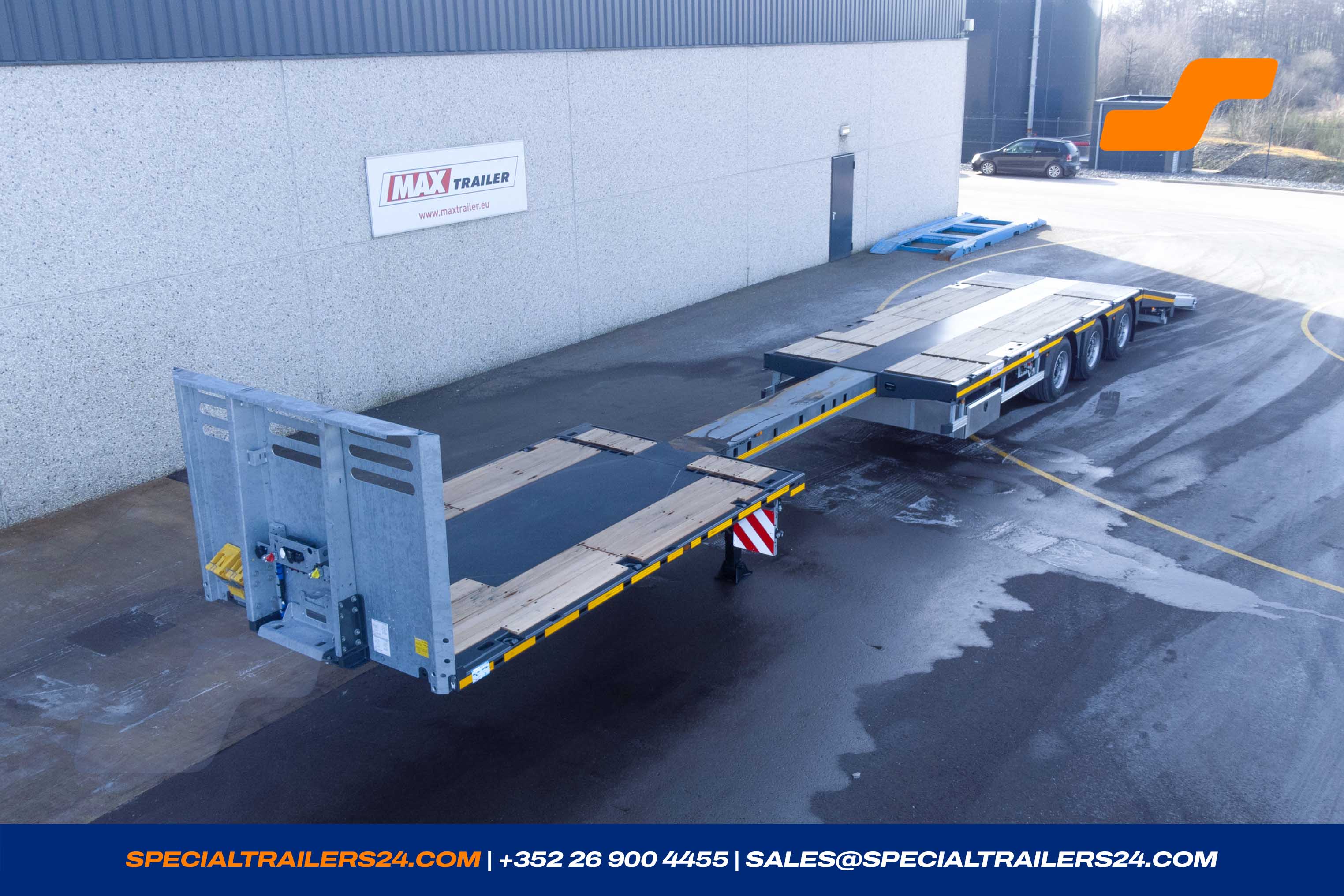

MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111251
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9006 (Brillant Direct) - White aluminium (brillant direct)
- Availability 03/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions
Loading deck
Loading platform
1 x Loading platform
Loading platform in extendable version.

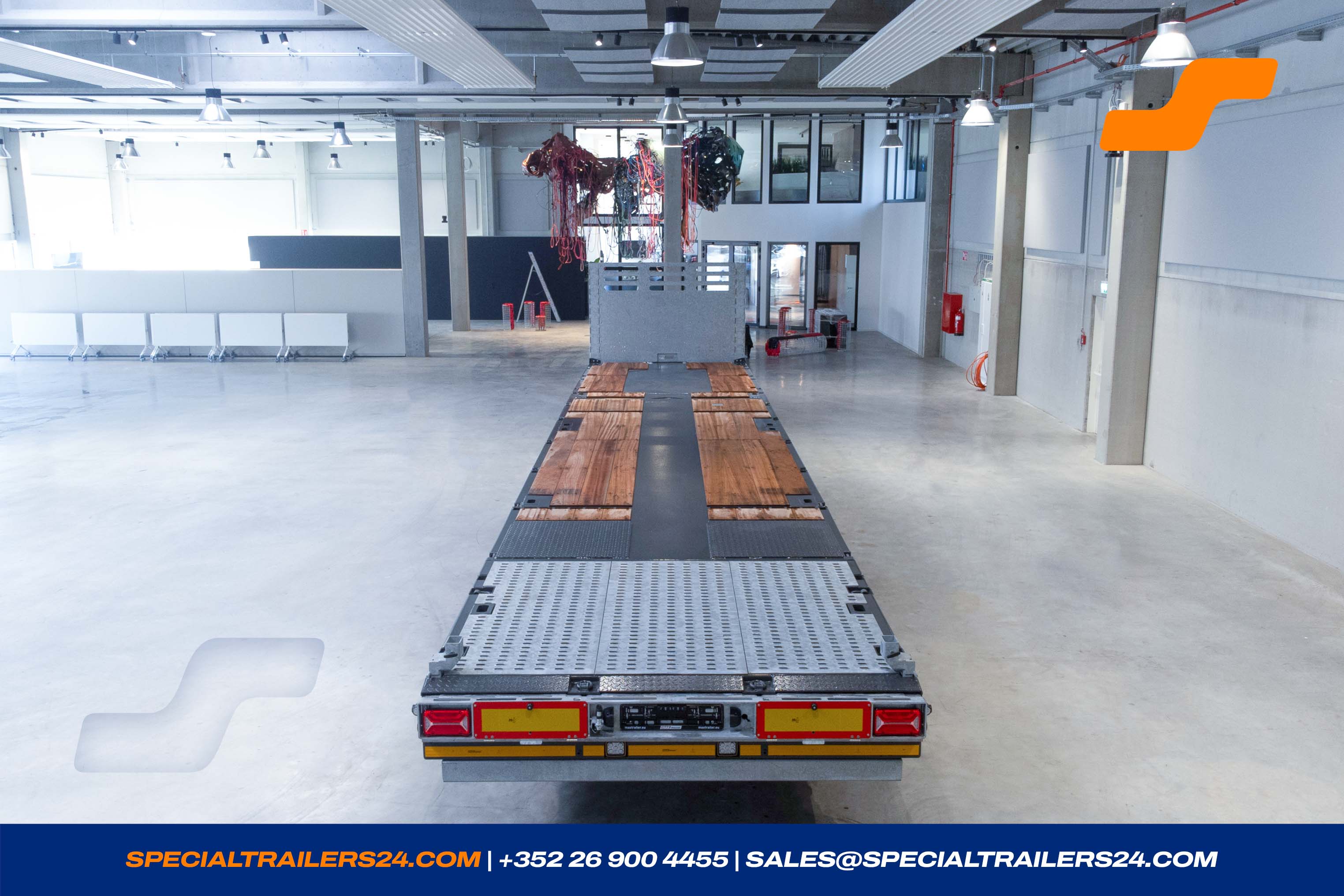

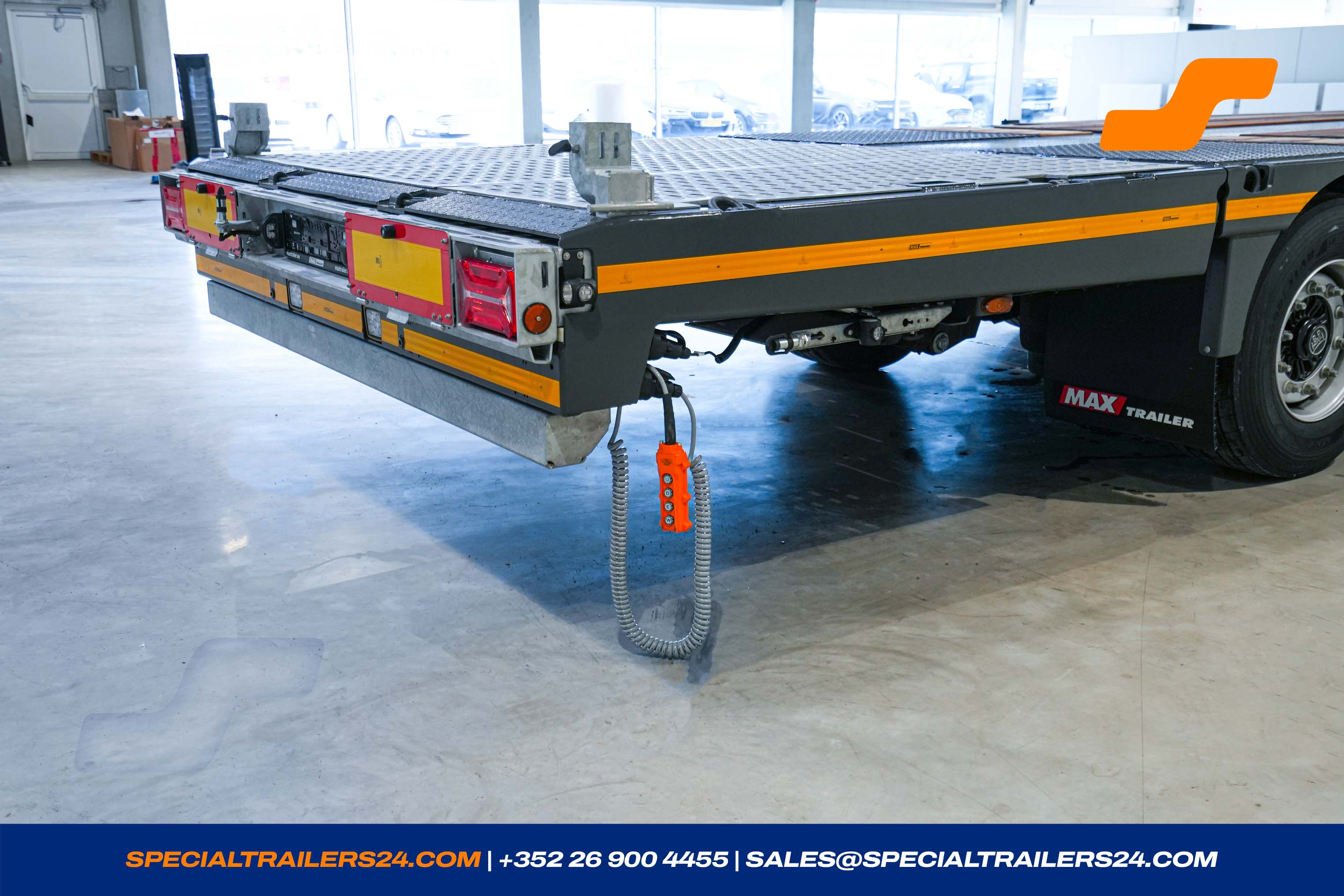

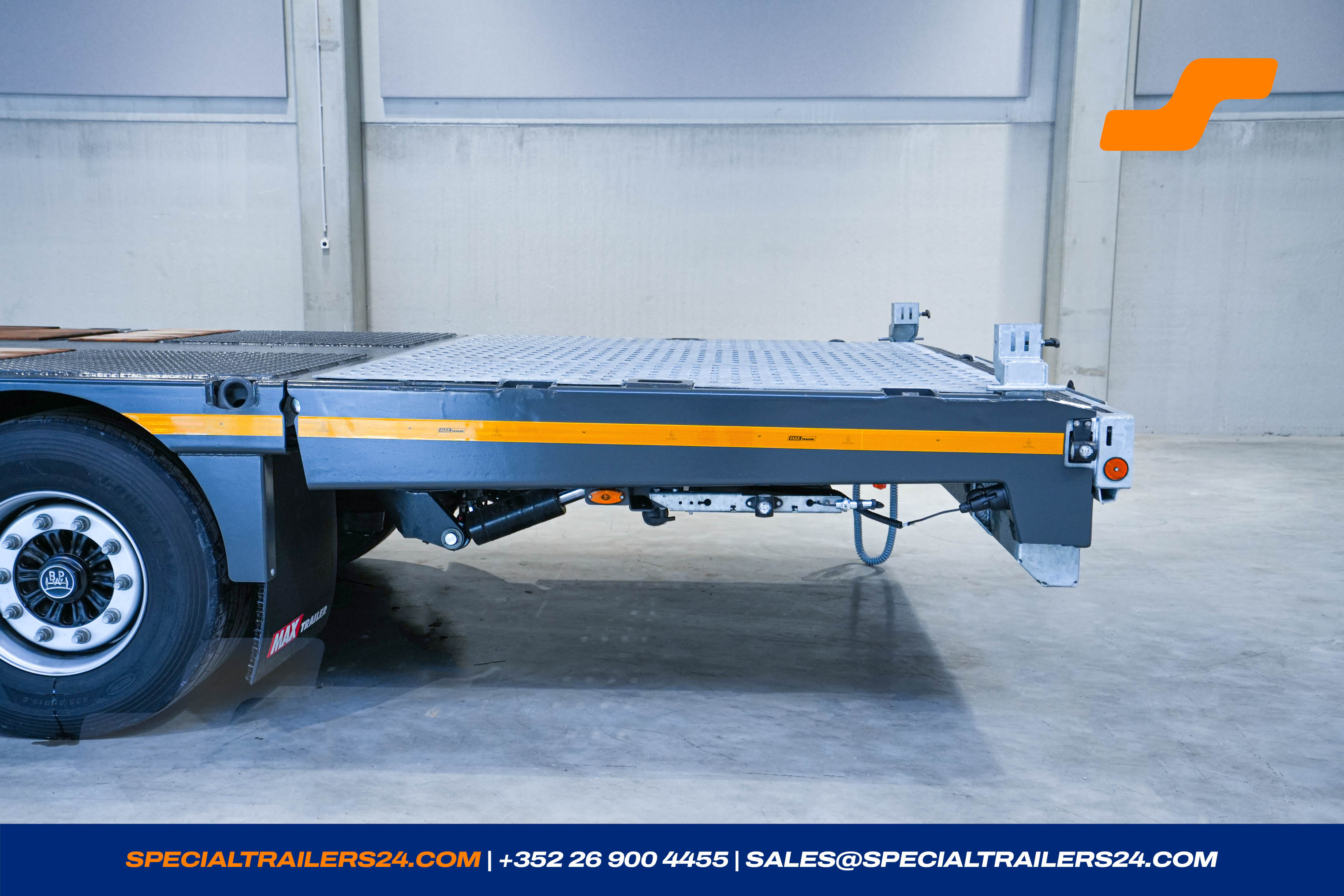

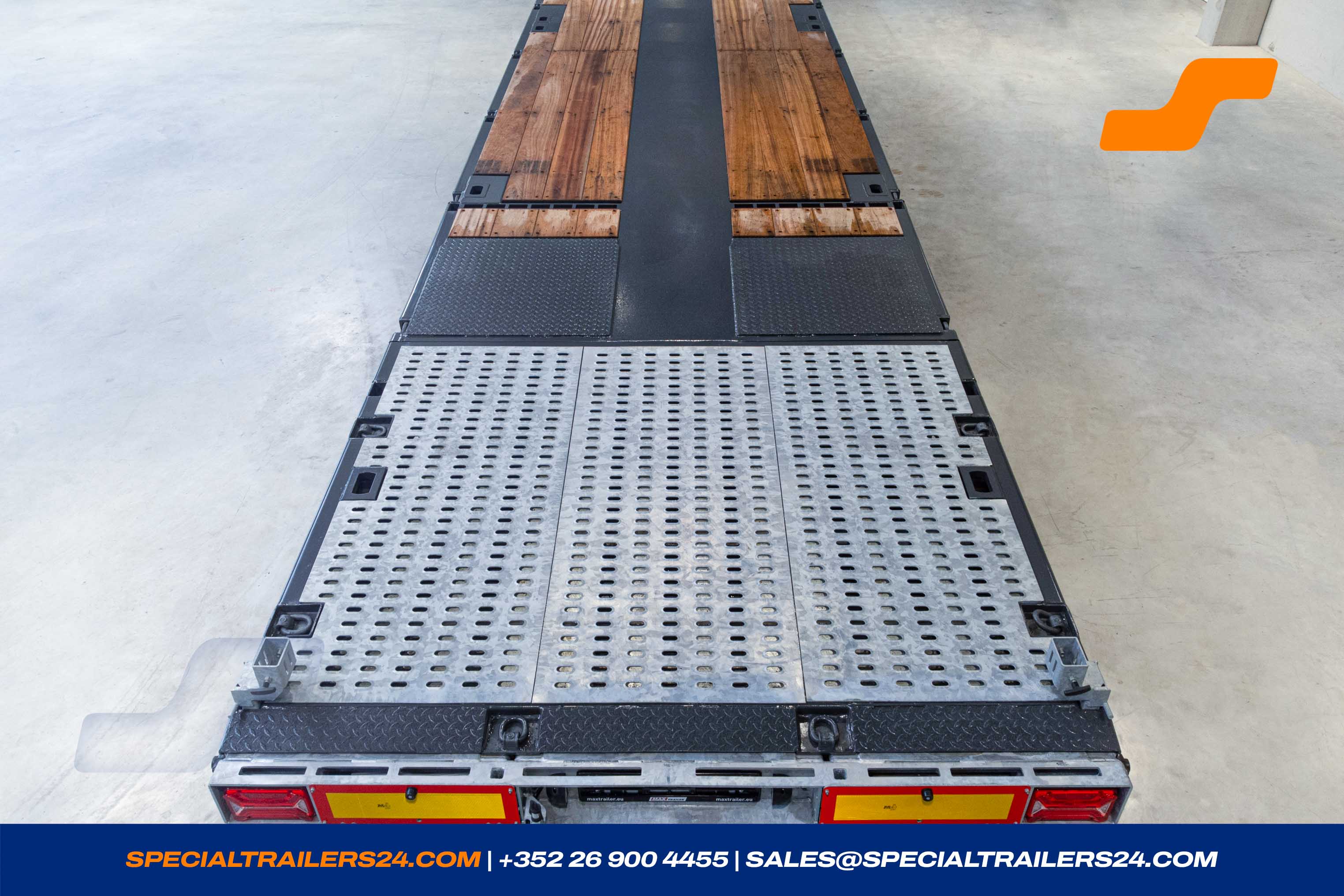

Loading platform at the rear with perforated steel on a length of ± 2 200 mm hydraulically lowerable.

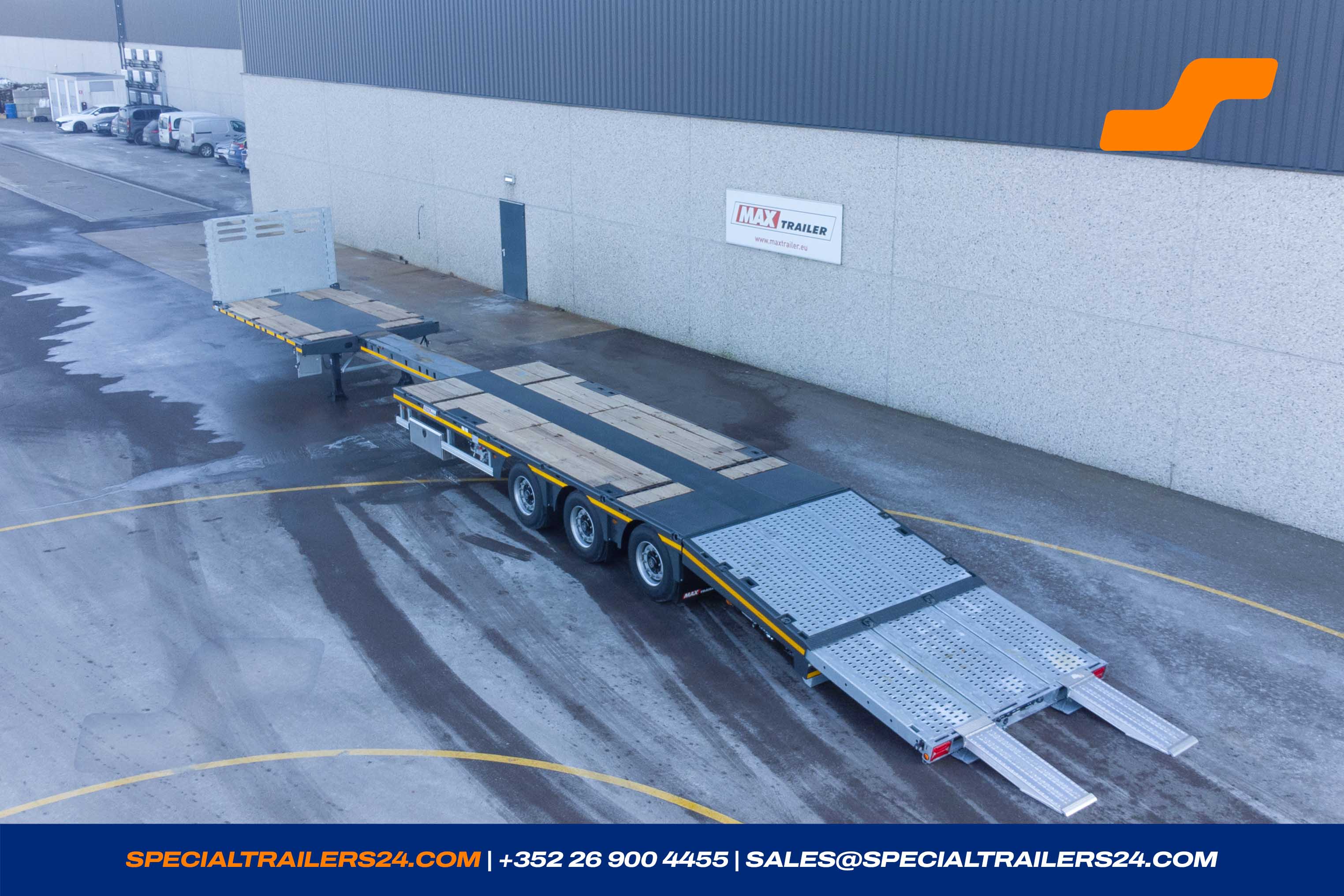

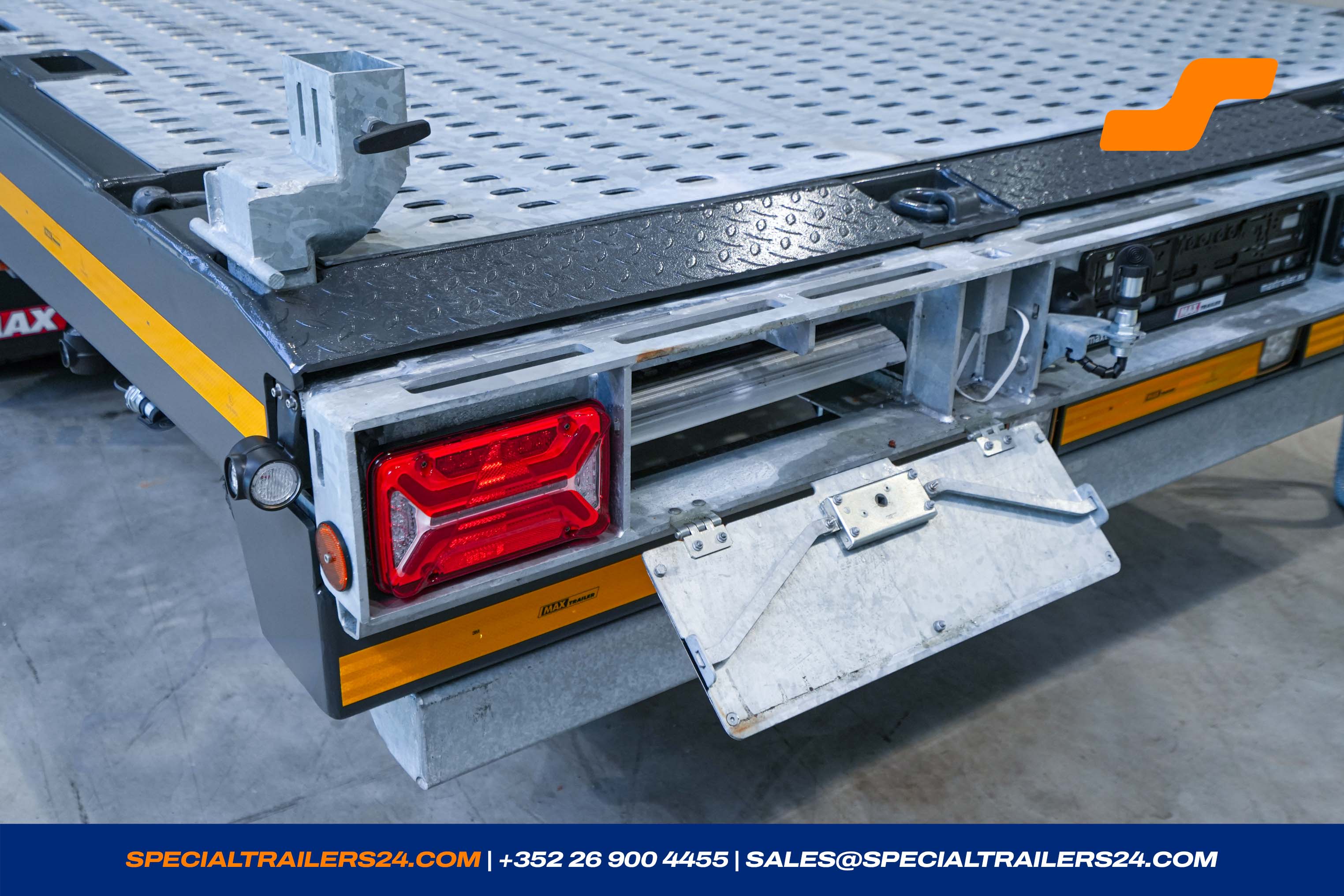

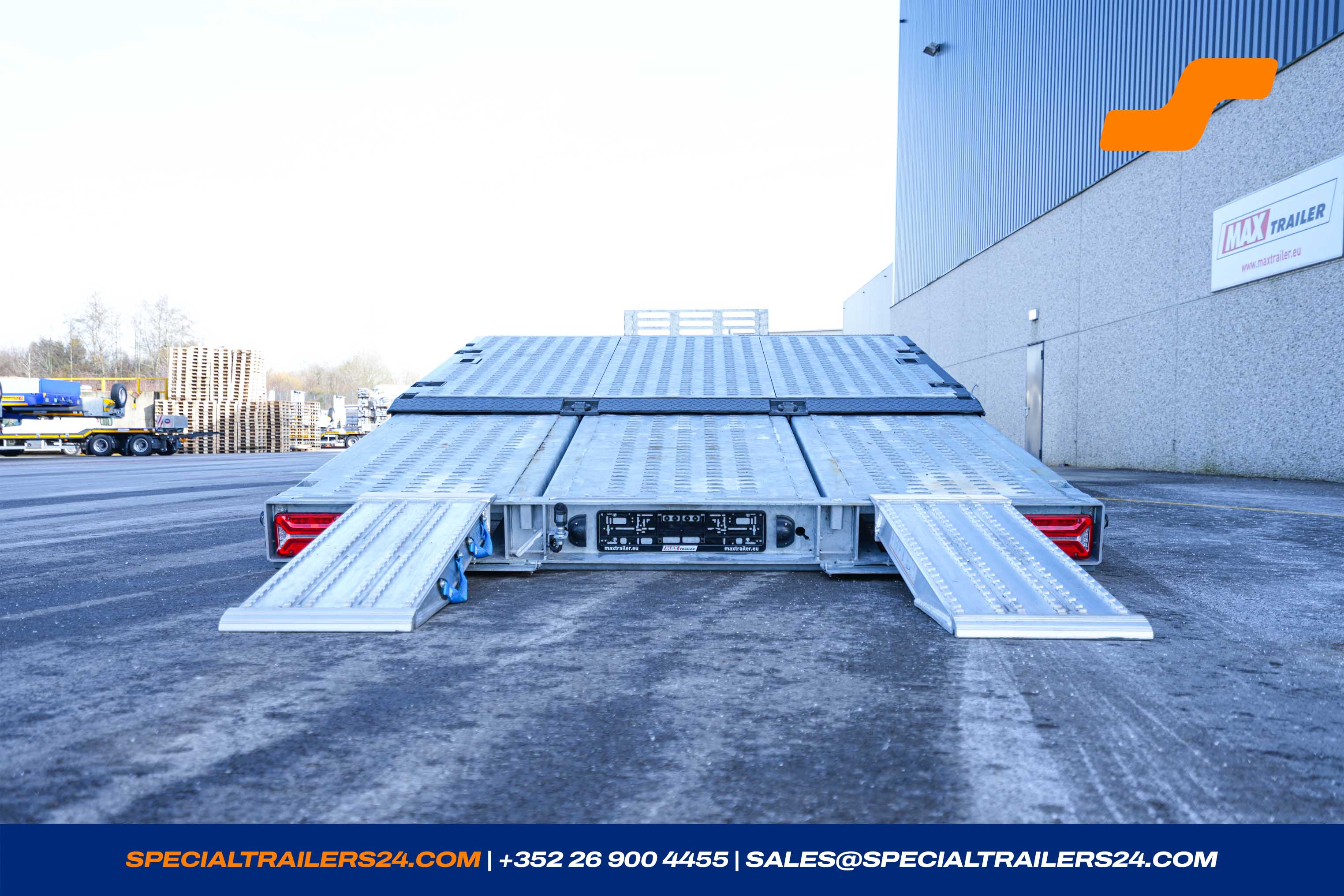

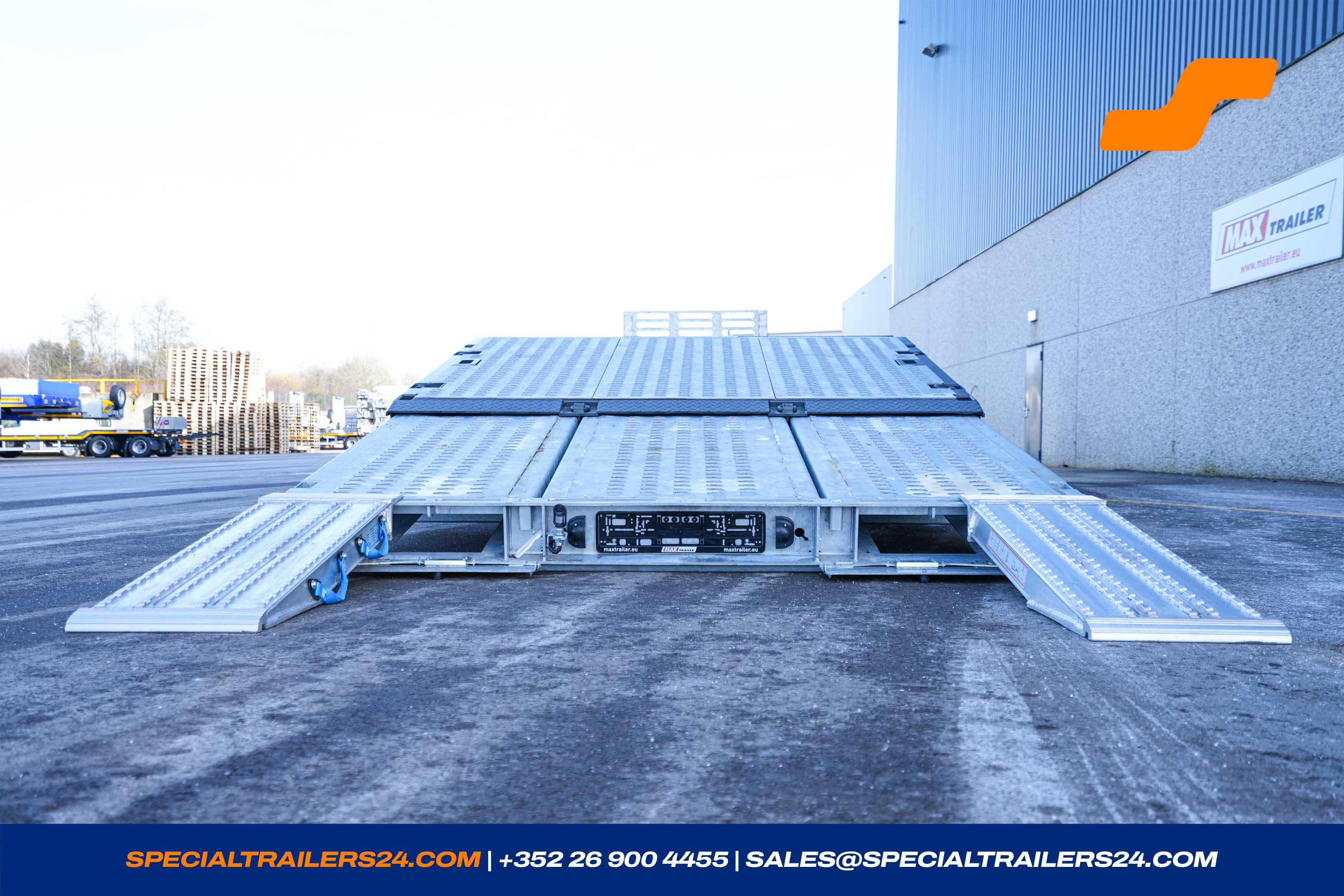

Vehicle rear end with integrated loading table that can be extended hydraulically by 1 500 mm, including 2 ramp compartments and ramp supports. 6 to capacity when lifted. The pull-out is not load-bearing.
The rear end of the vehicle can be driven on with up to 8 to axle load and is not suitable for track machines.
2 pairs of lashing rings (LC 5 000 daN).
1 pairs of lashing rings (LC 10 000 daN).

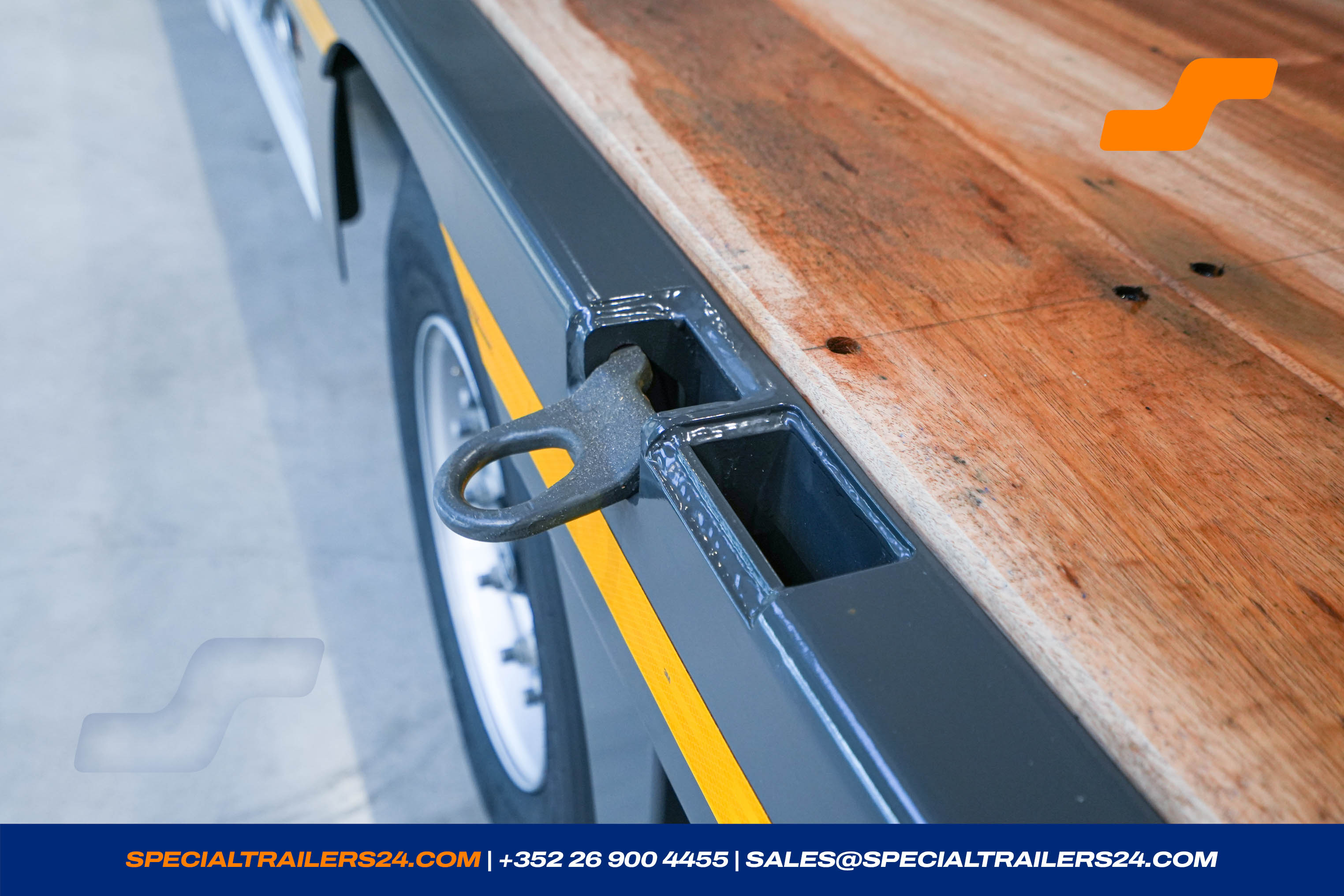

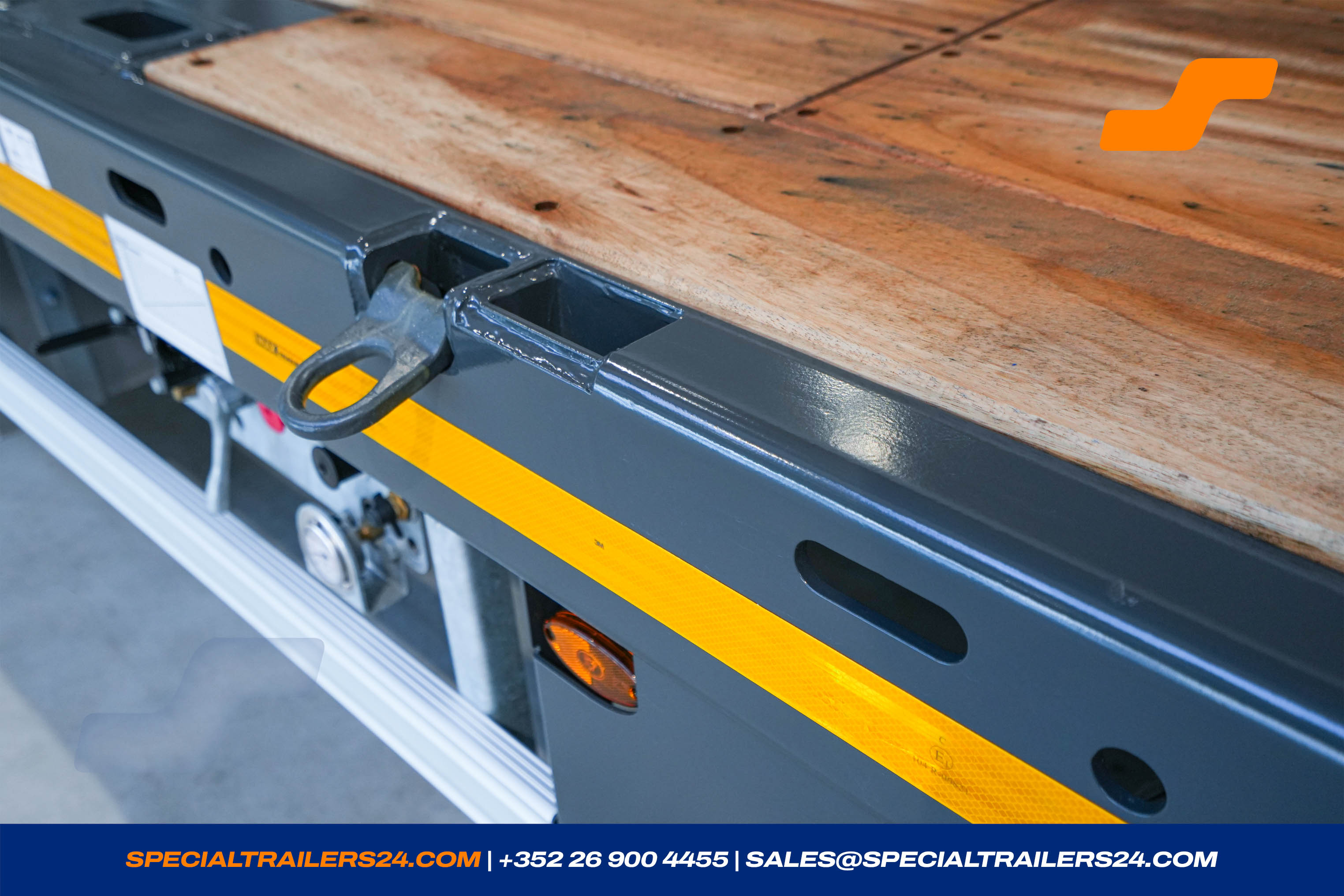

5 pairs of lashing rings hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings hinged outwardss (LC 10 000 daN).
1 pair of lashing rings at the rear of the trailer (LC 5 000 daN).
cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN)
-

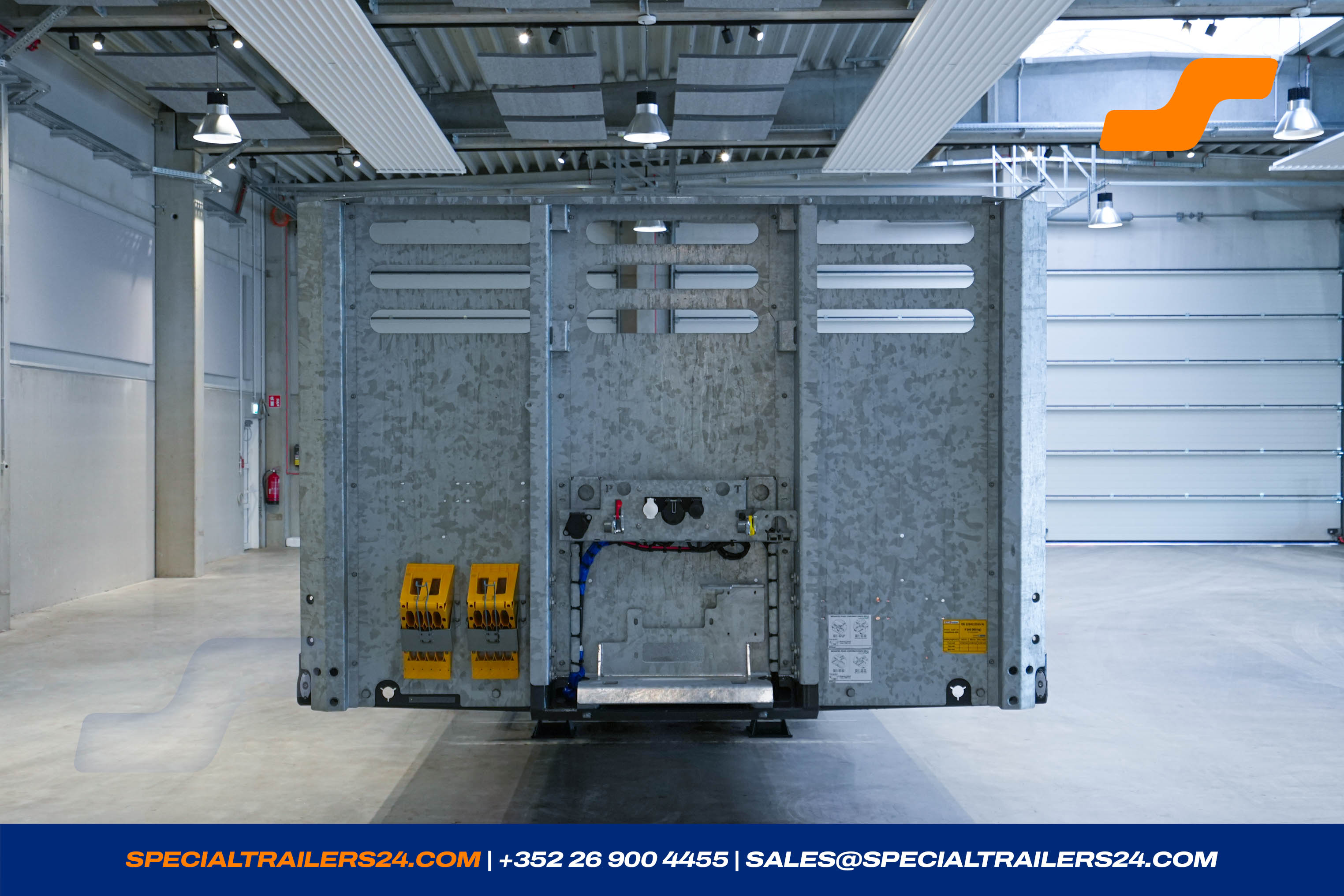

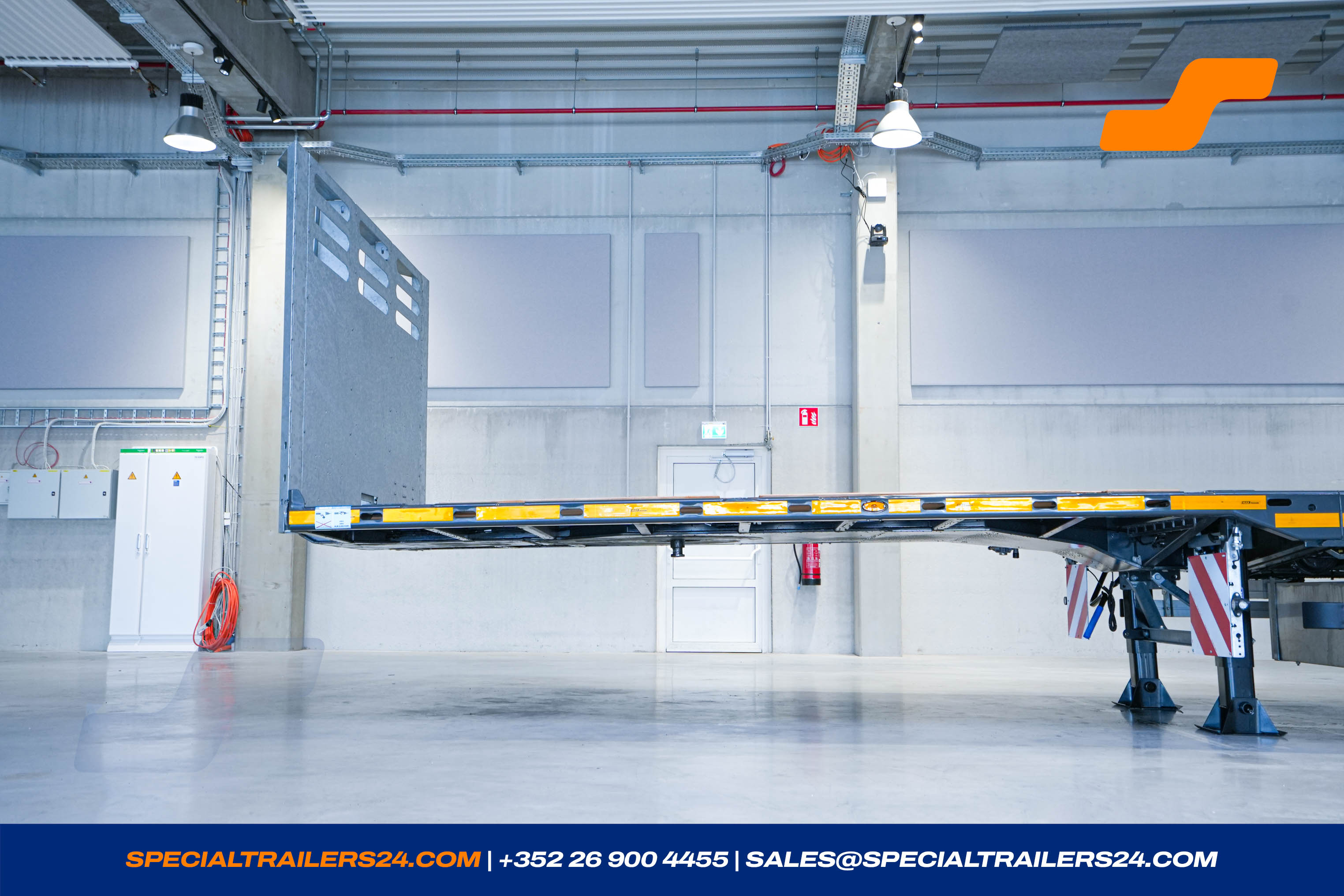

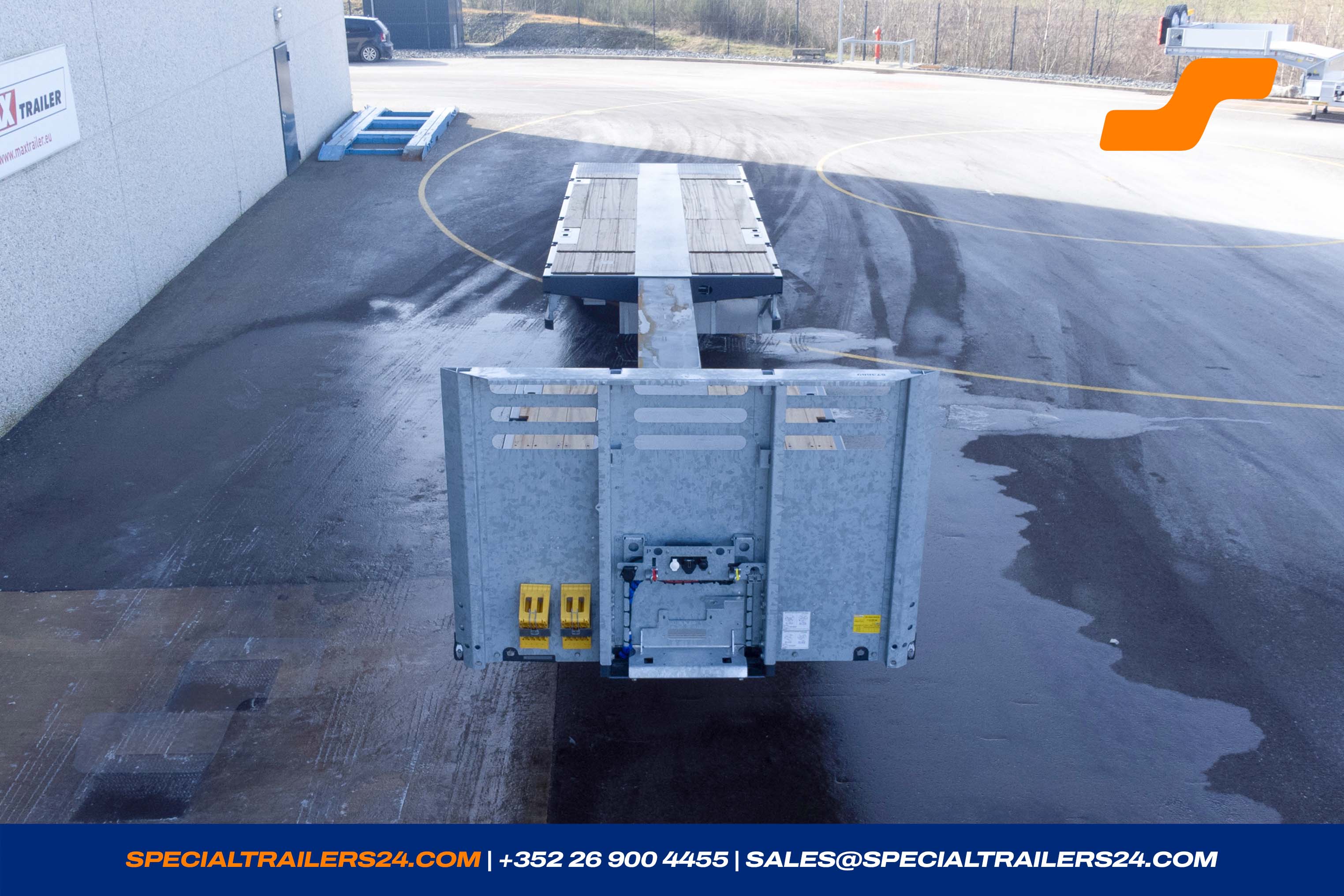

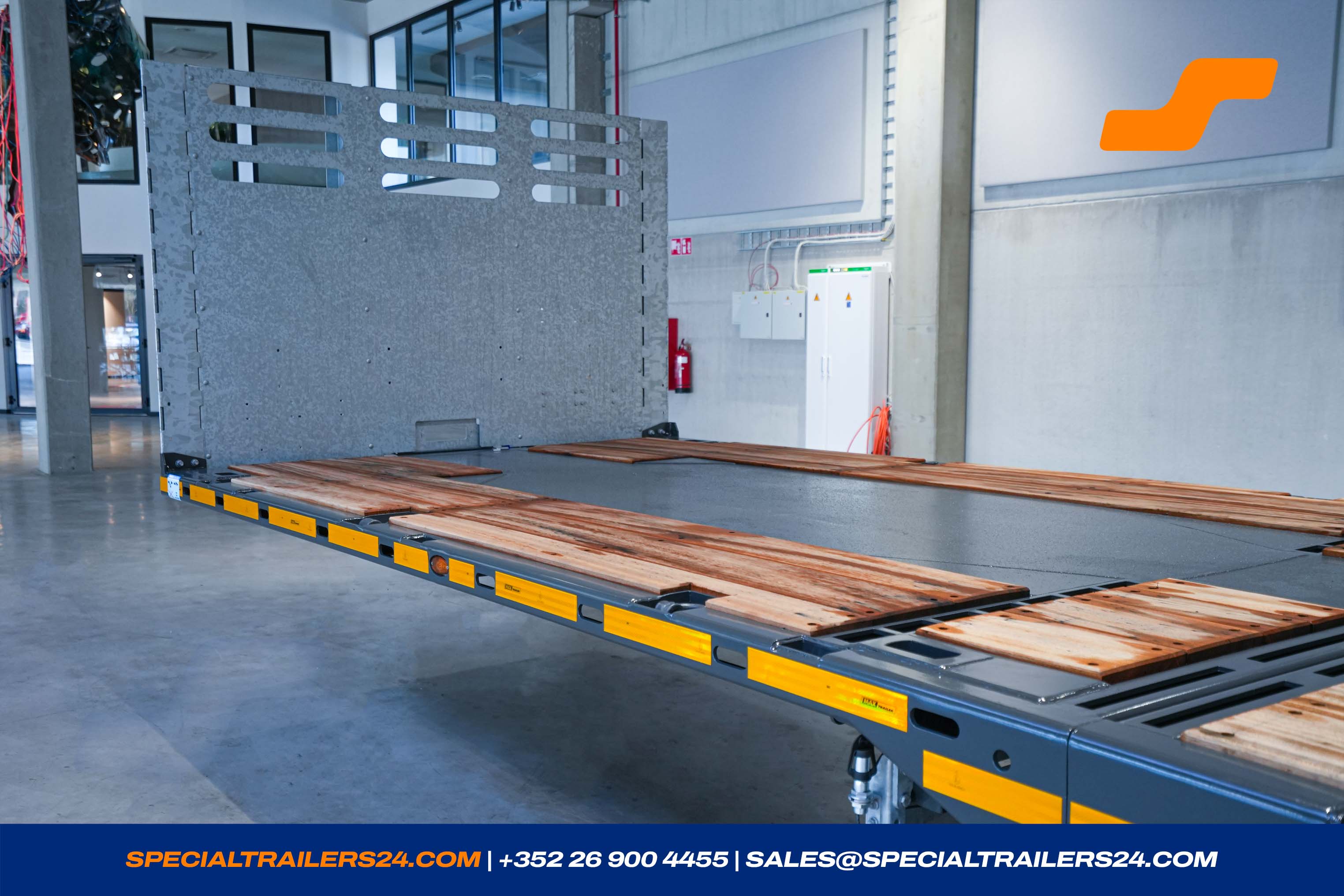

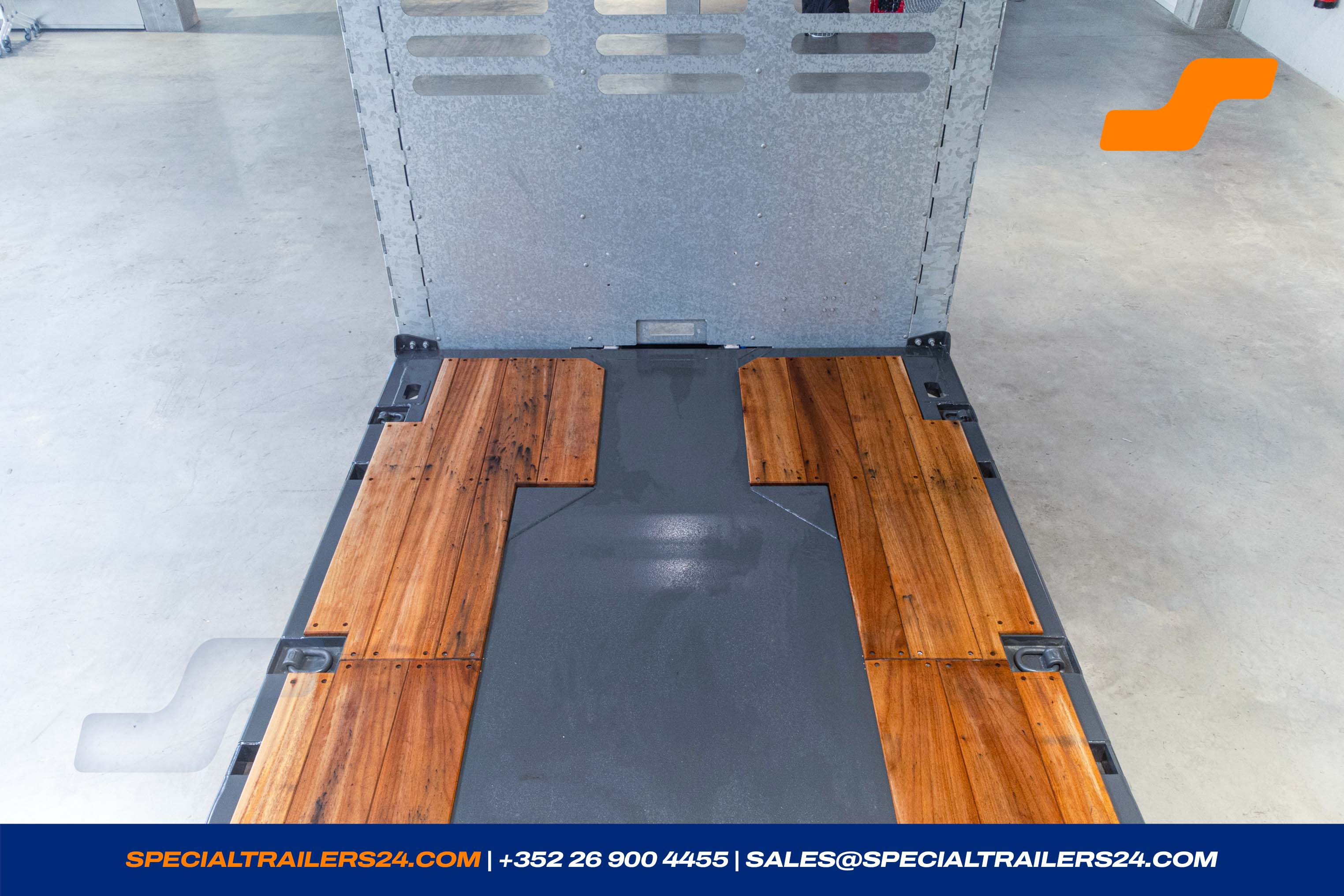

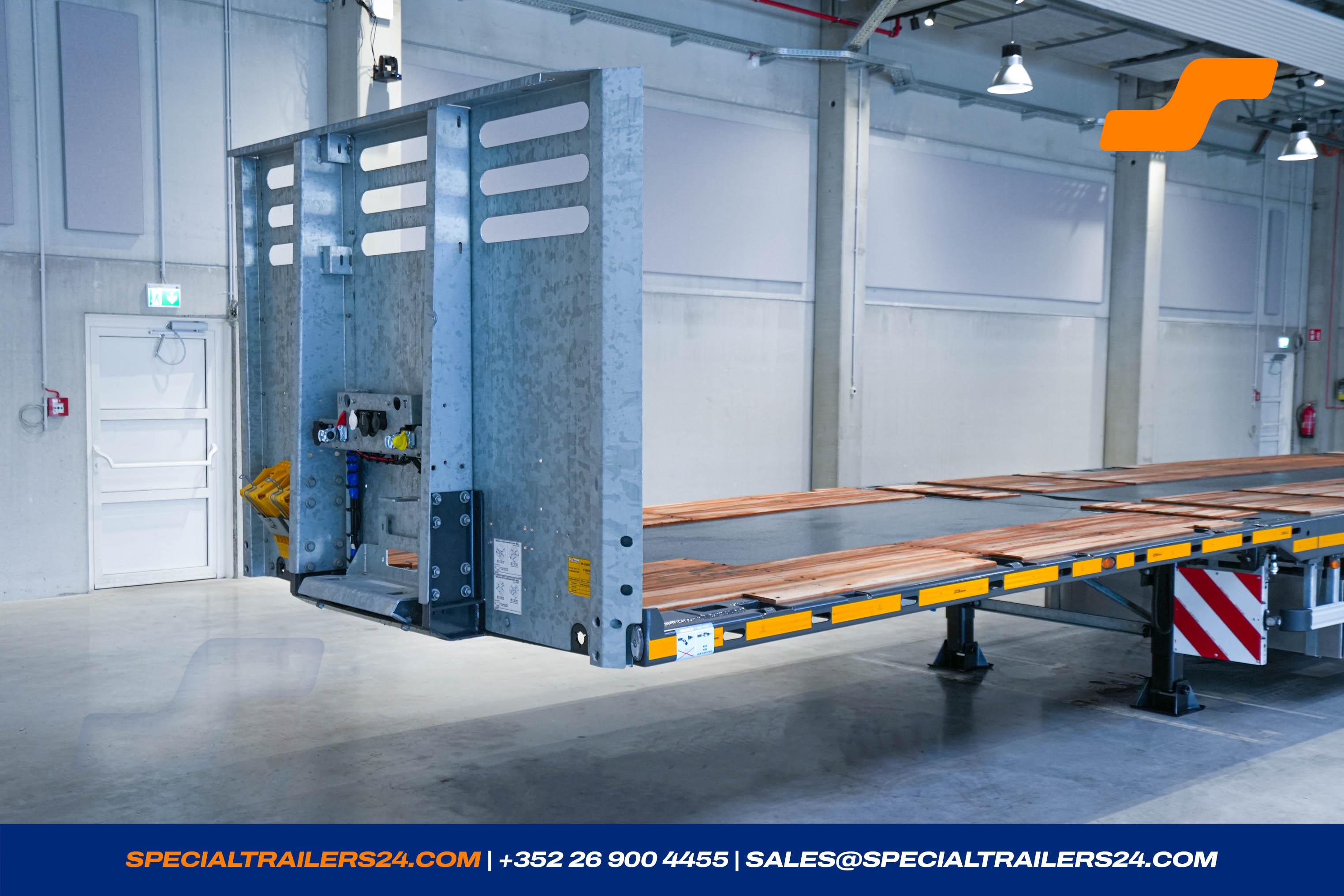

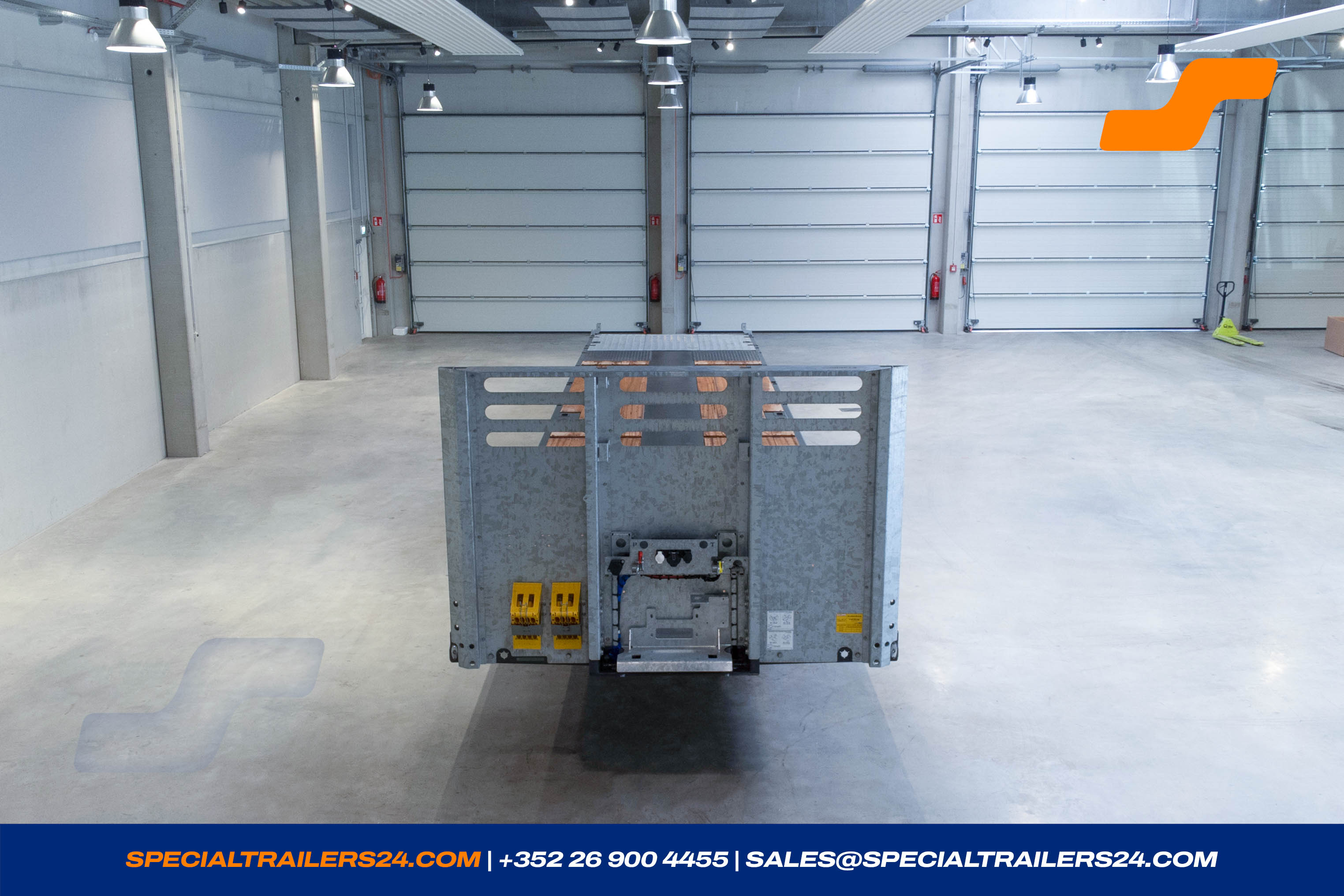

One galvanised steel headboard, height ± 2 200 mm. (± 105 kg)
EN12642-XL - One powder fire extinguisher (6 kg) with a protective casing and holder on the headboard (± 15kg).
- 2 pairs of WADER-containerlocks (± 30 kg).
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 7 pairs of galvanised stakes ± 100 x 50 mm, height ± 1 500 mm. (± 231 kg)
- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)

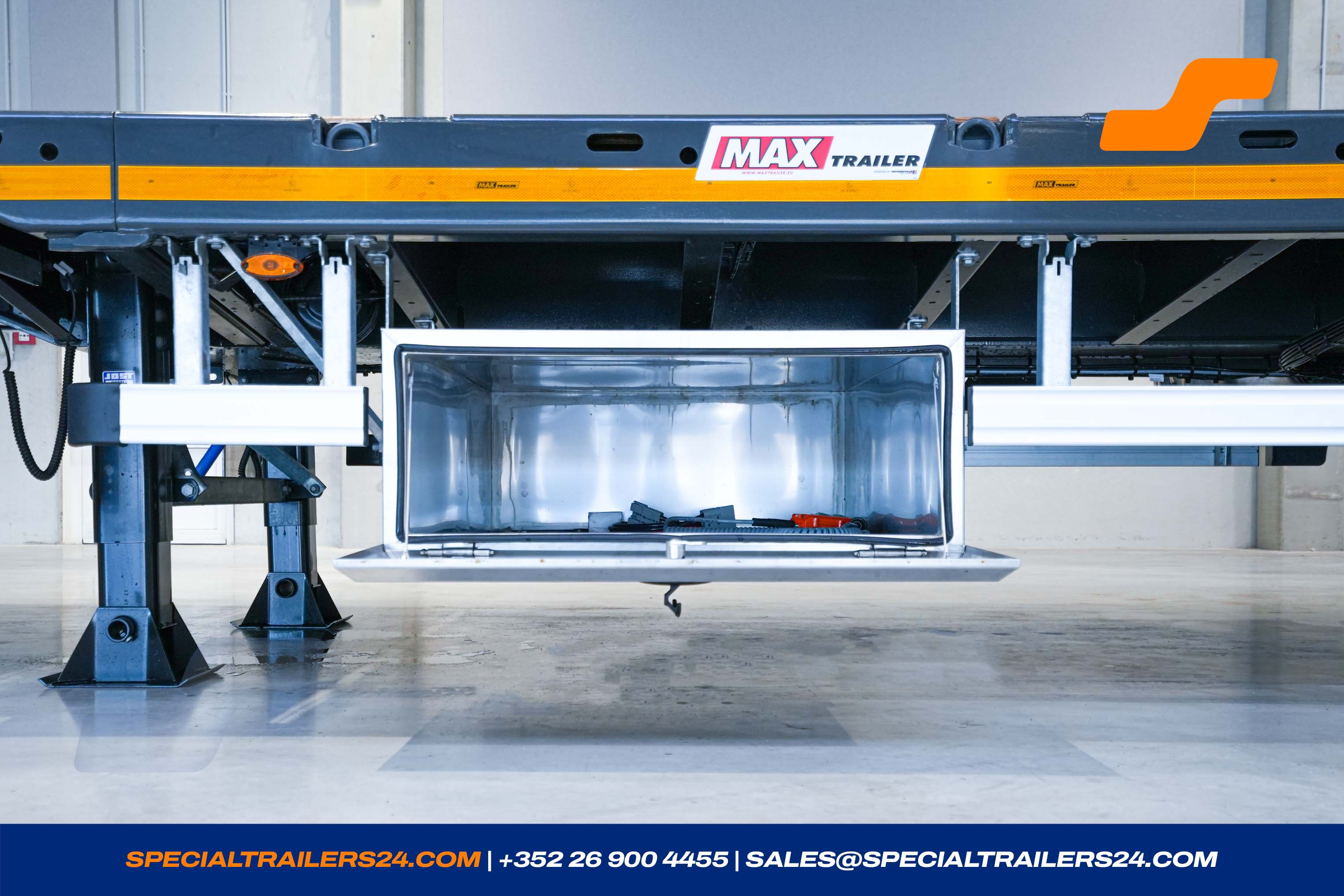

- Two lockable tool-box HDPE 620 x 360 x 610 mm under the loading platform on the left and right side. (± 72 kg)
- 1 spare wheel 435/50 R19.5 (± 105 kg)
- An electric cable winch in front of the front wall with radio remote control, ± 5 400 kg lifting force, including 9.5 mm thick wire rope 24 m long with cable guide pulley. (± 88 kg)
Accessories
1 x Accessories

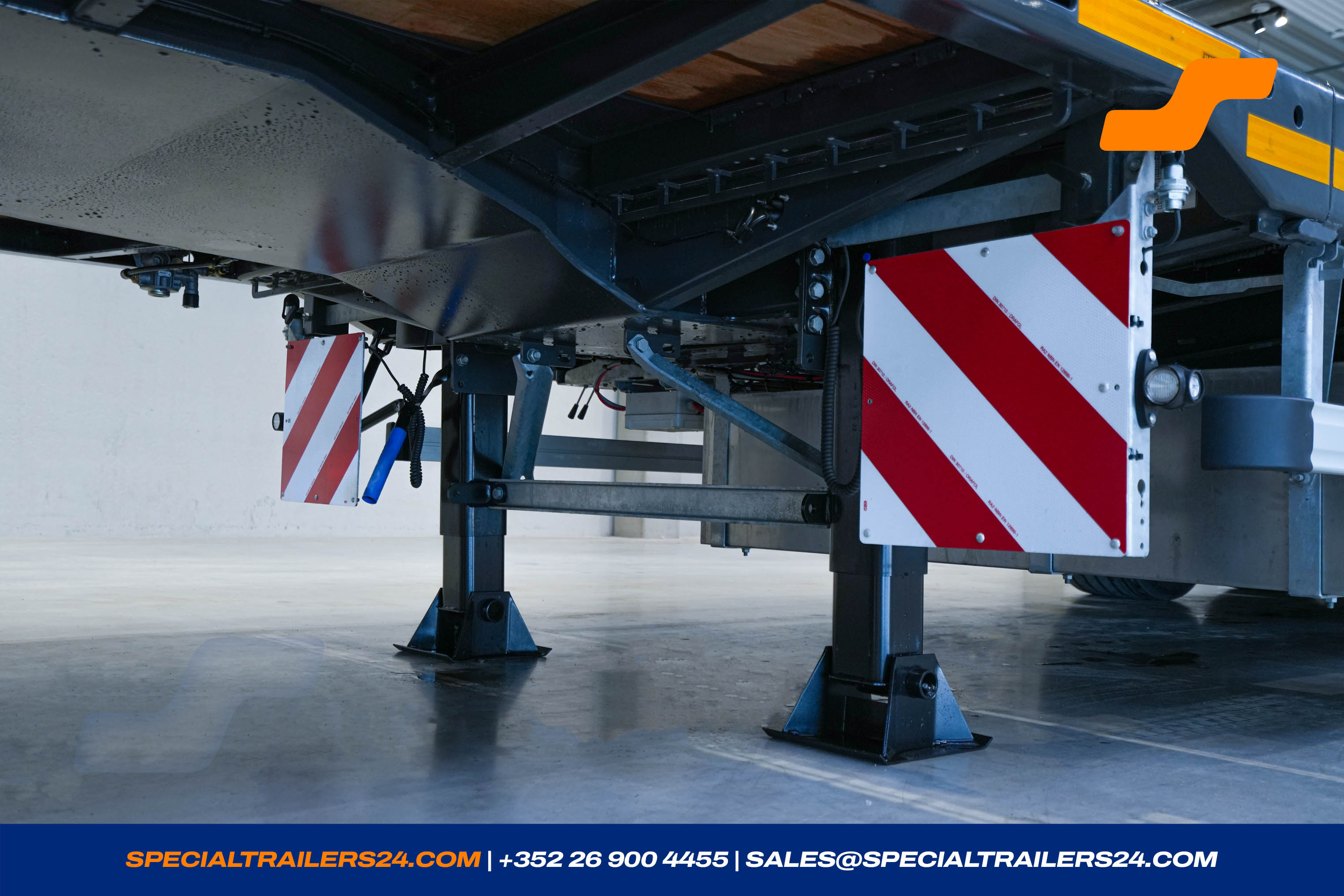

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Speed sticker 60, 80 & 90 km/h at the rear.
- Delivery from a trailer to factory Lentzweiler.
- Sign CONVOI EXCEPTIONNEL at the rear of the trailer.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111251
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour RAL 9006 (Brillant Direct) - White aluminium (brillant direct)
- Availability 03/2026
- Price On request
-
