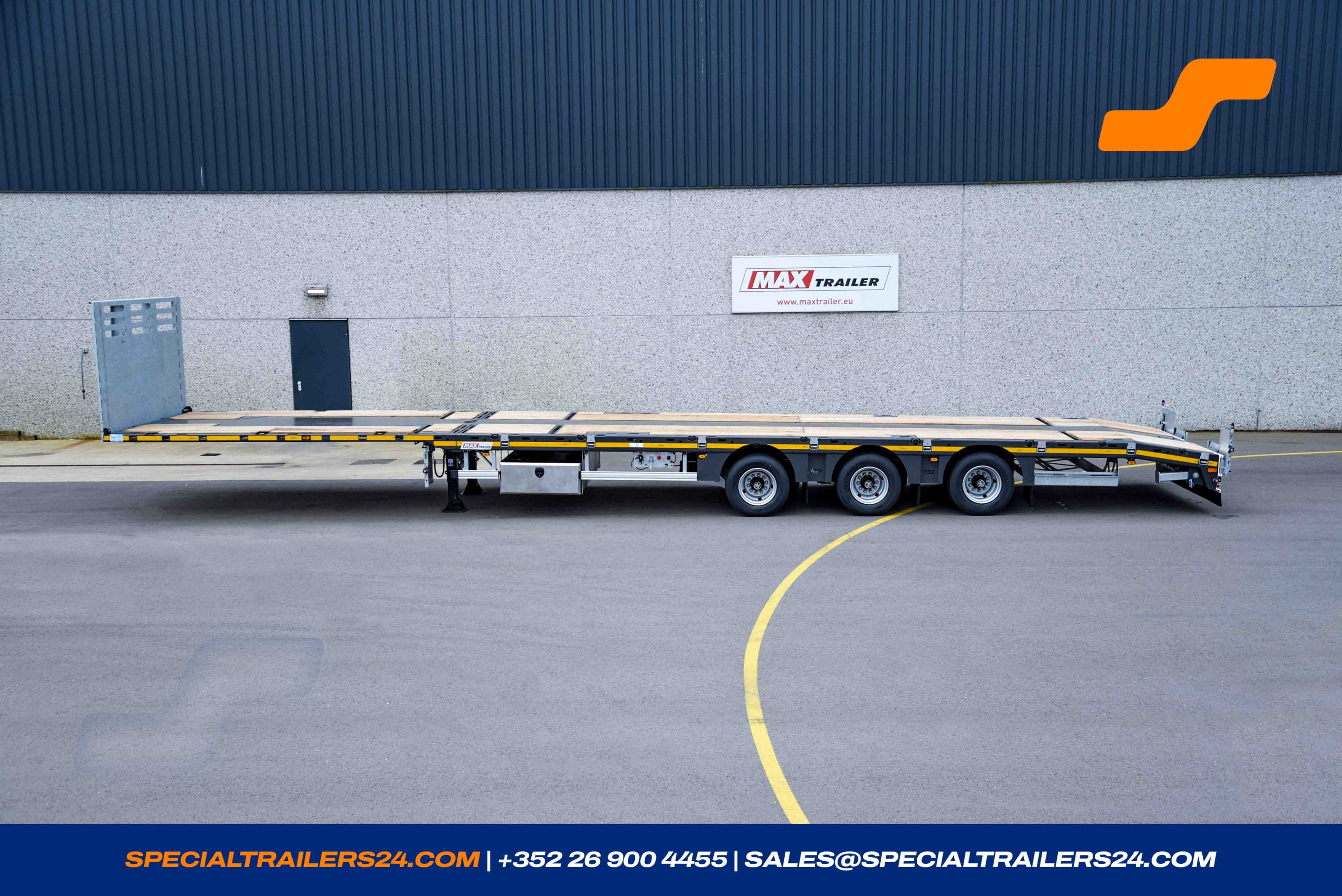

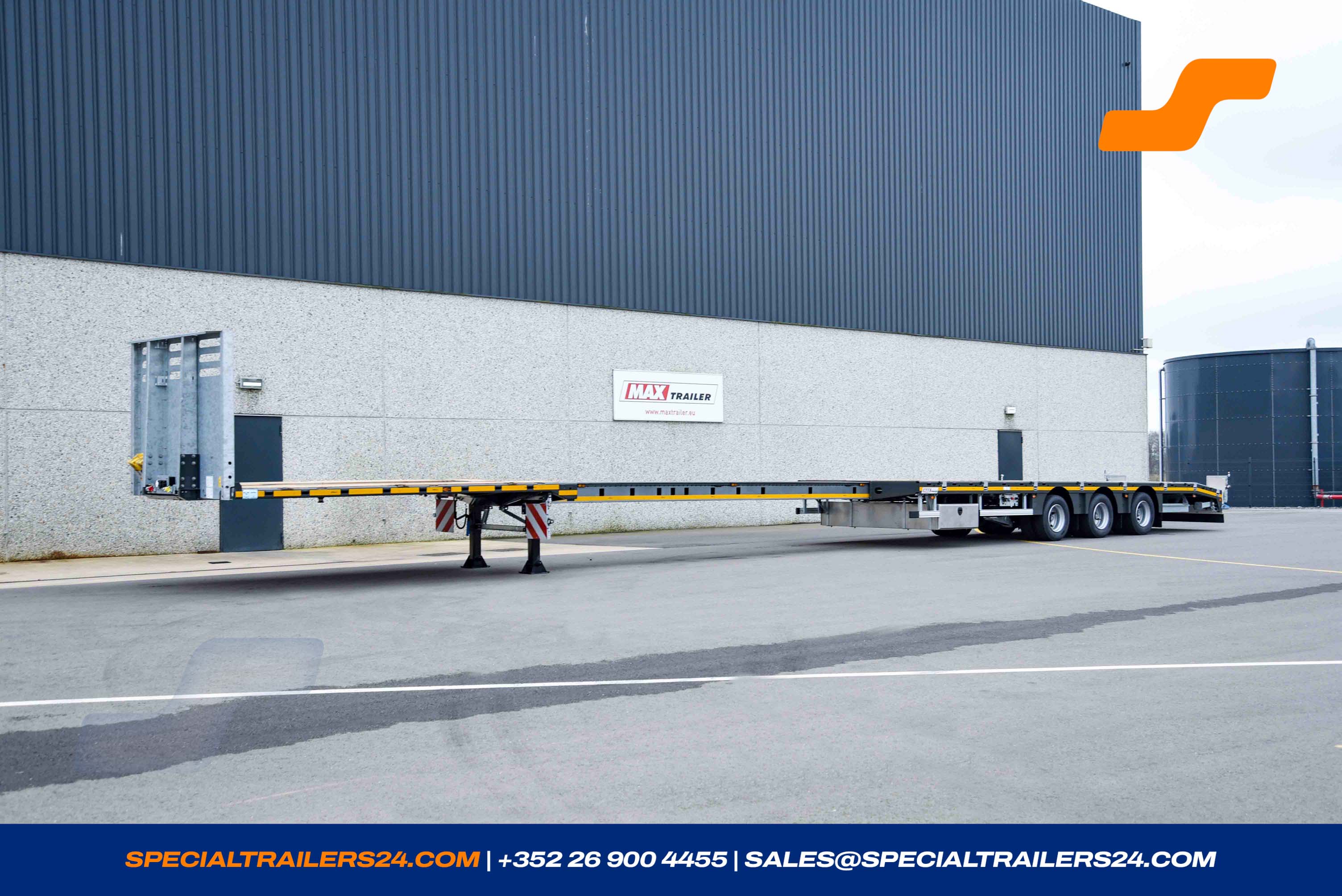

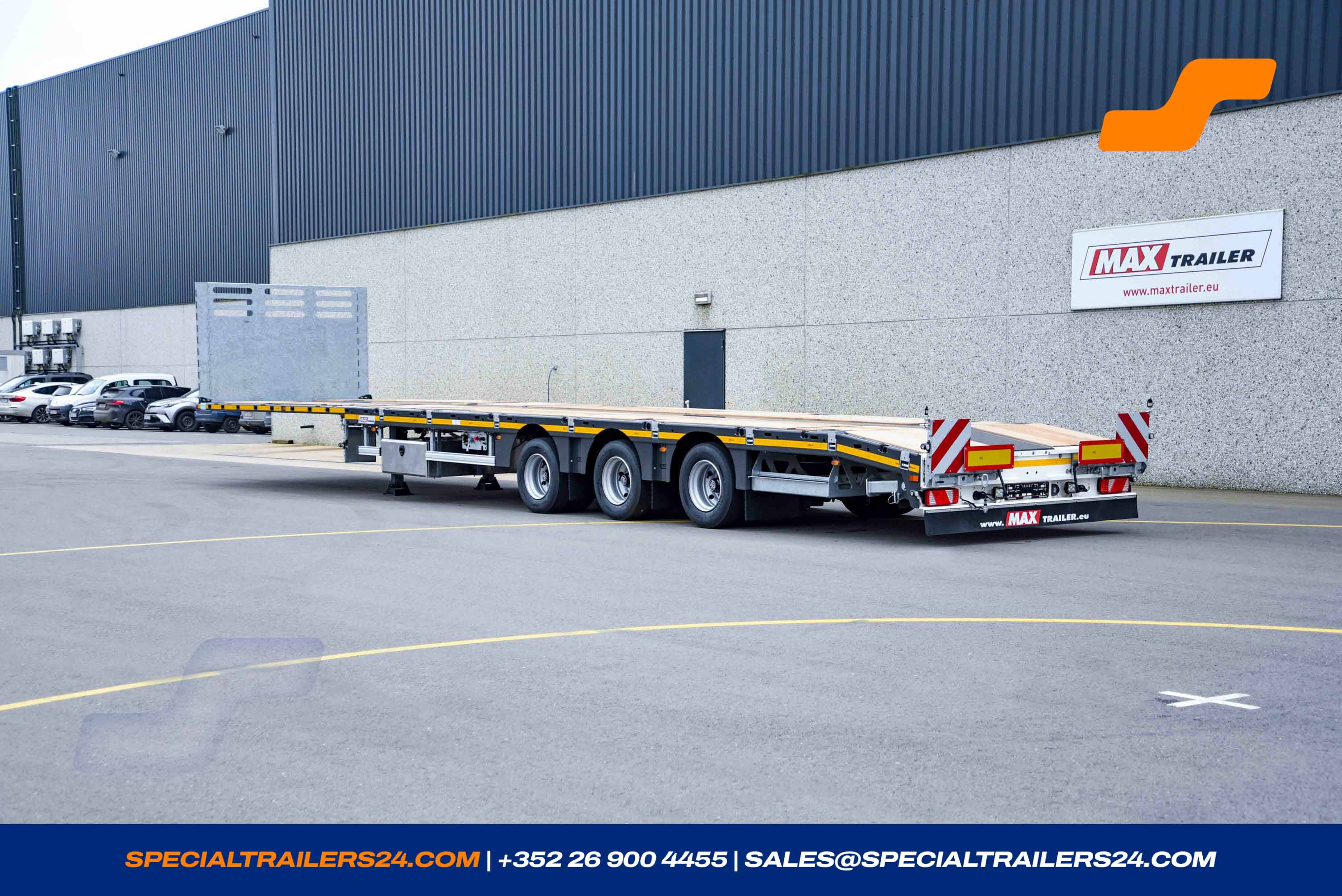

MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111194
- Reference MAX200-N-3A-13.50-17.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 05/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions
Loading deck
Loading platform

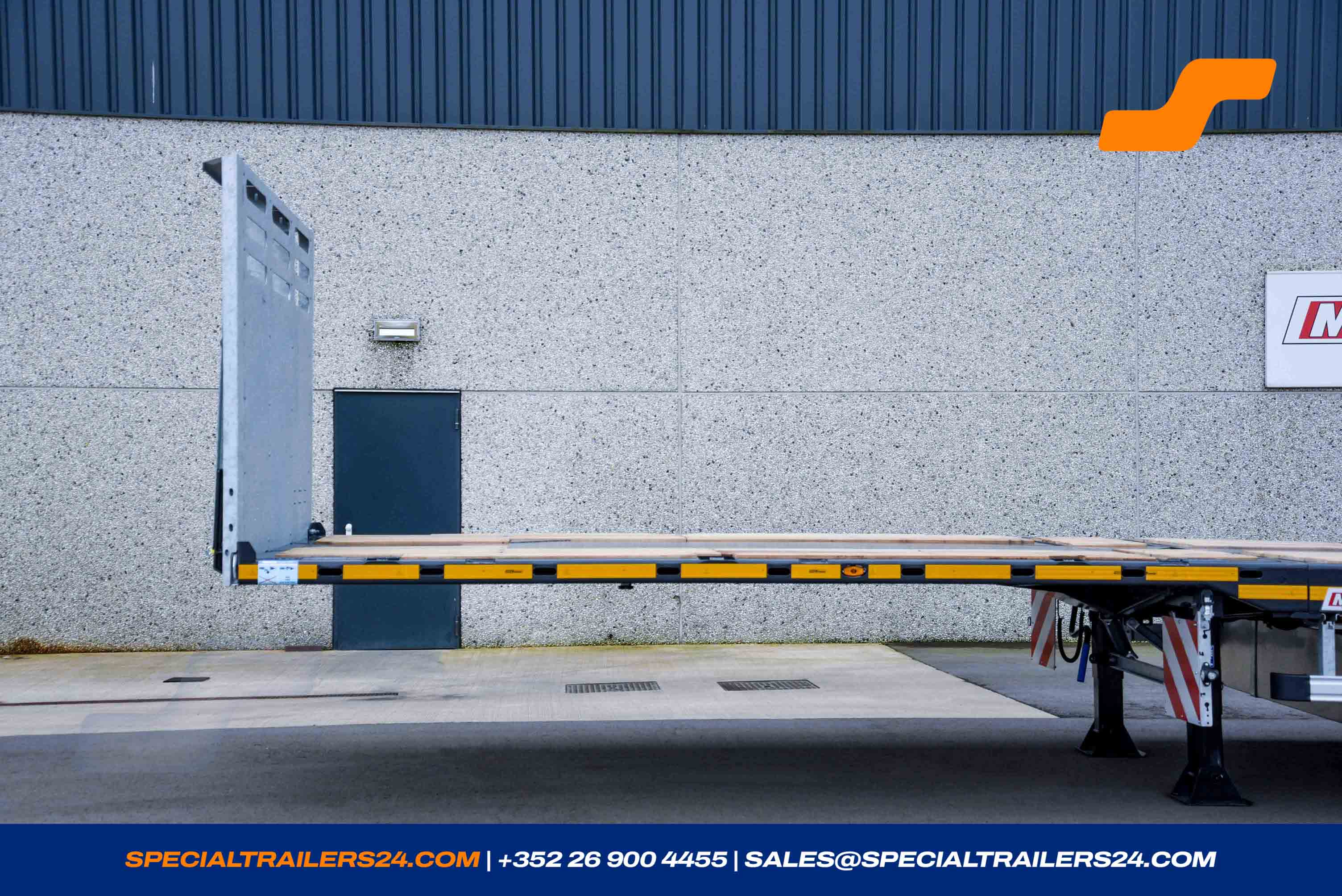

1 x Loading platform

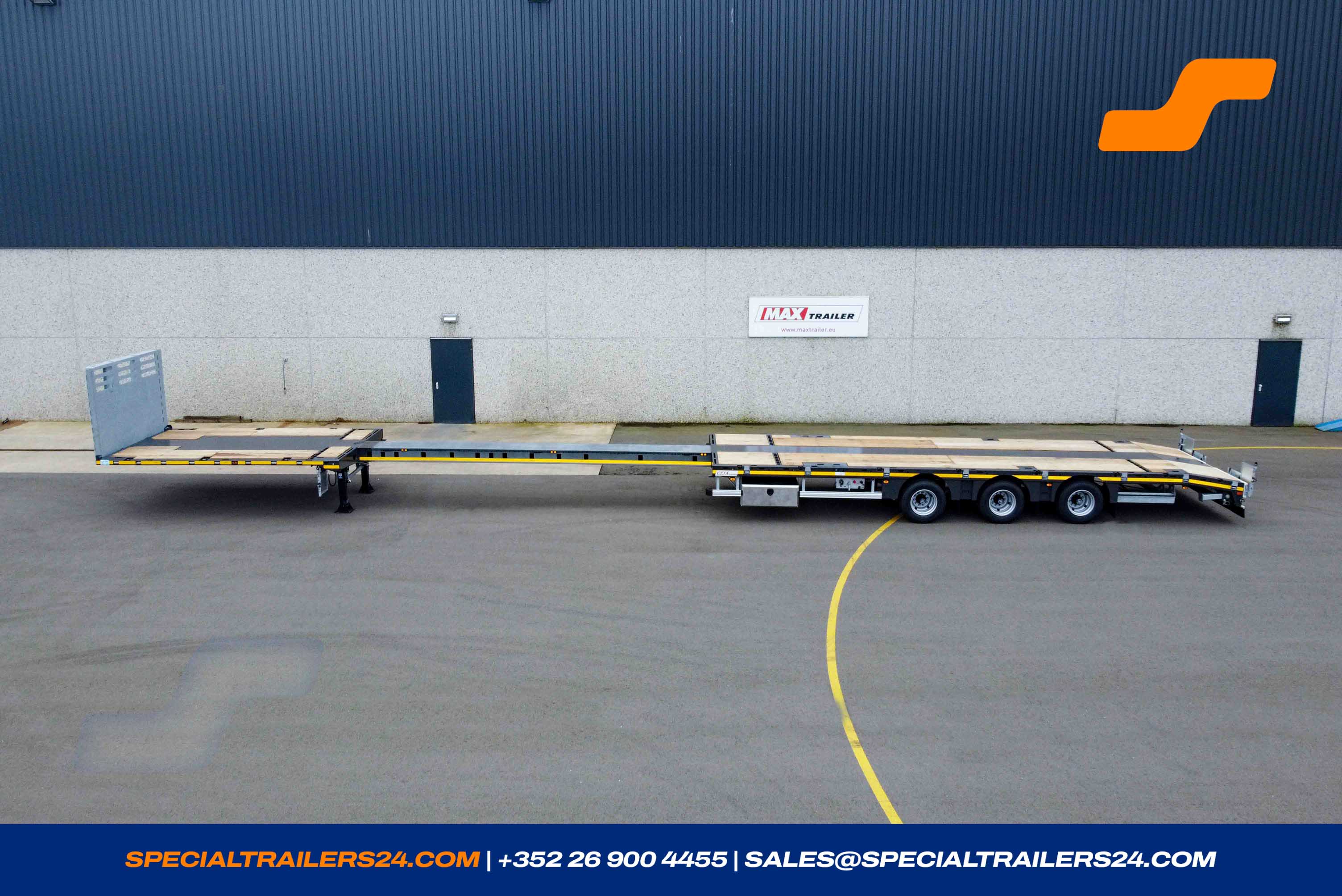

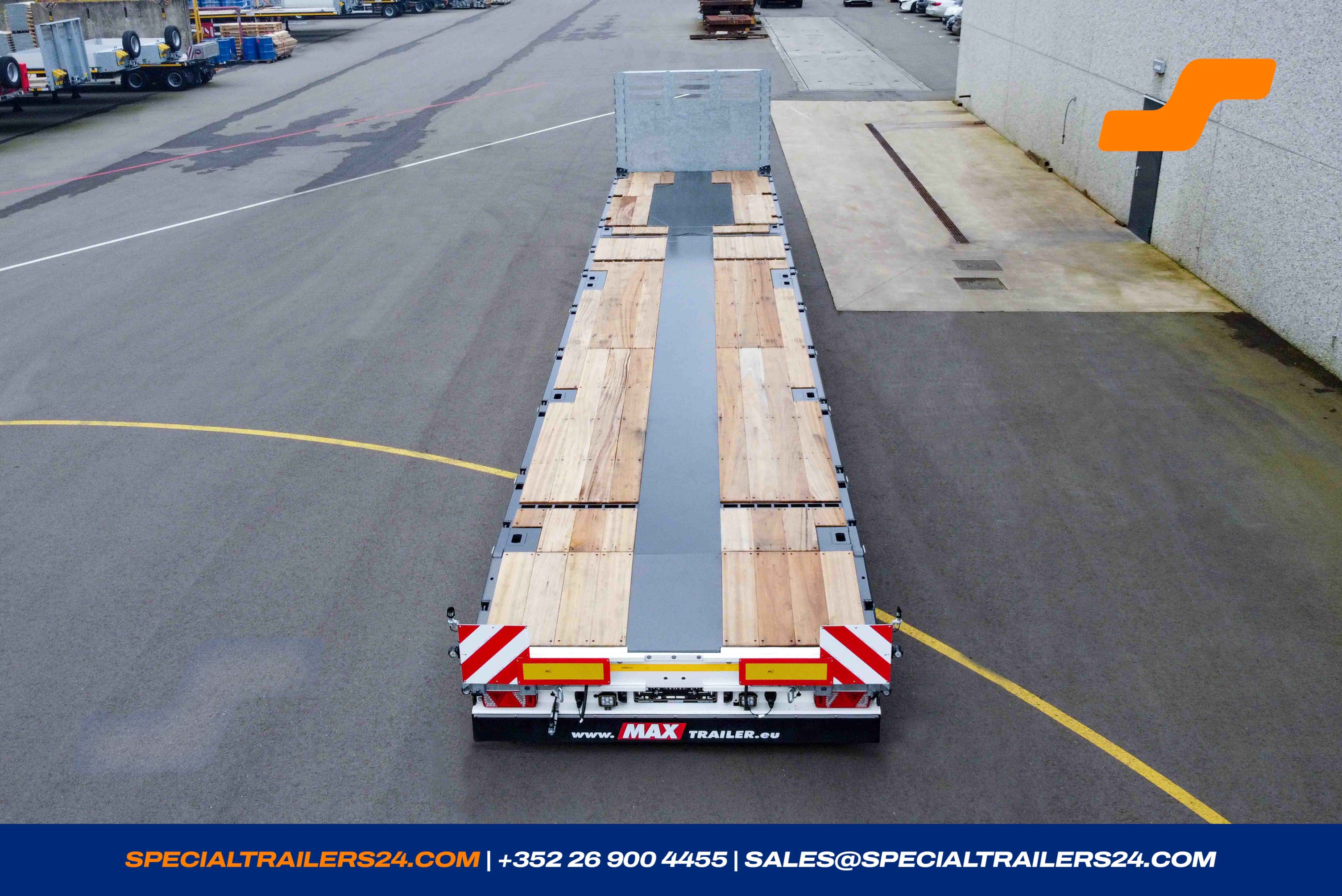

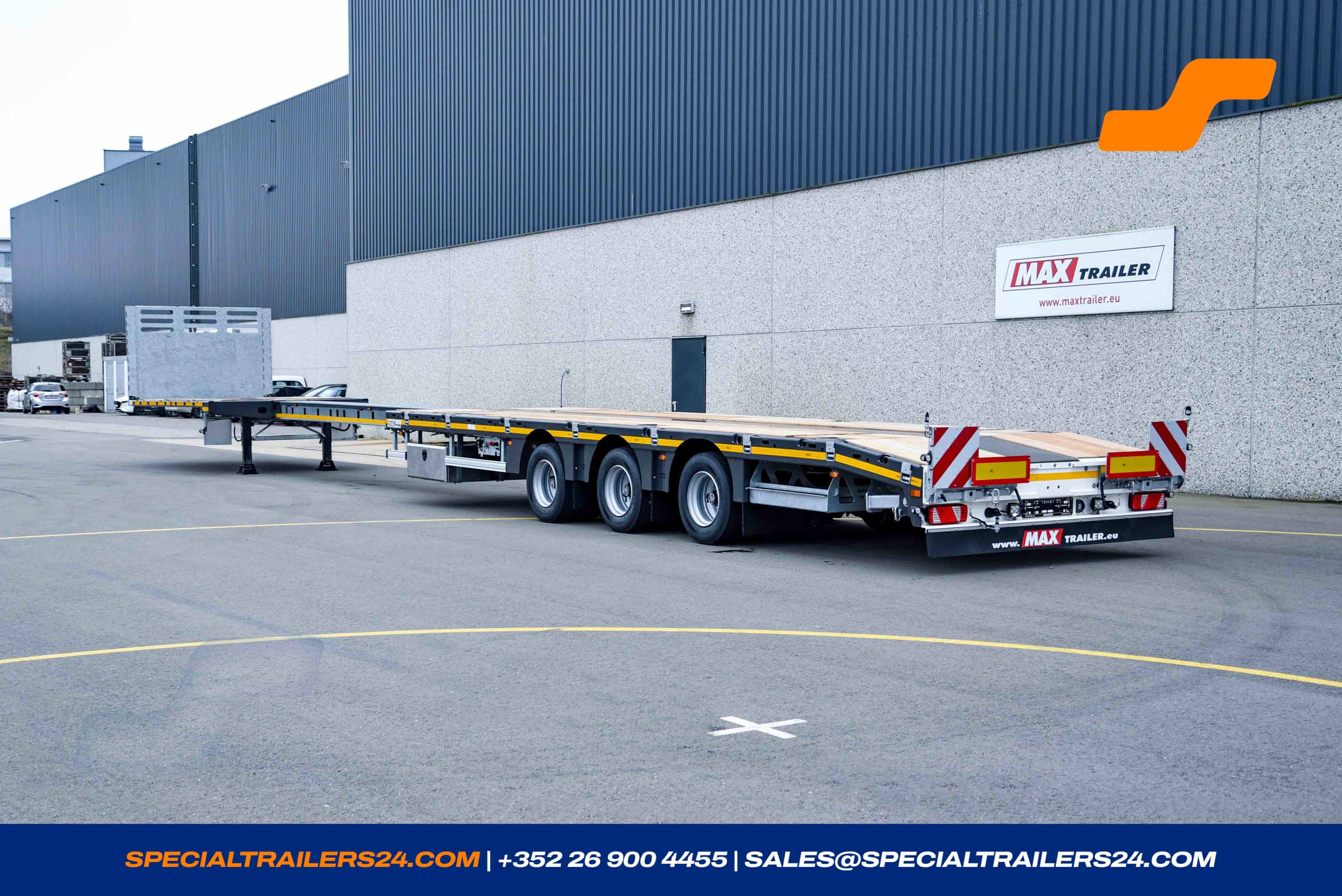

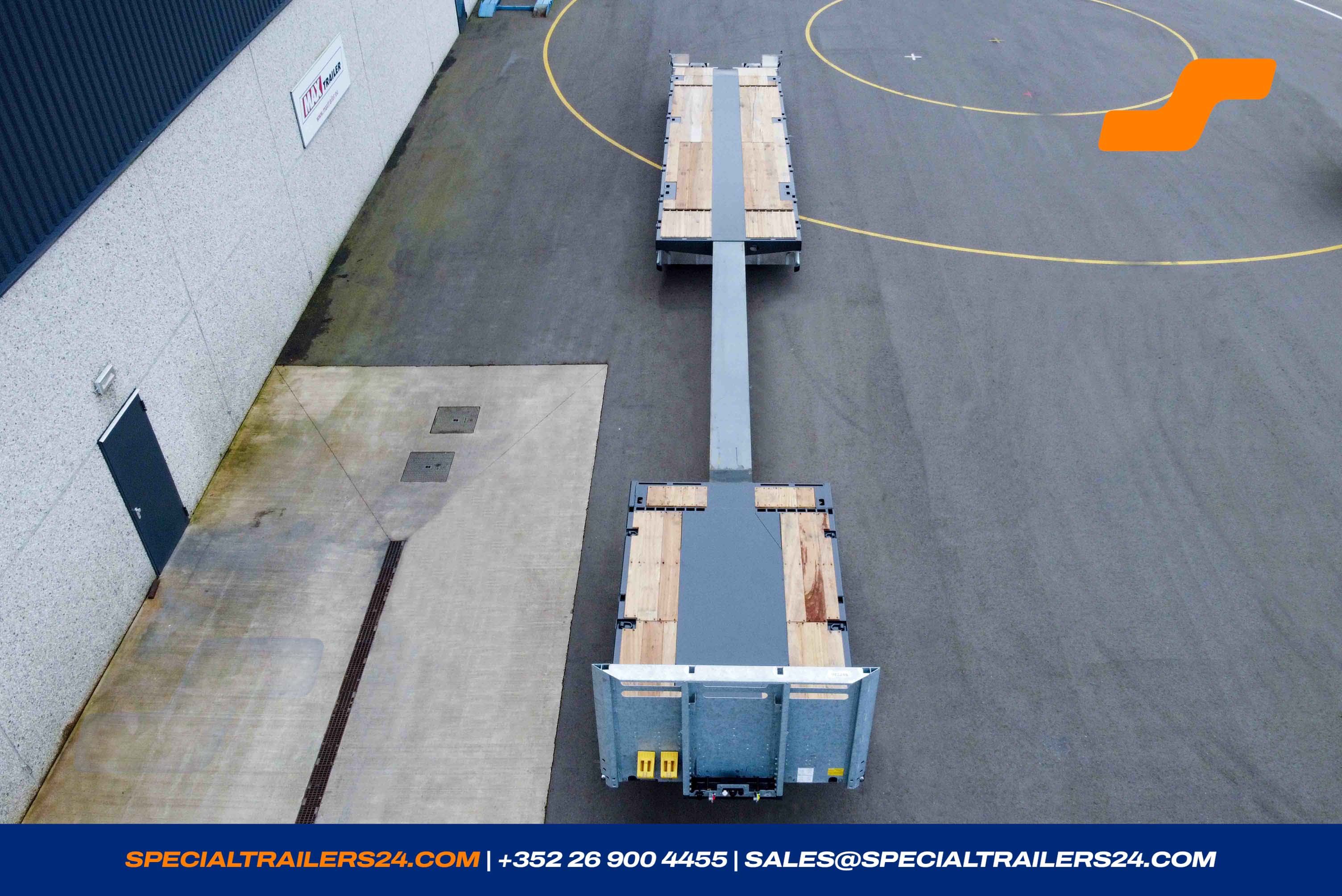

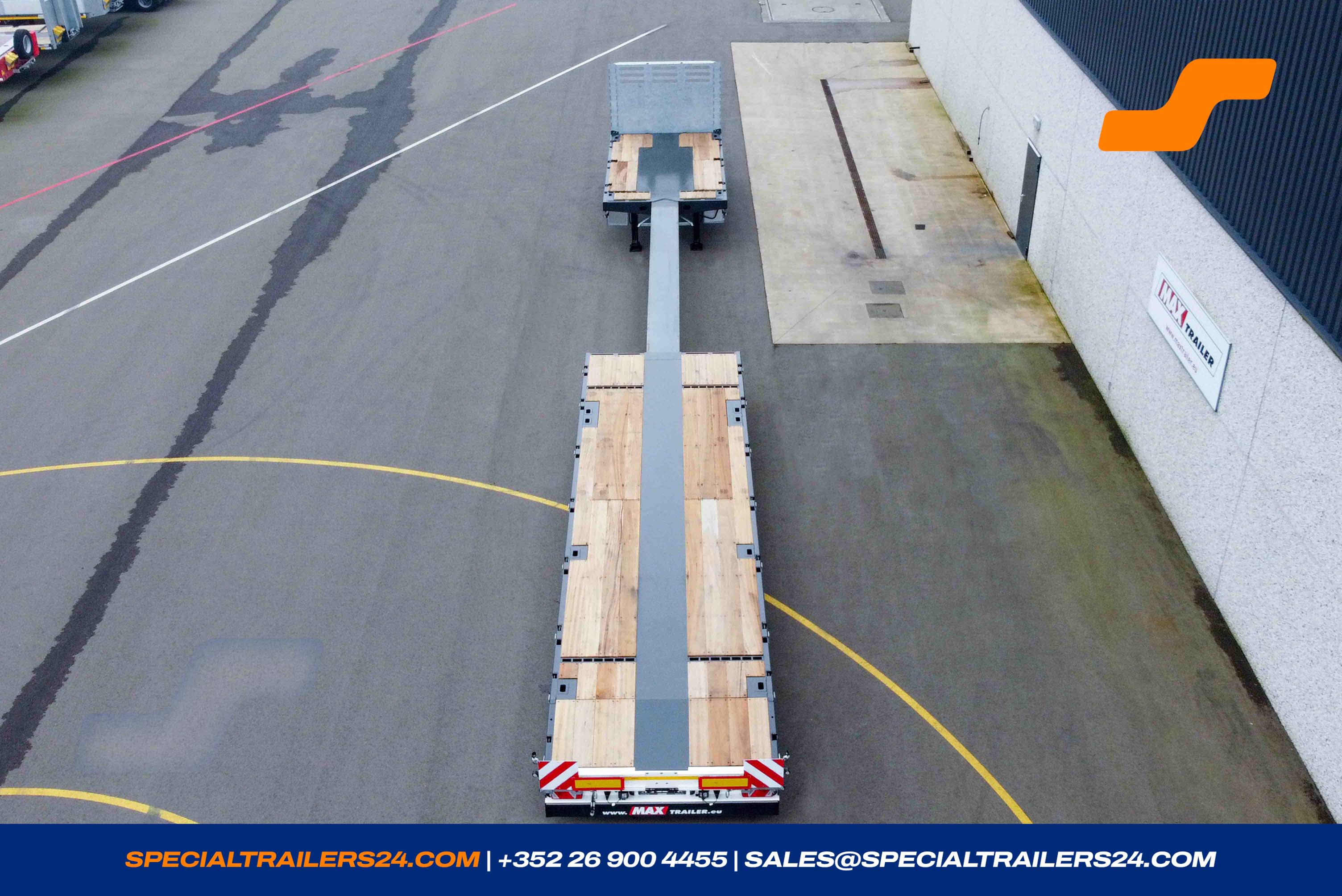

Extendabbe loading platform with hardwooden floor with chamfered beaver tail by about 1000 mm x 8°.
2 pairs of lashing rings inserted in the border frame (LC 5 000 daN).
1 pairs of lashing rings inserted in the border frame,(LC 10 000 daN).
6 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

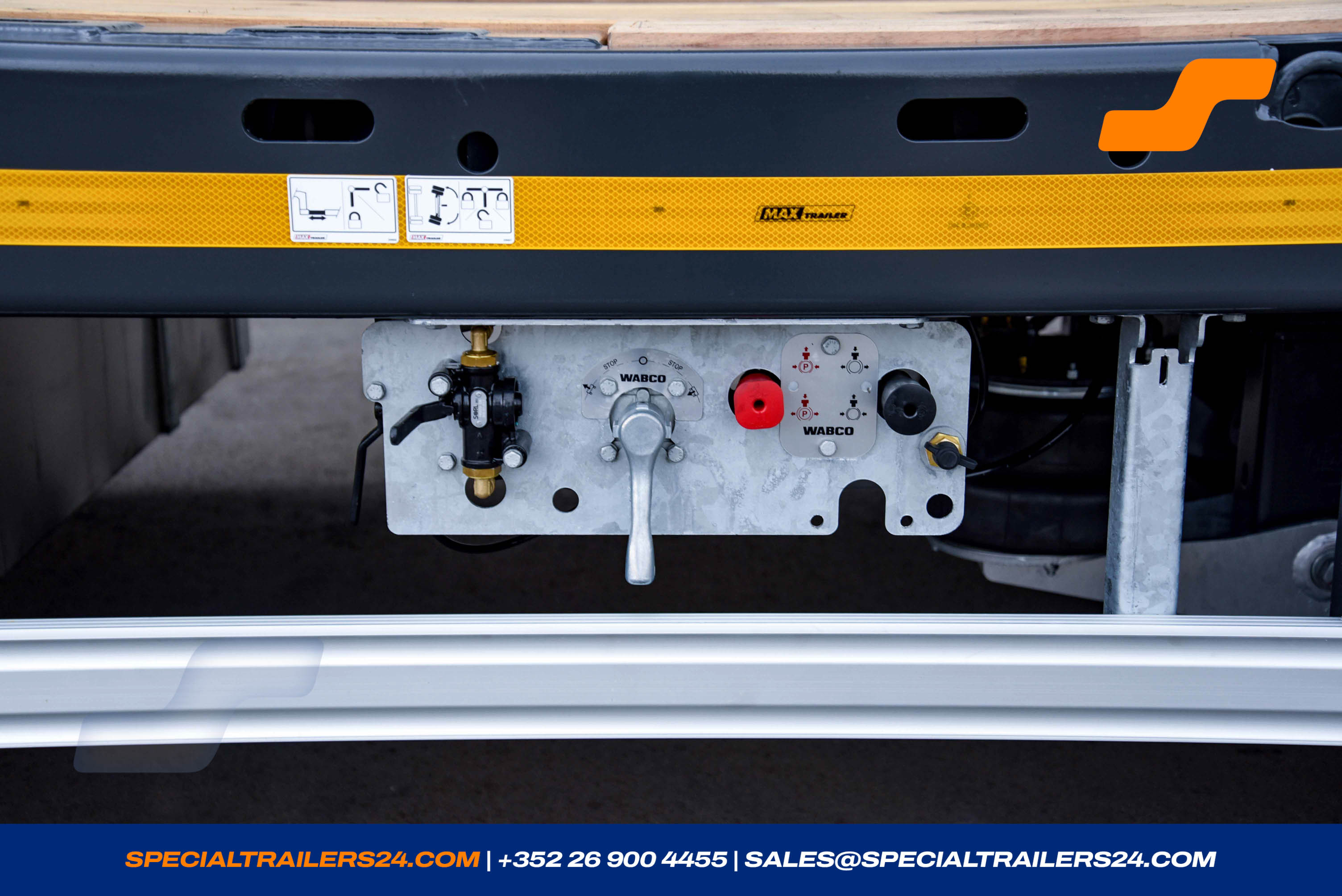

- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- King pin 2
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

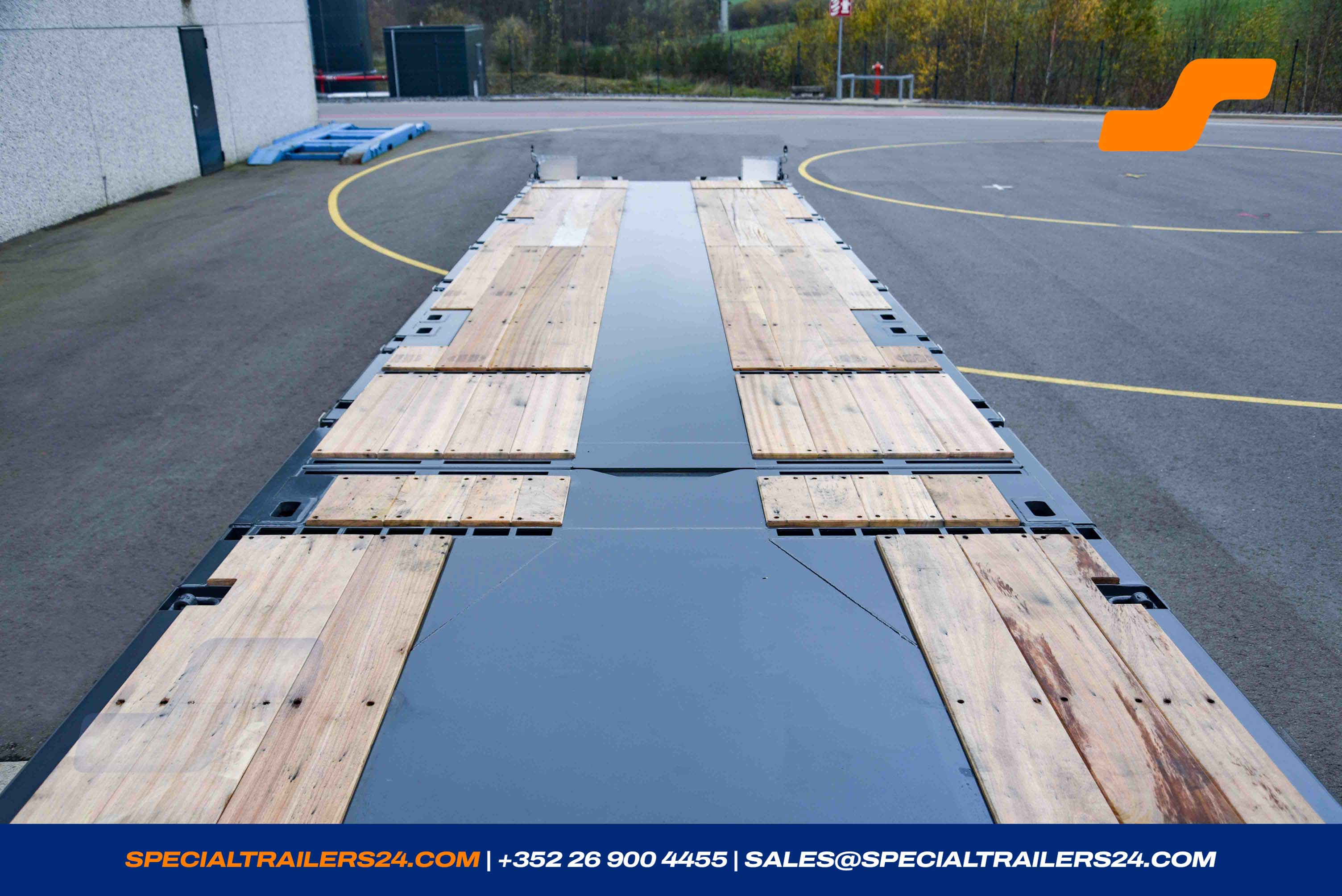

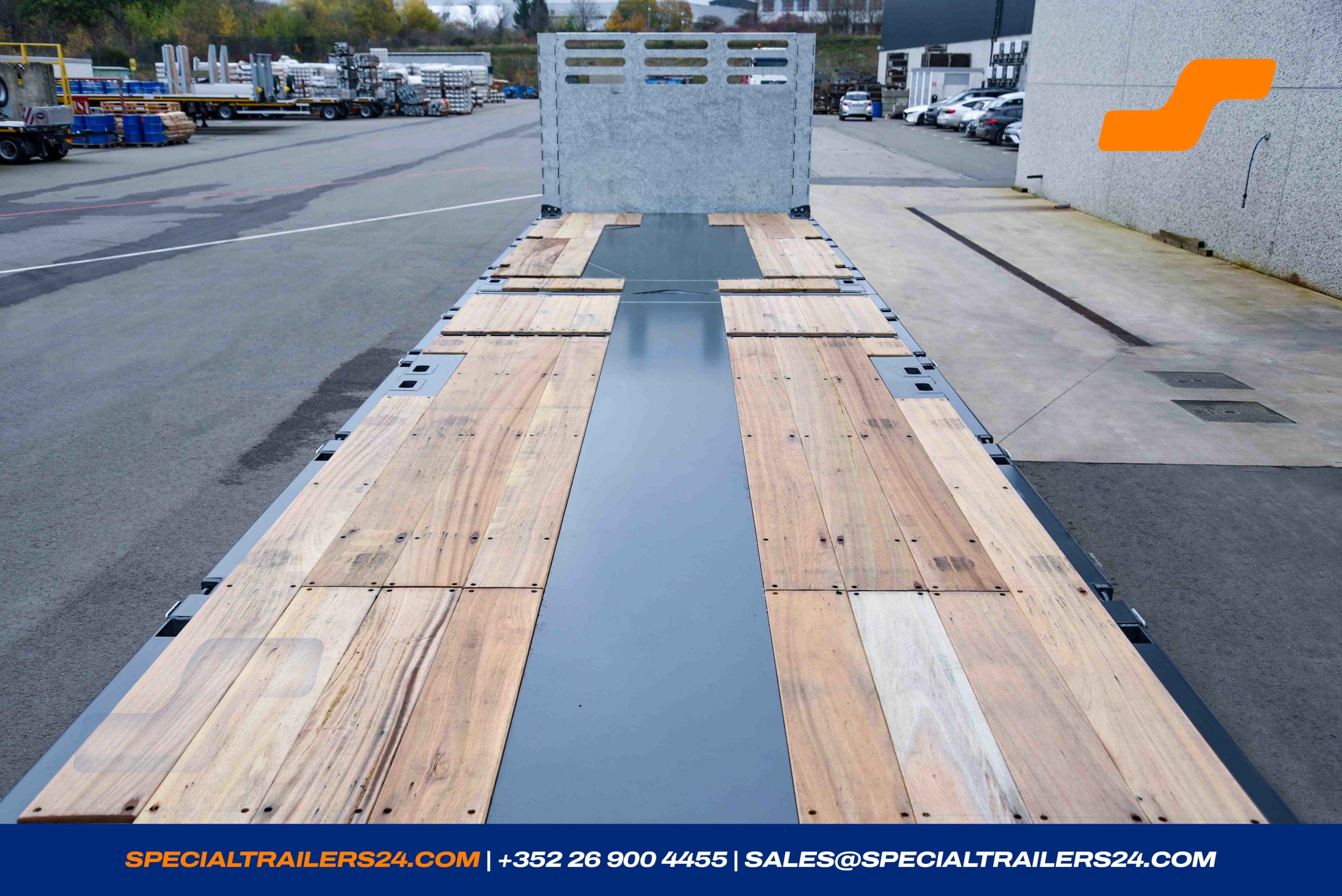

- Loading area with hardwood timber.
- 9 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 27 kg)
- Galvanised landing gears at the rear under the loading platform.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.

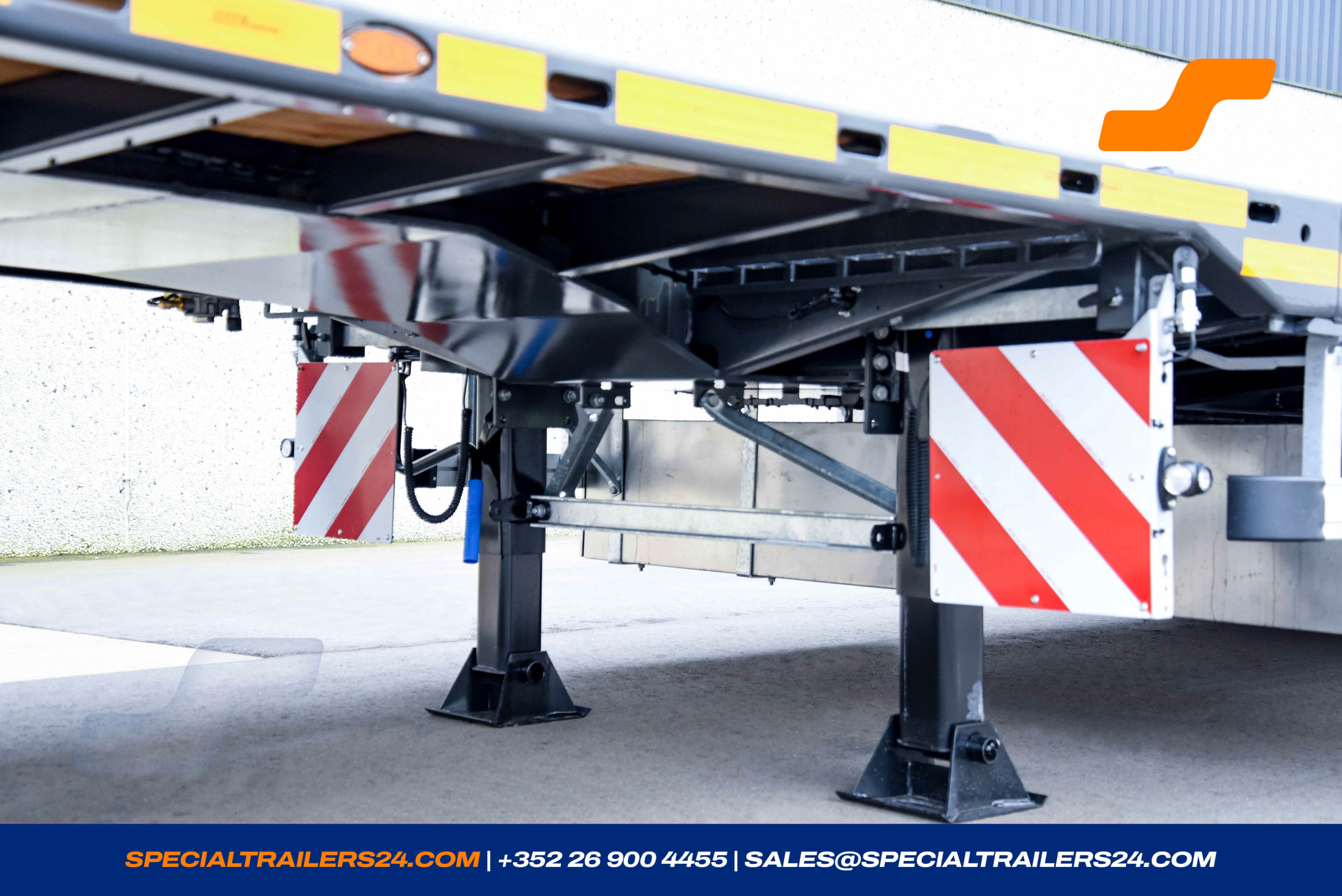

- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
-

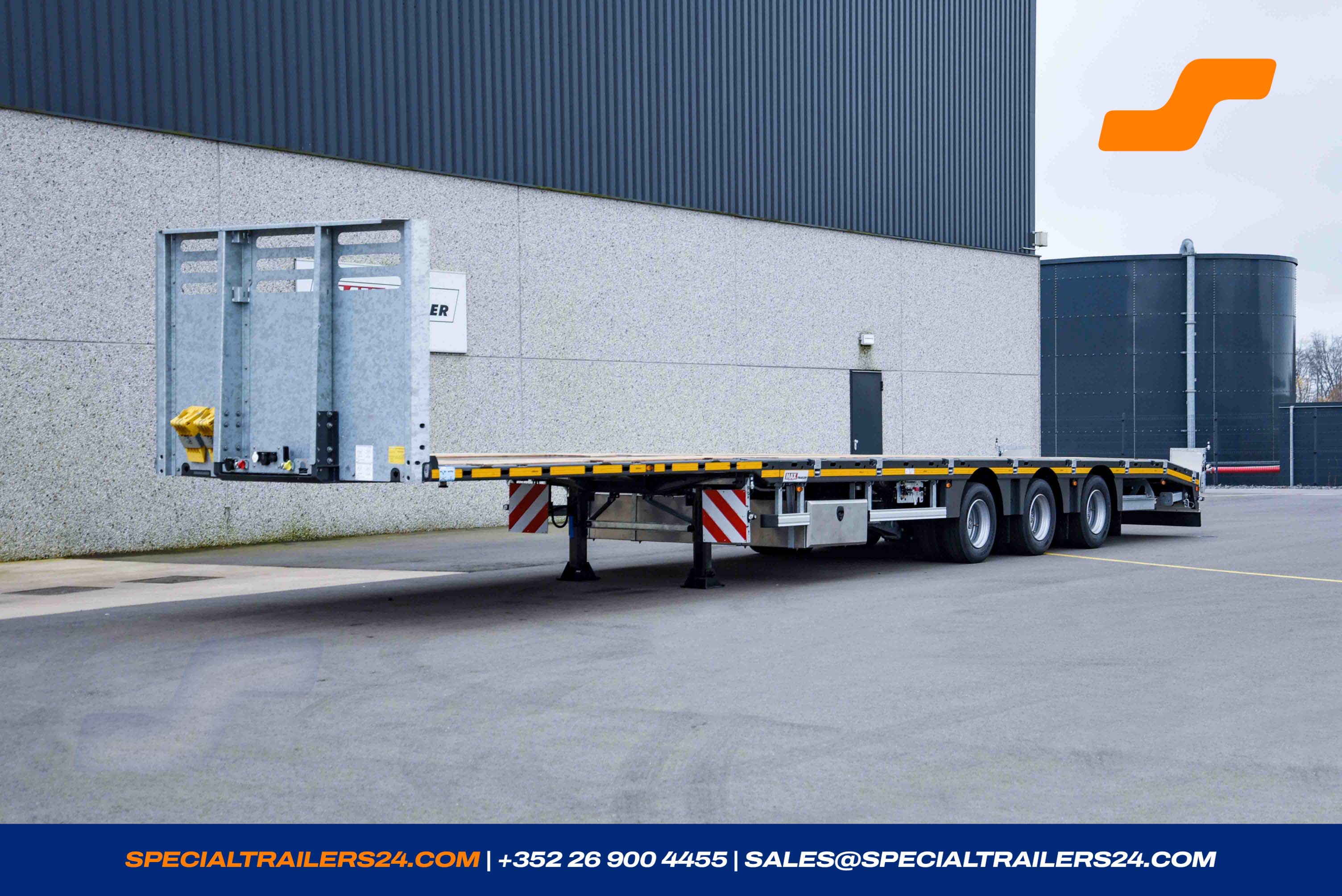

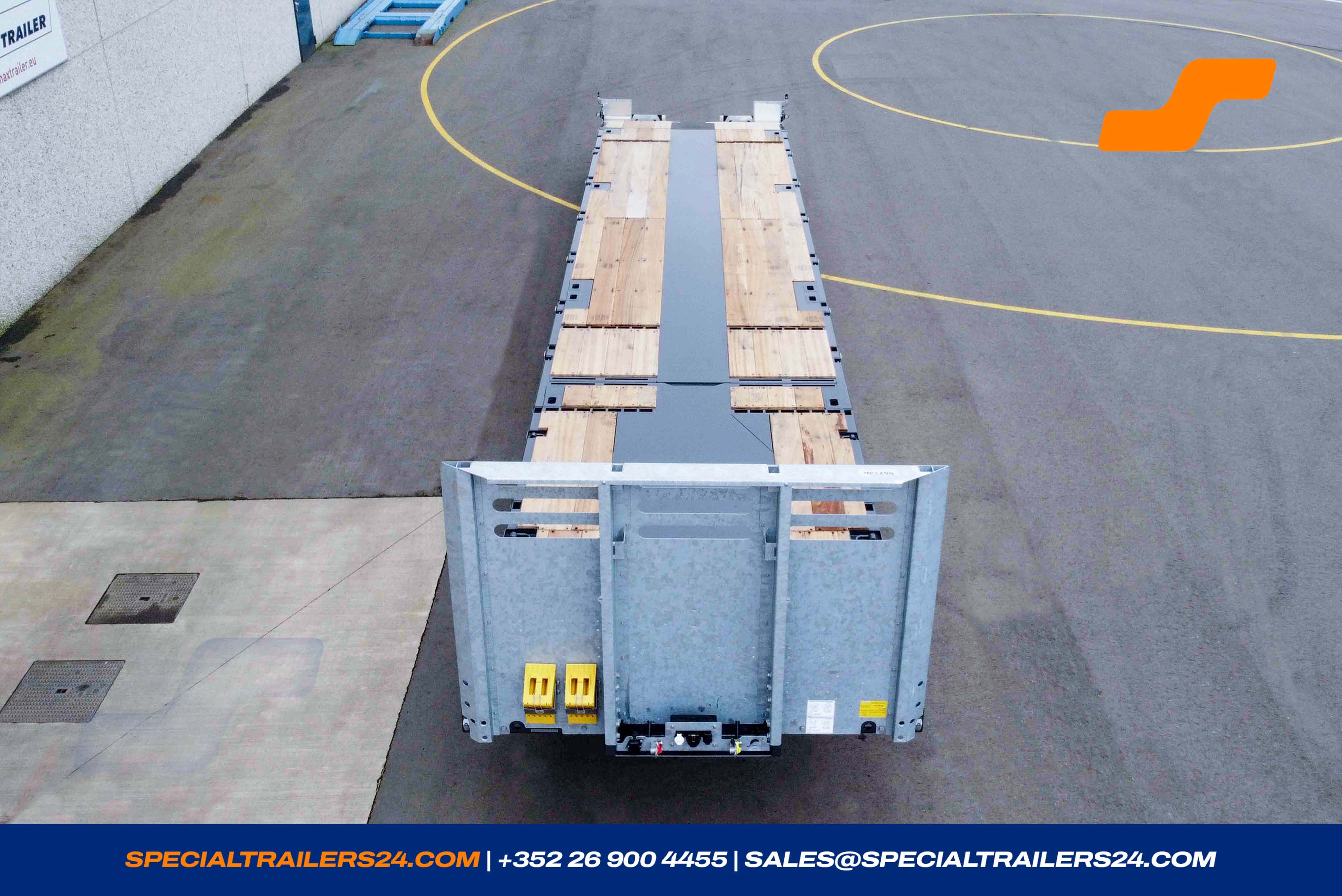

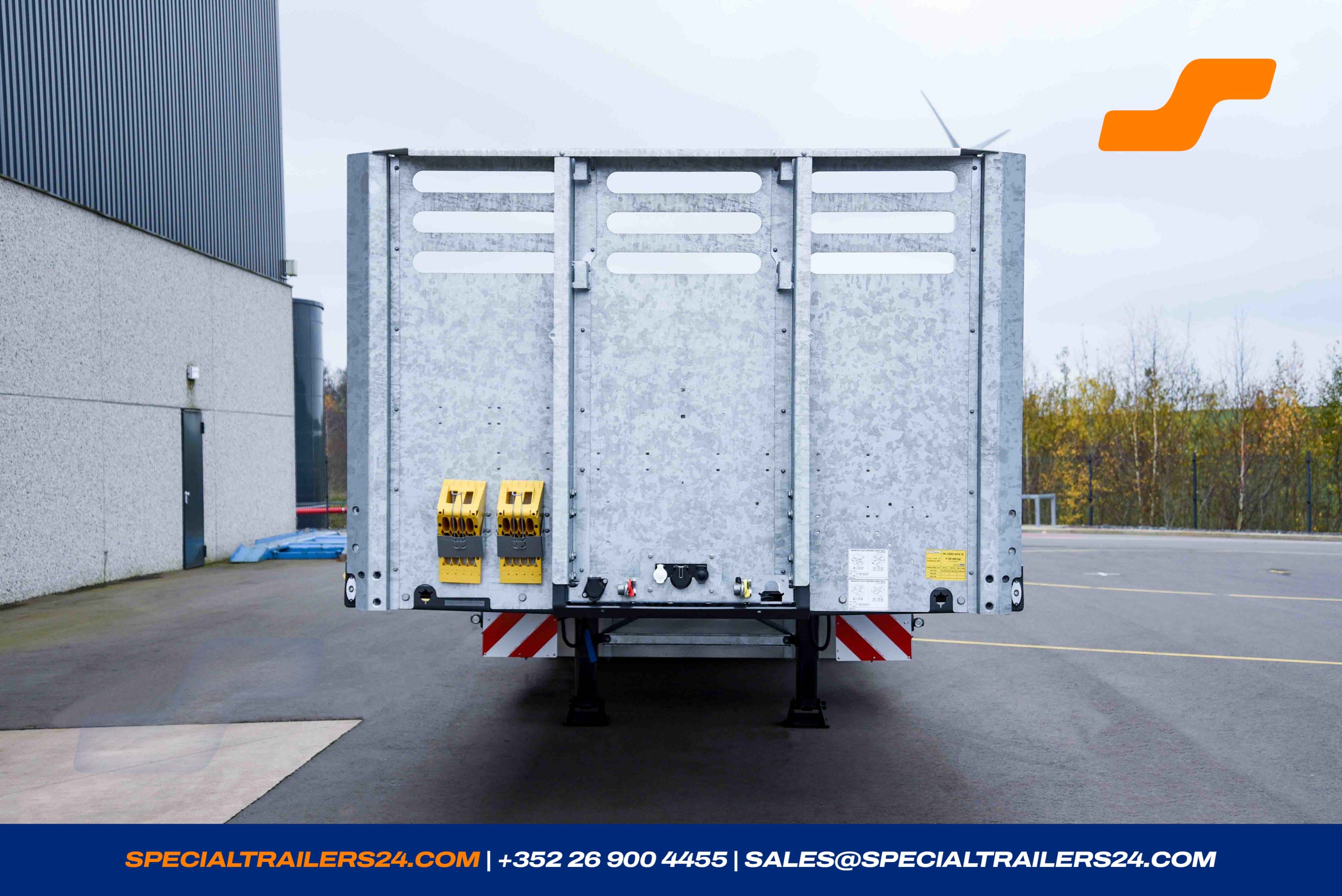

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - Anti-slip-coating with sand on the central beam.

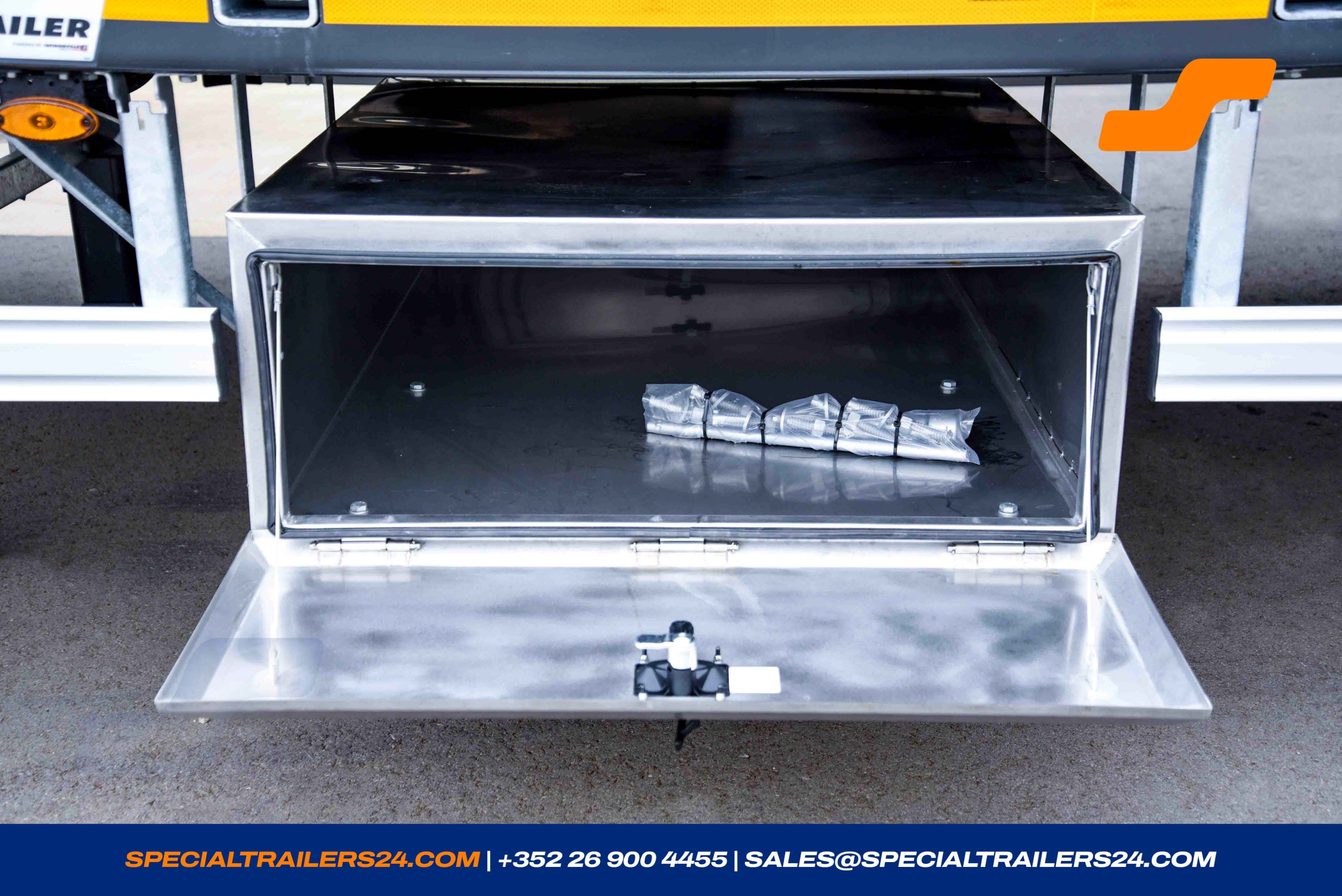

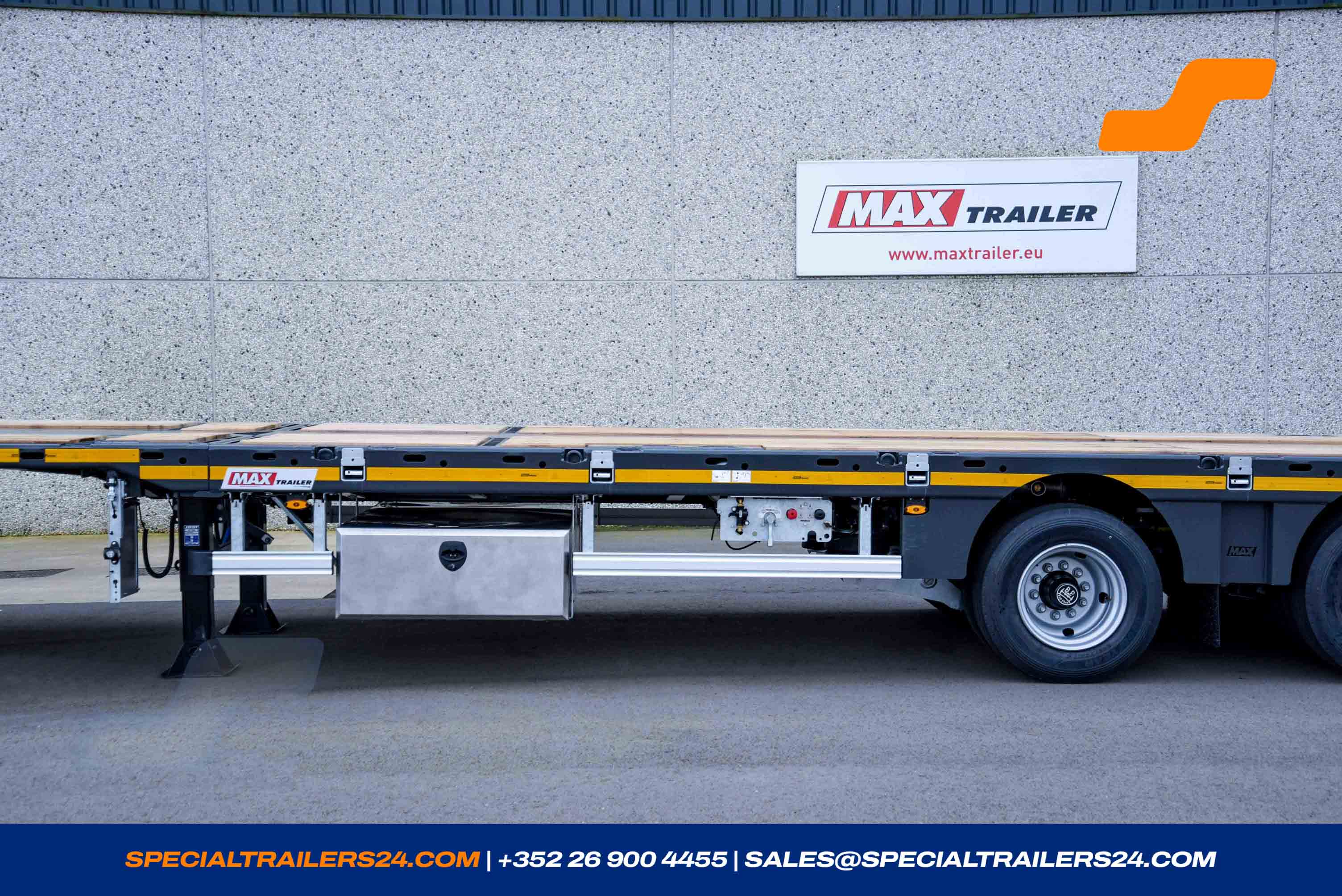

- One INOX lockable tool-box under the loading platform. (2500x400x1000) (± 135kg)
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 262 kg).

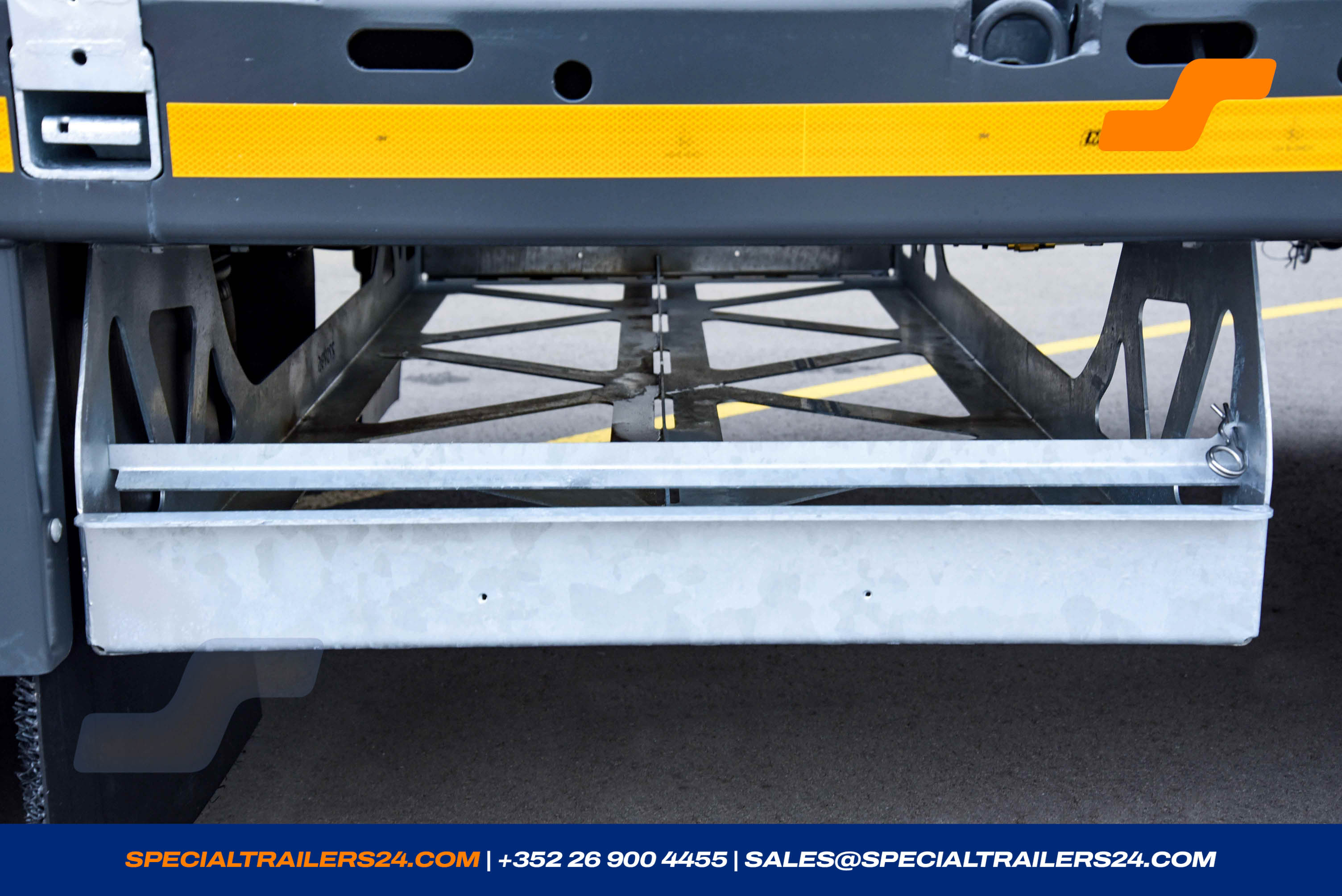

- Holder for alu-ramps, across, behind the axle bogie. (± 88kg)
- 1 spare wheel with holder under the loading platform, on the right-hand side in the direction of travel 235/75 R17.5 3PMSF. (± 70 kg)
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).
- Profile displaceable as hook-on device for alu-ramps at the rear.
- Square iron ledges 20 x 20 mm all 200 mm of the beavertail of the loading platform (± 2kg).
Accessories
1 x Accessories

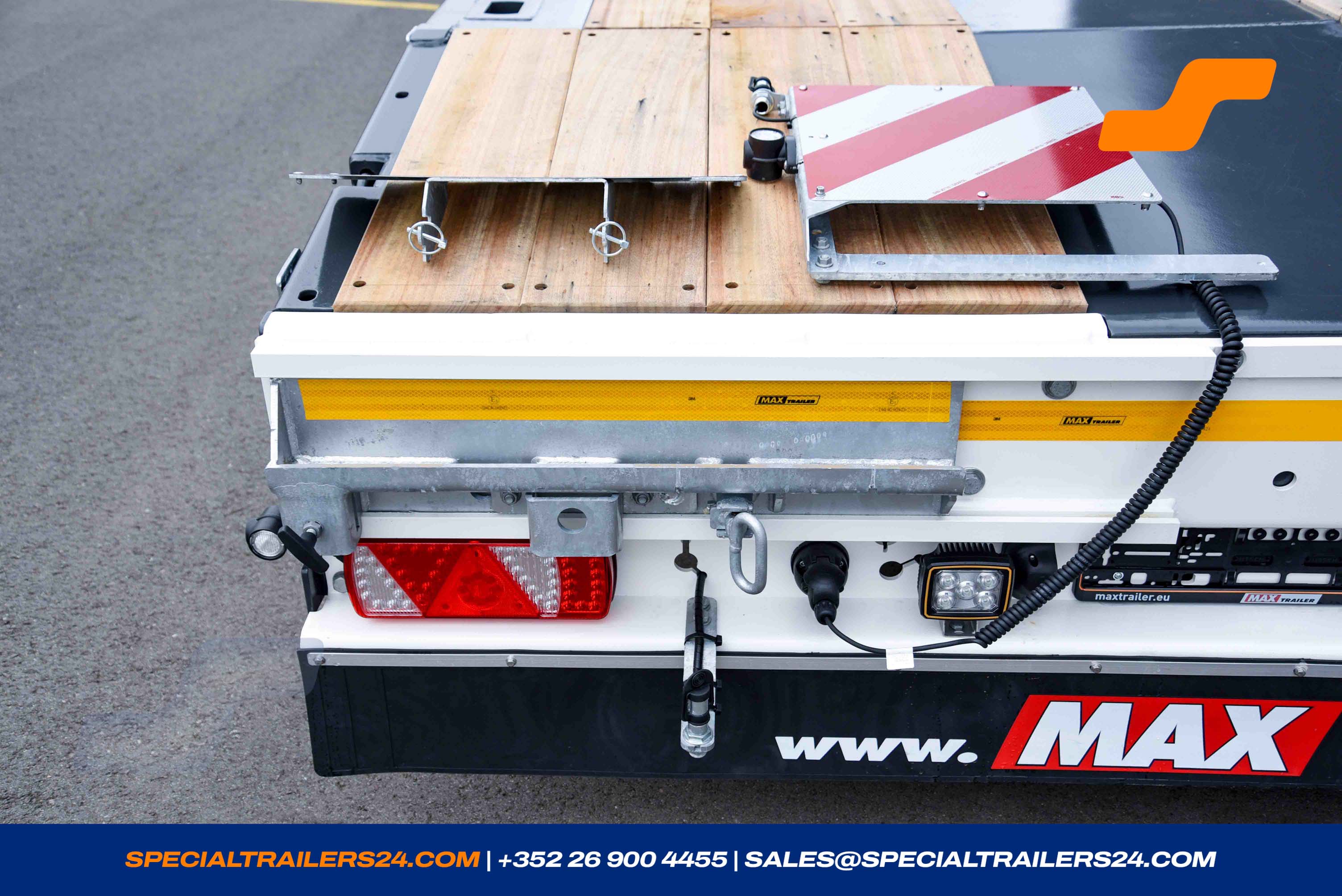

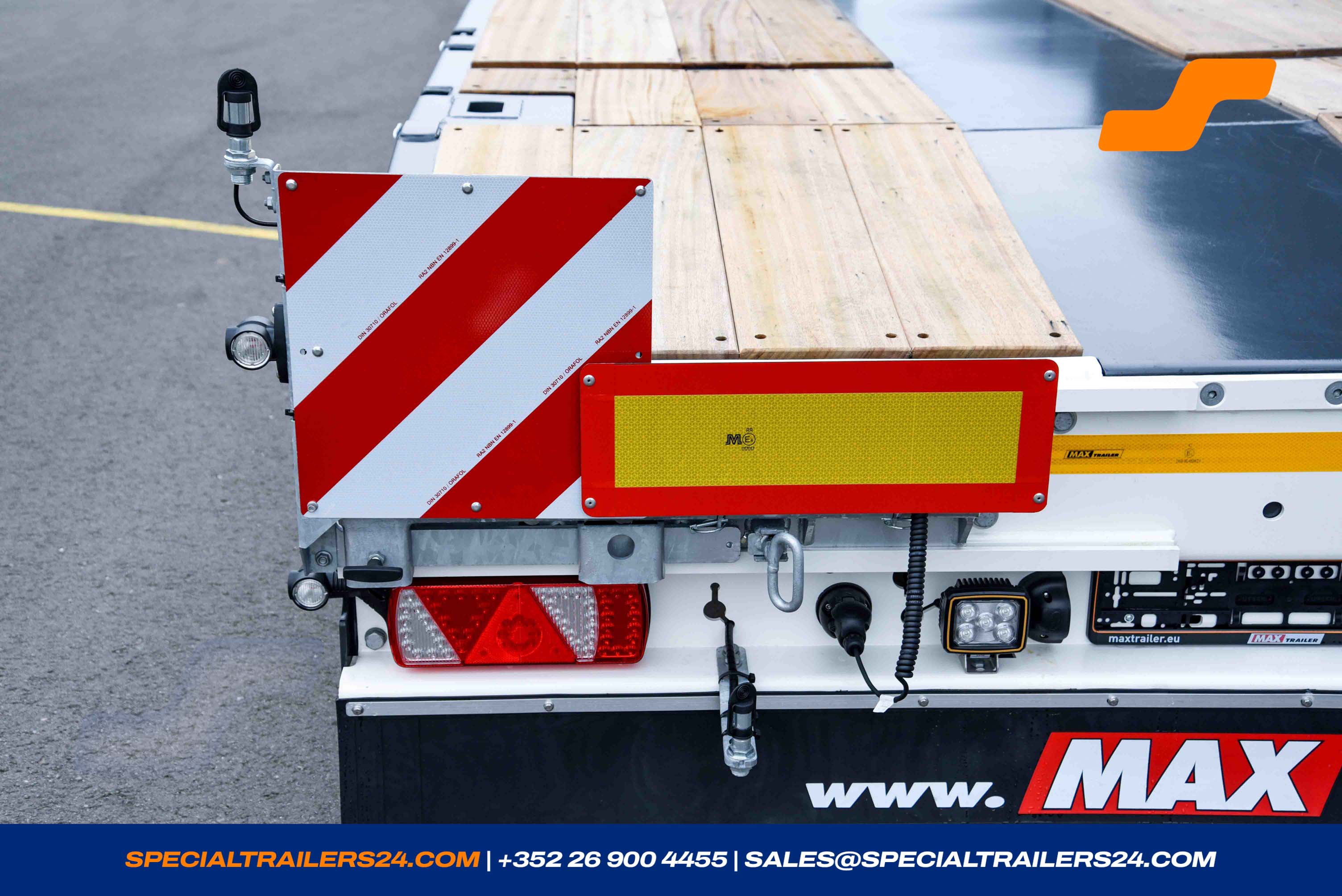

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Load manometer for determining the axle load, including load diagram.
