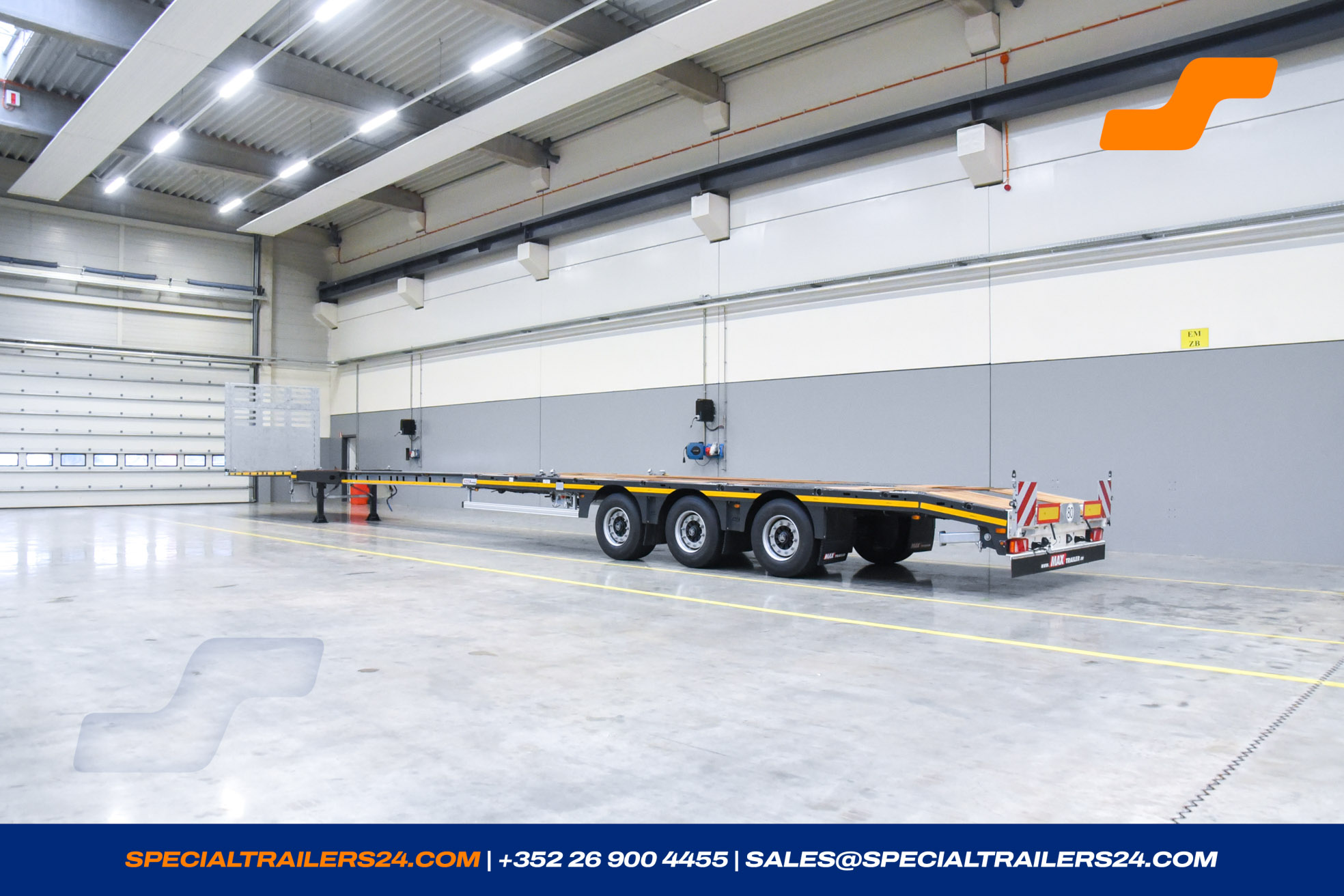

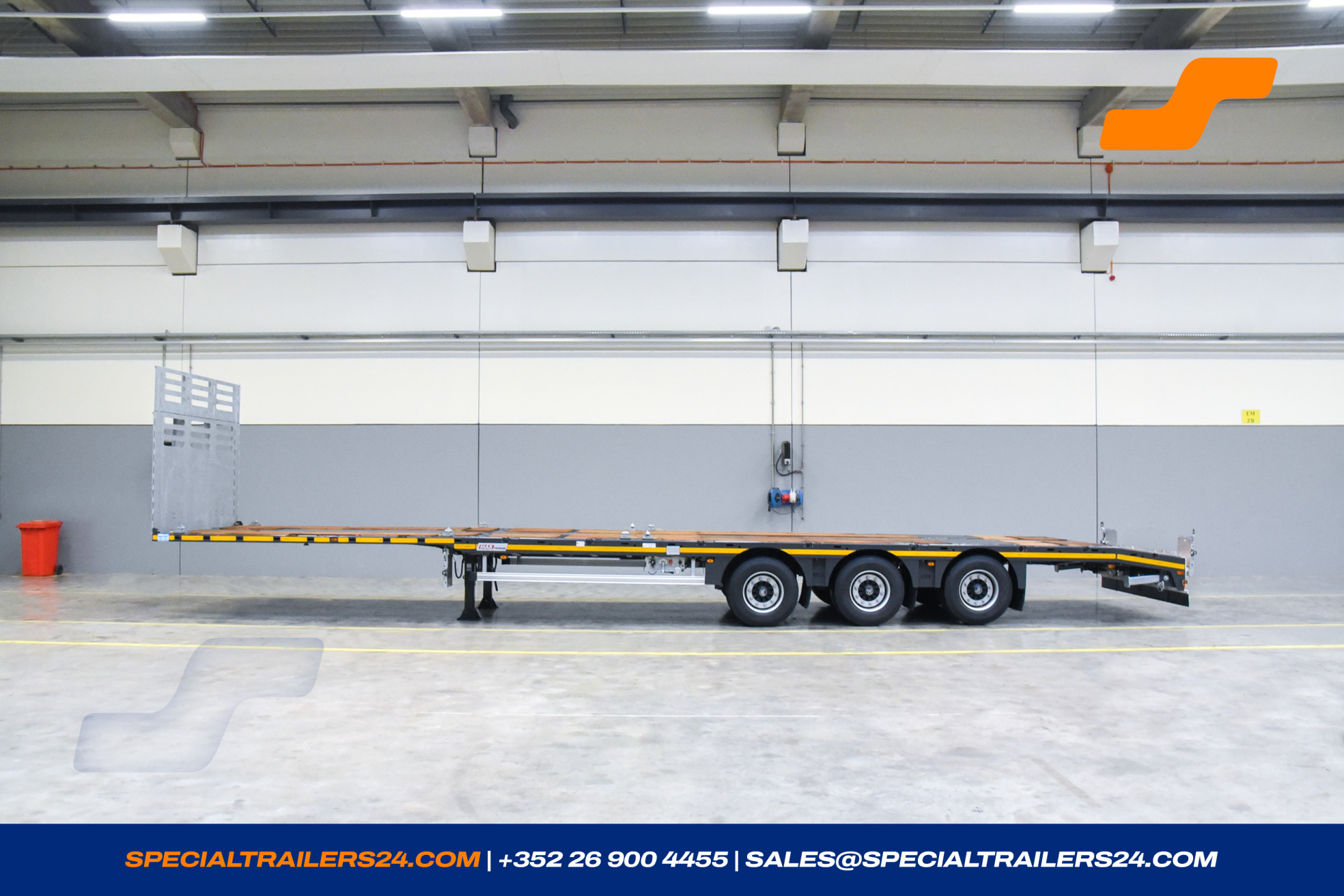

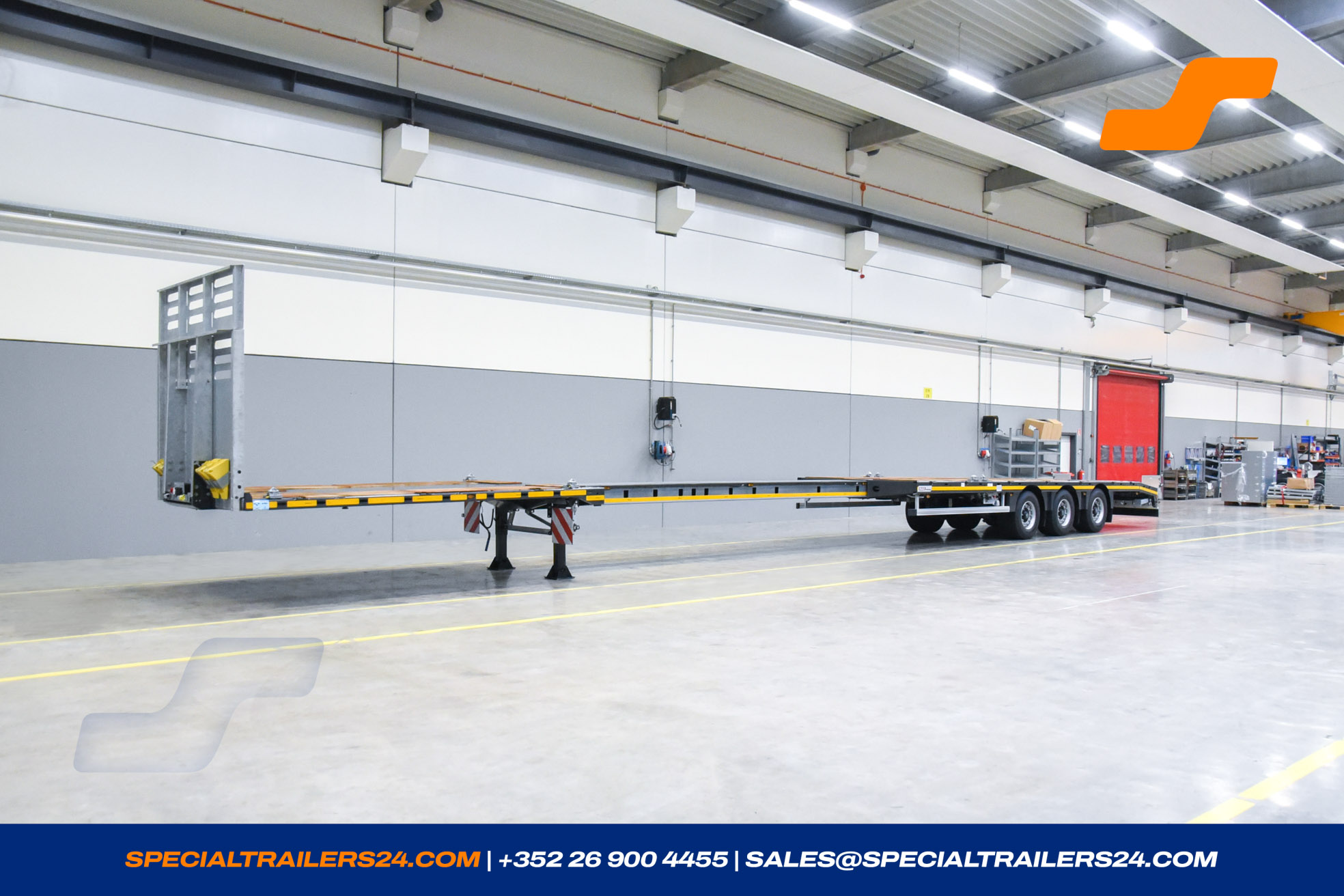

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110958
- Reference MAX200-N-3A-13.60-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 03/2026
- Steering Type Friction
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 8837 kg |
| Payload | 36163 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | 7 400 mm |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

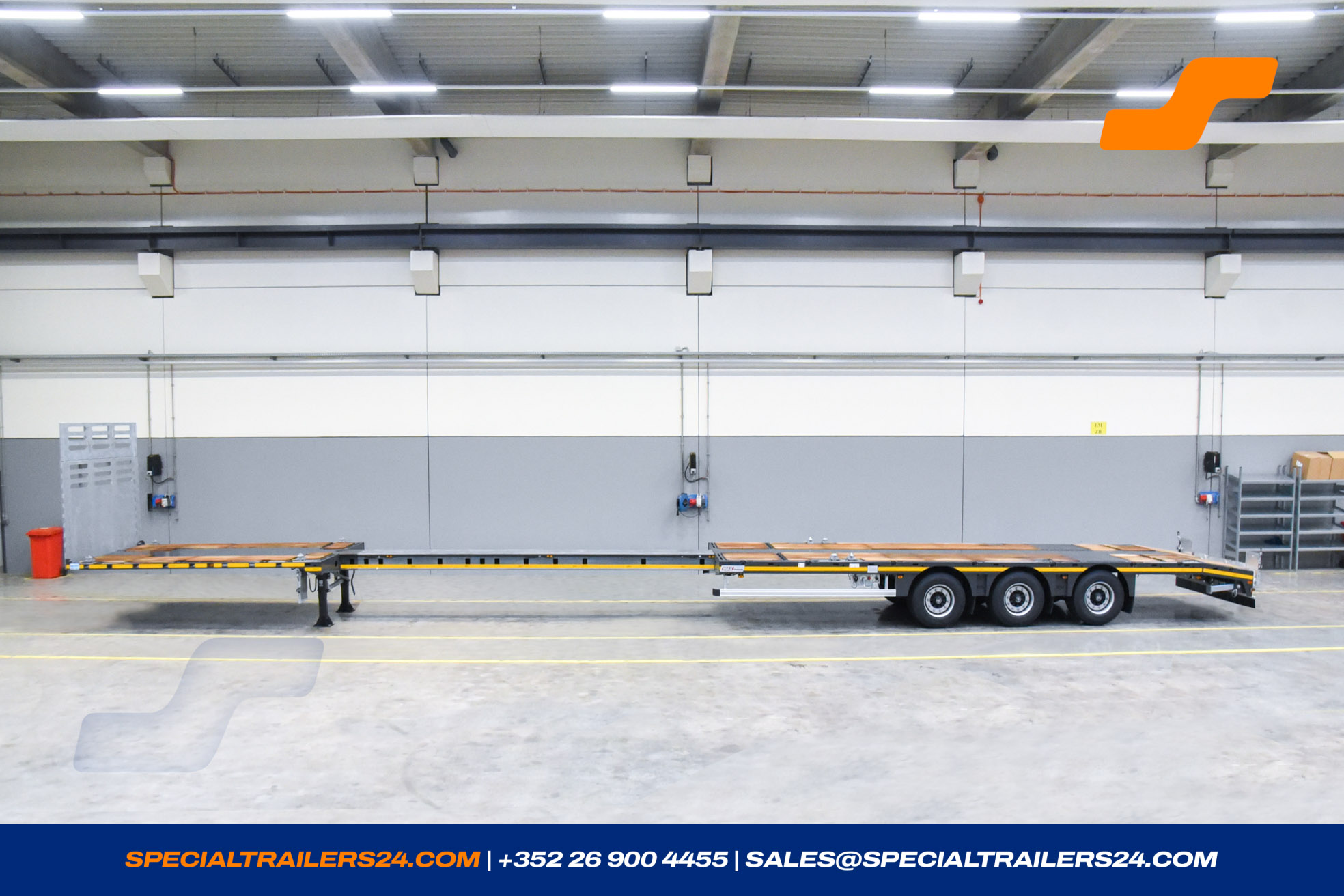

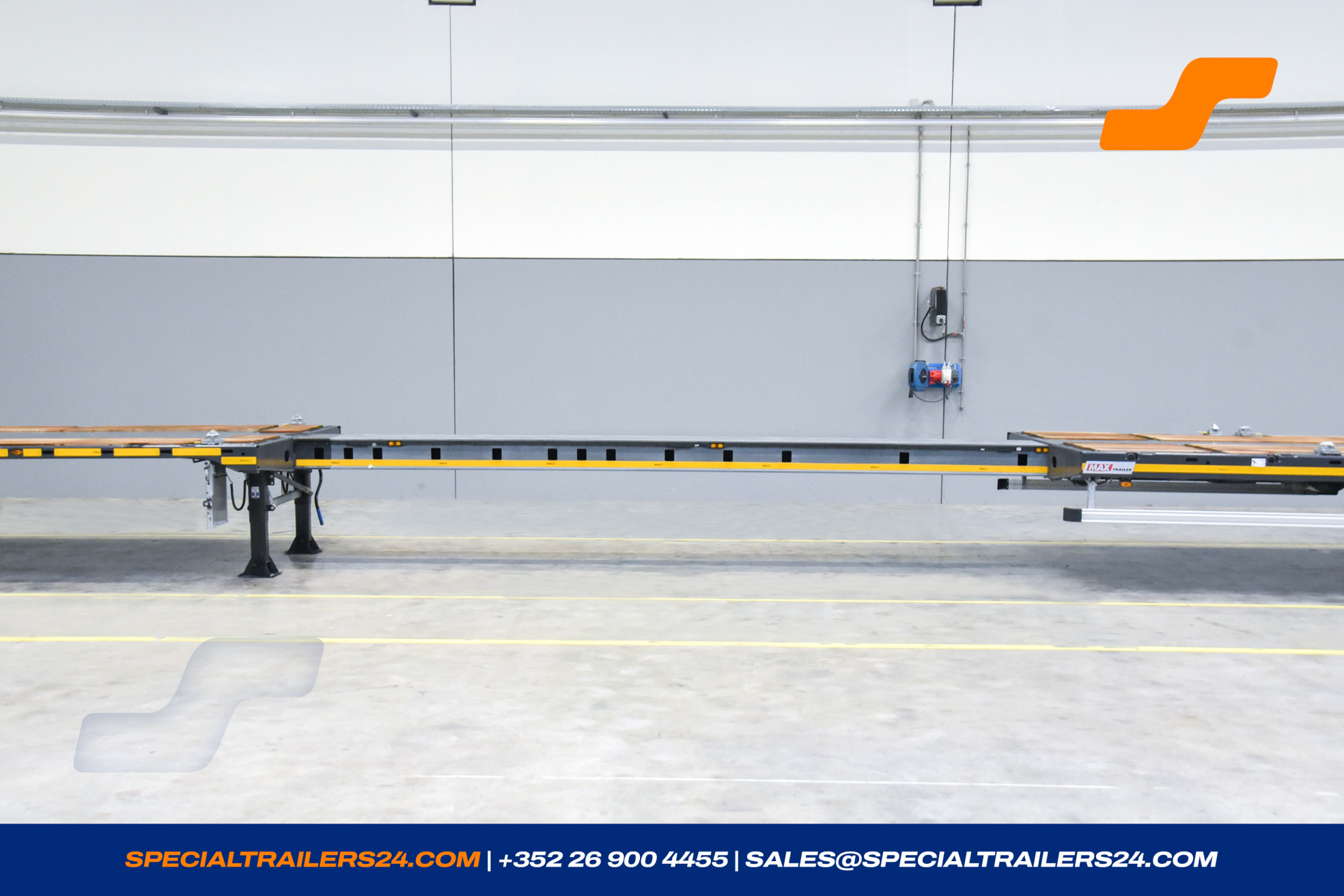

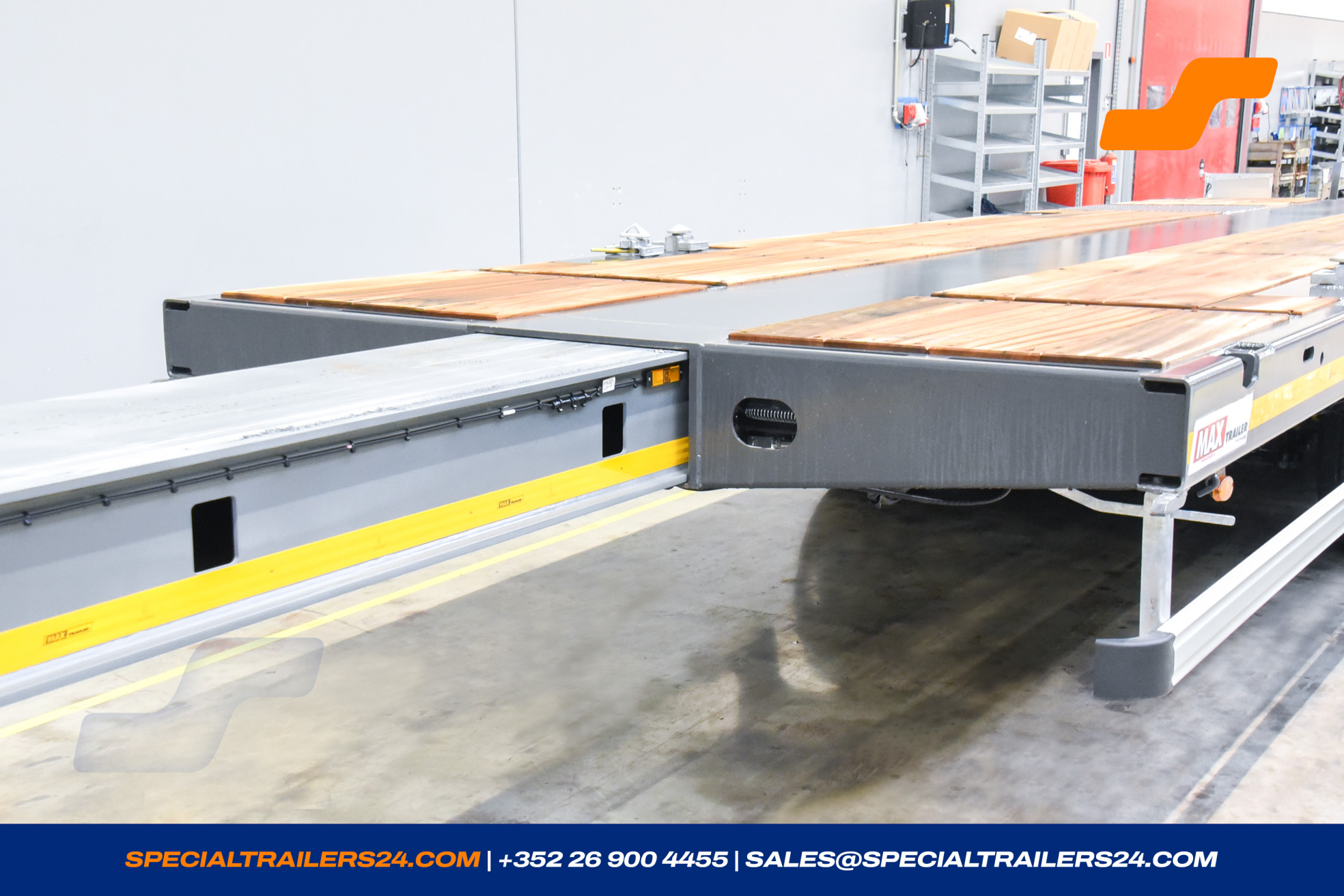

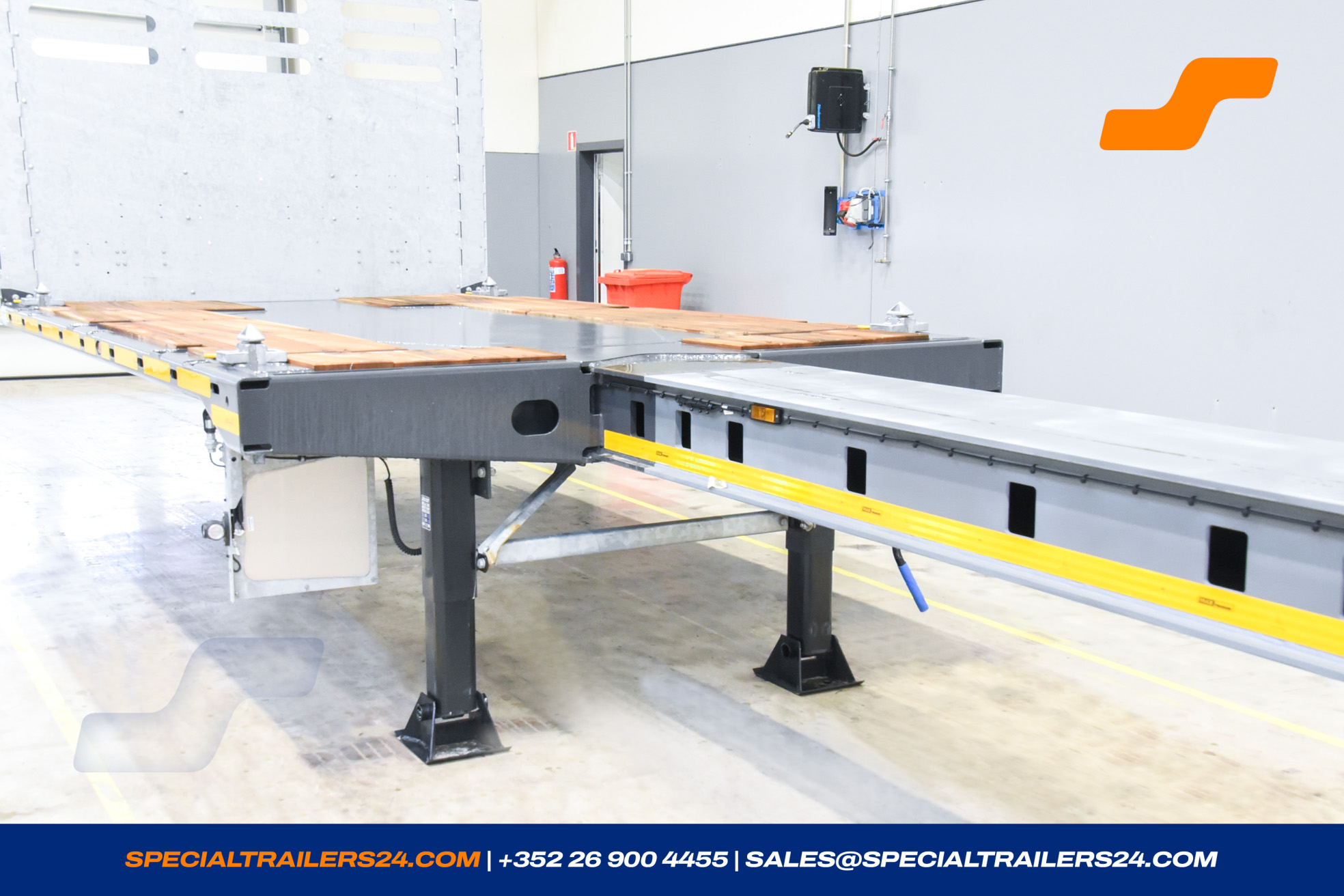

Loading platform extendable.

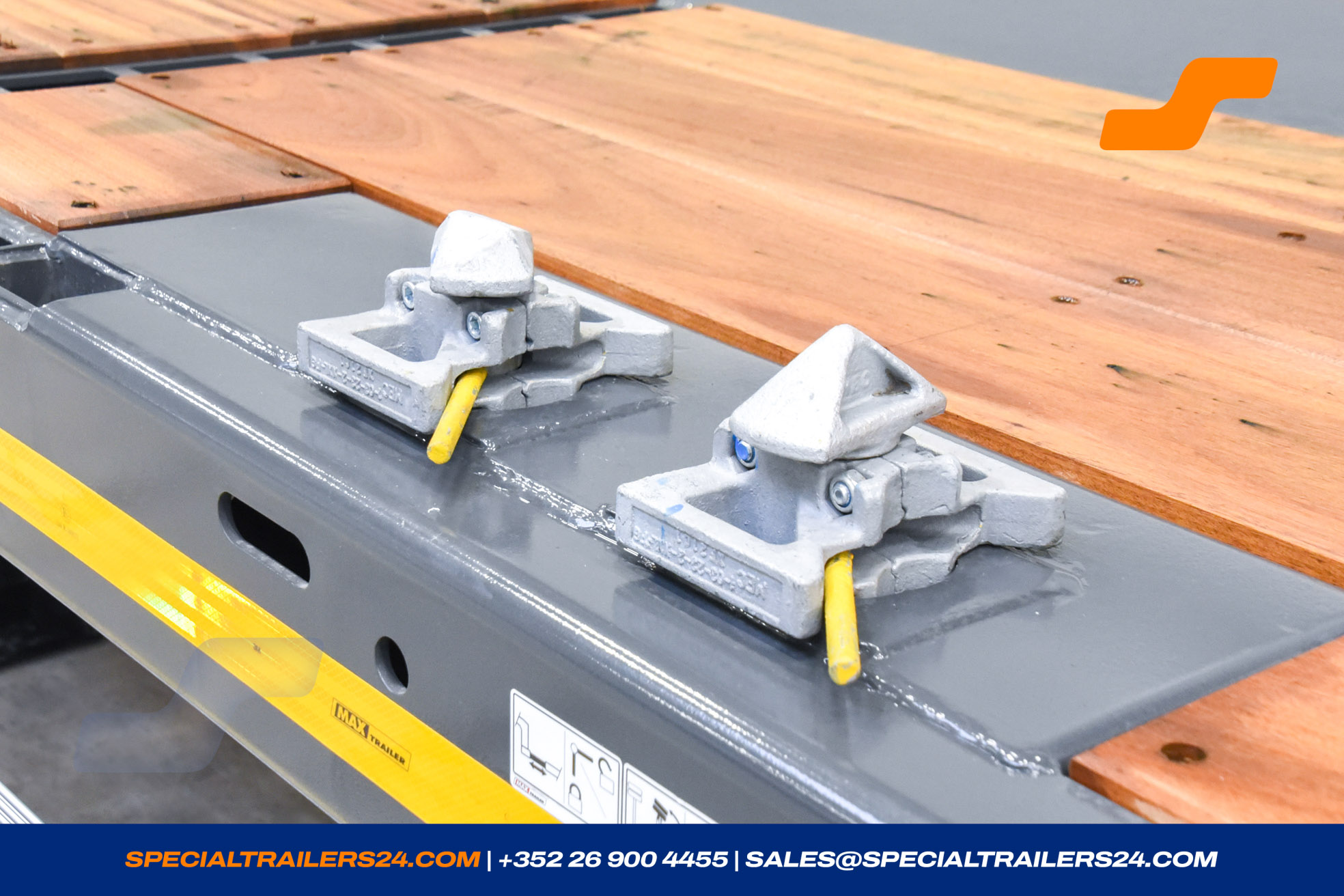

2 pairs of lashing rings inserted in the border frame (LC 5 000 daN).
1 pairs of lashing rings inserted in the border frame,(LC 10 000 daN).
6 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

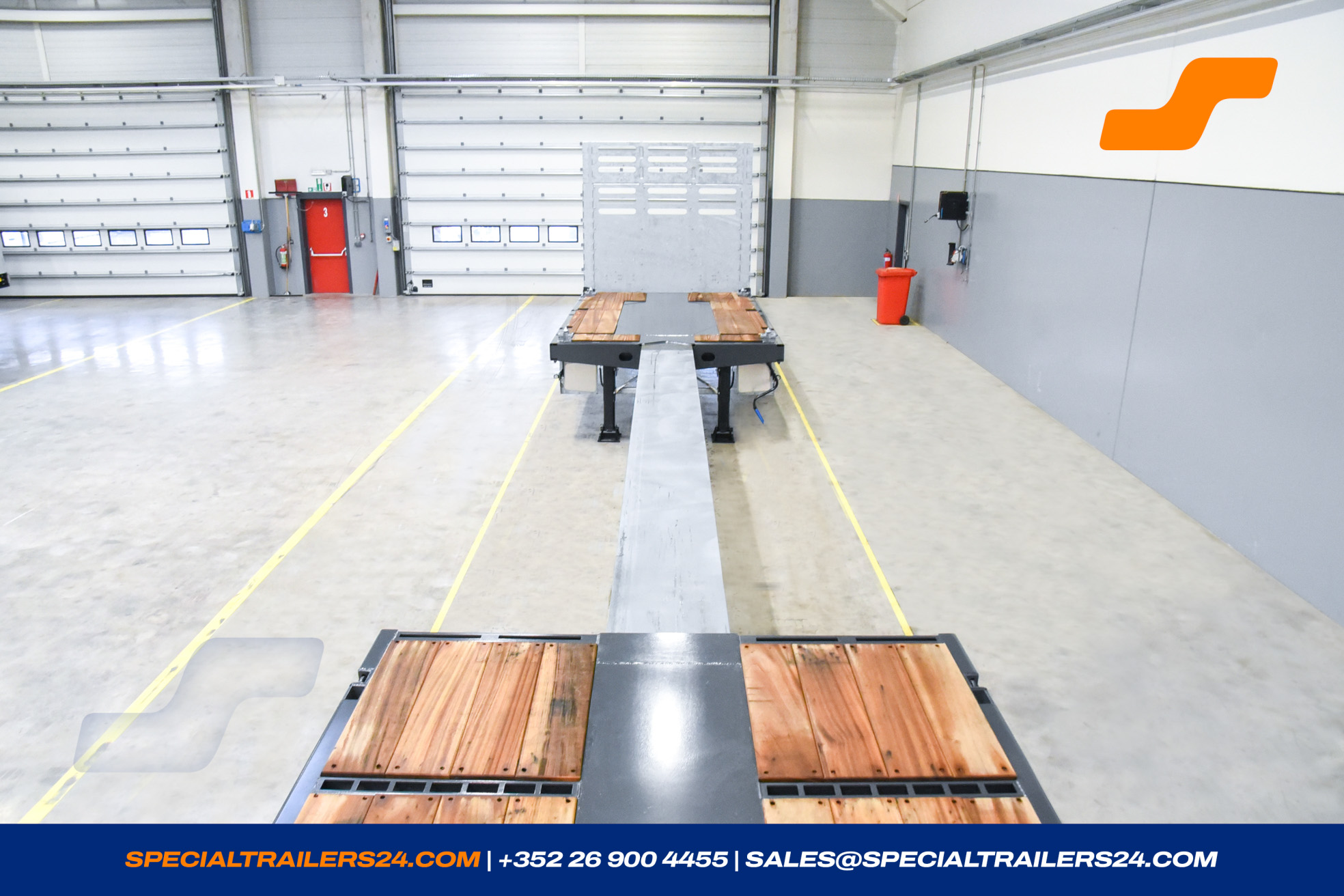

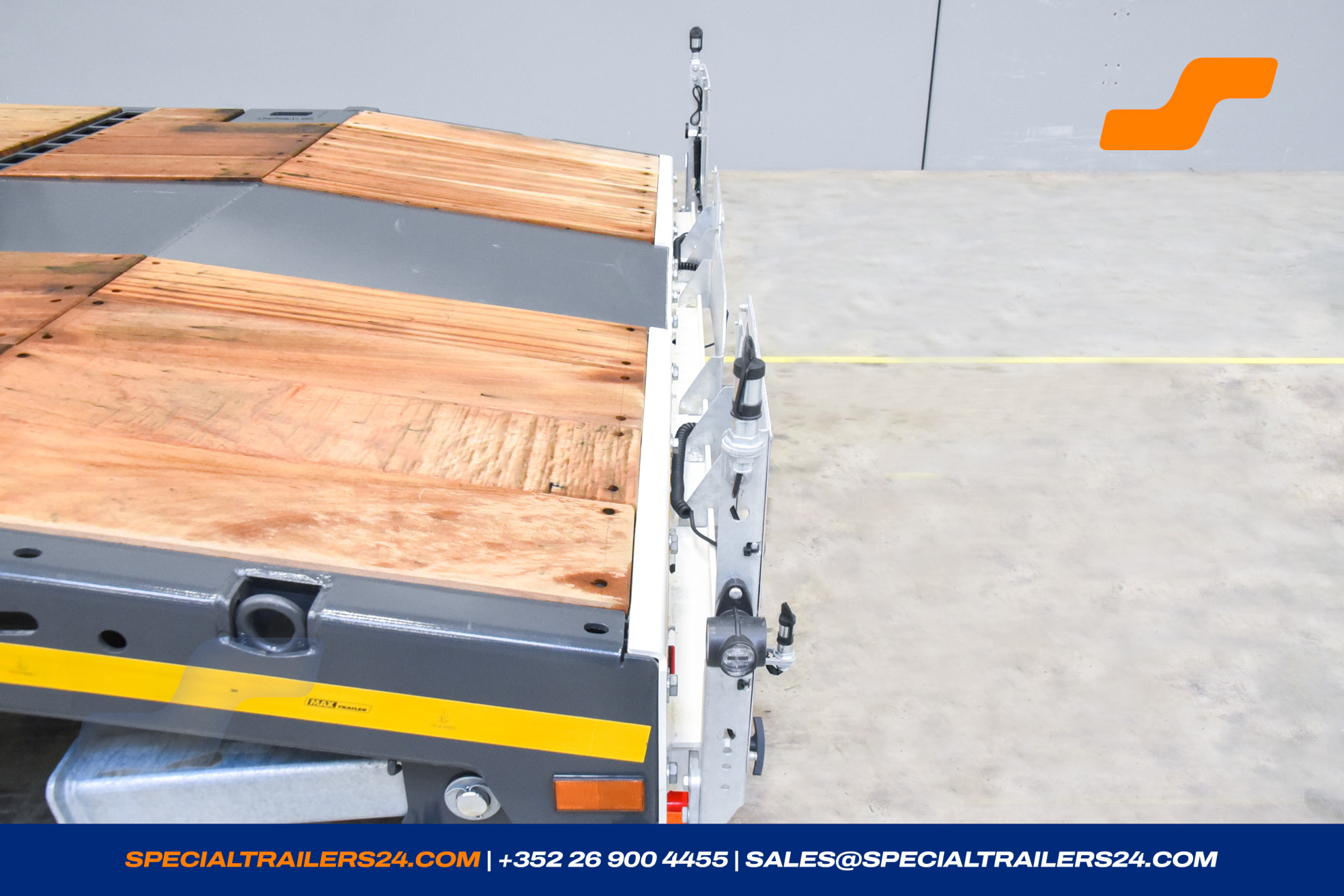

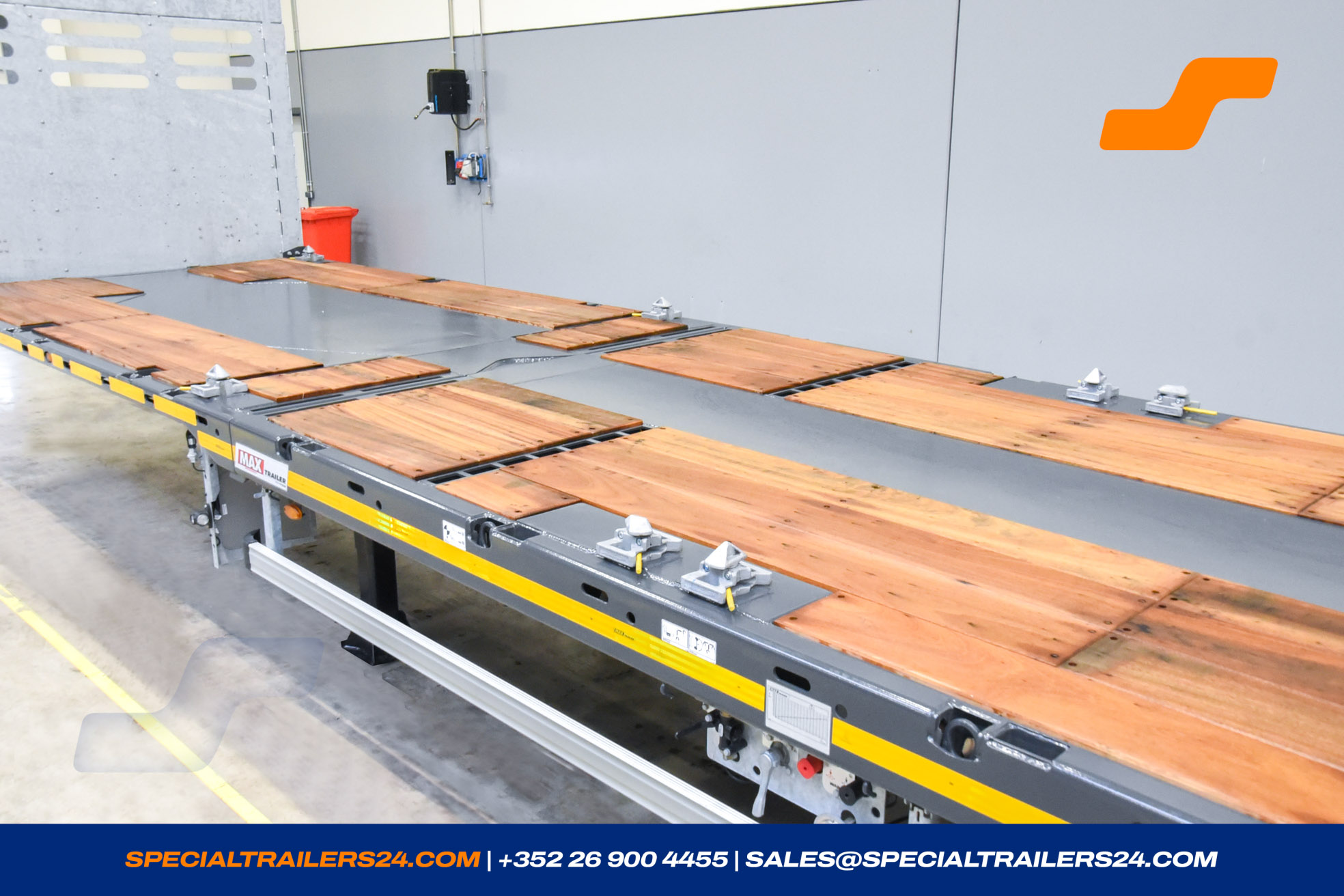

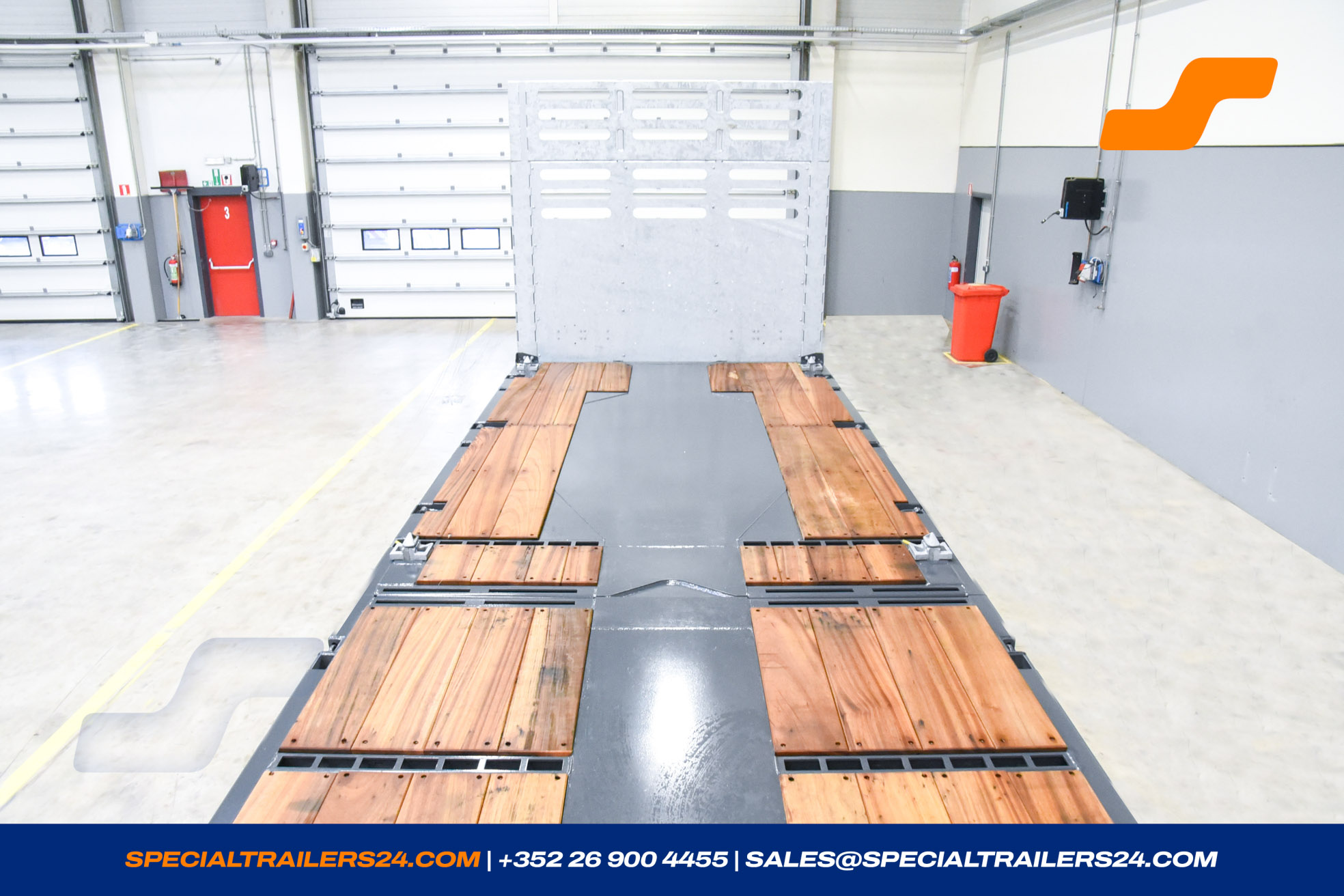

- Loading area with ± 38 mm hardwood floor. (± 320 kg)
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 4 wheel chocks with carrier. (± 5 kg)

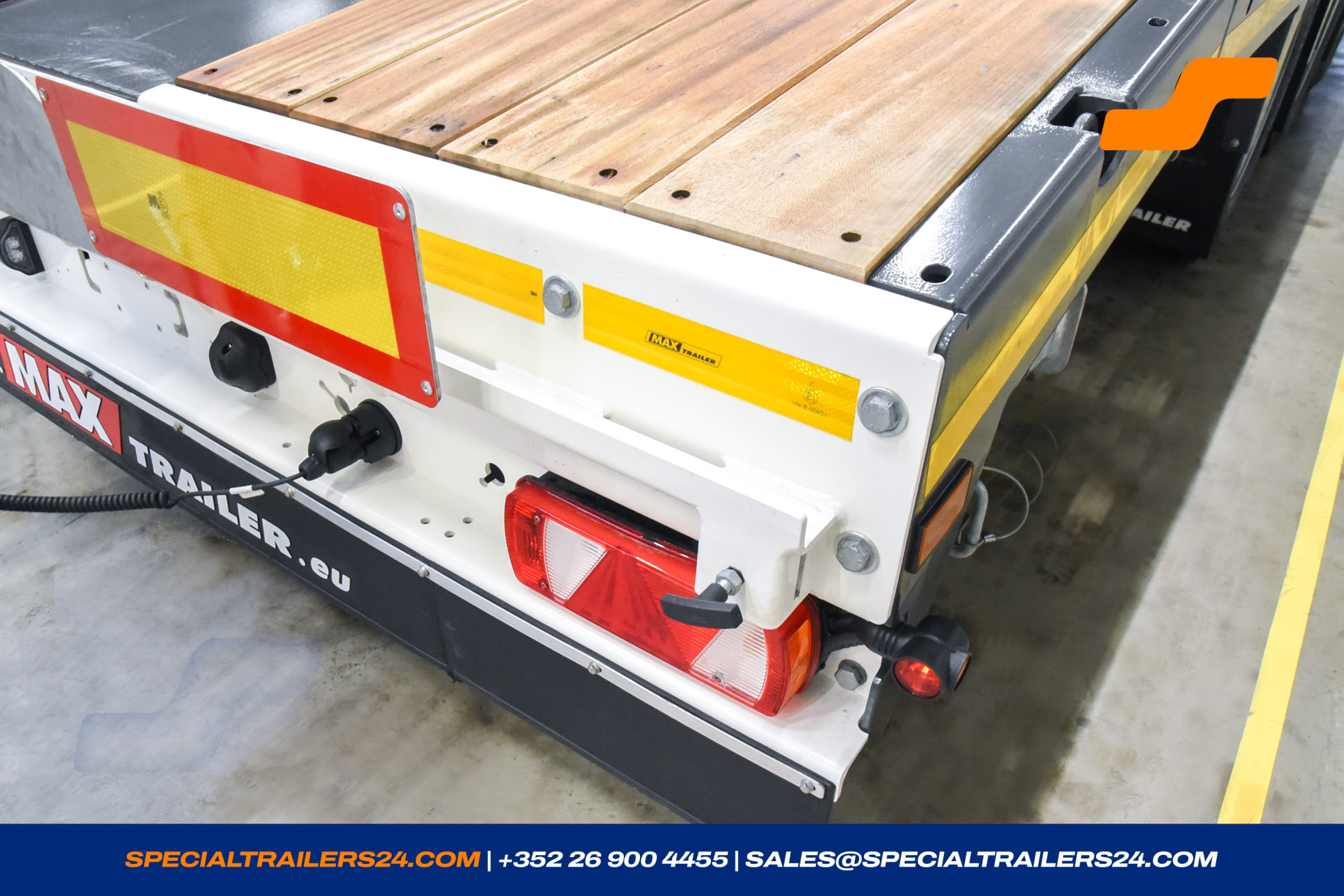

- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- Anti-slip-coating with sand on the central beam.
- Two lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the left and right side. (± 54kg)

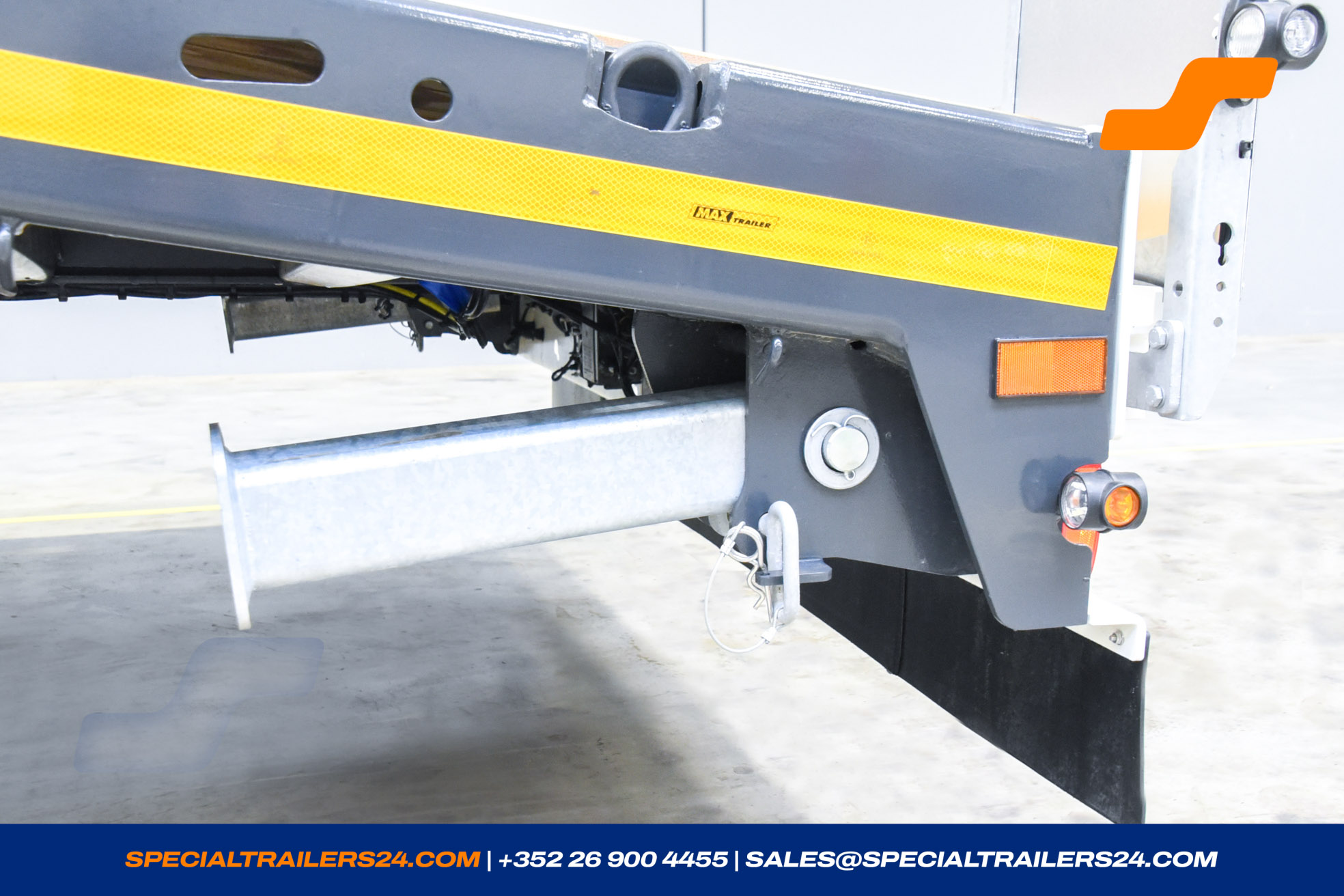

- A pair of plug-in U-profiles with a width of 500 mm for attaching loose aluminium ramps to the rear of the trailer.
- 1 spare wheel 435/50 R19.5 (± 105 kg)
Accessories
1 x Accessories

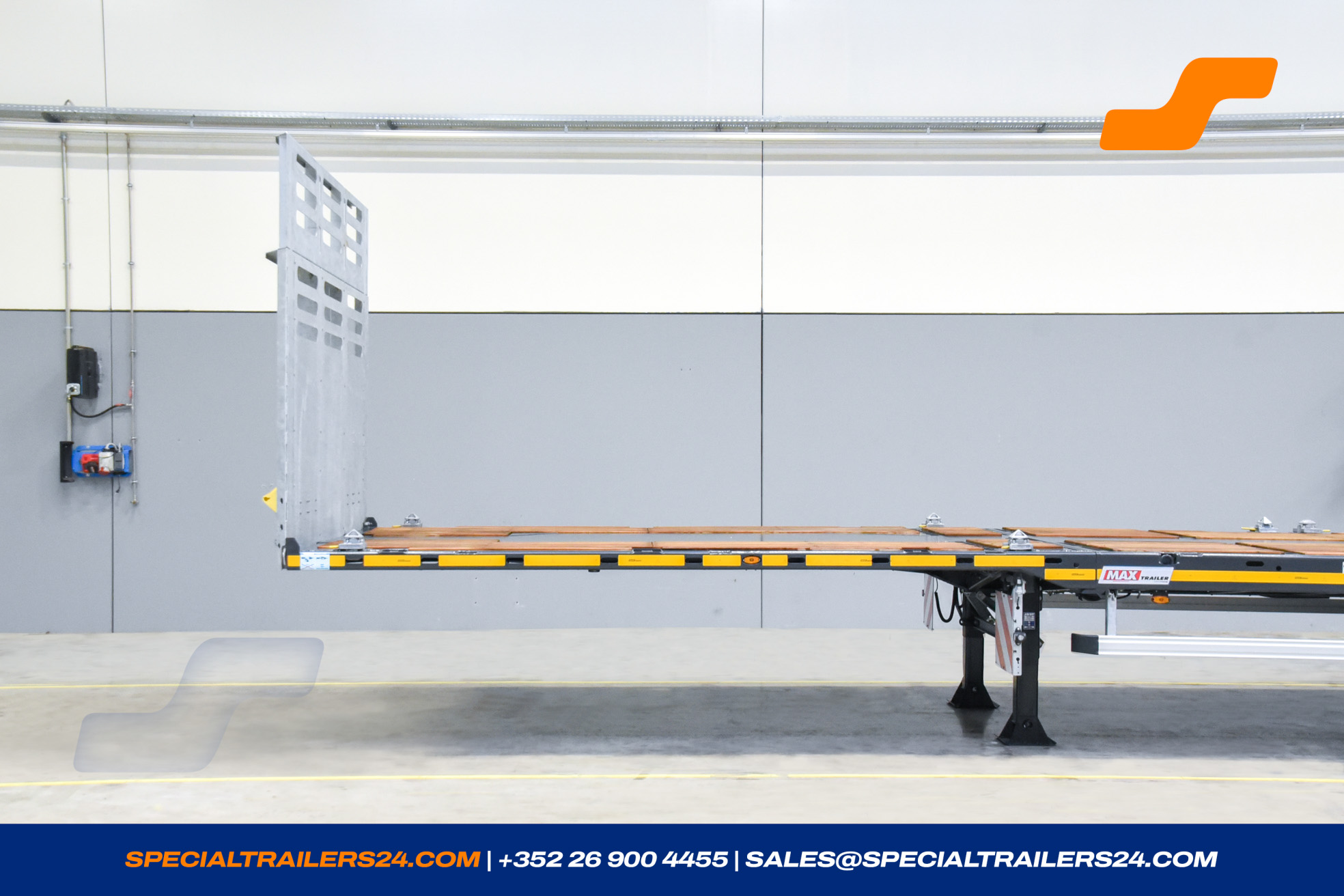

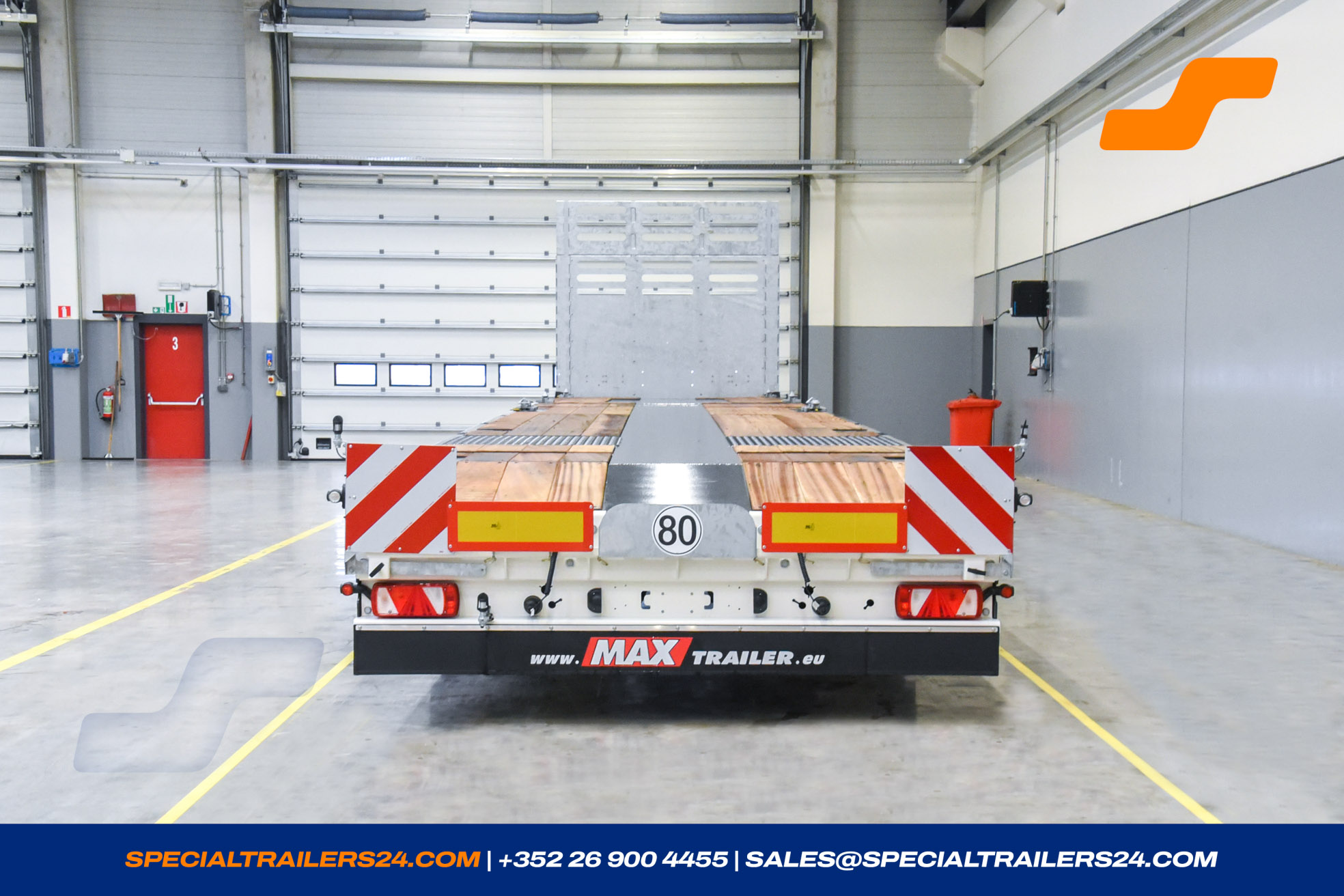

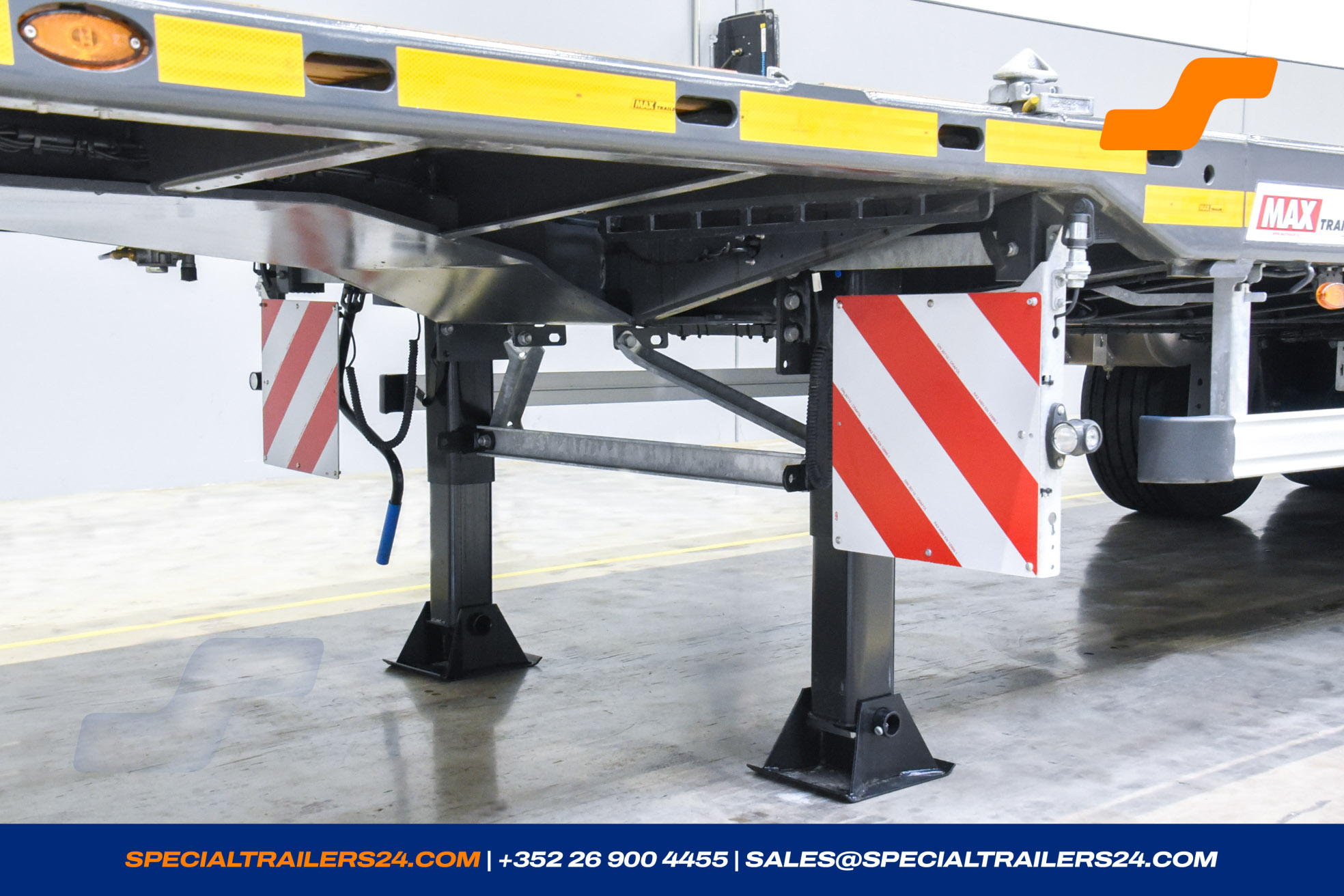

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.
-
TÜV expertise and §70 exemption for an application for an exceptional transport permit for a tractor.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer. - Load manometer for determining the axle load, including load diagram.
