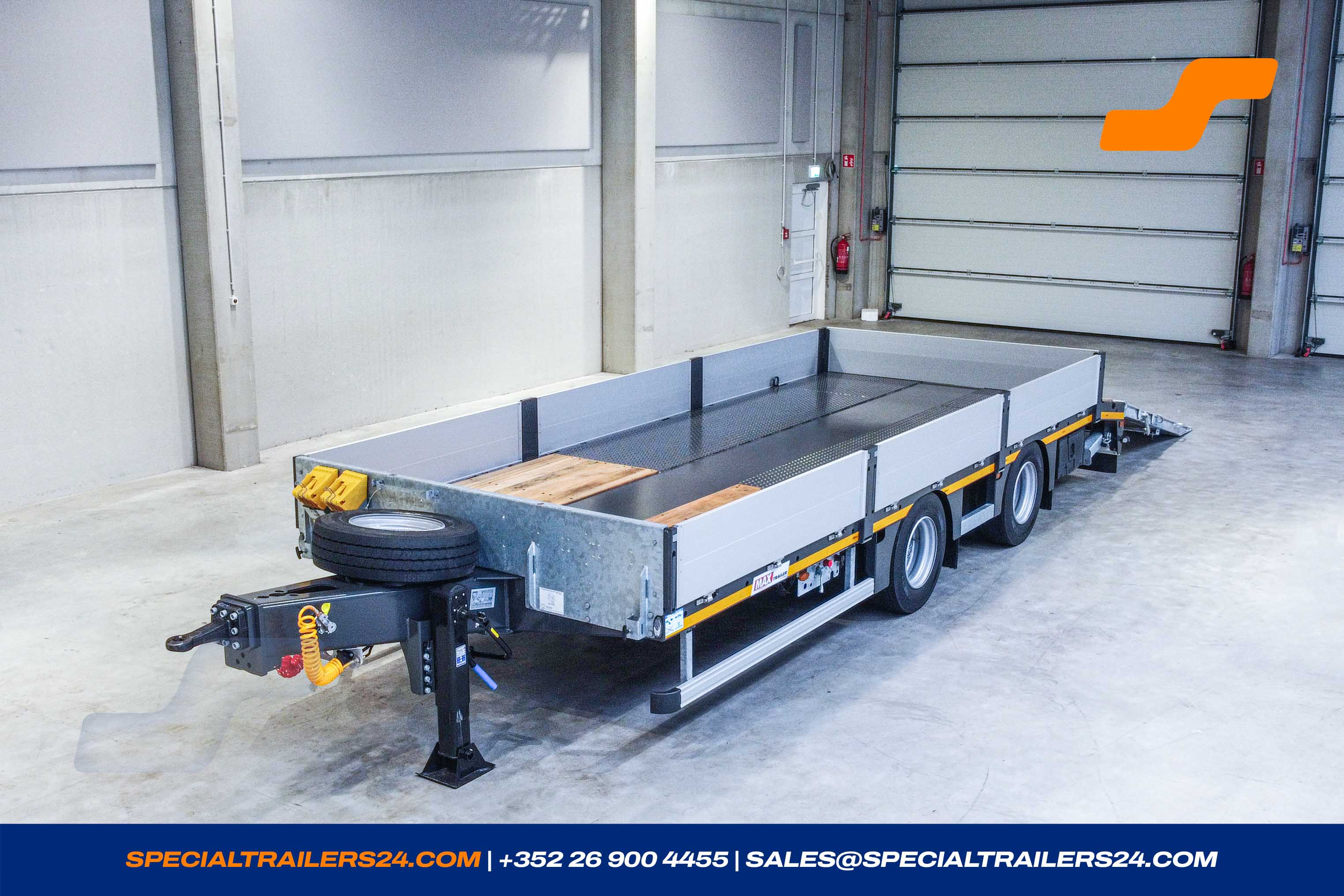

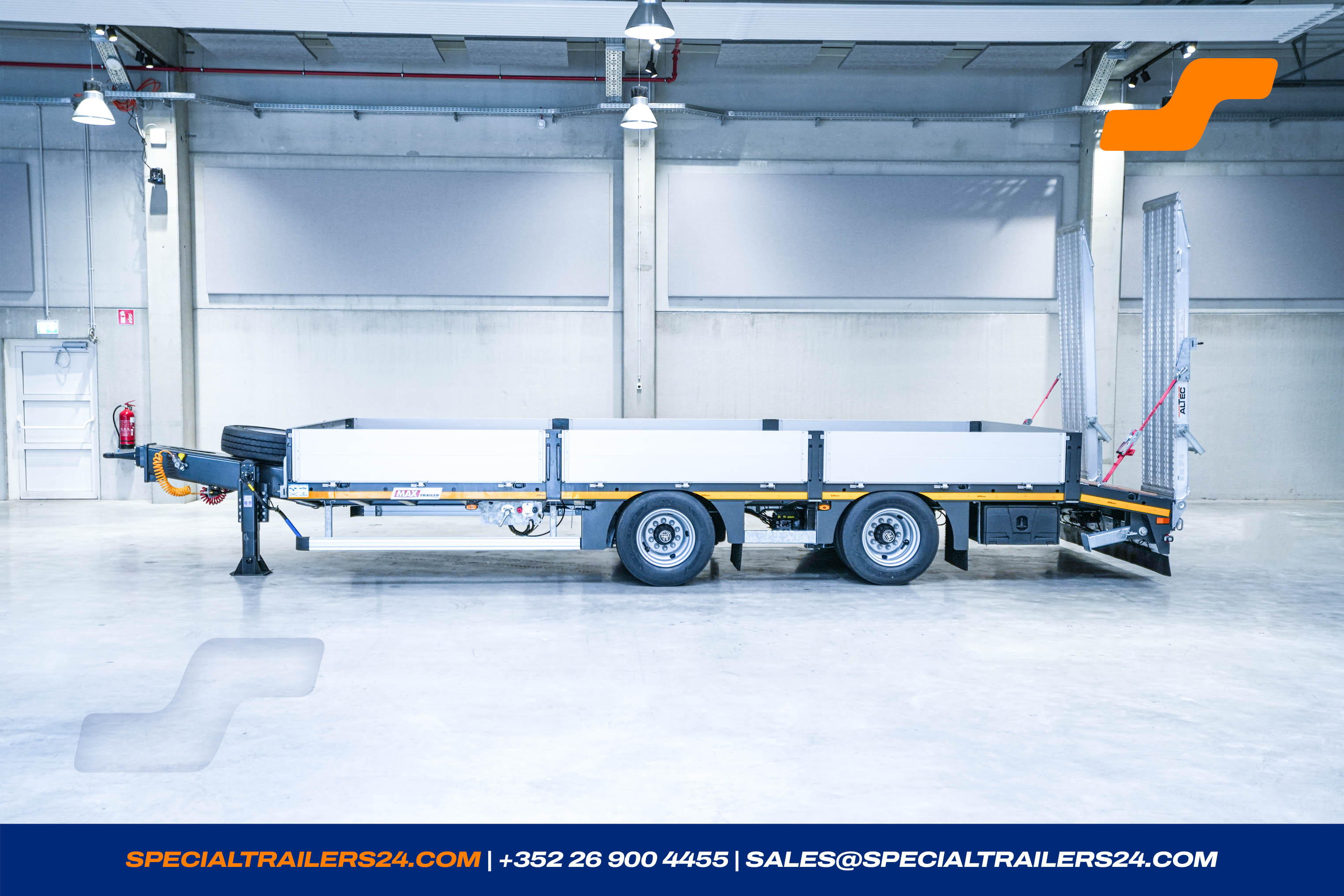

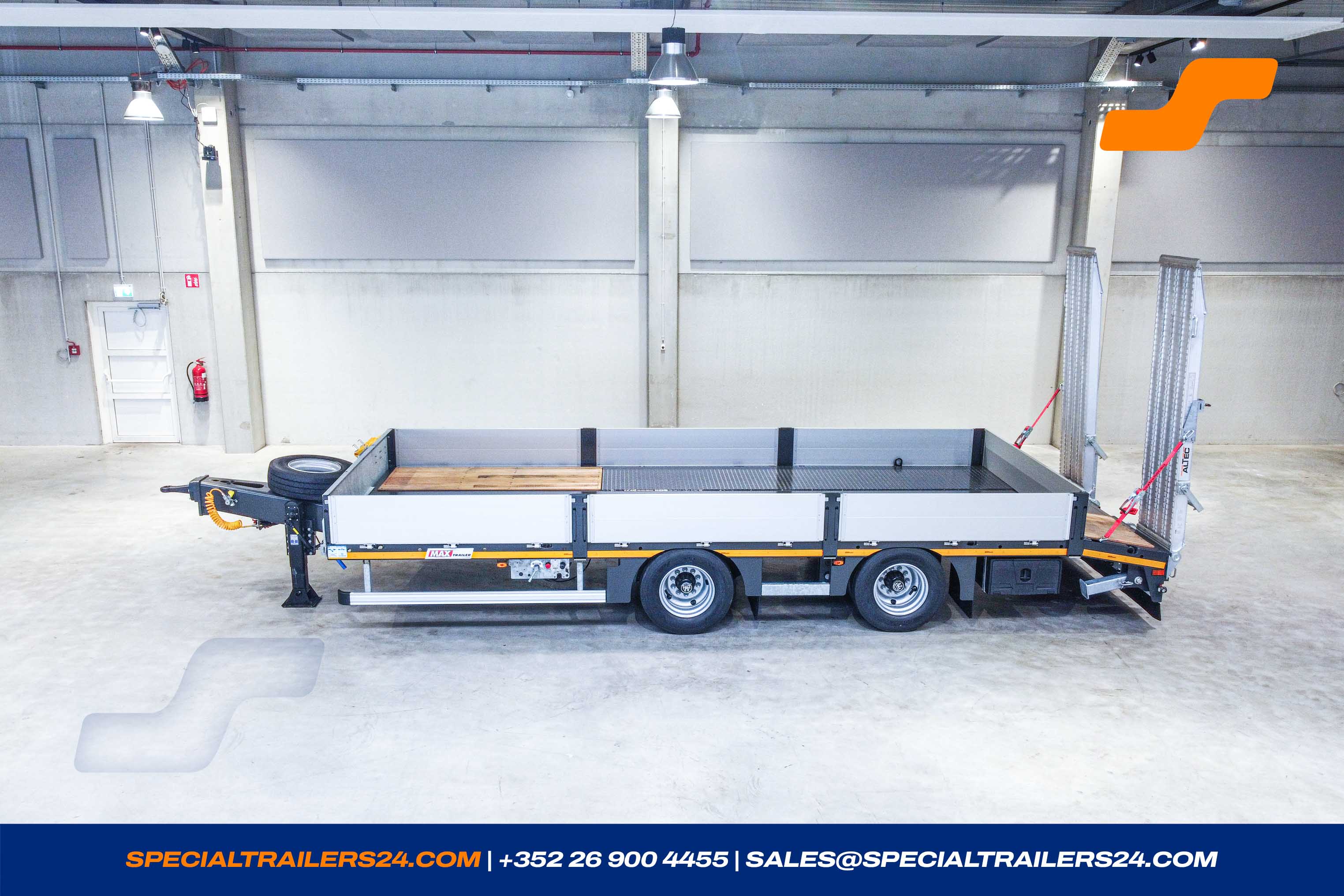

MAX Trailer MAX300
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110578
- Reference MAX300-S-2-7.00-U
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 02/2026
- Steering Type Rigid
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Axle load | 21000 kg |
| Gross weight | 21000 kg |
| Tare weight +- 3% | 5164 kg |
| Payload | 15836 kg |
Dimensions
| Loading platform length | 7 000 mm |
| Coupling height | 700-775-850 mm |
| Suspension stroke | -45/+145 mm |
Loading deck
Loading platform
1 x Loading platform
Loading platform with chamfered beaver tail by about 750 mm x 10°.

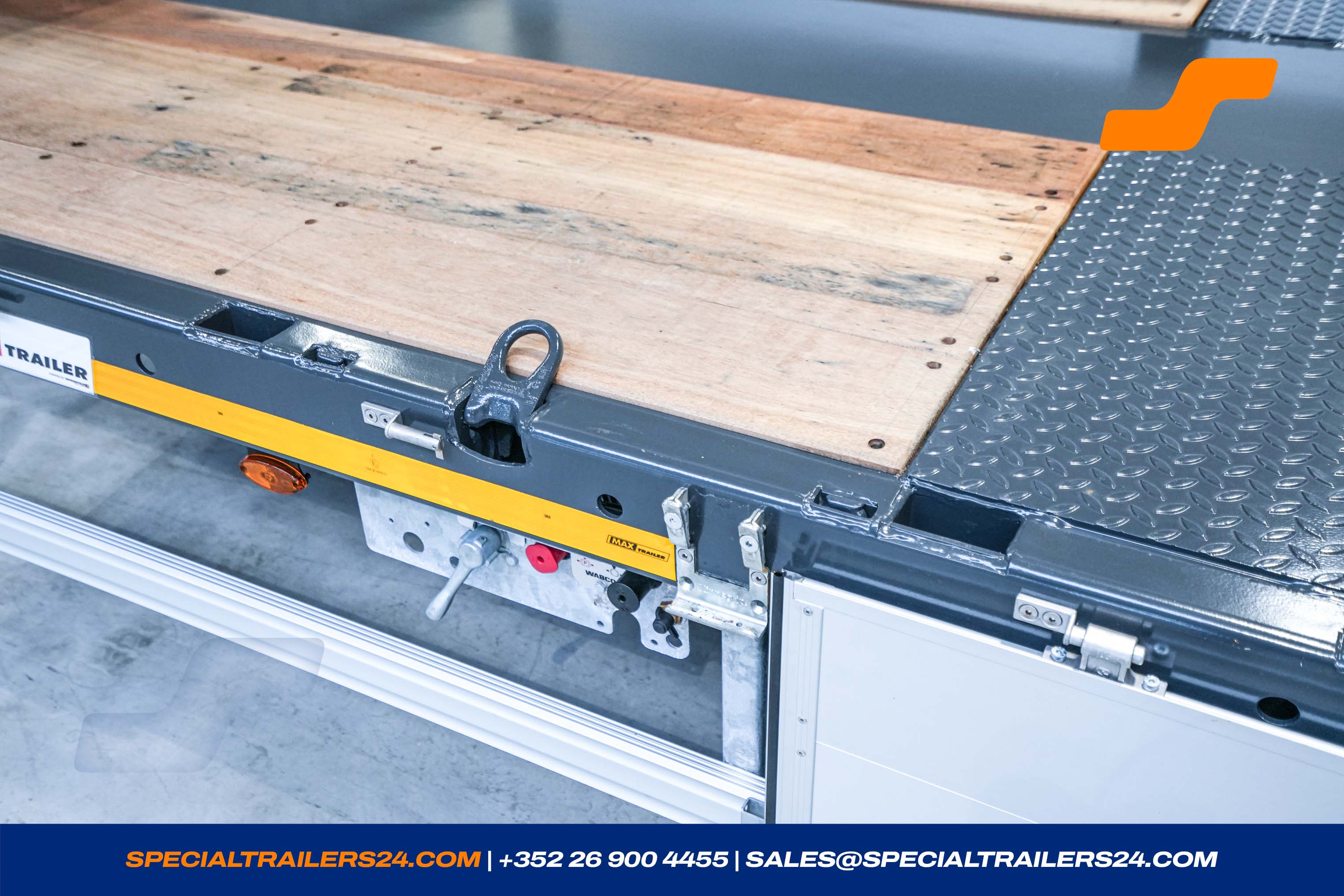

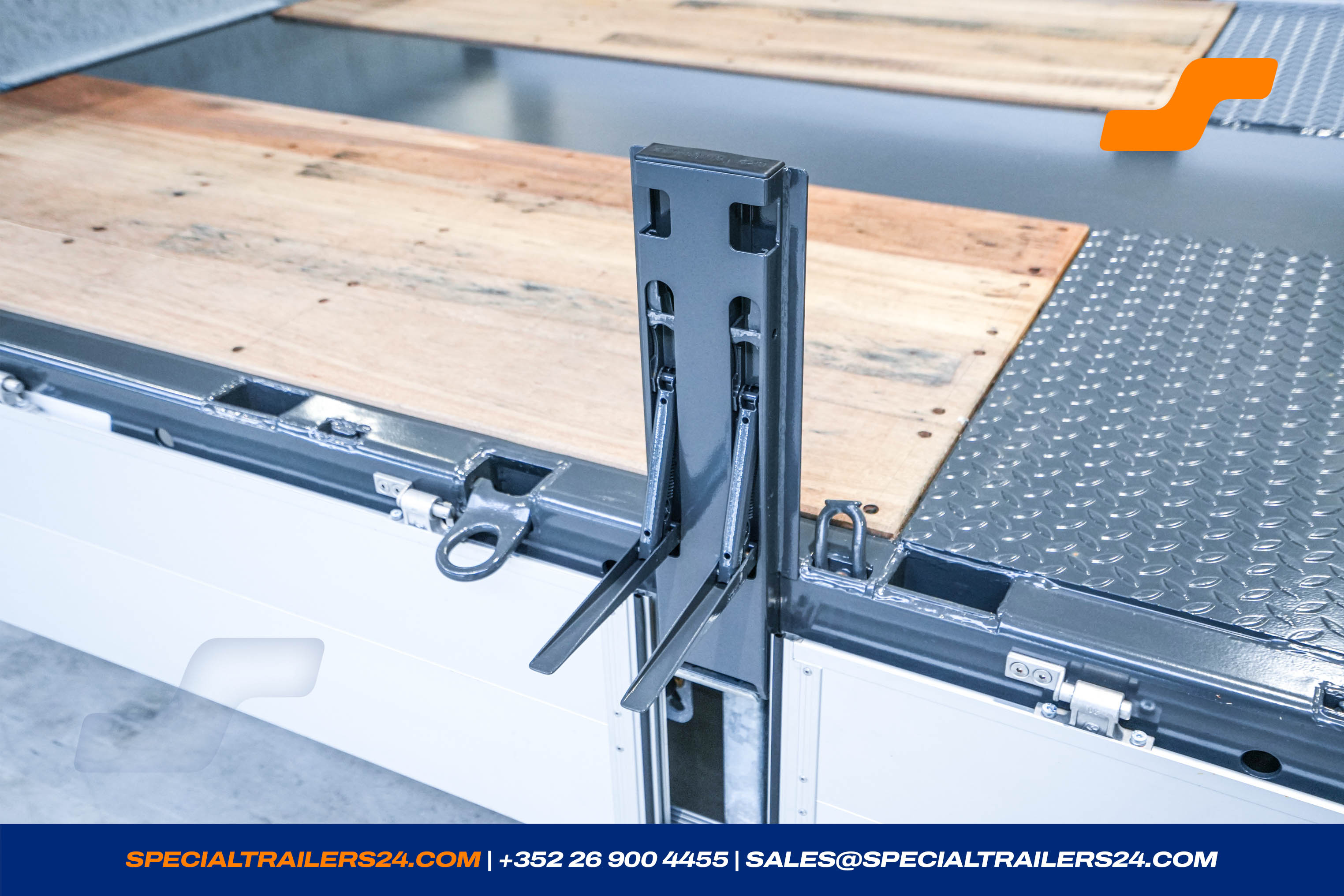

4 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
7 pairs of lashing rings in the loading platform, (LC 2 500 daN).
Cutouts in the border frame of the loading area for hooking in tension belts (LC 2 000 daN).

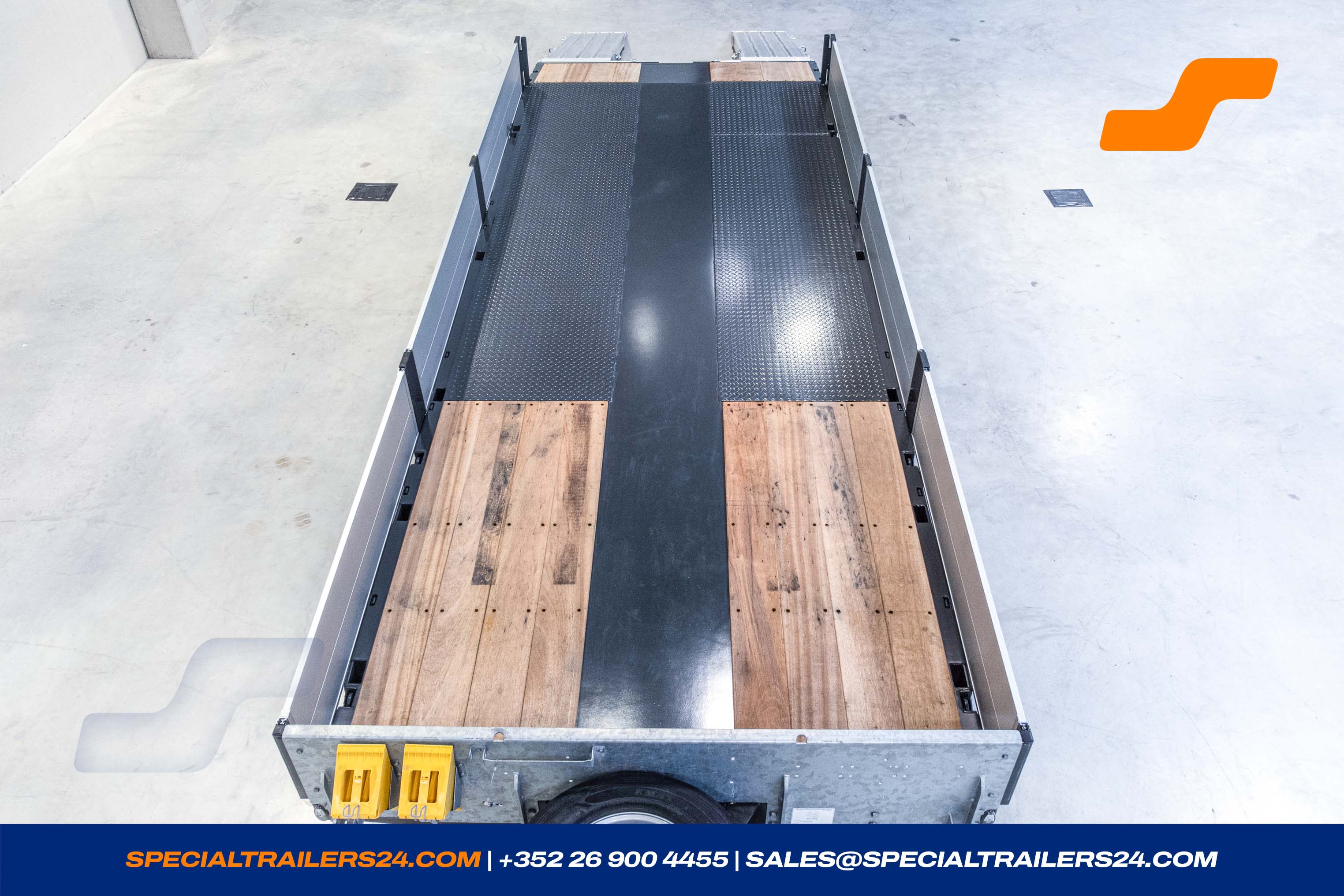

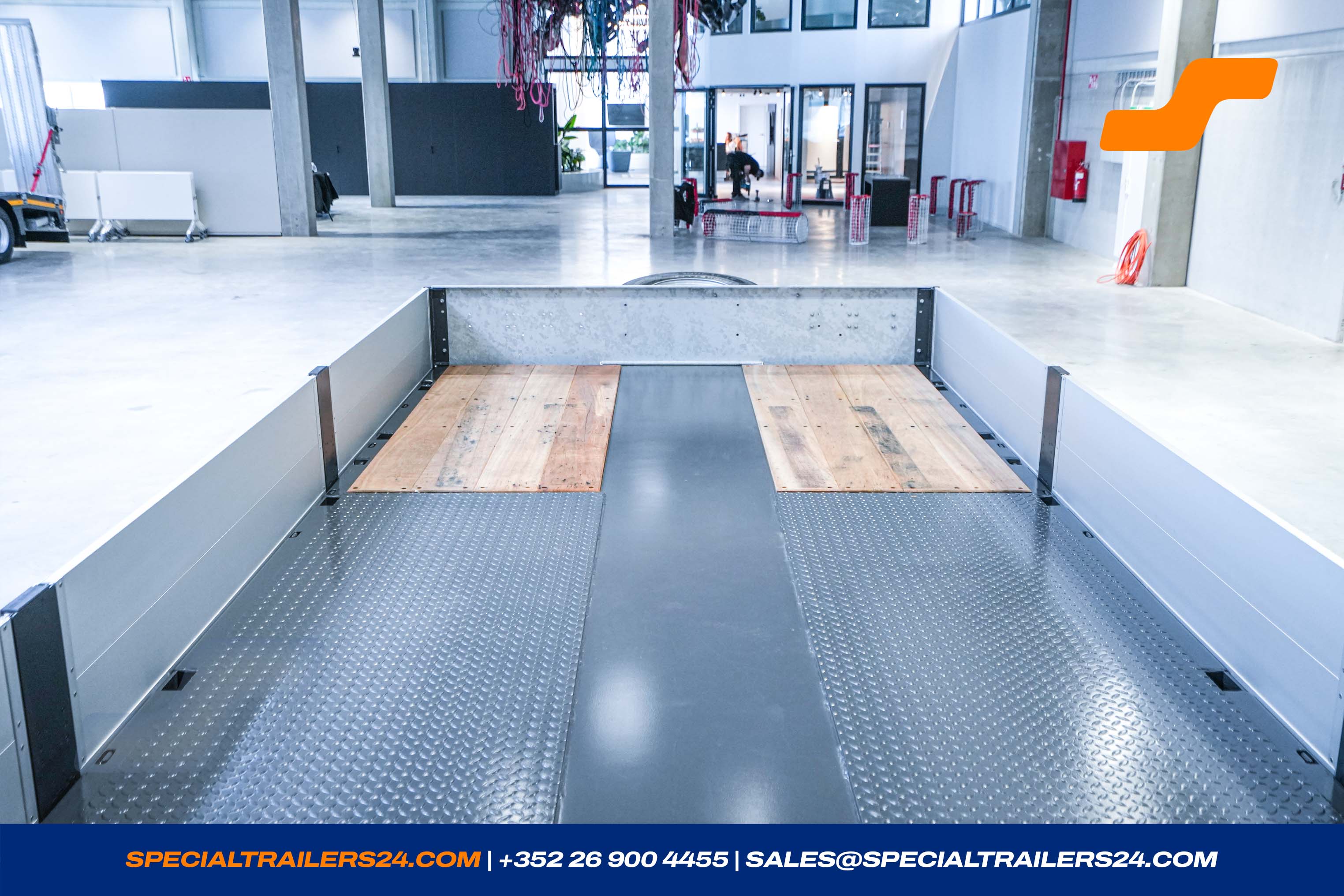

Hardwood cover thickness 38 mm above of the axles chequer plate.
- White reflective tape according to the EU regulation over the entire length, red on the rear.

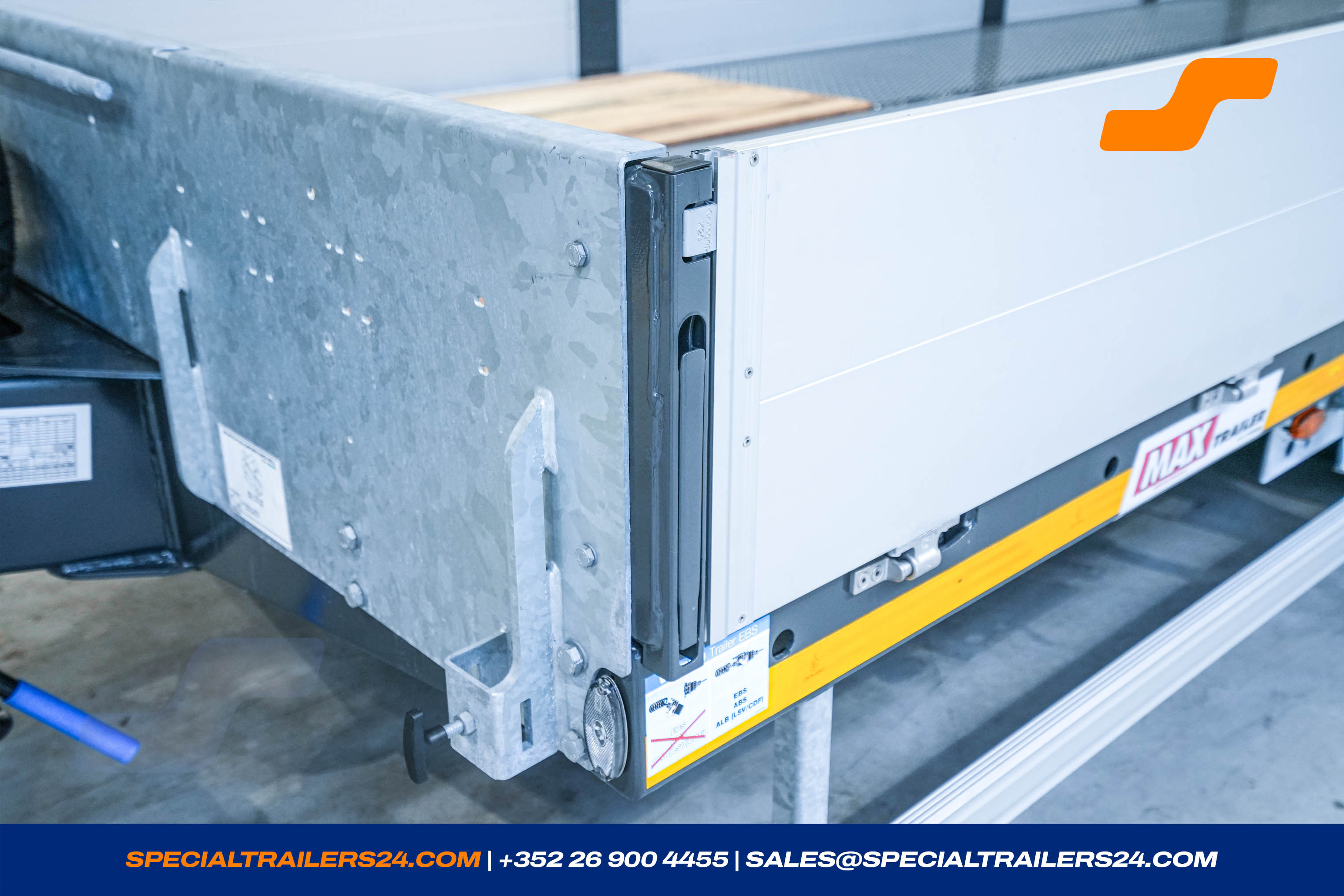

- One galvanised steel headboard, height ± 1 200 mm.
- 5 pairs of galvanised stakes ±100 x 50 mm, height 1000 mm (± 110 kg).
- Storage for stakes 1 000 mm. (± 45 kg)

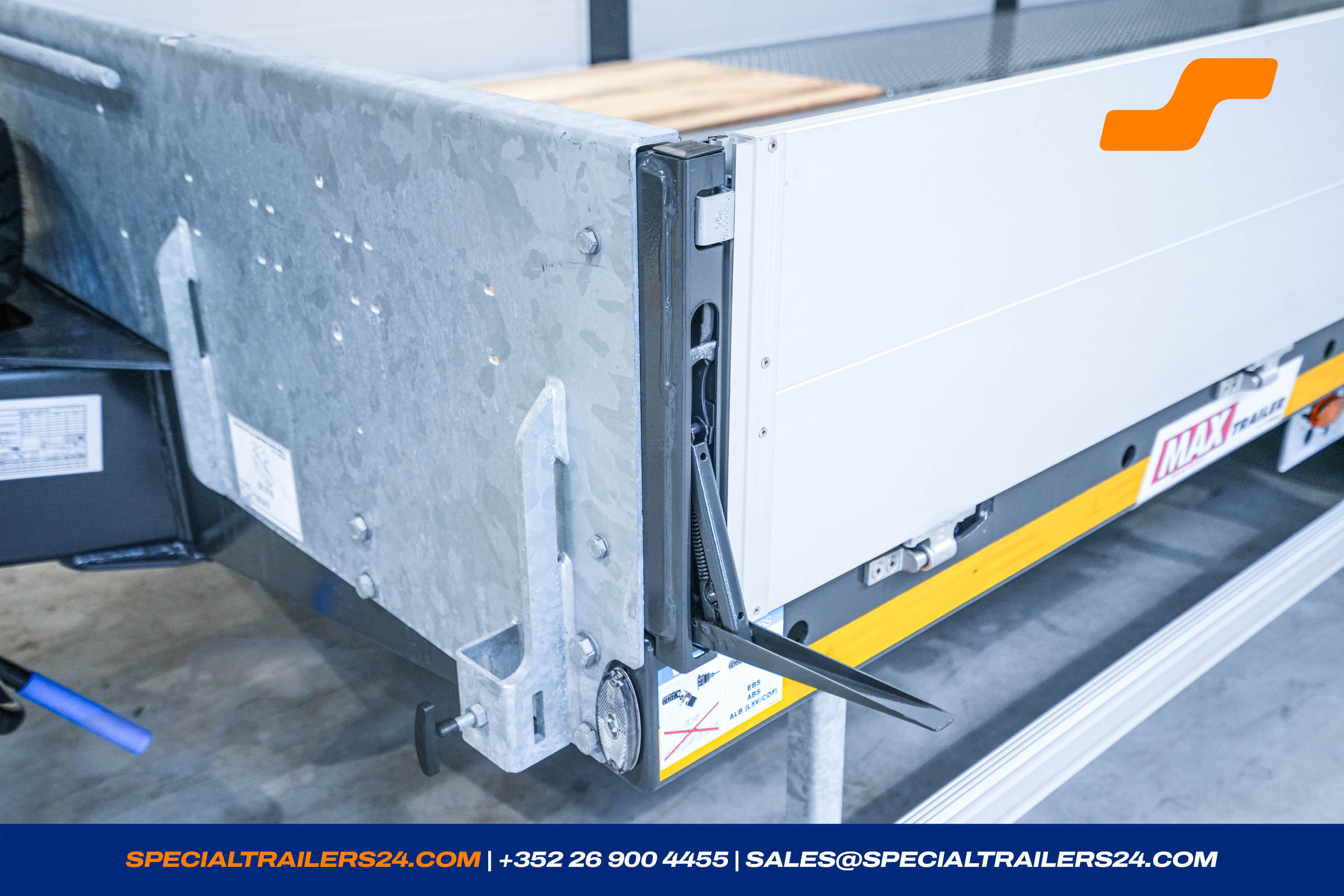

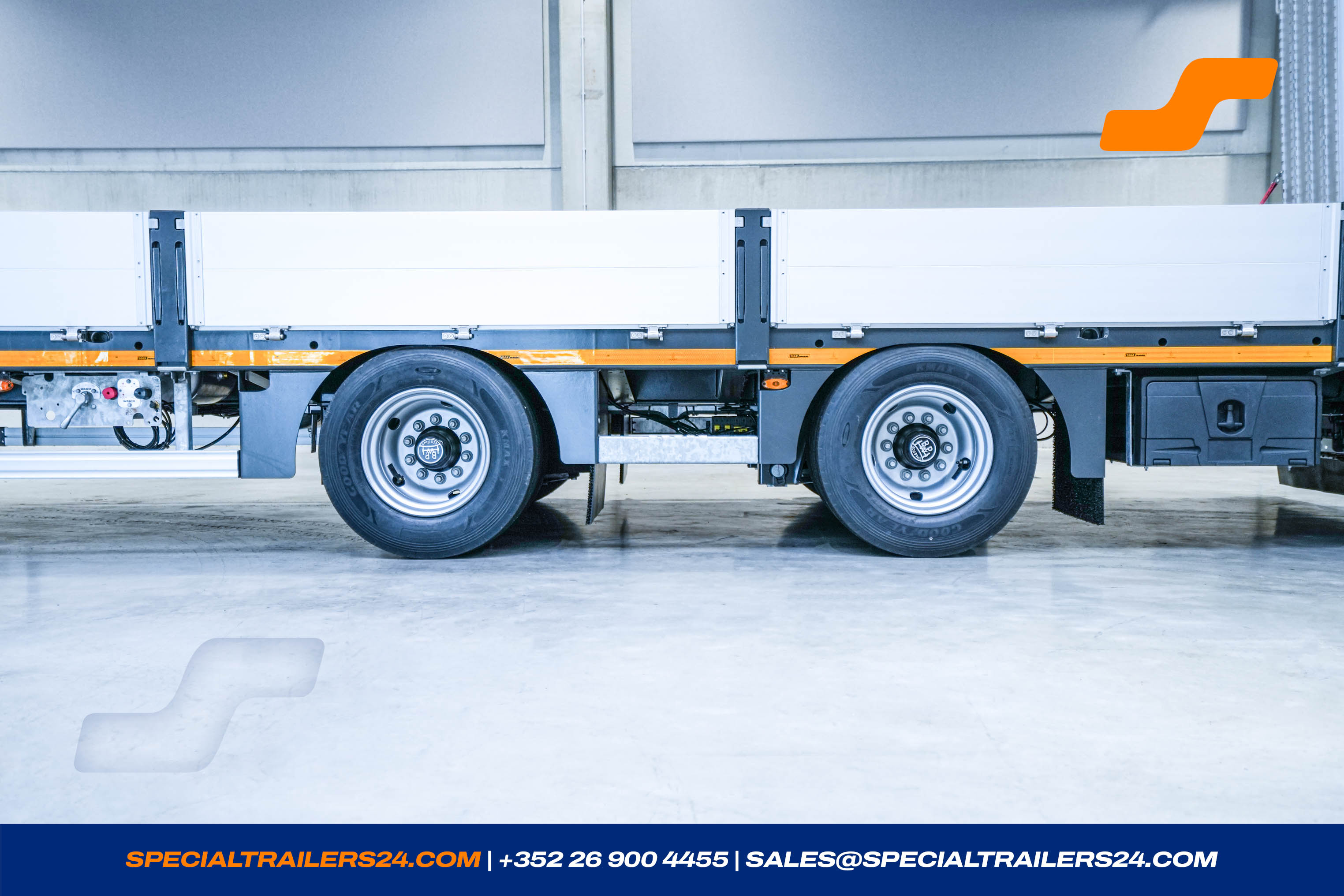

- Folding, anodised aluminium drop sides, at the side of the loading area, ± 400 mm high with KINNEGRIP folding stanchions. (± 150 kg)

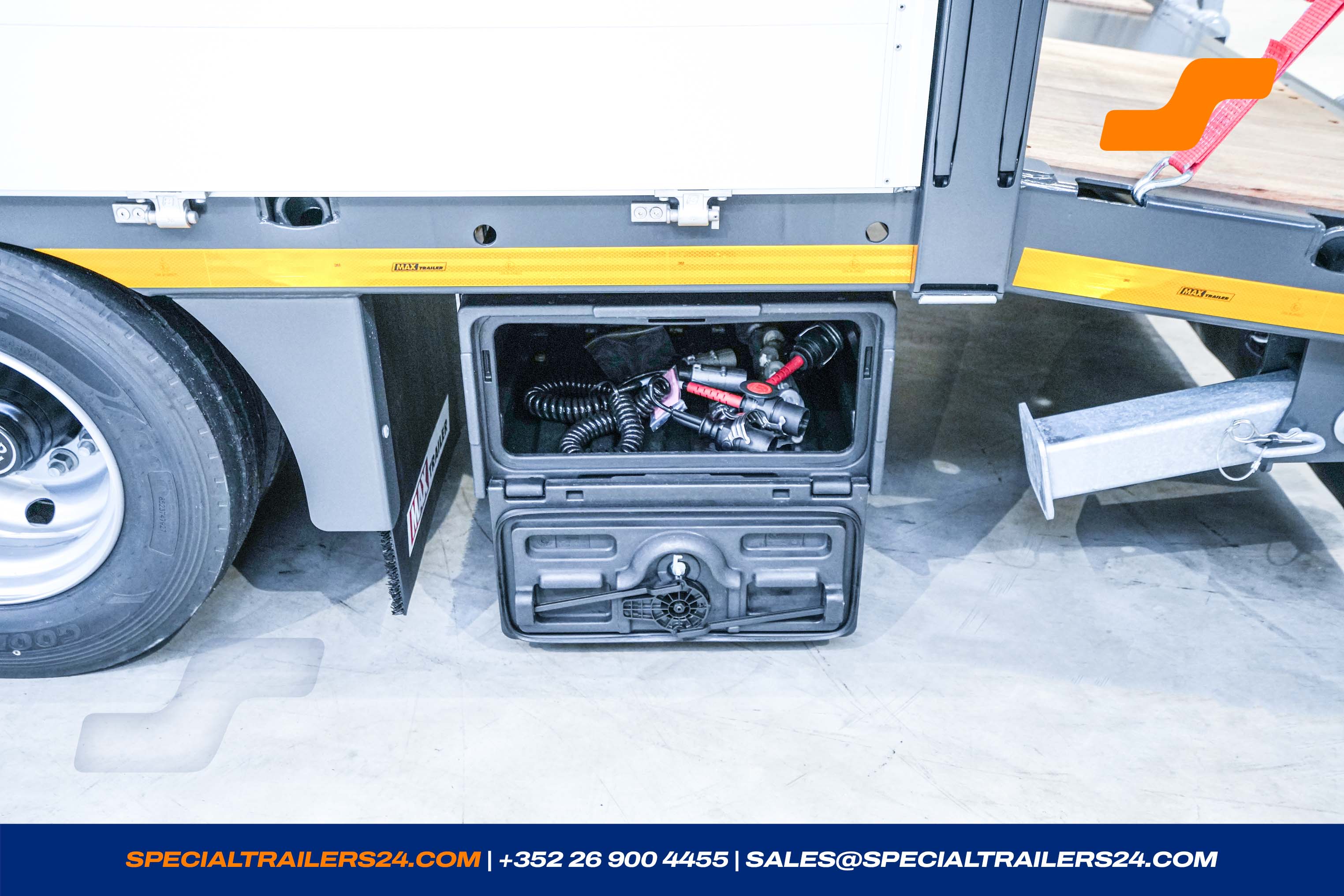

- One lockable tool-box INOX 600 X 350 X 600 under the loading platform in driving direction on the leftt side. (± 36kg)
- Speed sticker 60 km/h at the rear.
Ramps
Hydraulic loading ramps

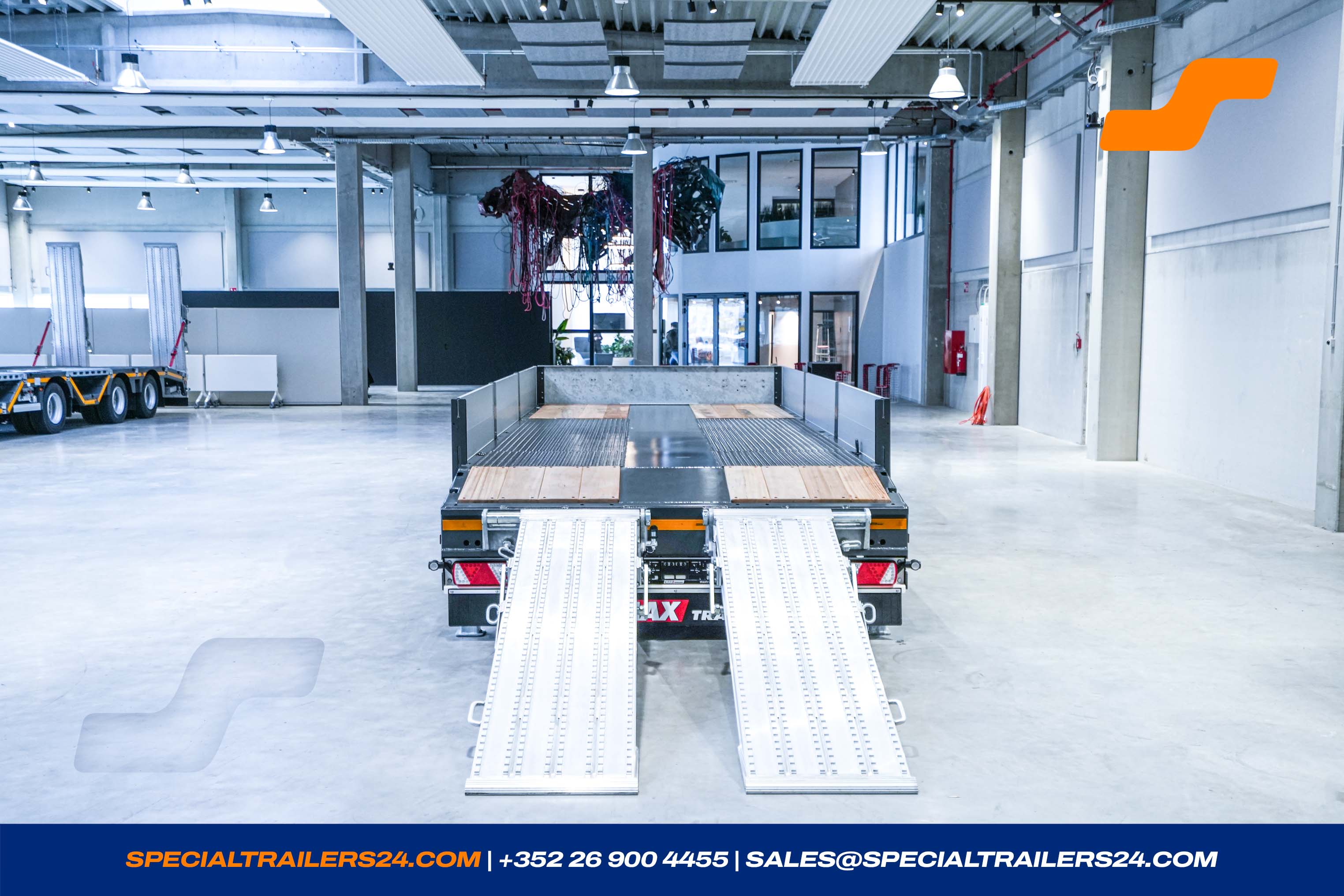

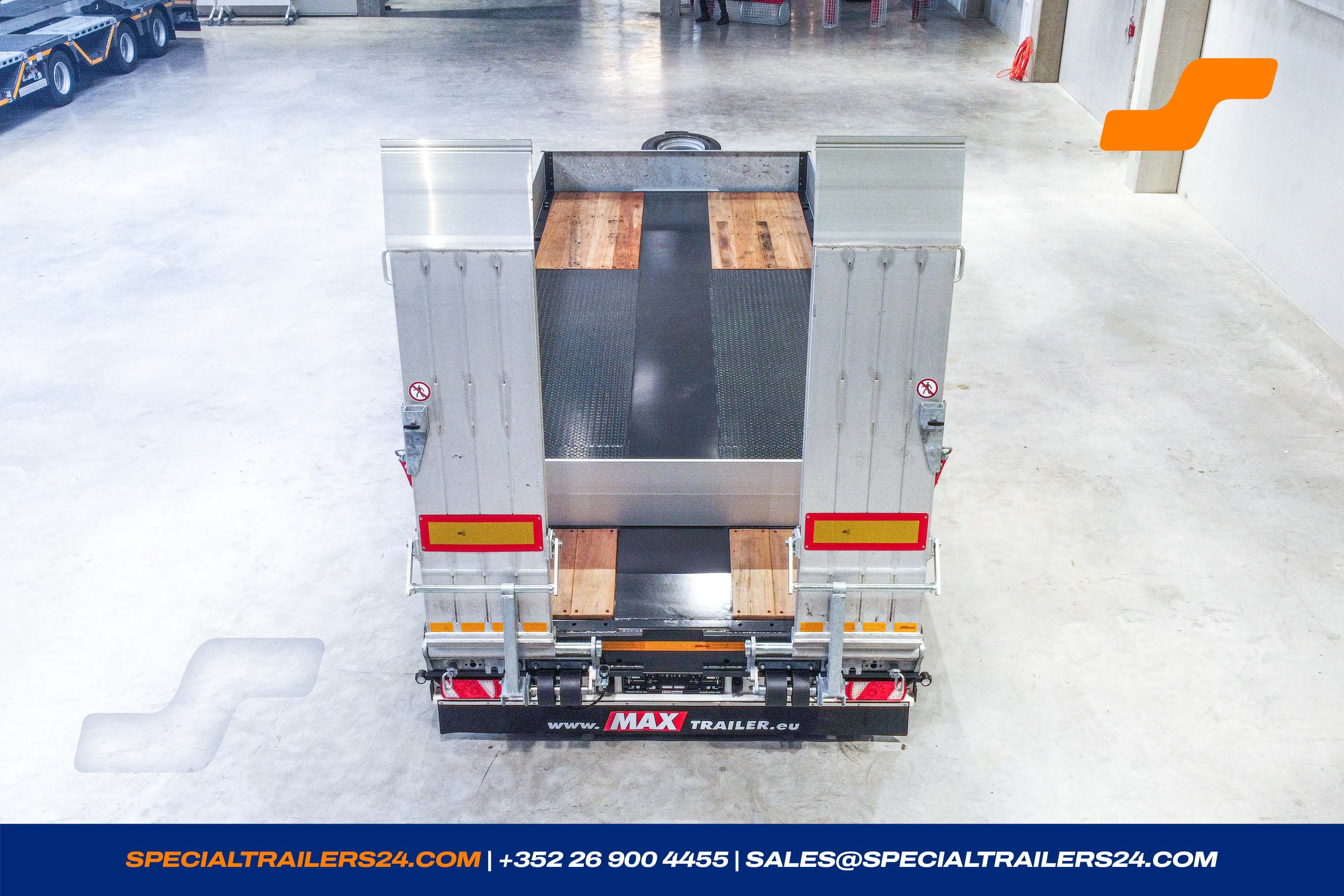

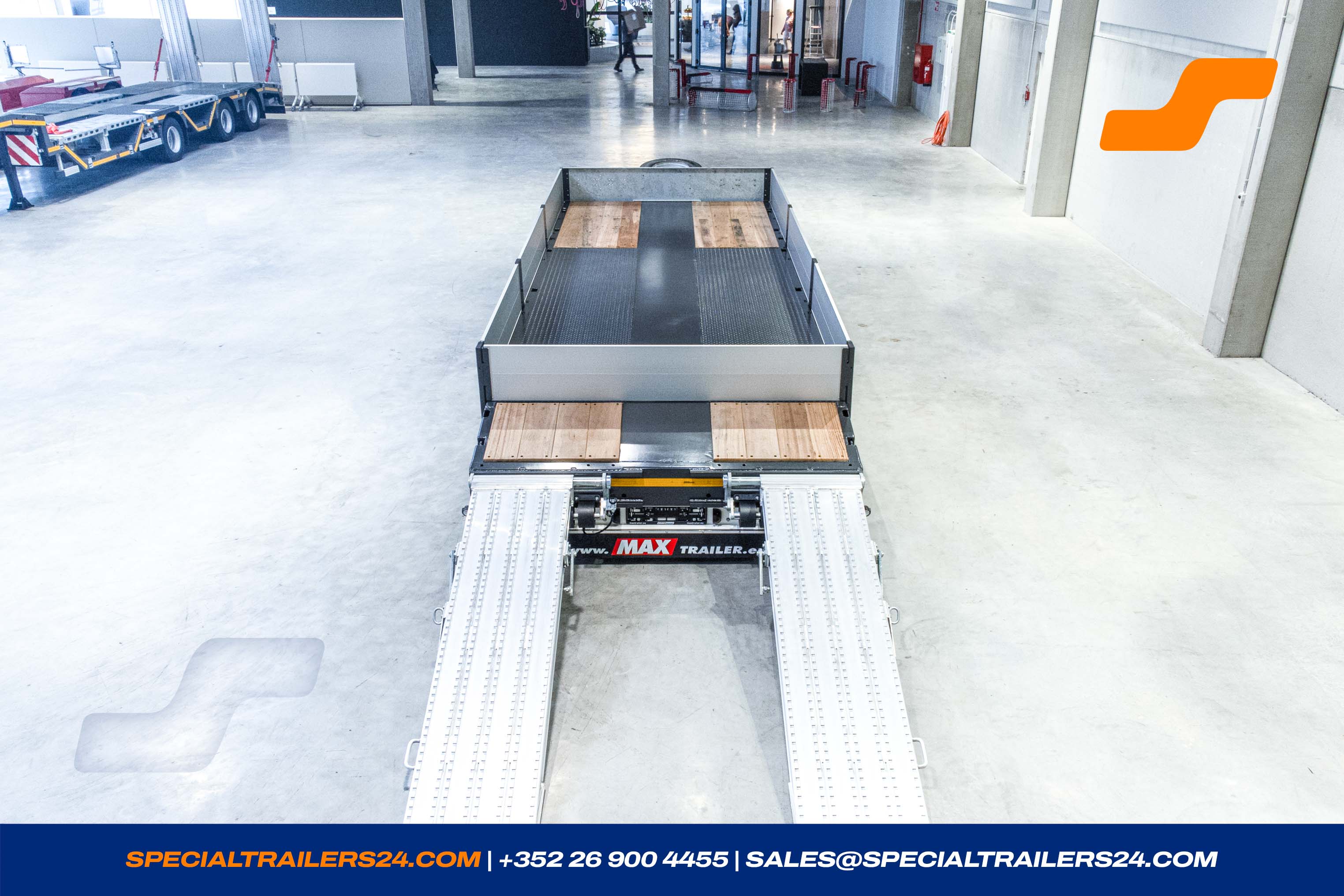

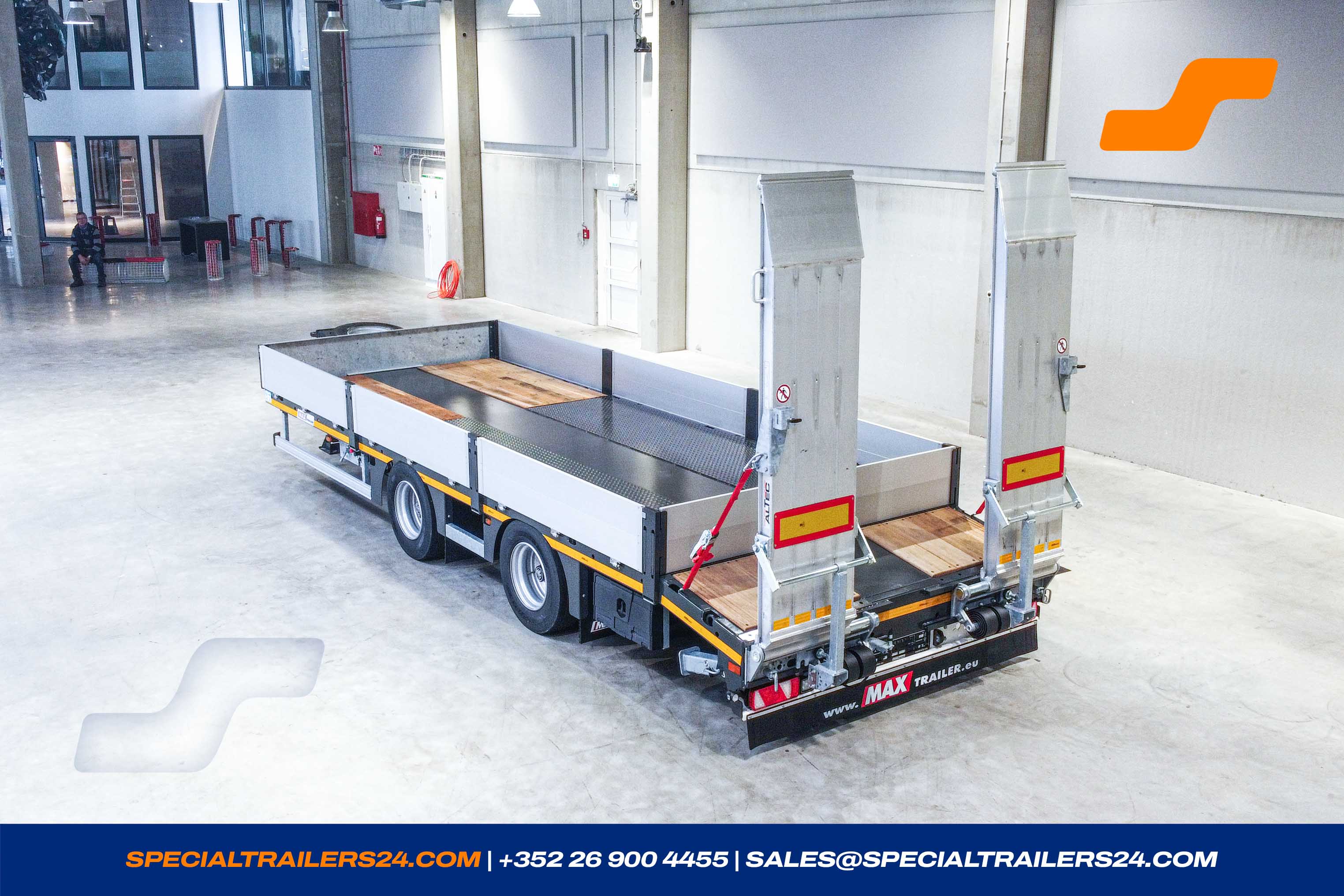

1 x ALU single piece ramps

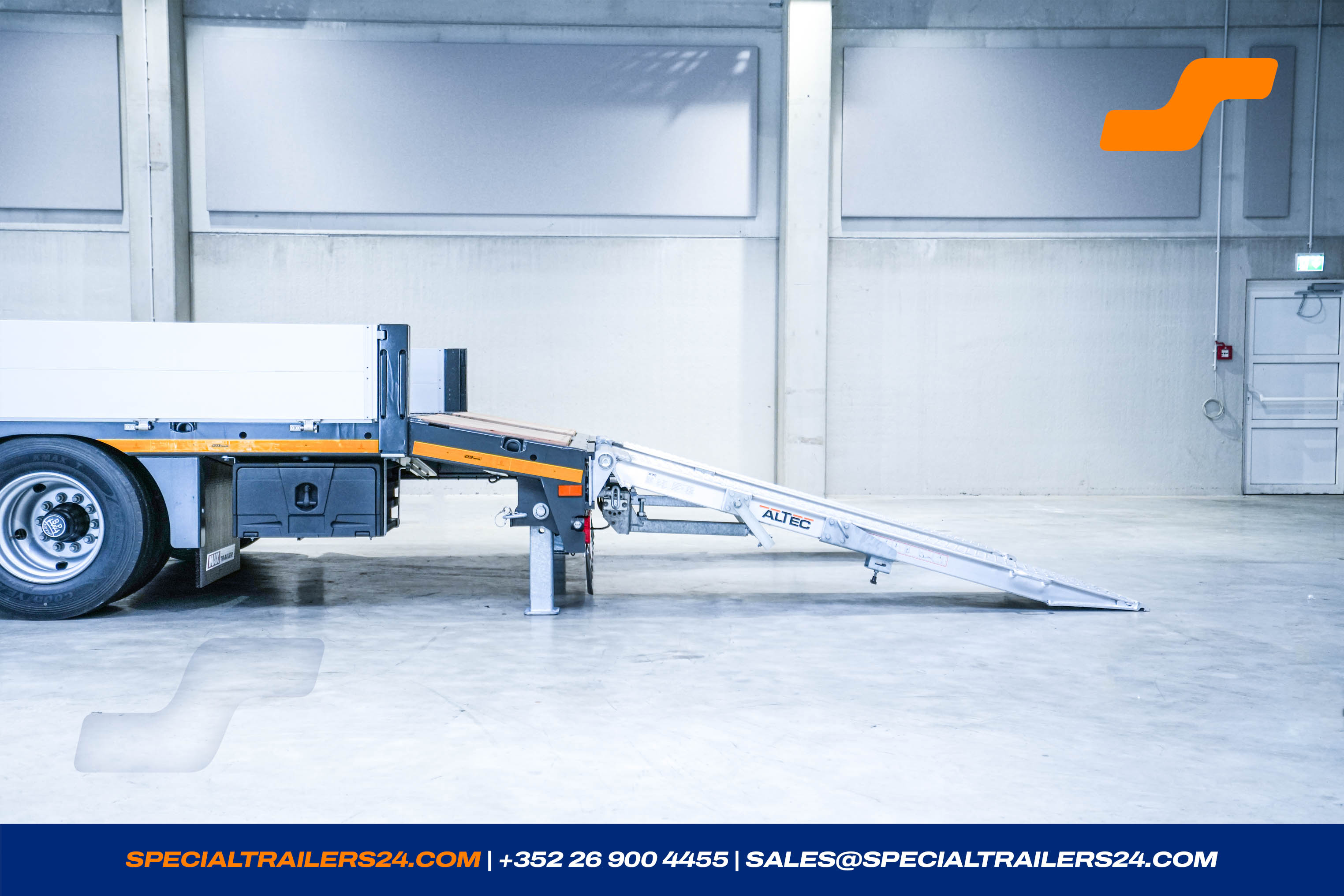

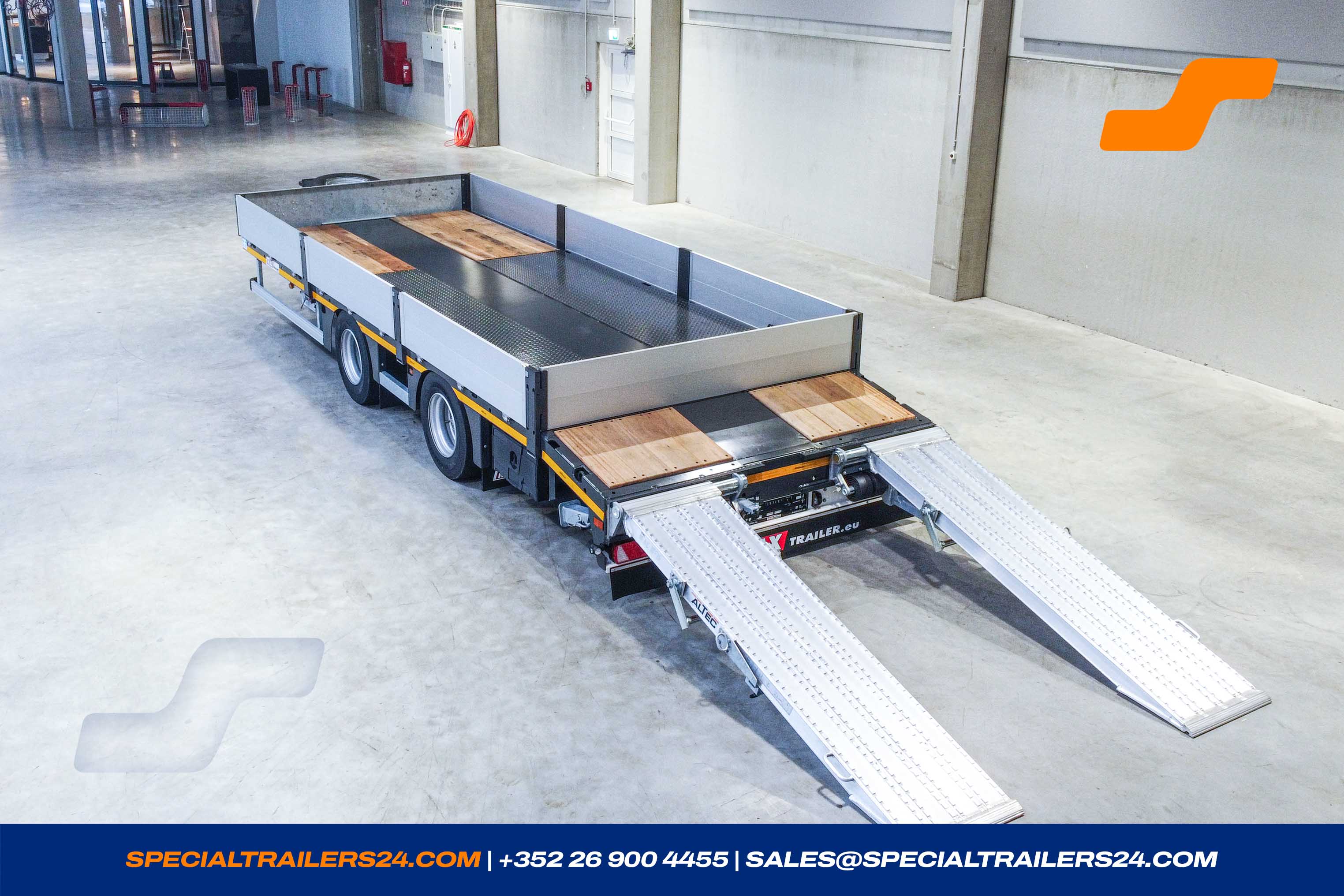

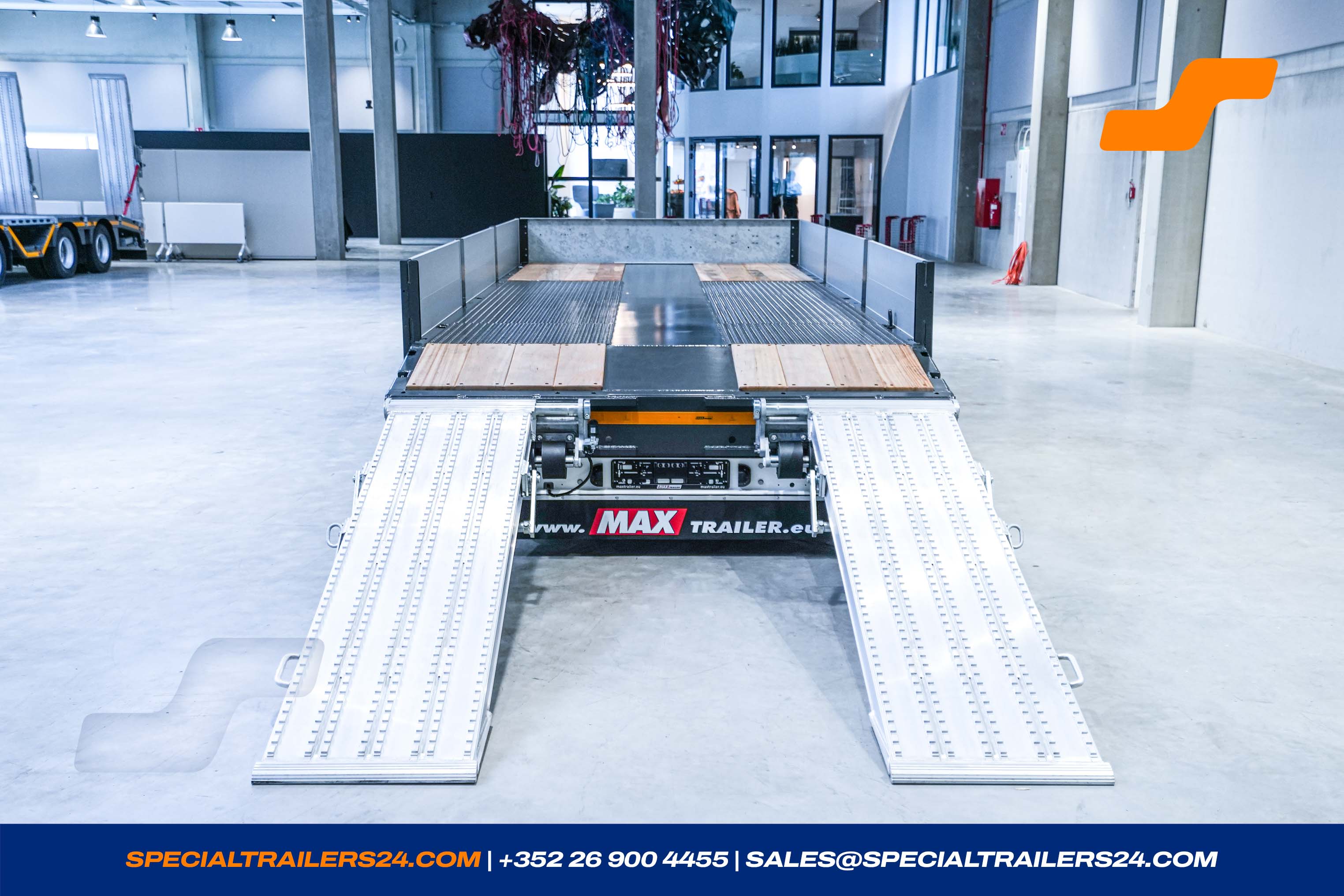

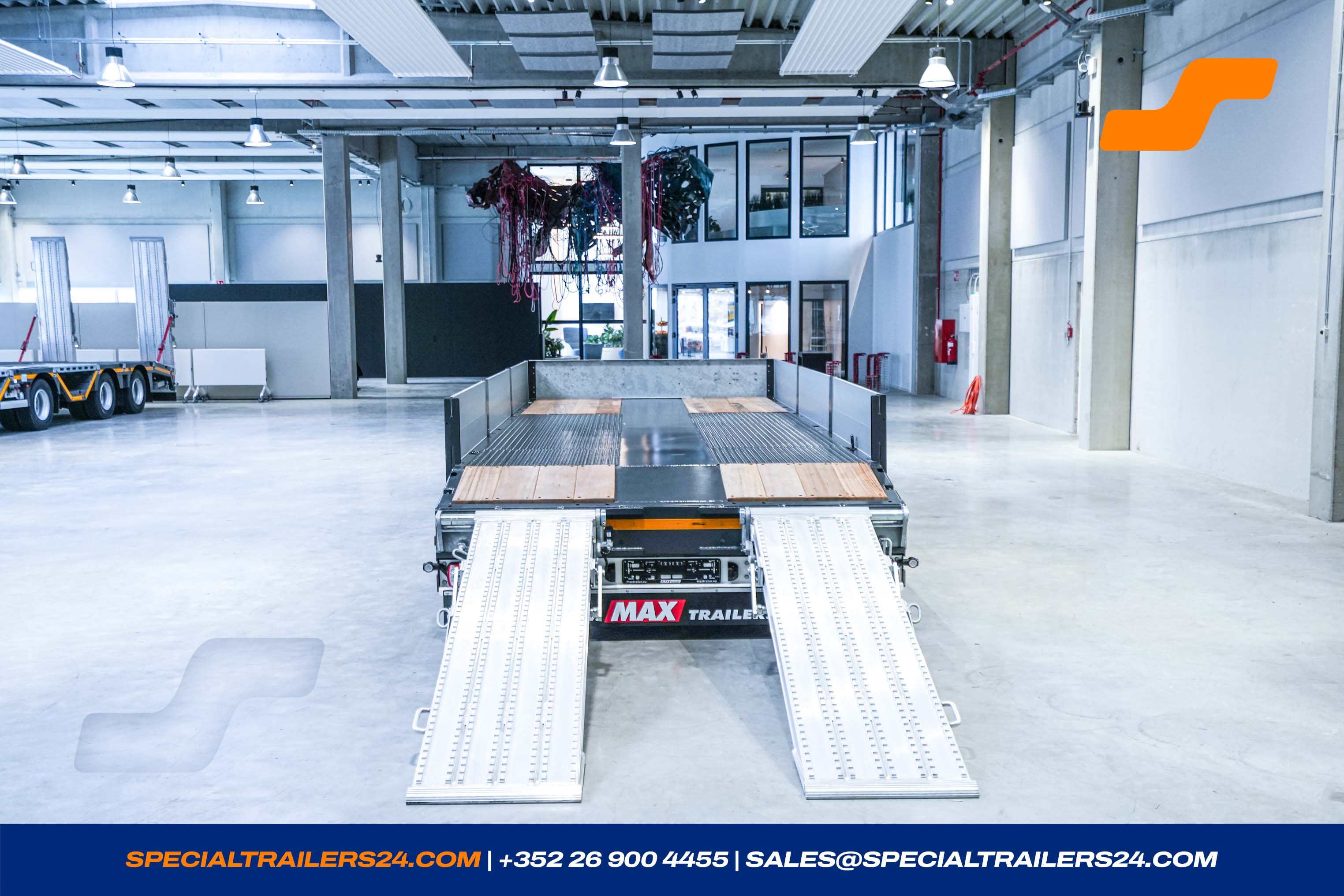

1 pair of single-piece ALU ramps ca. 2 500 x 600 mm.
Ramps spring actuated and manuel side shift
Maximal charge for one pair : 24 000 kg
Accessories
1 x Accessories
- Manual and description on USB stick .

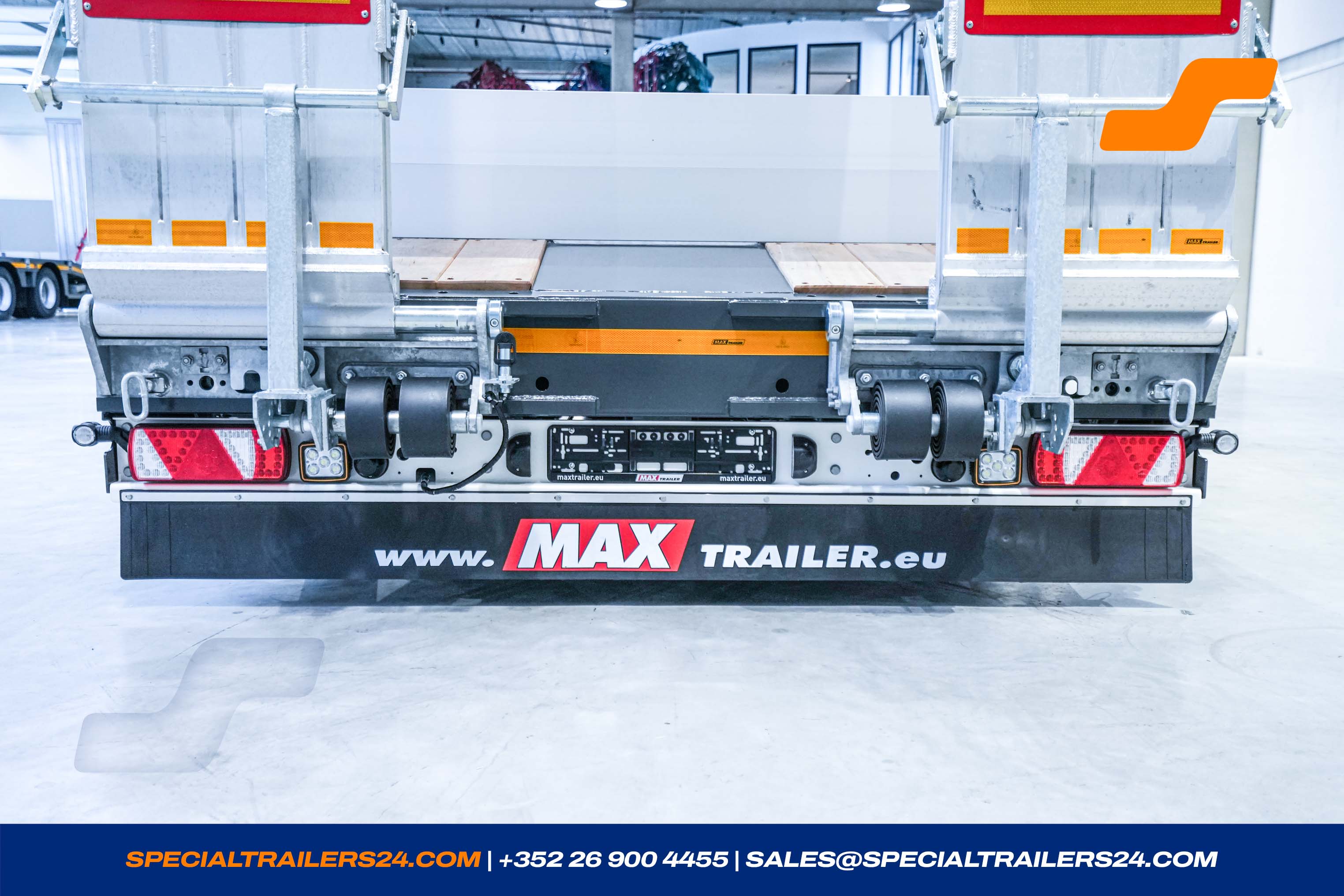

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Spiral cable 15/2x7 poles.
- 1 LED flashing beacon, provided separately.
- 2 LED- reversing lights at the rear.
- Assembly of the single ramps on the semitrailer.
- Delivery from a trailer to factory Büllingen.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110578
- Reference MAX300-S-2-7.00-U
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 02/2026
- Price On request
-
