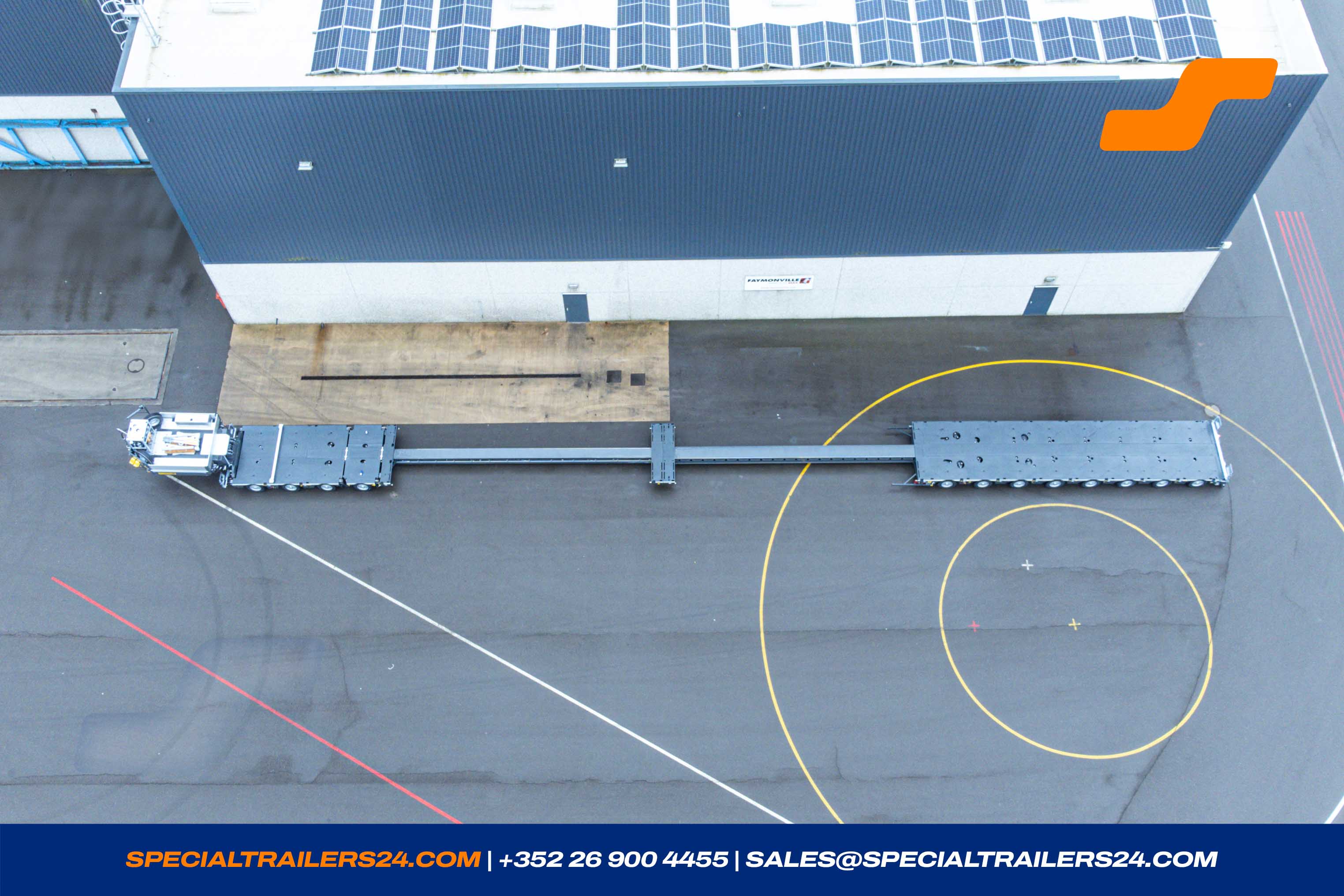

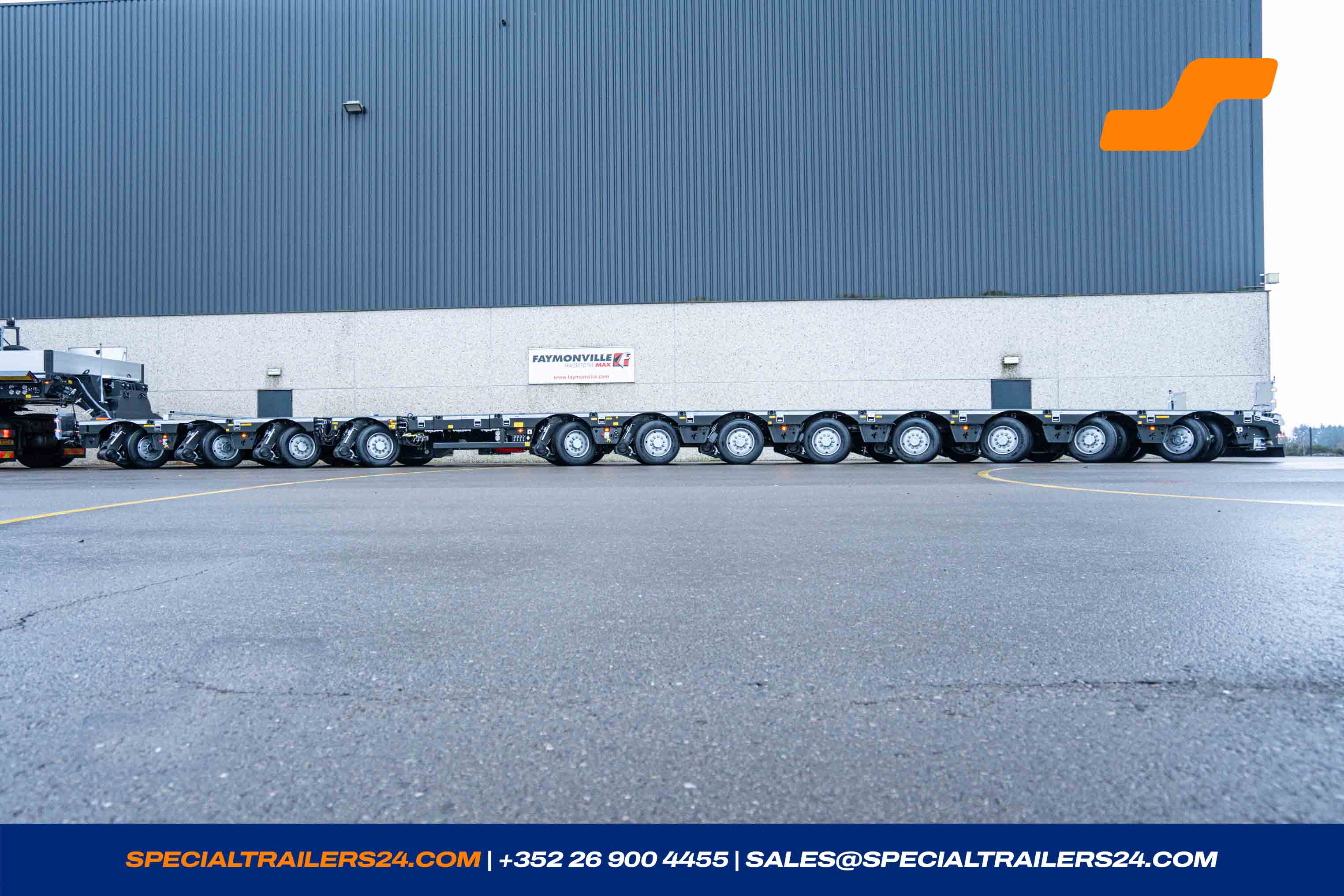

MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110091
- Reference MAX510-Z-2H-ATX-A-6.85-PA
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions

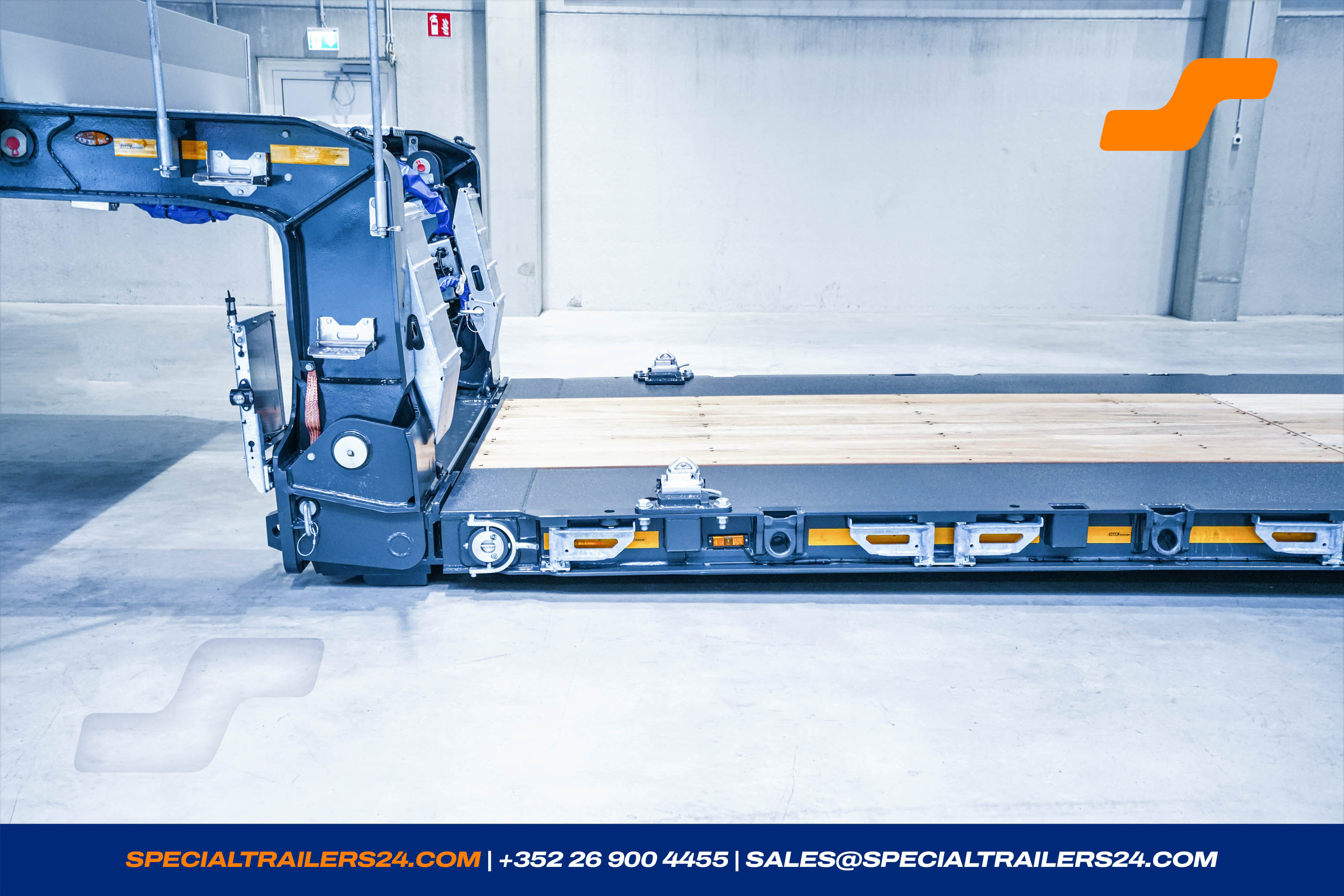

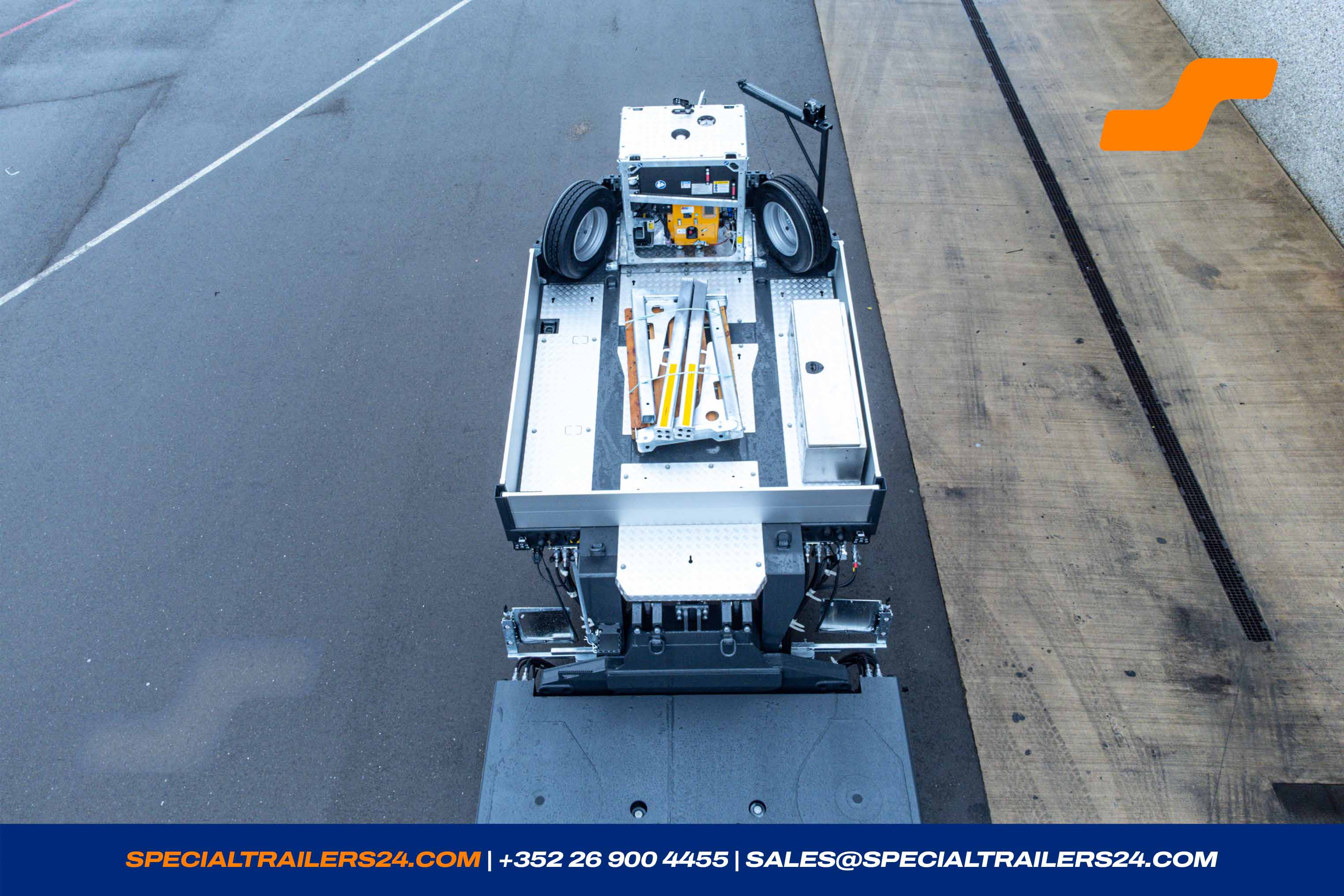

Gooseneck
1 x Gooseneck

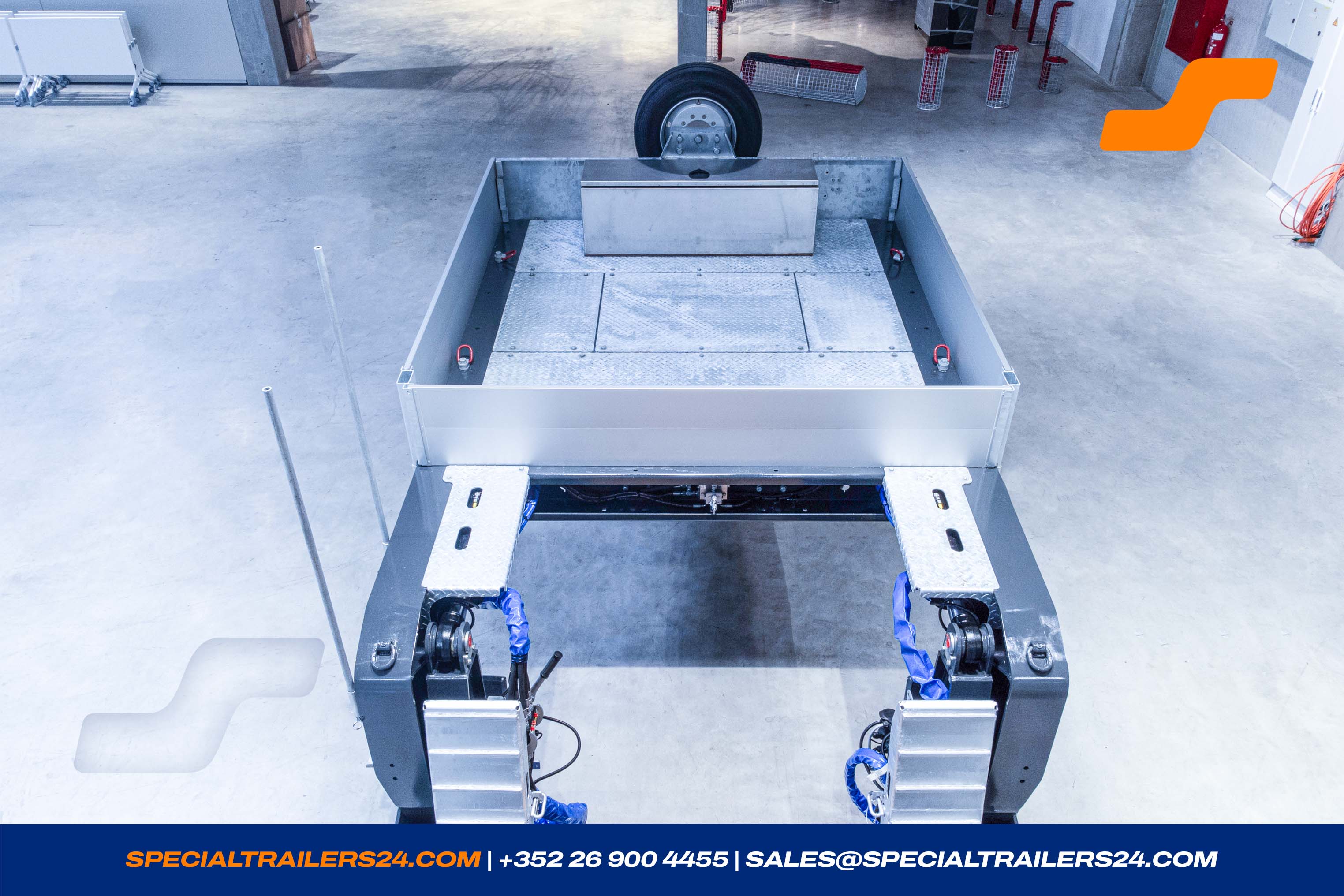

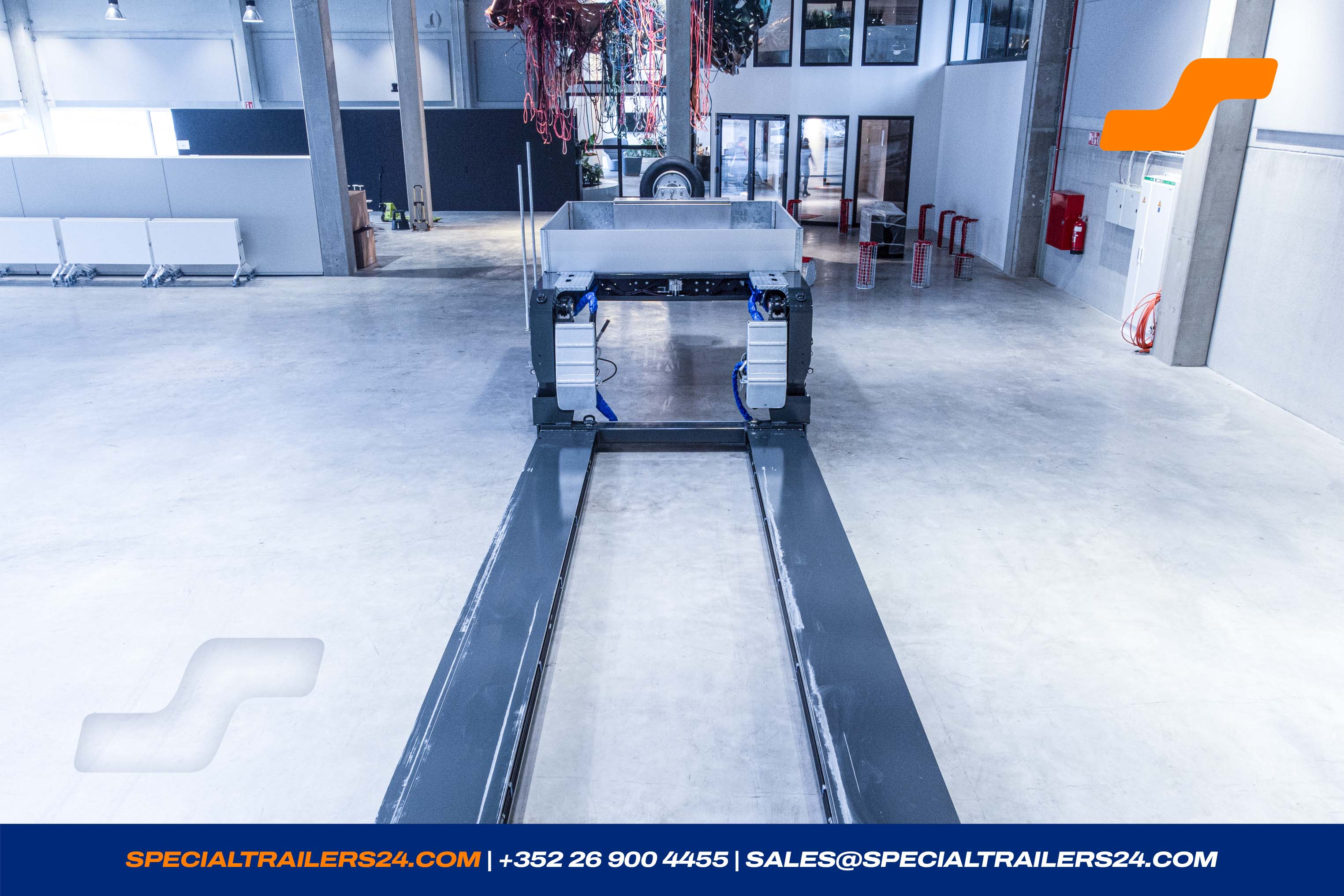

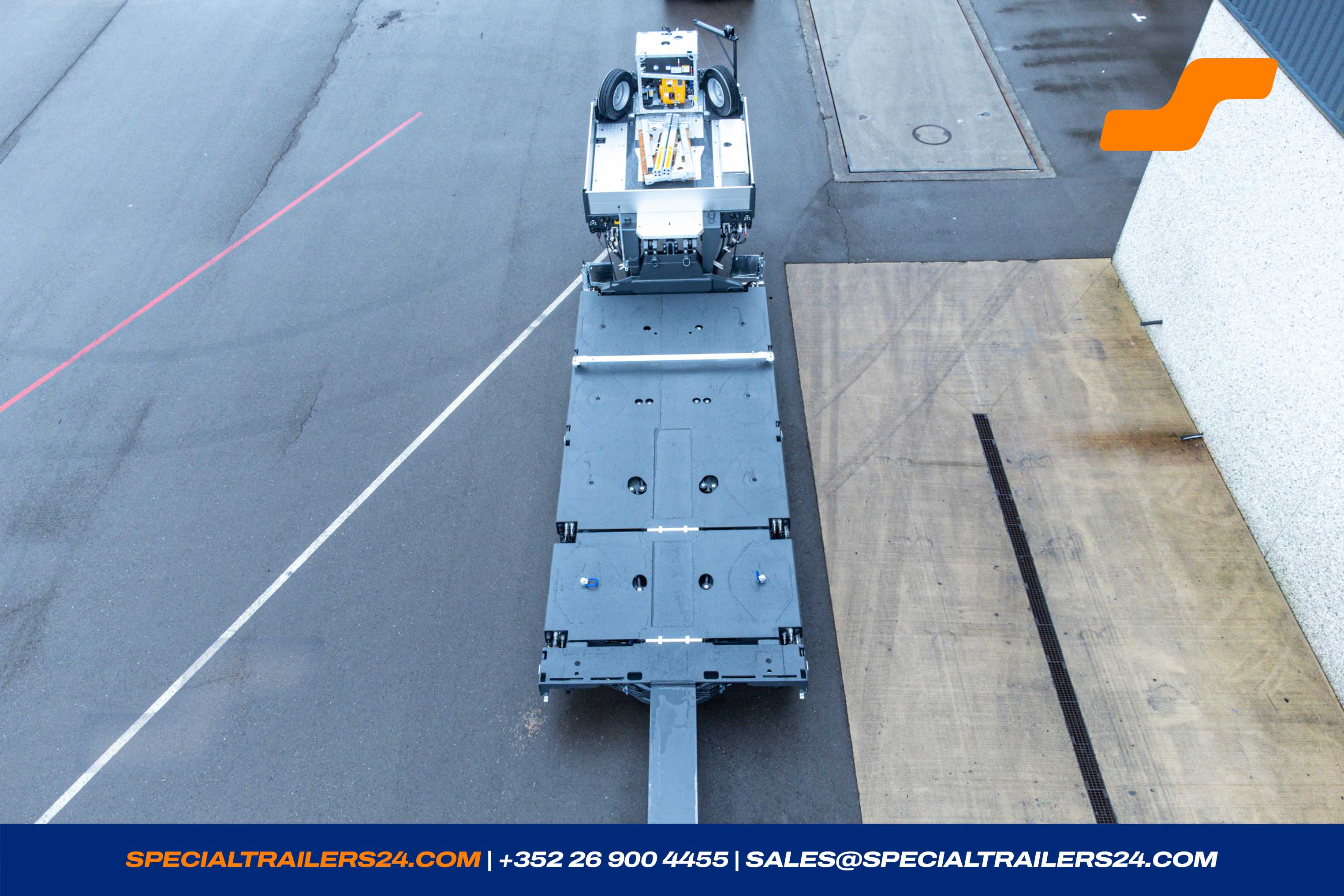

Gooseneck in SNT design for maximum loading length, length ± 3.750 mm.

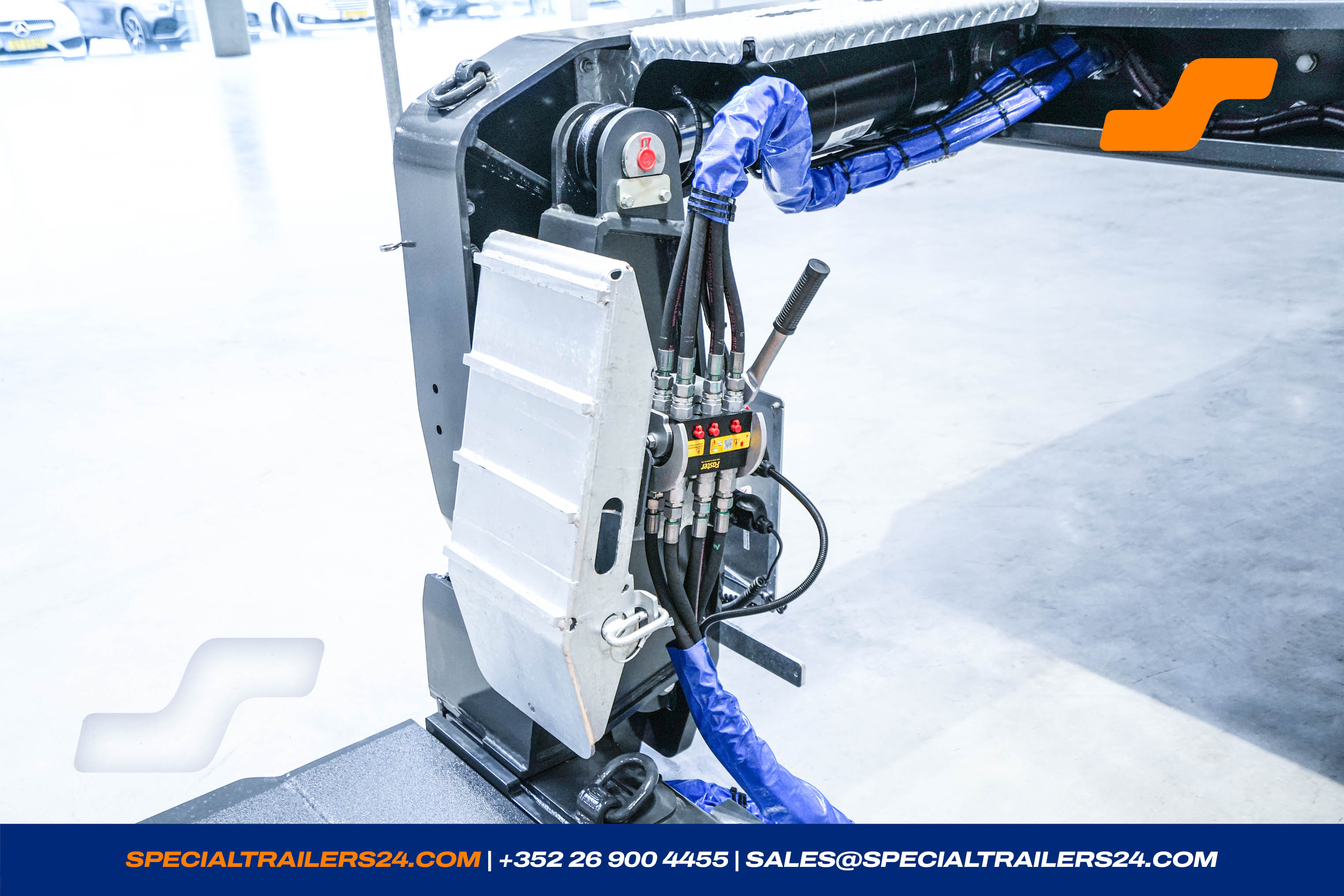

Gooseneck hydraulic lift and lowerable and detachable.
For use of trucks: 4 x 2, 6 x 2 and 6 x 4
- King pin 2
- One galvanised steel headboard, height ± 400 mm.
- One spare wheel with holder on the headboard.
- Red and yellow air couplings on the galvanised front connection ledge.
-
Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Hydraulic connections from gooseneck to lowbed with screw couplings.
- 4 wheel chocks with carrier. (± 5 kg)

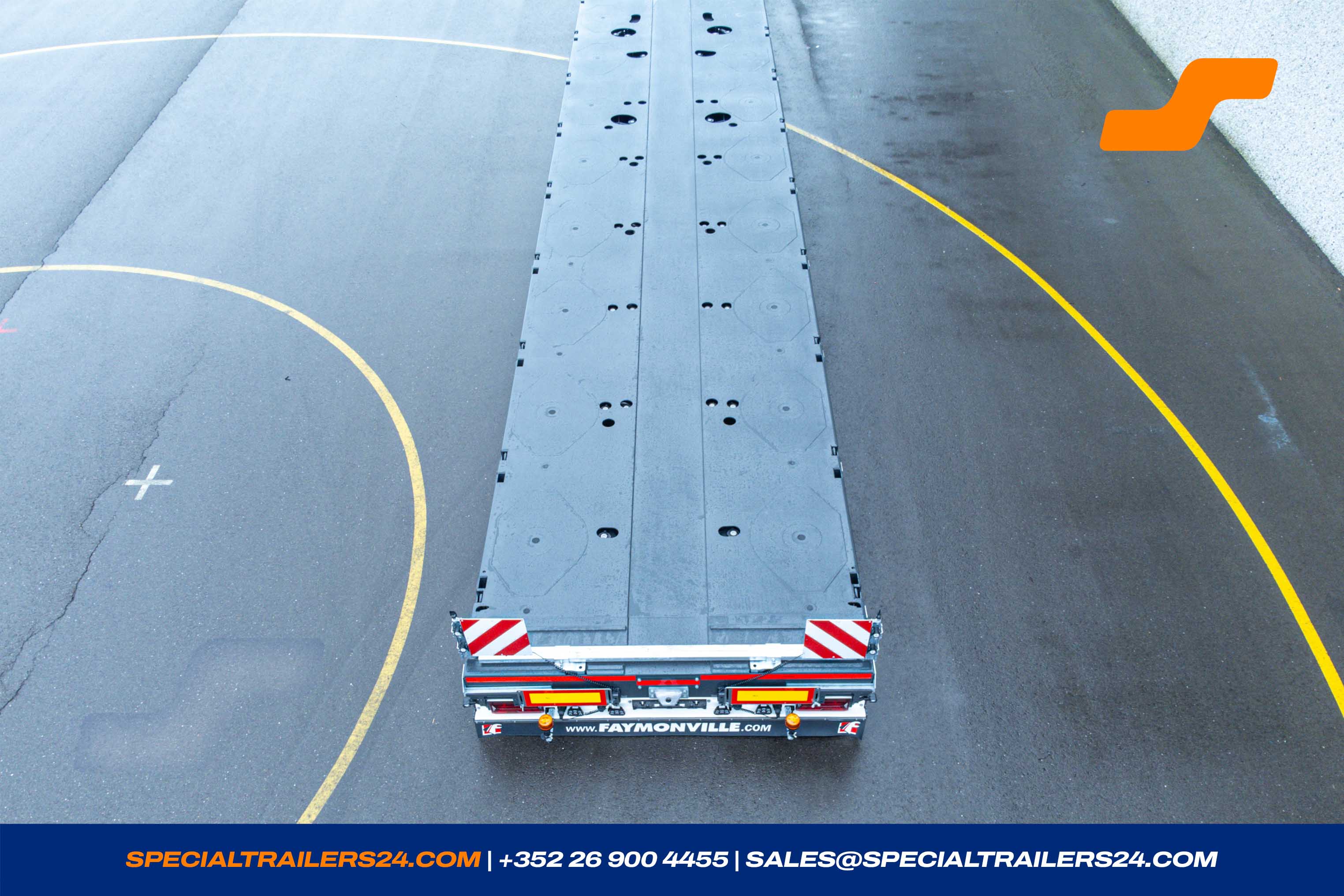

Loading deck
Loading platform
1 x Lowbed

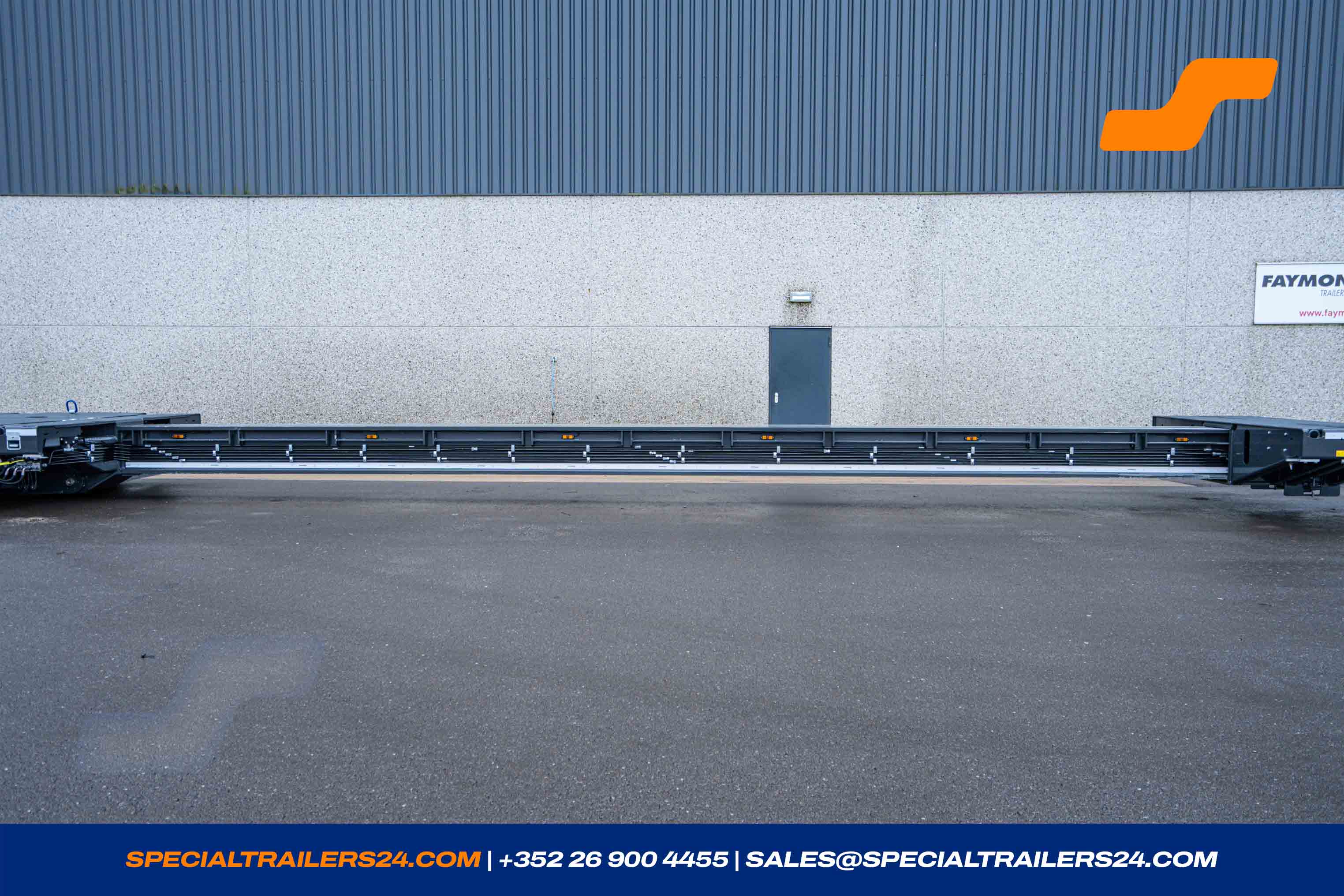

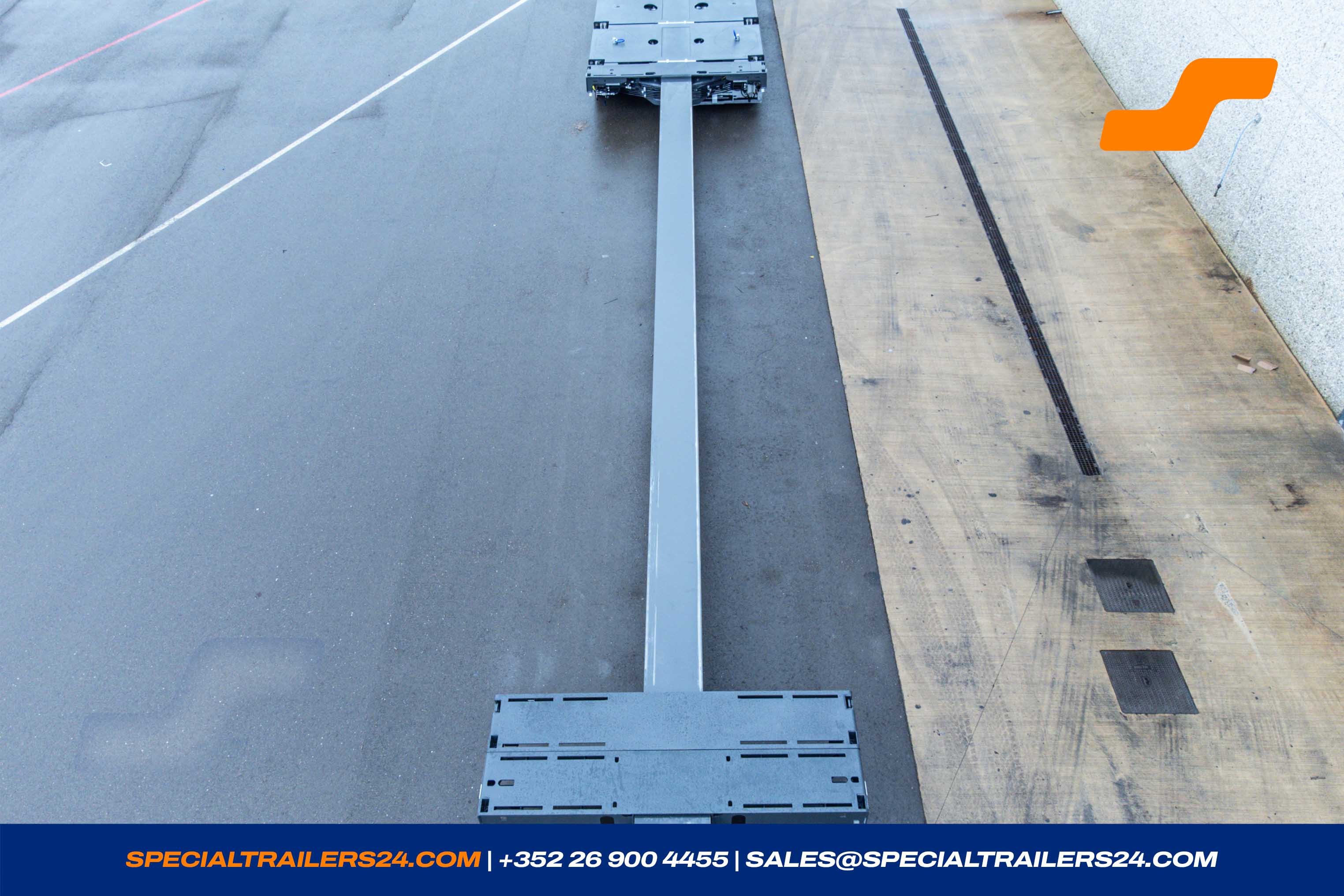

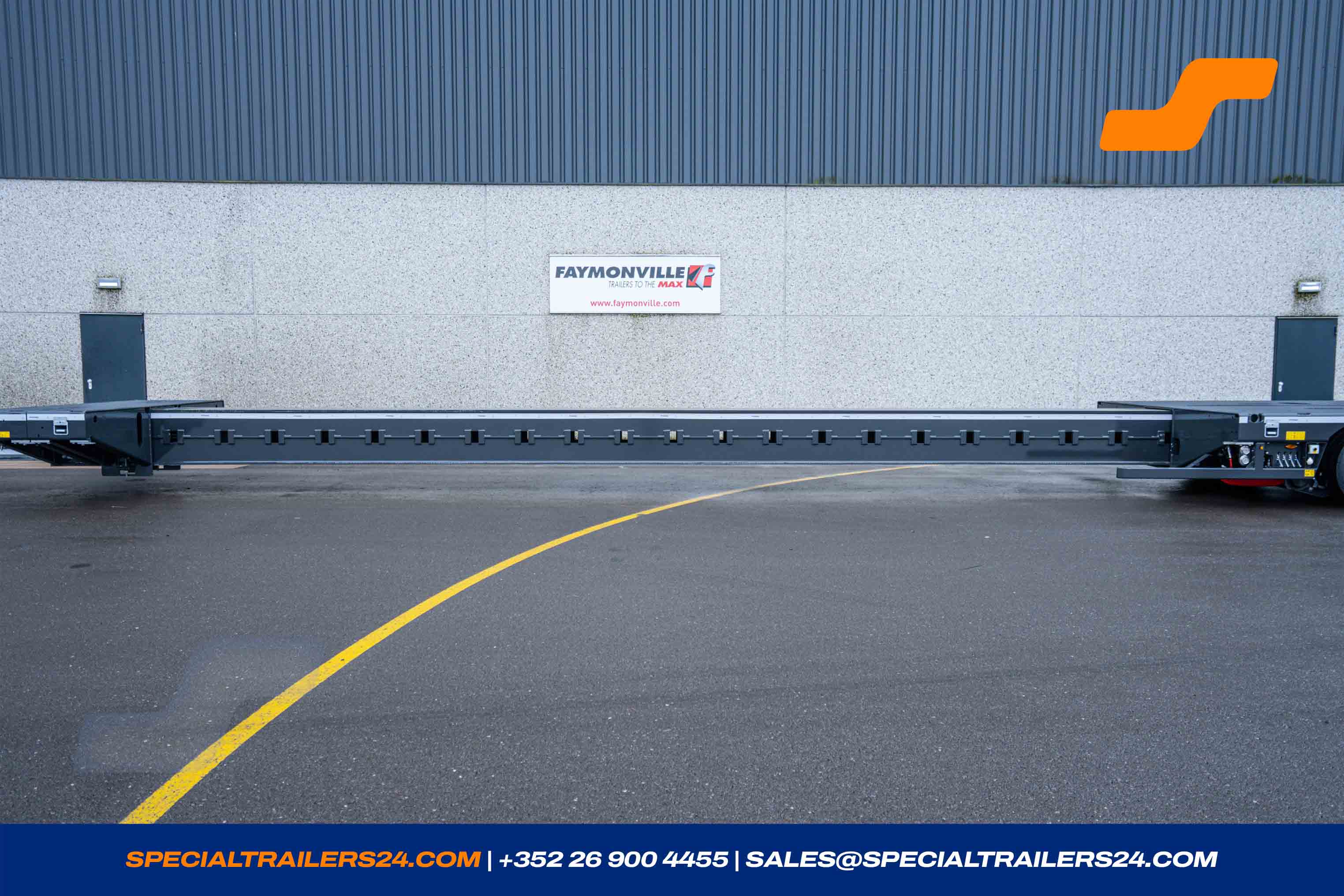

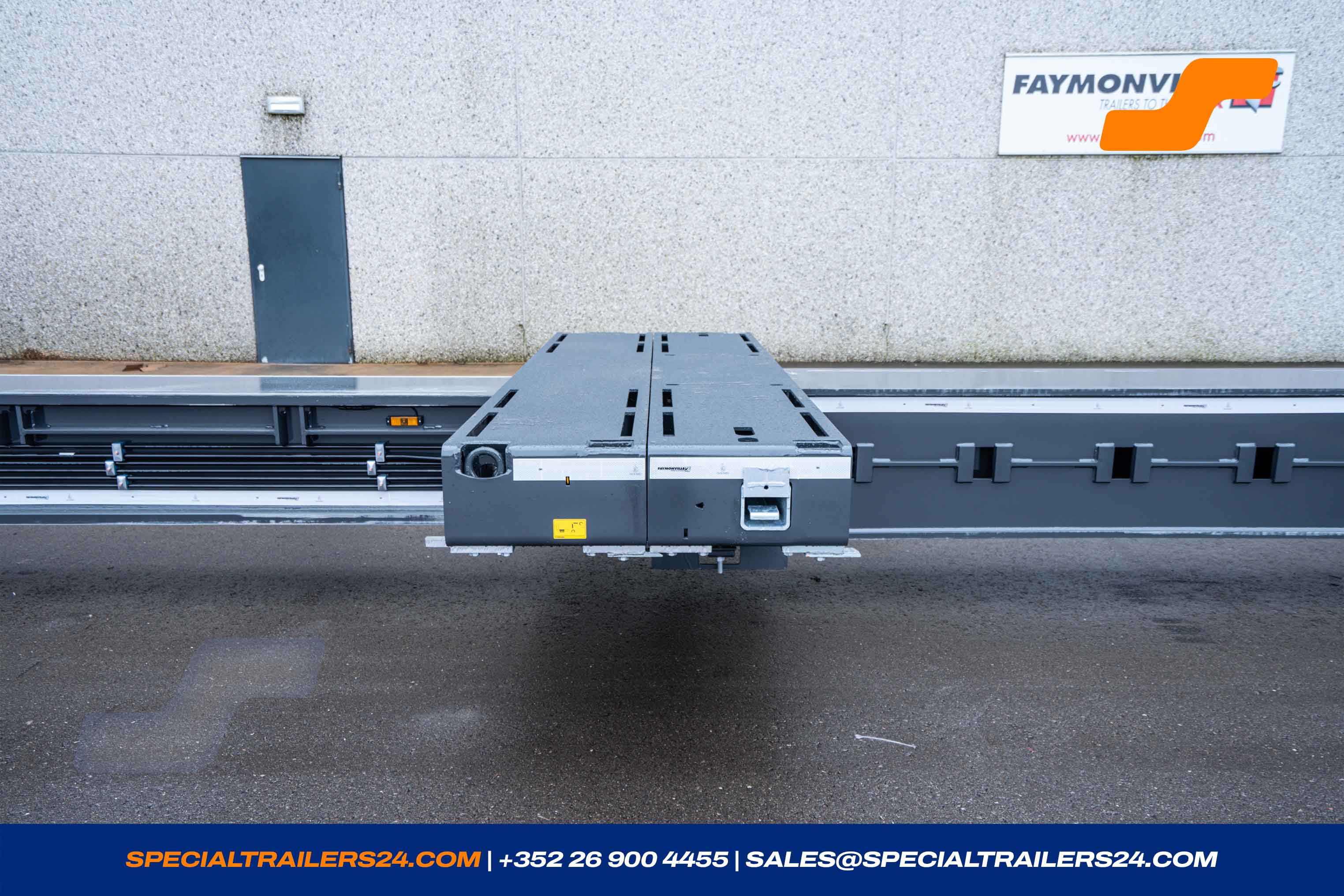

Lowbed in extendable outerbeams construction, SUPER LOW Design, length ± 6 850 mm.
Lowbed with hardwood cover ± 40 mm and with ***mechanical locking***.
The supply lines are laid in the outerbeams and adapt automatically to the loading length.

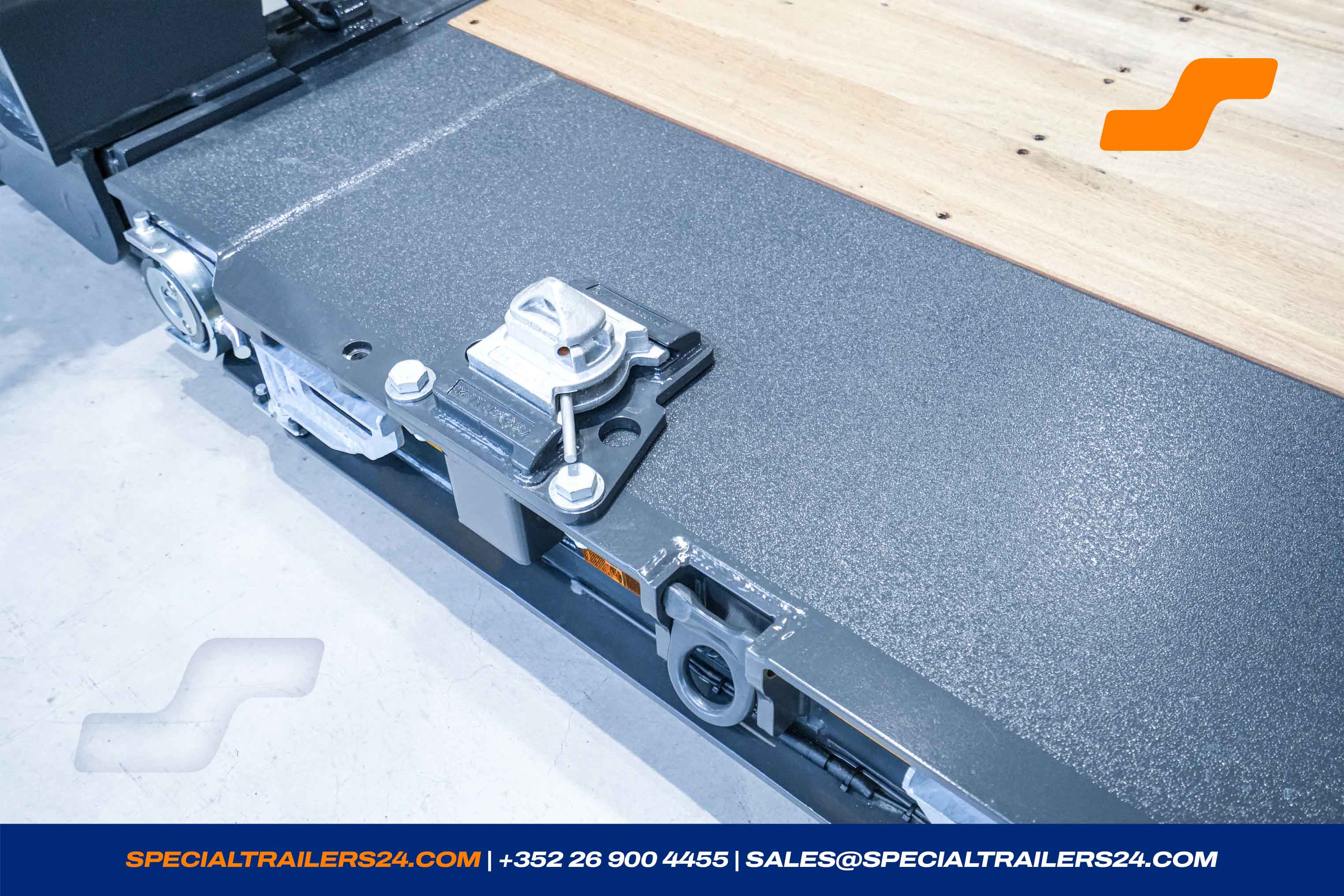

5 pairs of lashing rings (LC 10 000 daN).
6 pairs of threaded blocks on the inner beams for mounting screwable RUD rings...
-
Preparation for the attachment of screwable container fittings for 1 x 20' or 1 x 40' container on the outer beams.
Without container fittings. - Electrically operated hydraulic pump. (± 45kg)
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- 2 wooden blocks 500 x 250 x 200 mm.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.
- Load manometer for determining the axle load, including load diagram.
- 6 pairs of threaded blocks between the lashing rings under the top chord on the outer beam for mounting screwable RUD rings VLBG-4.
- 5 pairs of pockets for stakes ±100 x 50 mm in the outer frame of the loading platform (± 18 kg).
-

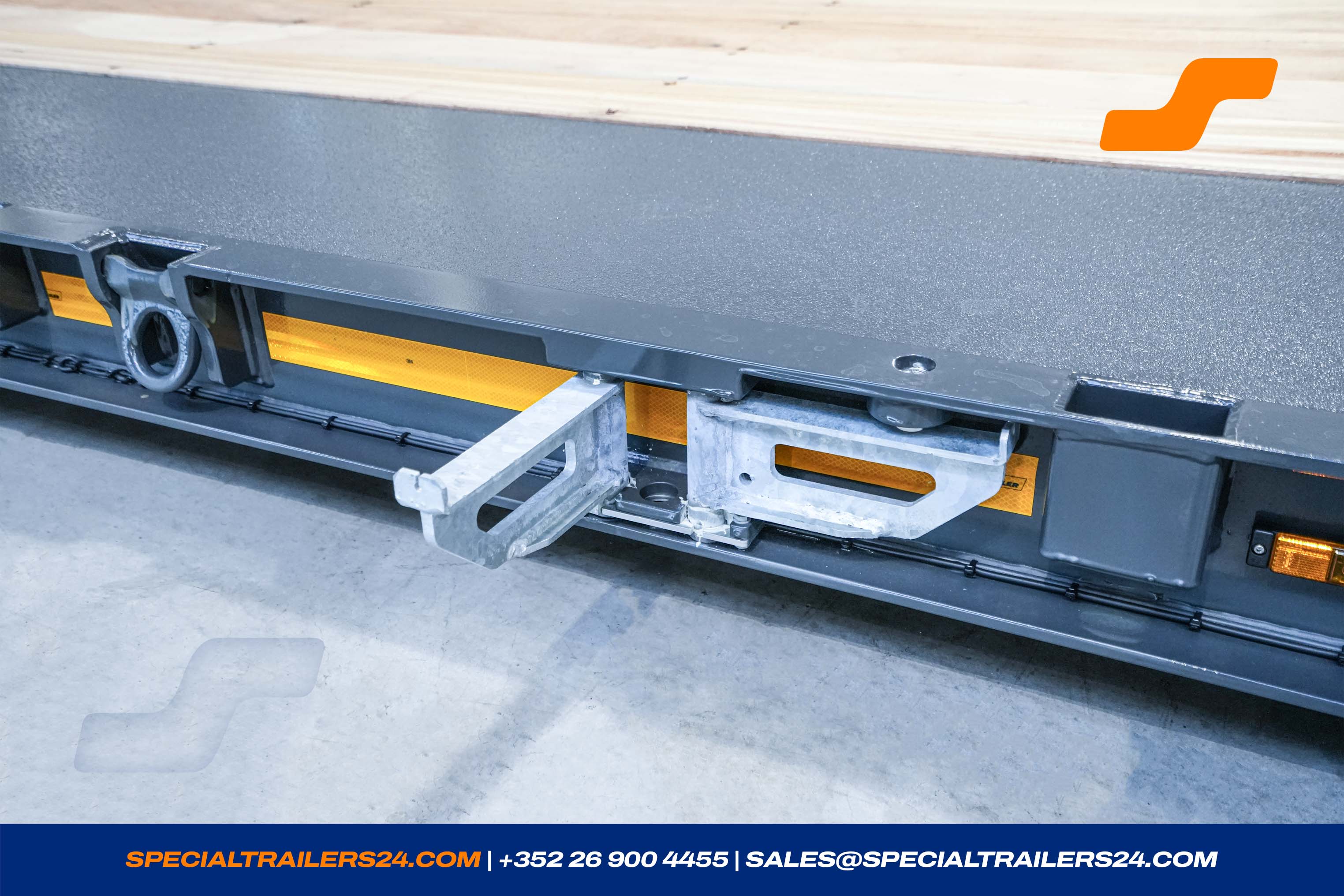

Foldable outriggers, 230 mm per side.
(Without timber) - 1 pair of steel-ramps to bridge the hooks of the lowbed. (± 60 kg)

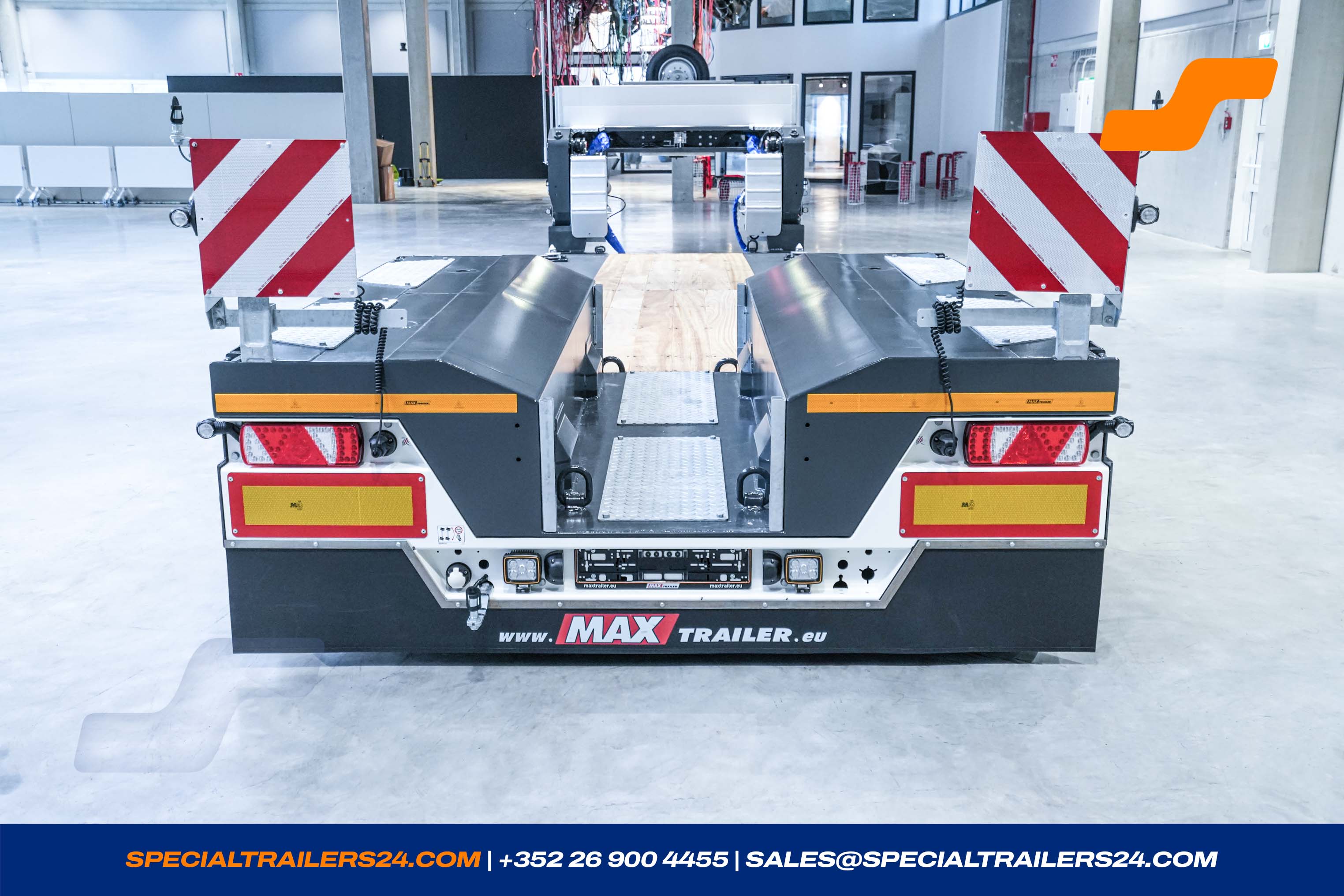

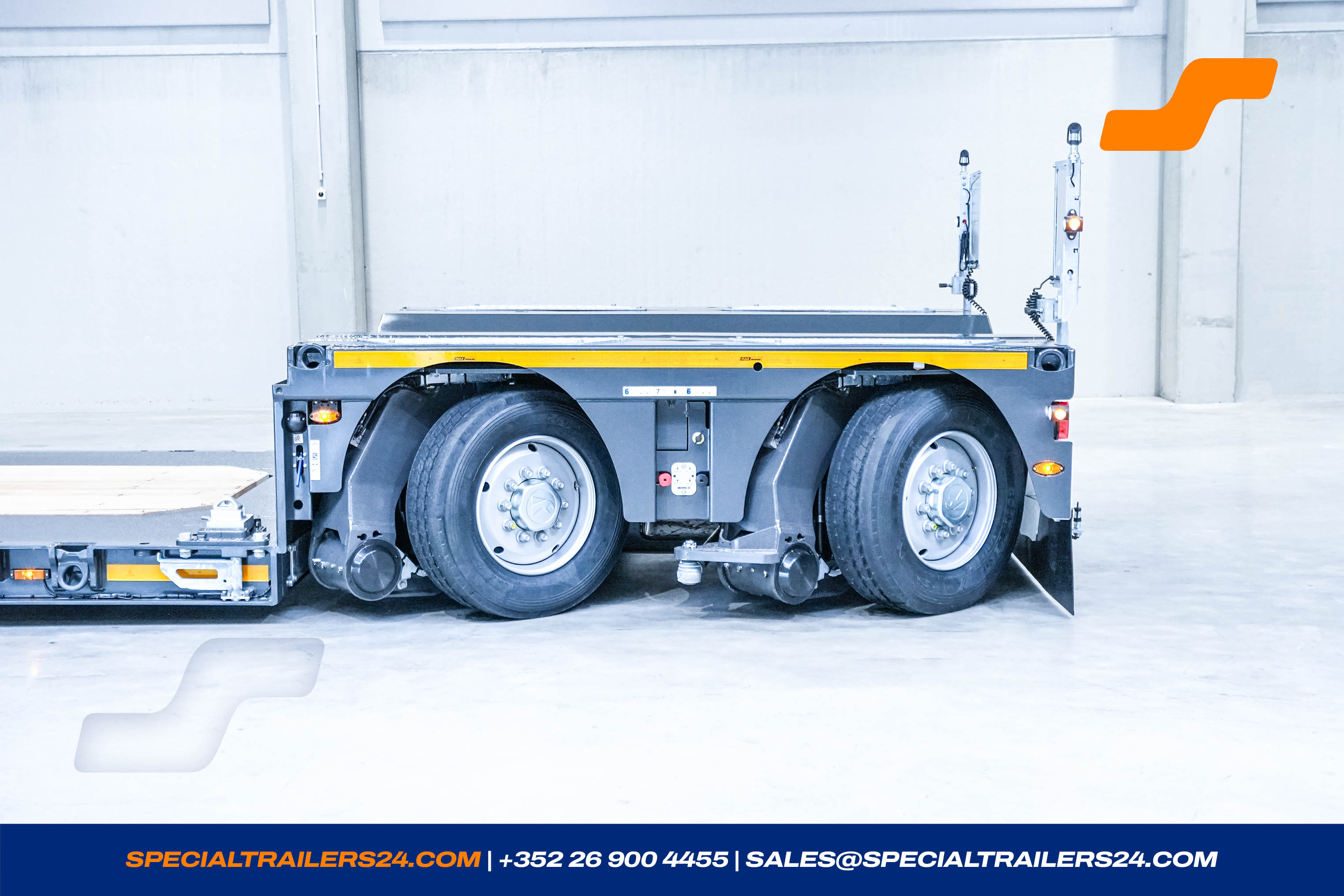

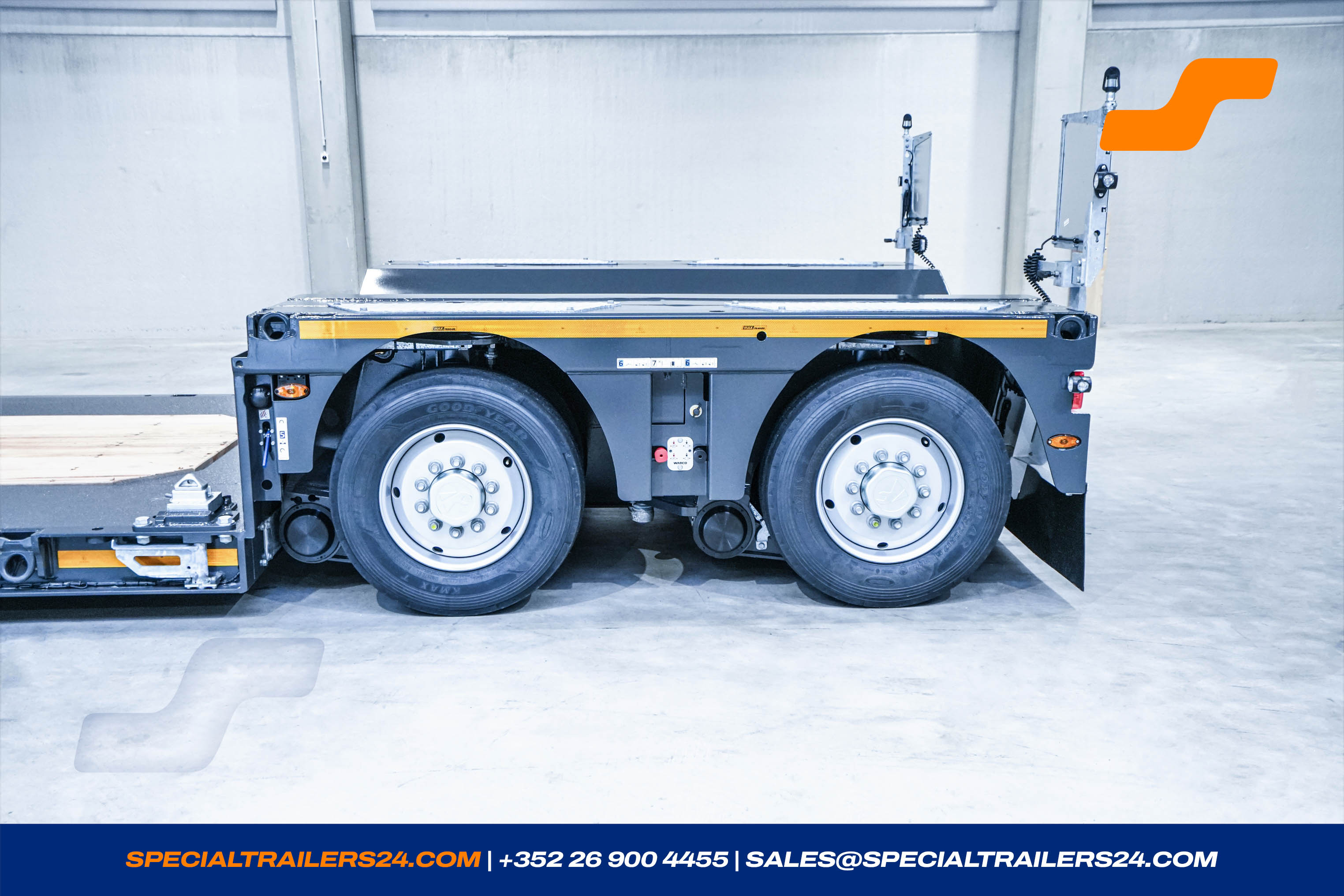

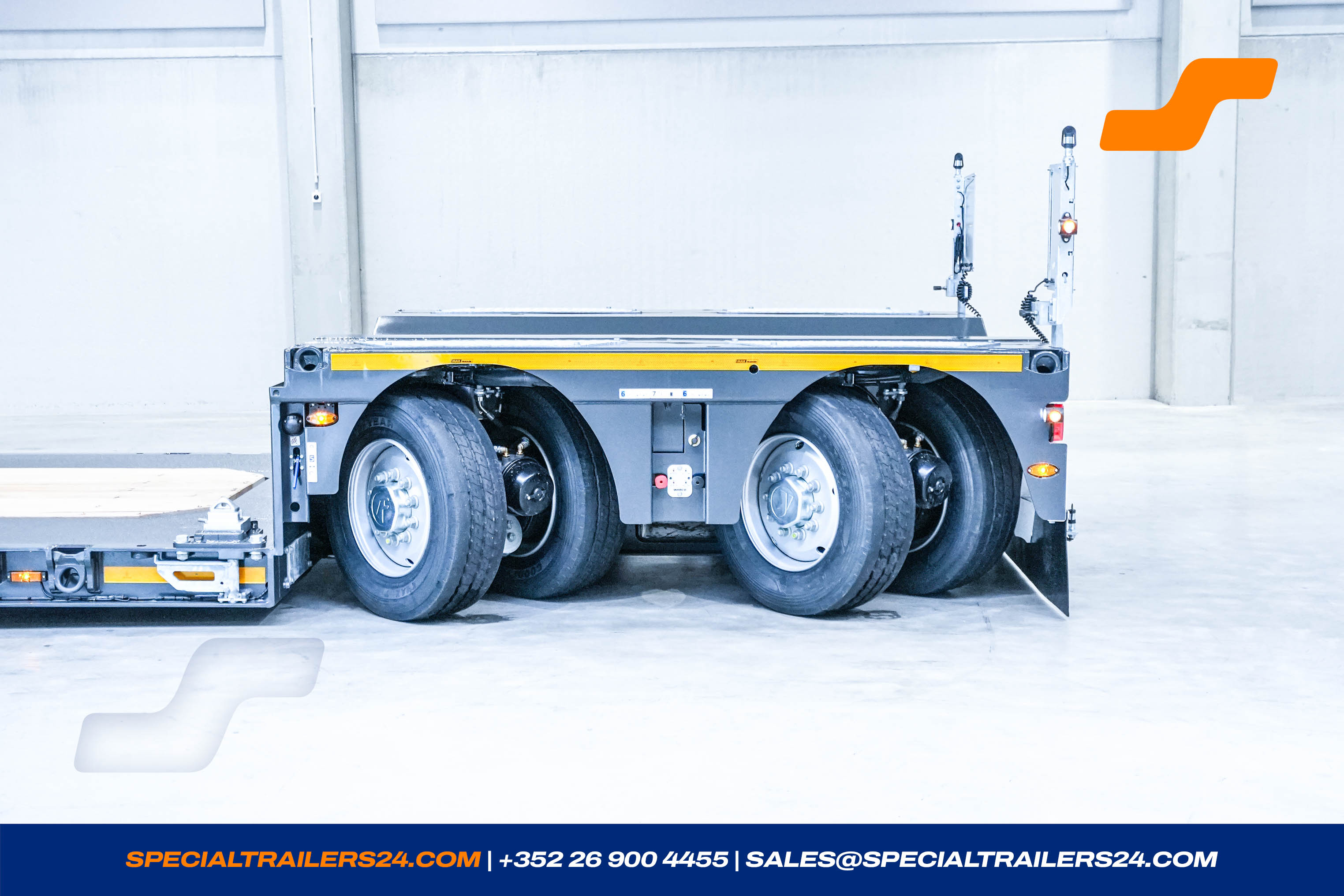

Rear Bogie
1 x Axles bogie

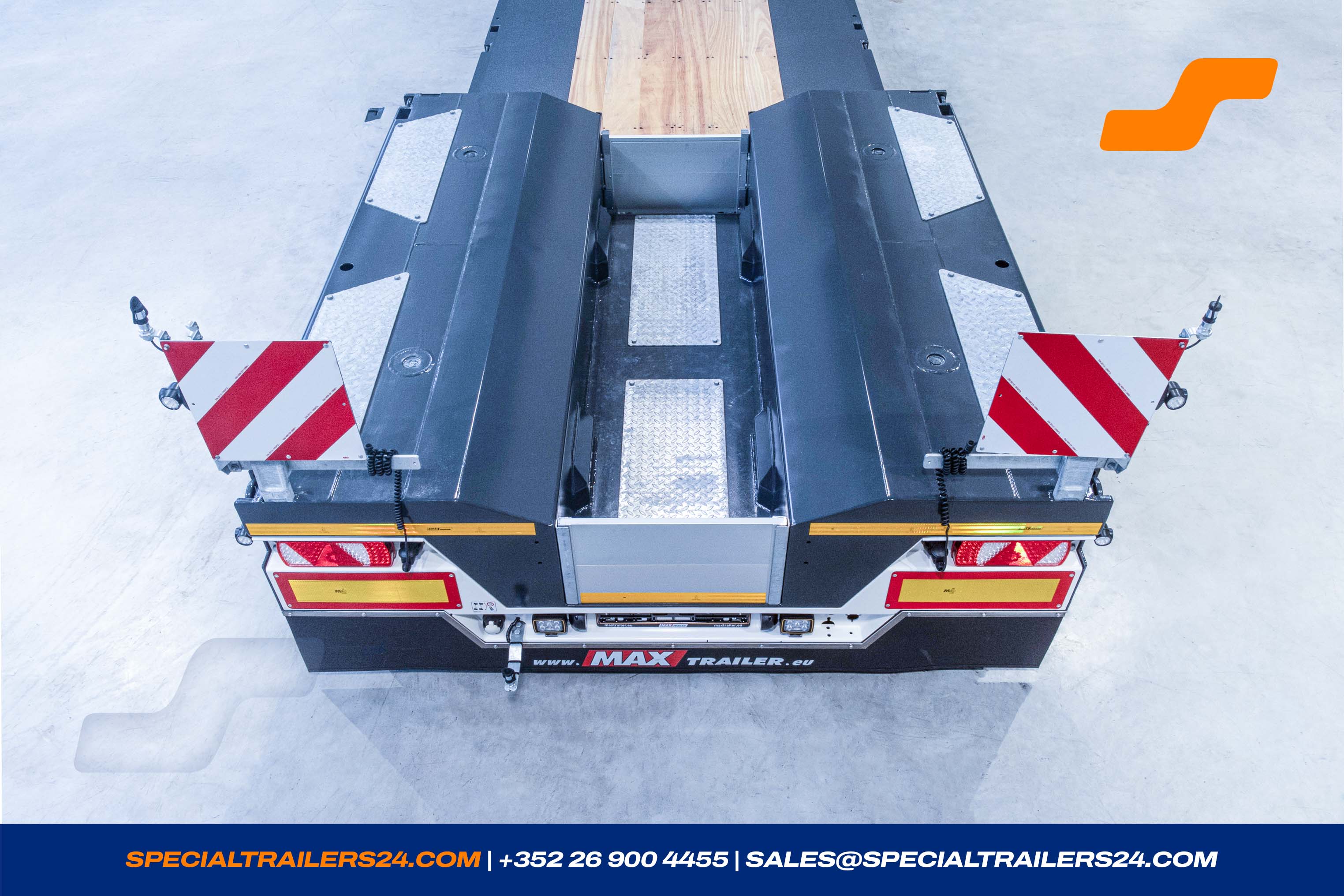

Axles bogie at the rear with outer frame construction, chequer plate cover and with recess, chamfered over the entire length ± 1 250/700 x 505 mm, rear open.
2 pairs of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
1 pair of rings in the recess (LC 16 000 daN).
1 pair of rings in the recess (LC 10 600 daN)
2 pairs of pockets for stakes ±100 x 50 mm in the outer frame.

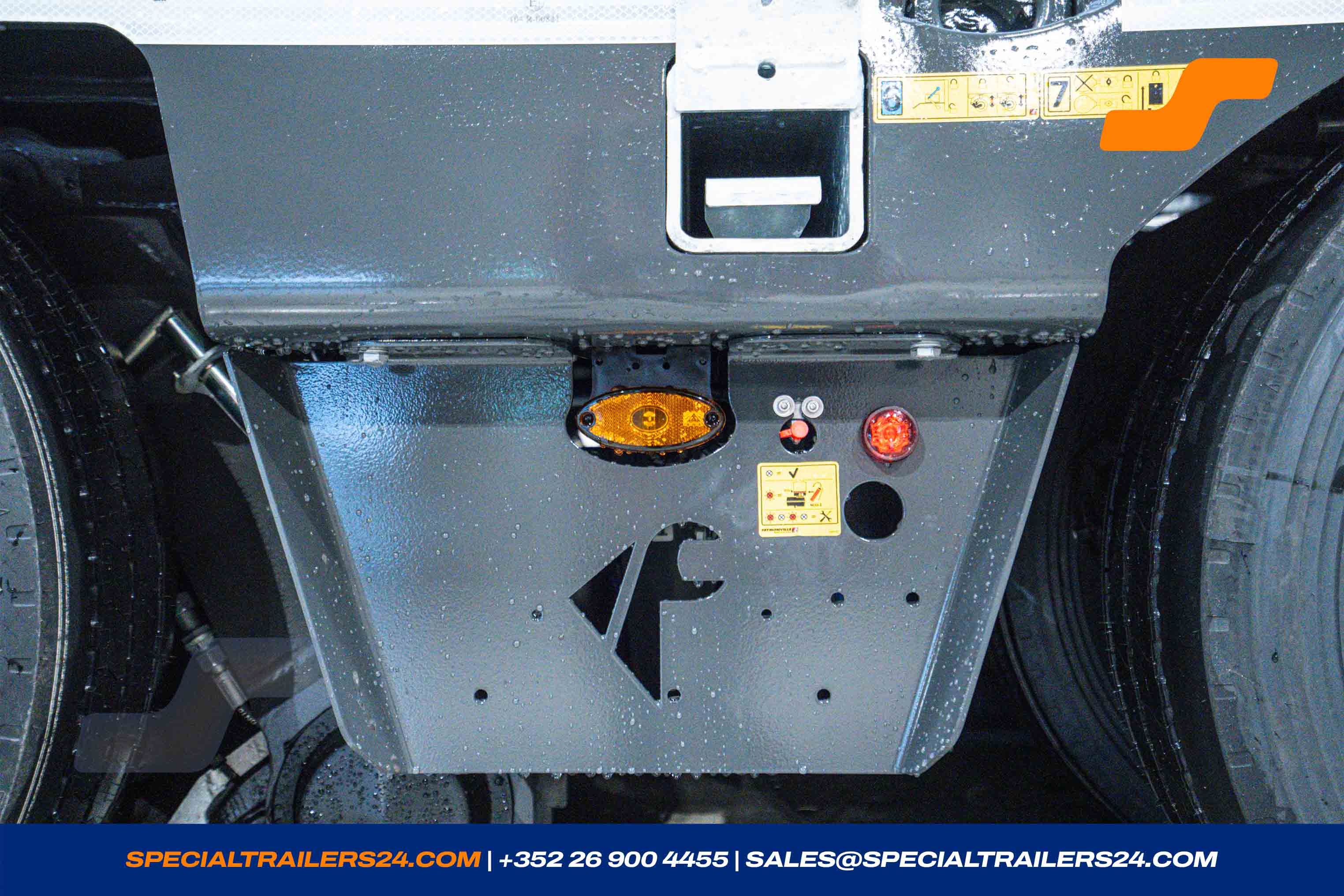

- Holder for one beacon light at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- The front and rear end of the recess on the axle bogie closed by a plate.
Accessories
1 x Accessories
-
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - Manual and description on USB stick .
- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-
TÜV expertise and §70 exemption for an application for an exceptional transport permit for a tractor.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer. - Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110091
- Reference MAX510-Z-2H-ATX-A-6.85-PA
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000273
- Steering Type Hydraulic
