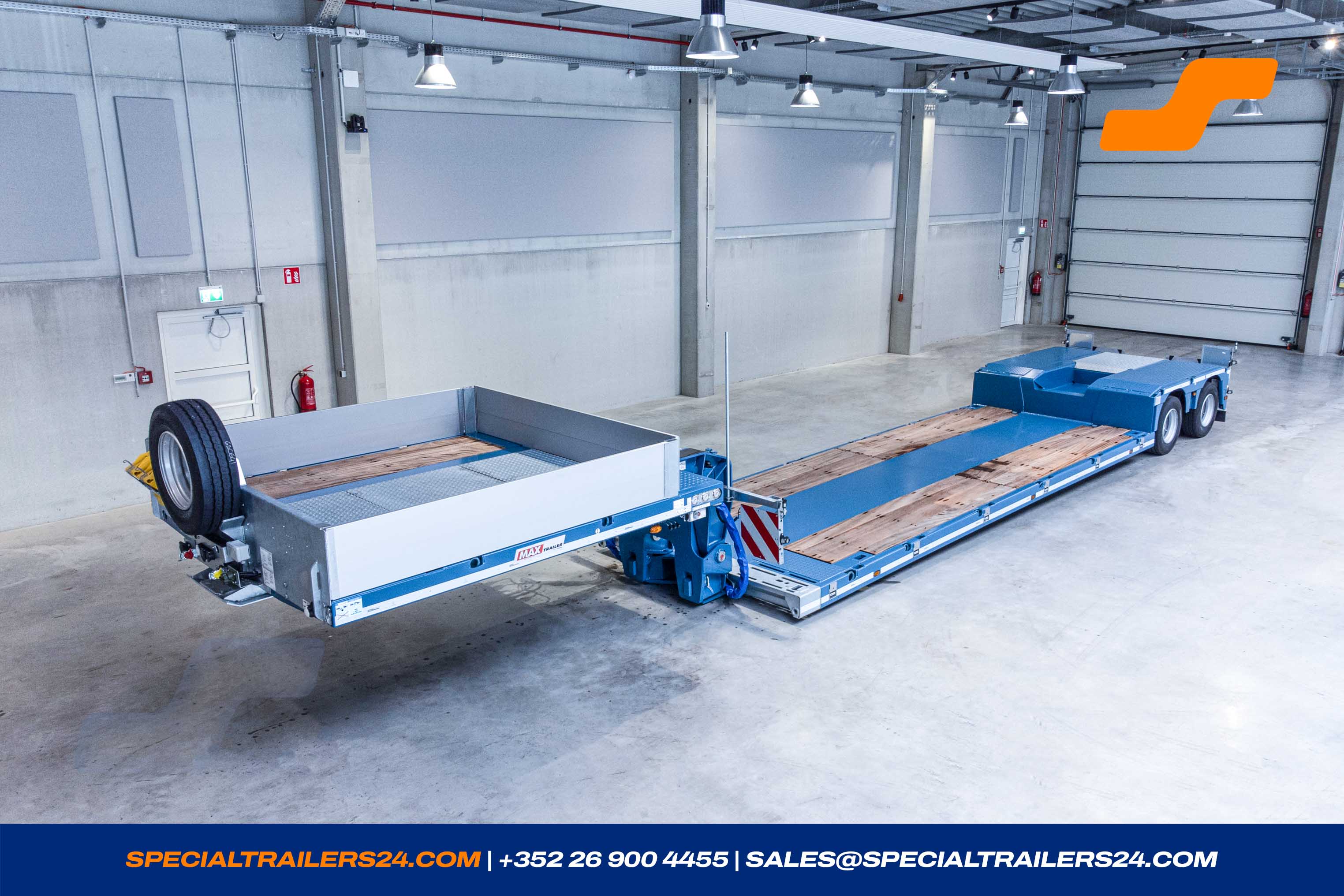

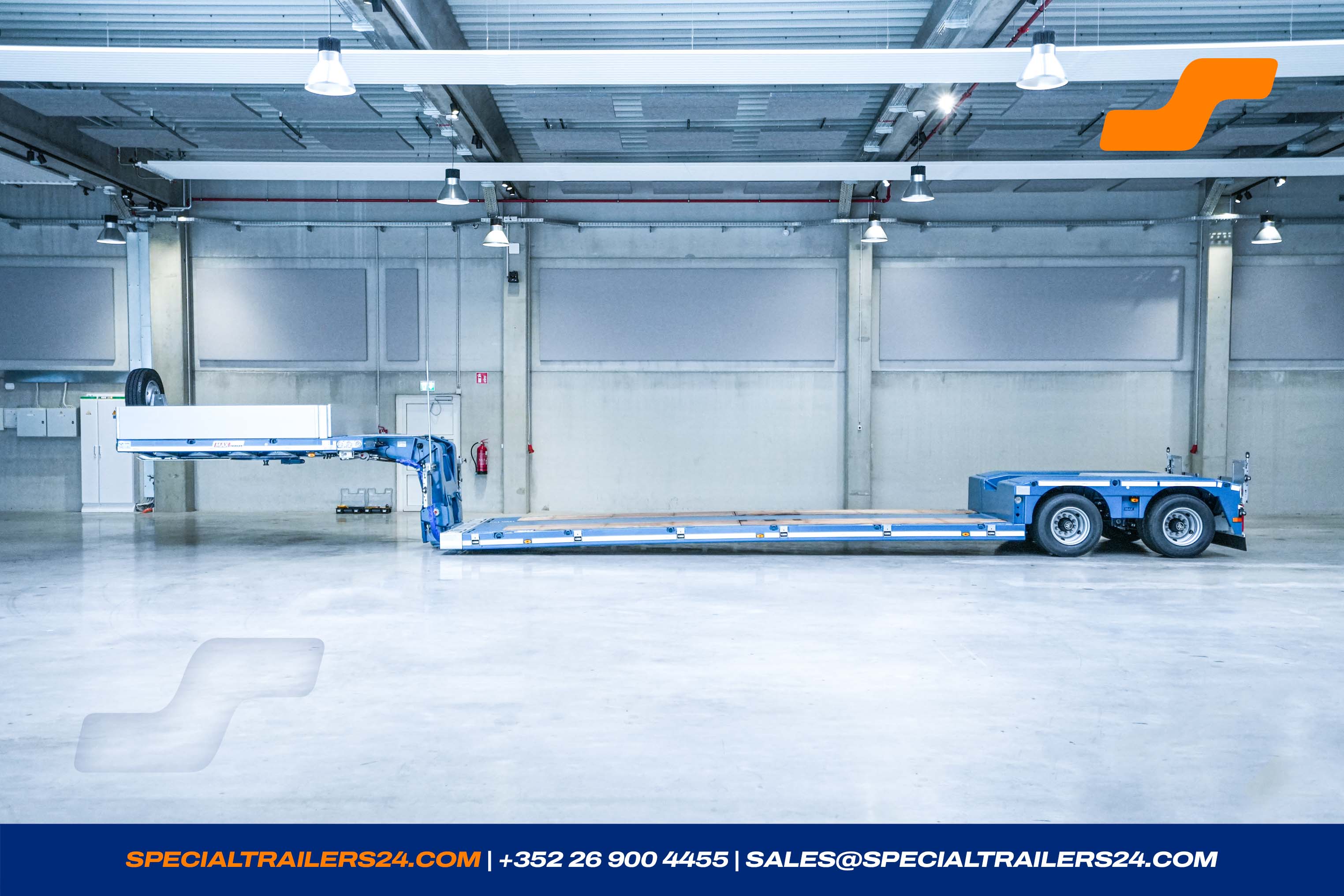

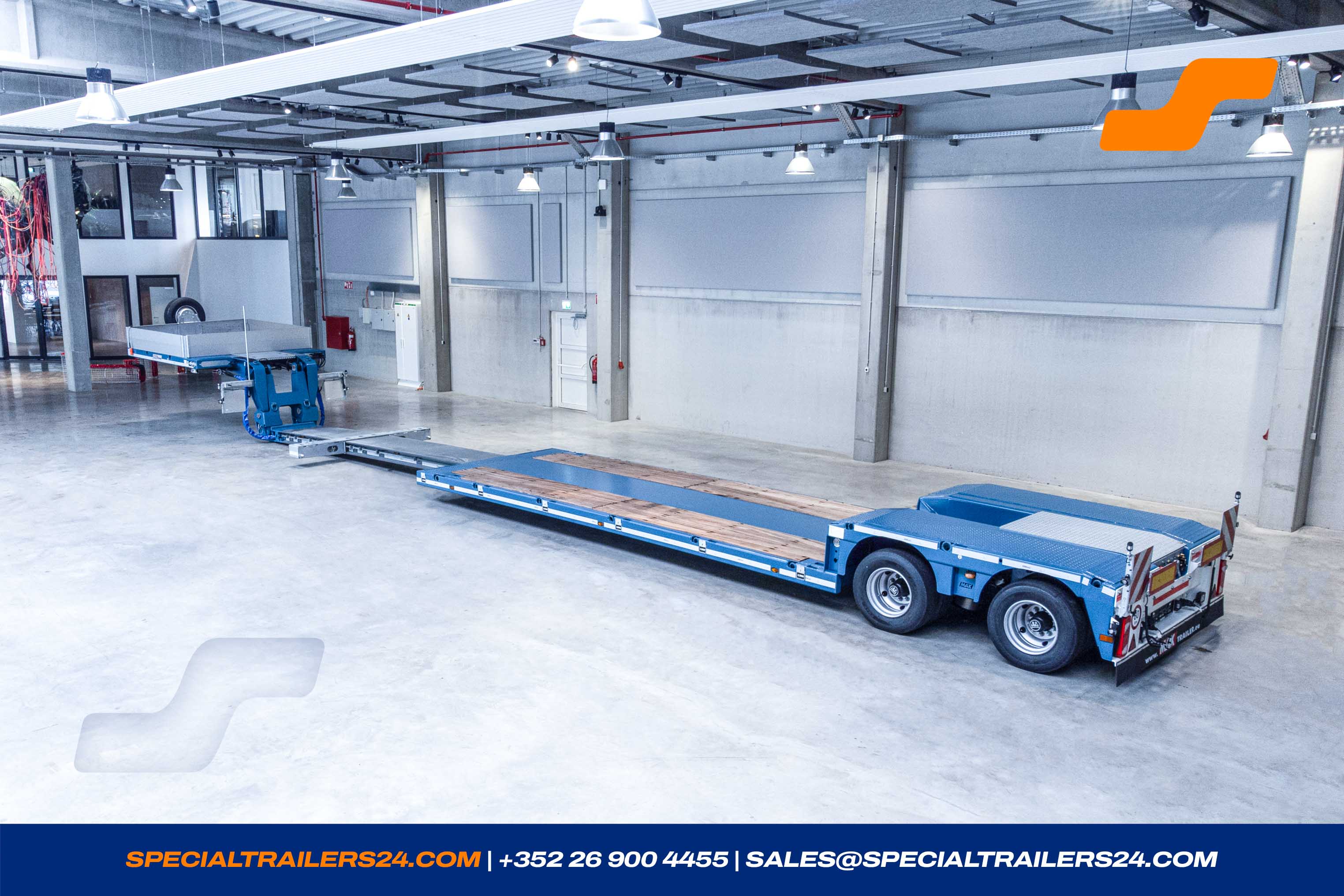

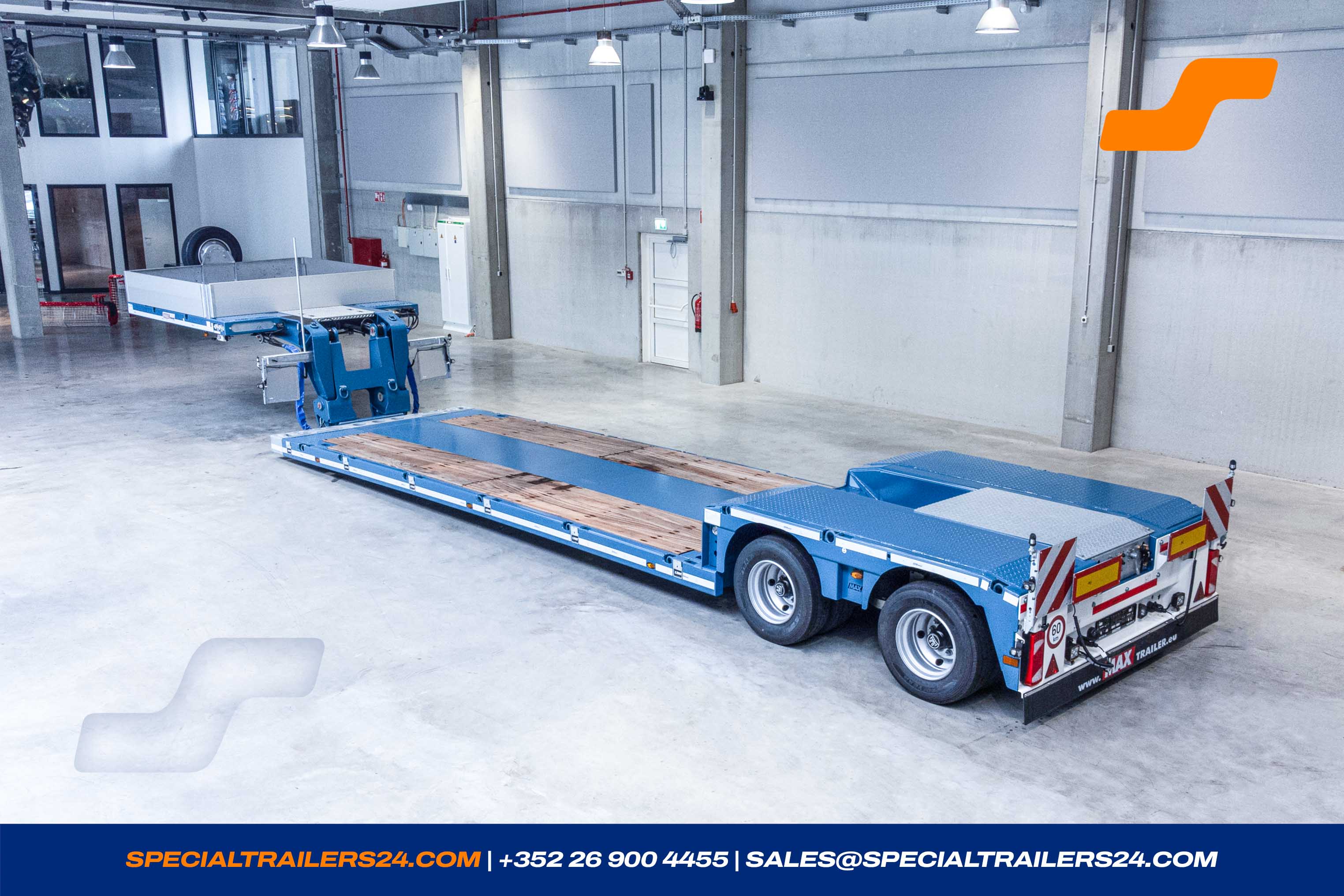

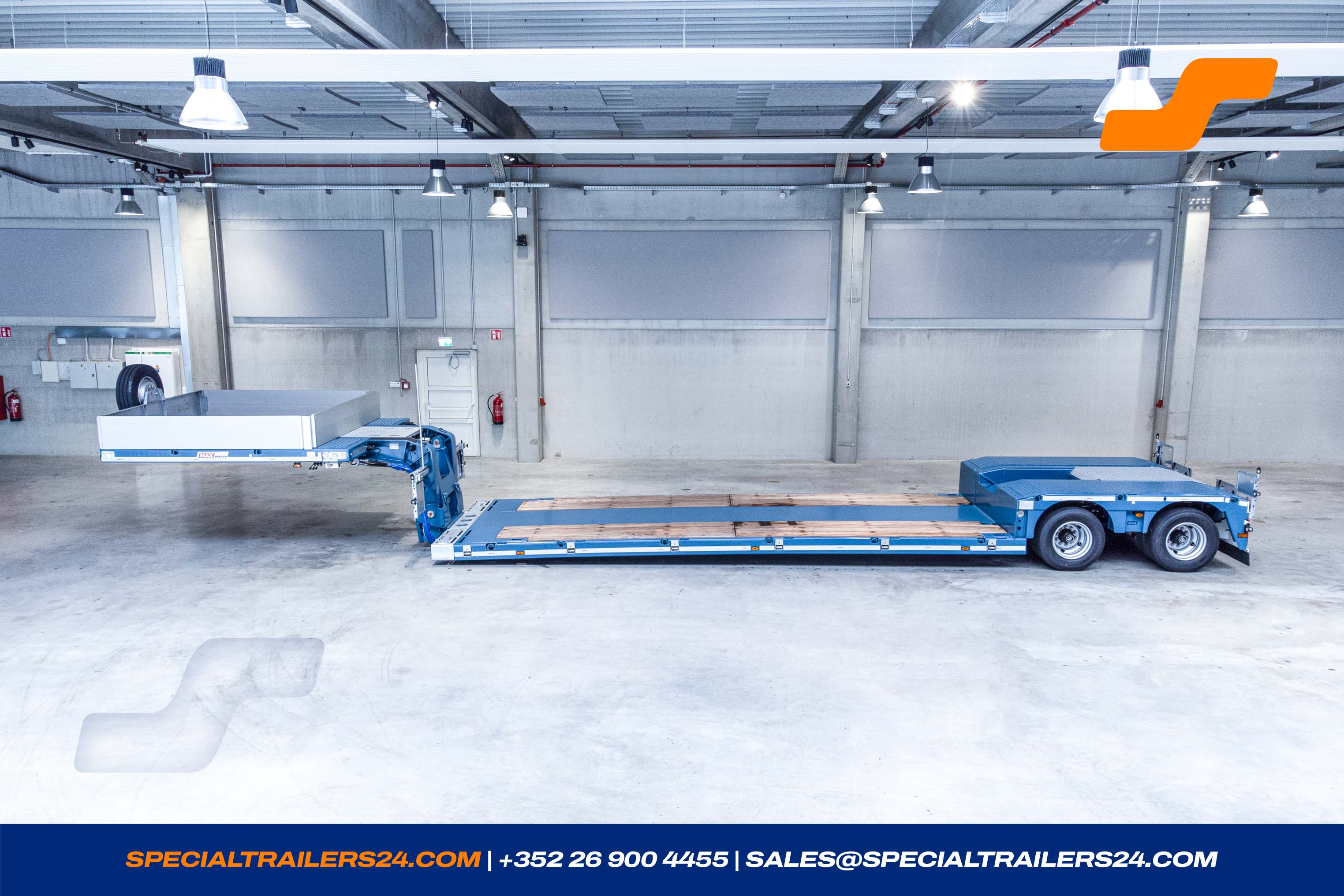

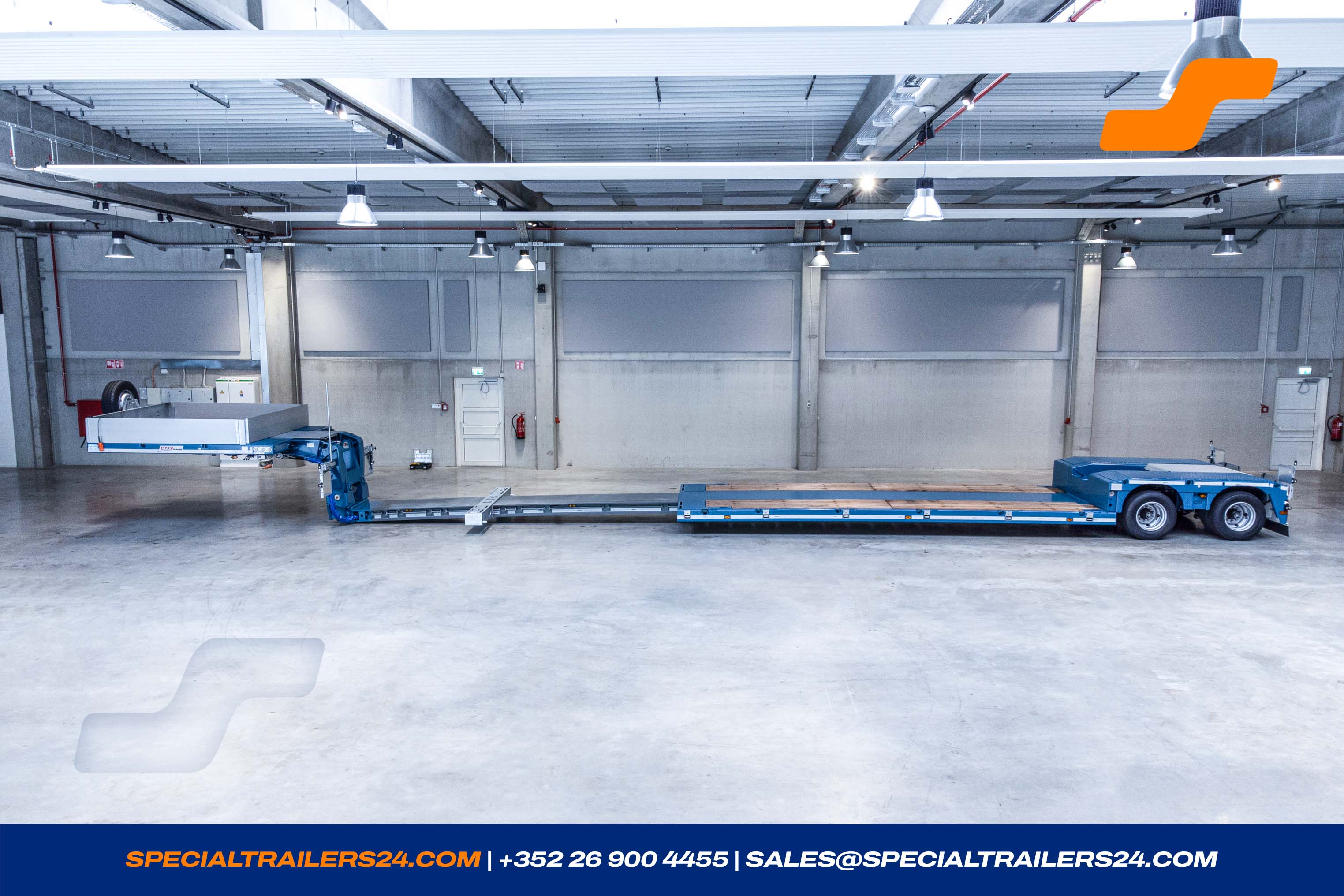

MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111348
- Reference MAX510-Z-2A-5.75
- Number of axles 2
- Condition New
- Year of manufacture 2026
- Colour RAL 9006 (Brillant Direct) - White aluminium (brillant direct)
- Availability 03/2026

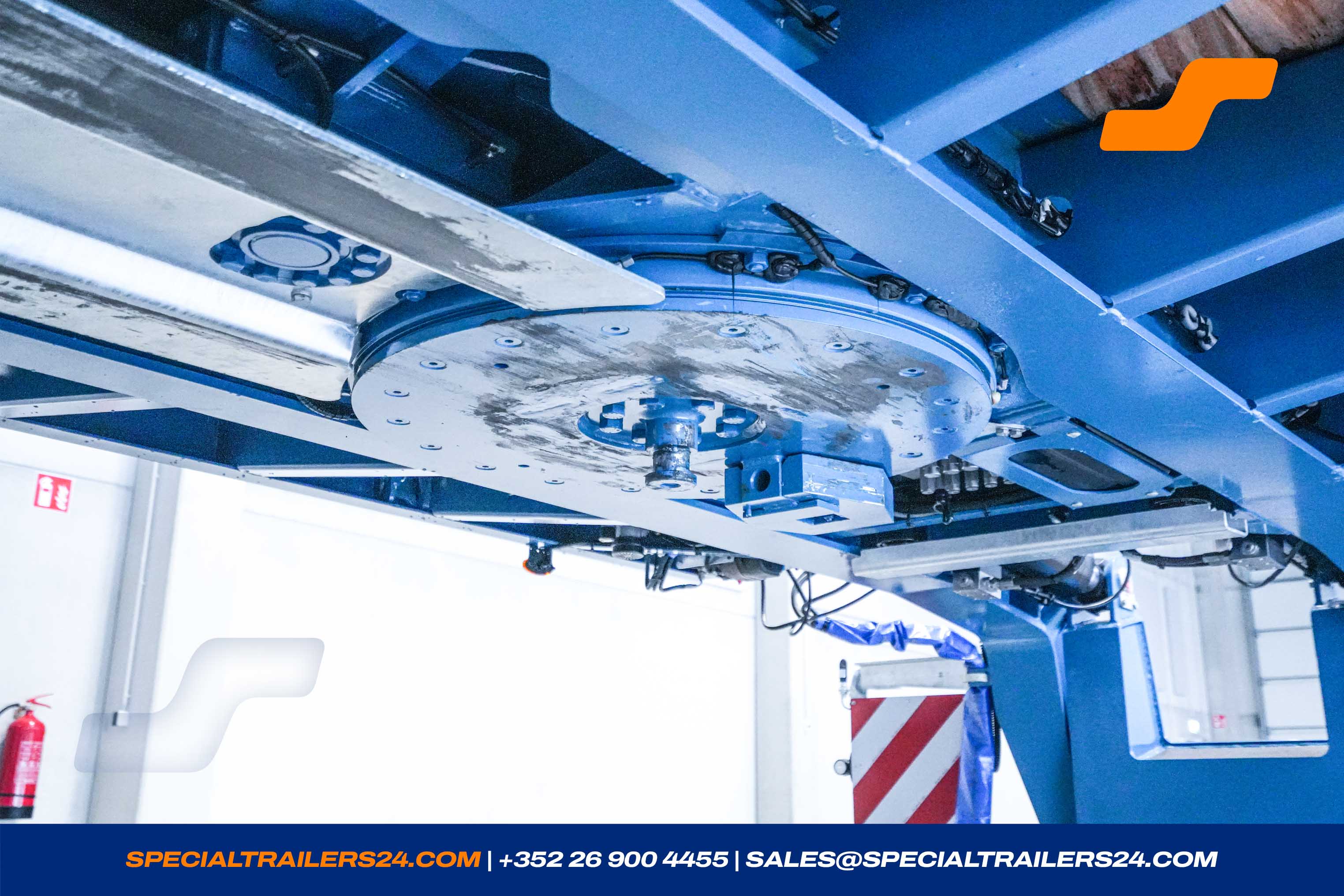

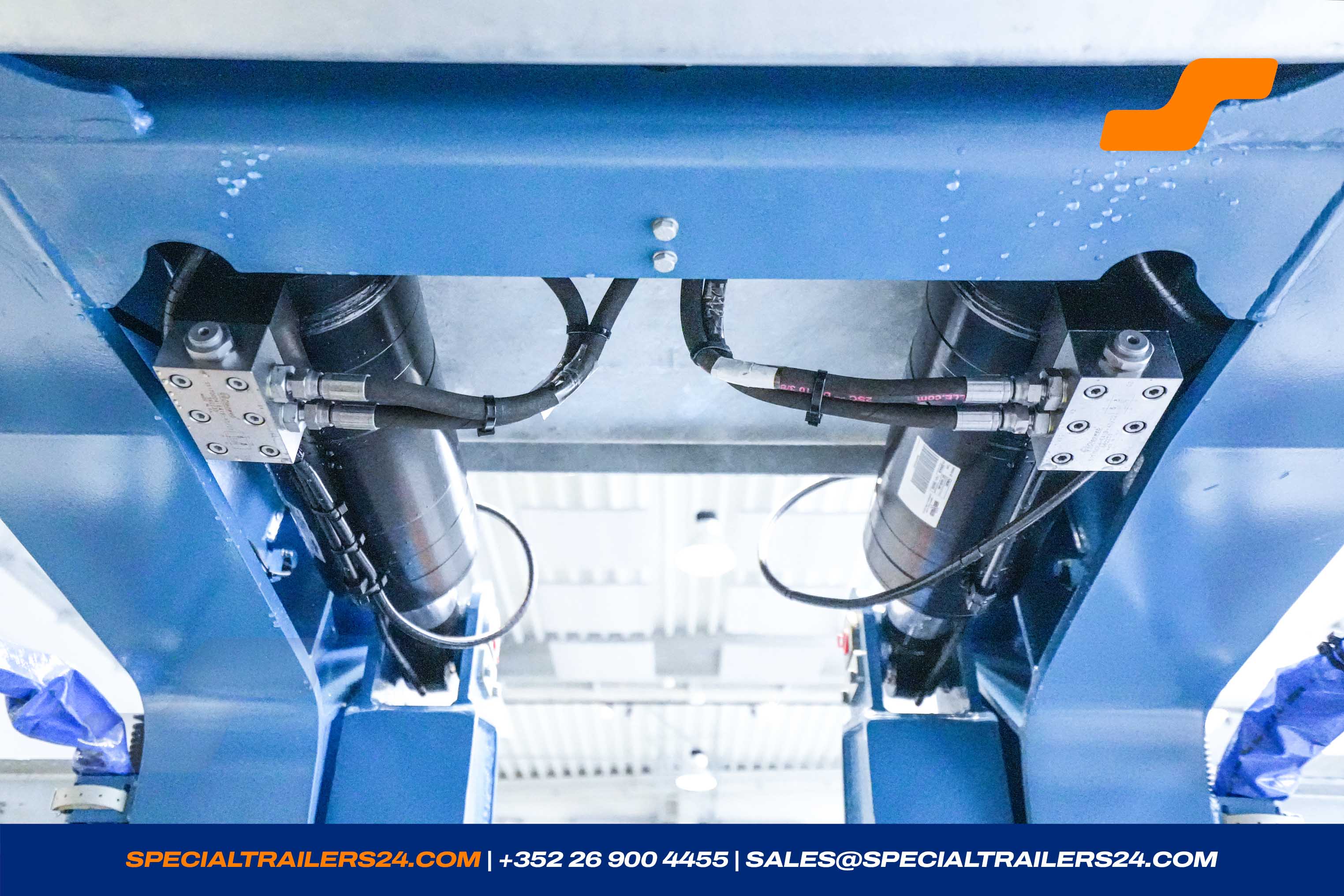

- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h |
|---|
Dimensions

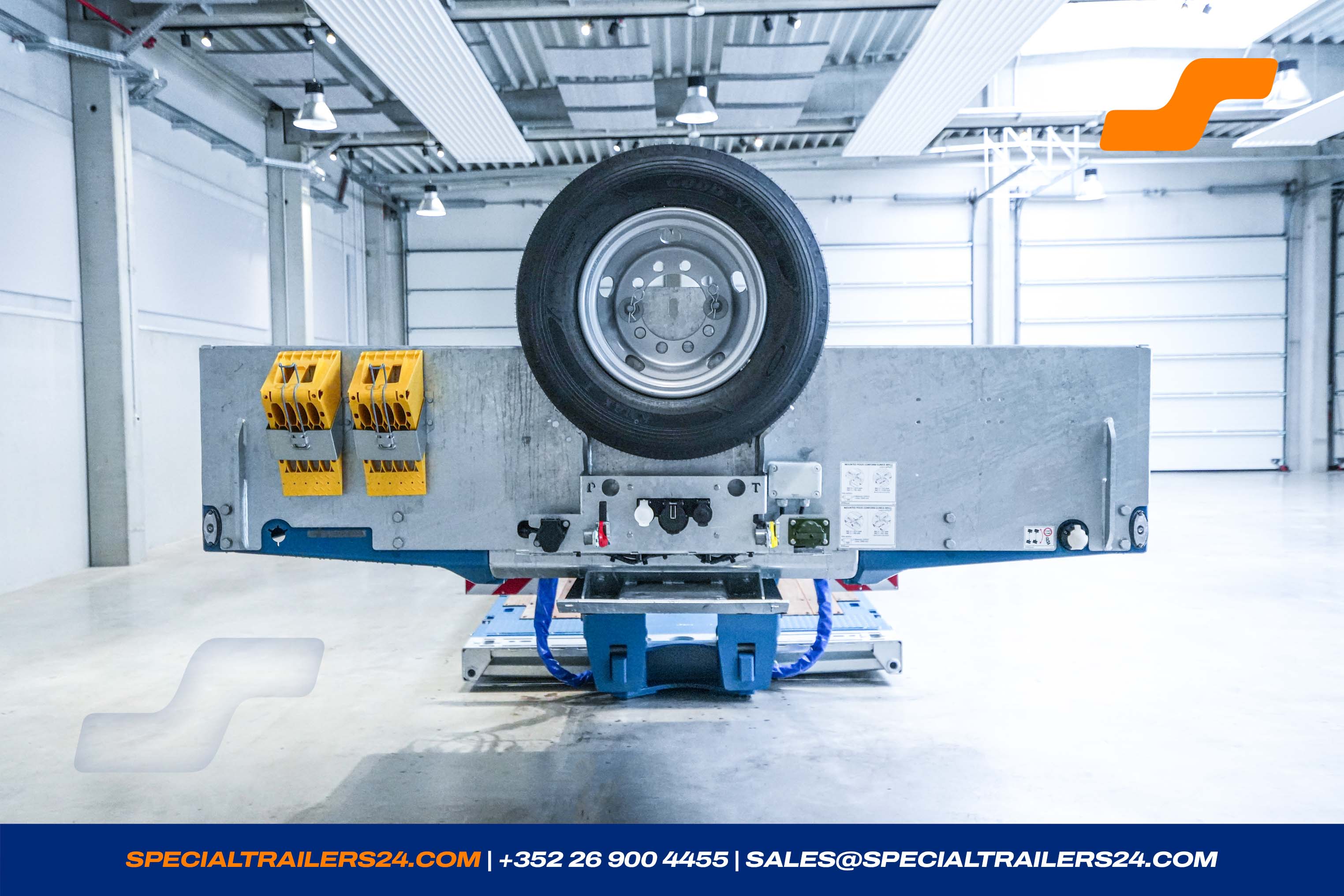

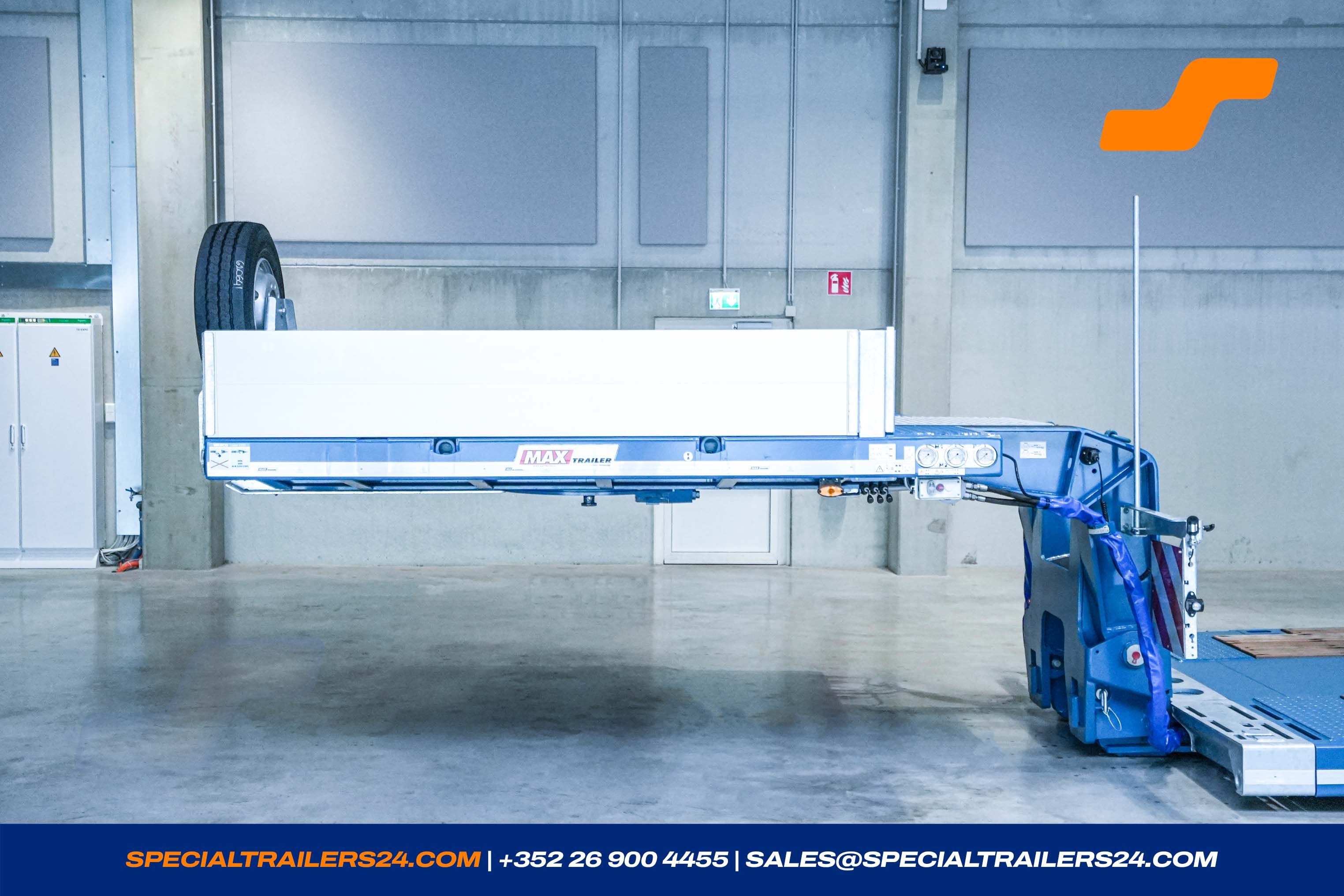

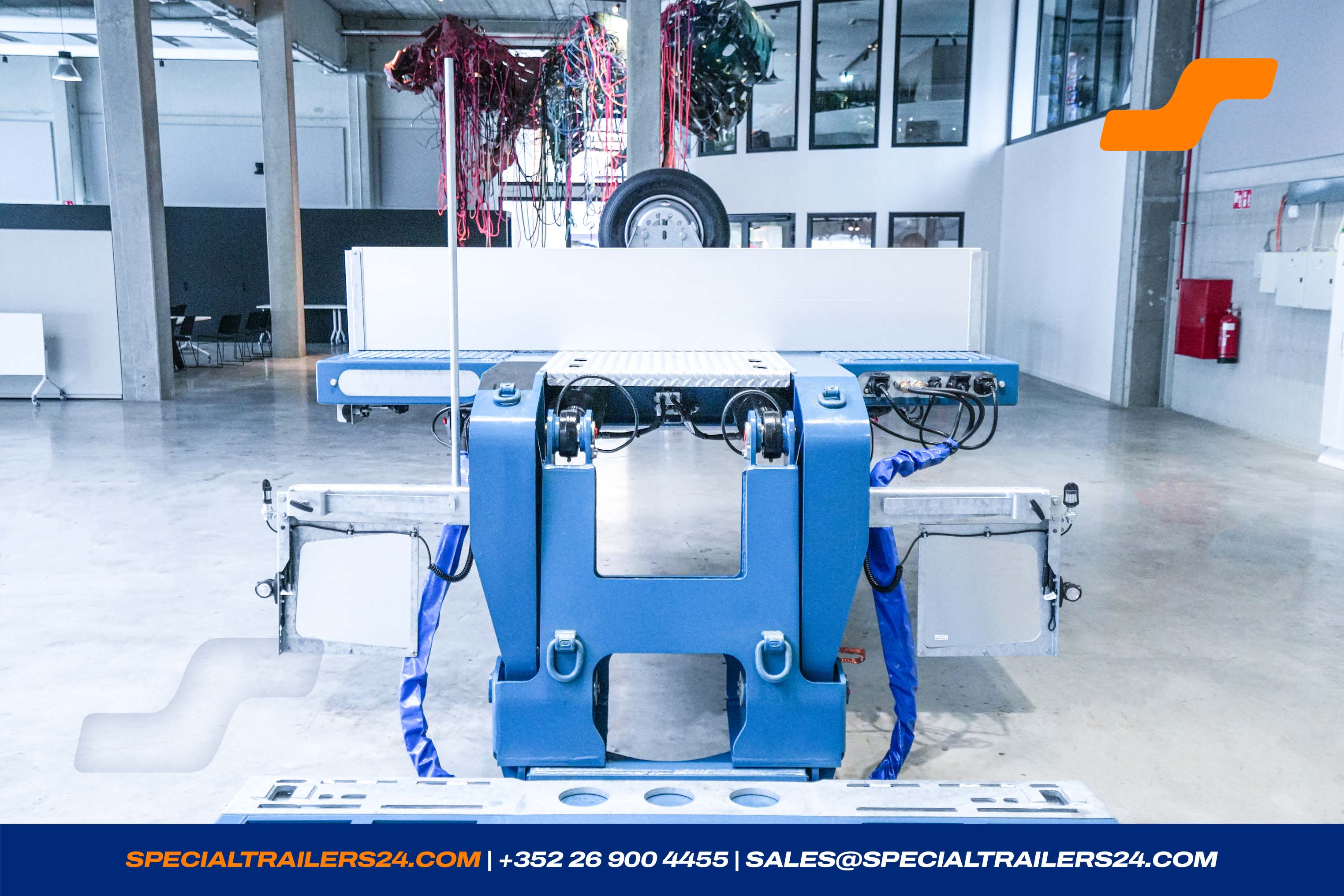

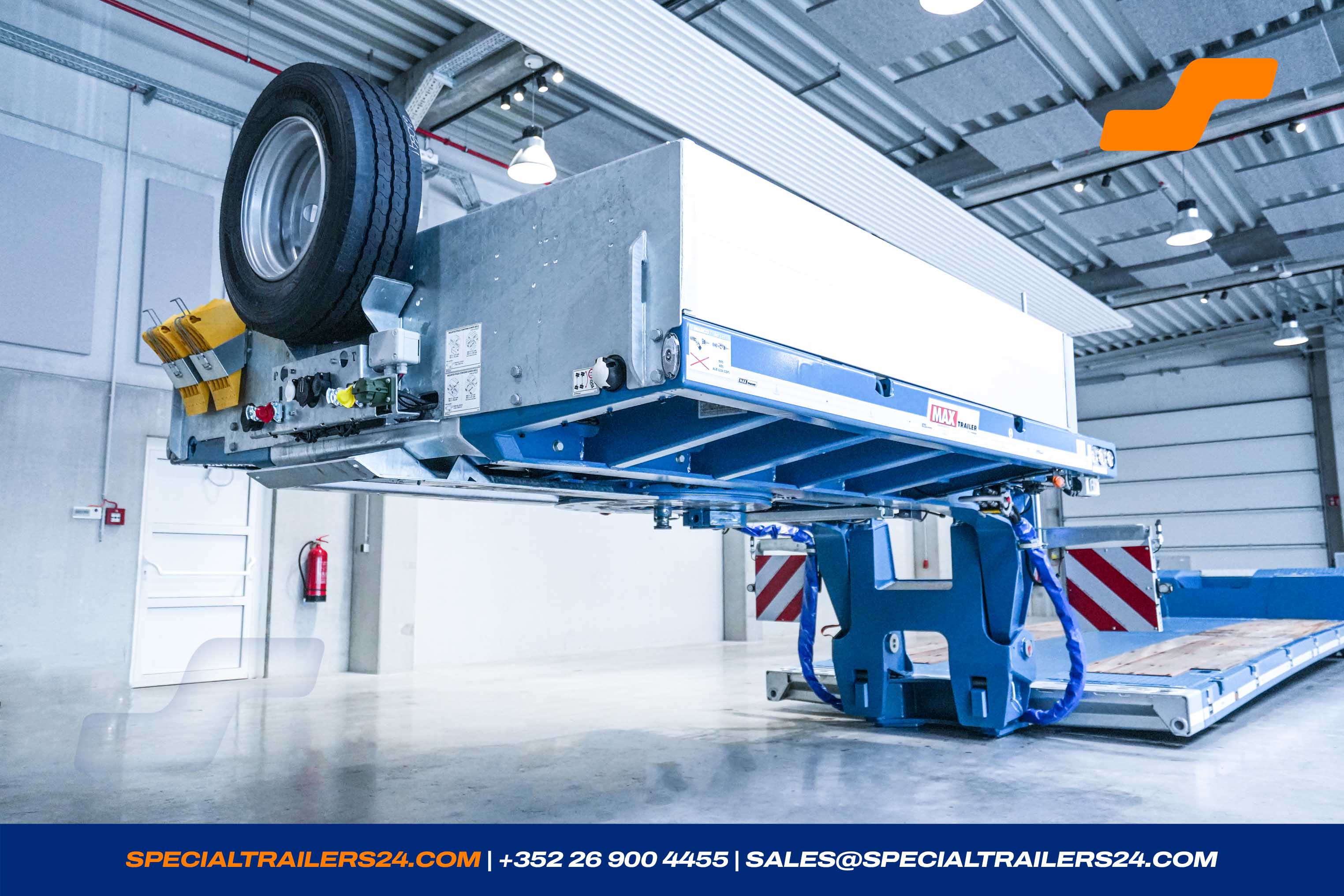

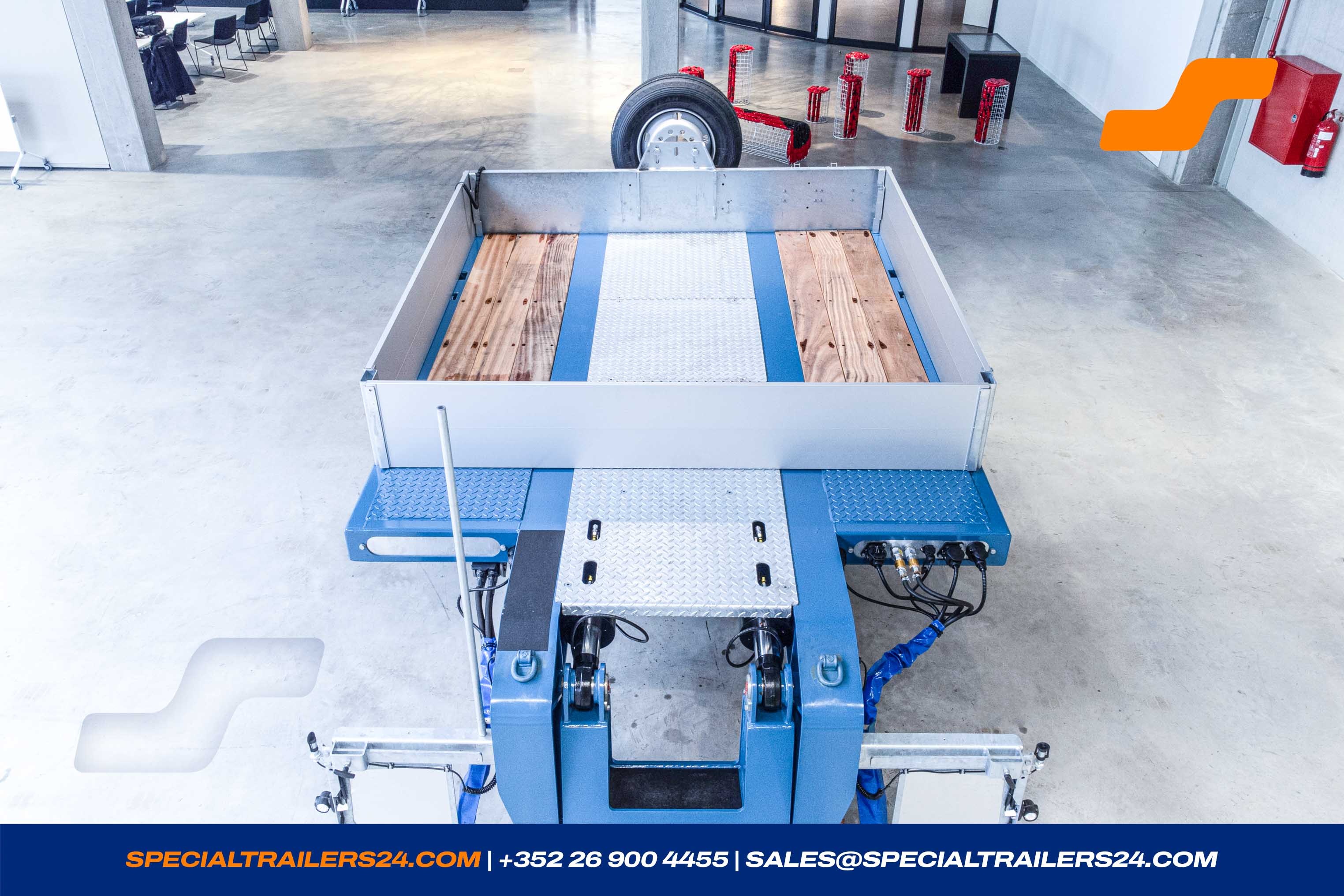

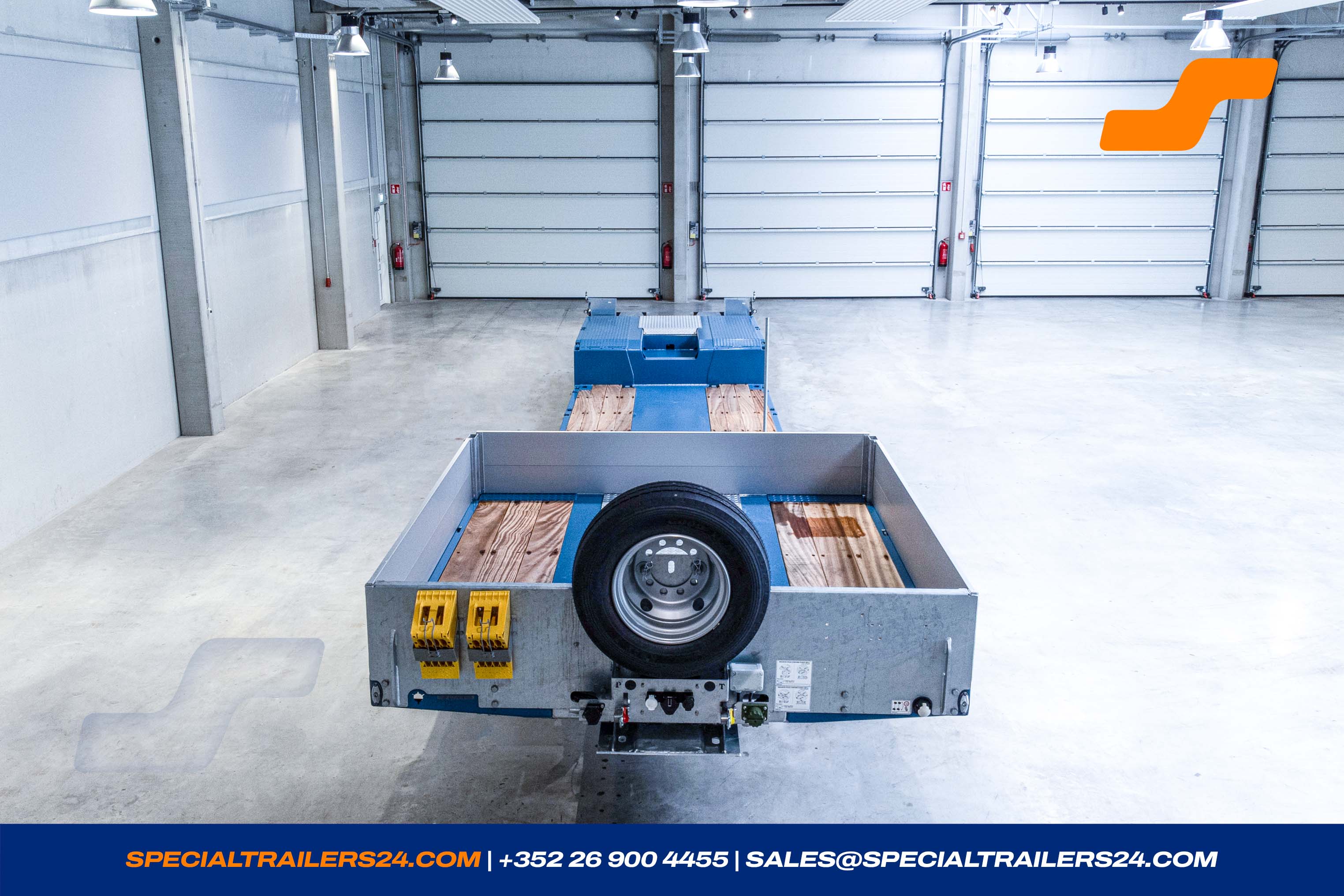

Gooseneck
1 x Gooseneck
Gooseneck , length ± 3.900 mm.
Gooseneck hydraulic lift and lowerable and detachable.
King pin load technical: 23.000
- One powder fire extinguisher (6 kg) with a protective casing and holder on the headboard (± 15kg).
- A separate air connection with air gun on the gooseneck.
- DUOMATIC air couplings connections from loading platform to gooseneck

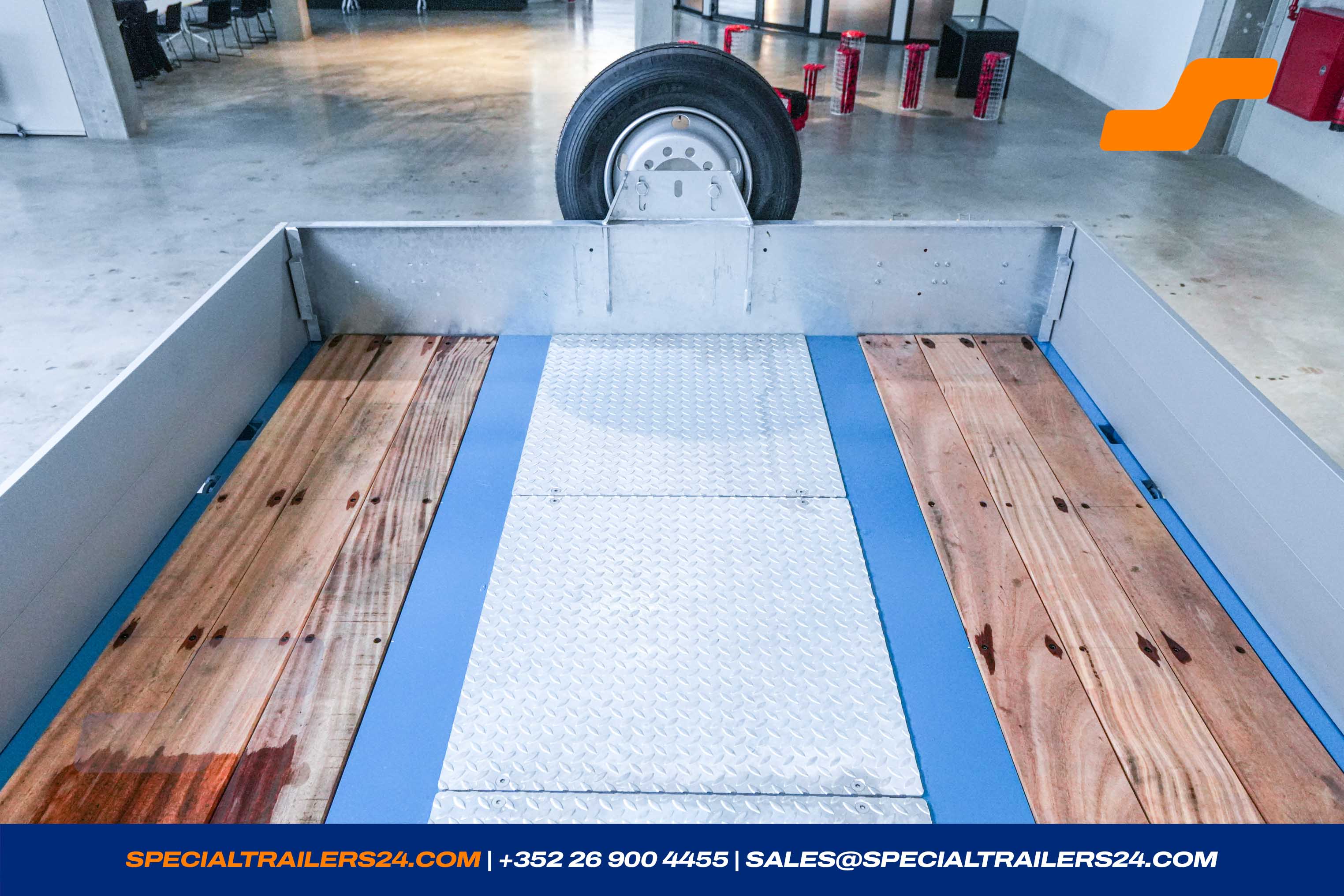

- 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)

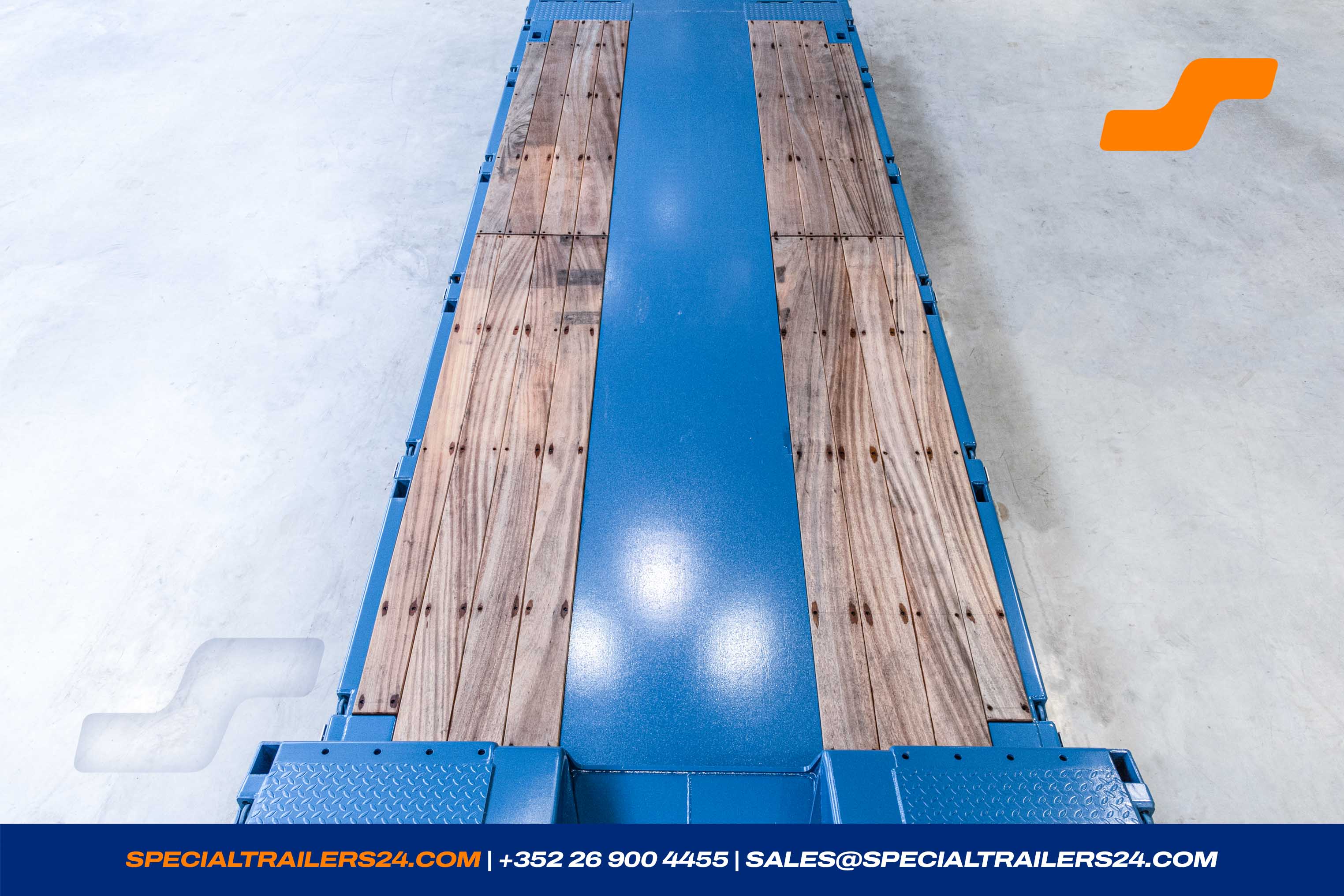

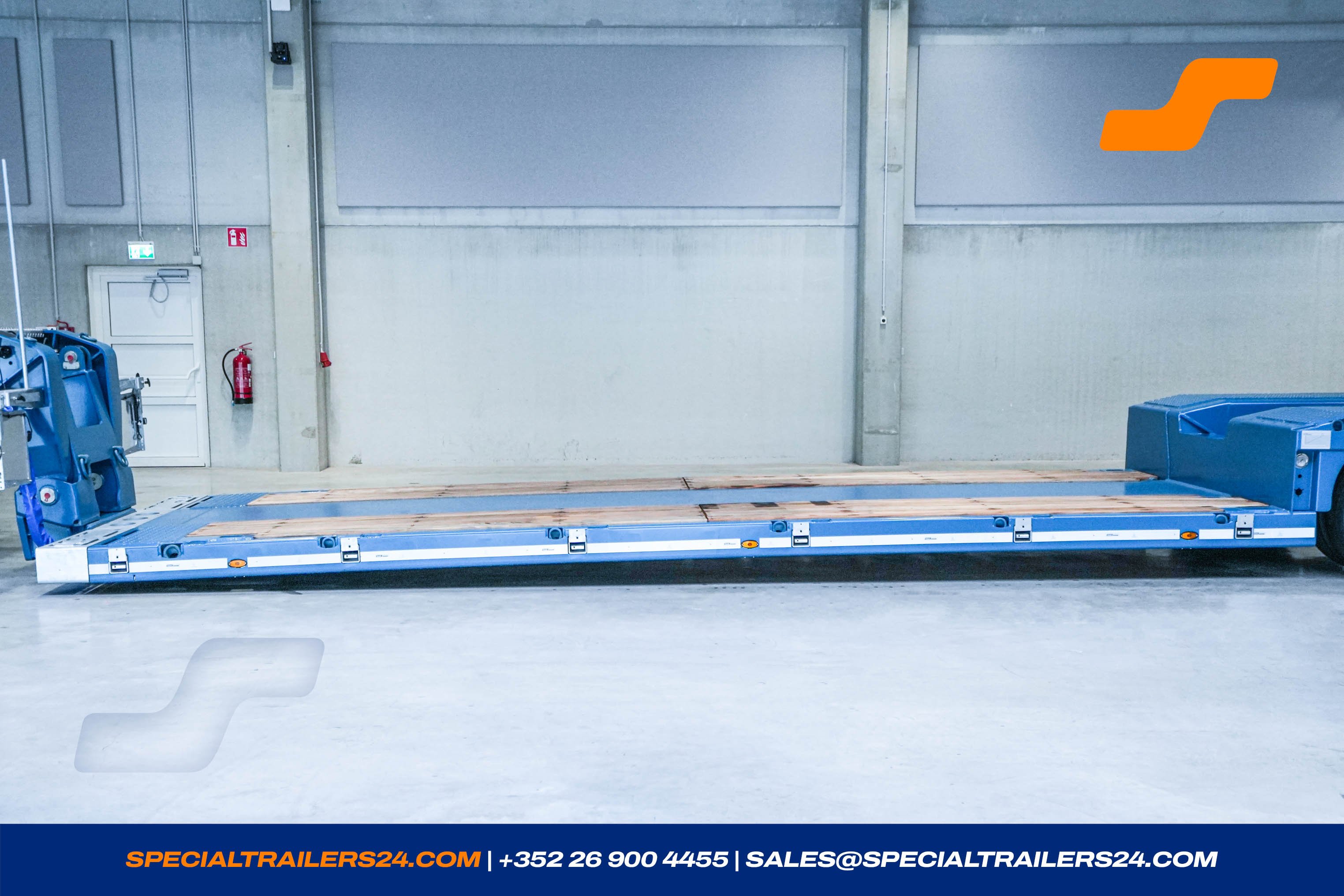

Loading deck
Loading platform
1 x Lowbed

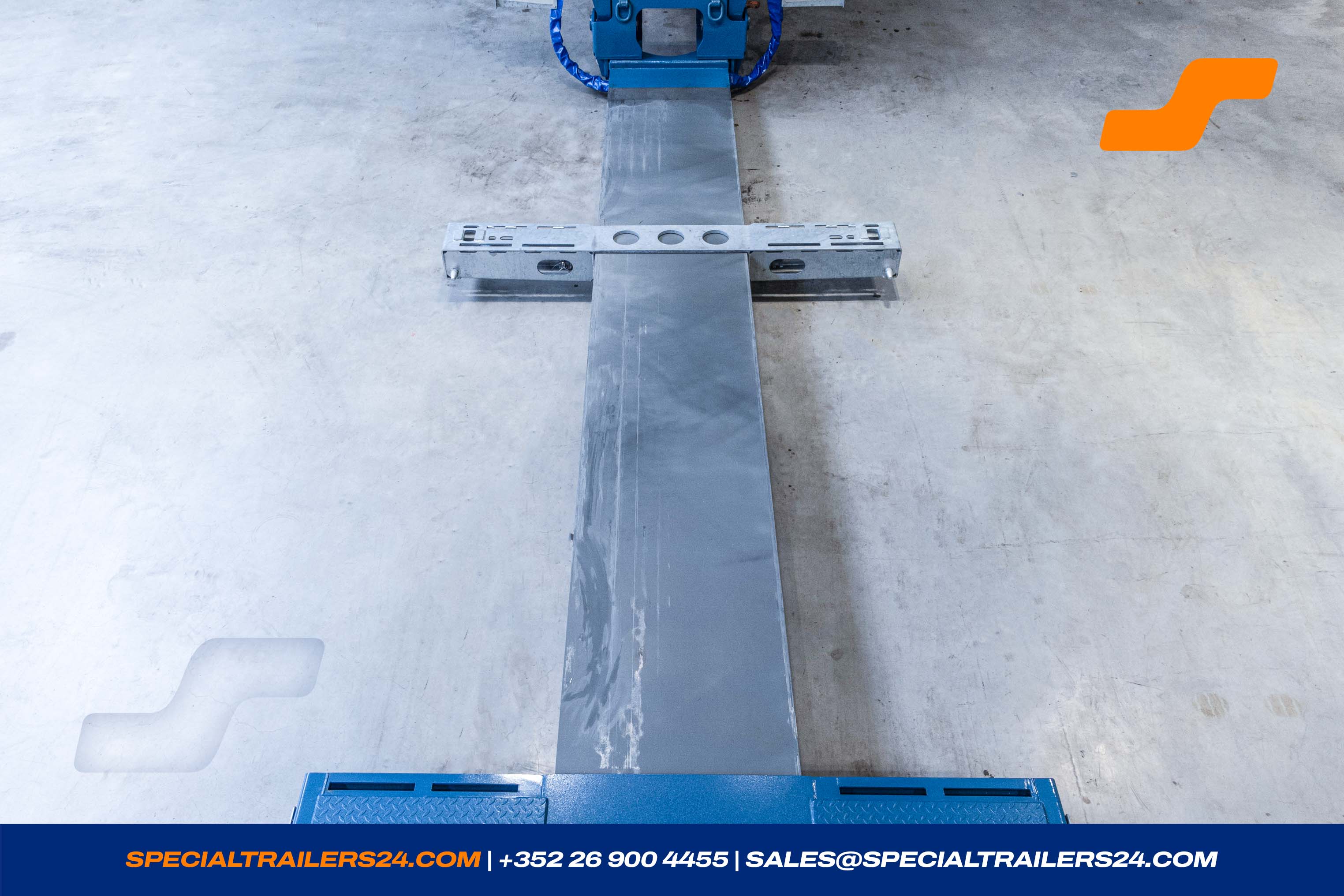

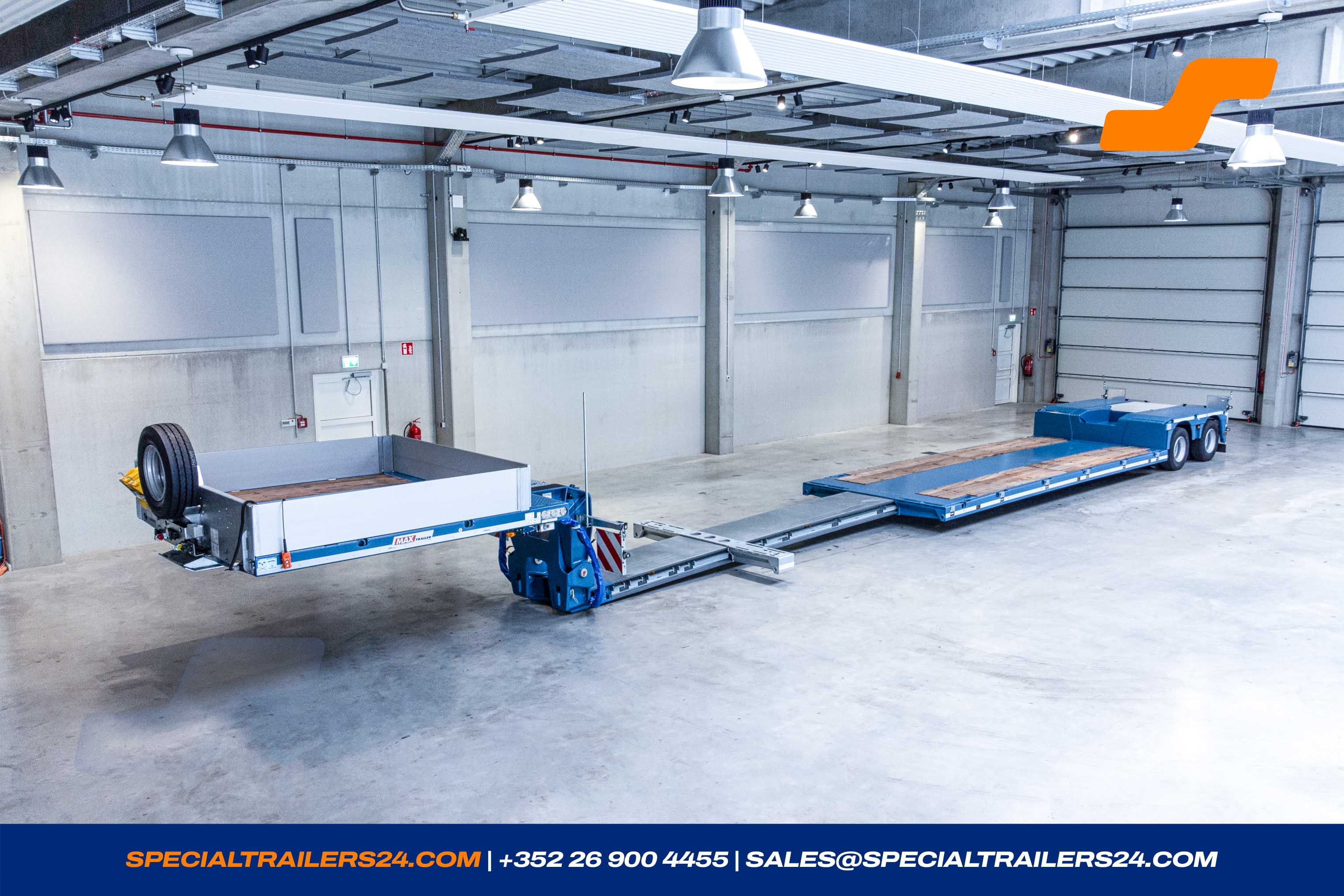

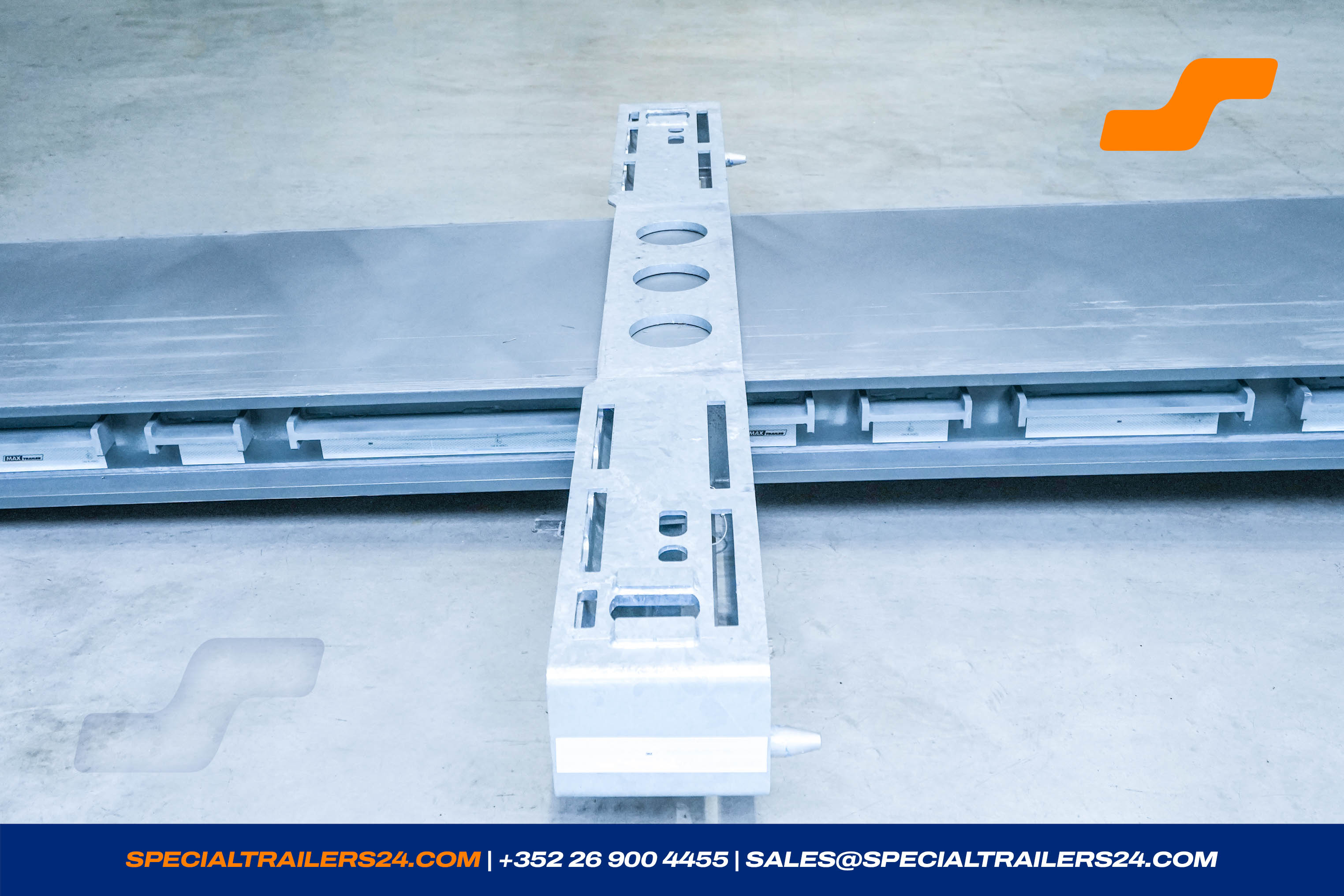

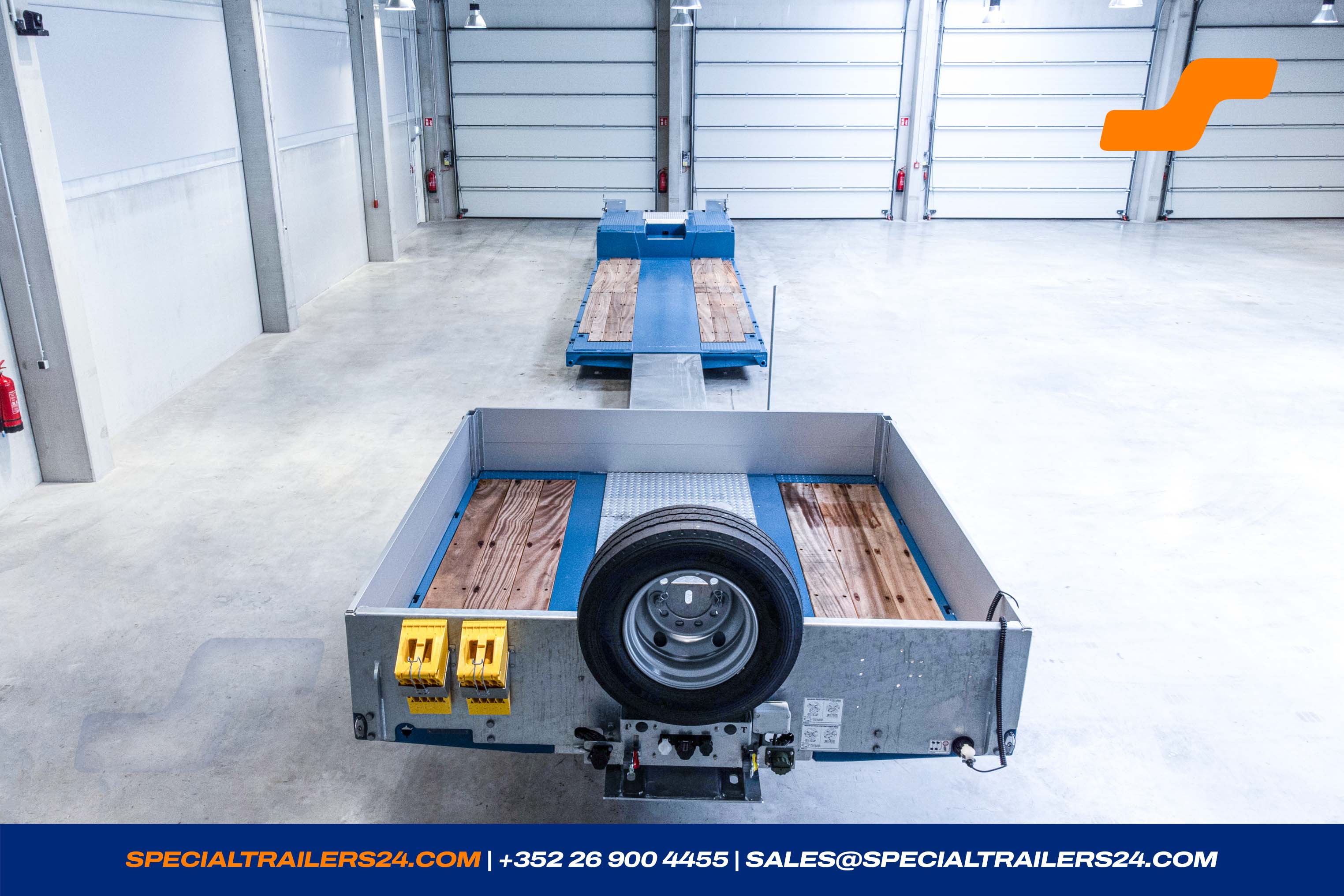

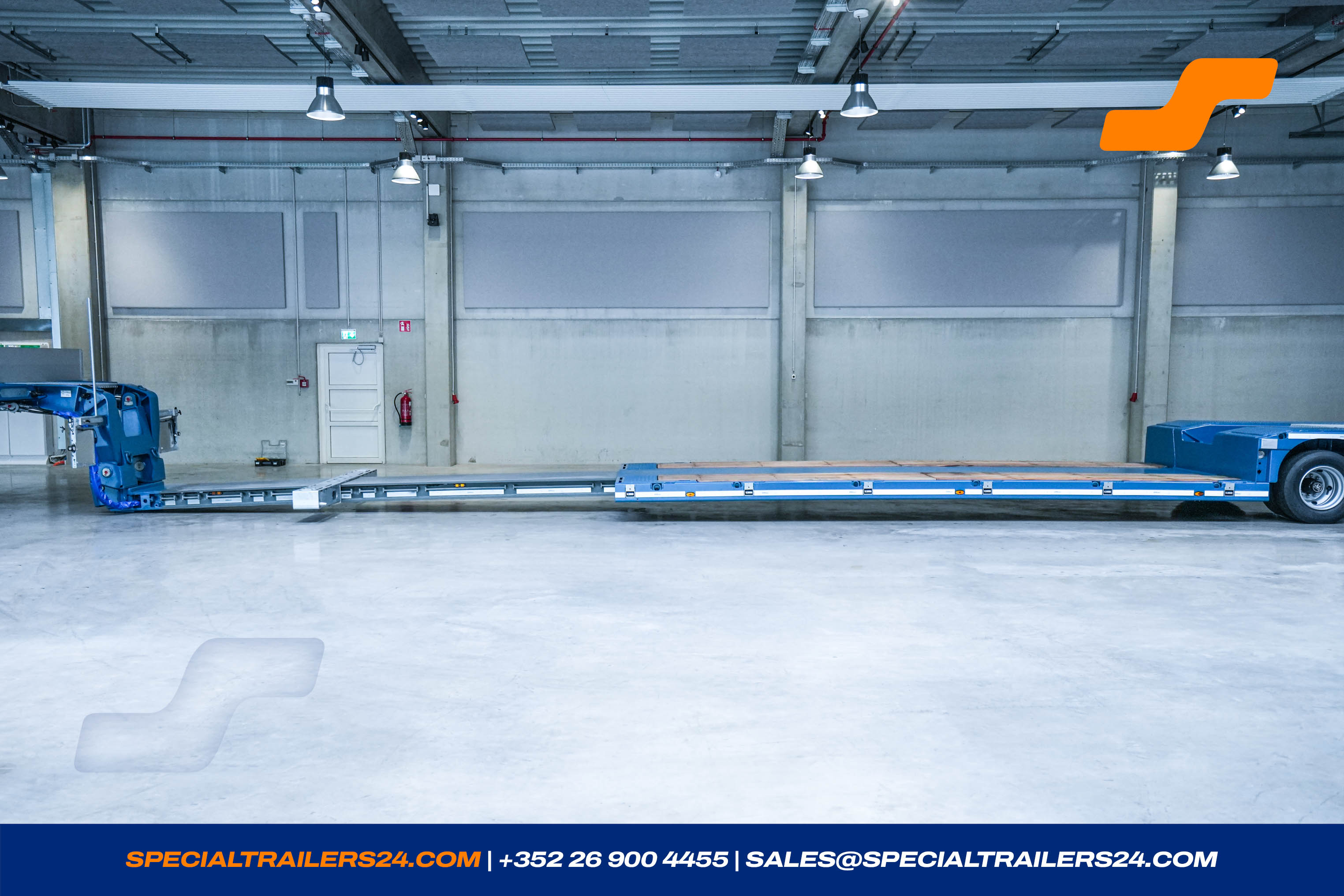

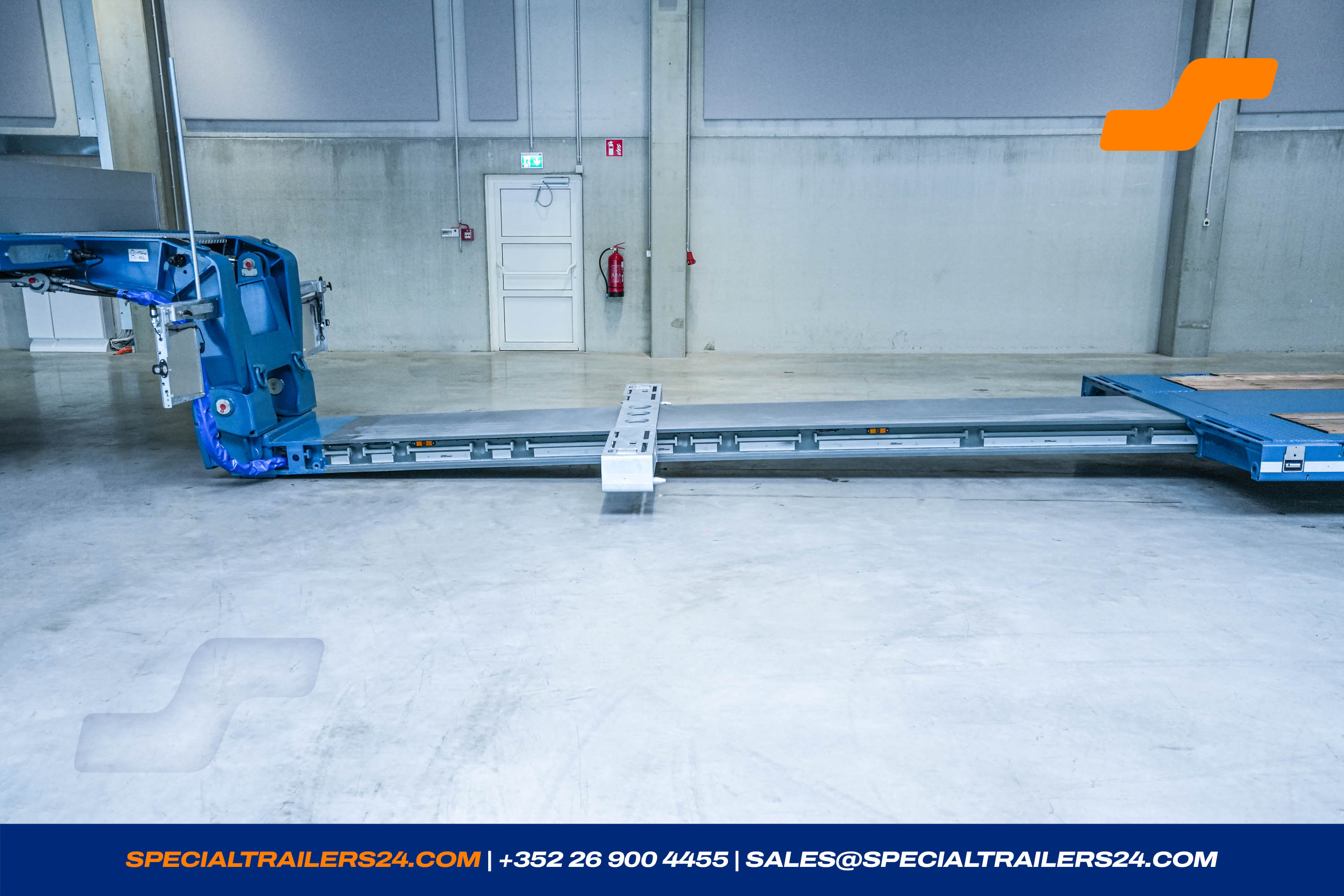

Lowbed with center spine extendable, length ± 5.750 mm.

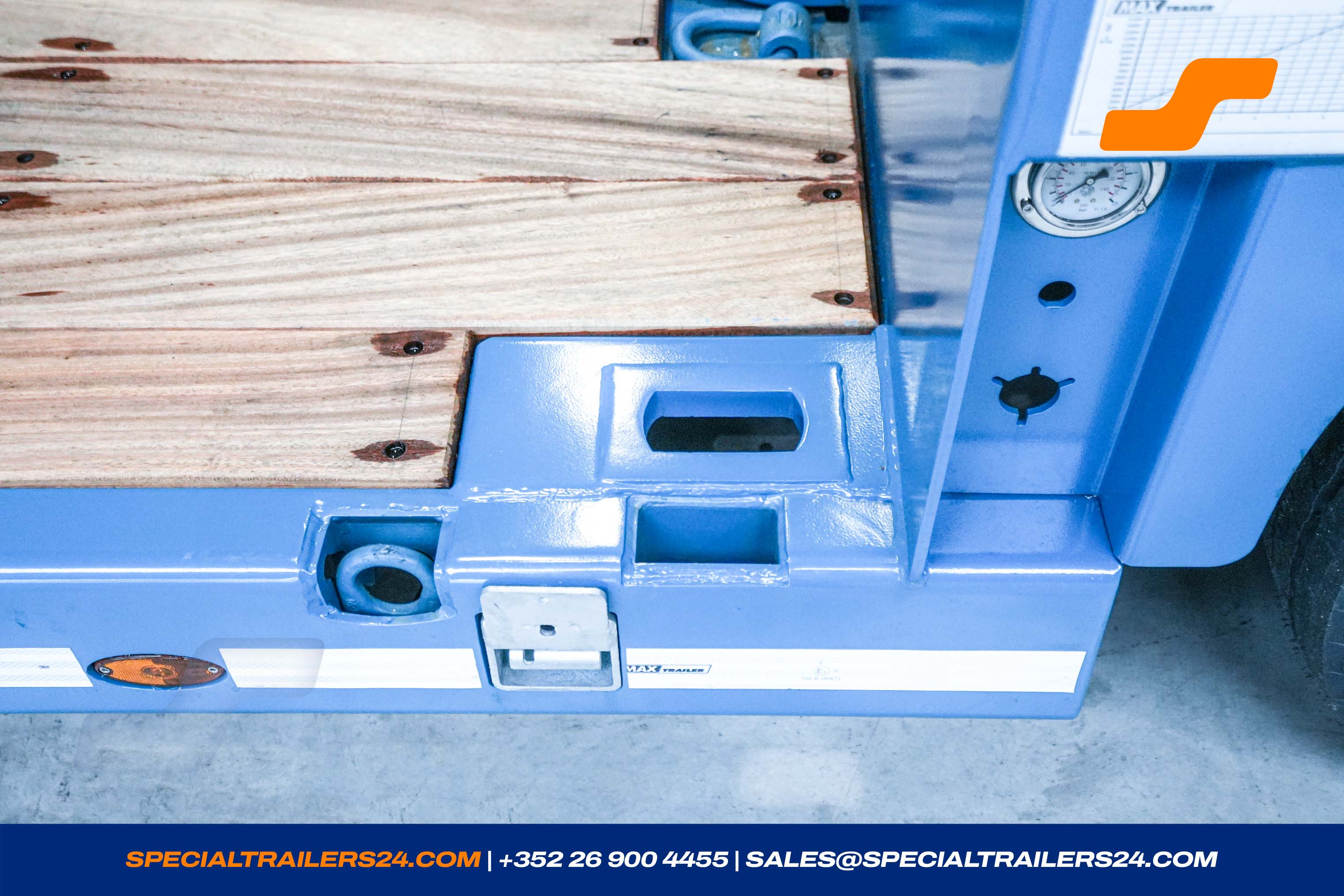

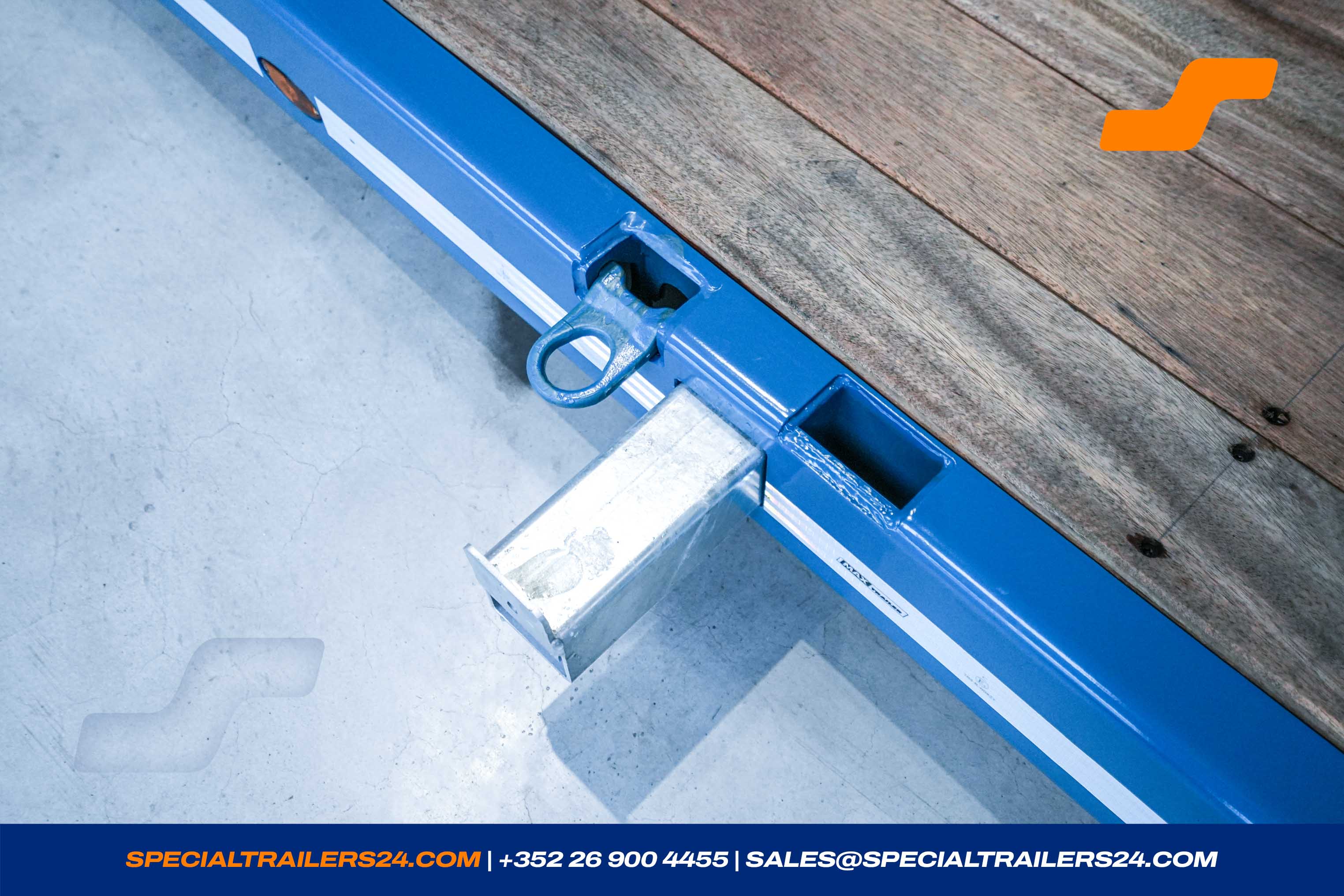

3 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
1 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN)
1 pair of lashing rings in rear in the firm part the loading platform (LC 10 000 daN).
The supply lines are laid in the center spine and adapt automatically to the length of the loading platform.
- Speed sticker 60 km/h at the rear.
- Sign 1 200 x 400 mm CONVOI EXCEPTIONNEL at the rear of the trailer.

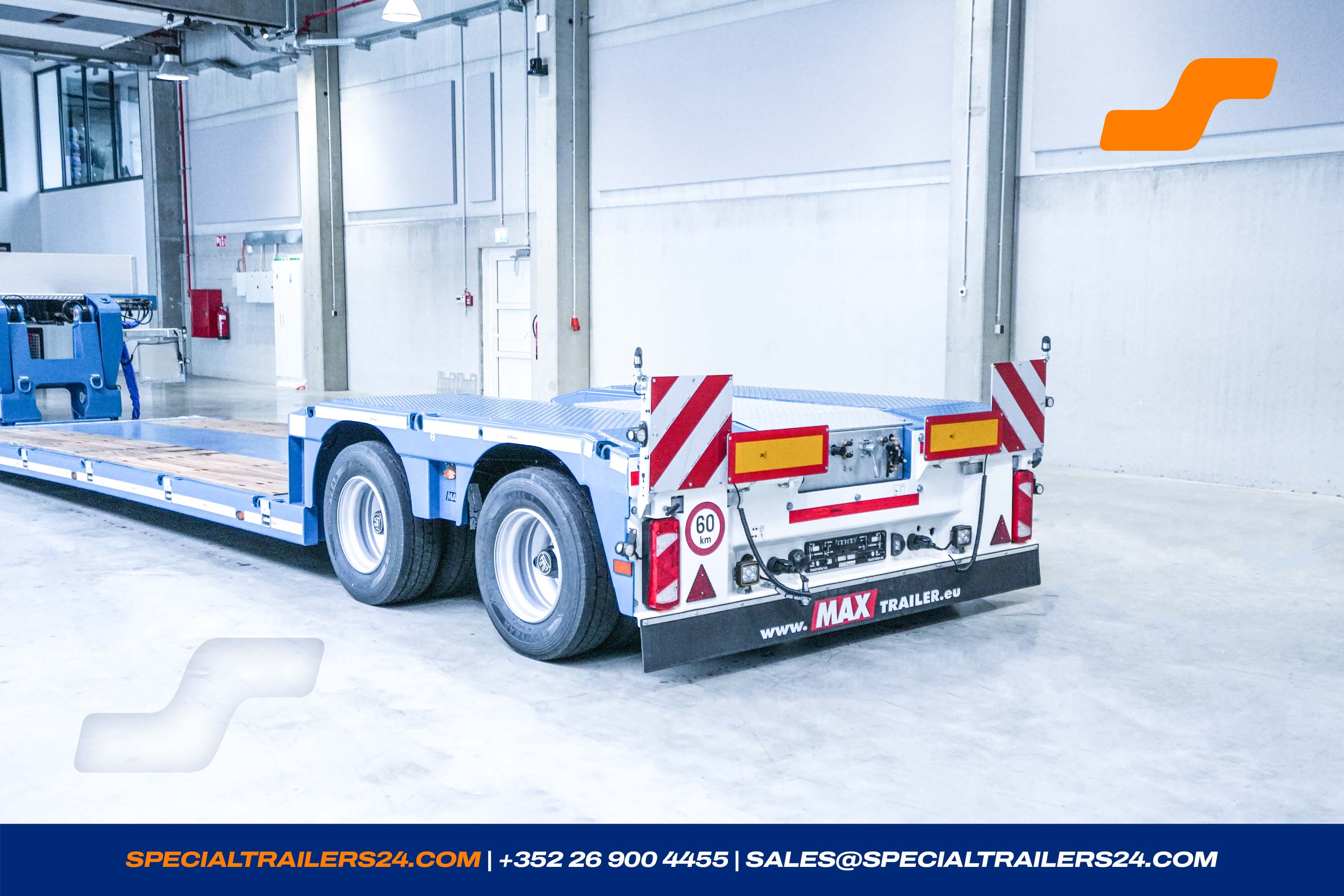

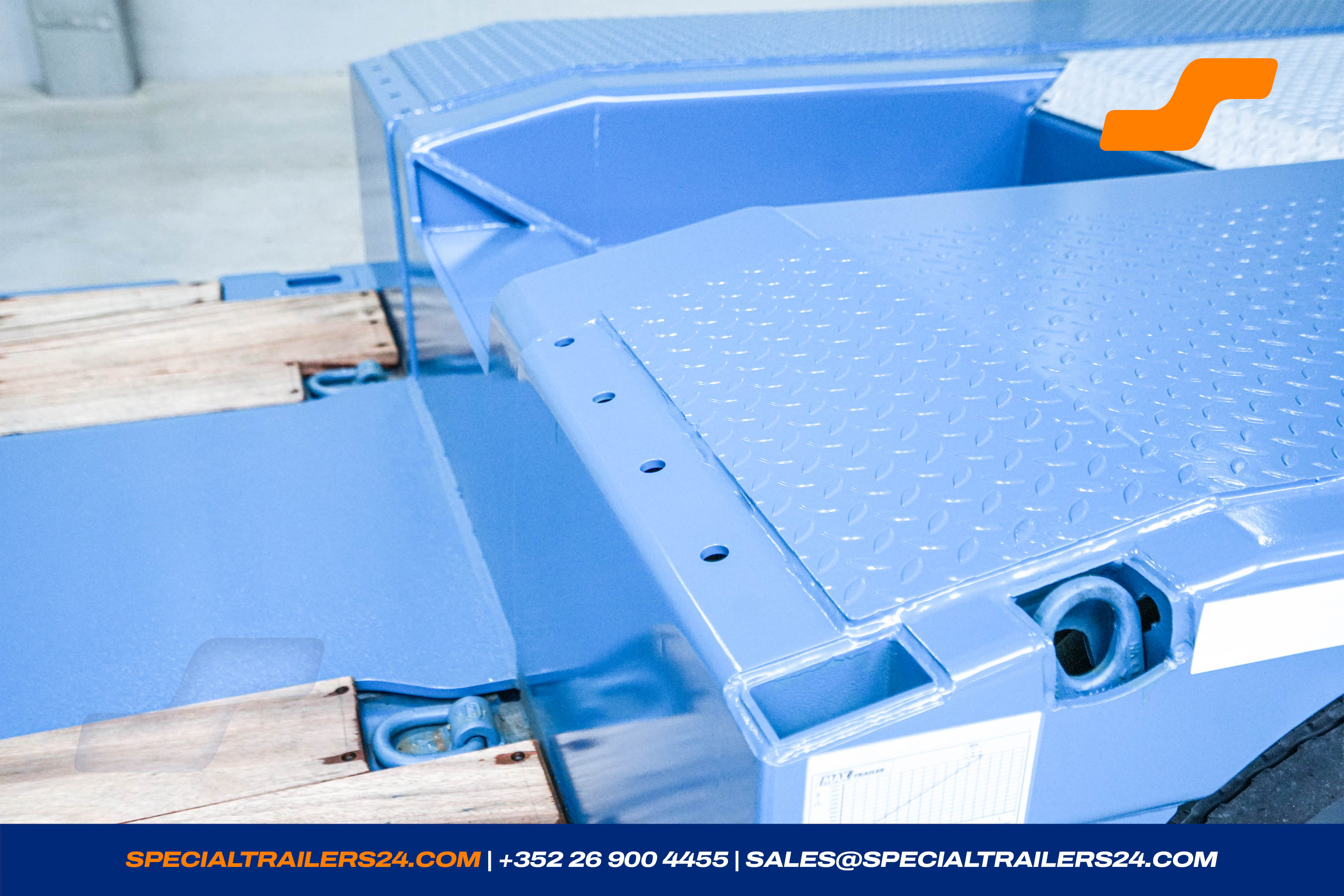

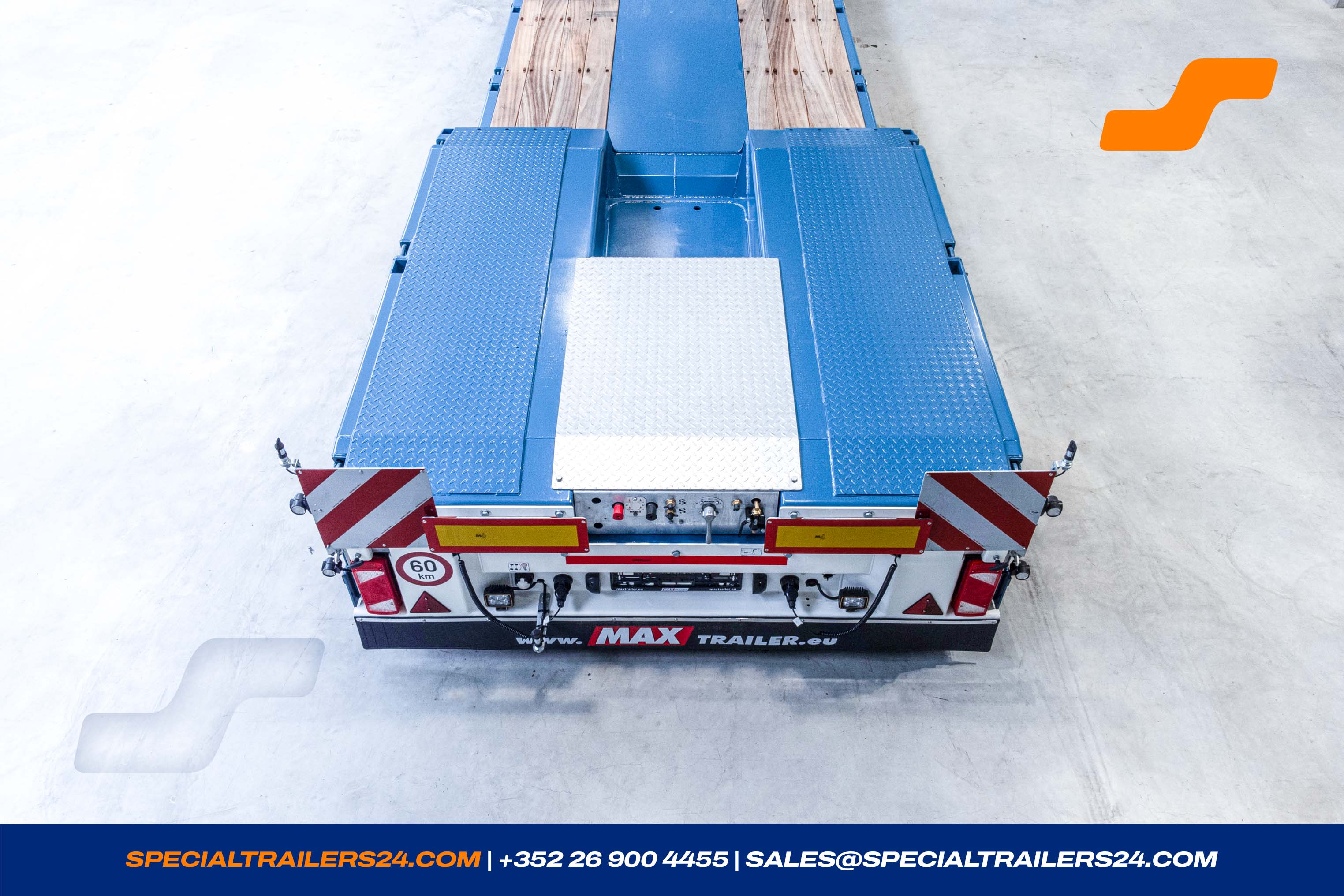

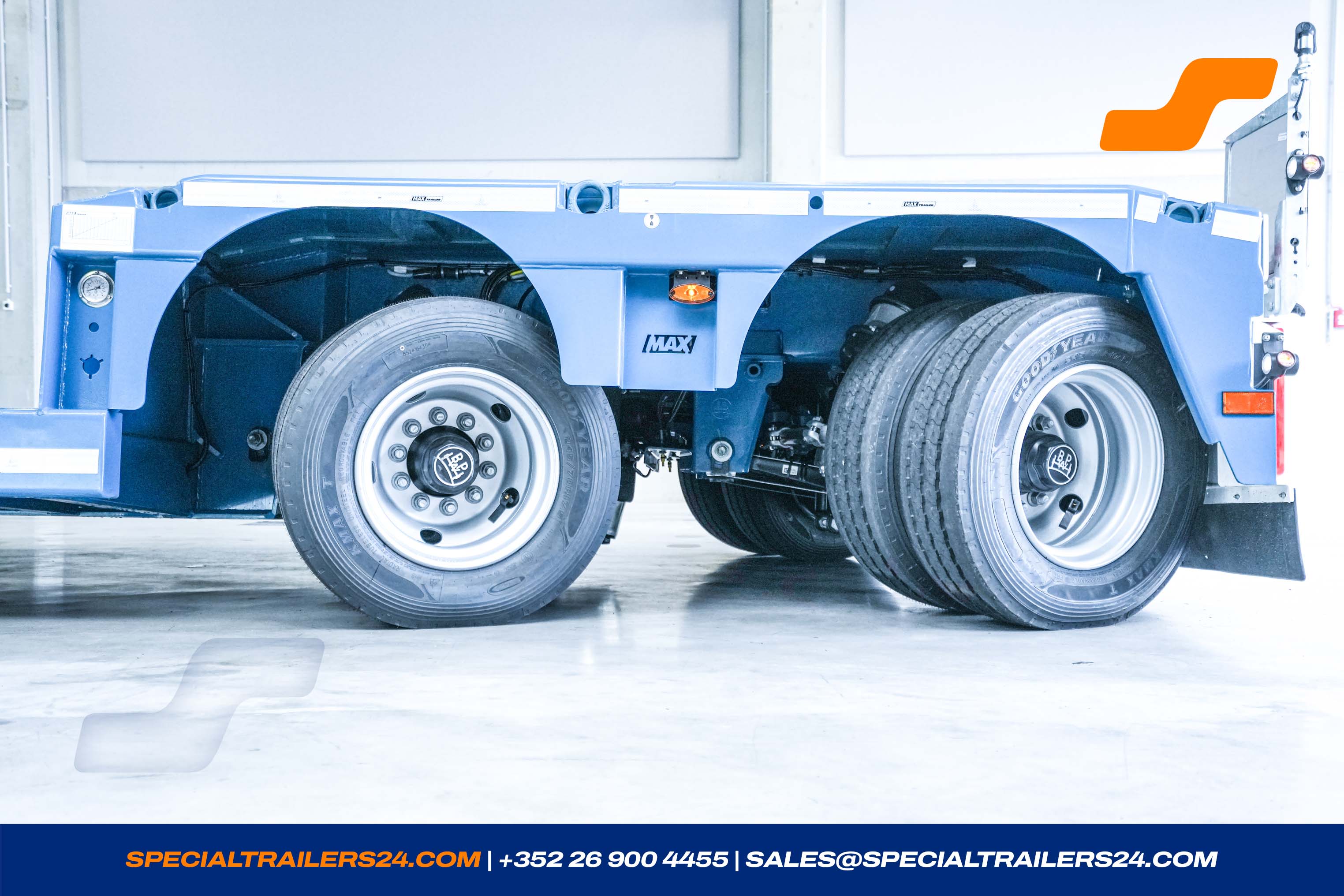

Rear Bogie
1 x Axles bogie

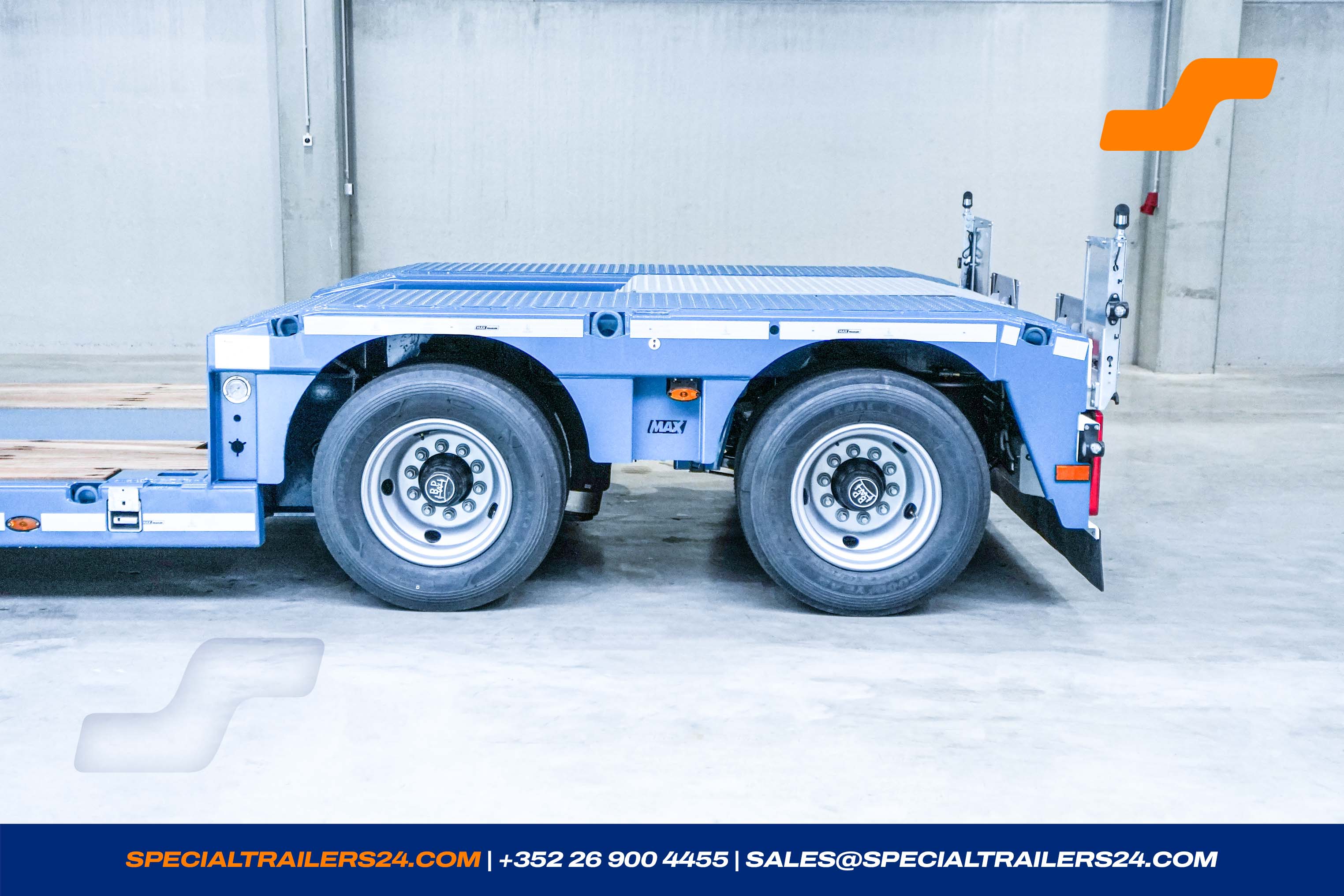

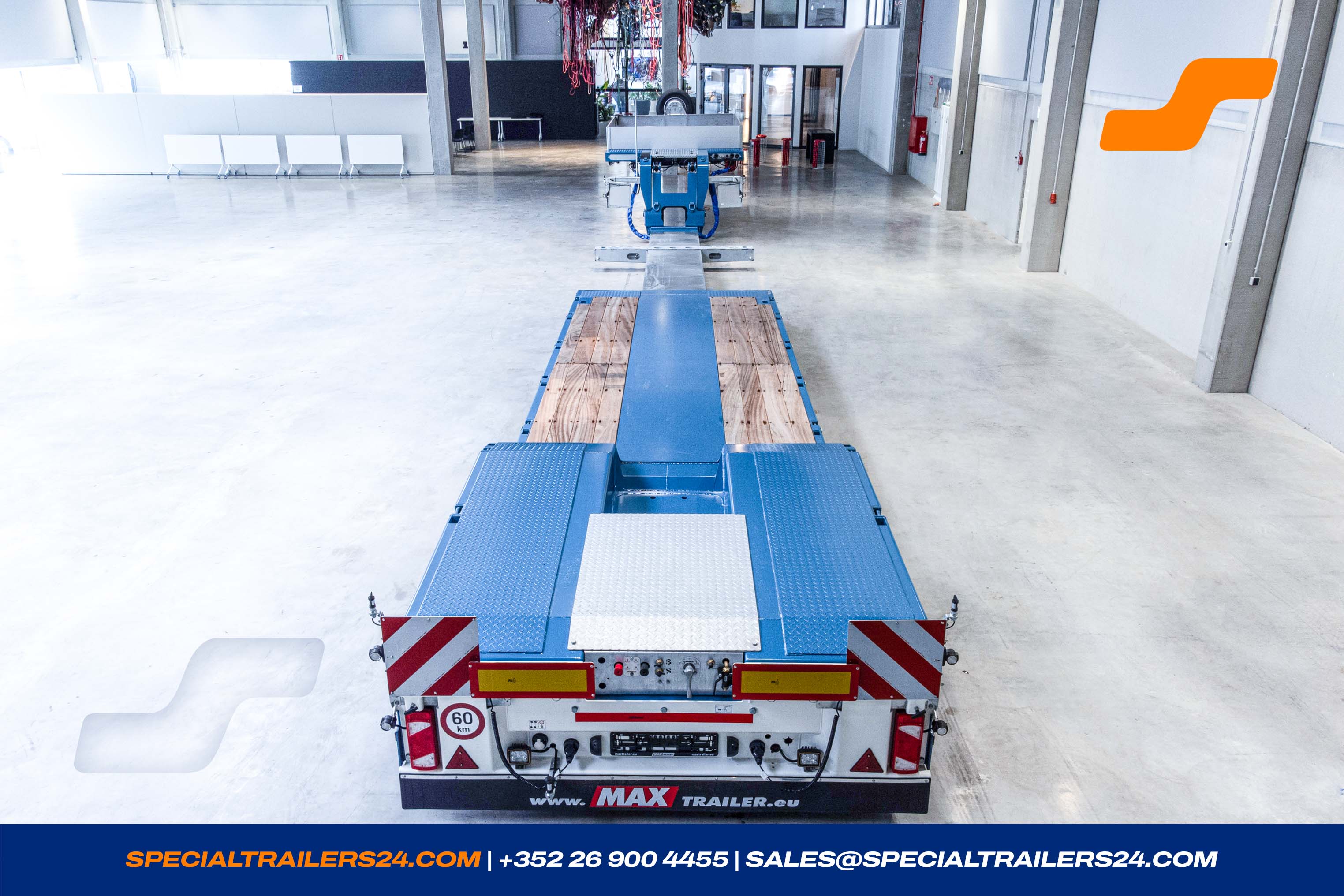

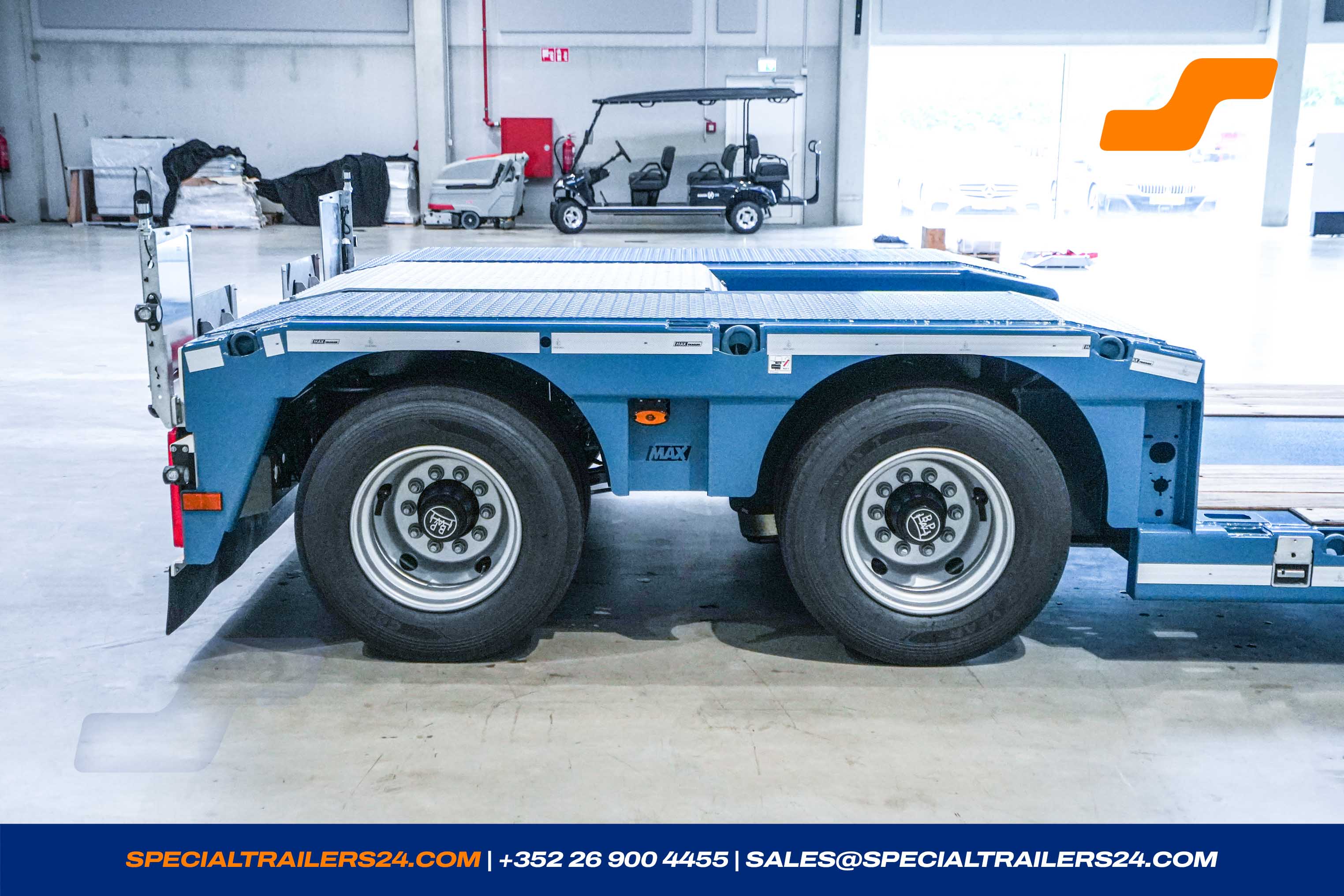

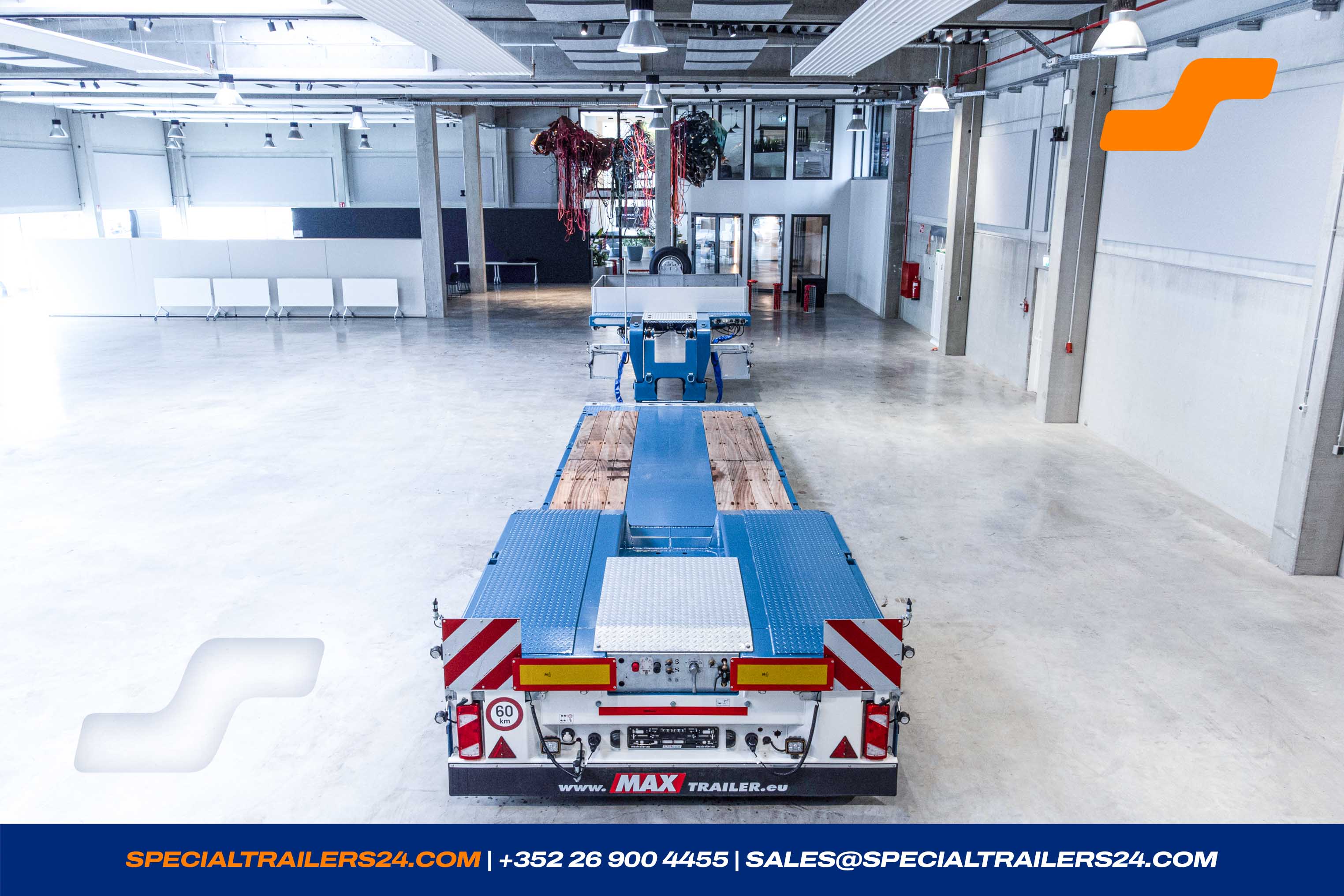

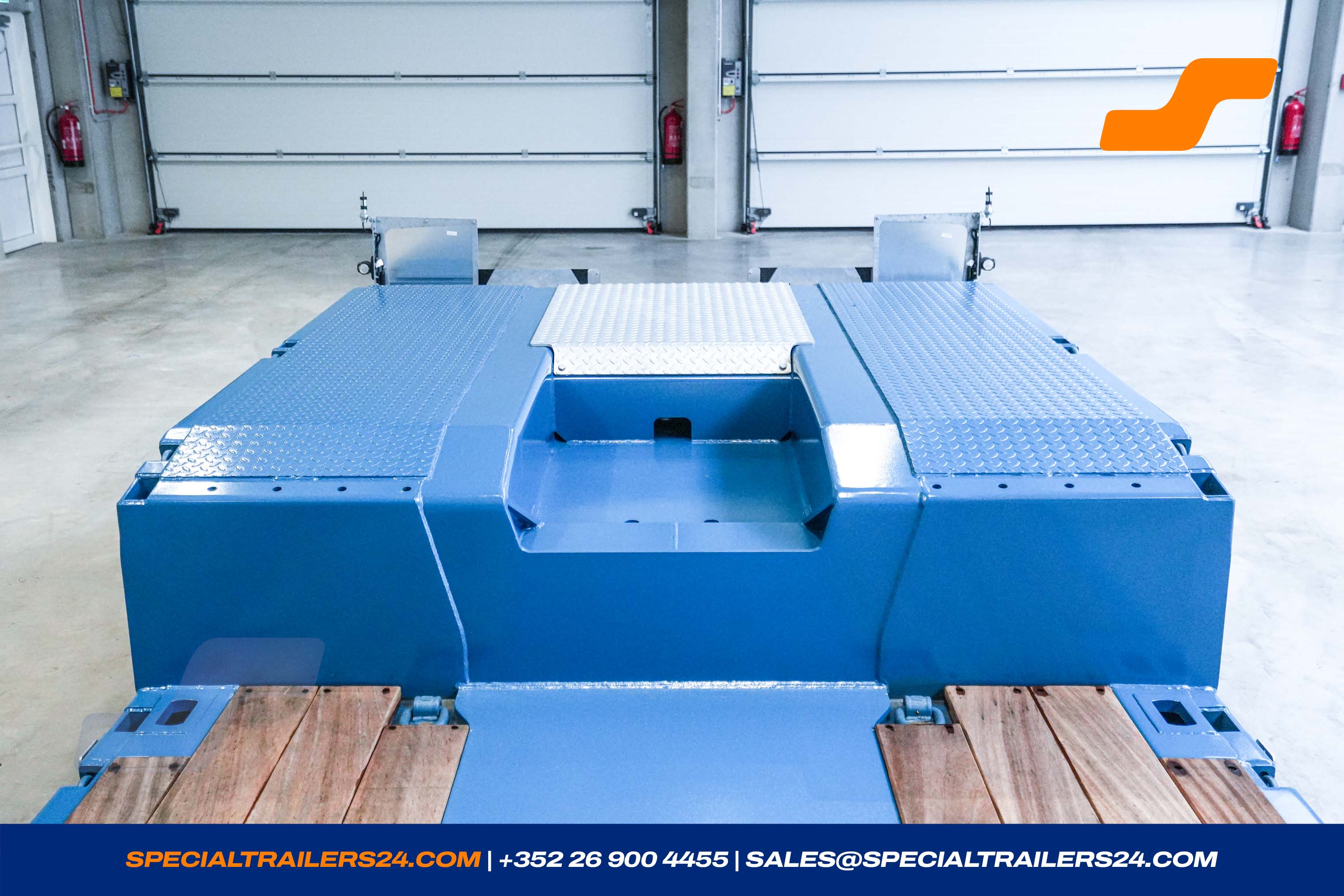

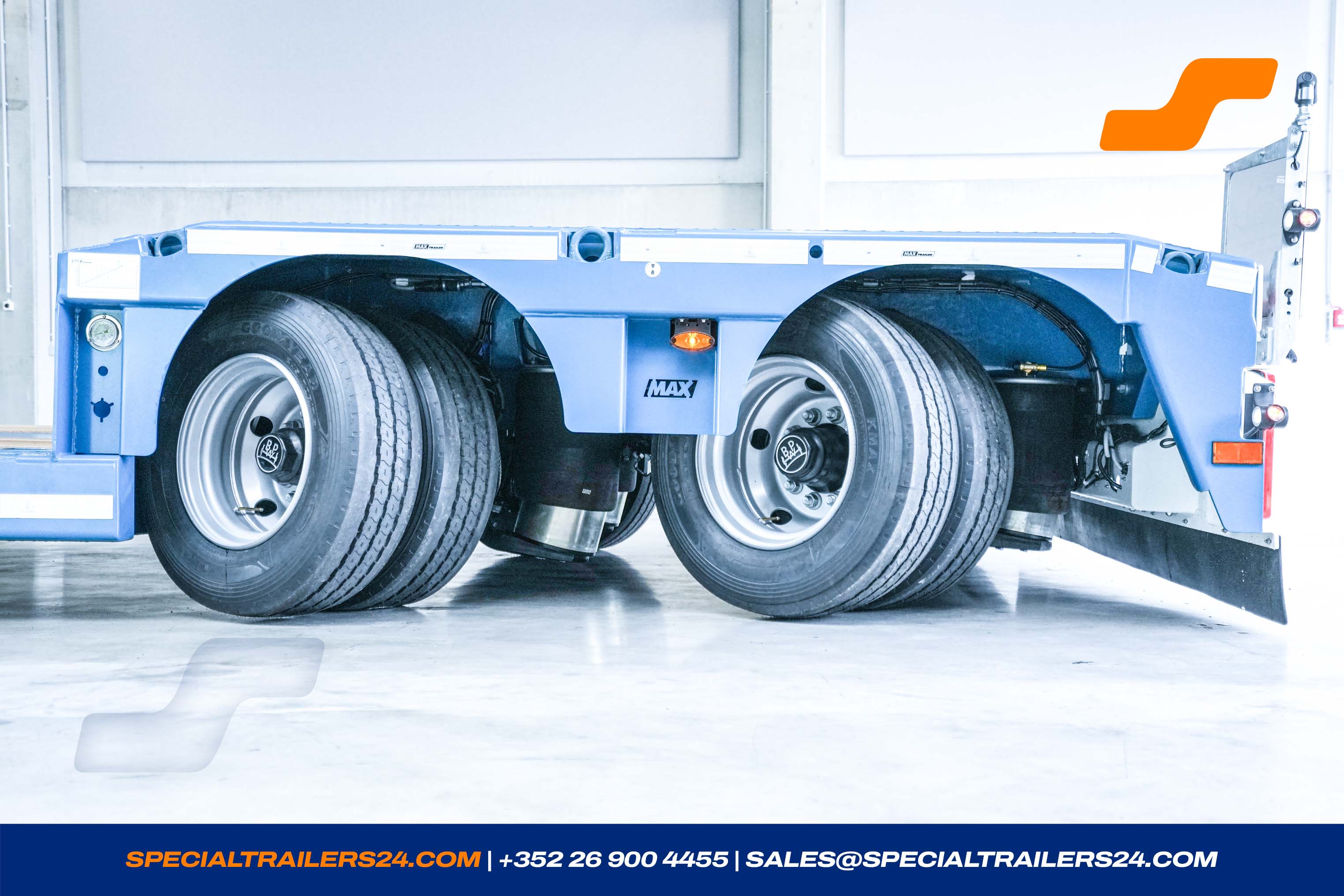

Axles bogie at the rear with outer frame construction and chequer plate cover.
Axles bogie with recess, closed at the rear part for the air tanks.
2 pairs of lashing rings in the loading platform, hinged outward (LC 5 000 daN).
1 pair of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
1 pair of lashing rings at the rear of the axles bogie (LC 10 000 daN).

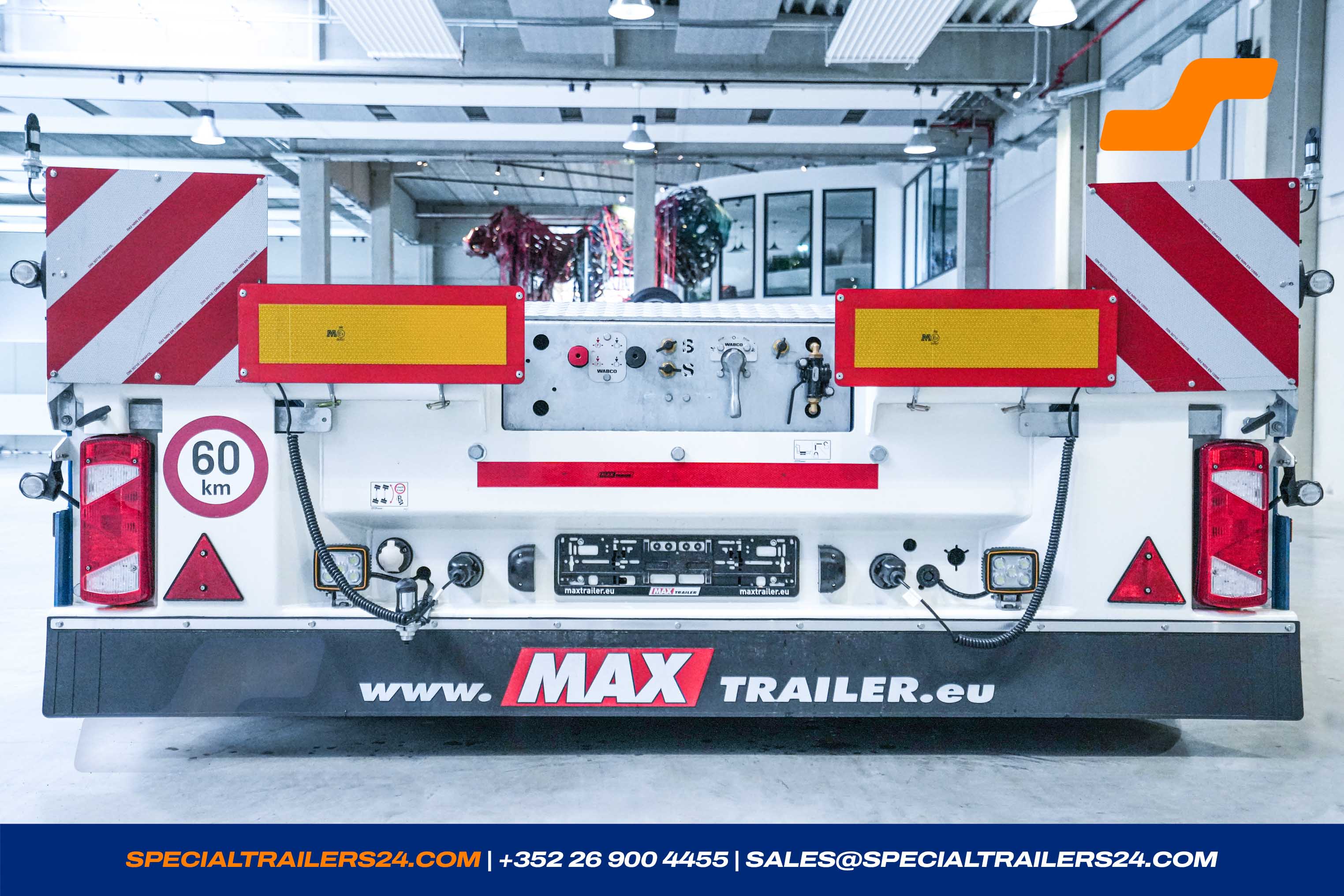

- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Holder for one beacon light at the rear right and left of the trailer.
Accessories
1 x Accessories
-
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - Manual and description on USB stick .
- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.

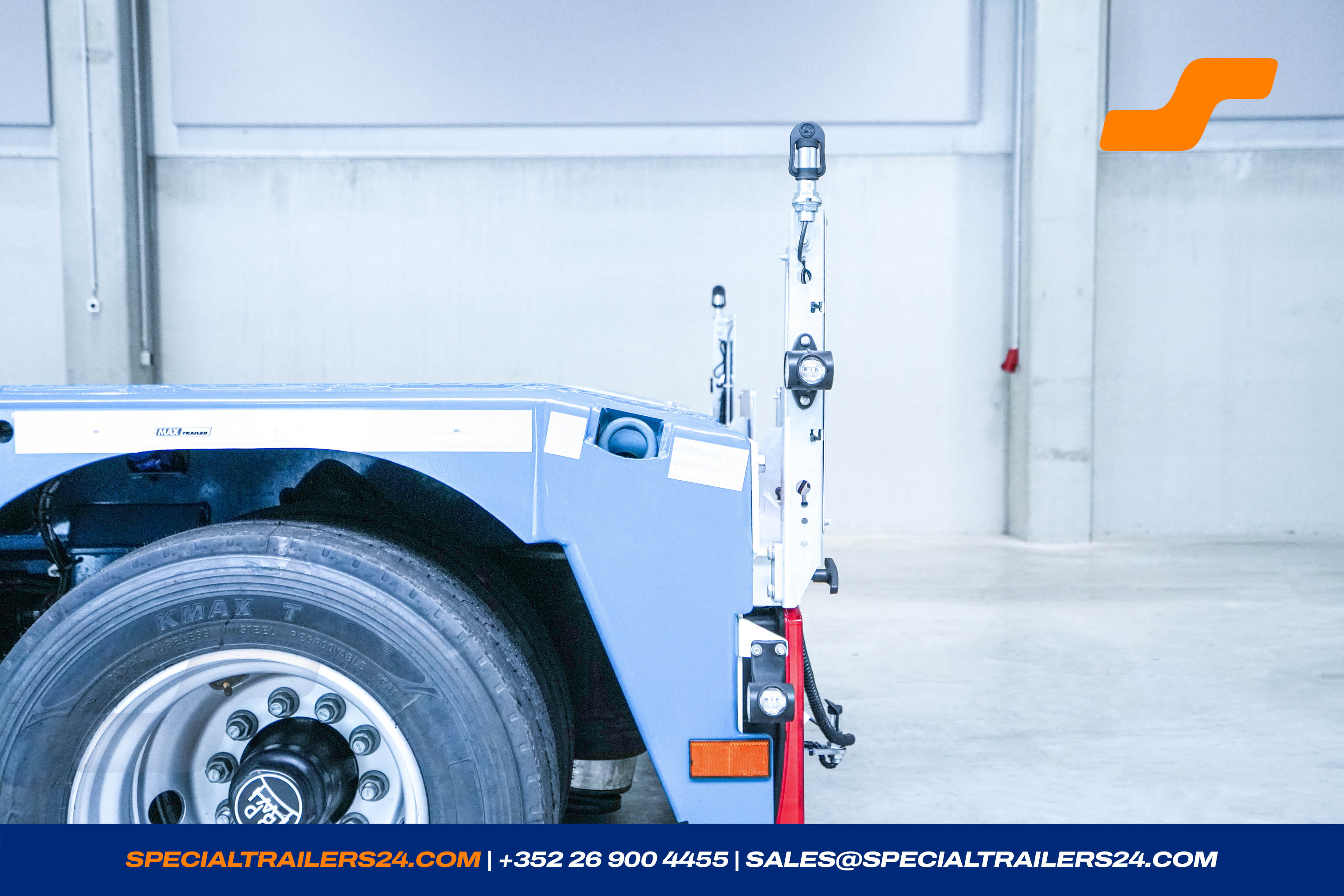

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED flashing beacons, provided separately.

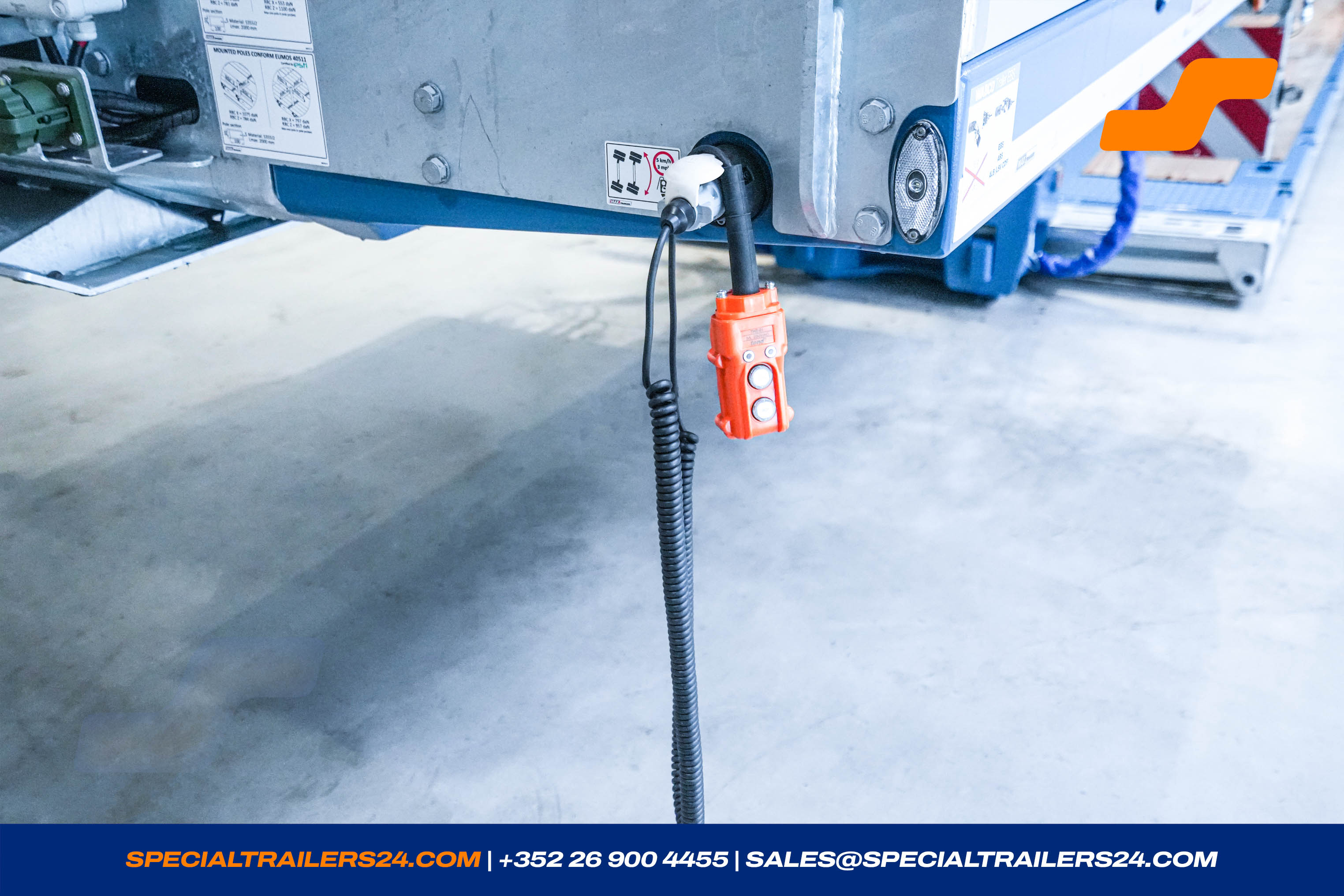

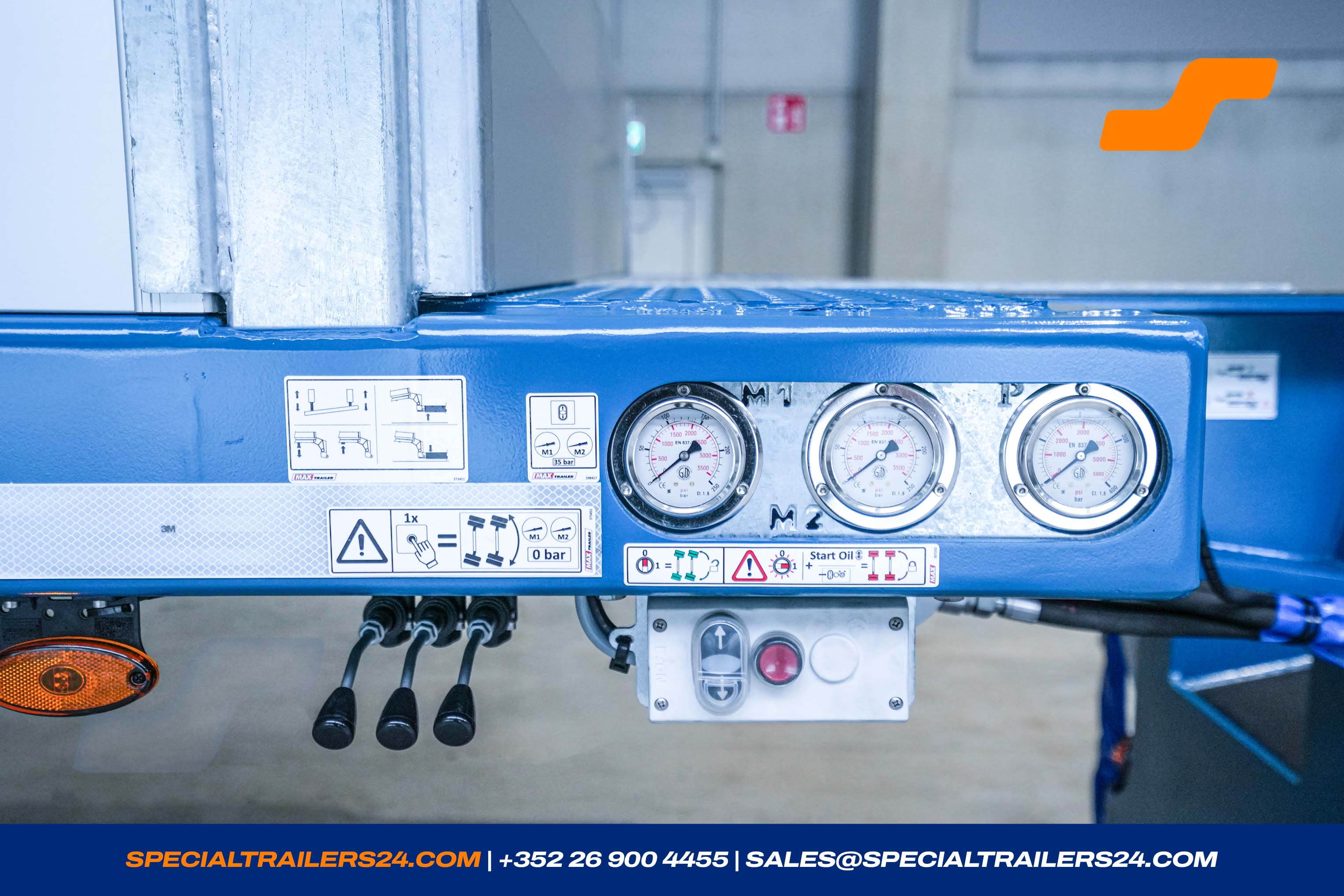

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111348
- Reference MAX510-Z-2A-5.75
- Number of axles 2
- Condition New
- Year of manufacture 2026
- Colour RAL 9006 (Brillant Direct) - White aluminium (brillant direct)
- Availability 03/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000266
- Steering Type Hydraulic
