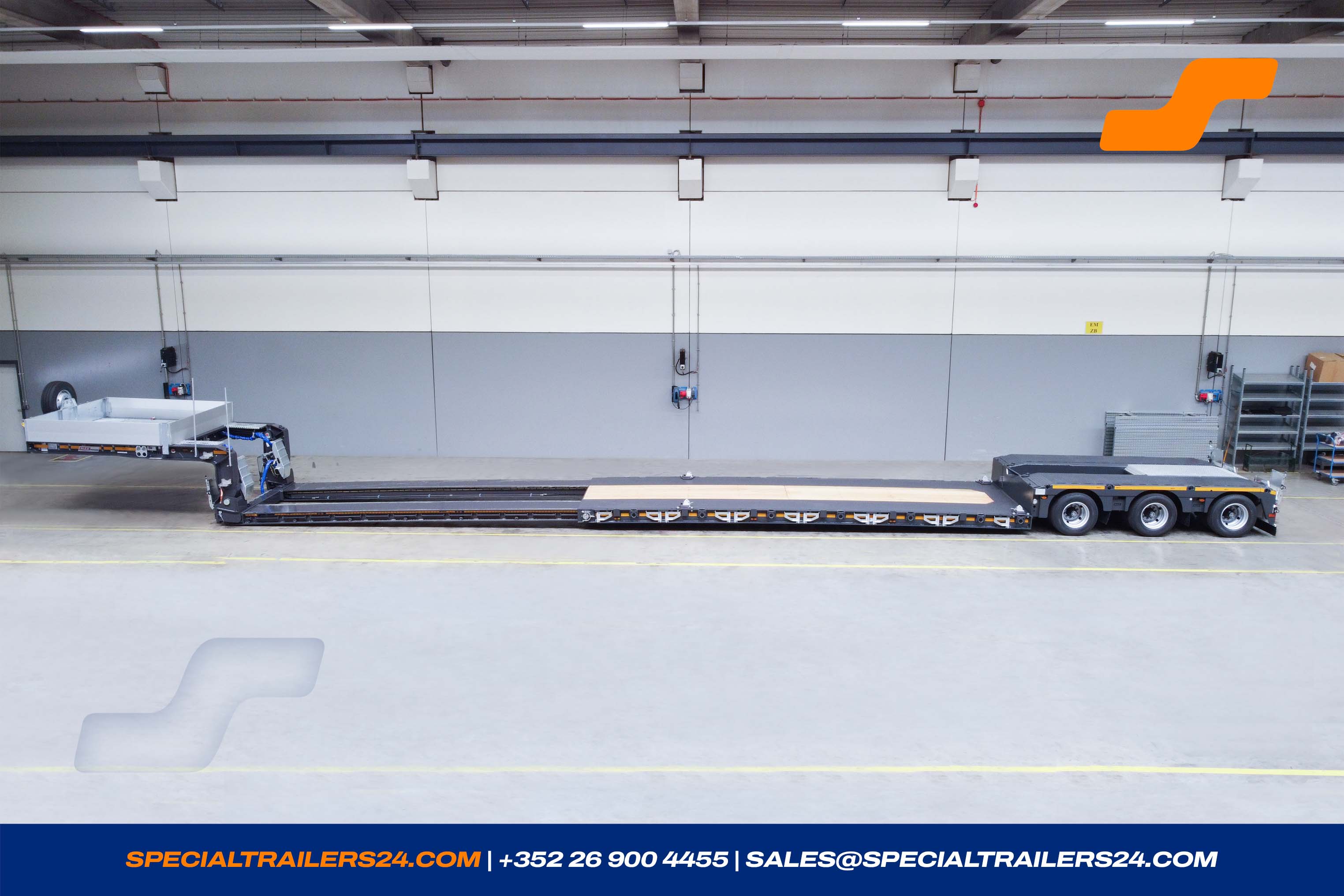

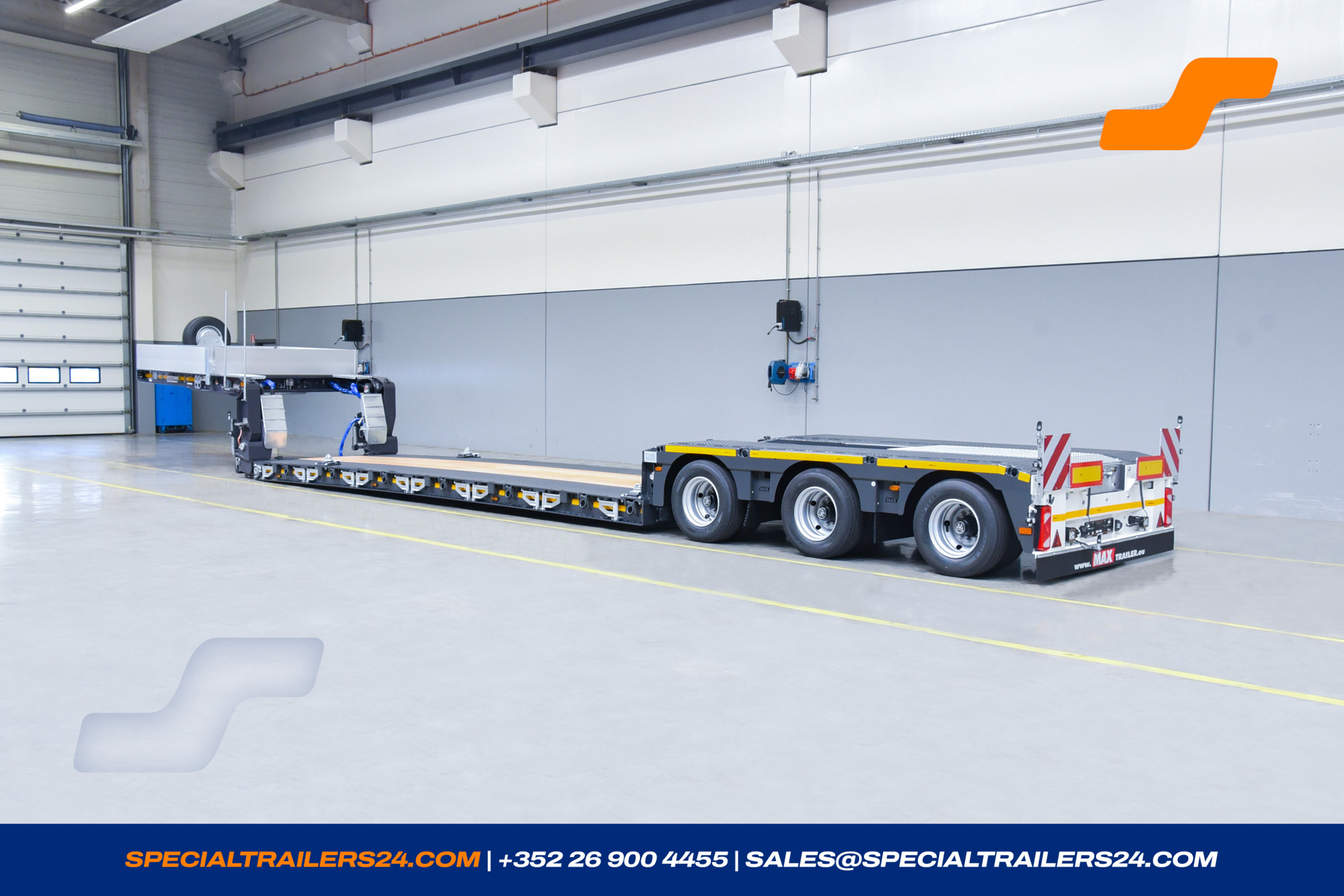

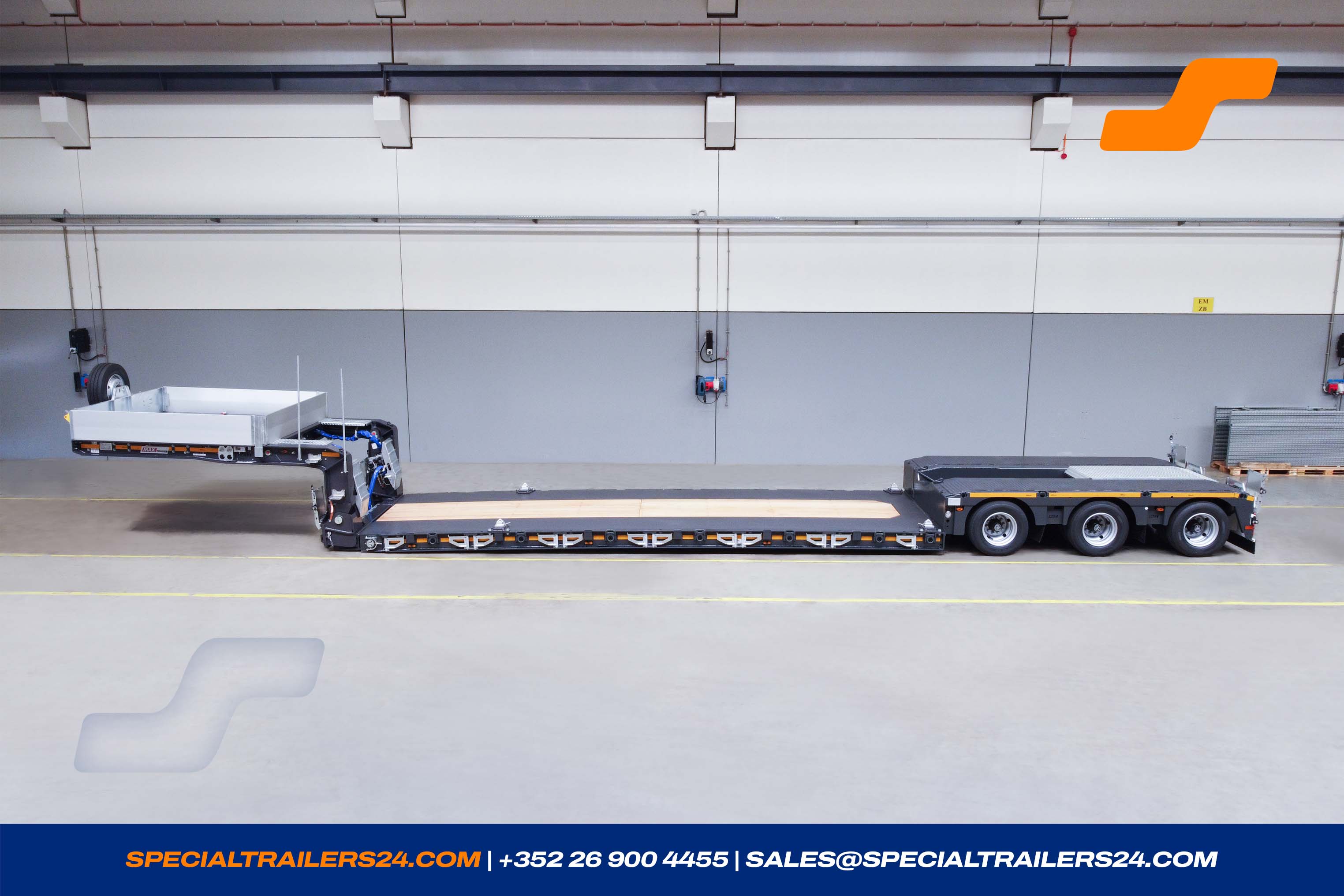

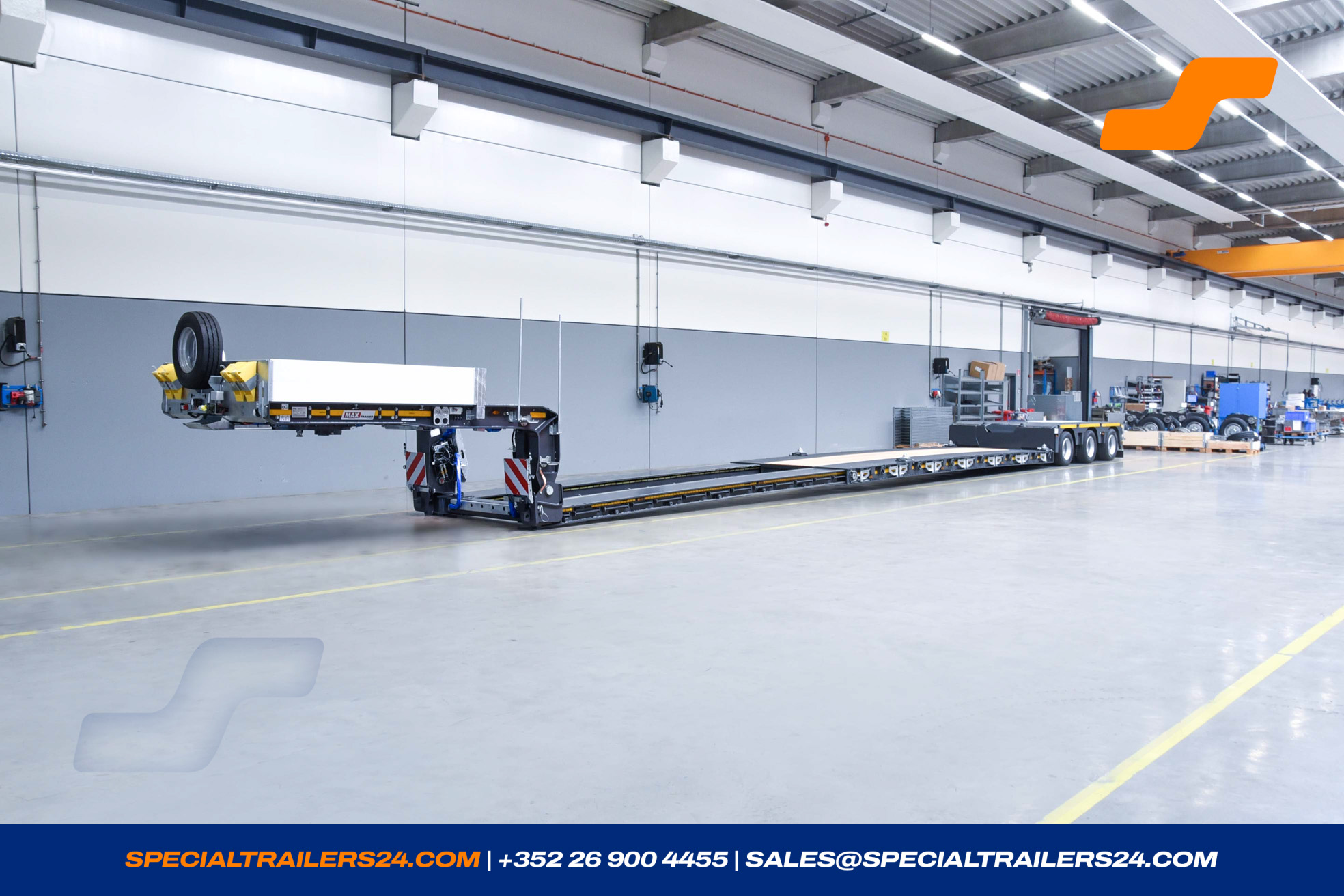

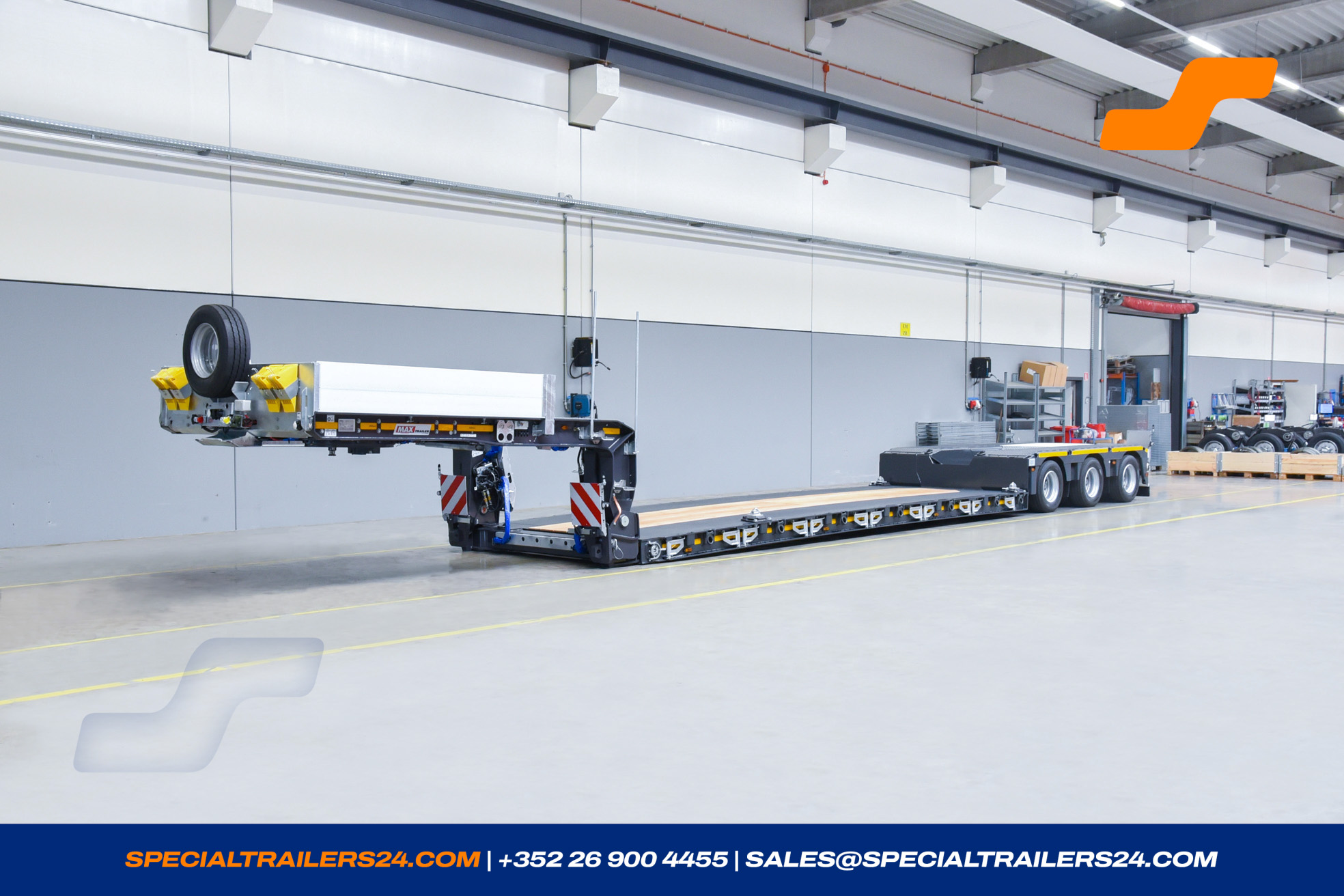

Lowbed trailer
MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110617
- Reference MAX510-Z-3-ATX-A-8.00
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 02/2026
- Steering Type Hydraulic
Availability
02/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 36000 kg |
| Gross weight | 59000 kg |
| Tare weight +- 3% | 17324 kg |
| Payload | 41676 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 3 750 mm |
| Turning circle reversing | 2 500 mm |
| Loading platform length | 8 000 mm |
| Extendable by | 6 024 mm |
| Loading height at max. load | 325 mm |
| Bogie length | 4 180 mm |
| Loading height on bogie | 900 mm |
| Suspension stroke | -80/+160 mm |
| Wheelbase | 1 360 mm |
| Bogie width | 2 540 mm |

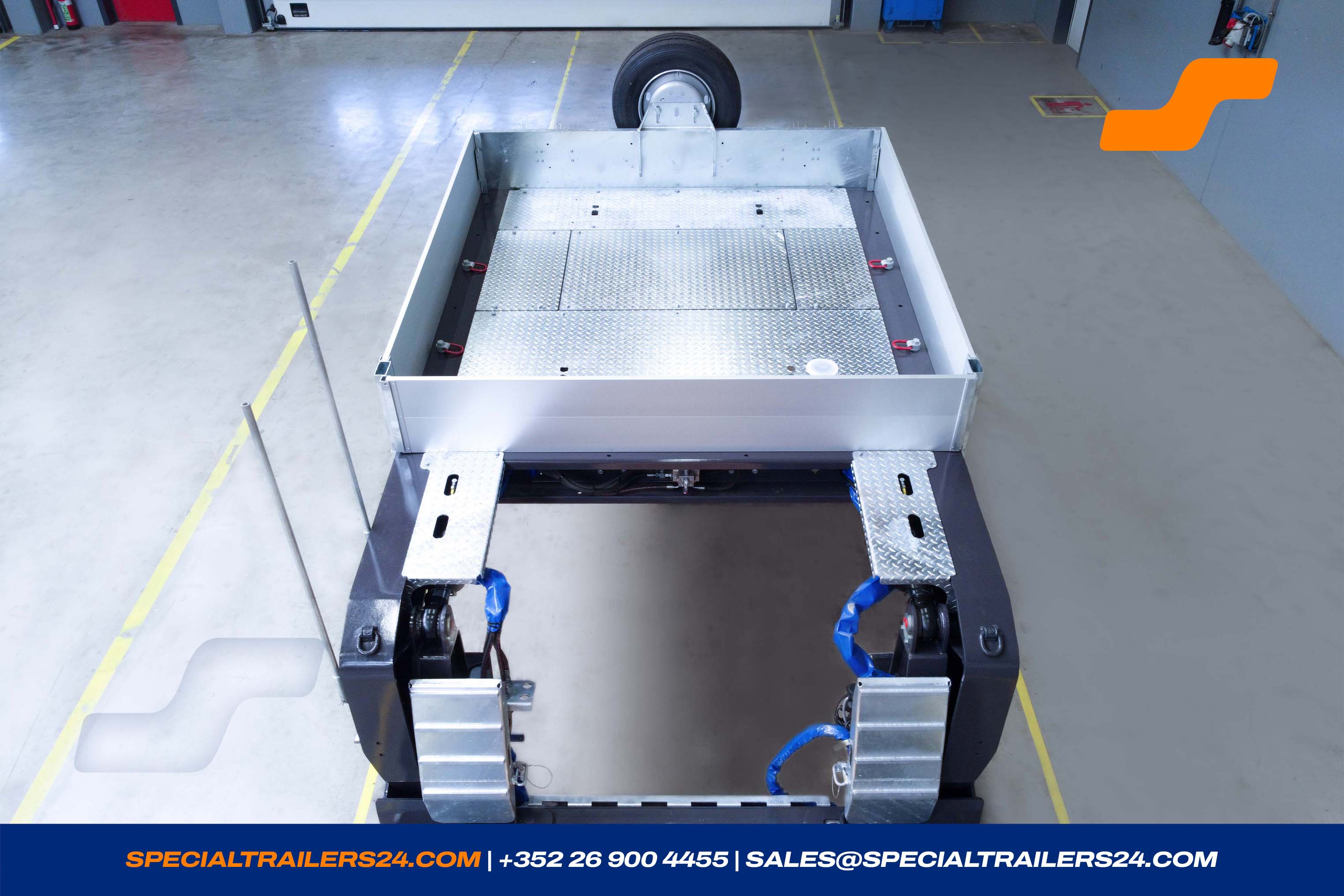

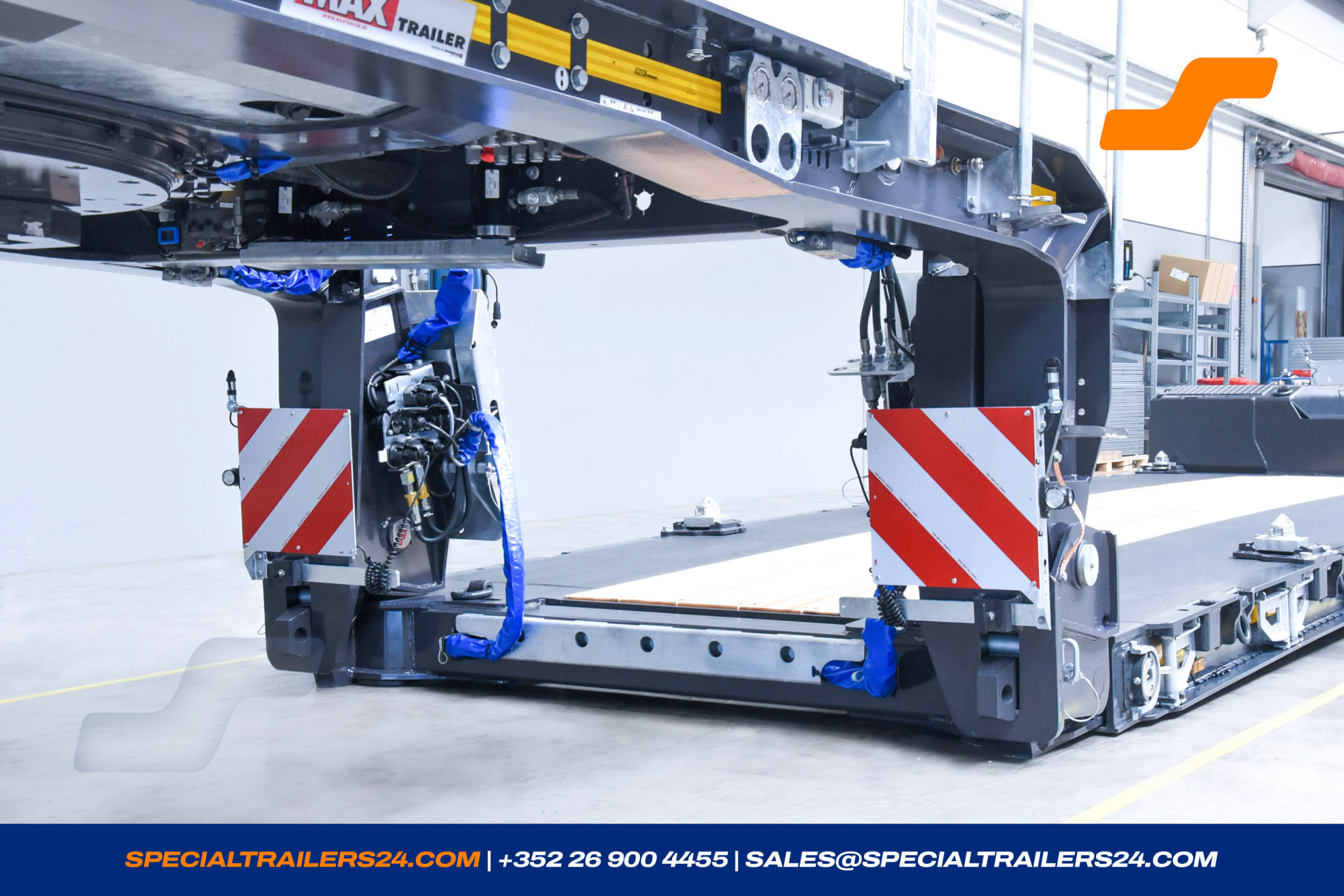

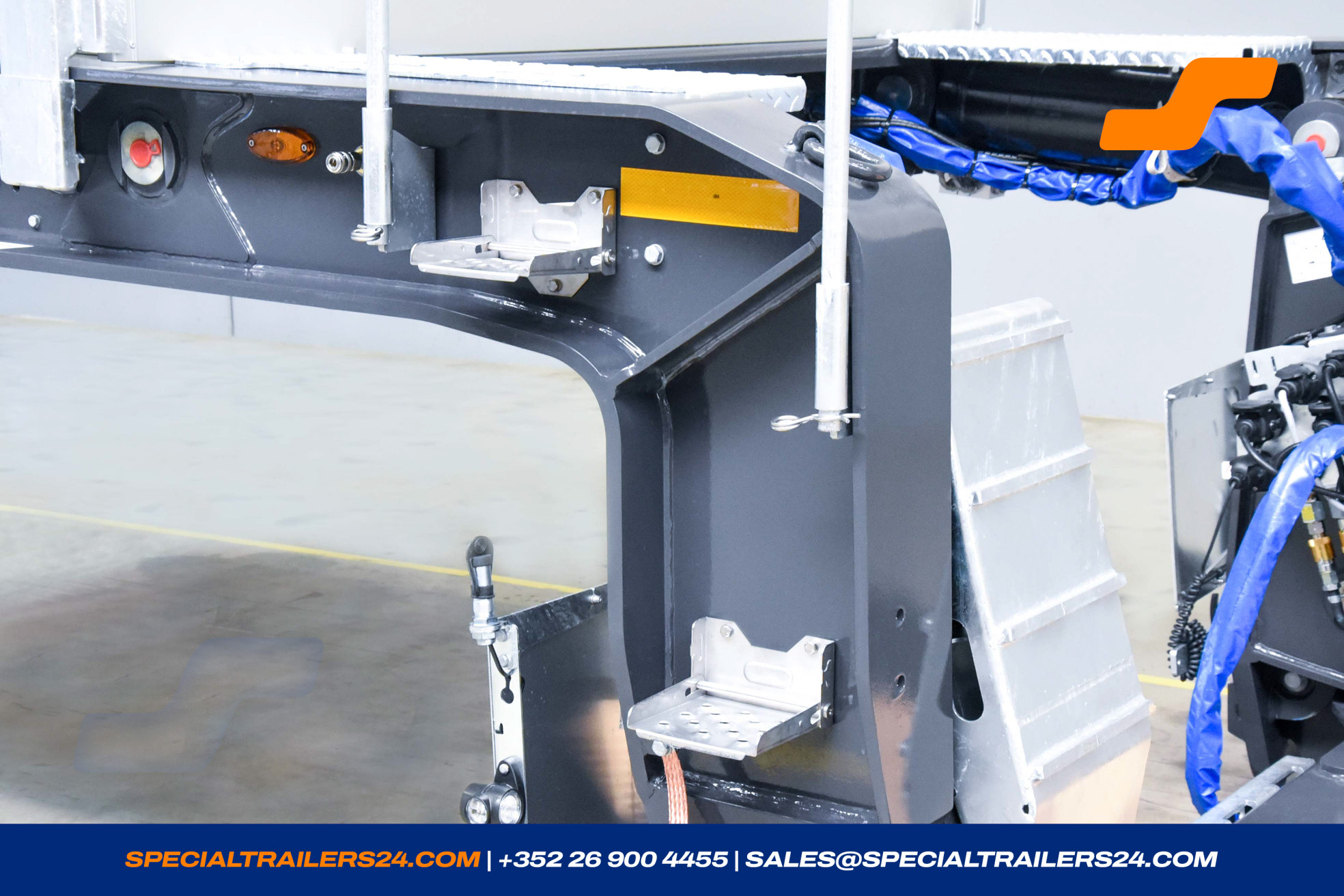

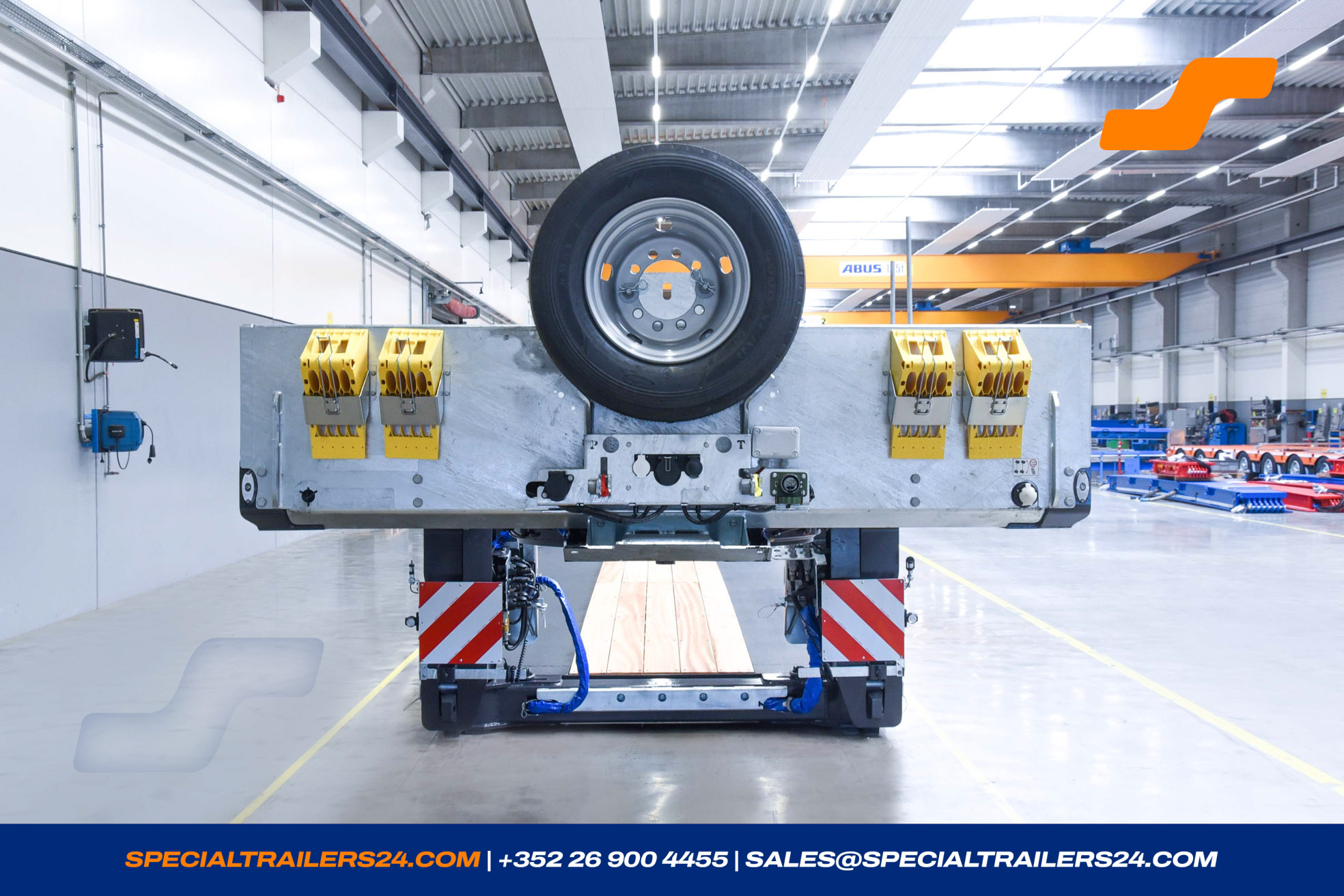

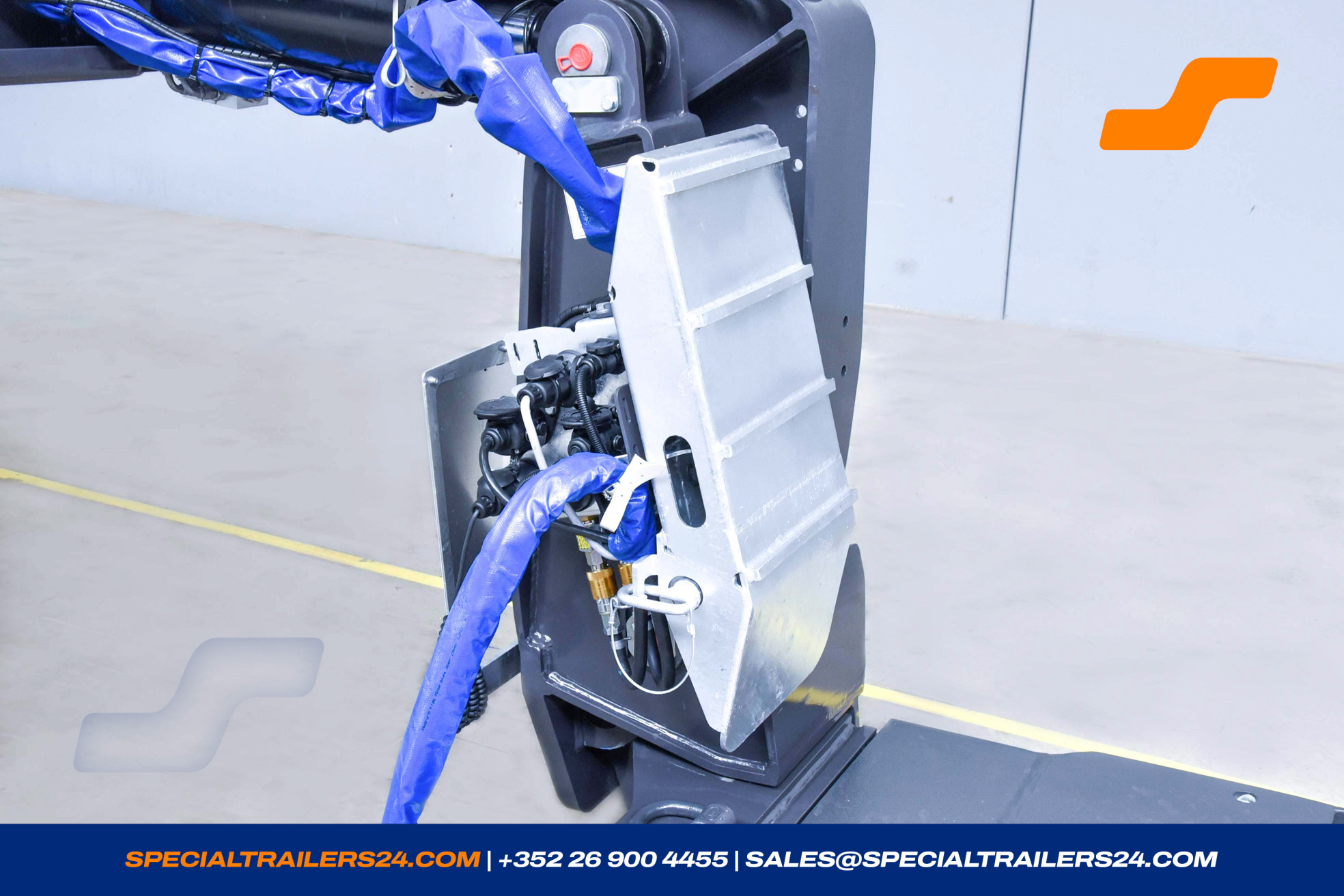

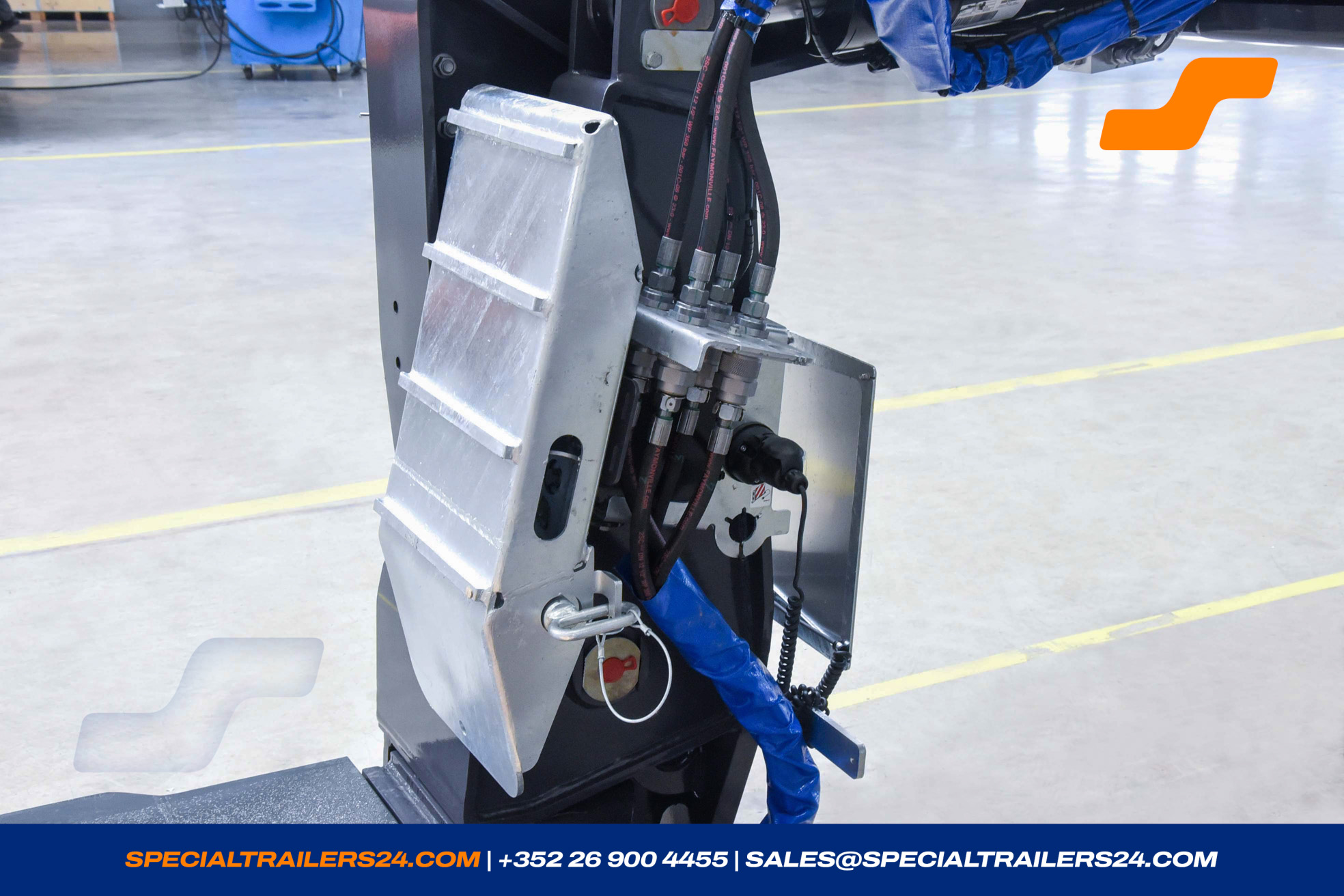

Gooseneck
1 x Gooseneck
Gooseneck in SNT design for maximum loading length, length ± 3.750 mm.
Gooseneck hydraulic lift and lowerable and detachable.
For use of trucks: 6 x 4 or 8 x 4
- 4 wheel chocks with carrier. (± 5 kg)
- 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
- Gooseneck on the rear part on the top closed with a cover plate.

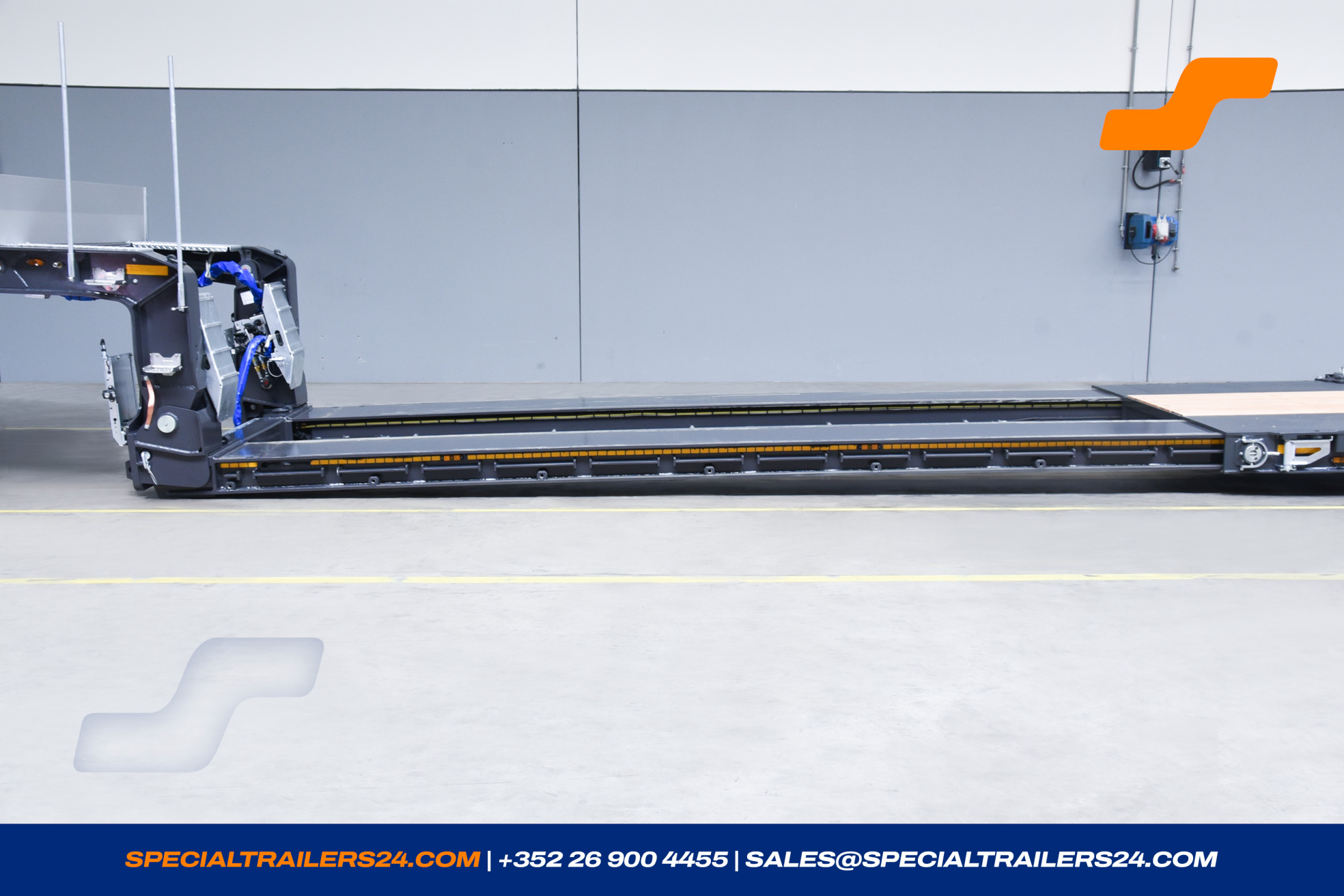

Loading deck
Loading platform
1 x Lowbed

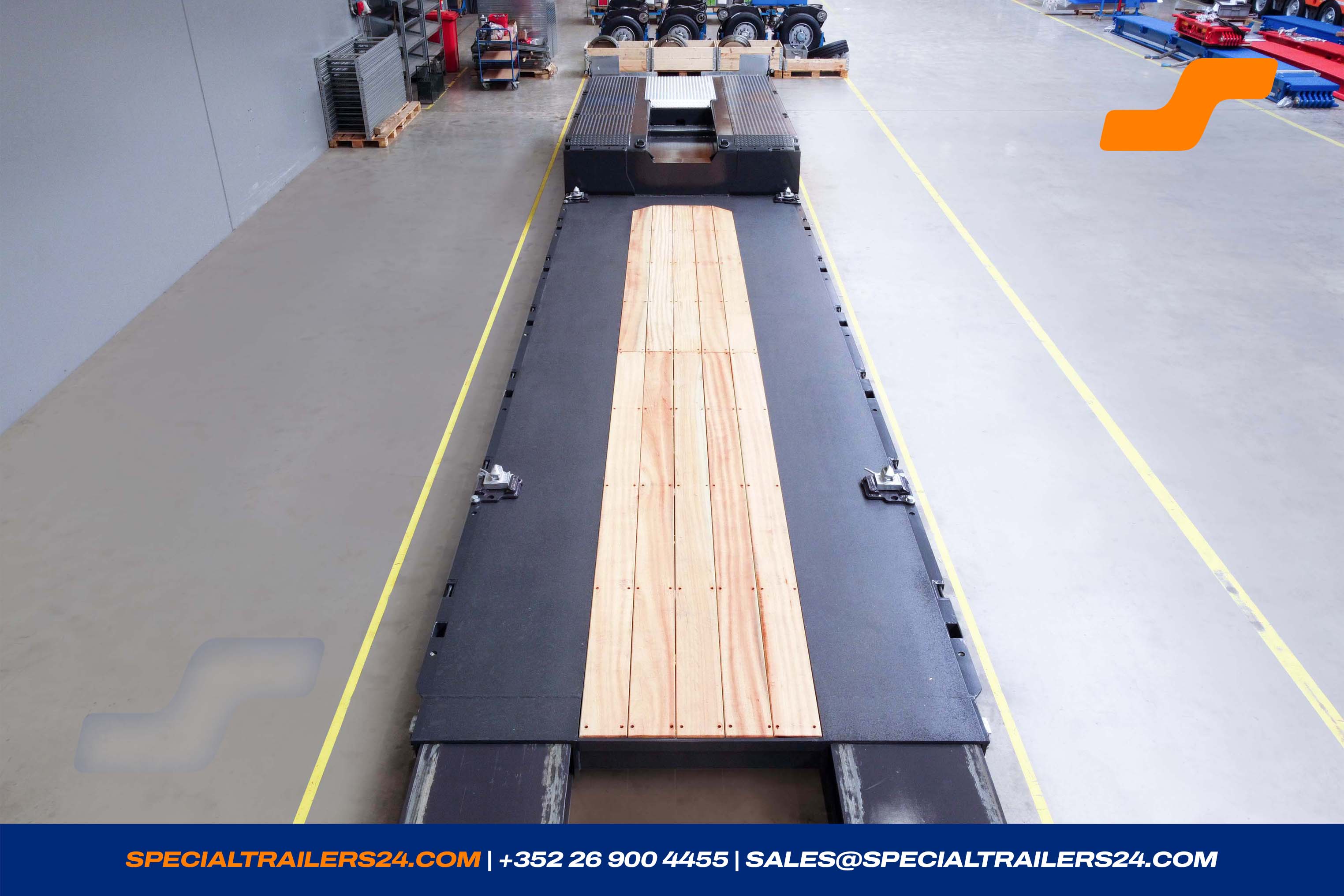

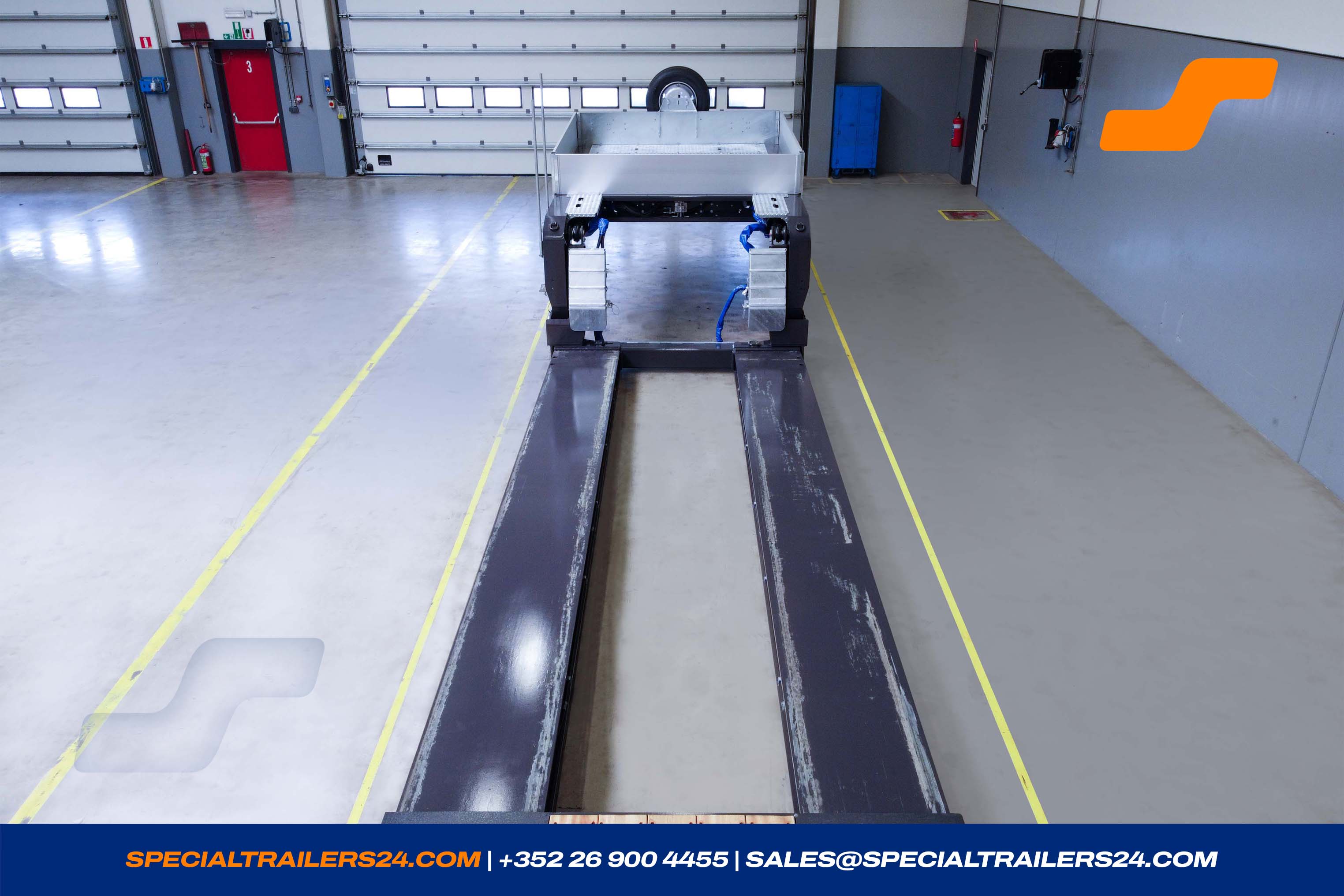

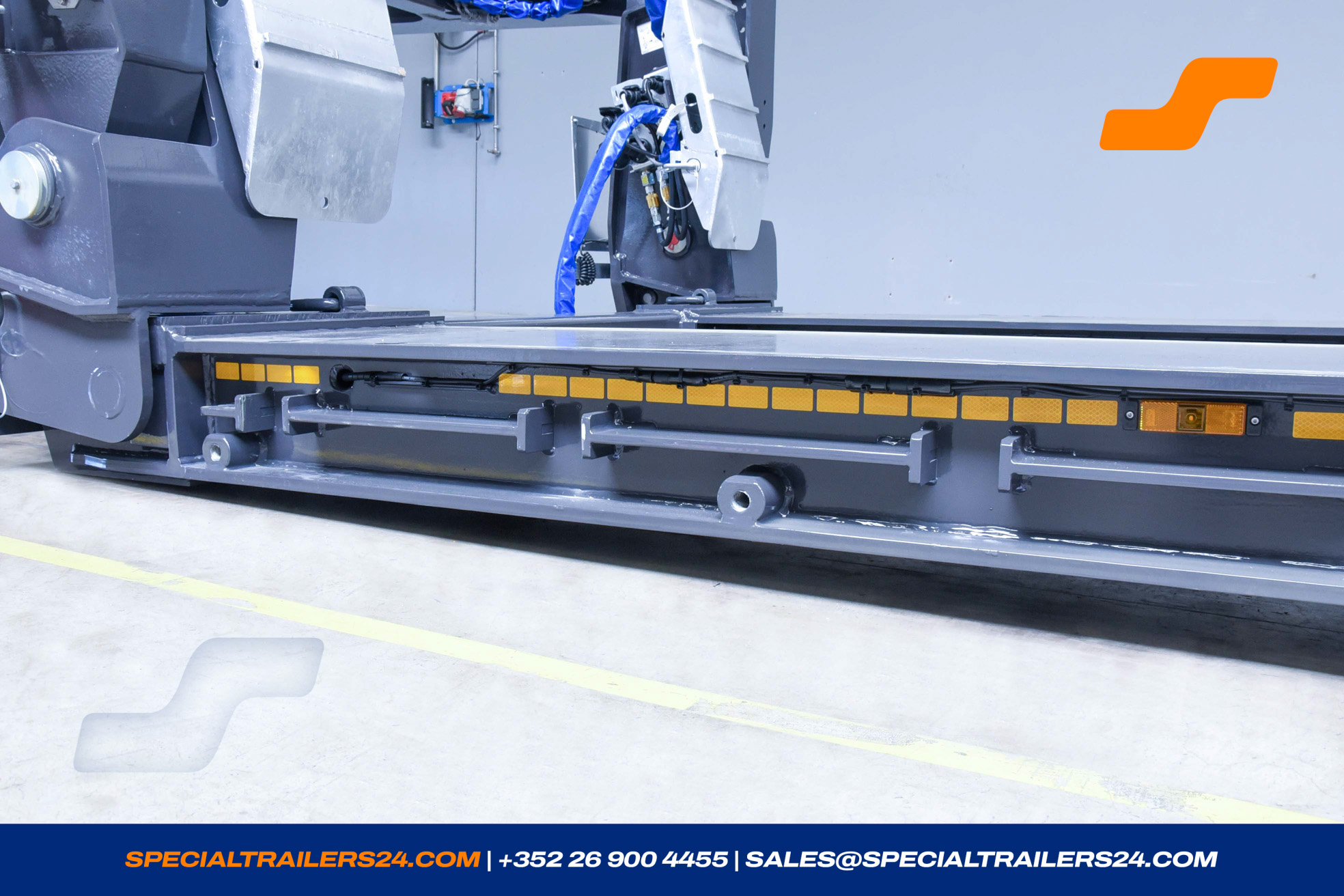

Lowbed in extendable outerbeams construction, SUPER LOW Design, length ± 8 000 mm.

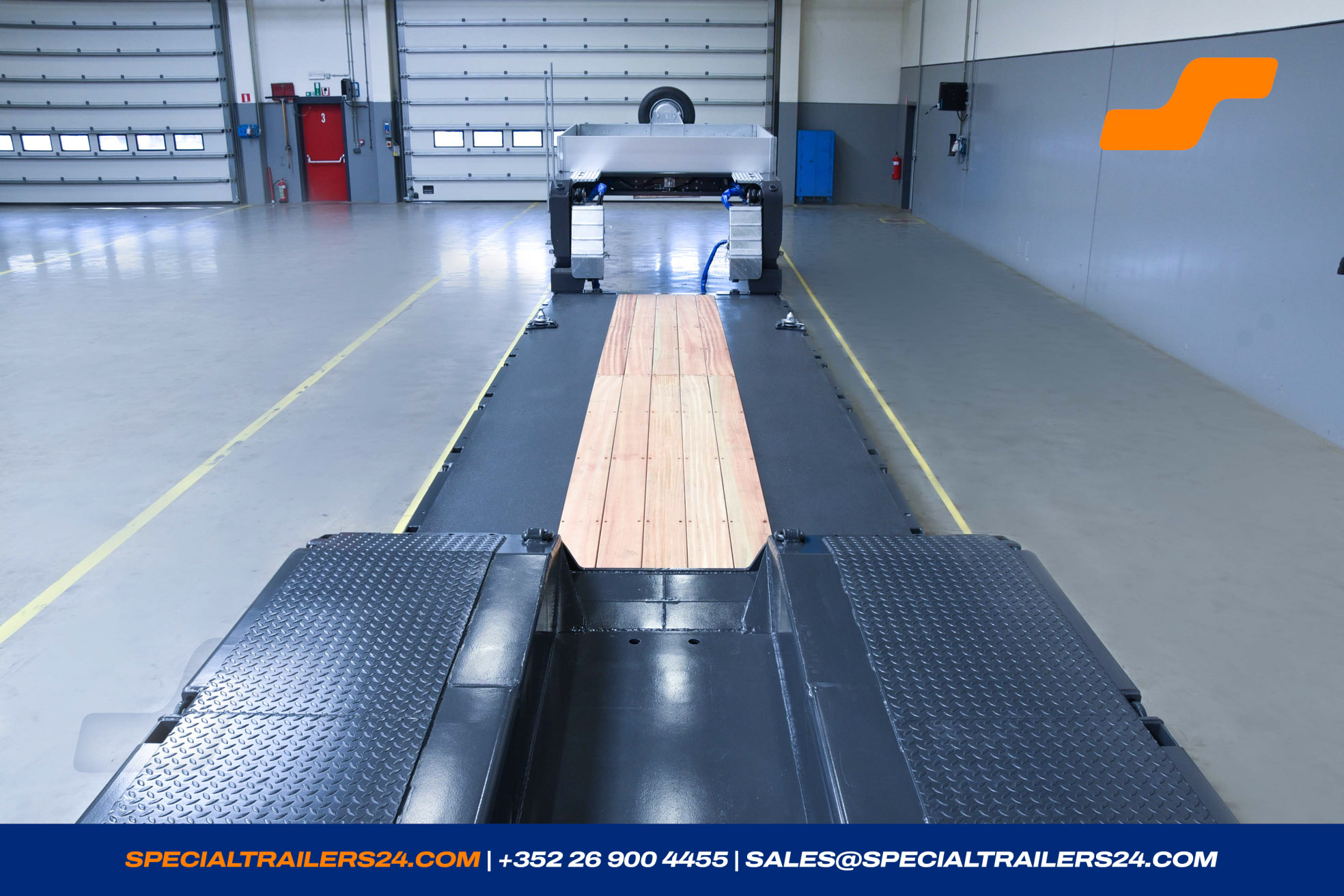

Lowbed with hardwood cover ± 40 mm and with ***mechanical locking***.
The supply lines are laid in the outerbeams and adapt automatically to the loading length.
7 pairs of lashing rings (LC 10 000 daN).
6 pairs of threaded blocks on the inner beams for mounting screwable RUD rings...
-
Preparation for the attachment of screwable container fittings for 1 x 20', 1 x 40' or 1 x 45' containers on the outer beams.
Without container fittings. - Electrically operated hydraulic pump. (± 45kg)
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- 2 wooden blocks 500 x 250 x 200 mm.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

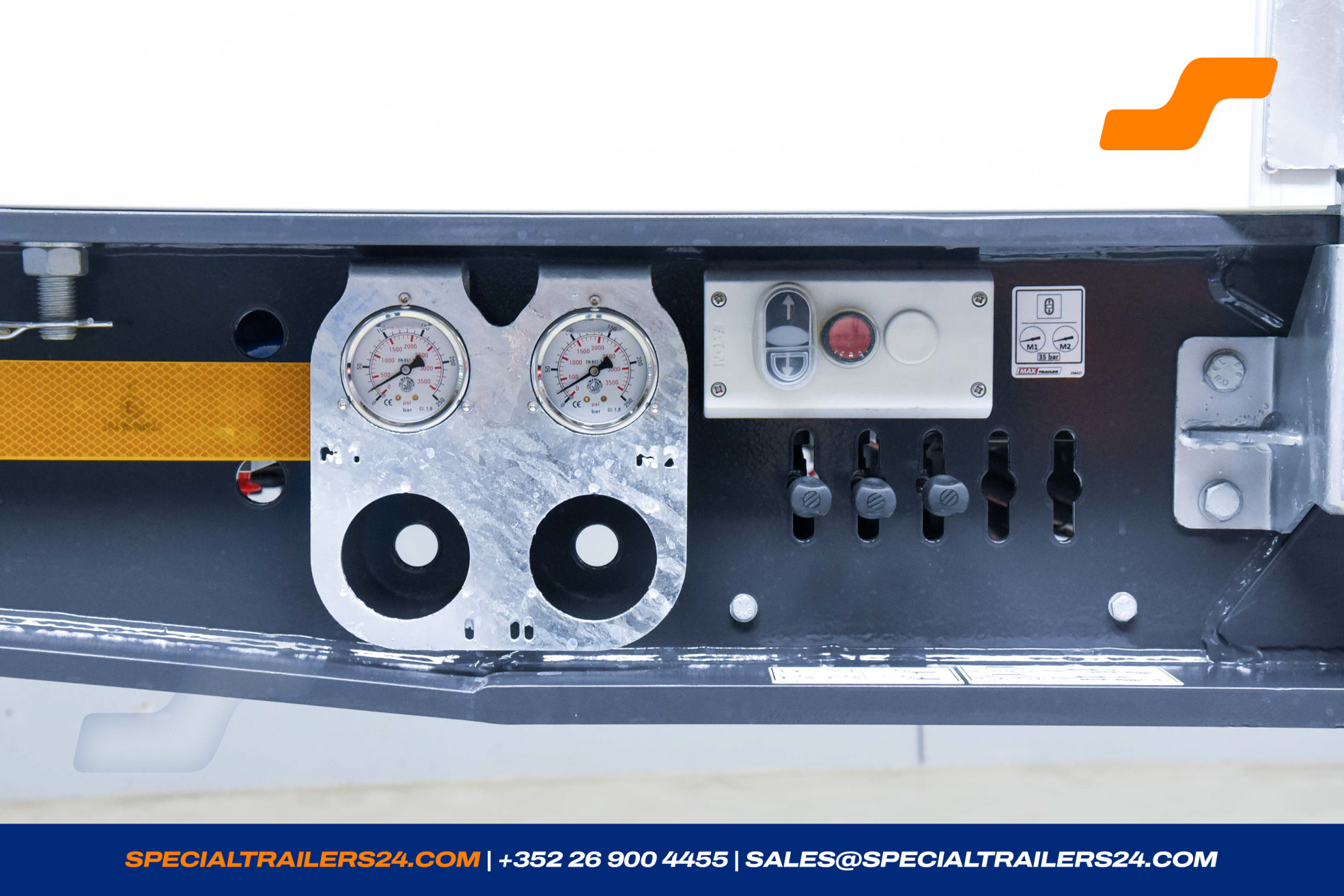

- Load manometer for determining the axle load, including load diagram.
- 7 thread blocks between the lashings rings under the upper flange on the outer beam for the fitting of srewable RUD lashings rings VLBG-4.
- 2 pairs of screwed-on container brackets on the outer beams. Including 2 pairs of container locks for 1 x 20', 1 x 40' or 1 x 45' container.
- 2nd driving height, ± 50 mm above the normal driving position, manually operated
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
-

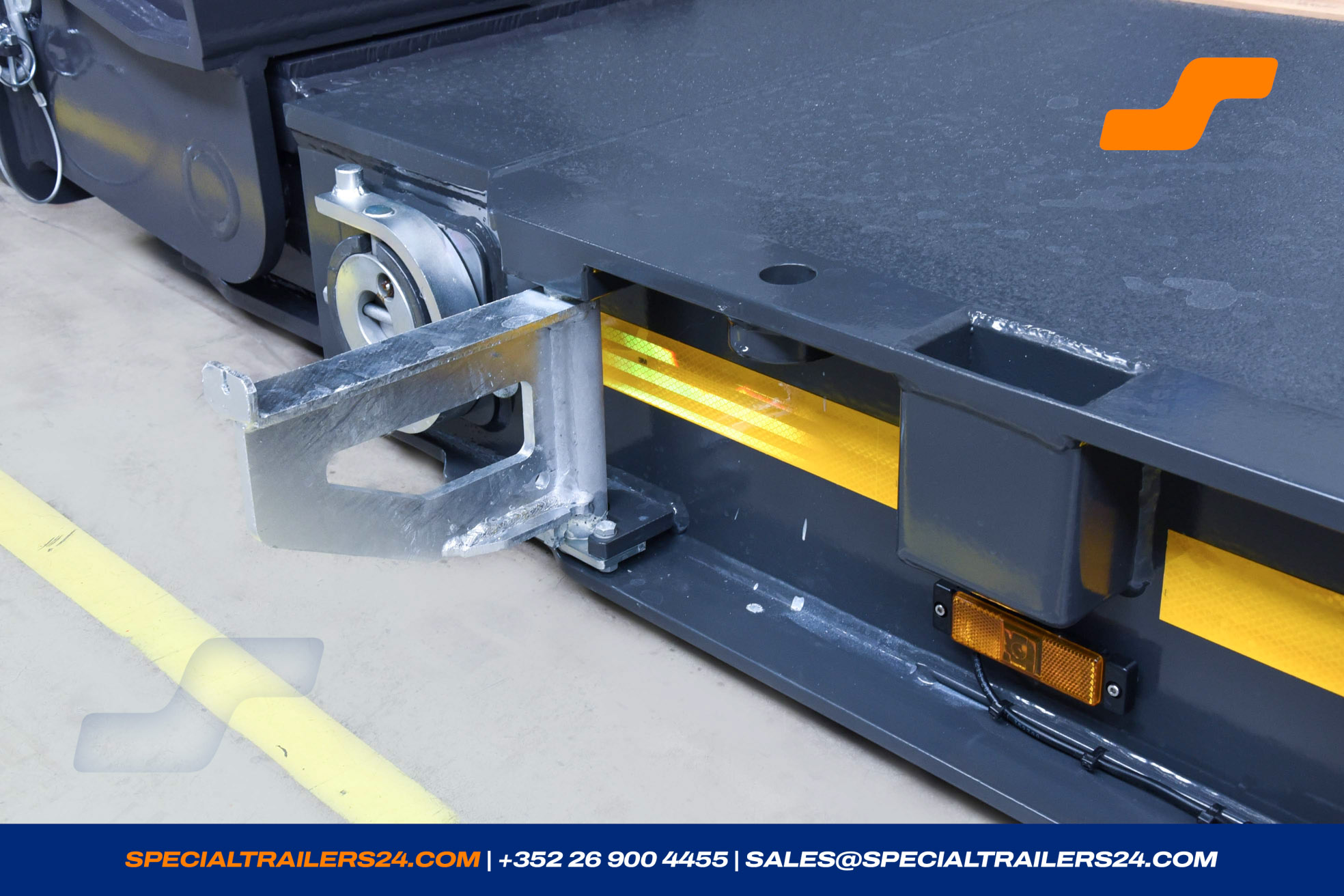

Foldable outriggers, 230 mm per side.
(Without timber) -
Hardwood timber for the outriggers. (± 350kg)
The maximum permissible point load on an area of 200 x 200mm is 3.5to. - 1 pair of steel-ramps to bridge the hooks of the lowbed. (± 60 kg)
- Anti-slip-coating with sand on the loading platform.
- 2 LED- reversing lights at the rear.
- Camera cable Brigade ( Ref. VBV-L430 ) to be fitted inside of the energy chain.
- Sign 1 200 x 400 mm CONVOI EXCEPTIONNEL at the rear of the trailer.

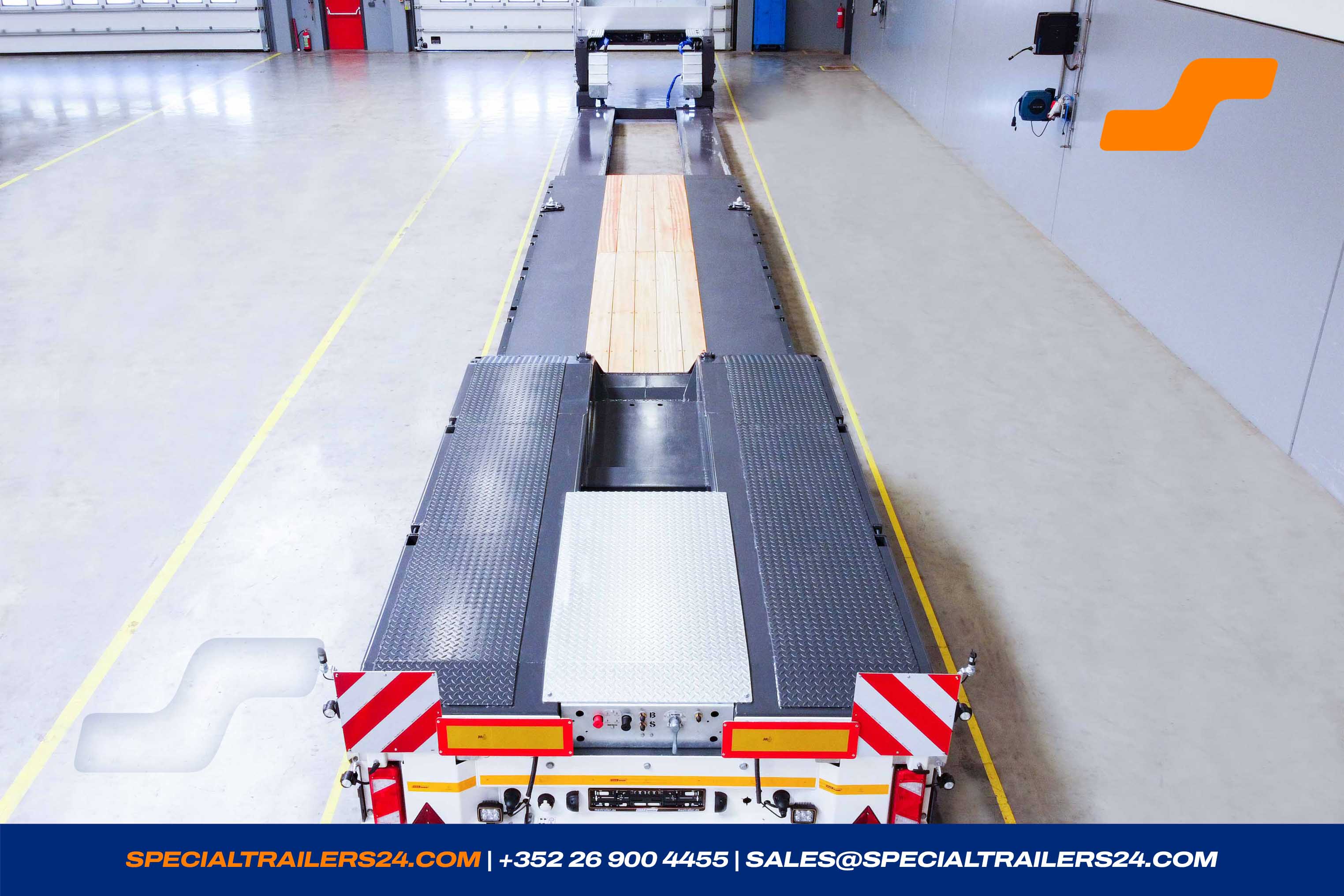

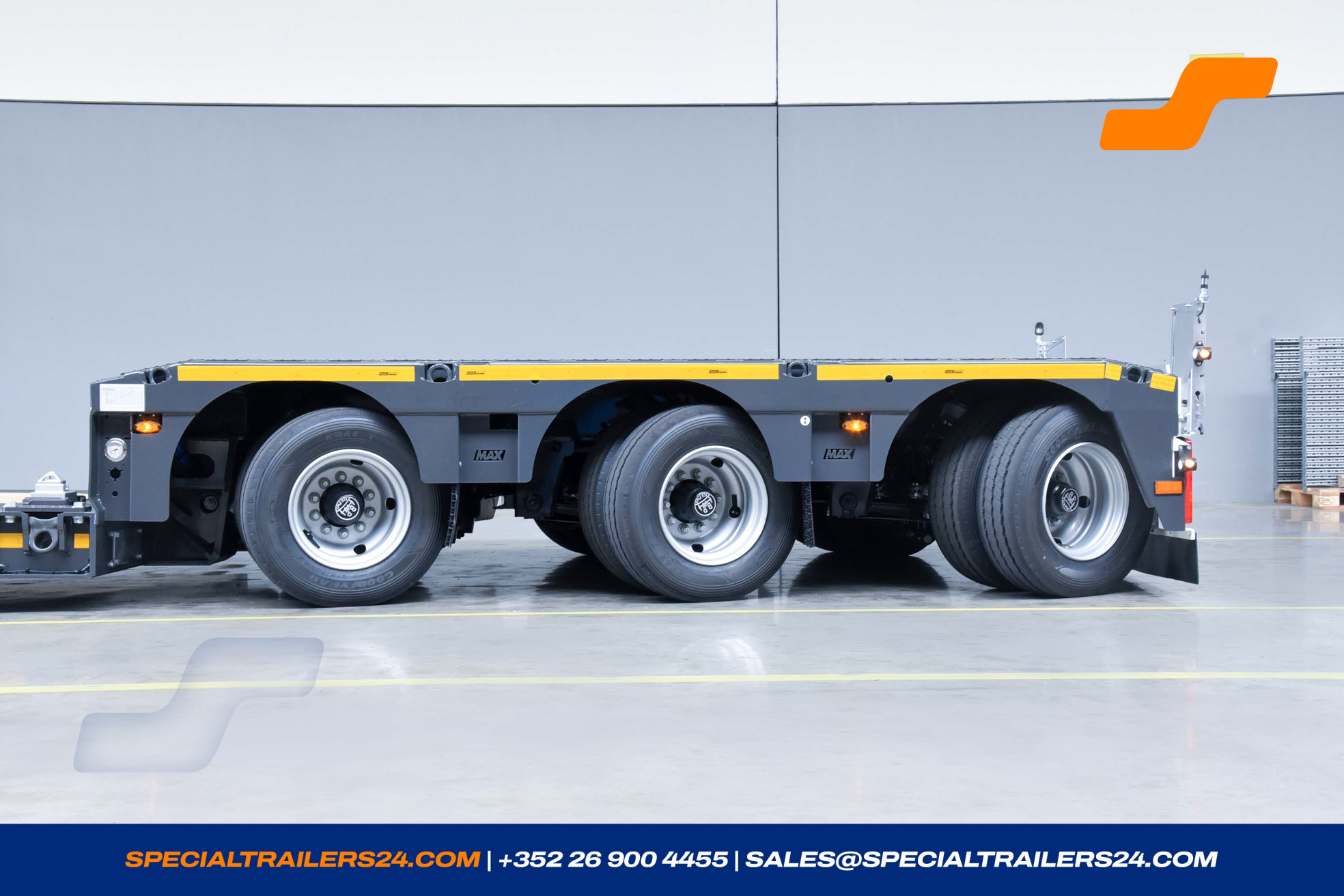

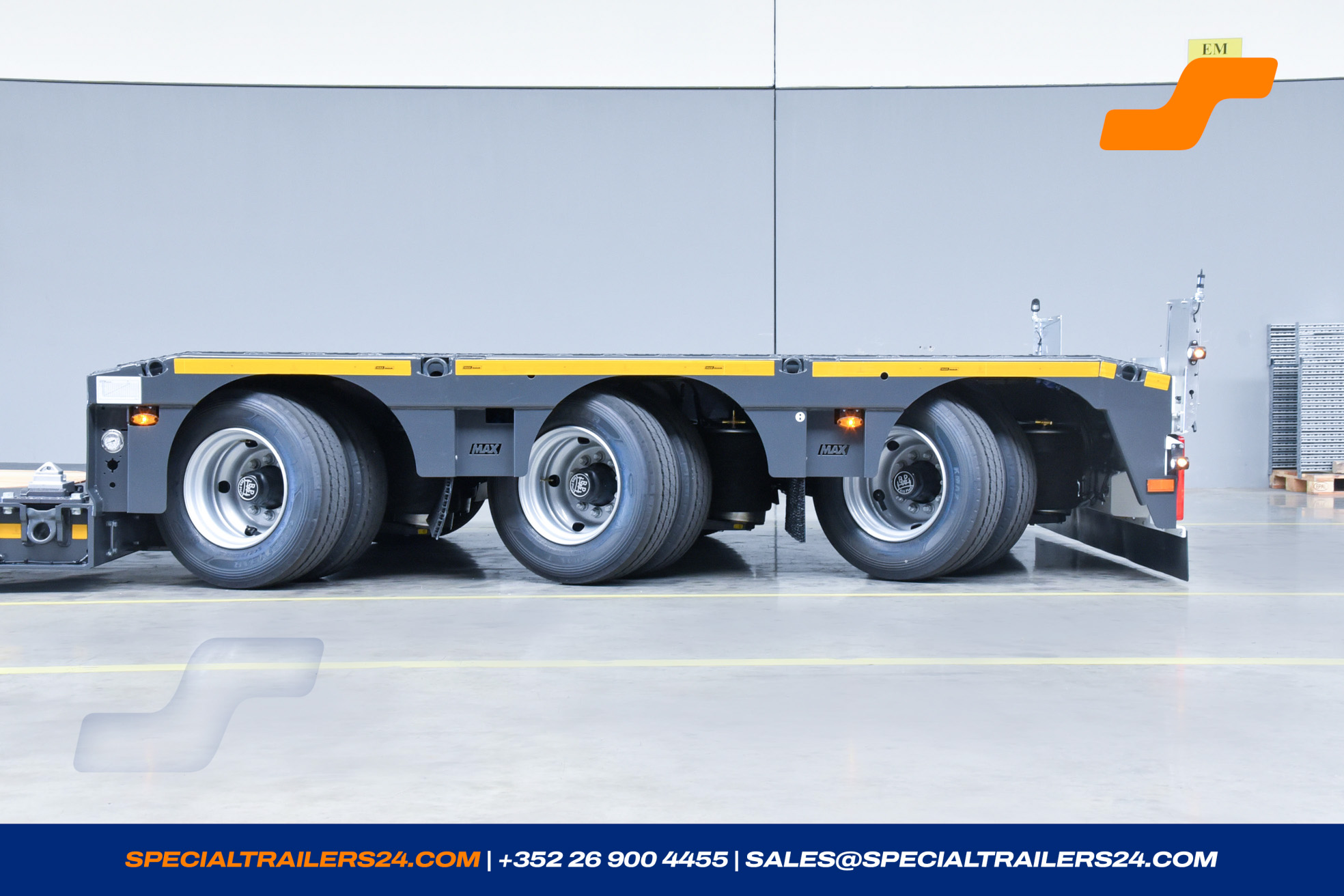

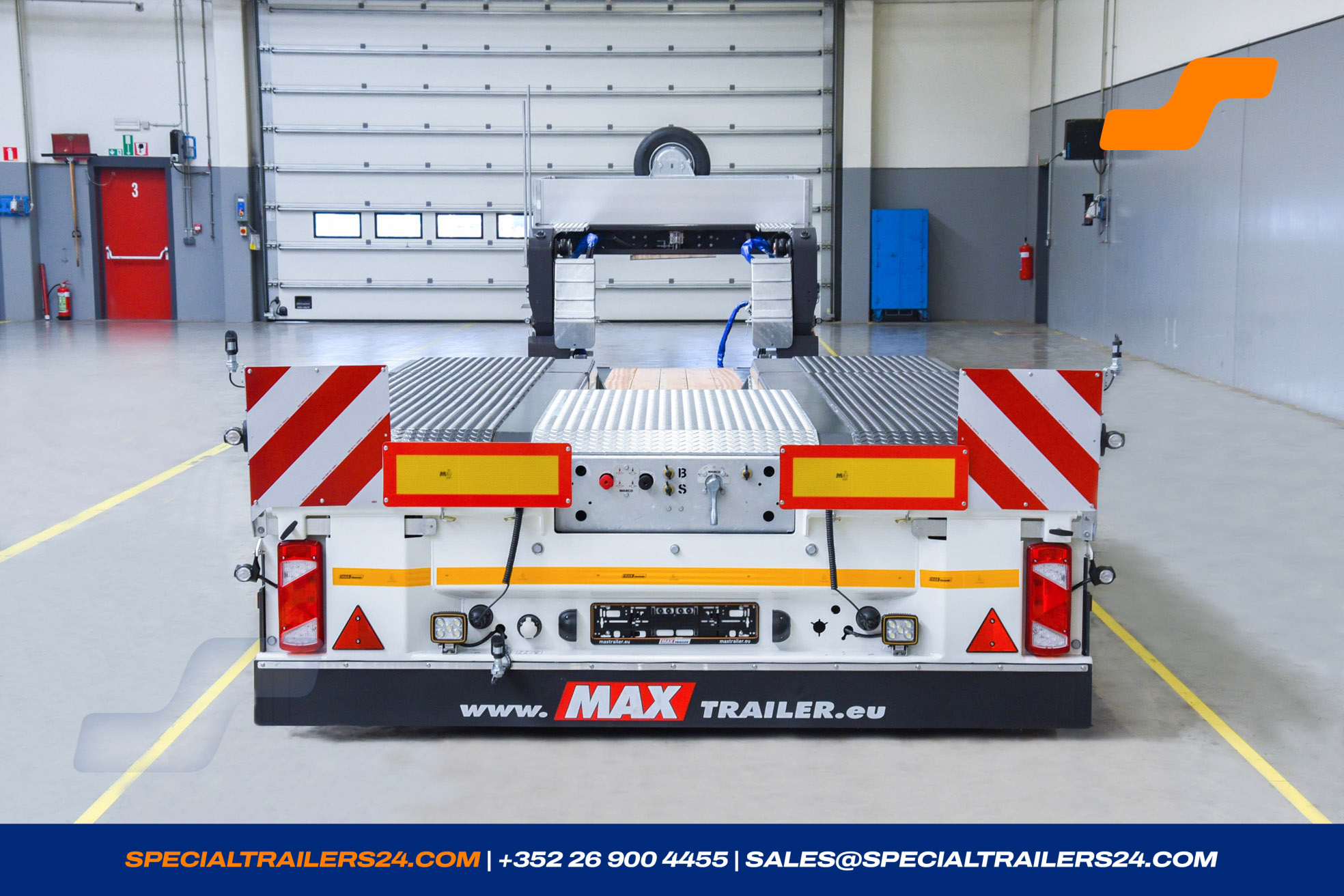

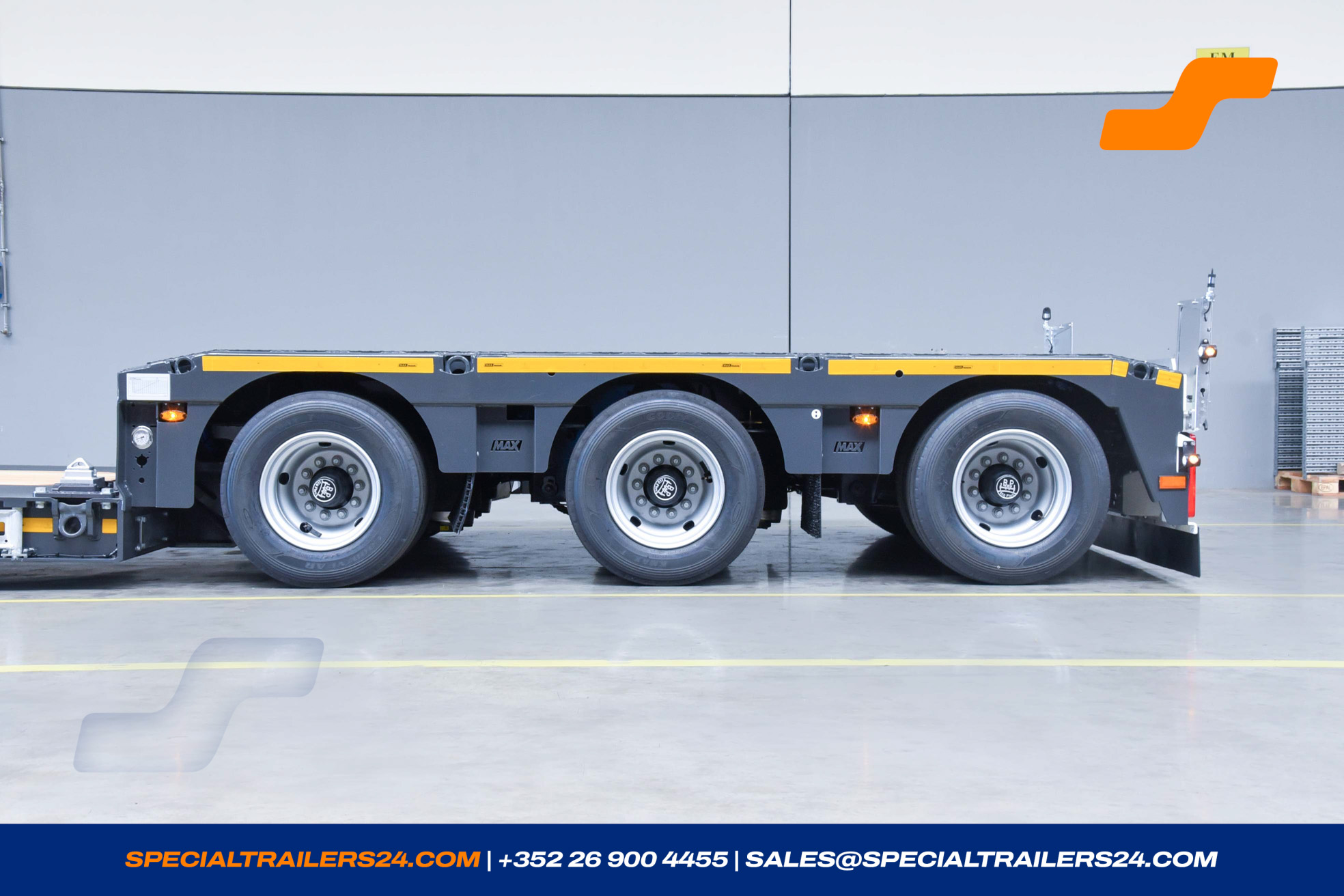

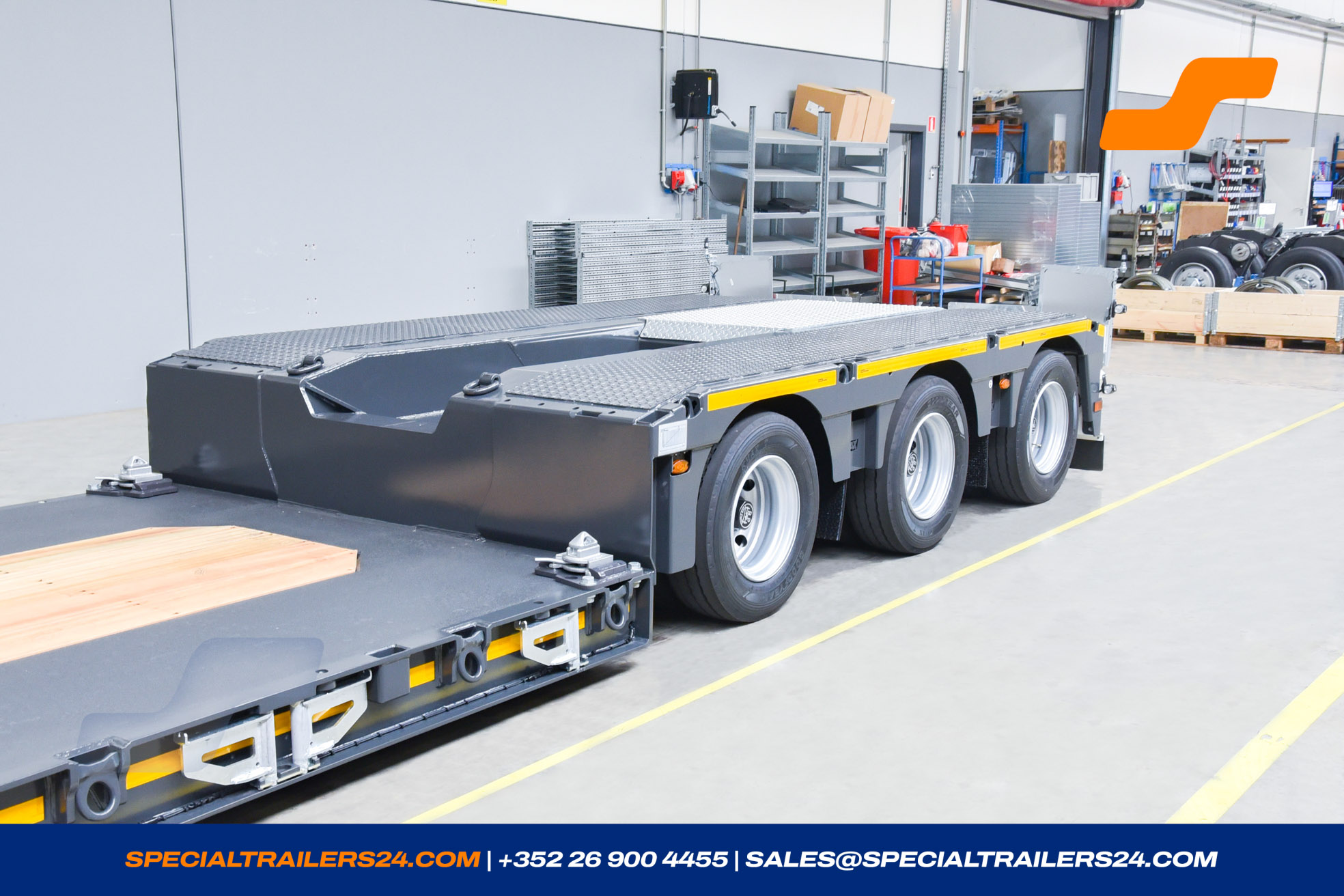

Rear Bogie
1 x Axles bogie

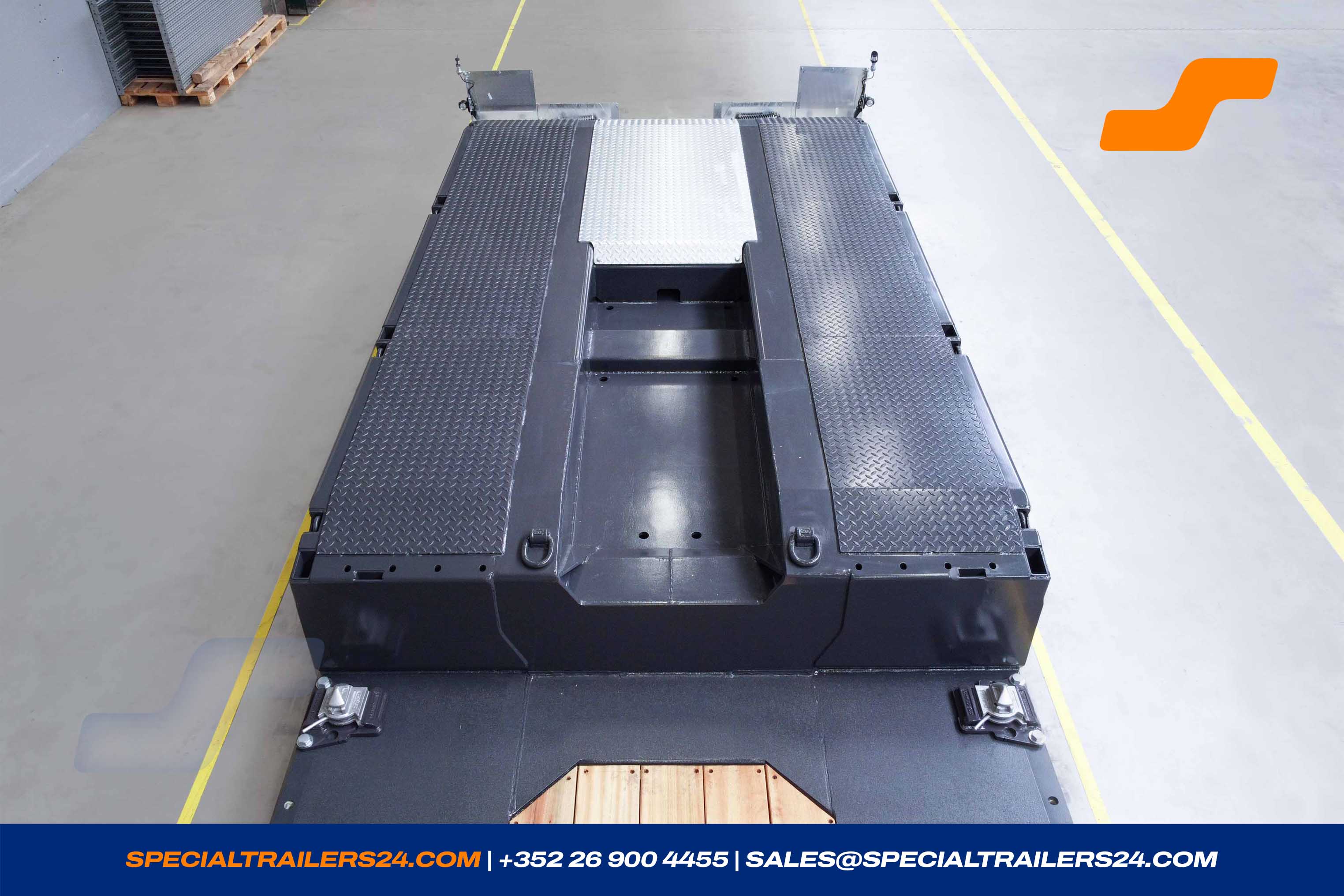

Axles bogie at the rear with outer frame construction and chequer plate cover.
Axles bogie with recess, closed at the rear part for the air tanks.
3 pairs of lashing rings in the loading platform, hinged outward (LC 5 000 daN).
1 pairs of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
1 pair of lashing rings at the front and at the rear of the axles bogie (LC 10 000 daN).
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Holder for one beacon light at the rear right and left of the trailer.
Accessories
1 x Accessories
-
BPW-axles and suspension, all axles hydro-mechanic steered.
Technical axle load: 12 000 kg

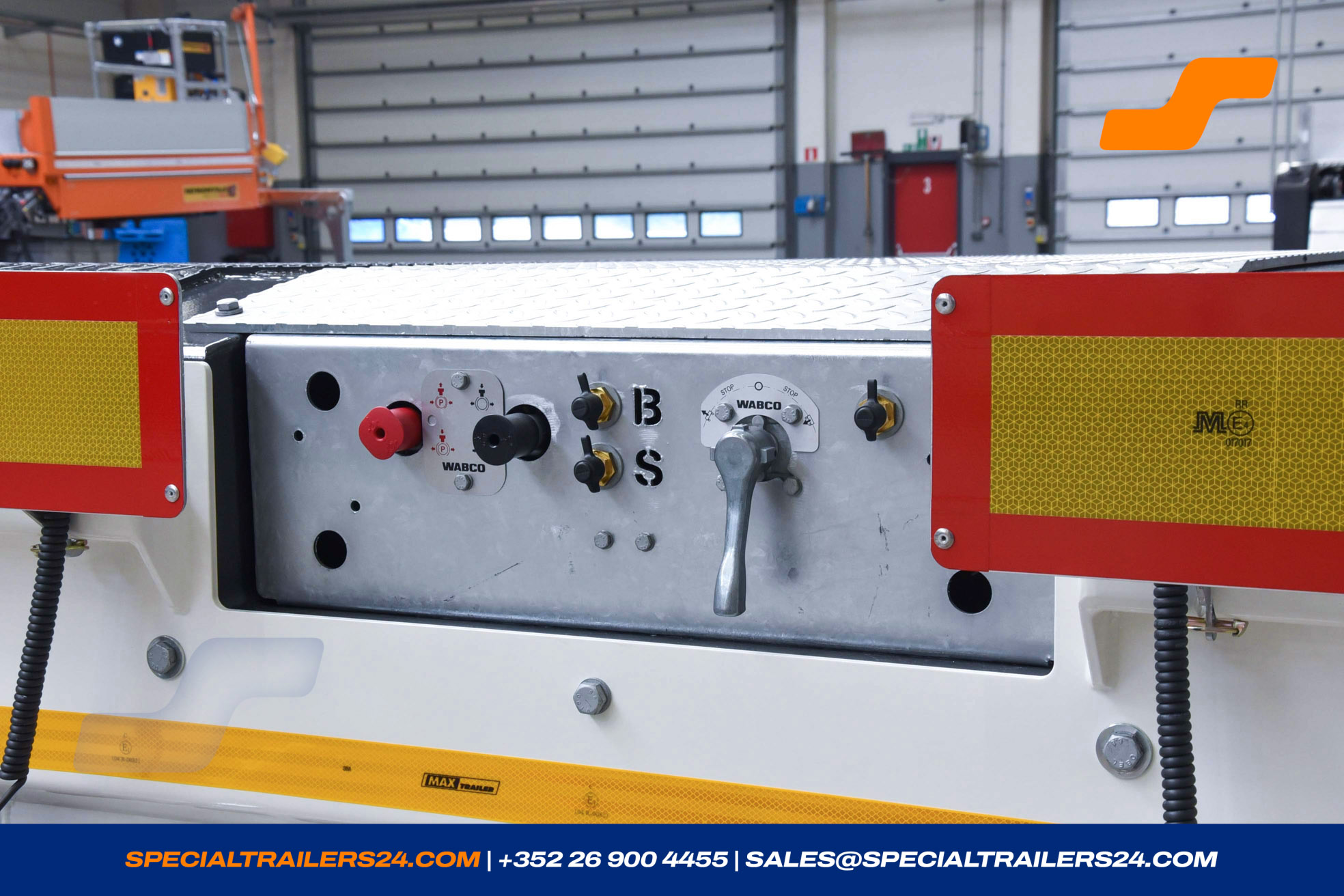

Pneumatic suspension with lifting/lowering valve.
Axle tools. -
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - Manual and description on USB stick .

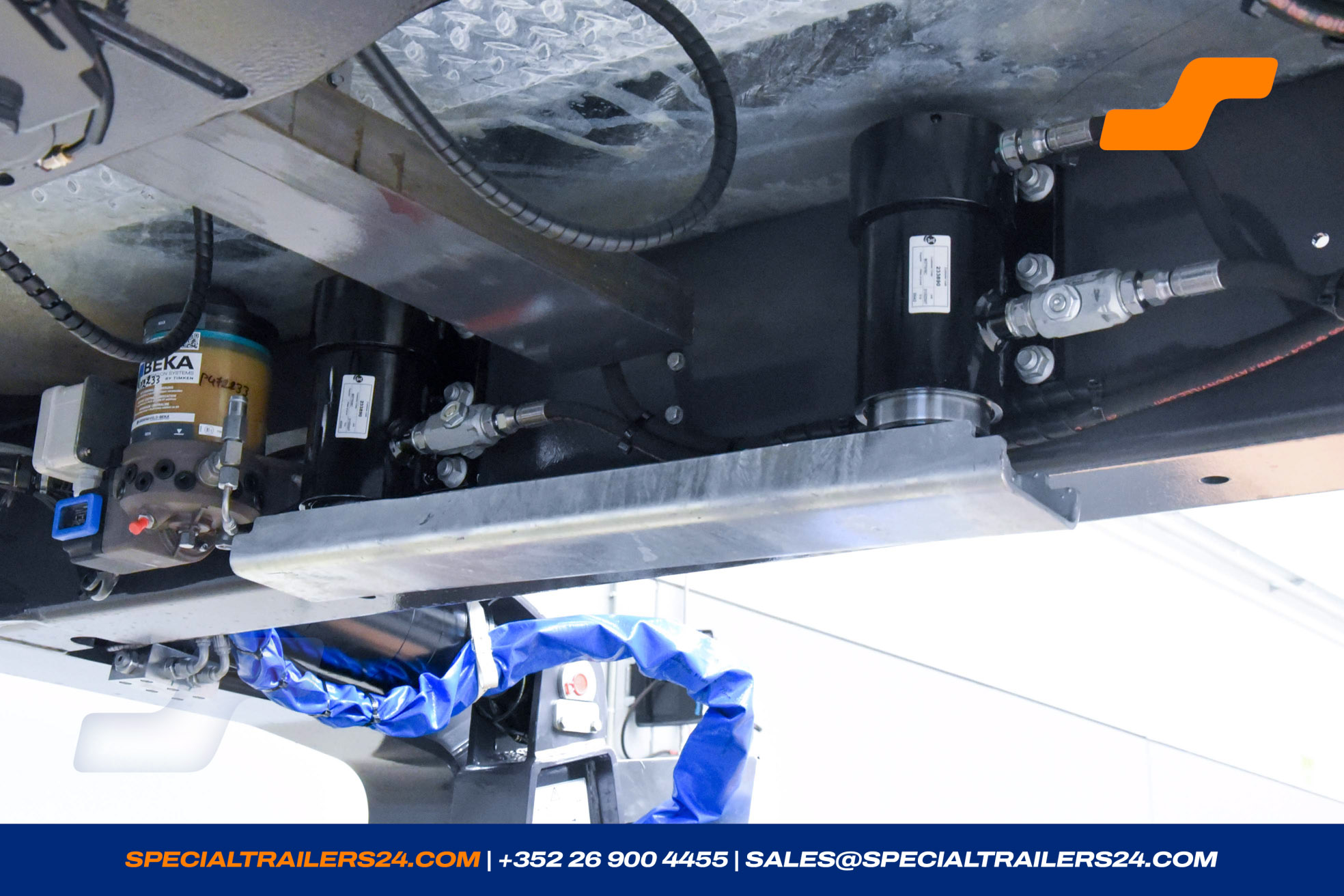

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
-
1 pair of alu ramps AVS 150 OR KE ± 1500 x 385 x 150 (l x w x h)
Capacity per ramp for :
Bogie 2 axles with load distribution 40% to 60%
by axle distance 1.5 meter : 6900 daN (Kp)
by axle distance 2.0 meter : 6900 daN (Kp)
single axle: 4140 daN (Kp)
max. admissible uphill : 30% (16.5°)
Weight per ramp approx. 23 kg (approx. 50kg) - 4 warning boards ± 423 x 423 mm extendable by ± 1 000 mm with 1 LED position light and holder for a flashing beacon. (± 65 kg)

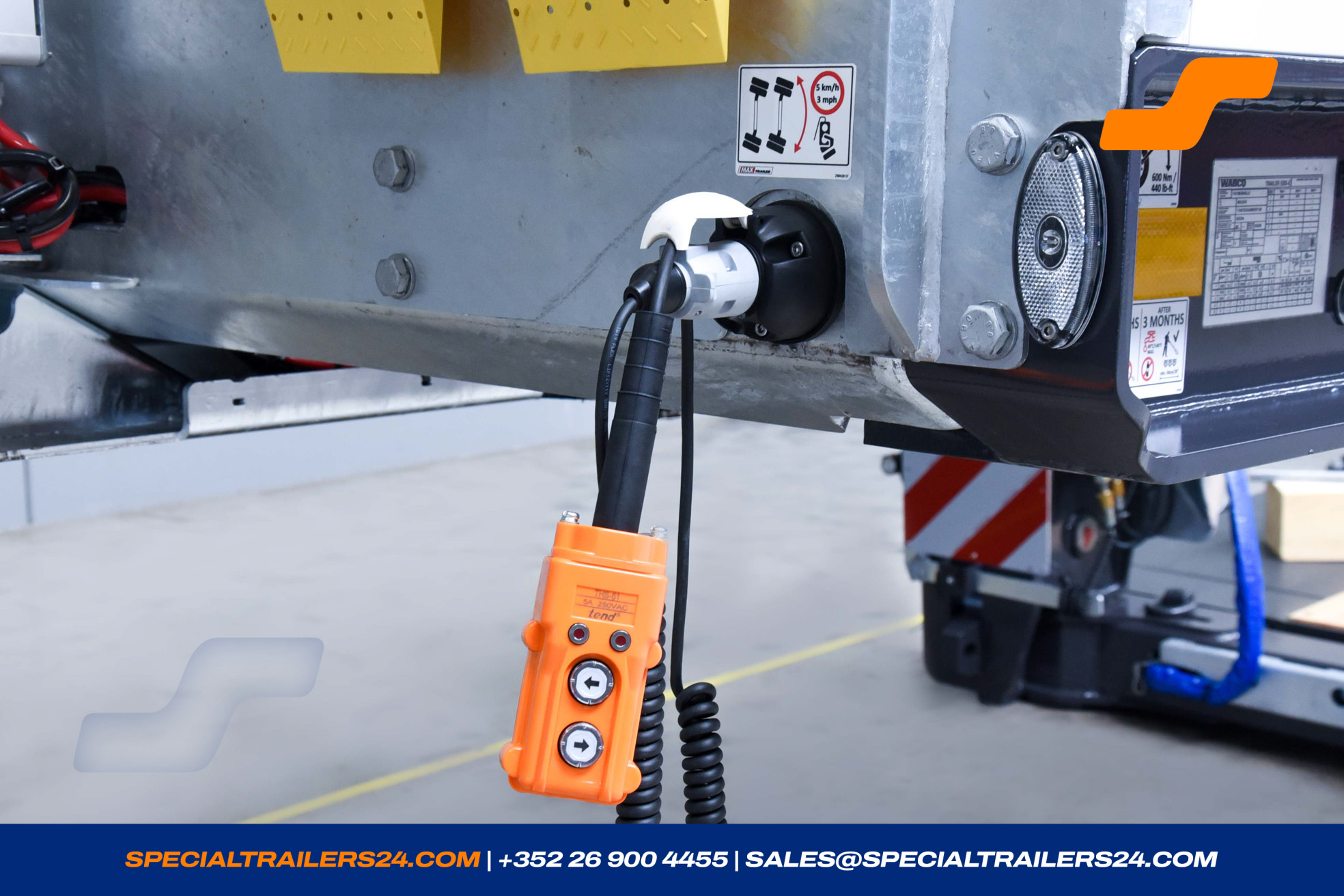

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-
TÜV expertise and §70 exemption for an application for an exceptional transport permit for two tractors.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer. -
Spain: Ficha técnica
For your information :
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations. -
Italy, Scheda Tecnica:
For your information:
Technical description, necessary for the request of an authorization for special transport.
We do not deliver any authorization but only the forms or descriptions needed for the delivery of those authorizations.
We do not have any influence on the delivery time of these authorizations. - Delivery from a trailer to factory Lentzweiler.
