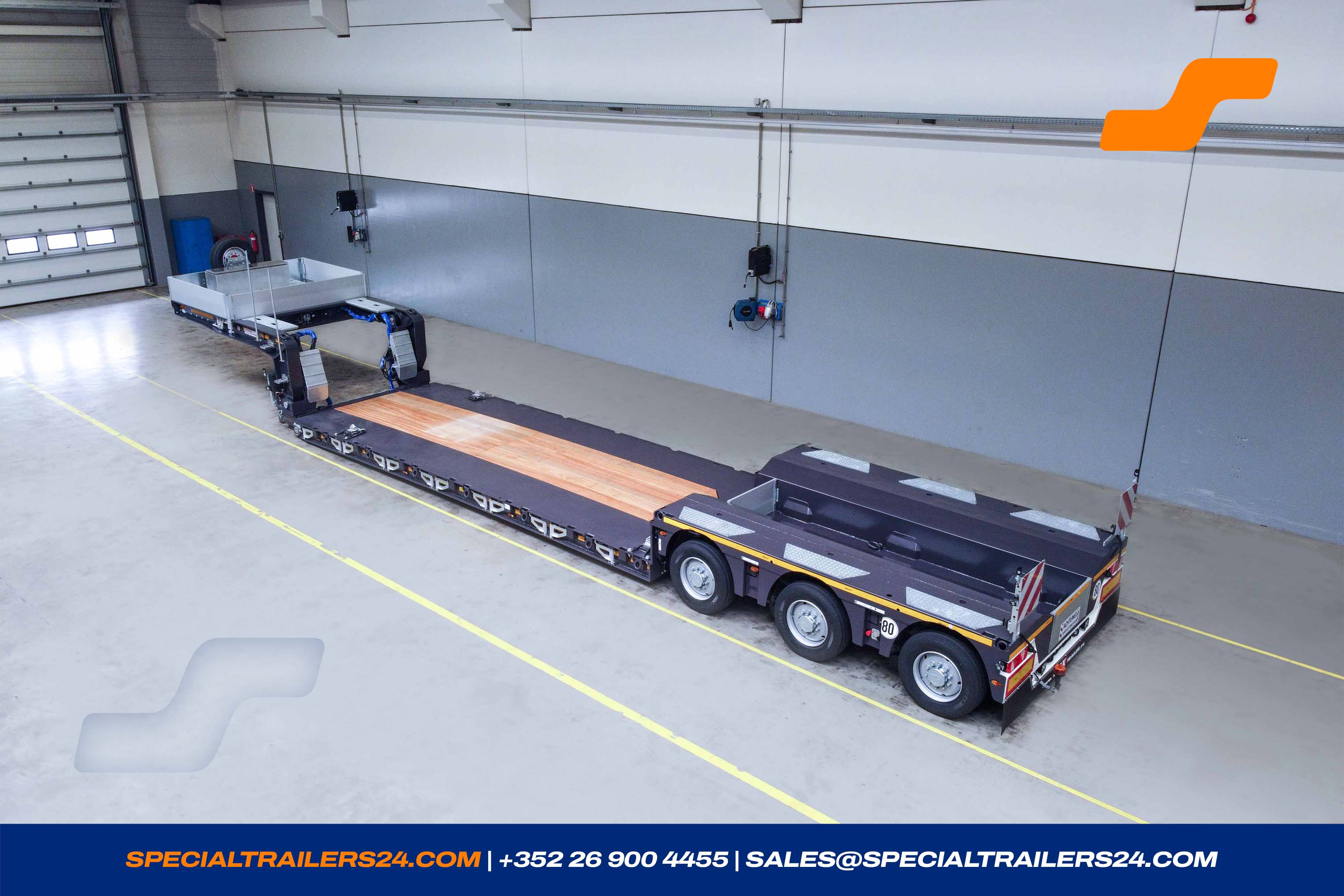

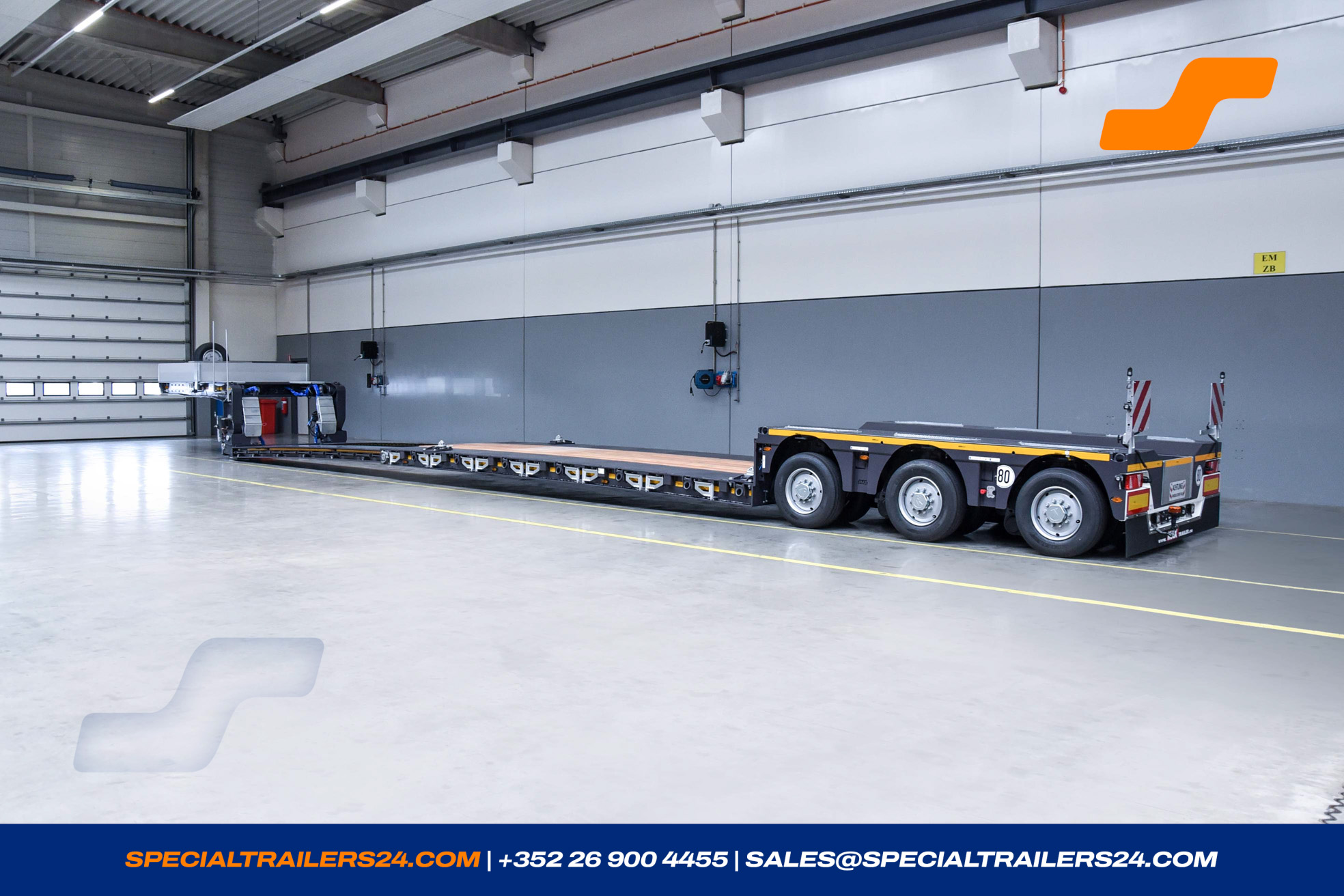

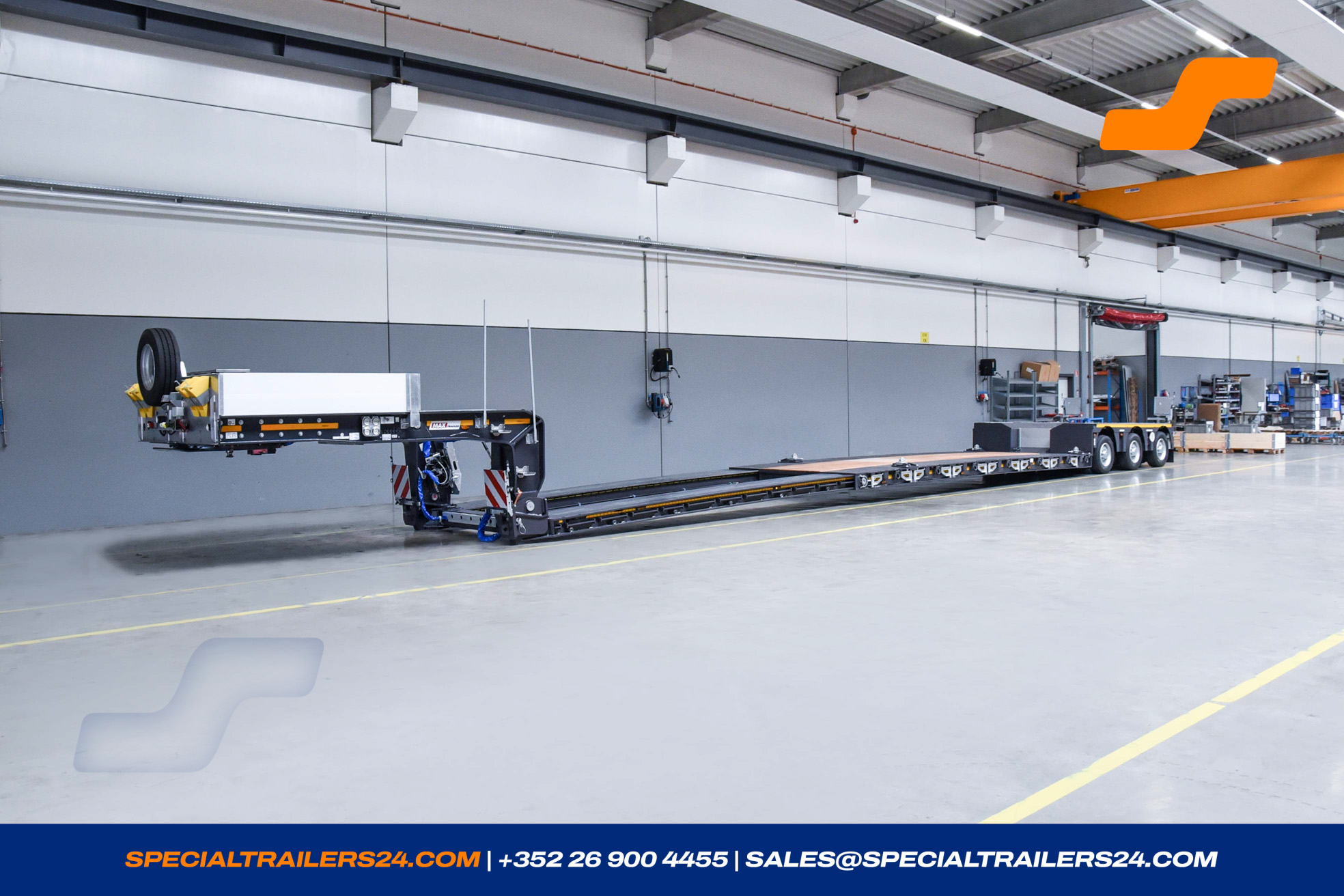

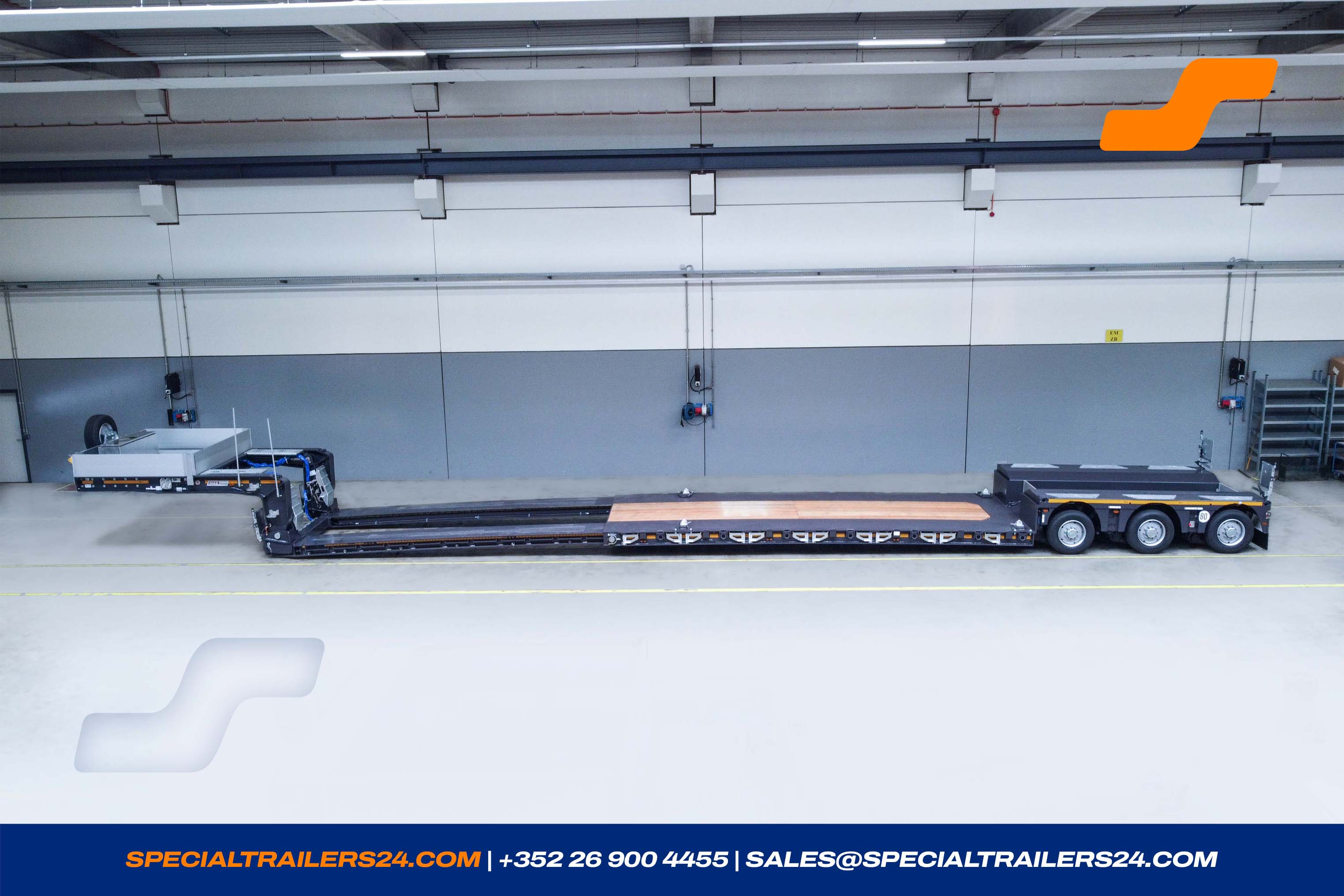

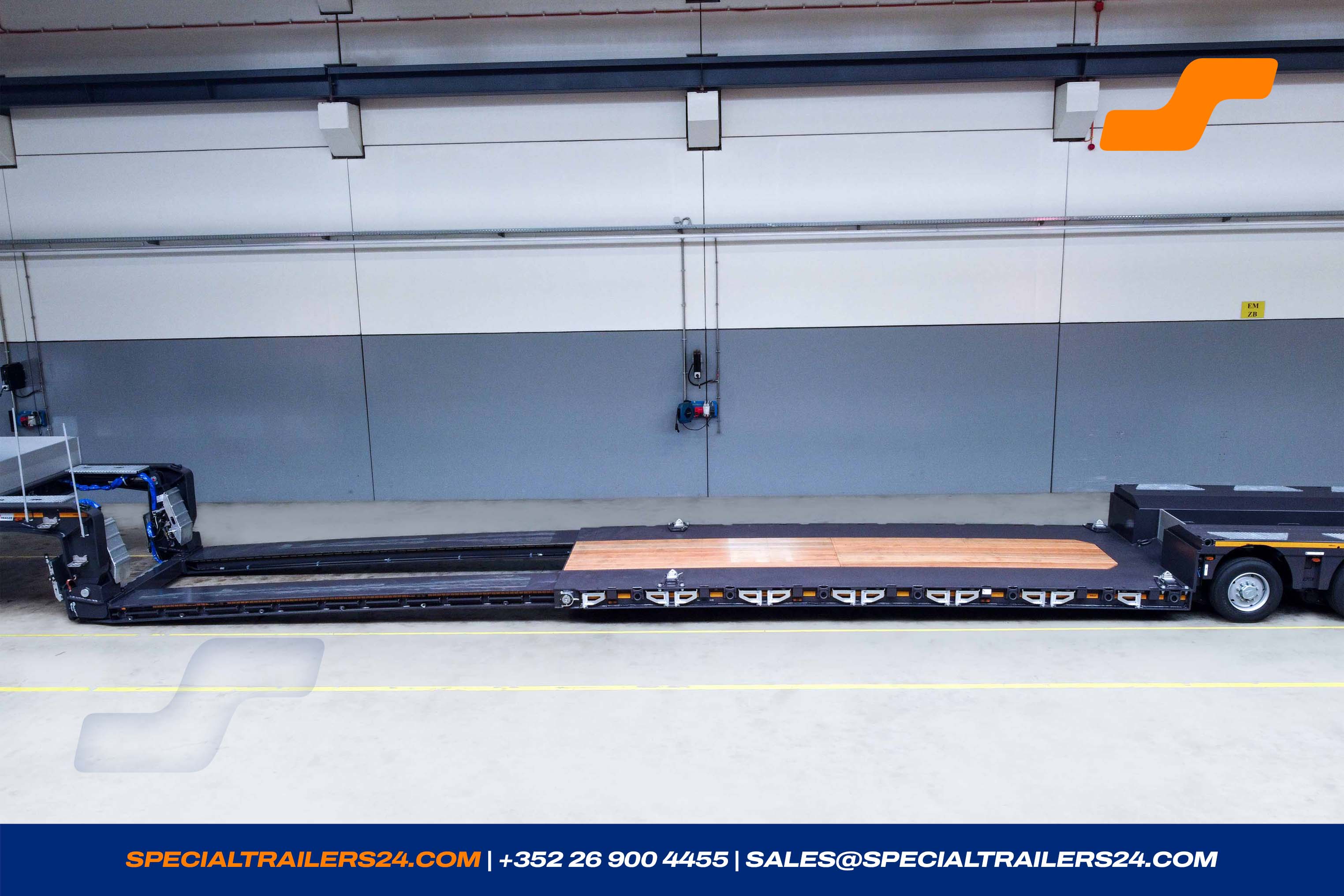

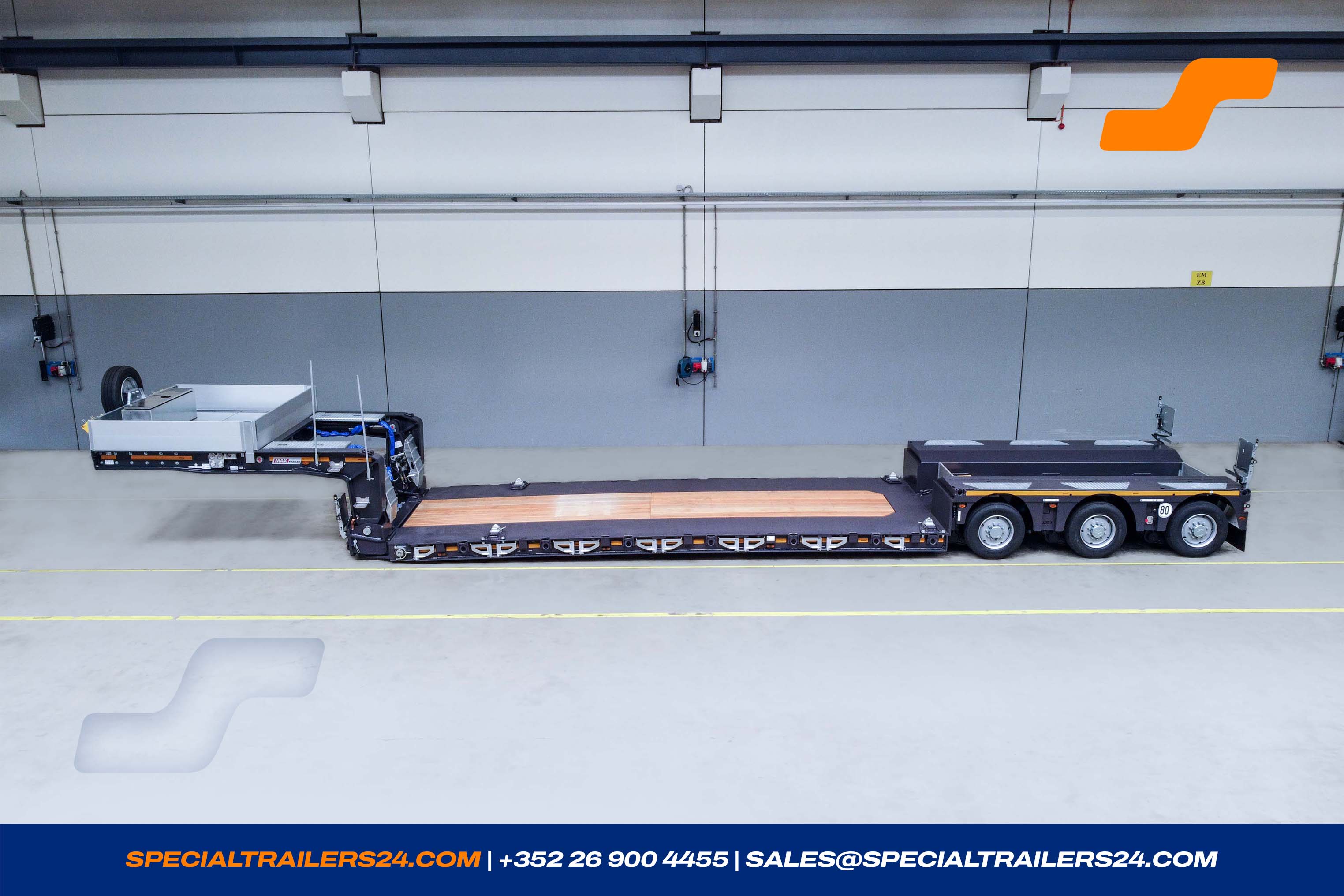

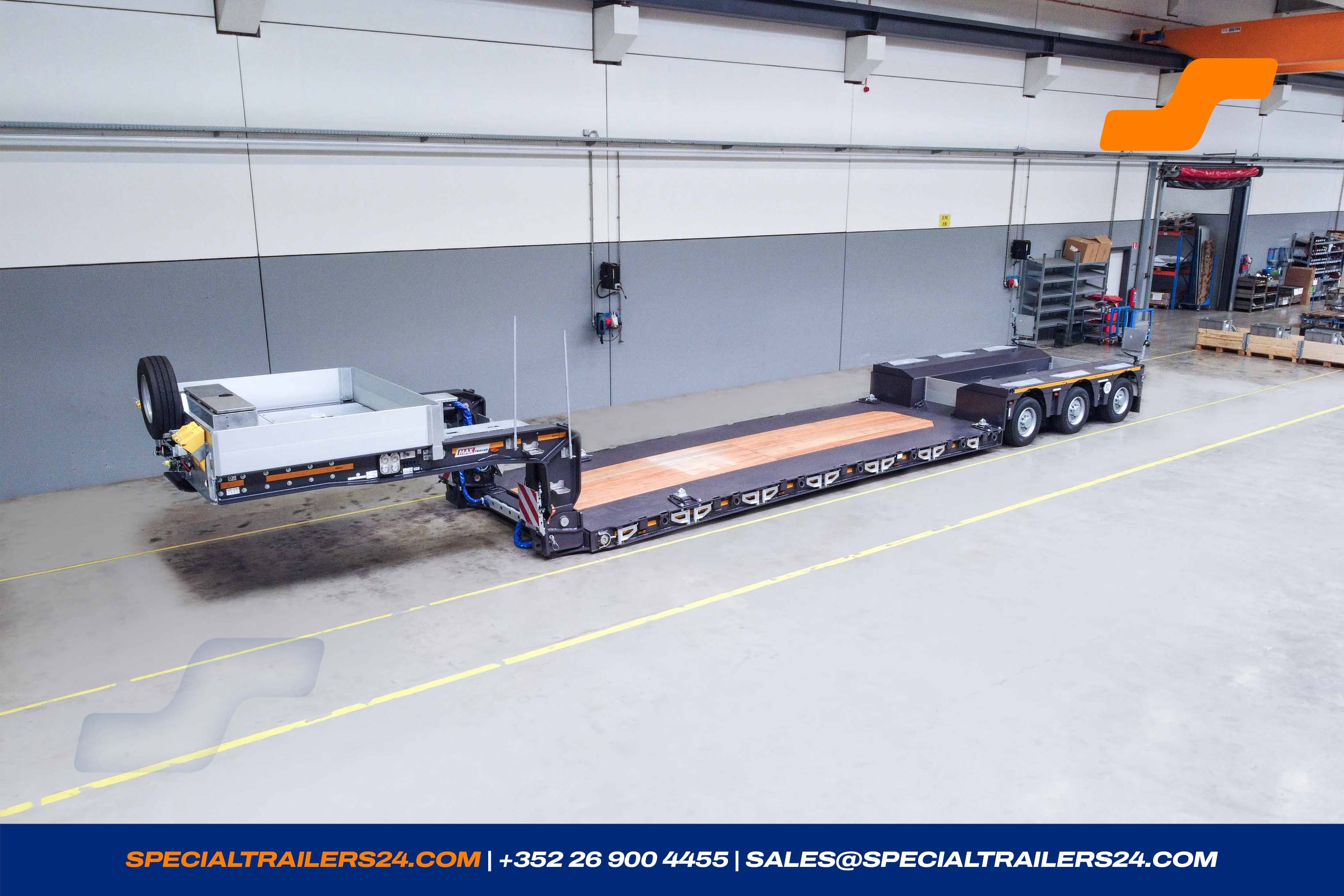

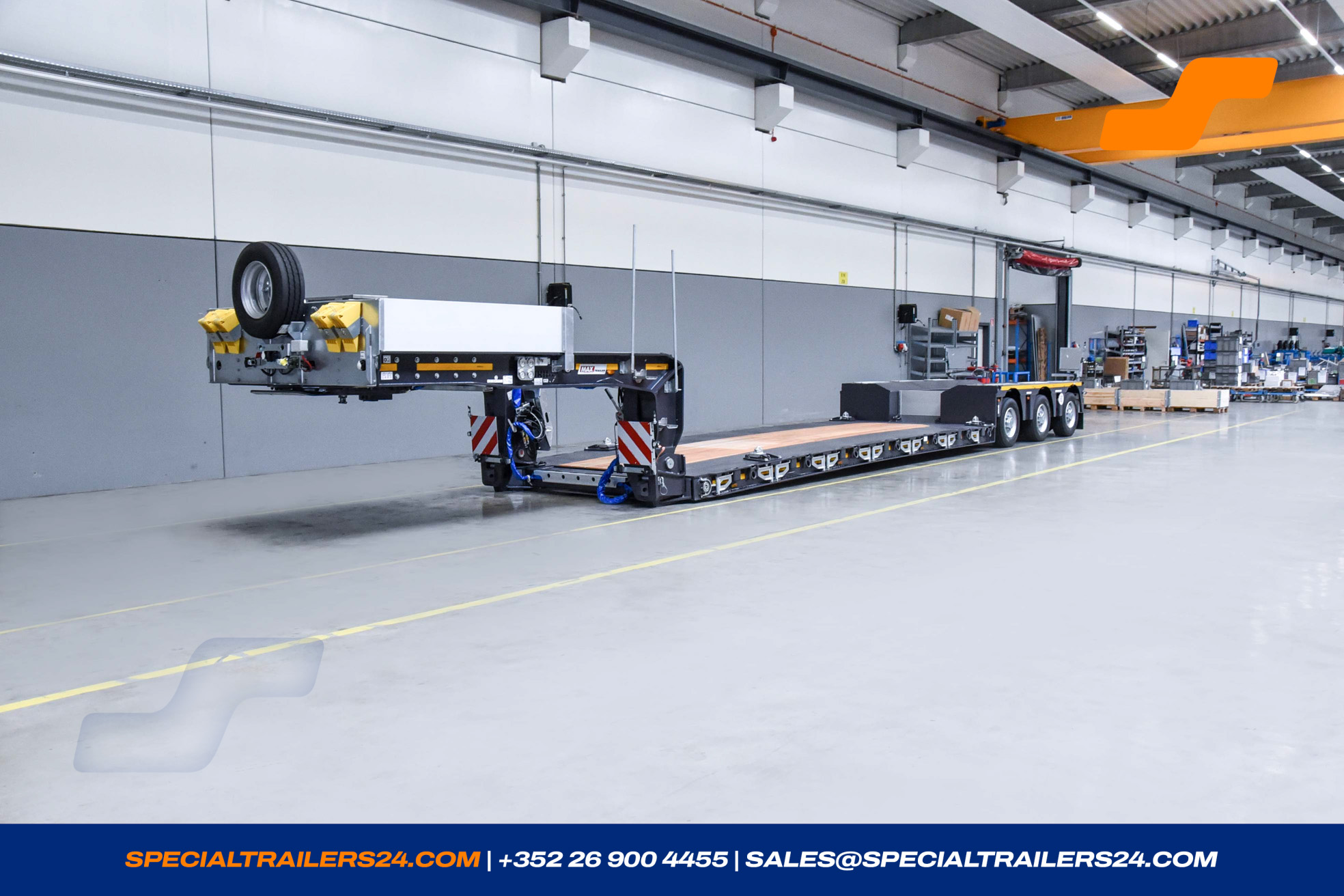

MAX Trailer MAX510
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110662
- Reference MAX510-Z-3H-ATX-A-7.55-PA
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability 01/2026
- Steering Type Hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 30000 kg |
| Axle load | 36000 kg |
| Gross weight | 91000 kg |
| Tare weight +- 3% | 17636 kg |
| Payload | 73364 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 3 700 mm |
| Turning circle reversing | 2 800 mm |
| Loading platform length | 7 550 mm |
| Extendable by | 5 500 mm |
| Loading height at max. load | 400 mm |
| Bogie length | 3 960 mm |
| Loading height on bogie | 1 005 mm |
| Suspension stroke | -150/+450 mm |
| Wheelbase | 1 360 mm |
| Bogie width | 2 750 mm |

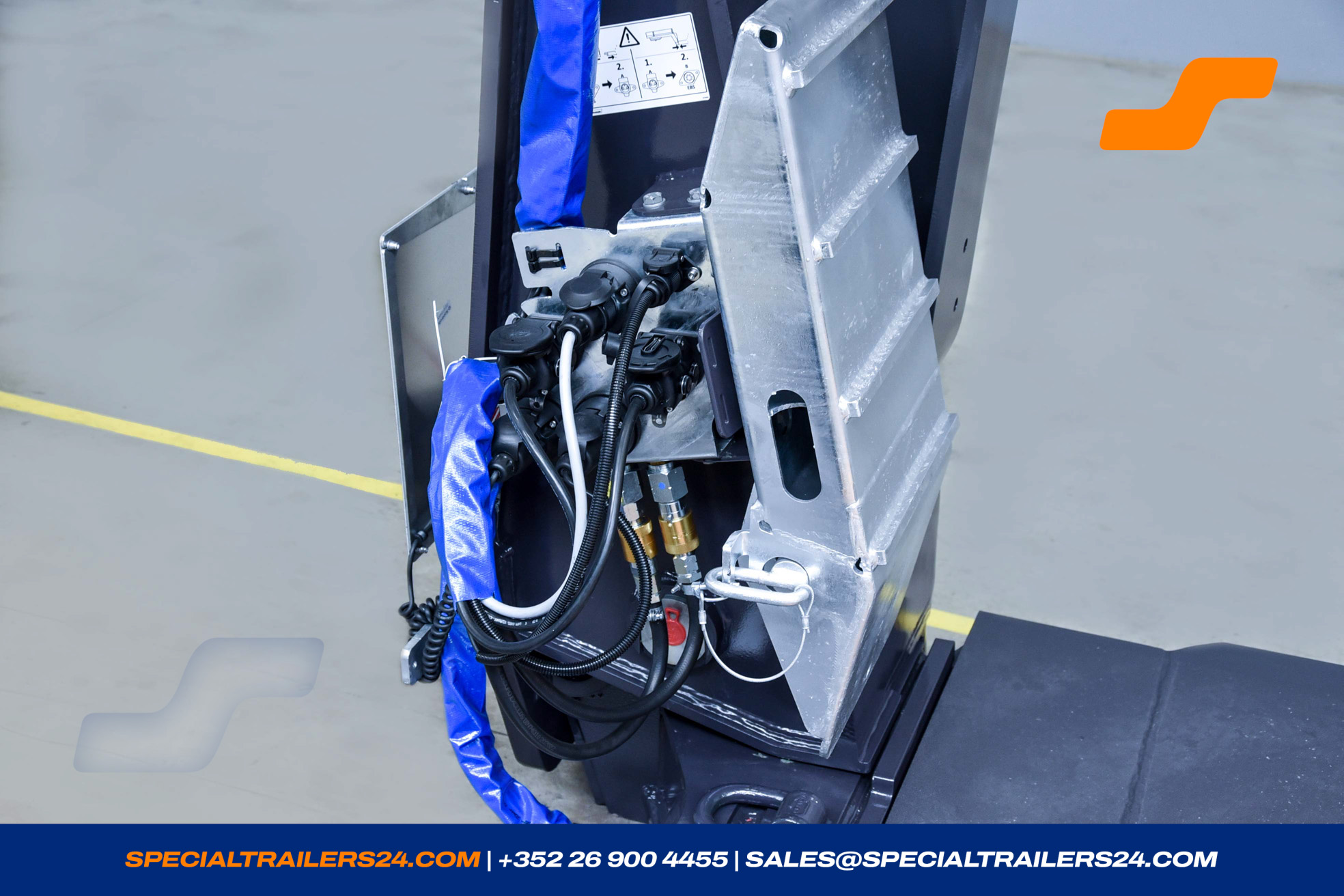

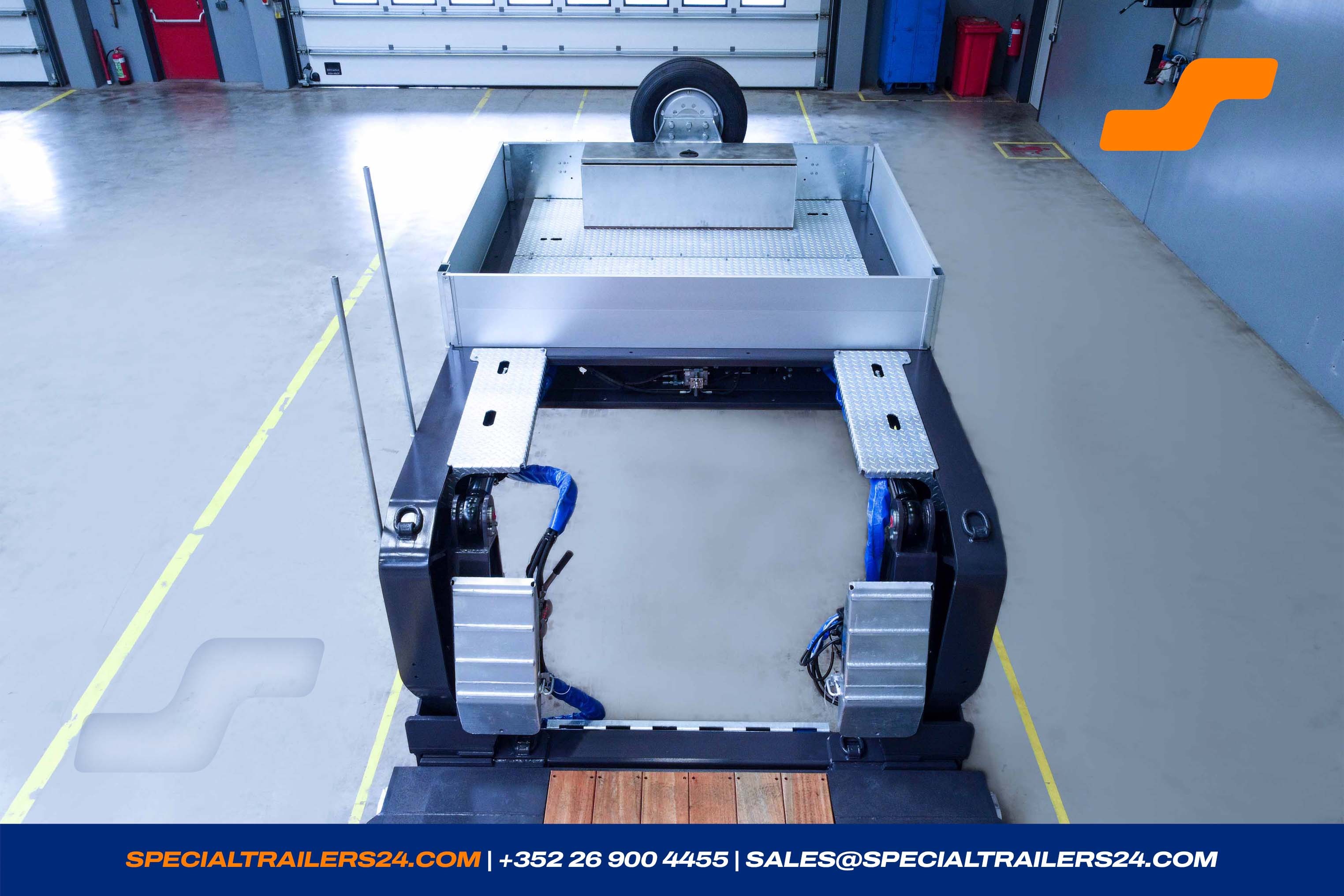

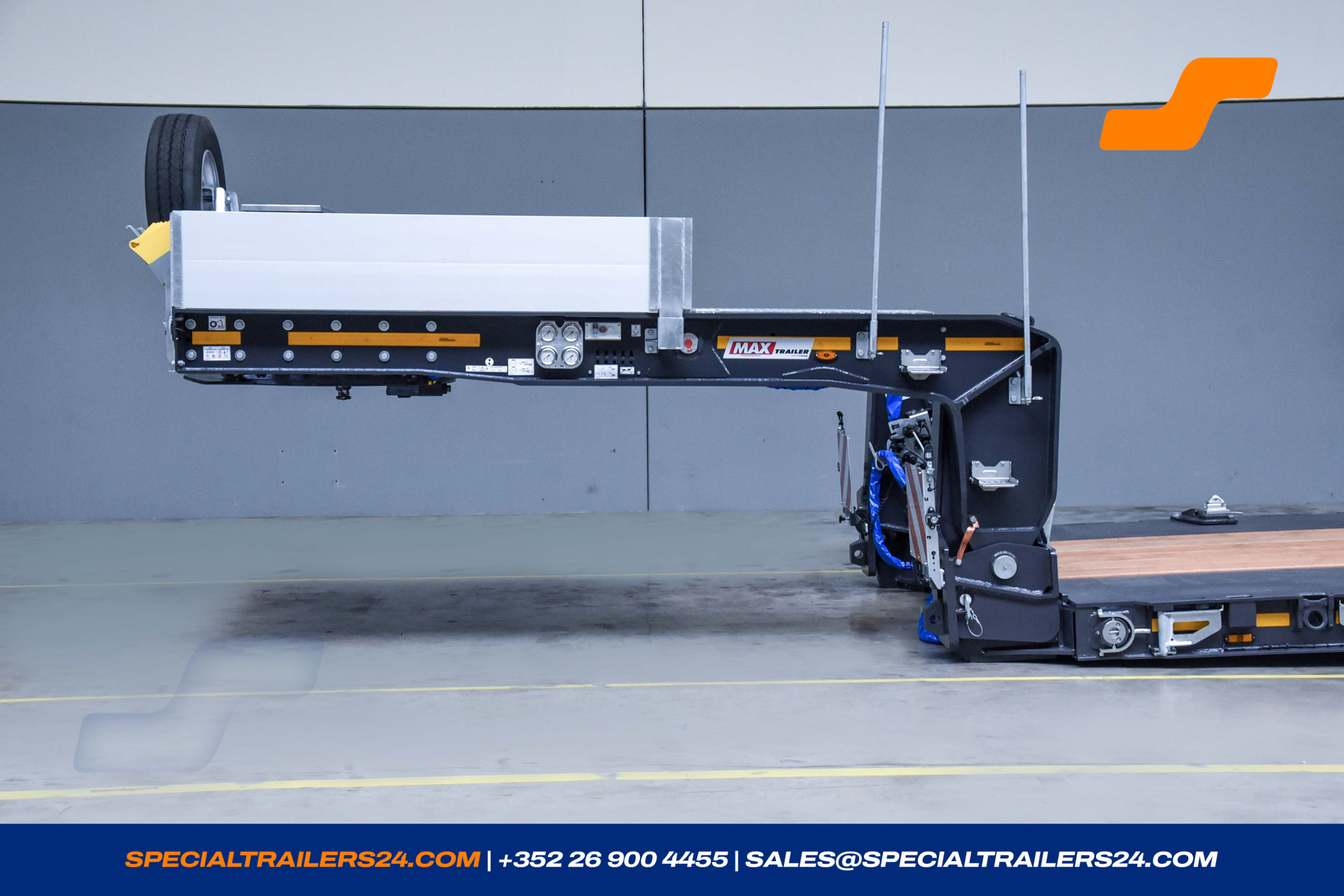

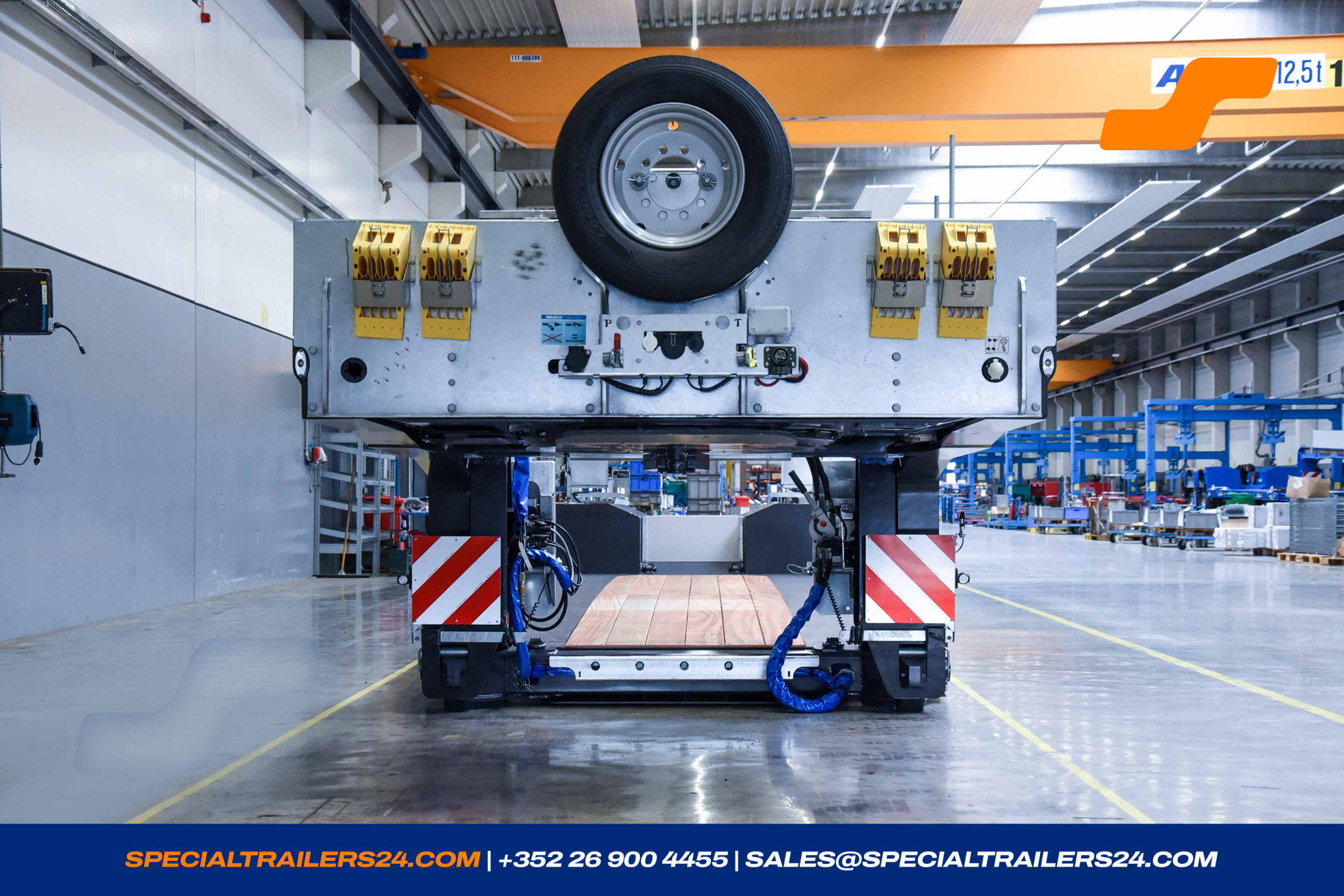

Gooseneck

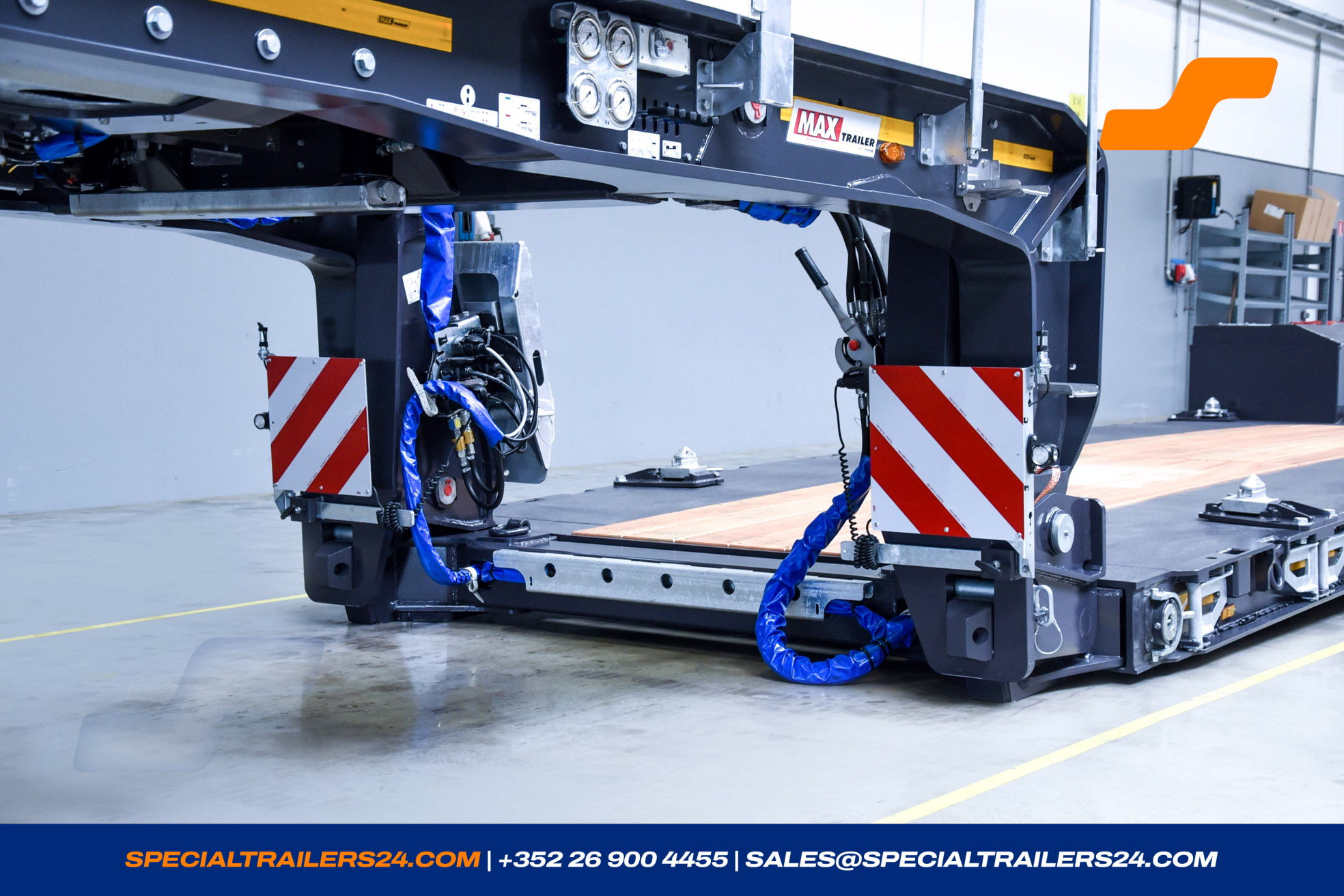

1 x Gooseneck
Gooseneck in SNT design for maximum loading length, length ± 3 700 mm.

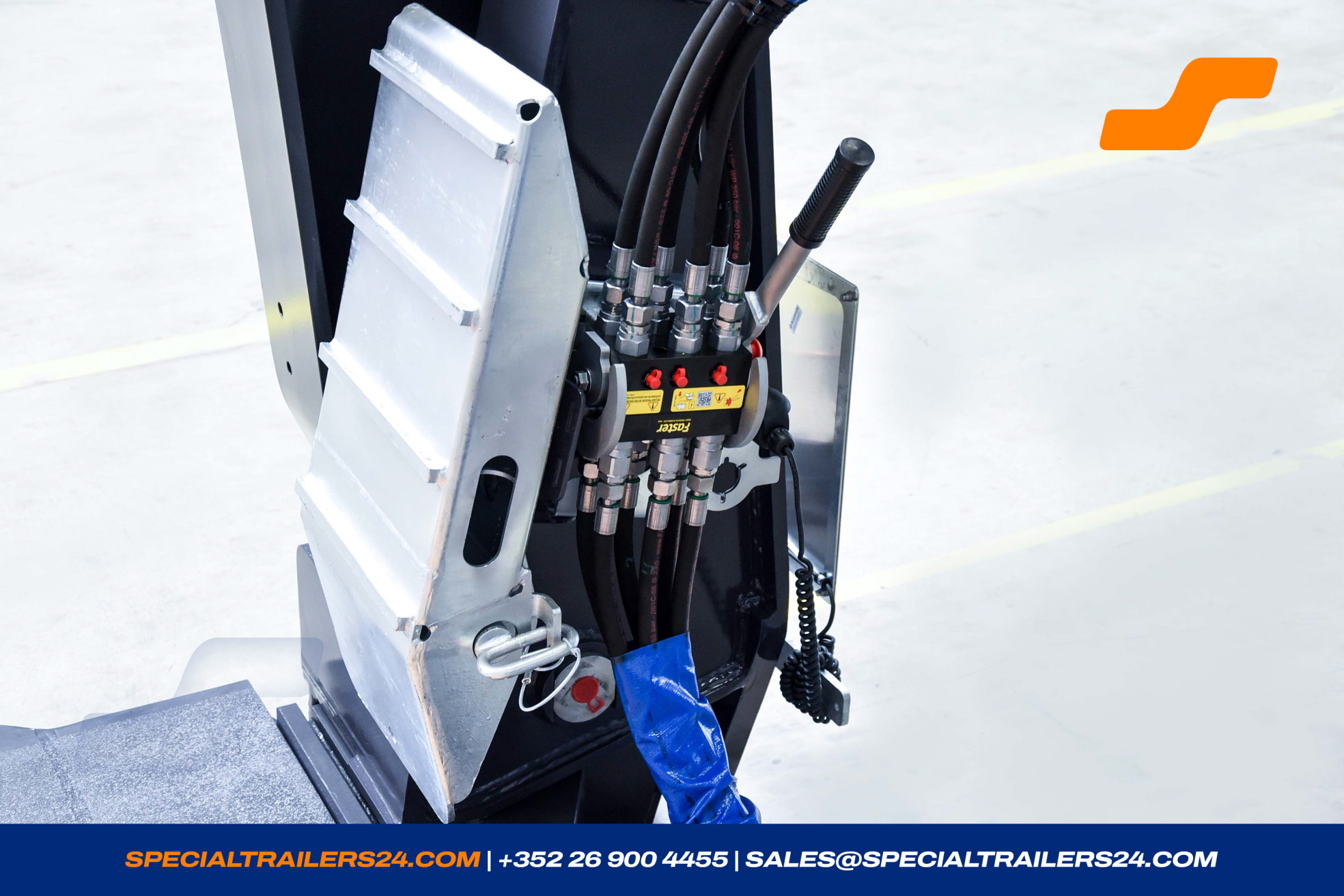

Gooseneck hydraulic lift- and lowerable and detachable.
For use of trucks: 6 x 4 and 8 x 4
- King pin 2
- 4 wheel chocks with carrier. (± 5 kg)
Loading deck

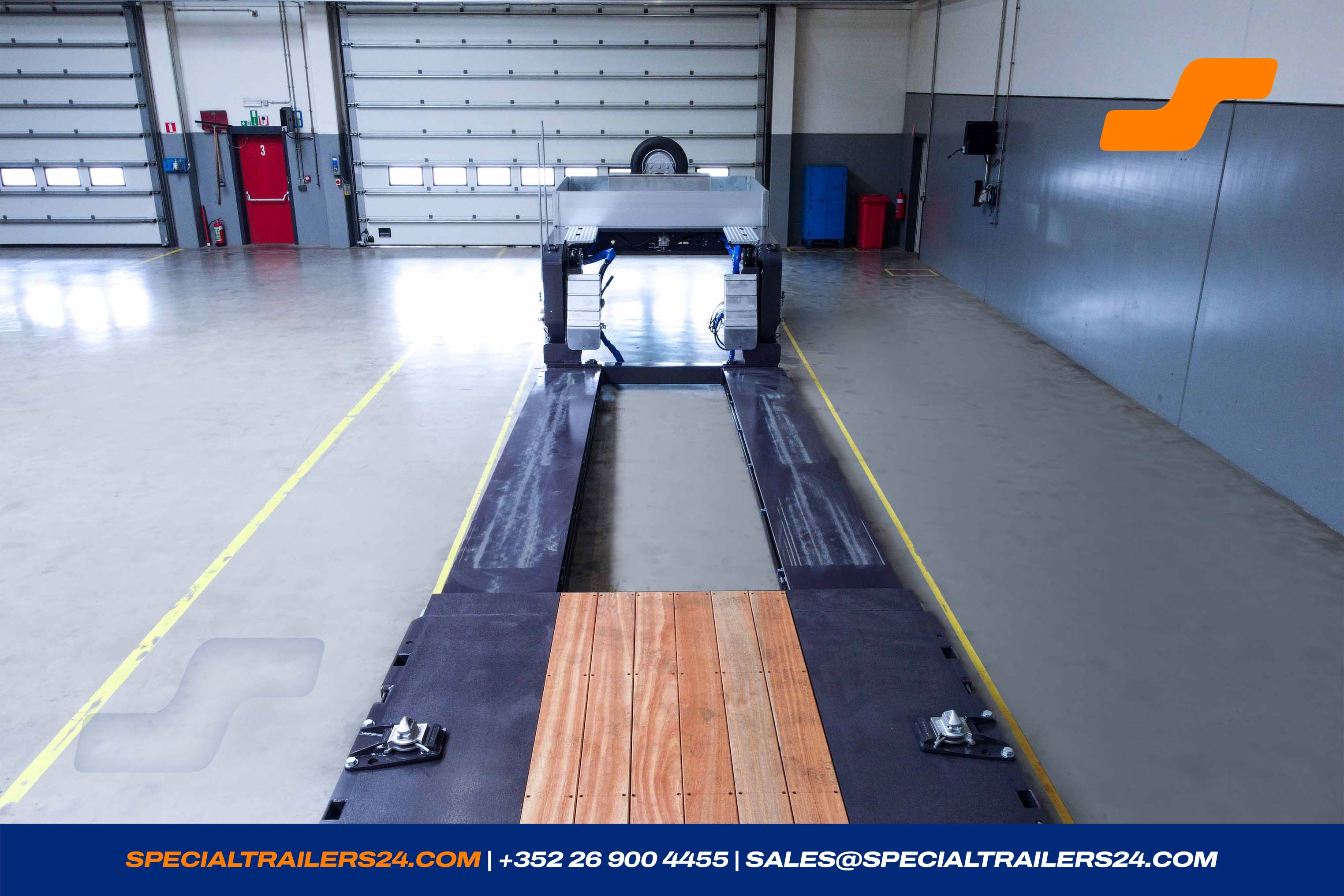

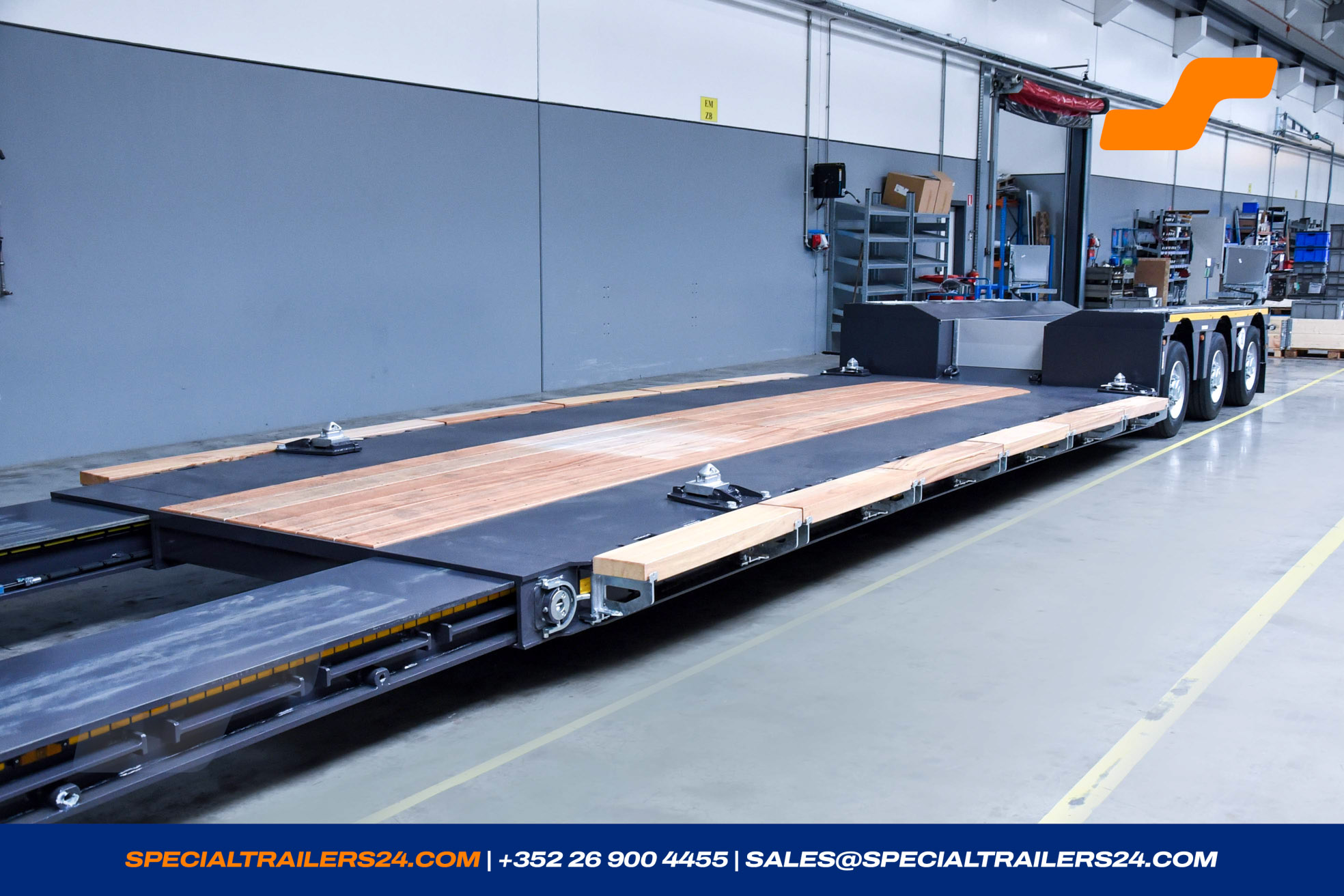

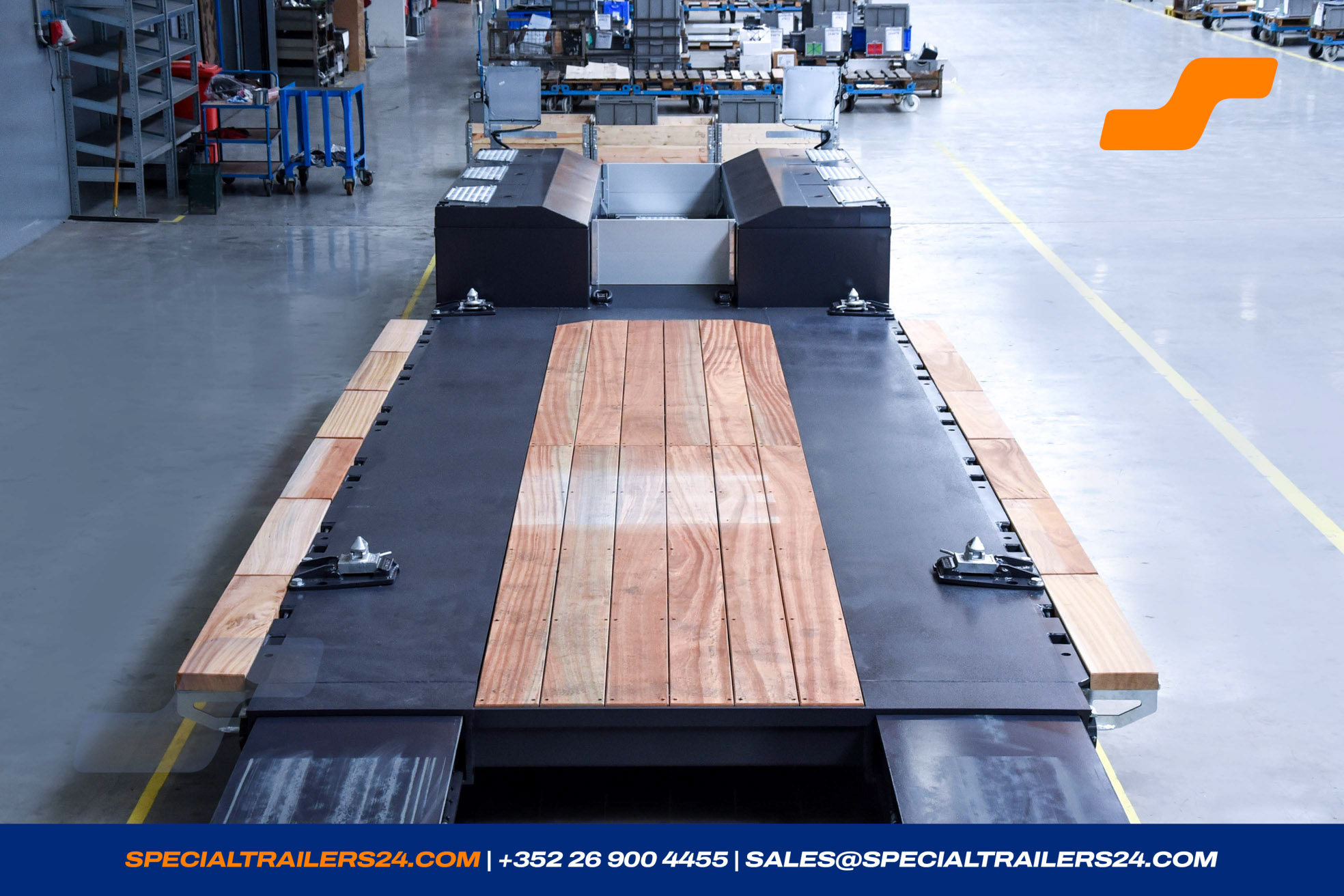

Loading platform

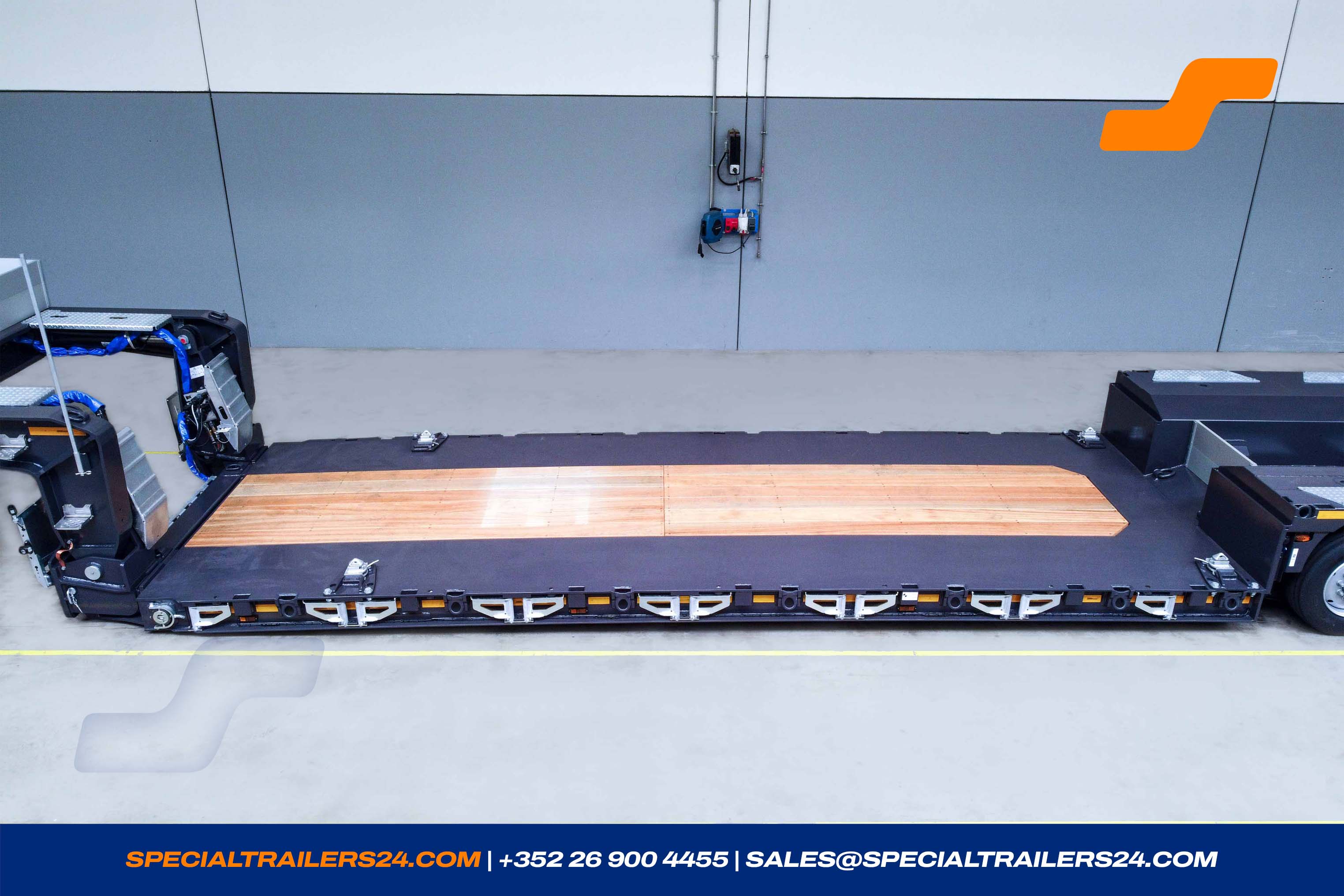

1 x Lowbed

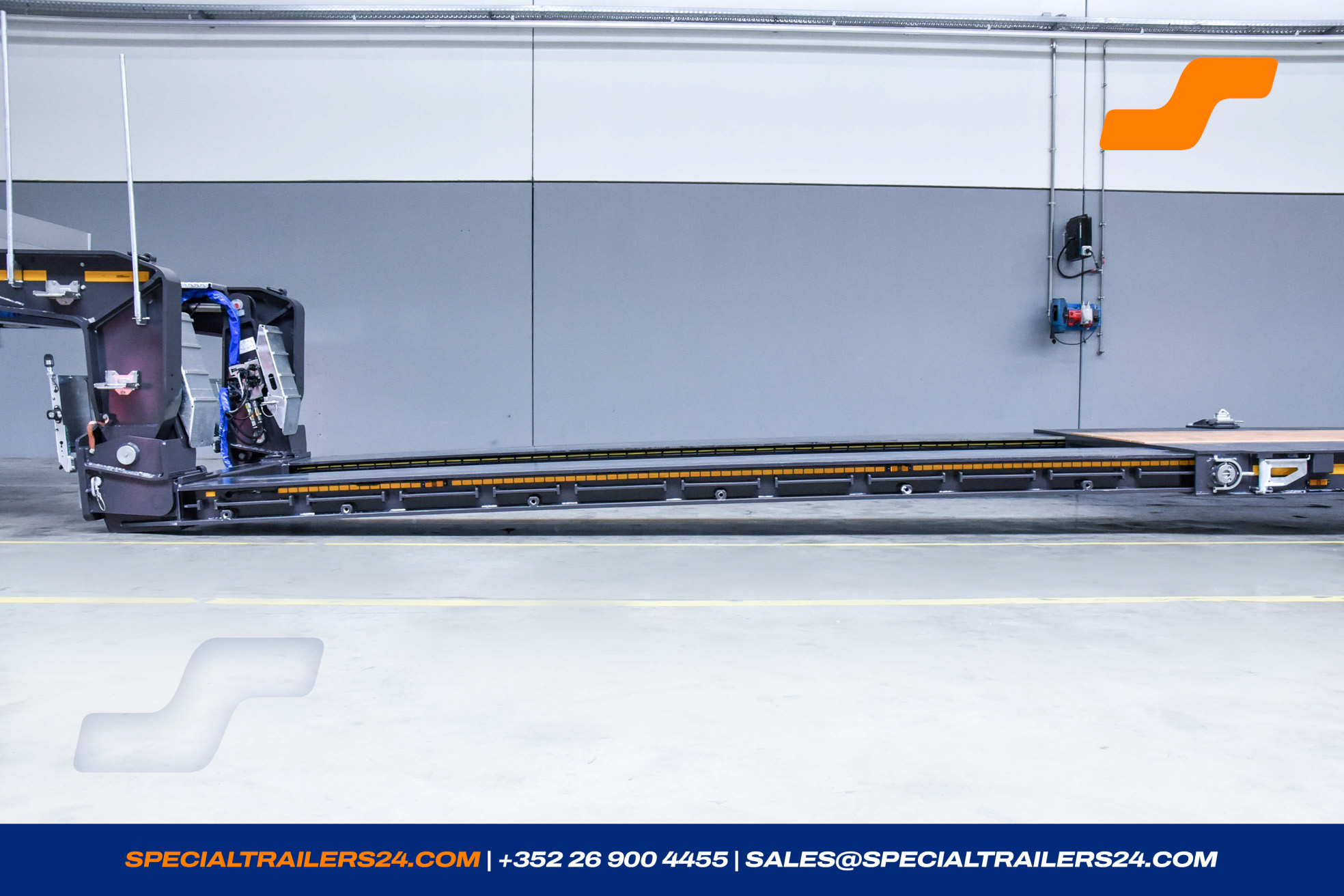

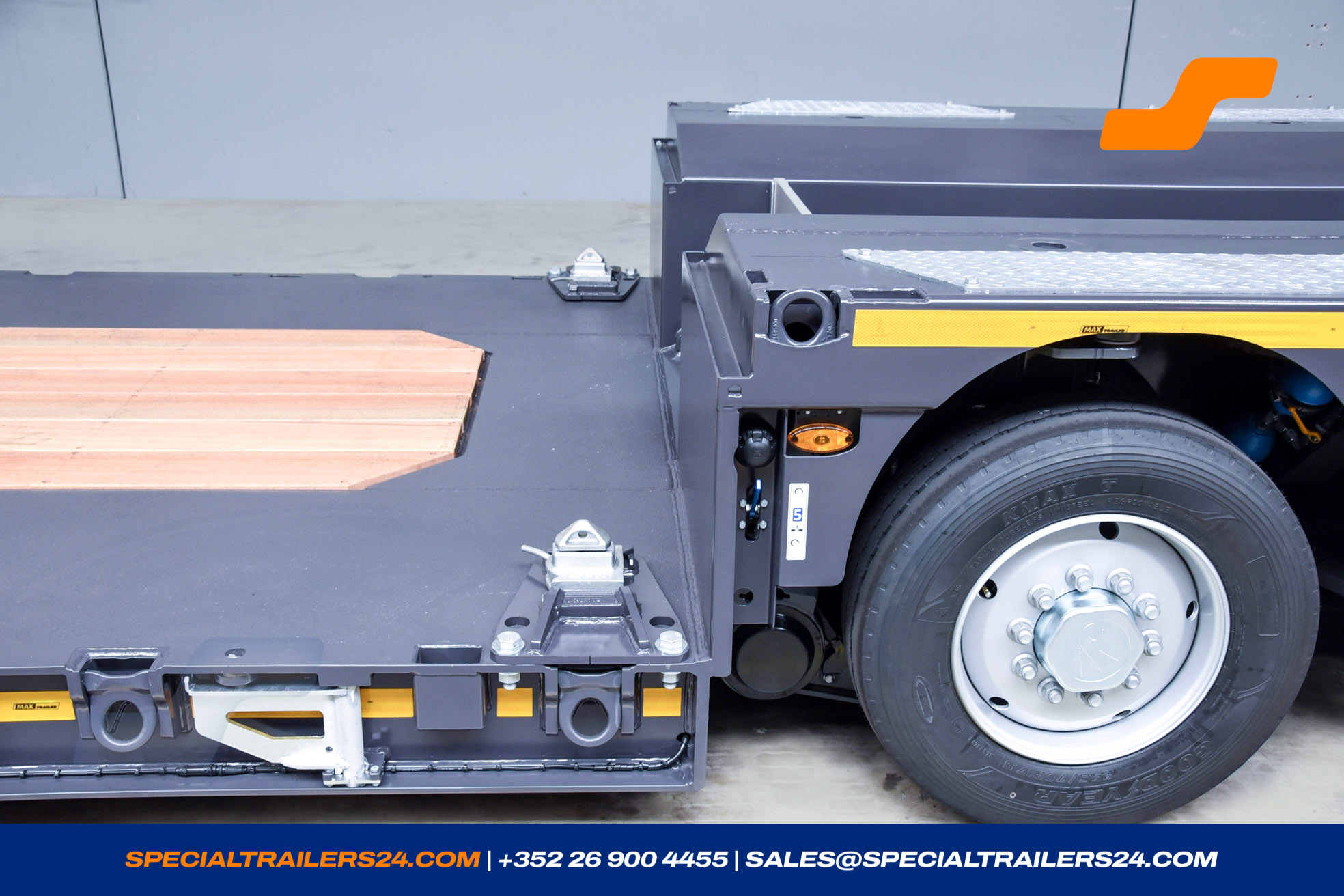

Lowbed in extendable outerbeams construction, SUPER LOW Design, length ± 7.550 mm.
Lowbed with hardwood cover ± 40 mm and with ***mechanical locking***.
The supply lines are laid in the outerbeams and adapt automatically to the loading length.
7 pairs of lashing rings (LC 10 000 daN).
6 pairs of threaded blocks on the inner beams for mounting screwable RUD rings...
-
Preparation for the attachment of screwable container fittings for 1 x 20' or 1 x 40' container on the outer beams.
Without container fittings. - Electrically operated hydraulic pump. (± 45kg)
- 2 wooden blocks 500 x 250 x 200 mm.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

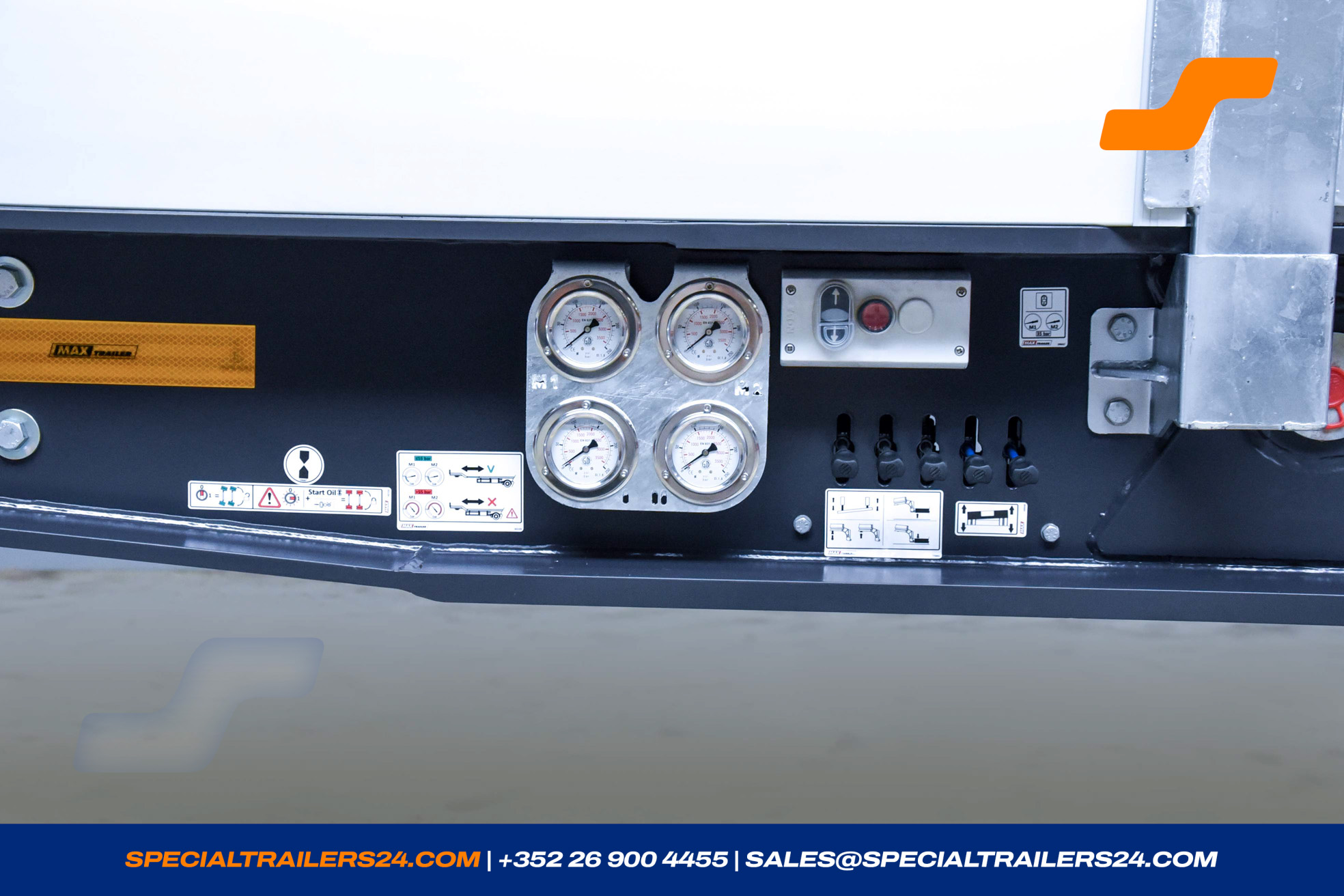

- Load manometer for determining the axle load, including load diagram.

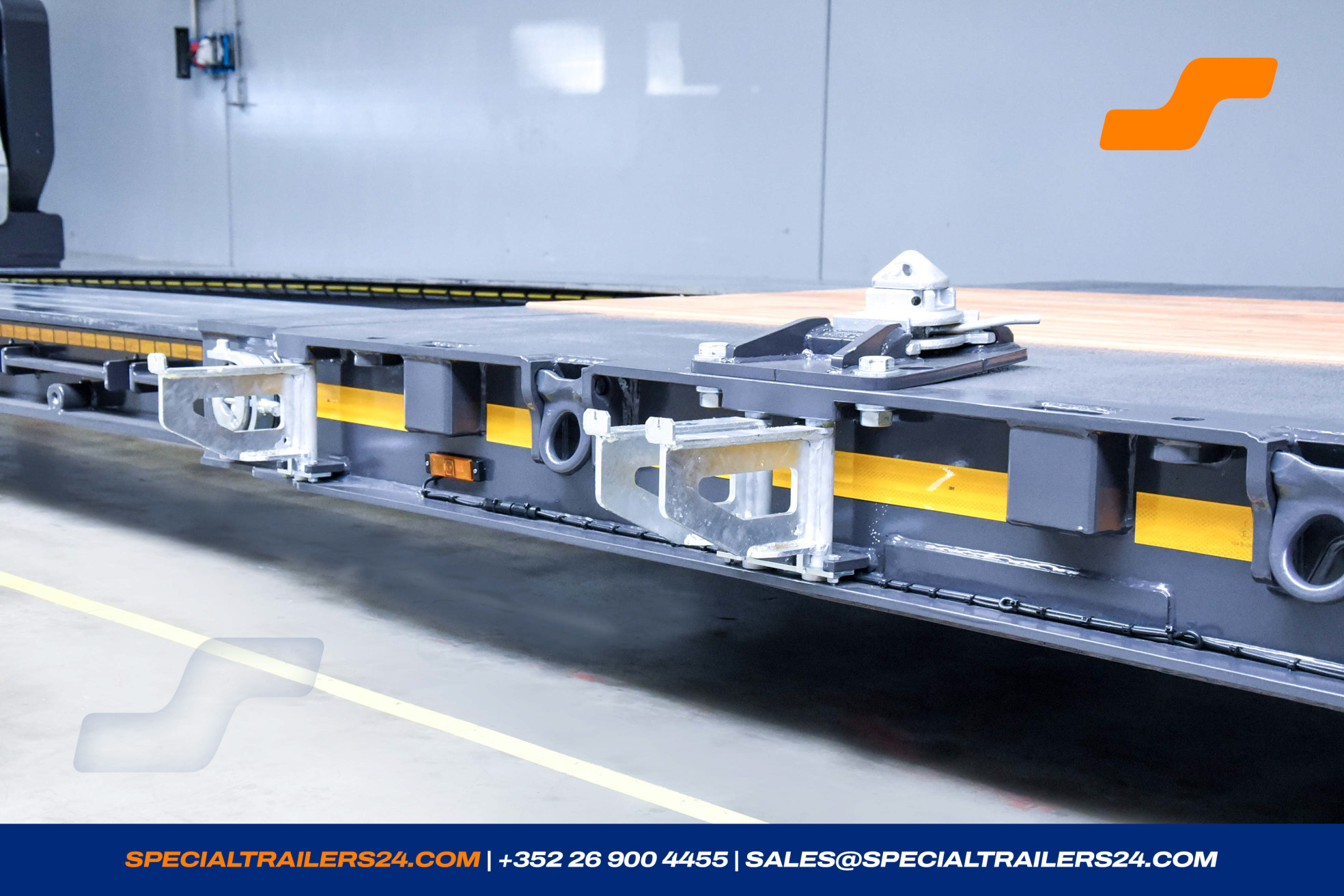

- 6 pairs of threaded blocks between the lashing rings under the top chord on the outer beam for mounting screwable RUD rings VLBG-4.
-

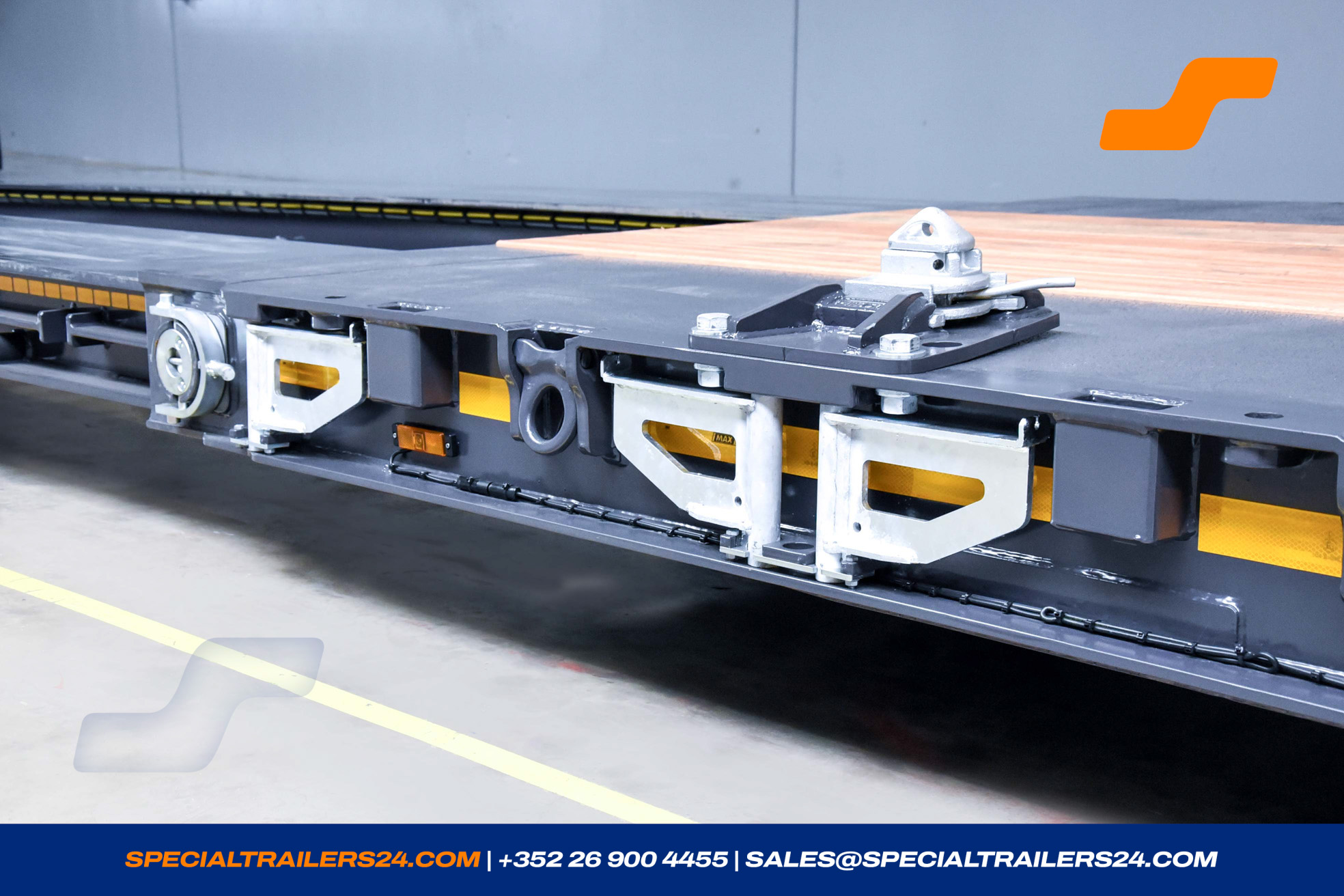

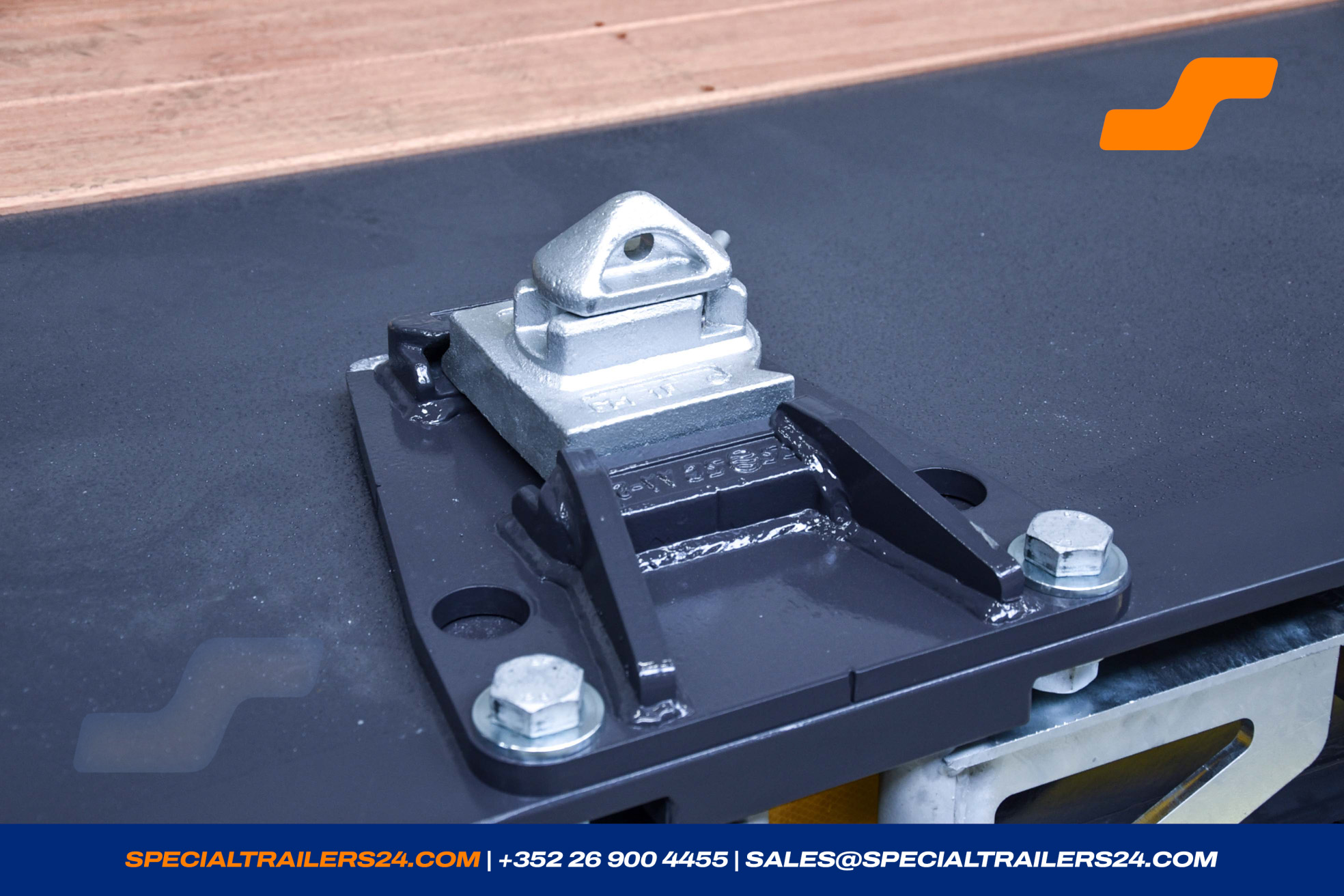

2 pairs of screwed-on container brackets on the outer beams.
Including 2 pairs of container locks for 1 x 20' or 1 x 40' container. - 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)
-
Foldable outriggers, 230 mm per side.
(Without timber) - 1 pair of steel-ramps to bridge the hooks of the lowbed. (± 60 kg)
- One removable, galvanised sliding bolster, 500 mm wide. (± 104 kg)
- Anti-slip-coating with sand on the loading platform.
- 2 LED- reversing lights at the rear.

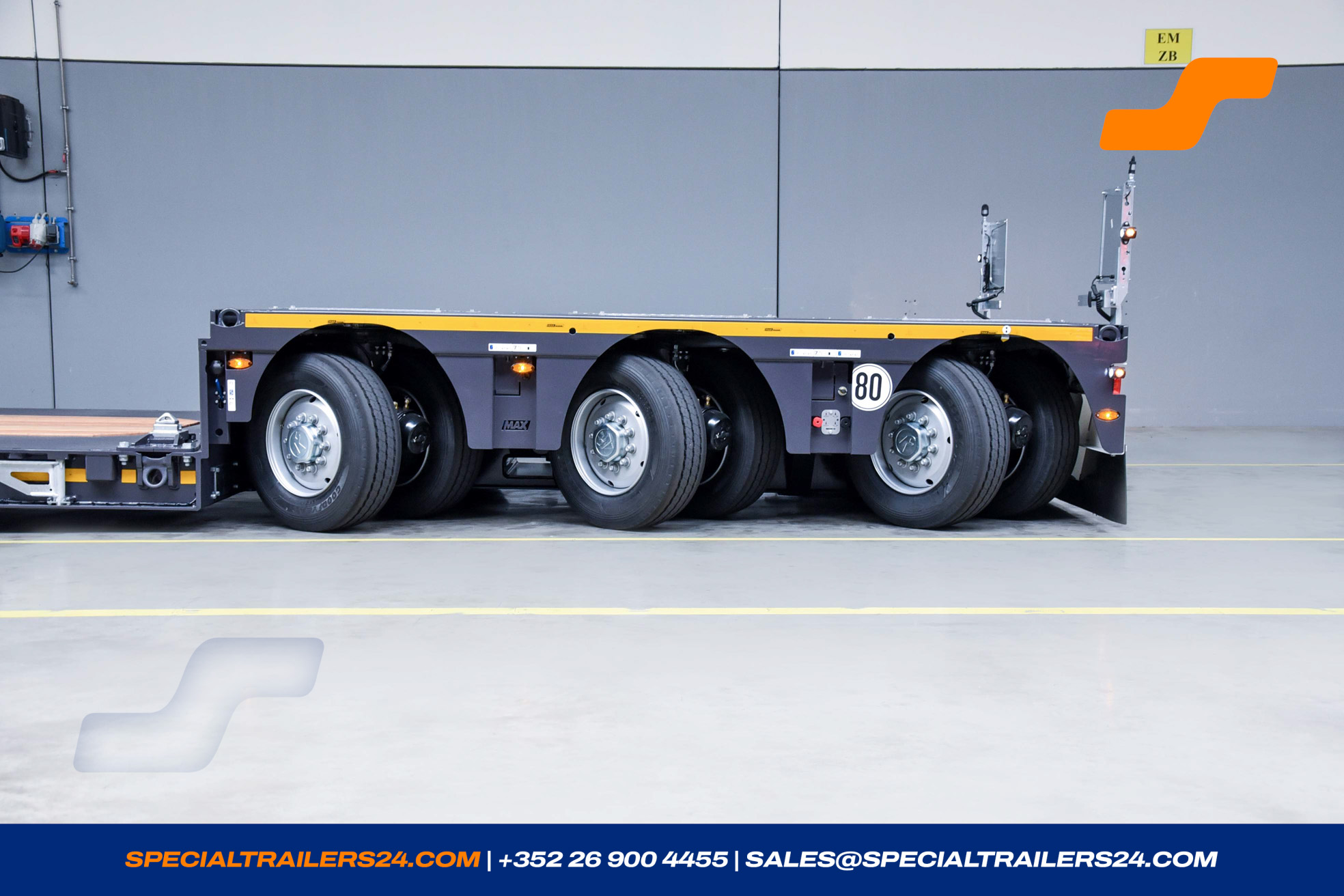

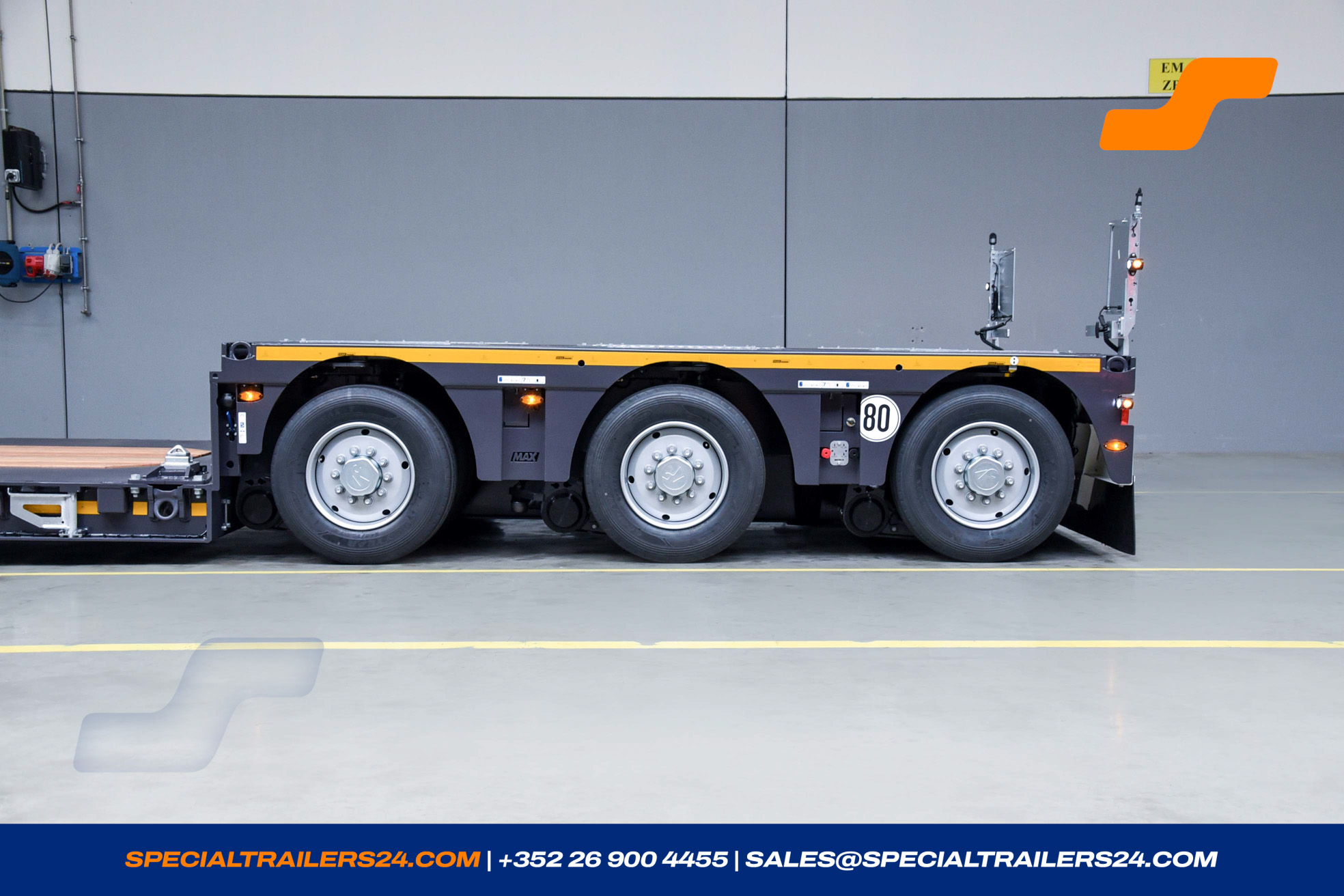

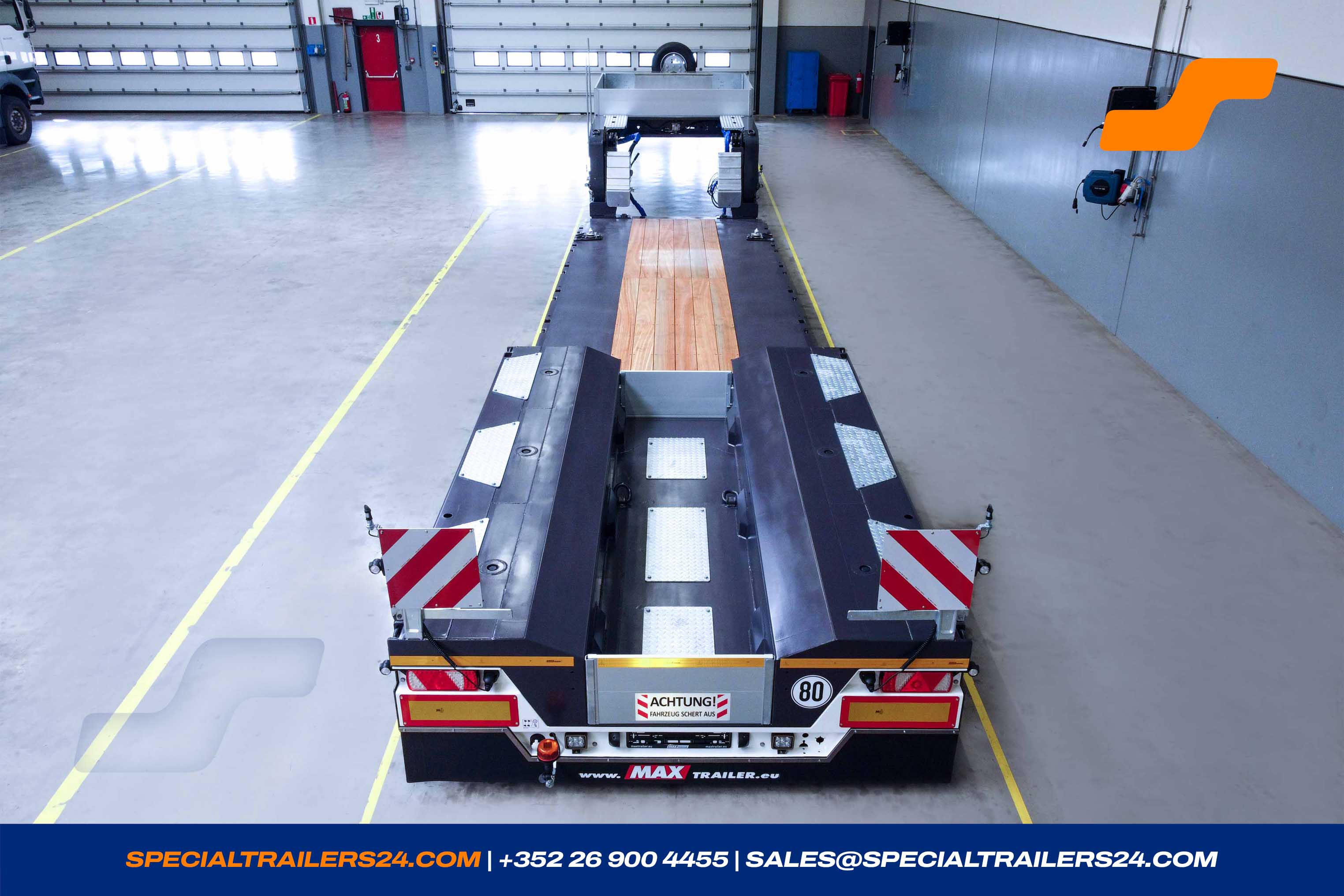

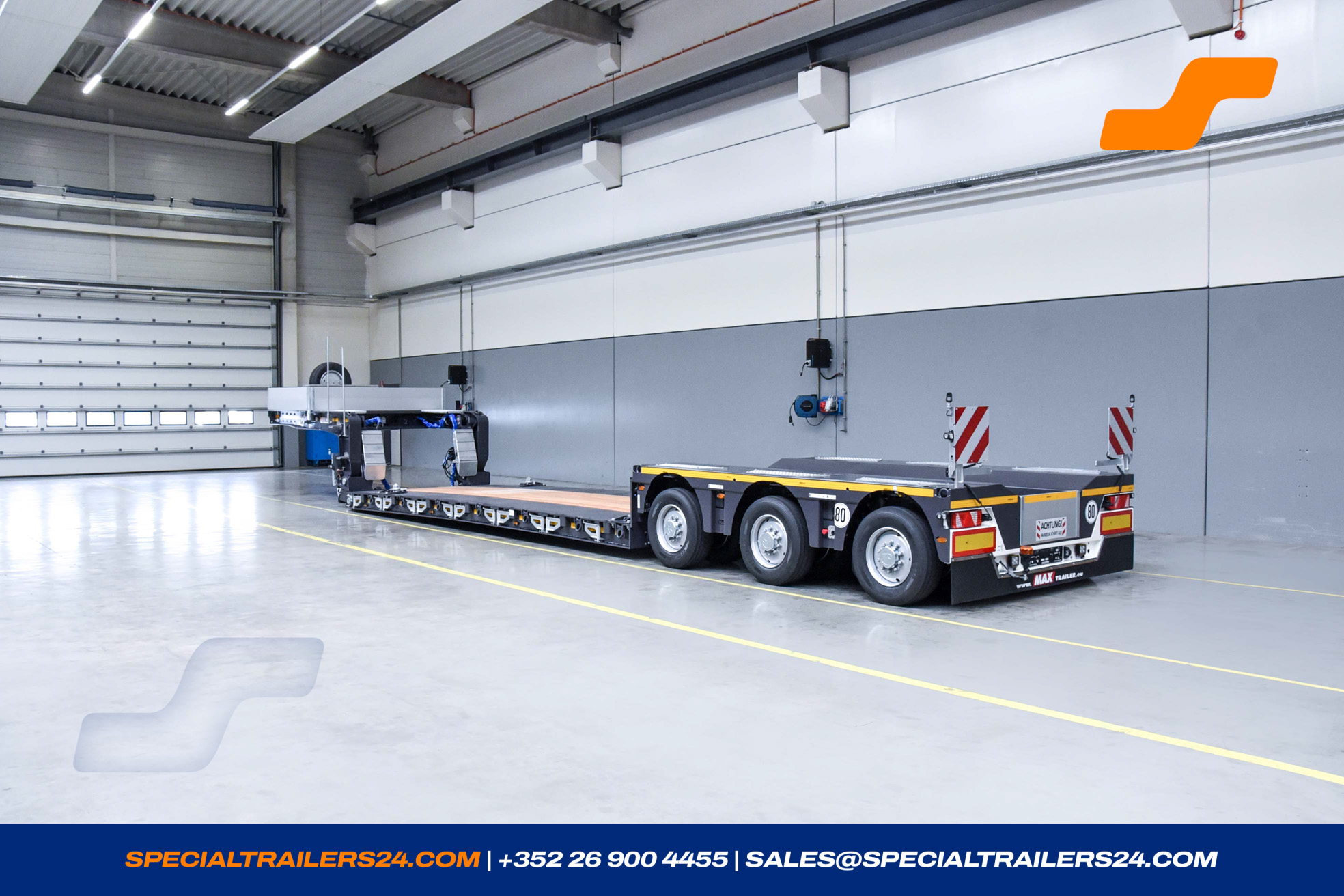

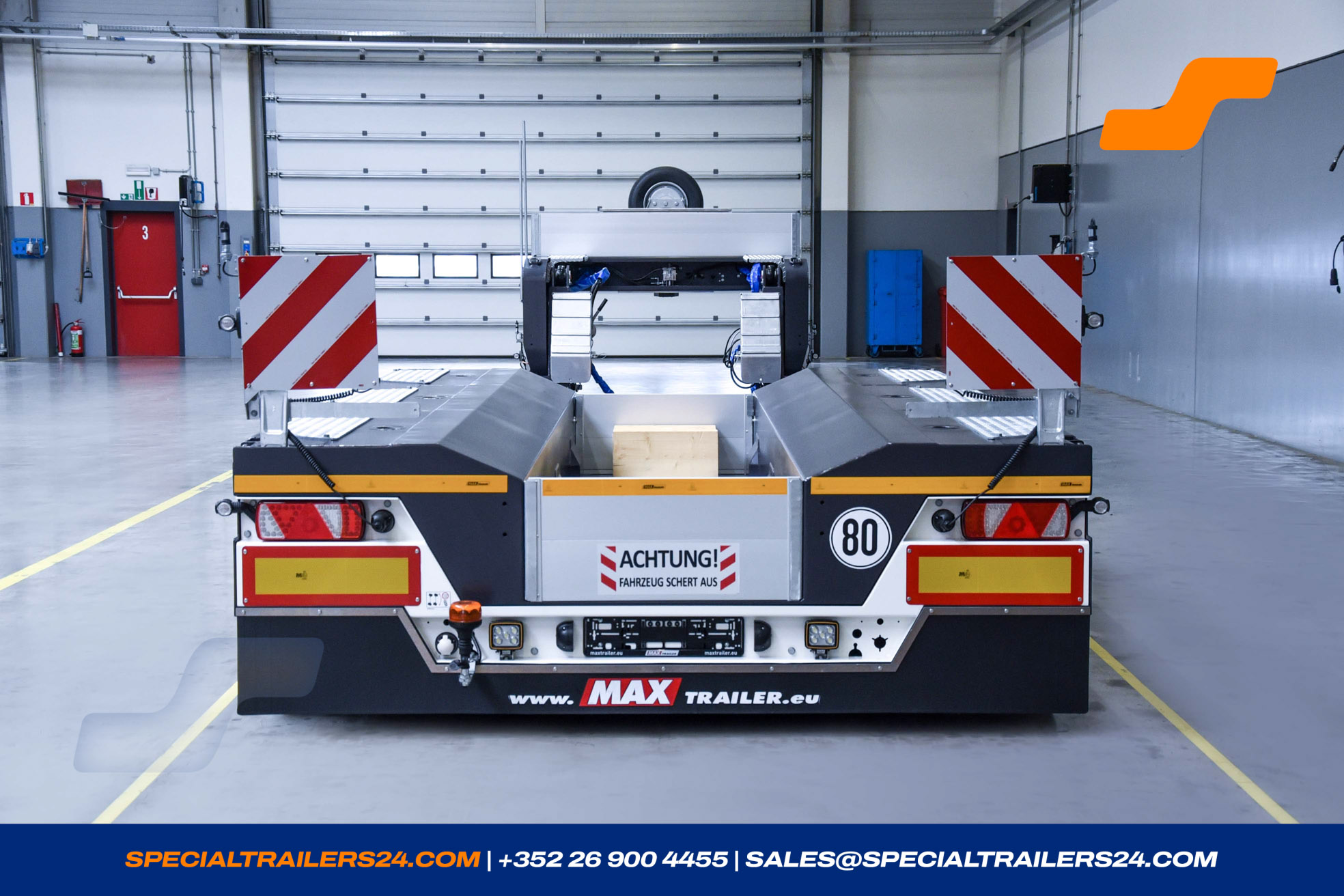

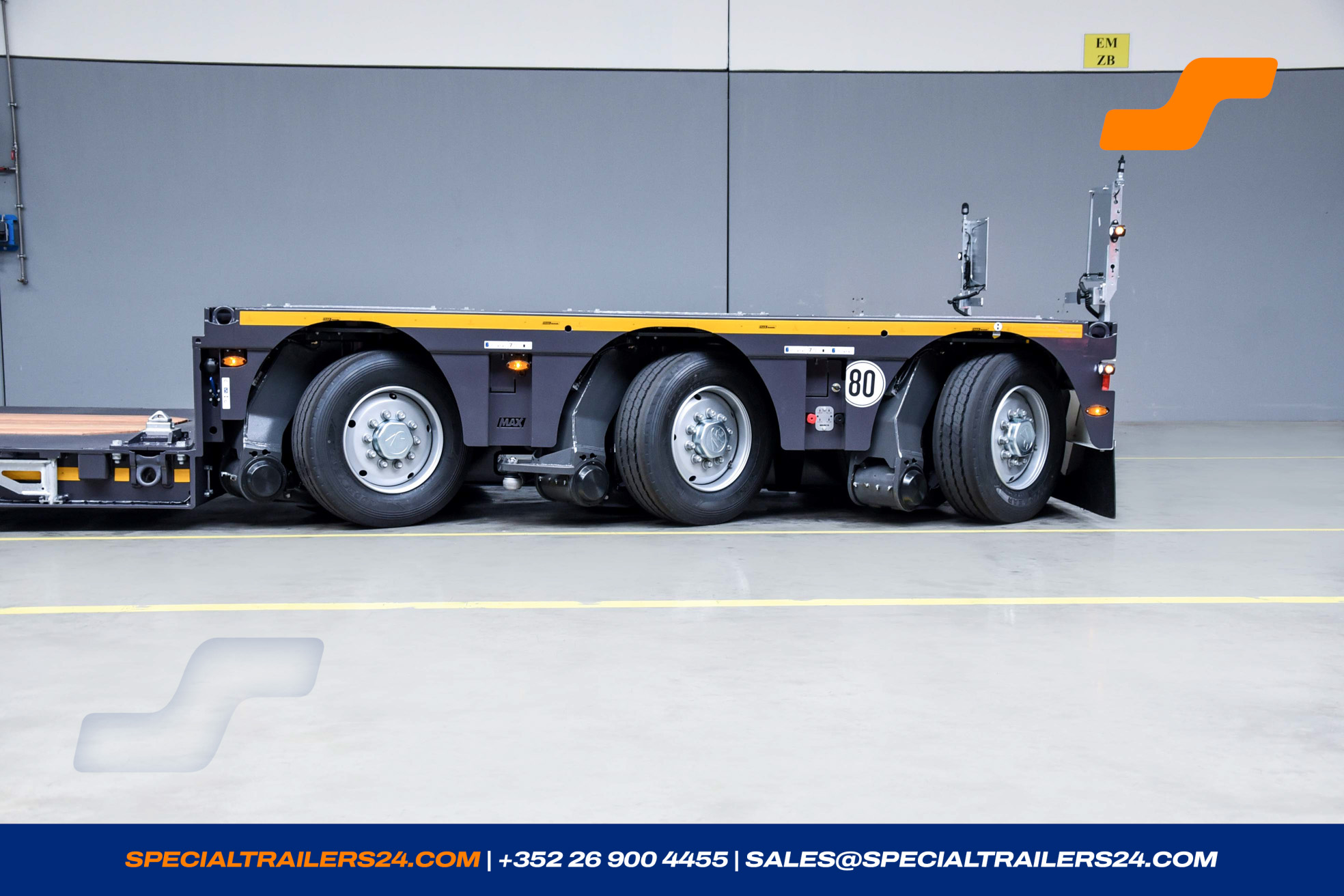

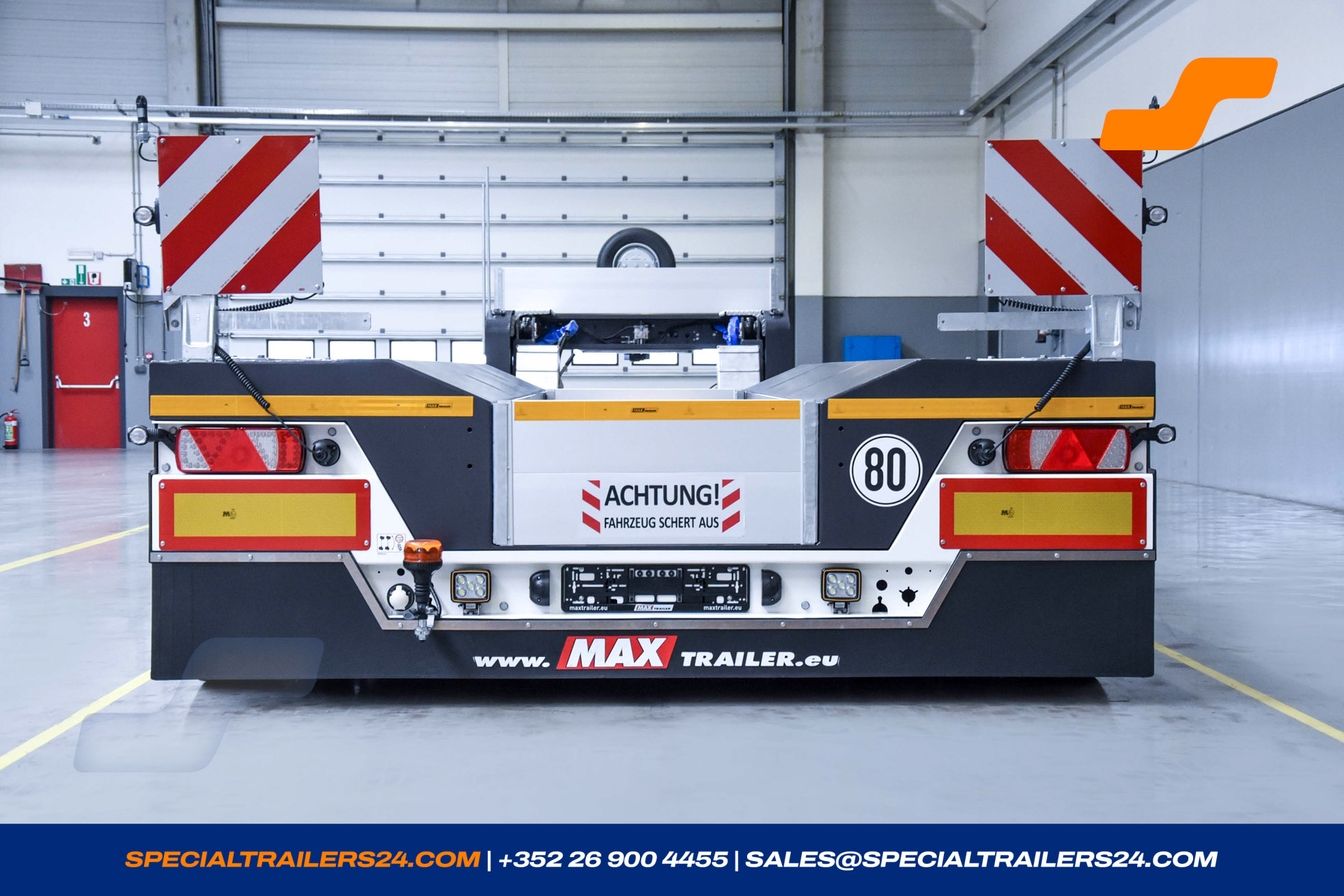

Rear Bogie
1 x Axles bogie

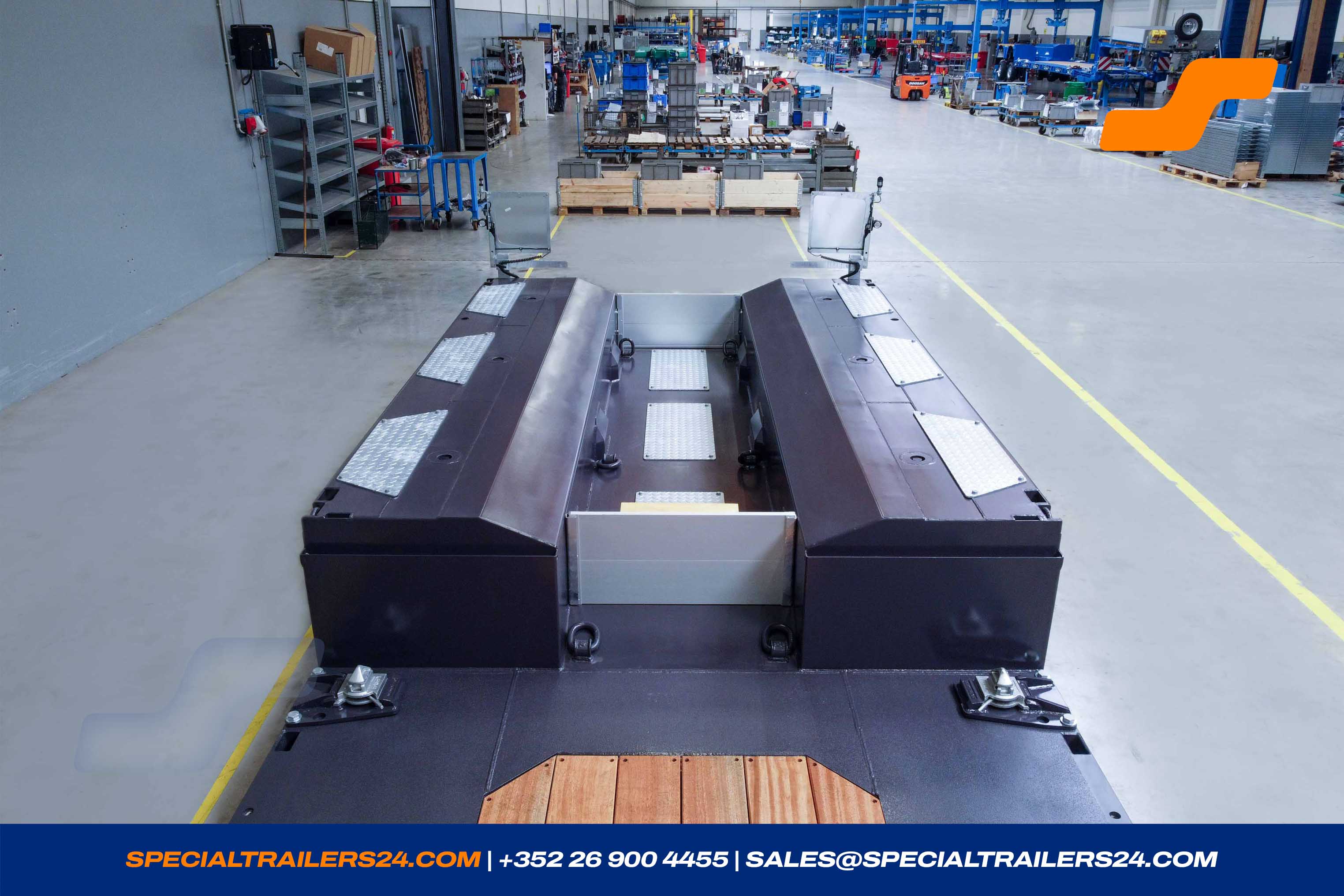

Axles bogie at the rear with outer frame construction, chequer plate cover and with recess, chamfered over the entire length ± 1 450/900 x 505 mm, rear open.
2 pairs of lashing rings, hinged outward (LC 10 000 daN).
2 pair of rings in the recess (LC 16 000 daN).
1 pair of rings in the recess (LC 10 600 daN).
2 pairs of pockets for stakes ± 100 x 50 mm in the outer frame.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- Holder for one beacon light at the rear right and left of the trailer.
- The front and rear end of the recess on the axle bogie closed by a plate.
Accessories
1 x Accessories
-
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)
**S690QL/S700MC (yield strength 690 MPa) - Manual and description on USB stick .

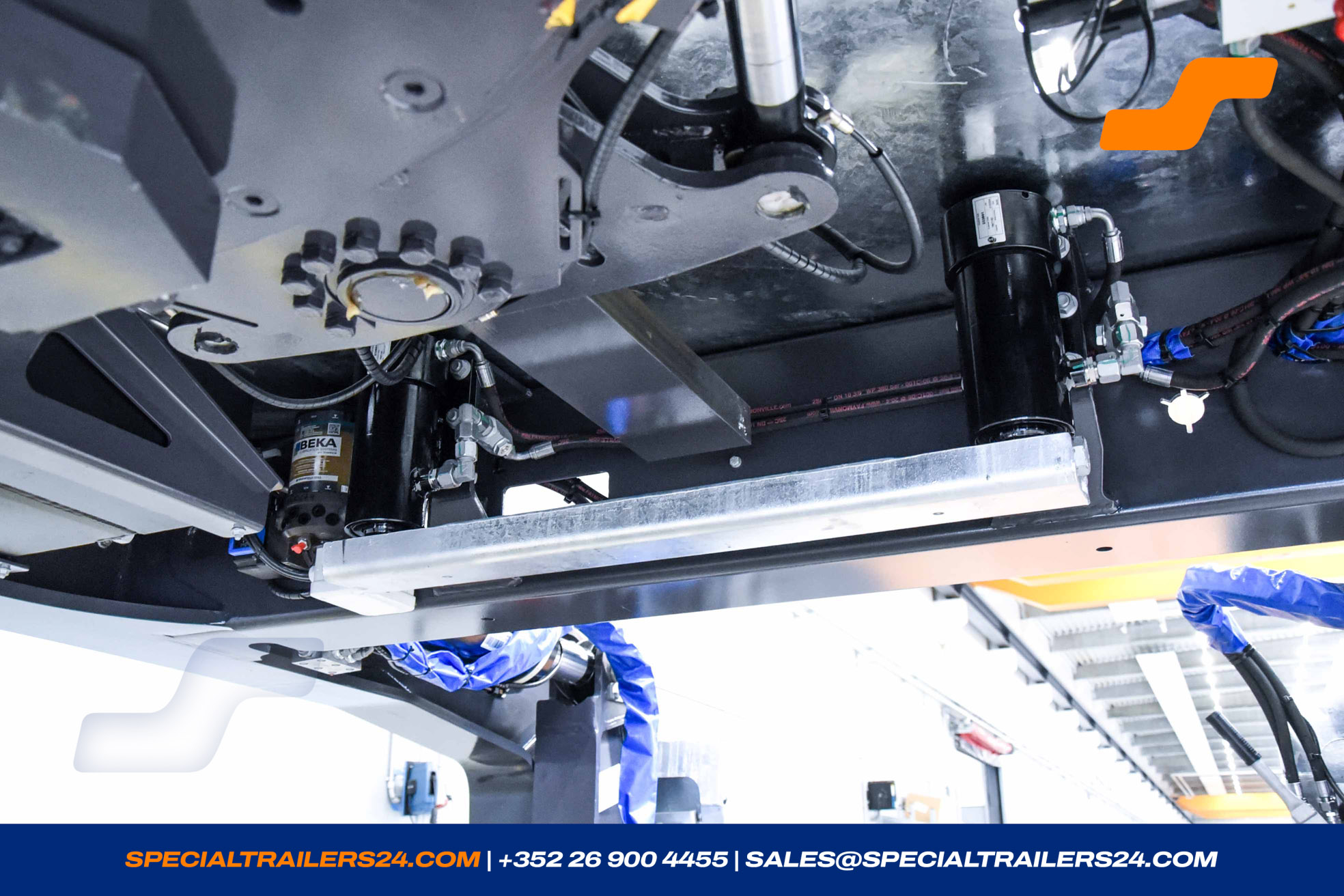

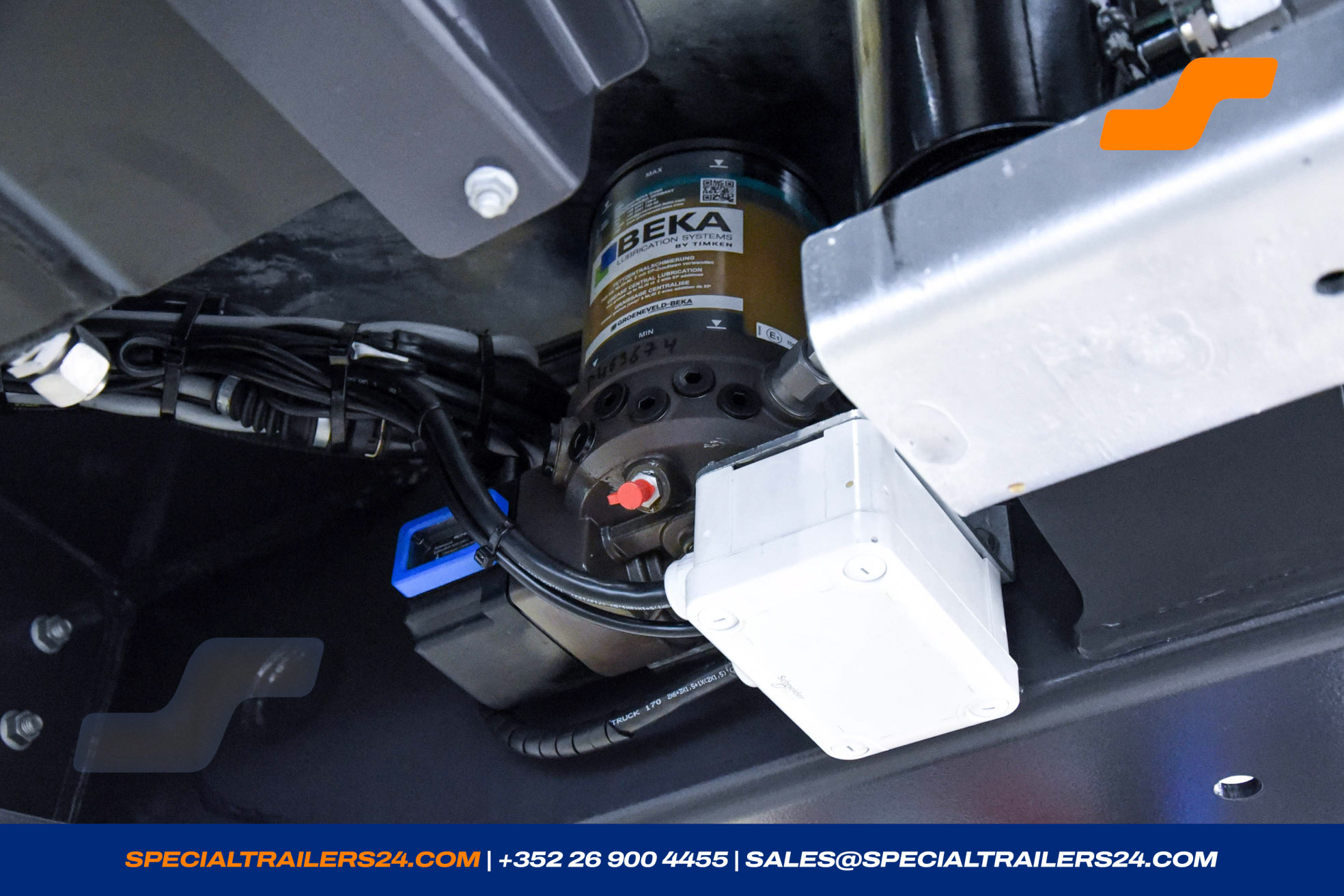

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
- White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- 4 warning boards ± 423 x 423 mm extendable by ± 1 000 mm with 1 LED position light and holder for a flashing beacon. (± 65 kg)
- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110662
- Reference MAX510-Z-3H-ATX-A-7.55-PA
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability 01/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000247
- Steering Type Hydraulic
