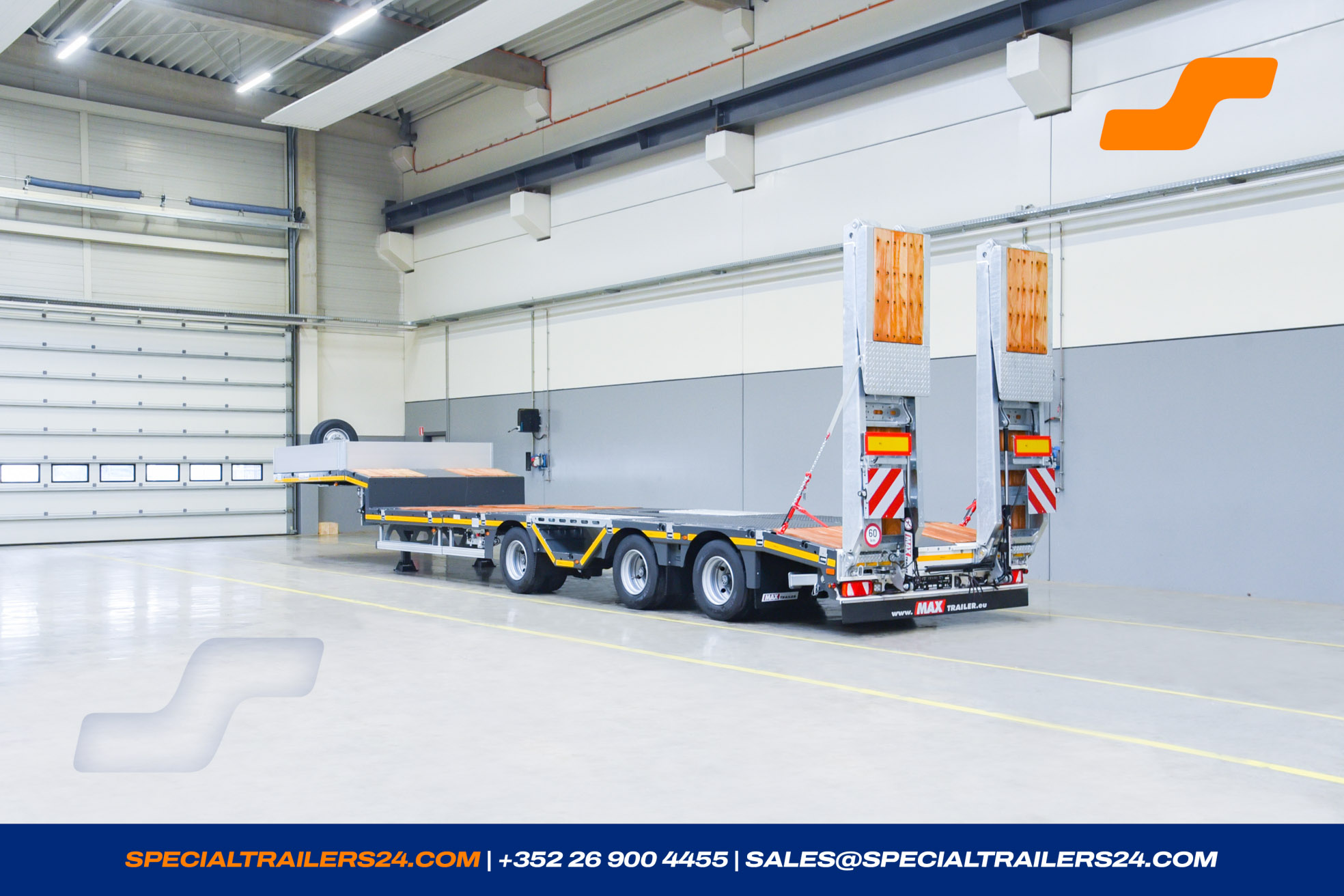

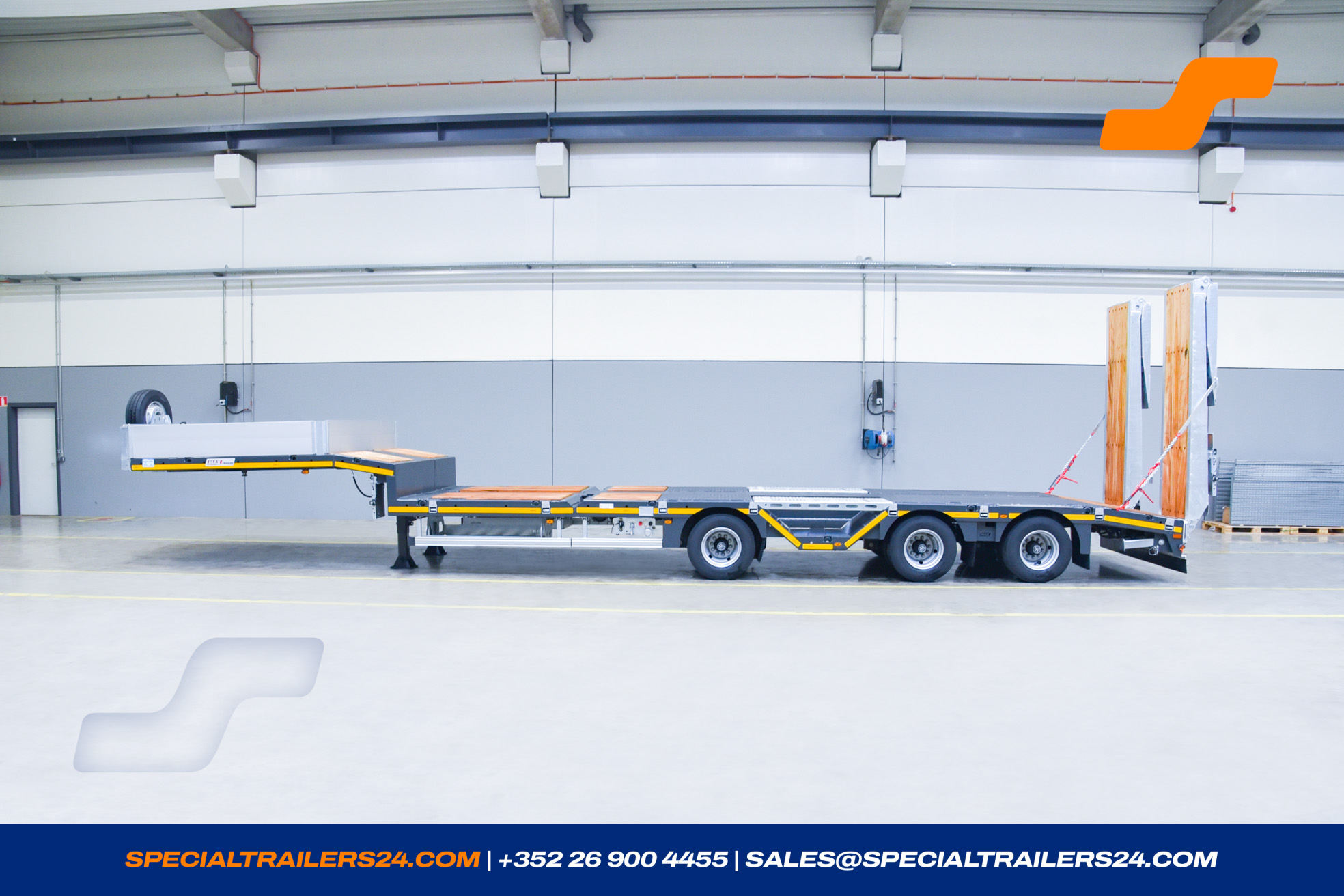

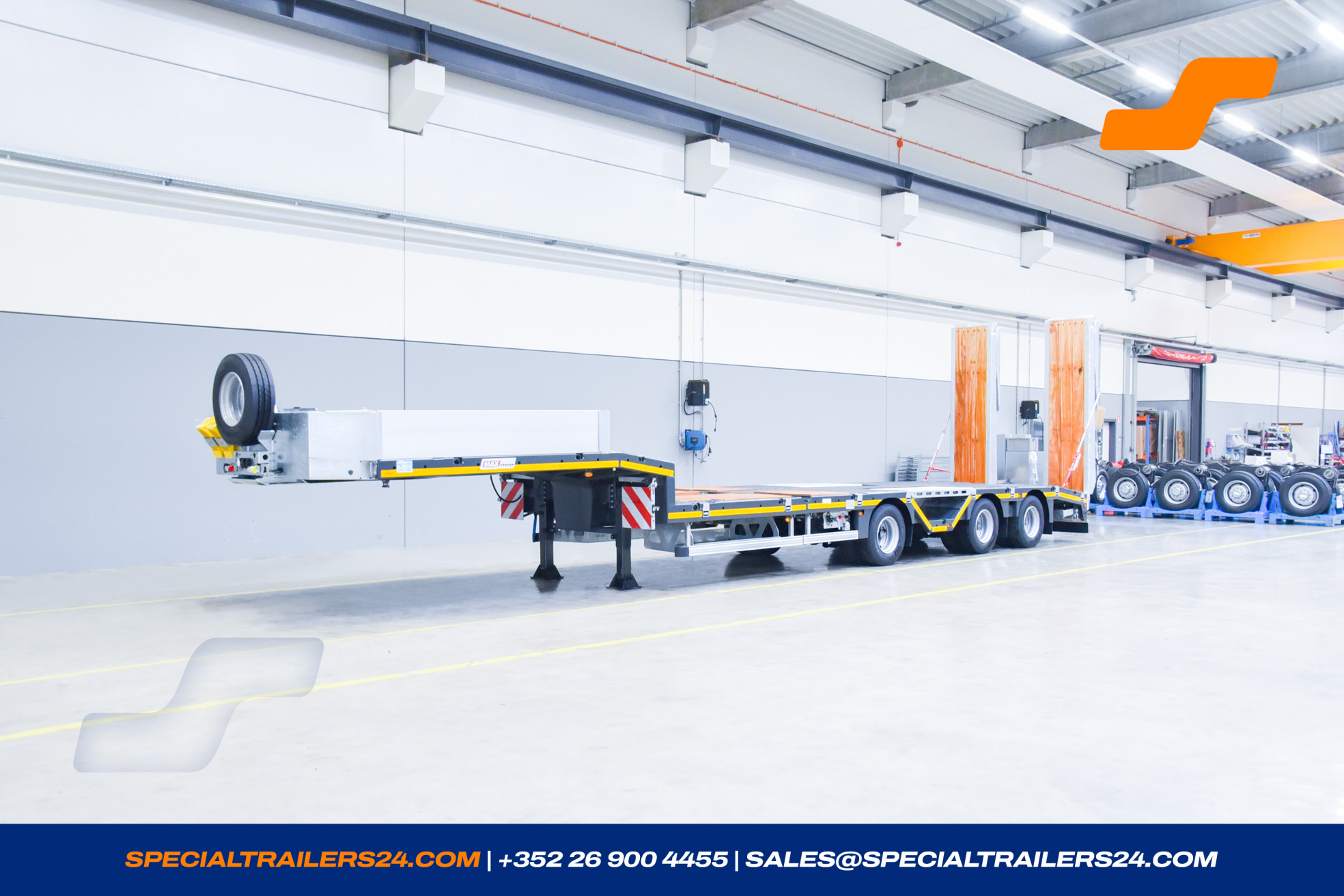

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111218
- Reference MAX100-N-3-9.30-RM-M-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 01/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 10297 kg |
| Payload | 39203 kg |
Dimensions
| Fifth wheel height loaded | 1280 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | No |
| Wheelbase | 2350/1360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

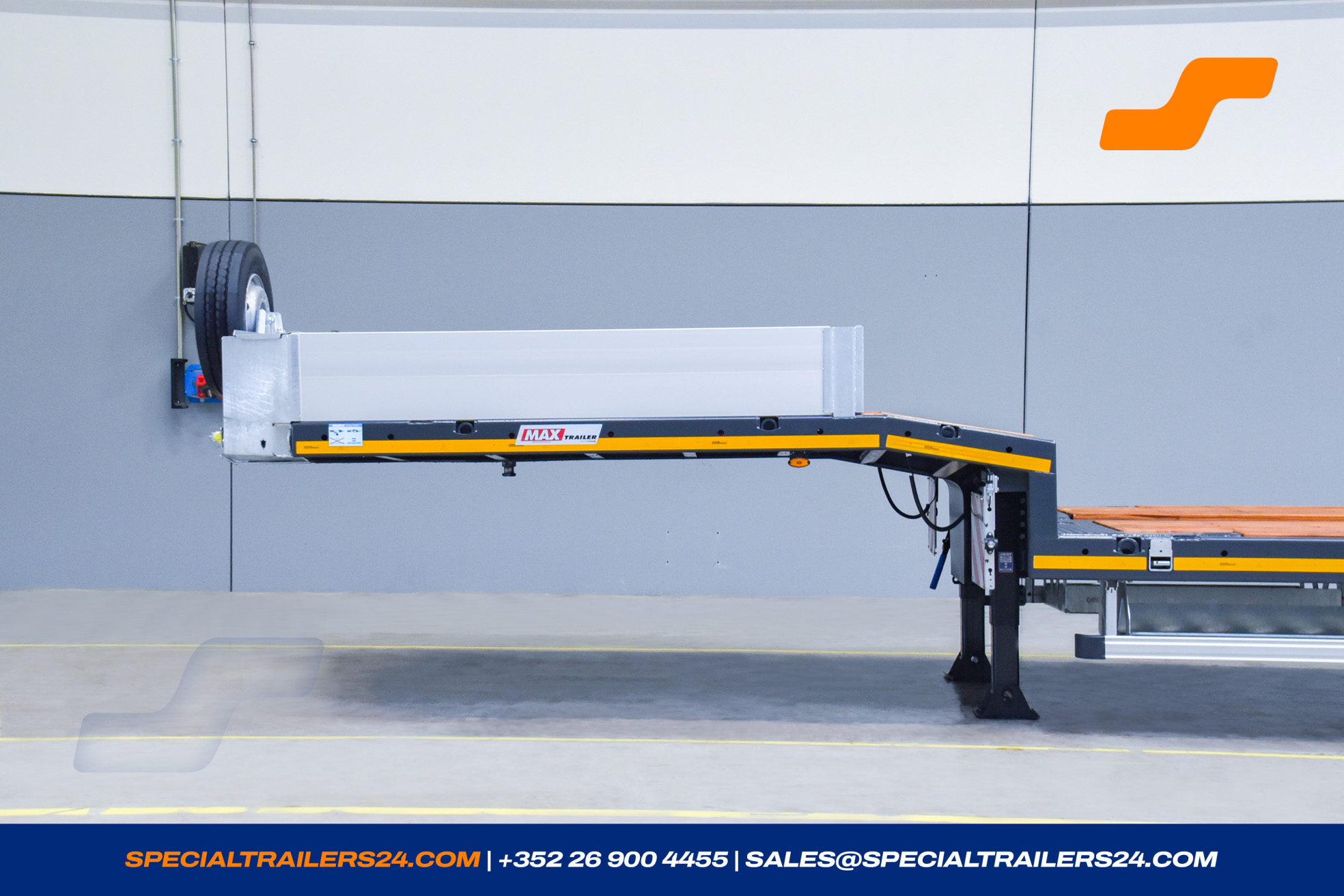

Gooseneck
1 x Gooseneck

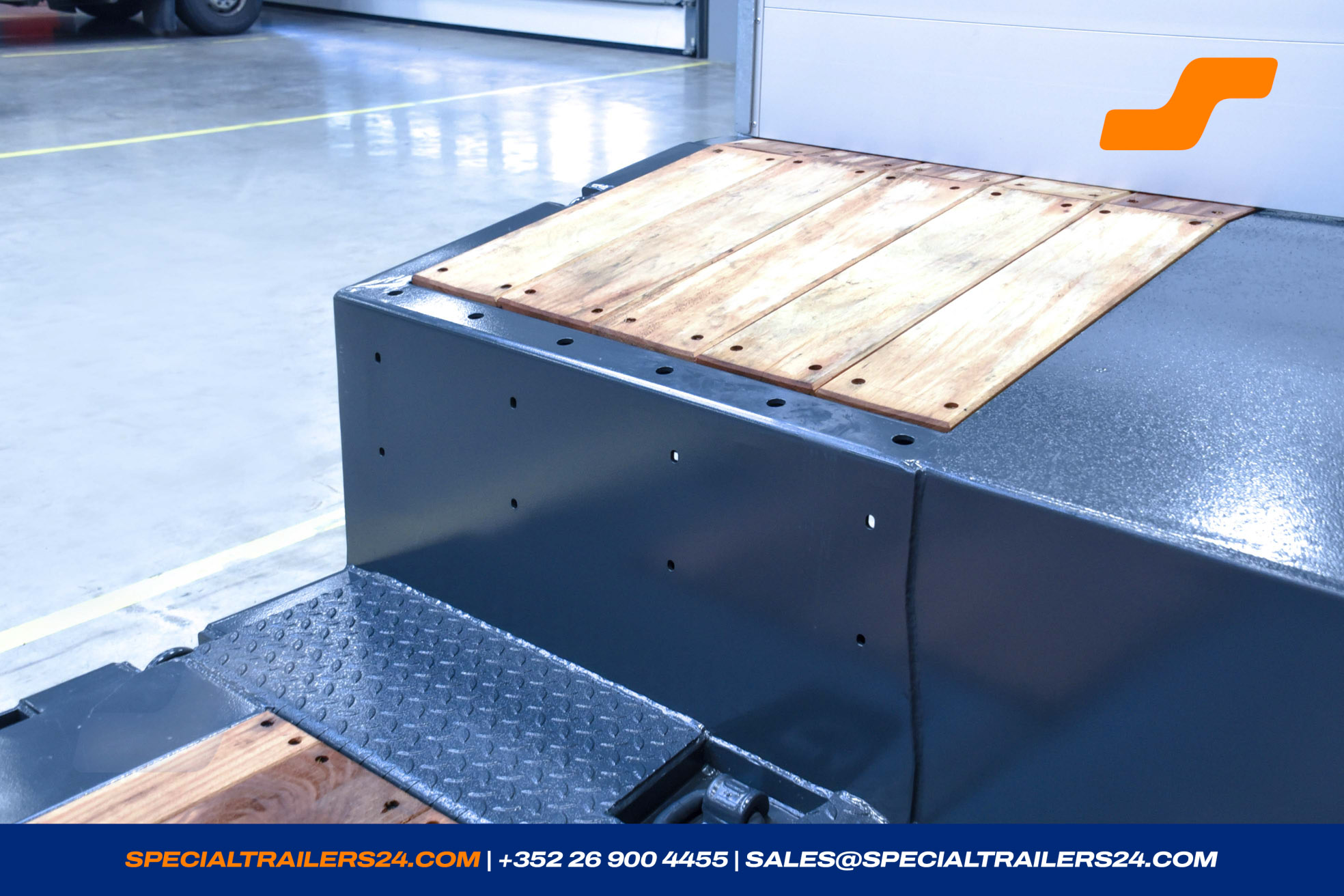

Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
- One 3.5 king pin to deliver separately (± 3kg).
- 4 wheel chocks with carrier on the headboard (± 5kg).

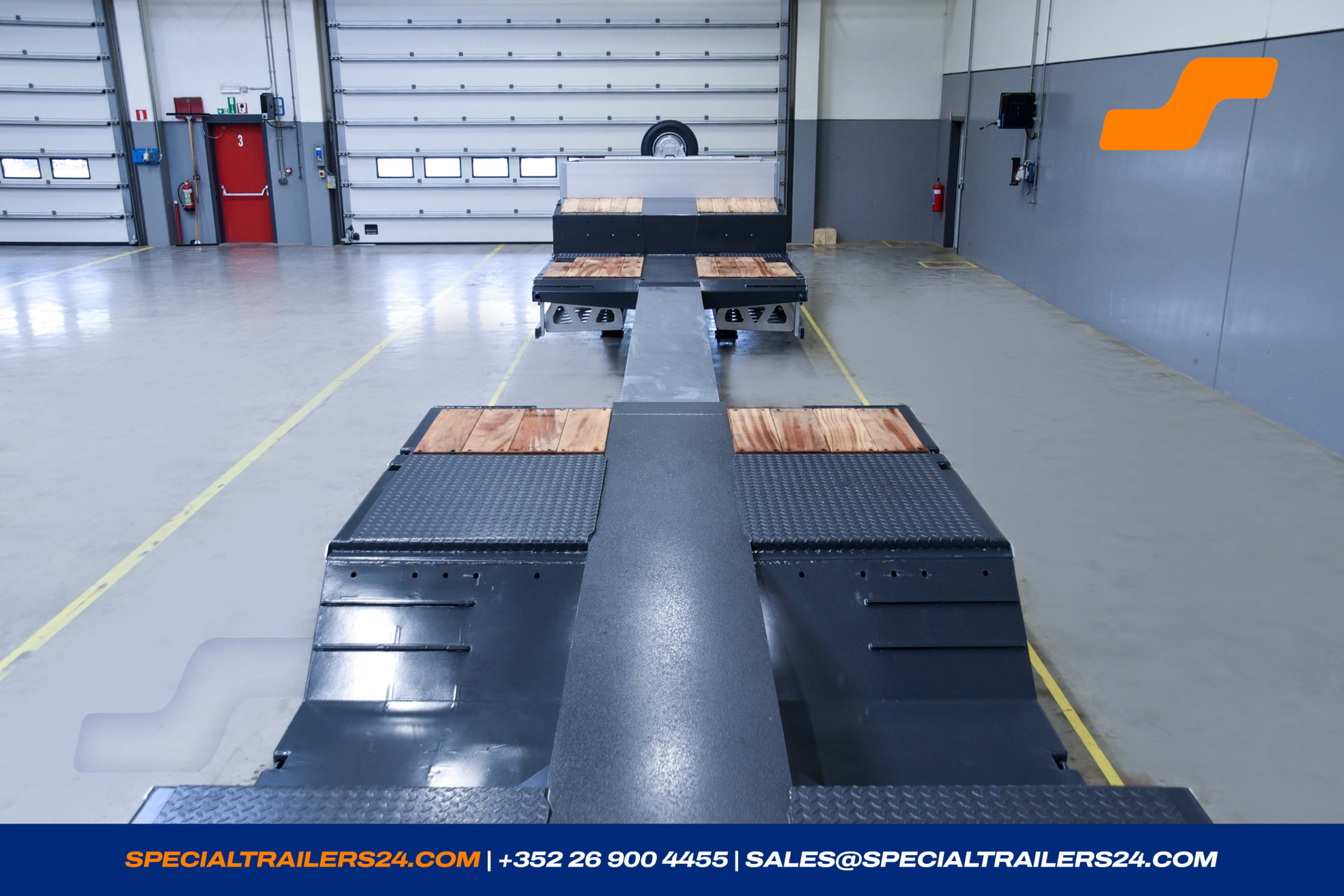

Loading deck

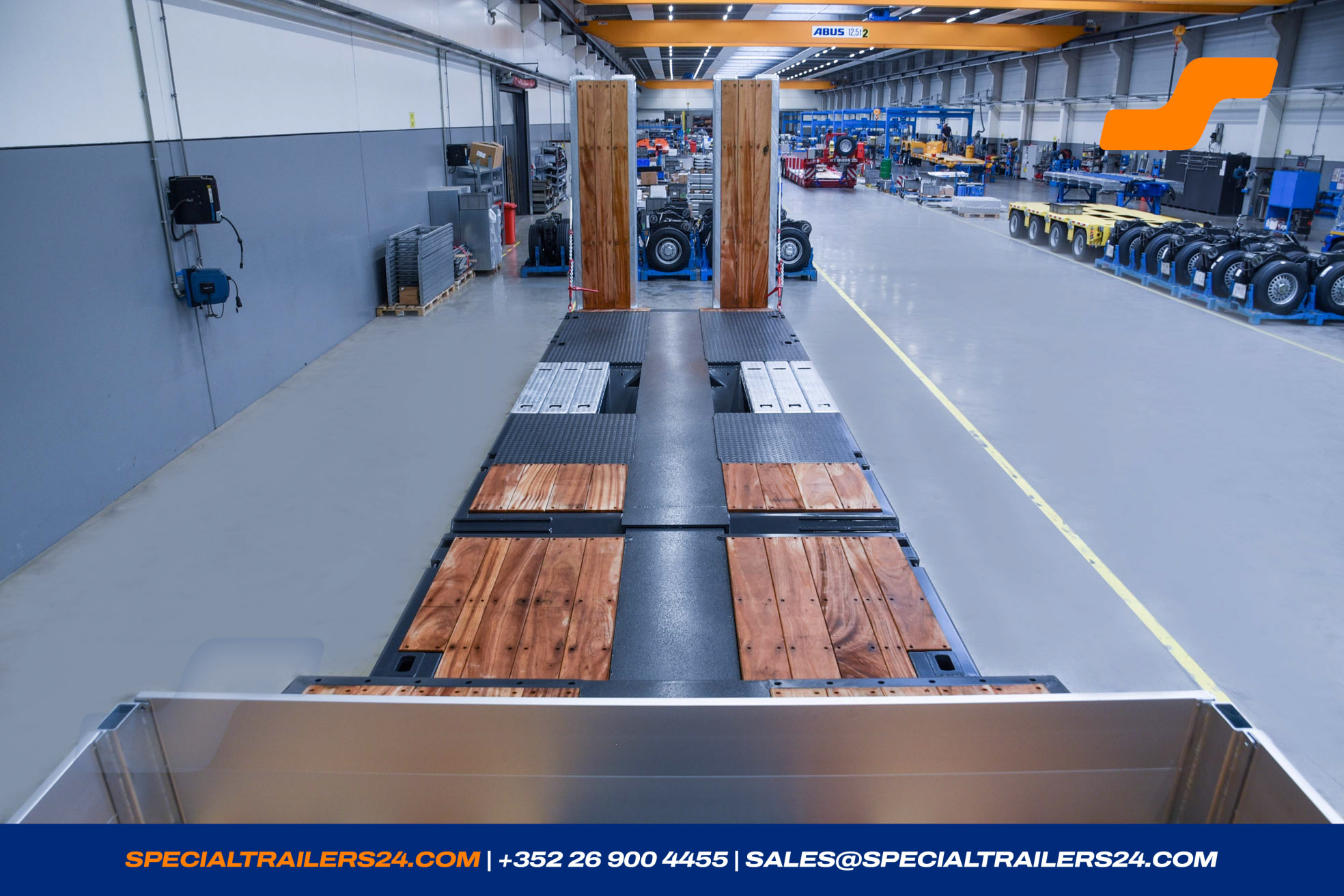

Loading platform
1 x Loading platform

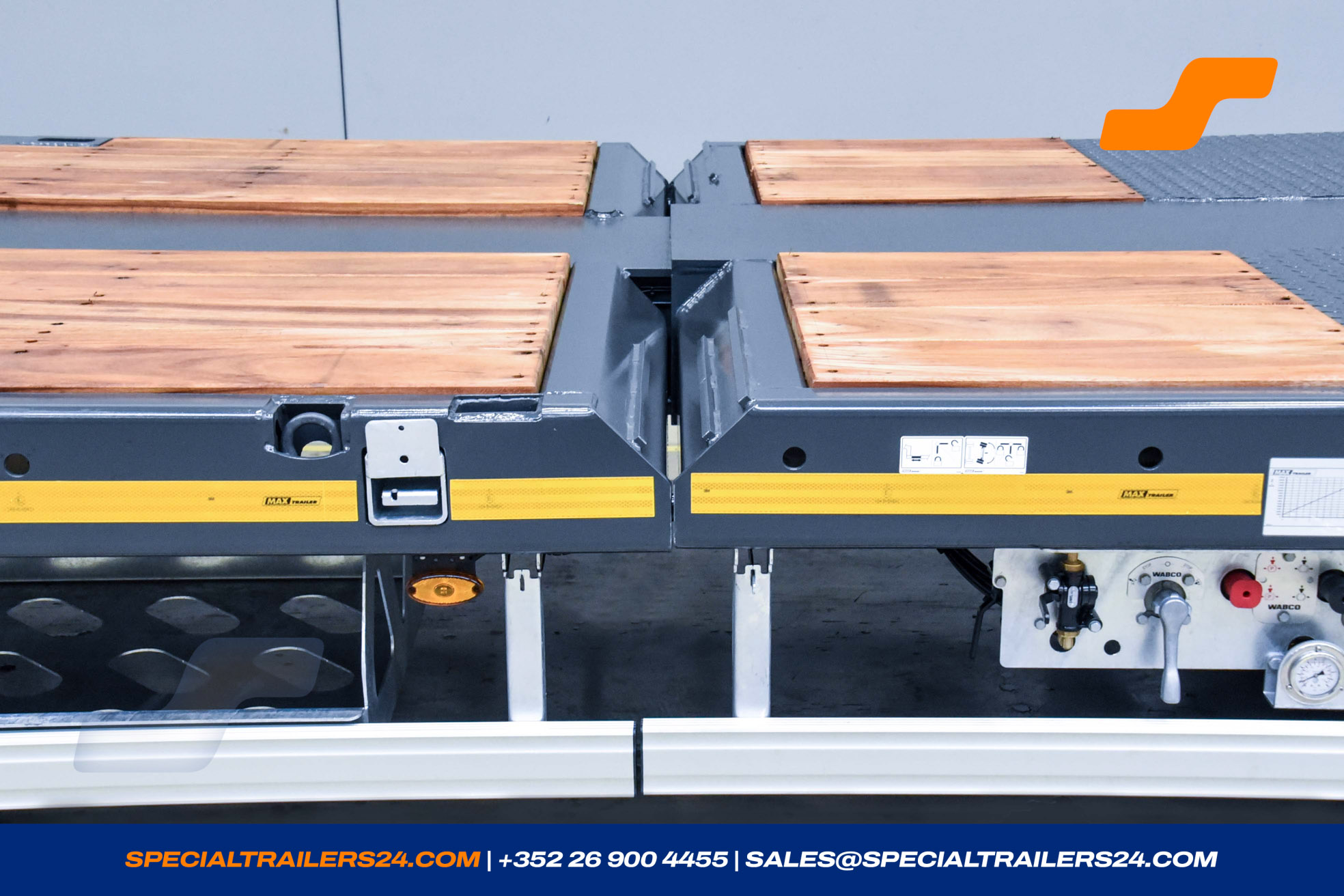

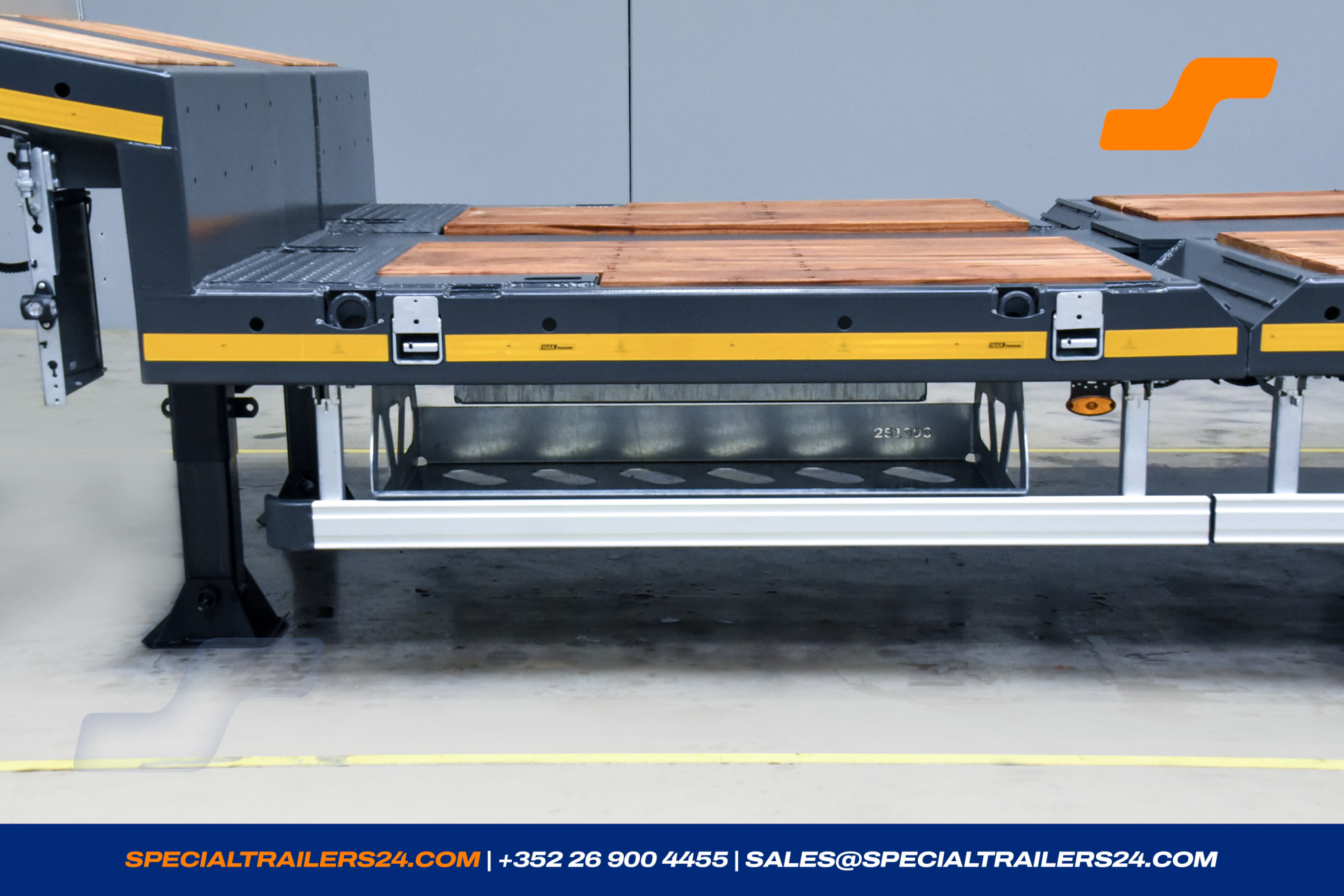

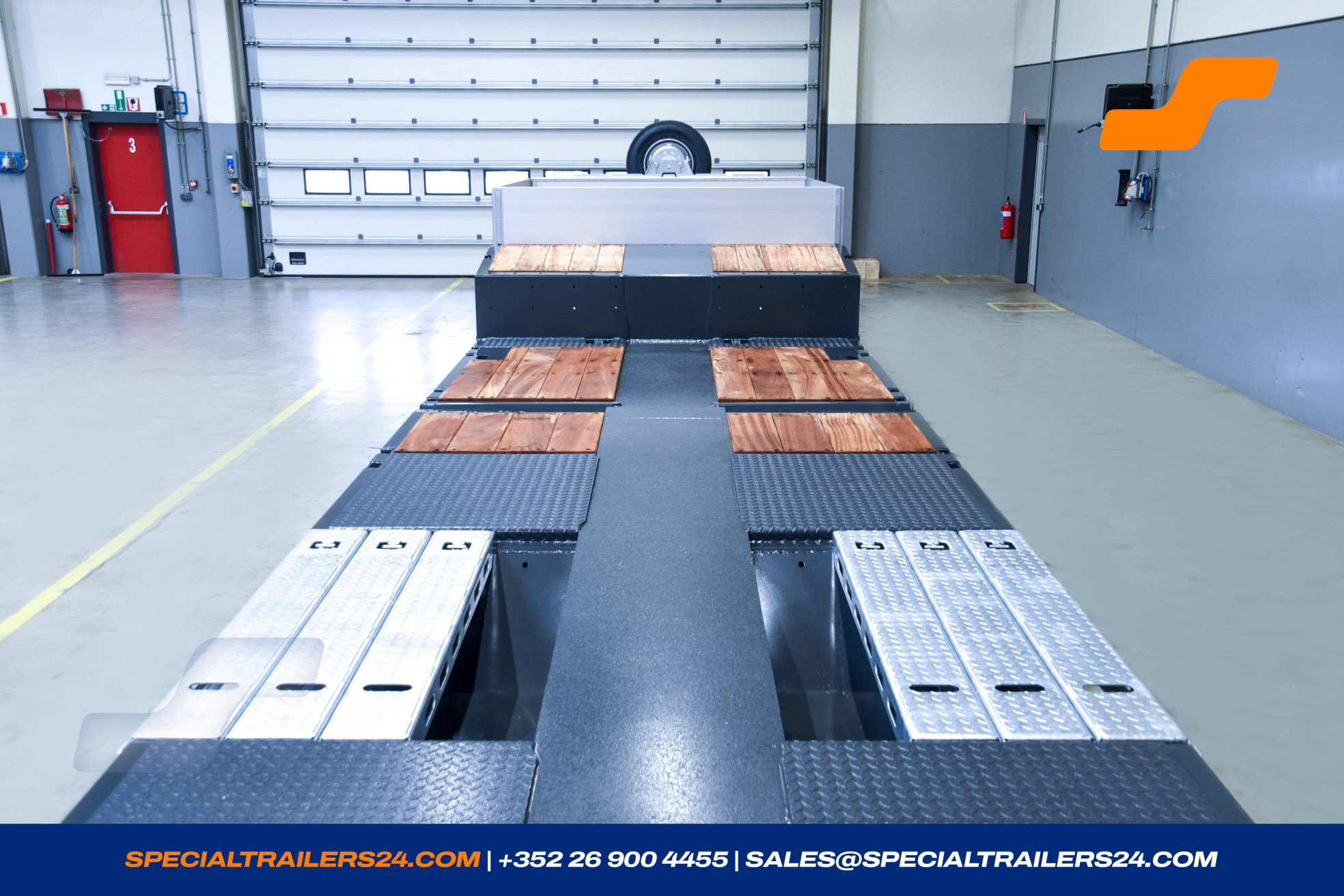

1 pair of built-in wheel recesses in front of the axles, approximately 2,610 x 970 x 400 mm (L x W x H).
Wheel recesses with square iron ledges of 15 x 15 mm and extensions in the lower area.

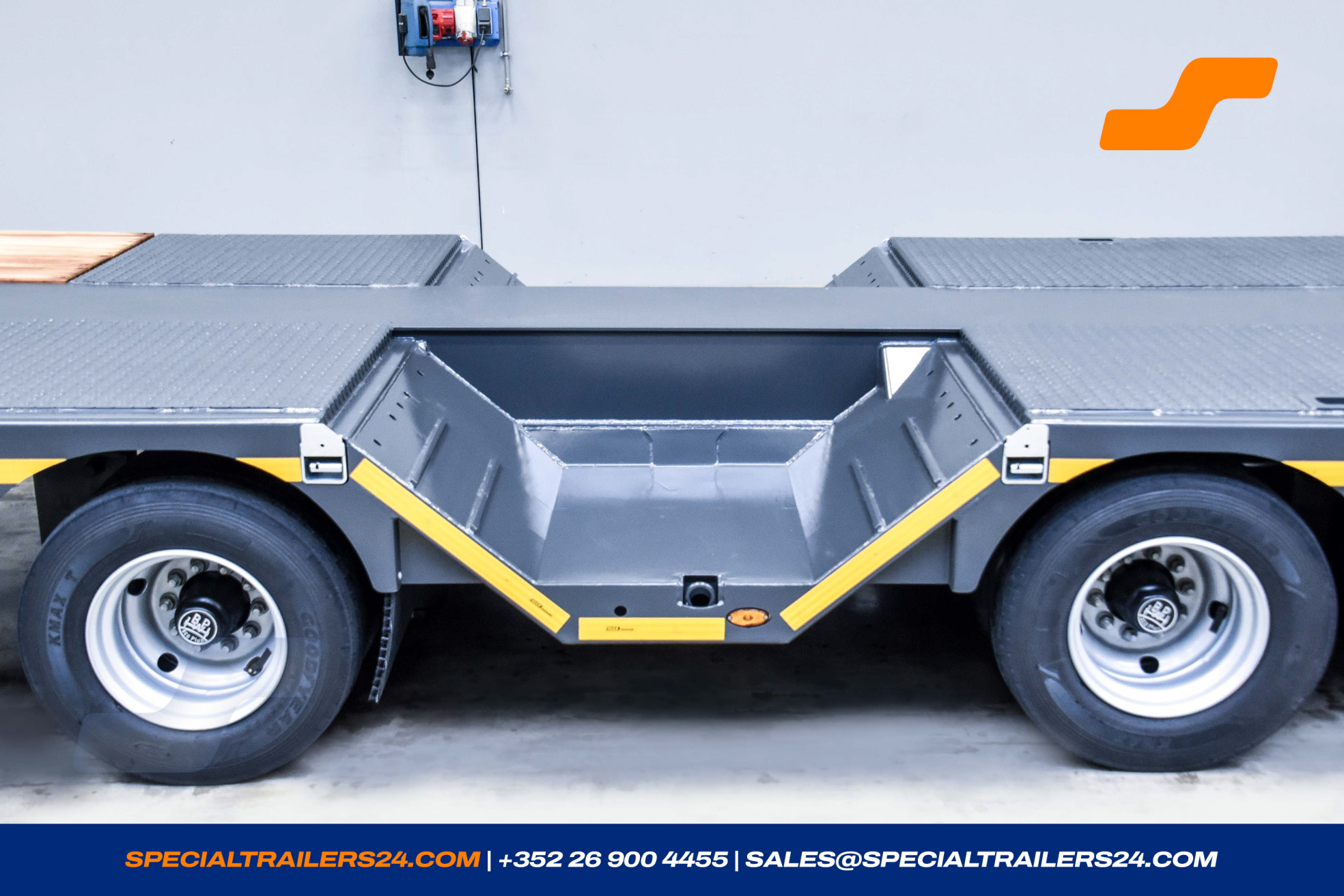

Between the 1st and 2nd axle, a pair of built-in wheel recesses, approximately 1,610 x 700 x 400 mm (L x W x H).

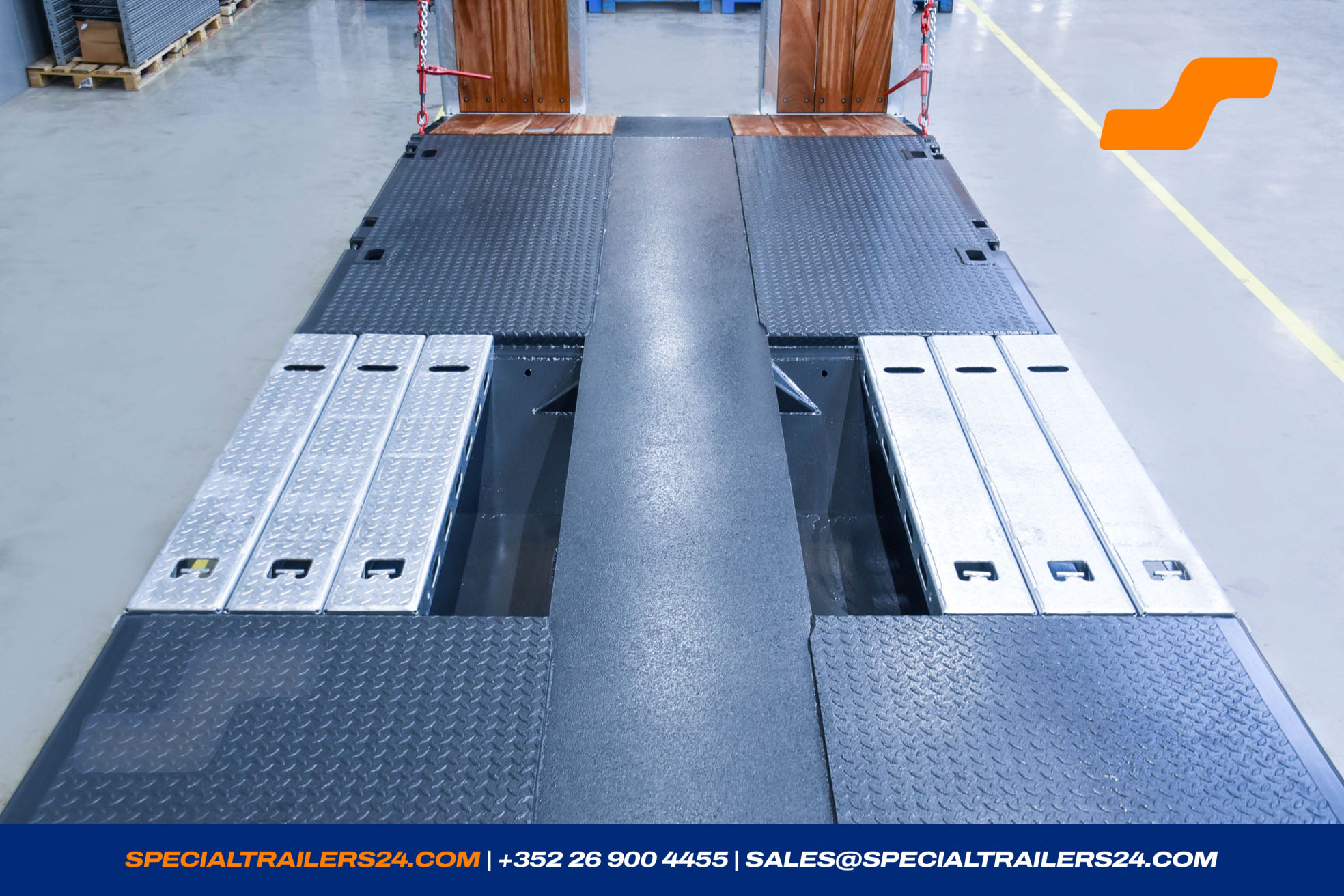

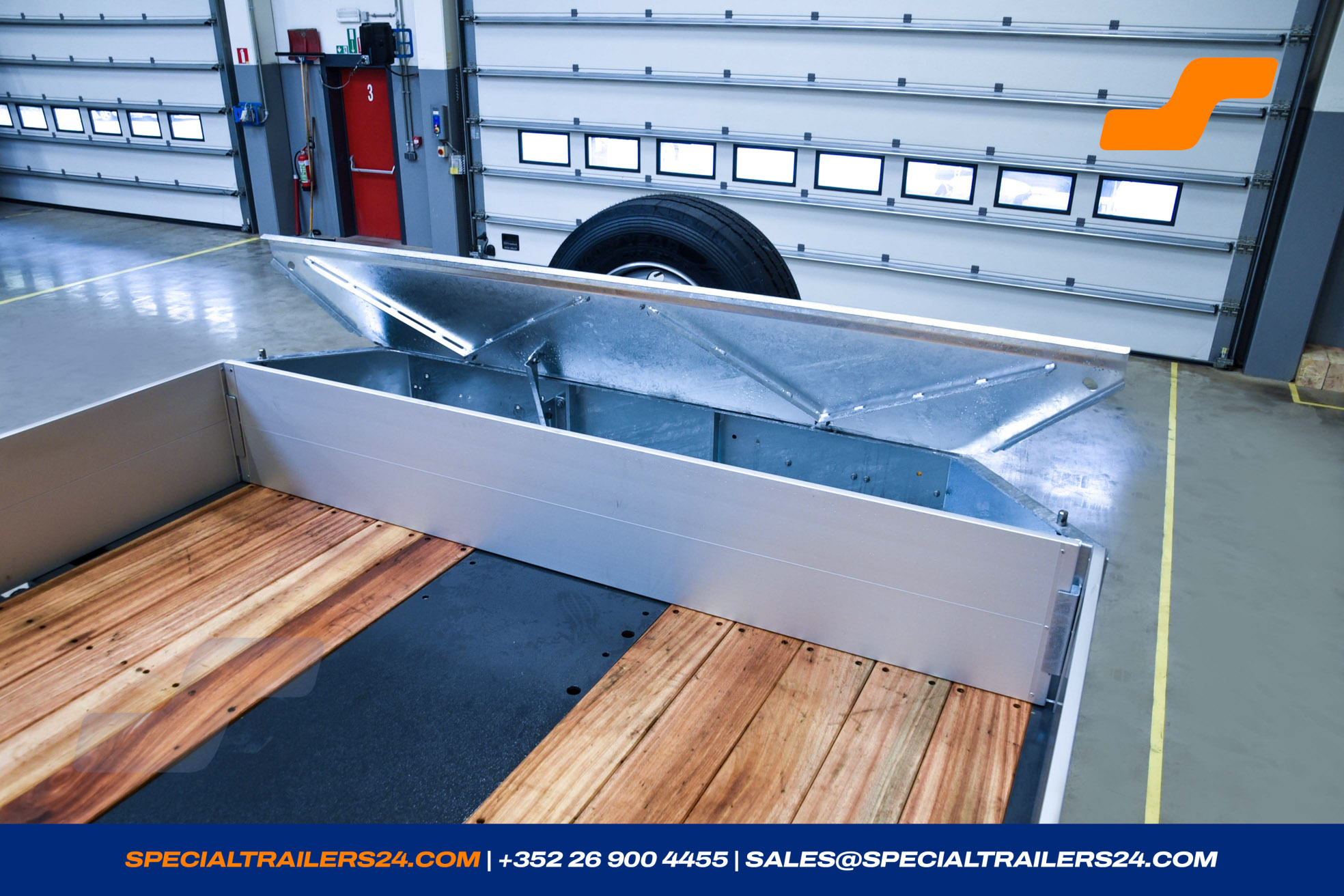

Including 3-part removable galvanized covers over the wheel recesses (width 670 mm - maximum point load of 5 tons per piece).
Depression in the slope and protruding into the loading platform for accommodating the excavator arm (approximately 2,900 x 750 x 210/290 mm (L x W x H).

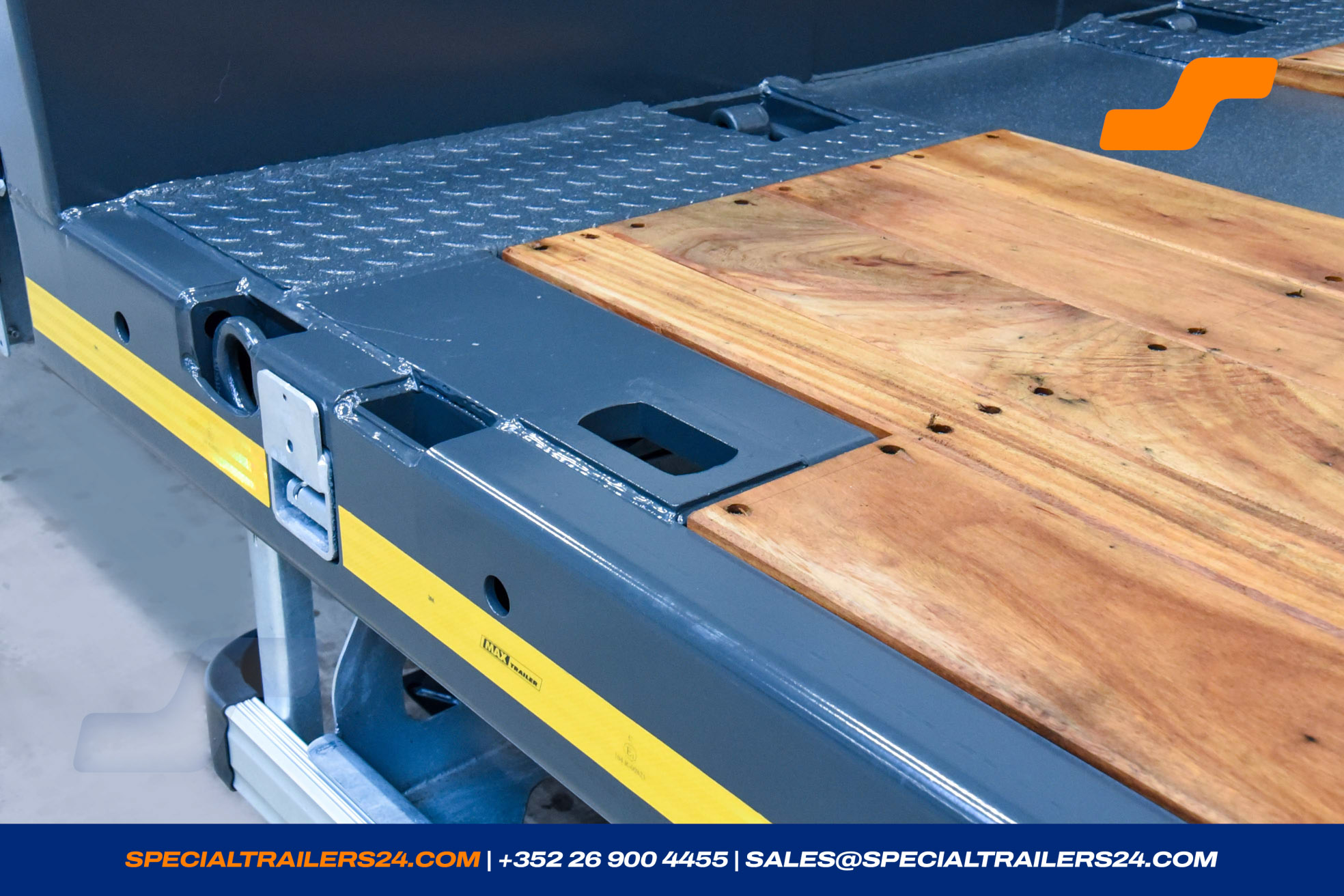

1 pair of lying lashing rings at the front of the loading platform (LC 10,000 daN).
5 pairs of outward folding lashing rings (LC 5,000 daN).
3 pairs of outward folding lashing rings (LC 10,000 daN).
2 pairs of lashing rings in the excavator arm recess (LC 5,000 daN).
Cutouts in the outer frame of the loading platform for attaching tension straps (LC 2,000 daN).
- 3 pairs of inserted lashing rings along the central beam of the loading area (LC 5.000 daN).
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

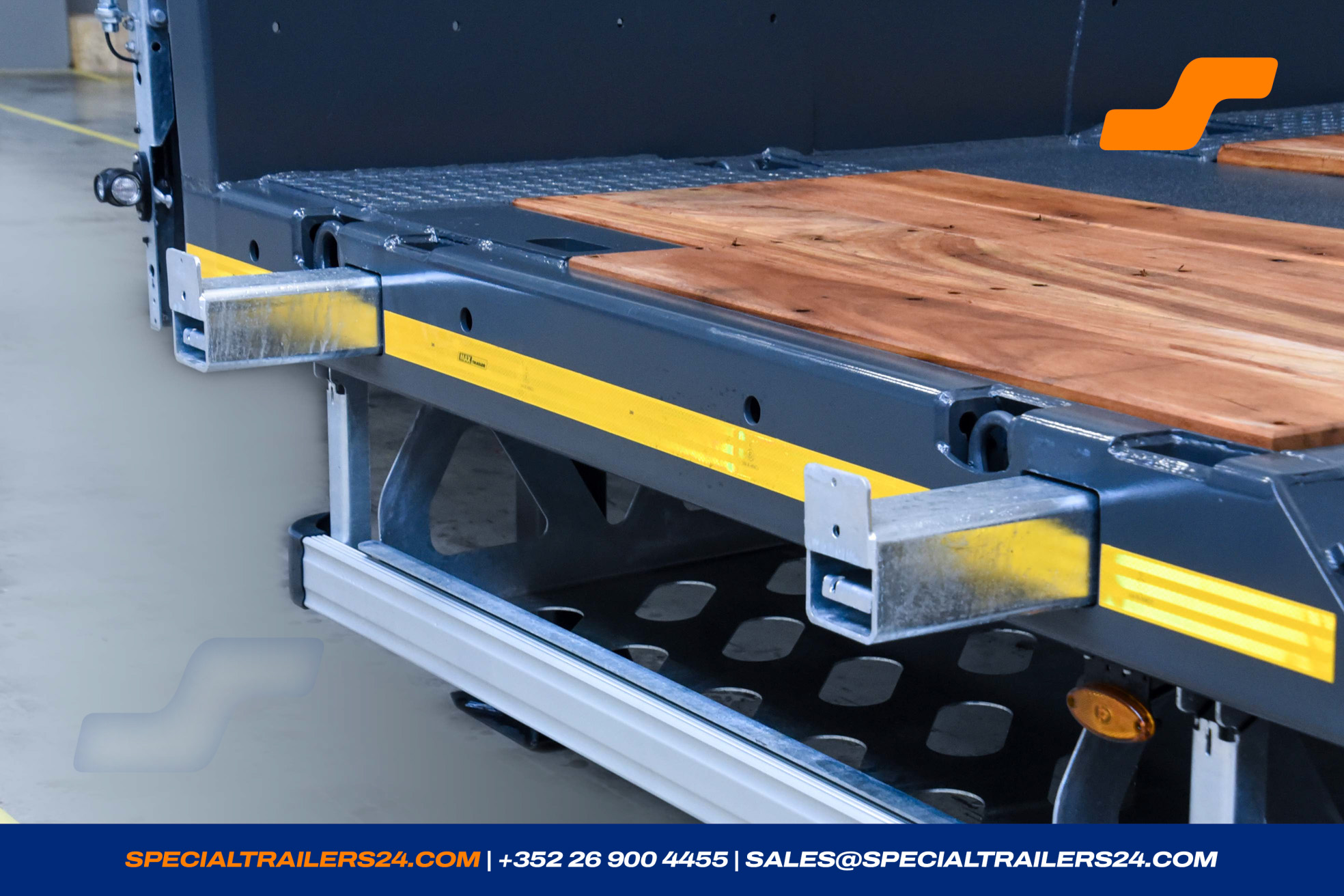

- 3 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 10kg)
-
Hardwood timber for the outriggers. (± 108kg)
The maximum permissible point load on an area of 200x200mm is 3.5to. - Anti-slip-coating with sand above the chequer plate of the goosenek and the loading platform.
- 1 LED flashing beacon, provided separately.
- Speed sticker 60 km/h at the rear.
-
Sign KG for CONVOI EXCEPTIONNEL
Caution: only valid for belgium
Ramps

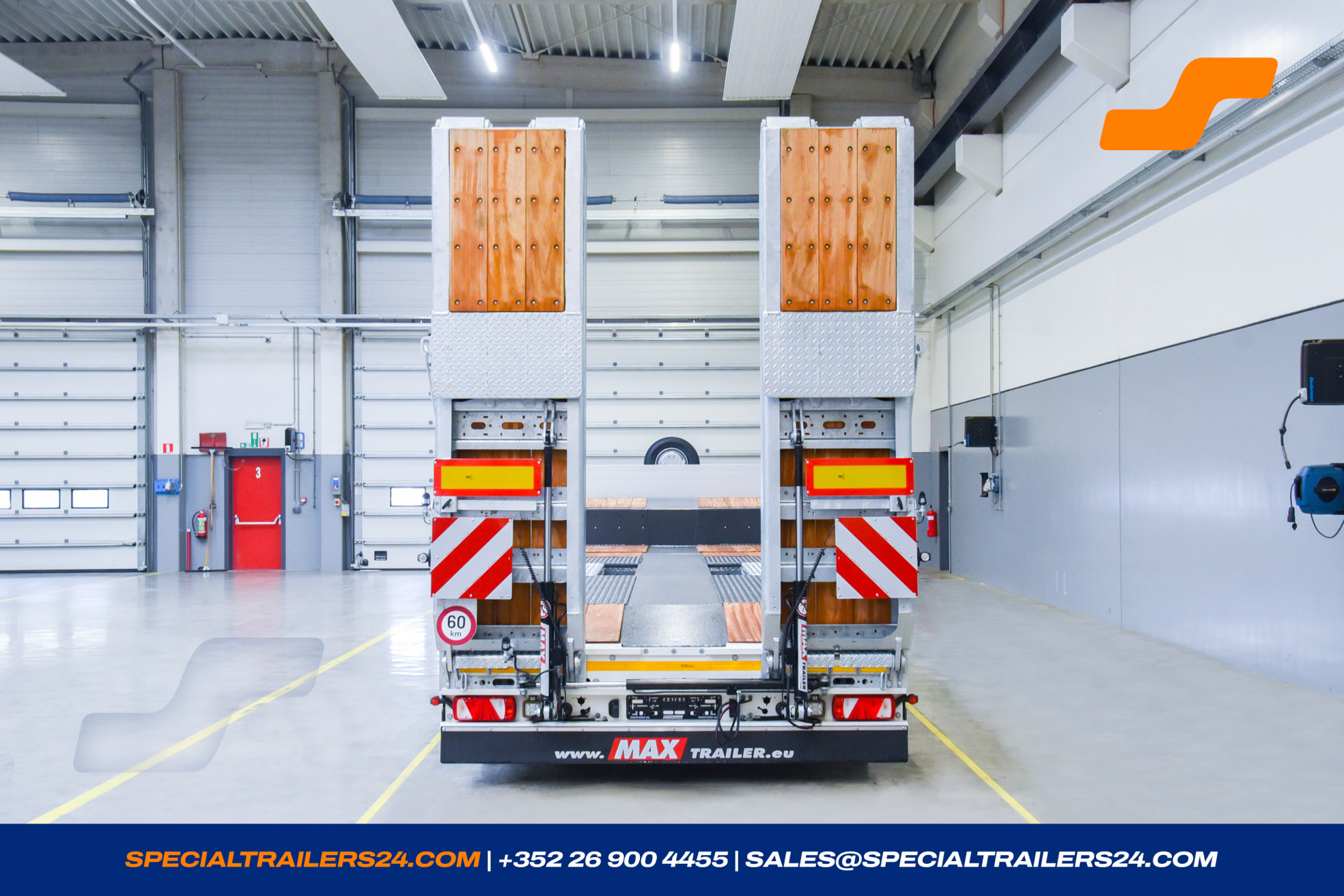

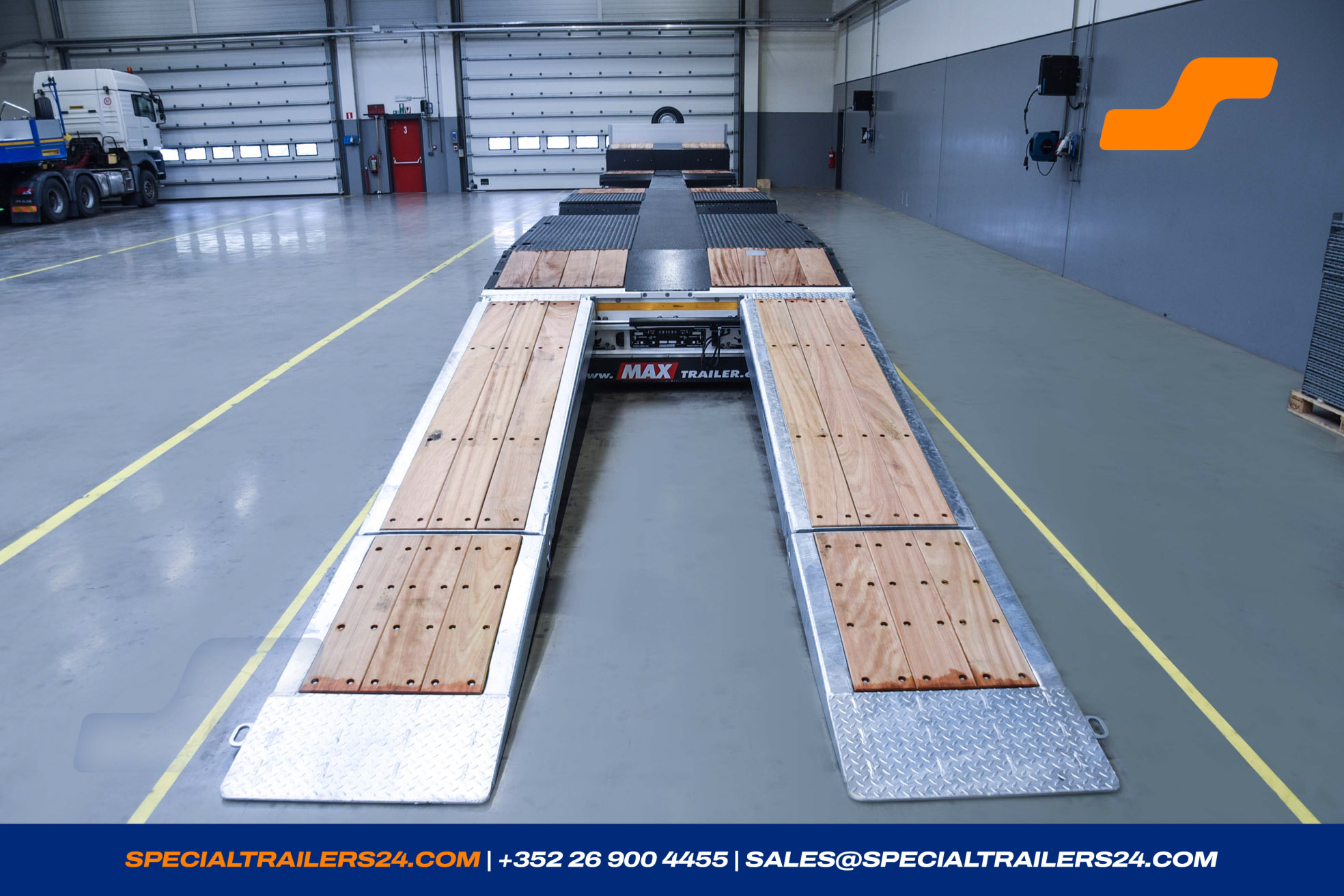

Hydraulic loading ramps
1 x Steel single piece ramps

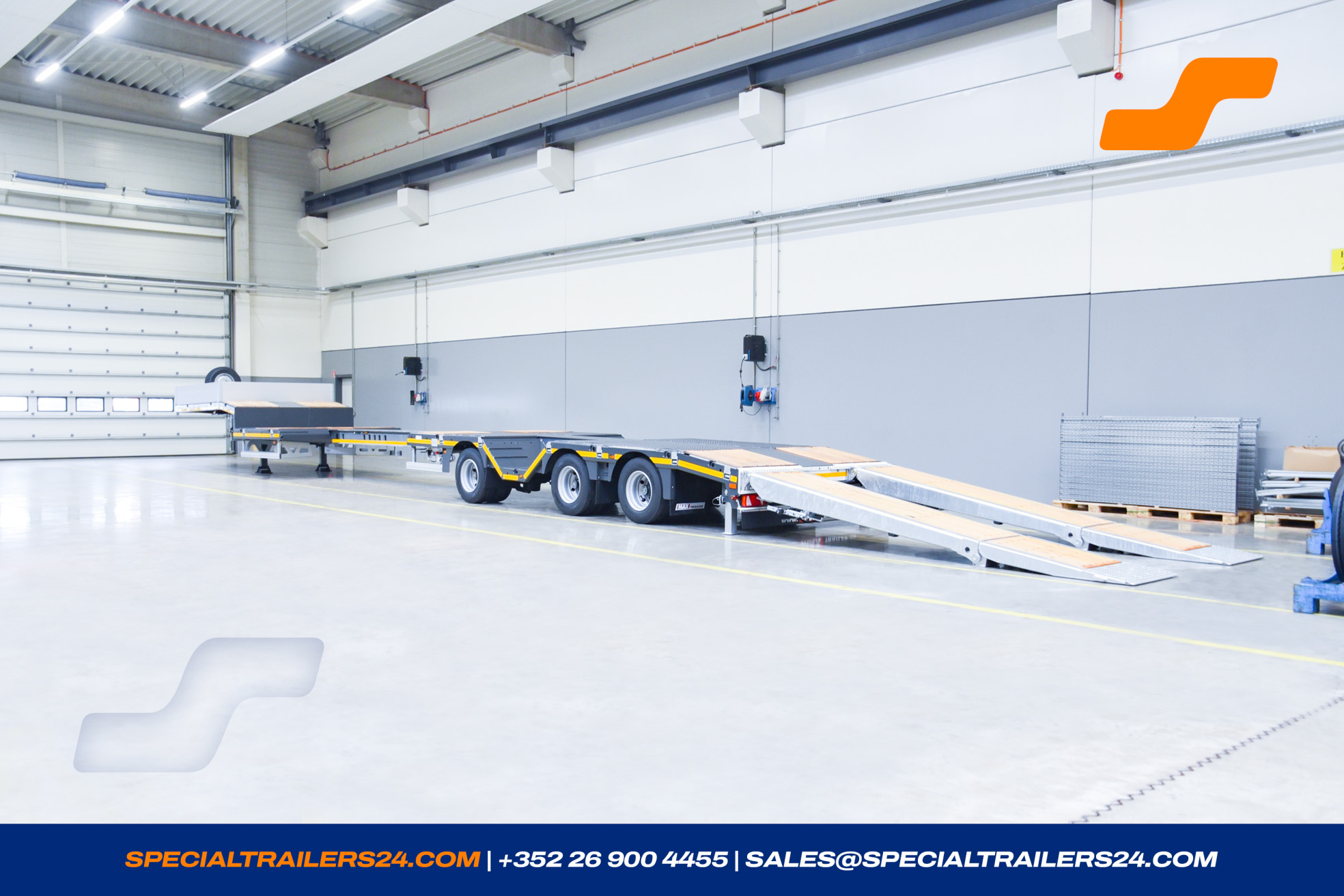

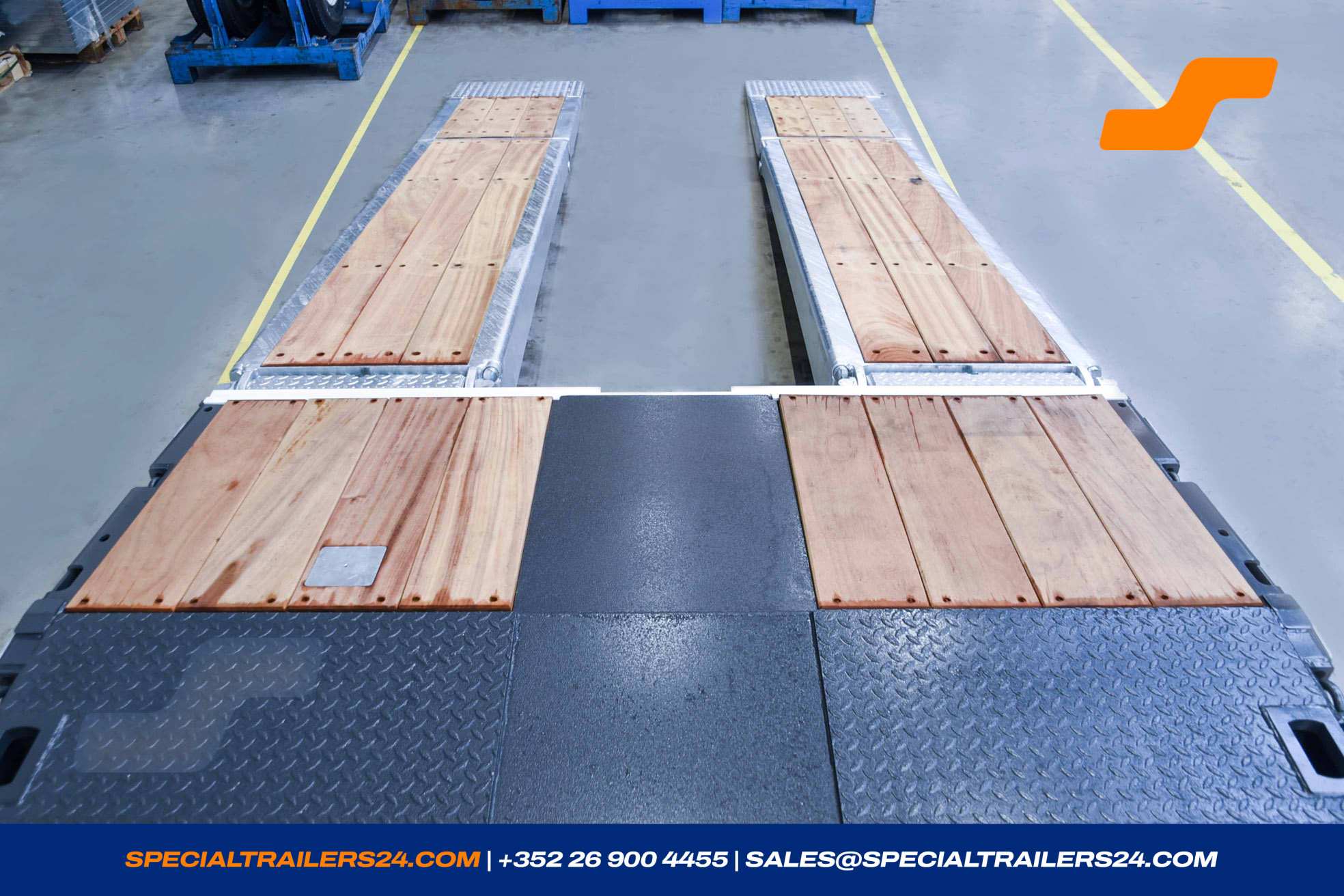

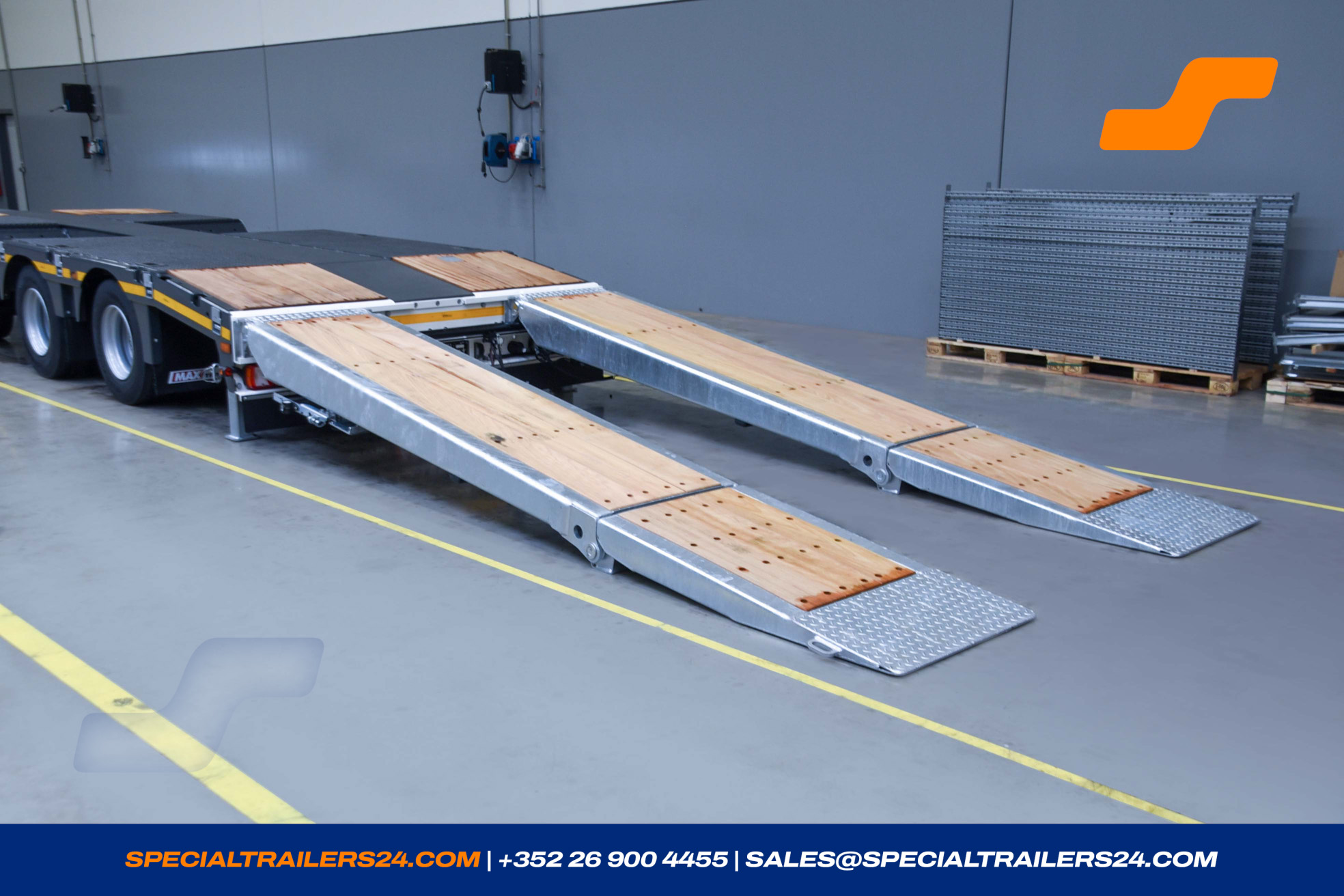

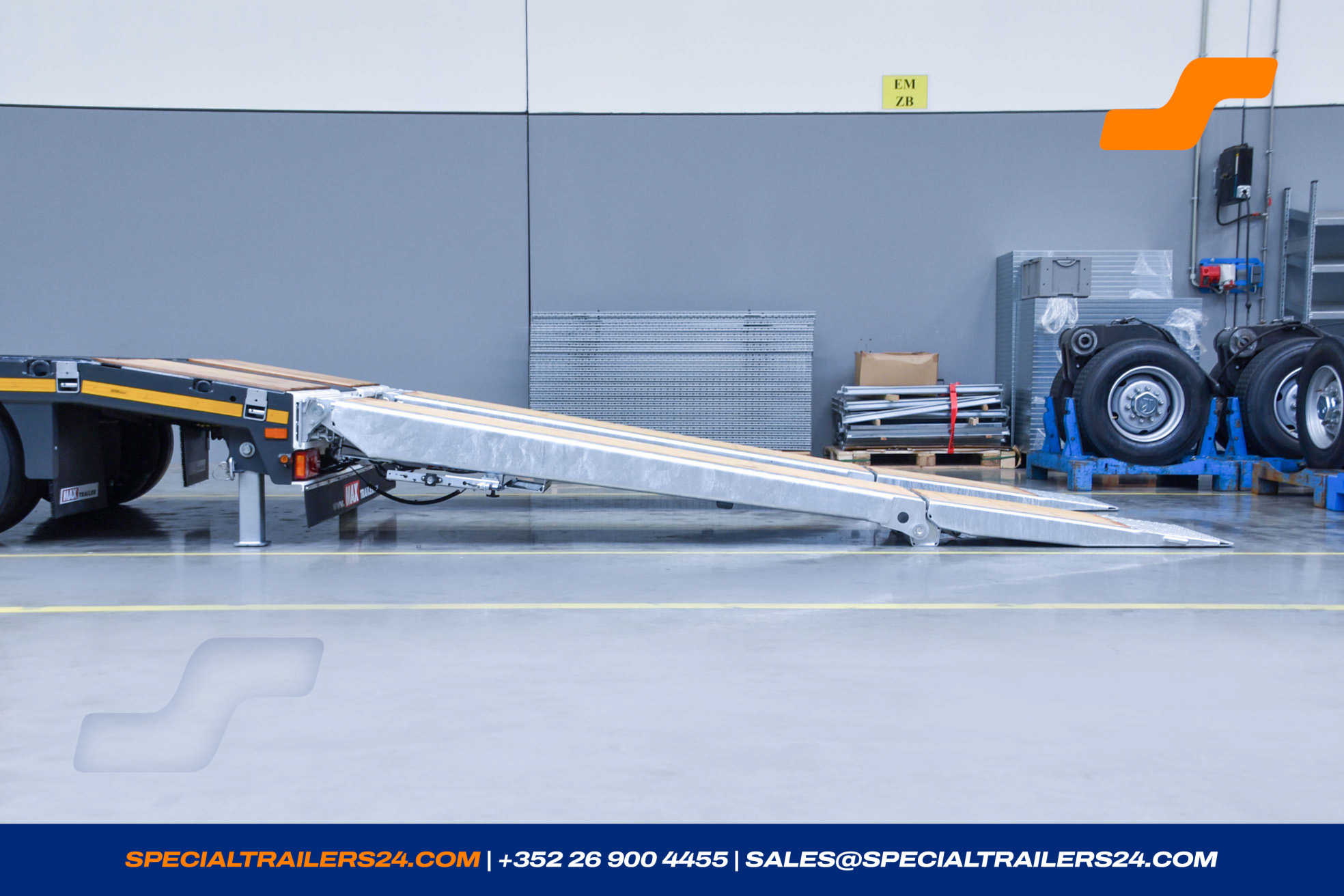

1 pair steel single piece ramps galvanized ca. 3 000 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40.000 kg
Accessories
1 x Accessories
- Manual and description on USB stick .
- Spiral cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Assembly of the single ramps on the semitrailer.
- Delivery from a trailer to factory Büllingen.
-
TÜV expertise and §70 exemption for an application for an exceptional transport permit for a tractor.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 111218
- Reference MAX100-N-3-9.30-RM-M-U
- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 01/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000258
- Steering Type Friction
