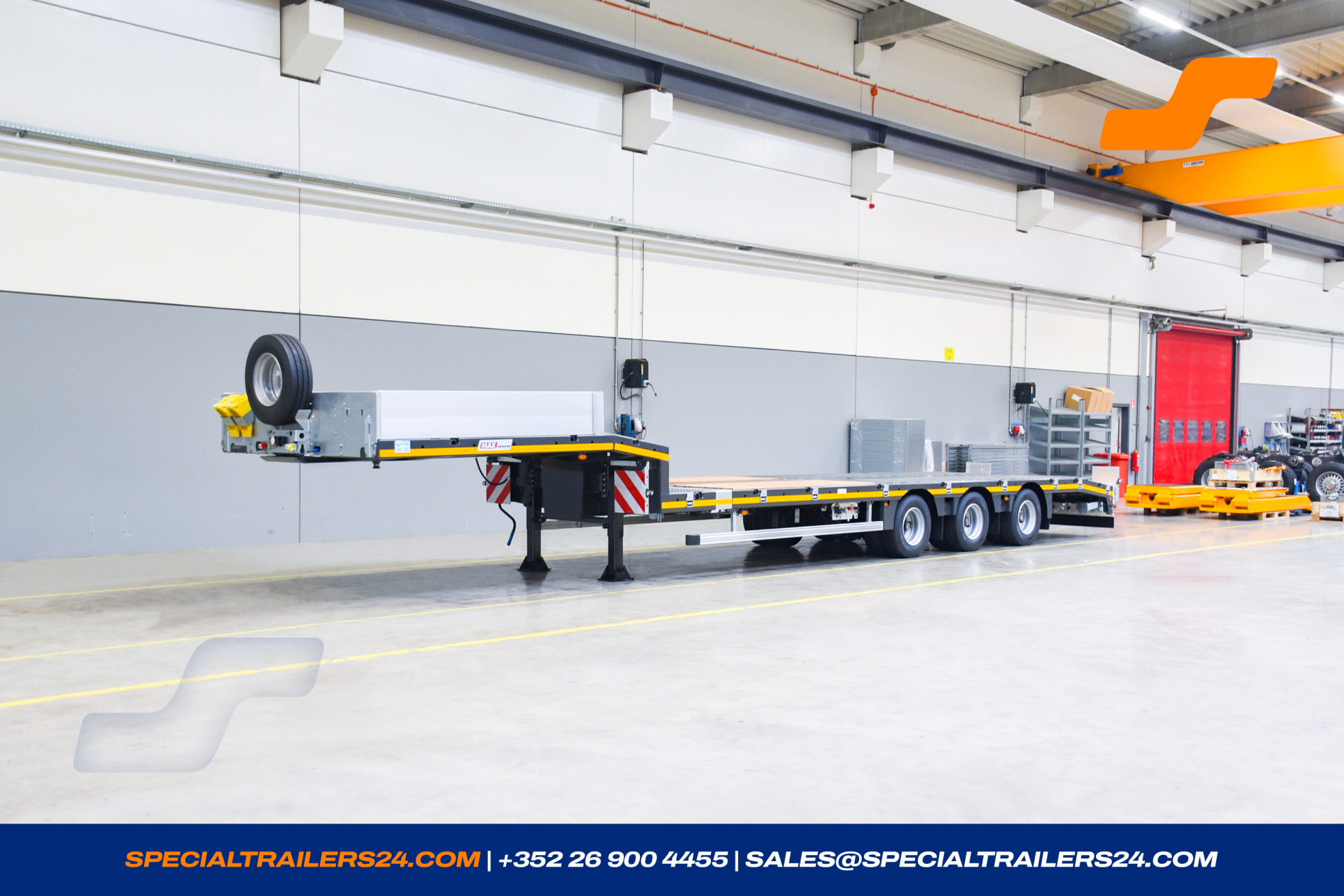

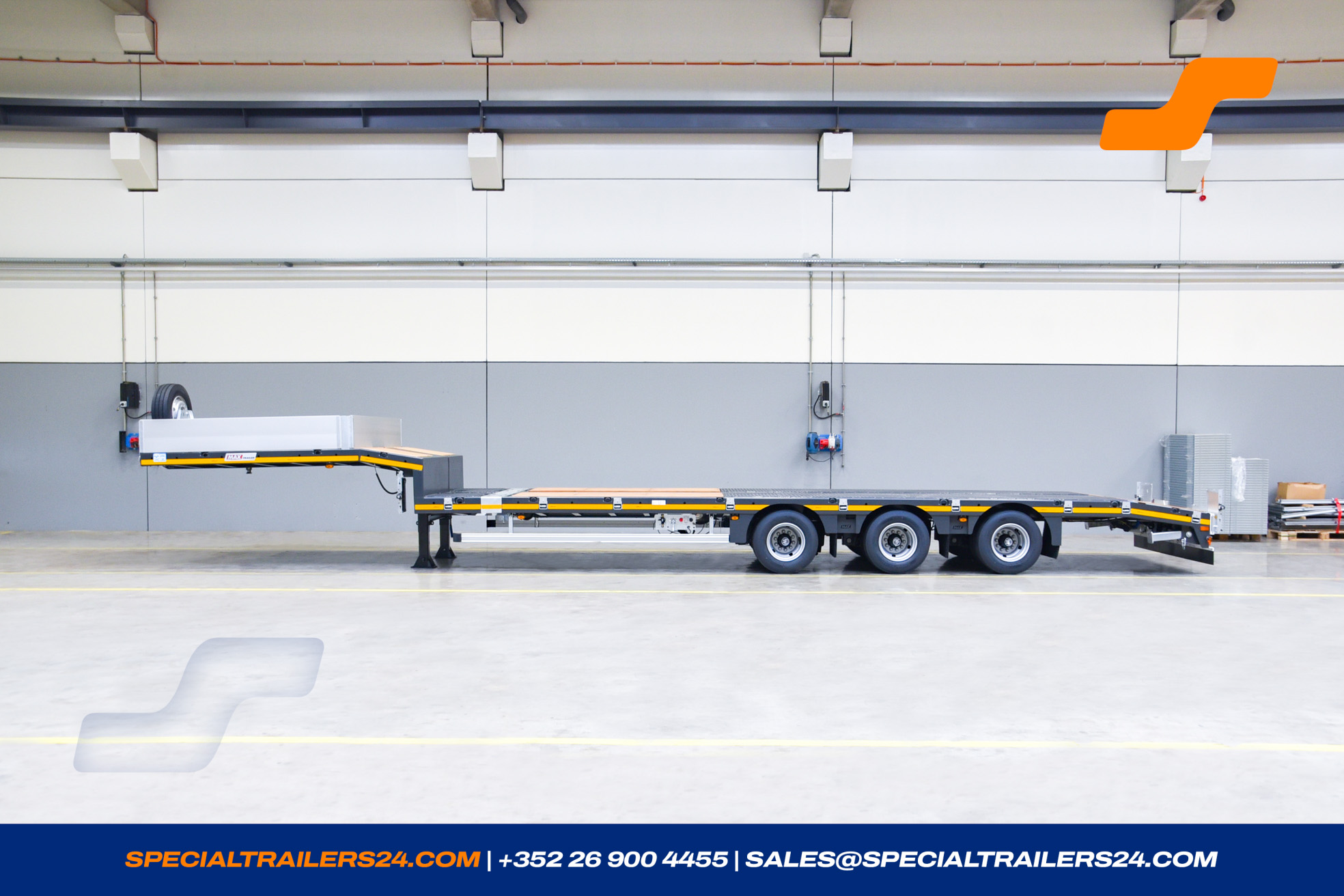

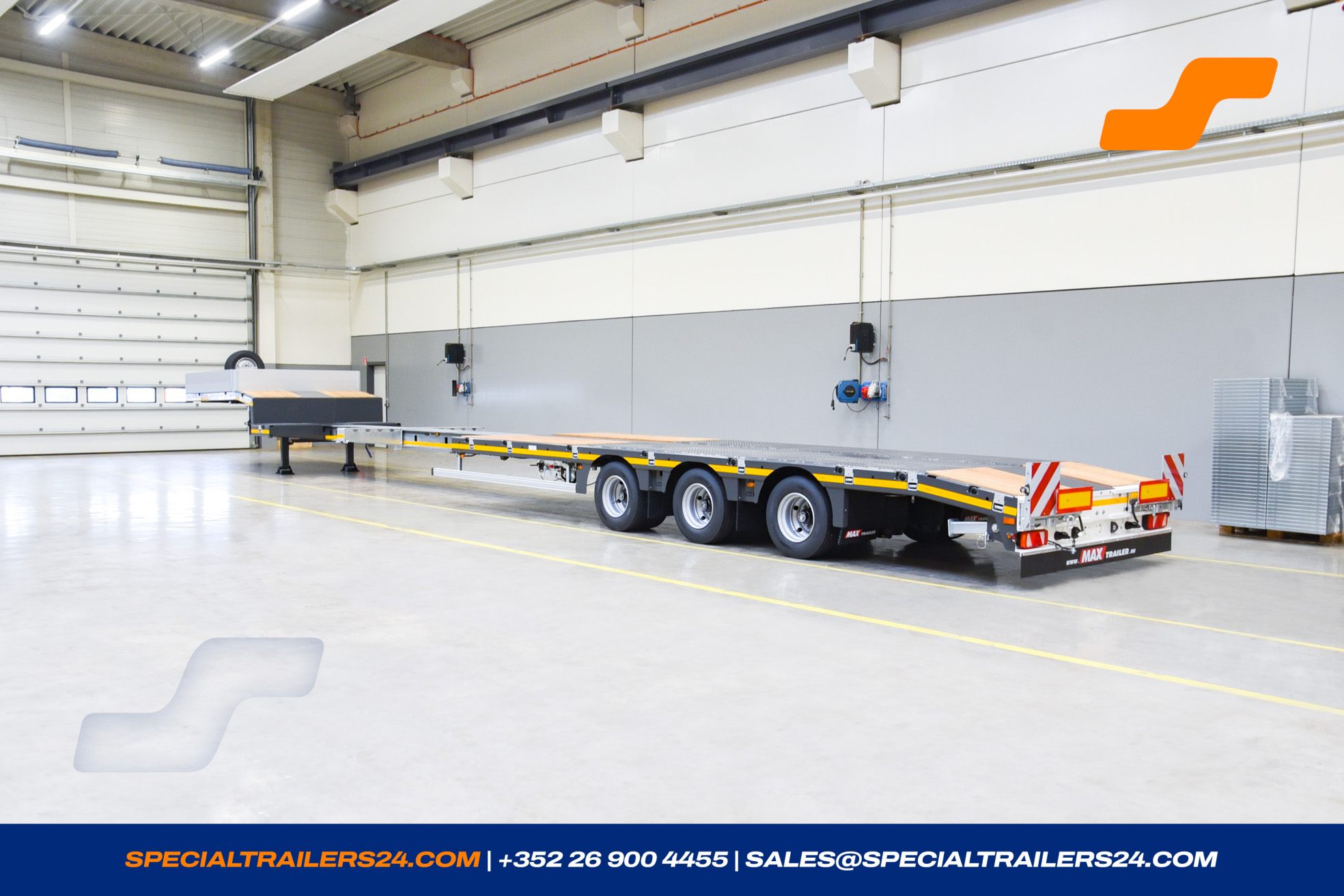

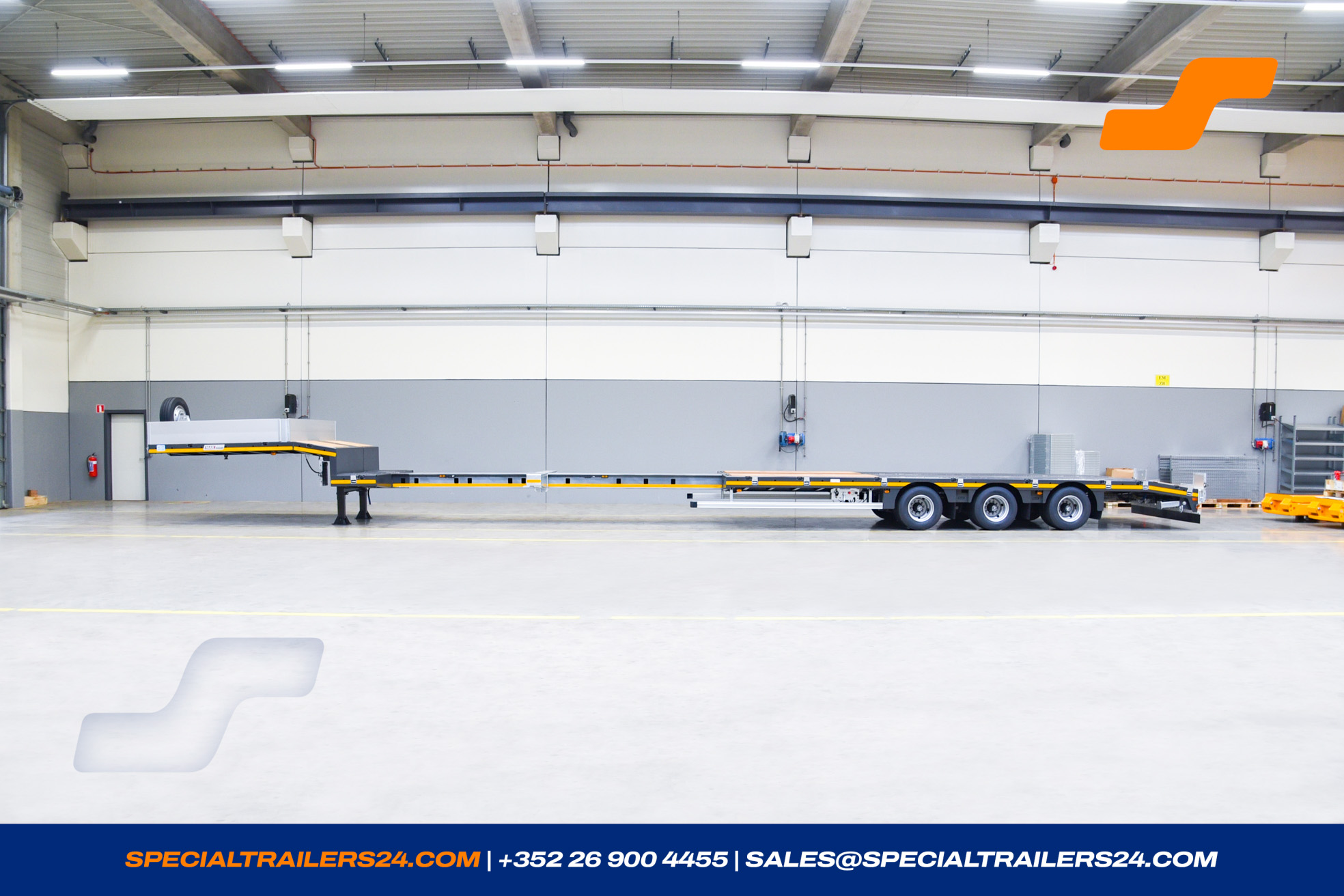

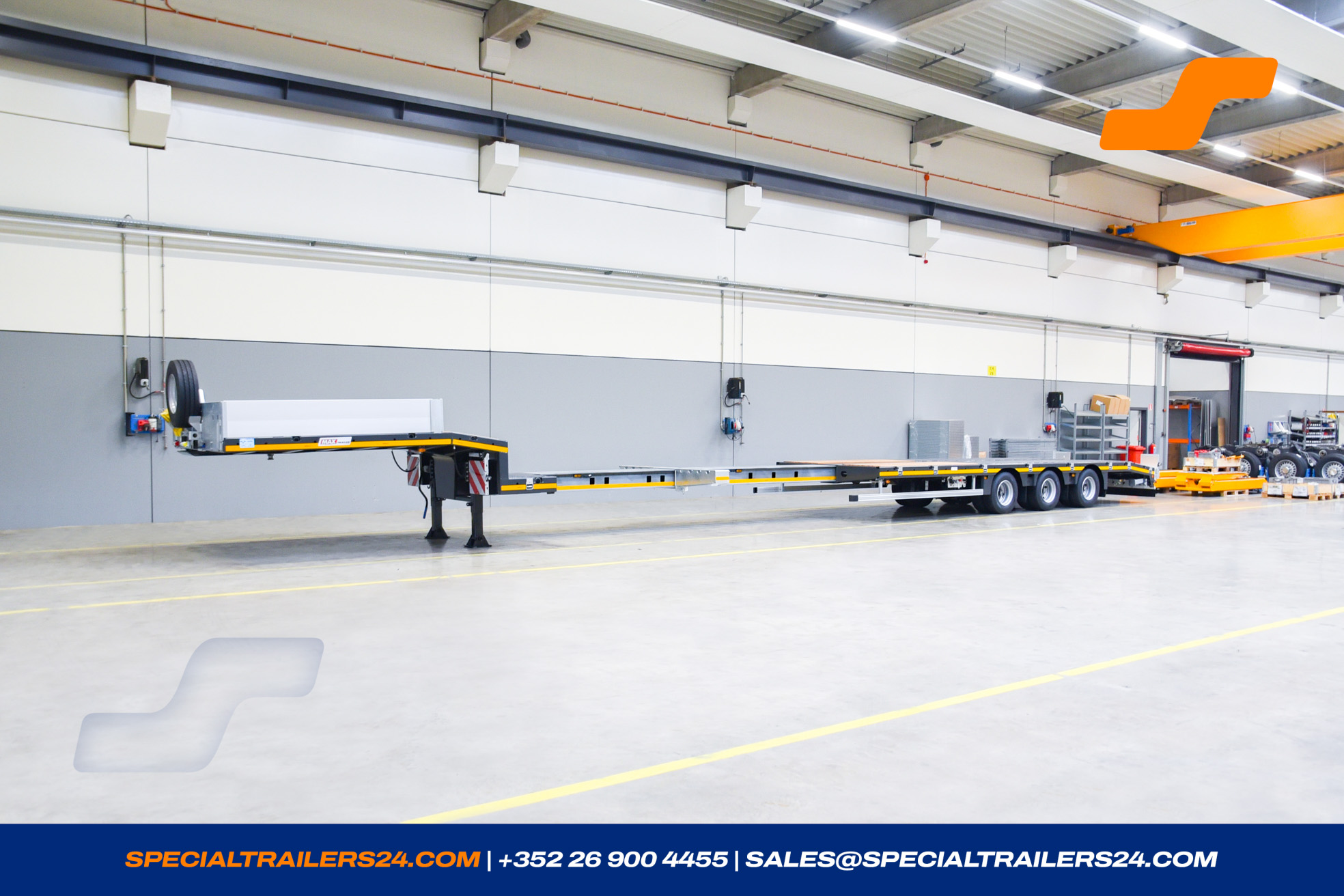

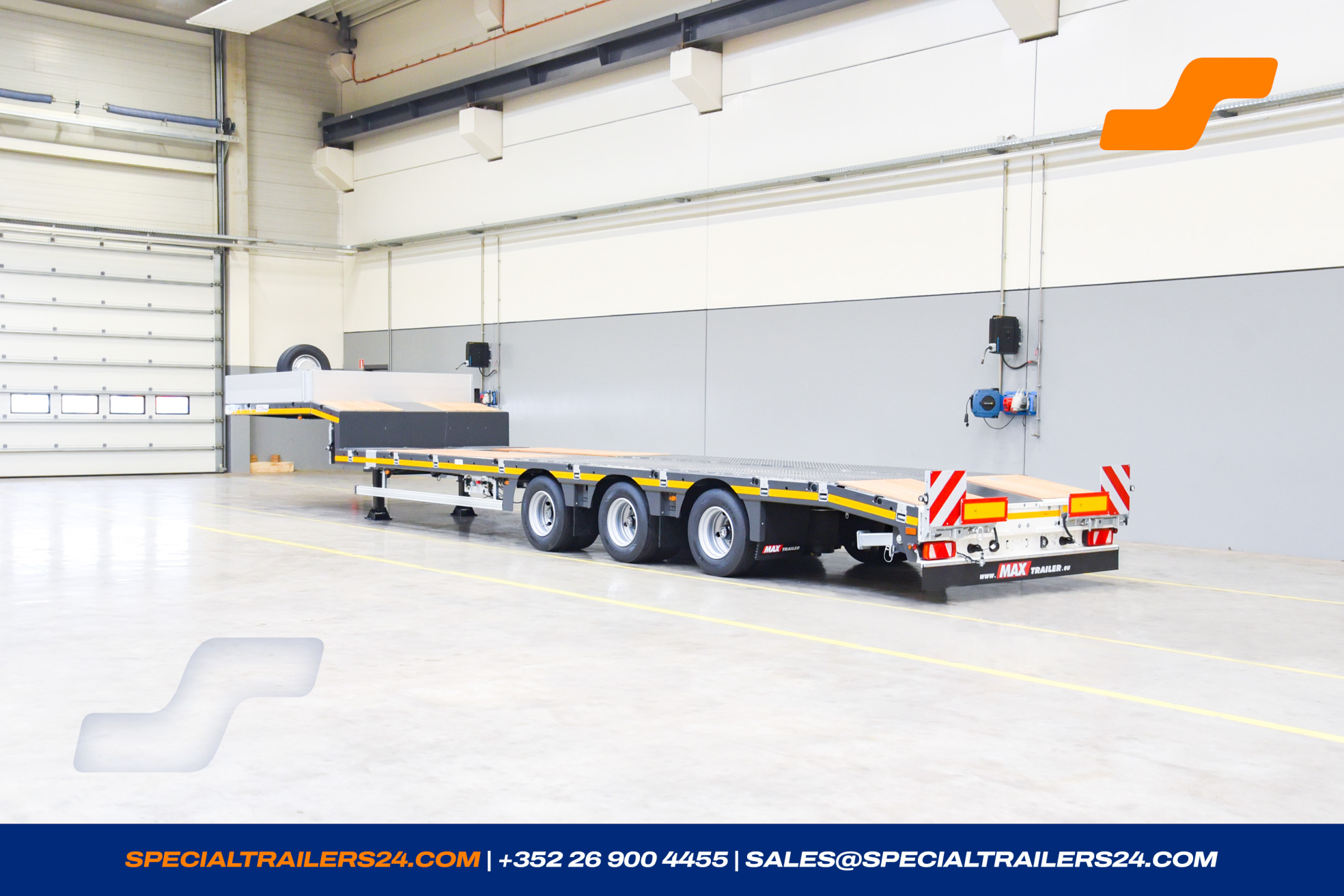

Low loader
MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111058
- Reference MAX100-N-3A-9.30

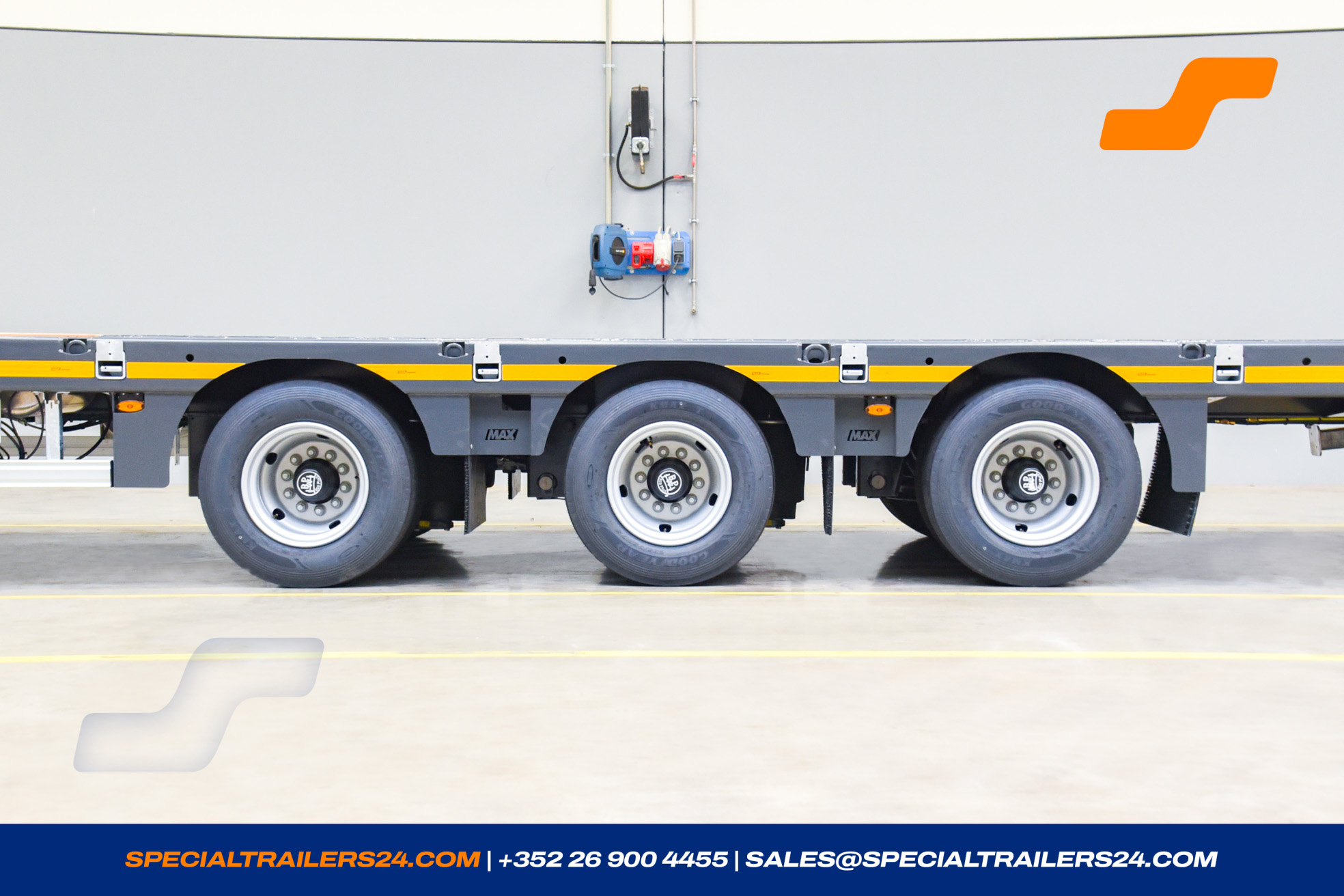

- Number of axles 3
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 01/2026
- Steering Type Friction
Availability
01/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 10136 kg |
| Payload | 39364 kg |
Dimensions
| Fifth wheel height loaded | 950 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 4 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

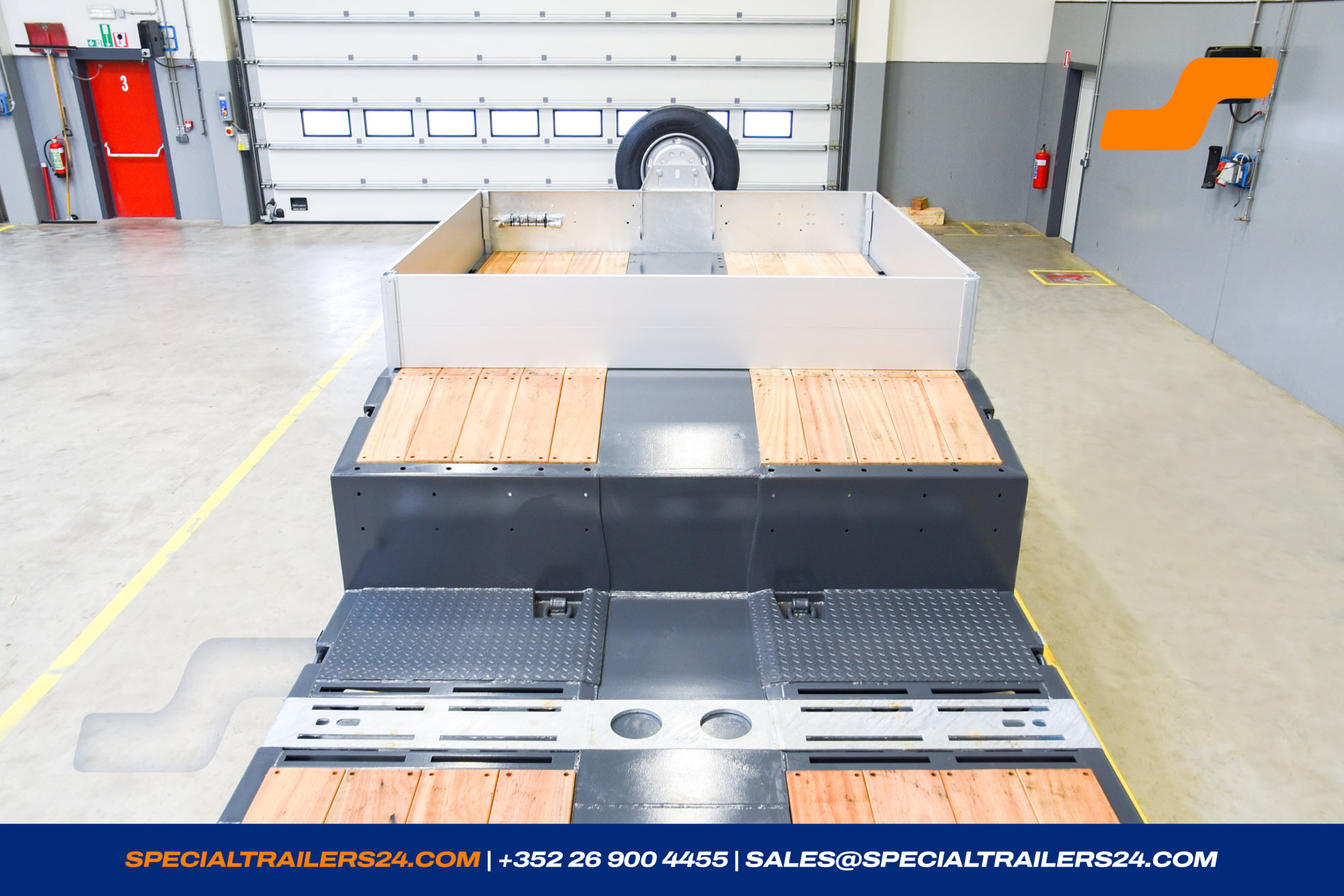

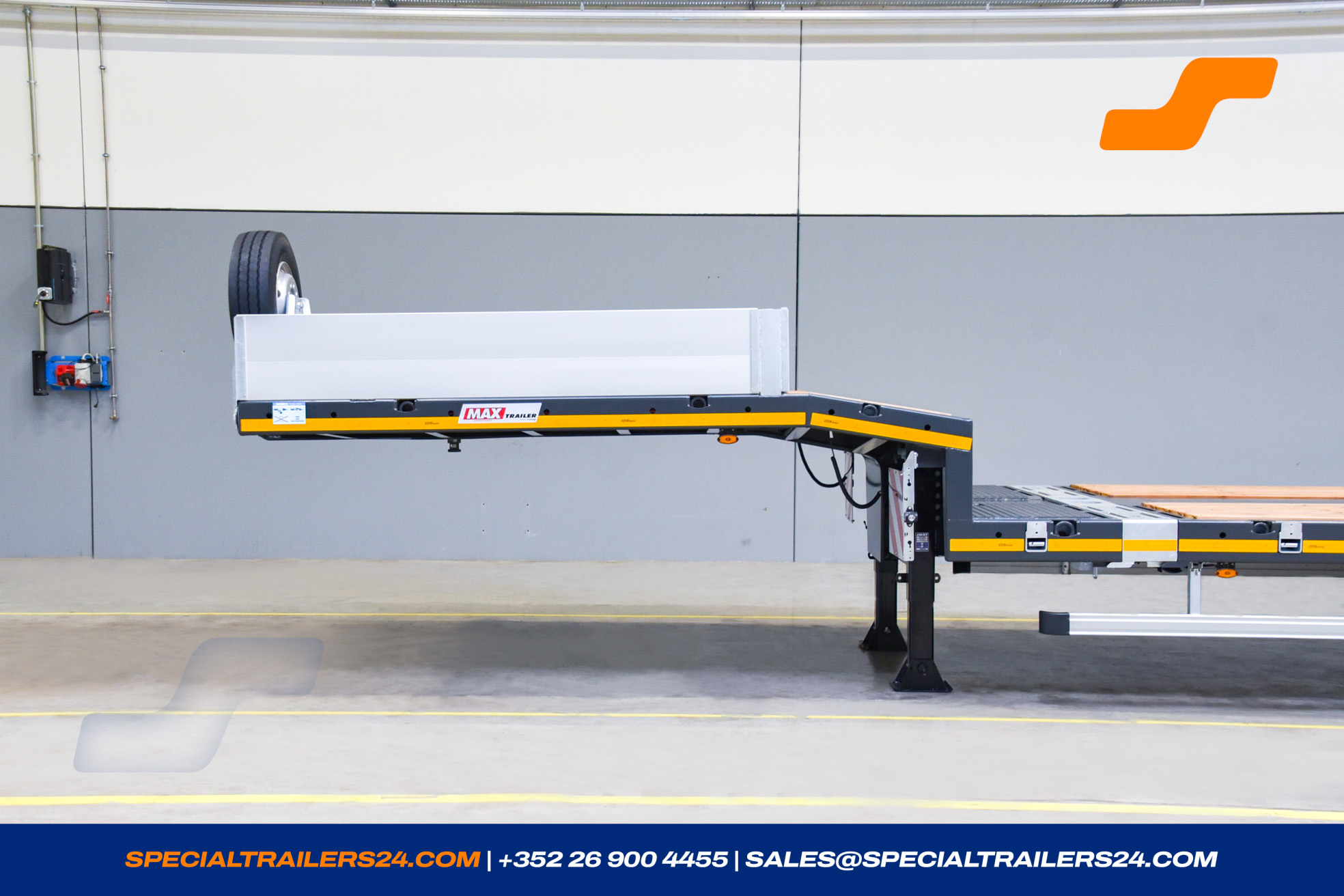

Gooseneck
1 x Gooseneck
Gooseneck with Hardwood cover thickness 30 mm.
Gooseneck at rear in straight version.
3 pairs of lashing rings (LC 5 000 daN).
- 4 wheel chocks with carrier on the headboard (± 5kg).

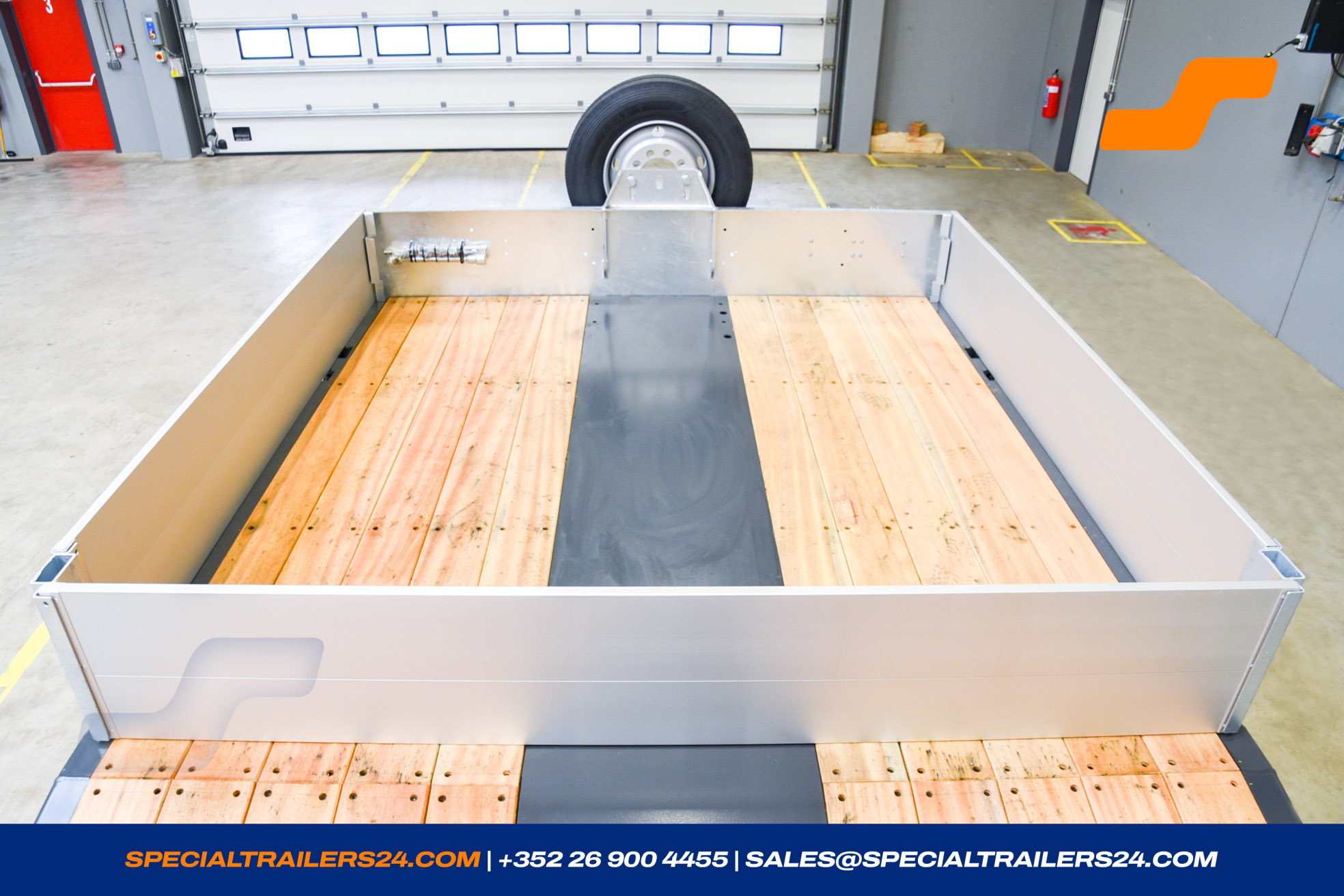

- 1 tool box INOX on the gooseneck ± 1 350 x 400 x 400 mm. (± 46 kg)
Loading deck

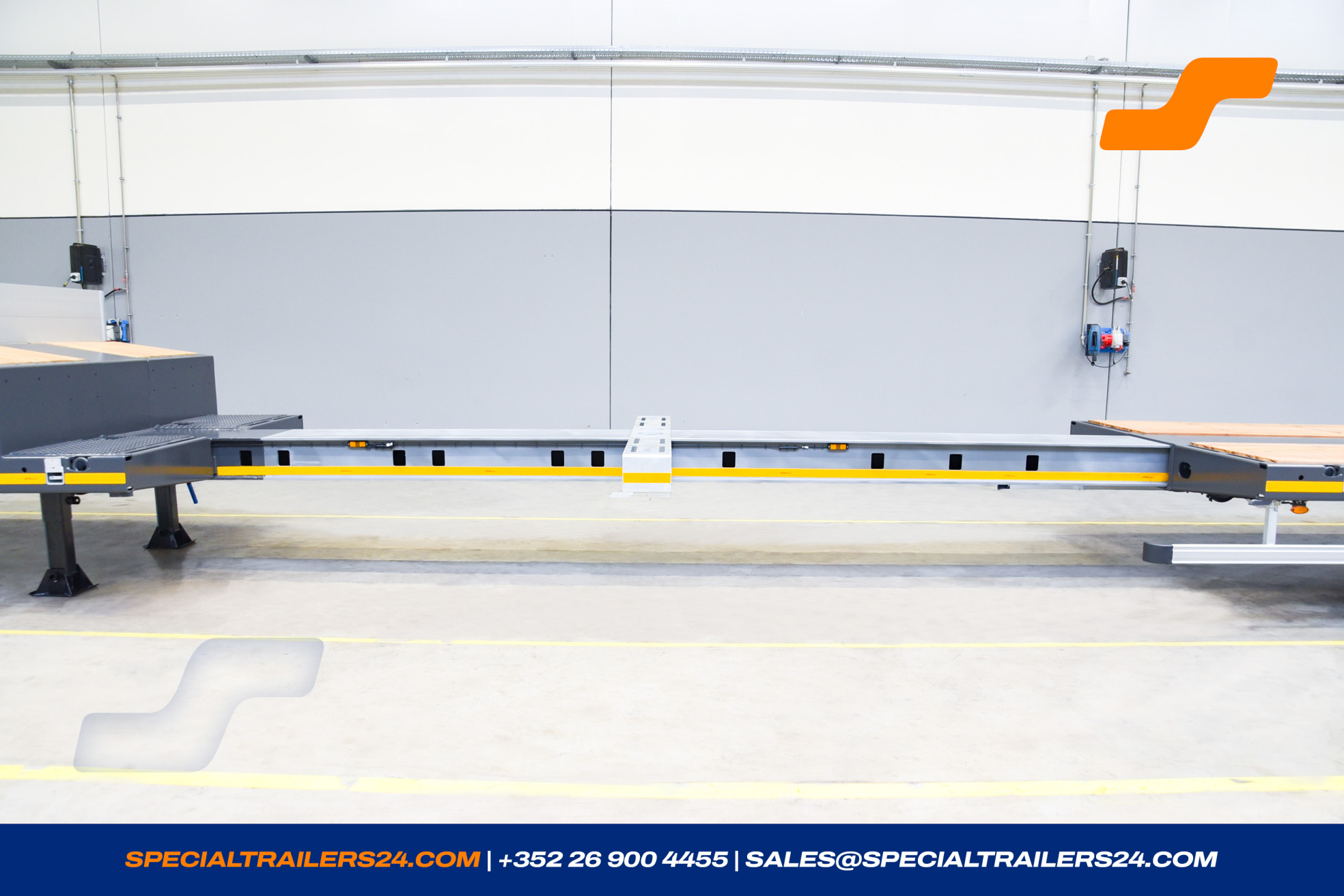

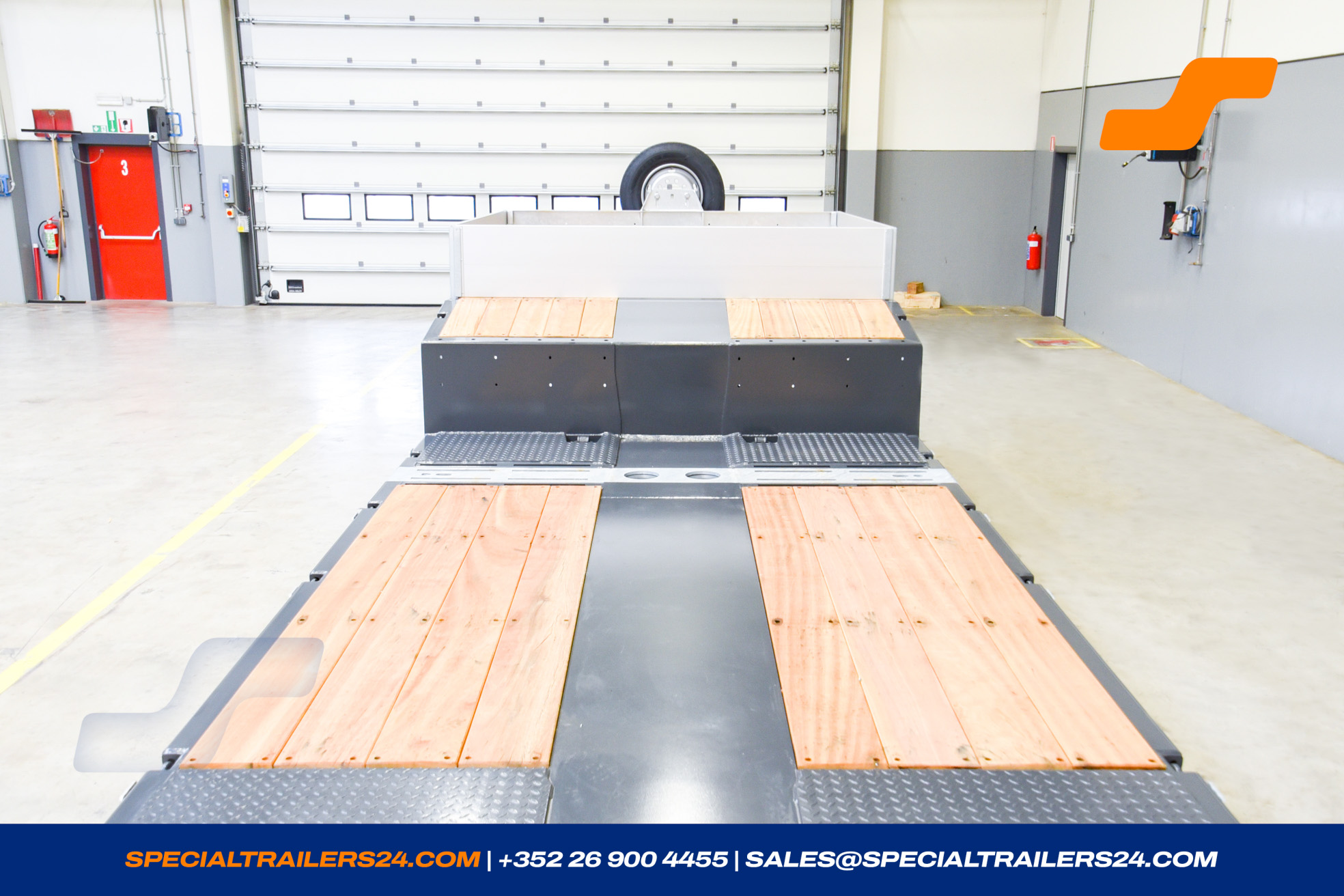

Loading platform
1 x Loading platform

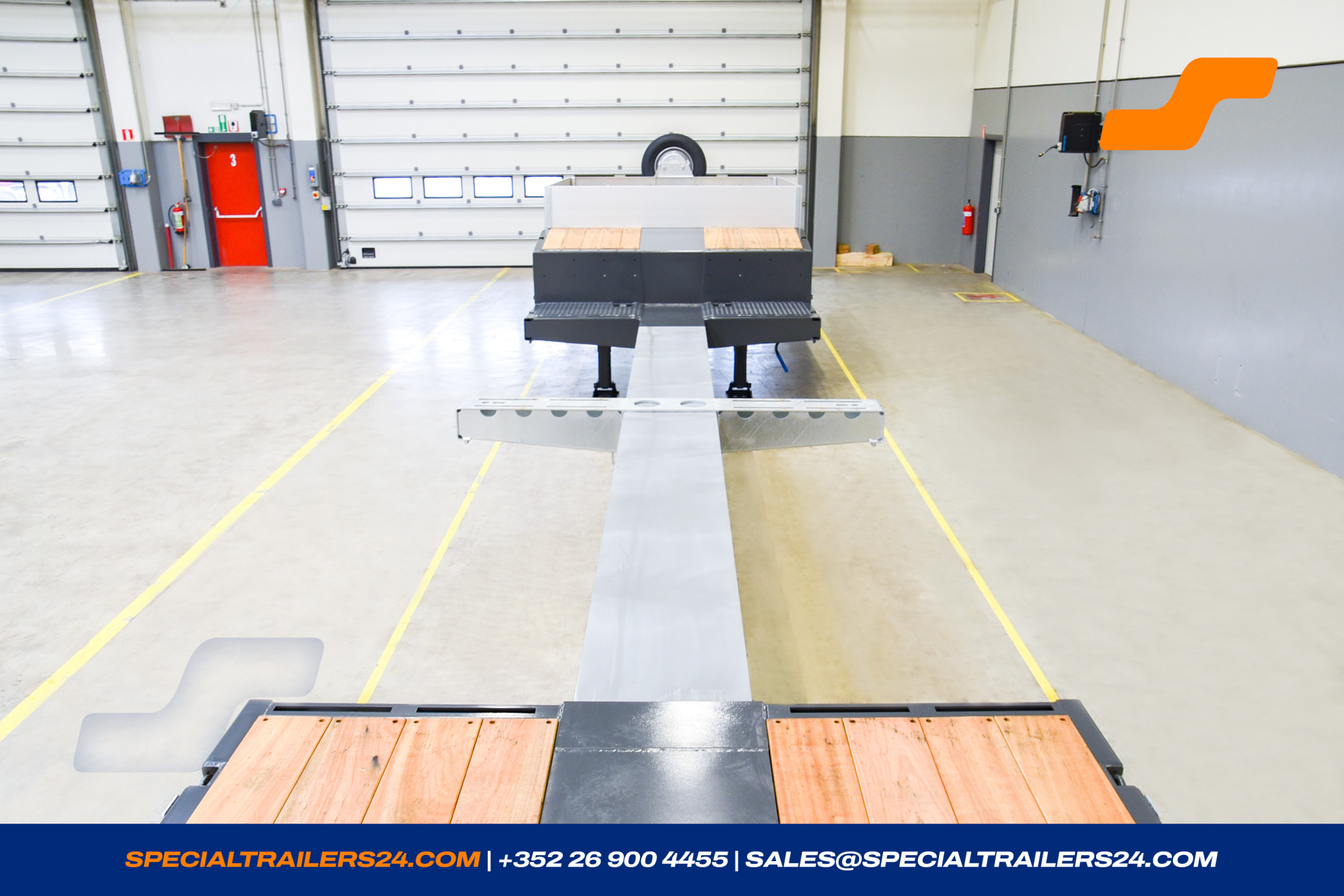

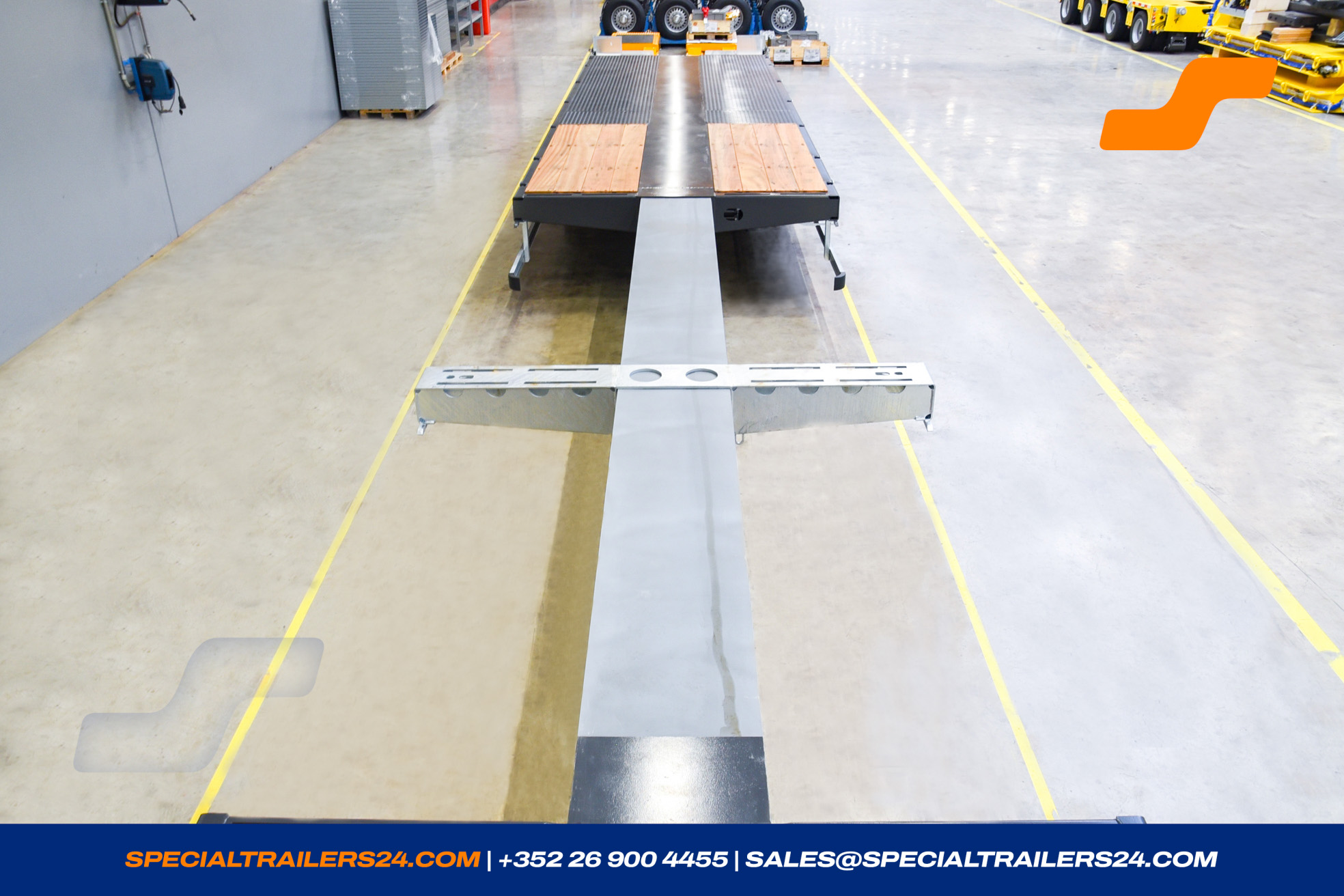

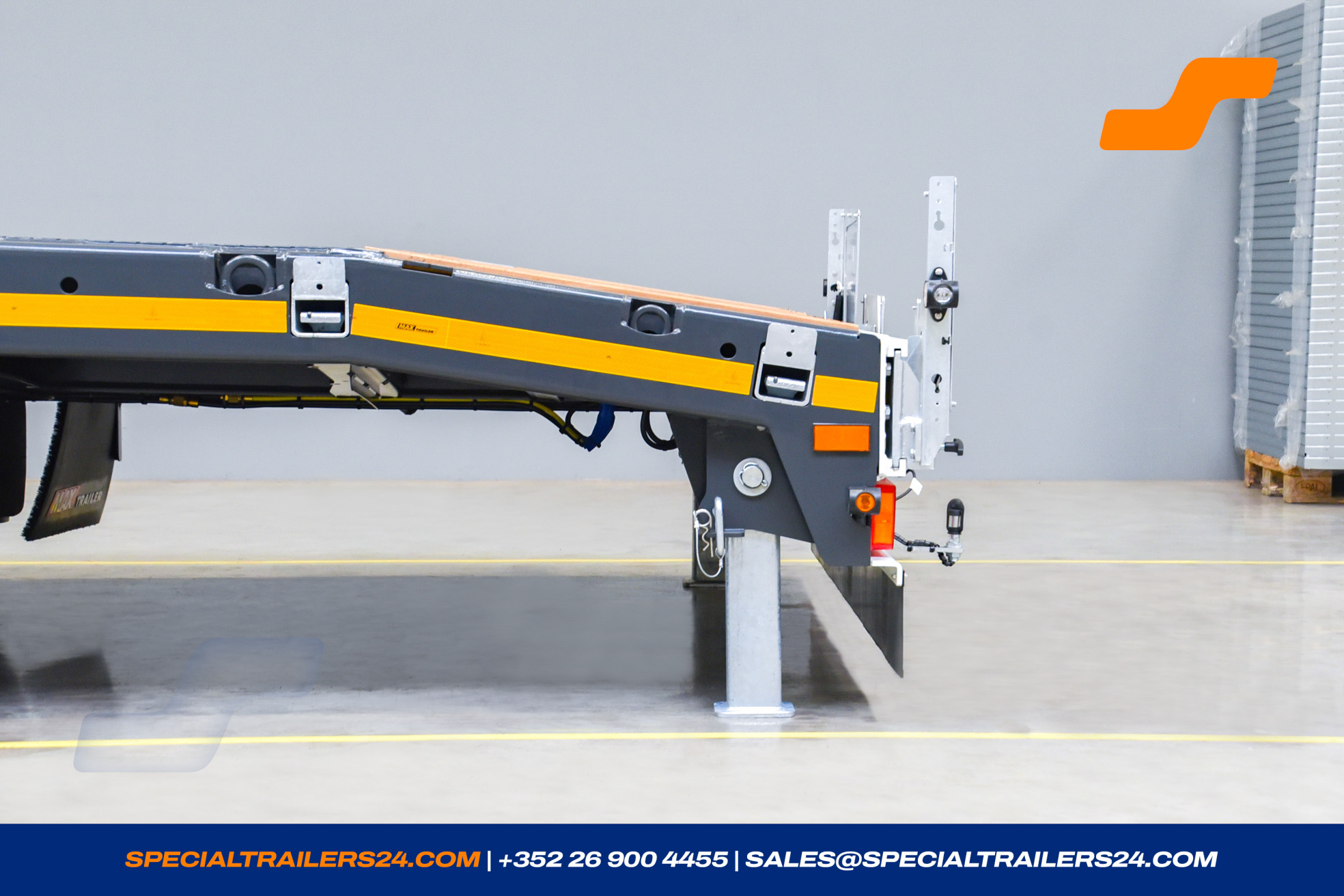

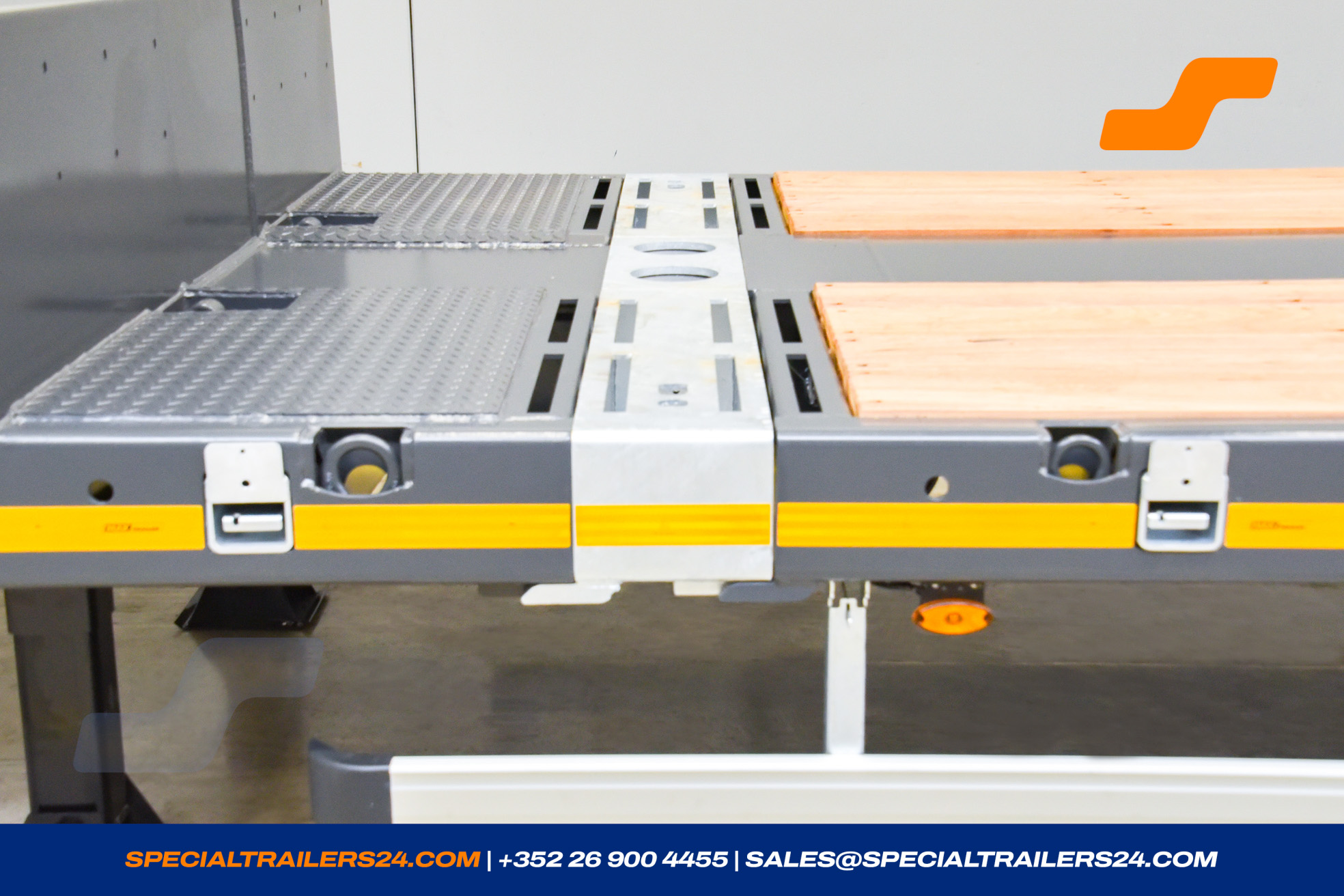

Loading platform in extendable version with chamfered beaver tail by about 1 000 mm x 8°.
6 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).

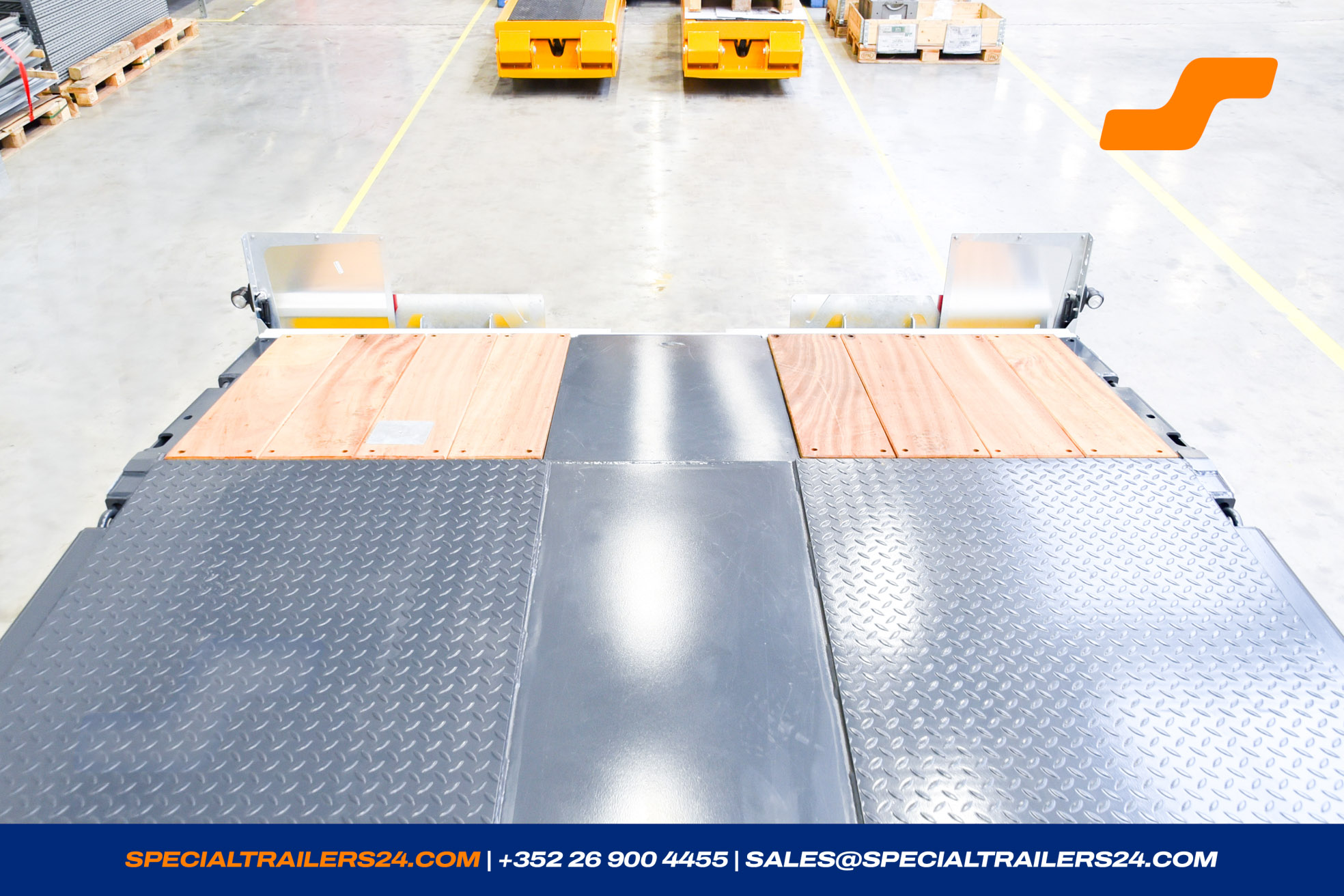

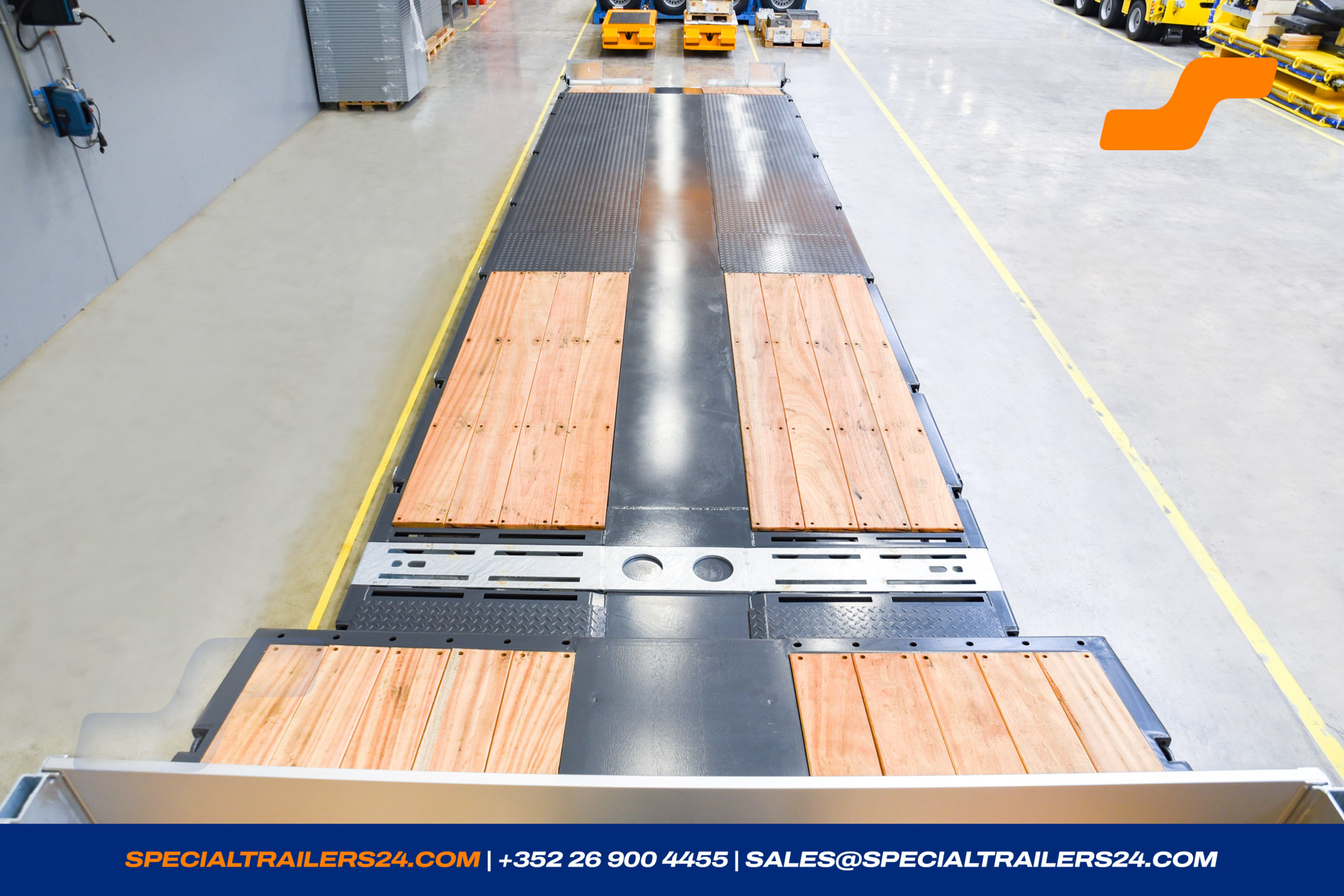

Hardwood cover thickness 48 mm above the axles chequer plate.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

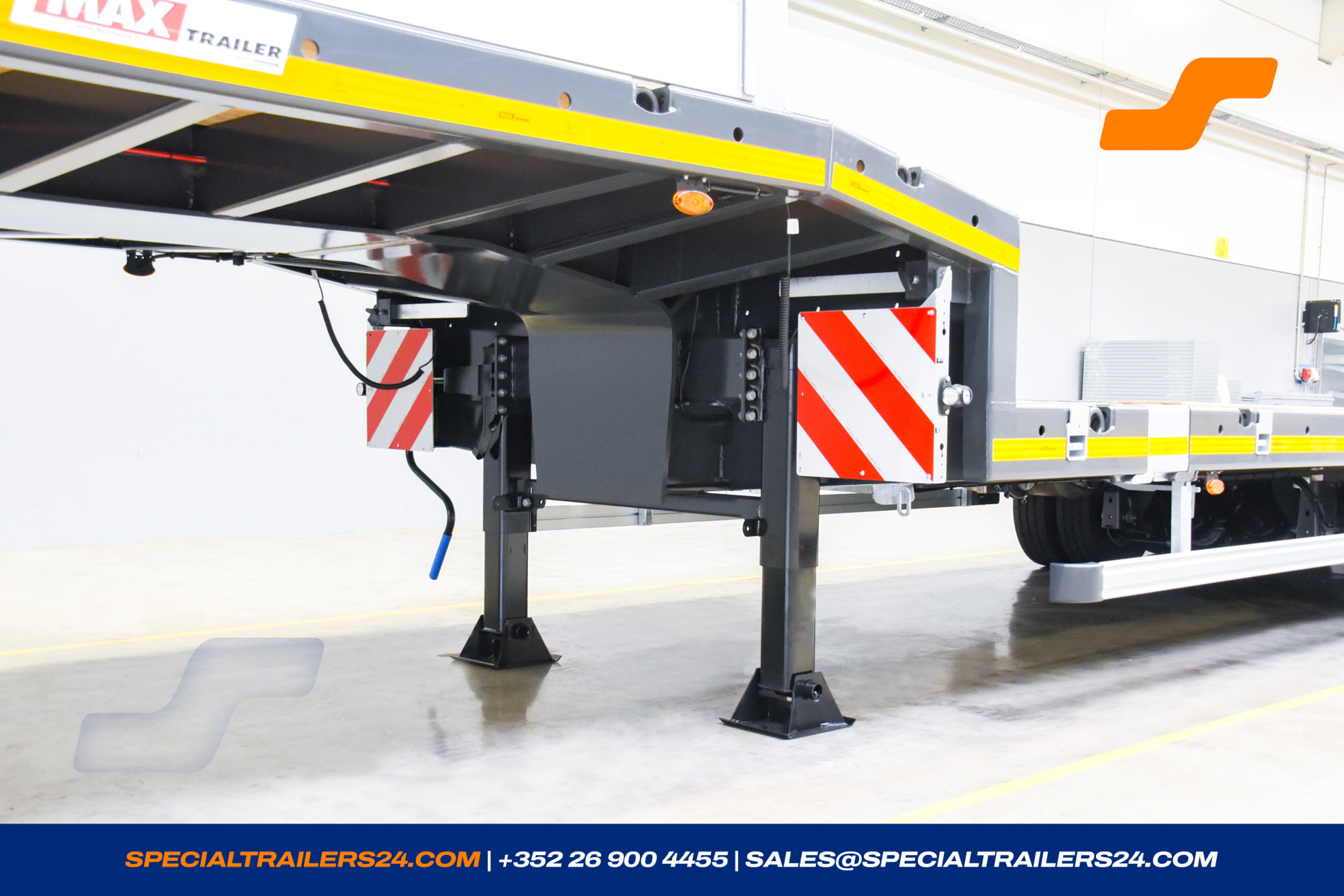

- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Profile as hook on device for alu-ramps at the rear.
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

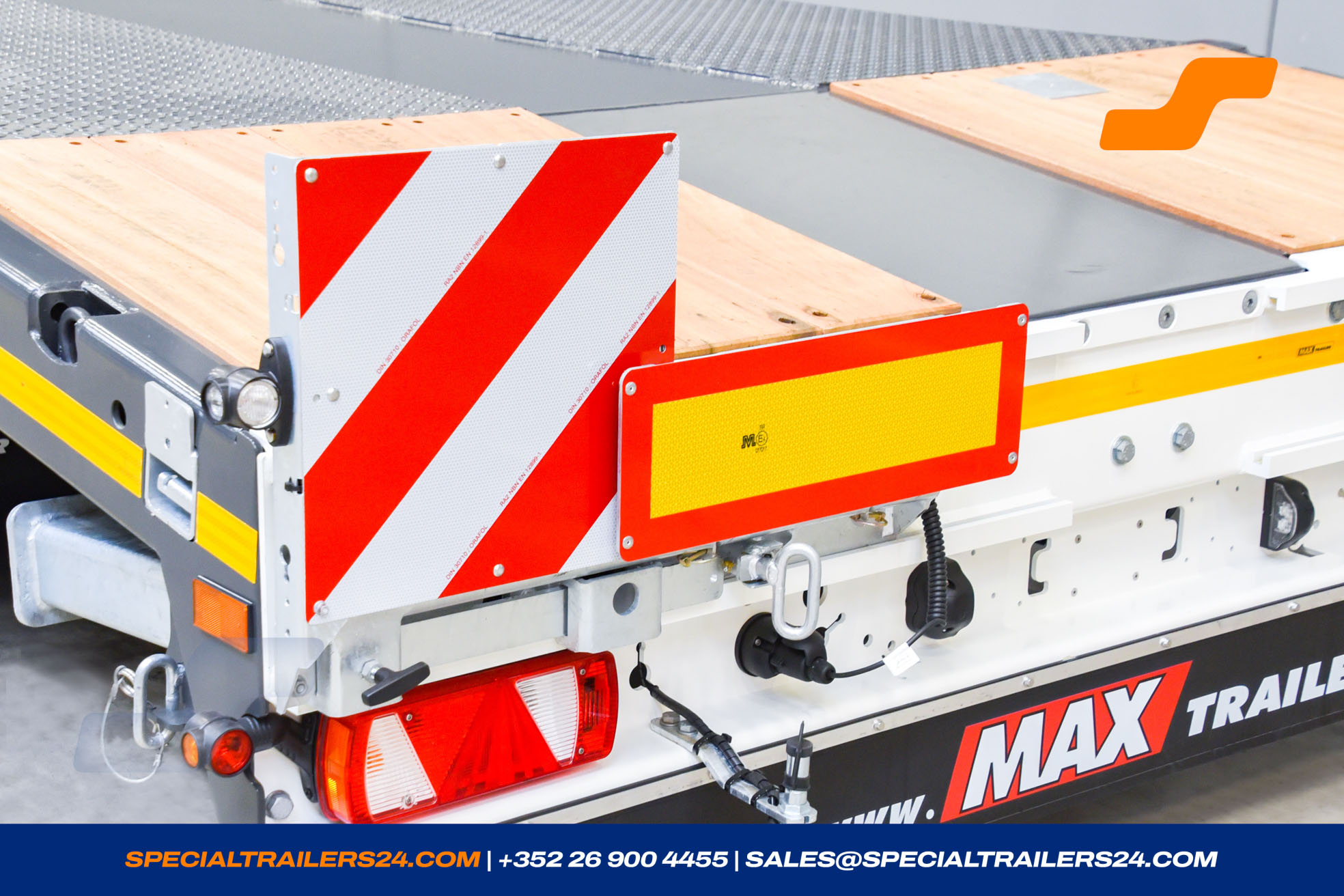

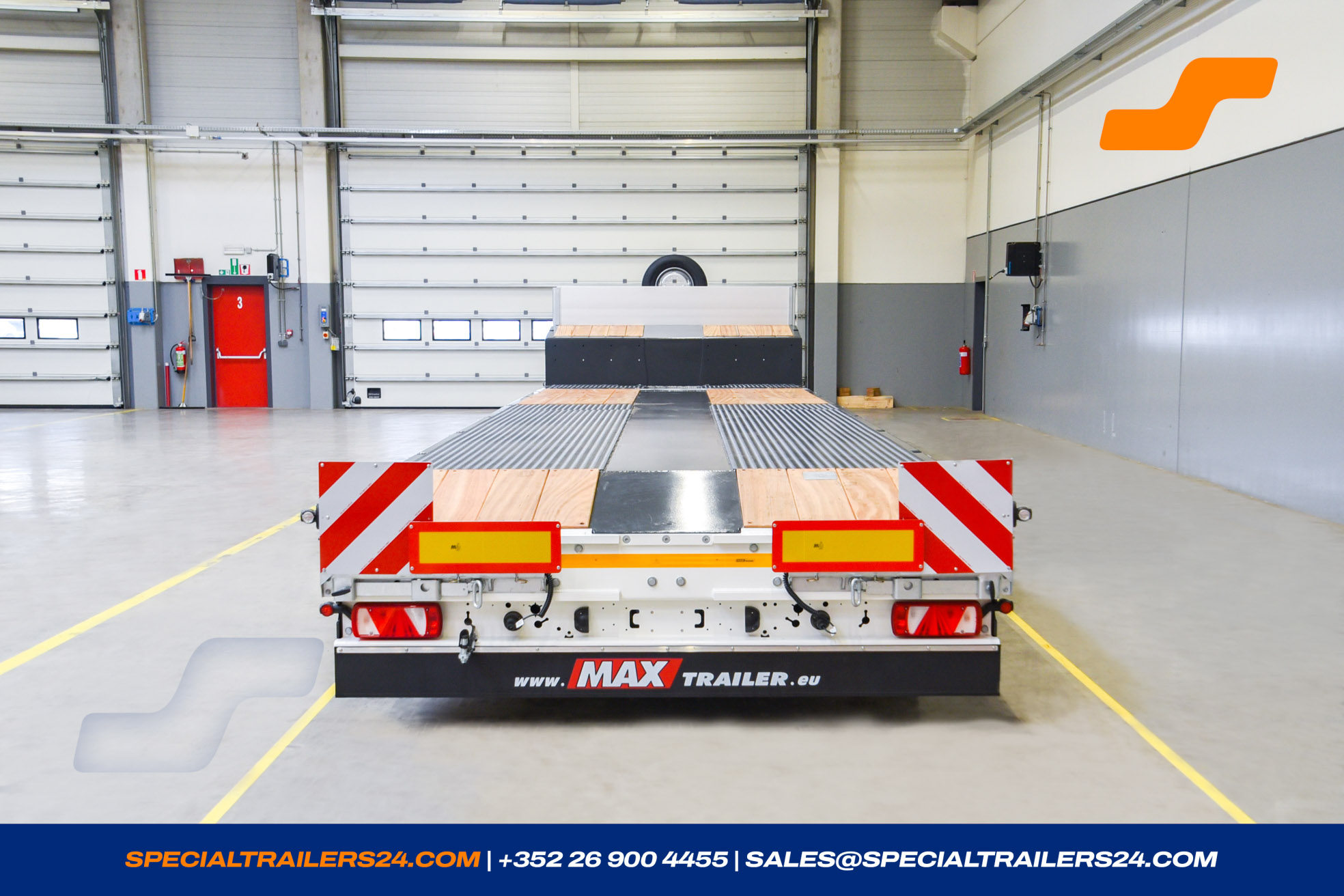

- 4 warning boards ± 423 x 423 mm, extendable by ± 900 mm with 1 LED position light. (± 39 kg)
- On the warning boards a holder to put a flashing beacon.
- 3 pairs of WADER containerpockets in the loading platform for one 20', (30') or 40' container. (± 30 kg)
- 2 pairs of WADER-containerlocks (± 30 kg).

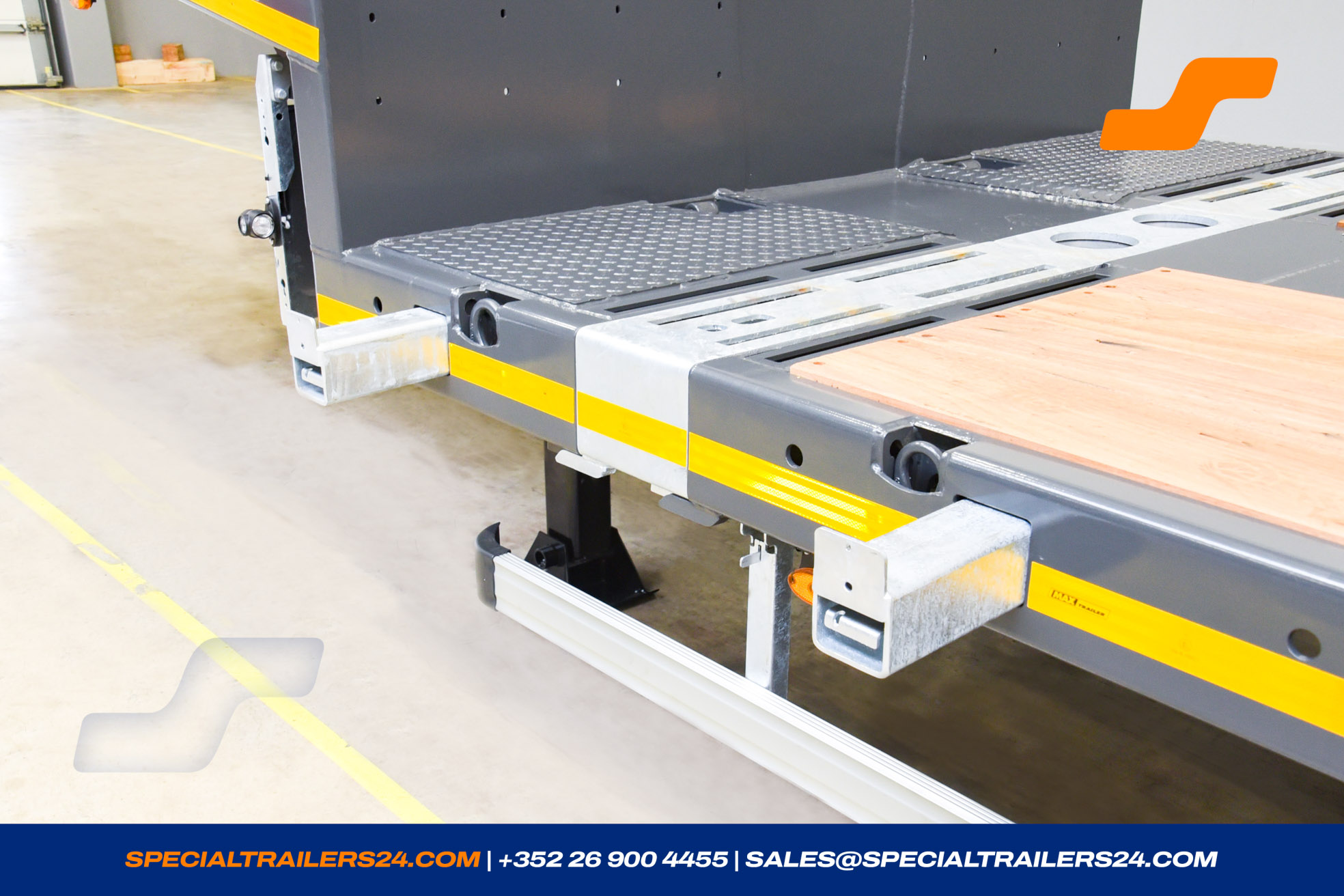

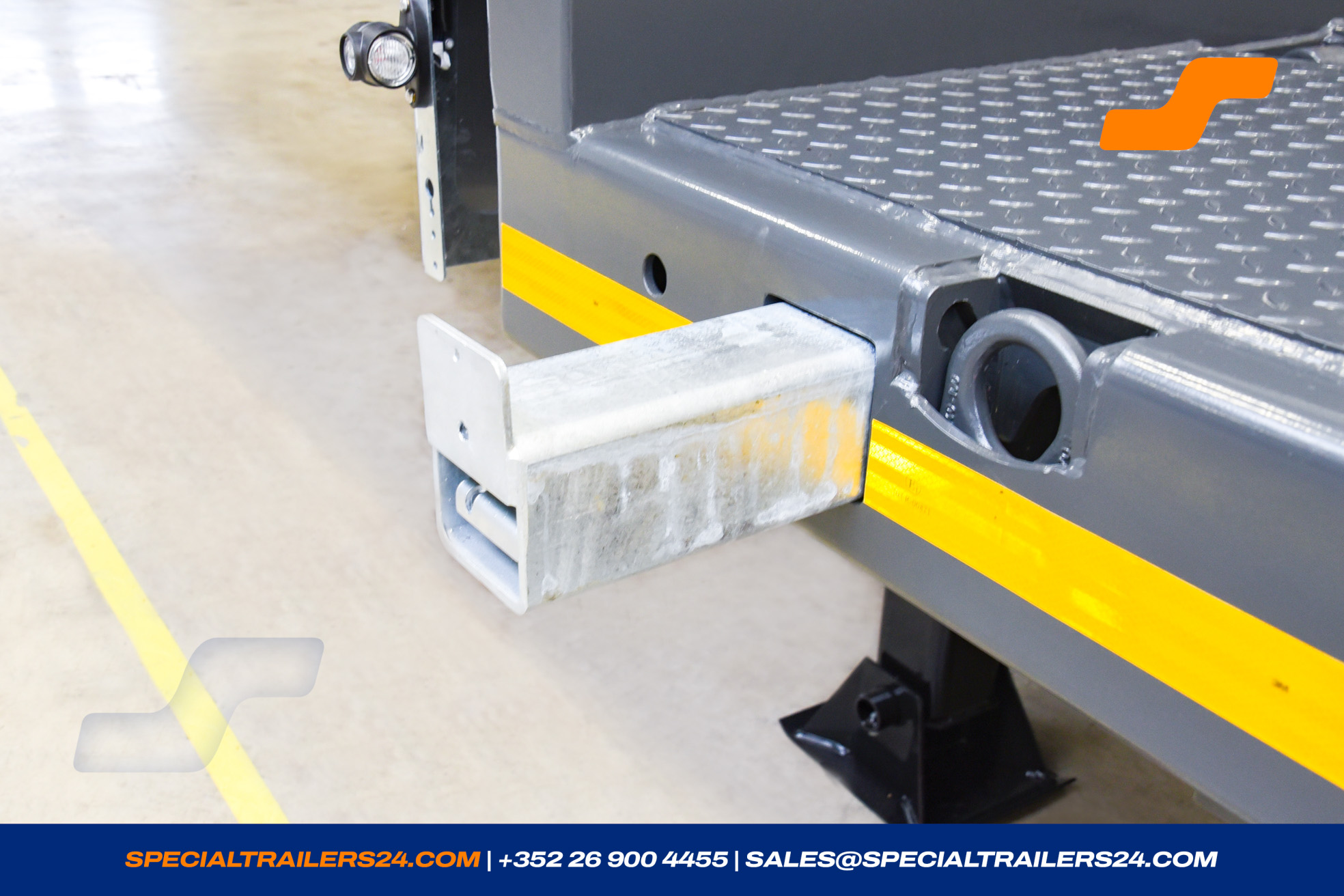

- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
- 6 pairs of galvanised stakes ca. 100 x 50 mm, height 1000 mm (± 132kg).
- Galvanised storage on the left under the loading platform. (± 60 kg)
-

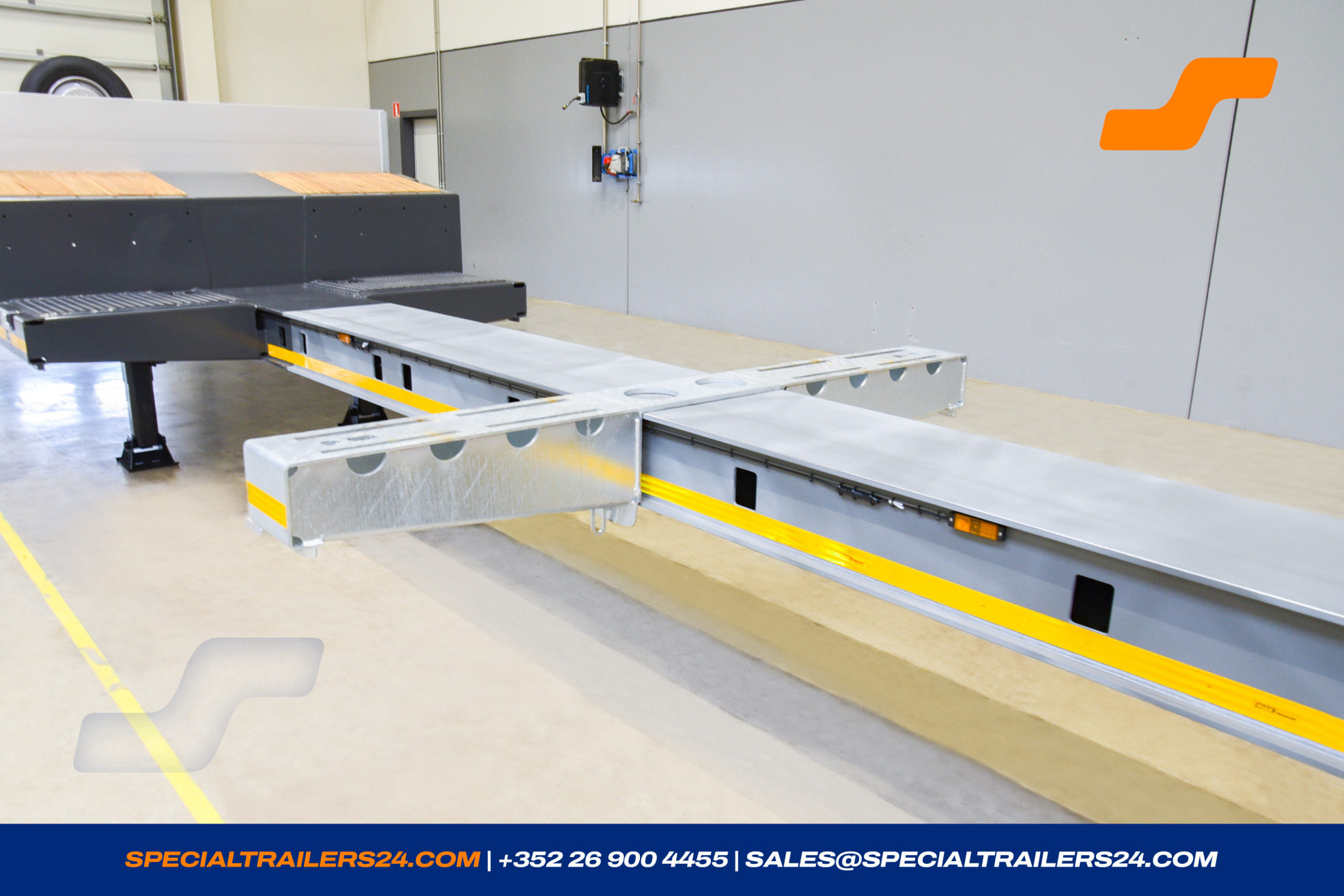

One galvanised trestle for the loading platform at the same height as the gooseneck, with one pair of galvanised stakes ca. 100 x 50 mm.
Capacity: 20000 kg
(± 110kg) -
1 pair of alu ramps VFR 120 ± 2350 x 450 x 120 (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 9500 daN (Kp)
by axle distance 2.0 meter : 12000 daN (Kp)
single axle 5500 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 55 kg (± 110kg) - Holder for alu-ramps, across, behind the axle bogie. (± 88kg)
- One lockable tool-box INOX 1500x390x810 under the loading platform in driving direction on the right side.(± 65kg)
- Galvanized compensating wedges for chamfer 1000 x 8°. (± 76kg)
- 2 LED- reversing lights at the rear.
- Speed sticker 80 km/h at the rear and on both sides.

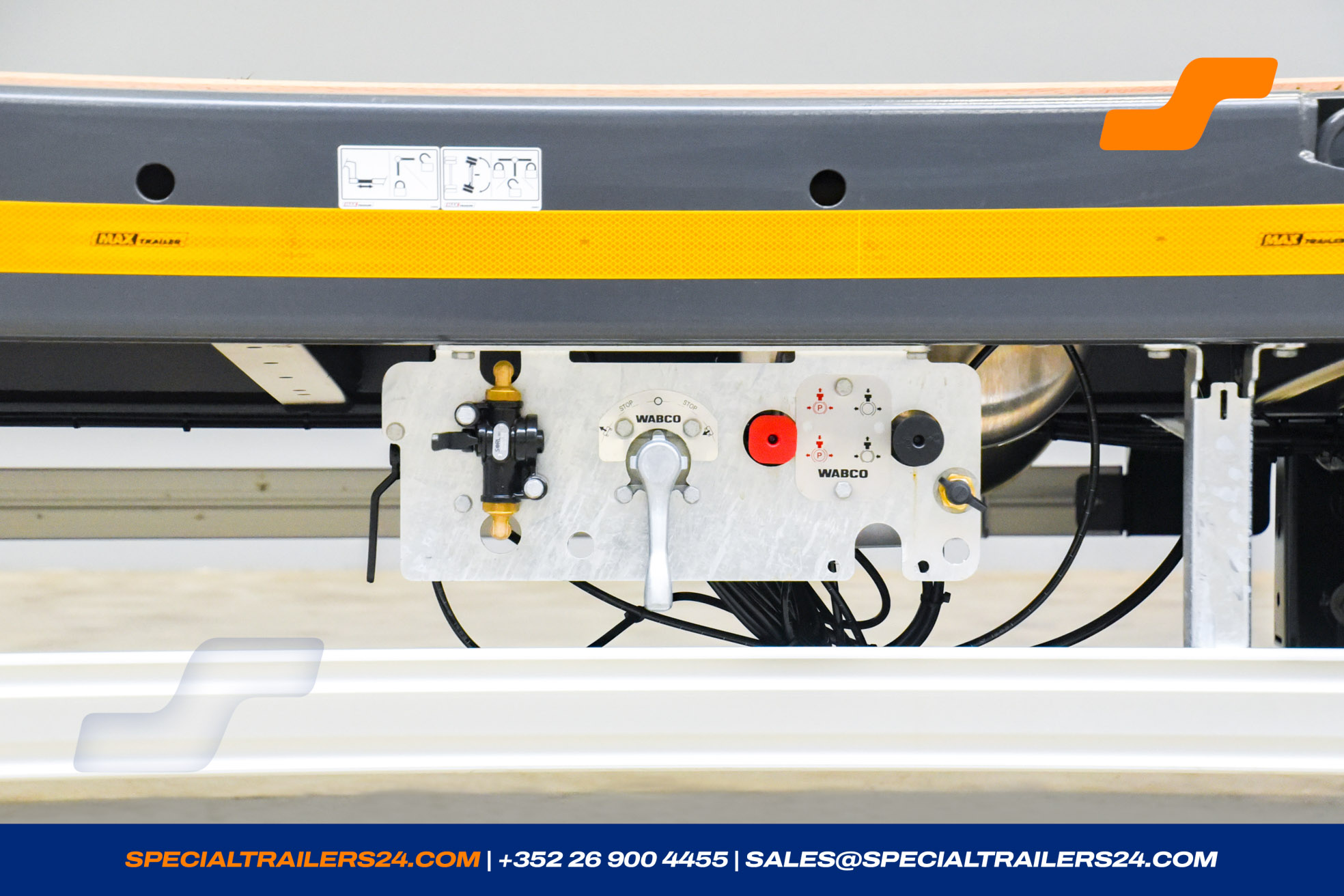

- Load manometer for determining the axle load, including load diagram.
Accessories
1 x Accessories
- Manual and description on USB stick .
- 2 LED flashing beacons, provided separately.
- Delivery from a trailer to factory Lentzweiler.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer.
