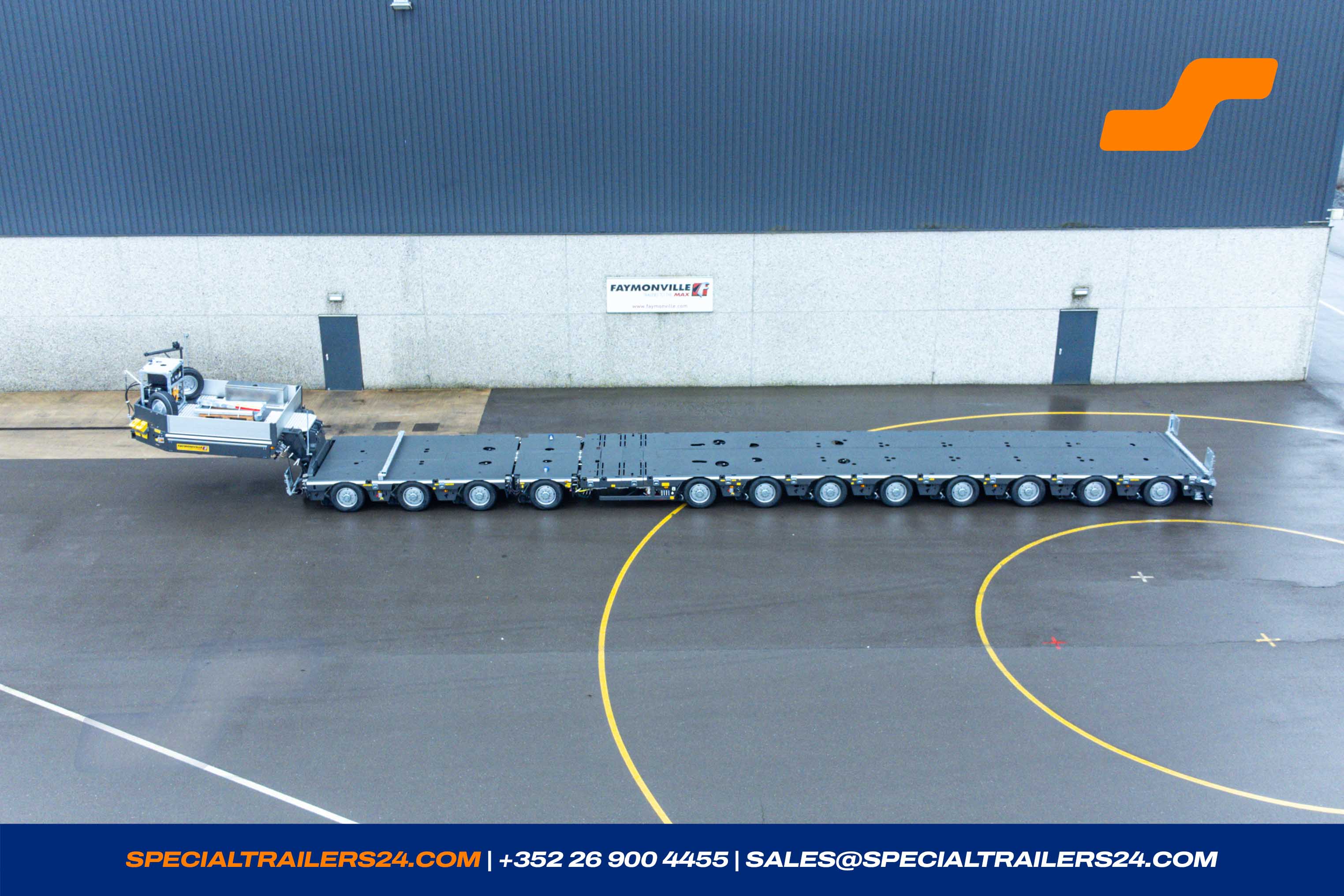

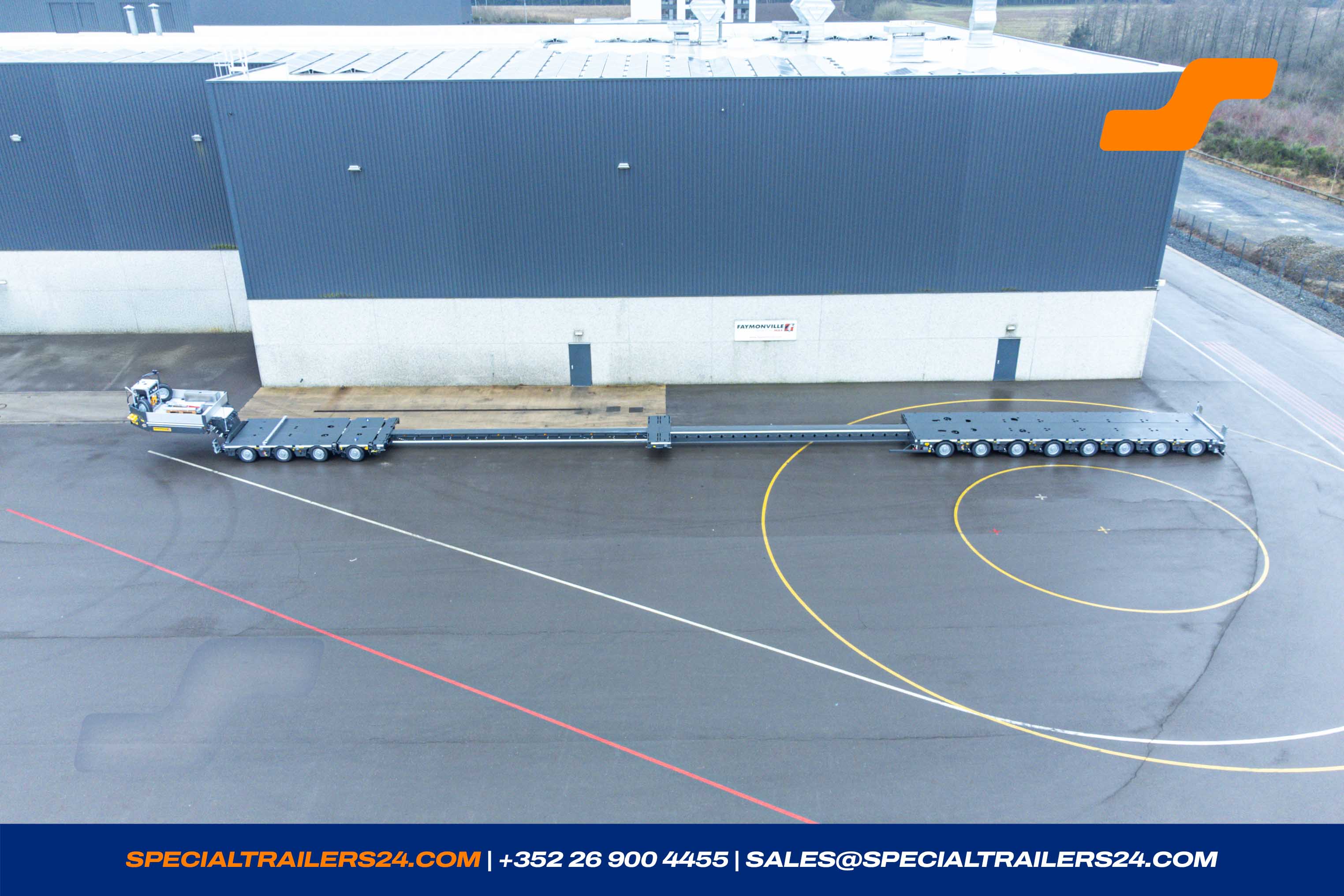

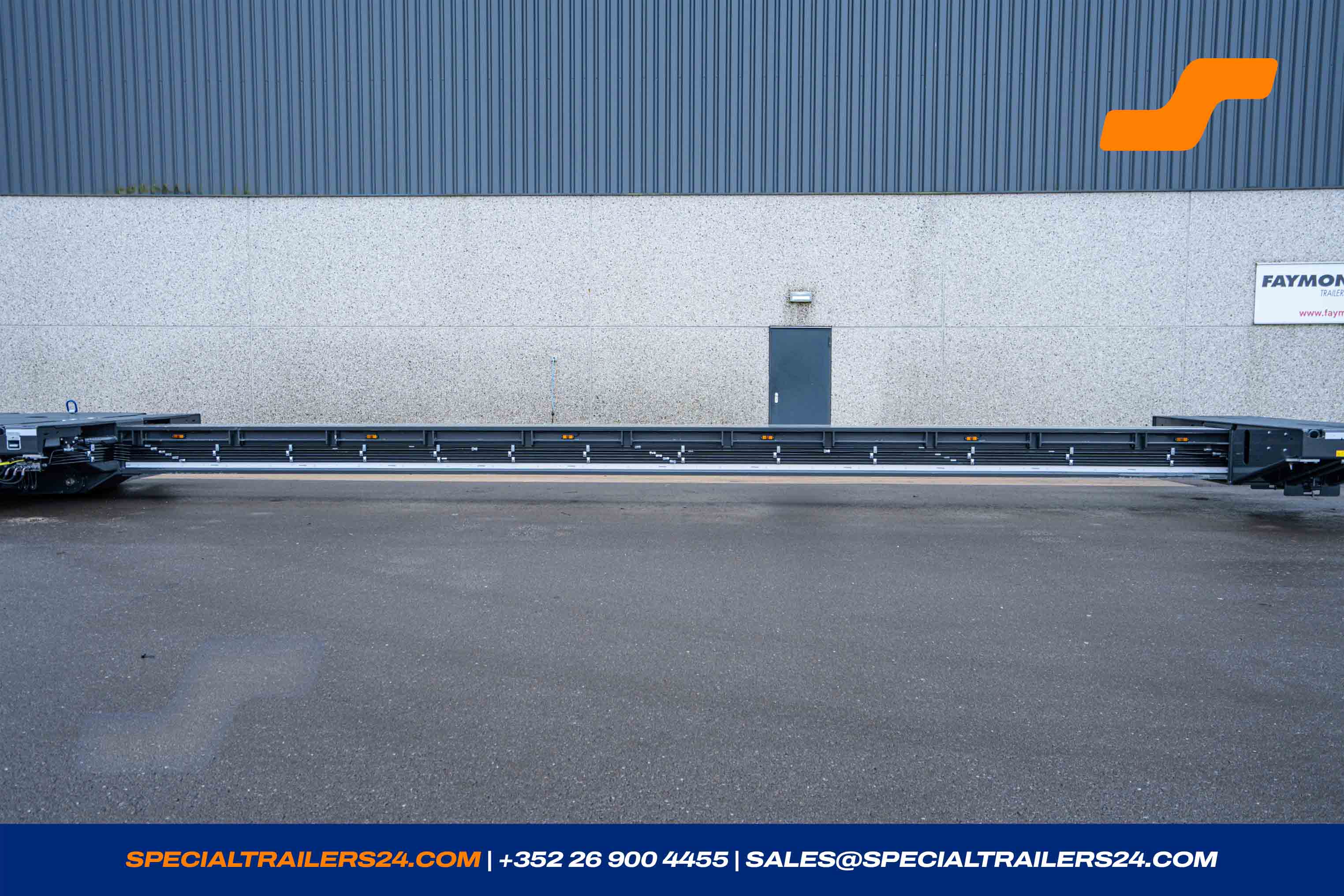

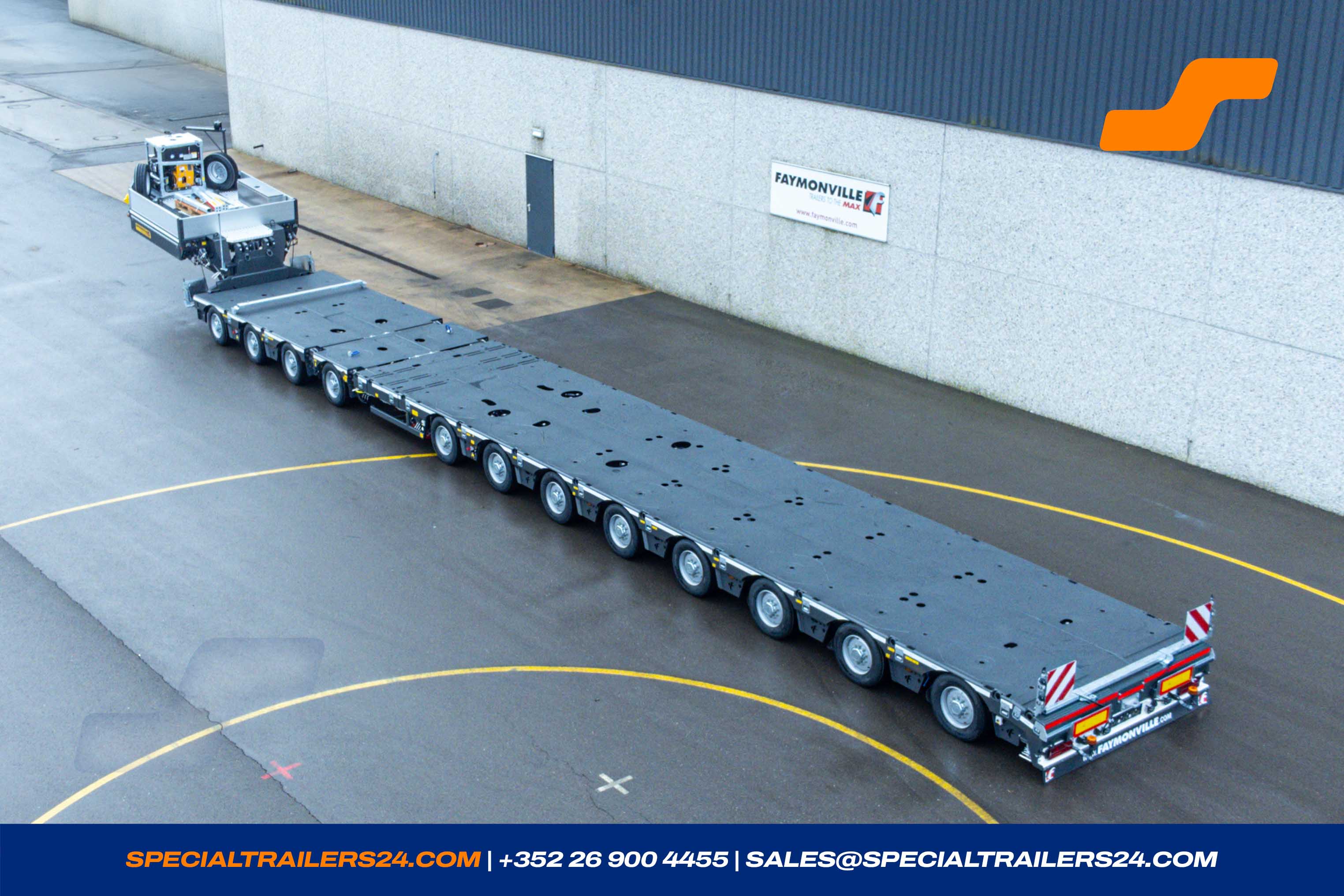

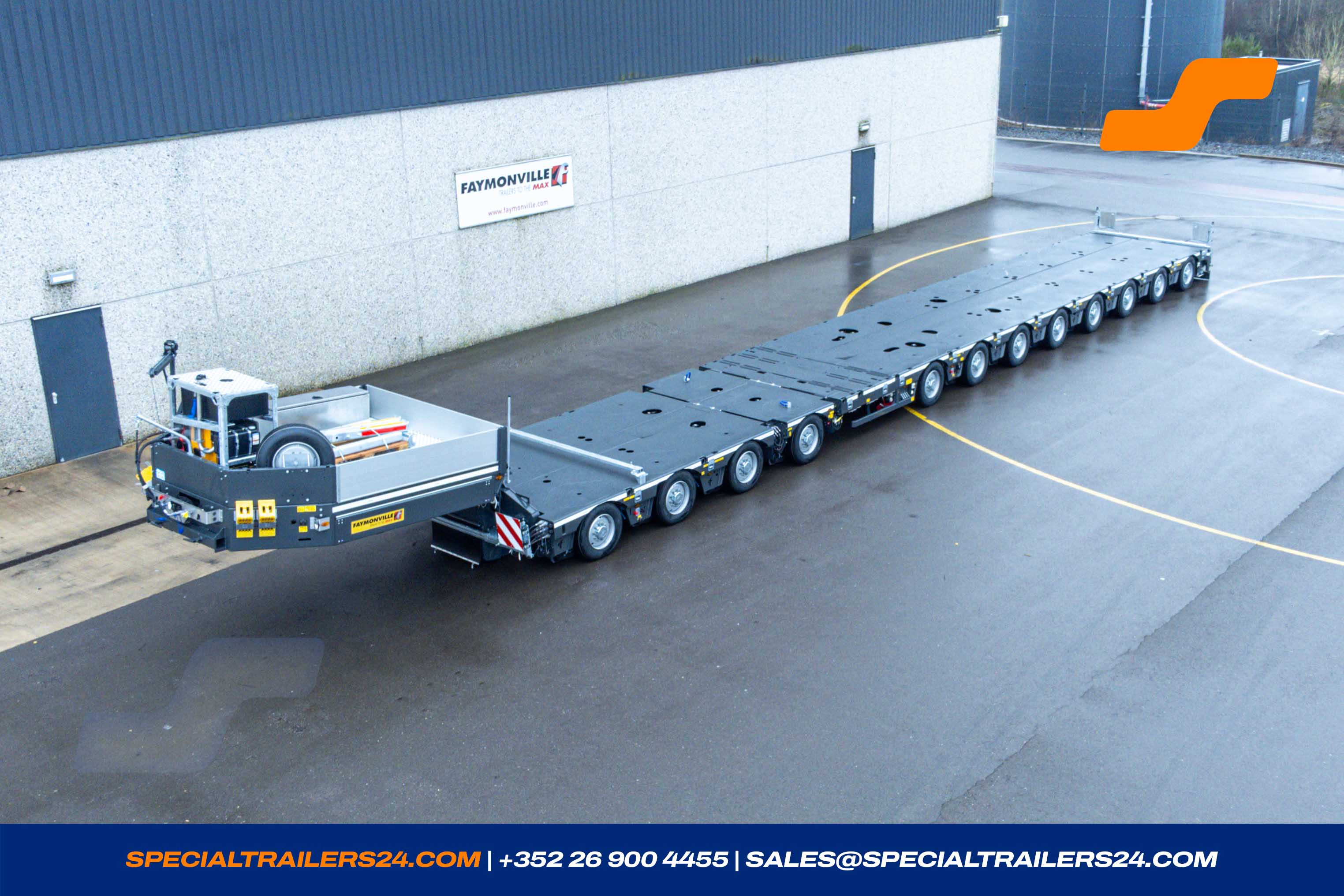

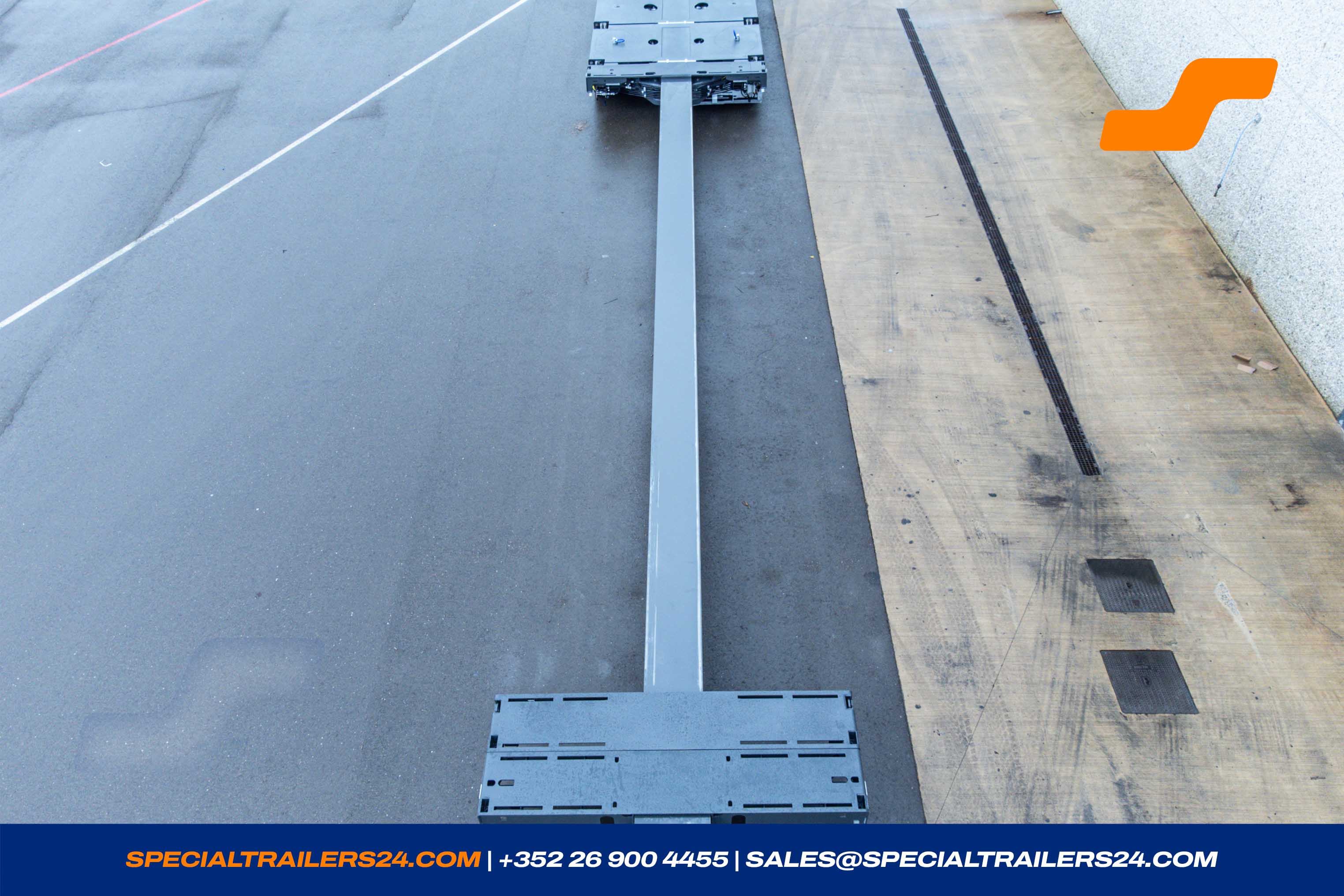

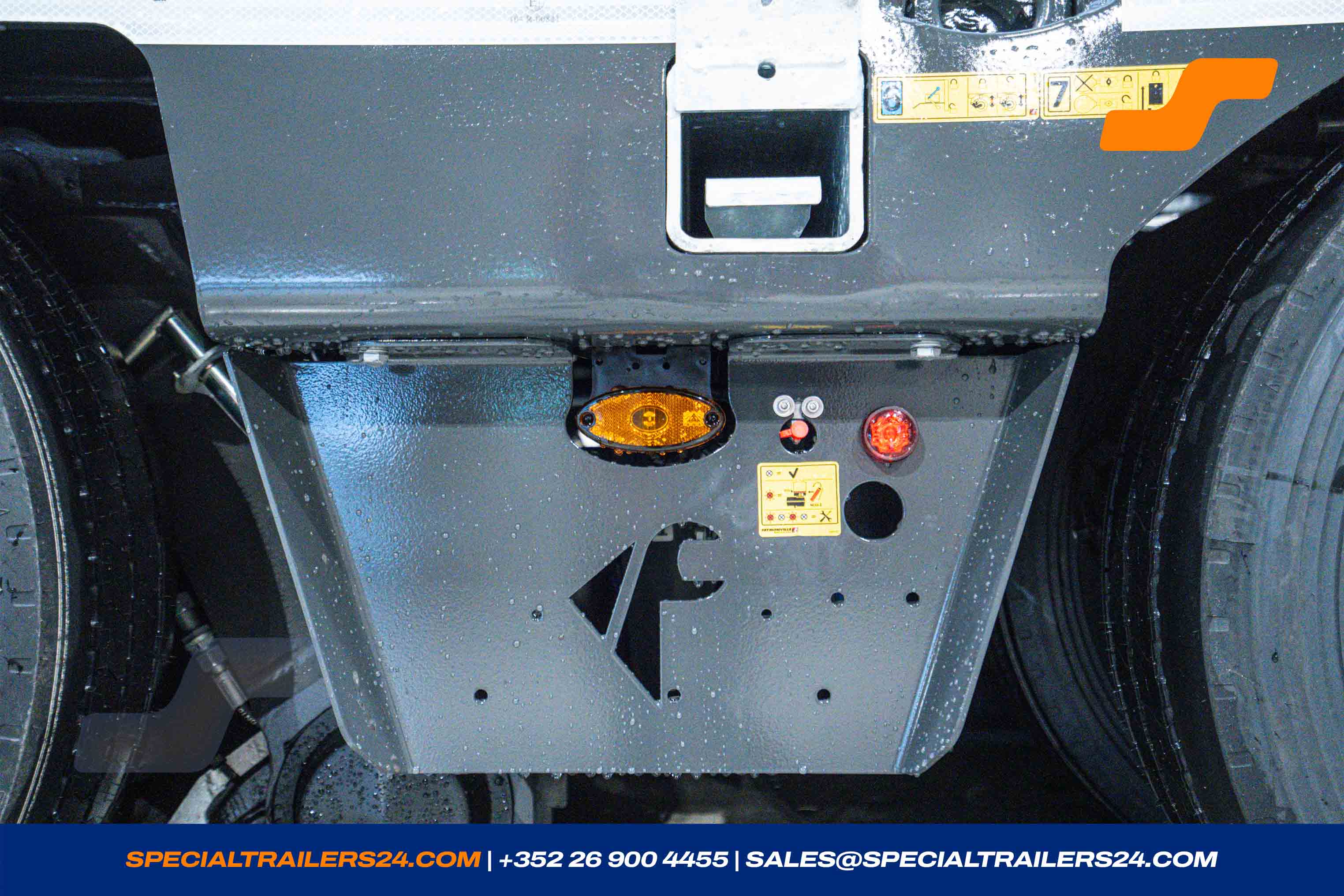

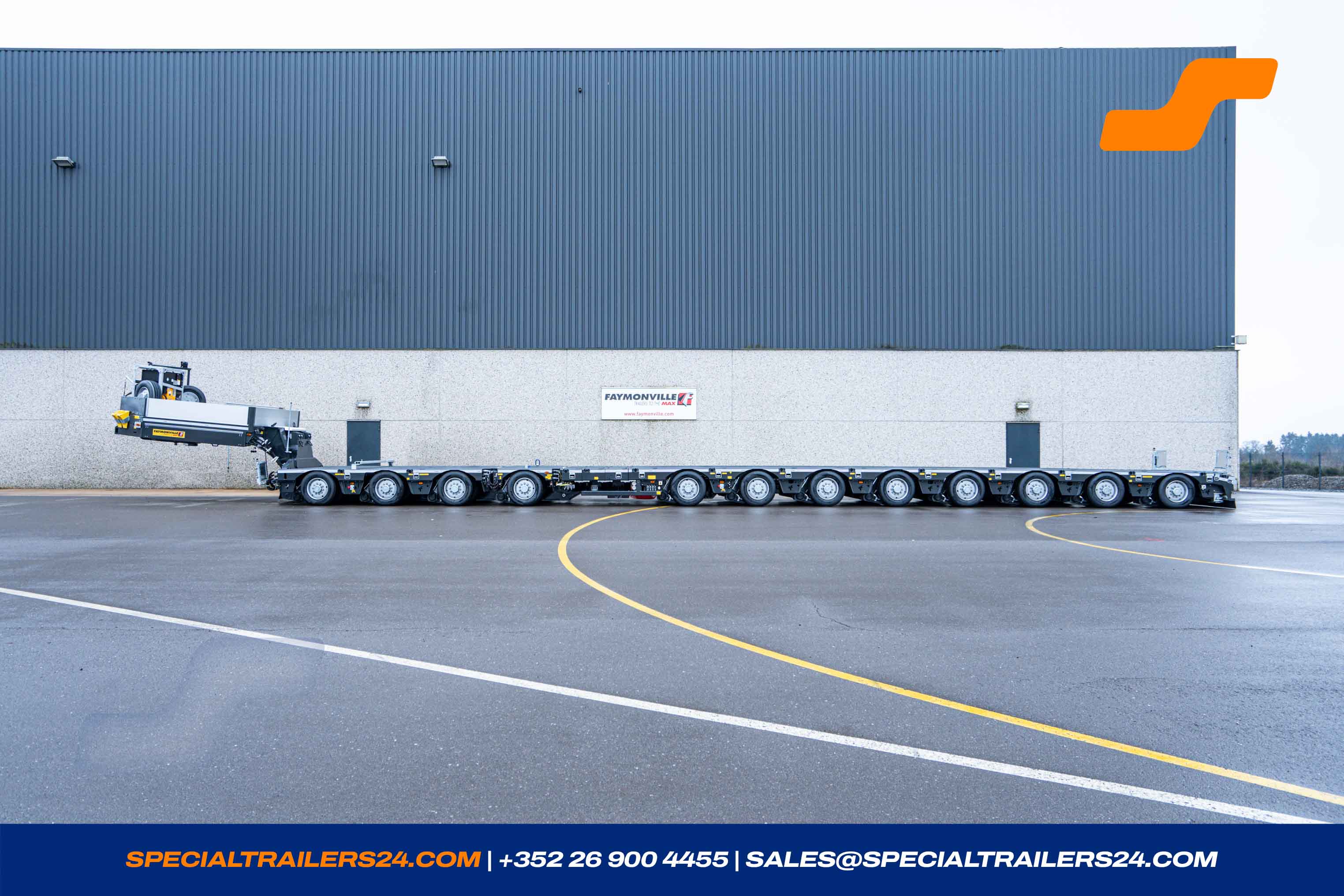

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110365
- Reference MAX100-N-3-8.60-U
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 31500 kg |
| Gross weight | 49500 kg |
| Tare weight +- 3% | 9197 kg |
| Payload | 40303 kg |
Dimensions
| Fifth wheel height loaded | 1250 mm |
| Gooseneck length | 3 850 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 8 600 mm |
| Extendable by | No |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 860 mm |
| Total width | 2 540 mm |
| Suspension stroke | -55/ +145 mm |

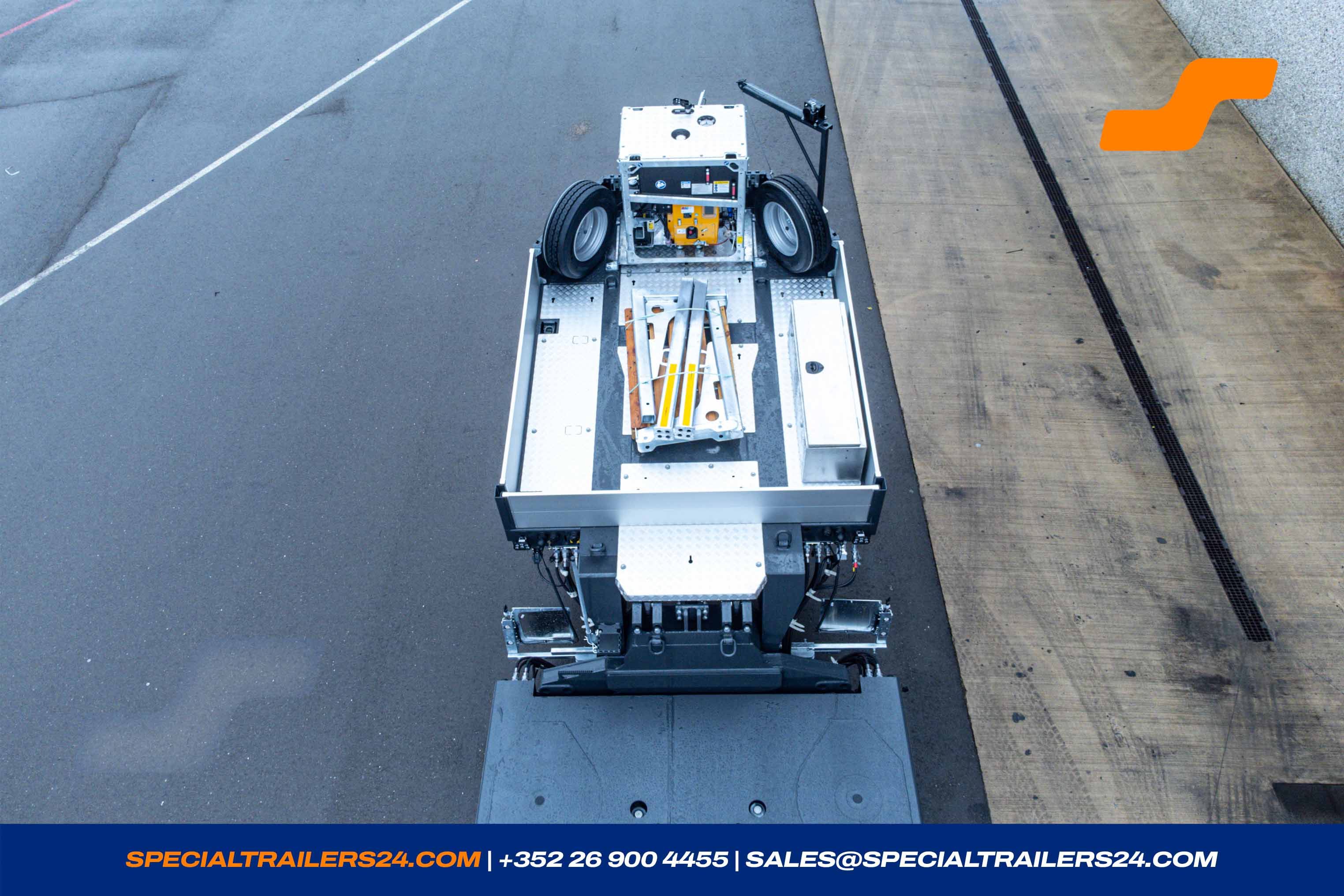

Gooseneck
1 x Gooseneck
Gooseneck with chamfered corners ± 45° in front and rear chamfered by ± 750 mm x 10°.
3 pairs of lashing rings (LC 5 000 daN).
Hardwood cover thickness 30 mm.
- King pin 2
- One galvanised steel headboard, height ± 400 mm.
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier on the headboard.
-
On the gooseneck removable sideboards and rearboard in alu ca. 2 400 x 400 mm (L x H).
The galvanised rear stakes are dismountable.
(Length of the structure ca. 2 560 mm) (± 46kg). - 1 galvanized toolbox integrated in the charmfered gooseneck (± 47 kg).
Loading deck

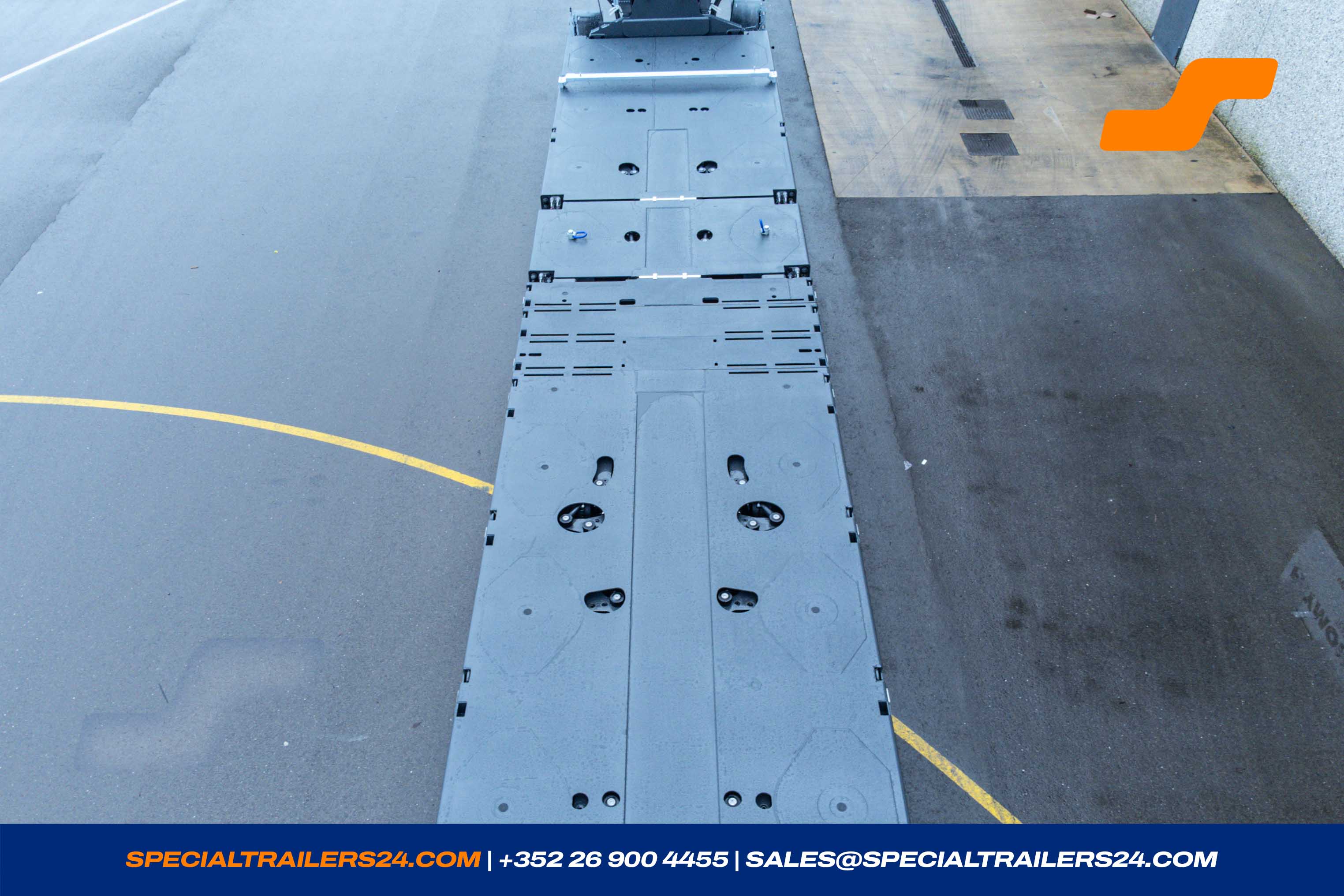

Loading platform
1 x Loading platform
Loading platform with chamfered beaver tail by about 1 000 mm x 8°.
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).
4 pairs of lashing rings in the loading platform, hinged outward (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outward (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
Hardwood cover thickness 48 mm above of the axles chequer plate.
- Galvanised landing gears at the rear under the loading platform.
- Holder for one beacon light at the rear of the trailer.
- Cover plates to bridge the clearance between ramps and loading area (± 17kg).
- Yellow reflective tape according to the EU regulation over the entire length and at the rear.

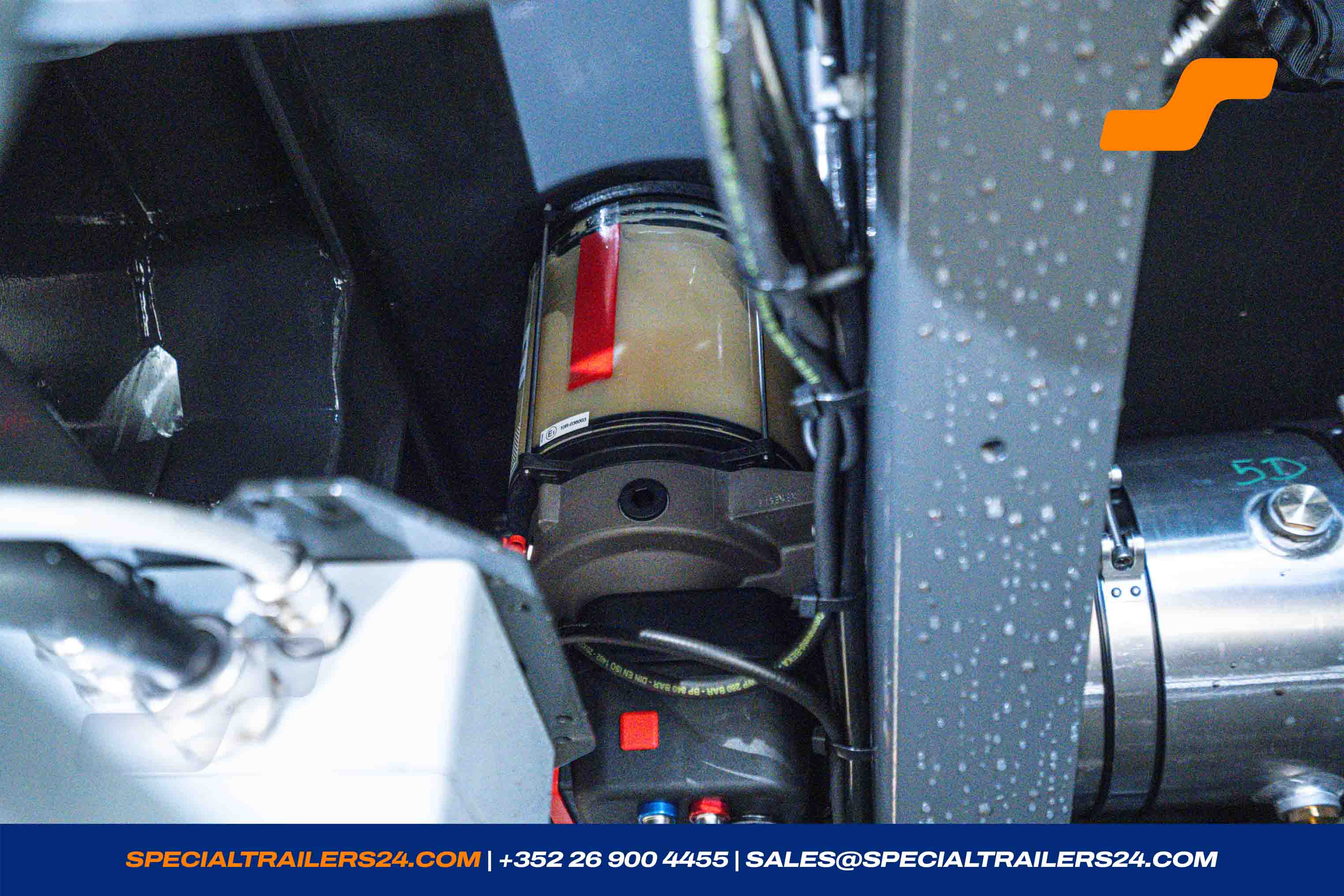

- Electrically operated hydraulic pump at the rear under the loading platform (± 45kg).
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.

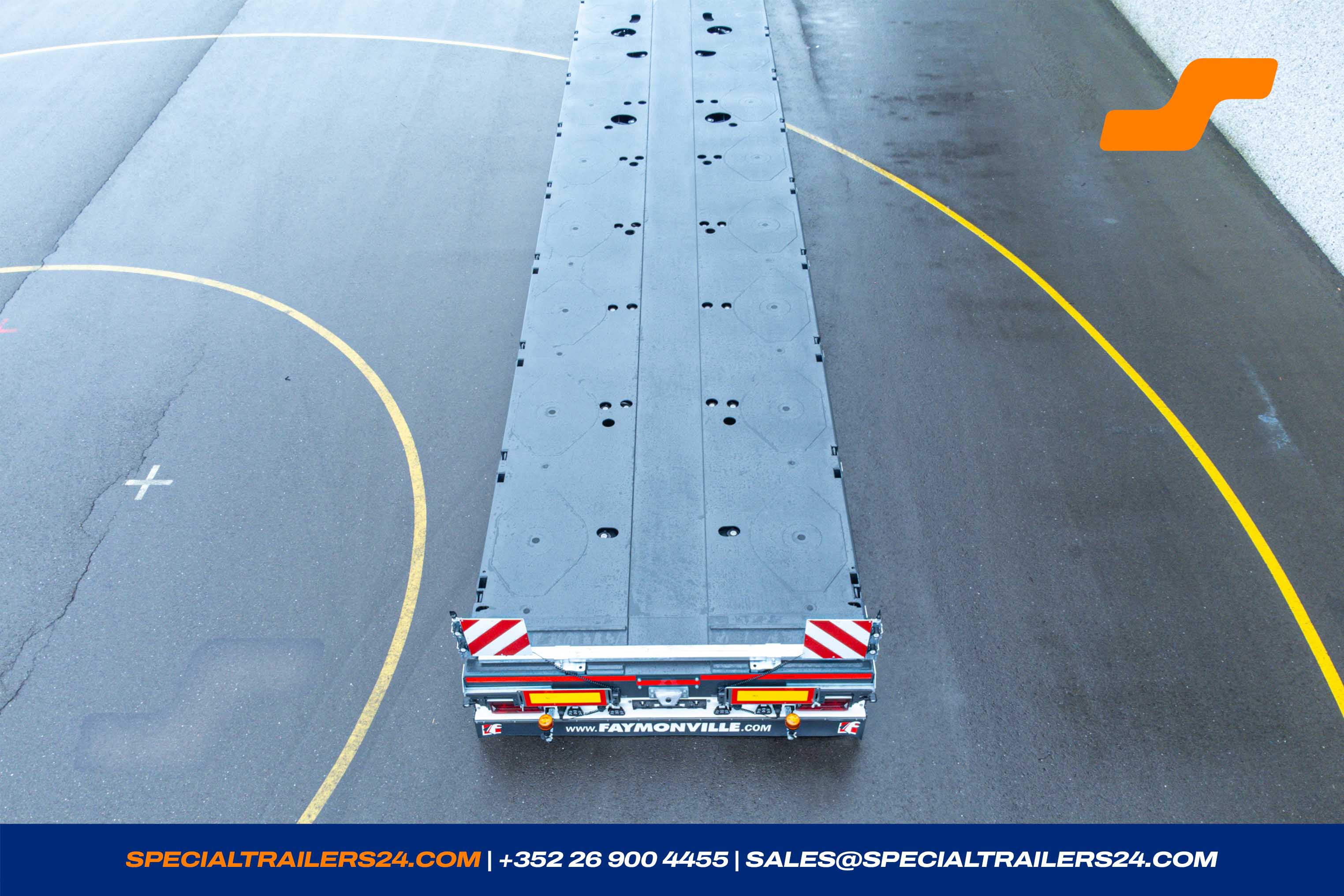

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- 2 pairs of WADER containerpockets in the loading platform for one 20' container (± 20kg).
- 6 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform (± 18kg).
- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).
- Galvanised storage for timber, left and right under the loading platform (± 100kg).
- 2 LED- reversing lights at the rear.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- Load manometer for determining the axle load, including load diagram.
Ramps
Hydraulic loading ramps
1 x Steel single piece ramps
1 pair steel single piece ramps galvanized ca. 3 000 x 800 mm with ca. 48 mm hardwood cover.
Ramps hydraulically operated and hydraulic side shift.
Maximal charge for one pair: 40.000 kg
- Operated valve for ramps mounted on the right side (± 4 kg).
Accessories
1 x Accessories
- Manual and description on USB stick .
- Assembly of the single ramps on the semitrailer.
- Delivery from a trailer to factory Lentzweiler.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110365
- Reference MAX100-N-3-8.60-U
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability Directly available
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000220
- Steering Type Friction
