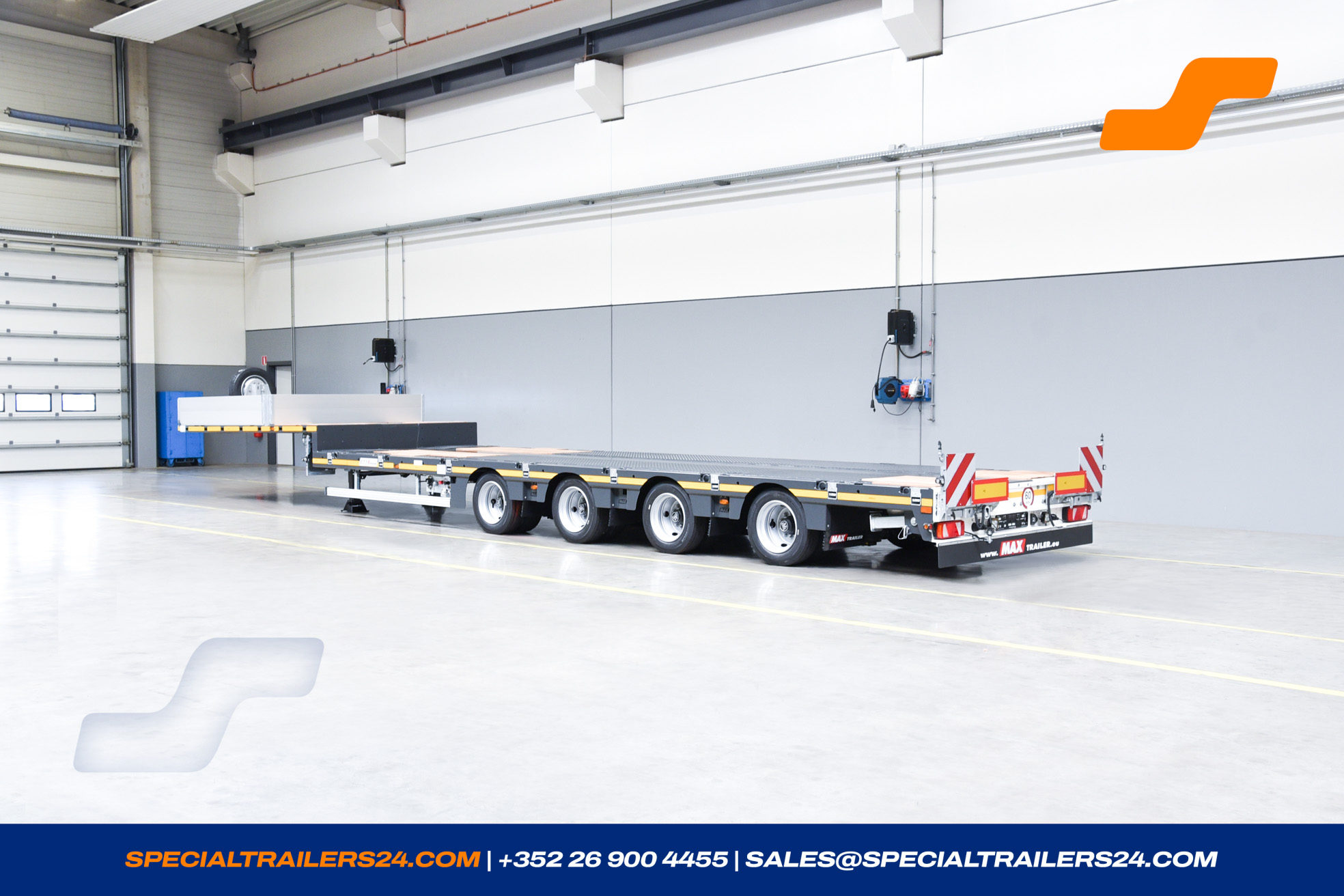

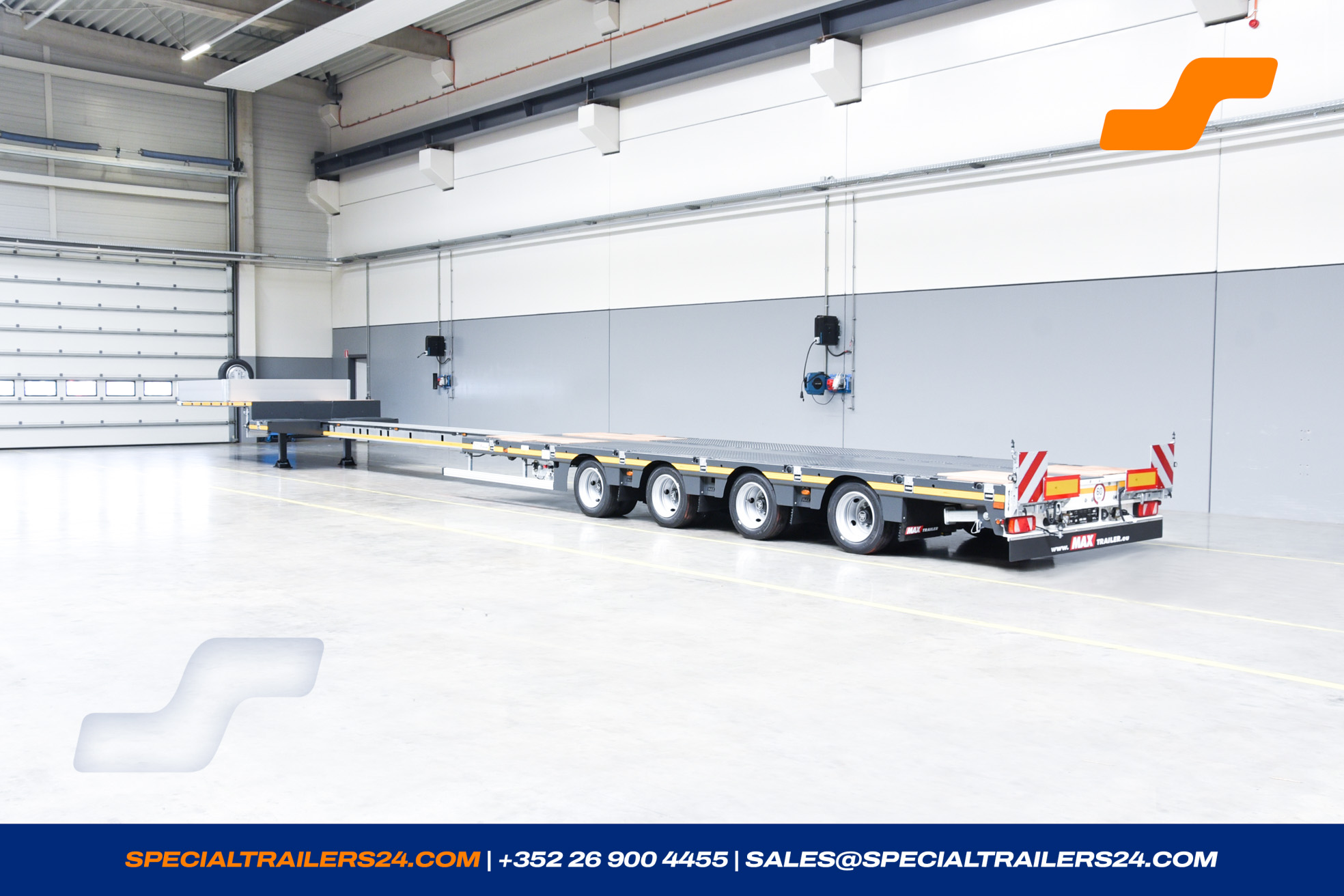

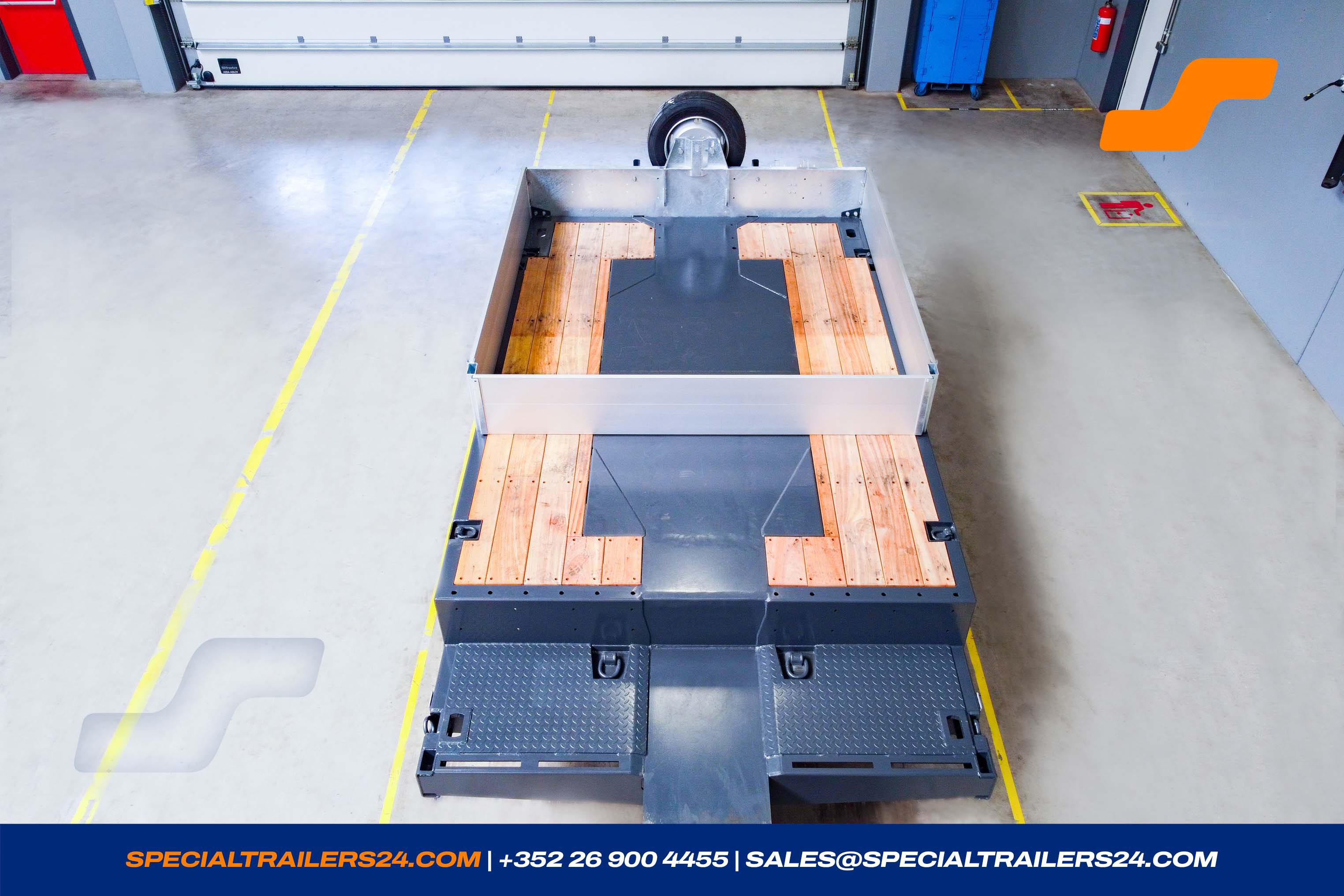

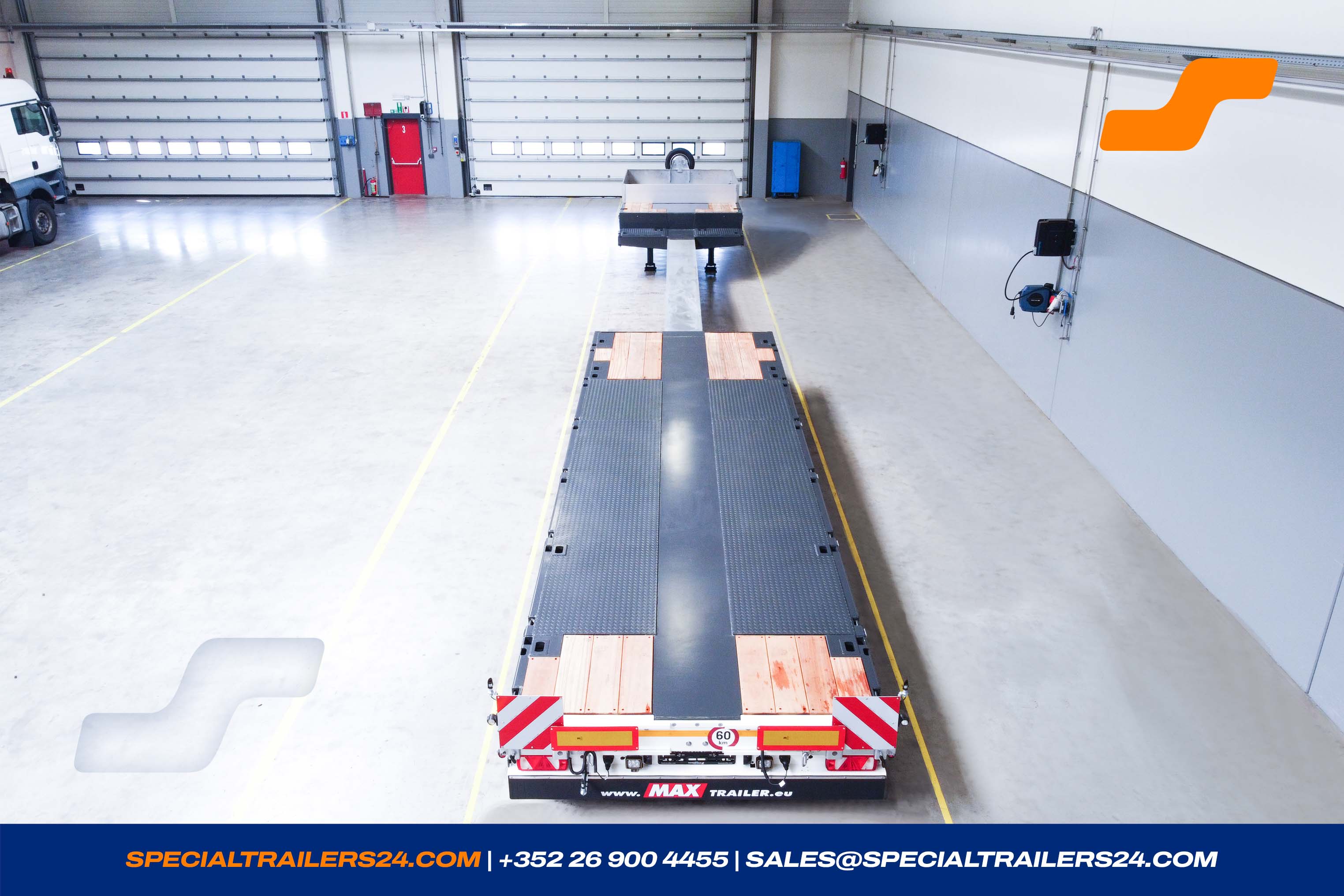

MAX Trailer MAX100
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110890
- Reference MAX100-N-4AX-9.30

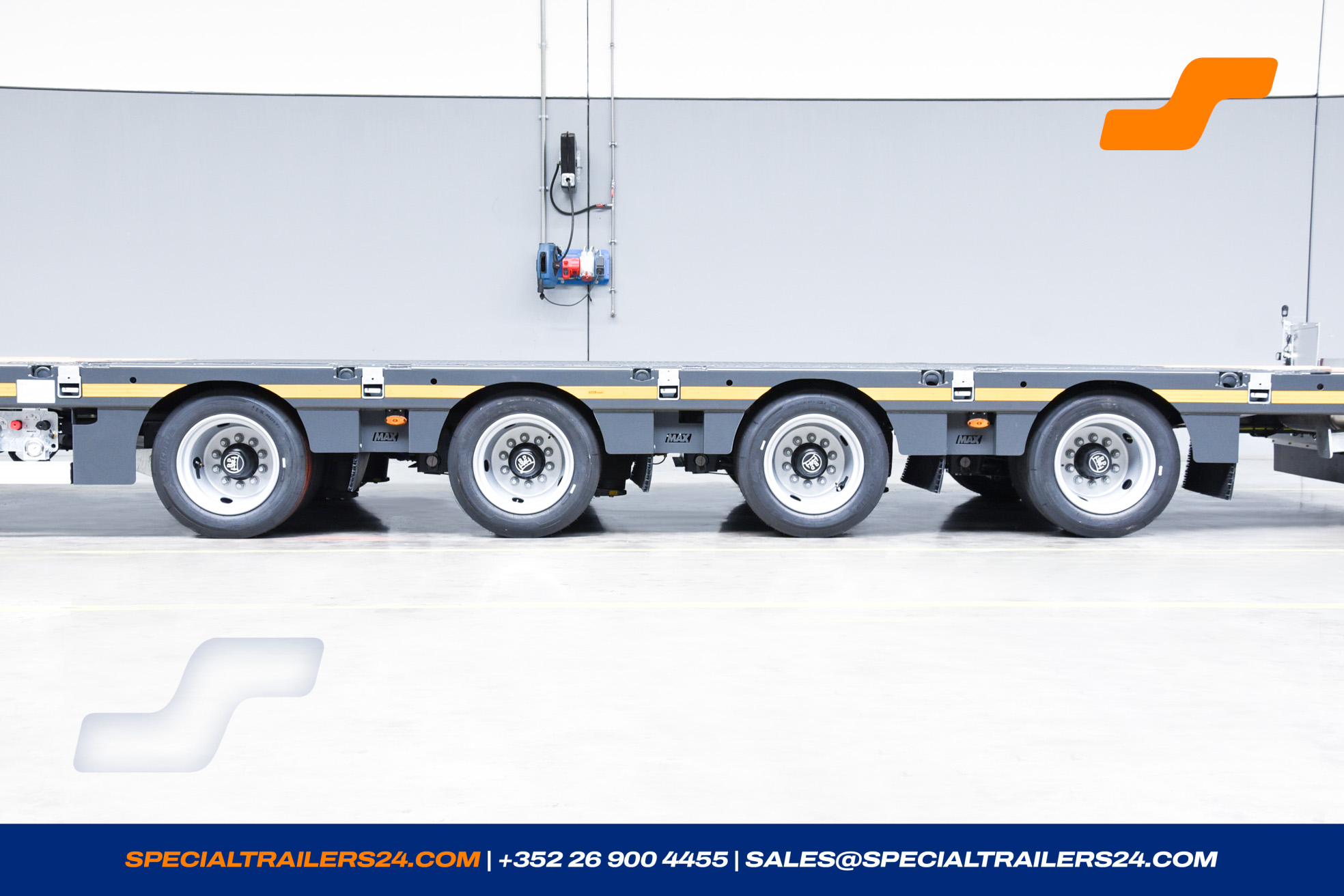

- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour RAL 5002 - Ultramarine blue
- Availability 12/2025
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 32960 kg |
| Gross weight | 50960 kg |
| Tare weight +- 3% | 11016 kg |
| Payload | 39944 kg |
Dimensions
| Fifth wheel height loaded | 1150 mm |
| Gooseneck length | 3 800 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 9 300 mm |
| Extendable by | 4 500 mm |
| Wheelbase | 1 360 mm |
| Loading height at max. load | 760 mm |
| Total width | 2 540 mm |
| Suspension stroke | -40/ +155 mm |

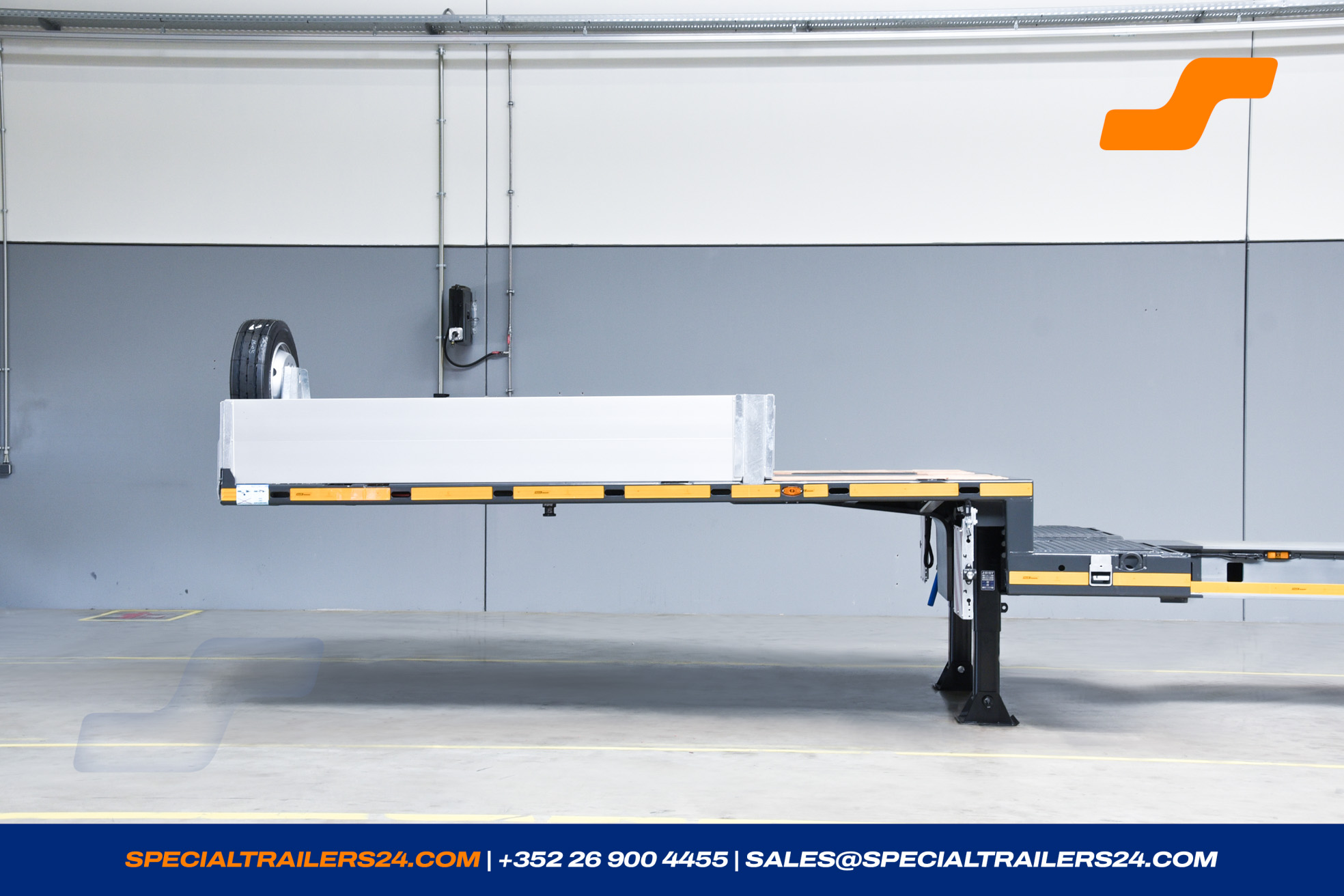

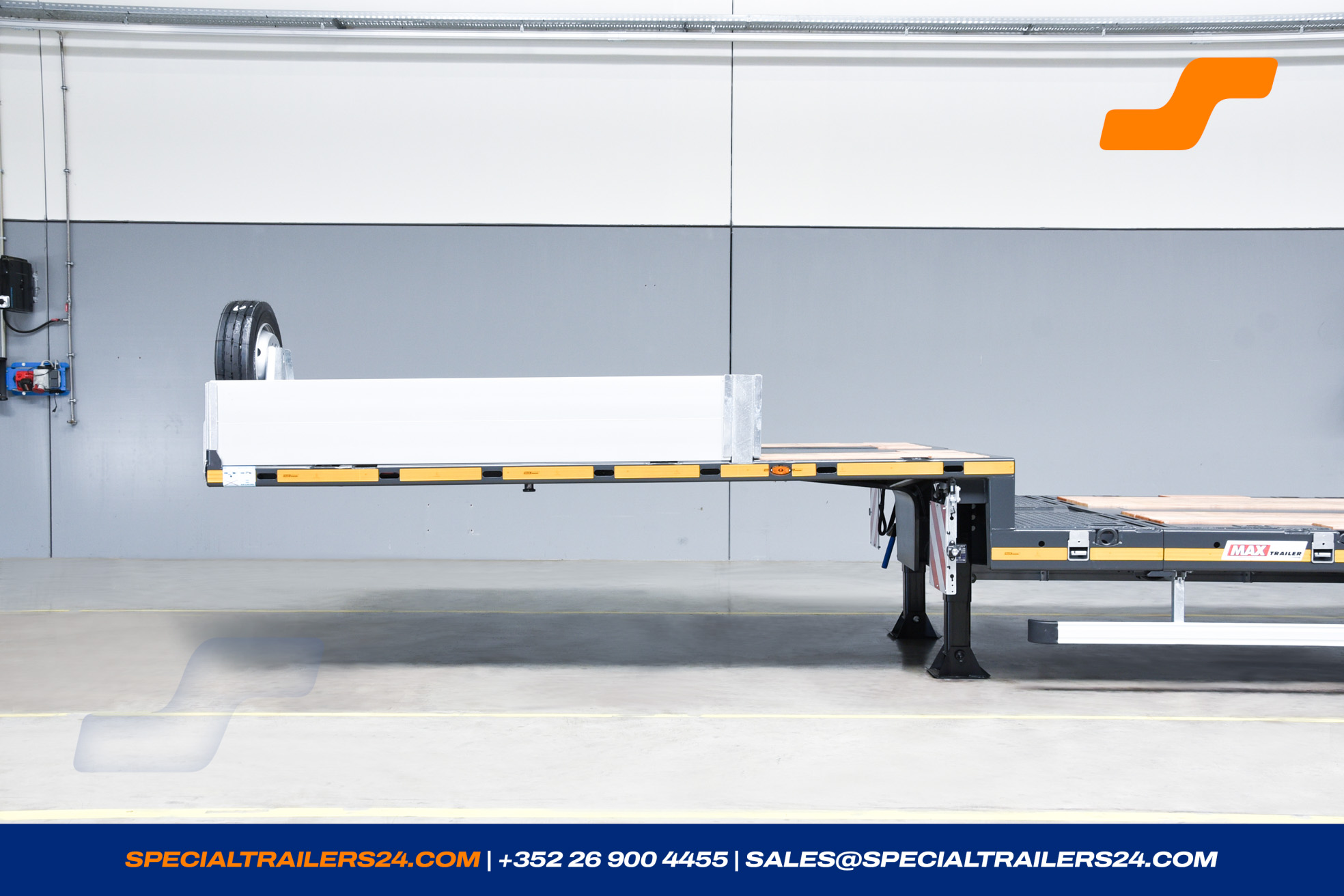

Gooseneck
1 x Gooseneck

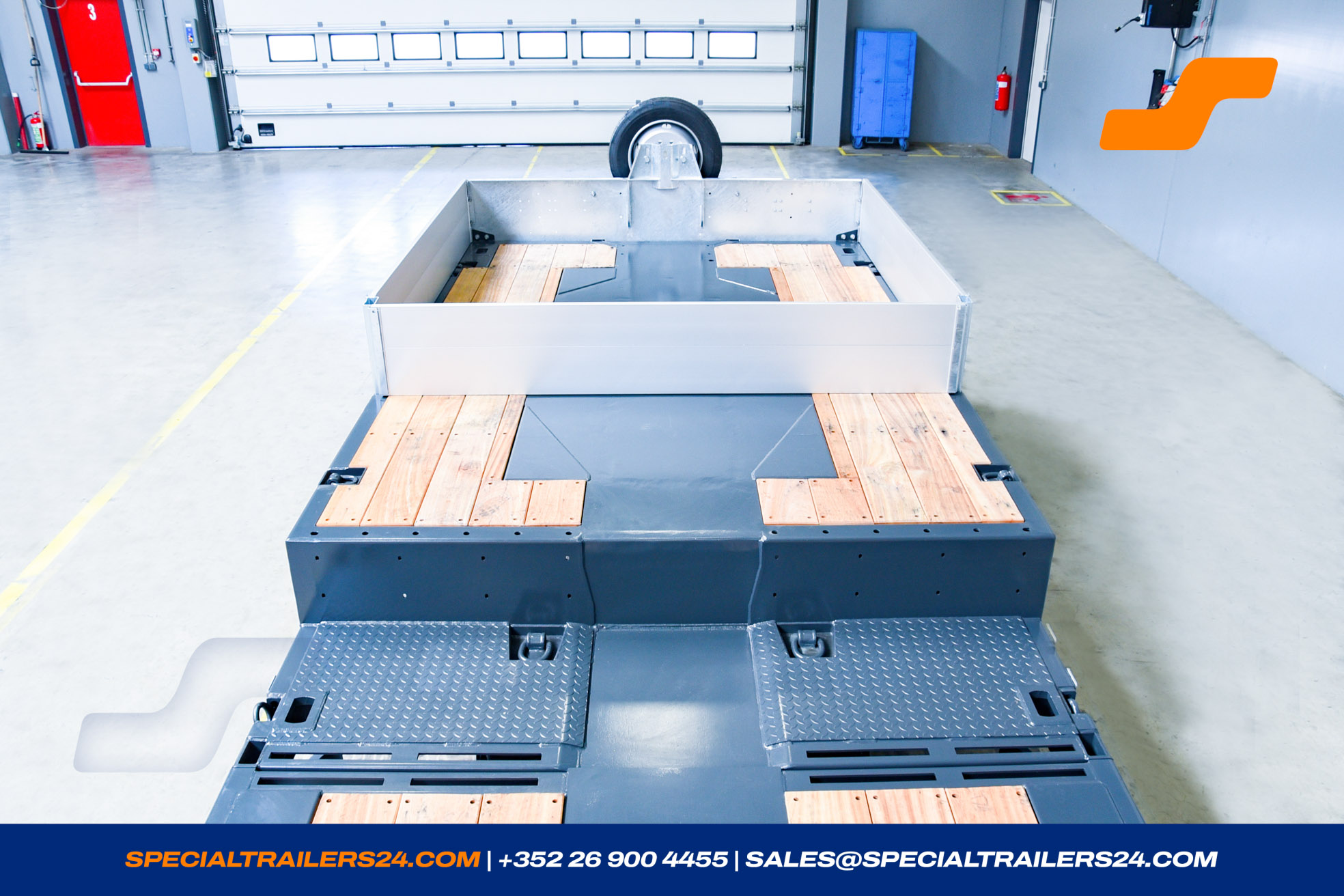

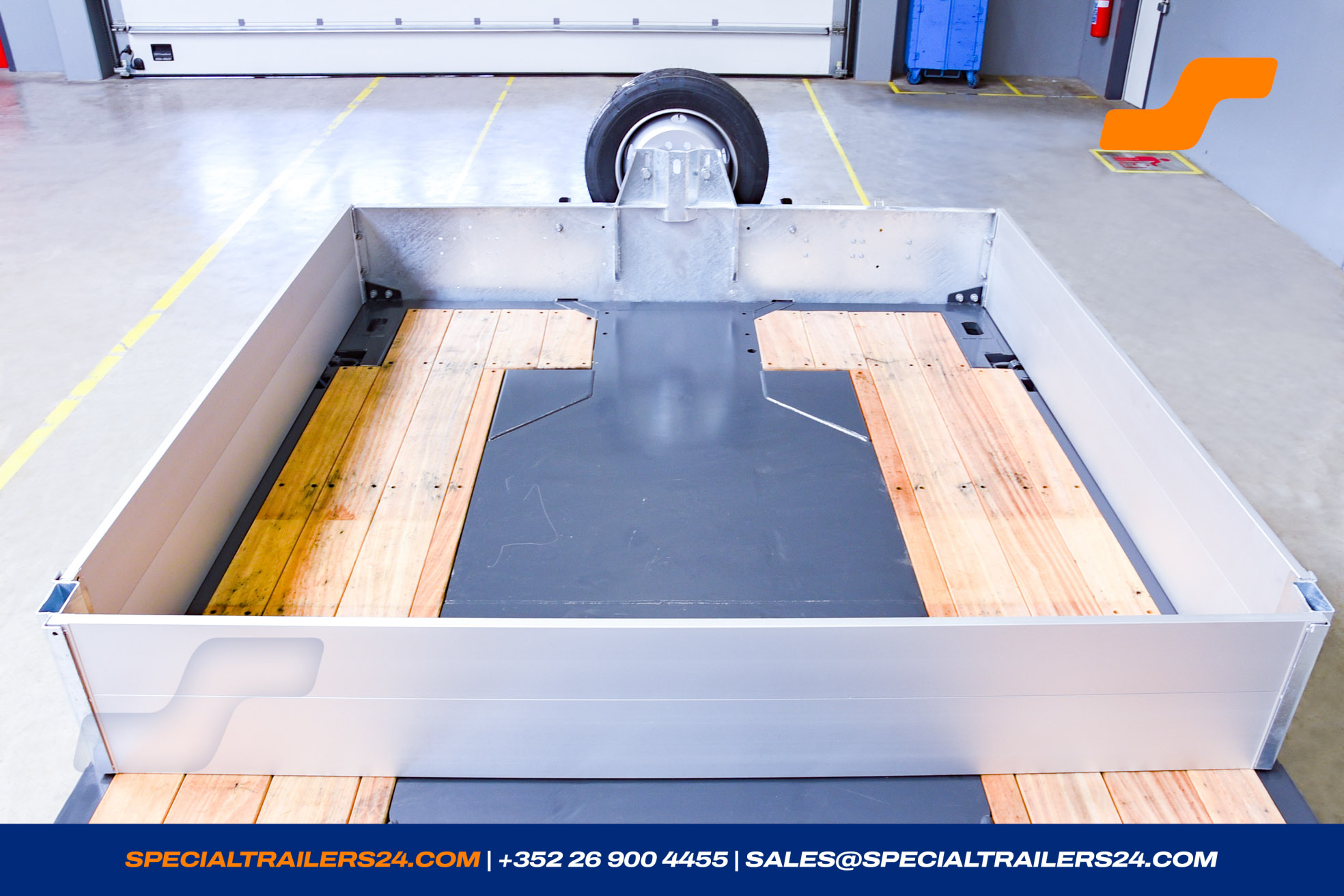

Gooseneck with Hardwood cover thickness 30 mm.
Gooseneck at rear in straight version.
3 pairs of lashing rings (LC 5 000 daN).
- 4 wheel chocks with carrier on the headboard (± 5kg).
- U-beam for ALU-ramps on the rear of the gooseneck with integrated impact protection. (± 56 kg)
Loading deck

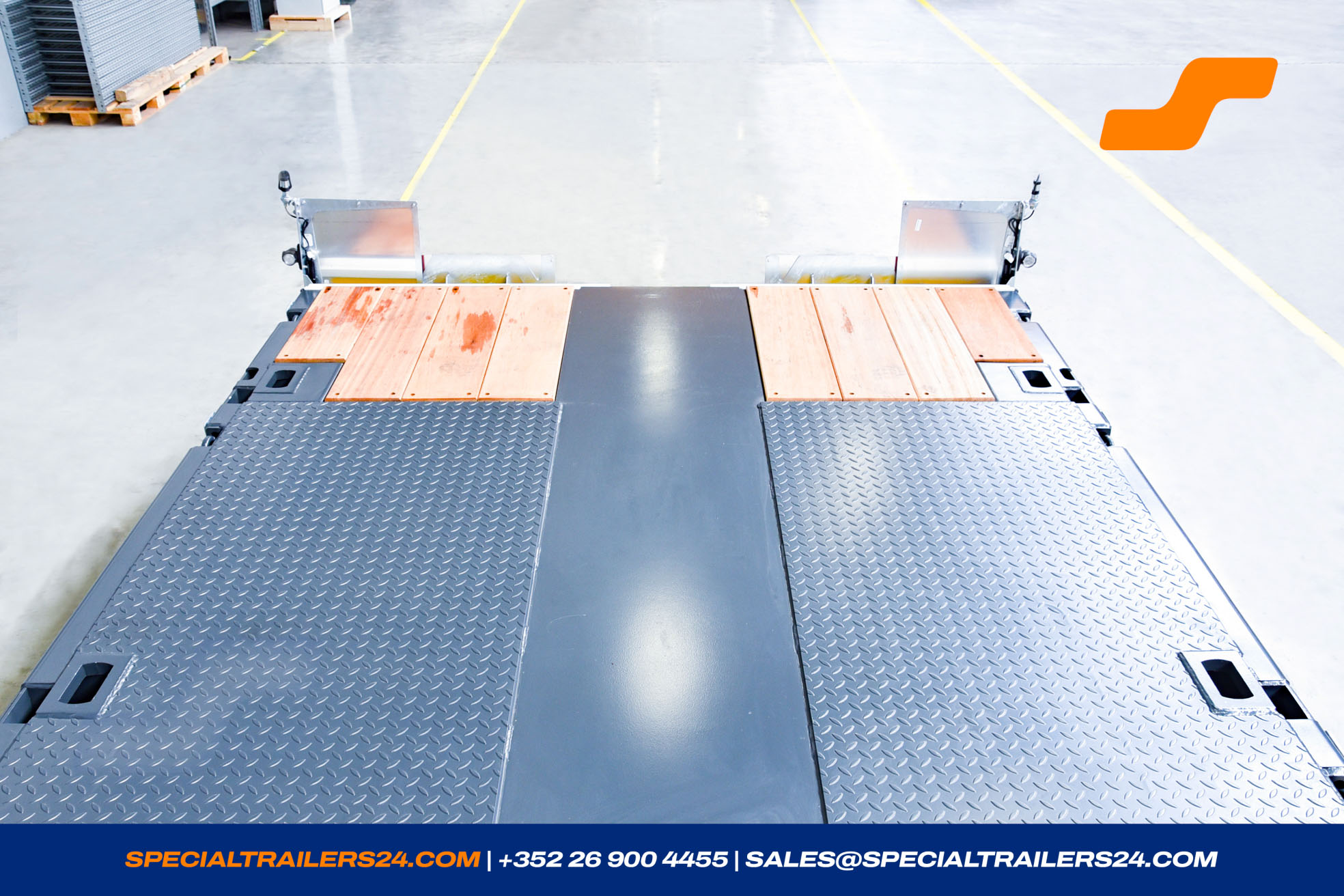

Loading platform
1 x Loading platform

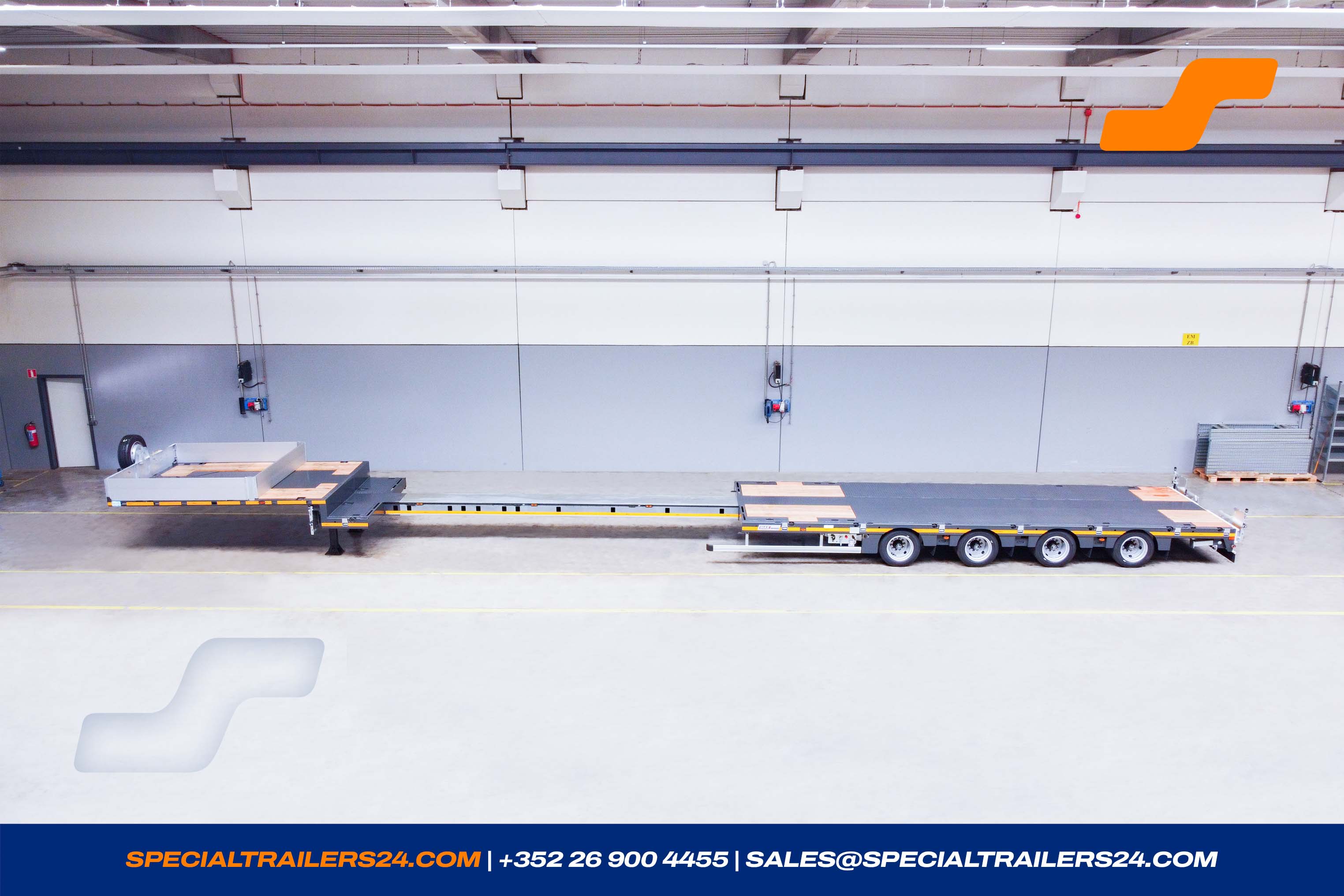

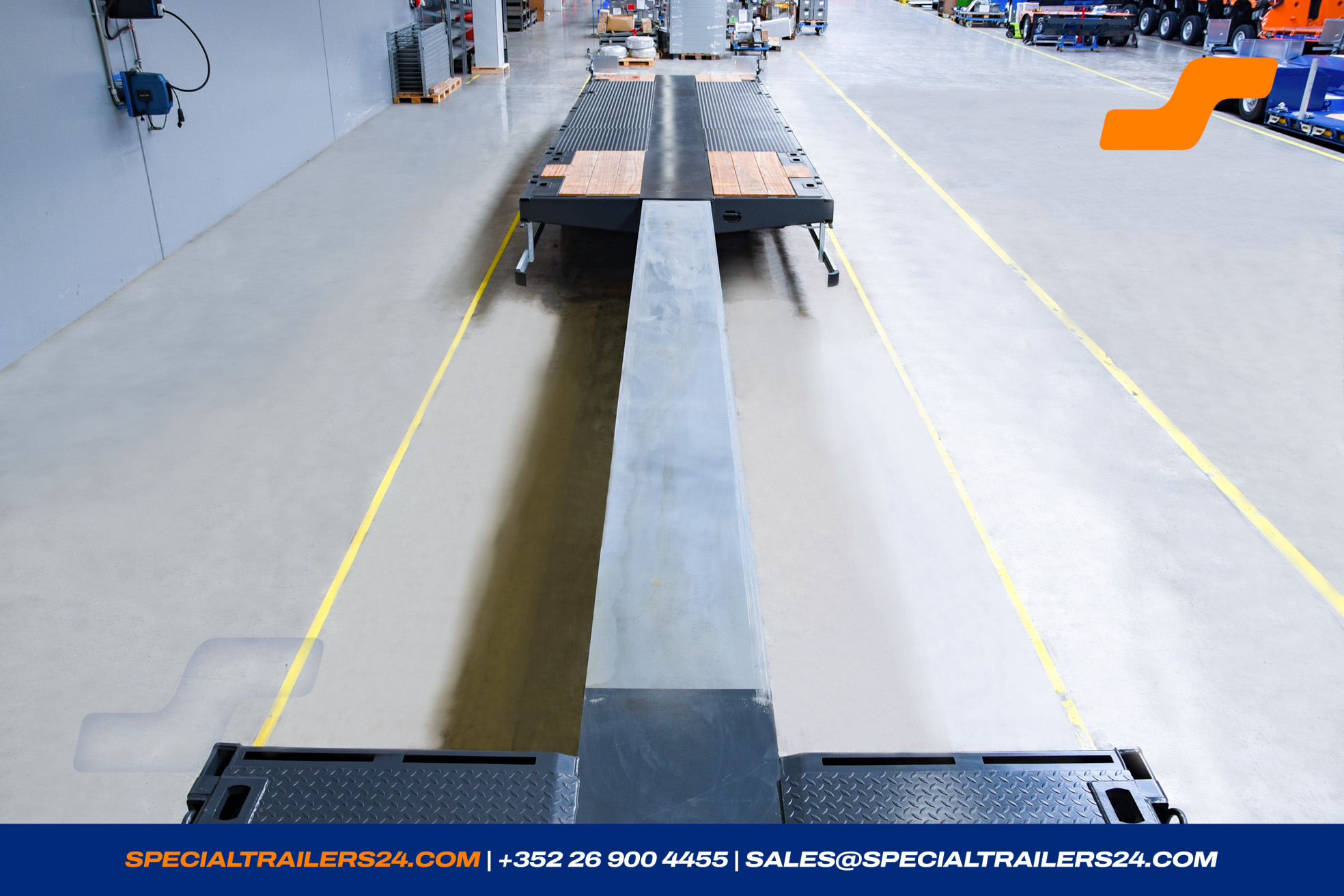

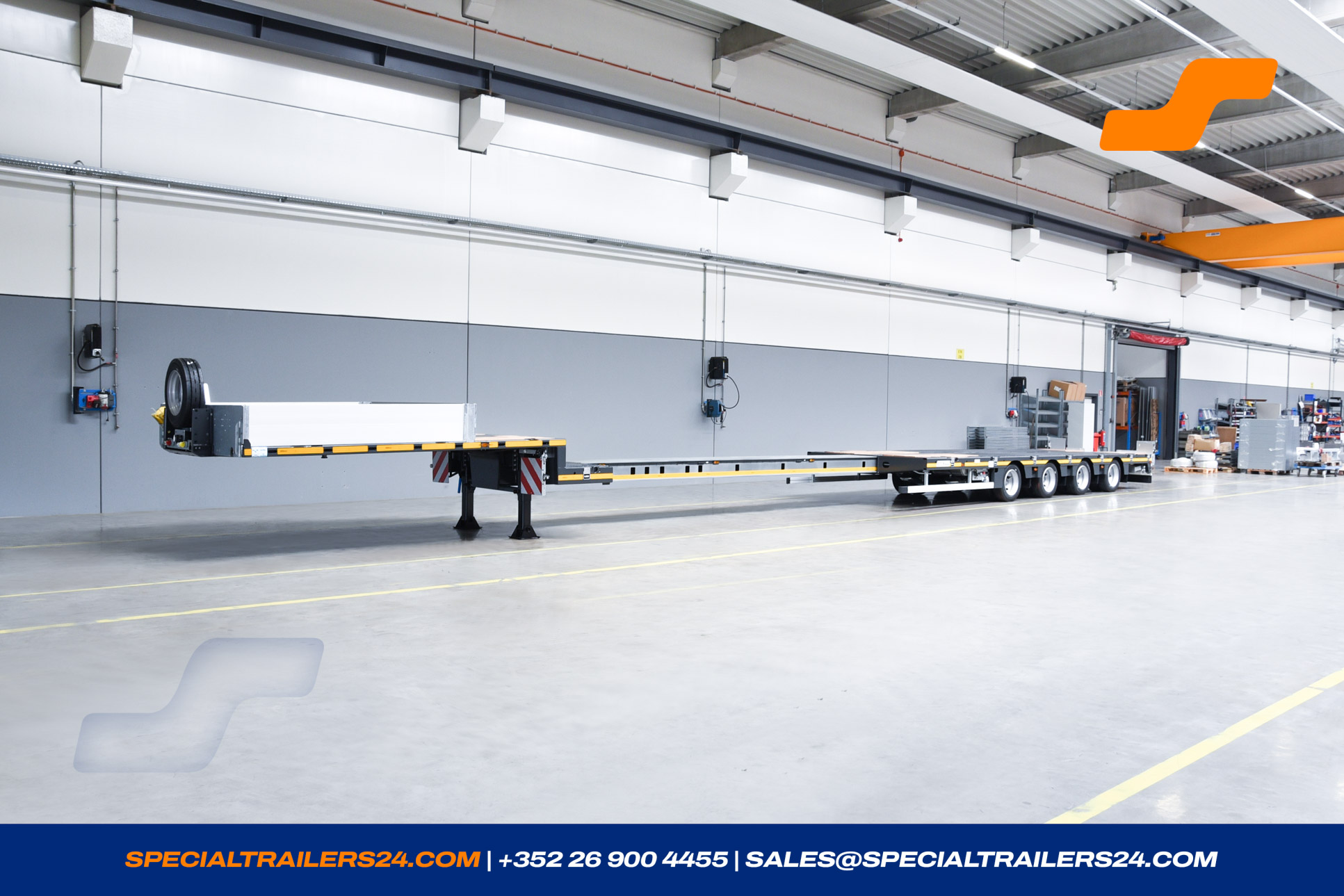

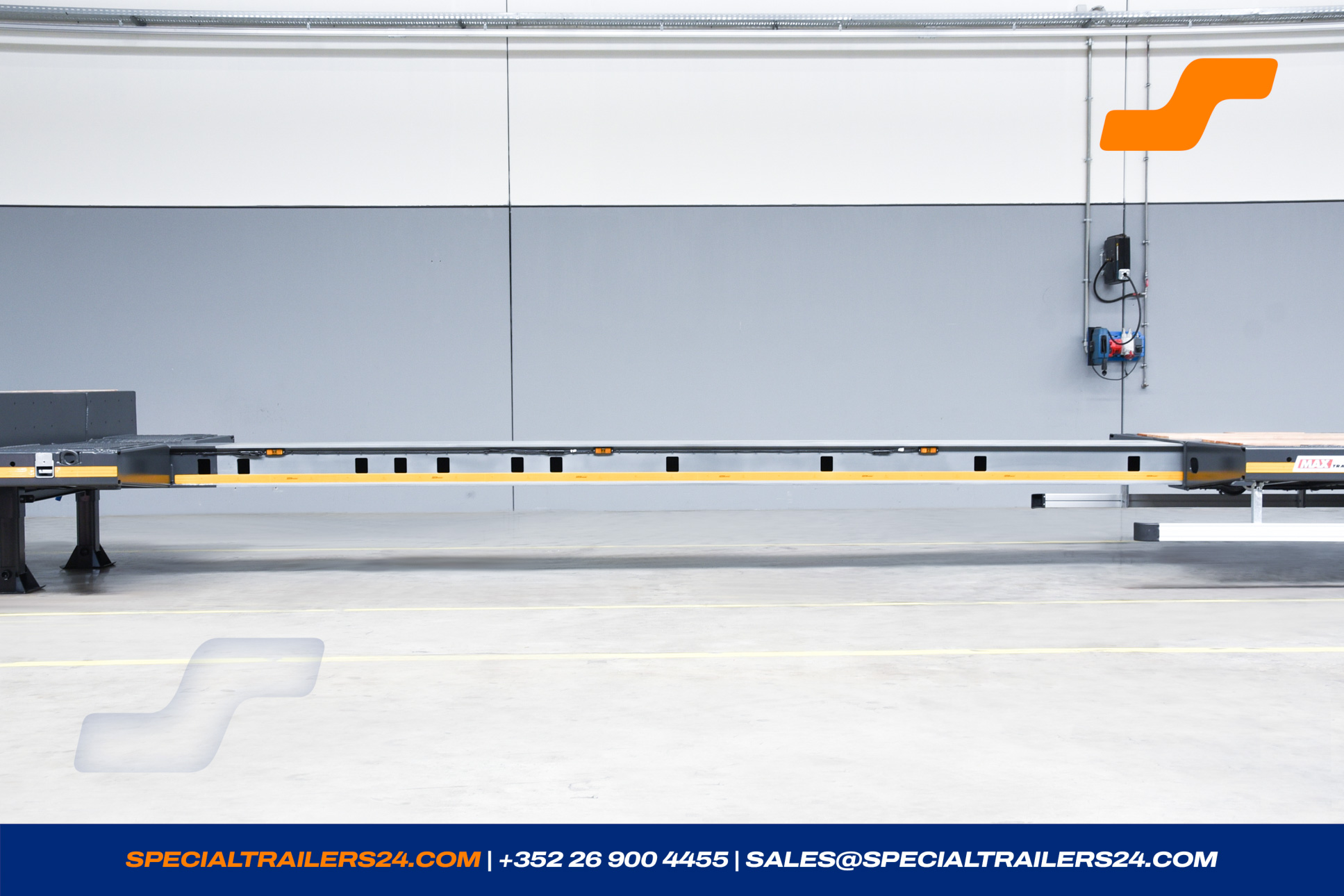

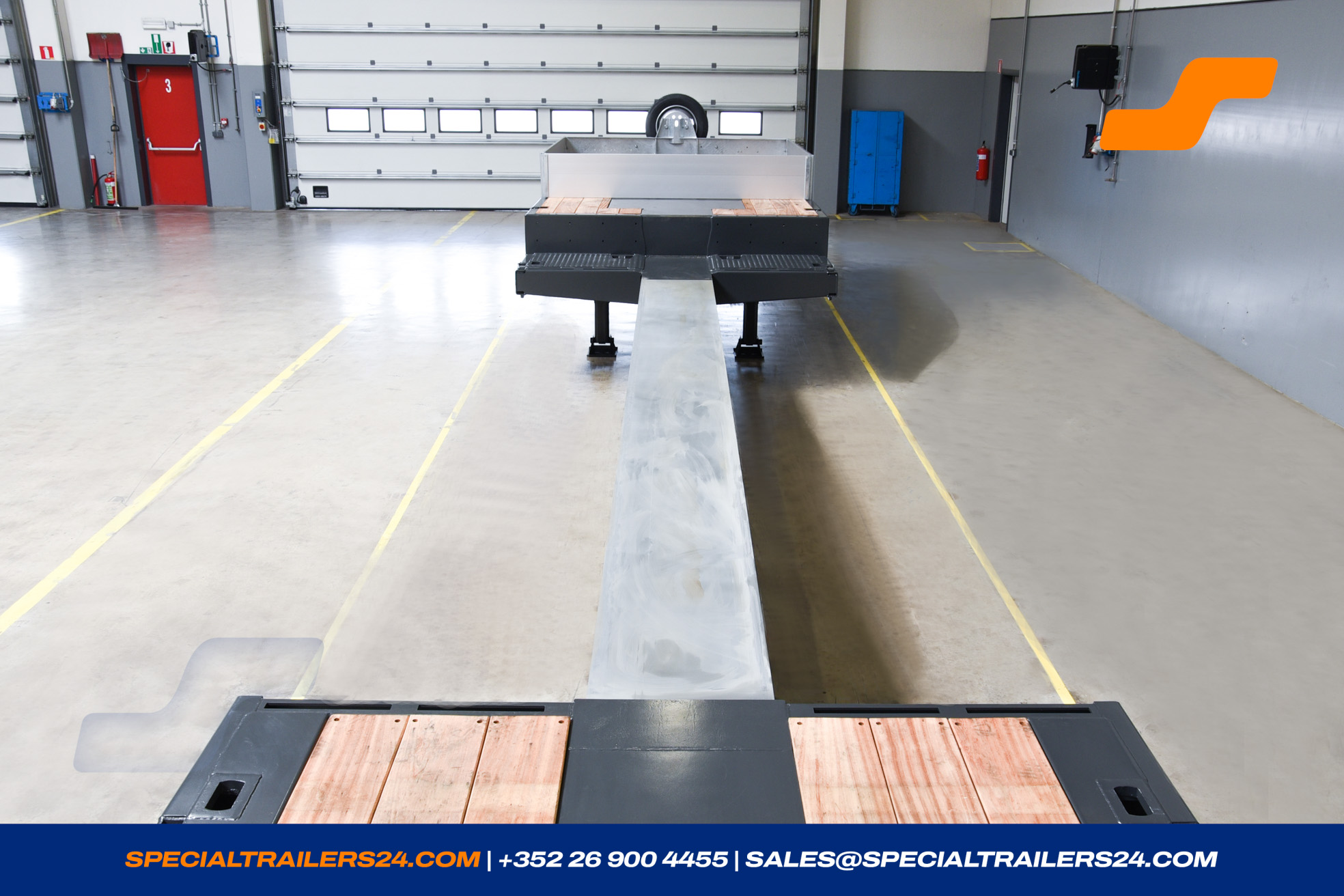

Loading platform in extendable version.
5 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
1 pair of lashing rings in front in the firm part the loading platform (LC 10 000 daN).

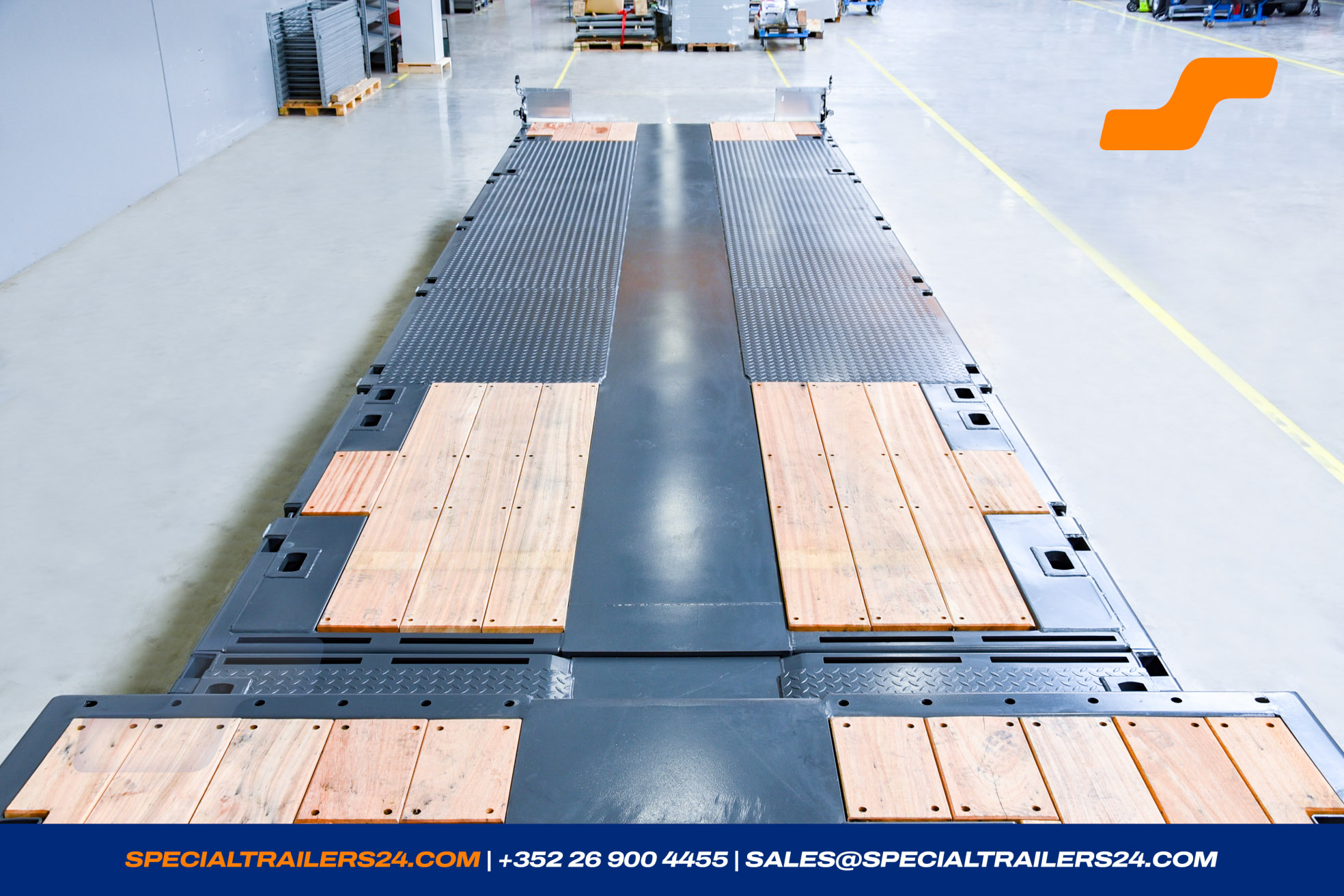

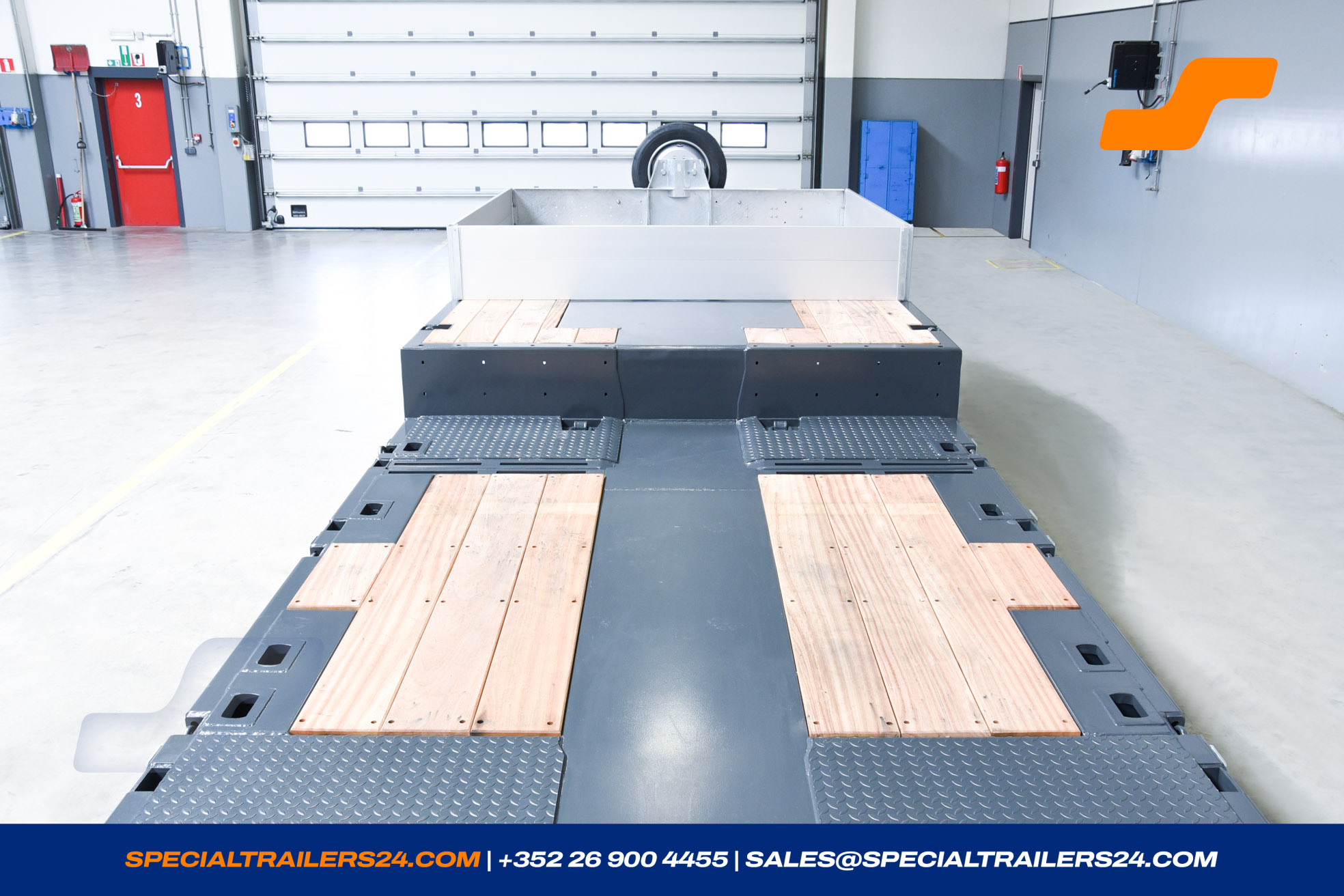

Hardwood cover thickness 48 mm above the axles chequer plate.

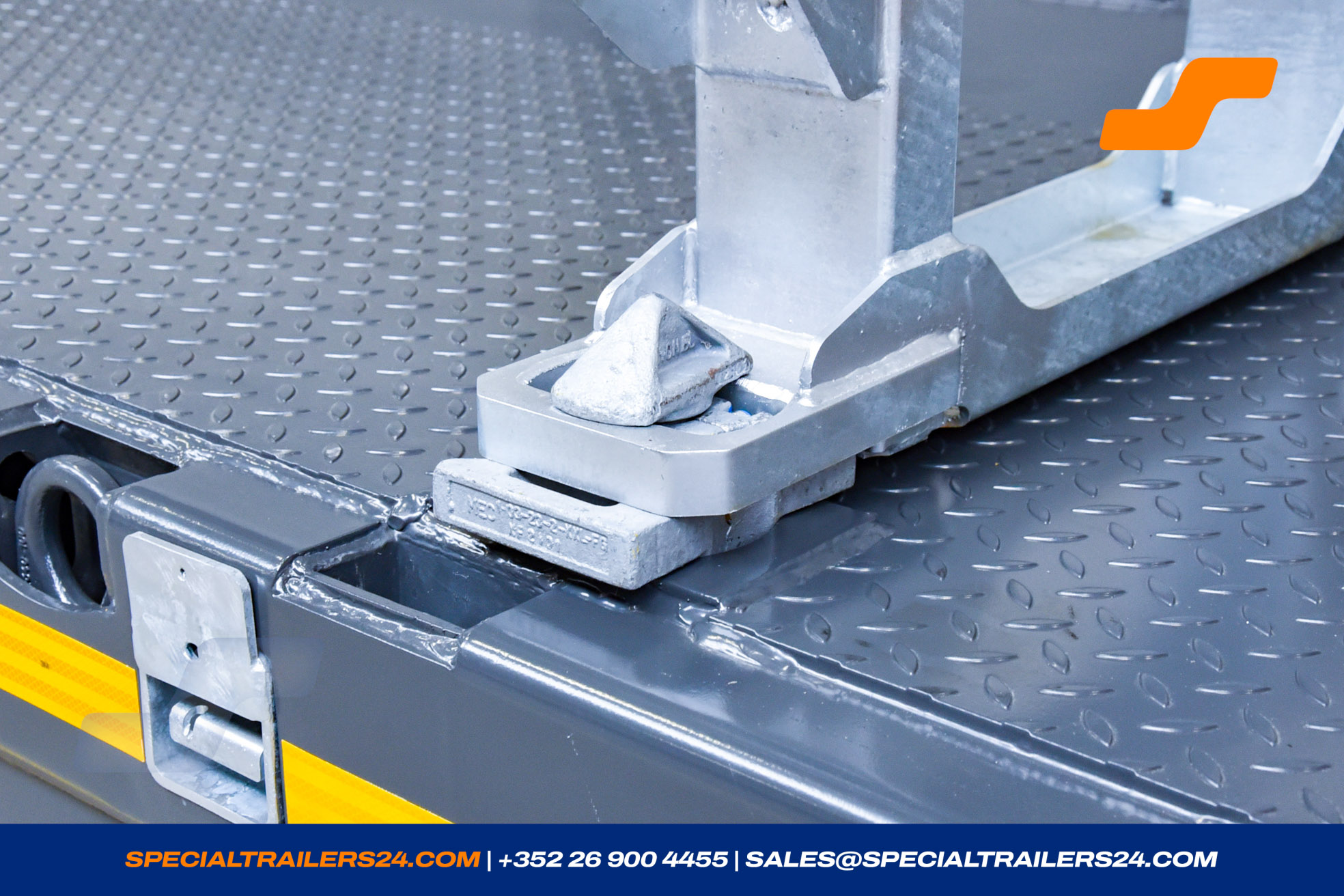

- 2 pairs of WADER-containerlocks (± 30 kg).

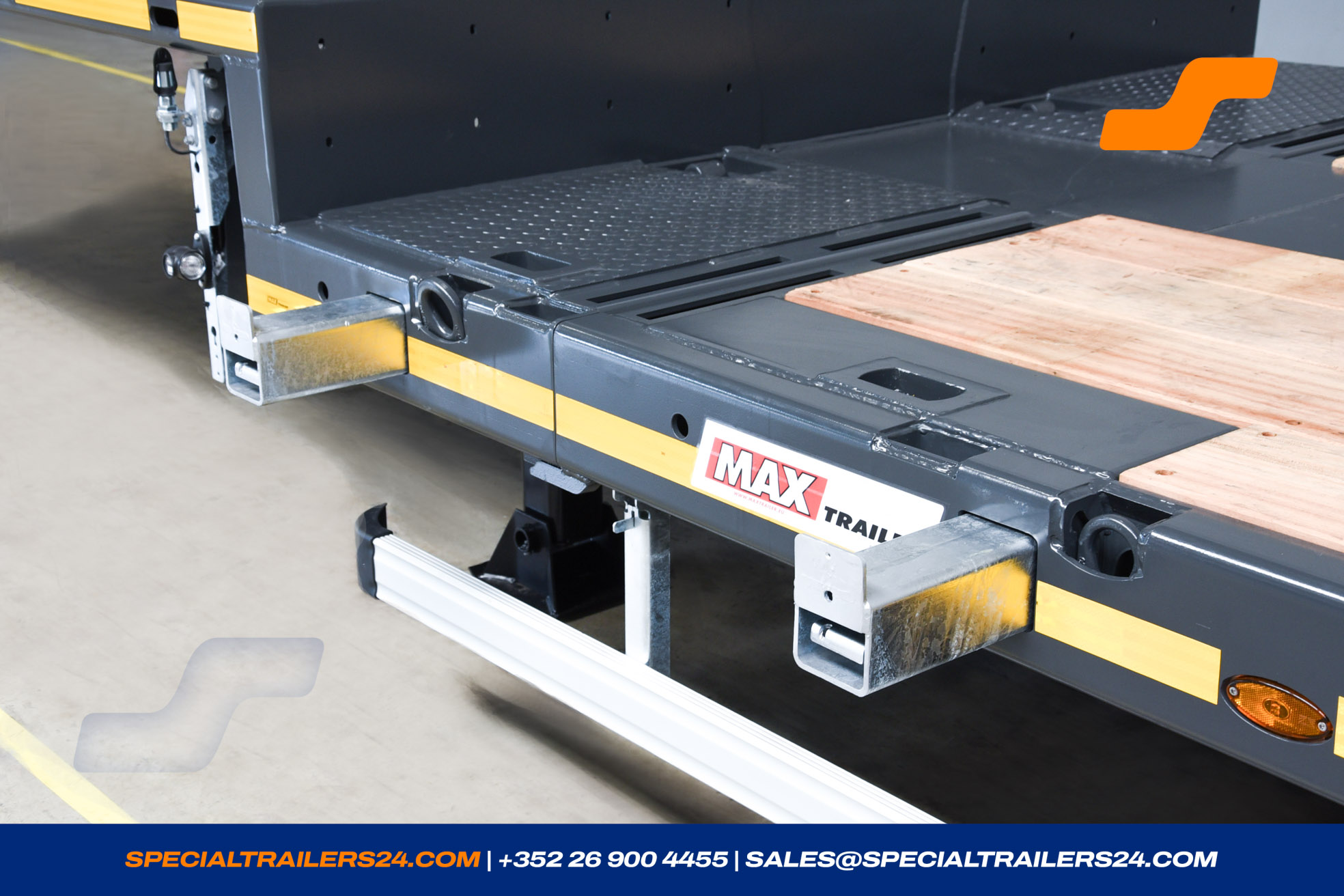

- 7 pairs of pockets for stakes ca. 100 x 50 mm in the outer frame of the loading platform. (± 21kg)
-
5 pairs of inserted lashing rings along the central beam of the loading area (LC 5.000 daN).
1 pair of inserted lashing rings along the central beam at the back (LC 10 000 daN). (± 19kg) - A tool box INOX 565x290x810 in the direction of travel right in front of the axles (± 45 kg)
- 1 LED reversing lamp left and right in front of the first axle.

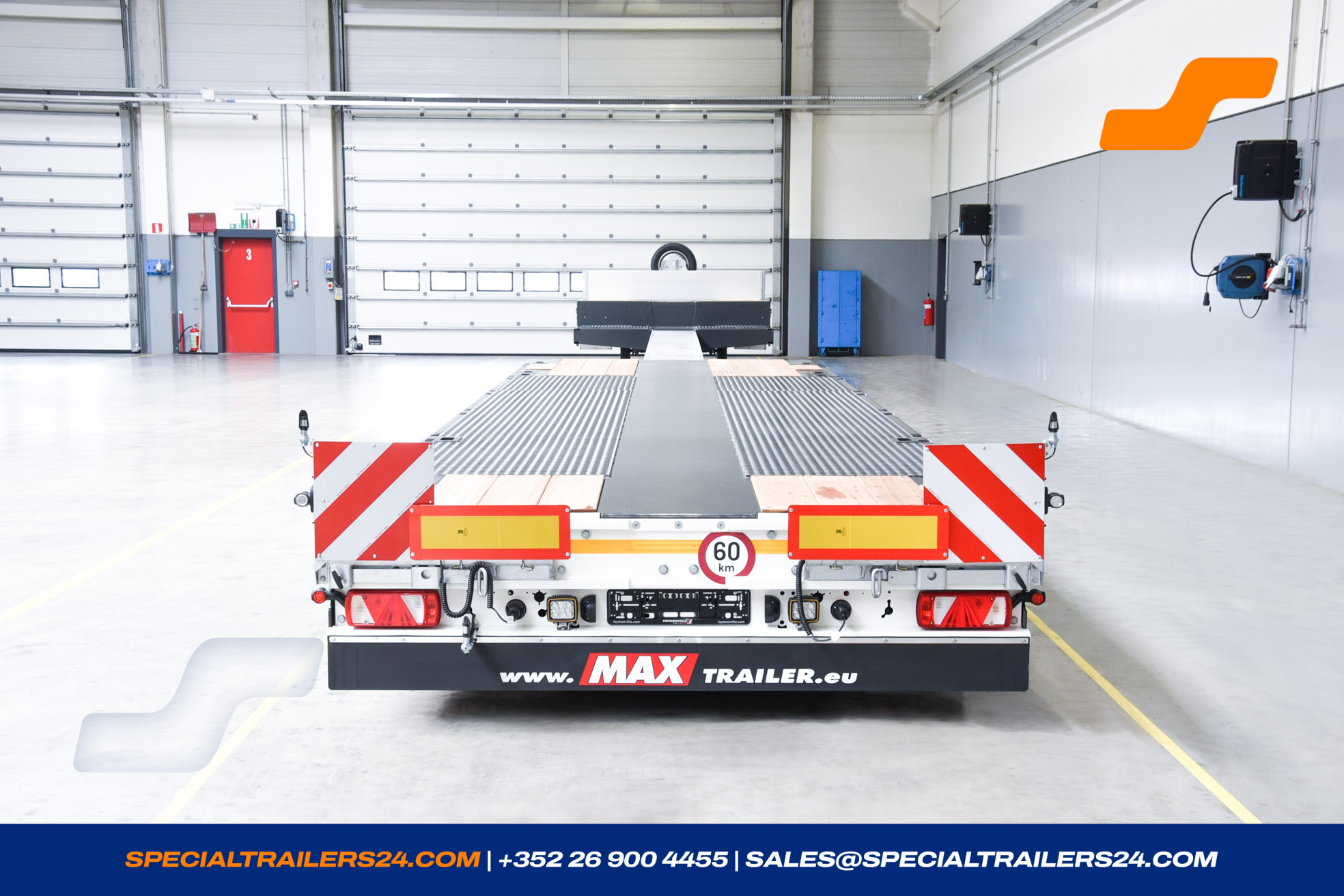

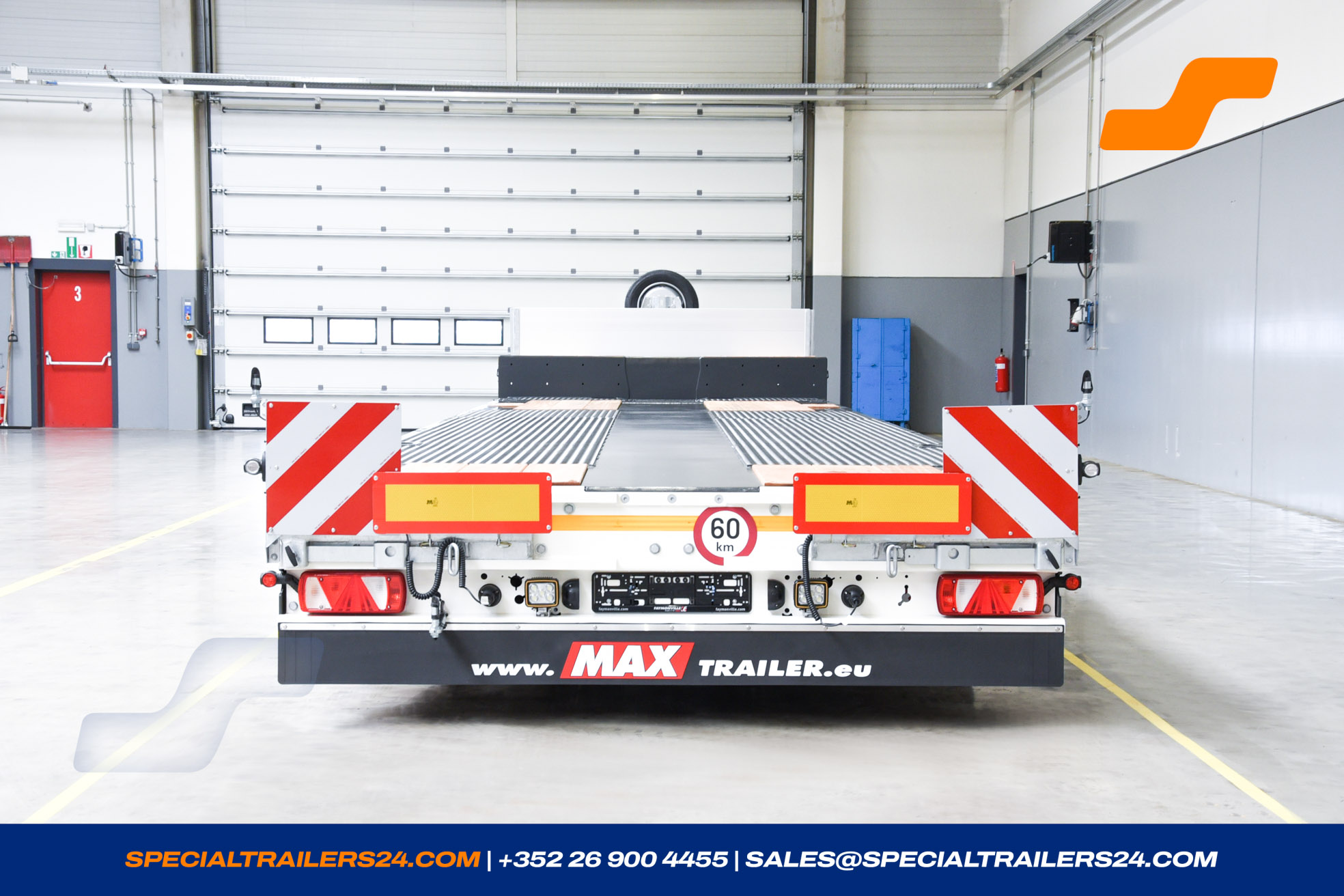

- Sign 1 900 x 250 mm CONVOI EXCEPTIONNEL at the rear of the trailer.
- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 1 LED flashing beacon, provided separately.
- Speed sticker 60 km/h at the rear.
Accessories
1 x Accessories
- Manual and description on USB stick .
- Delivery from a trailer to factory Büllingen.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110890
- Reference MAX100-N-4AX-9.30
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour RAL 5002 - Ultramarine blue
- Availability 12/2025
- Price On request
-
