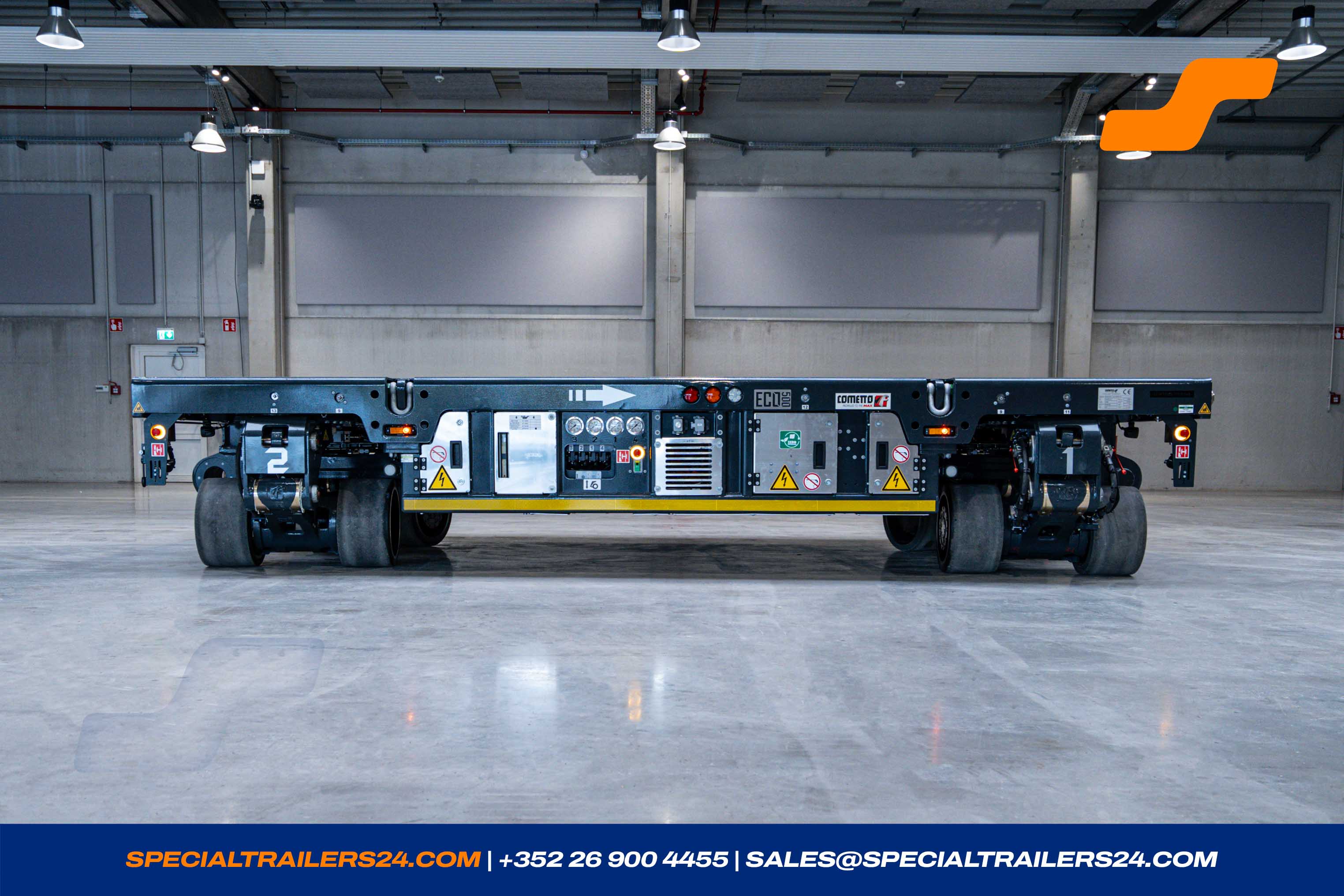

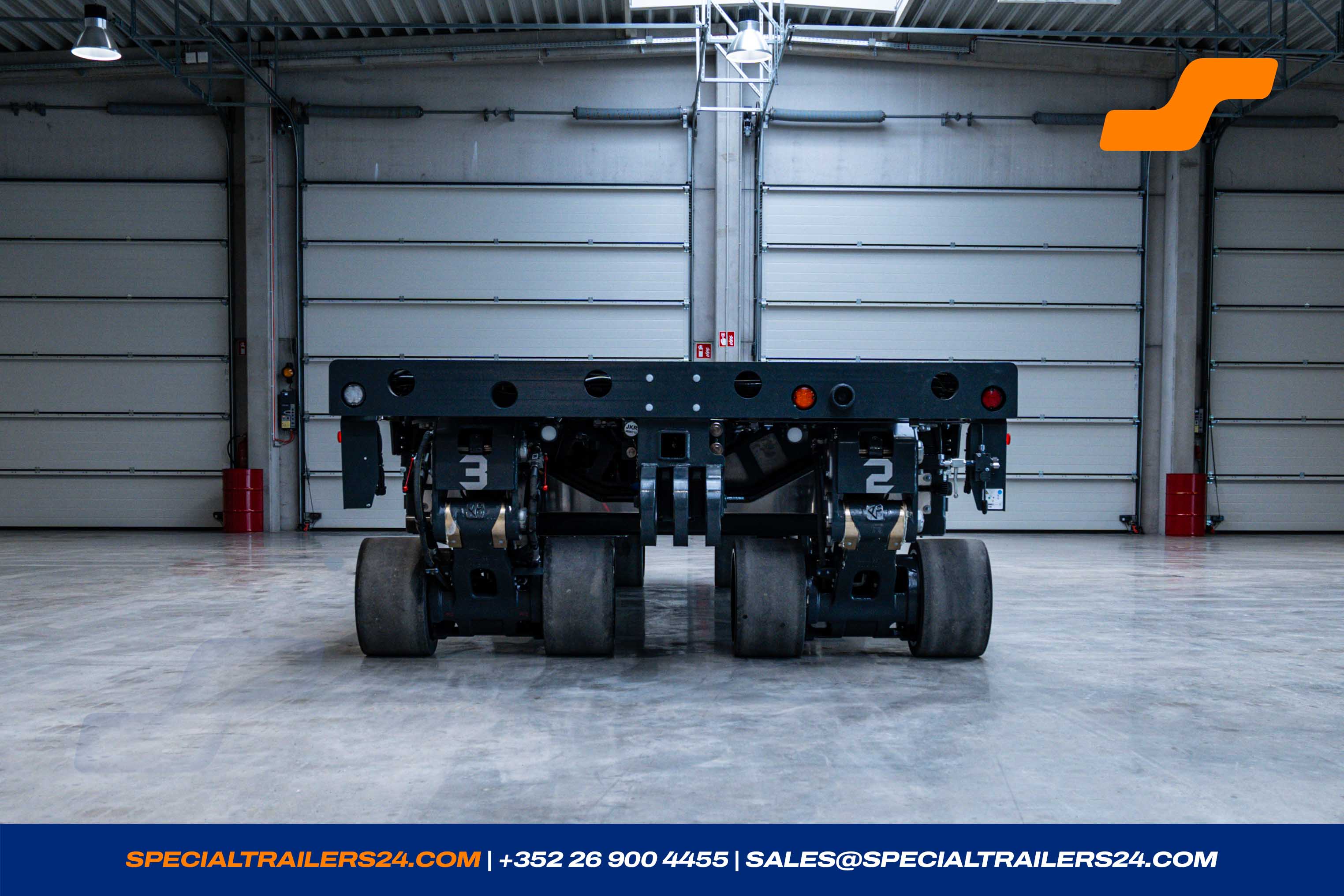

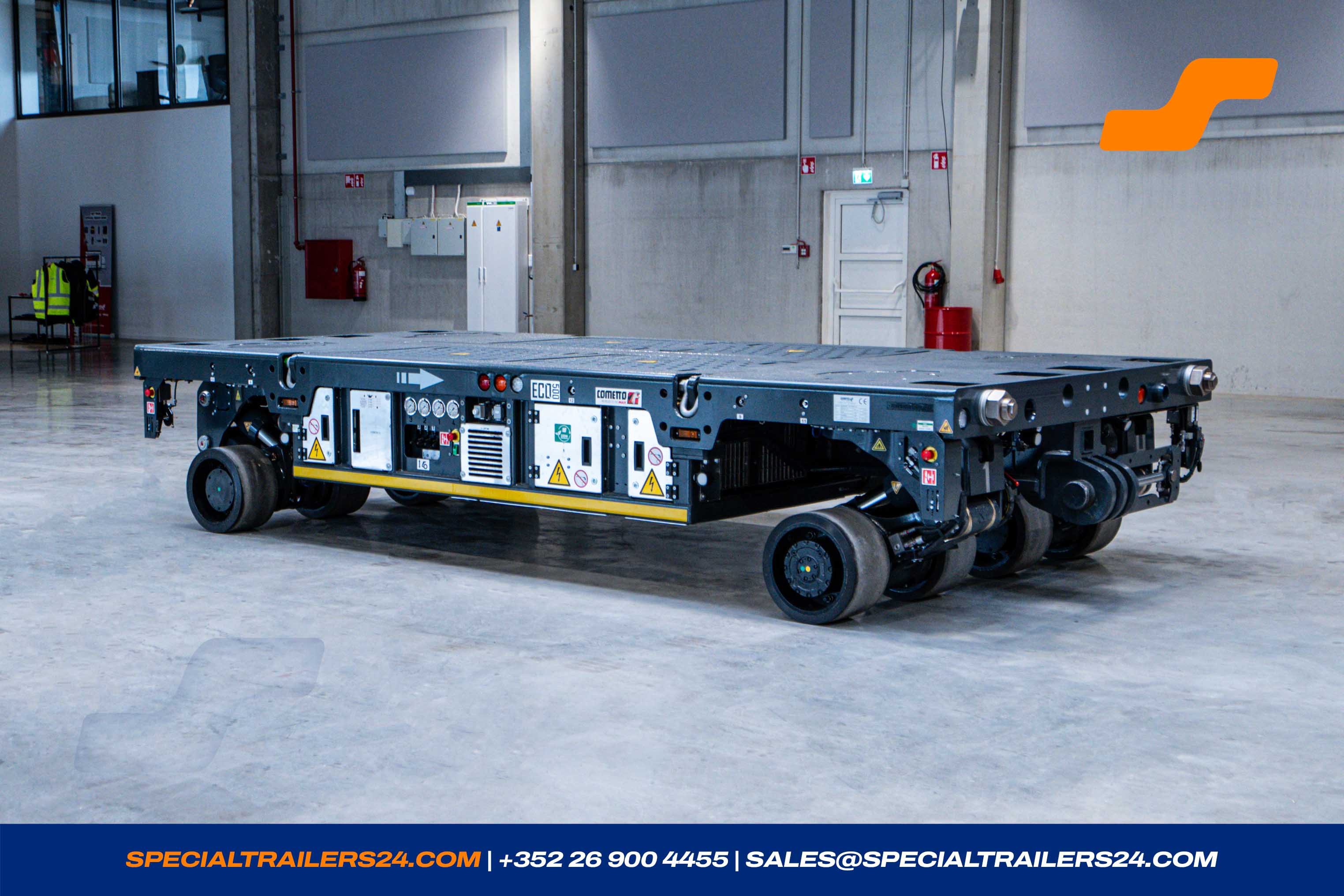

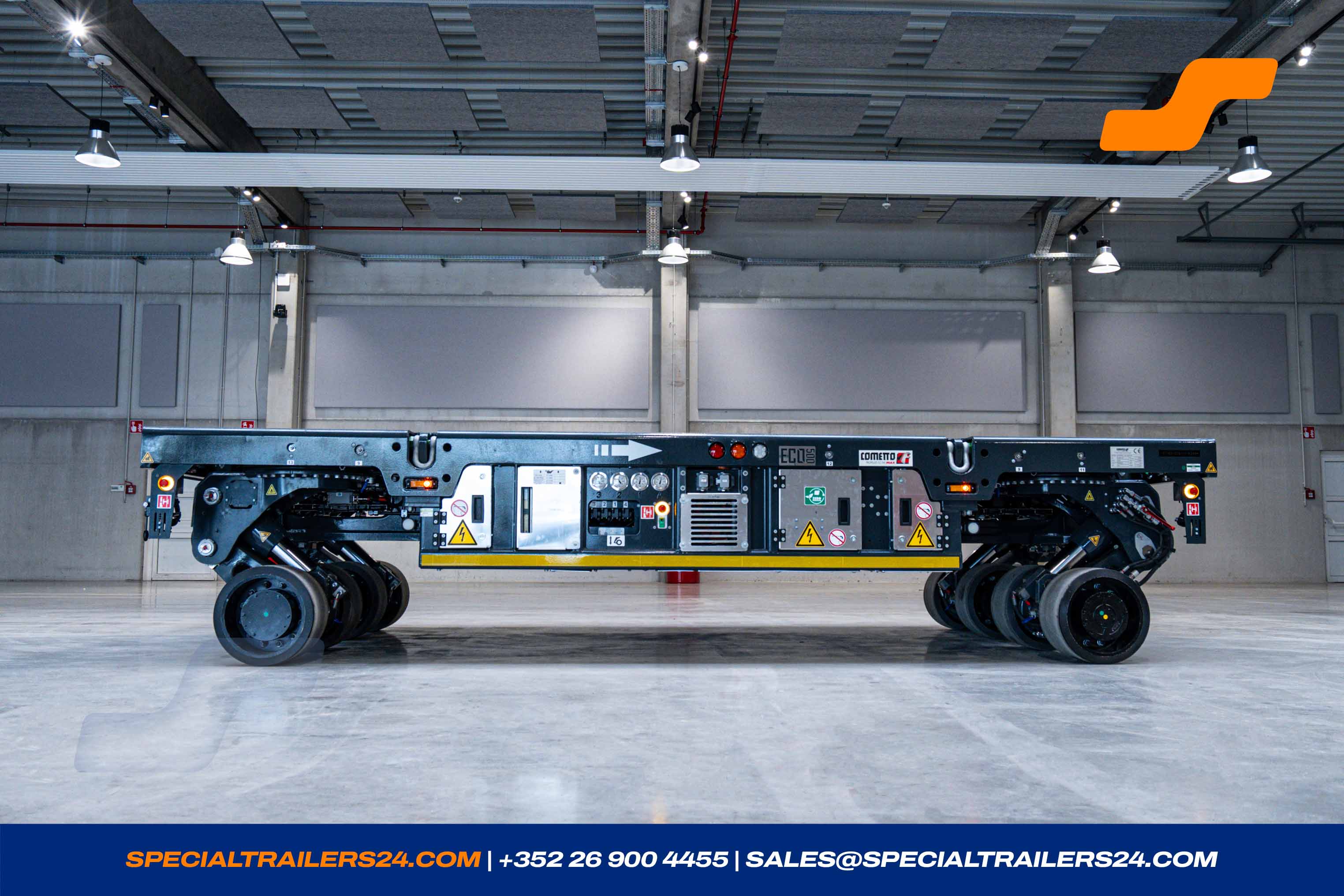

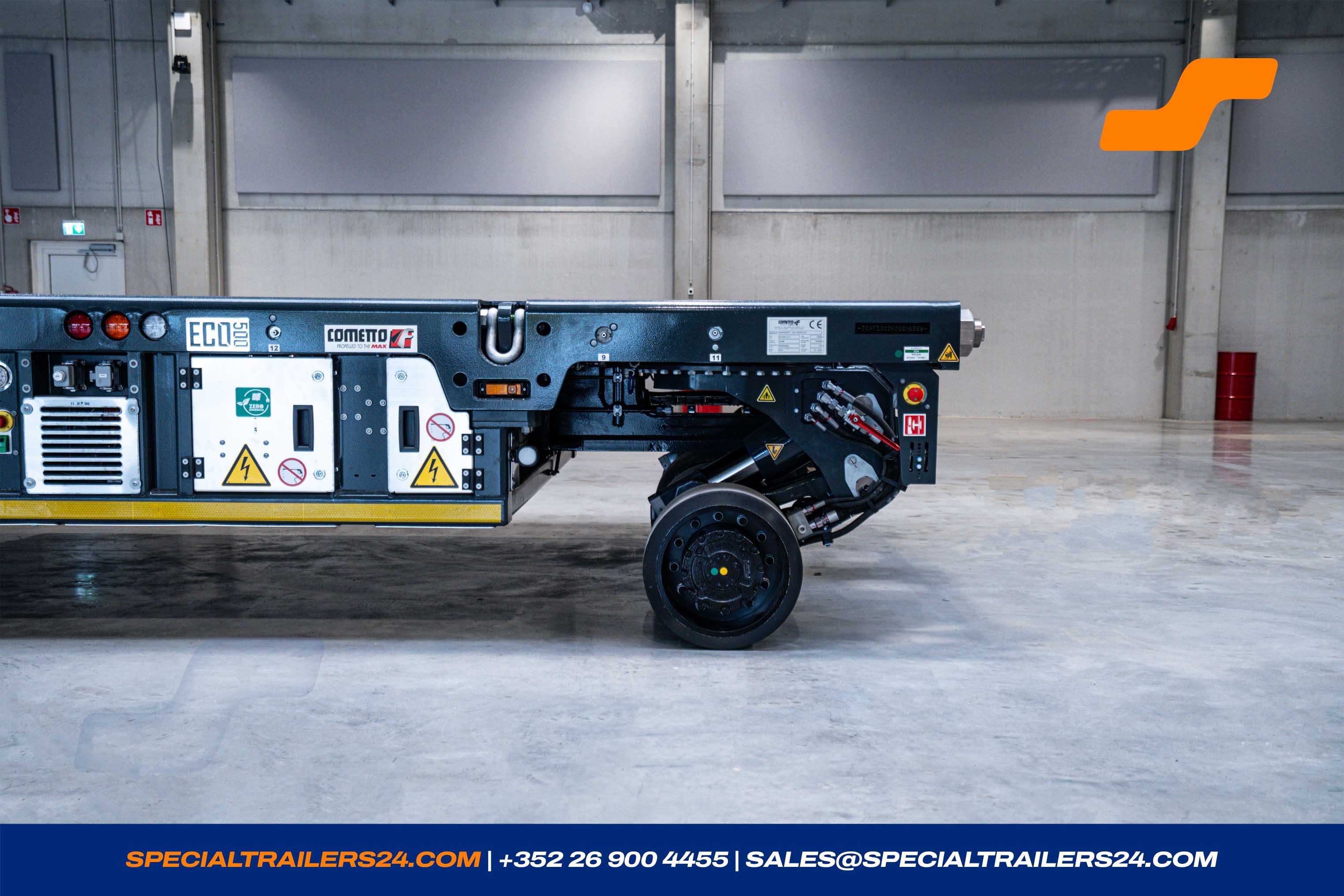

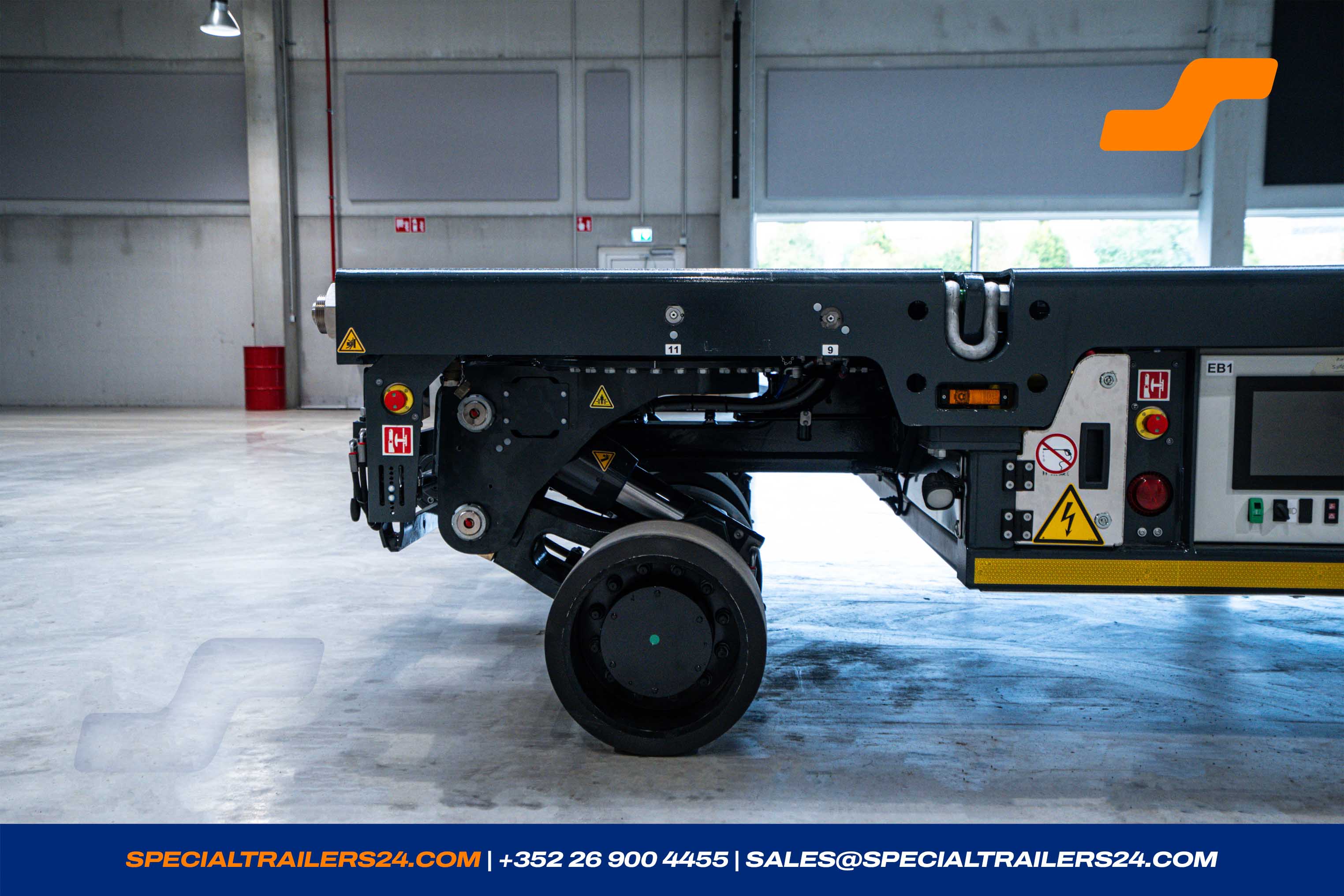

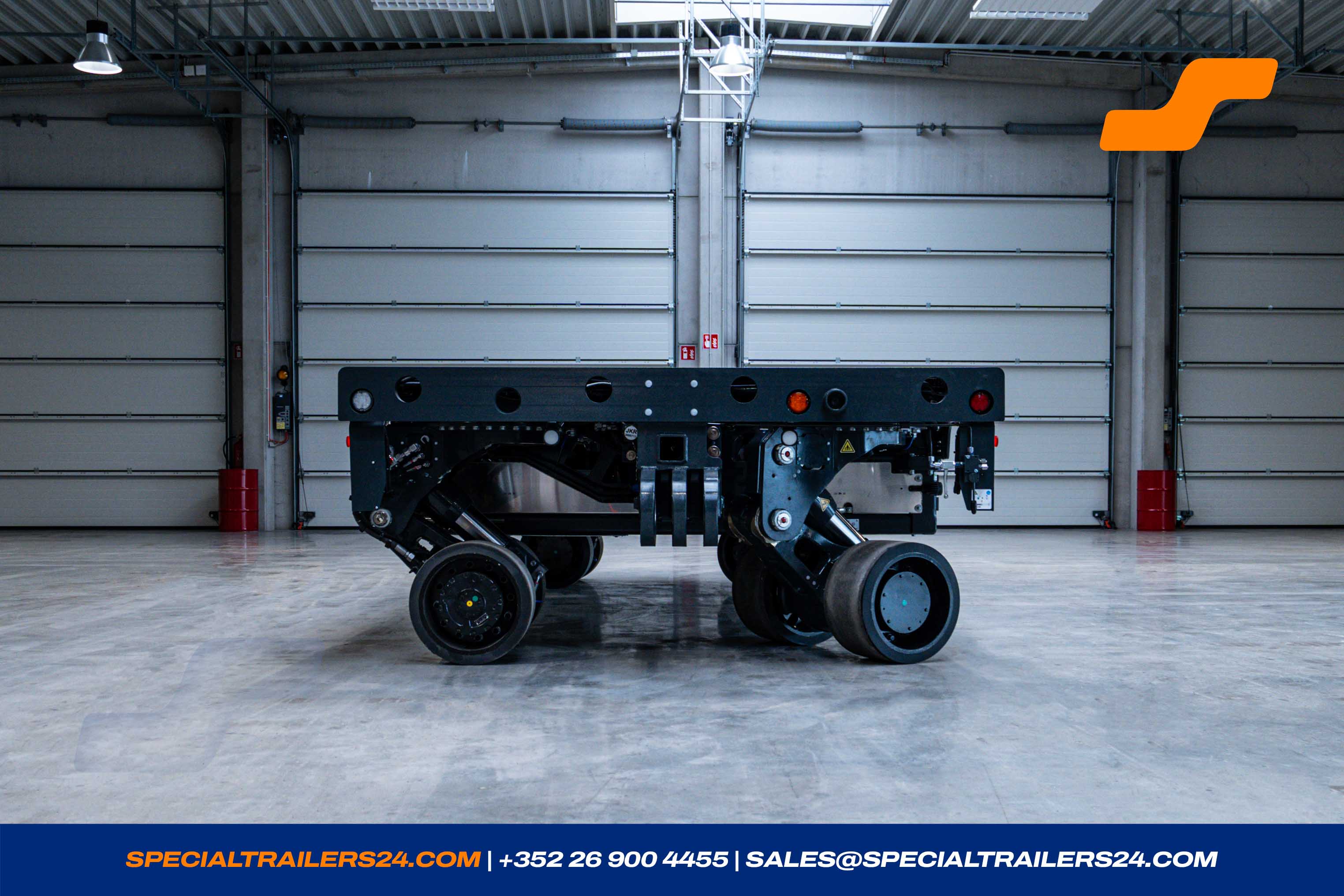

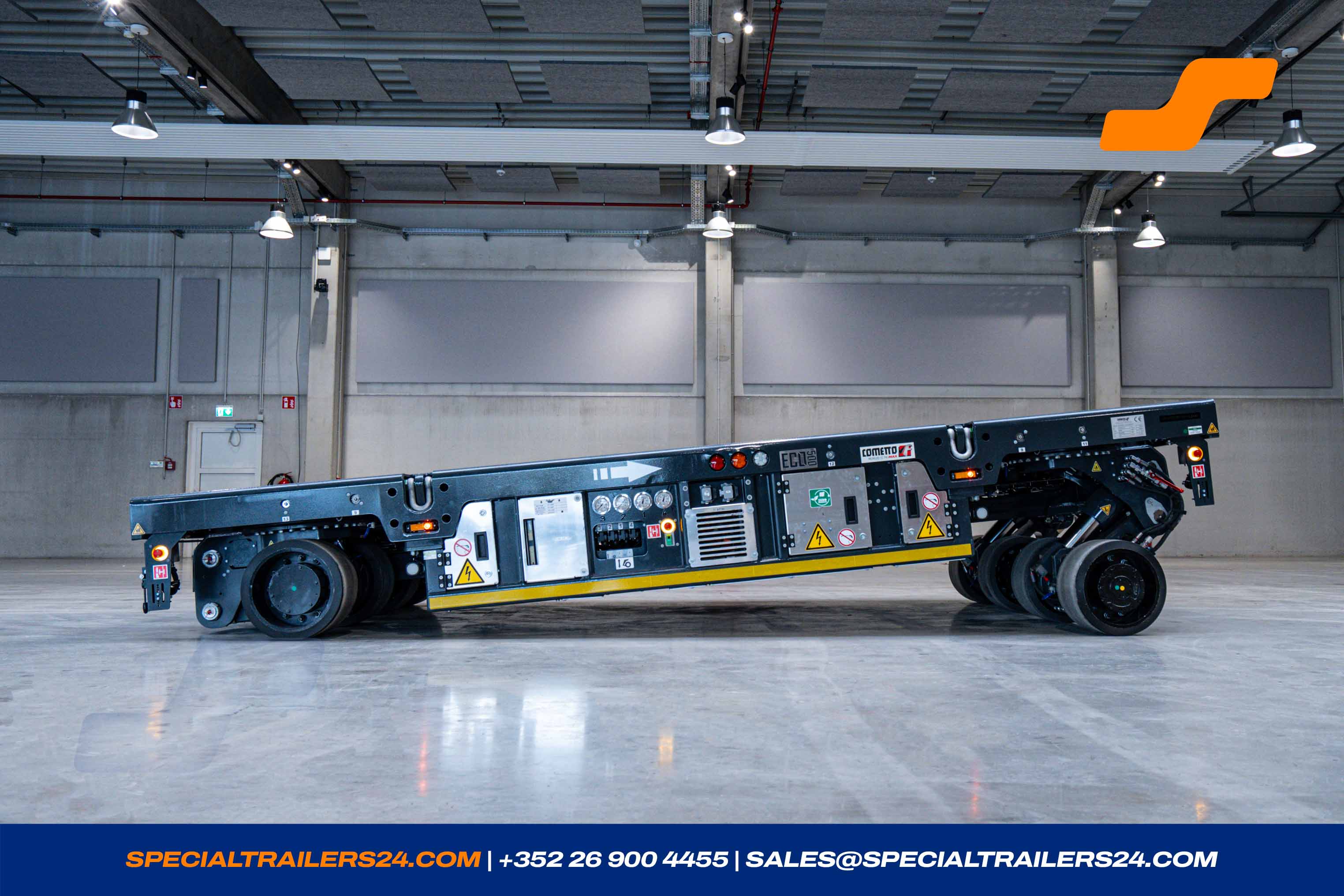

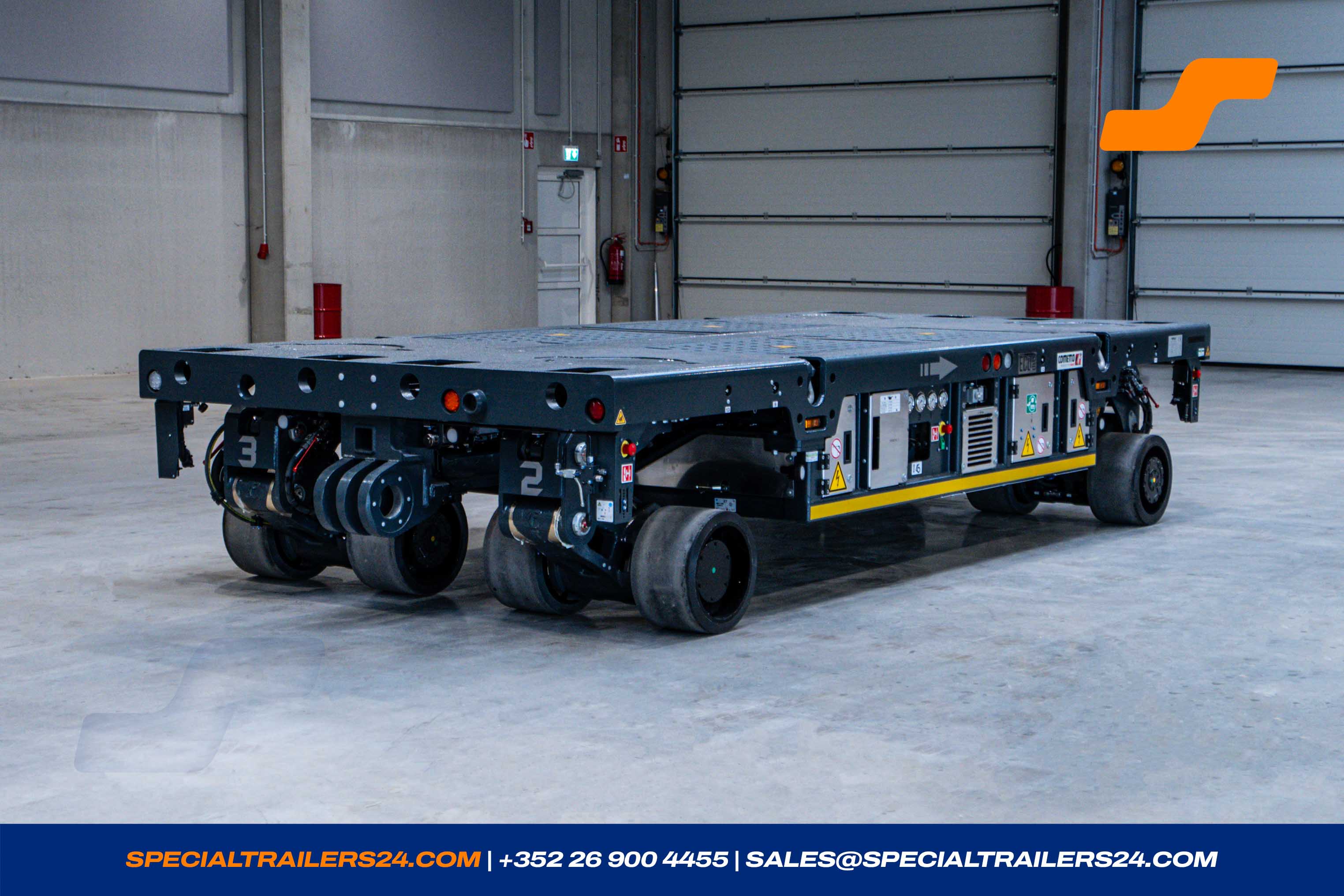

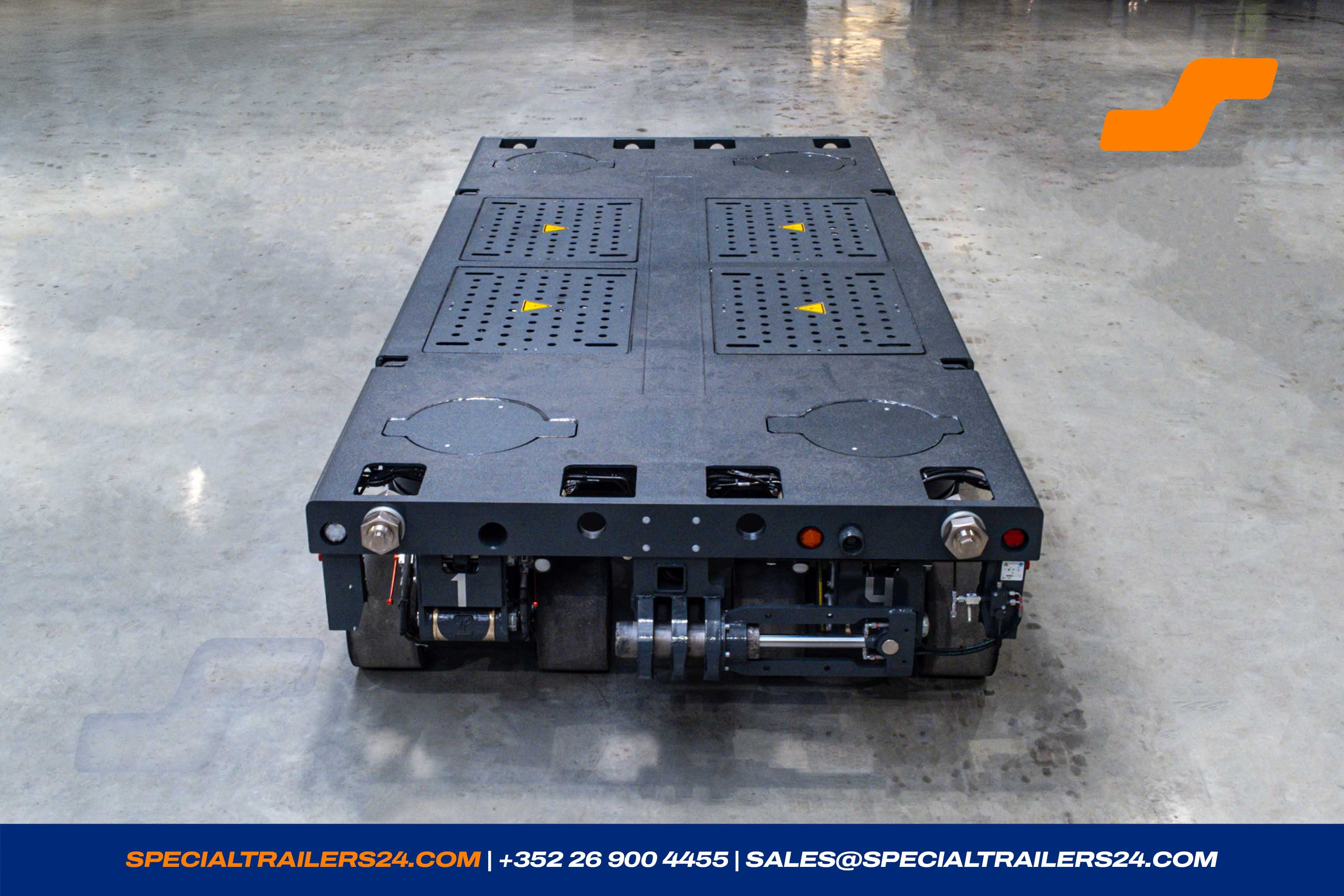

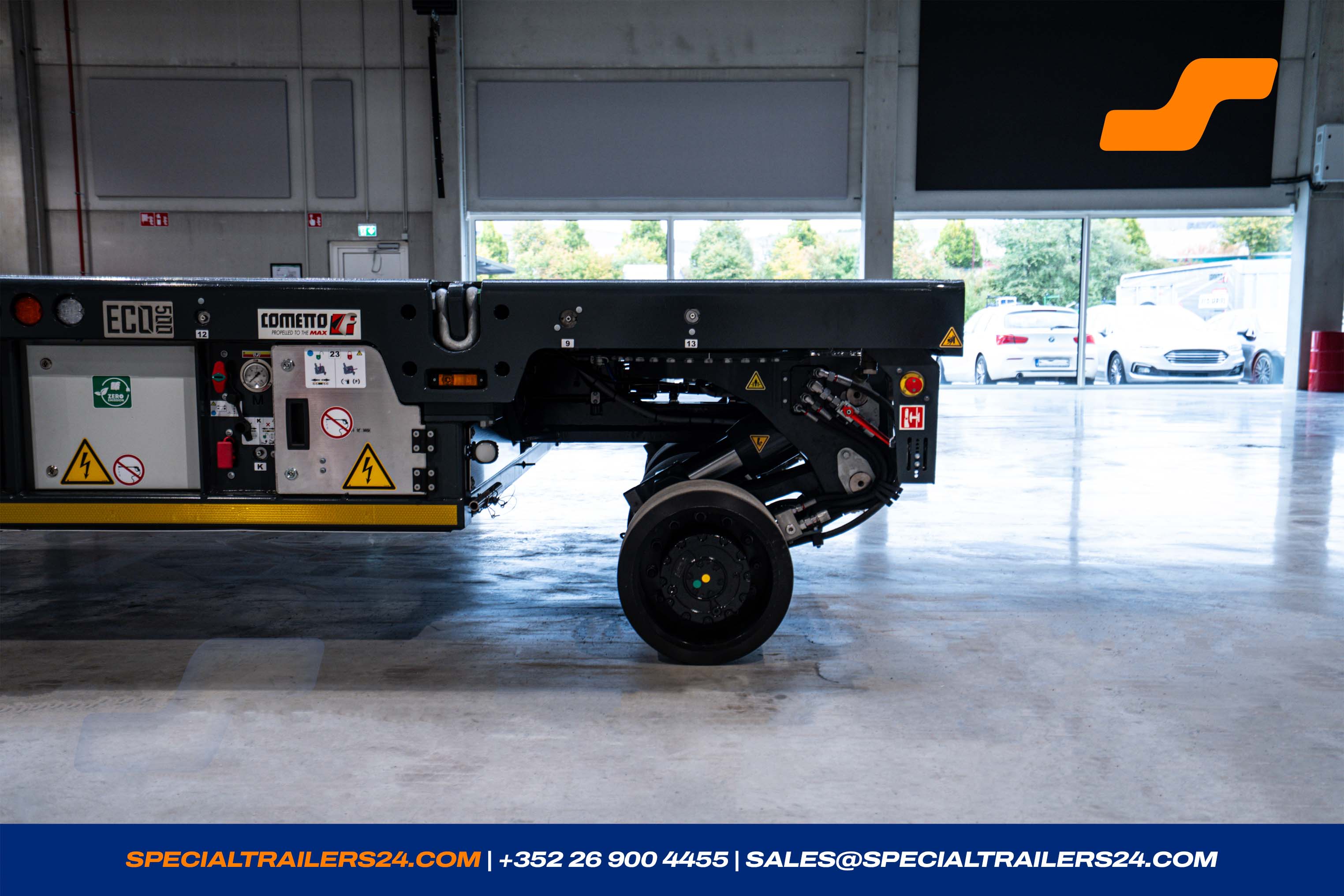

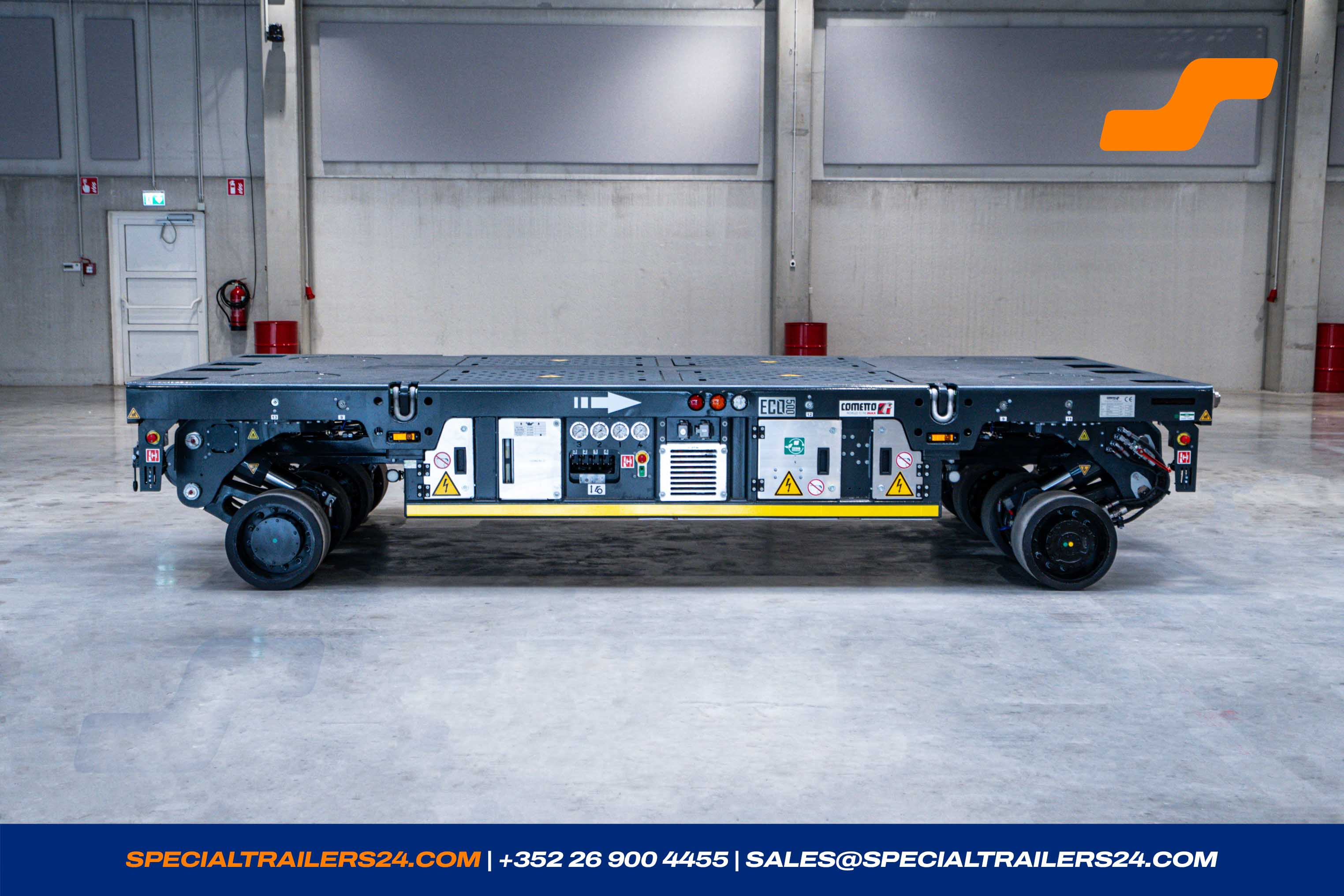

Cometto Eco500
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number ION 2024-00444
- Reference Order 24/444 - Eco502/2 E
- Number of axles 2
- Condition New
- Year of manufacture 2025
- Colour RAL 7016 - Anthracite grey
- Availability Directly available
- Steering Type Electro-hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 8700 kg |
| Payload | 67300 kg |
Bogie
Self-propelled bogies
1 x Module-Eco502/2E

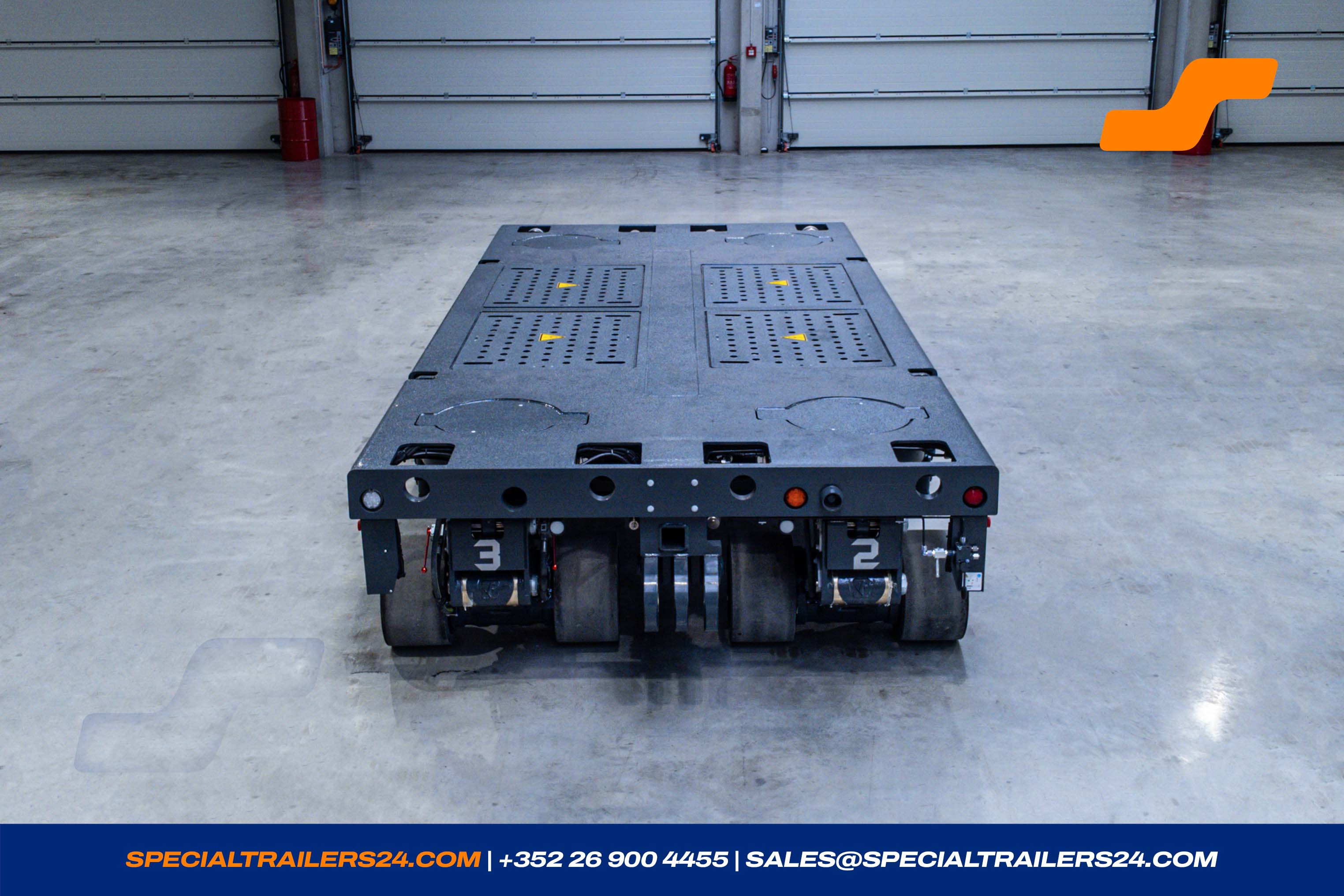

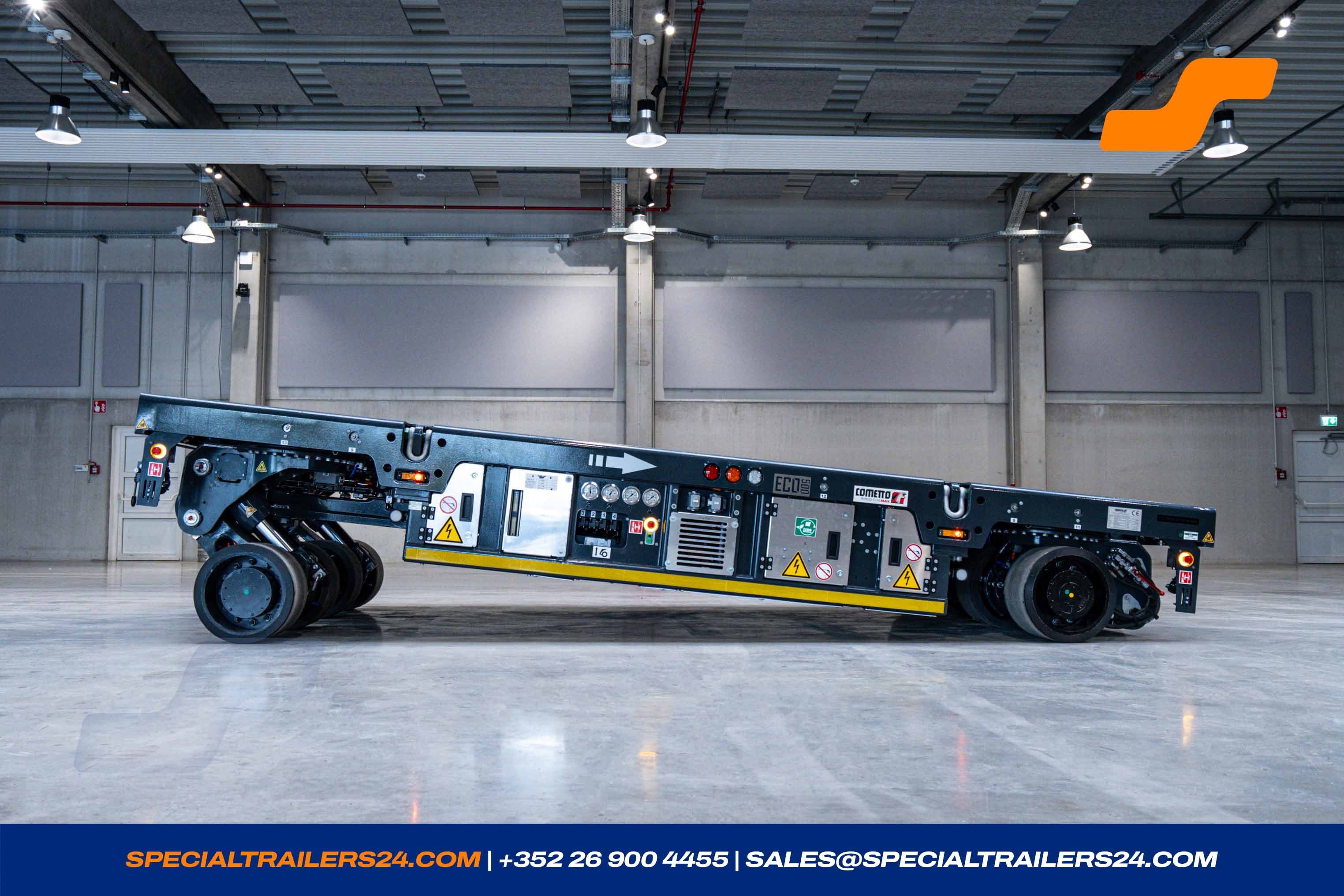

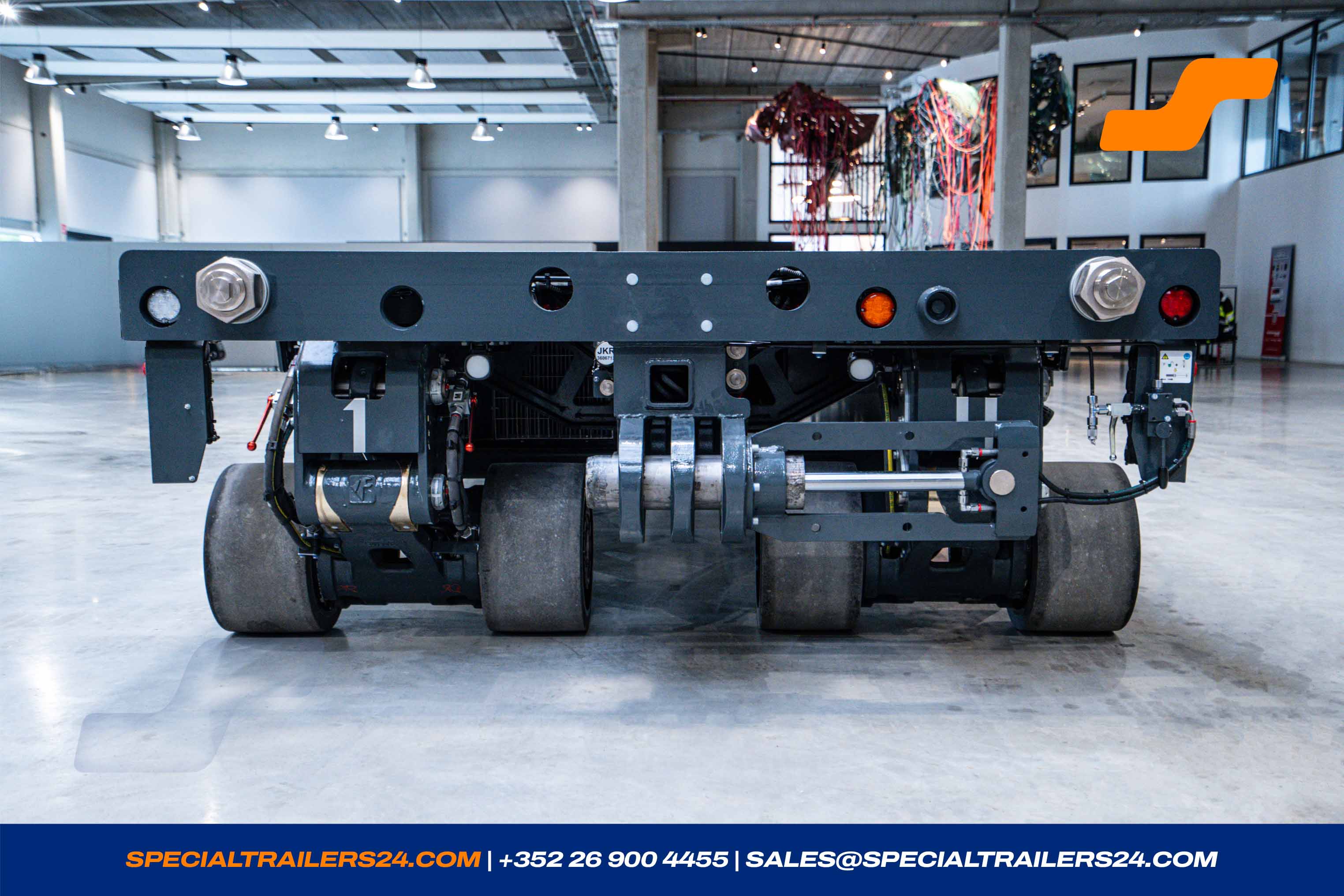

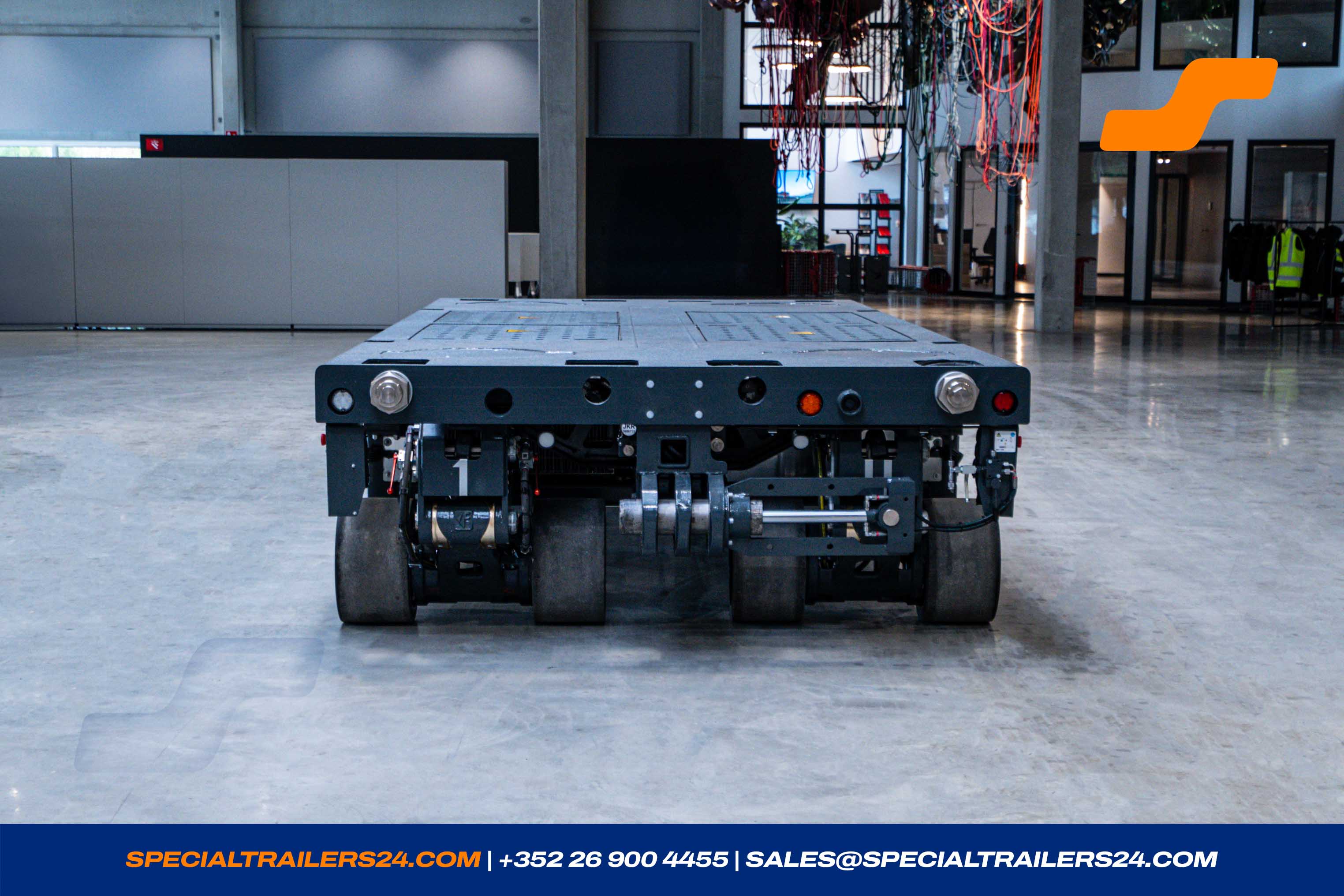

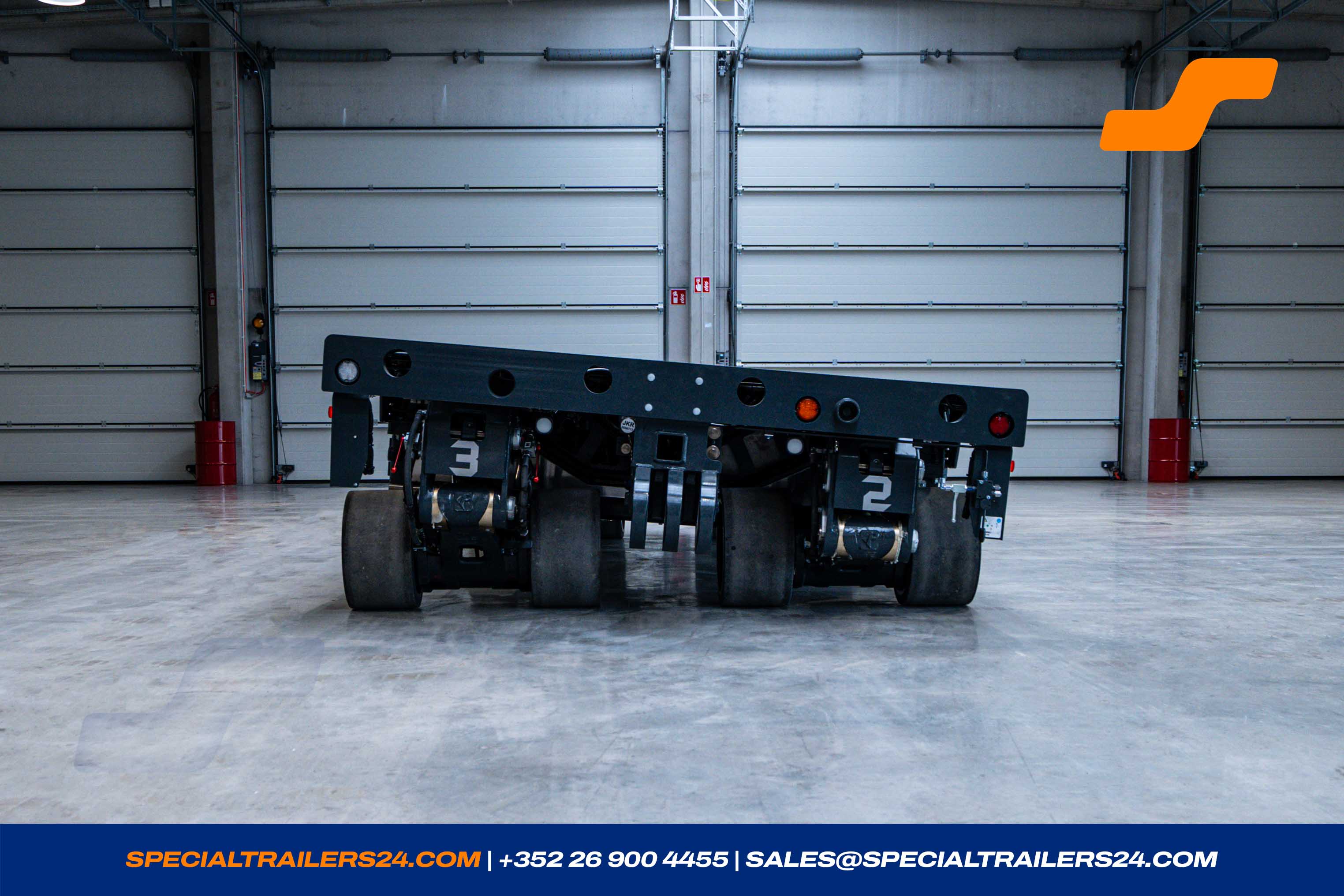

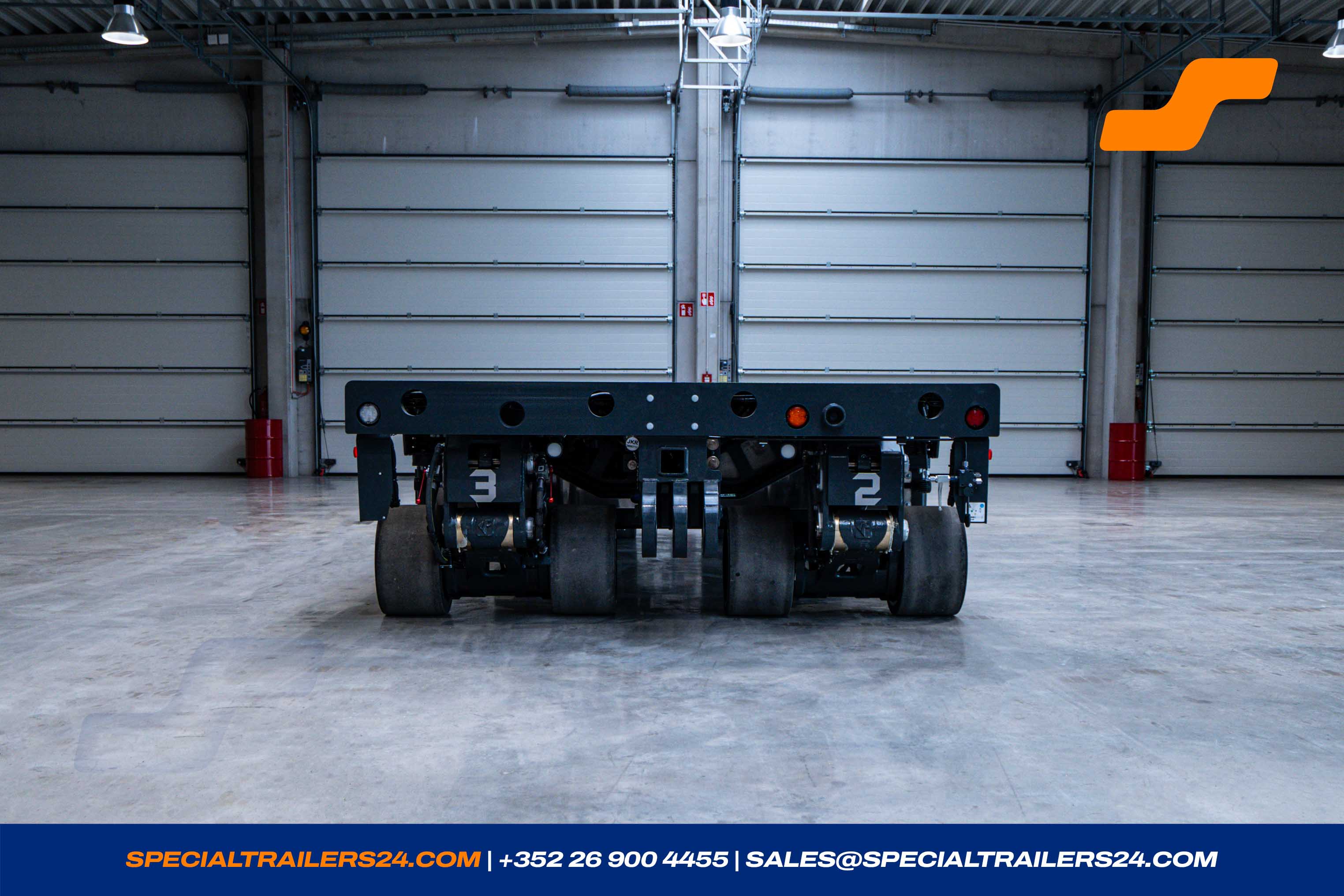

2-axle lines Heavy-Duty Platform Unit equipped with 2 self-driven axles and all-wheel electronic-hydraulic steering .
Platform 2.350 mm wide, for loads up to 38 t per axle line and high concentrated loads.
On the platform it is possible to install a E-PPU
Specification taken from technical description Eco500
- High Resistance Metallization (HRM) of the complete steelconstruction, after all welding works the structure is shotblasted and a layer of zinc (85%) - aluminum (15%) is applied.
- Wheels: RAL 9005 black
- Kit of 4 quick couplings and pipes to allow the interconnection of suspensions between Eco500 modules.
- Platform width: 2.350 mm
- Type of suspension: pendular

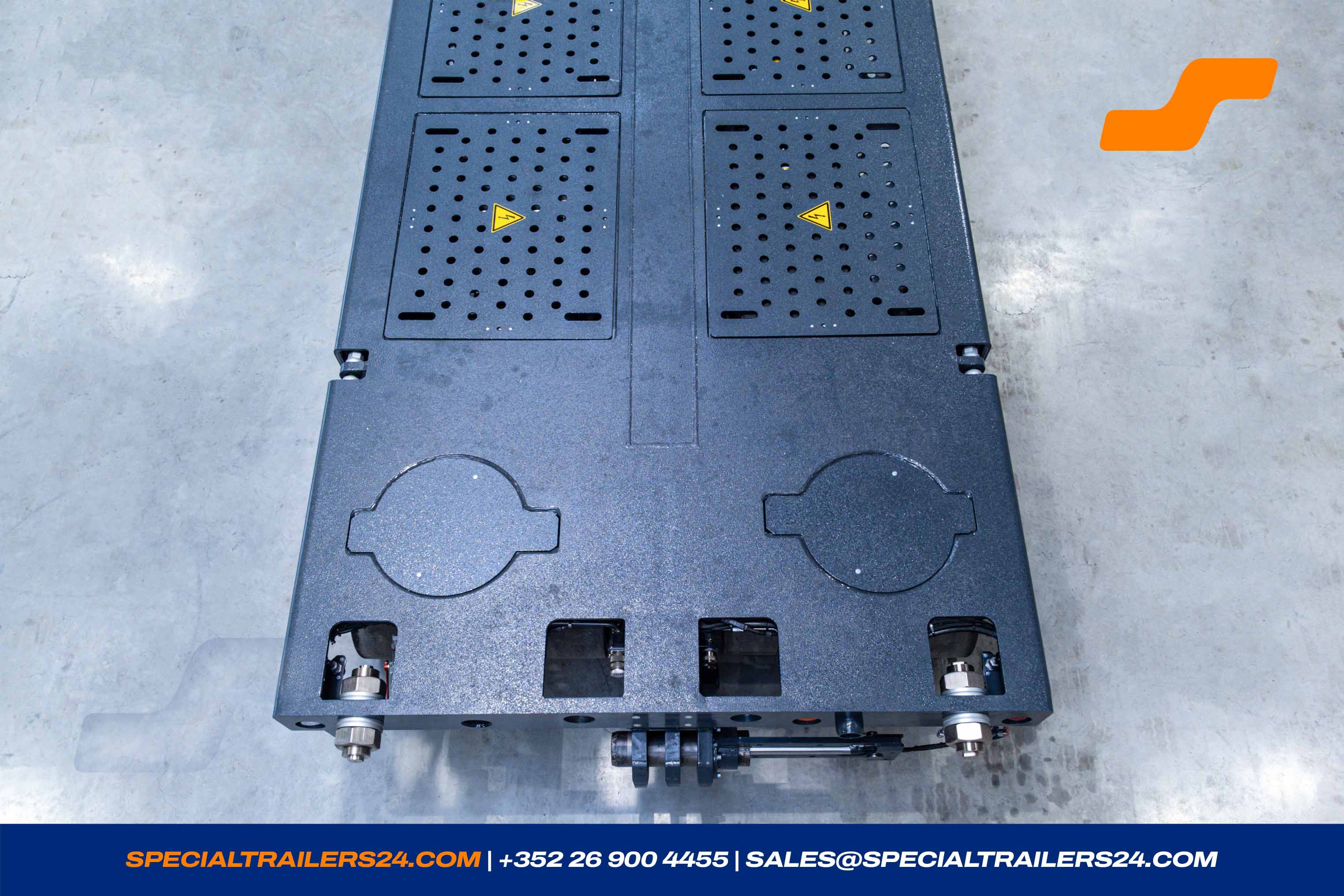

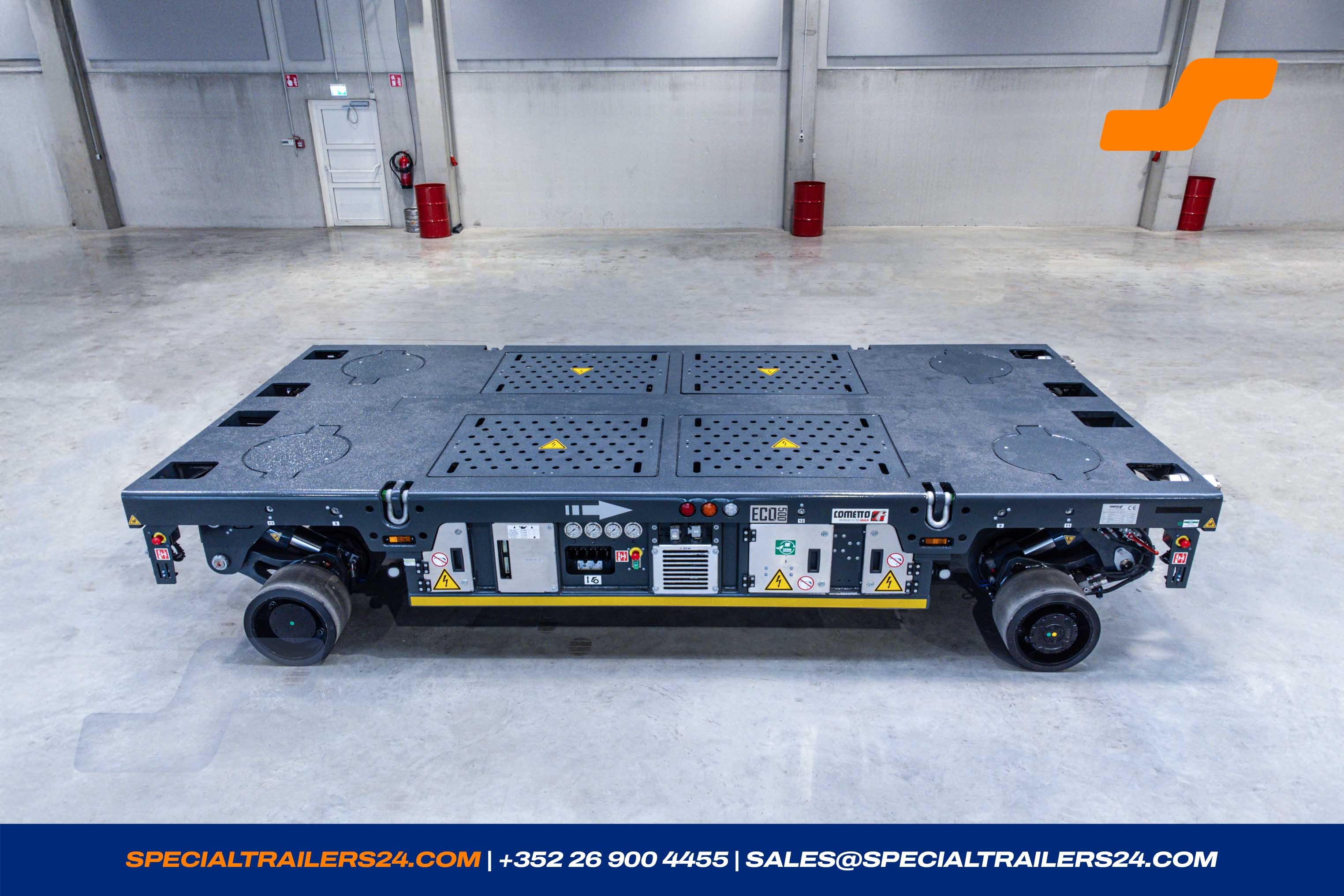

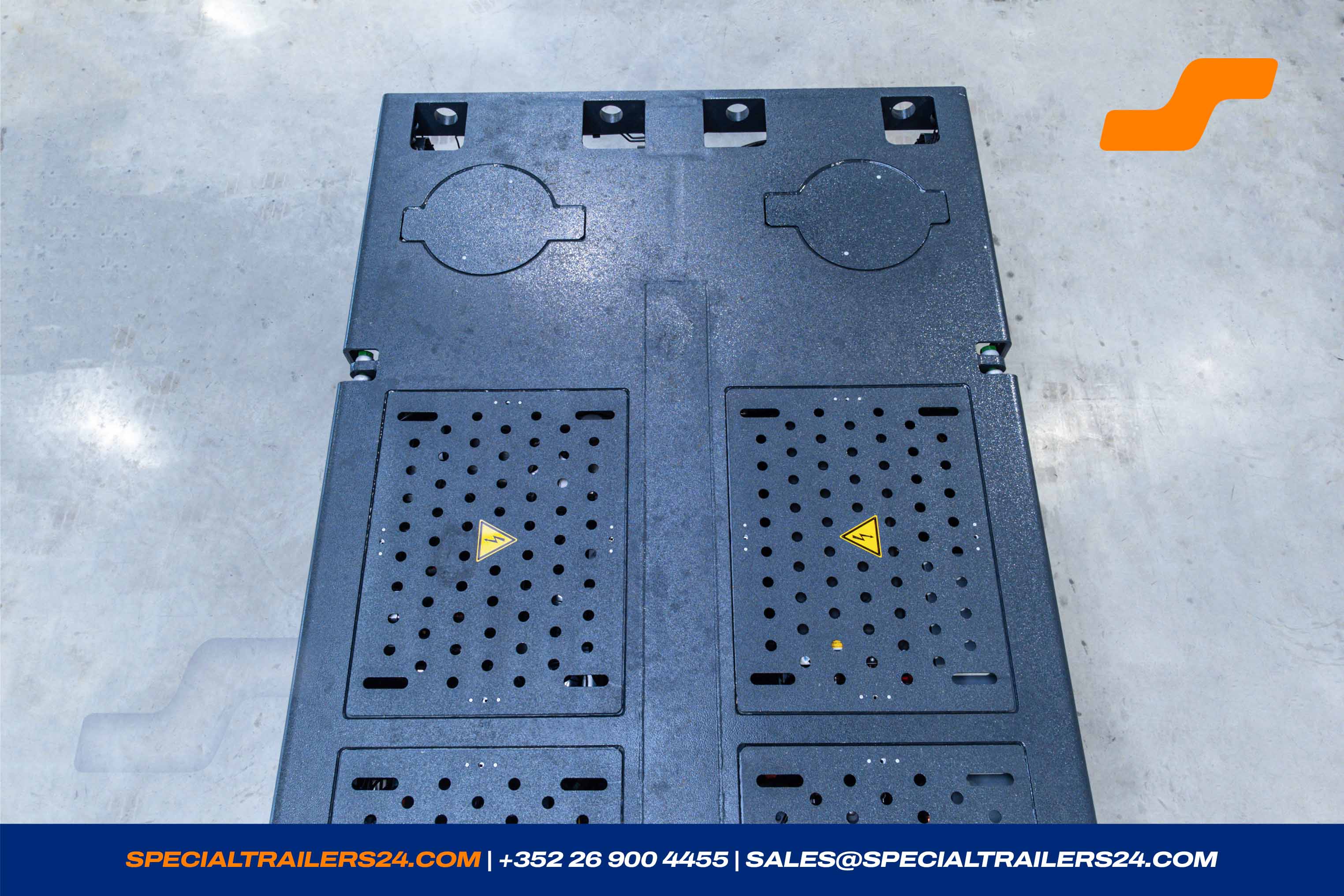

- Platform with anti-slip sand-coating.
-

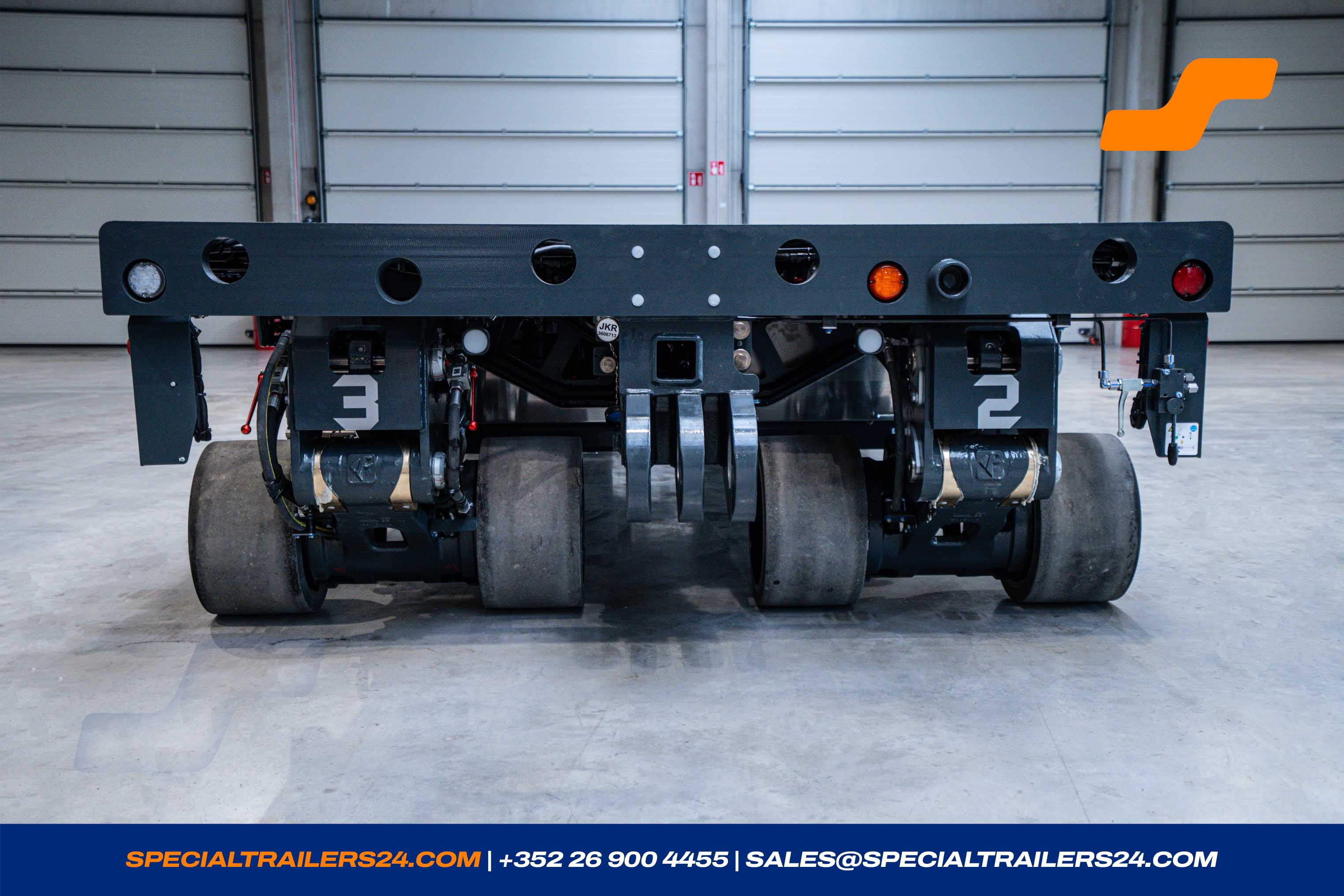

8x Solid tyres
Non-marking - Interface for aditionnal battery pack
-
Electronic leveling system, including the inclinometer sensors and software.
(available only with the equal lift system installed)
The system work with the equal lift system and allow to keep the horizontal position of the platform when ground is uneven. -
Equal lift system Including 8 ultrasonic sensors for height measuring (2 per each corner) and the equal / parallel electronic and software.
The system allow to lift the suspensions with the same speed in parallel mode. -
Working led lights for module.

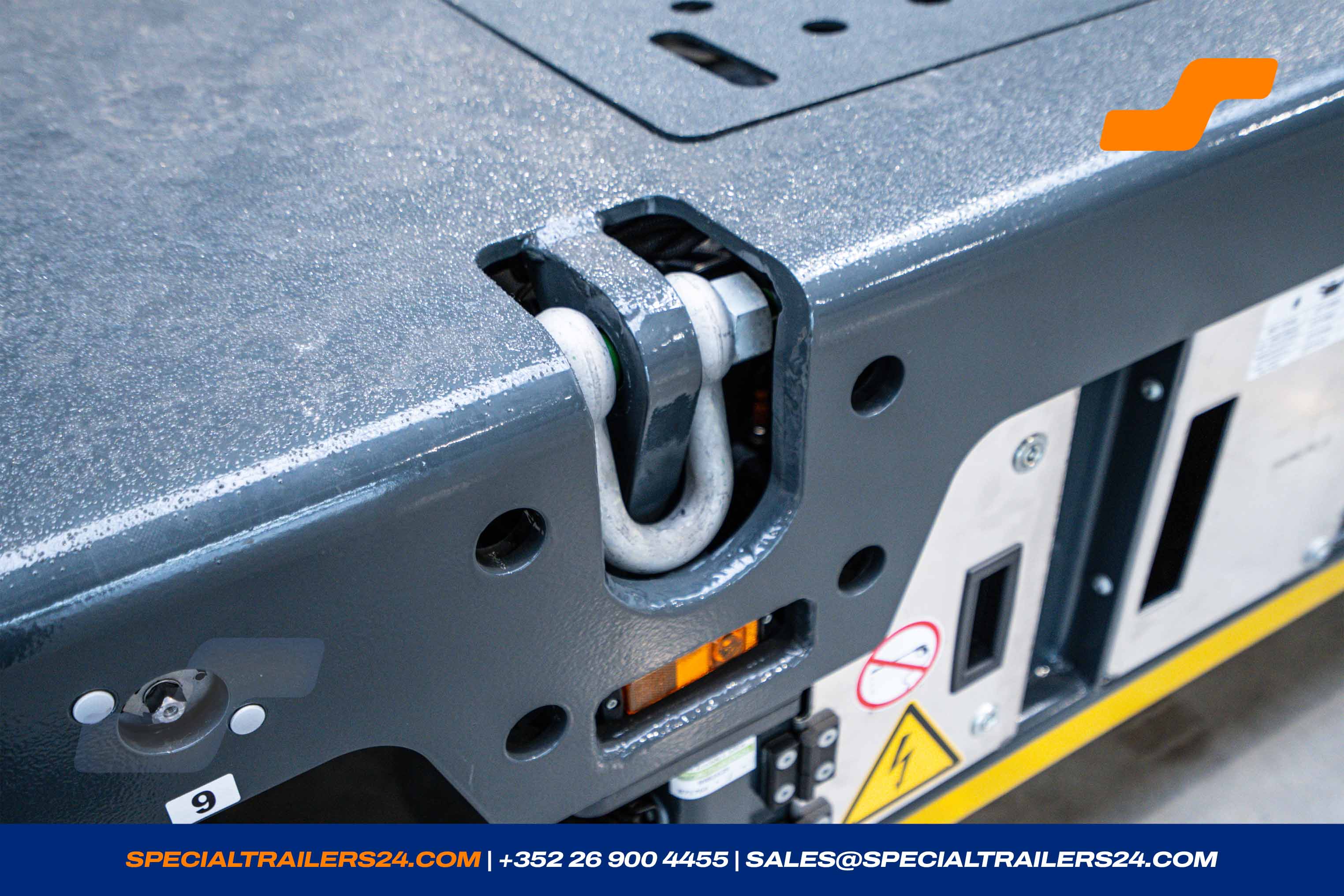

8 led lights in total, 2 lights installed per side and 2+2 on the heads. - 2 pairs of adjustable lashing rings mounted in lateral lashing points. Capacity of 8.5 Ton.
Painting
| Outer frame | N/A - RAL-nbr.: .................... (please confirm) |
| Chassis | RAL 7016 - Anthracite grey |
Powerpack
PPU

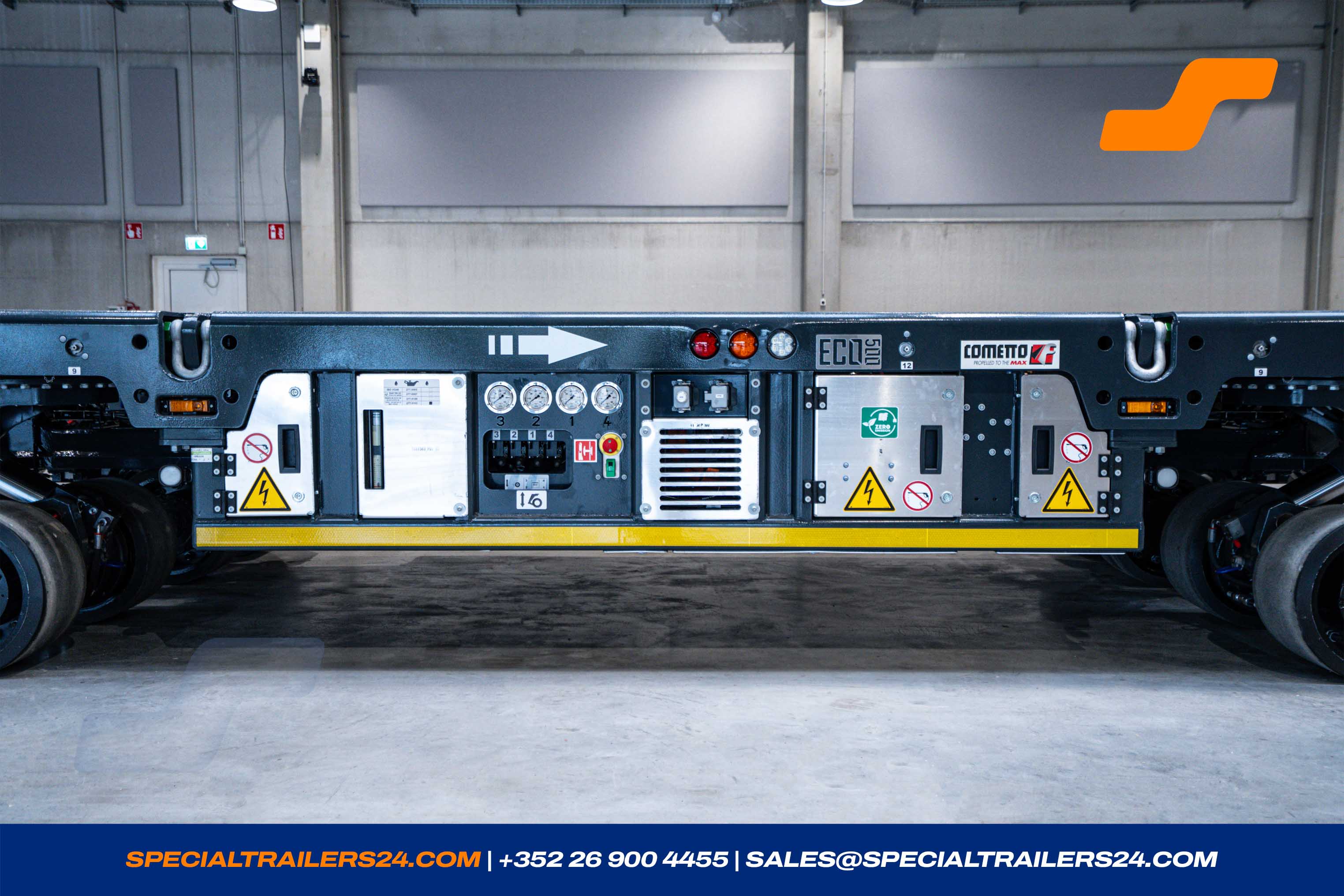

1 x Eco500 Electric Power Pack 60 kW
The power pack consists in an electric motor connected to several pumps for:
• hydrostatic drive system for traction
• lifting and steering system
• auxiliary system (cooling system, drainage system, etc.)
One set of battery is installed on the PPU.
Battery type LiNMC

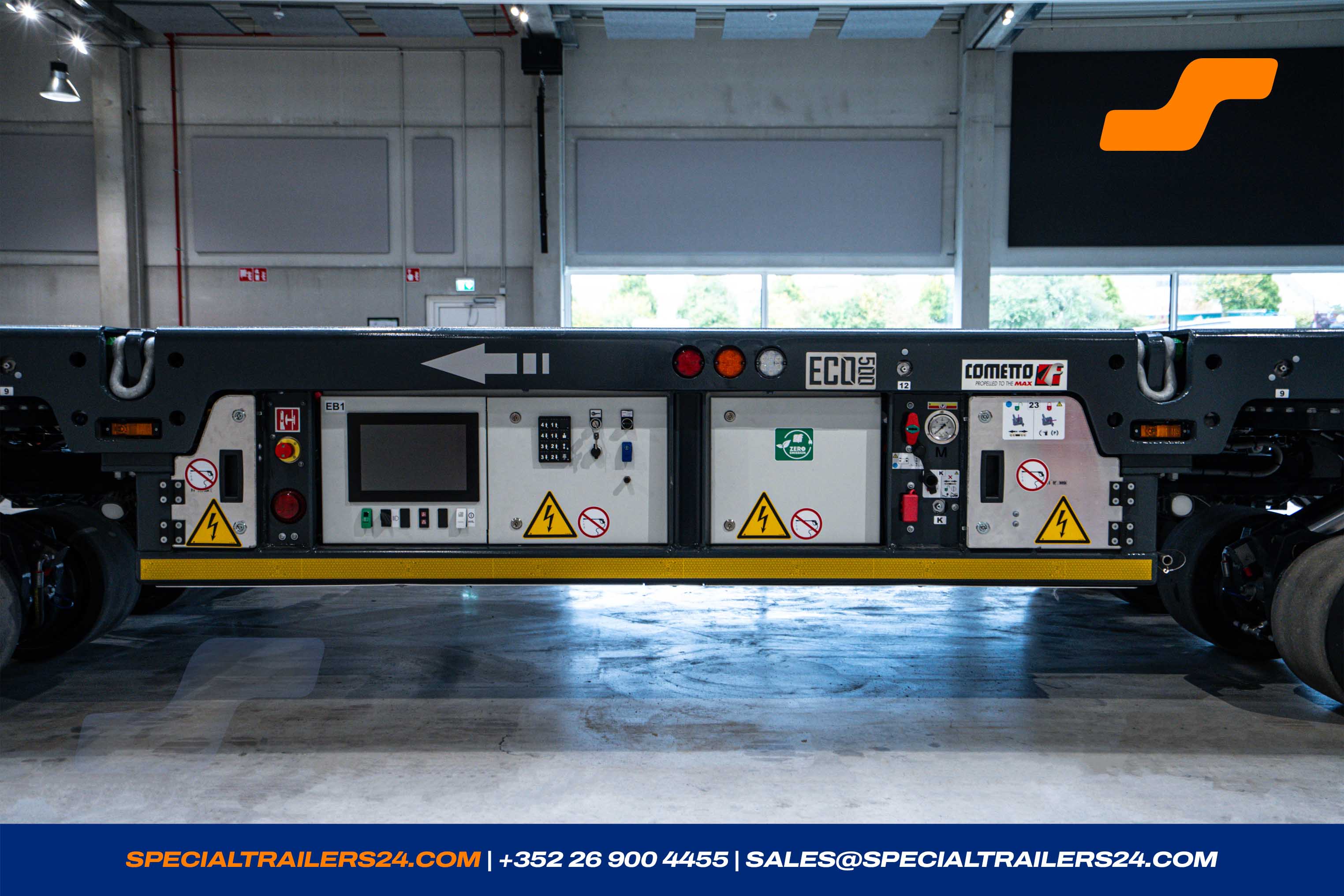

Electronic system and BMS (Battery Management System) software are installed on-board

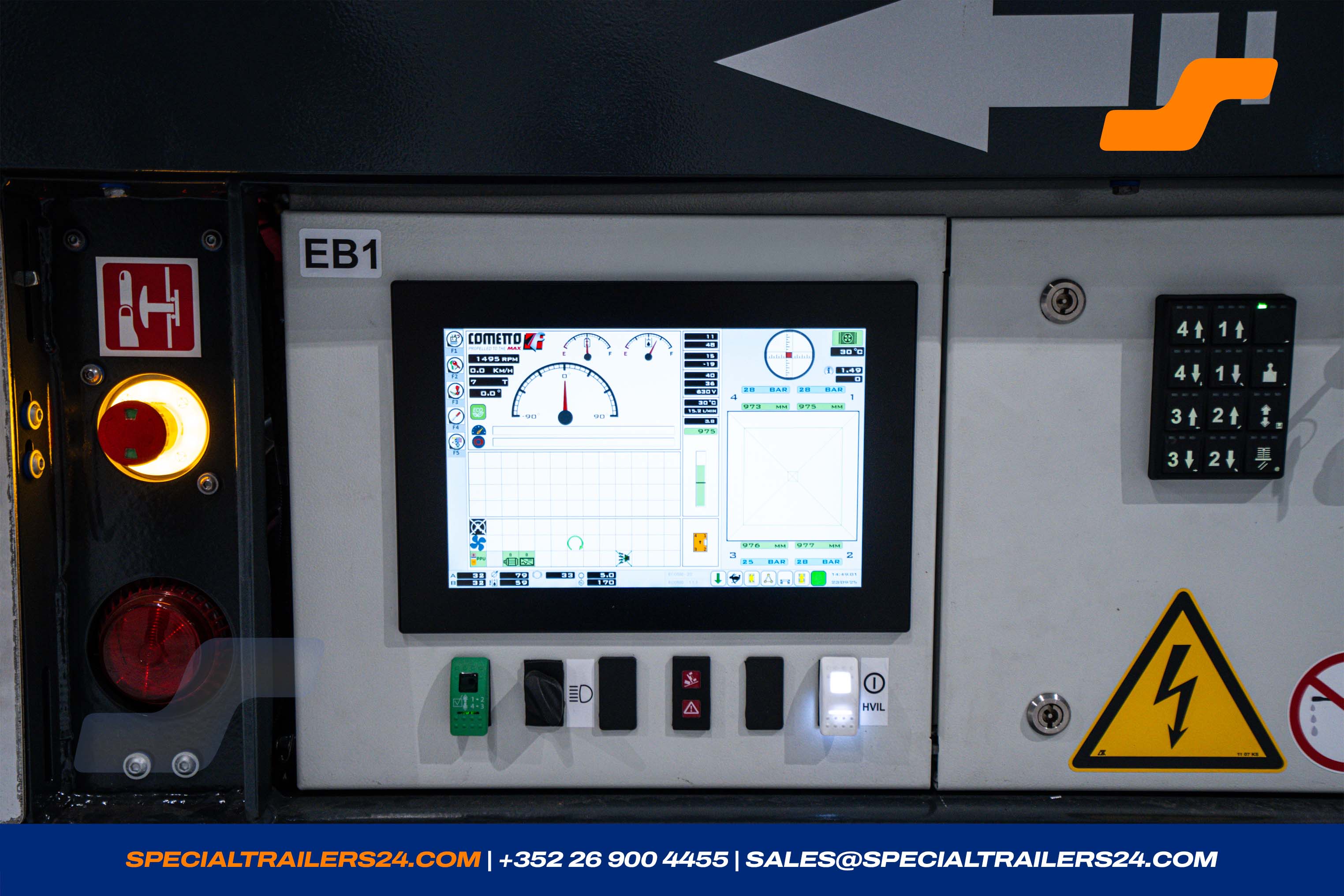

- High visibility screen and simple buttons to configure the convoy.
-
Continuous control of CoG of payload.
Horn and visual alarm for overcharge and risk of tilting of payload.
Alarm for level of hydraulic oil (low and full). - Powerpack with HRM metallization (High Resistance Metallisation).
-
Remote Diagnosis System - It allows to monitor the vehicle and help the troubleshooting through the COMETTO service department 24/365.
Data transmission is possible via mobile connection (3G/4G). - Integrated on-board charger
- CCS2-type charging socket on-board allowing both DC fast charge or AC charge
PPU Accessoires

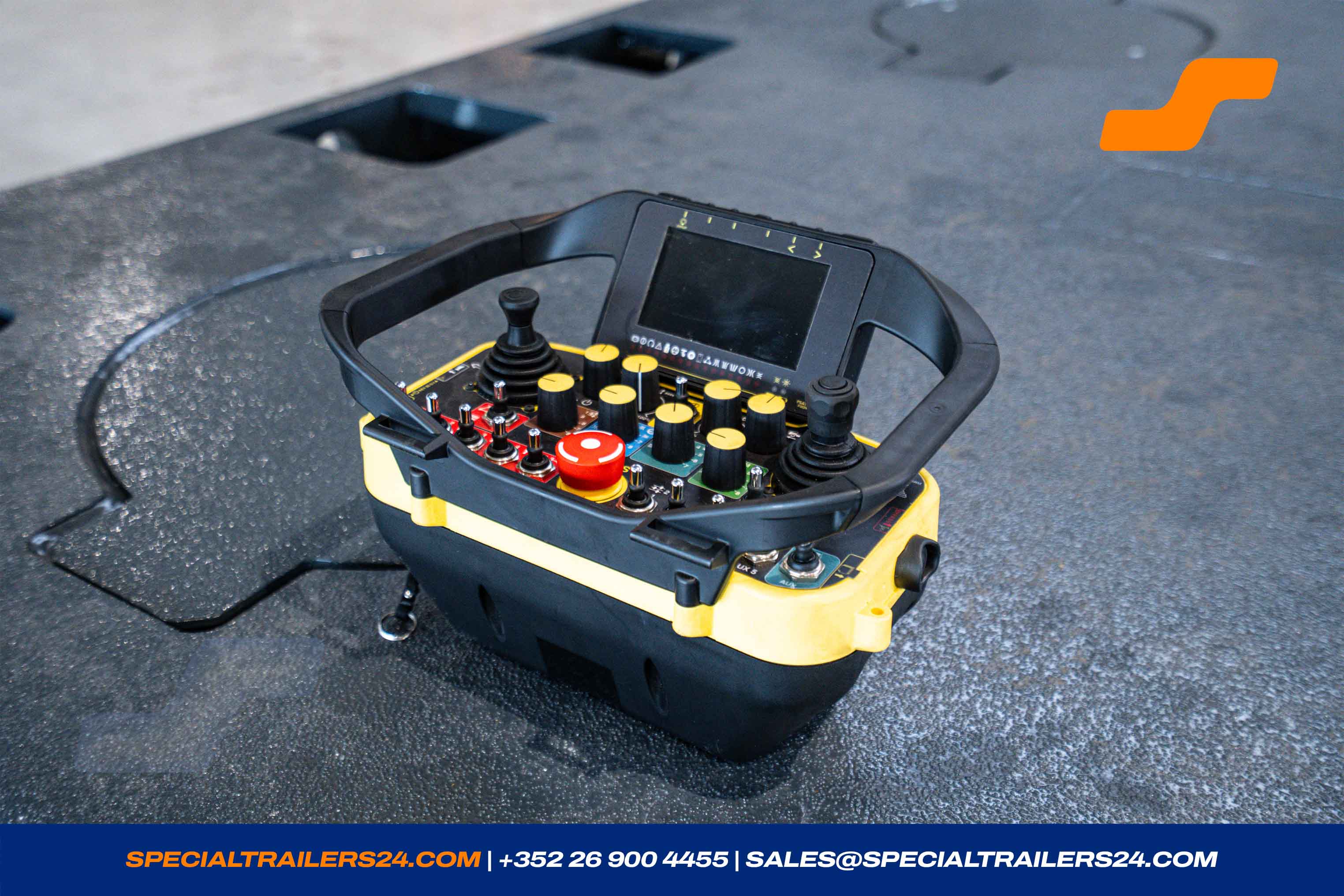

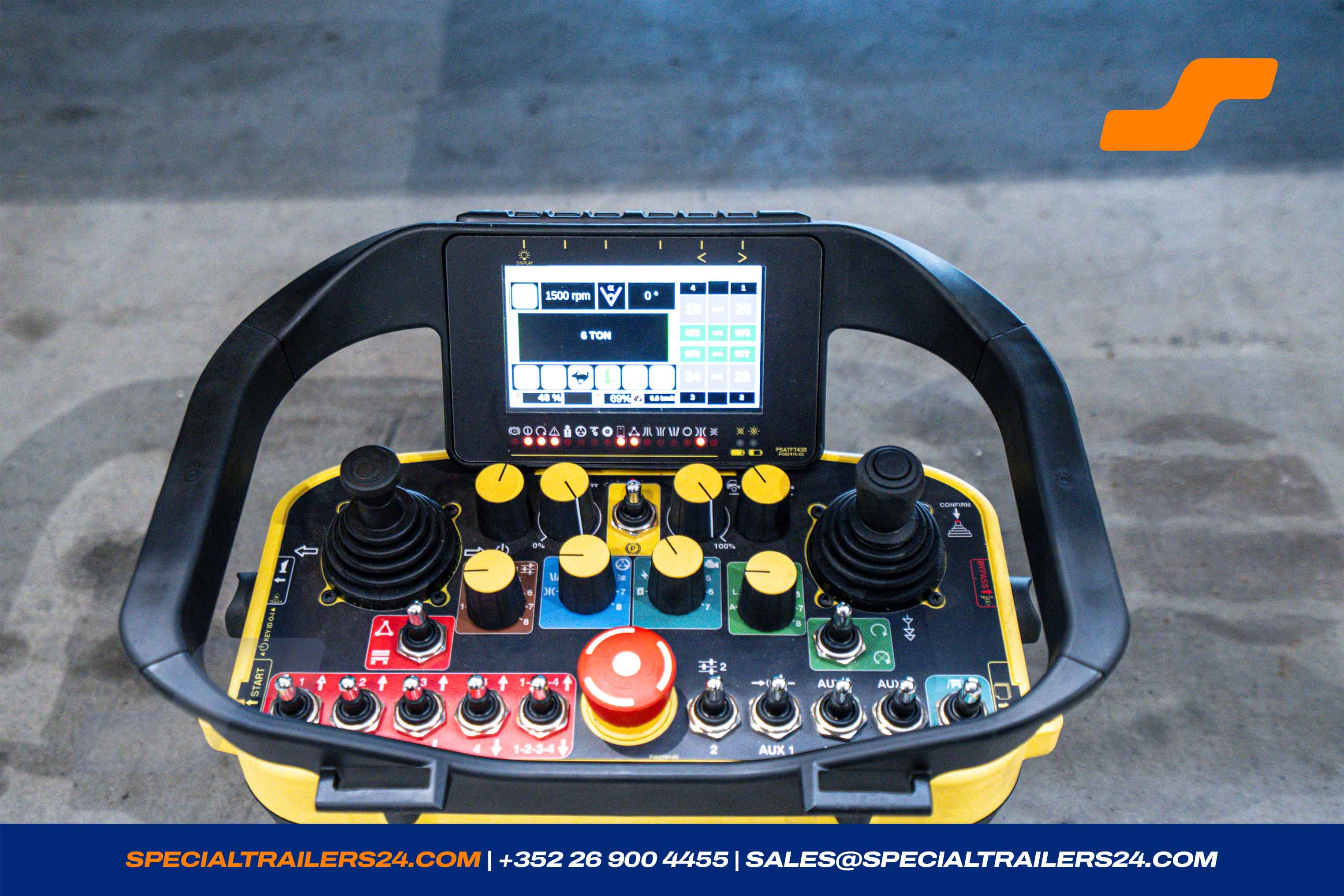

1 x Eco500 Compact remote control
Compact radio remote control.
It allows to handle the vehicle from a distance up to 50 m.
Remote control for all functions of vehicle with a display showing main data of convoy.
Receiver to be connected to Eco500 module
Small size
Frequency: 2,4 GHz
Supplied with 2 batteries, a 12V charger, and a cable for work without radio comunication.
Charger directly connectable to powerpack.
Accessories
General accessories
1 x Eco500 Tools kit: Essential
Kit of tools for general operations and basic maintenance on a Eco500 single trailer.
