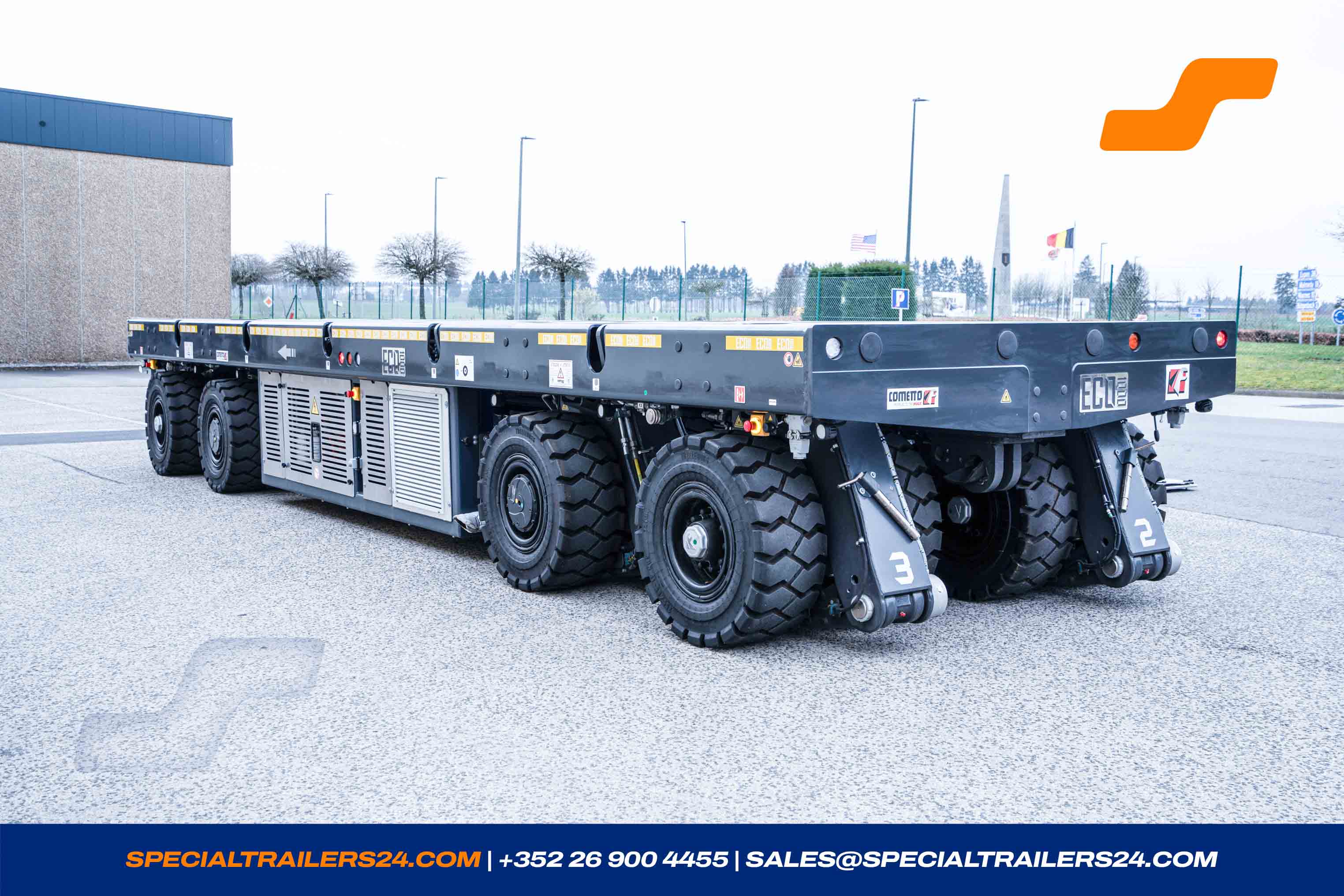

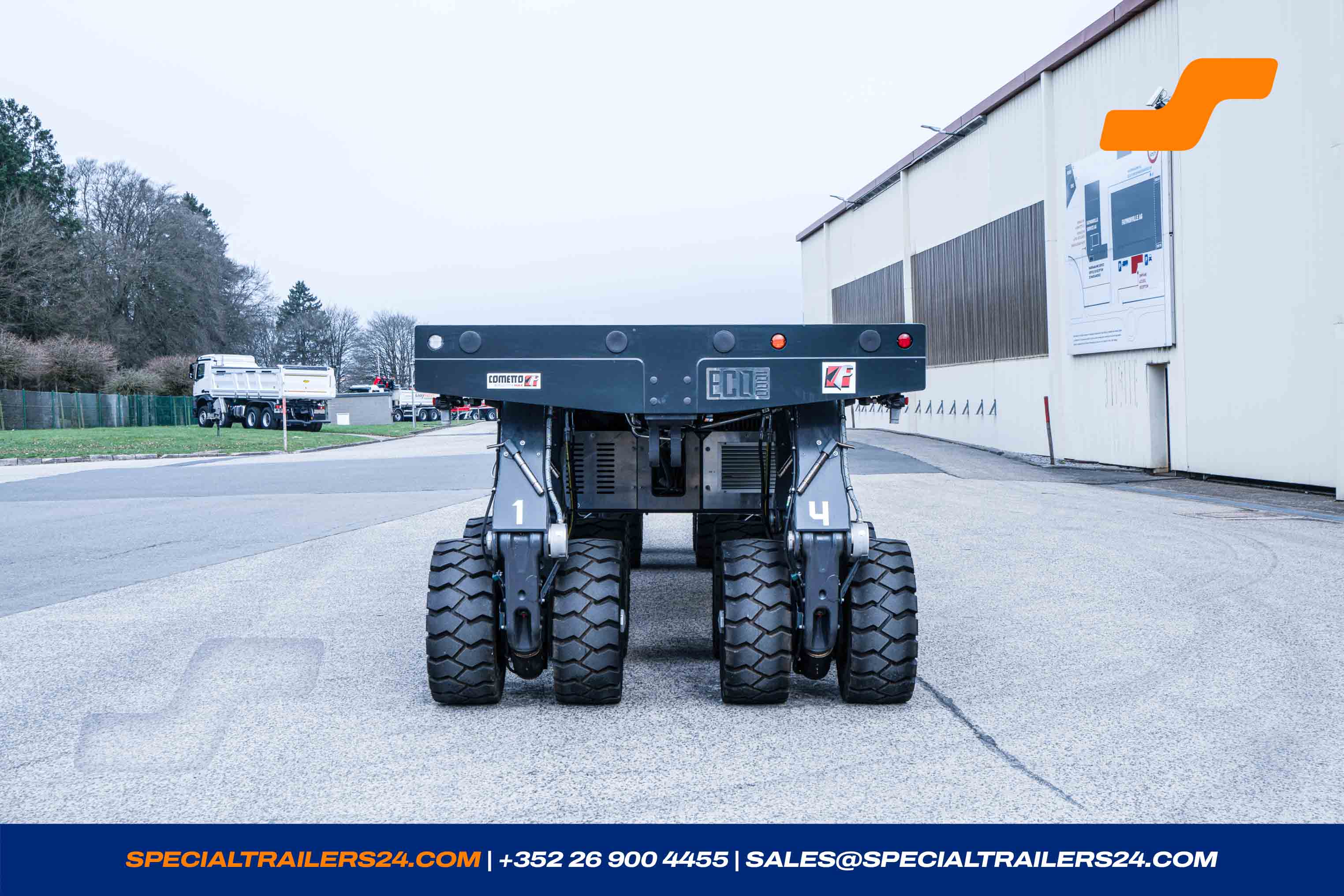

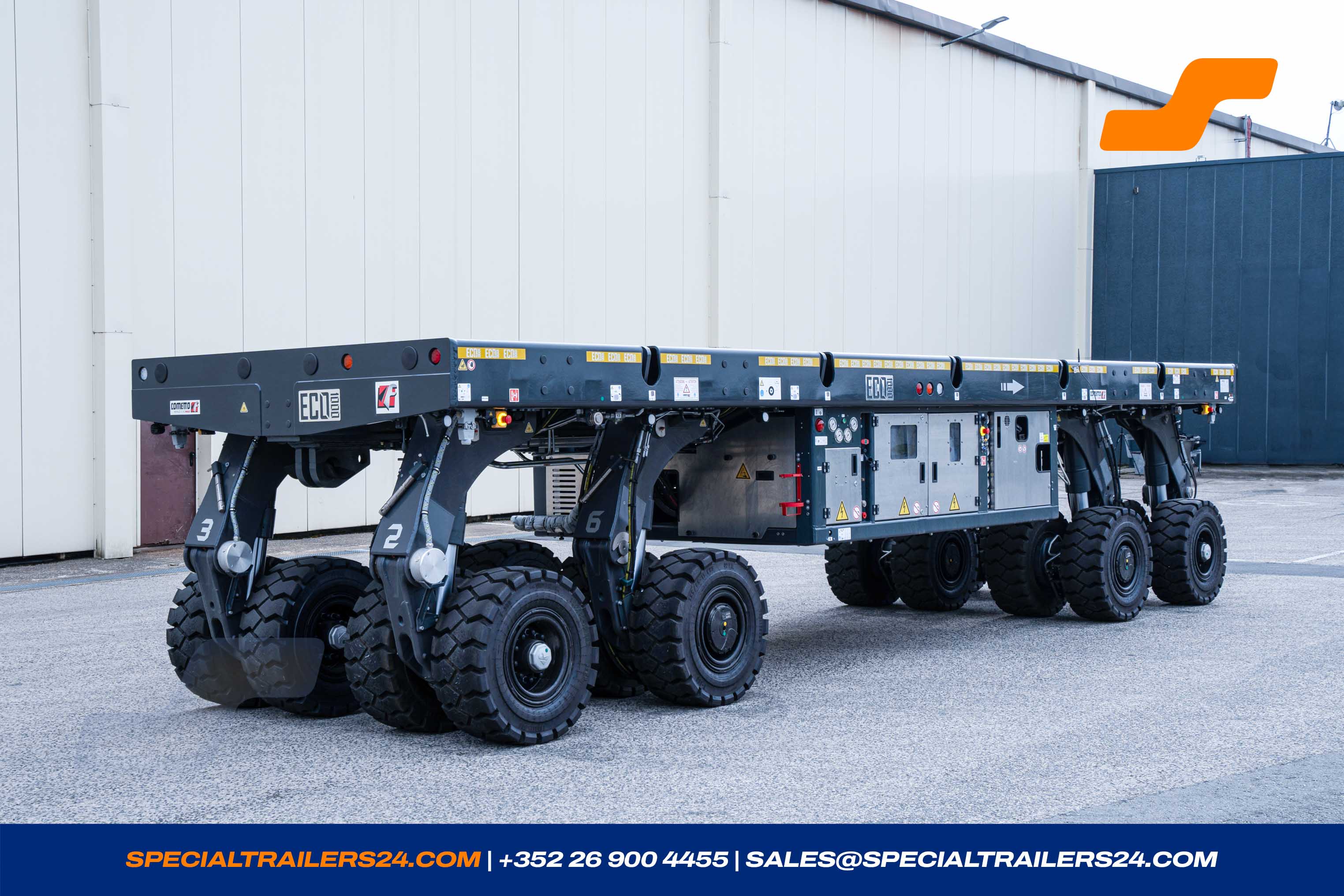

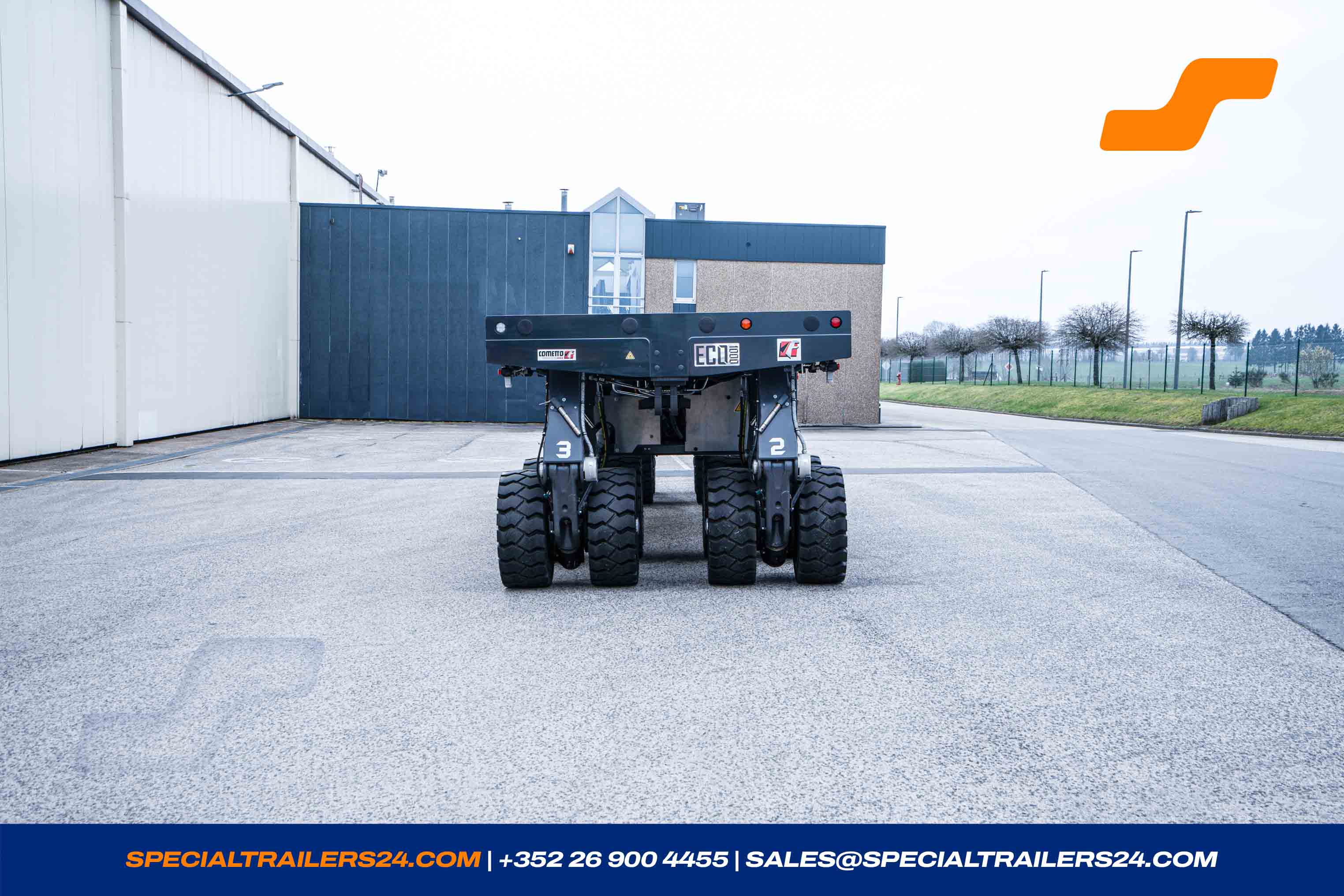

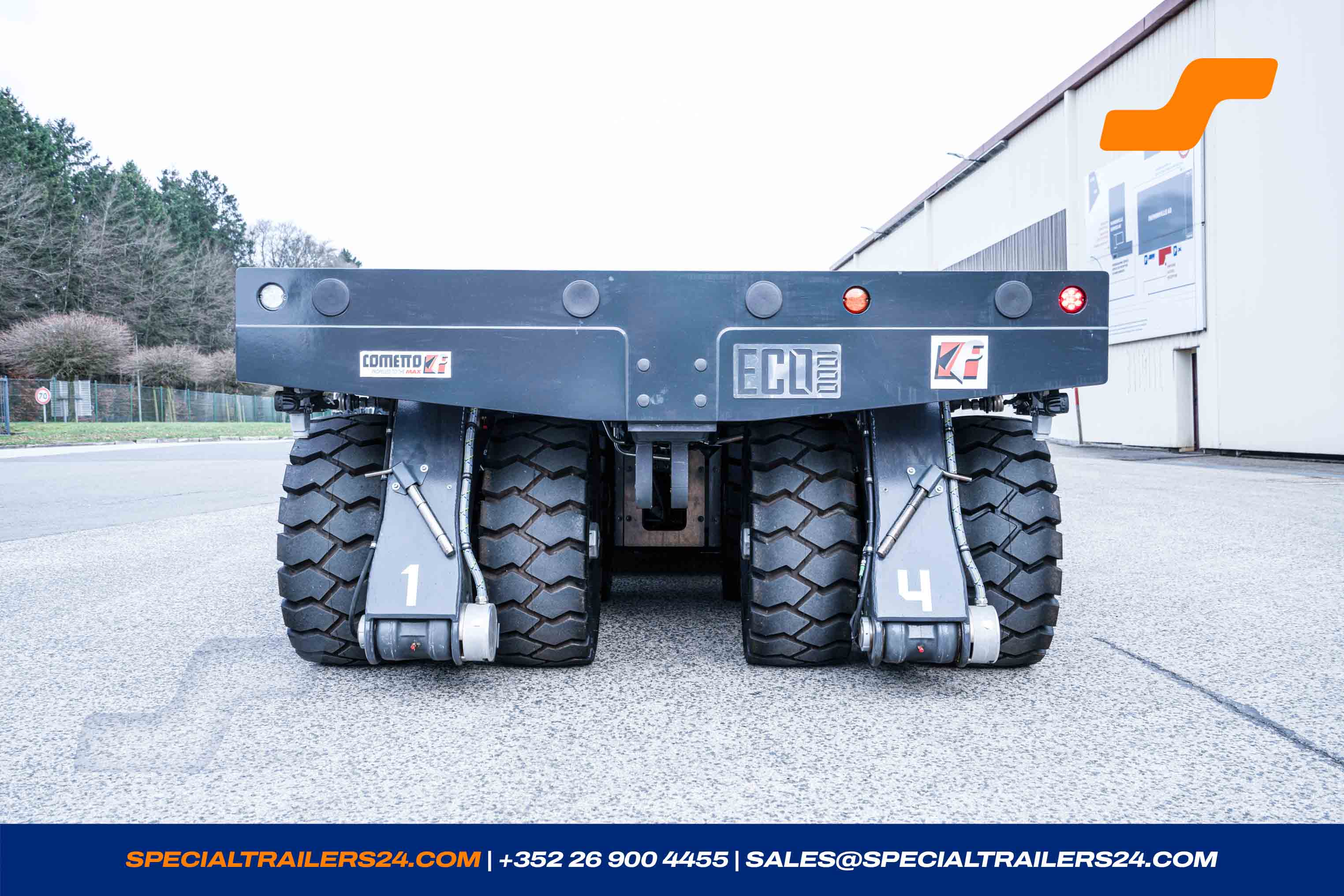

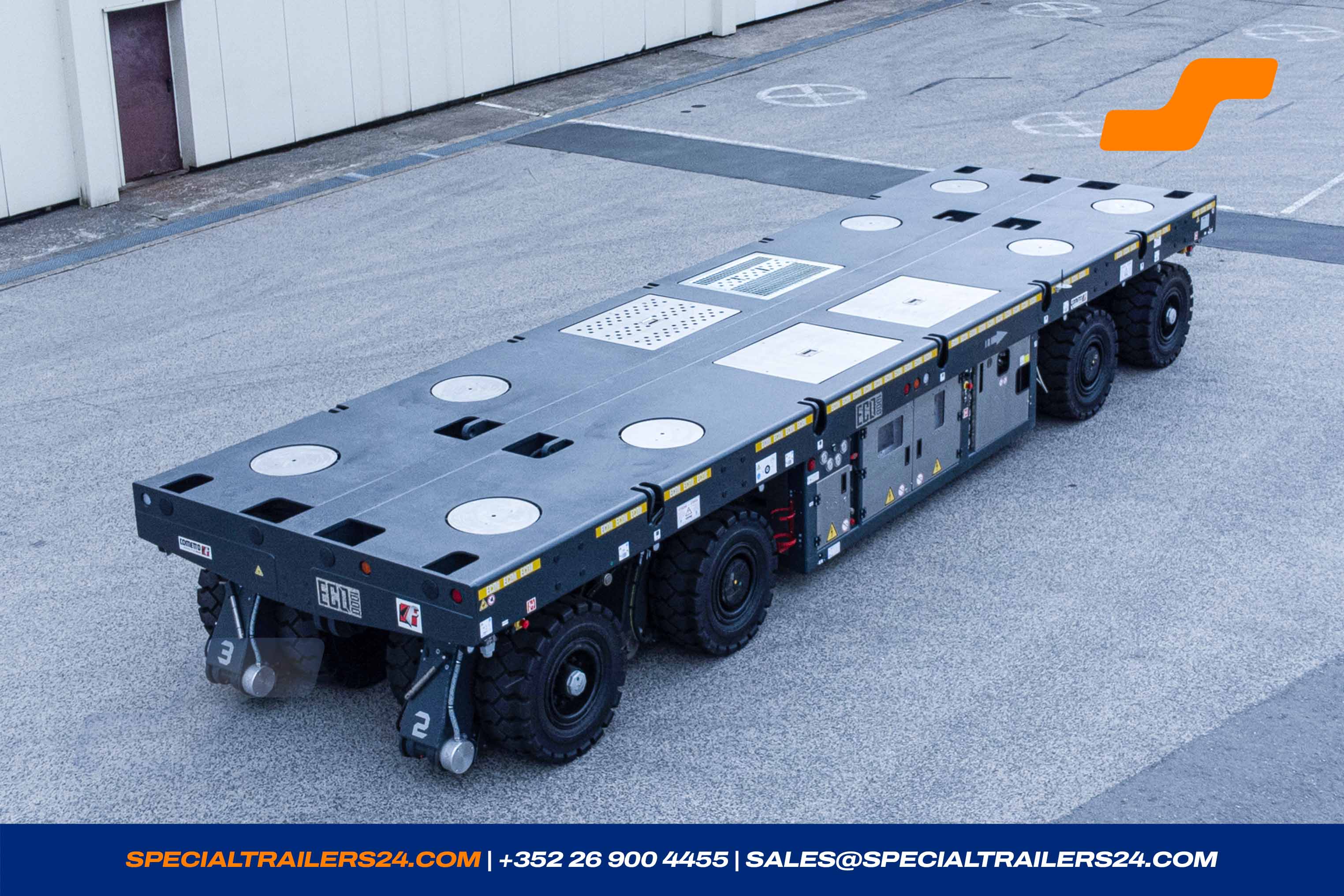

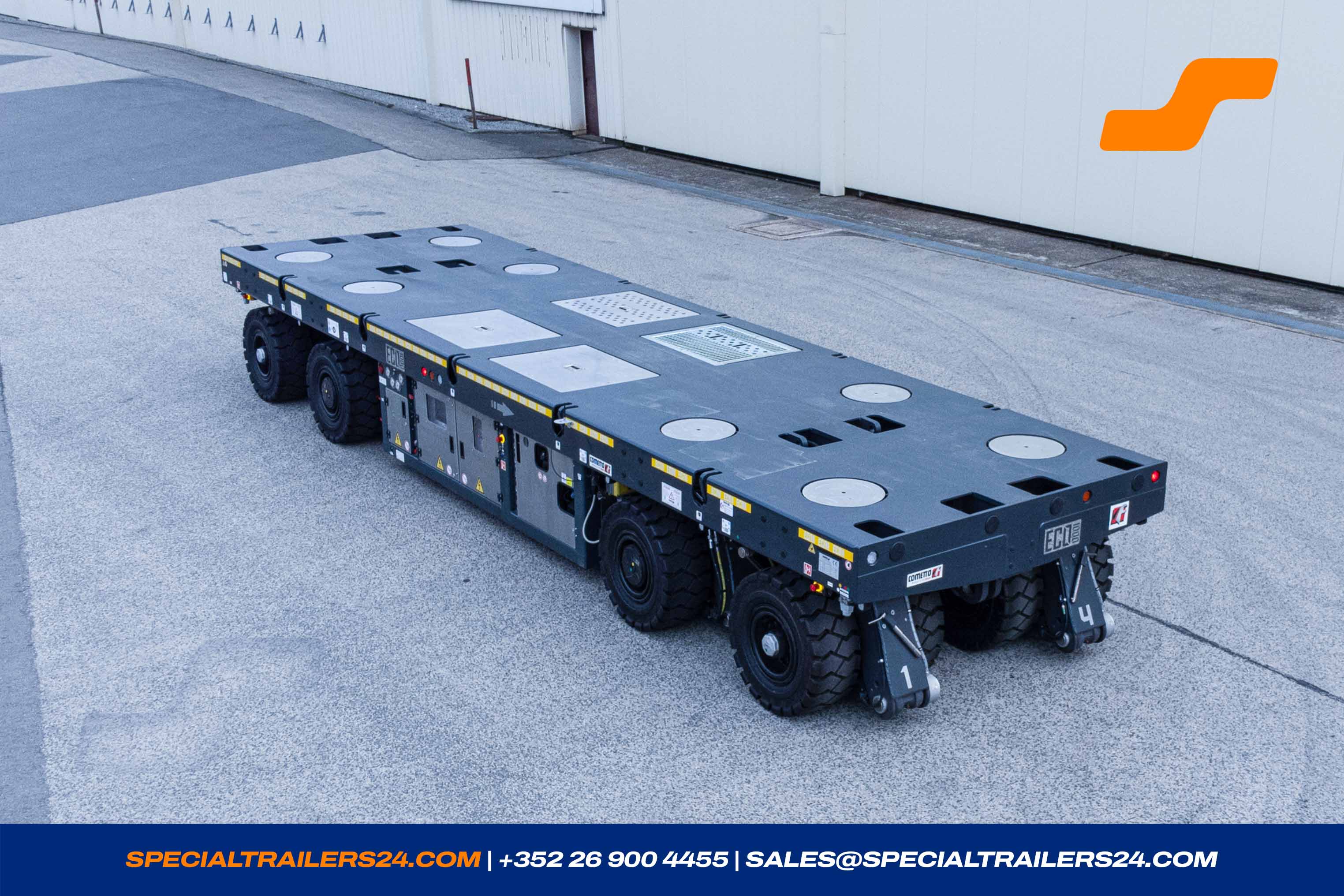

Cometto Eco1000/Eco1500
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number ION 2024-00327
- Reference Eco1000 4/4 Diesel
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour RAL 7016 - Anthracite grey
- Availability Directly available
- Steering Type Electro-hydraulic
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| Tare weight +- 3% | 18000 kg |
| Payload | 174000 kg |
Bogie
Bogies
1 x Module-Eco1000 4/4

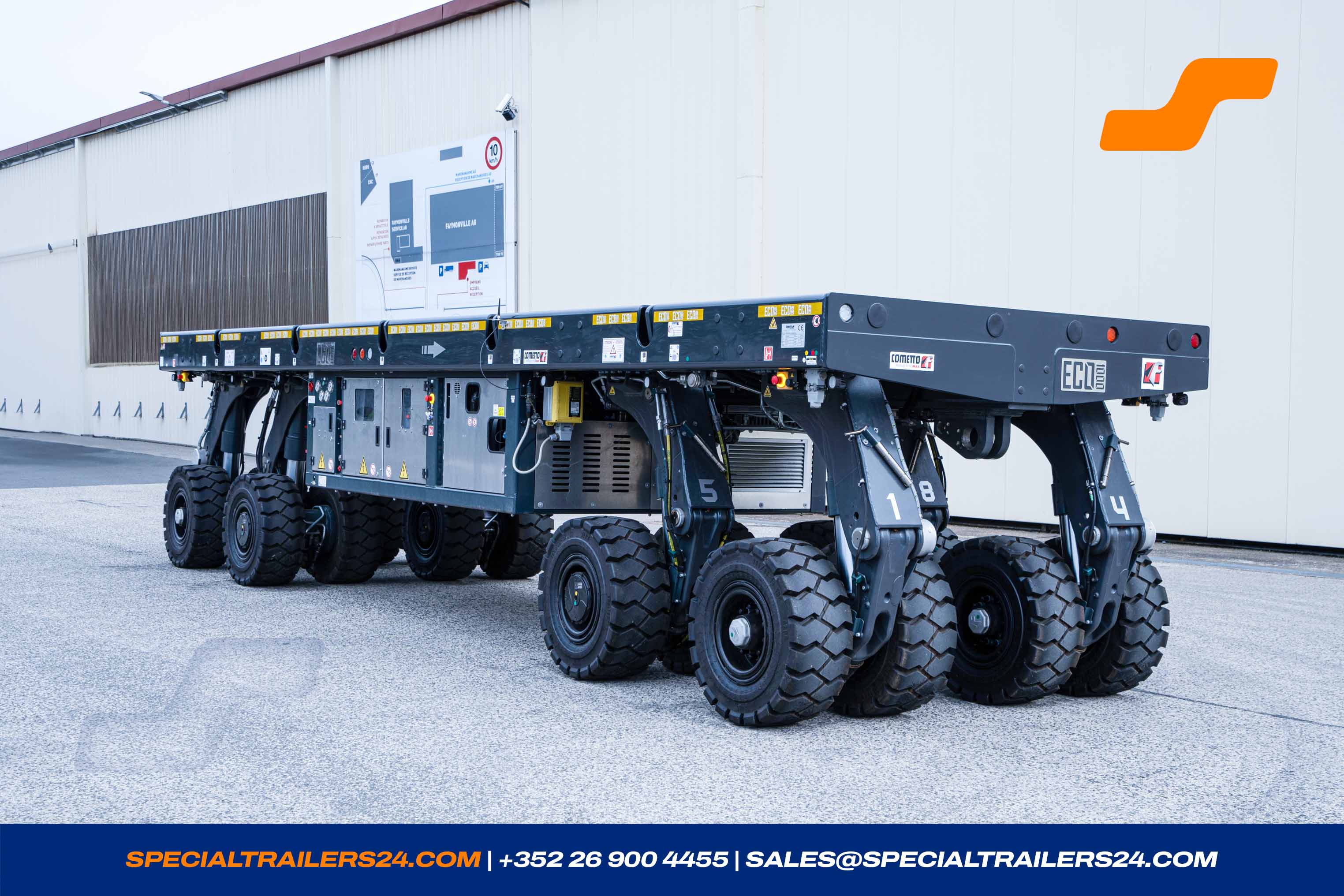

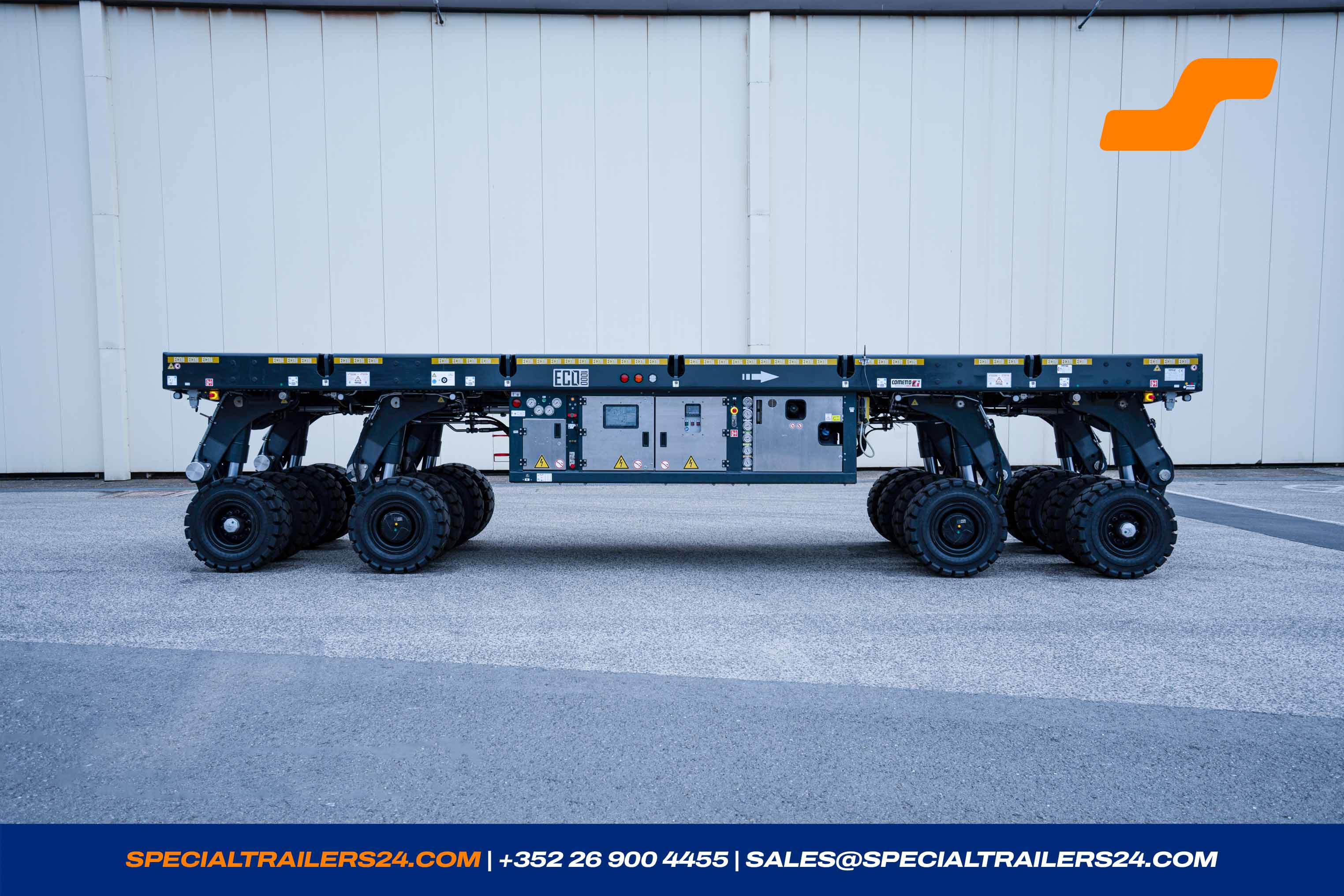

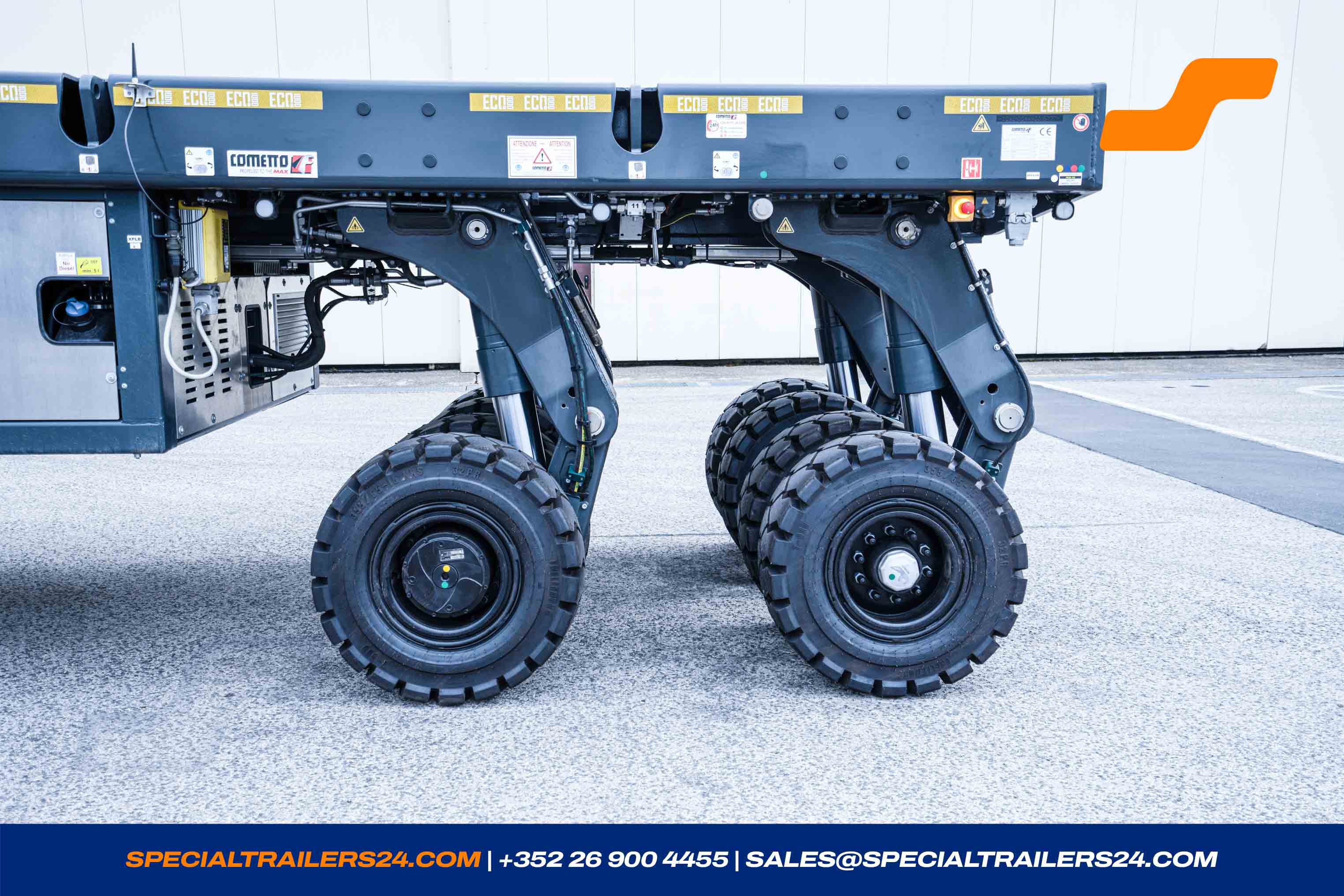

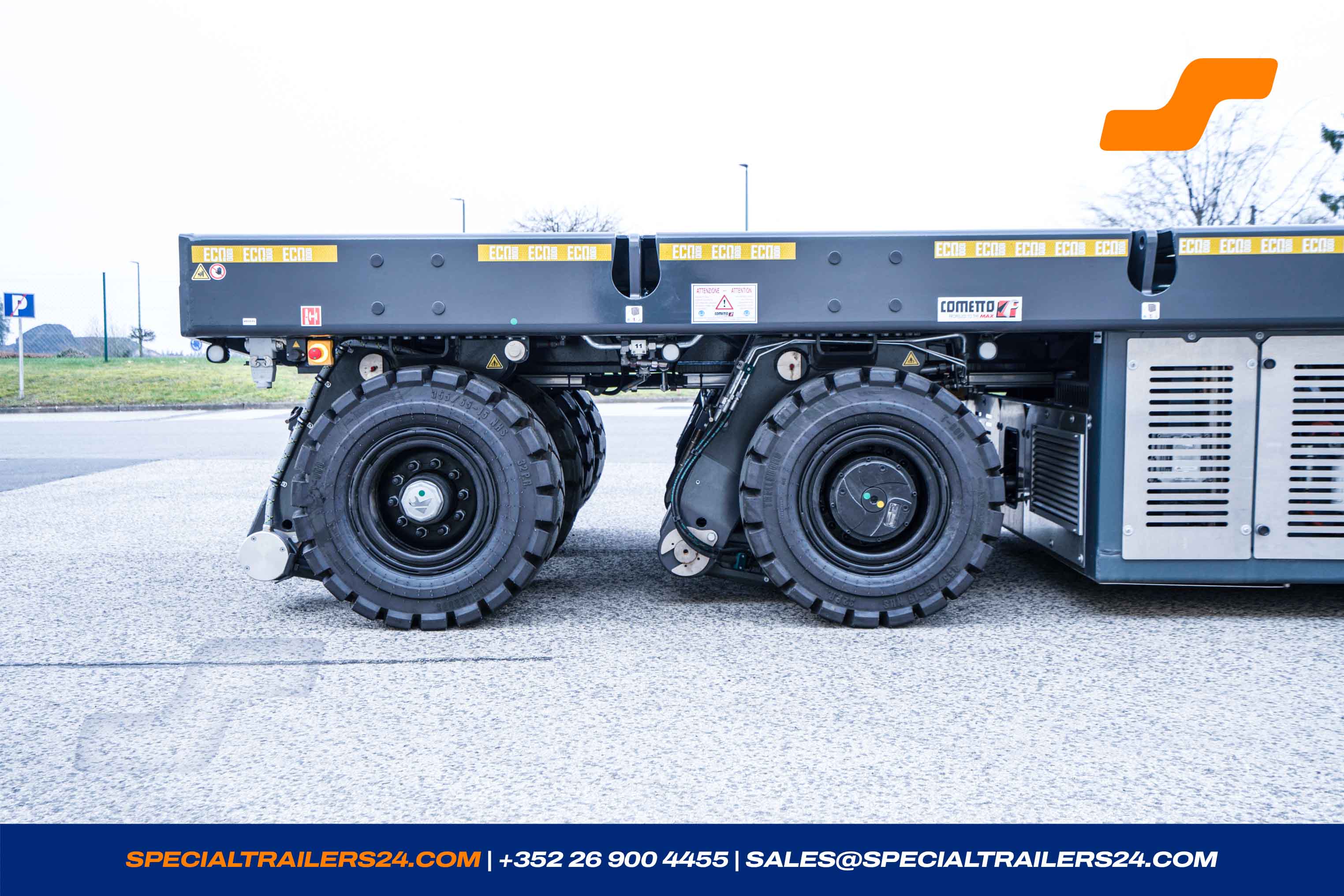

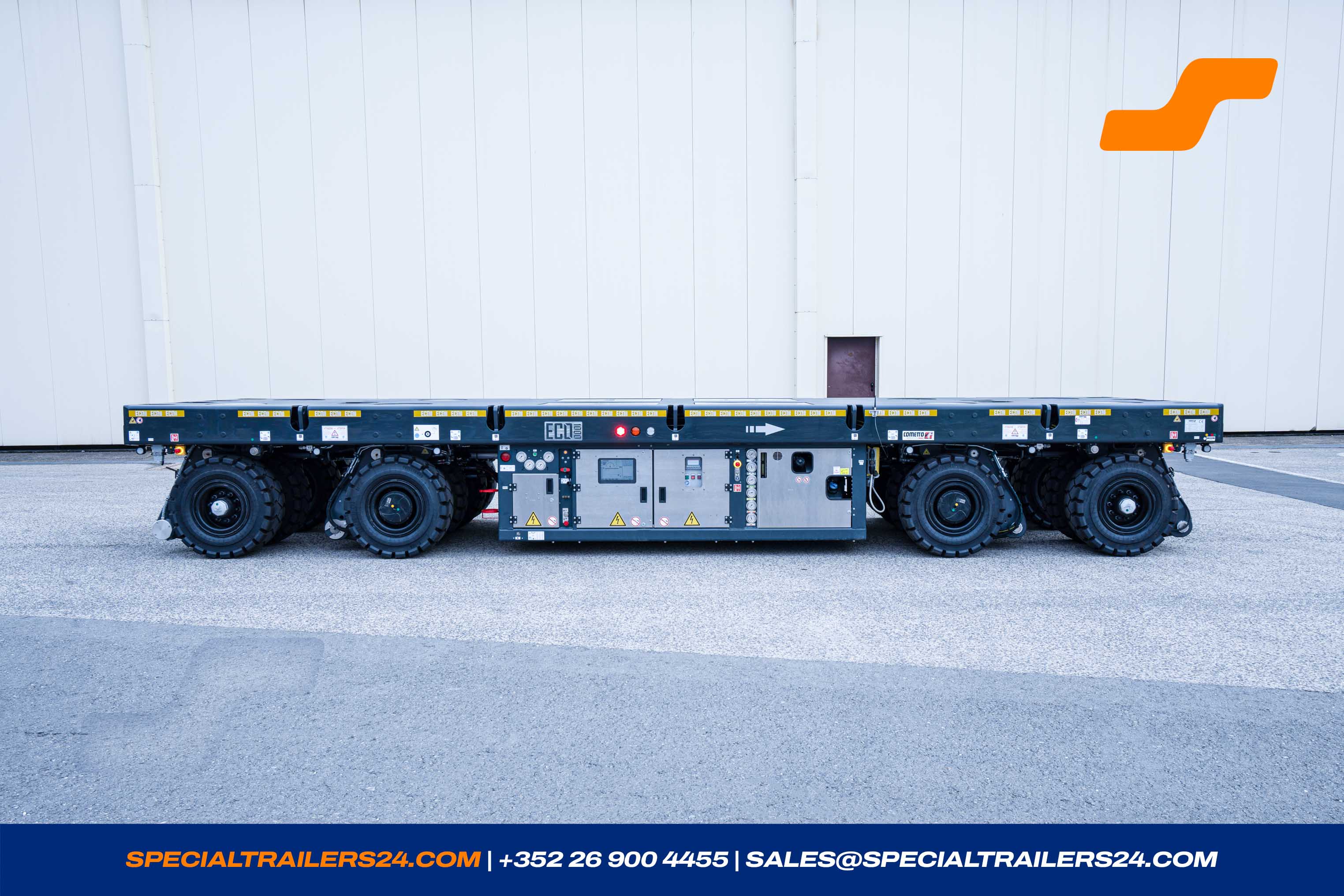

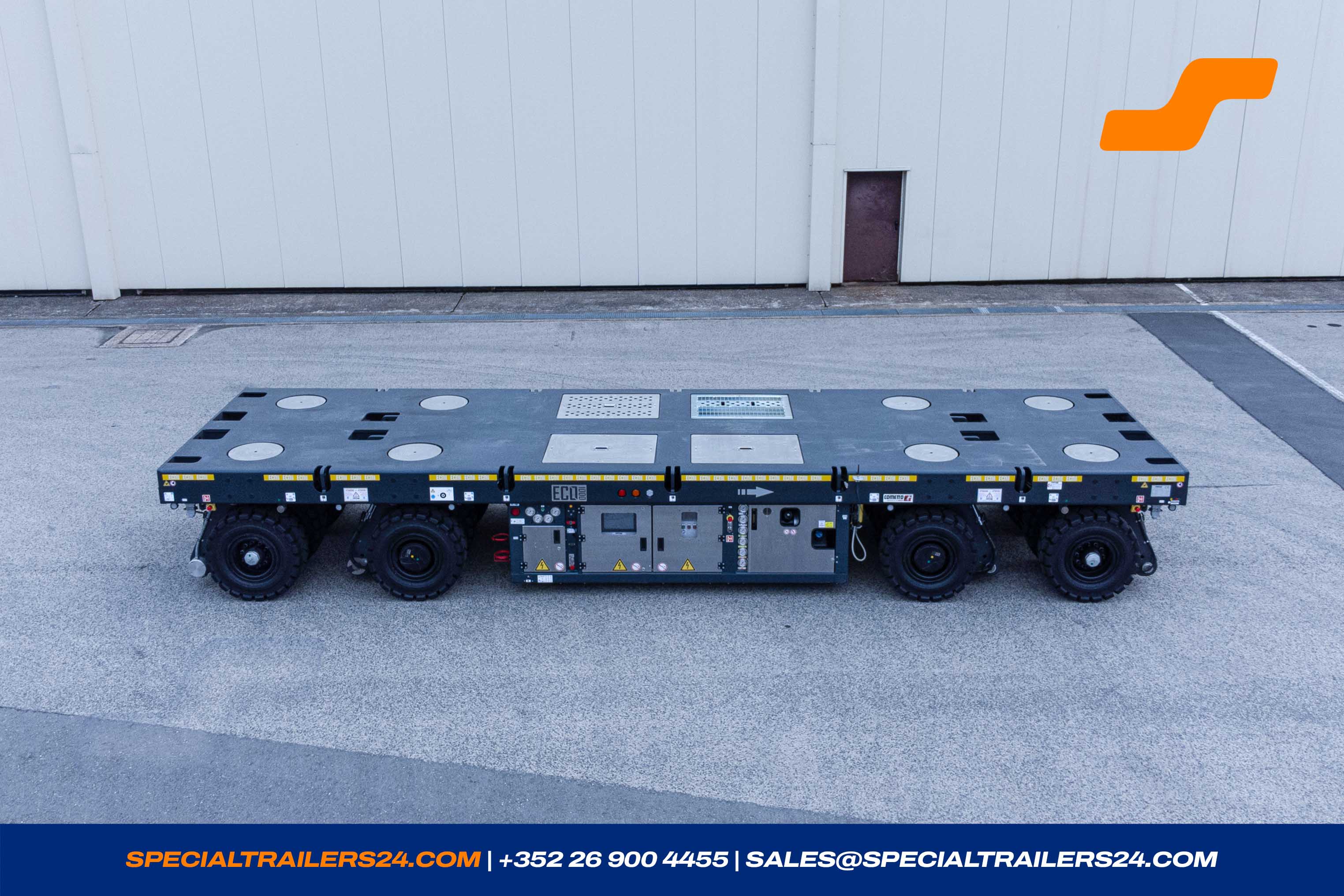

4-axle lines Heavy-Duty Platform Unit equipped with 4 self-driven axles and all steering-wheels .
Platform 2.430 mm wide, for loads up to 48 t per axle line and high concentrated loads.
The platform can be equipped with a PPU of 90 kW
Below specification taken from technical description Eco1000
Max total load: 192000 kg
Dead weight with PPU (±3%) : 18000 kg
Max Payload: 174000 kg

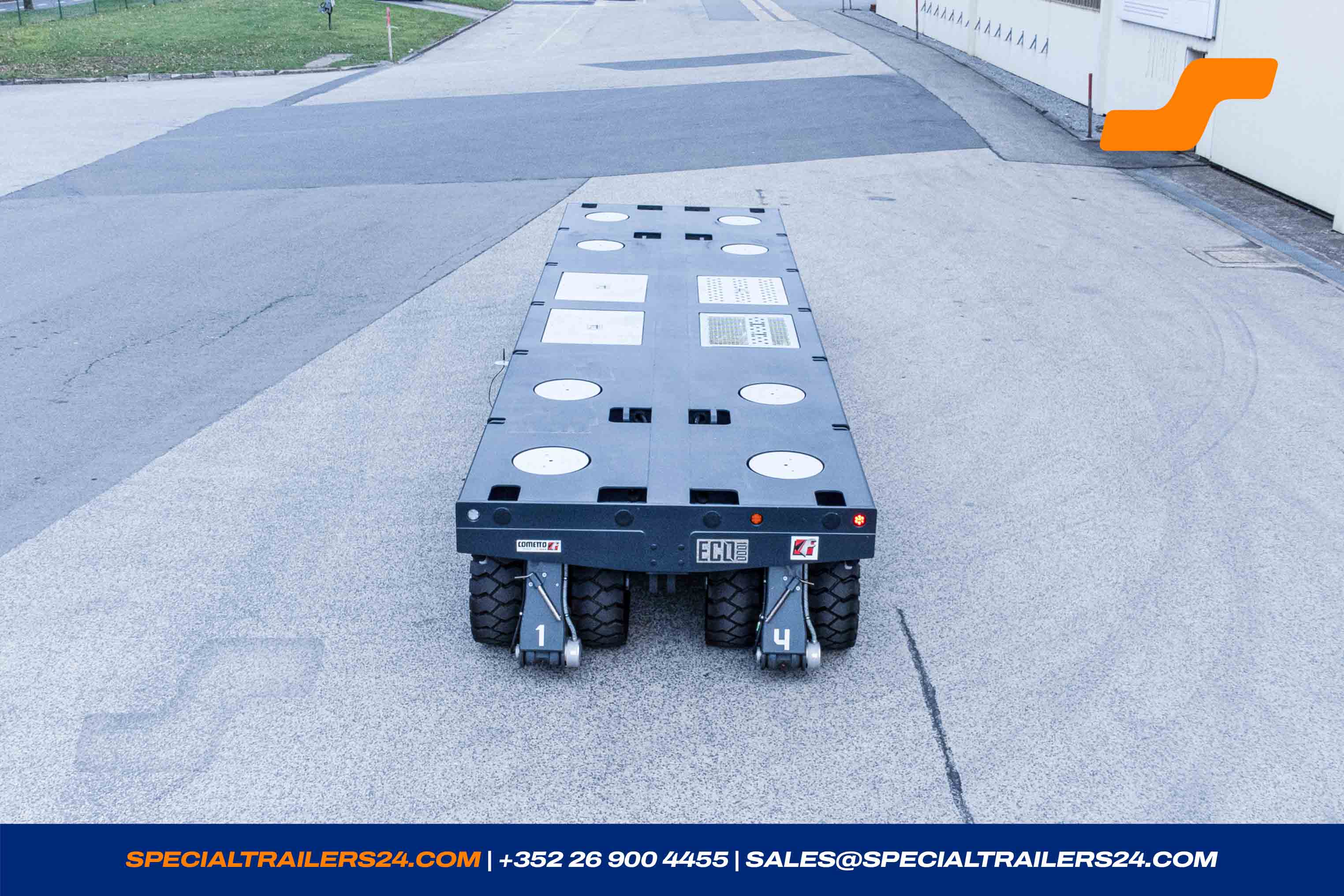

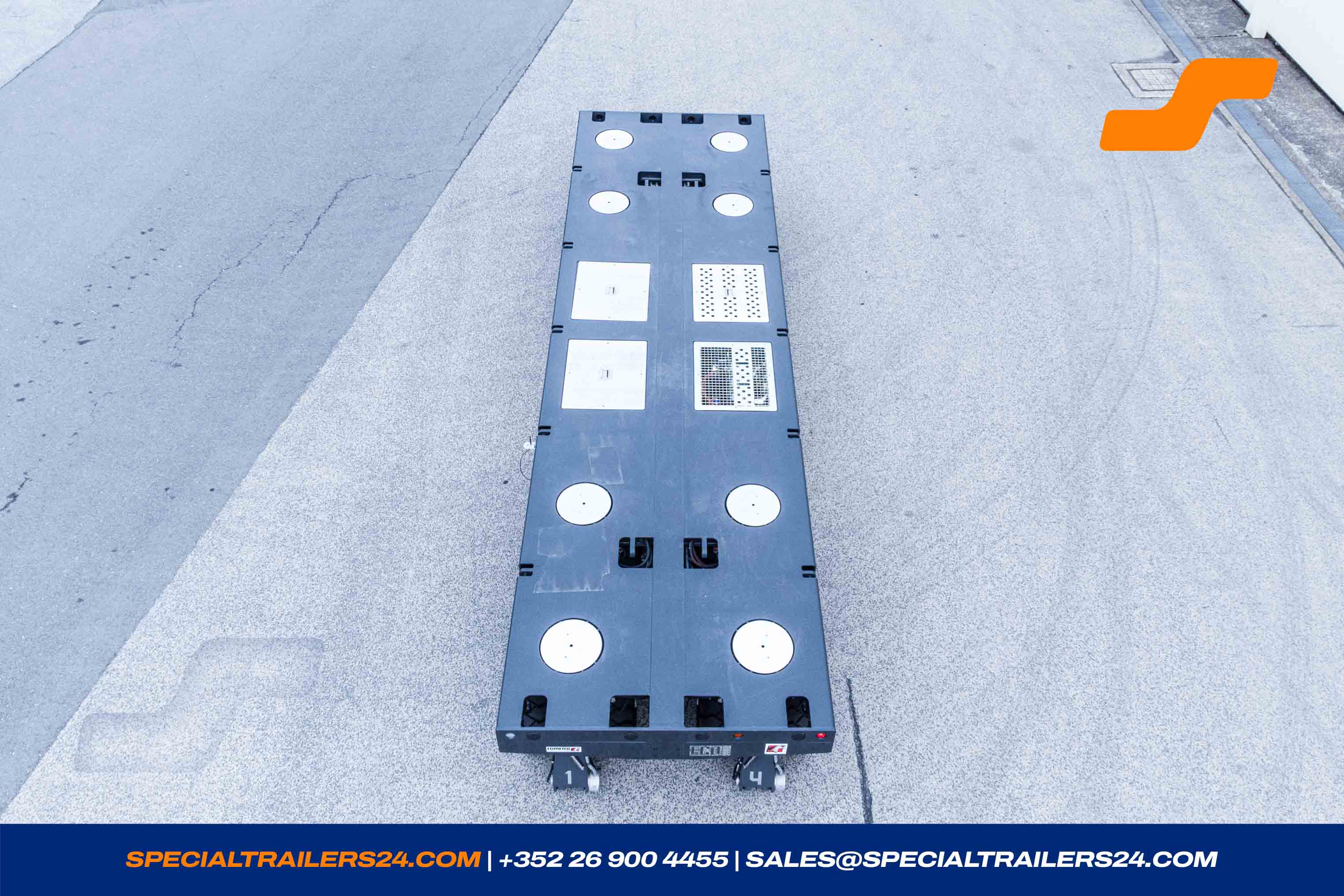

Loading platform length: 8800 mm
Loading platform width: 2430 mm
Traveling height: 1500 mm

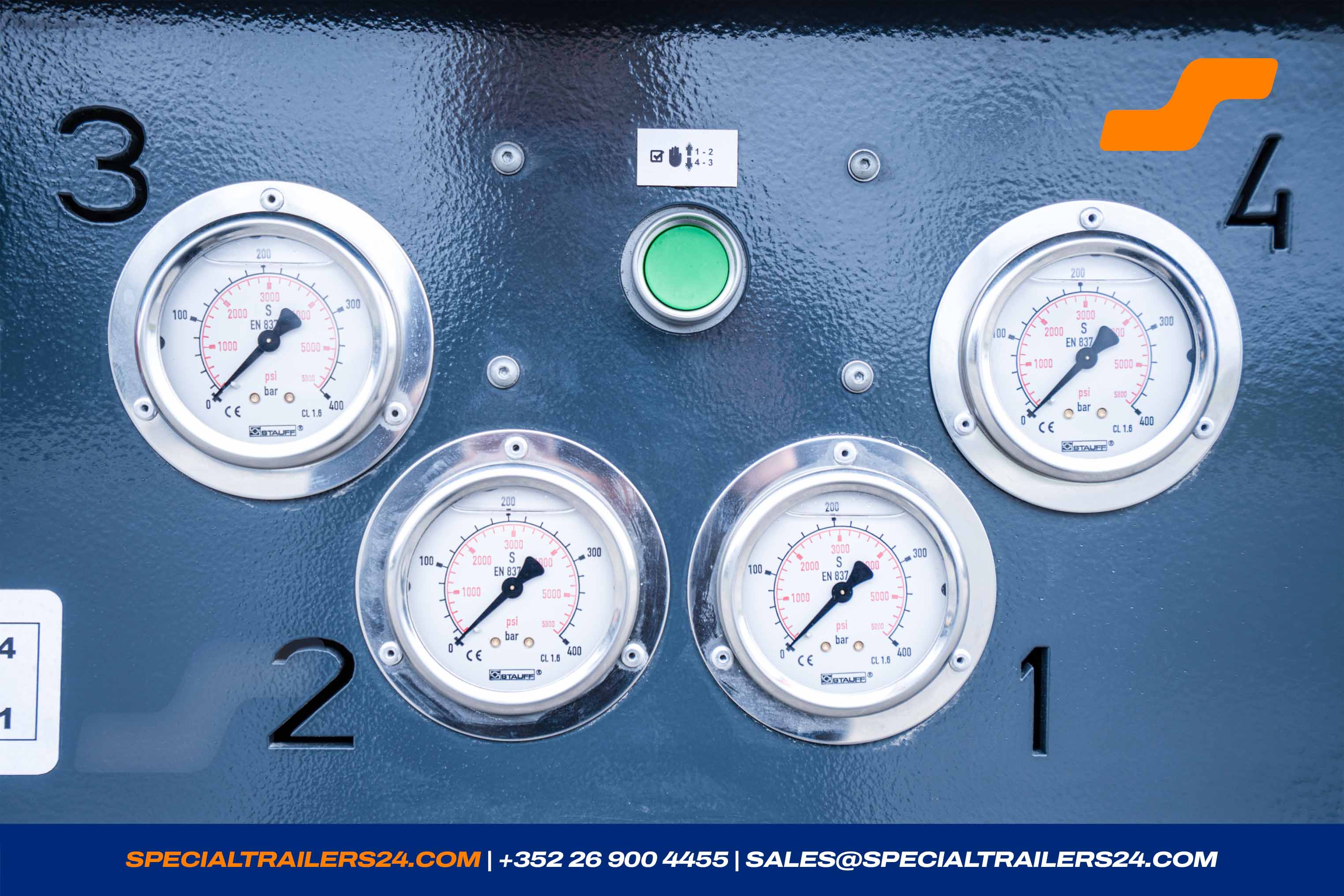

Suspension stroke: +400/-300
Number of suspensions: 8
Number of driven suspensions: 4
Number of braked suspensions: 4
Idle suspensions: 0
Tires per suspensions: 2
Steering angle ±135°
Drawing ref. 19PR24569
- High Resistance Metallization (HRM) of the complete steelconstruction, after all welding works the structure is shotblasted and a layer of zinc (85%) - aluminum (15%) is applied.
-

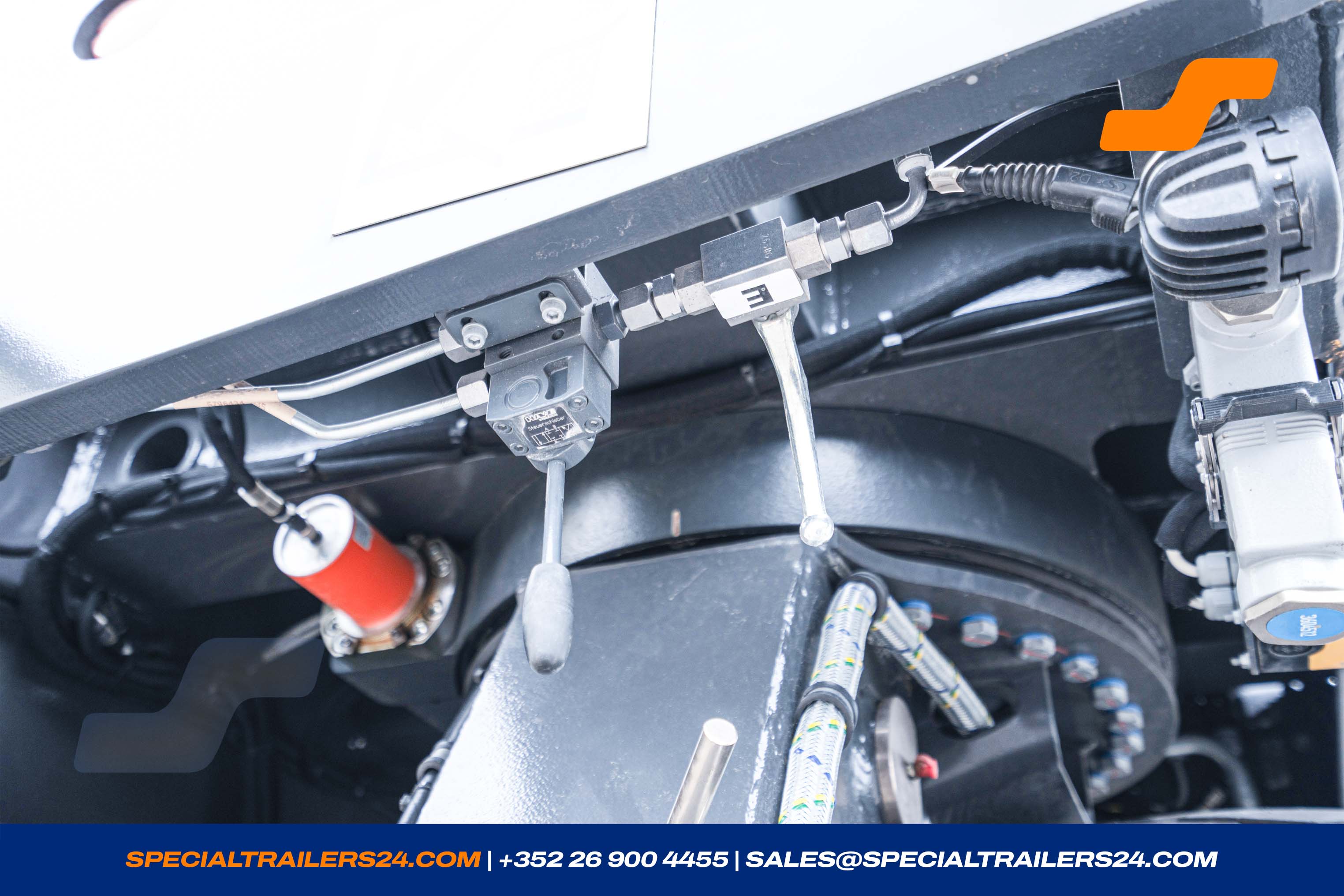

Equal lift system Including 4 precision potentiometer and the equal / parallel electronic and software.
The system allow to lift the suspensions with the same speed in parallel mode. - Kit of 4 quick couplings and pipes to allow the interconnection of suspensions between Eco1000 modules.
- Braked axles with drum brakes
- Wheels: RAL 9005 black
-

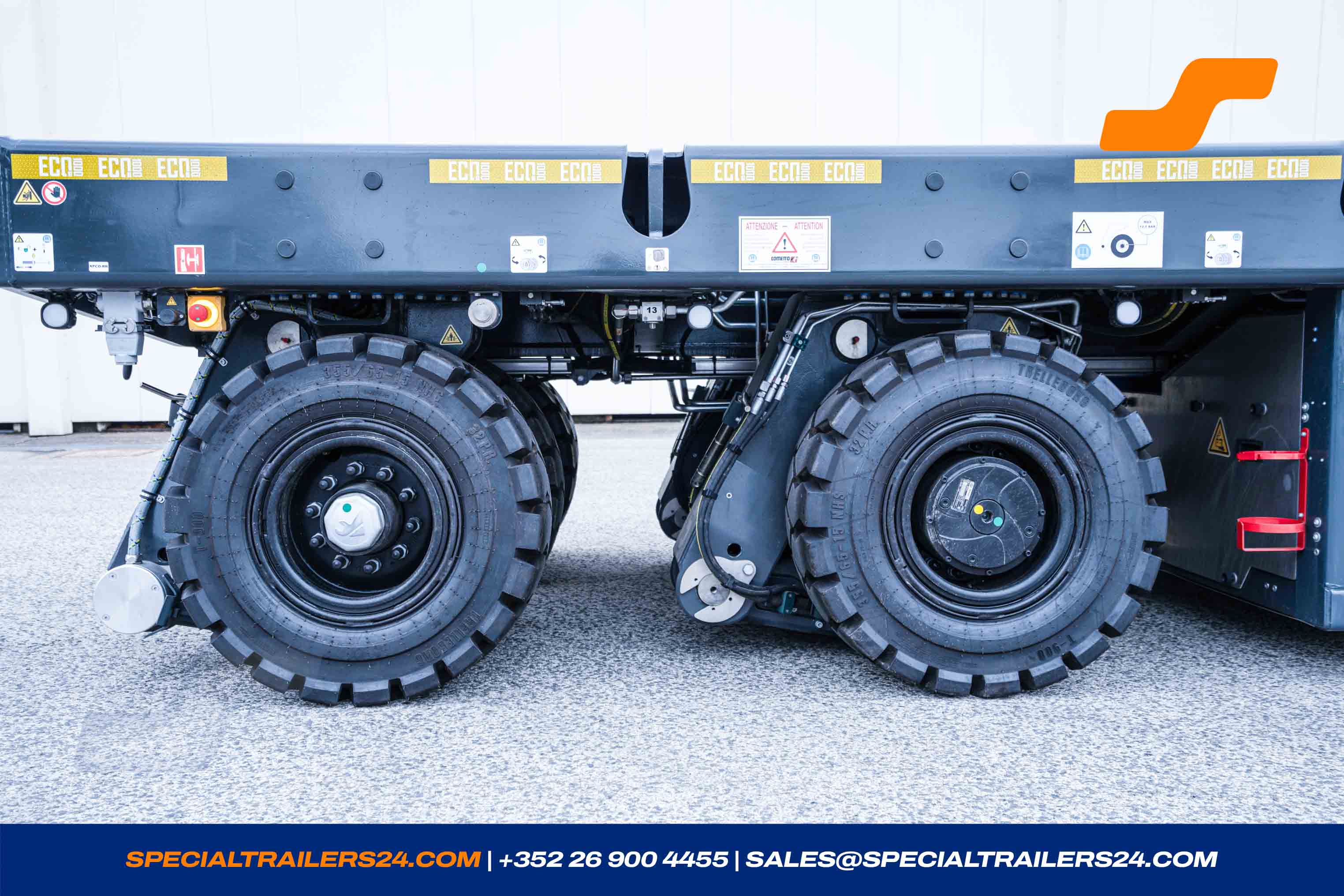

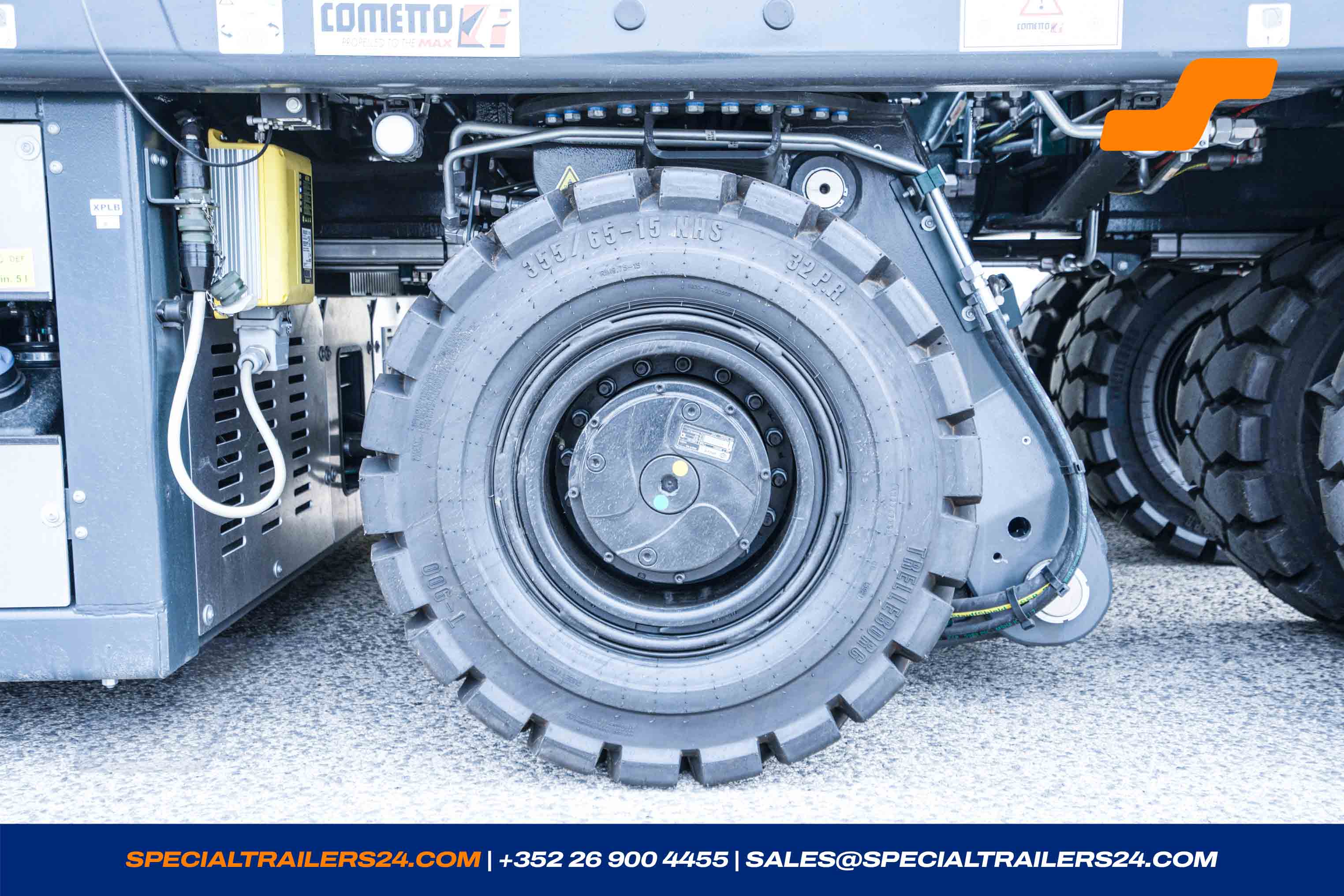

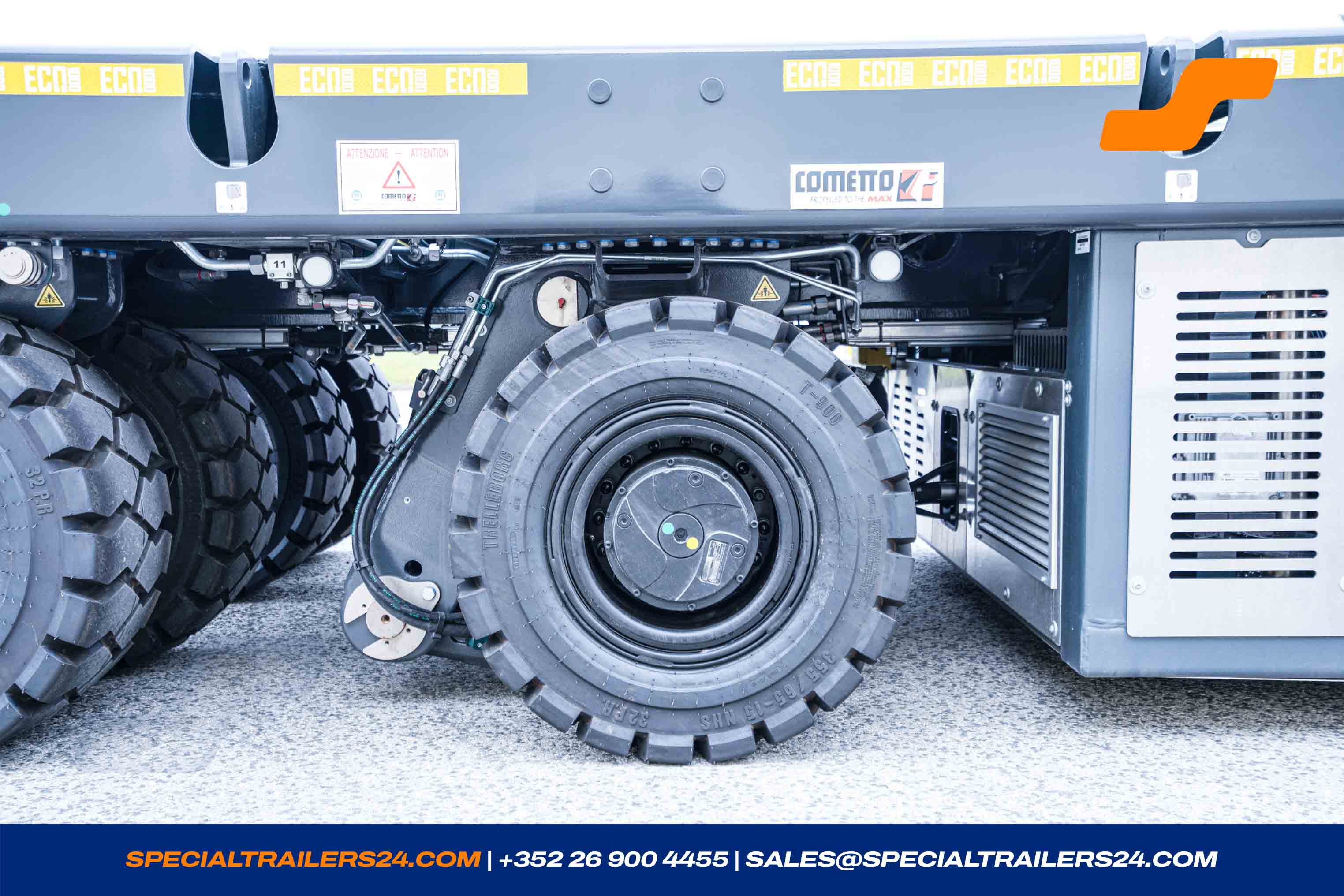

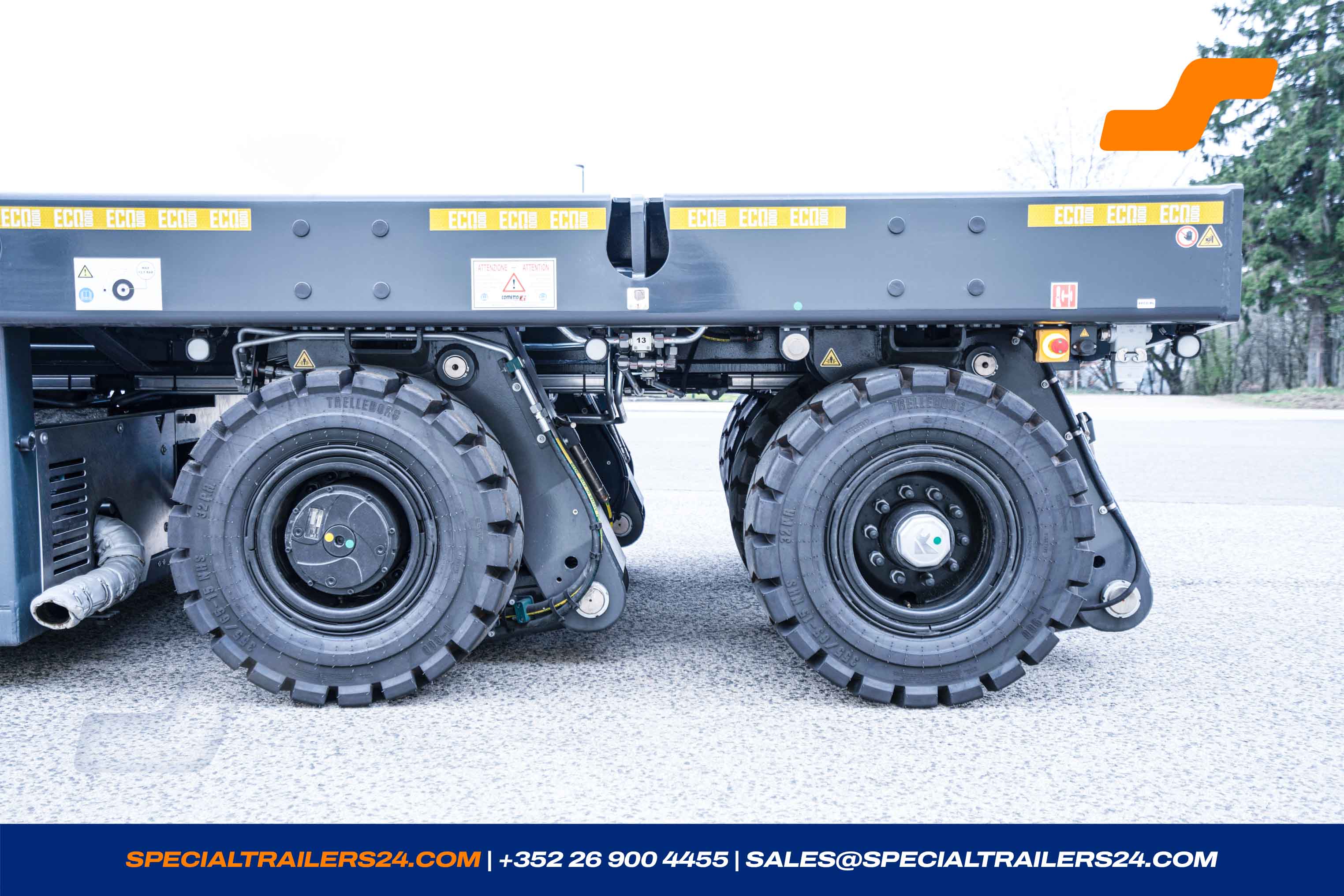

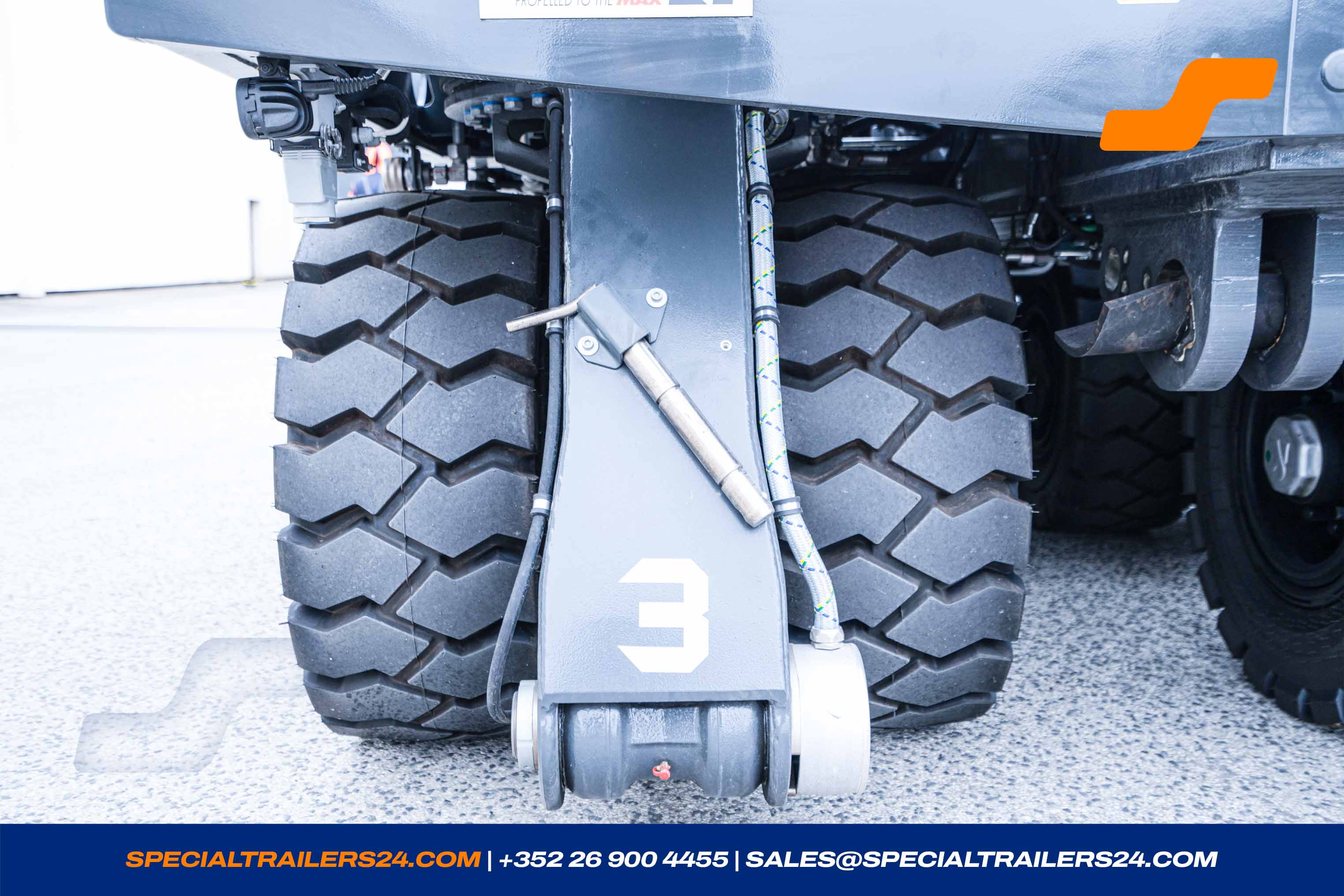

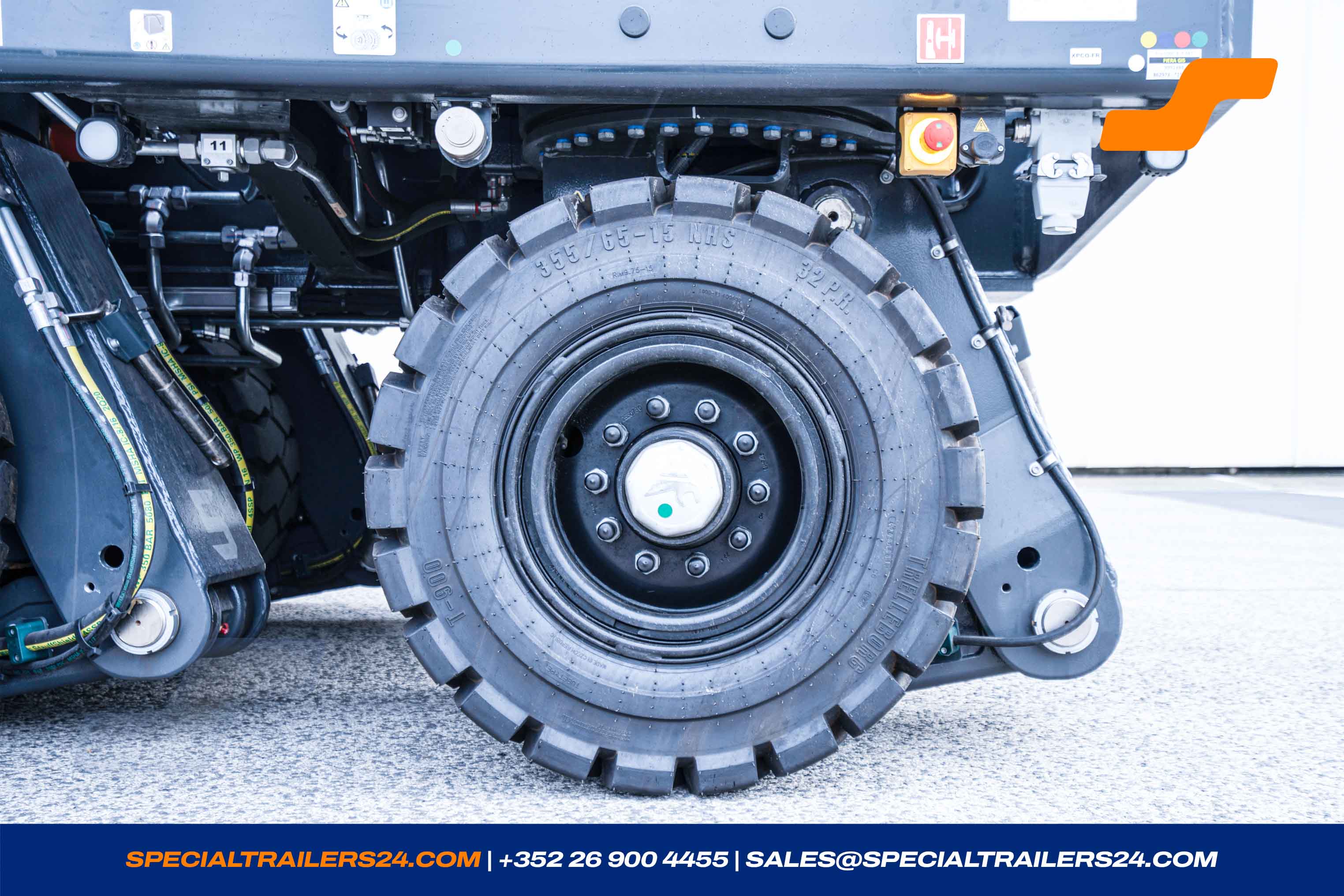

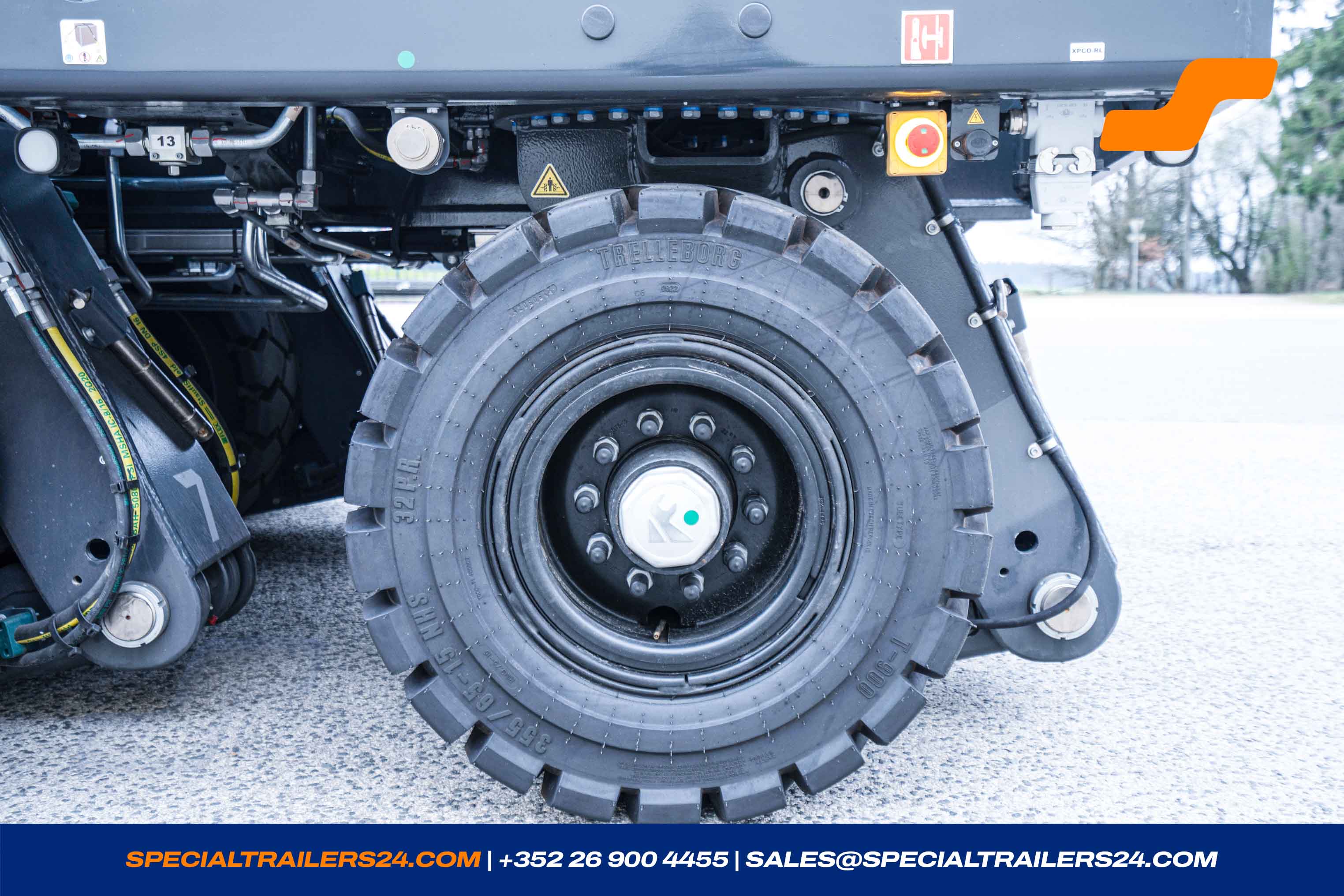

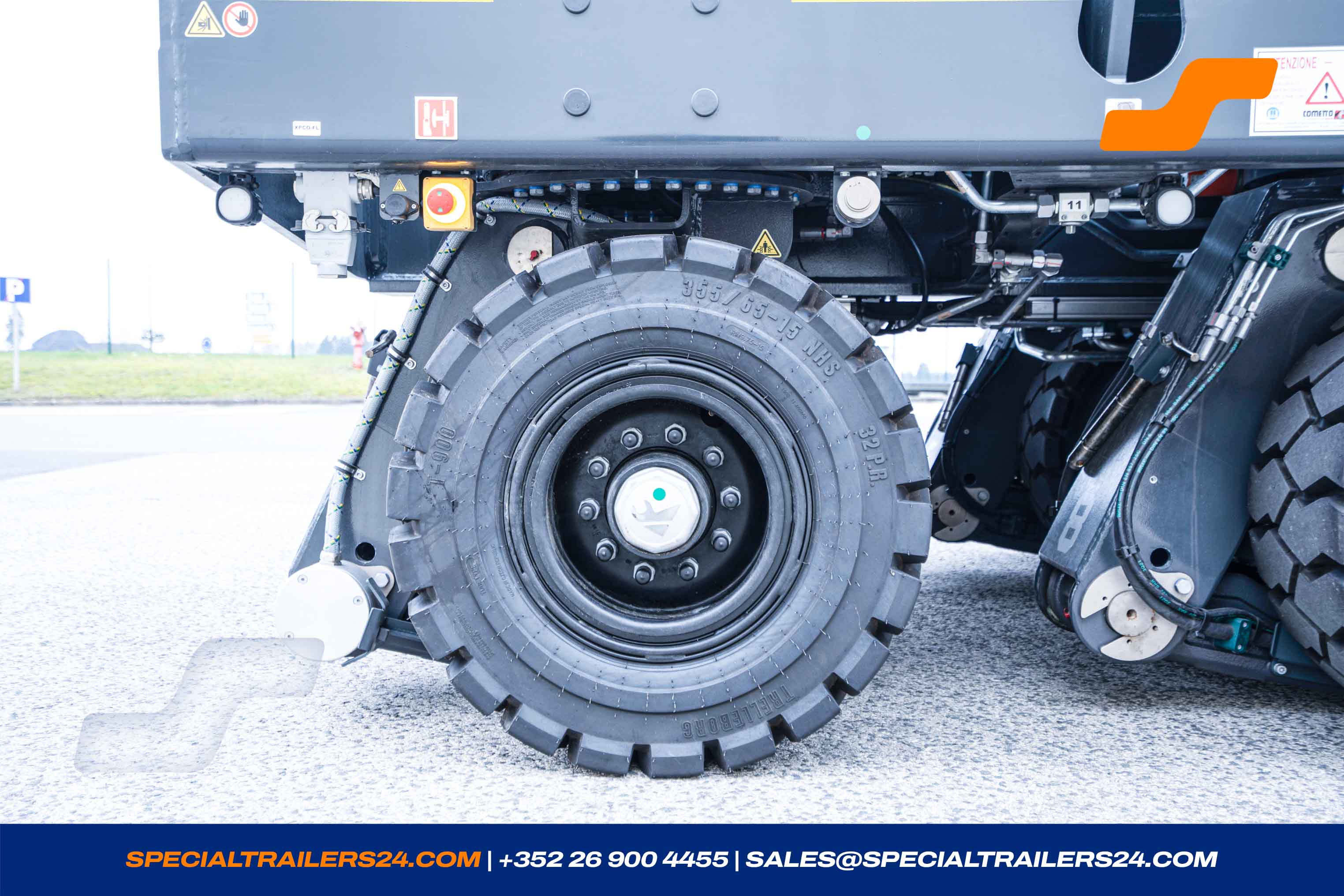

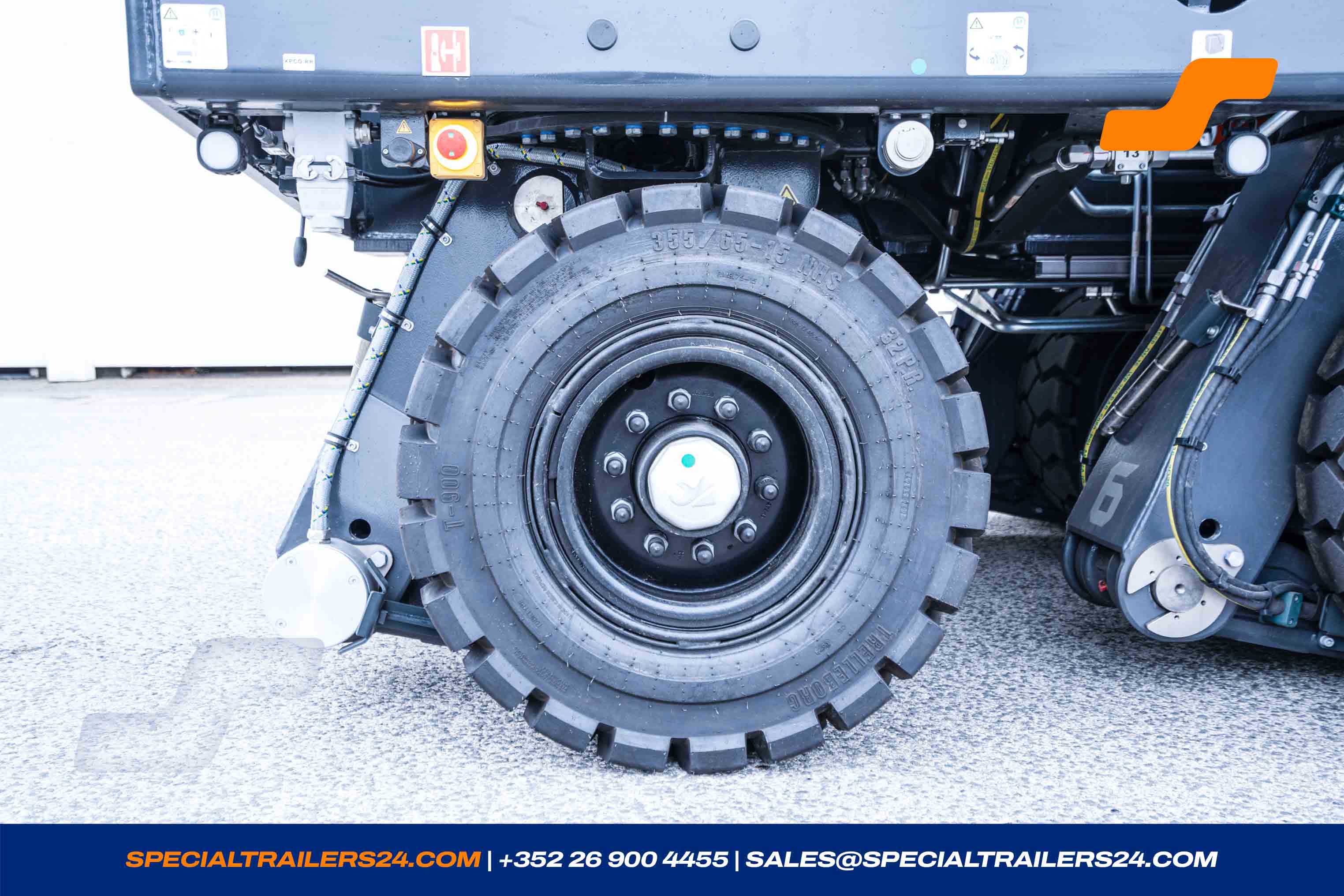

16x tyres 355/65 R15 PR32 Tubeless

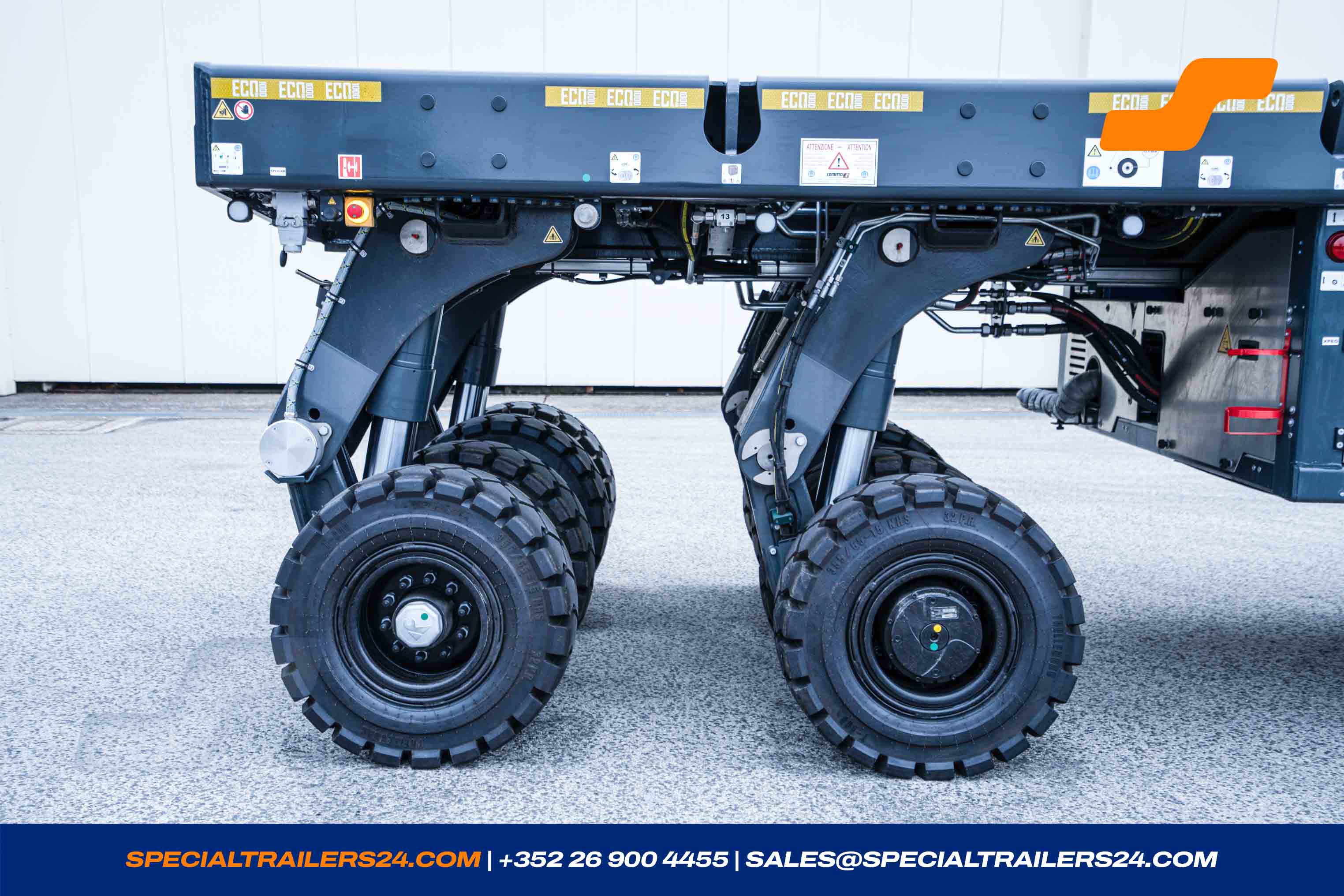

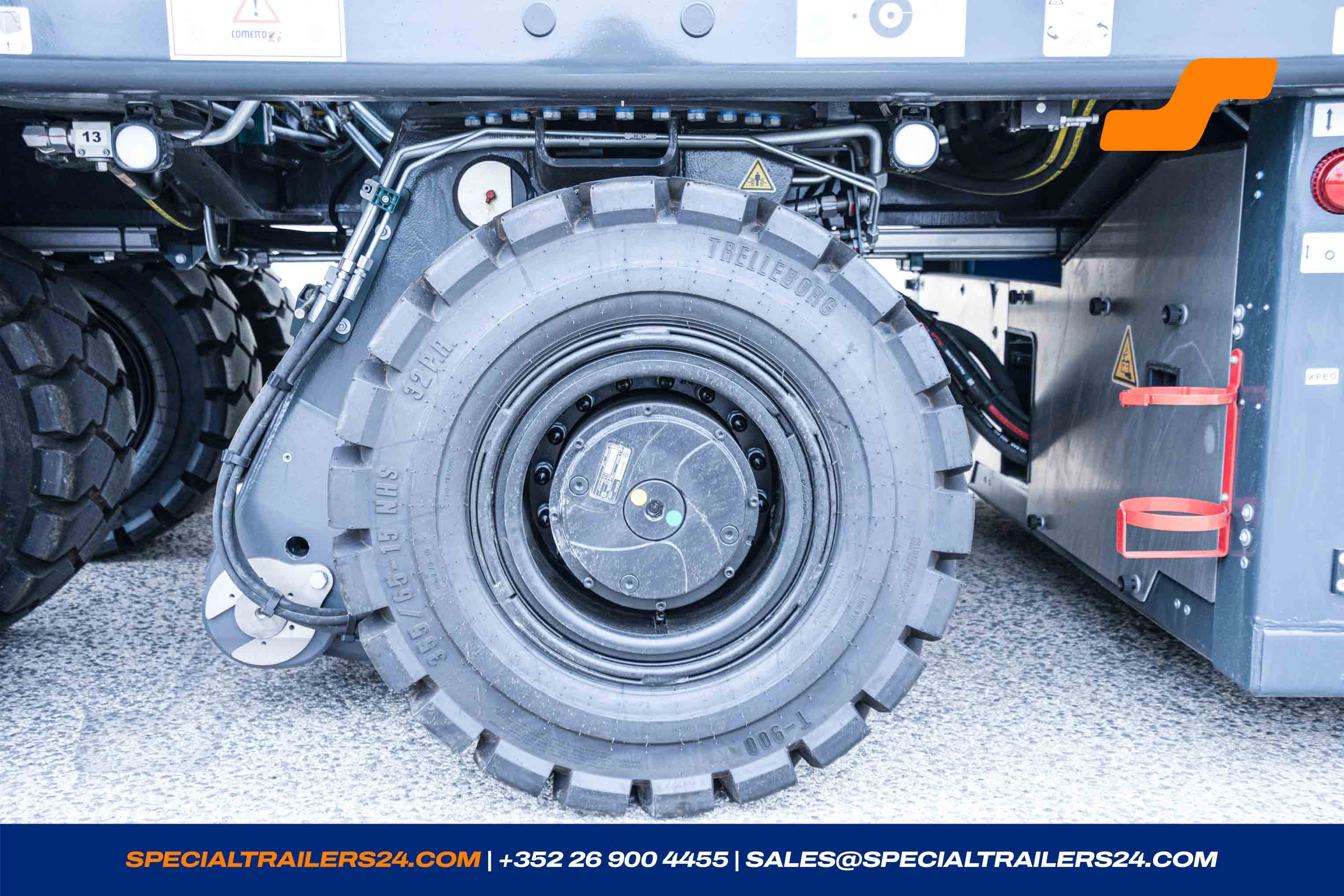

Tyre assembled on special rim designed by Cometto allowing the tubeless assembly. - Driven axles with integrated gearbox reductor and 2 hydraulic motors

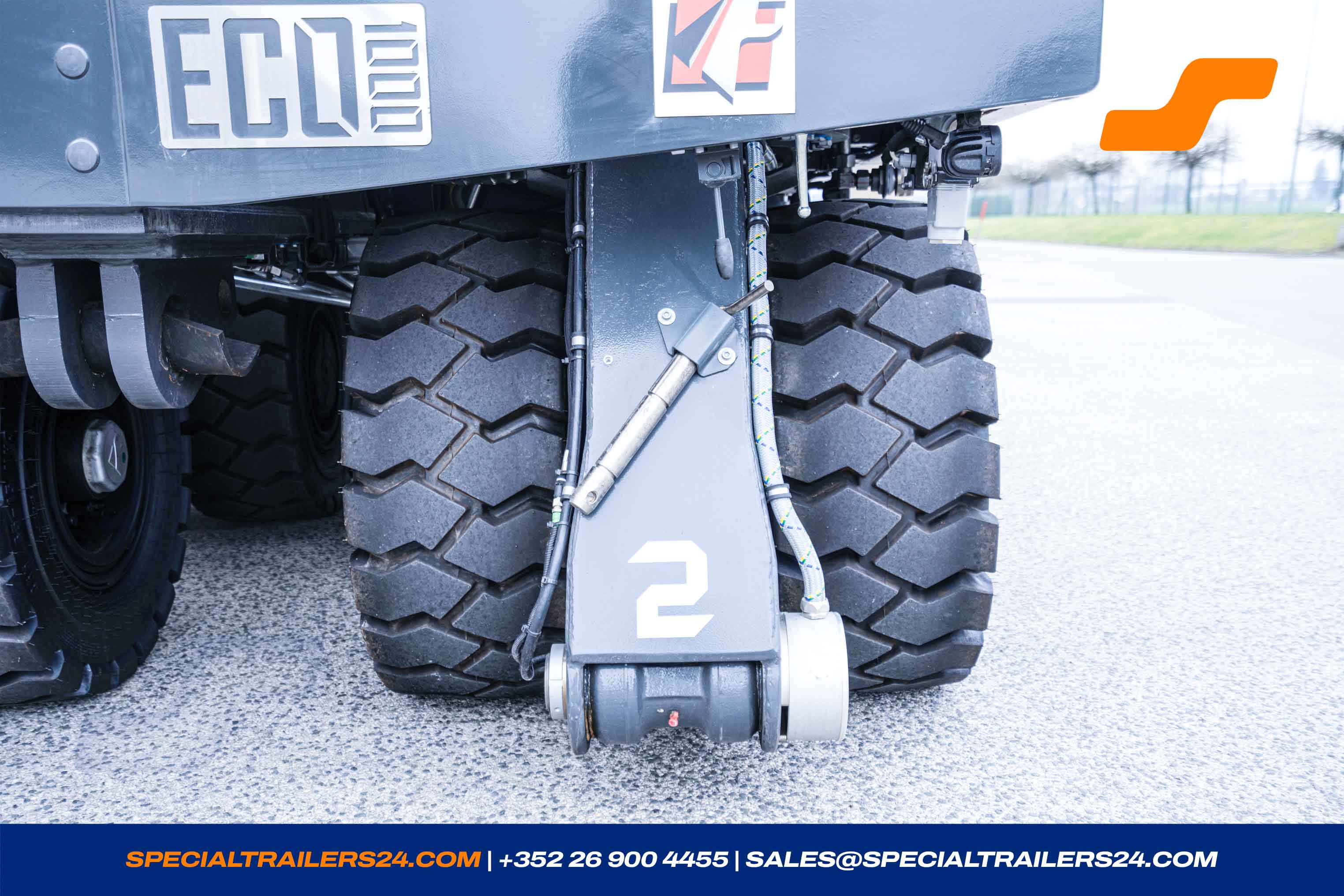

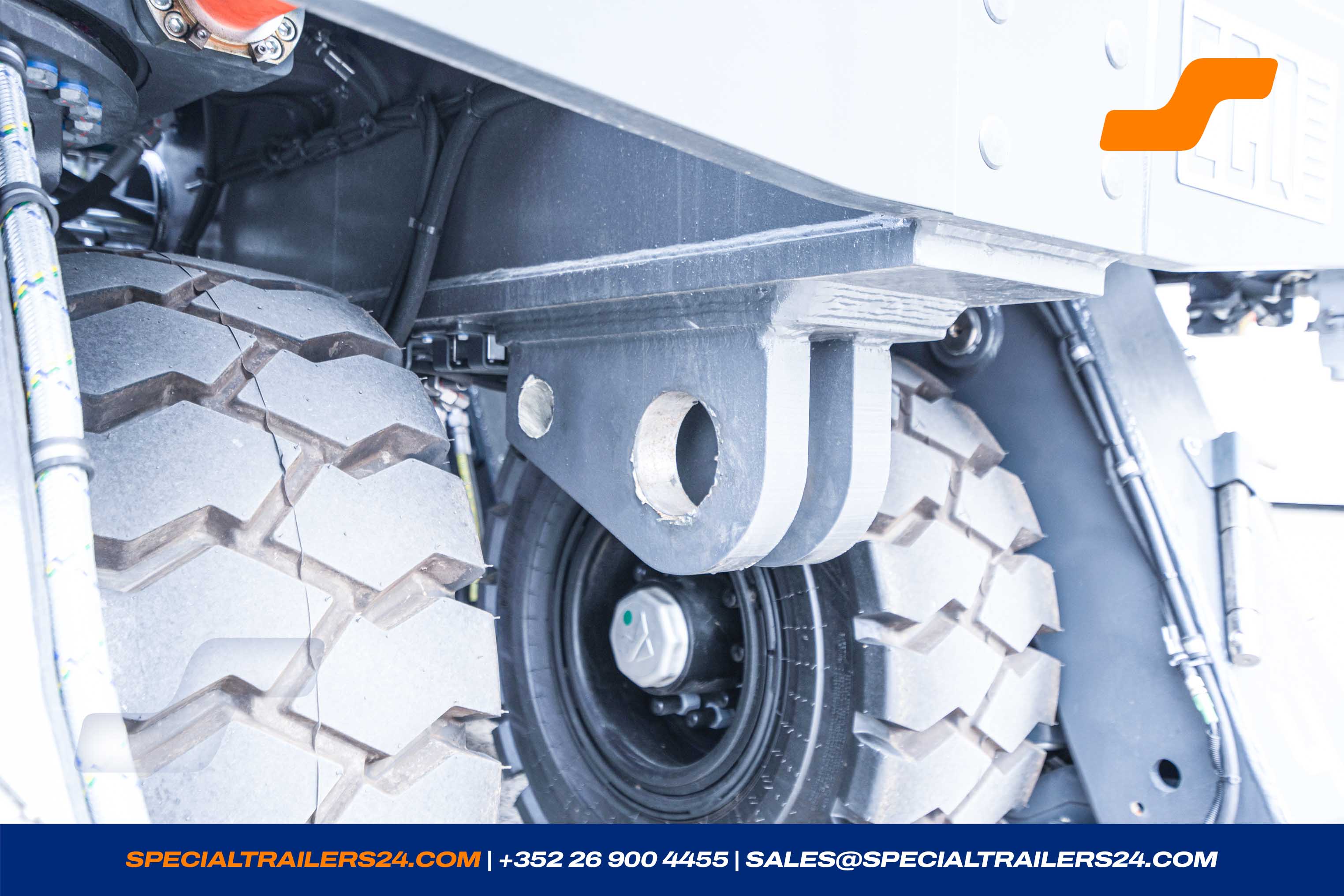

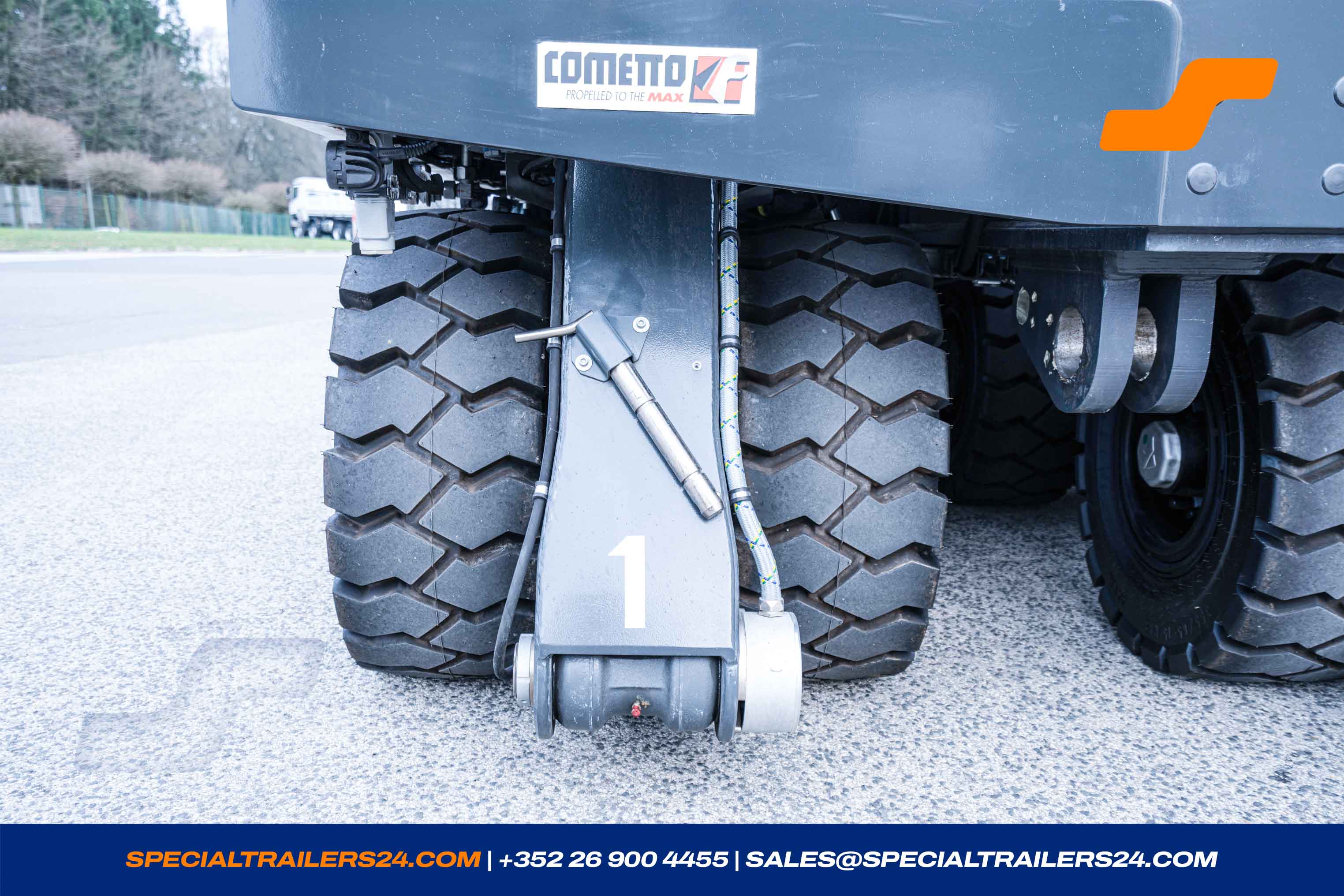

- Type of suspension: pendular
- Platform with anti-slip sand-coating.
-

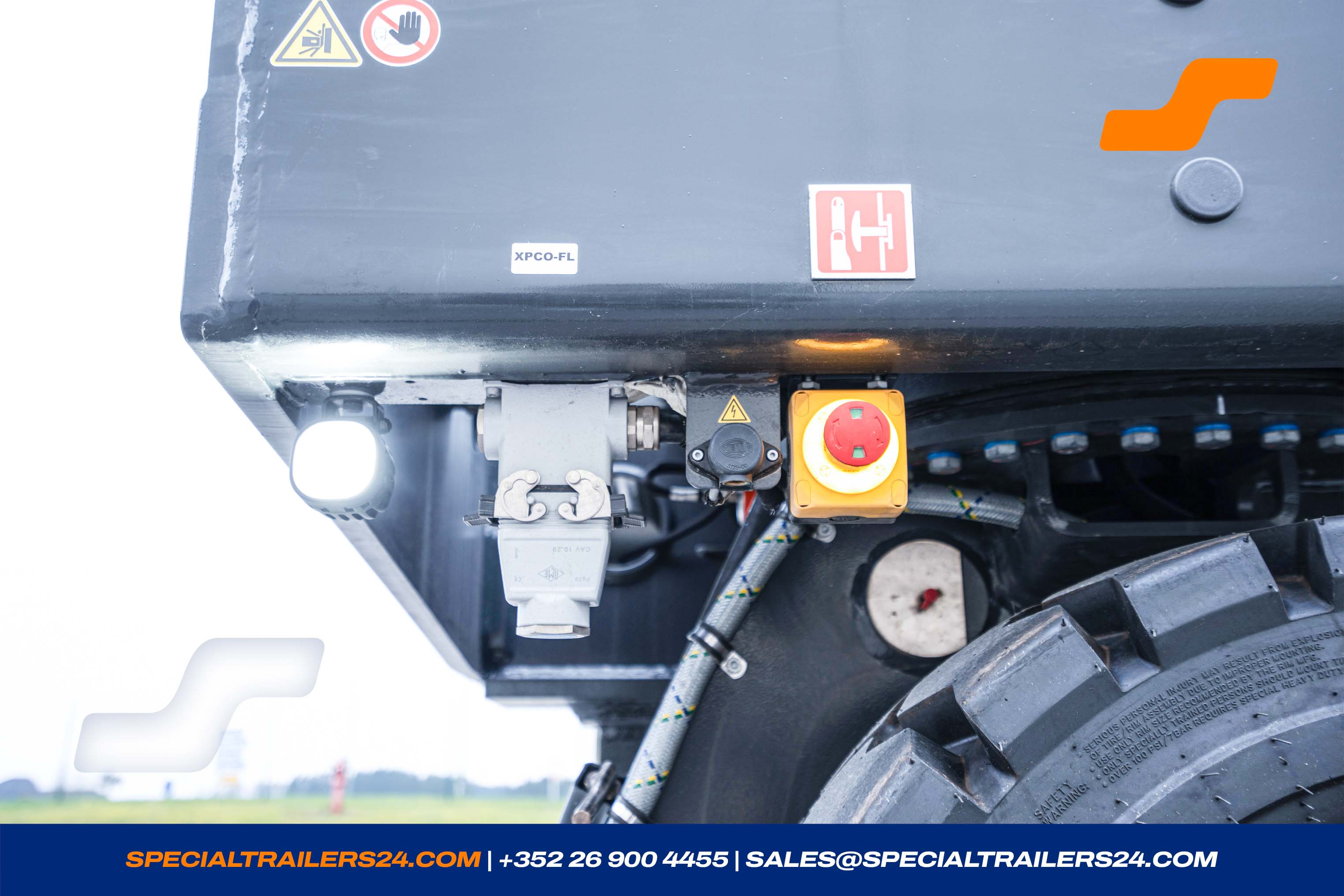

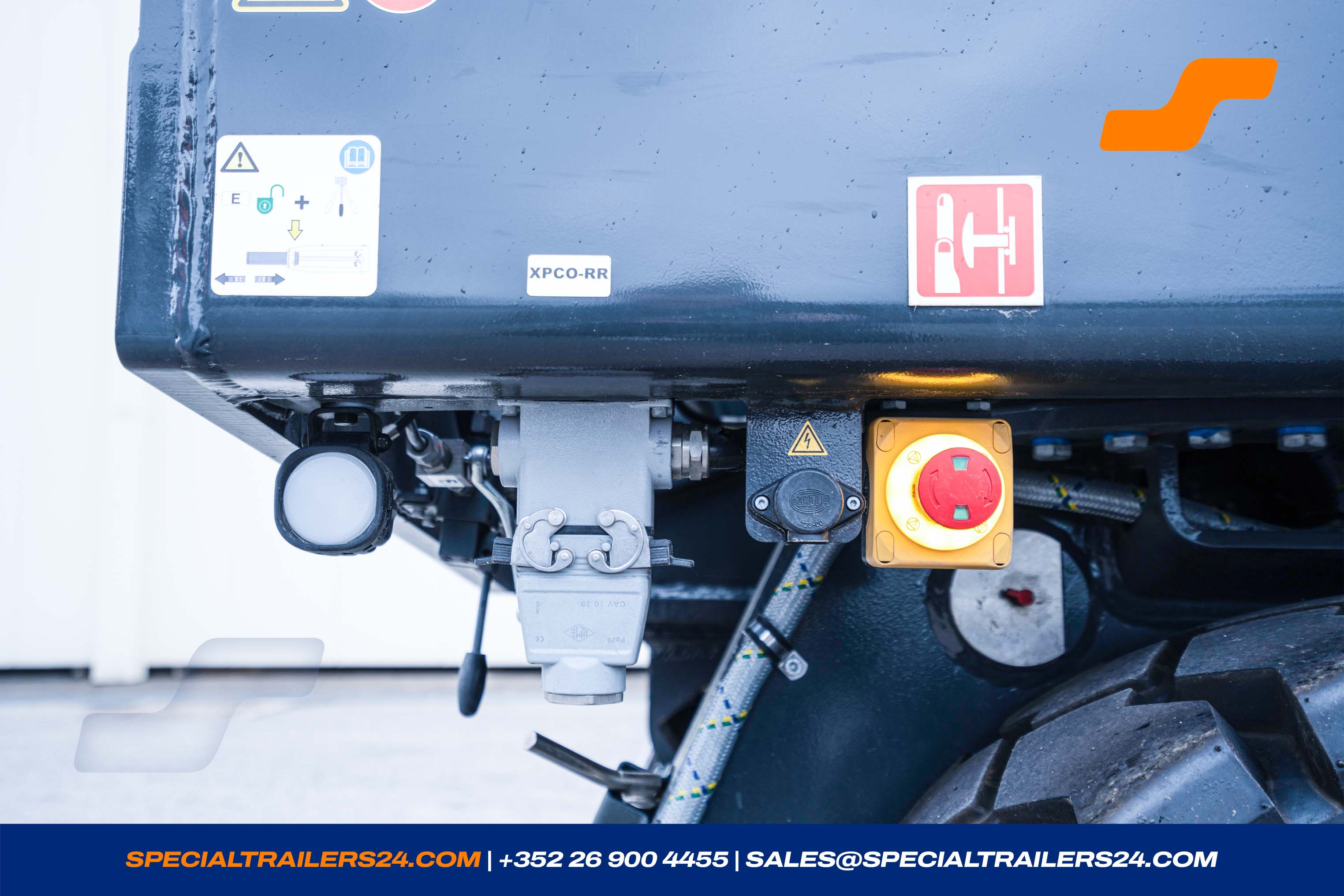

Working led lights for 4 axles module.
12 led lights in total , 4 lights installed per side and 2+2 on the heads. - 5 pairs of adjustable lashing rings mounted in lateral lashing points. Capacity of 8.5 Ton.
-
Electronic leveling system, including the inclinometer sensors and software.
(available only with the equal lift system installed)
The system work with the equal lift system and allow to keep the horizontal position of the platform when ground is uneven.
Painting
| Outer frame | RAL 7016 - Anthracite grey |
| Chassis | RAL 7016 - Anthracite grey |

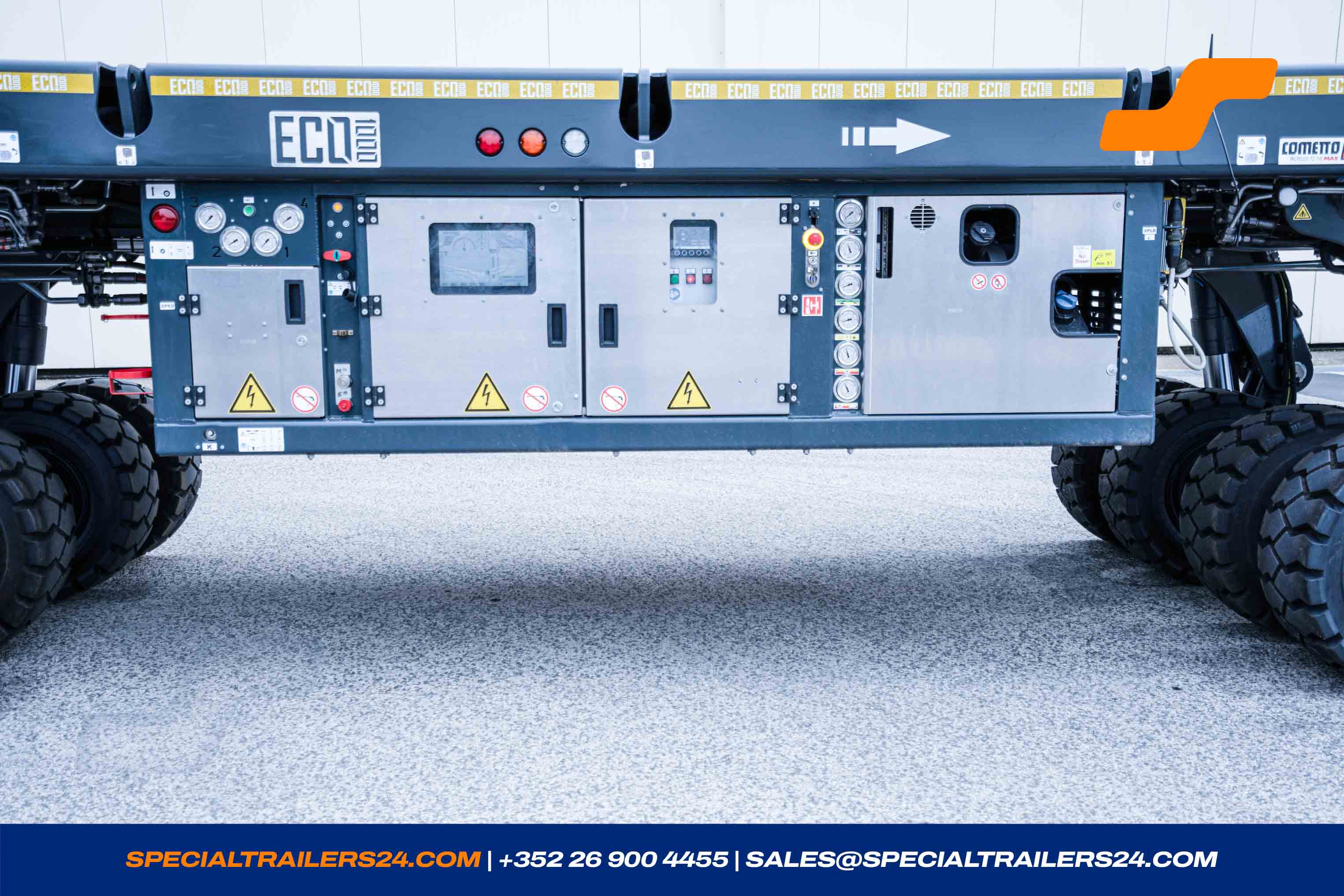

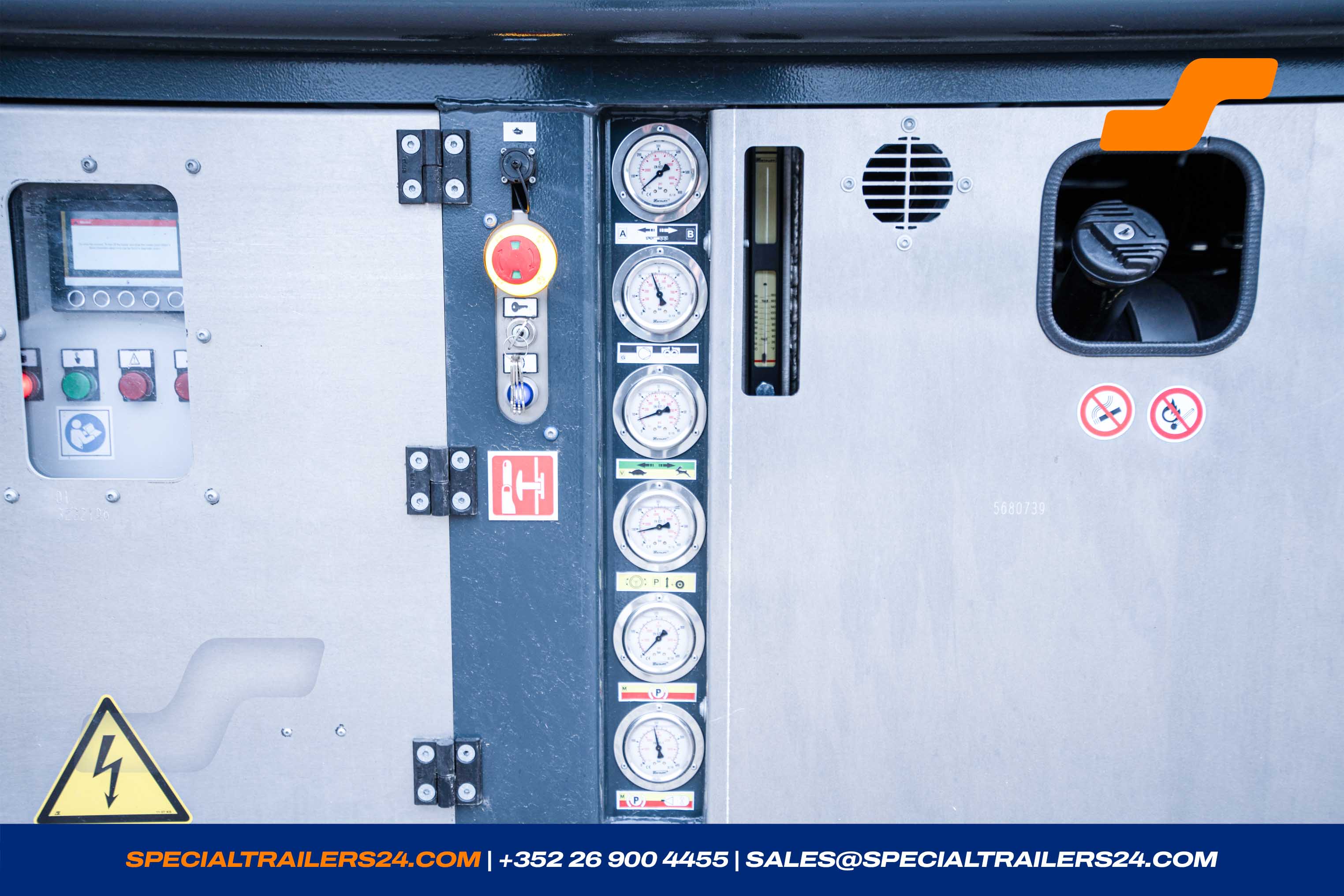

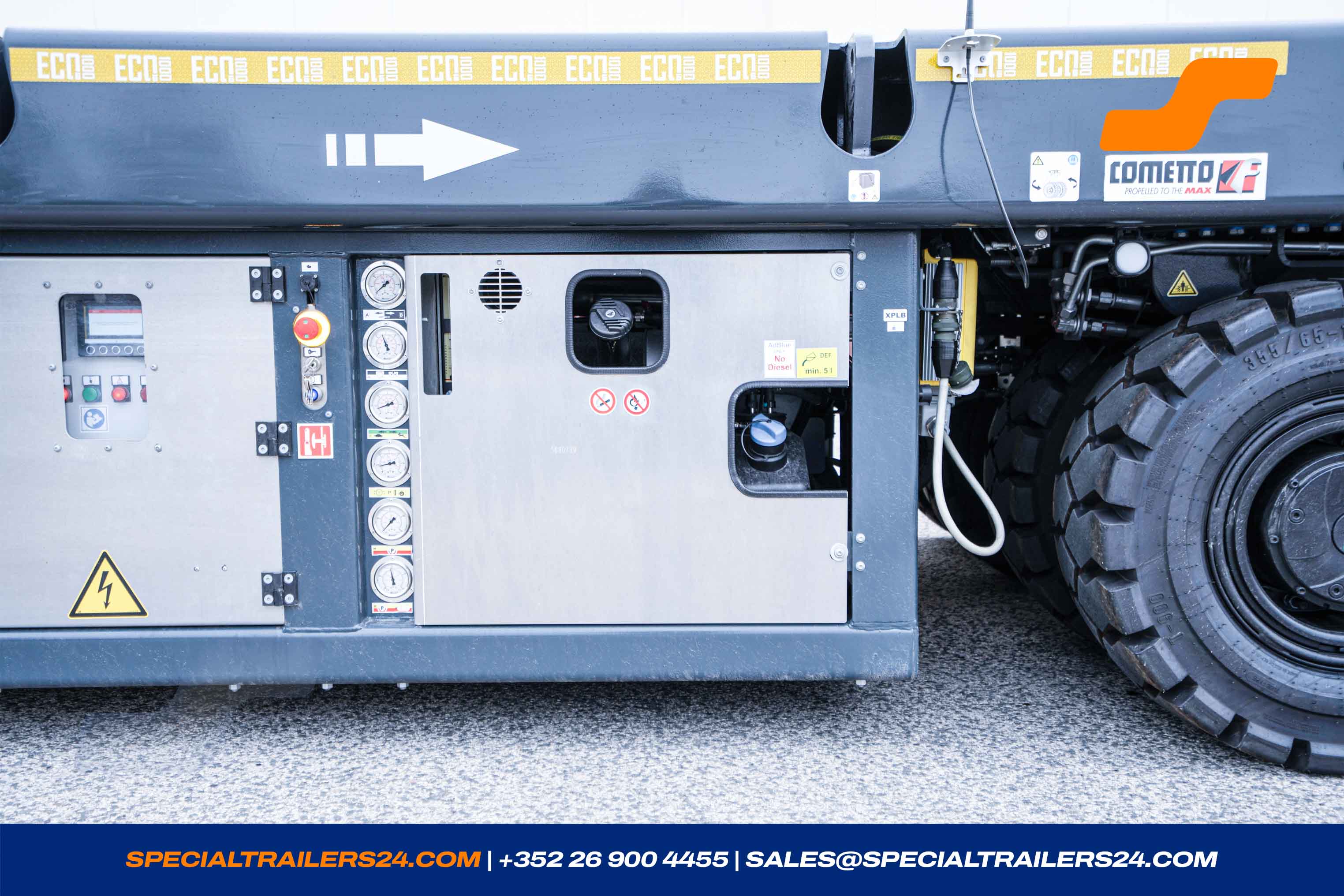

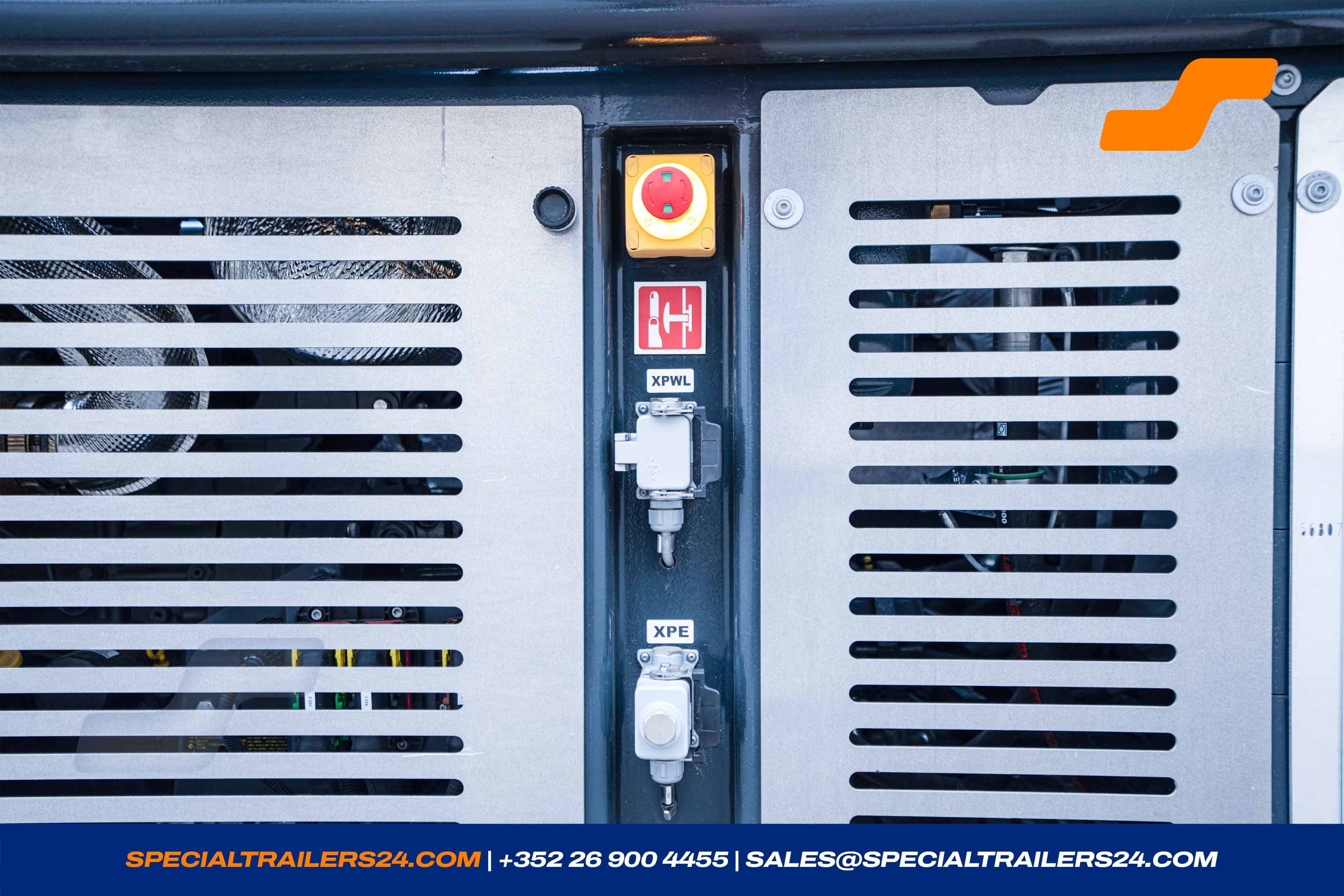

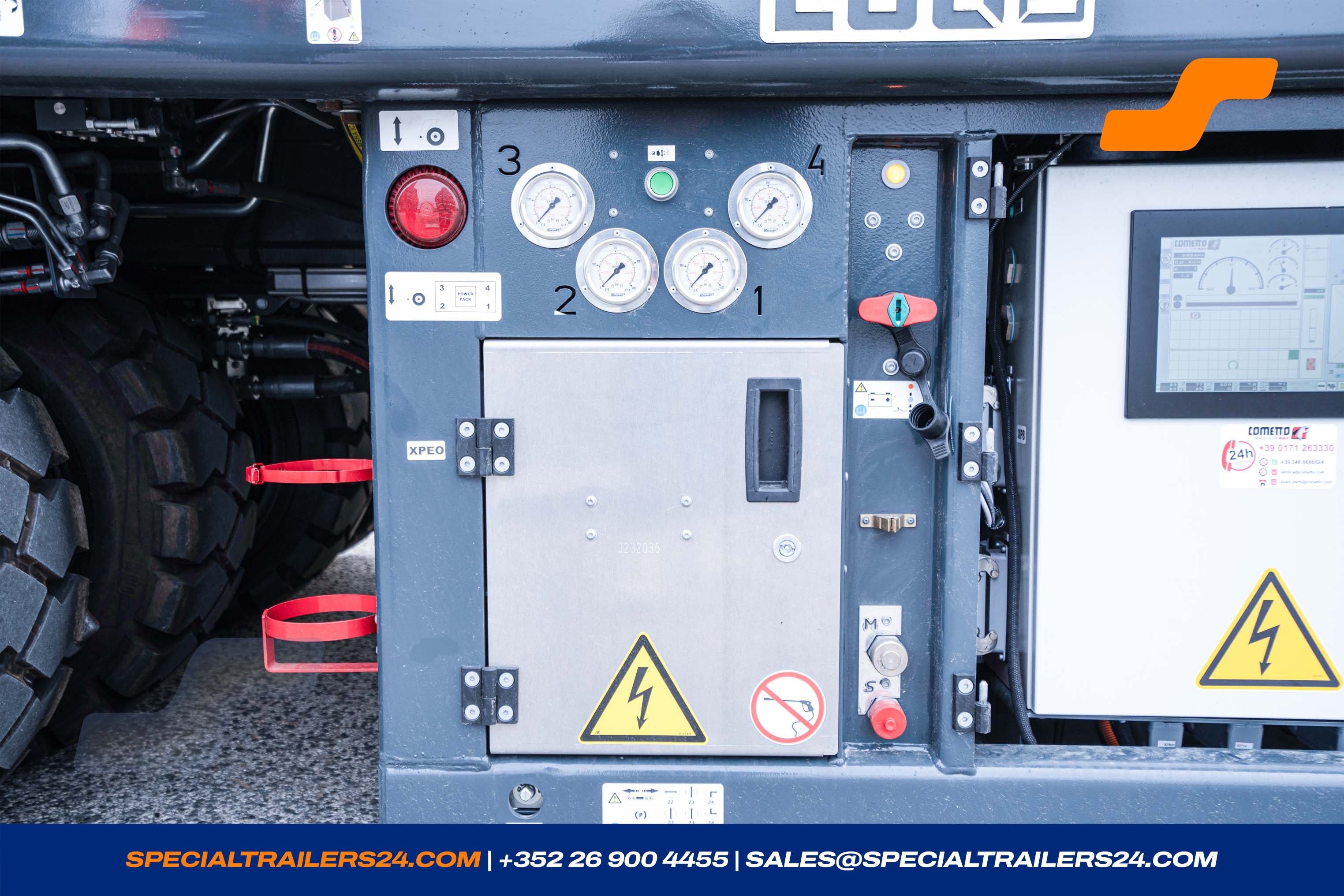

Powerpack

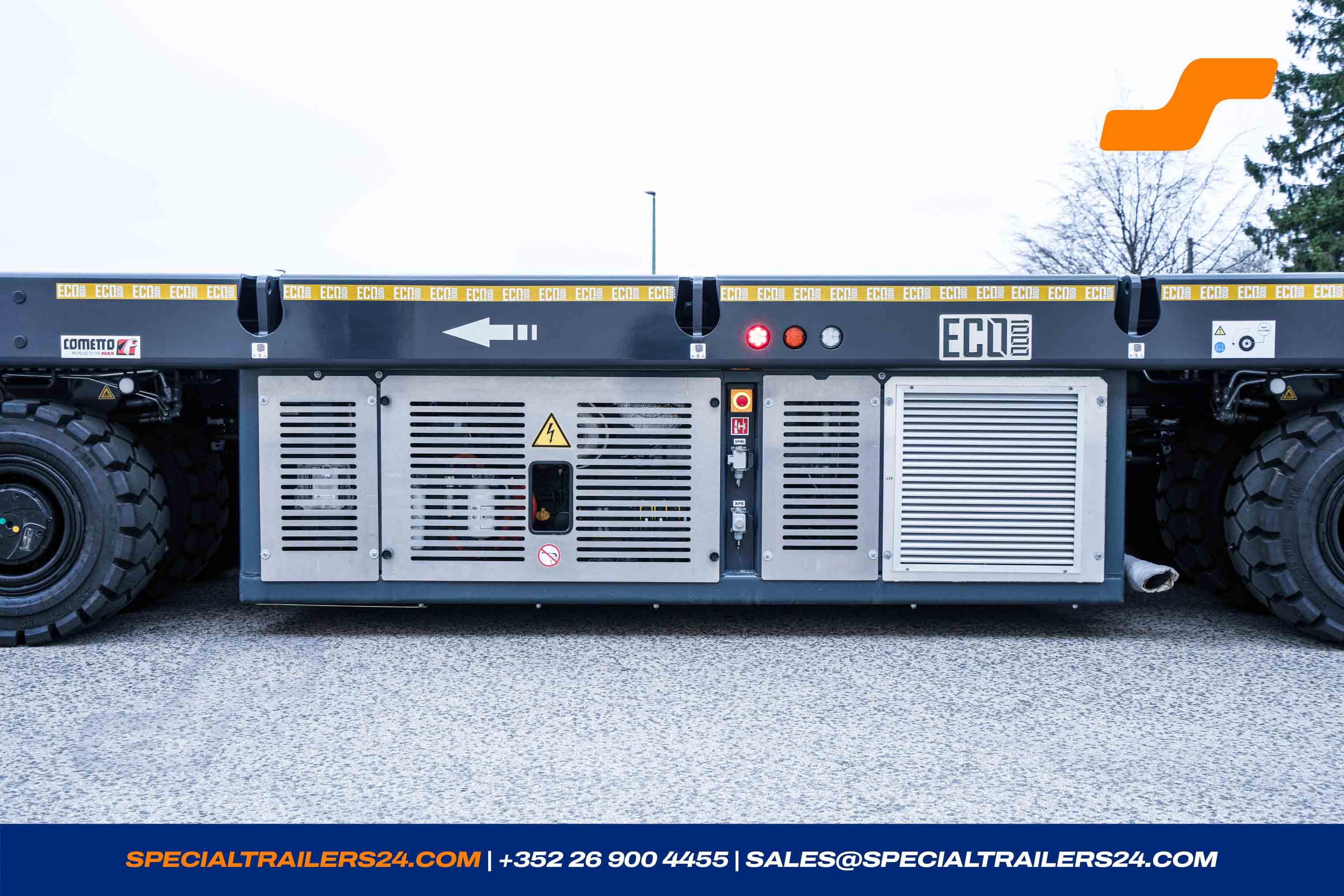

1 x Eco1000 Powerpack 85 kW
The power pack consists in a diesel engine connected to several pumps for:
• hydrostatic drive system for traction (variable displacement pumps in closed circuit);
• lifting and steering system (variable displacement pumps in open circuit);
• auxiliary system (cooling system, drainage system and so on) (gear pumps for open circuit).
Diesel engine characteristics:
• DEUTZ TCD 3.6 L4 -24V
• Emission compliant StageV / Tier4f
• Exhaust system aftertreatment DOC and SCR with ADBlue DEF system
Electronic system an CMS software installed on-board
Oil tank capacity: 150lt
Diesel tank capacity: 100lt
Working temperature: -20° / +50°.
Dust fire extinguisher of 3 kg installed on the platform.
- Electric starter remote controlled with 24 V battery.
-
Continuous control of CoG of payload.
Horn and visual alarm for overcharge and risk of tilting of payload.
Alarm for level of hydraulic oil (low and full). - Powerpack with HRM metallization (High Resistance Metallisation).

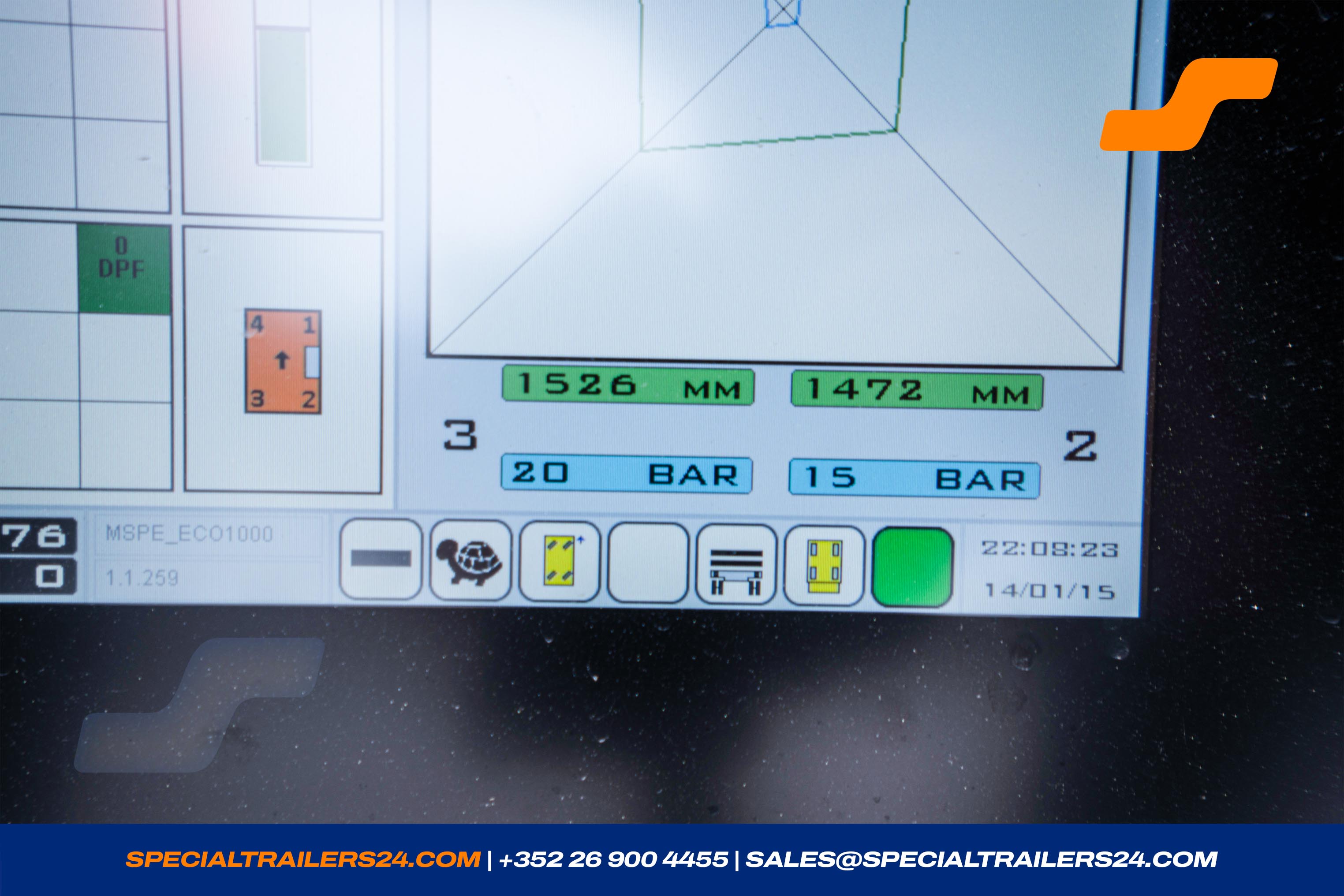

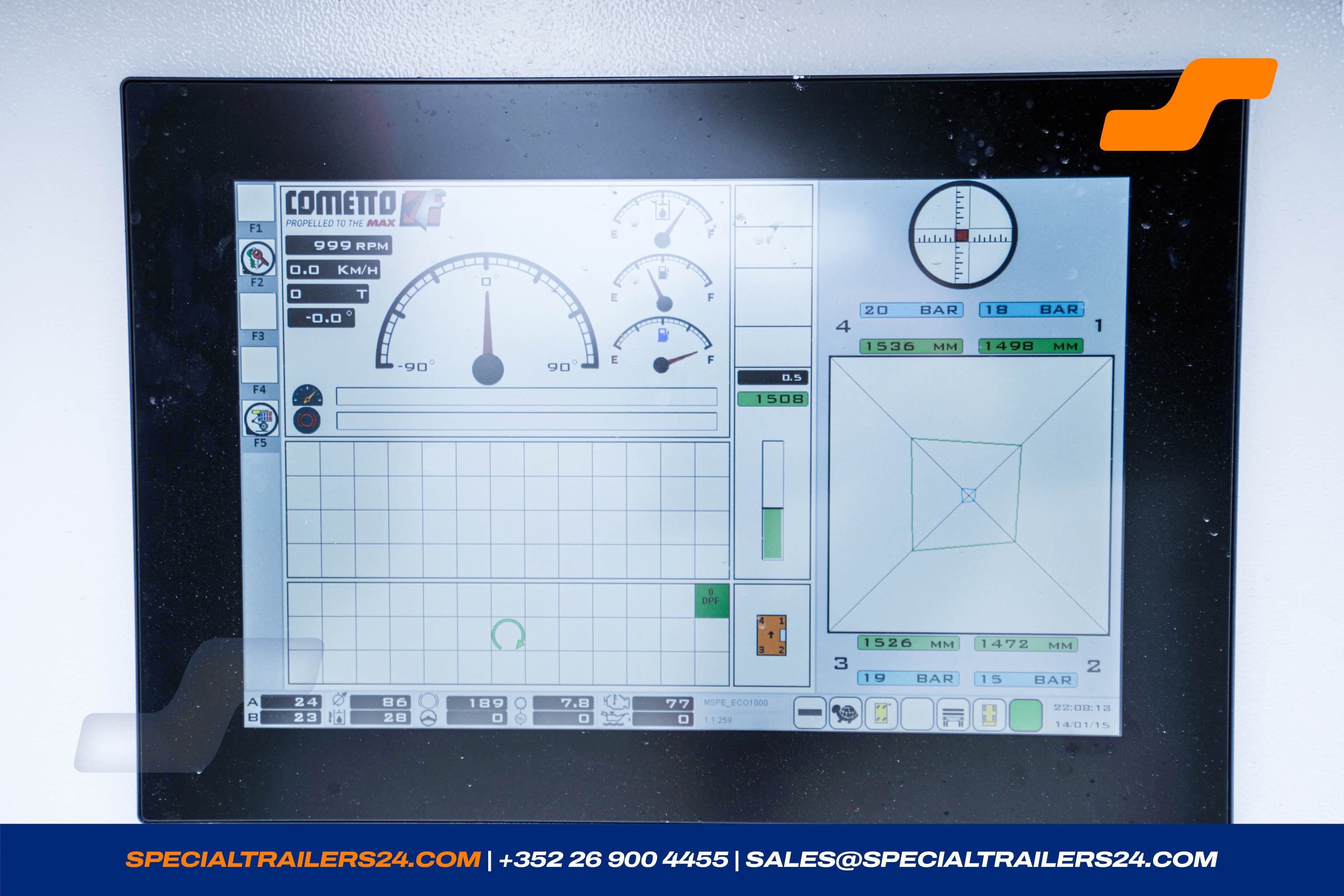

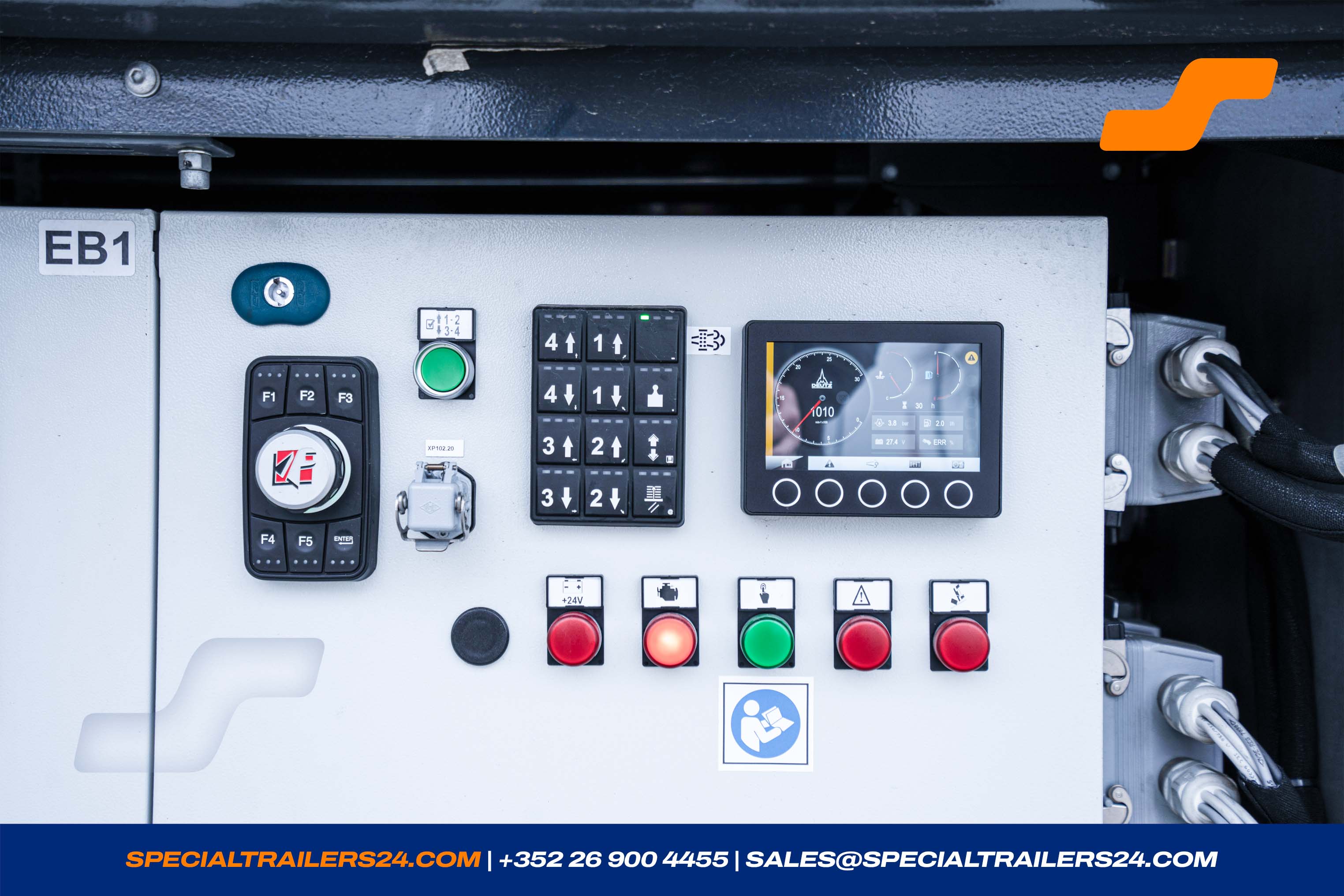

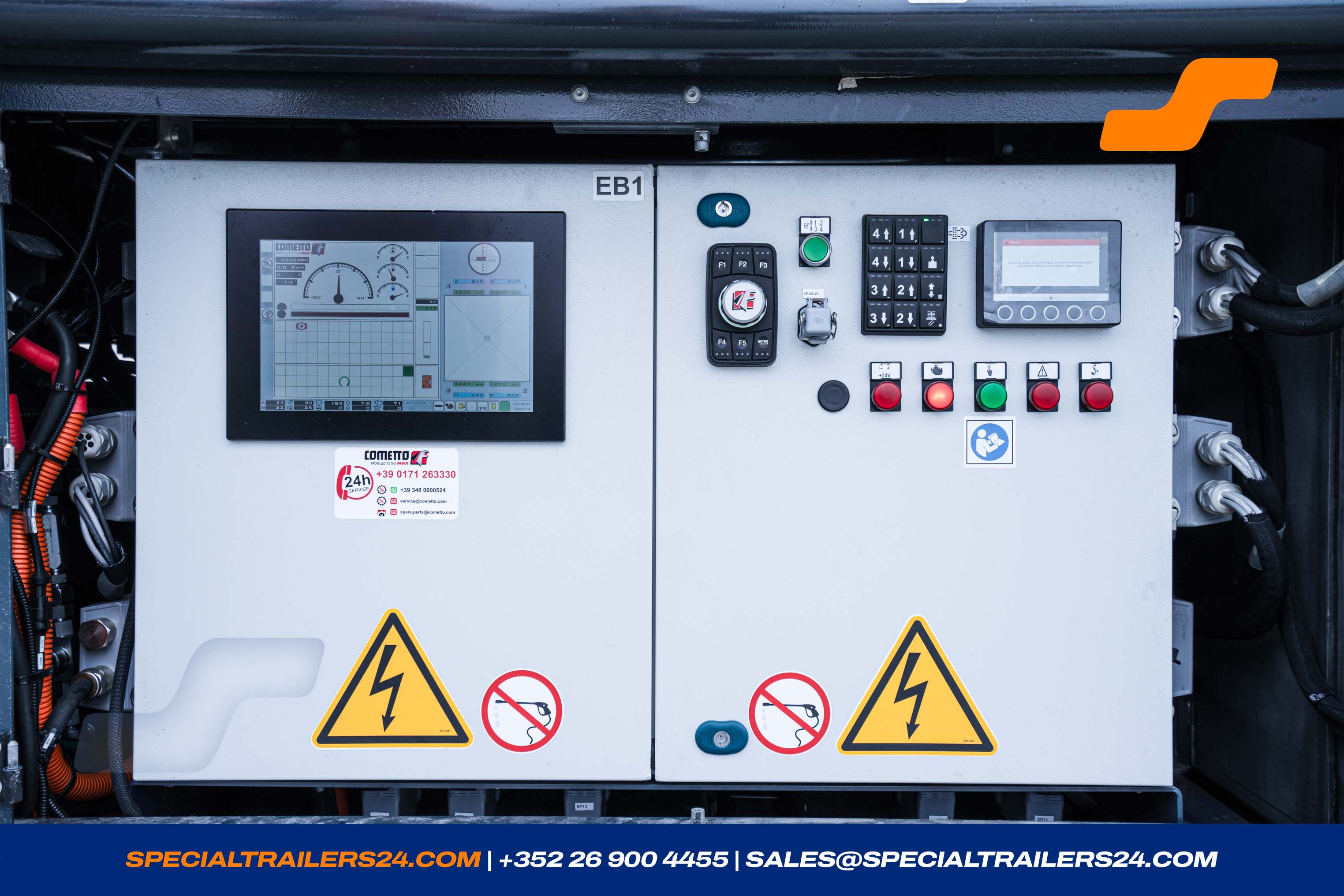

- High visibility screen and simple buttons to configure the convoy.
-
Remote Diagnosis System - It allows to monitor the vehicle and help the troubleshooting through the COMETTO service department 24/365.
Data transmission is possible via mobile connection (3G/4G).
Powerpack Accessories

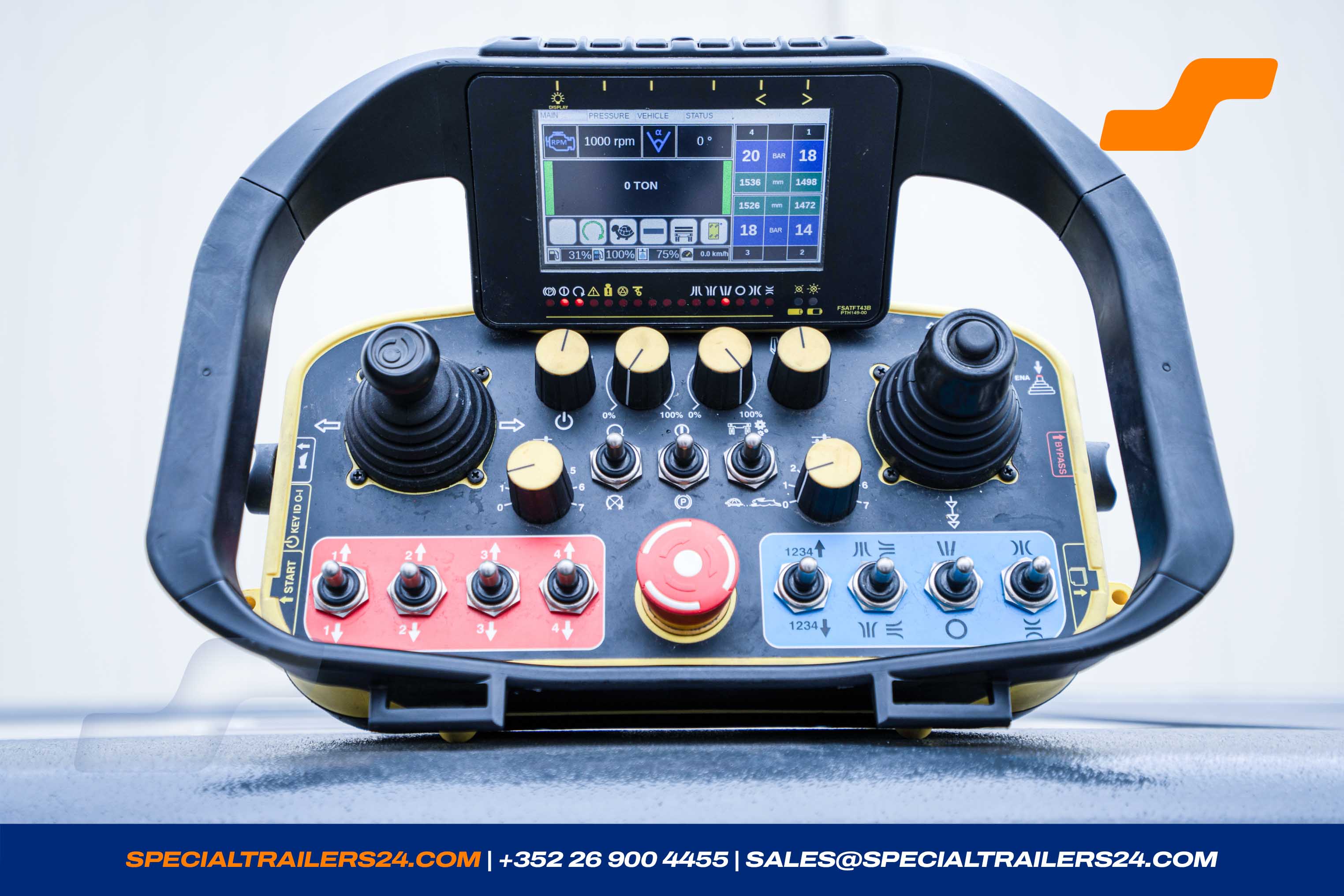

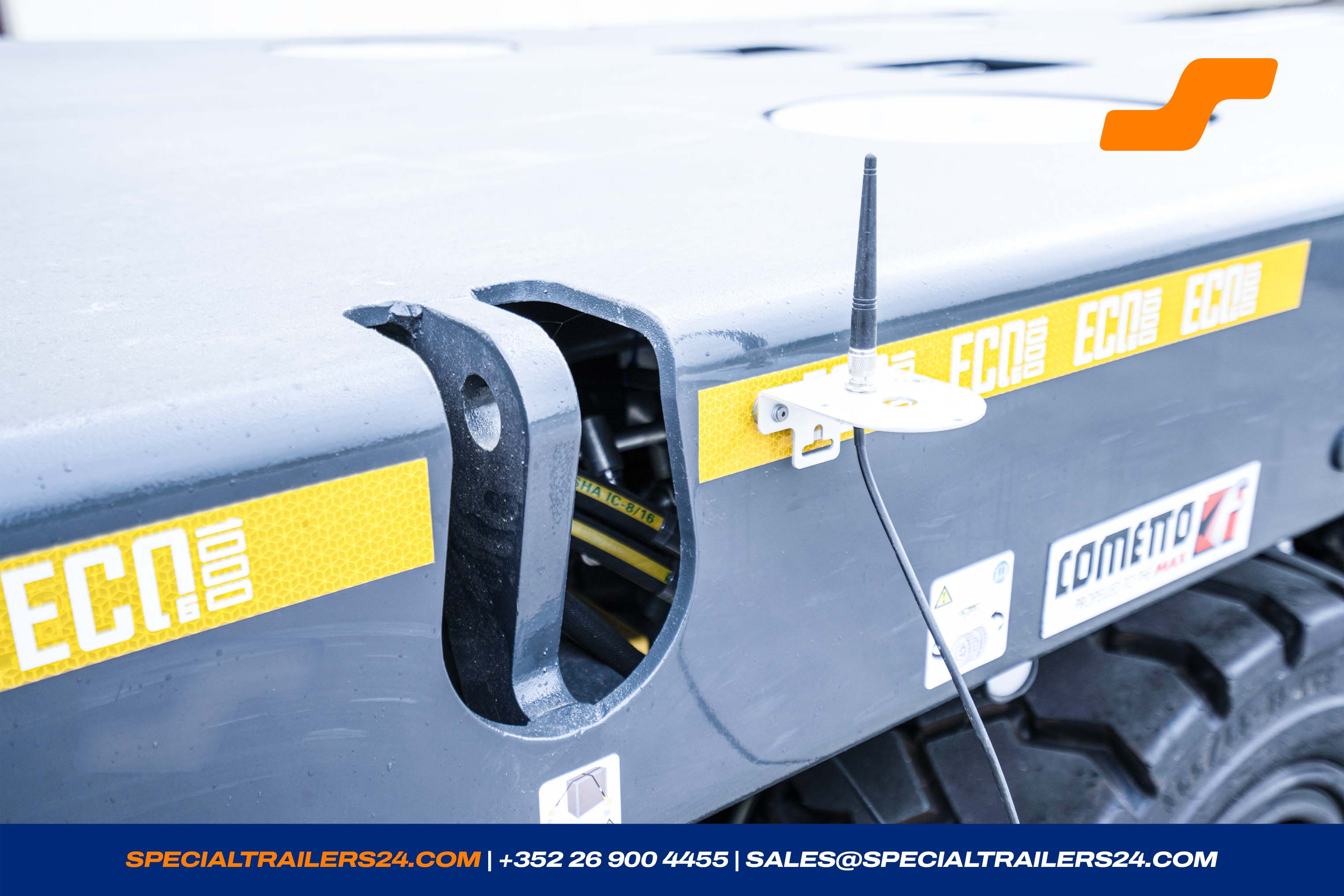

1 x Eco1000 Compact remote control
Compact radio remote control.
It allows to handle the vehicle from a distance up to 50 m.
Remote control for all functions of vehicle with a display showing main data of convoy.
Receiver to be connected to Eco1000 module
Small size
Frequency: 2,4 GHz
Supplied with 2 battery, a 12V charger, and a cable for work without radio comunication.
Accessories
General accessories
1 x Eco1000 Tools kit: Essential
Kit of tools for general operations and basic maintenance on a Eco1000 single trailer.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number ION 2024-00327
- Reference Eco1000 4/4 Diesel
- Number of axles 4
- Condition New
- Year of manufacture 2025
- Colour RAL 7016 - Anthracite grey
- Availability Directly available
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000235
- Steering Type Electro-hydraulic
