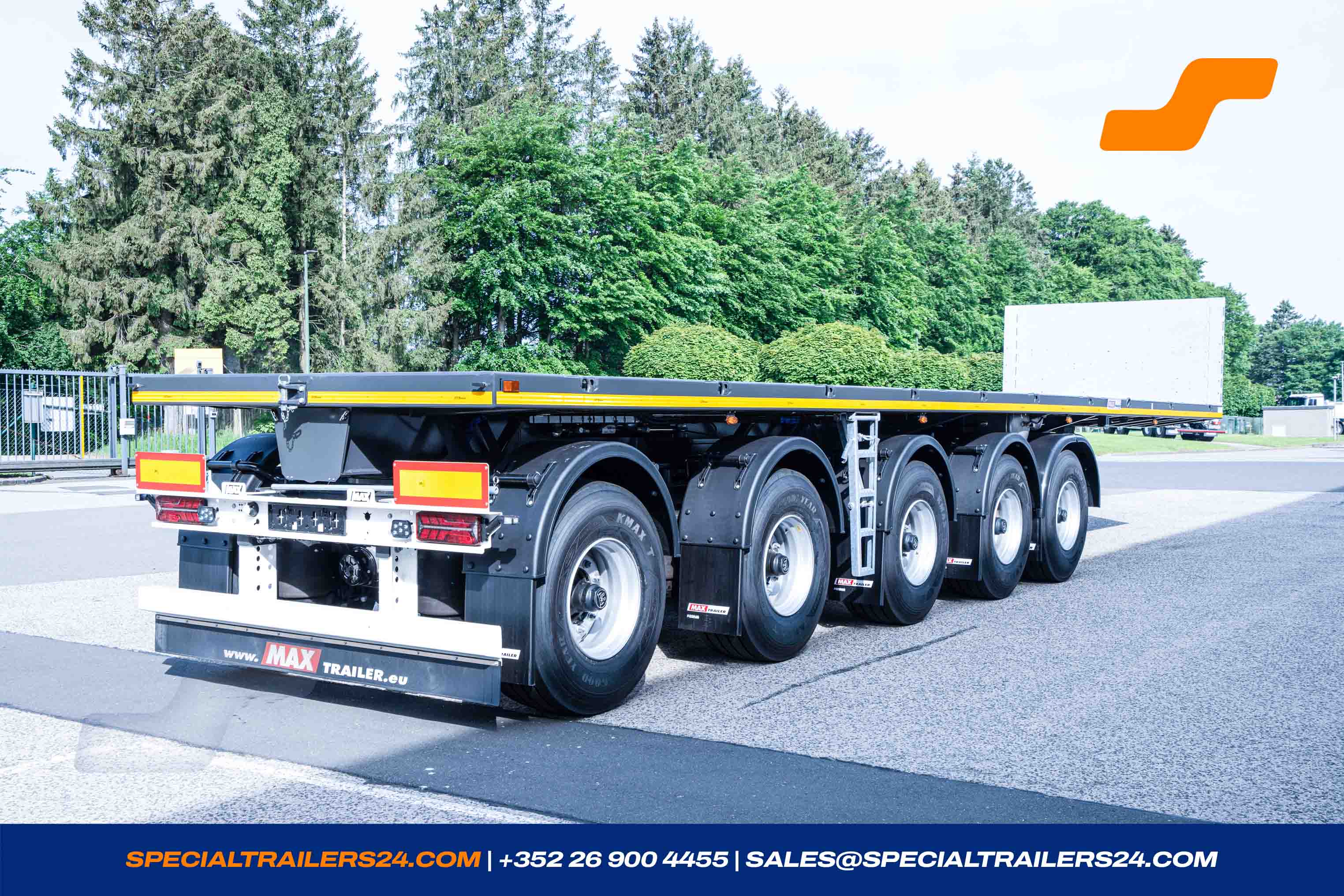

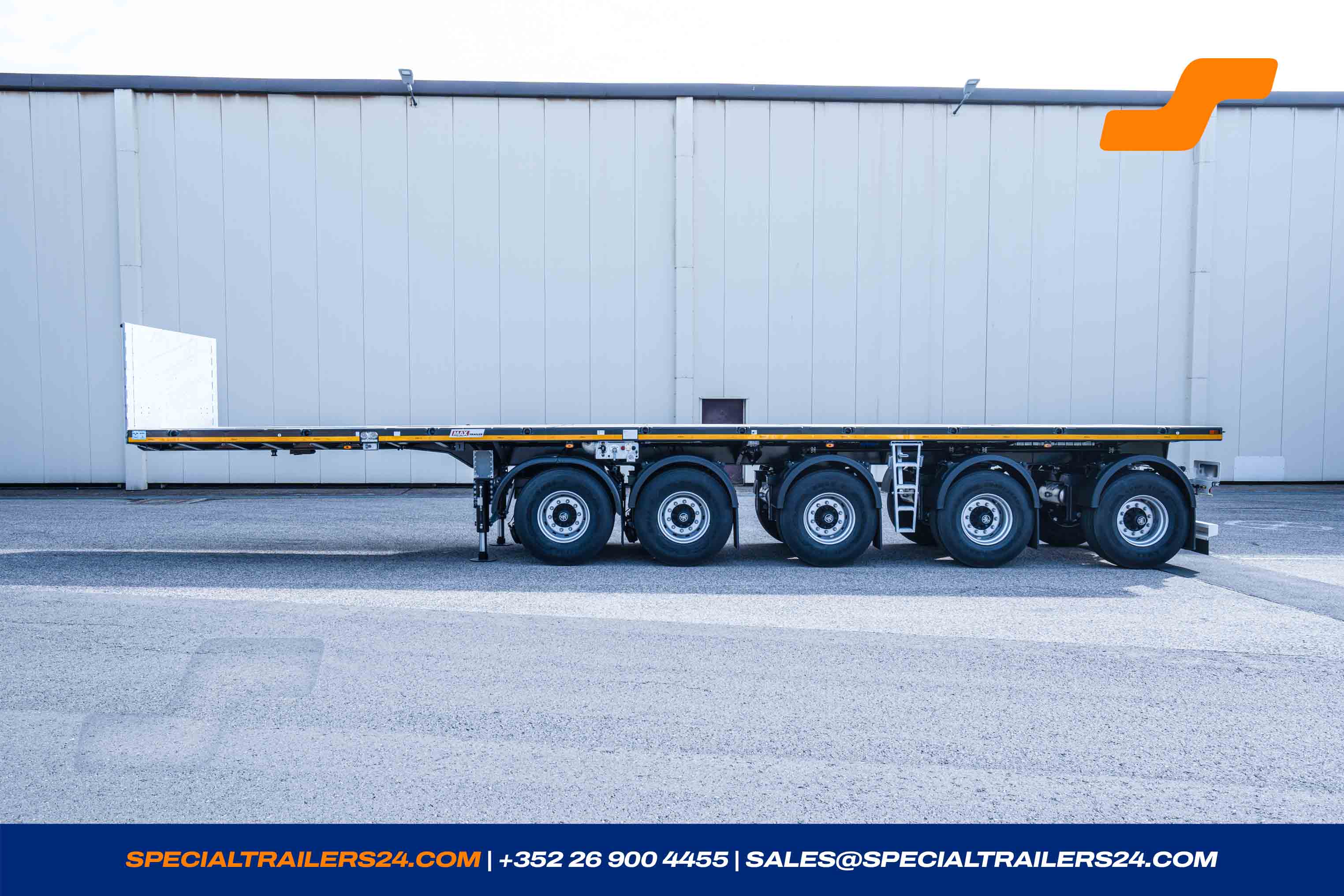

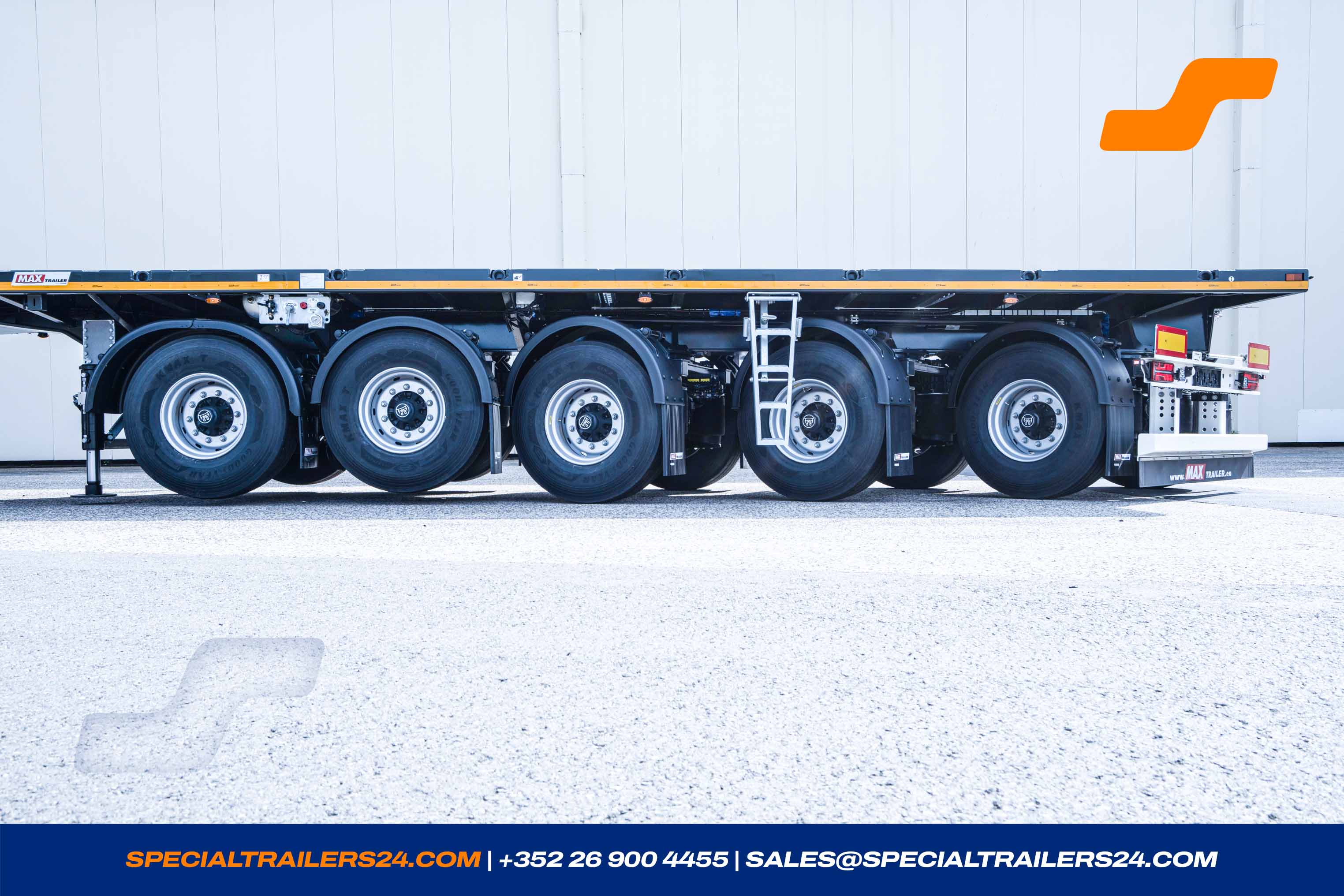

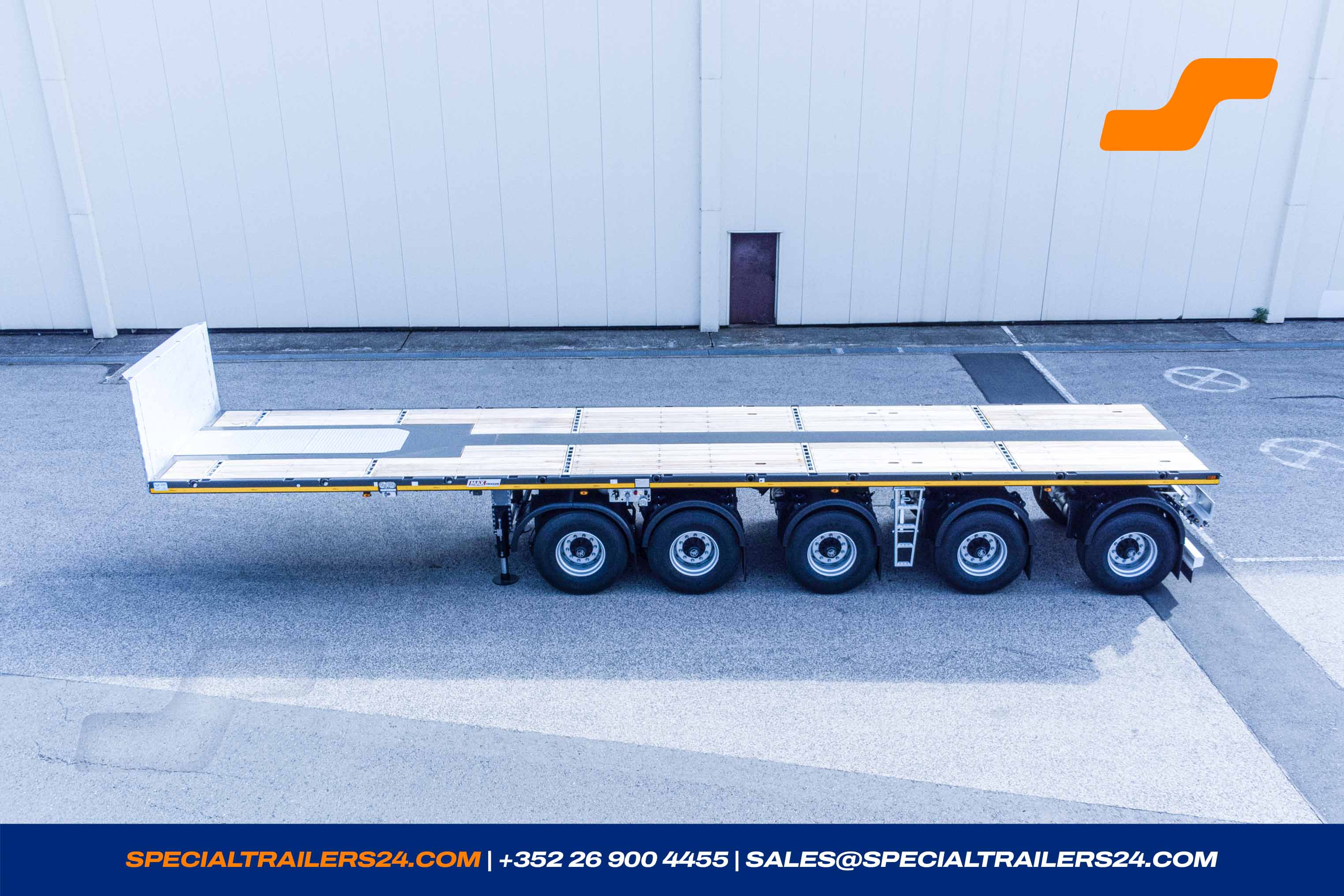

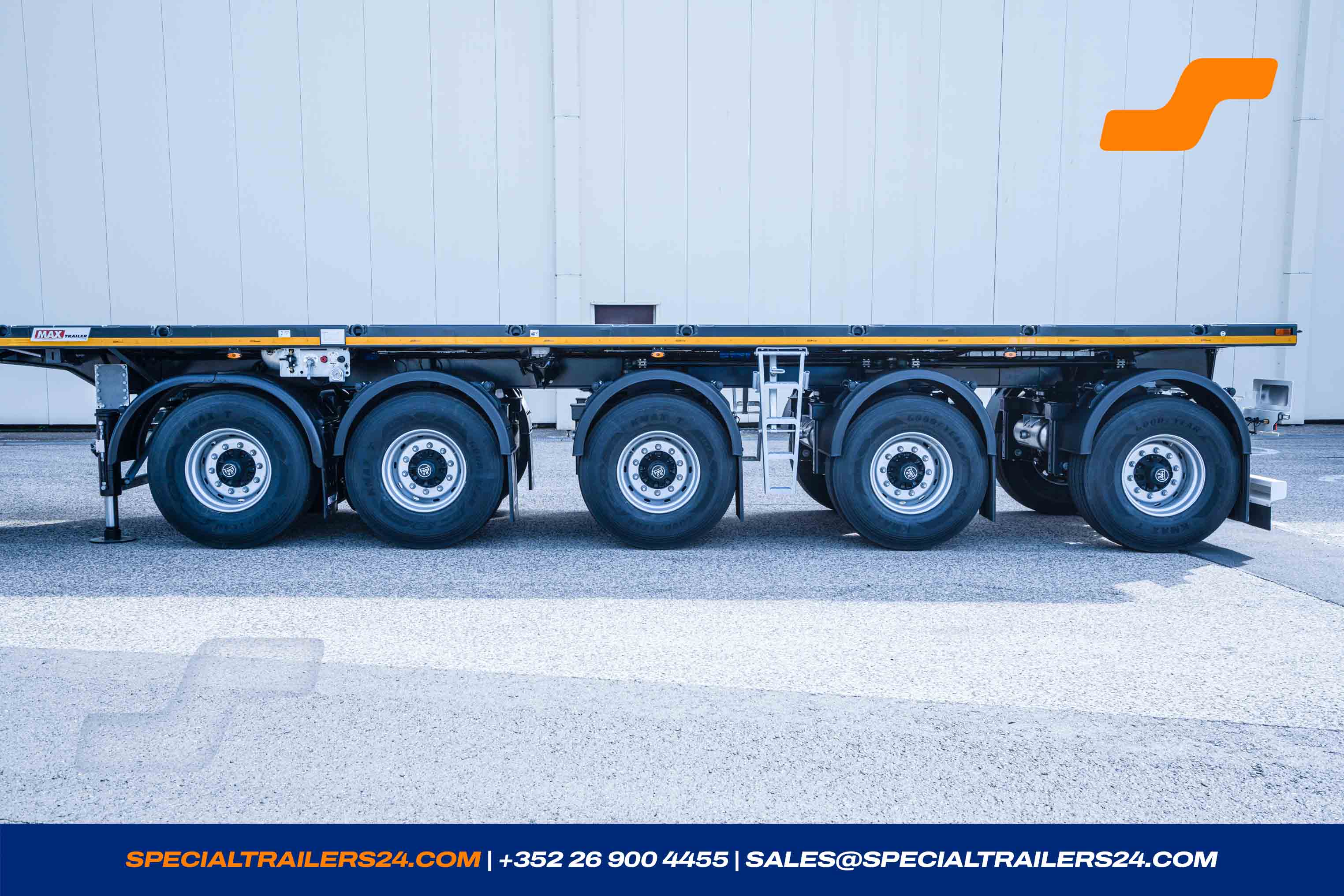

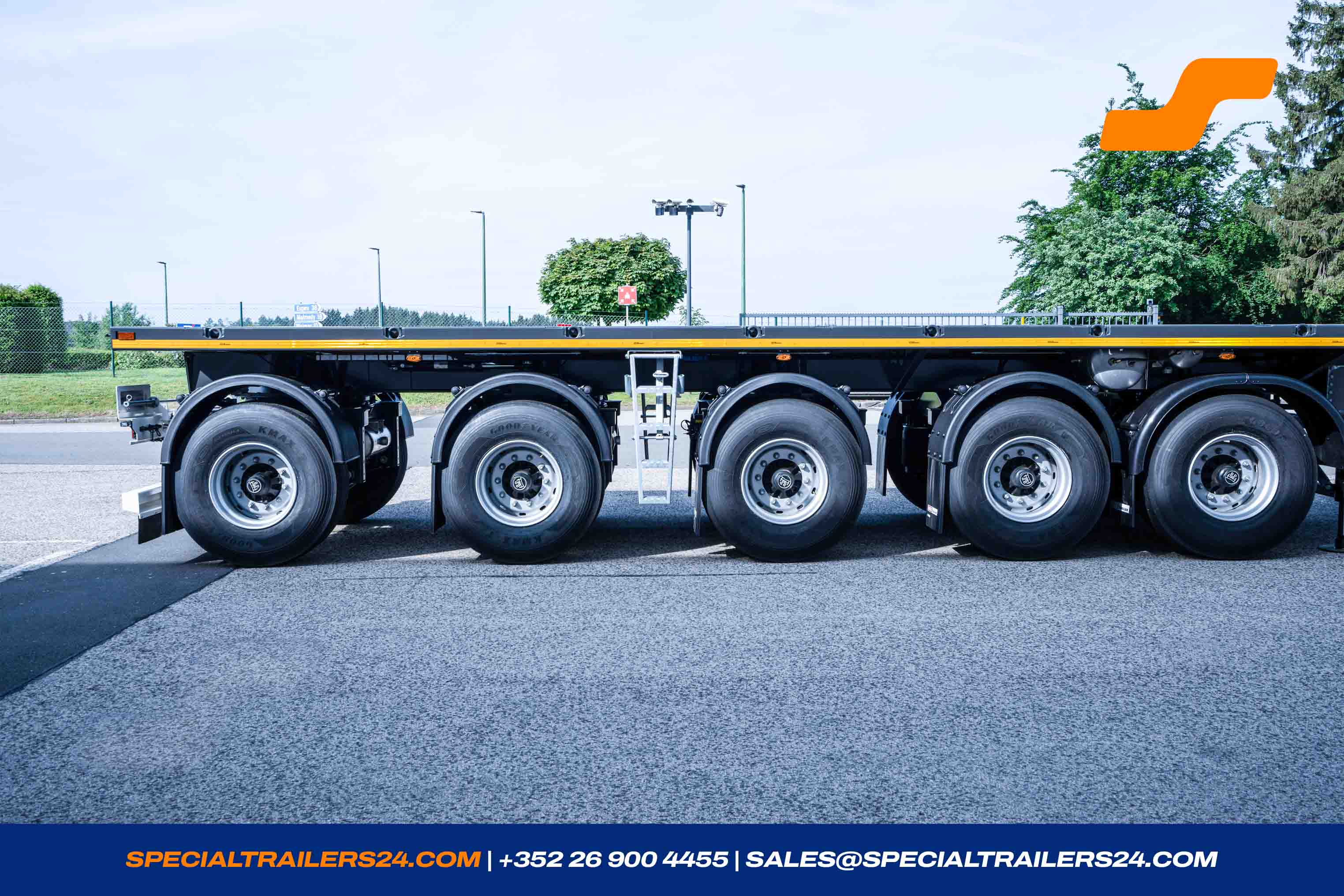

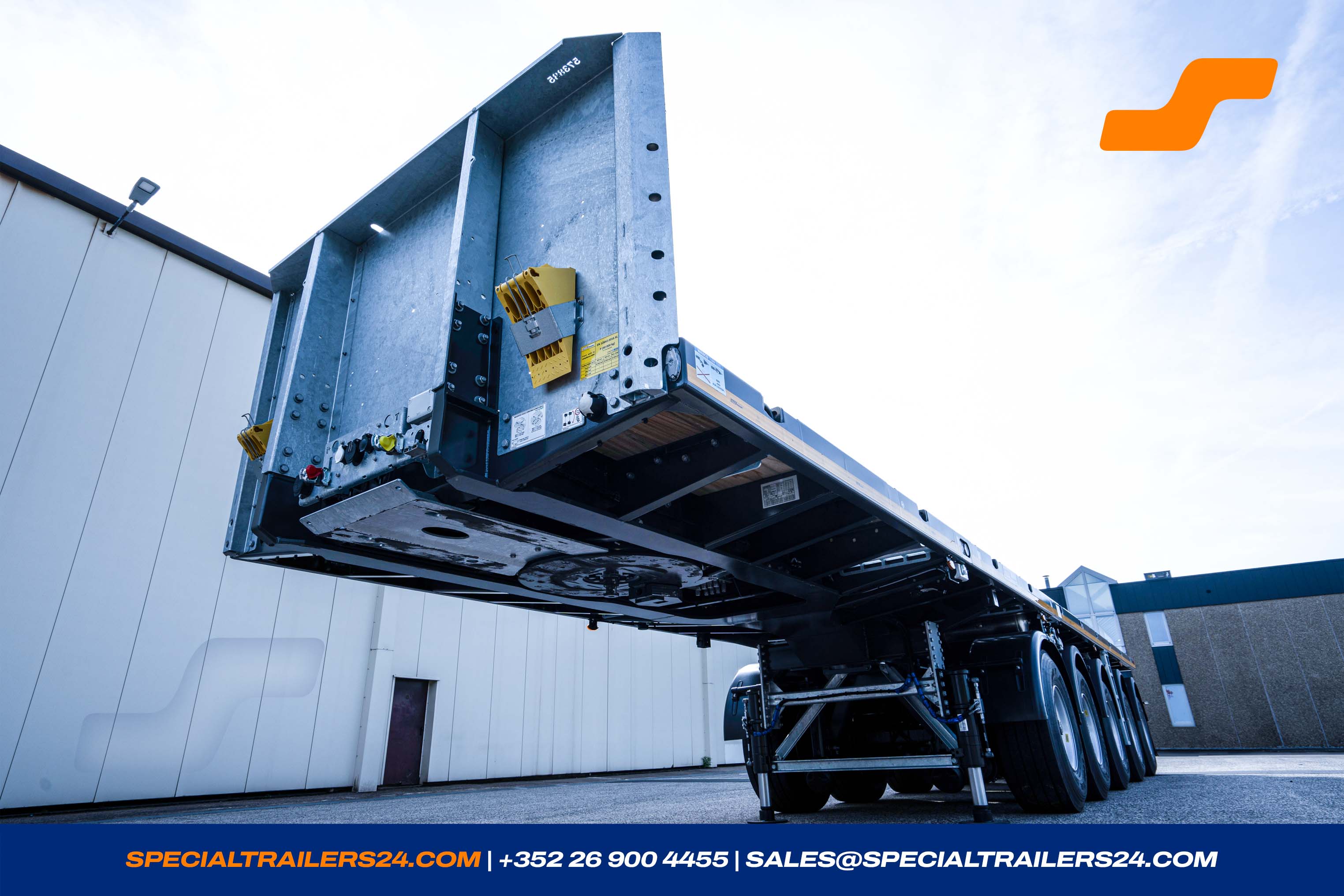

Flatbed trailer
MAX Trailer MAX410
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 111275
- Reference MAX410-NZ-5-12.40-22.5-2.54

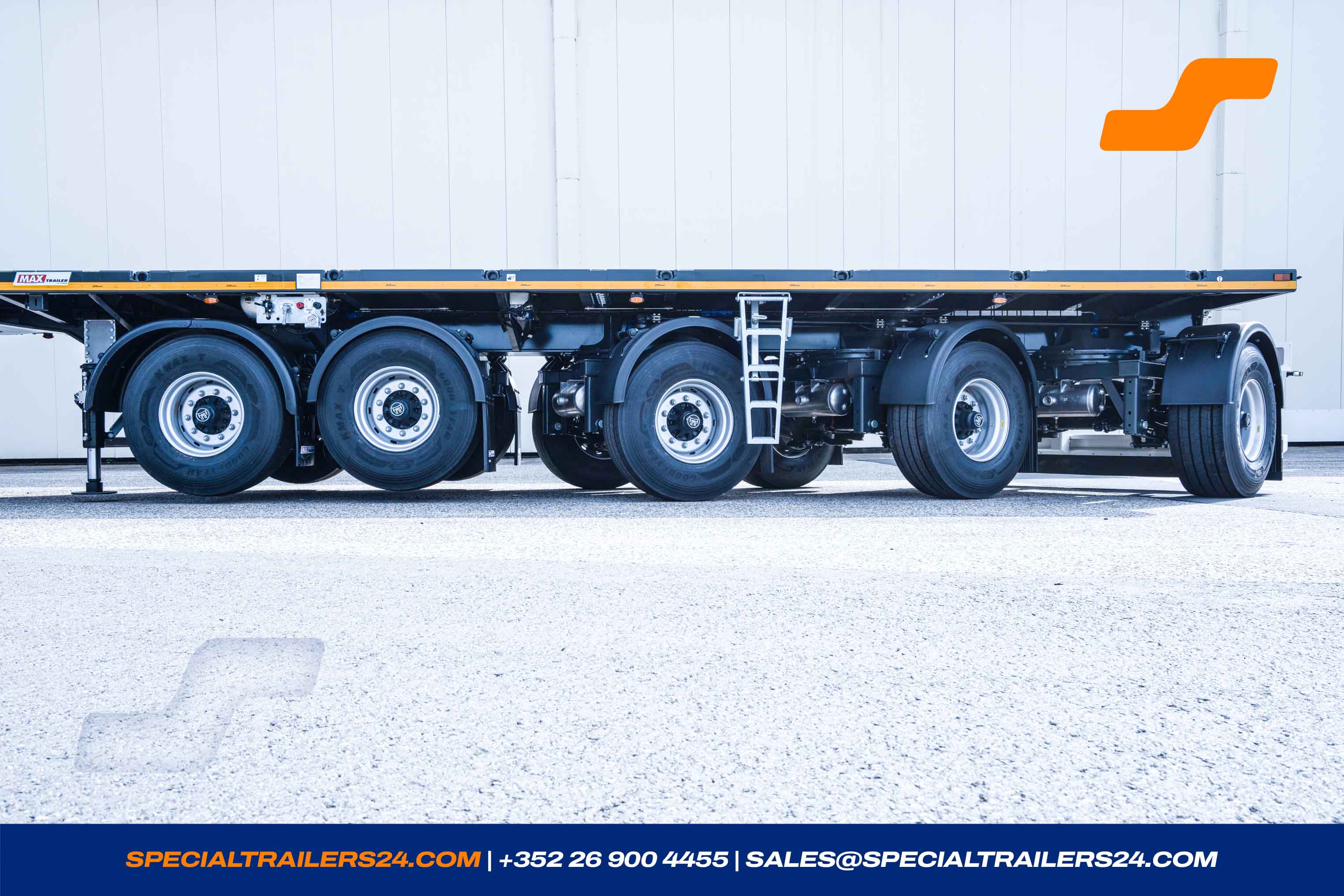

- Number of axles 5
- Condition New
- Year of manufacture 2026
- Colour Colour selectable
- Availability 03/2026
- Steering Type Hydraulic
Availability
03/2026
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 23000 kg |
| Axle load | 60000 kg |
| Gross weight | 83000 kg |
| Tare weight +- 3% | 11709 kg |
| Payload | 71291 kg |
Dimensions
| Fifth wheel height loaded | 1270->1330 mm |
| Loading platform length | 12 400 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
| Turning circle reversing | 2 500 mm |
Loading deck

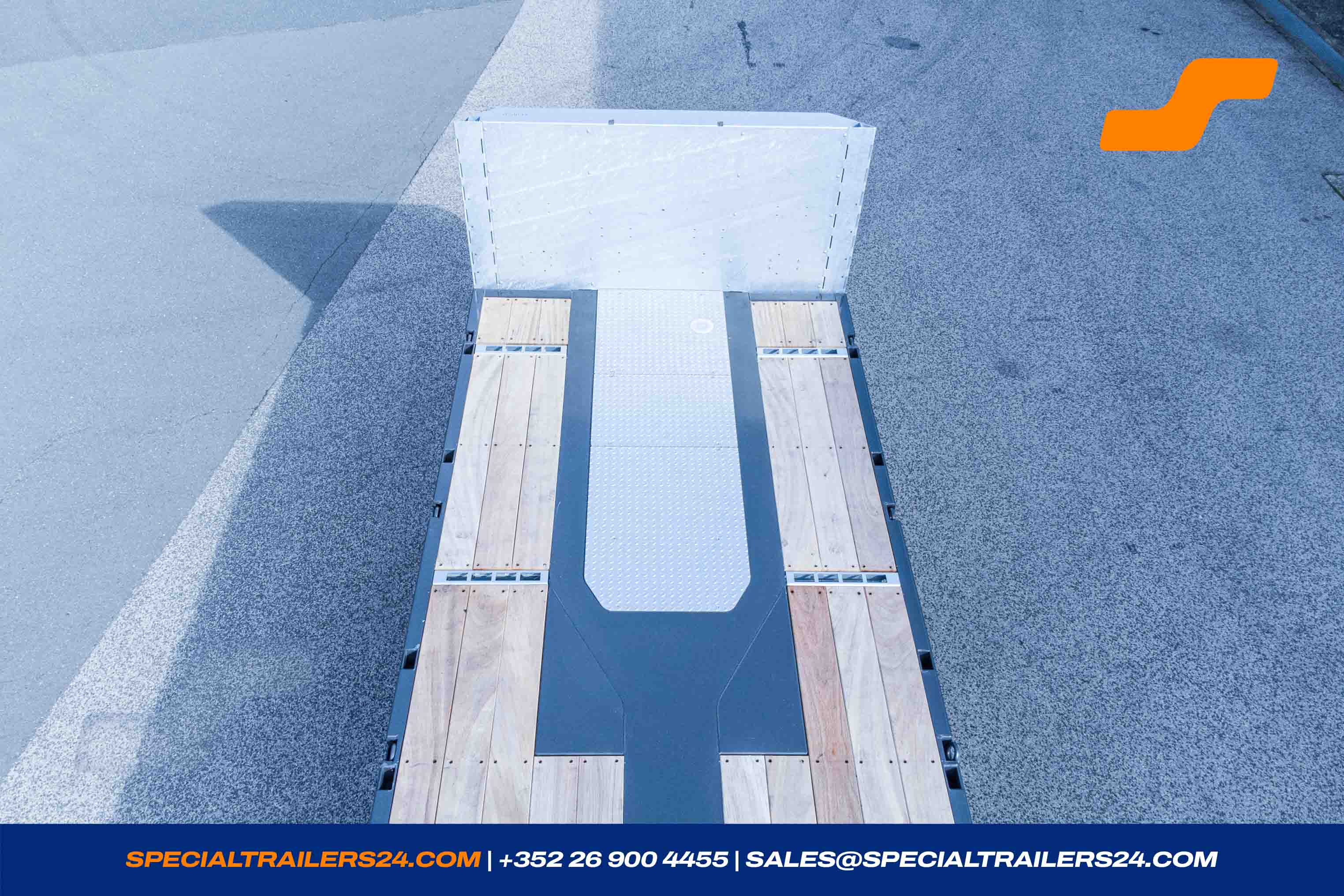

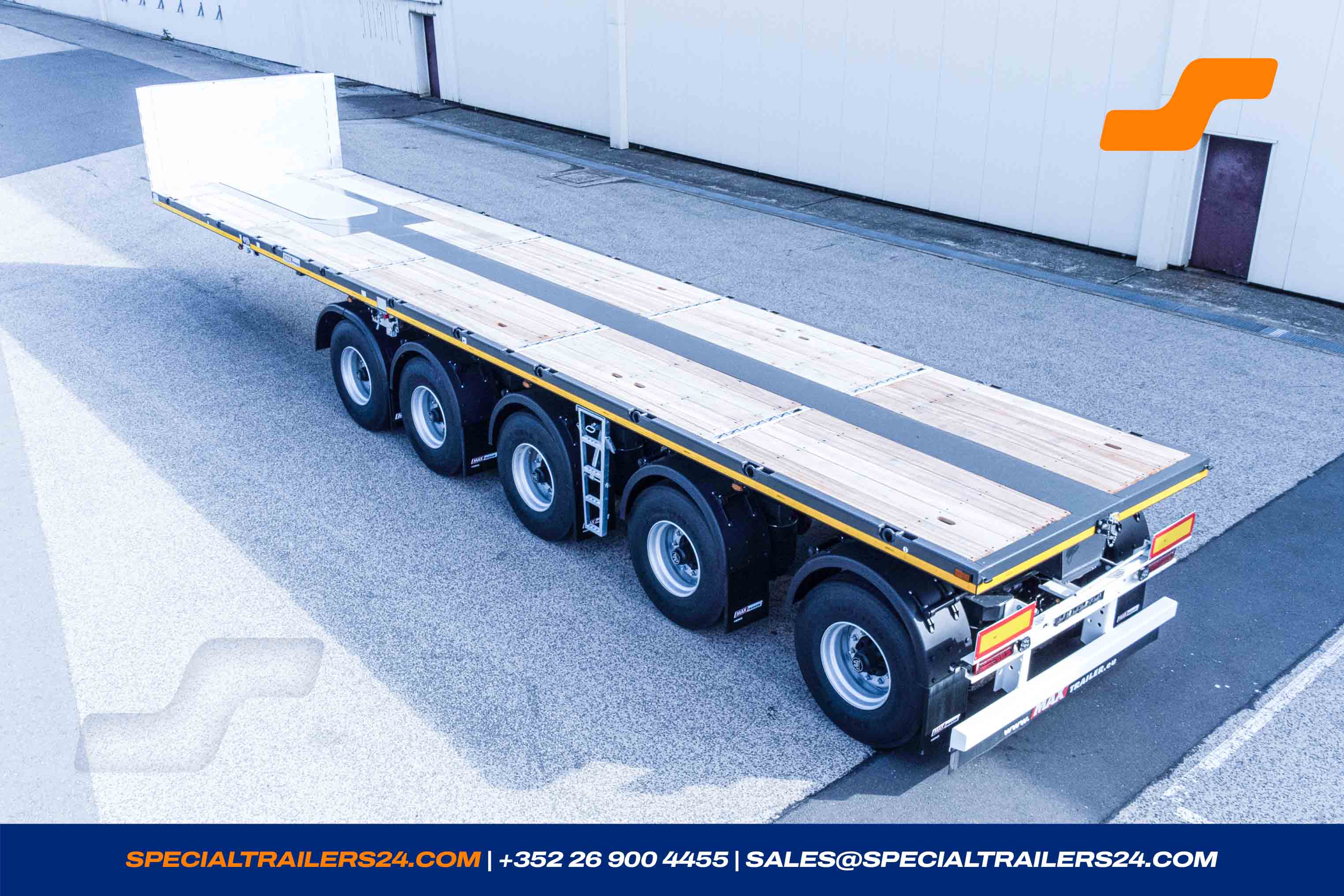

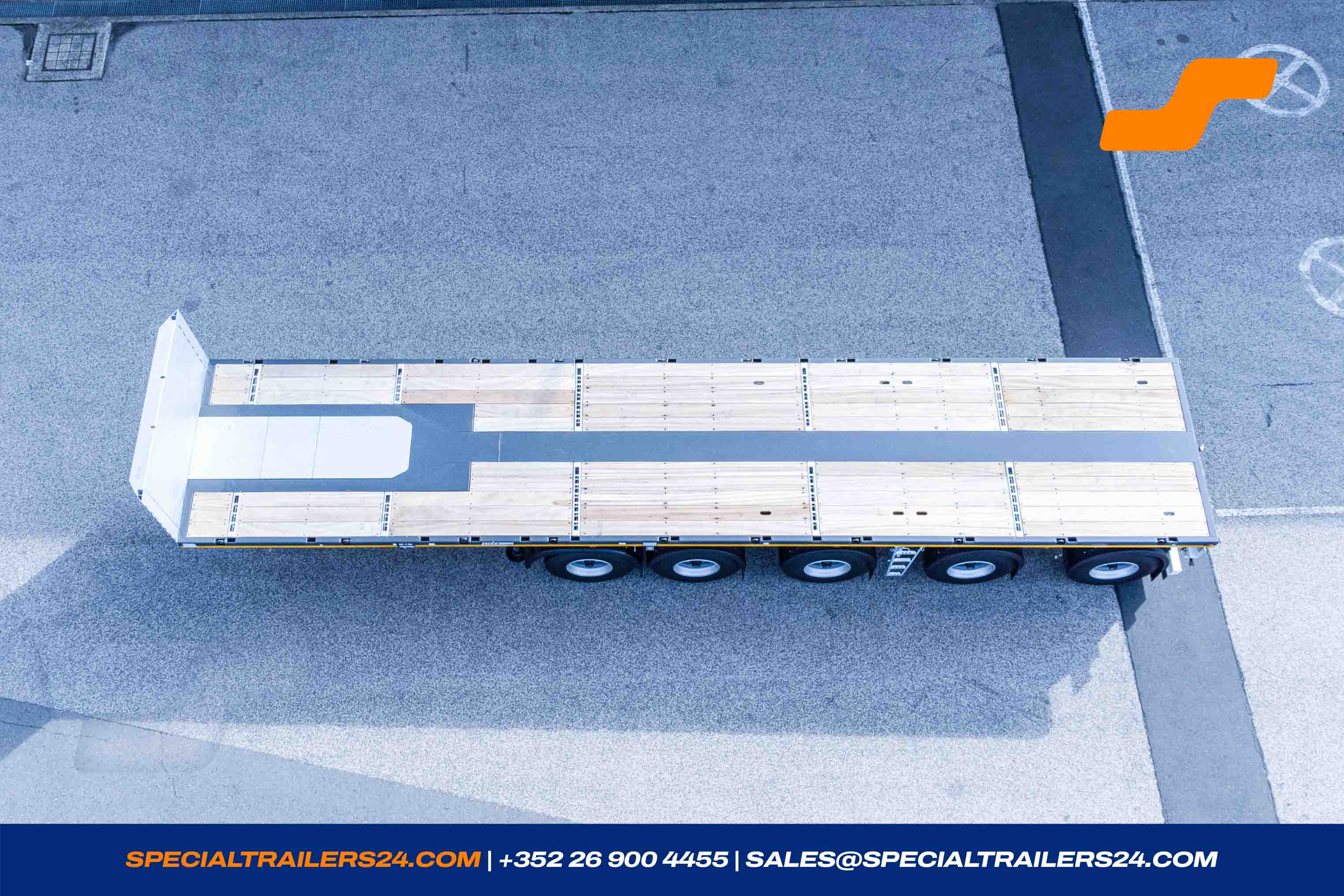

Loading platform
1 x Loading platform

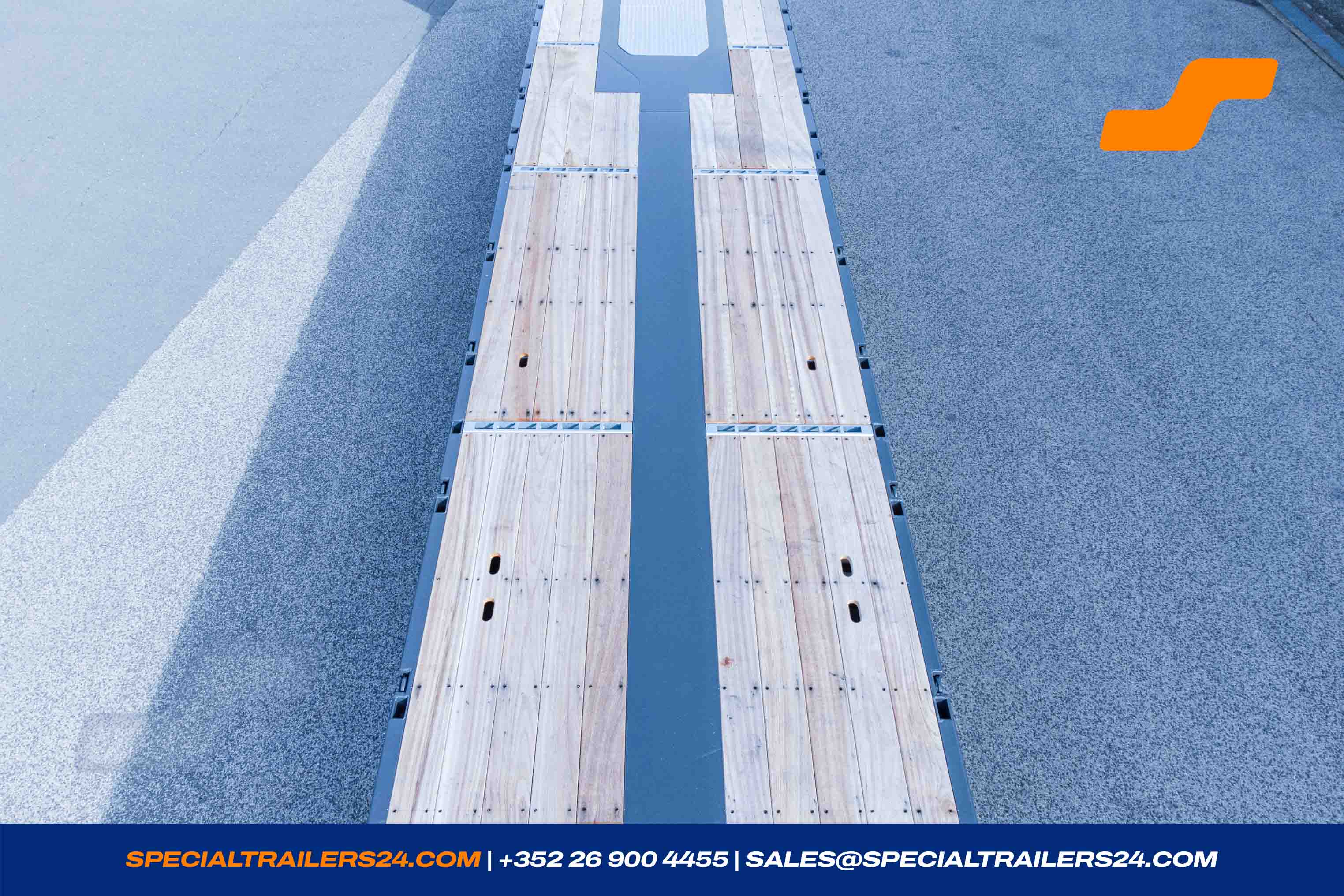

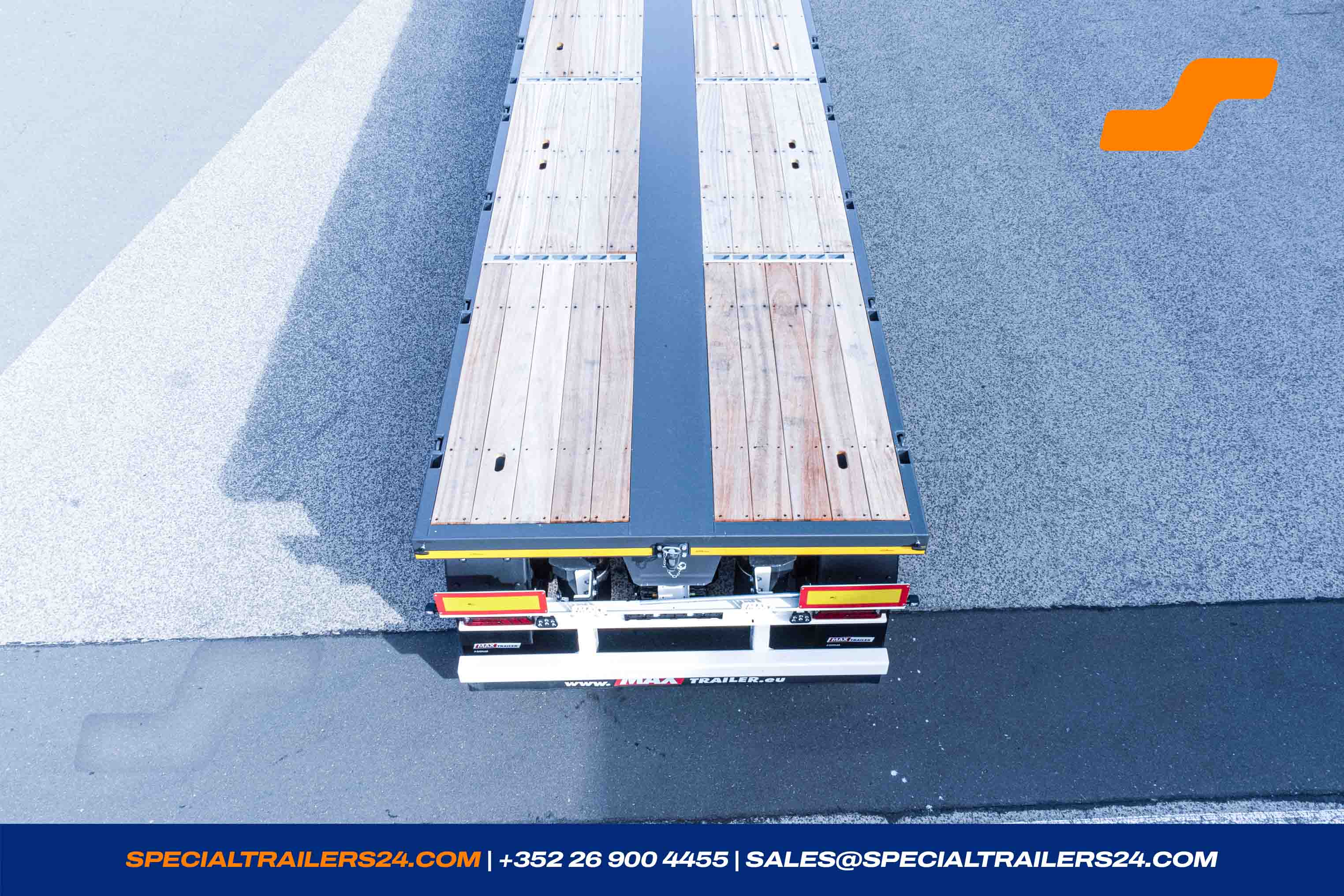

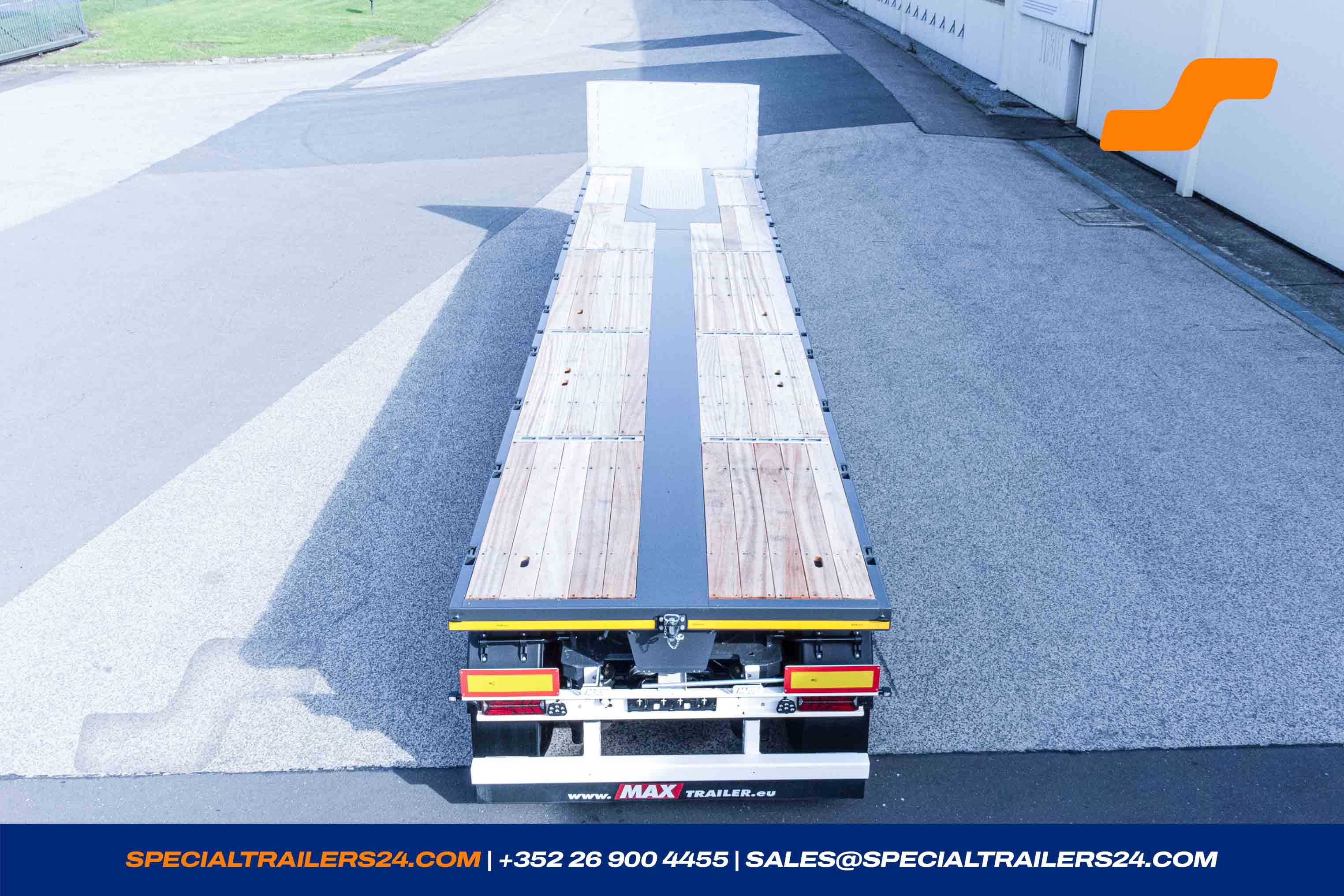

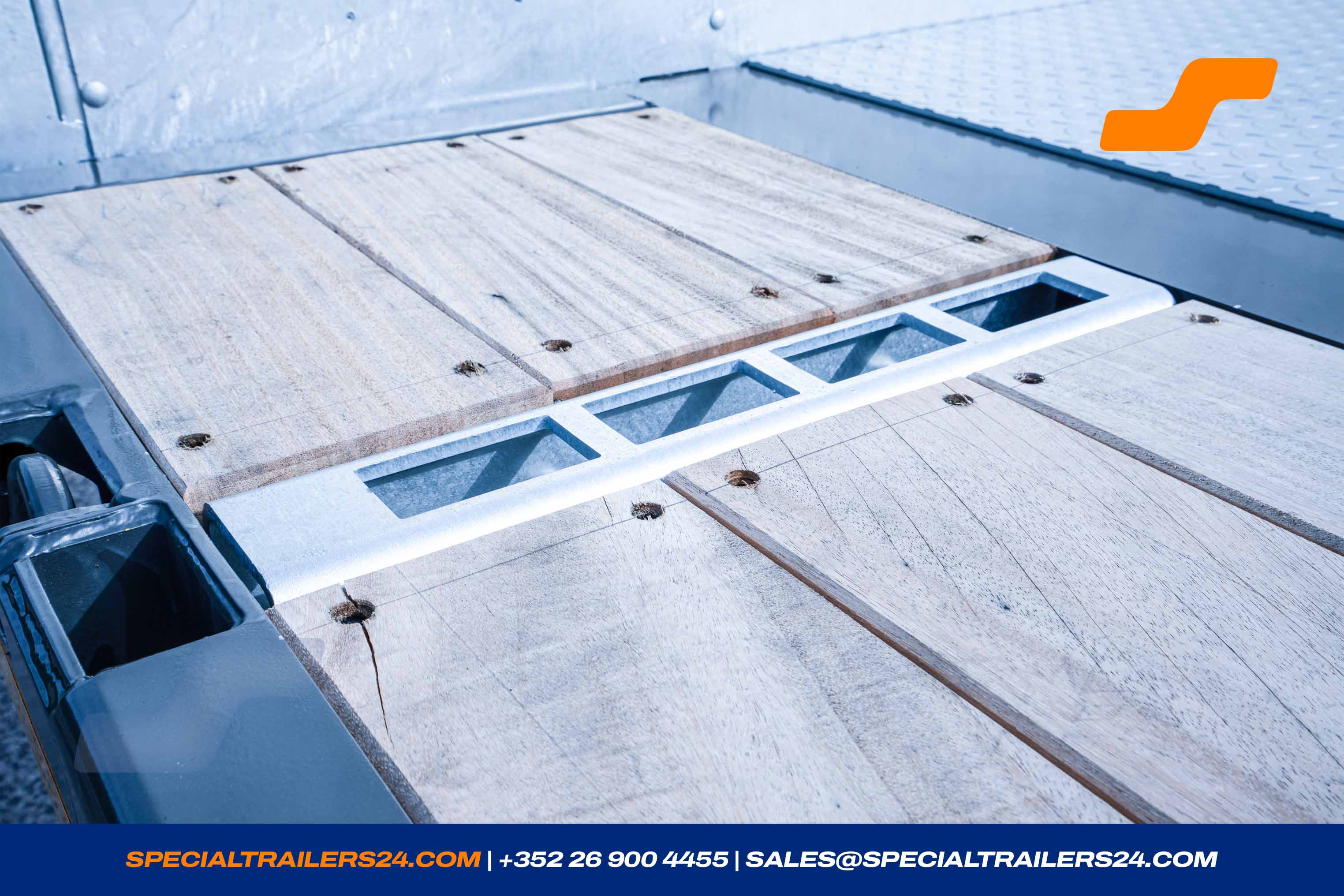

Loading area with ± 30 mm timber floor.
10 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 10 000 daN).
- One 3.5 king pin to deliver separately (± 3kg).

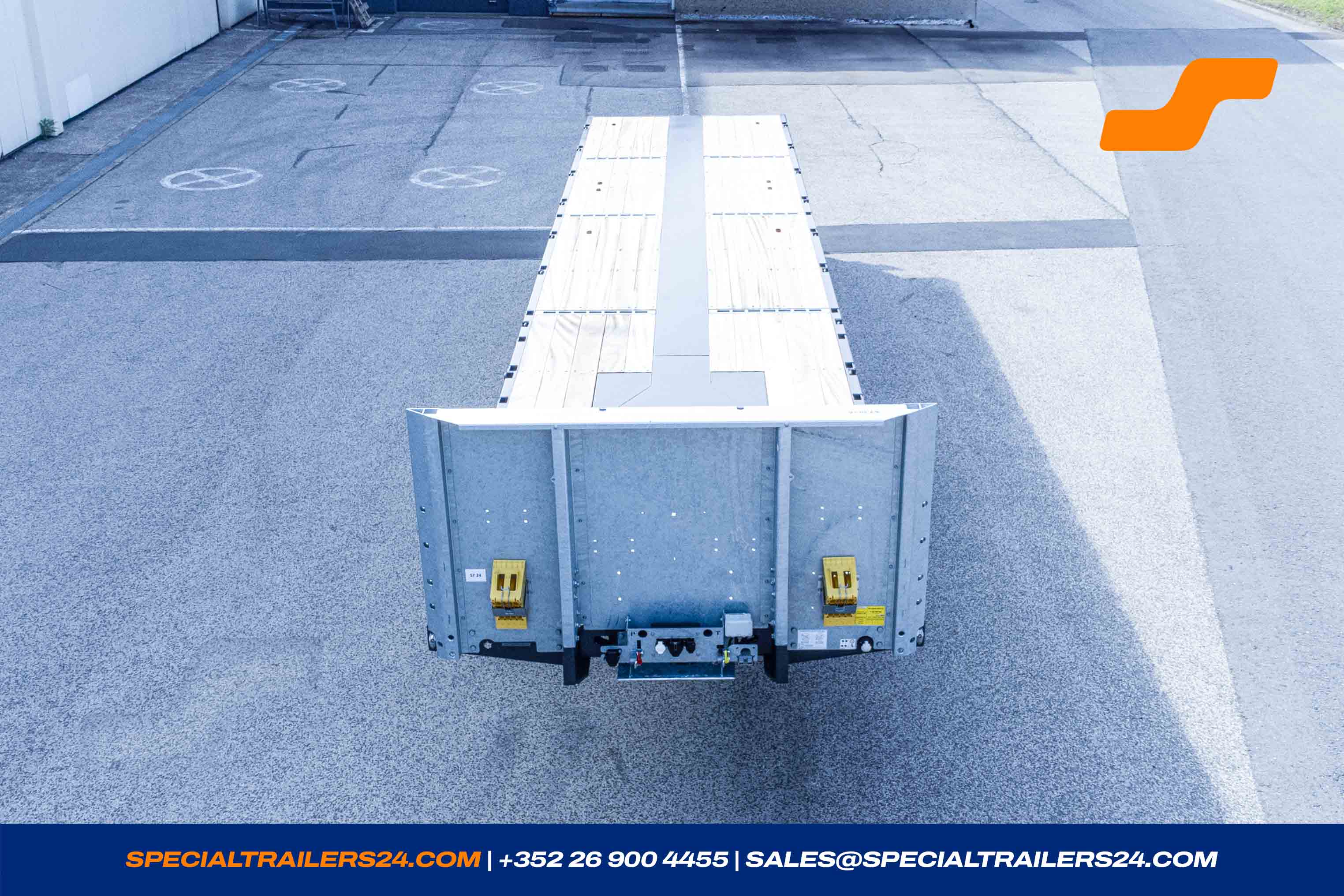

- 4 wheel chocks with carrier on the headboard (± 5kg).

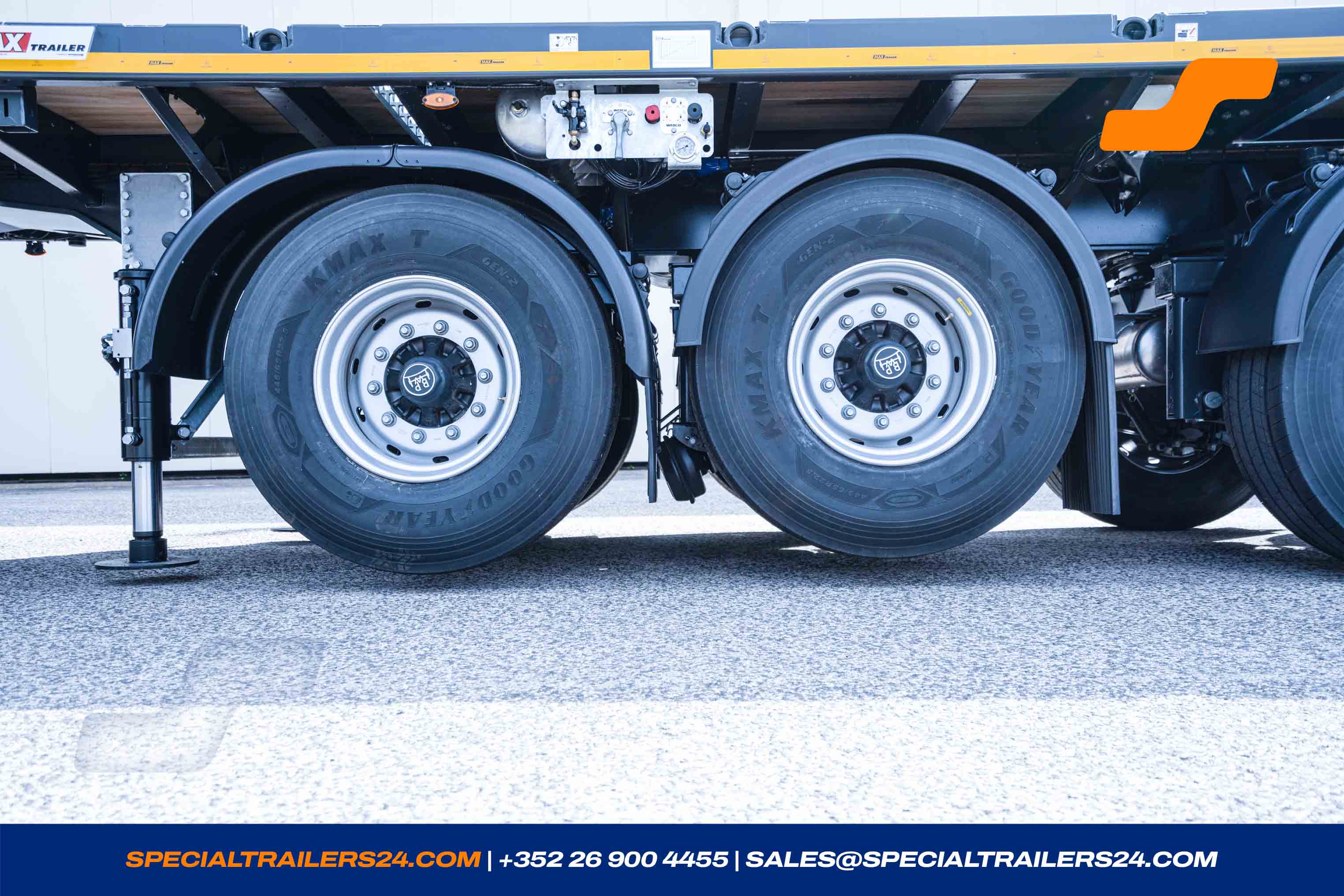

- 1 spare wheel 445/65 R22.5 delivered loose, WITHOUT holder. (± 140 kg)

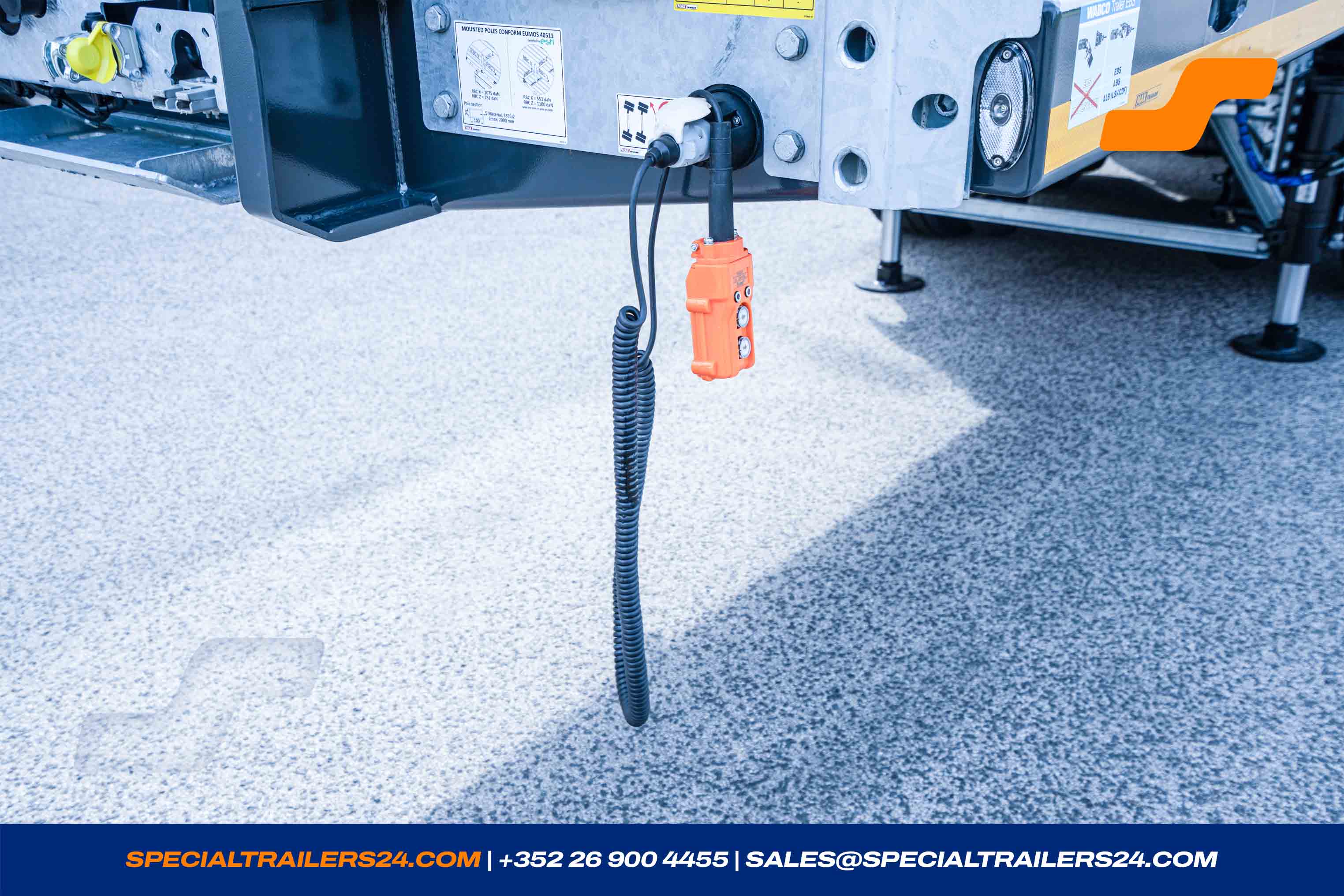

- Radio remote control for the hydraulic steering, additional to the cable control, with LED control lamp on the receiver for the alignment of the axles.
- Speed sticker 80 km/h at the rear and on both sides.
Accessories
1 x Accessories

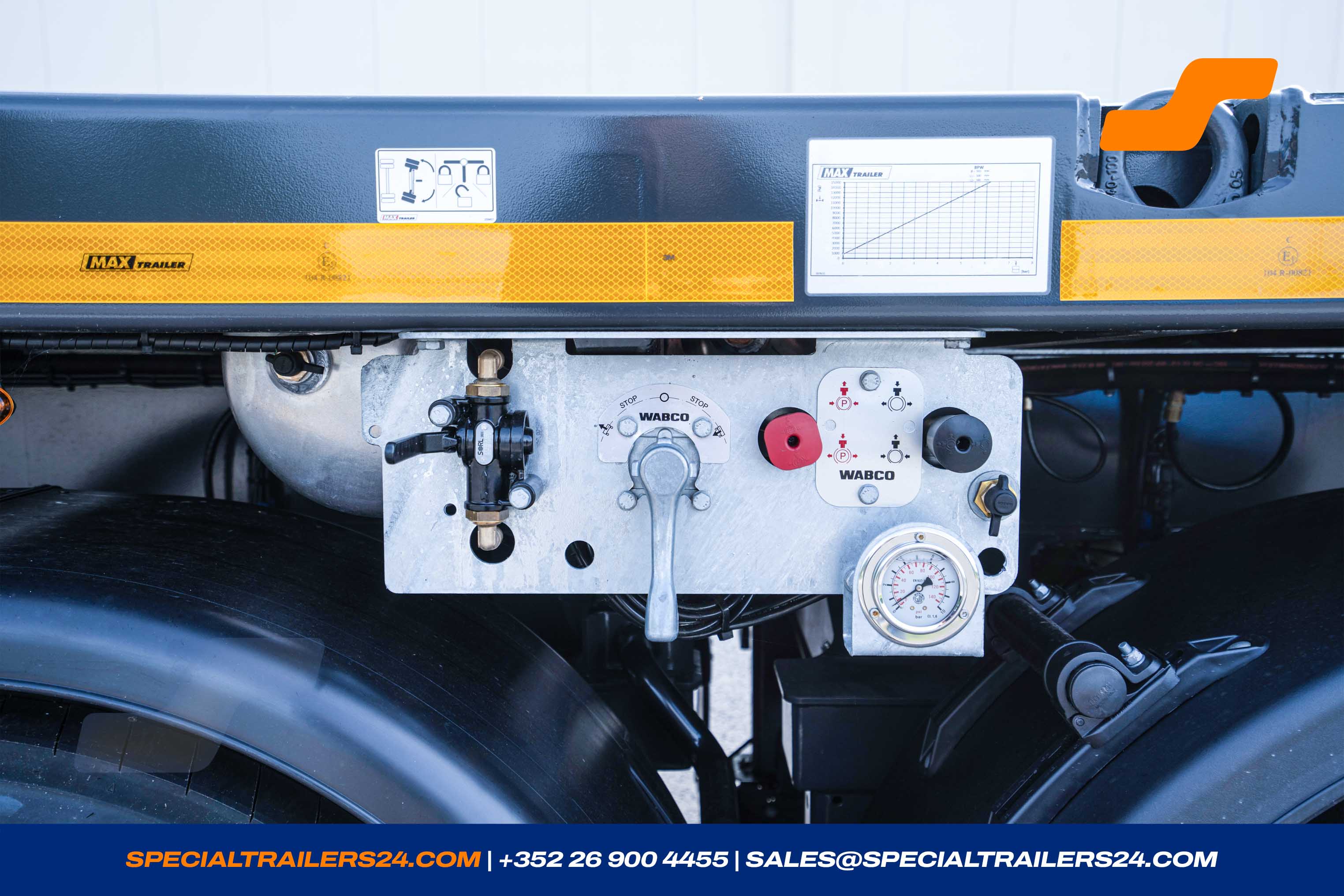

- Braking system WABCO following EU-regulations with EBS-E (4S3M) system, without connection to the truck.
-
Electric system conform to the EU-regulations, LED lighting 24 volt ASPÖCK-NORDIK (ASS3).
All LED side marker lights flash with the indicator.

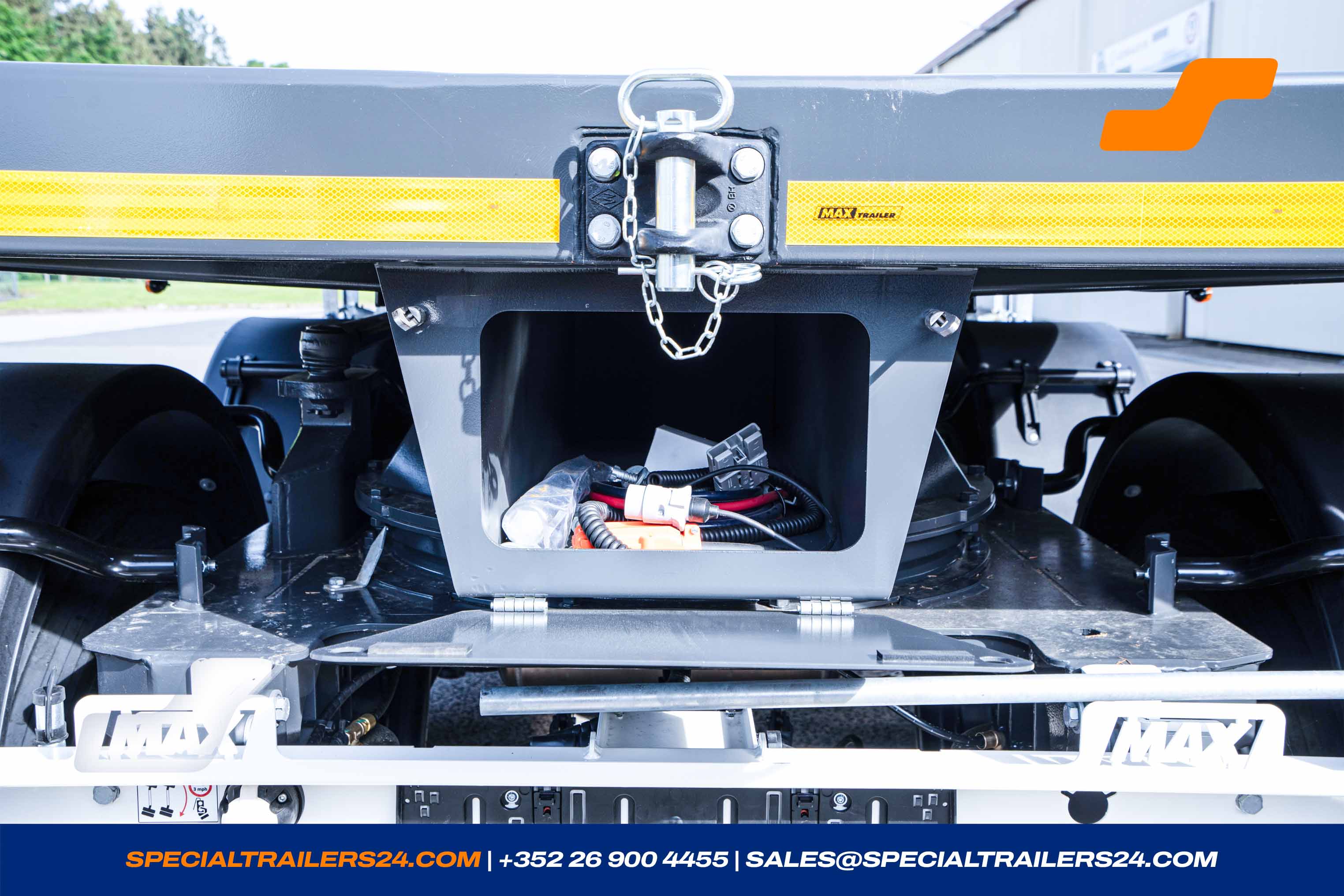

ASPÖCK-UNIBOX on the galvanised front connection ledge with socket 24N, 24S & 15 pole.
Connection to the ISO norm.
24N ISO-1185
24S ISO-3731
15 pol. ISO-12098 -
Steel construction of high tensile steel.
Steel grade:
**S355J2+N/S355MC (yield strength 355 MPa)

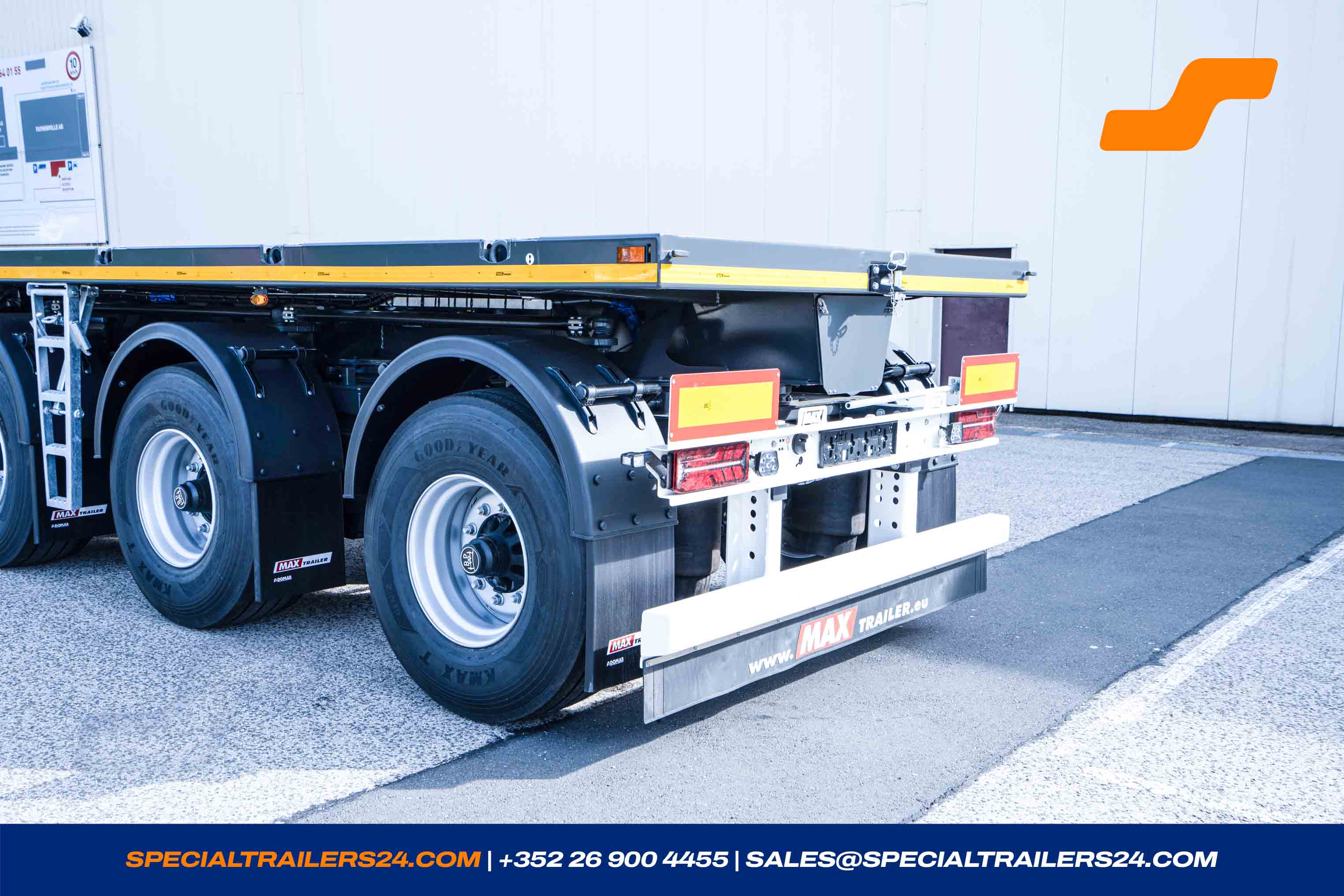

**S690QL/S700MC (yield strength 690 MPa) - A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Manual and description on USB stick .

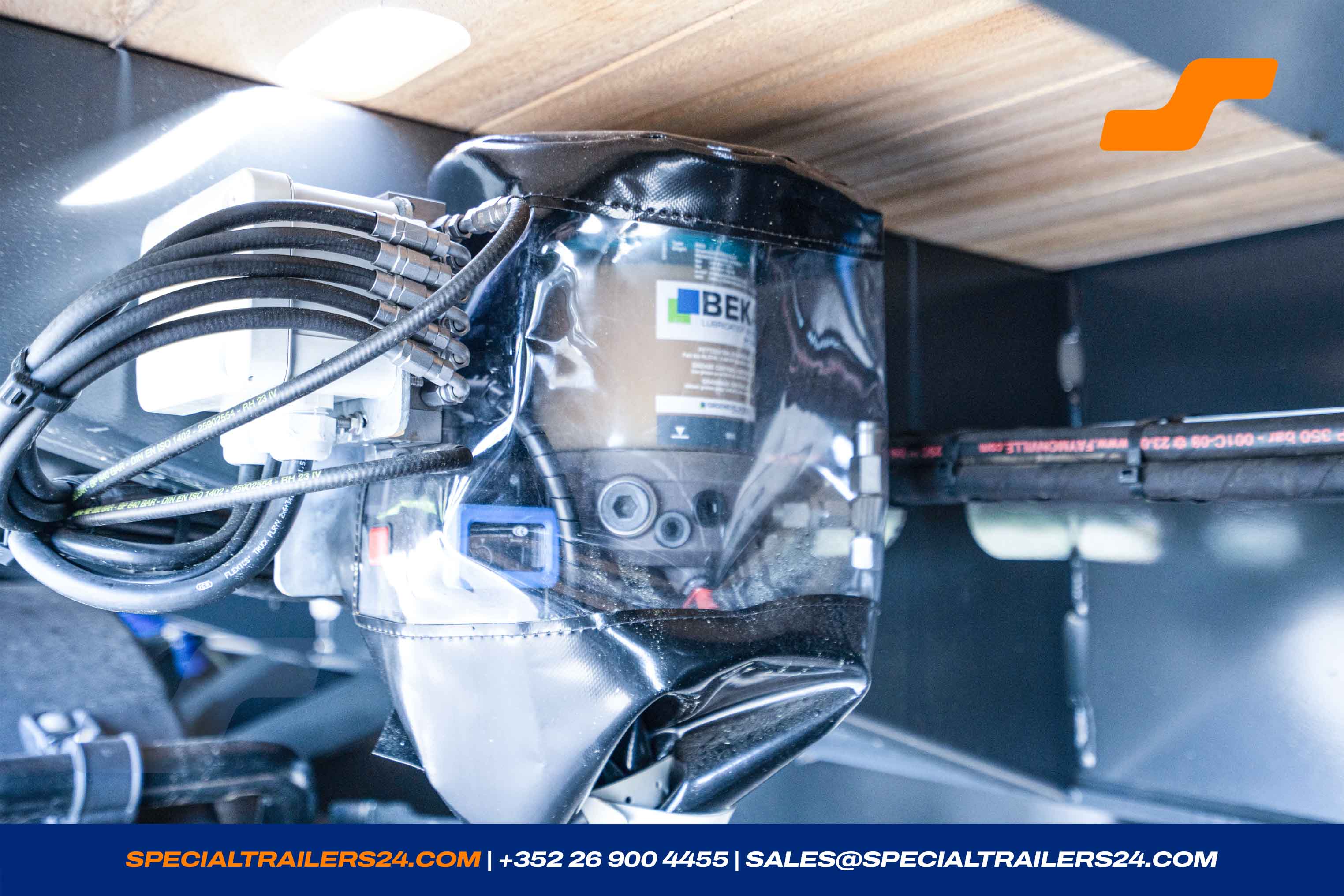

- Central greasing BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pump. (± 18 kg)
- 2 LED- reversing lights at the rear.
- 1 LED reversing lamp left and right in front of the first axle.
- Acoustic warning signal when reversing.
- Load manometer for determining the axle load, including load diagram.
