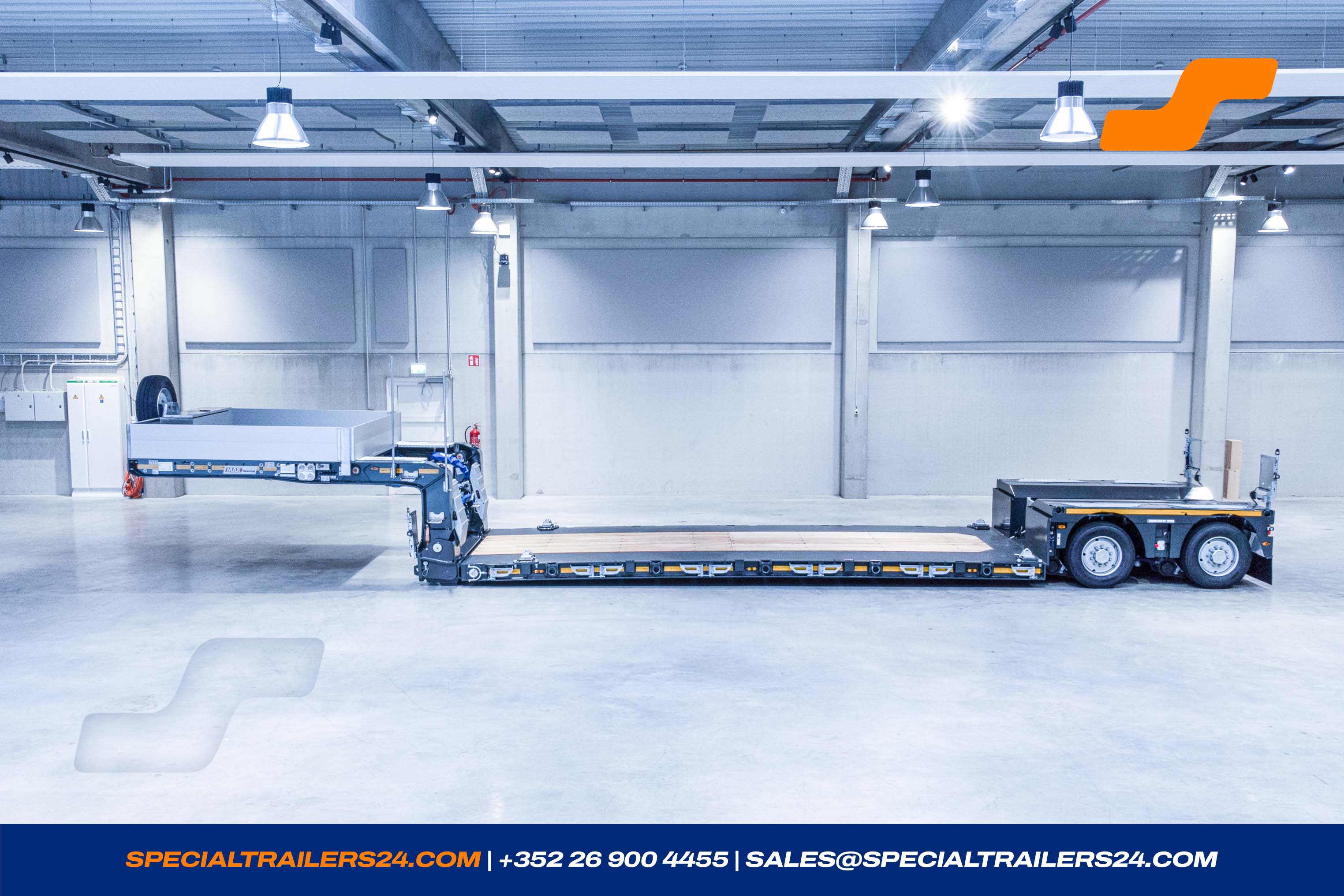

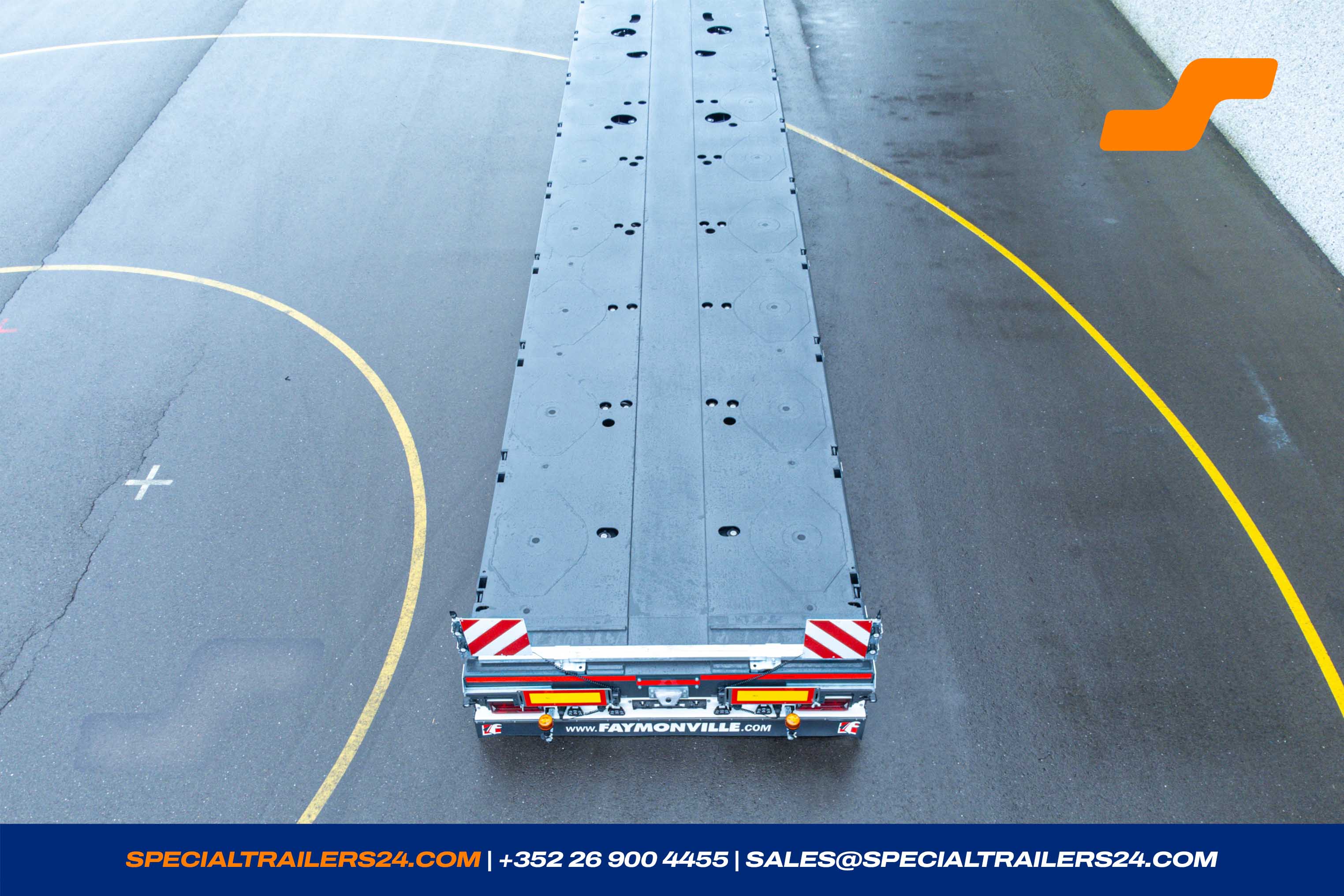

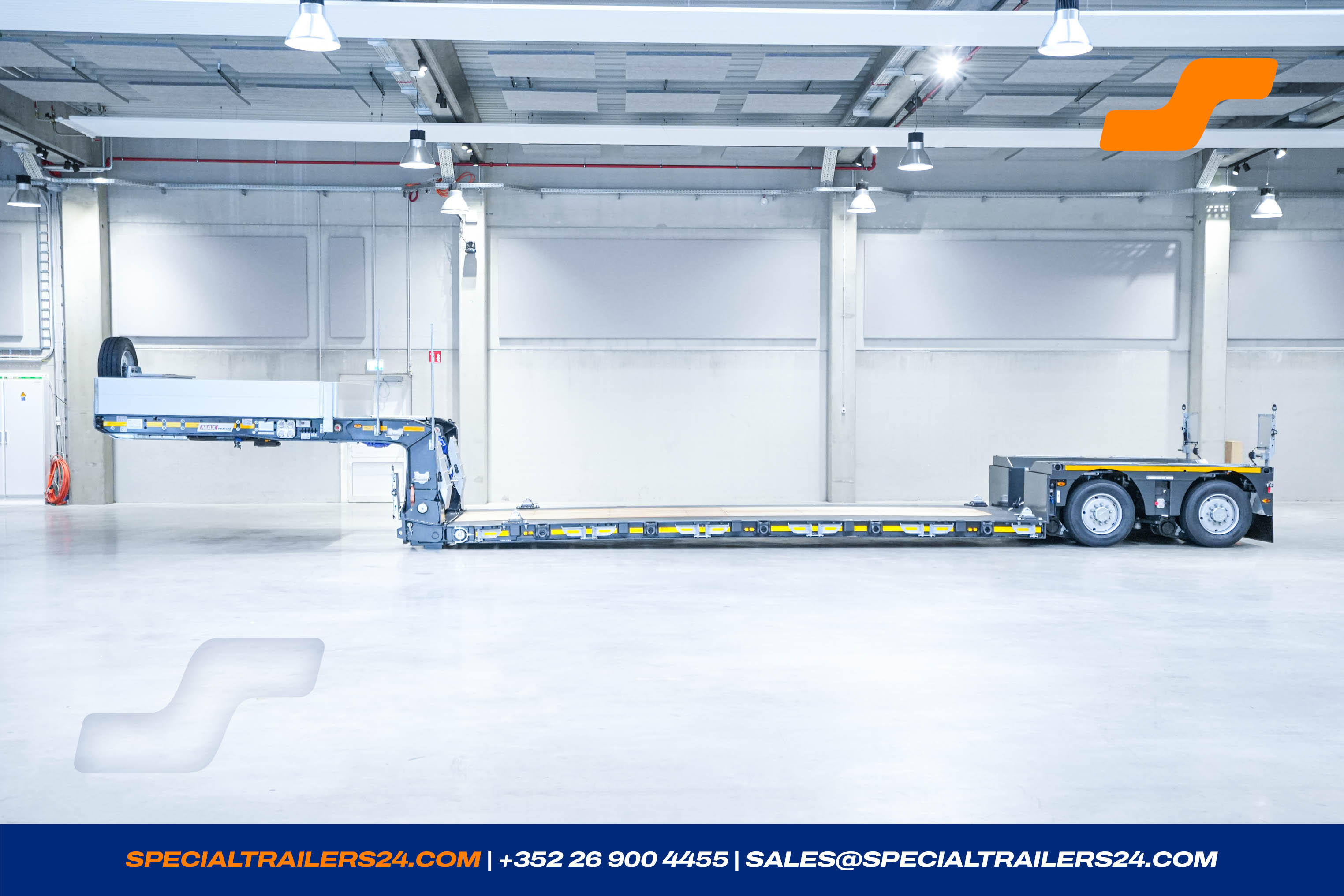

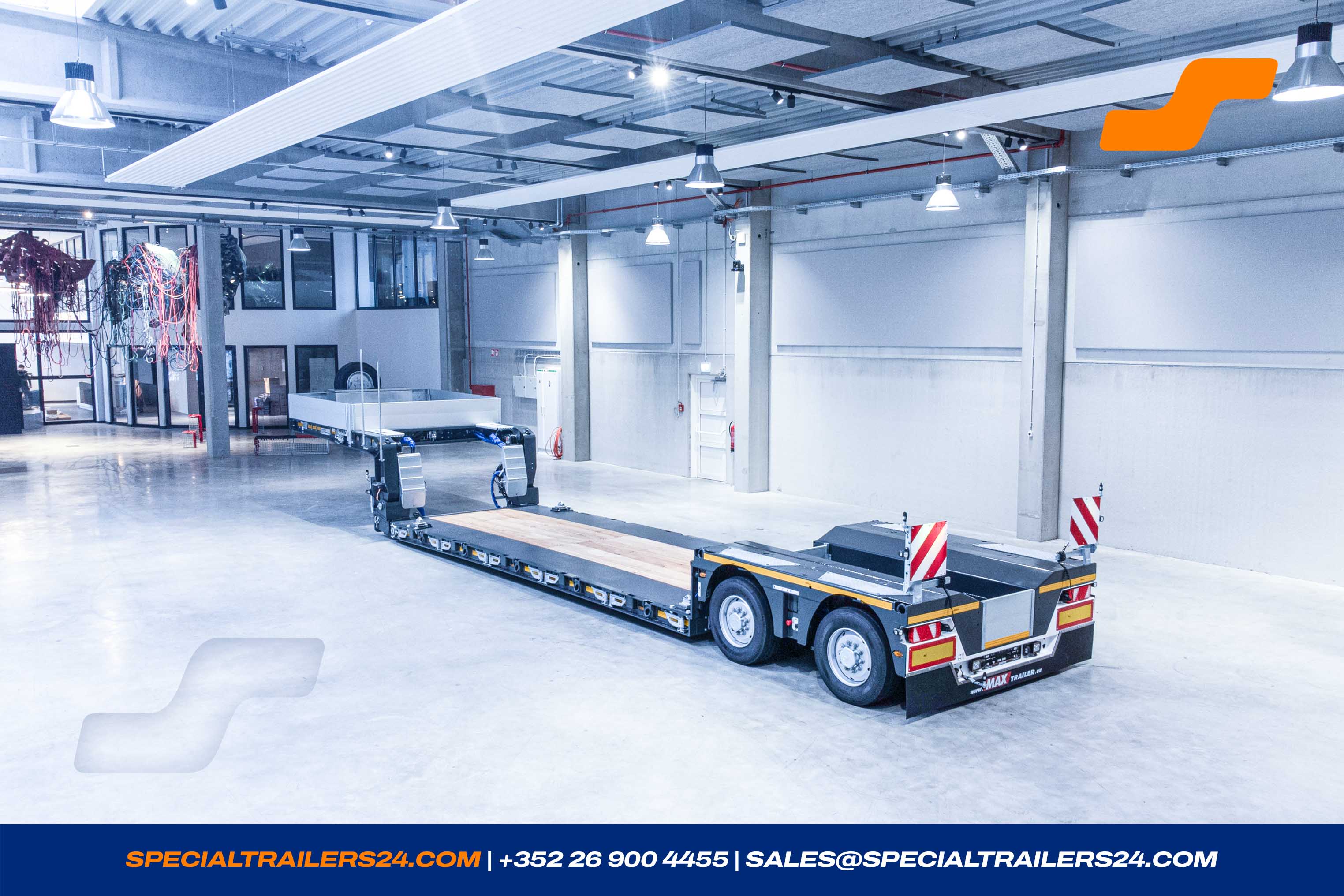

Flatbed trailer
MAX Trailer MAX210
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110808
- Reference MAX210-Z-3AA-13.50-17.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour DB 7350 - Nova grey
- Availability 12/2025
- Steering Type Hydraulic
Availability
12/2025
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 36000 kg |
| Gross weight | 54000 kg |
| Tare weight +- 3% | 13313 kg |
| Payload | 40687 kg |
Dimensions
| Fifth wheel height loaded | 950->1050 mm |
| Turning circle reversing | 2 100 mm |
| Loading platform length | 13 500 mm |

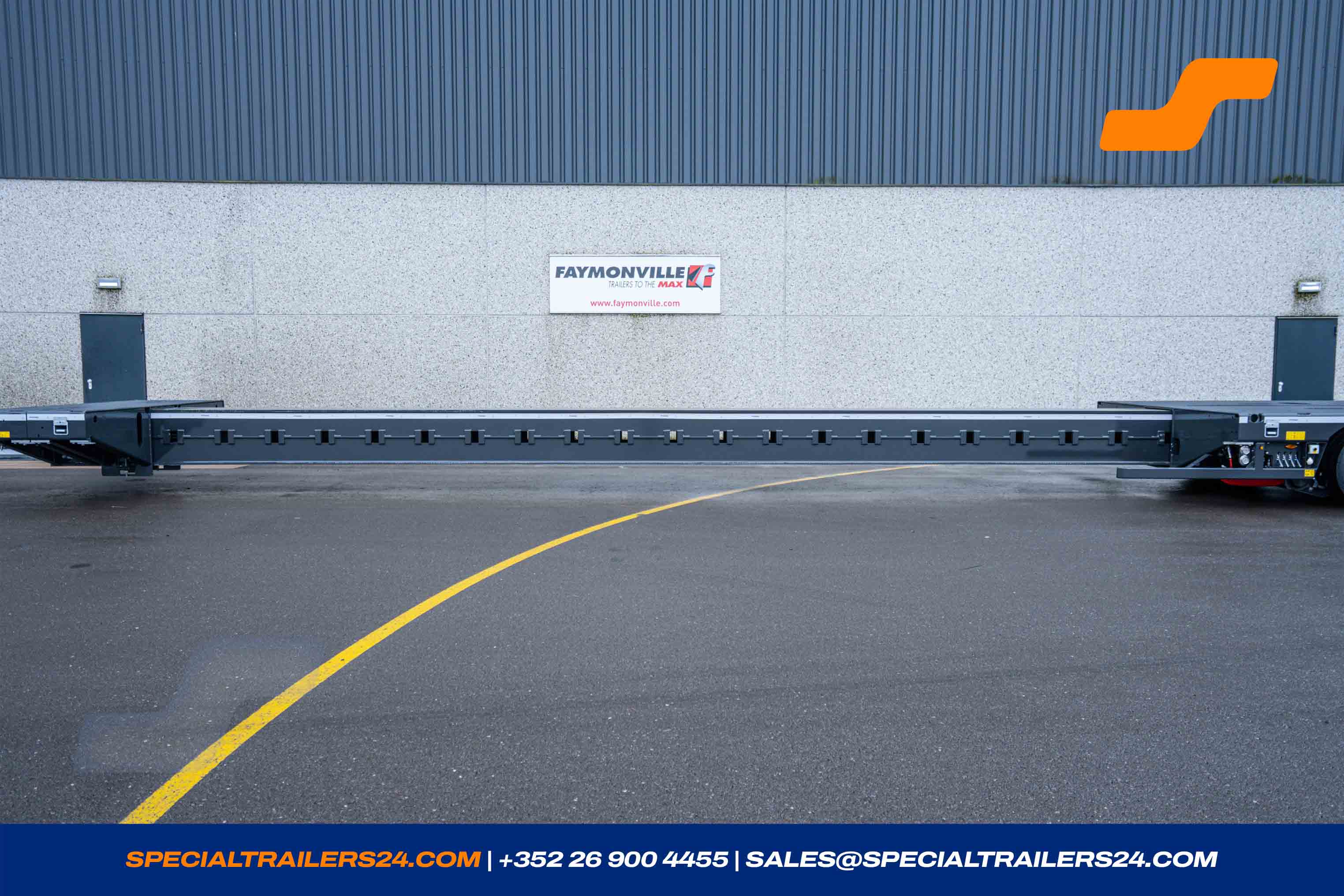

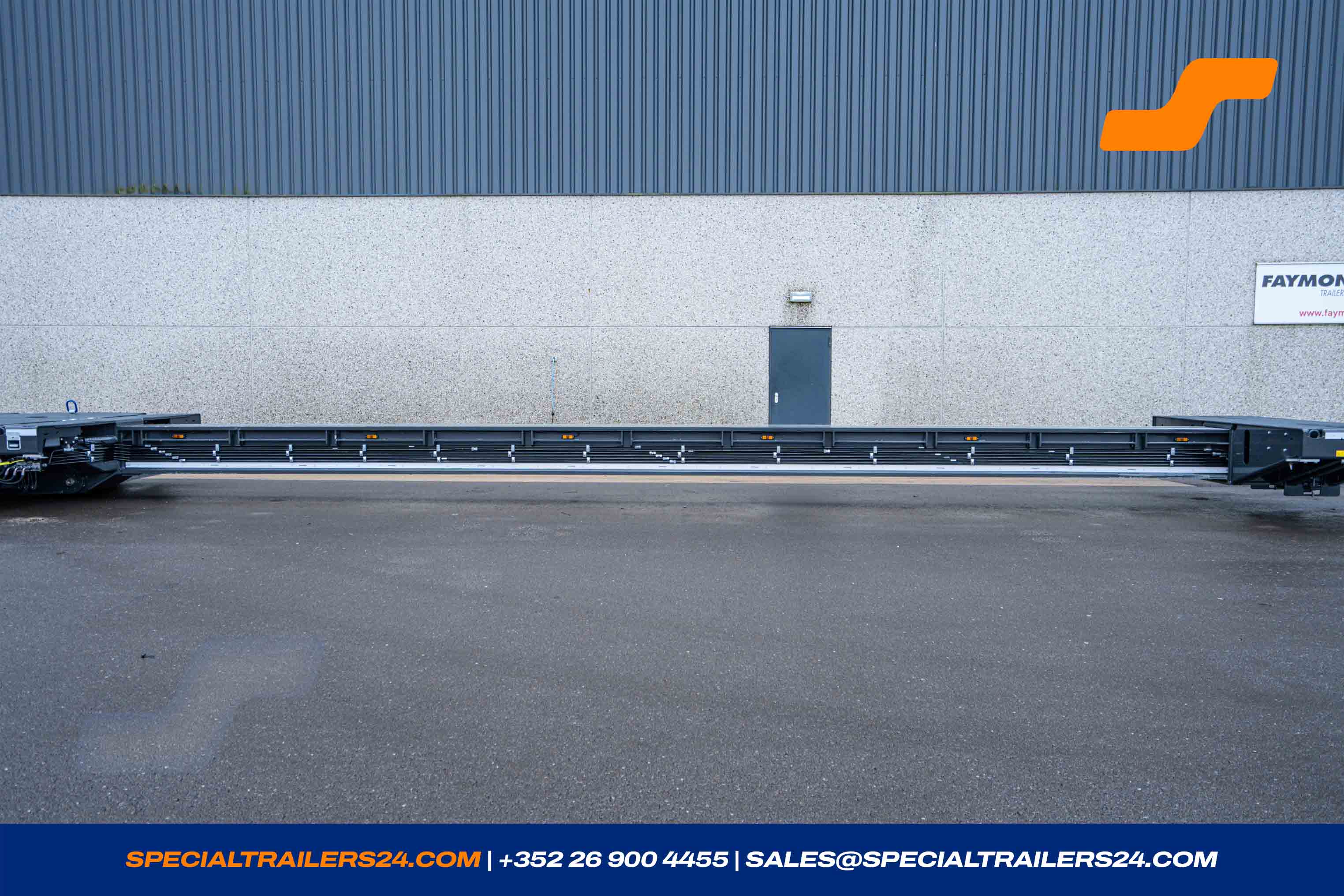

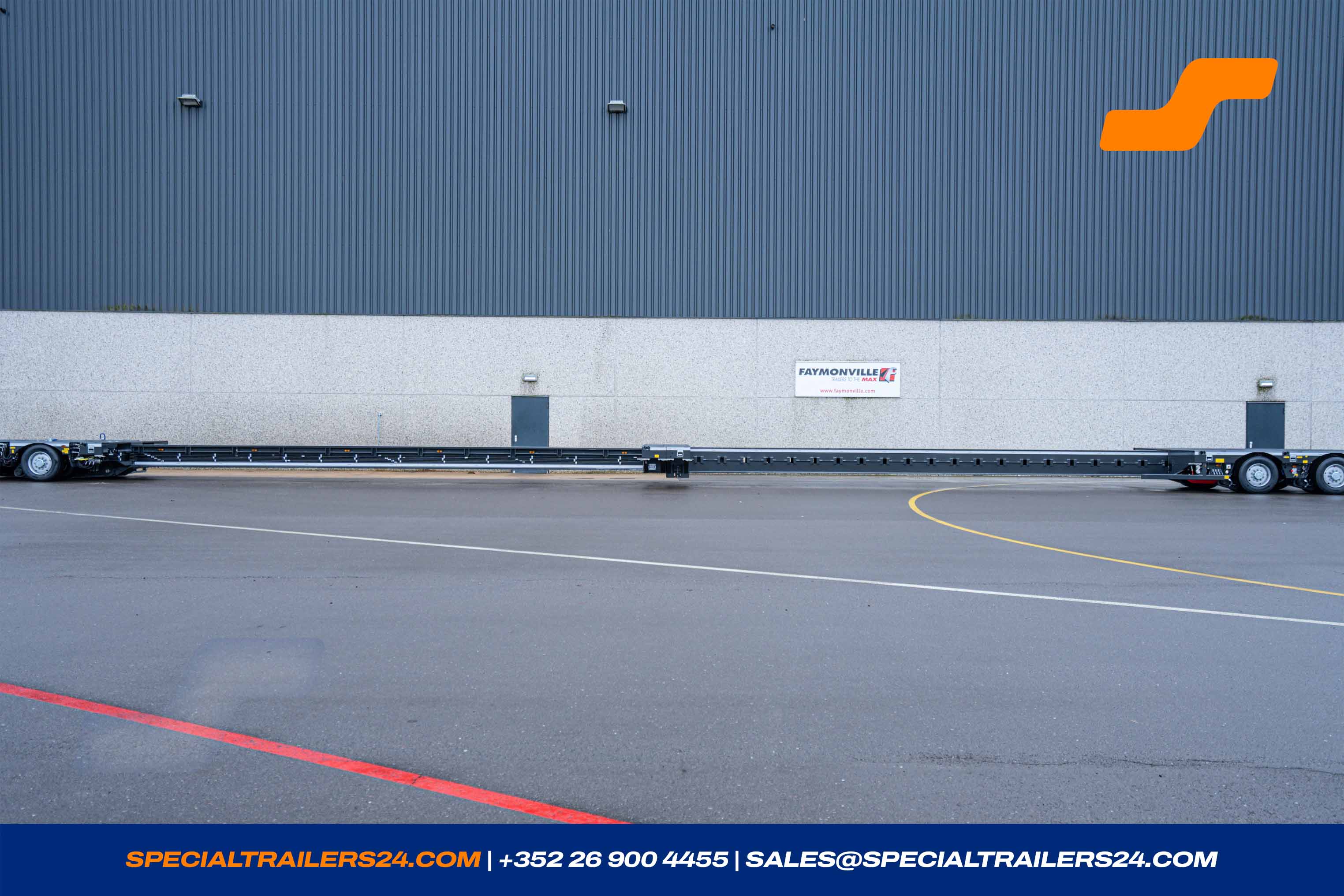

| Extendable by | 15 600 mm |
| Wheelbase | 1 810 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

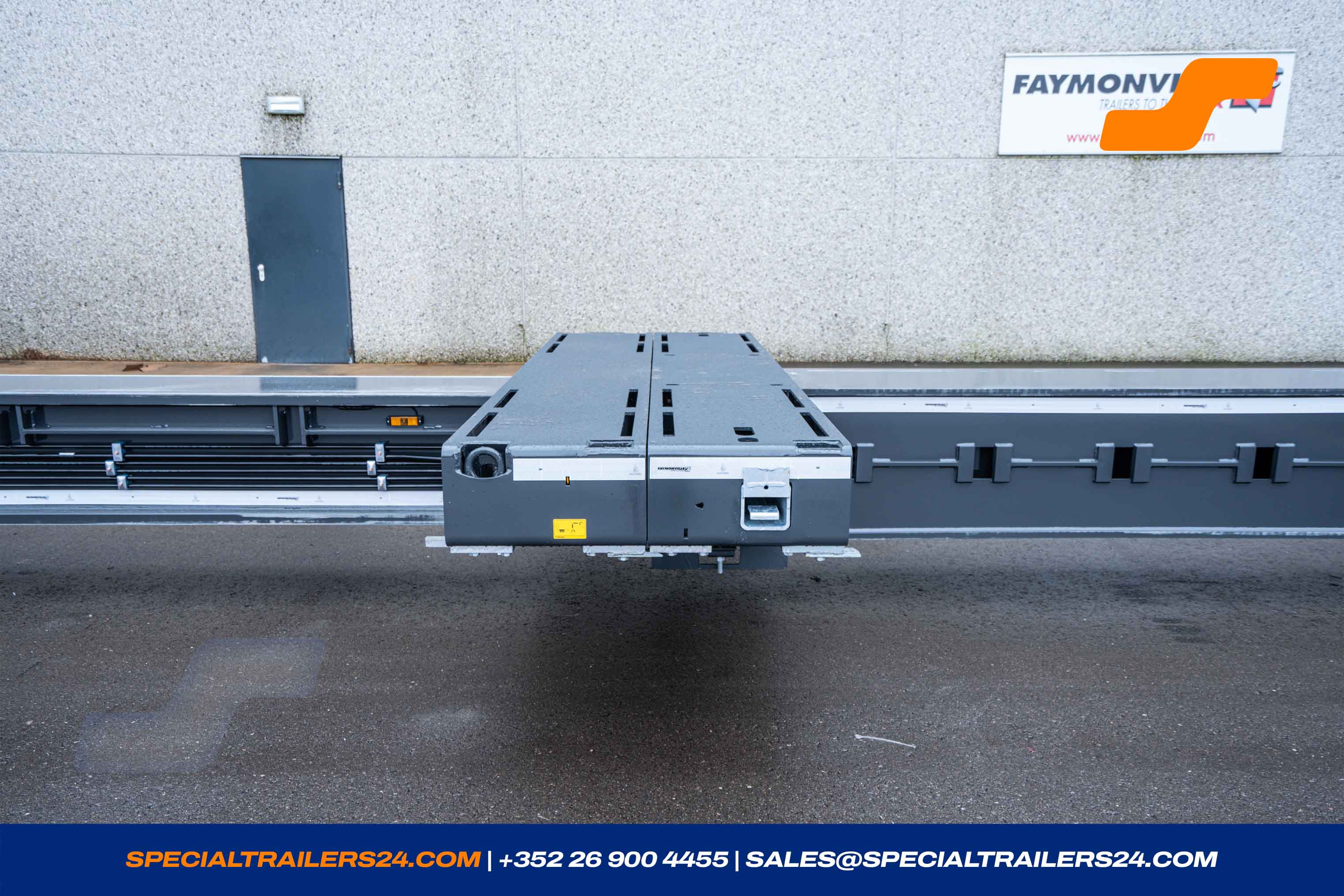

Loading area extendable center spine, pneumatically locked.
One fixed intermediate tabel + - 250 mmo n the extension beam.
2 pairs of lashing rings in the loading platform (LC 5 000 daN).
1 pairs of lashing rings in the loading platform(LC 10 000 daN).
7 pairs of lashing rings in the loading platform, hinged outwards (LC 5 000 daN).
3 pairs of lashing rings in the loading platform, hinged outwards (LC 10 000 daN).
Cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-
Manual-steering, handling with cable remote control from the front and the back, with PDC-light control for the realignement of the axles.
(without connection to the tractor). - Electrically operated hydraulic pump. (± 45kg)
- 2 wheel chocks with carrier on the headboard.
- King pin 2

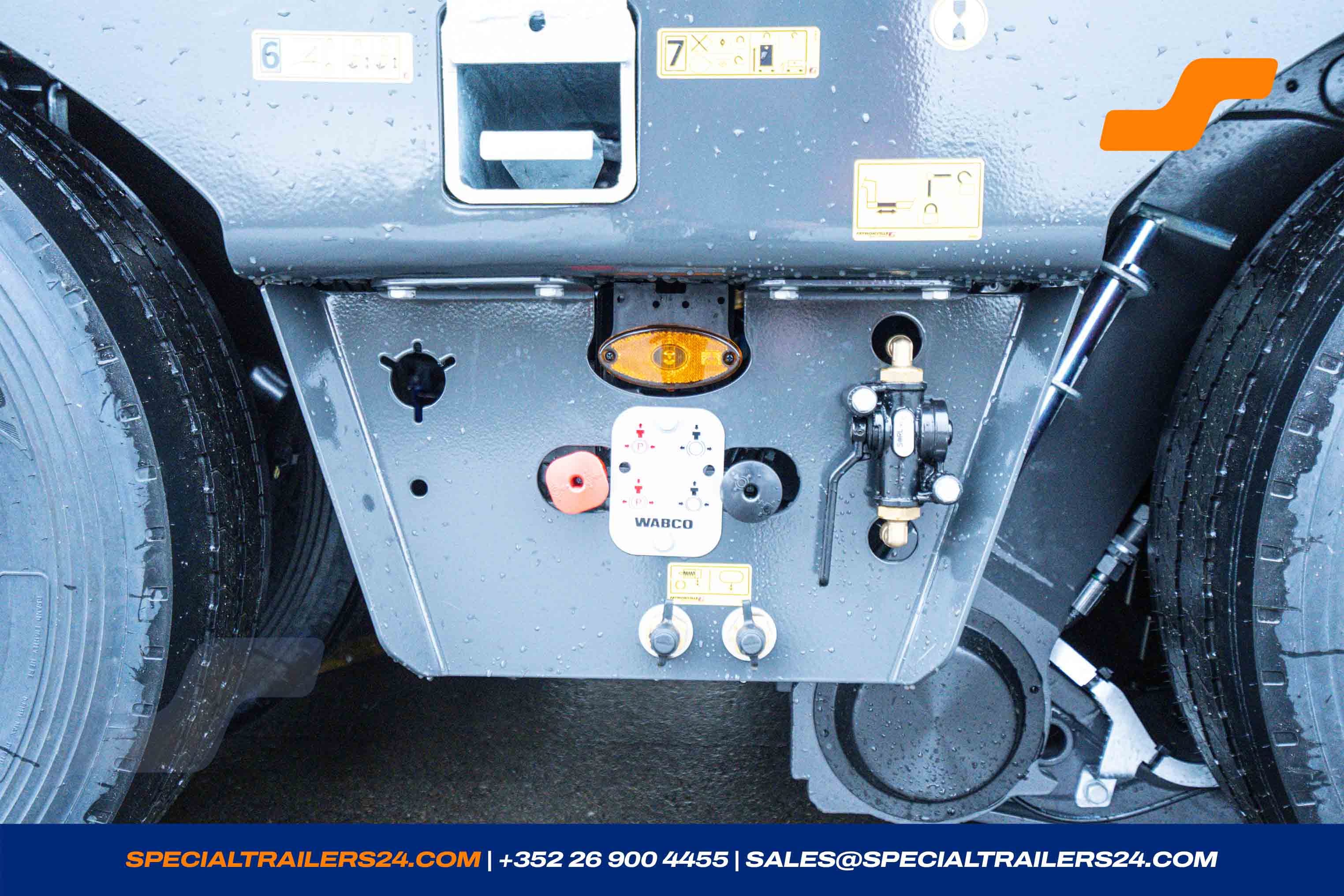

- Red and yellow air couplings on the galvanised front connection ledge.

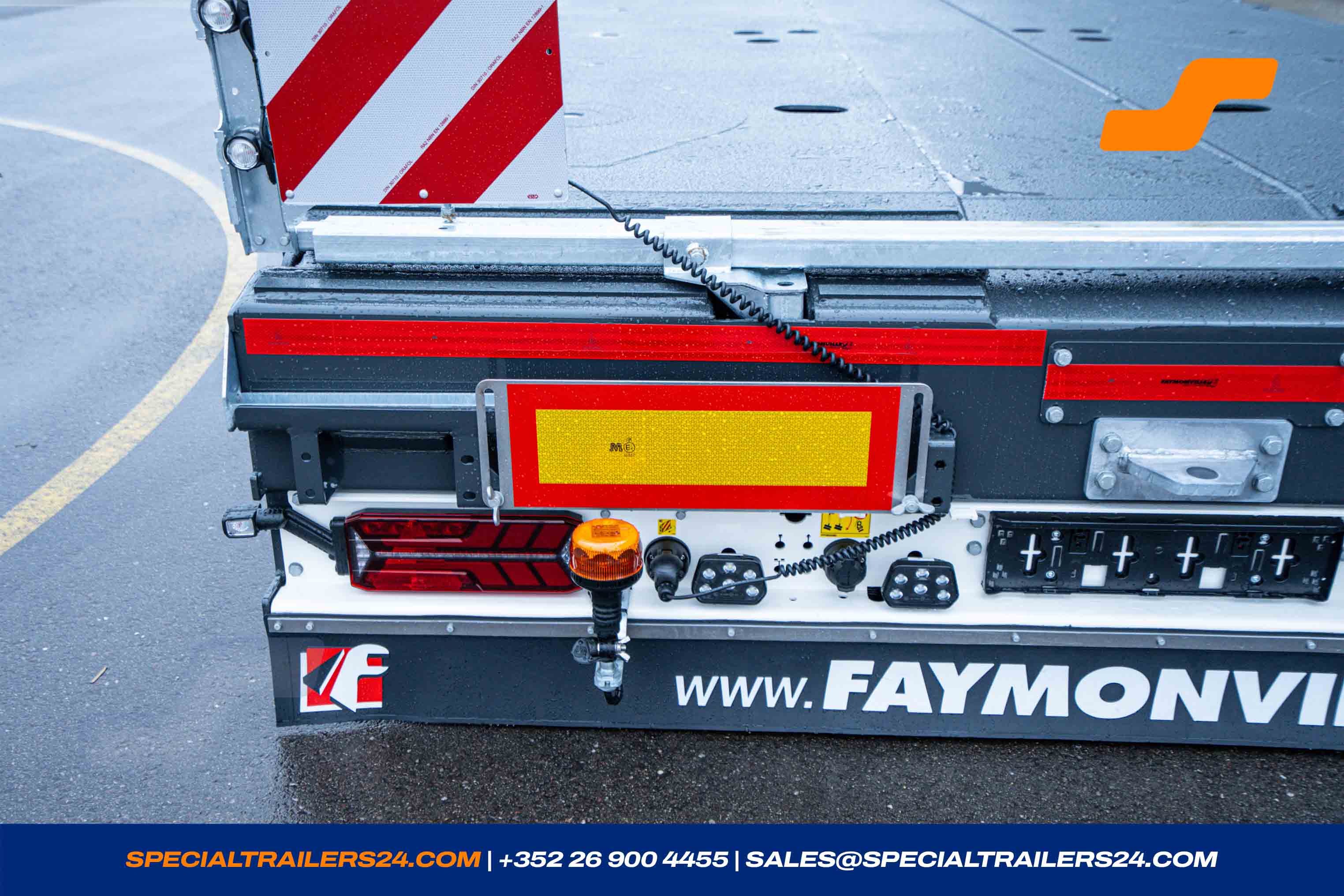

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.
- A mud flap (www.MAX Trailer.eu) at the rear of the trailer.
- Holder for one beacon light at the rear of the trailer.

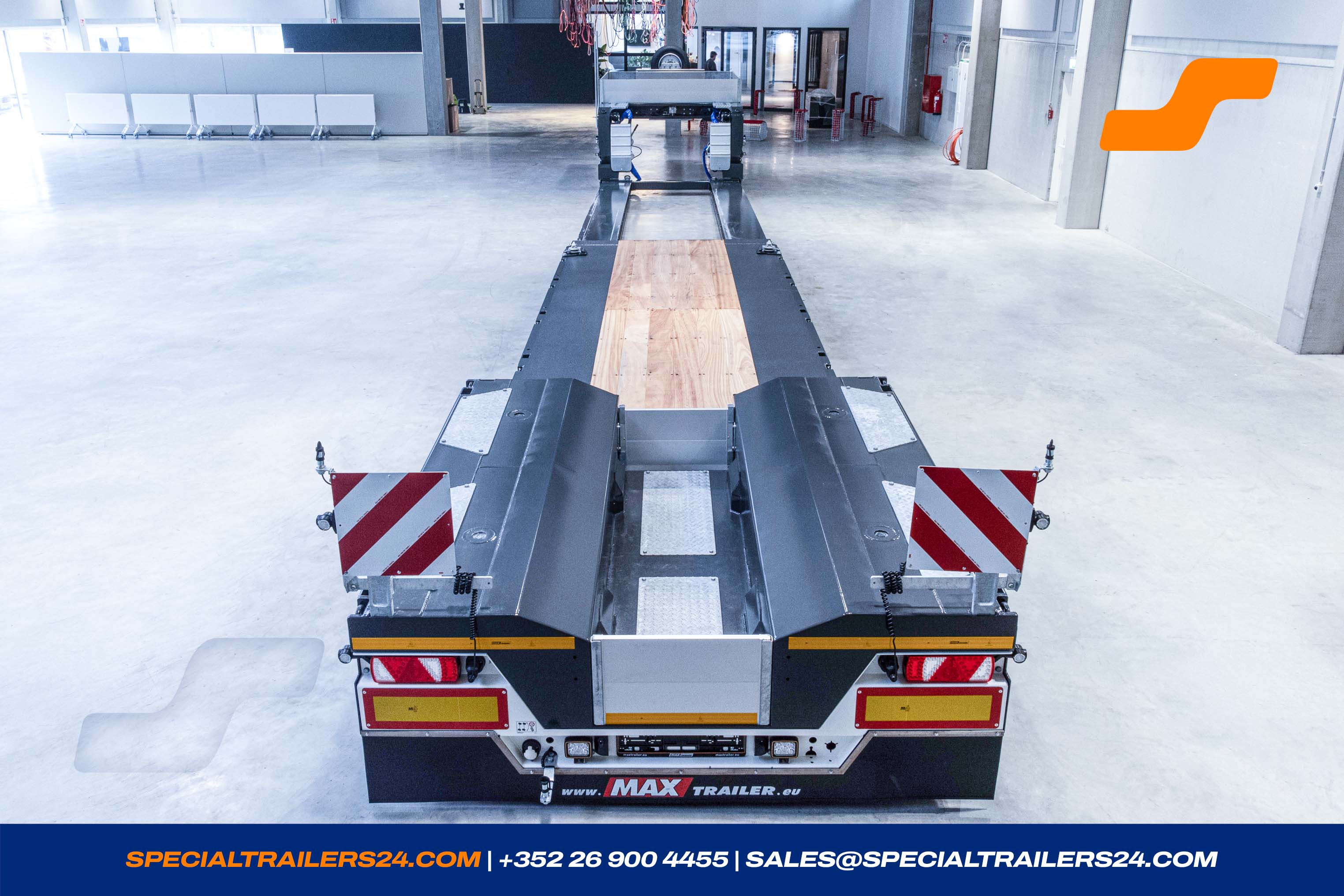

- Loading area with hardwood timber.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

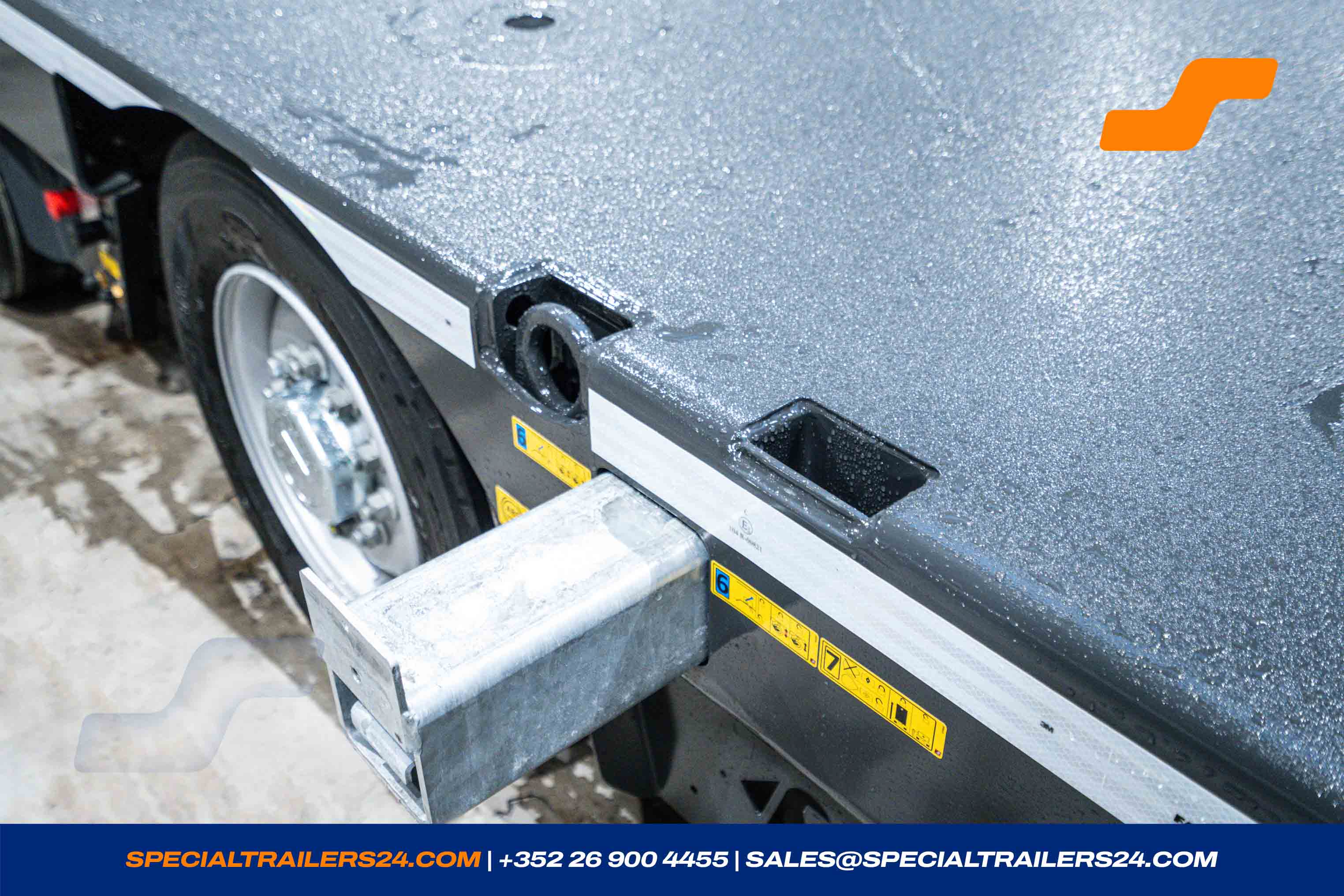

- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- Galvanised landing gears at the rear under the chamfer of loading platform.
-
One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - White reflective tape according to the EU regulation over the entire length and the extension, red on the rear.
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 5 pairs of stake pocket rows in the loading platform, for stakes 100 x 50 mm. (± 165 kg)
- Galvanised outriggers, extendable up to ± 230 mm per side (± 230 kg).

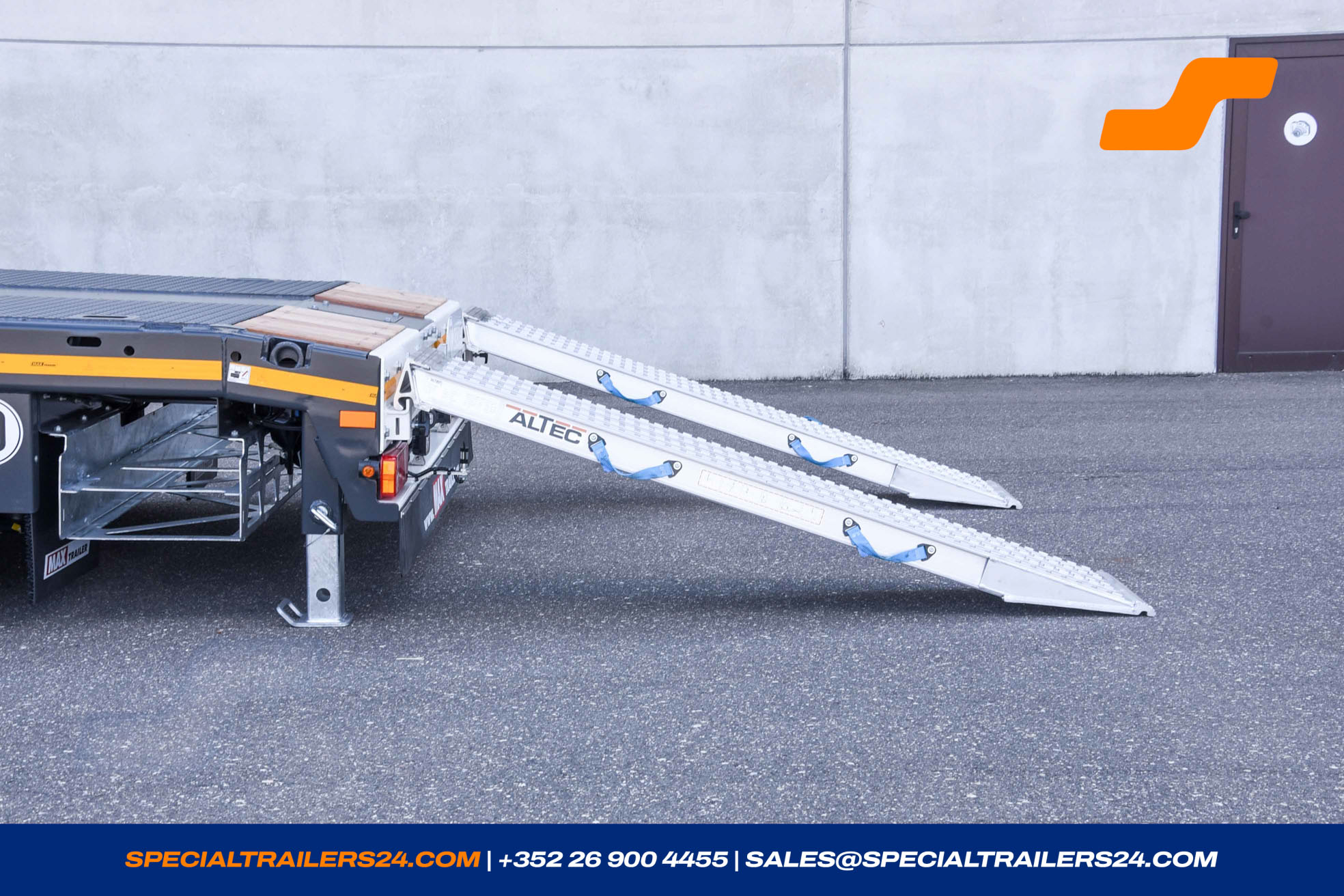

- Profile displaceable as hook-on device for alu-ramps at the rear.

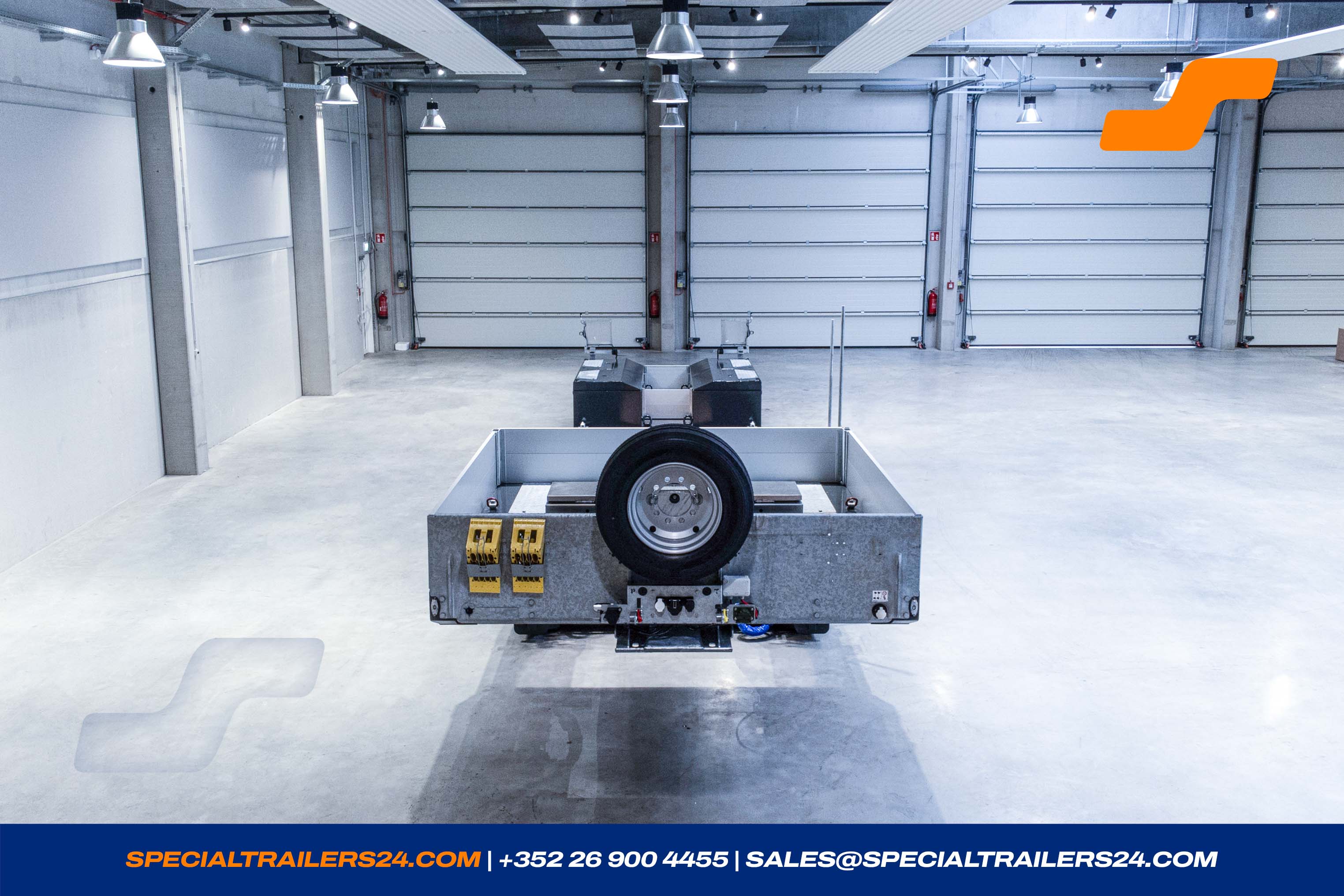

- 1 spare wheel with holder 245/70 R17.5 3PMSF (± 73 kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 250 A) between the semi-trailer and the truck with socket (NATO-NATO).
- Lift axle on the front axle with control by TEBS-E depending on the current axle load and the current loading condition (± 69 kg).

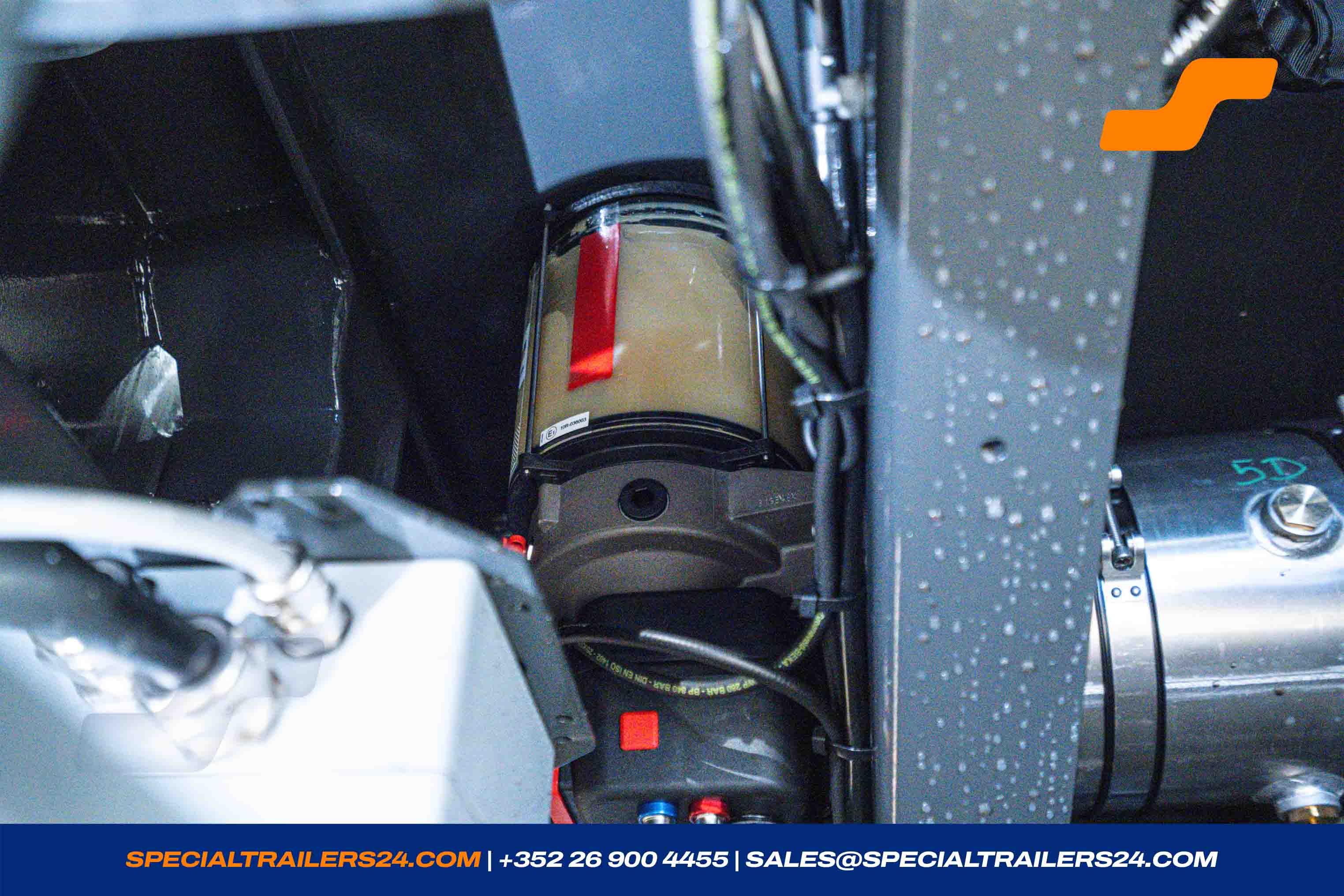

- Central greasing with 2 pumps BEKAMAX (Pico) with NLGI-2 normal grease with removable protection around the pumps. (± 26 kg)
Accessories
1 x Accessories
-
Complete steel construction automatically blasted after welding with blast wheel system.
Second blasting with corundum for optimal adhesion of the coating system.
HRM metallisation of the entire vehicle chassis with ZINACOR 850 (85% zinc/15% aluminium) to ensure the best corrosion protection.
Final painting with 2 layers of 2K topcoat, in a single colour of your choice following RAL 841GL system.
Rear section metallised and painted in RAL 9010 (pure white). Metallic paintwork is not possible.
Lacquer structure tested in salt spray test according to ISO 9227-NSS.
Body-cavity sealing with special wax. - Manual and description on USB stick .

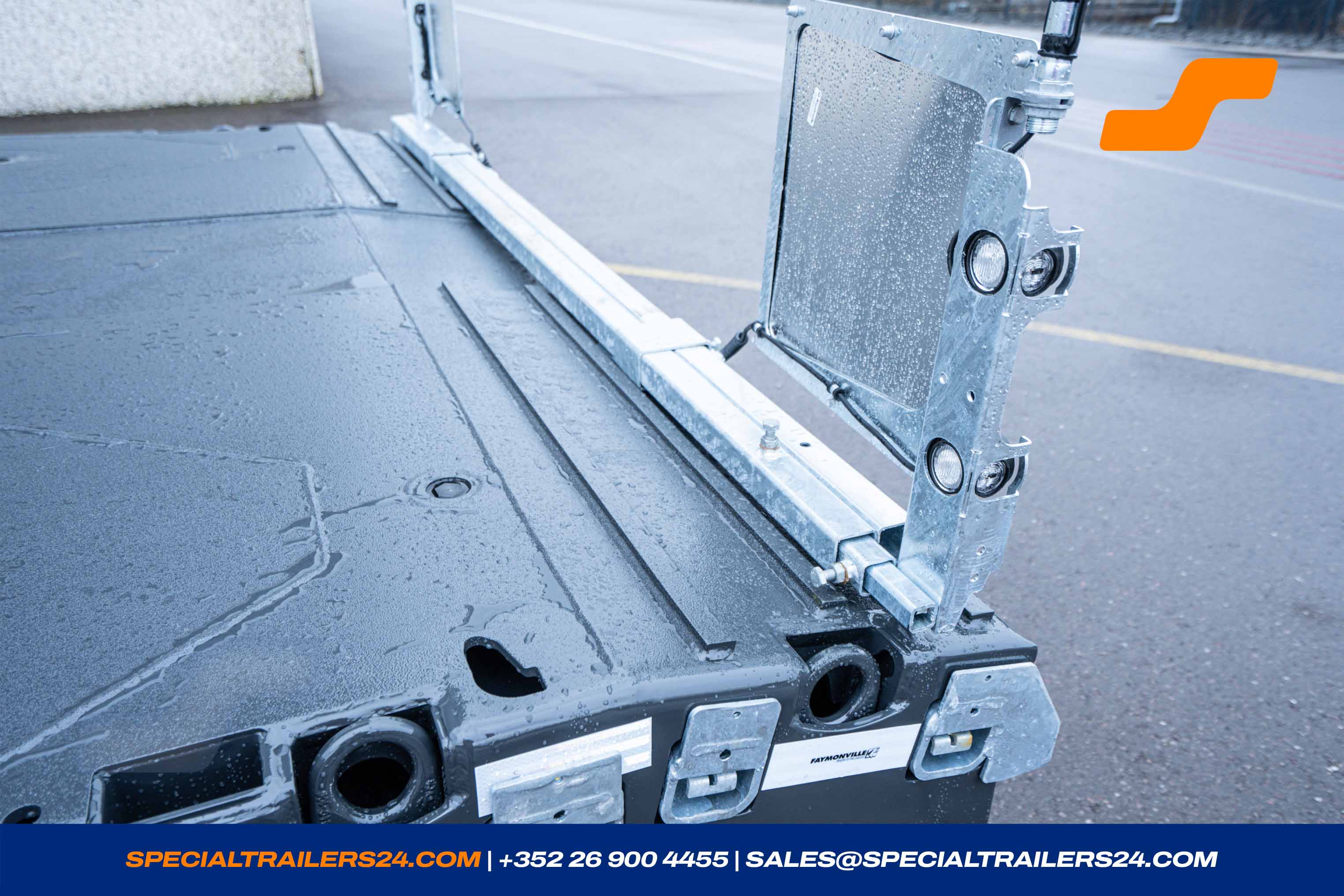

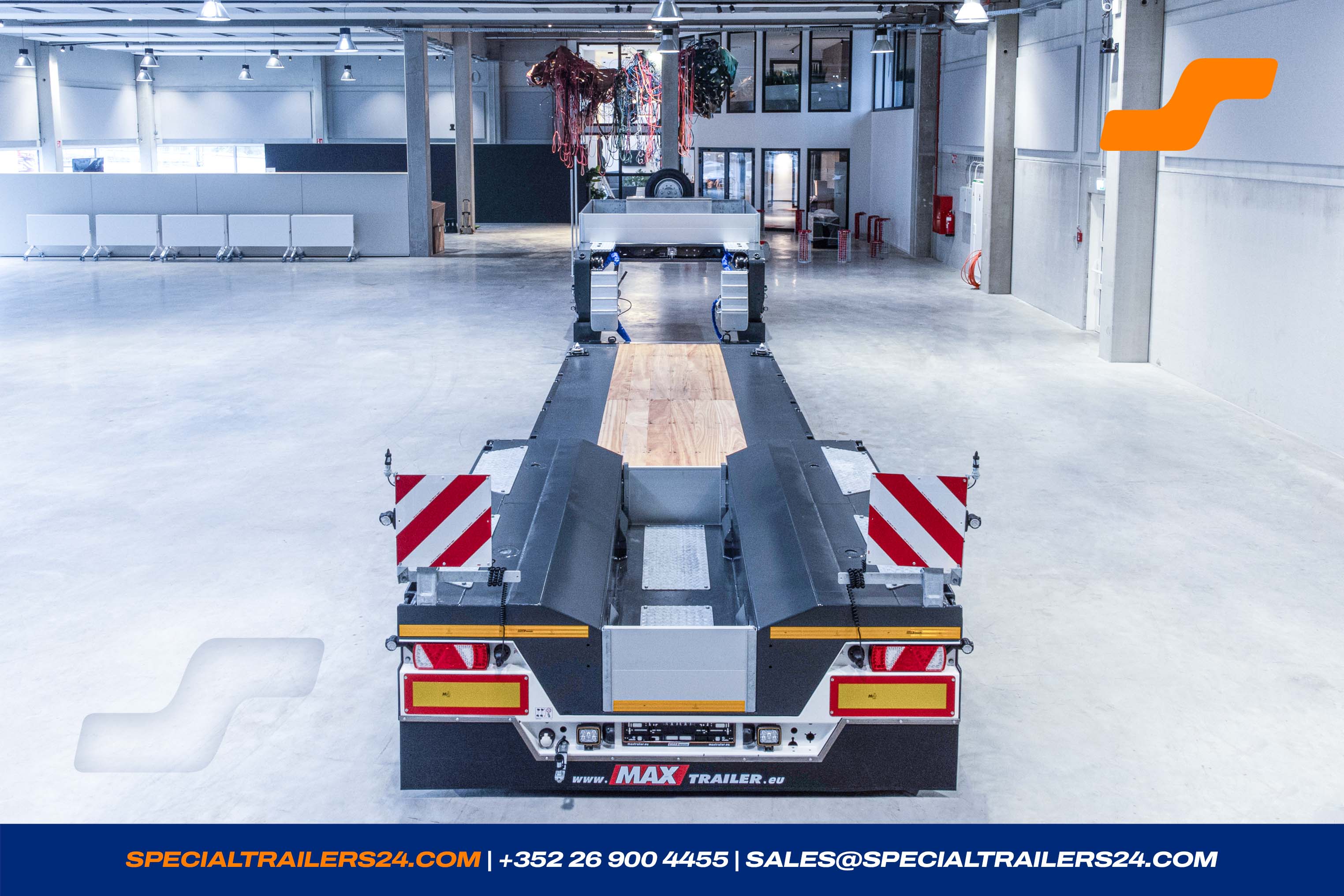

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- 1 LED flashing beacon, provided separately.

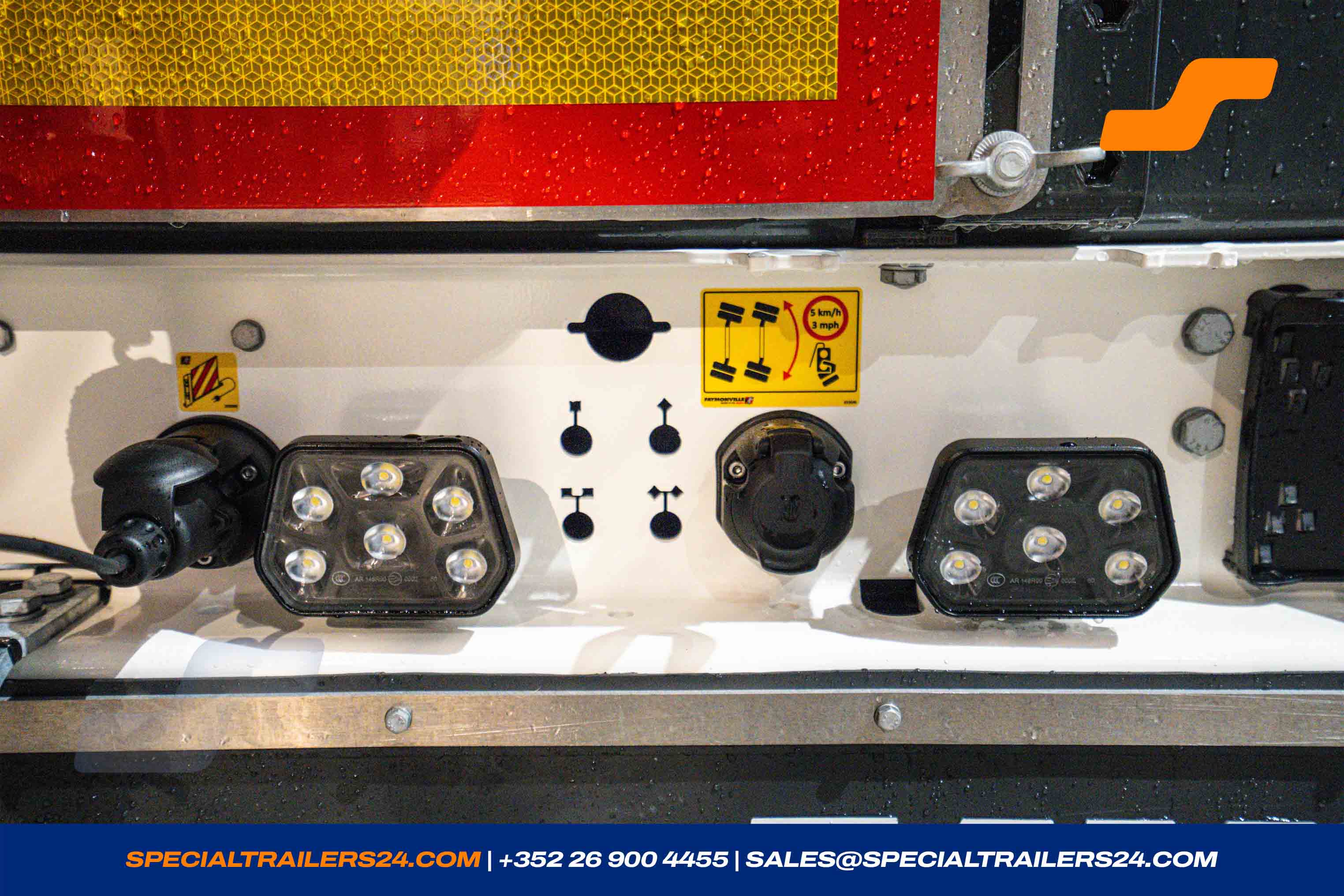

- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

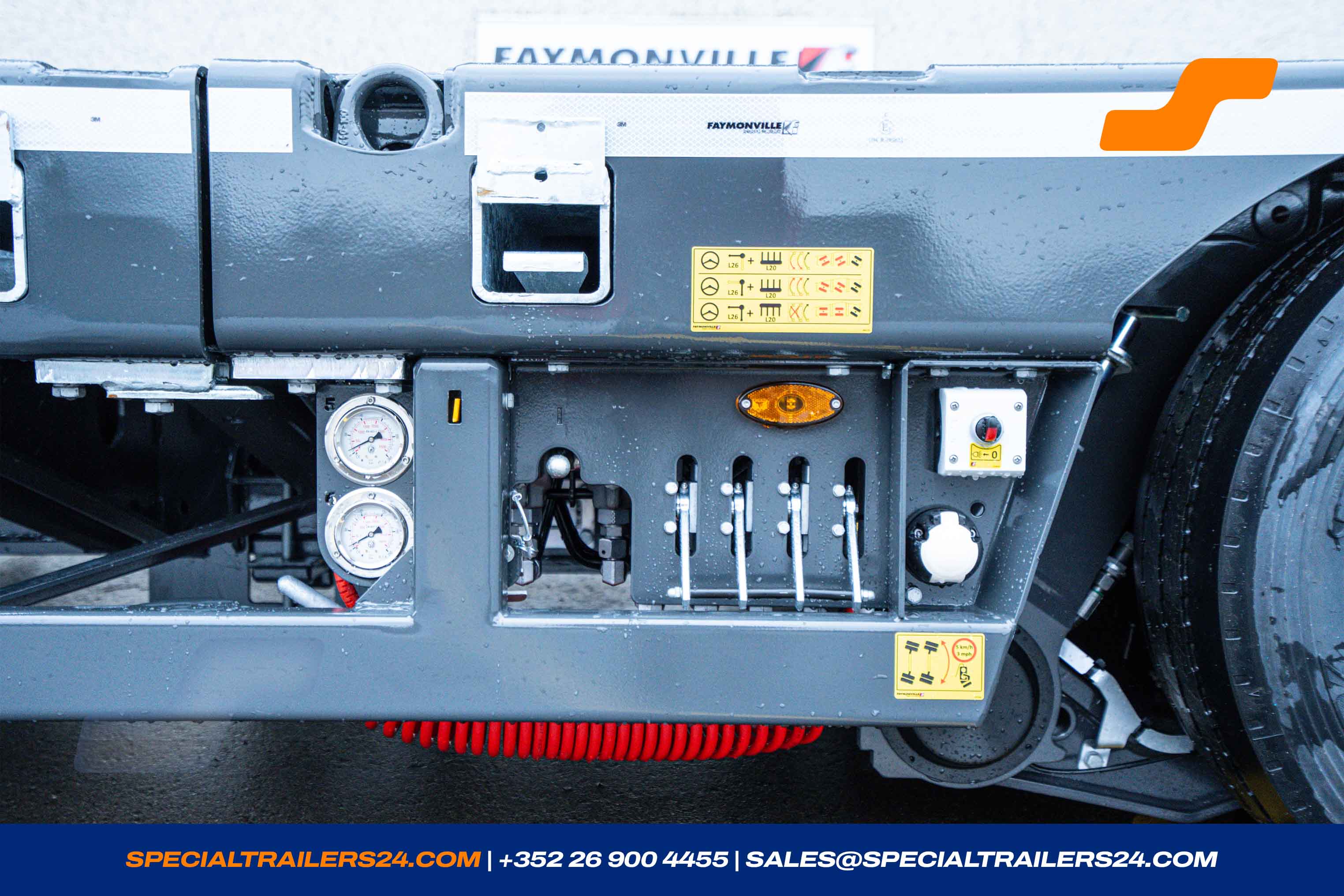

- Load manometer for determining the axle load, including load diagram.
