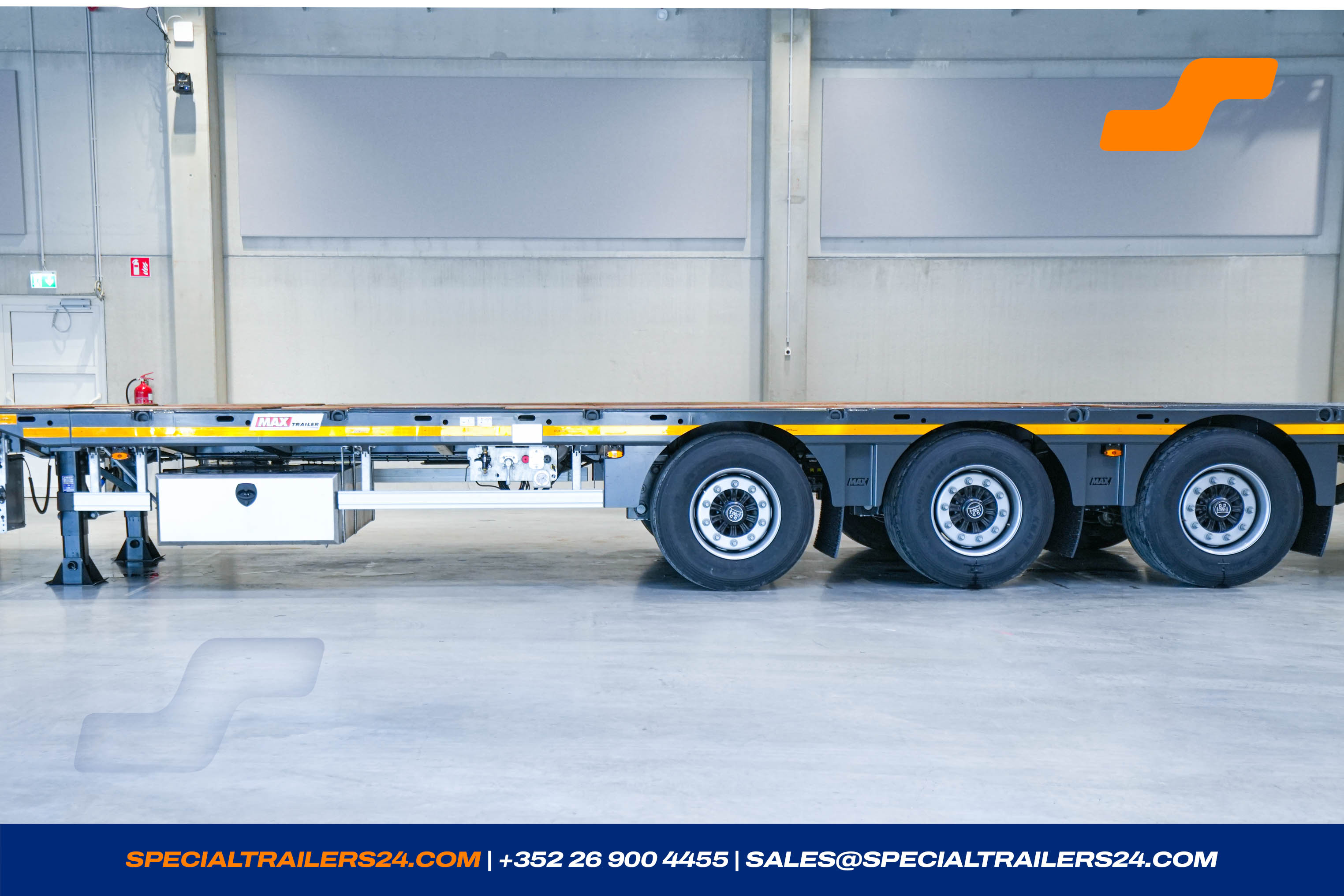

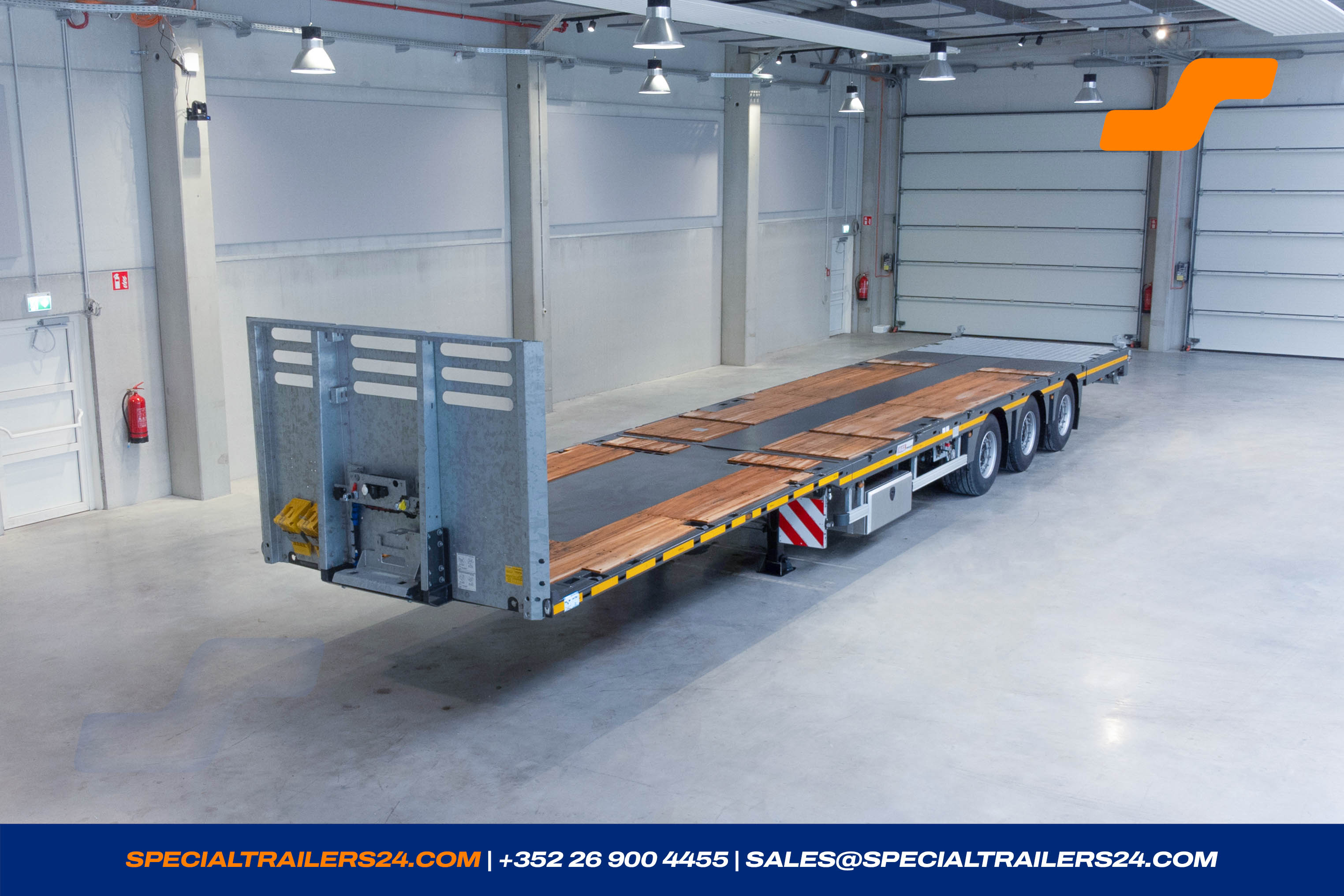

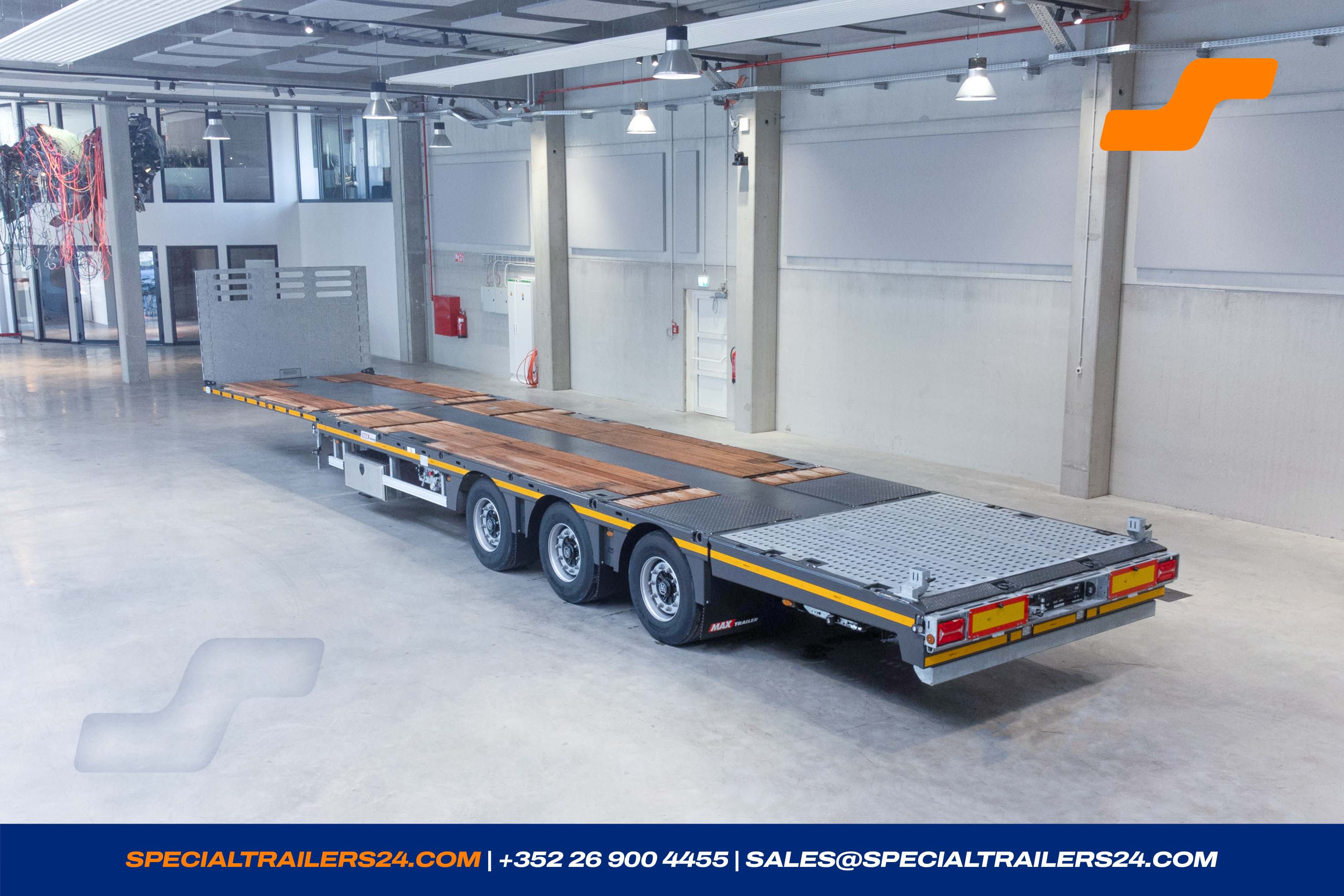

MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110687
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54

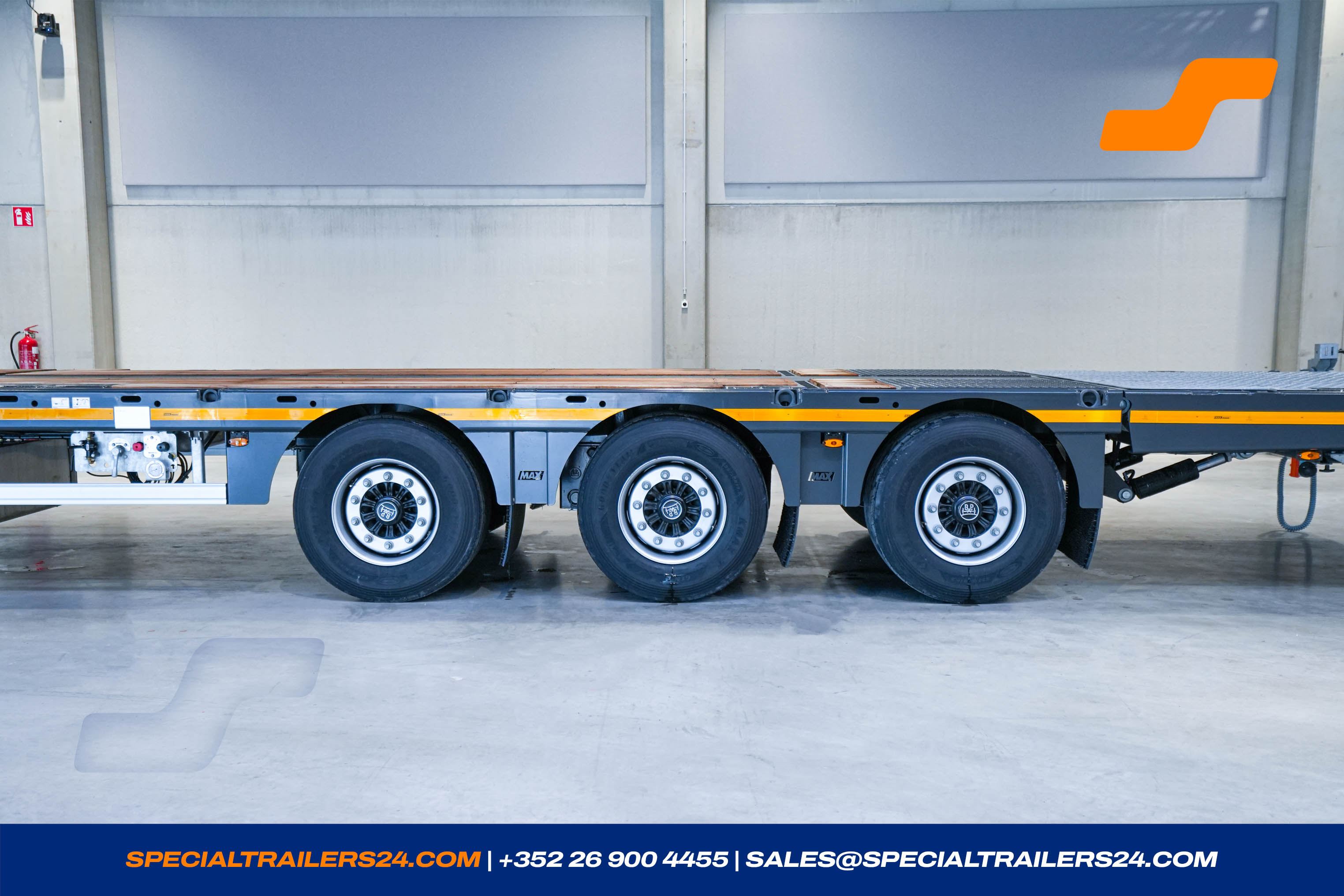

- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 02/2026
- Steering Type Friction
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 9572 kg |
| Payload | 35428 kg |
Dimensions
| Fifth wheel height loaded | 1050->1100 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | 3 400 mm |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |
Loading deck
Loading platform
1 x Loading platform

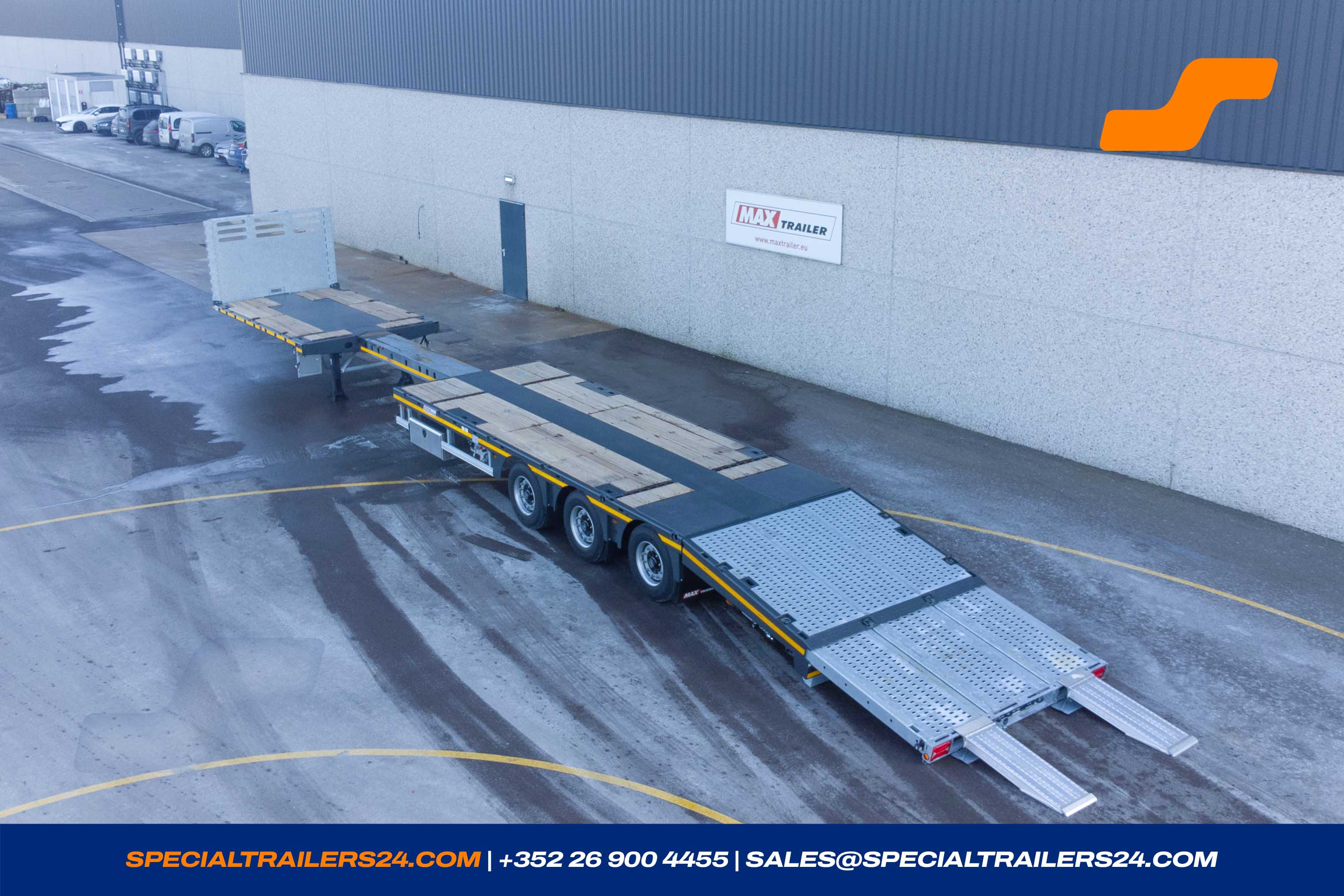

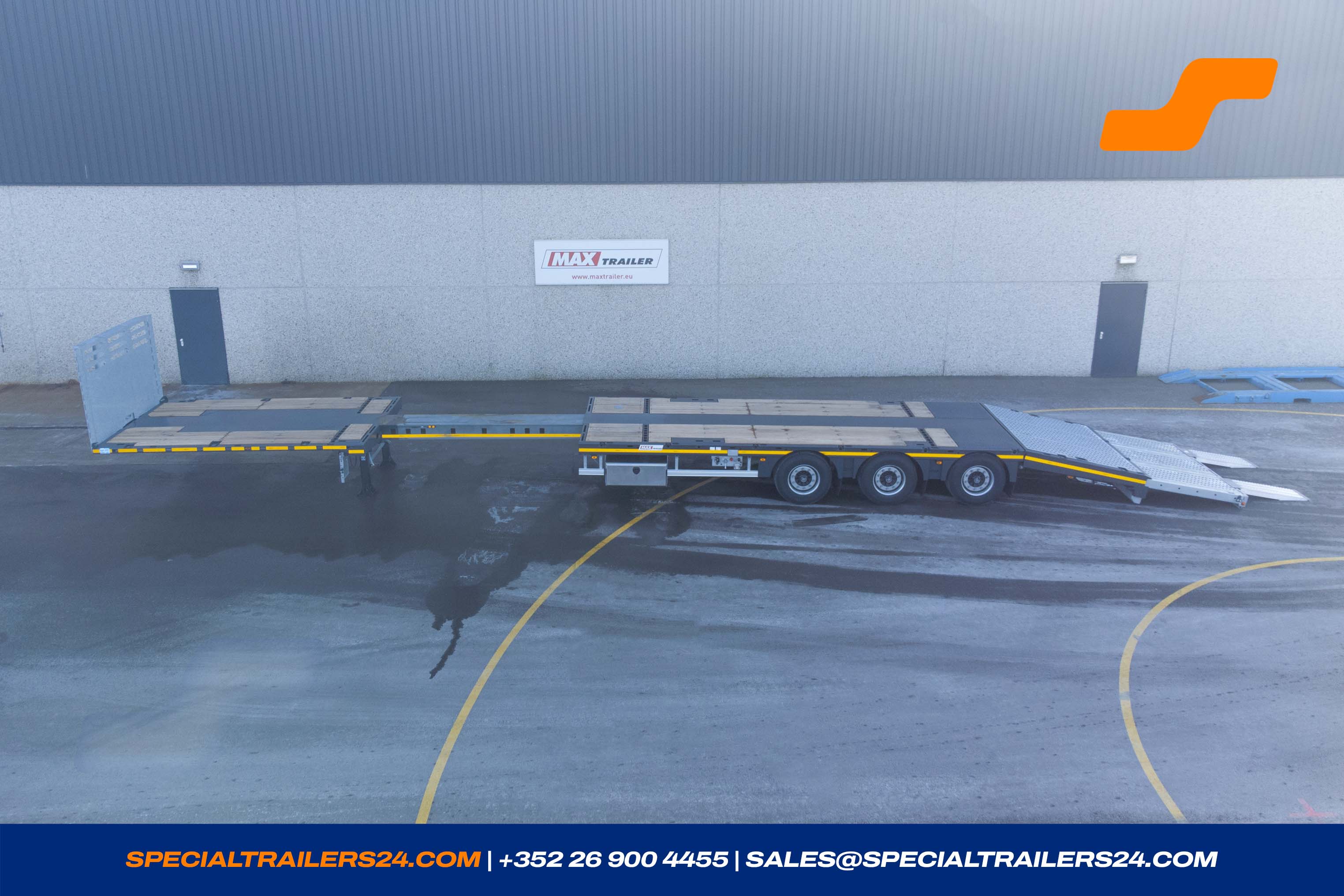

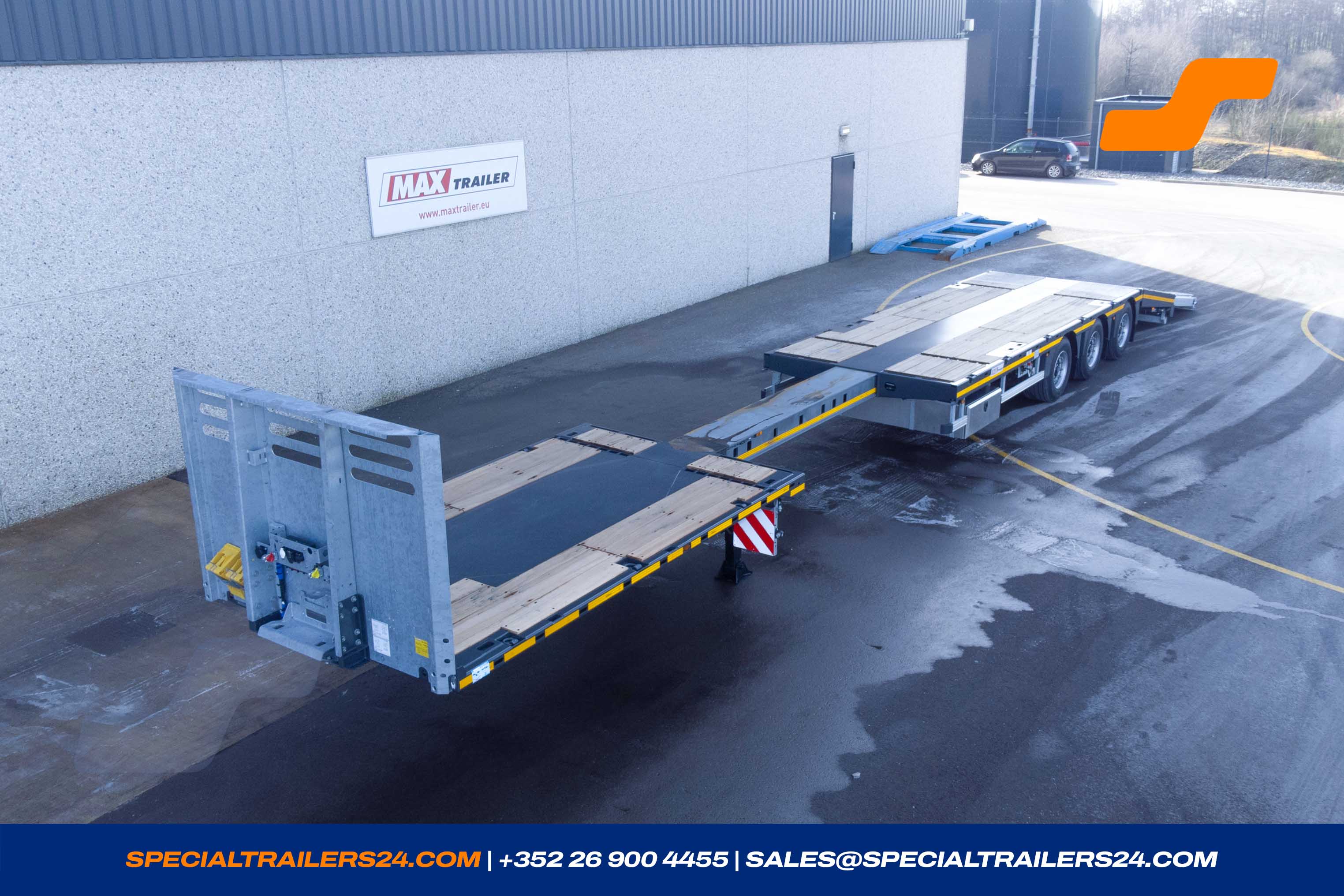

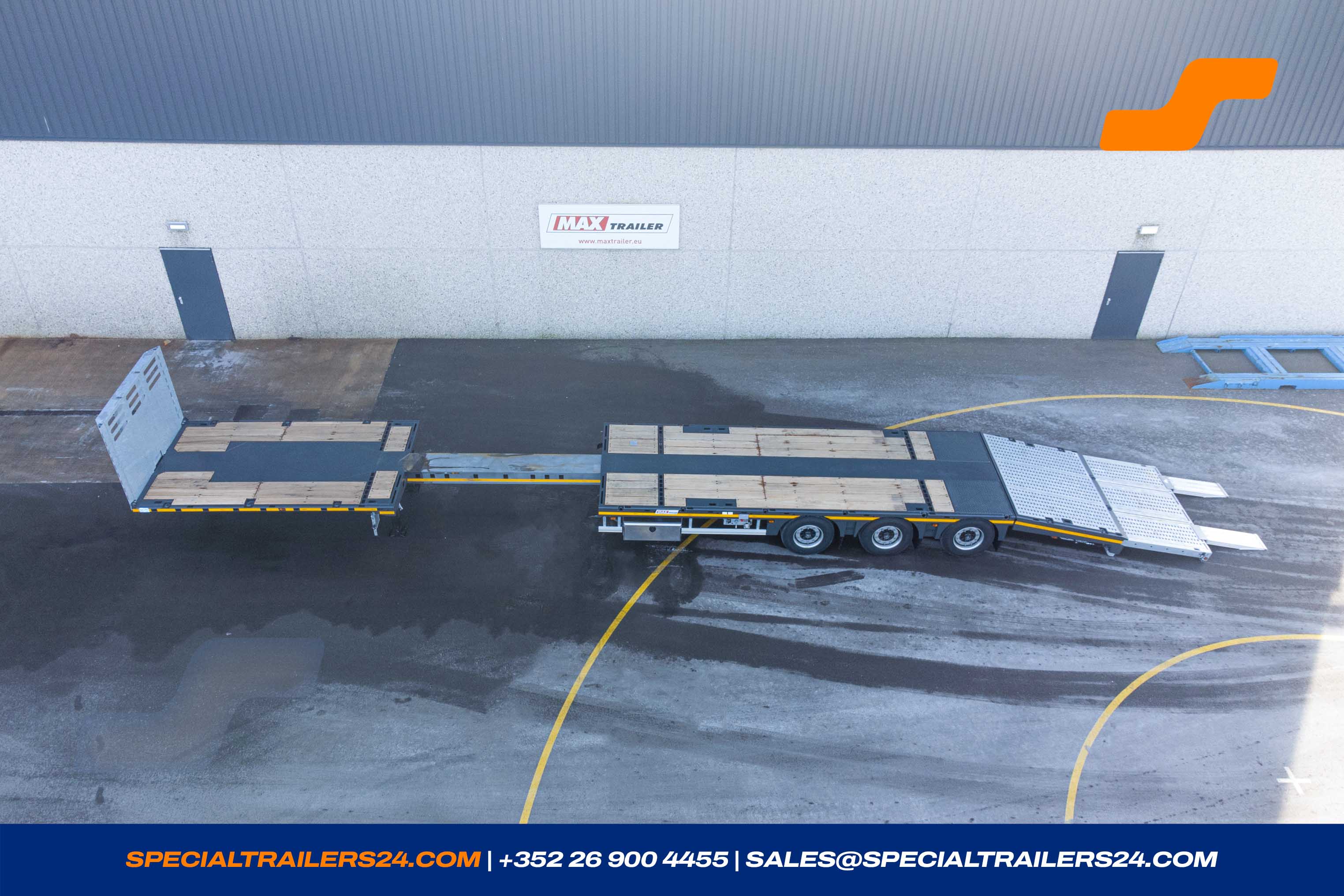

Loading platform in extendable version.

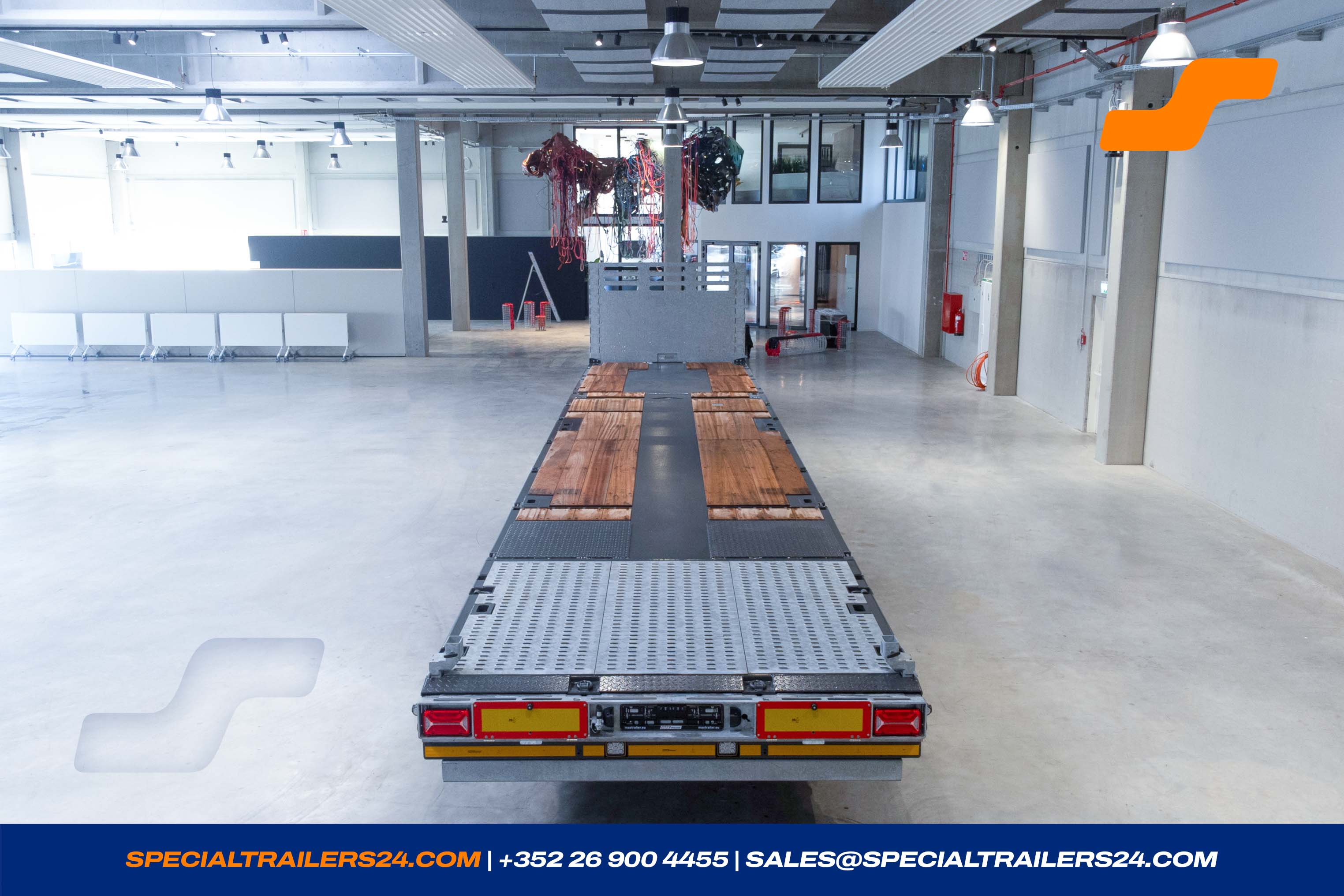

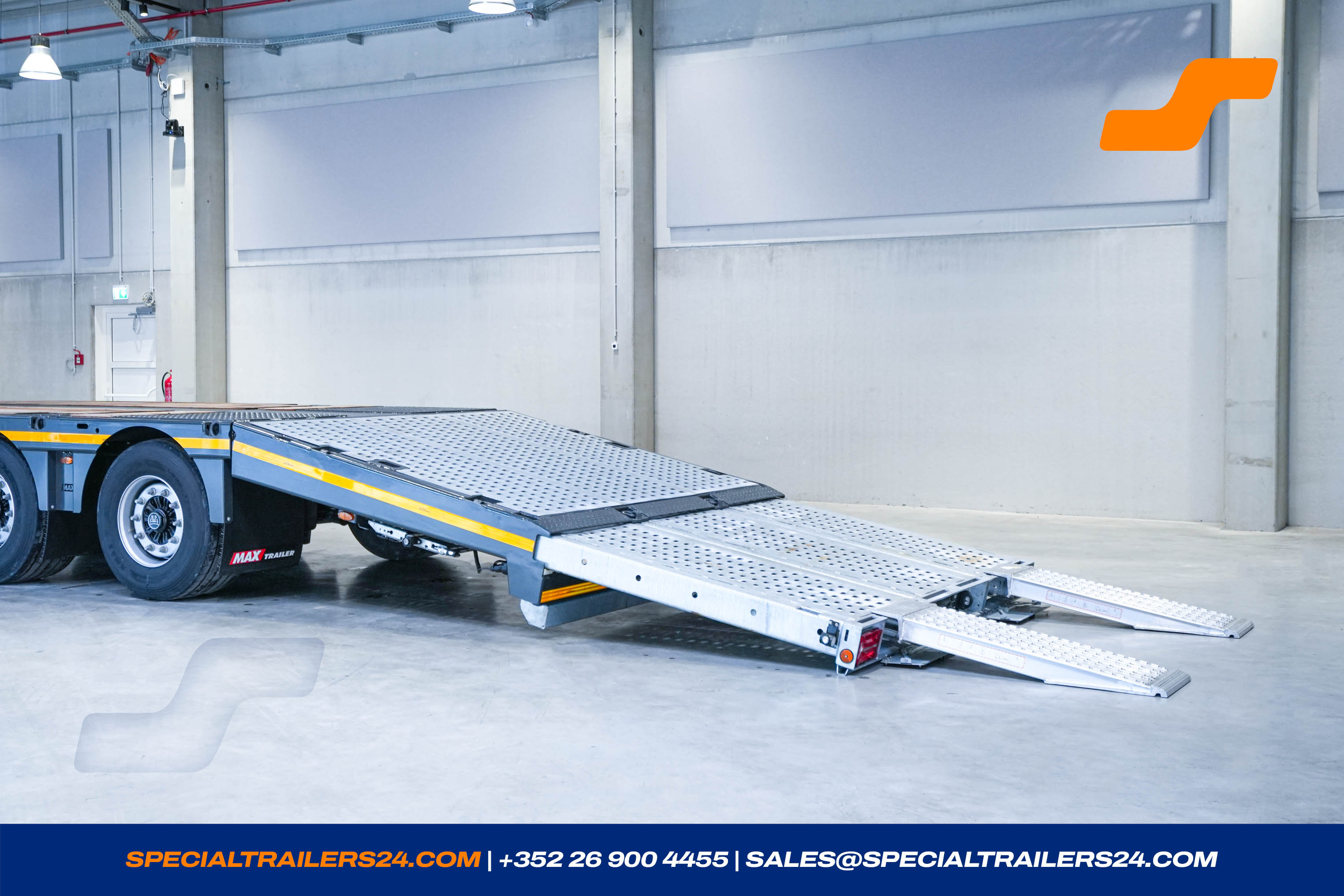

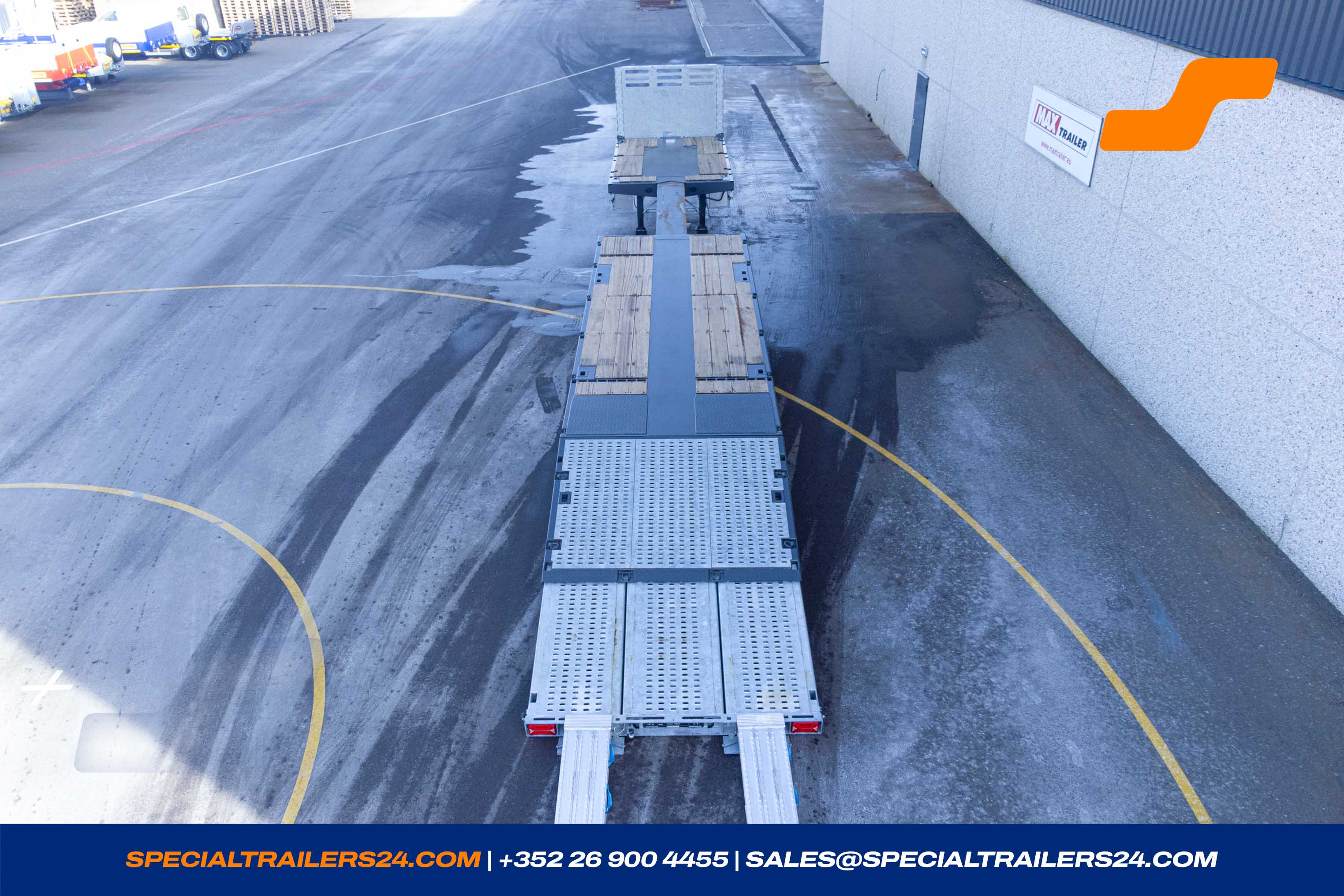

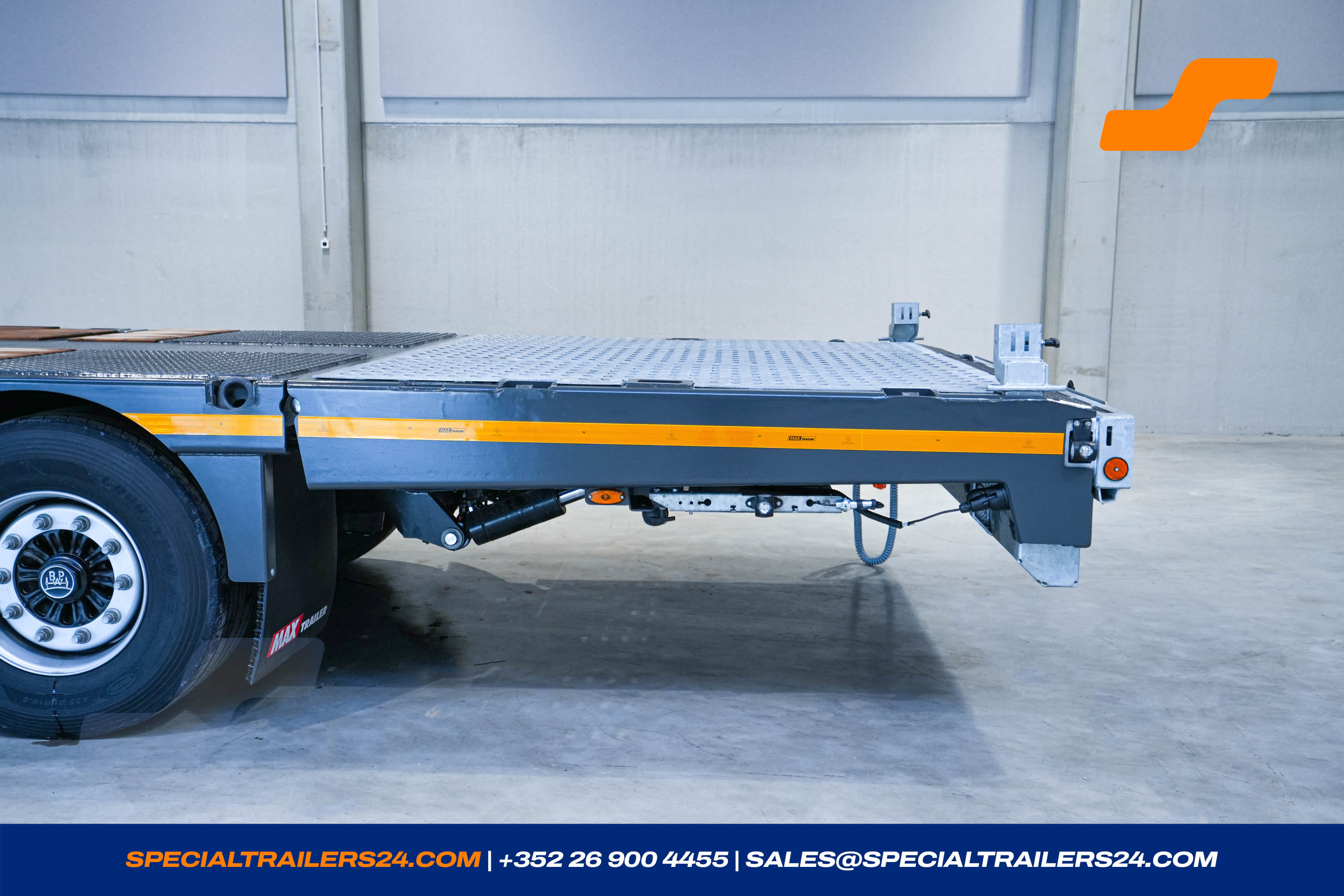

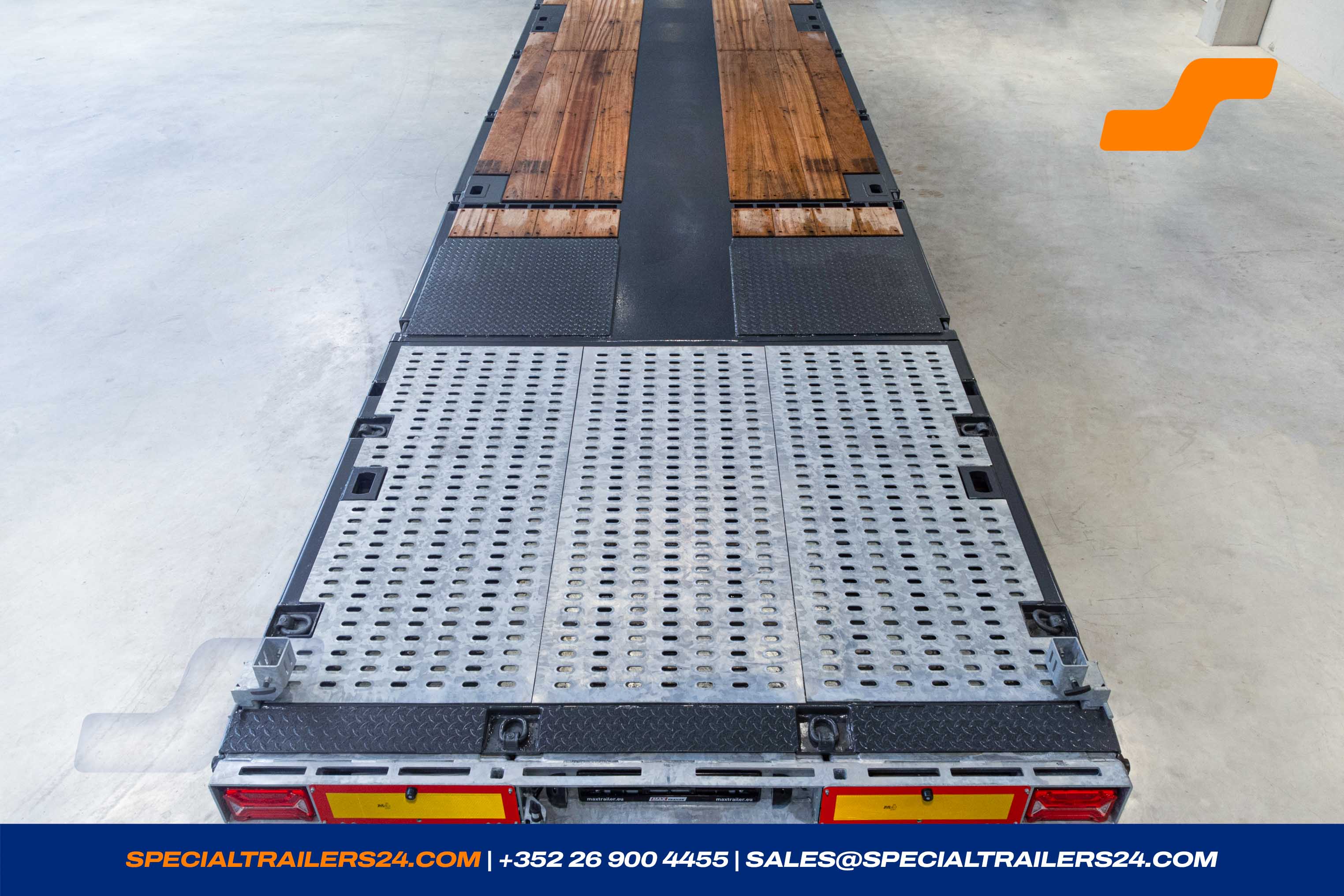

Loading platform at the rear with perforated steel on a length of approx. 2200 mm hydraulically lowerable.

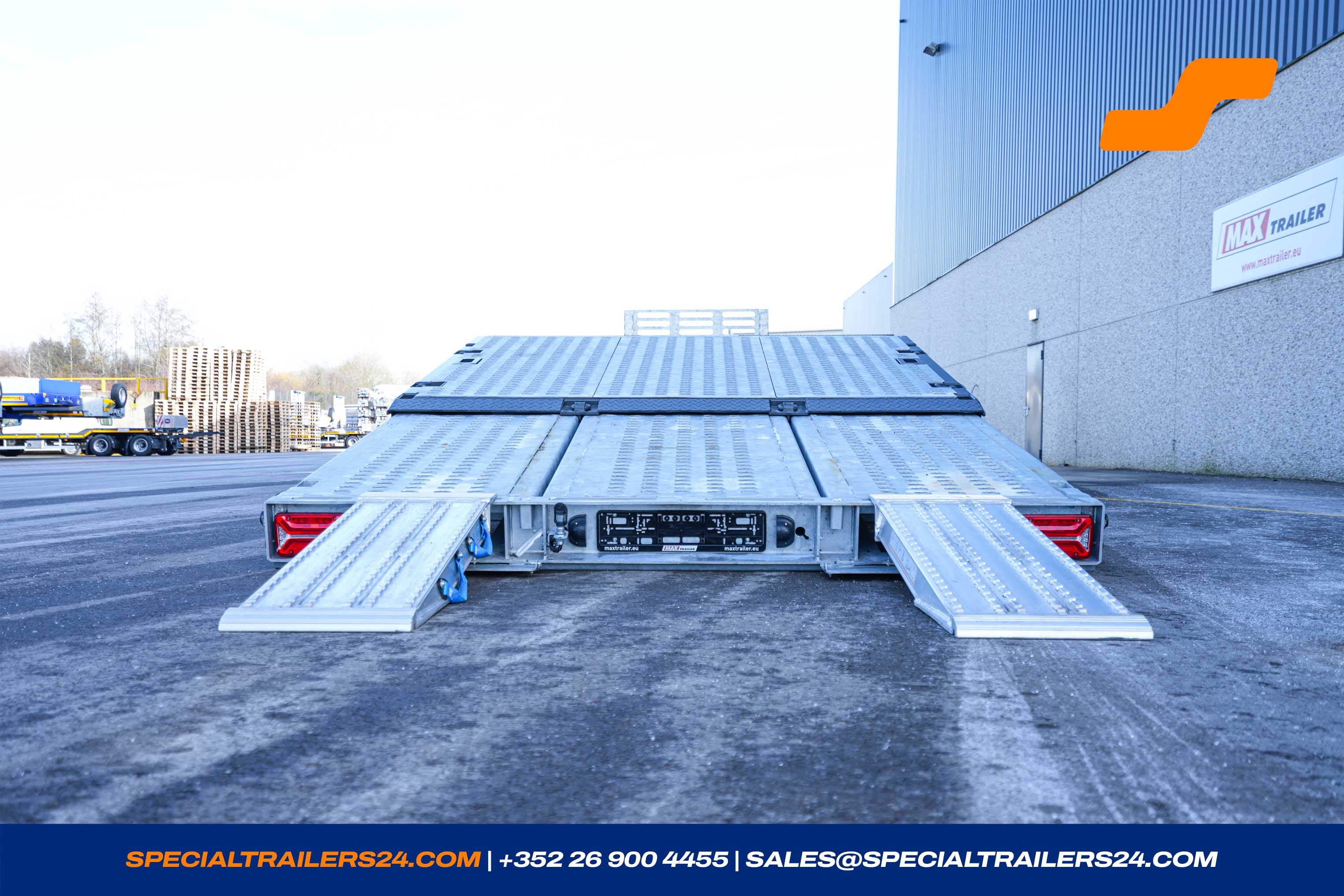

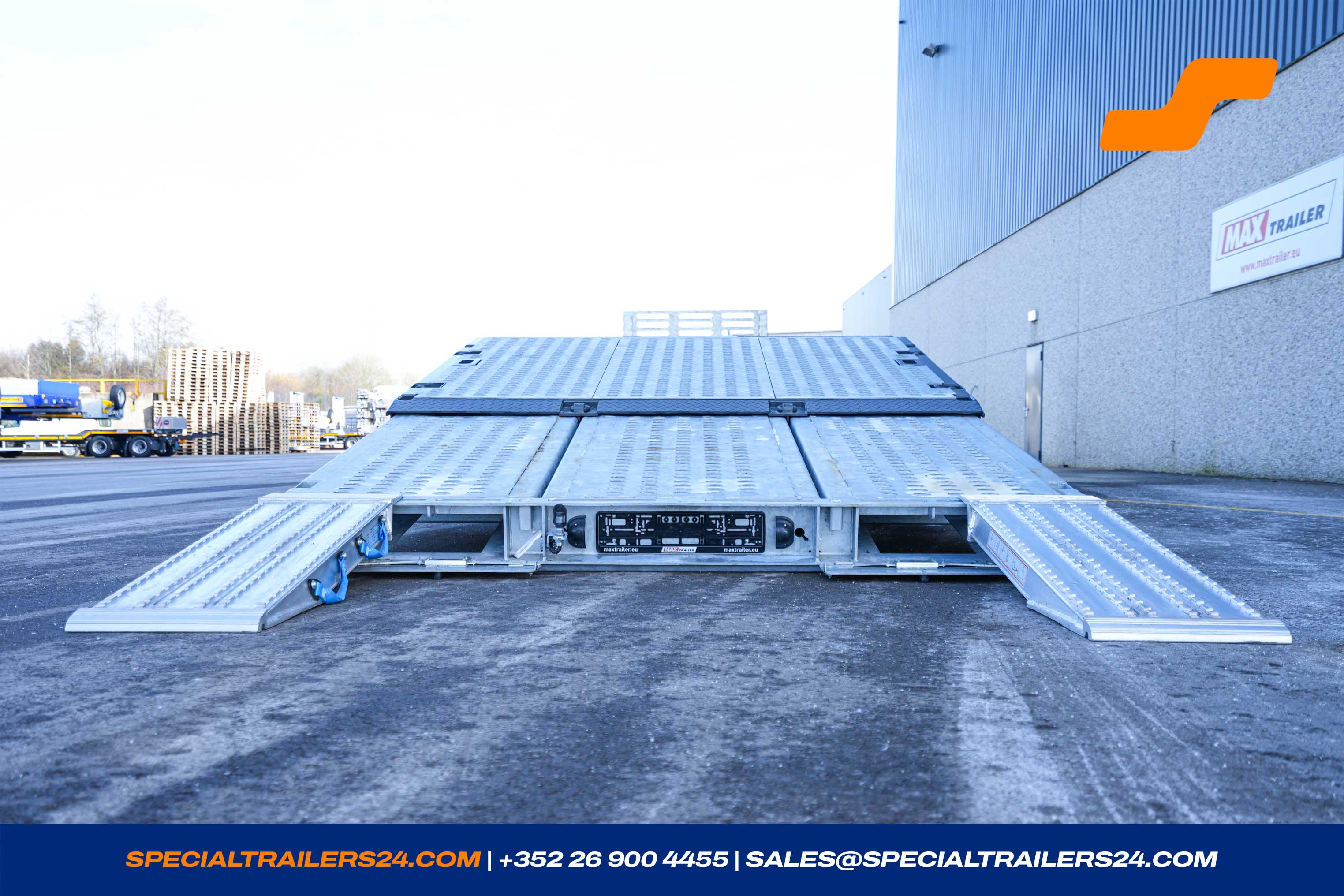

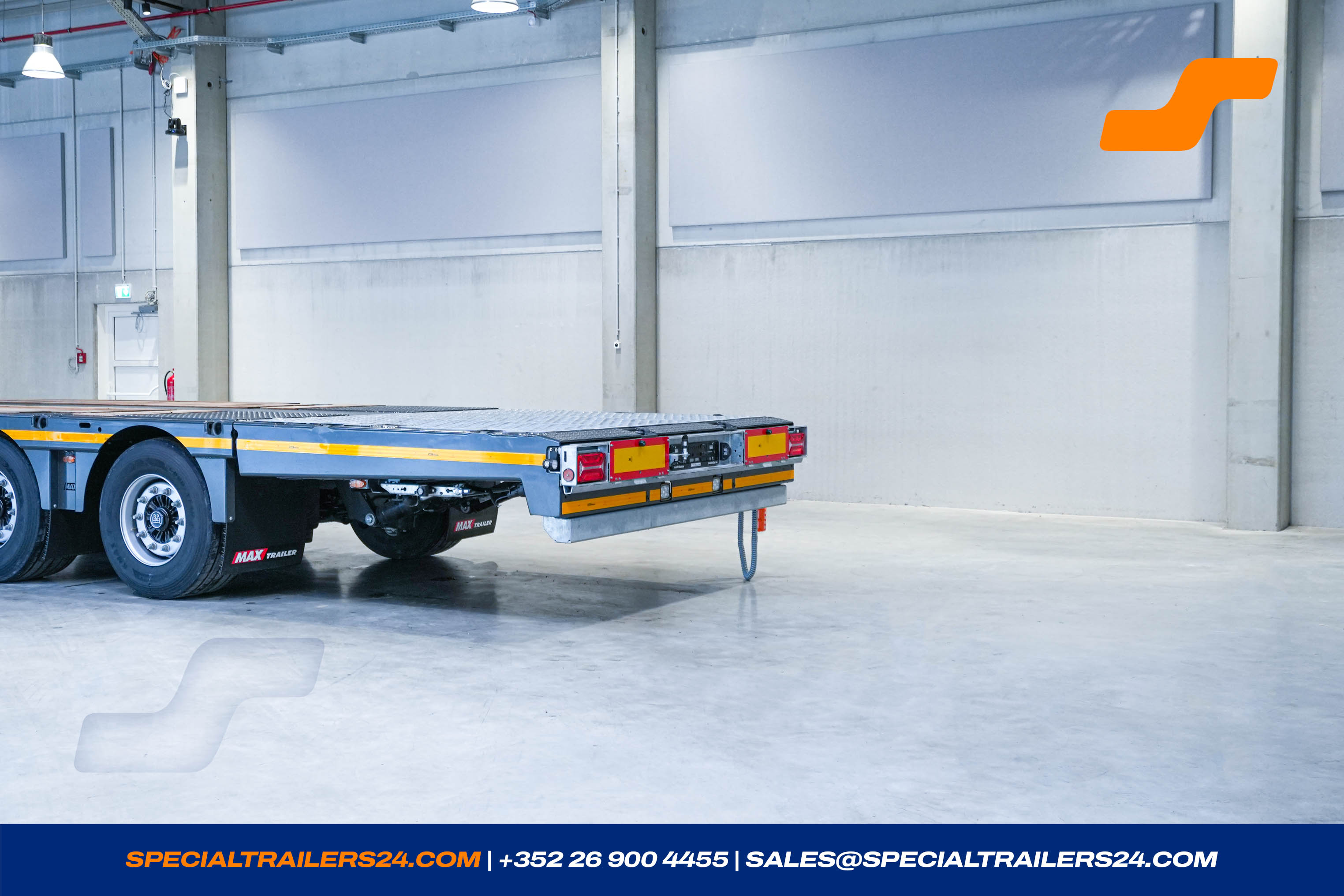

Vehicle rear end with integrated loading table that can be extended hydraulically by 1500 mm, including 2 ramp compartments and ramp supports. 6to capacity when lifted. The pull-out is not load-bearing.
The rear end of the vehicle can be driven on with up to 8to axle load and is not suitable for track machines.

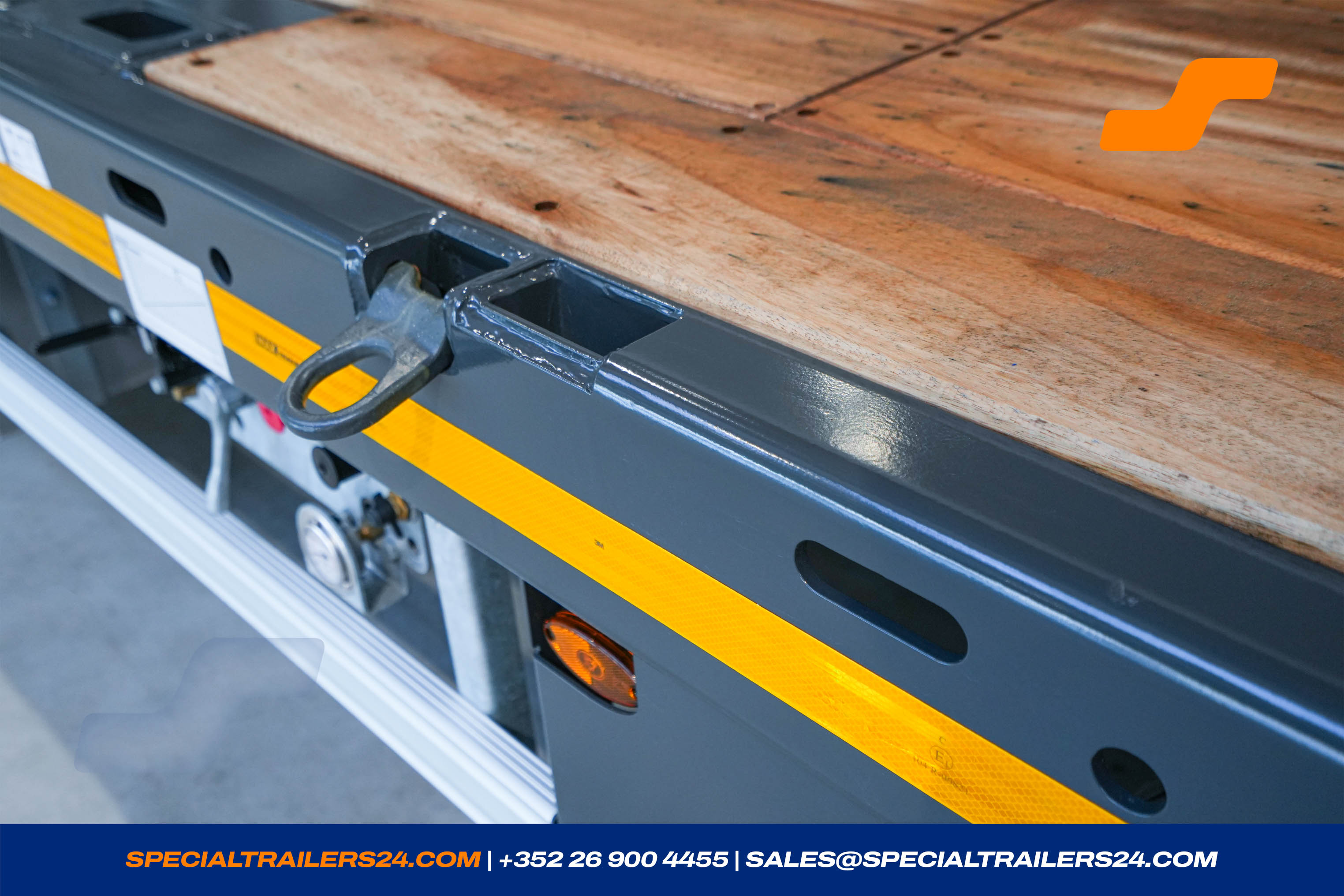

2 pairs of lashing rings (LC 5000 daN).
1 pairs of lashing rings (LC 10000 daN).

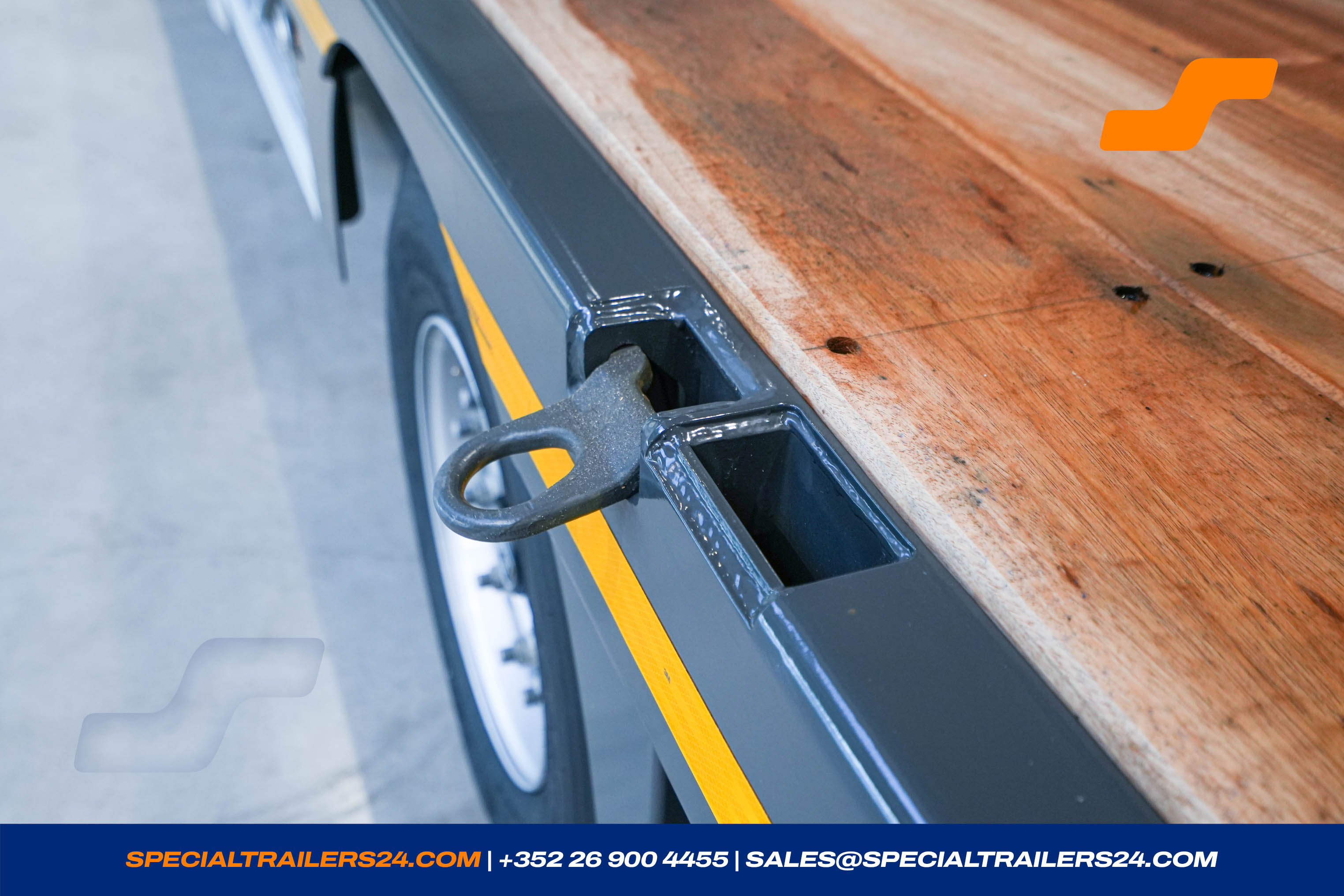

5 pairs of lashing rings hinged outwardss (LC 5000 daN).
2 pairs of lashing rings hinged outwardss (LC 10000 daN).
1 pair of lashing rings at the rear of the trailer (LC 5000 daN).
cutouts in the border frame of the loading area for hooking in tension belts (LC 2000 daN)
- Red and yellow air couplings on the galvanised front connection ledge.
- 2 wheel chocks with carrier.
- King pin 2
- Yellow reflective tape according to the EU regulation over the entire length, on the extension and at the rear.

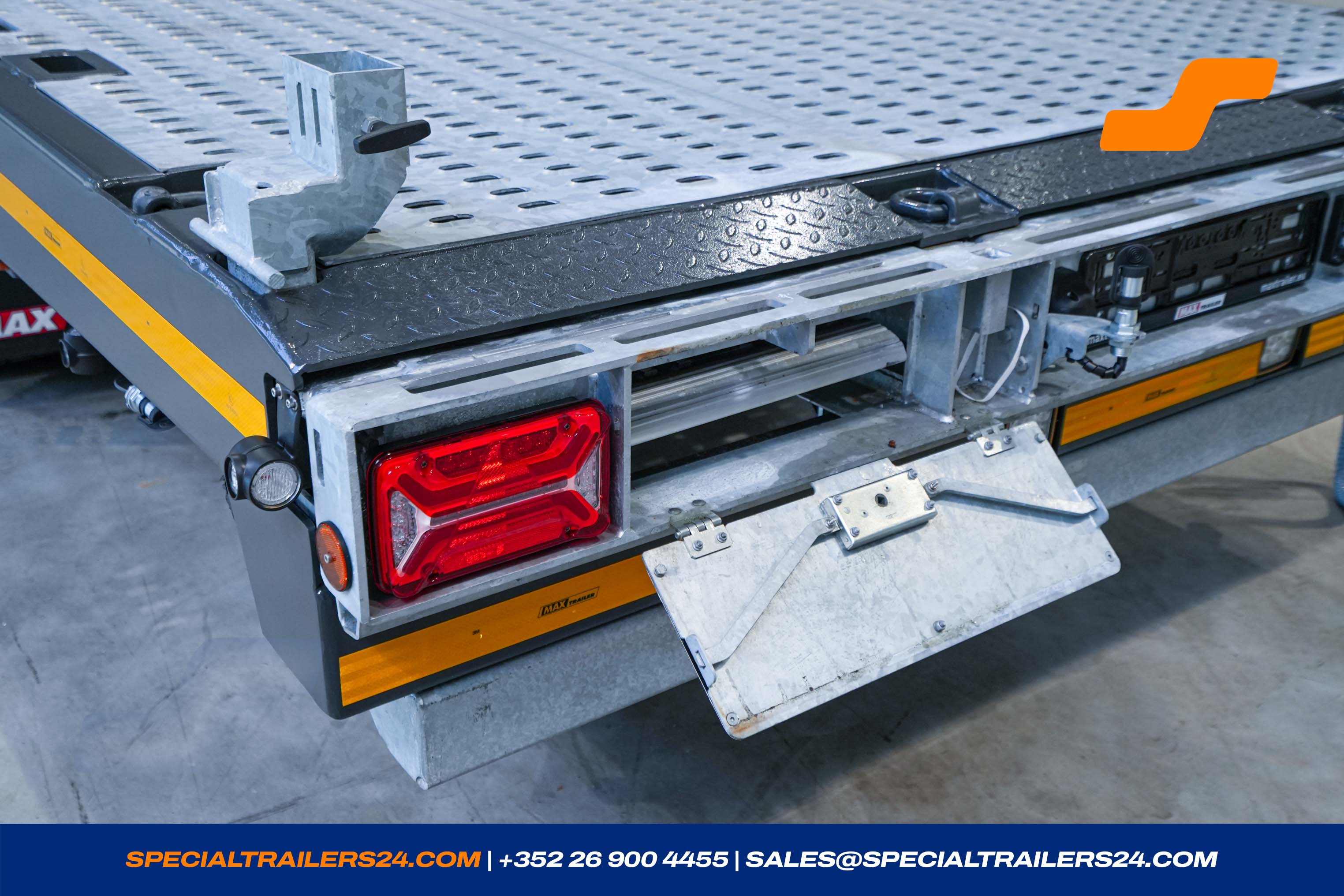

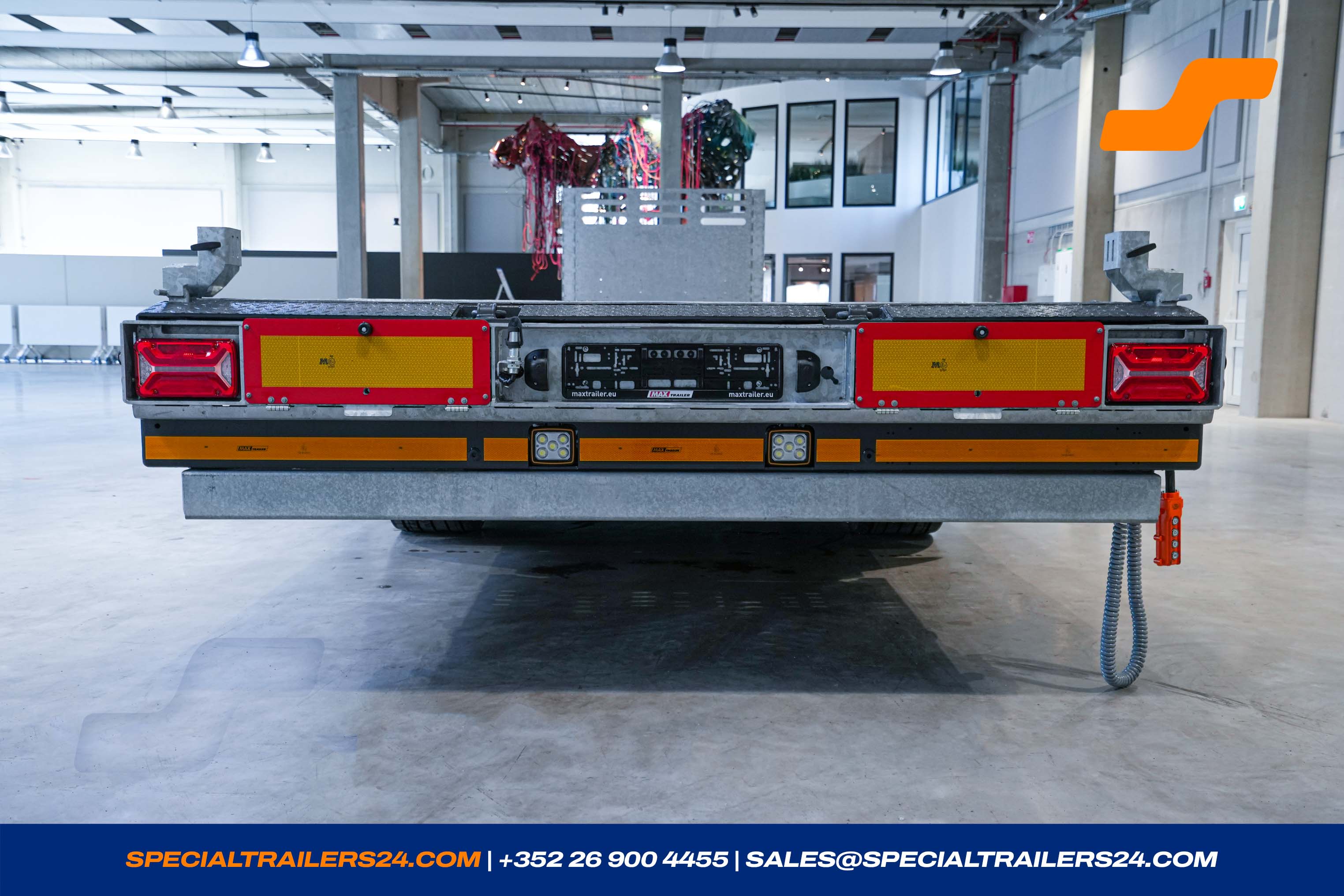

- Reflectors (red - yellow) according to the EU regulation at the rear of the trailer.

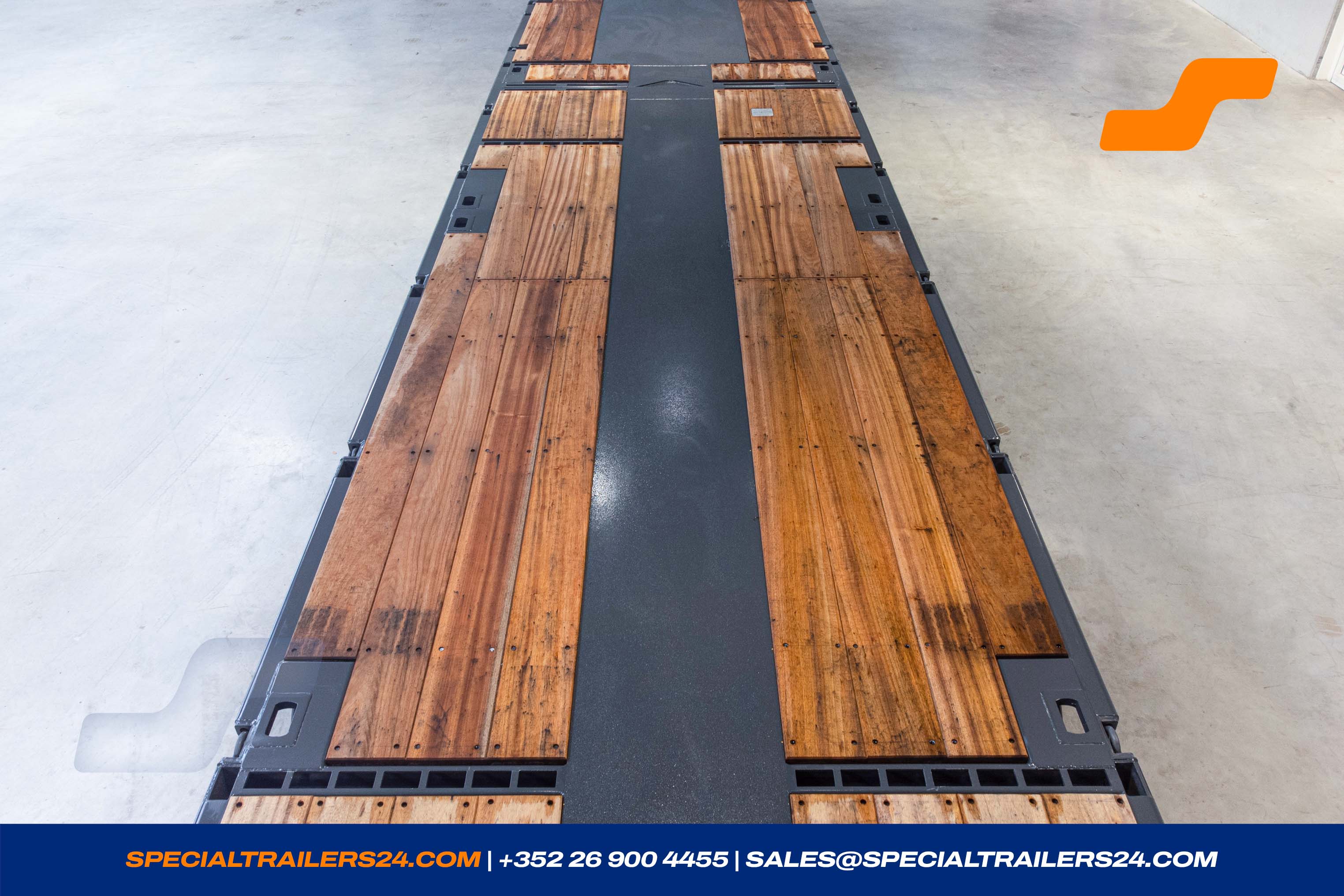

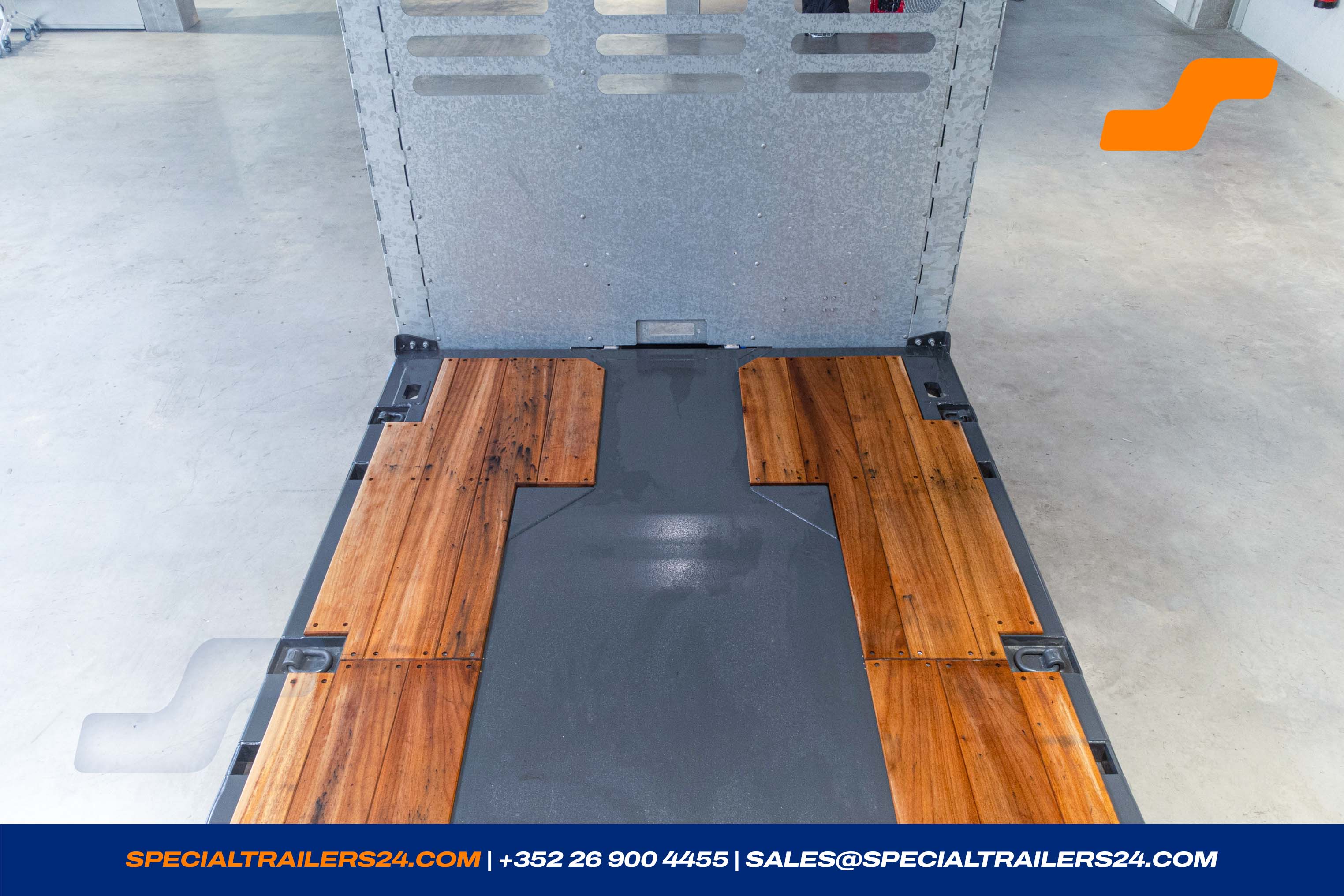

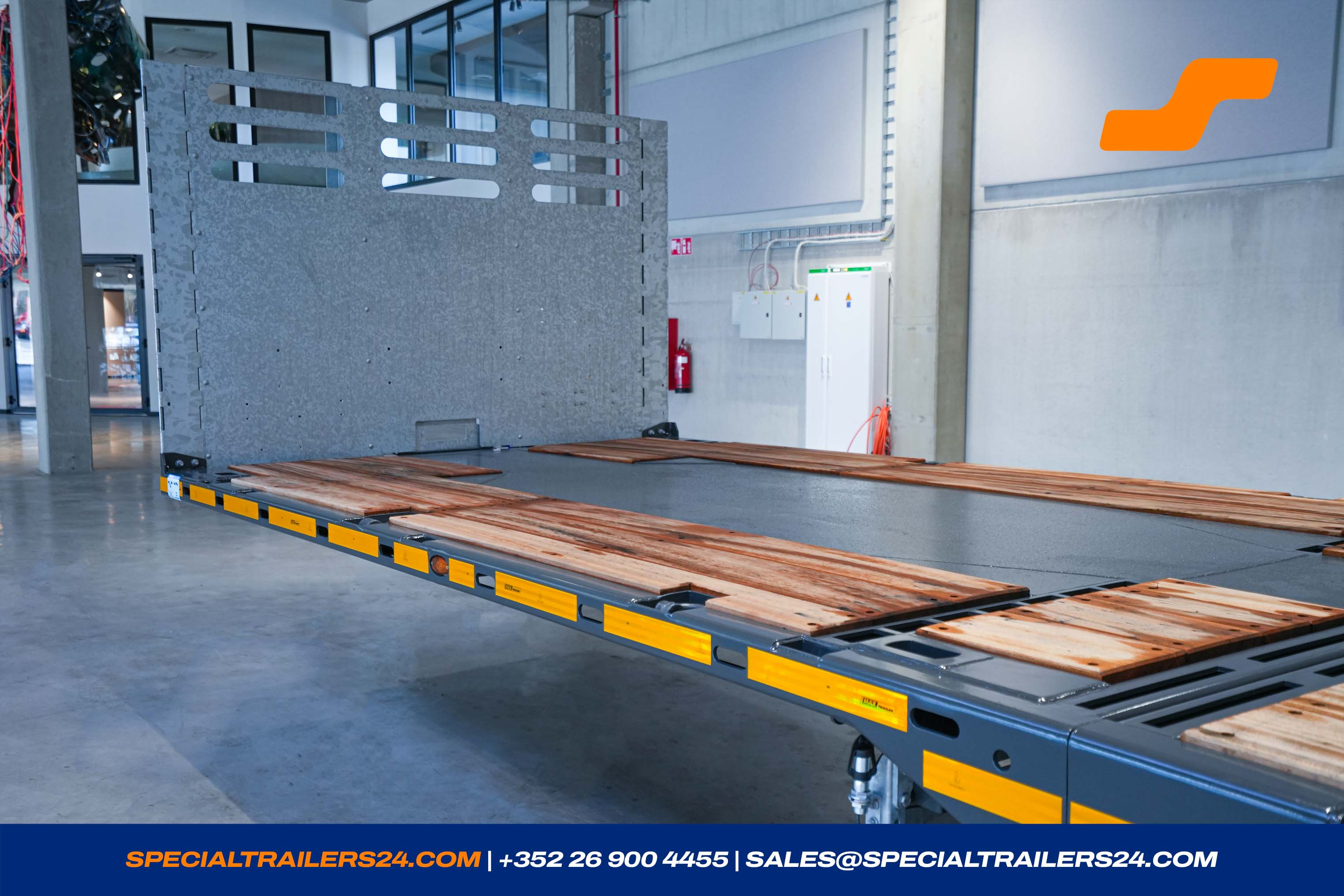

- Loading area with hardwood timber.
-
1 pair of alu ramps VFR 105 ca. 1300x390 x 105 mm (l x w x h)
Capacity per ramp for :
bogie 2 axles with load distribution 40 % to 60 %
by axle distance 1.5 meter : 7650 daN (Kp)
by axle distance 2.0 meter : 7650 daN (Kp)
single axle 5740 daN (Kp)
max. admissible uphill: 30 % (16.5°)
Weight per ramp approx. 24 kg (± 48kg) - 1 spare wheel carrier, under the loading platform on the right side.
- Manual and description on USB stick .
- Holder for one beacon light at the rear of the trailer.
- On the right and left on the gooseneck and at the rear of the trailer one holder for the warning boards with socket.

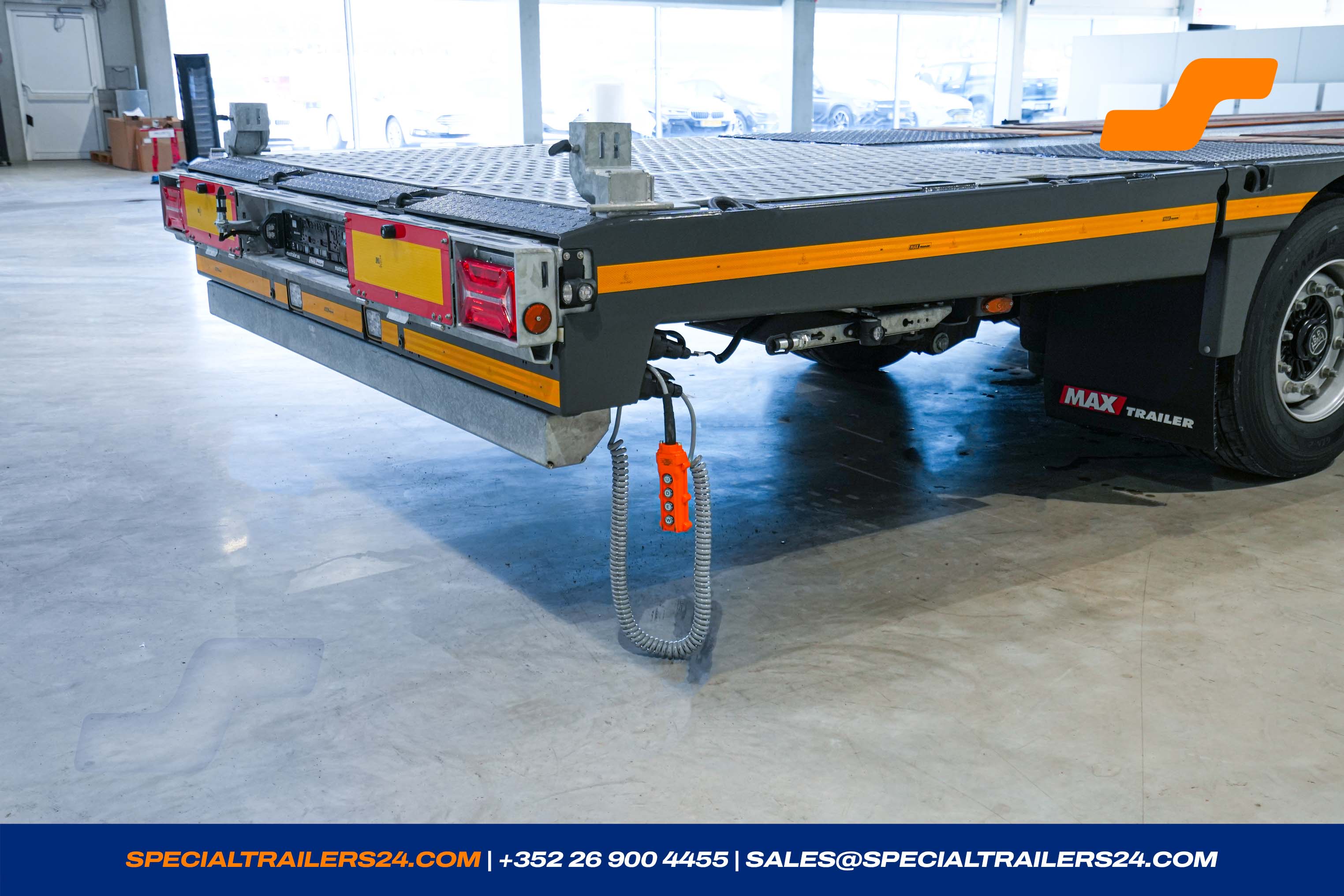

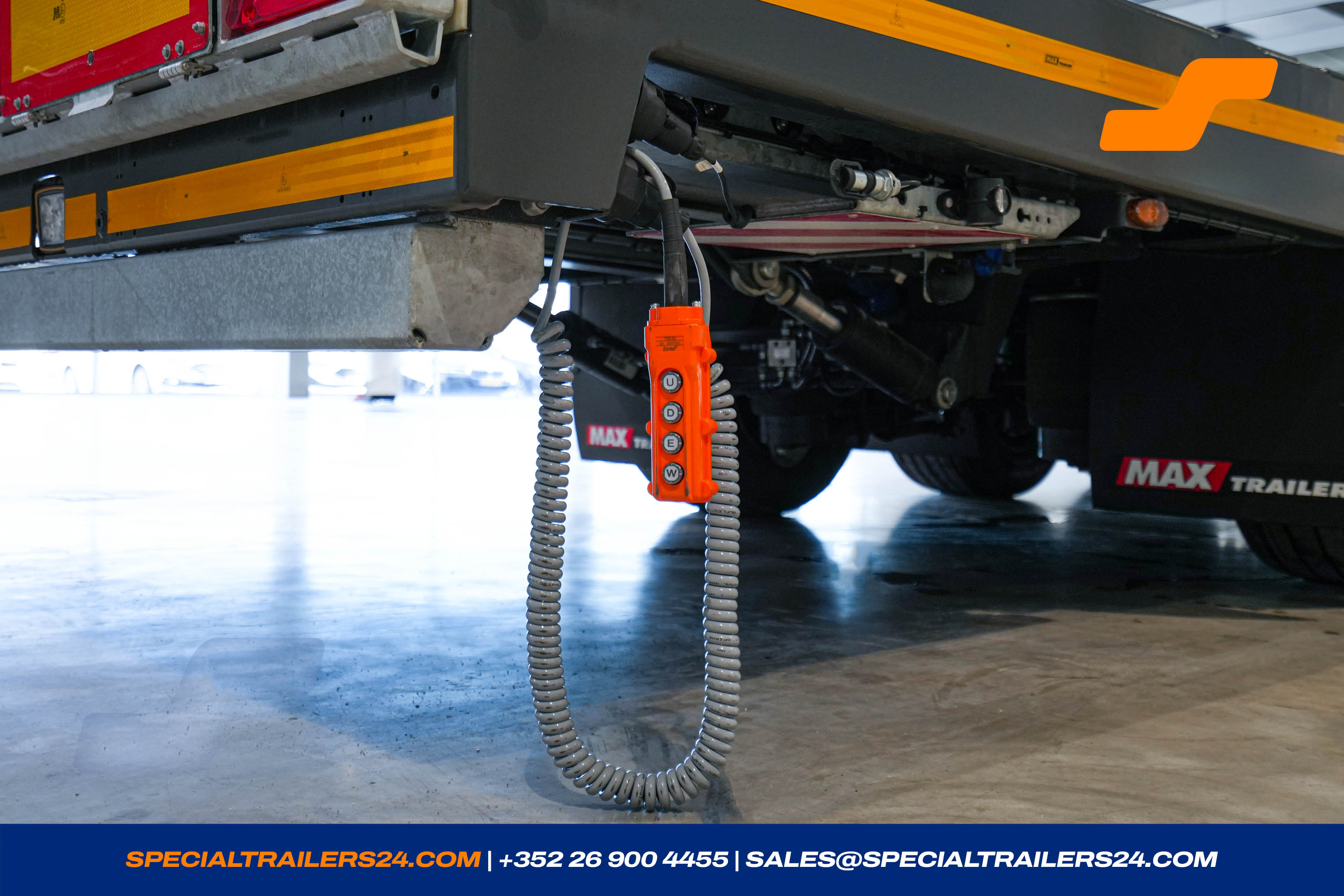

- Cable control for the hydraulic rear.
-

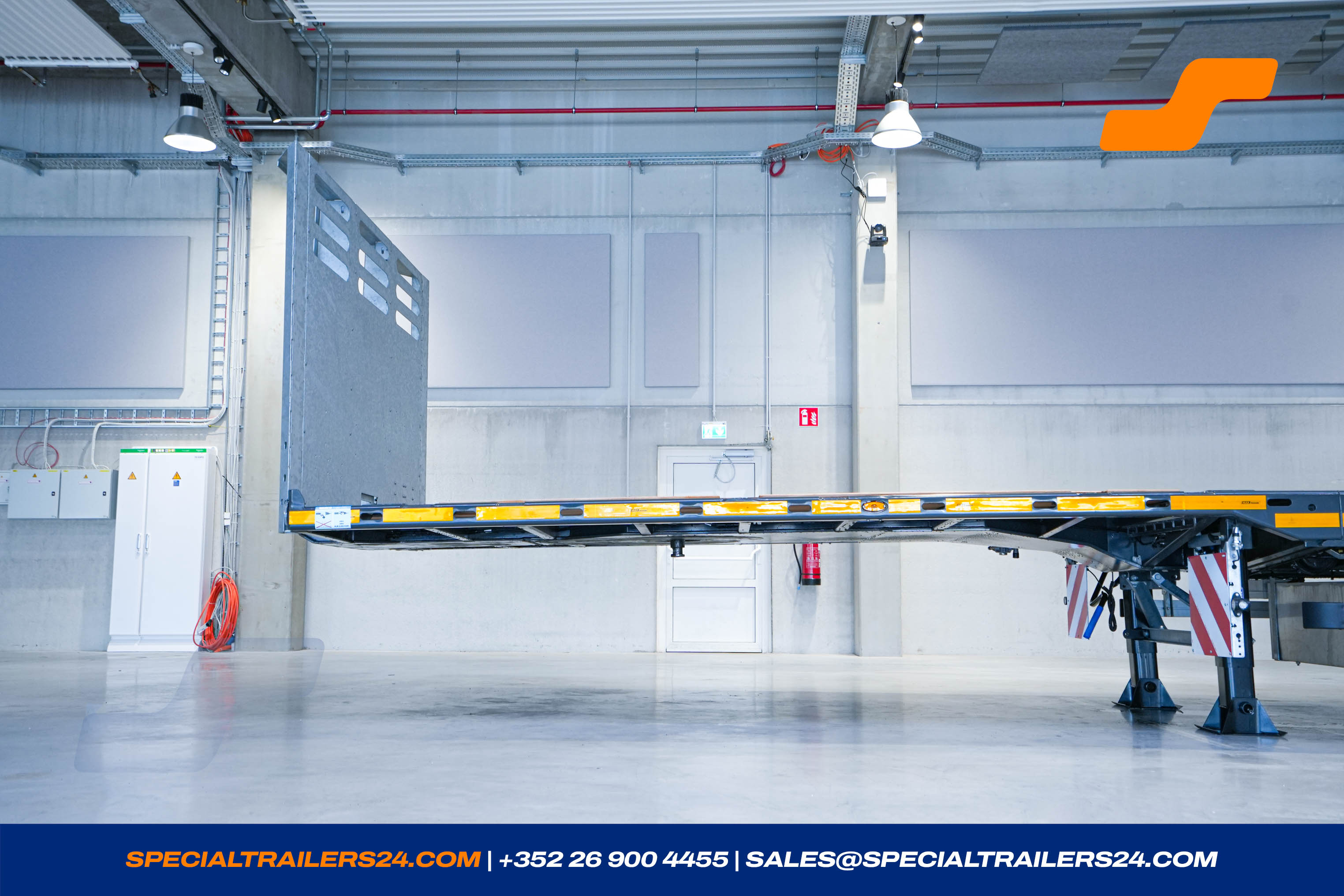

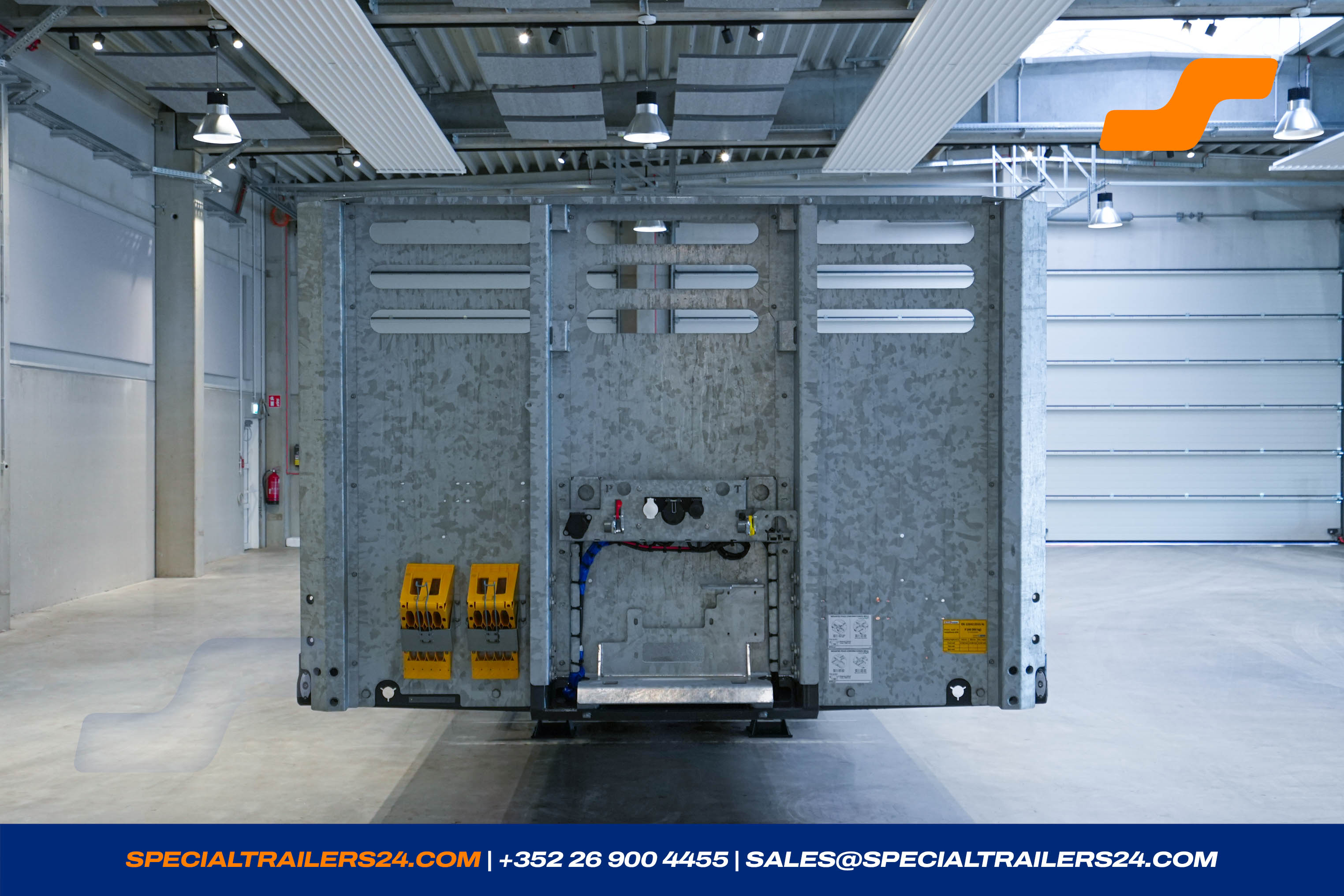

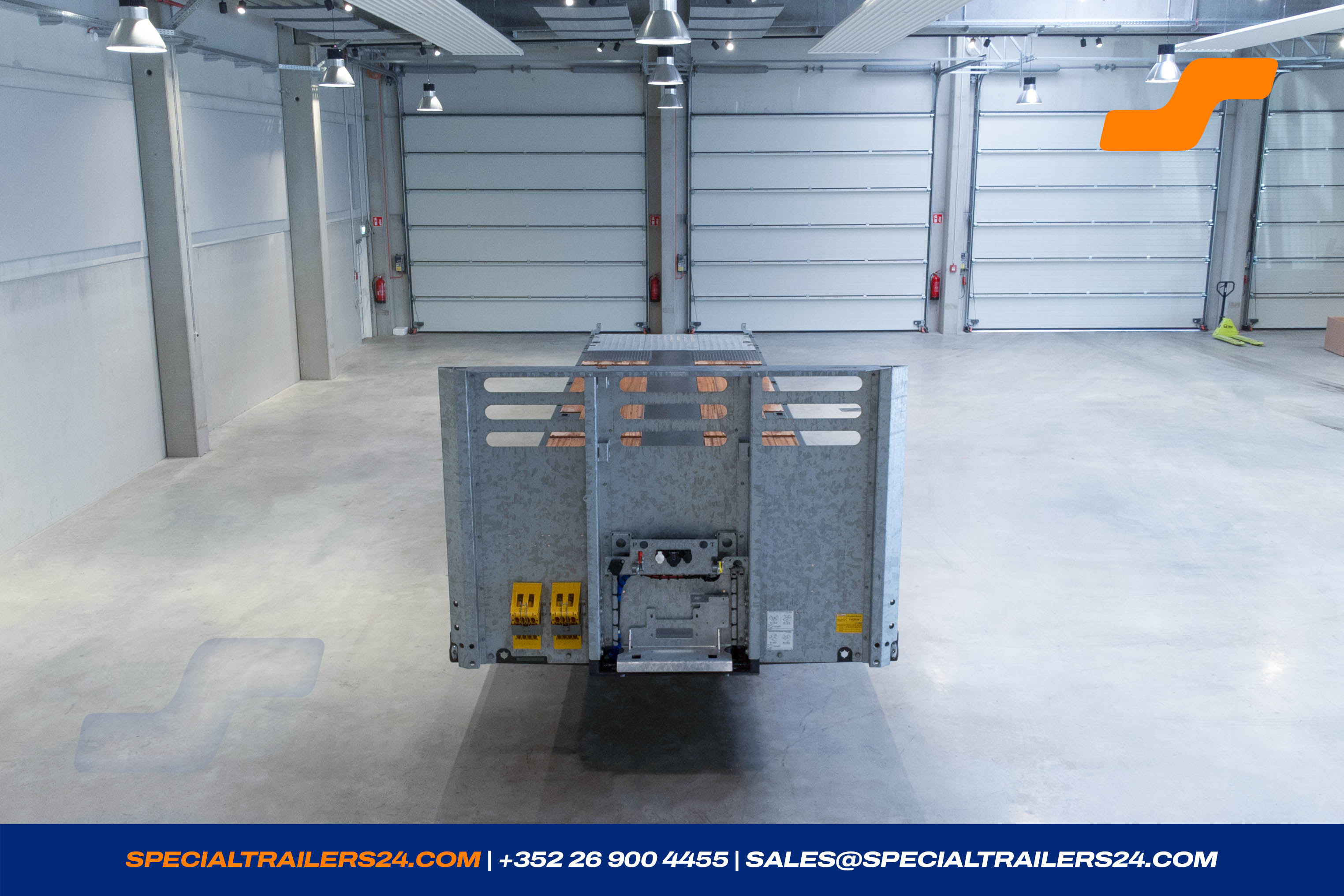

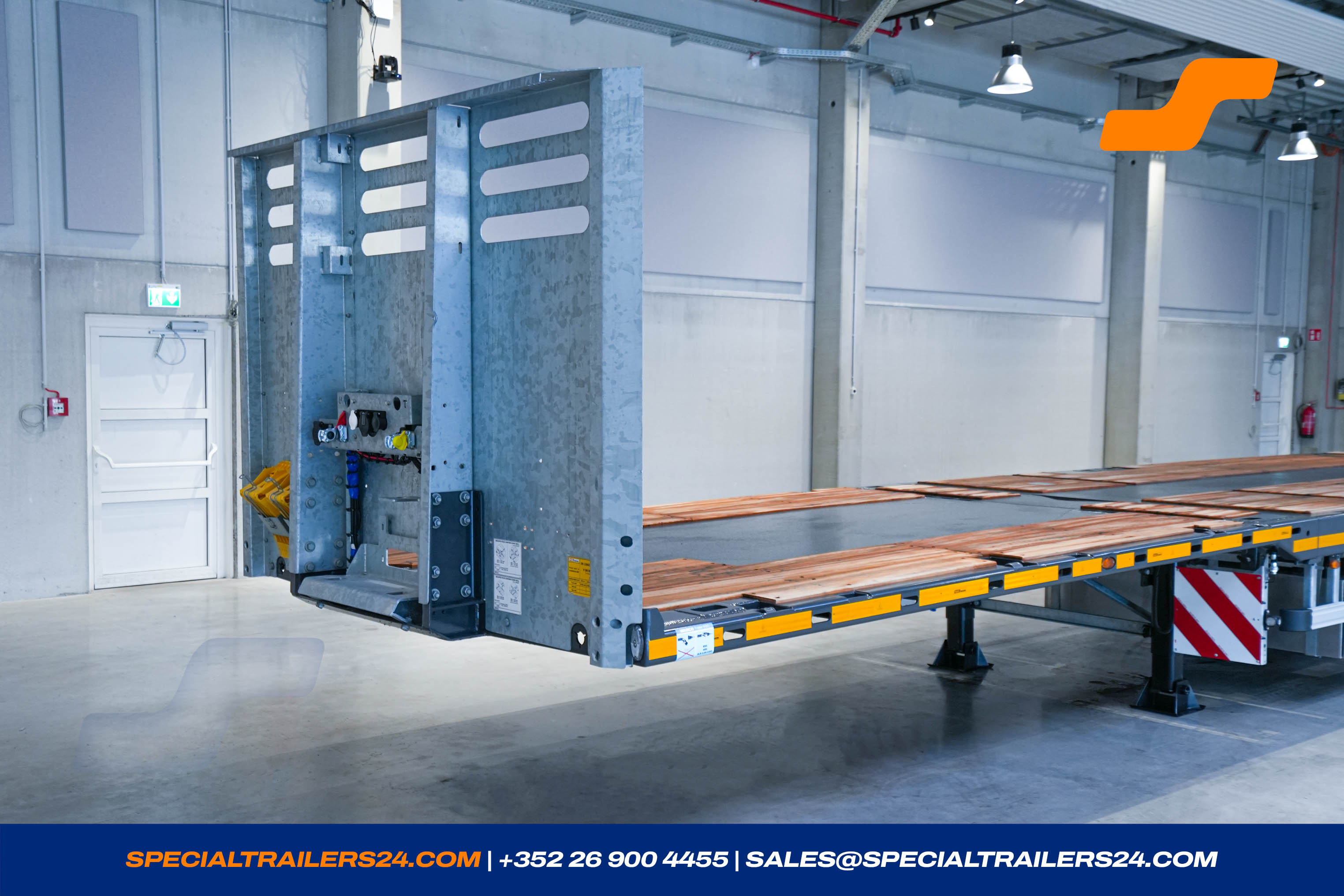

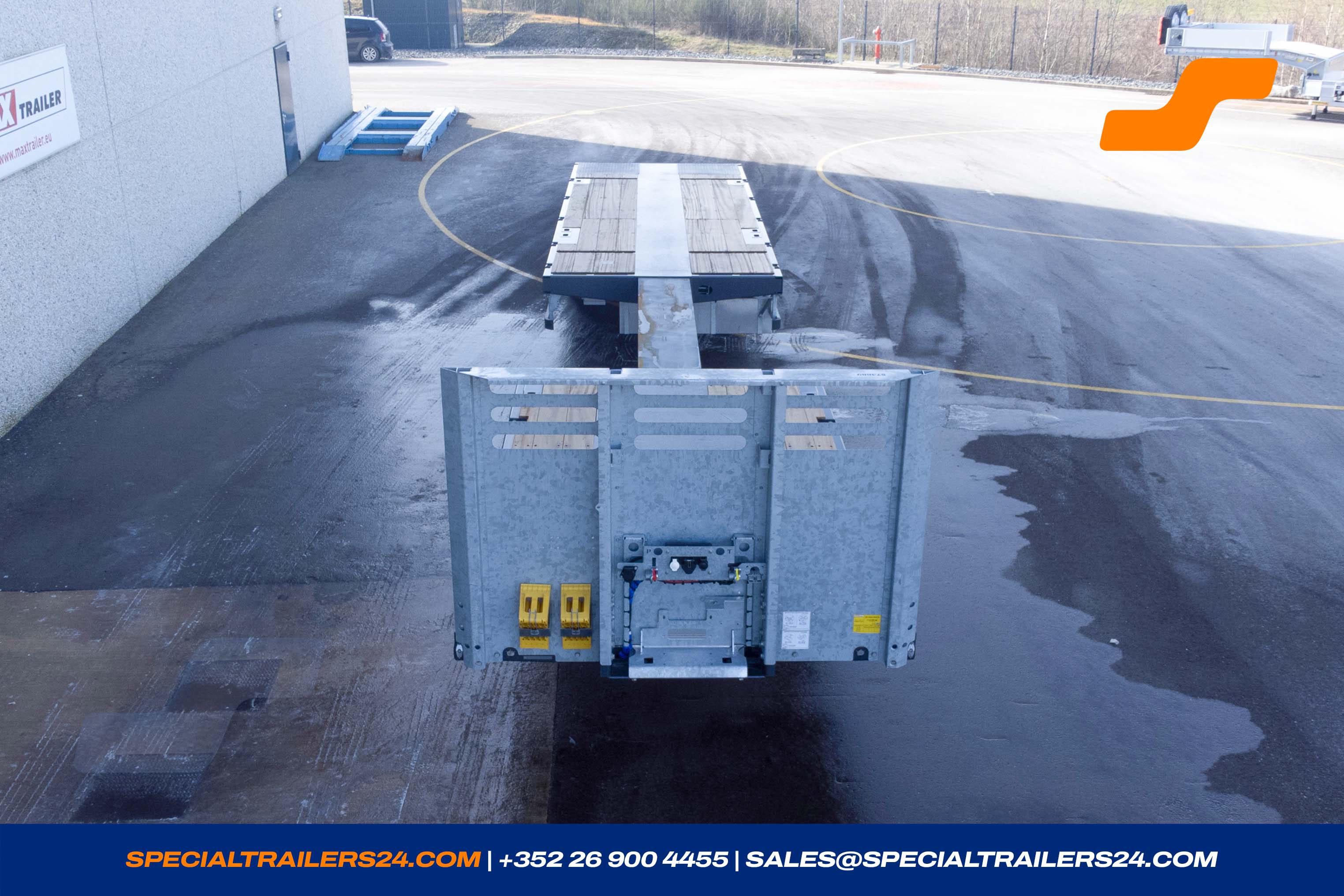

One galvanised steel headboard, height ± 1 600 mm. (± 35 kg)
EN12642-XL - Anti-slip-coating with sand on the central beam.

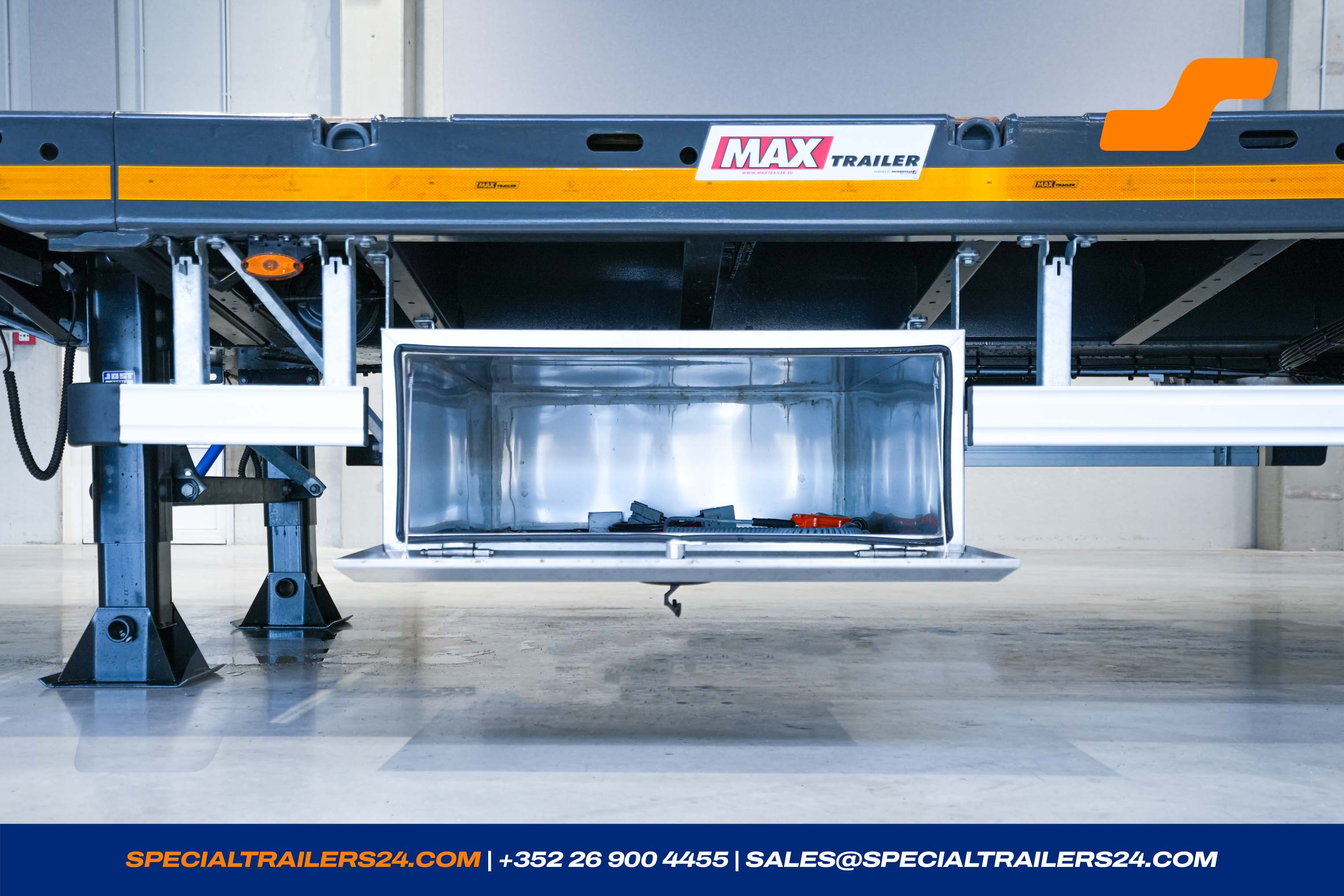

- One INOX lockable tool-box under the loading platform. (1 725x400x1 000) (± 115kg)
- 6 pairs of containerpockets incorporated into the loading platform for 1 x 20' or 2 x 20' Containers or 1 x 40' Containers. A locking position in the extending for a container 1 x 45'. (± 90 kg)
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- Pre-equipment for winch.
Accessories
1 x Accessories
- Electrically operated hydraulic pump. (± 45kg)
- Cable for the the electric-hydraulic pump and/or electric winch (35 mm², 3.5 m length, max. 160 A) between the semi-trailer and the truck with socket (ANDERSON-ANDERSON).

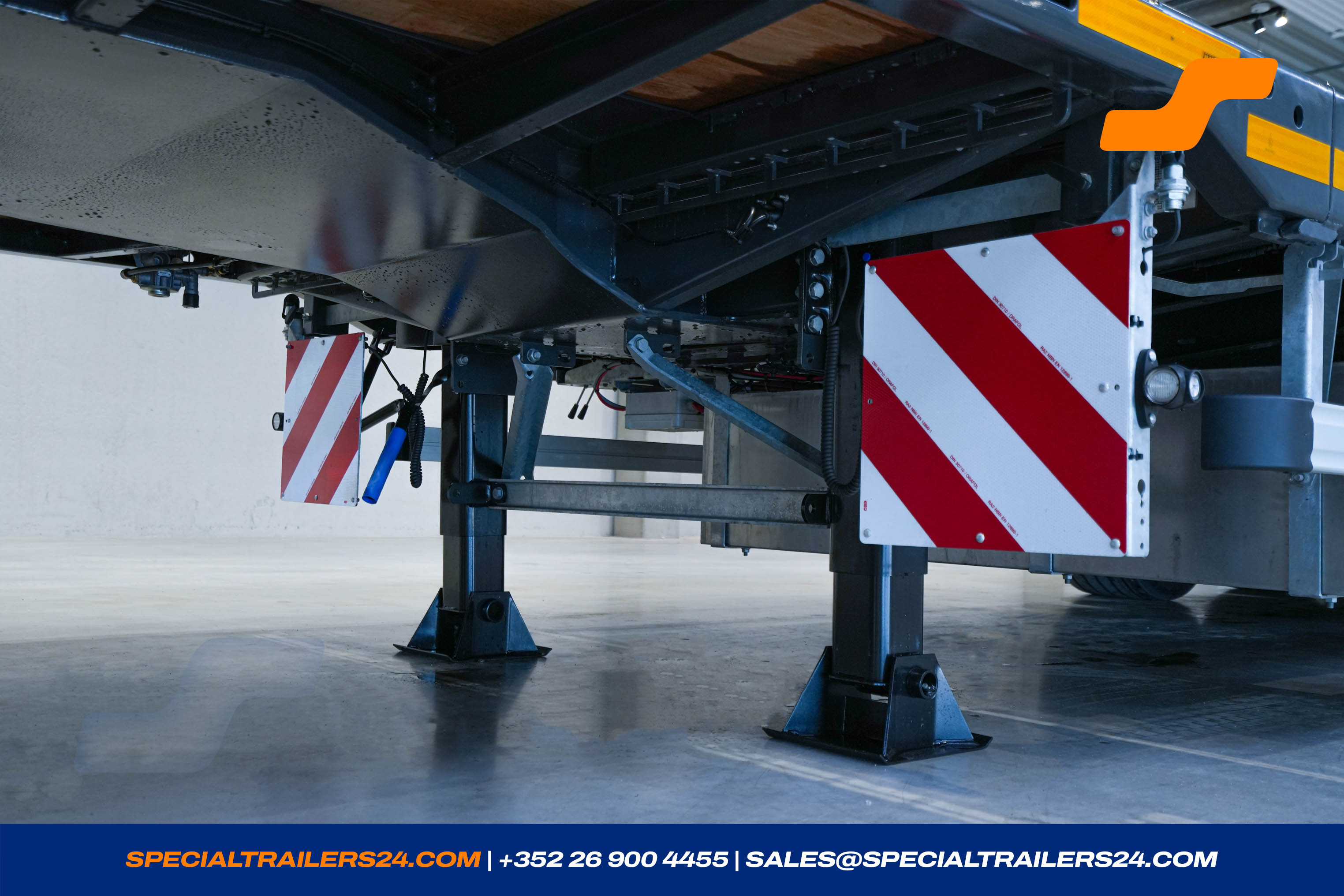

- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 2 LED- reversing lights at the rear.
- Delivery from a trailer to factory Lentzweiler.

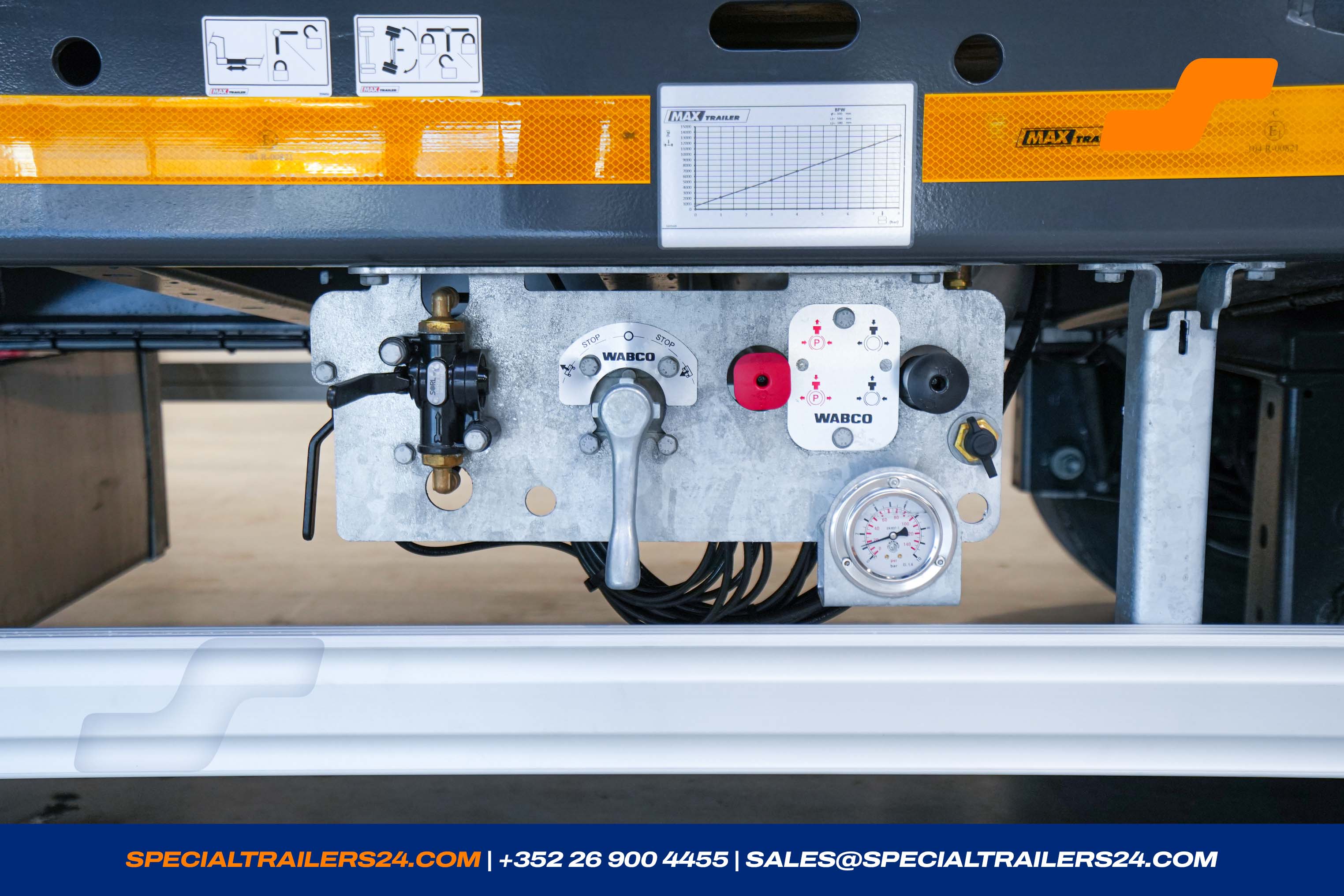

- Load manometer for determining the axle load, including load diagram.
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110687
- Reference MAX200-N-3A-13.60-FTR-19.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour Colour selectable
- Availability 02/2026
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000257
- Steering Type Friction
