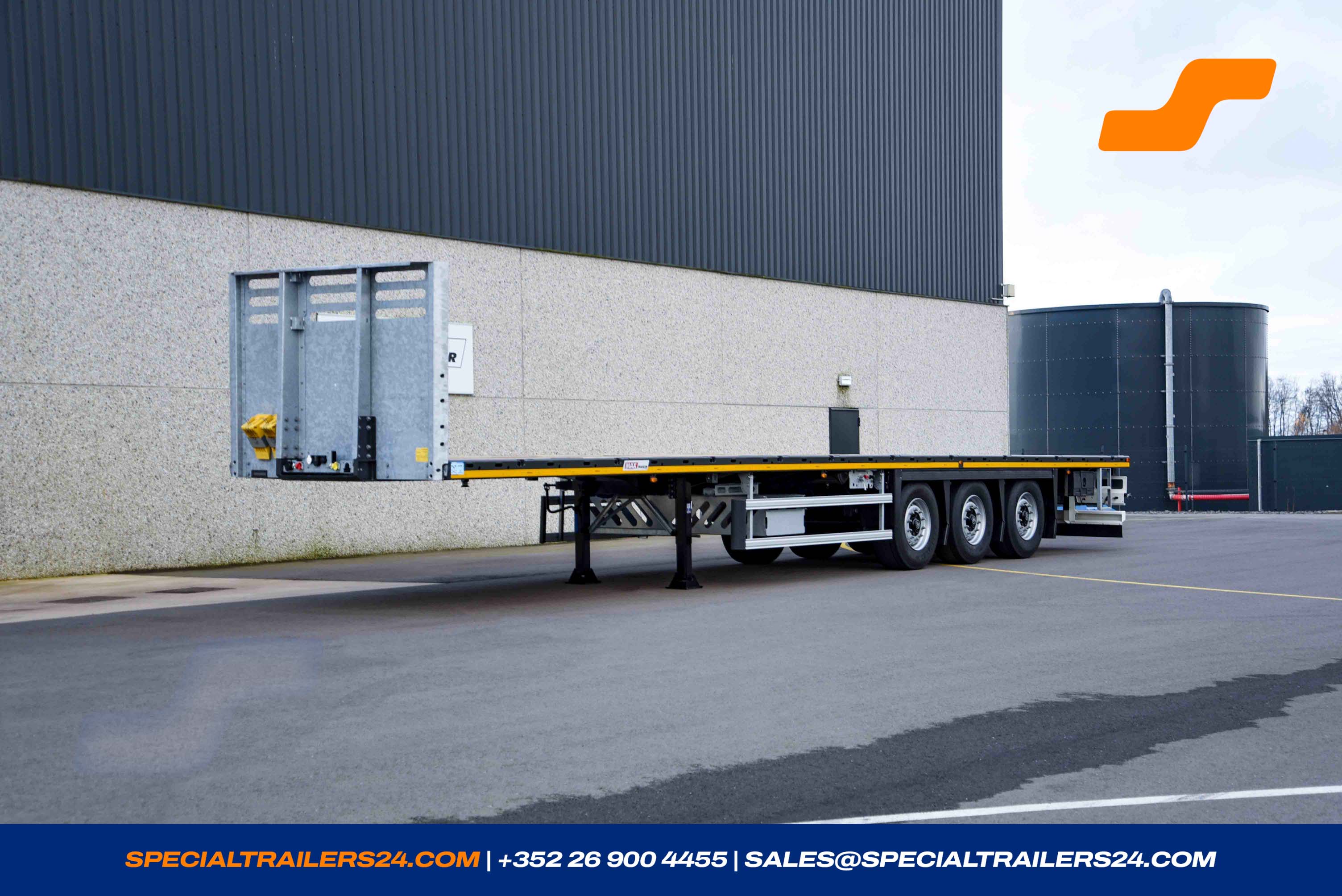

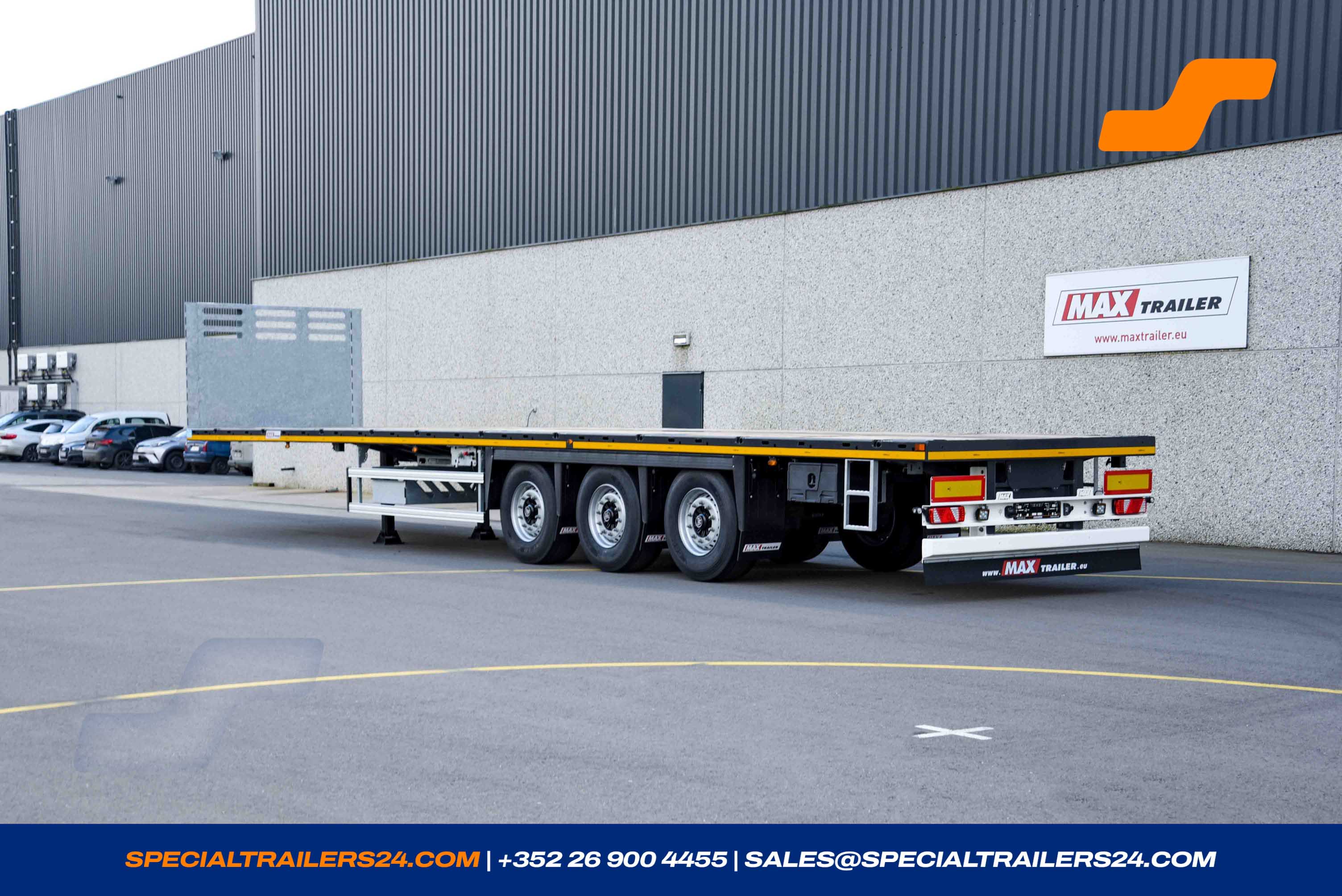

Flatbed trailer
MAX Trailer MAX200
Please note that the vehicle shown may differ from the actual offer in terms of colour and accessories. For further information, please contact us.
- Chassis number 110633
- Reference MAX200-S-3-13.60-22.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour RAL 3000 - Flame red
- Availability 12/2025
- Steering Type Rigid
Availability
12/2025
Price
On request
Location
Lentzweiler, Luxembourg
Download center
The most important documents
Detailed information
Technical data
Weights
| Technical value 80 km/h | |
|---|---|
| King pin load | 18000 kg |
| Axle load | 27000 kg |
| Gross weight | 45000 kg |
| Tare weight +- 3% | 6748 kg |
| Payload | 38252 kg |
Dimensions
| Fifth wheel height loaded | 1080->1250 mm |
| Turning circle reversing | 2 300 mm |
| Loading platform length | 13 600 mm |
| Extendable by | No |
| Wheelbase | 1 360/1 405 mm |
| Total width | 2 540 mm |

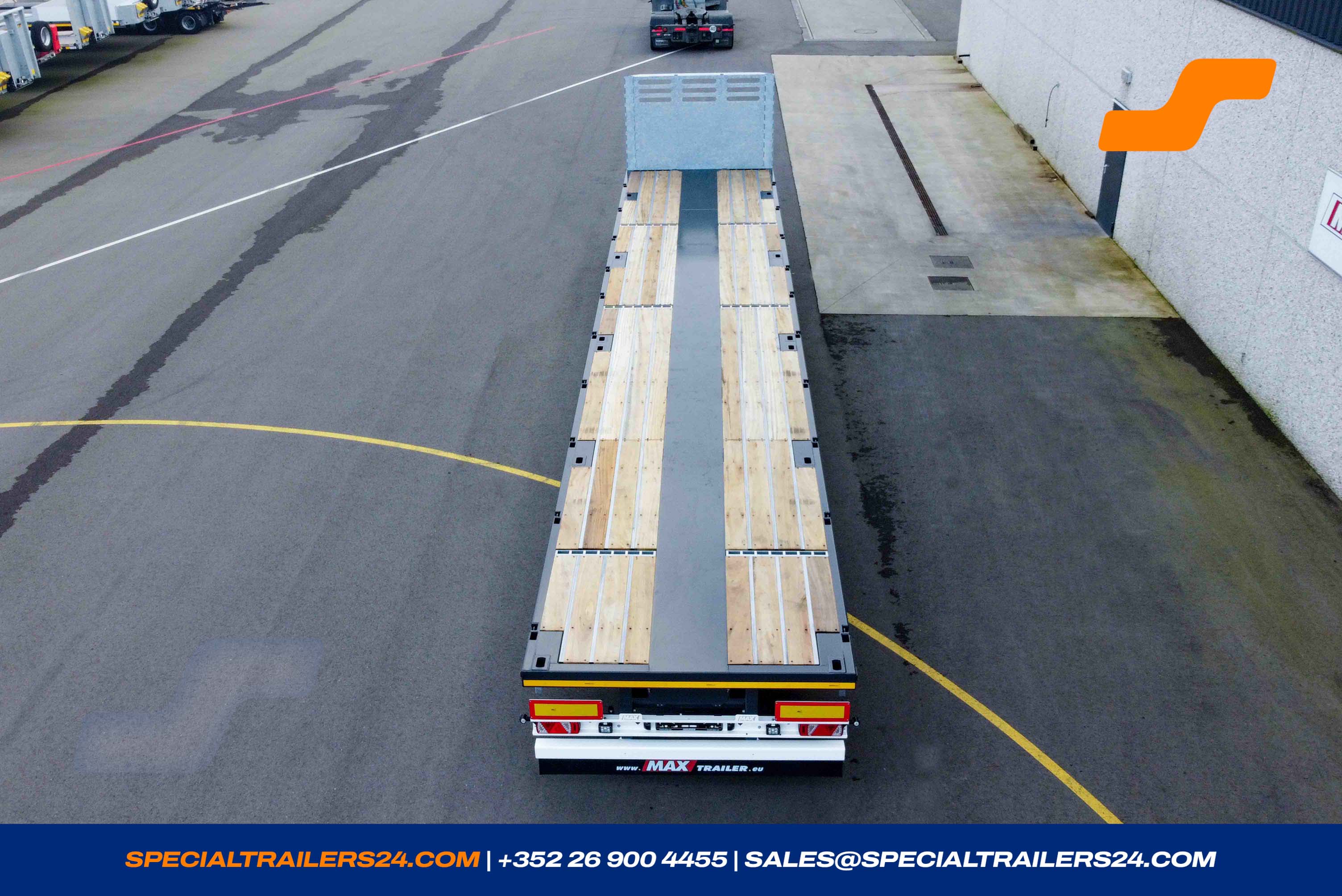

Loading deck
Loading platform
1 x Loading platform

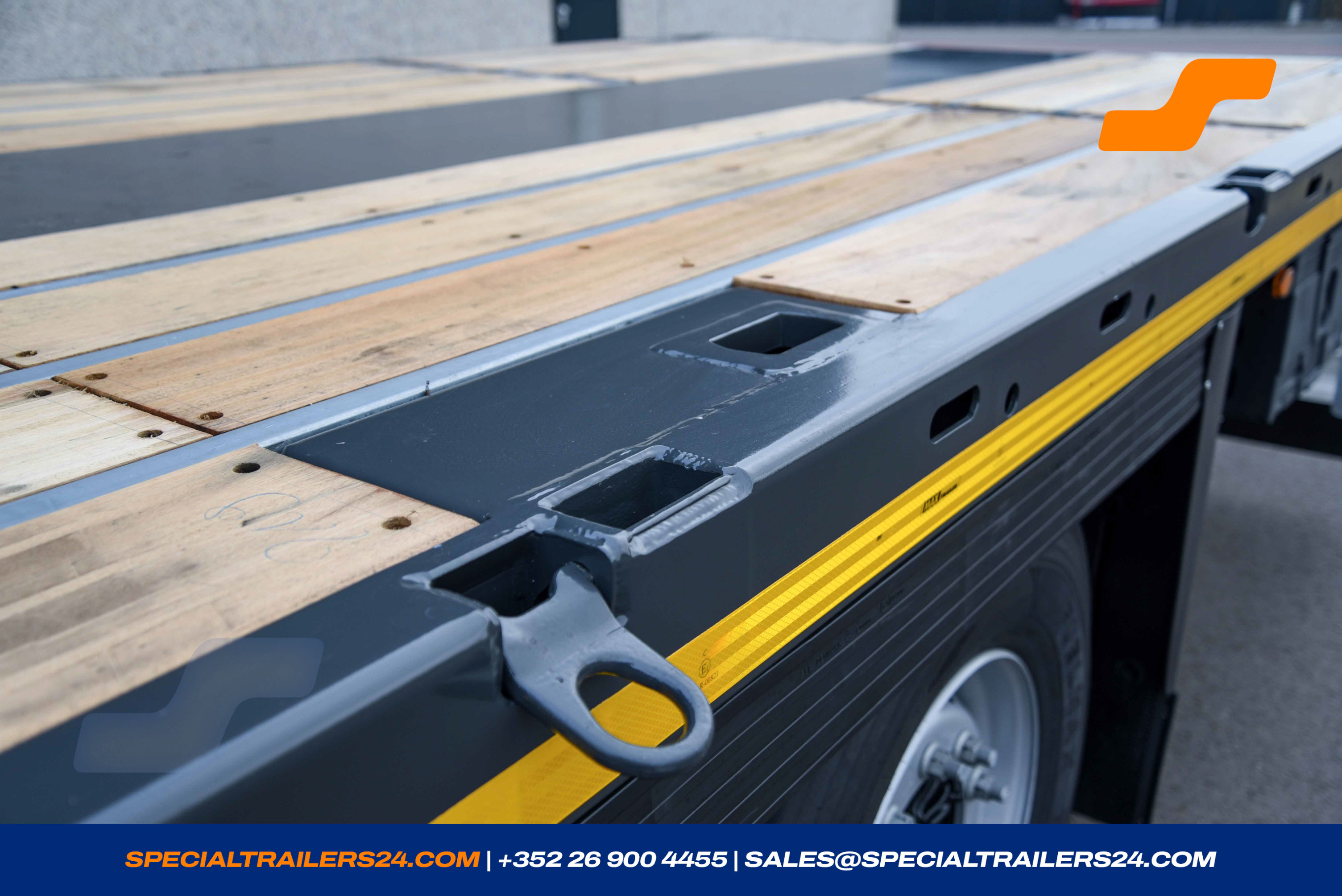

2 pairs of lashing rings inserted in the border frame, hinged outwardss (LC 5 000 daN).
24 pairs cutouts in the border frame of the loading area for hooking in tension belts. (LC 2 000 daN).
-

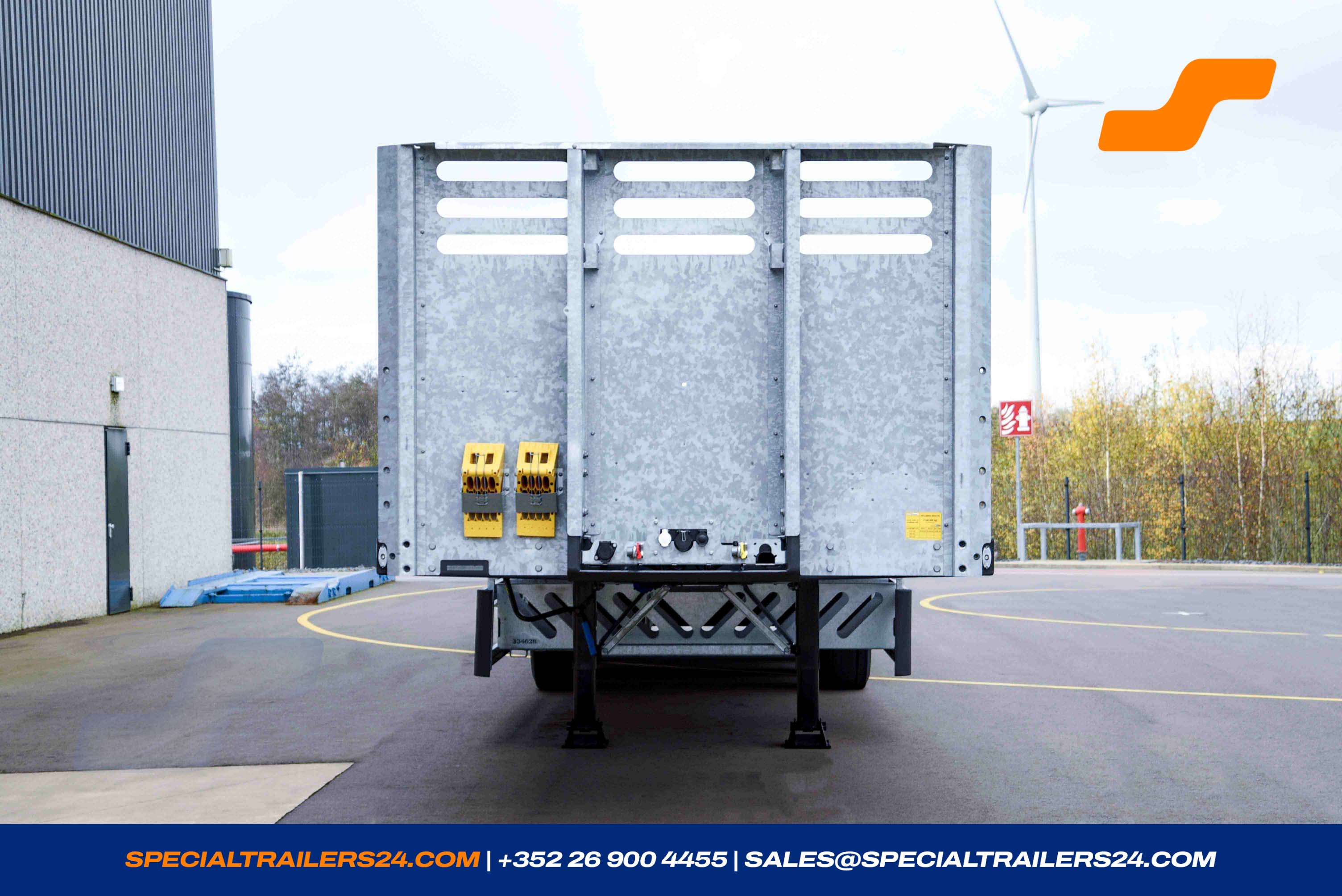

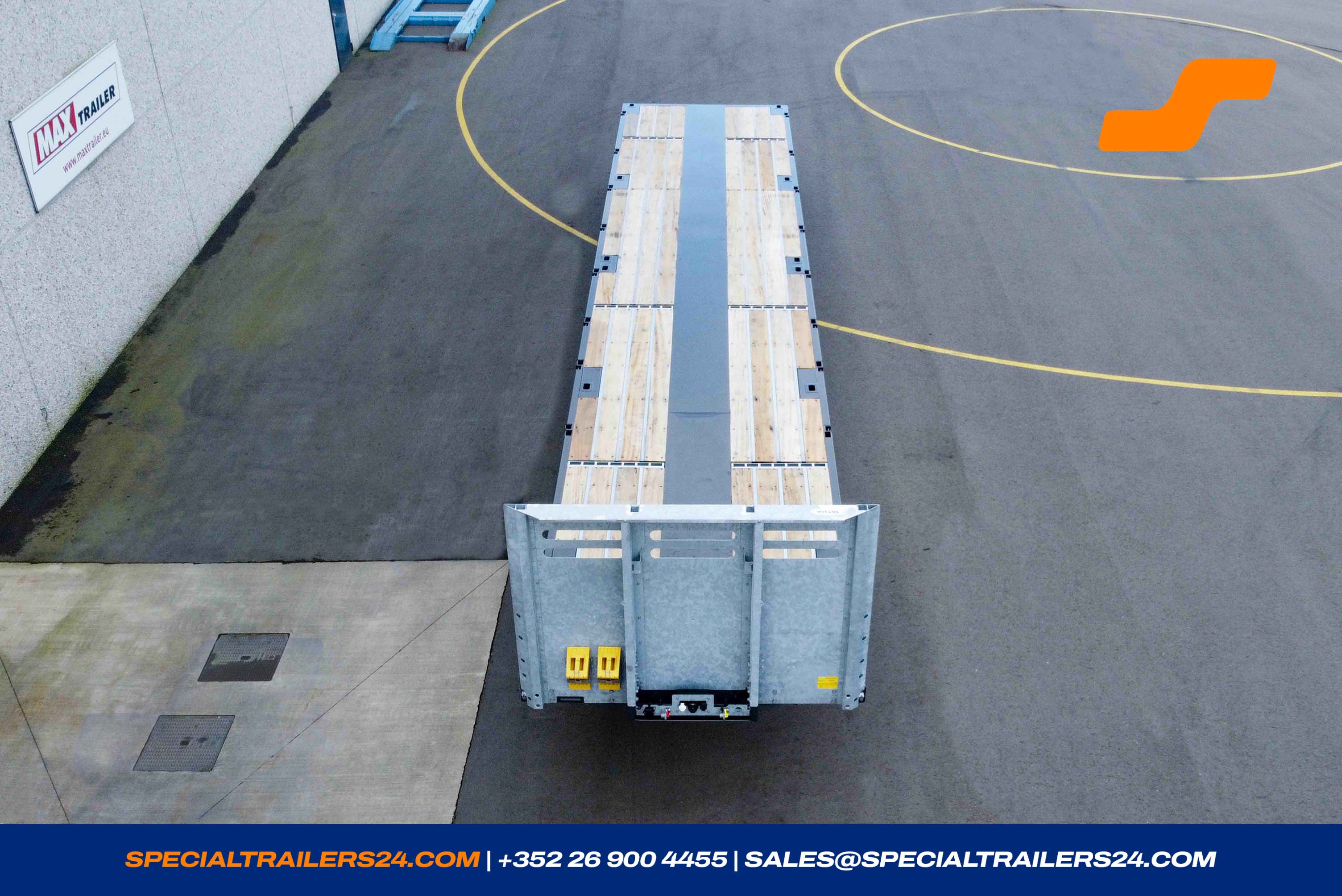

One galvanised steel headboard, height ± 1 200 mm.

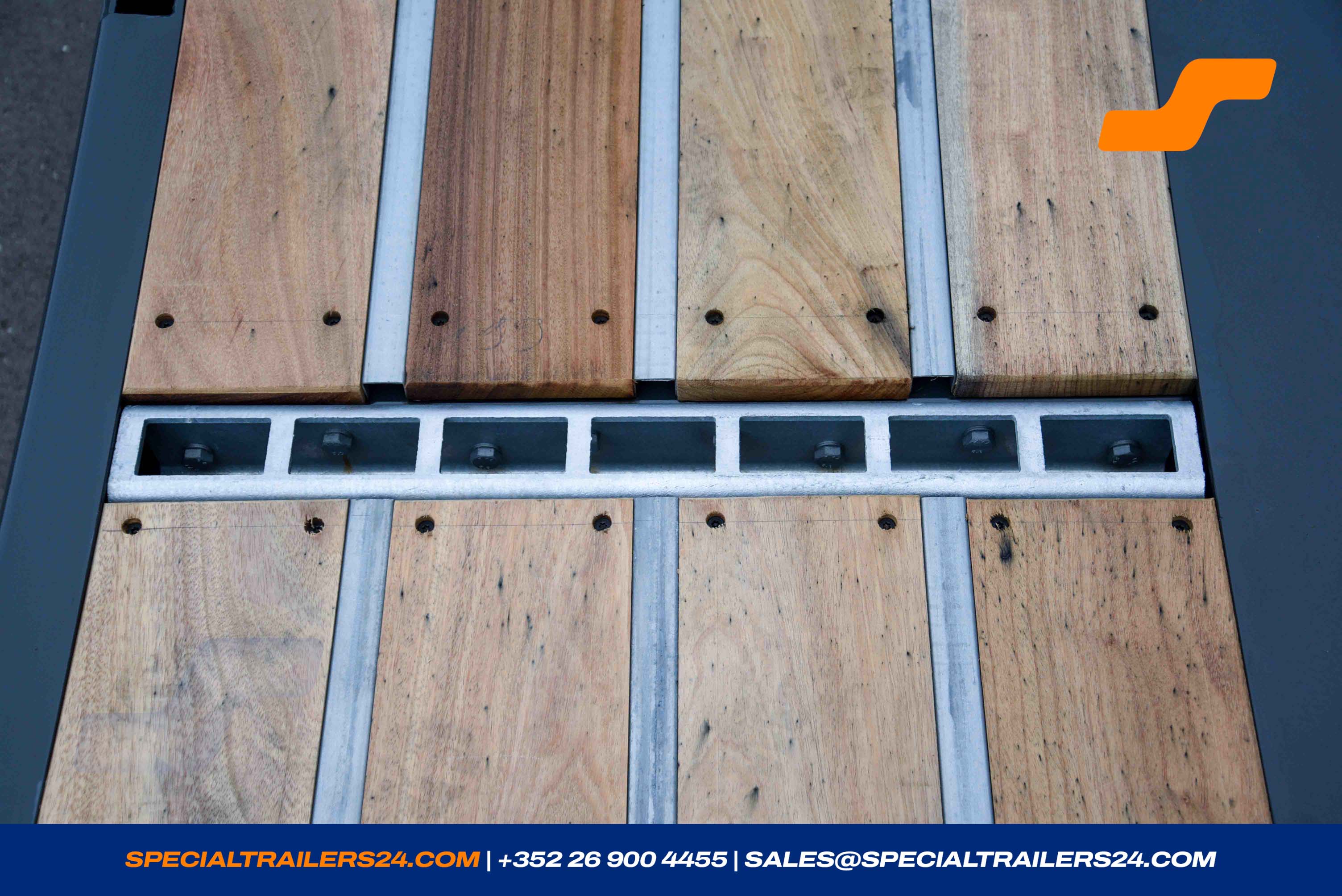

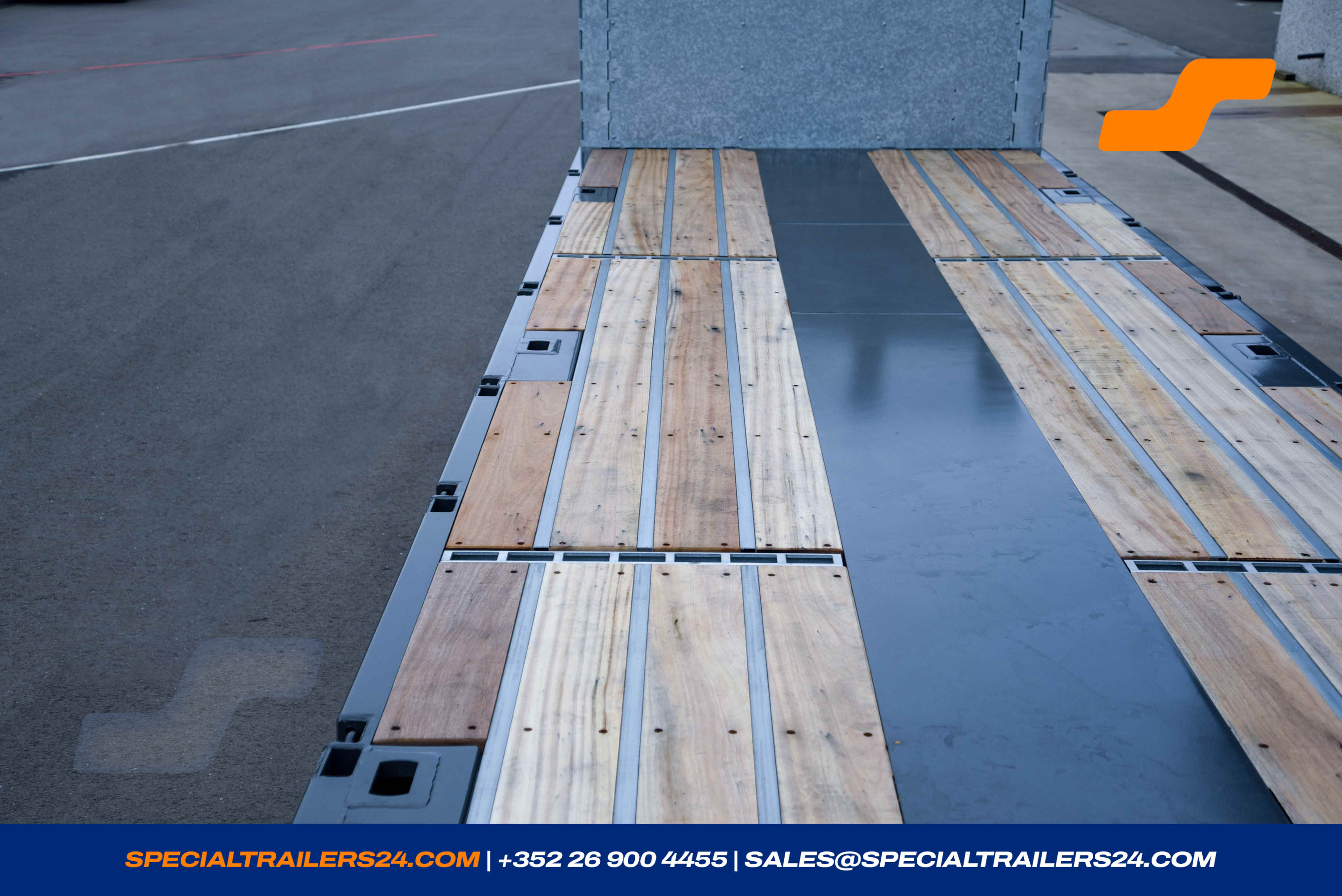

EN12642-XL - Loading area with ± 30 mm wooden floor incorporated in omega profiles.
- 10 pairs of pockets for stakes ± 100 x 50 mm in the outer frame of the loading platform. (± 30 kg)
- 3 pairs rows of stake pockets in the loading platform for stakes 100 x 50 mm. (± 95kg)
- Storage for 1000 mm stakes in the central carrier.
- 4 wheel chocks with carrier. (± 5 kg)
- 8 pairs of lashing rings inserted in the border frame, hinged outwards (LC 5 000 daN). (± 40 kg)
- 6 pairs of WADER container pockets, incorporated into the loading platform for 1 x 20‘ container, 2 x 20’ containers or 1 x 40' container. Flush rear. (± 90 kg)
- 4 pairs of WADER-containerlocks. (± 60kg)
- 10 pairs of galvanised stakes ± 100 x 50 mm, height 1 000 mm. (± 220 kg)
- Holder for max. 9 pairs of stakes ± 100 x 50 mm, screwed on the headboard inside. (± 34 kg)

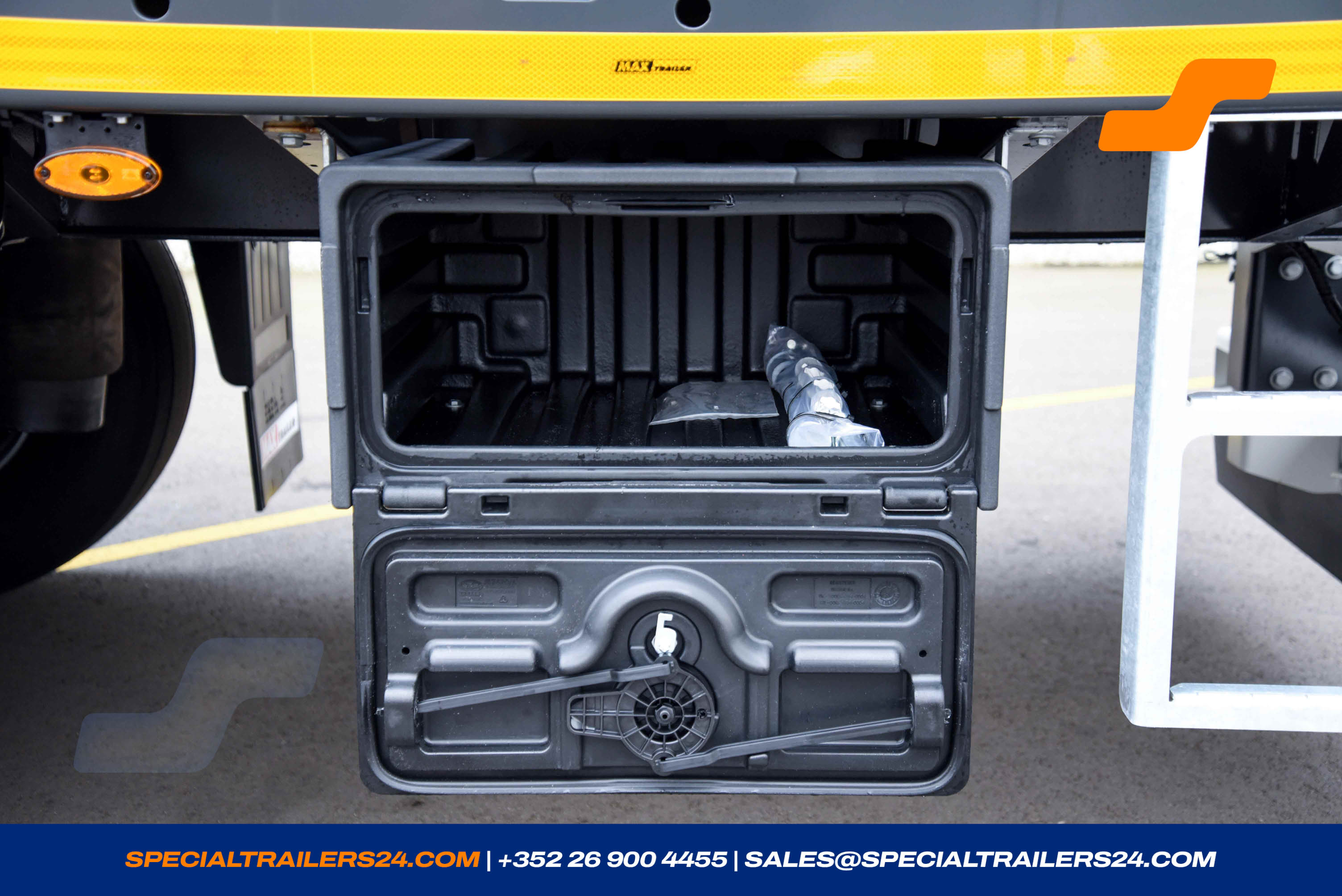

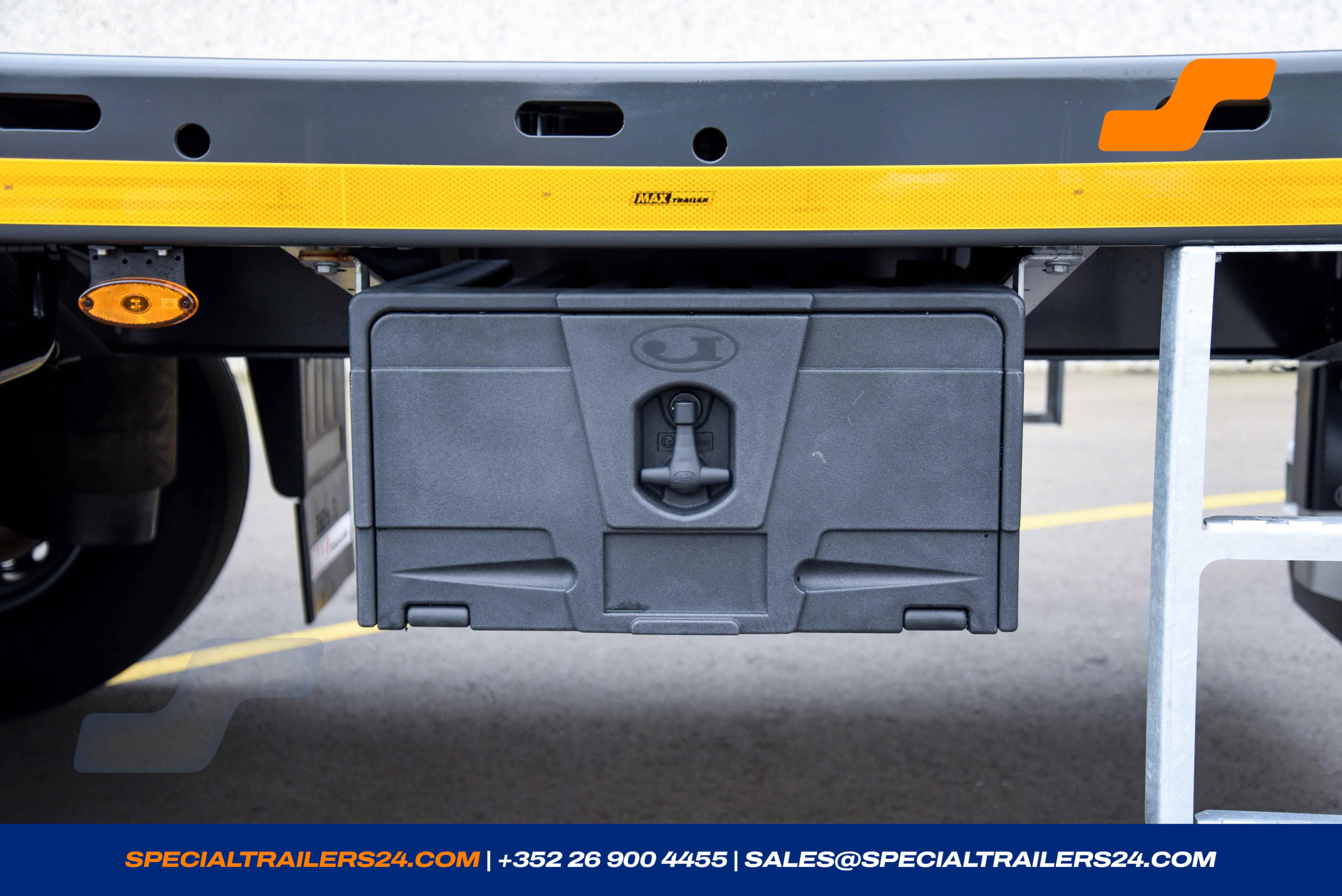

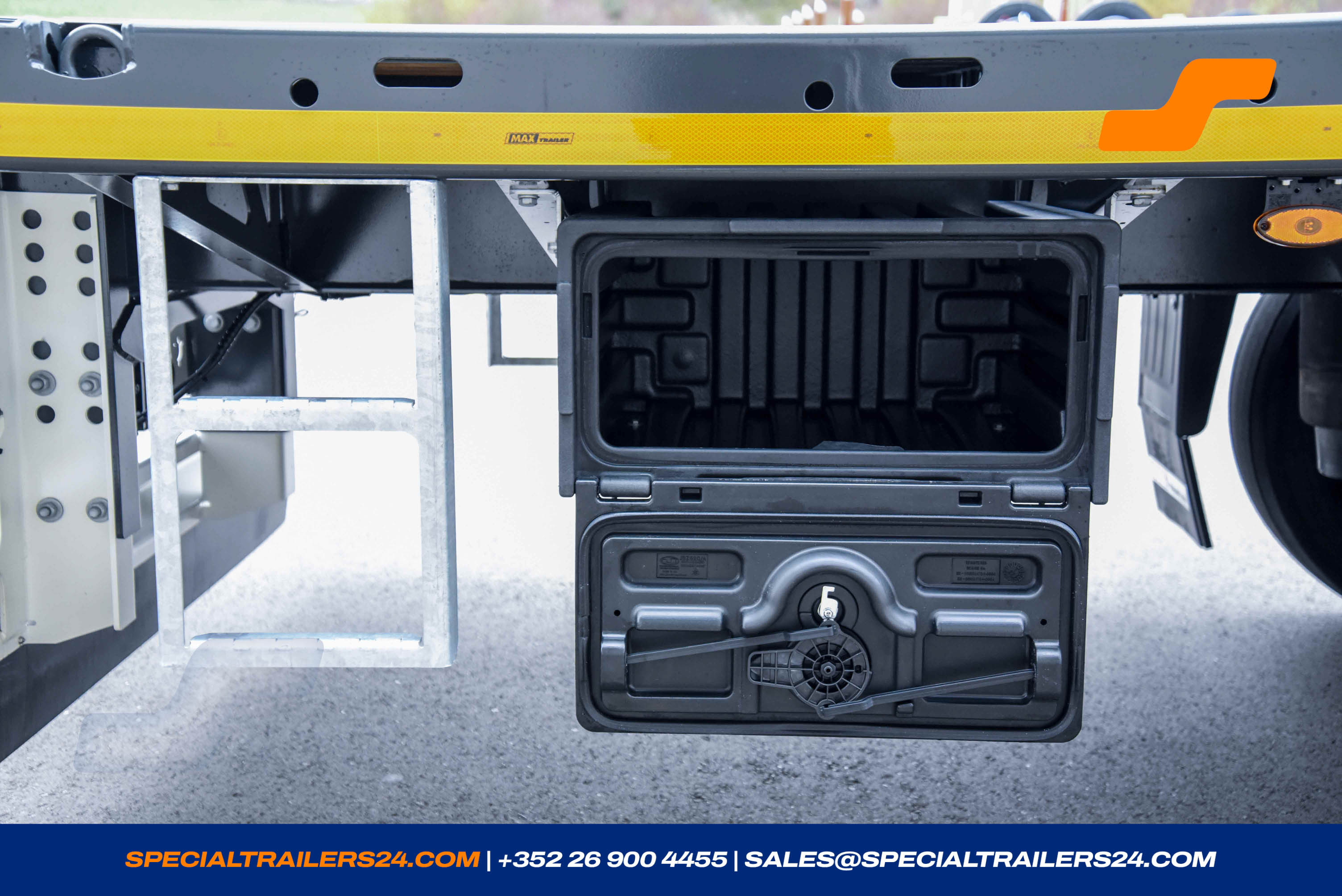

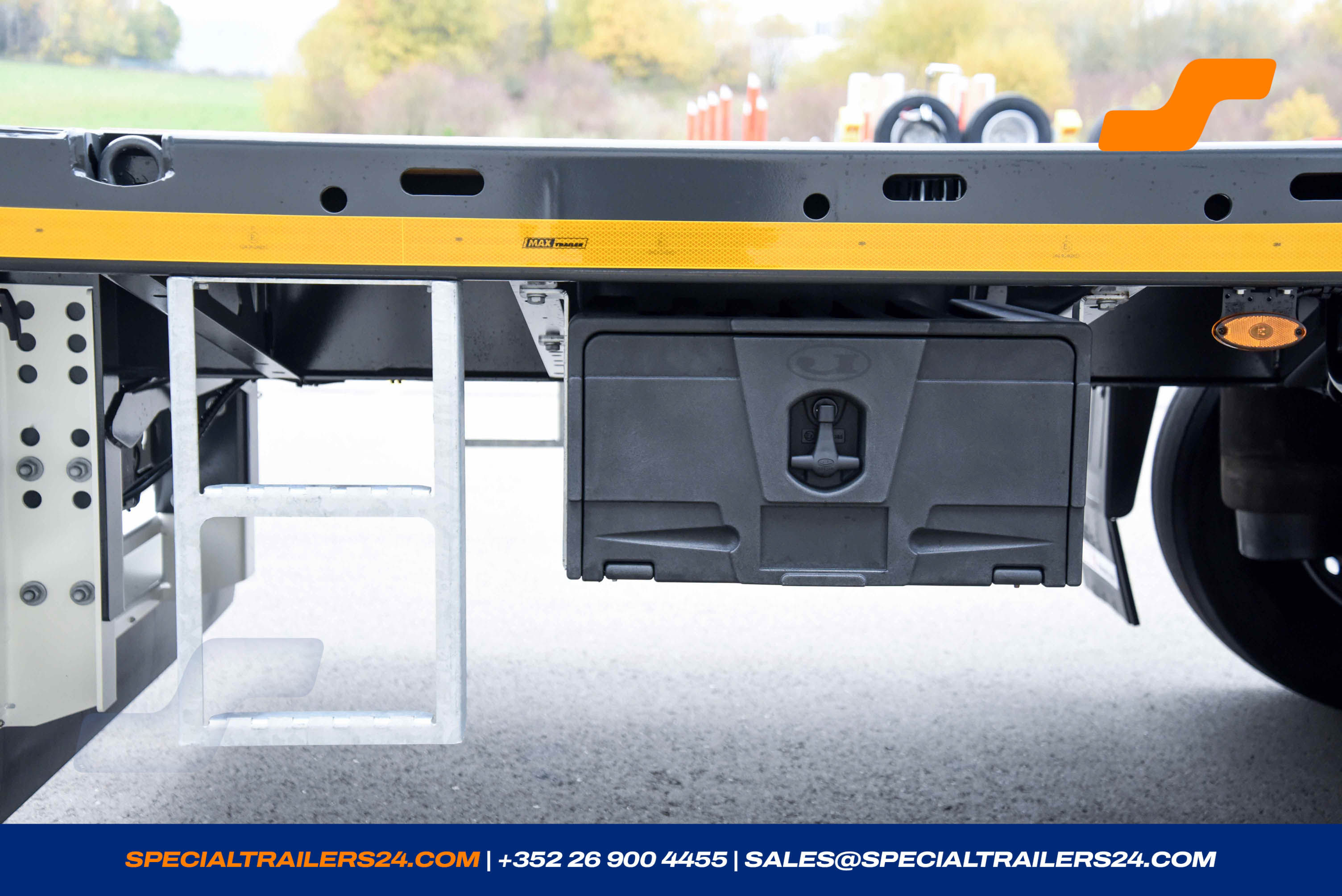

- Two lockable tool-box HDPE 620 x 360 x 610 mm under the loading platform on the left and right side. (± 72 kg)
Accessories
1 x Accessories
- Speed sticker 80 km/h at the rear and on both sides.
- 4 warning boards ± 423 x 423 mm extendable by ± 400 mm with 1 LED position lights (± 25 kg).
- On the warning boards a holder to put a flashing beacon.
- 1 LED flashing beacon, provided separately.

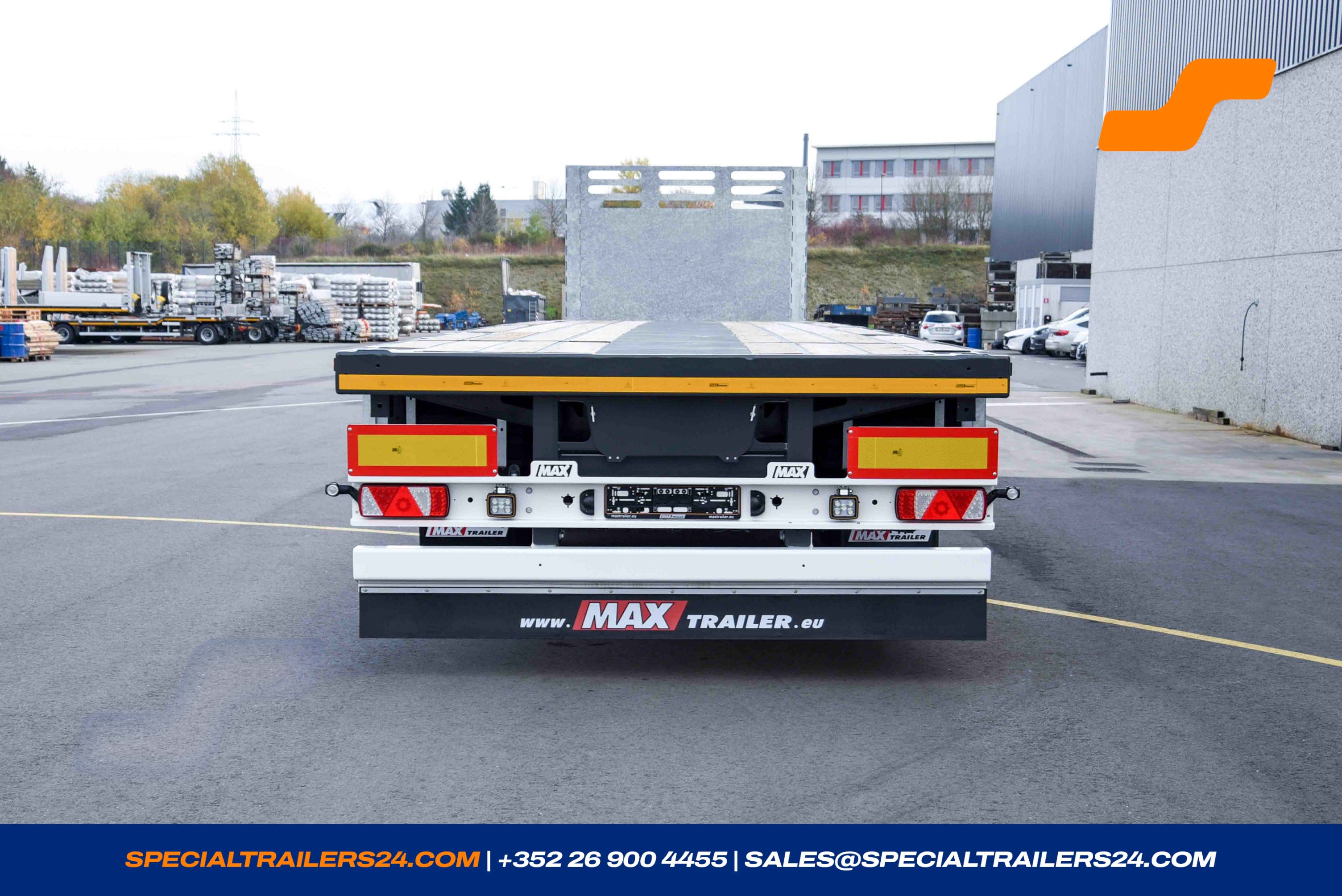

- 2 LED- reversing lights at the rear.
-
TÜV certificate according to §70 for ONE truck.
VERY IMPORTANT !
In order to prepare and send the necessary file to get the §70 back from Germany, we need the following documents of the truck:
1. A copy of the registration (truck and trailer);
2. The data sheet enclosed have to be fully filled in;
3. A copy of the COC;
4. A copy of the last technical periodical inspection;
5. If you wish a maximal weight for the road train that exceeds 44 to, this weight has to be certified by an official manufacturer certificate;
6. An official manufacturer certificate that proof that the truck is equipped with a board weighing;
7. 6 pictures of the truck without trailer. - Load manometer for determining the axle load, including load diagram.
MAX Trailer MAX200
Request vehicle
We look forward to receiving your enquiry. We will respond as quickly as possible.
- Chassis number 110633
- Reference MAX200-S-3-13.60-22.5-2.54
- Number of axles 3
- Condition New
- Year of manufacture 2025
- Colour RAL 3000 - Flame red
- Availability 12/2025
- Price On request
-
Location
SpecialTrailers24
Z.A.E.R. Op der Sang,
16, Op der Bréimicht
9779 Lentzweiler
Luxembourg - AdId 000242
- Steering Type Rigid
